Self-triggered radio detection and identification of cosmic air showers with the OVRO-LWA

TL;DR

This paper demonstrates a novel RF-only self-trigger system for cosmic ray detection using the OVRO-LWA, achieving efficient identification of high-energy cosmic events through advanced RFI mitigation techniques.

Contribution

It introduces a new RF-only self-trigger method for cosmic ray detection, enhancing detection efficiency and range over traditional particle-based triggers.

Findings

Successful detection of 10 cosmic ray events within 40 hours

Achieved 45% analysis efficiency for high SNR events

Proposed design for a future optimized cosmic-ray detector

Abstract

A successful ground array Radio Frequency (RF)-only self-trigger on 10 high-energy cosmic ray events is demonstrated with 256 dual-polarization antennas of the Owens Valley Radio Observatory Long Wavelength Array (OVRO-LWA). This RF-only capability is predicated on novel techniques for Radio Frequency Interference (RFI) identification and mitigation with an analysis efficiency of 45\% for shower-driven events with a Signal-to-noise ratio $\gtrsim$ 5 against the galactic background noise power of individual antennas. This technique enables more efficient detection of cosmic rays over a wider range of zenith angles than possible via triggers from in-situ particle detectors and can be easily adapted by neutrino experiments relying on RF-only detection. This paper discusses the system design, RFI characterization and mitigation techniques, and initial results from 10 cosmic ray events identified within a 40-hour observing window. A design for a future optimized commensal cosmic-ray detector for the OVRO-LWA is presented, as well as recommendations for developing a similar capability for other experiments -- these designs either reduce data-rate or increase sensitivity by an order of magnitude for many configurations of radio instruments.

Figures

Tables

Table 1. Table 1: Firmware symbol definitions.

Symbol	Meaning
$k$	Input index ($0\sim 31$ or $0\sim 511$)
$v_k\left[n\right]$	Sampled voltage for k’th input
$v_{filt,k}\left[n\right]$	Filtered voltage for k’th input
$h\left[m\right]$	Coefficients for 40-tap symmetric FIR filter
$p_k\left[n\right]$	Filtered power for k’th input
$p_{smooth,k}\left[n\right]$	Filtered power for k’th input (smoothed)
$T_k$	Triggering threshold for k’th input
$E_{I,k}\left[n\right]$	Input-wise event for k’th input
$D_k$	Corrective delay for k’th input (in samples)
$E_{D,k}\left[n\right]$	Event for k’th input (delayed)
$N_{bl}$	Number of samples to block for consecutive pulses
$E_{B,k}\left[n\right]$	Event for k’th input (after repeated event blocking)
$N_{sus}$	Event sustaining window (in samples)
$E_{sus,k}\left[n\right]$	Event for k’th input (additionally sustained)
$N_{trig}\left[n\right]$	Number of input triggers required for FPGA trigger
$C\left[n\right]$	FPGA-wise event detection

Table 2. Table 2: Software symbol definitions. Note that G k subscript 𝐺 𝑘 G_{k} has a new definition in this section.

Symbol	Meaning
$F_s=196.608\text{MHz}$	ADC sampling rate
$t_{center}$	Estimate of event arrival time, in samples
$k\in \left\{\mathrm{0..511}\right\}$	Input index (note: across entire array)
$p_{smooth,k}\left[n\right]$	Filtered power for k’th input (smoothed)
$N_k$	Noise estimate for k’th input
$P_k$	Event power estimate for k’th input
$t_k$	time of arrival estimate for k’th input
$d_k$	Distance from the $k$’th inputs antenna to event
${\text{flag}}_k$	Flags discarding the k’th input
$S={[S_x,S_y,S_z]}^{\top }$	Position of event source
$A_k={[A_{x,k},A_{y,k},A_{z,k}]}^{\top }$	Position of antenna serving $k$’th input
$G_k$	Estimate of relative sample delay implied by fit
$R\left[n\right]$	Estimated pulse power profile

Table 3. Table 3: Cosmic ray candidates, grouped by classification (CR: Cosmic Ray, NC: No Call, RFI: Radio Frequency Interference), subsequently sorted in order of arrival time. Power is measured in multiples of the galactic background power (estimated as the pulse profile estimate far before event arrival:median across all events in the dataset, in spite of the fact that galactic background power changes as a function of local sidereal time). Fractional power received each polarization estimated as the amplitude of a fit spatial Gaussian in a Gaussian+DC model. A rudimentary beam model was used for the expected power for each polarization, but that beam model has only been weakly validated and is subject to several instrumental effects. Polarization measurements have uncertainties ¡ 20%.

Azimuth	Elevation	Power	% seen$\to$N/S	% expec$\to$N/S	Residual	% $\to$Gaussian	Class
${327.3}^{\circ }$	${61.7}^{\circ }$	177.8	37	22	-15	72	CR
${96.7}^{\circ }$	${47.9}^{\circ }$	17.7	100	99	-1	48	CR
${94.7}^{\circ }$	${40.3}^{\circ }$	55.1	100	99	-1	40	CR
${24.4}^{\circ }$	${63.8}^{\circ }$	361.8	57	57	0	78	CR
${206.1}^{\circ }$	${42.4}^{\circ }$	30.8	1	4	2	28	CR
${72.5}^{\circ }$	${63.2}^{\circ }$	20.6	100	93	-7	36	CR
${164.4}^{\circ }$	${40.0}^{\circ }$	10.7	58	38	-21	41	CR
${172.5}^{\circ }$	${44.3}^{\circ }$	12.8	60	37	-23	23	CR
${10.1}^{\circ }$	${54.9}^{\circ }$	15.2	53	38	-15	36	CR
${24.6}^{\circ }$	${48.8}^{\circ }$	64.2	64	43	-20	56	CR
${85.0}^{\circ }$	${20.2}^{\circ }$	21.3	67	100	17	14	NC
${202.3}^{\circ }$	${33.8}^{\circ }$	24.5	53	1	-60	15	NC
${84.0}^{\circ }$	${20.6}^{\circ }$	10.1	32	100	58	10	RFI
${204.6}^{\circ }$	${11.5}^{\circ }$	19.2	24	0	-20	5	RFI
${201.3}^{\circ }$	${5.9}^{\circ }$	20.2	16	2	2	4	RFI
${327.7}^{\circ }$	${80.2}^{\circ }$	11.9	65	75	-12	9	RFI

Equations

$$\text{mbox}(bandpassfilter)v_{filt,k}\left[n\right]$$

$$\text{mbox}(computepower)p_k\left[n\right]$$

$$\text{mbox}(smoothpower)p_{smooth,k}\left[n\right]$$

$$\text{mbox}(threshold)E_{I,k}\left[n\right]$$

$$\text{mbox}(risingedge)E_{I,k}^{\prime }\left[n\right]$$

$$\text{mbox}(delay)E_{D,k}\left[n\right]$$

$$\text{mbox}(blockrepeatevents)E_{B,k}\left[n\right]$$

$$\text{mbox}(sustaindetections)E_{sus,k}\left[n\right]$$

$$\text{mbox}(countevents)C\left[n\right]$$

$$\text{mbox}(globaltimeestimate)t_{center}$$

$$\text{mbox}(inputnoiseestimate)N_k$$

$$\text{mbox}(inputpowerestimate)P_k$$

$$\text{mbox}(inputTOAestimate)t_k$$

$$\text{mbox}(inputflagbySNR)\text{mbox}{flag}_k$$

$$\text{mbox}(fitplane)[\sim ,\text{mbox}inliers]$$

$$\text{mbox}(flagonfittingresidual)\text{mbox}{flag}_k$$

$$\text{mbox}(fitlocation)\left\{S,r\right\}$$

$$\text{mbox}(estimatedelays)G_k$$

$$\text{mbox}(estimatepulseprofile)R\left[n\right]$$

$$N=\int dEF(E){\int }_0^{T}dt{\int }_A{\int }_{\Omega }\hat{v}\cdot d\vec{A}d\Omega P_{\det }({\vec{x}}_{\mathrm{core}},\hat{v},E,t)$$

$$X(s)={\int }_s^{\infty }d{s}^{\prime }\rho (s^{\prime }\hat{v}).$$

$$X_{\max }(E)=\left[55{\log }_{10}(E/\mathrm{eV})-240\right]g/c{\mathrm{m}}^2$$

$$\hat{p}=\frac{\hat{v}\times \vec{B}}{|\hat{v}\times \vec{B}|},$$

$$h_{\mathrm{eff}}^2(\lambda ,{\theta }_z)=\frac{4R_A}{Z_0}\frac{{\lambda }^2}{4\pi }\frac{|Z_{\mathrm{in}}{|}^2}{|Z_A+Z_{\mathrm{in}}{|}^2}\mathcal{F}(\lambda )D({\theta }_z).$$

$$|V{|}_{\mathrm{noise}}^2=k_B{T}_{\mathrm{sky}}{R}_A\frac{|Z_{\mathrm{in}}{|}^2}{|Z_A+Z_{\mathrm{in}}{|}^2}\mathcal{F}(\lambda )+k_B{T}_{\mathrm{sys}}{Z}_{\mathrm{in}},$$

Full text

††journal: Nuclear Instruments and Methods

1 Introduction

The detection of radio signals associated with cosmic ray air showers has become a standard technique for low-frequency radio telescope arrays over the past decade. Dedicated arrays such as the Auger Engineering Radio Array (AERA) [1], as part of the Pierre Auger Observatory [2] or Tunka-Rex [3], as well as commensal searches on low-frequency radio-astronomy telescopes such as LOFAR [4], regularly measure energy and composition. Radio detection of air showers combines the precision of optical methods with the almost full up-time of particle detectors [5]. Radio detection has been shown to yield very precise $X_{max}$ measurements (a tracer of composition) [6], as well as excellent energy resolution [7], which are the key parameters needed to understand the origin of cosmic rays.

To date, ground-based radio arrays have relied upon co-located particle detectors to identify air shower events. However, direct radio detection is expected to be more efficient because radio waves have a much longer range of propagation compared to the particles in the air shower, which are stopped after a few kilometers in the atmosphere. This is particularly a limitation for more inclined showers [8], as the efficiency of the particle detectors is limited by the trigger efficiency. Radio telescopes like LOFAR that are able to measure air shower signals [4] have built particle arrays to facilitate the trigger [9]. While the particle detectors also provide additional information for composition studies [10], these additional hardware requirements complicate the search for cosmic ray signals in non-dedicated radio arrays and limit the efficiency of air shower detection.

Most experiments have chosen to rely on an external trigger due to the challenges inherent to a trigger on the radio pulse itself, a self-trigger. In most environments, simply triggering on broadband pulses that are randomly occurring in time and direction by means of a threshold above the noise floor will yield extremely high trigger rates due to Radio Frequency Interference (RFI) caused by local human activity. Outside of remote regions in Antarctica, experiments aiming to detect neutrinos and cosmic rays with an independent self-trigger have been challenging due to this RFI environment[11, 12, 13, 14].

Early experiments to detect air showers have employed a self-trigger, but all ultimately had to verify their data using a particle array, partly due to limited knowledge of the nature of the radio emission pattern, and partly due to the complexity of finding a viable discriminator [15, 16, 13, 17]. All working self-triggers had to severely limit the acceptance of signals due to local noise sources, such as transmitters, or airplanes [18]. This can be overcome by using an external trigger, which was then deemed more reliable.

Separately, it has been proposed to build radio arrays to detect the radio signal following the interaction of a $\tau$-neutrino of an energy above $10^{15}$ eV [19, 20]. In order to reach the necessary sensitivity to detect these cosmogenic neutrinos [21, 22], these experiments will need to employ a radio self-trigger [23, 24]. The trigger has to be all the more effective at rejecting RFI due to the expected much lower rate of $\tau$-neutrino events, a process which has to happen at least semi-locally in the case of distributed systems, as data rates will be limited. Also, the computational power of autonomous stations will be restricted, which will limit the complexity of procedures to identify the air shower signals. It will, therefore, be necessary to know the requirements for a successful self-trigger when designing the detector system.

Independently of cosmic ray science, there has been an explosive growth in low-frequency arrays for astronomy. These arrays, including LOFAR [25], MWA [26], PAPER [27], the LWA [28, 29] and OVRO-LWA, offer excellent collecting area and computing resources, conducive to commensal air shower detection, but in many cases are limited by both their impulsive RFI111Radio Frequency Interference environment [30, 31], as well as the fact that their array configurations were not optimized for the task of cosmic ray detection. As demonstrated by LOFAR, accessing these arrays can provide the opportunity to perform powerful commensal air shower searches at low cost. These arrays would obviously benefit from the ability to self-trigger.

This paper presents the demonstration of a successful design of a cosmic ray self-trigger system using only the radio signal implemented on the OVRO-LWA. First, we will summarize the radio instrument (Section 2). We then discuss an overview of the techniques used in Section 3, as well as discriminating characteristics of cosmic rays in Section 4. Details on these methods are provided in Sections 5 and 6. A brief characterization of the types of RFI seen, as well as successful cosmic ray detections, are covered in Section 7. Recommendations for future instrument design and “Lessons Learned” are discussed in the Appendix.

2 The OVRO-LWA

This experiment was performed by re-purposing an existing instrument: the Owens Valley Radio Observatory Long Wavelength Array (OVRO-LWA) to perform cosmic ray detections without modifying any hardware. The system was originally designed as a fully cross-correlating interferometer, for which it continues to be used for astronomical purposes, transient science [32], and cosmology [33]. As such, the array is at a site which has no particle detectors or fluorescence telescopes (the standard methods of detecting cosmic ray events).

The OVRO-LWA is located at the Owens Valley Radio Observatory, near Bishop, CA, USA, where it has substantial shielding from major population centers, courtesy of the Sierra and Inyo mountains. As a consequence, the environment is very good for shielding against intentionally transmitted RFI. However, power lines in the valley are responsible for impulsive, band-limited RFI which makes the detection of cosmic rays challenging. Emphasizing cosmology and transient science, the array consists of 288 dual-polarization antennas (of which only 256 are in active use) distributed across a 1.53 km-diameter region. A 200 m diameter core contains 251 of these antennas and was the focus of this pilot effort222Once completed, the full array will consist of 352 antennas spread across a 2.6 km region.. The distribution of these antennas is shown in Figure 1. OVRO-LWA inherits its antenna and analog electronics from the New Mexico Long Wavelength Array stations (LWA, [28]), which are similar (but with a smaller, 100 m diameter layout, and an emphasis on high time-resolution beam forming as well as all-sky imaging). Each antenna sees nearly the entire sky, with a 3 dB point of approximately $40^{\circ}$ elevation angle. RF signals are baseband-sampled at $F_{s}\sim 196.6$ MSPS, for a Nyquist frequency of $\sim 98.3$ MHz. This is performed with 8-bit ADC16x250-8 Analog to Digital Converter (ADC) boards [34].

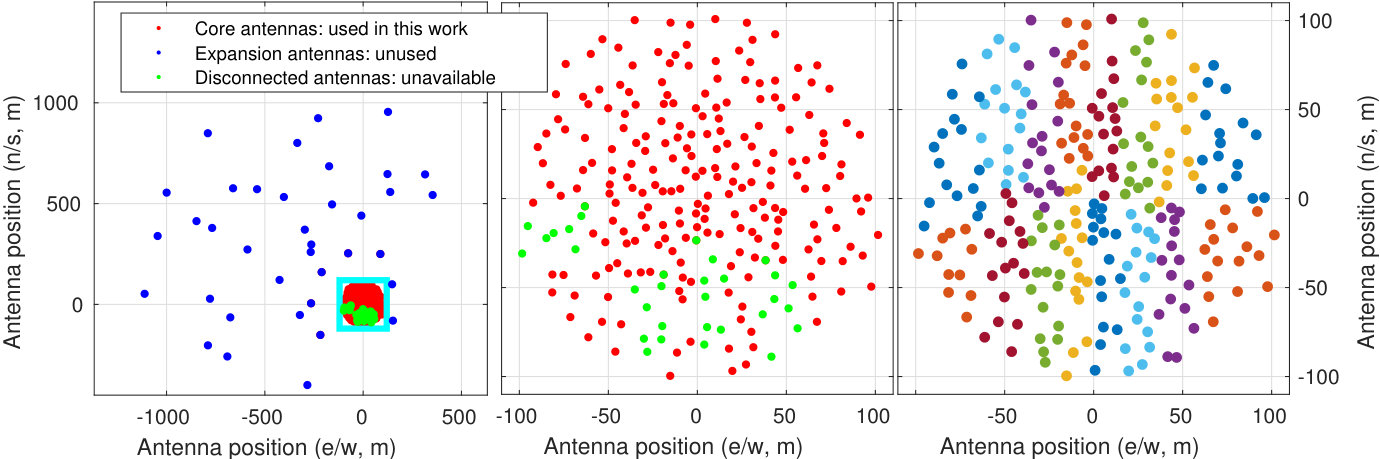

The OVRO-LWA (full technical details available at [35]) provides an ideal testing ground for both the development of a self-trigger, and verifying the utility of existing arrays for detecting cosmic rays. With few computational restrictions, different avenues can be explored and it can be determined whether air shower detection without the confirmation from particle detectors is at all feasible, let alone the more challenging task of radio detection of $\tau$ neutrinos. Having all signals brought back to a central location (as opposed to beam-forming in the field, for instance), as well as possessing a versatile digital back-end [35], enable a wide variety of techniques to be quickly prototyped and validated. As well as being a powerful and commensal cosmic ray experiment, running a sensitive and efficient self-trigger at the OVRO-LWA can be a first step in proving the feasibility of proposed neutrino arrays and is an important step towards an independent method of air shower detection.

3 Summary of Technique

For this demonstration, we re-use the existing hardware in its current configuration for the task of cosmic ray detection. The standard F-engine firmware is replaced with firmware which is designed to detect impulsive events while identifying and filtering known RFI sources. Preliminary detections are made at an individual FPGA level: initially, each FPGA processes data from the 16 antennas it services (which are spatially localized to rectangular regions roughly 25 m by 100 m in extent), and makes a preliminary decision using only this data. After detecting a promising impulsive event, the FPGA transmits an appropriate time-stamp to all 15 other FPGAs, which respond by dumping their data for that time window over 10 GbE to a host server. That server stores the candidate to disk for offline processing. After on-chip RFI filtering, the trigger is sensitive enough that 60% (typical conditions) to 80% (ideal conditions) of on-chip triggered events are caused by random thermal noise – evidence that the system is close to thermally limited (Figure 2).

Candidate events are then processed in MATLAB to produce the higher level statistics necessary for identification of true cosmic ray events. Primary flagging metrics include observed power at each antenna, direction, and range of source arrival, quality of a spherical wavefront model in source fitting, and time-domain clustering of events (see Section 6). This flagging reduces the number of impulsive candidates by a factor of $\sim$220,000. In the 40-hour dataset presented in this paper, 16 events are sufficiently promising to warrant human inspection. Of these, 10 events (62%) are classified as cosmic rays, a further 2 events (13%) are unable to be confirmed or rejected as air shower events and 4 events (25%) are most likely caused by RFI. This is equivalent to 5-6 cosmic-ray driven events per day under good RFI conditions.

The largest challenge in this project is filtering RFI events from cosmic ray events: under good RFI conditions, the system captures approximately 400K impulsive candidates for every cosmic ray ($\sim$500 Hz, versus $\sim$hourly). This issue is worsened by the fact that this system was not designed for cosmic ray detections. There is insufficient communication bandwidth between the FPGAs and the Ethernet switch with which they are connected, making transmission of the entire raw ADC data-stream impossible. For this reason and others, triggering must be performed on an individual FPGA-basis with minimal communication, severely limiting the systems ability to reject RFI. The use of hierarchical beamforming – conceived after the bulk of this work was finished – might relax this constraint (see Section C).

4 Identification of cosmic rays

Although the RFI conditions of the OVRO-LWA site do not interfere with the standard imaging mode, the impulsive RFI environment is very challenging for the detection of cosmic ray events. Figure 3 shows a typical spectrum, which is galactic noise dominated in the 20-85 MHz band except for a few narrow band RFI sources. The low frequencies are convenient for air shower detection, as radio emission in the atmosphere peaks in this band and the radio emission beam pattern is wider compared to higher frequencies. Approximately 500 impulsive RFI events (with more power than the galactic background noise) occur per second (see Section 5.6), compared to the cosmic ray incidence rate of $\sim$hourly [36, 37]. For this reason, aggressive use of descriptive statistics must be used to filter out promising cosmic ray candidates from spurious events. Motivated by radio measurements [4], these properties can broadly be described as:

Input signal is roughly a band-limited impulse [38], convolved with the instrumental impulse response.

• 2.

Time and direction of arrival is usually not coincident with a known or detected RFI source (mostly stationary sources and airplanes), which can be clustered in either direction or time+direction.

• 3.

Power distribution in the axis of ray travel is similar to that described in [39] – for this work, we searched for a localized region of power with a FWHM333Full-Width-Half-Max of 100-200 m on the ground. Events arriving at low elevation angles could have much broader extent, but this initial work focused on those events which were most easily discriminated by the OVRO-LWA core.

• 4.

Polarization properties roughly match what is expected given an event’s direction of arrival and the local geomagnetic field [40] – this was used for final validation of events.

• 5.

Finally, many events are discarded if it is likely that event power is insufficient for quality parameter estimation, or instrumental errors (such as dropped data due to network bandwidth saturation) are likely to result in ill-conditioned fits.

The system described below was designed to use these properties with the goal of both detecting cosmic rays while rejecting as many RFI events as possible, and as early as feasible in the signal chain so as to manage data-rates and make more sensitive detections.

5 Trigger

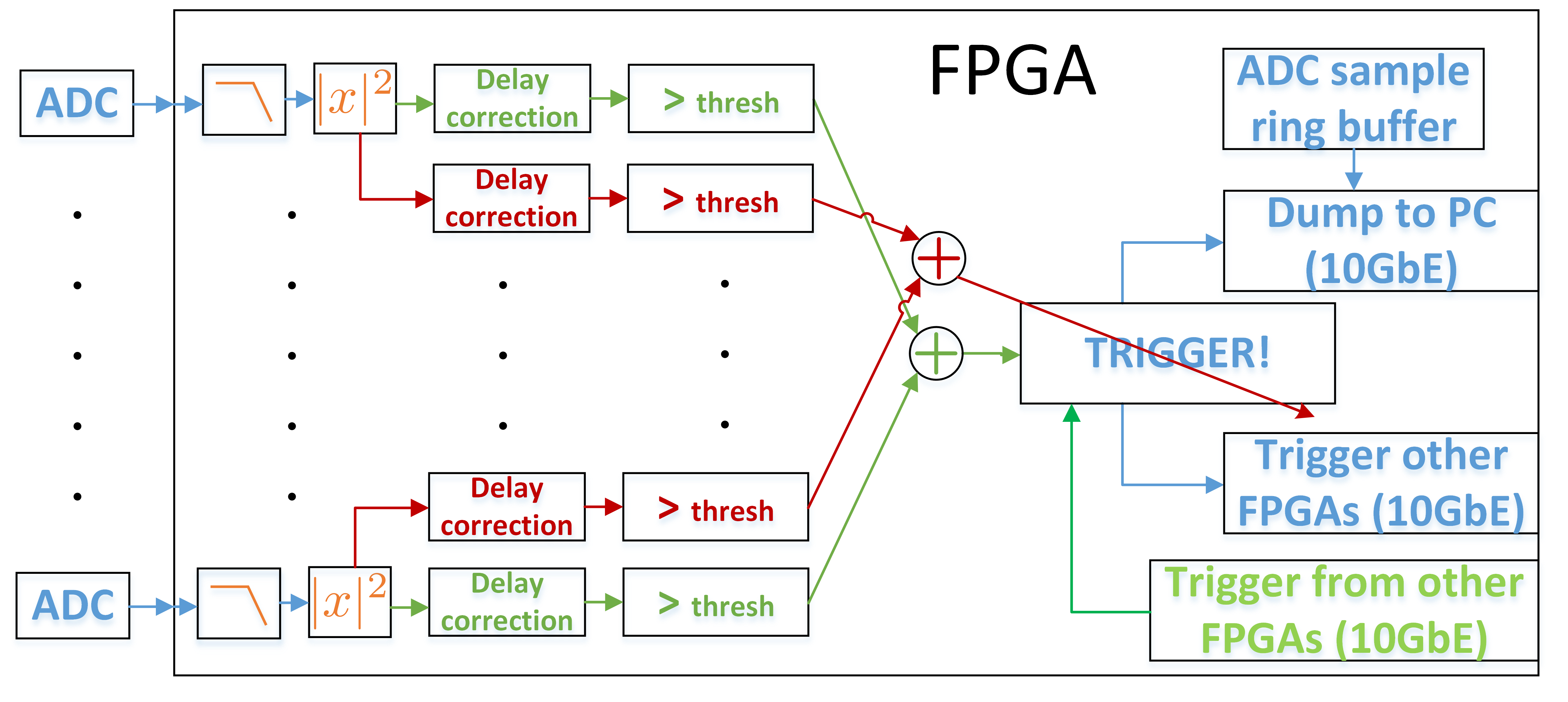

Here we discuss the algorithms used in the FPGA firmware to detect cosmic rays and perform preliminary RFI filtering. For definitions of symbols used in this section, refer to Table 1.

As mentioned in Section 3, each ROACH2 processes 16 antennas, for 32 inputs per FPGA. A circular buffer stores raw ADC samples for triggered dumping, while the signals are processed in parallel to detect impulsive events received by the system. A simplified block diagram of the firmware is shown in Figure 4. All math used in this work is real-valued.

5.1 Filtering and power smoothing

First, a 40-tap symmetric-coefficient bandpass FIR filter $h\left[m\right]$ (eq. 1) is used to filter the ADC voltage samples ($v_{k}[n]$ for each antenna indexed by $k$) to the range [30,75] MHz (Figure 3), which was chosen to avoid narrow-band, high-duty-cycle RFI sources. Xilinx FPGAs have special features which half the filter resource requirements for symmetric FIR filters, driving that decision. Afterward, filtered voltages are squared to compute power $p_{k}[n]$ (eq. 2), and subsequently smoothed with a 4-tap running average filter (eq. 3), producing $p_{smooth,k}[n]$; the value of 4 samples (20 ns) over the band-limited impulse time of 7 samples (35 ns) in this system was chosen to prioritize accurate time-of-arrival estimation over maximum sensitivity, justified because downstream processing could not handle such low SNR events. This smoothing and triggering process does not explicitly filter for impulsive events, but the short integration length prefers them over events with similar power levels but longer duration (and therefore, lower instantaneous power).

5.2 Thresholding and RFI mitigation

Each of these signals which exceeds a threshold (eq. 4) is registered as an ADC-wise event (at this level, each ADC input is treated completely independently – it is not until Eq. 9 as well as Section 6 that multiple inputs for a single temporal epoch are treated jointly; this limits the sensitivity of this technique). Cable length-delays are then removed from each signal using pre-computed values (eq. 6). In order to facilitate a primitive time-of-arrival estimate on-chip, all ADC-wise events which occur within $N_{bl}$ of a preceding event are suppressed: otherwise, a powerful event could trigger the RFI blocking system (Section 5.6) multiple times, resulting in powerful events being blocked regardless of incident direction (eq. 7); $N_{bl}$ is only non-zero in the directional RFI blocker, as discussed in Section 5.6. Since events will not typically be detected by all ADCs simultaneously even after cable delay444Due to geometric effects, event detections are sustained for an appropriate number of samples (eq. 8) $N_{sus}$. This value was set to 140, but could have been set as small as $100*\nicefrac{{F_{s}}}{{c}}\approxeq 66$ samples, where $c=3e8\,\nicefrac{{\text{m}}}{{\text{s}}}$ is the speed of light, and 100 m is the maximum extent of the core OVRO-LWA antennas that a single FPGA services. If after thresholding, suppression and sustaining, more than $N_{trig}$ ADCs have sustained events at any given time, that FPGA is said to have made an impulsive event detection, denoted $C\left[n\right]$ (eq. 9).

5.3 Trigger and dump via Ethernet

The time-stamp, which is synchronized by a global 1PPS5551 Pulse Per Second signal, is then transmitted to all other FPGAs via a 10 GbE interface, which synchronously halt writing to their circular buffers and transmit an event record (meta-data as well as 4096 raw ADC samples – equivalent to $20\,\mu s$ near the trigger time) to the host PC, which stores the events using the “tcpdump” tool. A logical “Rising Edge” operation is applied to the signals after thresholding individual ADC detections to facilitate the RFI blocking algorithm: discussed below, in Section 5.6. There is 2.6 ms of dead time after each trigger: likely limited by burst network capacity. Better system design could easily remove this limitation.

5.4 FPGA signal processing: summary

The operations described above are approximately summarized here. Equations (1$\sim$3) are covered in Section 5.1, while Section 5.2 covers equations (4$\sim$9). Equations (5) and (7) are handled out-of-order to accommodate RFI mitigation needs.

[TABLE]

5.5 Practical considerations

There are some run-time practicalities to making this system work. The thresholds $T_{k}$ must be scaled to account for differences in system gain across antennas and polarizations. This is done once at startup by selecting a random selection of 4096 samples from each of the 512 array inputs, and enforcing that each $T_{k}$ is inversely proportional to the power in that input: $T_{k}=G\left(\sum_{n=0}^{4095}v_{k}\left[n\right]^{2}\right)^{-1}$. As background RFI event rate varies, G is adjusted slowly (specifically, scaled by a factor of 2%$\sim$50% every six seconds, depending on how far away from the target range the current dump rate falls) such that the typical number of detected events falls within a user-defined region (12-50 events/sec in this case: 80% of those are typically random thermal noise, whereas almost all of the remainder are RFI). The upper bound was set by the computational power available for post-processing, while the lower bound was set as a quarter of the upper bound to avoid rapid adjustments in threshold values. In terms of trigger threshold, this is equivalent to a typical threshold variation of about 30%. Brief bursts of RFI occasionally increase this threshold by up to another 40%, which the system quickly recovers from.

5.6 On-chip RFI suppression

As the system design was iterated, it was found that the large number of RFI events was outstripping the processing ability of the software system. In order to mitigate this problem, a parallel (on-FPGA) algorithm was designed to block incident RFI coming from particular directions – this strategy was feasible because almost all of the RFI came from only three distinct, stationary sources (see Section 7). This was implemented by replicating equations (6) through (9) three times, gating the main detection on a lack of activity on these “RFI blockers”. Each of these directional blocking modules is configured with delays describing the timing of signals with regard to their arrival at the FPGA (equivalent to the sum of aforementioned cable length delay and the geometric delay appropriate for sources in the given direction). A detection with one of these modules blocks an FPGA trigger for the past and future $\sim 2.5\,\mu s$. A few minor departures from the original event trigger are also necessary for the RFI blocker: first, the original sustaining period of $N_{sus}=140$ samples was designed to capture any impulsive events: for the RFI blocking module, this is adjusted to $N_{sus}=6$ samples, a number which (per captured data) allows the RFI system to detect the majority of events from the chosen source, while blocking events from only a trivial fraction of the sky. Additionally, equations (5) and (7) (which were not originally necessary) were added, which temporarily suppress subsequent detections – transforming the detectors from simple power thresholds into a measure of time-of-arrival (otherwise, powerful events would trigger the RFI detectors multiple times, causing these powerful events to be blocked regardless of direction).

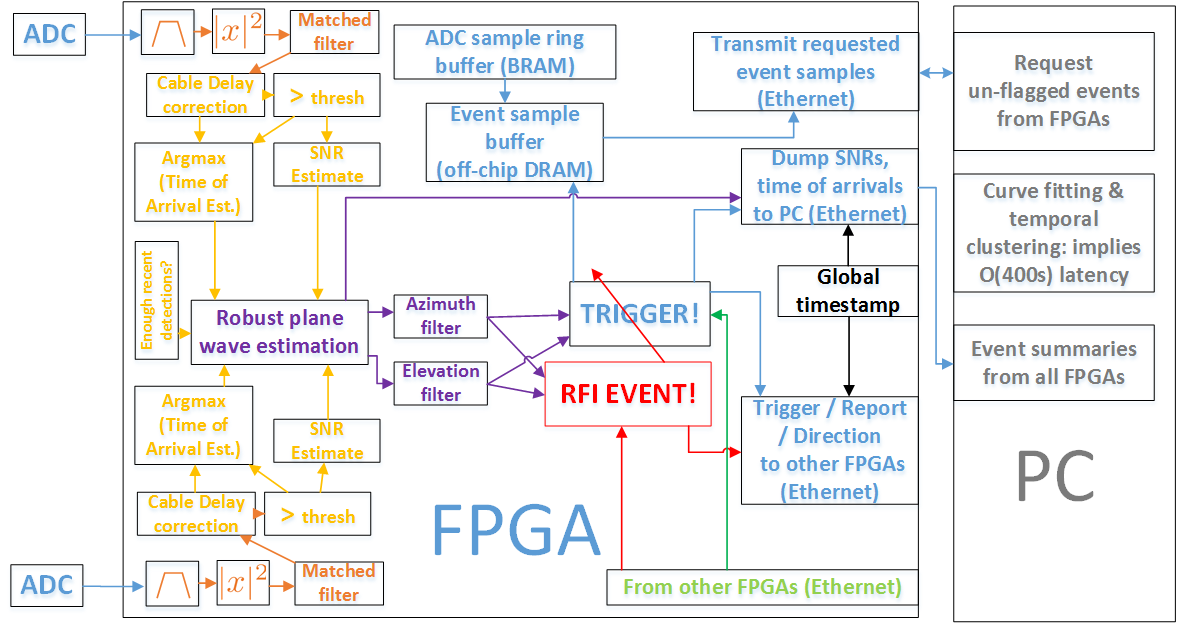

The blocking technique has some limitations that can be improved in the future: random thermal noise would occasionally trigger the RFI detection of individual inputs shortly before the arrival of a true RFI event. Per (eq. 7), this would preclude that input triggering at the appropriate time for the true event, allowing sufficiently weak RFI events (such that it was seen by a marginal number of RFI detection inputs) to slip this filter. The RFI blocker suppresses roughly 99.7% of events which would otherwise trigger the system, allowing the detection threshold to be reduced by a factor of roughly 2.8, for the same candidate event rate (Figure 6). Although many RFI events are not blocked by this filtering mechanism, the remaining events can be handled in subsequent software post-processing. A more effective RFI filtering technique is described and prototyped in Section C.

6 Analysis

Here we discuss the software algorithms used to detect cosmic rays. For definitions of symbols in this section, refer to Table 2.

6.1 Filtering and time-of-arrival estimation

After receiving event data from the FPGAs, candidate events are then processed to produce higher-level statistics. A simplified summary is shown in Figure 5. For each record, ADC samples have the same time-domain filter and power operations applied as in the FPGA system, reproducing $p_{smooth,k}\left[n\right]$. The time of peak power $t_{center}$ of the event is estimated as in (eq 10): all subsequent analysis is constrained to 250 samples ($1.2\,\mu s$) centered around $t_{center}$ to minimize the effects of noise and non-impulsive events in detections. Additionally, an estimate of the background noise in each input $N_{k}$ is made by computing (eq 11): the mean of several samples of $p_{smooth,k}$ far666Because it was before the triggering time, events only rarely fall near these samples from $t_{center}$. The event power $P_{k}$ on each input is estimated with (12). Any of the 512 inputs with an estimated Signal to Noise Ratio (SNR, estimated as the ratio between input event power and background noise power) less than 5 is flagged (eq. 14) and ignored for further processing – any event with fewer than 50 un-flagged inputs is rejected as too weak (or otherwise unfit) for analysis or (most rejected events are actually spurious triggers from random thermal noise; this was typically 80% of events, but in poor RFI conditions could be as little as 25%). Event time of arrival for a given input is estimated as (eq. 13). Flagging is done at this stage because the sample-resolution peak-search function will produce a “time-of-arrival” regardless of the quality of the input signal: subsequent stages would otherwise fail due to a large number of outliers contaminating the true signal.

6.2 Direction of arrival fitting

A spherical wave model is used to fit for the direction of event arrival as well as distance. With the positions of each antenna as well as the time of arrival at those antennas, each input is treated as a measurement of the distance from the antenna to the source. Estimates of cable length are subtracted from the data and the resultant times are converted into units of meters traveled at the speed of light by multiplying by $\nicefrac{{c}}{{F_{s}}}$. As a crude outlier rejection, a robust plane fit is performed on the tuples $\left(A_{x,k},A_{y,k},d_{k}\right)$777The altitude of the antennas is ignored for this step: the array is very nearly planar, using the MATLAB function “pcfitplane” [41, 42]. Inputs which fell sufficiently far from the robust plane fit were also flagged – the threshold was set such that events which were farther than the edge of the array were not impacted. The 3D position (distance r and direction S) of the source is then estimated as (eq 17), using the planar fit as a starting point. The search was performed in $S,\log_{10}\left(d_{k}\right)$ to reduce the dynamic range of the distance estimate. Sequential 1D global searches were done in azimuth, elevation and $\log_{10}\left(d_{k}\right)$ (three passes), followed by a call to the MATLAB tool “fminunc” [43]. Additionally, by aligning all un-flagged power signals using the geometric delays $G_{k}$ implied by the source position (eq. 18) and summing across non-flagged inputs, a pulse profile $R[k]$ for the event is constructed (eq. 19) for visual inspection. The results of the fitting procedure are the key metrics by which candidate cosmic ray events are automatically filtered: azimuth, elevation, range, fitting residual, $N_{inputs-detected}$, peak pulse power.

6.3 Software processing: summary

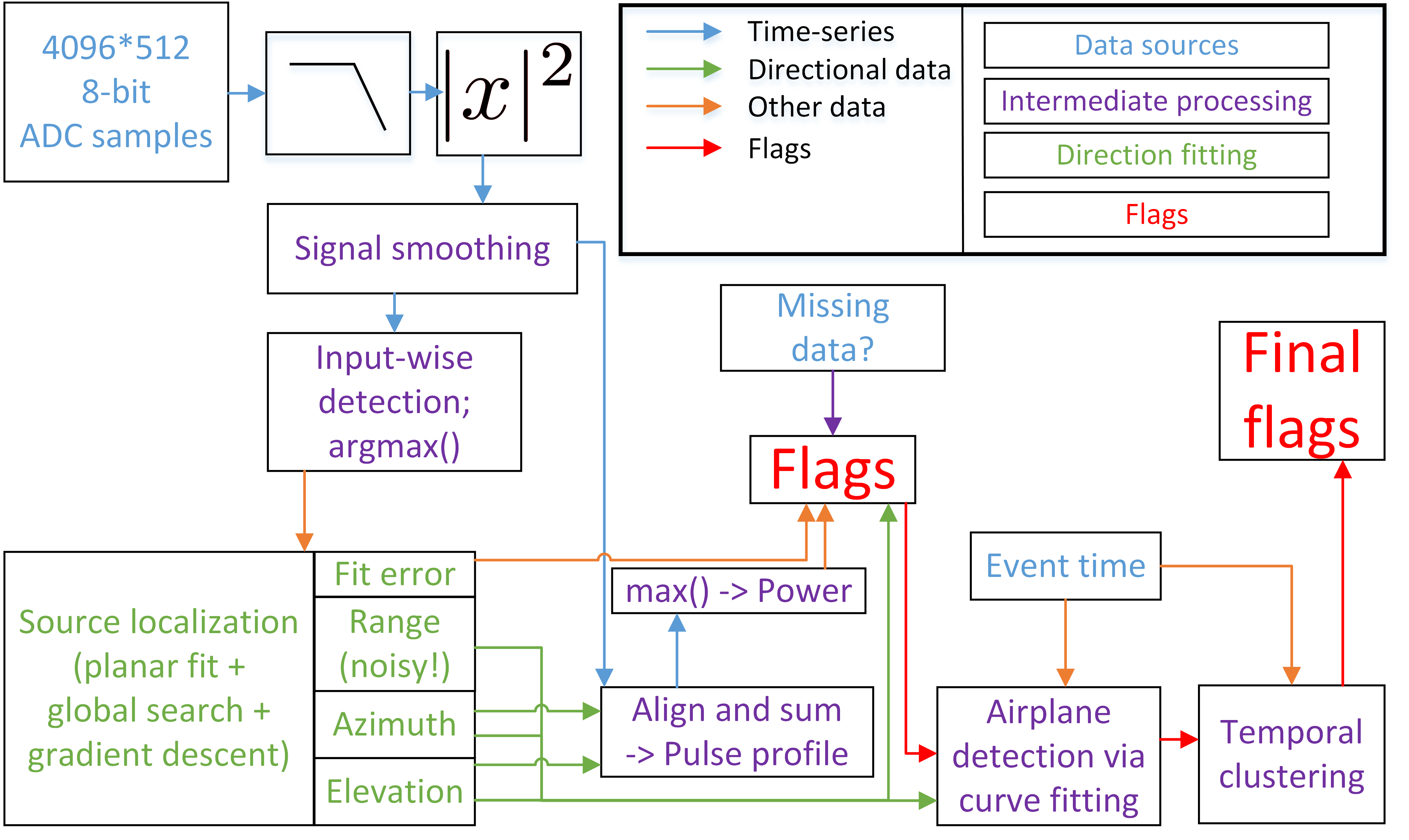

Most of the process described above can be summarized as

[TABLE]

6.4 RFI detection and flagging

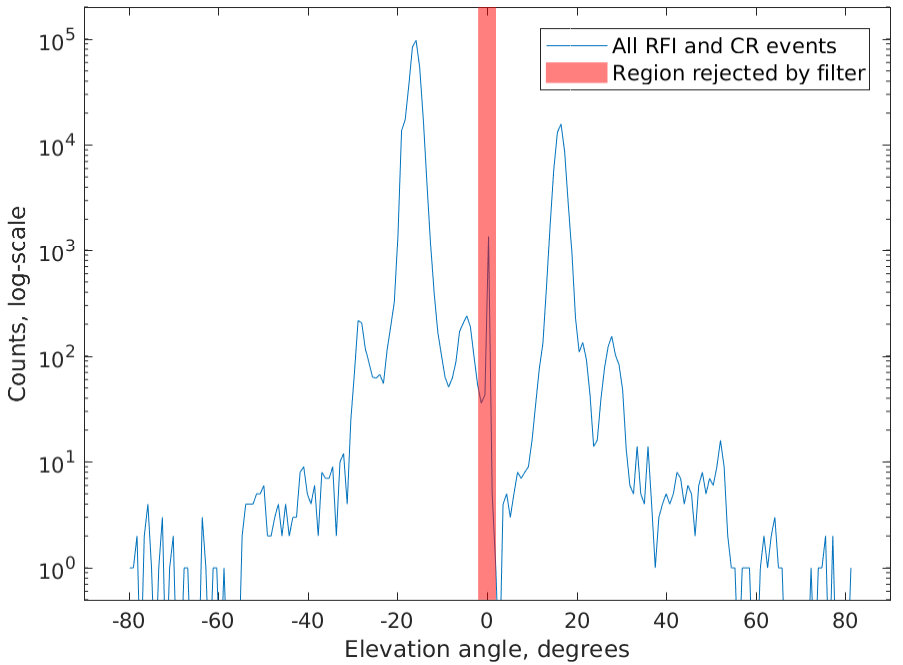

Remembering that there are hundreds of thousands of RFI events for every cosmic ray, the descriptive statistics from Section 6.2 must be used aggressively to remove non-air-shower events. The median high-SNR event has an RMS time-of-arrival residual across inputs of $\sim 3$ samples (15 ns, about half of which is due to signal processing losses). The distribution is bimodal, however, with a number of events having SNR sufficient for detection, but not localization with this algorithm (Figure 2). For this reason, events with over 12 times the median time-of-arrival/direction fitting residual are discarded. Additionally, events which were only seen on a small number of inputs (for Ethernet bandwidth: roughly a uniformly-distributed 22% of data, or signal-strength: due to random thermal noise reasons) are cut. Of those that remain, most are clustered in a few azimuthal directions: these are likely RFI. Additionally, most RFI events are found to come from a low elevation angle, and some events can be localized to a short distance from the array. For this reason, events coming from a few tightly-constrained directions in azimuth ($97^{\circ}$ out of a total of $360^{\circ}$ in azimuth, or $\sim 27$% of all directions), or low elevations ($<2^{\circ}$) and ranges ($<$1 km), are filtered, removing all but one event per 10,000.

6.5 Airplanes: a disruptive source of RFI

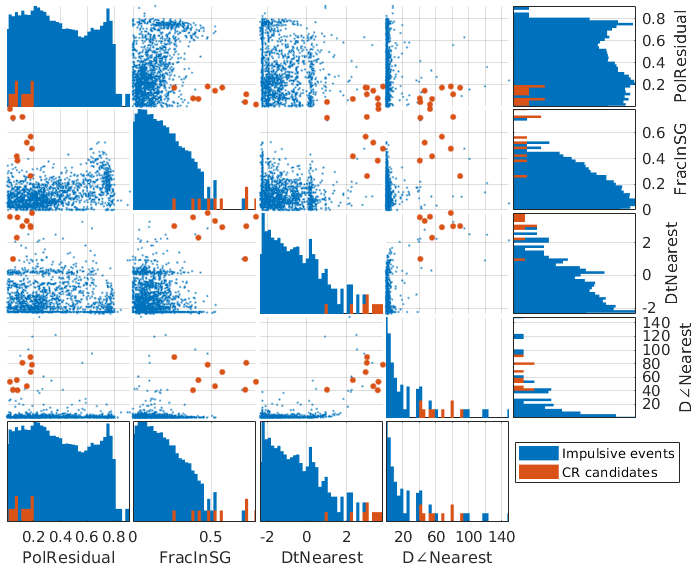

An overwhelming majority ($>99\%$, see Figure 6) of the events which remain after the aforementioned filtering steps trace smooth curves in the {azimuth, time} and {elevation, time} space (see Figure 7. These are suspected to be airplanes, which can also be seen in OVRO-LWA imaging data. A precise flagging of airplanes was achieved by performing local and robust curve fits to the {azimuth, time} and {elevation, time} spaces. This algorithm was imperfect, especially for airplanes which produced a small number of RFI events or interacted substantially with azimuths or elevations which were already rejected by fixed direction filters. Most remaining airplane-driven events were mitigated by filtering temporally clustered impulsive events. If only temporal clustering were used for airplane mitigation, $5-37\%$ of temporal epochs would be flagged due to airplanes–considerable observing time is retained due to specialized flagging: in this dataset, less than 1% of data was flagged due to bursting RFI. In general, these airplane-driven events do not interfere with the FPGA trigger beyond increasing the output data rate slightly.

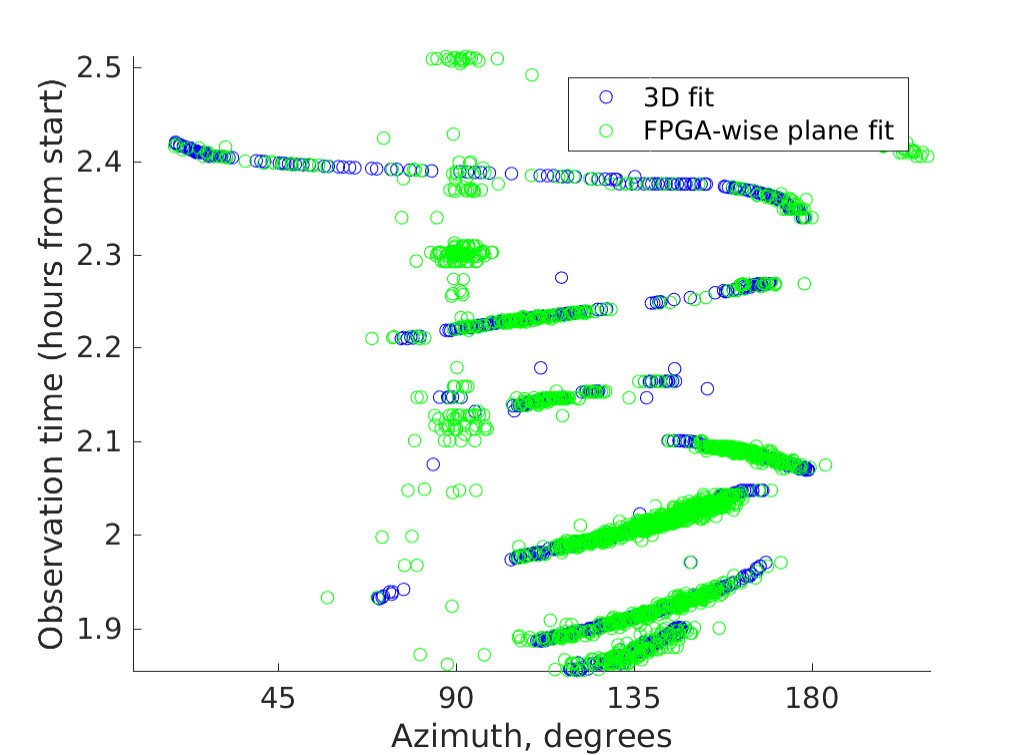

Figure 7 shows the azimuth, elevation, and trigger rate as a function of time for a 30 minute window with high levels of RFI. Airplanes trace out smooth curves in azimuth and elevation vs time. These are identified and removed from the data. Time periods with high trigger rates are flagged and removed from the data. Figure 8 shows a histogram of the time to the nearest event for airplane tracks. The airplane events are clearly clustered in time showing clear separation from other classes of events including our cosmic ray candidates.

The elevation, azimuth, and trigger rates as a function of time for a 12 hour portion of the 40 hour data taking period are shown in Figure 9. There are clear static sources of RFI in azimuth and elevation. Although occasional bursts of RFI appear, the data is relatively quiet. Events surviving these cuts, including our cosmic ray candidates, are clearly separated from the source of RFI. Figure 10 shows a scatter plot of the events in azimuth and elevation to illustrate the sequence of cuts applied. Known sources of RFI are first filtered by their azimuthal clustering. This leaves clear airplane tracks that are identified and cut by curve fitting. The surviving events are flagged for temporal clustering with the remaining events promoted to inspection.

6.6 Final cuts

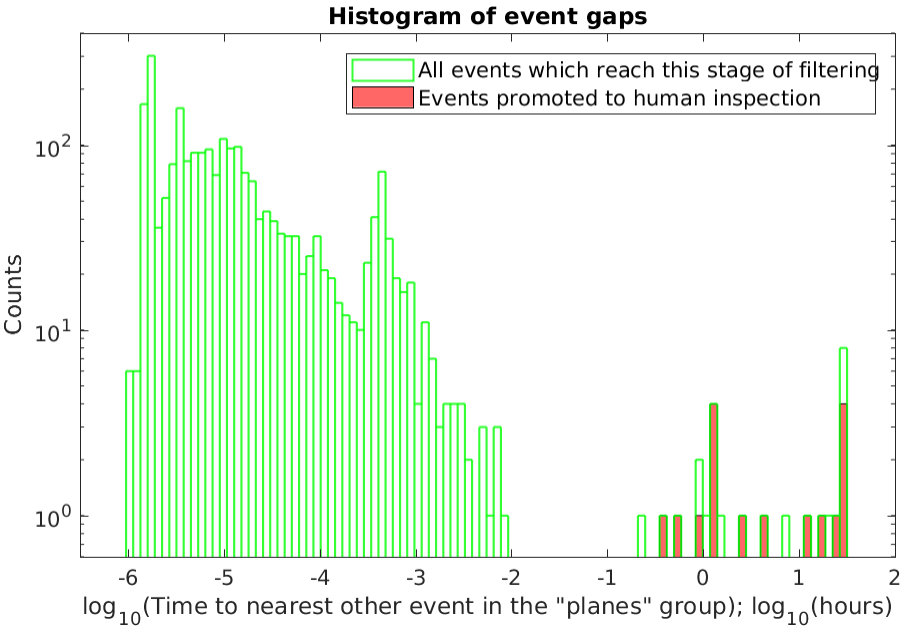

Many un-flagged events were associated with airplanes by visual inspection of {azimuth, elevation, time} scatter-plots, but were missed by flagging algorithms. This was largely due to the flaws in the airplane detection routine’s interaction with fixed directional blockers, as well as trend to promote marginal events (trusting human pattern matching to detect moving objects more reliably than a computer, in fear of accidentally discarding an air shower event)– these were flagged by hand.

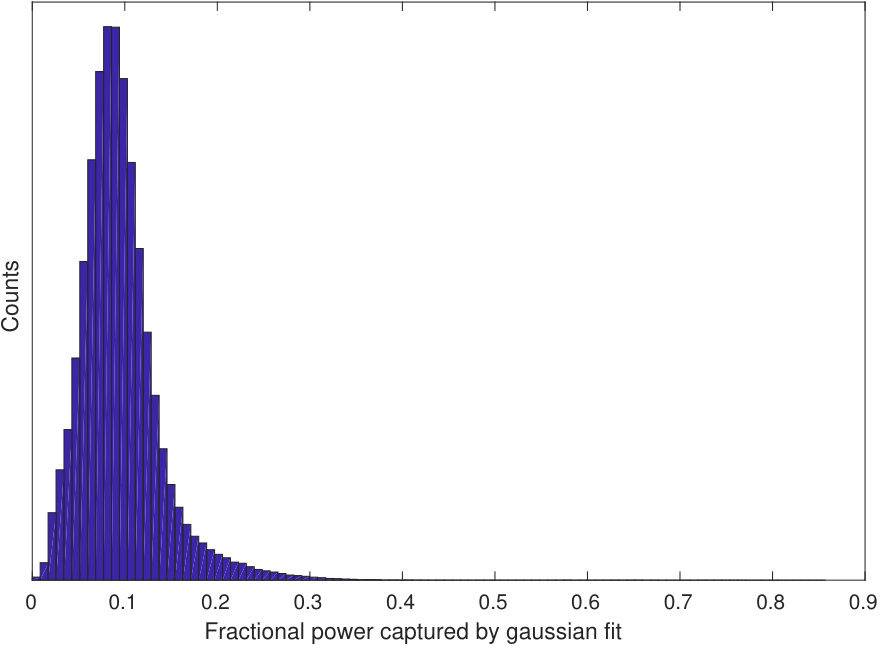

The remaining 16 events are classified using two statistics: polarization residual between predicted and observed, and fractional power captured by a Gaussian fit of each event – a method motivated by recent radio measurements [4]. The peak power seen by each antenna was taken as a measure of the total power of the event at that location on the ground. A constrained Gaussian + uniform background power model was fit to this spatial power profile $P\left(x,y\right)$, with $x$ and $y$ being the coordinates of the given antenna on the ground (this is not as efficient as going to coordinates aligned with the shower axis, but was sufficient for the purpose of RFI discrimination). The fraction of total power which was captured by the Gaussian is taken to be a measure of how much this event matches the distribution expected for a cosmic ray. The performance of this statistic is characterized in Figure 11: it appears to perform well, with the exception of a few well-defined RFI sources which can be cut in other ways. Figure 12 furthermore displays a histogram of this statistic for all events captured in the last four hours of the run (including cosmic ray candidates). Very few RFI events achieve a high value for this statistic.

This was coupled with a measure of the polarization agreement with expectation from a cosmic ray air shower. Each OVRO-LWA antenna contains one dipole each oriented in the N-S and E-W direction. Using the Gaussian fits described above, the ratio between the power captured in the N-S dipole as a ratio of the summed power captured in both Gaussians, is used as a measure of polarization. This measure is compared to the expected fractional power received in the N-S dipole, modeled by assuming that all power comes from the geomagnetic $v\times{}B$ emission. A primitive beam model of the OVRO-LWA antennas is used to predict the response in each dipole due to geomagnetic emission from the direction in question. Comparing prediction to reality allows for a measure of the similarity of the polarized signal to expectation. This statistic is limited because it does not model Askaryan emission, and is additionally subject to errors in power estimation, direction of arrival and antenna beam properties. In Figure 13, we show the the polarization fraction in the NS direction measured for sources coming from three distinct azimuth angles which show exceptionally large amounts of RFI. Each of these plots is expected to mostly contain events coming from a unique physical source: variation in the distribution of polarization measures can be used as an indicator of the quality of this measure in practice, which is to say precise to about 2-3 percent. The remainder is likely due to imperfect modeling or systematics, especially for events originating from directions near parallel to the local geomagnetic field lines, or events with low received power.

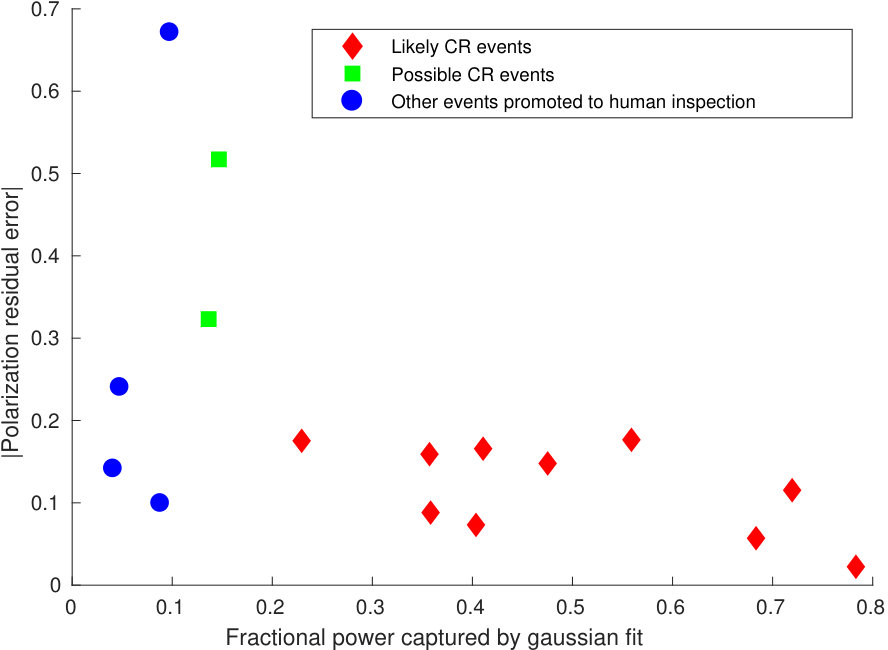

Figure 14 shows the synthesis of these two statistics. Intuitively, a cosmic ray event would receive a low polarization deviation and a high fractional power captured by the Gaussian fit – events in the bottom-right are likely to be cosmic rays. Unfortunately, both statistics are somewhat flawed: the array polarization is not perfectly known, and the spatial Gaussian is a simplification of more complicated structure, and lacks a compelling gain calibration. In both cases, a representation of the errors which is both simply described and accurate would be challenging to produce. In order to characterize these performance of this Figure, each event is carefully inspected by hand. All 16 events are band-limited impulses and lack spatio-temporal correlation with other events. Additionally, the spatial distribution of antenna time-of-arrival is inspected to confirm that the event was in the far-field (always true). Each event was inspected for spatial structure which is commensurate with a cosmic ray: a roughly Gaussian spatial distribution is expected. Deviation from the alignment of this asymmetry is permitted if the location of strike on the array results in an inconclusive result. Finally, special attention is given to events for which the power distribution and direction of arrival are roughly compatible with a near-field source: in these two cases, the spatial antenna time-of-arrivals are again carefully inspected for signatures of a near-field source (not found in either case). The polarization signature is ignored during this manual inspection process

Manual inspection of the 16 events presents 10 events which appear compatible with air showers and four events which are most likely caused by RFI. By human inspection, two events are inconclusive: there is a weak Gaussian signature on each event, but insufficient spatial extent to see the entire spatial structure. Each event comes from a low elevation angle, and the event from azimuth $202.3^{\circ}$ exhibits a Gaussian shape which is less prominent than that of events with much lower total power. The conflicting and weak evidence for both events makes discrimination challenging in this case. The use of an array with larger spatial extent such as the remainder of the LWA array, having a spatial extent of 1.53 km, but unused in this work, or the use of hierarchical beamforming as described in C, would have made classification of these events much easier. Both goals are beyond the scope of this demonstration, but will be included in future studies.

As shown in Figure 14, the statistics used for final cuts appear to capture human intuition very well. Despite the limitations of said statistics, the population of air-shower events is distinct from that of RFI events, typically by substantially more than the typical uncertainty estimated on these decision statistics. All 16 events, grouped by classification per human inspection, are listed in Table 3, as well as the Appendix.

7 Characterization of events

A multitude of impulsive events was detected by this system. The more common classes of events are listed here, alongside a prototypical event overview for at least one instance of each type

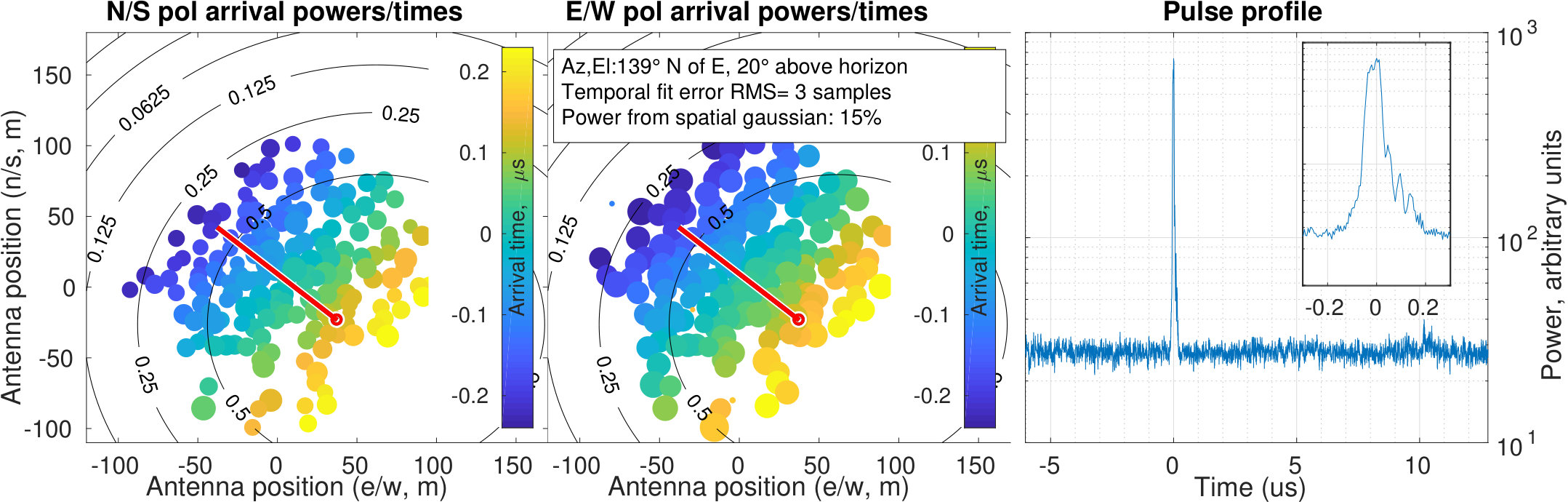

Band-limited impulsive events, coming from the nearby cities of Big Pine and Bishop, or one of another $\sim 10$ nearby sites of human civilization. These are the overwhelming majority of events detected by the array, and can be easily identified by spatial clustering, but are included here for completeness. These events are highly impulsive but illuminate the array uniformly; Figure 15. 2. 2.

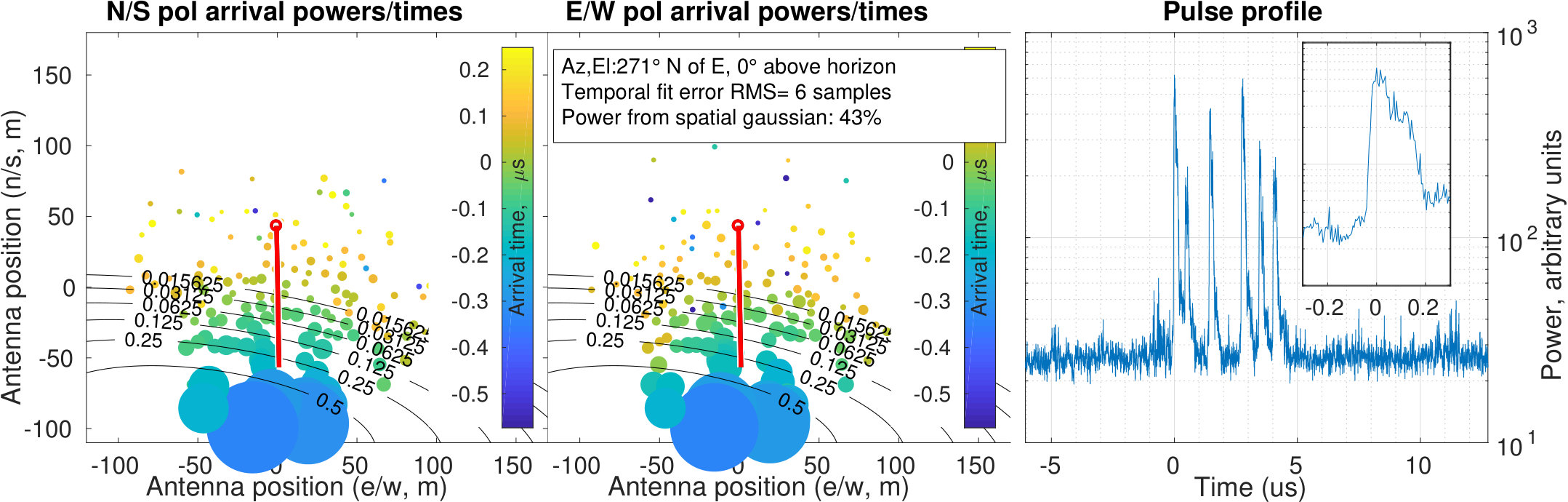

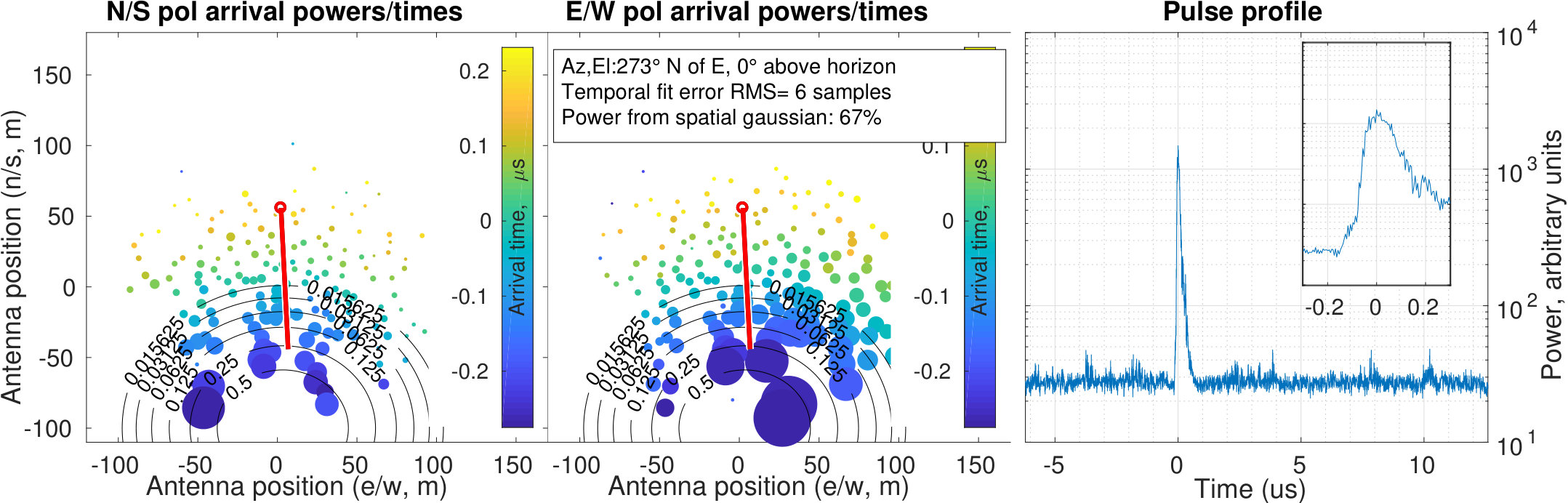

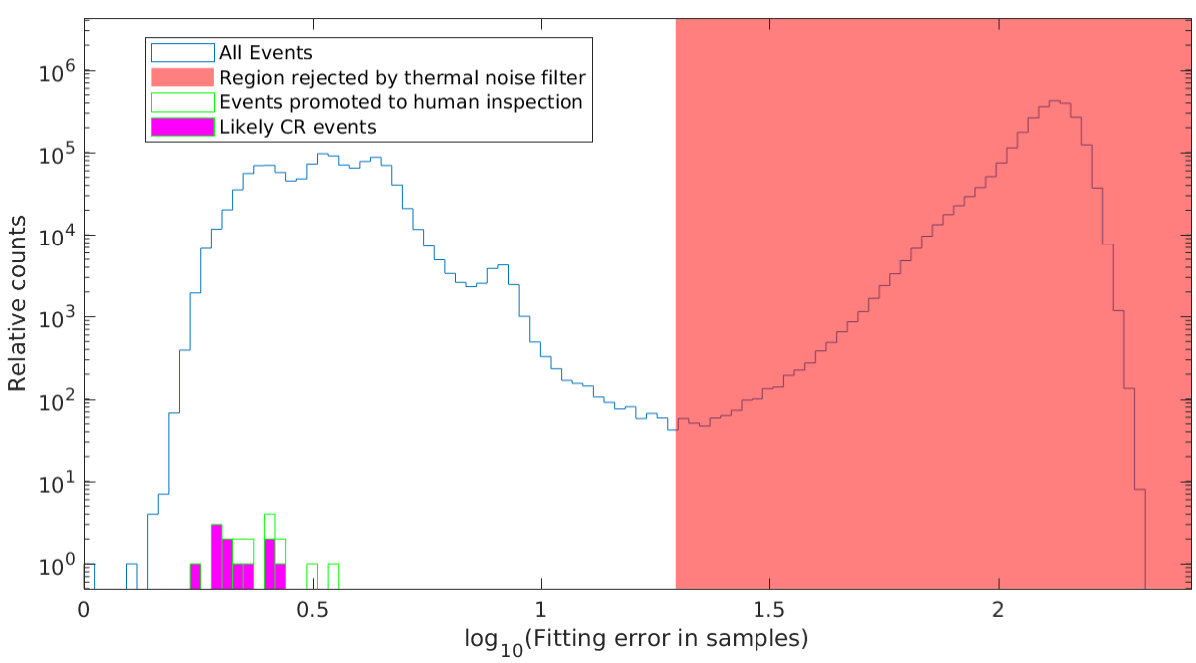

Events originating from A/C unit on the OVRO-LWA signal processing shelter. A combination of position fitting and pulse profile FWHM rejects these events from the “final cuts” dataset, but they are included for completeness. These events can also be highly impulsive. However, coming from a nearby source, they clearly show a power distribution that is high for the closer antennas and low for the more distant ones; Figures 16, 17, 18. 3. 3.

Overhead airplanes, many of which traveling to the nearby Eastern Sierra Regional Airport (16 km away with line-of-sight) or Mammoth Yosemite Airport (60 km away). These are characterized by smooth curves in azimuth and elevation against time. It is likely that most sites will experience less RFI from airplanes, provided that they are farther from a very active airport. The airplane mitigation algorithm rejects most of these, but some manual spatio-temporal flagging is required to fully mitigate. These events can also be highly impulsive, but, unlike our cosmic ray candidates, they tend to uniformly illuminate the array; Figure 19. 4. 4.

A family of events exhibited all of the properties of cosmic rays, as discussed above; Figure 20, 21. These events are summarized in Table 3. There are ten such events for which the polarization is consistent with expectation and which have a footprint consistent with a cosmic ray air signature. Another two are more questionable and are listed as such in favor of data purity, but deserve their own category as ”ambiguous events”. 5. 5.

Ambiguous events: Most events which are promoted to manual inspection are not associated with any other spatial and/or temporal cluster. However, the challenge remains to discriminate between an isolated RFI event coming from an airplane and one originating from a cosmic ray. This must be validated using the spatial power distribution of the event as seen by the array–cosmic ray events should have a vaguely Gaussian spatial footprint with an orientation and width compatible with the direction and parameters of the cosmic ray. Strong cosmic ray events at high elevation angles are easily confirmed, but events coming at low elevation angles can have a very broad power distribution – appearing uniform over the small 200m footprint of the OVRO-LWA core, whereas low power events can have a very weak signature. In both cases, the discrimination can be challenging. The polarization measure is of limited value, given the estimated $\sim 20\%$ uncertainty on true air shower events, and $\sim 5\%$ uncertainty for all sources–worse for low SNR events and especially low SNR air shower events. The low elevation angle case could be mitigated by using the 1.53 km wide OVRO-LWA expansion array. Being a demonstration that the OVRO-LWA is capable of detecting cosmic ray events, the entire issue is sidestepped in this work by discarding all events considered to be “questionable”. Future projects will use the full array, and additionally could constrain power distribution and polarization based on detailed air shower and detector simulations, power and direction of arrival, as well as careful analysis of airplane flight patterns and other backgrounds, allowing for more sensitive discrimination. However, this is beyond the scope of showing the plausibility of OVRO-LWA as a standalone cosmic ray detector and will be reserved for a future project.

8 Sensitivity Analysis

In this section we provide an analysis of the sensitivity to cosmic rays with the OVRO-LWA and check that the observations are consistent with expectations. As an additional check, we show that the cosmic ray candidates identified in this analysis are inconsistent impulsive transients associated with airplanes, which is the main source of potential false positives.

8.1 Number of Events

The number of events $N$ expected from an energy dependent flux $F(E)$ for an observing run with duration $T$ is given by

[TABLE]

where $\vec{x}_{\mathrm{core}}$ is the shower core ground intersection point integrated over an area $A$, $\hat{v}$ is the cosmic ray direction sampled over a range of solid angles $\Omega=2\pi$ corresponding to the visible part of the sky, and $P_{\mathrm{det}}$ is the probability of detection (including trigger and analysis efficiency), which is a function of shower core position, extensive air shower direction, energy, and time of observation.

8.2 Cosmic Ray Air Shower Simulations

We use a US Standard atmosphere [44] model of the altitude-dependent air density $\rho(h)$ for the OVRO-LWA site located in Owens Valley, California at $1.2$ km altitude. Given the cosmic ray direction $\hat{v}$, the depth $X$ is given by the integral over the slant column density

[TABLE]

Given the maximum shower depth of interaction $X_{\mathrm{max}}$, the coordinates of shower maximum are obtained from finding $s_{\mathrm{max}}$ such that $X_{\mathrm{max}}=X(s_{\mathrm{max}})$ and the assumed shower core position on the ground $\vec{x}_{\mathrm{core}}$. For the energy-dependent $X_{\mathrm{max}}$ we assume proton air showers approximated by

[TABLE]

based on the trends from various simulations (see, for example, [45]). For these simulations we assume a fixed value at each energy which is a valid approximation since, to first order, energy is much more important in determining the trigger threshold than the uncertainties and fluctuations in $X_{\mathrm{max}}$.

For the air shower radio emission profiles, we used the results of [46], and parameterized them as a double Gaussian shape as a function of shower inclination and view angle. The parameterization, projected onto ground distance to the core, is shown in Figure 22.

The electric field strength from the air shower is directly proportional to energy and inversely proportional to the distance between the antenna and $X_{\mathrm{max}}$. The polarization of the air shower is given by

[TABLE]

based on the Lorentz force law. The geomagnetic field at the Owens Valley site is $\vec{B}=(22.506,\ 5.012,\ 42.7)\ \mathrm{\mu T}$ in a (+N$|$-S), (+E$|$-W), (+D$|$-U) coordinate system obtained from the NOAA online geomagnetic field calculator888https://www.ngdc.noaa.gov/geomag/calculators/magcalc.shtml#igrfwmm, based on the International Geomagnetic Reference Field [47]. In these simulations, the azimuthal directions are sampled uniformly with the polarization taken into account as discussed above.

8.3 Detector Model

With the air shower signal generation model above, the electric field of each antenna in the array is estimated based on it position, the shower core location $\vec{x}_{\mathrm{core}}$ and the shower direction $\hat{v}$. We convert the peak electric field to peak voltage at the antenna front-end, according to $V_{pk}=E_{pk}\langle h_{\mathrm{eff}}\rangle$, where $\langle h_{\mathrm{eff}}\rangle\simeq 0.47\ \mathrm{m}$ is the average effective height of the LWA receiver in the 30-80 MHz band. As a simplifying approximation, we do not take into account the frequency-dependence of the electric field pulse spectrum. In this 30-80 MHz band, the electric field pulse spectrum is flat for many geometries of interest, although it can vary depending on the distance to the core position and zenith angle [48, 49]. The wavelength-dependent effective height is given by

[TABLE]

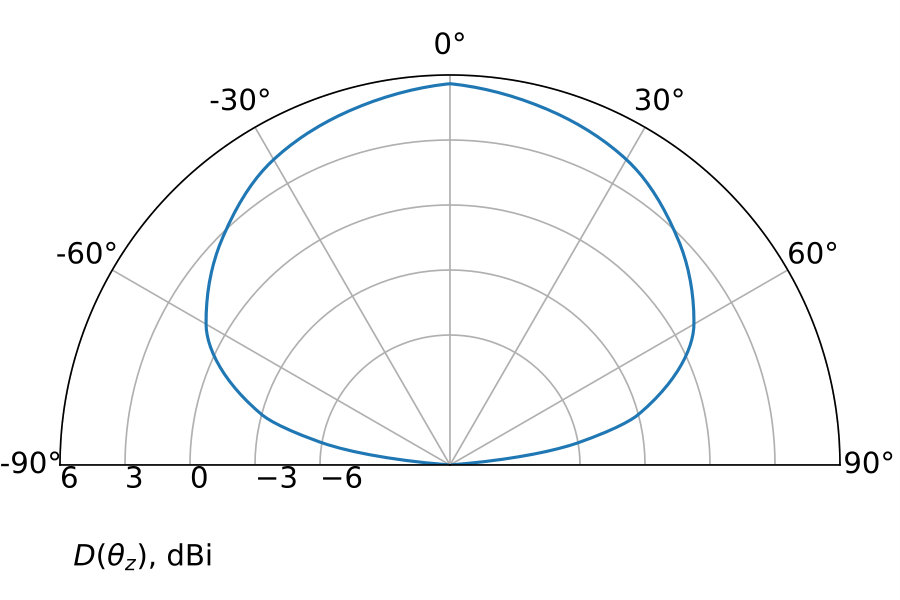

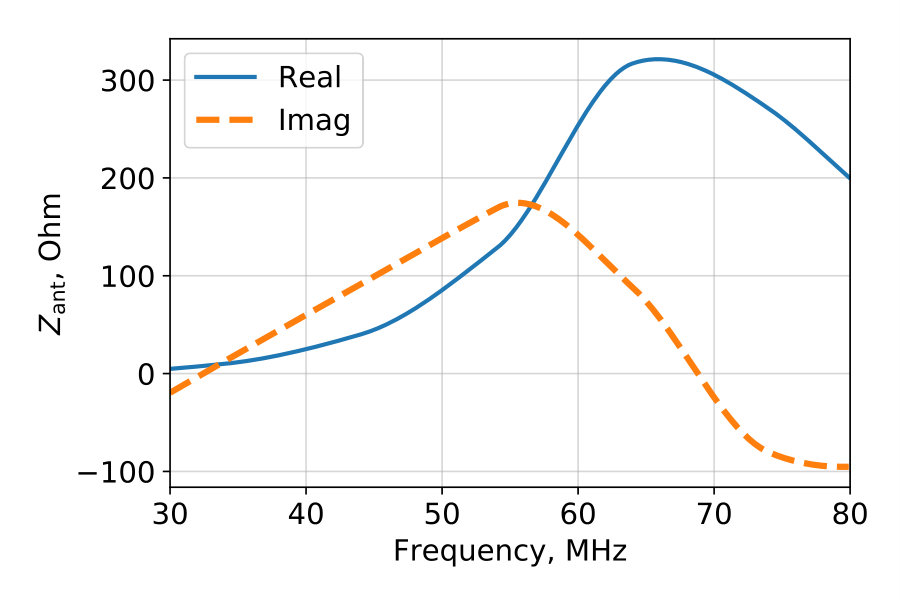

The LWA antenna impedance $Z_{A}$ (with real component $R_{A}$) is shown in Figure 23. The input impedance for the front=end electronics is $Z_{\mathrm{in}}=100\ \Omega$. The impedance of free space is $Z_{0}$ and $\lambda$ is the wavelength. Additional frequency dependent behaviors in the system, including filters for rejecting low frequency radiation, are captured in $\mathcal{F}(\lambda)$, which is obtained from a fit to the measured antenna noise power spectrum. The zenith-angle dependent antenna directivity $D(\theta_{z})$, estimated with a NEC2 simulation at the central frequency of 55 MHz, is shown in Figure 24.

The noise voltage spectrum at the front end is given by

[TABLE]

where $k_{B}$ is the Boltzmann constant, the galactic noise $T_{\mathrm{sky}}$ is given by [50], and $T_{\mathrm{sys}}=250\ \mathrm{K}$. The root-mean-square noise is $V_{\mathrm{rms}}=\sqrt{\int df|V|_{\mathrm{noise}}^{2}}$ over the frequency $f$ interval 30 - 80 MHz. The estimated value is $V_{\mathrm{rms}}\simeq 11.5\ \mathrm{\mu Volts}$.

8.4 Trigger Model

The trigger described in Section 5 used a running average of the receiver voltage power over 4 points (20 ns). We approximate the power signal-to-noise ratio of that procedure as $\mathrm{SNR}_{p}\simeq(V^{2}_{\mathrm{pk}}+4V^{2}_{\mathrm{rms}})/(4V^{2}_{\mathrm{rms}})$ to account for the fact that the peak voltage is typically in one sample while the rest are noise. We can just as easily simulate the trigger in terms of the amplitude signal-to-noise ratio $\mathrm{SNR}_{a}=V_{\mathrm{pk}}/V_{\mathrm{rms}}$, with the equivalent $\mathrm{SNR}_{p}=1+\mathrm{SNR}_{a}^{2}/4$. The trigger is approximated by requiring that $\geq 12$ antennas for the EW polarized channels or $\geq 12$ antennas in NS polarized channel exceed a threshold SNR. To estimate the threshold SNR, relevant to cosmic-ray signals, we inspect the set of 16 events that were promoted to manual inspection. For each simulated event we identify the 12th from the maximum SNR in the strongest polarization as a proxy. We find that the weakest event of the set has a threshold $\mathrm{SNR}_{a}=5.7$.

8.5 Expected Event Rates and Acceptance

In addition to the trigger, the analysis imposes additional quality cuts (QC) to discriminate against RFI that affects the cosmic ray air shower detection efficiency. The QC include directional filtering, plane detection, and temporal clustering cuts and has an efficiency of $\sim 75\%$. This efficiency is dominated by directional filtering since the airplanes are transient and cover a relatively small amount of solid angle in the sky. At the manual inspection stage, the discrimination between cosmic ray air showers and RFI a Guassian power cut (GC) is applied that requires that the fraction of power in the two-dimensional Gaussian fitted to the distribution of antenna signals is $>20\%$. The GC discriminates between events that have the expected Gaussian shape (see Figure 22) from plane-wave RFI. Based on the simulations described in the previous section, this cut has an estimated efficiency of $\sim 60\%$. The total analysis efficiency is estimated to be $\sim 45\%$.

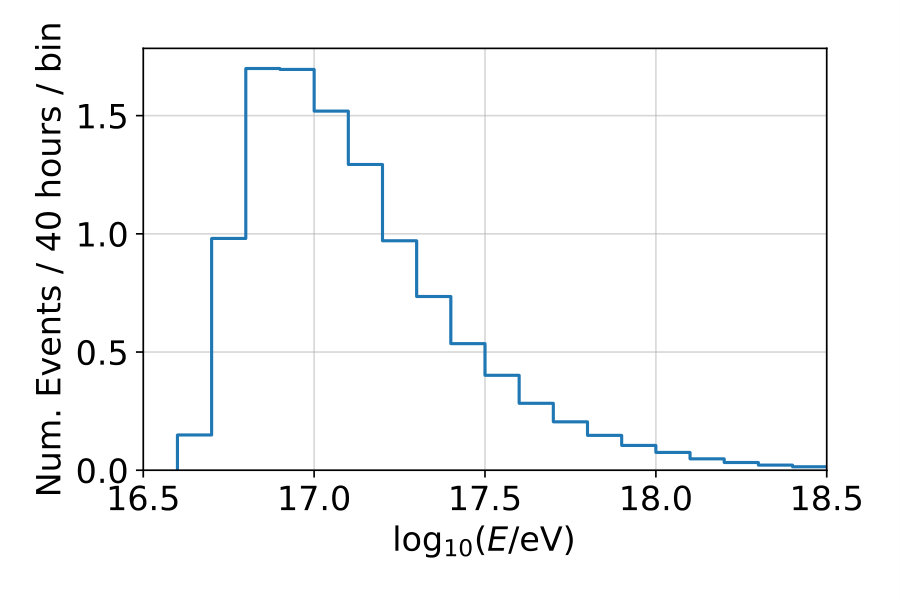

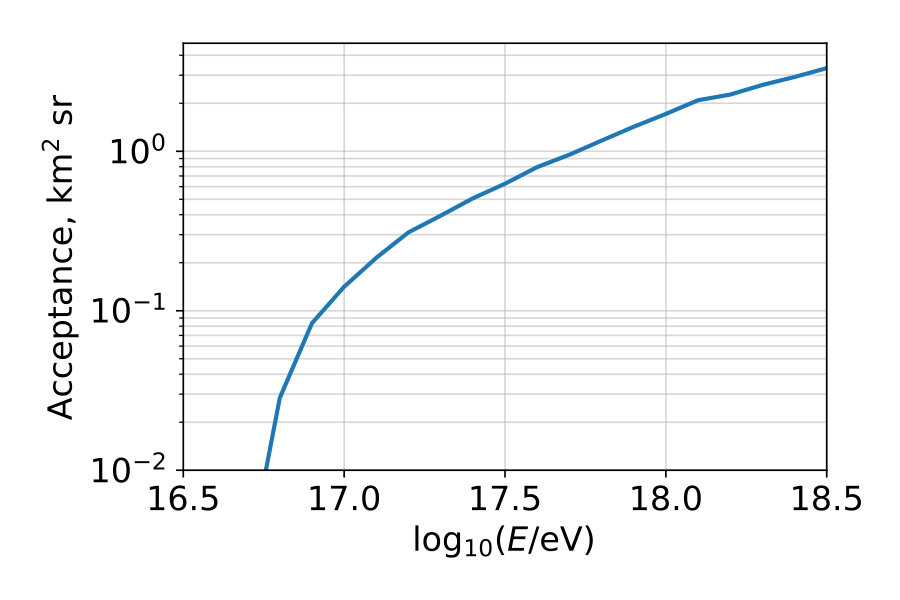

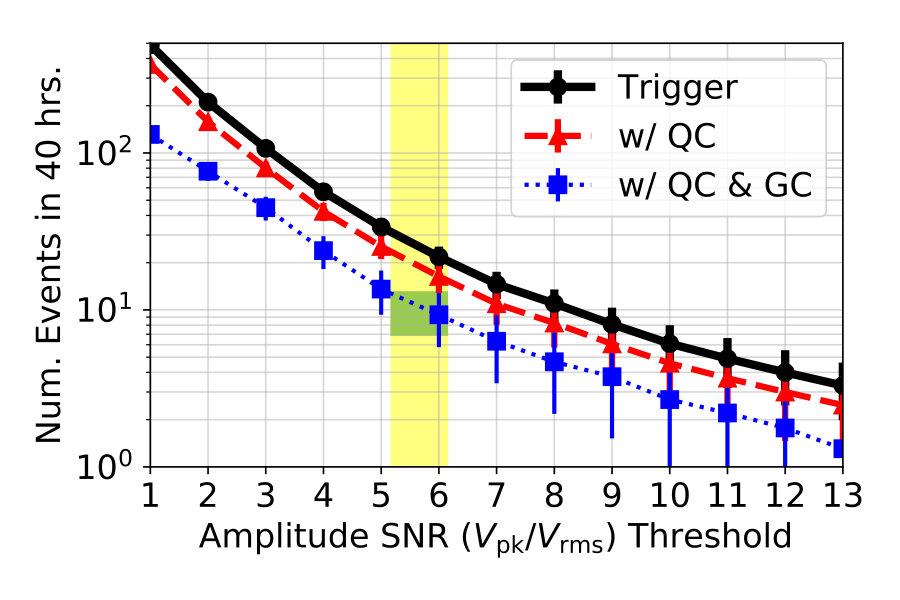

In Figure 25, we show the expected event rates based on the trigger model, the quality cuts (labelled QC) and the power in Gaussian fit cut (labelled GC). For the cosmic-ray flux, we use the Auger parameterization [51]. The 10 events detected and surviving selection cuts are consistent with the range of thresholds corresponding to the trigger rate and analysis efficiency. The acceptance and distribution of energies corresponding to the trigger threshold $\mathrm{SNR_{a}}=5.7$ are shown in Figures 26 and 27, respectively. The most likely energy of the events is expected to be $\sim 7\times 10^{16}$ eV.

The OVRO-LWA has several antennas extending across $\sim 2$ km separation from the core of the array which were not used in this demonstration. In future runs, it is expected that using the antennas extending over wider separation from the core will provide a significantly improved analysis efficiency. The longer baselines will improve the directional sensitivity to discriminate against stationary sources of RFI. The higher spatial coverage of the antennas will also improve the sensitivity to the Gaussian shape of the radio beam pattern of air showers.

8.6 Zenith Angle Distribution

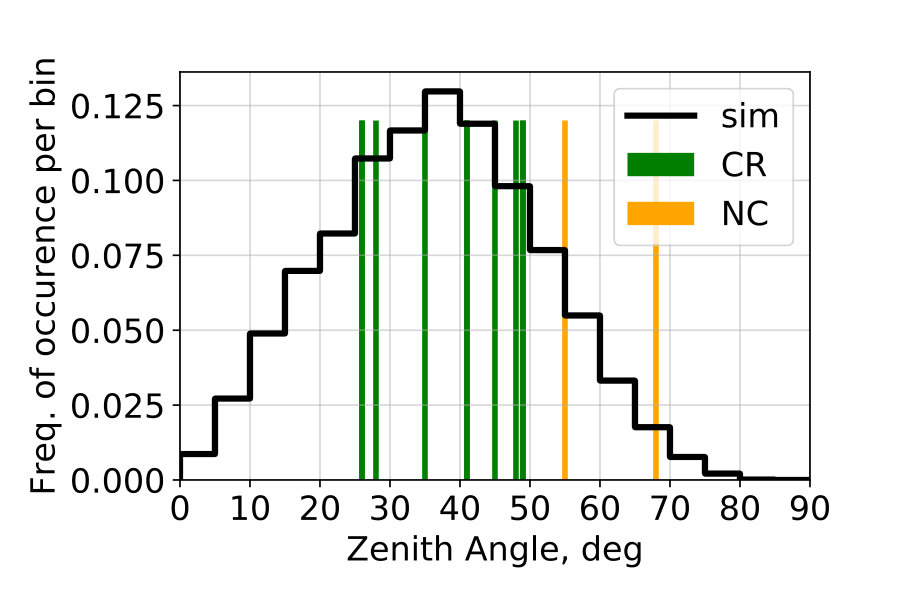

As an additional consistency check, we plot the simulated triggered distribution of zenith arrival directions, including the analysis cuts, in Figure 28. The 20% power in Gaussian fit cut reduces the fraction of high zenith angle ($\theta_{z}>50^{\circ}$) events since these will, in general, appear to have a flat power distribution across the $\sim 0.2$ km diameter array (see Figure 22). Figure 28 marks the best-fit zenith angle values for cosmic ray candidates (CR) and the no call (NC) events. The zenith angle distribution of cosmic ray candidate events are clearly clustered around the most likely range of values providing additional evidence that the CR events are indeed produced by cosmic ray air showers while disfavoring the cosmic-ray origin of the NC events.

8.7 Airplane Background Characterization

The main source of background for producing false positives are impulsive transients, the majority of which are associated with airplane events. We estimate the probability that such background events could be responsible for the cosmic-ray candidate events.

We characterize this background in terms of four variables. The first two are the observables used to identify cosmic-ray candidates: the error between the observed and expected N/S polarization for an air shower (PolResidual) and the fraction of power in Gaussian (FracInSG). The third is the shortest time to between two events flagged (DtNearest), which is expected to be short for background sources and random for an air shower. The fourth is the angular distance between the event and its nearest neighbor in time (D$\angle$Nearest), which is also expected to be small for a background event and random for an air shower. In Figure 29 we show the distribution of these variables for transient events (in blue) and the cosmic ray candidates in orange.

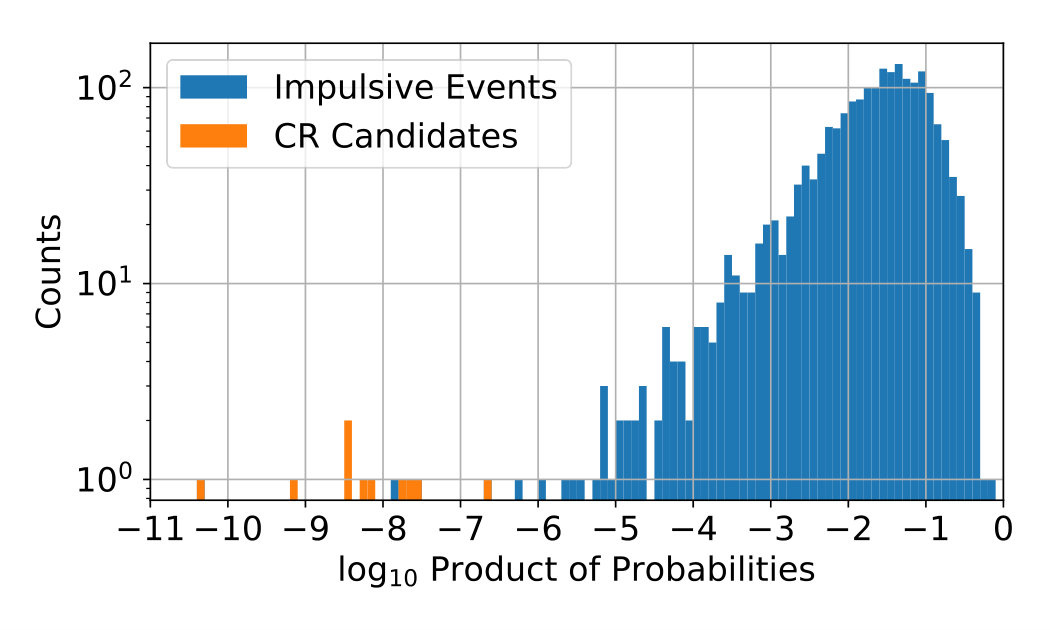

Cosmic ray candidates are generally separated from the impulsive backgrounds but no single variable or combination of variables shows a strong separation. However, the combination of these variables does show a clear separation. To show this, we take the cumulative distribution function of the events (Figure 30) to estimate the probability of each variable. We then multiply the probabilities of each variable. The resulting distribution (Figure 31) shows that the cosmic ray candidates are distinctly separated from the distribution of impulsive transients.

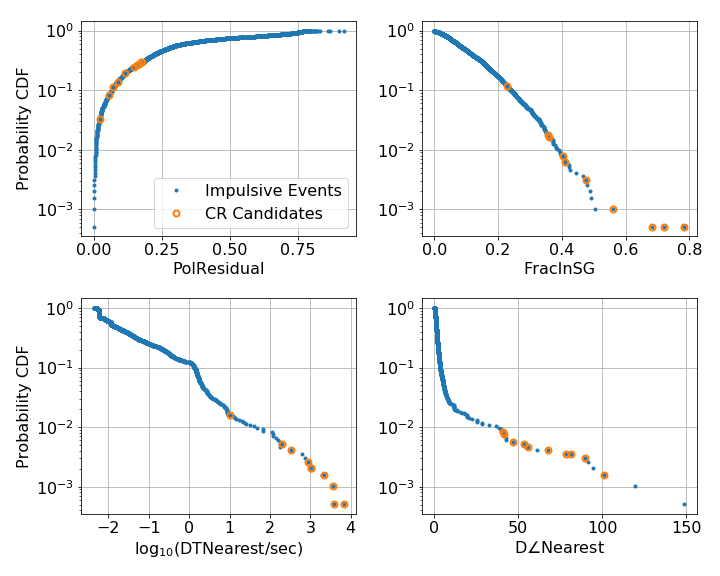

The results in Figure 31 show one impulsive transient event flagged as a background that is consistent with a cosmic ray candidate. This event was rejected as a cosmic ray candidate because it clustered with the fitted curve of an airplane trajectory despite being well separated in time and distance from it’s nearest event. This shows that our analysis has been conservative in flagging cosmic ray events.

We also inspected the events flagged as backgrounds in the tails of the distribution in Figure 31 (x-axis values between -7 and -6). These events are rejected due to high values of PolResidual ($>$60%). This population of isolated impulsive transients that are not consistent with cosmic rays is clearly distinguishable from the cosmic-ray candidate events.

9 Conclusion

Purely RF detection and identification of cosmic rays has been demonstrated with the OVRO-LWA. The use of custom FPGA firmware, centralized signal processing, dense antenna sampling and novel software post-processing made this demonstration possible. With its successful demonstration, however, replicating this result should not be challenging for many low-frequency arrays, including LOFAR, HERA, CHIME, and the SKA[52]. Implementation would be especially easy for other LWA stations, which share much of the back-end hardware.

There were essentially two problems faced by cosmic ray self-trigger applications in civilization. First, candidate impulsive events must be detected on-FPGA at a rate which does not saturate network bandwidth. Second, cosmic ray events must be discriminated from RFI – especially in the case of airplanes, which have more complicated time-frequency structure. Performance for the FPGA stage may be enhanced with the on-chip planar fit routines recommended in Section C, whereas it is systems which contain a dense component will get a substantial sensitivity and trigger rate benefit from hierarchical beamforming, described in the same section. The extraordinary properties of the air shower events demonstrated make successful detection of $\sim$10 events unquestionable, with another $\sim$2 being less clear. Simple changes can improve the missed detection rate from $\sim$40% down to nearly 0% for sufficiently energetic events above an elevation angle of $20^{\circ}{}$. Many steps which would make this improvement practical and economical were discussed in Section C.

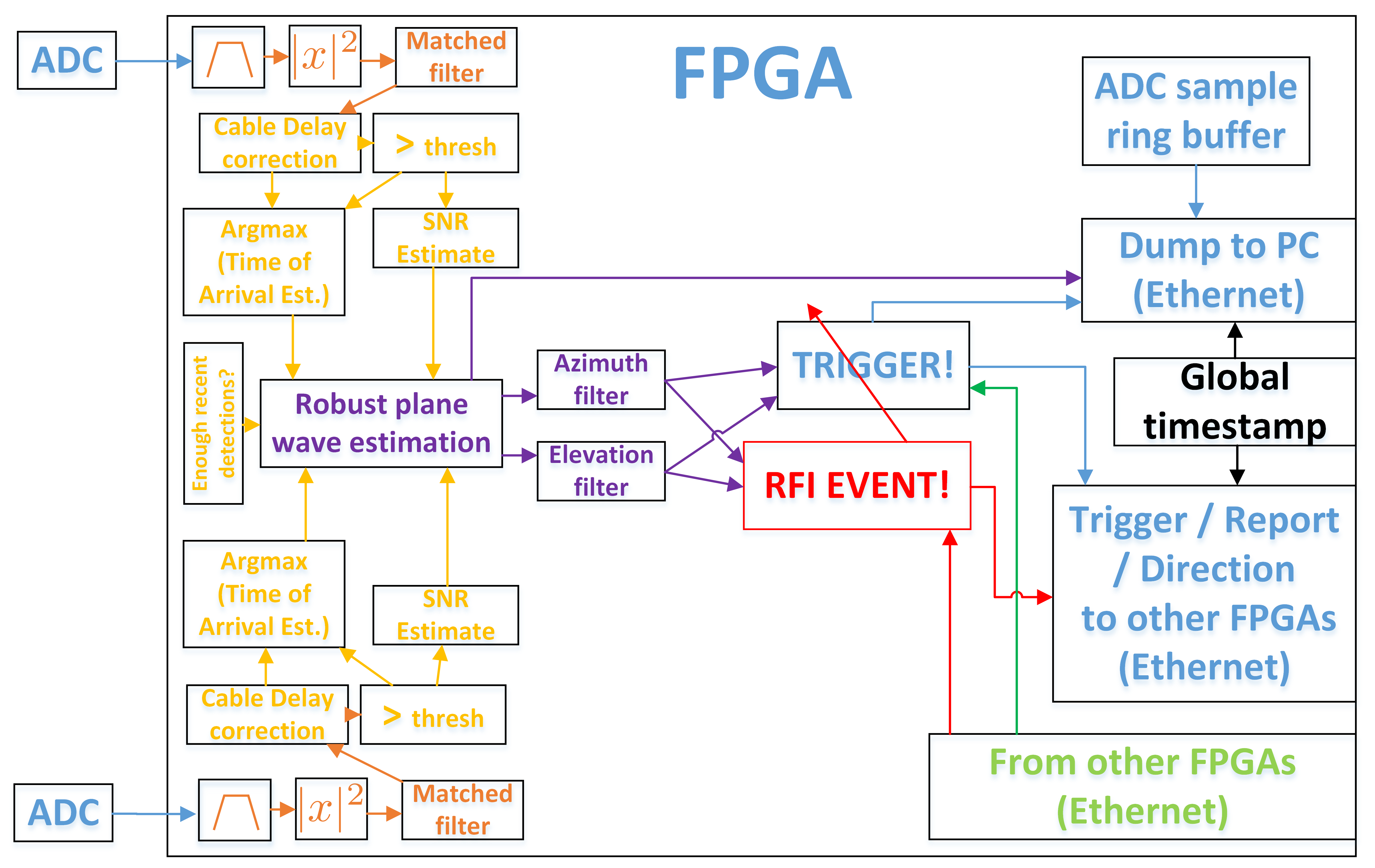

This demonstration, although it can improve, lends credibility to future arrays of RF-only air shower detectors for cosmic ray and neutrino science. The techniques described here can also be used to measure the beam pattern of individual antennas in the array, a challenging goal for many low frequency radio arrays.

10 Acknowledgements

This material is based in part upon work supported by the National Science Foundation under Grant AST-1654815 and AST-1212226, as well as the NASA Solar System Exploration Virtual Institute cooperative agreement 80ARC017M0006 and the DFG grant NE2031/1-1. Gregg Hallinan acknowledges the support of the Alfred P. Sloan Foundation and the Research Corporation for Science Advancement. The OVRO-LWA project was initiated through the kind donation of Deborah Castleman and Harold Rosen. Part of this work was carried out at the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration. Andres Romero-Wolf and Gregg Hallinan thank the Caltech/JPL President’s and Director’s Research and Development Fund. Copyright 2019. All rights reserved.

Appendix A All events promoted to final cuts

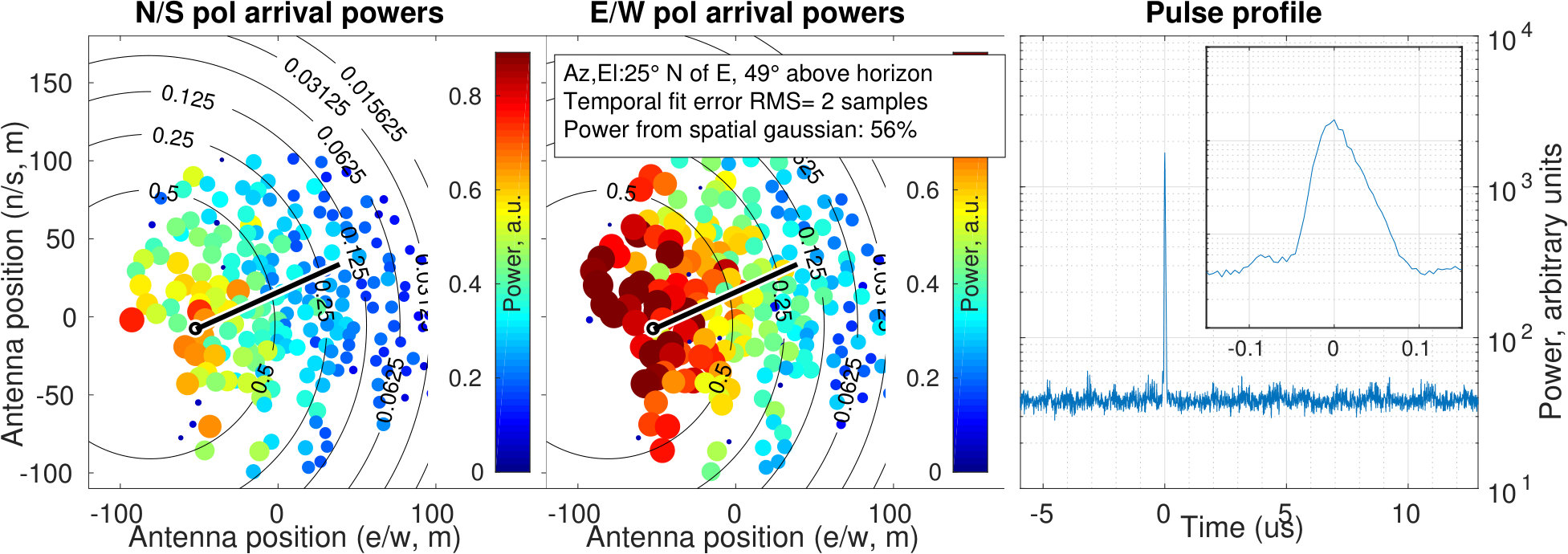

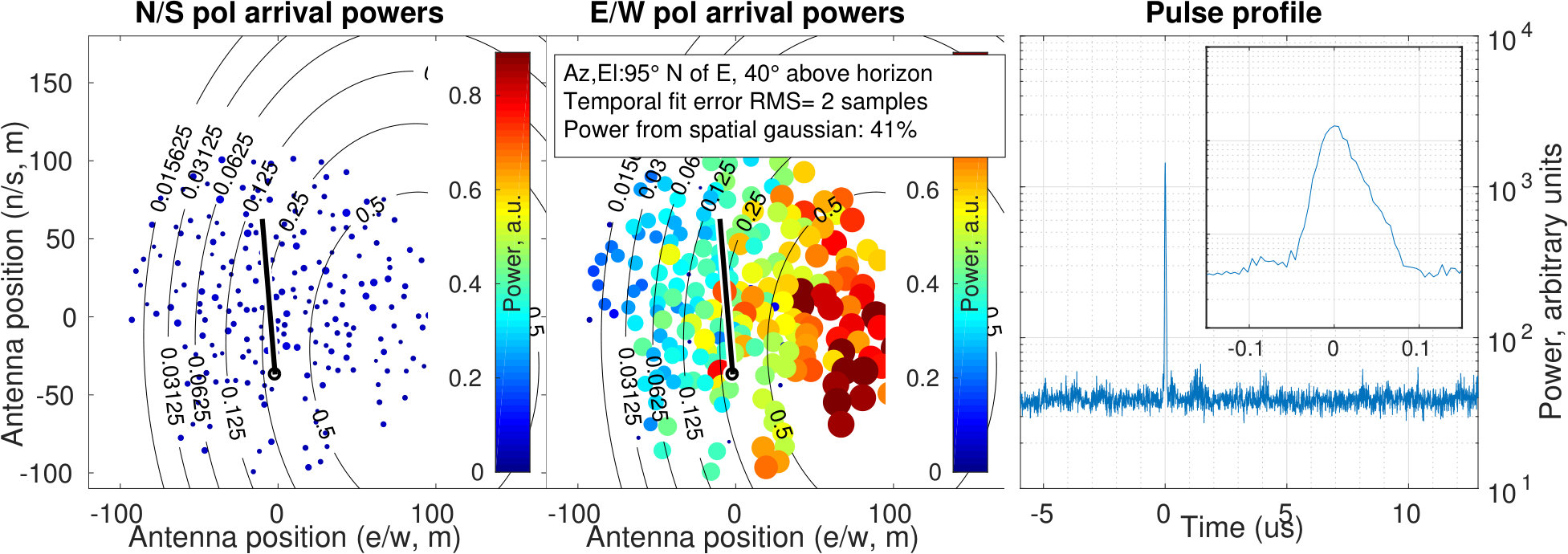

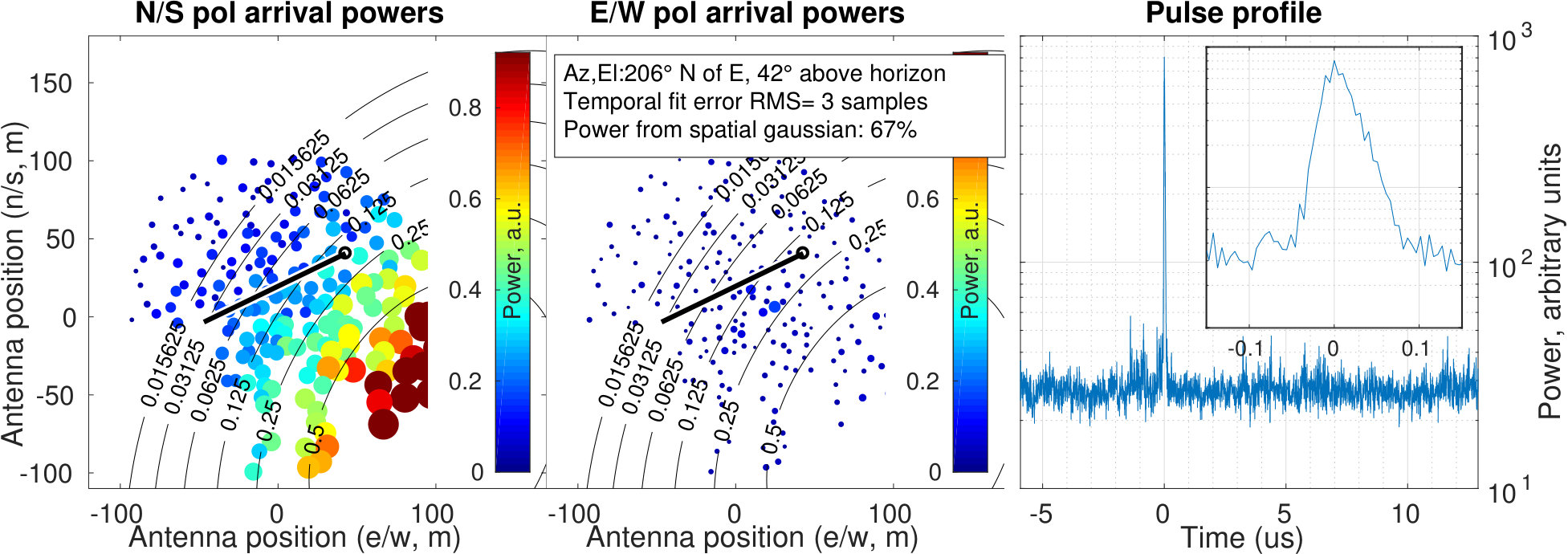

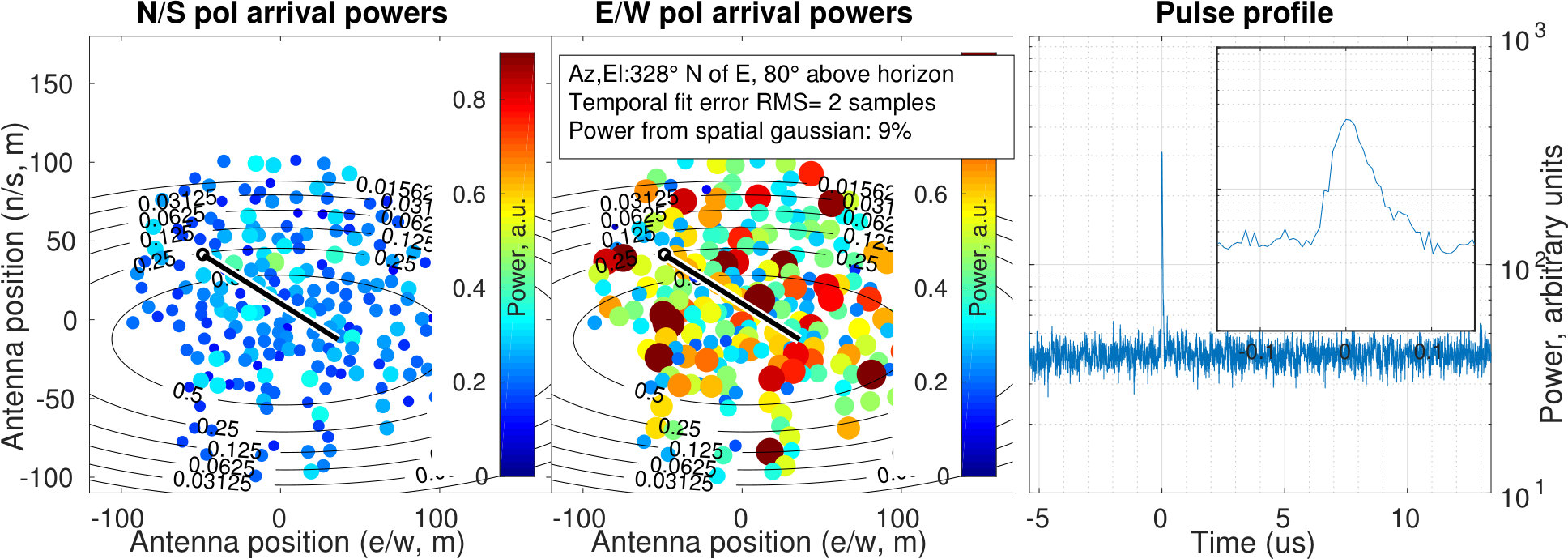

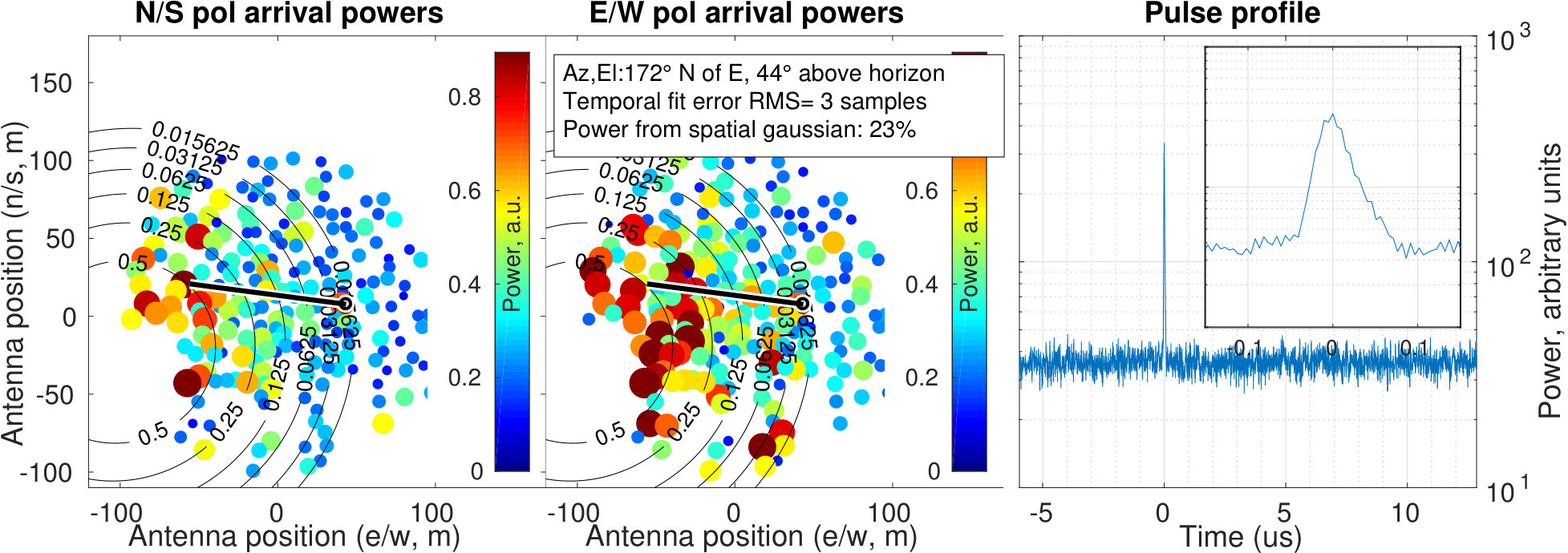

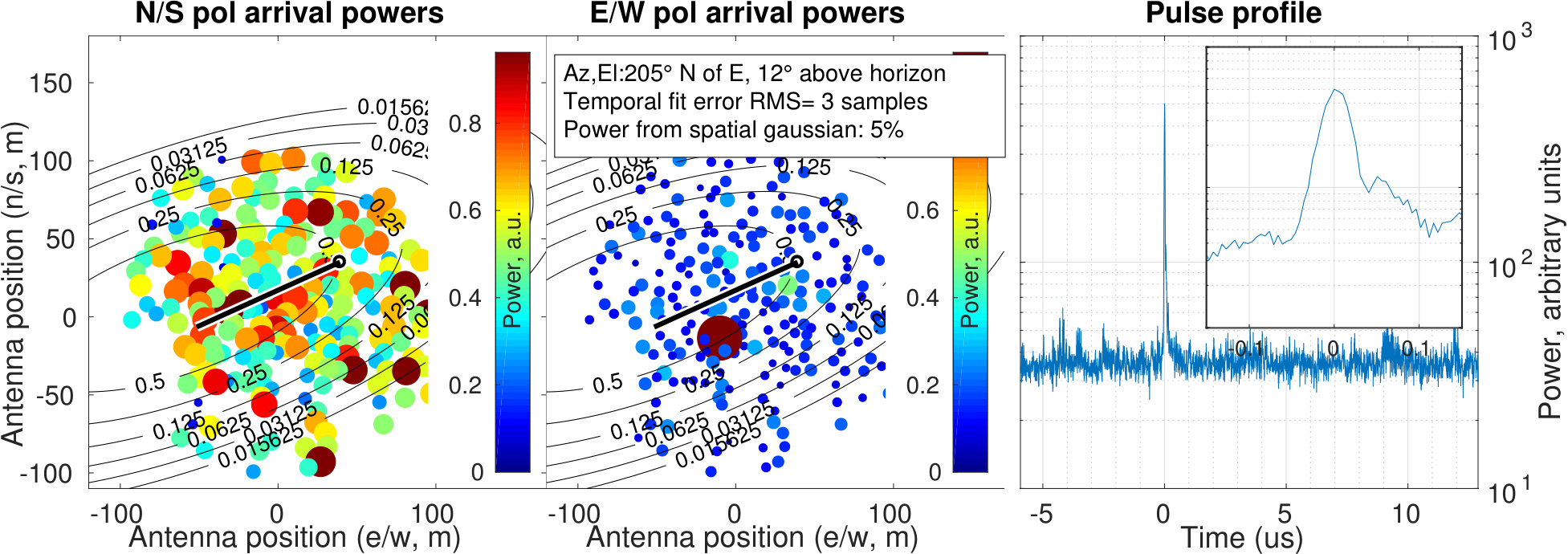

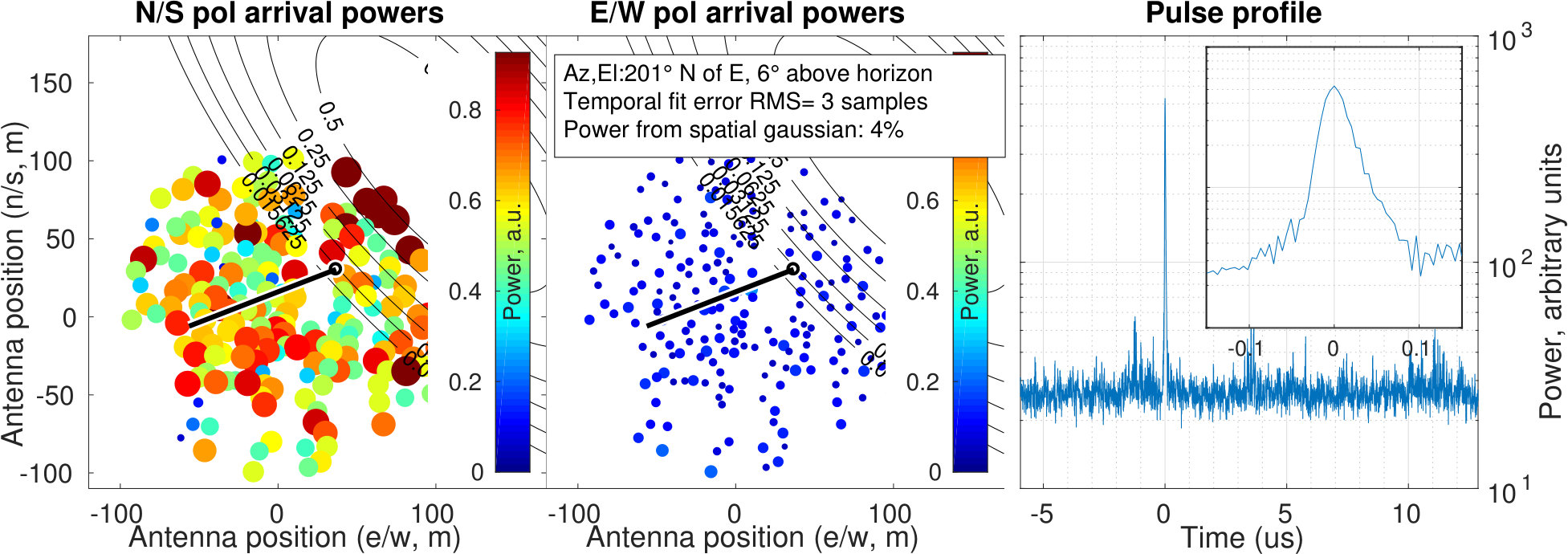

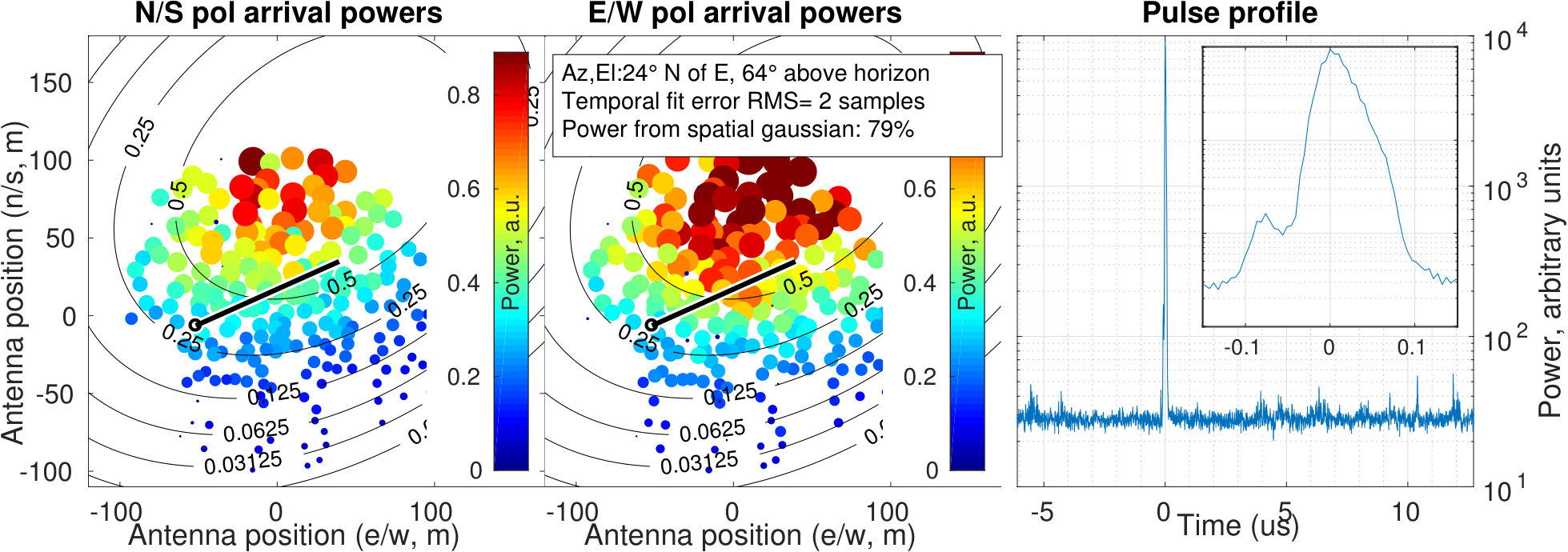

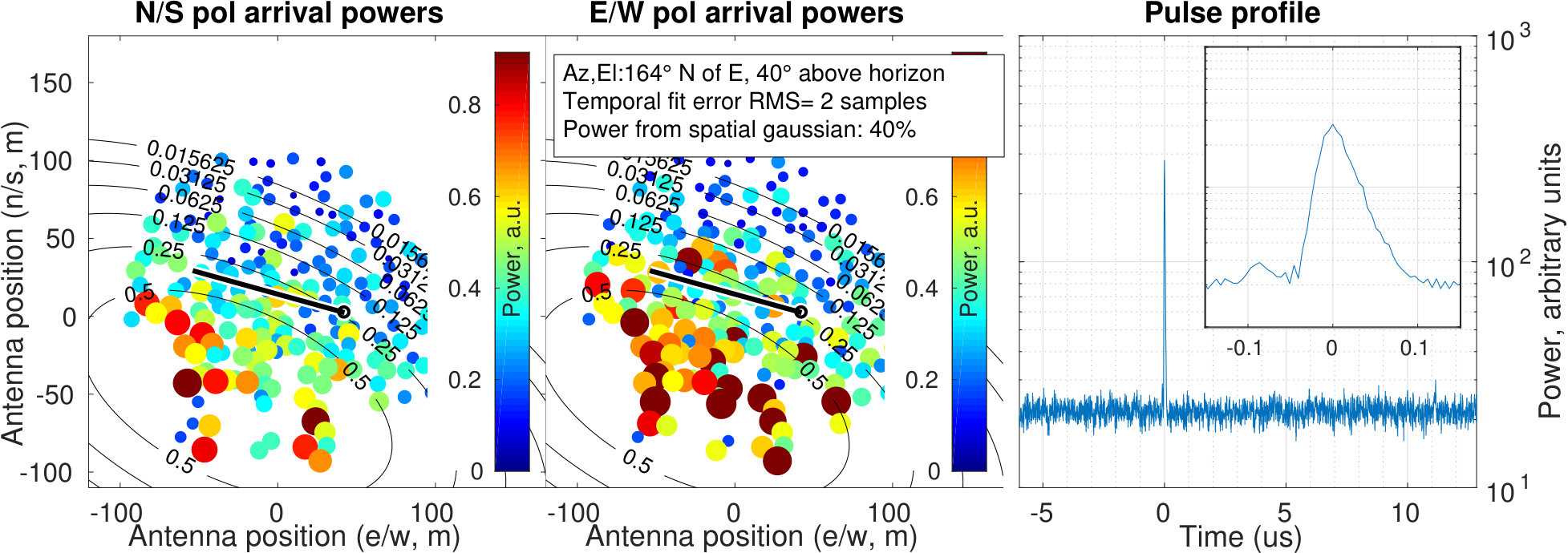

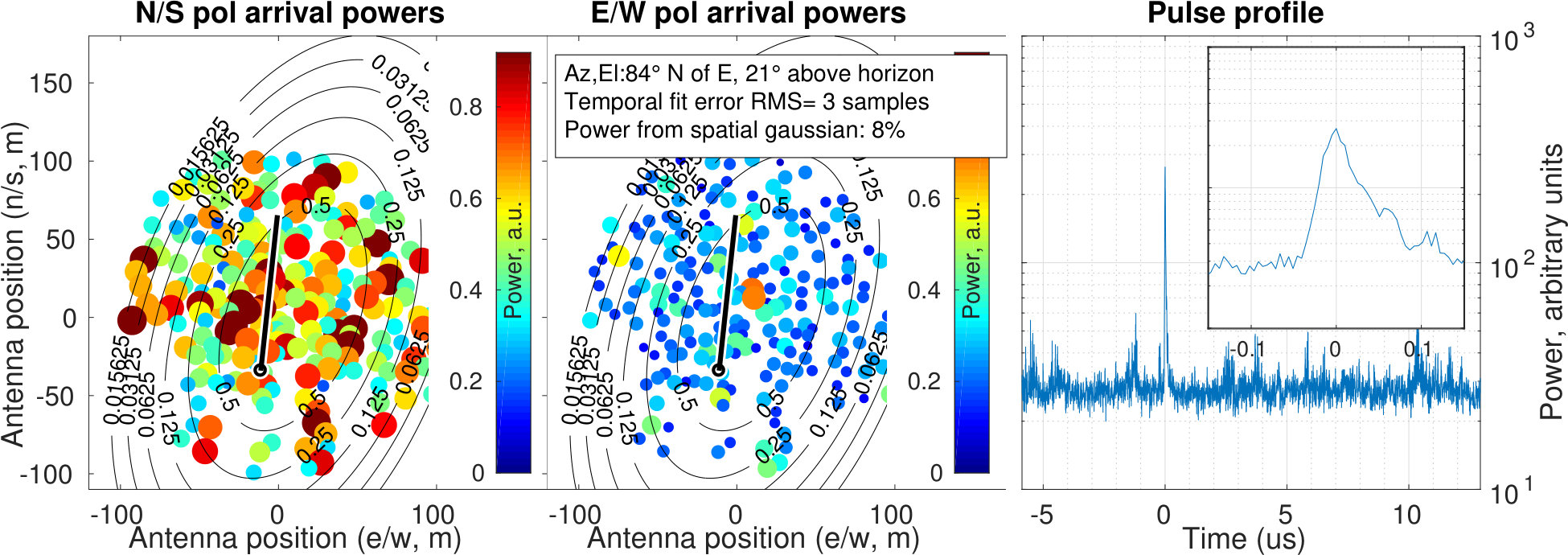

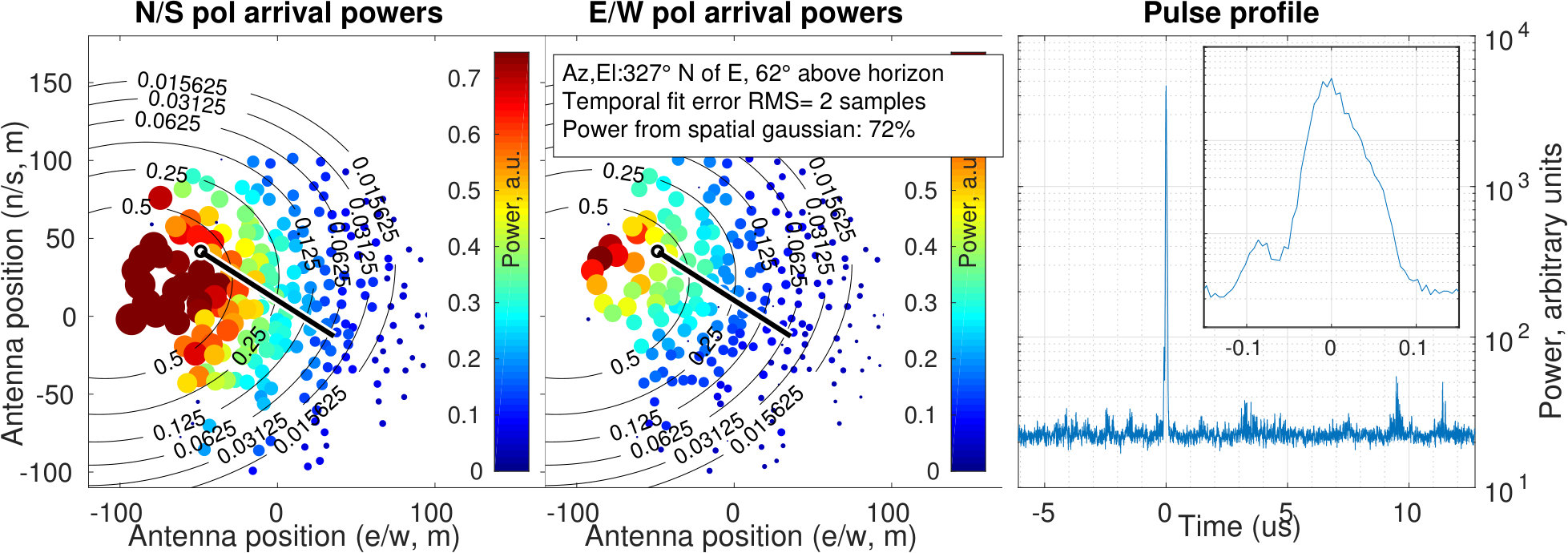

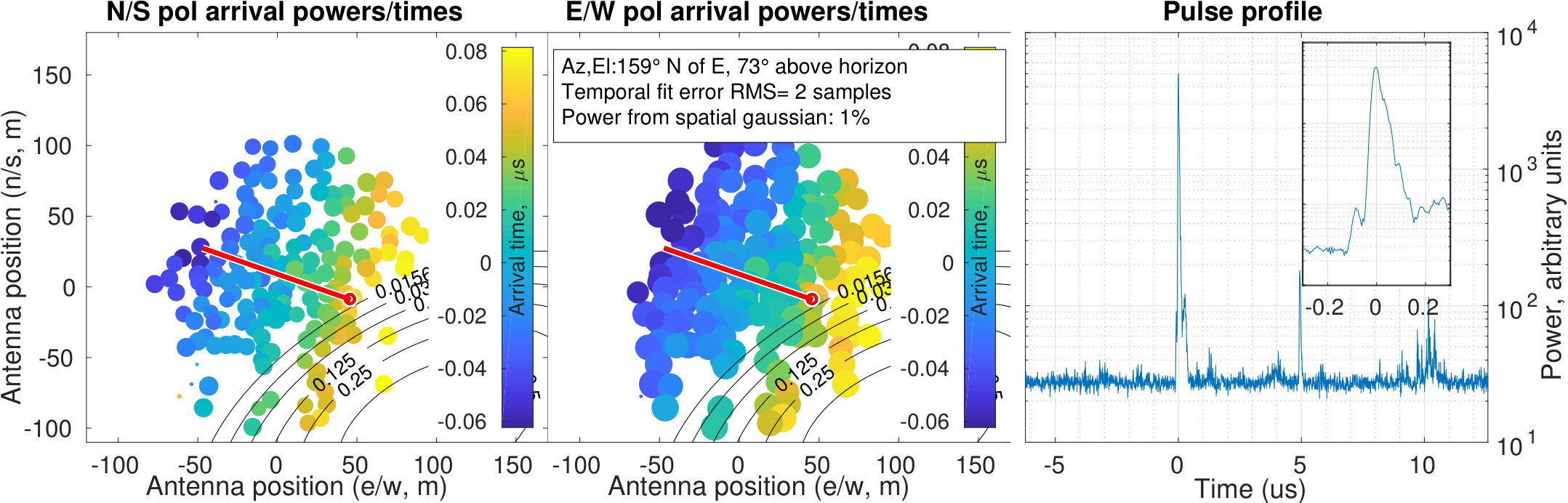

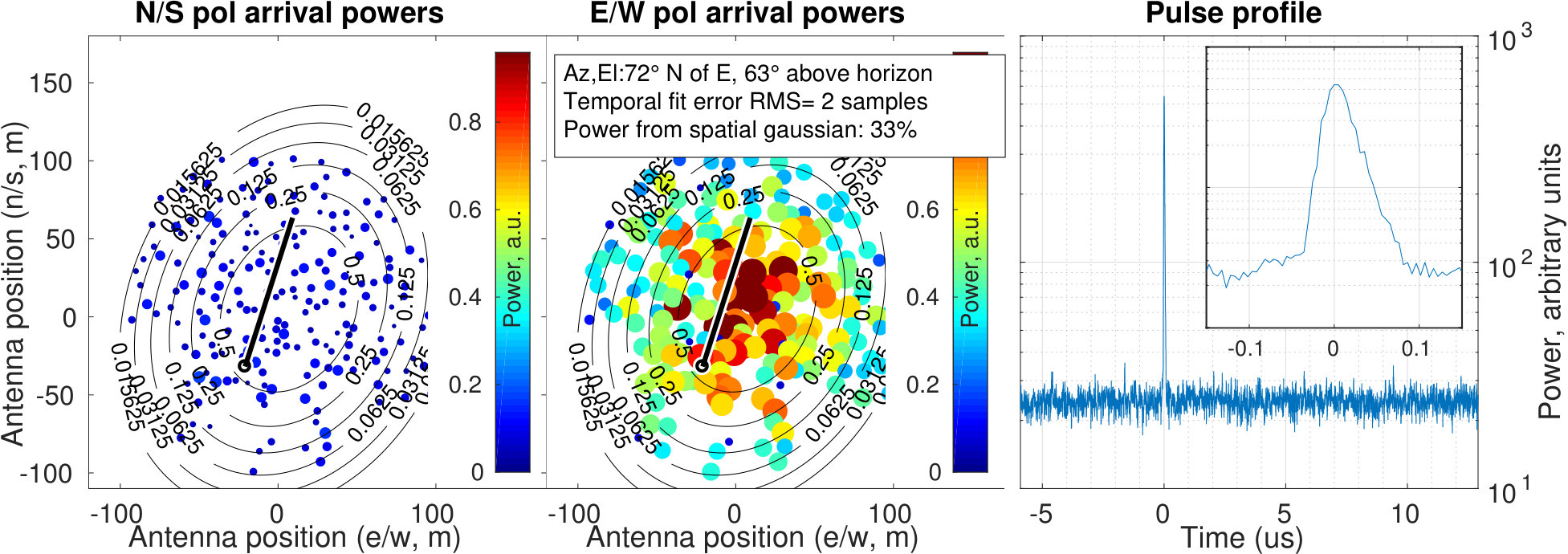

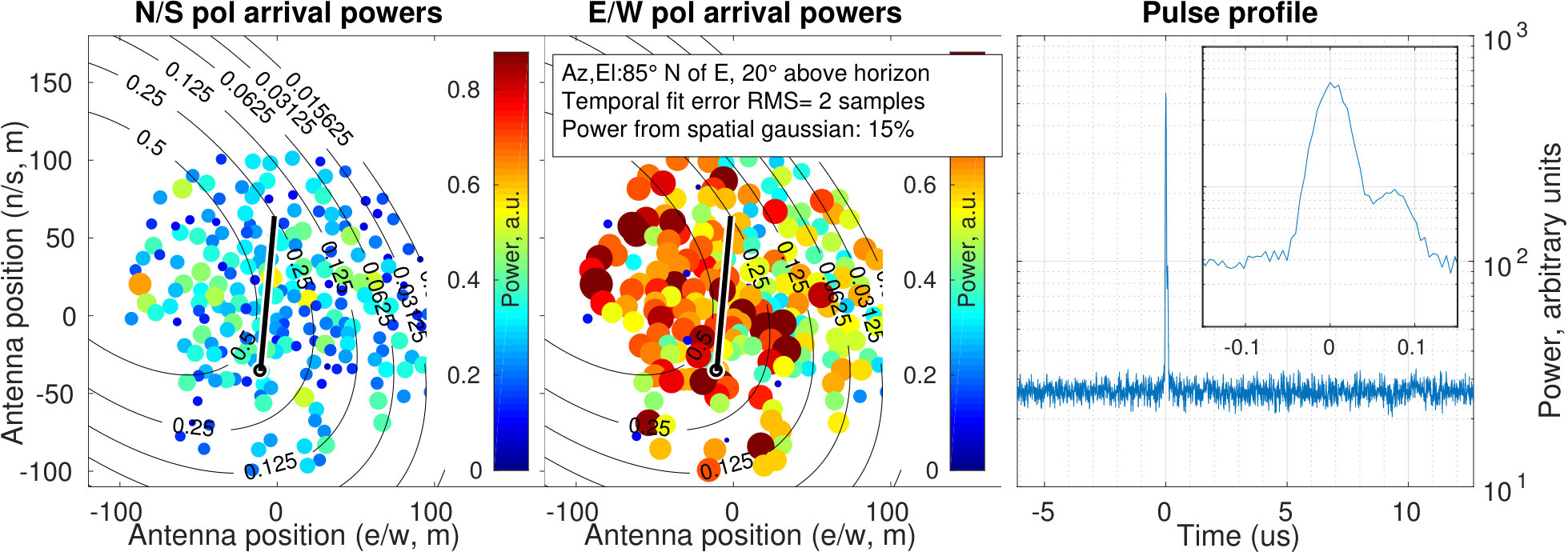

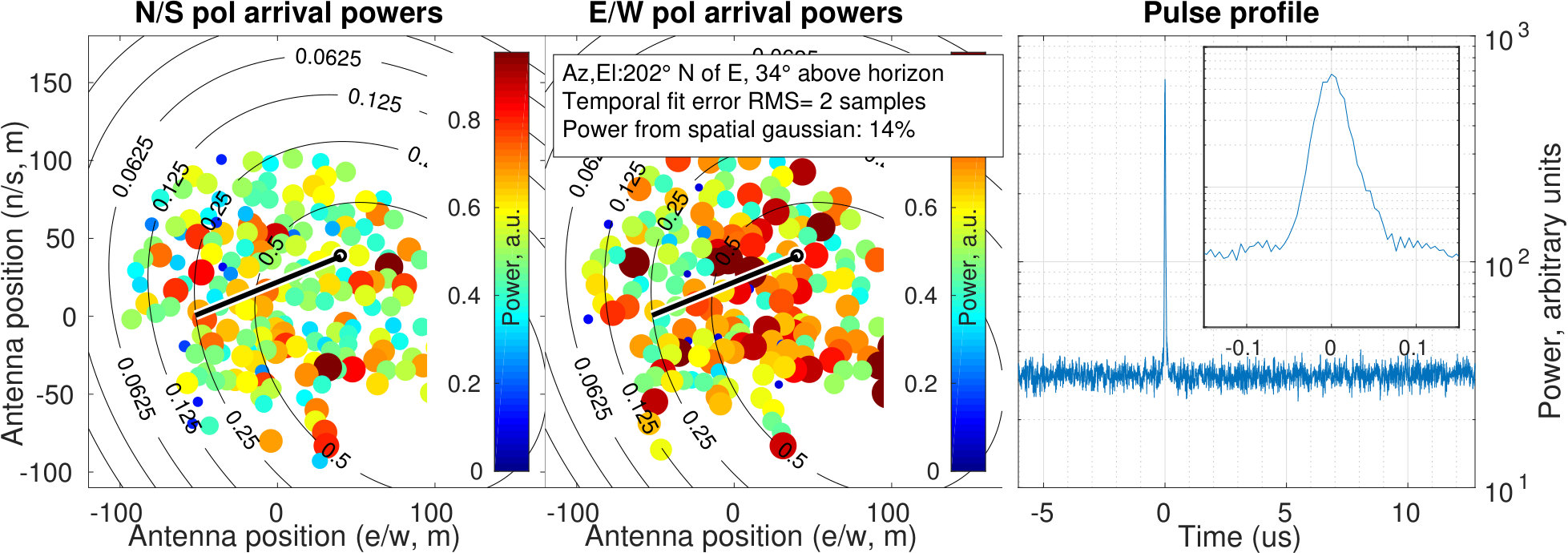

In order to better visualize the spatial power distribution of the events, these plots represent the power received as a function of antenna position in both the color and area of each scatter-point, a departure from previous plots which contain a similar aesthetic. These figures follow the order in Table 3

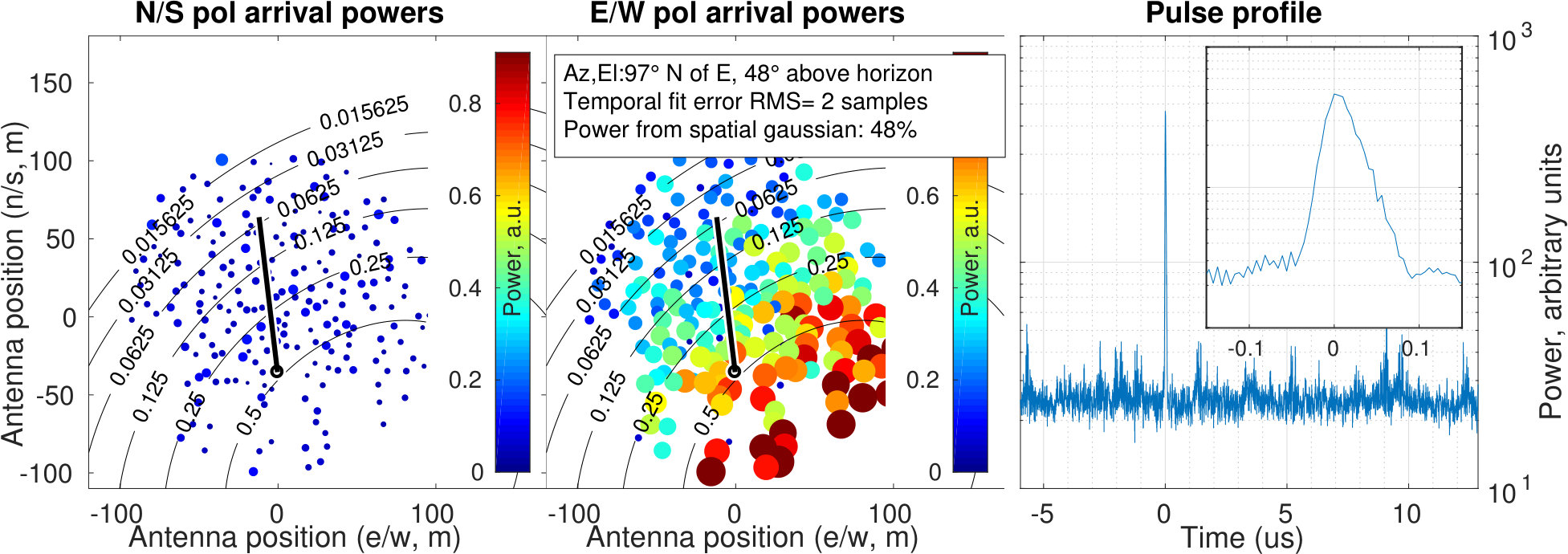

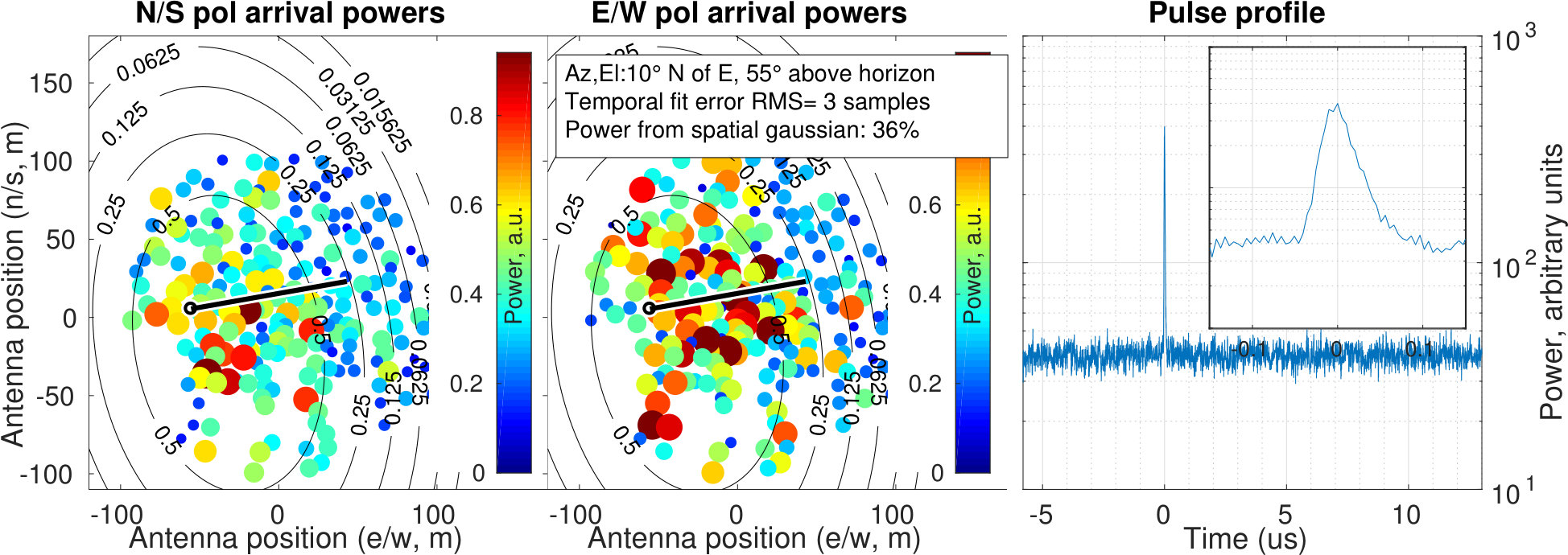

A.1 Events likely to originate from cosmic rays

A.2 Events which are inconclusive

A.3 Events likely to originate from man-made sources

Appendix B Discussion

Since this is one of the first successful RF self-triggers of cosmic rays with a radio telescope, a frank commentary on “lessons learned” merits discussion for future efforts.

**Cross-correlation time-of-arrival method **The initial time-of-arrival algorithm was far more complicated than the one presented in this work, including estimation of the received signal profile with almost no priors and then using the peak cross-correlation between that estimated signal and all inputs as the time of arrival estimate [53]. It was found that almost all RFI events detected by this system had a strong impulsive component (not surprising, considering that was what the FPGA detector was designed to operate on). The technique described in Section 6 is faster and can give useful results at lower SNR, but exhibits larger fitting residuals than the more sophisticated technique. That said, the Hilbert envelope technique described in [4] would have likely have performed very well as well. It is likely that a cross-correlation between input voltages would have worked best of all (provided that a full cross-correlation of all inputs was performed). This was prototyped and worked well, but the best way to extract the relative time-of-arrival for each input was not obvious in the context of not all inputs receiving an impulse, resulting in the use of the techniques described above. If a voltage cross-correlation technique was used however, precise extraction of individual antenna power estimates could be performed by formulating the problem as a noisy Rank-1 matrix completion problem, where each element in the matrix is the peak cross-correlation power between two inputs, and the diagonal (to be solved for) is the power seen by each input. Such a technique would largely remove the additive impact of receiver noise on power estimates, leaving only the astronomical background (this would likely give performance similar to imaging under the assumption that the image consists of only thermal noise and a point source). If cross-correlating voltages, remember to correlate the analytic version of all signals (via a Hilbert transform, for example).

• 2.

**Distribution of error sources **The RMS time-of-arrival residual was about 4 samples with the arg-max time-of-arrival estimator, and about 3 samples with the more cross-correlation technique (available in the included code, but not described here for brevity). In each case, about 0.5 samples of that residual was due to using the arg-max of the signal power (or alternatively, cross-correlation value), which does not consider the value of nearby samples. A better technique would use some form of super-resolution, such as quadratic interpolation of the peak location, to generate sub-sample resolution time-of-arrival estimates. An additional $\sim 1.8$ samples of the RMS residual was due to bias that was systematic to each antenna – likely inaccuracies in either cable delay estimation or antenna position estimation. Accurate estimation of these parameters would also have improved system performance. Responding to this issue, cable-length delays for each input were estimated using triggered RFI events. Great care was assigned to avoiding biasing the delay estimates towards common events. If this work were repeated, the same process would be performed jointly on antenna positions as well. It is important to note that with many FPGA boards and ADCs, the on-FPGA PLLs will lock to a different clock cycle of the ADC data line on each FPGA configuration. For this reason, it is possible that the effective cable lengths will vary across FPGA configurations, requiring a new cable length calibration each time.

• 3.

**You want the original samples **Being able to process the raw ADC voltages directly (as opposed to F-engine products, which lack the needed temporal resolution, or beam-formed products which lack the needed spatial coverage) was crucial for the success of this project. Additionally, being able to program the FPGAs with custom firmware greatly simplified the effort.

• 4.

Power line RFI is 60 **Hz phase dependent. **Although it was not demonstrated in this work, many sources of terrestrial RFI are correlated with the phase of the 50/60 Hz mains voltage: filtering event triggers on this signal may produce good RFI mitigation results for some sources. Because $\lambda$ at 60 Hz is $\sim$50,000 km, phase acquisition could be done at a central location and then transmitted to a distributed processing system, provided adequate time synchronization.

• 5.

**Matched filtering would have done a bit better. **Matched filters are the optimal detector of a known signal in the presence of white Gaussian noise [54]. This would likely have performed better than a moving average. Depending on the bandwidth of the instrument and RFI, it is possible that the impulse response of the system can be used as this matched filter (for OVRO-LWA, this was the case).

• 6.

**Grouping of antennas. **All detected cosmic rays, as well as almost all RFI sources, were considerably polarized. If grouping antennas on FPGAs for detection purposes, it might have been helpful to address polarization directly by taking the time-of-arrival for the highest SNR input on each antenna or alternatively simply summing in power across polarizations for the purpose of detection and localization. Likewise, re-arranging antennas on FPGAs such that each FPGA only contained inputs corresponding to one polarization could be an alternative method to capitalize on this property. Doing this would give the direction-of-arrival algorithm more unique locations with which to fit and presumably greater spatial extent. Since most of the power was typically in one polarization or the other for this work, sorting by polarization would not have terrible consequences on sensitivity for most RFI events, most of the time. None of this was explored, but it is worth thinking about the trade-offs of various antenna grouping schemes for future experiments.

• 7.

Elevation filtering was not as important as expected. Initial filters rejected all events with an elevation angle less than $29^{\circ}$, among many other filters which were tested at one point or another in this work. As an experiment to see if the system as designed would be effective at detecting $\tau$-neutrinos, this filter was relaxed to permit all events above an elevation angle of $2^{\circ}$. This resulted in more false positives (by a factor of $2\sim 3$) being promoted to final cuts, but no additional missed detections (which was a small risk due to the time domain clustering algorithm). Adding more filter metrics (reject events which lack data from over 1/4th of inputs due to instrumental errors; reject events whose pulse profiles do not appear to represent band-limited impulses) brought the RFI rejection performance to that which is shown in the main body of this work. Because the algorithm works well down to $\sim 2^{\circ}$ elevation angle, it is likely suitable for discriminating between RFI and $\tau$-neutrinos.

• 8.

The 3D source fitting algorithm performed much better than plane fitting but was computationally expensive. The 3D algorithm was written in MATLAB and likely very computationally inefficient. Likewise, the faster but less accurate robust plane-fitting algorithm was simply called from MATLAB without any special tuning. It is possible that engineering could bridge the gap between these algorithms. Likewise, implementing the entire routine in a compiled language (as opposed to MATLAB) could render the entire issue irrelevant.

• 9.

These automatic RFI filtering metrics completely ignore the distribution of antenna power as a function of position. We held the opinion that it would be too challenging to algorithmically discriminate RFI from astronomical events without having examples of cosmic rays.

• 10.

There was an unexpected surplus of RFI at $15^{\circ}$ elevation angle. We put a fair amount of effort into solving this, and could not. The AREA team has seen similar behavior [55, 56], also visible (but not addressed) in Figure 2 of [17]. Through inspection of the frequency of narrow-band RFI and comparison with imaging data and spectra, we are confident that the sampling frequency is correct. Several sources known to be produced on the ground near the array are reconstructed to positions near the horizon. Geometrically, there are no geographical features near OVRO-LWA which are perceived as a $15^{\circ}$ elevation angle from the location of the array. Furthermore, hand-calculation of the elevation angle of these strange events results in solutions very similar to those produced in the automated fashion, confirming that result. Reflections against some subterranean surface were considered but rejected based on both signal strength arguments and the detection of these events by AREA. This author disagrees with the conclusions of [56], which attribute the spurious elevation angle events with an ill-conditioned fit due to a lack of antenna coverage. Even after application of an appropriate cut, the number of spurious events is not substantially reduced, and the artifact is seen in this dataset at the OVRO-LWA which has excellent coverage. Figure 32 shows the histogram of observed elevation angles in detail, while the upper-left section of Figure 10 illustrates the behavior in a different perspective. The issue remains a mystery, and resolving or characterizing it will likely be a prerequisite for many proposed neutrino experiments which are predicated on radio triggering.

Appendix C Future experimental design

The lessons learned from this effort (and prior work in the field) inform future experiments. Broadly speaking the method of using single FPGAs for batch-processing baseband sampled antennas as described in Section 3 performed adequately for this experiment. Future systems (especially ones which are more compute or communications-limited) should perform techniques similar to those described in Section 5, as well as (11), (12), and (13) on-FPGA. Afterward, the subsequent steps of source direction fitting with a plane-wave assumption should be performed on-board [57] (FPGA soft processors could also be used for this task), followed by azimuth/elevation/fit-quality RFI blocking, which is sent to other devices as a time-stamped message to other FPGAs, not unlike the trigger packets used for regular detection above (Figure 33). This would filter all except $\sim$1/10,000 events with minimal consequence to cosmic ray detections, suitable for sites with relatively little air traffic. At these “low air traffic” sites, the data pipeline will simply saturate while the airplane is overhead, likely preventing cosmic ray detections. For sites with heavier air traffic or severe bandwidth limitations (such as those communicating event detections over cellular), these “Stage 2” detections can instead be buffered in on-board DRAM. After several minutes have passed, either time-domain clustering or robust curve fitting on {azimuth, elevation, time-stamp} as described in Section B can be used to flag out airborne RFI sources, reducing event rate to $\sim$1/hr if applied at the OVRO-LWA, which is slow enough for most arrays.

In order to simulate the impact of an algorithm which uses on-chip plane-fitting algorithms such as those described above, previously collected data was re-processed. Antennas were re-clustered into groups of 16 which were more optimal for RFI filtering, and source localization was performed using robust plane fitting, with the omission of the better-performing 3D localization routines. A separate plane fit was performed with each of the 16 groups of antennas, with the lowest-residual fit being accepted as the “true” source direction. The algorithm performed reasonably well – worse than a full fit, but would be a much more effective RFI filter than the methods described in Section 5, especially considering that PC post-processing can easily flag the remaining false positives once all data is available. A quick demonstration of the feasibility of this technique is provided in Figure 34, which shows similar behavior and quality when performing a simplified direction of arrival routine on-chip.

A successful RF self-trigger system relies on having (on a processing unit scale) both a sufficient density of antennas (to have coincident detections on cosmic rays) and sufficient extent of antennas (for the direction of arrival estimation). For the system and data analyzed in this work, a $\sim$100 m maximum antenna separation would have been suitable for source localization on these high elevation angle events. For arrays which collect all signals at a central location, this suggests arranging inputs on FPGAs such that they have at least roughly this extent in both dimensions. The narrow E/W extent of the OVRO-LWA antenna-FPGA groupings appears to have made it less suitable for this style of filtering.

For arrays which only collect post-trigger data, those same processors could be placed in the field, handling small groups of antennas. The same processing for centralized arrays could then be performed by sending the {azimuth, elevation, time-stamp} data over cellular to a central server which, after rejecting all airplanes, would trigger a dump from the local DRAM buffers to the central server (Figure 35).

Alternatively, beamforming the array in various directions would make near-optimal use of the collecting area of the array. Doing this right is tricky because you cannot simply beamform the entire array in each direction: the event may strike only a subset of the array antennas. Therefore, an intelligent trade-off will have to be struck between spatial resolution and detection SNR, optimized for the expected CR footprint on the array. After an initial detection is made in some direction, beamforming groups of antennas in the array in the direction implied by wavefront fitting will maximize SNR for CR parameter extraction. Using hierarchical beamforming [58, 59] will make the computation of beams economical with minimal SNR cost.

Plans at OVRO include near-term expansion to 352 antennas, as well as expansion to 2048 dipoles on a timescale of $\sim$5 years. Both arrays will span a 2.6 km diameter area and will include extensive air-shower detection as a continuous commensal of operation. Using the lessons learned from this work, the techniques described in this section, as well as Section B, will be applied directly in the design of that cosmic ray engine.

C.1 Beam-mapping of radio-astronomy arrays using cosmic ray events

Understanding the individual antenna response of low frequency radio-astronomy arrays can be very challenging. For higher frequency telescopes, steering the dish across a bright point source allows for the response to be mapped. However, low frequency antennas are not large compared to the wavelength of radiation that they receive, and so individual antennas/receivers typically see a substantial fraction of the sky at any given time. Additionally, these antennas are fixed and cannot be steered beyond what the motion of the earth facilitates. Techniques to reduce the sky to a single point source include using man-made drones as artificial point sources or taking advantage of the variability of radio pulsars to make a time-domain filter which rejects the rest of the sky. The drone technique suffers from challenges mapping the antenna pattern of the drone, and current techniques only map the amplitude of each antennas beam. On a similar note, pulsar holography [60] suffers from a limited selection of pulsars which have adequate SNR (limiting the region of the beam which can be mapped). Cosmic ray events provide an alternate technique by which the antenna beams can be mapped. Each event listed in this work has an individual antenna SNR of greater than five for a substantial portion of the array, and several events were ten times that bright. First, a cosmic ray event would be detected and its parameters (such as the direction of arrival, energy and $X_{max}$ ) extracted. A model of the complex-valued gain seen by each antenna (to a scalar power constant and a scalar time of arrival, likely as a function of frequency) is extracted. This is compared to the actual complex-valued gain seen by each antenna. This allows the relative gains of antennas to be mapped. The technique described here does not provide an absolute gain in each direction, but does greatly simplify the process of mapping individual dipole beams, provided a sufficient density of cosmic ray events striking the array. Making this work in practice will be challenging–the power received (and therefore resultant SNR) will vary as a function of event and antenna. Cosmic ray parameter estimation errors (including the direction of arrival) will contribute to errors in beam modeling, especially for cosmic rays with low received power. There will be a frequency-resolution/SNR trade-off. One good approach might be to grid events spatially. On an event-by-event basis (again, as a function of frequency, per an FFT), remove delays implied by geometric effects and a hyperbolic or conical beaming model at a sub-sample resolution. Integrate the expected and actual signal received after removing a model of thermal noise. After integrating a sufficient number of events, take the complex-valued ratio between the expected and actual received signal, as a function of antenna, frequency, and direction. That value will be an estimate of the complex-valued relative gains of each antenna in the given direction. On a related note, this same technique could be performed on the $\sim$ 5000 airplane events which were detected in this dataset (with the added challenge that the source signal in those cases is unknown). It is possible that these airplane-driven events are not isotropic, but AERA (the only other group known to investigate this in any capacity–it appears that they were trying to synchronize their antennas with better accuracy) only saw one useful airplane per week[18], whereas OVRO-LWA appears to see dozens per day. This warrants further investigation.
