Trees, Parking Functions and Factorizations of Full Cycles

John Irving; Amarpreet Rattan

arXiv:1907.10123·math.CO·September 19, 2023·Eur. J. Comb.

Trees, Parking Functions and Factorizations of Full Cycles

John Irving, Amarpreet Rattan

PDF

TL;DR

This paper explores refined relationships between parking functions, labeled trees, and cycle factorizations, extending known correspondences and introducing new enumerative and bijective insights.

Contribution

It introduces a bivariate refinement of the inversion enumerator and characterizes cycles where Stanley's bijection applies beyond the canonical cycle.

Findings

01

Refined inversion enumerator matches a similarly refined factorization enumerator.

02

Characterization of cycles preserving Stanley's bijection.

03

Connection established between refined enumerator and Haglund's bounce statistic.

Abstract

Parking functions of length $n$ are well known to be in correspondence with both labelled trees on $n + 1$ vertices and factorizations of the full cycle $σ_{n} = (01 \dots n)$ into $n$ transpositions. In fact, these correspondences can be refined: Kreweras equated the area enumerator of parking functions with the inversion enumerator of labelled trees, while an elegant bijection of Stanley maps the area of parking functions to a natural statistic on factorizations of $σ_{n}$ . We extend these relationships in two principal ways. First, we introduce a bivariate refinement of the inversion enumerator of trees and show that it matches a similarly refined enumerator for factorizations. Secondly, we characterize all full cycles $σ$ such that Stanley's function remains a bijection when the canonical cycle $σ_{n}$ is replaced by $σ$ . We also exhibit a connection between our…

Figures10

Click any figure to enlarge with its caption.

Tables3

Table 1. Table 1. Algorithm 6.4 applied to σ = ( 0 2 3 5 6 4 1 ) ∈ ℭ [ 6 ] 𝜎 0235641 subscript ℭ delimited-[] 6 \sigma=(0\,2\,3\,5\,6\,4\,1)\in\mathfrak{C}_{[6]} and p = ( 2 , 4 , 0 , 1 , 4 , 0 ) ∈ 𝒫 6 𝑝 2 4 0 1 4 0 subscript 𝒫 6 p=(2,4,0,1,4,0)\in\mathcal{P}_{6} , with ω σ , p = ( 5 , 2 , 1 , 4 , 3 , 6 ) subscript 𝜔 𝜎 𝑝 5 2 1 4 3 6 \omega_{\sigma,p}=(5,2,1,4,3,6) . Column s 𝑠 s displays s ℓ + 1 subscript 𝑠 ℓ 1 s_{\ell+1} when a j subscript 𝑎 𝑗 a_{j} is σ 𝜎 \sigma -left and s ℓ − 1 subscript 𝑠 ℓ 1 s_{\ell-1} when a j subscript 𝑎 𝑗 a_{j} is σ 𝜎 \sigma -right. Cycles C 𝐶 C and C ′ superscript 𝐶 ′ C^{\prime} are highlighted in red and blue, respectively.

$i$	$τ_{1}$	$τ_{2}$	$τ_{3}$	$τ_{4}$	$τ_{5}$	$τ_{6}$	$π_{i}$	$j$	$a_{j}$	$s$	$b_{j}$
$1$	$ι$	$ι$	$ι$	$ι$	$ι$	$ι$	$(0) (1) (2) (3) (4) (5) (6)$	$5$	$4$	$6$	$6$
$2$	$ι$	$ι$	$ι$	$ι$	$(4 6)$	$ι$	$(0) (1) (2) (3) (4 6) (5)$	$2$	$4$	$5$	$5$
$3$	$ι$	$(4 5)$	$ι$	$ι$	$(4 6)$	$ι$	$(0) (1) (2) (3) (4 5 6)$	$1$	$2$	$3$	$3$
$4$	$(2 3)$	$(4 5)$	$ι$	$ι$	$(4 6)$	$ι$	$(0) (1) (2 3) (4 5 6)$	$4$	$1$	$4$	$5$
$5$	$(2 3)$	$(4 5)$	$ι$	$(1 5)$	$(4 6)$	$ι$	$(0) (1 5 6 4) (2 3)$	$3$	$0$	$2$	$2$
$6$	$(2 3)$	$(4 5)$	$(0 2)$	$(1 5)$	$(4 6)$	$ι$	$(0 2 3) (1 5 6 4)$	$6$	$0$	$5$	$5$
$7$	$(2 3)$	$(4 5)$	$(0 2)$	$(1 2)$	$(4 6)$	$(0 5)$	$(0 2 3 5 6 4 1)$

Table 2. Table 2. Algorithm 6.4 applied to σ = ( 0 1 2 3 4 5 6 ) ∈ ℭ [ 6 ] 𝜎 0123456 subscript ℭ delimited-[] 6 \sigma=(0\,1\,2\,3\,4\,5\,6)\in\mathfrak{C}_{[6]} and p = ( 2 , 4 , 0 , 1 , 4 , 0 ) ∈ 𝒫 6 𝑝 2 4 0 1 4 0 subscript 𝒫 6 p=(2,4,0,1,4,0)\in\mathcal{P}_{6} , with ω σ , p = ( 5 , 2 , 1 , 4 , 3 , 6 ) subscript 𝜔 𝜎 𝑝 5 2 1 4 3 6 \omega_{\sigma,p}=(5,2,1,4,3,6) . The cycles C 𝐶 C and C ′ superscript 𝐶 ′ C^{\prime} are highlighted in red and blue, respectively.

$i$	$τ_{1}$	$τ_{2}$	$τ_{3}$	$τ_{4}$	$τ_{5}$	$τ_{6}$	$π_{i}$	$j$	$a_{j}$	$m$	$b_{j}$
$1$	$ι$	$ι$	$ι$	$ι$	$ι$	$ι$	$(0) (1) (2) (3) (4) (5) (6)$	$2$	$4$	$4$	$5$
$2$	$ι$	$(4 5)$	$ι$	$ι$	$ι$	$ι$	$(0) (1) (2) (3) (4 5) (6)$	$5$	$4$	$5$	$6$
$3$	$ι$	$(4 5)$	$ι$	$ι$	$(4 6)$	$ι$	$(0) (1) (2) (3) (4 5 6)$	$1$	$2$	$2$	$3$
$4$	$(2 3)$	$(4 5)$	$ι$	$ι$	$(4 6)$	$ι$	$(0) (1) (2 3) (4 5 6)$	$4$	$1$	$1$	$2$
$5$	$(2 3)$	$(4 5)$	$ι$	$(1 2)$	$(4 6)$	$ι$	$(0) (1 2 3) (4 5 6)$	$3$	$0$	$0$	$2$
$6$	$(2 3)$	$(4 5)$	$(0 2)$	$(1 2)$	$(4 6)$	$ι$	$(0 1 2 3) (4 5 6)$	$6$	$0$	$3$	$4$
$7$	$(2 3)$	$(4 5)$	$(0 2)$	$(1 2)$	$(4 6)$	$(0 4)$	$(0 1 2 3 4 5 6)$

Table 3. Table 3. The set C i subscript 𝐶 𝑖 C_{i} and D i subscript 𝐷 𝑖 D_{i} for the parking function in Figure 10 . Here, N = { 1 , … , 9 } 𝑁 1 … 9 N=\{1,\dots,9\} .

$set \ i$	$4$	$6$	$9$	$2$	$1$	$3$	$8$	$5$	$7$	$0$
$C_{i}$	$\emptyset$	$\emptyset$	$4, 6$	$\emptyset$	$\emptyset$	$9$	$2$	$\emptyset$	$1, 3, 8$	$5, 7$
$D_{i}$	$\emptyset$	$\emptyset$	$4, 6$	$\emptyset$	$\emptyset$	$4, 6, 9$	$2$	$\emptyset$	$N / {5, 7}$	$N$

Equations107

I_{n} (q) := T \in T_{n} \sum q^{inv (T)} .

I_{n} (q) := T \in T_{n} \sum q^{inv (T)} .

I_{n + 1} (q) = i = 0 \sum n (i n) (1 + q + q^{2} + \dots + q^{i}) I_{i} (q) I_{n - i} (q) .

I_{n + 1} (q) = i = 0 \sum n (i n) (1 + q + q^{2} + \dots + q^{i}) I_{i} (q) I_{n - i} (q) .

I_{n} (q) = (a_{1}, \dots, a_{n}) \in P_{n} \sum q^{(2 n) - (a_{1} + \dots + a_{n})} .

I_{n} (q) = (a_{1}, \dots, a_{n}) \in P_{n} \sum q^{(2 n) - (a_{1} + \dots + a_{n})} .

F_{1}

F_{1}

F_{2}

(a_{1} b_{1}) \dots (a_{n} b_{n})

(a_{1} b_{1}) \dots (a_{n} b_{n})

(a_{1} b_{1}) \dots (a_{n} b_{n})

area_{L} (f) := (2 n) - (a_{1} + \dots + a_{n})

area_{L} (f) := (2 n) - (a_{1} + \dots + a_{n})

area_{U} (f) := (b_{1} + \dots + b_{n}) - (2 n)

F_{n} (q, t) := f \in F_{n} \sum q^{area_{L} (f)} t^{area_{U} (f)} .

F_{n} (q, t) := f \in F_{n} \sum q^{area_{L} (f)} t^{area_{U} (f)} .

I_{n} (q, t) := T \in T_{n} \sum q^{inv (T)} t^{coinv (T)} .

I_{n} (q, t) := T \in T_{n} \sum q^{inv (T)} t^{coinv (T)} .

I_{0} (q, t) I_{1} (q, t) I_{2} (q, t) I_{3} (q, t) = 1 = t = t^{2} + t^{3} + t^{2} q = t^{6} + 2 t^{5} q + 2 t^{4} q^{2} + t^{3} q^{3} + t^{5} + t^{4} q + t^{3} q^{2} + 3 t^{4} + 3 t^{3} q + t^{3} .

I_{0} (q, t) I_{1} (q, t) I_{2} (q, t) I_{3} (q, t) = 1 = t = t^{2} + t^{3} + t^{2} q = t^{6} + 2 t^{5} q + 2 t^{4} q^{2} + t^{3} q^{3} + t^{5} + t^{4} q + t^{3} q^{2} + 3 t^{4} + 3 t^{3} q + t^{3} .

(12) (35) (13) (78) (06) (79) (07) (16) (45) \in F_{9} .

(12) (35) (13) (78) (06) (79) (07) (16) (45) \in F_{9} .

(0132)

(0132)

= (12) (01) (23) .

D_{n} (q) := T \in T_{n} \sum q^{inv (T) + coinv (T)} = f \in F_{n} \sum q^{area_{L} (f) + area_{U} (f)} .

D_{n} (q) := T \in T_{n} \sum q^{inv (T) + coinv (T)} = f \in F_{n} \sum q^{area_{L} (f) + area_{U} (f)} .

D_{2} (q)

D_{2} (q)

D_{3} (q)

D_{4} (q)

bounce (p) := j \sum (n - i_{j}) .

bounce (p) := j \sum (n - i_{j}) .

D_{n} (q) = T \in T_{n} \sum q^{depth (T)} = f \in F_{n} \sum q^{diff (f)} = p \in P_{n} \sum q^{bounce (p)} .

D_{n} (q) = T \in T_{n} \sum q^{depth (T)} = f \in F_{n} \sum q^{diff (f)} = p \in P_{n} \sum q^{bounce (p)} .

I_{n} (q, t) = p \in P_{n} \sum q^{area (p)} t^{stat (p)},

I_{n} (q, t) = p \in P_{n} \sum q^{area (p)} t^{stat (p)},

jump (p) = (0 + 1 + \dots + n - 1) - (a_{1} + \dots + a_{n}) = area (p) .

jump (p) = (0 + 1 + \dots + n - 1) - (a_{1} + \dots + a_{n}) = area (p) .

I_{n} (q, t) = p \in P_{n} \sum q^{jump (p)} t^{cojump (p)} .

I_{n} (q, t) = p \in P_{n} \sum q^{jump (p)} t^{cojump (p)} .

F (x; q, t) = n \geq 0 \sum F_{n} (q, t) \frac{x ^{n}}{n !} and I (x; q, t) = n \geq 0 \sum I_{n} (q, t) \frac{x ^{n}}{n !} .

F (x; q, t) = n \geq 0 \sum F_{n} (q, t) \frac{x ^{n}}{n !} and I (x; q, t) = n \geq 0 \sum I_{n} (q, t) \frac{x ^{n}}{n !} .

I (x; q, t) = exp (t n = 1 \sum \infty (t^{n - 1} + t^{n - 2} q + t^{n - 3} q^{2} + \dots + q^{n - 1}) I_{n - 1} (q, t) \frac{x ^{n}}{n !}),

I (x; q, t) = exp (t n = 1 \sum \infty (t^{n - 1} + t^{n - 2} q + t^{n - 3} q^{2} + \dots + q^{n - 1}) I_{n - 1} (q, t) \frac{x ^{n}}{n !}),

I_{n + 1} (q, t) = i = 0 \sum n (i n) t (t^{i} + t^{i - 1} q + t^{i - 2} q^{2} + \dots + q^{i}) I_{i} (q, t) I_{n - i} (q, t) .

I_{n + 1} (q, t) = i = 0 \sum n (i n) t (t^{i} + t^{i - 1} q + t^{i - 2} q^{2} + \dots + q^{i}) I_{i} (q, t) I_{n - i} (q, t) .

F (x; q, t) = exp (t n = 1 \sum \infty (t^{n - 1} + t^{n - 2} q + t^{n - 3} q^{2} + \dots + q^{n - 1}) F_{n - 1} (q, t) \frac{x ^{n}}{n !}) .

F (x; q, t) = exp (t n = 1 \sum \infty (t^{n - 1} + t^{n - 2} q + t^{n - 3} q^{2} + \dots + q^{n - 1}) F_{n - 1} (q, t) \frac{x ^{n}}{n !}) .

\hat{F}_{n} (q, t) := f \in \hat{F}_{n} \sum t^{area_{U} (f)} q^{area_{L} (f)} .

\hat{F}_{n} (q, t) := f \in \hat{F}_{n} \sum t^{area_{U} (f)} q^{area_{L} (f)} .

j = 1 \sum k area_{L} (f_{j})

j = 1 \sum k area_{L} (f_{j})

= j = 1 \sum k i = 1 \sum ∣ I_{j} ∣ (δ_{j} + i - 1) - j = 1 \sum k i = 1 \sum ∣ I_{j} ∣ (L (f_{j})_{i} + δ_{j})

= i = 1 \sum n (i - 1) - i = 1 \sum n L (f)_{i}

= area_{L} (f) .

ϕ_{k} (τ_{1}, \dots, τ_{n}) = (\overset{τ}{ˉ}_{k + 1}, \dots, \overset{τ}{ˉ}_{n}, τ_{1}, \dots, τ_{k - 1}),

ϕ_{k} (τ_{1}, \dots, τ_{n}) = (\overset{τ}{ˉ}_{k + 1}, \dots, \overset{τ}{ˉ}_{n}, τ_{1}, \dots, τ_{k - 1}),

area_{L} (f)

Peer Reviews

No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.

Videos

No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.

Full text

00footnotetext: Preliminary versions of the main results herein were announced in the extended abstract [IR16].

Trees, parking functions and factorizations of full cycles

John Irving

Saint Mary’s University, Halifax, N.S., Canada

[email protected]

and

Amarpreet Rattan

Department of Mathematics, Simon Fraser University, Burnaby, BC, Canada

[email protected]

Abstract.

Parking functions of length $n$ are well known to be in correspondence with both labelled trees on $n+1$ vertices and factorizations of the full cycle $\sigma_{n}=(0\,1\,\cdots\,n)$ into $n$ transpositions. In fact, these correspondences can be refined: Kreweras equated the area enumerator of parking functions with the inversion enumerator of labelled trees, while an elegant bijection of Stanley maps the area of parking functions to a natural statistic on factorizations of $\sigma_{n}$ . We extend these relationships in two principal ways. First, we introduce a bivariate refinement of the inversion enumerator of trees and show that it matches a similarly refined enumerator for factorizations. Secondly, we characterize all full cycles $\sigma$ such that Stanley’s function remains a bijection when the canonical cycle $\sigma_{n}$ is replaced by $\sigma$ . We also exhibit a connection between our refined inversion enumerator and Haglund’s bounce statistic on parking functions.

1. Introduction

This article concerns the interplay between trees on vertices $\{0,1,\ldots,n\}$ , parking functions of length $n$ , and factorizations of the full cycle $(0\,1\,\cdots\,n)$ into $n$ transpositions. To put our work in proper context we begin with a brief review of some well-known relationships among these ubiquitous objects. Novel content commences in Section 2, where we present an overview of our results.

1.1. Notation

For nonnegative integers $m,n\in\mathbb{N}$ we let $[n]:=\{0,1,\ldots,n\}$ and $[m,n]:=\{i\in\mathbb{N}\,:\,m\leq i\leq n\}$ . We write $\mathfrak{S}_{[n]}$ for the symmetric group on $[n]$ , and typically express its elements in cycle notation with fixed points suppressed, using $\iota$ to denote the identity. We caution the reader that we multiply permutations from left to right, that is $\pi_{1}\pi_{2}\,:\,i\mapsto\pi_{2}(\pi_{1}(i))$ . Finally, the support of a cycle $C=(c_{1}\,\cdots\,c_{k})$ is denoted $\mathrm{supp}(C):=\{c_{1},\ldots,c_{k}\}$ .

1.2. Labelled Trees

Let $\mathcal{T}_{n}$ be the set of all $(n+1)^{n-1}$ trees on vertex set $[n]$ . We regard each $T\in\mathcal{T}_{n}$ as being rooted at 0, and say for distinct vertices $i$ and $j$ that $j$ is a descendant of $i$ in $T$ if $i$ lies on the unique path from $j$ to the root. If $j$ is a descendant of $i$ , with $i>j$ , then the pair $(i,j)$ is called an inversion in $T$ .

Let $\mathrm{inv}(T)$ denote the number of inversions in $T$ . The inversion enumerator of $\mathcal{T}_{n}$ is defined by

[TABLE]

These well-studied polynomials were first introduced in [MR68], where it was shown that they satisfy the recursion

[TABLE]

Kreweras [Kre80] used this relation to establish several interesting combinatorial properties of the sequence $\{I_{n}(q)\}$ , including a link with parking functions to be described shortly. See also [Bei82, GW79] for connections to the Tutte polynomial of the complete graph.

1.3. Parking Functions

A parking function is a sequence $(a_{1},\ldots,a_{n})\in\mathbb{N}^{n}$ whose non-decreasing rearrangement $(a_{1}^{\prime},\ldots,a_{n}^{\prime})$ satisfies $a_{i}^{\prime}\leq i-1$ for all $i$ . Let $\mathcal{P}_{n}$ be the set of parking functions of length $n$ and let $\mathcal{M}_{n}$ be the set of their complements $(n-a_{1},\ldots,n-a_{n})$ , which are known as major sequences. Equivalently, $(b_{1},\ldots,b_{n})\in\mathbb{N}^{n}$ is a major sequence if its non-decreasing arrangement $(b_{1}^{\prime},\ldots,b_{n}^{\prime})$ satisfies $i\leq b_{i}^{\prime}\leq n$ for all $i$ .

Parking functions were first studied explicitly by Konheim and Weiss [KW66], who proved analytically that $|\mathcal{P}_{n}|=(n+1)^{n-1}$ . The equality $|\mathcal{P}_{n}|=|\mathcal{T}_{n}|$ anticipates correspondences between parking functions and trees, and indeed such bijections were found by various authors. The connection with trees was later refined by Kreweras as follows:

Theorem 1.1 ([Kre80]).

For $n\geq 0$ , we have

[TABLE]

Kreweras proved Theorem 1.1 by showing the polynomials on both sides of the identity satisfy recursion (1). Several bijective proofs have since been found, e.g. [Shi08]. We direct the reader to Yan’s comprehensive survey [Yan15] for further details and references.

The quantity $\binom{n}{2}-\sum_{i}a_{i}$ appearing in Theorem 1.1 is called the area of the parking function $p=(a_{1},\ldots,a_{n})$ . This terminology stems from an alternative view of parking functions as labelled Dyck paths; that is, lattice paths from $(0,0)$ to $(n,n)$ that remain weakly below $y=x$ . From the non-decreasing sequence $a_{1}^{\prime}\leq\cdots\leq a_{n}^{\prime}$ corresponding to $p$ , one draws a path $P$ whose $j$ -th horizontal step is at height $a_{j}^{\prime}$ . All horizontal steps at height $j$ are then labelled with $\{i:a_{i}=j\}$ , in decreasing order left-to-right. Evidently $\binom{n}{2}-\sum a_{i}$ is the number of whole squares between $P$ and the diagonal $y=x$ . See Figure 1 (black).

Similarly, major sequences $q=(b_{1},\ldots,b_{n})$ correspond with labelled paths remaining weakly above $y=x$ . The area of $q$ is defined to be the number of squares under its path that lie on or above the diagonal, i.e. $\mathrm{area}(q):=\sum_{i}b_{i}-\binom{n}{2}$ . See Figure 1 (red).

1.4. Minimal Factorizations of Full Cycles

Let $\mathfrak{C}_{[n]}$ denote the set of all full cycles in $\mathfrak{S}_{[n]}$ . It is easy to see that any $\sigma\in\mathfrak{C}_{[n]}$ can be expressed as a product of $n$ transpositions and no fewer. Accordingly, a sequence $(\tau_{1},\ldots,\tau_{n})$ of transpositions satisfying $\tau_{1}\tau_{2}\cdots\tau_{n}=\sigma$ is called a minimal factorization of $\sigma$ . Let $\mathcal{F}_{\sigma}$ be the set of all such factorizations.

We shall be particularly interested in factorizations of the canonical full cycle $\sigma_{n}:=(0\,1\,\cdots\,n)$ . For simplicity we write $\mathcal{F}_{n}$ in place of $\mathcal{F}_{\sigma_{n}}$ . It is also convenient to express factorizations as products rather than tuples; for instance,

[TABLE]

We remind the reader that permutations are multiplied from left to right.

Minimal factorizations of $\sigma_{n}$ have long been known to be closely related to labelled trees. The famous identity $|\mathcal{F}_{n}|=(n+1)^{n-1}$ dates back at least to Hurwitz but is often credited to Dénes [D5́9], who offered an elegant proof via indirect counting. Direct bijections between $\mathcal{F}_{n}$ and $\mathcal{T}_{n}$ came later. The simplest of these, due to Moszkowski [Mos89], has been rediscovered in different guises by a number of authors.

There is a strikingly simple connection between factorizations and parking functions. Consider the mappings ${L}:{\mathcal{F}_{n}}\rightarrow{\mathbb{N}^{n}}$ and ${U}:{\mathcal{F}_{n}}\rightarrow{\mathbb{N}^{n}}$ that send factorizations $f\in\mathcal{F}_{n}$ to their lower and upper sequences, respectively; that is,

[TABLE]

Here, and throughout, we assume that indeterminate transpositions $(a\,b)$ are written such that $a<b$ . Then we have:

Theorem 1.2 ([Sta97, Bia02]).

The functions $L$ and $U$ map $\mathcal{F}_{n}$ bijectively into $\mathcal{P}_{n}$ and $\mathcal{M}_{n}$ , respectively.

The bijectivity of ${L}:{\mathcal{F}_{n}}\rightarrow{\mathcal{P}_{n}}$ is proved explicitly by Biane [Bia02], though the author notes his result is equivalent to an earlier correspondence of Stanley between parking functions and maximal chains in the lattice of noncrossing partitions [Sta97, Theorem 3.1]. The bijectivity of ${U}:{\mathcal{F}_{n}}\rightarrow{\mathcal{M}_{n}}$ follows easily from that of $L$ via the involution on $\mathcal{F}_{n}$ that first interchanges symbols $i$ and $n-i$ and then reverses the order of the factors.

2. Summary of Results

The connections between $\mathcal{T}_{n},\mathcal{F}_{n}$ and $\mathcal{P}_{n}$ described in Section 1 can be extended in a few different directions. We will now summarize our contributions along these lines. Proofs and various other details of the results stated here will be deferred to later sections, as indicated.

2.1. Factorizations and Trees

In light of Theorem 1.2, it is sensible to define the lower and upper areas of a factorization $f=(a_{1}\,b_{1})\cdots(a_{n}\,b_{n})\in\mathcal{F}_{n}$ to be the areas of $L(f)\in\mathcal{P}_{n}$ and $U(f)\in\mathcal{M}_{n}$ , respectively. We write

[TABLE]

for these quantities and further define

[TABLE]

Observe that Theorems 1.1 and 1.2 immediately yield $F_{n}(q,1)=I_{n}(q)$ . We seek to refine this identity by equating $F_{n}(q,t)$ with a natural bivariate extension of the inversion enumerator.

Let us define a coinversion in a tree $T\in\mathcal{T}_{n}$ to be a pair of vertices $(i,j)$ such that $j$ is a descendant of $i$ and $i<j$ . Thus every pair of distinct vertices $(i,j)$ in $T$ with $j$ a descendant of $i$ is either an inversion $(i>j)$ , or a coinversion $(i<j)$ . Let $\mathrm{coinv}(T)$ denote the number of coinversions in $T$ and set

[TABLE]

The first few values of $I_{n}(q,t)$ are

[TABLE]

Note that the asymmetry of $I_{n}(q,t)$ is a consequence of the root 0 contributing $n$ coinversions for every tree $T\in\mathcal{T}_{n}$ . The polynomial $t^{-n}I_{n}(q,t)$ counts only non-root coinversions and is seen to be symmetric by swapping labels $i$ and $n-i+1$ , for $i\neq 0$ .111This asymmetry could naturally be remedied by instead defining $I_{n}(q,t)$ over rooted forests on vertices $1,2,\ldots,n$ . However, the present definition is convenient for our purposes.

Our first result is the following $(q,t)$ -refinement of $|\mathcal{T}_{n}|=|\mathcal{F}_{n}|$ . The case $n=3$ is illustrated in Figure 2.

Theorem 2.1.

For $n\geq 0$ we have $I_{n}(q,t)=F_{n}(q,t)$ . That is, the bi-statistics $(\mathrm{inv},\mathrm{coinv})$ on $\mathcal{T}_{n}$ and $(\mathrm{area}_{L},\mathrm{area}_{U})$ on $\mathcal{F}_{n}$ share the same joint distribution.

Our proof of Theorem 2.1 involves verifying that $F_{n}(q,t)$ and $I_{n}(q,t)$ both satisfy a straightforward refinement of a functional equation equivalent to recursion (1). Certain details of the proof are simplified by employing a graphical model for factorizations. The model will be developed in Section 3, followed by the proof of the theorem in Section 4. In Section 5 we investigate the distribution of $(\mathrm{area}_{L},\mathrm{area}_{U})$ over several interesting subsets of $\mathcal{F}_{n}$ .

2.2. Factorizations and Parking Functions

For an arbitrary full cycle $\sigma\in\mathfrak{C}_{[n]}$ , one can define the lower and upper functions ${L_{\sigma}}:{\mathcal{F}_{\sigma}}\rightarrow{\mathbb{N}^{n}}$ and ${U_{\sigma}}:{\mathcal{F}_{\sigma}}\rightarrow{\mathbb{N}^{n}}$ exactly as in (2). It is not difficult to show that $L_{\sigma}$ and $U_{\sigma}$ always map $\mathcal{F}_{\sigma}$ into $\mathcal{P}_{n}$ and $\mathcal{M}_{n}$ , respectively. It is then natural to ask for which $\sigma$ these mappings are bijective. Our next result generalizes Theorem 1.2 by characterizing all such $\sigma$ .

Let us say the full cycle $(0\,s_{1}\,\cdots\,s_{n})$ is unimodal if there is some $N$ such that $s_{N}=n$ and $0<s_{1}<s_{2}<\cdots<s_{N}>s_{N+1}>\cdots>s_{n}$ . For example, $(0\,2\,3\,5\,4\,1)\in\mathfrak{C}_{[5]}$ is unimodal whereas $(0\,1\,4\,3\,5\,2)$ is not. Note that there are $2^{n-1}$ unimodal full cycles in $\mathfrak{S}_{[n]}$ , since each is determined by a subset $\{s_{1},\ldots,s_{N-1}\}$ of $[1,n-1]$ . Then:

Theorem 2.2.

For any $\sigma\in\mathfrak{C}_{[n]}$ we have $L(\mathcal{F}_{\sigma})\subseteq\mathcal{P}_{n}$ and $U(\mathcal{F}_{\sigma})\subseteq\mathcal{M}_{n}$ . Moreover, the following are equivalent:

(1)

$\sigma$ * is unimodal.* 2. (2)

${L_{\sigma}}:{\mathcal{F}_{\sigma}}\rightarrow{\mathcal{P}_{n}}$ * is a bijection.* 3. (3)

${U_{\sigma}}:{\mathcal{F}_{\sigma}}\rightarrow{\mathcal{M}_{n}}$ * is a bijection.*

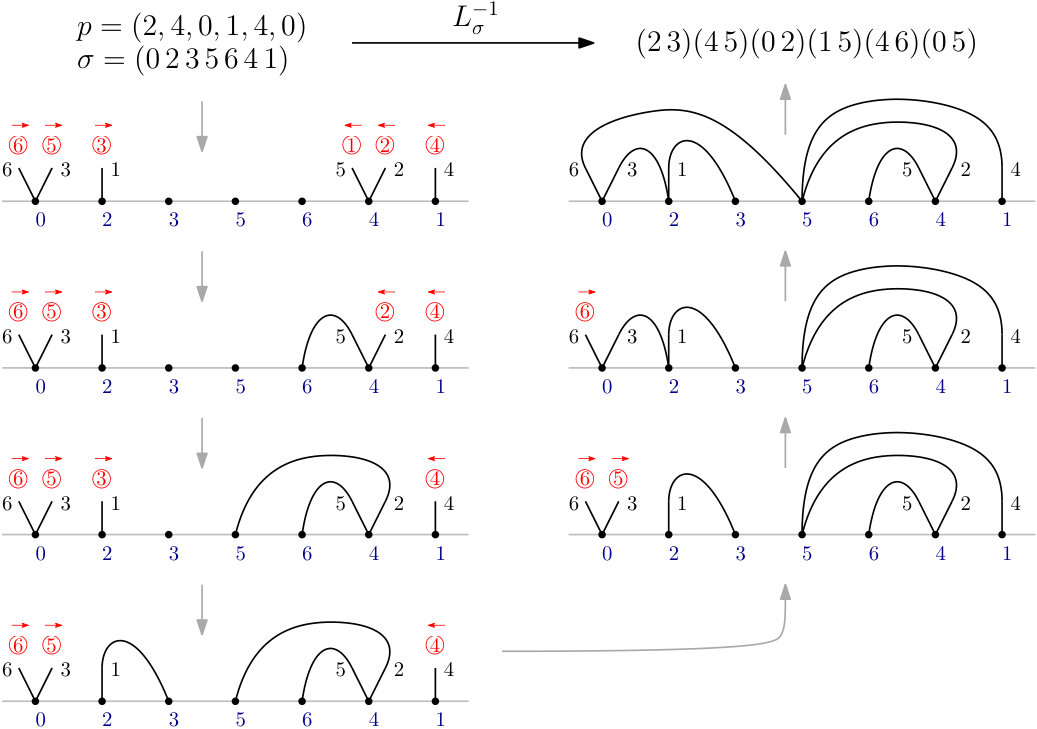

Theorem 2.2 is proved in Section 6. Notably, our proof entails an explicit construction of ${L_{\sigma}^{-1}}:{\mathcal{P}_{n}}\rightarrow{\mathcal{F}_{\sigma}}$ in terms of a simple graphical algorithm. Even in the case $\sigma=\sigma_{n}$ this algorithm for constructing a factorization from a parking function appears to fill a gap in the literature.

If $\sigma\in\mathfrak{C}_{[n]}$ is unimodal, then Theorem 2.2 associates every factorization $f\in\mathcal{F}_{\sigma}$ with a unique pair $(P_{L},P_{U})$ of labelled Dyck paths, where $P_{L}$ corresponds to $L_{\sigma}(f)\in\mathcal{P}_{n}$ and $P_{U}$ to $U_{\sigma}(f)\in\mathcal{M}_{n}$ . Figure 1 in fact shows the paths corresponding to the factorization

[TABLE]

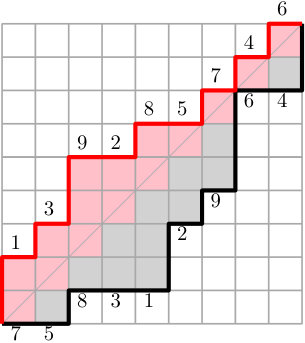

We refer to $P_{L}(f)$ and $P_{U}(f)$ as the lower and upper paths of $f$ . While each of these paths is determined by the other, it is by no means obvious from a diagram like Figure 1 how one might go about reconstructing $P_{U}(f)$ from $P_{L}(f)$ . In the case $\sigma=\sigma_{n}$ our algorithmic definition of ${L^{-1}}:{\mathcal{P}_{n}}\rightarrow{\mathcal{F}_{n}}$ affords a particularly simple description of this reconstruction. See Section 6 for details.

A final note in this section is to ask, in light of Theorem 2.2, whether a result analogous to Theorem 2.1 applies to unimodal cycles in general; that is, if the analogous polynomial in (3) for an arbitrary unimodal cycle equals $I_{n}(q,t)$ .

The highest and lowest degree terms in $I_{3}(q,t)$ are of degree 6 and 3, respectively, as seen in the explicit expressions in (4). But a quick check will show that the unimodal cycle $\sigma=(0\,1\,3\,2)$ has the two factorizations

[TABLE]

The first factorization has lower and upper areas equal to 2 and 5, respectively, summing to 7, while the second factorization has lower and upper areas equal to 0 and 3, respectively. Therefore, the polynomial $\mathcal{F}_{\sigma}(q,t)=\sum_{f\in\mathcal{F}_{\sigma}}q^{\mathrm{area}_{L}(f)}t^{\mathrm{area}_{U}(f)}$ has terms $q^{2}t^{5}$ (which has degree 7) and $t^{3}$ . It follows that $\mathcal{F}_{\sigma}(q,t)$ is neither equal to nor multiple of $I_{3}(q,t)$ . An open question is to characterize which unimodal cycles have lower and upper polynomials equal to $I_{n}(q,t)$ .

2.3. Depth, Difference, and Bounce

Specializing Theorem 2.1 at $q=t$ gives $I_{n}(q,q)=F_{n}(q,q)$ . Let $D_{n}(q)$ be the common value of these series; that is,

[TABLE]

Observe that $\mathrm{inv}(T)+\mathrm{coinv}(T)$ is the number of pairs $(i,j)$ of distinct vertices in $T\in\mathcal{T}_{n}$ such that $j$ is a descendant of $i$ . This is easily seen to be the sum of the distances from the root to all other vertices, a quantity we call the total depth222Also known in the literature as the path length of $T$ . of $T$ and denote by $\mathrm{depth}(T)$ . Interpreting $D_{n}(q)$ in this way, it is routine to show that $D(x)=\sum_{n}D_{n}(q)\frac{x^{n}}{n!}$ satisfies $D(x)=\exp(qxD(qx))$ . The initial values of $D_{n}(q)$ are found to be $D_{0}(q)=1,D_{1}(q)=q$ and

[TABLE]

Returning to (6), note that for $f=(a_{1}\,b_{1})\cdots(a_{n}\,b_{n})\in\mathcal{F}_{n}$ we have $\mathrm{area}_{L}(f)+\mathrm{area}_{U}(f)=\sum_{i}(b_{i}-a_{i})$ . We call this quantity the total difference of $f$ , written $\mathrm{diff}(f)$ . From the graphical point of view, $\mathrm{diff}(f)$ has the natural interpretation as the total area bounded between the upper and lower paths of $f$ . The reader is again referred to Figure 1 with reference to factorization (5).

Besides counting trees by total depth and factorizations by total difference, it transpires that $D_{n}(q)$ also enumerates parking functions with respect to Haglund’s “bounce” statistic [Hag08], whose definition we now recall.

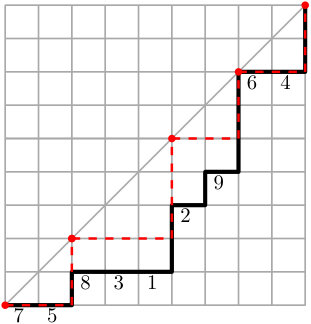

Let $P$ be the path corresponding to $p=(a_{1},\dots,a_{n})\in\mathcal{P}_{n}$ . Imagine a ball starting at the origin and moving east until it encounters a vertical step of $P$ , at which time it “bounces” north and continues until it encounters the line $y=x$ , where it bounces east until it hits $P$ , etc. The ball continues to bounce between $P$ and the diagonal until it arrives at $(n,n)$ , as shown in Figure 3. Let $0=i_{1}<\cdots<i_{k}=n$ be the $x$ -coordinates at which the ball meets $y=x$ . Then the bounce of $p$ is defined by

[TABLE]

Note that the labels on $P$ are immaterial in the definition of $\mathrm{bounce}(p)$ . Indeed, bounce is truly a statistic on Dyck paths, not parking functions. Nonetheless, the distribution of $\mathrm{bounce}(p)$ over $\mathcal{P}_{n}$ is of interest:

Theorem 2.3.

For any $k\in\mathbb{N}$ , the following objects are equinumerous: (1) trees $T\in\mathcal{T}_{n}$ of total depth $k$ , (2) minimal factorizations $f\in\mathcal{F}_{n}$ with total difference $k$ , and (3) parking functions $p\in\mathcal{P}_{n}$ whose bounce is $k$ . That is, we have

[TABLE]

Theorem 2.3 will be proved in Section 7 as a corollary of a more refined connection between bounce and total depth of trees. The relation between bounce and total difference comes indirectly via Theorem 2.1. In particular, we caution the reader that it is not generally the case that $\mathrm{bounce}(L(f))=\mathrm{diff}(f)$ .

2.4. Further Comments

Given Theorem 2.1, one might expect Kreweras’ formula (Theorem 1.1) to admit a refinement of the form

[TABLE]

where $\mathrm{stat}(\cdot)$ is some natural statistic on $\mathcal{P}_{n}$ . Indeed, such a statistic can be defined in terms of the “parking processes” for which parking functions are named.

Consider a doubly infinite parking lot consisting of stalls labelled $\ldots,-2,-1,0,1,2,3,\ldots$ from west to east. A total of $n$ cars wish to park in the lot, one after the other. The $i$ -th car enters the lot at stall $a_{i}$ and either parks there, if empty, or continues to the first unoccupied spot to the east. It is well known that the sequence $(a_{1},\ldots,a_{n})\in\mathbb{N}^{n}$ is a parking function if and only if the cars occupy stalls [math] through $n-1$ after all are parked [Sta97].

Suppose $p=(a_{1},\ldots,a_{n})\in\mathcal{P}_{n}$ and let $c_{i}$ be the stall in which car $i$ parks according to this procedure. Then $(c_{1},\ldots,c_{n})$ is a permutation of $[n-1]$ , and $c_{i}-a_{i}$ is the number of stalls the $i$ -th car must “jump“ before finding a place to park. Following Shin [Shi08], define $\mathrm{jump}(p):=\sum_{i}(c_{i}-a_{i})$ and observe that

[TABLE]

Shin proves Theorem 1.1 by giving a bijection ${\phi}:{\mathcal{T}_{n}}\rightarrow{\mathcal{P}_{n}}$ such that $\mathrm{inv}(T)=\mathrm{jump}(\phi(T))$ .

Now consider the state of the lot after the first $i$ cars have parked. Let $d_{i}$ be the closest empty stall west of car $i$ at this point. Thus $a_{i}-d_{i}$ is the number of stalls a car would jump if it were to enter at $a_{i}$ and take the first available spot to the west. If we define $\mathrm{cojump}(p):=\sum_{i}(a_{i}-d_{i})$ , then it is straightforward to deduce from Shin’s argument that $\mathrm{coinv}(T)=\mathrm{cojump}(\phi(T))$ . There follows

[TABLE]

At first glance, our proof of Theorem 2.1 and the proof of (8) described above appear to be quite different. However, these results can be unified by viewing $(\mathrm{jump},\mathrm{cojump})$ and $(\mathrm{area}_{L},\mathrm{area}_{U})$ as Mahonian bi-statistics on trees. Just as $(\mathrm{jump}(p),\mathrm{cojump}(p))$ corresponds with $(\mathrm{inv}(T),\mathrm{coinv}(T))$ , we have found that $(\mathrm{area}_{L}(f),\mathrm{area}_{U}(f))$ corresponds with $(\mathrm{maj}(T),\mathrm{comaj}(T))$ , the major/comajor index of $T$ . Moreover, we have discovered this approach is readily generalized, allowing trees to be replaced by $k$ -cacti and permitting various other refinements. These results on the major indices, their connections to factorizations and their $k$ generalizations were presented at the CanaDAM 2019 conference and will be exposited in detail in the forthcoming article [IR] (in preparation).

3. Minimal Factorizations and Arch Diagrams

Let $\pi$ be an arbitrary permutation. A factorization of $\pi$ is any sequence $f=(\tau_{1},\ldots,\tau_{m})$ of transpositions satisfying $\tau_{1}\cdots\tau_{m}=\pi$ . We say $f$ is minimal if there is no factorization of $\pi$ having fewer than $m$ factors.

Observe that factorizations in $\mathfrak{S}_{[n]}$ naturally correspond with edge-labelled graphs on $[n]$ . The graph of $f=(a_{1}\,b_{1})\cdots(a_{m}\,b_{m})$ , denoted $G(f)$ , has an edge $a_{i}b_{i}$ labelled $i$ for each $i\in[1,m]$ . See Figure 4 (left).

Our aim in this section is to associate every $f\in\mathcal{F}_{\sigma}$ with a particular planar embedding of $G(f)$ . For completeness we first establish a well-known graphical characterization of minimality.

Consider the effect of multiplying a permutation $\rho$ by a transposition $\tau=(a\,b)$ . If $a,b$ lie on the same cycle of $\rho$ , then this cycle is split into two cycles of the product $\rho\tau$ (one containing $a$ and the other $b$ ). In this case we say $\tau$ cuts $\rho$ . If $a,b$ instead lie on distinct cycles of $\rho$ , then these are merged into one cycle of $\rho\tau$ and we say $\tau$ joins $\rho$ . The factor $\tau_{i}$ is a join (respectively, cut) of the factorization $f=(\tau_{1},\ldots,\tau_{m})$ if it joins (cuts) the partial product $\tau_{1}\cdots\tau_{i-1}$ .

Suppose the cycles of $\pi$ are of lengths $n_{1},\ldots,n_{k}$ . Then clearly $\pi$ can be factored into $\sum_{i}(n_{i}-1)=n+1-k$ transpositions. But any factorization of $\pi$ must contain at least this many joins, since the effect of multiplying its factors is to merge $n+1$ trivial cycles of the identity into $k$ cycles of $\pi$ . A factorization of $\pi$ is therefore minimal if it is of length $n+1-\ell(\pi)$ , where $\ell(\pi)$ denotes the number of cycles of $\pi$ . Equivalently, $f$ is minimal if each of its factors is a join.

Let $f=(\tau_{1},\ldots,\tau_{m})$ be a minimal factorization and, for $i\in[n]$ , let $G_{i}$ be the spanning subgraph of $G(f)$ containing only those edges with label $\leq i$ . Thus, $G_{0}$ is the empty graph on $[n]$ , and $G_{i}$ is obtained from $G_{i-1}$ by adding edge $a_{i}b_{i}$ , where $\tau_{i}=(a_{i}\,b_{i})$ . Since all factors of $f$ are joins, we see inductively that each cycle of $\tau_{1}\cdots\tau_{i-1}$ is supported by the vertices of some component of $G_{i-1}$ . Since $a_{i}$ and $b_{i}$ belong to different cycles of $\tau_{1}\cdots\tau_{i-1}$ (i.e. different components of $G_{i-1}$ ) we conclude that $G_{i}$ is a forest. This leads to:

Lemma 3.1.

Let $f$ be a factorization of $\pi\in\mathfrak{S}_{[n]}$ . Then $f$ is minimal if and only if $G(f)$ is a forest consisting of $\ell(\pi)$ trees, each of whose sets of vertices support some cycle of $\pi$ . In particular, $f$ is a minimal factorization of a full cycle if and only if $G(f)$ is a tree.

Let $\sigma=(s_{0}\,s_{1}\,\cdots\,s_{n})\in\mathfrak{C}_{[n]}$ , with $s_{0}=0$ , and let $f$ be any factorization in $\mathfrak{S}_{[n]}$ . The $\sigma$ -diagram of $f$ , denoted $G_{\sigma}(f)$ , is a drawing of $G(f)$ in the plane in which vertex $s_{i}$ lies at the point $(0,i)$ and edges are rendered as semicircular arches above the $x$ -axis. The rotator of a vertex $v$ in $G_{\sigma}(f)$ is the ordered list of arch labels encountered on a counter-clockwise tour about $v$ beginning on the axis.

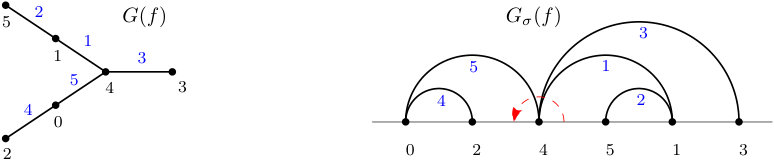

Figure 4 (right) displays $G_{\sigma}(f)$ for a minimal factorization $f$ of the full cycle $\sigma=(0\,2\,4\,5\,1\,3)$ . Observe that it is a tree, in accordance with Lemma 3.1. Moreover, its edges meet only at endpoints and all its rotators are increasing. It turns out that these conditions characterize the set $\{G_{\sigma}(f)\,:\,f\in\mathcal{F}_{\sigma}\}$ .

Theorem 3.2.

Let $f$ be a factorization in $\mathfrak{S}_{[n]}$ and let $\sigma\in\mathfrak{C}_{[n]}$ . Then $f\in\mathcal{F}_{\sigma}$ if and only if $G_{\sigma}(f)$ is a planar embedding of a tree in which every rotator is increasing.

The case $\sigma=\sigma_{n}$ of Theorem 3.2 can be found in [GY02], albeit phrased somewhat differently in terms of “circle chord diagrams”. (These are obtained from $\sigma$ -diagrams by wrapping the $x$ -axis into a circle so that arches become chords.) The general case follows immediately by relabelling. We mention in passing that Theorem 3.2 is but one manifestation of a general equivalence between factorizations in $\mathfrak{S}_{[n]}$ and embeddings of graphs on surfaces. There is a vast literature on this subject; see for example the surveys [LZ04, GJ14] and references therein.

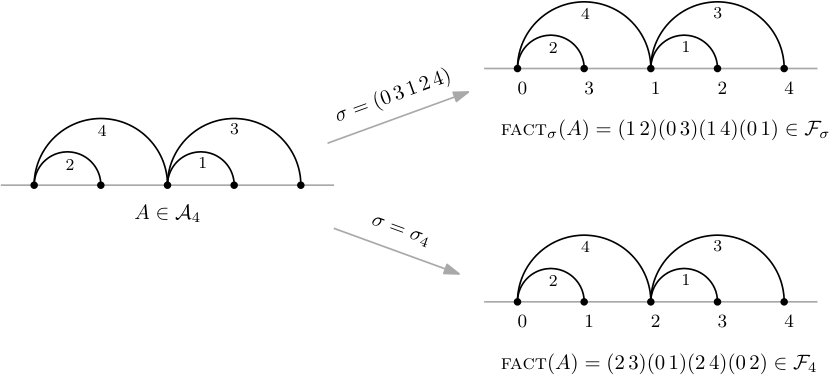

In light of Theorem 3.2, we define an arch diagram to be any noncrossing embedding of an edge-labelled tree into the upper half-plane $\{(x,y):y\geq 0\}$ such that vertices lie on the $x$ -axis and rotators are increasing. Let $\mathcal{A}_{n}$ denote the set of topologically inequivalent arch diagrams with edges labelled $1,\ldots,n$ .

Let $f\in\mathcal{F}_{\sigma}$ for some $\sigma\in\mathfrak{C}_{[n]}$ . Then stripping $G_{\sigma}(f)$ of its vertex labels leaves an arch diagram ${\textsc{arch}}_{\sigma}(f)\in\mathcal{A}_{n}$ . In fact, since the missing labels can be recovered from $\sigma$ , Theorem 3.2 implies $f\mapsto{\textsc{arch}}_{\sigma}(f)$ is a bijection between $\mathcal{F}_{\sigma}$ and $\mathcal{A}_{n}$ . The inverse map ${{\textsc{fact}}_{\sigma}}:{\mathcal{A}_{n}}\rightarrow{\mathcal{F}_{\sigma}}$ is illustrated in Figure 5. For simplicity we shall write arch and fact in place of ${\textsc{arch}}_{\sigma_{n}}$ and ${\textsc{fact}}_{\sigma_{n}}$ when $n$ is understood from context.

4. Factorizations and Trees

In this section we shall prove Theorem 2.1 by showing that the polynomial sequences $\{I_{n}(q,t)\}$ and $\{F_{n}(q,t)\}$ satisfy a common recursion defined in terms of their exponential generating series

[TABLE]

The recursion for $I_{n}(q,t)$ comes via the familiar decomposition of a tree $T\in\mathcal{T}_{n}$ into a set of rooted labelled trees by deletion of its root. Carefully accounting for inversions and coinversions under this decomposition yields

[TABLE]

which is readily seen to be equivalent to

[TABLE]

Note that (11) reduces to (1) at $t=1$ . The proofs of (10) and (11) at $t=1$ can be found in [Ges95, Theorem 3] or [Kre80, Theorem 1]. Proofs for arbitrary $t$ require only trivial modifications to their proofs and are omitted here.

Since $F_{0}(q,t)=I_{0}(q,t)=1$ , Theorem 2.1 follows immediately from the following analogue of (10) for minimal factorizations.

Theorem 4.1.

The series $F(x;q,t)$ satisfies

[TABLE]

We now prove Theorem 4.1 in two stages. We first show that its exponential nature reflects a canonical splitting of factorizations $f\in\mathcal{F}_{n}$ into sets of “simple” factorizations. We then describe a correspondence between simple factorizations in $\mathcal{F}_{n}$ and arbitrary factorizations in $\mathcal{F}_{n-1}$ .

Say a factorization $f\in\mathcal{F}_{n}$ is simple if it contains the factor $(0\,n)$ . Let $\hat{\mathcal{F}}_{n}$ be the set of simple factorizations in $\mathcal{F}_{n}$ and define

[TABLE]

Evidently $f$ is simple if and only if the left- and rightmost vertices of ${\textsc{arch}}(f)$ are joined by an edge, so we say an arch diagram is simple if it has this property. Let $\hat{\mathcal{A}}_{n}={\textsc{arch}}(\hat{\mathcal{F}}_{n})$ be the set of all simple diagrams in $\mathcal{A}_{n}$ .

A cap of an arch diagram is an edge that is not nested within any other edge. For example, the diagrams in Figure 5 each have two caps, with labels 3 and 4. Clearly every arch diagram has at least one cap, and $A\in\mathcal{A}_{n}$ is simple if and only if it has a unique cap.

Proposition 4.2.

$F(x;q,t)=\exp\left(\sum_{n\geq 1}\hat{F}_{n}(q,t)\frac{x^{n}}{n!}\right).$ **

Proof.

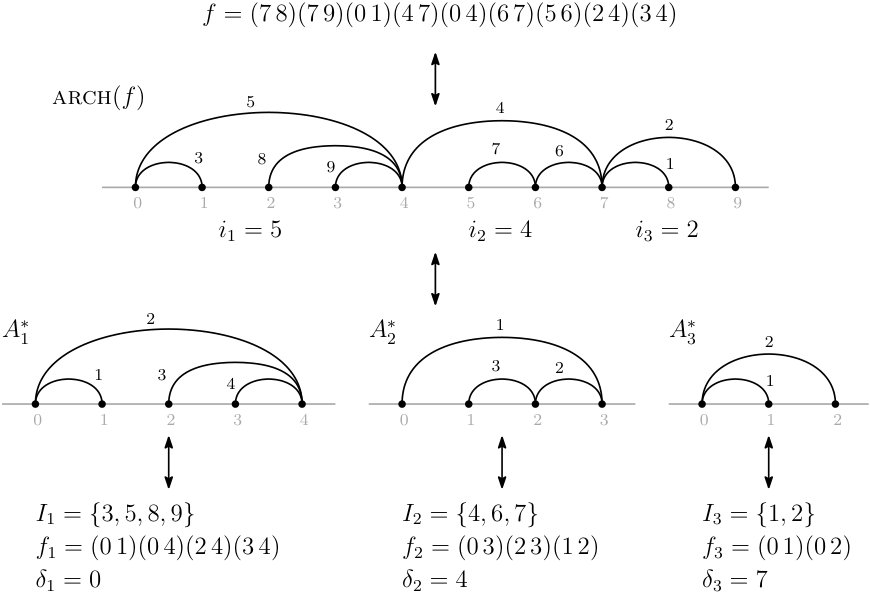

We employ a natural decomposition of noncrossing arch diagrams into sets of simple diagrams. Figure 6 illustrates the mechanics of the proof.

Let $f\in\mathcal{F}_{n}$ , where $n\geq 1$ , and let $A={\textsc{arch}}(f)$ . Let $e_{1},\ldots,e_{k}$ be the caps of $A$ and let $i_{1},\ldots,i_{k}$ be their labels. Then $\{e_{1},\ldots,e_{k}\}$ is the edge-set of a path from the leftmost to the rightmost vertex of $A$ . For $j\in[1,k]$ , let $A_{j}$ be the arch diagram induced by all edges of $A$ nested under $e_{j}$ , including $e_{j}$ itself. Evidently $A_{j}$ is simple, with $e_{j}$ being its unique cap. Preserve the edge labels of $A_{j}$ in the set $I_{j}$ , and then replace the $i$ -th largest label of $A_{j}$ with $i$ (for all $i$ ) to get an arch diagram $A_{j}^{*}$ with edge labels $\{1,2,\ldots,|I_{j}|\}$ .

Thus we have a decomposition $A\mapsto\{(A_{1}^{*},I_{1}),\ldots,(A_{k}^{*},I_{k})\}$ , where $\{I_{1},\ldots,I_{k}\}$ is a partition of $[1,n]$ and $A_{j}^{*}\in\hat{\mathcal{A}}_{|I_{j}|}$ . We claim this is reversible. Indeed, $A_{j}$ and its original cap label $i_{j}$ are easily reconstructed from $(A_{j}^{*},I_{j})$ , while increasing rotators force the $A_{j}$ ’s to be concatenated in decreasing left-to-right order of their cap labels $i_{j}$ .

Let $f_{j}={\textsc{fact}}(A_{j}^{*})\in\hat{\mathcal{F}}_{|I_{j}|}$ . We claim that $\mathrm{area}_{L}(f)=\sum_{j}\mathrm{area}_{L}(f_{j})$ and $\mathrm{area}_{U}(f)=\sum_{j}\mathrm{area}_{U}(f_{j})$ . The result then follows from Theorem 3.2 and the exponential formula [Sta99, Corollary 5.1.6].

To prove the claim, assume without loss of generality that $i_{1}>\cdots>i_{k}$ , which means the $A_{j}$ ’s are concatenated in left-to-right order $A_{1},\ldots,A_{k}$ to form $A$ . Let $\delta_{j}=|I_{1}|+\cdots+|I_{j-1}|$ , with $\delta_{1}=0$ . Then the $r$ -th vertex of $A_{j}$ (counting from the left) corresponds to the $(r+\delta_{j})$ -th vertex of $A$ . Thus each factor $(a\,b)$ of $f_{j}$ corresponds to a factor $(a+\delta_{j}\;b+\delta_{j})$ of $f$ . Letting $L(\cdot)_{i}$ denote the $i$ -th term of the lower sequence $L(\cdot)$ , we have

[TABLE]

A similar computation shows $\mathrm{area}_{U}(f)=\sum_{j}\mathrm{area}_{U}(f_{j})$ . ∎

Lemma 4.3.

Let $f=(\tau_{1},\dots,\tau_{n})\in\hat{\mathcal{F}}_{n}$ . Then there is a unique $k$ such that $\tau_{k}=(0\,n)$ . Moreover, $\tau_{k}$ is the rightmost factor moving 0 and the leftmost factor moving $n$ .

Proof.

The uniqueness of $\tau_{k}$ is clear, since $G(f)$ is a tree. The other assertions follow from the fact that the rotators of the left- and rightmost vertices of ${\textsc{arch}}(f)$ are increasing. ∎

Proposition 4.4.

$\hat{F}_{n}(q,t)=t(t^{n-1}+t^{n-2}q+t^{n-3}q^{2}+\cdots+q^{n-1})F_{n-1}(q,t)$ .

Proof.

For $k\in[1,n]$ , let $\hat{\mathcal{F}}_{n,k}$ be the subset of $\mathcal{F}_{n}$ containing factorizations whose $k$ -th factor is $(0\,n)$ . Lemma 4.3 shows $\{\hat{\mathcal{F}}_{n,1},\ldots,\hat{\mathcal{F}}_{n,n}\}$ is a partition of $\hat{\mathcal{F}}_{n}$ .

Define the function $\phi_{k}$ on $\hat{\mathcal{F}}_{n,k}$ by

[TABLE]

where $\bar{\tau}=\sigma_{n}\tau\sigma_{n}^{-1}$ denotes the conjugate of $\tau$ under $\sigma_{n}$ . The effect of $\phi_{k}$ is to “rotate” a factorization $f\in\hat{\mathcal{F}}_{n,k}$ until $(0\,n)$ is the rightmost factor, at which point this factor is removed. We claim that $\phi_{k}$ is bijection from $\hat{\mathcal{F}}_{n,k}$ to $\mathcal{F}_{n-1}$ , and that

[TABLE]

We first verify $\phi_{k}(\hat{\mathcal{F}}_{n,k})\subseteq\mathcal{F}_{n-1}$ . Let $f=(\tau_{1},\ldots,\tau_{n})\in\hat{\mathcal{F}}_{n,k}$ , so that $\tau_{1}\cdots\tau_{n}=\sigma_{n}$ and $\tau_{k}=(0\,n)$ . Taking $\alpha=\tau_{1}\cdots\tau_{k}$ and $\beta=\tau_{k+1}\cdots\tau_{n}$ , we have $\sigma_{n}^{-1}=\beta^{-1}\alpha^{-1}$ and therefore

[TABLE]

Multiplying on the right by $\tau_{k}=(0\,n)$ gives $\bar{\tau}_{k+1}\cdots\bar{\tau}_{n}\tau_{1}\cdots\tau_{k-1}=\sigma_{n}(0\,n)=\sigma_{n-1}$ . Thus $\phi_{k}(f)$ is a factorization of $\sigma_{n-1}$ into $n-1$ transpositions; i.e. $\phi_{k}(f)\in\mathcal{F}_{n-1}$ .

The argument above is easily reversed to confirm the inverse of $\phi_{k}$ is given by

[TABLE]

where $\tau^{\prime}=\sigma_{n}^{-1}\tau\sigma_{n}$ . Therefore $\phi_{k}$ is bijective.

Now suppose the factors of $f=(\tau_{1},\ldots,\tau_{n})\in\hat{\mathcal{F}}_{n,k}$ are $\tau_{i}=(a_{i}\,b_{i})$ , with $a_{i}<b_{i}$ . Lemma 4.3 ensures $a_{i}>0$ for $i>k$ , whence $\bar{\tau_{i}}=(a_{i}-1\;b_{i}-1)$ . That is,

[TABLE]

Since $a_{k}=0$ , we have

[TABLE]

Similarly, since $b_{k}=n$ ,

[TABLE]

This establishes (12), from which there follows

[TABLE]

Summing over $k\in[1,n]$ completes the proof. ∎

Propositions 4.2 and 4.4 together complete the proof of Theorem 4.1. We note it is straightforward to use the arguments in this section to define a recursive bijection between $\mathcal{F}_{n}$ and $\mathcal{T}_{n}$ preserving the relevant statistics.

5. Special Cases and Related Results

An interesting special case is the terms of highest degree in $F_{n}(q,t)$ ; that is, the factorizations with maximum total difference.

Let $\mathcal{F}^{\textnormal{max}}_{n}\subseteq\mathcal{F}_{n}$ be the set of factorizations with maximum total difference. While from the point of view of factorizations it is a priori unclear what this maximum total difference is and what factorizations have it, from the point of view of tree inversions this is clear. The terms of maximum degree in $I_{n}(q,t)$ correspond to trees with maximum total depth. Such trees are clearly paths, and therefore correspond to permutations, and have total depth $1+2\cdots+n=\binom{n+1}{2}$ . Furthermore, the notions tree inversions/coinversions for paths correspond to the usual notions of inversions/coinversions for permutations. Thus, the terms of maximum degree in $I_{n}(q,t)$ are in fact given by the extensively studied inversion polynomial for permutations (see Stanley [Sta12, Section 1.3]). This gives us the following corollary.

Corollary 5.1.

[TABLE]

Other special cases can obtained by looking at factorizations in $\mathcal{F}_{n}$ with restrictions placed on $L(f)$ .

For example, let $\mathcal{F}_{n}^{\mathrm{perm}}$ be the subset of $f\in\mathcal{F}_{n}$ where $L(f)$ is a permutation, and construct the series

[TABLE]

It is clear that any $f\in\mathcal{F}_{n}$ has $\mathrm{area}_{L}(f)=0$ if and only if $L(f)$ is a permutation. It follows that $F_{n}^{\mathrm{perm}}(q,t)$ is a polynomial in $t$ and is equal to $F_{n}(0,t)=I_{n}(0,t)$ . The latter polynomial is evidently the total depth polynomial for increasing trees; that is, trees with no inversions.

We can, of course, restrict our attention to other sets. An increasing parking function $(a_{1},\dots,a_{n})$ is a parking function with $a_{i}\leq a_{i+1}$ for all $i\geq 1$ . Decreasing parking functions are analogously defined. Both sets of parking functions are enumerated by the Catalan numbers, as they both have clear interpretations as Dyck paths. However, when these sets of parking functions are viewed as the lower sequences of factorizations, the upper sequence has some interesting properties. We call factorizations in $\mathcal{F}_{n}$ with increasing and decreasing lower sequences increasing and decreasing factorizations of $\sigma_{n}$ , respectively, and denote their respective sets by $\overrightarrow{\mathcal{F}}_{n}$ and $\overleftarrow{\mathcal{F}}_{n}$ . Decreasing factorizations of the canonical full cycle have been studied previously in [GM06]. We note that the authors there regard their factorizations as increasing since they multiply permutations from right to left. We will use and revisit their results in the proof of Theorem 5.2.

For $n\geq 1$ define the series $C_{n}(q,t)$ by

[TABLE]

The polynomials $C_{n}(q,t)$ are natural generalizations of Catalan numbers, and were recently considered in a similar context by Adin and Roichman [AR14], where the authors are determining the radius of the Hurwitz graph of the symmetric groups. Finally, let $\overrightarrow{F}_{n}(q,t)=\sum_{f\in\overrightarrow{\mathcal{F}}_{n}}q^{\mathrm{area}_{L}(f)}t^{\mathrm{area}_{U}(f)}$ and $\overleftarrow{F}_{n}(q,t)=\sum_{f\in\overleftarrow{\mathcal{F}}_{n}}q^{\mathrm{area}_{L}(f)}t^{\mathrm{area}_{U}(f)}$

Theorem 5.2.

For all $n\geq 1$ , the series $\overrightarrow{F}_{n}(q,t)$ satisfies

[TABLE]

whence, $\overrightarrow{F}_{n}(q,t)=t^{n}C_{n}(q,t)$ . Also, for all $n\geq 0$ , $\overleftarrow{F}_{n}(q,t)=t^{n}C_{n}(q,1)$ .

Proof.

We first observe that any factorization $f\in\overrightarrow{\mathcal{F}}_{n}$ contains $(0\;n)$ as a factor, and we refer the reader to Figure 6 for an explanatory illustration of this. Indeed, if the arch diagram of a factorization $f\in\overrightarrow{\mathcal{F}}_{n}$ has more than one cap (as defined in Section 4), then the cap labels will be increasing from right to left. Recall that $L(f)_{i}$ , the $i$ -th entry of $L(f)$ , is given by the left endpoint of the arch labelled $i$ . Hence, if $i$ and $j$ are labels on two adjacent caps with $i$ to the left of $j$ , then $i>j$ but $L(f)_{i}<L(f)_{j}$ , contradicting that $f$ has an increasing lower sequence. We conclude therefore that the arch diagram of $f$ has only one cap, $(0\;n)$ is a factor of $f$ , and by Lemma 4.3 this factor is the rightmost factor containing the symbol [math]. Notice further that since $f$ is increasing, all factors containing 0 are at the beginning of $f$ . Furthermore, these factors containing 0 appear in increasing order of their second element because of the increasing rotator condition on arch diagrams.

Now suppose that $f\in\overrightarrow{\mathcal{F}}_{n}$ and let $A={\textsc{arch}}(f)$ . Removing the cap from $A$ leaves two arch diagrams, $A_{1}$ and $A_{2}$ , corresponding to (minimal) increasing factorizations $f_{1}$ and $f_{2}$ of $(0\;1\;\cdots k)$ and $(k+1\;\cdots n)$ , respectively. The reasoning in the above paragraph applies to $f_{1}$ and $A_{1}$ as well: $A_{1}$ has a unique cap, it corresponds to a transposition $(0\;k)$ in $f_{1}$ , and this transposition is the rightmost transposition of $f_{1}$ containing 0. Note that the symbol $k$ is also the second largest symbol next to $n$ such that $(0\;k)$ is a factor of $f$ . Because $f$ is an increasing factorization, all the factors of $f_{1}$ occur to the left of the factors of $f_{2}$

We therefore see that $f_{1}\in\overrightarrow{\mathcal{F}}_{k}$ , but $f_{2}\notin\overrightarrow{\mathcal{F}}_{n-k-1}$ ; however, it is clear that the factorization $f^{\prime}_{2}$ , which is obtained from $f_{2}$ by subtracting $k+1$ from every element in every factor, is a minimal increasing factorization of $(0\;\cdots\;n-k-1)$ , and so $f^{\prime}_{2}\in\overrightarrow{\mathcal{F}}_{n-k-1}$ .

The above sets up a map from $\overrightarrow{\mathcal{F}}_{n}$ to $\bigcup_{k=0}^{n-1}\overrightarrow{\mathcal{F}}_{k}\times\overrightarrow{\mathcal{F}}_{n-k-1}$ . It is easy to see that the above construction is reversible. Namely, given an $f_{1}\in\overrightarrow{\mathcal{F}}_{k}$ and $f_{2}^{\prime}\in\overrightarrow{\mathcal{F}}_{n-k-1}$ , we can reconstruct $f_{2}$ from the length of $f_{1}$ , and then $f$ is the concatenation of $f_{1}$ and $f_{2}$ with the transposition $(0\;n)$ inserted immediately after the rightmost factor in the concatenation with a 0. We therefore have a bijection from $\overrightarrow{\mathcal{F}}_{n}$ to $\bigcup_{k=0}^{n-1}\overrightarrow{\mathcal{F}}_{k}\times\overrightarrow{\mathcal{F}}_{n-k-1}$ . What remains is verifying that areas are preserved. To wit,

[TABLE]

Similarly, we can show that

[TABLE]

This completes the proof that the polynomials $\{\overrightarrow{F}_{n}(q,t)\}$ satisfy the recurrence stated in the theorem. By (14), the polynomials $\{t^{n}C_{n}(q,t)\}$ satisfy the same recurrence and initial conditions, and so for all $n\geq 0$ , $\overrightarrow{F}_{n}(q,t)=t^{n}C_{n}(q,t)$ .

The two claims about $\overleftarrow{F}_{n}(q,t)$ in Theorem 5.2 are less novel and in fact follow easily from two previously known results. Indeed, it was shown by Gewurz and Merola [GM06] that $U:\overleftarrow{\mathcal{F}}_{n}\rightarrow\mathrm{a}_{132}(n)$ is a bijection, where $\mathrm{a}_{132}(n)$ is the set of $132$ -avoiding permutations in the symmetric group acting on the symbols $\{1,2,\dots,n\}$ . It is well-known that $\mathrm{a}_{132}(n)$ is counted by Catalan numbers. Thus, the upper sequences of factorizations in $\overleftarrow{\mathcal{F}}_{n}$ are permutations and therefore each $f\in\overleftarrow{\mathcal{F}}_{n}$ has $\mathrm{area}_{U}(f)=\sum_{i=1}^{n}i-\binom{n}{2}=n$ . Whence the contribution of $f$ to $\overleftarrow{F}_{n}(q,t)$ is $t^{n}q^{i}$ , where $i$ is the lower area of $f$ . Finally, as noted above, decreasing parking functions are in fact Dyck paths, and the classic result of Carlitz and Riordan [CR64] gives the area polynomial of Dyck paths of length $n$ as $C_{n}(q,1)$ . The result then follows. ∎

6. Factorizations and Parking Functions

The aim of this section is to prove Theorem 2.2. This will be done through a sequence of propositions, beginning with the following elementary result:

Proposition 6.1.

For any $\sigma\in\mathfrak{C}_{[n]}$ , we have $L_{\sigma}(\mathcal{F}_{\sigma})\subseteq\mathcal{P}_{n}$ and $U_{\sigma}(\mathcal{F}_{\sigma})\subseteq\mathcal{M}_{n}$ .

Our proof of Proposition 6.1 relies on the following well-known characterization of parking functions, which is itself readily established from their definition:

Lemma 6.2.

A sequence $(a_{1},\dots,a_{n})\in\mathbb{N}^{n}$ is a parking function if and only if for each $i\in[1,n]$ it contains at least $i$ entries less than $i$ (equivalently, at most $i$ entries are greater than or equal to $n-i$ ). ∎

Proof of Proposition 6.1.

By Lemma 6.2, $L(f)\in\mathcal{P}_{n}$ if and only if $G(f)$ has at least $i$ edges with an endpoint less than $i$ , for each $i\in[1,n]$ . To see that this is so, let $G_{i}$ be the subgraph of $G(f)$ induced by vertices $[i,n]$ . Since $G(f)$ is a tree (by Lemma 3.1), $G_{i}$ is a forest with $n-i+1$ vertices and hence at most $n-i$ edges. Thus $G(f)\setminus G_{i}$ has at least $i$ edges, as desired. The proof that $U(f)\in\mathcal{M}_{n}$ is similar. ∎

We now show that unimodality of $\sigma$ ensures surjectivity of ${L_{\sigma}}:{\mathcal{F}_{\sigma}}\rightarrow{\mathcal{P}_{n}}$ . This is the crux of Theorem 2.2. As proof we give an algorithm that explicitly constructs an element of $L_{\sigma}^{-1}(p)$ .

The algorithm is most simply described in graphical terms. Given a parking function $p=(a_{1},\ldots,a_{n})$ and unimodal cycle $\sigma=(0\,s_{1}\,\cdots\,s_{n})$ , we build an arch diagram as follows, being sure to abide by the embedding rules throughout (i.e. edges are drawn above the axis without crossings and rotators remain increasing). Figure 7 illustrates the process.

•

Initialize:

–

Arrange vertices $0,s_{1},\ldots,s_{n}$ in left-to-right order along the $x$ -axis.

–

For each $j\in[1,n]$ , attach to vertex $a_{j}$ a half-edge with label $j$ .

•

Iterate:

–

Let $v$ be the largest vertex with at least one incident half-edge. If no such $v$ exists, the algorithm terminates.

–

If $v$ is left of vertex $n$ , extend its least incident half-edge to connect it with the first possible vertex to its right.

–

If $v$ is right of vertex $n$ , extend its greatest incident half-edge to connect it with the first possible vertex to its left.

We claim that the above procedure can always be followed to completion, and that the resulting arch diagram $A$ satisfies $L_{\sigma}({\textsc{fact}}_{\sigma}(A))=p$ . To prove the claim we shall restate the algorithm more formally in terms of factorizations. Some additional terminology will be convenient.

Let $\sigma=(s_{0}\,\,s_{1}\,\cdots\,s_{n})\in\mathfrak{C}_{[n]}$ be unimodal, with $s_{0}=0$ and $s_{N}=n$ . We say an index $i\in[n-1]$ is $\sigma$ -left (resp. $\sigma$ -right) if $i=s_{k}$ for some $k<N$ (resp. $k>N$ ). Now fix $p=(a_{1},\ldots,a_{n})\in\mathcal{P}_{n}$ and let $J_{i}$ be the list of all indices $j$ such that $a_{j}=i$ , taken in increasing order when $i$ is $\sigma$ -left and in decreasing order when $i$ is $\sigma$ -right. Let $\omega_{\sigma,p}$ denote the permutation of $[1,n]$ defined by the concatenation $J_{n-1},J_{n-2},\ldots,J_{0}$ .

With respect to the graphical algorithm, $\sigma$ -left (resp. $\sigma$ -right) elements correspond to vertices whose half-edges are extended to the right (left) to form complete arcs, while $\omega_{\sigma,p}$ describes the order in which half-edges are processed. Observe that the sequence $(a_{\omega_{\sigma,p}(i)})_{1\leq i\leq n}$ must be weakly decreasing.

Finally, we declare a permutation $\pi\in\mathfrak{S}_{[n]}$ to be $\sigma$ -contiguous if each of its cycles is of the form $(s_{i}\,s_{i+1}\,\cdots\,s_{j})$ for some $i\leq j$ ,

*Example 6.3**.*

We continue with the same inputs as in Figure 7, so set $\sigma=(0\,2\,3\,5\,6\,4\,1)\in\mathfrak{C}_{[6]}$ . The labels $\{0,2,3,5\}$ are $\sigma$ -left and $\{1,4\}$ are $\sigma$ -right. For $p=(2,4,0,1,4,0)\in\mathcal{P}_{6}$ we have $J_{5}=\emptyset,J_{4}=(5,2),J_{3}=\emptyset,J_{2}=(1),J_{1}=(4)$ and $J_{0}=(3,6)$ , so $\omega_{\sigma,p}=(5,2,1,4,3,6)$ and $(a_{\omega_{\sigma,p}(i)})_{1\leq i\leq 6}=(4,4,2,1,0,0)$ . Both $(0\,2)(5\,6\,4)$ and $(6\,4)$ are $\sigma$ -contiguous, whereas $(2\,3\,4)(5\,6)$ is not.

Algorithm 6.4.

Let $\sigma\in\mathfrak{C}_{[n]}$ be unimodal and let $p=(a_{1},\ldots,a_{n})\in\mathcal{P}_{n}$ . The following procedure terminates with a factorization $f=(\tau_{1},\ldots,\tau_{n})\in\mathcal{F}_{\sigma}$ such that $L_{\sigma}(f)=p$ .

[TABLE]

Algorithm 6.4 builds $L_{\sigma}^{-1}(p)$ through a sequence of “partial factorizations” of $\sigma$ — that is, tuples $(\tau_{1},\ldots,\tau_{n})$ such that each $\tau_{j}$ is either a transposition or the identity and the product $\tau_{1}\cdots\tau_{n}$ is $\sigma$ -contiguous. The initial state is $(\tau_{1},\ldots,\tau_{n})=(\iota,\ldots.\iota)$ , and each iteration replaces a distinct factor $\tau_{j}$ with a transposition of the form $(a_{j}\,b_{j})$ . After $n$ iterations this results in a partial factorization of $\sigma$ composed of $n$ transpositions, which is necessarily an element of $\mathcal{F}_{\sigma}$ with lower sequence $p$ .

Table 1 shows the algorithm being applied to the same input as in the prior graphical example in Figure 7. This allows for comparison of the two approaches and should help guide the reader through the following proof of correctness. Note that the table also displays the value of certain parameters arising in the proof.

Proof of correctness:.

Say $\sigma=(s_{0}\,\ldots,s_{n})$ , where $s_{0}=0$ and $s_{N}=n$ , and for brevity let $w_{i}=\omega_{\sigma,p}(i)$ for $i\in[n-1]$ . Suppose the following conditions are met upon entering the $i$ -th iteration of the loop, as is clearly the case when $i=1$ :

(A)

$\pi_{i}=\tau_{1}\cdots\tau_{n}$ is $\sigma$ -contiguous and $\ell(\pi_{i})=n+2-i$

(B)

If $r\in\{w_{1},\ldots,w_{i-1}\}$ then $\tau_{r}=(a_{r}\,b_{r})$ for some $b_{r}>a_{r}$ , otherwise $\tau_{r}=\iota$ .

We prove the result inductively by verifying that these conditions continue to hold, with $i$ replaced by $i+1$ , upon completion of the $i$ -th iteration. (A) then implies the algorithm terminates with a factorization $f=(\tau_{1},\ldots,\tau_{r})$ of some $\sigma$ -contiguous full cycle, which much of course be $\sigma$ itself, while (B) ensures that $L_{\sigma}(f)=p$ .

Let $j=w_{i}$ and let $C$ be the cycle of $\pi_{i}$ containing $a_{j}$ . We shall make repeated use of the following assertions:

\scriptsize1⃝

$\pi_{i}$ fixes all elements $<a_{j}$ 2. \scriptsize2⃝

$\mathrm{supp}(C)$ does not contain the entire interval $[a_{j},n]$

The support of a cycle $C=(c_{1}\,\cdots\,c_{k})$ is defined as $\mathrm{supp}(C):=\{c_{1},\ldots,c_{k}\}$ .

Clearly \scriptsize1⃝ follows from hypothesis (B) and the fact that $(a_{w_{1}},\ldots,a_{w_{n}})$ is weakly decreasing. To prove \scriptsize2⃝, note that Lemma 6.2 gives $a_{j}\leq n-i$ . Thus $[a_{j},n]$ contains at least $i+1$ elements. But $C$ is a cycle of $\pi_{i}$ , and $\pi_{i}$ is a product of $i-1$ transpositions, so $C$ is of length at most $i$ .

The remainder of the proof is elementary but technical. The schematic in Figure 8 illustrates the equivalence with the graphical version of the algorithm.

Case 1: $a_{j}$ is $\sigma$ -left

Say $a_{j}=s_{k}$ , where $k<N$ . We claim $C=(s_{k}\,s_{k+1}\,\cdots\,s_{\ell})$ for some $\ell\in[k,n-1]$ . As proof, observe that $\pi_{i}$ being $\sigma$ -contiguous means either $C=(s_{k}\,s_{k+1}\,\cdots\,s_{\ell})$ for some $\ell\geq k$ or $s_{k-1}\in\mathrm{supp}(C)$ . The latter is impossible, as unimodality of $\sigma$ gives $s_{k-1}<s_{k}$ for $k<N$ while \scriptsize1⃝ implies $s_{k}$ is the least element of $C$ . And we cannot have $C=(s_{k}\,\cdots\,s_{n})$ , as unimodality would then give $\mathrm{supp}(C)\supseteq[s_{k},n]$ , contrary to \scriptsize2⃝.

Let $C^{\prime}$ be the cycle of $\pi_{i}$ containing $s_{\ell+1}$ . Since $\pi_{i}$ is $\sigma$ -contiguous, we have $C^{\prime}=(s_{\ell+1}\,\cdots\,s_{\ell+m})$ for some $m\geq 1$ . Then $C$ and $C^{\prime}$ are merged into the single cycle $(s_{k}\,s_{k+1}\,\cdots\,s_{\ell+m})$ of the permutation $\rho=\pi_{i}(s_{k}\,s_{\ell+1})$ . Clearly $\rho$ is $\sigma$ -contiguous and composed of $n+1-i$ cycles.

Now let $\alpha=\tau_{1}\cdots\tau_{j-1}$ and $\beta=\tau_{j+1}\cdots\tau_{n}$ . Then $\pi_{i}=\alpha\beta$ , as $\tau_{j}=\iota$ , and

[TABLE]

We claim $\beta^{-1}(a_{j})=a_{j}$ and $\beta^{-1}(s_{\ell+1})>a_{j}$ . By \scriptsize1⃝, no $\tau_{r}$ can move any symbol smaller than $a_{j}$ . So if $\tau_{r}$ moves $a_{j}$ then (B) gives $r\in\{w_{1},\ldots,w_{i-1}\}$ and $a_{r}=a_{j}$ , whence $r\leq j$ by definition of $\omega_{\sigma,p}$ . Thus $\tau_{r}(a_{j})=a_{j}$ for all $r>j$ , giving $\beta^{-1}(a_{j})=a_{j}$ . Now observe that $s_{\ell+1}>s_{k}=a_{j}$ , as otherwise unimodality would imply $[s_{k},n]\subseteq\{s_{k},s_{k+1},\cdots,s_{\ell}\}=\mathrm{supp}(C)$ , contradicting \scriptsize2⃝. Since none of the $\tau_{r}$ move symbols smaller than $a_{j}$ , we conclude $\beta^{-1}(s_{\ell+1})>a_{j}$ .

Finally, let $b_{j}=\beta^{-1}(s_{\ell+1})=\pi_{i}^{-1}\sigma\beta^{-1}(a_{j})$ and set $\tau_{j}=(a_{j}\,b_{j})$ as in lines 06 and 10 of the algorithm. We have shown $a_{j}<b_{j}$ , and by (15) we see that line 11 sets $\pi_{i+1}=\tau_{1}\cdots\tau_{n}=\alpha(a_{j}\,b_{j})\beta=\rho$ . Thus $\pi_{i+1}$ is $\sigma$ -contiguous and has $n+1-i$ cycles.

Case 2: $a_{j}$ is $\sigma$ -right

The proof is similar to the $\sigma$ -left case and details will be omitted. If $a_{j}=s_{k}$ , where $k>N$ , then we have $C=(s_{\ell}\,\cdots\,s_{k})$ for some $\ell\in[1,k]$ . Let $C^{\prime}=(s_{\ell-m}\,\cdots\,s_{\ell-1})$ be the cycle of $\pi_{i}$ containing $\sigma_{\ell-1}$ , and note that $C$ and $C^{\prime}$ are merged into the cycle $(s_{\ell-m}\,\cdots\,s_{k})$ of the $\sigma$ -contiguous permutation $\rho=(s_{k}\,s_{\ell-1})\pi_{i}$ . With $\alpha$ and $\beta$ as above, we arrive at $\pi_{i+1}=\rho=\alpha(a_{j}\,b_{j})\beta$ , where $b_{j}=\alpha(s_{\ell-1})>a_{j}$ . ∎

Notice that Algorithm 6.4 simplifies considerably in the case $\sigma=\sigma_{n}$ , where every $i\in[n-1]$ is $\sigma$ -left. Suppose, in the $i$ -th iteration, that $C$ is the cycle of $\pi_{i}$ containing $a_{j}$ . Let $m$ be the largest element of $C$ and let $C^{\prime}$ be the cycle of $\pi_{i}$ containing $m+1$ . Then $b_{j}$ is the image of $m+1$ under $\tau_{n}\tau_{n-1}\cdots\tau_{j+1}$ , and $\pi_{i+1}$ is obtained from $\pi_{i}$ by merging cycles $C$ and $C^{\prime}$ . Table 2 provides an example.

Taken together with Proposition 6.1, the following two results complete the proof of Theorem 2.2.

Proposition 6.5.

$\sigma\in\mathfrak{C}_{[n]}$ * is unimodal if and only if ${L_{\sigma}}:{\mathcal{F}_{\sigma}}\rightarrow{\mathcal{P}_{n}}$ is bijective.*

Proof.

It is easy to see that unimodality of $\sigma$ is necessary for $L_{\sigma}$ to be bijective. Indeed, suppose $\sigma$ is not unimodal, so that $s_{i-1}>s_{i}<s_{i+1}$ for some $i$ . Then $p=(0,\dots,0,s_{i})\in\mathcal{P}_{n}$ has two preimages in $\mathcal{F}_{\sigma}$ under $L_{\sigma}$ , namely

[TABLE]

where the hat indicates removal of the marked transposition. On the other hand, Algorithm 6.4 shows $L_{\sigma}$ is surjective when $\sigma$ is unimodal. Bijectivity follows since $|\mathcal{F}_{\sigma}|=|\mathcal{P}_{n}|=(n+1)^{n-1}$ . ∎

Proposition 6.6.

$\sigma\in\mathfrak{C}_{[n]}$ * is unimodal if and only if ${U_{\sigma}}:{\mathcal{F}_{\sigma}}\rightarrow{\mathcal{M}_{n}}$ is bijective.*

Proof.

Define $\gamma\in\mathfrak{S}_{[n]}$ by $\gamma(i)=n-i$ . This involution induces bijections $\mathcal{P}_{n}\rightarrow\mathcal{M}_{n}$ and $\mathcal{F}_{\sigma}\rightarrow\mathcal{F}_{\gamma\sigma\gamma}$ via coordinate-wise action and conjugation of factors, respectively. Note that $U_{\sigma}$ is the composition $\mathcal{F}_{\sigma}\rightarrow\mathcal{F}_{\gamma\sigma\gamma}\overset{L}{\rightarrow}\mathcal{P}_{n}\rightarrow\mathcal{M}_{n}$ , where $L=L_{\gamma\sigma\gamma}$ . Thus $U_{\sigma}$ is bijective if and only if ${L}:{\mathcal{F}_{\gamma\sigma\gamma}}\rightarrow{\mathcal{P}_{n}}$ is bijective, which by Proposition 6.5 is equivalent to $\gamma\sigma\gamma$ being unimodal. The result follows since conjugation by $\gamma$ clearly preserves unimodality. ∎

We close this section by reconsidering Algorithm 6.4 in the special case $\sigma=\sigma_{n}$ . Note that the algorithm (or its graphical incarnation) can be viewed as the reconstruction of the upper sequence of a factorization $f\in\mathcal{F}_{n}$ from its lower sequence. Equivalently, it provides a mapping from the lower path of $f$ to its upper path. We leave it to the reader to verify that this mapping from $P_{L}(f)$ and $P_{U}(f)$ can be succinctly described as follows: First shift all labels of $P_{L}$ to the left endpoints of their respective steps. Then, working left-to-right, push each label northeast until it encounters either an unlabelled point on $P_{L}$ or a point with a smaller label. The height at which a label of $P_{L}$ comes to rest is the height at which it occurs in $P_{U}$ . See Figure 9 and compare with Figure 1.

7. The Bounce Statistic

Recall the bounce statistic defined in (7) in Section 2.3. Our goal in this section is to prove a refinement of Theorem 2.3; namely, we define a refinement to the bounce statistic and show that those statistics over parking functions are equidistributed with the lower and upper area statistics over factorizations via the connection through tree inversions.

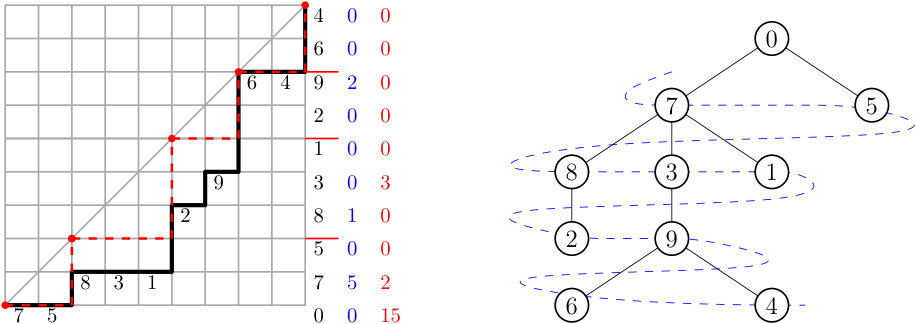

Consider a parking function $p$ of length $n$ drawn as the usual labelled Dyck path $P$ on a square grid between the points $(0,0)$ and $(n,n)$ with its bounce path $B$ , as given in Figure 3. That figure is repeated in Figure 10 (left). Recall our convention is to list the labels at the same height in $P$ in decreasing order. Let $w_{1},\ldots,w_{n}$ be the permutation of horizontal labels from left to right that occur in $P$ , and set $w=w_{0},w_{1},\dots,w_{n}$ , where $w_{0}=0$ . For $i\in[n]$ , define the sets

[TABLE]

Because of their recursive definition, it is convenient to find the sets $D_{w_{i}}$ in the order $i=n,\dots,0$ . For example, for the parking function $(1,3,1,7,0,7,0,1,4)\in\mathcal{P}_{9}$ in Figure 10 (left), we have the permutation $w=(0,7,5,8,3,1,2,9,6,4)$ , and the sets $C_{i}$ and $D_{i}$ are given in Table 3. A useful way to visually display these ideas is to write the permutation $w$ from bottom to top to the right of $P$ so $w_{i}$ is adjacent to the vertical segment with endpoints $(n,i-1)$ and $(n,i)$ ; then the labels at height $i$ are seen directly to the left of $w_{i}$ , giving $C_{w_{i}}$ . See Figure 10 (left).

It is useful to regard $w$ as labels on the vertical steps of the bounce path $B$ by simply projecting them from the right of the path $P$ to the vertical steps of $B$ . Define a vertical run of $B$ to be a set of vertical steps of at the same $x$ -coordinate. Consider the set of labels $V$ on the vertical run of $B$ with $x$ -coordinate $v$ . Then it is straighforward to show:

•

$D_{0}=[1,n]$ .

•

The sets $\{D_{i}:i\in V\}$ are pairwise disjoint.

•

The set $\bigcup_{i\in V}D_{i}$ is the set of labels on horizontal steps to the right (at any height) of the vertical run at $x=v$ ; so, the total size of this union is $n-v$ (see Figure 10 (left)).

•

Whence it follows from the definition in (7) that

[TABLE]

It further follows from the above properties that for all $i$ , $i\notin D_{i}$ .

We define two additional statistics on $p$ . For each $i\in[n]$ , let $\mathrm{binv}(i)$ and $\mathrm{cobinv}(i)$ be the number of elements in $D_{i}$ less than $i$ and greater than $i$ , respectively, and set

[TABLE]

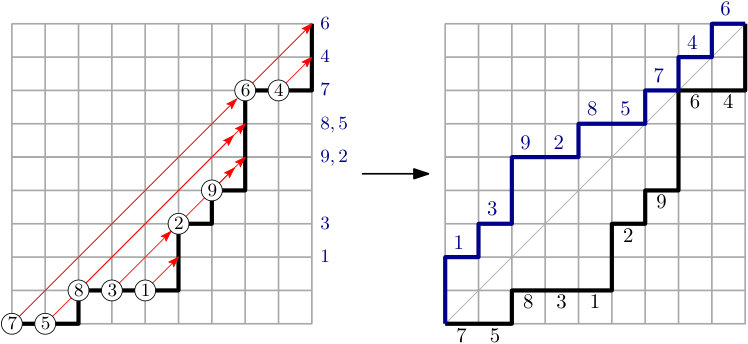

Figure 10 (left) illustrates the statistics $\mathrm{binv}$ and $\mathrm{cobinv}$ .

With this setup, we define a function $\theta:\mathcal{P}_{n}\rightarrow\mathcal{T}_{n}$ by defining $C_{i}$ to be the children of vertex $i$ . See Figure 10 (right). It is easy to see that $\theta$ is a bijection. Furthermore, if $p\in\mathcal{P}_{n}$ and $T=\theta(p)$ , we have:

•

By definition, for each $i\in[n]$ we have $\mathrm{binv}(i)+\mathrm{cobinv}(i)=|D_{i}|$ .

•

From (16), it follows that

[TABLE]

•

For each $i\in[n]$ , the descendants of $i$ in $T$ are $D_{i}$ ;

•

For each $i\in[n]$ , the statistics $\mathrm{binv}(i)$ and $\mathrm{cobinv}(i)$ count the number of pairs $(i,j)$ that are inversions and coinversions of $T$ , respectively.

•

It then follows by definition that $\mathrm{pinv}(p)$ and $\mathrm{copinv}(p)$ are equal to $\mathrm{inv}(T)$ and $\mathrm{coinv}(T)$ , respectively.

In light of the above, define for $n\geq 1$

[TABLE]

with $B_{0}(q,t)=1$ ; hence, $B_{n}(q,q)=\sum_{p\in\mathcal{P}_{n}}q^{\mathrm{bounce}(p)}$ from (17). Furthermore, we see from the discussion concerning the map $\theta$ that $B_{n}(q,t)=I_{n}(q,t)$ for all $n\geq 0$ . The next theorem, which is a refinement of Theorem 2.3, now follows from Theorem 2.1.

Theorem 7.1.

For all $n\geq 0$ , the polynomials $I_{n}(q,t),F_{n}(q,t)$ and $B_{n}(q,t)$ are all equal.

Bibliography23

The reference list from the paper itself. Each links out to its DOI / PubMed record.

1[AR 14] R. Adin and Y. Roichman, On maximal chains in the noncrossing partition lattice , J. Combin. Theory Ser. A. 125 (2014), 18–46.
2[Bei 82] Janet Simpson Beissinger, On external activity and inversions in trees , J. Combin. Theory Ser. B 33 (1982), no. 1, 87–92. MR 678173
3[Bia 02] P. Biane, Parking functions of types A and B , Electron. J. Combin. 9 (2002).
4[CR 64] L. Carlitz and J. Riordan, Two element lattice permutation numbers and their q 𝑞 q -generalization , Duke Math. J. 31 (1964), 371–388.
5[D 5́9] J. Dénes, The representation of a permutation as the product of a minimal number of transpositions and its connection with the theory of graphs , Publ. Math. Inst. Hungar. Acad. Sci. 4 (1959), 63–70.
6[Ges 95] Ira M. Gessel, Enumerative applications of a decomposition for graphs and digraphs , Discrete Math. (1995), 257–271.
7[GJ 14] I. P. Goulden and D. M. Jackson, Transitive factorizations of permutations and geometry , The Mathematical Legacy of Richard P. Stanley (P. Hersh, T. Lam, P. Pylyavskyy, and V. Reiner, eds.), American Mathematical Society, 2014.
8[GM 06] D. A. Gerwurz and F. Merola, Some factorizations counted by Catalan numbers , European J. Combin. 27 (2006), 990–994.

TL;DR

Contribution

Findings

Abstract

Peer Reviews

Videos

Trees, parking functions and factorizations of full cycles

Abstract.

1. Introduction

1.1. Notation

1.2. Labelled Trees

1.3. Parking Functions

Theorem 1.1** ([Kre80]).**

1.4. Minimal Factorizations of Full Cycles

Theorem 1.2** ([Sta97, Bia02]).**

2. Summary of Results

2.1. Factorizations and Trees

Theorem 2.1**.**

2.2. Factorizations and Parking Functions

Theorem 2.2**.**

2.3. Depth, Difference, and Bounce

Theorem 2.3**.**

2.4. Further Comments

3. Minimal Factorizations and Arch Diagrams

Lemma 3.1**.**

Theorem 3.2**.**

4. Factorizations and Trees

Theorem 4.1**.**

Proposition 4.2**.**

Proof.

Lemma 4.3**.**

Proof.

Proposition 4.4**.**

Proof.

5. Special Cases and Related Results

Corollary 5.1**.**

Theorem 5.2**.**

Proof.

6. Factorizations and Parking Functions

Proposition 6.1**.**

Lemma 6.2**.**

Proof of Proposition 6.1.

Example 6.3*.*

Algorithm 6.4**.**

Proof of correctness:.

Proposition 6.5**.**

Proof.

Proposition 6.6**.**

Proof.

7. The Bounce Statistic

Theorem 7.1**.**

Theorem 1.1 ([Kre80]).

Theorem 1.2 ([Sta97, Bia02]).

Theorem 2.1.

Theorem 2.2.

Theorem 2.3.

Lemma 3.1.

Theorem 3.2.

Theorem 4.1.

Proposition 4.2.

Lemma 4.3.

Proposition 4.4.

Corollary 5.1.

Theorem 5.2.

Proposition 6.1.

Lemma 6.2.

*Example 6.3**.*

Algorithm 6.4.

Proposition 6.5.

Proposition 6.6.

Theorem 7.1.
