Surface plasmon-polariton waves obliquely guided along interface containing periodicity direction of one-dimensional photonic crystal

TL;DR

This paper develops a comprehensive formulation for oblique surface plasmon-polariton waves at the interface with a one-dimensional photonic crystal, revealing bandgaps and periodicity in their propagation characteristics.

Contribution

It introduces a general formulation and dispersion equation for oblique SPP waves supported by photonic crystal interfaces, including numerical solutions and analysis of plasmonic bandgaps.

Findings

Observation of periodicity in SPP wave wavenumbers

Identification of plasmonic bandgaps in the photonic band diagram

Potential for designing optical filters using these bandgaps

Abstract

We recently formulated the canonical boundary-value problem of propagation of surface plasmon-polariton (SPP) waves along the direction of periodicity of a one-dimensional photonic crystal. Here we present the general formulation of that canonical problem supporting the oblique propagation of SPP waves in the interface plane. The general dispersion equation has been obtained using the rigorous coupled-wave approach for the oblique propagation and numerically solved using the Muller's method. A periodicity in the wavenumbers of the SPP waves was observed. Furthermore, the regions of high losses for the SPP waves, dubbed as plasmonic bandgaps, were observed in the photonic band diagram of the SPP waves. These plasmonic bandgaps can be used to construct optical filters for the SPP waves.

Figures

Equations

$${\epsilon }_r(x+\Lambda )={\epsilon }_r(x),z>0.$$

$${\epsilon }_r(x)=\sum _{n\in \mathbb{Z}}{\epsilon }_r^{(n)}\exp (in2\pi x/\Lambda ),$$

$${\epsilon }_r^{(0)}=\frac{1}{\Lambda }{\int }_0^{\Lambda }{\epsilon }_r(x)dx,$$

$${\epsilon }_r^{(n)}=\frac{1}{\Lambda }{\int }_0^{\Lambda }{\epsilon }_r(x)\exp (-in2\pi x/\Lambda )dx,n\ne 0.$$

$${\hat{\mathbf{u}}}_{\rho }={\hat{\mathbf{u}}}_x\cos \psi +{\hat{\mathbf{u}}}_y\sin \psi .$$

$$\mathbf{E}(\mathbf{r})$$

$${\eta }_0\mathbf{H}(\mathbf{r})$$

$$k_z^{(n)}=\sqrt{{\epsilon }_{met}{k}_0^2-{[k_{xy}^{(n)}]}^2},$$

$$k_{xy}^{(n)}=\sqrt{{[k_x^{(n)}]}^2+{[k_y^{(0)}]}^2}.$$

$${\mathbf{s}}_n=\frac{-k_y^{(0)}{\hat{\mathbf{u}}}_x+k_x^{(n)}{\hat{\mathbf{u}}}_y}{k_{xy}^{(n)}}$$

$${\mathbf{p}}_n=-\frac{k_z^{(n)}}{\sqrt{{\epsilon }_{met}}{k}_0}\left[\frac{k_x^{(n)}{\hat{\mathbf{u}}}_x+k_y^{(0)}{\hat{\mathbf{u}}}_y}{k_{xy}^{(n)}}\right]+\frac{k_{xy}^{(n)}}{\sqrt{{\epsilon }_{met}}{k}_0}{\hat{\mathbf{u}}}_z$$

$$\mathbf{E}(\mathbf{r})$$

$$\mathbf{H}(\mathbf{r})$$

$$\frac{d}{dz}{e}_x^{(n)}(z)-k_x^{(n)}{e}_z^{(n)}(z)=k_0{\eta }_0{h}_y^{(n)}(z),$$

$$\frac{d}{dz}{e}_y^{(n)}(z)-k_y^{(0)}{e}_z^{(n)}(z)=-k_0{\eta }_0{h}_x^{(n)}(z),$$

$$k_x^{(n)}{e}_y^{(n)}(z)-k_y^{(0)}{e}_x^{(n)}(z)=k_0{\eta }_0{h}_z^{(n)}(z),$$

$$\frac{d}{dz}{h}_x^{(n)}(z)-k_x^{(n)}{h}_z^{(n)}(z)=-\frac{k_0}{{\eta }_0}\sum _{m\in \mathbb{Z}}{\epsilon }_r^{(n-m)}{e}_y^{(m)}(z),$$

$$\frac{d}{dz}{h}_y^{(n)}(z)-k_y^{(0)}{h}_z^{(n)}(z)=\frac{k_0}{{\eta }_0}\sum _{m\in \mathbb{Z}}{ϵ}_r^{(n-m)}{e}_x^{(m)}(z),$$

$$k_x^{(n)}{h}_y^{(n)}(z)-k_y^{(0)}{h}_x^{(n)}(z)=-\frac{k_0}{{\eta }_0}\sum _{m\in \mathbb{Z}}{\epsilon }_r^{(n-m)}{e}_z^{(m)}(z).$$

$$[{\mathbf{x}}_{\sigma }(z)]$$

$$[{\underline{\underline{K}}}_x]=\mathrm{diag}[k_x^{(n)}],[{\underline{\underline{\epsilon }}}_r]=\left[{\epsilon }_r^{(n-m)}\right],$$

$$\left[{\mathbf{e}}_z(z)\right]$$

$$\left[{\eta }_0{\mathbf{h}}_z(z)\right]$$

$$\frac{d}{dz}\left[\mathbf{f}(z)\right]=i[\underline{\underline{P}}]\cdot \left[\mathbf{f}(z)\right],z>0,$$

$$\left[\mathbf{f}(z)\right]={\left[{\left[{\mathbf{e}}_x(z)\right]}^T,\text{leavevmode}\text{leavevmode}{\left[{\mathbf{e}}_y(z)\right]}^T,\text{leavevmode}\text{leavevmode}{\eta }_0{\left[{\mathbf{h}}_x(z)\right]}^T,\text{leavevmode}\text{leavevmode}{\eta }_0{\left[{\mathbf{h}}_y(z)\right]}^T\right]}^T$$

$$\left[\underline{\underline{P}}\right]=\left[\begin{array}[]{cccc}\left[\underline{\underline{0}}\right]&\left[\underline{\underline{0}}\right]&\left[\underline{\underline{P}}_{13}\right]&\left[\underline{\underline{P}}_{14}\right]\\ \left[\underline{\underline{0}}\right]&\left[\underline{\underline{0}}\right]&\left[\underline{\underline{P}}_{23}\right]&\left[\underline{\underline{P}}_{24}\right]\\ \left[\underline{\underline{P}}_{31}\right]&\left[\underline{\underline{P}}_{32}\right]&\left[\underline{\underline{0}}\right]&\left[\underline{\underline{0}}\right]\\ \left[\underline{\underline{P}}_{41}\right]&\left[\underline{\underline{P}}_{42}\right]&\left[\underline{\underline{0}}\right]&\left[\underline{\underline{0}}\right]\,,\end{array}\right]\,.$$

$$\left[{\underline{\underline{P}}}_{13}\right]$$

$$\left[{\underline{\underline{P}}}_{14}\right]$$

$$\left[{\underline{\underline{P}}}_{23}\right]$$

$$\left[{\underline{\underline{P}}}_{24}\right]$$

$$\left[{\underline{\underline{P}}}_{31}\right]$$

$$\left[{\underline{\underline{P}}}_{32}\right]$$

$$\left[{\underline{\underline{P}}}_{41}\right]$$

$$\left[{\underline{\underline{P}}}_{42}\right]$$

$$\left[\mathbf{f}(z)\right]=\exp \left\{i[\underline{\underline{P}}]z\right\}\cdot \left[\mathbf{f}(0)\right],z>0.$$

$$\left[{\bf f}(0+)\right]=\left[[{\bf t}^{(1)}]\leavevmode\nobreak\ [{\bf t}^{(2)}]\leavevmode\nobreak\ ...[{\bf t}^{2(2N_{t}+1)]}\right]\mbox{ {${}^{\bullet}$} }\left[{\bf B}\right]\,,$$

$$[\mathbf{B}]={\left[b_1\text{leavevmode}{b}_2\text{leavevmode}...\text{leavevmode}{b}_{2(2N_t+1)}\right]}^T.$$

$$\left.\begin{array}[]{l}e_{x}^{(n)}(0-)=a_{s}^{(n)}{\bf s}_{n}\cdot\hat{{\bf u}}_{x}+a_{p}^{(n)}{\bf p}_{n}\cdot\hat{{\bf u}}_{x}\\ e_{y}^{(n)}(0-)=a_{s}^{(n)}{\bf s}_{n}\cdot\hat{{\bf u}}_{y}+a_{p}^{(n)}{\bf p}_{n}\cdot\hat{{\bf u}}_{y}\\ \eta_{0}\,h_{x}^{(n)}(0-)=\sqrt{\varepsilon_{met}}[a_{s}^{(n)}{\bf p}_{n}\cdot\hat{{\bf u}}_{x}-a_{p}^{(n)}{\bf s}_{n}\cdot\hat{{\bf u}}_{x}]\\ \eta_{0}\,h_{y}^{(n)}(0-)=\sqrt{\varepsilon_{met}}[a_{s}^{(n)}{\bf p}_{n}\cdot\hat{{\bf u}}_{y}-a_{p}^{(n)}{\bf s}_{n}\cdot\hat{{\bf u}}_{y}]\end{array}\right\}\,,\quad n\in\mathbf{Z}\,$$

Full text

1 Introduction

The electromagnetic surface waves at the truncated surface of a one-dimensional photonic crystal (1DPC) was systematically studied first in 1977 [1] and then later experimentally verified in 1978 [2]. These waves were named as Bloch states or Bloch waves and often has been studied using band structures [3]. The most popular among the category of these electromagnetic surface waves are the surface plasmon-polariton (SPP) waves [4]. These waves exist at the interface of a dielectric material and a metal and decay exponentially away from the either side of the interface [5] . The SPP waves guided by the interface of a metal and 1DPC are also called Tamm plasmon-polariton waves [6] due to Tamm’s pioneering work on the electronic surface states on the surface of a semi-infinite crystal [7, 8].

The 1DPCs are being utilized for optical trapping, controlling the polarization of light, and for spatial light modulation [9]. The 1DPCs have also found applications in optical biosening [10], utilized to couple light between alternating dielectric layers [11], can be used to guide modes [12], and support surface waves with backward energy flow[13]. Existence and excitation of the SPP waves at the interface of a metal and a 1DPC has been extensively studied [15, 14] and even multiple SPP waves at the interface perpendicular to the direction of periodicity are well known [16, 17]. But most of the work on 1DPCs either utilized the interface perpendicular to the direction of periodicity [9, 11, 12, 13, 15, 18] or used the band structures [20, 21, 19] to obtain the surface waves.

Recently we formulated a canonical boundary-value problem to investigate the propagation of SPP waves along the direction of periodicity of 1DPC [22, 23]. Here, we present a more general framework which supports the oblique propagation of the SPP waves in the interface plane that contains the direction of periodicity of the 1DPC. Because of the oblique propagation, the SPP waves are no longer $p$ polarized. The rigorous coupled wave approach (RCWA) has been used to solve the canonical problem of metal/1DPC interface [24, 25, 27, 26, 28].

The formulation is presented in Sec. 2. The numerical results showing the plasmonic bandgaps, power profiles, and the periodicity of the wavenumbers of the SPP waves are presented in Sec. 3. The concluding remarks are presented in Sec. 4. An $\exp(-i\omega t)$ time-dependence is implicit, with $\omega$ denoting the angular frequency. The free-space wavenumber, the free-space wavelength, and the intrinsic impedance of free space are denoted by $k_{0}=\omega\sqrt{\epsilon_{0}\mu_{0}}$, $\lambda_{0}=2\pi/k_{0}$, and $\eta_{0}=\sqrt{\mu_{0}/\epsilon_{0}}$, respectively, with $\mu_{0}$ and $\epsilon_{0}$ being the permeability and permittivity of free space. Vectors are in boldface, column vectors are in boldface and enclosed within square brackets, and matrixes are underlined twice and square-bracketed. The asterisk denotes the complex conjugate, the superscript $T$ denotes the transpose, and the Cartesian unit vectors are identified as $\hat{{\bf u}}_{x}$, $\hat{{\bf u}}_{y}$, and $\hat{{\bf u}}_{z}$.

2 Formulation of dispersion equation

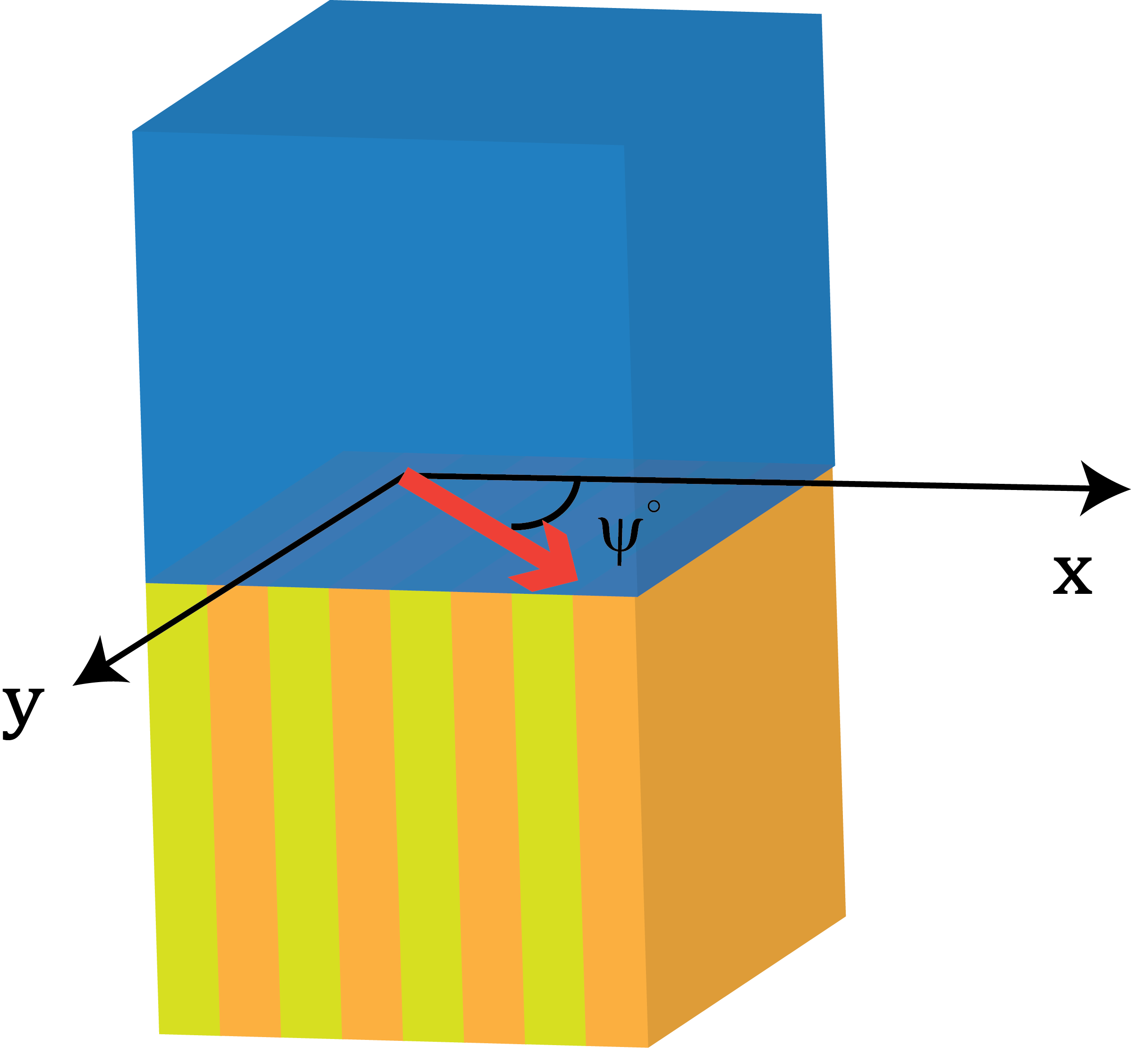

Let us consider the boundary value problem shown schematically in Fig. 1. The half-space $z\leq 0$ is occupied by a homogeneous medium with permittivity $\varepsilon_{met}$ and the region $z>0$ is occupied by a one-dimensional photonic crystal of structural period $\Lambda$ along $x$ axis with the relative permittivity

[TABLE]

The relative permittivity can be expanded as a Fourier series with respect to $x$, viz.,

[TABLE]

where

[TABLE]

and

[TABLE]

In the half-space $z\leq 0$, let the SPP wave propagate in the $xy$ plane making an angle $\psi$ with the $x$ axis along the unit vector

[TABLE]

The field phasors may be written in terms of Floquet harmonics as follows:

[TABLE]

where $k_{x}^{(n)}=q\cos\psi+n2\pi/\Lambda$, $k_{y}^{(0)}=q\sin\psi$, and

[TABLE]

where

[TABLE]

For SPP waves propagation Im$[k_{z}^{(n)}]<0$. The unit vectors

[TABLE]

and

[TABLE]

represent the $s$- and $p$-polarization states, respectively. Whereas $\left\{a_{s}^{(n)},a_{p}^{(s)}\right\}$, ${n\in\mathbb{Z}}$, are the unknown amplitudes of the electric field phasor that have to be determined.

The field phasors in the 1DPC may be written in terms of Floquet harmonics as

[TABLE]

Substitution of Eqs. (2), (12) and (13) in the frequency-domain Maxwell curl postulates results in a system of six algebraic equations as follows:

[TABLE]

Equations (14)–(19) hold ${\forall}n\in\mathbb{Z}$. We restrict $|n|\leq N_{t}$ and then define the column $(2N_{t}+1)$-vectors

[TABLE]

for ${\bf x}\in\left\{{\bf e},{\bf h}\right\}$ and $\sigma\in\left\{x,y,z\right\}$. Similarly, we define $(2N_{t}+1)\times(2N_{t}+1)$-matrixes

[TABLE]

where ${\rm{diag}}[k_{x}^{(n)}]$ is a diagonal matrix and $[\underline{\underline{\varepsilon}}_{r}]$ is a Toeplitz matrix.

Equations (16) and (19) yield

[TABLE]

the use of which in Eqs. (14), (15), (17) and (18) eliminates $e_{z}^{(n)}$ and $h_{z}^{(n)}\,\forall{n\in\mathbb{Z}}$, and gives the matrix equation

[TABLE]

where the column vector $[{\bf f}(z)]$ with $4(2N_{t}+1)$ components is defined as

[TABLE]

and the $4(2N_{t}+1)\times 4(2N_{t}+1)$-matrix $\left[\underline{\underline{P}}\right]$ is given by

[TABLE]

where $\left[\underline{\underline{0}}\right]$ is the $(2N_{t}+1)\times(2N_{t}+1)$ null matrix and $\left[\underline{\underline{I}}\right]$ is the $(2N_{t}+1)\times(2N_{t}+1)$ identity matrix, the non-null submatrixes on the right side of Eq. (26) are as follows:

[TABLE]

The solution of Eq. (24) can be written as

[TABLE]

To write the field phasors of the surface waves in the photonic crystal, we need the field expressions that represent the decay of the field away from the interface when $z\rightarrow\infty$. To do that, let us assume that $[{\bf t}^{(n)}]$ be the eigenvectors and $\alpha^{(n)}$ be the corresponding eigenvalues of the matrix $\left[\underline{\underline{P}}\right]$ and are labeled such that the first $2(2N_{t}+1)$ eigenvalues have Im $[\alpha^{(n)}]>0$ so that the corresponding eigenvectors represent decaying fields as $z\rightarrow\infty$. The other half eigenvalues represent the fields that grow as $z\rightarrow\infty$. Therefore,

[TABLE]

where

[TABLE]

Using Eqs. (6) and (7), we can get the components of the field phasors at $z=0-$ as

[TABLE]

that can be expressed in matrix form as

[TABLE]

where

[TABLE]

and the non-zero entries of $(4N_{t}+2)\times(4N_{t}+2)$-matrixes $\left[\underline{\underline{Y}}_{e,h}\right]$ are as follows:

[TABLE]

Implementing the standard boundary conditions, $[{\bf f}(0+)]=[{\bf f}(0-)]$, we get

[TABLE]

where

[TABLE]

For non-trivial solutions,

[TABLE]

which is the dispersion equation of SPP waves guided by the interface with 1DPC propagating obliquely in the interface plane that the contains the direction of periodicity.

3 Numerical Results and Discussion

For the representative numerical results in this section, the 1DPC has been taken to consist of alternating layers of different dielectric materials $\varepsilon_{a}$ and $\varepsilon_{b}$ of equal lengths $a$ and $b=a$, respectively, such that the structural period is $a+b=\Lambda$. Hence,

[TABLE]

Hence the Fourier coefficients of the relative permittivitiy are

[TABLE]

The relative permittvities of the layers of the 1DPC are assumed to be $\varepsilon_{a}=(1.5)^{2}+10^{-6}i$ and $\varepsilon_{b}=(2)^{2}+10^{-6}i$. The free-space wavelength of SPP waves is taken to be $\lambda_{0}=633$ nm and the partnering metal is chosen to be gold with $\varepsilon_{met}=-11.8+1.3i$ for the numerical computations. The Muller’s method has been used to obtain the numerical solutions of the dispersion equation 46. The relative wavenumber is first computed against $N_{t}$ for a fixed propagation angle so that the converged solutions can be obtained. The following relation is used as an initial guess value to obtain the main solution branch

[TABLE]

and solutions are found when the real and imaginary parts of the det$[\underline{\underline{M}}]$ were less than $10^{-6}$. Also the step-size for the Muller’s method is taken to be $10^{-6}$. All the solutions of the dispersion equation (46) presented here are for $N_{t}=7$ and plotted against propagation angle $\psi$ with respect to the $x$ axis. For the chosen set of parameters, the solutions of the dispersion equation (46) for different structural periods $\Lambda$ are presented in Fig. 2. Only the main branch of solutions for each value of $\Lambda$ are shown. It can be seen that real part of the relative wavenumber $q/k_{0}$ is almost the same for each structural period $\Lambda$, while the imaginary part of $q/k_{0}$ is a bit different for each $\Lambda$. Each solution presented in the Fig. 2 represents an SPP wave obliquely propagating along the interface of 1DPC containing direction of periodicity.

3.1 Periodicity of the solutions

While solving dispersion equation (2) we encountered multiple solution for a fixed $\psi$ and $\Lambda$. The multiple solutions had their imaginary part was the same but the real part was different. The three branches of these multiple solutions are presented in Fig. 3 for $\Lambda=0.6\lambda_{0}$. The periodicity can be explained by recalling that the the wavenumber $k_{xy}^{(n)}$ in the direction of propagation $\hat{{\bf u}}_{\rho}$ given by Eq. (9) is valid for all the values of $|n|\leq N_{t}$. And, for each value of $n$, $k_{xy}^{(n)}$ represents an evanescent Floquet harmonic obliquely propagating along the direction of periodicity of 1DPC. Also each value of $k_{xy}^{(n)}$ is utilized in obtaining the dispersion equation (46). So the solution of the dispersion equations $q$ itself possesses some sort of periodicity. We tested our hypothesis by expressing the wavenumber of the $\ell$th harmonic in Eq. (9) as

[TABLE]

or

[TABLE]

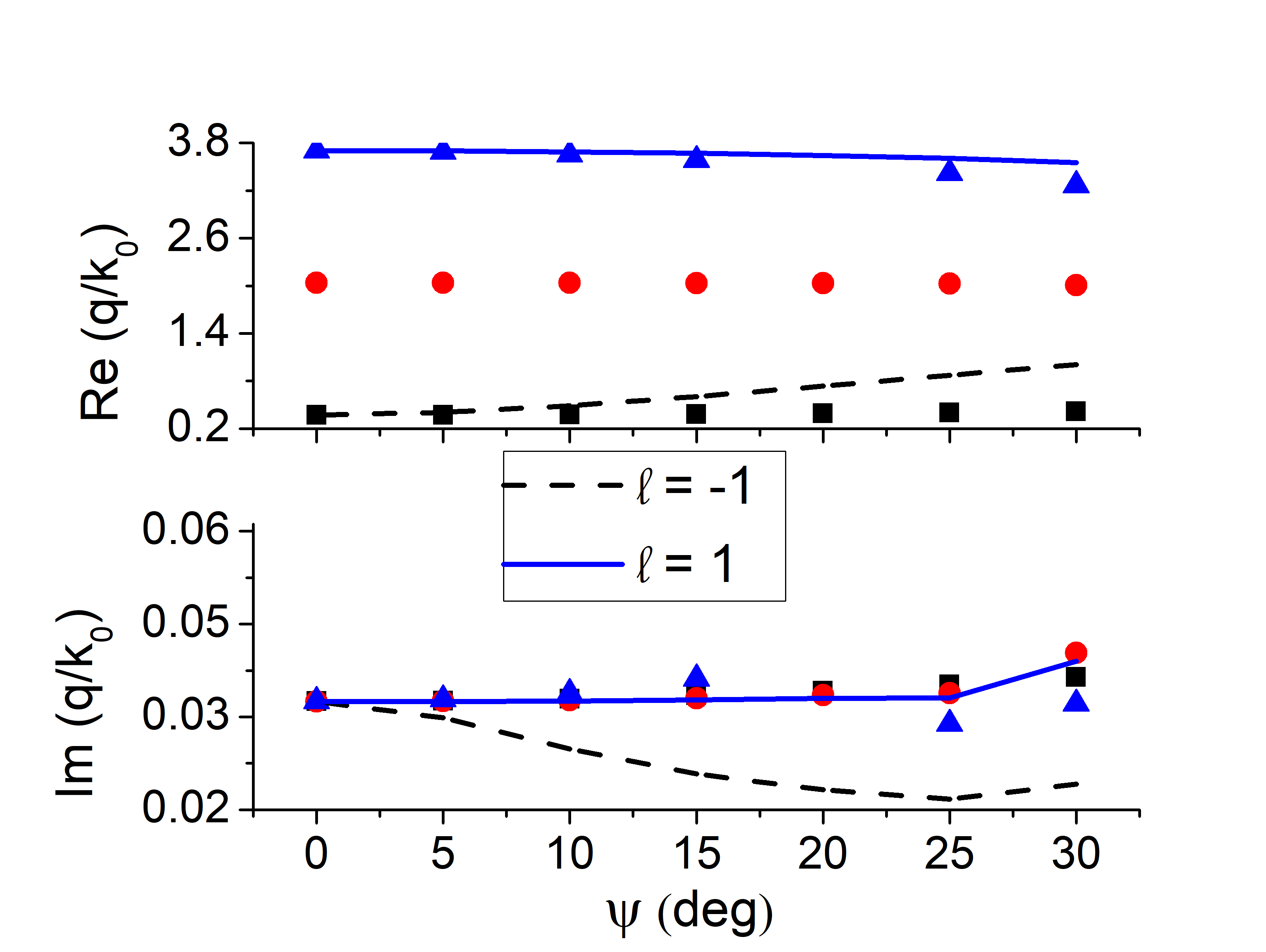

using $k_{0}=2\pi/\lambda_{0}$. The plot of Eq. (51) for $\ell=1$ and $\ell=-1$ is provided in Fig. 3. The very good match with the two branches indicate that these branches of solutions do not represent new SPP waves but the same as waves as the main branch. It can be seen from Fig. 3 that real part of the predicted and computed branches of Re$(q/k_{0})$ are in better agreement for the smaller value of the angles $\psi$ and imaginary part of the computed and predicted values of the relative wavenumber Im$(q/k_{0})$ do not agree very well for $\ell=-1$. Also the solutions of the dispersion equation (46) is really hard to find when the structural period $\Lambda\leq 1$. Let us note that the solution obtained for $\psi=0^{\circ}$ matches exactly with the solution obtained in our previously published work [22].

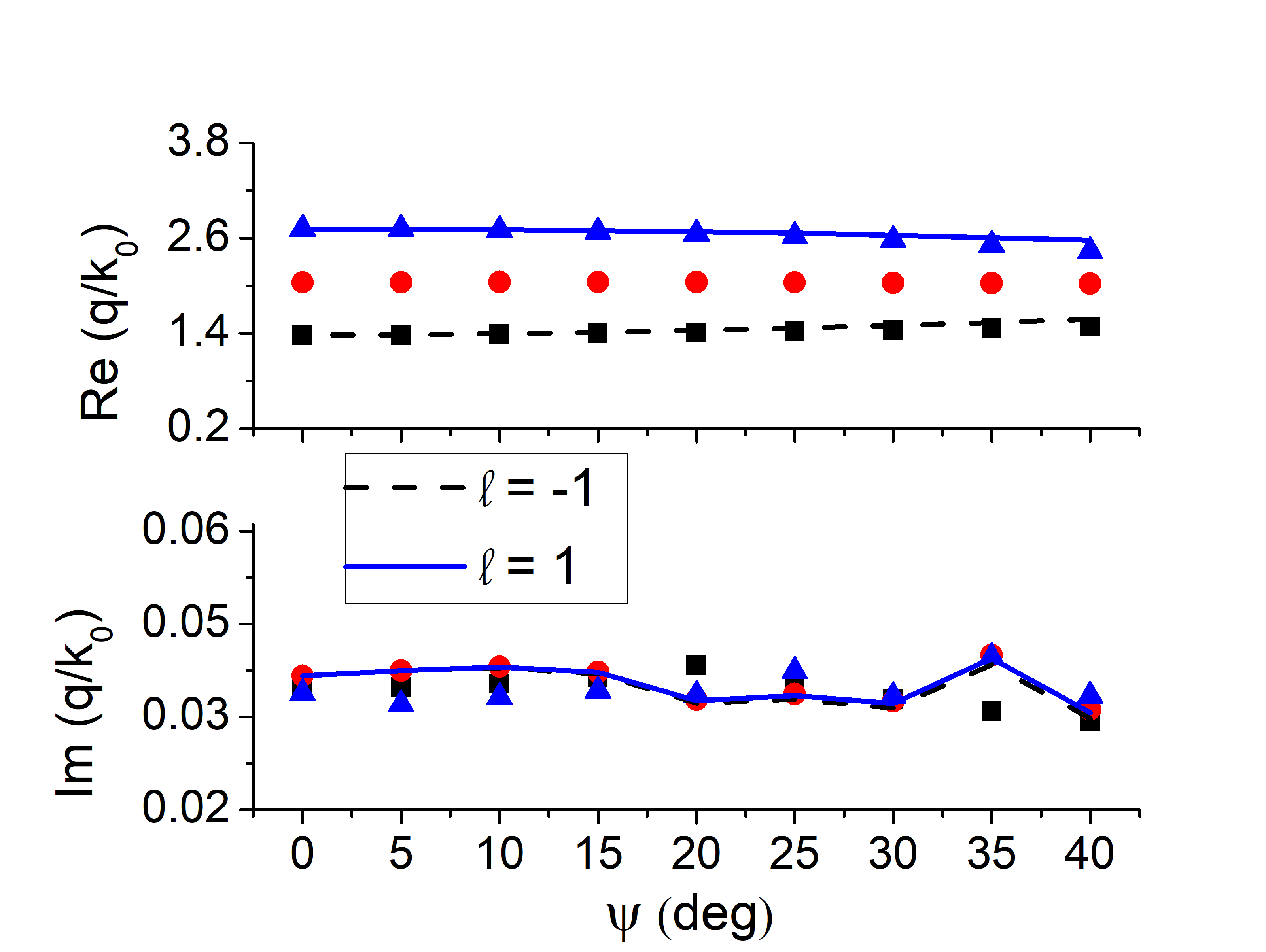

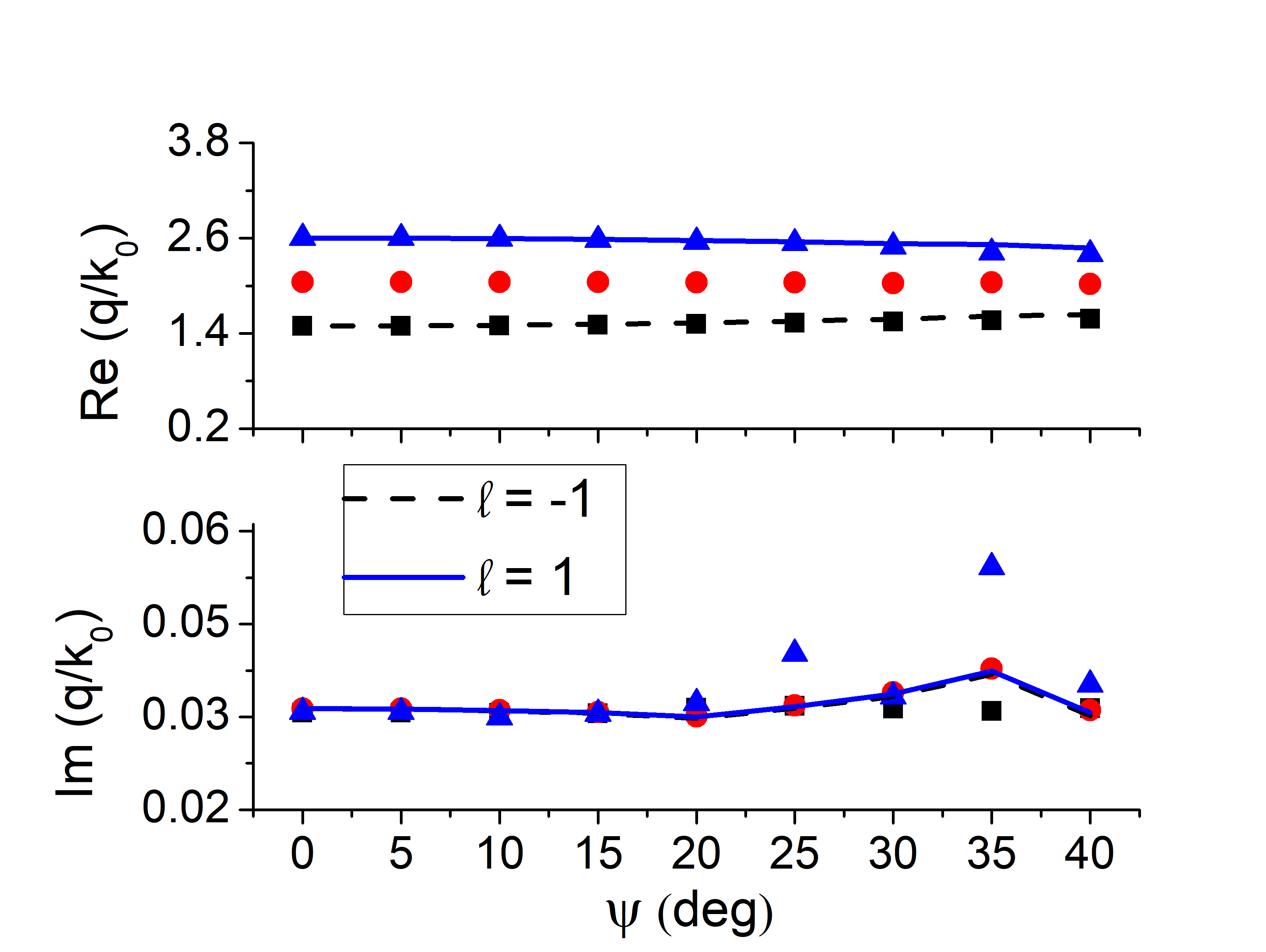

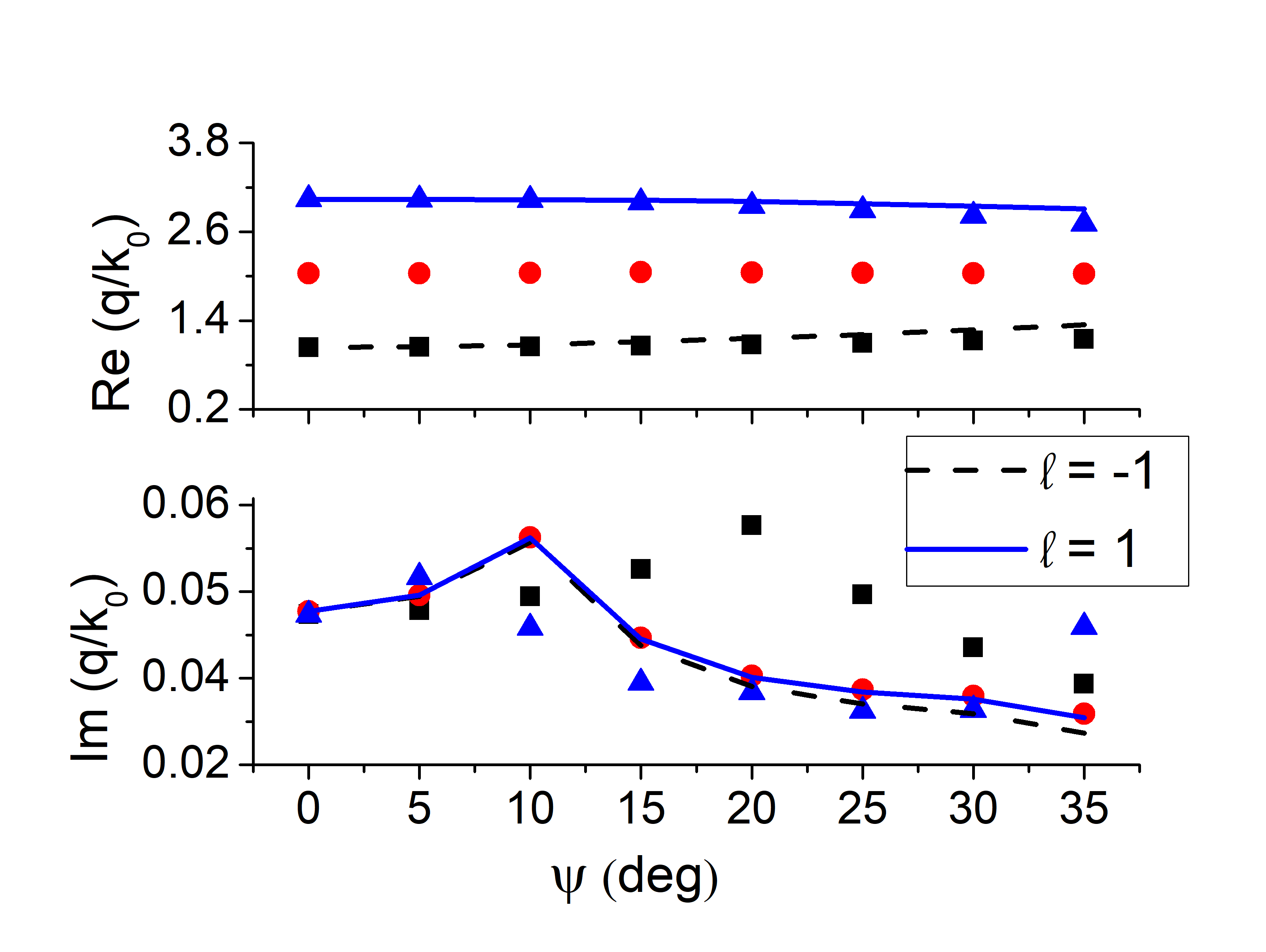

Multiple solutions and the plots of Eq. (51) for $\Lambda=\lambda_{0}$, $1.5\lambda_{0}$, and $1.8\lambda_{0}$ are presented in Figs. 4, 5 and 6, respectively. From these figures, we can see that the match between the computed solution of the dispersion equation and Eq. (51) gets better as $\Lambda$ increases. Let us not that the solutions corresponding to the higher values o $\ell$ are not shown but exist, though it gets increasing difficult to compute the solutions as $\ell$ increases in magnitude. This periodicity of the solution is just like the periodicity of the wavenumber in periodic media; however, the agreement between the solutions for the truncated 1DPC (the dispersion equation of SPP waves) and for the bulk 1DPC, i.e., Eq. (51), is not perfect.

3.2 Power profiles

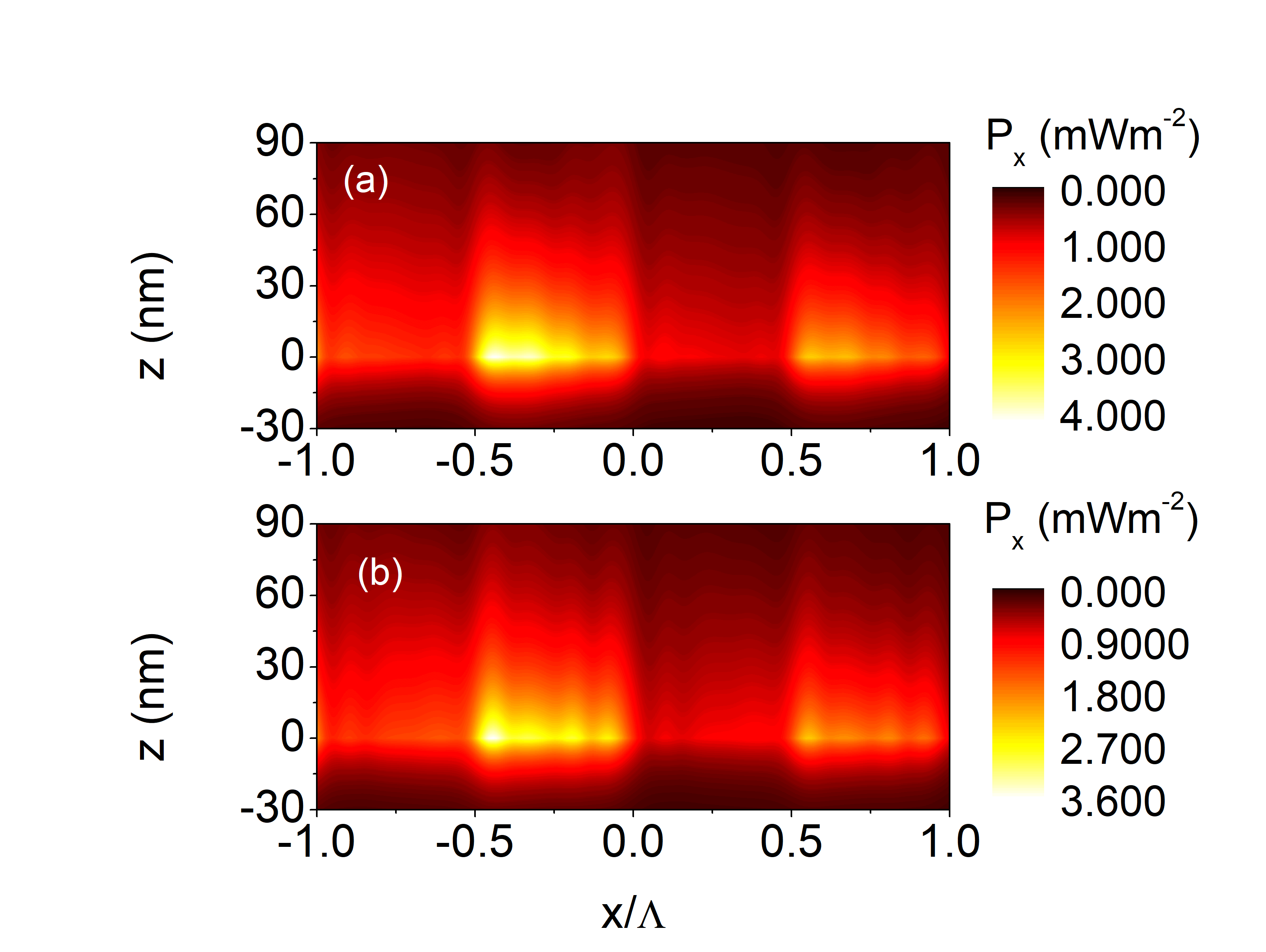

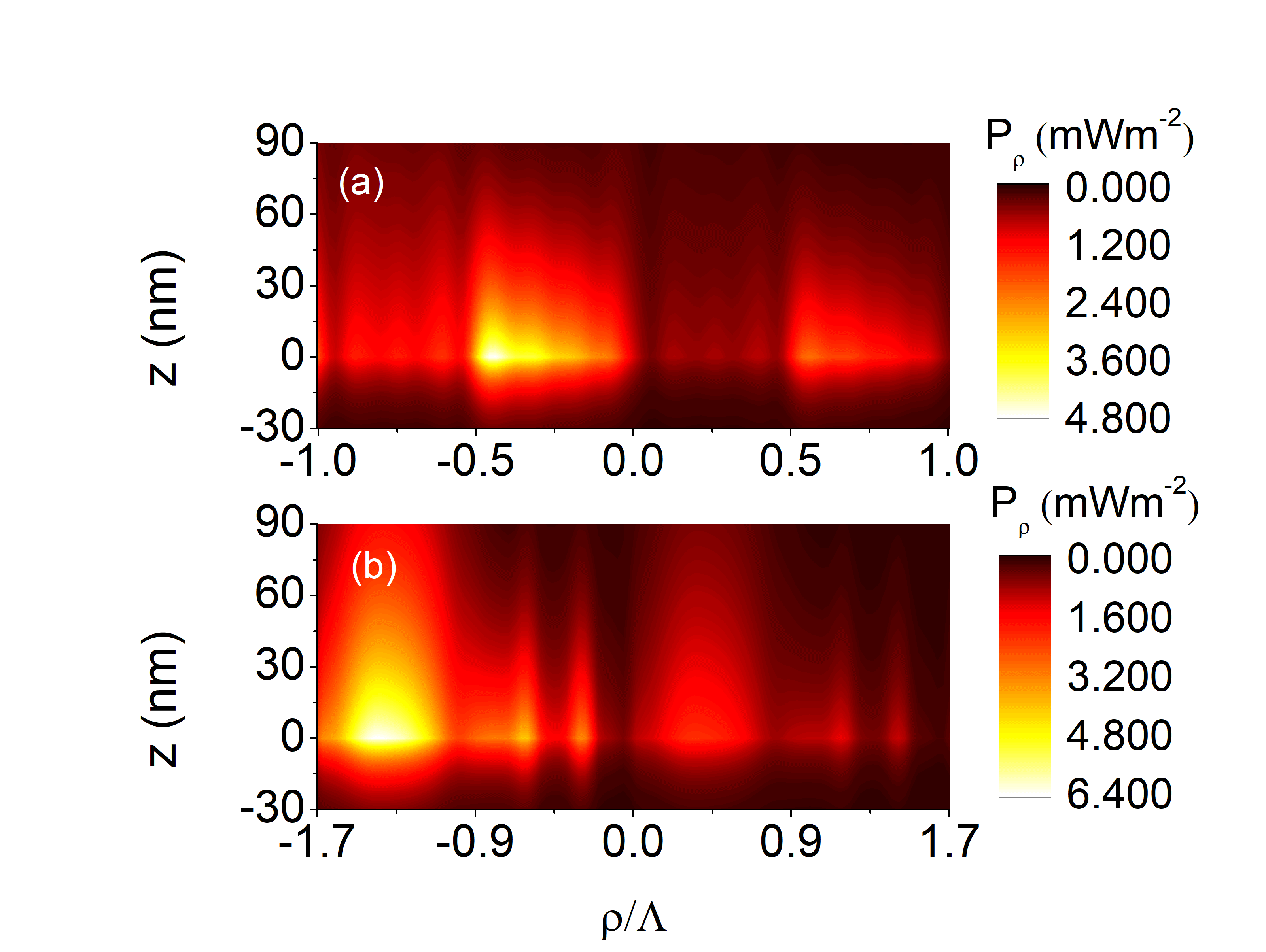

To confirm that the solutions of the dipsersion equation indeed represent SPP waves, the spatial profiles of the component of the Poynting vector along the direction of propagation $\hat{{\bf u}}_{\rho}$ were examined for the various solution. The representative plots are are given in Fig. 7 for some solutions presented in Figs. 3, 4, 5, 6 and 2. The power has been computed using the relation

[TABLE]

where

[TABLE]

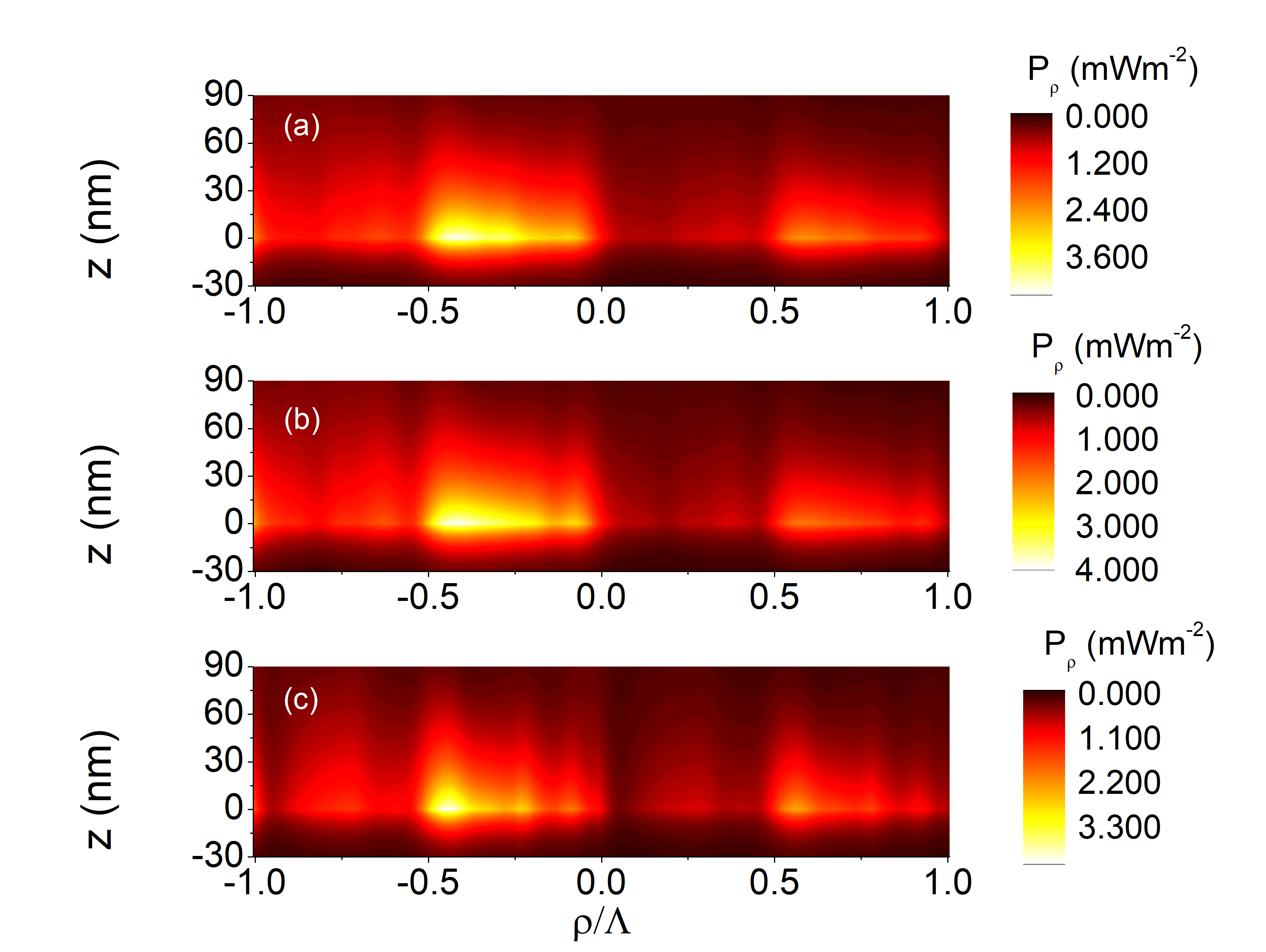

The power density was computed along the direction of propagation of the SPP wave. We used the $\rho$-component of the SPP wave as the SPP wave is obliquely propagating along $\hat{{\bf u}}_{\rho}$. Figure 7 represents the power density of the SPP wave as a function of $\rho$ and $z$ for a fixed $\psi$ and $\Lambda$ when $\ell=\{-1,0,1\}$. It is evident the field is highly-localized to the interface and decays away from the interface. The field decays periodically along $\hat{{\bf u}}_{\rho}$ according to the Floquet–Lyapunov theorem [29]. Moreover, comparison of the different graphs of the Fig. 7 shows that the SPP waves for different values of $\ell$ are very similar, though not exactly the same. To see the effect of the direction of propagation $\psi$, the profiles for two values of $\psi$ are presented for the same $\ell$ and the same $\Lambda$. The figure shows that the field profile changes significantly when $\psi$ changes.

3.3 Plasmonic bandgaps for $\psi=0$ deg

The periodicity of solutions of the dispersion equation is further explored when the SPP wave propagates along the direction of periodicity. For $\psi=0^{\circ}$, $k_{x}^{(n)}=q+n2\pi/\Lambda$ so Eq. (51) reduces to

[TABLE]

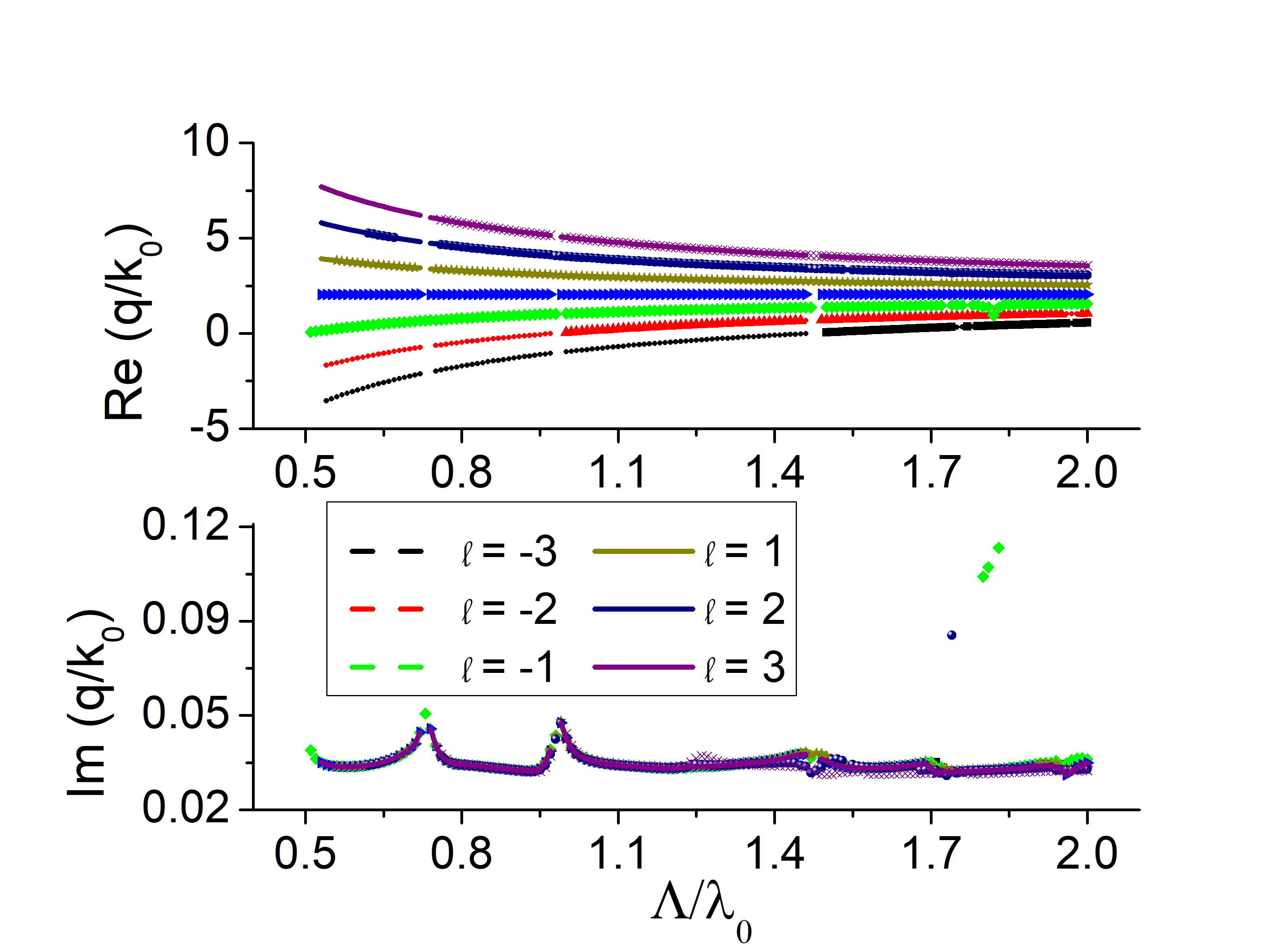

The solutions of the dispersion equation are presented in Fig. 9 along with the plots of Eq. (54) for different values of $\ell$. Both the solutions of the dispersion equation and the theoretical prediction match pretty well. However, there are gaps in the solutions of the dispersion equation where the imaginary part of the solution quickly grows and become much higher than the solutions for nearby values of $\Lambda$. These plasmonic bandgaps are the regions where the SPP-wave propagation is very lossy, which is reminiscent of the photonic bandgap in the bulk 1DPC. These plasmonic bandgap can be used to do filtering of the SPP waves, just like the filtering of the waves by bulk 1DPC.

A close inspection of Fig. 9 reveals some very interesting phenomena, e.g., the computed branches are not symmetric as the Eq. (9) predicts. It is due to the fact that the Re$[q^{(\ell)}/k_{0}]$ becomes negative when $\Lambda\leq 1.46\lambda_{0}$ for $\ell=-3$. Similarly, for $\ell=-2$, the Re$[q^{(\ell)}/k_{0}]$ becomes negative when $\Lambda\leq 0.97\lambda_{0}$. We know that Re$[q^{(\ell)}/k_{0}]<0$ represents growing waves when Im$[q^{(\ell)}/k_{0}]>0$, so we computed only those wavenumbers that represents the SPP waves.

4 Concluding Remarks

Using the rigorous coupled-wave approach (RCWA), a general formulation of the canonical boundary-value problem of surface plasmon-polariton (SPP) waves has been presented where the half-space is assumed to be occupied by a metal while the other half-space is assumed to be occupied by the one-dimensional photonic crystal (1DPC). A dispersion equation was obtained and numerically solved using the Muller’s method. The solutions of the dispersion equation for various values of the structural period of the 1DPC and for oblique angles of propagation were obtained.

It was found that the spatial periodicity of the 1DPC is manifested in the periodicity of the computed wavenumbers of the SPP waves. Also, for axial propagation, plasmonic bandgaps were found where the propagation is much more lossy than at other values of the structural of period. It is hoped that the formulation presented in this work will help in ushering new applications of in the optical filtering of the SPP waves.

Funding.

Higher Education Commission of Pakistan (HEC) grant NRPU $5905$.
