Homoepitaxial growth of SrTiO$_3$ by Pulsed Laser Deposition: energetic vs thermal growth

TL;DR

This study compares energetic and thermal pulsed laser deposition methods for growing SrTiO$_3$ thin films, revealing differences in island growth and interlayer transport dynamics through in-situ X-ray scattering.

Contribution

It provides new insights into how energetic particles influence homoepitaxial growth mechanisms compared to thermalized particles.

Findings

Energetic PLD suppresses lateral island growth.

Fast interlayer transport occurs in both methods.

Energetic particles break up smaller islands.

Abstract

Pulsed Laser Deposition (PLD) is widely used to grow epitaxial thin films of quantum materials such as complex oxides. Here, we use in-situ X-ray scattering to study homoepitaxy of SrTiO$_3$ by energetic (e-) and thermalized (th-) PLD. We find that e-PLD suppresses the lateral growth of two-dimensional islands, which suggests that energetic particles break up smaller islands. Fast interlayer transport occurs for both e-PLD and th-PLD, implying a process operating on sub-microsecond timescales that doesn't depend strongly on the kinetic energy of the incident particles.

Figures

Equations

$$I(t)\propto |F(Q){|}^2{\left|\frac{1}{1-e^{iQa}}+\sum _{n=1}^N{\theta }_n(t)e^{-iQna}\right|}^2,$$

Full text

Pulsed Laser Deposition (PLD) is a versatile method for homoepitaxial growth of ultra-smooth crystalline surfaces,Vasco et al. (2008) heteroepitaxial interfaces,Ohtomo and Hwang (2004); Reyren et al. (2007); Caviglia et al. (2008) and superlattices.Lee et al. (2005) Understanding and controlling the growth processes occurring in PLD and other energetic deposition methods presents an important challenge for the synthesis of thin layers with controllable properties.

PLD employs microsecond-scale pulses that occur as the laser plume reaches the growth surface, resulting in instantaneous deposition rates orders of magnitude higher than in continuous deposition methods such as Molecular beam Epitaxy (MBE). Deposited particles typically cannot diffuse a significant lateral distance on the surface while the rest of the plume is arriving. This is generally true over a wide range of deposition temperatures in the layer-by-layer growth regime, which is most relevant to epitaxial growth. Thus, it becomes possible to study fast microscopic crystallization mechanisms separately from slower competing thermal relaxation effects by studying the evolving X-ray scattering intensity on the relevant timescales.

Previous research has focused on the possibility that arriving particles with hyperthermal kinetic energies in the range of tens to hundreds of electron volts typical of PLD produce energetic surface smoothening effects, including energetic-particle island breakup and non-thermal transient enhanced mobility. Transient enhanced mobility is thought to involve conversion of hyperthermal kinetic energy into ballistic motion of deposited species.Fleet et al. (2005); Tischler et al. (2006); Vasco and Sacedón (2007) The motion can be in-plane – like enhanced surface diffusion – or it can involve material transferring between layers, such as when material lands on top on a unit-cell height island and then hops over the step edge to the next lower terrace. For example, in an experimental study of SrTiO3 homoepitaxy by Tischler et al., it was observed that inter-layer transport occurs on two different time scales separated by orders of magnitude.Tischler et al. (2006) Another study by Fleet et al. deduced the presence of a fast inter-layer relaxation process by comparing the experimentally-determined X-ray scattering intensity change immediately after the deposition pulse to the theoretical change for random deposition without relaxation.Fleet et al. (2005)

An additional energetic mechanism was suggested by Willmott et al.Willmott et al. (2006) for PLD growth of La1-xSrxMnO3 on SrTiO3, in which the energetic species in the laser plume breaks up islands into smaller daughter islands. Island break-up is expected to delay the average island size from reaching the critical size at which the next layer begins to nucleate. This delay should lead to a relatively smoother growth surface. These results seem to confirm computational predictions of a break-up effect in which adatoms are “chipped” from the edges of larger islands.Pomeroy et al. (2002) Supporting evidence has also been found in an experimental study of Platinum homoepitaxy by PLD, in which deposited particles with energies above 200 eV result in a higher island nucleation density, attributed to an increase of adatoms pushed out of the surface by the impinging energetic particles.Schmid et al. (2009) On the other hand, later studies of SrTiO3 homoepitaxy utilizing X-ray scattering measurements sensitive to in-plane structure have shown that the surface in-plane length scale coarsens significantly during the growth.Eres et al. (2016); Ferguson et al. (2009) This was interpreted as evidence that significant island breakup does not occur.

As we have mentioned above, we define the PLD regime as being the case where all the material in the laser plume is deposited before it diffuses significantly or nucleates islands, so that in the absence of fast non-thermal processes the instantaneous pulse (impulse) approximation is valid. This has important implications for the length scale of the islands, particularly during the initial stages of recovery after a deposition pulse. In continuous deposition the peak island density scales as $F^{\chi}$ where $F$ is the deposition flux and $\chi$ is an exponent that depends on the size of the critical nucleus.Venables et al. (1984) On the other hand, in PLD the nucleation density in the impulse approximation is set by the pulse intensity $\sigma$, with a length scale of $\ell\approx a/\sigma^{1/2}$ where $a$ is the lattice constant. This is strictly only true for the first deposited pulse, while for later pulses there will be a distribution of islands from previous pulses that have grown larger by aggregation and ripening in addition to islands from the most recent deposition pulse.

Here, we present in-situ X-ray scattering measurements of homoepitaxial growth of SrTiO3, by comparing the standard energetic deposition process (e-PLD) with a thermalized version of PLD (th-PLD). We report two principal results: (i) The length scale is reduced and the nucleation density is greatly increased in e-PLD relative to th-PLD. We observe for a pulse intensity $\sigma\approx 1/20$ ML, the in-plane length scale $\ell$ in e-PLD can approach the limiting value deduced above, which for $a=0.3905$ nm is $\approx$2 nm. Coarsening is also limited during e-PLD, consistent with island breakup. (ii) We find that fast interlayer transport occurs during both e-PLD and th-PLD. This result is remarkable since by result (i) th-PLD also produces larger island sizes, which implies that deposited particles have to migrate significantly longer distances to reach the nearest step edge.

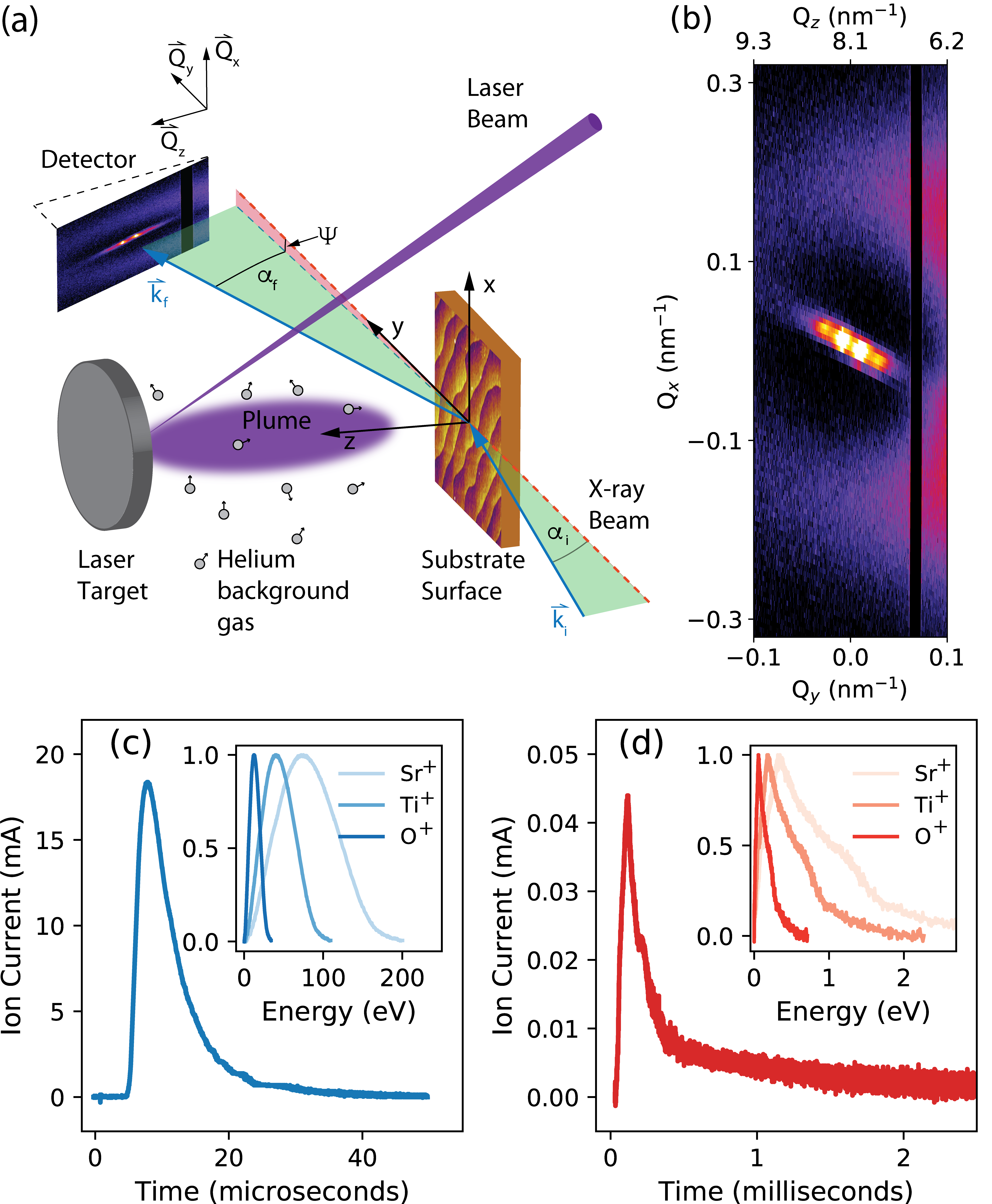

The experiments are performed in a custom growth chamber at the In-Situ and Resonant Scattering (ISR) beamline at the National Synchrotron Light Source II (NSLS-II). A schematic of the experiment is shown in Figure 1(a). Real time X-ray scattering with an energy of 11.3 keV is performed during the growth to extract in-plane and out-of-plane structural information about the growing films. The measurements are done at the [0 0 1/2] anti-Bragg position to maximize sensitivity to single unit cell height features. A broad component of diffuse scattering is visible corresponding to unit-cell height islands on the surface. This image corresponds to 5 ML of deposition, which results in a relatively coarse array of islands. The scattering forms a nearly perfect circle with a radius of $\approx$0.2 nm*-1*, indicating that islands are isotropically arranged on the surface with a mean spacing of $\approx$30 nm. In our experiments, we are sensitive in-plane diffuse scattering intensity out to about 3 nm*-1*, corresponding to length scales on the order of 2 nm. That is, we can access the whole range of length scales over which the two-dimensional islands form, from the scale of newly-arrived particles in individual laser pulses through the aggregation, coarsening, and coalescence stages of monolayer growth as they occur.

Two growth processes have been developed for these experiments, which we refer to as e-PLD and th-PLD. The energetic process uses parameters similar to previous studies of the homoepitaxy of SrTiO3.Eres et al. (2011) A background gas of 2 mTorr O2 is used to ensure proper oxidation of the growing surface. The laser fluence on the target is 3 J/cm2, which produces a deposition rate of 18 to 22 pulses per monolayer. The substrate temperature is 600∘C which results in a smooth starting surface and extended layer-by-layer growth. For the thermalized process,Shin and Aziz (2007) 300 mTorr of Helium buffer gas is added along with the Oxygen. Time-of-flight curves obtained with a Langmuir probe placed 8.7 cm from the laser target for each process are shown in Figure 1(c) and (d).Doggett and Lunney (2009); sup As the helium background pressure is increased, the fast component shown in Figure 1(c) becomes attenuated and it is completely replaced with a much slower component at 300 mTorr, as shown in Figure 1(d). As a result, particle kinetic energies are reduced from $\approx$ 100 eV/atom for e-PLD to $\approx$ 0.5 eV/atom for th-PLD.

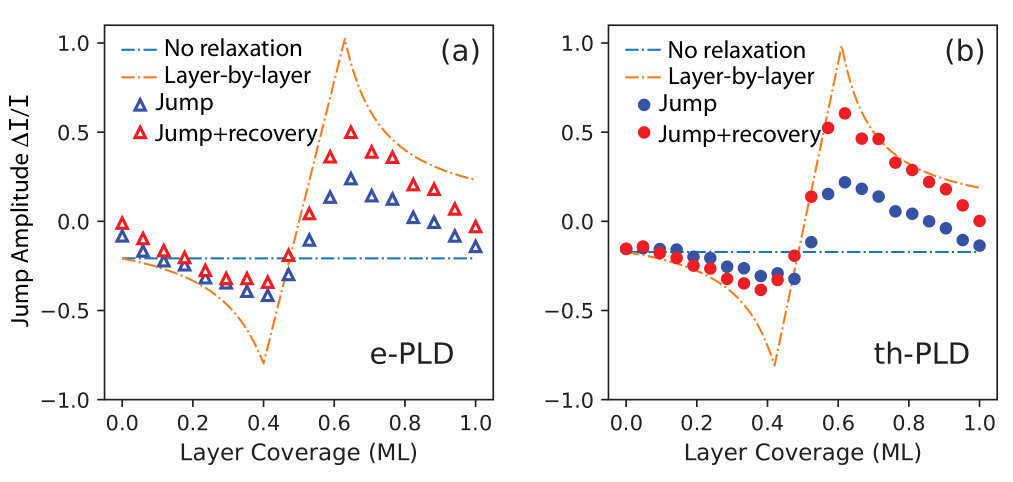

Surface X-ray scattering can be divided into two contributions: (i) the specular reflection, which is only sensitive to the layer coverages, and (ii) the diffuse intensity, which is additionally sensitive to in-plane structure. Figure 2(a) shows both specular and diffuse intensity data during e-PLD growth of SrTiO3 up to a final thickness of 4.5 unit cells. The top panel is the specular intensity, which oscillates with each layer, indicating layer-by-layer growth. A defining characteristic of PLD is that the jumps in the specular intensity coincide with the arrival of the plume due to a sudden change in the layer coverages. After each pulse, there is a slow evolution of the intensity due to interlayer transport as monomers descend and attach to step-edges from above. Comparable results for th-PLD are shown in Fig. 2(b). The specular intensity is very similar aside from a slightly reduced intensity at the peaks of the oscillations. The lower panels in Figs. 2 (a) and (b) show diffuse scattering profiles versus deposited thickness. They reveal an interesting difference that e-PLD exhibits a broad distribution centered at $\approx$1 nm*-1*, which is absent from the th-PLD profiles. This peak position corresponds to a length scale of $\approx$5 nm. As we discuss below, the length scale of this broad profile can be as small as 2.5 nm for shorter dwell times.

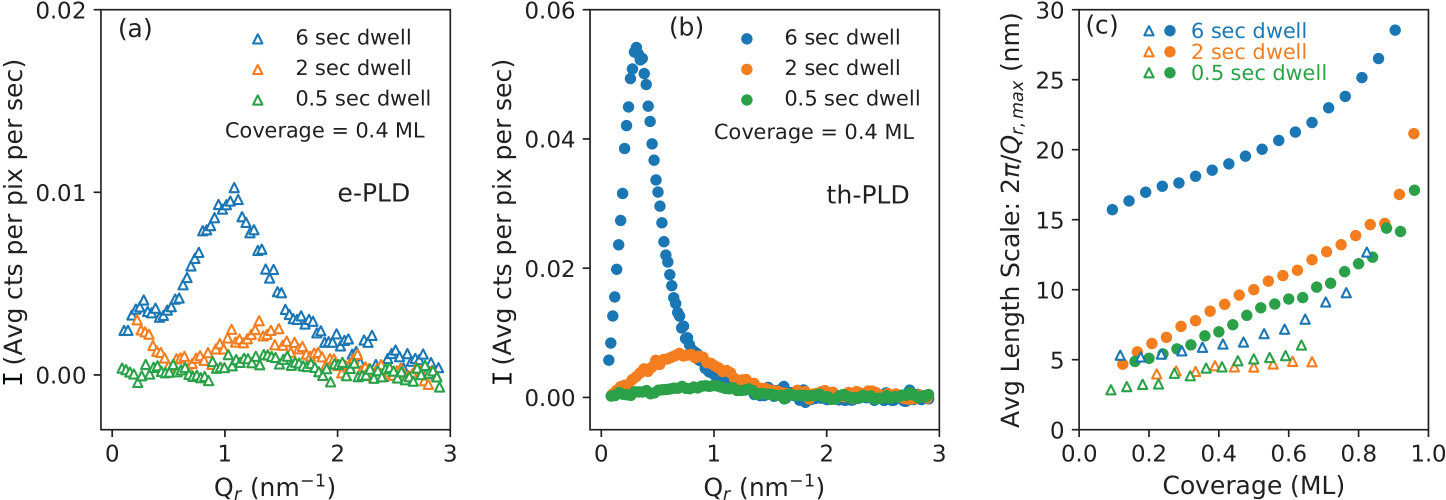

In order to gain further insight into this difference and it’s origin, Fig. 3(a,b) shows diffuse scattering profiles for various dwell times at the same coverage of $\theta=0.4$ ML. For these plots, we performed a circular average of the diffuse intensity at each $Q_{r}$ where $Q_{r}=\sqrt{Q_{x}^{2}+Q_{y}^{2}}$ in order to improve the counting statistics. Background corresponding to scattering from the substrate before the deposition was also subtracted, as described in the Supplemental Materials.sup There is a clear difference in the diffuse scattering profiles, both as a function of the dwell time and also between e-PLD and th-PLD. In Fig. 3(c), we plot the length scale $\ell$ derived from the peak position of the diffuse scattering, $Q_{\mathrm{r,max}}$. Comparison of the curves for energetic and thermalized deposition reveals the remarkable result that the thermal coarsening effect is inhibited in e-PLD, which implies that the nucleation density is greatly increased by energetic effects. For example, comparing the curves for 6 sec. dwell time in Fig. 3(c), we see that the length scale for e-PLD is about a factor of three smaller than for th-PLD over the entire range of coverages. For shorter dwell times, where thermal surface diffusion and relaxation are less dominant in both cases, we observe that the length scales become progressively smaller, even approaching the diffusion-less limit of $\ell\approx$ 2 nm that we deduced from the pulse intensity.

Based on the discussion above, the first main conclusion of this study is that the reduced in-plane length scales and coarsening rates for e-PLD are consistent with the island break-up mechanism.Pomeroy et al. (2002); Willmott et al. (2006) This process significantly counteracts the effects of thermal surface diffusion, aggregation, and ripening, leading to an island density that can be an order of magnitude higher for e-PLD compared to th-PLD for long dwell times. However, a net coarsening still occurs for e-PLD, albeit at a slower rate, as shown in Fig. 3(c), and it continues during the first few monolayers of growth, as observed in Fig. 2(a).

The specular intensity can be expressed as a simple function of the layer coverages. Assuming layer coverages $\theta_{n}(t)$ for layers $n=1~{}\rm{to}~{}N$:

[TABLE]

where $F(Q)$ is the scattering amplitude of a single unit-cell high layer and $Q$ is the magnitude of the scattering vector, which is oriented along the surface normal for the specular reflection.

Eq. 1 can be used to formulate several simple growth models for the intensity at the anti-Bragg position. In one model called the impulse approximation, it is assumed that monomers arrive at random positions on the surface during the pulse and then remain in the same layer. This model predicts a drop in specular intensity $I$ following each laser pulse given by $\Delta I/I=-4\sigma(1-\sigma)$.Fleet et al. (2005) The opposite limiting case is for perfect layer-by-layer (LBL) growth, which is described by $\Delta I/I=-4\sigma((1-\sigma)-2\theta)/(1-2\theta)^{2}$. Note that the impulse model predicts that the intensity jump is always negative, so that in the absence of any relaxation the intensity should continuously decrease. This is clearly inconsistent with experimental observations of an oscillating intensity during growth. Therefore, interlayer transport must occur following each laser pulse, and so the interesting question becomes: on what time scale does it occur? In order to address this question, Fig. 4 shows plots of the experimental fast intensity jump along with the total change in the intensity after the dwell time (labelled “jump + recovery”) for each pulse during the first monolayer of deposition. The results show that the fast jump amplitude significantly deviates from the impulse model. This is evidence that there must be a fast relaxation component, a result that was previously deduced for e-PLD.Fleet et al. (2005) Interestingly, the fast jump amplitudes are almost the same for th-PLD and e-PLD, which is remarkable since previous work emphasized the possible role of high kinetic energies ($E_{k}>10$ eV) in promoting interlayer transport.Tischler et al. (2006); Fleet et al. (2005) In contrast, our results show that the high kinetic energy of the incident particles in e-PLD does not enhance interlayer transport relative to the more modest energies present in th-PLD. The data for the intensity change after the dwell time is observed to be significantly closer to the LBL model, which indicates that thermal relaxation also plays a significant role, although it occurs on a much slower timescale. However, there is still a significant deviation from LBL near the middle of the growth cycle, which is related to the fact that the specular intensity $I$ does not disappear completely near $\theta$=0.5 ML. This effect is likely due to imperfections in the structure of the deposited layer.

The second main conclusion of this study is that fast interlayer transport occurs for th-PLD as well as e-PLD. We note that based on our Langmuir probe studies that the temperature of incidence particles in th-PLD may be as high as 4000 K. In this range, “hot” particles incident in normal incidence can scatter nearly elastically from surface atoms, leading to a significant velocity in the plane of the surface. For example, computational results by Gao et al. for Pd deposition on MgO showed that Pd arriving near Mg surface atoms can recoil with a significant lateral kinetic energy without desorbing.Gao et al. (2012) Particles incident with 0.4 eV kinetic energy were found to travel up to 2 nm from their impact site. Our results indicate that partially thermalized particles in SrTiO3 th-PLD travel up to $\approx$10 nm during growth.

In conclusion, our results suggest that incident particles with kinetic energies $0.1<E_{k}<10$ eV can migrate via transient-enhanced surface diffusion. Higher kinetic energies can break chemical bonds, leading to phenomena such as island breakup. These mechanisms should be included in models of epitaxial growth by hyperthermal and energetic deposition methods, and they can be exploited to engineer thin films and multilayers with improved properties.

The authors acknowledge the contributions of Christie Nelson. This material is based on work that was supported by the National Science Foundation under grant No. DMR-1506930. JU and RH were partially supported by the U.S. Department of Energy (DOE) Office of Science under Grant No. DE-SC0017802. This research used the 4-ID beamline of the National Synchrotron Light Source II, a U.S. DOE Office of Science User Facility operated for the DOE Office of Science by Brookhaven National Laboratory under Contract No. DE-SC0012704.
