WikiMatrix: Mining 135M Parallel Sentences in 1620 Language Pairs from Wikipedia

TL;DR

This paper introduces WikiMatrix, a large multilingual parallel corpus extracted from Wikipedia using sentence embeddings, enabling improved machine translation for many language pairs, especially low-resource and distant languages.

Contribution

It presents a novel method for mining a vast multilingual parallel corpus from Wikipedia without limiting to English, covering 1620 language pairs with 135 million sentences.

Findings

Successfully extracted 135 million parallel sentences across 1620 language pairs.

Neural MT systems trained on WikiMatrix data achieve strong BLEU scores.

The corpus is especially beneficial for translating distant and low-resource language pairs.

Abstract

We present an approach based on multilingual sentence embeddings to automatically extract parallel sentences from the content of Wikipedia articles in 85 languages, including several dialects or low-resource languages. We do not limit the the extraction process to alignments with English, but systematically consider all possible language pairs. In total, we are able to extract 135M parallel sentences for 1620 different language pairs, out of which only 34M are aligned with English. This corpus of parallel sentences is freely available at https://github.com/facebookresearch/LASER/tree/master/tasks/WikiMatrix. To get an indication on the quality of the extracted bitexts, we train neural MT baseline systems on the mined data only for 1886 languages pairs, and evaluate them on the TED corpus, achieving strong BLEU scores for many language pairs. The WikiMatrix bitexts seem to be particularly interesting to train MT systems between distant languages without the need to pivot through English.

Figures

Tables

Table 1. Table 1: Illustration how sentences in the wrong language can hurt the alignment process with a margin criterion. See text for a detailed discussion.

$L_1$ (French)	Ceci est une très grande maison
$L_2$ (German)	Das ist ein sehr großes Haus
	This is a very big house
	Ez egy nagyon nagy ház
	Ini rumah yang sangat besar

Table 2. Table 2: Comparison of NMT systems trained on the Europarl corpus and on bitexts automatically mined in Wikipedia by our approach at a threshold of 1.04. We give the number of sentences (first line) and the BLEU score (second line of each bloc) on newstest2014 .

Bitexts	de-en	de-fr	cs-de	cs-fr
Europarl	1.9M	1.9M	568k	627k
	21.5	23.6	14.9	21.5
	1.0M	370k	200k	220k
	21.2	21.1	12.6	19.2
Mined	1.0M	372k	201k	219k
Wikipedia	24.4	22.7	13.1	16.3
Europarl	3.0M	2.3M	768k	846k
+ Wikipedia	25.5	25.6	17.7	24.0

Table 3. Table 3: WikiMatrix: number of extracted sentences for each language pair (in thousands), e.g. Es-Ja=219 corresponds to 219,260 sentences (rounded). The column “size” gives the number of lines in the monolingual texts after deduplication and LID.

ISO	Name	Language Family	size		az	ba	be	bg	bn	bs	ca	cs	da	de	el	en	eo	es	et	eu	fa	fi	fr	gl	he	hi	hr	hu	id	is	it	ja	kk	ko	lt	mk	ml	mr	ne	nl	no	oc	pl	pt	ro	ru	sh	si	sk	sl	sq	sr	sv	sw	ta	te	tl	tr	tt	uk	vi	zh	total
ar	Arabic	Arabic	6516		17	15	11	54	40	34	94	67	53	99	66	999	37	174	40	24	58	53	163	50	68	38	38	60	90	18	123	83	11	48	33	52	32	32	12	73	58	9	74	157	71	125	35	32	32	39	30	49	58	13	27	27	18	69	14	70	93	86	4435
az	Azerbaijani	Turkic	1873			7	3	14	8	9	15	17	11	34	10	71	9	31	10	7	16	14	29	10	12	9	10	15	17	4	25	23	6	11	9	8	5	4	2	22	13	2	22	25	14	47	9	3	9	8	9	10	19	5	11	5	2	42	8	19	10	19	885
ba	Bashkir	Turkic	536				2	14	4	9	17	16	13	27	10	28	9	28	8	6	9	12	29	12	9	4	10	12	12	3	26	13	4	5	7	9	1	1	1	21	15	3	19	24	15	42	10	1	10	10	7	10	20	4	3	1	1	11	8	15	7	10	697
be	Belarusian	Slavic	1690					16	4	7	16	14	9	20	8	33	9	28	7	5	5	10	24	9	10	3	9	11	9	3	24	12	2	5	7	8	2	2	1	14	10	2	19	23	13	161	8	2	8	7	5	10	16	2	3	2	1	8	2	80	8	8	803
bg	Bulgarian	Slavic	3327						38	34	76	79	53	132	62	357	40	122	43	25	37	61	117	43	58	30	47	68	60	17	102	71	11	38	42	86	29	35	13	84	58	9	96	114	69	270	41	31	43	46	26	65	63	12	21	23	21	56	12	126	60	60	3770
bn	Bengali	Indo-Aryan	1412							21	41	47	33	70	36	280	27	81	26	14	20	37	68	27	34	21	23	41	36	8	64	38	4	20	21	23	7	8	3	50	35	4	52	76	46	62	20	8	25	26	17	25	54	6	12	8	4	33		37	31	31	1991
bs	Bosnian	Slavic	1060								44	43	32	71	33	210	24	70	25	16	20	36	60	32	30	16	164	39	38	11	52	36	6	22	23	39	19	20	8	45	36	6	48	62	37	59	178	16	25	34	19	130	38	7	15	12	13	33	8	39	38	31	2348
ca	Catalan	Romance	8332									100	86	180	90	1205	81	1580	54	77	44	83	490	268	84	37	57	92	107	23	316	103	12	52	45	61	45	56	17	144	102	57	121	358	110	169	52	52	50	57	34	67	102	14	30	35	31	77	16	98	106	90	8047
cs	Czech	Slavic	7634										75	233	70	519	75	181	62	36	45	95	185	54	72	38	63	105	78	23	161	105	15	53	55	51	36	41	15	139	86	11	176	153	82	186	50	37	474	64	30	63	97	15	31	34	25	75	14	104	74	80	5325
da	Danish	Germanic	2881											180	54	436	39	140	45	26	29	75	142	44	55	25	43	69	63	20	115	76	9	37	35	39	30	35	12	110	303	8	89	123	70	109	37	32	39	40	23	43	168	11	20	21	23	55	11	62	68	57	4006
de	German	Germanic	50944												95	1573	186	418	106	53	66	163	626	80	109	57	87	192	107	34	388	217	23	82	78	64	51	58	21	472	207	17	285	294	129	368	68	50	94	106	51	81	216	20	58	57	32	127	23	165	107	134	9692
el	Greek	Hellenic	3211													620	39	145	41	23	35	55	137	48	56	26	43	64	73	15	119	69	6	35	34	52	27	32	9	76	60	8	77	144	78	114	38	31	35	46	28	52	62	11	16	18	20	56	9	68	75	62	3728
en	English	Germanic	134431														298	3377	243	119	303	375	2757	446	545	231	259	488	1019	85	2126	851	20	306	157	395	71	124	15	796	636	37	668	2461	631	1661	224	115	178	318	180	395	546	51	95	91	75	477	32	681	1073	786	34321
eo	Esperanto	constructed	2371															149	31	25	23	46	134	46	39	22	29	57	46	15	101	48	7	26	28	30	28	28	9	81	47	9	77	91	43	81	26	28	41	32	19	36	53	8	16	19	17	37	8	50	42	39	2817
es	Spanish	Romance	25202																89	154	83	155	905	610	153	71	94	167	198	42	671	219	26	108	76	92	65	98	25	272	181	35	235	923	183	393	81	84	81	93	53	107	181	21	57	71	48	147	26	187	206	174	14980
et	Estonian	Uralic	2303																	22	24	70	85	32	39	20	33	56	41	14	75	57	6	29	35	32	20	21	8	72	49	7	73	76	48	96	27	19	34	35	18	34	58	9	16	16	15	43	7	56	40	44	2511
eu	Basque	Isolate	2259																		14	33	65	43	25	13	21	35	27	10	54	33	5	18	19	19	11	10	5	44	29	6	43	58	30	47	19	9	20	20	12	21	38	6	13	11	8	29	5	30	25	23	1699
fa	Farsi	Iranian	3954																			34	71	25	36	20	24	39	46	9	64	46	8	26	20	27	11	10	6	49	32	4	50	77	40	72	21	9	21	24	17	30	42	8	21	12	7	42	9	41	38	42	2122
fi	Finnish	Uralic	7428																				156	47	64	28	48	90	63	22	131	87	9	43	47	40	29	30	10	126	86	10	119	131	69	139	39	27	50	46	25	46	126	12	23	24	21	72	10	76	60	64	3998
fr	French	Romance	34494																					154	136	60	85	164	161	38	744	214	24	89	71	83	62	83	25	331	166	124	255	558	206	410	72	74	83	86	48	92	186	19	56	65	42	130	26	170	165	157	12441
gl	Galician	Romance	2221																						41	21	33	50	56	14	120	50	9	28	27	35	29	39	11	66	52	17	65	227	56	84	30	36	29	33	20	39	54	8	15	17	22	43	12	51	58	46	3969
he	Hebrew	Semitic	6962																							28	41	65	63	17	121	82	7	43	35	42	26	25	9	86	64	8	84	133	67	131	35	21	36	38	23	45	67	10	21	25	13	54	8	73	66	62	3666
hi	Hindi	Indo-Aryan	1353																								21	33	31	7	56	35	3	18	16	24	6	11	12	40	27	4	44	63	35	56	17	6	18	21	14	22	40	7	13	18	3	29	4	33	26	30	1781
hr	Croatian	Slavic	2229																									58	47	14	80	48	8	27	31	52	24	24	10	65	48	7	71	85	51	85	666	19	35	53	21	205	56	9	16	16	17	42	9	55	46	42	3629
hu	Hungarian	Uralic	7702																										70	20	146	99	11	49	48	47	27	28	10	121	75	10	126	148	87	149	46	26	56	55	27	53	88	13	29	30	20	75	9	83	74	75	4357
id	Indonesian	Malayo-Polynesian	3899																											16	146	77	8	45	33	55	25	23	10	101	83	8	93	204	94	127	43	23	37	46	32	56	79	13	24	19	21	79	11	73	146	83	4743
is	Icelandic	Germanic	488																												31	18	2	9	12	12	6	5	3	27	22	3	27	35	20	30	13	4	13	13	9	13	28	4	7	5	5	16	3	18	16	14	995
it	Italian	Romance	21025																													179	24	83	62	73	58	78	24	240	150	20	219	480	161	303	67	68	72	81	48	83	153	19	44	58	41	112	23	144	143	137	10084
ja	Japanese	Japonic	31614																														14	222	47	48	21	23	8	123	81	9	128	175	79	196	40	19	48	50	28	51	96	12	37	31	12	84	12	92	75	267	5382
kk	Kazakh	Turkic	1684																															6	5	6	2	2	1	18	11	1	17	22	12	32	8	1	8	7	6	8	16	3	3	1	1	10	4	14	6	9	581
ko	Korean	Koreanic	5400																																23	26	10	10	4	56	41	5	63	93	47	89	23	9	25	26	17	29	51	7	17	13	5	47	5	48	49	57	2539
lt	Lithuanian	Baltic	2031																																	28	16	16	6	57	39	6	70	64	39	107	25	15	30	30	16	29	46	8	13	11	12	36	6	57	33	35	2091
mk	Macedonian	Slavic	1487																																		21	22	9	53	46	6	56	93	56	88	52	19	29	39	25	106	48	9	14	15	16	43	8	57	57	45	2761
ml	Malayalam	Dravidian	272																																			3	1	41	32	7	41	58	35	46	21	2	22	21	13	20	44	6	4	3	1	16	2	26	15	17	1388
mr	Marathi	Indo-Aryan	503																																				1	46	35	5	47	86	47	50	22	3	25	25	13	19	56	4	5	3	1	17	1	26	14	17	1648
ne	Nepali	Indo-Aryan	235																																					17	13	4	17	21	14	19	10	1	10	10	6	9	17	3	1	1		7	1	11	6	6	584
nl	Dutch	Germanic	14091																																						133	13	177	218	96	199	53	42	66	64	34	61	151	16	37	35	29	90	18	104	84	88	6364
no	Norwegian	Germanic	1364																																							9	103	161	74	121	42	28	43	51	26	47	270	12	24	23	24	61	13	69	79	63	4771
oc	Occitan	Romance	472																																								13	24	11	14	6	5	6	6	4	7	12	2	3	3	3	7	3	9	8	7	706
pl	Polish	Slavic	16270																																									200	97	285	56	40	81	68	35	69	121	16	39	42	28	92	16	172	84	92	6035
pt	Portuguese	Romance	13354																																										177	312	74	76	71	85	47	101	155	20	42	54	45	140	23	156	213	165	10932
ro	Romanian	Romance	3504																																											136	44	43	42	49	30	58	75	15	23	27	29	72	13	82	96	74	4515
ru	Russian	Slavic	32537																																												70	42	85	78	44	114	140	17	54	55	29	119	25	2486	122	148	11311
sh	Serbo-Croatian languages	South Slavic	2069																																													17	27	46	19	373	46	8	14	13	17	35	9	45	42	36	3337
si	Sinhala	Indo-Aryan	320																																														22	22	10	15	48	4	4	4	2	15	1	21	14	16	1464
sk	Slovak	Slavic	1904																																															36	17	34	51	8	14	15	16	37	9	51	38	38	2726
sl	Slovenian	Slavic	1836																																																19	47	50	9	15	16	17	39	8	50	48	42	2623
sq	Albanian	Albanian	740																																																	25	31	6	13	10	10	27		29	30	24	1515
sr	Serbian	Slavic	4226																																																		51	9	19	18	14	43	8	71	56	45	3510
sv	Swedish	Germanic	17906																																																			16	33	39	35	72	17	82	74	73	5107
sw	Swahili	Niger-Congo	235																																																				6	3	4	12		12	10	11	652
ta	Tamil	Dravidian	1629																																																					6	2	29	5	30	19	27	1315
te	Telugu	Dravidian	1509																																																						1	21	1	30	16	20	1315
tl	Tagalog	Malayo-Polynesian	312																																																							12	1	16	17	10	1015
tr	Turkish	Turkic	4067																																																								10	67	77	69	3698
tt	Tatar	Turkic	449																																																									11	7	10	603
uk	Ukrainian	Slavic	12871																																																										73	72	7043
vi	Vietnamese	Vietic	6727																																																											89	4660
zh	Chinese	Chinese	12306																																																												4415

Table 4. Table 4: BLEU scores on the TED test set as proposed in Qi et al. ( 2018 ) . NMT systems were trained on bitexts mined in Wikipedia only (with at least twenty-five thousand parallel sentences). No other resources were used.

Src/Trg	ar	bg	bs	cs	da	de	el	en	eo	es	fr	fr-ca	gl	he	hr	hu	id	it	ja	ko	mk	nb	nl	pl	pt	pt-br	ro	ru	sk	sl	sr	sv	tr	uk	vi	zh-cn	zh-tw
ar		4.9	1.8	3.0	4.5	3.8	6.7	20.3	4.1	13.2	12.2	9.0	5.6	3.5	2.2	2.7	9.2	9.9	4.2	5.3	5.5	4.9	4.4	3.0	12.0	12.2	5.6	5.6	1.5	2.7	1.2	4.0	2.4	4.5	12.3	8.2	4.9
bg	3.0		4.2	6.7	8.7	8.5	10.0	25.3	7.7	16.3	14.7	11.9	8.4	3.2	6.4	4.7	10.3	12.2	4.0	5.4	16.2	8.1	7.7	6.3	14.7	15.4	9.8	12.4	4.0	6.4	2.7	7.1	2.4	10.4	11.7	6.4	4.7
bs	1.2	6.1		4.1	3.7	5.8	4.5	21.7		9.9	6.7	4.6	5.7	1.0	30.9	2.4	5.3	6.5	1.4		12.9		3.8	2.9	9.9	10.9	5.7	4.8	3.1	10.4	10.6	4.4	1.5	5.4	5.8	2.8	1.8
cs	1.9	7.8	3.7		7.1	8.3	6.4	20.0	10.4	12.6	11.4	8.6	5.0	2.5	6.5	4.9	7.8	9.6	4.1	5.5	5.0	6.3	7.6	8.1	10.8	12.1	6.3	9.4	28.1	6.7	1.6	7.0	2.6	7.8	9.0	6.6	4.7
da	2.0	8.9	4.0	5.2		14.0	9.0	32.9	6.7	16.7	16.7	12.8	7.3	3.5	4.4	4.7	10.8	13.4	4.7	6.0	6.2	33.1	12.4	4.8	14.0	16.2	8.5	7.8	3.1	5.2	1.4	25.8	2.7	6.3	11.2	7.3	4.9
de	2.4	9.7	4.9	8.1	16.9		7.8	24.5	15.9	17.4	18.3	14.7	6.8	4.3	5.5	7.2	8.6	13.5	6.4	6.6	5.6	11.5	17.6	6.8	14.2	15.2	8.7	9.2	5.4	8.6	1.5	12.7	3.6	7.8	11.3	9.2	4.3
el	4.1	11.2	4.8	5.5	9.7	6.7		27.9	8.0	18.8	16.3	13.5	10.1	4.0	5.6	5.3	13.1	15.3	5.5	6.1	10.2	9.3	8.7	5.1	18.0	18.3	10.4	8.4	3.1	6.4	2.0	7.2	3.4	7.2	14.4	8.7	5.3
en	11.9	23.9	14.7	15.5	30.9	20.4	27.1		22.6	35.8	32.6	25.1	24.3	17.3	18.8	13.5	28.8	29.5	10.2	18.6	21.8	31.8	25.1	12.0	31.4	37.0	20.4	17.4	13.8	16.5	5.5	29.1	10.3	17.6	26.9	18.0	10.7
eo	1.8	6.4		7.3	7.4	13.5	8.1	23.1		16.1	17.6	12.7	10.5	1.9	3.0	4.8	9.2	13.9	2.5	4.8	6.2	7.2	12.1	6.7	12.4	16.0	6.9	8.6	7.4	5.6	0.6	8.8	1.8	5.4	7.7	5.2	3.6
es	6.2	14.3	6.8	8.0	15.7	12.9	16.4	33.2	13.5		25.6	19.9	30.1	8.1	8.7	7.7	16.1	23.8	7.9	9.9	11.9	13.3	14.1	8.1	27.6	27.8	14.7	11.6	6.0	8.1	2.6	13.7	5.2	10.0	17.8	12.3	6.6
fr	6.0	12.7	5.0	8.3	15.6	14.5	15.4	31.6	18.6	26.4			17.2	6.8	6.9	7.7	15.0	24.6	7.3	8.7	10.7	13.1	15.9	8.1	24.2	26.0	16.5	12.7	5.8	7.1	2.1	13.8	4.2	9.8	17.0	11.1	6.6
fr-ca	4.9	12.5	2.8	7.8	14.3	12.9	15.4	27.8	14.0	23.7			18.1	6.8	6.8	7.9	13.7	23.4	7.5	8.8	10.3		15.1	7.2	18.6	23.2	15.3	11.3	6.1	6.6	3.3	12.5	5.0	9.7	15.4		6.2
gl	2.6	7.3	4.7	2.9	7.4	5.3	8.5	23.4	9.2	34.4	16.0	15.2		2.5	3.5	2.8	9.8	19.3	3.6	4.2	5.6	6.9	6.5	4.3	22.4	23.7	7.7	5.9	1.7	3.1	0.2	4.3	2.3	3.9	9.4	5.8	4.2
he	3.4	5.7	1.8	3.7	6.1	5.4	6.3	25.7	4.2	15.3	13.6	10.3	5.1		2.5	3.2	8.9	11.2	4.1	4.5	4.6	5.4	6.5	3.7	13.7	15.0	6.3	8.0	1.9	2.6	1.0	5.2	1.8	5.1	10.7	6.9	4.6
hr	1.6	8.7	29.9	7.0	6.5	5.8	6.6	24.4	4.4	12.6	9.9	7.8	5.7	1.5		4.3	8.2	10.4	1.8	4.0	14.1	5.3	6.1	5.4	12.1	12.6	7.3	8.3	4.6	12.6	11.7	6.0	1.9	6.9	9.4	4.8	2.9
hu	1.6	5.6	2.6		5.9	7.0	5.5	16.7	6.5	10.8	10.9	9.3	3.9	2.1	3.6		6.6	8.2	4.4	6.2	3.9	4.5	6.0	4.3	9.7	9.9	7.1	5.8	3.4	4.2	1.2	5.3	3.0	4.4	8.5	6.5	4.2
id	4.1	9.1	4.2	5.2	10.1	6.7	11.1	24.9	8.2	16.4	15.1	11.1	9.9	5.1	5.6	5.2		12.7	5.8	9.1	7.0	10.0	9.4	5.5	14.6	16.7	9.8	8.1	3.6	5.6	1.8	9.3	4.6	7.3	18.5	11.0	6.2
it	5.3	11.7	5.0	6.9	13.1	11.5	14.5	30.0	13.9	26.4	24.9	20.0	19.3	6.2	7.0	6.7	14.0		7.3	9.0	9.9	13.3	12.8	7.3	22.8	24.9	13.3	10.2	5.4	7.1	2.3	11.9	4.6	8.8	15.3	10.7	5.8
ja	1.4	1.9	0.7	1.8	3.1	2.7	2.5	7.9	2.2	6.0	6.0	4.7	2.3	1.4	1.3	2.0	3.5	4.6		16.9	1.6	2.6	3.1	1.8	5.1	4.9	2.8	2.7	1.2	1.8	0.5	2.6	1.9	2.2	5.9
ko	0.9	1.7		1.3	2.0	1.7	1.7	8.7	1.3	4.7	4.4	3.4	1.5	0.9	0.7	1.5	3.1	3.2	9.2		1.2	1.3	1.9	1.4	4.3	4.6	2.0	2.1	1.0	1.5	0.4	1.5	1.4	1.5	4.3
mk	2.4	18.2	12.0	5.4	7.2	4.3	10.3	23.4	8.9	15.2	11.5	10.0	5.4	4.0	12.6	3.7	8.9	11.1	3.5	4.7		7.5	6.7	4.5	13.9	15.6	8.3	7.5	3.5	7.1	3.7	5.6	2.0	6.4	10.9	6.3	4.3
nb	2.7	8.5		5.4	32.7	9.8	8.9	35.1	9.5	17.0	14.6		8.0	3.1	3.9	4.5	9.9	15.0	5.5	5.7	6.7			4.7	14.2		9.5	7.5	3.2	3.9	0.6	26.3	1.9	6.2	7.8
nl	2.4	8.2	2.9	5.9	14.2	16.1	8.4	26.5	13.4	16.8	16.7	13.5	7.3	3.9	4.8	5.3	11.4	13.3	5.2	5.9	5.9			5.3	13.8	15.4	7.8	7.6	4.1	5.1	1.6	11.1	3.2	6.1	10.6	8.0	5.1
pl	1.8	7.4	2.9	8.2	6.6	6.5	5.4	15.1	7.5	11.4	11.3	8.6	5.2	2.3	4.8	4.0	7.5	8.6	4.2	5.7	5.2	4.1	6.2		9.6	9.9	6.2	9.5	6.2	5.3	1.5	5.6	2.4	8.9	7.7	6.3	3.6
pt	7.4	15.2	7.0	8.0	15.5	13.2	18.7	35.0	12.0	32.4	26.7	19.0	23.0	8.8	10.3	8.4	17.5	24.4	7.8	10.6	13.1	14.3	14.9	8.9			15.3	11.7	6.6	8.1	2.0	14.3	6.2	9.3	18.0	12.9	5.8
pt-br	6.5	14.7	7.4	8.6	16.8	12.9	17.6	37.3	16.0	31.0	26.6	20.3	23.0	8.7	9.8	8.1	18.6	24.8	7.8	10.7	12.5		14.8	8.5			15.1	11.8	6.4	8.9	2.8	14.6	5.3	10.8	18.8	13.2	6.7
ro	3.2	9.7	3.7	5.1	9.4	7.5	10.4	25.0	6.7	18.8	19.3	14.6	10.0	4.0	5.7	5.9	11.0	15.5	4.3	6.4	7.3	8.0	8.1	5.2	15.4	17.7		8.0	3.6	5.0	1.9	7.0	3.3	6.6	12.7	7.8	4.9
ru	3.3	12.6	4.2	7.7	8.5	8.8	8.3	18.7	9.9	14.3	14.5	11.0	6.0	4.9	6.8	5.6	9.5	11.7	6.1	7.7	7.4	8.0	8.1	8.9	12.4	13.9	8.2		5.8	5.4	2.7	8.2	2.9	22.5	11.5	9.1	5.2
sk	0.7	5.1	2.7	27.0	4.3	5.7	3.2	16.9	9.3	9.4	8.5	6.7	2.7	1.0	5.1	3.7	4.9	6.9	2.2	3.9	3.5	4.9	5.0	7.1	7.8	8.5	3.5	6.6		5.0	1.5	4.3	1.6	5.4	5.4	2.3	2.5
sl	1.2	6.2	7.6	5.5	4.7	7.6	5.8	17.3	5.9	11.4	8.5	6.4	3.2	1.2	11.2	3.9	6.5	7.8	2.7	4.2	6.3	4.3	5.5	4.8		9.9	4.8	5.9	3.6		1.9	4.1	2.2	4.3	7.4	3.8	2.6
sr	1.8	7.6	33.2	5.1	3.7	3.8	5.8	22.8	3.2	11.9	9.1	7.5	3.5	1.1	30.4	2.7	6.1	8.2	1.2	2.9	13.7	3.3	3.3	3.9	10.8	11.3	5.6	7.2	2.8	9.5		3.0	1.1	5.7	6.8	4.3	3.1
sv	2.2	7.4	4.8	5.9	26.5	12.6	8.1	31.8	11.0	16.9	15.7	10.7	7.1	3.3	5.5	5.4	11.6	13.3	4.8	6.2	5.2	25.4	11.5	5.8	15.0	17.4	7.9	8.1	3.8	4.7	1.0		3.2	6.9	12.9	7.8	4.8
tr	2.2	3.5	2.0	2.6	3.9	4.1	4.7	15.9	2.9	9.4	7.7	6.7	3.6	1.6	2.1	3.4	6.7	6.4	4.3	7.0	3.5	3.1	4.2	2.5	9.0	8.4	4.6	4.0	1.8	2.3	0.8	3.5		3.3	8.2	6.7	4.4
uk	2.9	12.3	5.3	7.4	7.5	7.5	8.4	20.7	6.5	14.2	14.1	11.2	5.5	3.5	6.6	4.7	9.5	11.2	4.9	5.8	7.2	6.3	6.9	9.6		12.9	7.2	23.5	4.9	5.7	2.6	6.9	2.6		11.4	7.9	4.9
vi	4.2	7.5	4.0	4.7	8.5	6.0	8.8	20.2	7.3	13.7	13.2	9.9	6.5	4.6	4.9	4.7	14.7	10.7	5.6	9.3	6.9	5.7	7.3	4.5	13.0	14.1	8.5	7.2	3.4	4.6	1.7	8.2	4.0	6.7		9.9	6.7
zh-cn	2.1	3.2	1.0	2.2	3.8	3.2	4.5	11.8	3.8	8.2	7.6		3.2	1.7	1.9	3.0	6.6	6.0			3.4		3.8	2.2	7.1	7.9	4.1	4.1	1.6	2.4	0.9	3.1	2.3	3.0	10.8
zh-tw	2.2	3.1	1.1	2.1	3.7	2.8	3.9	10.7	3.4	7.5	7.2	6.1	2.8	1.8	1.6	3.0	6.2	5.4			2.8		3.5	2.3	6.3	6.9	3.5	3.9	1.4	2.1	0.9	3.0	2.4	2.9	10.0

Table 5. Table 5: WikiMatrix (part 2): number of extracted sentences (in thousands) for languages with a rather small Wikipedia. Alignments with other languages yield less than 5k sentences and are omitted for clairty.

ISO	Name	Language Family	size		ca	da	de	en	es	fr	it	nl	pl	pt	sv	ru	zh	total
an	Aragonese	Romance	222		24	7	12	23	33	16	13	9	10	14	9	11	6	324
arz	Egyptian Arabic	Arabic	120		7	6	11	18	12	12	10	8	9	10	8	12	7	278
as	Assamese	Indo-Aryan	124		8	6	11	7	11	12	10	9	9	8	8	9	3	216
azb	South Azerbaijani	Turkic	398		6	4	9	8	9	10	9	7	6	8	6	7	3	172
bar	Bavarian	Germanic	214		7	6	41	16	12	12	10	8	9	10	8	10	5	261
bpy	Bishnupriya	Indo-Aryan	128		2	1	4	4	3	4	2	2	3	2	2	3	1	71
br	Breton	Celtic	413				20	16	22	23	22			19		16	6	200
ce	Chechen	Northeast Caucasian	315		2	1	2	2	2	2	2	2	2	2	2	2	1	56
ceb	Cebuano	Malayo-Polynesian	17919		14	9	22	29	27	24	24	15	17	20	55	21	9	594
ckb	Central Kurdish	Iranian	127		2	2	6	8	5	5	4	4	4	4	3	6	4	113
cv	Chuvash	Turkic	198		4	3	5	4	6	6	7	5	4	6	5	8	2	129
dv	Maldivian	Indo-Aryan	52		2	2	5	6	4	4	3	3	3	3	3	5	3	96
fo	Faroese	Germanic	114		13	12	14	32	21	18	15	11	11	17	12	13	6	335
fy	Western Frisian	Germanic	493		13	8	16	32	21	18	17	38	12	18	13	14	5	453
gd	Gaelic	Celtic	66		1	1	1	1	1	1	1	1	1	1	1	1	1	41
ga	Irish	Irish	216			2	3	4	3	3	3	2	2	3	2	3	1	70
gom	Goan Konkami	Indo-Aryan	69		9	7	10	8	13	13	13	9	9	11	9	10	4	240
ht	Haitian Creole	Creole	60		2	1	3	4	3	4	3	2	3	2	2	3	1	72
ilo	Iloko	Philippine	63		3	2	4	5	4	4	4	3	3	4	3	4	2	96
io	Ido	constructed	153		5	3	6	11	7	7	5	5	5	6	5	5	3	143
jv	Javanese	Malayo-Polynesian	220		8	5	8	13	12	10	11	8	7	11	8	8	3	219
ka	Georgian	Kartvelian	480		11	7	15	12	16	17	16	12	11	14	12	13	5	288
ku	Kurdish	Iranian	165		5	4	8	5	8	7	8	7	6	7	6	6	3	222
la	Latin	Romance	558		12	9	17	32	20	18	17	12	13	18	13	14	6	478
lb	Luxembourgish	Germanic	372		12	7	26	22	19	18	15	11	11	16	12	11	4	305
lmo	Lombard	Romance	147		6	3	7	10	7	7	11	6	5	7	5	5	3	144
mg	Malagasy	Malayo-Polynesian	263		6	5	9	13	9	12	8	7	7	7	8	7	4	199
mhr	Eastern Mari	Uralic	61		3	2	4	3	4	4	5	3	3	4	3	4	2	96
min	Minangkabau	Malayo-Polynesian	255		4	2	6	7	5	5	5	4	4	4	5	5	2	121
mn	Mongolian	Mongolic	255		4	3	7	5	6	6	7	6	5	5	5	5	3	197
mwl	Mirandese	Romance	64		6	3	4	10	8	6	5	3	4	34	3	4	2	154
nds nl	Low German/Saxon	Germanic	65		5	4	6	10	7	7	6	15	5	6	5	5	3	151
ps	Pashto	Iranian	89			2	3	2	3	3	3	3	3	3	3	3	1	73
rm	Romansh	Italic	57		2	2	10	5	4	4	3	2	3	3	3	3	1	86
sah	Yakut	Turkic/Sib	134		4	3	7	5	6	6	6	5	5	5	5	6	3	134
scn	Sicilian	Romance	81		5	3	6	9	7	7	11	5	5	6	5	5	2	143
sd	Sindhi	Iranian	115			3	9		8	8	7	7	6	7	5	8	5	152
su	Sundanese	Malayo-Polynesian	120		4	3	5	7	6	5	6	4	4	5	4	4	2	117
tk	Turkmen	Turkic	56		2	2	3	3	4	3	4	2	2	4	2	3	1	76
tg	Tajik	Iranian	248		5	4	11	15	9	9	8	8	7	8	6	10	6	192
ug	Uighur	Turkic	83		4	3	9	10	7	8	6	6	5	6	5	9	6	168
ur	Urdu	Indo-Aryan	150		2	2	3	5	3	3	3	3	3	3	3	3	2	123
wa	Walloon	Romance	56		3	2	4	5	5	4	4	3	3	4	3	3	2	93
wuu	Wu Chinese	Chinese	75		8	6	11	17	12	11	10	8	9	11	9	10	43	283
yi	Yiddish	Germanic	131		3	2	4	3	4	4	5	3	3	4	3	4	1	92

Table 6. Table 6: BLEU scores on the TED test set as proposed in Qi et al. ( 2018 ) . NMT systems were trained on bitexts mined in Wikipedia only. No other resources were used.

Lang	xx $\to$ en	en $\to$ xx
et	15.9	14.3
eu	10.1	7.6
fa	16.7	8.8
fi	10.9	10.9
lt	13.7	10.0
hi	17.8	21.9
mr	2.6	3.5

Equations

$$\mathrm{margin}(x,y)$$

$$=\frac{\cos (x,y)}{\sum _{z\in {\mathrm{NN}}_k(x)}\frac{\cos (x,z)}{2k}+\sum _{z\in {\mathrm{NN}}_k(y)}\frac{\cos (y,z)}{2k}}$$

Full text

To get an indication on the quality of the extracted bitexts, we train neural MT baseline systems on the mined data only for 1886 languages pairs, and evaluate them on the TED corpus, achieving strong BLEU scores for many language pairs. The WikiMatrix bitexts seem to be particularly interesting to train MT systems between distant languages without the need to pivot through English.

1 Introduction

Most of the current approaches in Natural Language Processing (NLP) are data-driven. The size of the resources used for training is often the primary concern, but the quality and a large variety of topics may be equally important. Monolingual texts are usually available in huge amounts for many topics and languages. However, multilingual resources, typically sentences in two languages which are mutual translations, are more limited, in particular when the two languages do not involve English. An important source of parallel texts are international organizations like the European Parliament Koehn (2005) or the United Nations Ziemski et al. (2016). These are professional human translations, but they are in a more formal language and tend to be limited to political topics. There are several projects relying on volunteers to provide translations for public texts, e.g. news commentary Tiedemann (2012), OpensubTitles Lison and Tiedemann (2016) or the TED corpus Qi et al. (2018)

Wikipedia is probably the largest free multilingual resource on the Internet. The content of Wikipedia is very diverse and covers many topics. Articles exist in more than 300 languages. Some content on Wikipedia was human translated from an existing article into another language, not necessarily from or into English. Eventually, the translated articles have been later independently edited and are not parallel any more. Wikipedia strongly discourages the use of unedited machine translation,222https://en.wikipedia.org/wiki/Wikipedia:Translation but the existence of such articles can not be totally excluded. Many articles have been written independently, but may nevertheless contain sentences which are mutual translations. This makes Wikipedia a very appropriate resource to mine for parallel texts for a large number of language pairs. To the best of our knowledge, this is the first work to process the entire Wikipedia and systematically mine for parallel sentences in all language pairs. We hope that this resource will be useful for several research areas and enable the development of NLP applications for more languages.

In this work, we build on a recent approach to mine parallel texts based on a distance measure in a joint multilingual sentence embedding space Schwenk (2018); Artetxe and Schwenk (2018a). For this, we use the freely available LASER toolkit333https://github.com/facebookresearch/LASER which provides a language agnostic sentence encoder which was trained on 93 languages Artetxe and Schwenk (2018b). We approach the computational challenge to mine in almost six hundred million sentences by using fast indexing and similarity search algorithms.

The paper is organized as follows. In the next section, we first discuss related work. We then summarize the underlying mining approach. Section 4 describes in detail how we applied this approach to extract parallel sentences from Wikipedia in 1620 language pairs. To asses the quality of the extracted bitexts, we train NMT systems for a subset of language pairs and evaluate them on the TED corpus Qi et al. (2018) for 45 languages. These results are presented in section 5. The paper concludes with a discussion of future research directions.

2 Related work

There is a large body of research on mining parallel sentences in collections of monolingual texts, usually named “comparable coprora”. Initial approaches to bitext mining have relied on heavily engineered systems often based on metadata information, e.g. (Resnik, 1999; Resnik and Smith, 2003). More recent methods explore the textual content of the comparable documents. For instance, it was proposed to rely on cross-lingual document retrieval, e.g. (Utiyama and Isahara, 2003; Munteanu and Marcu, 2005) or machine translation, e.g. (Abdul-Rauf and Schwenk, 2009; Bouamor and Sajjad, 2018), typically to obtain an initial alignment that is then further filtered. In the shared task for bilingual document alignment Buck and Koehn (2016), many participants used techniques based on n-gram or neural language models, neural translation models and bag-of-words lexical translation probabilities for scoring candidate document pairs. The STACC method uses seed lexical translations induced from IBM alignments, which are combined with set expansion operations to score translation candidates through the Jaccard similarity coefficient (Etchegoyhen and Azpeitia, 2016; Azpeitia et al., 2017, 2018). Using multilingual noisy web-crawls such as ParaCrawl444http://www.paracrawl.eu/ for filtering good quality sentence pairs has been explored in the shared tasks for high resource Koehn et al. (2018) and low resource Koehn et al. (2019) languages.

In this work, we rely on massively multilingual sentence embeddings and margin-based mining in the joint embedding space, as described in Schwenk (2018); Artetxe and Schwenk (2018a); Artetxe and Schwenk (2018b). This approach has also proven to perform best in a low resource scenario Chaudhary et al. (2019); Koehn et al. (2019). Closest to this approach is the research described in España-Bonet et al. (2017); Hassan et al. (2018); Guo et al. (2018); Yang et al. (2019). However, in all these works, only bilingual sentence representations have been trained. Such an approach does not scale to many languages, in particular when considering all possible language pairs in Wikipedia. Finally, related ideas have been also proposed in Bouamor and Sajjad (2018) or Grégoire and Langlais (2017). However, in those works, mining is not solely based on multilingual sentence embeddings, but they are part of a larger system. To the best of our knowledge, this work is the first one that applies the same mining approach to all combinations of many different languages, written in more than twenty different scripts.

Wikipedia is arguably the largest comparable corpus. One of the first attempts to exploit this resource was performed by Adafre and de Rijke (2006). An MT system was used to translate Dutch sentences into English and to compare them with the English texts. This method yielded several hundreds of Dutch/English parallel sentences. Later, a similar technique was applied to the Persian/English pair Mohammadi and GhasemAghaee (2010). Structural information in Wikipedia such as the topic categories of documents was used in the alignment of multilingual corpora Otero and López (2010). In another work, the mining approach of Munteanu and Marcu (2005) was applied to extract large corpora from Wikipedia in sixteen languages Smith et al. (2010). Otero et al. (2011) measured the comparability of Wikipedia corpora by the translation equivalents on three languages Portuguese, Spanish, and English. Patry and Langlais (2011) came up with a set of features such as Wikipedia entities to recognize parallel documents, and their approach was limited to a bilingual setting. Tufis et al. (2013) proposed an approach to mine parallel sentences from Wikipedia textual content, but they only considered high-resource languages, namely German, Spanish and Romanian paired with English. Tsai and Roth (2016) grounded multilingual mentions to English wikipedia by training cross-lingual embeddings on twelve languages. Gottschalk and Demidova (2017) searched for parallel text passages in Wikipedia by comparing their named entities and time expressions. Finally, Aghaebrahimian (2018) propose an approach based on bilingual BiLSTM sentence encoders to mine German, French and Persian parallel texts with English. Parallel data consisting of aligned Wikipedia titles have been extracted for twenty-three languages555https://linguatools.org/tools/corpora/wikipedia-parallel-titles-corpora/. Since Wikipedia titles are rarely entire sentences with a subject, verb and object, it seems that only modest improvements were observed when adding this resource to the training material of NMT systems.

We are not aware of other attempts to systematically mine for parallel sentences in the textual content of Wikipedia for a large number of languages.

3 Distance-based mining approach

The underling idea of the mining approach used in this work is to first learn a multilingual sentence embedding, i.e. an embedding space in which semantically similar sentences are close independently of the language they are written in. This means that the distance in that space can be used as an indicator whether two sentences are mutual translations or not. Using a simple absolute threshold on the cosine distance was shown to achieve competitive results Schwenk (2018). However, it has been observed that an absolute threshold on the cosine distance is globally not consistent, e.g. Guo et al. (2018). The difficulty to select one global threshold is emphasized in our setting since we are mining parallel sentences for many different language pairs.

3.1 Margin criterion

The alignment quality can be substantially improved by using a margin criterion instead of an absolute threshold Artetxe and Schwenk (2018a). In that work, the margin between two candidate sentences $x$ and $y$ is defined as the ratio between the cosine distance between the two sentence embeddings, and the average cosine similarity of its nearest neighbors in both directions:

[TABLE]

where $\operatorname{NN}_{k}(x)$ denotes the $k$ unique nearest neighbors of $x$ in the other language, and analogously for $\operatorname{NN}_{k}(y)$. We used $k=4$ in all experiments.

We follow the “max” strategy as described in Artetxe and Schwenk (2018a): the margin is first calculated in both directions for all sentences in language $L_{1}$ and $L_{2}$. We then create the union of these forward and backward candidates. Candidates are sorted and pairs with source or target sentences which were already used are omitted. We then apply a threshold on the margin score to decide whether two sentences are mutual translations or not. Note that with this technique, we always get the same aligned sentences, independently of the mining direction, e.g. searching translations of French sentences in a German corpus, or in the opposite direction. The reader is referred to Artetxe and Schwenk (2018a) for a detailed discussion with related work.

The complexity of a distance-based mining approach is $O(N\times{}M)$, where $N$ and $M$ are the number of sentences in each monolingual corpus. This makes a brute-force approach with exhaustive distance calculations intractable for large corpora. Margin-based mining was shown to significantly outperform the state-of-the-art on the shared-task of the workshop on Building and Using Comparable Corpora (BUCC) Artetxe and Schwenk (2018a). The corpora in the BUCC corpus are rather small: at most 567k sentences.

The languages with the largest Wikipedia are English and German with 134M and 51M sentences, respectively, after pre-processing (see Section 4.1 for details). This would require $6.8\times 10^{15}$ distance calculations.666Strictly speaking, Cebuano and Swedish are larger than German, yet mostly consist of template/machine translated text https://en.wikipedia.org/wiki/List_of_Wikipedias We show in Section 3.3 how to tackle this computational challenge.

3.2 Multilingual sentence embeddings

Distance-based bitext mining requires a joint sentence embedding for all the considered languages. One may be tempted to train a bi-lingual embedding for each language pair, e.g. España-Bonet et al. (2017); Hassan et al. (2018); Guo et al. (2018); Yang et al. (2019), but this is difficult to scale to thousands of language pairs present in Wikipedia. Instead, we chose to use one single massively multilingual sentence embedding for all languages, namely the one proposed by the open-source LASER toolkit Artetxe and Schwenk (2018b). Training one joint multilingual embedding on many languages at once also has the advantage that low-resource languages can benefit from the similarity to other language in the same language family. For example, we were able to mine parallel data for several Romance (minority) languages like Aragonese, Lombard, Mirandese or Sicilian although data in those languages was not used to train the multilingual LASER embeddings.

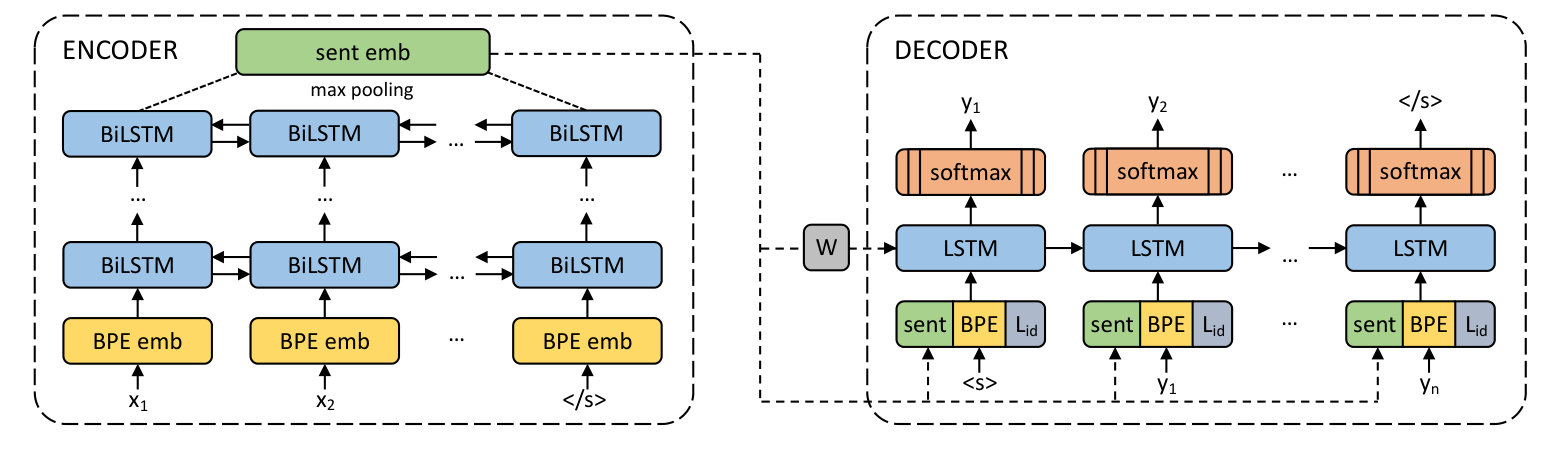

The underlying idea of LASER is to train a sequence-to-sequence system on many language pairs at once using a shared BPE vocabulary and a shared encoder for all languages. The sentence representation is obtained by max-pooling over all encoder output states. Figure 1 illustrates this approach. The reader is referred to Artetxe and Schwenk (2018b) for a detailed description.

3.3 Fast similarity search

Fast large-scale similarity search is an area with a large body of research. Traditionally, the application domain is image search, but the algorithms are generic and can be applied to any type of vectors. In this work, we use the open-source FAISS library777https://github.com/facebookresearch/faiss which implements highly efficient algorithms to perform similarity search on billions of vectors Johnson et al. (2017). An additional advantage is that FAISS has support to run on multiple GPUs. Our sentence representations are 1024-dimensional. This means that the embeddings of all English sentences require $153\cdot 10^{6}\times 1024\times 4=513$ GB of memory. Therefore, dimensionality reduction and data compression are needed for efficient search. In this work, we chose a rather aggressive compression based on a 64-bit product-quantizer Jégou et al. (2011), and portioning the search space in 32k cells. This corresponds to the index type “OPQ64,IVF32768,PQ64” in FAISS terms.888https://github.com/facebookresearch/faiss/wiki/Faiss-indexes Another interesting compression method is scalar quantization. A detailed comparison is left for future research. We build and train one FAISS index for each language.

The compressed FAISS index for English requires only 9.2GB, i.e. more than fifty times smaller than the original sentences embeddings. This makes it possible to load the whole index on a standard GPU and to run the search in a very efficient way on multiple GPUs in parallel, without the need to shard the index. The overall mining process for German/English requires less than 3.5 hours on 8 GPUs, including the nearest neighbor search in both direction and scoring all candidates

4 Bitext mining in Wikipedia

For each Wikipedia article, it is possible to get the link to the corresponding article in other languages. This could be used to mine sentences limited to the respective articles. One one hand, this local mining has several advantages: 1) mining is very fast since each article usually has a few hundreds of sentences only; 2) it seems reasonable to assume that a translation of a sentence is more likely to be found in the same article than anywhere in the whole Wikipedia. On the other hand, we hypothesize that the margin criterion will be less efficient since one article has usually few sentences which are similar. This may lead to many sentences in the overall mined corpus of the type “NAME was born on DATE in CITY”, “BUILDING is a monument in CITY built on DATE”, etc. Although those alignments may be correct, we hypothesize that they are of limited use to train an NMT system, in particular when they are too frequent. In general, there is a risk that we will get sentences which are close in structure and content.

The other option is to consider the whole Wikipedia for each language: for each sentence in the source language, we mine in all target sentences. This global mining has several potential advantages: 1) we can try to align two languages even though there are only few articles in common; 2) many short sentences which only differ by the name entities are likely to be excluded by the margin criterion. A drawback of this global mining is a potentially increased risk of misalignment and a lower recall.

In this work, we chose the global mining option. This will allow us to scale the same approach to other, potentially huge, corpora for which document-level alignments are not easily available, e.g. Common Crawl. An in depth comparison of local and global mining (on Wikipedia) is left for future research.

4.1 Corpus preparation

Extracting the textual content of Wikipedia articles in all languages is a rather challenging task, i.e. removing all tables, pictures, citations, footnotes or formatting markup. There are several ways to download Wikipedia content. In this study, we use the so-called CirrusSearch dumps since they directly provide the textual content without any meta information.999https://dumps.wikimedia.org/other/cirrussearch/ We downloaded this dump in March 2019. A total of about 300 languages are available, but the size obviously varies a lot between languages. We applied the following processing:

• •

extract the textual content;

• •

split the paragraphs into sentences;

• •

remove duplicate sentences;

• •

perform language identification and remove sentences which are not in the expected language (usually, citations or references to texts in another language).

It should be pointed out that sentence segmentation is not a trivial task, with many exceptions and specific rules for the various languages. For instance, it is rather difficult to make an exhaustive list of common abbreviations for all languages. In German, points are used after numbers in enumerations, but numbers may also appear at the end of sentences. Other languages do not use specific symbols to mark the end of a sentence, namely Thai. We are not aware of a reliable and freely available sentence segmenter for Thai and we had to exclude that language. We used the freely available Python tool SegTok101010https://pypi.org/project/segtok/ which has specific rules for 24 languages. Regular expressions were used for most of the Asian languages, falling back to English for the remaining languages. This gives us 879 million sentences in 300 languages. The margin criterion to mine for parallel data requires that the texts do not contain duplicates. This removes about 25% of the sentences.111111The Cebuano and Waray Wikipedia were largely created by a bot and contain more than 65% of duplicates.

LASER’s sentence embeddings are totally language agnostic. This has the side effect that the sentences in other languages (e.g. citations or quotes) may be considered closer in the embedding space than a potential translation in the target language. Table 1 illustrates this problem. The algorithm would not select the German sentence although it is a perfect translation. The sentences in the other languages are also valid translations which would yield a very small margin. To avoid this problem, we perform language identification (LID) on all sentences and remove those which are not in the expected language. LID is performed with fasttext121212https://fasttext.cc/docs/en/language-identification.html Joulin et al. (2016). Fasttext does not support all the 300 languages present in Wikipedia and we disregarded the missing ones (which typically have only few sentences anyway). After deduplication and LID, we dispose of 595M sentences in 182 languages. English accounts for 134M sentences, and German with 51M sentences is the second largest language. The sizes for all languages are given in Tables 3 and 5.

4.2 Threshold optimization

Artetxe and Schwenk (2018a) optimized their mining approach for each language pair on a provided corpus of gold alignments. This is not possible when mining Wikipedia, in particular when considering many language pairs. In this work, we use an evaluation protocol inspired by the WMT shared task on parallel corpus filtering for low-resource conditions Koehn et al. (2019): an NMT system is trained on the extracted bitexts – for different thresholds – and the resulting BLEU scores are compared. We choose newstest2014 of the WMT evaluations since it provides an $N$-way parallel test sets for English, French, German and Czech. We favoured the translation between two morphologically rich languages from different families and considered the following language pairs: German/English, German/French, Czech/German and Czech/French. The size of mined bitexts is in the range of 100k to more than 2M (see Table 2 and Figure 2). We did not try to optimize the architecture of the NMT system to the size of the bitexts and used the same architecture for all systems: the encoder and decoder are 5-layer transformer models as implemented in fairseq Ott et al. (2019). The goal of this study is not to develop the best performing NMT system for the considered languages pairs, but to compare different mining parameters.

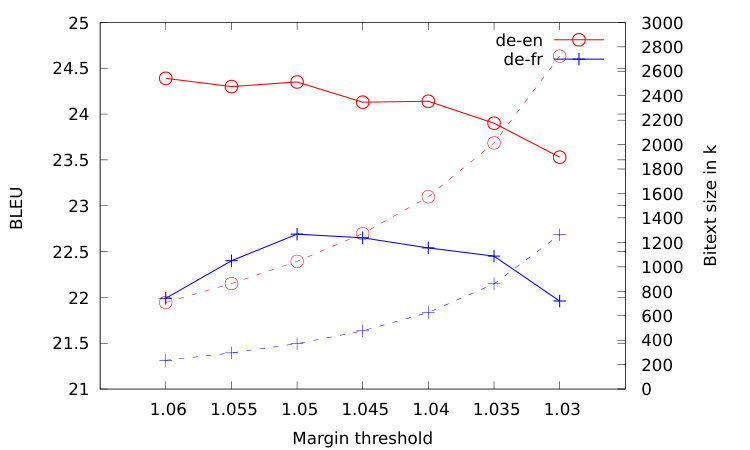

The evolution of the BLEU score in function of the margin threshold is given in Figure 2. Decreasing the threshold naturally leads to more mined data – we observe an exponential increase of the data size. The performance of the NMT systems trained on the mined data seems to change as expected, in a surprisingly smooth way. The BLEU score first improves with increasing amounts of available training data, reaches a maximum and than decreases since the additional data gets more and more noisy, i.e. contains wrong translations. It is also not surprising that a careful choice of the margin threshold is more important in a low-resource setting. Every additional parallel sentence is important. According to Figure 2, the optimal value of the margin threshold seems to be 1.05 when many sentences can be extracted, in our case German/English and German/French. When less parallel data is available, i.e. Czech/German and Czech/French, a value in the range of 1.03–1.04 seems to be a better choice. Aiming at one threshold for all language pairs, we chose a value of 1.04. It seems to be a good compromise for most language pairs. However, for the open release of this corpus, we provide all mined sentence with a margin of 1.02 or better. This would enable end users to choose an optimal threshold for their particular applications. However, it should be emphasized that we do not expect that many sentence pairs with a margin as low as 1.02 are good translations.

For comparison, we also trained NMT systems on the Europarl corpus V7 Koehn (2005), i.e. professional human translations, first on all available data, and then on the same number of sentences than the mined ones (see Table 2). With the exception of Czech/French, we were able to achieve better BLEU scores with the automatically mined bitexts in Wikipedia than with Europarl of the same size. Adding the mined text to the full Europarl corpus, also leads to further improvements of 1.1 to 3.1 BLEU. We argue that this is a good indicator of the quality of the automatically extracted parallel sentences.

5 Result analysis

We run the alignment process for all possible combinations of languages in Wikipedia. This yielded 1620 language pairs for which we were able to mine at least ten thousand sentences. Remember that mining $L_{1}\rightarrow L_{2}$ is identical to $L_{2}\rightarrow L_{1}$, and is counted only once. We propose to analyze and evaluate the extracted bitexts in two ways. First, we discuss the amount of extracted sentences (Section 5.1). We then turn to a qualitative assessment by training NMT systems for all language pairs with more than twenty-five thousand mined sentences (Section 5.2).

5.1 Quantitative analysis

[FIGURE:]

Due to space limits, Table 3 summarizes the number of extracted parallel sentences only for languages which have a total of at least five hundred thousand parallel sentences (with all other languages at a margin threshold of 1.04). Additional results are given in Table 5 in the Appendix.

There are many reasons which can influence the number of mined sentences. Obviously, the larger the monolingual texts, the more likely it is to mine many parallel sentences. Not surprisingly, we observe that more sentences could be mined when English is one of the two languages. Let us point out some languages for which it is usually not obvious to find parallel data with English, namely Indonesian (1M), Hebrew (545k), Farsi (303k) or Marathi (124k sentences). The largest mined texts not involving English are Russian/Ukrainian (2.5M), Catalan/Spanish (1.6M), between the Romance languages French, Spanish, Italian and Portuguese (480k–923k), and German/French (626k).

It is striking to see that we were able to mine more sentences when Galician and Catalan are paired with Spanish than with English. On one hand, this could be explained by the fact that LASER’s multilingual sentence embeddings may be better since the involved languages are linguistically very similar. On the other, it could be that the Wikipedia articles in both languages share a lot of content, or are obtained by mutual translation.

Services from the European Commission provide human translations of (legal) texts in all the 24 official languages of the European Union. This N-way parallel corpus enables training of MT system to directly translate between these languages, without the need to pivot through English. This is usually not the case when translating between other major languages, for example in Asia. Let us list some interesting language pairs for which we were able to mine more than hundred thousand sentences: Korean/Japanese (222k), Russian/Japanese (196k), Indonesian/Vietnamese (146k), or Hebrew/Romance languages (120–150k sentences).

Overall, we were able to extract at least ten thousand parallel sentences for 85 different languages.13131399 languages have more than 5,000 parallel sentences. For several low-resource languages, we were able to extract more parallel sentences with other languages than English. These include, among others, Aragonse with Spanish, Lombard with Italian, Breton with several Romance languages, Western Frisian with Dutch, Luxembourgish with German or Egyptian Arabic and Wu Chinese with the respective major language.

Finally, Cebuano (ceb) falls clearly apart: it has a rather huge Wikipedia (17.9M filtered sentence), but most of it was generated by a bot, as for the Waray language141414https://en.wikipedia.org/wiki/Lsjbot. This certainly explains that only a very small number of parallel sentences could be extracted. Although the same bot was also used to generate articles in the Swedish Wikipedia, our alignments seem to be better for that language.

5.2 Qualitative evaluation

Aiming to perform a large-scale assessment of the quality of the extracted parallel sentences, we trained NMT systems on the extracted parallel sentences. We identified a publicly available data set which provide test sets for many language pairs: translations of TED talks as proposed in the context of a study on pretrained word embeddings for NMT151515https://github.com/neulab/word-embeddings-for-nmt Qi et al. (2018). We would like to emphasize that we did not use the training data provided by TED – we only trained on the mined sentences from Wikipedia. The goal of this study is not to build state-of-the-art NMT system for for the TED task, but to get an estimate of the quality of our extracted data, for many language pairs. In particular, there may be a mismatch in the topic and language style between Wikipedia texts and the transcribed and translated TED talks.

For training NMT systems, we used a transformer model from fairseq (Ott et al., 2019) with the parameter settings shown in Figure 3 in the appendix. For preprocessing, the text was tokenized using the Moses tokenizer (without true casing) and a 5000 subword vocabulary was learnt using SentencePiece Kudo and Richardson (2018). Decoding was done with beam size 5 and length normalization 1.2.

We evaluate the trained translation systems on the TED dataset Qi et al. (2018). The TED data consists of parallel TED talk transcripts in multiple languages, and it provides development and test sets for 50 languages. Since the development and test sets were already tokenized, we first detokenize them using Moses. We trained NMT systems for all possible language pairs with more than twenty-five thousand mined sentences. This gives us in total 1886 language pairs in 45 languages. We train $L_{1}\rightarrow L_{2}$ and $L_{2}\rightarrow L_{1}$ with the same mined bitexts $L_{1}$/$L_{2}$. Scores on the test sets were computed with SacreBLEU (Post, 2018). Table 4 summarizes all the results. Due to space constraints, we are unable to report BLEU score for all language combinations in that table. Some additional results are reported in Table 6 in the annex. 23 NMT systems achieve BLEU scores over 30, the best one being 37.3 for Brazilian Portuguese to English. Several results are worth mentioning, like Farsi/English: 16.7, Hebrew/English: 25.7, Indonesian/English: 24.9 or English/Hindi: 25.7 We also achieve interesting results for translation between various non English language pairs for which it is usually not easy to find parallel data, e.g. Norwegian $\leftrightarrow$ Danish $\approx$33, Norwegian $\leftrightarrow$ Swedish $\approx$25, Indonesian $\leftrightarrow$ Vietnamese $\approx$16 or Japanese / Korean $\approx$17.

Our results on the TED set give an indication on the quality of the mined parallel sentences. These BLEU scores should be of course appreciated in context of the sizes of the mined corpora as given in Table 3. Obviously, we can not exclude that the provided data contains some wrong alignments even though the margin is large. Finally, we would like to point out that we run our approach on all available languages in Wikipedia, independently of the quality of LASER’s sentence embeddings for each one.

6 Conclusion

We have presented an approach to systematically mine for parallel sentences in the textual content of Wikipedia, for all possible language pairs. We use a recently proposed mining approach based on massively multilingual sentence embeddings Artetxe and Schwenk (2018b) and a margin criterion Artetxe and Schwenk (2018a). The same approach is used for all language pairs without the need of a language specific optimization. In total, we make available 135M parallel sentences in 85 languages, out of which only 34M sentences are aligned with English. We were able to mine more than ten thousands sentences for 1620 different language pairs. This corpus of parallel sentences is freely available.161616https://github.com/facebookresearch/LASER/tree/master/tasks/WikiMatrix We also performed a large scale evaluation of the quality of the mined sentences by training 1886 NMT systems and evaluating them on the 45 languages of the TED corpus Qi et al. (2018).

This work opens several directions for future research. The mined texts could be used to first retrain LASER’s multilingual sentence embeddings with the hope to improve the performance on low-resource languages, and then to rerun mining in Wikipedia. This process could be iteratively repeated. We also plan to apply the same methodology to other large multilingual collections. The monolingual texts made available by ParaCrawl or CommonCrawl171717http://commoncrawl.org/ are good candidates.

We expect that the WikiMatrix corpus has mostly well-formed sentences and it should not contain social media language. The mined parallel sentences are not limited to specific topics like many of the currently available resources (parliament proceedings, subtitles, software documentation, $\ldots$), but are expected to cover many topics of Wikipedia. The fraction of unedited machine translated text is also expected to be low. We hope that this resource will be useful to support research in multilinguality, in particular machine translation.

7 Acknowledgments

We would like to thank Edoaurd Grave for help with handling the Wikipedia corpus and Matthijs Douze for support with the use of FAISS.

Appendix A Appendix

Table 5 provides the amounts of mined parallel sentences for languages which have a rather small Wikipedia. Aligning those languages obviously yields to a very small amount of parallel sentences. Therefore, we only provide these results for alignment with high resource languages. It is also likely that several of these alignments are of low quality since the LASER embeddings were not directly trained on most these languages, but we still hope to achieve reasonable results since other languages of the same family may be covered.

Table 3 gives the detailed configuration which was used to train NMT models on the mined data in Section 5.

Finally, Table 6 gives the BLEU scores on the TED corpus when translating into and from English for some additional languages.
