On the Origin of Dust in Galaxy Clusters at Low to Intermediate Redshift

TL;DR

This study investigates the origin of dust in galaxy clusters at low to intermediate redshift, suggesting spiral galaxies are the primary source of intracluster dust, consistent with observational data.

Contribution

It introduces a detailed chemical evolution model combined with galaxy formation scenarios to quantify dust contributions from different galaxy types in clusters.

Findings

Spiral galaxies dominate the dust contribution to clusters.

Elliptical/S0 galaxies contribute negligibly to intracluster dust.

Model results align with observations at redshifts 0.2 to 1.

Abstract

Stacked analyses of galaxy clusters at low-to-intermediate redshift show signatures attributable to dust, but the origin of this dust is uncertain. We test the hypothesis that the bulk of cluster dust derives from galaxy ejecta. To do so, we employ dust abundances obtained from detailed chemical evolution models of galaxies. We integrate the dust abundances over cluster luminosity functions (one-slope and two-slope Schechter functions). We consider both a hierarchical scenario of galaxy formation and an independent evolution of the three main galactic morphologies: elliptical/S0, spiral and irregular. We separate the dust residing within galaxies from the dust ejected in the intracluster medium. To the latter, we apply thermal sputtering. The model results are compared to low-to-intermediate redshift observations of dust masses. We find that in any of the considered scenarios, elliptical/S0 galaxies contribute negligibly to the present-time intracluster dust, despite producing the majority of gas-phase metals in galaxy clusters. Spiral galaxies, instead, provide both the bulk of the spatially-unresolved dust and of the dust ejected into the intracluster medium. The total dust-to-gas mass ratio in galaxy clusters amounts to $10^{-4}$, while the intracluster medium dust-to-gas mass ratio amounts to $10^{-6}$ at most. These dust abundances are consistent with the estimates of cluster observations at $0.2 < z <1$. We propose that galactic sources, spiral galaxies in particular, are the major contributors to the cluster dust budget.

Figures

Tables

Table 1. Table 2: Fiducial model parameters for the single LF, consistent with the median found by Moretti et al. ( 2015 ) and Mamon et al. ( 2019 ) on the full WINGS cluster sample. The first and second rows are the lower ( M m ​ i ​ n subscript 𝑀 𝑚 𝑖 𝑛 M_{min} ) and upper ( M m ​ a ​ x subscript 𝑀 𝑚 𝑎 𝑥 M_{max} ) mass limits for irregular, spiral, and elliptical galaxies (Irr, Spi, Ell). On the bottom row, f e ​ l ​ l subscript 𝑓 𝑒 𝑙 𝑙 f_{ell} is the fraction of galaxies that are elliptical/S0. α 𝛼 \alpha is the slope of the single LF. n ∗ superscript 𝑛 n^{*} is the richness. Mag V ∗ superscript 𝑉 V^{*} is the V-band magnitude identifying the break luminosity.

$M_{G,min}^{Irr}$	$M_{G,min}^{Spi}$	$M_{G,min}^{Ell}$
${10}^7{M}_{\odot }$	$5\times {10}^9{M}_{\odot }$	$5\times {10}^9{M}_{\odot }$
$M_{G,max}^{Irr}$	$M_{G,max}^{Spi}$	$M_{G,max}^{Ell}$
$5\times {10}^9{M}_{\odot }$	$5\times {10}^{11}{M}_{\odot }$	—

Table 2. Table 3: Fiducial model parameters for the double LF, consistent with the median found by Moretti et al. ( 2015 ) on the full WINGS cluster sample. The subscripts b and f represent the bright and faint end of the double LF respectively.

${\alpha }_b$	${\alpha }_f$	Mag${}_{}{}^{\ast }{}_{V,b}{}^{}$	Mag${}_{}{}^{\ast }{}_{V,f}{}^{}$
-0.97	-0.6	-21.15	-16.30

Equations

$$M_d\left(t\right)=E_d\left(t\right)M_{G,X}{}^{{\beta }_d\left(t\right)},$$

$$M_d/M_d^{\ast }={\left(M_G/M_G^{\ast }\right)}^{{\beta }_d}={\left(L/L^{\ast }\right)}^{{\beta }_d},$$

$$(L/L^{\ast }{)}^{{\beta }_{d,X}}\Phi \left(L\right)=f_X{n}^{\ast }(L/L^{\ast }{)}^{{\beta }_{d,X}+\alpha }{\mathrm{e}}^{-L/L^{\ast }},$$

$$M_{d,ell}^{ISM}(<R_{200})=f_{ell}{M}_{d,ell}^{\ast ,ISM}{n}^{\ast }\Gamma (1+{\beta }_{d,ell}^{ISM}+\alpha ,L_{min,ell}/L^{\ast })$$

$$\begin{gathered} M_{d,spi}^{ISM}(<R_{200})=f_{spi}{M}_{d,spi}^{\ast ,ISM}{n}^{\ast }[\Gamma (1+{\beta }_{d,spi}^{ISM}+\alpha ,L_{min,spi}/L^{\ast }) \\ -\Gamma (1+{\beta }_{d,spi}^{ISM}+\alpha ,L_{max,spi}/L^{\ast })] \end{gathered}$$

$$\begin{gathered} M_{d,irr}^{ISM}(<R_{200})=f_{irr}{M}_{d,irr}^{\ast ,ISM}{n}^{\ast }[\Gamma (1+{\beta }_{d,irr}^{ISM}+\alpha ,L_{min,irr}/L^{\ast }) \\ -\Gamma (1+{\beta }_d^{irr,ISM}+\alpha ,L_{max,irr}/L^{\ast })], \end{gathered}$$

$$\Phi (L)\propto {\Phi }_b+\frac{L_b^{\ast }}{L_f^{\ast }}{\Phi }_f={\left(\frac{L}{L_b^{\ast }}\right)}^{{\alpha }_b}{\mathrm{e}}^{-L/L_b^{\ast }}+\frac{L_b^{\ast }}{L_f^{\ast }}{\left(\frac{L}{L_f^{\ast }}\right)}^{{\alpha }_f}{\mathrm{e}}^{-L/L_f^{\ast }},$$

$$n_X(z)=n_{X,0}(1+z{)}^{{\theta }_X},$$

$$f_{ell}=f_0\frac{(1+z{)}^{-2.5}}{f_0(1+z{)}^{-2.5}+(1-f_0)(1+z{)}^{0.9}},$$

$$M_{scaled}=M_{vir}\frac{\ln (1+t)-t/(1+t)}{\ln (1+c)-c/(1+c)},$$

$${\dot{G}}_k(t)=-\psi (t)X_k(t)+R_k(t)+{\dot{G}}_{k,inf}(t)-{\dot{G}}_{k,w}(t),$$

$$\begin{array}{r}{\dot{G}}_{k,dust}=-\psi (t)X_{k,dust}(t)+{\delta }_k{R}_k(t)+G_{k,dust}(t)/{\tau }_{k,accr}+\\ -G_{k,dust}(t)/{\tau }_{k,destr}-{\dot{G}}_{k,dust,w}(t),\end{array}$$

Full text

††pubyear: 2019††pagerange: On the Origin of Dust in Galaxy Clusters at Low to Intermediate Redshift.–On the Origin of Dust in Galaxy Clusters at Low to Intermediate Redshift.

1 Introduction

Even at low abundances, dust is an important ingredient in both the observation and the evolution of astrophysical systems. Dust affects the spectral energy distributions (SED) of any target, particularly stars and galaxies, from the UV-and-optical to the far-infrared (FIR, e.g., Calzetti, 2001). It is estimated that about 50% of all the starlight emitted across cosmic history has been reprocessed by dust (Hauser & Dwek, 2001). Dust depletes galactic interstellar media (ISM) of about half of their gaseous metals, many metals which (e.g., O, C, Fe) are important coolants. On the other hand, dust serves as a catalyst for the formation of some of the most important cooling molecules, especially H2 (Gould & Salpeter, 1963). These dust-related phenomena affecting gas temperature could indirectly influence star formation (SF).

Despite many open issues regarding the composition and size distribution of dust (e.g., Jones, 2014), the field has made substantial progress in the understanding of dust properties within galaxies (for a review, see Galliano et al., 2018). However, much less is known regarding the abundance, and size distribution of dust in galaxy clusters – including their diffuse intracluster media (ICM). The understanding of dust distribution in galaxy clusters is important for a number of reasons. For example, it affects galaxy cluster catalogue completeness. Up to $\sim$ 9% of clusters in a redshift range of $0.5<z<0.8$ might be undetected in the Planck survey due to the presence of dust (Melin et al., 2018). Dust becomes an efficient cooling agent in the hot temperatures ($T>10^{7}$K) typical of the ICM (Montier & Giard, 2004). Furthermore, a proper understanding of dust properties will be essential in the analysis of protoclusters at redshift $z\gtrsim 2$ (e.g., Casey, 2016; Cheng et al., 2019; Smith et al., 2019). These systems are not fully virialized, so their ICM has not reached the temperatures necessary to trigger efficient destruction mechanisms (i.e., sputtering).

There is no definitive evidence of the presence of dust in the ICM of local galaxy clusters. Stickel et al. (2002) put forward an estimate of a dust-to-gas mass ratio (DtG) for the ICM of the Coma cluster of about $10^{-6}$; it however found no evidence of dust in other clusters (A262, A2670, A400, A496, A4038). Later Kitayama et al. (2009), while finding estimates consistent with Stickel et al. (2002) for the Coma cluster DtG, attributed the low dust abundances to irregular sources fluctuating in the cirrus foreground. Similarly, Bai et al. (2007) found that the emission from the Abell cluster A2029 is indistinguishable from cirrus noise.

Evidence of the presence of dust in clusters may instead have been found in the statistical analysis of large datasets. Chelouche et al. (2007) and Muller et al. (2008), in the redshift ranges $0.1<z<0.3$ and $z<0.5$ respectively, observed dust extinction in galaxies and quasars located in the background of galaxy clusters. Both obtain comparable DtG measures of $10^{-4}$. Chelouche et al. (2007) estimated a DtG smaller than $<5$% of the typical galactic ISM values; Muller et al. (2008) found a dust mass upper limit of $8\times 10^{9}M_{\odot}$ within $R_{200}$111$R_{200}$ ($M_{200}$) is the radius that encloses (mass enclosed by) a sphere whose mean density is 200 times the critical density at the given redshift.. Chelouche et al. (2007) and later Gutiérrez & López-Corredoira (2017) noted that the ICM dust is mostly distributed in the outskirts of clusters. The dust signature drops closer to the cluster center, in the very hot ICM. This same radial dependence was observed by McGee & Balogh (2010) in systems within a redshift range of $0.1<z<0.2$, out to larger radii of 30$h^{-1}$Mpc from the center of large clusters ($\sim 10^{14}h^{-1}M_{\odot}$) and small groups ($\sim 10^{12.7}h^{-1}M_{\odot}$).

Analysing IR data, Giard et al. (2008) found more stringent upper limits. On a selection of galaxy clusters from three catalogues (Gal et al., 2003; Montier & Giard, 2005; Koester et al., 2007), they stacked the integrated IR luminosity ($L_{IR}$, Miville-Deschênes & Lagache, 2005) within an annulus between 9’ and 18’, in redshift bins up to $z<1$. They then paired the IR data with the X-ray Rosat All Sky Survey (RASS) (Voges et al., 1999) for all of the selected clusters, enabling the identification of the ongoing SF from member galaxies. After subtracting the SF component from the estimates, the resulting signal attributable to ICM dust leads to a DtG not greater than $10^{-5}$.

Roncarelli et al. (2010) is a follow-up to Giard et al. (2008) on a restricted redshift range of $0.1<z<0.3$ that employs the SDSS-maxBCG catalogue (Koester et al., 2007). The galaxies in this calalogue were separated by morphology – namely E/S0, Sa, Sb, Sc and starburst – and for each, they modeled their respective SEDs. They then reconstructed the 60 and 100 $\mu$m IRAS band emissions of the cluster galaxies using the prescriptions by Silva et al. (1998). Finally, they compared their predictions to the IR data by Giard et al. (2008) to isolate the IR emission not coming from dust in known galaxies, i.e. the emission coming from ICM dust. Their estimated total galactic emission is dominated by star-forming late-type galaxies, leading to an estimated ICM DtG of $\lesssim 5\times 10^{-5}$.

Planck Collaboration (XLIII) et al. (2016), hereafter PlanckXLIII-16, and Gutiérrez & López-Corredoira (2014, 2017), hereafter GLC14 and GLC17, provided some of the latest estimates on dust in galaxy clusters. PlanckXLIII-16 observed integrated – and hence not spatially-resolved – cluster dust masses of a few $10^{10}M_{\odot}$ within a fixed aperture of 15 arcmin for massive galaxy clusters within a redshift of $z<1$. The integration was run over a few reasonable values of the spectral emission fitting parameters. It is therefore an estimate of the total dust mass, including both galaxy (ISM) dust and ICM dust. GLC14 performed an analysis of both stacked IR emission and of background object extinction in an effort to disentangle the contributions of dust coming from the ICM and of dust residing within the ISM of cluster galaxies. All these studies, amid uncertainties, detected low dust abundances that may impact the interpretation of star formation rates (SFR) and evolutionary models for both galaxies and galaxy clusters.

Sporadic theoretical works have attempted to estimate ICM dust. Dwek et al. (1990) already predicted that dust should exist mostly far away from the cluster center ($R>2$ Mpc) and in low abundances. A decade later, Popescu et al. (2000) proposed that any IR emission by diffuse ICM dust would come from current dust injection in the ICM, and hence it would indicate the dynamical state and maturity of the cluster. More recently, Polikarpova & Shchekinov (2017) determined that dust may live in the ICM for 100-300 Myr if it resides in isolated dense and cold gas filamanets surviving the outflow. This would lead to an ICM DtG of about 1-3% of the typical Galactic values, whose average DtG is $10^{-2}$. Some hydrodynamical simulations and semi-analytical models (SAMs) of galaxies and galaxy clusters have already included dust evolution (e.g., Bekki, 2015; Zhukovska et al., 2016; Popping et al., 2017; Aoyama et al., 2017; McKinnon et al., 2017; Gjergo et al., 2018; Vogelsberger et al., 2019; Hu et al., 2019). Among these, Popping et al. (2017) with SAMs, and Gjergo et al. (2018) and Vogelsberger et al. (2019) with cosmological simulations of galaxy clusters and galaxies respectively, treated dust destruction by thermal sputtering in the harsh extragalactic and intracluster environments. Gjergo et al. (2018) slightly underproduced dust compared to PlanckXLIII-16, and alleviates the tension by relaxing the sputtering destruction timescale. Vogelsberger et al. (2019) is able to reproduce the Planck results by also relaxing the sputtering timescale, and by including gas cooling due to dust in high resolution simulations.

In this work we present an approach previously tested on gas metals for local galaxy clusters by Matteucci & Vettolani (1988) (hereafter MV88, ). The method consists in integrating at present time the chemical evolution models of elliptical/S0 galaxies over luminosity functions (LF). This approach successfully predicted that the bulk of the metal mass is produced by elliptical/S0 galaxies at the break of the LF (Gibson & Matteucci, 1997).

We implement the same technique of MV88, but using dust evolution models, and we apply it to the entire evolution history of a typical cluster. The comprehensive dust prescriptions have been validated in the solar neighborhood, damped Lyman alpha systems, far away galaxies and quasars, as well as across cosmic times (Fan et al., 2013; Gioannini et al., 2017a, b; Spitoni et al., 2017; Vladilo et al., 2018; Palla et al., 2020, 2019). Even though these chemical and dust evolution models have been mainly calibrated on field galaxies, it is safe to apply them to cluster galaxies. In fact, some studies (e.g., Davies et al., 2019) have shown that dust properties such as DtG and dust-to-stellar-mass ratios vary more stringently with morphology, age, and physical processes rather than with environment (field galaxies or cluster galaxies).

Unlike MV88, we differentiate among the three main morphologies: elliptical/S0, spiral and dwarf/irregular galaxies. For each of these, we separate the dust component residing within the ISM of galaxies from the other component ejected in the ICM. On top of the standard Schechter function (Schechter, 1976), we test the behavior of a double LF that consists of the sum of two LFs – one for massive galaxies, and one for dwarf/irregular galaxies. The parameters for both single and double LF follow Moretti et al. (2015), that derived median and average best fits for the full sample of the WINGS low redshift clusters. WINGS (WIde–field Nearby Galaxy–cluster Survey; Fasano et al., 2006; Moretti et al., 2014) is an all-sky survey of nearby galaxy clusters. WINGS comprises all clusters from three X-ray flux-limited samples in the redshift range 0.04-0.07, and with a Galactic latitude $\mid b\mid>20^{\circ}$. The completeness of the survey and the availability of relatively deep photometry in the B and V band, makes the WINGS sample ideal for the analysis in this paper.

Aside from the scenario where different galaxies evolve independently (monolithic open-box scenario), we expand the model to account for a hierarchical galaxy formation scenario following the method presented in Vincoletto et al. (2012). In this model, the galaxy number density $n^{*}_{k}$ for different morphologies was tuned to reproduce two quantities: the galaxy fractions at present time ($z<0.05$) (Marzke et al., 1998); and the cosmic star formation rate predicted in Menci et al. (2004) by means of a semi-analytical hierarchical model. This same method was adopted and applied to dust estimates in Gioannini et al. (2017b).

The paper is organized as follows: in Section 2 we overview the relevant observational papers that investigated the presence of dust in galaxy clusters. In Section 3 we describe in detail the methodology employed, including a summary of the the integration method and dust evolution models. In Section 4 we present our predictions of the dust evolution within a typical galaxy cluster, and we compare it against the latest observations.We also present the dependence of dust evolution in clusters on a reasonable range of parameter values. Finally, our discussion and conclusions are accounted for in Section 5.

Throughout this paper, we adopt a flat $\Lambda$CDM cosmology with a Hubble constant of $H_{0}=70$ km s*-1* Mpc*-1* and $\Omega_{m}=0.3$.

2 Observations of Dust in Galaxy Clusters

A summary of the existing observational literature is presented in Table 1. In bold are the observational studies that we compared to our results. Some works investigated individual clusters (e.g., Stickel et al., 1998, 2002; Bai et al., 2007; Kitayama et al., 2009) and some took a statistical average over large data sets investigating optical extinctions (Chelouche et al., 2007; Muller et al., 2008; McGee & Balogh, 2010) or dust IR emission (Giard et al., 2008; Gutiérrez & López-Corredoira, 2014, 2017; Planck Collaboration (XLIII) et al., 2016). Lastly, Roncarelli et al. (2010) reconstructed the SED of various galactic morphologies using both SDSS and IRAS data, in order to isolate a galactic SED signal from the ICM dust.

It is possible to estimate dust abundances either through dust emission in the IR or through the extinction of objects on the background of the observed medium in UV-optical wavebands. Typically, the IR dust emission technique consists in fitting the IR fluxes on modified blackbody spectra of dust thermal emission (e.g., Hildebrand, 1983). A technique for ICM extinction was pioneered by Ostriker & Heisler (1984). They estimated dust extinction in a given cluster by measuring the flux of objects – galaxies and quasars – located in the background of the given cluster. The dust-obscured flux is then compared to a reference flux of similar objects located at a similar redshift, but in the field, away from clusters and dust contamination. Employing this method, Ferguson (1993) and Maoz (1995) found that whatever dust may be contained in the ICM of galaxy clusters, it should be negligible compared to selection effects.

In general, dust abundances in the ICM of large cluster samples at redshift $z<1$ are not too well constrained, but most dust estimates limit the ICM DtG to around $10^{-5}$, which is around 3 orders of magnitude lower than the typical Galactic ISM values. Such low abundances are due to the short dust destruction timescales in the hostile ICM environment, which is permeated with X-ray radiation and highly energetic ions. Therefore, ICM dust is believed to be of recent origin (e.g., Dwek et al., 1990; Popescu et al., 2000; Clemens et al., 2010) – it is either newly ejected from galaxies by stellar winds, or stripped from the galactic ISM by merging events and ram pressure stripping. Dust is furthermore expected to reside mainly in the outskirts of the cluster, where late-type galaxies are dominant, and where the environment is contaminated by small groups or residues of past mergerer events. This is corroborated by cluster dust profile studies (Chelouche et al., 2007; Muller et al., 2008) in combination with the low dust abundances observed around cluster centers (Stickel et al., 2002; Bai et al., 2007; Kitayama et al., 2009).

In our work, we compare the obtained results with data by Stickel et al. (2002); \al@gutierrez17, 43planck16; \al@gutierrez17, 43planck16.

Stickel et al. (2002) predict the Coma cluster ICM dust. We take their value as the upper limit for dust content in the ICM of local galaxy clusters.

GLC14 employed two methods on the SDSS-DR9 (Ahn et al., 2012) sample of galaxy clusters located in a redshift range of $0.05<z<0.68$: the first method is a statistical approach to extinction. Their prediction for total dust mass averages $M_{d}<8.4\times 10^{9}M_{\odot}$ within a cluster radius of 3 Mpc. The second method is an emission estimate of the contribution of galaxy cluster dust to the FIR sky from optical extinction maps. This second method leads to a lower prediction of $\sim 2\times 10^{9}M_{\odot}$. The conservative DtG upper limit from the two methods combined is $\sim 8\times 10^{-5}$. Later, GLC14 was followed up through the Herschel HerMES project by GLC17. The cluster selection sample contained 327 clusters. GLC17 binned the estimates in three redshift bins (0.05–0.24, 0.24–0.42, 0.41–0.71), two cluster mass bins ($<10^{14}M_{\odot}$ and $>10^{14}M_{\odot}$), aperture (1 to 5 arcmin), and observed frequency (250, 350, and 500 $\mu$m). Our theoretical predictions are compared to a selected sample of GLC17 data, in particular to the three redshift bins for the massive cluster sample measured through the 350 $\mu$m channel, for arcmin 1’.

PlanckXLIII-16 considered a selection of 645 clusters within a redshift of $z<1$. For these clusters, they combined the Planck-HFI maps (6 beams, 100 to 857 GHz) with the IRAS (Miville-Deschênes & Lagache, 2005) maps (60 and 100 $\mu$m), they then integrated the stacked signal for each beam out to an aperture of 15 arcmin. Fixing the aperture radius implies that for more distant clusters, more of their outskirts is included in the analysis. They hence fit these 7 data points to the IR SED dust emission, following the approach prescribed in Hildebrand (1983). PlanckXLIII-16 ignores IRAS data at 60$\mu$m in the SED fit, because at this wavelength the contribution by small grains which are not in thermal equilibrium becomes prominent and would skew the fit. For the full sample, each cluster is estimated to have, within 15 arcmin, a dust mass of around $10^{10}M_{\odot}$ – with small variations depending on the choice of emissivity index $\beta$. The full sample ($\langle z\rangle=0.26\pm 0.17$, $M_{dust}=1.08\pm 0.32\times 10^{10}M_{\odot}$) is split in two redshift bins and two mass bins. The redshift bins are divided at $z=0.25$, with an average dust mass of $0.34\pm 0.17\times 10^{10}M_{\odot}$ for the low $z$ and $2.56\pm 0.91\times 10^{10}M_{\odot}$ for the intermediate $z$. The mass bins are divided at $M_{200}=5.5\times 10^{14}M_{\odot}$. In this case, the less massive clusters have on average a dust mass of $0.21\pm 0.14\times 10^{10}M_{\odot}$ and the more massive clusters fair at $3.48\pm 0.99\times 10^{10}M_{\odot}$. Comparisons are made both with the full sample and the two subsample s split according to redshift bins.

3 Method

In order to compute the total amount of dust produced and ejected by galaxies in the ICM, we follow the method proposed in MV88, in which they integrated over the LF of clusters the masses of given chemical species $i$ produced by galaxies at the present time. Unlike MV88 which employs only chemical evolution models of early-type galaxies (Matteucci & Tornambe, 1987), we take advantage of dust evolution models of irregular, spiral, and elliptical galaxies (i.e. Gioannini et al., 2017a; Palla et al., 2020). We also extend MV88 across the entire evolutionary history of the cluster. To do so, we assume two scenarios of galaxy formation: in one case, we consider a monolithic evolution of the cluster, where the three galaxy morphologies evolve indipendently, not changing in their number and abiding only by the chemical and dust evolution models. In the second case, we adopt the Vincoletto et al. (2012) prescription for hierarchical clustering, already paired to our dust evolution models in Gioannini et al. (2017b). What follows is the presentation of the monolithic scenario. We will then introduce the hierarchical scenario in Section 3.1.1 and the chemical and dust evolution models in Section 3.2.

3.1 Modeling dust in galaxy clusters

First, we find the relationship between the evolution of dust masses $M_{d}$ across the cosmic time $t$ for galaxies of a set morphology and total baryonic galaxy mass $M_{G}$. This quantity includes gas infall and outflow, and in the rest of the paper we will refer to it as "infall mass". We iterate our dust evolution code over a range of masses $M_{G,X}$ for each of the three morphologies $X$. In the case of elliptical galaxies, $M_{G,ell}$ has a lower limit of $10^{9}M_{\odot}$ and does not extend beyond $10^{12}M_{\odot}$. $5\times 10^{9}M_{\odot}<M_{G,spi}<5\times 10^{11}M_{\odot}$ is the range for spiral galaxies, and $10^{7}M_{\odot}<M_{G,irr}<5\times 10^{9}M_{\odot}$ for irregular galaxies. For each iteration, we are able to separate an "ISM" dust component, residing within galaxies, and an "ICM" dust component, ejected by stellar winds.

For each morphology across the respective iterations of dust evolution, we fit the following:

[TABLE]

where $E_{d}(t)$ and $\beta_{d}(t)$ are the time-dependent fit parameters. The fits are stable across cosmic time for every iteration.

With the relation between dust and galaxy mass established, we convert galaxy masses into luminosities, because our ultimate goal is to use Equation 1 as a weight function on the LF. We consider the mass-to-light ratio $K=M_{G}/L$, where the galaxy mass $M_{G}$ and luminosity $L$ are both expressed in solar units. We take a fiducial value of $K=5$, and test variations up to $K=15$. This range of $K$ is typical of several studies in literature (e.g., Spiniello et al., 2012; De Masi et al., 2019; Portinari et al., 2004) for both early and late-type galaxies. It is then possible to normalize Equation 1 by the respective quantities at the break (∗) of the LF:

[TABLE]

where $M_{d}^{*}$ is the dust mass associated to a galaxy of mass $M_{G}^{*}$ and luminosity $L^{*}$ at the break.

With these tools, we can now consider the distribution function of galaxies across luminosity (or mass). The most reasonable choice is the Schechter LF (Schechter, 1976): $\Phi\left(L\right)=n^{*}(L/L^{*})^{\alpha}\mathop{}\!\mathrm{e}^{-L/L^{*}}$, where $L^{*}$ is the luminosity of a galaxy at the break of the Schechter Function, $n^{*}$ is a measure of the cluster richness (the number of galaxies per unit luminosity $L_{\odot}^{-1}$), and $\alpha$ is the dimensionless slope of the power law. We weight $\Phi\left(L\right)$ by the normalized Equation 2. As $\Phi\left(L\right)$ includes all morphologies, we need to rescale the integration by the number fraction $f_{X}$ of each morphology $X$ compared to the total number of galaxies. In the Coma Cluster, for example, $f_{ell}=0.82$. In dynamically young clusters such as Virgo, the elliptical fraction has a lower value of $f_{ell}=0.43$. The spiral number fraction is then $f_{spi}=1-f_{ell}$. We will define the irregular fraction in the next paragraph.

The integrand that yields the cluster dust mass for a given morphology then takes the form of

[TABLE]

which can be integrated as an upper incomplete Gamma function $\Gamma(a,x)=\int_{x}^{\infty}t^{a-1}\mathop{}\!\mathrm{e}^{-t}\mathop{}\!\mathrm{d}t$, where $x$ is the lower limit of the integral. This is appropriate in the case of elliptical galaxies. For spiral and irregular galaxies we impose an upper limit to the integration, subtracting a second incomplete Gamma function to crop out the regions of the LF where we do not observe this morphology. We will see that in the case of spiral galaxies, this narrower range does not affect significantly the dust mass. To ensure we do not count galaxies in multiple morphologies, we impose the same value for the upper bound of irregular galaxies and the lower bounds of spiral and elliptical galaxies, and we take $f_{irr}=1$.

The cluster dust mass for each morphology $X$ within the ISM (and similarly for the ejected ICM component) is then derived as:

[TABLE]

[TABLE]

[TABLE]

where $L_{min,X}$ is the lowest luminosity observed in a given cluster and $M_{d,X}^{*}=E_{d,X}M_{G}^{*\beta_{d,X}(t)}$ is the dust mass for a galaxy at the break of the LF for the $X$ morphology in the ISM (or ICM). $M_{G}^{*}$ is the break galaxy baryonic mass.

Observational constraints on magnitude will define our luminosity integration limits, but also our galaxy masses. As derived in MV88, $M^{*}_{G}=KL^{*}=h^{2}K*10^{-0.4(\mbox{Mag}^{*}-\mbox{Mag}_{\odot})}$. $\mbox{Mag}_{\odot}=4.83$ and $\mbox{Mag}^{*}$ are respectively the V-band magnitude of the Sun and of a break galaxy.

Aside from the original Schechter LF, we also test a double Schechter LF. In the rest of the text, we will refer to them respectively as single LF and double LF. The double LF (e.g., Popesso et al., 2006), is in Moretti et al. (2015) the best fit to the WINGS survey. The function has the form of:

[TABLE]

where $\Phi_{b}$ and $\Phi_{f}$ are single Schechter functions calibrated on the bright end ($b$) and on the faint end ($f$) of the LF. Each of $\Phi_{b}$ and $\Phi_{f}$ have their own bright and faint break point, identified with respective break luminosities $L^{*}_{b}$ and $L^{*}_{f}$ and power law coefficients $\alpha_{b}$ and $\alpha_{f}$. We weight spiral and elliptical galaxies with the bright component. For irregular galaxies, we treat the bright component as we treat irregulars in the single LF, and we add to it the incomplete gamma function integration of the faint component. By steepening its slope at fainter luminosities, the double LF predicts the existence of more dwarf irregular galaxies than the normal one-slope Schechter function.

The parameters $\alpha$ for the single LF (or $\alpha_{b}$ and $\alpha_{f}$ for the double LF) and $L^{*}$ (or $L^{*}_{b}$ and $L^{*}_{f}$) are unique for individual clusters, and are taken from the WINGs (Moretti et al., 2015) median parameters unless otherwise specified: $\alpha=-1.15$ (or $\alpha_{b}=-0.97$ and $\alpha_{f}=-0.6$ for the double LF). The median V-band break magnitude is $\mbox{Mag}_{V}^{*}=-21.30$ (or -21.15 and -16.30 for the bright and faint end of the double LF). $f_{ell}=0.74$ is the average elliptical fraction for WINGs we extrapolated from (Mamon et al., 2019). To obtain the cluster richness, we take advantage of the richness-to-cluster-mass relation $n^{*}\propto M_{clus}^{0.92}$ found by (Popesso et al., 2007) and we rescale the Coma cluster richness to WINGS masses. The Coma cluster has a mass of $M_{clus}\sim 1.1\times 10^{15}M_{\odot}$ (Geller et al., 1999), while WINGS clusters average to $M_{clus}\sim 5\times 10^{14}M_{\odot}$ (Mamon et al., 2019). $n^{*}$ for Coma is 107 (Schechter, 1976), it follows from the Popesso et al. (2007) relation that $n^{*}=52$ for the average WINGS cluster sample. We do not report other well-known local clusters to avoid redundancy due to the similarity of the results, but we present a reasonable range of the parameter space to test what the dust evolution might look like in other clusters. We chose to express our integration limits in terms of mass ranges, as defined at the beginning of this section. Note that the irregular galaxy lower integration bound of $1\times 10^{7}M_{\odot}$ corresponds to the WINGs faintest magnitude limit of Mag${}_{min}\simeq-15.5$ (Moretti et al., 2015). We refrain from integrating the LF beyond the WINGS faintest magnitude limit to avoid extrapolations unwarranted by the data, but we note that the contribution of galaxies fainter than this limit is not substantial (see Section 4.3). The parameters just presented are summarized in Table 2, and in Table 3 we report the double LF parameters.

For simplicity, we assume that all morphological types start evolving at the same time at high redshift ($z=5$). We remind that with the calculations presented above we obtain a monolithic evolution, with galaxies of different morphological type that evolve separately. The inclusion of the hierarchical scenario is presented next.

3.1.1 Hierarchical scenario

We test hierarchical scenarios of galaxy cluster formation by employing the technique presented in Vincoletto et al. (2012) and already coupled to chemical and dust evolution models in Gioannini et al. (2017b). Instead of assuming that all moprhological types are born simultaneously and evolve separately, we let the number density of galaxies of morphological type $X$ evolve with redshift:

[TABLE]

where $n_{X,0}$ is the number density at redshift $z=0$ for a morphological type $X$; $\theta_{X}$ is a parameter that for irregular, spiral, and elliptical galaxies is calibrated in Gioannini et al. (2017b) to be respectively 0.0, 0.9, and -2.5. From this number density, we derive the rescaled elliptical fraction:

[TABLE]

where $f_{0}$ is the elliptical fraction at present time. Notice that, if we derive similarly the spiral fraction $f_{spi}$, the relation $f_{spi}=1-f_{ell}$ is preserved across cosmic history.

Even for this scenario, we assume $z=5$ as our starting time for galaxy evolution.

3.1.2 Scaling of the LF with radius

The calculation presented in Section 3.1 is valid for a Schechter function contained within $R_{200}$. The LF fits provided in Moretti et al. (2015) are valid within $0.5R_{200}$; fortunately, the shape of the Schechter function does not vary from from $0.5R_{200}$ to $R_{200}$ (Annunziatella et al., 2017). However, in order to obtain a fair comparison with observations (i.e., PlanckXLIII-16, ), we will need to calculate the integrated dust mass at radii larger than $R_{200}$. Specifically, we are interested in radii of 15 arcmin. We apply this method only at redsfhits $z\gtrsim 0.1$, where $R_{200}\sim 15^{\prime}$; in fact we are not interested in a profile at smaller radii than $R_{200}$ as our goal is to compute the total dust cluster mass.

In order to rescale our integral to larger radii we take advantage of the NFW model (Navarro et al., 1996). The mass contained within a radius $t=r/r_{s}$ is given by:

[TABLE]

where $r_{s}\rightarrow 15^{\prime}$ is the scale radius that will rescale our integration to the 15 arcmin observed by PlanckXLIII-16. The scale radius is redshift-dependent. We assume that the virial mass $M_{vir}$ is roughly represented by $M_{200}$. The concentration $c$ varies depending on the morphology: elliptical galaxies are well described with a concentration of $c\sim 4$, and spiral galaxies with $c=0.85$ (see Table 2 Cava et al., 2017).

3.2 Chemical evolution models and dust prescriptions

To reproduce the dust mass $M_{d}$ in the three morphologies, we adopt detailed chemical evolution models for galaxies including dust evolution (see Gioannini et al., 2017a, for further details). These models are built for different morphological types (e.g., Vladilo et al., 2018; Palla et al., 2020, 2019). In this scheme, we assume that galaxies form by an exponential infall of gas on a preexisting dark matter halo: the evolution of an element $k$ within a galaxy then takes the following form:

[TABLE]

where $G_{k}(t)=G(t)\,X_{k}(t)$ is the mass of the element $k$ in the ISM, normalized to the total mass; $X_{k}(t)$ is the fraction of the $k$-th element at time $t$. $\psi(t)$ is the SFR normalized to the total infall mass $M_{G}$: we adopt for it the Schmidt-Kennicutt law (Schmidt, 1959; Kennicutt, 1989) $\psi(t)=\nu G(t)^{k}/M_{G}$ with $k=1$. $G(t)=M_{ISM}(t)/M_{G}$ traces the evolution of the ISM mass normalized to the infall mass. $\nu$ is the star formation efficiency (expressed in Gyr*-1*, which varies depending on the morphology. We take $\nu=$ 15, 1, and 0.1 for elliptical, spiral and irregular galaxies, respectively. $R_{k}(t)$ represents the returned fraction of an element $k$ that a star ejects into the ISM through stellar winds and supernova (SN) explosions, whereas $\dot{G}_{k,inf}$ and $\dot{G}_{k,w}$ account for the infall of gas and for galactic winds, respectively. The mass outflow rate of an element $k$ due to galactic winds is defined as $\dot{G}_{k,w}=w_{k}\psi(t)$. $w_{k}$ stands for the mass loading factor for an element $k$, which is the same for every chemical species. We adopted a galaxy SF history that reproduces the majority of observable properties of local galaxies. In particular, the present time SFR, the SN rates and the chemical abundances (Grieco et al., 2012; Gioannini et al., 2017b).

Models also follow the comprehensive processes that influence dust evolution. For a specific element $k$ in the dust phase, we have:

[TABLE]

where $G_{k,dust}$ and $X_{k,dust}$ are the same of Equation (11), but for only the dust phase. This last equation includes dust production from AGB stars and core-collapse SNe ($\delta_{k}\,R_{k}$), accretion in molecular clouds (${G}_{k,dust}/\tau_{k,accr}$), and destruction by SNe shocks (${G}_{k,dust}/\tau_{k,destr}$). $\dot{G}_{k,dust,w}(t)$ represents the mass outflow rate of the dust element $k$ due to galactic winds.

To compute the terms, we adopt detailed prescriptions from literature. For the condensation efficiencies $\delta_{k}$ – i.e. the fraction of an element expelled by stars in the dust phase – we use prescriptions reported by Piovan et al. (2011), whereas for the processes of accretion and destruction we adopt the metallicity-dependent timescales $\tau_{k,accr}$ and $\tau_{k,destr}$ from Asano et al. (2013). We assume dust production by Type Ia SNe. This mechanism is a dubious contributor to the galactic dust budget. SN Ia will produce dust locally and over short timescales – Gomez et al., 2012, in fact, observed large dust masses around the centenary Kepler and Tycho Type Ia SNe. However, Nozawa et al. (2011) computed that nearly no SNe Ia-born dust will survive the SN feedback – at least, not long enough to be injected in the ISM. For spiral and irregular galaxies, the inclusion of SN Ia-born dust hardly affects their dust evolution profiles. Elliptical/S0 galaxies will instead be heavily affected; in fact, this morphology will otherwise host only low-mass short-lived AGBs that will produce little dust mass, and only sporadically. In the case of Type Ia SNe, we adopt the prescriptions by Dwek (1998) as implemented in Calura et al. (2008): a dust condensation efficiency of 0.5 is taken for C, whether a value of 0.8 is taken for Si, Mg, Fe, Si, Ca, and Al. It is then assumed that for each atom of these 6 elements, one oxygen atom is also condensed, i.e., $M_{O}=16\sum_{i}0.8M_{i}/\mu_{i}$, where $M_{i}$ is the mass and $\mu_{i}$ is the atomic weight of each of the 6 elements $i$. While there could be other mechanisms of dust production within elliptical/S0 galaxies, such as dust growth in shielded shocked gas e.g. in AGB winds (Li et al., 2019), these processes cannot be easily included in our models; a rough estimate shows that their contribution to dust masses in ellipticals would be smaller than what would be produced by Type Ia SNe. We therefore implement SN Ia dust production both to test this model itself, and as an upper limit to what elliptical galaxies would be capable of contributing to the total cluster budget.

We then apply thermal sputtering to the dust component ejected from galaxies into the ICM, as prescribed in Tsai & Mathews (1995). Assuming a fixed grain size of $0.1\mu$m, the initial sputtering timescale is taken to be $\tau_{sp}=5.5\times 10^{7}$ yr, as derived by Gjergo et al. (2018). Specifically, the dust mass differential varies as $\dot{M}_{dust}=M_{dust}/\tau_{sp}$. This treatment of sputtering is appropriate for virialized clusters whose ICM has become hot, diffuse, and highly ionized, therefore it applies to redshifts as far back as $z\sim 1$ to 2 (i.e., the observational data we consider are characterized by a heavily sputtered ICM).

4 Results

In this section we present the results of our method. In Section 4.1 we show the dust mass evolution for every cluster component: the ISM and ICM dust masses of elliptical, spiral, and irregular galaxies – in the case of independent or hierarchical evolution – when applied to single or double LFs. In Section 4.2 we rescale our total dust evolution to a fixed aperture of 15 arcmin, which is what PlanckXLIII-16 computes, and we normalize the curve to the cluster’s $M_{200}$. We consider the total evolution of single and double LF for both the independent and the hierarchical scenario. In said plot, we also vary one of the most important parameters of our model: $f_{0,ell}$. In Section 4.3 we finally present a variation of 7 of the main single LF function parameters for the 6 components – elliptical, spiral, and irregular, for ISM and ICM – with both the independent and the hierarchical scenarios.

4.1 Component evolution of a characteristic cluster

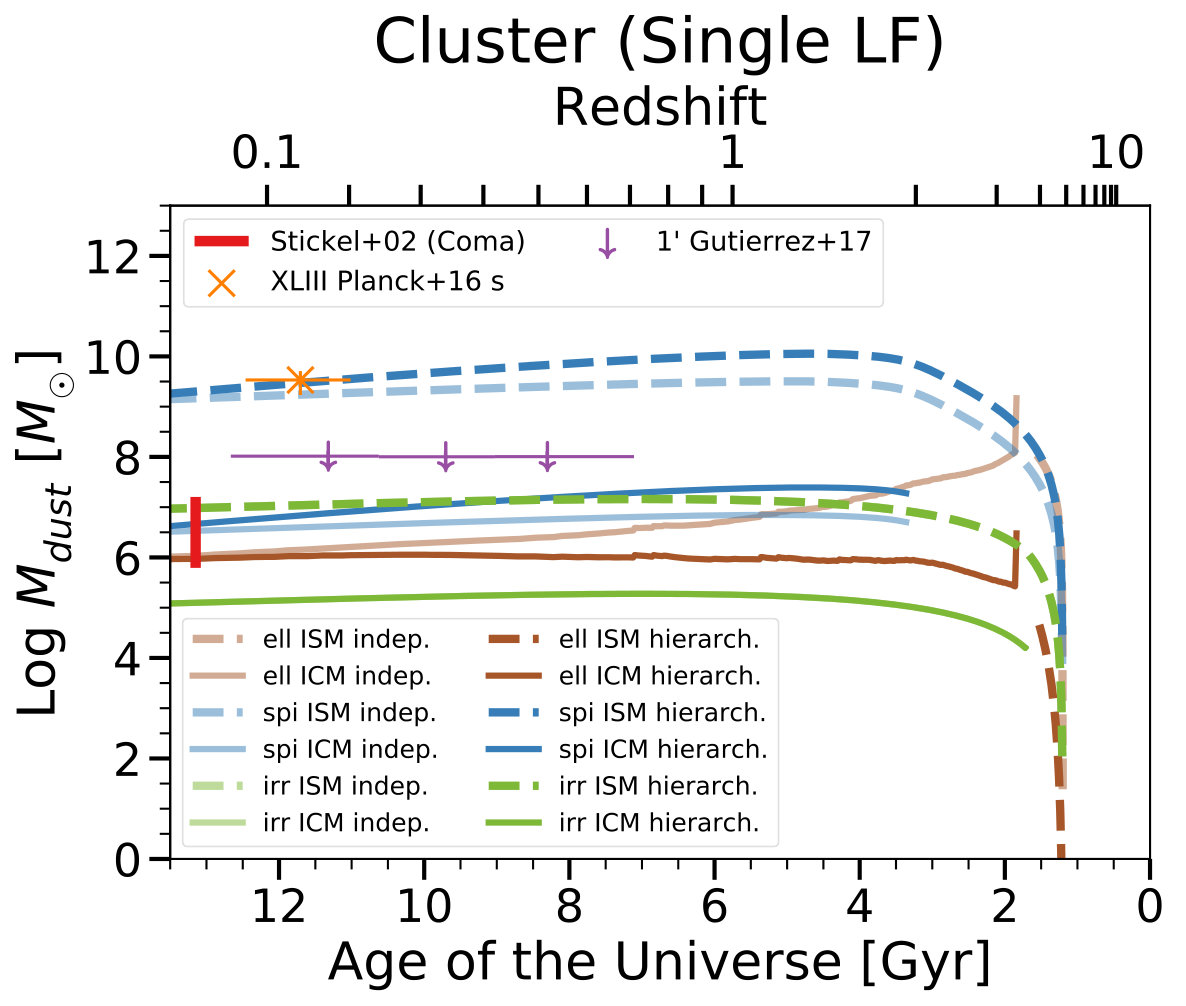

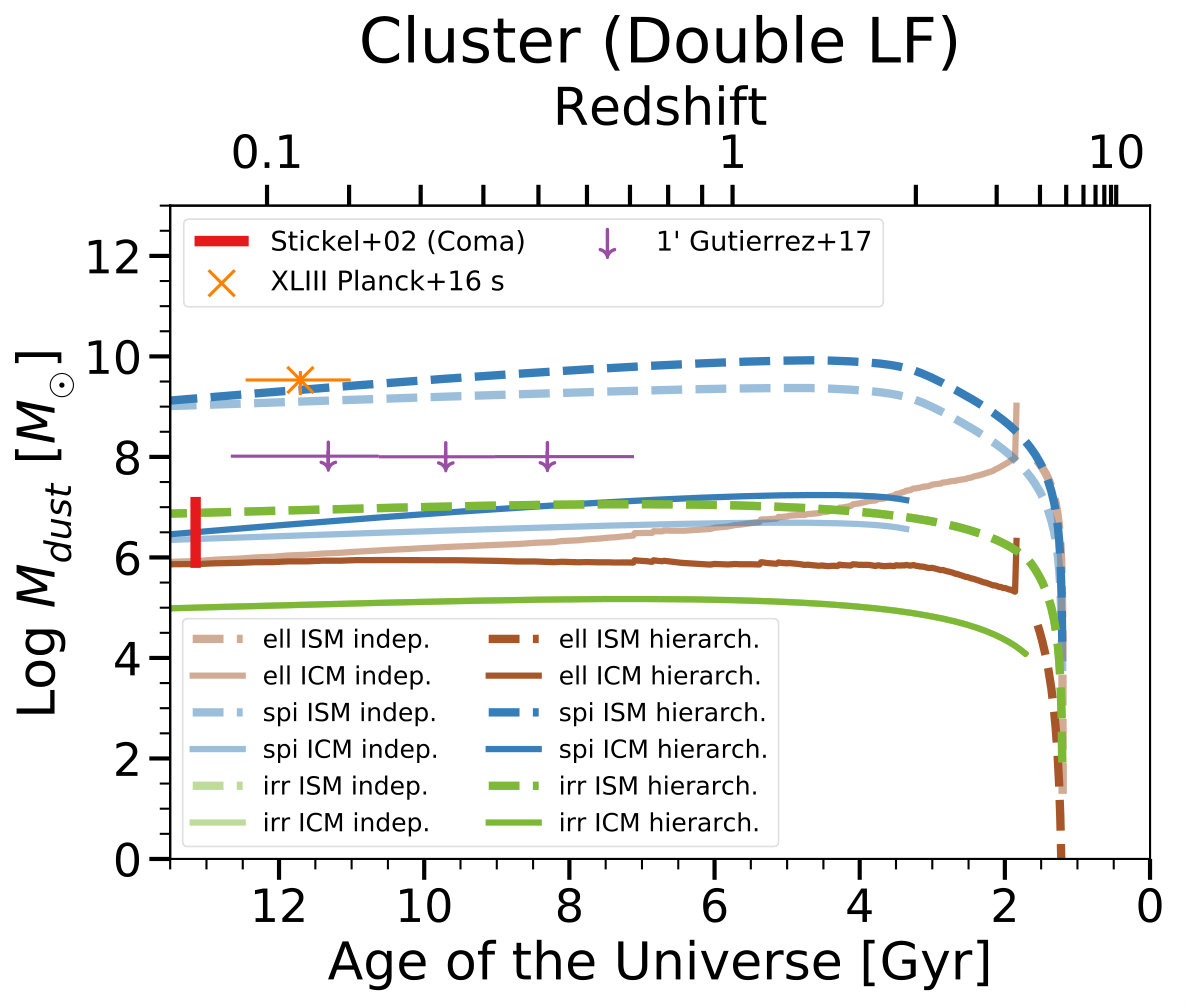

Figure 1 presents the results of our integration method within $R_{200}$ of a cluster of average LF parameters (Moretti et al., 2015) and average cluster parameters (Mamon et al., 2019) of the WINGS cluster sample, as specified in Table 2 and Table 3. On the right, we employed a single LF; on the left, a double LF. The dust mass components coming from the elliptical/S0, spiral and dwarf irregular galaxy morphologies are represented respectively with colors brown, blue and green. The two line styles, dashed and solid, identify the ISM dust components residing within galaxies and the ICM dust component ejected in the hot intergalactic and intracluster media, respectively. The fully opaque curves follow a hierarchical clustering scenario. The faint spiral and elliptical curves trace the scenario in which the morphologies evolve independently. Given that for irregular galaxies $\theta_{irr}=0$, the dust mass does not change between scenarios. For elliptical galaxies, our ISM component is instantaneously ejected into the ICM as soon as stellar winds ignite. The dominant component for both galaxy evolution scenarios and both LFs is the ISM dust in spirals, in agreement with the interpretation proposed by Roncarelli et al. (2010) that late-type galaxies should dominate the overall dust IR emission in galaxy clusters. We confirm this conclusion through our optically-calibrated dust evolution model. For both scenarios and for both LFs, the next most abundant dust mass component at a redshift $z<2$ appears only around 2 dex below the ISM spiral component.

As expected, the choice of single or double LF does not affect significantly the most massive galaxies, if not by a marginal decrease in dust mass. More surprisingly, it does not seem to affect the dwarf irregular components. Regarding these components, we see that below $z\lesssim 0.5$ the dust mass within irregular galaxies exceeds the dust mass ejected in the ICM by spirals.

There is a minimal but steady dust mass loss within the ISM of spiral galaxies in both hierarchical and monolithic evolution scenarios after the peak at a redshift of $z\sim 2$, at a galaxy age of $\sim 2$ Gyr. The slope traced by the spiral ICM dust line is steeper in the hierarchical scenario due to the higher spiral fraction at earlier times. The trend is flipped for elliptical ICM dust, as this morphology was less numerous in the past for the hierarchical evolution.

The observational data included in the Figure are: the low-redshift total cluster dust mass by PlanckXLIII-16 bin with average cluster mass of $\left<M_{200}\right>=4.3\times 10^{14}M_{\odot}$ and average redshift $\left<z\right>=0.139$ (orange cross); the ICM dust mass upper limit estimated by GLC17 in the $350\mu$m channel within 1 arcmin (purple downward arrows), applied to the three redshift bins of the cluster sample with virial masses $>10^{14}M_{\odot}$; the Stickel et al. (2002) estimate for the Coma cluster (red vertical dash). This latest value, while near the cirrus foreground noise (Kitayama et al., 2009), is a good upper limit for ICM dust of local quiescent clusters. Many of our curves of the cumulative ICM dust components fall within the Stickel et al. (2002) ICM dust mass estimate for galaxy evolution scenarios and LFs. Our results are also in agreement with the dust ICM upper limit estimate by GLC17 and with total cluster dust found by PlanckXLIII-16.

Summarising, within $\sim 2$ Gyr since galactic birth, the overall ISM of cluster galaxies contains already about $10^{10}M_{\odot}$ in dust mass for a massive WINGS-like cluster ($3\times 10^{10}M_{\odot}$ in dust mass for the independent morphological evolution scenario). This corresponds to a dust-to-gas ratio of $DtG\sim 5\times 10^{-4}$ for the entire cluster. The ICM components are between 2 to 4 dex lower, around or below a dust mass of $10^{7}M_{\odot}$, which corresponds to a low DtG of the order of $10^{-6}$.

4.2 Mimicking Planck’s observations

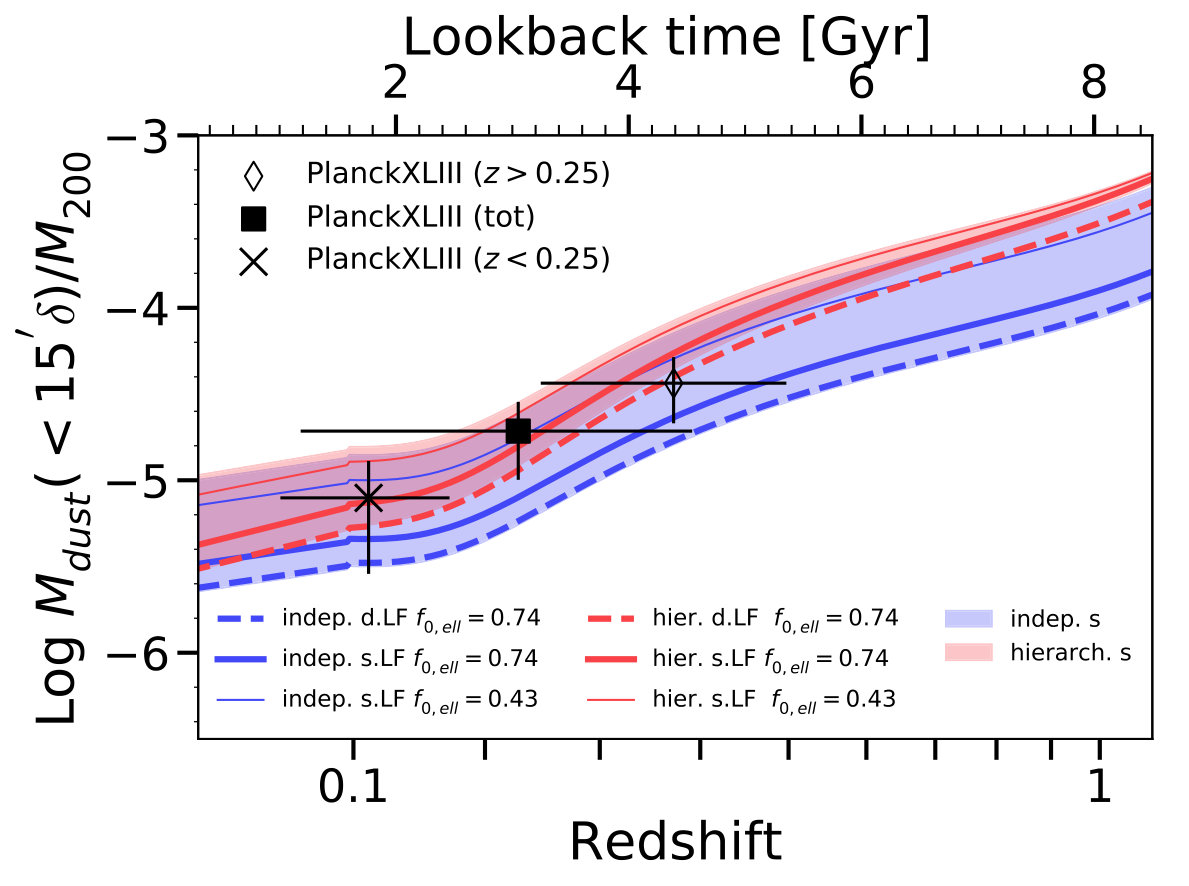

Figure 2 rescales our model curves so that they mimic PlanckXLIII-16, from which the three data points are taken. The middle full square is the dust mass estimate from the whole sample of 645 stacked clusters in redshift range $0.01<z<1.00$ (with a $M_{200}$ of $5.6\pm 2.1\times 10^{14}M_{\odot}$). The other two points are the redshift bins of two subsamples at $z\leq 0.25$ with 307 clusters (’X’, with a $M_{200}$ of $4.3\pm 1.7\times 10^{14}M_{\odot}$), and at $z>0.25$ with 254 clusters (hollow diamond, with a $M_{200}$ of $7.0\pm 1.5\times 10^{14}M_{\odot}$). As the dust masses in PlanckXLIII-16 are integrated out to radii of 15 arcmin, we rescale our dust evolution curves out to the same volumes above $z\sim 0.1$, whereas at lower redshift we adopt an unscaled profile (see Section 3.1.2). Both data and curves are normalized to their respective $M_{200}$. In the theoretical curves, the $R_{200}(t)$ rescaling to 15 arcmin and $M_{200}(t)$ are taken from the D2 run in Gjergo et al. (2018).

The blue curve shows the case in which the morphologies evolve independently (according to the monolithic scenario), the red curve shows instead the hierarchical clustering iteration. The solid lines are computed using the single LF, the dashed lines represent instead the double LF. We adopt, just like in the previous case, LF and cluster parameters coming from the WINGS average. The WINGS elliptical fraction $f_{0,ell}=0.74$ (Mamon et al., 2019) is shown with bold lines. The elliptical fraction is the parameter we vary in the other curves. The thin solid curves assume a final elliptical fraction of $f_{0,ell}=0.43$. This is the fraction observed in the dynamically young local Virgo cluster. The two semi-transparent bands, red for the hierarchical scenario and blue for the independent morphological evolution, span an elliptical fraction from 0.2 on top to 0.82 on the bottom for the single LF. We chose $f_{0,ell}=0.82$ as our lower limit for this band as this is the elliptical fraction observed in the mature Coma cluster (Melnick & Sargent, 1977). We see that varying the elliptical fraction in the range between $\sim 0.2$ to $\sim 0.8$ changes the dust mass estimates for each model by not more than a factor of 6 overall. In the range encompassed by the Planck parameters, the slope is mainly driven by the larger fixed aperture. However, by $z\sim 0.5$ to 0.6, the angular size has already reached 3 Mpc, and the NFW rescaling doesn’t increase the dust mass by much, due to the low galaxy density out to these outskirts. The increase at higher z is mainly caused by the normalization to $M_{200}$.

The data-model comparison seems to weakly favor a hierarchical scenario with the WINGS average elliptical fraction of 0.74, with no significant preference between the single or double LF. For $f_{ell}=0.74$, $\chi^{2}$ is respectively 1.10 and 0.40 for the double and single LF. For the single LF with $f_{ell}=0.43$, $\chi^{2}$ is 0.16. For the hierarchical scenario, the $\chi^{2}$ in the curves with $f_{ell}=0.74$ is 0.07 for the double LF, and 0.21 for the single LF; 0.80 is the value of the single LF with the $f_{ell}=0.43$. As $f_{ell}$ (and so also $f_{spi}$) is time-dependent in the hierarchical scenario, at higher redshifts the red curves converge to higher dust-to-M200 ratios. The difference between the constant elliptical fraction of the monolithic evolution and the same fraction for the hierarchical evolution widens at high final elliptical fraction values because the spiral number density falls more steeply (and the elliptical number density grows more rapidly). Interestingly, our curves fall right between the data without the need for any calibration. This is the first theoretical work that reproduces the Planck total cluster dust mass estimates at low-to-intermediate redshift, without amending the sputtering timescales or other model parameters.

4.3 Parameter variations

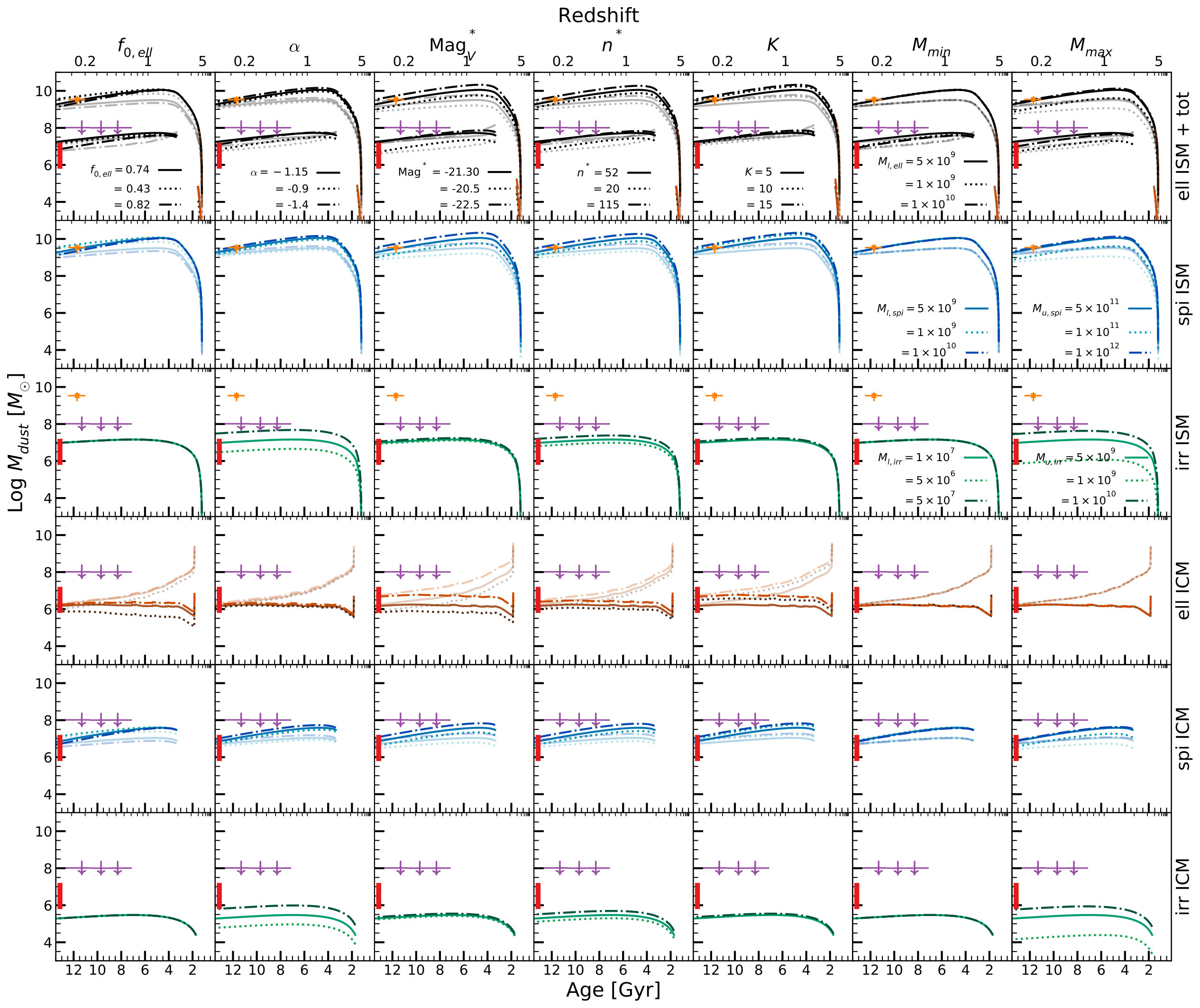

Figure 3 displays the dependence of our model on the single LF parameters, which from left to right column are: the elliptical fraction $f_{0,ell}$, the LF slope $\alpha$, the V-band magnitude at the break of the LF Mag${}^{*}_{V}$, the cluster richness $n^{*}$, the mass-to-light ratio in $K$, the lower $M_{l,X}$ and upper $M_{u,X}$ mass integration limits for each of the three morphologies $X$. On each row we display the dust mass components: the top three rows contain the ISM dust of elliptical (orange/yellow), spiral (blue), and irregular galaxies (green), and the bottom three rows contain the ICM components, with same colors and order. The first row also contains in black the total ISM components and the total ICM components. Faint curves trace the independent morphological evolution scenario, whereas the fully-opaque curves the hierarchical scenario. Fiducial values are plotted with the solid line, and are identical to Figure 1, as are the observational data points. The variations, as identified by the label, are shown with dotted and dot-dashed lines.

Each parameter encompasses the typical average ranges of known clusters. $f_{0,ell}$ spans from 0.43 to 0.82, which is the elliptical fraction of the Virgo Cluster and of the Coma cluster, respectively. $\alpha$ and Mag${}^{*}_{V}$ test ranges which include $\sim 1.5\sigma$ of the LF slope and break V-band magnitude in Moretti et al. (2015). Specifically, $\alpha$ ranges between -0.9 and -1.4, and Mag${}^{*}_{V}$ ranges between -20.5 and -22.5. For the richness, we once again refer to the WINGS sample: we vary $n^{*}$ between 115 (highest richness considered in Schechter, 1976) and 52 (average WINGS richness). The $K$ spanned range is between 5 and 15: typical $K$ values in early-type galaxies range from $\sim$ 5 to $\sim$ 13, while in late-type galaxies it ranges between 5 and 10 (De Masi et al., 2019). For galaxies of equal mass, $K=10$ will mean galaxies are half as luminous as those at $K=5$.

In our cluster dust mass estimates, the model depends linearly only on $f_{0,ell}$ and on $n^{*}$. The richer and younger the cluster, the more dust there is, but the cluster richness does not vary the cumulative dust mass if not by a factor of 3. A factor of 3 is also the extent to which the variation of $f_{0,ell}$ changes the dust mass for the spiral and elliptical components. Notice that the dust mass evolution with a Virgo-like elliptical fraction is slightly larger than the total dust Planck estimate at $z\sim 0.2$. In each case at low redshifts, the spiral ICM dust component is between 3 and 30 times larger than the elliptical ICM component. Thus, spiral galaxies are more efficient than elliptical/S0 galaxies at contaminating the ICM with dust.

A little more complicated is the issue of the contribution by smaller galaxies. These faint irregular galaxies are difficult to resolve, so the emission and extinction from dust within these systems may be confused as newly ejected ICM dust. To compare how much dust there is within irregular galaxies with each parameter variation against the GLC17 ICM upper limit, we have added those data points to the third row of the plot. As expected, the irregular-born dust mass has little dependence on most parameter variations. The only difference, a significant one, is generated by the choice of the $\alpha$ LF slope, and of an upper mass integration limit $M_{max,irr}$ ($M_{u,irr}$ in the plot): in fact, these are the only cases where parameter changes in a certain scenario span more than a factor 6 (3 in most of the other cases). The increase in dust mass in the $\alpha$ variation is mostly due to the excess in number density on the more massive end of the integration limits, closer to the break magnitude. In fact, when we test these variations on the double LF function, we find that a steeper increase of $\alpha_{f}$ provides only a marginal gain in dust mass. That said, the upper bound for irregular galaxies is dictated by observations (e.g., Vaduvescu et al., 2007; Yin et al., 2011). A galaxy with an infall mass of $10^{10}M_{\odot}$ will likely be a spiral rather than an irregular galaxy. Therefore, it is not realistic to extend the upper integration limit for irregular galaxies above our fiducial of $5\times 10^{9}M_{\odot}$.

Except for the above case of the irregular components, the lower and upper mass bounds of our integration matter little. Unless the infall mass is of the same order or larger than the break infall galaxy mass ($M^{*}_{G}=6.94\times 10^{10}M_{\odot}$ for the single LF), the integration is not very sensitive to either mass bounds. We see, in fact, that if we were to choose upper bounds close to $M^{*}_{G}$, the integration would not be stable for irregular and also spiral galaxies. In the case of spiral galaxies, $M_{u,spi}=10^{11}M_{\odot}$ – an upper bound five times smaller than the fiducial – decreases the dust mass by a factor of 3. The upper bound $M_{u,spi}=10^{12}M_{\odot}$, five times larger than the fiducial upper bound, hardly makes a difference – the dust mass has nearly reached its limiting value. A dependence on the upper limit does not exist for elliptical galaxies, because we integrate them over a single upper incomplete gamma function having only a lower bound. Even if we were to impose an upper limit, as long as it were not close to $M^{*}_{G}$ (e.g., $M_{u,ell}=10^{12}M_{\odot}$) it would not affect the stability of our results.

In Figure 3, we do not plot the dependencies on double LF parameters. In fact, by testing all the other cases with the double LF, we find only minor differences.

Concluding, both in the case of the ISM and of the ICM components, spiral galaxies are dominant and sufficient to explain the observed dust abundances. After spiral galaxies, the ISM from irregular galaxies is a major dust source. This dust mass from irregulars comes mainly from the bright end of the single LF, as the dust mass is nearly independent of the lower integration limit.

5 Discussion and Conclusions

The latest and most advanced observations of dust in galaxy clusters come from the analysis of stacked signals in large cluster datasets. PlanckXLIII-16 provided a spatially-unresolved average total dust mass of over 600 clusters, using the dust thermal emission as detected by the Planck beams and IRAS data. GLC17 reported the ICM dust directly, using both emission and extinction techniques. In the case of emission, GLC17 subtracted foreground sources from the detected ICM emission; in the case of extinction, they estimated the ICM extinction curves around sources (quasars or galaxies) located on the background of galaxy clusters.

With this work, we aimed at breaking down the galaxy-born total cluster dust mass into its various components. We differentiated the three main morphologies that contribute to the dust budget and we also separated dust residing within galaxies from the dust ejected in the ICM by applying sputtering to the dust ejected out of galaxies. Then we applied an integration method developed by MV88 to integrate galaxy dust over a parametrization of cluster LFs. Our LF parameters were chosen from medians and average values of large local galaxy clusters (WINGs, Moretti et al., 2015; Mamon et al., 2019). We tested the cluster dust evolution both in a monolithic (i.e., galaxies evolve as a whole and indipendently of other galaxies) and in a hierarchical scenario of galaxy formation (Vincoletto et al., 2012).

Our main conclusions are as follows:

• •

Dust within spiral galaxies accounts for most of the dust contained within clusters in any assumed galaxy formation scenario. We estimate that a typical cluster should have around $10^{10}M_{\odot}$ in total ICM dust mass, mainly residing within its spiral galaxies, or a DtG of $\sim 5\times 10^{-4}$. Dust mass in the ICM of a cluster should be of the order of $10^{7}M_{\odot}$.

• •

Dust ejected into the ICM by spirals ($\sim$2.5 dex less abundant than spiral ISM dust) is comparable in mass to the dust component residing within irregulars, and it is largely consistent with the dust abundance upper limits measured in the ICM of local galaxy clusters (Stickel et al., 2002; Kitayama et al., 2009; Bai et al., 2007) regardless of the assumed spiral fraction.

• •

Without any calibration, we are able to produce dust abundances analogous to observational data (i.e., \al@43planck16, gutierrez17; \al@43planck16, gutierrez17, ). It is not necessary to rely on dust sources aside from those of galactic origin – such as dust growth in cold filaments of the ICM, or dust generated around intracluster stars – to explain where the bulk of cluster dust comes from. Galaxy-born dust is likely the main source of cluster dust. Unless the LF of such smaller sources were to spike at the faintest luminosities and were not Schechter-like, the smaller sources cannot produce sufficient dust mass to account for the large ICM dust upper limits reported by GLC17.

• •

Letting our model evolve according to a hierarchical scenario marginally improves the redshift-dependence of dust evolution, and better captures the $M_{dust}(<15^{\prime})/M_{200}$ slope observed by PlanckXLIII-16.

• •

Galaxies close to the break of the LF dominate the cluster dust mass, and the method has little dependence on the integration limits. A similar result was found in Gibson & Matteucci (1997) for the gas-phase metals in the ICM: galaxies at the break of the LF dominate the ICM metal enrichment. In the case of gas-phase metals, it is the contribution of the dominant early-type galaxies (elliptical/S0 in our model) to govern the enrichment, not spiral galaxies. However, ellipticals produce little dust in dust evolution models, so that they cannot contribute to the present time ICM dust mass as much as spirals do. This conclusion holds even assuming, as we did throughout this work, a strong dust production by Type Ia SNe. Stellar winds in ellipticals are very efficient at driving out of the galaxy any newly-formed dust, so that any dust observed within ellipticals must be of recent origin; but also the ICM dust component coming from ellipticals will not survive for long due to sputtering.

• •

By varying our model parameters ($f_{ell}$, $\alpha$, Mag${}^{*}_{V}$, $n^{*}$, $K$, $M_{l,X}$, $M_{u,X}$) over a reasonable range chosen from literature, we find that dust masses change by up to a factor of $\sim$ 6 (up to 3 most of the times). The only exceptions are the slope of the LF, $\alpha$, and the upper mass limit of irregular galaxies on the irregular components only. All these variations do not affect deeply our conclusions, confirming the robustness of the method adopted.
