Neutron optics of the PSI ultracold neutron source: characterization and simulation

TL;DR

This paper characterizes and simulates the neutron optics of the PSI ultracold neutron source to optimize UCN intensity for fundamental physics experiments.

Contribution

It provides a detailed characterization of the source components and introduces a comprehensive simulation model to analyze and improve UCN production.

Findings

Measured emptying and storage times of UCN

Determined transmission probabilities of UCN

Developed a simulation model matching experimental data

Abstract

The ultracold neutron (UCN) source at the Paul Scherrer Institute serves mainly experiments in fundamental physics. High UCN intensities are the key for progress and success in such experiments. A detailed understanding of all source parameters is required for future improvements. Here we present the UCN source components, elements of the neutron optics, the characterization of important related parameters like emptying times, storage times or transmission probabilities of UCN which are ultimately defining the UCN intensity delivered at the beamports. We also introduce a detailed simulation model of the PSI UCN source, used to analyze the measurements and to extract surface parameters.

Figures

Tables

Table 1. Table 1: List of storage time constants measured with a detector on beamport West-1 and with different shutter configurations (see also  Goeltl2012 ). The shutter to West-2 was always open and does not significantly influence the time constants.

Source Configuration	$\tau$ [s]
SV-Flaps closed
West-1 open	36.1$\pm$0.2
W-1 & South open	31.6$\pm$0.7
SV-Flaps open
2 flaps open	5.0$\pm$0.4
one flap closed	6.9$\pm$0.2

Table 2. Table 2: Storage time constants from single exponential fits to the storage measurement at cold operating conditions in 2011. (see also  Goeltl2012 ).

Fit range (s)	STC (s)
5 - 300	94.5$\pm$0.9
5 - 20	80.0$\pm$10.0
180 - 350	97.2$\pm$0.5

Table 3. Table 3: Storage time constants from exponential fit to the storage measurement at cold operating conditions in different years since start-up. Data were binned to 1 s and a fit in the range of 40 to 220 s after proton pulse start  Ries2016 .

Year	STC (s)
2011	89$\pm$1
2012	84$\pm$1
2013	79$\pm$1
2014	83$\pm$1
2017	83$\pm$1
2018	85$\pm$1

Table 4. Table 4: UCN transmission with respect to magnetic field strength relative to B= 0   T times 0 tesla 0\text{\,}\mathrm{T} , measured with production pulses and benchmark pulses a proton beam current of 2200   µ ​ A times 2200 microampere 2200\text{\,}\mathrm{\SIUnitSymbolMicro A} . The larger error in the production pulse measurement reflects the large time jitter of the flapper valve at the time of the measurements. This was largely improved at a later time  Ries2016 .

B(T)	Transmission in 3 s	Transmission in
	production pulse	benchmark pulse
0.0	$1.00$	$1.00$
0.5	$0.95\left(3\right)$	$0.958\left(3\right)$
1.0	$0.82\left(2\right)$	$0.851\left(5\right)$
1.5	$0.70\left(1\right)$	$0.744\left(6\right)$
2.0	$0.62\left(1\right)$	$0.656\left(3\right)$
3.0	$0.58\left(1\right)$	$0.580\left(2\right)$
4.0	$0.57\left(1\right)$	$0.566\left(3\right)$
5.0	$0.57\left(1\right)$	$0.565\left(2\right)$

Table 5. Table 5: Parameters of the coatings used in the simulations: optical potential ( V F subscript 𝑉 F V_{\text{F}} ), loss parameter ( η = W / V F 𝜂 𝑊 subscript 𝑉 F \eta=W/V_{\text{F}} ), fraction of diffuse (Lambert) reflections ( p diff subscript 𝑝 diff p_{\text{diff}} ), and attenuation constant of the material ( Σ atten subscript Σ atten \Sigma_{\text{atten}} ) for 1 m/s. These numbers represent (i) theoretical values  Golub1991 , (ii) measurements discussed in this paper and in  Bondar2017 , (iii) simulations benchmarked with measurements, (iv) geometrical estimations of gaps, and (v) rough estimations with a low dependency of the outcome.

Surface	$V_{\text{F}}$	Method	$\eta$	Method	$p_{\text{diff}}$	Method	${\Sigma }_{\text{atten}}$	Method
	(neV)		(-)		(-)		cm-1m/s
Lid sD2	54	Al calc.	1$\times$10-4	low dep.	0.0	low dep.	49	meas.
Vert. guide	230	NiMo calc.	5$\times$10-4	gaps calc.	0.04	low dep.	$\infty$	design
Stor. vessel	230	DLC meas.	11$\times$10-4	meas.+MC	0.10	low dep.	$\infty$	design
Guide South	220	NiMo meas.	3$\times$10-4	meas. Bondar2017 + gaps	0.02	meas.+MC	$\infty$	design
Windows	54	Al calc.	1$\times$10-4	low dep.	0.0	low dep.	77	meas.

Equations

$$N(t)=I\times e^{\frac{-t}{\tau }}$$

$$N(t)=a{e}^{-t/{\tau }_1}+b{e}^{-t/{\tau }_2},$$

Full text

1 Introduction

Neutrons with velocities below about 8 m/s and hence with kinetic energies below about 300 neV, equivalent to temperatures below 3 mK are termed ultracold neutrons (UCN). Such neutrons have unique properties Golub1991 ; Ignatovich1990 . Most prominently, UCNs are reflected under any angle of incidence from suitable materials like steel, beryllium, nickel, diamond-like carbon (DLC) or nickel-molybdenum (NiMo). Hence, UCNs can be stored in bottles made from or coated with these materials, where they can be observed for hundreds of seconds, in principle only limited by the neutron lifetime. Moreover, UCN can also be guided to remote areas over tens of meters and behave more comparable to an extremely dilute ideal gas than to a particle beam. The specific description of UCN transport includes basic transport processes and includes also magnetic interactions, various loss mechanisms and gravity. All together can be summarized with the term UCN optics Ignatovich2010 .

The distinct behavior makes UCN an ideal tool to study the intrinsic properties of the neutron and also to search for physics beyond the Standard Model of particle physics (BSM), most prominently represented by experiments searching for a possible permanent electric dipole moment of the neutron (nEDM) Baker2006 ; Baker2011 ; SerebrovEDM2015 ; Pendlebury2015 ; Abel2017 ; Kolarkar2010 ; Martin2013 or the precise determination of the neutron lifetime Wie2011 ; Yue2013 ; Serebrov2018 ; Pattie2018 .

Such precision measurements are presently limited by neutron counting statistics, hence there are worldwide efforts to build new UCN sources with higher intensities Kirch2010 ; Bison2017 . A new high-intensity UCN source was designed and constructed at the Paul Scherrer Institute (PSI), Villigen, Switzerland, and started operation in 2011. Specific details and efforts were already reported in Refs. Anghel2009 ; Lauss2011 ; Lauss2012 ; Lauss2014 ; Becker2015 ; Blau2016 ; Goeltl2012 ; Ries2016 ; Bison2017 .

Here we compare source characterization measurements to detailed Monte-Carlo (MC) simulations using the simulation tool MCUCN Zsigmond2018 developed at PSI. This provides input to a better understanding of the UCN source performance.

Further increase of UCN intensities requires an excellent understanding of all components of the UCN source. Scope of the presented Monte-Carlo analysis is the extraction of parameters as defined in established UCN physics in order to characterize the quality of the optical components, and to identify possible improvements. For this purpose, all processes which could lead to a loss of UCN have to be identified, monitored and eliminated or reduced as much as possible. For instance, losses due to frost formation on the solid deuterium (sD2) surface have been only recently identified together with a way to recover performance Anghel2018 .

This paper is organized in the following way. In Sec. 2 we give an introduction to all setup items of the UCN source which are relevant to its neutron optics performance. Section 3 provides an introduction to our simulation model describing the UCN transport in the source and its guides. In Sec. 4 we describe measurements which provide a characterization of different important neutron optics parameters of the operating UCN source. Simulations used for the analysis of characterizing parameters are described in Sec. 5, followed by short conclusions in Sec. 6.

2 UCN source setup

Overviews of the main parts of the UCN source relevant to this work are shown in Figures 1 and 2. Many important subsystems devoted to cooling and cryo-operation Anghel2008 , vacuum, gas handling, heavy water system, spallation target Meer2004 ; Wohlmuther2006 and the proton beam line Anghel2009 ; Anicic2005 are omitted here.

The source operation is as follows: The full proton beam of 590 MeV and up to 2.4 mA is directed onto a spallation target Wohlmuther2006 with a pulse length of up to 8 s. About 8 free neutrons per incident proton are produced in the target made of lead Atchison2005d . These neutrons are thermalized in the surrounding heavy water (D2O) at room temperature (about 30$\degree$C during operation). Thermal neutrons are further moderated and down-scattered into the cold and ultra-cold range inside solid deuterium (sD2), kept at a temperature of 5 K inside the moderator vessel located about 40 cm above the spallation target. UCN production in sD2 has been investigated over many years Golub1977 ; Serebrov1995b ; Serebrov1997 ; Serebrov2000 ; Serebrov2001b ; Morris2002 ; Saunders2004 ; Bodek2004 ; Atchison2005 ; Atchison2005a ; Atchison2005b ; Atchison2007 ; Atchison2011 .

UCN leaving the sD2 gain kinetic energy by the material optical potential of 102 neV Daum2008 . The UCN traverse a 0.5 mm thin AlMg3 lid separating the sD2 from the UCN storage vacuum. They are further guided upwards through a flapper valve into the storage vessel. At the end of the proton beam pulse the valve is closed and reopened about 20 s before the next pulse.

On the bottom of the storage vessel two UCN guides, called “West1” and “South”, connect the source to the corresponding beamports and experimental areas, West and South. Figure 2 shows a CAD image of this guide arrangement. The upper guide, “West-2”, with lower intensity is used for test measurements. Neutron shutters are positioned at the storage vessel exits and allow to close the vessel for UCN storage.

Proton beam operation for UCN production consists of single pulses of up to 8 s duration with a typical repetition period of 300 s. The maximum pulse length results from the constraint to keep the temperature rise inside the sD2 within a few Kelvin during the pulse. A kicker magnet was specially designed to allow for a fast kick of the full proton intensity to the UCN proton beamline with a rise and fall time of 2.5 ms Anicic2005 . A typical pulse sequence during standard operation is sketched in Fig. 3 indicating the duration and repetition of the proton pulse and the UCN intensity observed at a beamport.

Below we give a detailed description of key components for UCN transport, i.e. items with surfaces in contact with UCN, which are also included in the simulation model.

2.1 D2 vessel and lid

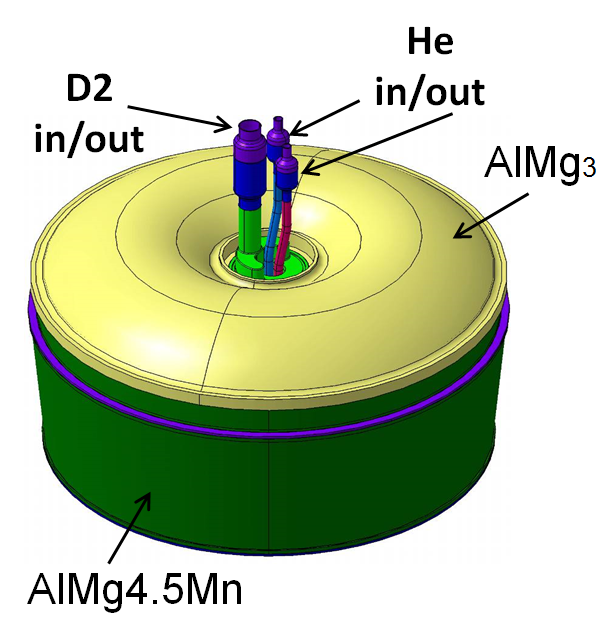

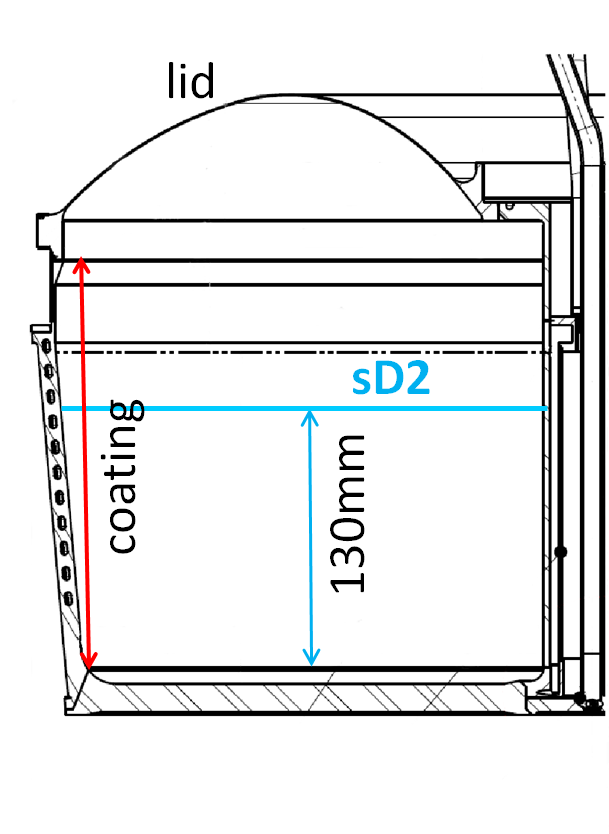

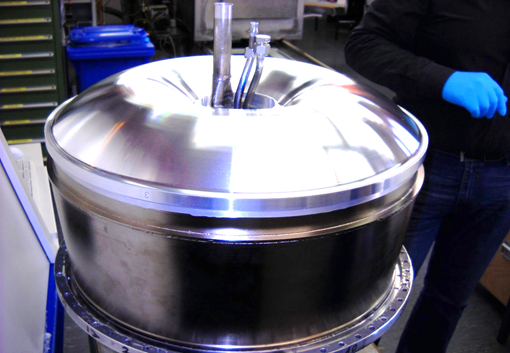

The D2 moderator vessel is a sophisticated double-walled container with a volume of 44 l, engineered for cooling with super-critical helium at 4.9 K. A CAD image is shown in Fig. 4 together with a cut view. The cooling channels were wire-eroded into the bottom plate and the side walls (visible in the cut view) before all parts were welded together. A photo of the final vessel is shown in Fig. 5 .

Relevant for UCN transport is the coating on the inside of the vessel. The vessel with the exception of the top lid was galvanically coated with about 70 $\mu$m of nickel. In a second step, using sputter-coating111S-DH GmbH Heidelberg Hans-Bunte-Str.8-10, 69123 Heidelberg, Germany, http://www.s-dh.de, a thin layer of about 400 nm of a nickel-molybdenum (NiMo) alloy with a 85/15 weight percent mixture was added on top.

The vessel lid with a thickness of 0.5 mm was machined from a single forged piece of AlMg3. A tolerance in thickness of less than $\pm$50 $\mu$m was maintained during production. This thin lid is necessary as the thickness of the material has a strong influence on UCN transmission Atchison2009 . In Fig. 5 the toroidally-shaped lid is clearly visible.

2.2 Vertical UCN guide

The vertical UCN guide is indicated as (3) in Fig. 1 and displayed in Fig. 6a. The sD2 vessel is located inside, at the bottom of the vertical guide which serves also as a cryo-shield. During operation the vertical guide is cooled to about 80 K. This guide bridges about one meter of height between moderator lid and UCN storage vessel. This vertical rise decreases the UCN kinetic energies by roughly the same amount as they gain via the energy boost when exiting the sD2.

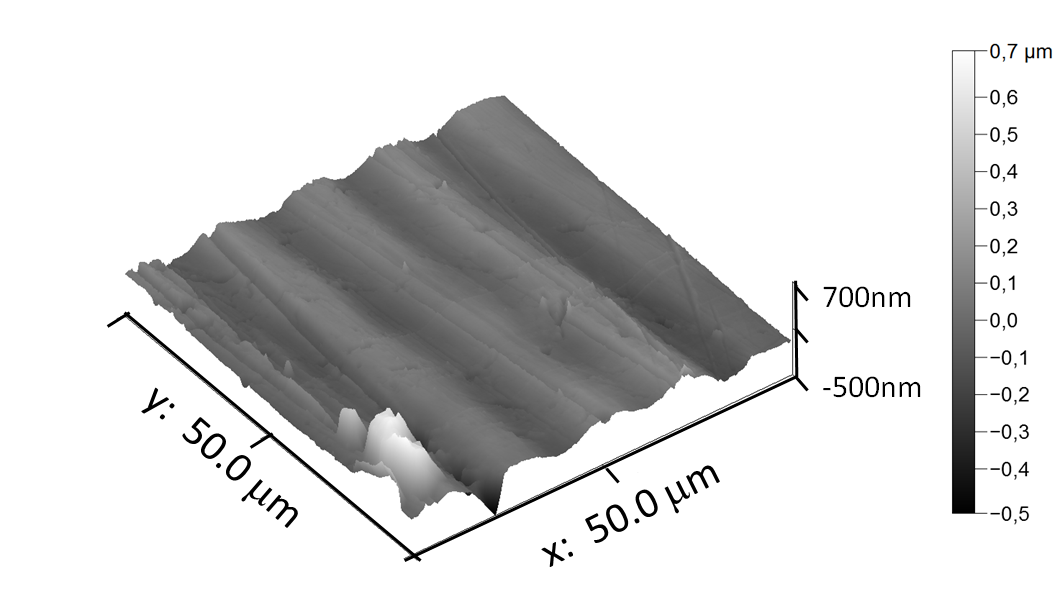

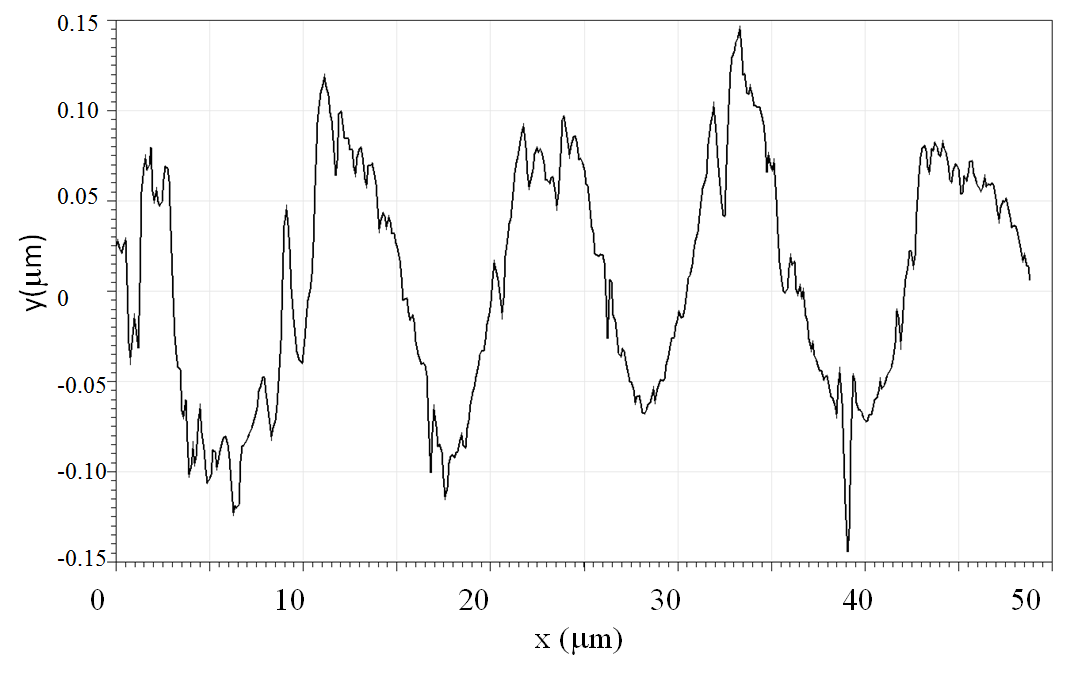

The guide cylinder is made from ultra-pure aluminum. Four 25 cm-thick cylindrical pieces of aluminum were diamond-lathed on the inside to a surface roughness better than 100 nm, then machined with wall thicknesses of 2, 4 and 6 mm, and then welded together. Finally, the inside was sputter-coated with 400 nm of nickel-molybdenum. The surface roughness of the diamond-lathed surface was determined using atomic force microscopy (AFM). The scan of one cylindrical piece is shown in Fig. 7. The grooves from lathe machining are visible with a groove depth of about $\pm$100 nm, which can be determined in the profile view.

2.3 UCN storage vessel

The UCN storage vessel, indicated as (SV) in Fig. 2 has a volume of about 1.58 m3 and an inside surface of 95’500 cm2. During operation it is cooled to around 80 K. It is made from machined aluminum plates which were joined carefully together to prevent gaps between the plates as well as shape modification of the assembled vessel during cool down. Depending on the size such gaps can cause large UCN losses. The total area of gaps of the assembled storage vessel was therefore minimized. A rough mechanical measurement at room temperature resulted in a gap fraction of about 5$\times$10*-4* of the total surface. Two photos of the storage vessel are shown in Fig. 8.

The inside surfaces of the storage vessel open to UCN are all machined to a roughness of about 400 nm. The plates were galvanically coated with nickel (thickness about 60 $\mu$m) and finally coated with diamond-like carbon (DLC)222Fraunhofer-Institut für Werkstoff- und Strahltechnik, Fraunhofer Projektgruppe at the Dortmunder Oberflächenzentrum, Eberhardstrasse 12, 44120 Dortmund, Germany, www.iws.fraunhofer.de which was found to have excellent UCN storage properties Atchison2005c ; Atchison2006 ; Atchison2006b ; Atchison2007a ; Atchison2007b ; Atchison2008 . The thickness of the DLC coating varied between 1 and 2 $\mu$m depending on position during the coating process. The material optical potential of a sample plate coated with DLC in the same process as the storage vessel plates was measured at a cold-neutron reflectometer Bodek2008 . A neutron optical potential between of 235$\pm 10$ neV was determined.

The central tube inside the storage vessel serves as supply tube for cyrogenic liquids to the moderator vessel and is shown in Fig. 9. It is made of Al and coated with DLC on the outside, identically as the vessel plates. The hole on the bottom of the vessel can be closed by a valve made of two semi-circular flaps with 57 cm diameter, indicated as (4) in Fig. 1. A photo of the flapper valve is shown in Fig. 9. Machined from AlMgSi, the flaps were also galvanically coated with nickel and subsequently coated with DLC.

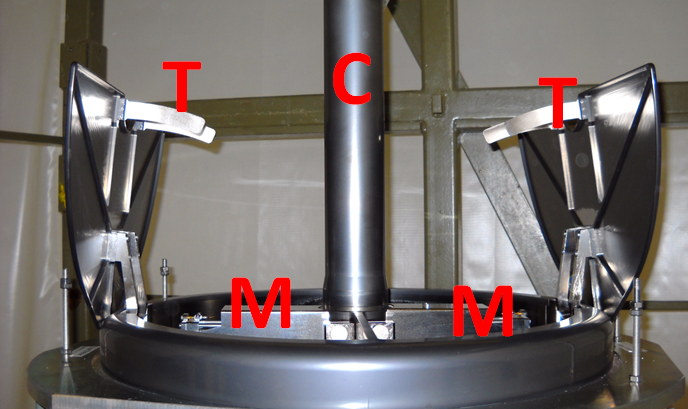

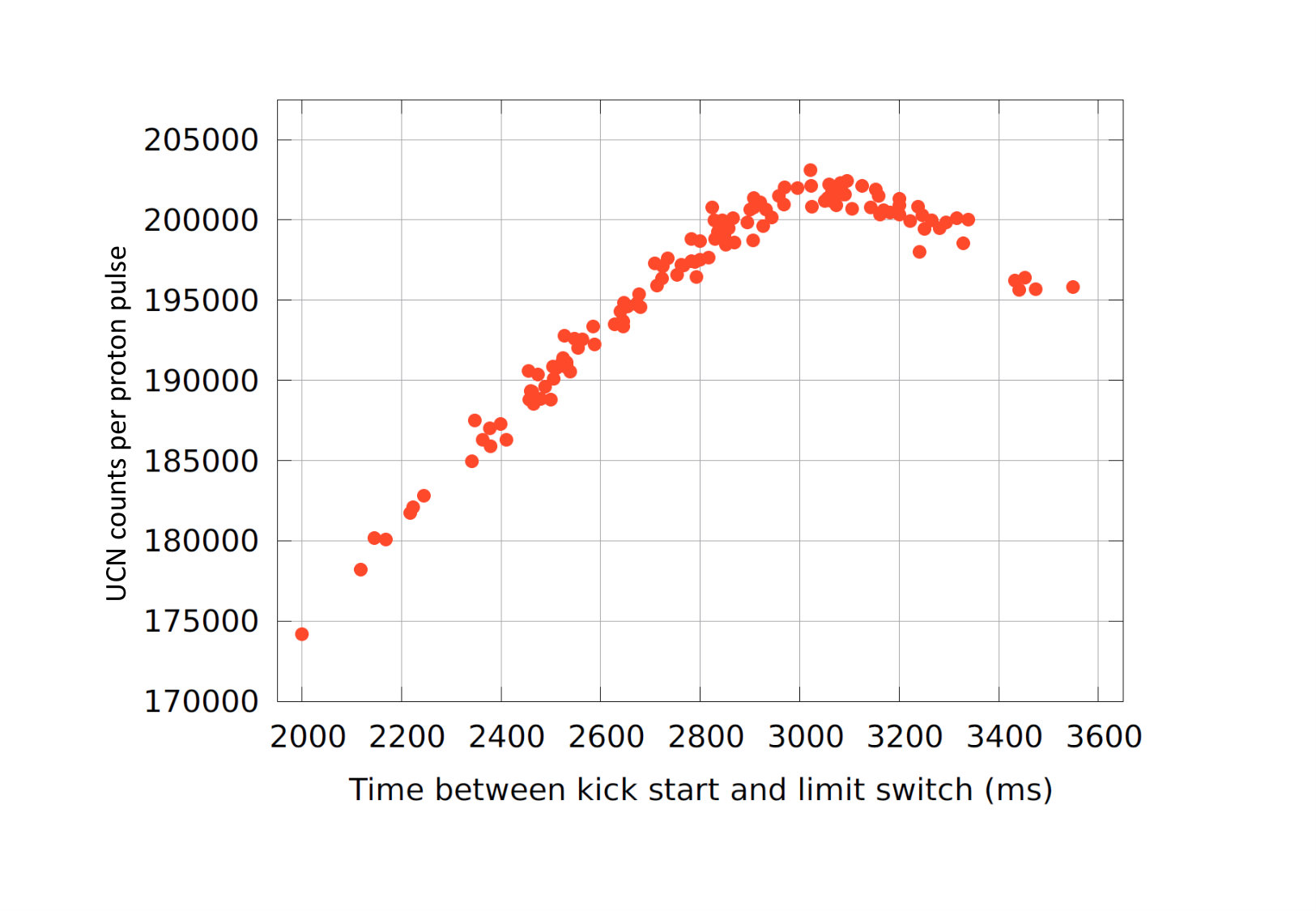

Closing of the flapper valve is triggered by a signal synchronized with the proton beam kick and done with a pneumatic actuator using helium. The closing time is around two seconds. Opening of the flaps takes about 10 s because the high impedance of the long helium feeding line results in a slow pressure build-up in the actuator cylinder. The slow opening does not significantly influence the UCN performance. Timing between the flap-closing signal and the beam signal was optimized and shows a $\pm$100 ms flat maximum as seen in Fig. 10 displaying the UCN count rate at beamport West-2 as function of the closing time of the flapper valve. In practice this is the time difference between the kick signal coincident with the rising flank of the proton beam pulse (see Fig.3) and the time when the flapper valve starts closing.

2.4 UCN guides

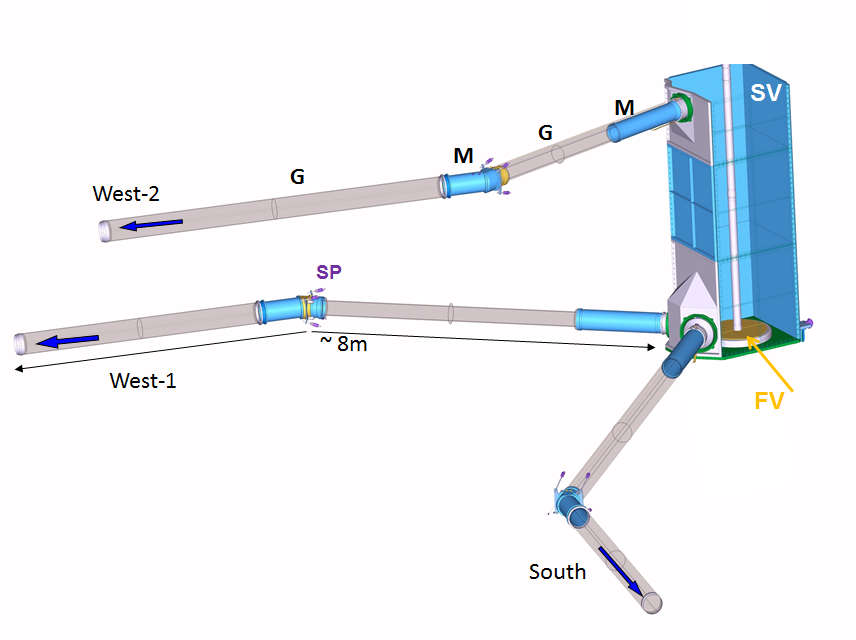

Three UCN guides connect the storage vessel to the beamports in the experimental areas, see Fig. 2. The guide quality, mainly defined by low surface roughness and uniform coating with suited materials, is of paramount importance in order to minimize UCN losses on the long path to experiments. The length of the individual guide sections to the beamport West-1 is 7.090 m, to West-2 is 8.618 m, and to South is 7.049 m. The diameter was optimized by MC simulations to find a compromise between better transmission (large diameter) and less UCN density dilution (small diameter).

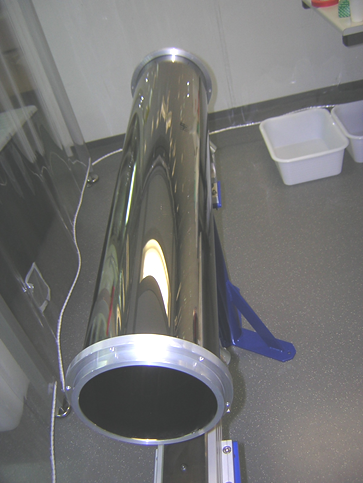

The straight guide sections were made from DuranTM glass tubes333 SCHOTT AG, Hattenbergstr. 10, 55122 Mainz, Germany with a surface roughness better than 1 nm and therefore an expected high UCN transmission Atchison2010 . The inside diameter of the tube is 180 mm, the wall thickness is 5 mm.

Two sections per guide were made from stainless steel:

1. A bent was necessary for radiation protection to prevent a direct line of sight between experimental area and storage vessel.
2. Stainless steel was chosen as it increases the radiation hardness of the first meter guide docking directly onto the storage vessel and containing the neutron guide shutter.

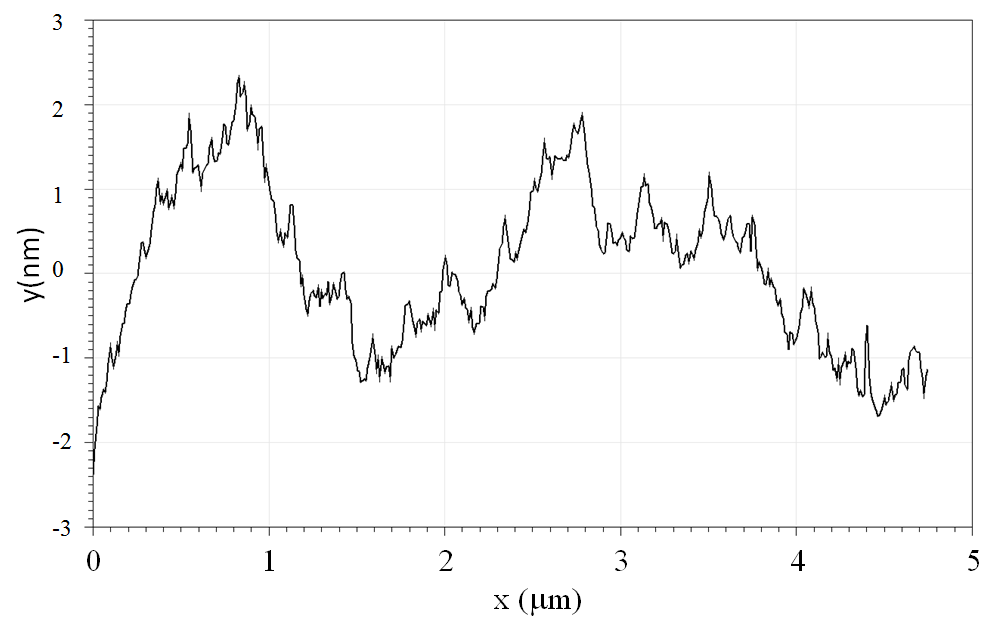

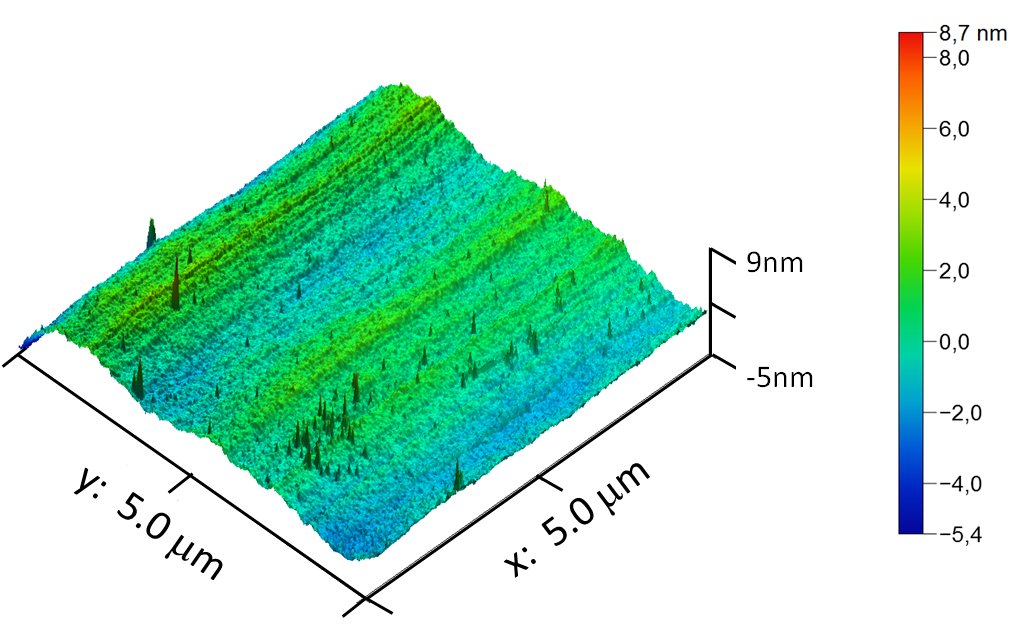

All metal tubes were honed on the inside and then hand-polished to a surface roughness below 10 nm. All surfaces exposed to UCN were characterized using atomic-force microscopy as shown for a typical glass surface in Fig. 11. The profile view shows a smoothness for a glass tube to be below 2 nm.

All guide parts were either glued together, (the radiation hardness of the glue was tested, see Bertsch2009 ), or screwed tightly together, in order to minimize gaps, which could cause significant UCN losses. Figure 12 shows a photo of one metal guide. Figure 13 shows a picture of a finished glass guide. Figure 14 shows a photo of the end section of a glass guide during the production process. The end section was ground and smoothened over the entire diameter to guarantee the dimensions and then flame-polished to prevent chipping. A stainless steel end-ring was glued onto the prepared glass guide providing good protection of the glass and minimizing gaps. Any left-over small gap was filled with glue Bertsch2009 and then sputter-coated with the entire guide in one process. The stainless steel guide attached to the storage vessel serves also as thermal insulator between the storage vessel at 80 K and the glass guide at room temperature. It contains the neutron guide shutter at its front end shown in Fig. 15.

All surfaces exposed to UCN during operation were finally sputter-coated with nickel-molybdenum (NiMo) with a weight ratio of 85% to 15%. Additional small flat glass pieces were attached to the tubes during the coating process to allow cold-neutron reflectometry afterwards. Measurements of all guide samples at the NARZISS reflectometer Bodek2008 resulted in a material optical potential of 220$\pm$10 neV. One result of such a measurement of a NiMo coating is shown in Fig. 16.

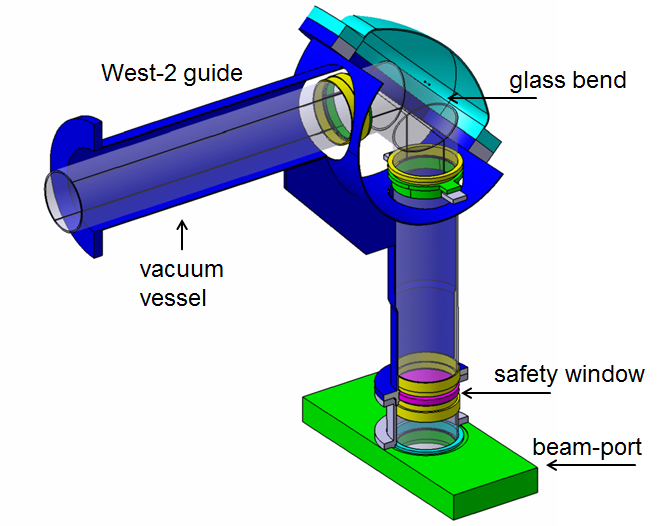

The guide shutters and tubes indicated as No. (6) in Fig. 1, and shown in Fig. 15 for guide South, are part of the storage vessel and therefore coated with DLC. Opening and closing times of the guide shutters were measured to be below 200 ms.

The UCN transmission of all installed guides was measured prior to installation and found to be about 98% per meter for all glass and stainless-steel tubes Blau2016 .

2.4.1 Minimizing gaps:

Gaps along the UCN transport path can cause large losses, therefore we tried to minimize gaps in the design and construction of the entire UCN path. All metal flanges were precisely machined and glued onto the glass guides as shown in Fig. 14. The metal guides and glass guides were then firmly connected by screws. The front section, where the guide connects to the storage vessel was pushed inside a concave receptacle on the storage vessel plate. Strong mechanical springs were mounted to keep the tension to this guide section towards the storage vessel in order to stay firmly connected when the storage vessel is cooled to about 80 K. Otherwise, gaps with the size of the order of millimeters could open due to thermal shrinking. The bend section of guide West-1, Fig. 17, shows the connections between metal guides and glass guides, and also the four springs pushing the guides towards the storage vessel. After installation the gap between guide end and window grid at the beamport was measured to be 0.3 mm (West-1), 5 mm (South), 0.1 mm (West-2) at room-temperature.

2.5 Safety window

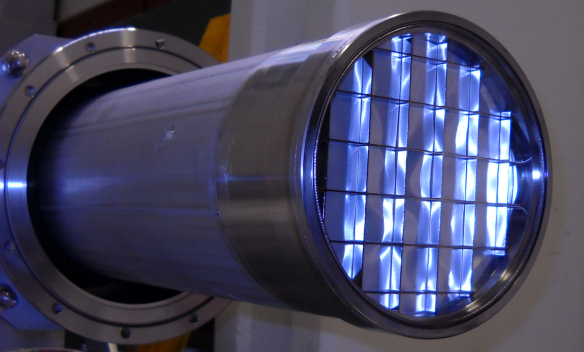

The safety windows at the end of the UCN guides separate the UCN source vacuum from the experiment vacua. Figure 18 shows all parts of the window assembly which were finally welded together to assure vacuum tightness. It is an important safety component and has therefore to withstand 3 bar overpressure from inside and 1 bar from outside. After a long performance test series  Atchison2009 , AlMg3 with a thickness of 0.1 mm was selected as window material because of its mechanical strength and good UCN transmission. Measurements of UCN transmission in the AlMg3 foil are reported in Section 4.4 below.

All three guides accommodate a safety window located close to the beamport. On guide West-2 the expected average UCN energy spectrum is significantly softer due to gravitational shift, as the extraction is at a height of 2.3 m above the bottom of the storage vessel. Therefore an additional vertical section on guide West-2, shown in Fig. 19, was added. This causes the UCN to fall by one meter and increases the kinetic energy by 100 neV, well above the neutron optical potential of the AlMg3 safety window (54 neV).

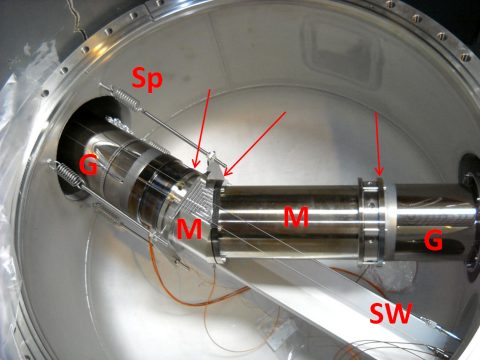

The beamports West-1 and South were prepared for the installation of superconducting (SC) polarizer magnets. The safety windows would be located at the highest magnetic field of an installed SC magnet. The polarized UCN would have the highest velocities when passing the foil. For the nEDM experiment, beamport South was equipped with a magnet providing a 5 T field. UCN intensity measurements for various magnetic field strengths are described in Section 4.5 below.

2.6 Beamport shutter

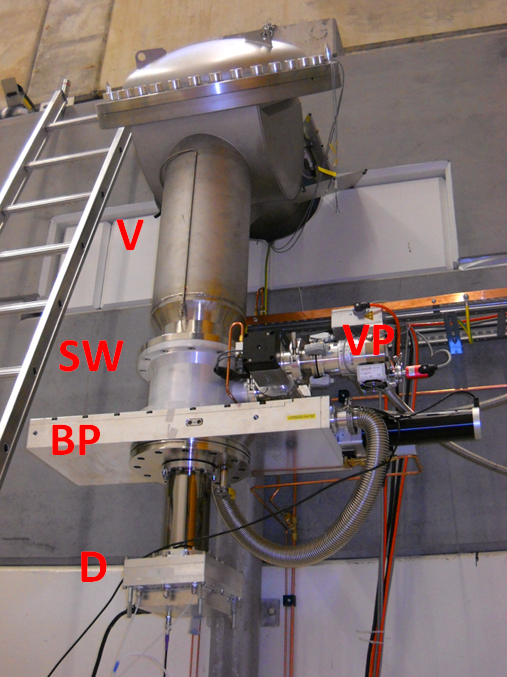

Three large (DN200) vacuum shutters custom designed and produced by VAT444VAT Group AG, Seelistr. 1, CH-9469 Haag, Switzerland are mounted as beamport shutters indicated as BP in Fig. 19. All parts of the shutter exposed to UCN were coated with DLC. In Ref. Blau2016 we have already reported on the properties of this shutter. Figures 4 to 6 of this reference depicted the measured opening area and opening function relevant for UCN transport modeling. The opening and closing times were measured to be about 1 s.

3 Simulation model for the PSI UCN optics

In order to relate the parameters and the geometry of individual parts of the UCN source and guides system to its overall performance, detailed Monte Carlo simulations were performed. A large number of alternative geometry configurations for the UCN optics system were simulated showing that the as-built configuration is optimal in terms of UCN yield. The general features of the PSI-developed simulation code, MCUCN, for ultracold neutron transport are summarized in Ref. Zsigmond2018 . This code was also used during the development of the UCN source at PSI to optimize the distance between the sD2 vessel and the bottom of the storage vessel. Also the size and shape of the storage vessel, and the guide diameters were investigated, to provide preliminary predictions on UCN density and energy distribution.

3.1 Geometry model of the PSI UCN source

In the geometrical model for MC simulations of the PSI UCN source we implemented (i) all surfaces coated with materials with high optical potentials (DLC, Ni, NiMo 85/15), and (ii) all gaps between guide sections which were approximated either as totally absorbing or having low material optical potential, e.g. aluminum. As basis for the input geometry we used technical drawings. The actual length of the neutron guides from storage vessel to beamport is implemented with an accuracy of 2 mm. The geometry starts with the lid of the solid deuterium vessel as shown in Fig. 4. However, instead of a half toroidal shape we implemented a dome. The latter definition was more straightforward and less run-time demanding than building a toroidal surface from a series of cone sections. Our previous MC comparisons of a dome and a toroidal shape gave the same results for the transmission of UCN because the average angular distributions of the surface normal are in both cases similar.

This lid constitutes the lower boundary of the vertical guide which directs the neutrons into the large storage vessel of the UCN source (see Figs. 8 and 1). This vessel has four flat sides. In the bottom part the two neutron guide exits are located in a niche. Important are also the time dependent position of the flaps separating the storage vessel from the vertical guide, as shown in Fig. 9. The neutron guide shutter at the storage vessel is shown for guide South in Fig. 15. Apart from the lid of the sD2 vessel, we also included the vacuum separation foils, made from AlMg3, at the end of the UCN guides as introduced in Sec. 2.5. On guide South the foil was placed in the center of a 5 Tesla superconducting magnet which acts as UCN polarizer. Each virtual detector counts UCN through another, similar 100 $\mu$m thick separation foil. The sensitive detector area is matched to the detector used in the actual measurement. For test calculations different experimental volumes were attached depending on the aim of the calculation.

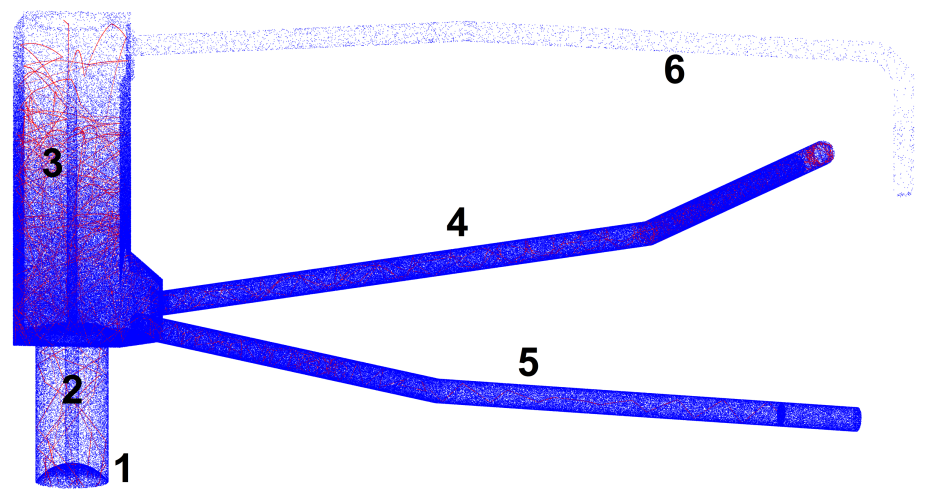

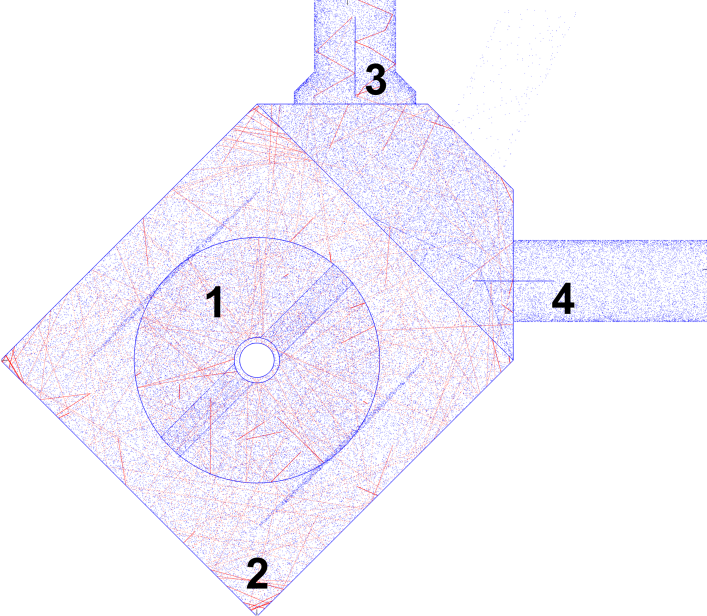

In Figs. 20 and 21 the geometry of the UCN source part as appearing in the MCUCN model is visualized. The blue dots are points of reflection of UCN on their way to the beamports and example trajectories are shown in red. Such plots serve as first tests of the geometry and physics implementations.

3.2 Coating parameters

We introduced three global coating parameters for the neutron guides between the storage vessel and the beamports:

an optical potential with a value obtained from cold neutron reflectometry measurements Atchison2006 ; Atchison2006b ; Atchison2007a ; 2. 2.

a loss parameter $\eta$, calculated from the ratio of the complex and real parts of the optical potential - independent of kinetic energy in agreement with experimental results Atchison2007a ; Bondar2017 ; 3. 3.

a parameter pdiff for the fraction of diffuse reflections according to the Lambert model which is also independent of kinetic energy.

The history of the trajectories in the MC simulations show that the majority of UCN exiting the beamports have sampled the whole volume of the UCN source and the beamline and therefore we use such global i.e. spatially averaged parameters (the spacial averaging is of course not independent from the geometry configuration). Similarly, different values of the three global parameters were defined for the entire storage vessel of the UCN source, including shutters, and separately for the vertical guide between UCN converter and storage vessel of the source.

3.3 Initial trajectory parameters from the source

At the beginning of the simulation UCNs are generated with random initial coordinates (position, velocity and time) as described below according to probability distributions detailed in Golub1991 .

For the energy distribution of the UCN emerging from the solid deuterium surface, we rely on a linear approximation, i.e. on the initial linear section of a Maxwell flux (eq.(3.9) in Golub1991 ) for a high-quality, realistic sD2 converter. This assumption was strengthened by separate MC simulations of the UCN extraction efficiency from bulk sD2 for a close-to-optimal sD2 structure. They are in agreement with experimental data Altarev2008 . These calculations included (i) super-thermal UCN production, (ii) temperature-dependent thermal up-scattering, (iii) up-scattering on para-deuterium, (iv) Porod scattering Brys2007 , (v) absorption on hydrogen contamination, and (vi) reflection or absorption on the coating material of the converter vessel. We did not implement an interface distribution of macroscopic cracks in the solid deuterium since these are unknown and can be different after every freezing procedure. Such cracks represent deuterium-vacuum interfaces which can reflect UCN and hence increase their dwell time within the material and thus also the loss probability. We also did not implement intensity reduction due to the observed frost formation Anghel2018 . Consequently, our estimate of the absolute UCN flux constituted an upper limit and is not subject of this paper.

The angular distribution of the emerging UCN was set as a linear dependence in cosine of the angle to the surface normal. This is typical for moderators and for perfectly diffuse emitter models. On top of this angular distribution we added a vertical boost which corresponds to the optical potential of the sD2 Daum2008 . Since we don’t expect a perfectly smooth deuterium surface for a real converter material we also modeled cases when this boost was not vertical but diffuse. In this case we kept the initial angular distribution mentioned above and only increased the total energy by 102.5 neV. Then the vertical transmission through the lid decreased by about 30%.

The initial position coordinates are generated according to a flat horizontal homogeneous distribution confirmed by our separate MC results on extraction from the sD2 into vacuum. Deviations from this distribution don’t show a relevant influence.

4 Characterization measurements

A series of measurements were performed to characterize the UCN source components. Measurement were performed with UCN counters attached to beamport West-1 and West-2. Beamport South was used for a few measurements only as it permanently hosted the nEDM experiment Pendlebury2015 ; Baker2011 ; ABel2018a up to 2017 and has the n2EDM experiment Abel2018b now being set up.

We used position-sensitive Cascade UCN counters555 CDT CASCADE Detector Technologies GmbH, Hans-Bunte-Str. 8-10, D-69123 Heidelberg, Germany with active areas of 10 cm$\times$10 cm (referred to later as ‘small’) or 20 cm$\times$20 cm (‘big’), the latter covering the full 180 mm diameter of the beam guide. UCN detection works via neutron capture on 10B which is followed by emission of an $\alpha$ particle and a 7Li nucleus Klein2011 . The detector entrance window, a 0.1 mm thick AlMg3 or Al foil is coated on the backside with a 10B layer of 200 nm. The UCN transmission in the Al part of this entrance window is about 0.7 Goeltl2008 .

In standard operation, UCN counts are monitored with the big cascade detector mounted on beamport West-1 and one small cascade detector mounted on beamport West-2.

4.1 UCN counts time distributions

The time distribution of UCN counts arriving at a given beamport reflects the emptying time of the storage vessel and UCN guide through the defined opening of the neutron guide towards a detector. The time behavior can be described with an exponential function and a characteristic time constant ($\tau$) which for storage measurements is called storage time constant (STC)

[TABLE]

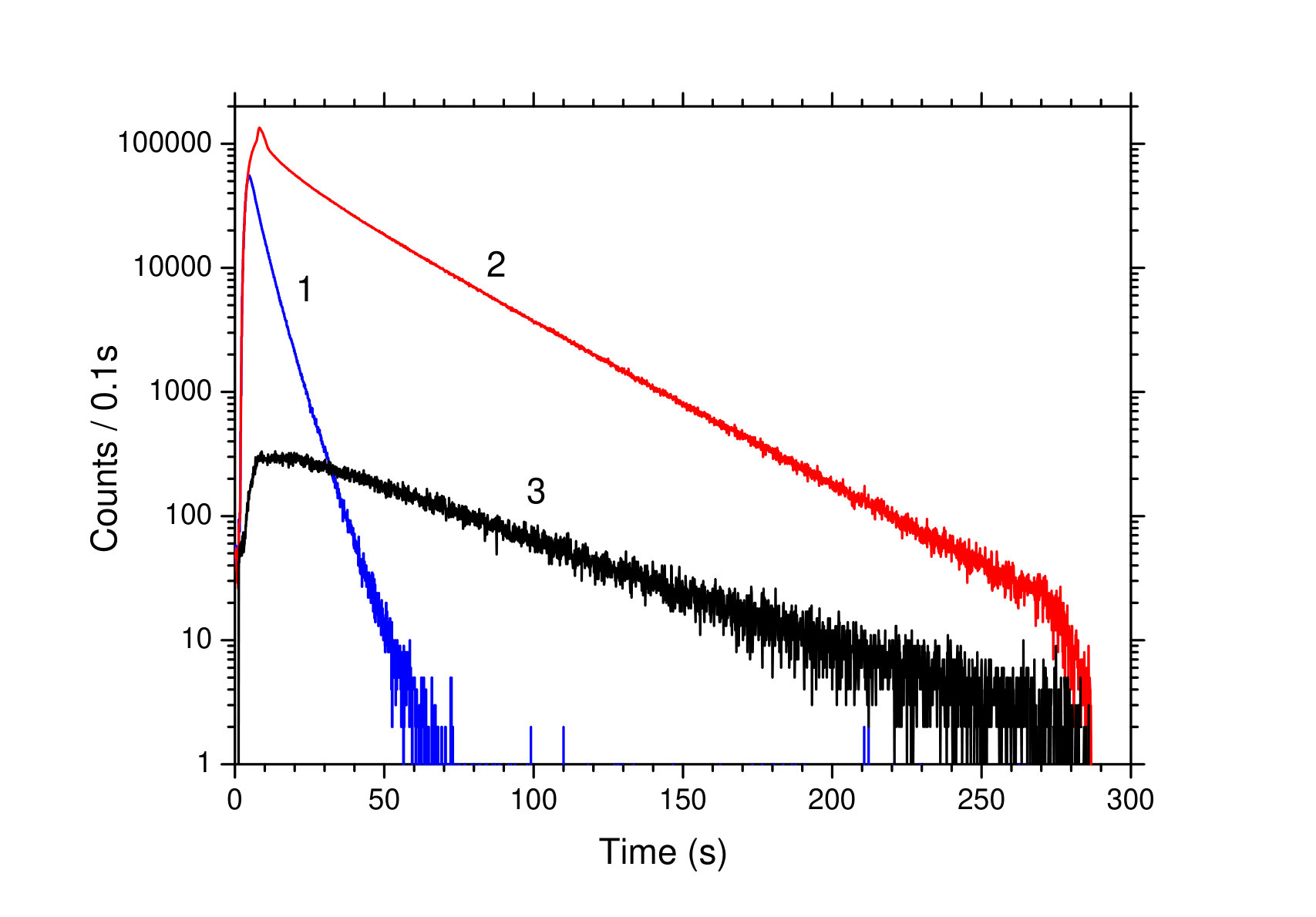

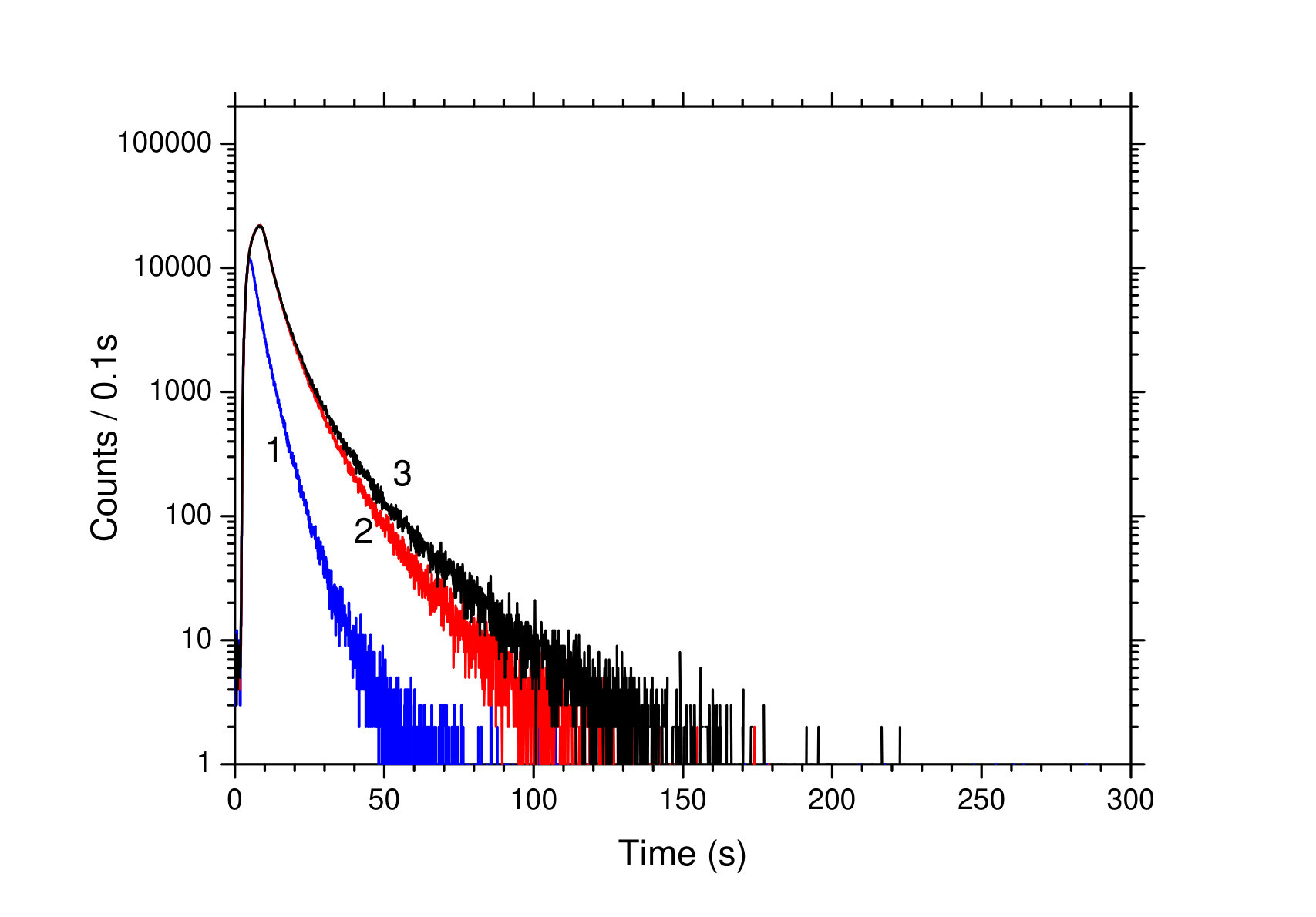

We mainly worked with three configurations: Figure 22 shows the observed UCN counts over a full period of 300 s between proton pulses for three different operation modes, i.e. configurations of the UCN source.

1. Benchmark pulse: A benchmark pulse is a 2 s long proton beam pulse with a box-shaped profile. All shutters are open and hence no mechanical movements influence UCN delivery. This mode is used in order to guarantee close to identical conditions for measurements distributed over many years. As the storage vessel flapper valve stays open, UCN are rapidly lost due to back-reflections through the large opening (a factor of 9 larger area than the guide exits) and subsequent absorption in the sD2 solid.

2. Production pulse: In standard operation, i.e. providing production pulses, the UCN storage flapper valves close at the end of the proton pulse preventing further back-reflection towards the sD2. UCN are then emptied towards the beamport over the full period between subsequent pulses. The UCN count rate rapidly increases during the pulse. After the flapper valve is closed the rate decreases with the emptying rate of the storage vessel and guide system through one or in this example two guide openings, 254 cm2 each. At 280 s the flapper valve opens again in preparation of the next beam pulse, therefore the remaining UCN are quickly lost.

3. Leakage mode: In leakage mode the neutron guide shutter towards the beamport stays closed. The shutter is not perfectly tight and UCN can leak through and travel from the exit of the storage vessel to the detector. The initial emptying rate is smaller and has a longer time constant compared to case (2). This mode is used to determine the storage time constant of the storage vessel. At 280 s the flapper valve opens.

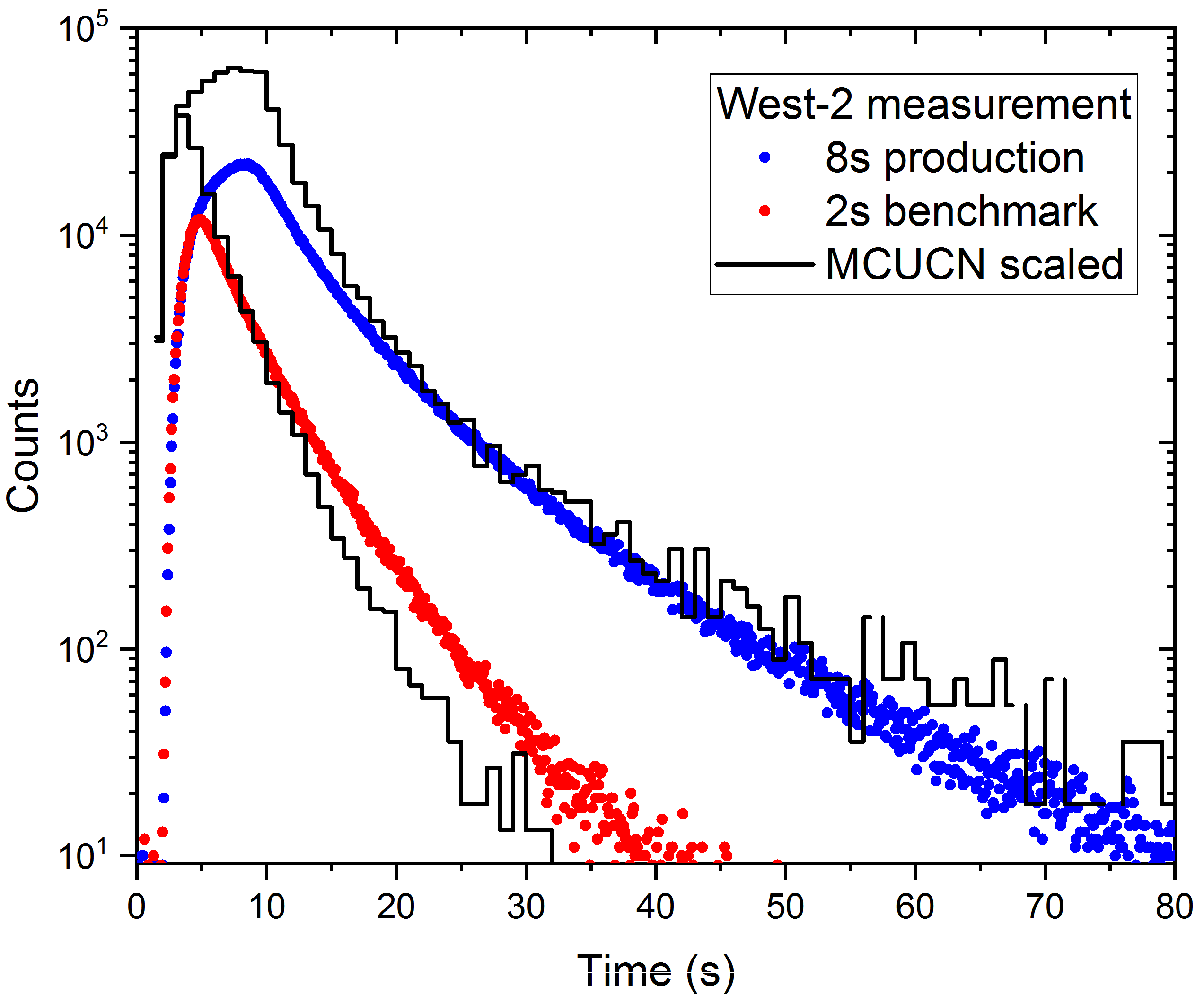

Figure 23 displays the same three cases as in Fig. 22, but at beamport West-2. The UCN intensity is about a factor of 10 smaller due to i) the extraction height of guide West-2 which is 2.3 m above the storage vessel floor and ii) using the small Cascade counter. After about 100 s all UCN with energies above 230 neV at the level of the West-2 storage-vessel exit are extracted or lost, and the UCN intensity is rapidly approaching zero. Also the observed storage time constants are smaller than at beamport West-1 as the observed UCN which can reach the West-2 beamport have on average higher energies at the bottom level and therefore are lost faster. The fact that neutron guide shutter West-1 is closed, influences the UCN intensity at West-2 only at very late times as can be seen by the higher intensity of curve 3) in comparison to curve 2).

Depending on the open or closed state of the main flapper valves of the storage vessel and the different neutron guide shutters the storage time constants differ. The resulting characteristic time constants from fits of Eqn.1 to the data are listed in Tab. 1.

4.2 UCN intensity development

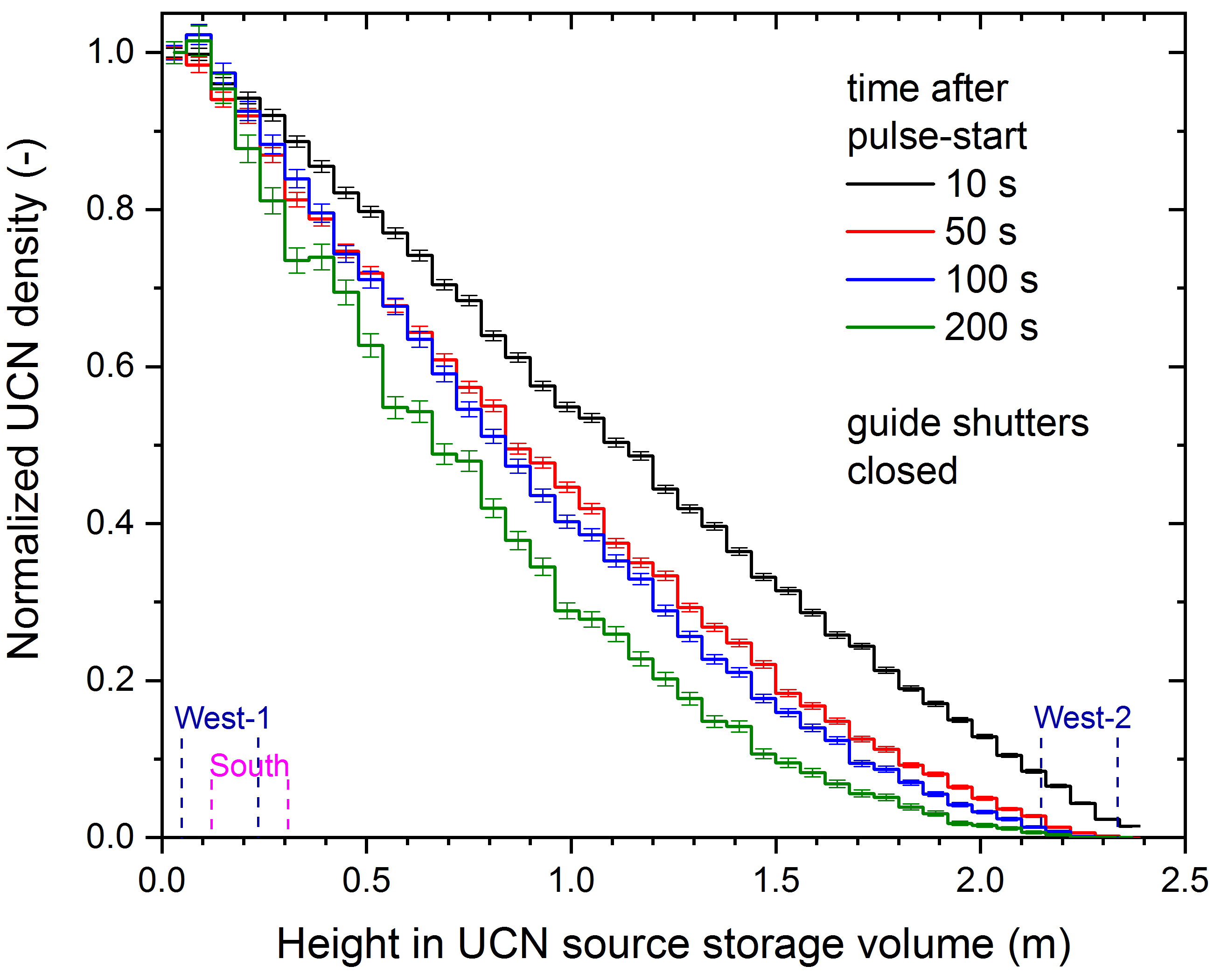

In order to characterize the intensity of the UCN source and compare it over long time periods we have used benchmark pulses and production pulses. Benchmark pulses do not involve any mechanical movements and should therefore track the status of the UCN production and extraction in the sD2, under the assumption of no changes in UCN transport through storage vessel, guides and windows. The observed intensity increase over the years, shown in Fig. 24, tracks the improvements in preparation and modification of the sD2 and the increased duty cycle. In Fig. 25 the largest UCN yield measured from production pulses on beamport West-1 is shown for each year. Actual measurements took place at proton beam currents of 1.8, 2.2, 2.4 mA and were normalized to 2.2mA for the plot. Both plots show a dip in 2014 because a different experimental setup was online Bondar2017 when the UCN source actually performed best, hence no standardized characterization measurement was taken at the best source conditions.

4.3 Storage time constants of the UCN storage vessel

The storage time constant of the storage vessel can be determined in two ways. The ’classical‘ method Golub1991 proceeds in three steps:

filling the storage vessel with UCN; 2. 2.

closing all UCN shutters and storing the UCN for a given time; 3. 3.

opening the shutter towards the detector and counting all surviving UCN.

The leakage method as described in Sec. 4.3.2 is an alternative way to measure the decrease of the UCN density in the storage vessel. With both methods the time dependence of the observed UCN intensity can be fitted with a single (or double, or multiple) exponential function with the slope defining the storage time constant(s) (STC).

4.3.1 Classical method

Measurements using the classical method were performed with a Cascade counter mounted on beamport West-1. We have measured the number of UCN in the vessel as a function of time for storage times between 5 and 350 s. By choosing different fit regions one can obtain information about the behavior of the storage vessel with respect to the UCN velocity spectrum. A fit to the entire data-set yields a STC = 94.5$\pm$0.9 s for a single exponential as shown in Fig.26. In principle every UCN energy group has a separate storage time constant. It is common to define two groups which are discernible with separate storage time constants. The short time range is dominated by the influence of spectral cleaning which takes some time until UCN with kinetic energies above the optical potential of the walls are lost. But it also characterizes the group of faster UCN. Since these interact more often with the wall materials they are lost faster. After longer times only slower UCN survive resulting in a larger STC. Table 2 lists the result obtained for different fit ranges.

In order to understand the temperature dependence of losses due to thermal up-scattering, we also performed a measurement with the storage vessel at room temperature. This could only be done with very low UCN statistics and in a non-standard operation mode where the entire UCN source was at room temperature. The UCN intensity was therefore very low, as the UCN production took place in gaseous D2 at room-temperature and 1 bar pressure, hence under very disfavoring conditions. The results are plotted in Fig. 26. A STC of 68 s was determined, with the at 2 s measurement outside the fit range.

4.3.2 Leakage method

The ‘leakage method’ makes use of the fact that the neutron guide shutters are not perfectly UCN tight but cause a small UCN leakage on the order of 1%. The intensity of these leaking UCN decreases exponentially with time described with the STC of the UCN storage vessel. The measurement is shown in Fig. 22 by curve 3 which was fitted with a single exponential function. The results confirm the classical measurement.

Several measurements were conducted in subsequent years of operation which were separated by periods of warming up the entire facility to room temperature, and venting of the storage vessel and guides. Furthermore, some maintenance work was typically performed during such shutdown periods. The measured STCs with a single exponential fit in an identical fit range, given in Tab. 3, agree within a small range of a few seconds. The lower values observed in 2013 could not be conclusively explained. The small changes could be due to variations in closing of the flapper valve of the storage vessel, in closing of the neutron guide shutters, or to the UCN energy spectrum from changing conditions of the sD2 bulk and surface. A change in vacuum conditions, i.e. rest gas, is excluded.

4.4 Transmission through AlMg3

UCN have to penetrate solid AlMg3 material on their path from production to detection at two positions which are required by hydrogen safety regulations:

1. the lid of the solid deuterium moderator vessel (thickness = 500$\mu$m) (see Fig. 4);

2. the UCN vacuum window at the end of the UCN guides (thickness = 100$\mu$m) (see Fig. 18).

It was previously shown that measured transmission through Al foils cannot be correctly calculated by relying only on the Al absorption cross-sections and material densities which consistently overestimates the transmission Atchison2009 . Therefore we have pursued several investigations into the UCN transmission properties of the AlMg3 material used in the foils.

Measurements were performed using a Cascade detector mounted after a foil holder in the UCN path. Different foils with 70 mm diameter were inserted. The setup was installed on beamports West-1 and West-2. The two positions allowed to see the influence of different UCN energy spectra on the transmission.

1. Production pulse on West-2: The West-2 port extracts UCN from the top of the storage vessel at 230 cm height. After a 1.3 m vertical section before the beamport (see Fig. 19) all UCN have a minimum energy of $\sim$130 neV due to gravitational acceleration. Two 90-degree UCN guide bends made from stainless steel after the vertical section were used to cut off the UCN with kinetic energies above the stainless steel neutron optical potential $\sim$190 neV.

2. Production pulse on West-1: At this port UCN energies start at 50 neV (passing the safety foil) and are well populated up to the guide coating material optical potential of 220 neV.

A fraction of higher energy neutrons is also present as shown in MCUCN simulations (see Fig. 43). In the following we discuss the two types of safety windows.

4.4.1 D2 moderator vessel lid

The 0.5$\pm$0.05 mm thick material used in the lid measurement was machined in the same way and from the same bulk AlMg3 material as the installed moderator vessel lid. This was possible as the moderator vessel had an identical twin which passed a burst-pressure test demonstrating functionality up to 7 bar. After this burst test, large undamaged parts of the damaged lid could be re-used for UCN transmission measurements at the West-2 and West-1 beamports. The results are plotted in Fig. 27. It is obvious, that a lower UCN kinetic energy reduces the UCN transmission. We remind the reader that UCN gain about 100 neV in kinetic energy when exiting from the sD2 due to its neutron optical potential Daum2008 . Therefore, the UCN energies at the lid position starts at 100 neV. The height difference of the West-1 and West-2 beamports selects a different UCN energy spectrum. The measured values are consistent with one previously obtained using a similar Al-alloy Goeltl2008 measured at the TRIGA Mainz UCN facility Kahlenberg2017 .

4.4.2 Window foil

The material for the UCN transmission measurement of the window safety foil was taken from the same 0.1 mm thick AlMg3 foil roll as the original window foil used for the installed safety windows (see Sec. 2.5).

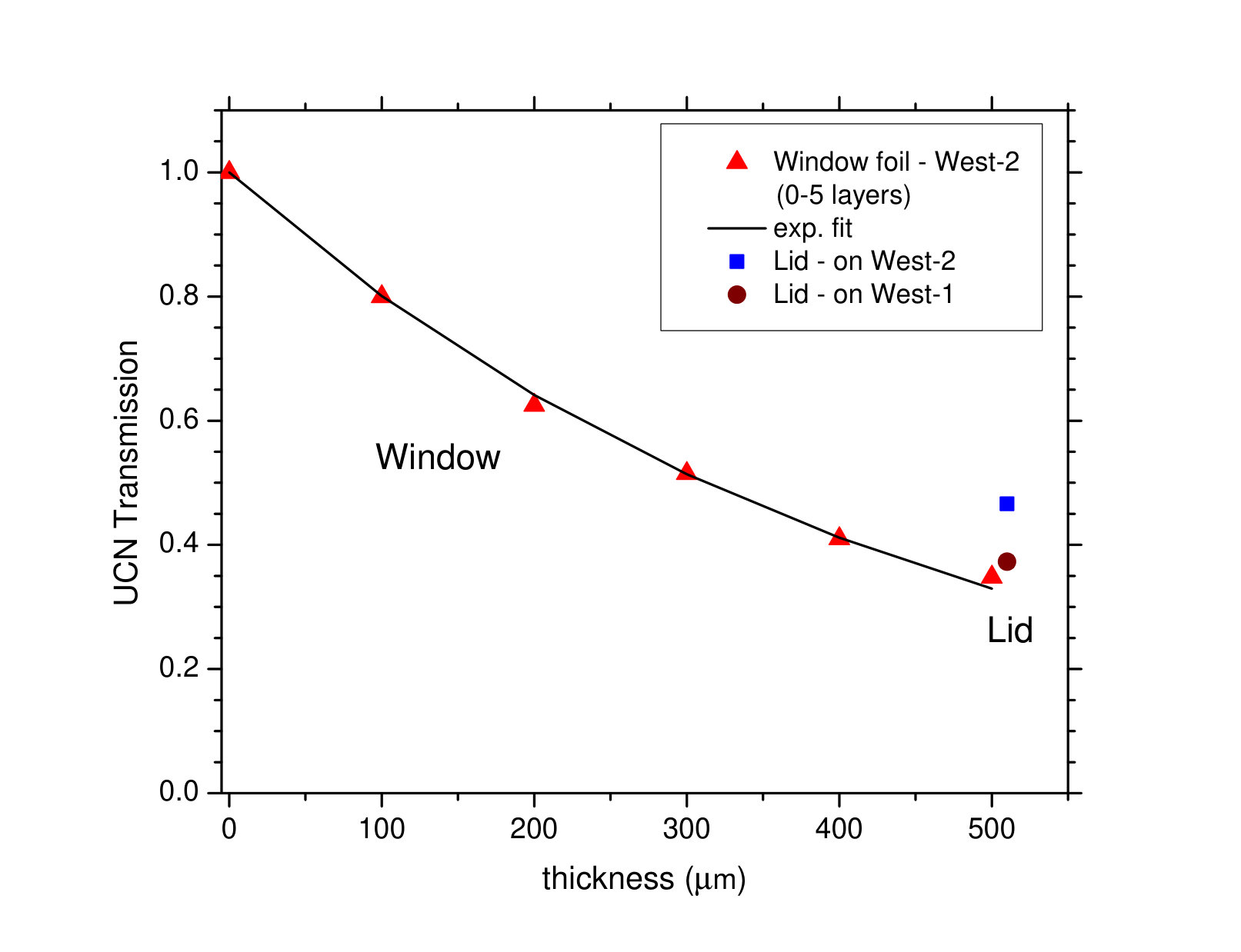

Measurements on West-2 were performed with a stack of up to five foils, demonstrating the expected exponential decrease with thickness displayed in Fig. 27. One can see that while having the same material thickness of 0.5 mm, five foils together have a smaller UCN transmission than a single ’thick’ piece. This is probably due to additional reflections on the individual foil surfaces.

Calculating the UCN transmission from absorption cross-section values for known material compositions results typically in a large underestimation of the UCN transmission as already observed previously in Atchison2009 . Therefore experimental transmission values were used to tune the loss cross-sections in the Monte-Carlo simulation. It required increasing the theoretical cross-section by about a factor of factor of 2.1$\pm$0.1 consistent with the findings in Ref. Atchison2009 . These effective cross-sections can then reproduce the observed UCN transmission values. These were used in our simulation model of the PSI UCN source as outlined in Sec. 3.

4.5 Transmission measurements through the superconducting magnet

As described in Section 2.5, beamport South was equipped with a SC magnet. Because of the magnetic moment of the neutron interacting with the magnetic field ($\pm$60 neV/T) the UCN velocity of the transported UCN is affected in a magnetic field and therefore also when passing this AlMg3 window. We have performed transmission measurements for various field values in order to further constrain the UCN energy spectrum from the source. The big Cascade detector was mounted directly at that beamport to investigate the window transmission as a function of magnetic field. No additional spin analysis system was used. With this setup the dependence of the UCN rate for various magnetic fields in the range of $0\text{\,}\mathrm{T}$ to $5\text{\,}\mathrm{T}$, using production pulses with $3\text{\,}\mathrm{s}$ length and benchmark pulses with $2\text{\,}\mathrm{s}$ were measured.

4.5.1 UCN intensities

Integrated UCN counts for the different magnetic fields, measured in 3 s production pulses are shown in Fig. 28. Table 4 lists the intensities, both, for benchmark pulses and production pulses. In order to exclude faster neutrons occurring during the proton pulse, the integration time started 1 s after the end of the pulse. With increasing magnetic field magnitude, lower rates of UCN were registered in the detector. This is expected, as half of the neutrons – i.e. one spin state – start to encounter a potential barrier increasing with magnetic field strength (low field seekers), while the other half (high field seekers) encounter a magnetic well, The lowest UCN intensities at B=$$5\text{\,}\mathrm{T} are at 57% of the ones at zero magnetic field. That this fraction is considerably larger than one half is because of the improved transmission of the transported spin state. These UCN have about 300 neV more kinetic energy when passing the AlMg3 window than at B=0.

4.5.2 UCN rate measurements

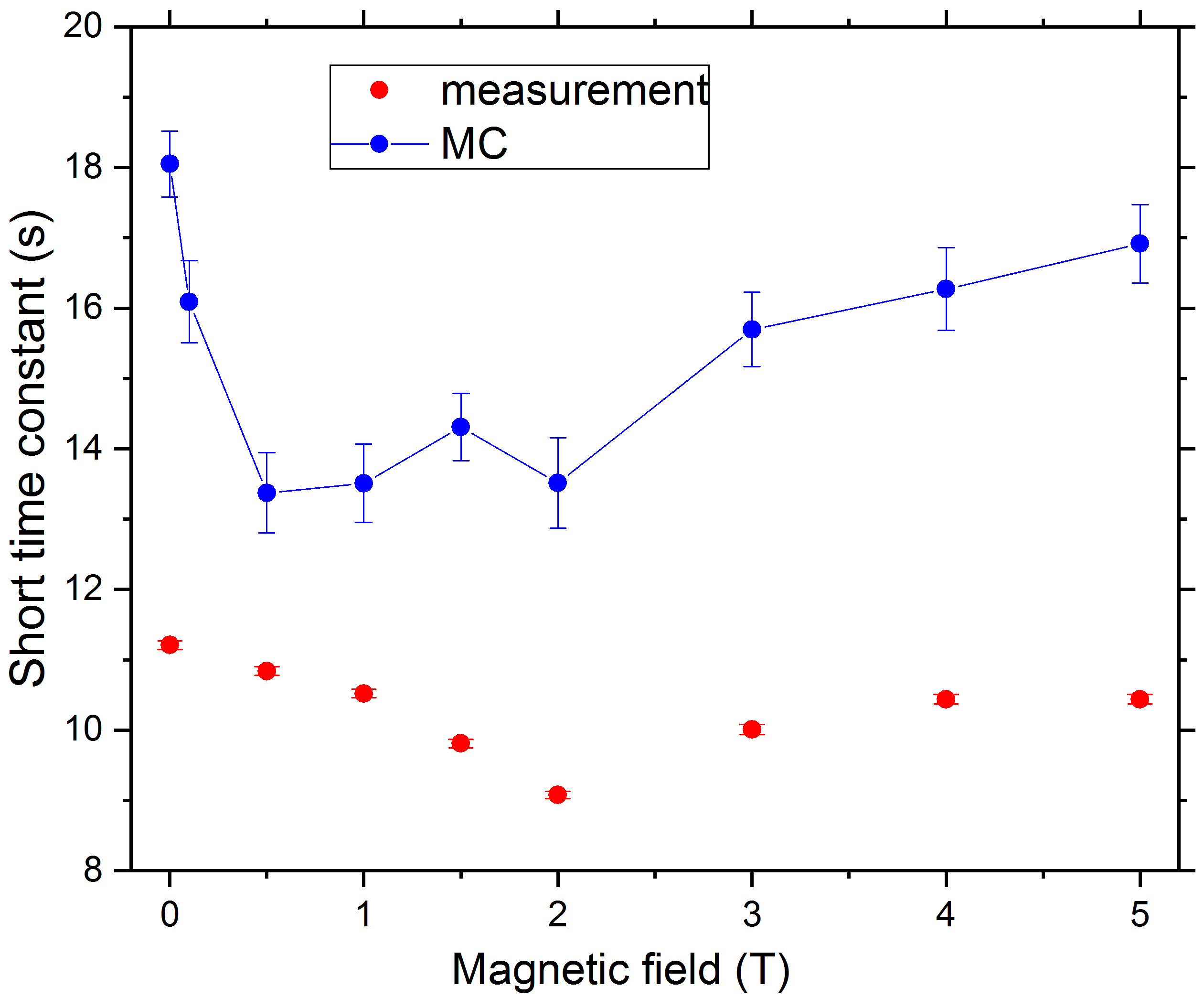

Looking into the first $30\text{\,}\mathrm{s}$ of the UCN intensity decrease after production pulses, as shown in Fig. 29, reveals some information about the UCN energy spectrum.

The peaks of the count rates, about $1\text{\,}\mathrm{s}$ after the end of the proton pulse, are separated in intensity, as expected, with intensities decreasing with increasing B field. High field seekers and low field seekers with forward momenta high enough to traverse the magnetic field are exiting the beamport. 2. 2.

A few seconds after the end of the kick, the UCN rates for $B=$3, 4 and $5\text{\,}\mathrm{T}$ merge. This means, that no high field seekers with forward momenta high enough to traverse $B=$4\text{,}\mathrm{T} magnetic fields are left in the source. A little bit later the same happens for UCNs which cannot traverse $B=$3\text{\,}\mathrm{T}. At about $50\text{\,}\mathrm{s}$ after the end of the kick (not shown in Fig. 29), the same happens for UCNs which cannot traverse $B=$2\text{,}\mathrm{T}$$ .

The measurements hence confirms the expected higher loss rates of faster UCN.

A double exponential decay of the form

[TABLE]

where $N(t)$ is the amount of UCN counted in a given time bin, $a$ and $b$ decay amplitudes for the short ($\tau_{1}$) and long ($\tau_{2}$) time constants, was fitted to the time spectra. The long time constant is shown in Fig. 30 as a function of the magnetic field. The fits were done in a time window from $15\text{\,}\mathrm{s}$ to $300\text{\,}\mathrm{s}$, which corresponds to a $285\text{\,}\mathrm{s}$ long window starting at about $4\text{\,}\mathrm{s}$ after the end of the proton beam kick.

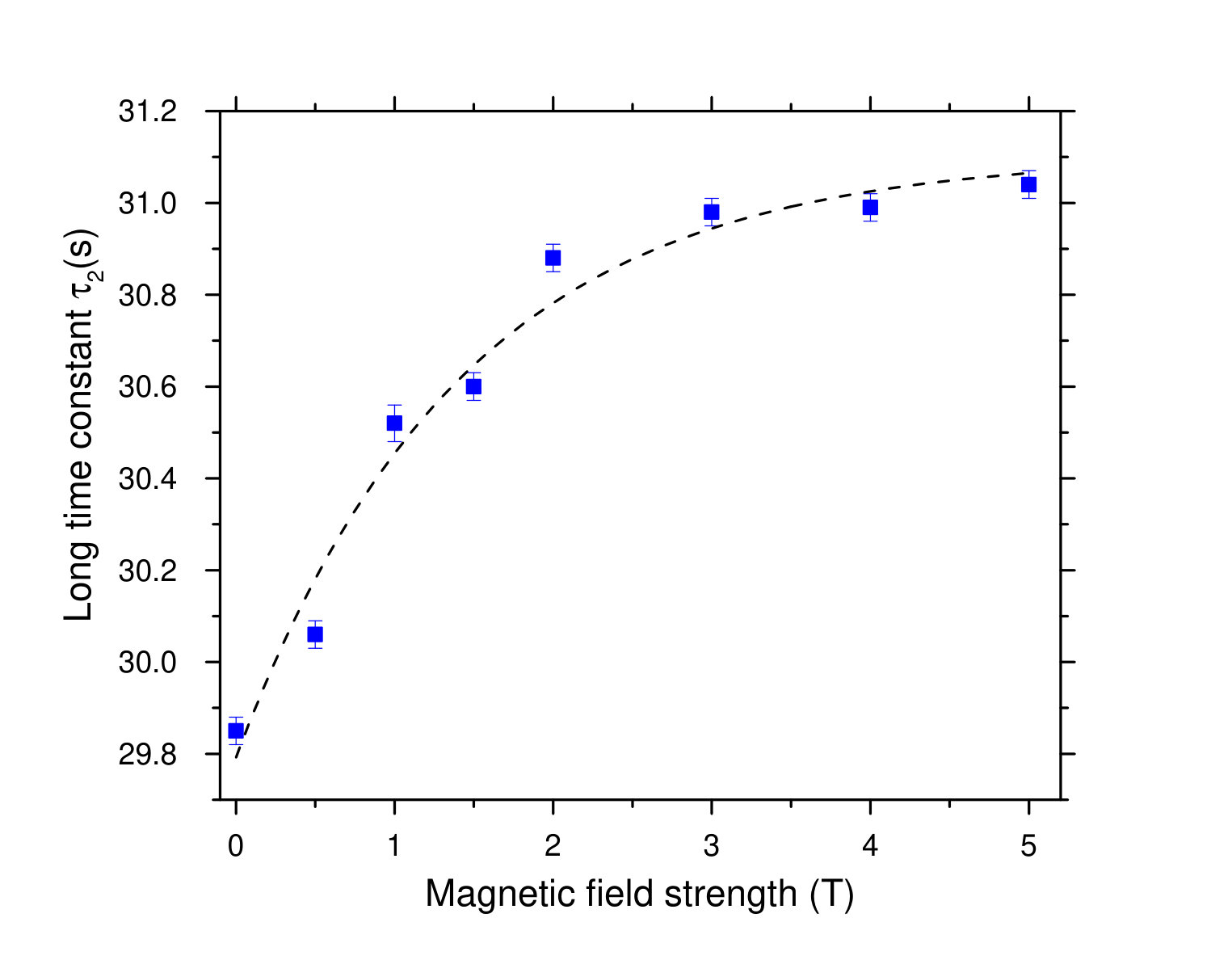

The long time constant, of the order of $30\text{\,}\mathrm{s}$, rises with the magnetic field strength and saturates at $3\text{\,}\mathrm{T}$. This is likely because for slower UCN the size of the potential barrier above 3 T does not matter much. In addition the magnetic field reflects low field seekers back into direction to the source. There UCNs can change the spin orientation, e.g. in a wall collision, and then return to the magnet after a diffuse reflection from a wall or from the storage vessel. Like this, some UCN exit the source at later times than in the absence of a magnetic field. This leads to a longer emptying time. A more detailed discussion is given in Sec. 5.4.

5 Simulation-based analysis of the measurements

The scope of the present MC analysis is to extract model parameters defined in the established theory of UCN physics in order to characterize the quality of the neutron-optical components, and to identify possible improvements. In all results presented in this paper, the simulated counts represent sampling trajectories and we used free scaling parameters in order to best fit the experimental curves. Computed predictions of the absolute UCN counts at the PSI source will be the subject of a separate forthcoming study.

Our model on diffuse reflections, taking a fraction of reflections as ideally diffuse (Lambertian), is only an approximation. However, for longer time scales which allow for a large number of reflections, storage-effects become important and the concrete mechanism of diffuse reflection will be less relevant. This was demonstrated in several test simulations using alternative diffuse reflection models. Such long time scales are for example our typical emptying and filling times in the experiments comparable to several tens of seconds.

In this sense, in our definition of diffuse reflection properties the diffuse fraction parameter $p_{\text{diff}}$ is an effective characterization quantity in terms of the Lambert model. We also performed simulations comparing the Lambert and micro-roughness Steyerl1972b models, e.g. for the case of emptying UCN from a storage chamber into a detector. We obtained almost identical results when setting the Lambert parameter accordingly low (to match micro-roughness) - as a consequence that storage effects were in this case dominant.

Different coating parameters influence with different weights the outcome of measurements or simulations. In some cases it was enough to scan one parameter and compare to the experimental data, the rest of the parameters being irrelevant. For example the calculated storage time constant of the source storage vessel, measured by the counts after UCN traversing the guides and exiting the beamport, is of the order of 100 s, and dominated by the loss parameter. We checked this by performing consistency calculations by varying the diffuse reflection parameters. In order to extract the UCN guide parameters multidimensional scans were necessary. In each case, single and multi-parameter scans, we also performed several consistency scans by roughly varying parameters which were expected to affect the result less.

5.1 Storage vessel parameters

The parameters of the storage vessel of the UCN source were obtained from matching MC results to the storage curves measured via leakage counts (see Sec. 4.1 and Fig. 22). Figure 31 compares MC results with the measurements.

With all shutters closed and setting no gaps in the geometry, the dominating ’loss’ channel is represented by the loss parameter within this vessel. In case if possible gaps should be co-represented by this parameter, we call the latter ‘effective’. The MC scan gave a fit value for the effective loss parameter of (1.5$\pm$0.1)$\times$10*-3* for the vessel at room temperature, and (1.1$\pm$0.1)$\times$10*-3* for the vessel in the cold operating state (around 80 K).

To interpret these large fit values, one must also consider that the effective loss parameter used in the simulation must include all the loss channels possible in the real system. These are (i) nuclear absorption and up-scattering, (ii) losses through gaps along the surface boundaries, and (iii) losses through holes distributed throughout the coated surfaces.

Regarding (i), previous measurements at room temperature Atchison2005c yielded an average loss parameter $\eta$ for DLC on aluminum (4$\pm$0.2)$\times$10*-4*. At 70 K the measured loss parameter in Atchison2005c was (1.7$\pm$0.1)$\times$10*-4*.

Regard (ii), gaps were found along the borders of individual surfaces (flaps, shutters, wall sections). and measured in the construction phase of the UCN source vessel. About a total of 25 cm2 were estimated for the bottom of the vessel, and about the same amount on the side walls. This results in a total gap size of 50 cm2 which is a fraction of 5$\times$10*-4* from all DLC-coated surfaces in the storage vessel. As this was measured at room temperature a large uncertainty might be on this value when comparing to operating conditions.

It was important to check if this gap size is consistent with the measured UCN storage curves. Thus an additional series of simulations was performed. The loss per bounce parameter was set to the measured literature value assuming a very similar surface quality as in Atchison2005c . Two gap regions were modeled: (i) an absorbing flat ring on the bottom of the volume around the main flaps, and (ii) an absorbing vertical stripe along one sidewall in the full height of the volume. These two positions represent in the simulation different aspects because of the gradient in UCN density in the storage vessel. In Fig. 32 we plotted density profiles for different times after the pulse start, also indicating the vertical positions of the beamlines. There is also a kinetic energy gradient along the vertical direction due to gravity causing a non-constant bounce-rate and loss probability. The absorbing ‘gap’ surfaces were set variable. Since the mechanical measurements gave a similar surface of gaps for both the bottom and sidewalls, we kept this ratio during scanning this simulation parameter. We determined the most probable amount of gaps by minimizing the $\chi^{2}$ between the measured and simulated data-points of the storage curve. With this model we also include possible holes in the DLC coating, the aforementioned third loss channel.

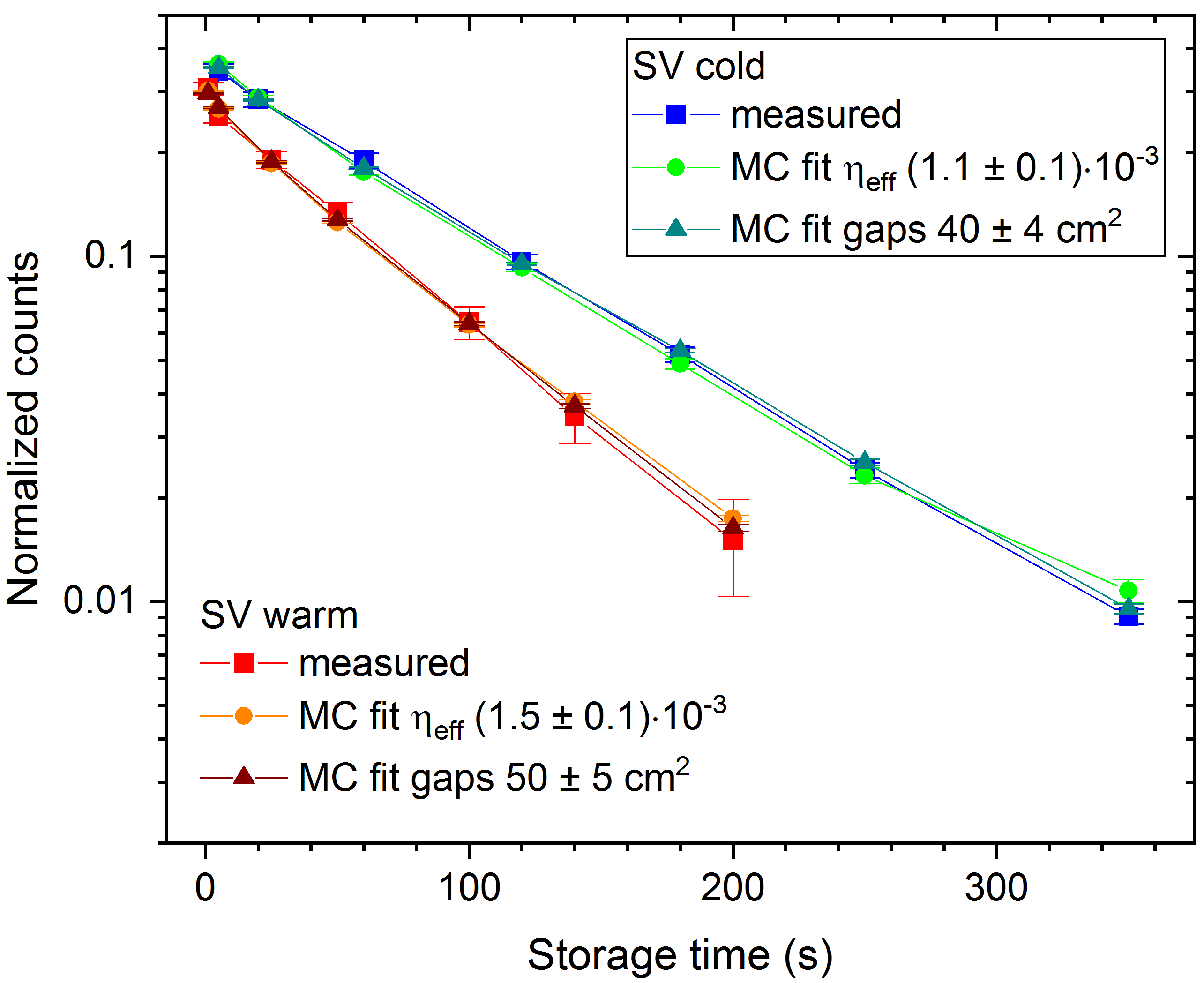

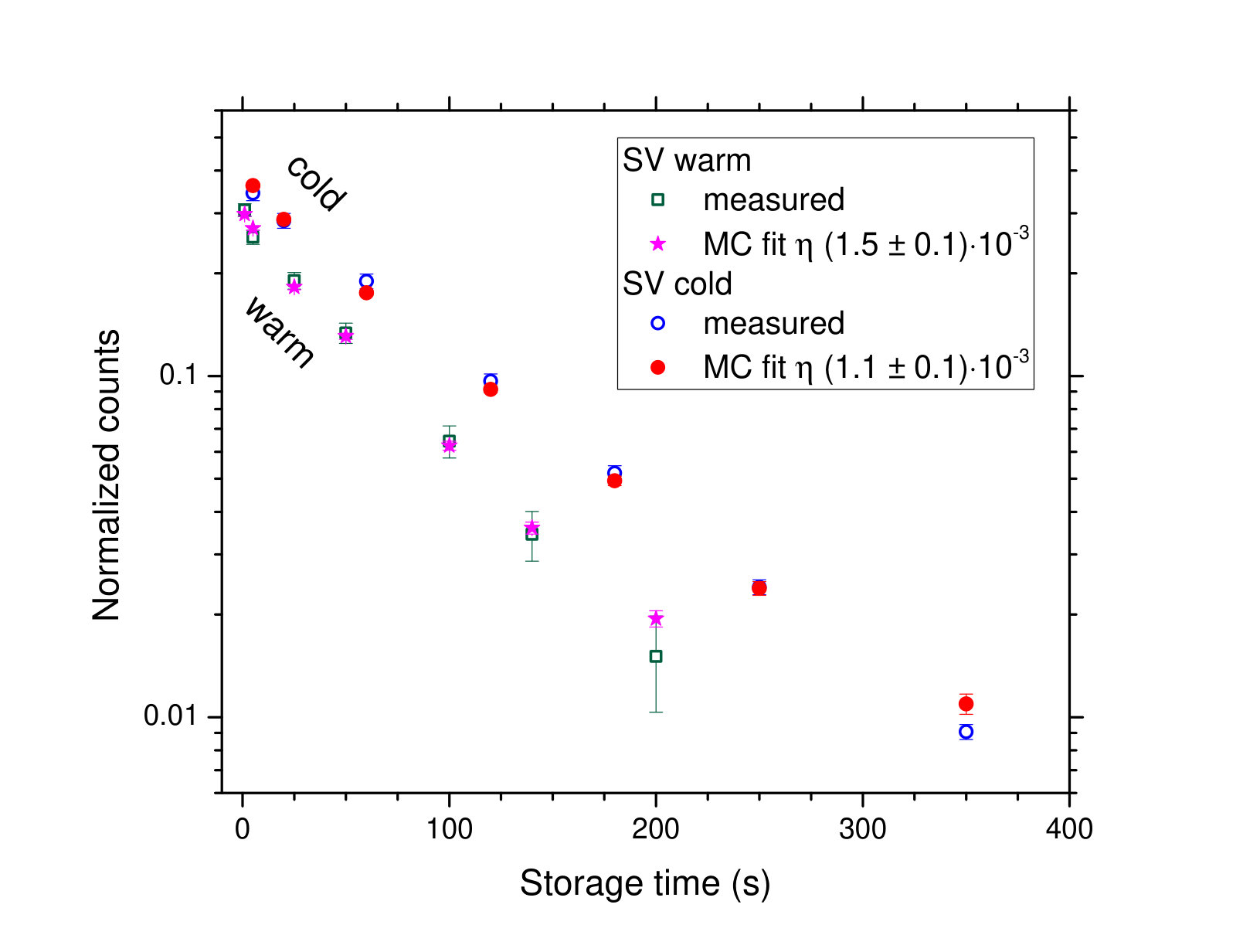

The results with the best MC fits were included in Fig. 31. The uncertainty was estimated to 10%. The fitted gap parameter matches very well the gaps determined during the construction i.e. a total of 50$\pm$5 cm2 for the warm state. In the cold state of the storage vessel the total gap parameter decreased to 40$\pm$4 cm2, however, remaining compatible with the room-temperature value within the errors. Thermal contraction of aluminum surfaces from 300 K to 100 K would yield only a 1% change, however, depending on the initial size of a gap between the surfaces, this could change by a much larger percentage.

If using a harder UCN energy spectrum than our linear reference spectrum emerging from the UCN converter in the simulations, the fitted loss parameters would shift to slightly lower values. We will study this aspect in the future, after calibrating the initial energy spectrum by a combination of further test measurements and simulations. It is also important to note that a variation of the fraction of diffuse reflections in the storage volume did not make any difference at our level of accuracy.

To conclude, the MC storage curves shown in Fig. 31 well match the ones measured at room temperature and in the cold state (Fig. 26). The simulated storage time constants agree with the measurement within the error bars. Consequently, the linear energy spectrum assumed for UCN exiting from the sD2 converter was a sufficiently good approximation for this purpose.

5.2 UCN guide parameters from emptying time constants

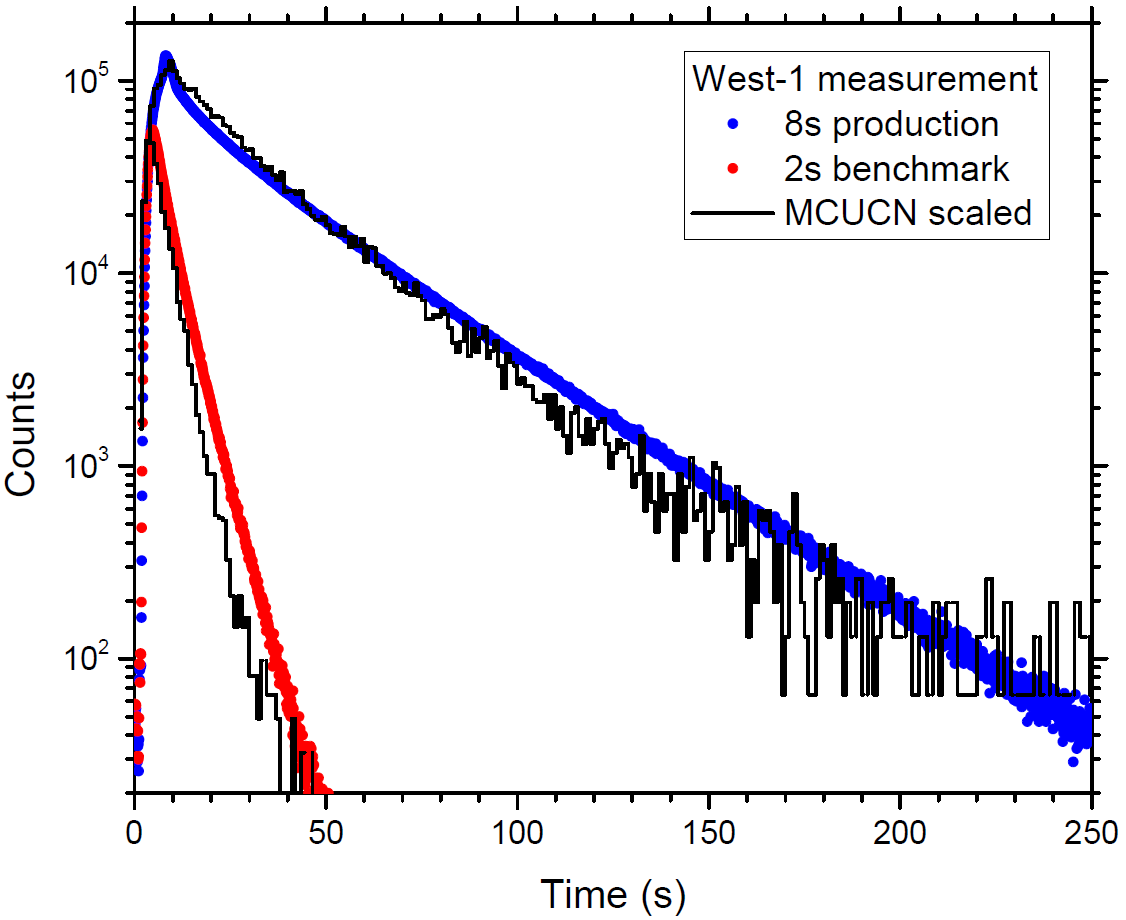

In Figs. 33, 34 and 35 we compare measurement results and MC data. The emptying curve displays the UCN counts decreasing in time after a benchmark pulse or a production pulse. For the case of the South beamline, shown in Fig. 33, the simulation was already validated via parameter scans and fit to the measured slopes. In Fig. 34, the small mismatch in slope between simulation and measurement indicates that the coating parameters obtained for beamline South are not exactly the same as for West-1.

We see a mismatch between MC and measured data at times comparable with the length of the initial proton beam pulse. The agreement is much better at later times when, as discussed above, we expect that the details of the diffuse reflection model is less relevant. During the pulse it is likely that one measures a higher background which is not simulated, mostly from faster (not storable) neutrons which can pass with low probability at small grazing reflection angles along the guides.

Another cause of the discrepancy at such short times could be that in reality the low roughness and high roughness surface regions (the latter including cavities at the edges) are unevenly distributed, whereas in the MC model we set uniform surface quality. At short time-scales and, in contrast to what was previously discussed for equilibrium conditions, the implementation of diffuse reflections in the model actually matters. An additional simplification was that the assumed energy spectrum emerging from the UCN converter was linear as obtained from simulations of an optimal sD2 structure. If a harder UCN spectrum would be generated, it could enhance the higher energies at early times.

In order to benchmark MC simulations with measurements we compare the emptying time constants which do not depend on the scaling of the UCN counts. We defined two separate time intervals as indicated by the rectangles along the data in Fig. 33, one from 50 s to 75 s, and the next from 75 s to 100 s. Within these short intervals we can safely assume single-exponential dependence and sufficient statistics for the benchmark. To each interval corresponds one constant, $\tau_{1}$ or $\tau_{2}$.

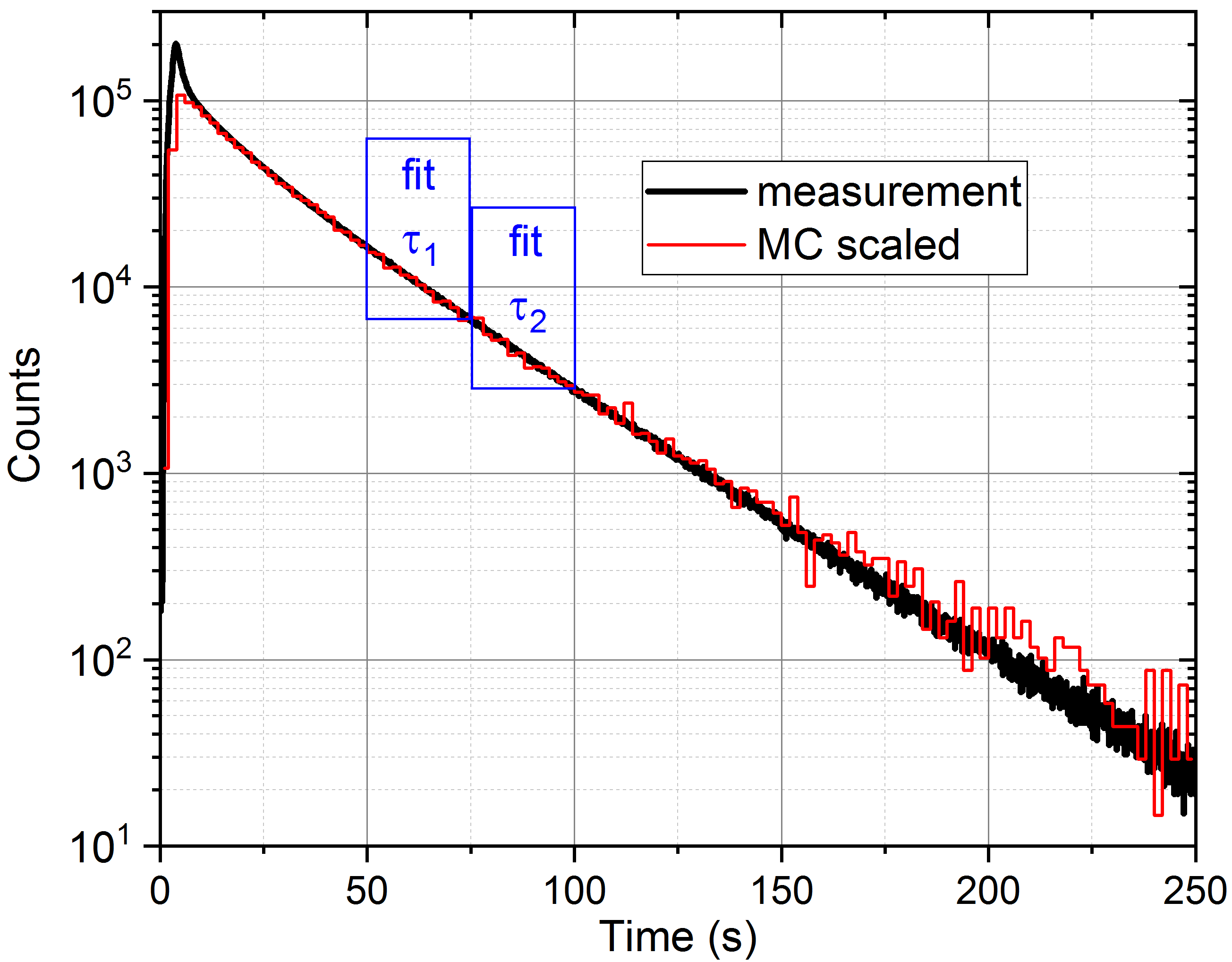

Each of these two time constants were extracted from the measured and the simulated time spectra. We calculated the relative deviation between the MC and the experimental value. The scope is to scan the parameter plane, one axis being the loss parameter $\eta$ and the other axis the diffuse reflection fraction $p_{\text{diff,guide}}$. A single simulation takes ten minutes in order to produce enough statistics (goal: below 1.5% relative error) for only one parameter configuration. Therefore we scanned along a uniform grid in the parameter space and and used triangular interpolation. Thus we obtained a continuous surface of the distribution of the absolute value of the relative deviation on the third axis. Along the third axis we can define contour levels of the deviation.

We interpret the 1$\sigma$ of the measurement and also of the simulation as 68% confidence interval, assuming that the convolution of several uncertainty contributions result in a close-to-normal distribution. Since we have statistical spread on both the measured and the MC values, 1$\sigma$ here is the square root of the sum of squares of each 1$\sigma$ uncertainty.

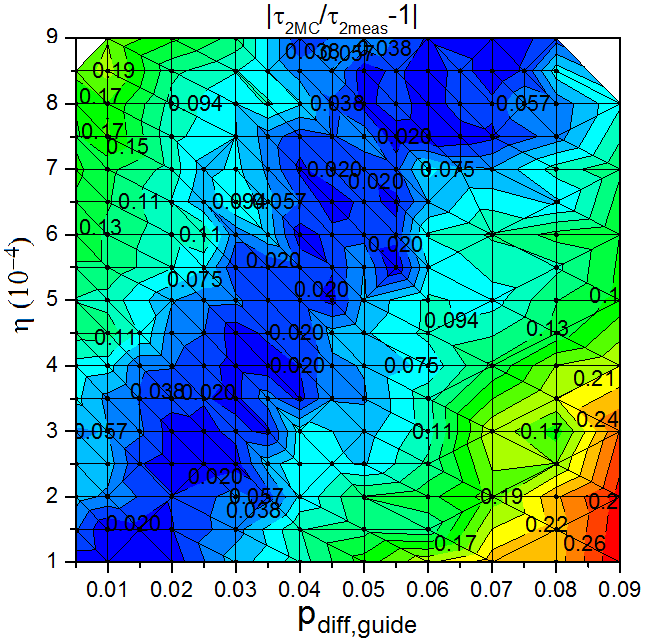

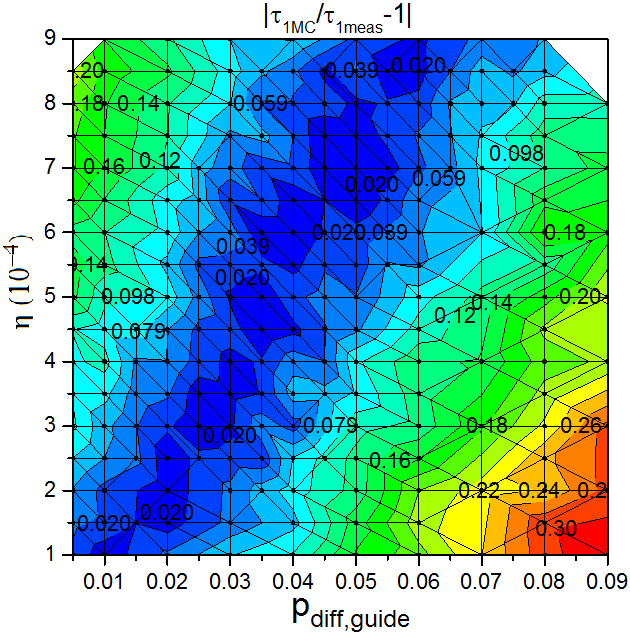

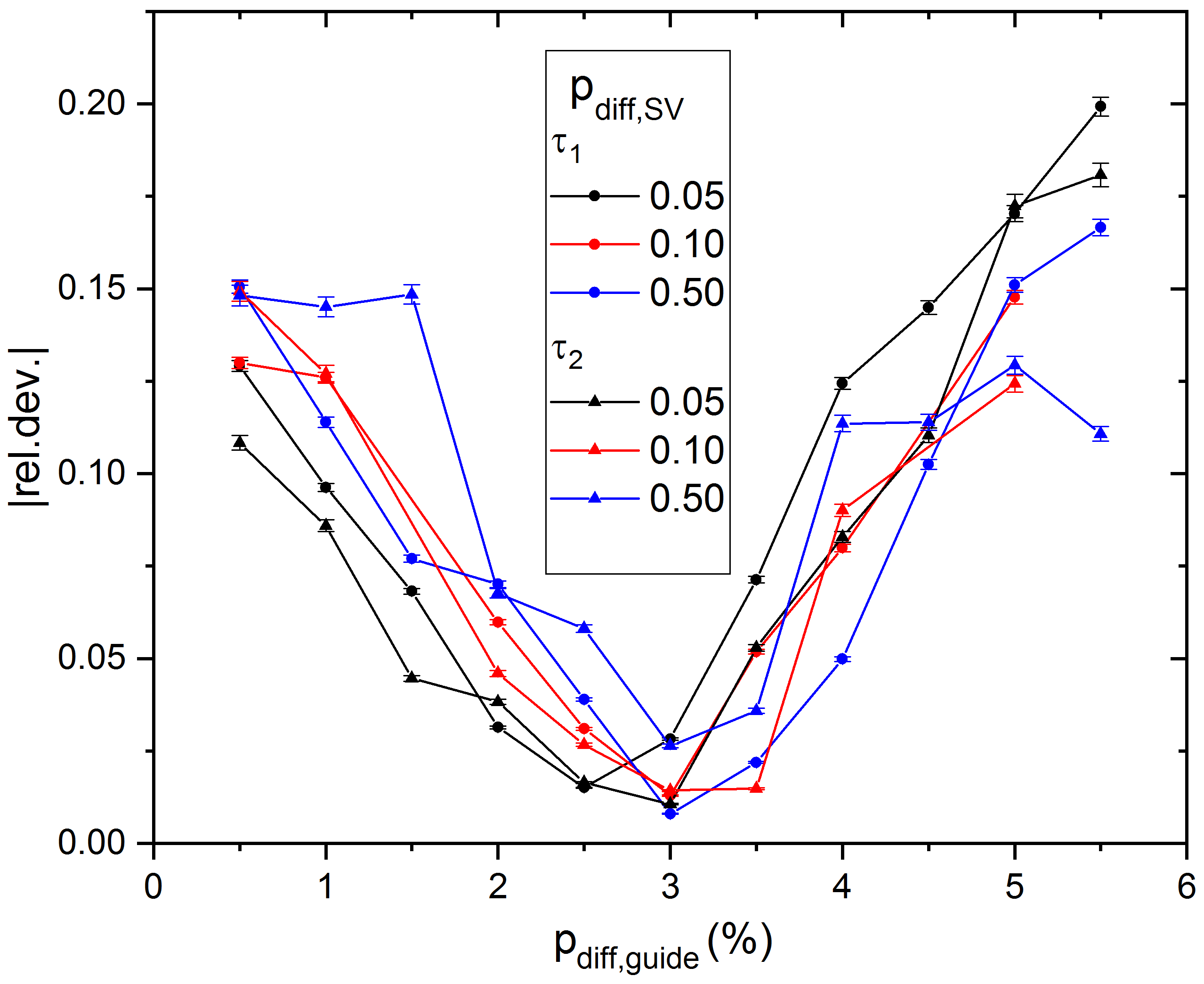

Figures 36 and 37 show the MC results. These reveal a straight valley with a lowest deviation between MC and measurement reaching down to about 2% with almost connected islands. We take as reference the next level, 4%, which is the first fully connected area. This corresponds to about 2-3$\sigma$ deviation. In the calculations we had a 2% relative statistical spread in the MC counts, and in case of the measurements below 0.4% of the counts.

We observe that the valley of lowest deviation points into a direction in which both parameters grow simultaneously. This is because, in this case, the UCN experience two strongly competing effects: (i) the emptying time-constants are on one hand determined by the speed of emptying, i.e. the transmission quality, but (ii) on the other hand by the loss time constant of the entire storage vessel and neutron guide system. For example, if we increase the loss parameter, the time constant will decrease because we lose UCN much faster. At the same time, if we increase the diffuse parameter we make the emptying slower and thus compensate a faster decay in the time spectrum.

5.3 Consistency check by varying the storage volume diffuse fraction

Since the simulations are limited by computation time, we cannot perform very detailed scans by adding those parameters to the parameter space for which we concluded that the dependency of the fit to experiment must be small. However, as a consistency check, we still performed several calculations in which we changed the values of such less relevant parameters.

In Fig. 38 we show a scan to check the variation of the two aforementioned emptying time-constants as a function of the fraction of diffuse reflections at the storage vessel surface. The MC scan was done along a line in the $\eta-p_{\text{diff,guide}}$ plane across the minimum deviation valley visible in Figs. 36 and 37. Different values for the fraction of diffuse reflections in the storage volume were set. We see a weak dependence of the minimum well on this parameter, however, within the uncertainty of the extracted neutron guide parameters. This confirms the robustness of our results with respect to this parameter.

5.4 UCN intensity variation from the magnetic field of the polarizer

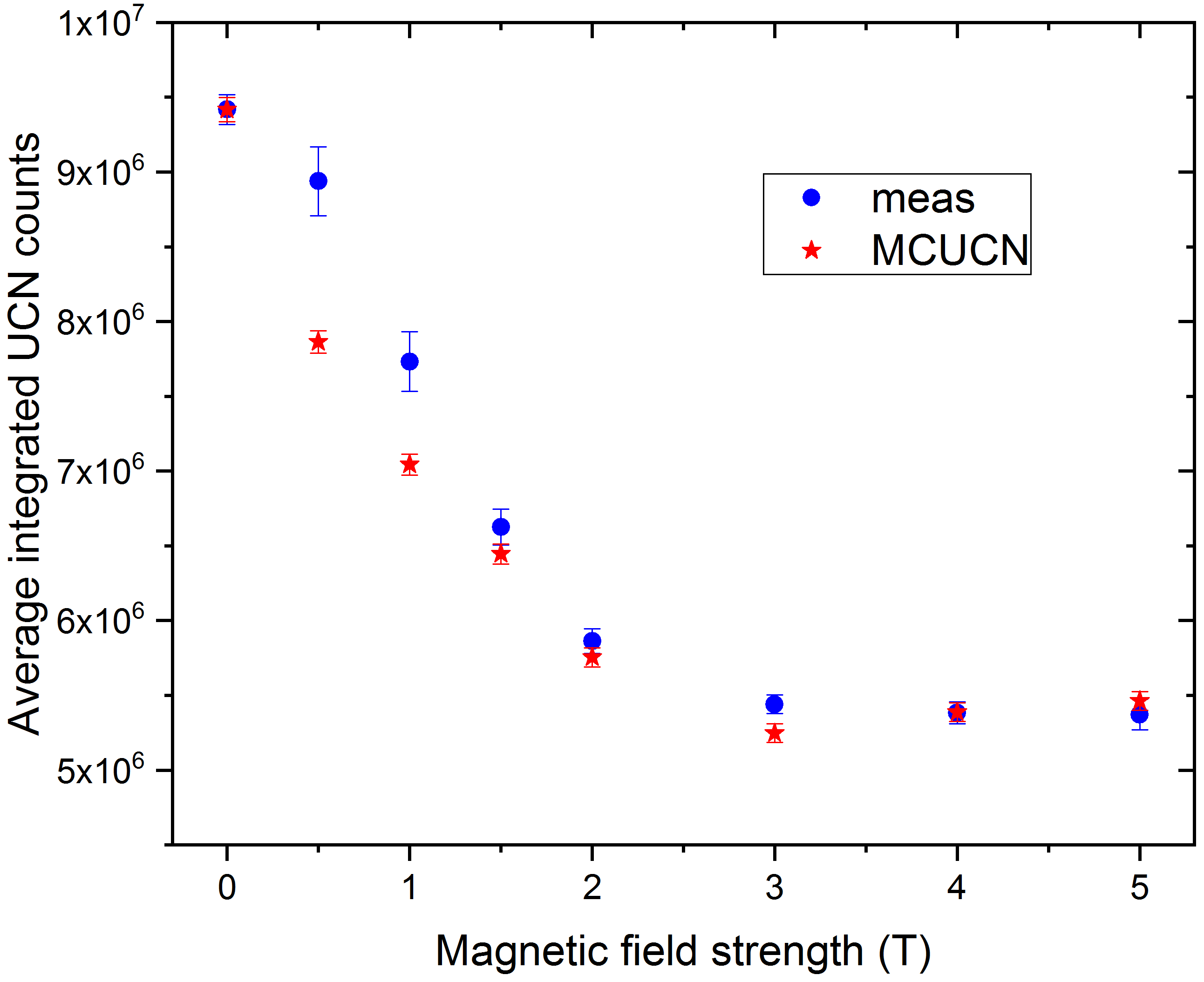

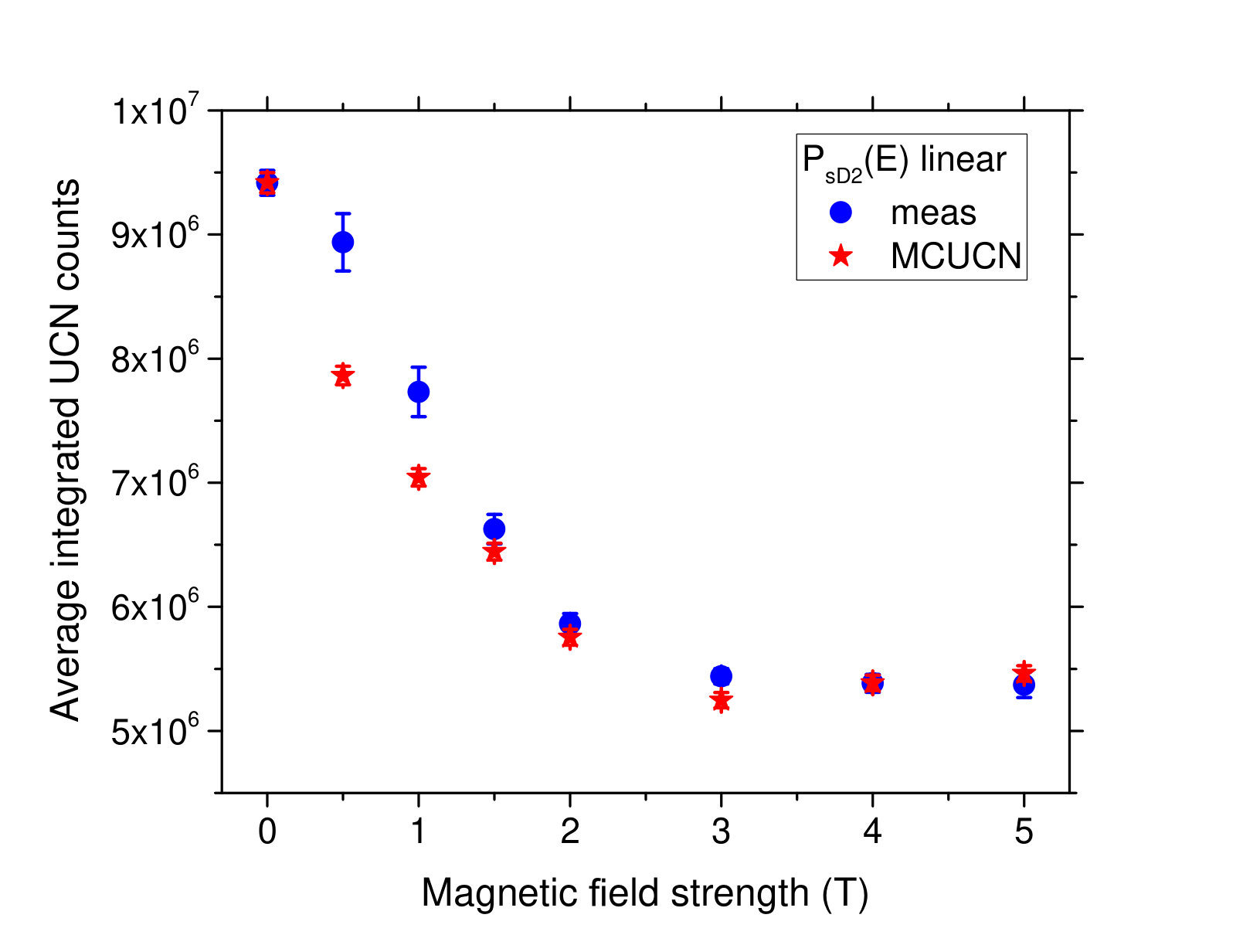

The measurements described in Sec. 4.5 were reproduced satisfactorily by simulations as illustrated in Fig. 28. The low-energy range is not yet well modeled, either because of the not sufficiently well known low-energy spectrum or the not well known transmission of the low-energy UCN. The SC polarizer magnet was simplified to a rectangular potential profile along the beam axis located at the position of the safety window. Further studies are planned. We also envisage to check how the alternative diffuse reflection models would affect the results.

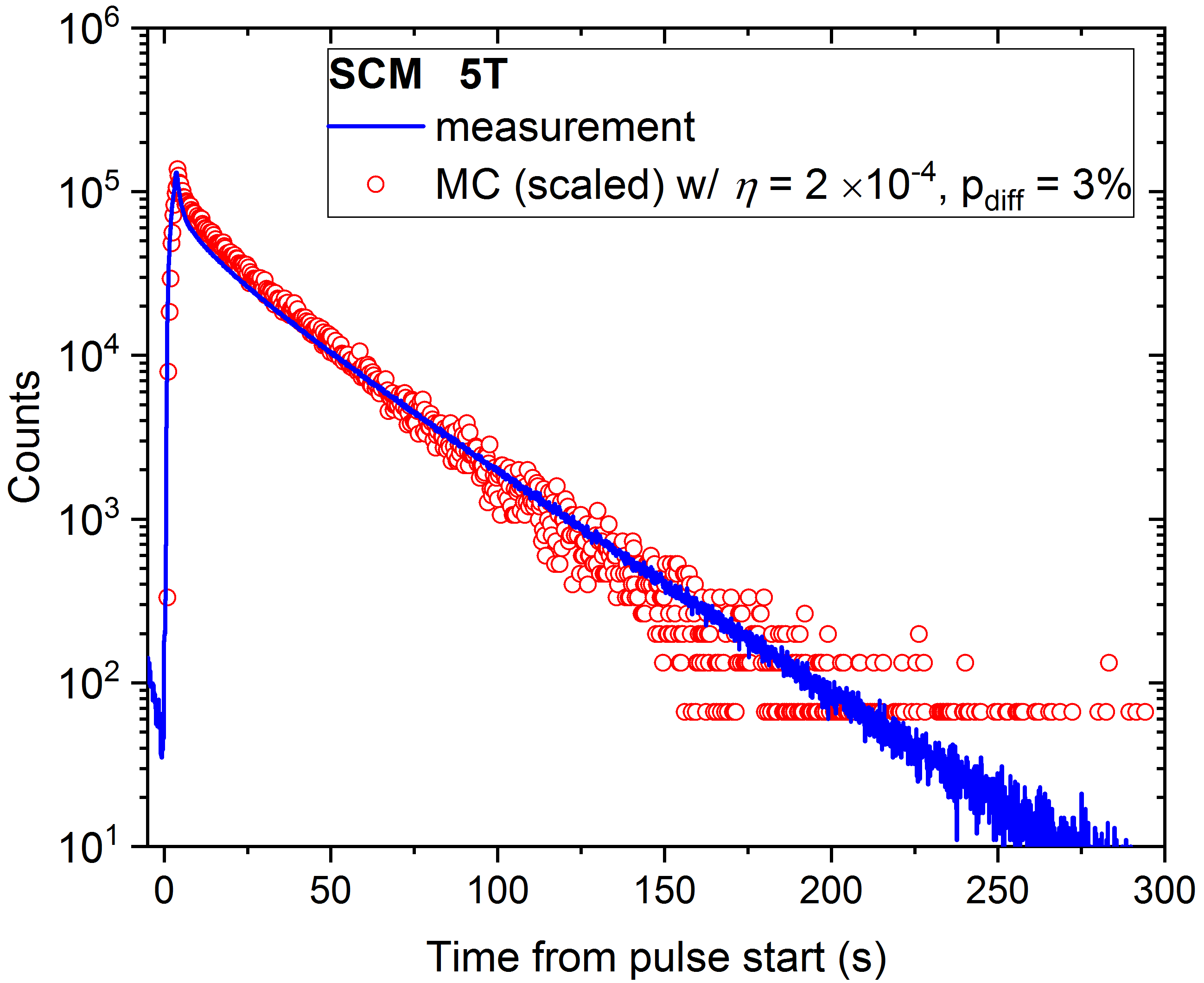

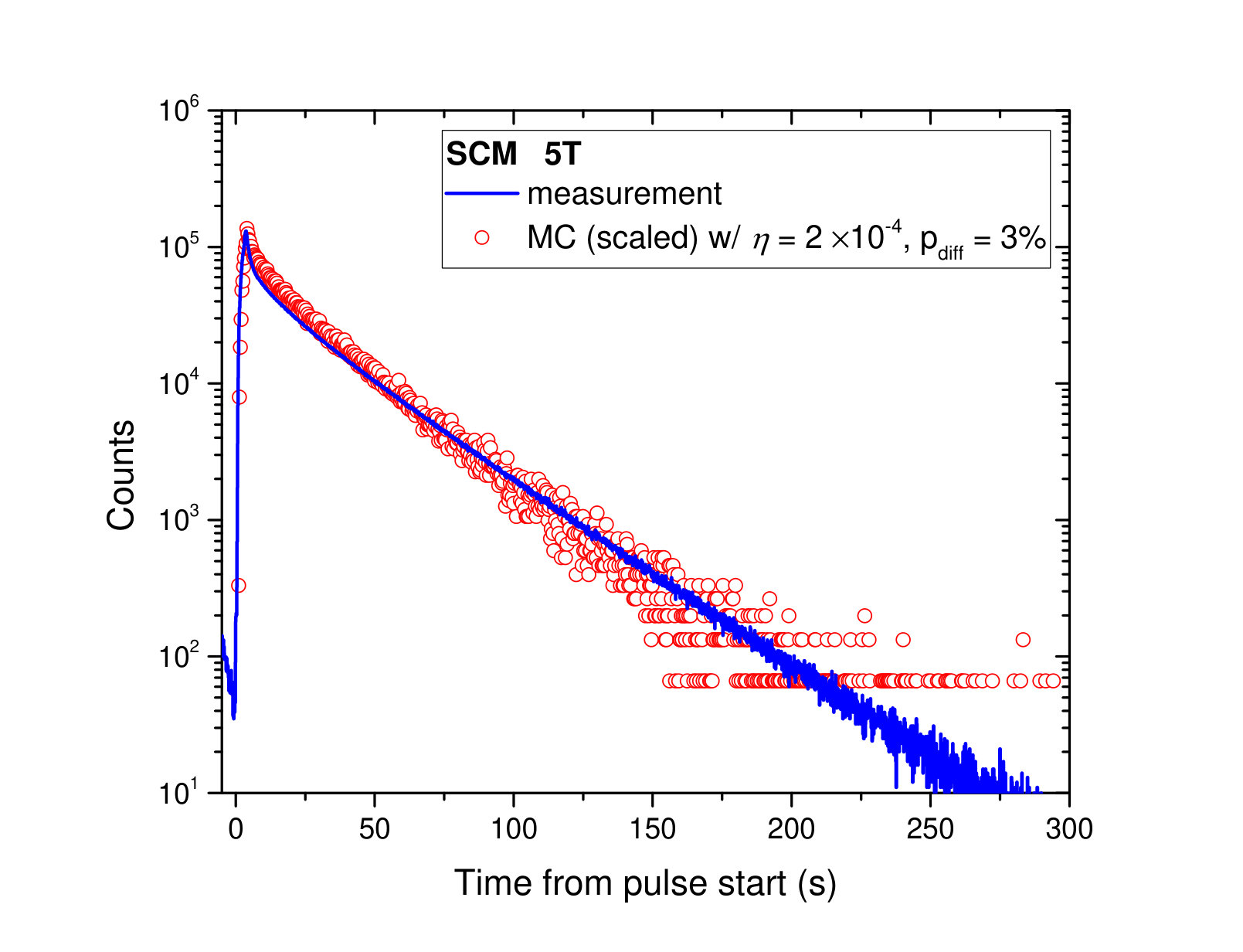

In Fig. 39 the emptying curves for the case of a 5 T magnetic field are depicted. It can be observed that for time-scales below 50 s the simulation does not reproduce very well the measurement. One cause, which will be checked in further studies, could be that the short time characteristics are determined by the concrete modeling of the diffuse reflections. A Lambert-type modeling turns out to be a too rough approximation for short detection times. It is sufficient only for detection times larger than several tens of seconds as demonstrated in Figs. 33 and 39. The simulations overestimate the time constant for short times as visible in Fig. 40. However, the profile indicating a minimum was qualitatively reproduced. This can be due to the competition of two effects both increasing with the magnetic field: (i) better transmission through the aluminum window allowing for shorter detection times, and (ii) more UCN rejected by the polarizer which depolarize again and have a second chance later to be transmitted, and thus increasing the detection time.

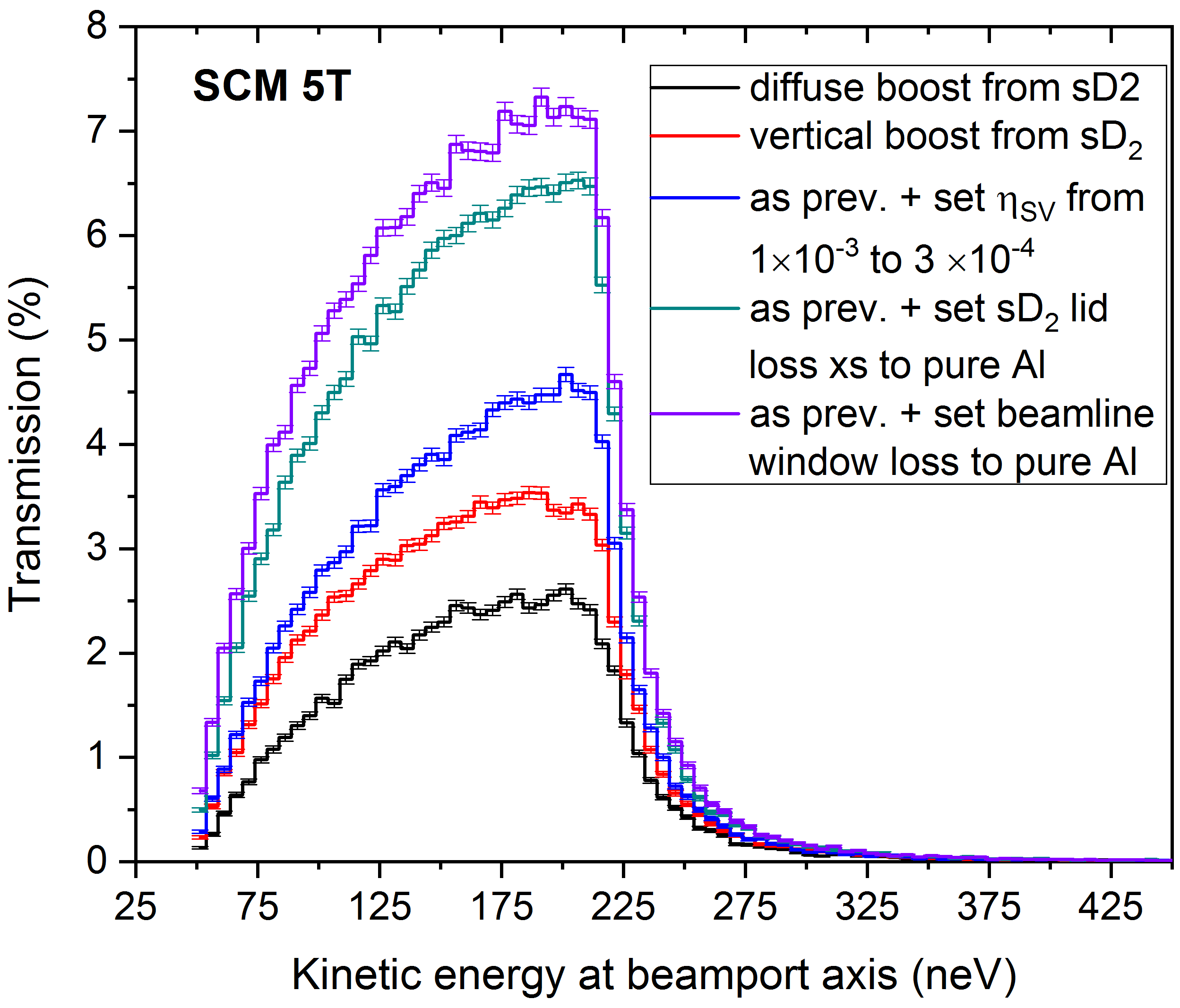

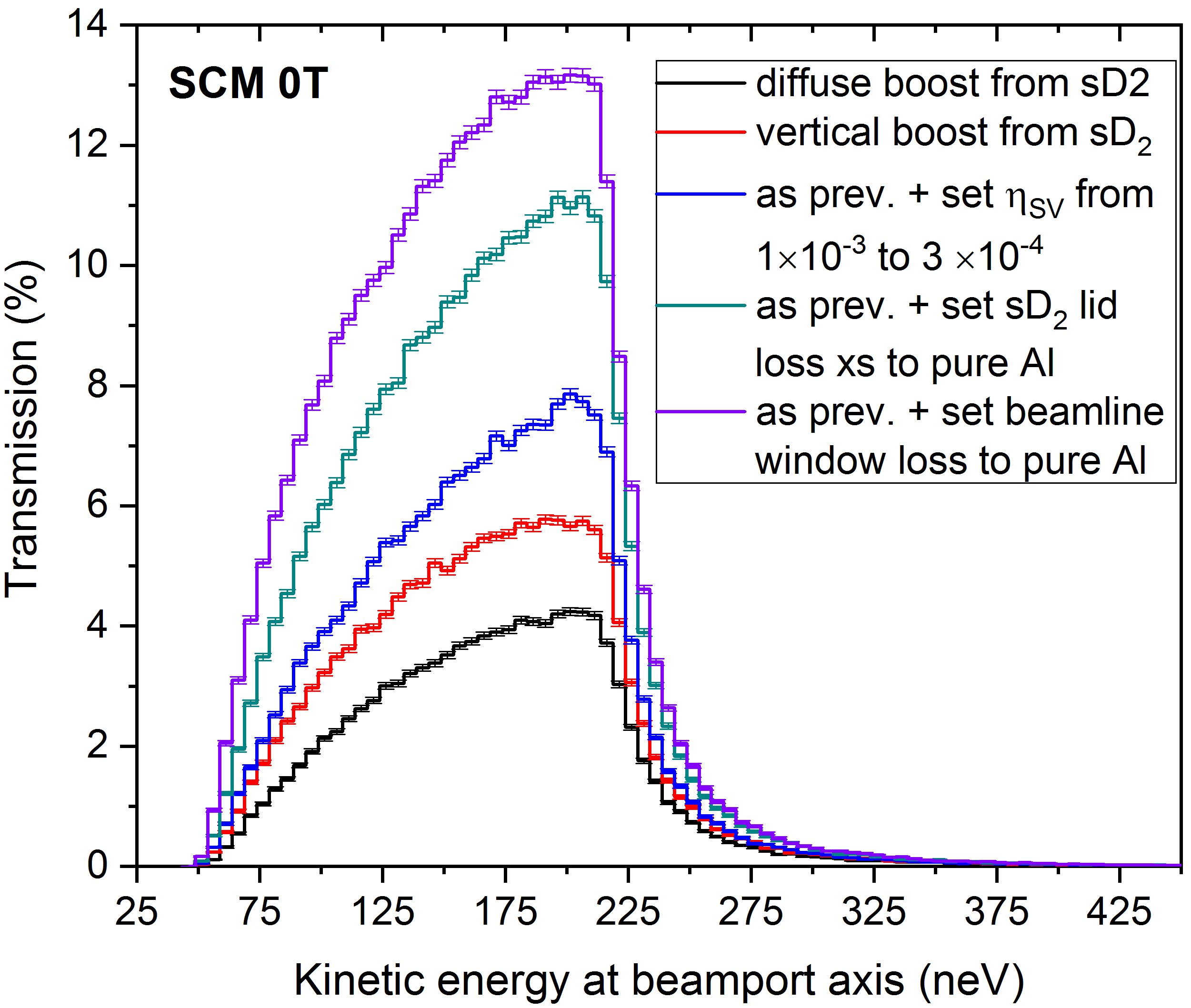

5.5 Simulations of the UCN transmission from the solid deuterium to the beamport

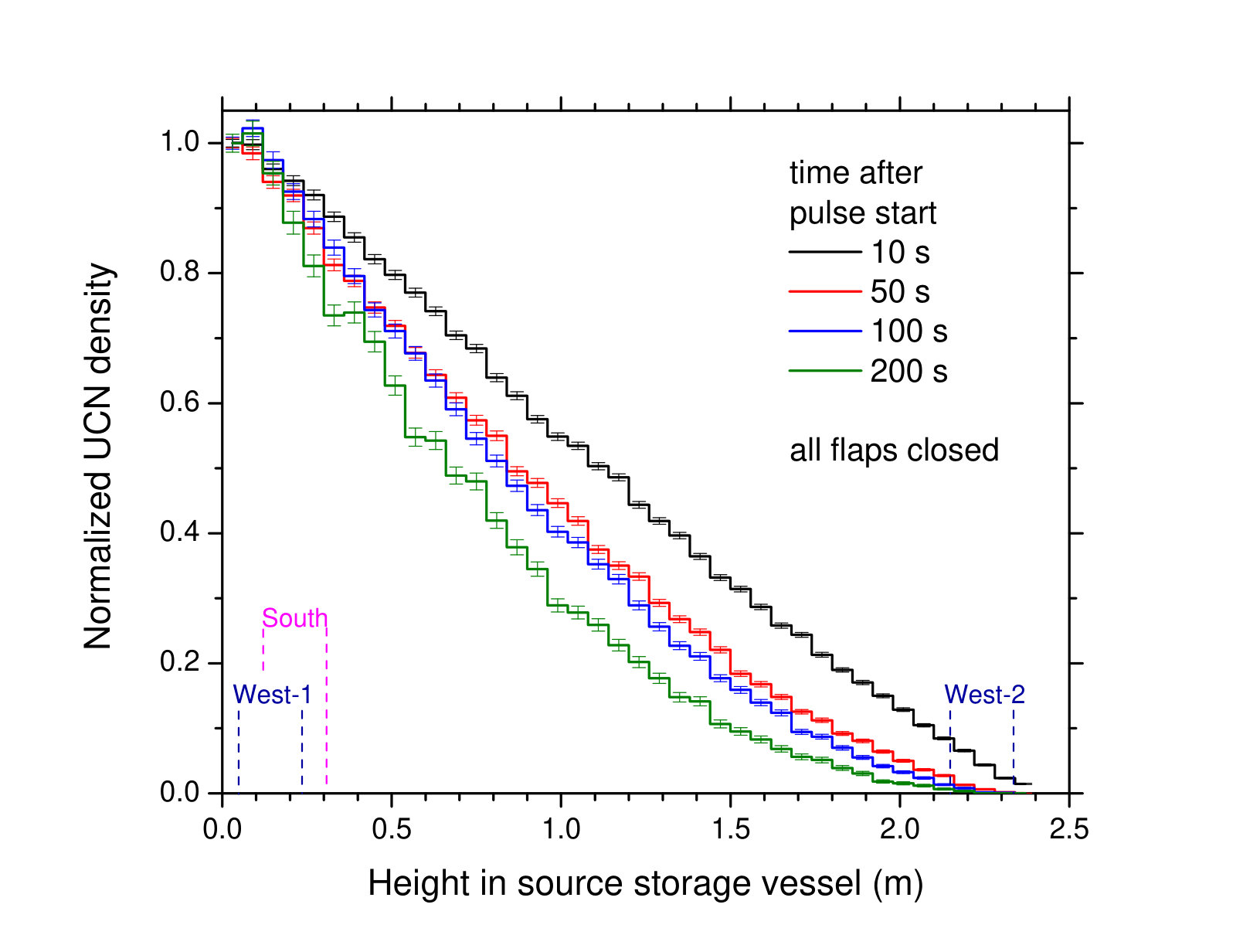

In this section we provide details from simulations describing the dependence of important quantities on time, position, energy, which are not accessible directly from experiments for practical reasons. However, they provide important information on the characteristics of the PSI UCN source and UCN guide system. We obtain information on, for example (i) the time-integrated transmission between the upper surface of the UCN converter and the end of the UCN guides, including the detector window, or (ii) on the energy spectra as a function of time of the detected UCN. Another not accessible observable, the density profile of UCN along the vertical direction in the storage vessel of the UCN source was already plotted in Fig. 32, and helped to estimate the ratio of bounce-rates at different heights.

The parameters for coating quality in the simulation results presented next are summarized in Table 5. We considered the case of direct transmission between the lid above the sD2 and the detector window, including these two.

In Figs. 41 and 42 the transmission of UCN between the solid deuterium surface and the detector is shown for zero and for 5 T field in the SC polarizer magnet. The transmission was calculated as the ratio of the UCN counts after the detector window, and the number of UCN generated below the lid of the converter vessel, and was separated into bins of the kinetic energy at the level of the beamline axis. The vacuum window of the beamport and that of the detector set the lower energy boundary of the spectrum to the optical potential of aluminum. The different lines indicate successive simulations in which we changed only one parameter at a time (except the random seed). For obvious reasons the transmission of UCN is strongly energy dependent, thus for a more general purpose, the transmission has to be calculated as a function of energy.

In a first step (see the lowest transmission curve in Figs. 41 and 42) the UCN source and guide optics was set as previously benchmarked by matching the test measurements

• as described in the above sections - and by setting the energy boost from the solid deuterium diffusely (see Sec. 3.3). This kind of diffuse boost corresponds to the most probable case when the upper surface of the converter material is very rough, e.g. being composed by poly-crystalline structures, as frost Anghel2018 .

The next case is the simulation of a vertical boost which would correspond to a perfectly flat surface of the converter material. The gain factor due to this new setting turns out to be about 1.4$\pm$0.1. The latter and next gain factors from these simulations were calculated by averaging in the UCN energy interval 120-230 neV, which is a representative range in which most UCN are transmitted to the beamport (see transmission curves in Fig. 43).

In a second step, we estimate the loss effect due to the gaps in the storage-vessel of the UCN source by changing the effective loss parameter from the one benchmarked above 1$\times$10*-3* to the pure DLC contribution 3$\times$10*-4*

• as found in measurements Atchison2005c . The gain factor obtained in this step is 1.3$\pm$0.1.

The next curves help to localize the loss effects due to the absorption, up-scattering and back-scattering in the vacuum safety windows. It has been shown in Atchison2009 and in later comparisons with measurements reported in Section 4.4 and in Ref. Ries2016 that the loss cross-section in the aluminum window is a factor 2.2-2.5 larger than the theoretical value. At first we reduced only the loss cross section in the lid of the converter vessel to the theoretical one. The gain factor due to this new setting is 1.5$\pm$0.1.

The last step was switching the loss parameter in the vacuum safety window to the theoretical one. In this case we see a difference between the two magnetic field settings in the SC polarizer. The gain factor obtained in this step is 1.3$\pm$0.1 for field off (un-polarized UCN) and 1.1$\pm$0.1. for a 5 T field (polarized UCN). The smaller difference for the case of polarized neutrons was expected because of the energy boost caused by the SC magnet.

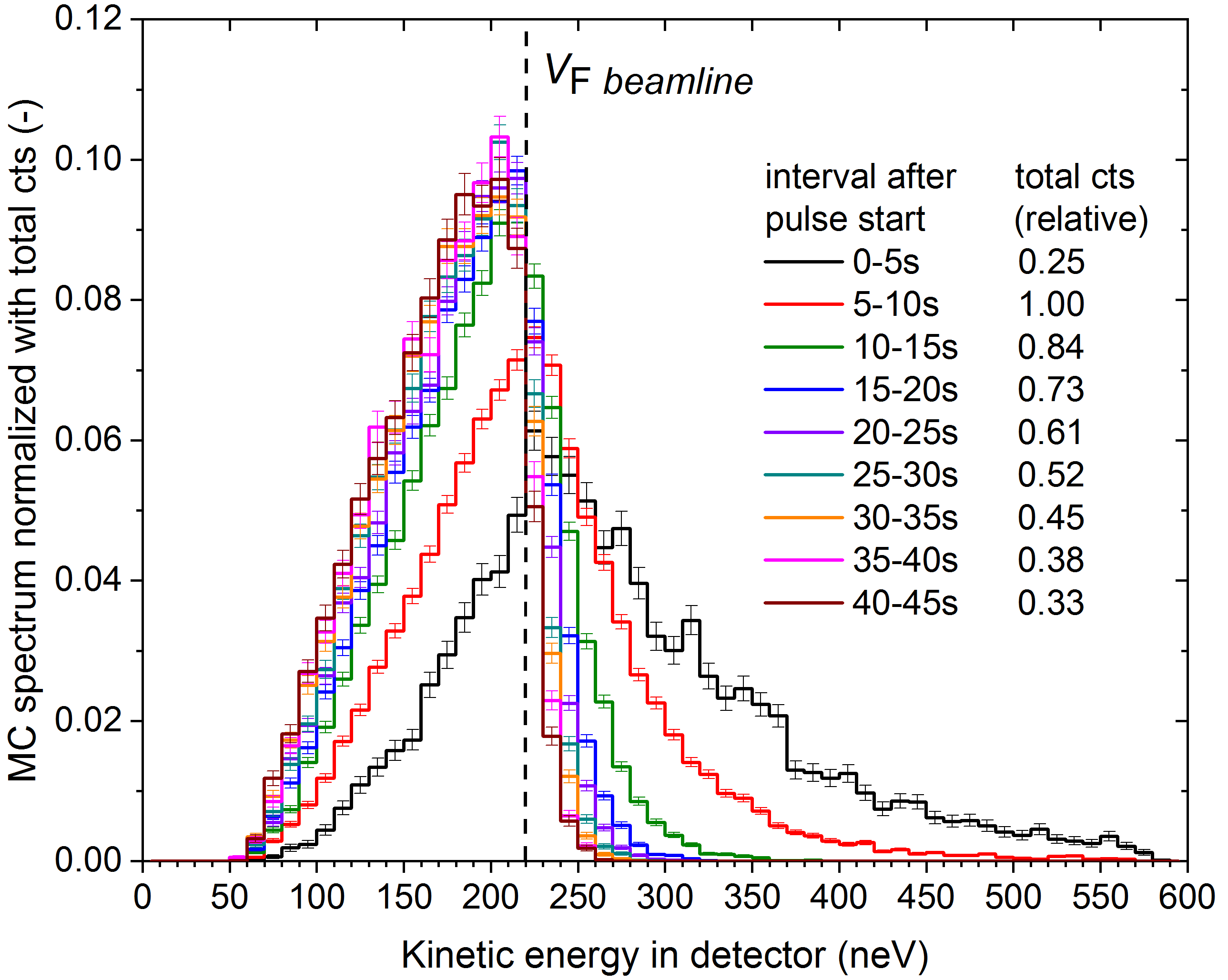

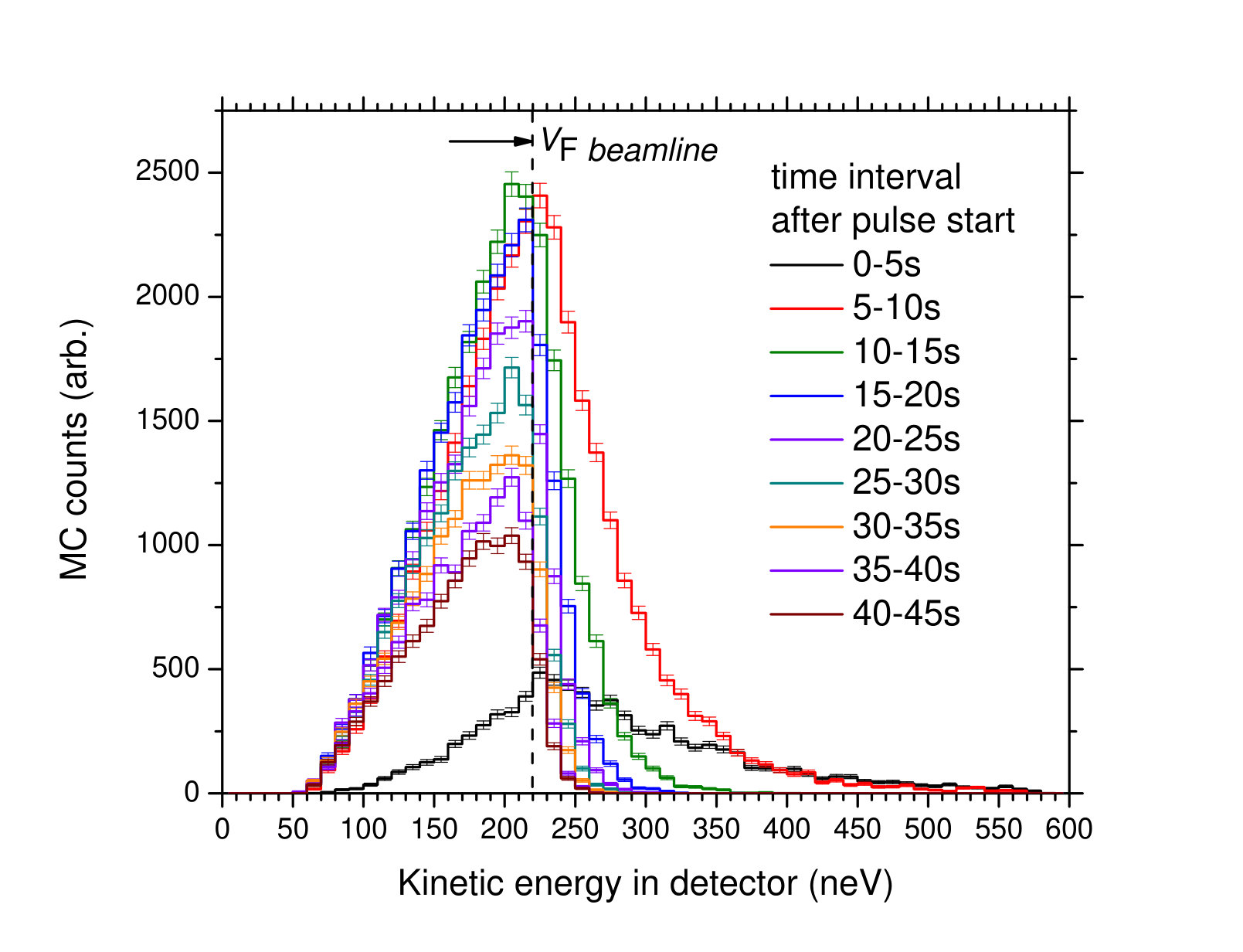

The transmission profiles given as a function of UCN energy are valid independently from the initial energy spectrum which was generated at the level of the solid deuterium surface. One can estimate the energy spectra detected at the beamport assuming a linear initial spectrum. The calculations were again considering the case of direct transmission towards the detector. The resulting energy spectra were plotted in Fig. 43 as a function of the time bins after the start of the 4 s proton pulse. The spectra were normalized with their total counts. The change over time in the total counts (relative to the maximum) can be seen in the second column of the figure legend. It can be seen that the spectrum is softening very fast just after the pulse and continues to do so with decreasing rate. The dashed vertical line at 220 neV indicates the optical potential of the UCN guide coating (NiMo) set in the MC simulation. One can clearly see the decrease in the spectra above this energy limit. At short times a large fraction of very-cold neutrons (in our case with energies higher than 220 neV) are still present. Even after 30 s the fraction of these faster neutrons is not negligible compared to the area of the same curve below the 220 neV threshold.

We can conclude that MC simulations help us to quantify several effects causing UCN losses in the PSI UCN source and guide system. Just after the proton pulse there is a considerable amount of neutrons faster than UCN, which could be important for specific applications.

6 Summary

This paper presents all components which define the ultracold neutron optics of the PSI UCN source. UCN intensities and their increase in subsequent years are given. Measurements of storage time constants, of UCN intensities and their time dependence, and of UCN transmissions are shown as relevant characterization measurements. Together with measurements characterizing the UCN surfaces they define the neutron optics parameters of the source.

The MCUCN simulation model together with dedicated experiments allowed for constraining overall quality parameters characterizing the optical components above the main shutter of the UCN source vessel. A specific characterization of the vertical guide part of the source will be the subject of a forthcoming study. The resulting cross-checked simulation allowed the calculation of relevant parameters of the UCN source which are not accessible to experiments, like the UCN density distribution in the storage vessel. The presented results demonstrate the excellent performance of the PSI UCN source and will help us to better understand and further optimize its performance.

Acknowledgments

All people who have been contributing to design and construction of the PSI UCN source are gratefully acknowledged. The outstanding continuous technical support of M. Meier and F. Burri is acknowledged. We are grateful to the BSQ group operating the UCN source, namely P. Erisman, R. Erne, K. Geissmann, A. Kalt, T. Hofmann, J. Welte and D. Viol. Operations support by A. Anghel is appreciated. We acknowledge the excellent support by the PSI proton accelerator operations section, especially A. Mezger and D. Reggiani, and the target group of M. Wohlmuther and V. Talanov, and the excellent support by many other PSI support groups. Personal efforts and support of P. Bucher, U. Bugmann, M. Dänzer, J. Ehrat, A. Fuchs, A. Gnädinger, A. Hirt, M. Horisberger, B. Jehle, R. Käch, R. Knecht, M. Koller, M. Mähr, O. Morath, M. Müller, W. Pfister, P. Rüttimann, R. Schelldorfer, T. Stapf and C. Stettler are acknowledged. This work was supported by the Swiss National Science Foundation Projects $200020\_137664$ and $200020\_149813$, $200020\_163413$. Special thanks for granting access to the PL-Grid PLGrid .
