Topological Anderson insulator phase in a quasicrystal lattice

TL;DR

This paper demonstrates that disorder can induce a topological Anderson insulator phase in a two-dimensional quasicrystal lattice, with robust edge states and quantized conductance, expanding understanding of topological phases in aperiodic systems.

Contribution

It reveals that disorder can induce a topological phase transition in a quasicrystal lattice, supported by numerical evidence and topological index calculations.

Findings

Disorder induces a transition from normal insulator to topological Anderson insulator.

Quantized conductance plateau appears inside the energy gap due to disorder.

Edge-localized current distributions confirm the topological nature of the disorder-induced phase.

Abstract

Motivated by the recent experimental realization of the topological Anderson insulator and research interest on the topological quasicrystal lattices, we investigate the effects of disorder on topological properties of a two-dimensional Penrose-type quasicrystal lattice that supports the quantum spin Hall insulator (QSHI) and normal insulator (NI) phases in the clean limit. It is shown that the helical edge state of the QSHI phase is robust against weak disorder. Most saliently, it is found that disorder can induce a phase transition from NI to QSHI phase in the quasicrystal system. The numerical results based on a two-terminal device show that a quantized conductance plateau can arise inside the energy gap of NI phase for moderate Anderson disorder strength. Further, it is confirmed that the local current distributions of the disorder-induced quantized conductance plateau are located on the two edges of sample. Finally, we identify this disorder-induced phase as topological Anderson insulator phase by computing the disorder-averaged spin Bott index.

Figures

Tables

Table 1. Table 1: The Slater-Koster hopping matrix elements.

Orb.	$s$	$p_x$	$p_y$
$s$	$V_{ss\sigma }$	$l{V}_{sp\sigma }$	$m{V}_{sp\sigma }$
$p_x$	$-l{V}_{sp\sigma }$	$l^2{V}_{pp\sigma }+\left(1-l^2\right)V_{pp\pi }$	$lm\left(V_{pp\sigma }-V_{pp\pi }\right)$
$p_y$	$-m{V}_{sp\sigma }$	$lm\left(V_{pp\sigma }-V_{pp\pi }\right)$	$m^2{V}_{pp\sigma }+\left(1-m^2\right)V_{pp\pi }$

Equations

$$H$$

$$t_{i\alpha ,j\beta }\left({\mathbf{d}}_{ij}\right)=\text{SK}\left[V_{\alpha \beta \gamma }\left(d_{ij}\right),{\hat{\mathbf{d}}}_{ij}\right],$$

$$V_{\alpha \beta \gamma }\left(d_{ij}\right)=V_{\alpha \beta \gamma }^0\frac{d_0^2}{d_{ij}^2},$$

$$H_L=\sum _{i\alpha }{\mu }_L{\sigma }_0{c}_{i\alpha }^{†}{c}_{i\alpha }+\sum _{⟨i\alpha ,j\beta ⟩}{t}_{i\alpha ,j\beta }{\sigma }_0{c}_{i\alpha }^{†}{c}_{j\beta },$$

$$H_{LD}=\sum _{⟨i_s\alpha ,j_s\beta ⟩}{t}_{i_s\alpha ,j_s\beta }{\sigma }_0{c}_{i_s\alpha }^{†}{c}_{j_s\beta },$$

$$\Delta H=\sum _{i\alpha }{W}_{i\alpha }{\sigma }_0{c}_{i\alpha }^{†}{c}_{i\alpha },$$

$$P=\sum _i^N|{\psi }_i⟩⟨{\psi }_i|,$$

$$U_{\pm }$$

$$V_{\pm }$$

$$B_s=\frac{1}{2}\left(B_{+}-B_{-}\right),$$

$$J_{\mathbf{i}\to \mathbf{j}}=\frac{2e^2}{h}\text{Im}\left[\sum _{\alpha ,\beta }{H}_{\mathbf{i}\alpha ,\mathbf{j}\beta }{G}_{\mathbf{j}\beta ,\mathbf{i}\alpha }^n\right]\left(V_L-V_R\right)\text{,}$$

Full text

I Introduction

The quasicrystal, which possesses long-range orientational order but non translational symmetry Shechtman et al. (1984); Levine and Steinhardt (1984); Biggs et al. (1990); Pierce et al. (1993); Basov et al. (1994); Pierce et al. (1994), exhibits various unusual physical properties such as extremely low friction Dubois et al. (1991), self-similarity Sutherland (1986); Fujiwara et al. (1988), and critical behaviours of wave functions Tsunetsugu et al. (1991); Tsunetsugu and Ueda (1991). Moreover, the quasicrystal possesses multifractal energy structure Fujiwara (1989), which is responsible for the counterintuitive transport properties, including the abnormally low conductivities Fujiwara (1989); Matsubara et al. (1991) and the disorder-enhanced transport Fujiwara et al. (1993); Mayou et al. (1993) that was experimentally confirmed in a photonic system Levi et al. (2011). Due to its unique properties, the quasicrystal has attracted much attention theoretically and experimentally, and has been investigated in various systems including the solid state systems Jenks and Thiel (1998); McGrath et al. (2002); Sharma et al. (2007); McGrath et al. (2012), photonic systems Vardeny et al. (2013); Viebahn et al. (2019); Steurer and Sutter-Widmer (2007), and phononic systems Steurer and Sutter-Widmer (2007); Chen et al. (2008).

Materials with nontrivial topology have attracted much attention in the last decade Qi and Zhang (2011); Hasan and Kane (2010); Bansil et al. (2016). Nowadays, the search for new topological phases becomes a fundamental theme of the condensed matter physics community. Topological materials were mainly investigated in conventional crystalline systems. Recently, an increasing interest is realizing nontrivial topological phases in the quasicrystal systems. For example, Huang and Liu proposed that the quantum spin Hall insulator (QSHI) can be realized on a Penrose-type quasicrystal lattice, in which the bulk topology is captured by the spin Bott index Huang and Liu (2018a, b). Furthermore, they found that the QSHIs manifest similarly in an Ammann-Beenker-type octagonal quasicrystal and a periodic snub-square crystal, indicating the robustness of the topological properties regardless of symmetry and periodicity Huang and Liu (2019). Moreover, the quantum Hall insulator Tran et al. (2015), the Floquet Chern insulator Bandres et al. (2016), the topological superconductor Pöyhönen et al. (2018); Fulga et al. (2016), the non-Hermitian topological insulator Longhi (2019); Zeng et al. (2019), and the higher-order topological insulator Chen et al. (2019)/superconductor Varjas et al. (2019) were proposed in the quasicrystal systems. In the mean time, the topological phase transitions were experimentally observed in photonic quasicrystals Verbin et al. (2013), and recently the topological edge modes were also reported in quasiperiodic acoustic waveguides Apigo et al. (2019).

On the other hand, the interplay between topology and disorder plays an important role in the recent research of topological matters. The topological Anderson insulator (TAI), one of disorder-induced topologically nontrivial phases, was firstly proposed by Li et al  Li et al. (2009). Since then, the TAI and the disorder effects on the topological matters have been investigated in various models and systems  Jiang et al. (2009); Groth et al. (2009); Wu et al. (2016); Xing et al. (2011); Orth et al. (2016); Guo et al. (2010, 2011); Guo (2010); Chen et al. (2017a, b, 2018a, 2018b); Su et al. (2016); Kimme and Hyart (2016); Chen et al. (2015a, b); Shapourian and Hughes (2016); Kuno (2019); Zhang et al. (2019). Recently, the TAI phase has been observed experimentally in one-dimensional disordered atomic wires Meier et al. (2018) and a photonic platform Stützer et al. (2018). It is noted that up to now the studies of the TAI phase mainly focus on the crystalline systems with disorder. Considering the recent processes of topological nature of quasicrystal systems, thus, the disorder effects on topological quasicrystal systems is also an interesting issue worthy to be addressed.

In this work, we investigate the disorder effects on a general atomic-basis quasicrystal lattice model arranged according to the Penrose tiling. By calculating the two-terminal conductance, it is found that disorder can induces a quantized conductance plateau with $G=2e^{2}/h$ from the normal insulator (NI) phase. The quantized plateau has zero conductance fluctuation, and maintains in a certain range of disorder strength. Thus, it is indicted that the TAI phase appears in the quasicrystal system. Furthermore, the inspection of the nonequilibrium local current distribution confirms that the quantized conductance plateau arises from the disorder-induced helical edge states. Finally, the TAI phase can be characterized by the quantized disorder-averaged spin Bott index.

II Model and method

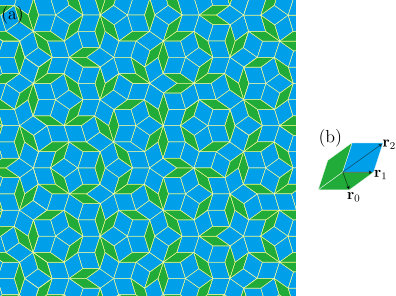

Following the pioneer works by Huang and Liu Huang and Liu (2018a, b), we start with a two-dimensional (2D) quasicrystal lattice with its sites arranged on each vertex of the Penrose tiling Penrose (1974), as depicted in Fig. 1(a). The Penrose tiling contains two types (thin and fat) of rhombuses, which can fill the plane completely in an aperiodic way. To construct the Penrose tiling, we adopt Bruijn’s method by projecting a five-dimensional cubic lattice onto the 2D plane de Bruijn (1981). The QSHI model on the Penrose-type quasicrystal lattice introduced by Huang and Liu Huang and Liu (2018a, b) is described by the following Hamiltonian,

[TABLE]

where $c_{i\alpha}^{{\dagger}}$ and $c_{i\alpha}$ are the creation and annihilation operators of electrons with the orbital $\alpha=s,p_{x},p_{y}$ on site $i$. $\sigma_{i}$ are Pauli matrices representing spin. $\epsilon_{\alpha}$ is the magnitude of the onsite energy of the $\alpha$-orbit. The second term corresponds to the hopping integral with its amplitude depending on the orbital type and the distance vector $\mathbf{d}_{ij}=\mathbf{r}_{j}-\mathbf{r}_{i}.$ The last term is the spin-orbit coupling (SOC) term, and $\lambda$ corresponds to the SOC strength. In this model, the hopping integral $t_{i\alpha,j\beta}$ is determined by the Slater-Koster parametrization Slater and Koster (1954)

[TABLE]

which depends on the orbital type $\alpha,\beta=s,p_{x},p_{y}$, the vector $\mathbf{d}_{ij}$, and the bonding parameter $\gamma=\sigma,\pi$. Here the specific form of $t_{i\alpha,j\beta}\left(\mathbf{d}_{ij}\right)$ is presented in Table 1, where $\mathbf{\hat{d}}_{ij}=\left(l,m\right)$ is the unit direction vector along $\mathbf{d}_{ij}$, and $d_{ij}=\left|\mathbf{d}_{ij}\right|$ is the distance between $i$-th and $j$-th sites. The bonding parameters $V_{\alpha\beta\gamma}\left(d_{ij}\right)$ depend on the distance between two sites, and can be expressed by the Harrison relation Harrison (2012)

[TABLE]

where $d_{0}$ modulates the overall bonding amplitudes. In the subsequent calculations, we take the parameters as $\epsilon_{s}=1.8\text{ eV}$, $\epsilon_{p_{x}}=\epsilon_{p_{y}}=-6.5\text{ eV}$, $\lambda=1\text{ eV}$, $V_{ss\sigma}^{0}=-0.4\text{ eV}$, $V_{sp\sigma}^{0}=0.9\text{ eV}$, $V_{pp\sigma}^{0}=1.8\text{ eV}$, and $V_{pp\pi}^{0}=0.05\text{ eV}$. We will only consider the nearest-neighbor (NN) hopping, the next-nearest-neighbor hopping, and the next-next-nearest-neighbor hopping, which correspond to the short diagonal of the thin rhombuses, the edge of rhombuses, and the short diagonal of the fat rhombuses, respectively, shown in Fig. 1(b). In the previous works by Huang and Liu Huang and Liu (2018a, b, 2019), based on the Penrose-type quasicrystal lattice model described by the Hamiltonian (1), they proposed that the quantum spin Hall effect can be realized in quasicrystal lattices.

We will investigate the transport properties of the Penrose-type quasicrystal lattice with disorder by using the Landauer-Büttiker-Fisher-Lee formula Landauer (1970); Büttiker (1988); Fisher and Lee (1981) and the recursive Green’s function method MacKinnon (1985); Metalidis and Bruno (2005). The linear conductance can be obtained by $G=(e^{2}/h)T$, where $T=$ Tr$\left[\Gamma_{L}G^{r}\Gamma_{R}G^{a}\right]$ is the transmission coefficient. The linewidth function $\Gamma_{\eta}(\mu)=i\left[\Sigma_{\eta}^{r}-\Sigma_{\eta}^{a}\right]$ with $\eta=L,R$, and the Green’s functions $G^{r/a}(\mu)$ are calculated from $G^{r}(\mu)=\left[G^{a}(\mu)\right]^{\dagger}=\left[\mu I-H_{C}-\Sigma_{L}^{r}-\Sigma_{R}^{r}\right]^{-1}$, where $\mu$ is the chemical potential, $H_{C}$ is the Hamiltonian matrix of the central scattering region, and $\Sigma_{L,R}^{(r/a)}$ are the retarded (advanced) self-energy due to the device leads.

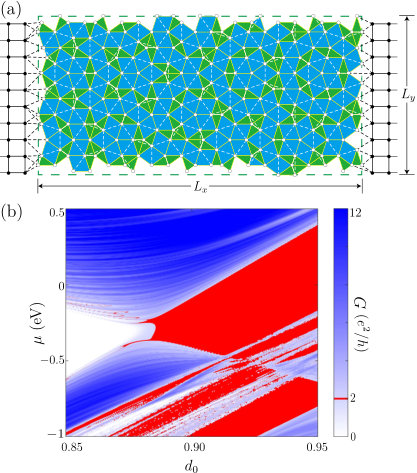

As shown in Fig. 2(a), we adopt a clipped Penrose lattice of size $L_{x}\times L_{y}$ as the central scattering device, and two semi-infinite square lattice as the leads connected to the device along the $x$ direction. The Hamiltonian for the semi-infinite lead is

[TABLE]

where $\mu_{L}$ is the chemical potential of the leads. In modeling the leads, we only consider the NN hopping of the square lattice, i.e., $d_{ij}=r_{1}$. The Hamiltonian that describes the connection between the leads and device is

[TABLE]

where the labels $i_{s}$ and $j_{s}$ correspond to the connected points in the leads and device, respectively. In the subsequent calculation, we take $\mu_{L}=2\text{ eV}$ to guarantee a high density of state of the leads. We will introduce the Anderson-type disorder to the central scattering region with

[TABLE]

where $W_{i\alpha}$ is uniformly distributed within $\left[-U/2,U/2\right]$, with $U$ being the disorder strength.

On the other hand, the Penrose quasicrystal lacks the translational symmetry, and cannot be analysed in the framework of Bloch theory. However, the quasicrystal tiling approximants provides a systematic approach to construct a periodic lattice which can gradually approximate the aperiodic quasicrystal with increasing the vertex number of the super unit cell Tsunetsugu et al. (1991); Tsunetsugu and Ueda (1991); Tsunetsugu et al. (1986); Entin-Wohlman et al. (1988). It is noted that the spin Bott index has been proposed to identify the quantum spin Hall state in both crystalline and nonperiodic systems Huang and Liu (2018a, b). Thus, in the Penrose-type quasicrystal lattice, we will adopt the spin Bott index to identify the topological phase. To calculate the spin Bott index in real space, one needs to construct the projector operator of the occupied states as

[TABLE]

where $\psi_{i}$ is the $i$-th eigenvector of the Hamiltonian obtained by the Penrose-type quasicrystal tiling approximants, and $N$ is the number of the occupied bands. Then we construct the projected spin operator as $P_{z}=P\hat{s}_{z}P$, where $\hat{s}_{z}=\frac{\hbar}{2}\sigma_{z}$ is the spin operator. The eigenvalue of $P_{z}$ is composed of two parts that are separated by zero-value energy. The number of positive eigenvalues is $N/2$, which equals to the number of negative eigenvalues. In this way, the new projector operators can be constructed as $P_{\pm}=\sum_{i}^{N/2}\left|\phi_{i}^{\pm}\right\rangle\left\langle\phi_{i}^{\pm}\right|$, where $\phi_{i}^{+}(\phi_{i}^{-})$ is the eigenvector of the $i$-th positive (negative) eigenvalue. One defines the projected position operators of the two spin sectors as

[TABLE]

where $X_{ii}=x_{i}$ and $Y_{ii}=y_{i}$ are diagonal matrices, and $\left(x_{i},y_{i}\right)$ is the coordinate of the $i$-th lattice. In order to make the results more stable, we adopt the singular value decomposition $M=Z\Lambda\Pi^{{\dagger}}$ for $U_{\pm}$ and $V_{\pm},$ and then set $\tilde{M}=Z\Pi^{{\dagger}}$ as the new unitary operators. Finally, the spin Bott index is obtained as Huang and Liu (2018a, b)

[TABLE]

with $B_{\pm}=\frac{1}{2\pi}\operatorname{Im}\left[\operatorname{Tr}\left(\ln V_{\pm}U_{\pm}V_{\pm}^{{\dagger}}U_{\pm}^{{\dagger}}\right)\right]$ being the Bott indexes for the two spin sectors.

III Numerical simulation

III.1 The clean limit

In Fig. 2(b), we compute the conductance as a function of the chemical potential $\mu$ and $d_{0}$ for the system being in the clean limit, i.e., $U=0$. Firstly, let us focus on the $\frac{2}{3}$ filling of the electron states, which corresponds to the chemical potential is about $\mu=-0.3\text{ eV}$. From Fig. 2(b), it is observed that the conductance is zero for $d_{0}$ being less than $0.88$ and $\mu=-0.3\text{ eV}$. Thus, in this case the system is a NI. While for a larger $d_{0}$, the conductance shows a quantized value of $G=2e^{2}/h$, implying the nontrivial topological nature of the system. On the other hand, when the chemical potential is located in the bulk bands, the multifractal band structure Fujiwara (1989) can be clearly observed from the phase diagram [Fig. 2(b)], that is each band of the quasicrystal system has several pseudogaps that separate it to subbands, which leads to the regions with zero or quantized conductances in the phase diagram. In this work, however, we will only concentrate on the gap near $\frac{2}{3}$ filling of electron states.

By calculating the spin Bott index on the approximated Penrose quasicrystal system, we confirm that for $d_{0}>0.88$ the system is a QSHI which is characterized by nonzero spin Bott index $B_{s}=1$ (corresponding to the quantized conductance $G=2e^{2}/h$). While for $d_{0}<0.88$, the system is a NI with $B_{s}=0$.

III.2 The disorder effects

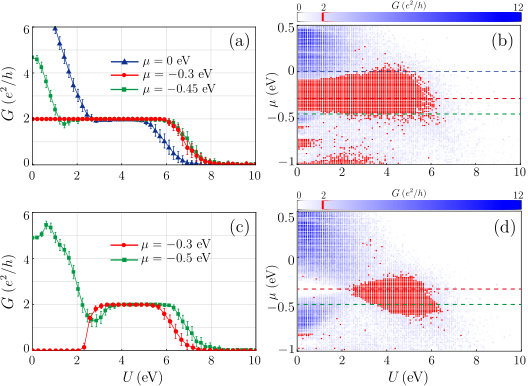

Now, we study the disorder effects on the 2D quasicrystal lattice. In Figs. 3(a) and 3(c), we respectively plot the conductance as a function of the disorder strength $U$ for $d_{0}=0.90$ and $d_{0}=0.87$ with several different values of chemical potential $\mu$. For the case of $d_{0}=0.90$ [Fig.  3(a)], in the clean limit, the system is a QSHI with a quantized conductance $G=2e^{2}/h$ when the chemical potential lies in the bulk energy gap ($\mu=-0.3\text{ eV}$). With increasing disorder strength, the conductance keeps the quantized value until the disorder strength $U$ exceeds $6\text{ eV}$. Therefore, similar to the previous studies on disordered crystalline systems Li et al. (2009); Jiang et al. (2009); Groth et al. (2009); Wu et al. (2016), the topologically protected helical edge states in the Penrose-type quasicrystal lattice are also robust against disorder. When the chemical potential is located at the bulk bands ($\mu=0\text{ eV}$ and $\mu=-0.45\text{ eV}$), the conductance is suppressed by disorder, then gradually decreases to the quantized plateau before it finally disappears.

While for a NI phase with $d_{0}=0.87$ and $\mu=-0.3\text{ eV}$ [as shown by red curve in Fig.  3(c)], the conductance is zero as no state appears inside the bulk energy gap when the disorder strength is weak. With increasing disorder strength ($U>2\text{ eV}$), the conductance increases and then forms a quantized plateau with $G=2e^{2}/h$. The quantized plateau is observed for a certain range of disorder strength, and it decreases and finally disappears with increasing the disorder strength. The zero conductance fluctuation of the quantized plateau indicates that it may be originated from the helical edge state of the QSHI phase. The case with $d_{0}=0.87$ and $\mu=-0.5\text{ eV}$ is also presented in Fig. 3(c) [as shown by green curve]. It is observed that in this case the variation of conductance with increasing disorder strength is similar to that of the case with $d_{0}=0.90$ and $\mu=0\text{ eV}$ (or $\mu=-0.45\text{ eV}$) shown in Fig.  3(a).

In Figs. 3(b) and 3(d), we plot the phase diagrams of the QSHI state and the NI state on the $(U,\mu)$ phase space, respectively. Here each point is obtained from a single configuration of disorder, which is enough to determine the quantized conductance region. It can be clearly shown that the disorder-induced quantized conductance region for the NI phase appears mainly in the energy gap, and the small region of the valence bands [Fig. 3(d)].

To further confirm the assertion that the quantized conductance plateaus originate from the robust edge states, we calculate the nonequilibrium local current distribution between sites $\mathbf{{i}}$ and $\mathbf{{j}}$ from the following formulaJiang et al. (2009)

[TABLE]

where $V_{L}(V_{R})$ describes the voltage of the left (right) lead, and $G^{n}=G^{r}\Gamma_{L}G^{a}$ is the electron correlation function. To calculate the local current distribution, a small external bias $V=V_{L}-V_{R}$ is applied longitudinally between the two terminals, where $V_{L}$ and $V_{R}$ describe the voltages of the left and right leads. The small bias voltage $V$ is fixed to be $0.0001\text{ eV}$. We assume the electrostatic potential in the central part is $\phi(x_{i})=(L_{x}-x_{i}+1)V/(L_{x}+1)$, where $x_{i}$ is $x$ direction coordinate of the $i$-th site and $1\leq x_{i}\leq L_{x}$. Then, the electric field is uniformly distributed in the central sample region.

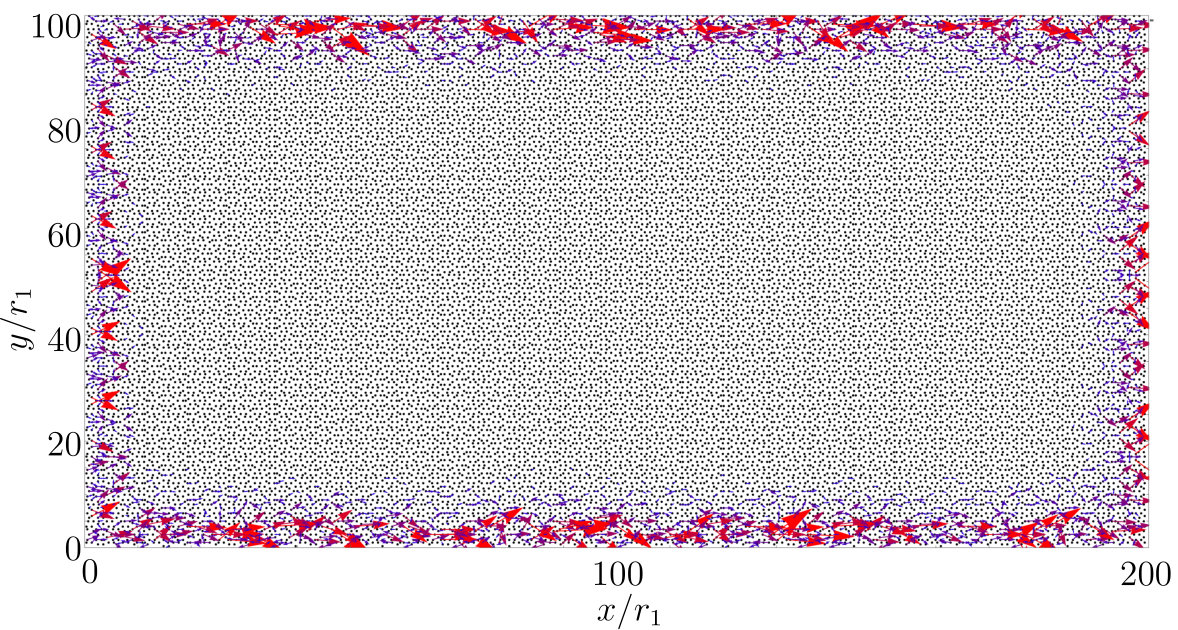

In Fig. 4, we plot the averaged current distribution Jiang et al. (2009) of the disorder-induced QSHI state. The size of the arrows corresponds to the local current strength. Apparently, for the disorder-induced QSHI phase with $G=2e^{2}/h$, the currents are localized at the two opposite sides of the sample, which characterizes the helical edge states of the disorder-induced QSHI phase.

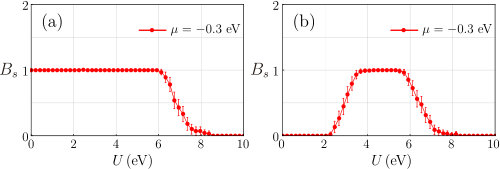

In addition, the spin Bott index can also characterize the topological properties of the disordered system Huang and Liu (2018a, b). As shown in Fig. 5, we plot the spin Bott index varying as functions of the disorder strength $U$ with $d_{0}=0.87$ and $d_{0}=0.90$. For the QSHI phase [Fig. 5(a)], the spin Bott index is quantized as $1$, and maintains this value for a certain range of disorder strength. For the NI phase [Fig. 5(b)], the spin Bott index is zero when the disorder is weak, and increases to the quantized value $1$ with increasing disorder strength. Therefore, we identify this disorder-induced topologically nontrivial phase as a TAI phase.

IV Conclusion

In this work, we study the effects of disorder on topological properties of a 2D Penrose-type quasicrystal lattice. Firstly, it is shown that the QSHI phase in the quasicrystal system is robust against weak disorder. Moreover, the disorder-induced TAI phase on a 2D quasicrystal lattice is proposed. The TAI phase is characterized by a disorder-induced quantized conductance plateau with $G=2e^{2}/h$. We also present the nonequilibrium local current distribution, and the disorder-averaged spin Bott index, which further identify the TAI phase. In the previous studies, the TAI phases were mainly presented in the crystalline systems Li et al. (2009); Jiang et al. (2009); Groth et al. (2009); Wu et al. (2016), while we extend the territory of TAI phase to the quasicrystal systems.

In conclusion, we found that the occurrence of TAI phase shares various similarities between the crystalline and quasicrystalline systems, for example, they both require that the NI phase is in proximity to the QSHI phase in the clean limit and the chemical potential is located near the band edge. The present results show that the disorder-induced phase transition is irrelevant to the lattice structure, and only depends on the above-mentioned conditions. In previous works on crystalline systems Li et al. (2009); Jiang et al. (2009); Groth et al. (2009); Wu et al. (2016), the disorder-induced topological phase transitions can be explained by a $k$-space self-consistent Born approximation, where disorder renormalizes the mass term and chemical potential, resulting in the TAI states. However, quasicrystal lacks the translational symmetry, and the original theory for the TAI phase is not available. Considering the similarities mentioned above, we could conjecture that the underlying reason for the occurrence of TAI phase in the Penrose-type quasicrystal lattice may be attributed to the renormalization effect of disorder, and it will be investigated in our future works.

Recently, the TAI phases in the crystalline systems have been successfully realized in one-dimensional disordered atomic wires Meier et al. (2018) and a photonic platform Stützer et al. (2018). On the other hand, the atomic quasicrystals may be grown by the deposition of atoms on the surfaces of quasicrystal substrates Jenks and Thiel (1998); McGrath et al. (2002); Sharma et al. (2007); McGrath et al. (2012); Huang and Liu (2018a), and the photonic quasicrystals have already been realized in experiments Verbin et al. (2013); Levi et al. (2011); Vardeny et al. (2013); Viebahn et al. (2019); Steurer and Sutter-Widmer (2007). Therefore, we suggest that the experimental realization of the TAI phase in the quasicrystals is promising in the atomic or photonic systems.
