Influence of Backside Energy Leakages from Hadronic Calorimeters on Fluctuation Measures in Relativistic Heavy-Ion Collisions

TL;DR

This paper investigates how energy leakages in hadronic calorimeters affect fluctuation measurements in heavy-ion collision experiments, emphasizing the impact of centrality selection efficiency on different system sizes.

Contribution

It introduces a model to quantify the influence of backside energy leakages on fluctuation measures across various colliding systems in heavy-ion experiments.

Findings

Light systems are highly sensitive to centrality selection inefficiencies.

Heavy systems show minimal impact from energy leakage effects.

Modeling indicates significant effects on multiplicity fluctuations in small systems.

Abstract

The phase diagram of the strongly interacting matter is the main research subject for different current and future experiments in high-energy physics. System size and energy scan programs aim to find a possible critical point. One of such programs was accomplished by the fixed-target NA61/SHINE experiment in 2018. It includes six beam energies and six colliding systems: p + p, Be + Be, Ar + Sc, Xe + La, Pb + Pb and p + Pb. In this study, we discuss how the efficiency of centrality selection by forward spectators influences multiplicity and fluctuation measures and how this influence depends on the size of colliding systems. We use SHIELD and EPOS Monte-Carlo (MC) generators along with the wounded nucleon model, introduce a probability to lose a forward spectator and spectator energy loss. We show that for light colliding systems such as Be or Li even a small inefficiency in centrality selection has a dramatic impact on multiplicity scaled variance. Conversely, heavy systems such as Ar + Sc are much less prone to the effect.

Figures

Tables

Table 1. Table 1: Comparison of results for 10% most central events with realistic energy leakage and without it in a frame of WNM.

	Li + Be	Ca + Cl	Pb + Pb
<N> without energy loss	32.527+/$-$0.017	172.069+/$-$0.027	1094.34+/$-$0.19
<N> with energy loss	32.414+/$-$0.012	171.996+/$-$0.034	1094.16+/$-$0.15
$\omega$[N] without energy loss	2.0192+/$-$0.0041	3.2594+/$-$0.0072	13.101+/$-$0.021
$\omega$[N] with energy loss	2.0625+/$-$0.0042	3.3111+/$-$0.0051	13.175+/$-$0.019
with/without (N)	0.99653+/$-$0.00057	0.99958+/$-$0.00032	0.99984+/$-$0.00052
with/without ($\omega$[N])	1.0214+/$-$0.0021	1.0159+/$-$0.0023	1.006+/$-$0.0017

Full text

\pubvolume

5 \issuenum5 \articlenumber126

\historyReceived: 19 April 2019; Accepted: 17 May 2019; Published: 23 May 2019 \updatesyes \TitleInfluence of Backside Energy Leakages from Hadronic Calorimeters on Fluctuation Measures in Relativistic Heavy-Ion Collisions \AuthorAndrey Seryakov\orcidicon \AuthorNamesAndrey Seryakov \corresCorrespondence: seryakov@yahoo.com

1 Introduction

Fluctuation measures are considered to be an important tool in the search of the possible critical point of the strongly interacting matter. However, fluctuation quantities are sensitive to various effects along with the critical behavior Luo ; Vovchenko ; NuXu ; MandP such as volume fluctuations VolumeAndAuto ; StronglyIntensive , resonance decays resonance , beam and target material impurities machiek and detector inefficiencies.

Experiments in relativistic heavy ion collisions use different techniques to reduce volume fluctuations by selecting centrality classes. The procedure aims to select events with a restricted number of particle production sources or volume. The centrality selection may be accomplished by measuring produced particle multiplicity in a specific rapidity interval along with energy of non-interacted nucleons-spectators by forward hadronic calorimeters. Although the multiplicity based approach introduces, a bias on any fluctuations due to correlations between multiplicities even in different acceptance windows. However, it is worth noting that this bias can be well reproduced and estimated by using MC generators.

Contrary to this, a solely spectators based centrality selection provides an unbiased method to restrict the collision volume. Technically, it can be accomplished only in fixed target experiments, as it is possible there to place a hadronic calorimeter exactly at the beam line. Nevertheless, such calorimeters suffer from hadronic shower energy leakages from the surface and have much lower resolution capabilities compared to multiplicity detectors. In this paper, we study an influence of the energy leakage from the calorimeter back surface on the average multiplicities and the multiplicity scaled variance and its dependency on the colliding system size.

2 Study with a Geant Calorimeter Model

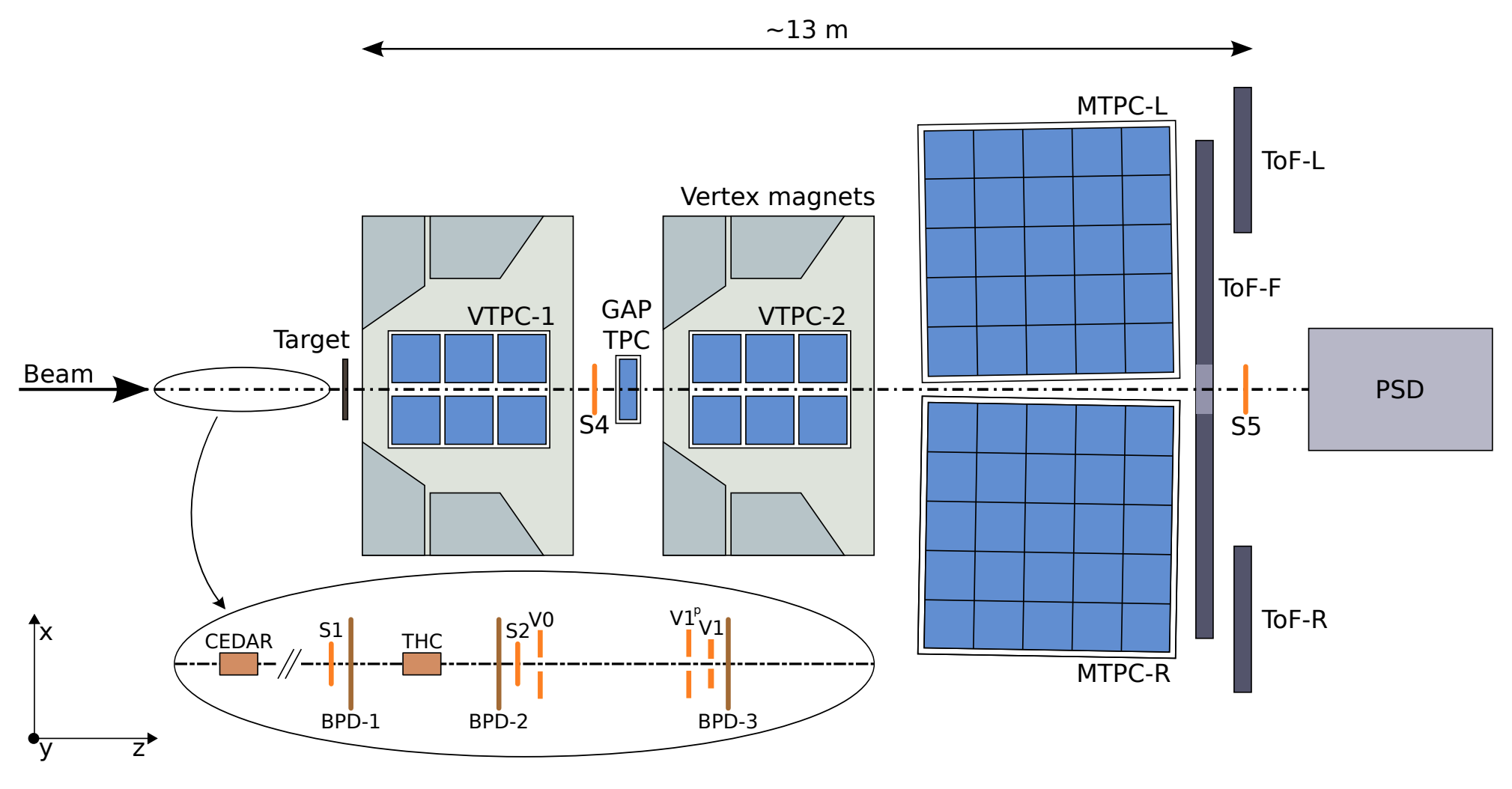

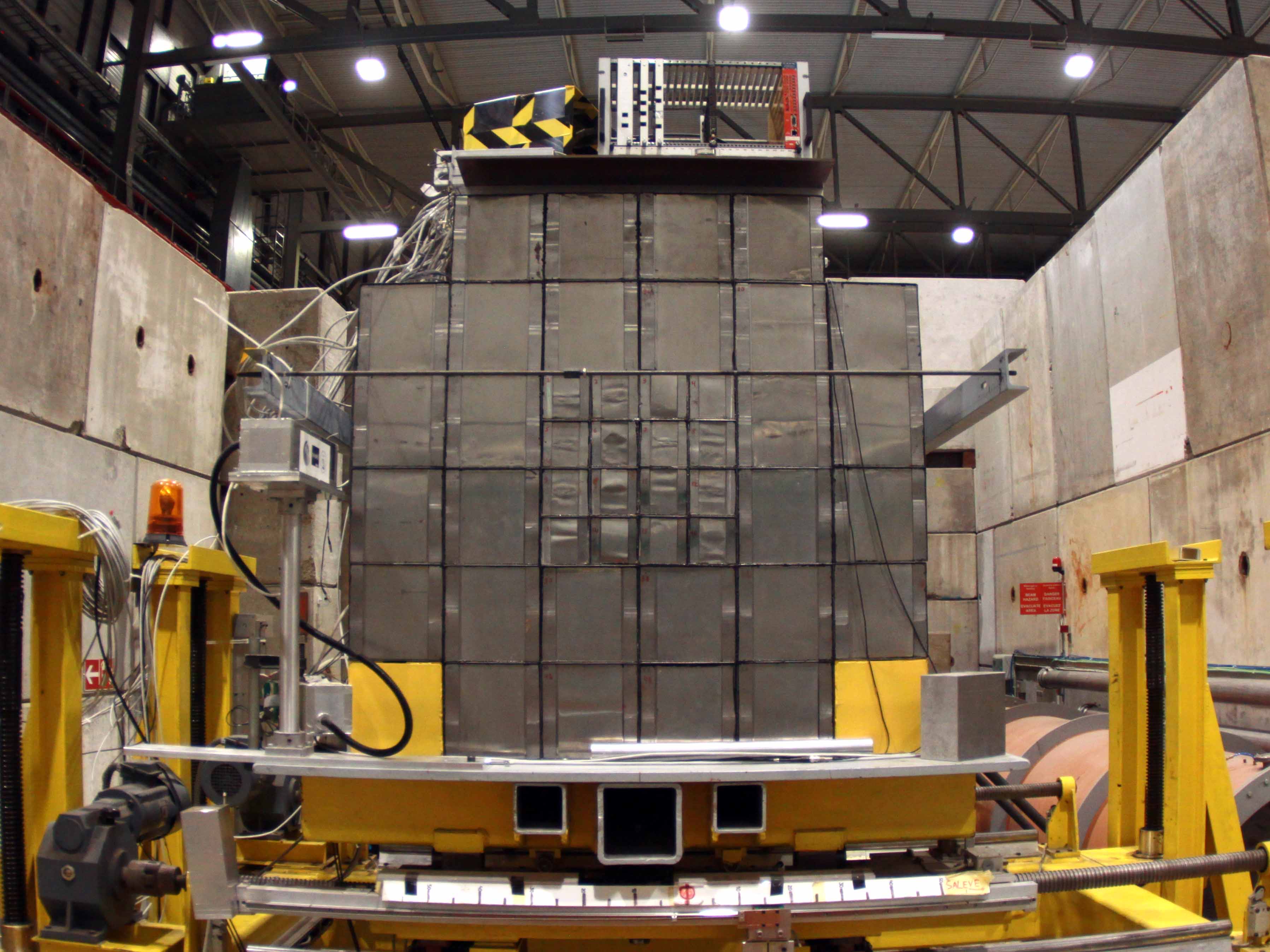

The main motivation for this work was a study of how Projectile Spectator Detector (PSD) Marina influences the measured quantities in the NA61/SHINE collaboration facility . PSD is a segmented modular hadronic calorimeter, which is used for triggering, centrality and event plane determination. The detector consists of 44 independent modules and each of them has 60 lead (16 mm) + scintillator (4 mm) layers. The total length of PSD is about 1.2 m, which corresponds to approximately 5.6 interaction lengths. A scheme of the NA61/SHINE setup and a photo of PSD are presented in Figure 1.

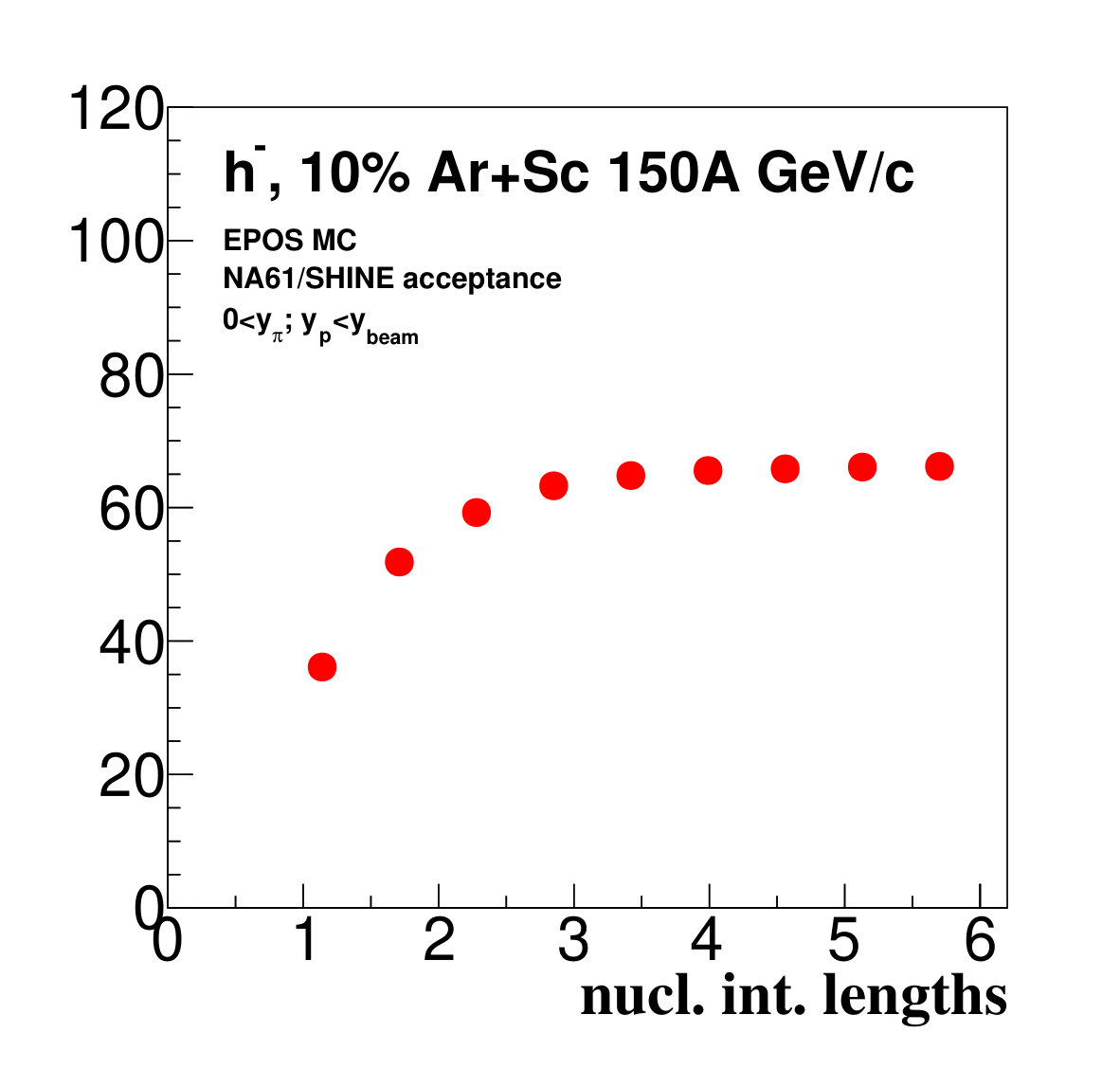

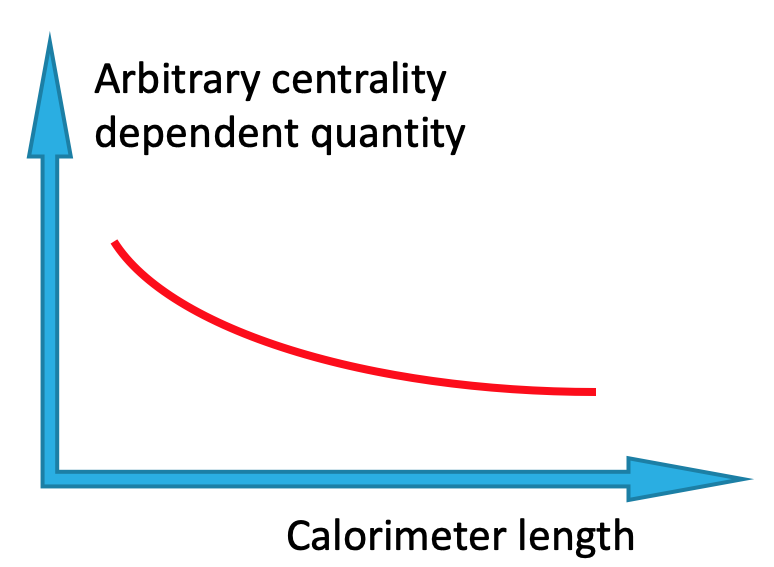

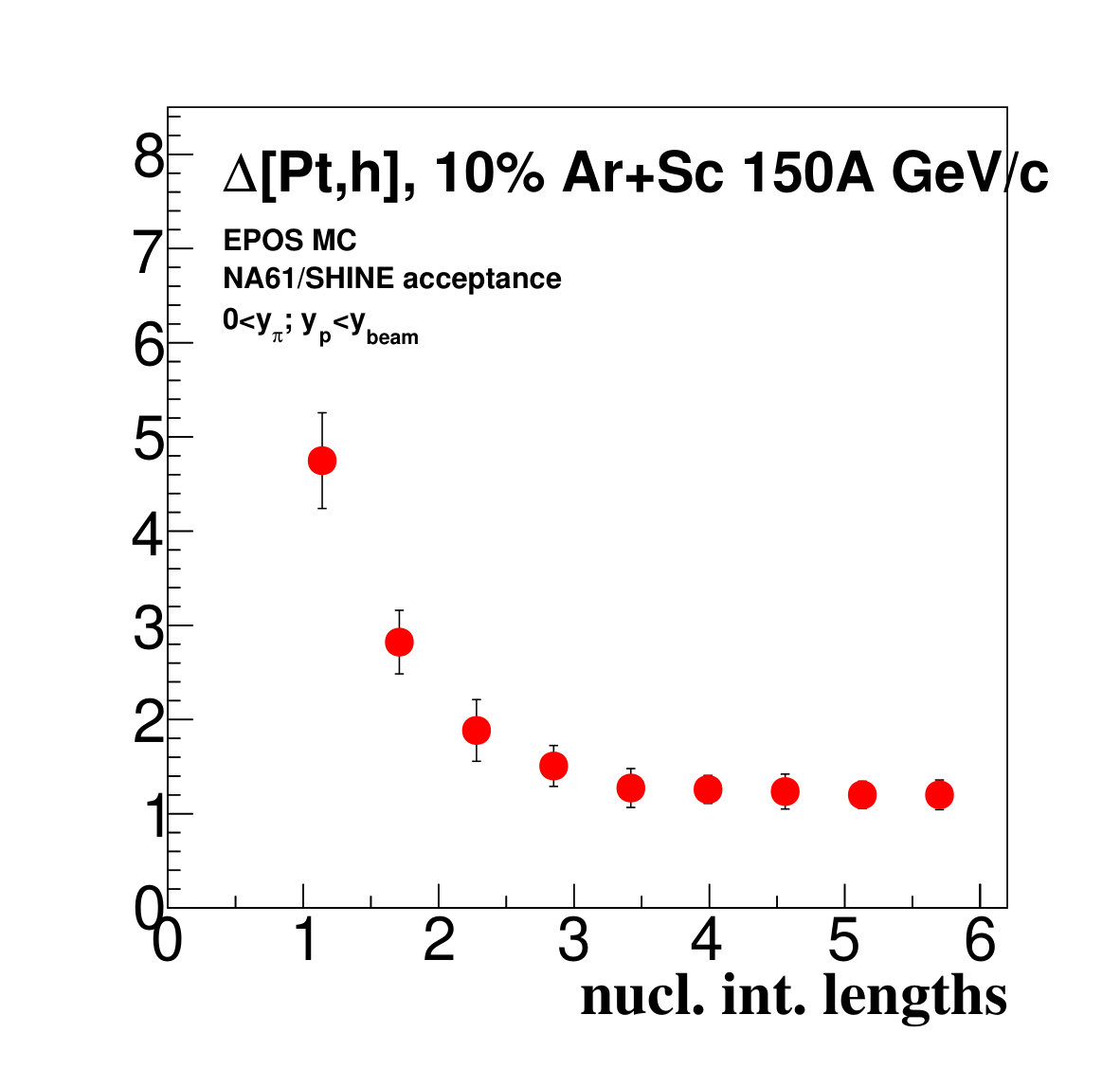

Signals from 60 scintillators in each module are grouped by six, therefore, the design of PSD allows collecting information from ten independent areas along the beam axis inside the calorimeter. This makes it possible to study dependencies of different quantities on the calorimeter lengths by selecting centrality by a reduced number of scintillator groups. It is expected that any centrality sensitive measure will saturate at one point with an increase of calorimeter length (see Figure 2). On such plot, the 0 limit corresponds to 0 centrality detector efficiency, an absence of centrality selection and to minimum bias events. The right limit is an absence of any energy leakage from the hadronic calorimeter backside.

Two MC datasets were generated with the GEANT4 GEANT PSD simulation for studying the energy leakage influence on different systems: 100,000 events of 150A GeV/c 7Li + 9Be SHIELD MC SHIELD and 40,000 events of 150A GeV/c 40Ar + 45Sc EPOS 1.99 MC EPOS . 7Li was chosen instead of experimentally used 7Be as the first one is stable and can be simulated by SHIELD MC. It was possible to compare two completely different MC generators as the studied effect was purely detector based. Moreover, it does not depend on the spectator transverse characteristics as we studied longitudinal shower propagation that is insensitive to a hit position. In each dataset, we selected centrality on the different length of the detector from $\approx$1.1 to 5.6 interaction lengths. The results for average multiplicities, multiplicity ratios and fluctuation quantities are presented in Figure 3 for 7Li + 9Be and for 40Ar + 45Sc collisions.

Two main conclusions may be drawn from the results:

• •

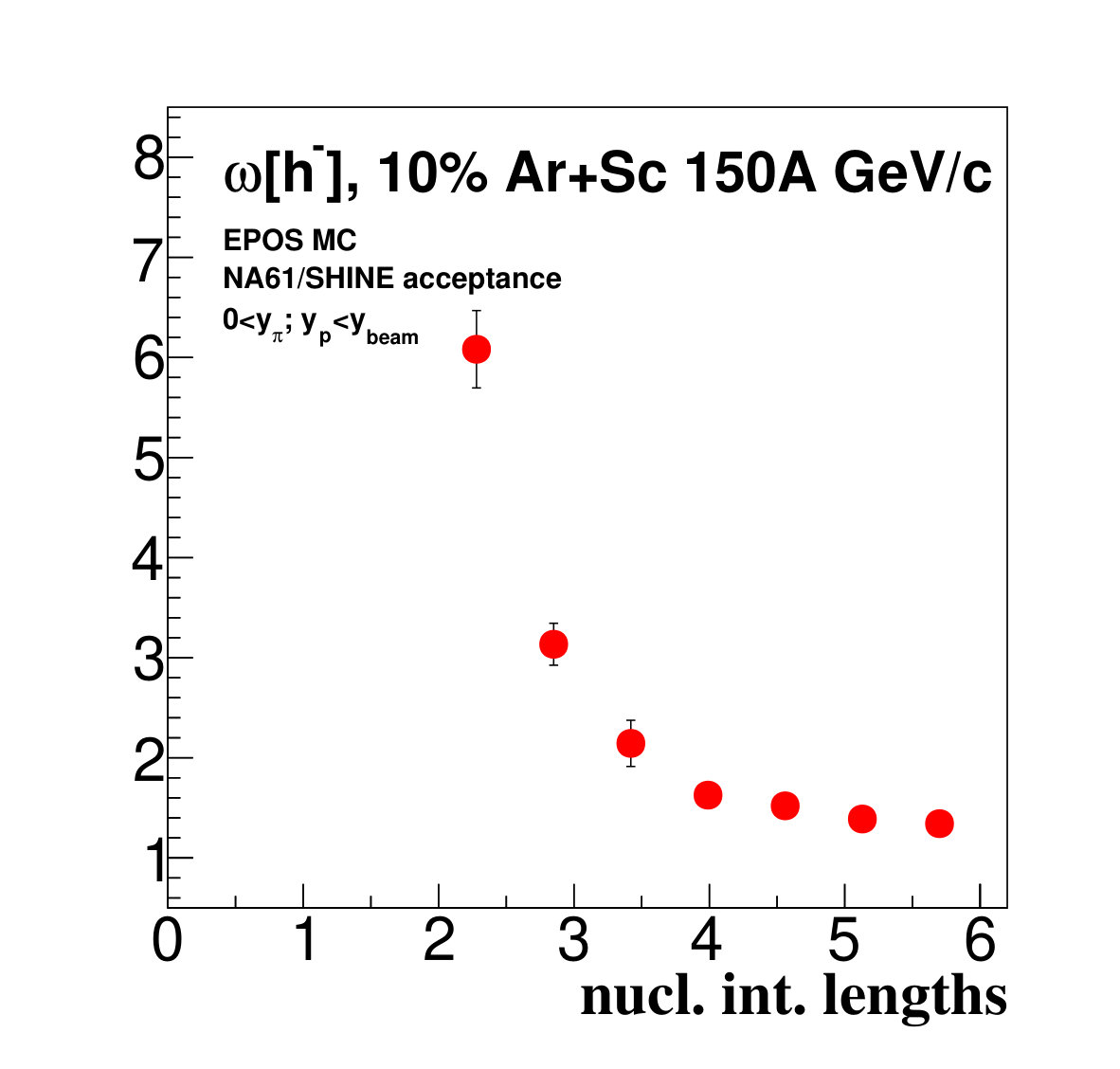

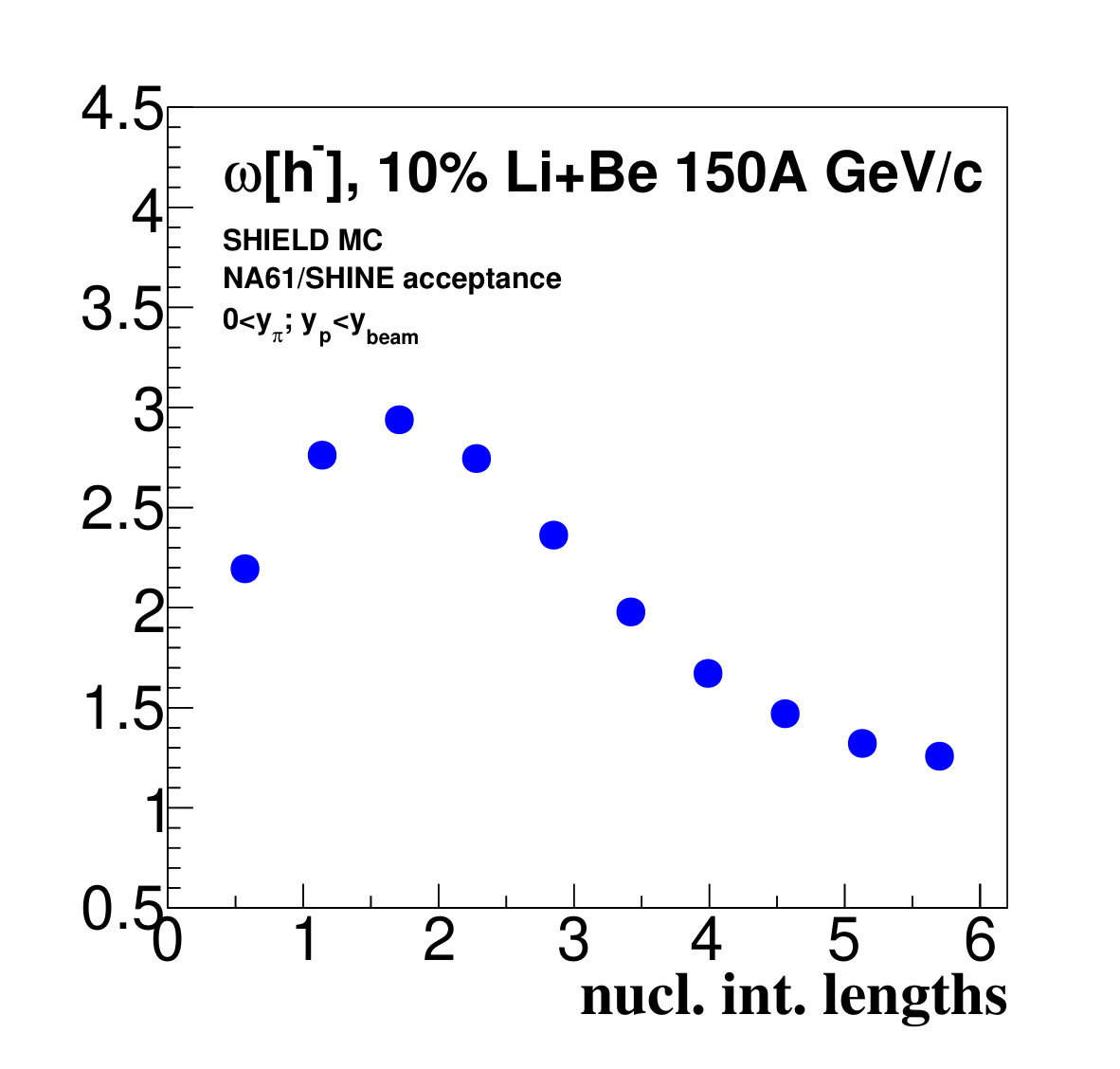

The 5.6 interaction lengths were not enough to eliminate the influence of backside energy leakage in light colliding systems (7Li + 9Be) on volume fluctuations as the dependencies did not saturate. The middle size systems as 40Ar + 45Sc were much less prone to the effect. However, Ar + Sc data are more sensitive to energy leakage in case of a short calorimeter.

• •

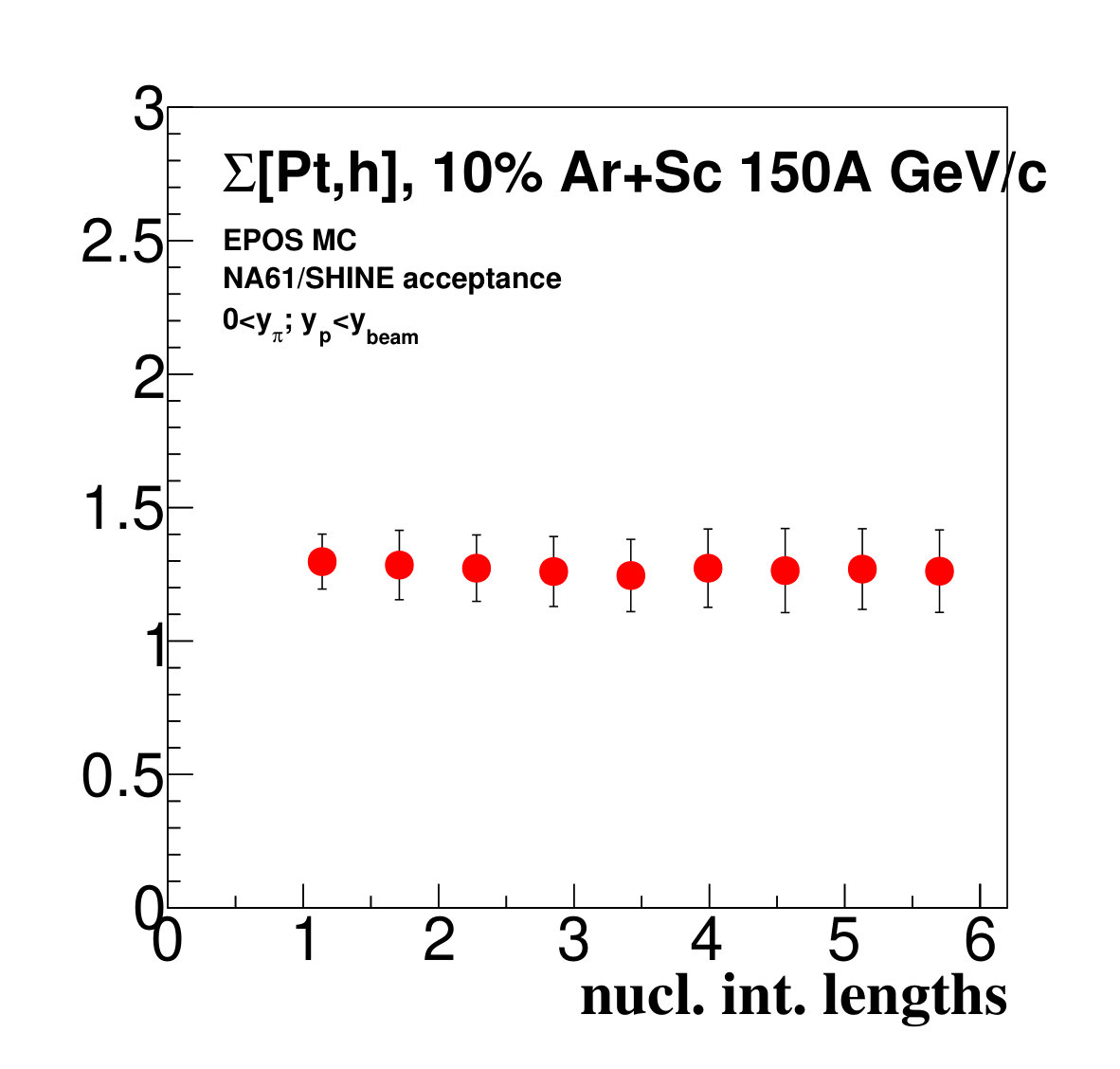

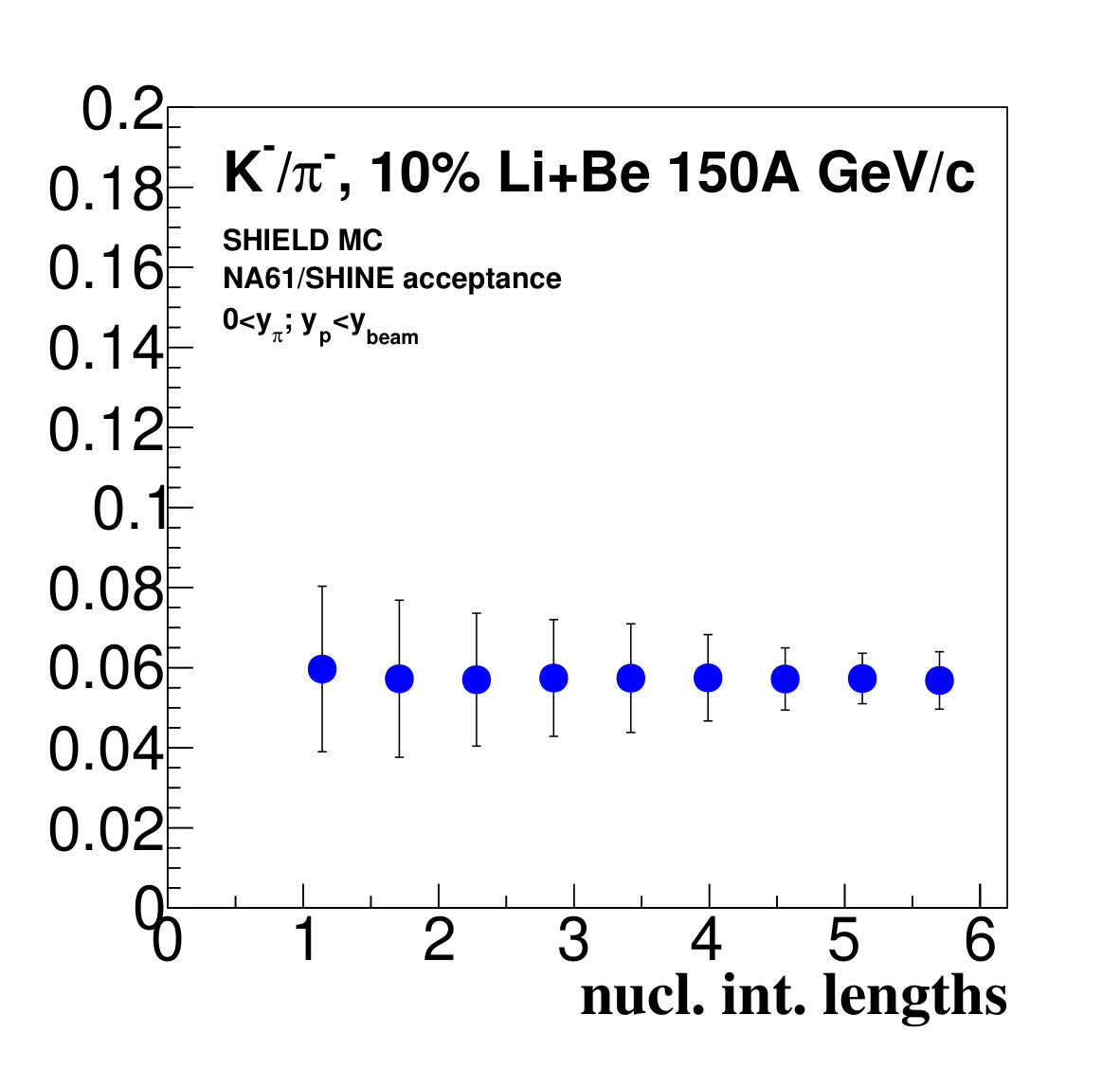

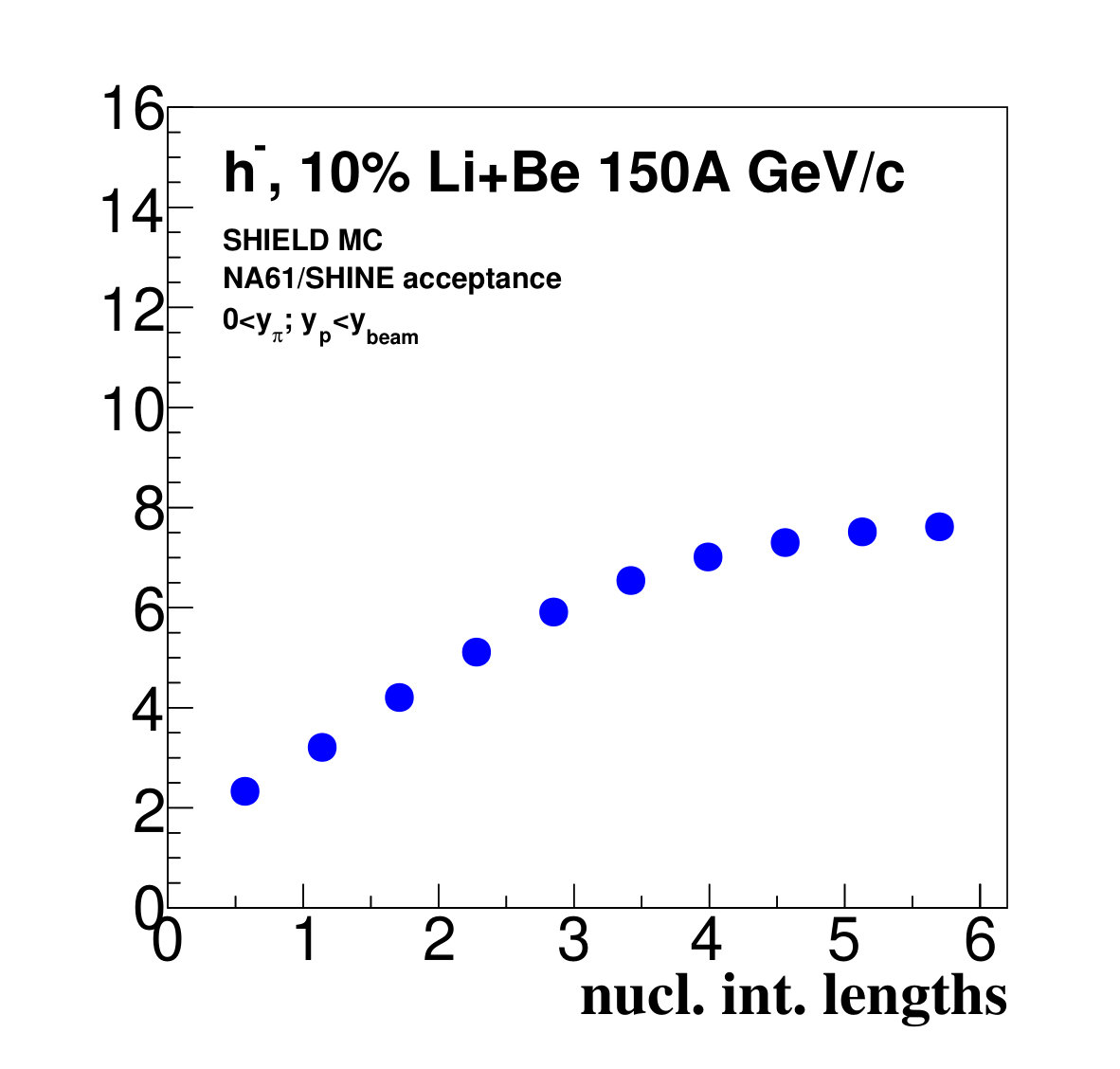

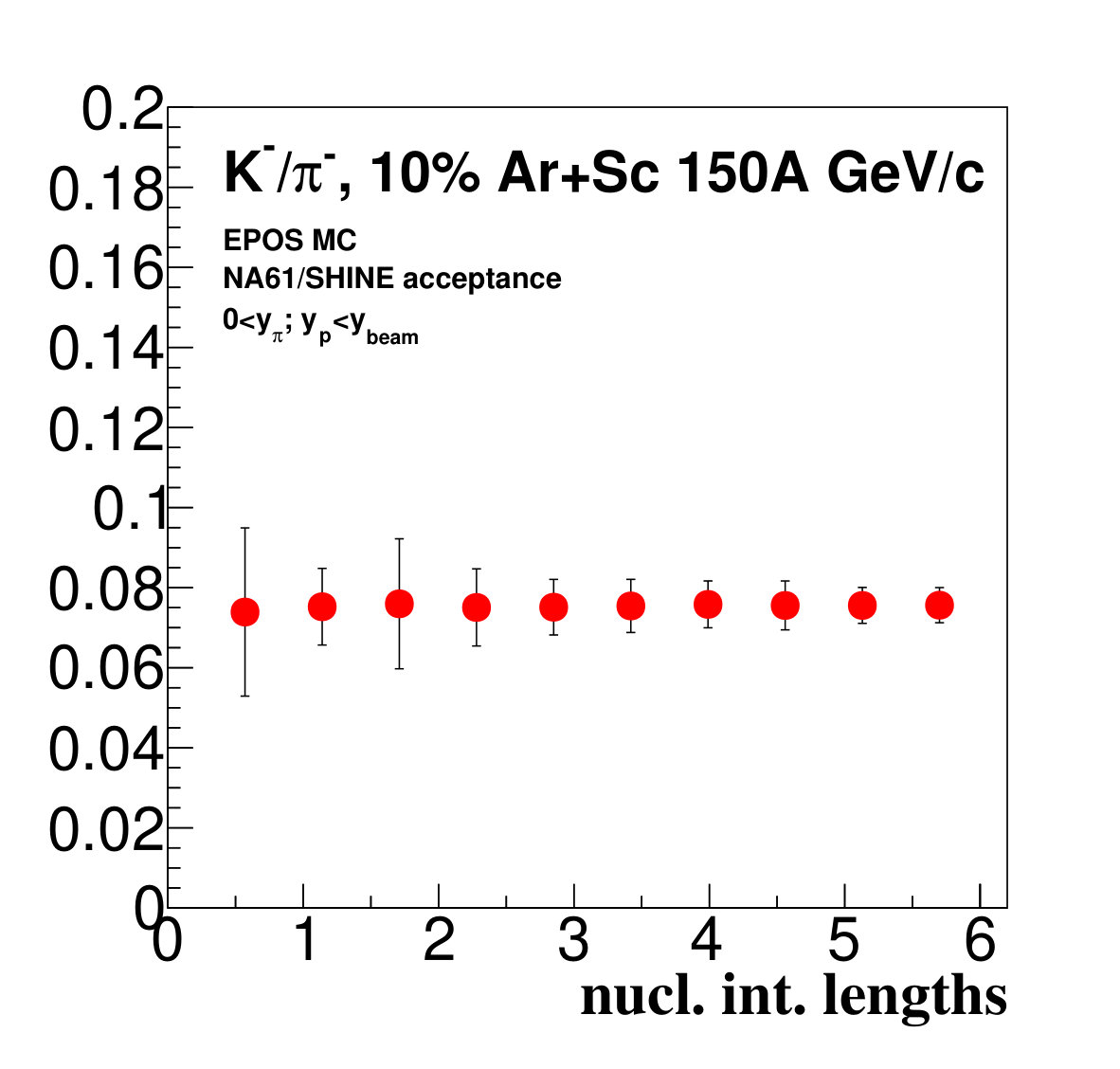

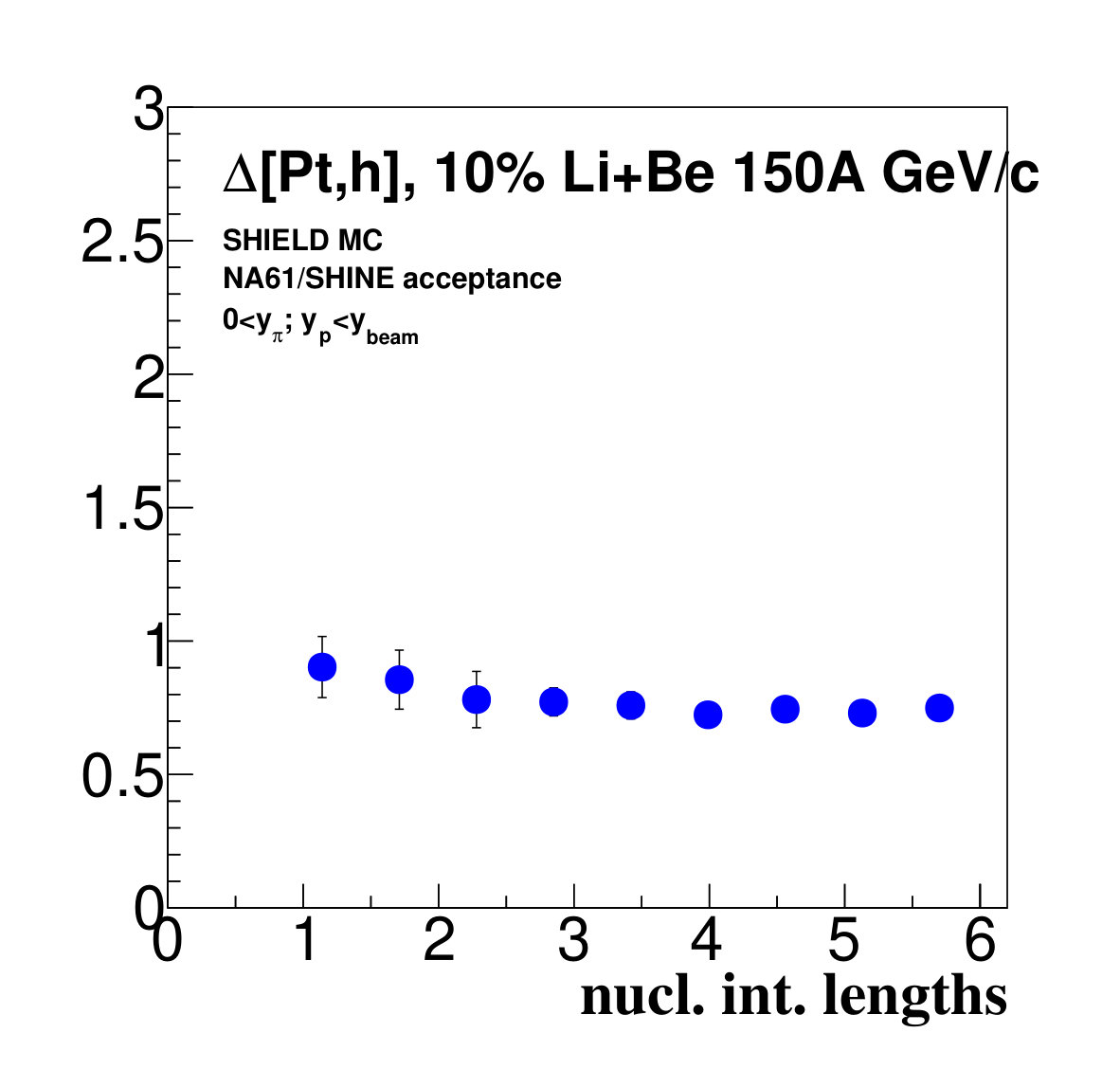

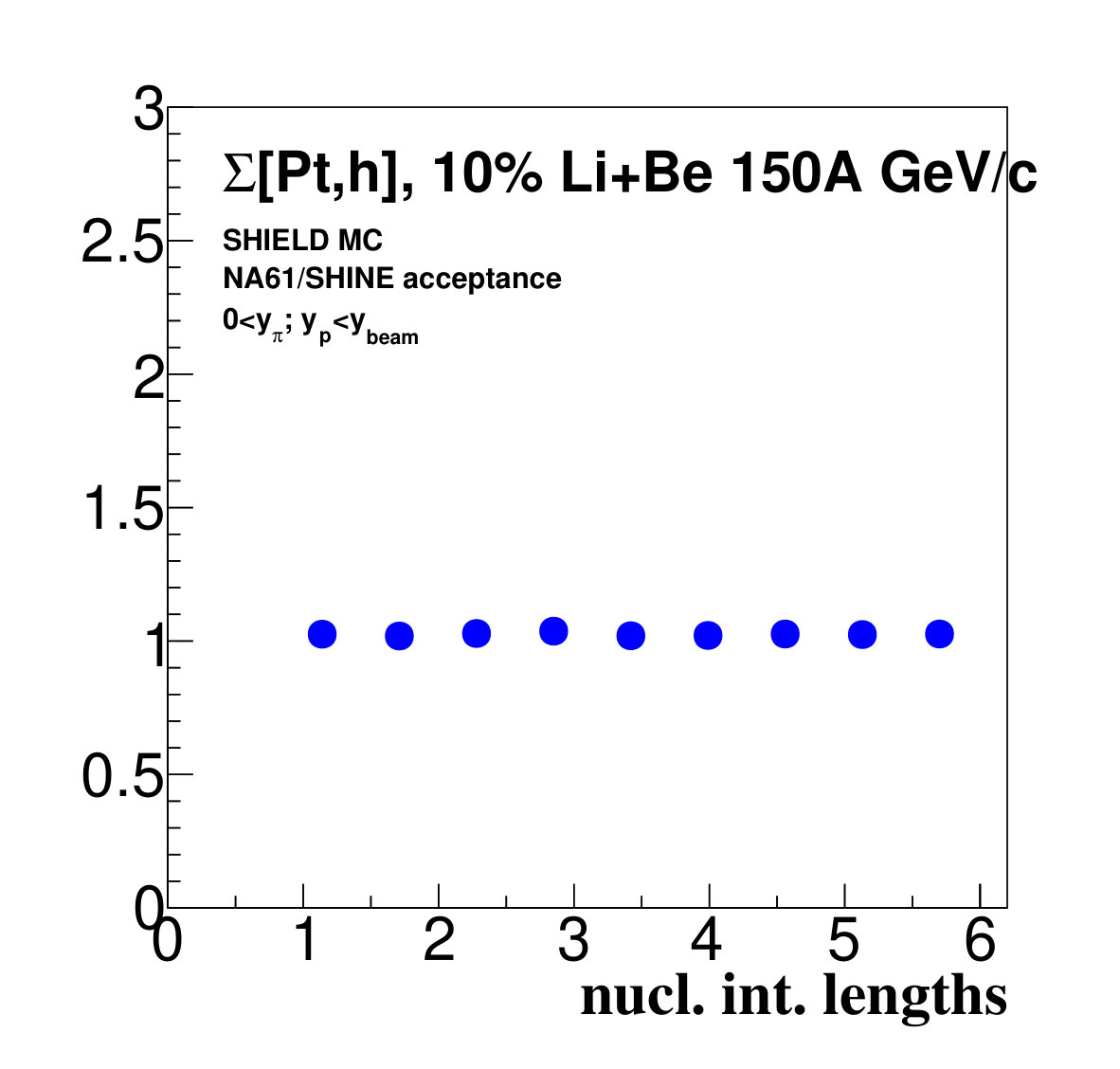

Mean multiplicities, scaled variance $\omega$[h] = (<h2> $-$ <h>2)/<h> and strongly intensive $\Delta$[Pt,h] StronglyIntensive2 were sensitive to the effect, while mean multiplicity ratios and another strongly intensive quantity $\Sigma$[Pt,h] showed steady behavior. The instability of $\Delta$[Pt,h] contradicted the presumption that such quantities do not depend on the volume fluctuations. Therefore, it was clear that assumptions which lead to the construction of the strongly intensive measure $\Delta$[Pt,h] StronglyIntensive2 are not fulfilled even in MC generators. Investigation of other measures sensitivities transcends the scope of this work.

3 Study within a Wounded Nucleon Model

A simple wounded nucleon model (WNM) was created to understand the unexpected sensitivity of light systems to the energy leak. Three different colliding systems were considered: 7Li + 9Be, 35Cl + 40Ca and 208Pb + 208Pb with 150 A GeV/c beam momentum ($\sqrt{S_{NN}}\approx$ 17A GeV). Nucleon density profiles were taken from table . Nucleon core effect was not taken into account. Alpha clustering was not implemented as the goal of the study was to check how the sensitivity to the energy leakage depends on the number of nucleons in colliding systems. Inelastic nucleon–nucleon cross-section was taken equal to $31.75$ mb. Multiplicity was introduced based on the number of wounded nucleons; in other words, each wounded nucleon produced a random number of charged particles, which were distributed according to a Poisson with $<N_{ch}>=3.5$.

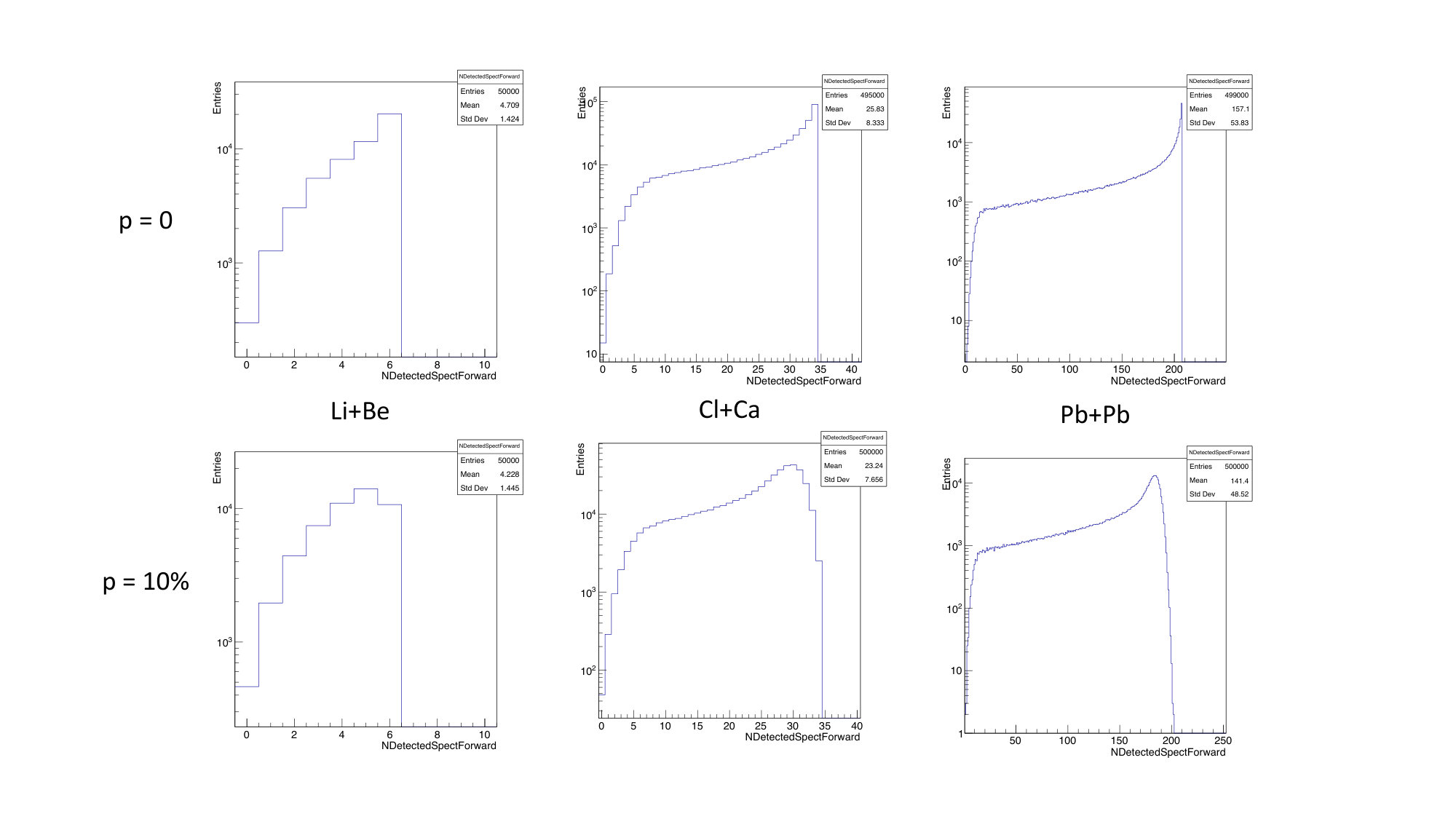

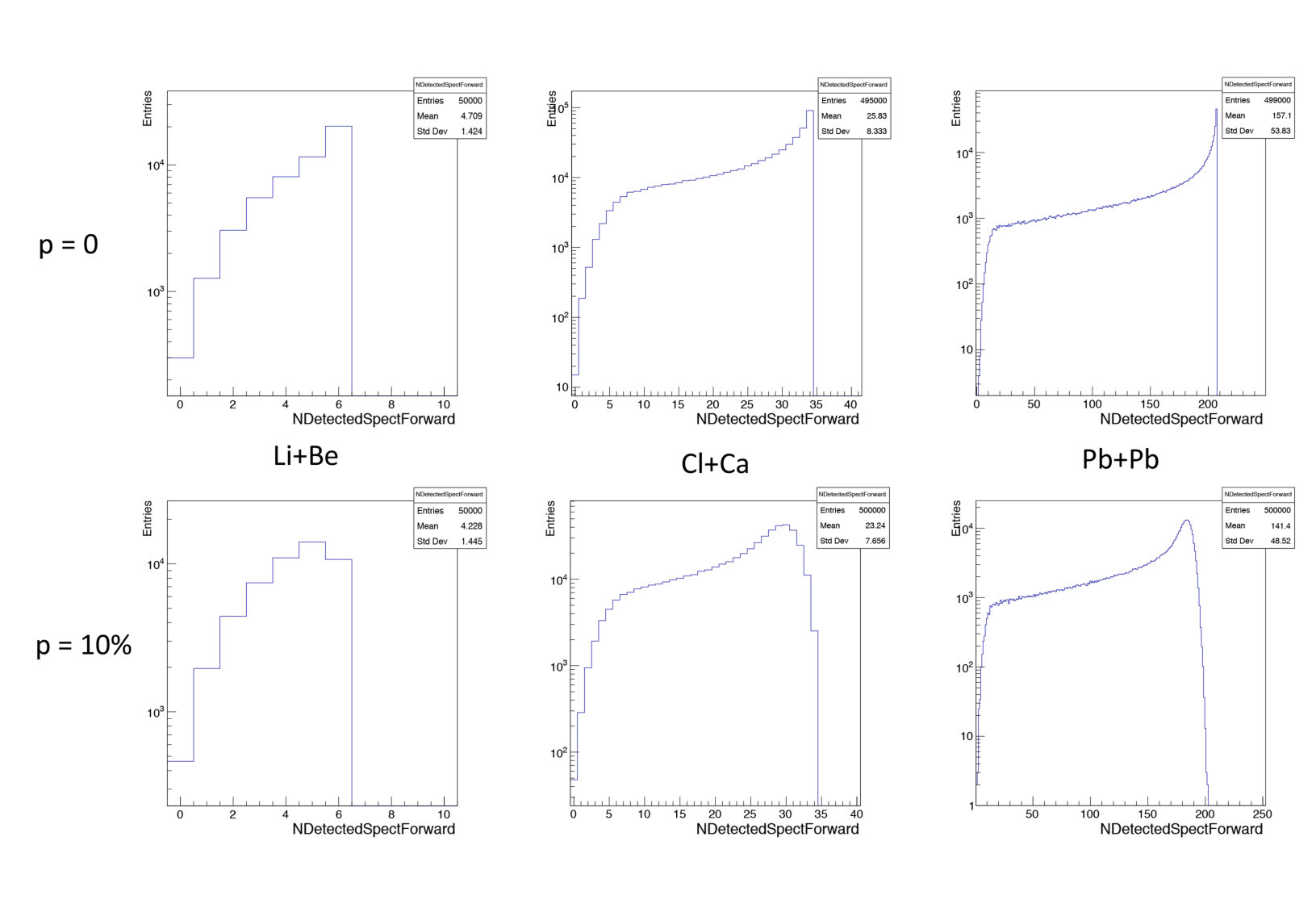

In the first version of the model, we introduce dcentrality selection based on the number of forward nucleon-spectators and a probability to lose each of them $p$. Distributions of forward nucleon spectators for $p=0\%$ and $10\%$ are shown in Figure 4.

The 10% of events with a lower number of detected forward nucleons spectators were selected as the most central ones. If the boundary between classes di not coincide with the boundary between integer numbers of forward spectators N, then a fraction of events with N + 1 forward spectators was taken to obtain exactly 10% of the whole data sample.

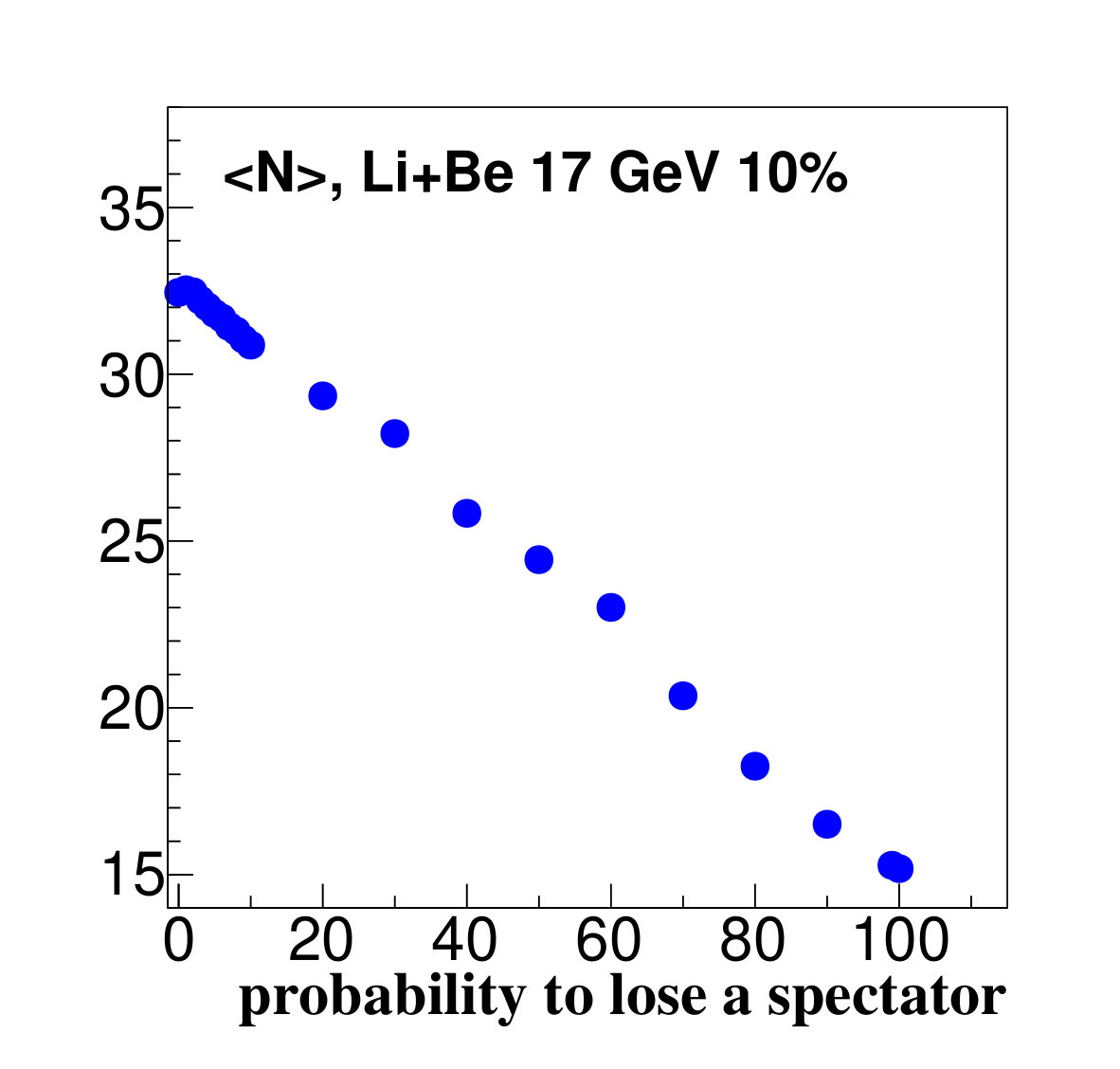

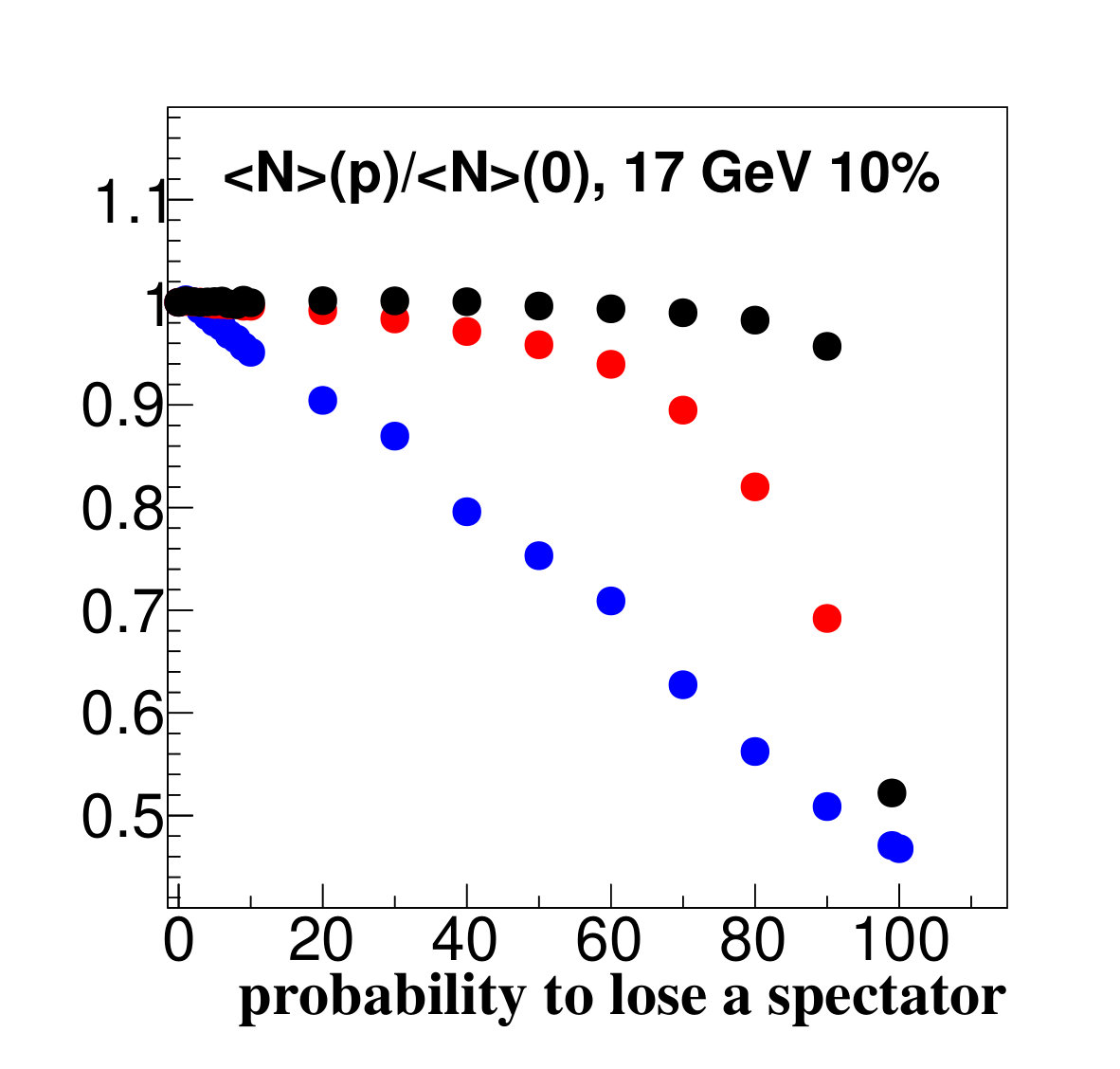

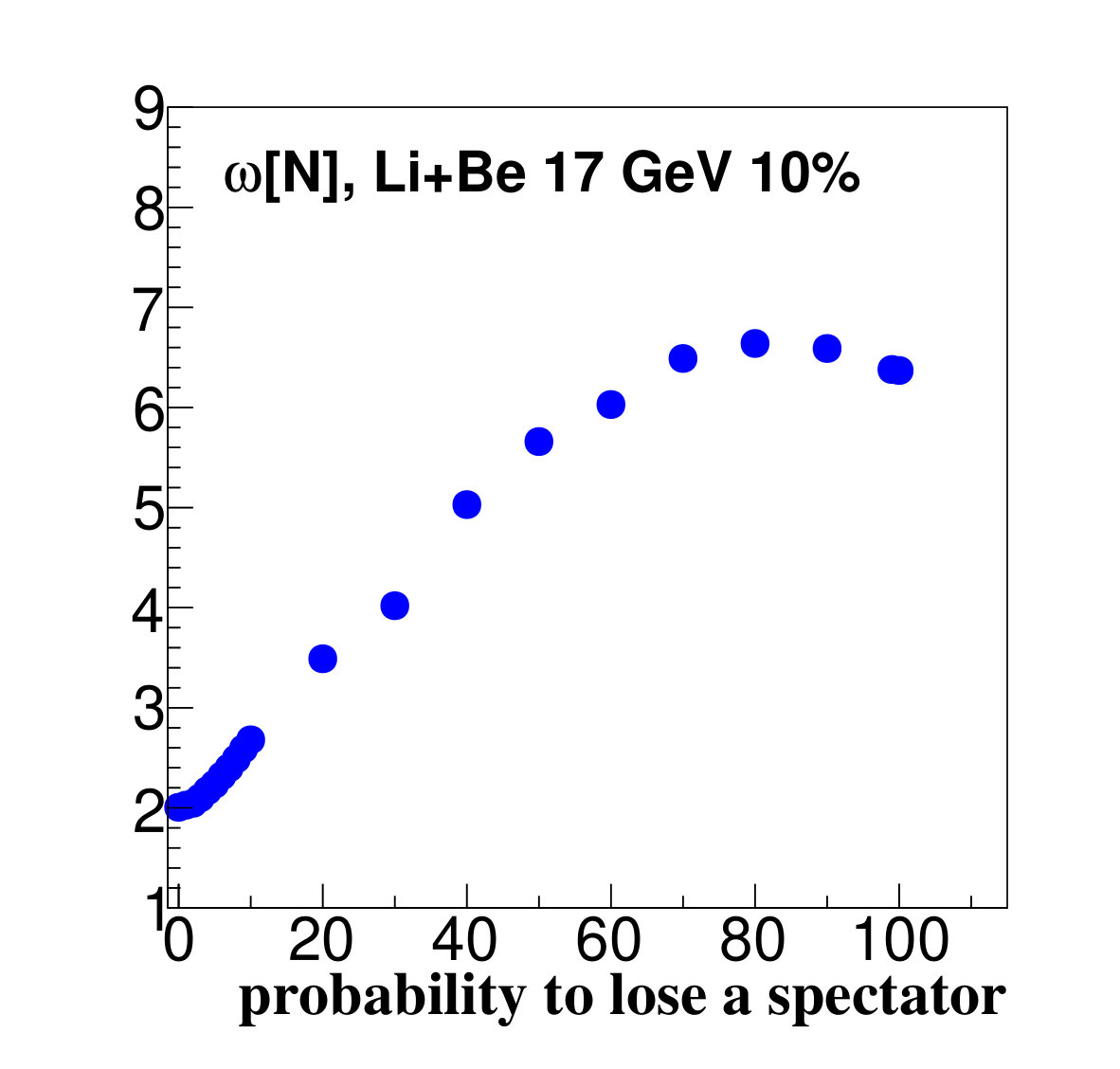

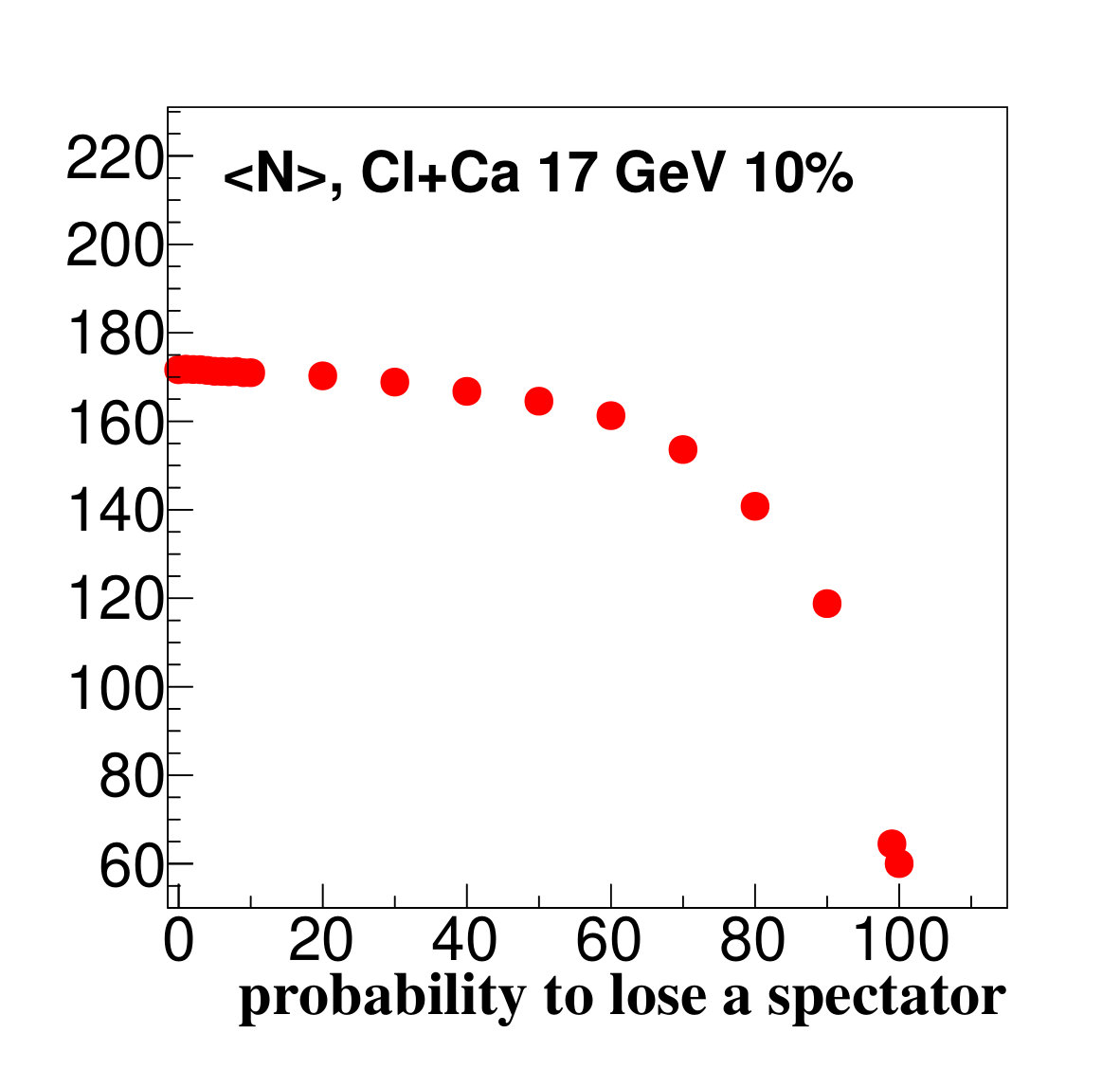

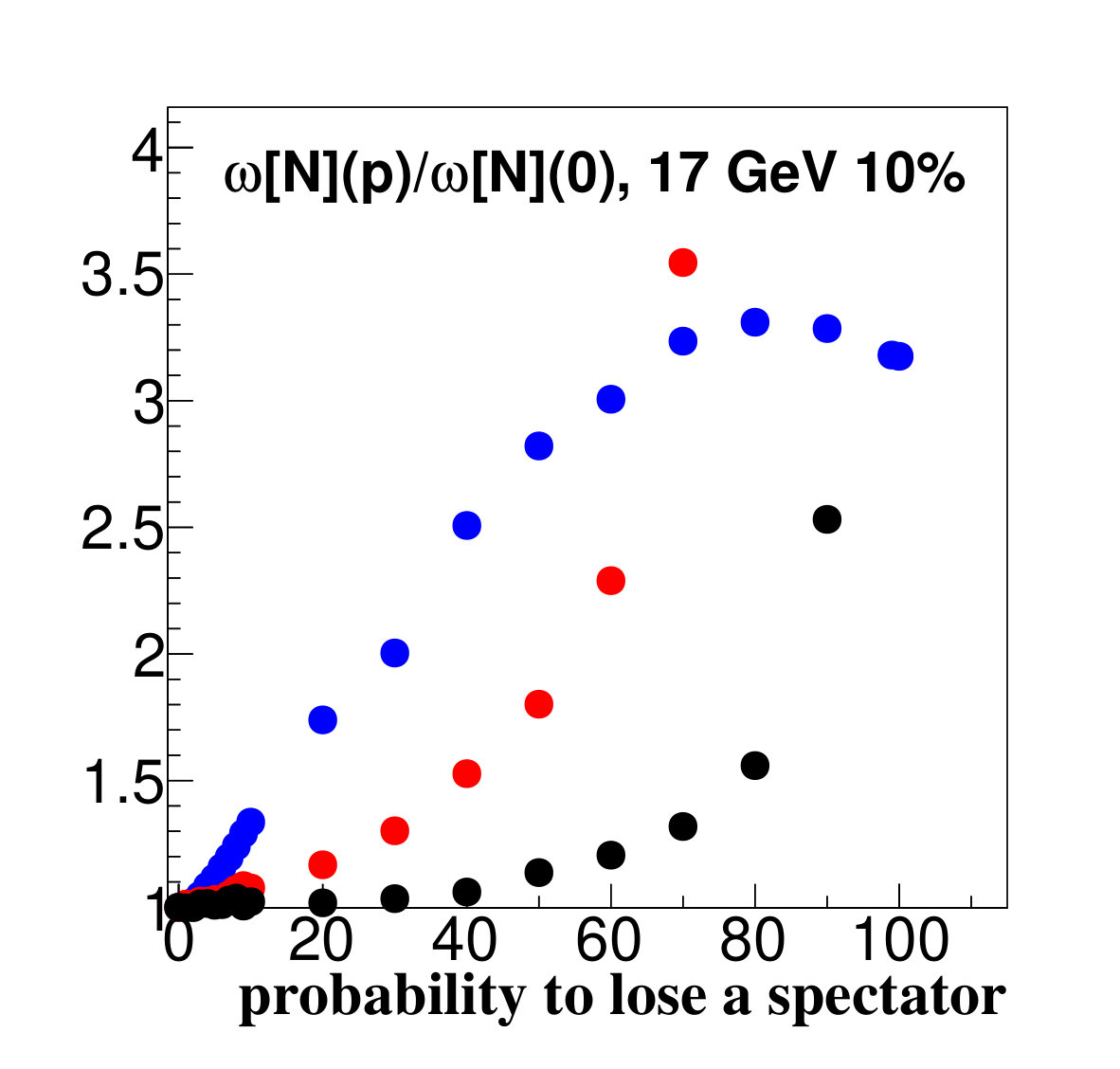

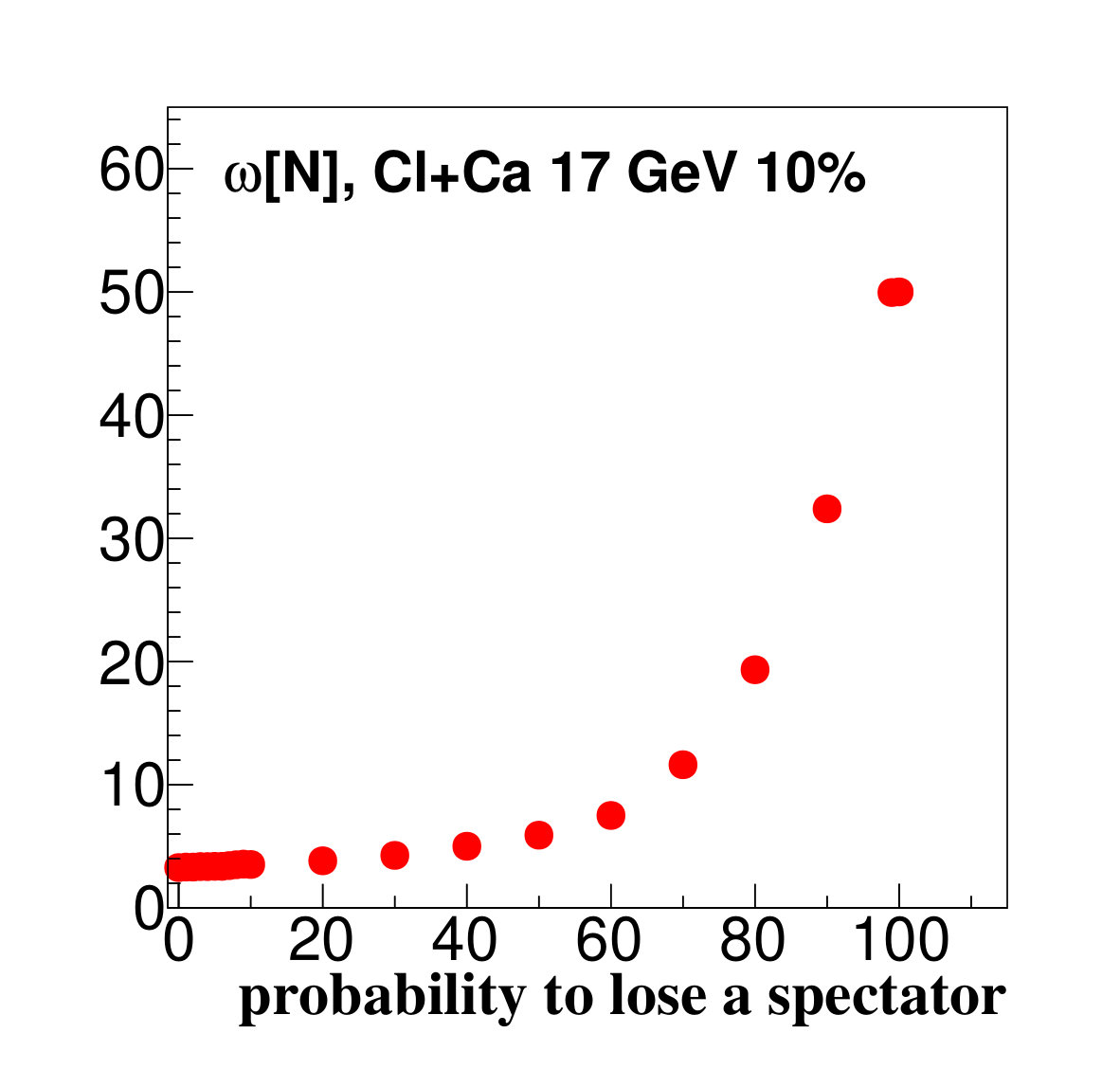

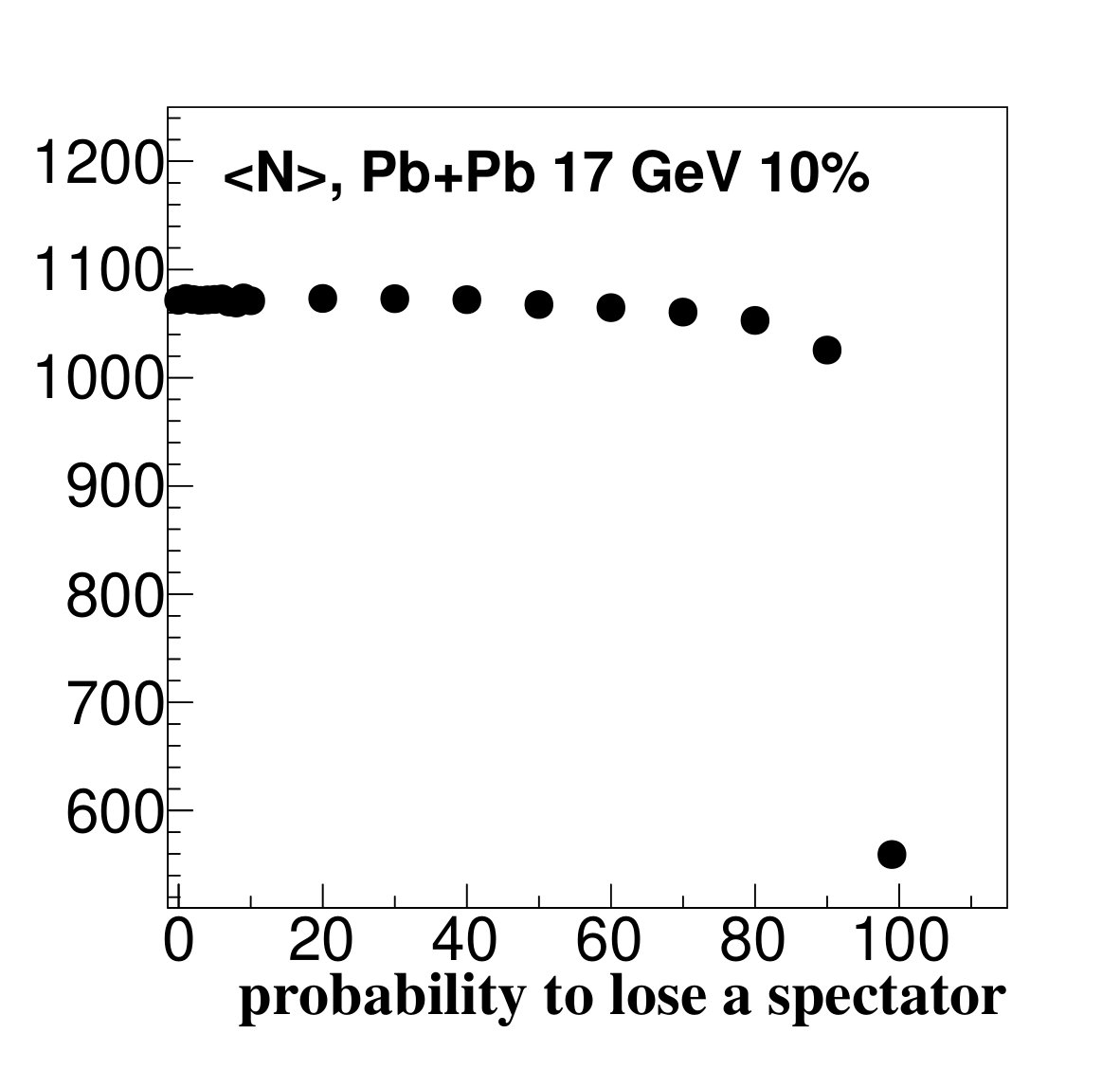

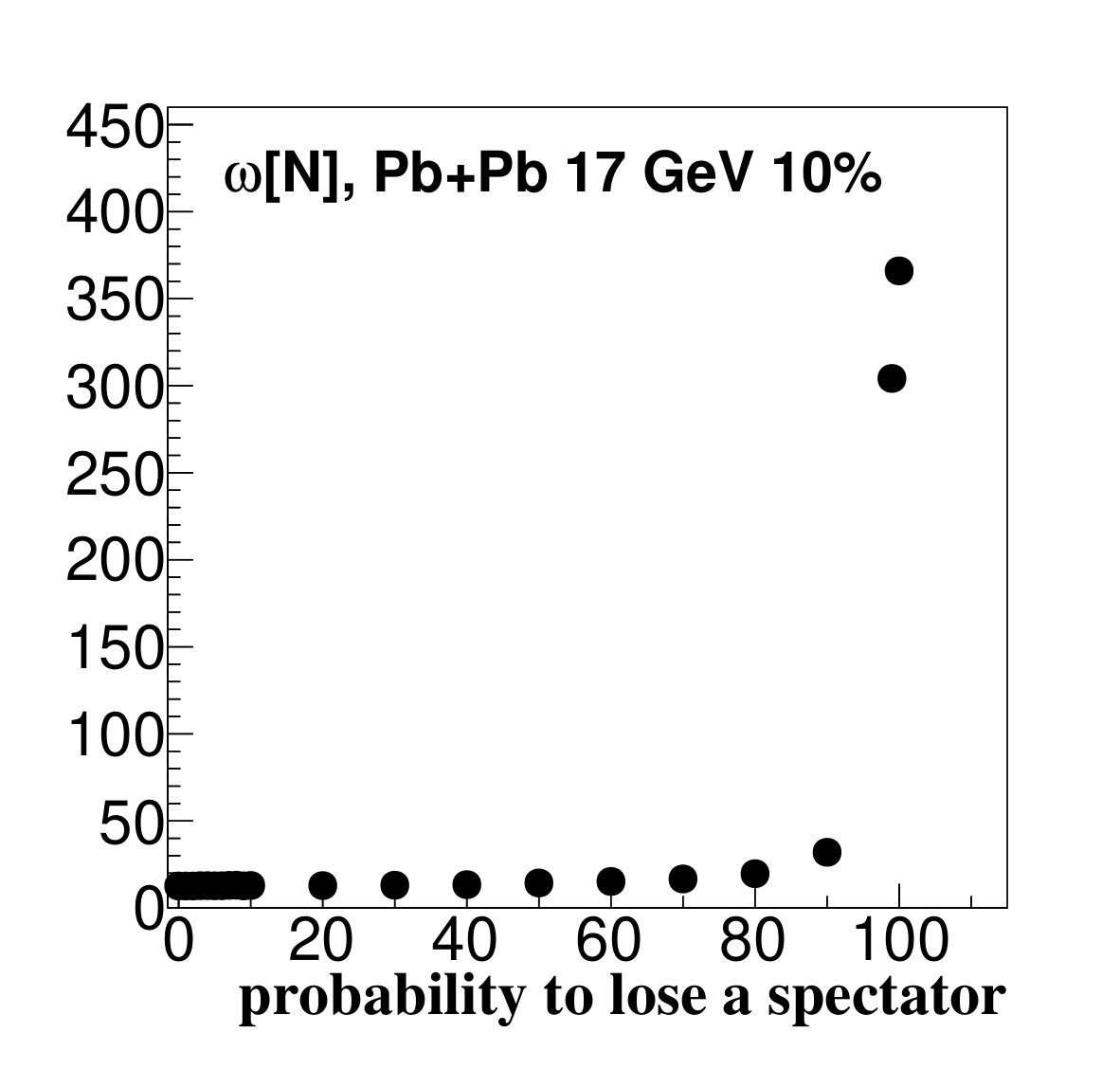

The dependencies of average event multiplicity and multiplicity scaled variance $\omega$[N] versus the probability to lose a forward spectator showed a striking difference (Figure 5) in the sensitivity to detector efficiency between light system and heavy one (7Li + 9Be and 208Pb + 208Pb). <N> and $\omega$[N] in Beryllium collisions became sensitive to the spectators lost already, then p $\approx$ 3–4% contrary to Pb + Pb collisions where <N> and $\omega$[N] were steady to the effect until p $\approx$ 70% and 30% respectively (see Figure 6).

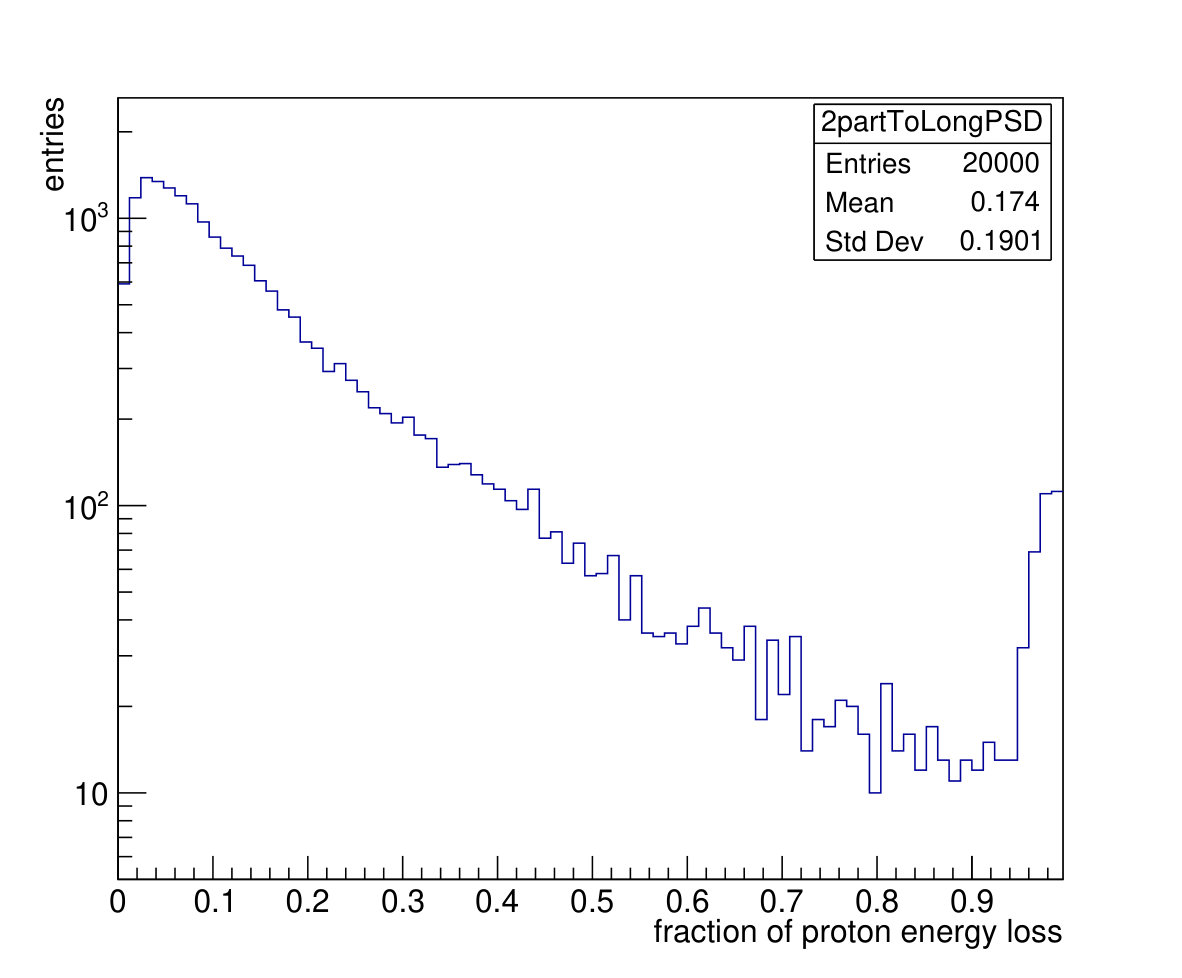

Unexpectedly, this simple model reproduced two important features: higher sensitivity of light systems for small energy loss and lower sensitivity for large fraction energy loss. Nevertheless, we are aware of the fact that the probability to lose a spectator is not a realistic model of a hadronic calorimeter. The next step was to introduce a realistic energy losd. For this goal a two-times longer ($\approx$11.2 interaction length) GEANT4 model of PSD was used and a response on a 150 GeV/c proton beam was generated. We calculated and fitted a distribution of ratio between deposited by a proton energy in the first seven sections ($\approx$3.9 int.l.) to the whole calorimeter (20 sections), as shown in Figure 7. We used the obtained function to introduce a random energy loss of each forward spectator in the wounded nucleon model.

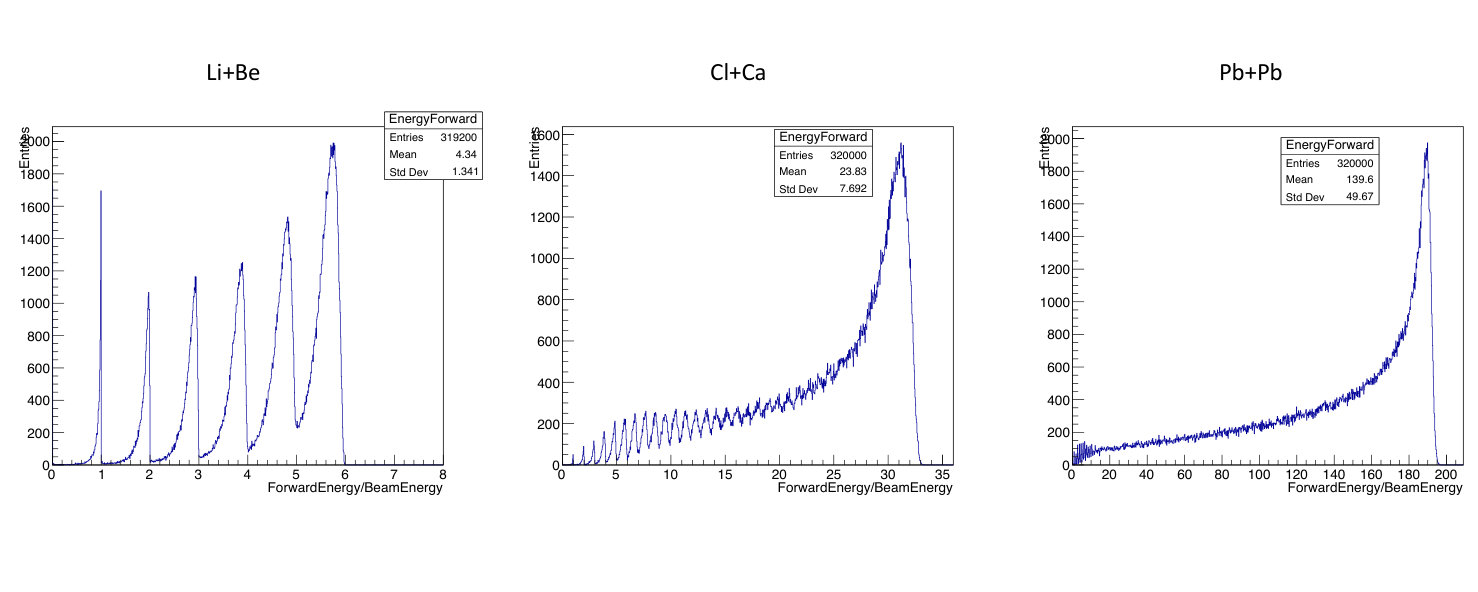

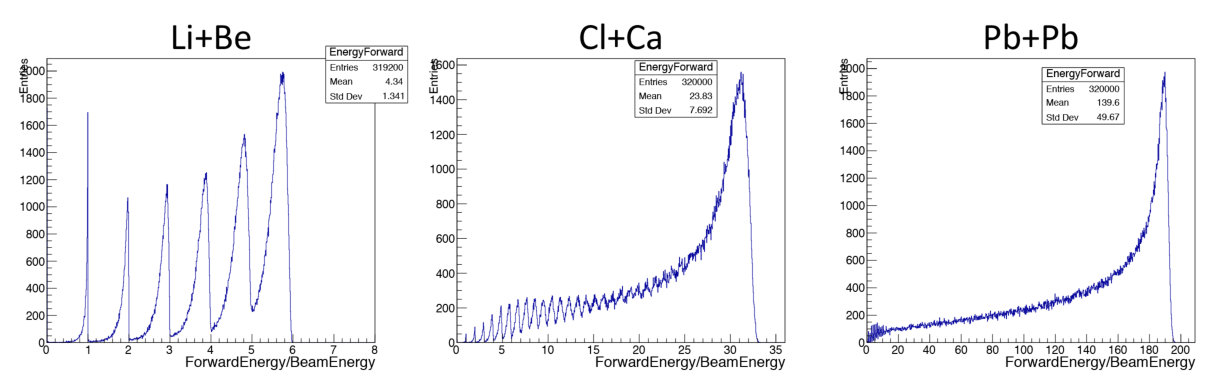

The 10% of the most central events were selected by the spectator deposited energy (see Figure 8). <N> and $\omega$[N] were calculated and compared with the ideal case (without energy loses). The results are presented in Table 1.

As shown, the effect is very tiny but nevertheless the lighter the system is the more sensitive it is. The size of the difference is probably a result of an absence of the energy resolution due to the calorimeter sandwich structure, as present in the GEANT4 simulation.

4 Conclusions

It was observed that the light nuclei systems as Li + Be are more sensitive to the energy leakage from the back side of hadronic calorimeters used for centrality determination in fixed target experiments compared to intermediate size systems as Ar + Sc. The probable reason is that in the light systems most of the forward energy is concentrated only in a few nucleons. Therefore, a single nucleon loss produces much bigger volume fluctuations than in a collision of heavy systems, which have a presence of more or less constant energy leakage in each collision. Nevertheless, more investigations are needed to reach the complete understanding of the phenomenon. Even though we succeeded in demonstrating the sensitivity of light systems in the framework of the wounded nucleon model with the probability of a spectator loss, the realistic energy loss simulation in the same model shows only a tiny effect on average multiplicity and scaled variance.

The future fixed target programs, which aim to study light nuclei colliding systems, have to pay attention that a longer calorimeter is needed to control the volume fluctuations for such reactions than for heavier ones.

\funding

This research was funded by the Russian Science Foundation grant number 17-72-20045 in a part of data analysis from MC generators (Section 2) and the Russian Foundation for Basic Research grant number 18-32-01055 mol_a in a part of wounded nucleon model analysis (Section 3).

Acknowledgements.

We would like to thank Sergey Morozov, Marina Golubeva and the PSD group for providing the calorimeter and the SHIELD MC simulations; Justyna Monika Cybowska for providing the EPOS MC simulation; and Evgeny Andronov, Marek Gazdzicki, Peter Seyboth and the NA61/SHINE collaboration for discussions leading to this article. \conflictsofinterestThe author declares no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results. \reftitleReferences
