On the importance of resistivity and Hall effect in MHD simulations of binary neutron star mergers

TL;DR

This paper investigates the conditions under which ideal MHD assumptions hold in binary neutron star merger simulations, emphasizing the roles of resistivity and Hall effect, and delineates the regimes where hydrodynamics fails.

Contribution

It identifies the plasma conditions where ideal MHD breaks down and highlights the significance of Hall effects at low densities and temperatures in BNSM simulations.

Findings

Ideal MHD applies until hydrodynamic breakdown conditions.

Hall effect influences magnetic field configuration at low densities.

Hydrodynamic description fails in specific temperature-density regimes.

Abstract

We examine the range of rest-mass densities, temperatures and magnetic fields involved in simulations of binary neutron star mergers (BNSM) and identify the conditions under which the ideal magneto-hydrodynamics (MHD) breaks down using recently computed conductivities of warm, magnetized plasma created in such systems. While previous dissipative MHD studies of BNSMs assumed that dissipation sets in due to low conduction at low rest-mass densities, we show that this paradigm must be shifted: the ideal MHD is applicable up to the regime where the hydrodynamic description of matter breaks down. We also find that the Hall effect can be important at low densities and low temperatures, where it can induce a non-dissipative rearrangement of the magnetic field. Finally, we mark the region in temperature-density plane where the hydrodynamic description breaks down.

Figures

Equations

$$\nabla \times \mathbf{E}=-\frac{1}{c}\frac{\partial \mathbf{B}}{\partial t},\nabla \times \mathbf{B}=\frac{4\pi }{c}\hat{\sigma }\mathbf{E},$$

$$\frac{\partial \mathbf{B}}{\partial t}=-\nabla \times \left(\hat{\varrho }\nabla \times \mathbf{B}\right),$$

$$\frac{4\pi \sigma }{c^2}\frac{\partial \mathbf{B}}{\partial t}=\Delta \mathbf{B}.$$

$${\tau }_d=\frac{4\pi \sigma {\lambda }_B^2}{c^2}.$$

$${\sigma }_{kj}$$

$${\varrho }_{ik}$$

$${\varrho }_0=\frac{c^2}{4\pi }\frac{{\sigma }_0}{{\sigma }_0^2+{\sigma }_1^2},{\varrho }_1=\frac{c^2}{4\pi }\frac{{\sigma }_1}{{\sigma }_0^2+{\sigma }_1^2},{\varrho }_2=\frac{c^2}{4\pi \sigma }\frac{{\sigma }_1^2-{\sigma }_0{\sigma }_2}{{\sigma }_0^2+{\sigma }_1^2},$$

$$\sigma =\frac{n_e{e}^2{c}^2\tau }{\epsilon },{\sigma }_0=\frac{\sigma }{1+({\omega }_c\tau {)}^2},{\sigma }_1=\frac{({\omega }_c\tau )\sigma }{1+({\omega }_c\tau {)}^2}=({\omega }_c\tau ){\sigma }_0.$$

$${\varrho }_0\simeq \frac{c^2}{4\pi \sigma },{\varrho }_1\simeq ({\omega }_c\tau ){\varrho }_0,{\varrho }_2\simeq 0.$$

$$|\hat{\varrho }\nabla \times \mathbf{B}|\simeq \max (1,{\omega }_c\tau ){\varrho }_0\frac{B}{{\lambda }_B}.$$

$${\tau }_B=\frac{{\tau }_d}{{\omega }_c\tau }=\frac{4\pi n_{e}e{\lambda }_B^2}{cB}=\frac{4\pi e\rho {\lambda }_B^2}{cB}\frac{Z}{A{m}_n}.$$

$$\displaystyle\sigma=\frac{1.5\times 10^{22}}{Z}\left(\frac{T_{F}}{1~{}{\rm MeV}}\right)^{a}\bigg{(}\frac{T}{T_{F}}\bigg{)}^{-b}\bigg{(}\frac{T}{T_{F}}+d\bigg{)}^{c}\,{\rm s}^{-1},$$

$$\displaystyle\tau_{d}\simeq 5\times 10^{11}\left(\frac{\rho}{1~{}{\rm g\,cm^{-3}}}\right)^{0.1}\bigg{(}\frac{T}{1\,{\rm MeV}}\bigg{)}^{0.8}\left(\frac{\lambda_{B}}{1\,{\rm km}}\right)^{2}\,{\rm s}.$$

$${\tau }_B\simeq 12\times B_{14}^{-1}\left(\frac{\rho }{1\mathrm{g}\mathrm{c}{\mathrm{m}}^{-3}}\right){\left(\frac{{\lambda }_B}{1\mathrm{km}}\right)}^2\mathrm{s},$$

$$\displaystyle\lambda_{\rm mfp}\simeq 4.2\,\left(\frac{\rho}{1~{}{\rm g\,cm^{-3}}}\right)^{-0.9}\bigg{(}\frac{T}{1~{}{\rm MeV}}\bigg{)}^{1.8}\,{\rm cm}.$$

$$\displaystyle\rho\gtrsim 1.4\times 10^{-5}\,\bigg{(}\frac{T}{1~{}{\rm MeV}}\bigg{)}^{2}\left(\frac{\lambda_{B}}{1~{}{\rm km}}\right)^{-1.1}\,{\rm g\,cm^{-3}}.$$

Full text

Keywords: binary neutron star mergers - magnetohydrodynamic simulations - magnetic-field decay - electrical conductivity - Hall effect

1 Introduction

The recent detections of gravitational waves by the LIGO and Virgo detectors have opened a new chapter in multimessenger astronomy. The observations of GW170817 and GRB170817A provided the first direct evidence that a class of short gamma-ray bursts (GRB) can be associated with the inspiral and merger of binary compact stars. As the magnetic field plays a central role in the generation of the GRBs, the physics of inspiral and merger of magnetized neutron stars can now be constrained directly by observations. The general-relativistic MHD simulations of these processes have advanced steadily over the recent years (Faber 2012, Paschalidis 2016, Baiotti 2016) and can be carried out either in the case of ideal (Rezzolla 2011, Kiuchi 2014, Palenzuela 2015, Kawamura 2016, Ruiz 2016, Kiuchi 2017, Ruiz 2018) or resistive MHD (Dionysopoulou 2012, Palenzuela 2013b, Palenzuela 2013a, Dionysopoulou 2015).

The aim of this work is to investigate the conditions under which the non-ideal MHD effects can be important in the contexts of BNSMs and the evolution of the post-merger object. For doing so, we first discuss briefly the relevant time- and lengthscales over which the physical parameters evolve in the simulations of magnetized BNSMs. Characteristic timescales of simulations set the upper bound $\tau_{0}$ over which the relevant quantities need to change to be relevant dynamically. The current highest resolution simulations of the merger process (Siegel 2013, Kiuchi 2015, Kiuchi 2017) are limited in time after merger due to numerical costs. Lower-resolution simulations can be carried out up to the point of the collapse to a black hole or the formation of a differentially rotating and unstable neutron star, and last typically tens of milliseconds (Dionysopoulou 2012, Dionysopoulou 2015).

To extract the relevant lengthscales we use an ideal MHD simulation of the merger of an equal-mass magnetized binary system with a total ADM mass of $M_{\rm ADM}=3.25M_{\odot}$ and initial orbital separation of $45\,{\rm km}$. The finest resolution of the simulation is $l_{0}\approx 227\,{\rm m}$, and the merger takes place at $t_{\rm mg}\simeq 3.5\,{\rm ms}$ after the start of the simulation (see ref. Harutyunyan 2018 for details).

The main features of the ideal-MHD simulations which are important for our estimates are: (a) the characteristic lengthscales over which the magnetic-field variations can be significant are $\lambda_{B}\simeq 1\,{\rm km}$ or less, with the lower limit obviously given by the resolution of the simulation; (b) the characteristic lengthscales over which the rest-mass density variations can be significant are $\lambda_{\rho}\simeq 10\,{\rm km}$, *i.e., *the density of matter is approximately constant over the lengthscales of variation of magnetic field; (c) the characteristic timescales relevant for the simulations are of the order of $\tau_{0}\simeq 10\,{\rm ms}$.

We start this review by collecting the relevant formulae for the characteristic timescales which describe the evolution of the magnetic field in Sec. 2. In Sec. 3 we present our numerical results and identify the density-temperature regimes where the ideal MHD approximation as well as MHD description of plasma are justified. Our results are summarized in Sec. 4.

2 Ohmic diffusion and Hall timescales

As is well-known, the MHD description of low-frequency phenomena in neutron stars is based on the following Maxwell equations

[TABLE]

where ${\hat{\sigma}}$ is the electrical conductivity tensor. Eliminating the electric field $\bm{E}$, we obtain an evolution equation for the magnetic-field

[TABLE]

where ${\hat{\varrho}}$ is the electrical resistivity tensor defined as ${\hat{\varrho}}=({c^{2}}/{4\pi}){{\hat{\sigma}}}^{-1}$.

In the case of isotropic conduction $\hat{\sigma}_{ij}=\delta_{ij}\sigma$, and Eq. (2) reduces to

[TABLE]

For qualitative estimates we approximate $|\Delta\bm{B}|\simeq B/\lambda_{B}^{2}$ and $|\partial\bm{B}/\partial t|\simeq B/\tau_{d}$, from where we find an estimate for the magnetic field decay (Ohmic diffusion) timescale $\tau_{d}$

[TABLE]

In the presence of strong magnetic fields the electrical conductivity and resistivity tensors can be decomposed as ($b_{k}=B_{k}/B$)

[TABLE]

The components of the resistivity tensor $\hat{\rho}$ are related to those of $\hat{\sigma}$ by

[TABLE]

where $\sigma=\sigma_{0}+\sigma_{2}$ is the longitudinal conductivity, *i.e., *the electrical conductivity in the absence of magnetic field. The three components of the conductivity tensor are given by the following Drude-type formulas (Harutyunyan 2016)

[TABLE]

Here $n_{e}$ is the electron number density, $e$ is the elementary charge, $c$ is the speed of light, $\tau$ is the electron mean collision time, $\omega_{c}:=ecB\varepsilon^{-1}$ is the cyclotron frequency, and $\varepsilon$ is the characteristic energy-scale of electrons.

From Eqs. (7) and (8) we obtain the following estimates for the components of the resistivity tensor

[TABLE]

Now, upon using Eqs. (6) and (9) and approximating again $\partial_{i}B\simeq B/\lambda_{B}$, we estimate the right-hand side of Eq. (2)

[TABLE]

In the case of small magnetic fields $\omega_{c}\tau\ll 1$ we recover the isotropic case from Eqs. (2) and (10). The evolution of magnetic field is then determined by the Ohmic diffusion timescale $\tau_{d}$ given by Eq. (4). Conversely, in the strongly anisotropic regime, where $\omega_{c}\tau\gg 1$, the magnetic field evolution is determined by the characteristic timescale $\tau_{B}$ given by

[TABLE]

In the last step we used the condition of the charge neutrality, which implies $n_{e}=Z\rho/(Am_{n})$, where $Z$ and $A$ are the charge and the mass number of nuclei, respectively, and $m_{n}$ is the atomic mass unit.

Thus, in the strongly anisotropic regime which is realized for sufficiently high magnetic fields and low rest-mass densities the characteristic timescale over which the magnetic field evolves is reduced by a factor of $\omega_{c}\tau$ due to the Hall effect. We see from Eq. (11) that the timescale $\tau_{B}$ decreases with an increase of the magnetic field and, in contrast to the Ohmic diffusion timescale $\tau_{d}$, is independent of the electrical conductivity $\sigma$. The physical reason for this difference lies in the fact that the Hall effect per-se is not dissipative. Note however that it can act to facilitate Ohmic dissipation. For instance, the Hall effect may cause the fragmentation of magnetic field into smaller structures through the Hall instability, which can then accelerate the decay of the field via standard Ohmic dissipation (Gourgouliatos 2016, Kitchatinov 2017).

3 Results

In order to estimate the Ohmic diffusion timescale given by Eq. (4) we use the following fit formula for the electrical conductivity $\sigma$ (Harutyunyan 2016, Harutyunyan 2017)

[TABLE]

where $T$ and T_{F}=0.511\big{[}\sqrt{1+(Z\rho_{6}/A)^{2/3}}-1\big{]}\,{\rm MeV} are the temperature of stellar matter and the Fermi temperature of electrons, respectively, $\rho_{6}:=\rho/(10^{6}\,{\rm g\ cm}^{-3})$, and the fitting parameters $a,b,c,d$ are functions of $Z$.

At low-density ($\rho_{6}\lesssim 1$) and high-temperature ($T\gtrsim 1\,{\rm MeV}$) regime of stellar matter where we are mainly interested, the matter consists mainly of hydrogen nuclei. In this case $a=0.924,\,b=0.507,\,c=1.295,\,d=0.279$  (Harutyunyan 2017), and, approximating also $T_{F}\simeq 0.25\,\rho_{6}^{2/3}\,{\rm MeV}\ll T$ in Eq. (12), we find the following estimate for Eq. (4)

[TABLE]

This timescale is clearly much larger than the typical timescales $\tau_{0}\simeq 10\,{\rm ms}$ involved in a merger. Given the current limitations on the resolution to the order of a meter and choosing the most favorable temperature and density values we can obtain an effective lower limit on $\tau_{d}$ by substituting in Eq. (13) $\lambda_{B}=1\,{\rm m}$, $\rho\simeq 10^{-3}\,{\rm g\ cm}^{-3}$, and $T=0.1\,{\rm MeV}$, in which case $\tau_{d}\sim 10^{4}\,{\rm s}$, which is still much larger than $\tau_{0}$ (although smaller rest-mass densities can be reached in BNSMs, for $\lambda_{B}=1\,{\rm m}$ and $T=0.1\,{\rm MeV}$ the MHD approach breaks down already at $\rho\lesssim 10^{-3}$ g cm*-3*; see the discussion in Sec. 3.1). Thus, our analysis suggests that resistive effects do not play an important role in the MHD phenomenology of BNSMs and the ideal-MHD approximation in BNSM simulations is always justified as long as the MHD description itself is valid. Our conclusion is in contrast with the previous paradigm of onset of dissipative MHD in low-density regime (Dionysopoulou 2012, Dionysopoulou 2015) where the nearly zero-conductivity of matter would have implied $\tau_{d}\to 0$.

In a similar way we express the Hall timescale $\tau_{B}$ given by Eq. (11) as

[TABLE]

where $B_{14}:=B/(10^{14}\,{\rm G})$. Clearly, the timescale $\tau_{B}$ is much shorter than the diffusion timescale and it can be in the relevant range of milliseconds for sufficiently low densities and large magnetic fields.

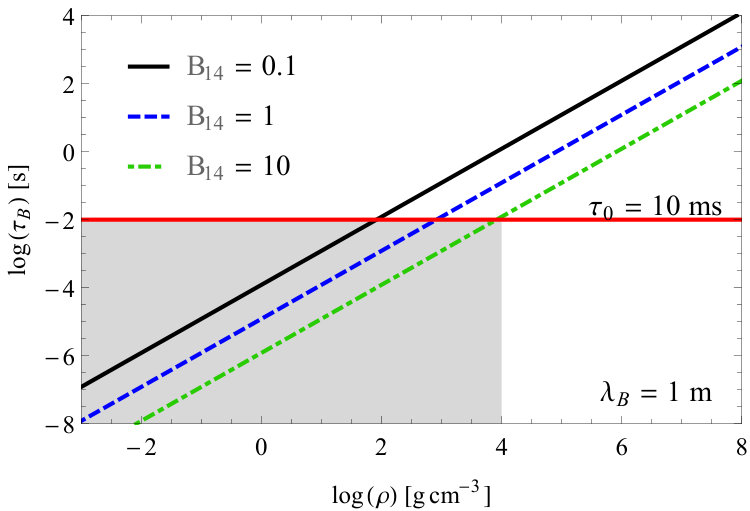

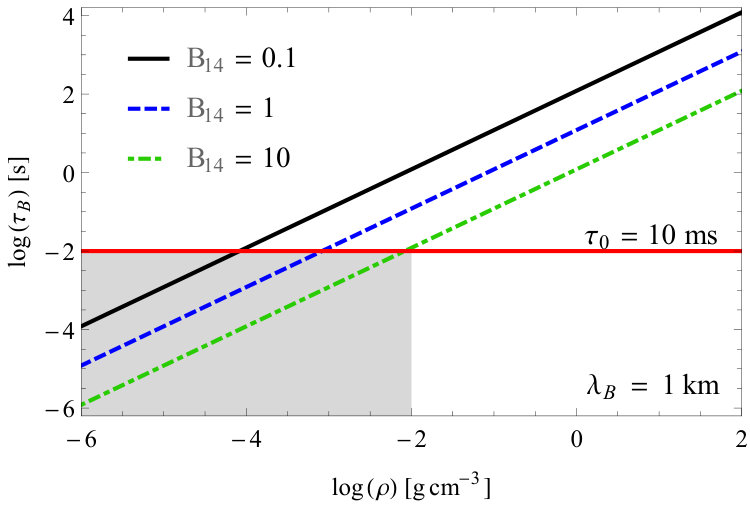

The dependence of $\tau_{B}$ on the rest-mass density is shown in Fig. 1 for $\lambda_{B}=1\,{\rm km}$ and $\lambda_{B}=1\,{\rm m}$ for several values of the magnetic field. At low densities (the shaded areas in the figure) we have $\tau_{B}<\tau_{0}$, therefore in these regions the magnetic field can be subject to the Hall effect, which will change its distribution on a timescale $\tau_{B}$. It is seen from Fig. 1 that, *e.g., *for $B_{14}=1$, $\tau_{B}$ reaches the value $\tau_{0}=10\,{\rm ms}$ for $\lambda_{B}=1\,{\rm km}$ at very low densities $\rho\leq 10^{-3}\,{\rm g\,cm}^{-3}$, while for $\lambda_{B}=1\,{\rm m}$ the value $\tau_{B}=10\,{\rm ms}$ is reached already at the densities $\rho\leq 10^{3}\,{\rm g\,cm}^{-3}$, in agreement with the scaling $\tau_{B}\propto\rho\lambda^{2}_{B}$.

3.1 Validity of the MHD approach

After having assessed the ranges of validity of ideal MHD, we can now turn to the next natural question: what limits the applicability of the MHD approach in the present context? Clearly, at very low rest-mass densities the mean free path of electrons $\lambda_{\rm mfp}=\tau v$ becomes large and the validity of the MHD description of matter itself can break down. We recall that hydrodynamic description of matter breaks down whenever $\lambda_{\rm mfp}\geq\lambda_{B}$.

At low densities and high temperatures we can obtain a simple estimate for $\lambda_{\rm mfp}$ [the arguments are similar to those leading to Eq. (13)]

[TABLE]

Now the condition of applicability of MHD description, i.e., $\lambda_{\rm mfp}\leq\lambda_{B}$, can be written as

[TABLE]

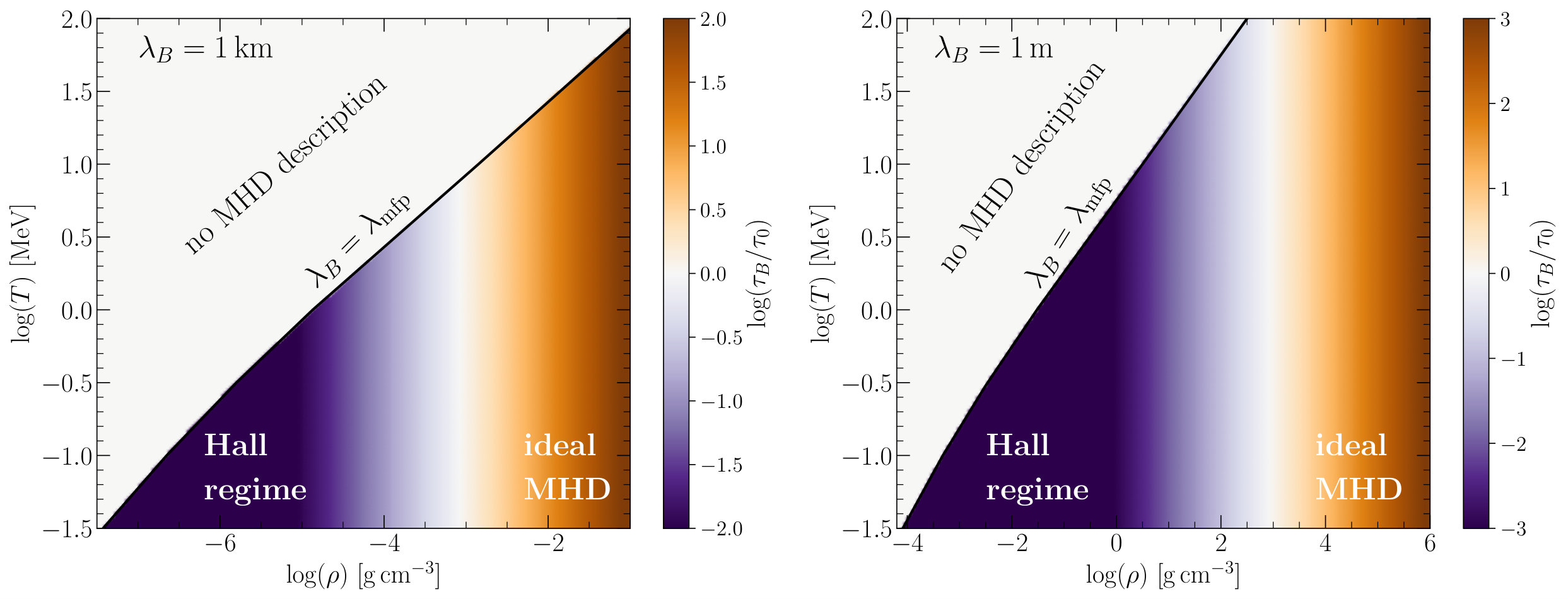

It follows from Eq. (16) that the higher the temperature or the smaller the typical lengthscale $\lambda_{B}$, the higher the rest-mass density below which the MHD description breaks down. Figure 2 shows the regions of validity of the MHD description in the temperature-density plane for $\lambda_{B}=1\,{\rm km}$ and $\lambda_{B}=1\,{\rm m}$. The low-temperature and high-density region corresponds to the regime where ideal MHD conditions are fulfilled. Adjacent to this, a lower density region emerges where the MHD is applicable, but the Hall effect should be taken into account; the exact location of this region depends on the strength of the magnetic field. It moves to lower rest-mass densities for the weaker magnetic field. Above the separation line $\lambda_{B}=\lambda_{\rm mfp}$ the low-density and high-temperature region features matter in the non-hydrodynamic regime, *i.e., *in a regime where the MHD approximation breaks down and a kinetic approach based on the Boltzmann equation is needed.

4 Summary

Motivated by recent developments of multimessenger astronomy started with the observations of GW170817 in electromagnetic and gravitational waves, we addressed in this work the role of dissipative processes in the MHD description of BNSMs. Using recently obtained conductivities of warm plasma in strongly magnetized matter we analysed the timescales for the evolution of the magnetic field under the conditions which are relevant for BNSMs. We found that the magnetic-field decay time is much larger than the relevant timescales for the merger process in the entire density-temperature range characteristic for these processes. In other words, the ideal MHD approximation is applicable throughout the entire processes of the merger. This conclusion holds for lengthscales down to a meter, which is at least an order of magnitude smaller than currently feasible computational grids. Our finding implies a paradigm shift in resistive MHD treatment of BNSMs, as these were based on the modeling of conductivities which vanish in the low-density limit (Dionysopoulou 2015). We have demonstrated that the ideal MHD description does not break down due to the onset of dissipation, rather it becomes inapplicable when the MHD description of matter becomes invalid.

We have demonstrated that the Hall effect plays an important role in the low-density and low-temperature regime. Thus, the ideal MHD description must be supplemented by an approach which takes into account the anisotropy of the fluid via the Hall effect. As is well-known, the Hall effect can act as a mechanism of rearrangement of the magnetic field resulting in resistive instabilities (Gourgouliatos 2016, Kitchatinov 2017). We hope that our study will stimulate MHD simulations which will include these effects.

Acknowledgements

I would like to thank Prof. Armen Sedrakian, Prof. Lucciano Rezzolla and Dr. Antonios Nathanail for scientific collaboration and fruitful discussions. I also acknowledge support from the HGS-HIRe graduate program at Goethe University, Frankfurt. The simulations were performed on the LOEWE cluster in CSC in Frankfurt by A. Nathanail.
