Mass measurements for two binary pulsars discovered in the PALFA survey

TL;DR

This paper reports precise timing measurements of two binary millisecond pulsars from the PALFA survey, including their masses, proper motions, and implications for their evolutionary history and formation mechanisms.

Contribution

It provides the first detailed mass and proper motion measurements for these pulsars, revealing their likely formation scenarios and introducing a new class of eccentric millisecond pulsar binaries.

Findings

PSR J1949+3106 has a pulsar mass of 1.34 M_sun and companion mass of 0.81 M_sun.

PSR J1950+2414 has a pulsar mass of 1.496 M_sun and companion mass of 0.28 M_sun.

PSR J1949+3106 likely resulted from a low-kick supernova.

Abstract

In this paper, we present the results of timing observations of PSRs J1949+3106 and J1950+2414, two binary millisecond pulsars discovered in data from the Arecibo ALFA pulsar survey (PALFA). The timing parameters include precise measurements of the proper motions of both pulsars, which show that PSR J1949+3106 has a transversal motion very similar to that of an object in the local standard of rest. The timing also includes measurements of the Shapiro delay and the rate of advance of periastron for both systems. Assuming general relativity, these allow estimates of the masses of the components of the two systems; for PSR J1949+3106, the pulsar mass is $M_p \, = \, 1.34^{+0.17}_{-0.15} \, M_{\odot}$ and the companion mass $M_c \, = \, 0.81^{+0.06}_{-0.05}\, M_{\odot}$; for PSR J1950+2414 $M_p \, = \, 1.496 \, \pm \, 0.023\, M_{\odot}$ and $M_c \, = \, 0.280^{+0.005}_{-0.004}\, M_{\odot}$ (all values 68.3 % confidence limits). We use these masses and proper motions to investigate the evolutionary history of both systems: PSR J1949+3106 is likely the product of a low-kick supernova; PSR J1950+2414 is a member of a new class of eccentric millisecond pulsar binaries with an unknown formation mechanism. We discuss the proposed hypotheses for the formations of these systems in light of our new mass measurements.

Figures

Tables

Table 1. Table 1: Ephemerides for two binary pulsars

PSR	J1949+3106		J1950+2414
Observation and data reduction parameters
Reference epoch (MJD)	56000		56000
Span of timing data (MJD)	54389-57887		55838-57883
Number of ToAs	3441		913
Assumed Solar wind parameter, $n_0$ (cm-3)	0		6
RMS Residual ($\mu s$)	3.8	3.8	4.7	4.7
${\chi }^2$	3629.6	3629.7	908.4	908.6
Reduced ${\chi }^2$	1.063	1.063	1.023	1.023
Astrometric and spin parameters
Right Ascension, $\alpha$ (J2000)	19:49:29.6374604(37)	19:49:29.6374604(37)	19:50:45.063662(24)	19:50:45.063661(24)
Declination, $\delta$ (J2000)	31:06:03.80604(7)	+31:06:03.80604(6)	+24:14:56.9639(4)	+24:14:56.9639(4)
Proper motion in $\alpha$, ${\mu }_{\alpha }$ (mas yr-1)	$-$2.895(31)	$-$2.894(31)	$-$2.12(18)	$-$2.12(18)
Proper motion in $\delta$, ${\mu }_{\delta }$ (mas yr-1)	$-$5.091(46)	$-$5.093(45)	$-$3.63(19)	$-$3.64(19)
Spin frequency, $\nu$ (Hz)	76.1140249316118(7)	76.1140249316119(6)	232.300152212241(37)	232.300152212240(37)
Spin frequency derivative, $\dot{\nu }$ (${10}^{-15}\mathrm{Hz}{s}^{-1}$)	$-$0.544131(7)	$-$0.544131(7)	$-$1.01478(37)	$-$1.01477(37)
Dispersion measure, DM (${\mathrm{cm}}^{-3}\mathrm{pc}$)	164.1266824)	164.12669(24)	142.0842(31)	142.0842(31)
Rotation measure, RM (${\mathrm{cm}}^{-3}\mathrm{pc}$)	230(20)	230(20)	-	-
Binary parameters
Orbital model	DDFWHE	DDGR	DDFWHE	DDGR
Orbital period, $P_b$ (days)	1.9495374(6)	1.94953755(20)	22.19137127(6)	22.19137127(6)
Projected semi-major axis, $x$ (lt-s)	7.2886512(13)	7.2886510(7)	14.2199356(8)	14.21993591(35)
Epoch of periastron, $T_0$ (MJD)	56000.58744(47)	56000.58740(44)	56001.3656142(26)	56001.3656143(26)
Orbital eccentricity, $e$	0.000043124(36)	0.000043122(35)	0.07981175(6)	0.07981173(4)
Longitude of periastron, $\omega$ (∘)	207.87(9)	207.86(8)	274.47042(4)	274.47042(5)
Total mass, $M$ ($M_{☉}$ )	1.99a	2.124(20)	${1.7790}^a$	1.779(25)
Companion mass, $M_c$ ($M_{☉}$ )	0.81b	0.81(5)	${0.300}^b$	0.2788(38)
Rate of advance of periastron, $\dot{\omega }$ (${}_{}{}^{\circ }\mathrm{yr}_{}^{-1}$)	0.103(19)	-	0.001678(16)	-
Orthometric amplitude of Shapiro delay, $h_3$ ($\mu$s)	2.33(7)	-	0.71(12)	-
Orthometric ratio of Shapiro delay, $\varsigma$	0.837(12)	-	${0.783346}^c$	-
Derivative of $P_b$, ${\dot{P}}_b$ (${10}^{12}$ s s-1)	$-$0.046(28)	$-0.037{\left(25\right)}^d$	$-1\left(11\right)$	$0{\left(11\right)}^d$
Derived parameters
Galactic longitude, $l$	66.8583	66.8583	61.0975	61.0975
Galactic latitude, $b$	2.5536	2.5536	$-$1.1687	$-$1.1687
DM-derived distance, $d_{\mathrm{psr},1}$ (kpc)	6.5	6.5	5.6	5.6
DM-derived distance, $d_{\mathrm{psr},2}$ (kpc)	7.5	7.5	7.3	7.3
Galactic height, $Z_{\mathrm{psr},1}$ (kpc)	0.29	0.29	0.11	0.11
Galactic height, $Z_{\mathrm{psr},2}$ (kpc)	0.33	0.33	0.15	0.15
Magnitude of proper motion, $\mu$ ($\mathrm{mas}{\mathrm{yr}}^{-1}$)	5.856(43)	5.858(42)	4.21(19)	4.21(19)
Heliocentric transverse velocity, $v_T$ ($\mathrm{km}{s}^{-1}$)	208(31)	208(31)	145(22)	145(22)
Position angle of proper motion, ${\Theta }_{\mu }$ ($\mathrm{deg}$, J2000)	209.62(34)	209.60(34)	210.2(2.5)	210.2(2.5)
${\Theta }_{\mu }$ ($\mathrm{deg}$, Galactic)	268.69(34)	268.67(34)	269.2(2.5)	269.1(2.5)
Pulsar spin period, $P$ (ms)	13.13818315216540(12)	13.13818315216539(11)	4.3047754832565(7)	4.3047754832565(7)
Spin period derivative, $\dot{P}$ (${10}^{-20}$ s s-1)	9.39235(13)	9.39235(13)	1.8805(7)	1.8805(7)
Intrinsic spin period derivative, ${\dot{P}}_{\mathrm{int}}$ (${10}^{-20}$ s s-1)	${9.40}_{-0.78}^{+0.48}$	${9.40}_{-0.78}^{+0.48}$	${2.033}_{-0.014}^{+0.003}$	${2.033}_{-0.014}^{+0.003}$
Surface magnetic flux density, $B_0$ (${10}^9$ Gauss)	1.12	1.12	0.30	0.30
Characteristic age, ${\tau }_c$ (Gyr)	2.2	2.2	3.4	3.4
Spin-down power, $\dot{E}$ (${10}^{33}\mathrm{erg}{s}^{-1}$)	1.6	1.6	10.1	10.1
Mass function, $f$ ($M_{☉}$ )	0.10938583(8)	0.10938582(5)	0.0062691312(11)	0.0062691316(5)
Pulsar mass, $M_p$ ($M_{☉}$ )	-	1.33(15)	-	1.500(22)
Orbital inclination ($\mathrm{deg}$)	79.9	79.9	76.1	76.1
Notes. Timing parameters derived using tempo, they are derived in the Barycentric Dinamical Time (TDB), using DE 436 Solar System ephemeris.
a: Derived from $\dot{\omega }$, b: derived from $h_3$ and $\varsigma$, c: assumed from best inclination given by DDGR fit, d: Fitted as the XPBDOT parameter.
$d_1$ is derived using the NE2001 (Cordes & Lazio, 2002) Galactic model, $d_2$ using the YMW16 (Yao et al., 2017) Galactic model.
Estimate of $v_T$, ${\dot{P}}_{\mathrm{int}}$ assumes $d_2$ with an uncertainty of 15 %.

Equations

$$\frac{\dot{D}}{D}=-\frac{a_l+{\mu }^{2}d}{c}$$

$${\left(\frac{{\dot{P}}_{\mathrm{b}}}{P_{\mathrm{b}}}\right)}_{\mathrm{obs}}={\left(\frac{{\dot{P}}_{\mathrm{b}}}{P_{\mathrm{b}}}\right)}_{\mathrm{GW}}-\frac{\dot{D}}{D},$$

$$\varsigma =\frac{s}{1+\sqrt{1-s^2}}=\mathrm{0.7833...},$$

$${\dot{\omega }}_{\mathrm{k}}=\pm \frac{\mu }{\sin i}=\pm 1.2\times 10^{-6}\mathrm{deg}\mathrm{y}{\mathrm{r}}^{-1},$$

Full text

(stars:) pulsars: general — (stars:) pulsars: individual: PSR J1949+3106— (stars:) pulsars: individual: PSR J1950+2414 — stars: neutron — binaries: general

††software: PRESTO (Ransom, 2011), PSRCHIVE (Hotan et al., 2004), TEMPO (Nice et al., 2015)

1 Introduction

1.1 The PALFA pulsar survey

The PALFA survey (Cordes et al., 2006; Lazarus et al., 2015), currently being carried out with the Arecibo Observatory, has thus far discovered 189 pulsars111http://www.naic.edu/~palfa/newpulsars/. The high spectral and time resolution of the data are optimized for the discovery of millisecond pulsars (MSPs, defined here as recycled pulsars with a spin period $P<25$ ms) at high values of dispersion measure (DM), enabling searches for MSPs to great distances into the Galactic plane. This approach is now well demonstrated, with the discovery of 30 new MSPs, most with large DMs compared to the previous population and large distances (Champion et al., 2008; Knispel et al., 2010, 2011; Crawford et al., 2012; Deneva et al., 2012; Allen et al., 2013; Scholz et al., 2015; Knispel et al., 2015; Stovall et al., 2016). PALFA survey uses the PRESTO software package (Ransom, 2011) for pulsar searches.

The instantaneous sensitivity of the Arecibo 305-m telescope means that the survey can achieve considerable depth with relatively short pointings (about 4.5 minutes); this makes it sensitive to highly accelerated systems. It is partly for this reason that the survey has already discovered three new relativistic pulsar-neutron star (PSR - NS) systems: PSRs J1906+0746 (Lorimer et al., 2006), a system where the pulsar we detect is the second-formed NS, J1913+1102 (Lazarus et al., 2016), a system with a likely mass asymmetry and J1946+2052 (Stovall et al., 2018), the most compact PSR - NS system known. This survey has also discovered the first repeating fast radio burst (Spitler et al., 2014, 2016).

1.2 The pulsars

PSR J1949+3106 is one of the two new MSPs announced by Deneva et al. (2012). It has a spin period of 13.1 ms, and it is in a binary system with an orbital period of 1.95 d. The projected semi-major axis of its orbit ($x\,=\,$7.29 light seconds, lt-s) implies that it has a massive companion; the small orbital eccentricity ($e\,=\,0.000043$) implies that this massive companion is a white dwarf star (WD). In the discovery paper, Deneva et al. (2012) also measured the Shapiro delay in this system and determined the masses of the pulsar and its companion: $m_{p}\,=\,1.47^{+0.43}_{-0.31}\,M_{\odot}$ and $m_{c}\,=\,0.85^{+0.14}_{-0.11}\,M_{\odot}$. Although the Shapiro delay had been detected with high significance, the uncertainties of the published masses are too large to be astrophysically useful.

PSR J1950+2414 was found by the Einstein@Home pipeline (Allen et al., 2013); its discovery and early timing results were described by Knispel et al. (2015). It is a 4.3-ms pulsar in a 22.2-day orbit with a companion that is likely to be a low-mass WD. The unusual characteristic of this system is its orbital eccentricity, $e\,=\,0.0798$, which is much larger than those of most MSP - WD systems. This system is not unique in this respect; there are four other similar systems with orbital periods between 22 and 32 days and eccentricities of the order of 0.1 (PSR J2234+0611, Deneva et al. 2013; Stovall et al. 2019, PSR J1946+3417, Barr et al. 2013, 2017, PSR J0955$-$6150, Camilo et al. 2015 and PSR J1618$-$3921, Octau et al. 2018). Such similarities are not expected from a chaotic process like the triple disruption that is thought to have formed the unusual eccentric MSP - main sequence star PSR J1903+0327 (Champion et al., 2008; Freire et al., 2011), however, as we show later, the exact formation mechanism for these binaries is still unknown.

For PSR J1950+2414, Knispel et al. (2015) measured the rate of advance of periastron, $\dot{\omega}\,=\,0.0020(3)^{\circ}\rm yr^{-1}$. Assuming this is solely an effect of general relativity, they estimated that the implied total mass of the system, $M$, is $2.3(4)\,M_{\odot}$. No other PK parameters were measured, so it was not possible to separate the component masses. Although the measurement of $\dot{\omega}$ is highly significant, the uncertainty on the resulting $M$ was too large to draw any interesting conclusions about the system.

1.3 Motivation and structure of the work

In this work, we present the results of continued timing of these two binary systems. The main aim of this project was to measure the proper motions of the two systems more precisely and to improve (as in the case of PSR J1949+3106) or to obtain (as in the case of PSR J1950+2414) masses for the MSPs and their companions.

Measuring NS masses is important for several reasons. First, their measurement allows, in some cases, precise tests of nature of gravitational waves (Freire et al., 2012) and of the strong equivalence principle (Archibald et al., 2018), which represent stringent tests of general relativity (GR) and alternative theories of gravity. Large NS masses, as in the case of PSR J0348+0432 (Antoniadis et al., 2013) and PSR J0740+6620 (Thankful Cromartie et al., 2019) introduce stringent constraints on the equation of state for super-dense matter, a fundamental problem in nuclear physics and astrophysics (see e.g., Özel & Freire 2016 and references therein). Apart from this, measuring more NS masses is important for understanding the relation between the masses of the NS components and the orbital and kinematic properties of the systems, which are a product of supernova physics (see e.g., Tauris et al. 2017 and references therein). Measuring the masses of NSs in PSR - NS and PSR - Massive WD systems, where there was little accretion, is important for establishing the distribution of NS birth masses (see e.g., Cognard et al. 2017 and references therein). Finally, measuring MSP masses is important for understanding the role that strong recycling (with potentially significant amounts of matter being accreted) have on the observed mass distribution. In this respect, it is important to determine whether the observed MSP mass distribution is uni- or bi-modal (Antoniadis et al., 2016b).

Many of these applications require an improvement in the statistics of well-measured NS masses, and some require specifically an increase in the number of precise MSP mass measurements. Our initial analysis of the two pulsars studied in this paper found that, with adequate timing data, they would yield good mass measurements; this initial expectation was, as we show below, largely confirmed.

In section 2, we will present the new observations we have made for this project and describe briefly how was the resulting data reduced. In section 3, we present the timing results, with a particular focus on the proper motion and the mass measurements. Finally, in section 4, we discuss the implications of these measurements for the origin and evolution of these systems.

2 Observations and data reduction

2.1 Observations

For both systems, we re-use the topocentric pulse times of arrival (ToAs) used in their published timing; for detailed descriptions see (Deneva et al., 2012) for PSR J1949+3106 and (Knispel et al., 2015) for PSR J1950+2414. For PSR J1949+3106, the data set is dominated by Arecibo data taken with the Wideband Arecibo Pulsar Processors (WAPPs, Dowd et al. 2000). For PSR J1950+2414, the setup was similar to that used during the PALFA survey (which uses the Mock spectrometers as a back-end), but on dedicated timing campaigns the Puerto Rico Ultimate Pulsar Processing Instrument (PUPPI) was used, mostly with the “L-wide” receiver, which is sensitive to radio frequencies between 1170 to 1730 MHz.

Most of the new data on both systems was taken with PUPPI in coherent dedisperison mode and the L-wide, in the way described by Knispel et al. (2015). All PUPPI data for both pulsars was processed as independent 100-MHz blocks, the ToAs are derived from the integrated pulse profiles within each 100-MHz block using the standard PSRCHIVE222http://psrchive.sourceforge.net/index.shtml (Hotan et al., 2004) routines as described in the aforementioned works. For PSR J1949+3106, we used separate profile templates for each 100-MHz sub-band to derive ToAs that account for any frequency-dependent evolution of the profile shape (This method was earlier used by Donner et al., 2019, where further details can be found.) This has significantly improved the timing precision of this pulsar relative to the standard single-template method; part of the reason is the strong profile evolution for this pulsar as a function of frequency (Deneva et al., 2012). For PSR J1950+2414, this method did not improve the timing noticeably, so we used TOAs derived from the standard single-template method.

For PSR J1949+3106, more than half of the additional PUPPI data resulted from the North American Nanohertz Observatory for Gravitational Waves (NANOGrav) observations (Arzoumanian et al., 2018), these were taken between MJDs 56139 and 57015 (2012 July 31 to 2014 December 23), which were used to test the suitability of this pulsar for pulsar timing arrays (PTAs); the pulsar was eventually dropped out of the PTA. To this, we added the ToAs from a dense, targeted orbital campaign that happened between MJDs 57839 and 57887 (2017 March 27 and May 14).

For PSR J1950+2414, most of the additional data were obtained during two dense orbital campaigns, the first between MJDs 56557 and 56576 (2013 September 22 to October 11) and the second between MJDs 57725 and 57744 (2016 December 3 to 22), with more sparse observations made at other times.

The ToA analysis is made using tempo333http://tempo.sourceforge.net/ (Nice et al., 2015). To convert the telescope ToAs (corrected to the International Bureau of Weights and Measures version of Terrestrial Time, TT) to the Solar System barycentre, we used the Jet Propulsion Laboratory’s DE436 solar system ephemeris; the resulting timing parameters are presented in Barycentric Dynamical Time (TDB).

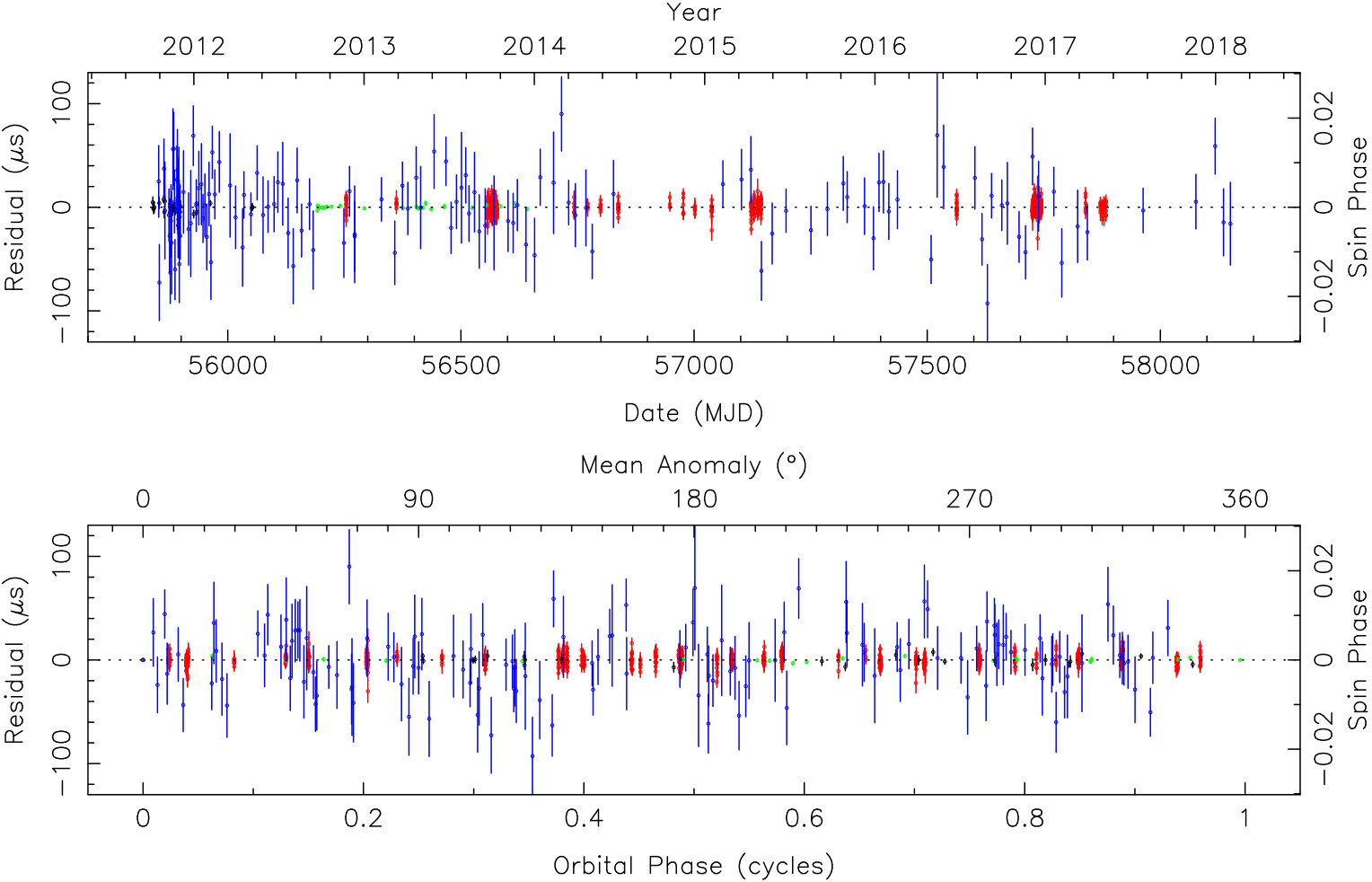

The timing solutions for both pulsars are presented in Table 1. All uncertainties are as derived by tempo, and quoted to 1$\sigma$ (68.3% C. L.). For each pulsar, we present two solutions, one based on the DDGR orbital model (Damour & Deruelle, 1986), which assumes the validity of GR to derive self-consistent mass values, and a second solution based on a theory-independent parameterization of the relativistic effects observed in the timing of these systems, the DD model (Damour & Deruelle, 1986) with a re-parameterization of the Shapiro delay known as the “orthometric” parameterization (Freire & Wex, 2010). Its implementation in tempo has the name DDFWHE (Weisberg & Huang, 2016). The ToA residuals obtained with the DDGR solutions for PSRs J1949+3106 and J1950+2414 are presented in Figures 2 and 3, respectively.

We modeled the DM by introducing DM derivatives; 7 in the case of PSR J1949+3106 and 6 in the case of J1950+2414. The number of derivatives was determined by the significance of the improvement, we stopped adding new derivatives when the $\chi^{2}$ improvement becomes smaller than 2.

For PSR J1949+3106, we investigated the possibility of using the DMX model, which fits for a time-varying DM (Demorest et al., 2013). In this model we selected ranges of 6 days for independent DM estimates, as in the NANOGrav data analysis (Arzoumanian et al., 2018); the measured DM values are presented in the top plot of Figure 2, as a function of time. We only present the DM offsets of time segments with TOAs measured at multiple frequencies; these were only derived for Arecibo data, where we obtained independent TOAs for every 100 MHz sub-band of the L-wide data. The problem of this approach is that the mass values are strongly dependent of the DMX interval we choose to use. This stems, we believe, from the fact that we only have data taken at L-band. Multi-receiver data would be necessary to make more robust measurements of the DM variations in a way that the uncertainties do not affect the small time signatures from Shapiro delay.

3 Results

3.1 Proper motions

For both systems we can measure precise proper motions, with total magnitude $\mu$ and a position angle $\Theta_{\mu}$ given in Table 1, both in Equatorial (J2000) and Galactic coordinates. For both pulsars, this has some covariance with the DM variations, for this reason the proper motion and velocity uncertainties are under-estimated.

Both systems have Westwards proper motions along the Galactic plane. The vertical velocities (i.e., the Heliocentric velocities in the direction perpendicular to the Galactic plane) are small: $v_{V}=\,\mu\cos(\Theta_{\mu})d_{\rm psr}\,=\,(-0.63\pm\,0.16)\,\times\,d_{\rm J1949+3106}\,\rm km\,s^{-1}$ and $v_{V}\,=\,(-0.3\pm\,0.9)\,\times\,d_{\rm J1950+2414}\,\rm km\,s^{-1}$ where $d_{\rm psr}$ are their distances. We cannot measure the parallaxes from the timing with any significance, so we derive the distances from their DMs using the NE2001 (Cordes & Lazio, 2002) and the YMW16 (Yao et al., 2017) models of the Galactic electron distribution; these are presented in table 1. Assuming the YMW16 distances for both systems, their vertical velocities are $-4.8\,\pm\,1.2$ and $-2.3\pm 6.6\,\rm km\,s^{-1}$ respectively. The vertical velocity of the Sun in the Galaxy is about $+7.3(1.0)\,\rm km\,s^{-1}$ (Schönrich et al., 2010); this means that all objects with no vertical velocity are seen, in the Helocentric frame, with an opposite vertical velocity. Subtracting that from the observed proper motions, we obtain, in the reference frame of the Galaxy, $v_{V}\,=\,2.5\,\pm\,1.2$ and $5.0\,\pm 6.6\,\rm km\,s^{-1}$ respectively.

The vertical velocities are a component of the pulsar’s velocity relative to the local standard of rest (LSR), known as peculiar velocity. The fact that they are small suggests that the pulsars might be in the LSR. We now test this hypothesis by calculating the magnitude of the proper motions parallel the Galactic plane (the horizontal proper motions) these pulsars should have if they were in the LSR.

The first step is to calculate the X, Y and Z coordinates of the pulsar, which is done easily enough from $l$, $b$, $d$ and the Sun’s distance to the Galactic centre, $r_{0}$. For this, we used the estimate from the GRAVITY experiment (Gravity Collaboration et al., 2018), $r_{0}\,=\,8.122(31)$kpc. The coordinates for the Sun are $X_{\odot}\,=\,r_{0}$, $Y_{\odot}\,=\,0$ and $Z_{\odot}\,\simeq\,0.02$; for the pulsar $X_{\rm psr}\,=\,r_{0}-d_{\rm psr}\cos(l)\cos(b)$, $Y_{\rm psr}\,=\,d_{\rm psr}\sin(l)\cos(b)$ and $Z_{\rm psr}\,=Z_{\odot}+\,d_{\rm psr}\sin(b)$.

The Sun’s peculiar velocity is given by $V_{X,\odot}\,=\,-11.1(1.5)$, $V_{Y,\odot}\,=\,12.2(2.0)$ and $V_{Z,\odot}\,=\,7.3(1.0)\,\rm km\,s^{-1}$ (here the X-direction is away from the centre of the Galaxy, the opposite of the convention used by Schönrich et al. 2010, which define the X axis as pointing to the centre of the Galaxy). To get the velocity of the Sun relative to the Galactic centre, we add the Galaxy’s rotational velocity to $V_{Y,\odot}$. Here we use the value provided by McGaugh (2018), $v_{\rm Gal}\,=\,233.3\,\rm km\,s^{-1}$, which already takes the updated $r_{0}$ into account.

If the pulsar is in the LSR, then $V_{X,\rm psr}=-v_{\rm Gal}Y_{\rm psr}/r_{\rm psr}$ and $V_{Y,\rm psr}=v_{\rm Gal}X_{\rm psr}/r_{\rm psr}$, where $r_{\rm psr}$ is the pulsar’s distance from the Galactic centre. Finally, we calculate the projection of the difference of velocities along a unit vector perpendicular to the line of sight and parallel to the plane of the Galaxy, and then divide the resulting velocity by the distance to the pulsar to obtain the horizontal proper motion $\mu_{H}$.

For PSR J1949+3106 ($l\,=\,66.8583\,\deg$) the NE2001 distance is 6.5 kpc, and $r_{\rm psr}\,=\,8.18\,$kpc, a distance very similar to $r_{0}$. From this we obtain $\mu_{H}\,=\,-5.85\,\rm mas\,yr^{-1}$, where the negative sign indicates Westwards motion along the Galactic plane (thus, decreasing $l$). For the YMW16 distance (7.5 kpc), $r_{\rm psr}\,=\,8.60\,$kpc and $\mu_{H}\,=\,-5.69\,\rm mas\,yr^{-1}$. The observed $\mu_{H}$, given by $\mu\sin(\Theta_{\mu})=-5.86(4)\,\rm mas\,yr^{-1}$, is in very good agreement with the NE2001 estimate, and in 4.3-$\sigma$ disagreement with the YMW16 estimate. If the NE2001 distance is correct, the peculiar horizontal velocity of the pulsar is $v_{H}\,=\,0.0(1.3)\,\rm km\,s^{-1}$; if the YMW16 model distance is correct $v_{H}\,=\,5.9(1.5)\,\rm km\,s^{-1}$. Thus the precisions of $v_{H}$ is limited by the uncertainty of the distance. If we assume that the pulsar is in the LSR, then the NE2001 distance estimate is much closer to the real distance than the YMW16 estimate.

For PSR J1950+2414 ($l\,=\,61.0975\,\deg$) the NE2001 distance is 5.6 kpc, thus $\mu_{H}\,=\,-6.11\,\rm mas\,yr^{-1}$. For the YMW16 distance (7.3 kpc) $\mu_{H}\,=\,-6.04\,\rm mas\,yr^{-1}$. The observed horizontal proper motion, $\mu_{H}\,=\,-4.21(19)\,\rm mas\,yr^{-1}$, is in clear disagreement with the estimates above, the differences are $+1.90(19)$ and $+1.83(19)\,\rm mas\,yr^{-1}$; this is about 10-$\sigma$ significant in both cases. Using the YMW16 distance, we obtain $v_{H}\,=\,+61(7)\,\rm km\,s^{-1}$. Thus PSR J1950+2414 has a significant horizontal peculiar velocity, despite its very small vertical velocity.

3.2 DM evolution

If PSR J1949+3106 were in the LSR, and if $r_{\rm psr}\,\simeq\,r_{0}$ (this happens if the pulsar is near the NE2001 distance), then something interesting would happen: The pulsar and the Sun would not only travel with nearly the same absolute velocity as all objects in the LSR ($v_{\rm gal}$), but they would also have approximately the same angular velocity ($\Omega_{\rm gal}=v_{\rm gal}/r_{0}$) around the Galactic centre. In such a configuration, the Sun and PSR J1949+3106 would form an approximately rigid rotating triangle, i.e., one with approximately constant side length. Thus the distance between the Sun and PSR J1949+3106 would change little, i.e., J1949+3106 should have a very small Heliocentric radial velocity. A detailed calculation yields a radial velocity of $-16.9\,\rm km\,s^{-1}$ that is mostly caused by the Sun’s peculiar velocity, without the latter the radial velocity would be $-1.3\,\rm km\,s^{-1}$.

Currently, it is not possible to measure the Heliocentric radial velocity of this system: the quantity cannot be extracted from pulsar timing. It could in principle be extracted from absorption lines in the optical spectrum of the companion, however, the companion to PSR J1949+3106 has not been detected. For this reason, we cannot measure the peculiar velocity of PSR J1949+3106 along the radial direction, so we cannot conclude that the system really has a low peculiar velocity; even though this is true in the direction perpendicular to the line of sight.

Recently, Jones et al. (2017) used the observed DM variations of the NANOGrav MSPs in an attempt to measure the radial velocities of the pulsars. A detailed calculation of all effects is beyond the scope of this work. However, if the pulsar and the intervening ionized interstellar medium (IISM) are all in the LSR, then there should be very little change in the line of sight of the system relative to the IISM, since the latter is basically co-moving with the Earth and the system. This means that there should be no long-term increasing or decreasing trend in the DM of the pulsar. This is in agreement with the observations presented in Fig. 2 – the DM derivative is $0.00060(20)\,\rm cm^{-3}\,pc\,yr^{-1}$, 3-$\sigma$ consistent with zero – and in disagreement with the DM trends observed for most other pulsars listed by Jones et al. (2017).

3.3 Spin parameters

With the assumed distances and the measured proper motion we can estimate the magnitude of the kinematic effects that may bias the timing parameters using the simple expressions provided by Shklovskii (1970) and Damour & Taylor (1991), which estimate the rate of change of the Doppler shift factor $D$:

[TABLE]

To estimate the Galactic acceleration $a_{l}$, we use the equations provided by Lazaridis et al. (2009). These are reasonably accurate for these pulsars since they are very close to the Galactic plane. In those equations we used the $r_{0}$ and $v_{\rm Gal}$ from the previous section. The results for $\dot{D}/D$ are $0.5^{+3.6}_{-5.9}\,\times\,10^{-20}\rm s^{-1}$ and $35.6^{+0.6}_{-3.3}\,\times\,10^{-20}\rm s^{-1}$ for J1949+3106 and J1950+2414 respectively, both values calculated assuming the YMW16 distances. The expected value for PSR J1949+3106 (consistent with zero) is consistent with the “rigid rotating triangle” configuration mentioned above where the distance between the pulsar and the Earth is unchanging: indeed, $\dot{D}$ is proportional to the second derivative of that distance.

With the values of $\dot{D}/D$ for both pulsars, we can estimate the kinematic correction to the spin period derivatives, $\dot{P}_{\rm kin}\,=\,-P\dot{D}/D$. Subtracting this from the observed $\dot{P}$s we obtain intrinsic spin period derivatives ($\dot{P}_{\rm int}$); these are quite similar to the observed values for both pulsars. From $P$ and $\dot{P}_{\rm int}$, we derive updated values for the characteristic age ($\tau_{c}$), surface magnetic flux density ($B_{0}$) and also the rate of loss of rotational energy ($\dot{E}$) using the standard expressions presented by Lorimer & Kramer (2004). All these quantities are presented in Table 1.

3.4 Orbital period derivatives

The observed orbital period derivative for these binaries with compact companions is given, to first order, by:

[TABLE]

where the first term is the orbital decay caused by the emission of gravitational waves and the second term is the fractional rate of change of the Dopper shift calculated in eq. 1.

In the case of PSR J1950+2414, it is clear that only the second term matters. Indeed, in that case the DDGR model predicts $\dot{P}_{\rm b,GR}\,=\,-4.47\,\times\,10^{-17}\rm s\,s^{-1}$, this is four orders of magnitude smaller than the kinematic term $\dot{P}_{\rm b,k}\,\equiv\,-P_{\rm b}\dot{D}/D\,=\,-0.68_{-0.01}^{+0.06}\,\times\,10^{-12}\rm s\,s^{-1}$. If we fit for this quantity, we obtain $\dot{P}_{\rm b,obs}\,=\,-1\pm 11\,\times\,10^{-12}\rm s\,s^{-1}$. Thhis means we’re one order of magnitude away from the detection of $\dot{P}_{\rm b,k}$.

For PSR J1949+3106, the situation is far more interesting. In that case, $\dot{P}_{\rm b,GR}\,\simeq\,-6\,\times\,10^{-15}\rm s\,s^{-1}$, is comparable to the uncertainty of the kinematic term $\dot{P}_{\rm b,k}\,=\,-0.8^{+10.0}_{-6.1}\,\times\,10^{-15}\rm s\,s^{-1}$, obtained assuming the YMW16 distance with a 15% uncertainty. Our DDFWHE solution yields $\dot{P}_{\rm b,obs}\,=\,-46\pm 56\,\times\,10^{-15}\rm s\,s^{-1}$ (95.4 % C. L.). This precision is not yet enough to constrain the distance to the system.

3.5 Mass measurements

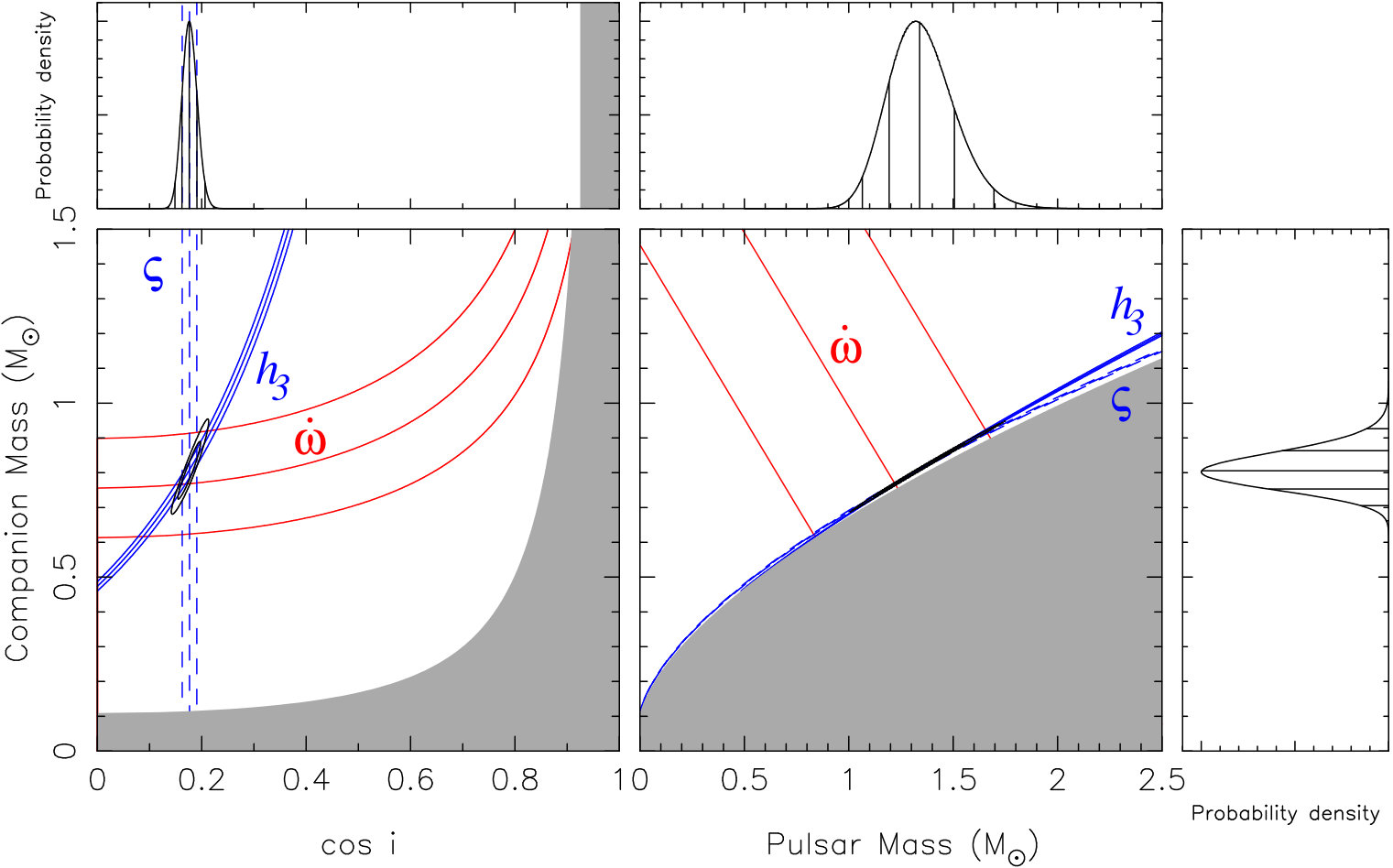

For each pulsar in this work, we detect 3 post-Keplerian parameters: the rate of advance of periastron ($\dot{\omega}$), and the Shapiro delay, which yields two parameters, the orthometric amplitude ($h_{3}$) and ratio ($\varsigma$). The fits made using the DDGR model (Damour & Deruelle, 1986) use the relativistic time signatures of these effects and assume the validity of GR to provide direct estimates of the total binary mass $M$ and the companion mass $M_{c}$. For PSR J1949+3106, these are respectively $M\,=\,2.14(20)\,M_{\odot}$, $M_{c}\,=\,0.81(5)\,M_{\odot}$ and $M_{p}\,=\,1.33(15)\,M_{\odot}$, given the mass function these correspond to $s\,=\,\sin i\,\simeq\,0.9844...$. These are 1-$\sigma$ consistent with the values presented by Deneva et al. (2012), but $\sim\,2$ times more precise. These masses are based almost entirely on the measurement of the Shapiro delay (see Fig. 4), but are now being influenced by the detection of $\dot{\omega}$.

One of the remarkable features of PSR J1949+3106 is that we have a 5-$\sigma$ significant measurement of $\dot{\omega}$ of this system despite the fact that its orbital eccentricity is rather small ($e=\,\,4.3124(36)\,\times\,10^{-5}$). The value we measure, $\dot{\omega}\,=\,0.103(19)\deg\,\rm yr^{-1}$, is consistent with the the GR prediction for the masses determined from the Shapiro delay (see Fig. 4). This is a test of GR, although not a very constraining one.

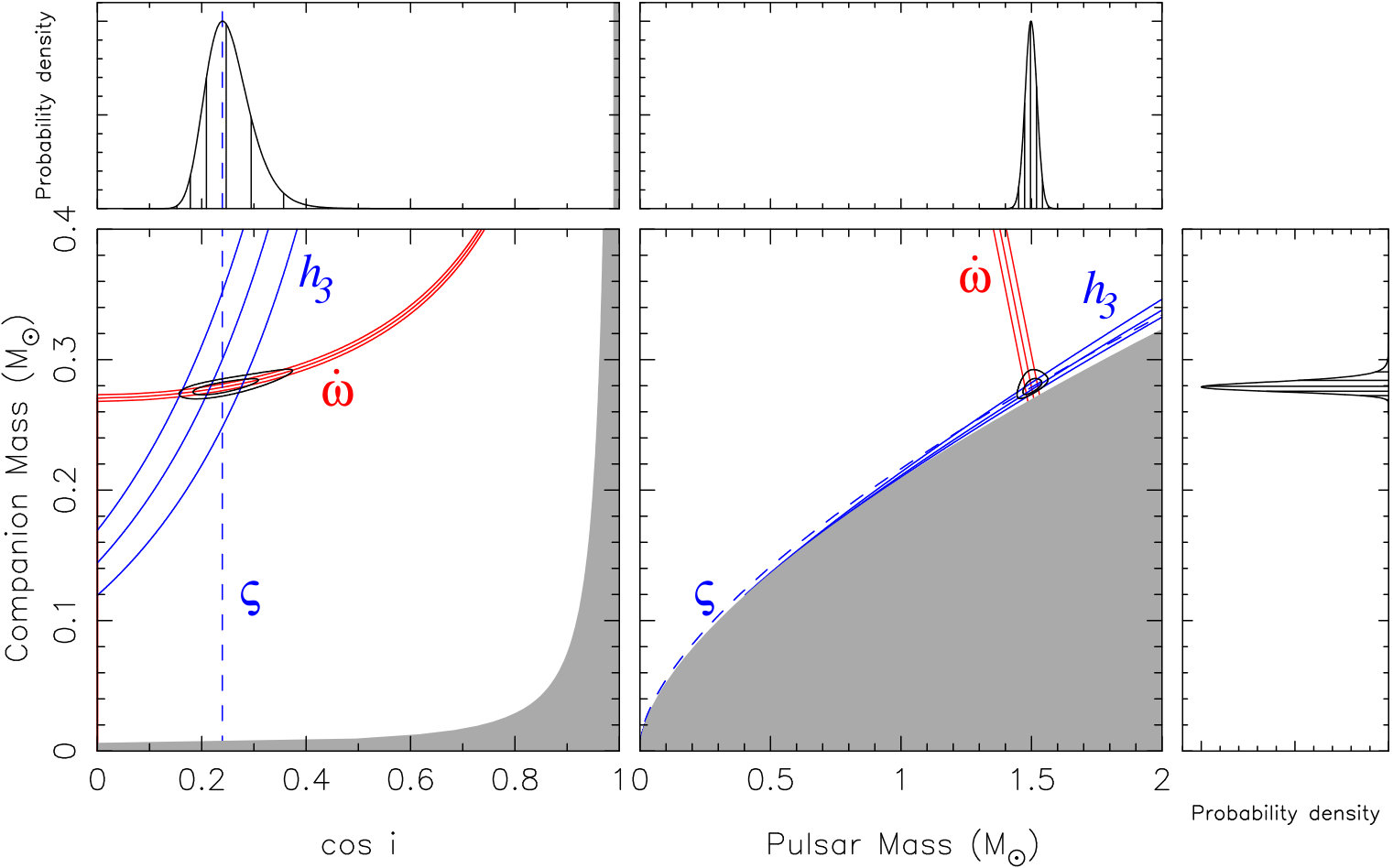

For PSR J1950+2414, the DDGR solution yields precise masses: The total mass is $M\,=\,1.779(25)\,M_{\odot}$, for the individual masses we obtain: $M_{c}\,=\,0.2788(38)\,M_{\odot}$ and $M_{p}\,=\,1.500(22)\,M_{\odot}$.

The total mass is determined precisely because the unusually large eccentricity of the system ($e\,=\,0.07981175(6)$) enables a precise measurement of the rate of advance of periastron ($\dot{\omega}\,=\,0.001678(16)\,\deg\rm yr^{-1}$ in the DDFWHE solution). The constraints imposed by this, assuming that the effect is caused by GR alone, are shown with the red lines in Fig. 5.

The Shapiro delay yields, on its own, far less precise masses than for PSR J1949+3106; fitting for both $h_{3}$ and $\varsigma$ we get very low significance for both parameters. To better estimate the regions allowed by the Shapiro delay, we fix $\varsigma$ to the value of $\sin i$ derived by the DDGR solution ($s\,=\,\sin i\,=\,0.9709...$), using (Freire & Wex, 2010):

[TABLE]

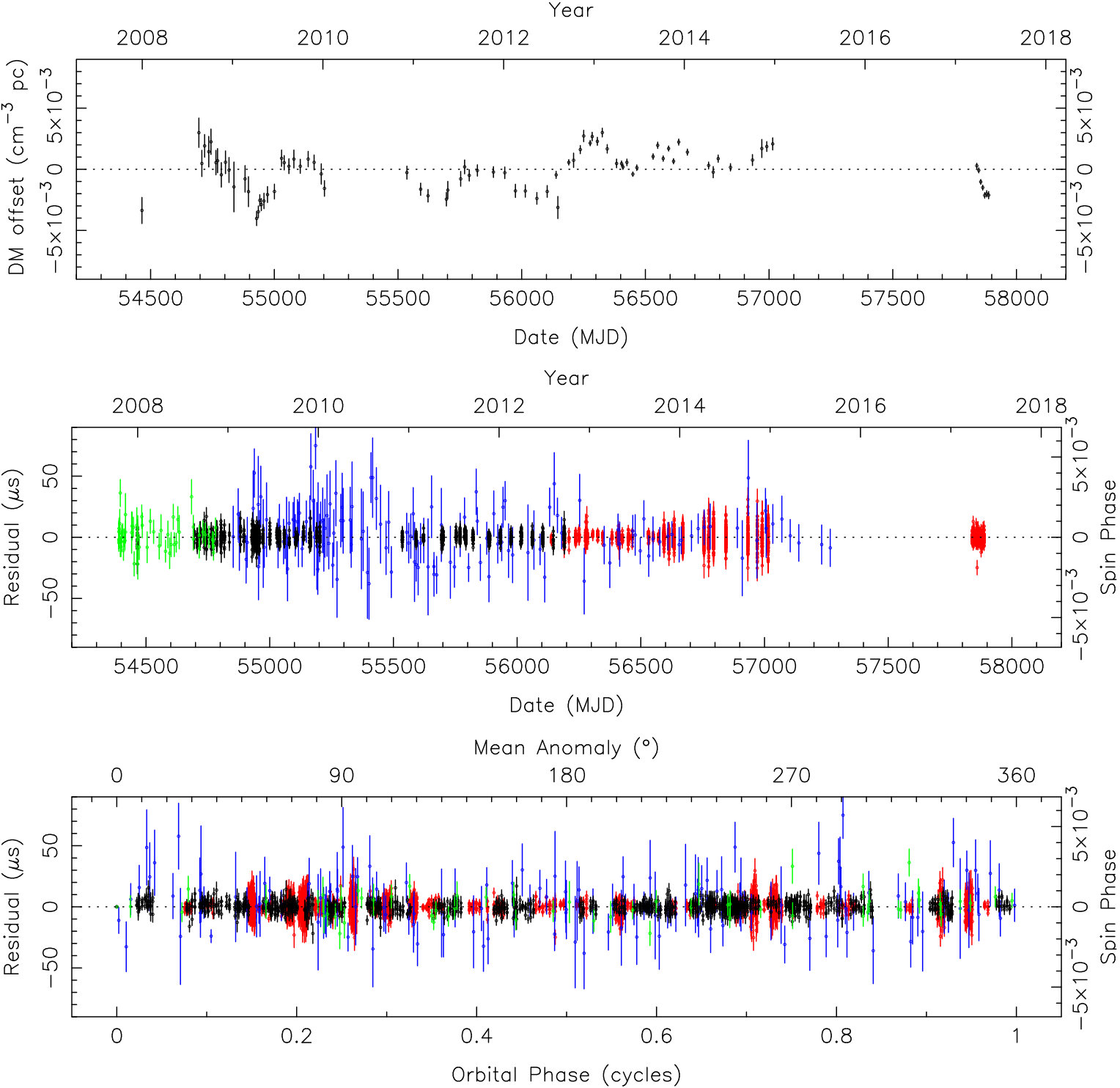

this is represented by the blue dashed lines in figure 5. With this, we obtain a highly significant detection of the orthometric amplitude, $h_{3}\,=\,0.71\,\pm\,0.12\,\mu\rm s$. It is this constraint, in combination with the $\dot{\omega}$, that allows the precise measurement of the individual component masses (see figure 5).

We now verify whether the $\dot{\omega}$ is caused by the effects of GR. To do this, we estimate the contribution to $\dot{\omega}$ from the proper motion of the system ($\mu\,=\,4.21(19)\,\rm mas\,yr^{-1}$), using the equations first derived by Kopeikin (1995, 1996). The largest possible contribution is given by

[TABLE]

which is one order of magnitude smaller than the uncertainty of $\dot{\omega}$. Other contributions are likely to be smaller (Stovall et al., 2019). Therefore, the assumption that the measured $\dot{\omega}$ is relativistic is, to our knowledge, warranted.

3.6 Bayesian mass estimates

To verify the uncertainty estimates for the masses, we used the Bayesian method described in detail by Barr et al. (2017) and references therein. In this method, we make a map of the $\chi^{2}$ of the ToA residuals as a function of $\cos i$ (which has a constant probability for randomly oriented orbits) and $h_{3}$ in the case of PSR J1949+3106 (in order to save computational time from being allocated to regions with very bad values of $\chi^{2}$), and $M_{c}$ in the case of PSR J1950+2414. We then transform these $\chi^{2}$ maps into a 2-D probability density function (pdf) in the $\cos i$ - $M_{c}$ plane, we also translate it into a similar pdf in the $M_{p}$ - $M_{c}$ plane. The contours holding 68.23 and 95.44 % of all probability in these planes are displayed in Figs. 4 for PSR J1949+3106 and 5 for PSR J1950+2414. For the former, the region of high probability is well described by the orthometric Shapiro delay parameters, $h_{3}$ and $\varsigma$, and their uncertainties, as predicted by Freire & Wex (2010) and already observed in this system by Deneva et al. (2012). For the latter system, the region of high probability is well described by $h_{3}$, $\dot{\omega}$ and their uncertainties. Projecting these 2-D pdfs onto the different axes, we obtain the probabilities for the masses and orbital inclination. For PSR J1949+3106 the 68.3 % confidence limits are: $M_{c}\,=\,0.81_{-0.05}^{+0.06}\,M_{\odot}$, $M_{p}\,=\,1.34_{-0.15}^{+0.17}\,M_{\odot}$ and $i\,=79.9_{-0.9}^{+0.8}\,\deg$; for PSR J1950+2414 $M_{c}\,=\,0.2795_{-0.0038}^{+0.0046}\,M_{\odot}$, $M_{p}\,=\,1.496\,\pm\,0.023\,M_{\odot}$ and $i\,=75.7_{-2.8}^{+2.2}\,\deg$. For both systems, these values and uncertainties are in good agreement with those obtained using the DDGR model in tempo.

4 Discussion

4.1 PSR J1949+3106

The companion WD to this pulsar has a mass of about 0.8 $M_{\odot}$; this suggests it is a Carbon-Oxygen WD. The pulsar in this system seems to have a rather normal mass ($M_{p}\,=\,1.34\,M_{\odot}$), although in this case the precision of the measurement is still consistent, within 2 $\sigma$, with a wide range of masses, from 1.06 to 1.70 M*⊙*. This means that improvements on the mass measurements are still of scientific interest. Since the measurement precision for $\dot{\omega}$ improves faster than for the Shapiro delay parameters (the uncertainties decrease as $T^{-3/2}$ for the former versus $T^{-1/2}$ for the latter, where $T$ is the timing baseline), it is likely that, in a not-too-distant future, the combination of $\dot{\omega}$ with the Shapiro delay parameters will yield much more precise masses, as in the case of the other pulsar described in this work, PSR J1950+2414. If we set the uncertainty of $M$ to zero in the DDGR model, we can simulate the results we would obtain for this system if we measured a very precise $\dot{\omega}$. In that case, the individual masses can be measured with an uncertainty of only $\sim\,7.5\,\times\,10^{-4}\,M_{\odot}$ from the combination of the “fixed” $\dot{\omega}$ and $h_{3}$.

The characteristics of this system suggest a relatively mild evolutionary history. The small transverse peculiar velocity indicates that the kick associated with the supernova that formed this neutron star was unusually small, even though its effect on the peculiar motion of the system would have been attenuated by the large mass of the progenitor of the WD companion. This suggests that the envelope of the progenitor to PSR J1949+3106 was heavily stripped by the progenitor of the companion WD.

In double neutron star systems, there seems to be a positive correlation between the kick magnitude and the mass of the second-formed NS (Tauris et al., 2017). If kick magnitude is also correlated with the mass for the first-formed NS in NS-WD systems, then the small velocity of PSR J1949+3106 relative to the LSR and the small implied kick would suggest a relatively small mass for PSR J1949+3106.

4.2 PSR J1950+2414

As discussed already by Knispel et al. (2015) and in section 1, the second object studied in this work, PSR J1950+2414 is a member of a recent and growing class of MSPs with unexplained large ($e\,\sim\,0.1$) orbital eccentricities and orbital periods between 22 and 32 days.

Any measurements of the masses and proper motions for these intriguing systems, such as those we have obtained above, are important for testing the hypotheses that have been advanced for their formation. Apart from PSR J1950+2414, measurements have just been published for PSR J1946+3417 (Barr et al., 2017) and for PSR J2234+0611 (Stovall et al., 2019). As discussed in detail in these papers, these mass measurements exclude the hypotheses proposed by Freire & Tauris (2014) and Jiang et al. (2015), which are based on sudden mass loss of the MSP progenitor. All measurements thus far are consistent with the expectations of the hypothesis proposed by Antoniadis (2014). This proposes that the orbital eccentricity is caused by material ejected from the companion WD by nuclear reactions happening near its surface. This hypothesis predicts, among other things, that the MSPs in these systems should have a range of masses similar to those of the general MSP population (Özel & Freire, 2016; Antoniadis et al., 2016b), which appears to be true.

Regarding the companions to the MSPs in these systems, the prediction of all hypotheses advanced to date is that they should be Helium white dwarfs with masses given by the Tauris & Savonije (1999) relation. The companion masses measured for PSR J1950+2414 (this work) and PSR J2234+0611 (Stovall et al., 2019) are in agreement with the Tauris & Savonije (1999) relation. Furthermore, optical observations of the companion of PSR J2234+0611 have confirmed that it is a He WD (Antoniadis et al., 2016a). However, the companion mass measured for PSR J1946+3417 ($M_{c}\,=\,0.2556(19)\,M_{\odot}$, Barr et al. 2017) is slightly smaller than that expectation.

One aspect that has not been discussed in detail until now has been the position of the eccentric MSPs in the $P$-$\dot{P}$ diagram. If, as predicted by Antoniadis (2014), these systems formed essentially as all other MSP binaries, they should be located in the same areas of the $P$-$\dot{P}$ diagram. This also appears to be the case as well.
