The SAT+CAS Method for Combinatorial Search with Applications to Best Matrices

TL;DR

This paper introduces the SAT+CAS method, combining SAT solvers and computer algebra systems, to solve combinatorial conjectures and constructs the largest known best matrices, confirming the best matrix conjecture for a new case.

Contribution

The paper presents a novel SAT+CAS approach applied to construct and verify the existence of large best matrices, extending the conjecture to r=7.

Findings

Confirmed the best matrix conjecture for r=7

Constructed new skew Hadamard matrices from best matrices

Validated previous exhaustive search results for r≤6

Abstract

In this paper, we provide an overview of the SAT+CAS method that combines satisfiability checkers (SAT solvers) and computer algebra systems (CAS) to resolve combinatorial conjectures, and present new results vis-\`a-vis best matrices. The SAT+CAS method is a variant of the Davis$\unicode{8211}$Putnam$\unicode{8211}$Logemann$\unicode{8211}$Loveland $\operatorname{DPLL}(T)$ architecture, where the $T$ solver is replaced by a CAS. We describe how the SAT+CAS method has been previously used to resolve many open problems from graph theory, combinatorial design theory, and number theory, showing that the method has broad applications across a variety of fields. Additionally, we apply the method to construct the largest best matrices yet known and present new skew Hadamard matrices constructed from best matrices. We show the best matrix conjecture (that best matrices exist in all orders of the form $r^2+r+1$) which was previously known to hold for $r\leq6$ also holds for $r=7$. We also confirmed the results of the exhaustive searches that have been previously completed for $r\leq6$.

Figures

Tables

Table 1. Table 1: A summary of the results produced by the SAT+CAS system MathCheck .

Paper	Conjecture	Main Result
Bright et al. bright2019good	Good Matrix	Found three new counterexamples
Bright et al. bright2016mathcheck	Williamson	Found the smallest counterexample
Bright et al. bright2019applying	Even Williamson	Verified orders up to 70
Bright et al. bright2018complex	Complex Golay	Nonexistence in lengths 23, 25, 27, 28
Zulkoski et al. zulkoski2015mathcheck	Ruskey–Savage	Verified in order five
Zulkoski et al. zulkoski2015mathcheck	Norine	Verified in order six
This work	Best Matrix	Verified in order 57

Equations

$$\mathrm{sum}(A{)}^2+\mathrm{sum}(B{)}^2+\mathrm{sum}(C{)}^2+\mathrm{sum}(D{)}^2=4n$$

$$\bigg{\lvert}\sum_{j=0}^{n-1}a_{j}\exp\big{\lparen}2\pi\sqrt{-1}jk/n\big{\rparen}\bigg{\rvert}^{2}\leq 4n$$

$$A=B=C=\left[\begin{array}{ccc}+& -& +\\ +& +& -\\ -& +& +\end{array}\right]D=\left[\begin{array}{ccc}+& +& +\\ +& +& +\\ +& +& +\end{array}\right].$$

$${\bar{x}}_k:=x_k+x_{k+19}+x_{k+2\cdot 19}\text{for 0≤k<19}.$$

$${\mathrm{PSD}}_{\bar{A}}(k)+{\mathrm{PSD}}_{\bar{B}}(k)+{\mathrm{PSD}}_{\bar{C}}(k)+{\mathrm{PSD}}_{\bar{D}}(k)=4n\text{for all k}.$$

$$\operatorname{PSD}_{\bar{X}}(k)\coloneqq\bigg{\lvert}\sum_{j=0}^{18}\bar{x}_{j}\exp\big{\lparen}2\pi\sqrt{-1}jk/19\big{\rparen}\bigg{\rvert}^{2}.$$

$$a_k=-a_{n-k},b_k=-b_{n-k},c_k=-c_{n-k},d_k=d_{n-k}\text{for k=0.}$$

$$(a_k\vee a_{k+19})\wedge (a_k\vee a_{k+2\cdot 19})\wedge (a_{k+19}\vee a_{k+2\cdot 19})\wedge (\neg a_k\vee \neg a_{k+19}\vee \neg a_{k+2\cdot 19})$$

$${\mathrm{PSD}}_A(k)+{\mathrm{PSD}}_B(k)+{\mathrm{PSD}}_C(k)+{\mathrm{PSD}}_D(k)=4n\text{for all k}.$$

$$\sum _{X\in S}{\mathrm{PSD}}_X(k)\le 4n$$

$$x_0=a_k{b}_k,x_1=x_0{c}_k,x_2=x_1{d}_k,x_3=x_2{a}_{2k},x_4=x_3{b}_{2k},x_5=x_4{c}_{2k}$$

$$(x_0\vee a_k\vee b_k)\wedge (\neg x_0\vee \neg a_k\vee b_k)\wedge (x_0\vee \neg a_k\vee \neg b_k)\wedge (\neg x_0\vee a_k\vee \neg b_k)$$

$$a_0\vee a_1,a_0\vee a_2,a_1\vee a_2,\neg a_0\vee \neg a_1\vee \neg a_2,$$

$$b_0\vee b_1,b_0\vee b_2,b_1\vee b_2,\neg b_0\vee \neg b_1\vee \neg b_2,$$

$$c_0\vee c_1,c_0\vee c_2,c_1\vee c_2,\neg c_0\vee \neg c_1\vee \neg c_2,$$

$$d_0,d_1,d_2.$$

$$(a_0^2+a_1^2+a_2^2)+(a_0{a}_1+a_1{a}_2+a_2{a}_0)x+(a_0{a}_2+a_1{a}_0+a_2{a}_1)x^2.$$

$$\left[\begin{array}[]{c@{\qquad}c@{\qquad}c}a_{0}^{2}+a_{1}^{2}+a_{2}^{2}&a_{0}a_{1}+a_{1}a_{2}+a_{2}a_{0}&a_{0}a_{2}+a_{1}a_{0}+a_{2}a_{1}\\ \end{array}\right].$$

$$A(x)A(x^{-1})+B(x)B(x^{-1})+C(x)C(x^{-1})+D(x)D(x^{-1})=4\cdot 3.$$

$$A(x)A(x^{-1})=3-x-x^2,$$

$$B(x)B(x^{-1})=3-x-x^2,$$

$$C(x)C(x^{-1})=3-x-x^2,$$

$$D(x)D(x^{-1})=3+(1+2d_1)x+(1+2d_1)x^2.$$

$$4\cdot 3+(-2+2d_1)x+(-2+2d_1)x^2=4\cdot 3$$

$$B_0=1,B_1=1,B_2=2,B_3=2,B_4=7,B_5=2,B_6=5,B_7=3.$$

$$\mathrm{sum}(A)=a_0+\sum _{i=1}^{(n-1)/2}(a_i+a_{n-i})=1$$

$$\mathrm{sum}(A{)}^2+\mathrm{sum}(B{)}^2+\mathrm{sum}(C{)}^2+\mathrm{sum}(D{)}^2=4n$$

$$\mathrm{sum}(D)=1+2\sum _{i=1}^{(n-1)/2}{d}_i\equiv n(\mathrm{mod}4).$$

$$r^2+r+1\equiv (-1{)}^{\lfloor (r+1)/2\rfloor }(\mathrm{mod}4)\text{and}2r+1\equiv (-1{)}^r(\mathrm{mod}4)$$

$$a_k{b}_k{c}_k{d}_k{a}_{2k}{b}_{2k}{c}_{2k}=-1$$

$$A(x)A(x^{-1})+B(x)B(x^{-1})+C(x)C(x^{-1})+D(x)D(x^{-1})=4n$$

$$A(x)A(x^{-1})$$

$$=2(2A_{+}-T)-(2A_{+}-T{)}^2$$

$$=4A_{+}-4A_{+}^2-(2T-4|A_{+}|T+nT)$$

Full text

††journal: Annals of Mathematics and Artificial Intelligence

1 Introduction

In recent years a number of search paradigms have emerged that allow the solving of extraordinarily large problems in combinatorial mathematics. In particular, one of the most successful techniques has been the “SAT paradigm” of reducing a problem into Boolean logic and then searching for a solution using a SAT solver handbook . In fact, the SAT paradigm has been so successful that it is routinely used to solve problems in areas of mathematics which don’t seem to be directly connected to Boolean logic at first glance. In 2017, Heule, Kullmann, and Marek heule2017solving summarized the state-of-the-art in combinatorial searches as follows:

Surprisingly, SAT solving is getting so strong that indeed [using SAT solvers] seems today the best solution in most cases.

Some enormous combinatorial problems have been resolved in this way. In particular, the cube-and-conquer SAT solving paradigm heule2017science by Heule and Kullmann has achieved a number of striking successes including solving the Boolean Pythagorean triples problem heule2016solving and determining the value of the fifth Schur number—a problem that resisted solution for over 100 years heule2018schur .

Briefly, in the cube-and-conquer paradigm a “look-ahead” SAT solver heule2009look partitions the search space into a number of independent subspaces of roughly equal difficulty called “cubes”. Each cube is then solved by a SAT solver using conflict-driven clause learning marques2009conflict (possibly employing parallelization across a large number of processors) to determine if a solution to the problem exists. See Section 2 for more background on the cube-and-conquer paradigm.

Despite these impressive successes, the cube-and-conquer paradigm is not appropriate for all kinds of combinatorial problems, and in particular it would be difficult to use in problems that have properties that cannot easily be expressed in Boolean logic. When dealing with such problems one common approach is to employ an SMT (SAT modulo theories) solver handbook-smt ; z3 ; yices ; ganesh-stp based on the Davis–Putnam–Logemann–Loveland algorithm (modulo theories) denoted by DPLL($T$) not06 where $T$ is a theory of first-order logic. SMT solvers can solve many problems of interest in the context of automatic program verification botinvcan2009separation and automatic test case generation cadar2008exe . However, modern SMT solvers only support specific theories and in this paper we are interested in solving combinatorial problems that have properties that cannot be easily expressed in those theories.

By contrast, a huge number of mathematical properties of interest can easily be expressed in computer algebra systems (CAS) such as Maple mapleguide , Mathematica wolfram2003mathematica , and SageMath sagemath . Indeed, a common approach for solving problems that use advanced mathematics is to write a program in the programming language of a CAS. While CAS are very impressive in solving pure math problems, they are not optimized for combinatorial problems that require both math and search.

We therefore have developed a new “SAT+CAS” method, that combines the best of both the SAT world (for search) and CAS (for math) and have used this method to solve several large combinatorial problems that rely on advanced mathematics. We do this by using a combination of SAT solvers and computer algebra systems and use each system in ways that exploit its strengths. Namely, we use the SAT solver as the combinatorial search engine and use the CAS to check properties that are too difficult or cumbersome to encode into Boolean logic. The SAT+CAS paradigm is a variant of DPLL($T$) and can be captured as DPLL(CAS), however, it also uses the CAS more generally. For example, during preprocessing the CAS can often show the equivalence of subproblems that the SAT solver would not be able to discern and would therefore otherwise have to solve multiple times.

As concrete examples of this paradigm we mention three problems and the properties that we checked using a CAS. See Section 3 for background on these problems and Section 4 for details of how we used the SAT+CAS method to push the state-of-the-art in these problems. We briefly mention these below:

The Ruskey–Savage conjecture (see zulkoski2017combining ; zulkoski2015mathcheck ). This conjecture states that any matching of a hypercube graph can be extended to a Hamiltonian cycle. We encode the property that a set of edges is a matching in a SAT instance and check that the edges extend to a Hamiltonian cycle using a CAS. 2. 2.

Enumerating Williamson matrices (see bright2018sat ; bright2018satcas ). Williamson matrices are square $\{\pm 1\}$-matrices that satisfy a simple arithmetical property. They also satisfy a more complicated property based on the discrete Fourier transform that we check using a CAS. 3. 3.

Enumerating complex Golay pairs (see bright2018enumeration ; bright2018complex ). Complex Golay pairs are two polynomials with coefficients in $\{\pm 1,\pm i\}$ that satisfy a simple arithmetical property. The norm of the polynomials satisfy certain bounds that we check using the nonlinear programming optimizer of a CAS.

1.1 New results

In this paper, we further extend the success of the SAT+CAS paradigm to another class of matrices studied in combinatorial design theory known as best matrices georgiou2001circulant . This case study is similar to the Williamson example from above because best matrices are also known to satisfy a strict condition based on the discrete Fourier transform. However, best matrices tend to be much rarer than Williamson matrices. In particular, it is known that if circulant best matrices of order $n$ exist then $n$ must be of the form $r^{2}+r+1$ for some $r\geq 0$ djokovic2018goethals .

Before this work it was known that best matrices exist in all these orders for $r$ up to and including $r=5$ georgiou2001circulant and best matrices were recently found for $r=6$ djokovic2018goethals . This makes it tempting to conjecture that best matrices actually exist for all orders of the form $r^{2}+r+1$. See Section 5 for a detailed discussion of how we applied the SAT+CAS paradigm to this problem and Section 6 for details on our implementation and results.

The main new result of this paper is that we show for the first time that best matrices exist for $r=7$ by explicitly constructing best matrices of order $57$—the largest best matrices currently known. Additionally, we use these matrices to construct new skew Hadamard matrices and perform the first published verification of the counts of best matrices given in djokovic2018goethals ; georgiou2001circulant (see Section 6). A secondary contribution is a demonstration that the SAT+CAS method is applicable to a wide variety of fields including graph theory, combinatorial design theory, and number theory (see Section 4).

2 Previous work

SAT solving has been studied since the 1960s but it was not generally considered a tractable problem at that time. In fact, SAT was often considered as a typical example of an intractable problem after the Cook–Levin theorem showed that SAT is NP-complete. In the 1990s new algorithmic techniques such as conflict-driven clause learning and variable branching heuristics greatly increased the size of problems that could be solved. This spurred what has been referred to as a “SAT revolution” vardi2009symbolic and SAT solvers now routinely solve problems with millions of variables and constraints. The ability to efficiently solve such problems has resulted in a large number of applications of SAT solving ranging from formal verification of hardware vizel2015boolean to solving Sudoku puzzles lynce2006sudoku . In this paper we focus on applications of SAT solvers to combinatorial search problems.

The first application of SAT solvers to combinatorial problems appears to be by McCune mccune1994davis , and Stickel and Zhang stickel1994first who in the 1990s used SAT solvers to solve a number of open Latin square and quasigroup problems. Zhang developed a solver called SATO zhang1997specifying and applied it to numerous Latin square problems and observed that such an approach was just as effective as using a special-purpose solver zhang2009combinatorial :

In the earlier stage of our study of Latin square problems, the author wrote two special-purpose programs. After observing that these two programs could not do better than SATO, the author has not written any special-purpose search programs since then.

In the 2000s SAT solvers were also successfully applied to the branch of combinatorics known as Ramsey theory and in particular to the problem of computing van der Waerden numbers. The mathematician van der Waerden proved van1927beweis that any $r$-colouring of the natural numbers must contain $k$ numbers in arithmetic progression that are all the same colour (monochromatic). A van der Waerden number is the smallest value of $n$ such that all $r$-colourings of $\{1,\dotsc,n\}$ have a monochromatic arithmetic progression of length $k$.

An initial result in 2003 was by Dransfield, Marek, and Truszczyński dransfield2003satisfiability who used a SAT solver to significantly improve the lower bounds on several van der Waerden numbers. Two years later Kouril and Franco kouril2005resolution used a SAT solver to find a $2$-colouring of $\{1,\dotsc,1131\}$ without any monochromatic arithmetic progressions of length $6$ and conjectured that it was not possible to increase the size of this set. Three years later Kouril and Paul kouril2008van used a SAT solver to prove this, in other words they showed that all $2$-colourings of $\{1,\dotsc,1132\}$ contain monochromatic arithmetic progressions of length $6$.

In 2011, Heule, Kullmann, Wieringa, and Biere heule2011cube developed the cube-and-conquer paradigm in the process of solving SAT instances that arose from computing van der Waerden numbers ahmed2014van . They found that the cube-and-conquer method performed better than any other method on these instances:

Results on hard van der Waerden benchmarks using our basic method show reduced computational costs up to a factor 20 compared to the fastest “pure” SAT solver.

The basic idea behind the cube-and-conquer method is to combine two different SAT solving strategies, the “lookahead” and “conflict-driven” strategies. Lookahead solvers are good at making decisions at a global level, i.e., finding the next decision that simplifies the problem as much as possible. In contrast, conflict-driven solvers are good at solving large problems that admit a relatively short solution, i.e., ones that can be solved by making specific local decisions that may not be good globally but happen to work in that specific case.

The crucial insight by Heule et al. is to employ lookahead solvers to split the problem into many subproblems and then switch to conflict-driven solvers once the subproblems become simple enough. In this way a cube-and-conquer solver performs better than either a pure lookahead or pure conflict-driven solver. Furthermore the method naturally admits parallelization as the subproblems can be solved using separate processors.

The cube-and-conquer paradigm has been enormously successful. In particular, Heule, Kullmann, and Marek heule2016solving used it to solve the Boolean Pythagorean triples problem and Heule heule2018schur used it to find the value of the fifth Schur number—both of these problems were well-known and went unsolved for decades. SAT solvers have also been used to compute Green–Tao numbers by Kullmann kullmann2010green and solve a special case of the Erdős discrepancy conjecture by Konev and Lisitsa konev2014sat .

3 Mathematical preliminaries

In this section we describe the mathematical preliminaries necessary to understand the problems discussed in this paper. One of our goals is to demonstrate that the SAT+CAS method is applicable across many fields, so to this end we introduce problems in the fields of graph theory, combinatorial design theory, and number theory.

Graph theory.

The hypercube graph of order $n$ is a graph on $2^{n}$ vertices where the vertices are labelled with bitstrings of length $n$. Two vertices are adjacent in this graph exactly when their labels differ in a single bit. A matching of a graph is a subset of its edges such that no two edges share a vertex. A Hamiltonian cycle of a graph is a path through the graph that starts and ends at the same vertex and visits each vertex exactly once.

The Ruskey–Savage conjecture says that every matching of a hypercube graph of order $n\geq 2$ can be extended into a Hamiltonian cycle of the graph ruskey1993hamilton . This conjecture has been open for over twenty-five years.

Combinatorial design theory.

A Hadamard matrix is a square matrix with $\pm 1$ entries such that any two distinct rows are orthogonal. Hadamard matrices have a long history (first constructed in 1867 sylvester1867thoughts ) and applications to error-correcting codes macwilliams1977theory , image coding pratt1969hadamard , and techniques for statistical estimation rao1996balanced . The Hadamard conjecture is that Hadamard matrices exist in all orders that are multiples of four and much work has gone into constructing Hadamard matrices in as many orders as possible hedayat1978hadamard ; horadam2012hadamard ; kharaghani2005hadamard ; seberry1992hadamard . One way of constructing a Hadamard matrix of order $4n$ is to use a set of Williamson matrices of order $n$ kotsireas2009hadamard .

To define Williamson matrices we require the definition of a circulant matrix. A matrix is circulant if each row is equal to the previous row shifted by one element to the right (with a wrap-around). Therefore, a circulant matrix can equivalently be identified with the sequence formed by its first row. Four circulant and symmetric matrices $A$, $B$, $C$, $D$ of order $n$ are Williamson matrices if they have $\pm 1$ entries and $A^{2}+B^{2}+C^{2}+D^{2}$ is the scalar matrix $4nI$. The Williamson conjecture is that Williamson matrices exist in all positive orders $n$ golomb1963search and the even Williamson conjecture is that Williamson matrices exist in all even orders bright2019applying .

Best matrices are similar to Williamson matrices and will be formally defined in Section 5. One of the major differences is that best matrices can be used to construct skew Hadamard matrices, i.e., ones whose off-diagonal entries are anti-symmetric. Much effort has also been spent constructing skew Hadamard matrices in as many orders as possible. The skew Hadamard conjecture says that they exist in all orders of the form $4n$ craigen2007hadamard but the current smallest unknown order is $n=69$ and the previous smallest unknown order $n=47$ was solved in 2008 djokovic2007skew .

Best matrices are primarily used to construct orthogonal designs and skew Hadamard matrices—which have applications to fields such as statistical analysis and coding theory. For example, Kim and Solé kim2008skew have shown that skew Hadamard matrices of order $4n$ produce self-dual codes over fields of characteristic dividing $n$. Applications to other combinatorial structures relying on best matrices are given in the original paper of Georgiou, Koukouvinos, and Seberry that defined best matrices georgiou2001circulant . For example, they use best matrices to construct the first known orthogonal designs of a certain form.

Number theory.

Two polynomials $A$ and $B$ with coefficients in $\{\pm 1,\pm i\}$ and of length $n$ (i.e., degree $n-1$) form a complex Golay pair if $\lvert A(z)\rvert^{2}+\lvert B(z)\rvert^{2}=2n$ for all $z$ on the unit circle. Such polynomials (with real coefficients) were first used by Golay to solve a problem in infrared multislit spectrometry golay1949multi . They have since been applied to an enormous number of applications in engineering (particularly in communications taghavi2007autocorrelations ). They also provide extremal examples for various problems in number theory Borwein2002 .

Craigen, Holzmann, and Kharaghani craigen2002complex study complex Golay pairs and make a number of conjectures concerning them. For example, they conjecture that if complex Golay pairs of prime length $p$ do not exist then complex Golay pairs also do not exist in any length that is divisible by $p$. Thus, since complex Golay pairs of length $7$ do not exist, their conjecture implies that complex Golay pairs also do not exist in length $28$. Additionally, they conjecture that complex Golay pairs do not exist in length $23$ based on a partial search.

4 The SAT+CAS paradigm

It is well known that one of the drawbacks of Boolean logic is that it is not expressive enough for many domains cimatti2006building . This was a significant impetus for the development of SAT modulo theories (SMT) solvers and the DPLL($T$) architecture ganzinger2004dpll that can solve problems specified in more expressive theories. A few SMT solvers have the ability to work with more mathematically complex theories such as non-linear transcendental arithmetic cimatti2018incremental . However, to our knowledge no SMT solvers can compute fast Fourier transforms or are optimized to handle the many fragments of mathematics supported by computer algebra systems.

Conversely, computer algebra systems (CAS) from the field of symbolic computation are optimized to solve hard non-linear algebraic problems, among many other fragments of mathematics. In 2015, Ábrahám abraham2015building pointed out that the fields of symbolic computation and SMT solving have similar aims but the fields have developed mostly independently of each other:

The research areas of SMT solving and symbolic computation are quite disconnected. On the one hand, SMT solving [ …] makes use of symbolic computation results only in a rather naive way. [ …] On the other hand, symbolic computation [ …] does not exploit the achievements in SMT solving for efficiently handling logical fragments, using heuristics and learning to speed-up the search for satisfying solutions.

Furthermore, she made the case that these communities could mutually benefit from exploiting the achievements of the other field. To this end the SC2 project (for symbolic computation and satisfiability checking) was started to bridge the gap between these communities abraham2016sc2 .

Independently of the work of Ábrahám, we started developing a system called MathCheck in 2014 inspired by the DPLL($T$) algorithm but replacing the theory solver with a computer algebra system. We used MathCheck to show that certain graph theoretic conjectures held up to bounds that had not previously been verified zulkoski2015mathcheck . Later we applied MathCheck to find (or disprove the existence of) Williamson matrices bright2018satcas , complex Golay pairs bright2018enumeration , and good matrices bright2019good in certain orders. A summary of these results is presented in Table 1.

The SAT instances that were generated in the graph theory case studies were small enough that the instances could be solved without splitting them into subproblems. However, in every subsequent problem we found that splitting was essential in order to solve the largest cases. We observed very similar behaviour to what was described by Heule heule2018schur in the cube-and-conquer paradigm, namely, that instances could be solved much quicker once they had been split into independent subproblems. This held true even if only using a single processor and even when accounting for the time it took to split the problem.

Our SAT+CAS method can be viewed as a special case of the cube-and-conquer paradigm with two major differences. First, we don’t divide the problem into subproblems specified by cubes (a conjunction of literals). Instead, we specify the division of the problem into subproblems by using clauses in conjunctive normal form. Second, we use a computer algebra system during both the divide and conquer phases. During the dividing phase the computer algebra system can often discard entire subproblems without even sending them to a SAT solver. For example, if the CAS finds that two subproblems are isomorphic then one can safely be discarded. However, devising a splitting method that takes advantage of the computer algebra system and performs well requires significant knowledge of the domain. We display a general overview of the SAT+CAS method using divide and conquer in Figure 1.

We now describe in detail the problems outlined in Sections 1 and 3 and how we applied the SAT+CAS paradigm to derive new results about each problem. We leverage some of these ideas in Section 5 and use them to construct the largest best matrices currently known.

Graph theory.

The Ruskey–Savage conjecture (that every matching of a hypercube can be extended into a Hamiltonian cycle) was previously known to hold in the orders $n=2$, $3$, and $4$ fink2007perfect . Using MathCheck we showed that the conjecture also holds in the order $n=5$ for the first time zulkoski2015mathcheck .

The constraint that a subset of the edges of a hypergraph forms a matching is encoded directly into Boolean logic. However, the constraint that says that such a matching can be extended into a Hamiltonian cycle is not straightforward to encode in Boolean logic—but a computer algebra system can easily test this. Therefore, whenever a satisfying assignment of the propositional constraints (i.e., a matching of the graph) is found by the SAT solver the matching is passed to a CAS to verify that it can be extended into a Hamiltonian cycle.

If the CAS finds that the given matching can not extend to a Hamiltonian cycle this provides a counterexample of the conjecture. Otherwise, the CAS provides to the SAT solver a clause that blocks this matching from being considered in the future. It’s also possible for the CAS to provide clauses that block other similar matchings (e.g., matchings generated via an automorphism of the graph) and we showed that this was beneficial to the performance of the solver zulkoski2017combining .

Combinatorial design theory.

Exhaustive searches for Williamson matrices had been performed in all odd orders $n\leq 59$ holzmann2008williamson and all even orders $n\leq 18$ kotsireas2006constructions prior to our work. These searches discovered that Williamson matrices don’t exist in the orders $n=35$, $47$, $53$, and $59$, but exist in all other orders that were searched. Using MathCheck we were able to provide exhaustive searches for all orders $n\leq 70$ divisible by $2$ or $3$ (finding over 100,000 new sets of Williamson matrices) bright2019applying ; bright2018satcas and verified the counterexample $n=35$ bright2016mathcheck .

Using arithmetic circuits it is possible to generate a SAT instance that specifies that Williamson matrices exist in order $n$. However, this approach was only able to find Williamson matrices for orders up to $n=30$. To scale up to $n=70$ we found that it was essential to use a divide-and-conquer approach and use CAS functionality in both the divide and conquer phases.

First, we give an overview of the divide phase. The first property that is useful in this regard is the fact that Williamson matrices satisfy

[TABLE]

where $\operatorname{sum}(X)$ denotes the rowsum of the first row of $X$. (We associate a circulant matrix $X$ with the sequence formed by its first row.) We use a computer algebra system to solve the equation $x^{2}+y^{2}+u^{2}+v^{2}=4n$ in integers and each solution provides one subproblem, namely, the subproblem of finding a set of Williamson matrices of order $n$ with rowsums $(x,y,u,v)$. This typically splits each order into a few subproblems; to further divide the problem we use sequence compression djokovic2015compression .

For concreteness, suppose $n$ is even and $n=2m$. Then Williamson matrices can be “compressed” into matrices of order $m$ by adding together the entries that are separated by exactly $m$ entries in each row. For example, the compression of the row $[1,-1,1,1,-1,-1]$ is $[2,-2,0]$. We generate further subproblems using compressions; each subproblem corresponds to finding a set of Williamson matrices that compresses to a given $\{\pm 2,0\}$-sequence. The reason this method of dividing is so effective is because there are strong filtering theorems that a CAS can use to determine that most subproblems of this form are unsatisfiable without even using a SAT solver. An example of these filtering theorems is described below (in the context of the conquer phase).

Second, we give an overview of the conquer phase. In this phase a SAT solver receives a number of independent SAT instances that encode one subproblem that was generated in the divide phase. Using an off-the-shelf SAT solver in this stage allowed us to scale to order $n=35$ (and in particular verify that $35$ is the smallest counterexample of the Williamson conjecture bright2016mathcheck ). However, using a CAS in the conquer phase was found to be orders of magnitude faster and allowed us to scale to $n=70$.

The reason that using a CAS produces such a dramatic improvement is because it allows the usage of filtering theorems that are very strong—but the theorems cannot easily be directly encoded into Boolean logic. As an example, it is known that if $A=[a_{0},\dotsc,a_{n-1}]$ is the first row of a Williamson matrix then the bound

[TABLE]

holds for all integers $k$. This is a very strict bound that the vast majority of $A$ will fail to satisfy for some $k$. Furthermore, it is very efficient to test because the values on the left form the power spectral density of $A$ and can be quickly computed using a fast Fourier transform (e.g., using the DFT and PowerSpectrum functions of the computer algebra system Maple).

In the conquer phase the SAT solver proceeds as normal until a partial satisfying assignment of the propositional constraints are such that the values of $A$ can be determined. At this point $A$ is passed to a CAS which computes its power spectrum. If the power spectral density bound is violated then a conflict clause is returned to the SAT solver that blocks this $A$ from being considered in the future. The same condition is also checked with $B$, $C$, and $D$.

Number theory.

All complex Golay pairs up to length $n=19$ were enumerated in craigen2002complex and it was conjectured (based on their partial search and patterns that they noticed) that such pairs do not exist for $n=23$ and $28$. This was proven in fiedler2013small where a complete enumeration was performed up to $n=28$. However, this result had never been independently verified. Using MathCheck we performed the first independent verification of this result bright2018complex by explicitly finding all complex Golay pairs for $n\leq 28$, and further provided a complete enumeration of all inequivalent complex Golay pairs up to $28$.

At first it is not even obvious that a search for complex Golay pairs of length $n$ could be translated into SAT, since there are an infinite number of $z$ on the unit circle. In fact, using arithmetic circuits and other properties of complex Golay pairs it is possible to generate a SAT instance that specifies that complex Golay pairs exist in length $n$. However, in our experience these instances could only be solved up to $n=16$ before incorporating a CAS. Similar to the previous case study we employ a divide and conquer approach and use CAS functionality in both phases.

In the divide phase we perform a search for all possible polynomials $A$ that could appear as a member of a complex Golay pair. A number of properties that $A$ must satisfy are used as filtering criteria, the main one being that $\lvert A(z)\rvert^{2}\leq 2n$ for all $z$ on the unit circle. To test this bound we find the maximum of the non-linear function $\lvert A(z)\rvert^{2}$ for $z$ on the unit circle; for example, this can be done with the Maple command NLPSolve.

In the conquer phase we solve a SAT instance for each possible $A$ that was found in the dividing phase; a satisfying assignment of such an instance will produce a $B$ such that $(A,B)$ form a complex Golay pair. To do this we use the relationship $N_{A}+N_{B}=[2n,0,\dotsc,0]$ where $N_{X}$ is the autocorrelation of the coefficients of $X$. For example, $N_{B}$ can be computed with the Maple command AutoCorrelation once the coefficients of $B$ are known. An important optimization is that most values of $N_{B}$ can be computed with only partial knowledge of $B$; this allows one to learn shorter conflict clauses based on only a partial assignment of the SAT instance.

5 Best matrices

We now apply our experience using MathCheck on the three case studies described in Section 4 to a new problem, namely, the problem of finding best matrices from combinatorial design theory. Best matrices are similar to Williamson matrices but exist in fewer orders; in fact, if best matrices exist in order $n$ then $n$ must be of the form $r^{2}+r+1$. The best known result djokovic2018goethals is that best matrices exist for all $r\leq 6$ and we use MathCheck to extend this result to $r\leq 7$. It is unknown if best matrices exist for any $r\geq 8$.

5.1 Background

Let $X$ be a square matrix of order $n$. Recall that $X$ is symmetric if $x_{i,j}=x_{j,i}$ for all indices $(i,j)$, skew if $x_{i,j}=-x_{j,i}$ for all indices $i\neq j$ and $x_{i,i}=1$, and circulant if $x_{i,j}=x_{i+1,j+1}$ for all indices reduced mod $n$.

Four matrices $A$, $B$, $C$, $D$ of order $n$ with $\pm 1$ entries and positive diagonal entries are best matrices if they satisfy the following three conditions:

1. (1)

$A$, $B$, and $C$ are skew and $D$ is symmetric. 2. (2)

$A$, $B$, $C$, and $D$ are pairwise commutative. 3. (3)

$AA^{T}+BB^{T}+CC^{T}+DD^{T}$ is the scalar matrix $4nI$.

An example of best matrices of order three (where “$+$” denotes $1$ and “$-$” denotes $-1$) are

[TABLE]

In this paper we will only consider circulant best matrices in which case condition (2) is always satisfied. Furthermore, condition (1) is easy to enforce since, for example, once the first half of the entries in the first row are known they uniquely determine the values of the entries in the second half. This still leaves an enormous search space, however. Since there are $(n-1)/2$ undetermined entries in each matrix a naive brute-force search would check $2^{4(n-1)/2}=4^{n-1}$ quadruples—making the search space for best matrices of order $57$ about a quarter of a billion times larger than the search space for best matrices of order $43$ (the previous largest best matrices known). Nevertheless, we were successful in our search for best matrices of order $57$ by employing a number of powerful filtering theorems and using SAT solvers to search the remaining space.

5.2 Equivalence operations

There are three operations on best matrices $A$, $B$, $C$, $D$ that can be used to produce a new equivalent set of best matrices:

Reorder $A$, $B$, and $C$ in any way. 2. 2.

Apply the operation $f(i)\coloneqq-i\bmod n$ to the indices of the first row of $A$, $B$, or $C$. (Since $D$ is symmetric such an operation has no effect on it.) 3. 3.

Apply an automorphism of the cyclic group $\mathbb{Z}_{n}$ to the indices of the first rows of $A$, $B$, $C$, and $D$ simultaneously.

Such equivalence operations are well-known djokovic2018goethals . The “cyclic shift” operation is sometimes also considered an equivalence operation but we did not use it as it generally disturbs the symmetry and anti-symmetry of the matrices.

5.3 Divide phase

Our aim in this phase is to split the problem of finding best matrices of given order $n$ into subproblems such that each subproblem is easy enough to be solved with a SAT solver (coupled with a CAS).

For concreteness we will focus on the case $n=57$ and use the fact that $57=3\cdot 19$ which allows us to “3-compress” the rows of best matrices to form compressed best matrices of order $19$. If $X$ is a sequence of length $57$ then its compression $\bar{X}$ is a sequence of length $19$ such that its $k$th entry is

[TABLE]

The reason why compression is so important is because of the following PSD equality that the compressions of best matrices must satisfy djokovic2015compression :

[TABLE]

Here $\operatorname{PSD}_{\bar{X}}$ denotes the power spectral density of $\bar{X}$ defined by

[TABLE]

Our implementation (see Section 6 for details) finds $15{,}178$ inequivalent possible quadruples $(\bar{A},\bar{B},\bar{C},\bar{D})$ that satisfy the necessary relationship (5.3) for $n=57$. For each quadruple we generate a SAT instance with the $2n-2$ variables $\{\,a_{i},b_{i},c_{i},d_{i}\,:\,1\leq i<(n+1)/2\,\}$. The remaining entries are determined via the relationships

[TABLE]

For clarity we will use variables with indices greater than $(n+1)/2$ with the understanding they refer to variables in our SAT instance using these relationships. Variables will be assigned true when they represent the entry $1$ and false when they represent the entry $-1$ (by abuse of notation we use the same variable name for both but it will be clear from context if the variable is an integer or a Boolean).

Each of the $15{,}178$ possible compressions will specify a single independent SAT subproblem. This is achieved by encoding the compression constraints in conjunctive normal form. Because the sum of three $\pm 1$ entries must be $\pm 3$ or $\pm 1$ these constraints come in four forms.

The first form is when $a_{k}+a_{k+19}+a_{k+2\cdot 19}=3$. In this case, we add the cube $a_{k}\land a_{k+19}\land a_{k+2\cdot 19}$ to the SAT subproblem. The second form is when $a_{k}+a_{k+19}+a_{k+2\cdot 19}=1$. In this case, we add

[TABLE]

to the SAT subproblem. The cases with $-1$ and $-3$ are handled in the same way with the polarity of the literals in the clauses reversed. We also add similar clauses for the entries of $B$, $C$, and $D$.

5.4 Conquer phase

Our aim in this phase is to solve the subproblems generated in the dividing phase. To do this, we employ a SAT solver with a programmatic interface ganesh2012lynx that allows it to learn conflict clauses by querying a CAS. A programmatic SAT solver is simply a variant of DPLL($T$), the key difference being that in the programmatic SAT context the $T$ solver can be specialized to individual formulas (like an advice string in a non-uniform computation model), whereas DPLL($T$) was envisioned with the $T$ solver being a decision procedure for an entire theory.

The property that the CAS checks is the uncompressed form of the PSD equality (5.3), namely,

[TABLE]

Note that although this condition can only be verified to hold once all entries of $A$, $B$, $C$, $D$ are known, in many cases it can be verified to not hold with only partial information. In particular, since $\operatorname{PSD}$ values are non-negative we must have the PSD criterion

[TABLE]

where $S$ is any subset of $\{A,B,C,D\}$.

In particular, if a partial assignment specifies enough entries such that the PSD criterion is violated then a conflict clause is learned that tells the SAT solver to avoid that partial assignment in the future. An important optimization is to choose $S$ in the PSD criterion to be as small as possible. For example, if both $S=\{A,B\}$ and $S=\{C\}$ violate the PSD criterion we prefer the latter because in that case we learn a shorter conflict clause. In the latter case the learned clause would say that at least one variable $\{\,c_{i}\,:\,0\leq i<n\,\}$ has to be assigned differently to its current assignment.

Additionally, the entries of best matrices can be shown to satisfy certain constraints similar to constraints that Williamson matrices williamson1944hadamard , good matrices bright2019good , and the coefficients of complex Golay pairs bright2018complex satisfy. In the appendix we show that the entries of best matrices satisfy the relationship $a_{k}b_{k}c_{k}d_{k}a_{2k}b_{2k}c_{2k}=-1$ for $k\neq 0$ with indices reduced mod $n$. Because of the anti-symmetry of $A$, $B$, and $C$, when $k=n/3$ the product constraint reduces to $d_{k}=1$ and in this case can be encoded as a unit clause. In general we encode the product constraint in SAT by breaking it up into the six constraints

[TABLE]

with $x_{5}=-1$, where the $x_{i}$ are new variables. For example the first of these constraints is represented in conjunctive normal form as

[TABLE]

and the others are represented similarly.

5.5 Example

We now present an example of applying our method on a small order, namely, the order $n=3$. Let $(\bar{A},\bar{B},\bar{C},\bar{D})$ be the $3$-compression of the first rows of a set of best matrices $(A,B,C,D)$ of order $3$.

With the help of a CAS we find that the only possible solutions for $(\bar{A},\bar{B},\bar{C},\bar{D})$ whose PSDs sum to 12 have $\bar{a}_{0}=\pm 1$, $\bar{b}_{0}=\pm 1$, $\bar{c}_{0}=\pm 1$, and $\bar{d}_{0}=\pm 3$. A CAS can also show that all $(\bar{a}_{0},\bar{b}_{0},\bar{c}_{0},\bar{d}_{0})$ are equivalent to $(1,1,1,3)$.

A SAT instance is generated with the variables $(a_{i},b_{i},c_{i},d_{i})$ for $0\leq i<3$ and the following fifteen clauses:

[TABLE]

Finally, if the SAT solver finds a partial satisfying assignment of these clauses such that $\sum_{X\in S}\operatorname{PSD}_{X}(k)>4n$ for some subset $S$ of $\{A,B,C,D\}$ and integer $k$ then a conflict clause is programmatically learned that blocks the variables that appear in $S$ from being assigned the way they are in the partial satisfying assignment.

In this case the only solutions are equivalent to those that assign the variables $\{a_{1},b_{1},c_{1}\}$ to false and the other variables to true. This solution leads to the example of best matrices given in Section 5.1.

The product relationship $a_{1}b_{1}c_{1}d_{1}a_{2}b_{2}c_{2}=-1$ with $a_{1}=-a_{2}$, $b_{1}=-b_{2}$, and $c_{1}=-c_{2}$ reduces to $d_{1}=1$. The unit clause $d_{1}$ has already been included in the SAT instance, so this gives us no extra information in this case. However, it can still be instructive to see how this fact can be derived directly from the definition of best matrices. (We focus on the case $n=3$; see the appendix for a general derivation.)

Consider the generating function $A(x)\coloneqq a_{0}+a_{1}x+a_{2}x^{2}$ where $x$ is an indeterminate variable with $x^{3}=1$ and similarly for $B$, $C$, and $D$. Note that $A(x)A(x^{-1})$ expands to

[TABLE]

This corresponds with the entries of the first row of the circulant matrix $AA^{T}$, namely,

[TABLE]

Thus, it follows that for $A$, $B$, $C$, $D$ to be best matrices we must have

[TABLE]

Using $a_{1}=-a_{2}$, $b_{1}=-b_{2}$, $c_{1}=-c_{2}$, $d_{0}=1$, and $d_{1}=d_{2}$, we can derive

[TABLE]

Summing these together, we have

[TABLE]

from which it follows that $-2+2d_{1}=0$ and $d_{1}=1$.

6 Implementation and results

We implemented the divide and conquer phases described in Section 5 in our SAT+CAS system MathCheck. Our code is available from our website uwaterloo.ca/mathcheck along with more details for the case studies described in Section 4. A high-level flowchart of our method is shown in Figure 2.

In the divide phase we wrote some custom C++ code to generate all possible compressions of best matrices. This code takes advantage of the well-known fact (see georgiou2001circulant ) that the rowsums of the first rows of $A$, $B$, $C$ must be $1$ and the squared rowsum of the first row of $D$ must be $4n-3$. It follows that the rowsum of the first row of $D$ is $\pm(2r+1)$ where $n=r^{2}+r+1$. In fact, the sign of $\operatorname{sum}(D)$ is positive when $r\equiv 0,1\pmod{4}$ and negative otherwise (see appendix for details). Thus, for $r=7$ we have that $\operatorname{sum}(D)=-15$.

We now employ a brute-force method to find all possibilities for the first rows of best matrices of order $n$. Taking into account the matrices are skew or symmetric there are $2^{(n-1)/2}$ possibilities for each of $A$, $B$, $C$, and $D$. The majority of possibilities have a $\operatorname{PSD}$ value larger than $4n$ and can therefore be ignored. To further cut down on possibilities we also discard possibilities that will lead to equivalent best matrices using the equivalence operations of Section 5.2. In particular, we apply operation 2 to the possibilities for $B$ and $C$ and operation 3 to the possibilities for $A$.

We then $3$-compress the possibilities for $n=57$, finding $2748$ possibilities for $\bar{A}$, $24{,}674$ possibilities for $\bar{B}$ and $\bar{C}$, and $7999$ possibilities for $\bar{D}$. These possibilities now need to be joined into quadruples. First, using brute-force we make a list of the possible pairs $(\bar{A},\bar{B})$ and $(\bar{C},\bar{D})$; we find about $12$ million possibilities for the former and $40$ million possibilities for the latter. Then using the string sorting and matching algorithm described in kotsireas2009weighing we find all quadruples whose $\operatorname{PSD}$ values sum to $4n$. After this step has completed we find $91{,}190$ possible quadruples $(\bar{A},\bar{B},\bar{C},\bar{D})$ of which $15{,}178$ are inequivalent using the equivalence operations of Section 5.2. Each of these quadruples will form one independent subproblem (using the SAT encoding described in Section 5.3) to be solved in the conquer phase.

For efficiency the $\operatorname{PSD}$ values were computed using the C library FFTW frigo2005design that can very efficiently compute discrete Fourier transforms. Since FFTW uses floating-point arithmetic we would only discard possibilities whose $\operatorname{PSD}$ values could be shown to be larger than $4n+\epsilon$ where $\epsilon$ is larger than the precision of the fast Fourier transform that was used.

In the conquer phase we solved our SAT instances using a programmatic version of the SAT solver MapleSAT liang2017empirical . The programmatic “callback” function was implemented as described in Section 5.4 with a conflict clause being learnt whenever enough of a partial assignment is known so that the PSD criterion can be shown to be violated. Again for efficiency we used the C library FFTW for computing the $\operatorname{PSD}$ values.

As previously mentioned the orders of best matrices must be of the form $r^{2}+r+1$ for $r\geq 0$. The case $r=7$ is currently the smallest open case and MathCheck is successfully able to solve this case. For completeness, we apply our method to smaller orders. Orders of the form $r^{2}+r+1$ are prime for $r\in\{1,2,3,5,6,8\}$ and therefore do not have a nontrivial compression factor. Despite this, the cases $r=1$, $2$, $3$, $4$ can be be solved in under a second using the method described in Section 5 with no compression (i.e., compression by $1$). Furthermore, the case $r=5$ can be solved in about $5$ seconds and the case $r=6$ can be solved in about $50$ minutes.

We ran the case $r=7$ on a cluster of 64-bit Opteron 2.2GHz and Xeon 2.6GHz processors running CentOS 6 using compression by a factor of $3$. In this case MathCheck requires about $20$ minutes to perform the dividing phase and about $162$ hours to perform the conquer phase. These times measure the total amount of CPU time, though the conquer phase took under an hour of real time when parallelized across $200$ cores.

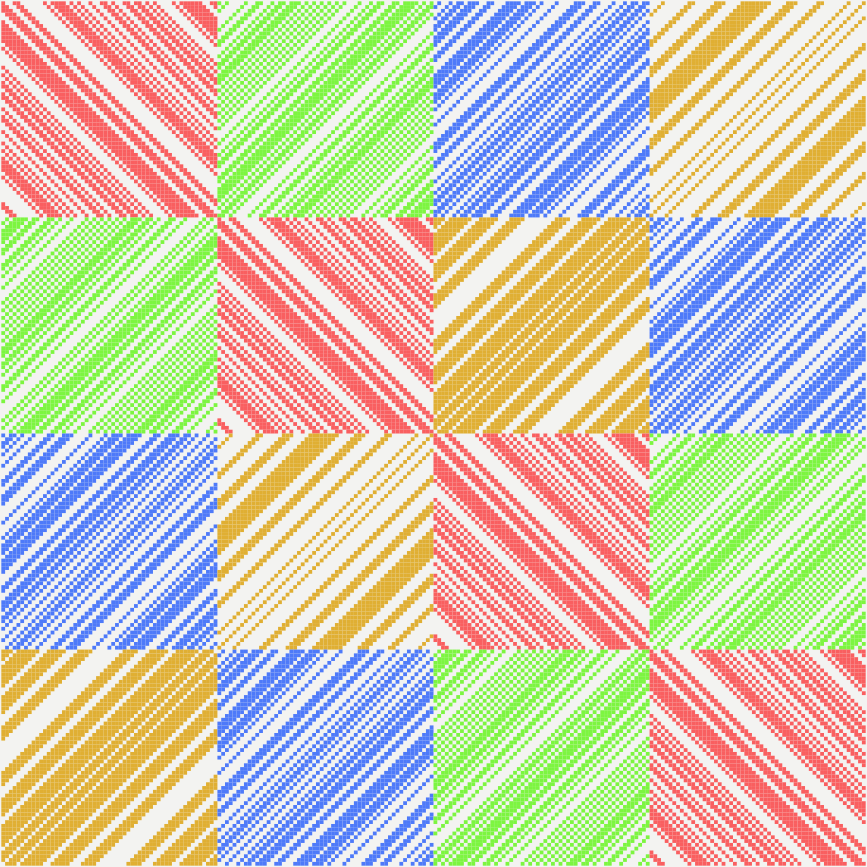

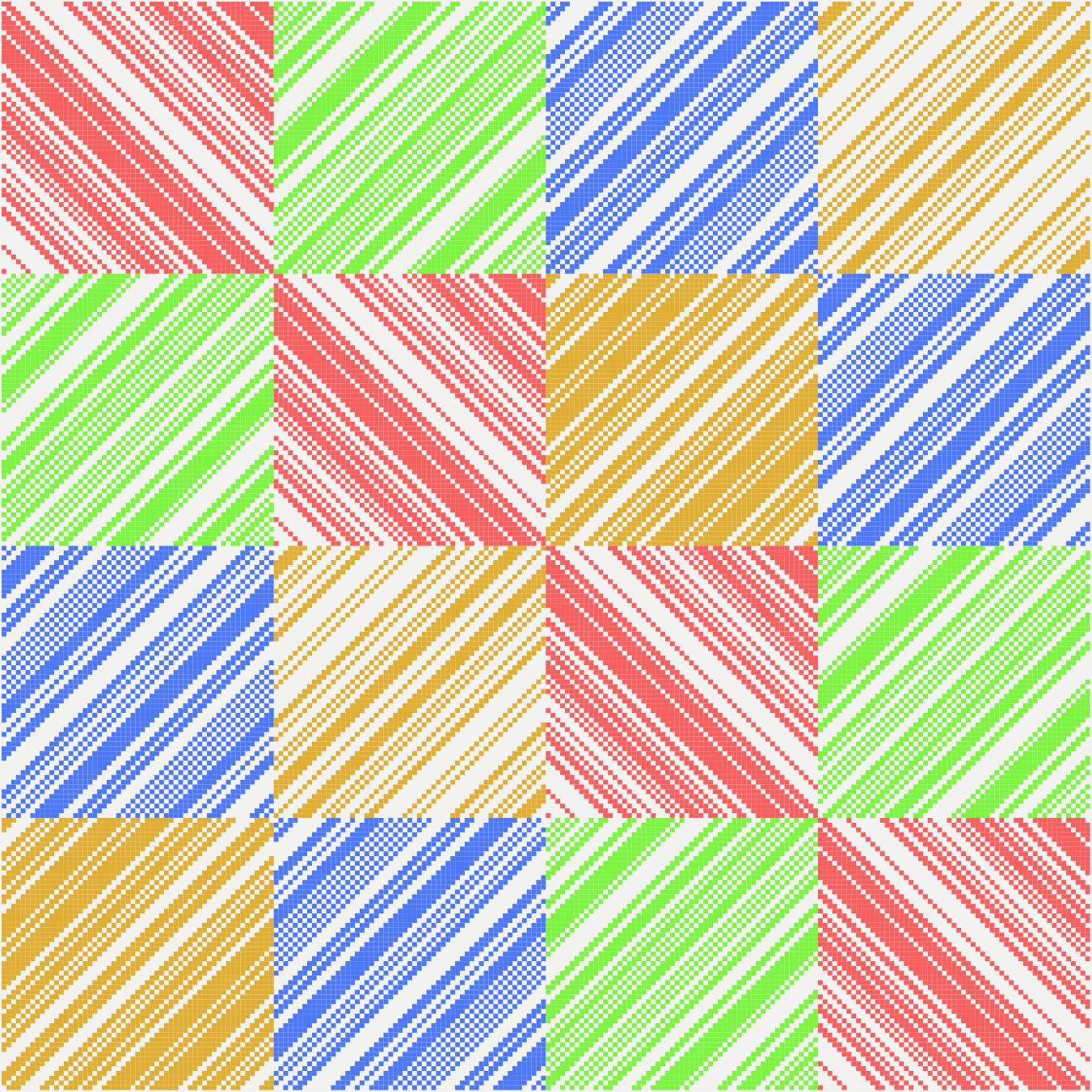

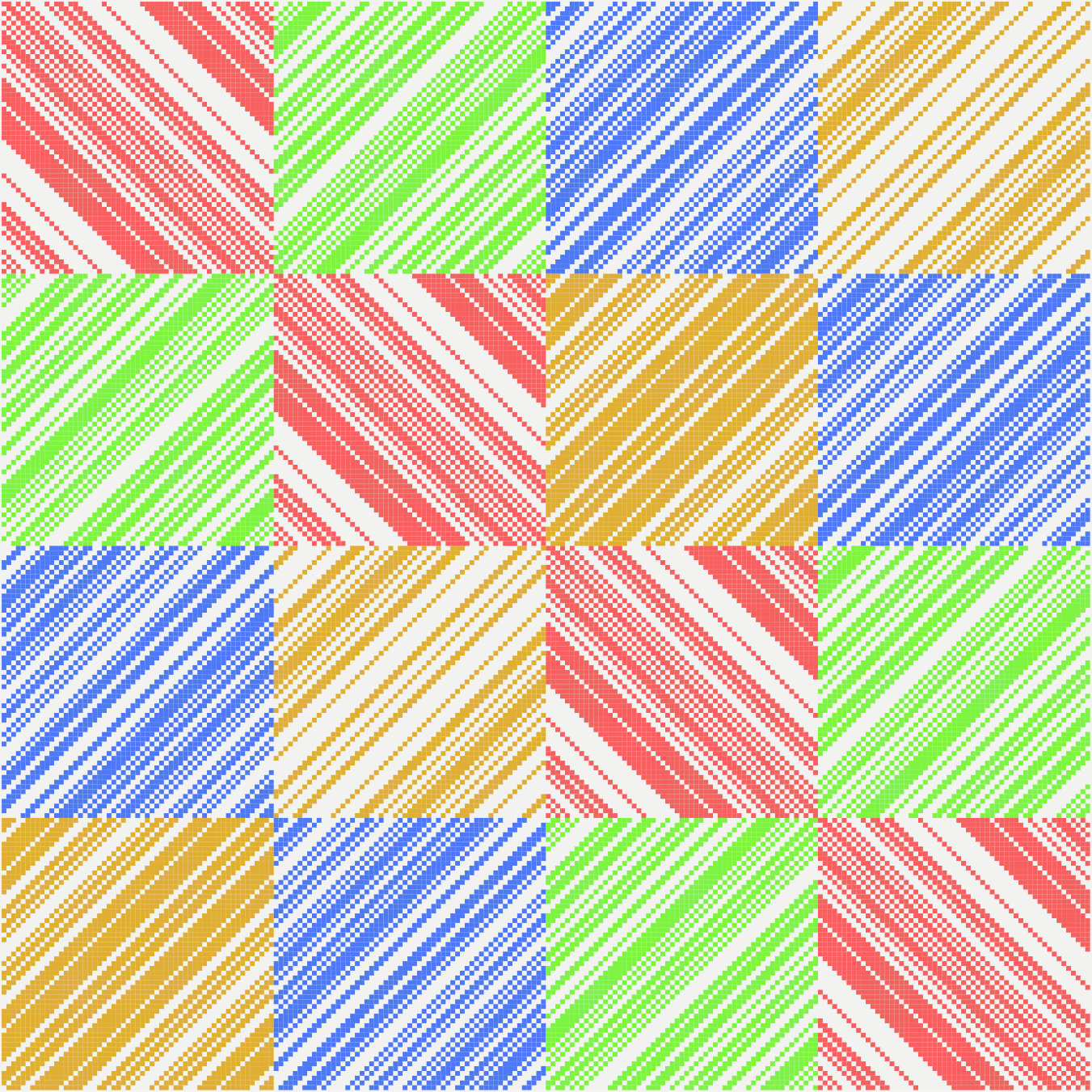

Three inequivalent sets of best matrices of order $57$ were found in the $r=7$ case. We used the Goethals–Seidel construction goethals1970skew to construct new skew Hadamard matrices of order $4\cdot 57$ using these best matrices and give one example in Figure 3. (Skew Hadamard matrices of order $4\cdot 57$ have long been known seberry1978skew but these are the first ones constructed using best matrices.) Explicit representations of all the best matrices that we constructed can be found on our website uwaterloo.ca/mathcheck, and explicit representations of the new best matrices are available in the appendix.

Let $B_{r}$ denote the number of inequivalent sets of best matrices of order $r^{2}+r+1$. Our results determine the value of $B_{r}$ for $r\leq 7$:

[TABLE]

The value of $B_{7}$ is new, the value of $B_{6}$ was found in djokovic2018goethals , and the other values were given in georgiou2001circulant . Our counts differ from those of georgiou2001circulant only because that work did not use equivalence operation 2. For example, for $r=4$ they find twenty-one sets of best matrices but each of them is equivalent to one of the seven sets that we found. The counts up to $r=5$ also appear in djokovic2009supplementary ; koukouvinos2008skew but these works did not verify the counts. To our knowledge we have performed the first published verification.

7 Conclusions and future work

We have described a “SAT+CAS” paradigm, building on DPLL($T$), that is able to solve hard combinatorial problems that require both clever search routines (à la SAT) and efficient procedures for complex mathematics outside the scope of traditional SMT theory solvers (e.g., Fourier transforms in CAS). As a demonstration of the power and flexibility of the method we have outlined how it was used to improve the state-of-the-art on three separate class of problems from graph theory, number theory, and design theory, as well as its application to construct new skew Hadamard matrices of order $4\cdot 57$. The naive search space for such an object is $2^{57\cdot 56/2}\approx 10^{480}$ which is totally impractical to search using brute-force. Instead, we use a number of mathematical properties of best matrices to greatly constrain the search space. However, it would still be too difficult to execute the search using either SAT solvers or computer algebra systems in isolation: by themselves SAT solvers would not be able to exploit the complex mathematical properties that are known and computer algebra systems would not be able to exploit the efficient search routines of SAT solvers.

We additionally find inspiration from the cube-and-conquer paradigm of Heule et al. heule2011cube . Since open problems (like finding best matrices of order $57$) typically have extremely large search spaces they are usually not easy to solve using a sequential SAT solver. To deal with this we developed a method of dividing instances into multiple independent subproblems. In particular, we divide the search for best matrices of order $57$ into $15{,}178$ subproblems such that each subproblem can be solved in about a minute using a SAT solver augmented with a domain-specific method of generating conflicts.

Heule, Kullmann, and Marek heule2017solving point out that there are essentially three kinds of solvers that are currently used for solving large combinatorial problems: special-purpose solvers, constraint satisfaction solvers, and SAT solvers. We believe that SAT+CAS solvers have now proven themselves as an effective way of introducing the reasoning of special-purpose solvers and computer algebra systems into SAT solving for hard problems from many areas of mathematics. Going forward, we expect that SAT+CAS solvers will become essential for solving the largest combinatorial problems that incorporate sophisticated mathematical properties. For example, heule2017solving points out that searching for finite projective planes (a special kind of combinatorial design) has currently only been done using special-purpose solvers. These kinds of problems are ripe for attack using the SAT+CAS paradigm.

Acknowledgments

We thank the reviewers for their detailed comments that improved the clarity of this article.

Appendix

Let $A$, $B$, $C$, $D$ be a set of circulant best matrices of order $n=r^{2}+r+1$ (note that all numbers of this form are odd). As described in Section 6 the rowsums of the first rows of $A$, $B$, $C$ are $1$ and the rowsum of the first row of $D$ is $\pm(2r+1)$ where the sign of $\operatorname{sum}(D)$ is positive when $r\equiv 0,1\pmod{4}$ and negative otherwise.

Proof

Since the matrix $A$ is skew we have $a_{i}+a_{n-i}=0$ for $i\neq 0$. Thus

[TABLE]

and similarly for $B$ and $C$. Taking the relationship $AA^{T}+BB^{T}+CC^{T}+DD^{T}=4nI$ and multiplying by the row vector of ones (on the left) and the column vector of ones (on the right) we obtain

[TABLE]

and therefore $\operatorname{sum}(D)^{2}=4n-3=(2r+1)^{2}$ and $\operatorname{sum}(D)=s(2r+1)$ where $s=\pm 1$.

Since $D$ is symmetric and $2d_{i}\equiv 2\pmod{4}$

[TABLE]

Therefore $r^{2}+r+1\equiv s(2r+1)\pmod{4}$. Since

[TABLE]

we have $s=1$ when $r\equiv 0,1\pmod{4}$ and $s=-1$ otherwise. ∎

As described in Section 5.4 we have that the entries of these matrices satisfy the relationship

[TABLE]

for $k\neq 0$ with indices reduced mod $n$.

Proof

We can equivalently consider circulant best matrices to be polynomials given by the generating function of the entries of their first rows. In this formulation $A$, $B$, $C$, $D$ are polynomials with $\pm 1$ coefficients and of degree $n-1$ that satisfy

[TABLE]

modulo the ideal generated by $x^{n}-1$ (all computations will take place modulo this ideal).

Let $A_{+}$ denote the polynomial containing the terms of $A$ with positive coefficients and let $\lvert A_{+}\rvert$ denote the number of terms in $A_{+}$. Then $A=2A_{+}-T$ where $T(x)\coloneqq\sum_{i=0}^{n-1}x^{i}$. Since $x^{i}T=T$ we have $A_{+}T=\lvert A_{+}\rvert T$ and $T^{2}=nT$.

Since $A$ is anti-symmetric (i.e., $A(x)+A(x^{-1})=2$) we have $A(1)=1$ and $\lvert A_{+}\rvert=(T(1)+A(1))/2=(n+1)/2$. Furthermore,

[TABLE]

and similarly for $B$ and $C$.

Since $D$ is symmetric (i.e., $D(x)=D(x^{-1})$) we have

[TABLE]

By the symmetry of $D$ we have $D(x)=1+D^{\prime}(x)+D^{\prime}(x^{-1})$ where $D^{\prime}(x)\coloneqq\sum_{i=1}^{(n-1)/2}d_{i}x^{i}$. Then $\lvert D_{+}\rvert=1+2\lvert D^{\prime}_{+}\rvert$ and thus $\lvert D_{+}\rvert$ is odd.

Equating (1)–(3) and dividing by four we have

[TABLE]

Since $A_{+}=\sum_{a_{i}=1}x^{i}$ we have $A_{+}^{2}\equiv\sum_{a_{i}=1}x^{2i}\pmod{2}$ and (4) reduces to

[TABLE]

since both $n$ and $\lvert D_{+}\rvert$ are odd.

Since $n$ is odd the congruence $i\equiv 2y\pmod{n}$ has exactly one solution $0\leq y<n$ for each $0\leq i<n$. Denoting this solution by $i/2$ we have

[TABLE]

In other words, we have that the number of entries in $\{a_{i/2},a_{i},b_{i/2},b_{i},c_{i/2},c_{i},\allowbreak d_{i/2}\}$ that are positive is $1$ (mod $2$) for $i=0$ and [math] (mod $2$) for $i\neq 0$. Letting $k=i/2$ for $i\neq 0$ this means $a_{k}a_{2k}b_{k}b_{2k}c_{k}c_{2k}d_{k}=-1$ as required. ∎

One new skew Hadamard matrix that we constructed was given in Figure 3 and the other two new skew Hadamard matrices are given in Figure 4. The first rows of the best matrices used to construct these skew Hadamard matrices are given here:

+--++------+-++++-+-+--+--++-+--++-++-+-+----+-++++++--++

+-+-++++-++--++-+--+---+-+-+-+-+-+-+++-++-+--++--+----+-+

++-++-+--+---++--+++----+---+-+++-++++---++--+++-++-+--+-

+---+------++-----+++----++++++++----+++-----++------+---

+--++------+-++++-+-+--+--++-+--++-++-+-+----+-++++++--++

+-+-++++-++--++-+--+---+-+-+-+-+-+-+++-++-+--++--+----+-+

++-++-+--+---++--+++----+---+-+++-++++---++--+++-++-+--+-

+---+------++-----+++----++++++++----+++-----++------+---

++----+------++--++-+--+---+-+-+++-++-+--++--++++++-++++-

+--+-+-+--+-++----++--++++++-+------++--++++--+-++-+-+-++

++-+--++++++---++-++----+-+-+-+-+-++++--+--+++------++-+-

+---++++--+-+---+--++------+--+------++--+---+-+--++++---
