Renormalisation of linear halo bias in N-body simulations

TL;DR

This paper develops a renormalisation approach for linear halo bias in N-body simulations, improving the modeling of tracer-matter relationships and identifying key operators for accurate large-scale structure analysis.

Contribution

It extends bias renormalisation from perturbative to non-perturbative regimes and applies it to simulation data to refine bias parameter measurements and operator selection.

Findings

Bias parameters depend on halo mass and are best modeled with specific operators.

Renormalisation improves the agreement between theory and simulation results.

Optimal operator set includes δ, ∇²δ, δ², and s² for k<0.2 h/Mpc at z=0.

Abstract

The interpretation of redshift surveys requires modeling the relationship between large-scale fluctuations in the observed number density of tracers, $\delta_\mathrm{h}$, and the underlying matter density, $\delta$. Bias models often express $\delta_\mathrm{h}$ as a truncated series of integro-differential operators acting on $\delta$, each weighted by a bias parameter. Due to the presence of `composite operators' (obtained by multiplying fields evaluated at the same spatial location), the linear bias parameter measured from clustering statistics does not coincide with that appearing in the bias expansion. This issue can be cured by re-writing the expansion in terms of `renormalised' operators. After providing a pedagogical and comprehensive review of bias renormalisation in perturbation theory, we generalize the concept to non-perturbative dynamics and successfully apply it to dark-matter haloes extracted from a large suite of N-body simulations. When comparing numerical and perturbative results, we highlight the effect of the window function employed to smooth the random fields. We then measure the bias parameters as a function of halo mass by fitting a non-perturbative bias model (both before and after applying renormalisation) to the cross spectrum $P_{\delta_\mathrm{h}\delta}(k)$. Finally, we employ Bayesian model selection to determine the optimal operator set to describe $P_{\delta_\mathrm{h}\delta}(k)$ for $k<0.2\,h$ Mpc$^{-1}$ at redshift $z=0$. We find that it includes $\delta, \nabla^2\delta, \delta^2$ and the square of the traceless tidal tensor, $s^2$. Considering higher-order terms (in $\delta$) leads to overfitting as they cannot be precisely constrained by our data. We also notice that next-to-leading-order perturbative solutions are inaccurate for $k\gtrsim 0.1\,h$ Mpc$^{-1}$.

Figures

Tables

Table 1. Table 1: Acronyms used in the paper and sections or equations where they are introduced.

Acronym	Meaning	Section
CDM	Cold dark matter	1
DM	Dark matter	1
LSS	Large-scale structure	1
LO	Leading order	1
PT	Perturbation theory	1
RG	Renormalisation group	1
SPT	Standard perturbation theory	2.1
NLO	Next-to-leading order	2.1
EFT	Effective field theory	2.2
CIC	Cloud in cell	3.2
FFT	Fast Fourier transform	3.2
MCMC	Markov Chain Monte Carlo	5.1
WAIC	Widely applicable information criterion	5.2, Eq. (68)
AIC	Akaike information criterion	5.2
DIC	Deviance information criterion	5.2
NR	No renormalisation	5.3, Eq. (69)
IE	Intermediate expansion	5.4, Eq. (70)
RL	Linear renormalisation	5.4, Eq. (71)
RNL	Non-linear renormalisation	5.4, Eq. (74)

Table 2. Table 2: The set of parameters that characterise our suite of N sim subscript 𝑁 sim N_{\mathrm{sim}} simulations: L box subscript 𝐿 box L_{\mathrm{box}} denotes the box length, N part subscript 𝑁 part N_{\mathrm{part}} the number of particles, M part subscript 𝑀 part M_{\mathrm{part}} the particle mass, L soft subscript 𝐿 soft L_{\mathrm{soft}} the softening length, and z IC subscript 𝑧 IC z_{\mathrm{IC}} the initial redshift.

$N_{\mathrm{sim}}$	$L_{\mathrm{box}}$	$N_{\mathrm{part}}$	$M_{\mathrm{part}}$	$L_{\mathrm{soft}}$	$z_{\mathrm{IC}}$	Cosmology
40	1200 $h^{-1}$ Mpc	${512}^3$	$1.1037\times {10}^{12}{h}^{-1}{M}_{\odot }$	0.078 $h^{-1}$ Mpc	50	Planck 2015

Table 3. Table 3: The variance of the matter density field as a function of the cutoff scale Λ Λ \Lambda at z = 0 𝑧 0 z=0 . We contrast the results obtained from linear SPT ( σ 1 2 subscript superscript 𝜎 2 1 \sigma^{2}_{1} ) with those measured in the simulations ( σ sim 2 subscript superscript 𝜎 2 sim \sigma^{2}_{\mathrm{sim}} ).

$\Lambda \left[h{\mathrm{Mpc}}^{-1}\right]$	${\sigma }_1^2$	${\sigma }_{\mathrm{sim}}^2$
0.05	0.0377	0.0343
0.10	0.1672	0.1513
0.20	0.5430	0.5223

Table 4. Table 4: The factors α δ 2 ​ ( Λ ) subscript 𝛼 superscript 𝛿 2 Λ \alpha_{\delta^{2}}(\Lambda) and α s 2 ​ ( Λ ) subscript 𝛼 superscript 𝑠 2 Λ \alpha_{s^{2}}(\Lambda) defined in equations ( 50 ) and ( 51 ). The values indicate the average over the simulations and the uncertainty is the standard error of the mean.

$\Lambda \left[h{\mathrm{Mpc}}^{-1}\right]$	${\alpha }_{{\delta }^2}\left(\Lambda \right)$	${\alpha }_{s^2}\left(\Lambda \right)$
0.05	$0.072\pm 0.001$	$0.046\pm 0.001$
0.10	$0.349\pm 0.006$	$0.228\pm 0.004$
0.20	$1.261\pm 0.017$	$0.834\pm 0.013$

Table 5. Table 5: The difference Δ Δ \Delta WAIC between a model and the preferred one (highlighted with a dash) obtained by fitting P δ h ​ δ subscript 𝑃 subscript 𝛿 h 𝛿 P_{\delta_{\mathrm{h}}\delta} for mass bin M 3 subscript 𝑀 3 M_{3} . Columns two to five indicate which operators are included in each model. Columns six to eight (as well as nine to eleven) refer to different values of Λ Λ \Lambda expressed in units of   h ℎ h  Mpc -1 .

Model	$\delta$	${\delta }^2$	$s^2$	${\nabla }^2\delta$	$\Delta$WAIC (NR & RNL)			$\Delta$WAIC (RL)
					$\Lambda =$ 0.05	0.1	0.2	0.05	0.1	0.2
${ℳ}_1$	x				62.56	1672.15	69339.13	34.99	1683.11	69847.85
${ℳ}_{2a}$	x	x			83.16	492.70	4302.72	4.53	689.03	5188.85
${ℳ}_{2b}$	x		x		40.13	449.46	9308.73	32.54	820.53	7367.62
${ℳ}_{2c}$	x			x	23.79	81.89	846.68	1.03	–	576.55
${ℳ}_{3a}$	x	x	x		12.94	436.73	1797.75	7.24	450.06	4406.97
${ℳ}_{3b}$	x	x		x	10.42	40.97	828.06	–	1.63	575.36
${ℳ}_{3c}$	x		x	x	25.14	82.82	328.83	2.33	1.91	161.92
${ℳ}_4$	x	x	x	x	–	–	–	1.59	3.86	–

Table 6. Table 6: As in Table  5 , but considering models that include more operators (see columns two and three) with respect to ℳ 4 subscript ℳ 4 \mathcal{M}_{4} . Results are displayed for Λ = 0.2 Λ 0.2 \Lambda=0.2   h ℎ h  Mpc -1 , only.

Model	${\Gamma }_3$	$k^2$	$\Delta$WAIC (NR & RNL)	$\Delta$WAIC (RL)
${ℳ}_{5a}$	x		1.72	1.02
${ℳ}_{5b}$		x	2.35	1.88
${ℳ}_6$	x	x	1.66	1.41

Table 7. Table 7: The bias parameters obtained by fitting equations ( 69 ) and ( 74 ) to P δ h ​ δ ​ ( k ) subscript 𝑃 subscript 𝛿 h 𝛿 𝑘 P_{\delta_{\mathrm{h}}\delta}(k) from our 40 simulations.

Mass	$\Lambda$	$b_1$	$b_1^R$	$b_2$	$b_{s^2}$	$b_{{\nabla }^2\delta }$
bin	$\left[h{\mathrm{Mpc}}^{-1}\right]$	(NR)	(RNL)			$\left[h^2{\mathrm{Mpc}}^{-2}\right]$
	$0.05$	$1.91\pm 0.02$	$1.89\pm 0.01$	$-0.09\pm 0.26$	$-0.14\pm 0.46$	$5.53\pm 7.34$
$M_1$	$0.1$	$1.91\pm 0.02$	$1.89\pm 0.01$	$-0.003\pm 0.10$	$-0.08\pm 0.08$	$7.12\pm 1.26$
	$0.2$	$2.04\pm 0.04$	$1.895\pm 0.003$	$-0.05\pm 0.03$	$-0.09\pm 0.01$	$2.45\pm 0.36$
	$0.05$	$2.38\pm 0.02$	$2.39\pm 0.02$	$0.14\pm 0.39$	$0.06\pm 0.67$	$17.87\pm 10.28$
$M_2$	$0.1$	$2.30\pm 0.04$	$2.38\pm 0.01$	$0.38\pm 0.15$	$-0.25\pm 0.12$	$18.34\pm 1.82$
	$0.2$	$2.35\pm 0.05$	$2.378\pm 0.004$	$0.12\pm 0.05$	$-0.15\pm 0.01$	$10.71\pm 0.55$
	$0.05$	$3.26\pm 0.03$	$3.35\pm 0.02$	$2.92\pm 0.55$	$-2.79\pm 0.95$	$57.75\pm 15.00$
$M_3$	$0.1$	$2.94\pm 0.05$	$3.36\pm 0.01$	$1.87\pm 0.20$	$-1.00\pm 0.15$	$54.50\pm 2.39$
	$0.2$	$2.35\pm 0.07$	$3.35\pm 0.01$	$1.07\pm 0.06$	$-0.42\pm 0.01$	$40.33\pm 0.67$

Table 8. Table 8: As in Table  7 but using equation ( 71 ).

Mass	$\Lambda$	$b_1^R$	$b_2$	$b_{s^2}$	$b_{{\nabla }^2\delta }$
bin	$\left[h{\mathrm{Mpc}}^{-1}\right]$				$\left[h^2{\mathrm{Mpc}}^{-2}\right]$
	$0.05$	$1.90\pm 0.01$	$-0.10\pm 0.27$	$0.01\pm 0.05$	$7.81\pm 6.09$
$M_1$	$0.1$	$1.90\pm 0.01$	$-0.10\pm 0.08$	$0.02\pm 0.08$	$7.34\pm 0.96$
	$0.2$	$1.898\pm 0.002$	$0.05\pm 0.01$	$-0.10\pm 0.01$	$3.84\pm 0.13$
	$0.05$	$2.38\pm 0.01$	$-0.14\pm 0.40$	$-0.05\pm 0.07$	$12.03\pm 8.58$
$M_2$	$0.1$	$2.38\pm 0.01$	$0.18\pm 0.12$	$-0.14\pm 0.13$	$17.33\pm 1.39$
	$0.2$	$2.379\pm 0.004$	$0.12\pm 0.01$	$-0.15\pm 0.01$	$10.56\pm 0.17$
	$0.05$	$3.35\pm 0.02$	$-0.87\pm 0.62$	$-0.07\pm 0.11$	$42.85\pm 13.53$
$M_3$	$0.1$	$3.36\pm 0.01$	$-0.05\pm 0.17$	$-0.07\pm 0.17$	$41.46\pm 1.96$
	$0.2$	$3.35\pm 0.01$	$0.23\pm 0.02$	$-0.36\pm 0.02$	$30.97\pm 0.23$

Equations

$$\delta (\mathbf{x})={\delta }_1(\mathbf{x})+{\delta }_2(\mathbf{x})+{\delta }_3(\mathbf{x})+\dots$$

$$\theta (\mathbf{x})={\theta }_1(\mathbf{x})+{\theta }_2(\mathbf{x})+{\theta }_3(\mathbf{x})+\dots ,$$

$$\delta_{n}\big{(}\mathbf{k}\big{)}=\int F_{n}\big{(}\mathbf{k}_{1},\dots,\mathbf{k}_{n}\big{)}\,\delta_{1}\big{(}\mathbf{k}_{1}\big{)}\dots\delta_{1}\big{(}\mathbf{k}_{n}\big{)}\\ \delta_{\mathrm{D}}\big{(}\mathbf{k}_{1}+\dots+\mathbf{k}_{n}-\mathbf{k}\big{)}\,\frac{\mathrm{d}^{3}k_{1}}{(2\pi)^{3}}\dots\frac{\mathrm{d}^{3}k_{n}}{(2\pi)^{3}}$$

$$\theta_{n}\big{(}\mathbf{k}\big{)}=\int G_{n}\big{(}\mathbf{k}_{1},\dots,\mathbf{k}_{n}\big{)}\,\delta_{1}\big{(}\mathbf{k}_{1}\big{)}\dots\delta_{1}\big{(}\mathbf{k}_{n}\big{)}\\ \delta_{\mathrm{D}}\big{(}\mathbf{k}_{1}+\dots+\mathbf{k}_{n}-\mathbf{k}\big{)}\,\frac{\mathrm{d}^{3}k_{1}}{(2\pi)^{3}}\dots\frac{\mathrm{d}^{3}k_{n}}{(2\pi)^{3}}\;,$$

$$F_{2}\big{(}\mathbf{k}_{1},\mathbf{k}_{2})=\frac{5}{7}+\frac{1}{2}\,\frac{\mathbf{k}_{1}\cdot\mathbf{k}_{2}}{k_{1}k_{2}}\,\Bigg{(}\frac{k_{1}}{k_{2}}+\frac{k_{2}}{k_{1}}\Bigg{)}+\frac{2}{7}\,\Bigg{(}\frac{\mathbf{k}_{1}\cdot\mathbf{k}_{2}}{k_{1}k_{2}}\Bigg{)}^{2}\;,$$

$$G_{2}\big{(}\mathbf{k}_{1},\mathbf{k}_{2})=\frac{3}{7}+\frac{1}{2}\,\frac{\mathbf{k}_{1}\cdot\mathbf{k}_{2}}{k_{1}k_{2}}\,\Bigg{(}\frac{k_{1}}{k_{2}}+\frac{k_{2}}{k_{1}}\Bigg{)}+\frac{4}{7}\,\Bigg{(}\frac{\mathbf{k}_{1}\cdot\mathbf{k}_{2}}{k_{1}k_{2}}\Bigg{)}^{2}\;,$$

$$P_{\delta \delta }(k)\simeq P_{\delta \delta }^{(11)}(k)+P_{\delta \delta }^{(22)}(k)+P_{\delta \delta }^{(31)}(k),$$

$$P_{\delta \delta }^{(22)}(k)$$

$$P_{\delta \delta }^{(31)}(k)$$

$${\delta }_{\mathrm{h}}=b_0+b_1\delta$$

$$+b_3{\delta }^3+b_{\delta s^2}\delta s^2+b_{s^3}{s}^3+b_{{\Gamma }_3}{\Gamma }_3,$$

$$s_{ij}={\partial }_i{\partial }_j\varphi -\frac{1}{3}{\delta }_{ij}^{\mathrm{K}}\delta =\left({\partial }_i{\partial }_j{\nabla }^{-2}-\frac{1}{3}{\delta }_{ij}^{\mathrm{K}}\right)\delta ={\gamma }_{ij}\delta ,$$

$${\delta }_{\mathrm{h}}=\sum _O{b}_{O}O,$$

$${\delta }_{\mathrm{h}}=\sum _O\left(b_O+{ϵ}_O\right)O.$$

$${\delta }_{\mathrm{h}}=b_0+{ϵ}_0+b_1\delta +b_{{\nabla }^2\delta }{\nabla }^2\delta +{ϵ}_1\delta +{ϵ}_{{\nabla }^2\delta }{\nabla }^2\delta +b_2{\delta }^2+b_{s^2}{s}^2.$$

$${{\rm Y}}_{O{O}^{\prime }}(k)={{\rm Y}}_{0,O{O}^{\prime }}+{{\rm Y}}_{2,O{O}^{\prime }}{k}^2+{{\rm Y}}_{4,O{O}^{\prime }}{k}^4+\dots .$$

$${\delta }_{\mathrm{h}}=\sum _{[O]}(b_{[O]}+{ϵ}_{[O]})[O].$$

$${\delta }^2(\mathbf{k})=\int \delta (\mathbf{q})\delta (\mathbf{k}-\mathbf{q})\frac{{\mathrm{d}}^{3}q}{(2\pi {)}^3}.$$

$$⟨{\delta }^2(\mathbf{x})⟩=\frac{1}{2{\pi }^2}{\int }_0^{\infty }{q}^2{P}_{\delta \delta }(q)\mathrm{d}q\equiv {\sigma }^2,$$

$$P_{{\delta }^2\delta }(k)=\int B_{\delta \delta \delta }(\mathbf{q},\mathbf{k}-\mathbf{q},-\mathbf{k})\frac{{\mathrm{d}}^{3}q}{(2\pi {)}^3},$$

$${\sigma }_{(\mathrm{LO})}^2=\underset{\Lambda \to \infty }{\lim }\frac{1}{2{\pi }^2}{\int }_0^{\Lambda }{q}^2{P}_{11}(q)\mathrm{d}q\equiv \underset{\Lambda \to \infty }{\lim }{\sigma }_1^2(\Lambda ),$$

$$P_{{\delta }^2\delta }^{(\mathrm{LO})}(k)$$

$$=P_{{\delta }^2\delta }^{(22)}(k)+P_{{\delta }^2\delta }^{(31)}(k),$$

$$P_{\delta^{2}\delta}^{(22)}(k)=2\int F_{2}\big{(}\mathbf{q},\mathbf{k}-\mathbf{q}\big{)}P_{11}\big{(}q\big{)}\,P_{11}\big{(}|\mathbf{k}-\mathbf{q}|\big{)}\frac{\mathrm{d}^{3}q}{(2\pi)^{3}}\,,$$

$$P_{\delta^{2}\delta}^{(31)}(k)=4P_{11}\big{(}k\big{)}\int F_{2}\big{(}-\mathbf{q},\mathbf{k}\big{)}P_{11}\big{(}q\big{)}\frac{\mathrm{d}^{3}q}{(2\pi)^{3}}\,.$$

$$P_{{\delta }^2\delta }^{(31)}(k)=\frac{68}{21}{\sigma }_1^2(\Lambda )P_{11}(k),$$

$${\delta }_{\mathrm{h}}(\mathbf{x})=b_0+b_1\delta (\mathbf{x})+b_2{\delta }^2(\mathbf{x})$$

$$P_{{\delta }_{\mathrm{h}}\delta }(k)=b_1^{\mathrm{R}}{P}_{11}(k)+b_2{P}_{{\delta }^2\delta }^{(22)}(k).$$

$${\delta }_{\mathrm{h}}(\mathbf{x})=b_1\delta (\mathbf{x})+b_2{\left[{\delta }^2(\mathbf{x})\right]}_0,$$

$${\delta }_{\mathrm{h}}(\mathbf{x})=b_1^{\mathrm{R}}\delta (\mathbf{x})+b_2{\left[{\delta }^2(\mathbf{x})\right]}_1,$$

$$S_2\left({\mathbf{k}}_1,{\mathbf{k}}_2\right)={\gamma }_{ij}({\mathbf{k}}_1){\gamma }_{ji}({\mathbf{k}}_2)={\left(\frac{{\mathbf{k}}_1\cdot {\mathbf{k}}_2}{k_1{k}_2}\right)}^2-\frac{1}{3},$$

$$P_{s^{2}\delta}^{(31)}(k)=4P_{11}\big{(}k\big{)}\int F_{2}\big{(}-\mathbf{q},\mathbf{k}\big{)}\,S_{2}(\mathbf{q},\mathbf{k}-\mathbf{q})\,P_{11}\big{(}q\big{)}\frac{\mathrm{d}^{3}q}{(2\pi)^{3}}\;,$$

Full text

††pubyear: 2019††pagerange: Renormalisation of linear halo bias in N-body simulations–Renormalisation of linear halo bias in N-body simulations

1 Introduction

The idea that galaxies could be biased tracers of the underlying matter distribution dates back to the 1980s and is intimately linked with the development of the cold-dark-matter (CDM111Table 1 lists all the acronyms used in the paper.) cosmological model (e.g. Kaiser, 1984; Davis et al., 1985; Rees, 1985; Dekel & Rees, 1987; White et al., 1987). For many years, the leading galaxy-biasing model assumed a local and deterministic relation between the smoothed galaxy density contrast $\delta_{\mathrm{g}}$ and the matter density contrast $\delta$ evaluated at the same position ${\mathbf{x}}$, i.e. $\delta_{\mathrm{g}}(\mathbf{x})=f[\delta(\mathbf{x})]$ where $f$ denotes a generic ‘bias function’ (Fry & Gaztanaga, 1993). The freedom in the function $f$ was often described in terms of the ‘bias parameters’ i.e. the Taylor coefficients $b_{i}$ appearing in the ‘bias expansion’ $\delta_{\mathrm{g}}=b_{0}+b_{1}\,\delta+b_{2}\,\delta^{2}+\dots$. These parameters depend on the coarse-graining scale used to define $\delta$ and $\delta_{\mathrm{g}}$. The reasons for smoothing are multiple: (i) galaxies are discrete objects and we want to define a continuous density field; (ii) our model aims at describing the largest scales only; (iii) the bias expansion should be well-behaved so that it can be truncated at finite order; (iv) the dynamical model we use to evolve cosmological perturbations breaks down on small scales.

This bias model is applicable to any tracers of the large-scale structure (LSS) of the Universe (e.g. galaxy clusters, dark-matter (DM) haloes, galaxies detected with different selection criteria) by picking the appropriate function $f$ or, equivalently, the corresponding set of bias parameters. In particular, if one considers DM haloes, the local ansatz for the bias relation is supported by spherically-symmetric models of gravitational collapse which also provide predictions for the bias parameters as a function of halo mass (e.g. Mo & White, 1996; Mo et al., 1997; Porciani et al., 1998).

It was later realised that anisotropic gravitational collapse generates non-local and stochastic terms in the bias relation (Catelan et al., 1998) and that this originates leading-order (LO) corrections to the galaxy bispectrum (Catelan et al., 2000). The implications of this result were fully appreciated only a decade later when local bias was shown to be insufficient to describe the clustering of DM haloes (Manera & Gaztañaga, 2011; Matsubara, 2011; Roth & Porciani, 2011; Pollack et al., 2012, 2014) and evidence for bias corrections that are quadratic in the tidal tensor was found in N-body simulations (Baldauf et al., 2012; Chan et al., 2012). At the same time, it was realized that the bias expansion should also contain a series of derivative terms starting with $R^{2}\,\nabla^{2}\delta$ because haloes and galaxies collect material from an extended region of space of characteristic size $R$ (e.g. Desjacques, 2008; McDonald & Roy, 2009; Desjacques et al., 2010; Schmidt et al., 2013; Fujita et al., 2016). The current consensus is that the bias relation should be compatible with all possible symmetries of gravitational instability (McDonald & Roy, 2009; Kehagias et al., 2014; Senatore, 2015; Eggemeier et al., 2019) and thus depend on several other fields than $\delta$ (see section 2.2).

Different techniques have been developed to measure the corresponding bias coefficients for DM haloes in numerical simulations. One possibility is to fit model predictions to the N-body data for various clustering statistics – e.g. power spectra or two-point correlation functions – (Saito et al., 2014; Bel et al., 2015; Hoffmann et al., 2015, 2017; Modi et al., 2017; Hoffmann et al., 2018) or even at the field level (Roth & Porciani, 2011; Schmittfull et al., 2018). Alternatively, one can measure the response of the halo population to long-wavelength perturbations in the matter density (Li et al., 2016; Baldauf et al., 2016; Lazeyras et al., 2016; Lazeyras & Schmidt, 2019). Lastly, bias parameters can be obtained by cross-correlating the corresponding fields that appear in the bias expansion with the halo density distribution (Abidi & Baldauf, 2018; Lazeyras & Schmidt, 2018).

Another important line of research has examined how measurable clustering statistics of tracers depend on the bias relation and on the statistical properties of the underlying matter-density field. This is, in fact, key to interpret results from galaxy redshift surveys. For a local bias relation and in the presence of a Gaussian matter-density field, the ratio $b^{2}_{\mathrm{eff}}(k)$ between the (shot-noise subtracted) tracer- and matter power spectra tends to the constant $b_{1}^{2}$ when $k\to 0$ (Szalay, 1988; Coles, 1993; Fry & Gaztanaga, 1993; Gaztanaga & Baugh, 1998). However, for a non-Gaussian matter density distribution, the constant does not coincide with the linear bias parameter and also depends on the cumulants of the matter density as well as higher-order bias parameters (Scherrer & Weinberg, 1998). In particular, if the statistics of the matter distribution are derived using standard perturbation theory, the LO correction to $b_{1}^{2}$ scales with the variance of the linear density field that grows large when the coarse-graining scale becomes small (Heavens et al., 1998, see also our section 2.3.2 for further details). This sensitivity of the theoretical predictions on the smoothing scale that defines the bias function complicates the use of bias models to interpret observational data.

Inspired by applications of the renormalisation group to the perturbative solution of ordinary differential equations, McDonald (2006) proposed a different interpretation of the theoretical predictions. The key concept is that the parameters $b_{i}$ appearing in the bias expansion do not actually correspond to the physical constants that can be measured in a survey. They are, instead, bare quantities that do not take into account the contribution of perturbative (loop) corrections to the leading terms. One can then rewrite the result of the perturbative calculations for the power spectrum of the tracers in terms of measurable ‘renormalised222The whole procedure parallels Wilsonian renormalisation in field theories. The coarse-graining scale of the density fields here replaces the cutoff that regularises the loop integrals in the quantum field theories.’ quantities that do not depend on the smoothing scale. McDonald & Roy (2009) extended this approach to a bias relation that also depends on the tidal field. More recently, by using the diagrammatic representation of perturbation theory (PT), Assassi et al. (2014) derived a set of conditions that the bias expansion must satisfy to be perturbatively renormalised order by order (see also Senatore, 2015). From these studies it emerges that only bias expansions that include terms proportional to the tidal field and to derivative of the matter density (e.g. $\nabla^{2}\delta$) can be renormalised.

Bias renormalisation is analogous to methods used in statistical field theory and quantum field theory. In general, these techniques provide a convenient way to build ‘effective theories’ that describe physics at a given range of length (and/or time, mass, etc.) scales and with a given accuracy by using a finite set of parameters. This bypasses the need for the ‘full theory’ that includes physics on all scales but might be intractable or, even, unknown. Likewise, the goal of bias renormalisation is to build an effective model for the clustering statistics of tracers. Much of the jargon used in the literature on bias renormalisation is imported from other branches of physics. Less theoretically inclined researchers shy away from the unfamiliar notation and concepts. One of the motivations of this paper is to provide a pedagogical review of the subject and some concrete examples to see it ‘in action’. A second one is that there are a number of questions that are still unanswered. Are all the possible operators allowed by symmetries necessary in the bias expansion? Down to what distances does the renormalised bias expansion (truncated to some order) give an accurate description of the observed clustering statistics of tracers like galaxies?

Although the renormalisation of the bias expansion has always been discussed within the context of cosmological PT, only some of its aspects are fully perturbative. If one writes down a bias expansion in terms of Taylor coefficients, renormalisation is necessary also when one deals with the exact dynamics (extracted e.g. from simulations as in our case) in order to account for the non-linear terms (e.g. $\delta^{2}$) that generate smoothing-dependent spectra. In general, renormalisation fixes a ‘language’ problem in the way we describe biasing, and PT provides an approximate solution on how to implement the remedy in practice. Here we present a first step towards implementing renormalisation within a large suite of N-body simulations where the dynamics is non-perturbative. This will shed new light on the limitations of the perturbative approach.

Usually, tests of the renormalised bias models are conducted by fitting the full perturbative expression for some clustering statistics to N-body simulations (e.g. Saito et al., 2014). We instead apply the renormalisation procedure step by step to the numerical data, examining all the contributions due to the relevant fields separately. For simplicity, we focus on the cross power spectral density $P_{\delta_{\mathrm{h}}\delta}(k)$ of the matter and halo density fields333With a little abuse of notation, we denote by $f(\mathbf{k})$ the Fourier transform of the function $f(\mathbf{x})$ where $\mathbf{x}$ indicates the comoving position. defined as $\langle\delta_{\mathrm{h}}({\mathbf{k}})\,\delta({\mathbf{k}}^{\prime})\rangle=(2\pi)^{3}\,P_{\delta_{\mathrm{h}}\delta}(k)\,\delta_{\mathrm{D}}({\mathbf{k}}+{\mathbf{k}}^{\prime})$, where the brackets $\langle\dots\rangle$ denote the average over an ensemble of realizations and $\delta_{\mathrm{D}}(\mathbf{k})$ is the Dirac delta distribution in three dimensions.

The detailed goals of this work are to (i) apply the Wilsonian renormalisation-group (RG) method to halo bias in a large suite of N-body simulations and study the behaviour of the fields appearing in the bias expansion as a function of the coarse-graining scale; (ii) measure the bias parameters of the DM haloes extracted from simulations by fitting the halo-matter cross-power spectrum $P_{\delta_{\mathrm{h}}\delta}(k)$; (iii) follow their evolution (running) induced by the RG coarse-graining scale; (iv) test that they can be renormalised by re-arranging the terms in the bias expansion; (v) use Bayesian model-selection techniques to determine which bias parameters are necessary to accurately describe $P_{\delta_{\mathrm{h}}\delta}(k)$ up to $k=0.2$  $h$ Mpc*-1*. In this paper, we introduce the main concepts of our study and focus on the renormalisation of the linear bias coefficient, $b_{1}$. We plan to discuss the renormalisation of the bias parameters at second order in our future work.

The structure of this paper is as follows: The theoretical motivations and methods of bias renormalisation are reviewed in section 2 where we also present an original discussion on the impact of filter functions. The numerical techniques and N-body simulations we use are described in section 3. Our results on renormalisation are presented in section 4 and the measurements of the bias parameter in section 5. Finally, our conclusions are laid down in section 6.

2 Tracer bias in cosmological perturbation theory

2.1 Standard perturbation theory in a nutshell

Standard perturbation theory (SPT, for a review, see Bernardeau et al., 2002) describes matter as a pressureless and inviscid fluid to model the growth of density and velocity perturbations in a Friedmann-Robertson-Walker background with expansion factor $a$. The system formed by the continuity, Euler and Poisson equations is solved perturbatively. At any given time, the fastest growing solution for the density contrast, $\delta(\mathbf{x})$, is expanded as

[TABLE]

where $\delta_{1}$ denotes the growing-mode solution to the linearized set of equations and $\delta_{n}={\mathcal{O}}(\delta_{1}^{n})$. The time evolution of $\delta_{1}$ is governed by the linear growth factor $D(a)$, such that $\delta_{1}\propto D$. Similarly, the fastest growing mode for the divergence of the peculiar velocity $\nabla\cdot\mathbf{v}=-aHf\,\theta$ – where $H=\dot{a}/a$ is the Hubble parameter (the dot indicates differentiation with respect to cosmic time) and $f={\mathrm{d}}\ln D/{\mathrm{d}}\ln a$ – is written as

[TABLE]

with $\theta_{1}=\delta_{1}$. In Fourier space,

[TABLE]

and

[TABLE]

where the kernels $F_{n}$ and $G_{n}$ are homogeneous functions of degree zero that describe the couplings between Fourier modes generated by the dynamical non-linearities. These functions obey recursion relations that can be solved order by order starting from $F_{1}=G_{1}=1$ (e.g. Goroff et al., 1986). For instance, the second-order kernels (symmetrized over permutations of their arguments) are

[TABLE]

[TABLE]

Although these expressions are exact only in an Einstein-de Sitter universe, they provide an excellent approximation also in the $\Lambda$CDM scenario (Bernardeau, 1994; Lee et al., 2014).

Assuming Gaussian initial conditions allows us to compute perturbative expansions for statistical quantities averaged over an ensemble of realisations of $\delta_{1}$. For instance, let us consider the power spectrum of matter density perturbations, $P_{\delta\delta}(k)$, defined as $\langle\delta(\mathbf{k})\,\delta(\mathbf{k}^{\prime})\rangle=(2\pi)^{3}\,P_{\delta\delta}(k)\,\delta_{\mathrm{D}}(\mathbf{k}+\mathbf{k}^{\prime})$. Within SPT and up to fourth order in $\delta_{1}$, we can write the ‘correlator’ $\langle\delta\delta\rangle\simeq\langle\delta_{1}\delta_{1}\rangle+\langle\delta_{2}\delta_{2}\rangle+\langle\delta_{3}\delta_{1}\rangle$ (the obvious dependence on the wavevectors is understood here to simplify notation). Therefore, $P_{\delta\delta}(k)$ can be approximated as

[TABLE]

where the LO term $P^{(11)}_{\delta\delta}(k)$ coincides with the linear power spectrum $P_{11}(k)$ while the next-to-leading-order (NLO) corrections are

[TABLE]

A powerful diagrammatic technique has been introduced to conveniently perform the SPT expansion of ensemble-averaged statistics (e.g. Bernardeau et al., 2002). This is analogous to the method introduced by Feynman in quantum electrodynamics. In most cases, LO contributions are associated with tree diagrams (in the sense of graph theory) and are thus called ‘tree-level terms’. Evaluating these quantities does not require any integration (see e.g. $P_{11}(k)$ above). On the other hand, terms associated with diagrams containing $n$-loops give rise to ‘$n$-loop corrections’ that require $n$ integrations (see e.g. the 1-loop term $P^{(22)}_{\delta\delta}(k)+P^{(13)}_{\delta\delta}(k)$). Note that, if the tree-level term vanishes, the LO is given by the 1-loop terms (see e.g. section 2.3.2).

SPT mainly suffers from two limitations. First, being a perturbative technique, it is expected to break down when and where $|\delta(\mathbf{x})|\simeq 1$. Second, the gravitational collapse of an initially cold distribution of collisionless DM develops multi-stream regions where the velocity field is not single-valued. However, the pressureless-fluid approximation adopted by SPT does not account for this phenomenon which alters the dynamics of the system. N-body simulations show that, within the $\Lambda$CDM scenario, SPT provides rather accurate predictions for 2- and 3-point statistics at redshifts $z>1$ and $k\lesssim 0.2\ h$ Mpc*-1* while it becomes increasingly imprecise at lower redshifts (for the same wavenumbers) as the variance of the density perturbations approaches unity (e.g. Carlson et al., 2009; Nishimichi et al., 2009; Blas et al., 2014).

2.2 Biasing as an effective field theory

We are interested in describing how discrete objects (for example DM haloes or galaxies) trace the smooth matter density field throughout the Universe. Since haloes assemble from the gravitational collapse of matter on small scales and galaxies form within them, it is reasonable to assume that some deterministic relationship exists between the density of matter and that of the discrete tracers on large scales. Numerical simulations and simple toy models that associate haloes to peaks in the initial density field provide supporting evidence in favour of this argument. However, the physics of halo and galaxy formation is complex, highly non-linear and non-perturbative. Although we can simulate it with the help of a computer, we are not able to make analytical predictions. Given these circumstances, for practical applications like the interpretation of galaxy redshift surveys, it makes sense to opt for a simplified description that holds true only on large scales.

Analogous problems in other fields of physics led to the development of effective field theories (EFTs). We highlight here how the basic concepts of an EFT can be used to model large-scale biasing. We first introduce the effective overdensity field of the tracers444The subscript ‘h’ refers to DM haloes, but the framework is applicable to any tracer., $\delta_{\mathrm{h}}({\mathbf{x}},t)$, which describes their large-scale clustering, but is blind to their precise distribution on small scales. In order to relate this quantity to the underlying mass-overdensity field, $\delta$, it is necessary to identify all possible dependencies that are compatible with the symmetries of the problem. Assuming that the tracers are non-relativistic implies that gravitational physics is fully described in terms of the (rescaled) peculiar gravitational potential $\phi$, defined so that $\nabla^{2}\phi=\delta$. Taking into account the equivalence principle and that $\delta_{\mathrm{h}}$ is a scalar under rotations, it follows that $\delta_{\mathrm{h}}$ can only depend on scalar combinations of second spatial derivatives of the peculiar gravitational potential $\partial_{i}\partial_{j}\phi$, and first spatial derivatives of the peculiar velocity field $\partial_{j}{\varv}^{i}$ (McDonald & Roy, 2009; Kehagias et al., 2014; Senatore, 2015).

The second key step in the construction of an EFT for biasing is to consider that the physics regulating the clustering of tracers is non-local in space and time. The material that forms a tracer was dispersed within an extended patch of characteristic size $R$ at early times and needed a characteristic time $T$ to assemble together. In general, $R\lesssim 10$  $h^{-1}$ Mpc (the Lagrangian size of galaxy clusters) which is small compared with the scales we want to describe using our EFT. On the other hand, $T$ is never short compared to the Hubble time. It follows that the effective theory of biasing should be approximately local in space but non-local in time (Senatore, 2015). In mathematical terms, this means that $\delta_{\mathrm{h}}$ should depend on the cosmological perturbations evaluated along the past worldlines of the fluid elements that end up forming the tracers at a given location (or, better, within a given patch).

Since we are only interested in the large spatial scales, the third step is to expand the generic (and unknown) functional $\delta_{\mathrm{h}}$ in powers of the cosmological fluctuations and their spatial derivatives (to account for the mild spatial non-locality). Note that the tensor $\partial_{i}\partial_{j}\phi$ is a dimensionless quantity and its spatial derivatives need to be multiplied by a length scale of order $R$ in the expansion. It follows that all derivative corrections will be suppressed on scales much larger than $R$. This is more easily seen in Fourier space. For instance, let us consider the lowest derivative correction to terms that are proportional to $\delta$, i.e. $\sim R^{2}\nabla^{2}\delta$ (as we need a scalar under rotations). In Fourier space this term is proportional to $(kR)^{2}$ and thus heavily suppressed for scales $k\ll R^{-1}$. On the other hand, this also implies that the derivative expansion breaks down on scales of order $R$.

Finally, the non-locality in time is accounted for by making some further hypotheses, namely by assuming that cosmological perturbations evolve as in SPT. In this case, the expansion of $\delta_{\mathrm{h}}$ is re-organised to avoid duplication of terms (for instance the velocity divergence coincides with the overdensity at linear order) and its coefficients are re-defined as integrals over time of the original ones (Mirbabayi et al., 2015; Angulo et al., 2015; Desjacques et al., 2018b, a).

Up to third order in the cosmological perturbations, one thus obtains

[TABLE]

where we have (i) decomposed the tensor $\partial_{i}\partial_{j}\phi$ into its trace $\delta$ and the traceless part,

[TABLE]

(with $\nabla^{-2}$ the inverse of the Laplacian operator and $\delta_{ij}^{\mathrm{K}}$ the Kronecker symbol); (ii) introduced the scalars $s^{2}=s_{ij}s_{ji}$, $s^{3}=s_{ij}s_{jk}s_{ki}$; (iii) used the (rescaled) velocity potential $\phi_{\varv}$ such that $\nabla^{2}\phi_{\varv}=\theta$ to define the tensor $p_{ij}=\partial_{i}\partial_{j}\phi_{\varv}-\frac{1}{3}\delta_{ij}^{\mathrm{K}}\theta$ and the operator555The bias expansion is sometimes written using the so-called second- and third-order ‘Galileon’ operators, $\mathcal{G}_{2}(\phi)$ and $\mathcal{G}_{3}(\phi)$ (e.g. Assassi et al., 2014, see also Chan et al. 2012). The relation between this set of operators and ours is $\mathcal{G}_{2}(\phi)=s^{2}-(2/3)\,\delta^{2}$ and $\mathcal{G}_{3}(\phi)=-\delta^{3}/9-s^{3}+\delta s^{2}/2$. Note that $\Gamma_{3}=\mathcal{G}_{2}(\phi)-\mathcal{G}_{2}(\phi_{\varv})$. $\Gamma_{3}=s^{2}-p^{2}-(2/3)(\delta^{2}-\theta^{2})$ with $p^{2}=p_{ij}p_{ji}$; (iv) included only the leading higher-derivative term $\propto\nabla^{2}\delta$, for simplicity.

In compact form, the bias expansion can be written as

[TABLE]

where the sum runs over a fixed basis of operators, ${O}$, that are compatible with the symmetries and the evolution of cosmological perturbations while the bias parameters, $b_{O}$, depend on the characteristics of the population of tracers (e.g. the halo mass, the galaxy luminosity or the intensity of a particular emission line).

The expressions above are meant to relate the spatial distribution of tracers on large scales with the underlying long-wavelength cosmological perturbations in a deterministic way. However, the short-wavelength fluctuations (to which our effective theory is blind by construction) also play a role in determining the precise location of the tracers. In order to account for this phenomenon in the theory, we introduce a certain degree of randomness in the bias expansion by assuming that the bias coefficients have also a zero-mean stochastic component $\epsilon_{O}$, i.e.

[TABLE]

Furthermore, it is customary to treat each stochastic term as a perturbation ${\mathcal{O}}(\delta)$. For example, to second order, we can write:

[TABLE]

Under the assumption that the stochastic terms do not correlate with the long-wavelength cosmological perturbations, their statistical properties are fully determined by their auto- and cross-correlation functions (or auto- and cross-spectra in Fourier space). In the literature, it is often assumed that the cross-spectrum between $\epsilon_{O}$ and $\epsilon_{O^{\prime}}$ can be written as a series expansion in $k^{2}$,

[TABLE]

Once again, this reflects the fact that $\delta_{\mathrm{h}}$ should be determined by the value assumed by the stochastic fields within an extended region of space and not only at one point. However, when taken term by term, this expansion makes little sense in configuration space. While $\Upsilon_{0,OO^{\prime}}$ gives rise to a standard shot-noise term with a 2-point correlation that is proportional to the Dirac delta distribution at zero lag, $\delta_{\mathrm{D}}(r)$, the remaining terms generate contributions proportional to $\nabla^{2n}\delta_{\mathrm{D}}(r)$. These ‘contact terms’ (as they are generally dubbed in field theory) appear because we are considering an asymptotic expansion in Fourier space that breaks down on small scales. A more sophisticated treatment of the short-wavelength modes should then be used to discuss the statistics of tracers in configuration space.

A note is in order regarding equations (10), (12), and (13). Implicit in the definition of all fields is a low-pass smoothing procedure that isolates the long-wavelength modes to which the theory applies. In particular, it is necessary to specify how the smoothing is done for the non-linear terms like $\delta^{2}$ and $s^{2}$. In fact, the long-wavelength modes of $\delta^{2}$ depend on the short-wavelength modes of $\delta$ implying that $\delta^{2}$ cannot be reliably computed with a perturbative approach and that it can grow large even at low $k$. Since we want to consider only the contribution of the large-scale modes of the density perturbations, the only meaningful interpretation of the r.h.s. in equations (10), (12), and (13) is to smooth the matter overdensity field first and then use the low-pass filtered $\delta$ to evaluate the non-linear operators (Heavens et al., 1998). Filtering out the short-wavelength modes with $k>\Lambda$ is thus necessary for several reasons: (i) as we have already mentioned, to only consider the scales that are described by the theory; (ii) to ensure that $|\delta(\mathbf{x})|\ll 1$ and a series expansion of the bias relation in the cosmological perturbations makes sense; and (iii) to be able to apply SPT.

The ultimate goal of the effective theory of biasing is to model the observed $n$-point correlation functions (and their corresponding multi-spectra in Fourier space) for tracers on large scales. In this work, we focus on two-point statistics in Fourier space. The model predictions are obtained by correlating the Fourier transform of equation (13) either with itself or with the Fourier transform of the overdensity field. This provides a systematic expansion of the spectra organized according to the importance of its terms based on a power-counting argument. The underlying assumption is that there exist two well-defined scales: a non-linearity scale $R_{\mathrm{nl}}$ (at which physics becomes non-perturbative and the expansion in powers of the cosmological fluctuations breaks down) and a non-locality scale $L$ (at which the expansion in powers of the higher-derivative terms breaks down). The different contributions to the spectra scale as powers of $kL$ and $kR_{\mathrm{nl}}$. Truncating the expansion at a given order thus provides results with reliable error estimates without referencing any quantity outside of the theory. The bias parameters and the coefficients that define the statistical properties of the stochastic fields are free parameters that need to be tuned in order to match observations. However, since the non-linear operators of the theory are heavily dependent on the smoothing scale, the best-fitting coefficients will inherit a dependence on $\Lambda$. As we have already mentioned in the introduction, an analogy can be established between this description of galaxy biasing and the Wilsonian renormalisation in quantum field theory. In brief, the bias series can be re-organized so that to eliminate the so-called ‘UV-sensitive’ terms that depend on $\Lambda$ order by order in the perturbative expansion. This is equivalent to expressing the bias relation in terms of a set of ‘renormalised’ operators $[{O}]$ built from the original operator basis $O$

[TABLE]

2.3 Bias renormalisation

The bias renormalisation forms the main subject of our investigation and, for this reason, we explore the related concepts in more detail.

2.3.1 UV-sensitivity of composite operators

The bias expansion given in equation (13) contains operators obtained by multiplying two fields evaluated at the same spatial location, like $\delta^{2}$ and $s^{2}$. These ‘local operators’ or ‘composite operators’ (as they are generally called in field theories) are very sensitive to the short-wavelength modes of $\delta$ that are not accurately modelled by SPT. This can be easily understood, for example, by inspecting the Fourier transform of $\delta^{2}$:

[TABLE]

Even for small values of $k$, $\delta^{2}$ receives contributions from all scales. For instance, its expectation value,

[TABLE]

can get very large (or even diverge) if the density perturbations have substantial power at small scales. Similarly, the cross spectrum of $\delta^{2}$ with the matter-density fluctuations, defined as $\langle\delta^{2}({\mathbf{k}})\,\delta({\mathbf{k}}^{\prime})\rangle=(2\pi)^{3}\,P_{\delta^{2}\delta}(k)\,\delta_{\mathrm{D}}(\mathbf{k}+\mathbf{k}^{\prime})$, coincides with an integral over all scales of the matter bispectrum

[TABLE]

where $\langle\delta({\mathbf{p}})\,\delta({\mathbf{q}})\,\delta({\mathbf{k}})\rangle=(2\pi)^{3}\,B_{\delta\delta\delta}(p,q,k)\,\delta_{\mathrm{D}}({\mathbf{p}}+{\mathbf{q}}+{\mathbf{k}})$. All this implies that, if a low-pass filter $W(k,\Lambda)$ is applied to $\delta$, then $\delta^{2}(\mathbf{k})$ inherits a strong dependence on $\Lambda$. In brief, we say that the composite operators $\delta^{2}$ and $s^{2}$ are UV-sensitive.

2.3.2 Composite operators in SPT

To LO in SPT, we can write the matter power spectrum $P_{\delta\delta}^{\mathrm{(LO)}}(k)=P_{11}(k)$ and the bispectrum $B_{\delta\delta\delta}^{\mathrm{(LO)}}(k_{1},k_{2},k_{3})=B^{(112)}_{\delta\delta\delta}(k_{1},k_{2},k_{3})+B^{(121)}_{\delta\delta\delta}(k_{1},k_{2},k_{3})+B^{(211)}_{\delta\delta\delta}(k_{1},k_{2},k_{3})$. By substituting these approximations in equations (18) and (19) one obtains

[TABLE]

and

[TABLE]

with

[TABLE]

and

[TABLE]

The behaviour of these cross-spectra at large scales ($k\to 0$) is usually determined by using spherical coordinates (with polar axis $\mathbf{k}$) and limiting the integration in $q$ with an upper cutoff $\Lambda$. It turns out that

[TABLE]

which shows that the normalisation of $P_{\delta^{2}\delta}^{(31)}(k)$ depends on $\Lambda$ (Heavens et al., 1998). This is an example of a UV-sensitive term. On the other hand, the $k\to 0$ limit of $P_{\delta^{2}\delta}^{(22)}(k)$ does not show any cutoff dependence.

2.3.3 Renormalisation and counterterms

Fur illustrative purposes only, let us now consider a simplified bias expansion such that

[TABLE]

and evaluate the expectation value of $\delta_{\mathrm{h}}$ at NLO in SPT.

It is straightforward to obtain that $\langle\delta_{\mathrm{h}}(\mathbf{x})\rangle=b_{0}+b_{2}\sigma_{1}^{2}(\Lambda)$. Since $\langle\delta_{\mathrm{h}}\rangle$ is an observable which is identically equal to zero, if we want to identify our truncated perturbative result with the actual measurement, it is necessary to set $b_{0}+b_{2}\sigma_{1}^{2}(\Lambda)=b_{0}^{\mathrm{R}}=0$. This leads to the modified bias expansion $\delta_{\mathrm{h}}(\mathbf{x})=b_{0}^{\mathrm{R}}+b_{1}\delta(\mathbf{x})+b_{2}[\delta^{2}(\mathbf{x})-\sigma_{1}^{2}(\Lambda)]=b_{1}\delta(\mathbf{x})+b_{2}[\delta^{2}(\mathbf{x})-\sigma_{1}^{2}(\Lambda)]$.

Starting from this expression, we now derive the cross spectrum between the tracer density field and the matter density to 1-loop in SPT. The tree-level result is $b_{1}P_{11}(k)$, while the 1-loop corrections give b_{2}\big{[}P_{\delta^{2}\delta}^{(22)}(k)+P_{\delta^{2}\delta}^{(31)}(k)\big{]}. Equation (24) shows that the loop corrections contain a term which coincides with the tree-level result rescaled by a cutoff-dependent coefficient. Remarkably, the combination $[b_{1}+b_{2}\,(68/21)\,\sigma_{1}^{2}(\Lambda)]\,P_{11}(k)$ gives the dominant contribution when $k\to 0$. Inspired by Wilsonian renormalisation of field theories where the UV divergences are cancelled by a redefinition of the parameters of the theory, McDonald (2006) proposes to replace $b_{1}+b_{2}\,(68/21)\,\sigma_{1}^{2}(\Lambda)$ with the new (‘renormalised’ or ‘observable’) linear bias coefficient $b_{1}^{\mathrm{R}}$. The resulting expression for the cross spectrum at one loop will thus be

[TABLE]

Here, $b_{1}^{\mathrm{R}}$ should be considered as a free parameter of the model that can be adjusted to fit observational data. On the other hand, the ‘bare’ linear bias coefficient $b_{1}$ should be merely considered as a mathematical tool to perform calculations and should not be assigned any physical meaning. This technique can be iterated to renormalise higher-order bias parameters (McDonald, 2006; McDonald & Roy, 2009). The net effect of this procedure is that no UV-sensitive terms appear in the theoretical expressions for the ensemble averaged statistics of the tracers.

A different way to understand renormalisation is through the introduction of counterterms in the bias expansion. For instance, let us re-consider the example above. In order to eliminate the UV-sensitive term that appears in the NLO expression for $\langle\delta_{\mathrm{h}}(\mathrm{x})\rangle$, we could add the constant counterterm $\Delta b_{0}$ to the r.h.s. of equation (25) and get $\langle\delta_{\mathrm{h}}(\mathbf{x})\rangle=b_{0}+\Delta b_{0}+b_{2}\sigma_{1}^{2}(\Lambda)$. By requiring that the expectation value of the theory coincides with the observed value (i.e. zero), we thus get $\Delta b_{0}=-b_{0}-b_{2}\sigma_{1}^{2}(\Lambda)$. The new bias expansion (including the counterterm) can thus be re-organised as follows:

[TABLE]

where $\left[\delta^{2}(\mathbf{x})\right]_{0}\equiv\delta^{2}({\mathbf{x}})-\sigma_{1}^{2}(\Lambda)$ denotes a new operator compatible with the renormalisation of $b_{0}$.

Next, we could add the counterterm $\Delta b_{1}\delta(\mathbf{x})$ to the bias expansion in order to cancel out the UV-sensitive term in the NLO expression for the two-point statistic $P_{\delta_{\mathrm{h}}\delta}(k)$. In fact, the new term generates the correction $\Delta P_{\delta_{\mathrm{h}}\delta}(k)=\Delta b_{1}P_{11}(k)$ and by imposing that $b_{1}+\Delta b_{1}+b_{2}\,(68/21)\,\sigma_{1}^{2}(\Lambda)=b_{1}^{\mathrm{R}}$, we finally obtain

[TABLE]

where $\left[\delta^{2}(\mathbf{x})\right]_{1}\equiv\delta^{2}({\mathbf{x}})-\sigma_{1}^{2}(\Lambda)\,[1+(68/21)\,\delta(\mathbf{x})]$ represents the quadratic operator which is consistent with the renormalisation of both $b_{0}$ and $b_{1}$.

The examples above illustrate how the linear bias coefficient $b_{1}$ and the field $\delta^{2}$ can be consistently renormalised starting from the simplified model given in equation (25). Considering a more general bias expansion that includes additional composite operators requires further calculations. For instance, we might want to add a non-local bias term proportional to $s^{2}$. In this case, all the perturbative calculations we made to compute spectra and cross-spectra for $\delta^{2}$ can be easily generalised to $s^{2}$. By introducing the Fourier-space operator

[TABLE]

one finds that $\langle s^{2}({\mathbf{x}})\rangle=(4/3)\,\sigma^{2}$ and

[TABLE]

which is UV-sensitive as (McDonald & Roy, 2009)

[TABLE]

Thus, $s^{2}$ needs to be renormalised. Analogous considerations apply to other composite operators.

A systematic procedure for renormalising the bias expansion order by order in PT has been presented by Assassi et al. (2014, see also ). The renormalisation conditions for the generic operator ${O}$ appearing in the bias expansion are

[TABLE]

where ${\mathbf{q}}_{i}\to 0$ $\forall i$. In a diagrammatic representation, this means that the counterterms should be chosen so that to cancel the loop corrections obtained from diagrams in which different Fourier modes of $\delta$ that contribute to the operator ${O}$ are contracted among themselves as in equations (23) and (30).

2.4 Cross-spectrum between matter and tracers

In this paper, we use a large suite of N-body simulations to test how accurately the third-order bias expansion given in equation (10) describes the spatial distribution of biased tracers (namely, dark-matter haloes with different masses). In order to focus on the deterministic terms, we only consider the cross-spectrum between the matter-density field and the tracers, $P_{\delta_{\mathrm{h}}\delta}(k)$. As a reference, we provide here the perturbative result for this quantity (to NLO) expressed in terms of the renormalised linear bias parameter $b_{1}^{\mathrm{R}}$ (McDonald & Roy, 2009; Assassi et al., 2014; Saito et al., 2014; Senatore, 2015; Desjacques et al., 2018b):

[TABLE]

In the expression above, we have introduced the LO cross spectra of the renormalised operators,

[TABLE]

[TABLE]

where666Equation (24) implies that $B_{\delta^{2}\delta}(k)=0$ as $P_{\delta^{2}\delta}^{(31)}(k)\propto P_{11}(k)$.

[TABLE]

[TABLE]

On the contrary, the $\Gamma_{3}$ operator does not require renormalisation (e.g. Assassi et al., 2014) and we have

[TABLE]

with777The perturbative contributions to $\Gamma_{3}$ vanish at second order.

[TABLE]

A few notes are in order here. First, all terms proportional to $P_{11}(k)$ have been used to define the renormalised linear bias parameter as a function of the bare bias coefficients:

[TABLE]

This makes sure that $P_{\delta_{\mathrm{h}}\delta}(k)\to b_{1}^{\mathrm{R}}\,P_{\delta\delta}(k)$ in the limit $k\to 0$. Secondly, although the perturbative calculations give $b_{1}^{\mathrm{R}}\,P_{\delta\delta}^{\mathrm{(LO)}}(k)+b_{1}\,P_{\delta\delta}^{\mathrm{(NLO)}}(k)$, this expression has been replaced with $b_{1}^{\mathrm{R}}\,[P_{\delta\delta}^{\mathrm{(LO)}}(k)+P_{\delta\delta}^{\mathrm{(NLO)}}(k)]$ in equation (33), the difference being proportional to $\sigma_{1}^{2}\,P_{\delta\delta}^{\mathrm{(NLO)}}(k)$ and thus higher-order in the perturbations. As we will show later, this substitution is a source of error on mildly non-linear scales. Thirdly, the third-order bias coefficients $b_{3}$ and $b_{\delta s^{2}}$ are renormalised into $b_{1}^{\mathrm{R}}$ and do not appear in equation (33). Fourthly, it turns out that the functions $B_{s^{2}\delta}(k)$ and $B_{\Gamma_{3}\delta}(k)$ are proportional to each other and therefore a single bias parameter (a linear combination of $b_{s^{2}}$ and $b_{\Gamma_{3}}$) could be used to scale their total contribution (McDonald & Roy, 2009). Finally, no direct contributions from the stochastic bias coefficients $\epsilon_{O}$ appear in the r.h.s. of equation (33). This is because these zero-mean stochastic fields are assumed to be independent of $\delta$. If, however, matter-density perturbations are described in terms of an effective deterministic field $\delta_{\mathrm{eff}}$ plus stochastic contributions $\epsilon_{\mathrm{m}}$ (from the small-scale modes that are not included in the theory), then the correlation between the stochastic terms $\epsilon_{1}$ and $\epsilon_{\mathrm{m}}$ should contribute to $P_{\delta_{\mathrm{h}}\delta}^{\mathrm{(nlo)}}(k)$. The corresponding cross spectrum is represented by the term $\Upsilon_{2,\epsilon_{1},\epsilon_{\mathrm{m}}}\,k^{2}=(\partial\Upsilon_{\epsilon\epsilon_{\mathrm{m}}}/\partial k^{2})_{k=0}\,k^{2}$ in equation (33). Theoretical considerations suggest that this term should be highly suppressed with respect to the other NLO corrections (Senatore, 2015; Angulo et al., 2015).

2.5 Impact of filter functions

Equations (24) and (31) are obtained from equations (23) and (30) by performing the integration over $\mathbf{q}$ in spherical polar coordinates. The integration range extends over the full solid angle around $\mathbf{k}$ but is limited to the region $q<\Lambda$ for the radial component. We show here that this calculation does not exactly give what one would obtain by smoothing the density field with a sharp cutoff in $k$ space as, for instance, we will do later when analyzing N-body data.

As mentioned in section 2.2, the bias expansion applies to fields that have been low-pass filtered. Let us consider the smoothed field $W(k)\,\delta(\mathbf{k})$ with $W(k)$ a low-pass, spherically symmetric, window function. In this case, equation (23) should be replaced with

[TABLE]

For simplicity, in this work, we use a spherical top-hat filter in $k$ space,

[TABLE]

The factor $W(|\mathbf{k}-\mathbf{q}|)$ in the integrand of equation (41) thus limits the integration range to the region where

[TABLE]

with $\mu=(\mathbf{k}\cdot\mathbf{q})/(kq)$ the cosine of the angle between $\mathbf{k}$ and $\mathbf{q}$. This turns out to be a constraint on $\mu$ at fixed $q$,

[TABLE]

and implies that, for $q>\Lambda-k$, the integration range in $\mu$ will have a lower bound $\mu_{\mathrm{min}}>-1$. The complete result for $0<k<\Lambda$ is

[TABLE]

where the integral over $\mu$ reduces to

[TABLE]

It follows that

[TABLE]

where

[TABLE]

and $\sigma_{1}^{2}(\Lambda)-\sigma_{1}^{2}(\Lambda-k)=\mathcal{H}_{2}(k)$. By Taylor expanding the $\mathcal{H}_{n}(k)$ functions to fourth order, we obtain the linear expansion of the expression in the curly parentheses in equation (47),

[TABLE]

This result has some implications for the renormalisation of the bias expansion. First, the resulting expression for $P_{\delta^{2}\delta}^{(31)}(k)$ is not proportional to $P_{11}(k)$ at finite wavenumbers. Moreover, the limit for $k\to 0$ of equation (2.5) is not $(68/21)\,\sigma_{1}^{2}(\Lambda)$ (contrary to what claimed by Desjacques et al., 2018b, after their equation 2.122) and a different cutoff-dependent coefficient should be used to renormalise $b_{1}$. Note, however, that, for a $\Lambda$CDM cosmology, the $k\to 0$ limit reduces to (24) for $\Lambda\to+\infty$. We will return to these issues and present a comparison with N-body simulations in section 4.3. Analogous calculations can also be performed for $s^{2}$ and other composite operators.

3 Numerical methods

In this section, we introduce our suite of N-body simulations and describe the numerical techniques we use to build the continuous density fields, as well as the auto and cross power spectra that appear in equation (33).

3.1 N-body simulations

We use the SPH code gadget-2 (Springel 2005) to run 40 DM-only simulations. Their main characteristics are summarised in Table 2. We set up the initial conditions (IC) at $z_{\mathrm{IC}}=50$ with the music code (Hahn & Abel 2011) employing the Planck 2015 (Planck Collaboration et al. 2016) cosmology, i.e. $h=0.677$, $\sigma_{8}=0.816$, $n_{s}=0.967$, $\Omega_{\mathrm{m}}=0.3089$, $\Omega_{\mathrm{b}}=0.0486$ and $\Omega_{\Lambda}=0.6911$.

To identify gravitationally bound structures, we use the rockstar halo finder (Behroozi et al., 2013). This algorithm uses the phase-space distribution of the simulation particles to detect spherical haloes with a virial mass defined as in Bryan & Norman (1998). We split the halo population into three mass bins based on the number of halo particles. In the lowest-mass bin, $M_{1}$, haloes contain between 40 and 79 particles, corresponding to a mean mass of $\overline{M}_{1}=6.15\times 10^{13}h^{-1}M_{\odot}$. The second bin includes haloes with 80 to 159 particles ($\overline{M}_{2}=1.21\times 10^{14}h^{-1}M_{\odot}$), while more massive structures with $\geq 160$ particles fall into the highest-mass bin ($\overline{M}_{3}=3.17\times 10^{14}h^{-1}M_{\odot}$).

3.2 Measuring smoothed fields and spectra

We employ a ‘cloud-in-cell’ (CIC) interpolation method to build the gridded overdensity fields $\delta$ and $\delta_{\mathrm{h}}$ starting from the positions of the N-body particles and of the haloes, respectively. The fields are sampled on a regular Cartesian mesh with $256^{3}$ cells that fully covers the simulation box. After correcting for the mass-assignment scheme, we use the fast-Fourier-transform (FFT) algorithm to obtain $\delta(\mathbf{k})$ and $\delta_{\mathrm{h}}(\mathbf{k})$. In the top panel of Fig. 1, we show the matter power spectrum $P_{\delta\delta}(k)$ and the halo-matter cross spectra $P_{\delta_{\mathrm{h}}\delta}(k)$ averaged over our set of simulations for each halo mass bin. The shaded regions indicate the standard error of the mean. In the bottom panel, we show the ratio $P_{\delta_{\mathrm{h}}\delta}(k)/P_{\delta\delta}(k)$ which can be interpreted as an effective scale-dependent bias. This function grows with $k$, and this effect becomes more prominent for more massive haloes. In order to emphasize this trend, we fit a constant to the five leftmost data points and plot the result with a dashed line. The discrepancy between the solid and dashed line provides a strong motivation for considering non-linear bias models.

Low-pass smoothing is applied in Fourier space by multiplying the FFT of the fields by the window function $W(k)$ given in equation (42). We use three different values for the cutoff scale $\Lambda$ ensuring that the variance of the $\delta$ field is smaller than unity (see Table 3). We also apply spectral methods to compute the Fourier transforms of $s_{ij}$ and $\nabla^{2}\delta$ starting from $\delta(\mathbf{k})$. In order to compute $\Gamma_{3}$, we first build three momentum grids (one for each Cartesian component of the momentum vector) by applying the CIC interpolation to the particle velocities. To get the velocity grids from these we divide the momentum components by the density. We apply the FFT to these grids so that we can first compute $\theta(\mathbf{k})=i\mathbf{k}\cdot\mathbf{v}(\mathbf{k})/(aHf)$ and then $p_{ij}(\mathbf{k})$. Finally, we transform all the smoothed fields back to real space and compute the quadratic fields $\delta^{2}(\mathbf{x})$, $s^{2}(\mathbf{x})$, $p^{2}(\mathbf{x})$ and $\Gamma_{3}(\mathbf{x})$.

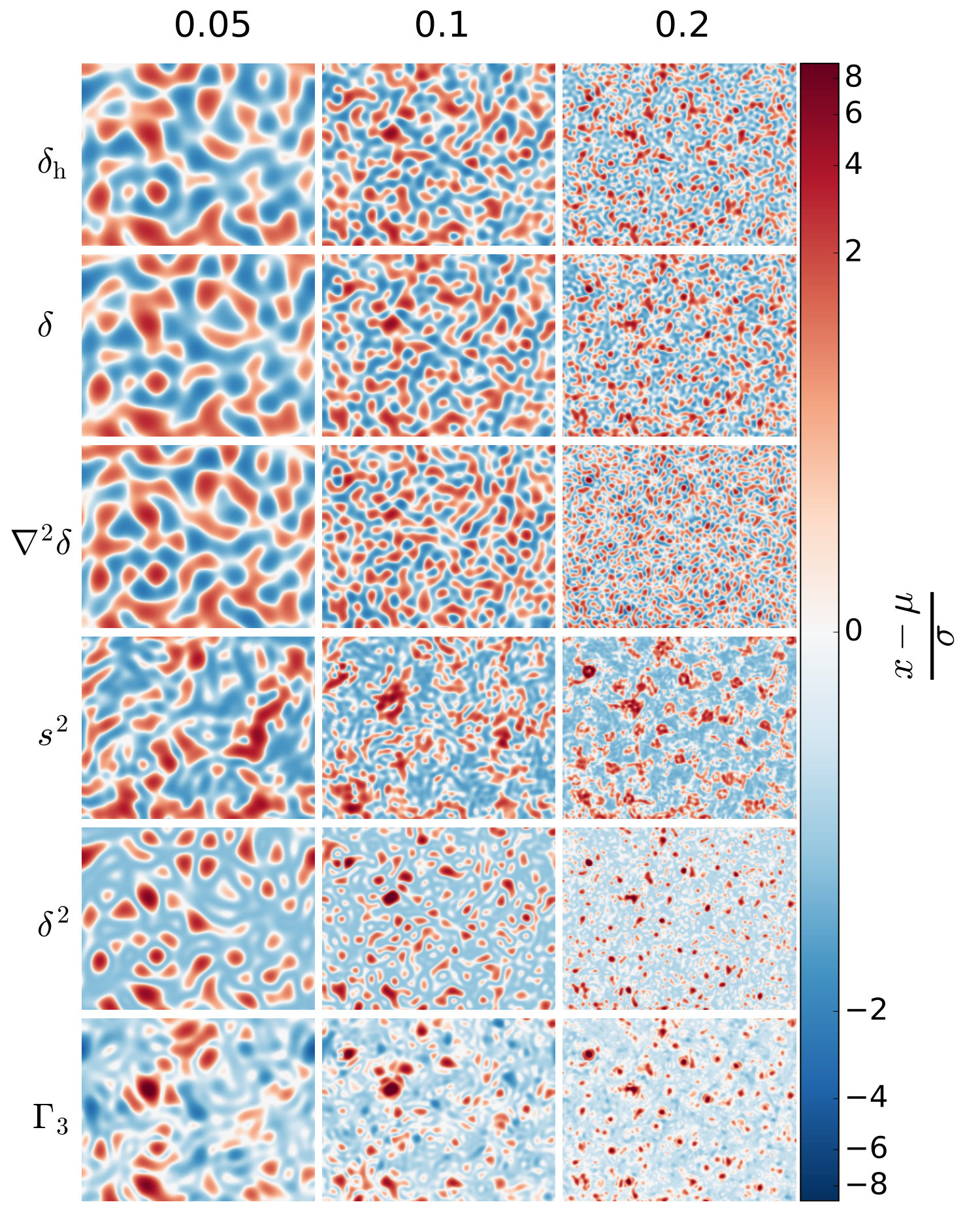

A sample slice extracted from one of the simulation boxes at $z=0$ for all fields is shown in Fig. 2. From top to bottom we plot the different fields, from left to right we change the cutoff scale $\Lambda$. We standardised the fields such that dark tones indicate large deviations from than the mean. As expected, larger values of $\Lambda$ give rise to more detailed structure in all panels. The most striking feature is that $\delta_{\mathrm{h}}$ and $\delta$ always look very similar. This is not surprising since $\delta_{\mathrm{h}}\propto\delta$ at LO in the bias expansion. For larger $\Lambda$, the similarity is less evident, reflecting the increased importance of higher-order and derivative terms. The Laplacian of $\delta$ looks qualitatively similar to $\delta$ for small $\Lambda$, whereas, for large $\Lambda$, short-wavelength Fourier modes are enhanced with respect to the density field. The field $\delta^{2}$ presents concentrated high positive peaks on top of a rather uniform background, somewhat reminiscent of shot noise (see also Heavens et al., 1998). Around those peaks the signal of $s^{2}$ becomes strong in almost spherical shells which are particularly evident for large $\Lambda$. Finally, for $\Lambda=0.2$ $h$ Mpc*-1*, $\Gamma_{3}$ presents high peaks at the same locations as $\delta^{2}$ and $s^{2}$ while this correspondence is less striking for smaller $\Lambda$. Not visible in the figure is that the relative amplitudes of the different fields change dramatically with the cutoff scale. Whereas, for $\Lambda=0.05$ $h$ Mpc*-1*, they are clearly ordered as expected from SPT, for $\Lambda=0.2$ $h$ Mpc*-1*, $\delta$, $\delta^{2}$, $s^{2}$ and $\Gamma_{3}$ are all of order unity.

We employ standard methods to compute the auto and cross power spectra between the fields using 10, 20 and 40 linearly-spaced bins in $k$ for $\Lambda=0.05,\,0.1,$ and $0.2$ $h$ Mpc*-1*, respectively.

4 Renormalisation in simulations

In this section, we measure the UV-sensitivity of the composite operators and implement the renormalisation framework directly in our simulations.

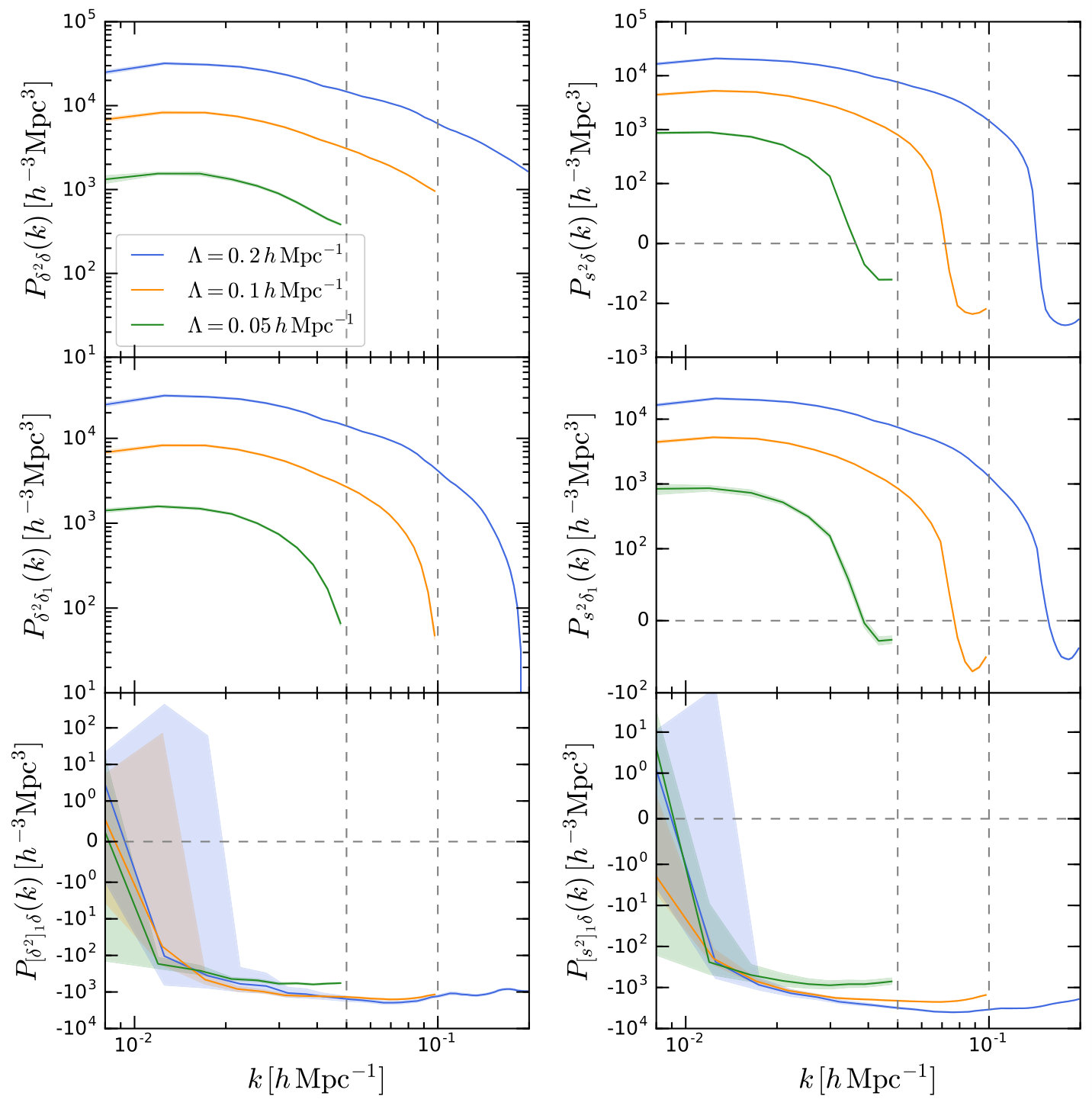

In the top panels of Fig. 3, we show the average over the 40 simulations of the cross spectra between different composite operators and $\delta$ for three values of $\Lambda$. We plot $P_{\delta^{2}\delta}(k)$ on the left-hand side and $P_{s^{2}\delta}(k)$ on the right-hand side. As expected, our results are UV-sensitive as the amplitude of the spectra changes dramatically with $\Lambda$. Qualitatively, this is consistent with the perturbative calculations presented in section 2.3.2.

We want to build a procedure that removes the UV-sensitive part from the cross spectra. In the perturbative calculations, this term is $[\lim_{q\to 0}P_{{O}\delta}^{(31)}(q)/P_{11}(q)]\,P_{11}(k)$. For instance, if ${O}=\delta^{2}$, then $P_{{O}\delta}^{(31)}(q)$ is obtained from the correlator $2\langle(\delta_{2}\delta_{1})\,\delta_{1}\rangle$ (parentheses here denote the fields contributing to $\delta^{2}$). This is the LO term of $\langle\delta^{2}\delta_{1}\rangle$. In the simulations, we cannot isolate $\delta_{2}$ from all the other non-linear terms. However, if the perturbative ansatz holds true on the largest scales, we can safely assume that $\langle\delta^{2}\delta_{1}\rangle$ is dominated by the LO part when $k\to 0$. Therefore, it makes sense to measure $P_{\delta^{2}\delta_{1}}(k)$ from the simulations and compute the ‘renormalised cross spectrum’

[TABLE]

where $k_{\mathrm{min}}$ denotes the bin containing the lowest wavenumbers that can be accessed in our simulation boxes and $P_{11}(k)$ is computed directly by re-scaling the IC of the simulations. Similarly, for $s^{2}$, we have

[TABLE]

4.1 Measuring the linear growth factor

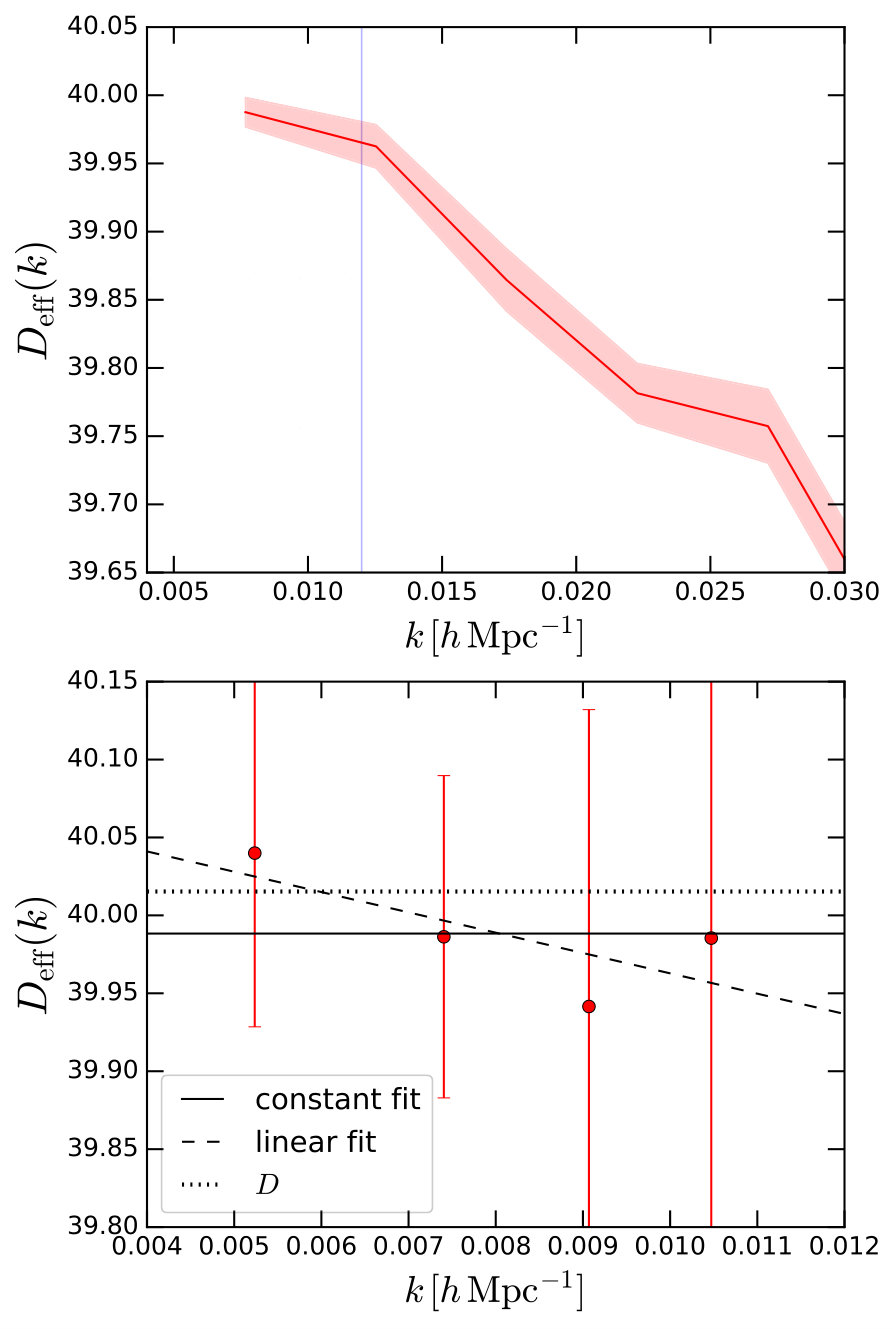

In order to implement the renormalisation procedure sketched above, we need the linear density field $\delta_{1}$ evaluated at $z=0$ in the N-body simulations. This is obtained by multiplying the IC by the linear growth factor $D$. Although $D$ can be computed from the cosmological parameters by performing a numerical integration ($D=40.015$ at $z=0$), the result does not necessarily match the actual growth of perturbations in the simulations which only provide an approximate solution. Previous studies have shown that different N-body codes might differ by up to 0.3 per cent in the large-scale normalization of the matter power spectrum at $z=0$ which corresponds to a 5 per cent error on $D$ (see e.g. Fig. 1 in Schneider et al., 2016). Since the success of the renormalisation procedure relies on the subtraction of two signals with comparable amplitudes to get a much smaller one, we need to make sure that we know the precise value of the growth factor realized in the simulations. Therefore, we proceed as follows. First, we measure an ‘effective’ scale-dependent growth function directly from our simulations as

[TABLE]

where the average is taken over the same bins of $k$ as the spectra and we have explicitly written the redshift at which the fields are evaluated. The result for $k<0.03\,h$ Mpc*-1* is shown in the top panel of Fig. 4 where the shaded region indicates the error of the mean over the simulations. Note that, as expected from theoretical considerations, $D_{\mathrm{eff}}$ decreases with $k$ on these scales. We are interested in the limit of this function for $k\to 0$. For this reason, we only consider the leftmost bin and analyze the signal at the level of single Fourier modes (see the bottom panel of Fig. 4). In order to extract the limit, we fit a constant ($D_{\mathrm{eff}}=39.98\pm 0.07$, dotted) and a linear function of $k$ ($D_{\mathrm{eff}}(k)=40.09\pm 0.31-(13\pm 39)\,(k/1\,h\,\mathrm{Mpc}^{-1})$, dashed) to the measurements. The slope of the linear fit is consistent with zero within the errors. Furthermore, the two fits give consistent limits for $k\to 0$ which are also compatible with the expected value for $D$. For our calculations, we therefore use $D=39.98$.

4.2 Renormalising the spectra

We are now ready to compute $P_{\delta^{2}\delta_{1}}(k)$ and $P_{s^{2}\delta_{1}}(k)$ as well as the renormalised spectra $P_{[\delta^{2}]_{1}\delta}(k)$ and $P_{[s^{2}]_{1}\delta}(k)$. A note is in order here. The IC of our simulations are Gaussian and all the three-point correlators of $\delta_{1}$ should, in principle, vanish. In practice, however, we measure very noisy non-zero values for $P_{\delta_{1}^{2}\delta_{1}}(k)$ and $P_{s_{1}^{2}\delta_{1}}(k)$. In the perturbative framework, these spectra coincide with the tree-level terms of $P_{\delta^{2}\delta}(k)$ and $P_{s^{2}\delta}(k)$. Therefore, in order to improve the quality of our results, we subtract the noisy terms from all the non-linear cross spectra appearing on the r.h.s. of equations (50) and (51). Our final results for $P_{\delta^{2}\delta_{1}}(k)$ and $P_{s^{2}\delta_{1}}(k)$ are shown in the middle panels of Fig. 3. As expected, they show a similar behaviour as a function of both $\Lambda$ and $k$ with respect to $P_{\delta^{2}\delta}(k)$ and $P_{s^{2}\delta}(k)$. However, when $k$ approaches $\Lambda$ their signal is suppressed. The corresponding values of $\alpha_{\delta^{2}}(\Lambda)$ and $\alpha_{s^{2}}(\Lambda)$ are presented in Table 4.

We finally compute the renormalised spectra $P_{[\delta^{2}]_{1}\delta}(k)$ and $P_{[s^{2}]_{1}\delta}(k)$ from equations (50) and (51). We first obtain them for each simulation individually and then perform an average. The results are shown in the bottom panels of Fig. 3. At large scales, spectra obtained with different values of $\Lambda$ are now compatible within the errorbars while they differ when $k\simeq\Lambda$. This means that the renormalisation procedure was successful.

4.3 Comparing spectra from simulations and SPT

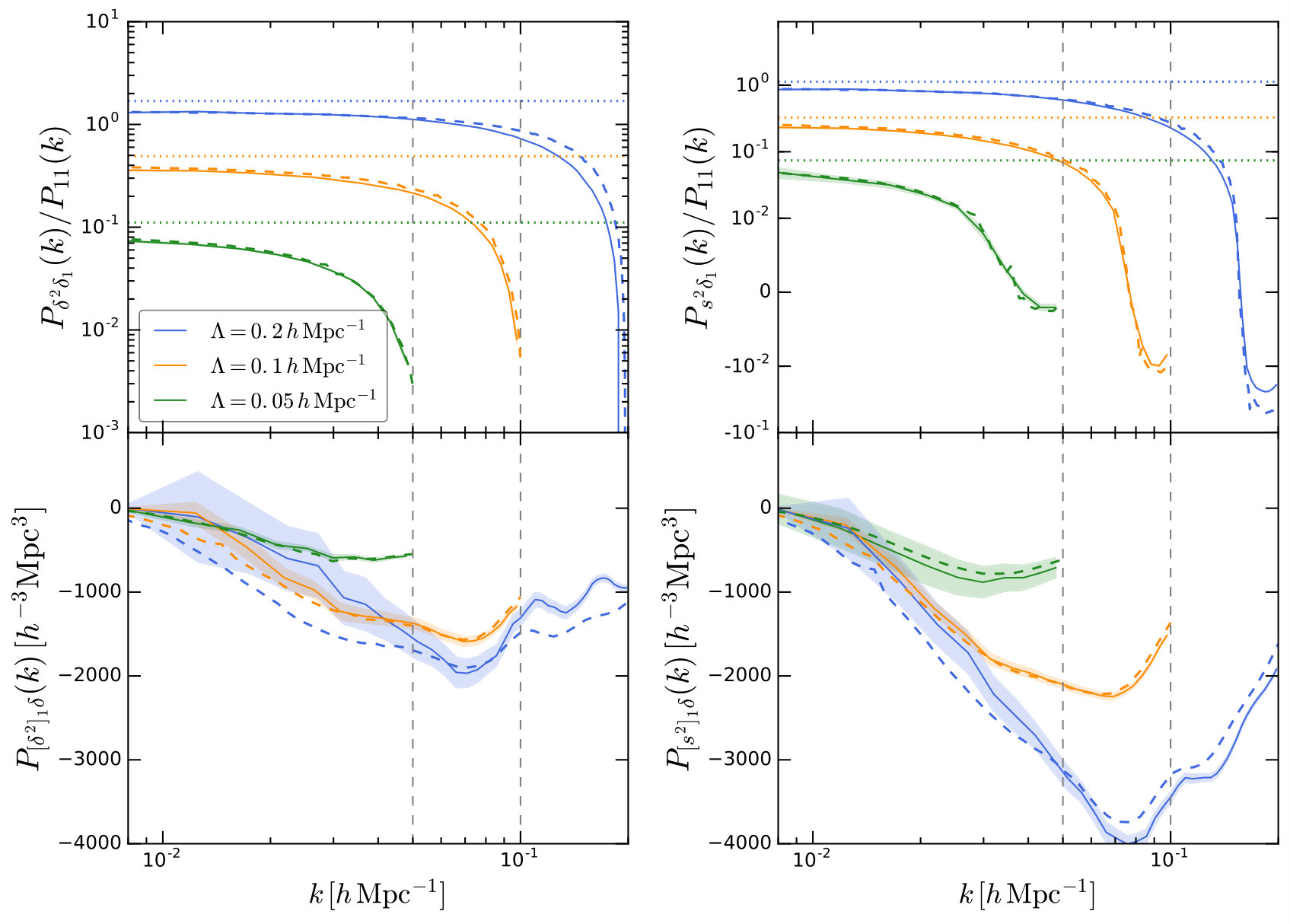

In the top-left panel of Fig. 5, we show a comparison between $P^{(31)}_{\delta^{2}\delta}(k)$, calculated with SPT (equation (24), dashed-dotted), with SPT including filter functions (equation (41), dashed), and $P_{\delta^{2}\delta_{1}}(k)$ that we measure from the simulations (solid). We repeat the analysis in the top right panel for $P^{(31)}_{s^{2}\delta}(k)$ and $P_{s^{2}\delta_{1}}(k)$. Equations (24) and (31) show that in SPT the UV-sensitive terms can be written as a $\Lambda$-dependent prefactor times $P_{11}(k)$. Therefore, in order to conveniently compare the numerical results to the SPT predictions, we always plot the ratios of the cross spectra with $P_{11}(k)$. The measurements from the simulations (solid) decrease with $k$ and are in excellent agreement with the SPT results when filter functions are taken into account (dashed). Note that when $k\to 0$, the curves do not assume the values $68/21\,\sigma^{2}$ and $136/63\,\sigma^{2}$ (dotted), but stay below them (as described by e.g. the first line of equation (2.5) for $\delta^{2}$). The logarithmic difference between the solid and dotted curves decreases for larger values of $\Lambda$. This result confirms the discussion presented in section 2.5.

In the bottom panels of Fig. 5 we compare the renormalised spectra measured from the simulations (shown already in the bottom panels of Fig. 3 in logarithmic scale) with the theoretical predictions including filter functions. We find good agreement at all $k$ for small values of $\Lambda$. For $\Lambda=0.2$ $h$ Mpc*-1*, however, the theoretical results differ more markedly from the simulation measurements. This suggests either that higher-order terms should be accounted for in order to match the N-body results, or that the perturbative expansion starts breaking down at these scales and redshifts.

5 Measuring bias parameters

We now measure the bias parameters by fitting $P_{\delta_{\mathrm{h}}\delta}(k)$ with different bias models, renormalised and not. First, we describe our Bayesian fitting routine that takes into account the correlations between the different spectra extracted from our simulations. Subsequently, we discuss how many bias parameters are needed to optimally describe our data by using Bayesian model-comparison techniques. Finally, we present the best-fitting parameters.

5.1 Fitting method

In this section, we introduce the Bayesian method we use to fit the bias parameters. Readers who are more interested in the results than in the statistical techniques can directly move to section 5.3.

Our goal is to fit a model for $P_{\delta_{\mathrm{h}}\delta}(k)$ to our simulation suite, that can schematically be written as $P_{\delta_{\mathrm{h}}\delta}(k)=\sum_{O}b_{O}\,P_{O\delta}(k)$. Contrary to previous work in the field, we do not rely on perturbation theory, but we measure the spectra $P_{O\delta}(k)$ together with $P_{\delta_{\mathrm{h}}\delta}(k)$ from the simulation boxes. This means that both the dependent and the independent variables in our fit are affected by statistical errors. Since these measurement errors are correlated (as they originate from the same underlying density field), we need to account for their covariance matrix C. In practice, we treat each realisation as a repeated measure of all the spectra and we infer the best-fitting parameters by writing a global likelihood function for the bias parameters.

To simplify the notation, we write all the cross spectra for a given $k$ bin as a multi-dimensional vector y and their noisy estimates as $\hat{\textbf{{y}}}=\textbf{{y}}+\boldsymbol{\eta}$, where $\boldsymbol{\eta}$ denotes the measurement error. We assume that the estimator of all $y_{i}$ is unbiased and that the errors are drawn from a multi-variate Gaussian distribution with covariance matrix C as stated above. It follows that the probability of measuring $\hat{\textbf{{y}}}$ is

[TABLE]

We now order the components of the vectors so that $P_{\delta_{\mathrm{h}}\delta}(k)$ appears first. We can thus write $y_{1}=\beta_{2}y_{2}+\beta_{3}y_{3}+\dots+\beta_{n}y_{n}$ (where the coefficient $\beta_{i}$ represent the $n-1$ bias parameters that characterize a model). The likelihood function for the model parameters ($\boldsymbol{\beta},\textbf{{y}}$) given the data is then

[TABLE]

with888From now on Greek indices run from 1 to $n$ and Roman indices run from 2 to $n$. Moreover, $C_{ij}^{-1}$ denotes the $ij$-element of the inverse of C.

[TABLE]

We then marginalize over the unknown true spectra y, i.e.

[TABLE]

This is easily achieved after rewriting the integrand in the form of a $n$-dimensional Gaussian distribution. We first rewrite $A$ as

[TABLE]

where

[TABLE]

and

[TABLE]

We then express the second term on the r.h.s. of equation (57) as a function of a generic vector d such that

[TABLE]

and impose that $d_{i}Q_{ij}y_{j}+y_{i}Q_{ij}d_{j}=2\omega_{i}x_{i}$. This gives $d_{i}(Q_{ij}+Q_{ji})y_{j}=2d_{i}Q_{ij}y_{j}=2\omega_{i}y_{i}$, implying that $d_{i}Q_{ij}=\omega_{j}$. We finally obtain

[TABLE]

which, inserted into equation (57), gives

[TABLE]

We now perform the integration in equation (56) and arrive at the final expression for one $k$ bin:

[TABLE]

To combine all $k$ bins, we consider the total likelihood $\mathscr{L}$ defined as

[TABLE]

where $N$ denotes the number of $k$ bins. In practice, we replace the unknown covariance matrix C with an unbiased estimate derived from the 40 simulations.

We sample the posterior distribution of the bias parameters by using our own Markov Chain Monte Carlo (MCMC) code and assuming flat priors.

5.2 How many bias parameters are needed?

A generic bias expansion includes all the possible operators allowed by symmetries. Here, we perform a Bayesian model comparison to investigate how many bias parameters are actually needed to fit $P_{\delta_{\mathrm{h}}\delta}(k)$ extracted from our simulations for $k<0.2$  $h$ Mpc*-1*. We focus on the $M_{3}$ sample that shows the most prominent scale-dependent bias in Fig. 1. We start with fitting the simple linear-bias model $P_{\delta_{\mathrm{h}}\delta}(k)=b_{1}P_{\delta\delta}(k)$. Then, we add several combinations of the terms $b_{2}P_{\delta^{2}\delta}(k)$, $b_{s^{2}}P_{s^{2}\delta}(k)$ and $b_{\nabla^{2}\delta}P_{\nabla^{2}\delta\delta}(k)$ as summarized in Table 5. Finally, motivated by the perturbative results presented in section 2.4, we also consider the terms $b_{\Gamma_{3}}P_{\Gamma_{3}\delta}(k)$ and $\Upsilon_{2,\epsilon_{1},\epsilon_{\mathrm{m}}}\,k^{2}$, as well as a combination of the two (see Table 6).

We quantify the relative performance of each model by using the Widely Applicable Information Criterion (Watanabe, 2010), also known as the Watanabe-Akaike Information Criterion (WAIC). This method evaluates the ‘predictive accuracy’ of a model, i.e. how useful the model will be in predicting new or future measurements. For finite and noisy data, this concept differs from the ‘goodness of fit’ which quantifies how well a model describes the data that have been used to optimize the model parameters. The WAIC is a Bayesian method that generalizes the Akaike Information Criterion (AIC, Akaike, 1973) by averaging over the posterior distribution of the model parameters. It can be shown that it is asymptotically equivalent to Bayesian cross validation (Watanabe, 2010). Moreover, the WAIC can be seen as an improvement upon the Deviance Information Criterion (DIC, Spiegelhalter et al., 2002) as it is invariant under re-parametrization of the model and also works for singular models (where the Fisher information matrix is not invertible). To apply the WAIC, one first estimates the log pointwise predictive density of the model (lppd, Gelman et al., 2014)

[TABLE]

where the sum runs over the data points $\mathbf{w}_{i}$, and $P(\mathbf{w}_{i}|\boldsymbol{\theta})$ denotes the probability to measure $\mathbf{w}_{i}$ under the statistical model and for a given set of model parameters $\boldsymbol{\theta}$. The expectation $\langle\dots\rangle_{\mathrm{post}}$ is estimated using draws for the model parameters from the posterior distribution given by the MCMC chains. The better the model fits the data, the larger the lppd is. In order to avoid overfitting, the lppd should be penalized for the effective number of model parameters, $p_{\mathrm{WAIC}}$. Two different estimators can be used to measure this quantity from the MCMC chains, namely

[TABLE]

and

[TABLE]

Essentially, each model parameter counts as one if all the information about it comes from the likelihood function, as zero if all the information comes from the prior, or as an intermediate number whenever both the data and the prior are informative. For our fits, we do not notice any practical difference between using equation (66) or equation (67). Following Gelman et al. (2014), we finally define the WAIC by using a deviance scale (i.e. by multiplying the lppd by a factor of 2 so that the final result is more easily comparable with the AIC and the DIC):

[TABLE]

The lower the WAIC is, the better the model performs. It is generally understood that a difference $\Delta$WAIC of 5 (10) provides ‘suggestive’ (‘substantial’) evidence in favour of the preferred model.

5.3 Bare bias expansion

When we do not apply any renormalisation (hereafter NR, short for ‘no renormalisation’), the lowest WAIC is obtained for model $\mathcal{M}_{4}$,

[TABLE]

for all values of $\Lambda$. In Table 5, we report the difference $\Delta$WAIC between each model we have considered and the preferred one. Our results clearly rule out models with less than four bias parameters. On the other hand, considering additional terms proportional to $\Gamma_{3}$ and $k^{2}$ and their combination gives a WAIC which is slightly worse than for $\mathcal{M}_{4}$, as we present in Table 6 for $\Lambda=0.2$ $h$ Mpc*-1*(since higher-order corrections should be most important for this cutoff). This shows that there is no need to include $b_{\Gamma_{3}}$ and $b_{k^{2}}$ in the bias expansion as, for $k<0.2$ $h$ Mpc*-1*, our measurement of $P_{\delta_{\mathrm{h}}\delta}(k)$ within $\sim 70\,h^{-3}$ Gpc3 cannot constrain them. We thus conclude that, to describe the $z=0$ cross spectral density of massive DM haloes and matter on these scales, we need to account for the linear bias $b_{1}$, the non-linear bias $b_{2}$, the tidal bias $b_{s^{2}}$ and the first higher-derivative bias $b_{\nabla^{2}\delta}$.

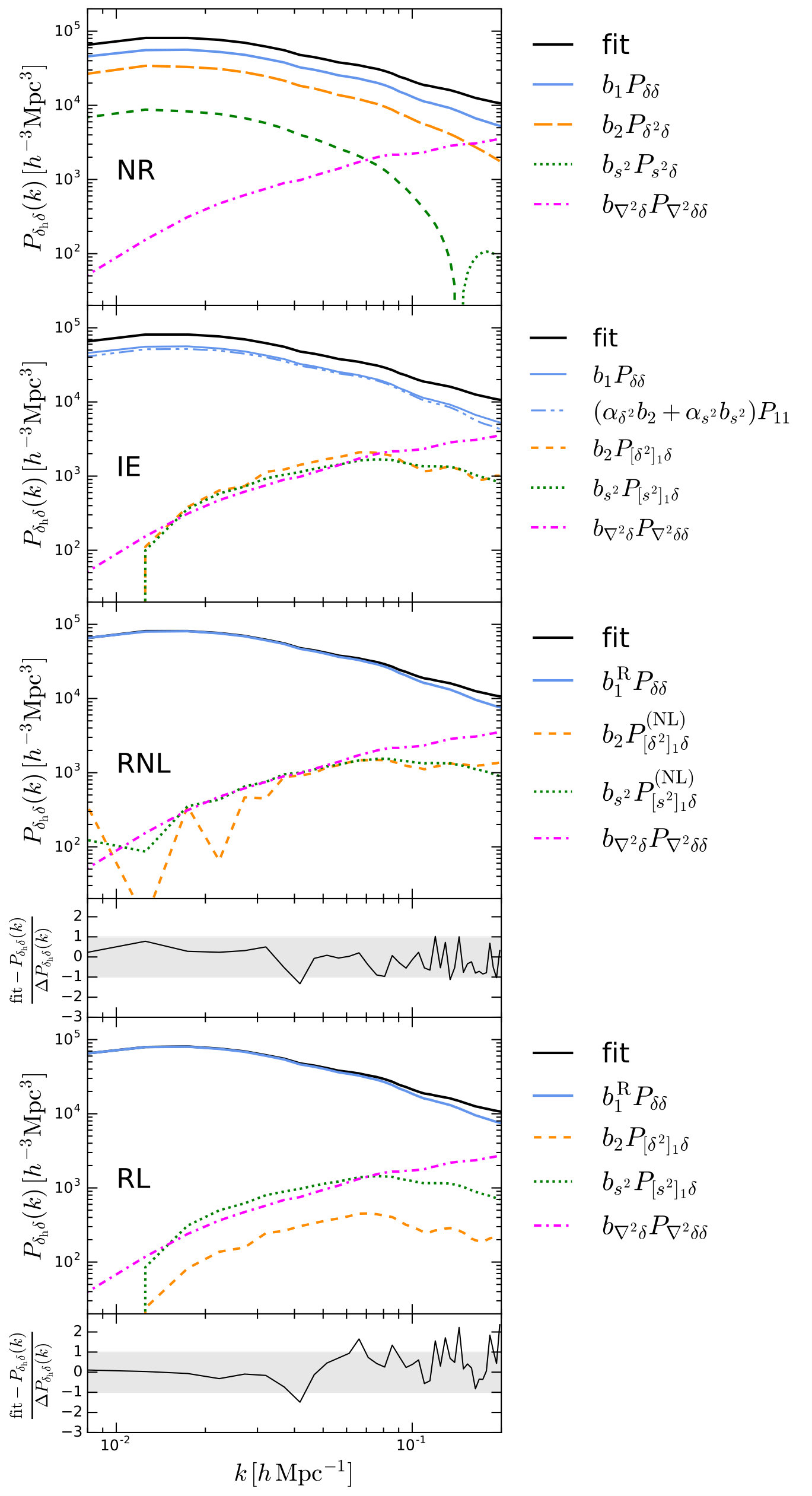

In the top panel of Fig. 6, we plot the best-fitting model $\mathcal{M}_{4}$ (solid curve) and the corresponding residuals are shown in the narrow panel below (fourth from the top). The fit never deviates from the measurements in a statistically significant way and sub-percent accuracy is achieved for most values of $k$. In order to visually illustrate the need for and the concept of renormalisation, in the top panel, we also plot the individual contributions of the different terms appearing on the r.h.s. of equation (69). Note that $P_{\delta\delta}(k)$, $P_{\delta^{2}\delta}(k)$ and $P_{s^{2}\delta}(k)$ are proportional to each other when $k\to 0$. Moreover, the terms that scale with $b_{2}$ and $b_{s^{2}}$ are never negligible compared with $b_{1}P_{\delta\delta}(k)$, even at the largest scales we can probe.

5.4 Renormalised bias expansion

For every model expressed in terms of the bare bias parameters, we can renormalise the cross-spectra of the composite operators with $\delta$ as in the examples provided by equations (50) and (51). The subtracted terms proportional to $P_{11}(k)$ will then contribute to the renormalised linear bias parameter. Let us consider, for example, equation (69) and re-write it in terms of the renormalised cross spectra

[TABLE]

with $\alpha_{\delta^{2}}$ and $\alpha_{s^{2}}$ the numerical coefficients appearing in equations (50) and (51). The result of this decomposition for the best-fitting model $\mathcal{M}_{4}$ is illustrated in the second panel from the top of Fig. 6 (labelled IE, short for ‘intermediate expansion’). The renormalised cross spectra of the composite operators are now subdominant (and have a different shape) for $k\to 0$ with respect to the linear bias terms. Their relative contributions to $P_{\delta_{\mathrm{h}}\delta}(k)$ grow with $k$ (although their sum nearly vanishes in this particular case).

In perturbative calculations, the spectrum $P_{11}(k)$ appearing in equation (70) is promoted to $P_{\delta\delta}(k)$ to write

[TABLE]

which is the analog of equation (33) with

[TABLE]

In the simulations, however, this expression does not coincide any longer with equation (71) as $P_{11}(k)\neq P_{\delta\delta}(k)$ for $k>0$ (see Fig. 7). The only option to renormalise the linear bias coefficient without altering equation (69) is to generalize equation (50) to the non-linear regime by using

[TABLE]

together with analogous relations for the other composite operators. We can thus re-write equation (69) as

[TABLE]

which we refer to as the RNL, short for ‘non-linear renormalisation’. In the third panel from the top of Fig. 6, we show the best-fitting model $\mathcal{M}_{4}$ and its different components. Obviously, fitting the RNL expression to the numerical data is completely equivalent to fitting the NR one and gives exactly the same constraints on the non-linear and higher-derivative bias parameters. In fact, all the spectra that are used in the fits are the same, it is only their labelling that changes. In the NR case, the terms $\alpha_{\delta^{2}}P_{\delta\delta}$ and $\alpha_{s^{2}}P_{\delta\delta}$ are considered as parts of $P_{\delta^{2}\delta}(k)$ and $P_{s^{2}\delta}(k)$, respectively, whereas they are interpreted as part of the renormalised linear bias term in the RNL case. Therefore, the conclusions regarding the optimal number of bias parameters that we have drawn for the bare bias expansion still apply to the RNL case.

On the other hand, in hands-on situations, it is common practice to fit one-loop perturbative models to survey or simulation data (e.g. Saito et al., 2014). In our study, taking model $\mathcal{M}_{4}$ as an example, this corresponds to using equation (71) together with (50) and (51). In this case (hereafter dubbed RL, short for ‘linear renormalisation’), the best-fitting parameters and the goodness of fit do not coincide with those obtained for NR and RNL models. We thus repeat our model-selection test focusing on RL models. We find that the preferred operator sets vary with the cutoff scale (see the rightmost three columns in Table 5). For $\Lambda=0.05$ and 0.1  $h$ Mpc*-1*, all models that contain a term in $\nabla^{2}\delta$ are favoured. For $\Lambda=0.2$ $h$ Mpc*-1*, instead, $\mathcal{M}_{4}$ is singled out by the WAIC (the bottom two panels of Fig. 6 display the individual components of $\mathcal{M}_{4}$ and the fit residuals). Further adding the $\Gamma_{3}$ and/or $k^{2}$ operators leads to slightly larger WAIC indicating mild overfitting. These results suggest that, as expected in an effective theory, more bias parameters are needed if smaller scales are considered. In particular, while $\delta$ and $\nabla^{2}\delta$ form the minimal set of operators required for $\Lambda<0.1$ $h$ Mpc*-1*, adding $[\delta^{2}]_{1}$ and $[s^{2}]_{1}$ is necessary to describe the data with $\Lambda=0.2$ $h$ Mpc*-1*.

5.5 Bias parameters

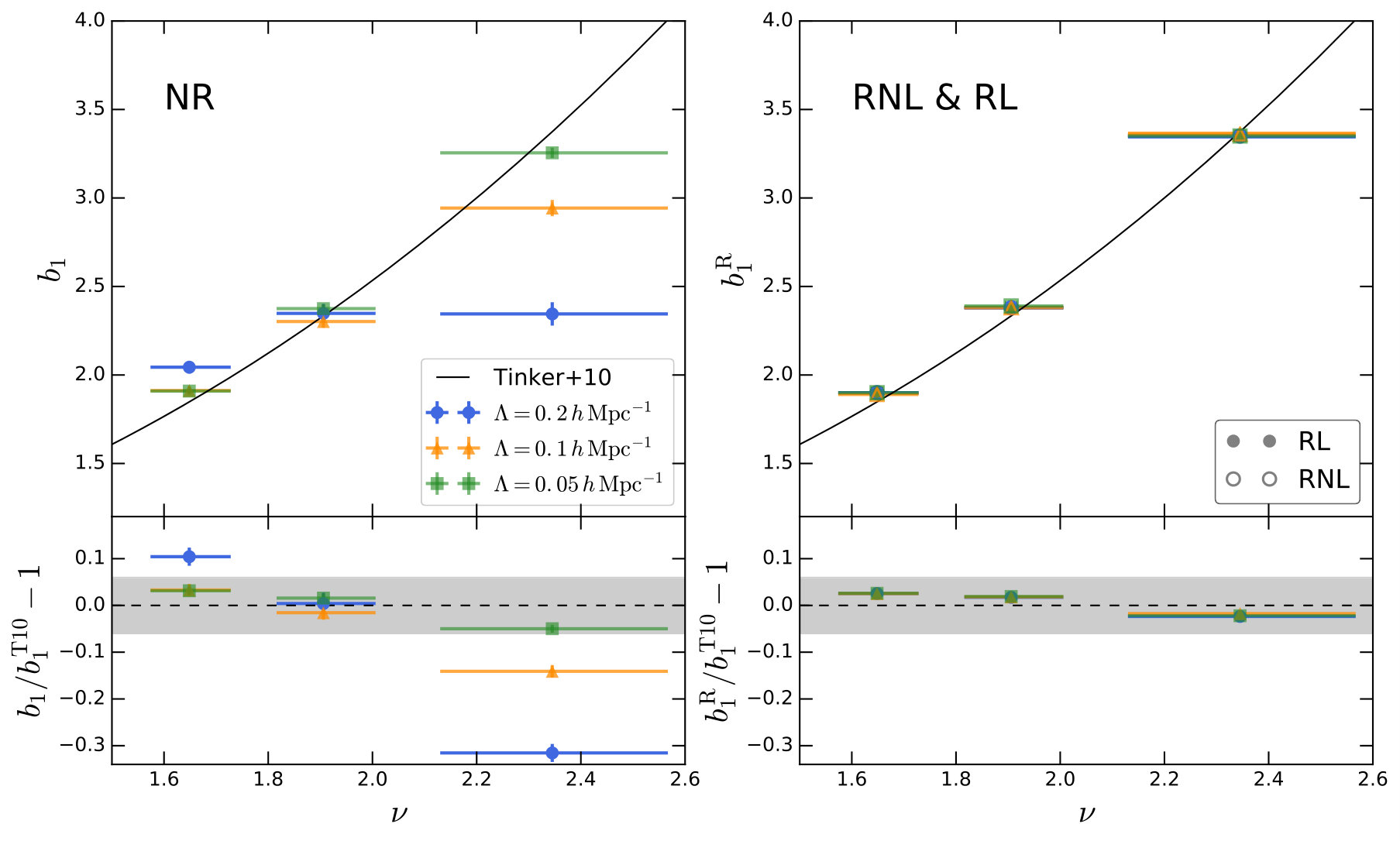

The best-fitting values of the bias parameters obtained for the NR and the RNL cases are displayed in Table 7 for all mass bins and cutoff scales. We show both the bare linear bias parameter ($b_{1}$) and the renormalised one ($b_{1}^{\mathrm{R}}$). Similarly, in Table 8, we report the best-fitting parameters for the RL fits. Notice that, while $b_{1}$ is $\Lambda$-dependent, $b_{1}^{\mathrm{R}}$ assumes consistent values for all cutoffs in both the RNL and RL cases. We can thus conclude that the non-perturbative renormalisation procedures we have implemented in the simulations were completely successful. Nevertheless, it is worth pointing out that the best-fitting values of $b_{2}$, $b_{s^{2}}$ and $b_{\nabla^{2}\delta}$ in Tables 7 and 8 differ for all mass bins when $\Lambda\geq 0.1\,h\,\mathrm{Mpc}^{-1}$. In fact, the difference between $P_{11}(k)$ and $P_{\delta\delta}(k)$ becomes substantial at small scales where also the signal generated by the non-linear and derivative bias terms is important. Therefore, the RL fit compensates for the improper renormalisation of the linear-bias term by spuriously altering $b_{2}$, $b_{s^{2}}$ and $b_{\nabla^{2}\delta}$. These results demonstrate the limitations of applying perturbative renormalisation at finite values of $k$. As already discussed in section 5.4, in order to retain the measurements of $b_{2}$, $b_{s^{2}}$ and $b_{\nabla^{2}\delta}$ from the NR fit in the renormalised case, equation (73) (and its analogue for the other operators) must be used instead of (50).

5.6 Comparison with previous work

We compare the halo bias parameters we obtained from our simulations with previous results in the literature. In Fig. 8, we contrast our results for $b_{1}$ and $b_{1}^{\mathrm{R}}$ (symbols) with the fit by Tinker et al. (2010) – their equation (6) – evaluated for a mean halo overdensity of $\Delta=333$ (solid line). The fit quantifies the relative amplitude of the halo and matter power spectra on large scales as measured from a set of N-body simulations with slightly different cosmological parameters. To ease the comparison, we express the mass dependence in terms of the ‘peak height’ $\nu=\delta_{\mathrm{c}}/\sigma_{M}$. Here, $\sigma_{M}$ denotes the linear rms density fluctuation smoothed over the Lagrangian patch of each halo using a spherical top-hat filter and $\delta_{\mathrm{c}}=1.686$ is the critical linear overdensity in the spherical collapse model (for an Einstein-de Sitter universe). The horizontal location of the symbols is obtained by computing $\nu$ for every halo and averaging over each mass bin. In the NR case (left), our best-fitting values run with $\Lambda$ and differ from the fit by Tinker et al. (2010) by up to 30 per cent. After renormalisation (right), the $\Lambda$-independent data points obtained in the RNL and RL cases are in excellent agreement with each other and also match the results by Tinker et al. (2010) to better than 2 per cent which is a factor of three smaller than the intrinsic scatter about the mean relation between linear bias and halo mass found in Tinker et al. (2010). This shows that by renormalising the spectra we automatically obtain a consistent and robust value of $b_{1}^{\mathrm{R}}$ for all the mass bins.

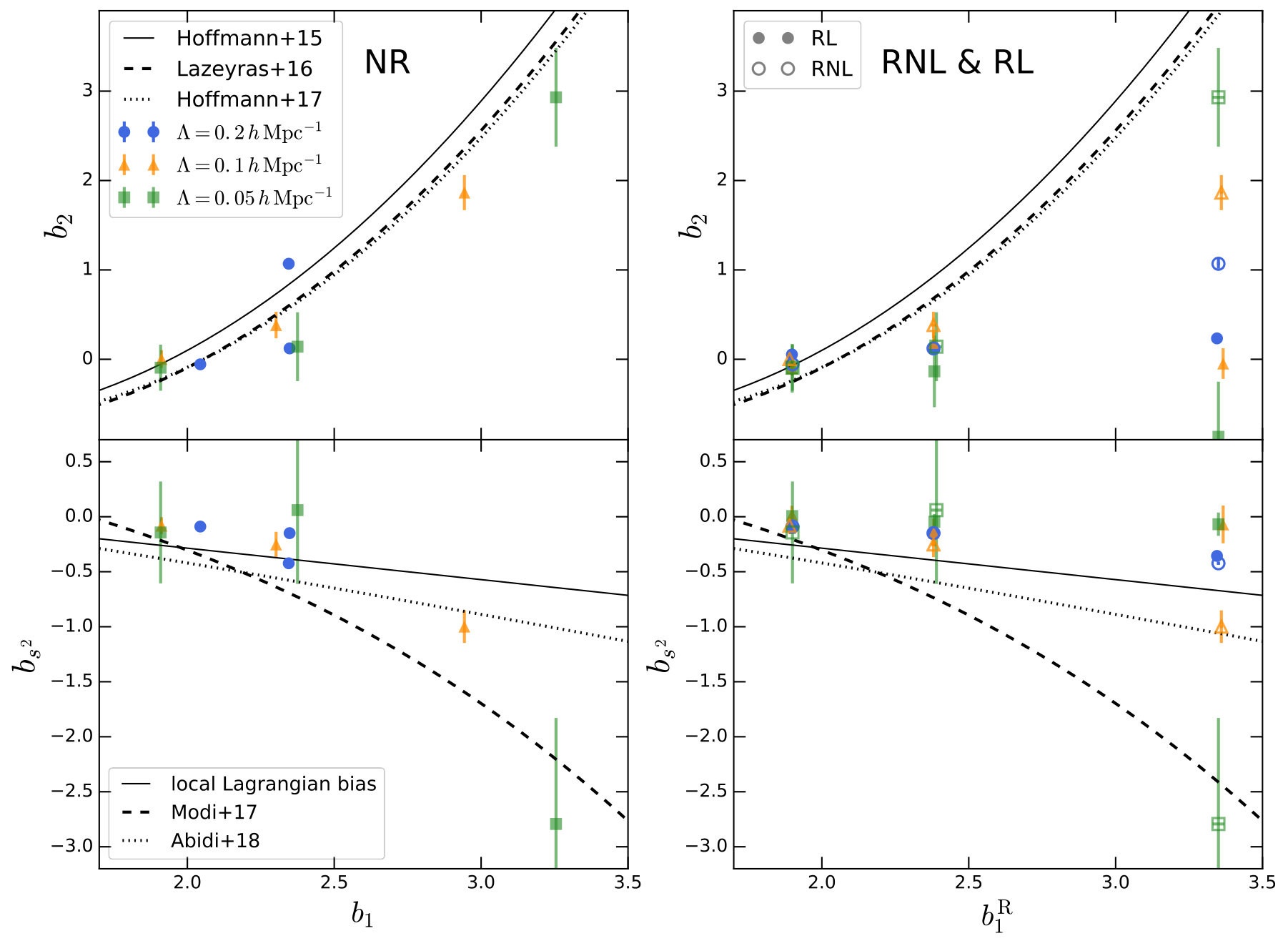

In Fig. 9, we compare our measurements of $b_{2}$ and $b_{s^{2}}$ with other results in the literature. For the quadratic bias (top panels), we consider three different fitting functions for the relation $b_{2}(b_{1})$ extracted from N-body simulations. The first was obtained by applying the peak-background split to measurement of the halo mass function (Hoffmann et al., 2015). The second was determined with the ‘separate-universe’ technique in which one studies the response to infinite-wavelength perturbations (Lazeyras et al., 2016). The third, instead, was derived from measurements of the halo reduced three-point correlation function (Hoffmann et al., 2017). Note that these methods measure the renormalised $b_{2}$ while we only renormalise $b_{1}$. Therefore, we do not expect that our $\Lambda$-dependent best-fitting values for $b_{2}$ should perfectly coincide with the other results in the literature. Nevertheless, in the NR case (left panel) and for large-scale cutoffs (i.e $\Lambda=0.05$ and 0.1 $h$ Mpc*-1*), our measurements approximately run along the fitting functions for the relation $b_{2}(b_{1})$. After renormalising $b_{1}$ (right panel), however, our $b_{2}$ measurements for the two highest mass bins tend to lie below the previously published results. Moreover, as already mentioned, we obtain different $b_{2}$ values in the RNL and RL cases. The RNL results with small $\Lambda$ are in much better agreement with the fitting functions in the literature. This suggests that it should be possible to further improve the agreement by extending the RNL technique to renormalise $b_{2}$. We will explore this possibility in our future work. For the tidal bias (bottom panels), we also compare our best-fitting values to three different literature results. We consider the theoretical prediction for a local Lagrangian biasing scheme (Catelan et al., 2000), $b_{s^{2}}(b_{1})=-(2/7)\,(b_{1}-1)$ (Baldauf et al., 2012; Chan et al., 2012) together with two fitting functions that account for a non-vanishing Lagrangian tidal-tensor bias in N-body simulations (Modi et al., 2017; Abidi & Baldauf, 2018, their equations 22 and 5.1 plus 2.32, respectively). In agreement with these fitting functions, our measurements provide evidence for large negative tidal biases at high halo masses. After renormalising $b_{1}$, this conclusion holds only in the RNL case while $b_{s^{2}}$ always assumes values close to zero in the RL case.

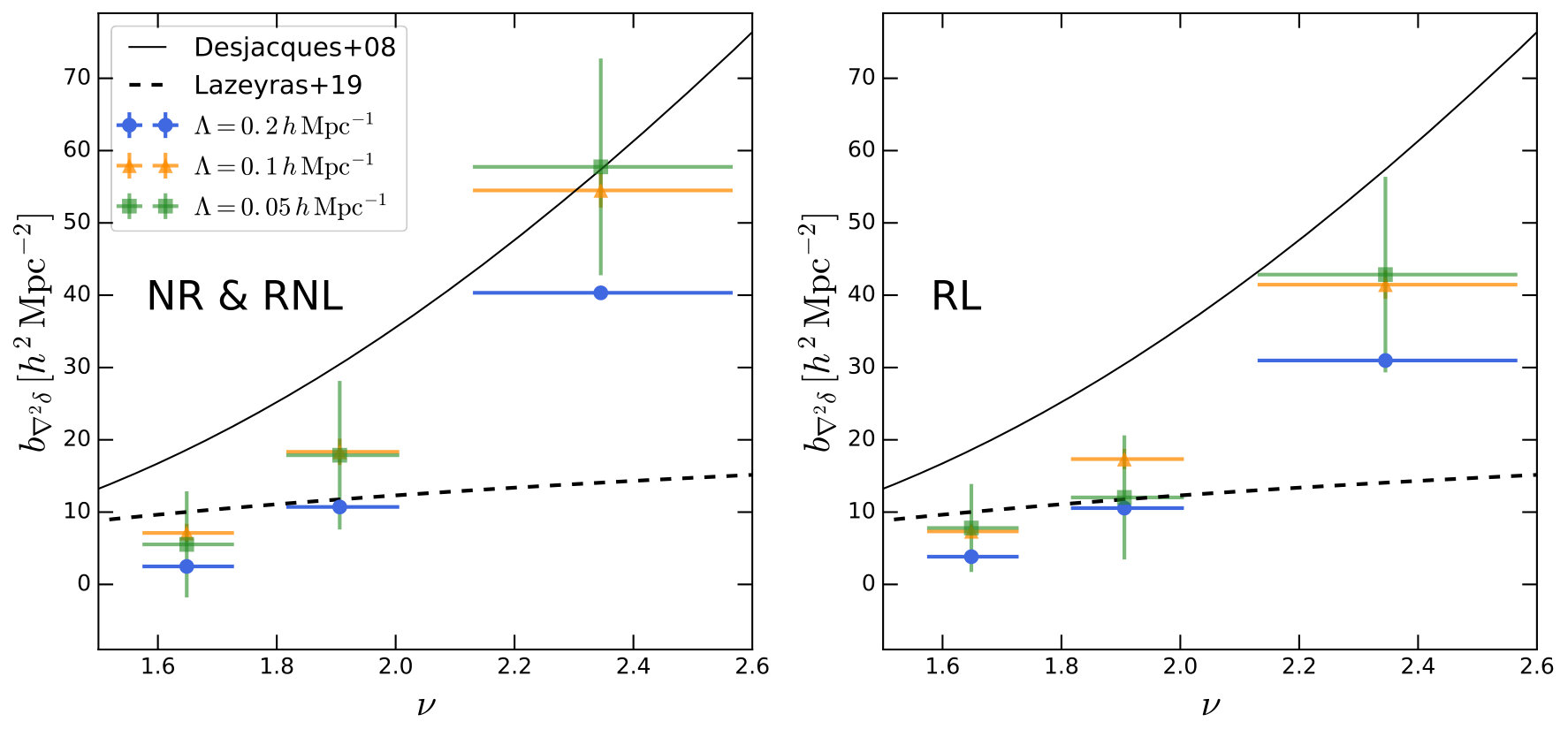

In Fig. 10, we plot our results for $b_{\nabla^{2}\delta}$ as a function of $\nu$. The NR and RNL fits are shown together in the left-hand side panel since $b_{\nabla^{2}\delta}$ assumes the same value in these cases. On the contrary, the RL results are plotted in the right-hand side panel. As a benchmark, we also show the fitting function obtained with the ‘amplified-mode’ simulation technique by Lazeyras & Schmidt (2019, their equation 5.4 but note that we adopt the opposite sign convention for $b_{\nabla^{2}\delta}$) as well as the predictions for density peaks (Desjacques, 2008) computed using the filter function given in Chan et al. (2017). In agreement with Elia et al. (2012), our measurements for the haloes scale with $\nu$ in a similar way as the theoretical peak model but assume lower values in the $\nu$-range we can probe. Compared with the fit by Lazeyras & Schmidt (2019), we find comparable results in bins $M_{1}$ and $M_{2}$ and substantially higher values for $M_{3}$. Overall our NR and RNL measurements display a steeper $\nu$-dependence than expected based on their results.

6 Summary

We have investigated a number of issues related to the clustering of biased tracers of the LSS. In particular, we have focused on the renormalisation of the linear bias parameter. After reviewing the literature on the subject, we have applied a bias expansion to N-body simulations and studied the UV-sensitivity of the composite operators that contribute to the halo-matter cross spectrum $P_{\delta_{\mathrm{h}}\delta}(k)$. We have then successfully mastered the challenge to renormalize these terms without resorting to perturbation theory. Finally, we have identified how many bias parameters are needed to accurately describe halo clustering for $k<0.2$ $h$ Mpc*-1*without overfitting. Our main results can be summarized as follows.

We have run a suite of 40 N-body simulations and measured $P_{\delta_{\mathrm{h}}\delta}(k)$ for three different halo-mass bins selected at $z=0$. Consistently with previous work, we have found that the ratio $P_{\delta_{\mathrm{h}}\delta}(k)/P_{\delta\delta}(k)$ grows with $k$ and that this effect becomes more prominent for more massive haloes (Fig. 1). The scale dependence of the ratio provides a compelling motivation for considering non-linear bias models. 2. 2.

We have measured all fields that enter $P_{\delta_{\mathrm{h}}\delta}(k)$ at one loop in PT – equation (33) – using different values of the coarse-graining scale ($\Lambda=0.05,0.1$ and 0.2 $h$ Mpc*-1*, Fig. 2). By cross-correlating these fields with the mass overdensity, we have computed all partial contributions to $P_{\delta_{\mathrm{h}}\delta}(k)$. Focusing on the composite operators appearing in the bias expansion (e.g. $\delta^{2}$ and $s^{2}$), we have shown that the amplitude of their cross spectra with $\delta$ strongly depends on $\Lambda$ (top panels of Fig. 3). We have demonstrated that this ‘UV-sensitivity’ is fully captured by the cross correlation between the composite operators and the linear density field (middle panels of Fig. 3). Thus, we have successfully obtained the renormalised spectra by subtracting this UV-sensitive term from the original spectra (bottom panels of Fig. 3). 3. 3.

We have compared $P_{\delta^{2}\delta_{1}}(k)$ and $P_{s^{2}\delta_{1}}(k)$ extracted from the simulations to perturbative predictions at LO. An excellent agreement over a broad range of scales can be achieved by properly accounting for the window functions that define the coarse-graining procedure in the perturbative integrals (top panels of Fig. 5). The values $68/21\,\sigma_{1}^{2}$ and $136/63\,\sigma_{1}^{2}$, that are usually quoted for the limit $k\to 0$, overpredict our measurements, as they are obtained neglecting the influence of the window function. The relative difference, however, decreases with increasing $\Lambda$. 4. 4.

For $\Lambda=0.05$ and 0.1  $h$ Mpc*-1*, we have shown that the ‘renormalised spectra’ $P_{[\delta^{2}]_{1}\delta}(k)$ and $P_{[s^{2}]_{1}\delta}(k)$ measured in the simulations are in very good agreement with the perturbative calculations obtained by taking the window functions into account (bottom panels of Fig. 5). For $\Lambda=0.2$  $h$ Mpc*-1*, however, the 1-loop results show non-negligible deviations from the numerical data. 5. 5.

We have fit bias models with a different number of parameters to $P_{\delta_{\mathrm{h}}\delta}(k)$ by using a Bayesian method that accounts for correlations between all spectra entering the model. With a model-selection criterion (WAIC), we have determined the optimal number of bias parameters that are needed as a function of $\Lambda$ for both the renormalised and non-renormalised spectra. The preferred set of bias operators includes $\delta,\nabla^{2}\delta,\delta^{2}$ and $s^{2}$ in most cases (model $\mathcal{M}_{4}$ in Table 5). 6. 6.

In Fig. 6, we have illustrated the renormalisation procedure of the linear bias parameter for the optimal model. We have identified two different modi operandi. The first (RL) parallels perturbative renormalisation while the second (RNL) generalizes the renormalisation procedure to the fully non-linear regime. 7. 7.

We have presented the fits we obtained for the optimal bias model (see Tables 7 and 8, as well as Figs. 8 – 10) and compared them to previous results in the literature. While the best-fitting values for the bare linear bias $b_{1}$ run with $\Lambda$, those for the renormalised linear bias $b_{1}^{\mathrm{R}}$ stay constant as a function of the cutoff scale (for both RL and RNL). This confirms that our numerical renormalisation was successful. 8. 8.

Finally, we have shown that only RNL leaves the non-linear and higher-derivative bias parameters unchanged with respect to the bare bias expansion (NR). This casts some doubts on the accuracy and robustness of using NLO perturbative expressions to fit low-redshift observational and N-body data at $k\gtrsim 0.1$  $h$ Mpc*-1*.

Acknowledgements

KW acknowledges partial support from the Transregional Collaborative Research Centre TRR 33 - The Dark Universe of the Deutsche Forschungsgesellschaft (DFG).
