Performance and science reach of POEMMA for ultrahigh-energy particles

TL;DR

POEMMA is a space-based observatory designed to significantly advance ultra-high-energy cosmic ray and neutrino science by providing high-quality, stereoscopic measurements of extensive air showers from space, enabling new insights into their origins and particle interactions.

Contribution

This study demonstrates POEMMA's potential to increase UHECR detection statistics, provide event-by-event energy and mass estimates, and explore ultra-high-energy particle interactions and sources from space.

Findings

POEMMA will greatly increase UHECR observation statistics.

First space-based UHECR fluorescence detector with stereoscopic capabilities.

Potential to detect ultra-high-energy neutrinos and photons from exotic sources.

Abstract

The Probe Of Extreme Multi-Messenger Astrophysics (POEMMA) is a potential NASA Astrophysics Probe-class mission designed to observe ultra-high energy cosmic rays (UHECRs) and cosmic neutrinos from space. POEMMA will monitor colossal volumes of the Earth's atmosphere to detect extensive air showers (EASs) produced by extremely energetic cosmic messengers: UHECRs above 20 EeV over the full sky and cosmic neutrinos above 20 PeV. We focus most of this study on the impact of POEMMA for UHECR science by simulating the detector response and mission performance for EAS from UHECRs. We show that POEMMA will provide a significant increase in the statistics of observed UHECRs at the highest energies over the entire sky. POEMMA will be the first UHECR fluorescence detector deployed in space that will provide high-quality stereoscopic observations of the longitudinal development of air showers. Therefore, it will be able to provide event-by-event estimates of the calorimetric energy and nuclear mass of UHECRs. The particle physics in the interactions limits the interpretation of the shower maximum on an event by event basis. In contrast, the calorimetric energy measurement is significantly less sensitive to the different possible final states in the early interactions. We study the prospects to discover the origin and nature of UHECRs using expectations for measurements of the energy spectrum, the distribution of arrival direction, and the atmospheric column depth at which the EAS longitudinal development reaches maximum. We also explore supplementary science capabilities of POEMMA through its sensitivity to particle interactions at extreme energies and its ability to detect ultra-high energy neutrinos and photons produced by top-down models including cosmic strings and super-heavy dark matter particle decay in the halo of the Milky Way.

Figures

Tables

Table 1. Table 1: Comparison of the POEMMA EAS simulation based on the distributions from 1000 modeled proton UHECRs with 30 ∘ zenith angle to that from CONEX.

EAS Energy (EeV)	POEMMA $N_{\max }$	CONEX $N_{\max }$	POEMMA $X_{\max }$ $\left(g/{\mathrm{cm}}^2\right)$	CONEX $X_{\max }$ $\left(g/{\mathrm{cm}}^2\right)$
1	$6.30\pm 0.27\times {10}^8$	$6.15\pm 0.22\times {10}^8$	$750\pm 62$	$739\pm 70$
10	$6.12\pm 0.21\times {10}^9$	$6.10\pm 0.19\times {10}^9$	$815\pm 58$	$793\pm 62$
100	$5.91\pm 0.18\times {10}^{10}$	$5.94\pm 0.20\times {10}^{10}$	$868\pm 53$	$849\pm 60$

Table 2. Table 2: TS values for scenarios with Θ = 15 ∘ Θ superscript 15 \Theta=15^{\circ} .

Catalog	$f_{\mathrm{sig}}$	TS	$\sigma$
SBG	$5$%	6.2	2.0
	$10$%	24.7	4.6
	$15$%	54.2	7.1
	$20$%	92.9	9.4
2MRS	$5$%	2.4	1.0
	$10$%	8.7	2.5
	$15$%	20.0	4.1
	$20$%	35.2	5.6
Swift-BAT AGN	$5$%	10.4	2.8
	$10$%	39.6	6.0
	$15$%	82.4	8.8
	$20$%	139.3	11.6

Table 3. Table 3: Comparison between the number of triggered and reconstructed events above an energy l ​ o ​ g ​ ( E / eV ) = 19.6 𝑙 𝑜 𝑔 𝐸 eV 19.6 log(E/{\rm eV})=19.6 .

	Cherenkov method	Slant depth method
Triggered	305	305
Reconstructed	110 $\left(\to 36\%\right)$	267 $\left(\to 88\%\right)$

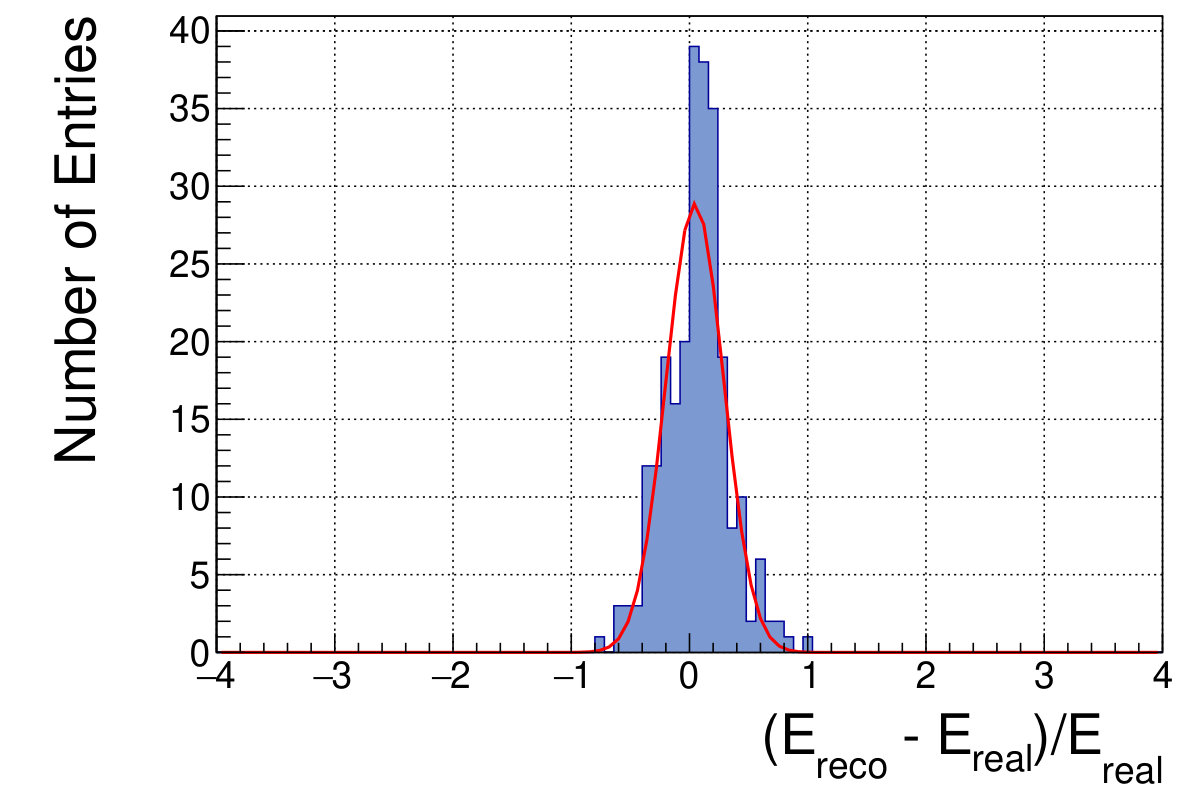

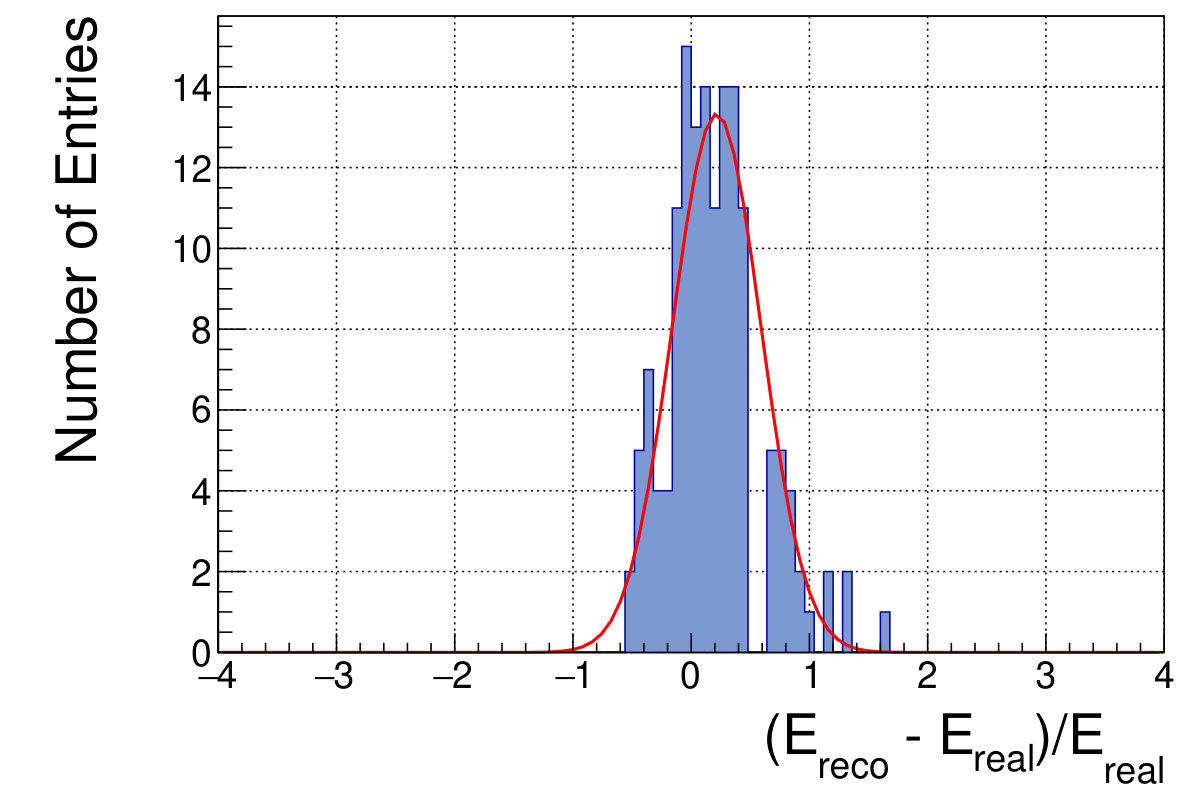

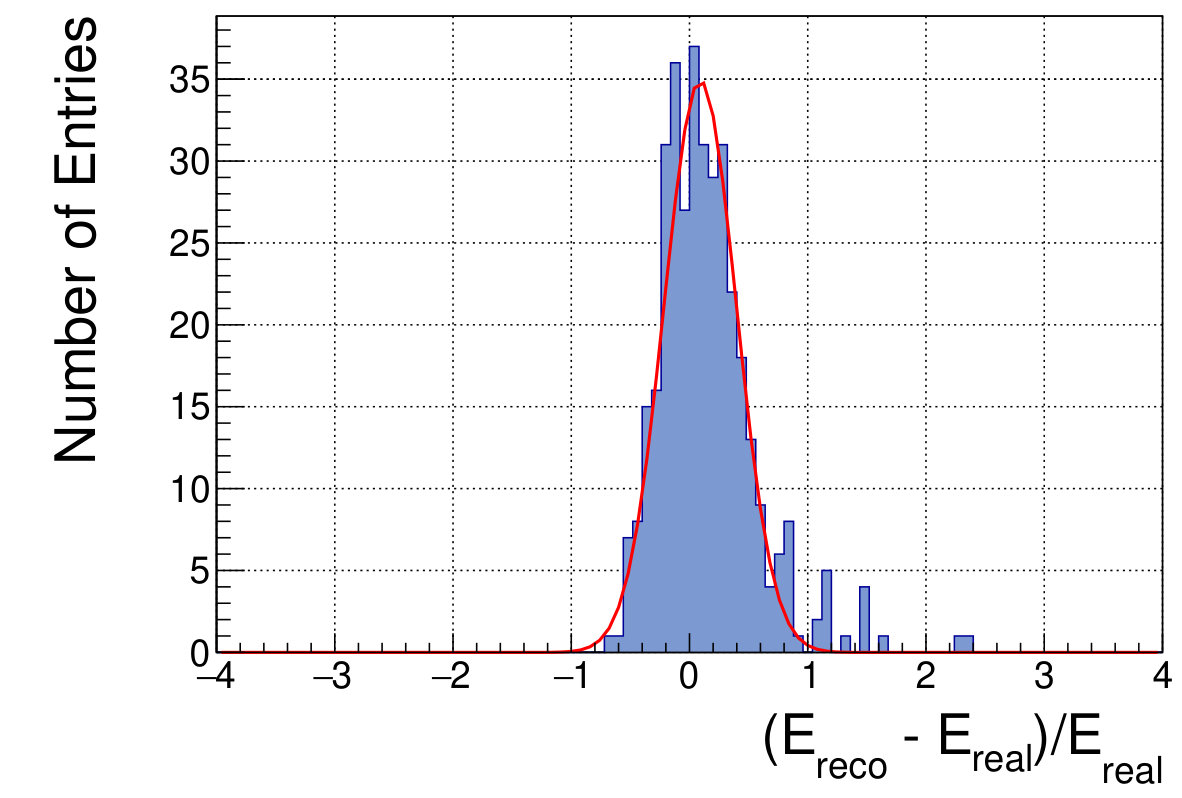

Table 4. Table 4: X max subscript 𝑋 max X_{\rm max} and energy resolutions (all EAS included) for the two methods adopting either an automatic or a manual reconstruction procedure.

Lower $E$ Bias 21% Resolution 37% Higher $E$ Bias 4% Resolution 20% Lower $E$ Bias 9% Resolution 30% Higher $E$ Bias 0.5% Resolution 27%

$X_{\max }$ (g/cm2) Cherenkov method               Bias               $\sigma$ Automatic $12$ 128 Manual $-13$ 107 $E$ (%) Cherenkov method Bias $\sigma$ Automatic $-10$ 25 Manual $-11$ 25 $X_{\max }$ (g/cm2) Cherenkov method Bias $\sigma$ Automatic 37 100 Manual 34 110 $E$ (%) Slant depth method Bias $\sigma$ Automatic 8 21 Manual 11 21

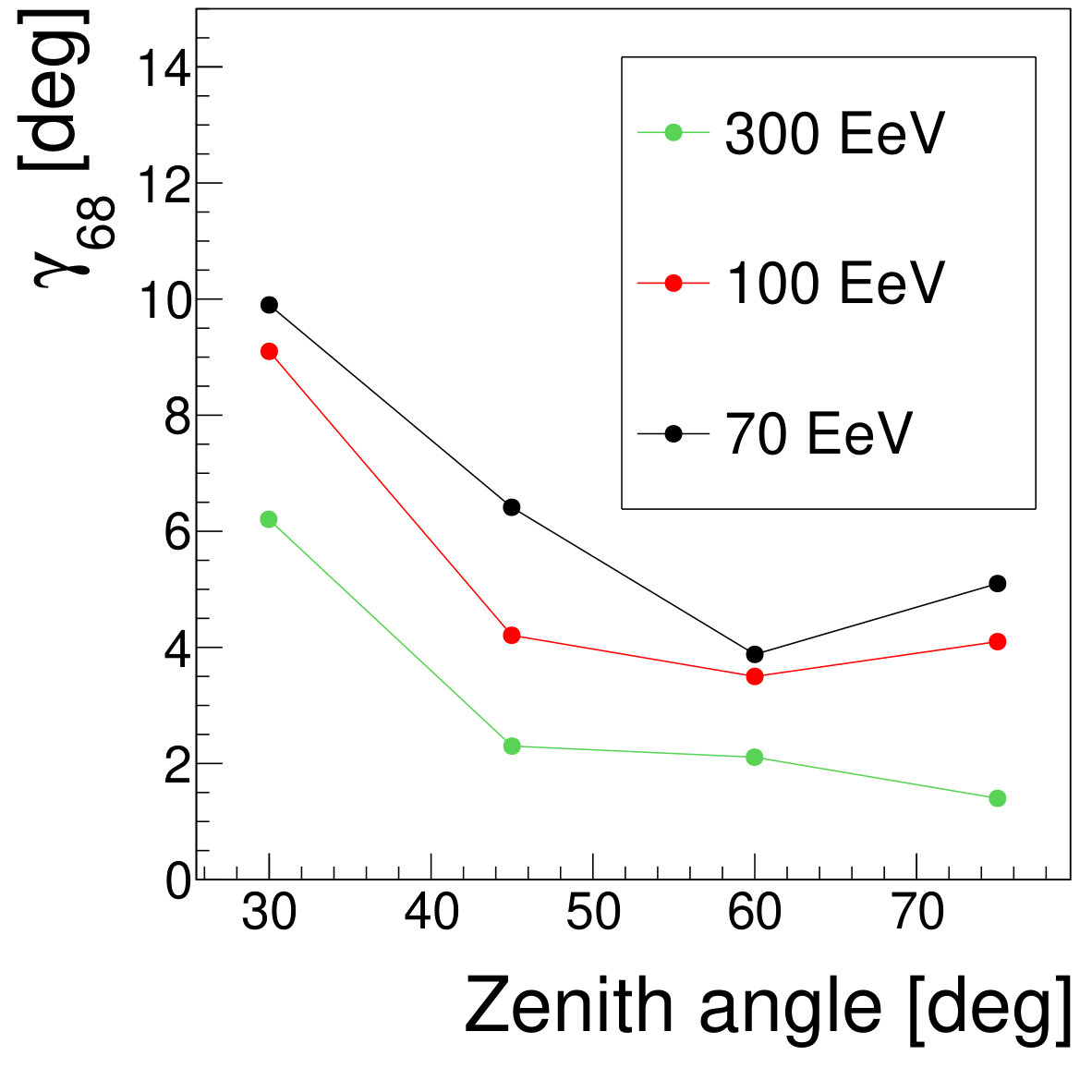

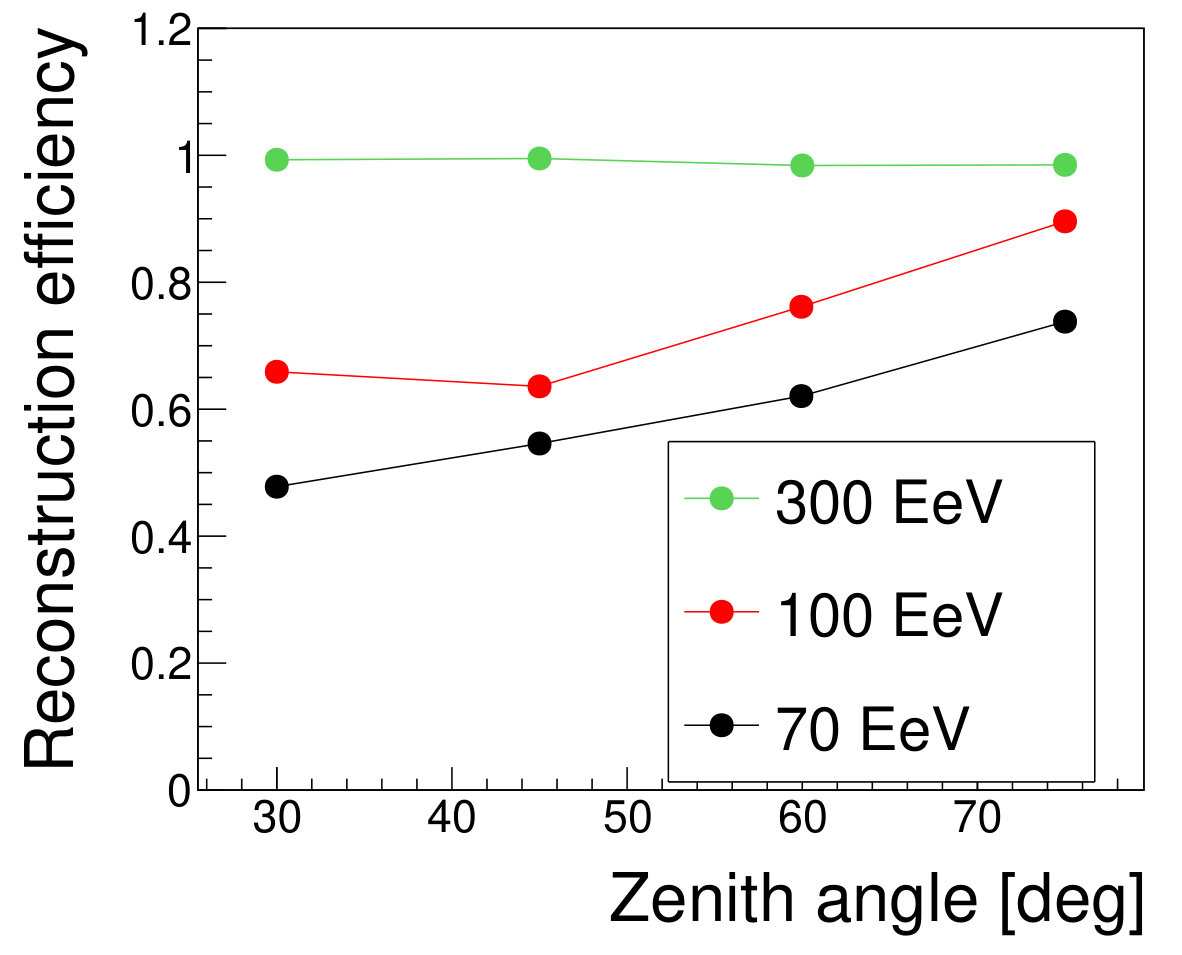

Table 5. Table 5: Angular performance for θ 𝜃 \theta , ϕ italic-ϕ \phi and γ 68 % subscript 𝛾 percent 68 \gamma_{68\%} . All numbers are expressed in degrees. The number of triggered and reconstructed events and their ratio are reported as well.

E(eV)	${\theta }_{\text{sim}}$	$N_{\text{trig}}$	$N_{\text{reco}}$	${ϵ}_{\mathrm{reco}}$		$\sigma \left({\Delta }_{\theta }\right)$		$\sigma \left({\Delta }_{\varphi }\right)$	${\gamma }_{\text{68\%}}$
7$\times$1019	30	697	333	0.47	2.5	2.9	0.3	7.4	9.9
	45	780	426	0.54	1.0	2.0	0.1	3.3	6.4
	60	910	563	0.61	-0.5	2.2	0.1	2.0	3.9
	75	1063	785	0.73	-0.7	2.6	-0.1	1.1	5.1
1020	30	948	625	0.65	2.8	3.0	-4.1	6.6	9.1
	45	1022	651	0.63	0.4	2.1	-0.1	2.7	4.2
	60	1062	808	0.76	-0.5	2.3	0.3	2.0	3.5
	75	1127	1010	0.89	-1.0	1.6	0.0	0.9	4.1
3$\times$1020	30	1101	1094	0.99	4.7	2.1	0.0	3.8	6.2
	45	1119	1114	0.99	-0.9	1.5	0.0	1.3	2.3
	60	1128	1111	0.98	-1.0	1.0	0.0	0.7	2.1
	75	1136	1119	0.98	-0.5	0.8	0.0	0.4	1.4

Table 6. Table 6: TS values for various astrophysical scenarios.

Catalog $f_{\mathrm{sig}}$ $\Theta$ TS $\sigma$ SBG $5$% $5^{\circ }$ 33.6 5.4 $5$% ${10}^{\circ }$ 12.8 3.1 $5$% ${15}^{\circ }$ 6.2 2.0 $5$% ${20}^{\circ }$ 3.4 1.3 $5$% ${25}^{\circ }$ 1.7 0.8 $10$% $5^{\circ }$ 115.4 10.5 $10$% ${10}^{\circ }$ 48.1 6.6 $10$% ${15}^{\circ }$ 24.7 4.6 $10$% ${20}^{\circ }$ 13.0 3.2 $10$% ${25}^{\circ }$ 7.0 2.2 2MRS $5$% $5^{\circ }$ 7.7 2.3 $5$% ${10}^{\circ }$ 3.7 1.4 $5$% ${15}^{\circ }$ 2.4 1.0 $5$% ${20}^{\circ }$ 1.5 0.7 $5$% ${25}^{\circ }$ 0.9 0.5 $10$% $5^{\circ }$ 29.8 5.1 $10$% ${10}^{\circ }$ 14.2 3.4 $10$% ${15}^{\circ }$ 8.7 2.5 $10$% ${20}^{\circ }$ 5.9 1.9 $10$% ${25}^{\circ }$ 3.9 1.5 Swift-BAT AGN $5$% $5^{\circ }$ 39.9 6.0 $5$% ${10}^{\circ }$ 19.1 4.0 $5$% ${15}^{\circ }$ 10.4 2.8 $5$% ${20}^{\circ }$ 6.7 2.1 $5$% ${25}^{\circ }$ 4.2 1.5 $10$% $5^{\circ }$ 129.9 11.2 $10$% ${10}^{\circ }$ 67.2 7.9 $10$% ${15}^{\circ }$ 39.6 6.0 $10$% ${20}^{\circ }$ 24.9 4.6 $10$% ${25}^{\circ }$ 16.1 3.6

$f_{\mathrm{sig}}$ $\Theta$ TS $\sigma$ $15$% $5^{\circ }$ 228.1 14.9 $15$% ${10}^{\circ }$ 101.9 9.8 $15$% ${15}^{\circ }$ 54.2 7.1 $15$% ${20}^{\circ }$ 29.5 5.1 $15$% ${25}^{\circ }$ 16.1 3.6 $20$% $5^{\circ }$ 369.8 19.1 $20$% ${10}^{\circ }$ 170.9 12.9 $20$% ${15}^{\circ }$ 92.9 9.4 $20$% ${20}^{\circ }$ 51.4 6.9 $20$% ${25}^{\circ }$ 27.9 4.9 $15$% $5^{\circ }$ 63.2 7.7 $15$% ${10}^{\circ }$ 31.4 5.2 $15$% ${15}^{\circ }$ 20.0 4.1 $15$% ${20}^{\circ }$ 13.6 3.3 $15$% ${25}^{\circ }$ 8.9 2.5 $20$% $5^{\circ }$ 105.7 10.0 $20$% ${10}^{\circ }$ 55.2 7.1 $20$% ${15}^{\circ }$ 35.2 5.6 $20$% ${20}^{\circ }$ 23.5 4.5 $20$% ${25}^{\circ }$ 15.1 3.5 $15$% $5^{\circ }$ 248.5 15.6 $15$% ${10}^{\circ }$ 137.7 11.5 $15$% ${15}^{\circ }$ 82.4 8.8 $15$% ${20}^{\circ }$ 53.2 7.0 $15$% ${25}^{\circ }$ 36.4 5.7 $20$% $5^{\circ }$ 392.3 19.6 $20$% ${10}^{\circ }$ 224.4 14.8 $20$% ${15}^{\circ }$ 139.3 11.6 $20$% ${20}^{\circ }$ 91.5 9.3 $20$% ${25}^{\circ }$ 62.4 7.6

Table 7. Table 7: UHECR proton background probabilities as a function of energy and X Start subscript 𝑋 Start X_{\rm Start} as well as the anticipated UHECR statistics in representative energy ranges based on 5 year observation with the Auger and TA measured spectra.

$X_{\mathrm{Start}}$	40 EeV	60 EeV	100 EeV	200 EeV
$\ge 1500g/{\mathrm{cm}}^2$	$4.9\times {10}^{-8}$	$7.2\times {10}^{-5}$	$5.8\times {10}^{-4}$	$9.1\times {10}^{-4}$
$\ge 2000g/{\mathrm{cm}}^2$	$9.0\times {10}^{-11}$	$4.8\times {10}^{-6}$	$1.1\times {10}^{-4}$	$2.1\times {10}^{-4}$
Spectrum	50 EeV	50 EeV 100 EeV	100 EeV 200 EeV	$E_{\mathrm{prot}}\ge$ 200 EeV
Auger (5 years)	3106	271	66	5
TA (5 Years)	5006	925	327	10

Table 8. Table 8: UHECR observed proton background probabilities as a function of energy and X Start subscript 𝑋 Start X_{\rm Start} based on 5 year observation with the Auger and TA measured spectra.

$X_{\mathrm{Start}}$	40 EeV	60 EeV	100 EeV	200 EeV	Sum
Auger Spectrum: $N_{\mathrm{Obs}}\ge 1$
$\ge 1500g/{\mathrm{cm}}^2$	$1.5\times {10}^{-4}$	$1.9\times {10}^{-2}$	$3.8\times {10}^{-2}$	$4.5\times {10}^{-3}$	$6.1\times {10}^{-2}$
$\ge 2000g/{\mathrm{cm}}^2$	$2.8\times {10}^{-7}$	$1.3\times {10}^{-3}$	$7.2\times {10}^{-3}$	$1.0\times {10}^{-3}$	$9.6\times {10}^{-3}$
Auger Spectrum: $N_{\mathrm{Obs}}\ge 2$
$\ge 1500g/{\mathrm{cm}}^2$	$1.2\times {10}^{-8}$	$1.9\times {10}^{-4}$	$7.1\times {10}^{-4}$	$1.0\times {10}^{-5}$	$9.1\times {10}^{-4}$
$\ge 2000g/{\mathrm{cm}}^2$	$3.9\times {10}^{-14}$	$8.4\times {10}^{-7}$	$2.6\times {10}^{-5}$	$5.3\times {10}^{-7}$	$2.8\times {10}^{-5}$
TA Spectrum: $N_{\mathrm{Obs}}\ge 1$
$\ge 1500g/{\mathrm{cm}}^2$	$2.5\times {10}^{-4}$	$6.4\times {10}^{-2}$	$1.7\times {10}^{-1}$	$9.0\times {10}^{-3}$	$2.5\times {10}^{-1}$
$\ge 2000g/{\mathrm{cm}}^2$	$4.7\times {10}^{-7}$	$4.4\times {10}^{-3}$	$3.5\times {10}^{-2}$	$2.1\times {10}^{-3}$	$4.2\times {10}^{-2}$
Ta Spectrum: $N_{\mathrm{Obs}}\ge 2$
$\ge 1500g/{\mathrm{cm}}^2$	$3.0\times {10}^{-8}$	$2.1\times {10}^{-3}$	$1.6\times {10}^{-2}$	$4.1\times {10}^{-5}$	$1.8\times {10}^{-2}$
$\ge 2000g/{\mathrm{cm}}^2$	$1.0\times {10}^{-13}$	$9.8\times {10}^{-6}$	$6.3\times {10}^{-4}$	$2.1\times {10}^{-6}$	$6.4\times {10}^{-4}$

Equations

$${\theta }_{\mathrm{eg}}\approx 1.5^{\circ }Z\sqrt{\frac{d}{3.8\mathrm{Mpc}}\frac{\lambda }{0.1\mathrm{Mpc}}}\frac{B}{\mathrm{nG}}{\left(\frac{E}{10\mathrm{EeV}}\right)}^{-1},$$

$${\theta }_{\mathrm{G}}\sim 10^{\circ }Z{\left(\frac{E}{10\mathrm{EeV}}\right)}^{-1},$$

$$f(E,\delta |A,Z)$$

$$T\sim \frac{N}{\Gamma f_{\mathrm{sky}}{f}_{\mathrm{events}}}.$$

$$\Phi (\hat{n})=\frac{N}{4\pi f_1}W(\hat{n})[1+\Delta (\hat{n})],$$

$$\Delta (\hat{n})=\sum _{\ell =1}^{\infty }\sum _{m=-\ell }^{\ell }{a}_{\ell m}{Y}_{\ell m}(\hat{n}),$$

$$C(\ell )=\frac{1}{2\ell +1}\sum _{m=-\ell }^{\ell }{a}_{\ell m}^2,$$

$$\frac{dN}{d{X}_{\max }}\propto \exp (-X_{\max }/{\Lambda }_{\eta })$$

$${\sigma }_{p-\mathrm{air}}=\frac{⟨m_{\mathrm{air}}⟩}{k{\Lambda }_{\eta }},$$

$$\mathcal{E}(E)=A_{\text{geo}}(E)tϵ,$$

$$A_{\text{geo}}(E)={\int }_{S_{\text{sim}}}dS{\int }_0^{2\pi }d\varphi {\int }_0^{\pi /2}d\theta \cos \theta \sin \theta ϵ(E)$$

$$ϵ(E)=\frac{N_{\text{trig}}}{N_{\text{sim}}}$$

$${\mathcal{F}}_{\mathrm{sky}}\left(\hat{n}\right)=\frac{\omega \left(\hat{n}\right)}{\mathcal{C}}\left[\left(1-f_{\mathrm{sig}}\right)\frac{1}{4\pi }+f_{\mathrm{sig}}{\mathcal{F}}_{\mathrm{src}}\left(\hat{n}\right)\right],$$

$$\mathrm{TS}=2\ln \left(\frac{L\left({\mathcal{F}}_{\mathrm{sky}}\right)}{L\left({\mathcal{F}}_{\mathrm{iso}}\right)}\right),$$

$$L\left(\mathcal{F}\right)=\frac{1}{\mathcal{N}}\prod _i\mathcal{F}\left({\hat{n}}_i\right).$$

$${\Lambda }_{\eta }^{\mathrm{opt}}=\sum _{i=1,N_{\mathrm{evts}}}(X_{\max ,i}-X_{\max }^{\mathrm{start}})/N_{\mathrm{evts}}.$$

$$J(E)$$

$$\ln (E/E_{norm})=\ln (E_0/E_{norm})+\Delta$$

Full text

I Introduction

After over 80 years of the first measurement of extensive air showers (EASs) by Pierre Auger Auger:1939sh , the astrophysical sources of these extremely energetic cosmic rays remain unknown. Ultra-high energy (UHE) cosmic rays (CRs) have been observed with energies $E\gtrsim 10^{20}~{}{\rm eV}\equiv 100~{}{\rm EeV}$, which is more than 7 orders of magnitude higher than what the LHC beam can currently achieve. The nature of the astrophysical sources and their acceleration mechanism(s) remains a mystery Kotera:2011cp ; Anchordoqui:2018qom ; AlvesBatista:2019tlv . The understanding is further muddled by the uncertainty in the nuclear composition of UHECRs above $50~{}{\rm EeV}$.

A succession of increasingly sized ground-based experiments has led to the Pierre Auger Observatory (Auger) Abraham:2010zz ; Abraham:2009pm , with an exposure ${\cal E}\sim 65,000~{}{\rm km^{2}\ sr\ yr}$ collected in 15 years of operation Aab:2017njo , and the Telescope Array (TA) AbuZayyad:2012kk ; Tokuno:2012mi , with ${\cal E}\sim 10,000~{}{\rm km}^{2}\,{\rm sr}\,{\rm yr}$ collected in 10 years. Both of these experiments have precisely measured key features in the UHECR spectrum: a pronounced hardening around 5 EeV (the so-called “ankle” feature) and a suppression of the flux above about 40 EeV Abbasi:2007sv ; Abraham:2008ru ; Abraham:2010mj ; AbuZayyad:2012ru . The differential energy spectra measured by TA and Auger agree within systematic errors below $10~{}{\rm EeV}$. However, even after energy re-scaling, a large difference remains at and beyond the flux suppression TheTelescopeArray:2018dje .

The EAS longitudinal development is characterized by the number of particles as a function of the atmospheric column depth $X$ in ${\rm g/cm}^{2}$. A well-defined peak of the longitudinal profile is observed when the number of $e^{\pm}$ in the electromagnetic shower is at its maximum. This shower maximum or $X_{\rm max}$ becomes a powerful observable for studying the UHECR nuclear composition. This is because breaks in the elongation rate – the rate of change of $\langle X_{\rm max}\rangle$ per decade of energy – can be related to changes in the nuclear composition Linsley:1978bm ; Linsley:1981gh , even when uncertainties in the UHE particle physics limit the accuracy of mapping between $X_{\rm max}$ and the nucleus baryon number $A$.

At around the ankle, the measurements of $X_{\rm max}$ by TA Abbasi:2014sfa ; Abbasi:2018nun and Auger Abraham:2010yv ; Aab:2014kda ; Aab:2014aea ; Aab:2017cgk are both consistent with a predominantly light composition. For $E\gtrsim 10~{}{\rm EeV}$, Auger data show both a significant decrease in the elongation rate and a decrease of the shower-to-shower fluctuations of $X_{\rm max}$ with energy. These two effects indicate a gradual increase of $A$ with rising energy. Indeed, at $E\approx 30~{}{\rm EeV}$ the interpretation of Auger data with LHC-tuned hadronic interaction models leads to $A\approx 14-20$. The Auger and TA collaborations have also conducted a thorough joint analysis concluding that at the current level of statistics and understanding of systematics, both datasets are compatible with being drawn from the same parent distribution Abbasi:2015xga ; Hanlon:2018dhz . Above about 10 EeV TA data are compatible with a pure protonic composition, but also with the mixed composition determined by the Auger Collaboration Abbasi:2015xga ; Hanlon:2018dhz ; Auger data are more constraining and not compatible with the pure protonic option available with TA alone. Moreover, the Auger Collaboration has reported additional model-independent evidence for a mixed nuclear composition around the ankle in the correlations between $X_{\rm max}$ and the shower size at ground Aab:2016htd . All in all, while there remain some differences in the details of composition measurements between Auger and TA, Auger has provided evidence of heavier composition with increasing energies above $10~{}{\rm EeV}$ and TA measurements are not in contradiction with that interpretation.

UHECR deflections by intervening magnetic fields constitute the main challenge for source identification. The typical deflection of UHECRs in the extragalactic magnetic field, $B\sim 1~{}{\rm nG}$ Pshirkov:2015tua , can be estimated to be

[TABLE]

where $d$ is the source distance, $\lambda$ the magnetic field coherence length, and $Z$ is the charge of the UHECR in units of the proton charge Waxman:1996zn ; Farrar:2012gm . Typical values of the deflections of UHECRs crossing the Galaxy are somewhat larger Farrar:2017lhm

[TABLE]

preventing small-scale clustering with directional pointing to the sources. However, individual sources could still be isolated in the sky if the UHECR flux is dominated by the contribution of a limited number of sources. Indeed, the reduction of the UHECR horizon, because of the so-called “Greisen-Zatsepin-Kuzmin (GZK) interactions” on the cosmic microwave background (CMB) Greisen:1966jv ; Zatsepin:1966jv , implies that fewer and fewer sources contribute to the flux at higher and higher energy.

Assuredly, the most recent results concerning the origin of UHECRs has been the discovery (statistical significance $>5\sigma$) of a large scale hemispherical asymmetry in the arrival direction distribution of events recorded by Auger Aab:2017tyv ; Aab:2018mmi . The data above $8~{}{\rm EeV}$ are well-represented by a dipole with an amplitude $A=(6.5^{+1.3}_{-0.9})\%$ pointing in the direction $(l,b)=(233^{\circ},-13^{\circ})\pm 10^{\circ}$ in Galactic coordinates, favoring an extragalactic origin for UHECRs. However, Auger and TA data have yielded only a few clues to the precise location of the sources. For instance, the TA Collaboration has reported an excess above the isotropic background-only expectation in cosmic rays with energies above $57~{}{\rm EeV}$ Abbasi:2014lda . In addition, searches in Auger data revealed a possible correlation with nearby starburst galaxies, with a (post-trial) $4\sigma$ significance, for events above $39~{}{\rm EeV}$ Aab:2018chp . The smearing angle and the anisotropic fraction corresponding to the best-fit parameters are ${13^{+4}_{-3}}^{\circ}$ and $(10\pm 4)\%$, respectively. The energy threshold coincides with the observed suppression in the spectrum, implying that when we properly account for the barriers to UHECR propagation in the form of energy loss mechanisms Greisen:1966jv ; Zatsepin:1966jv we obtain a self consistent picture for the observed UHECR horizon. With current statistics the TA Collaboration cannot make a statistically significant corroboration or refutation of the starburst hypothesis Abbasi:2018tqo . A slightly weaker association ($2.7\sigma$) with active galactic nuclei emitting $\gamma$-rays ($\gamma$AGN) is also found in Auger events above $60~{}{\rm EeV}$ Aab:2018chp . For $\gamma$AGN, the maximum deviation from isotropy is found at an intermediate angular scale of ${7^{+4}_{-2}}^{\circ}$ with an anisotropic fraction of $(7\pm 4)\%$.

Extremely fast spinning young pulsars Blasi:2000xm ; Fang:2012rx ; Fang:2013cba , active galactic nuclei (AGNs) Biermann:1987ep ; Rachen:1992pg ; Romero:1995tn ; Matthews:2018laz , starburst galaxies (SBGs) Anchordoqui:1999cu ; Anchordoqui:2018vji ; Anchordoqui:2019mfb , and gamma-ray bursts (GRBs) Waxman:1995vg ; Vietri:1995hs ; Dermer:2006bb ; Wang:2007xj ; Murase:2008mr ; Baerwald:2013pu ; Globus:2014fka ; Zhang:2017moz can partially accommodate Auger and TA observations, but a convincing unified explanation of all data is yet to be realized. What is clearly needed is a more dramatic increase in UHECR exposure. The Probe of Extreme Multi-Messenger Astrophysics (POEMMA) will accomplish this by using space-based UHECR observations with excellent angular, energy, and nuclear composition resolution Olinto:2017xbi . In addition, both Auger and TA are undergoing upgrades. TA$\times$4 is designed to cover the equivalent of Auger’s aperture Kido:2019enj . Auger’s upgrade (“AugerPrime” Aab:2016vlz ) focuses on more detailed measurements of each shower observed. This will enable event-by-event probabilistic composition assignment (hence selection of low-$Z$ events).

In this paper we investigate the sensitivity of POEMMA to address challenges of UHECR astrophysics and explore the potential of this experiment to probe fundamental physics. The layout of the paper is as follows. In Sec. II we provide an overview of the POEMMA design and the mission specifications. Aspects of the simulated detector response are discussed in Sec. III and the POEMMA UHECR performance is studied in Sec. IV. After that, in Sec. V we examine the POEMMA science reach. We also evaluate whether the UHECR capabilities of POEMMA for baryonic cosmic rays are also applicable to fluorescence detection of extreme energy photons and ultrahigh-energy neutrino interactions deep in the atmosphere. Finally, we summarize our results and draw our conclusions in Sec. VI.

II The POEMMA Experiment

The POEMMA instruments and mission leveraged from previous work developed for the Orbiting Wide-field Light-collectors (OWL) mission Stecker:2004wt , together with the experience on the fluorescence detection camera for the Joint Experimental Missions of the Extreme Universe Space Observatory (JEM-EUSO) Adams:2013vea , and the recently proposed CHerenkov from Astrophysical Neutrinos Telescope (CHANT) concept Neronov:2016zou to form a multi-messenger probe of the most extreme environments in the universe.

POEMMA was selected by NASA as one of the several concept study proposals to provide science community input for a new class of NASA missions, called Astrophysics Probes. Such Astrophysics Probes will be examined by the 2020 Astronomy and Astrophysics Decadal Survey in support of the development of a recommended portfolio of future astrophysics missions.111NASA Research Announcement Astrophysics Probe Mission Concept Studies, Solicitation: NNH16ZDA001N-APROBES. The Astrophysics Probe mission concepts were funded for 18 month studies, including week-long dedicated engineering study runs. The POEMMA study was performed at the Instrument Design Lab (IDL) and the Mission Design Lab (MDL) in the Integrated Design Center (IDC) at NASA/GSFC.222For details, see https://idc.nasa.gov/idc/ The probe studies were developed with specific instructions to define this unique NASA Class B mission, including Phase A start date (1-Oct-2023), launch date (1-Nov-2029), and launch vehicle guidance, with a total lifecycle (NASA Phases A through E) costs between $400{\rm M}$ and $1{\rm B}$ in FY2018 dollars. In this context, POEMMA is considered as a potential probe mission in terms of the 2020 astrophysics decadal review assessment of the probe-class concept. In this section we provide a summary of the POEMMA mission specifications developed under the probe study.

II.1 Instrument Design

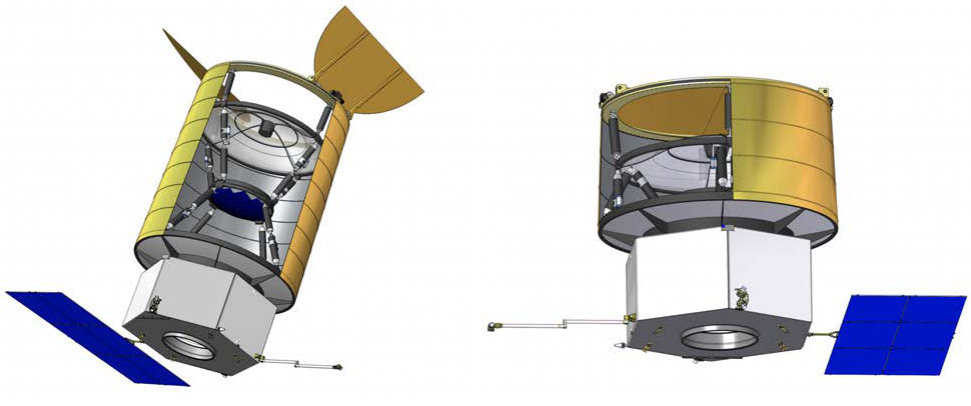

Building on the OWL study Stecker:2004wt , POEMMA is composed of two identical satellites flying in formation with the ability to observe overlapping atmospheric volumes during nearly moonless nights in configurations ranging from nadir viewing to that just above the limb of the Earth. The satellites will fly at an altitude of about 525 km with separations ranging from 300 km for stereo fluorescence UHECR observations to 25 km when pointing at the Earth’s limb for both fluorescence and Cherenkov observations of UHECRs and cosmic neutrinos. Each POEMMA satellite consists of a 4-meter diameter Schmidt telescope with a fast (f/0.64) optical design. The optical effective area ranges from 6 to 2 m2 depending on the angle of incidence of the signal. The visible portion of the EAS disk is a few hundreds of meters wide and determines the required pixel angular resolution in the Schmidt telescope focal plane: a spatial size of 1 km from 525 km leads to pixel angular resolution of $\sim 0.1^{\circ}$ to accurately view the EAS development. Each POEMMA telescope monitors a substantial $45^{\circ}$ field of view (FoV) with fine pixel angular resolution of $0.084^{\circ}$ and a refractive aspheric aberration corrector plate. A lens-cap lid (or shutter door) and a cylindrical light shield shroud protect the mirror from stray light and micrometeoroids. The mirrors act as large light collectors with modest imaging requirements, i.e., the POEMMA optics imaging requirements are $\sim 10^{4}$ away from the diffraction limit. The primary mirror is 4 m diameter, whereas the corrector lens 3.3 m diameter. The concept of the POEMMA photometer and spacecraft is shown in Fig. 1.

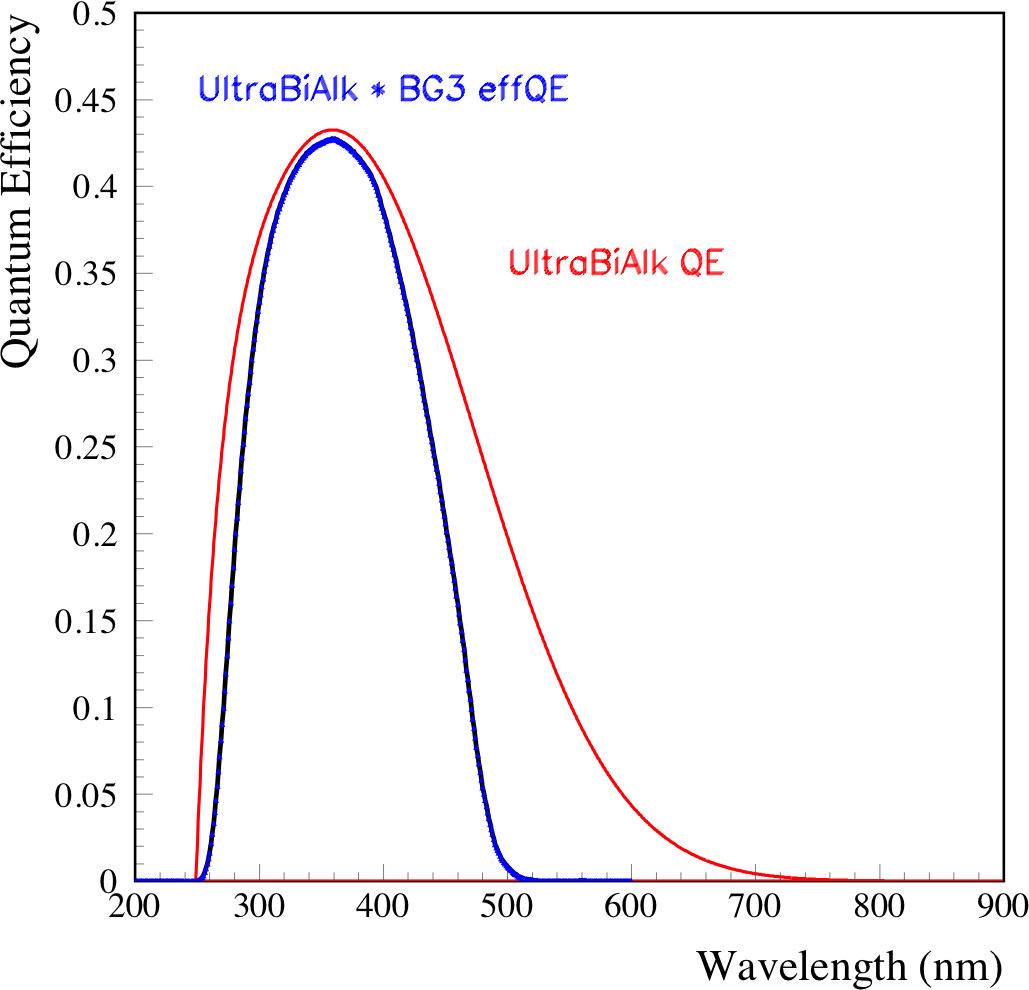

The POEMMA focal surface (1.6 m diameter) is composed of a hybrid of two types of cameras: over 85% of the focal surface is dedicated to the POEMMA fluorescence camera (PFC), while the POEMMA Cherenkov camera (PCC) occupies the crescent moon shaped edge of the focal surface, which images the limb of the Earth. The PFC is composed of the EUSO designed Photo Detector Modules (PDM) based on multi-anode photomultiplier tubes (MAPMTs) as flown in sub-orbital missions in EUSO-Balloon Abdellaoui:2019qmg , EUSO- SPB1 Wiencke:2017cfi , and EUSO-SPB2 Wiencke:2019vke , and in the mini-EUSO Belov:2017ksp and CALET 2015JPhCS.632a2023A experiments onboard the International Space Station. The sampling time between images for the PFC is $1~{}\mu{\rm s}$. The much faster POEMMA Cherenkov camera (PCC) is composed of Silicon photo-multipliers (SiPMs) designed to detect the 10 ns to 100 ns Cherenkov flashes. The PFC registers UHECR tracks from near nadir when in stereo mode extended to just below the Earth’s limb when in tilted neutrino mode, where the PCC registers light within the Cherenkov emission cone of up-going showers around the limb of the Earth and also from UHECRs above the limb of the Earth. An schematic representation of the POEMMA’s hybrid focal surface is shown in Fig. 2.

II.2 Mission Synopsis

The POEMMA mission involves two satellites flying in formation in a relatively low-altitude (525 km), near-equatorial orbit (28.5∘ inclination). Each satellite operates independently and telemeters data to the ground for combined analysis. Both satellites will be launched in a stowed configuration on a single launch vehicle. Once on orbit, the telescopes will be deployed along with the solar array, light shield, and the communications antenna. The mirror and data module are attached to the satellite bus.

Both satellites will be launched as a dual-manifest in an Atlas V using the long payload fairing. The satellites will be inserted into a circular orbit at an inclination of about 28.5∘ and an initial altitude of 525 km and a separation of 300 km. The most common flight configuration will be the UHECR stereo observation mode. The target-of-opportunity (ToO) observing mode will involve the instruments slewing to view the celestial source location as well as a maneuver to closer distance such that both satellites observe the same Cherenkov signal from Earth-skimming neutrinos from the transient source Venters:2019xwi for long-duration ($>$ 1 day) bursts. Once extreme transient event alerts are received, for example, from the gravitational wave signature of a binary neutron-star merger, the satellites will maneuver to a closer separation distance of about 25 km and an appropriate attitude and slew to follow the ToO of the transient source as it rises and sets over the Earth’s limb. While the PCC is searching for neutrinos from the ToO, each PFC continues to observe UHECRs in a common volume, providing two correlated monocular views of EASs. A sequence of observing formation stages, varying between stereo and ToO modes, will be planned to address each science goal for the minimum 3 year mission with a 5 year mission goal.

III Simulated Detector Response

POEMMA’s two identical satellites fly in formation to observe EASs in two different modes: precision UHECR stereo mode and a tilted configuration, denoted as neutrino mode, when also viewing $\tau$-lepton EASs sourced near the Earth’s limb. In stereo mode, the UHECR measurement performance is optimized by separating the POEMMA satellites by 300 km and tilted slightly away from nadir for each to view a common area and stereoscopically reconstruct the EASs from UHECRs. In neutrino mode, the satellites slew to view the source and are separated by 25 km to put both in the Cherenkov light pool from the upward-moving $\tau$-lepton EASs, using the PCCs, and also measure UHECRs using the PFCs with a higher geometry factor, but reduced performance due the more monocular-like UHECR reconstruction response. Note that both instruments also view a common atmospheric volume in limb-viewing mode. Here we detail the two separate simulations used to determine the stereo and monocular UHECR performance.

Both simulations use the same parametric optical models derived from ray tracing optical design software (Zemax). Each satellite carries a Schmidt telescope with a 3.3 meter diameter optical aperture, defined by the corrector lens, and $45^{\circ}$ full FoV. In Fig. 3 we show the effective area and RMS spot radius as a function of the viewing angle. The effective area includes the effects of the transmission through the Corrector Lens (94% transmission) and mirror reflectivity (95%).

III.1 Stereo Simulations

The UHECR simulated stereo response was performed using an end-to-end simulation originally developed for the OWL Stecker:2004wt study but updated for POEMMA. The simulation assumes an isotropic UHECR flux impinging the Earth and uses a fast EAS generator Mikulski that provides the 1-dimensional EAS profiles as Gaisser-Hillas functions Gaisser-Hillas-1977-ICRC-15-8-353 . POEMMA’s 0.084∘ focal plane pixel FoV translates to a spatial distance of $\sim 0.8~{}{\rm km}$ at sea level for nadir viewing from an altitude of 525 km, indicating that the 1-dimensional EAS modeling is a good approximation. Starting point fluctuations of the EAS are included and the EAS generator can model any nuclei. A comparison of proton primaries to that produced by the CONEX CONEX 1-dimensional EAS simulation using QGSJETII-04 are shown in Table 1.

A detailed atmospheric model is required to define the EAS development, the fluorescence light generation, the generated and scattered Cherenkov light emission, and the fluorescence and Cherenkov light attenuation based on an optical depth between the EAS and POEMMA observations. We employ a static, baseline model for the definition of the atmosphere profile using the model of Shibata Shibata to define the overburden and density. The temperature profile, needed to account for the altitude dependence of the fluorescence yield, is taken from the 1976 standard atmosphere while the index of refraction of air uses a parametric model of Hillas Hillas1 . The fluorescence light is generated in the wavelength band from 282 nm to 523 nm based on the measured relative yields from each specific line Bunner1966 ; Davidson , with the total fluorescence yield defined by recent measurements compiled by the Particle Data Group Tanabashi:2018oca . The pressure and temperature dependence of the fluorescence emission uses the model of Kakimoto et al. Kakimoto . For simulating the PFC response, Cherenkov light is generated in the wavelength band 200 - 600 nm in bins of 25 nm based on a standard prescription Fernow1986 .

The fluorescence and Cherenkov light attenuation includes the effects of Rayleigh scattering Sokolsky1989 and ozone absorption. The Earth’s ozone layer efficiently attenuates optical signals at shorter wavelengths (\lambda\mathrel{\hbox{\hbox to0.0pt{\lower 3.22916pt\hbox{\sim}\hss} \kern-3.00003pt\raise 1.72218pt\hbox{<}}}330 nm). An ozone attenuation model Krizmanic1999 is used with an altitude dependent profile derived from Total Ozone Mapping Spectrometer (TOMS) measurements McPeters . The optical fluorescence and (scattered) Cherenkov wavelength dependent signals delivered to the POEMMA satellites at 525 km altitude are then convolved with a model of performance of each POEMMA Schmidt telescope.

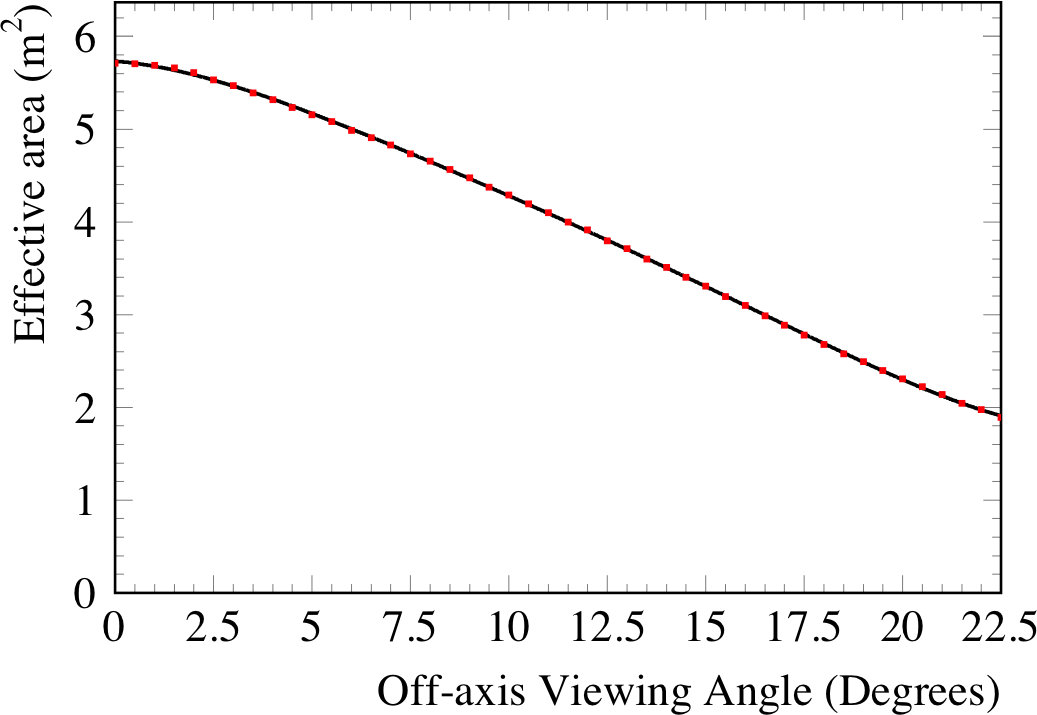

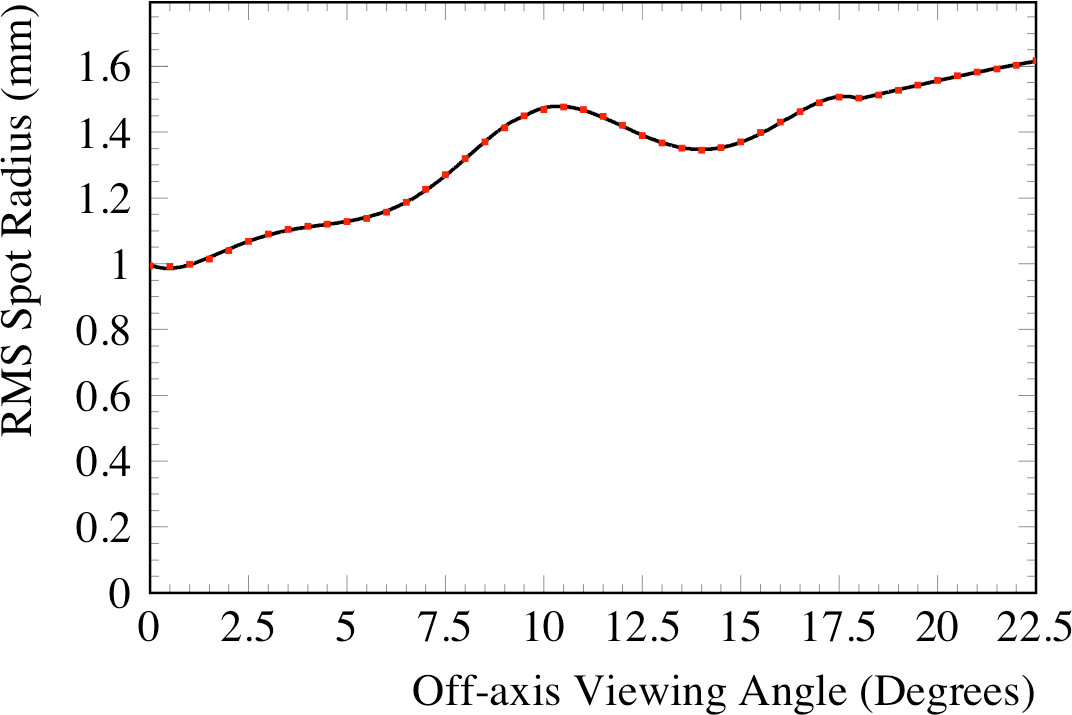

The effective area and RMS point-spread-function (PSF) are modeled using a parametric description based upon the optical design that relies on ray tracing. The wavelength-dependent signals are attenuated by a UV filter and then mapped onto a POEMMA focal plane assuming 3 mm spatial pixel size. The quantum efficiency (QE) of the photo-detector is modeled using the wavelength dependence based on that reported by the manufacturer (Hamamatsu). The incident angle of the EAS optical signal determines the effective collecting area and the PSF of the optics, these are used to then generate photo-electrons (PE) by using Poisson statistics after accounting for the bandpass of the BG3 UV filter and QE of the photo-detectors (see Fig. 4). This process uses 1 $\mu$s sampling time to record the EAS signals while also providing the integrated EAS profile in the POEMMA focal planes.

We have performed detailed simulation studies using POEMMA’s optical performance to determine POEMMA’s UHECR exposure, angular resolution, and nuclear composition ($X_{\rm max}$) resolution. For stereo UHECR mode, we modeled a satellite configuration with a 300 km separation and tilted ($\pm 12.2^{\circ}$) to view a common atmospheric volume between the two satellites. The PFC instrument response model is derived from the ESAF simulations (described in Appendix A) which take into account the effects of air glow background, the PFC trigger, and electronic response. A single POEMMA telescope pointing in nadir mode was modeled using the methodology of the stereo simulation. The UHECR event selection was then tuned by setting requirements on the number of pixels above a PE threshold to achieve a similar trigger UHECR aperture as reported by the ESAF simulations; see Appendix A. This condition was then used for the modeling of POEMMA’s stereo response for the condition of separating the satellites by 300 km and tilting them to view a common volume of atmosphere between them.

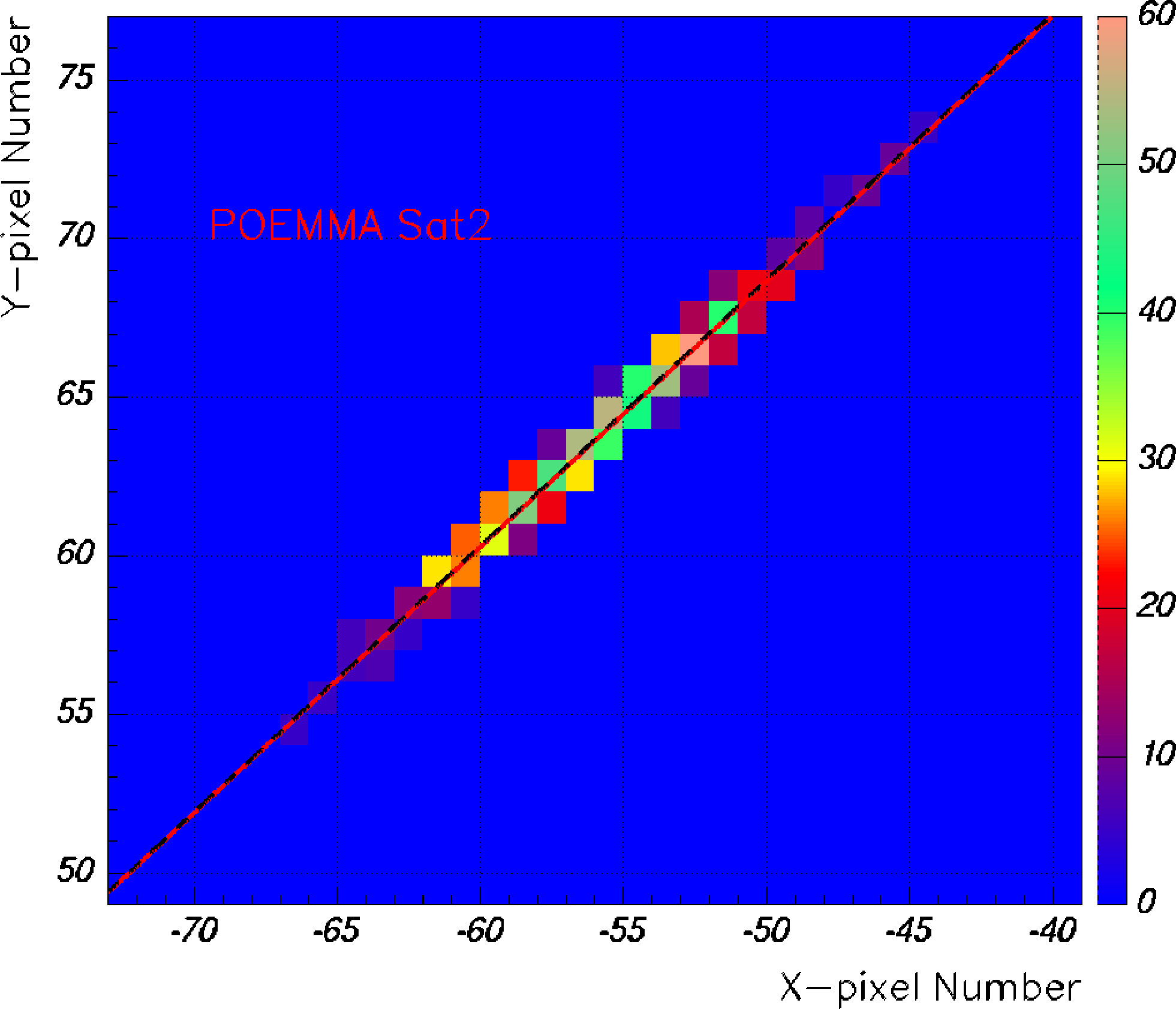

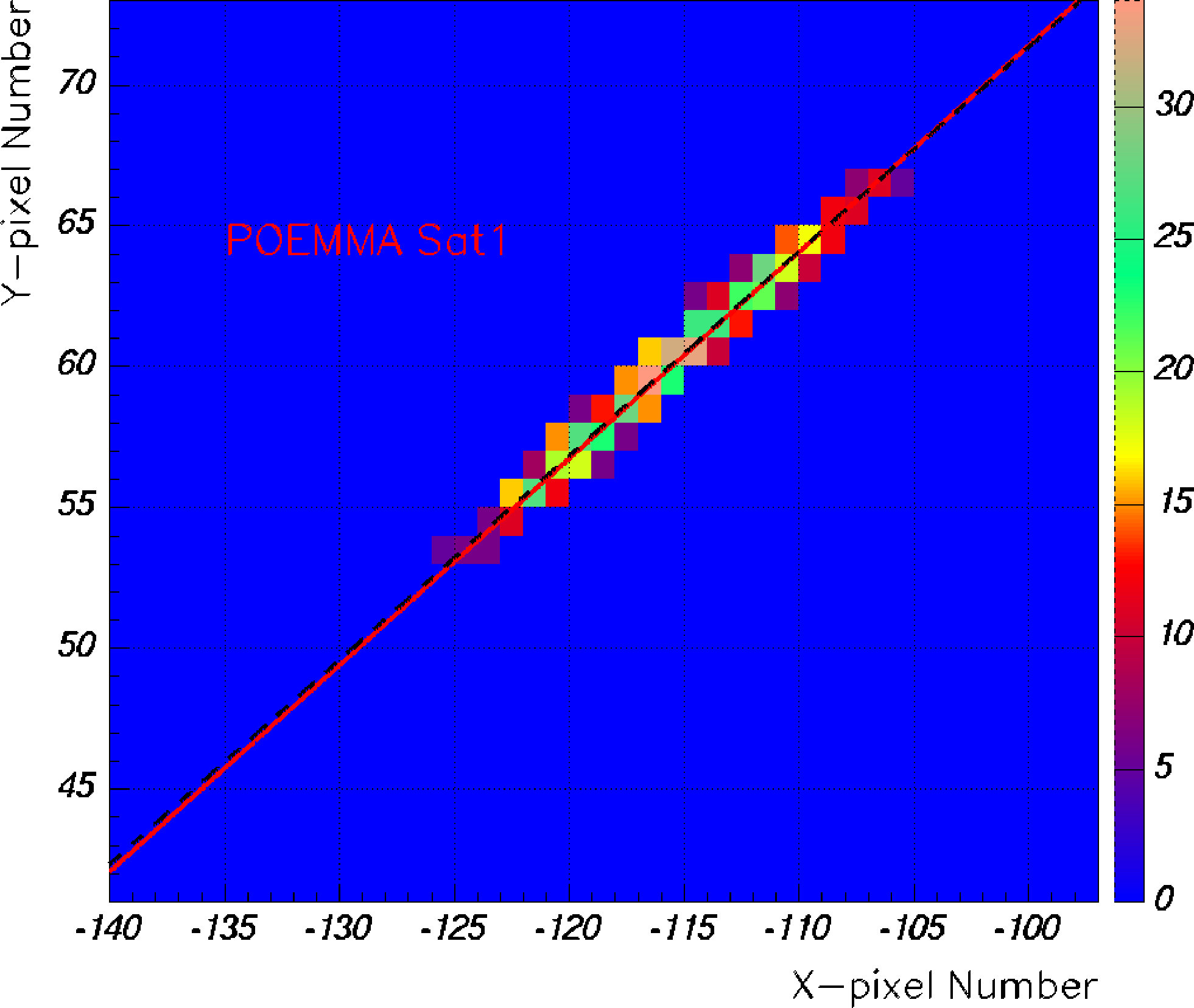

Each measured EAS trajectory in the POEMMA focal planes defines a unique geometrical plane. Simple geometry determines a line in 3-dimensional space where these two planes intersect, corresponding to the EAS trajectory. As long as the opening angle between these planes is larger than $\sim 5^{\circ}$, the reconstruction of the EAS trajectory is robust, due to POEMMA’s excellent EAS pixel angular resolution, yielding superb UHECR angular resolution. Figure 5 shows POEMMA’s stereo reconstructed angular resolution, which is $\sim 1^{\circ}$ or better above 30 EeV, and highlights the strength of the stereo reconstruction technique when one has good pixel angular resolution. In Fig. 6 we show zenith angle distribution of triggered events above 50 EeV and in Fig. 7 we show an example 50 EeV UHECR as measured in the POEMMA focal planes.

The stereo trigger condition in each satellite leads to a highly efficient reconstruction fraction of $\sim 80\%$, with the losses due mainly to the requirement of the $\sim 5^{\circ}$ opening angle between each EAS geometrical plane. To estimate the energy resolution in stereo mode we performed simulations with ESAF in monocular mode (see Appendix A), assuming $\sigma=1^{\circ}$ angular resolution in both zenith and azimuth angles based on the results of the stereo reconstruction (see Fig. 5) This leads to a resolution of 26% and 24% at 50 and 100 EeV respectively. Since the two satellites provide an independent measurement of the same EAS, the resolution can be expected to be a factor of $\sqrt{2}$ better than the monocular one with fixed geometry, i.e. 18% and 17% at 50 and 100 EeV respectively. It is worthwhile noting that these numbers can be considered conservative, because the ESAF simulations used a lower quantum efficiency and a larger time binning (2.5 $\mu$s) than it will be used in POEMMA (1 $\mu$s). A partial estimate of the $X_{\rm max}$ resolution is evaluated by considering the effects of the finite PE statistics when reconstructing the shower profile. The results, shown in Fig. 8, give an $X_{\rm max}$ resolution of $20~{}{\rm g/cm^{2}}$ at 30 EeV. The $X_{\rm max}$ resolution is further degraded by effects of angular resolution and acceptance. We will consider all these effects in Sec. IV to estimate the total $X_{\rm max}$ resolution.

POEMMA is expected to operate also in tilt mode when observing the Cherenkov signal from tau neutrinos and also to exploit different combinations of stereoscopic vision. By tilting the instrument the EAS distance increases and therefore the energy threshold of the instrument increases as well. Moreover, it is expected that the background increases as the the column density of airglow emitting layer increases with the tilt angle. This is taken into account assuming that such increase is proportional to $\cos(\theta)^{-1}$. In Fig. 9 we exhibit the UHECR proton aperture, after taking into account event reconstruction efficiency, for stereo viewing, as well as that when the satellites are tilted by 47∘ for the condition when POEMMA is viewing the limb of the Earth in neutrino mode. The stereo results are based on the stereo POEMMA simulation, whereas the 47∘ tilted mode results are based on the ESAF simulation using monocular reconstruction of POEMMA.

III.2 Duty Cycle and Exposure

The estimation of the UHECR exposure of a space-based experiment like POEMMA requires accounting for: (i) the characteristics of the EAS development in the atmosphere as observed from space, (ii) the properties of the telescope, including its orbit and FoV, (iii) the various sources of steady background like night-glow and moonlight, (iv) the overall optical transmission properties of the atmosphere, in particular the possible presence of clouds, and (v) the effect of anthropogenic light, or other light sources such as transient luminous events (TLEs) and meteors. Topics (i) and (ii) are the principal factors determining the threshold in energy and the maximum aperture of the telescope. Topic (iii) limits the observational duty cycle of the mission. Topics (iv) and (v) affect the instantaneous aperture of the telescope. The role of each of the above listed aspects has been studied in the past to evaluate their contribution to the determination of the JEM-EUSO exposure. A detailed description of such studies was reported in Adams:2013vea .

The observational duty cycle of POEMMA is the fraction of time in which the EAS measurement is not hampered by the brightness of the atmosphere. The atmospheric brightness, which is mainly due to the night-glow and back-scattered moonlight, is variable over time. We define the observational duty cycle as the fraction of time $\eta_{0}$ in which the background intensity $I_{\rm BG}$ is lower than a given value $I_{\rm BG}^{\rm thr}$. The moonless condition is assumed to be $I_{\rm BG}$ = 500 photons m*-2* sr*-1* ns*-1* in the range $300<\lambda/{\rm nm}<500$. This produces a signal of $\sim$ 1.5 photo-electron pixel*-1* $\mu$s*-1* for POEMMA. To remain conservative, herein we adopt $I_{\rm BG}^{\rm thr}$ = 1,500 photons m*-2* sr*-1* ns*-1*. In this condition, the signal of a 100 EeV shower is still more than 5 times brighter than the background level well around the shower maximum. The back-scattered moonlight is calculated from the moon phase and its apparent position as seen from the POEMMA orbit. The zenith angle of the Sun is required to be greater than 109∘ for an orbiting altitude of 525 km. The observational duty cycle $\eta_{0}~{}(I_{\rm BG}~{}<~{}I_{\rm BG}^{\rm thr}~{})$ is of the order of $\sim$ 20%. This value is actually conservative at $E\gtrsim 100~{}{\rm EeV}$, where it is possible to also operate in higher background levels.

Another source of background is the UV emission produced by direct particles interacting in the detector, particularly with the corrector lens due to its large size and transparency. For the JEM-EUSO mission, which was designed to use two lenses, the increase of UV light due to this contribution was determined to be negligible ($\sim 1\%$). This will also be the case for POEMMA. A point worth noting at this juncture is that this estimate takes into account the UV emission in the corrector lens due to trapped electrons in the center of the South Atlantic Anomaly, where the flux of particles exceeds by orders of magnitude the average value.

In addition to the diffuse sources of background, there are transient or steady local sources, such as, lightning and TLEs, auroras or city lights. To estimate the effect of lightning and TLEs, we scale the rate of events detected by Tatiana satellite Garipov . We find this prevents observation by $\sim 4\%$. This scaling does not take into account the double counting due to the fact that the presence of lightning is very often associated to the presence of high clouds. This is explicitly done to reinforce the conservative nature of our calculation. Because of the POEMMA equatorial orbit the presence of auroras is negligible. This was evaluated for JEM-EUSO (ISS orbit) and even in the case maximum solar activity, the effect is of the level of $\sim 1\%$.

To evaluate the effect of light sources on the Earth, which are mainly anthropogenic, we use the Defense Meteorological Satellite Program (DMSP) database. To remain conservative, in the study for JEM-EUSO it was assumed that no measurement of EASs is performed if, in a region viewed by a PDM, there is at least one pixel which detects a light intensity which exceeds the average level by a factor of 3 or more. The average level of intensity essentially corresponds to the typical condition on oceans. With this assumption, the inefficiency of the instantaneous aperture is about $7\%$. For POEMMA, the FoV of a PDM is 4 times larger, but the trigger logic works at elementary cell (EC) level, which is 1/9 of a PDM. Therefore, by assuming the same rule at EC level, the above results for JEM-EUSO remains anyway conservative also for POEMMA.

In order to quantify the reduction of the effective instantaneous aperture of the telescope due to the presence of clouds, a study on the distribution of clouds as a function of top altitude $H_{\rm C}$, optical depth $\tau_{\rm C}$ and geographical location were performed using several meteorological data sets and reported in cloudy . Showers were simulated using ESAF according to the matrix of cloud occurrence determining the trigger efficiency in the different conditions, and obtaining the corresponding aperture to estimate the ratio $\kappa_{\rm C}$ between the aperture when the role of clouds is included, compared to purely clear atmosphere. Selecting the cases of clouds with $\tau_{\rm C}<1$, or shower maximum above the cloud-top altitude (i.e. $H_{\max}>H_{\rm C}$) leads to $\kappa_{\rm C}\sim~{}72\%$ almost independently of energy cloudy ; Adams:2013vea .

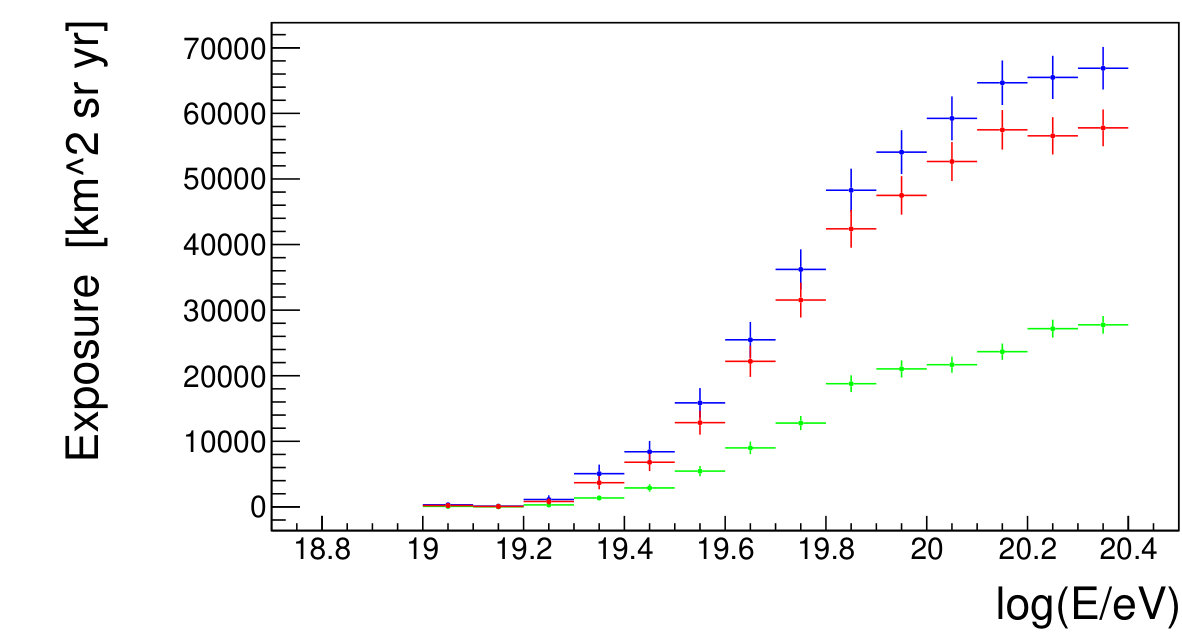

All of the above factors give an overall conversion factor from geometrical aperture to exposure of about 13% for POEMMA at 525 km. Based on the UHECR stereo and tilted monocular UHECR apertures, we calculate the POEMMA 5 year exposures, for both stereo (nadir) and mono (limb) configurations, compared to the Auger and TA exposures reported at the 2017 ICRC conference. Both the stereo and monocular reconstruction studies show an 80% reconstruction efficiency and a 13% duty cycle based on adapting JEM-EUSO studies assumed for POEMMA observations. In Fig. 10 we show the 5 year POEMMA exposures in relation to Auger and TA.

Apart from the effect of the clouds, the sky coverage of the POEMMA exposure is determined by its orbit and the observable dark night time for a given direction in the Celestial Sphere. The uniformity over the right ascension slightly deviates from the uniformity due to the seasonal variation of the time that POEMMA stays in the Earth’s umbra per orbital period which is longest around equinoxes. An effect of the Earth’s orbit eccentricity appears as the excess in the observation time for the winter time in Southern Hemisphere when the Earth revolves at the slowest velocity.

The differential distribution of the exposure is primarily expressed as a function of the declination. As can be seen in Fig. 6, at lower energies the trigger efficiency increases with zenith angles. On the other hand, the effective area of the instantaneous apertures is proportional to the cosine of the zenith angle. These effects compose the exposures in terms of the observable time and geometrical apertures. The zenith angle dependence is mostly irrelevant for the highest energies.

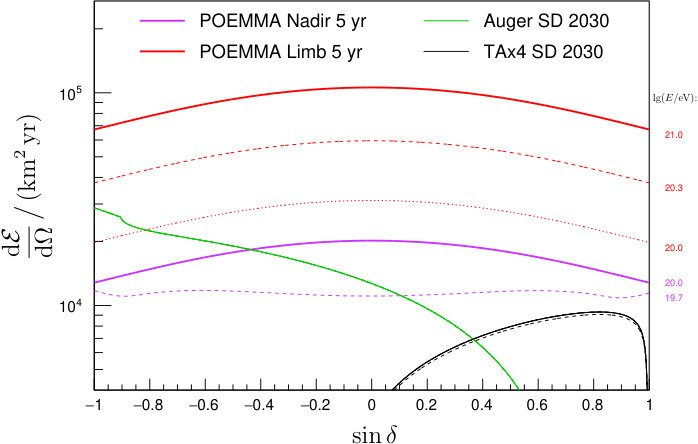

The differential exposure as a function of declination for five years of the POEMMA operations in each of the two different modes is shown in Fig. 11. Purple curves denote the stereo (near-nadir) mode at $50$ EeV (dashed) and $100$ EeV (solid). Red curves denote the limb-viewing mode at $100$ EeV (dashed) and $200$ EeV (dash), and $1$ ZeV (solid). The exposures of the surface detectors assuming being in operation until 2030 are shown as green and black curves for Auger and TA including the TA$\times$4 upgrade, respectively. In this figure, the absolute exposures in units of km2 sr yr have been normalized considering the overall effect of the clouds as studied for JEM-EUSO in Refs. cloudy ; Adams:2013vea . Compared with geographically settled surface detectors, the major advantage of POEMMA is the full sky coverage over the whole Celestial Sphere with the single experiment that may reduce the systematic uncertainties, e.g., in energy scale, for comparing the different part of the sky.

In the same references, the climatology of cloud distribution and the fundamental role to the overall exposure have been studied. According to these studies, showers from the large zenith angles develop at higher altitudes and thus, seen from POEMMA, they are more impervious to the presence of clouds. The effects on the exposure map depend upon the event selection cuts applied on the analysis of air showers with respect to the cloud characteristics such as cloud-top height. For the different conditions compared in Fig. 11, different cuts should be optimized according to the science purpose.

In Fig. 12 we show celestial sky coverage maps, where a $\sim 50\%$ variation is evident in the uniformity of the UHECR sky exposure assuming an isotropic flux. Thus, POEMMA is sensitive to UHECR sources in both the northern and southern hemisphere. POEMMA will measure the UHECR source distribution on the full celestial sphere under a single experimental framework with a well-defined UHECR acceptance, mitigating the issues of cross-comparisons inherent to viewing different portions of the sky with multiple experiments. The response shown in each panel of Fig. 12 was calculated assuming that the POEMMA telescopes point in a near nadir viewing configuration used in stereo mode. The ability of the space-based POEMMA telescopes to tilt towards the northern or southern hemisphere allows for the sky exposure to enhance for a specific hemisphere. Likewise, it is easy for POEMMA to change its pointing direction for a sequence of orbital periods to further tailor the UHECR sky coverage.

IV UHECR Performance

POEMMA is designed to obtain definitive measurements of the UHECR spectrum, nuclear composition, and source location for $E\gtrsim 20~{}{\rm EeV}$. UHECR events are well reconstructed by POEMMA when the two orbiting satellites stereoscopically record the waxing and waning of the EAS fluorescence signal. The video recordings with $1~{}\mu{\rm s}$ snapshots from each POEMMA satellite define a plane (the observer-EAS plane). The intersection of the two planes from both satellites determines a line in 3-dimensional space corresponding to the EAS trajectory. For opening angles between these two planes larger than $\sim 5^{\circ}$ , the reconstruction of the EAS trajectory is robust given POEMMA’s excellent pixel angular resolution, yielding superb UHECR angular resolution.

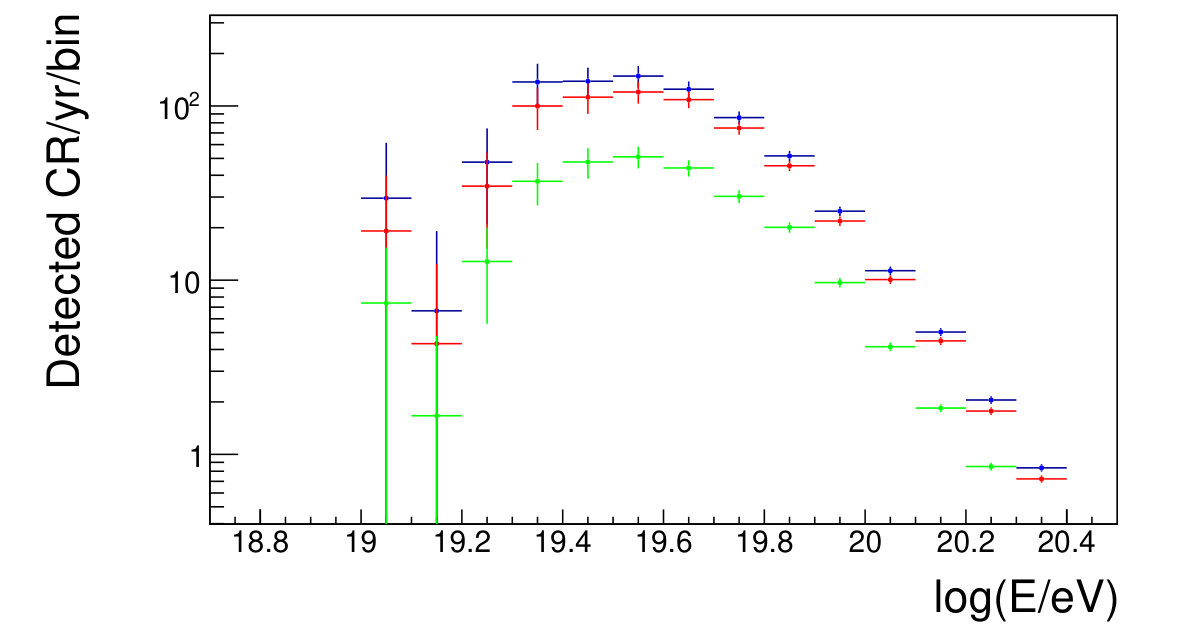

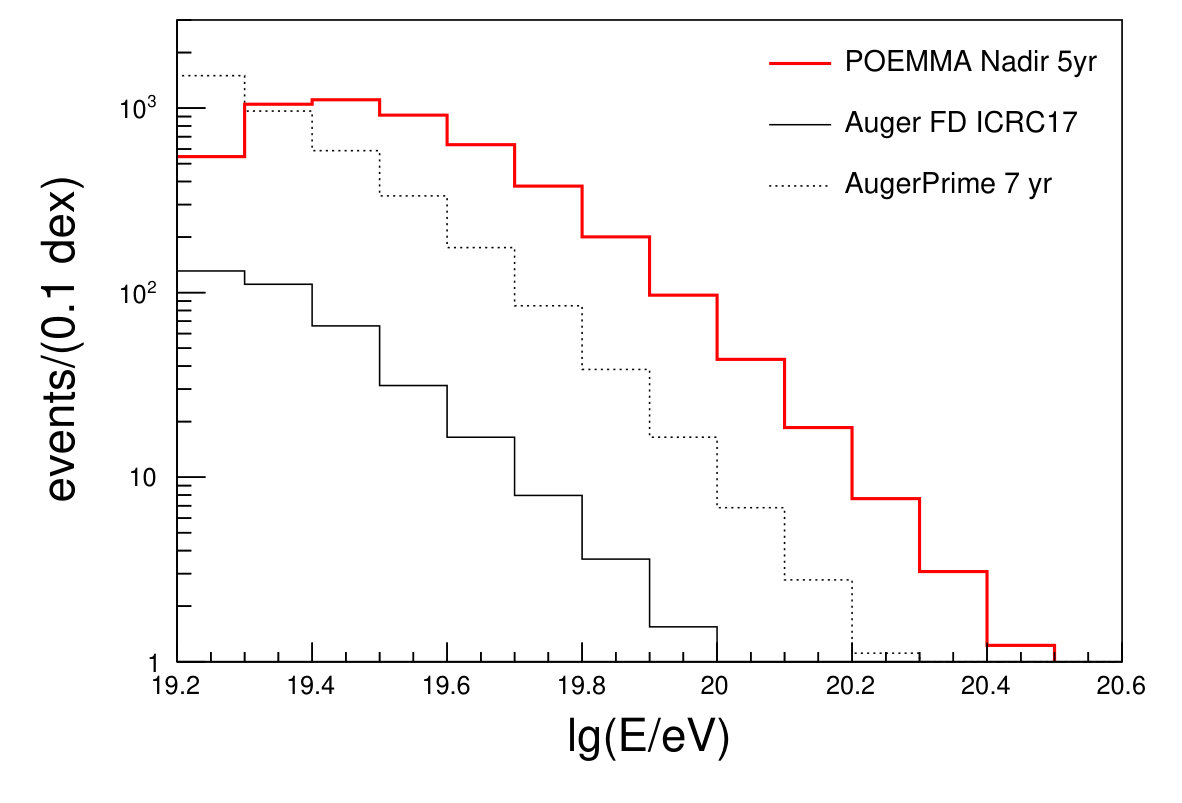

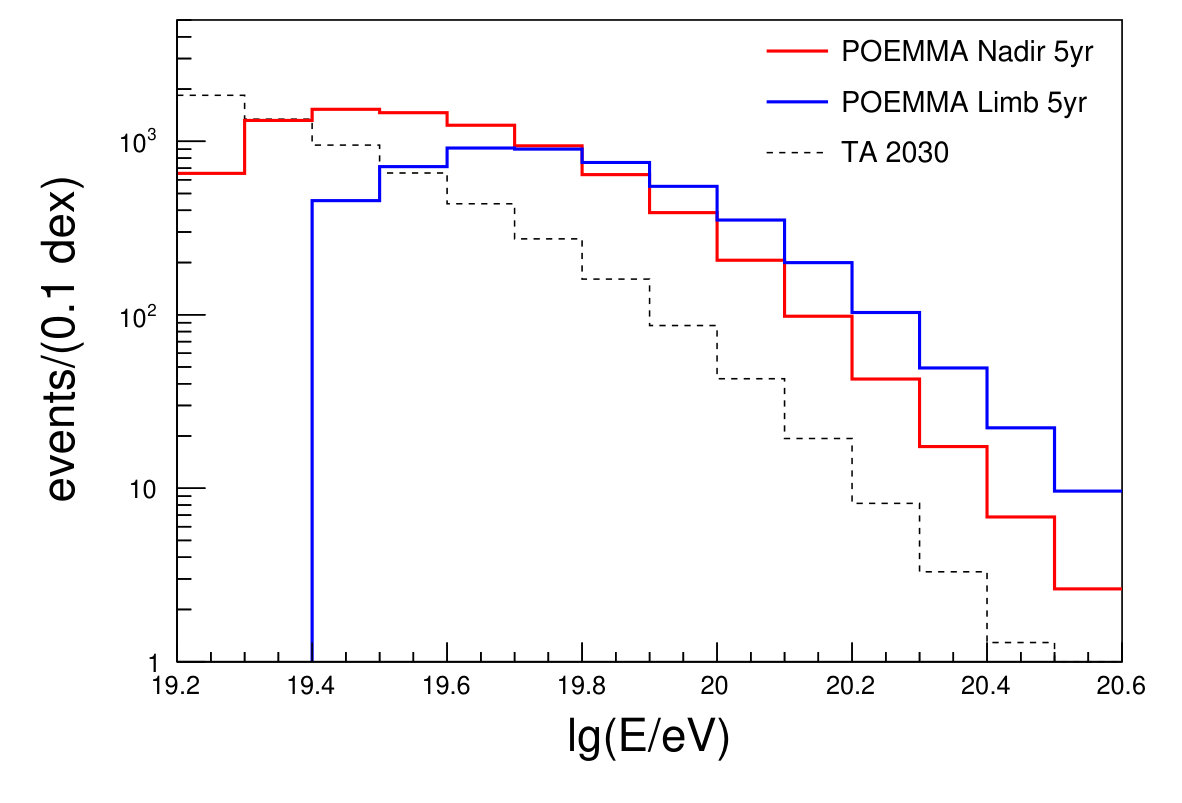

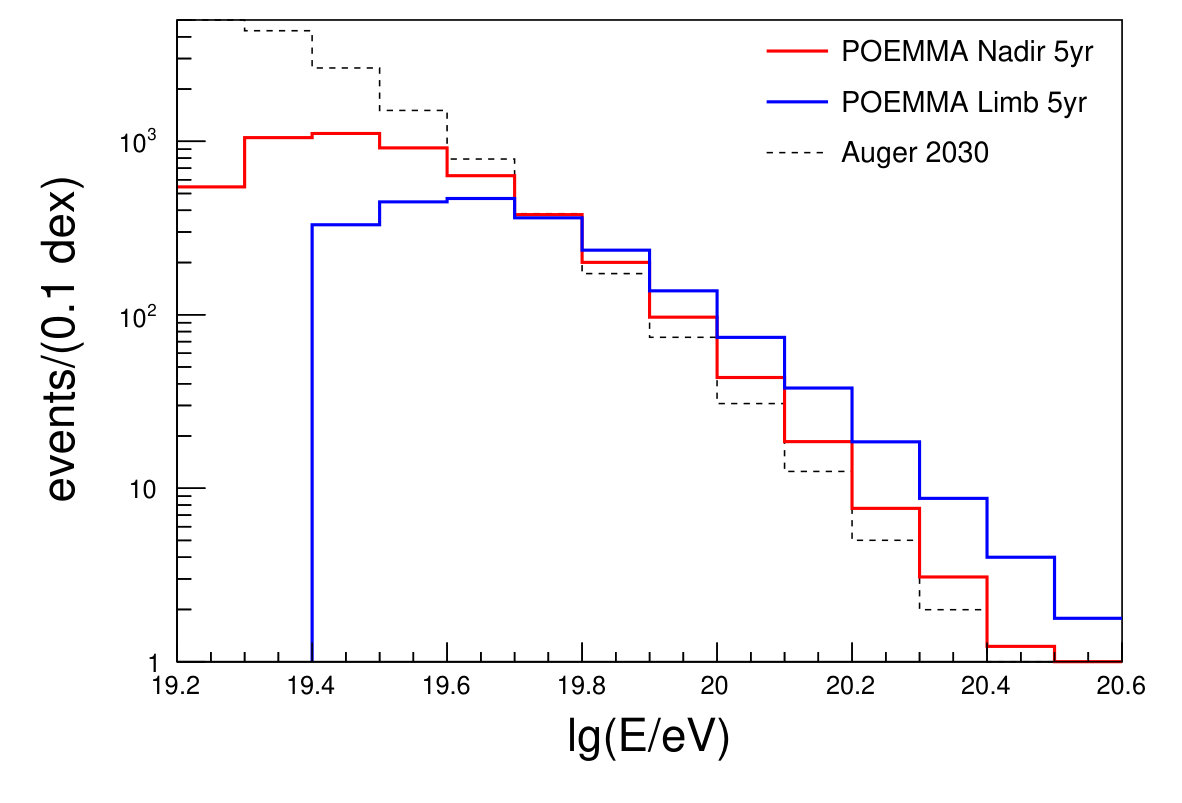

The expected number of events detected during five years in stereo and limb-viewing operational mode is shown in Figs. 13, 14, and 15. To estimate the event rate in these figures we assumed that the UHE flux follows the fit of the Auger combined spectrum given in Aab:2017njo (Figs. 13 and 14) and the one from TA given in Matthews:2017waf (Fig. 15). The comparison of the events in stereo mode with the current statistics of the Auger FD shows that POEMMA will be a giant leap forward regarding the detection of cosmic rays with the fluorescence technique. POEMMA will increase the number of UHE cosmic-ray events with direct observation of $X_{\text{max}}$ and energy from 62 (last integral bin of the Auger FD analysis above $30$ EeV) to more than 2000.333Indirect estimates of $X_{\text{max}}$ with the surface detector of Auger were reported in Aab:2017cgk with 517 events above $10^{19.5}$ eV and a resolution of 45 g/cm2. The AugerPrime detector could detect about 700 events above this energy within 7 years of running time and a resolution of about 30 g/cm2 Aab:2016vlz .

The integral number of events will be a factor of 1.5 larger than the one used by Auger to study correlations with starburst galaxies above 40 EeV and and 2.1 larger than the one for $\gamma$AGN above 60 EeV Aab:2018chp . Moreover, contrary to the Auger data set, the POEMMA exposure covers the full sky and each event detected by POEMMA in stereo mode will have a measurement of the shower maximum and thus allow to study the correlations for different cosmic-ray rigidities.

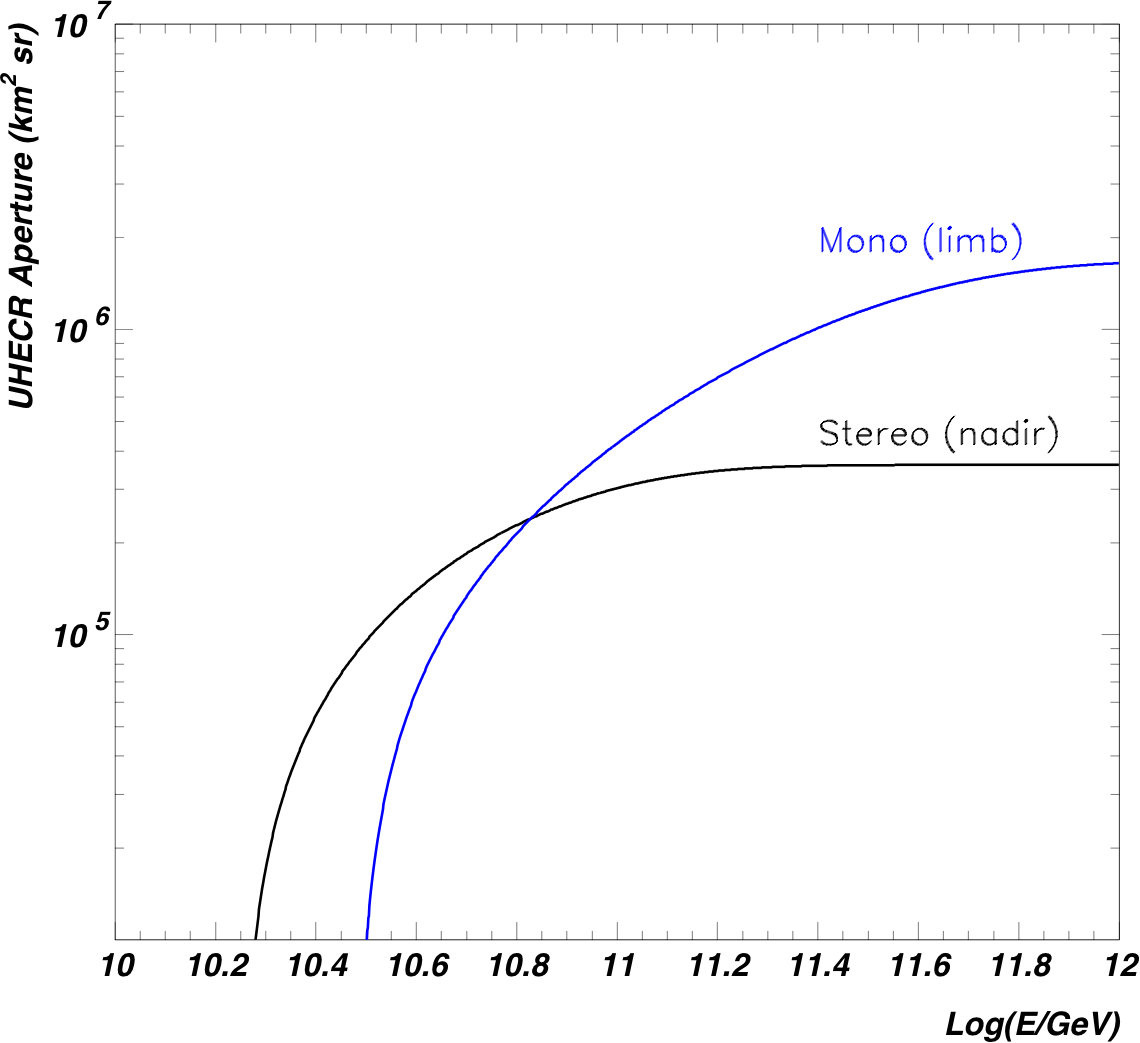

The UHECR aperture in limb-viewing mode starts to outperform the stereo operation above $60$ EeV. However, due to the steeply falling cosmic-ray flux above the suppression, the expected number of events beyond the crossover is of the same order of magnitude (75 for stereo and 146 for limb-viewing assuming the Auger spectrum). Given that stereo events have a better energy resolution and provide information about the shower maximum, we foresee that most of the UHECR data taking time will be spent in stereo (near-nadir) mode. The collected exposures at 40 at 100 EeV after 5 years of operation are shown in Fig. 16.

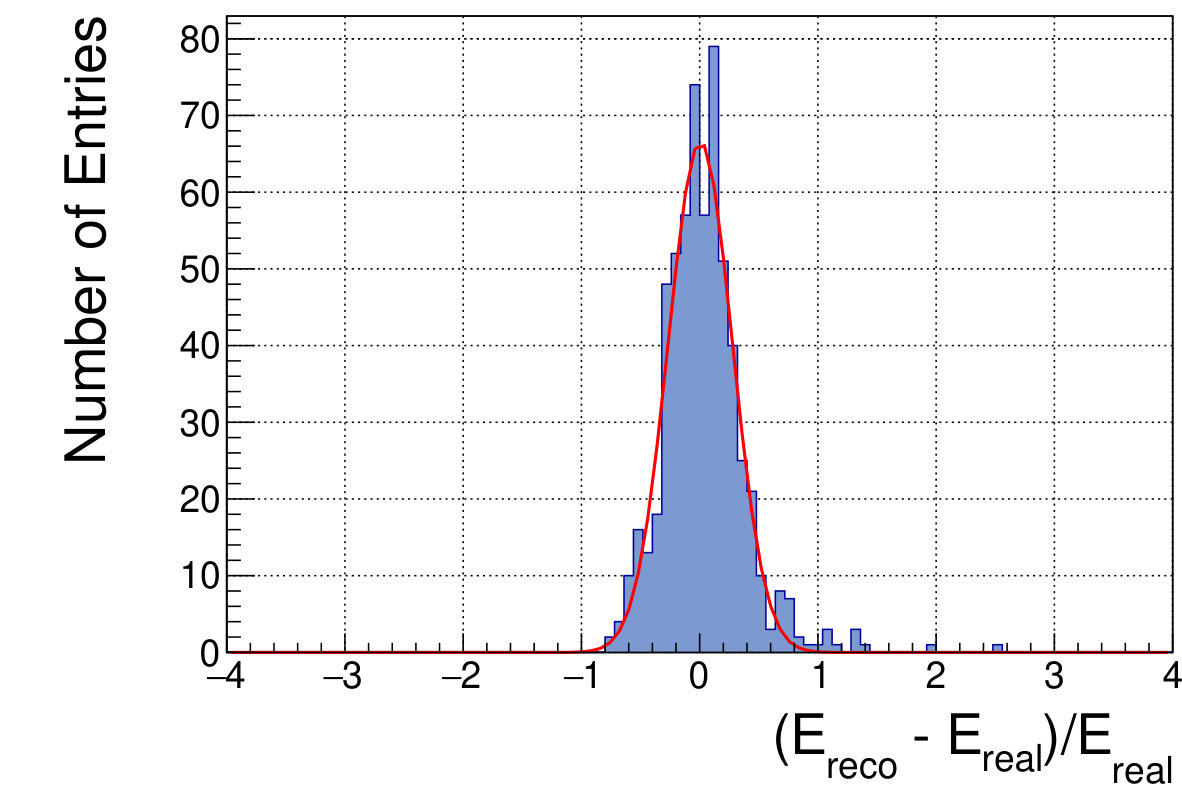

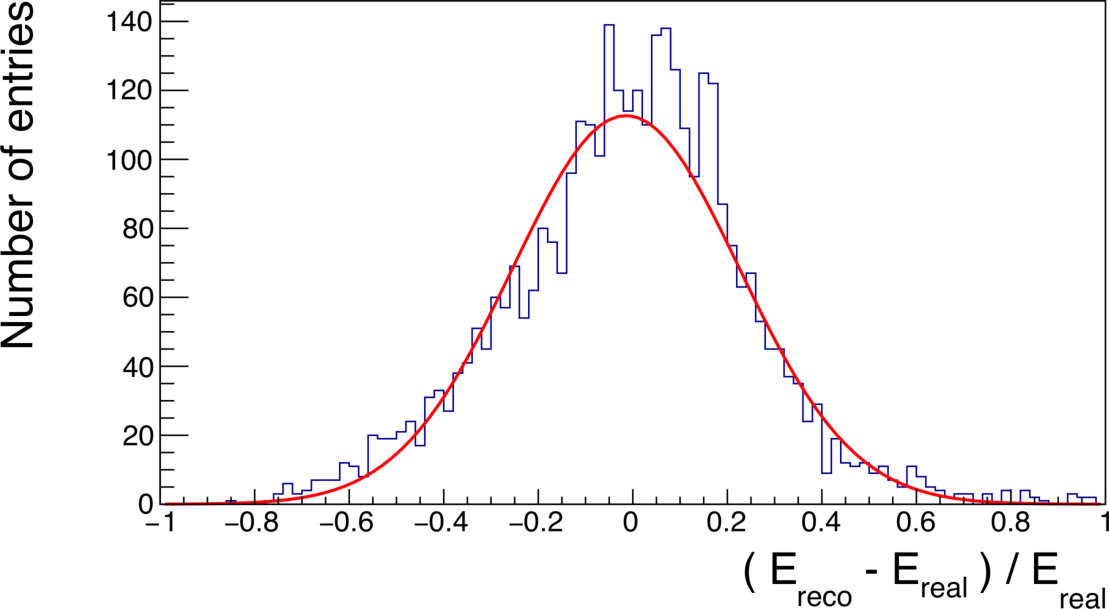

An estimate of the $X_{\text{max}}$ resolution of POEMMA in stereo mode is shown in Fig. 17. The contribution from the PE statistics was studied with a full simulation in Sec. III and amounts to about 20 g/cm2 at $30~{}{\rm EeV}$ for one photometer and decreases approximately with $\sqrt{E}$ (see Fig. 8). The uncertainty in the measured zenith angle of the shower affects the calculation of the slant depth of the shower maximum. A preliminary analytic propagation of this uncertainty to the resolution of $X_{\text{max}}$ is indicated as gray lines in Fig. 17 averaged over the expected arrival directions of triggered events. Since inclined events are more affected than vertical ones, the overall resolution depends on the maximum zenith angle of the data sample (a possible correlation between the zenith angle and angular resolution has not been taken into account yet). The total $X_{\text{max}}$ resolution of POEMMA including both, angular resolution and PE statistics, is about 31 g/cm2 at $30$ EeV for events below 60∘ (72% of the data sample) and 39 g/cm2 below 70∘ (91% of the data sample). At $100$ EeV the resolution is 17 and 21 g/cm2 respectively.

V Science Reach

The typical observables for comparing data to model predictions are the energy spectrum, the mass spectrum, and the distribution of arrival directions of UHECR reaching the Earth. From these observables, the last one provides the most unambiguous conclusions about the locations of the sources. In this section, we determine the sensitivity of POEMMA to measure the first two observables and discuss the discovery reach of anisotropy searches using the third observable. We also investigate supplementary science capabilities of POEMMA. We first determine the sensitivity to probe particle interactions at extreme energies and after that we explore the potential for observing extreme energy photons produce in the decay of super-heavy dark matter particles clustered in the halo of the Milky Way. We then present the UHE neutrino sensitivity based on stereo fluorescence measurements of neutrinos interacting deep in the atmosphere.

V.1 Energy Spectrum

The all-particle spectrum contains information about the source distribution, emission properties, nuclear composition, and propagation effects. Indeed, there is a fair amount of work devoted to deducing such fundamental information from details of spectral features. The standard approach involves establishing some hypothesis about source properties and, using either Monte Carlo simulations or analytic methods, inferring the mean spectrum one expects to observe here on Earth. Since at present we have a limited understanding of source distributions and properties, it is common practice to assume spatially homogeneous and isotropic UHECR emissions, and compute a mean spectrum based on this assumption. Obviously, in the real world this assumption cannot be correct, especially at the highest energies where GZK interactions severely limits the number of sources visible to us at Earth. However, one can quantify the possible deviation from the mean prediction based on the understanding we do have on the source density and the possible distance to the closest source populations. Such a next statistical moment beyond the mean prediction is referred to as the ensemble fluctuation Ahlers:2012az . It depends on, and consequently provides information on, the distribution of discrete local sources, source nuclear composition, and energy losses during propagation. The ensemble fluctuation in the energy spectrum is one manifestation of the cosmic variance, which should also come out directly via eventual identification of nearby source populations.

POEMMA will have full-sky coverage for UHECRs due to the nature of the 525 km, $28.5^{\circ}$ inclination orbit and large $45^{\circ}$ full FoV for each telescope. Therefore, the satellites will observe the source distribution on the full celestial sphere under a single experimental framework with a well-defined acceptance. This implies that POEMMA will be sensitive to ensemble fluctuations in the energy spectrum for two “realizations of the universe.” For example, it will be able to detect spectral variations in the northern and southern skies, or else distinct ensemble fluctuations associated with the spatial anisotropy of the dipolar asymmetry observed by Auger. In the left panel of Fig. 18 we show the UHECR spectrum as observed by Auger and TA together with the expected accuracy reached with POEMMA in stereo and limb-viewing mode after 5 yr of data collection, assuming normalization to each of the experiments. As can be seen, the high-statistics sample with high-resolution to be collected by POEMMA will provide a final verdict on whether the Auger and TA discrepancy in the measurement of the spectrum at the highest energies is due to physics, statistics, or systematic uncertainties in the energy calibration.

The abrupt softening of the spectrum due to energy losses via photo-pion production and/or photo-disintegration in the CMB (a.k.a. GZK cutoff) is the only unequivocal prediction ever made concerning the spectral shape Greisen:1966jv ; Zatsepin:1966jv . The discovery of a suppression at the end of the spectrum was first reported by HiRes Abbasi:2007sv and Auger Abraham:2008ru , and later confirmed by TA AbuZayyad:2012ru ; by now the significance in Auger data is well in excess of $20\sigma$ compared to a continuous power law extrapolation beyond the ankle feature Abraham:2010mj . Although the existence of the flux suppression has been firmly established, an alternative interpretation for the suppression region was put forward in Allard:2008gj , wherein it is postulated that the end-of-steam for cosmic accelerators is coincidentally near the putative GZK cutoff. Note that this alternative interpretation predicts an increasingly heavier composition from the ankle towards the suppression region, with a mix of protons and heavies undergoing acceleration to the same rigidity, so that their maximum energy scales as $E_{Z}^{\rm max}\sim ZE_{p}^{\rm max}$, where $E_{p}^{\rm max}$ is the maximum proton energy. Yet another model to explain the suppression postulates that the maximum energy is constrained by GZK interactions at the source Anchordoqui:2019mfb . This model also yields a change towards a heavier composition at higher energies, but predicts a different scaling for the maximum energy because while the acceleration capability of the sources grows linearly in $Z$, the energy loss per distance traveled decreases with increasing $A$. A general feature of the GZK cutoff is that of a slight recovery of the spectrum if the source emission spectra extend to energies far beyond 100 EeV. This is in sharp contrast to models that postulate that the suppression is primarily caused by the limiting acceleration energy at the sources, which makes the observe spectrum steeper than that at lower energy, developing a sharp cutoff.

In the right panel of Fig. 18 we show the sensitivity of POEMMA to observe the GZK recovery. The sensitivity is given by the 90% confidence level upper limit for the case of zero observation with zero background Feldman:1997qc . Therefore, these sensitivities are for the ideal case of perfect energy resolution and the actual sensitivity will be somewhat worse due to the non-zero probability of a net migration of events from lower energies towards the low-flux UHE energy range. It should be noted that if a post-GZK recovery is observed in stereo mode, the POEMMA instruments could tilt to increase the sensitivity for the highest energy UHECRs.

The ideal POEMMA sensitivity is compared to generic model predictions of the spectral falloff Muzio:2019leu built on the UFA15 Unger:2015laa model that explains the shape of the spectrum and its complex composition evolution via photo-disintegration of accelerated nuclei in the photon field surrounding the source, but also allowing for a subdominant purely protonic component which is constrained by UHECR composition measurements Aab:2014kda , limits on astrophysical neutrinos (IceCube Aartsen:2016ngq and ANITA Gorham:2019guw ) and gamma-ray observations (Fermi-LAT TheFermi-LAT:2015ykq ).

V.2 Nuclear Composition

The measurement of the composition of UHECRs is one of the key ingredients to constrain their origin. The event-by-event measurement of energy and $X_{\rm max}$ with fluorescence telescopes is well suited to perform composition studies Kampert:2012mx . As can be seen in Fig. 19, the high statistics and good energy and $X_{\rm max}$ resolution of POEMMA will allow for high-precision composition studies at hitherto unexplored energies, while at the same time providing an overlap with existing compositions measurements from Auger at low energies.

EASs initiated by photons have a larger $X_{\rm max}$ than showers initiated by nuclei with the same energy. This is because the radiation length is more than two orders of magnitude shorter than the mean free path for photo-nuclear interaction, and therefore this leads to a reduced transfer of energy to the hadronic component of the EAS Risse:2007sd . The development of EAS initiated by a photon is hence delayed (compared to a baryon-induced shower) by the typically small multiplicity of electromagnetic interactions. On the other hand, for showers of a given total energy $E$, heavy nuclei have smaller $X_{\rm max}$ than light nuclei because they have a larger cross section and interact sooner, and because the energy is already shared among $A$ nucleons, so the shower develops more quickly. More concretely, $\langle X_{\rm max}\rangle$ scales approximately as $\ln(E/A)$ Linsley:1978bm ; Linsley:1981gh . In addition, the standard deviation $\sigma(X_{\rm max})$ is smaller for heavier nuclei because the sub-shower fluctuations average out. By contrast, protons or He can have a deep or shallow first interaction, and the shower-to-shower fluctuations in subsequent development are larger. Therefore, only light cosmic rays have large $X_{\rm max}$, permitting a fraction of events to be unambiguously identified as light nuclei. The high event statistics with good $X_{\rm max}$ resolution would allow POEMMA not only isolate baryons from photon and neutrino primaries, but also to distinguish between protons, light nuclei, medium mass nuclei, and heavies Krizmanic:2013tea .

In addition, if a hot spot of a nearby source is identified, protons can be further discriminated from CNO and heavies by looking at the distribution of arrival directions. This is because while sources of UHECR protons exhibit anisotropy patterns that become denser and compressed with rising energy, nucleus-emitting-sources imprint layers on the sky that become more distant from the source position with rising energy Anchordoqui:2017abg . The peculiar shape of the hot spots from nucleus-accelerators is steered by the competition between energy loss during propagation and deflection on the Galactic magnetic field: for a nucleus of charge $Ze$ and baryon number $A$, the bending of the cosmic ray decreases as $Z/E$ with rising energy, while the energy loss per distance traveled decreases with increasing $A$. The potential for nucleus-proton discrimination is shown schematically in Fig. 20, and can be understood as follows. If the source emits only protons, the size of the corresponding “spot” should decrease as $1/E$ with rising energy due to reduced deflection in magnetic fields. In contrast, if the source produce a mixed composition, a different quality emerges. Lighter compositions tend to shorter mean-free-paths at higher energies, so as their energy increases they begin to disappear from the sample leaving behind only the lower energy component. The latter suffers a relatively smaller magnetic deflection compared to heavier nuclei at all energies. One thus ends up with a hot spot in which the energies of the species observed closer to the source have a lower rather than higher energy, as they would in the case that the source emitted only protons.

Despite the fact the Galactic Magnetic field is highly anisotropic, to anticipate the sensitivity of POEMMA herein we assume that the deflection of particles is isotropic around the line of sight, and given by (2). We further assume that the fixed parameters of the statistical analysis should match the anisotropy clues provided by Auger data. Hence, we adopt a search angular window $\Delta=13^{\circ}$, a source distance $\sim 4\,{\rm Mpc}$, a threshold energy $E_{0}=39~{}{\rm EeV}$, and source spectrum $\propto E^{-5.03}$ that consistent with both the energy spectrum above $40\,{\rm EeV}$ reported by the Auger Collaboration Aab:2017njo and the source spectra of nearby starburst galaxies as estimated in Anjos:2018mgr . With this simplified picture in mind, we now assume that UHECRs are normally distributed around the source direction, which defines the center of the hot spot. The deflection $\delta$, which characterizes the angle between the arrival direction and the line of sight, is a random variable distributed according to a one sided von Mises distribution, bounded by a window size $\Delta$ with zero mean and a dispersion parameter $\kappa=1/\theta^{2}(E,Z)$. The probability density for an UHECR to have energy in $[E,E+dE]$ and deflection in $[\delta,\delta+d\delta]$ is found to be

[TABLE]

where $\mathcal{A}$ is a normalization constant and $E_{A}$ is the cutoff energy in the observed spectrum of the various species. Following Anjos:2018mgr we take $E_{4}=60~{}{\rm EeV}$, $E_{14}=80~{}{\rm EeV}$, $E_{28}=130~{}{\rm EeV}$, and $E_{56}=210~{}{\rm EeV}$, which accounts for energy losses during propagation. Before proceeding, we pause to note that in the actual data analysis one should also consider the variations of the magnetic field for UHECRs arriving from different points of the sky. A full consideration of the anisotropic magnetic deflections would require an adjustment of the distribution in (3) to incorporate an azimuthal variable around the line of sight, and should also take into account the source direction in the sky. Notwithstanding, our assumption of isotropy around the line of sight provides a demonstration of the search procedure while keeping the complexity at a reasonable level at this stage.

To carry out the statistical analysis we the adopt the Kolmogorov-Smirnov test. The power of a statistical test is the probability that the null hypothesis is rejected if it is actually false. The probability of rejecting the null hypothesis while it is true, depends on the significance level of the test $\alpha$. For a chosen null hypothesis ${\cal H}_{0}$ and significance level $\alpha$, there is a critical value for the test statistic, $t_{c}$, above which there is a fraction $\alpha$ of the data simulated following ${\cal H}_{0}$. For a given alternative hypothesis ${\cal H}_{k}$, the fraction $\beta_{k}$ of the data with test statistic $t<t_{c}$ is the probability of not rejecting the null hypothesis while it is false. All in all, the power of the test for a given ${\cal H}_{k}$ is $\mathcal{P}_{k}=1-\beta_{k}$.

We simulate datasets $\mathcal{D}_{x,N}$ following the distributions in (3), where $x\in\{p,{{}^{4}{\rm He}},{{}^{14}{\rm N}},{{}^{56}{\rm Fe}}\}$ and $N=\dim\mathcal{D}_{x,N}$ is the number of data points in the hot spot. For each value of $N$, which roughly corresponds to a given livetime of the POEMMA mission, we consider as null hypothesis a pure proton composition, ${\cal H}_{\mathrm{p},N}$, and the different nuclei as alternative hypotheses ${\cal H}_{\mathrm{x},N}$. To estimate the performance of POEMMA we take an event rate above $E_{0}$ of $\Gamma\sim 280~{}{\rm yr}^{-1}$. A $13^{\circ}$ angular radius solid angle covers a fraction $f_{\rm sky}\sim 0.013$ of the sky. Within a hot spot, one expects both background and source contributions, with a ratio $f_{\rm events}=n_{\rm ev}/n_{\rm bg}$. With this, the required livetime of the experiment to measure a hot spot of $N$ events can be roughly estimated to be

[TABLE]

For $f_{\rm events}\sim 3,$ as observed in Aab:2017njo from the direction of the nearby radiogalaxy Centaurus A, $T\sim 0.09N\,{\rm yr}$. The projected sensitivity of POEMMA is shown in Fig. 21. For hot spots of 20 or more events, the discovery power (with $\alpha=0.05$) is almost one for nuclei other than helium. Therefore, we conclude that if the hot spot is composed of nuclei heavier than nitrogen, in two years of operation POEMMA will be able to exclude a pure-proton origin at the 95% CL.

V.3 Anisotropy Searches

V.3.1 Large-scale Anisotropy Searches Using Spherical Harmonics

The most direct way to determine the location of the sources is to search for anisotropy in the distribution of arrival directions. The distribution of arrival directions, like any field on the unit sphere, can be conveniently decomposed in spherical harmonics Sommers:2000us . Specifically, we can decompose the angular distribution of events $\Phi$ in some direction $\hat{n}$ by separating the dominant monopole contribution from the anisotropic one, $\Delta(\hat{n})$, according to

[TABLE]

where $W(\hat{n})$ is the relative coverage of the experiment varying from 0 to 1, $f_{1}=\int d\hat{n}\ W(\hat{n})/(4\pi)$ is the fraction of the sky effectively covered by POEMMA, and $N$ the total number of observed UHECRs Aab:2014ila ; Aab:2016ban . Along these lines, the multipolar expansion of $\Delta(\hat{n})$ into the spherical harmonics basis $Y_{\ell m}(\hat{n})$ is given by

[TABLE]

where the $a_{\ell m}$ coefficients encode any anisotropy signal. An unambiguous measurement of the full set of spherical harmonic coefficients requires full-sky coverage. Indeed, using the orthogonality of the spherical harmonics basis one can directly recover the multipolar moments $a_{\ell m}$. The partial-sky coverage of ground based experiments, encoded in the $W(\hat{n})$ function, prevents direct determination of the $a_{\ell m}$ coefficients. Although the exhaustive information of the distribution of arrival directions is encoded in the full set of multipole coefficients, the characterisation of any important overall property of the anisotropy becomes evident in the angular power spectrum

[TABLE]

which is a coordinate independent quantity. Any significant anisotropy of the angular distribution over scales $\simeq 1/\ell$ radians would be captured in a non-zero power in the mode $\ell$. For a 5 yr mission with $N=1400$ events, we have $\langle C(\ell)\rangle=(4\pi N)^{-1}\simeq 6\times 10^{-5}$ Anchordoqui:2003bx .

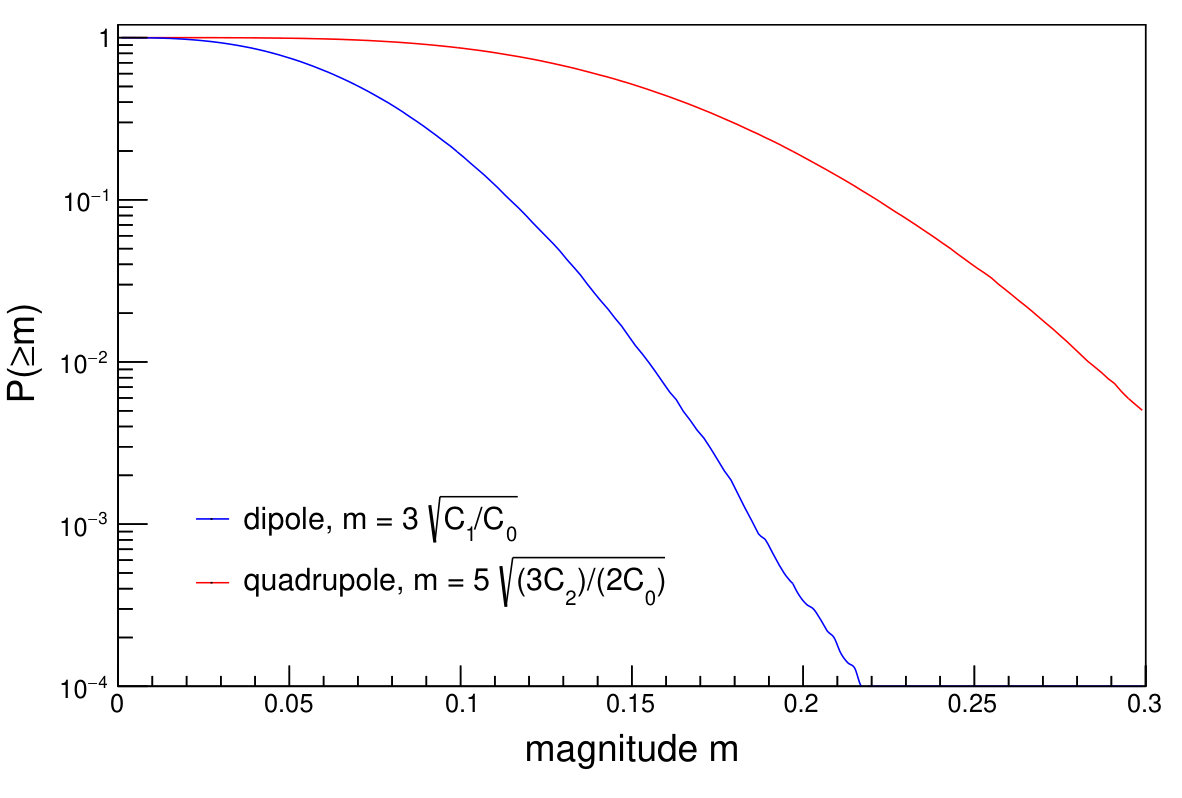

In order to assess the sensitivity of POEMMA to dipolar and quadrupolar anisotropy patterns, we consider the distribution of dipole and quadrupole moment magnitudes for an isotropic $1400$ event sky, as shown in Fig. 22. From this distribution, it is straightforward to estimate that with POEMMA, dipole (quadrupole) moments above $\sim 11\%$ ($\sim 21\%$) and $\sim 18.5\%$ ($\sim 33\%$) can be probed at the 84% and 99.9% confidence level sensitivities at 40 EeV.

V.3.2 Intermediate-scale Anisotropy Searches Through Cross-Correlations with Astrophysical Catalogs

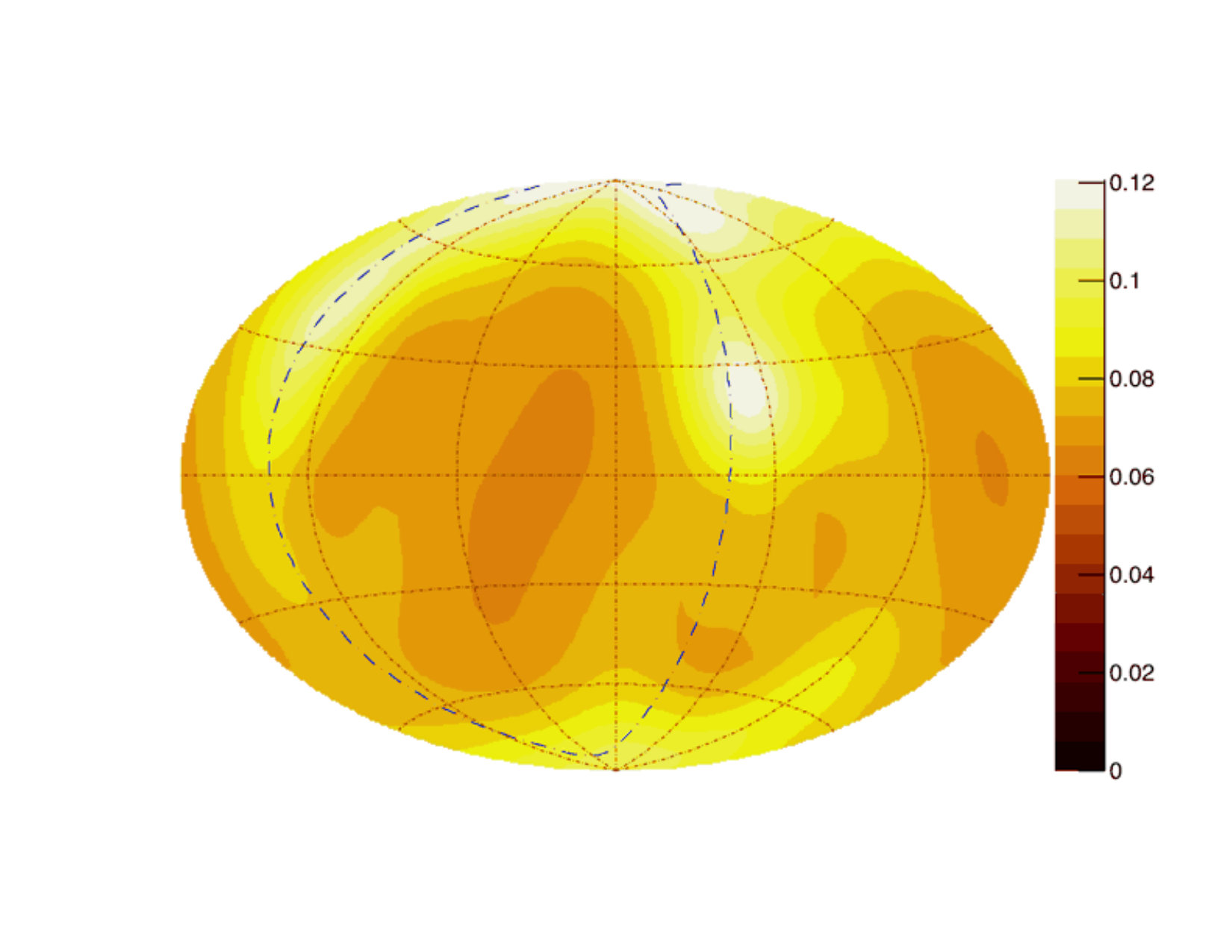

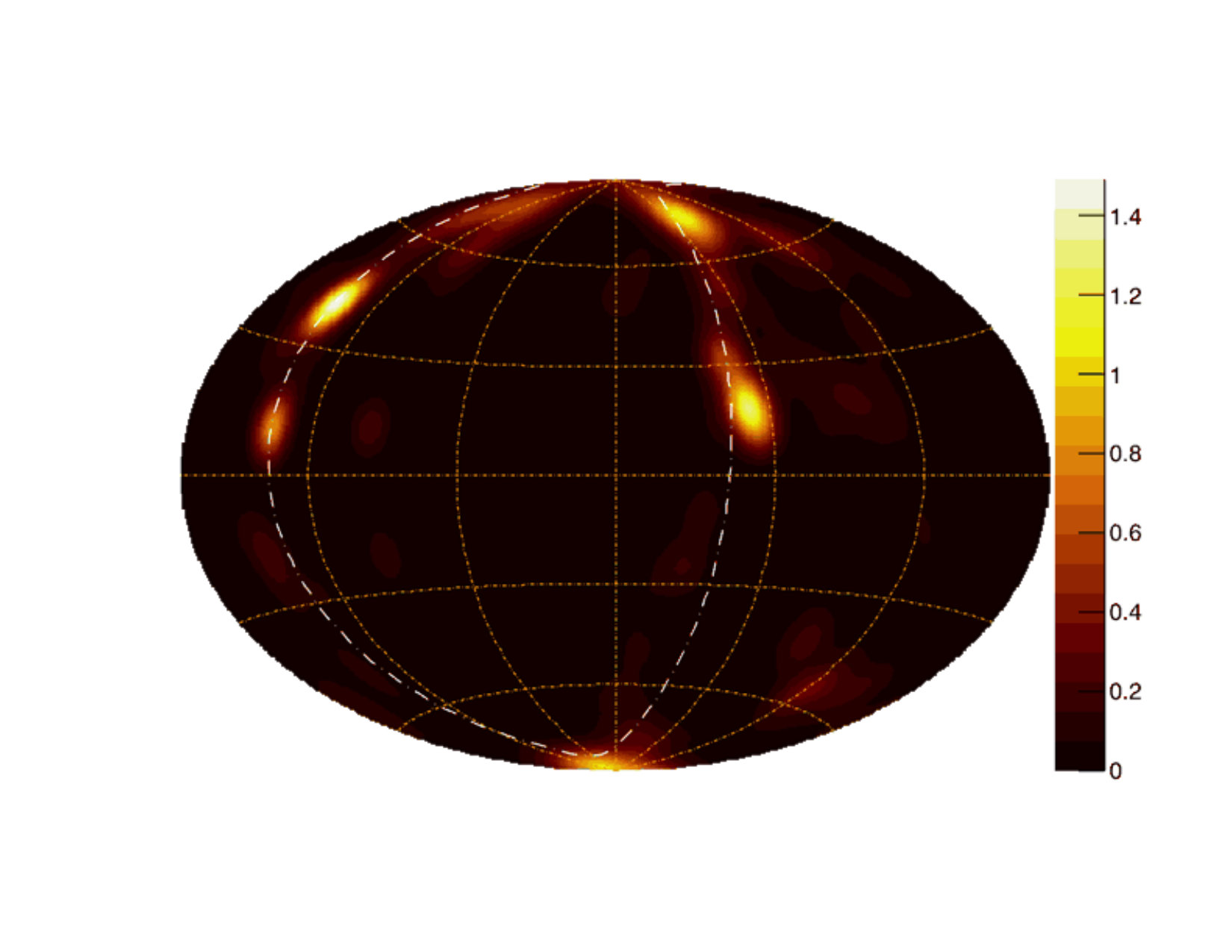

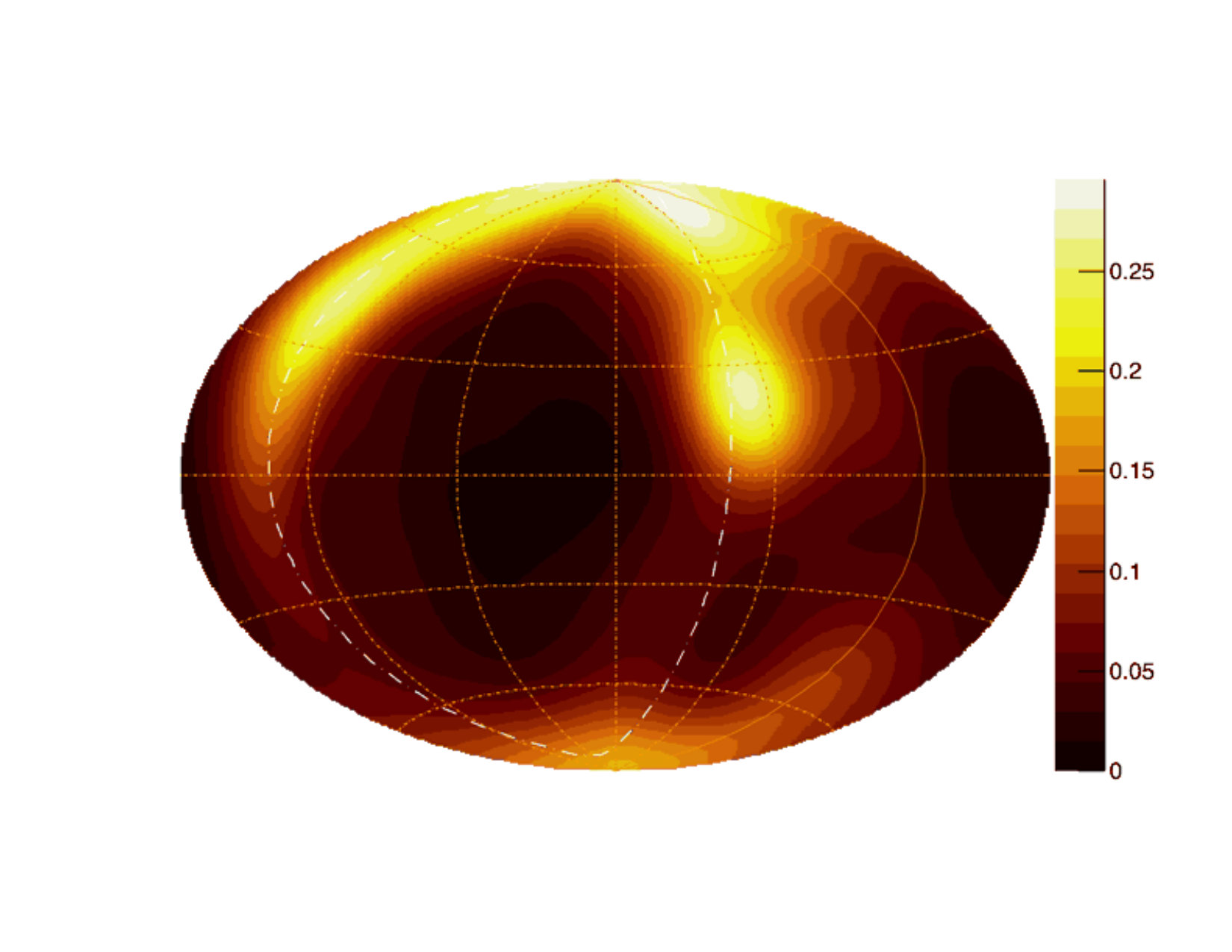

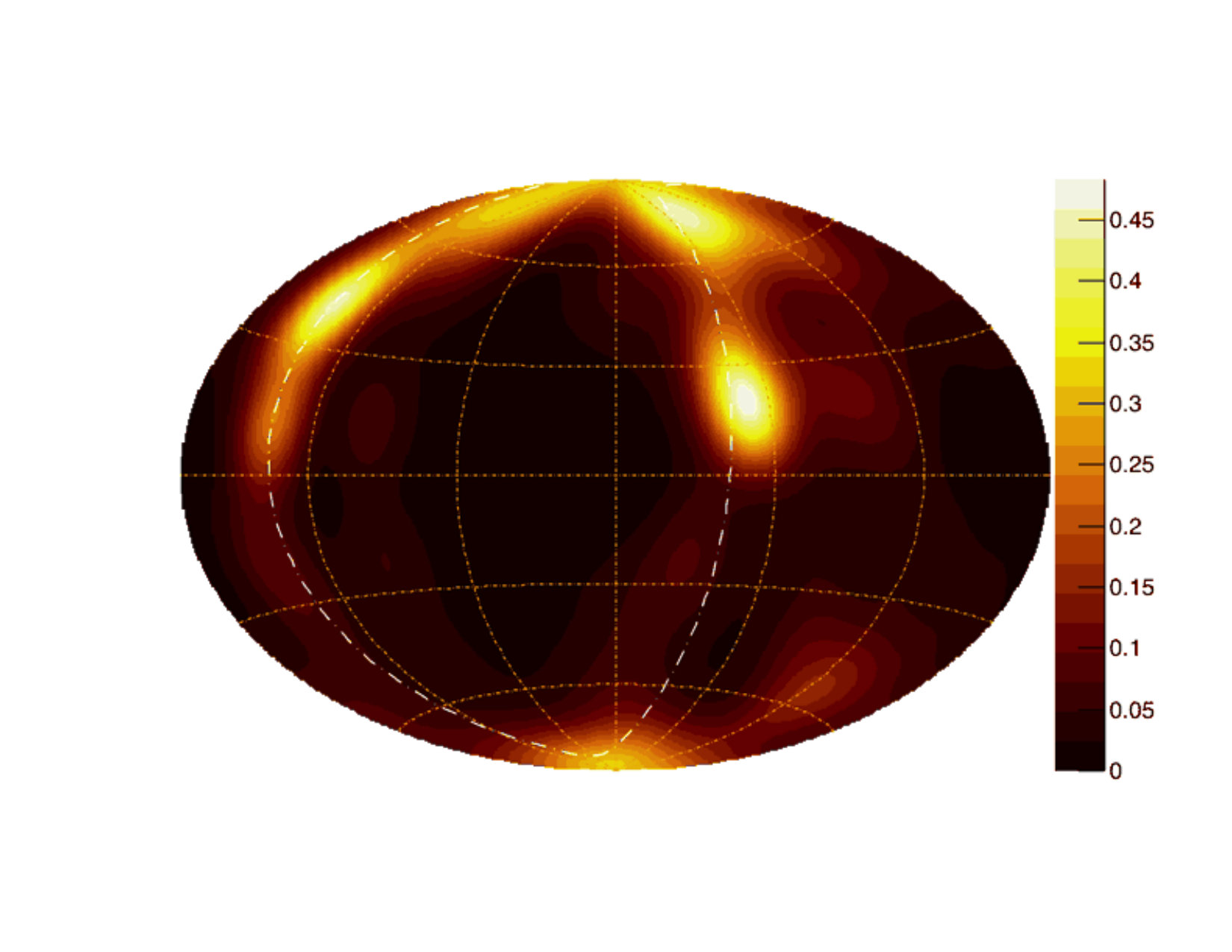

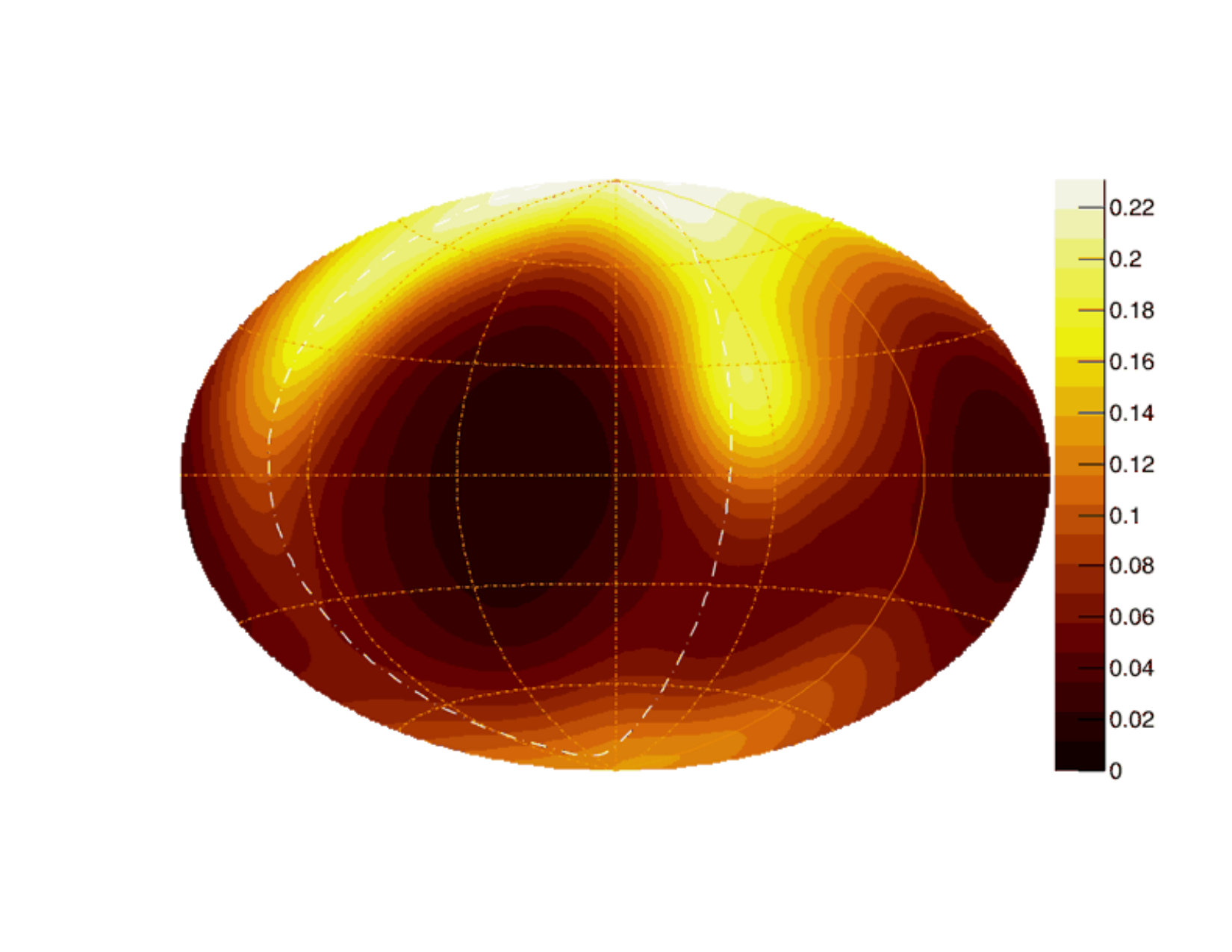

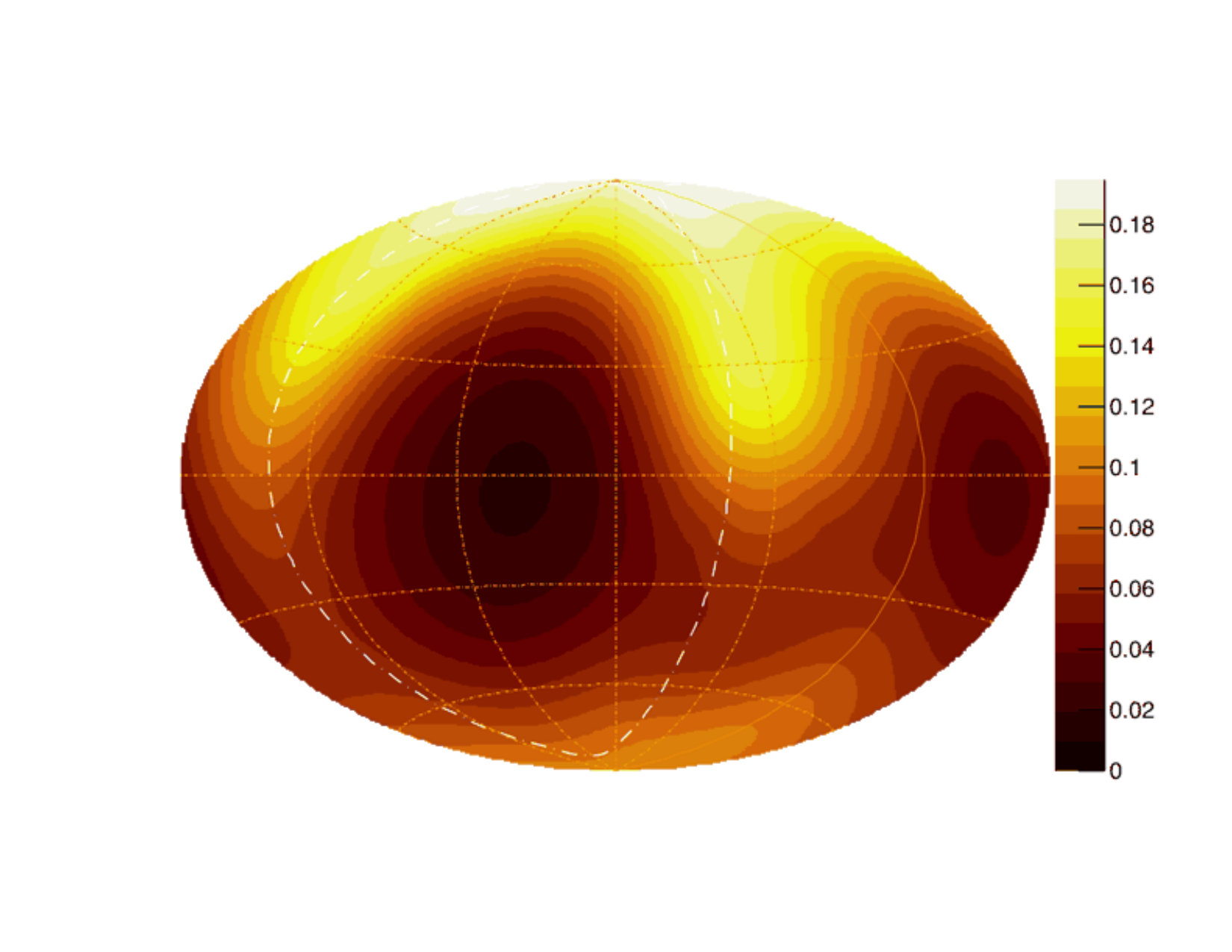

One commonly invoked test for anisotropy on intermediate scales is motivated by the expectation that UHECRs will point back to their sources above a given threshold energy. The exact value of the threshold energy is unknown due to uncertainties in the Galactic and extragalactic magnetic fields. However, the expectation is that the threshold energy occurs at roughly the same energies at which the flux of UHECRs is attenuated by cosmological photon backgrounds. UHECR attenuation results in a horizon distance for UHECRs within which astrophysical sources appear to be anisotropic; hence, the expectation is that above a given energy threshold, the arrival directions of UHECRs will be similarly anisotropic and will be, to a given degree, correlated with the positions of their sources on the sky, with angular separations corresponding to the degree of magnetic deflection (angular separations $\sim$ few–tens of degrees). As such, statistical tests cross-correlating arrival directions of UHECR events with astrophysical catalogs are effective in detecting anisotropy at intermediate scales and may also provide clues about the UHECR source population(s) and the amount of deflection due to intervening magnetic fields Soriano:2019wfx . Previous searches conducted by the Auger and TA collaborations utilizing this approach have provided hints of anisotropy Aab:2018chp ; Abbasi:2014lda , with the strongest signal arising from cross-correlation with a catalog of starburst galaxies (significance $\sim 4.5\sigma$ Aab:2019ogu ).

As can be seen in Fig. 16, POEMMA will attain an exposure of $\sim 1.5\times 10^{5}~{}{\rm km^{2}~{}sr~{}yr}$ above 40 EeV within five years of operation. Furthermore, the POEMMA exposure will cover the entire sky, providing sensitivity to starburst galaxies that are not accessible to Auger or TA. As such, within its nominal mission lifetime, POEMMA will be capable of detecting anisotropy to high significances, achieving $5\sigma$ discovery reach for search parameters within the vicinity of the signal regions for anisotropy hints reported by the Auger Aab:2018chp ; Aab:2019ogu and TA Abbasi:2014lda collaborations. In order to determine the reach of POEMMA in such cross-correlation searches, we implement a simple statistical study simulating POEMMA datasets assuming various astrophysical scenarios (i.e., starbursts and AGNs). Mock datasets are constructed by drawing a given fraction of events, $f_{\rm sig}$, from an astrophysical source sky map and drawing the rest ($1-f_{\rm sig}$) from an isotropic skymap, where both skymaps are weighted by the variation in POEMMA exposure over the sky (see Fig. 11). We construct the astrophysical source sky maps from catalogs of candidate UHECR sources, weighting each individual source by its electromagnetic flux, accounting for UHECR attenuation due to energy losses during propagation, and smoothing with a von Mises-Fisher distribution with a given angular spread, $\Theta$ (see examples in Fig. 23). For the purposes of this study, we use the same astrophysical catalogs as in Refs. Aab:2018chp ; Aab:2019ogu , which include a catalog of starburst galaxies selected based on their continuum emission at $1.4$ GHz, a catalog of radio-loud and radio-quiet AGNs included in the 70 Month Swift-BAT All-sky Hard X-ray Survey 2013ApJS..207…19B , and a catalog of galaxies at distances greater than $1$ Mpc from the 2MASS Redshift Survey (2MRS) of nearby galaxies 2012ApJS..199…26H . For calculating the UHECR attenuation factors, we adopted Composition Scenario A from Ref. Aab:2018chp , which best matches Auger composition and spectral measurements. For the threshold energy values, we adopted the values found in Ref. Aab:2019ogu , which corresponds to roughly $1400$ events with five years of POEMMA, assuming the Auger cosmic ray spectrum. We construct mock datasets several scenarios for each catalog, varying the signal fraction of events, $f_{\rm sig}$, and the angular spread, $\Theta$. For each mock dataset, we perform a statistical analysis testing the astrophysical hypothesis against the null hypothesis of isotropy. In so doing, we follow the likelihood ratio approach of Abbasi et al. [36; see also, 104; 35; 3], constructing profiles of the test statistic (TS) as a function of $f_{\rm sig}$ and $\Theta$ and finding the maximum TS value. Since TS values vary over realizations of the mock datasets, we simulate $1000$ datasets for each scenario and compute the average TS value at particular values of $f_{\rm sig}$ and $\Theta$ in order to construct the TS profiles. Motivated by reported search radii of $\sim 15^{\circ}$ found in Ref. Aab:2019ogu , we present results for selected scenarios in which $\Theta=15^{\circ}$ in Table 2 and Fig. 24. See Appendix B for more details on the maximum-likelihood methodology and a more complete table of results for all scenarios considered in this study.

It is worth noting that though many of the scenarios included in this study are very similar to the maximum-likelihood search parameters obtained by the Auger collaboration Aab:2019ogu , the maximum TS values obtained from our simulations may be somewhat different than expected based on the maximum TS values obtained Auger. This is likely due to the fact that certain catalogs contain powerful sources in regions of the sky that are not accessible by Auger. The impact is that in simulations in which we assume the same signal fraction as found by Auger, the signal events are now distributed over more sources, spreading out the anisotropic events over a wider portion of the sky and making each individual source less significant. The result is that the TS values obtained from the simulations may be somewhat lower than expected, perhaps even lower than Auger found. This is most noticeable in the starburst scenario with simulation parameters $f_{\rm sig}=10$% and $\Theta=15^{\circ}$. The Auger exposure map does not include M82, a nearby powerful starburst galaxy, that would be included in our simulations. The result is that the TS value predicted by the simulations ($24.7$; significance $\sim 4.6\sigma$) is somewhat lower than the TS value reported by Auger ($29.5$; post-trial significance $\sim 4.5\sigma$). However, if starbursts are the sources of UHECRs, we would expect that adding a powerful source like M82 would increase the fraction of events that would correlate with starburst galaxies. As such, we also present scenarios in which the signal fraction is higher, and in these scenarios, we see that POEMMA will detect the signal to very high significances.

V.4 Fundamental Physics

In this section we explore the potential of POEMMA mission to probe fundamental physics. We begin with a discussion of measurements of the $pp$ cross section beyond collider energies. After that, we study the sensitivity of POEMMA for two typical messengers of top-down models: photons and neutrinos.

V.4.1 Inelastic Proton-Air and Proton-Proton Cross Sections

The showers absorbed in the atmosphere observed by POEMMA correspond to a calorimetric fixed target experiment with $E_{0}>40\,$EeV. The collisions of the primary cosmic ray particles with atoms of the atmosphere happen at equivalent center-of-mass energies per nucleon-nucleon pair of above $\sqrt{s_{NN}}=\sqrt{2E_{0}m_{p}}=283\,$TeV. When those numbers are put into perspective with the capabilities of the LHC, where the beam energy is limited to 7 TeV and the maximum center-of-mass energy to 14 TeV, it is clear that there is an exciting opportunity to study fundamental particle physics at extreme energies. In this section we estimate the potential of POEMMA to measure the elemental inelastic cross sections at center-of-mass energies above $283\,$TeV. For this purpose we follow here the analysis procedure developed by the Pierre Auger Collaboration Collaboration:2012wt , where the exponential slope of the high-$X_{\rm max}$ tail is measured and related to the proton-air cross section $\sigma_{p-{\rm air}}$. The exponential slope $\Lambda_{\eta}$ is defined via

[TABLE]

for all $X_{\rm max}$ values above a minimum grammage $X_{\rm max}>X^{\rm start}_{\rm max}$. The slope $\Lambda_{\eta}$ is inversely proportional to the proton-air cross section via

[TABLE]

with $\lambda_{p-{\rm air}}=k\Lambda_{\eta}$ being the interaction length of protons in the air, and $\langle m_{\rm air}\rangle$ is the mean target mass of air. Using the measurement of $\Lambda_{\eta}$ automatically enriches the proton contribution in a mixed mass scenario since protons are the most deeply penetrating cosmic ray nuclei. Thus, this approach is well suited for a first demonstration of the POEMMA capability.

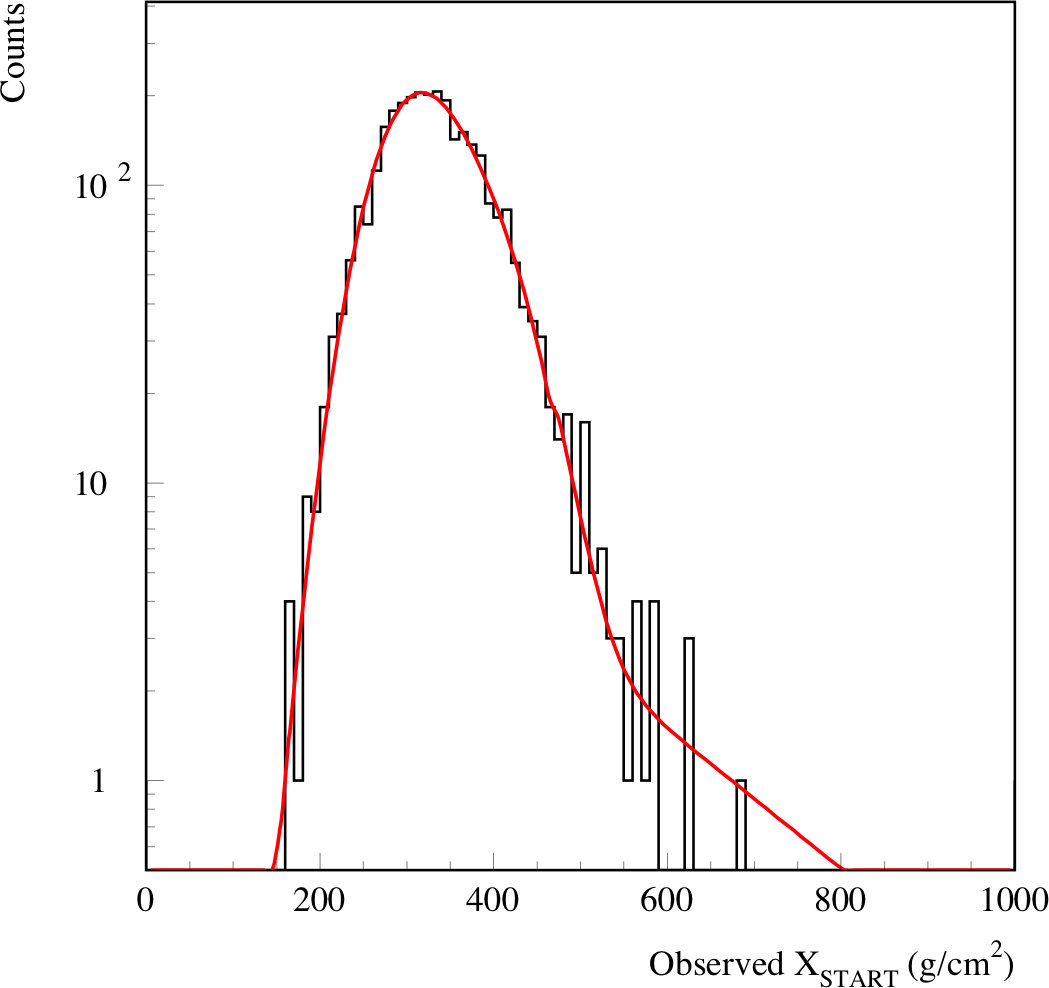

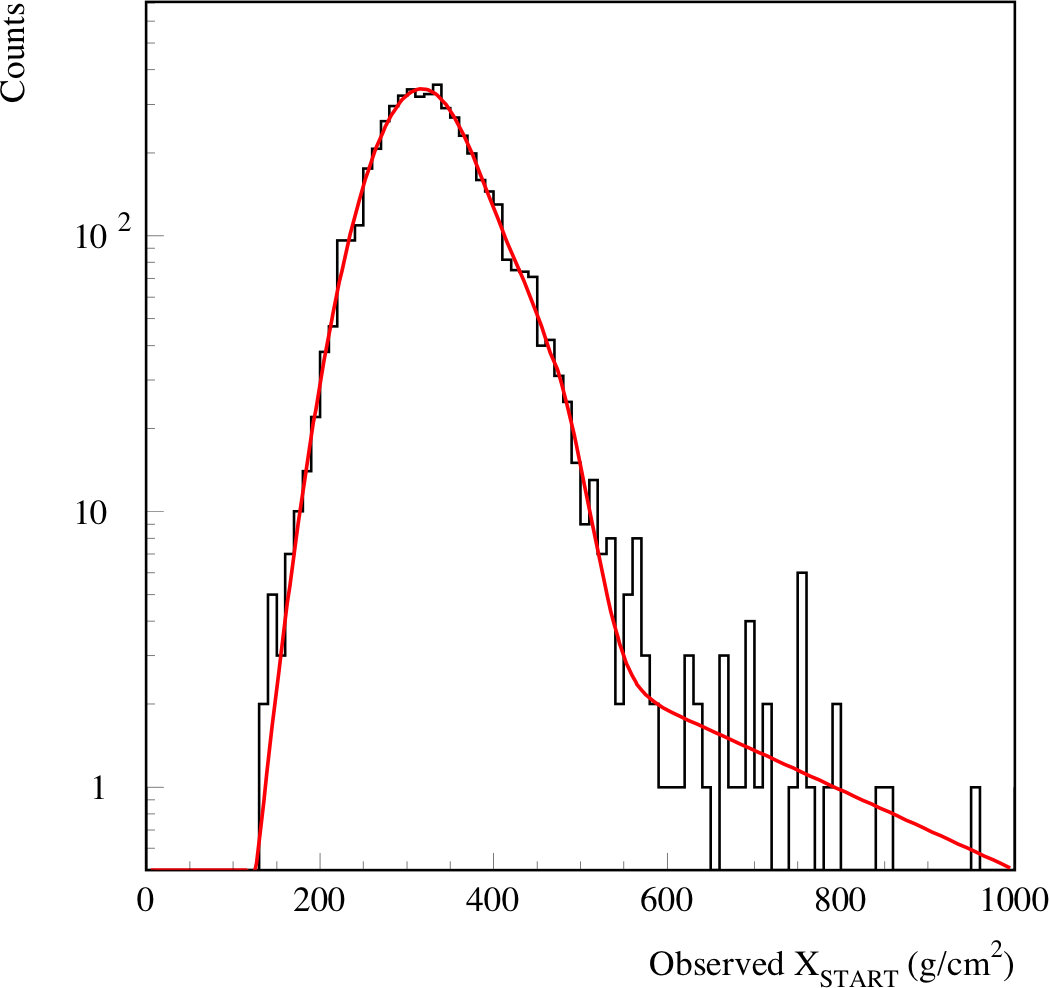

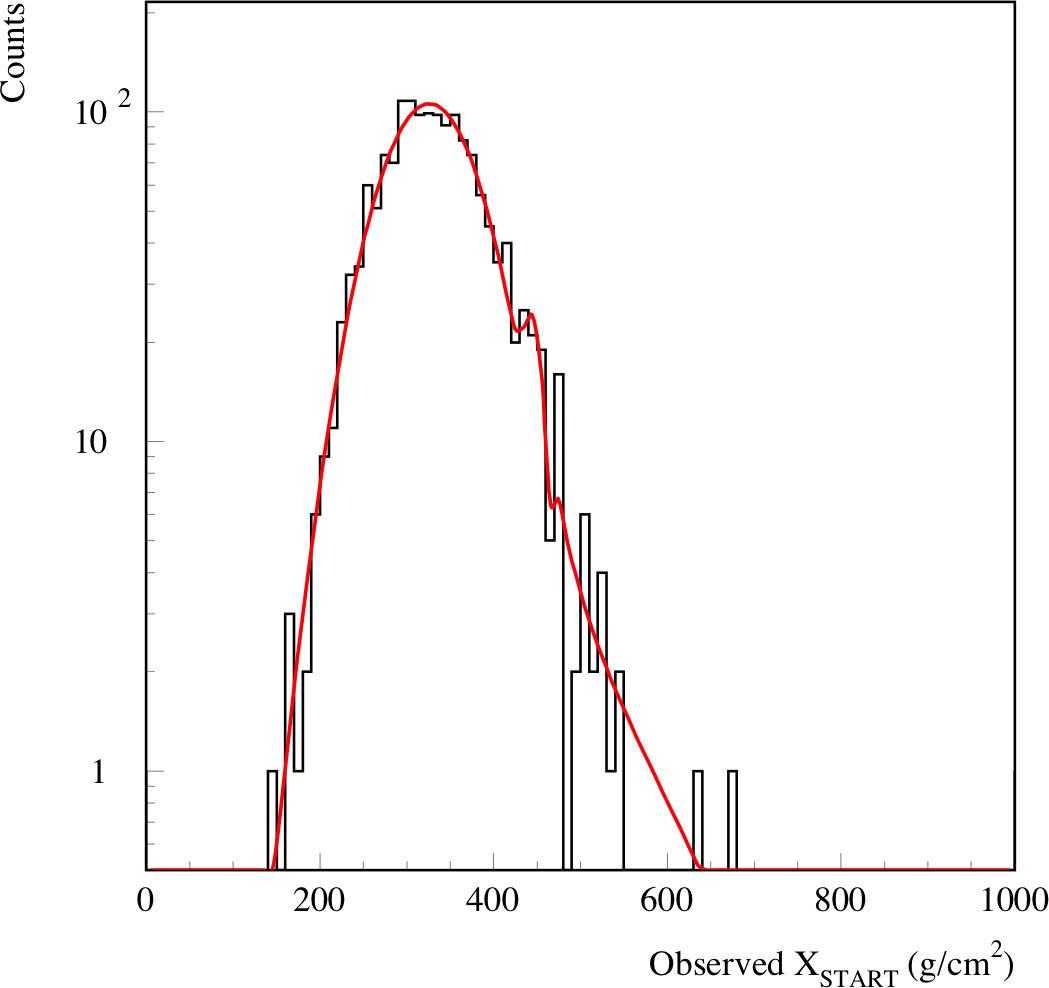

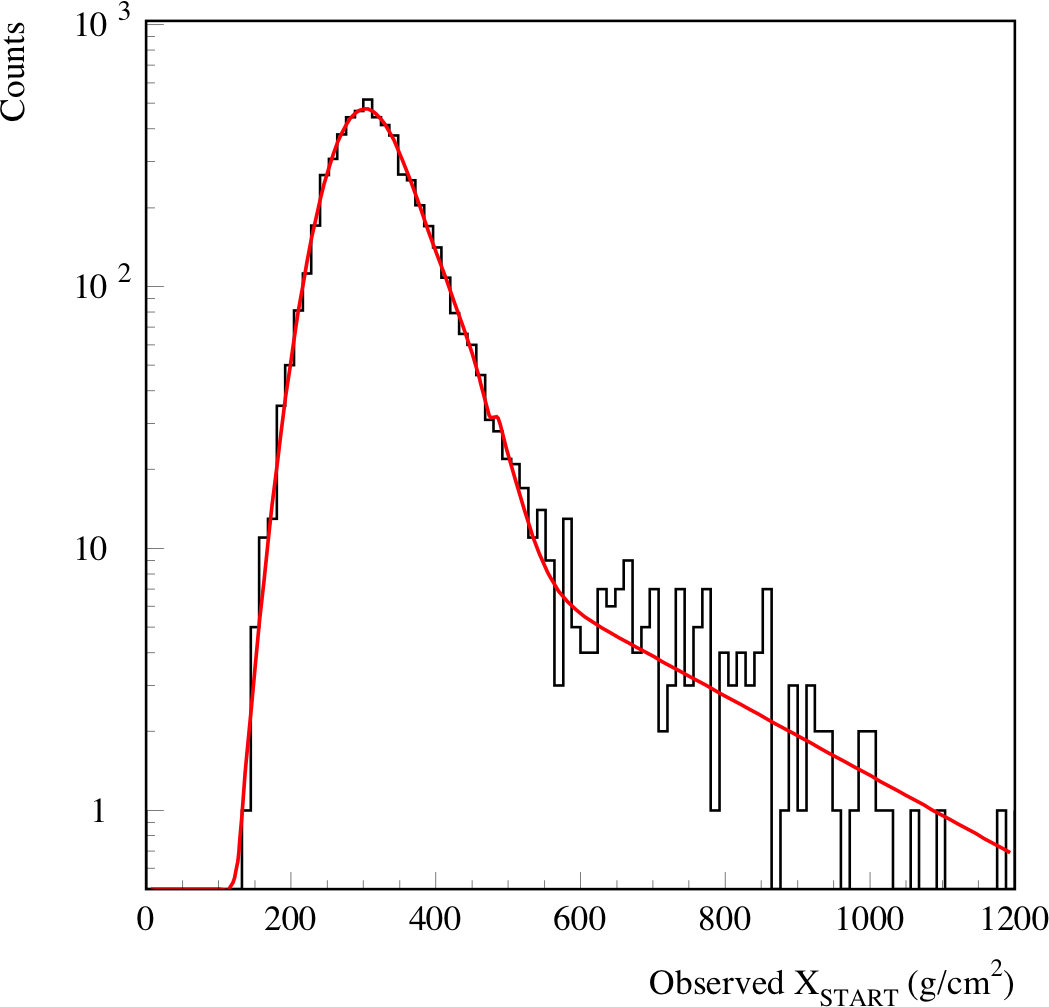

The choice of $X^{\rm start}_{\rm max}$ is critical and determines the statistical power of the analysis as well as the systematic effects of model- or mass-dependence. The value of $X^{\rm start}_{\rm max}$ can be defined via the fraction $\eta$ of the most deeply penetrating events. It was shown that $\eta=0.2$ yields optimal results in the case of the Pierre Auger Observatory for events with an average energy of $\sqrt{s_{NN}}=57\,$TeV and an assumed maximum helium contamination of 25% Collaboration:2012wt . In the following, we investigate estimates of $\eta$ at higher energies for POEMMA, informed by the $p-$air cross section analysis of the Pierre Auger Collaboration.

In general, the distribution $dN/dX_{\rm max}$ depends to a large extend on the cosmic ray mass composition. We adopt as benchmark composition models the recent fits to Auger data from Muzio:2019leu shown in Fig. 25. As can be seen, there is no helium in these models above 40 EeV. Indeed there is almost no helium production at sources, and the small attenuation length of 4He on the CMB Soriano:2018lly further suppresses the flux on Earth. Inspired by these models we investigated two simple scenarios as potential limiting cases of the mass composition at Earth above 40 EeV: an optimistic one with a flux composition ratio of $p$:Si = 1:3 and a conservative one with $p$:N = 1:9. Obviously, a larger proton fraction directly leads to a better statistical precision and a better handle to limit systematic uncertainties. Heavier nuclei contribute less to the high $X_{\rm max}$ tail than lighter nuclei do, so nitrogen contributes more to the $X_{\rm max}$ tail than silicon, even with equal composition ratios. Thus, 90% nitrogen corresponds to the most conservative assumption studied here. The more realistic mass distributions (for the galactic mixture) shown in Fig. 25 are significantly more favorable for a $\Lambda_{\eta}$ measurement than this extreme 90% nitrogen scenario.

It is anticipated that $N=1400$ events integrated over an energy above 40 EeV will be observed by POEMMA, when the measured shape of the cosmic ray spectrum above the ankle by the Pierre Auger Observatory is used Aab:2017njo . The flux as measured by the TA Collaboration could yield a much higher number of events, c.f.  Figs. 14 and 15, but we do not include this option here.

Since the measurement is entirely focused on the exponential slope of the tail the expected Gaussian detector resolution on the order of $35\,$g/cm2 in $X_{\rm max}$ and 0.2 in $\Delta E/E$ does not affect this. The exponential slope $\Lambda_{\eta}$ is determined by using an unbinned $\log L$ fit Ulrich:2015yoo approximated by the result in the large $X_{\rm max}$ limit, as described in Appendix C. Thus, the relative statistical uncertainty of $\Lambda_{\eta}$ is simply $1/\sqrt{N_{\rm tail}}$, where $N_{\rm tail}=N\eta$ is the number of events in the tail of the $X_{\rm max}$ distribution.

In the following, we use two different choices for $\eta$ following the guidance of the Pierre Auger Observatory: for the $p$:N = 1:9 case, $\eta$ reflecting the proton content of 0.1 is reduced by an additional fraction 0.2 to minimize the potential impact of the non-proton primaries that contaminate the high $X_{\rm max}$ tail; for the $p$:Si case, since Si is a heavier primary that affects $\Lambda_{\eta}$ much less, we use a fraction of 0.5 the proton content 0.25 for the tail measurement. We arrive with a very conservative effective $\eta=0.1\times 0.2=0.02$ for the pessimistic scenario of $p$:N = 1:9, and $\eta=0.25\times 0.5=0.13$ for the more optimistic one with $p$:Si = 1:3.

Now, using the estimate of the overall number of events above $40\,$EeV of $N=1400$ and combining it with expectations from cosmic ray propagation simulations indicating possible mass composition scenarios, we can determine a projected measurement of the proton-air cross section as shown in Fig. 26. In this plot the uncertainties of the left point for POEMMA corresponds to the $p$:N = 1:9 and the right point to $p$:Si = 1:3 proton fraction scenarios. The analysis described here is not yet optimized for the actual POEMMA observations and we study two very different potential scenarios. For illustration purposes, the central value of the projected POEMMA points in Fig. 26 are located at the lower range of the model prediction. This is what some of the recent data from the Pierre Auger Observatory and also LHC suggest.

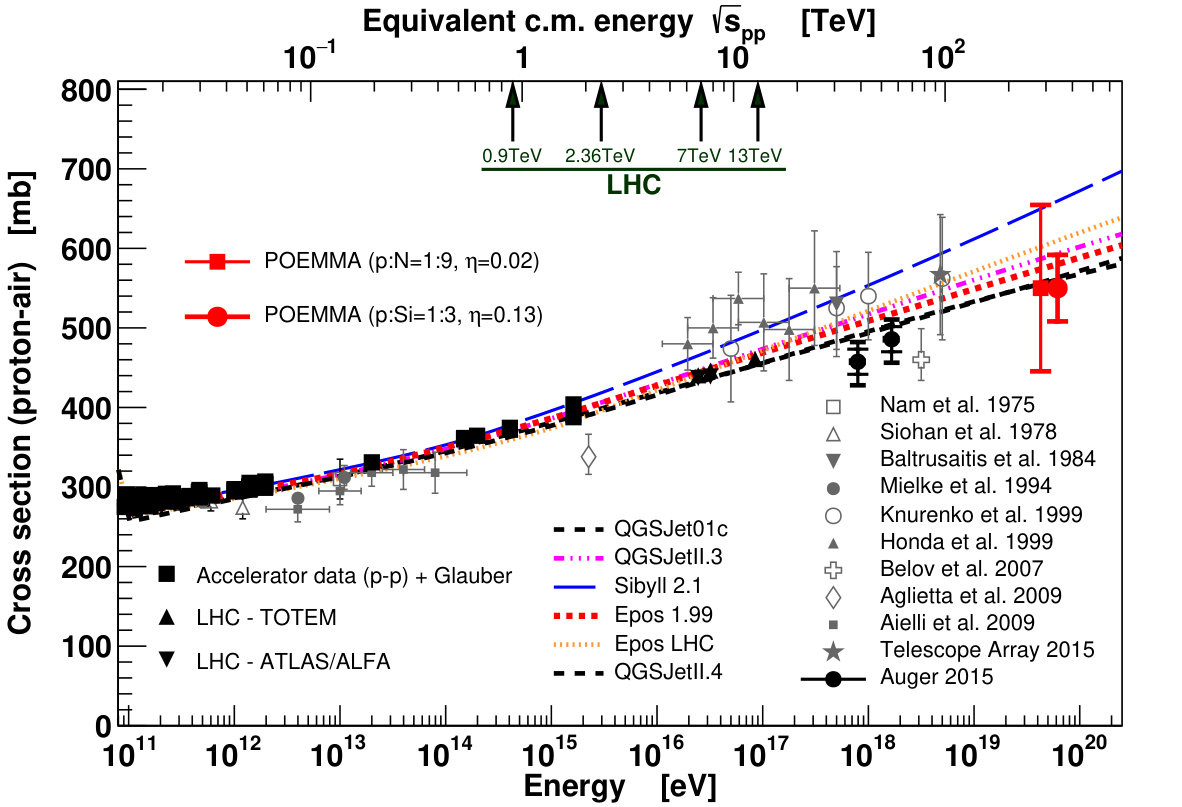

In the final step, these data will also be converted into the fundamental inelastic proton-proton cross section $\sigma_{pp}^{\rm inel}$ using an inverse Glauber formalism.

V.4.2 Searches for super-heavy dark matter

One of the leading objectives of the particle physics program is to identify the connection between dark matter (DM) and the Standard Model (SM). Despite the fact there is ample evidence for DM existence, the specific properties and the identity of the particle DM remain elusive Bertone:2004pz . For many decades, the favored models characterized DM as relic density of weakly interacting massive particles (WIMPs) Feng:2010gw . Theoretical ideas and experimental efforts have focused mostly on production and detection of thermal relics, with mass typically in the range of a few GeV to a hundred GeV. However, despite numerous direct and indirect detection searches Klasen:2015uma ; Undagoitia:2015gya , as well as searches for DM produced at particle accelerators Buchmueller:2017qhf ; Penning:2017tmb , there has thus far been no definitive observation of the WIMP particle. Moreover, as of today, there have been no definitive hints for new physics beyond the SM at any accessible energy scale Rappoccio:2018qxp , suggesting that nature does not too much care about our notion of naturalness. Anthropic reasoning, bastioned by probabilistic arguments of the string theory landscape, seems to indicate that if the universe is fine-tuned then the natural mass range for the particle DM would be the Planck scale Garny:2015sjg ; Garny:2017kha ; Alcantara:2019sco . Without DM, the epoch of galaxy formation would occur later in the universe, thus galaxies would not form in time for our existence. However, it is only the DM abundance and not any other details of dark sector which is critical for life to exist. Then it is quite reasonable to expect that the DM sector would not be as fine tuned as the visible SM sector. Production of non-thermal super-weakly interacting super-heavy dark matter (SHDM) particles is ubiquitous in string theory Chung:1999ve ; Kannike:2016jfs . While SHDM must be stable over cosmological timescales, instanton decays induced by operators involving both the hidden sector and the SM sector may give rise to observable signals in the spectrum of UHECRs Berezinsky:1997hy ; Kuzmin:1997jua .

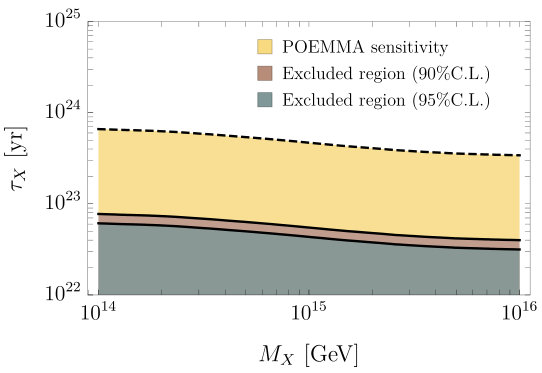

When SHDM decays into SM particles, photons and neutrinos dominate the final state. The energy spectra depend on the exact decay mechanism and is somewhat model dependent. There are several computational schemes proposed in the literature Birkel:1998nx ; Sarkar:2001se ; Berezinsky:2000up ; Barbot:2002gt , which predict accurately the secondary spectra of SM particles produced in the decay of SHDM $X$-particles and agree well each other. The expected energy distribution on Earth follows the initial decay spectrum, whereas the angular distribution incorporates the (uncertain) distribution of dark matter in the Galactic halo via the line-of-sight integral Dubovsky:1998pu ; Evans:2001rv ; Aloisio:2007bh ; Kalashev:2017ijd . The photon energy flux is estimated to be $\Phi_{\gamma}\propto(M_{X}\tau_{X})^{-1},$ where $M_{X}$ is the mass of the particle and $\tau_{X}$ its lifetime Aloisio:2015lva ; Kalashev:2016cre . The non-observation of extreme-energy photons can be used to constrain the $\tau_{X}-M_{X}$ parameter space. In Fig. 27 we show the lower limit on the lifetime of SHDM particles from the non-observation of UHECR photons at Auger together with the sensitivity of POEMMA operating in stereo mode Alcantara:2019sco . CMB observations set a bound $M_{X}\lesssim 10^{16}~{}{\rm GeV}$ at 95% CL Garny:2015sjg . Detection of a extreme-energy photon would be momentous discovery. If this were the case POEMMA could be switched into limb-mode to rapidly increase statistics. Note that for energies $E\gtrsim 10^{20}~{}{\rm eV}$, the average $X_{\rm max}$ of photon and proton showers differs by more than $100~{}{\rm g/cm^{2}}$ Risse:2007sd . This implies that POEMMA operating in limb-viewing mode, with $X_{\rm max}$ resolution $\sim 100~{}{\rm g/cm^{2}}$ determined from simulated monocular reconstruction performance, will be able to deeply probe the SHDM parameter space.

V.4.3 Searches for neutrinos from decaying topological defects

Beyond SM physics often also predicts phase transitions at which topological defects are formed Kibble:1976sj . The decay of topological defects is also dominated by photons and neutrinos, but since these relics are expected to be distributed uniformly throughout the universe the photon signal would cascade down to lower energies and extreme-energy neutrinos become the smoking gun.

POEMMA will be a powerful probe of extreme-energy neutrino emission. An example involves the flux neutrinos produced via decay of highly boosted (strongly coupled) moduli, radiated by relic cosmic strings Berezinsky:2011cp . These strongly coupled moduli are scalar fields, which appear to be quite generic in the string theory landscape Conlon:2007gk ; AbdusSalam:2007pm .

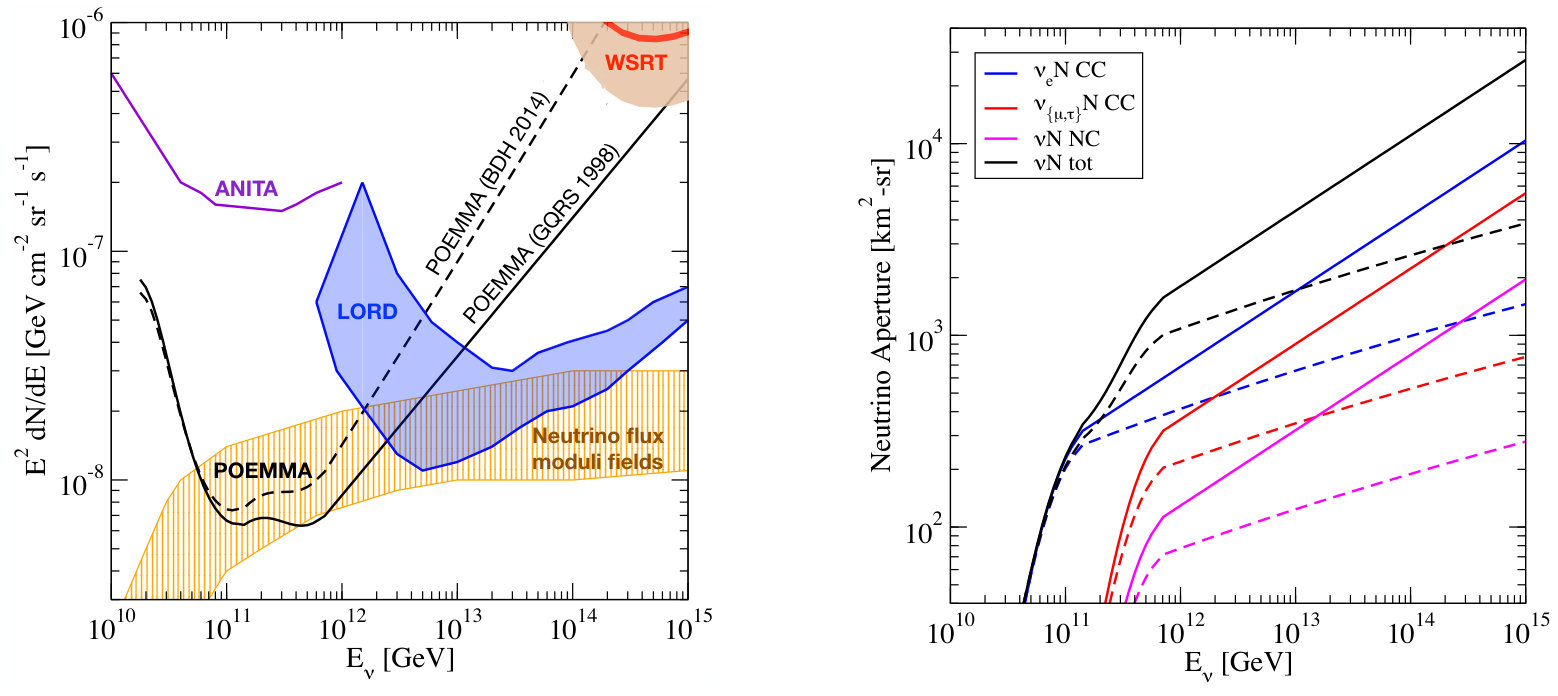

In Fig. 28 we show the sensitivity of both POEMMA and the future Lunar Orbital Detector (LORD)  Ryabov:2016fac , and current limits from ANITA I-IV Gorham:2019guw and WSRT Scholten:2009ad . We also show the neutrino flux range resulting from models of strongly coupled moduli in a string theory background with $G\mu\sim 10^{-20}$, where $G$ is the Newton’s constant and $\mu$ the string tension Berezinsky:2011cp . POEMMA sensitivity was estimated assuming the stereo configuration observations with 10% duty cycle and 5 years of observation time. The neutrino aperture is the result of simulations of isotropic events interacting deep in the atmosphere (observed starting point $X_{\rm Start}\geq 2000~{}{\rm g/cm^{2}}$). The sensitivity includes all flavors, charged and neutral current interactions, for two different cross-sections as estimated in Gandhi:1998ri and Block:2014kza . POEMMA UHE neutrino simulated neutrino air fluorescence response is detailed in Appendix D.

It is evident that POEMMA will probe a significant part of the parameter space, providing a method of searching for strongly coupled moduli, which complements searches based on gravitational effects of strings, like structure formation, cosmic microwave background, gravitational radiation, and gravitational lensing. The strongest current bound from lensing effects is estimated to be $G\mu\lesssim 10^{-7}$ Christiansen:2010zi , while millisecond pulsar observations lead to $G\mu\lesssim 4\times 10^{-9}$ vanHaasteren:2011ni . Next generation gravitational wave detectors are expected to probe $G\mu\sim 10^{-12}$ Damour:2004kw ; Olmez:2010bi . Thus, POEMMA will attain sensitivity to a region of the parameter space more than 10 orders of magnitude below current limits and about 8 order of magnitude smaller than next generation gravitational wave detectors. It should be noted that these stereo fluorescence neutrino measurements effectively “come for free” when POEMMA is in stereo UHECR observation mode.

VI Conclusions

The transformational UHECR physics performance of POEMMA above 40 EeV is based upon the large, all-sky exposure enabled by a stereo UHECR space-based experiment. POEMMA is designed with wide FoV Schmidt optics coupled to relatively fine pixel resolution to provide excellent angular, energy, and $X_{\rm max}$ resolutions, using stereo UHECR reconstruction. This performance translates into high sensitivity for UHECR composition determination, UHECR anisotropy and source determination, and providing fundamental physics measurements on dark matter and proton-proton cross sections along with remarkable UHE neutrino sensitivity at the highest energies ever achieved. We have shown that POEMMA will provide new Multi-Messenger Windows onto the most energetic environments and events in the universe enabling the study of new astrophysics and particle physics at these otherwise inaccessible energies.

Acknowledgements.

We thank our colleagues of POEMMA, Pierre Auger, and JEM-EUSO collaborations for some valuable discussion. This work has been supported by NASA (grants 80NSSC18K0464, NNX17AJ82G, 17-APRA17-0066), the U.S. National Science Foundation (NSF grant PHY-1620661), and the U.S. Department of Energy (grant DE- SC-0010113).

Appendix A Modeling POEMMA using ESAF

A first estimation of POEMMA performance in terms of trigger exposure and quality of event reconstruction has been assessed using the ESAF code assuming a clear atmosphere. Because the POEMMA PFC is baselined to use the photodetector modules (PDMS) and electronics developed for the JEM-EUSO mission, it is reasonable to adopt the JEM-EUSO trigger algorithms and reconstruction procedures to evaluate the performance of POEMMA.

Here we provide an overview of ESAF. The Greisen-Ilina-Linsley (GIL) function Ilina:1992qv is used as parametric generator to reproduce the profile as a function of slant depth. The GIL function is optimized to reproduce EAS from hadronic particles simulated by CORSIKA 1998cmcc.book…..H with the QGSJET01 hadronic interaction model Kalmykov:1993qe . Proton showers have been simulated for the analyses presented in this paper. This is motivated by the fact that they develop deeper in the atmosphere, which results in a higher atmospheric absorption and higher cloud impact. Therefore, the results that are discussed in the following sections constitute a conservative estimation on the performance of the instrument. In the present work, the fluorescence yield is taken from Nagano:2004am . In the atmosphere, UV photon propagation is strongly affected by Rayleigh scattering and absorption by ozone for wavelengths $<320$ nm. These processes along with the atmospheric profile are modeled with the LOWTRAN package LOWTRAN7 .

The POEMMA detector was implemented in ESAF Berat:2009va using the parametric optical model shown in Fig. 3. A single telescope, which allows for the calculation of POEMMA’s monocular mode performance, was considered since ESAF does not allow yet a stereoscopic vision. The trigger efficiency is determined at single telescope level, because POEMMA’s telescopes operate independently regardless of mode of operation. The simulations were performed assuming a standard UV nightglow background level of 500 photons/m2/ns/sr in the 300 - 500 nm band Adams:2013vea , which is appropriate considering the use of a BG3 UV filter in the PFC. Taking into account the POEMMA detector response this corresponds to an average equivalent count rate 1.54 counts/$\mu$s/pixel. In Fig. 29 we show the track image in a PFC focal plane of a typical proton EAS of 100 EeV, 60∘ inclined from nadir.

A.1 Trigger efficiency

To estimate the trigger efficiency curve of POEMMA, an overall set of 20,000 proton EAS were simulated with ESAF using the following parameters: primary energy ($E$) in the range $5\leq E/{\rm EeV}\leq 500$, zenith angle $0\leq\theta\leq\pi/2$, and azimuth angle $0\leq\phi\leq 2\pi$. To avoid border effects EAS were simulated on an area which is almost twice bigger; namely, $S_{\text{FoV}}\sim 145,000$ km2 and $S_{\text{sim}}\sim 271,000$ km2. The exposure is then calculated according to

[TABLE]

where

[TABLE]

is the geometrical aperture, $t$ is the observation time,

[TABLE]

is the average efficiency of the detector at a given energy $E$, and $N_{\text{trig}}$ and $N_{\text{sim}}$ are respectively the number of triggering events and the number of simulated events at a certain energy $E$. The events were passed through the electronics, and the response of the first JEM-EUSO trigger level was applied Abdellaoui:2017huh . This trigger level is based on an excess of signal in a box of $3\times 3$ pixels for 5 consecutive GTUs. The thresholds for this signal excess reduce the rate of fake trigger at the level of $\sim 7$ Hz/PDM. The second trigger level, which is not applied here, looks for a signal excess on a track, lasting 15 GTUs. The thresholds are set to have a fake trigger rate of $\sim 0.1$ Hz/FS. According to simulations for the JEM-EUSO mission, the application of this second trigger level shifts the trigger efficiency curve by $\sim 10\%$ at higher energies. In Fig. 30 we show the exposure determined for nadir mode and different tilt angles away from nadir.

A.2 Reconstruction performance in monocular nadir observation

A first evaluation of the reconstruction performance in monocular mode and nadir pointing was performed using the same algorithms defined for JEM-EUSO. No optimization has been introduced yet, like the use of a shorter GTU (1 $\mu$s). Therefore, the results presented in this work have to be considered as conservative. Two different pattern algorithms have been defined in ESAF to reconstruct the EAS parameters. The “LTTPatternRecognition” was developed to collect as much signal as possible from the EAS track to get a better estimation of the EAS energy, even at the expenses of the uncertainty in the direction reconstruction. The details of this method are reported in fenu-expastro . On the other hand, the PWISE method developed for the track direction is meant to make the track as narrow as possible to reduce the uncertainty on the direction reconstruction. In the following, results are shown applying the two chains independently. Before proceeding, it is important to underline that a failure of the PWISE algorithm does not imply that the event can not be reconstructed, as the chain for the reconstruction of the energy would anyway provide a first estimation of the arrival direction. Naturally, the ideal case would be to use both algorithms in parallel in order to get as much information as possible for the same event.

The triggered EAS were passed through JEM-EUSO reconstruction algorithms discussed in fenu-expastro to evaluate the quality in the EAS reconstruction for the POEMMA detector.

In JEM-EUSO two methods have been developed to determine the altitude of the shower maximum: the Cherenkov method and the method based on the direction reconstruction (slant depth method). The Cherenkov method uses the Cherenkov reflection mark which identifies the location and time at which the EAS reaches the ground. This method can be applied only for vertical EAS, for which the Cherenkov mark is bright enough and it is located on a limited number of pixels. For more inclined EAS, such peak is spread in time and space and can not be identified. The slant depth method assumes a parameterization for the depth of the shower maximum and relies on the direction delivered by the direction reconstruction.

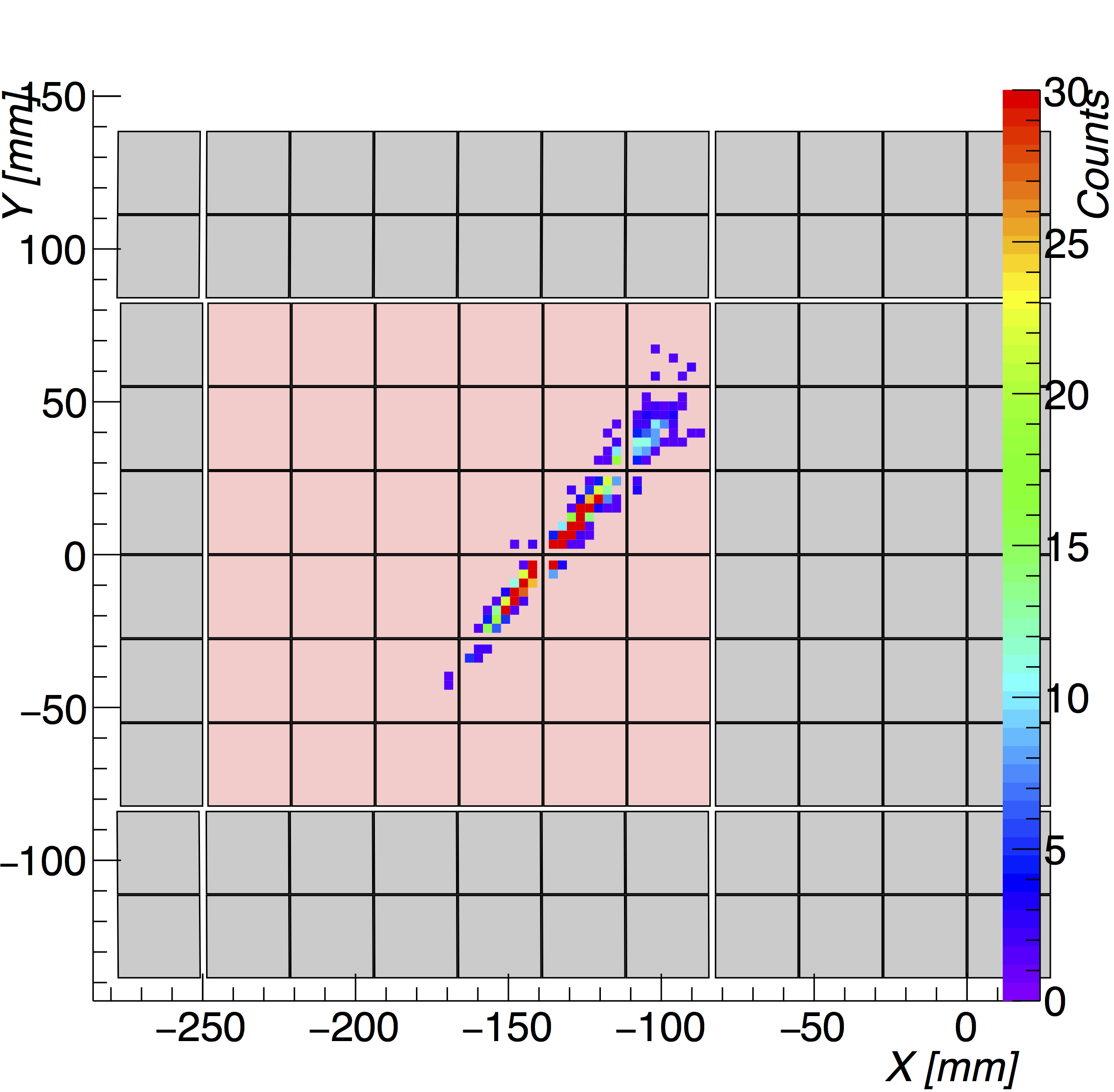

Before applying the reconstruction algorithms, a pattern recognition algorithm is applied to the data to identify the center of the spot in each GTU. Indeed, for each event, the background is simulated on all the PDMs that were crossed by the EAS event. Therefore, the signal due to the EAS cascade has to be extracted from background. This is done to mimic the real conditions expected on flight.

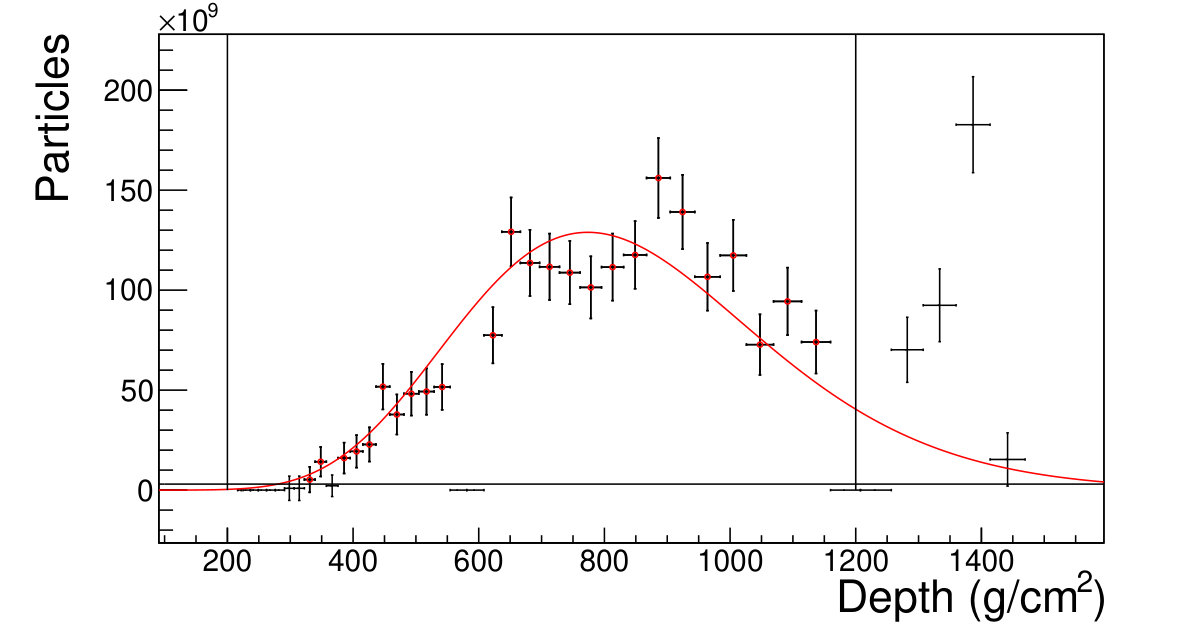

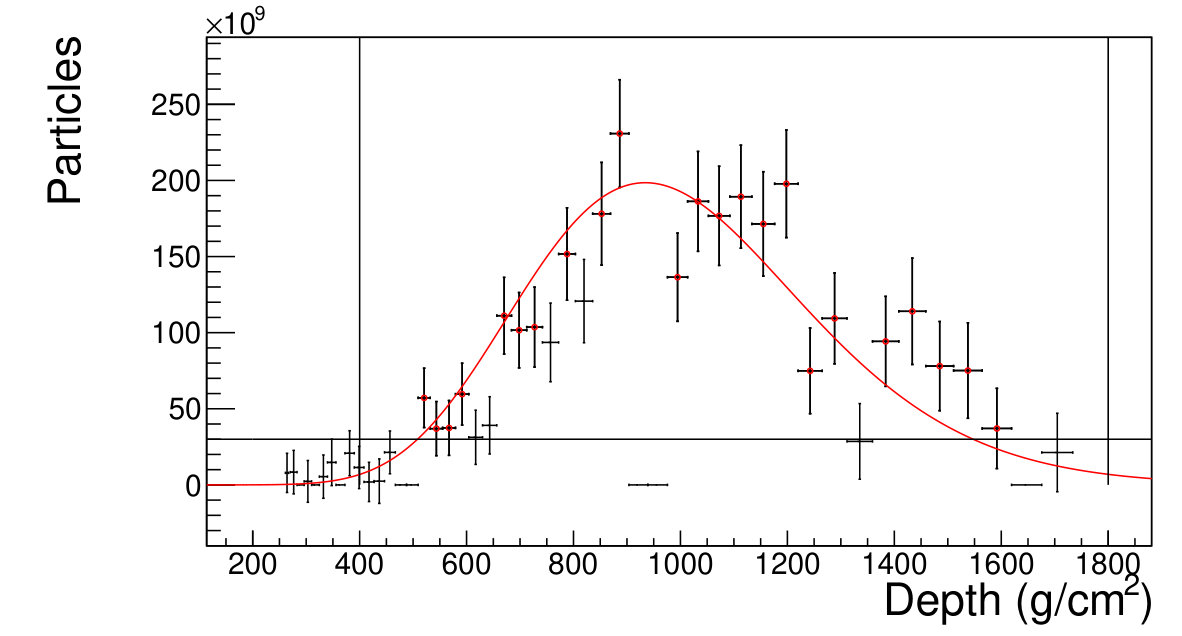

The reconstruction of events were performed using both methods separately. In Fig. 31 we show two examples of reconstructed events. On the left panel, it is possible to recognize the Cherenkov peak. This event can be reconstructed using the Cherenkov method and the slant depth method. Instead, on the right panel, the Cherenkov peak is not present and the event can be reconstructed only using the slant method.

To perform a reconstruction, we carry out a chi-square goodness of fit test with a number of degrees of freedom (DOF) $>4$ and the likelihood satisfying $0.1<\chi^{2}<3$. For this analysis, 11,200 events were simulated in the energy range $19.2\leq\log(E/{\rm eV})\leq 20.8$. Out of the total, 3,879 events ($\sim$35%) were triggered and passed through the pattern recognition algorithm and EAS reconstruction chain. From this selected sample, 3,253 events (equivalent to $\sim$84%) were successfully reconstructed by the slant method and 1,472 events (equivalent to $\sim$38%) by the Cherenkov method. It is not surprising that in the Cherenkov method only about half of the events were reconstructed. As mentioned before this is due to the fact that this method is usable up to zenith angles $\sim 50^{o}$ (the value depends on energy and EAS location on the FS). At higher zenith angles the Cherenkov signal is too dim to be isolated from background fluctuations.

In the left panel of Fig. 32 we show a comparison between the triggered and reconstructed spectra using both reconstruction methods. In the right panel of this figure we show the expected number of detected and reconstructed events per year assuming the Pierre Auger energy spectrum.

A comparison between the number of triggered events and the number of events automatically reconstructed with the two reconstruction methods for $log(E/eV)>19.6$ is provided in Table 3.

When a selection cut is placed at $log(E/eV)=19.6$, the overall fraction of reconstructed events above this energy is slightly higher than using all the data sample. In particular, the slant depth method approaches 90% efficiency in EAS reconstruction.

In Fig. 33 we show the relative energy resolution $(E_{\text{reco}}-E_{\text{real}})/E_{\text{real}}$ applying the two methods for two different energy intervals. All zenith angles are included. In Table 4 we describe the performance on $X_{\text{max}}$ and energy reconstruction including all the reconstructed EASs using the two methods. To test the validity of the automatic procedure, in parallel the same EASs have been reconstructed manually. As one can easily verify in Table 4 the results of the automatic procedure are consistent with those obtained adopting the manual reconstruction. This indicates that the automatic algorithm is quite effective on its own. However, the manual procedure allowed to remove 4 events for which the result of the automatic procedure was providing a very bad result. This might happen when the EAS goes through gaps between PDMs and the automatic algorithm fails to reject those points for the fitting procedure.

A.3 Angular reconstruction

The angular reconstruction for POEMMA was evaluated at fixed zenith angles ($\theta$ = 30∘, 45∘, 60∘ and 75∘) for three different energies (E = 7$\times$1019 eV, 1020 eV and 3$\times$1020 eV). The same methodology defined for JEM-EUSO reconstruction performance was applied to POEMMA, with a fine tuning of the parameters of the PWISE algorithm. Fig. 34 shows the reconstruction efficiency as a function of zenith angle for the three different energies. The reconstruction efficiency is defined as the ratio $\epsilon_{\text{reco}}=\frac{N_{\text{reco}}}{N_{\text{trig}}}$. About 1000 EAS are simulated in each condition (see table 5 for details). In order to define that the pattern recognition is successful at least 10 pixels should have been selected in the track by the PWISE algorithm. The same pixel can be selected more than once in the track, i.e. in consecutive GTUs. This selection criteria tends to make the angular reconstruction less efficient at lower energies and for lower zenith angles. This is an important parameter that needs to be explored with more details in the future. Moreover, by reducing the GTU to 1 $\mu$s, the number of selected pixels might increase considerably.

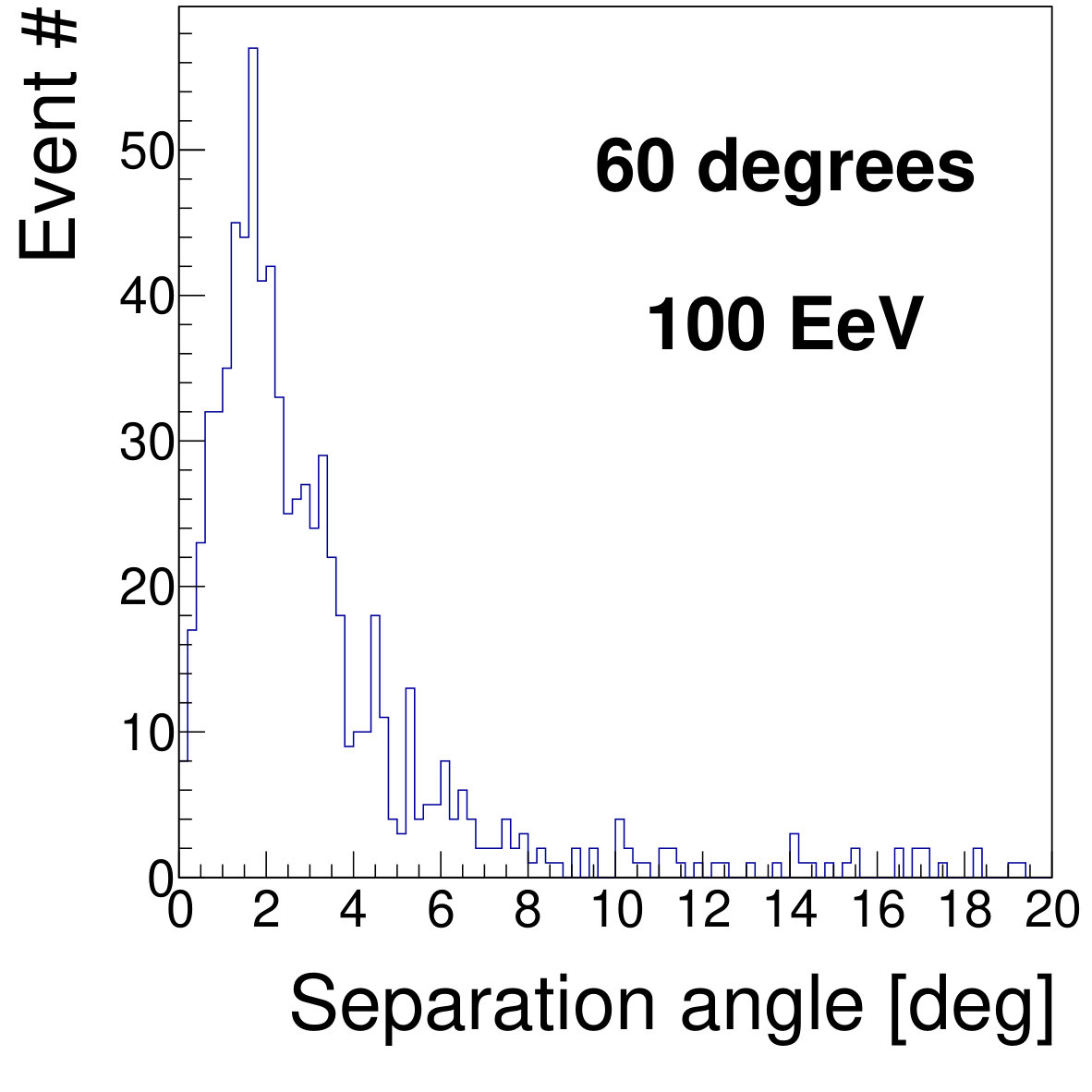

To estimate the expected angular resolution of POEMMA, as in JEM-EUSO, we compared the angle ($\gamma$) between the injected shower axis and the reconstructed one. We define $\gamma_{68\%}$ as the value at which the cumulative distribution of $\gamma$ reaches 0.68. It is worth mentioning that both systematic errors and statistical fluctuations are included within the definition of $\gamma_{68\%}$. We will use this parameter as a measurement of the overall performance of the reconstruction capabilities. Fig. 35 shows the results in terms of $\gamma_{68\%}$ for different zenith angles and energies. Details can be found in table 5.

It is important to underline that a more detailed study of the bias should be performed. The reduction of the bias would be capable of improving the overall performance of $\gamma_{68\%}$ as it includes both statistical and systematic uncertainties. The reconstruction performance will improve also by reducing the GTU to 1 $\mu$s.

A.4 ESAF estimate of stereo energy resolution

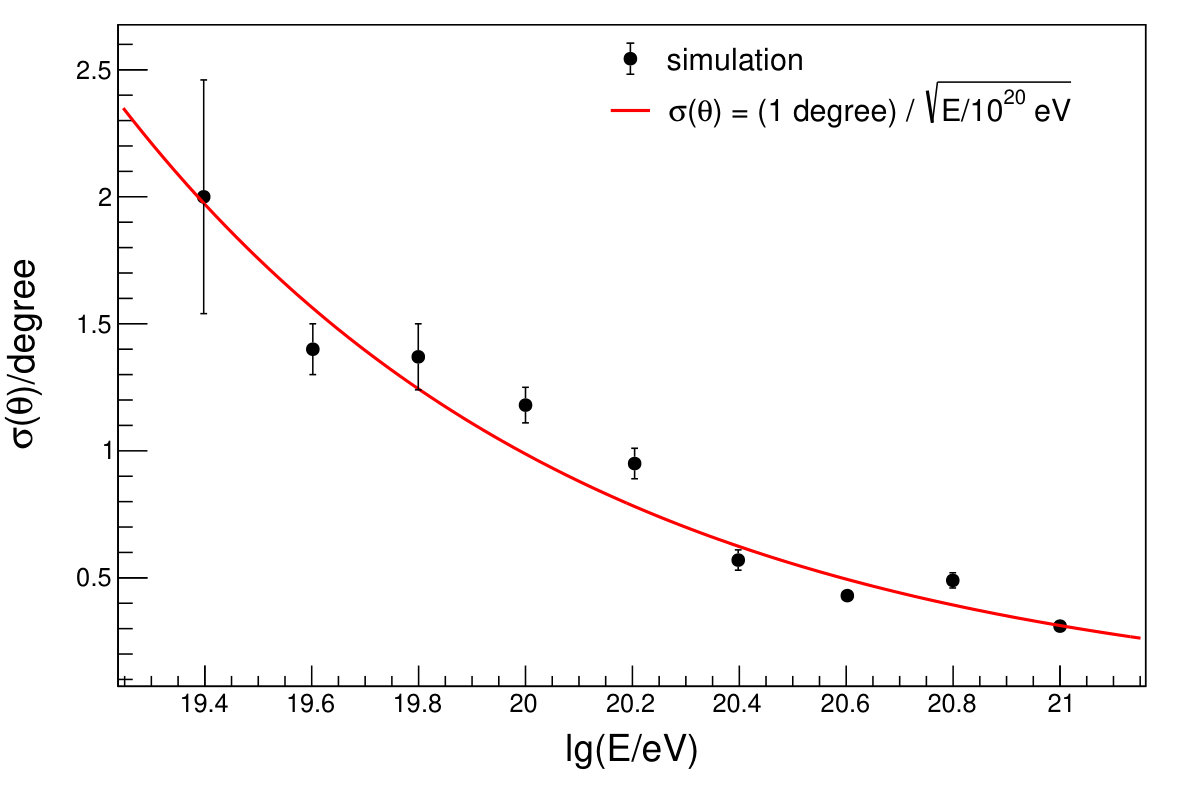

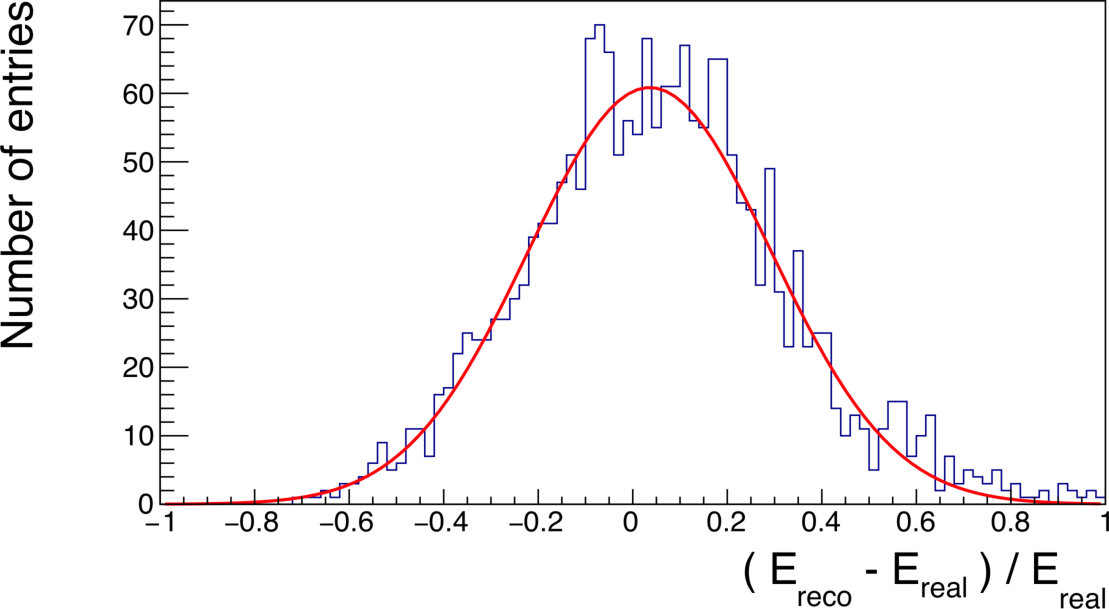

The ESAF simulation was used to estimate the stereo reconstructed energy resolution via imposing an angular resolution defined by Gaussian distributions with $\sigma=1^{\circ}$ for the zenith and azimuth angles. Isotropic UHECRs were generated from $0^{\circ}-90^{\circ}$ zenith angles at two energies, 50 EeV and 100 EeV, assuming nadir pointing of a single POEMMA telescope. The events were then reconstructed assuming $1^{\circ}$ resolutions. The results for the energy reconstruction are shown in Fig. 36. For 50 EeV, the energy resolution is 26% with a $+3.5\%$ bias, while for 100 EeV the energy resolution is 24% with a $-1.5\%$ bias. Since the two POEMMA telescopes provide independent measurements of each EAS, the combined resolution is obtained by dividing by $\sqrt{2}$, yielding 18% at 50 EeV and 17.0% at 100 EeV.

A.5 Summary

A first estimation of POEMMA performance in terms of trigger exposure and quality of event reconstruction has been assessed using the ESAF code for the clear atmosphere case. The same trigger algorithms and reconstruction procedures developed for JEM-EUSO have been applied to POEMMA. A parametrized optics has been adopted. Results of the EAS reconstruction refer to the nadir configuration, while the trigger exposure has been obtained also for tilted configurations. It is important to underline that a 2.5$\mu$s GTU has been used in this study. POEMMA is expected to adopt a shorter GTU of 1$\mu$s, therefore, the quality in trigger reconstruction and in the trigger efficiency will improve. Therefore, the results obtained in this study have to be considered as conservative ones. It is worth mentioning finally that $\sim 88\%$ of the triggered events were successfully reconstructed for the energy parameter above $log(E/eV)=19.6$. This is important because it indicates that the exposure curve provides already a reliable information on the number of events that could be retained for further analysis.

The angular reconstruction still needs improvements in terms of reconstruction efficiency. Most probably a too severe threshold on the number of points has been applied. Nevertheless, because the energy reconstruction provides also an angular reconstruction, in case of a failing of the PWISE algorithm, the information of the angular resolution could be retained from the chain employed for the energy reconstruction.

Appendix B Methodology for Anisotropy Searches Cross-Correlating with Astrophysical Catalogs

In order to determine the reach of POEMMA in detecting anisotropy through cross-correlating with astrophysical catalogs, we perform a detailed statistical study simulating POEMMA datasets assuming either the starburst or AGN hypothesis and comparing them against the null hypothesis of isotropy. In so doing, we follow the likelihood ratio approach of Abbasi et al. [36; see also, 104; 35; 3]. For each constructed mock dataset (see Sec. V.3.2), we express the astrophysical hypotheses as sky models in which the flux of UHECRs consists of either of a purely isotropic distribution or an isotropic component with an anisotropic component arising from astrophysical sources:

[TABLE]

where $\mathcal{F}_{\rm sky}\left(\hat{n}\right)$ is the probability density sky map, $\hat{n}$ is the unit vector for a given location on the sky, $\omega\left(\hat{n}\right)$ is the exposure in the direction of $\hat{n}$, $f_{\rm sig}$ is the signal fraction (the fraction of UHECRs originating from the sources), $\mathcal{F}_{\rm src}$ is the normalized source sky map for the flux of UHECRs originating from the sources, and $\mathcal{C}$ is a normalization factor to ensure that $\int\mathcal{F}_{\rm sky}\left(\hat{n}\right)d\Omega$. We construct $\mathcal{F}_{\rm src}$ as the weighted sum of the UHECR flux from sources of the source class under consideration, assuming that the flux of UHECRs from each individual source is proportional to its electromagnetic flux. Each source is weighted by a von Mises-Fisher distribution444The equivalent of a Gaussian distribution on the surface of a sphere. For the 2-sphere, it is given by $\mathcal{G}\left(\hat{n},\hat{s};\kappa\right)=\kappa\exp\left(\hat{n}\cdot\hat{s}\right)/\left(4\pi\sinh{\kappa}\right)$, where $\kappa=\Theta^{-2}$ is the concentration parameter. with angular spread $\Theta$ and an attenuation factor that accounts for UHECR energy losses through propagation. We then construct normalized source sky maps from sources in one of the flux-limited catalogs used for this study (see Sec. V.3.2). In Fig. 37, we provide examples of normalized source sky maps ($\mathcal{F}_{\rm src}\left(\hat{n}\right)$) constructed from nearby galaxies in the 2MRS catalog for various values for the concentration parameter. In Fig. 38, we provide examples of probability density sky maps ($\mathcal{F}_{\rm sky}\left(\hat{n}\right)$) corresponding to select astrophysical scenarios in which the flux of UHECRs consists of an isotropic component and an anisotropic component as defined above. Parameters for the displayed scenarios are chosen to coincide with the best-fit search parameters reported by Ref. Aab:2019ogu for the given astrophysical source catalogs.

The null and alternative hypotheses are tested using mock datasets of a given number of events drawn from the astrophysical source sky maps assuming a given signal fraction and angular spread. For each mock dataset, we calculate the TS as a function of the search parameters. The TS value is computed as the likelihood ratio for the modeled sky maps for the null and alternative hypotheses:

[TABLE]

where $\mathcal{F}_{\rm iso}=\omega\left(\hat{n}\right)/4\pi$ and the likelihood is given by

[TABLE]

Appendix C Determination of the $p$-air interaction length

To assess POEMMA’s ability to measure $\sigma_{p-{\rm air}}$, we use the method of fitting the shape of the large $X_{\rm max}$ tail of ${\rm d}N/{\rm d}X_{\rm max}$ with an exponential $\exp(-X_{\rm max}/\Lambda_{\eta})$ Collaboration:2012wt , where $\Lambda_{\eta}$ is proportional to the $p$-air interaction length which is, in turn, proportional to the inverse of the proton-air cross section. Here, $\eta$ refers to the fraction of the showers included in the tail, predominantly proton induced, as discussed in Sec. V.4.1.

The value of $\eta$ in our analysis is translated to a starting value of $X_{\rm max}$, $X_{\rm max}^{\rm start}$. The attenuation parameter $\Lambda_{\eta}$ is determined from the unbinned events, including smearing to account for the detector. With a large enough number of events, one can find the extremum of log-likelihood (see, e.g., Ref. Ulrich:2015yoo ), but for POEMMA’s total $\sim 1,400$ cosmic ray events above 40 EeV, a reasonable approximation is

[TABLE]

With a high statistics Monte Carlo, we generate events according to a cosmic ray spectrum above the ankle parameterized by

[TABLE]

where we take the central values of $E_{\rm ankle}=5.08$ EeV, $E_{s}=39$ EeV, $\gamma_{2}=2.53$, $\Delta\gamma=2.5$ as measured by the Auger Collaboration and reported in Ref. Fenu:2017hlc . We model the $X_{\rm max}$ distribution with the generalized Gumbel form with parameters determined in Ref. Arbeletche:2019qma for the QGSJETII.04 Ostapchenko:2010vb and EPOS-LHC Pierog:2013ria shower models. The cosmic ray energies are smeared according to

[TABLE]

for $E_{norm}=10^{18}$ eV, with $\Delta$ generated with a Gaussian distribution with $\sigma_{\Delta}=0.2$. The $X_{\rm max}$ values are smeared with a Gaussian distribution with $\sigma_{X}=35$ g/cm2. For the QGSJETII.04 (EPOS-LHC) model, $X_{\rm max}^{\rm start}=896\ (906)$ g/cm2 for the cosmic ray composition of $p$:N = 1:9 and $\eta=0.02$. We find $X_{\rm max}^{\rm start}=834\ (851)$ g/cm2 for $p$:Si = 1:3 with the QGSJETII.04 (EPOS-LHC) model with $\eta=0.13$. Examples of $\sim 80-90$ Monte Carlo trials of the $1,400$ events POEMMA will measure with smeared energy above 40 EeV and $X_{\rm max}>X_{\rm max}^{\rm start}$ are shown in Fig. 39.

Figure 40 shows the smeared, high statistics histograms of the unit normalized $X_{\rm max}$ distributions of all cosmic rays above 40 EeV (blue histograms) and the proton component (green histograms). The $X_{\rm max}$ distributions for one sample of $N_{\rm evts}=1,400$ for two composition models and a hadronic interaction model are shown with the data points in the panels in Fig. 40. The error bars show $\sqrt{N_{i}}/N_{\rm evts}/\Delta X_{\rm max}$ for $\Delta X_{\rm max}=10$ g/cm2 for this set of 1,400 events. The red points show the $X_{\rm max}$ bins which are above the bin that includes $X_{\rm max}^{\rm start}$. In the right panels, the shaded red bands show the range of slopes of the tail determined by $\Lambda_{\eta}^{\rm opt}$ with $1\sigma$ statistical errors on both $\Lambda_{\eta}^{\rm opt}$ and the number of events above $X_{\rm max}^{\rm start}$, given 1,400 total events for POEMMA. Thus, $\Lambda_{\eta}^{\rm opt}$ can be converted to $\sigma_{p-{\rm air}}$ with the associated statistical uncertainty shown in Fig. 26.

Appendix D POEMMA’s Simulated UHE Neutrino Sensitivity

In stereo observation mode, POEMMA monitors $\sim 10^{13}$ metric tons of atmosphere. Thus, POEMMA has high sensitivity via air fluorescence EAS observations for UHE neutrino interactions that occur deep in the atmosphere that are well separated from UHECR EASs. The POEMMA stereo simulation package was used to simulate neutrino interactions above 30 EeV assuming an isotropic flux. For neutrino energies above a PeV, the neutrino and antineutrino interaction cross sections are virtually equal, and we just denote these as neutrinos. For neutrino energies above 10 EeV, the y-dependence of the cross section puts, on average, 80% of the neutrino energy into the daughter lepton and 20% into a hadronic shower. For charged-current (CC) electron neutrino interactions this leads to an EAS with 100% of the neutrino energy. The EAS development is simulated as that of a proton, but initiated at the neutrino interaction point. On one hand this is conservative since a pure electromagnetic EAS will have $\sim 20\%$ higher $N_{\rm part}$ at EAS maximum, but on the other hand, the Landau–Pomeranchuk–Migdal effect Landau:436540 ; PhysRev.103.1811 will reduce this. Given this, proton EAS profiles are used since a model of the LPM effect is included in the EAS generator. The selection of $X_{\rm Start}\geq 2000~{}{\rm g/cm}^{2}$ is based on the analysis of the $X_{\rm Start}$ distributions for UHECR protons at 40, 60, 100, and 200 EeV. The event selection is based on the stereo selection described earlier, which yields approximately 1∘ angular resolution which implies a $1.5\times 10^{-4}$ fractional error on the determination of $X_{\rm Start}$. Fig. 41 shows the distribution of $X_{\rm Start}$ for UHECRS along with parametric fits used to define the quasi-gaussian peaks and exponential tails of the distributions. These parametric fits define probability distributions that can be evaluated to determine the probability for $X_{\rm Start}\geq 2000~{}{\rm g/cm}^{2}$ and $X_{\rm Start}\geq 1500~{}{\rm g/cm}^{2}$, the later is used for comparison to the effects on the neutrino aperture for different selection criteria. Table 7 provide the UHECR background probabilities as a function of $X_{\rm Start}$ and EAS energies. Note that the assumption that the UHECR flux is pure protons is the most conservative assumption for this background analysis. Table 7 also provides the anticipated statistics in representative energy ranges based on the Auger and TA spectra assuming 5 years observation as shown in Fig. 18 for stereo (Nadir) observations.

Using the background probabilities and anticipated UHECR event statistics, the mean number of background events can be calculated and evaluated assuming Poisson statistics to calculate the probability of observing $\geq 1$ and $\geq 2$ UHECR background events with POEMMA in 5 years. These are also detailed in Table 8.

The results show that assuming the POEMMA UHECR statistics based on the measured Auger UHECR spectrum, the probability of getting at lease one UHECR background event in the neutrino sample is 6.1% for $X_{\rm Start}\geq 1500~{}{\rm g/cm}^{2}$ while it is $<1$% for $X_{\rm Start}\geq 2000~{}{\rm g/cm}^{2}$. Assuming the POEMMA UHECR statistics based on the measured TA UHECR spectrum, the probability of getting at lease one UHECR background event in the neutrino sample is 25% for $X_{\rm Start}\geq 1500~{}{\rm g/cm}^{2}$ while it is 4.2% for $X_{\rm Start}\geq 2000~{}{\rm g/cm}^{2}$. This motivates the use of $X_{\rm Start}\geq 2000~{}{\rm g/cm}^{2}$ for the POEMMA air fluorescence neutrino acceptance.

The effects of the $X_{\rm Start}$ selection on the simulated electron neutrino aperture is shown in Fig. 42. A parametric fit is used to describe the aperture based on simulations at specific energies. The comparison of the results for $X_{\rm Start}\geq 2000~{}{\rm g/cm}^{2}$ show a modest 15% reduction over the entire energy band as compared to the $X_{\rm Start}\geq 1500~{}{\rm g/cm}^{2}$ results. This comparison shows the relative insensitivity of the electron neutrino aperture for modest changes in the observed $X_{\rm Start}$ requirement.

Using the CC electron neutrino aperture, the apertures of the other neutrino flavors for both CC and NC can be obtained. For the NC, the emergent lepton is a neutrino and thus an EAS with 20% of the incident neutrino energy is produced but with a lower rate given by the ratio of NC to CC neutrino cross sections. Effectively this shifts the NC neutrino aperture curve up by a factor of five in neutrino energy, compared to the CC electron neutrino aperture, with a reduction given by $\frac{\sigma_{\rm NC}(E_{\nu})}{\sigma_{\rm CC}(E_{\nu})}$ for each of the three neutrino flavors. For the CC $\mu_{\mu}$ and $\nu_{\tau}$ apertures, we conservatively assume that only 20% of the neutrino energy is observed, e.g. the EAS generated by the emergent muon or $\tau$-lepton is not observed. While these UHE muons are well above their critical energy, the charged-particle production in these muonic EASs versus electron-initiated EAS is much reduced Vankov . Thus it is assumed the air fluorescence signal is below POEMMA’s detection threshold. For $\tau$-leptons, the decay length given by $\gamma$c$\tau$ is nearly 5,000 km at 100 EeV. The conservative approach is to assume the $\tau$-lepton decays outside POEMMA’s FoV and only 20% of the incident neutrino is observed in the EAS. These assumptions lead to the muon and $\tau$-lepton CC neutrino apertures shifted up by a factor of five in neutrino energy, compared to the CC electron neutrino aperture. The ensemble of these results are presented in the rightmost plot in Fig. 28.
