Disorder suppresses chaos in viscoelastic flows

TL;DR

This study demonstrates that geometric disorder in microfluidic arrays can significantly delay or suppress chaotic flow behaviors in viscoelastic fluids by shifting the flow from extension-dominated to shear-dominated regimes.

Contribution

It reveals how geometric disorder influences flow stability in viscoelastic systems, showing that increased disorder suppresses chaos and alters flow type.

Findings

Small disorder delays chaos onset.

Large disorder suppresses chaotic fluctuations.

Flow shifts from extension to shear dominance with disorder.

Abstract

Viscoelastic flows transition from steady to time-dependent, chaotic dynamics under critical flow conditions, but the implications of geometric disorder for flow stability in these systems are unknown. Utilizing microfluidics, we flow a viscoelastic fluid through arrays of cylindrical pillars, which are perturbed from a hexagonal lattice with various degrees of geometric disorder. Small disorder, corresponding to ~ 10% of the lattice constant, delays the transition to higher flow speeds, while larger disorders exhibit near-complete suppression of chaotic velocity fluctuations. We show that the mechanism facilitating flow stability at high disorder is rooted in a shift from extension-dominated to shear-dominated flow type with increasing disorder.

Figures

Equations

$${\left[\frac{\tau U}{\mathcal{R}}\frac{{\sigma }_{11}}{{\eta }_0\dot{\gamma }}\right]}^{1/2}\ge M_{\text{cr}},$$

Full text

Viscoelastic fluids encompass a wide range of complex materials having a mechanical response to strain that lies between elastic solids and viscous fluids Chen et al. (2010). Even in the absence of inertia, viscoelastic flows spontaneously become time dependent when elastic stresses overcome viscous stresses. This condition is often characterized by a Weissenberg number, $\mathrm{Wi}=\tau\dot{\gamma}>\mathrm{Wi}_{\mathrm{cr}}\sim 1$, where $\dot{\gamma}$ is the typical shear rate and $\tau$ is the fluid relaxation time Larson (1992). Purely elastic instabilities manifest as spatio-temporal chaotic flow and elastic turbulence Groisman and Steinberg (2000, 2004) in a wide range of natural and industrial applications: Elasticity generates secondary flows of DNA and blood suspensions in biological systems Gulati et al. (2008); Thiébaud et al. (2014), hydrodynamic resistance increases Denn (2004) along with power consumption and cost in polymer processing, and elastic instabilities enhance mixing and dispersion in microfluidic and porous media flows Groisman and Steinberg (2001); Clarke et al. (2015); Scholz et al. (2014). Experimental Muller et al. (1989); McKinley et al. (1993); Arratia et al. (2006); Sousa et al. (2015, 2018) and numerical Deiber and Schowalter (1981); Poole et al. (2007); Grilli et al. (2013) efforts have characterized the onset and impact of elastic instabilities in well-defined geometries including cross slot  Arratia et al. (2006); Poole et al. (2007), Couette Larson et al. (1990); Groisman and Steinberg (1998), Poiseuille Groisman and Steinberg (2001); Meulenbroek et al. (2003), and ordered pillar array flows McKinley et al. (1993); Arora et al. (2002); Qin and Arratia (2017). In contrast to the high degree of symmetry in such systems, how geometrical disorder affects the onset of elastic instability remains an open question.

Geometrical disorder is a fundamental determinant of transport properties for diverse physical systems, ranging from Anderson localization Anderson (1958) to colloidal glasses Weeks and Weitz (2002) to network dynamics Watts and Strogatz (1998). Similar to viscoelastic flows, coupled dynamical systems are known to display chaotic dynamics under sufficient driving force Shinbrot et al. (1992). However, simulations have suggested that disorder can promote synchronization among arrays of oscillators Braiman et al. (1995) and in earthquakes Mousseau (1996), a phenomenon which has been realized in relatively few physical systems Sagués et al. (2007); Shew et al. (1999). In this Letter, we experimentally demonstrate the role of geometric disorder in inhibiting the transition to chaos for viscoelastic flows through microfluidic pillar arrays (Fig. 1). In an ordered pillar array, the flow field fluctuations undergo a bifurcation at the predicted $\mathrm{Wi}\approx 0.5$ De Gennes (1974). Strikingly, the introduction of small, finite disorder to the pillar array (12.5% of the lattice constant) delays the onset of velocity fluctuations to higher $\mathrm{Wi}\approx 1.2$, and larger disorders ($\geq 25\%$) completely quench the transition. This work thus provides a rare, physical realization of a novel class of systems, where disorder suppresses chaos.

Microfluidic channels (25 mm long, 4 mm wide, 50 $\mu m$ high) containing arrays of cylindrical pillars (diameter, $d=50$ $\mu$m) were fabricated using soft lithography to provide precise control over the geometry. Starting from a hexagonal array (lattice constant, $a=120$ $\mu$m), disorder is introduced into the pillar arrangements through computer-generated photolithography masks. Pillar locations are randomly displaced from the ordered lattice within a hexagon of circumradius, $\beta a$ (see Supplemental Material SIR ), where five individual microchannels were fabricated with disorders of $\beta=$ [0, 0.125, 0.25, 0.5, 1.0].

The viscoelastic fluid is comprised of high molecular weight polyacrylamide (PAA; $18\times 10^{6}$ g/mol) at 150 ppm in a viscous Newtonian solvent (97% aqueous glycerol), which ensures a dilute polymer regime (overlap concentration, $c^{\ast}=350$ ppm) Arratia et al. (2006). The shear rheology (TA AR-2000) of the PAA solution exhibits a slightly shear thinning viscosity, $\eta$, in the range 2 Pa-s $\geq\eta\geq$ 0.5 Pa-s for shear rates $0.01\leq\dot{\gamma}\leq 10$ s*-1*. The elastic relaxation time of the fluid, $\tau=1.14\textrm{ s}\pm 0.1$ s, was measured using a capillary breakup extensional rheometer (CaBER) SIR . The viscoelastic fluid is driven through the microfluidic pillar arrays at constant pressure (Elveflow OB1), and video microscopy (Nikon Ti-e; 10$\times$, 0.2 NA objective) captures the motion (100 fps; Andor Zyla) of fluorescent tracer particles (diameter, $0.5$ $\mu$m) seeded in the flow. Time-resolved velocity fields, $\textbf{u}(\textbf{r},t)$, are measured using particle image velocimetry (PIV) Thielicke and Stamhuis (2014), and Lagrangian flow statistics are obtained by simultaneously tracking slightly larger particles (diameter, $1$ $\mu$m) seeded at low density. The maximum Reynolds number across experiments is $\mathrm{Re}=\rho Ud/\eta\lesssim 10^{-4}$ (density, $\rho$; mean flow speed, $U$), ensuring that inertial effects are negligible.

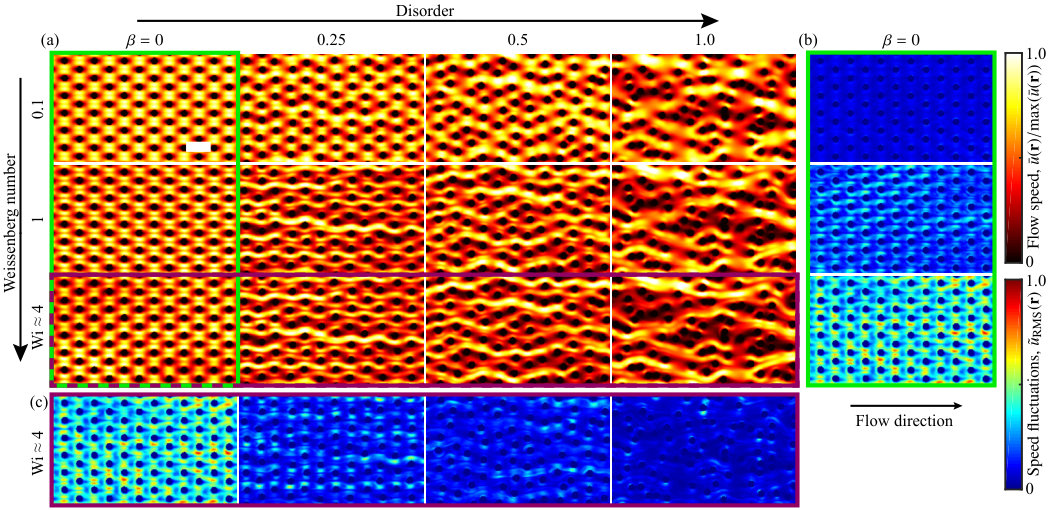

The introduction of geometric disorder into the pillar arrays shifts the flow topology from highly periodic to heterogeneous and decreases the temporal fluctuations of the velocity field. Flow speed fields, $u(\textbf{r},t)=|\textbf{u}(\textbf{r},t)|$, are time averaged, $\bar{u}(\textbf{r})=\langle u(\textbf{r},t)\rangle_{t}$, to quantify flow topology [Fig. 1(a)] as a function of both disorder, $\beta$, and flow strength, where the latter is characterized by the Weissenberg number, $\textrm{Wi}=\tau U/d$. At low $\mathrm{Wi}$, disorder induces heterogeneities in the time-averaged speed field [Fig. 1(a), $\mathrm{Wi}\approx 0.1$], similar to Newtonian flow Alim et al. (2017). As $\mathrm{Wi}$ is increased, the flow speed in fast flowing regions becomes amplified leading to ‘channelization’ of the flow field [Fig. 1(a), $\beta=1.0$]. In ordered geometries, the measured local temporal fluctuations Arratia et al. (2006), $\tilde{u}_{\textrm{RMS}}(\textbf{r})=\sqrt{\langle(\tilde{u}(\textbf{r},t)-\langle\tilde{u}(\textbf{r},t)\rangle_{t})^{2}\rangle_{t}}$, of the normalized speed field, $\tilde{u}(\textbf{r},t)=u(\textbf{r},t)/U$, increase with Wi, as expected for chaotic regimes with $\textrm{Wi}\gtrsim 1$ [Fig. 1(b)]. In surprising contrast, the amplitude of the temporal flow speed fluctuations drastically decreases by an order of magnitude as the disorder of the system is increased at high $\mathrm{Wi}$ [Fig. 1(c), $\textrm{Wi}\approx 4$; see also Supplemental Movies 1-5 SIR ]. The viscoelastic flows through pillar arrays studied here demonstrate a surprising interplay between geometry, flow topology, and elastic stability.

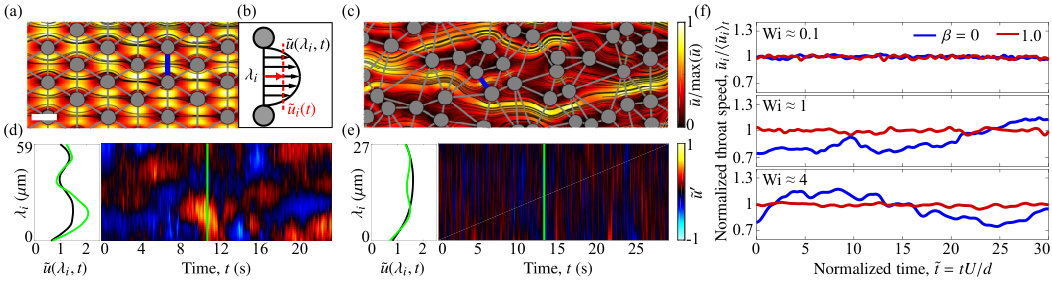

The spatial extent of the velocity fluctuations is typically on the order of the pillar spacing (Fig. 2), which suggests that pore-scale averaging of the flow statistics provides an adequate level of course graining to study the dynamical transition of these viscoelastic flows Pan et al. (2013). Taking a hydraulic network point of view, we inspect the fluctuations within throats between adjacent pillars [Figs. 2(a)-(c)] using a Delaunay triangulation of their positions. The normalized speed fields are interpolated [Fig. 2(b)] between pillars to obtain a time-dependent speed profile [Fig. 2(d)-(e)], $\tilde{u}(\lambda_{i},t)$, where $\lambda_{i}$ runs across throat $i$. Kymographs reveal deficits and excesses of flow speed in a given throat cross section [Fig. 2(d)-(e)] and are used to discriminate sub-pore-scale temporal fluctuations [Fig. 2(d)]. These fluctuations are comparable to the pore scale, and thus, we compute the instantaneous, normalized mean flow speed through each throat, $\tilde{u}_{i}(t)=\langle\tilde{u}(\lambda_{i},t)\rangle_{\lambda_{i}}$. The normalized throat flow speed initially exhibits small fluctuations in the ordered system, which markedly grow with increasing $\mathrm{Wi}$ [Fig. 2(f), $\beta=0$]. In distinct contrast, throat speeds for the disordered system remain nearly constant across $\mathrm{Wi}$ [Fig. 2(f), $\beta=1$] with comparable fluctuations to the $\mathrm{Wi}\approx 0.1$ ordered system [Fig. 2(f), $\beta=0$]. This pore-scale analysis captures the essential features of the system (Fig. 1) and provides a convenient framework to determine how disorder affects the dynamical transition to chaos.

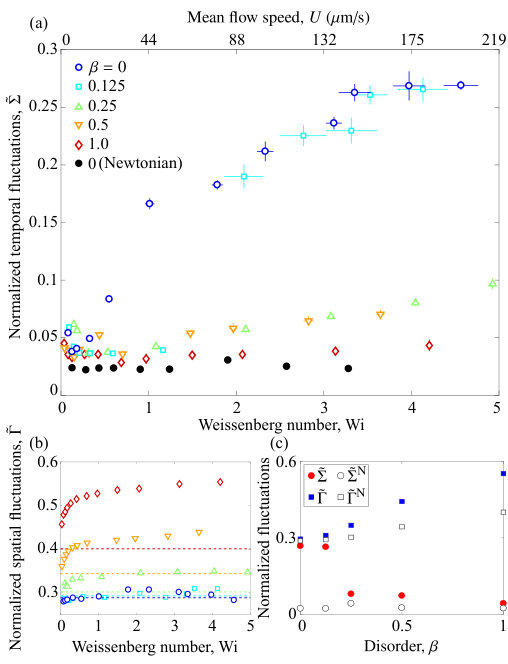

Examination of the pore-scale flow speed fluctuations demonstrates that the onset of time-dependent flow undergoes a global, forward bifurcation Pan et al. (2013) in the ordered geometries but not in disordered geometries. The ensemble-averaged, temporal fluctuation of the normalized throat speeds, $\tilde{\Sigma}=\langle\sqrt{\langle(\tilde{u}_{i}(t)-\bar{u}_{i})^{2}\rangle_{t}}\rangle_{i}$, is used as the order parameter, where $\bar{u}_{i}=\langle\tilde{u}_{i}(t)\rangle_{t}$ [Fig. 3(a)]. For the ordered lattice ($\beta=0$), a bifurcation in the throat speed fluctuations occurs at $\textrm{Wi}_{\textrm{cr}}\approx 0.5$, which is accompanied by the onset of slow flow speed fluctuations (see Supplemental Movie 2 SIR ) and corresponds to the predicted polymer coil-stretch transition in purely extensional flows De Gennes (1974). A minor perturbation to the ordered geometry ($\beta=0.125$) significantly delays the transition to $\textrm{Wi}_{\mathrm{cr}}\approx 1.2$, where time-dependent flow occurs. At yet higher disorders, the flow appears stable up to the limits of our experiment ($\textrm{Wi}\approx 5$), where for $\beta\geq 0.25$ no bifurcation is discernible and speed fluctuations are significantly damped. For example, $\tilde{\Sigma}$ for viscoelastic flows with $\beta=1.0$ is one order of magnitude smaller than for $\beta=0$ and comparable to $\tilde{\Sigma}$ for Newtonian flow at similar mean speeds [Figs. 3(a) and 3(c)]. To our knowledge, this result represents the first observation of the stabilizing effect of disorder on viscoelastic flow. Furthermore, the finite disorder necessary to quench the onset of time-dependent flow and lack of scaling with Wi across disorder, suggests a deeper coupling between flow topology and polymer stretching.

Disorder suppresses the abrupt onset of temporal fluctuations, but introduces spatial heterogeneity into the flow topology, where viscoelasticity further enhances flow channelization SIR in a continuous fashion. The normalized, spatial throat speed fluctuations - defined by the root-mean-square, $\tilde{\Gamma}=\sqrt{\langle(\bar{u}_{i}-\langle\bar{u}_{i}\rangle_{i})^{2}\rangle_{i}}$ - reveal a continuous increase with Wi from their respective, measured Newtonian values, $\tilde{\Gamma}^{N}$, for highly disordered geometries ($\beta=[0.25,0.5,1.0]$) [Fig. 3(b)]. In contrast, ordered geometries ($\beta=[0,0.125]$), where bifurcations in $\tilde{\Sigma}$ are evident, show relatively little change in $\tilde{\Gamma}$ with Wi [Fig. 3(b)]. The result is an apparent trade-off between spatial and temporal fluctuations with increasing disorder [Fig. 3(c)]. The non-linear flow response of disordered systems to increased $\mathrm{Wi}$ goes beyond a simple increase in the spatial heterogeneity of flow speed, and the observed channelization [Figs. 1(a) and 2(c)] Datta et al. (2013) likely alters the nature of the deformations experienced by fluid particles.

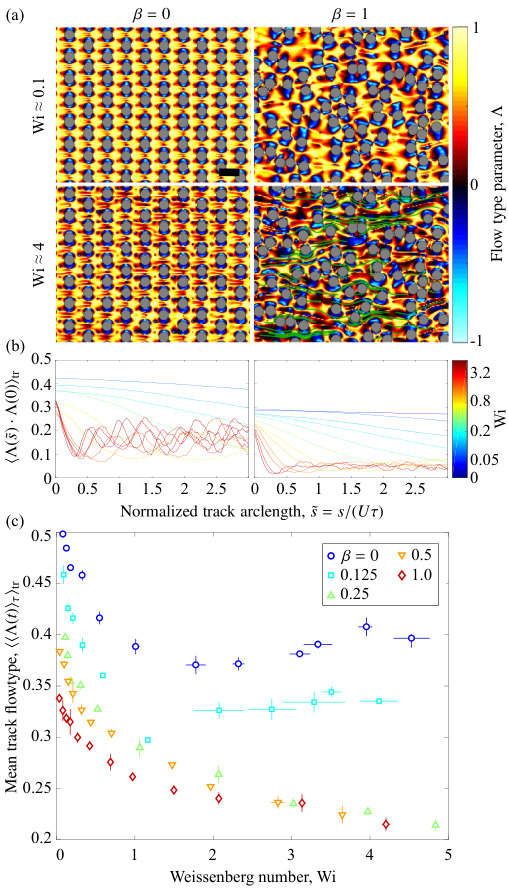

The local mode of fluid deformation, or flow type, dramatically affects the hydrodynamic response of viscoelastic fluids. For example, in extensional strain, viscoelastic flows reach a critical stretching rate, $\dot{\epsilon}=(2\tau)^{-1}$, due to finite polymer extensibility, accompanied by increased extensional viscosity De Gennes (1974). The flow type parameter Astarita (1979), $\Lambda=(||\mathbf{D}||-||\mathbf{\Omega}||)/(||\mathbf{D}||+||\mathbf{\Omega}||)$, quantifies the local flow kinematics ranging from pure rotation ($\Lambda=-1$) to shear ($\Lambda=0$) to pure extension ($\Lambda=+1$), where $\mathbf{D}$ and $\mathbf{\Omega}$ are the strain-rate and vorticity tensors, respectively, and $||\mathbf{D}||=\sqrt{2\mathbf{D}:\mathbf{D}}$. At low $\mathrm{Wi}$, the flow through both ordered ($\beta=0$) and disordered ($\beta=1$) arrays is dominated by extension [Fig. 4(a), top row]. As Wi increases, the flow type in the ordered geometry remains primarily extensional [Fig. 4(a), bottom left]. However, a clear shift toward shear-dominated flow-type is evident in the disordered geometry [Fig. 4(a), bottom right], suggesting that the flow type experienced by fluid particles is integral to the stabilizing mechanism of these viscoelastic flows.

The degree of polymer stretching is dependent upon the Lagrangian flow type history of fluid particles, which ultimately dictates the global dynamics of viscoelastic flows Wagner and McKinley (2016). The auto-correlation of the flow type [Fig. 4(b)] along measured particle trajectories [Fig. 4(a), bottom right, green tracks] quantifies the constancy of fluid deformation. In ordered geometries [Fig. 4(b), left, $\beta=0$], fluid particles are subjected to strongly extensional flow with regular frequency, whereas the weakly correlated flow type experienced in random media likely facilitates polymer relaxation [Fig. 4(b), right, $\beta=1$] despite the spatial correlations introduced by flow channelization (Fig. 1). To compare the relative flow type experienced by fluid particles across geometries, we compute the ensemble-averaged, mean flow type (see Fig. S8 SIR ) along measured particle trajectories [Fig. 4(a), bottom right] over one relaxation time, $\tau$ [Fig. 4(c)]. This time-averaged flow type initially decreases with Wi for all disorders, tending toward shear. However, the most ordered geometries ($\beta=[0,0.125]$) plateau at $\Lambda>0.3$ for $\textrm{Wi}\gtrsim 1$, corresponding to the unstable regime. These results show that disordered media enable viscoelastic flow to minimize extensional strain and avoid elastic instability, whereas ordered microstructure maintains sufficiently strong, coherent extension to trigger instability.

Lagrangian unsteady flows, having non-constant stretch history, present theoretical challenges for understanding elastic flow instabilities Wagner and McKinley (2016). However, we can gain some insight into the geometry-dependent conditions, $M_{\textrm{cr}}$, for elastic stability through the well-developed Pakdel-McKinley criterion Pakdel and McKinley (1996); McKinley et al. (1996):

[TABLE]

where $\mathcal{R}$ is the radius of curvature of a streamline, $\sigma_{11}$ is the stream-wise tensile stress, and $\eta_{0}$ is the zero shear rate viscosity. The first term, $\tau U/\mathcal{R}$, represents the contribution of geometry to polymer stretching through streamline curvature, but this effect has only a minor variation across disorders (see Fig. S5 in the Supplemental Material SIR ). The second term in the criterion, $\sigma_{11}/(\eta_{0}\dot{\gamma})$, is the ratio of extensional to shear stresses. While we do not have access to the local $\sigma_{11}$, the observed evolution to shear-dominated flow with increasing $\mathrm{Wi}$ and disorder (Fig. 4) is consistent with reducing the Pakdel-McKinley number, tending toward stable flow.

In this Letter, we demonstrate that the introduction of finite disorder into hydraulic networks suppresses the onset and amplitude of chaotic velocity fluctuations associated with viscoelastic flow, emphasizing the need for a Lagrangian understanding of elastic flow stability beyond the Weissenberg number Pakdel and McKinley (1996); McKinley et al. (1996). The stabilizing effect of disorder is attributed to a shift in the flow type history of the viscoelastic fluid, which evolves from extensional and unstable in ordered systems to shear-dominated and stable in disordered systems. We expect that the transport properties of these transitional flows will likewise be sensitive to disorder due to temporal fluctuations, which are important for extraction, remediation, and other industrial processes in porous media flows Scholz et al. (2014); Clarke et al. (2015). More broadly, coupled systems often exhibit chaotic dynamics under sufficient forcing, where only a few examples have thus far demonstrated the counterintuitive restoration of synchrony or stability by disorder Sagués et al. (2007): Arrays of forced, coupled pendula desynchronize, but introducing disorder among their natural frequencies suppresses chaotic oscillations and recovers periodicity Braiman et al. (1995); Shew et al. (1999). In earthquakes and neural networks, finite disorder causes a transition from a self-organized-critical (SOC) distribution of avalanches to system-wide, periodic events Mousseau (1996); Fontenele et al. (2019). Analogously, in the system presented here, stability is maintained for a viscoelastic flow through a disordered microstructure, relative to a perfectly crystalline medium. Hence, this work provides a new, physical example of the suppression of chaos via disorder and adds to the growing canon of this important phenomenon, which is thus far dominated by simulation and theory.
