Commuting-projector Hamiltonians for 2D topological insulators: edge physics and many-body invariants
Jun Ho Son
Department of Physics, Stanford University, Stanford, CA 94305, USA
Jason Alicea
Department of Physics and Institute for Quantum Information and Matter, California Institute of Technology, Pasadena, CA 91125, USA
Walter Burke Institute for Theoretical Physics, California Institute of Technology, Pasadena, CA 91125, USA
Abstract
Inspired by a recently constructed commuting-projector Hamiltonian for a two-dimensional (2D) time-reversal-invariant topological superconductor [Wang et al., Phys. Rev. B 98, 094502 (2018)], we introduce a commuting-projector model that describes an interacting yet exactly solvable 2D topological insulator. We explicitly show that both the gapped and gapless boundaries of our model are consistent with those of band-theoretic, weakly interacting topological insulators. Interestingly, on certain lattices our time-reversal-symmetric models also enjoy symmetry, leading to intuitive interpretations of the bulk invariant for a -symmetric topological insulator upon putting the system on a Klein bottle. We also briefly discuss how these many-body invariants may be able to characterize models with only time-reversal symmetry.
I Introduction
Commuting-projector Hamiltonians consist of sums of local terms that commute with each other. In these models, both ground states and excited states can be obtained simply by finding simultaneous eigenstates of all local terms—typically implying exact solvability despite strong interactions among microscopic degrees of freedom. Commuting-projector models have yielded great insights into interacting, gapped topological phases of matter. Historically, the two now-canonical commuting-projector models—Kitaev quantum double [1] and Levin-Wen string-net models [2]—laid important cornerstones for the study of bosonic topologically ordered phases. More recently, various commuting-projector models for fermionic topologically ordered states and symmetry-protected topological phases [3; 4; 5; 6; 7; 8; 9; 10; 11] have been constructed, establishing concrete lattice models of topological phases predicted by more abstract formalisms.
Despite the remarkable recent progress, commuting projector models for fermionic topological phases with both antiunitary symmetry and continuous on-site symmetry have, to our knowledge, so far eluded construction. The first goal of the paper is to build a commuting-projector model for the most well-known example of such phases: a two-dimensional (2D) topological insulator with time-reversal symmetry and U(1) particle conservation, also known as a quantum spin Hall system (we use both names interchangeably in this paper). Topological insulators are one of the first-discovered symmetry-protected topological phases and have been extensively explored via band theory. Nevertheless, it has remained unclear how such states can emerge in a local lattice model outside of band-theoretic frameworks.
We will show that decorating Ising-spin domain walls with two Kitaev chains [12] in a time-reversal symmetric and particle-conserving manner (instead of a single Kitaev chain as done in Ref. 13) allows one to construct commuting-projector models for -symmetric topological insulators. Our model, though strongly-interacting, possesses the same symmetry and edge properties of band-theoretic quantum spin Hall insulators. In particular, to study gapless edge states of our model, we derive a strictly one-dimensional (1D) Hamiltonian whose low-energy physics is identical to that of fully symmetric quantum-spin-Hall edge states. This Hamiltonian constitutes a generalization of a 1D model that recently appeared in Ref. 14.
We further point out that the exactly solvable models for -invariant topological superconductors and insulators also possess symmetry when defined on certain lattices (here and respectively denote charge conjugation and spatial reflection symmetries). Recent studies have explored -protected topological phases [15; 16; 17; 18]. While symmetry is rather unnatural in realistic condensed-matter setups, many topological phases are described by Lorentz-symmetric field theories in the infrared even though they emerge from non-relativistic settings; moreover, in relativistic theories is equivalent to due to the theorem. Hence, studying -invariant topological phases may shed light on how to understand -invariant topological phases as well. We will show that our -symmetric models can be defined on a Klein bottle, upon which many-body invariants that characterize -protected topological phases obtain intuitive interpretations. We also comment on possible applications of these ideas to -symmetric topological insulators without any exact symmetry built in.
The rest of the paper is organized as follows. Section II briefly reviews the commuting-projector model for -invariant topological superconductors [13] and then generalizes the construction to 2D topological insulators. Sections III and IV explore gapped and gapless edge phases in our commuting-projector topological-insulator Hamiltonians, demonstrating consistency with band-theoretic phenomenology for weakly interacting topological insulators. We explain how to define our models on a Klein bottle and how to compute topological invariants in Sec. V. Finally, concluding remarks appear in Sec. VI.
II The Model
II.1 Symmetry actions in a Majorana representation
In this paper it is convenient to express models in terms of Majorana fermions rather than complex fermions. Hence we review how U, , and symmetries act on Majorana operators. We start with the first two symmetries, which are relevant to time-reversal-symmetric topological insulators. Let denote fermion operators for spatial index and spin . Symmetries and act on these operators as follows:
[TABLE]
[TABLE]
When acting on individual fermion operators, time-reversal and charge conservation symmetries satisfy
[TABLE]
Non-commutation between and U(1) encoded in the second relation reflects antiunitarity of . Hence, a topological insulator is often denoted as protected by U, where the semidirect product emphasizes the above relation.
Now we define two Majorana operators associated with each operator via
[TABLE]
One can then show that and transform Majorana operators according to
[TABLE]
where
[TABLE]
The matrices and satisfy relations analogous to Eq. (3), i.e.,
[TABLE]
Thus, one may take the above relations as defining properties—that is, the SO transformation matrix on Majorana operators and time-reversal transformation matrix encode the correct symmetries of a 2D topological insulator provided Eq. (7) holds.
One can similarly encapsulate symmetries of a U topological insulator in real matrices representing the symmetry action on Majorana operators. Complex fermion operators transform under as
[TABLE]
here in the subscript denotes the spatial index obtained from reflecting site with respect to some axis of our choice. The and symmetries satisfy
[TABLE]
Here non-commutativity between and comes from the fact that exchanges particles and holes, which acquire opposite U(1) phases.
In the Majorana representation sends
[TABLE]
with
[TABLE]
As expected, and satisfy relations akin to Eq. (9),
[TABLE]
which may be taken as the defining property of the symmetry transformations.
II.2 Review of the commuting-projector Hamiltonian for -invariant topological superconductors
We briefly review the exactly solvable model for -invariant 2D topological superconductors introduced in Ref. 13; our commuting-projector Hamiltonian for 2D topological insulators naturally extends this model as we will see in Sec. II.3. For brevity and ease of generalization to -protected topological phases, throughout the main text we focus on models constructed on the honeycomb lattice. We emphasize, however, that the Hamiltonians can be easily generalized into arbitrary trivalent lattices.
The degrees of freedom in the 2D topological superconductor model are two spinful Majorana fermions per honeycomb-lattice edge and one spin- per plaquette. See Fig. 1(a) for an illustration. In an equivalent picture that we will frequently exploit, one can modify the honeycomb lattice by replacing each vertex with a small triangle, generating the Fisher lattice sketched in Fig. 1(b); the two Majorana fermions at each honeycomb-lattice edge can then be viewed as living on Fisher-lattice vertices. We label Pauli operators for the spin at plaquette by and , and denote the Majorana operators at Fisher-lattice vertex by , where labels spin.
Due to subtleties with global fermion parity, defining the model consistently requires specifying a Kasteleyn orientation on the the Fisher lattice. Kasteleyn orientations are defined as a choice of arrows on the lattice that satisfies the following condition, often denoted as the ‘clockwise-odd rule’: Around any closed clockwise cycle, there are an odd number of clockwise-oriented arrows. (See Refs. 5 and 6 for a detailed discussion.) We adopt the following convention:
- •
As in Ref. 13, let ‘long edges’ denote Fisher-lattice edges derived from the original honeycomb lattice. Moreover, label the two honeycomb sublattices by and [colored red and green, respectively, in Fig. 1(b)]. Arrows on all long edges point from the sublattice to sublattice.
- •
Let ‘short edges’ denote the edges of the small triangles in the Fisher lattice. Arrows on short edges orient clockwise on going around any small triangle.

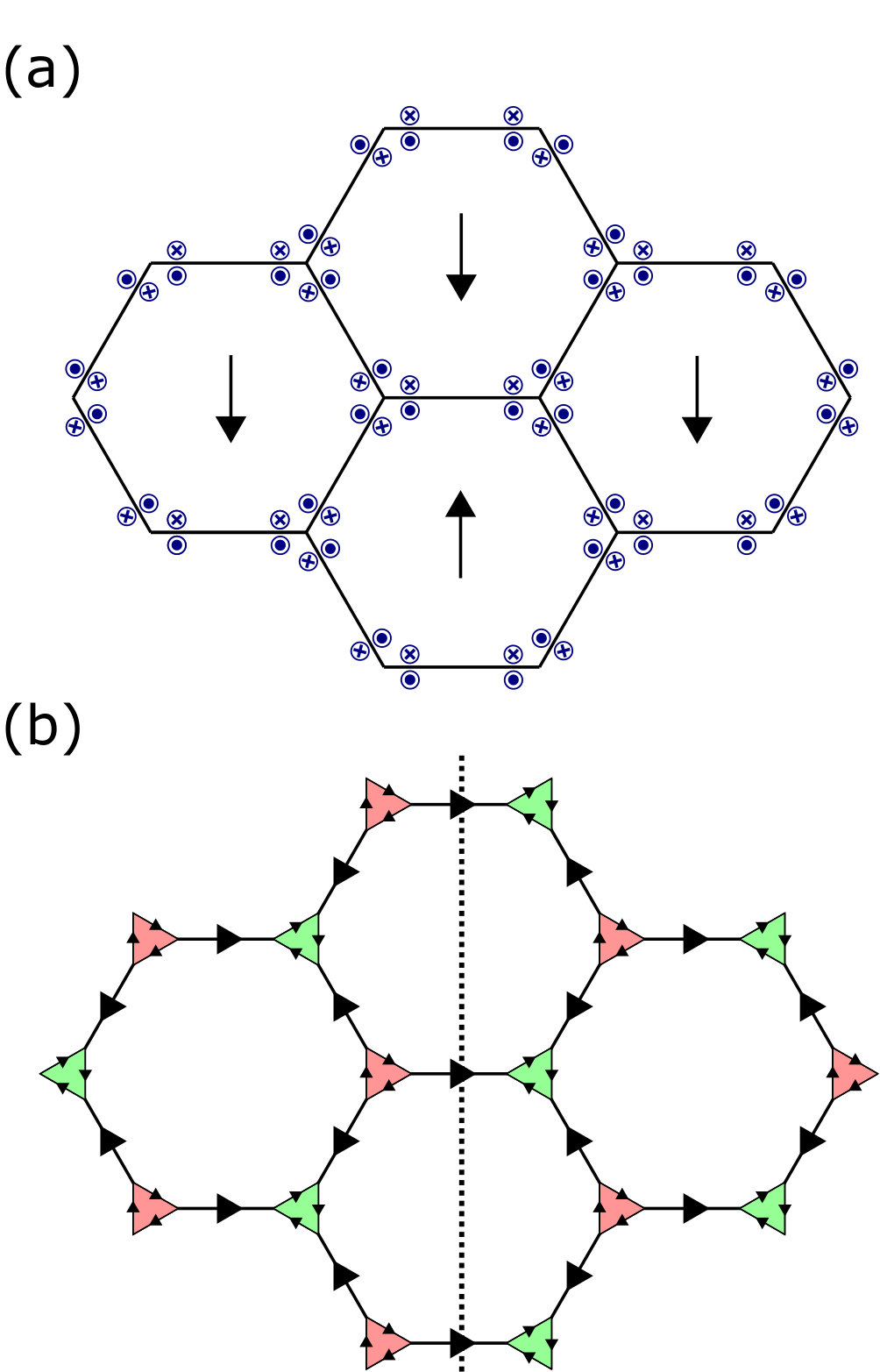

Figure 1(b) illustrates the resulting Kasteleyn orientation.
The Hamiltonian,
[TABLE]
consists of vertex terms defined for each vertex of the honeycomb lattice (corresponding to a small triangle on the Fisher lattice, hence the subscript ) along with plaquette terms . Before explaining these terms in detail, we define a sense of ‘pairing’ of Majorana fermions belonging to Fisher-lattice vertices and linked by either a long or short edge: and are paired in a state if . Here if the Kasteleyn arrow points from to ; otherwise .

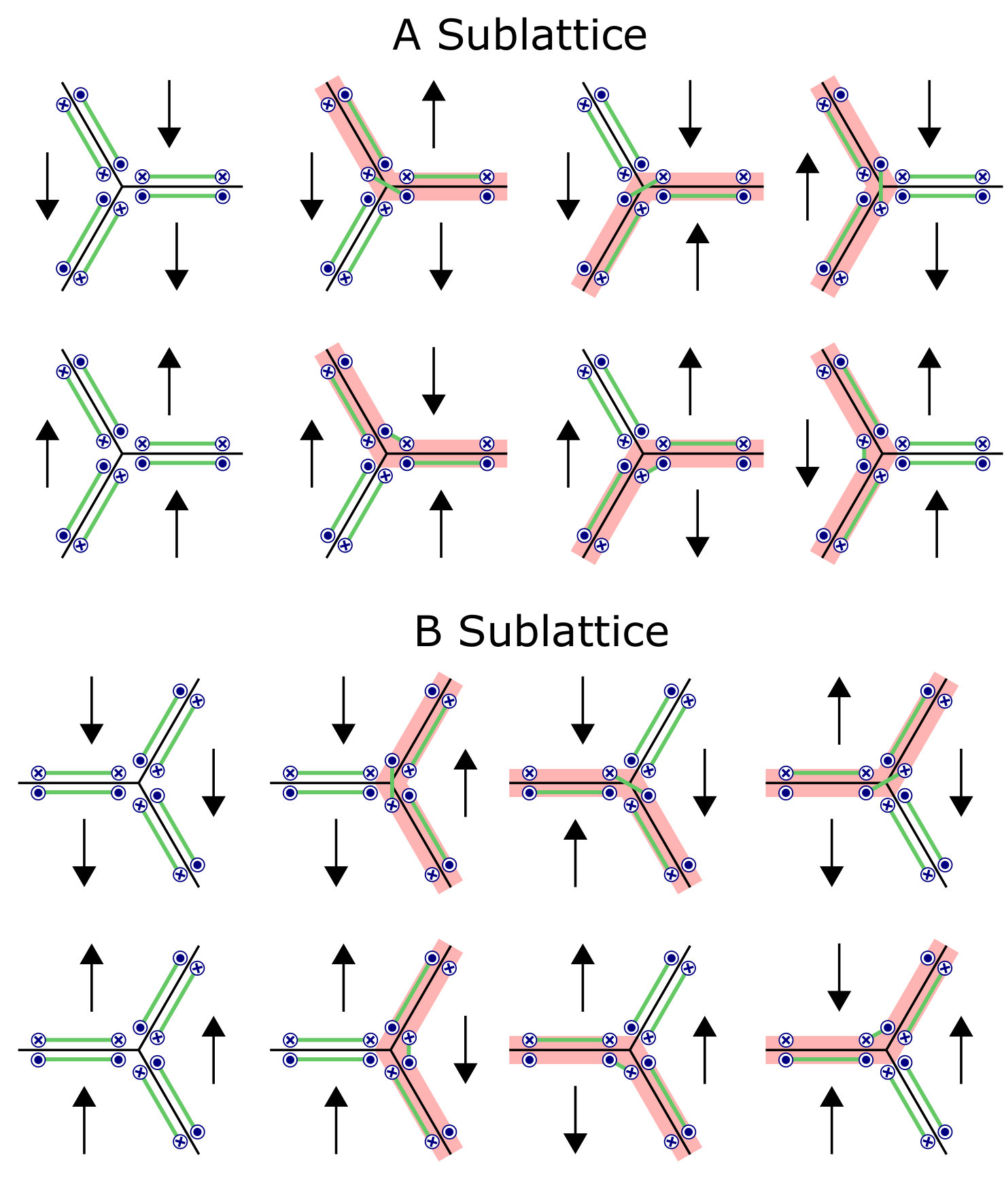

The role of is to give an energy advantage whenever Ising spin configurations around the vertex (i.e., values around the vertex) and Majorana pairings are consistent with the local rules illustrated in Fig. 2. Some key features of these local rules are the following:
- •
The local rules enforce Majorana pairing along short edges only when there is a domain wall of Ising spin configuration along it. Away from such domain walls, Majoranas always pair along long edges. One can alternatively understand short-edge pairings as decorating Kitaev chains along domain walls.
- •
Majorana fermions with the same spin pair along long edges. Meanwhile, short-edge Majorana pairings are always between opposite spins.
- •
The Majorana spins involved in short-edge pairings also depend on the adjacent Ising spins. In particular, the upper and lower panels for each sublattice in Fig. 2 are related by an Ising-spin flip, and have Majoranas with opposite spin indices paired.
After defining the projector
[TABLE]
which projects onto the state where and are paired, one can explicitly express as
[TABLE]
Here denotes an Ising spin configuration around the honeycomb vertex ; the sum runs over all eight possible Ising spin configurations. The factor projects onto states with Ising spin configuration . And is a set whose elements are pairings enforced by the Ising spin configuration according to the local rules. Simply stated, if the state is consistent with the local rules illustrated in Fig. 2, while on all other states.

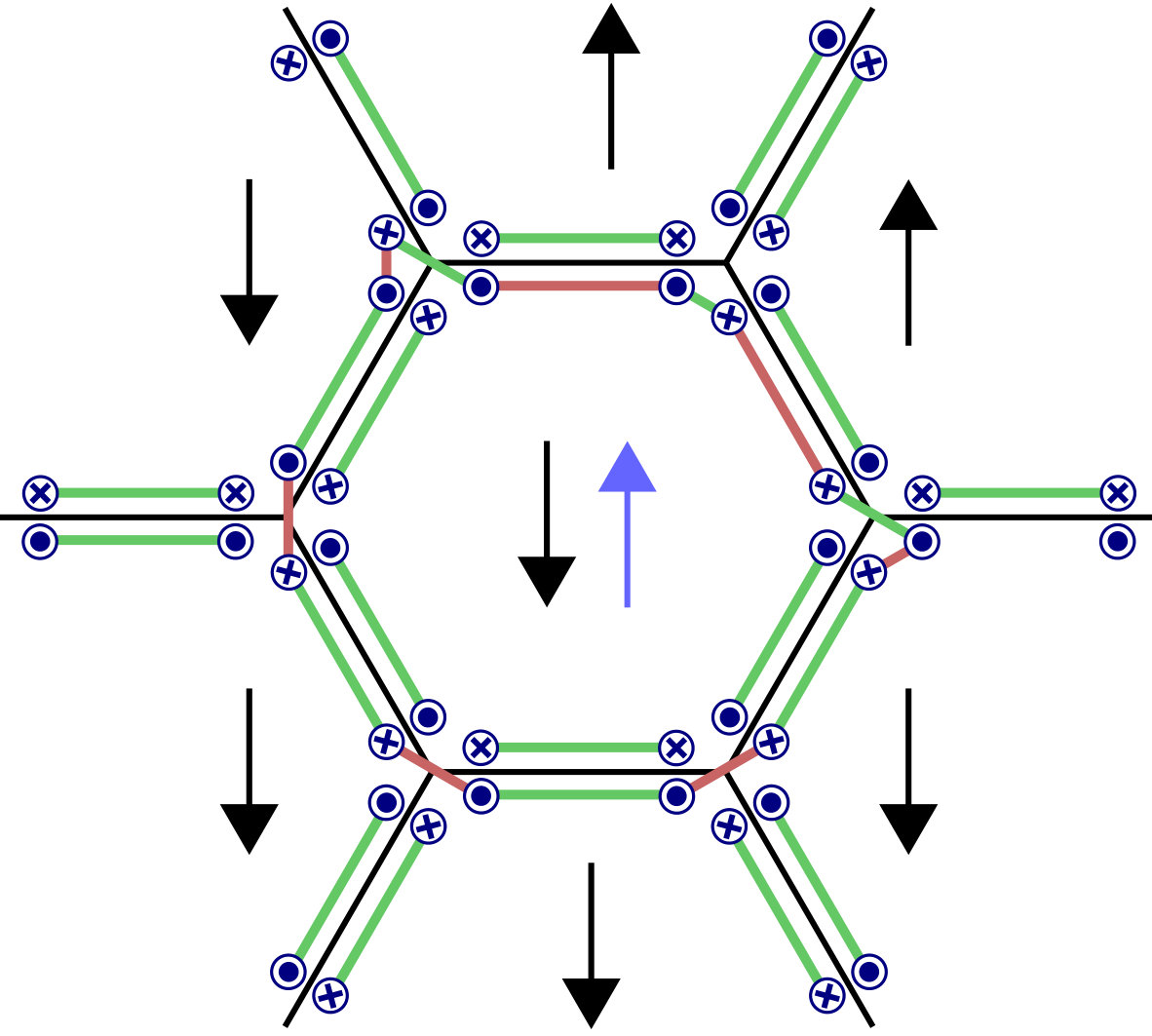

Plaquette terms allow Majorana pairings and the plaquette spin to fluctuate in a way that preserves the local rules if they are satisfied initially. These terms read
[TABLE]
In the above equations denotes an Ising spin configuration for plaquette together with the six neighboring plaquettes. Moreover, projects onto Ising spin configuration ; denotes a set of Majorana pairings consistent with ; and is a modified set of Majorana pairings consistent with the spin configuration in which is flipped. Thus, the bosonic part flips the plaquette spin, and the two strings of Majorana projectors in project onto the state with Majorana pairings consistent with the new Ising spin configuration. Finally, some integer powers of are added to normalize to have an eigenvalue and [math] on entire Hilbert space. See Fig. 3 for an illustration of the action of .
One can explicitly show that all and operators commute with each other. Also, is Hermitian and unitary on the subspace in which . Hence, on this subspace, . The ground state can be easily constructed by diagonalizing each term, and corresponds to an equal superposition of each Ising spin configuration accompanied with correct Majorana pairings.
Finally, let us discuss symmetry of the Hamiltonian. Denote a vertex of the Fisher lattice adjacent to sublattice and of the honeycomb lattice as and , respectively. We can define an antiunitary symmetry that acts on Majorana operators and Ising spins according to
[TABLE]
Notice that the action on Majorana fermions is identical to how is defined in Eqs. (5) and (6). One can prove that the Hamiltonian preserves . The following observation comes in handy for the proof: for all possible Majorana pairs and that can be paired due to the local rules, only one acquires a minus sign under time-reversal. An additional minus sign from complex conjugation results in a transformation of to , where the overline denotes an opposite spin index.
II.3 Extension to -invariant topological insulators
Next we will generalize the model reviewed in the previous subsection to construct a commuting-projector Hamiltonian for the celebrated quantum spin Hall insulator. As a first step we double the number of Majorana fermions per Fisher-lattice vertex from two to four. The corresponding Majorana operators on vertex are denoted by , the subscript being a ‘layer index’. Essentially, we will just construct a Hamiltonian in which the ground state is decorated with two layers of Kitaev chains instead of one as in the topological superconductor case.
The Hamiltonian once again takes the form
[TABLE]
Vertex and plaquette terms are straightforwardly modified to reflect that there are now two layers of Majorana fermions that pair identically according to the same local rules summarized in Fig. 2. To this end, define the projector
[TABLE]
which is a product of two projectors in Eq. (14), one for layer 1 and another for layer 2. We then have
[TABLE]
and
[TABLE]
Aside from normalization factors in , the vertex and plaquette terms are identical to those in the topological superconductor model, but with .
The Hamiltonian exhibits the following three symmetries:
The time-reversal transformation inherited from the original topological superconductor model applied to plaquette spins and Majorana fermions on both layers. We will soon find out that this operation does not coincide with physical time-reversal symmetry of an electronic topological insulator—which we hereafter denote by . 2. 2.
A layer interchange symmetry , which transforms . The Hamiltonian obviously preserves this symmetry since the layers are treated identically. 3. 3.
A U symmetry with elements that acts on Majorana operators as
[TABLE]
To see that this is actually a symmetry of the Hamiltonian, we observe that is invariant under the above U transformation due to a simple corollary of a lemma presented in Appendix B. Since all fermionic terms in the Hamiltonian appear in the form of , invariance of implies U invariance of the whole Hamiltonian.
The transformations specified above imply that , which is reminiscent of the second relation satisfied by time-reversal symmetry in Eq. (3). Nevertheless, clearly is not the time-reversal symmetry appropriate for a quantum spin Hall insulator since it is unitary and obeys . Furthermore, although is antiunitary and obeys , this operation can not be the desired time-reversal symmetry either since it commutes with U. Instead, the correct time-reversal symmetry is
[TABLE]
One can explicitly show that and satisfy the relations given in Eq. (3), and equivalently in Eq. (7).
We close this subsection with two remarks. First, defining time-reversal symmetry as layer interchange followed by a symmetry inherited from the topological superconductor may appear somewhat artificial. However, we will see in Secs. III and V that this choice allows one to see topological properties transparently, indicating that our choice is indeed physically correct. Second, our model has an extra layer-interchange symmetry (or equivalently, symmetry) that one may suspect plays a crucial role in topological properties. It does not. This ‘accidental’ symmetry can be broken without altering the topological properties of the model as discussed later on.
II.4 symmetry
Both the -symmetric topological insulator and topological superconductor models additionally possess symmetry. The dashed line in Fig. 1(b) shows our choice of the reflection axis associated with . We note two important features of this reflection: First, it maps maps sublattice onto sublattice and vice versa. Second, in the preceding sections we adopted a ‘special Kasteleyn orientation’ for which all arrows flip under this reflection.

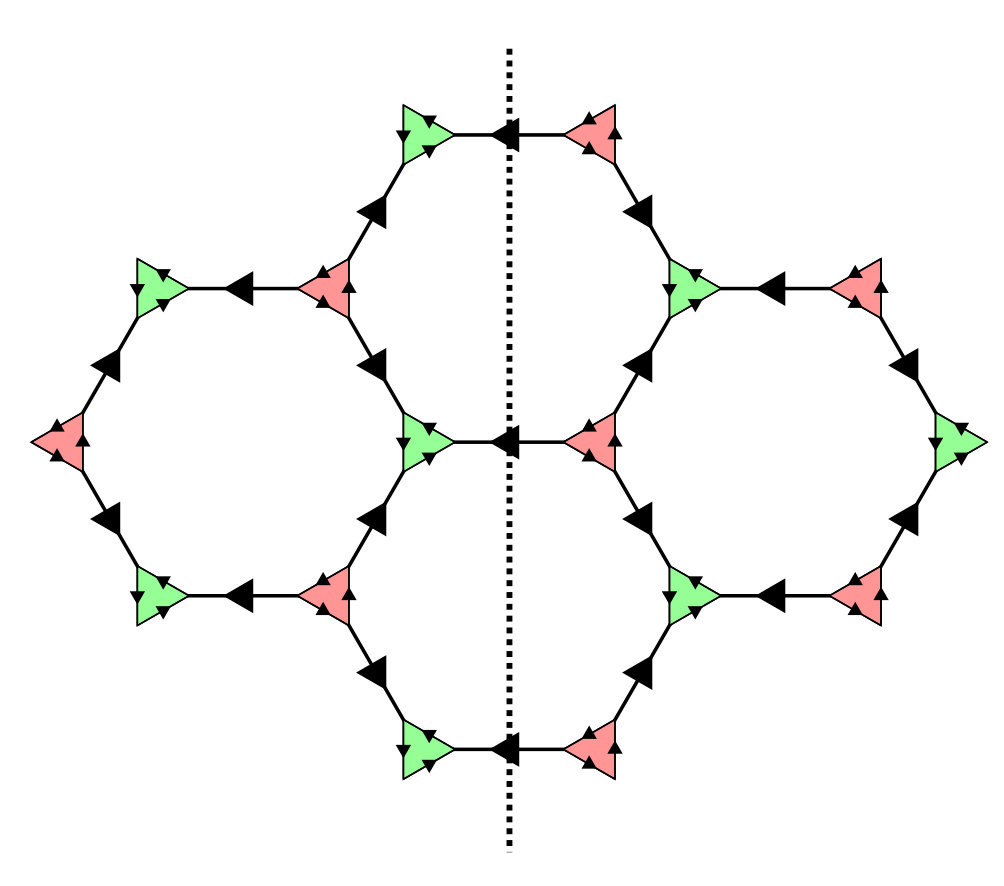

For simplicity, let us first consider the topological superconductor model. The second point above suggests that naive parity symmetry is absent. However, one can consider the following operation:
[TABLE]
As in Sec. II.1, the minus sign on the vertex and plaquette indices refers to the reflection operation. Note that since and respectively belong to sublattice and , despite some minus signs picked up by Majorana fermions in the transformation. Equation (24) essentially flips the plaquette spins and Majorana spins, spatially reflects, and adds some minus signs.
To see why is a symmetry of the Hamiltonian, first observe that the vertex rules illustrated in Fig. 2 are symmetric under spatial reflection and simultaneous flipping of plaquette spins and Majorana spins. This property is not sufficient, however, because we earlier observed that the spatial reflection flips the Kasteleyn-orientation arrows. The minus signs added in the transformation rule for Majorana fermions in Eq. (24) remedy the issue, which can be seen as follows. Long-edge pairing always pairs Majoranas with the same spin but opposite sublattice. The transformation rule dictates that precisely one of those Majorana fermions acquires an extra minus sign, thereby correcting the Kasteleyn-orientation flip from the spatial reflection. Similarly, short-edge pairing always pairs Majoranas on the same sublattice but with opposite spin; here too only one such Majorana fermion acquires a minus sign, again correcting the reversed Kasteleyn orientation.
The topological-insulator model, which has doubled Majorana degrees of freedom and exhibits U and layer-interchange symmetry, straightforwardly inherits symmetry. As we already encountered for time-reversal symmetry, however, is not the symmetry appropriate for the quantum-spin-Hall setting—this operation satisfies neither Eq. (9) nor the equivalent Eq. (12). We can nevertheless construct , the symmetry relevant to the -protected topological insulator, by combining with :
[TABLE]
Note the similarity to Eq. (23). One can explicitly show that , and that the U and action on Majorana degrees of freedoms satisfies Eq. (12).
Let us briefly comment on the fate of symmetry beyond the honeycomb-lattice setting. Recall that the existence of symmetry above relied on the bipartite and reflection-symmetric nature of the lattice. We detail in Apppendix A how symmetry may survive in models defined on any reflection-symmetric lattice (not necessarily bipartite) as well. Conversely, if -symmetric topological phases are defined on a non-parity-symmetric lattice, there cannot be any strict symmetry. We will, however, see in Sec. V that some bulk diagnostic of non-trivial topology of -symmetric phases still remains in such models despite the lack of symmetry.
III Gapped, symmetry-breaking edge properties of the -invariant topological insulator model
Quantum spin Hall insulators are protected by the interplay of U and symmetries. Hence, breaking either symmetry (e.g., via introduction of superconductivity or magnetism) suffices to gap out the edge, in turn enabling multiple inequivalent gapped edge phases. Domain walls separating incompatibly gapped regions of the edges bind interesting zero-dimensional modes that have been widely studied, typically by assuming that the edge is governed by an effective model for helical 1D Dirac fermions. In this section we show that our commuting-projector model reproduces precisely the same physics. Interestingly, due to the exact solvability, these zero modes can be observed explicitly on the lattice level without resorting to an analysis of an effective low-energy edge description.
III.1 Construction of broken-symmetry gapped edges
First, we discuss how one can break symmetry [but preserve U] at the boundary without losing exact solvability or generating spurious gapless degrees of freedom. Consider the ‘dangling-bond edge termination’ shown in Fig. 4(a) in which boundary plaquettes are incomplete. In such a geometry, one can define vertex terms precisely as before since all vertices remain trivalent. Likewise, one can define as before for all complete ‘bulk’ plaquettes. For incomplete edge plaquettes indexed by , we violate by polarizing edge spins with a Zeeman term
[TABLE]
Since clearly commutes with all other Hamiltonian terms, exact solvability is retained and the spectrum remains gapped. The ground state is readily constructed by freezing the edge spins to minimize the Zeeman term, then allowing bulk spins to fluctuate and Majorana pairings to follow the constraint given by ’s. See Fig. 4(b) for an illustration.
We can also break U at the edge while preserving time-reversal symmetry. To do so we employ the same lattice termination as above, but now we remove the spins from all incomplete plaquettes instead of polarizing them via a Zeeman field. Vertex and plaquette terms that invoked these eliminated spins in their definition must then be replaced. We do so by imposing the following Majorana-pairing rule at the boundary: Majorana fermions on layer 1 pair as if the eliminated spins point down, whereas Majorana fermions on layer 2 pair as if the eliminated spins point up. Figure 4(c) shows an example of Majorana pairings consistent with this rule.
Since Majorana fermions in layers 1 and 2 couple differently, the Hamiltonian explicitly breaks both the layer-mixing U symmetry and the layer-interchange symmetry. The Hamiltonian also breaks since this symmetry acts separately on Majorana fermions within each layer and the boundary Majorana fermions behave as if the eliminated spins were polarized. The modified rule above does, however, preserve , emphasizing that this somewhat-arbitrary-looking composite operation is indeed the correct antiunitary symmetry that protects the topological insulator!

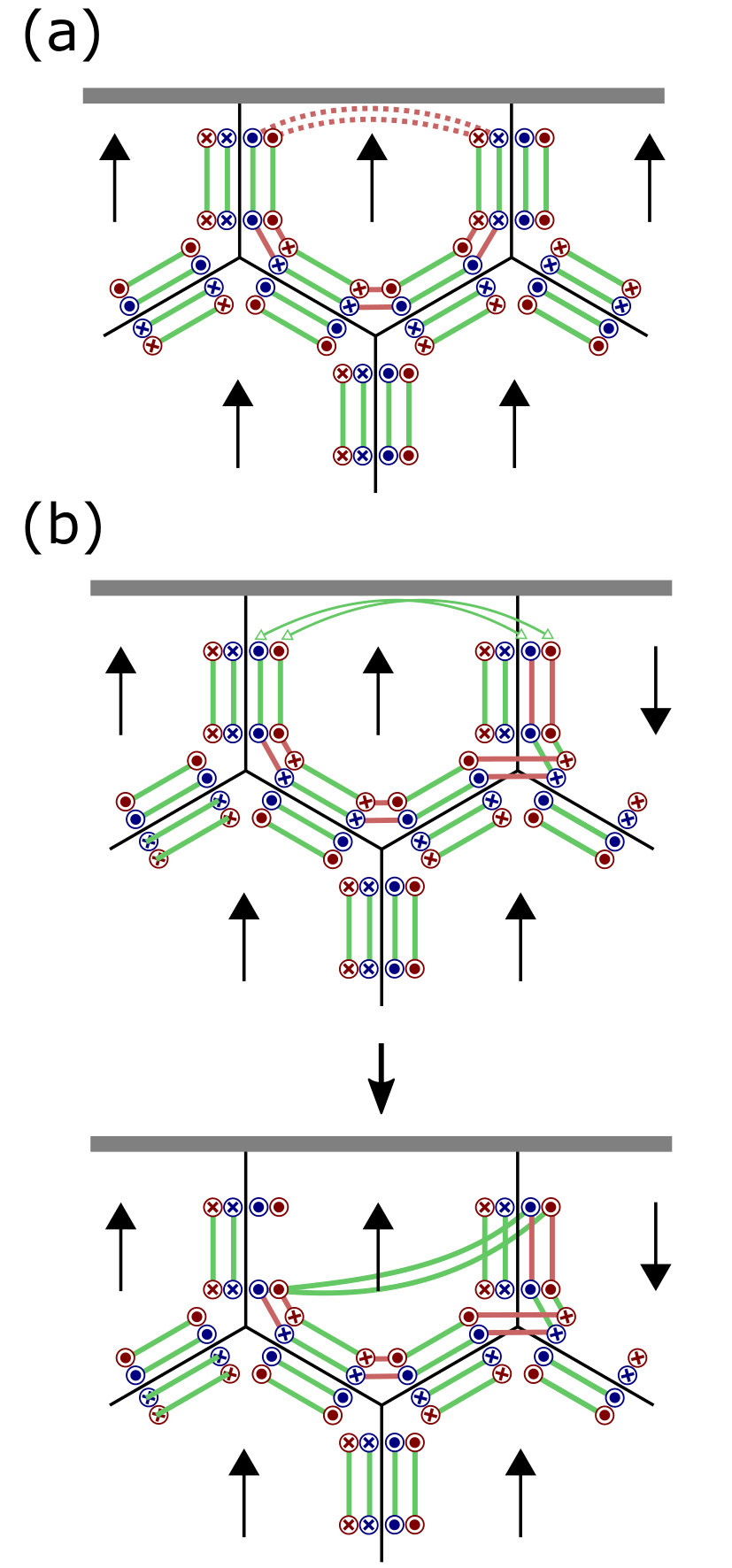

Note that we can alternatively construct a time-reversal-invariant, gapped boundary by pairing Majorana fermions as if the eliminated edge spins point up for layer 2 and down for layer 1 (opposite to what we described in the previous paragraph). In fact, a further generalization is possible. Define and as
[TABLE]
Essentially, correspond to a U-twisted version of . We can construct a -symmetric gapped edge for any by pairing ’s as if the eliminated edge spins orient up and pairing ’s as if the eliminated edge spins point down. The example at the beginning of the paragraph corresponds to . Physically, corresponds to the phase of the superconducting order parameter that gaps the boundary. The factor of 2 in the trigonometric functions in Eq. (27) is important. It follows that , though fermion-parity preservation ensures that the edge states corresponding to and are identical. The minus signs on the right side are in fact consistent with our identification of as the order-parameter phase. Winding the phase by is equivalent to dragging an superconducting vortex around the edge—which does not affect Cooper pairs but generates a minus sign for individual fermions.
III.2 Domain walls between incompatibly gapped edge phases

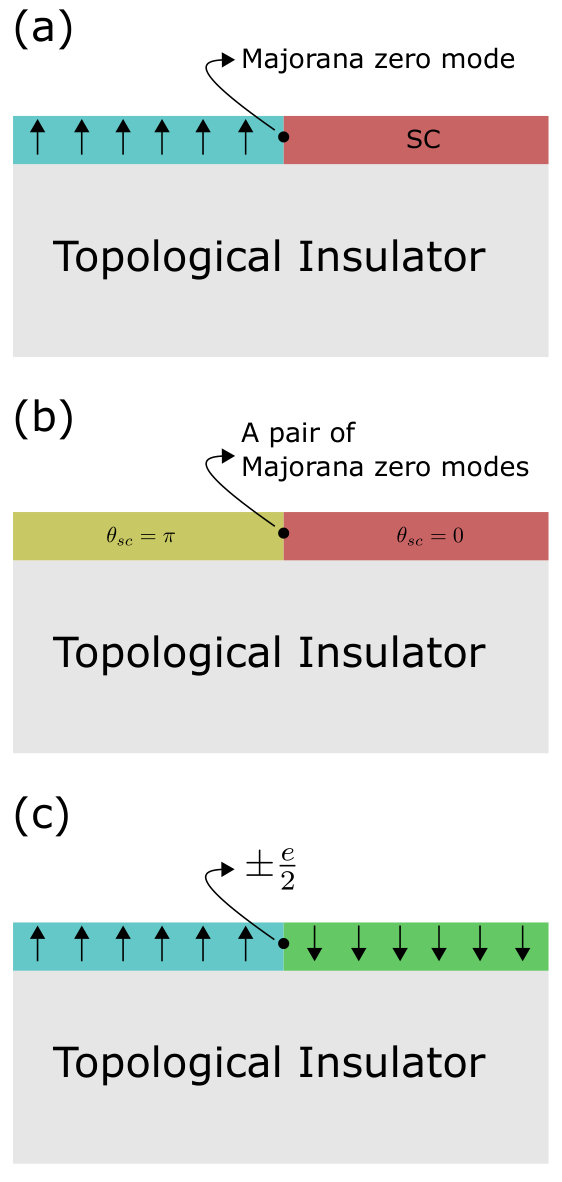

We now briefly review the physics of domain walls separating inequivalent gapped, broken-symmetry regions of the edge. Perhaps most famously, the interface between a superconducting domain that breaks U and a magnetic domain that breaks binds a single unpaired Majorana zero mode [19]. Nontrivial domain walls are also possible even if either or U is globally conserved. Suppose that is globally conserved. Here one can consider a -invariant domain wall between two U-breaking edge regions, one with a superconducting-order-parameter phase and another with . This -junction domain wall hosts a Kramers pair of Majorana zero modes—which is intimately related to the fractional Josephson effect [12]. Now imagine that U is globally conserved. Since is a discrete symmetry, -breaking edge phases come in pairs that are time-reversed partners of each other. In an experimental context these time-reversed partners correspond to helical edge modes gapped via a proximate ferromagnet that magnetizes either up or down; in our construction they simply reflect the two possible choices for the sign of the Zeeman field in Eq. (26) that polarizes the edge spins. A domain wall between oppositely magnetized regions of the edge hosts a (complex) fermion zero mode with fractional charge [20; 21]. Figure 5 summarizes the structure of the three types of domain walls highlighted above.

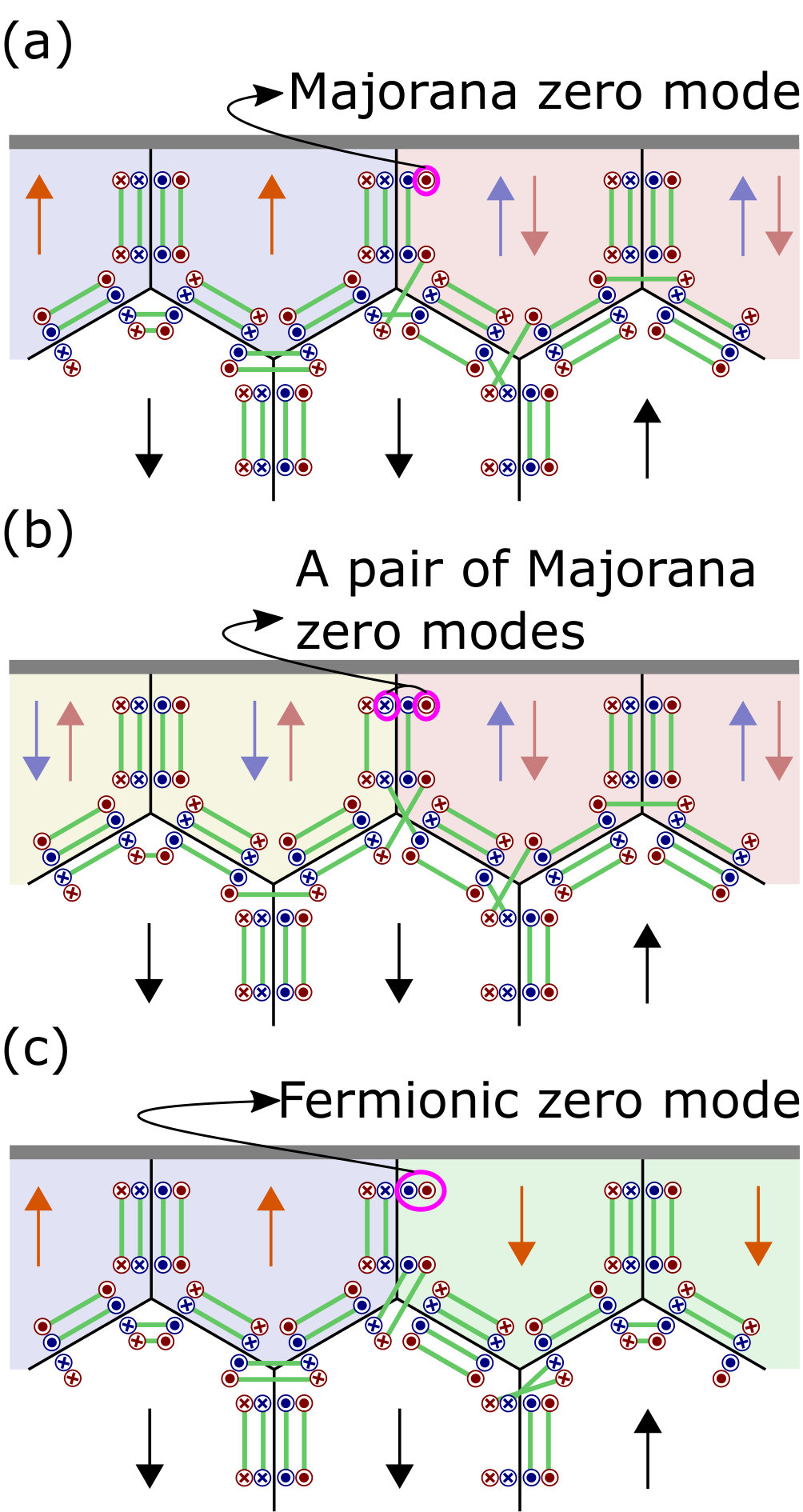

Within our framework, we can most readily capture the Majorana zero mode at a domain wall between superconducting and ferromagnetic edge phases. To implement such a domain wall we break U in one region of the edge and time-reversal symmetry in another, precisely as described in the preceding subsection. For concreteness we arbitrarily polarize the spins up in the magnetized domain. Recalling that Majorana fermions in layer 1 pair as if the eliminated boundary spins pointed up, one sees that the domain wall does not affect Majorana pairings in that layer. On the contrary, Majorana fermions in layer 2 pair as if the eliminated spins pointed down—yielding an ‘effective magnetic domain wall’ for layer 2 that does influence Majorana pairings, and in particular indeed traps the expected unpaired Majorana zero mode as sketched in Fig. 6(a).
Consider next a -invariant domain wall at which the superconducting-order-parameter phase jumps by . In the previous subsection we established that the effective orientations of eliminated edge spins for layers 1 and 2 at are exactly opposite those at . Hence, there is now an effective magnetic domain wall for both layers. As Fig. 6(b) illustrates, we thereby obtain one Majorana zero mode from each layer that together form the expected Kramer’s pair.

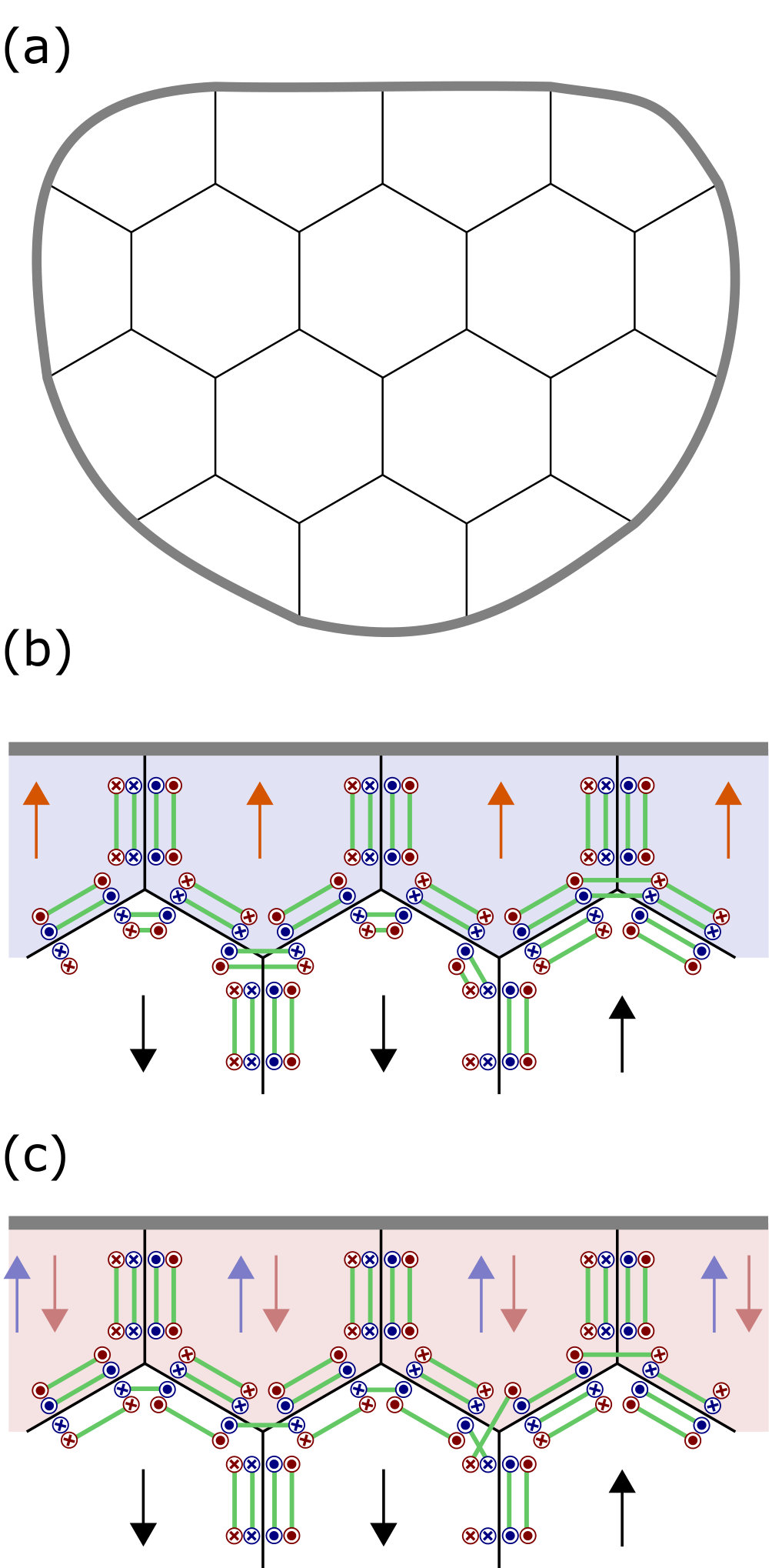

We can also readily describe U-invariant magnetic domain walls in our setup by simply polarizing the boundary spins up in one region and down in another via a position-dependent Zeeman field. As seen in Fig. 6(c), our Majorana-pairing rules dictate that a magnetic domain wall binds two uncoupled Majorana zero modes and —or equivalently one complex fermion zero mode . Under an element Uα of U, the complex fermion zero mode transforms as , signaling that carries a single unit of electric charge . Hence, if the magnetic domain wall binds charge in a state with , then the charge with must be . We will now argue that .
As a primer, suppose that we completely gap out the boundary with a uniform Zeeman field (i.e., no magnetic domain walls). To fix a notion of charge neutrality, it is useful to work with complex fermions that carry charge and define number operators . When Majoranas with spin at vertex pair with Majoranas with spin at vertex , the state satisfies the constraint . Translating into complex fermion language, one finds that configurations satisfying this constraint involve an equal superposition of a state with and another state with . This property indicates that when the edge is gapped out with a uniform Zeeman field (or when the system is defined without a boundary), the ground state of our model always resides exactly at half-filling.
Let us now examine a topological insulator defined on a manifold with a gapped boundary hosting a pair of magnetic domain walls, one hosting a complex fermion zero mode , the other hosting . The key observation is that exactly one of these zero modes must be occupied in the charge neutrality ground state. The state with both zero modes vacant thus has charge relative to the ground state, while the state with both zero modes occupied has charge relative to the ground state. Assuming symmetric charge assignments, we conclude that each magnetic domain wall binds the expected fractional charge of or , i.e, as claimed above.
IV Gapless Edge State of the -invariant topological insulator
In this section, we examine the dangling-bond edge-termination geometry in the limit where both time-reversal and U symmetries are preserved everywhere. The boundary is necessary gapless in this case, implying that the Hamiltonian can no longer consist solely of commuting projectors (which would imply a fully gapped spectrum). Starting from our 2D model, we will nevertheless ‘peel off’ a strictly 1D microscopic Hamiltonian whose low-energy physics exactly reproduces that of the familiar 2D topological insulator edge. Our effective 1D model and its physics can be viewed as a natural generalization of 1D models that recently appeared in Ref. 14 for symmetry-protected gapless edges of a -symmetric topological superconductor and the Tarantino-Fidkowski model [5]. However, our derivations and presentation differ from those of Ref. 14; we hope that these distinctions give readers complementary viewpoints on gapless edge states of fermionic symmetry-protected topological phases.
IV.1 Symmetric edge termination
The degrees of freedom in the dangling-bond edge termination are identical to those of the -breaking gapped boundary examined in Sec. III.1: eight Majorana fermions per edge together with Ising spins for every plaquette, including incomplete ones at the edge. Just as for the -breaking case, vertex terms require no modification. The key addition here involves incomplete plaquette terms. In the -breaking construction, we polarized spins in incomplete plaquettes with Zeeman terms. Instead, now we assemble -like plaquette terms, denoted for each incomplete plaquette , that allow spins and Majorana pairings to fluctuate at the edge.
Each incomplete-plaquette term is given by
[TABLE]
Above, refers to possible configurations of the five spins residing at incomplete plaquette and the four surrounding plaquettes; and projects onto spin configuration ; and is a normalization factor that we will specify shortly. The set consists of Majorana pairings enforced by spin configuration according to the usual local rules, while consists of pairings consistent with but with flipped. Hence, the product of projectors in merely reconfigure the Majorana fermions, subject to the caveat below, such that they pair appropriately given the flipped incomplete-plaquette spin (the factor is added for normalization). Figure 7 illustrates the action of these incomplete-plaquette terms.
The expression for resembles the bulk plaquette term from Eq. (21). Two key differences do, however, arise:
- •

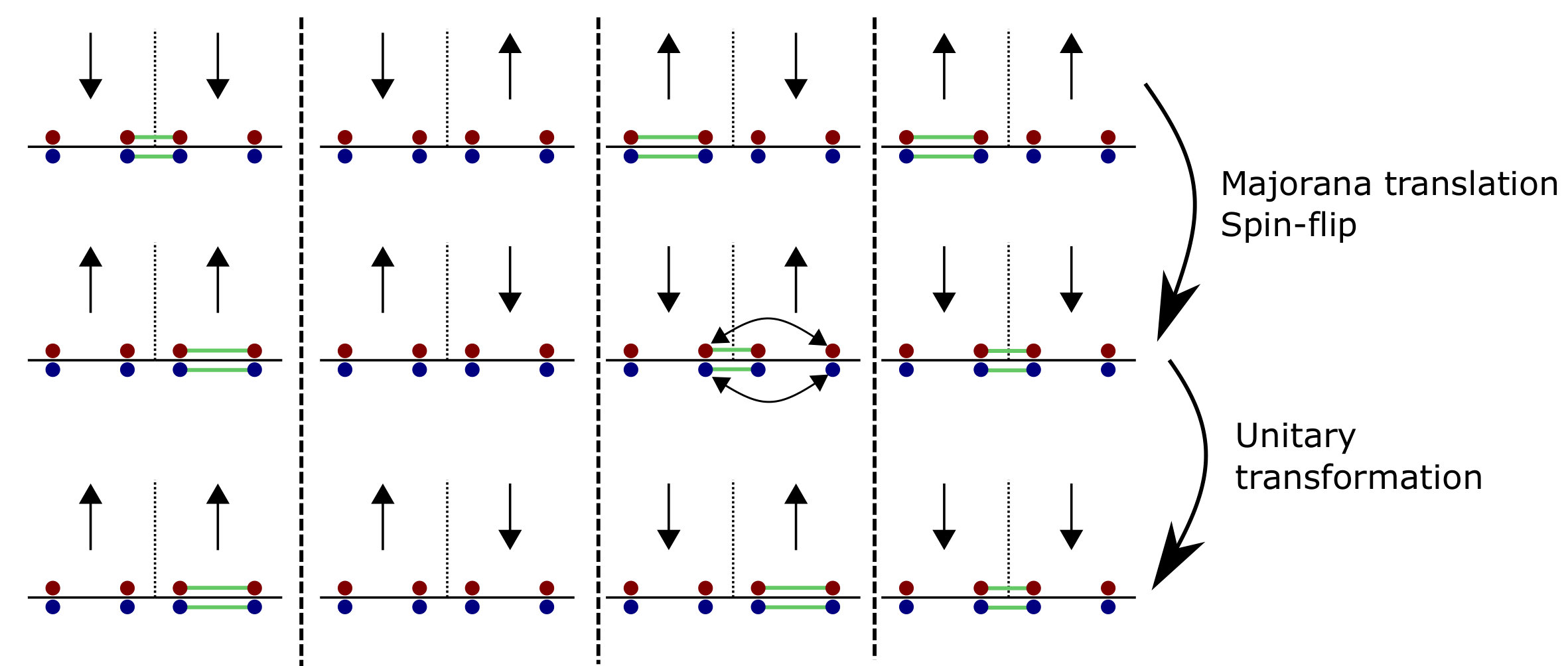

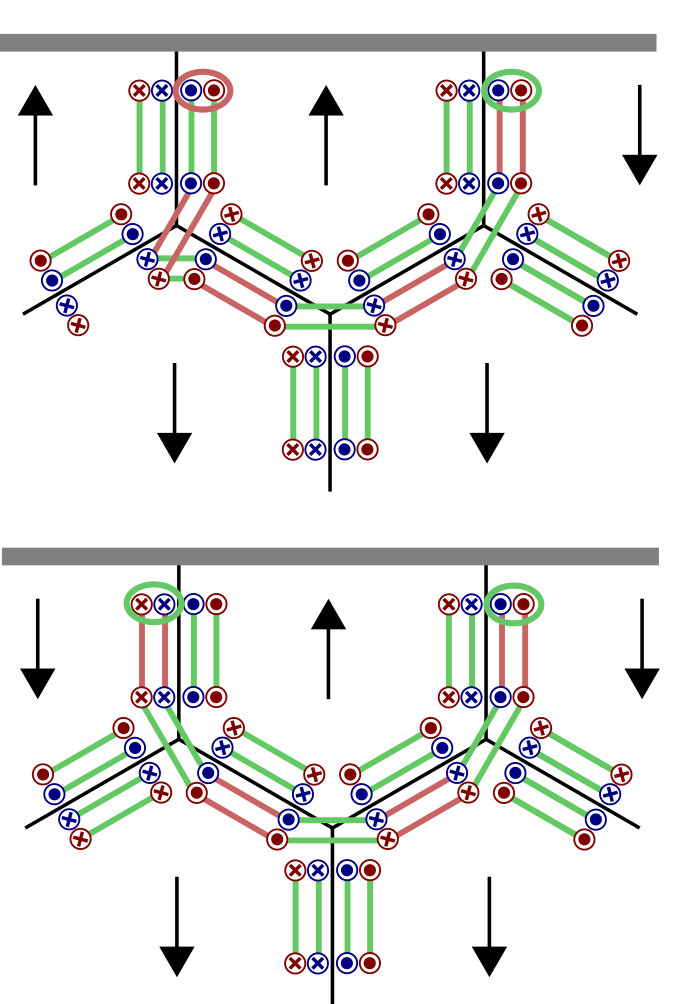

As seen in Fig. 7, certain spin configurations before/after acting keep some Majorana fermions unpaired; the action of the usual bulk plaquette terms, by contrast, always keep all Majorana fermions paired.
- •
Consequently, the normalization must be more carefully chosen for to be Hermitian, as opposed to the uniform normalization for in Eq. (21). While more than one choice of renders properly Hermitian, we take
[TABLE]
Due to the structure built into the incomplete-plaquette terms, somewhat obviously commutes with all vertex terms. A slightly less obvious fact is that also commutes with all bulk plaquette terms , which we investigate in detail in Appendix C. We emphasize, however, that ’s do not commute with themselves—precisely this non-commutativity underlies interesting gapless edge physics.
IV.2 Derivation of the effective 1D model for the edge
The fact that the low-energy physics is solely controlled by terms that commute with all bulk terms suggests the possibility of ‘stripping away’ the bulk degrees of freedom to obtain a 1D Hamiltonian describing the gapless boundary. However, some difficulties arise in this procedure as we now briefly discuss.
The low-energy physics occurs in the subspace that satisfies the constraint for all vertices and all bulk plaquettes. Consider states that strictly obey this constraint. The spin operator at an incomplete plaquette commutes with bulk terms, so we can further imagine states with a fixed boundary spin configuration. In the left panel of Fig. 8, two edge spins point up; there, bulk Majorana fermions in the grey area exhibit fluctuating pairings due to the constraint but never pair with edge Majoranas in the white area. One might therefore be tempted to derive an effective 1D edge models by simply throwing out Majoranas and spins in the grey region. However, the right panel of Fig. 8 shows a different edge spin configuration which imposes pairing between Majorana fermions in the grey and white regions. Thus one can not naively discard degrees of freedom in the grey area to derive a 1D edge model. In fact, any choice of a ‘grey area’ specifying bulk degrees of freedom to be discarded similarly yields some states that entangle the ‘bulk’ and ‘edge’ degrees of freedom. This conclusion reflects the familiar fact that the symmetric edge states of a quantum-spin-Hall insulator are anomalous and can not be sliced away from the accompanying bulk.

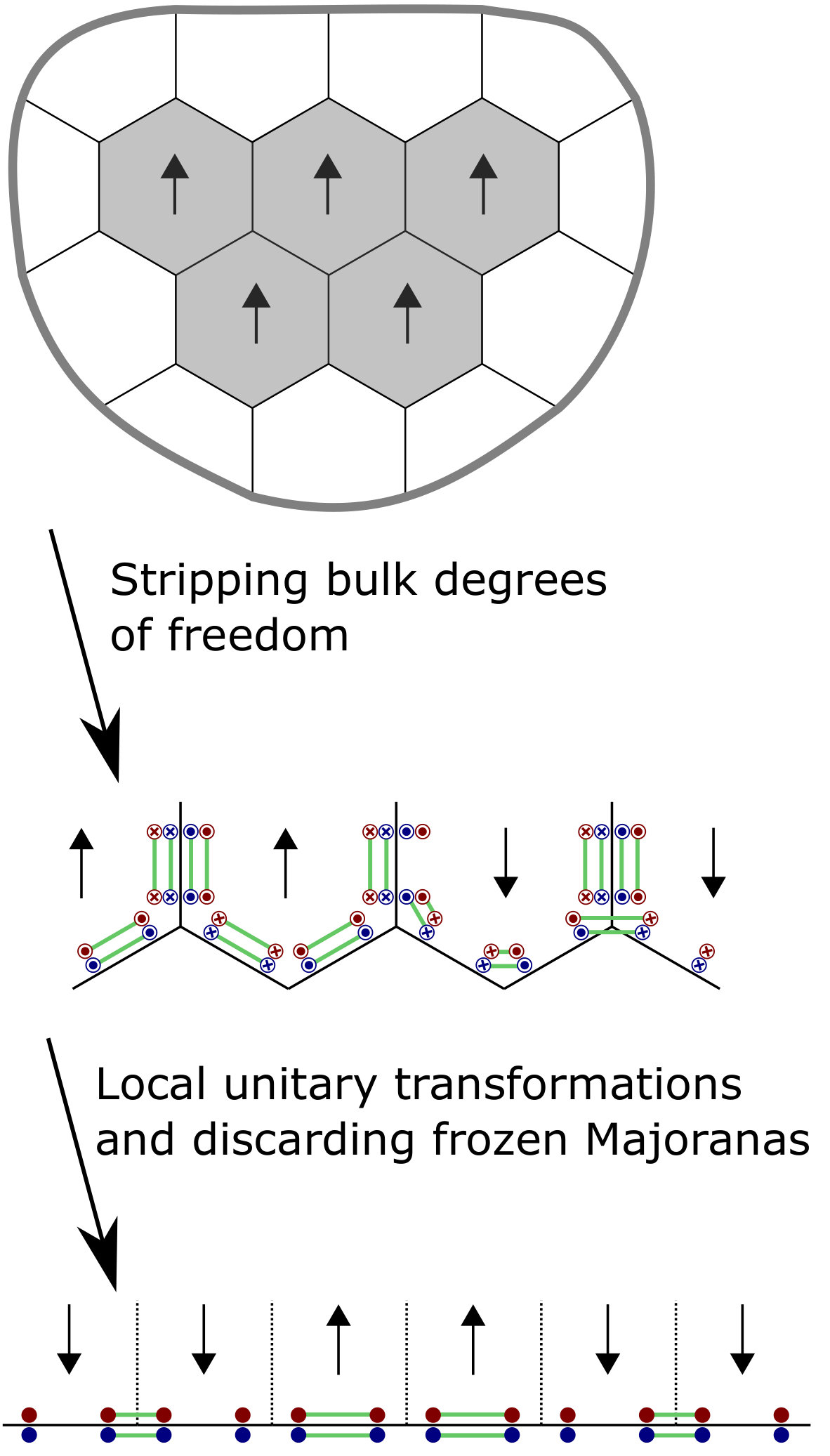

Progress can nevertheless proceed if one sets out to construct a 1D lattice model whose physics at all scales may not be identical to the 2D Hamiltonian we consider, but whose physics in a certain low-energy sector certainly is. Here we only establish the basic ideas, relegating a more detailed discussion to Appendix C. Consider the following family of Hamiltonians parametrized by :
[TABLE]
We keep sufficiently larger than so that the low-energy physics is controlled by the terms. The limit corresponds to our fully symmetric topological-insulator model. Increasing from zero to one tunes the bulk to a trivial insulator at the cost of breaking symmetry. Note that also commutes with , so here as well all bulk and edge terms commute.

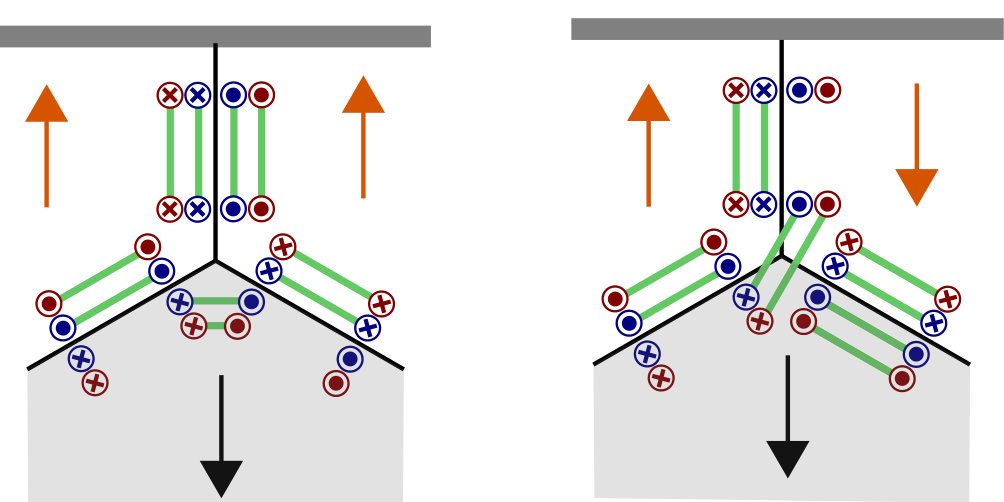

One may naively expect that since does not possess exact time-reversal symmetry, the edge loses its nontrivial properties and becomes similar to the magnetically gapped edge discussed in Sec. III.1. However, such a bulk transformation does not affect edge dynamics, so any exhibits identical low-energy physics to . This conclusion follows from the fact that the bulk Zeeman terms commute with ’s that give non-trivial edge dynamics. Hence, we are free to analyze instead, in which ’s are completely replaced by ’s. In the low-energy subspace, all bulk spins freeze in one direction, and the bulk Majorana pairings become frozen as well. One may then discard these degrees of freedom to study the edge physics. Making a further unitary transformations and discarding unimportant degrees of freedom (as also detailed in Appendix C), we arrive at a simplified, translationally invariant 1D model with four Majorana fermions and one bosonic spin per unit cell. Figure 9 pictorially summarizes this procedure.

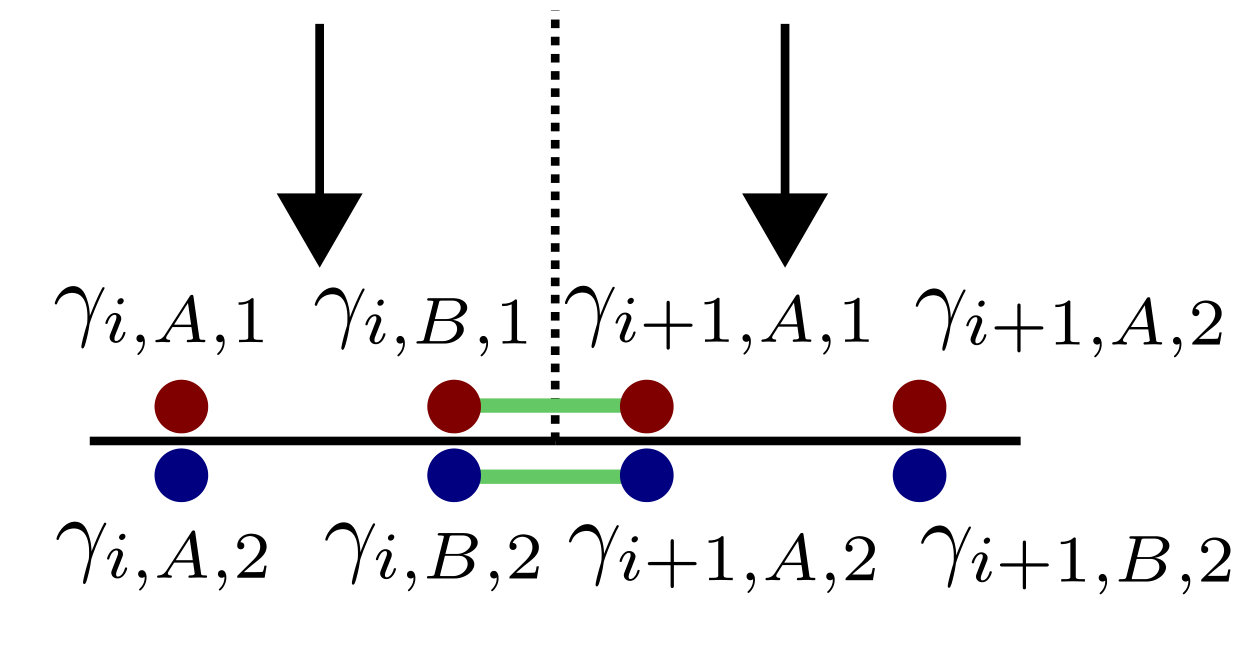

Let denote 1D unit cells, and label the four Majorana fermions per unit cell as in Fig. 10. Our 1D edge Hamiltonian can be written as
[TABLE]
(The meaning of the ‘’ superscripts will become apparent in the next subsection.) The first terms are given by
[TABLE]
The second terms read
[TABLE]
where takes an analogous role to in Eq. (29) and is defined as
[TABLE]
Similar to the vertex term of the original 2D model, projects onto Majorana pairings consistent with bosonic spins. The upper row of Fig. 11 illustrates the relevant pairing rules. Note that here we show the pairings imposed by at a particular unit cell corresponding to the rightmost spin in each column. In the space where is strictly enforced for all ’s, Majorana fermions in each layer pair as in a non-trivial topological phase along spin-up domains, and pair as in a trivial phase in spin-down domains. The bottom of Figure 9 illustrates an example of such pairings. (In the upper row of Fig. 11, there are no green lines in unit cell when its spin points up; these ‘missing’ green lines are filled in by to produce a pattern like that in the last row of Fig. 9.) Domain walls therefore host two Majorana zero modes, reminiscent of the magnetic domain-wall structure discussed in Sec. III.2. The term, derived from of the original 2D model, flips a bosonic spin and modifies Majorana pairings by projection. Note that , though different ’s need not commute with each other. The low-energy physics is fully captured by the subspace in which is strictly observed.
IV.3 -symmetry in the effective 1D edge model
Our 1D Hamiltonian still exactly preserves symmetry, but is not invariant under . In fact, in our derivation we explicitly broke -symmetry by polarizing bulk spins and threw out Kramers partners of Majoranas in the stripped-down 1D Hamiltonian. A remnant of symmetry nevertheless persists in this model as nicely explained in Ref. 14; here, we recast their findings in a slightly different language.
Define , the ‘right-handed version’ of our original ‘left-handed’ , such that is modified to , defined as follows:
[TABLE]
We illustrate this modification in Fig. 11 as well. Interestingly, the following series of transformations map to :
Global bosonic spin flip 2. 2.
Kramers-Wannier-like half-unit-cell Majorana translation combined with layer exchange, formally written as
[TABLE] 3. 3.
Unitary transformation , where
[TABLE]
This unitary operator transforms , and similarly for Majoranas on the second layer, but only when and . 4. 4.
Complex conjugation.
One can check term-by-term to prove our claim. We argue that the above operations correspond to the implementation of symmetry in our 1D model.
In the low-energy sector in which is strictly observed, and are completely identical: they exhibit identical many-body spectra, and each energy level is described by the same wavefunction. Thus within this subspace the 1D model preserves . Due to differences in details of ’s, however, this correspondence does not hold outside of this subspace. The situation is reminiscent of particle-hole symmetry in the lowest-Landau level of a 2D electron gas; such a symmetry clearly breaks down in the full unprojected Landau-level space.
Although the -symmetry implementation is highly non-local due to Majorana-translation operations, it is explicitly anti-unitary, and also possesses correct commutation relations with U symmetry due to the fact that the Majorana translation additionally swaps the layer index. Hence, this nonlocal symmetry is valid to be viewed as an incarnation of physical time-reversal symmetry for the quantum-spin-Hall edge. Since our 1D model is exactly derived from a 2D quantum-spin-Hall Hamiltonian, is expected to be realized only in an anomalous fashion; in our case, this ‘anomaly’ is manifest via the non-local nature of the symmetry. Note that either or U(1) must be realized anomalously, but not both. Indeed, U(1) admits a simple local implementation in our 1D model similar to the action in the full 2D Hamiltonian.
Finally, we have so far discussed -symmetry only in the context of an infinitely long 1D chain. It is often more convenient to study a finite-size 1D model with periodic or anti-periodic boundary conditions; more precisely, for an -site chain, the projector enforcing pairing between and is taken to be , where the and signs respectively correspond to periodic and anti-periodic boundary conditions. With periodic boundary conditions, a straightforward generalization of -symmetry we wrote down, whereby one identifies sites and , suffices. In the case of anti-periodic boundary conditions, however, should be slightly modified as follows: In the half-unit-cell Majorana translations, and at the very end of the chain respectively transform to and , i.e., with a minus sign. Also, to account for the minus sign, at the last step, the unitary transformation should be applied instead—in particular, the unitary at the last site is modified to its inverse.
IV.4 Numerical results
We are unaware of any exact analytical solution to or . Focusing on the restricted subspace that satisfies for all , we thus instead employ exact diagonalization to study our 1D model defined on an -site chain with either periodic or anti-periodic boundary conditions.

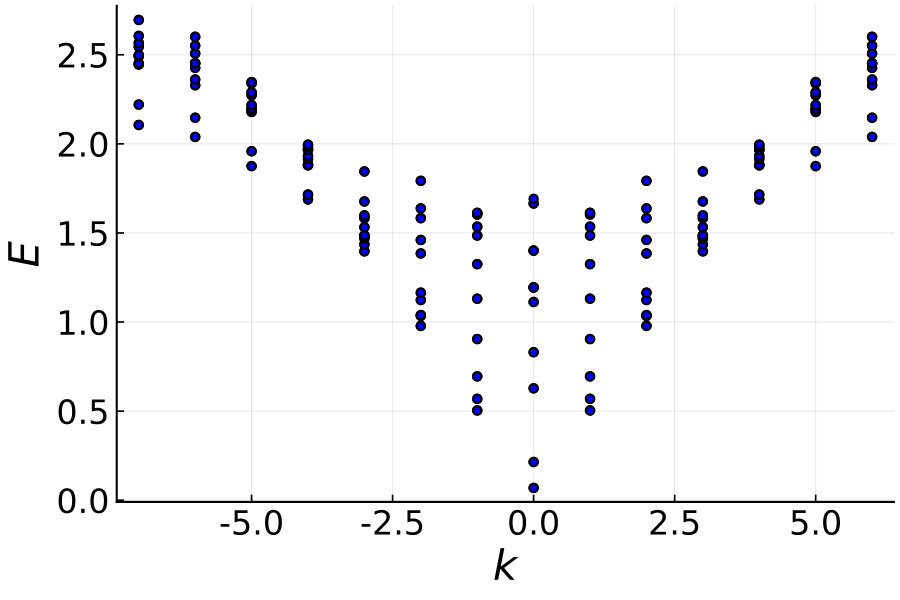

Figure 12 plots the many-body energy levels versus the total momentum for an system with anti-periodic (upper panel) and periodic (lower panel) boundary conditions. Eigenstates with global even fermion parity and odd fermion parity are shown. In both boundary conditions, the spectra are perfectly symmetric with respect to —hence ‘right-movers’ and ‘left-movers’ are completely symmetric as expected from a -invariant quantum-spin-Hall edge. Furthermore, the dispersion of the lowest-energy states in each momentum near is crudely linear, indicating the Dirac-fermion nature of the excitations and allowing one to identify these lowest-lying levels as single-particle states. Other parts of the spectra, however, cannot be explained by a free Dirac fermion, indicating more complex Luttinger-liquid physics arising from interaction. Since the low-energy conformal field theory is unlikely to be a minimal model, there can be an infinite number of primary operators; hence, it is difficult to read off the full identity of the low-energy conformal field theory just from the spectrum.
We also point out some interesting degeneracies that appear in the spectra. For the periodic-boundary-condition spectrum from Fig. 12, energy eigenstates at each momentum are two-fold degenerate. This degeneracy can be explained by some extra symmetries, apart from U and , that our Hamiltonian possesses. Specifically, our Hamiltonian separately preserves the fermion parities and for layers 1 and 2, defined by
[TABLE]
Additionally, one can define a unitary modification of , which we denote , by removing complex conjugation operations and modifying the Majorana translation/layer-interchange from item 2 in the numbered list of the previous subsection as follows:
[TABLE]
One can explicitly show that also maps to and hence is a valid symmetry on the restricted subspace of interest. Since commutes with a unit-cell translation but does not involve complex conjugation, it does not change momentum of an eigenstate. Finally, changes the sign of both and due to the half-unit-cell Majorana translation. It follows that energy eigenstates at a given momentum always come in degenerate pairs, each one having opposite signs of and . When applied to the ground state, we see that a zero-momentum, zero-energy mode is guaranteed to exist.
For a chain with anti-periodic boundary conditions, should be modified in the same manner as we modified at the last part of the previous subsection. This modified symmetry action now preserves and , and hence energy eigenstates at a given momentum are not always two-fold degenerate. However, any eigenstate with is still two-fold degenerate because of layer-interchange symmetry. Such states [red circles in Fig. 12, upper panel] exhibit odd total fermion parity, carry momentum for integer , and are indeed doubly degenerate in our numerics. Even-fermion-parity states, by contrast, have and momentum ; layer-interchange symmetry clearly does not imply degeneracy for those states; in particular, the ground state at is unique. This degeneracy can also be understood as one state being the ‘particle-hole conjugate’ of another. While odd-fermion states always transform nontrivially under the particle-hole-like transformation, states with the integer momentum can be symmetric under that transformation and thus can exist without degeneracy, particularly when the states represent neutral excitations.
As an additional check, we extract the central charge by computing the entanglement entropy of the ground state with anti-periodic boundary conditions at . It is known that if the system’s low-energy physics is described by a conformal field theory, the entanglement entropy of a subsystem of size takes the form [22]
[TABLE]

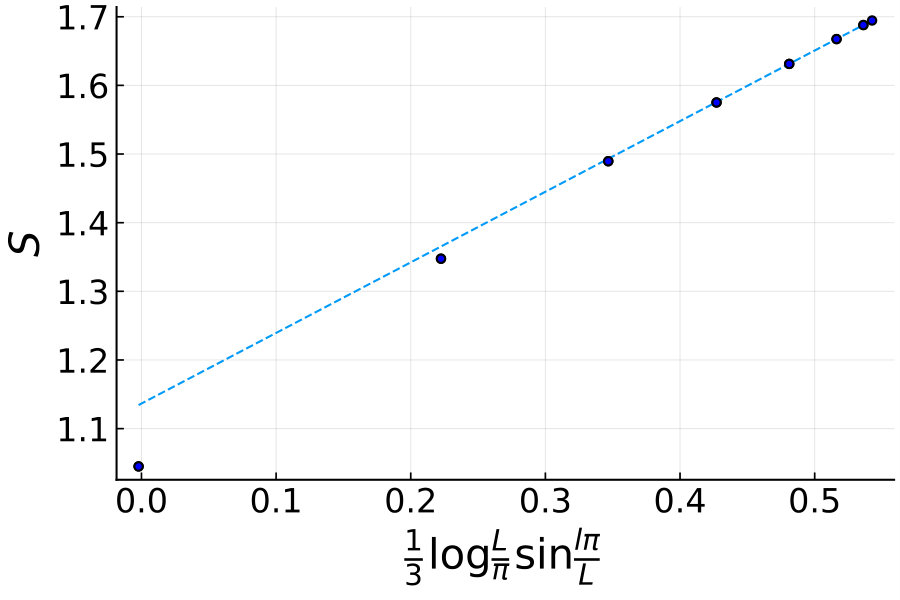

Figure 13 shows the entanglement entropies versus for . Performing a linear fit for the data yields the relation (see dashed line in the figure), consistent with central charge expected for a helical Luttinger liquid arising at a quantum-spin-Hall edge. One can in principle perform other consistency checks such as extracting anomalous fermion scaling dimensions by computing fermion correlation function; we leave more detailed numerical studies of the 1D model for future work.
V Topological superconductor and insulator on a Klein bottle: construction and many-body invariants
The topological-superconductor construction presented in Ref. 13, along with our topological-insulator generalization, implicitly assume that the manifold on which the models are defined is orientable. In this section, we first discuss how to adapt these models to a Klein bottle manifold in a -symmetric manner. Then, we compute many-body topological invariants for -symmetric topological phases [17; 15; 18] by changing the boundary condition along a non-contractible cycle and show that they acquire non-trivial values. We finalize the section with comments on how many-body invariants originally devised for -symmetric topological phases may work for models with only symmetry.
V.1 Defining the lattice models on a Klein bottle

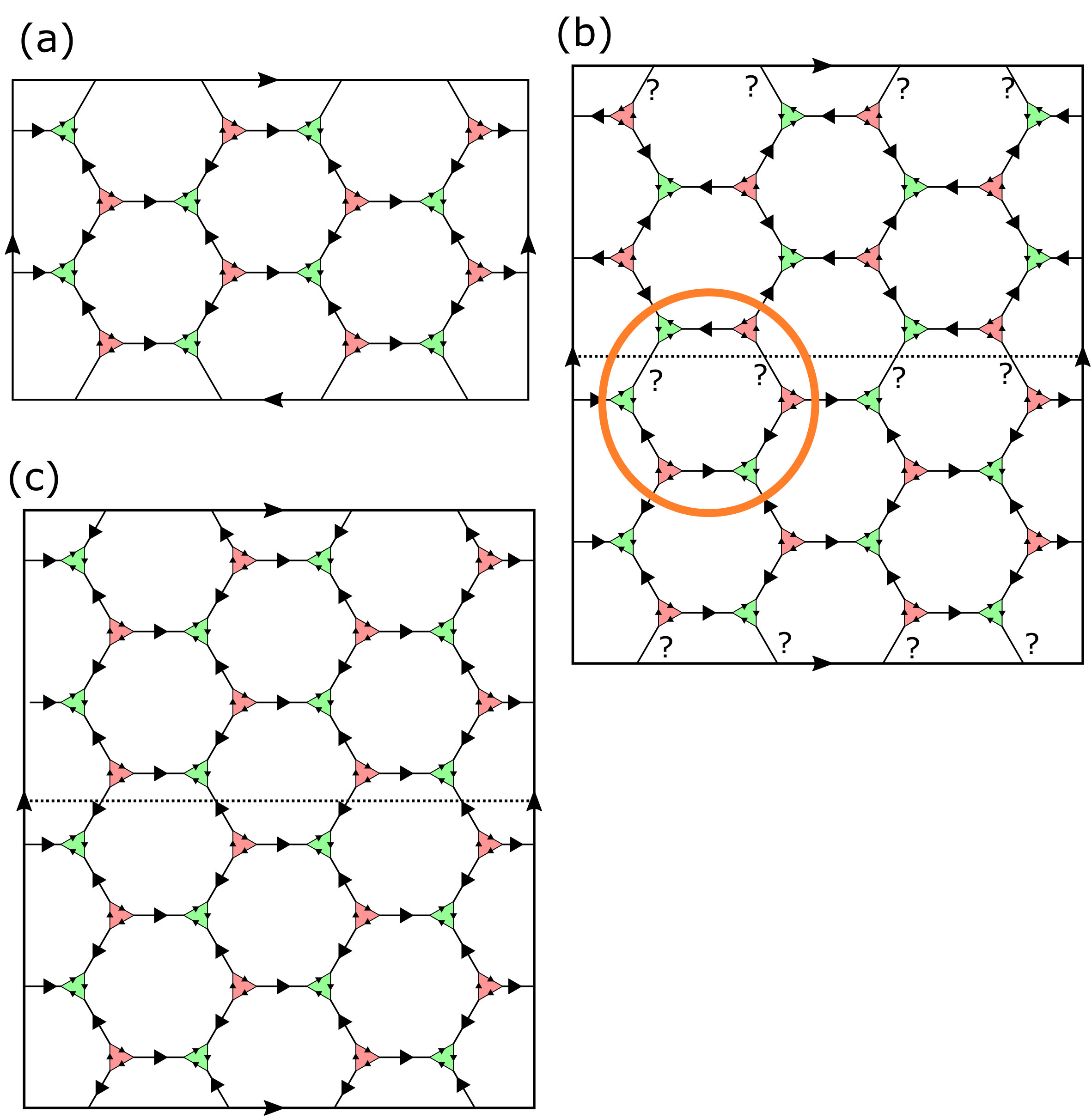

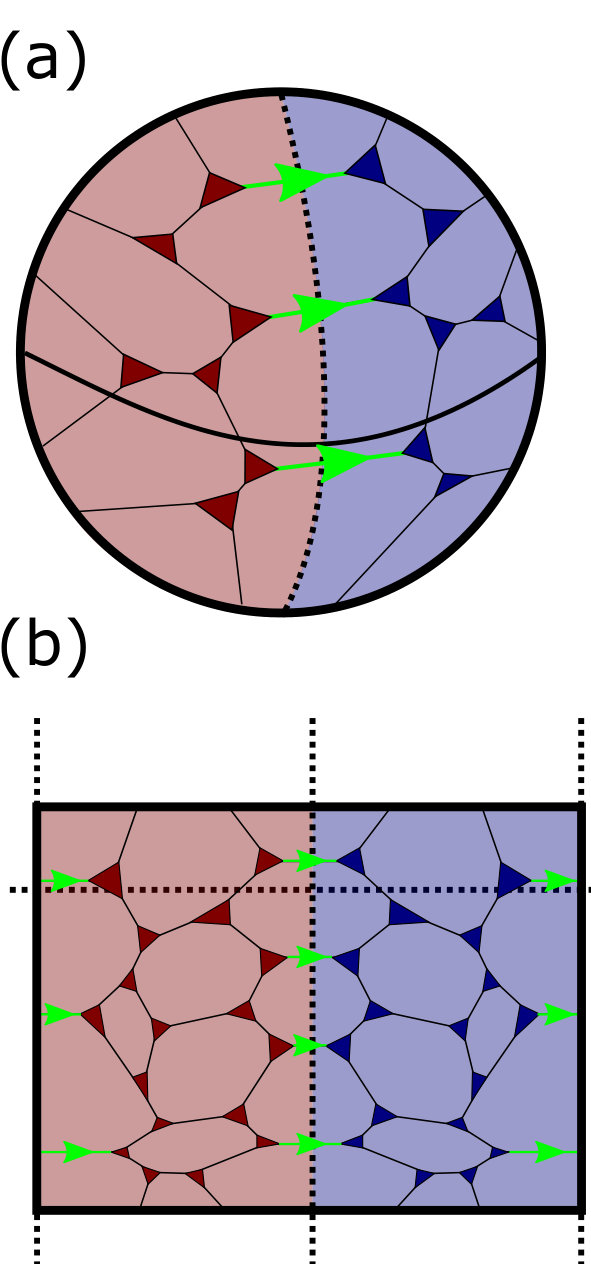

Here, we illustrate some difficulties in naively defining our lattice models on a Klein bottle and how to overcome them. We focus on the topological superconductor; the generalization to the topological insulator is straightforward and will only be briefly discussed at the end. Imagine putting the honeycomb-lattice model on a rectangle as in Fig. 14(a). The two vertical edges of the rectangle are identified in the standard way, as indicated by the accompanying aligned arrows. The two horizontal edges, however, are identified with opposite arrows. Hence we have ‘twisted’ the rectangle as if making a Mobius strip, indicating the non-orientable nature of the Klein bottle.

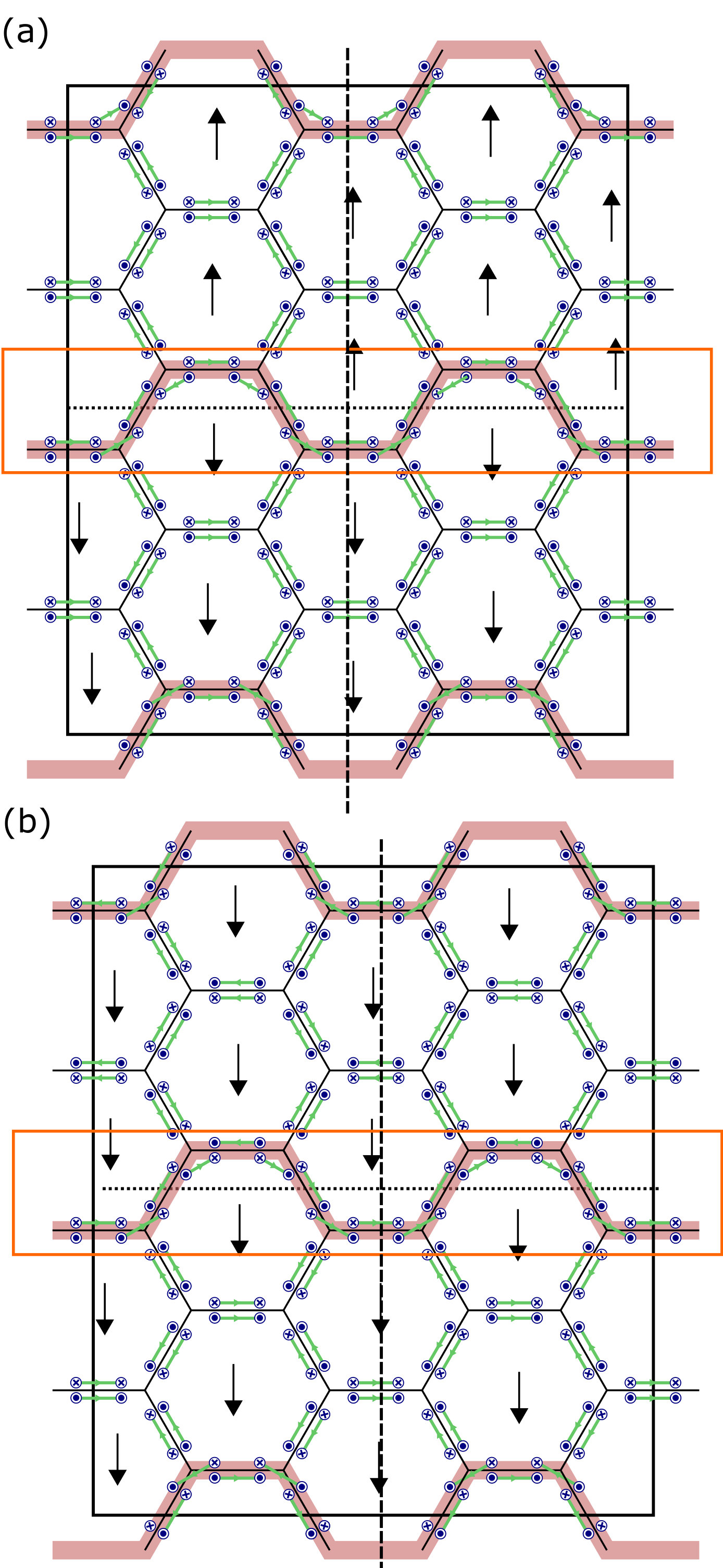

It is useful to examine the ‘double cover’ representation of spin configurations and corresponding Majorana pairings on the Klein bottle; see Fig. 14(b), which can be constructed by conjoining two rectangles with identical Majorana pairings and spins along horizontal edges, in a way that one rectangle is spatially reflected. By identifying the horizontal edges and vertical edges of this ‘double rectangle’, as illustrated by the arrows in Fig. 14(b), one can construct a torus which is a double cover of the Klein bottle. For convenience we will retain the line between the conjoined rectangles, hereafter denoted as a branch cut. All and terms can be represented on this double cover as well. Note that a single vertex or plaquette term corresponds to two different possible terms in the double cover due to its 2-to-1 nature.
Consistently assigning Majorana pairings requires Kasteleyn orientations that satisfy the clockwise-odd rule. It is relatively straightforward to choose Kasteleyn orientations within a single rectangle, utilizing the rules we discussed in Sec. II. However, for edges that cross the branch cut, two problems arise:
- •

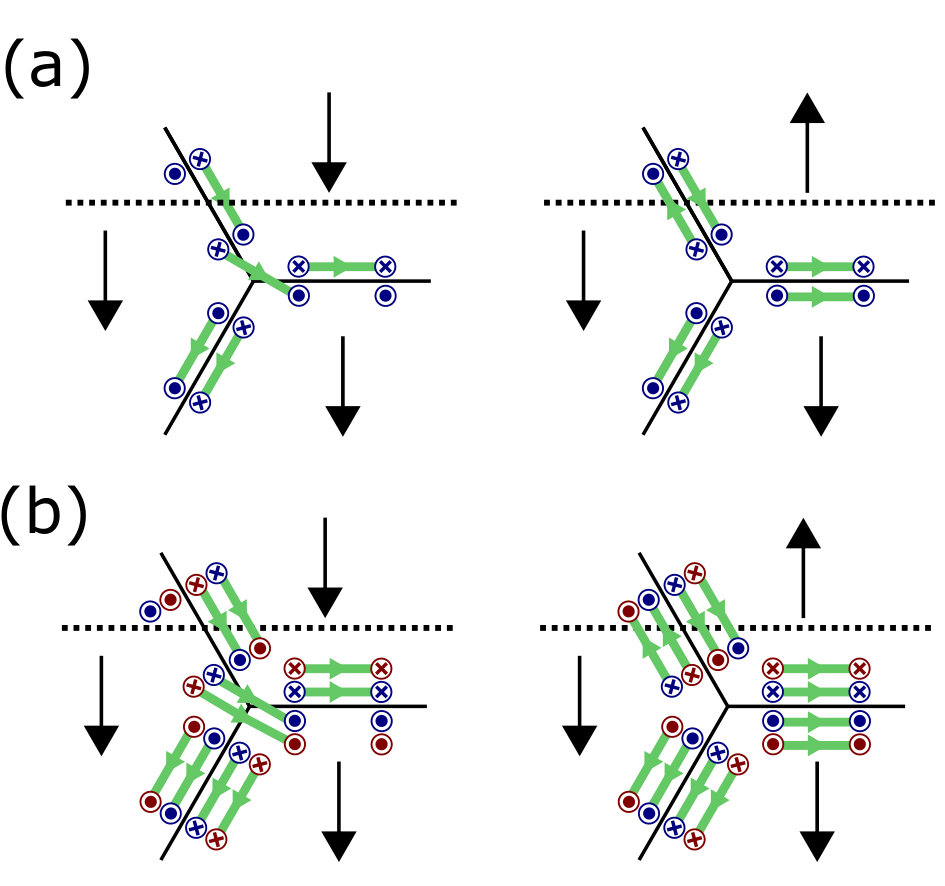

Long edges usually connect vertices on different sublattices. However, due to the peculiar identification scheme adopted in the double cover, long edges that cross the branch cut actually connect vertices on the same sublattice. Hence, from the rule we specified before, it is fundamentally ambiguous what arrows one chooses here. These problematic edges are indicated with question marks in Fig. 14(b).
- •
Even if one chooses the orientation along long edges in some way, it is now impossible to enforce the clockwise-odd rule consistently on each cycle. For example, consider the plaquette in Fig. 14(b) circled in orange. There, due to the Klein-bottle twist, arrows on small triangles above the dotted line are clockwise-even, while arrows on small triangles below the line are clockwise-odd. Hence, plaquette terms cannot be constructed in a way that preserves fermion parity.
To rectify these issues, we attack the problem in reverse: We will construct a different double-cover representation, deduce how to correctly represent each Majorana pairing consistent with a given spin configuration, and then construct the Hamiltonian. Let us now assign sublattices and Kasteleyn orientations on our double rectangle as if the system was defined on an ordinary torus; see Fig. 14(c). The aforementioned pathology does not exist in this choice. However, all Kasteleyn orientations on the second rectangle are opposite of the original double cover, indicating that the second rectangle should be identified with the first in a different way.
Specifically, we identify the second rectangle transformed by as the first, where is defined as:
[TABLE]
Comparing with Eq. (24), we see that can be understood as the ‘local’ part of symmetry for the topological superconductor. That is, is simply followed by spatial inversion. This identification corresponds to what we will therefore call a -twisted double cover. The essential idea is that the above transformation explicitly maps any operators that represent Majorana pairings within the second rectangle to ; hence, undoing this transformation effectively flips the Kasteleyn orientation, thus recovering the Kasteleyn orientation choice for the original double cover. Note that we explicitly swap the sublattice index in the transformation ; when comparing the sublattice distributions in Fig. 14(b) and Fig. 14(c), it is obvious that one should explicitly change the sublattice index of the upper rectangle to properly ‘untwist’ the -twisted double cover.
Next, let us discuss how to represent spin configurations and Majorana pairings on the double cover. Starting from the -twisted double cover, we put bosonic spins on each plaquette, but considering the twist, bosonic spins on the second rectangle orient opposite those on the first. We pair Majorana fermions on the twisted double-cover following the usual vertex rule on the torus. To recover the original double cover from the twisted double cover, simply transform the upper rectangle with . We illustrate the double-cover representations of spin configurations and Majorana pairings in Fig. 15(a) for the twisted double cover and Fig. 15(b) for the untwisted one obtained by applying to the upper rectangle. Note that within each rectangle Majorana pairings are fairly featureless. The nontrivial pairing configurations reflecting the Klein-bottle manifold can be seen in the orange box, wherein Majorana pairings cross the branch cut.
We have thus constructed a double-cover representation with consistently assigned spin configurations and Majorana pairings that are free from the aforementioned pathologies. From here, one can straightforwardly build and terms. The key modification of and comes from the following two features: First, due to the fact that untwisting the double cover flips bosonic spins, short-edge pairings no longer necessarily match with domain walls between Ising spins near the branch cut. Figure 16(a) illustrates some examples of anomalous vertex rules at the branch cut. Second, the untwisting procedure significantly modifies the nature of long-edge pairings across the branch cut, as is evident by explicitly constructing projectors corresponding to long-edge pairings of interest. We consider the following four projectors in the twisted double-cover representation:
[TABLE]
To ensure the above projectors are associated with long-edge pairings across the branch cut, we will assume that and belongs to the upper rectangle in Fig. 14(c); meanwhile, and belong to the lower rectangle. The untwisting procedure transforms the above four projector to
[TABLE]
We note that Majorana fermions with opposite spins pair along long edges crossing the branch cut as seen in both panels of Fig. 16(a). Also, as seen in the right panel, two long-edge pairings that belong to the same edge across the branch cut should have opposite pairing signs. As for ‘arrows’ along long edges crossing the branch cut, two pairings distinguished only by spins have opposite directions on this special type of long edge.
One can locally (but not globally) convert and terms across the branch cut to usual vertex and plaquette terms in the ‘bulk’ by applying on one side. Hence, this construction inherits all good local properties of the original model defined on an orientable manifold; most notably, our Hamiltonian is still a commuting-projector model, and acts as a nontrivial unitary operator on the subspace in which all vertex constraints are satisfied. Also, the ‘boundary-condition prescription’ that we employed preserves symmetry—which arises fairly straightforwardly by observing that the untwisting operation commutes with symmetry. (Commutation can be seen by how symmetry maps the projectors associated with long-edge pairings across the branch cut.) However, this prescription breaks -symmetry since under , in Eq. (43) transforms to a complex conjugate of , not itself. The same is true for as well.
The above scheme can be straightforwardly extended to the topological-insulator model by adding one more layer. Recall that symmetry for the topological insulator involves layer interchange as well, so the preceding prescription enforces Majorana fermions to pair between different layers along the long edges crossing the branch cut; see Fig. 16(b), where the two layers are represented by different colors. While this pairing breaks U symmetry, we will observe in a later subsection that this ‘layer twist’ is a key reason why a U-twisted boundary condition can be defined naturally on a Klein bottle.
V.2 Many-body invariants for topological superconductors
As an initial step towards defining a many-body invariant for the topological superconductor, we comment on a peculiar feature of the Klein-bottle manifold. Recall from Fig. 2 that in our construction on orientable manifolds, Majoranas pair along short edges when there is an adjacent domain wall separating up and down bosonic spins. Hence, one can view our construction as essentially decorating topologically nontrivial Kitaev chains along spin domain walls. On closed, orientable manifolds that admit non-contractible cycles, domain walls and hence Kitaev chains can form along non-contractible cycles as well. Clearly there must always be an even number of such domain walls/Kitaev chains.
But does the preceding statement continue to hold in the non-orientable Klein bottle manifold? To address this question we examine a Klein-bottle configuration with all bosonic spins down. As before, it is useful to consider the twisted double-cover representation, wherein such a bosonic spin configuration is represented by all-down spins in one rectangle and all-up spins in the other rectangle. Two non-contractible cycles thus form, one along each boundary between the two rectangles [see Fig 15(a) for an illustration]. Nevertheless, because the double cover is a two-to-one representation, and despite all spins pointing down within the Klein bottle, the pairing rules across the branch cut imply that a Kitaev chain wraps around a single non-contractible cycle. Local transformations (i.e., ) that flip bosonic spins locally and reconfigure Majorana pairings accordingly may change the number of non-contractible cycles by an even number, but for all spin configurations and corresponding Majorana pairings the number of non-contractible Kitaev chains is always odd.
The above observations allow us to define a topological superconductor many-body invariant by changing boundary conditions. Consider the operator
[TABLE]
where is a set of all vertex/spin labels that pair when all bosonic spins point down. Up to some factors of , is a product of all Majorana operators that appear in the system; it thus defines the total fermion parity operator and indeed satisfies . Now, we imagine flipping the boundary condition by flipping Kasteleyn orientations along edges that cross the vertical dashed line in Figs. 15(a) and (b). If there is no domain wall along a given edge that crosses the vertical dashed line, then two Majorana pairings from that edge cross the dashed line; if there is a domain wall, due to presence of a non-trivial Kitaev chain along the domain wall, only one Majorana pairing crosses the dashed line. In the Klein bottle, there is always an odd number of domain walls that cross the vertical line and hence always an odd number of Majorana pairings across that line whose signs are explicitly inverted by the boundary condition change. The boundary-condition change consequently changes the sign of .
It is reasonable to assert that on a closed manifold with a given boundary condition, the ground-state fermion parity can not change provided the bulk gap is finite so that the system remains in the same phase. A trivial insulator can be smoothly deformed into a product state with all fermions strictly localized to the lattice sites; the ground state and hence the ground-state fermion parity are then clearly independent of boundary conditions. The feature in which a system defined on a Klein bottle has a different ground-state fermion parity compared to the torus thus defines a many-body topological invariant. Similar features arise in Majorana dimer models [6] and superconductors [23], wherein putting the system on torus and changing boundary condition changes the fermion parity of the ground states.
V.3 Many-body invariants for topological insulators
Above we probed the nontrivial topological index of the topological superconductor by changing boundary conditions in a discrete way. In the case of the topological insulator, U symmetry allows one to continuously vary the boundary condition by twisting the pairings that cross the vertical dashed line in Figs. 15(a) and (b) by a U variable . Twisting is formally done as follows: For all projectors associated with pairings that cross the vertical dashed line, apply the transformation
[TABLE]
where
[TABLE]
In the equations above we assume that and respectively reside on the right and left sides of the vertical dashed line.
This boundary condition preserves symmetry, since although parity sends , charge conjugation contributes another minus sign and returns to its original value. This boundary condition is ‘flat’ in the sense that local terms and can be reverted to untwisted ones by local gauge transformations. For example, we see that the projector U twisted in Eq. (45) reverts back to its original form by the transformation
[TABLE]
which is an immediate consequence of a corollary of the lemma introduced in Appendix B. Using this transformation one can readily ‘flatten’ ’s. Similarly, one can flatten ’s that do not cross the branch cut by applying the same gauge transformation to Majoranas on one side of the vertical dashed line, e.g., in the blue area of Fig. 17(a). One should take a more careful approach for ’s that cross the branch cut since, due to the Klein-bottle structure, the boundary condition is twisted in opposite ways across the branch cut. Hence, to flatten terms locally, one should transform Majoranas above the branch cut [red area in Fig. 17(b)] with instead of , due to a different corollary presented in Appendix B. We recall that long-edge pairings across the branch cut pair Majoranas with different layer indices. Hence, the corresponding projector is preserved under the gauge transformation with on one side and on the other. If we had not twisted Majorana layers across the branch cut when defining the system on the torus in an earlier subsection, it would have been impossible for us to flatten those ’s. This once more emphasizes the importance of encoding layer interchange in the definition of symmetry.

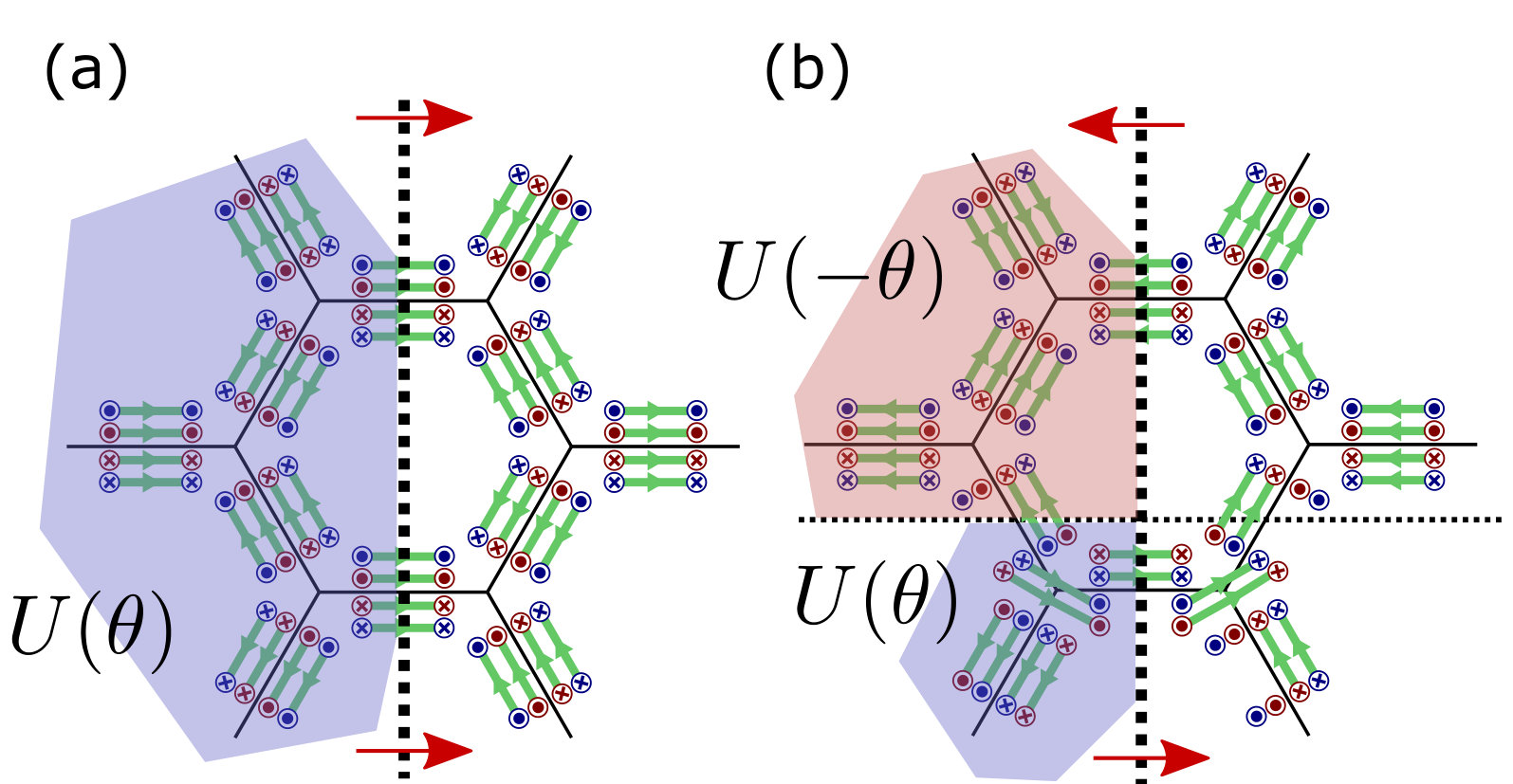

Because and can be locally flattened, all nice local properties are once more preserved in this boundary-condition twist. We emphasize, however, that no local gauge transformations map our system with specific into a system with a different U boundary-condition twist.
Let us now compute the Berry phase of the ground state by adiabatically changing from 0 to . First, let us consider the Berry phase for a single snapshot in which all spin configurations are fixed to be down, with Majoranas paired accordingly. Denote this state as . We will compute
[TABLE]
As a first step we examine a 1D problem in which we compute the Berry phase for double Kitaev chains. One can easily compute that the Berry phase is precisely . Since contains an odd number of such chains, the Berry phase is mod . The full ground state of interest reads
[TABLE]
where is a total number of plaquettes. Since all terms in the summand have different bosonic spin configurations and hence are orthogonal to each other, one can write the Berry phase as
[TABLE]
The above equation implies that one can compute by simply averaging the Berry phase for different configurations. Remarkably, we will show in Appendix D that
[TABLE]
for any and any —which guarantees that . This Berry phase was computed from the boundary [15] and bulk in band-theory frameworks [18] and found to be quantized in -symmetric topological phases. Strikingly, this Berry phase—which is generically nontrivial to compute and usually evaluated with small-system numerics—can be analytically determined for any system size in our exactly solvable model! We note that while there are supporting evidences that the Berry phase is quantized to either [math] or , to our knowledge, a microscopic proof of robust quantization is not yet available.
V.4 Towards bulk topological invariants of -symmetric topological phases without symmetry
Throughout the main text of this paper, we focused on honeycomb-lattice models with a specific choice of Kasteleyn orientation. We indeed eschewed fully general setups in favor of accessibility. Appendix A.1, however, shows how to define models on any trivalent lattice with any choice of Kasteleyn orientation. The particularly interesting setups relevant to this subsection occur when the trivalent lattice is chosen to violate parity symmetry; in these cases, there is no exact symmetry. It is natural to ask whether it is possible to define models on non-orientable manifolds when the lattice is not parity-symmetric and if one can define the models on a Klein bottle, whether the many-body invariants we explored earlier in this section can be extended to these setups.
In Appendix A.3, we show that the answers to both questions are affirmative: The models can still be defined on a Klein bottle while maintaining commuting-projector properties, and the global-fermion-parity flip and Berry phase still characterize our exactly solvable model. While we relegate technical details to the appendix, we will briefly discuss here the role of time-reversal symmetry in defining models on a Klein bottle.
Recall that in the earlier subsection we stated that putting systems on a Klein bottle breaks -symmetry. The same is true for Klein-bottle constructions presented in Appendix A.3 as well. Hence, readers may naturally wonder in what sense may protect many-body invariants of our interests. To see this within the context of the construction presented in this section, we emphasize that the unitary part of -symmetry encoded in Eq. (17) is actually identical to the local part of symmetry in Eq. (41), modulo some sublattice relabeling in the latter equation. The Klein-bottle construction presented in the appendix is a natural extension of this observation and employs the unitary part of the time-reversal symmetry, without referring to any symmetry.
While the previous paragraph gives us some confidence that many-body invariants on a Klein bottle may also characterize -symmetric topological phases, whether these invariants remain quantized or valid outside of the context of our special exactly solvable models requires further investigation. Also, we did not give any detailed prescription on how to construct these many-body invariants outside in the context of our exactly solvable models; developing a systematic procedure would be an interesting future direction.
VI Conclusions
In this paper we constructed a commuting-projector model for an interacting 2D quantum-spin-Hall insulator. While such phases are of course amenable to band-theory treatments in the non-interacting limit, our perspective illuminates complementary insights that are far from obvious from that more traditional approach. Most strikingly, from our commuting-projector model we derived a strictly 1D lattice Hamiltonian that, within a restricted subspace, faithfully reproduces the physics of a fully symmetric quantum-spin-Hall edge. Additionally, we discovered that both the topological-superconductor model from Ref. 13 and our topological-insulator model preserve symmetry when defined on parity-symmetric lattices, allowing us to explore bulk invariants by placing the systems on non-orientable manifolds. We further observed that computation of many-body invariants can be extended to models with symmetry but without explicit symmetry. The latter result raises the question of whether topological invariants of time-reversal-invariant topological phases can be also explored by defining systems on non-orientable manifolds.
To close we highlight a number of other interesting open questions connected to our study:
In our 1D lattice Hamiltonian that describes the quantum-spin-Hall edge, U symmetry is realized in the usual, local manner while is implemented nonlocally. Can one derive an alternative strictly 1D model in which the roles of these symmetries are reversed, i.e., unconventional realization of U but local implementation? It is also worthwhile to contemplate practical utility of such 1D Hamiltonians. They may, for instance, enable efficient numerical studies of 2D quantum-spin-Hall edges with interactions, noise, etc. As an alternative application, can one interface magnetic degrees of freedom and electrons to design experimental 1D setups that emulate the quantum-spin-Hall edge? Architectures of this type could furnish new platforms for Majorana zero modes, fractional charges, anomalous pumping cycles, and more.
On the more technical end, are the nontrivial Berry phase (for the topological-insulator model) and ground-state fermion-parity flip from changing fermionic boundary condition (for the topological-superconductor model) generic properties of time-reversal symmetric topological phases? If so, is there an analytical proof available in the context of -dimensional lattice models? How is our construction related to the relevant Pin-structure? Kasteleyn orientations are related to spin structures [24], and there is generalization of Kasteleyn orientations to the structure as well [25]. The topological-superconductor model is known to be related to the structure [17], and indeed how the Kasteleyn orientation should be properly constructed for the model on a Klein bottle differs from the discrete structure given in Ref. 25.
Finally, are there higher-dimensional generalizations of the commuting-projector models that we studied here, e.g., for 3D topological insulators—potentially giving rise to strictly 2D lattice Hamiltonians that similarly capture the anomalous single-Dirac-cone surface states?
Acknowledgements.
We thank Xie Chen, Gil Young Cho, Lukasz Fidkowski, Shinsei Ryu, Xiao-Qi Sun, and Zitao Wang for helpful discussions. This work was supported by the Army Research Office under Grant Award W911NF-17-1-0323; the NSF through grant DMR-1723367; the Caltech Institute for Quantum Information and Matter, an NSF Physics Frontiers Center with support of the Gordon and Betty Moore Foundation through Grant GBMF1250; and the Walter Burke Institute for Theoretical Physics at Caltech.
Appendix A Models on general trivalent lattices with general Kasteleyn orientations
In this appendix, we briefly review the -symmetric topological-superconductor model on any trivalent lattice defined on an orientable manifold, and for any choice of Kasteleyn orientation (as opposed to the specific choice of lattice and Kasteleyn orientation used elsewhere in this paper). Then, we show that on any parity-symmetric lattice and with any Kasteleyn orientation, the model preserves symmetry as well. Finally, we discuss how to define our models on a Klein bottle even when the lattice is not parity-symmetric and hence symmetry is absent. The latter discussion suggests that many-body invariants originally proposed for -symmetric topological phases may also characterize -symmetric phases. We stress that although we primarily focus on the constructions of topological-superconductor models, the generalization to topological insulators proceeds straightforwardly by adding another layer of Majorana fermions.
A.1 Topological-superconductor models
The degrees of freedom are defined analogously to the honeycomb-lattice construction used earlier. A single bosonic spin resides on each plaquette of the trivalent lattice, while four Majoranas appear at each edge—two at one end of the edge and two at the other. The pair of Majoranas at the same end of the edge will be distinguished by different spin indices. Alternatively, one can replace a vertex of the trivalent lattice with small triangles to make a triangle-decorated ‘pairing lattice’ (i.e., the Fisher lattice in the honeycomb-lattice used in the main text); pairs of Majoranas with opposite spins can then be viewed as residing on each vertex of the pairing lattice. As before, long edges correspond to edges of the pairing lattice from the original trivalent lattice and short edges to the edges arising from small-triangle decoration.
Given a Kasteleyn orientation on the pairing lattice (which can be chosen for any lattice on an orientable manifold [24]), we specify how Majoranas pair for each plaquette. From there the vertex terms and the plaquette terms can be constructed by using appropriate Majorana projectors dictated by the pairing rules below.
Determine which Majoranas should pair along each long edge first. Given a long edge , vertices and connected by , and two neighboring plaquettes and , these pairings are determined as follows:
- (a)
If Ising spins on and are identical, pair and . 2. (b)
If those Ising spins are opposite, draw an arrow from the plaquette with up Ising spin to to the plaquette with down Ising spin, and cross product the Kastelyn arrow connecting and with this arrow. If the cross product points out of the page, pair only ; otherwise, pair only . 2. 2.
If all three plaquette spins adjacent to a vertex are identical, the above rules pair all six Majoranas on the small triangle at vertex . If not, exactly two among six Majoranas on the small triangle remain unpaired. Pair those two unpaired Majoranas.

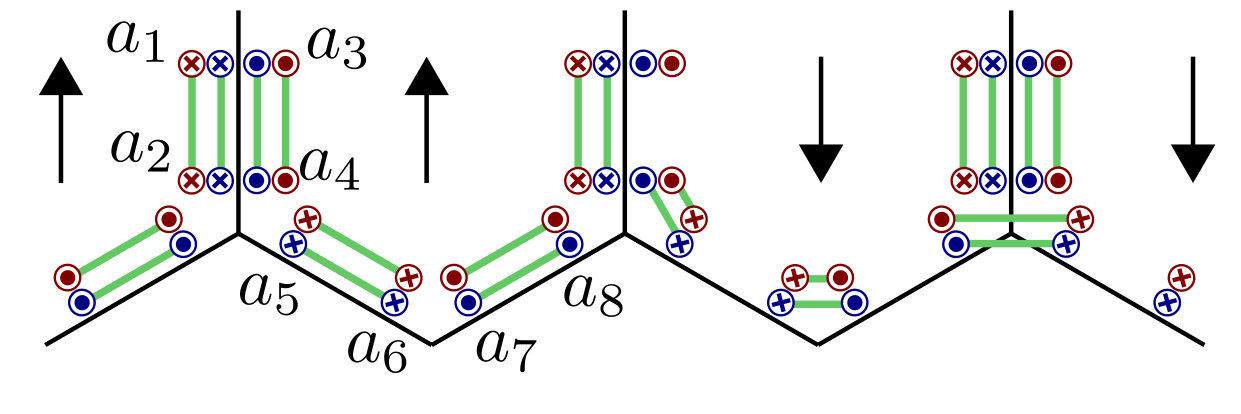

As an exercise, one can check that for the honeycomb lattice the pairing rule given in Fig. 2 in the main text follows the above prescription.
Time-reversal symmetry of the Hamiltonian is implemented by the anti-unitary transformation
[TABLE]
Here and are vertices of the pairing lattice that are connected by a long edge, with the Kasteleyn arrow direction on that long edge pointing from to . One can prove that among two Majoranas and that can be paired in some spin configuration, the above transformation endows a minus sign to only one of them. Hence, combined with complex conjugation that sends , maps to , with the overlines denoting the opposite spin indices. As a consistency check, one can show that upon specializing to the honeycomb-lattice model with our previous Kasteleyn orientation choice, this transformation reduces to the operation specified in Eq. (17).
Finally, we discuss the relationship between two Hamiltonians with identical lattice but with different Kasteleyn orientations. We first recall that a ‘local transformation’ at a vertex of the pairing lattice is defined by flipping arrows on the three edges that meet at . It is known that a series of local transformations map all Kasteleyn orientations that represent the same spin structure [24]. For topological-superconductor models, flipping an arrow direction on a long edge changes how Majoranas pair for each spin configuration. Hence, one can think of the following local transformation at :
[TABLE]
where is the vertex connected to via a long edge. Essentially, the above transformation adds minus signs to Majoranas at and flips the Majorana spins at both and . A series of transformations connect Hamiltonians defined with different Kasteleyn orientations in the same ‘topological sector’. We note that corresponds to gauge transformations on Majoranas combined with spin relabeling; if two Hamiltonians are related by a series of ’s, they should be regarded as identical.
A.2 symmetry beyond honeycomb-lattice models
Here we present a proof that the topological-superconductor models defined on a torus or sphere and on parity-symmetric lattices always possess symmetry. While our proof is restricted to the case of two specific manifolds, it is natural to expect that a similar technique can be extended to any orientable manifold on which a reflection operation can be defined.
First, we show that there are ‘canonical Kasteleyn orientations’ in which the reflection operation flips all arrows. As shown in Fig. 18(a), a line that is fixed under reflection [dotted vertical line in (a)] bisects the sphere into two parts marked blue and red in figure, one being a mirror image of the other. In the case of the torus, there are two lines that are fixed under reflection [three dotted vertical lines in Fig. 18(b); the two at the extreme ends are actually identical]. These two lines similarly divide a torus into two parts, which are also mirror images of each other.
One can imagine first assigning arrows for edges that reside only on one part (e.g., the red region) such that all cycles within that part satisfy the clockwise-odd rule. Note that we are not assigning arrow directions to edges that cross the fixed lines and hence belong to both parts. Then, one can define arrow directions on the other part (e.g., the blue region) such that they are opposite of the mirror image of the arrows in the first part. Now, all edges except for the ones that lie across the fixed lines have arrow assignments, and all cycles isolated to each part satisfy the clockwise-odd rule.
Thanks to the two parts being mirror images of one another, the arrows for the edges that cross the fixed line are fairly straightforward to determine as well. Plaquettes that extend across the fixed lines are guaranteed to be clockwise even without arrows for the edges on a fixed line; indeed, due to reflection symmetry, the already-assigned arrows on the left and right have the same number of edges that are directed against the clockwise cycle. Hence, one can choose arrows along fixed lines such that all of them uniformly point from one area to the other, just like the bright green arrows in Figs. 18(a) and (b). Plaquettes bisected by fixed lines then satisfy the clockwise-odd rule.
As a final step, we recall that there are four locally inequivalent choices of Kasteleyn orientations for the torus. The three other locally inequivalent canonical Kasteleyn orientations can be generated by flipping all arrows on any vertical or horizontal dotted line in Fig. 18, or both. This global transformation does not alter the defining property that the reflection transformation on these Kasteleyn orientations are equivalent to flipping all arrows.
One can write down the -symmetric topological-superconductor models based on these canonical Kasteleyn orientations. In addition to , these models enjoy symmetry defined by (unitary part of the time-reversal symmetry) followed by spatial reflection. As for the proof, one can manually check that our definition of , when applied to a vertex term at the vertex , properly gives its mirror partner—which suffices to prove invariance of the whole Hamiltonian.
When the Hamiltonian is defined with some arbitrary Kasteleyn orientation without a mirror property, as we saw earlier, a series of local gauge transformations allow us to map the Hamiltonian to the one defined with canonical Kasteleyn orientations. Hence, we conclude that an emergence of symmetry on our exactly solvable model is a very general phenomenon whenever the underlying lattice is parity symmetric.
A.3 Topological superconductor models on a Klein bottle without symmetry
We conclude this appendix by giving a general prescription of how to define topological-superconductor models on a Klein bottle, even when the underlying lattice is not parity symmetric and hence symmetry is absent. We proceed similarly to the main text by building a twisted double-cover representation of Majorana pairings and spin configurations.
The key ingredients in building a twisted double-cover representation is a choice of Kasteleyn orientation. Kasteleyn orientation on a twisted-double cover representation is essentially arrow assignments on a trivalent lattice on a torus, now with a special property: The lattice on the upper half is precisely the mirror image of the lower half, and the Kasteleyn orientation on the upper half is opposite of the mirror image of the lower half. We will show that such a Kasteleyn orientation can be generally chosen on a Klein bottle when each half contains an even number of vertices, using the result from Ref. 25.
Before stating our proof, we set up some notation. There are two lines (referred to as ‘cuts’) on the double-cover torus where the lower half and the upper half meet. Following Ref. 25 we will denote edges crossing these lines as ‘0-edges’, while edges that do not cross the lines are dubbed ‘1-edges’. Reference 25 shows that as long as the number of vertices on either half is even, a Kasteleyn orientation on an identical lattice, but with modified relations between arrows on the lower half and upper half, is guaranteed to exist: In the modified relation, 0-edges follow the same rule described in the previous paragraph. However, arrows on 1-edges crossing one cut are just the mirror image of those on the other cut (instead of being opposite of the mirror image). All we need to do to construct the Kasteleyn orientations we want for our purpose is flip arrows on 1-edges that cross one of the cuts, so that now all arrows on the upper half—regardless of whether they are on 1-edges or 0-edges—are opposite of the mirror image of the lower half. This operation is benign in the sense that all clockwise-odd cycles remain clockwise-odd.
We emphasize that this proof is expected to only work on a Klein bottle; in fact, based on the fact that there is no Pin*+* structure on , it is expected that there is no natural way to define our models consistently on some other non-orientable manifolds.
The rest of the process is almost identical to the one presented in the main text: We build twisted double-cover representations by setting the bosonic spin configurations on the upper half as the opposite of the mirror image of the lower half, and pair Majoranas following the local rules as if the twisted double-cover torus was just an ordinary fully orientable torus. To build an ordinary double cover, we untwist the upper half with . One can show that this operation generates Majorana pairings and spin configurations where the upper half is precisely the mirror image of the lower half, and we indeed thus construct the ‘double cover representation’ of Majorana/spin configurations on a Klein bottle. From there, one can straightforwardly write down the Hamiltonian on a Klein bottle.
This method of putting the model on a Klein bottle explicitly breaks time-reversal symmetry. However, we note that this methods uses some form of symmetry and indeed can be understood as twisting the boundary condition by the unitary part of time reversal and many-body invariants presented in Sec. V can be computed in this setup as well and can be shown to acquire the same values.
Appendix B Proof of a projector lemma and its corollaries
Here, we prove the following lemma: We are given four Majorana operators , , , and O matrices and . We also define
[TABLE]
Here and in other parts of the proof repeated indices are implicitly summed. Then the following holds:
[TABLE]
Notice that regardless of the detailed form of and , as long as remains the same, the right-hand side remains the same as well.
The proof proceeds by brute force:
[TABLE]
By recognizing that , one can see that the second term on the right side of Eq. (56) precisely matches the second term on the right side of Eq. (55). Observe next that
[TABLE]
The first term above vanishes, due to the fact that the two row vectors of are orthogonal to each other. The coefficient in the second term is simply —hence . One can see that the third term in the last line of Eq. (56) is then precisely the last line of Eq. (55). The lemma is therefore proven.
Below we list several useful corollaries.
Multiplication of two projectors
[TABLE]
is invariant under the transformation
[TABLE]
This corollary can be straightforwardly proven by noticing that the above transformation is equivalent to setting . 2. 2.
The projector
[TABLE]
appears in Sec. V, where defining the model on a Klein bottle makes some Majoranas pair across the different layers. This projector is invariant under the U(1) transformation
[TABLE]
This property can be proven as follows: The above projector can be obtained by choosing , , and the transformation is equivalent to choosing and . It is easy to show that . 3. 3.
Let us consider
[TABLE]
where and are defined as
[TABLE]
Then one can show:
[TABLE]
This can be easily proven by noticing that
[TABLE]
Then, one can deduce
[TABLE]
The product of the projectors on the third line is explicitly 0. This property will be used in Appendix D.
Appendix C More on the gapless edge Hamiltonian
This appendix fills in technical gaps that we left open in Sec. IV.
C.1 Strategy for proving
Here, we introduce a trick that allows to be modified such that it can be treated more like an ordinary plaquette flip term . This modification allows one to prove straightforwardly. First we summarize the key elements in the proof of (following similar techniques used, e.g., in Ref. 6, 14, and 26). If and are non-neighboring, this relation is somewhat obvious. The non-trivial feature of the proof comes from the fact that when and are neighboring, there are Majorana projectors in the expression for and that do not commute with each other and should be handled carefully. We emphasize that the precise details of proof are only dependent on projectors involving Majoranas around two vertices and there is a step in the proof that relies on the fact that in , projectors that project onto the Majorana pairings consistent with the original spin configuration and projectors that project onto the Majorana pairings consistent with the new spin configurations together form a loop around the plaquette .
Let us investigate how and are retained or violated in . Think of a bulk plaquette neighboring to , and two vertices at which and meet. The operator actually contains all Majorana projectors involving degrees freedom around those two vertices as if it was a normal ‘complete’ plaquette. Hence, one may naively expect that projectors that should be treated carefully are actually just identical to those involved in the proof of . However, is explicitly incomplete and hence Majorana projectors do not form a loop anymore, violating . Hence, if we devise an equivalent modification of in which Majorana projectors now form a closed loop without affecting Majorana projectors around the two vertices of interest, then we can apply the same technique for proving .
We divide into cases in which the two incomplete plaquette spins surrounding are the same or opposite. For case , assume that the two incomplete plaquette spins are up, and that the spin at plaquette is up as well. Then, in the expression for in Eq. (28), the projectors in the first parenthesis explicitly keep four Majoranas at the edge unpaired, whereas the projectors in the second parenthesis keep these previously unpaired Majoranas paired with Majoranas in the bulk. Denote those four Majoranas as , , and . One can insert the projectors
[TABLE]
to get an equivalent expression, where the signs should be determined by the clockwise-odd rule around the incomplete plaquette . This modification makes satisfy for the we considered so far. To see why this works, let us label Majoranas (on the first layer) in a way that the second parenthesis of enforces Majorana pairings between , ,, , and the first parenthesis projects onto the state with Majorana pairings ; we chose to combine spin and vertex indices of Majoranas into a single index for simplicity. Note that and respectively corresponds to and . By definition, states that are not projected out by the second parenthesis have definite eigenvalue of the following operator:
[TABLE]
The product of operators on the right side is also fixed by the first parenthesis—implying that states obtained after applying the original have definite eigenvalues despite lacking projectors involving the latter Majoranas. Hence, adding the projector in Eq. (67) that projects onto the certain eigenstate of is harmless and does not change how acts. The same logic applies for Majoranas in layer 2. See Fig. 19(a) for an illustration.
One can insert the same projector in the second parenthesis if the configuration has spin down at plaquette (which is the ‘Hermitian conjugate’ of the first case we considered). One can also apply a similar modification when two surrounding incomplete plaquette spins point down instead of up.
Next we introduce a modification when the two incomplete plaquette spins around are opposite—fixed for concreteness to up on the left and down on the right—and with the spin at pointing up. The spin configuration then enforces two Majoranas and to be unpaired. After action of , the aforementioned Majoranas pair with and , and a different set of Majoranas and will now be unpaired; see Fig. 19(b). We introduce the unitary transformation
[TABLE]
which exchanges and and and only when . (Whether we use the or sign above is unimportant.) This unitary transformations commutes with any bulk term, hence proving implies . The intuitive effect of this transformation is clear: As illustrated in Figs. 19(b) and (c), this transformation fixes Majoranas that remain unpaired, allowing to be treated as closed loops for the we are considering. This can be explicitly confirmed via projector algebra, which we leave as an exercise for readers who want to gauge their understanding of this paper (the proof can be done in three lines). As before, the above modification can be straightforwardly generalized to the other spin configurations falling into case .
C.2 More detailed justification for polarizing bulk spins to derive the edge Hamiltonian
Next we provide a more detailed and technical justification for deriving the edge Hamiltonian by fixing bulk spins and stripping out degrees of freedom that are frozen due to lack of quantum fluctuations of bulk spins in the low-energy space. To justify this procedure, we investigate the low-energy physics and the spectrum of the Hamiltonian . We will work in the subspace in which is enforced. Also, we define , the subset of in which bulk spin configurations are fixed to be . By definition, .
One can construct a canonical isomorphism from to , the bulk spin configuration obtained by flipping spins at a set of plaquettes from , defined as:
[TABLE]

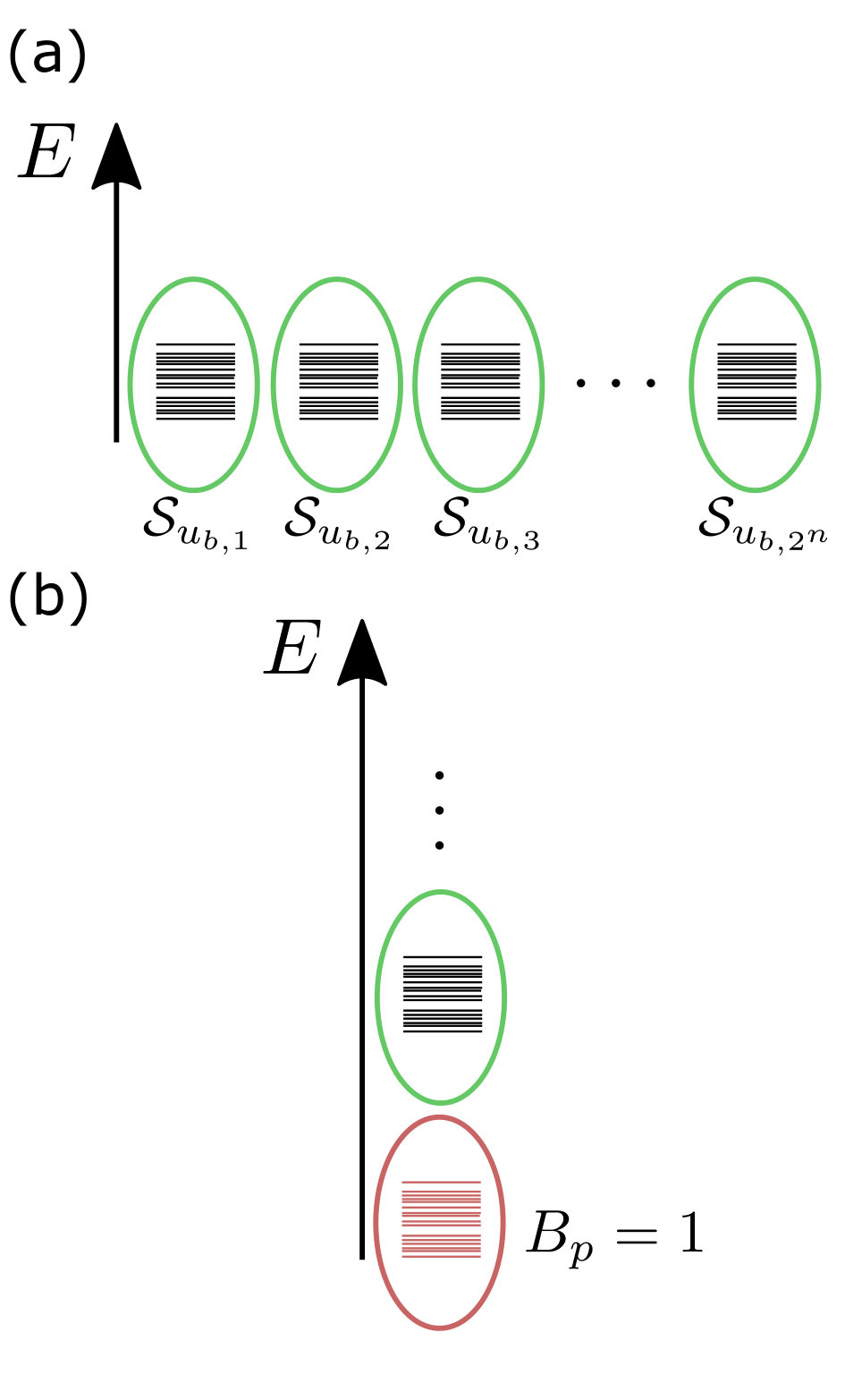

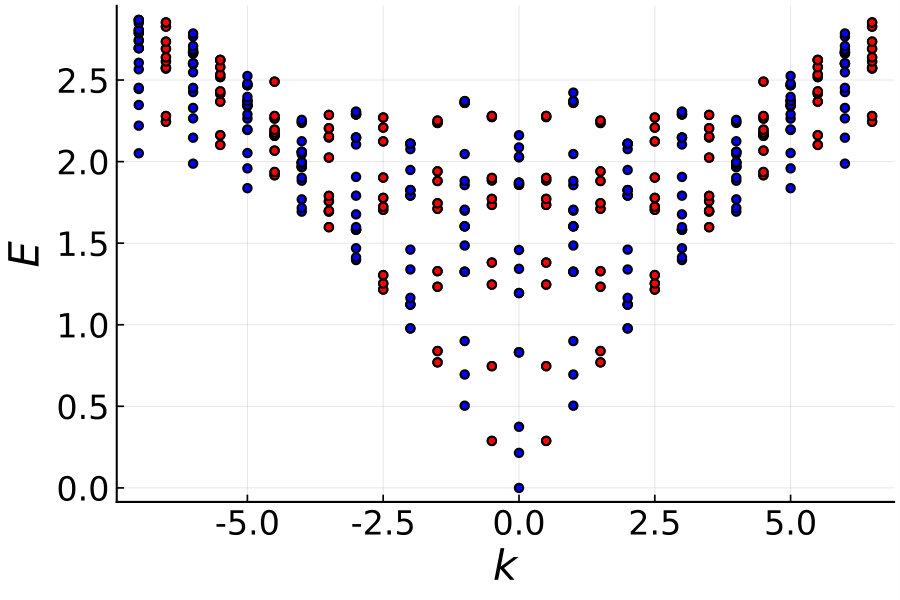

Moreover, commutes with . These two facts imply that the spectra of within all sectors are identical. When the full Hilbert space is considered, the low-energy spectrum of is -fold degenerate ( is the number of bulk plaquette spins), each degenerate state in the spectrum coming from a different subspace . See Fig. 20(a) for a schematic.
Adding the term lifts this massive degeneracy, splitting the degenerate levels into different levels that can be labeled by eigenvalues; this is possible because commutes with and . Within the levels that possess the same set of eigenvalues, their relative energies are purely given by and hence are identical to those given by the Hamiltonian defined on the restricted Hilbert space . See Fig. 20(b) for an illustration. The low-energy subspace of interest satisfies for all , and therefore one can fix bulk spin configurations to study the low-energy physics of the Hamiltonian . The cost is loss of an explicit on-site time-reversal symmetry. However, we saw that the effective 1D model we derived from this procedure retains some non-trivial incarnation of -symmetry in the low-energy space.
C.3 Simplifying the 1D model with unitary transformations and cutting out Majoranas
After polarizing bulk spins and removing Majoranas that are frozen in the low-energy space, we obtain a 1D model with a bosonic spin in each plaquette (i.e., unit cell) and sixteen Majoranas per unit cell, eight per layer. We will label the latter as in layer 1 and similarly for layer 2; here denotes a unit cell index and are internal indices within a unit cell (see Fig. 21 for the definition). We now introduce a three-step local unitary transformation that reduces the number of Majorana degrees of freedom that fluctuate at low energies to four per unit cell, two for each layer:
Whenever and apply the following unitary transformation
[TABLE]
to each site. The above transformation exchanges and , and and in layer 1, with the same exchanges occurring also in layer 2. In the original model, Majoranas with both spins can fluctuate; by applying the following changes, we will freeze Majoranas with a certain spin (in the language of this section, , , , and ) and discard them. 2. 2.
Whenever , apply the transformation
[TABLE]
which changes and in layer 1 only when the spin at points down (identical changes occur in layer 2). As a result of this transformation, in the low-energy subspace, and always remain paired and can be removed for the sake of studying the low-energy physics. The same goes for the analogous Majoranas in layer 2. 3. 3.
Whenever and apply the unitary transformation
[TABLE]
Meanwhile, when and , apply
[TABLE]
Both transformations are applied when there are unpaired Majoranas between sites and , and move the unpaired Majoranas (which due to the very first transformation we applied are always and ) to either or . Also, this transformation causes and to always pair in the low-energy subspace—hence they can be discarded. Likewise, and can be thrown away.

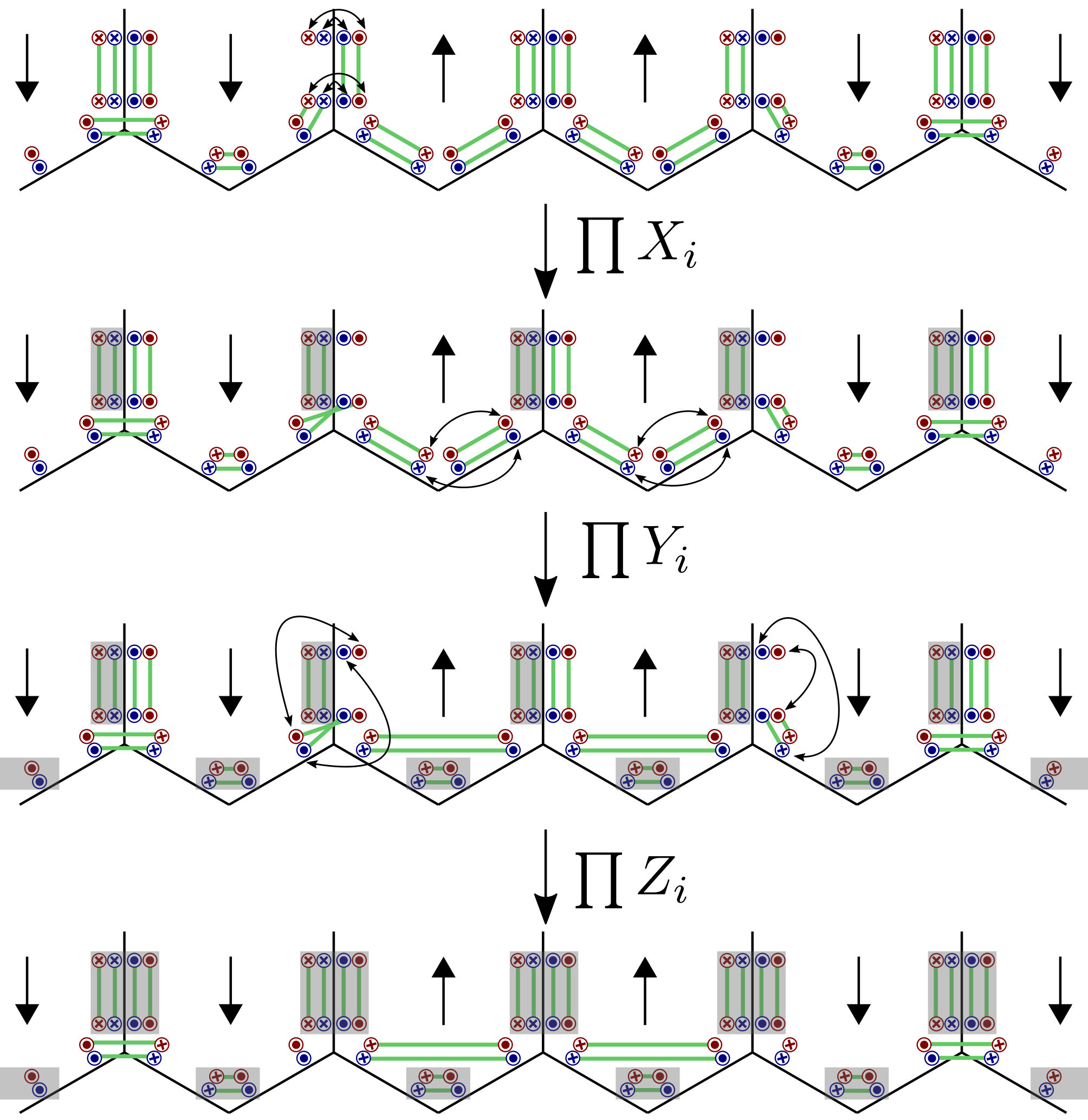

Figure 22 illustrates the effect of the above three transformations. Applying these unitary transformation and discarding Majoranas that are frozen in the low-energy space yields a 1D Hamiltonian that is almost identical to (up to some Majorana gauge transformation), subject to the following difference: In , there are two types of vertex terms, one originating from the fully trivalent ‘complete vertices’ in Fig. 21 and another originating from ‘incomplete vertices’ where only two edges meet. Terms orignating from incomplete vertices are notably absent in . However, removing these terms does not affect the subspace with . Hence, we conclude that the low-energy physics of is completely identical to the 1D edge of our exactly-solvable topological insulator model.
Appendix D More on the Berry-phase calculation
The goal of this appendix is to prove Eq. (51). We start by proving a related lemma.
D.1 Lemma
Let denote a state with bosonic spin configuration and Majorana pairings consistent . Then, for any and , the following holds:
[TABLE]
Since acts on some fixed spin configuration, we can write
[TABLE]
where only contains Majorana projectors (the spin parts of the two operators must undo one another to get a nontrivial result). Let us denote as any pair of projector that appears in the expression for , and define as the version of with erased. We then have
[TABLE]
While this looks complicated, it is just a straightforward application of the product rule of derivatives. Recall that following the notation of Eq. (21), corresponds to projectors that reconfigure Majorana pairings and are in the first parenthesis of Eq. (21). In this case, following similar logic that local-fermion-parity conservation fixes one of the pairings without explicit projection, ! The case corresponds to projectors in the second parenthesis of Eq. (21) that project onto Majorana pairings consistent with a spin configuration around plaquette . If Majorana pairings between are reconfigured by the first parenthesis, similar logic as before guarantees that . If they are not reconfigured, we use the fact that commutes with all projectors , which allows us to convert back to to as well. We thus deduce
[TABLE]
Finally, using the fact that on the third line and that , one can equivalently substitute the partial derivatives in the above expression via
[TABLE]
Appendix B proved that the expression on the right side of Eq. (79) vanishes. This proves Eq. (75).
D.2 Proof of Eq. (51) using the lemma
Next, we note that
[TABLE]
where the definition of each symbol is identical to the ones in Eq. (51). The proof thus really boils to down to showing
[TABLE]
In Eq. (81) the derivative acts only on operators in the second product.
To proceed, let us set an ordering for plaquettes , , ; the precise details of the ordering do not matter. Let us further order terms in the second parenthesis according to the chosen ordering, but order terms in the first parenthesis with the inverse ordering (which can be understood as the ‘Hermitian conjugate’ of ordering in the second parenthesis). Then, the product rule of partial derivatives allows one to show that
[TABLE]
The identical product of projectors in the second and the third parenthesis multiply to 1. Also,
[TABLE]
where is a state with a spin configuration obtained by flipping spins of from the all-down spin configuration, and with Majorana pairings consistent with that new spin configuration. Hence, we can greatly simplify Eq. (82) to be
[TABLE]
If then the summand trivially vanishes. If we can apply the lemma of the previous subsection to show that it also vanishes. Hence, we proved Eq. (51), and the Berry phase of our topological-insulator model on a Klein bottle may be computed by computing the Berry phase at one spin configurations with corresponding Majorana pairings.
The reference list from the paper itself. Each links out to its DOI / PubMed record.
- 1Kitaev [2003] A. Kitaev, Annals of Physics 303 , 2 (2003) . · doi ↗
- 2Levin and Wen [2005] M. A. Levin and X.-G. Wen, Phys. Rev. B 71 , 045110 (2005) . · doi ↗
- 3Gu et al. [2014] Z.-C. Gu, Z. Wang, and X.-G. Wen, Phys. Rev. B 90 , 085140 (2014) . · doi ↗
- 4Chen et al. [2014] X. Chen, Y. Lu, and A. Vishwanath, Nature Communications 5 , 3507 (2014) . · doi ↗
- 5Tarantino and Fidkowski [2016] N. Tarantino and L. Fidkowski, Phys. Rev. B 94 , 115115 (2016) . · doi ↗
- 6Ware et al. [2016] B. Ware, J. H. Son, M. Cheng, R. V. Mishmash, J. Alicea, and B. Bauer, Phys. Rev. B 94 , 115127 (2016) . · doi ↗
- 7Bhardwaj et al. [2017] L. Bhardwaj, D. Gaiotto, and A. Kapustin, Journal of High Energy Physics 2017 , 96 (2017) . · doi ↗
- 8Tantivasadakarn and Vishwanath [2018] N. Tantivasadakarn and A. Vishwanath, Phys. Rev. B 98 , 165104 (2018) . · doi ↗
