Detecting and classifying moments in basketball matches using sensor tracked data

TL;DR

This paper presents a method to automatically identify and classify active moments in basketball games using sensor-tracked player data, enhancing sports analytics by distinguishing offensive and defensive phases.

Contribution

It introduces a novel threshold-based approach with tuning strategies to detect active periods and classify them, leveraging video-annotated ground truth for accuracy.

Findings

Effective identification of active game periods

Accurate classification of offensive and defensive phases

Improved data-driven sports performance analysis

Abstract

Data analytics in sports is crucial to evaluate the performance of single players and the whole team. The literature proposes a number of tools for both offence and defence scenarios. Data coming from tracking location of players, in this respect, may be used to enrich the amount of useful information. In basketball, however, actions are interleaved with inactive periods. This paper describes a methodological approach to automatically identify active periods during a game and to classify them as offensive or defensive. The method is based on the application of thresholds to players kinematic parameters, whose values undergo a tuning strategy similar to Receiver Operating Characteristic curves, using a ground truth extracted from the video of the games.

Figures

Tables

Table 1. Table 2: An excerpt from the first report.

action	sec	off
off	1	1
def	32	0
off	72	1
def	138	0

Full text

1 Introduction

Recent years registered the rise of data analytics applied to sports. Experts in data science are nowadays employed by teams to improve strategical decisions. These strategies, related to the objective of winning the games, may regards either single players or the whole team and must consider both offensive and defensive performances. In basketball, Oliver oliver04rules outlines most of the tools used to evaluate performance. Offensive performance can be measured in terms of shots (Zuccolotto et al. zucco18big ) or considering other aspects of playing, such as the number of possessions per game (Kubatko et al. kubatko07starting ). Sampaio et al. sampaio15exploring and Paulauskas et al. paulauskas18basket applied a descriptive discriminant analysis to different competitions to identify which variables best predict differences in the playing style. From a defensive perspective, Franks et al. franks15counter and Goldsberry and Weiss goldsberry15effect introduced a new suite of defensive metrics suggesting to integrate spatial approaches and player tracking data.

The positioning and the velocity of players is an essential aspect to be considered when analysing both offensive and defensive performance. The robust statistical apparatus of National Basketball Association (NBA) supported by private companies made analysis of offensive and defensive moments relatively easy. Wu and Bornn wu2017modeling provide a tool for the visual analysis of offensive actions using a sensor data technology. Miller and Bornn miller2017possession use the same data to catalogue NBA league strategies according to players’ movements. Ball circulation during offense actions has been analysed by D’Amour et al. d2015move to show that the more open shots opportunities can be generated with more frequent and faster movements of the ball. Less attention was paid to European leagues, mainly depending on the restriction on data collection, which is rarely granted to authorized operators. Metulini et al. metu17space ; metu17sensor and Metulini metu18mining use tracked data from Italian professional basketball games collected by mean of an accelerometer device and they split games into clusters of homogeneous spatial distances among players, looking for those with better team shooting performance. Metulini et al. metu18area , using the same data, measured the relation of surface area occupied by players in offence and in defence with the number of scored points by the team.

However, accelerometer devices track players’ movements along the full game, without distinguishing between active/inactive periods and offensive/defensive possessions. A possible solution is to instruct a person to track these information during the game. However, this option can be unpractical either due to organizational issues and cost impact. For these reasons, we propose a procedure that identifies and removes inactive periods and classifies them as either offensive or defensive. Such a procedure allows a better usage of tracked data from localization systems for the aim of a better team performance analysis at support to game decision in basketball, from professional to amateur and youth leagues.

In this paper we discuss the procedure proposed by Metulini metu17filt and we introduce a validation strategy based on the use of a “ground truth” extracted from a video-based annotation of a sample of games.

2 Data

The tracking system collects the position and the velocity of every player during the full game length, including whose waiting on the bench, along the $x$-axis (court length) and the $y$-axis (court width). The measured positions are expressed in centimeters (cm); the estimated accuracy of the tracking system is around $30$ cm. Each measurement is marked by its time instant $t$. The tracking system is able to capture measurements at a sampling frequency of $50$ Hz, corresponding to a measurement every $20$ milliseconds (ms). We call the ordered set of measurements X. The measurement made at the time instant $t$, denoted with $x_{t}$, thus contains the following information:

• •

The vector of the position for the $i$-th player along the $x-$ and the $y-$ axis, denoted as $pos_{i}(t)=\{pos_{i}^{x}(t),pos_{i}^{y}(t)\}$, measured in cm, where superscript $x$ and $y$ are used, respectively, for court length and court width;

• •

The vector of the velocity for the $i$-th player along the $x-$ and the $y-$ axis, denoted as $vel_{i}(t)=\{vel_{i}^{x}(t),vel_{i}^{y}(t)\}$, measured in kilometres per hour (km/h);

• •

The velocity for the $i$-th player in the court at time $t$, computed as $v_{i}(t)=\sqrt{vel_{i}^{x}(t)^{2}+vel_{i}^{y}(t)^{2}}$.

3 The procedure

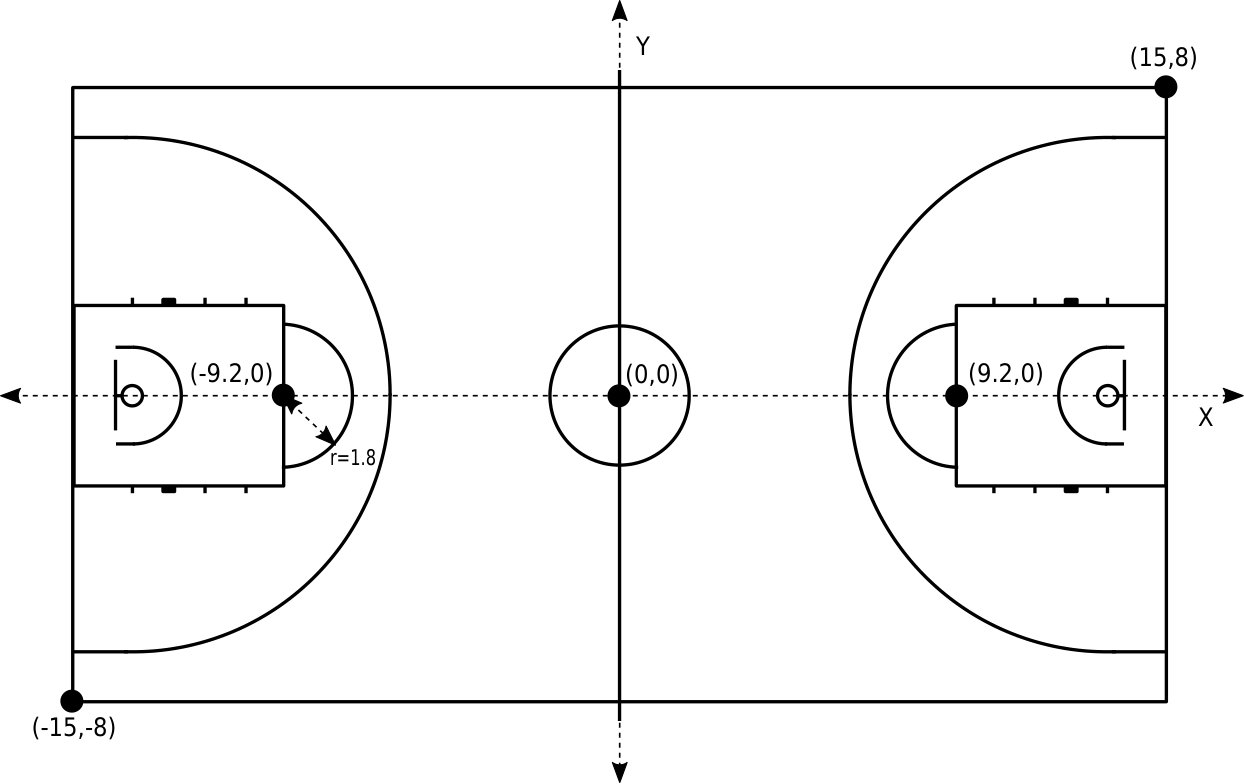

The procedure aims at removing specific measurements from $\mathbf{X}$ according to three different criteria and to separate the game into offensive and defensive possessions. The filtering and labelling scheme is based on defining kinematic parameters related to players’ positions and velocities on the International Basketball Federation (FIBA) court (Figure 1). The outcome is a reduced set of measurements denoted as $\mathbf{Xr}$ that includes two features about the type of possession ($poss$ = {offensive, defensive, transition}) and the ordered number of possession ($ord$ = {1,2, …, n}), respectively.

In detail:

According to criterion 1-A, the procedure drops from X all the measurements belonging to the time instant $t$ in which the number of players inside the court is different from $5$. 2. 2.

Criterion 1-B drops from X the measurements when at least one player is on the free throw shooting area (FTSA) for at least a specified interval of time $T_{ft}$. Player $i$ lies in the FTSA at time $t$ if the vector $pos_{i}(t)$ lies in the circle $C_{r}$ centred on the center of the FTSA of radius $r=1.80m$. 3. 3.

The criterion 1-C removes those measurements where the speed of all the five players in the court is below a given threshold $V_{min}$, for an interval of time equal or larger than $T_{vel}$. 4. 4.

Criterion 2-A assigns the value of the variable $poss$ to each measurement of $\mathbf{Xr}$. The procedure generate the average $x$ coordinate of the five players on the court at time $t$, $avg\_pos^{x}(t)=\sum_{i=1}^{5}pos_{i}^{x}(t)/5$. The measurement $t$ could lie either on the offensive ($avg\_pos^{x}(t)>4$) or on the defensive ($avg\_pos^{x}(t)<-4$) side of the court. transition is instead assigned to variable $poss$ whereas $avg\_pos^{x}(t)$ lies in the interval {+4,-4}. 5. 5.

Criterion 2-B assigns to the measurement of $\mathbf{Xr}$ the $ord$ value, for the aim of counting for the total number of possessions in the game. The procedure assign to $ord$ value “1” to measurement $x_{1}$. Such a value increases by 1 whenever the variable $poss$ takes the value $transition$ at time $t-1$ and either $offensive$ or $defensive$ at time $t$.

4 The validation strategy

While parameter $T_{ft}$ can easily be determined by looking to the average time required by a player to shot one or two free-throws, the “best” values for the parameters $V_{min}$ and $T_{vel}$ need for a tuning strategy in order to be correctly identified. The tuning strategy has the objective to find those values for $V_{min}$ and $T_{vel}$ such that the accordance of the procedure with the “ground truth” is maximized.

4.1 Video-based annotation

We extract the “ground truth” by using a specific smartphone application while watching the available video footage of the game. We take note of a number of game events related to i) the moments in which the game is active/inactive; ii) the moments of free-throws, time-outs, quarter- and half-time intervals; iii) the moments when the team was in offence/defence (Table 1). Based on the recorded data, we produce two reports.

The first report displays when the action starts to be active (action = play) or starts to be inactive (action = stop) with reference to a given moment (sec). active is a variable that assumes value equal to $1$ if the game starts to be inactive in that moment. timeout, ft, quarter and half are variables assuming value equal to $1$ if the reason of the inactivity is, respectively, a time-out, the shooting of a free-throw, a quarter-time interval or an half-time interval. In the excerpt reported in Table 3, the game starts at second $1$ ($active=0$ & $sec=1$ in the first row). From second $1$ to second $4$ the game is active. At second $5$ the game stops ($active=1$ at the second row of the table) due to a generic reason. At second $13$ the game restarts (third row) and at second $47$ the game stops due to a free-throw ($ft=1$ in the fourth row). The second one reports the variable action, which can assumes either value 1 (start a offensive action for the team) or value 0 (start a defensive action for the team). In the excerpt in Table 3 the team starts the game in defence ($sec$ = 1), it starts an offensive play at second 32, it goes back to defence at second 72, an so on.

4.2 The “ROC” method

We use the ground truth to check for the robustness of the classification of the procedure in relation to the choice of parameters $V_{min}$ and $T_{vel}$. Actually, the robustness may be evaluated either in terms of how the procedure classifies active/inactive moments or in terms of how it classifies offence and defence. We borrow the approach of the Receiver Operating Characteristic (ROC) curves. The Area Under the Curve (AUC) is traditionally computed based on sensitivities and specificities to quantify the robustness of a prediction method (Zhou et al. zhou2009statistical , Pepe pepe2003statistical , Krzanowski and Hand krzanowski2009roc ). Sensitivity measures the proportion of true positives, while specificity measures the proportion of true negatives. The ROC and AUC help in deciding the optimal threshold value by computing sensitivity and specificity on a series of possible thresholds. In this problem we have no threshold values to set for the underlying probabilities. In our case, the measurements are directly classified by the procedure as positive or negative (i.e. active/inactive; offence/defence). However, the binary classification changes as parameters $V_{min}$ and $T_{vel}$ change. Therefore, we measure the performance of our procedure by evaluating the AUC with respect to different values of $V_{min}$ and $T_{vel}$ used as thresholds.

The proposed strategy is adopted for identifying the best parameters using active/inactive classification. The same strategy could be applied, making appropriate adaptations, using offence/defence classification. Let $\tilde{\textbf{X}}$ be the set of measurements obtained from X by aggregating the observations at a frequency of $1$ second. We let $Y\tilde{t}$ be the variable assuming value $1$ if, according to the report, the game is inactive at second $\tilde{t}$, [math] otherwise. Moreover, for a given $V_{min}$ and $T_{vel}$ combination, let $Y^{\star}\tilde{t}$ be the variable assuming value 1 in $\tilde{t}$ if the majority of the observations corresponding to that $\tilde{t}$ was labelled as inactive by the procedure, [math] otherwise. We define true positives (TP), true negatives (TN), false positives (FP) and false negatives (FN) accordingly and we compute sensitivity and 1 - specificity. The method is defined by the following $3$ steps:

For a given $V_{min}$ we compute the AUC for $T_{vel}$ varying in a range of values. The AUC is then computed for all the $V_{min}$ in a range of values. 2. 2.

$V_{min}$ is selected such that AUC is maximized. 3. 3.

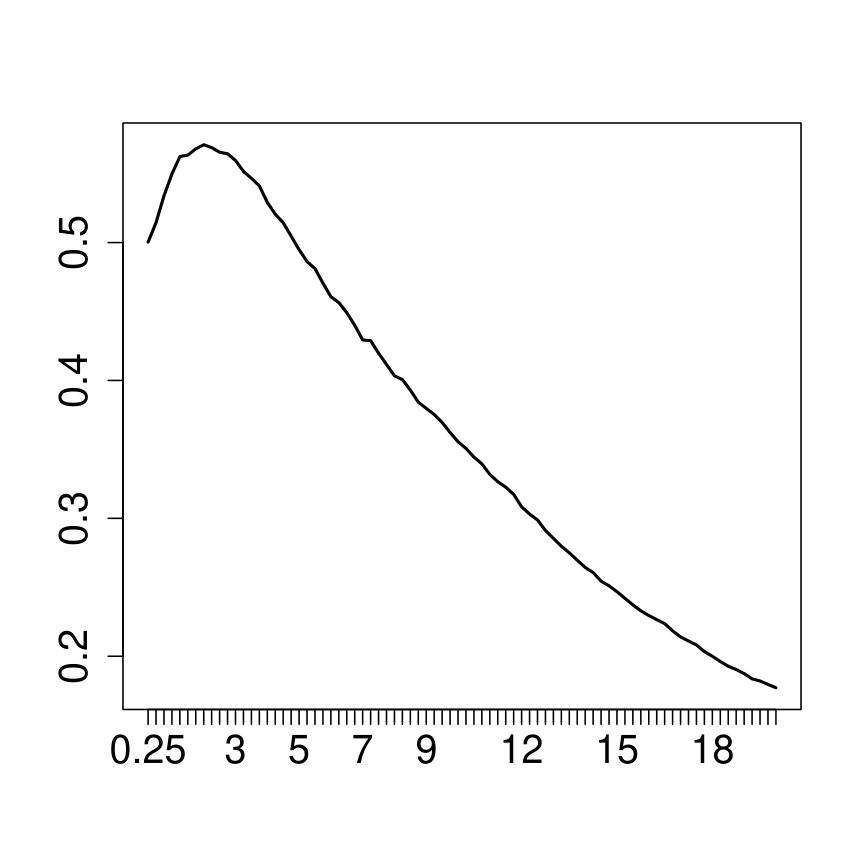

Adopting the Youden’s index criteria (Youden’s youden50index , Fluss et al. fluss2005estimation and Liu liu2012accuracy ), for the chosen $V_{min}$, the value of $T_{vel}$ is selected such that the sum of sensitivity and specificity is maximized.

5 Results

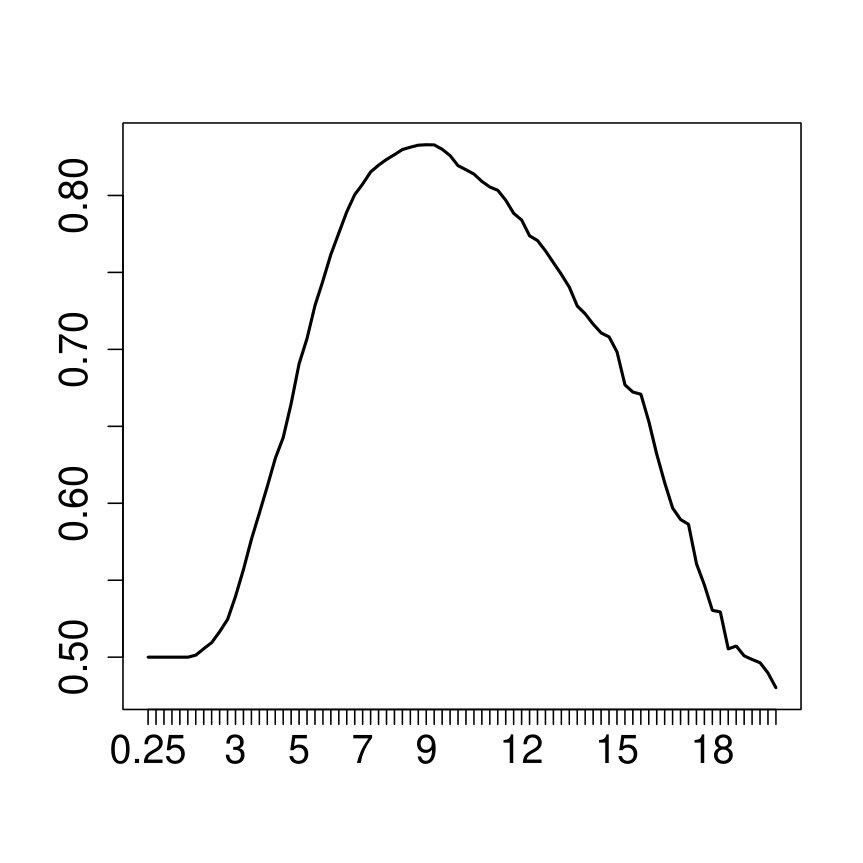

We apply the method for classifying active/inactive periods to the set of measurements of one game played by a team during the Italian Basketball Cup Final Eight 2017. The game will be indicated as case study 1 (CS1) and the corresponding set, counting for $505,291$ measurements, will be denoted with $\textbf{X}_{1}$. We first compute the value of the $AUC$ corresponding to different values of $V_{min}$. Up to a given point, the $AUC$ increases as $V_{min}$ increases; beyond such a point, the $AUC$ decreases as $V_{min}$ increases (Figure 3). The largest value of $AUC$ is 0.8329. According to the second step, we select the value of $V_{min}$ corresponding to the largest $AUC$, which is equal to to $9.25km/h$. Moving to the third step, we search for the value of $T_{vel}$ that maximize the Youden’s index (Figure 3). The largest Youden’s index is found for $T_{vel}=2$.

6 Conclusions

In this work we outline a methodological approach that should be used to automatically select the correct portion of spatial tracking data of a game by just selecting those that correspond to active moments, and to correctly classify them by type of possession. The procedure, along with the identified values for the kinematic parameters may helps experts and analysts who want to analyse tracked data without watching the video of the game. Future work will focus on a more extensive application of this methodological approach and to a larger number of real case studies. First by focusing on finding the parameters that best classify active and inactive moments, then by looking to the best choice with regards to the classification among offensive and defensive possessions.

Acknowledgements.

Research carried out in collaboration with the Big&Open Data Innovation Laboratory (BODaI-Lab), University of Brescia (project nr. 03-2016, title Big Data Analytics in Sports, https://bdsports.unibs.it/), granted by Fondazione Cariplo and Regione Lombardia.
