Paths towards equilibrium in molecular systems: a mesoscopic Mpemba-like effect in water

TL;DR

This paper demonstrates through numerical simulations that water exhibits a Mpemba-like effect during non-equilibrium cooling, occurring without phase transitions and linked to initial energy distribution.

Contribution

It provides the first numerical evidence of a Mpemba effect in water, showing it arises from non-equilibrium energy distributions rather than phase transitions.

Findings

Mpemba effect observed in water via simulations

Effect linked to initial energy equipartition absence

No phase transition involved in the effect

Abstract

The so-called Mpemba effect, i.e. the observation that the warmer of two otherwise identical systems cools faster when both are refrigerated in the same thermal reservoir, is a hotly debated topic in condensed mater physics and statistical mechanics. Although it has been found in several non-equilibrium model systems, its very existence in water, the system in which it has been historically reported, is still open to question. Here we show using numerical simulations that a Mpemba effect is indeed present in water. We find that the effect occurs when equipartition of energy is not present in the initial state. Interestingly, the effect is observed without the intervention of a phase transition, and it is therefore seen to be a purely non-equilibrium relaxation effect.

Figures

Full text

Non-equilibrium thermodynamics $|$ Mpemba effect $|$ Memory effects in condensed matter

An unperturbed out-of-equilibrium system will evolve in time until it finally reaches a state of equilibrium, from which it will not spontaneously depart. This evolution is system-specific, and dependent on the initial conditions. Experimental observations Keim reveal that frequently the evolution towards equilibrium depends on the system’s thermal history, a phenomenon known as a memory effect. Memory effects are common in condensed matter systems Kovacs ; Prados ; Rodriguez ; Xie ; Fiocco ; Schoenholz ; Nagel , having been documented in disordered materials Lahini , spin glasses Jonason , granular matter Prados , polymers Struik , biological systems Kursten and batteries Sasaki ; they are thus of fundamental as well as practical interest, but our understanding of them is still incomplete. An intriguing memory effect named after Mpemba Mpemba is frequently ascribed to water Ball ; Ouellette ; it refers to the observation that the warmer of two otherwise identical beakers of water, when put in contact with the same thermal reservoir, may cool faster under certain conditions. Even though it has been described since antiquity Aristotle the Mpemba effect (ME) remains controversial to date. Experimental efforts have thus far been unable to provide a conclusive and reproducible picture of the effect Brownridge ; Burridge . The phenomenon is not specific to water; indeed the earliest modern reference to it Mpemba describes how it was first observed in ice-cream mixtures; there is also report of its observation in clathrate hydrates Ahn . A number of computational experiments have reported Mpemba-like phenomena in various idealised model systems, such as in granular fluids Lasanta17 ; Torrente19 , spin glasses Baiti18 and Markovian systems Lu17 ; Klich18 .

Here we describe a hitherto unacknowledged non-equilibrium Mpemba-like effect in atomistic models of bulk water, which we refer to as the mesoscopic Mpemba effect. The term mesoscopic is used here in the sense of Van Kampen vanKampen , i.e. a description of the thermal evolution of a system in terms of macroscopic variables (e.g. temperature) that are nevertheless affected by fluctuations resulting from the microscopic dynamics of its constituents. We also use the term to distinguish our observations from the conventional, macroscopic ME, which, if real, takes place over time scales much longer than can be observed in the effect we report here.

In our simulations we monitor the process of equilibration from carefully-prepared initial conditions in water systems. To this end, we have conducted constant-volume molecular dynamics (MD) simulations of systems containing 64000 water molecules in periodic boundary conditions at densities corresponding to liquid water and hexagonal ice. Simulations were carried out using two different implementations of molecular dynamics, NAMD NAMD and LAMMPS LAMMPS , both giving the same results. In order to insure that the effects observed were not an artefact of a particular water model, we have used several different standard models, including the SPC, TIP3P and TIP4P TIP4P rigid models, as well as a flexible version of the TIP3P model TIP3P . The equations of motion were integrated using a time-step of 1 fs. Initial atomic velocities were generated by sampling the Maxwell-Boltzmann distribution at the desired target temperature. Starting configurations for the liquid with rigid models were obtained from a simple-cubic lattice distribution of molecules with a density of 1 $\mbox{g/cm}^{3}$. These configurations were then subjected to an equilibration run during which velocities were re-scaled to drive the system towards the desired temperature, lasting a total of 10 ps. Production runs were 5 ps long. Runs with the flexible TIP3P model used as initial seed a previously equilibrated configuration of the rigid model, which was subsequently equilibrated with velocity re-scaling for 200 ps, followed by a production run of 50 ps. For the solid phase, we started from a supercell of ice Ih containing 64000 molecules, constructed so as to have no net dipole; this was then subjected to the same equilibration procedure as the liquid phase. Once a given system had been equilibrated at the desired temperature, we took a representative configuration and constructed new, out-of-equilibrium initial conditions by modifying the velocity distribution of the molecules, so as to study the system’s evolution back to equilibrium. We considered the following four cases: case 1, in which the velocities were unaffected (normal equilibrium case); case 2, in which the kinetic energy was placed only in translational modes (molecular rotations were initially frozen); case 3, in which the translational modes were initially frozen, with the kinetic energy placed in rotational modes, and finally case 4 in which both translation and rotation modes were initially frozen, and the kinetic energy was contained in internal molecular vibrations (this is only relevant for the flexible TIP3P model). Clearly, cases 2 to 4 above are very extreme and particular and are only used as convenient starting conditions from which to monitor the process of equilibration; they are far from equilibrium velocity distributions; our conclusions below do not depend on such starting conditions. The use of thermostats to impose a target temperature was explicitly avoided to prevent any interference with the intrinsic relaxation dynamics of the system.

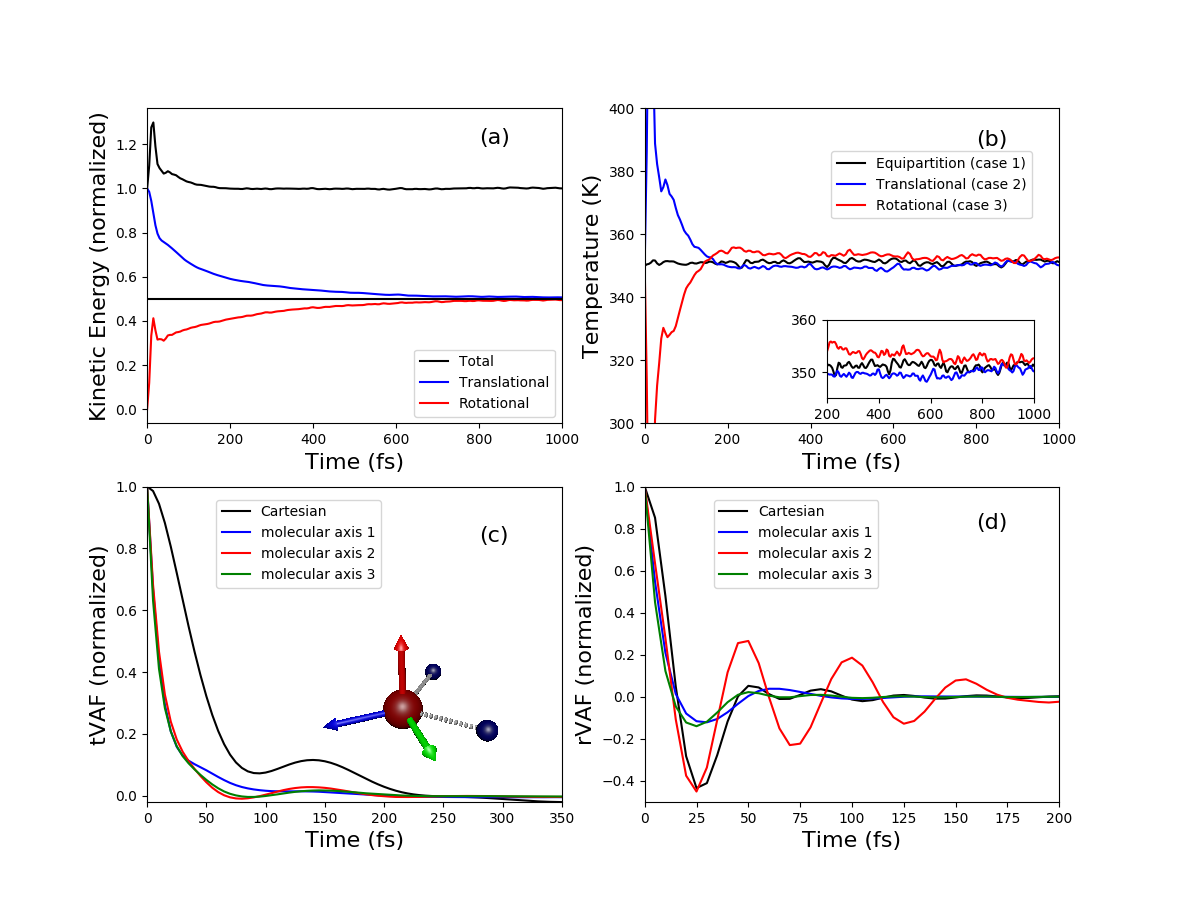

In Fig. (1) we display a sample of the observations obtained from the simulations described above. The system is liquid water modelled with the rigid TIP4P TIP4P model, starting from a configuration resulting from a long equilibration period at 350 K. This model, being rigid, has only translational and rotational degrees of freedom. After the equilibration period, the velocities of atoms in the system are modified such that all the kinetic energy is put in molecular translational modes, while that in rotational modes is set to zero (case 2 above). This distribution obviously breaks the equipartition of kinetic energy among different modes that one expects to find under conditions of thermal equilibrium, and Fig. (1a) shows how the system evolves towards restoring equipartition between translation and rotation in this case. Fig. (1b) displays the evolution of the instantaneous temperature of the system in three different cases, namely, the case considered in Fig. (1a) (case 2), the alternative case in which the initial kinetic energy is put only in molecular rotational modes (case 3 above), and normal equilibrium (case 1). As can be appreciated in Fig. (1a), the translational and rotational kinetic energies evolve towards their equipartition value at slightly different rates. Indeed, the translational energy is seen to reach its equipartition value faster than the rotational one. This is also the case when the initial conditions are inverted so that all kinetic energy is initially in rotational modes, i.e. the translational kinetic energy reaches its equipartition value before the rotational one, only in that case it reaches it from below. The different rates of evolution towards equipartition of the two kinds of modes present in this system result in a transient reduction (or increase, in case 3) of the total kinetic energy with respect to its equilibrium average value. Although this difference with respect to the equilibrium value is small, it nevertheless translates into a noticeable (albeit transient) temperature mismatch with respect to the equilibrium value of approximately $\pm 5$ K, as can be appreciated in Fig. (1b).

The behaviour observed in Figs. (1a,b) is not so surprising if one considers that different kinds of degrees of freedom experience different dynamics, as made evident by the corresponding velocity auto-correlation functions (VAF), displayed in Fig. (1c,d). Fig. (1c) plots the VAFs of the centre-of-mass translational velocity (tVAF), while Fig. (1d) displays the VAFs of the rotational velocity (rVAF). It can be observed that the translational and rotational VAFs are very different from each other.

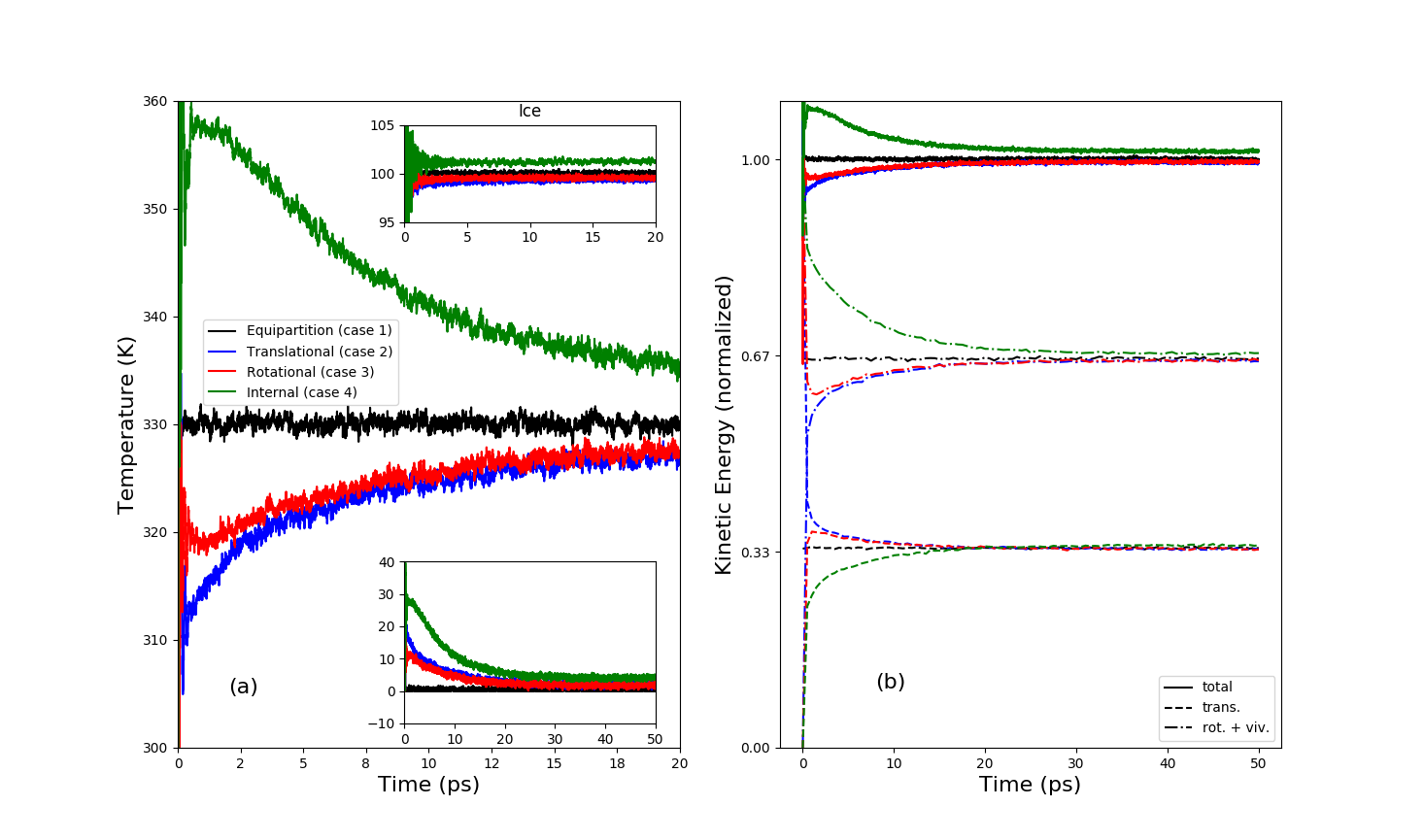

We next consider the case in which a water molecular model with internal degrees of freedom is employed. Specifically, we consider the flexible TIP3P TIP3P model, which incorporates harmonic potentials for both the O-H bonds and the H-O-H bond-angle. Strictly speaking, quantum effects in the molecular internal degrees of freedom are more prominent than in translation and rotational motion, and thus equipartition does not hold for such modes in the real situation, but in line with standard practice in molecular mechanics simulations we are going to obviate this fact. Due to the different time-scales involved in the dynamics of internal degrees of freedom and molecular translation/rotation modes it can be anticipated that energy exchange between the first and the latter will be comparatively slow. We can thus expect that the timescale to reach equilibrium (equipartition of energy between the different modes) will be longer than for rigid water models. Fig. (2) shows that this is indeed the case; displayed in Fig. (2a) is the temperature evolution for flexible TIP3P water at 330 K in four different cases: equilibrium, all kinetic energy initially placed in purely molecular translational modes, all kinetic energy initially placed in rotational modes, and all kinetic energy initially distributed among internal molecular vibrations; the latter case is only considered for completeness since, as noted above, quantum effects will be more important in the internal degrees of freedom. Therefore, we focus our discussion on the second and third cases. The upper inset in panel (2a) shows similar results for the case of TIP3P ice at 100 K, demonstrating that similar effects can be observed in out-of-equilibrium solids as well as in liquids (more details of the latter simulations can be found in the Supplementary Information file). Panel (2b) shows the distribution of kinetic energy into different modes for all the simulations of the liquid phase considered in Fig.(2a); as can be seen there, equipartition still holds for the equilibrium case, with translational kinetic energy accounting for 1/3 of the total kinetic energy, and rotational plus vibrational kinetic energy for the remaining 2/3. In the cases of initial non-equilibrium distributions of kinetic energy, equipartition is attained in due course, but much more slowly than when a rigid molecular model is used, see Fig. (1a). As can be appreciated in Fig. (2a), when the kinetic energy is initially placed exclusively in either translational or rotational modes the instantaneous temperature approaches the equilibrium value of 330 K from below, while if only internal molecular vibrations are initially excited, the approach to the equilibrium temperature is from above. In all three cases, however, equilibration is attained over a time scale that is at least an order of magnitude longer than in the case of rigid water molecules.

In conclusion, the results displayed in Figs. (2) reveal a mechanism that we refer to as the mesoscopic ME. If equipartition does not hold, and in particular if there is an excess of kinetic energy contained in either (or both) translational and rotational modes, the resulting temperature would be lower, by up to a few degrees, to that of an identical sample obeying equipartition. This is a reflection of the different time-scales associated to the dynamics of different degrees of freedom. Equipartition is only ensured when the sample is in conditions of thermal equilibrium, but breaking that equilibrium (for example, by placing the sample in a colder environment, as is done in Mpemba effect experiments) could result in the breaking of equipartition. Interestingly, the results reported here show the possibility of the existence of an inverse ME in water, as far as we know not observed or predicted, and which is present in other non-equilibrium systems  Lasanta17 ; Torrente19 ; Baiti18 ; Lu17 . It should be stressed that our results strongly support the hypothesis that the ME is an effect that could arise in out of equilibrium relaxation of complex systems. The development of the multidimensional spectroscopy techniques, allowing for the excitation of particular modes of specific water molecules and the visualisation of the response in the femptosecond timescale range MUK00 ; COW07 ; HOCH07 ; ASH06 could open the door for the experimental validation of our hypothesis and results.

Acknowledgements

The authors thank Drs. R. Ramirez, C. P. Herrero, V. Martín Mayor, F. Barbero, Juan José Lietor Santos and E. J. S. Villaseñor enlightening discussions. The Galician Supercomputing Centre (CESGA) is thanked for access to their computational facilities. This work is funded by the Spanish Ministerio de Economía y Competitividad through projects FIS2-15-64222-C2-1-P and MTM2017-84446-C2-2-R.
