Compact Disks in a High Resolution ALMA Survey of Dust Structures in the   Taurus Molecular Cloud

Feng Long; Gregory J. Herczeg; Daniel Harsono; Paola Pinilla; Marco; Tazzari; Carlo F. Manara; Ilaria Pascucci; Sylvie Cabrit; Brunella Nisini,; Doug Johnstone; Suzan Edwards; Colette Salyk; Francois Menard; Giuseppe; Lodato; Yann Boehler; Gregory N. Mace; Yao Liu; Gijs D. Mulders; Nathanial; Hendler; Enrico Ragusa; William J. Fischer; Andrea Banzatti; Elisabetta; Rigliaco; Gerrit van der Plas; Giovanni Dipierro; Michael Gully-Santiago,; Ricardo Lopez-Valdivia

arXiv:1906.10809·astro-ph.SR·September 11, 2019

Compact Disks in a High Resolution ALMA Survey of Dust Structures in the Taurus Molecular Cloud

Feng Long, Gregory J. Herczeg, Daniel Harsono, Paola Pinilla, Marco, Tazzari, Carlo F. Manara, Ilaria Pascucci, Sylvie Cabrit, Brunella Nisini,, Doug Johnstone, Suzan Edwards, Colette Salyk, Francois Menard, Giuseppe, Lodato, Yann Boehler, Gregory N. Mace, Yao Liu

PDF

TL;DR

This high-resolution ALMA survey of 32 Taurus protoplanetary disks reveals that smaller, compact disks tend to lack substructures and may be optically thick, providing insights into disk evolution and planet formation processes.

Contribution

First high-resolution survey of Taurus disks showing a correlation between disk size, substructures, and optical thickness, highlighting differences between compact and extended disks.

Findings

01

12 disks with dust gaps and rings identified

02

Compact disks are all smaller than 50 au and lack substructures

03

Some compact disks are optically thick at millimeter wavelengths

Abstract

We present a high-resolution ( $\sim 0 .^{''} 12$ , $\sim 16$ au, mean sensitivity of $50 μ$ Jy~beam $^{- 1}$ at 225 GHz) snapshot survey of 32 protoplanetary disks around young stars with spectral type earlier than M3 in the Taurus star-forming region using Atacama Large Millimeter Array (ALMA). This sample includes most mid-infrared excess members that were not previously imaged at high spatial resolution, excluding close binaries and highly extincted objects, thereby providing a more representative look at disk properties at 1--2 Myr. Our 1.3 mm continuum maps reveal 12 disks with prominent dust gaps and rings, 2 of which are around primary stars in wide binaries, and 20 disks with no resolved features at the observed resolution (hereafter smooth disks), 8 of which are around the primary star in wide binaries. The smooth disks were classified based on their lack of resolved substructures, but…

Figures13

Click any figure to enlarge with its caption.

Tables5

Table 1. Table 1: Host Stellar Properties and Observation Results

Name	2MASS	D	A_V ^a^a $A_{V}$ is listed to nearest 0.05 and has an uncertainty of $\sim 0.2 - 0.5$ mag; the higher uncertainty applies to stars with high veiling at optical wavelengths. RW Aur has a negative statistical extinction and is treated as $A_{V} = 0$ mag here.	SpTy	$T_{eff}$	$L_{*}$	$M_{*}$	$t_{*}$	Multiplicity	Peak $I_{ν}$	RMS noise	beam
		(pc)	(mag)		(K)	( $L_{⊙}$ )	( $M_{⊙}$ )	(Myr)	(arcsec)	(mJy beam^-1)	( $μ$ Jy beam^-1)	(arcsec)
disks with substructures
CI Tau	04335200+2250301	158	1.90	K5.5	4277	0.81	0.89 ${}_{- 0.17}^{+ 0.21}$	2.50 ${}_{- 1.10}^{+ 2.00}$	–	8.55	50	0.13 $\times$ 0.11
CIDA 9 A	05052286+2531312	171	1.35	M1.8	3589	0.20	0.43 ${}_{- 0.10}^{+ 0.15}$	3.20 ${}_{- 1.60}^{+ 3.10}$	2.34(K11)	2.98	50	0.13 $\times$ 0.10
DL Tau	04333906+2520382	159	1.80	K5.5	4277	0.65	0.98 ${}_{- 0.15}^{+ 0.84}$	3.50 ${}_{- 1.60}^{+ 2.80}$	–	12.27	49	0.14 $\times$ 0.11
DN Tau	04352737+2414589	128	0.55	M0.3	3806	0.70	0.52 ${}_{- 0.11}^{+ 0.14}$	0.90 ${}_{- 0.40}^{+ 0.60}$	–	12.87	51	0.13 $\times$ 0.11
DS Tau	04474859+2925112	159	0.25	M0.4	3792	0.25	0.58 ${}_{- 0.13}^{+ 0.17}$	4.80 ${}_{- 2.30}^{+ 4.80}$	–	3.05	50	0.14 $\times$ 0.10
FT Tau	04233919+2456141	127	1.30	M2.8	3444	0.15	0.34 ${}_{- 0.09}^{+ 0.13}$	3.20 ${}_{- 1.60}^{+ 3.20}$	–	10.76	48	0.12 $\times$ 0.11
GO Tau	04430309+2520187	144	1.50	M2.3	3516	0.21	0.36 ${}_{- 0.09}^{+ 0.13}$	2.20 ${}_{- 1.10}^{+ 1.90}$	–	7.87	49	0.14 $\times$ 0.11
IP Tau	04245708+2711565	130	0.75	M0.6	3763	0.34	0.52 ${}_{- 0.13}^{+ 0.15}$	2.50 ${}_{- 1.20}^{+ 2.20}$	–	1.66	48	0.14 $\times$ 0.11
IQ Tau	04295156+2606448	131	0.85	M1.1	3690	0.22	0.50 ${}_{- 0.12}^{+ 0.16}$	4.20 ${}_{- 2.00}^{+ 4.10}$	–	5.76	78	0.16 $\times$ 0.11
MWC 480	04584626+2950370	161	0.10	A4.5	8400	17.38	1.91 ${}_{- 0.13}^{+ 0.09}$	6.90 ${}_{- 5.80}^{+ 5.10}$	–	31.29	69	0.17 $\times$ 0.11
RY Tau	04215740+2826355	128	1.95	F7	6220	12.30	2.04 ${}_{- 0.26}^{+ 0.30}$	5.00 ${}_{- 1.60}^{+ 3.10}$	–	18.98	51	0.14 $\times$ 0.11
UZ Tau E^b^bUZ Tau E is a spectroscopic binary in 0.03 au separation (Mathieu et al., 1996; Prato et al., 2002). We adopt its stellar mass from dynamical measurement (Simon et al., 2000).	04324303+2552311	131	0.90	M1.9	3574	0.35	1.23 $\pm$ 0.07	(1.30 ${}_{- 0.60}^{+ 1.00}$ )	3.54(K09)	8.44	49	0.13 $\times$ 0.1
smooth disks in single stars
BP Tau	04191583+2906269	129	0.45	M0.5	3777	0.40	0.52 ${}_{- 0.12}^{+ 0.15}$	1.90 ${}_{- 0.90}^{+ 1.50}$	–	5.18	45	0.14 $\times$ 0.11
DO Tau	04382858+2610494	139	0.75	M0.3	3806	0.23	0.59 ${}_{- 0.13}^{+ 0.15}$	5.90 ${}_{- 2.80}^{+ 6.10}$	–	22.67	58	0.14 $\times$ 0.10
DQ Tau^c^cDQ Tau is a double-lined spectroscopic binary with a period of $\sim$ 16 days in an ecentric orbit (e = 0.56, Mathieu et al. 1997; Tofflemire et al. 2017). Its stellar mass is adopted from the dynamical measurement of Czekala et al. (2016).	04465305+1700001	197	1.40	M0.6	3763	1.17	1.61 ${}_{- 0.34}^{+ 0.58}$	(0.5)	–	23.05	45	0.13 $\times$ 0.10
DR Tau	04470620+1658428	195	0.45	K6	4205	0.63	0.93 ${}_{- 0.16}^{+ 0.85}$	3.20 ${}_{- 1.40}^{+ 2.70}$	–	21.11	51	0.13 $\times$ 0.10
GI Tau	04333405+2421170	130	2.05	M0.4	3792	0.49	0.52 ${}_{- 0.12}^{+ 0.15}$	1.50 ${}_{- 0.70}^{+ 1.20}$	–	4.33	50	0.12 $\times$ 0.11
GK Tau	04333456+2421058	129	1.50	K7.5	4007	0.80	0.63 ${}_{- 0.13}^{+ 0.16}$	1.20 ${}_{- 0.60}^{+ 0.70}$	–	3.26	51	0.12 $\times$ 0.11
Haro 6-13	04321540+2428597	130	2.25	K5.5	4277	0.79	0.91 ${}_{- 0.17}^{+ 0.24}$	2.60 ${}_{- 1.10}^{+ 2.10}$	–	32.63	52	0.14 $\times$ 0.11
HO Tau	04352020+2232146	161	1.00	M3.2	3386	0.14	0.30 ${}_{- 0.04}^{+ 0.05}$	2.70 ${}_{- 1.00}^{+ 1.50}$	–	3.93	46	0.12 $\times$ 0.11
HP Tau	04355277+2254231	177	3.15	K4.0	4590	1.30	1.20 ${}_{- 0.18}^{+ 1.14}$	2.40 ${}_{- 1.00}^{+ 1.90}$	–	22.45	51	0.13 $\times$ 0.11
HQ Tau	04354733+2250216	158	2.60	K2.0	4900	4.34	1.78 ${}_{- 0.26}^{+ 1.69}$	1.00 ${}_{- 0.40}^{+ 0.60}$	–	1.16	46	0.12 $\times$ 0.11
V409 Tau	04181078+2519574	131	1.00	M0.6	3763	0.66	0.50 ${}_{- 0.10}^{+ 0.13}$	0.90 ${}_{- 0.30}^{+ 0.50}$	–	4.48	46	0.13 $\times$ 0.11
V836 Tau	05030659+2523197	169	0.60	M0.8	3734	0.44	0.48 ${}_{- 0.12}^{+ 0.14}$	1.40 ${}_{- 0.70}^{+ 1.10}$	–	7.64	49	0.13 $\times$ 0.10
smooth disks around the primary star in binaries/multiple systems
DH Tau A	04294155+2632582	135	0.65	M2.3	3516	0.20	0.37 ${}_{- 0.10}^{+ 0.13}$	2.30 ${}_{- 1.20}^{+ 2.10}$	2.34(I05)	9.14	44	0.13 $\times$ 0.11
DK Tau A	04304425+2601244	128	0.70	K8.5	3902	0.45	0.60 ${}_{- 0.13}^{+ 0.16}$	2.30 ${}_{- 1.10}^{+ 1.80}$	2.36(KH09)	12.73	44	0.13 $\times$ 0.11
HK Tau A	04315056+2424180	133	2.40	M1.5	3632	0.27	0.44 ${}_{- 0.11}^{+ 0.14}$	2.20 ${}_{- 1.10}^{+ 1.90}$	2.34(KH09)	11.56	48	0.12 $\times$ 0.11
HN Tau A^d^dHN Tau A has a high inclination angle and appears too faint to derive the accurate stellar mass and age from the grids, for which we adopt the dynamical mass measurement from Simon et al. (2017).	04333935+1751523	136	1.15	K3	4730	0.16	1.53 $\pm$ 0.15	(2.0)	3.14(KH09)	7.0	40	0.14 $\times$ 0.10
RW Aur A	05074953+3024050	163	(0)	K0	5250	0.99	1.20 ${}_{- 0.13}^{+ 0.18}$	13.50 ${}_{- 5.90}^{+ 11.10}$	1.42(WG01)	18.34	51	0.16 $\times$ 0.10
T Tau N	04215943+1932063	144	1.25	K0	5250	6.82	2.19 ${}_{- 0.24}^{+ 0.38}$	1.10 ${}_{- 0.40}^{+ 0.70}$	0.68(KH09)	64.56	52	0.14 $\times$ 0.10
UY Aur A	04514737+3047134	155	1.00	K7.0	4060	1.05	0.65 ${}_{- 0.13}^{+ 0.17}$	0.90 ${}_{- 0.40}^{+ 0.40}$	0.88(KH09)	16.91	48	0.15 $\times$ 0.10
V710 Tau A⁽⁽footnotemark: e)	04315779+1821350	142	0.55	M1.7	3603	0.26	0.42 ${}_{- 0.11}^{+ 0.13}$	2.20 ${}_{- 1.10}^{+ 1.90}$	3.22(KH09)	7.52	42	0.14 $\times$ 0.10

Table 2. Table 2: ALMA Observing Log

UTC Date	N_ant	Baselines/m	PWV/mm	Calibrators	Targets
2017/08/18	43	21-3638	0.5	J0423-0120,J0423-0120,J0431+1731	T Tau, HN Tau, V710 Tau
				J0423-0120,J0423-0120,J0440+1437	DQ Tau, DR Tau
2017/08/27	47	21-3638	0.5	J0510+1800,J0510+1800,J0512+2927	MWC 480
				J0510+1800,J0510+1800,J0435+2532^^The scheduled phase calibrator (J0426+2327) for these disks was observed at different spectral windows from the science targets, thus phase calibration cannot be applied from the phase calibrator to our targets. We used the weaker check source (J0435+2532) instead to transfer phase solutions.	CI Tau, DL Tau, DN Tau, HP Tau, Haro 6-13, RY Tau
				J0510+1800,J0510+1800,J0440+2728	DO Tau, GO Tau
				J0510+1800,J0510+1800,J0426+2327	IQ Tau
2017/08/31	45	21-3697	1.3	J0510+1800,J0510+1800,J0519+2744	V836 Tau, CIDA 9
				J0510+1800,J0510+1800,J0439+3045	UY Aur, DS Tau
				J0510+1800,J0510+1800,J0512+2927	RW Aur
2017/08/31	45	21-3697	1.5	J0510+1800,J0423-0120,J0426+2327	DK Tau, GK Tau, V409 Tau, GI Tau, FT Tau
					HO Tau, UZ Tau E, HK Tau, HQ Tau
				J0510+1800,J0423-0120,J0440+2728	DH Tau
				J0510+1800,J0423-0120,J0422+3058	BP Tau
				J0510+1800,J0423-0120,J0435+2532	IP Tau
2017/09/02	45	21-3697	1.3	J0510+1800,J0510+1800,J0426+2327	DK Tau, GK Tau, V409 Tau, GI Tau, FT Tau
					HO Tau, UZ Tau E, HK Tau, HQ Tau
				J0510+1800,J0510+1800,J0440+2728	DH Tau
				J0510+1800,J0510+1800,J0422+3058	BP Tau
				J0510+1800,J0510+1800,J0435+2532	IP Tau

Table 3. Table 3: Disk Model Parameters

Name	$F_{ν}$	$R_{eff, 68 %}$	$R_{eff, 95 %}$	$R_{c}$	$γ_{1}$	$γ_{2}$	incl	PA	Source Center
	(mJy)	(arcsec)	(arcsec)	(arcsec)			(deg)	(deg)
CI Tau	142.40 ${}_{- 0.81}^{+ 0.47}$	0.706	1.195	–	–	–	50.0 ${}_{- 0.3}^{+ 0.3}$	11.2 ${}_{- 0.4}^{+ 0.4}$	04h33m52.03s +22d50m29.81s
CIDA 9 A	37.10 ${}_{- 0.20}^{+ 0.26}$	0.287	0.371	–	–	–	45.6 ${}_{- 0.5}^{+ 0.5}$	102.7 ${}_{- 0.7}^{+ 0.7}$	05h05m22.82s +25d31m30.50s
DL Tau	170.72 ${}_{- 0.43}^{+ 0.93}$	0.702	1.033	–	–	–	45.0 ${}_{- 0.2}^{+ 0.2}$	52.1 ${}_{- 0.4}^{+ 0.4}$	04h33m39.09s +25d20m37.79s
DN Tau	88.61 ${}_{- 0.62}^{+ 0.25}$	0.313	0.475	–	–	–	35.2 ${}_{- 0.6}^{+ 0.5}$	79.2 ${}_{- 1.0}^{+ 1.0}$	04h35m27.39s +24d14m58.55s
DS Tau	22.24 ${}_{- 0.23}^{+ 0.23}$	0.376	0.446	–	–	–	65.2 ${}_{- 0.3}^{+ 0.3}$	159.6 ${}_{- 0.4}^{+ 0.4}$	04h47m48.60s +29d25m10.76s
FT Tau	89.77 ${}_{- 0.25}^{+ 0.27}$	0.264	0.357	–	–	–	35.5 ${}_{- 0.4}^{+ 0.4}$	121.8 ${}_{- 0.7}^{+ 0.7}$	04h23m39.20s +24d56m13.86s
GO Tau	54.76 ${}_{- 0.41}^{+ 0.85}$	0.698	1.187	–	–	–	53.9 ${}_{- 0.5}^{+ 0.5}$	20.9 ${}_{- 0.6}^{+ 0.6}$	04h43m03.08s +25d20m18.35s
IP Tau	14.53 ${}_{- 0.18}^{+ 0.17}$	0.234	0.280	–	–	–	45.2 ${}_{- 0.9}^{+ 0.8}$	173.0 ${}_{- 1.1}^{+ 1.1}$	04h24m57.09s +27d11m56.07s
IQ Tau	64.11 ${}_{- 0.72}^{+ 0.49}$	0.423	0.838	–	–	–	62.1 ${}_{- 0.5}^{+ 0.5}$	42.4 ${}_{- 0.6}^{+ 0.6}$	04h29m51.57s +26d06m44.45s
MWC 480	267.76 ${}_{- 1.07}^{+ 0.51}$	0.345	0.878	–	–	–	36.5 ${}_{- 0.2}^{+ 0.2}$	147.5 ${}_{- 0.3}^{+ 0.3}$	04h58m46.27s +29d50m36.51s
RY Tau	210.40 ${}_{- 0.21}^{+ 0.21}$	0.378	0.509	–	–	–	65.0 ${}_{- 0.1}^{+ 0.1}$	23.1 ${}_{- 0.1}^{+ 0.1}$	04h21m57.42s +28d26m35.09s
UZ Tau E	129.52 ${}_{- 0.79}^{+ 0.68}$	0.445	0.667	–	–	–	56.1 ${}_{- 0.4}^{+ 0.4}$	90.4 ${}_{- 0.4}^{+ 0.4}$	04h32m43.08s +25d52m30.63s
BP Tau	45.15 ${}_{- 0.14}^{+ 0.19}$	0.226	0.321	0.273	0.10 ${}_{- 0.03}^{+ 0.03}$	3.93 ${}_{- 0.24}^{+ 0.24}$	38.2 ${}_{- 0.5}^{+ 0.5}$	151.1 ${}_{- 1.0}^{+ 1.0}$	04h19m15.85s +29d06m26.48s
DO Tau	123.76 ${}_{- 0.27}^{+ 0.17}$	0.183	0.263	0.247	0.53 ${}_{- 0.00}^{+ 0.00}$	4.97 ${}_{- 0.14}^{+ 0.14}$	27.6 ${}_{- 0.3}^{+ 0.3}$	170.0 ${}_{- 0.9}^{+ 0.9}$	04h38m28.60s +26d10m49.08s
DQ Tau	69.27 ${}_{- 0.19}^{+ 0.15}$	0.124	0.219	0.166	0.80 ${}_{- 0.03}^{+ 0.03}$	2.37 ${}_{- 0.12}^{+ 0.12}$	16.1 ${}_{- 1.2}^{+ 1.2}$	20.3 ${}_{- 4.3}^{+ 4.3}$	04h46m53.06s +16d59m59.89s
DR Tau	127.18 ${}_{- 0.22}^{+ 0.20}$	0.188	0.276	0.267	0.70 ${}_{- 0.00}^{+ 0.00}$	5.37 ${}_{- 0.16}^{+ 0.16}$	5.4 ${}_{- 2.6}^{+ 2.1}$	3.4 ${}_{- 8.0}^{+ 8.2}$	04h47m06.22s +16d58m42.55s
GI Tau	17.69 ${}_{- 0.07}^{+ 0.25}$	0.145	0.190	0.193	0.39 ${}_{- 0.05}^{+ 0.05}$	9.69 ${}_{- 3.66}^{+ 5.56}$	43.8 ${}_{- 1.1}^{+ 1.1}$	143.7 ${}_{- 1.6}^{+ 1.9}$	04h33m34.07s +24d21m16.70s
GK Tau	5.15 ${}_{- 0.11}^{+ 0.19}$	0.065	0.099	0.085	0.53 ${}_{- 0.91}^{+ 0.59}$	3.47 ${}_{- 3.25}^{+ 8.64}$	40.2 ${}_{- 6.2}^{+ 5.9}$	119.9 ${}_{- 9.1}^{+ 8.9}$	04h33m34.57s +24d21m05.49s
Haro 6-13	137.10 ${}_{- 0.21}^{+ 0.24}$	0.185	0.264	0.268	0.78 ${}_{- 0.00}^{+ 0.00}$	7.25 ${}_{- 0.32}^{+ 0.32}$	41.1 ${}_{- 0.3}^{+ 0.3}$	154.2 ${}_{- 0.3}^{+ 0.3}$	04h32m15.42s +24d28m59.21s
HO Tau	17.72 ${}_{- 0.17}^{+ 0.20}$	0.183	0.267	0.242	0.48 ${}_{- 0.05}^{+ 0.05}$	4.30 ${}_{- 0.65}^{+ 0.76}$	55.0 ${}_{- 0.8}^{+ 0.8}$	116.3 ${}_{- 1.0}^{+ 1.0}$	04h35m20.22s +22d32m14.27s
HP Tau	49.33 ${}_{- 0.15}^{+ 0.16}$	0.090	0.125	0.127	0.68 ${}_{- 0.06}^{+ 0.06}$	8.31 ${}_{- 2.45}^{+ 3.12}$	18.3 ${}_{- 1.4}^{+ 1.2}$	56.5 ${}_{- 4.3}^{+ 4.6}$	04h35m52.79s +22d54m22.93s
HQ Tau	3.98 ${}_{- 0.17}^{+ 0.08}$	0.129	0.155	0.158	-0.21 ${}_{- 0.34}^{+ 0.29}$	16.40 ${}_{- 11.51}^{+ 6.89}$	53.8 ${}_{- 3.2}^{+ 3.2}$	179.1 ${}_{- 3.4}^{+ 3.2}$	04h35m47.35s +22d50m21.36s
V409 Tau	20.22 ${}_{- 0.18}^{+ 0.12}$	0.239	0.311	0.324	0.59 ${}_{- 0.03}^{+ 0.03}$	16.11 ${}_{- 5.98}^{+ 6.25}$	69.3 ${}_{- 0.3}^{+ 0.3}$	44.8 ${}_{- 0.5}^{+ 0.5}$	04h18m10.79s +25d19m56.97s
V836 Tau	26.24 ${}_{- 0.12}^{+ 0.16}$	0.128	0.188	0.156	0.22 ${}_{- 0.10}^{+ 0.08}$	3.52 ${}_{- 0.52}^{+ 0.55}$	43.1 ${}_{- 0.8}^{+ 0.8}$	117.6 ${}_{- 1.3}^{+ 1.3}$	05h03m06.60s +25d23m19.29s
DH Tau A	26.68 ${}_{- 0.12}^{+ 0.13}$	0.105	0.146	0.140	0.38 ${}_{- 0.07}^{+ 0.07}$	5.73 ${}_{- 1.08}^{+ 1.35}$	16.9 ${}_{- 2.2}^{+ 2.0}$	18.8 ${}_{- 7.2}^{+ 7.1}$	04h29m41.56s +26d32m57.76s
DK Tau A	30.08 ${}_{- 0.09}^{+ 0.14}$	0.092	0.117	0.120	0.60 ${}_{- 0.03}^{+ 0.03}$	38.93 ${}_{- 20.79}^{+ 14.57}$	12.8 ${}_{- 2.8}^{+ 2.5}$	4.4 ${}_{- 9.4}^{+ 10.1}$	04h30m44.25s +26d01m24.35s
HK Tau A	33.15 ${}_{- 0.13}^{+ 0.15}$	0.156	0.216	0.230	0.92 ${}_{- 0.01}^{+ 0.01}$	21.36 ${}_{- 10.06}^{+ 17.75}$	56.9 ${}_{- 0.5}^{+ 0.5}$	174.9 ${}_{- 0.5}^{+ 0.5}$	04h31m50.58s +24d24m17.37s
HN Tau A	12.30 ${}_{- 0.18}^{+ 0.12}$	0.104	0.136	0.140	0.65 ${}_{- 0.05}^{+ 0.05}$	16.19 ${}_{- 7.31}^{+ 4.74}$	69.8 ${}_{- 1.3}^{+ 1.4}$	85.3 ${}_{- 0.6}^{+ 0.7}$	04h33m39.38s +17d51m51.98s
RW Aur A	35.60 ${}_{- 0.27}^{+ 0.28}$	0.101	0.132	0.140	0.70 ${}_{- 0.02}^{+ 0.02}$	26.24 ${}_{- 12.61}^{+ 14.96}$	55.1 ${}_{- 0.4}^{+ 0.5}$	41.1 ${}_{- 0.6}^{+ 0.6}$	05h07m49.57s +30d24m04.70s
T Tau N	179.72 ${}_{- 0.22}^{+ 0.22}$	0.111	0.143	0.150	0.68 ${}_{- 0.00}^{+ 0.00}$	49.58 ${}_{- 1.75}^{+ 0.78}$	28.2 ${}_{- 0.2}^{+ 0.2}$	87.5 ${}_{- 0.5}^{+ 0.5}$	04h21m59.45s +19d32m06.18s
UY Aur A	19.96 ${}_{- 1.06}^{+ 1.07}$	0.033	0.044	0.040	0.24 ${}_{- 2.05}^{+ 0.97}$	7.10 ${}_{- 5.55}^{+ 12.59}$	23.5 ${}_{- 6.6}^{+ 7.8}$	125.7 ${}_{- 10.9}^{+ 10.3}$	04h51m47.40s +30d47m13.10s
V710 Tau A	55.20 ${}_{- 0.14}^{+ 0.19}$	0.238	0.317	0.320	0.48 ${}_{- 0.01}^{+ 0.01}$	8.82 ${}_{- 0.59}^{+ 0.62}$	48.9 ${}_{- 0.3}^{+ 0.3}$	84.3 ${}_{- 0.4}^{+ 0.4}$	04h31m57.81s +18d21m37.64s

Table 4. Table 4: Disks excluded from this survey

Already observed:	AA Tau, AB Aur, CW Tau, CX Tau, CY Tau, DE Tau, DG Tau, DM Tau, DP Tau,
	FX Tau, Haro 6-28, Haro 6-37, IS Tau, LkCa 15, SU Aur, UX Tau, V955 Tau, VY Tau
In our sample, not observed:	GM Aur
Excluded for $A_{V} > 3$ mag:	V892 Tau, LR 1, JH 223, JH 112, IRAS 04260+2642, IT Tau, V410 X-ray 2,
or faint $J$ -band:	IRAS 04301+2608, IRAS 04370+2559, IRAS 04385+2550, FY Tau, CoKu Tau 3,
	FZ Tau, IRAS 04303+2240, IRAS 04125+2902, V410 X-ray 7, IRAS 04196+2638,
	2MASS J04202144+2813491, 2MASS J04221675+2654570, GN Tau,
	2MASS J04333905+2227207 IRAS 04200+2759, MHO 3, IRAS 04187+1927 V955 Tau,
	MHO 2, MHO 1, IRAS 04216+2603, ITG 33A, XEST 13-010, Haro 6-28
Excluded for $0 \overset{''}{.} 1 - 0 \overset{''}{.} 5$ binarity:	V807 Tau, GG Tau, V955 Tau, CoKu Tau/4, IS Tau, GH Tau, FS Tau,
	IRAS 04187+1927, DF Tau, XZ Tau
Excluded for efficiency:	IRAS 04429+1550, J04333278+1800436
Excluded due to use of prior spectral type:	FP Tau
There might be some overlap in close multiples and high extinction targets

Table 5. Table 5: Disk Model Parameters from Different Sets of Observations

Name	$F_{ν}$	$R_{eff, 68 %}$	$R_{eff, 95 %}$	$R_{c}$	$γ_{1}$	$γ_{2}$	incl	PA
	(mJy)	(arcsec)	(arcsec)	(arcsec)			(deg)	(deg)
BP Tau	45.15 ${}_{- 0.14}^{+ 0.19}$	0.226	0.321	0.273	0.10 ${}_{- 0.03}^{+ 0.03}$	3.93 ${}_{- 0.24}^{+ 0.24}$	38.2 ${}_{- 0.5}^{+ 0.5}$	151.1 ${}_{- 1.0}^{+ 1.0}$
BP Tau SPW01	45.48	0.225	0.319	0.270	0.06	3.90	39.0	150.9
BP Tau SPW23	44.31	0.223	0.317	0.270	0.10	3.92	38.1	150.7
BP Tau SPW45	43.65	0.224	0.308	0.286	0.23	5.29	36.8	150.1
GI Tau	17.69 ${}_{- 0.07}^{+ 0.25}$	0.145	0.190	0.193	0.39 ${}_{- 0.05}^{+ 0.05}$	9.69 ${}_{- 3.66}^{+ 5.56}$	43.8 ${}_{- 1.1}^{+ 1.1}$	143.7 ${}_{- 1.6}^{+ 1.9}$
GI Tau SPW01	17.85	0.146	0.185	0.191	0.38	16.26	45.1	140.9
GI Tau SPW23	16.83	0.145	0.186	0.192	0.42	15.07	43.1	142.1
GI Tau SPW45	17.29	0.143	0.190	0.188	0.35	7.43	43.7	144.2
HO Tau	17.72 ${}_{- 0.17}^{+ 0.20}$	0.183	0.267	0.242	0.48 ${}_{- 0.05}^{+ 0.05}$	4.30 ${}_{- 0.65}^{+ 0.76}$	55.0 ${}_{- 0.8}^{+ 0.8}$	116.3 ${}_{- 1.0}^{+ 1.0}$
HO Tau SPW01	17.67	0.180	0.259	0.247	0.57	5.27	54.9	113.7
HO Tau SPW23	17.21	0.176	0.253	0.232	0.42	4.59	54.3	116.8
HO Tau SPW45	17.57	0.185	0.260	0.255	0.59	6.29	56.0	116.1
V409 Tau	20.22 ${}_{- 0.18}^{+ 0.12}$	0.239	0.311	0.324	0.59 ${}_{- 0.03}^{+ 0.03}$	16.11 ${}_{- 5.98}^{+ 6.25}$	69.3 ${}_{- 0.3}^{+ 0.3}$	44.8 ${}_{- 0.5}^{+ 0.5}$
V409 Tau SPW01	21.09	0.238	0.313	0.325	0.60	13.44	69.3	44.5
V409 Tau SPW23	19.50	0.240	0.314	0.325	0.57	13.66	69.5	44.6
V409 Tau SPW45	19.81	0.236	0.305	0.318	0.58	18.08	69.4	45.3

Peer Reviews

No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.

Videos

No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.

Full text

Compact Disks in a High Resolution ALMA Survey of Dust Structures in the Taurus Molecular Cloud

Feng Long(龙凤)

Kavli Institute for Astronomy and Astrophysics, Peking University, Beijing 100871, China

Department of Astronomy, School of Physics, Peking University, Beijing 100871, China

Gregory J. Herczeg(沈雷歌)

Kavli Institute for Astronomy and Astrophysics, Peking University, Beijing 100871, China

Daniel Harsono

Leiden Observatory, Leiden University, P.O. box 9513, 2300 RA Leiden, The Netherlands

Paola Pinilla

Department of Astronomy/Steward Observatory, The University of Arizona, 933 North Cherry Avenue, Tucson, AZ 85721, USA

Max-Planck-Institut für Astronomie, Königstuhl 17, 69117, Heidelberg, Germany

Marco Tazzari

Institute of Astronomy, University of Cambridge, Madingley Road, Cambridge CB3 0HA, UK

Carlo F. Manara

European Southern Observatory, Karl-Schwarzschild-Str. 2, D-85748 Garching bei München, Germany

Ilaria Pascucci

Lunar and Planetary Laboratory, University of Arizona, Tucson, AZ 85721, USA

Earths in Other Solar Systems Team, NASA Nexus for Exoplanet System Science, USA

Sylvie Cabrit

Sorbonne Université, Observatoire de Paris, Université PSL, CNRS, LERMA, F-75014 Paris, France

Univ. Grenoble Alpes, CNRS, IPAG, F-38000 Grenoble, France

Brunella Nisini

INAF–Osservatorio Astronomico di Roma, via di Frascati 33, 00040 Monte Porzio Catone, Italy

Doug Johnstone

NRC Herzberg Astronomy and Astrophysics, 5071 West Saanich Road, Victoria, BC, V9E 2E7, Canada

Department of Physics and Astronomy, University of Victoria, Victoria, BC, V8P 5C2, Canada

Suzan Edwards

Five College Astronomy Department, Smith College, Northampton, MA 01063, USA

Colette Salyk

Vassar College Physics and Astronomy Department, 124 Raymond Avenue, Poughkeepsie, NY 12604, USA

Francois Menard

Univ. Grenoble Alpes, CNRS, IPAG, F-38000 Grenoble, France

Giuseppe Lodato

Dipartimento di Fisica, Universita Degli Studi di Milano, Via Celoria, 16, I-20133 Milano, Italy

Yann Boehler

Univ. Grenoble Alpes, CNRS, IPAG, F-38000 Grenoble, France

Rice University, Department of Physics and Astronomy, Main Street, 77005 Houston, USA

Gregory N. Mace

McDonald Observatory and Department of Astronomy, University of Texas at Austin, 2515 Speedway, Stop C1400, Austin, TX 78712-1205, USA

Yao Liu

Max-Planck-Institut für Extraterrestrische Physik, Giessenbachstrasse 1, 85748, Garching, Germany

Purple Mountain Observatory, Chinese Academy of Sciences, 2 West Beijing Road, Nanjing 210008, China

Gijs D. Mulders

Department of the Geophysical Sciences, The University of Chicago, 5734 South Ellis Avenue, Chicago, IL 60637, USA

Earths in Other Solar Systems Team, NASA Nexus for Exoplanet System Science, USA

Nathanial Hendler

Lunar and Planetary Laboratory, University of Arizona, Tucson, AZ 85721, USA

LSSTC Data Science Fellow

Enrico Ragusa

Department of Physics and Astronomy, University of Leicester, Leicester LE1 7RH, UK

William J. Fischer

Space Telescope Science Institute Baltimore, MD 21218, USA

Andrea Banzatti

Lunar and Planetary Laboratory, University of Arizona, Tucson, AZ 85721, USA

Elisabetta Rigliaco

INAF-Osservatorio Astronomico di Padova, Vicolo dell’Osservatorio 5, 35122 Padova, Italy

Gerrit van de Plas

Univ. Grenoble Alpes, CNRS, IPAG, F-38000 Grenoble, France

Giovanni Dipierro

Department of Physics and Astronomy, University of Leicester, Leicester LE1 7RH, UK

Michael Gully-Santiago

NASA Ames Research Center and Bay Area Environmental Research Institute, Moffett Field, CA 94035, USA

Ricardo Lopez-Valdivia

McDonald Observatory and Department of Astronomy, University of Texas at Austin, 2515 Speedway, Stop C1400, Austin, TX 78712-1205, USA

Abstract

We present a high-resolution ( $\sim 0\farcs 12$ , $\sim 16$ au, mean sensitivity of $50~{}\mu$ Jy beam*-1* at 225 GHz) snapshot survey of 32 protoplanetary disks around young stars with spectral type earlier than M3 in the Taurus star-forming region using Atacama Large Millimeter Array (ALMA). This sample includes most mid-infrared excess members that were not previously imaged at high spatial resolution, excluding close binaries and highly extincted objects, thereby providing a more representative look at disk properties at 1–2 Myr. Our 1.3 mm continuum maps reveal 12 disks with prominent dust gaps and rings, 2 of which are around primary stars in wide binaries, and 20 disks with no resolved features at the observed resolution (hereafter smooth disks), 8 of which are around the primary star in wide binaries. The smooth disks were classified based on their lack of resolved substructures, but their most prominent property is that they are all compact with small effective emission radii ( $R_{\rm eff,95\%}\lesssim 50$ au). In contrast, all disks with $R_{\rm eff,95\%}$ of at least 55 au in our sample show detectable substructures. Nevertheless, their inner emission cores (inside the resolved gaps) have similar peak brightness, power law profiles, and transition radii to the compact smooth disks, so the primary difference between these two categories is the lack of outer substructures in the latter. These compact disks may lose their outer disk through fast radial drift without dust trapping, or they might be born with small sizes. The compact dust disks, as well as the inner disk cores of extended ring disks, that look smooth at the current resolution will likely show small-scale or low-contrast substructures at higher resolution. The correlation between disk size and disk luminosity correlation demonstrates that some of the compact disks are optically thick at millimeter wavelengths.

††software: Galario (Tazzari et al., 2018), emcee (Foreman-Mackey et al., 2013), CASA (v4.7.2, v5.1.1; McMullin et al. 2007)

1 Introduction

The rich diversity in exoplanetary systems (see review by Winn & Fabrycky, 2015) must have its origin, at least in part, when planets are still forming in their natal protoplanetary disks. It is therefore not surprising that protoplanetary disks also show spectacular diversity in virtually every observable disk property. This diversity was initially seen in the decades-old problem of why some disks survive for $>10$ Myr while others disappear in $<1$ Myr (e.g. Walter et al., 1988; Skrutskie et al., 1990; Haisch et al., 2001). In recent ALMA surveys, disks in each stellar mass bin have a spread in disk dust mass of $\sim 2$ orders of magnitude (Barenfeld et al., 2016; Pascucci et al., 2016; Ansdell et al., 2016, 2017). Similar spreads are seen in stellar accretion rates (e.g., Manara et al., 2017) and in disk CO gas masses (Miotello et al., 2017; Long et al., 2017). This diversity is also now being seen at high-spatial resolution, with remarkable images that reveal an assortment of rings, cavities, spirals, and horseshoe-like substructures in both millimeter continuum emission (e.g., ALMA Partnership et al. 2015; Andrews et al. 2016; Pérez et al. 2016) and near-IR scattered light observations from small dust grains (e.g. van Boekel et al., 2017; Avenhaus et al., 2018; Garufi et al., 2018).

An emerging view is that substructures of mm-sized grains are identified in most disks, when they are imaged with sufficient angular resolution (van der Marel et al., 2013; Isella et al., 2016; Cieza et al., 2017; Loomis et al., 2017; van der Plas et al., 2017; Hendler et al., 2018; Fedele et al., 2018; Boehler et al., 2018; Dong et al., 2018; van Terwisga et al., 2018; van der Marel et al., 2019). These substructures may be either a cause or a consequence of planetesimal and planet formation. However, the frequency of such structures has been uncertain because deep, high-spatial resolution ALMA observations so far have preferentially targeted stars with known large dust cavities and the brightest known disks. These biases developed naturally because transition disks (disks with inner cavities) are a likely signature of planet formation, while the brightest disks are easier to observe at the highest spatial resolutions.

Several recent programs have sought to minimize selection biases by obtaining high-resolution imaging of more complete samples. Deep imaging of 20 of the brightest disks in Lupus, Ophiuchus, and Upper Sco at $\sim 0\farcs 03$ resolution revealed that rings are very common, while spiral arms and other asymmetric structures are rare (e.g. Andrews et al., 2018b; Huang et al., 2018a, b). Meanwhile, in the first results of 147 disks in a much broader survey of Ophiucus with $\sim 0\farcs 2$ resolution, Cieza et al. (2019) finds that most disks are small ( $<15$ AU), in contrast to the picture of large rings that has emerged from brightness-selected samples.

In this paper, we present the overview of the properties of dust disks in high-resolution ( $\sim 0\farcs 12$ ) ALMA imaging of 32 protoplanetary disks in the Taurus Molecular Cloud, selected to be representative of disks across a wide range of sub-mm flux and not selected for previous identification of inner holes from near- and mid-IR spectral energy distributions. This survey was designed with sufficient resolution and depth to provide a snapshot of substructures of mm-sized grains in a large number of disks. In initial results from our survey, we described the detected substructures in our sample and used them to rule out the hypothesis that they are all generated by ice lines (Long et al., 2018a), evaluated and modeled the prominent ring around MWC 480 (Liu et al., 2019), and identified the gap-inferred young planet population, under the assumption that the gaps are carved by planets (Lodato et al., 2019). A companion paper by Manara et al. (submitted) further evaluates the disks in resolved binary systems in our sample. Here we present an analysis of the full sample, with an emphasis on those disks around single stars that did not have resolved substructures identified by Long et al. (2018a). In Section 2, we describe the sample, including how the targets were selected, and the ALMA observations. In Section 3, we characterize disk properties by fitting the observations in the visibility plane. In Section 4, we examine the commonalities and differences in stellar and disk properties for disks with different dust morphologies. In Section 5, we discuss the future directions towards detecting disk substructures. We close with our main findings in Section 6.

2 Sample and Observations

2.1 Sample Selection

The goal of our target selection was to obtain a sample that spans the full range of disk types for solar-mass stars, without any bias related to any disk property. Previous measurements of the disks, including disk brightness and inference of substructures from SEDs, were explicitly not used in the target selection, except for a previous identification of a primordial disk.

Our sample selection began with the census of Taurus disks around stars identified by Spitzer (Rebull et al., 2010; Luhman et al., 2010). We selected disks around stars of spectral type earlier than M3 to ensure sufficient signal-to-noise to image disks across the full range of disk brightness at our sensitivity. Known binaries with separations between $0\farcs 1$ – $0\farcs 5$ were excluded to avoid interactions at our spatial resolution. Sources with high extinction ( $A_{V}>3$ mag) or consistently faint optical/near-IR emission were excluded to avoid edge-on disks and embedded objects. We also excluded from our sample all disks with existing (or scheduled) ALMA images of dust emission with a spatial resolution better than $0\farcs 25$ . This avoidance of near-duplications is the most significant bias that introduces uncertainties in making robust generalizations from our current sample. Many of the most well-known disks had existing high-resolution observations at the time of our proposal. The final selection eliminated two isolated targets to optimize the efficiency of the ALMA observing blocks. A more complete description of targets that were excluded from our sample is described in Appendix A.

These selection criteria produced a sample of 32 stellar systems, including 10 systems in wide binaries. The spatial distribution of these systems (Figure 1) shows that the sources are located across the Taurus Molecular Cloud, with the densest parts of the cloud excluded because of criterion that required low extinction.

2.2 Host star properties

Table 2.1 lists the properties of the host stars in our ALMA sample. Most spectral types and the spectral type-temperature conversion are obtained from the optical spectral survey of Herczeg & Hillenbrand (2014). Luminosities are then calculated from the 2MASS $J$ -band magnitude (Skrutskie et al., 2006), the extinction measured by Herczeg & Hillenbrand (2014), the $J$ -band bolometric correction for the relevant spectral type calculated by Pecaut & Mamajek (2013), and the distance from Gaia DR2 (Gaia Collaboration et al., 2018). The properties of RY Tau were unclear from literature estimates and are derived in Appendix B.

The mass and age of each source in our sample and in the Taurus disk sample of Andrews et al. (2013) are then calculated by comparing the temperature and updated luminosity to Baraffe et al. (2015) and non-magnetic Feiden (2016) models of pre-main sequence stellar evolution, as in Pascucci et al. (2016). The combination of both sets of evolutionary tracks cover the full range of spectral types in Taurus disks. For sources that are more luminous than the youngest isochrone, we choose the youngest 0.5 Myr isochrone and then calculate the stellar mass based on stellar effective temperature. For sources that appear fainter than the main population, we calculate a stellar mass from the isochrone of the average age in the full Taurus sample ( $\sim$ 2 Myr). We adopt the stellar dynamical mass measurements from the CO gas rotation for the two spectroscopic binaries (UZ Tau E, Simon et al. 2000 and DQ Tau, Czekala et al. 2016) and two relatively edge-on disks (HN Tau A and HK Tau B, Simon et al. 2017), all corrected for the Gaia DR2 distance.

In Lodato et al. (2019), we analyzed the putative population of hidden planets in the subset of sources with substructures. Most of those host stars have masses measured from gas rotation in the disk (Simon et al., 2000; Piétu et al., 2007; Guilloteau et al., 2014; Simon et al., 2017), which should be more accurate than masses estimated from HR diagrams. The accuracy of host mass was also important to that paper, so that we could compare disk properties to the exoplanet systems around stars of the same mass. For this paper, the masses are most important as a tool for comparison to the parent sample of Taurus disks, including those disks that were excluded from our sample. These different goals led to different choices in the method to measure stellar mass.

In Appendix B, we discuss some of the uncertainties in assigning stellar masses and ages to each target. Although individual stellar masses estimated from evolutionary tracks are marginally consistent with most dynamical measurements, a global comparison indicates that the masses used here are likely underestimated. The average age of the sample is $\sim 2.3$ Myr, consistent with the approximate age of Taurus, but the age of any individual star is unreliable.

2.3 Observations

Our ALMA observations were conducted as program 2016.1.01164.S (PI: Herczeg) in 2017 August–September. The Band 6 receivers were used for all measurements with identical spectral window (SPW) setup. The continuum emission was recorded in two SPWs, which centered at 218 and 233 GHz, each with a bandwidth of 1.875 GHz. The resulting average observing frequency is 225.5 GHz (wavelength of 1.3 mm). Another SPW covered 13CO and C18O $J$ =2-1 with a velocity resolution of 0.16 km s*-1*. The remaining SPW was designed to target 12CO $J$ =2-1 line, but was unfortunately incorrectly tuned during the observation. The 13CO emission were detected in about 1/3 of our sample, which will be presented in a forthcoming paper. We adopted the C40-7 antenna configuration to achieve the desired spatial resolution of $\sim 0.\farcs 1$ .

The selected sample of 32 Taurus disks were split into four different observing groups mainly based on their locations in the sky. One observing group (2017/08/27, see Table 2) consists of bright disks (mm flux $>50$ mJy obtained from Andrews et al. 2013 and Akeson & Jensen 2014) with $\sim 4$ min integration time per source. The other three groups, with mostly faint disks ( $<50$ mJy, with exceptions for a few bright disks for observing efficiency), were observed for $\sim 8-9$ min per source. Bandpass and flux calibrators were observed at the beginning of each observing group/block, and a phase calibrator near the science targets was repeatedly recorded every 30–60 s. The observing conditions and calibrators for each observing group are summarized in Table 2.

Data reduction started with the standard ALMA pipeline calibration, with scripts provided by ALMA staff. This calibration procedure was performed with CASA v4.7.2 for the first observing group (2017/08/18) and v5.1.1 for the later three groups. Following the pipeline, initial phase adjustments were made based on the water vapor radiometer measurements. The standard bandpass, flux, and gain calibrations were then applied accordingly for each measurement set (see Table 2). In some observations in the second observing group (2017/08/27), the phase calibrator was recorded at different spectral setup from the science targets. We therefore used the weaker check source for phase corrections (see note in Table 2). Self-calibration were performed for our targets, except for the faint GK Tau and HQ Tau, with procedures elaborated in Long et al. (2018a). As a result, self-calibration provided visible improvement in image quality that image peak signal-to-noise ratio (SNR) for most disks increased by $\sim 30\%$ and a factor of 2–3 improvement in image SNR was seen for the brightest disks. After continuum self-calibration, the data visibilities were extracted for further modeling. We then created continuum image for each target using tclean with Briggs weighting and a robust parameter of +0.5. Our final continuum images have a typical beam size of $0.\farcs 14\times 0.\farcs 11$ and a median continuum rms of 50 $\mu$ Jy beam*-1* (see peak intensity and noise level for individual disks in Table 2.1).

3 Disk Modeling in the visibility plane

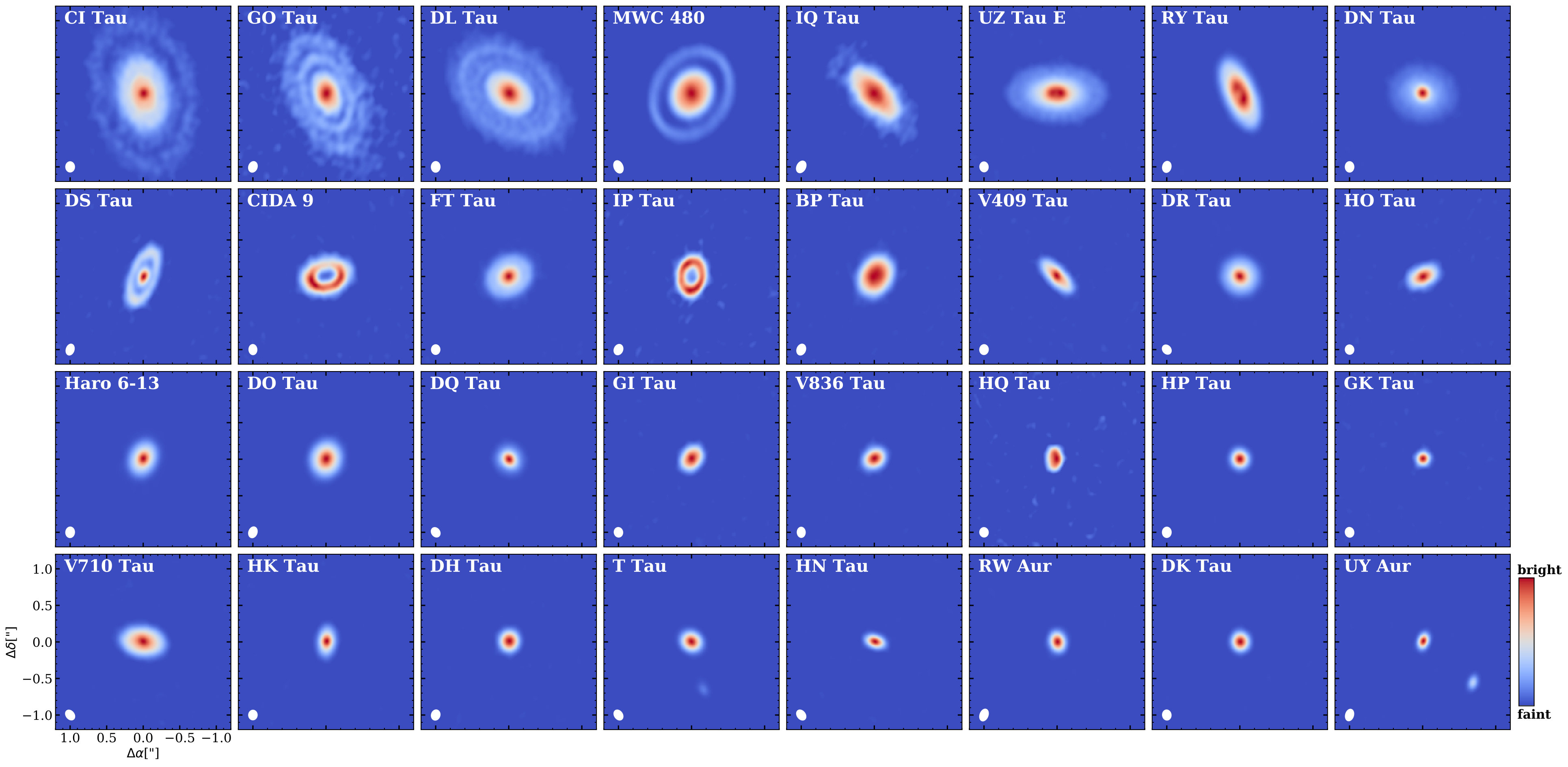

The 32 images of 1.3 mm continuum emission (Figure 3) reveal two types of disks: disks with dust substructures in various numbers, locations, and contrasts, and disks with dust emission peaking in the center and monotonically decreasing outward. The 12 disks with prominent dust gaps and rings have been modeled and discussed in detail in Long et al. (2018a). For the other 20 disks, we follow the similar disk modeling procedure in the visibility plane as presented in Long et al. (2018a) to describe the disk dust distribution. The best-fit models are then used to derive the general disk properties (disk position angle, inclination, mm fluxes and disk radius) for further analysis.

3.1 Modeling Procedure

Our model fitting is performed in the visibility plane. The main procedure is summarized as follows: we first take a model intensity profile and Fourier transform it to create the model visibilities; the fitting is then executed by comparing the model visibilities to data visibilities with the Markov chain Monte Carlo (MCMC) method to derive the best-fit model.

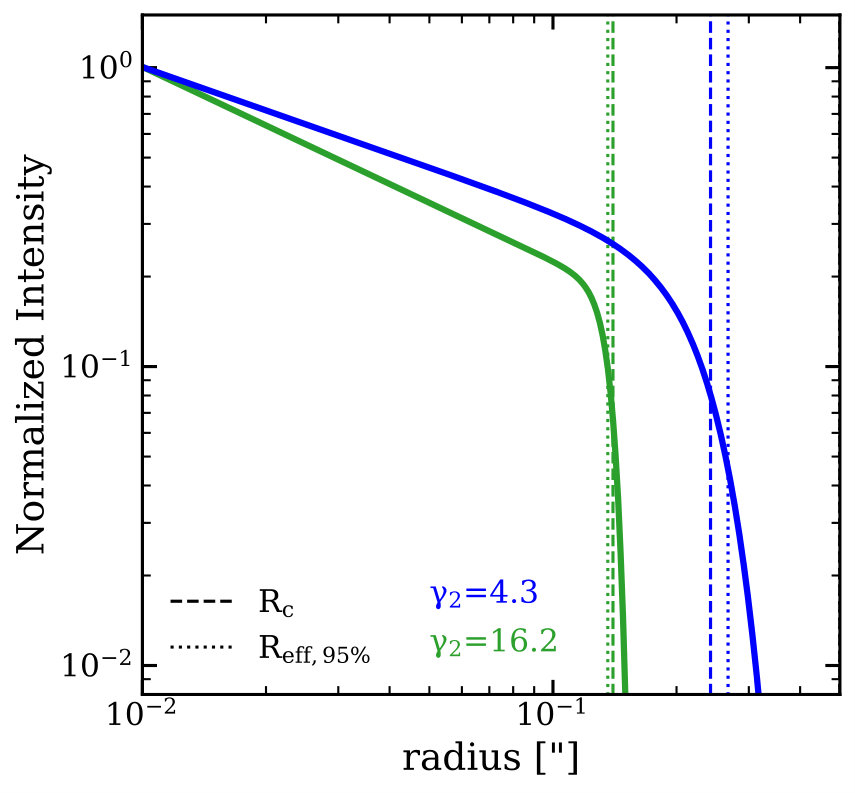

The choice of model profile is guided by the appearance of the visibility profile. The oscillation pattern in the real part of the visibility profile is seen for a fraction of disks (see also Figure C in the Appendix), which likely indicates a disk with a sharp outer edge in millimeter dust grains (e.g., Hogerheijde et al. 2016; Zhang et al. 2016). We therefore adopt an exponentially tapered power law ( $I(R)=A(R/R_{c})^{-\gamma_{1}}\exp[-(R/R_{c})^{\gamma_{2}}]$ ) as the model intensity profile, in which power law index $\gamma_{1}$ and taper index $\gamma_{2}$ describe the slope of the emission gradient in the inner disk and the sharpness of the falloff beyond the transition radius ( $R_{c}$ ), respectively (see Figure 4). The model is also described by a disk inclination and position angle and phase center offsets. We then apply the Galario code (Tazzari et al., 2018) to Fourier transform the model intensity profile into visibilities sampled with the same uv-coverage. The model visibilities are later compared with data visibilities using emcee package (Foreman-Mackey et al., 2013). The parameters are explored with 100 walkers and 5000 steps for each walker. The burn-in phase for convergency is typically less than 1000 steps. The posterior medians are obtained using the MCMC chains of the last 1000 steps, with the 1 $\sigma$ uncertainty for each parameter calculated from 16th and 84th percentiles.

3.2 Modeling Results

For single stars in our sample with no detectable substructures, we apply the modeling approach described above to fit the disk dust distribution. For multiple stellar systems (see Table 2.1), the fitting results are adopted from the companion paper of Manara et al. (submitted), which fits multiple disk components simultaneously. Our analysis below only includes the circumprimary disks, which are modeled with the same morphologic function as disks in single stellar systems.

The quality of the best-fit model is checked by inspecting the comparisons of data and model in images, visibility profiles, and radial intensity cuts (see Figure C in the Appendix). In most cases, the exponentially-tapered power law can well describe the dust emission, with residuals less than 3 $\sigma$ . For DR Tau and DQ Tau, however, the comparisons of best-fit model to data yield asymmetric residuals of 5-10 $\sigma$ . The residual in the innermost disk of the spectroscopic binary DQ Tau may be associated with the high orbital eccentricity (Mathieu et al., 1997). A check for Haro 6-13 also shows 5-10 $\sigma$ asymmetric residuals in the inner disk, as well as a possible faint (3 $\sigma$ ) outer disk. Since large residuals are seen in all bright disks (high peak SNR), we may miss some fine details and faint substructures that would have been detected with greater sensitivity and spatial resolution (see, e.g. Huang et al., 2018b). This is also indicated by the data and model comparison at longer baselines (Figure C), where our simple model might miss some small-scale structures. For all disks, the exponentially tapered power law fits better than the Gaussian profile, except for the faint and compact GK Tau where both models work similarly well.

3.2.1 Best-fit profile parameters

The best-fit model parameters, including power-law and taper indices, inclination, and position angle, are summarized in Table 3. The taper index $\gamma_{2}$ describes the profile of the outer disk (Figure 4). The taper index is generally higher than those of the widely-used similarity solution, implying sharp outer edges of dust disks. Most of the disks in binary systems have the sharpest outer disk edges (larger $\gamma_{2}$ index) in our sample, hinting for higher level of outer disk truncation by close companions (see the detailed discussion in Manara et al. submitted).

The distribution of materials in the inner disk is characterized by the power law index $\gamma_{1}$ . The negative $\gamma_{1}$ index of HQ Tau indicates depletion towards the inner region, perhaps indicating the existence of a dust cavity that is not well resolved in our current data. Except for HQ Tau, most smooth disks in our sample have similar inner disk profiles, with the median $\gamma_{1}$ value of 0.56 and a standard deviation of 0.26. BP Tau has a peculiar flat inner disk, with $\gamma_{1}$ of only 0.1.

The listed uncertainties for the fitted parameters are adopted as the 16th to 84th percentile range of the posterior distribution for each parameter, and are then scaled by the square root of the reduced $\chi^{2}$ of the fit. These uncertainties correspond to statistical uncertainties and are likely underestimated.

Since some targets were observed in multiple nights and with different beam shapes, differences between separate fits to the sets of observations provide us with an independent estimate for the observational errors. We include the fitting results for a few disks in Table 5 in the Appendix. These fits demonstrate that the inclinations and position angles have a precision of $\sim 1-2$ deg, and the effective radii are precise to $\sim 3$ %, fluxes to 5%. The power-law and taper indices have larger uncertainties, although the values are generally similar. The scale of the uncertainty depends on disk brightness and disk size. The two disks without self-calibration, GK Tau and HQ Tau, have larger uncertainties derived from the fitting than the average, likely due both to their faintness and their compactness.

3.2.2 Fluxes and Sizes of Dust Disks

We summarize the disk mm fluxes and disk sizes in Table 3. Based on the best-fit model profiles, the disk mm flux densities and dust disk sizes are derived as in Long et al. (2018a). The mm continuum fluxes for each disk, measured by integrating over the intensity profile, are broadly consistent with pre-ALMA flux measurements (Andrews et al., 2013), if taking into account a 10–15% systematic uncertainty.

The dust disk size is defined here as the radius that encircles some fraction of the total flux, calculated for 68% and 95% for direct comparisons with previous studies. For disks with a sharp outer edge (large $\gamma_{2}$ ), the disk $R_{\rm eff,95\%}$ almost overlaps with $R_{c}$ , the transition radius of the power law model profile, while for disks with shallower variations, $R_{\rm eff,95\%}$ is typically 10-20% further out than $R_{c}$ . For the 11 disks in our sample with $R_{\rm eff,68\%}$ measured by Tripathi et al. (2017) with SMA observations at 0.88 mm ( $\sim$ 340 GHz), the disk radii at 0.88 mm are systematically larger than our measurements at 1.3 mm by an average factor of 1.6. The largest differences are seen for DK Tau, Haro 6-13, and HP Tau, which are all more than two times larger at 0.88 mm than measured here. These three disks are smooth and lack substructures in our observations, and are compact enough that the 0.88 mm measurements may be affected by the lower angular resolution of SMA (typical resolution of $0.\farcs 5$ ). Though the continuum emission at longer wavelength is expected to be more compact as a consequence of dust grain growth and radial drift (e.g., Pérez et al. 2012, 2015, Menu et al. 2014, Tazzari et al. 2016), when the gas pressure profile is smooth in the outer disk, a factor of 2 difference at such close wavelengths (grain sizes) is hard to be produced in dust evolution models.

4 Results

4.1 Disk sub-sample Category

Our high-resolution ALMA Survey consists of 32 disks in the Taurus Clouds, one of the largest samples studied at $0\farcs 1$ resolution. In Long et al. (2018a), we described the 12 disks that shows prominent disk substructures mainly based on the inspection of radial intensity profiles, for which dust emission could not be fit with a single central component. An exponentially tapered power law provides a good fit to most of the other 20 disks (see Section 3), which confirms the robustness of our previous selection in Long et al. (2018a). These 20 disks are therefore referred as smooth disks for their lack of resolved structures, although these disks might host small-scale substructures that are not yet identified in our data. The 20 smooth disks are further separated into 12 disks around single stars and 8 disks in binary (or multiple) systems that have separations in the range of $0\farcs 7-3\farcs 5$ and may be affected by tidal interactions (e.g., Artymowicz & Lubow 1994; Harris et al. 2012; Long et al. 2018b). Based on the dust morphology (and the effect of stellar multiplicity on dust distribution), this division leads to three catagories of disks (see also Table 2.1):

Disks with substructures: 12 disks show remarkable dust substructures, including four disks with inner dust cavities (plus additional rings in two disks), three disks with inner disk encircled by a single ring, and five disks with inner disk encircled by multiple rings. The inner disk is modeled by either a Gaussian profile or an exponentially tapered power law, and each substructure component is modeled by a Gaussian ring to infer to gap and ring properties. The possible formation mechanisms for disk substructures are discussed in Long et al. (2018a) and Lodato et al. (2019) based on the derived gap and ring properties. Two multiple systems, CIDA 9 (separation of $2\farcs 34$ ) and UZ Tau E (separation of $3\farcs 56$ from the close binary UZ Tau Wab) are included in this sub-sample.

Smooth disks around singles: 12 disks around stars in single stellar systems are well described by one model component and do not show apparent substructures at current resolution. Some 5–10 $\sigma$ residuals are seen in three bright disks (DR Tau, Haro 6-13, and DQ Tau), which may host unresolved fine substructures in the inner disks. The spectroscopic binary DQ Tau (separation of $<$ 0.1 au) is included in this sub-sample, since the inner cavity caused by the binary motion remains unresolved in our data. The possibly negative power law index in the very faint HQ Tau may also suggest dust depletion in the inner disk.

Smooth disks in binaries/multiples: 8 disks around primary stars in multiple stellar systems that appear smooth in our observations. The disks around the additional stellar components are detected in all but two systems (DH Tau and V710 Tau). A detailed discussion about this sub-sample is presented in Manara et al. (submitted).

4.2 Comparisons of stellar and disk properties in the three sub-samples

In this section, we will assess the similarities and diversities in stellar mass, disk brightness, system age, disk radius and dust profile for our defined sub-samples (Section 4.1), to evaluate the general properties for systems with detectable substructures.

4.2.1 Comparison of stellar masses

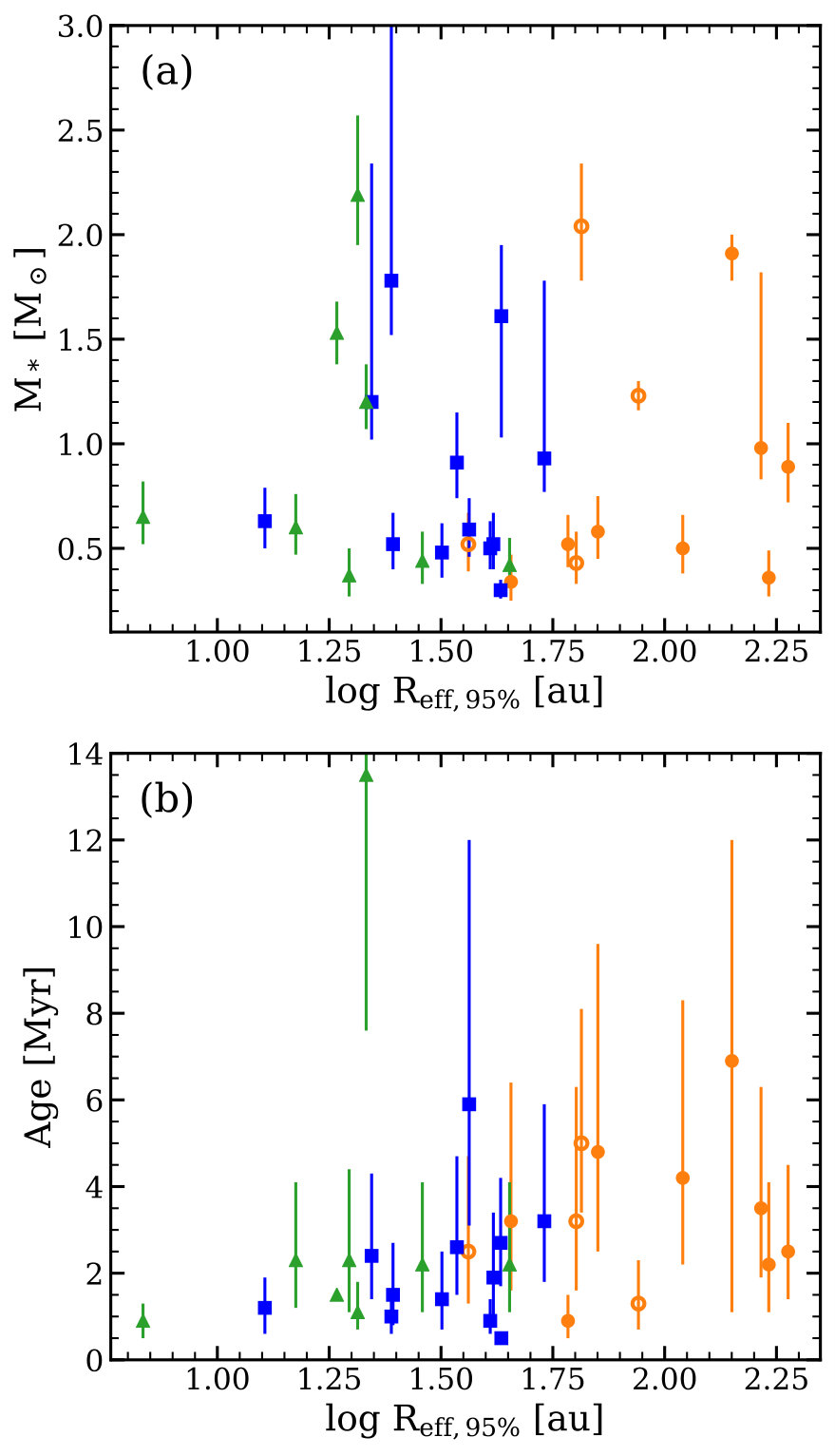

Our ALMA sample covers a wide range in stellar mass, from $\sim$ 0.3 M⊙ (set by the prior selection for stars with SpTy earlier than M3) to $\sim 2$ M⊙, but populates in the early M and late K type stars. Stellar masses in each of the three sub-samples span the full range of our whole sample, as seen in Figure 5. By performing the two-sample KS test using ks_2samp task in Python scipy package, we find that stellar mass distribution in disks with substructures is indistinguishable from that of the smooth disks ( $p=94\%$ , or from that of the smooth disks in singles with $p=98\%$ ). The similar stellar mass distribution in the three sub-samples is also evident in Figure 6, with most disks clustered around 0.5 M⊙ and a few disks reaching beyond 1 M⊙ in all three sub-samples.

4.2.2 Comparison of disk continuum luminosities

We adopt here the continuum luminosity, $L_{\rm mm}=F_{\nu}(d/140)^{2}$ , where $d$ is the Gaia DR2 distance for individual disks, to present the disk brightness. This quantity is directly proportional to the commonly computed disk dust mass, when assuming uniform dust temperature and dust opacity in all disks.

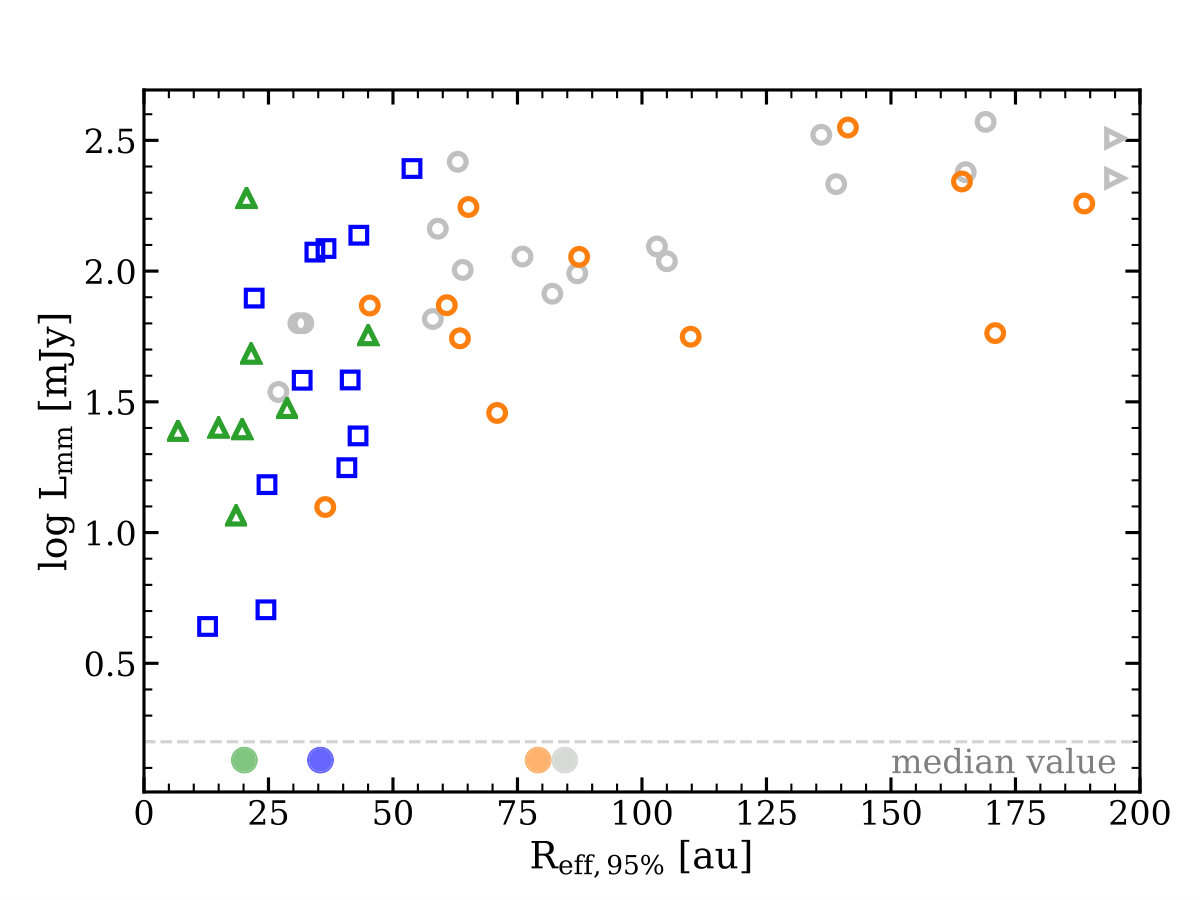

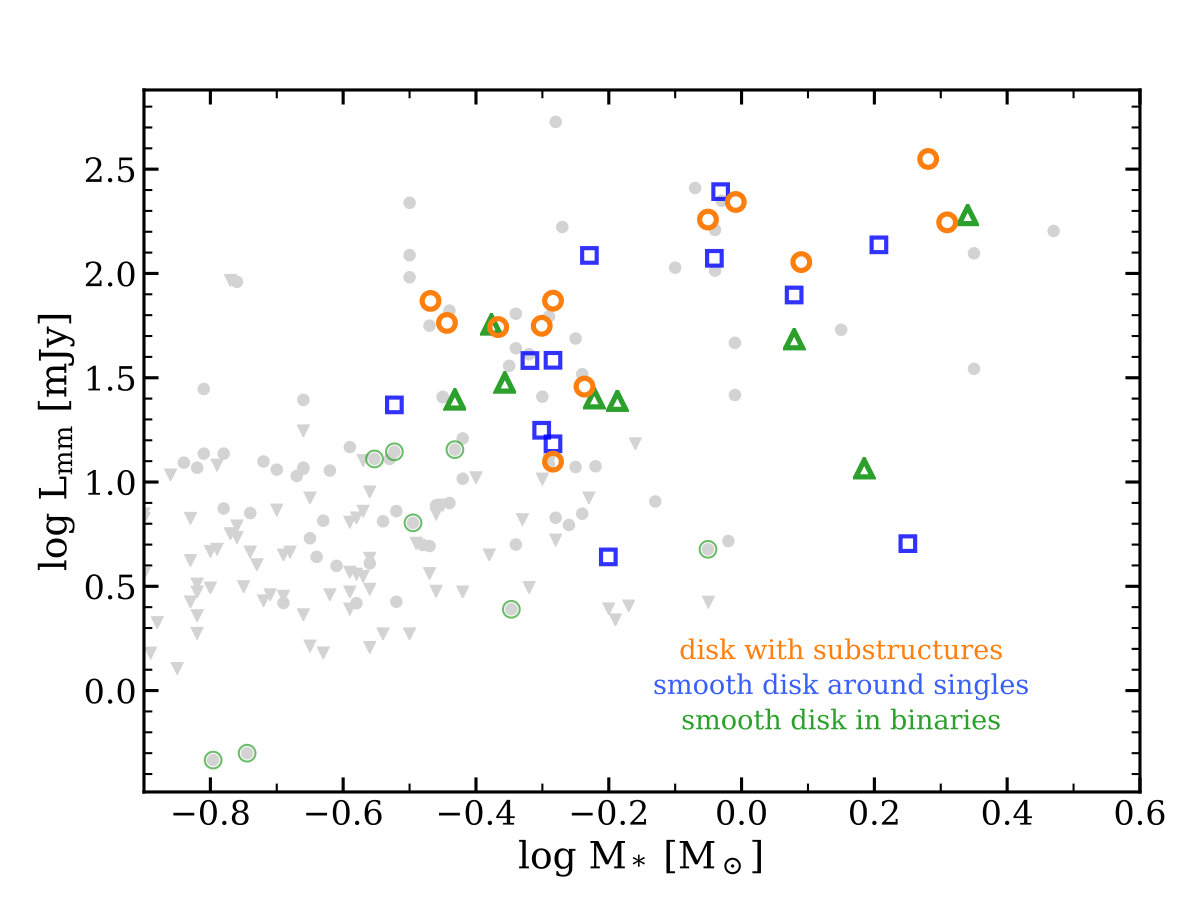

The disk millimeter luminosity in our full sample spans almost two orders of magnitude (see Figure 5), from merely 4 mJy to $>300$ mJy, with a median luminosity of $\sim 55$ mJy. The set of disks with substructures is slightly brighter than the smooth disk sample, with average disk luminosity a factor of $\sim$ 2 higher than that of smooth disks in single stars and a factor of $\sim$ 3 than that of the binary sample. Our KS tests suggest that the continuum luminosity distributions for the disks with substructures and the smooth disks in singles are not drawn from different parent samples ( $p=18\%$ ), while clear difference is seen from the comparison with the smooth disks in binaries ( $p=4\%$ ). A fraction of smooth disks have comparable brightness as the disks with substructures but distinct smaller disk radii seen at millimeter dust grains (the right panel of Figure 5). In the stellar mass range of 0.3–1.0 $M_{\odot}$ , our selected sample is still highly underrepresented in the fainter disk population as seen from the full Taurus sample. These faint disks include many close binaries and sources with high extinction, which were left out from our initial selection criterion (see Appendix A).

4.2.3 Comparison of stellar ages

Our selected disks have a median age of $\sim 2.3$ Myr, representative of the whole Taurus region. Disks with substructures appear older with a large spread in ages (Figure 6). The median age for disks with substructures is about 3.2 Myr, slightly older than that of the smooth disk sample of 2 Myr (Figure 2). However, this age difference is not statistically significant between disks with substructures and smooth disks in singles, in which a two-sample KS test returns a P-value of 15%. The age distribution indeed looks different when comparing the disks with substructures with smooth disks in binaries ( $p=2\%$ ). As seen in Figure 1, the full sample is well-mixed in spatial distribution, mostly along the edge of the main filaments. No apparent large age difference emerges from the sample spatial distribution. These comparisons are also challenging because of the uncertainties in measuring ages (e.g. Soderblom et al., 2014).

4.2.4 Comparison of dust disk sizes

The most prominent difference between smooth disks and substructured disks is seen in the size of dust emission, hereafter measured as the effective radius that encircles 95% of the total flux ( $R_{\rm eff,95\%}$ ). The general results also hold when choosing $R_{\rm eff,68\%}$ as our disk radius definition, since both metrics take into account the outer rings in most cases.

Disks with substructures have continuum emission radii that range from 40 to 200 au, while the smooth disk sample all have radii $\lesssim 55$ au, $\sim 80\%$ of which are between 20–40 au. In other words, disks with effective radius larger than 55 au all show gaps and rings in our sample. The disk size difference is clearly visible in Figure 5 for the three sub-samples, in which disks with substructures have typical dust disk size larger than the smooth disk sample (i.e. a factor of 2–3 larger in median sizes). IP Tau, the disk with inner cavity, and FT Tau, the disk with low-contrast emission bump, are the smallest disks in the substructure sample, and with sizes comparable to these of the larger end of the smooth disks.

In addition, the smooth disks in binaries are generally more compact than those in single systems, which likely results from the tidal interaction in binary systems (e.g., Artymowicz & Lubow 1994; Miranda & Lai 2015). Most disks in the binary sample have sizes smaller than 30 au. The V710 Tau A disk is the most extended disk ( $R_{\rm eff,95\%}\sim 45$ au) in our binary sample; in this system the southern component is not detected in our ALMA observations.

4.2.5 Comparison of disk dust profiles

As established in the previous subsection, disks with substructures are generally more extended in our sample. In this subsection, we demonstrate that these larger radii are obtained because of the presence of outer rings. As seen in Figure 3, the inner emission cores for some of the extended ring disks actually have similar extents to the smooth disks. Meanwhile, peak brightness distributions are indistinguishable among the three sub-samples, though the T Tau N disk is extremely bright (see Figure 7).

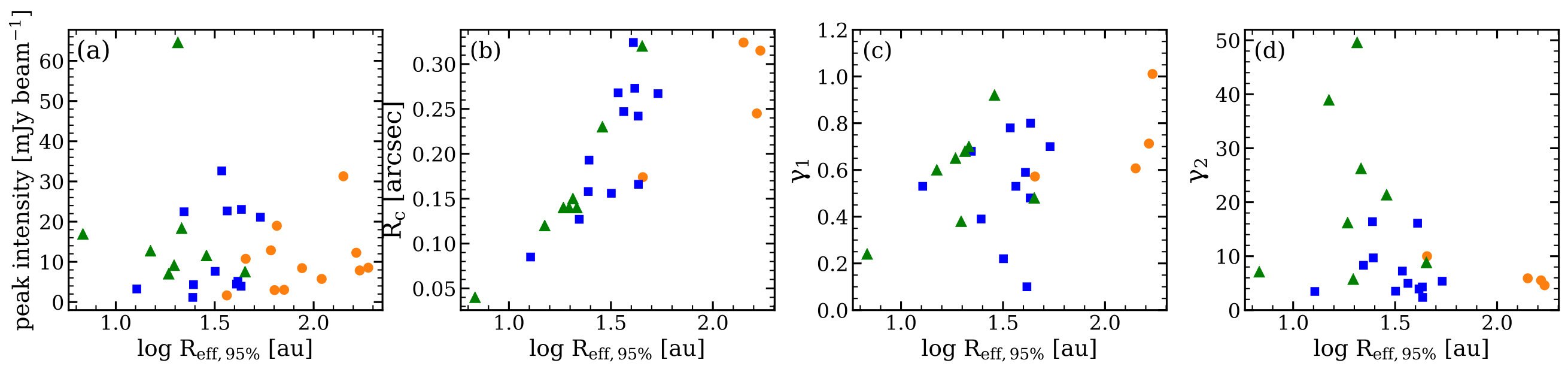

We further explore the disk profiles for the inner emission cores in extended ring disks and compact smooth disks. In Long et al. (2018a), we have employed models with the fewest number of parameters to describe the dust emission morphologies, therefore the inner cores of some disks were modeled with Gaussian profiles. In the comparison of disk profile parameters, we thus only include the four disks that were modeled with the tapered power law profile for their inner emission cores when a Gaussian profile could not work equally well. As seen in Figure 7, the inner cores of ring disks resemble the smooth disks, with values of disk transition radius ( $R_{\rm c}$ ), power law index ( $\gamma_{1}$ ), and taper index ( $\gamma_{2}$ ) well within the parameter ranges of the smooth disk sample. Another four disks with inner cores modeled with Gaussian profiles also have small sizes, with Gaussian radius less than $0\farcs 2$ . The inner cores of ring disks have similar steep outer edge to smooth disks around single stars, while in general shallower than those in binaries.

5 Discussion

5.1 The appearance of disk substructures

Disk substructures are present in disks across a wide range of parameter space. In our Taurus sample, we detect disk substructures in all spectral types from A to M3 (the hard cut of our sample selection). A similar spectral type coverage is found within the DSHARP sample (the 18 disks with annular substructures, Huang et al. 2018a), with disks mainly selected from the Lupus and Ophiuchus star-forming region (Andrews et al., 2018b). Most of the disk substructures are revealed from systems of early-type stars (see also a recent compilation of 16 disks with multi-rings by van der Marel et al. 2019), because 1) any serendipitous discovery more likely comes from the preferentially targeted brighter disks, which are linked to earlier spectral types (the stellar mass–disk mass scaling relation, e.g., Pascucci et al. 2016), 2) specialized substructure surveys (e.g., DSHARP) also selected brighter disks to achieve a sensitivity/contrast criterion (Andrews et al., 2018b), 3) our survey, though covering fainter disks, only probes down to M3 stars.

The existing observations are largely biased towards brighter disks; even our survey, which is designed to include as broad as the range in disk brightness, implies a high occurrence rate of disk substructures among bright disks. Most of the faint disks in our sample have small disk radius (typical $R_{\rm eff,95\%}\sim 30$ au, see Figure 5), in which substructures may not be captured by our $\sim$ 15 au beam. Given the current observational biases and the observed disk luminosity–size relation (Tripathi et al., 2017; Tazzari et al., 2017), higher resolution ALMA observations for M dwarfs (or even brown dwarfs) and faint disks are needed to build a more complete picture of disk substructures.

Dust rings are detected in both young embedded sources (e.g., HL Tau, ALMA Partnership et al. 2015; GY 91, Sheehan & Eisner 2018) and more evolved disks (e.g., TW Hydra, Andrews et al. 2016). In our Taurus sample, substructures are found in systems across an age range of 1–6 Myr (see Figure 6). Even though the age of individual sources remains poorly determined, the wide age difference is still informative. Disk substructures likely form at a very early stage (e.g. ALMA Partnership et al., 2015; Sheehan & Eisner, 2018) and are sustained in some way for at least a few Myr, although at least one Class I disk, that of TMC1A, is smooth at a resolution of $\sim$ 8 au (Harsono et al., 2018). Current studies have not yet come to firm conclusions about the origin of disk substructures, as a diverse set of mechanisms are capable of reproducing the observed disk patterns. Analyses show no obvious trend between stellar luminosities and the gap/ring locations (Long et al., 2018a; Huang et al., 2018a; van der Marel et al., 2019), thus discarding snow lines as the universal mechanism for disk gap and ring formation. Though no secure evidence has been found to support hidden planets as the cause of gaps in disks (Testi et al., 2015; Guidi et al., 2018), it remains a promising and intriguing explanation, while it opens the question of how relative high mass planets ( $\gtrsim$ Neptune-mass) can form at early disk ages, especially at large separations ( $>50$ au). The assembly of planets may be rapid and happens very early on. The Class I disks might be the key for exploring the onset of disk morphological transition and towards the first steps of planet formation.

Our disks with substructures have similar radial extents as the DSHARP sample (see $R_{\rm eff,95\%}$ comparison in Figure 5), from $\sim$ 30 au to $\sim$ 200 au. The selection criteria of the DSHARP sample inevitably lead to a strong bias towards larger disks (Andrews et al., 2018b). Our blind search of disk substructures in a sample with diverse brightness (also diverse dust disk radius as expected from disk luminosity–size relation), however, results in a preference of finding disk substructures in larger disks (regardless of disk brightness). A recent study of 16 multi-ring disks compiled from literature by van der Marel et al. (2019) suggests that the average disk outer radius for the 12 younger disks is a factor of two larger than that of the 4 oldest systems. This trend is not seen in both our Taurus sample and the DSHARP sample, as many young disks have a small radius and the oldest disks (e.g., MWC 480 in our sample) are relatively extended. The small number of older systems observed so far prevents us from drawing any final conclusion.

5.2 Disk substructures in compact disks

Spatially extended disks in our sample show gaps and rings, with diversity in the number and location of the rings and their contrast with gaps. The smaller disks, however, appear smooth in their radial brightness profiles (see Figure 8). This raises the questions of whether our observations are missing some very faint rings at large radii, and whether smaller disks are scaled-down versions of substructures seen in the larger disks.

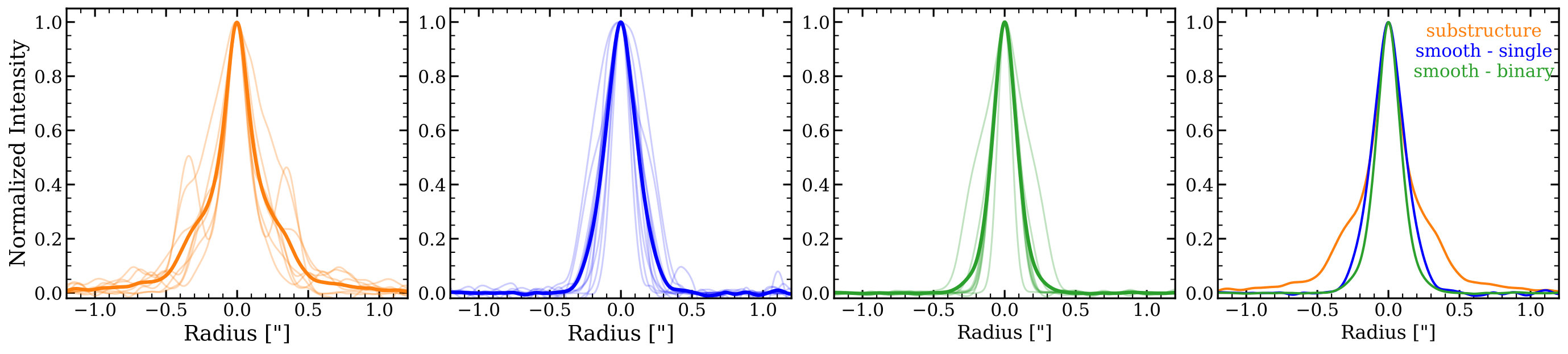

The comparison of the average disk radial profiles in our defined sub-samples (Figure 8) shows that 1) the inner 0. $\farcs$ 25 emission core for disks with substructures overlaps with the average profile of the smooth disks in single stars; 2) broader emission appearing as a shoulder spanning from 0. $\farcs$ 3 to 0. $\farcs$ 5 followed by a shallow wing extending to 1 $\farcs$ is seen in the sample with substructures; 3) disks in binary systems are more compact overall. Some rings in the outer disks are very faint (3-10 $\sigma$ ), seen as the wing in the average profile. Given the nearly uniform noise level in the images and similar peak brightness distributions (see Figure 7), substructures with similar/stronger significance (i.e. brightness ratio of the central peak to the ring peak) around the currently observed compact disk would have been detected, if they were present.

A comparison between the GO Tau and V836 Tau disks provide an instructive example of the differences between a compact and large disk. Both disks have inner emission cores with similar size and peak brightness. Any 3-10 $\sigma$ ring, like that seen in GO Tau, would have been easily detected in the outer disk of V836 Tau, if rings were present. If the disk brightness of GO Tau were scaled down by a factor of 2–3 to match the total disk flux of V836 Tau (as opposed to the peak flux), then the innermost bright ring is still detectable when simulated with CASA, while the outer faint ring is barely visible. We cannot reject the possibility of very faint outer rings beyond our observational limit in some compact disks, perhaps especially the faintest disk, HQ Tau.

Our observations are only sensitive to substructures with scales of $\sim 10$ au. The non-detections of substructures in our compact disks (as well as the inner emission cores of ring disks) imply that any hidden substructure should be narrow or have low contrast. The three smallest disks ( $\sim$ 30 au, DoAr 33, WSB 52 and SR 4) in the DSHARP sample (Huang et al., 2018a) have disk sizes that are similar to the radii of our compact disks. With a fine resolution of 5 au, radial profiles for DoAr 33 and WSB 52 show emission bumps instead of distinctive gaps, while SR 4 has a prominent deep gap around 11 au (Huang et al., 2018a). By convolving the DSHARP data with our beam size, the dust disks of DoAr 33 and WSB 52 become smooth, while the deep gap in SR 4 remains visible. In case of efficient dust trapping, dust rings are expected to have width equal to or narrower than the pressure scale height (e.g., 0.1, Dullemond et al. 2018), thus substructures in the inner disk should have small characteristic scales. The longest baselines of ALMA are needed to image the compact sources, probing the disk material distribution in the giant-planet forming region of our Solar System.

5.3 Disk size–luminosity relationship

Disk population studies reveal scaling relations in multiple dimensions (e.g., $M_{*},M_{disk}$ , $\dot{M}_{*}$ , $R_{disk}$ ), linking disk evolution with the bulk properties of disks (e.g., Manara et al. 2016, Ansdell et al. 2016, Pascucci et al. 2016, Mulders et al. 2017). Recent analysis based on spatially resolved observations of 105 disks demonstrate that disk luminosity scales linearly with the surface area of the emitting materials (Andrews et al., 2018a). With better mapping of the disk material distribution, we revisit this relationship to obtain a better understanding of disk demographics.

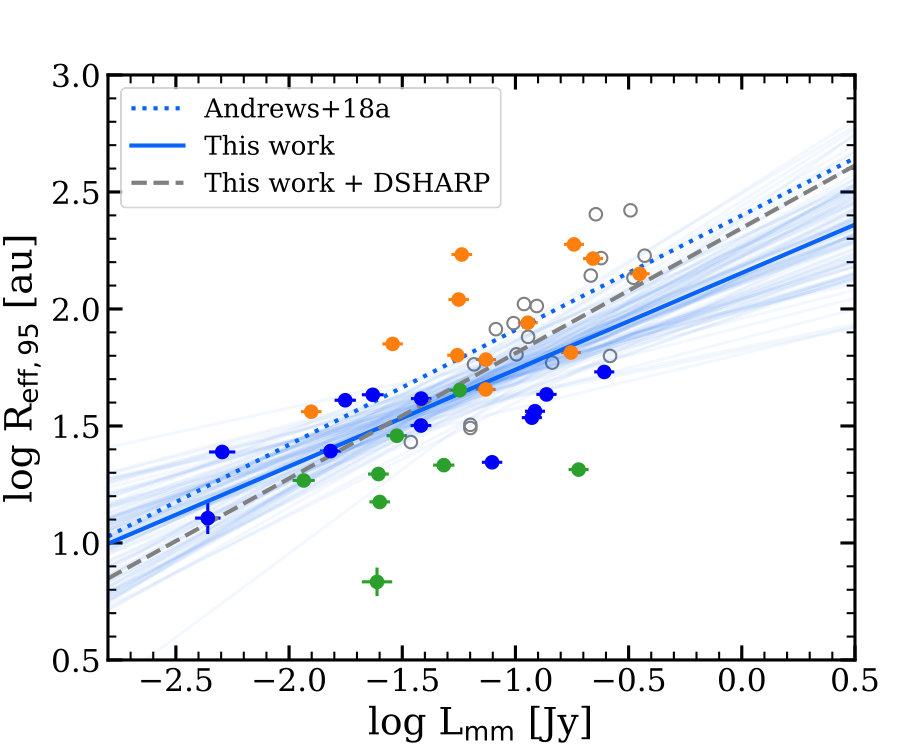

Figure 9 shows the resulting disk size–luminosity relation for our sample in the Taurus star-forming region. Assuming a linear relationship in the log–log plane, we employ the Bayesian linear regression method of Kelly (2007) with its python package Linmix111https://github.com/jmeyers314/linmix to determine the correlation, considering uncertainties on both axes (including 10% absolute flux uncertainty for luminosity). With this approach, we find a best-fit relation of log $R_{\rm eff}$ = (2.15 $\pm$ 0.15) + (0.42 $\pm$ 0.11)log $L_{\rm mm}$ , where the disk size is the radius that encircles 95% of flux, scaled the disk luminosity as $F_{\nu}(d/140)^{2}$ to a uniform 140 pc. The 1 $\sigma$ dispersion is 0.3 dex and the correlation coefficient is $r=0.58$ . The slope of the relationship is consistent (1 $\sigma$ ) with the finding in Tripathi et al. (2017) and Andrews et al. (2018a) that $L_{\rm mm}\propto R_{\rm eff}^{2}$ . We also include the scaling relation from Andrews et al. (2018a) with the same 95% definition for disk size in Figure 9, which shows a larger intercept (by 1-2 $\sigma$ ). While our observations are conducted at 225 GHz, Andrews et al. (2018a) used data from the $\sim$ 340 GHz band in their work. The lower intercept of our derived correlation might be caused by a more concentrated distribution of larger grains and finer angular resolution in our observations, or by the exclusion of some of large disks in our analysis. Andrews et al. (2018a) also claims that the slope of the correlation is insensitive to the metrics (50%–95%) used for disk size definition, while we find a slightly flatter slope (0.34 $\pm$ 0.11) when using $R_{\rm eff,68\%}$ .

As seen in Figure 9, disks with substructures mostly sit above the derived relationship. The inclusion of the DSHARP sample ( $R_{\rm eff}$ defined as the radius of 95% encircled), steepens the relation by 1 $\sigma$ (0.53 $\pm$ 0.08), while still keeping most of the ring disks in the top right of the plot. Tripathi et al. (2017) and Andrews et al. (2018a) reproduce the scaling relation by considering optically thick disks with fractional regions being depleted (optically thin), and interpret the spread of the correlation as the varying fraction of the optically thin region. Taking a few disks with identical disk luminosity but different spatial extents, the most compact ones are likely to be optically thick overall, while the most extended ones are expected to contain large fraction of depleted optically thin regions (e.g., multiple gaps). This picture fits into the spatial segregation in the $L_{\rm mm}-R_{\rm eff}$ plane for disks with various morphologies. Multi-wavelength observations would be beneficial to access the spectral index information as to provide further evidence for this hypothesis.

5.4 The origin of compact dust disks

The continuum emission at millimeter wavelength is heavily dominated by dust grains at size of $\sim$ millimeter. These mm-size particles are subject to fast radial drift and are expected to be quickly depleted at large disk radii (Weidenschilling, 1977); in contrast, dust disks often have large radii and survive for 1–10 Myr. Disk substructures may resolve this apparent contradiction, serving as the mechanism (e.g., dust traps, Pinilla et al. 2012; Dullemond et al. 2018) to hinder radial drift and preserve the disk materials in wide orbits. Our observations seem to fit into this picture, where rings are formed at large radii and are the macroscopic consequence of particle trapping, which helps to maintain a large population of mm-sized grains in the outer disk. For our compact disks, the outer dust disk could be lost through efficient radial drift as dust rings are somehow not able to exist, as seen in the disk of CX Tau, which is very compact (and also smooth) in mm dust emission but has a very extended CO gas disk (Facchini et al., 2019). In addiion, the compact disks may suffer from past dynamical interactions of very wide binaries, e.g. GI Tau and GK Tau with projected separation of 13. $\farcs$ 6 (Kraus & Hillenbrand, 2009b).

Alternatively, the compact disks could have small sizes initially, closely connected to the disk formation process. Non-ideal MHD simulations show that disk size distribution in early protostellar stage strongly depends on the relative orientation of the rotation vector of molecular cores and magnetic field (Tsukamoto et al., 2015; Wurster et al., 2016), through which both small and large disks could be formed. However, the disk formation process remains unclear, with complications from initial angular momentum distribution, magnetohydrodynamic structure, and turbulence (Li et al., 2014; Tsukamoto et al., 2018; Bate, 2018).

The inclusion of disk gas size measurements is crucial for the assessment of the formation and evolution path of our compact disks. If the original outer regions of these compact disks are absent through rapid inward drift of mm-size grains, $R_{\rm gas}/R_{\rm dust,mm}$ should be higher in smaller disks. Disks that are born small would be expected with also small gas disks.

6 Summary

We present a high-resolution ( $\sim 0\farcs 12$ ) ALMA survey of 32 protoplanetary disks around solar-mass stars in the Taurus star-forming region. Our main goal is to provide an initial assessment of disk structures of mm-size grains at 10–20 au scale, for a sample of disks that spans a wide range in disk mm brightness. The disk model fitting is performed in the visibility plane to quantify the dust distribution. Our main results are summarized as follows:

We detect disk substructures (including rings, gaps, and inner cavities) from 12 disks in the millimeter continuum emission. The other 20 smooth disks (without resolved substructures at current resolution, 12 disks in single stars, 8 disks around the primary star in multiple stellar systems with separations in $0\farcs 7-3\farcs 5$ ) are well described by an exponentially tapered power law profile, which may host unresolved small-scale substructures based on image residuals. The non-detection of substructures in the smooth disks indicate that any hidden substructures are rather narrow or are low-contrast features. 2. 2.

Substructures are detected in disks around stars of all spectral types between A and M3, and in most bright and large disks. The subsample of disks with substructures has similar distributions as the smooth disks in stellar mass, stellar age, and disk luminosity. However, the disks with subtructures have preferentially larger radii in mm-size grains. All disks with radius larger than 55 au show substructures in our sample. 3. 3.

The inner emission cores of the extended ring disks have comparable radius, peak brightness, power law index ( $\gamma_{1}$ ), and taper index ( $\gamma_{2}$ ) to the compact smooth disks. The large value of $\gamma_{2}$ in most of our disks may imply some level of radial drift of mm-size grains. The larger disk radii in the ring disks compared to the compact smooth disks is due to the presence of additional bright rings outside of the inner core. 4. 4.

The disk size–luminosity relation for our sample is broadly consistent with the correlations found by Tripathi et al. (2017) and Andrews et al. (2018a) from larger samples. Some of the compact disks may be optically thick, while extended disks contain some regions that are optically thin, corresponding to the observed dust gaps in the large disks. 5. 5.

These compact smooth disks may have lost their outer disk through rapid inward migration, or they may still retain very faint outer disks that are below our sensitivity limit. Another possibility is that they were born small. Future high-resolution observations toward low-mass stars and fainter disks will help to build a more complete picture of the occurrence and morphology of disk substructures, and facilitate a better understanding of the first steps toward planet formation.

Acknowledgments

We thank the Herschel/WISH team (PI: E. F. van Dishoeck), which hosted a team meeting at which this proposal idea was initially generated. We are grateful to Adam Kraus and Subo Dong for nice discussions. F.L. and G.J.H. are supported by general grants 11773002 and 11473005 awarded by the National Science Foundation of China. P.P. acknowledges support by NASA through Hubble Fellowship grant HST-HF2-51380.001-A awarded by the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Inc., for NASA, under contract NAS 5-26555. D.H. is supported by European Union A-ERC grant 291141 CHEMPLAN, NWO and by a KNAW professor prize awarded to E. van Dishoeck. C.F.M. acknowledges support through the ESO Fellowship and partial support by the Deutsche Forschungs-Gemeinschaft (DFG, German Research Foundation) - Ref no. FOR 2634/1 TE 1024/1-1. M.T. has been supported by the DISCSIM project, grant agreement 341137 funded by the European Research Council under ERC-2013-ADG and by the UK Science and Technology research Council (STFC). F.M., G.v.d.P and Y.B. acknowledge funding from ANR of France under contract number ANR-16-CE31-0013 (Planet-Forming-Disks). D.J. is supported by NRC Canada and by an NSERC Discovery Grant. BN and GL thank the support by the project PRIN-INAF 2016 The Cradle of Life - GENESIS-SKA (General Conditions in Early Planetary Systems for the rise of life with SKA). C.F.M., G.L., and M.T. have received funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Sklodowska-Curie grant agreement No 823823 (DUSTBUSTERS). Y.L. acknowledges supports by the Natural Science Foundation of Jiangsu Province of China (Grant No. BK20181513) and by the Natural Science Foundation of China (Grant No. 11503087). G.D. and E.R. acknowledges financial support from the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme (grant agreement No 681601). N.H. thanks the LSSTC Data Science Fellowship Program, which is funded by LSSTC, NSF Cybertraining Grant 1829740, the Brinson Foundation, and the Moore Foundation; his participation in the program has benefited this work. This paper makes use of the following ALMA data: 2016.1.01164.S. ALMA is a partnership of ESO (representing its member states), NSF (USA), and NINS (Japan), together with NRC (Canada), MOST and ASIAA (Taiwan), and KASI (Republic of Korea), in cooperation with the Republic of Chile. The Joint ALMA Observatory is operated by ESO, AUI/NRAO, and NAOJ. This work has made use of data from the European Space Agency (ESA) mission Gaia (https://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, https://www.cosmos.esa.int/web/gaia/dpac/consortium). Funding for the DPAC has been provided by national institutions, in particular the institutions participating in the Gaia Multilateral Agreement. This work used the Immersion Grating Infrared Spectrometer(IGRINS) that was developed under a collaboration between the University of Texas at Austin and the Korea Astronomy and Space Science Institute (KASI) with the financial support of the US National Science Foundation under grant AST-1229522, of the University of Texas at Austin, and of the Korean GMT Project of KASI. These results made use of the Discovery Channel Telescope at Lowell Observatory. Lowell is a private, non-profit institution dedicated to astrophysical research and public appreciation of astronomy and operates the DCT in partnership with Boston University, the University of Maryland, the University of Toledo, Northern Arizona University and Yale University.

Appendix A Disks not selected for this survey

In Section 2.1, we briefly describe the source selection for this survey. The initial source list was obtained from Andrews et al. (2013), which was compiled from the sample of disks identified in Spitzer imaging by Rebull et al. (2010) and Luhman et al. (2010). Using this source list, we first selected sources that are around stars with spectral types listed as earlier than M3 in Herczeg & Hillenbrand (2014). This restricted the sample to a reasonable size to answer our primary science questions. Inclusion of later spectral types would have led to the selection of much fainter disks, which would not be feasible for a snapshot survey.

Binaries with separations of $0\farcs 1$ – $0\farcs 5$ (White & Ghez, 2001) were excluded from our sample, because at those separations the binary interactions are expected to significantly affect disk substructures at the $\sim 0\farcs 1$ resolution of our observations. However, spectroscopic binaries were included in this sample because their spatial separations are not expected to affect large-scale disk structures.

We excluded stars with extinctions $A_{V}>3$ mag and stars with faint $J$ -band magnitudes. In many of these cases, the objects have inner disks that are edge-on and block the light from the central star. While disks viewed edge-on are powerful probes of disk flaring (Louvet et al., 2018), substructures are challenging to identify and interpret (see, e.g., our observations of IQ Tau). This criterion also selected against young disks, such as HL Tau, that are still embedded in remnant circumstellar envelopes, and other disks, such as FY Tau and IT Tau, that are highly extincted. IRAS 04216+2603 was excluded because of the high $A_{V}$ estimated by Rebull et al. (2010). CIDA 9 was included in our sample despite faint 2MASS photometry because the source was bright and had low extinction in the Herczeg & Hillenbrand (2014) survey. This selection criterion biases our survey against edge-on disks and perhaps favors disks that are slightly older.

Several disks, such as V819 Tau and JH 56, were excluded because their properties seem more similar to debris disks than primordial disks (e.g. Hartmann et al., 2005; Furlan et al., 2006). The mid-IR excess emission from these disks is very weak, and the stars show no sign of accretion. These disks were not detected in the sub-mm by Andrews et al. (2013). This exclusion means that we are not sensitive to what may be either the very last stages of disk evolution or the youngest debris disks.

From this list, we then selected targets that would not duplicate observations of disks that had been obtained or were scheduled for Cycle 3 observations222Based on the file duplication_cycle4_march18.xls located at https://almascience.eso.org/documents-and-tools/cycle4/duplication_check_xls/view. with a beam size of $<0\farcs 25$ . This criterion ensured that our observations would be an improvement by at least a factor of 5 in the beam area. However, this final selection criterion may introduce significant biases into our sample. Table 4 lists all disks excluded because of duplication alone. Several disks, including DM Tau, LkCa 15, and UX Tau, have known disk substructures inferred from mid-IR photometry, which in some cases have been previously imaged. Some of these disks, including CW Tau, DG Tau, and DP Tau, drive prominent jets.

Our final selection then excluded a few sources for non-scientific reasons. IRAS 04429+1550 and 2MASS J04333278+1800436 are located far from other sources and were excluded to maximize the efficiency of the program. FP Tau was excluded based on a spectral type of M4 in Luhman et al. (2010), although Herczeg & Hillenbrand (2014) later re-classified it as M2.5. Finally, the transition disk of GM Aur was included in our final sample in the proposal but was not observed, presumably because of inclusion in a different program.

Since this selection, additional disks have been found with WISE (Rebull et al., 2011; Esplin et al., 2014). These new disks are typically located outside of the regions with highest stellar densities, since those had been covered by Spitzer. The disks also tend to be around objects that are faint in near-IR photometry, either because the central object is a very low-mass star or brown dwarf or because the disk is viewed edge-on and obscures the central source. However, some of these recently discovered disks would have likely been selected for this study, and their exclusion may introduce some bias in age or environment.

Some targets that have low disk masses for their stellar mass are preferentially missing from our survey (see Figure 5). Our selection therefore appears biased. However, many of these targets are close binaries. For instance, V807 Tau is a $0\farcs 3$ binary (White & Ghez, 2001) with a weak sub-mm flux from Andrews et al. (2013). Disks in such multiple systems may sometimes have weak sub-mm fluxes (e.g. Harris et al., 2012; Long et al., 2018b) because of disk truncation or because the disk is around the fainter star. Some weak sub-mm points, such as IRAS 04301+2608, are Class I objects (Furlan et al., 2011) and have only weak compact emission. Some very high extinction objects, such as IRAS 04303+2240, may have edge-on disks. If we discount the debris-like disks, then our selection samples well the full range of sub-mm flux from single and wide binary T Tauri stars with spectral types earlier than M3 in Taurus.

Appendix B Descriptions of disk host properties

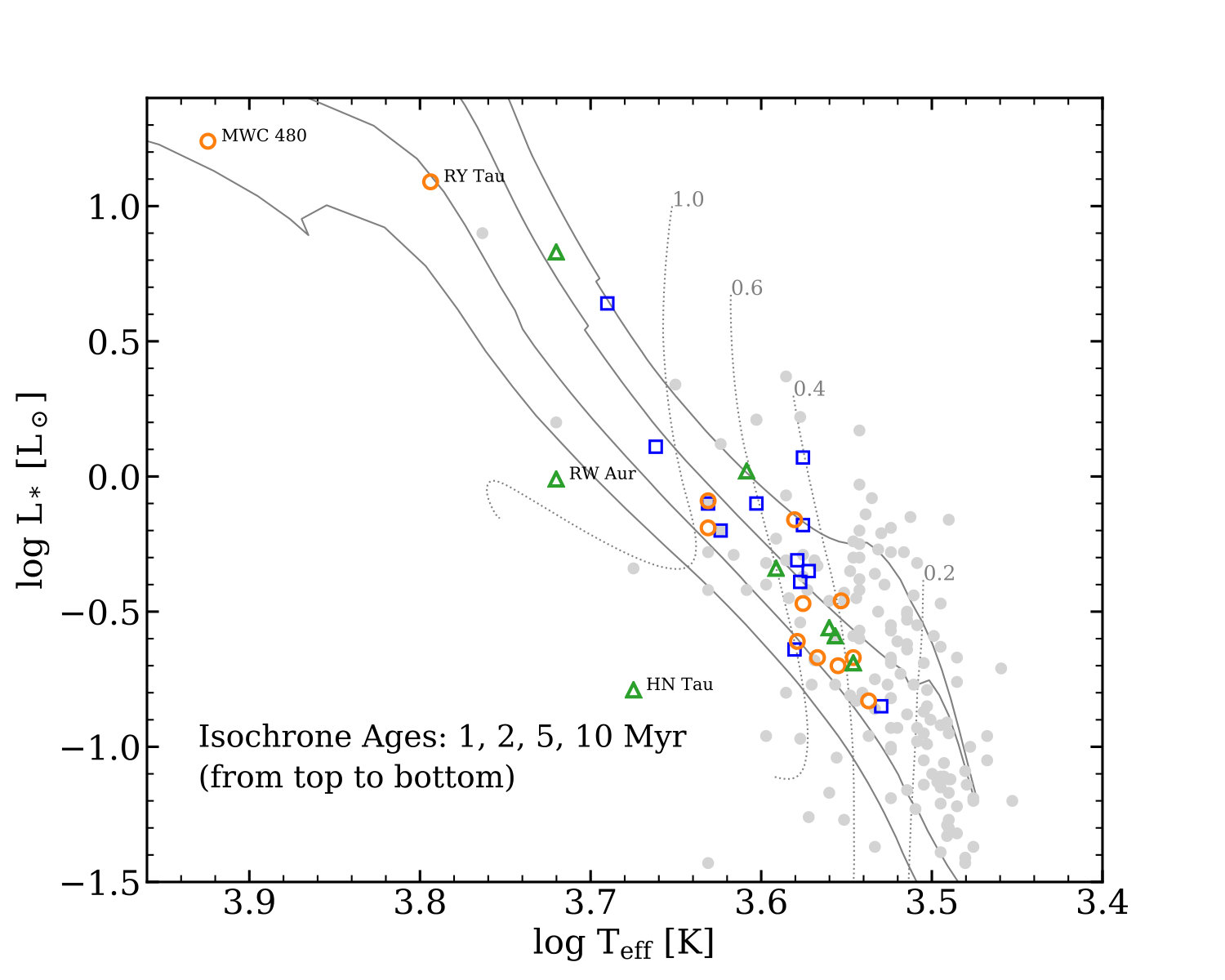

Masses and ages of young stars are usually estimated by comparing their effective temperatures and luminosities to sets of evolutionary tracks. The adopted temperatures and luminosities are discussed in §2.2. This approach is adopted here because it is easily reproduceable and applicable to the full set of Taurus objects. Additional details for RY Tau and CIDA 9 are described in the subsections below.

The mass and age estimates are plagued by uncertainties, especially for K and M stars. Our masses tend to be lower than the mass measured from Keplerian rotation of CO in the disk, consistent with direct comparisons for eclipsing binaries (David et al., 2019). The adoption of the magnetic Feiden (2016) tracks would have produced higher masses, since the magnetic fields generate cooler atmospheres. Spots are also not considered in either the observational measurements or in the evotionary tracks (see, e.g., Somers & Pinsonneault, 2015; Gully-Santiago et al., 2017).

B.1 RY Tau

The stellar properties of RY Tau require a re-evaluation of the observed photospheric emission and the Gaia DR2 distance. Initial spectral types of RY Tau of F8 and G0 were measured by Hubble (1922) and Joy (1945), with independent support from Petrov et al. (1999), Calvet et al. (2004), and Herczeg & Hillenbrand (2014), among others. The spectral type of K1 measured by Herbig (1977) propagated into the Herbig & Bell (1988) catalog of T Tauri stars, and has since been widely adopted by many surveys and compilations (e.g. Kenyon & Hartmann, 1995; Rebull et al., 2010; Luhman et al., 2010).

To resolve this discrepancy in SpT, we downloaded (from the CADC archive) and coadded 96 high-resolution ESPaDOnS spectra (Donati et al., 2006) of RY Tau, obtained by PIs H. Takami, J.-F. Donati, and C. Dougados in separate programs, with some data publised by Chou et al. (2013). The spectra cover 3800–10000 Å with a resolution of $R\sim 68,000$ . We use the BT-Settl models (version cifist2011_2015; Allard, 2014) with solar metallicity and $\log g=4.0$ to identify regions at $<4300$ Å and 5150-5200 Å that are most sensitive to temperature for FG spectral types. A $\chi^{2}$ analysis on seven independent regions yields an effective temperature of $6220\pm 80$ K, consistent with a spectral type F6-F8 in the Kenyon & Hartmann (1995) temperature scale. The uncertainty of 80 K is the standard deviation of best-fit temperatures between several different spectral regions. The discrepant spectral type of Herbig (1977) was likely caused by a measurement from a low-resolution red spectrum, which is not very sensitive to FG spectral types. Accounting for the minor change in spectral type from Herczeg & Hillenbrand (2014), the extinction here is increased slightly to $A_{V}=1.94$ mag with an uncertainty estimate of $\sim 0.2$ mag.

The Gaia DR2 parallax leads to a distance of $445\pm 45$ pc. The uncertainty in parallax of 0.24 mas/yr is higher than the uncertainty of other nearby sources of similar magnitude, and the excess astrometric noise of 1 mas indicates a poor astrometric fit. Bright nebulosity around RY Tau (e.g. Leavitt & Pickering, 1907) introduces additional uncertainty into whether the parallax measurement is reliable and likely causes the high excess noise. For 29 Taurus members333Excluding the outlier parallax of IRAS 04158+2805, which is highly uncertain and may also be affected by nebulosity listed in Esplin et al. (2014) that are within 1 degree of RY Tau, the average distance is $128.5\pm 0.3$ pc, with a standard deviation of 5 pc. If we focus on the 11 stars with the smallest uncertainties in parallax, the distance is $128.2$ pc with a standard deviation of 4 pc. The distance of $128\pm 4$ pc is adopted here as the distance to RY Tau.

These updated parameters and the $J$ -band brightness lead to a luminosity of 12.3 L⊙ (the luminosity from Herczeg & Hillenbrand (2014) would be adjusted to 11.1 L⊙). Comparison to the non-magnetic Feiden (2016) yields a mass of 2.0 $M_{\odot}$ , and an age of 5.2 Myr.

B.2 CIDA 9

The 2MASS $J$ -band is faint, relative to other Taurus sources of similar spectral type. The $V$ -band emission measured by the ASAS-SN survey (Kochanek et al., 2017) is highly variable, likely indicating extinction events. The luminosity is therefore obtained directly from Herczeg & Hillenbrand (2014).

The dynamical mass of CIDA 9 is $1.32\pm 0.24$ M⊙, as measured from CO rotation (Simon et al., 2017) and updated with Gaia DR2 distance. This mass differs significantly from the mass of $0.43$ M⊙ inferred from the spectral type of M1.8 (Herczeg & Hillenbrand, 2014). The inner hole of $\sim 25$ AU is suggestive of the higher mass. However, the spectrum has strong TiO absorption and could not be mistaken for a K spectral type. A sensitive search for spatially-resolved multiplicity revealed an absence of any close companion of CIDA 9A (Kraus et al., 2011); the secondary is located at $2\farcs 3$ and is discussed elsewhere.

We recently obtained a high-resolution IGRINS (Mace et al., 2018) HK spectrum of CIDA 9A to evaluate binarity. The A component (in the SW) was placed on the slit. The lines are single-peaked and located at a radial velocity of $\sim 18.7$ km s*-1*, which corresponds to the expected velocity at that location in Taurus (Kraus et al., 2017). For this one epoch (JD of 2458565.64), we can rule out that the source is a double-lined spectroscopic binary, although a robust test will require several epochs. An initial analysis with a 2-temperature fit yields a photospheric temperature of 3800–4000 K, warmer than inferred from the TiO bands in the optical but cool enough to still be discrepant from the dynamical mass.

Appendix C Fitting results for individual disks

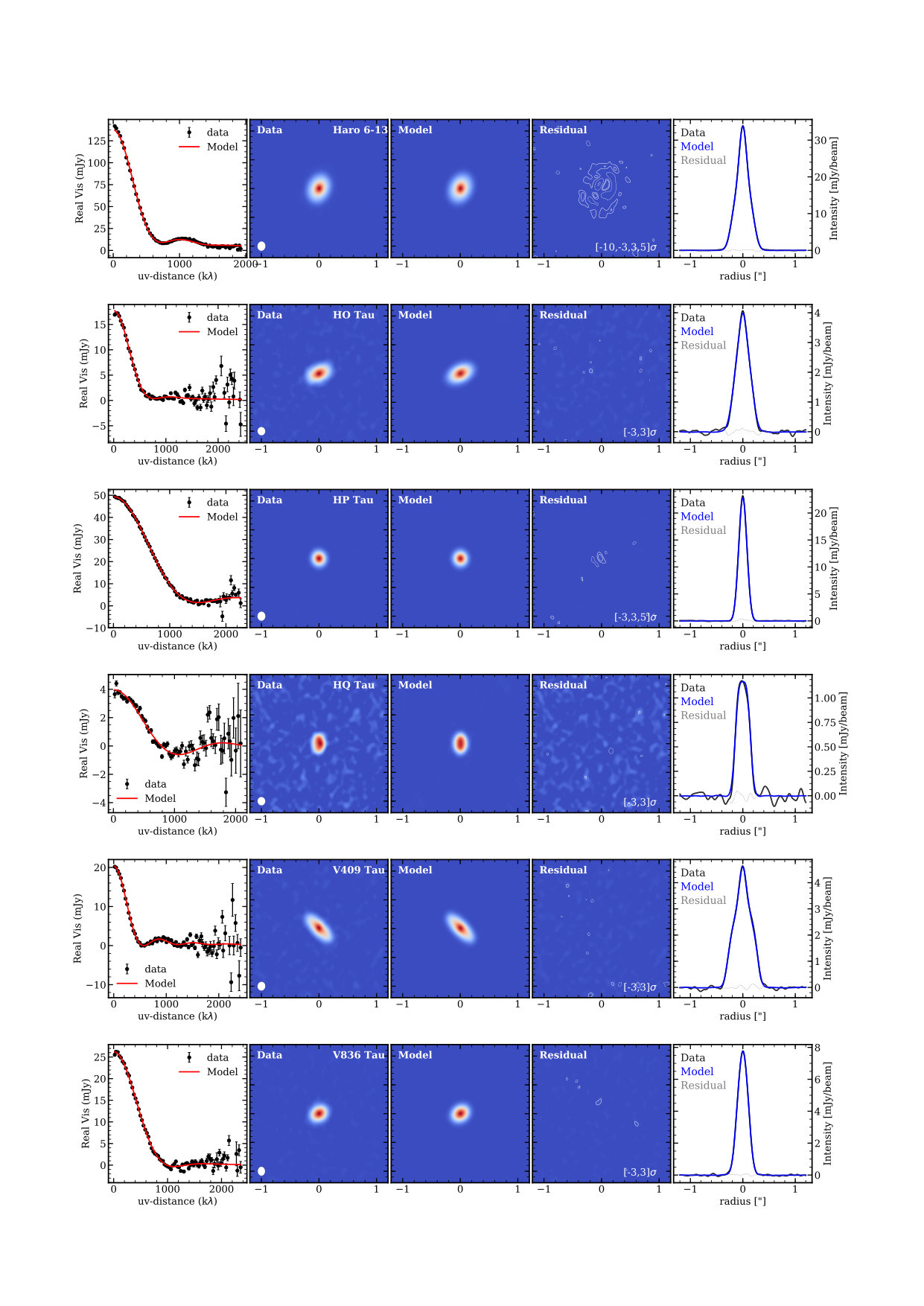

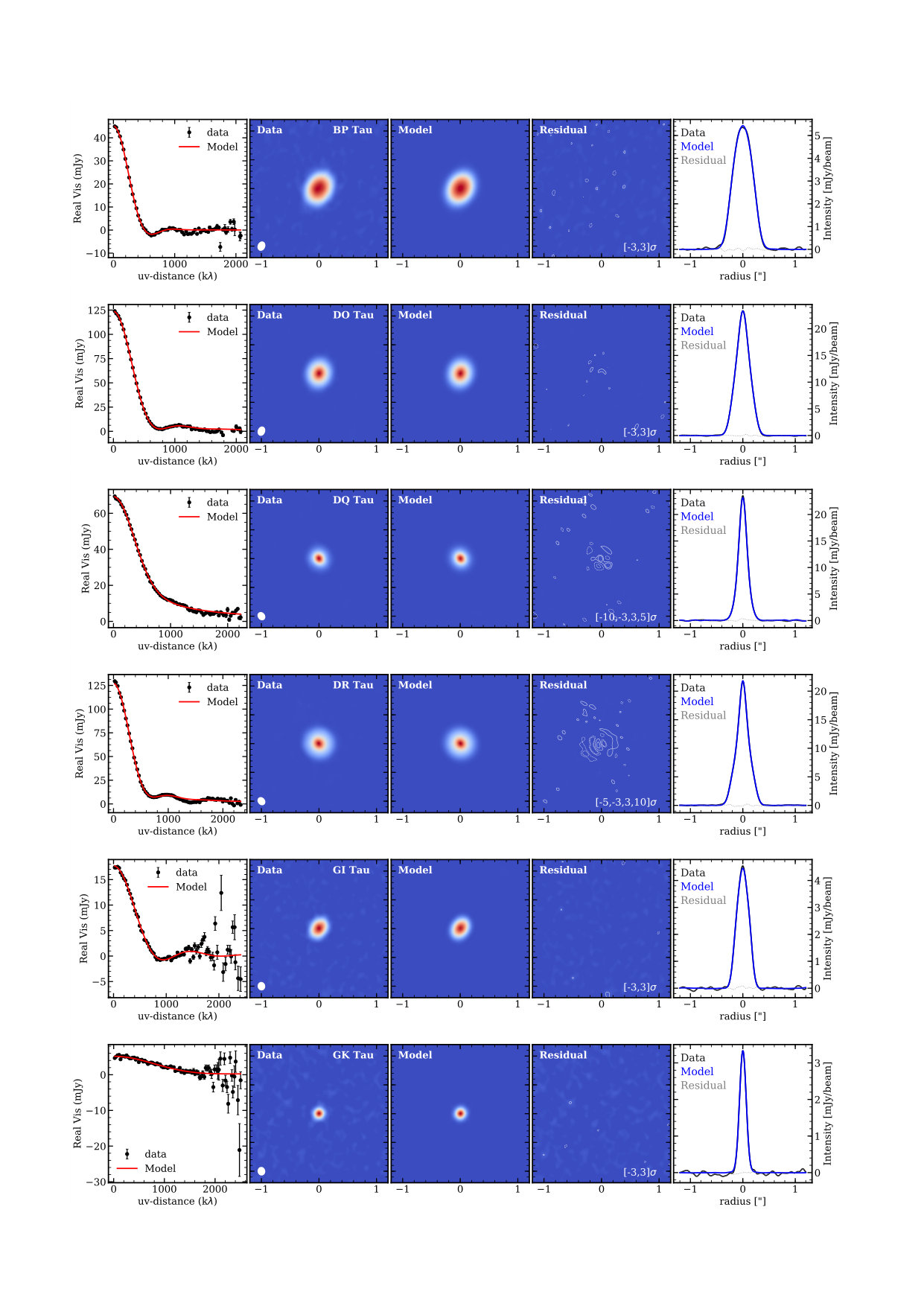

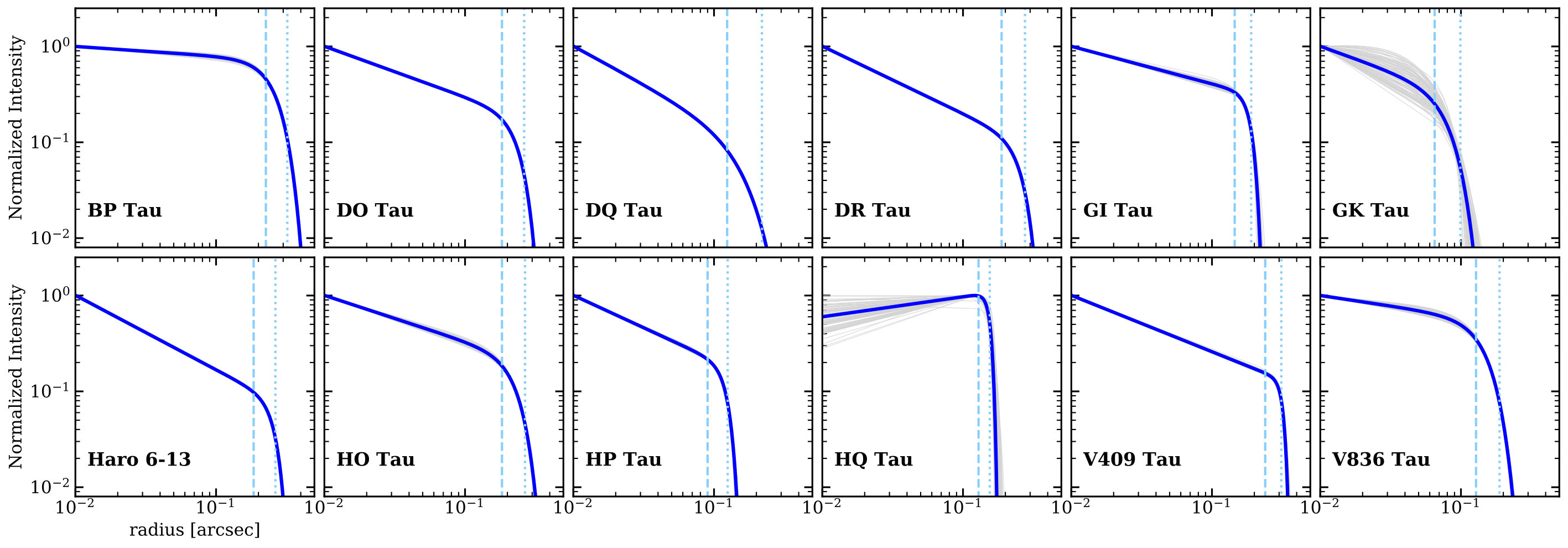

The best-fit model intensity profile for individual disks in the single smooth disk sample is shown in Figure 10. The comparisons of data and best-fit model are then shown in Figure C, in which we check the goodness of our fit through visibility profile, synthesized image, and radial cut. In most cases, the maximum residual in the image is 3 $\sigma$ .

Bibliography116

The reference list from the paper itself. Each links out to its DOI / PubMed record.

1Akeson & Jensen (2014) Akeson, R. L., & Jensen, E. L. N. 2014, Ap J, 784, 62
2Allard (2014) Allard, F. 2014, in IAU Symposium, Vol. 299, Exploring the Formation and Evolution of Planetary Systems, ed. M. Booth, B. C. Matthews, & J. R. Graham, 271–272
3ALMA Partnership et al. (2015) ALMA Partnership, Brogan, C. L., Pérez, L. M., et al. 2015, Ap J, 808, L 3
4Andrews et al. (2013) Andrews, S. M., Rosenfeld, K. A., Kraus, A. L., & Wilner, D. J. 2013, Ap J, 771, 129
5Andrews et al. (2018 a) Andrews, S. M., Terrell, M., Tripathi, A., et al. 2018 a, Ap J, 865, 157
6Andrews et al. (2016) Andrews, S. M., Wilner, D. J., Zhu, Z., et al. 2016, Ap J, 820, L 40
7Andrews et al. (2018 b) Andrews, S. M., Huang, J., Pérez, L. M., et al. 2018 b, Ap J, 869, L 41
8Ansdell et al. (2017) Ansdell, M., Williams, J. P., Manara, C. F., et al. 2017, AJ, 153, 240
