Generating quantum multi-criticality in topological insulators by periodic driving

TL;DR

This paper shows that periodic driving can induce complex quantum multi-critical points in 2D topological insulators, revealing multiple universality classes and scaling laws through a unified Floquet RG approach.

Contribution

It introduces a novel Floquet RG method to analyze multi-criticality in driven topological insulators, uncovering coexistence of different quantum phase transitions.

Findings

Multiple universality classes identified

Scaling laws characterized by Floquet RG

Coexistence of Dirac-like and nodal loop transitions

Abstract

We demonstrate that the prototypical two-dimensional Chern insulator hosts exotic quantum multi-criticality in the presence of an appropriate periodic driving: a linear Dirac-like transition coexists with a nodal loop-like transition caused by emerging symmetries. The existence of multiple universality classes and scaling laws can be unambiguously captured by a single renormalization group approach based on the stroboscopic Floquet Hamiltonian, regardless of whether the topological transition is associated with the anomalous edge modes or not.

Figures

Tables

Table 1. Table S1: Summary of the critical exponents extracted for the two different topological phase transitions existing in the Floquet-Chern insulator, where 𝐤 ~ ~ 𝐤 \tilde{\mathbf{k}} refers to the k 𝑘 k -coordinates around the HSPs where the corresponding gap closes.

topological phase transition	dispersion	$\gamma$	${\nu }_x$ or ${\nu }_{\tilde{x}}$	${\nu }_y$
$\tilde{J}=\frac{1}{3}\left(n-J\right)$	$E\propto \sqrt{{\widetilde{𝐤}}^2+M^2}$	$2$	$1$	$1$
$\tilde{J}=J$	$E\propto \sqrt{{\left({\tilde{k}}_x^2-{\tilde{k}}_y^2\right)}^2+M^2}$	$\frac{3}{2}$	$\frac{1}{2}$	$1$

Equations

$$\mathcal{H}(t)$$

$$H(\mathbf{k},t)$$

$$h_{\text{eff}}(\mathbf{k})\propto \mathrm{Im}[B]{\sigma }^x+\mathrm{Re}[B]{\sigma }^y+\mathrm{Im}[A]{\sigma }^z\equiv \mathbf{n}(\mathbf{k})\cdot \mathbf{\sigma }.$$

$$F(\mathbf{k})=\hat{\mathbf{n}}(\mathbf{k})\cdot \left[{\partial }_{k_x}\hat{\mathbf{n}}(\mathbf{k})\times {\partial }_{k_y}\hat{\mathbf{n}}(\mathbf{k})\right]$$

$$\frac{\mathrm{d}M_{i}}{\mathrm{d}l}=\frac{1}{2}\frac{\partial^{2}_{k_{j}}F(\mathbf{k},{\bf M})\big{|}_{\mathbf{k}=\mathbf{k}_{0}}}{\partial_{M_{i}}F(\mathbf{k}_{0},{\bf M})}.$$

$$E=\pm A\sqrt{((k_x-k_{0,x}{)}^2-(k_y-k_{0,y}{)}^2{)}^p+M^2},$$

$$H_{NL}$$

$$+\alpha (\sin k_x-\sin k_y)(\cos k_x+\cos k_y){\sigma }^y$$

$$+\beta (\sin k_x+\sin k_y)(\cos k_x+\cos k_y){\sigma }^z,$$

$$\mathcal{M}{h}_{\text{eff}}(k_x,k_y){\mathcal{M}}^{-1}=-h_{\text{eff}}(k_y,k_x)$$

$${\tilde{F}}_{2D}(\mathbf{R})=\frac{1}{(2\pi {)}^2}\iint {\mathrm{d}}^{2}k{e}^{i\mathbf{k}\cdot \mathbf{R}}F(\mathbf{k},\mathbf{M})=-i\sum _{n\in v}⟨\mathbf{R}n|{\left(\mathbf{R}\times \mathbf{r}\right)}_z|0n⟩$$

$$=-i\sum _{n\in v}\int {\mathrm{d}}^{2}r{W}_n^{\ast }(\mathbf{r}-\mathbf{R})\left(\mathbf{R}\times \hat{\mathbf{r}}\right)W_n(\mathbf{r})\propto e^{-R_x/{\xi }_{k_x}}{e}^{-R_y/{\xi }_{k_y}},$$

$$h_{\text{eff}}(\mathbf{k})\psi (\mathbf{k})=\frac{{\theta }_{\mathbf{k}}}{T}\psi (\mathbf{k})$$

$$U_{\mathbf{k}}(T,0)\psi (\mathbf{k})=e^{-i{\theta }_{\mathbf{k}}}\psi (\mathbf{k}).$$

$$\theta (\mathbf{k})=-i\log {\lambda }_{+}=\arccos \left[\frac{\mathrm{Tr}{U}_{\mathbf{k}}(T,0)}{2}\right].$$

$$H_{NL}={\lambda }_1\sin k_x{\sigma }^x-{\lambda }_2\sin k_y{\sigma }^y+(\mu -2(\cos k_x+\cos k_y)){\sigma }^x,$$

$$\mathcal{C}{h}_{\text{eff}}(k_x,k_y){\mathcal{C}}^{-1}$$

$$\mathcal{I}{h}_{\text{eff}}(k_x,k_y){\mathcal{I}}^{-1}$$

$$\mathcal{D}{h}_{\text{eff}}(k_x,k_y){\mathcal{D}}^{-1}$$

$$\bar{\mathcal{M}}{h}_{\text{eff}}(k_x,k_y){\bar{\mathcal{M}}}^{-1}$$

$$H_{NL}$$

$$=(\mu -2\eta (\cos k_x+\cos k_y){)}^2{\sigma }^x+\alpha (\sin k_x-\sin k_y)(\cos k_x+\cos k_y){\sigma }^y$$

$$+\beta (\sin k_x+\sin k_y)(\cos k_x+\cos k_y){\sigma }^z.$$

$$\bar{\mathcal{M}}{h}_{\text{eff}}(k_x,k_y){\bar{\mathcal{M}}}^{-1}=-h_{\text{eff}}(k_y,k_x)$$

$$⟺h_{\text{eff}}^{\ast }(k_x,k_y)=h_{\text{eff}}(k_y,k_x)$$

$$⟺{\left(\log U(k_x,k_y;T)\right)}^{\ast }=-\log U(k_y,k_x;T)$$

$$⟺\log U^{\ast }(k_x,k_y;T)=\log U^{-1}(k_y,k_x;T)$$

$$⟺U(k_x,k_y;T)=U^{\mathbb{T}}(k_y,k_x;T)$$

$$U(\mathbf{k},T)=U^{\mathbb{T}}({\mathbf{k}}^{\mathcal{M}},T)$$

Full text

Introduction — Periodic driving provides an unprecedented channel to engineer exciting nonequilibrium quantum phases. Of particular interest are the various topologically ordered phases that can be achieved by periodic driving, such as Floquet topological insulators (Kitagawa et al., 2010; Lindner et al., 2011; Cayssol et al., 2013; Harper and Roy, 2017; Roy and Harper, 2017; Esin et al., 2018), Floquet topological superconductors Liu et al. (2013); Thakurathi et al. (2013, 2014); Wang et al. (2014); Sacramento (2015); Thakurathi et al. (2017); Molignini et al. (2017, 2018); $\mathbf{C}$ade$\mathbf{z}$ et al. (2019), and various exotic Floquet semimetals Bomantara et al. (2016); Zhou et al. (2016); Bomantara and Gong (2016); Bucciantini et al. (2017); Hübener et al. (2017); Cao et al. (2017); Li et al. (2017); Chen et al. (2018), as well as nodal lines or loops Li et al. (2018). Most importantly, this plethora of Floquet topological phases can be very efficiently tuned by simple manipulations of the drive. This versatility provides an unrivalled opportunity to investigate the quantum criticality near the topological phase transitions (TPTs).

In this Letter, we demonstrate the feasibility of inducing TPTs belonging to multiple universality classes, as well as quantum multi-criticality, by means of periodic driving in an otherwise ordinary, noninteracting topological insulator. This result is remarkable, given that in static systems with local Landau order parameters these features usually arise from the complicated interplay between various interacting and kinetic energy scales Fisher (1984); Zacharias et al. (2009); Carr (2010); Pixley et al. (2014); Brando et al. (2016). The identification of this unexpected multi-criticality is based on a unified framework that views the topological order as an momentum space integration of a curvature function Chen (2016); Chen et al. (2016); Kourtis et al. (2017); Chen (2018), and the generic feature that the curvature function and edge state decay length diverge Rufo et al. (2019) at the TPTs, from which the existence as well as coexistence of multiple universality classes and the scaling laws are uncovered.

To demonstrate the aforementioned features, we employ a prototypical two-dimensional (2D) Floquet-Chern insulator (FCI) that exhibits additional peculiar features that are themselves of extreme interest. Firstly, this system hosts so-called anomalous phases — with no static counterpart — that break the ubiquitous bulk-edge correspondence: they are characterized by a trivial stroboscopic bulk topology, while still exhibiting anomalous edge modes (AEMs) in the quasienergy spectrum Rudner et al. (2013); Mukherjee et al. (2017); Yao et al. (2017). We establish that anomalous TPTs can be well captured by stroboscopic physics and do not require knowledge of the full-time dependence (micromotion). Secondly, we uncover that an appropriate driving induces a nodal loop semimetal (NLS) due to an emergent chiral mirror symmetry, which corresponds to elusive topological nodal loop band inversions studied in the context of the spin Hall effect Qi et al. (2006); Li and Araújo (2017). This suggests the feasability of realizing exotic symmetry-induced topological states by choosing specific driving strategies. We will demonstrate that the unified scheme based on the momentum space curvature function allows the application of a curvature renormalization group (CRG) approach (Chen, 2016; Chen et al., 2016), which has been successfully applied to determine the phase boundaries in numerous interacting and noninteracting models, both static and periodically driven (Chen, 2016; Chen et al., 2016; Kourtis et al., 2017; Chen, 2018; Molignini et al., 2018). The CRG approach based on the stroboscopic Floquet Hamiltonian unambiguously captures the TPTs despite all the richness of multi-criticality, AEMs, and emergent nodal loops.

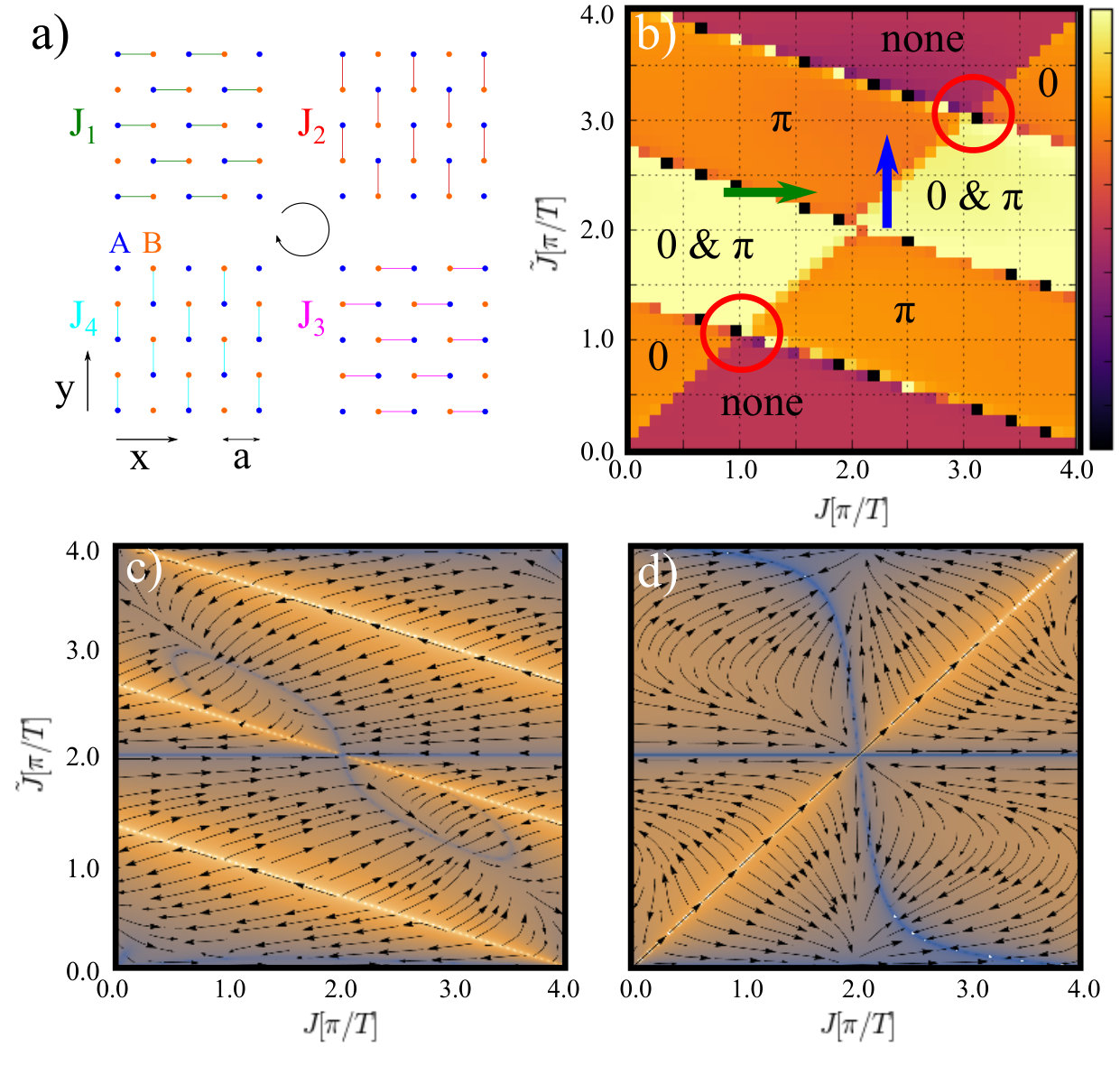

Model — We consider a paradigmatic 2D FCI already realized in photonic lattices Rudner et al. (2013); Mukherjee et al. (2017). The model describes fermions with modulated nearest-neighbor hoppings on a square lattice:

[TABLE]

The lattice vectors $\mathbf{b}_{1}=-\mathbf{b}_{3}=(a,0)$ and $\mathbf{b}_{2}=-\mathbf{b}_{4}=(0,a)$ connect the sublattices $\alpha=A,B$ on which the creation or annihilation operators $c_{\mathbf{k},\alpha}^{(\dagger)}$ act, and $\sigma^{\pm}$ refer to Pauli matrices. A schematic illustration of the model is provided in Fig. 1. The hoppings $J_{n}(t)$ are periodically modulated with a four-step protocol of period $T$, in which during the $n$-th step of the cycle only the hopping $J_{n}$ in direction $\mathbf{b}_{n}$ is active Mukherjee et al. (2017). Furthermore, we consider the special case of $J\equiv J_{1}\neq J_{2}=J_{3}=J_{4}\equiv\tilde{J}$ (see Fig. 1 for clarity). Note that this type of modulation inherently introduces a circular pattern of hoppings that enables the propagation of edge modes in a strip geometry Rudner et al. (2013); Mukherjee et al. (2017).

In Ref. Rudner et al. (2013), it was shown that stroboscopic dynamics is insufficient to determine the correct number of edge modes generated in this model. Micromotion, i.e. time evolution within a period, should be considered explicitly by introducing a computationally cumbersome time-integrated topological invariant determined from the full time evolution operator $U(t,0)=\mathcal{T}\exp\left[-i\int_{0}^{t}H(t^{\prime})\mathrm{d}t^{\prime}\right]$ Rudner et al. (2013)111Throughout our work we have set $\hbar=1$. In general, micromotion plays a crucial in role in the definition and determination of the correct topological invariants Ünal et al. (2019a, b). However, information about the TPTs is readily determined by the gap closures in the quasienergy spectrum at zero and $\pi$ quasienergies, which can be readily extracted from the stroboscopic bulk effective Hamiltonian $h_{\text{eff}}(\mathbf{k})$ Molignini et al. (2018). For a general unitary $2\times 2$-Floquet operator U_{\mathbf{k}}(T,0)=\left(\begin{array}[]{cc}A(\mathbf{k})&B(\mathbf{k})\\ -B(\mathbf{k})^{*}&A(\mathbf{k})^{*}\end{array}\right), the effective Floquet Hamiltonian defined via $U_{\mathbf{k}}(T,0)=e^{-ih_{\text{eff}}(\mathbf{k})T}$ takes the following form Molignini et al. (2018); sup :

[TABLE]

The quasienergy dispersions of the Floquet bands rescaled to $[-\pi,\pi)$ are then obtained as the eigenvalues of the operator $h_{\text{eff}}(\mathbf{k})T$. The topology of the stroboscopic bulk effective Hamiltonian is mapped by the Chern number Chiu et al. (2016) which for the two-band system analyzed here is $\mathcal{C}=-\frac{1}{2\pi}\int_{-\pi}^{\pi}\mathrm{d}k_{x}\int_{-\pi}^{\pi}\mathrm{d}k_{y}\>F(\mathbf{k})$, where

[TABLE]

is the Berry curvature of the Floquet band in question.

Detection of TPTs — The Chern number $\mathcal{C}$ of the effective bulk Hamiltonian counts the difference between the numbers of edge modes above and below each Floquet band Rudner et al. (2013). If edge modes exist only at quasienergy [math] or $\pm\pi$, $\mathcal{C}$ of each band will correctly capture the number of edge modes. However, for coexisting [math] and $\pm\pi$ modes $\mathcal{C}=0$, the bulk-edge correspondence is broken, and we have a phase with AEMs Rudner et al. (2013). The full phase diagram based on time-integrated topological invariants as defined in Ref. Rudner et al. (2013) is mapped in Fig. 1b) as a function of the two hopping strengths $J$ and $\tilde{J}$. We can distinguish multiple phases which are either topologically trivial, hosting only one edge mode at quasienergy [math] or $\pi$, or hosting AEMs. The topological phase boundaries have an analytical form given by $\tilde{J}=J$ and $\tilde{J}=\frac{1}{3}\left(n-J\right)$, where $n\in\left[1,2,3\right]$ Mukherjee et al. (2017).

Using the CRG method, we now show that information about the TPTs and their criticality can be extracted even in the presence of AEM from the stroboscopic Berry curvature alone, even though its integration $\mathcal{C}$ is not necessarily equal to the true time-integrated topological invariant. We first briefly summarize the method developed originally for static systems in (Chen, 2016; Chen et al., 2017, 2016; Kourtis et al., 2017; Chen, 2018) and for Floquet systems in Molignini et al. (2018). Generally, at any system parameters ${\bf M}=(J,\tilde{J})$, the curvature function peaks around high-symmetry points (HSPs) $\mathbf{k}_{0}$ satisfying $\mathbf{k}_{0}=-\mathbf{k}_{0}$. Across the topological phase boundaries described by $\{\mathbf{M}_{c}\}$, the peaks diverge and flip sign to preserve the quantization of the Chern number (Chen, 2016; Chen et al., 2016, 2017). The CRG relies on the scaling procedure $F(\mathbf{k}_{0},{\bf M}^{\prime})=F(\mathbf{k}_{0}+\delta\mathbf{k},{\bf M})$ that searches the trajectory in the parameter space along which the diverging peak $F(\mathbf{k}_{0},{\bf M})$ is gradually flattened (Chen, 2016; Chen et al., 2016, 2017). Defining $\mathrm{d}l\equiv\delta k^{2}$, $dM_{i}=M_{i}^{\prime}-M_{i}$, the scaling procedure yields the RG equation

[TABLE]

The topological phase diagram can be easily ascertained by analyzing the critical points of (8) sup . Furthermore, the criticality of the TPT is characterized by the divergences of both $F(\mathbf{k}_{0},\mathbf{M})$ and the concomitant inverse of the full width at half maximum in directions $i=x,y$ expressed as $\textit{FWHM}_{i}\equiv\frac{2}{\xi_{k_{0,i}}}$, see also Ref. (Chen, 2016; Chen et al., 2016, 2017). As ${\bf M}\to{\bf M}_{c}$, these quantities diverge like $F(\mathbf{k}_{0},{\bf M})\propto|{\bf M}-{\bf M}_{c}|^{-\gamma}$ and $\xi_{\mathbf{k}_{0,i}}\propto|{\bf M}-{\bf M}_{c}|^{-\nu_{i}}$. The conservation of $\mathcal{C}$ in a phase leads to precise scaling laws relating $\gamma$ and $\nu_{i}$. For example, $\sum_{i}\nu_{i}=1+1=\gamma=2$ for an isotropic 2D Dirac model (Chen et al., 2017). The Fourier transform of the curvature function yields a Wannier state correlation function, which decays exponentially in real space due to the peak shape of the curvature function in momentum space, with $\xi_{\mathbf{k}_{0,i}}$ playing the role of the correlation length, and $F(\mathbf{k}_{0},{\bf M})$ serving as the analog of the susceptibility in the Landau paradigm sup . The critical exponents $\left\{\gamma,\nu_{i}\right\}$ then characterize the universality class of the TPT.

Quantum criticality of the TPTs — We now analyze the criticality of the different TPTs that exist in this model, including transitions to phases with AEMs. We apply the CRG method to the stroboscopic curvature function (7) at the representative HSPs $\mathbf{k}_{0}=(0,0),(0,\pi)$ 222Because of the $C_{4}$ symmetry of the lattice, all other HSPs (e.g. $\mathbf{k}_{0}=(\pi,\pi),(\pi,0)$ etc.) are obtained by a shift with the reciprocal vectors $\mathbf{b}_{1}=(\pi,\pi)$ and/or $\mathbf{b}_{2}=(-\pi,\pi)$ and yield the same results as the two different representative HSPs $\mathbf{k}_{0}=(0,0),(0,\pi)$. to extract the criticality of the topological phase boundaries. Firstly, via a straightforward analysis of the CRG equations, all phase boundaries, including those delineating AEM phases are correctly captured by the RG flow (see Figs. 1a-b). Note that this approach requires very little computational effort compared to the evaluation of the time-integrated topological invariant, since solving Eq. (8) only requires to calculate $F(\mathbf{k},{\bf M})$ at few momentum points. The fixed lines, on the other hand, illustrate the regions where the correlation length is shortest, indicating relatively localized Wannier states. In the following, we focus exclusively on the critical lines, and detail the two dramatically different critical behaviors uncovered in this system.

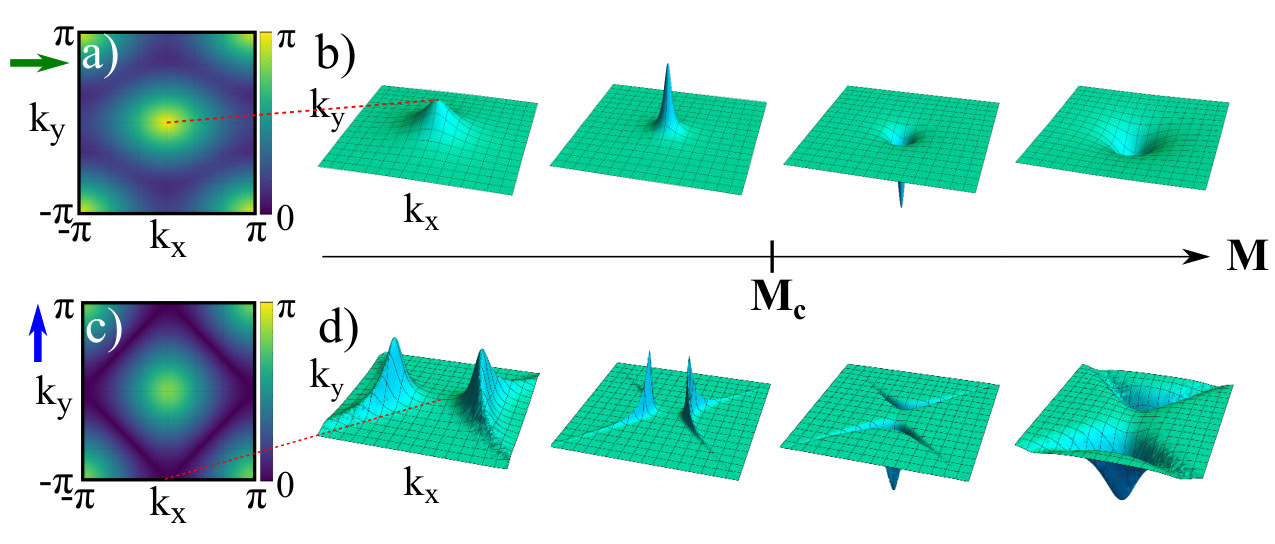

Floquet-Dirac criticality — Close to the $\tilde{J_{c}}=\frac{1}{3}\left(n-J\right)$ (e.g. green arrow in Fig. 1b)) transitions, a Dirac-like linear gap closure at the Floquet band edge takes place at one of the HSPs $(k_{x},k_{y})=(0,0)$ and $(k_{x},k_{y})=(\pm\pi,\pm\pi)$, and the curvature function near the HSP has the shape of a single Lorentzian peak. As $\tilde{J}\to\tilde{J}_{c}$, the Lorentzian peak diverges and flips sign across the transition, with critical exponents $\nu_{x}=\nu_{y}=1$, $\gamma=2$, fulfilling the scaling law $2=\gamma=\nu_{x}+\nu_{y}$ (up to numerical accuracy). This result implies that these TPTs belong to the same universality class of a static 2D isotropic Dirac model Chen and Schnyder (2019), and this critical behavior is independent of whether in the underlying phase AEMs exist or not.

Floquet nodal loop criticality — We now analyze the TPTs across $\tilde{J}_{c}=J$ (e.g. blue arrow in Fig. 1b)), for which the gap closure is revealed to be quadratic along the nodal loops $k_{y}=\pm\pi\mp|k_{x}|$, realizing an elusive 2D NLS. For this nodal loop case, the curvature function is characterized by a pair of non-Lorentzian peaks symmetrically shifted away from the HSP in $k_{x}$ or $k_{y}$ direction (depending on the direction of the transition), as shown in Fig. 2b). Across the TPT, the peaks simultaneously approach the HSP while diverging, then flip sign, and then depart again from the HSP but in the orthogonal direction. For simplicity, we fix the direction of the transition such that the peaks are along the $k_{y}$ direction before diverging. We note that, because of the boomerang shape of the Berry curvature along the $k_{x}$-direction, the correlation length that correctly captures the conservation of the Chern number has to also be defined along the same curve, i.e. as $\xi_{\mathbf{k}_{0,\tilde{x}}}\equiv\frac{2}{FWHM(\max_{k_{y}}\{F(\mathbf{k})\})}$. A fit of the curvature function for this geometry reveals $\gamma=\frac{3}{2}$, $\nu_{\tilde{x}}=\frac{1}{2}$, and $\nu_{y}=1$ (up to numerical accuracy). These critical exponents fulfill the scaling law $\nu_{\tilde{x}}+\nu_{y}=\gamma$, but are distinct from Dirac models of any order of band crossing Chen and Schnyder (2019).

This different behavior clearly indicates that the TPT at $\tilde{J}_{c}=J$ belongs to a different universality class than the $\tilde{J_{c}}=\frac{1}{3}\left(n-J\right)$ transitions described earlier. This is remarkable, as it is not customary for a single system to host two kinds of TPTs belonging to different universality classes. Quite surprising is also that the two TPTs, described by drastically different effective theories, connect the same phases along two different parameter paths.

We now present an effective theory for this Floquet-engineered NLS which perfectly captures this physics. First note that in the vicinity of $\tilde{J}_{c}=J$ transition line, the quasienergy dispersion around the HSPs $\mathbf{k}_{0}=(0,\pm\pi),(\pm\pi,0)$ is well described by the following:

[TABLE]

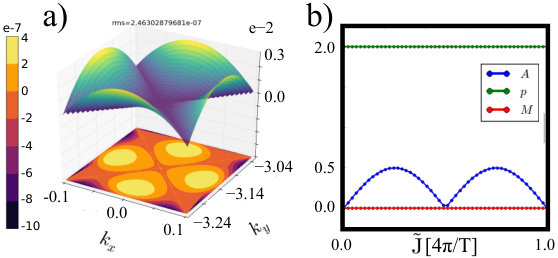

where the parameters $A$, $p$, and $M$ are determined numerically. A fit of the quasienergy dispersion to the form of Eq. (9) is depicted in Fig. 3a). Close to $\tilde{J}_{c}=J$, $p=2$ and at the transition the mass term $M=0$. Remarkably, along the entirety of the transition line $\tilde{J}_{c}=J$, the dispersion exhibits the same shape with the same values of $p$ and $M$ (except at the multi-critical point where the dispersion is identically zero), and only its overall scaling factor $A$ varies as illustrated in Fig. 3b). Note that $A$ has no influence on the topology because it does not affect the gap closures.

The peculiar non-Dirac quadratic gap closure of Eq. (9) can be naturally generated along the entire $\tilde{J}=J$ transition line from a single $2\times 2$ NLS Hamiltonian

[TABLE]

where $\sigma^{i}$ are the Pauli matrices, $\alpha$, $\beta$, $m$, $\mu$, and $\eta$ are parameters. For $\mu=0$ (and arbitrary values of the other parameters) the energy dispersion of Eq. (16) in the vicinity of the HSPs exactly recovers Eq. (9), with the overall scale $A=\eta$ and $M=0$. This model can further reproduce all the features observed in the FCI along the $\tilde{J}=J$ transition, including the shape of the Berry curvature across the TPT, the value of the critical exponents, and symmetries sup . Surprisingly, Floquet driving realizes an extension of the model discussed in Refs. Qi et al. (2006); Li and Araújo (2017) in the context of the spin quantum Hall phases. Though 3D NLS have been abundantly discussed in the literature  Mullen et al. (2015); Rhim and Kim (2015); Lim and Moessner (2017); Kopnin et al. (2011); Li et al. (2016); Chan et al. (2016); Wang and Nandkishore (2017); Liu and Balents (2017), physical realizations of 2D NLS (proposed as excellent candidates for spintronics) remain elusive  Burkov et al. (2011); Yu et al. (2017); Zhou et al. (2019). Recently proposed candidate systems include interpenetrating kagome-honeycomb lattices Lu et al. (2017) and ferromagnetic monochalcogenide monolayers Zhou et al. (2019). Here, we see that via a simple driving protocol on a square lattice, the resulting Floquet-engineered Hamiltonian perfectly realizes the full static model of a 2D NLS.

Emergent chiral mirror symmetry — The existence of two different universality classes in a simple non-interacting model indicates that they must be related to different symmetries. In fact, the effective nodal loop theory is characterized by an increased chiral mirror symmetry that can be traced back to the driving scheme. At $\tilde{J}=J$, the effective Floquet Hamiltonian (and correspondingly the low-energy theory Eq. (16) with $\mu=0$) fulfills

[TABLE]

with $\mathcal{M}=\sigma^{y}$. This symmetry acts together with charge conjugation $\mathcal{C}h_{\text{eff}}(k_{x},k_{y})\mathcal{C}^{-1}=-h_{\text{eff}}(-k_{x},-k_{y})$, $\mathcal{C}=\sigma^{z}\circ\mathcal{K}$ ($\mathcal{K}$ represents complex conjugation), to topologically protect the nodal loop from mass terms in the $y$ and $z$ components sup , while it is absent for the linear Dirac transitions along $\tilde{J_{c}}=\frac{1}{3}\left(n-J\right)$. The chiral mirror symmetry has a direct correspondence in terms of a restricted form of the Floquet operator $U(\mathbf{k},T)=U^{\mathbb{T}}(\mathbf{k}^{\mathcal{M}},T)$, where the superscript $\mathbb{T}$ denotes the matrix transpose and $\mathbf{k}^{\mathcal{M}}$ are the $k$-coordinates transformed under the chiral mirror symmetry (in this case, $\mathcal{M}:k_{x}\leftrightarrow k_{y}$). By Floquet engineering the stroboscopic time evolution to have such property, it is in principle possible to generate a whole hierarchy of effective Floquet Hamiltonians with chiral mirror symmetry that can stabilize nodal loop semimetal phases.

Multi-critical points — Lastly, we consider the three multi-critical points shown in the phase diagram. Because the two kinds of TPTs of the model occur at different HSPs, the points at $\tilde{J}=J=\pi/T,3\pi/T$ are found to exhibit both a peak divergence at $\mathbf{k}_{0}=(0,0)$ and $\mathbf{k}_{0}=(\pm\pi,\pm\pi)$ (linear gap closure at quasienergy $\pi$), and a double-peak divergence around $\mathbf{k}_{0}=(0,\pm\pi)$ and $\mathbf{k}_{0}=(\pm\pi,0)$ (quadratic gap closure at quasienergy [math]). These multi-critical points therefore display a coexistence of both TPTs belonging to different universality classes. The points at $\tilde{J}=J=2\pi n/T$, $n\in[0,1,2]$ are instead not critical, because there the Floquet operator $U(\mathbf{k},T)=e^{ih_{\text{eff}}(\mathbf{k})T}$ is precisely the identity and the quasienergy dispersion $h_{\text{eff}}(\mathbf{k})T$ collapses to a flat band at 0. This behavior at $\tilde{J}=J=2\pi/T$ is also detected in the CRG flow, where fixed lines and critical lines meet. The loss of criticality around these points is further corroborated by the fit of the quasienergy dispersion (Fig. 3), which highlights the flat band as $A\to 0$.

Finally, we remark that the multiple universality classes and the multi-criticality uncovered in the present work can be experimentally detected in cold atomic realizations of the model through quantum interference maps of the Berry curvature Duca et al. (2015) or force-induced wave-packet velocity measurements Price and Cooper (2012); Jotzu et al. (2014). Our work thus paves the path for future explorations and realizations of complex topological states of matter by engineering emergent symmetries in simple systems using judiciously chosen Floquet driving protocols.

We kindly acknowledge financial support by G. Anderheggen and the ETH Zürich Foundation, and the productivity in research fellowship from CNPq. The authors would like to thank T. Pereg-Barnea, H.-Y. Kee, Y.-B. Kim, A. Schnyder, M. Rudner and T. Bzdušek for fruitful discussions.

I Supplementary Material for: Generating quantum multi-criticality in topological insulators by periodic driving

In the following we summarize some of the concepts and derivations used in the main text.

II Wannier state correlation function and critical exponents

The critical exponents obtained from the CRG analysis can be related to those assigned to correlation length and susceptibility in the Landau theory of phase transitions. This stems from that fact that the Fourier transform of the curvature function yields a Wannier state correlation function, as we demonstrate below following the recipe in Ref. [29] and [30] of the main text. For a 2D (stroboscopic) Hamiltonian described by (Floquet-)Bloch states $\left|u_{n\mathbf{k}}\right>$, such as the one considered in this work, the curvature function takes the form of a Berry curvature $F(\mathbf{k},\mathbf{M})=\sum_{n\in v}\nabla_{\mathbf{k}}\times\left<u_{n\mathbf{k}}\right|i\nabla_{\mathbf{k}}\left|u_{n\mathbf{k}}\right>$. This expression can be equivalently expressed in terms of Wannier states $\left|\mathbf{R}n\right>=\frac{1}{N}\sum_{\mathbf{k}}e^{i\mathbf{k}\cdot\left(\hat{\mathbf{r}}-\mathbf{R}\right)}\left|u_{n\mathbf{k}}\right>$, where $N$ denotes the number of lattice sites, and $\hat{\mathbf{r}}$ is the position operator. We emphasize that in our analysis of the Floquet problem we work with the Floquet bands derived from the stroboscopic effective Hamiltonian, and therefore the Wannier states calculated in this context are also to be interpreted as stroboscopic states. The wave function constructed from the Wannier states describe a real-space Wannier function $W_{n}(\mathbf{r}-\mathbf{R})\equiv\left<\mathbf{r}\middle|\mathbf{R}n\right>$ at position $\mathbf{r}$ centered at the home cell $\mathbf{R}$. In this basis, the Berry curvature is written as Wang et al. (2006); Marzari et al. (2012); Gradhand et al. (2012) $F(\mathbf{k},\mathbf{M})=-i\sum_{n\in v}\sum_{\mathbf{R}}e^{-i\mathbf{k}\cdot\mathbf{R}}\left<\mathbf{R}n\right|(\mathbf{R}\times\hat{\mathbf{r}})_{z}\left|\mathbf{0}n\right>$, where $\left|\mathbf{0}\right>$ denotes the Wannier function centered at the origin. The Wannier representation allows us to draw a direct correspondence between the topological description of the system and the theory of orbital magnetization for 2D TRS-breaking systems Thonhauser et al. (2005); Xiao et al. (2005); Ceresoli et al. (2006); Shi et al. (2007); Souza and Vanderbilt (2008). In this picture, the Fourier transform of the curvature function yields

[TABLE]

which is a measure of the overlap of the Wannier function centered at $\mathbf{R}$ with that centered at the origin, sandwiched by the operator $(\mathbf{R}\times\mathbf{r})_{z}$. Note that the correlation function is a gauge-invariant observable because it is obtained upon integrating the gauge-invariant curvature function over a closed surface.

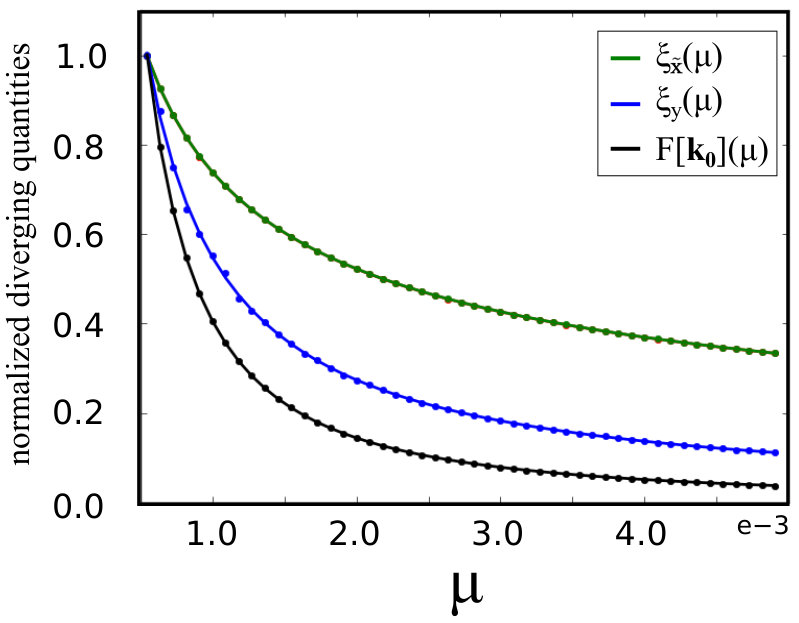

We can see that the correlation function $\tilde{F}_{2D}(\mathbf{R})$ decays exponentially with characteristic length scales $\xi_{i}$, indicating that $\xi_{i}$ acquire the meaning of correlation lengths of the topological phase transition with the associated critical exponents $\nu_{i}$. Furthermore, the integration of the correlation function over real space yields $\int\tilde{F}_{2D}(\mathbf{R})\mathrm{d}^{2}R=F({\mathbf{k}}_{0},{\bf M})$. The curvature function at the high symmetry point $F({\mathbf{k}}_{0},{\bf M})$ can be therefore interpreted as the analogue of the susceptibility in the Landau paradigm. For this reason, we assign to it the exponent $\gamma$ that characterizes its criticality. Consequently, different values of $\left\{\nu_{i},\gamma\right\}$ signify different universality classes. In Table I we summarize the critical exponents and the low energy dispersions of the two different universality classes obtained from the model in the main text. Details of fitting the critical exponents will be demonstrated in the following sections.

III Measures of topology for Floquet systems

In this section we review how to construct topological invariants for 2D Floquet systems. For a general time-periodic system with open boundary conditions described by the Hamiltonian $H(t)=H(t+T)$, the full dynamics of the topological edge states is governed by the time evolution operator, defined as $U(t)=\mathcal{T}\left\{\exp\left[-i\int_{0}^{t}\mathrm{d}t^{\prime}\>H(t^{\prime})\right]\right\}$, where $\mathcal{T}$ is the time-ordering operator and we have set the initial time $t_{0}=0$ and $\hbar=1$. The operator $U(t)$ accounts for the full time dynamics, including the micromotion between periods. When $t\to T$, the time evolution operator is typically called Floquet operator and, because of the underlying time periodicity, it fulfills $U(T,0)=U(Tm,T(m-1))$ with $m\in\mathbb{N}$. This induces a discrete quantum map that describes stroboscopic dynamics Dittrich et al. (1998). We can then define an effective stroboscopic Floquet Hamiltonian via $U(T,0)\equiv e^{-ih_{\text{eff}}T}$ that contains the full information about the system at multiples of the driving period $T$. Diagonalization of $h_{\text{eff}}T$ will then yield the stroboscopic quasienergy spectrum $\epsilon_{\alpha,k}$ of the Floquet-state solutions $\Psi_{\alpha}(k,t)=\exp(-i\epsilon_{\alpha,k}t)\Phi_{\alpha}(k,t)$, where $\Phi_{\alpha}(k,t)=\Phi_{\alpha}(k,t+T)$ (Dittrich et al., 1998). Because of the $T$-periodicity of the Floquet modes $\Phi_{\alpha}(k,t)$, the quasienergies are defined modulo $\frac{2\pi}{T}=\omega$. Therefore, we can restrict ourselves to consider a first “Floquet-Brillouin zone” of quasienergies $\epsilon_{\alpha}\in(-\omega/2,\omega/2)$. The number of stroboscopic edge modes can be determined as a function of the driving parameters from an analysis of the quasienergy spectrum, i.e. from gap closures and localization of [math] and $\pi$-quasienergy states. Consequently, the topological phase diagram of the stroboscopic system can be ascertained.

In analogy with time-independent systems, the number of edge modes in an open geometry is related to the properties of the bulk time evolution operator via a bulk-edge correspondence Rudner et al. (2013). We could therefore determine the topological phase diagram by investigating the bulk time operator $U(\mathbf{k},t)=\mathcal{T}\left\{\exp\left[-i\int_{0}^{t}\mathrm{d}t^{\prime}\>H({\mathbf{k}},t^{\prime})\right]\right\}$. For a two-dimensional system like the one considered here, the number of edge modes at quasienergy $\epsilon$ can be calculated from a topological invariant defined as the winding number of an explicitly time-dependent map $S^{1}\times S^{1}\times S^{1}\to U(N)$ constructed from the bulk-time operator Bott and Seeley (1978); Rudner et al. (2013) $W[U_{\epsilon}]=\frac{1}{16\pi^{2}}\int\mathrm{d}t\,\mathrm{d}k_{x}\,\mathrm{d}k_{y}\operatorname{Tr}\left[U_{\epsilon}^{-1}\partial_{t}U_{\epsilon}\left[U_{\epsilon}^{-1}\partial_{k_{x}}U_{\epsilon},U_{\epsilon}^{-1}\partial_{k_{y}}U_{\epsilon}\right]\right]$. Here, $U_{\epsilon}(\mathbf{k},t)$ is an operator derived from $U(\mathbf{k},t)$ preserving the number of edge modes at $\epsilon$ while smoothening the operator at the end of the cycle to the identity, i.e. $U_{\epsilon}(\mathbf{k},T)=\mathds{1}$ Rudner et al. (2013). This transformation is necessary, because the winding number is equal to the number of edge modes at $\epsilon$ only if the spectrum of the bulk operator is gapped everywhere expect at $\epsilon$, which can be achieved only if $U_{\epsilon}(\mathbf{k},T)=\mathds{1}$.

IV Structure of the stroboscopic effective Hamiltonian

In this section we elaborate on the structure of the low-energy theory of the topological phase transitions by explicitly looking at the form of the stroboscopic effective Hamiltonian and the curvature function given by Eq. (2) and (3) in the main text. The stroboscopic quasienergy dispersion $\theta(\mathbf{k})$ corresponding to the effective Hamiltonian fulfills the eigenvalue equation Molignini et al. (2017)

[TABLE]

or, equivalently,

[TABLE]

Hence, $\theta(\mathbf{k})$ can be derived, by calculating the eigenvalues of the Floquet operator and exploiting the identity $\arccos(z)=-i\log\left(z+\sqrt{z^{2}-1}\right)$, to be

[TABLE]

The behavior of $\theta(\mathbf{k})$ at criticality can be used to shed light on the type of topological phase transition taking place there. Typically, the order of the gap closure is associated to the type of low energy theory.

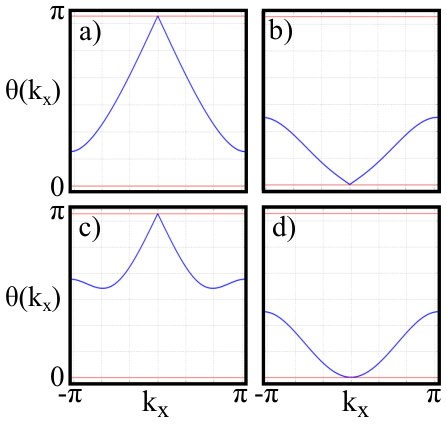

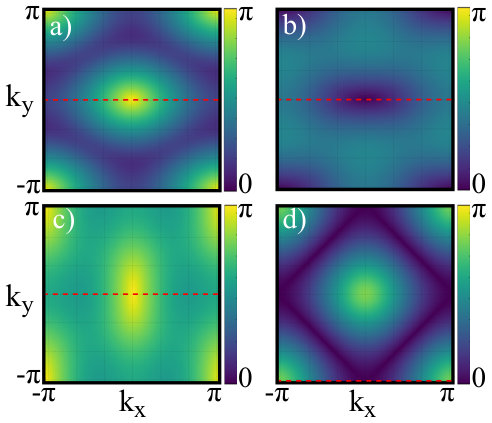

For the four different transition lines in the phase diagram of the Floquet system analyzed in the main text, we show in Fig. S1 contour plots of the quasienergy dispersion that illustrate the location of the gap closures. Additionally, in Fig. S2 we also present one-dimensional cuts that depict the form of the gap closures: we can appreciate that the topological phase transitions at $\tilde{J}=\frac{1}{3}(n-J)$ are all characterized by linear gap closures, while the one at $\tilde{J}=J$ corresponds instead to a quadratic gap closure. This visual finding was also verified through a numerical fit of the quasienergy dispersion.

V Comparison between Floquet-Chern insulator and nodal loop semimetal

In this section we compare the behavior of the stroboscopic Berry curvature in Eq. (3) of the main text for the Floquet-Chern insulator to the one of a static effective nodal loop semimetal and show that they exhibit the same behavior across the corresponding topological phase transitions. For the Floquet-Chern insulator, we construct the Berry curvature from the effective stroboscopic Hamiltonian in Eq. (2) of the main text. To obtain the Berry curvature of the nodal loop semimetal, we use instead the static Hamiltonian

[TABLE]

which is a simplified version of the nodal-loop Hamiltonian presented in the main text. We have verified that both nodal-loop Hamiltonians reproduce the same behavior of the Berry curvature across the transition. The reason why we present the results from Hamiltonian (16) is to draw a connection to Refs. Qi et al. (2006); Li and Araújo (2017) in which it was already discussed.

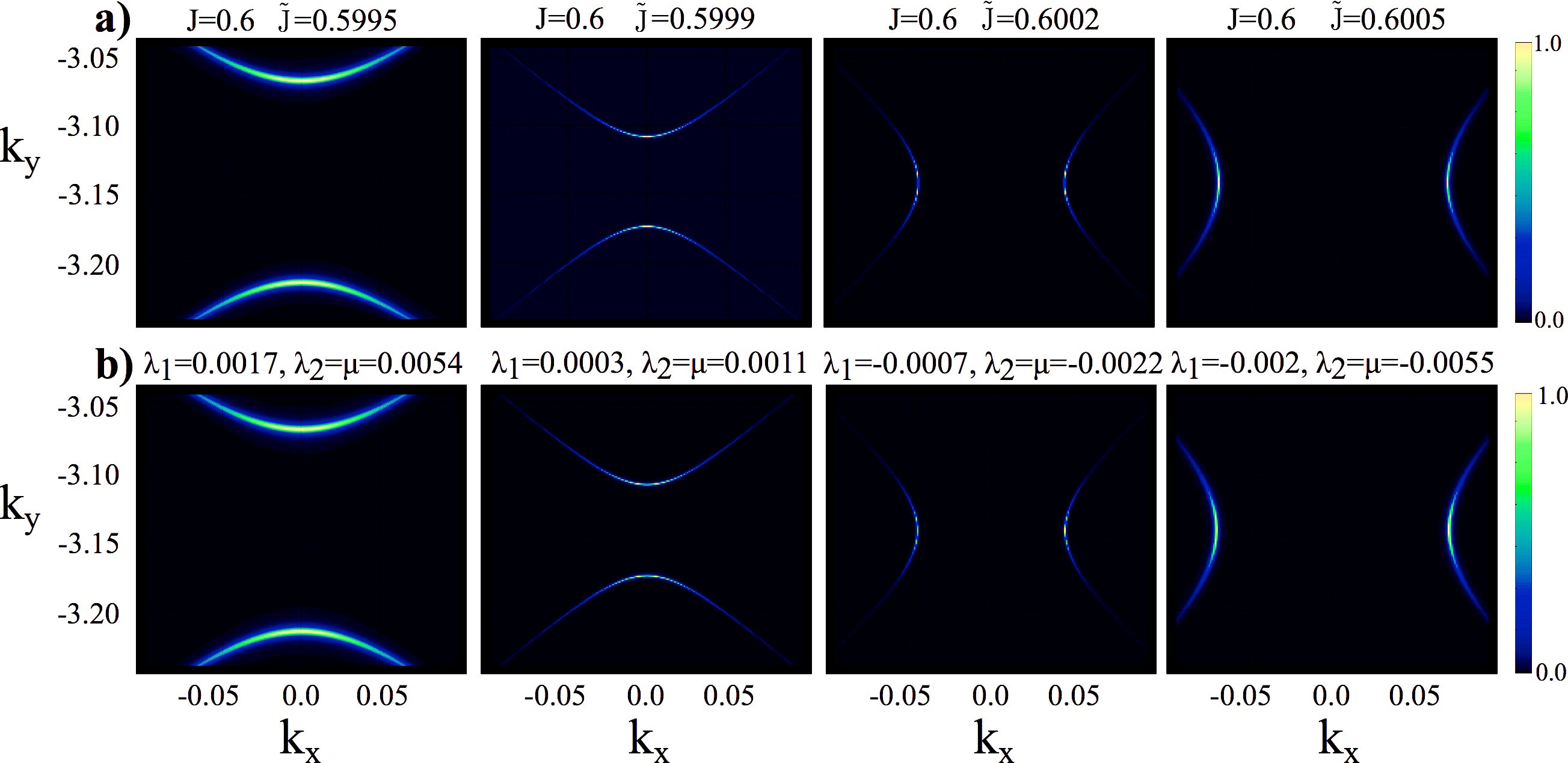

A comparison of the two Berry curvatures across the topological phase transitions ($J=\tilde{J}=0.6$ for the Floquet-Chern insulator and correspondingly $\lambda_{1}\simeq\lambda_{2}=\mu$ for the nodal loop semimetal) is shown in Fig. S3 and reveals an excellent agreement between the two systems, indicating that the low-energy theory of the topological phase transition in the Floquet-Chern insulator is in fact a nodal loop semimetal.

As explained in the main text, the curved shape of the Berry curvature along the $k_{x}$-direction modifies the scaling law that captures the conservation of the Chern number. To recollect this scaling law, the correlation length must also be defined along the same curve, e.g. as $\xi_{\mathbf{k}_{0},\tilde{x}}\equiv\frac{2}{FWHM\left(\max_{k_{y}}\left\{F(\mathbf{k})\right\}\right)}$. Following this idea, we have additionally extracted the critical exponents from the Berry curvature by performing a numerical fit of the diverging quantities $F[\mathbf{k}_{0}]$, $\xi_{\tilde{x}}$, and $\xi_{y}$, shown in Fig. S4. The exponents are $\gamma\approx 1.491$, $\nu_{\tilde{x}}\approx 0.499$, $\nu_{y}\approx 1.000$, which fulfill the (anisotropic) Dirac theory scaling law $\nu_{\tilde{x}}+\nu_{y}=\gamma$.

Finally, we note that in the Floquet-Chern insulator, all points along the transition line $\tilde{J}=J$, with the exception of the flat band points, are mapped to the same diagonal transition $\mu=\lambda_{1}=\lambda_{2}$ in the phase diagram of the static nodal loop semimetal. We have confirmed this by performing similar fits at other values of $\tilde{J}=J$, and obtained comparable results as the one shown in Fig. S4.

VI Emergent symmetry of the nodal loop semimetal

We have numerically verified that the Floquet effective Hamiltonian fulfills the following symmetry operations:

[TABLE]

These symmetries are charge conjugation, inversion, and displacement by $\pm\pi$ (reduction of the Brillouin zone to half). Additionally, at $\tilde{J}=J$ corresponding to the nodal loop low-energy theory, a new symmetry emerges:

[TABLE]

We term this symmetry “chiral mirror symmetry”, as it can be decomposed into a combination of a mirror symmetry $\mathcal{M}$ and chiral or sublattice symmetry $\mathcal{S}$. We note however that the two separate symmetry operations $\mathcal{M}$ and $\mathcal{S}$ need not be fulfilled when chiral mirror symmetry is present, much likely a chiral symmetry can exist on its own even when time-reversal and charge-conjugation symmetries are not separately fulfilled Chiu et al. (2016). In fact, we empirically verified that the effective Floquet Hamiltonian does not have separate mirror and chiral symmetries.

A possible nodal loop Hamiltonian that incorporates all the symmetries above is

[TABLE]

The combination of charge conjugation and chiral mirror symmetry protects the nodal loop Hamiltonian (22) from mass terms. Chiral mirror symmetry implies $Y(k_{x},k_{y})=-Y(k_{y},k_{x})$, which forbids mass terms in $\sigma^{y}$. Charge conjugation instead implies $Z(k_{x},k_{y})=-Z(-k_{x},-k_{y})$, which forbids mass terms in $\sigma^{z}$. The parameter $\mu$ controls the gap closure, such that the nodal loop sits at zero (quasi)energy when $\mu=0$ (and correspondingly $\tilde{J}=J$ for the Floquet-Chern insulator).

The chiral mirror symmetry is a direct consequence of the driving scheme applied to the Chern insulator and can be reformulated as a property of the Floquet operator $U(\mathbf{k},T)$:

[TABLE]

This property can be generalized to other forms of mirror symmetries, such as reflections with respect to a different axis ($k_{x}\leftrightarrow k_{y}$ is a reflection with respect to $\hat{a}=\frac{1}{\sqrt{2}}(1,1)$ in $\mathbf{k}$-space). The general condition to have chiral mirror symmetry in the effective theory of the Floquet Hamiltonian is then

[TABLE]

where $\mathbf{k}^{\mathcal{M}}$ are the $k$-coordinates transformed under the chiral mirror symmetry and $\mathbb{T}$ is matrix transposition.
