Outlier eigenvalues for non-Hermitian polynomials in independent i.i.d. matrices and deterministic matrices

TL;DR

This paper studies the behavior of outlier eigenvalues in large non-Hermitian random matrices formed by noncommutative polynomials of independent i.i.d. and deterministic matrices, identifying conditions for their asymptotic convergence.

Contribution

It introduces conditions under which outlier eigenvalues of non-Hermitian polynomial matrices match those of the deterministic part, extending understanding of spectral outliers in complex random matrix models.

Findings

Eigenvalues outside the spectrum of $P(c,a)$ are characterized asymptotically.

Provided a sufficient condition for outliers to match eigenvalues of $P(0,A)$.

Analyzed the spectral behavior of non-Hermitian polynomials in large random matrices.

Abstract

We consider a square random matrix of size $N$ of the form $P(Y,A)$ where $P$ is a noncommutative polynomial, $A$ is a tuple of deterministic matrices converging in $\ast$-distribution, when $N$ goes to infinity, towards a tuple $a$ in some $\mathcal{C}^*$-probability space and $Y$ is a tuple of independent matrices with i.i.d. centered entries with variance $1/N$. We investigate the eigenvalues of $P(Y,A)$ outside the spectrum of $P(c,a)$ where $c$ is a circular system which is free from $a$. We provide a sufficient condition to guarantee that these eigenvalues coincide asymptotically with those of $P(0,A)$.

Figures

Equations

$${\mu }_B:=\frac{1}{N}\sum _{i=1}^N{\delta }_{{\lambda }_i(B)}.$$

$${\lambda }_i(\frac{X_N}{\sqrt{N}}+A_N)={\lambda }_i(A_N)+o(1).$$

$$S_N=A_N+\frac{X_N}{\sqrt{N}},$$

$$\underset{z\in \partial \Gamma }{\min }\left|\frac{\det (A_N-z)}{\det (A_N^{\prime }-z)}\right|⩾\epsilon ,$$

$$\underset{N}{\sup }\Vert A_N^{(i)}\Vert <\infty ,$$

$$M_N=P\left(\frac{X_N^{(1)}}{\sqrt{N}},\dots ,\frac{X_N^{(u)}}{\sqrt{N}},A_N^{(1)},\dots ,A_N^{(t)}\right).$$

$$\text{spect}(P(c,a))=\{z\in \mathbb{C}:0\in \text{supp}({\mu }_z)\}.$$

$$M_N^{(0)}=P(0_N,\dots ,0_N,A_N^{(1)},\dots ,A_N^{(t)}),$$

$$P(0_N,\dots ,0_N,(A_N^{(1)}{)}^{\prime },\dots ,(A_N^{(t)}{)}^{\prime })-z{I}_N$$

$$\underset{N}{\sup }\Vert (A_N^{(k)}{)}^{{}^{\prime }}\Vert <+\infty .$$

$$\underset{z\in \partial \Gamma }{\min }\left|\frac{\det (z{I}_N-P(0_N,\dots ,0_N,A_N^{(1)},\dots ,A_N^{(t)})}{\det (z{I}_N-P(0_N,\dots ,0_N,(A_N^{(1)}{)}^{{}^{\prime }},\dots ,(A_N^{(t)}{)}^{{}^{\prime }})}\right|⩾ϵ$$

$$\underset{j\in J}{\max }|{\lambda }_j(M_N)-{\lambda }_j(M_N^{(0)})|{\to }_{N\to +\infty }0.$$

$$M_N=P\left(\frac{X_N^{(1)}}{\sqrt{N}},\dots ,\frac{X_N^{(u)}}{\sqrt{N}},A_N^{(1)},\dots ,A_N^{(t)}\right)$$

$$M_N=\alpha \frac{X_N^{(1)}}{\sqrt{N}}+Q\left(\frac{X_N^{(2)}}{\sqrt{N}},\dots ,\frac{X_N^{(u)}}{\sqrt{N}},A_N^{(1)},\dots ,A_N^{(t)}\right),$$

$$M_N$$

$$=\frac{3}{2}\frac{X_N^{(1)}}{\sqrt{N}}+\frac{1}{6}{\left(\frac{X_N^{(2)}}{\sqrt{N}}\right)}^2{A}_N+\frac{1}{6}\frac{X_N^{(2)}}{\sqrt{N}}\frac{X_N^{(3)}}{\sqrt{N}}{A}_N\frac{X_N^{(3)}}{\sqrt{N}}+A_N^2\frac{X_N^{(3)}}{\sqrt{N}}+A_N+\frac{1}{8}{A}_N^2,$$

$$A_{N}=\left(\begin{array}[]{ccccc}2&&&&\\ &2i&&&\\ &&0&&\\ &&&\ddots&\\ &&&&0\end{array}\right).$$

$$M_N=P_2\left(\frac{X_N^{(1)}}{\sqrt{N}},\frac{X_N^{(2)}}{\sqrt{N}},\frac{X_N^{(3)}}{\sqrt{N}},A_N^{(1)},A_N^{(2)}\right)$$

$$=\frac{1}{2}\frac{X_N^{(1)}}{\sqrt{N}}+\frac{1}{6}{A}_N^{(1)}\frac{X_N^{(2)}}{\sqrt{N}}\left(A_N^{(2)}+A_N^{(1)}+\frac{X_N^{(3)}}{\sqrt{N}}\right)\frac{X_N^{(2)}}{\sqrt{N}}+A_N^{(2)}\frac{X_N^{(3)}}{\sqrt{N}}{A}_N^{(1)}$$

$$+A_N^{(1)}+\frac{1}{2}{A}_N^{(2)},$$

$$A_{N}^{(1)}=\left(\begin{array}[]{ccccc}2&&&&\\ &-2.5&&&\\ &&0&&\\ &&&\ddots&\\ &&&&0\end{array}\right)$$

$$M_N$$

$$=\frac{X_N^{(1)}}{\sqrt{N}}+A_N^{(1)}+A_N^{(2)}+A_N^{(1)}\frac{X_N^{(2)}}{\sqrt{N}}{A}_N^{(2)}\frac{X_N^{(2)}}{\sqrt{N}}+\frac{X_N^{(3)}}{\sqrt{N}}{A}_N^{(2)}\frac{X_N^{(2)}}{\sqrt{N}},$$

$$A_{N}^{(1)}=\left(\begin{array}[]{cccccc}1&&&&&\\ &\ddots&&&&\\ &&1&&&\\ &&&-1&&\\ &&&&\ddots&\\ &&&&&-1\end{array}\right)$$

$$A_{N}^{(2)}=\left(\begin{array}[]{ccccc}1.5&&&&\\ &-2+2i&&&\\ &&0&&\\ &&&\ddots&\\ &&&&0\end{array}\right)$$

$$M_N$$

$$=\frac{1}{5}\left(\frac{X_N^{(1)}}{\sqrt{N}}+3I_N\right)\left(\frac{X_N^{(2)}}{\sqrt{N}}+A_N+2I_N\right)\left(\frac{X_N^{(3)}}{\sqrt{N}}+2I_N\right)-2I_N,$$

$$A_{N}=\left(\begin{array}[]{ccccc}2i&&&&\\ &-2i&&&\\ &&0&&\\ &&&\ddots&\\ &&&&0\end{array}\right).$$

$${\mu }_{a_1}(P)=\int P(t)\mathrm{d}{\nu }_{a_1}(t).$$

$$\phi (p_1(a_{i_1},a_{i_1}^{\ast })\cdots p_k(a_{i_k},a_{i_k}^{\ast }))=0$$

$$\phi (x^k)=\int t^{k}d{\mu }_{sc}(t)$$

$${\mu }_X=\{B^{n-1}\ni (b_1,b_2,\dots ,b_{n-1})\mapsto E[X{b}_{1}X{b}_2\cdots X{b}_{n-1}X]\in B:n\ge 0\},$$

$$G_X(b)=E\left[(X-b{)}^{-1}\right].$$

Full text

1 Introduction

1.1 Previous results

Ginibre (1965) introduced the basic non-Hermitian ensemble of random matrix theory. A so-called Ginibre matrix is a $N\times N$ matrix comprised of independent complex Gaussian entries. More generally, an i.i.d. random matrix is a $N\times N$ random matrix $X_{N}=(X_{ij})_{1\leqslant i,j\leqslant N}$ whose entries are independent identically distributed complex entries with mean 0 and variance 1.

For any $N\times N$ matrix $B$, denote by $\lambda_{1}(B),\ldots,\lambda_{N}(B)$ the eigenvalues of $B$ and by $\mu_{B}$ the empirical spectral measure of $B$:

[TABLE]

The following theorem is the culmination of the work of many authors [2, 3, 18, 19, 24, 27, 34, 36].

Theorem 1**.**

Let $X_{N}$ be an i.i.d. random matrix. Then the empirical spectral measure of $\frac{X_{N}}{\sqrt{N}}$ converges almost surely to the circular measure $\mu_{c}$ where $d\mu_{c}=\frac{1}{\pi}1\!\!{\sf I}_{|z|\leqslant 1}dz.$

One can prove that when the fourth moment is finite, there are no significant outliers to the circular law.

Theorem 2**.**

$($see Theorem 1.4 in $\cite[cite]{[\@@bibref{}{Tout}{}{}]})$ Let $X_{N}$ be an i.i.d. random matrix whose entries have finite fourth moment: $\mathbb{E}(|X_{11}|^{4})<+\infty.$ Then the spectral radius $\rho(\frac{X_{N}}{\sqrt{N}})=\sup_{1\leqslant j\leqslant N}\left|\lambda_{j}\left(\frac{X_{N}}{\sqrt{N}}\right)\right|$ converges to 1 almost surely as $N$ goes to infinity.

An addititive low rank perturbation $A_{N}$ can create outliers outside the unit disk. Actually, when $A_{N}$ has bounded rank and bounded operator norm and the entries of the i.i.d. matrix have finite fourth moment, Tao proved that outliers outside the unit disk are stable in the sense that outliers of $M_{N}$ and $A_{N}$ coincide asymptotically.

Theorem 3**.**

([37]) Let $X_{N}$ be an i.i.d. random matrix whose entries have finite fourth moment. Let $A_{N}$ be a deterministic matrix with rank $O(1)$ and operator norm $O(1)$. Let $\epsilon>0$, and suppose that for all sufficiently large $N$, there are :

• •

no eigenvalues of $A_{N}$ in $\{z\in\mathbb{C}:1+\epsilon<|z|<1+3\epsilon\}$,

• •

$j=O(1)$* eigenvalues $\lambda_{1}(A_{N}),\ldots,\lambda_{j}(A_{N})$ in $\{z\in\mathbb{C}:|z|\geqslant 1+3\epsilon\}$.*

Then, a.s , for sufficiently large $N$, there are precisely j eigenvalues of $\frac{X_{N}}{\sqrt{N}}+A_{N}$ in $\{z\in\mathbb{C}:|z|\geqslant 1+2\epsilon\}$ and after labeling these eigenvalues properly, as $N$ goes to infinity, for each $1\leqslant i\leqslant j$,

[TABLE]

Two different ways of generalization of this result were subsequently considered.

Firstly, [6] investigated the same problem but dealing with full rank additive perturbations. Main terminology related to free probability theory which is used in the following is defined in Section 3 below. Consider the deformed model:

[TABLE]

where $A_{N}$ is a $N\times N$ deterministic matrix with operator norm $O(1)$ and such that $A_{N}\in({\cal M}_{N}(\mathbb{C}),\operatorname{tr}_{N})$ converges in $\ast$-moments to some noncommutative random variable $a$ in some ${\cal C}^{*}$-probability space $(\mathcal{A},\varphi)$. According to Dozier and Silverstein [16], for any $z\in\mathbb{C}$, almost surely the empirical spectral measure of ${(S_{N}-zI_{N}){(S_{N}-zI_{N})}^{*}}$ converges weakly towards a nonrandom distribution $\mu_{z}$ which is the distribution of $(c+a-z)(c+a-z)^{*}$ where $c$ is a circular operator which is free from $a$ in $(\mathcal{A},\varphi)$.

Remark 4**.**

Note that for any operator $K$ in some ${\cal C}^{*}$-probability space $({\cal B},\tau)$, $K$ is invertible if and only if $KK^{*}$ and $K^{*}K$ are invertible. If $\tau$ is tracial, the distribution $\mu_{KK^{*}}$ of $KK^{*}$ coincides with the distribution of $K^{*}K$. Therefore, if $\tau$ is faithful and tracial, we have that $0\notin\text{supp}(\mu_{KK^{*}})$ if and only if $K$ is invertible.

Therefore , since we can assume that $\varphi$ is faithful and tracial, $\text{spect}(c+a)=\{z\in\mathbb{C}\colon 0\in\text{supp}(\mu_{z})\},$ where spect denotes the spectrum. Actually, we will present some results of [6] only in terms of the spectrum of $c+a$ so that we do not need the assumption (A3) in [6] on the limiting empirical spectral measure of $S_{N}$. The authors in [6] gave a sufficient condition to guarantee that outliers of the deformed model (1) outside the spectrum of $c+a$ are stable. For this purpose, they introduced the notion of well-conditioned matrix which is related to the phenomenon of lack of outlier and of well-conditioned decomposition of $A_{N}$ which lead to the statement of a sufficient condition for the stability of the outliers. We will denote by $s_{1}(B)\geq\cdots\geqslant s_{N}(B)$ the singular values of any $N\times N$ matrix $B$. For any set $K\subset\mathbb{C}$ and any $\epsilon>0$, $B(K,\epsilon)$ stands for the set $\{z\in\mathbb{C}\colon d(z,K)\leqslant\epsilon\}$.

Definition 5**.**

Let $\Gamma\subset\mathbb{C}\setminus\text{spect}(c+a)$ be a compact set. $A_{N}$ is well-conditioned in $\Gamma$ if for any $z\in\Gamma$, there exists $\eta_{z}>0$ such that for all $N$ large enough, $s_{N}(A_{N}-zI_{N})>\eta_{z}$.

Theorem 6**.**

([6]) Assume that $A_{N}$ is well-conditioned in $\Gamma$, Then, a.s. for all $N$ large enough, $S_{N}$ has no eigenvalue in $\Gamma$.

Corollary 7**.**

([6]) If for any $z\in\mathbb{C}\setminus\text{spect}(c+a)$, there exists $\eta_{z}>0$ such that for all $N$ large enough, $s_{N}(A_{N}-zI_{N})>\eta_{z}$, then, for any $\varepsilon>0$, a.s. for all $N$ large enough, all eigenvalues of $S_{N}$ are in $B(\text{spect}(c+a),\varepsilon)$.

Let us introduce now the notion of well-conditioned decomposition of $A_{N}$ which allowed [6] to exhibit a sufficient condition for stability of outliers.

Definition 8**.**

Let $\Gamma\subset\mathbb{C}\backslash\text{spect}(c+a)$ be a compact set. $A_{N}$ admits a well-conditioned decomposition if : $A_{N}=A^{\prime}_{N}+A^{\prime\prime}_{N}$ where

• •

There exists $M>0$ such that for all $N$, $\|A^{\prime}_{N}\|+\|A^{\prime\prime}_{N}\|\leqslant M$.

• •

For any $z\in\Gamma$, there exists $\eta_{z}>0$ such that for all $N$ large enough, $s_{N}(A^{\prime}_{N}-zI_{N})>\eta_{z}$ (i.e $A^{\prime}_{N}$ is well-conditioned in $\Gamma$) and $A^{\prime\prime}_{N}$ has a fixed rank $r$.

Theorem 9**.**

([6]) Let $\Gamma\subset\mathbb{C}\backslash\text{spect}(c+a)$ be a compact set with continuous boundary. Assume that $A_{N}$ admits a well-conditioned decomposition: $A_{N}=A^{\prime}_{N}+A^{\prime\prime}_{N}$. If for some $\varepsilon>0$ and all $N$ large enough,

[TABLE]

then a.s. for all $N$ large enough, the numbers of eigenvalues of $A_{N}$ and $S_{N}$ in $\Gamma$ are equal.

On the other hand, in [15], the authors investigate the outliers of several types of bounded rank perturbations of the product of $m$ independent random matrices $X_{N,i}$, $i=1,\ldots,m$ with i.i.d entries. More precisely they study the eigenvalues outside the unit disk, of the three following deformed models where $A_{N}$ and the $A_{N,j}$’s denote $N\times N$ deterministic matrices with rank $O(1)$ and norm $O(1)$:

$\prod_{k=1}^{m}\left(\frac{X_{N,k}}{\sqrt{N}}+A_{N,k}\right)$; 2. 2.

the product, in some fixed order, of the $m+s$ terms $\frac{X_{N,k}}{\sqrt{N}},k=1,\ldots,m$, $(I_{N}+A_{N,j}),j=1,\ldots,s$; 3. 3.

$\prod_{k=1}^{m}\frac{X_{N,k}}{\sqrt{N}}+A_{N}$.

Set ${\bf Y_{N}}=\left(\frac{X_{N,k}}{\sqrt{N}},k=1,\ldots,m\right)$ and denote by ${\bf A_{N}}$ the tuple of perturbations, that is ${\bf A_{N}}=\left(A_{N,k},k=1,\ldots,m\right)$ in case 1., ${\bf A_{N}}=\left(A_{N,j},j=1,\ldots,s\right)$ in case 2. and ${\bf A_{N}}=A_{N}$ in case 3.. In all cases 1.,2.,3., the model is some particular polynomial in ${\bf Y_{N}}$ and ${\bf A_{N}}$, let us say $P_{i}({\bf Y_{N}},{\bf A_{N}})$, $i=1,2,3$. It turns out that, according to [15], for each $i=1,2,3$ the eigenvalues of $P_{i}({\bf Y_{N}},{\bf A_{N}})$ and $P_{i}(0,{\bf A_{N}})$ outside the unit disk coincide asymptotically. Note that the unit disk is equal to the spectrum of each $P_{i}(c,0)$, $i=1,2,3$ where $c$ is a free $m$-circular system.

1.2 Assumptions and results

In this paper we generalize the previous results from [6] to non-Hermitian polynomials in several independent i.i.d. matrices and deterministic matrices. Note that our results include in particular the previous results from [15]. Here are the matricial models we deal with. Let $t$ and $u$ be fixed nonzero integer numbers independent from $N$.

• (A1)

$(A_{N}^{(1)},\ldots,A_{N}^{(t)})$ is a $t-$tuple of $N\times N$ deterministic matrices such that

for any $i=1,\ldots,t$,

[TABLE]

where $\|\cdot\|$ denotes the spectral norm, 2. 2.

$(A_{N}^{(1)},\ldots,A_{N}^{(t)})$ converges in $\ast$-distribution towards a $t$-tuple $a=(a^{(1)},\dots,a^{(t)})$ in some ${\cal C}^{*}$-probability space $\left({\cal A},\varphi\right)$ where $\varphi$ is faithful and tracial.

• (X1)

We consider $u$ independent $N\times N$ random matrices $X_{N}^{(v)}=[X^{(v)}_{ij}]_{i,j=1}^{N}$, $v=1,\ldots,u$, where, for each $v$, $[X^{(v)}_{ij}]_{i\geqslant 1,j\geqslant 1}$ is an infinite array of random variables such that $\{\sqrt{2}\Re(X^{(v)}_{ij})$, $\sqrt{2}\Im(X^{(v)}_{ij}),i\geqslant 1,j\geqslant 1\}$ are independent identically distributed centred random variables with variance 1 and finite fourth moment.

Let $P$ be a polynomial in $t+u$ noncommutative indeterminates and define

[TABLE]

Note that we do not need any assumption on the convergence of the empirical spectral measure of $M_{N}$. Let ${c}=(c^{(1)},\dots,c^{(u)})$ be a free noncommutative circular system in $\left({\cal A},\varphi\right)$ which is free from ${a}=(a^{(1)},\dots,a^{(t)})$. According to the second assertion of Proposition 23 below, for any $z\in\mathbb{C}$, almost surely, the empirical spectral measure of $(M_{N}-zI_{N})(M_{N}-zI_{N})^{*}$ converges weakly to $\mu_{z}$ where $\mu_{z}$ is the distribution of $\left[P(c,a)-z1\right]\left[P(c,a)-z1\right]^{*}.$ Since we can assume that $\varphi$ is faithful and tracial, we have by Remark 4 that

[TABLE]

Define

[TABLE]

where $0_{N}$ denotes the $N\times N$ null matrix. Throughout the whole paper, we will call outlier any eigenvalue of $M_{N}$ or $M_{N}^{(0)}$ outside $\mathbb{C}\setminus\text{spect}(P({c},{a}))$. We are now interested by describing the individual eigenvalues of $M_{N}$ outside $B(\text{spect}(P({c},{a})),\epsilon)$ for some $\epsilon>0$. To this end, we shall fix a set $\Gamma\subset\mathbb{C}$. In the lineage of [6], our main result gives a sufficient condition to guarantee that outliers are stable in the sense that outliers of $M_{N}$ and $M_{N}^{(0)}$ coincide asymptotically.

Theorem 10**.**

*Assume that hypotheses ${\bf(A1),(X1)}$ hold. Let $\Gamma$ be a compact subset of $\mathbb{C}\setminus\mathrm{spect}(P(c,a))$. Assume moreover that

${\bf(A2)}\;$* for $k=1,\ldots,t$, $\;A_{N}^{(k)}=(A_{N}^{(k)})^{{}^{\prime}}+(A_{N}^{(k)})^{{}^{\prime\prime}}$,*

where $(A_{N}^{(k)})^{{}^{\prime\prime}}$ has a bounded rank $r_{k}(N)=O(1)$ and $\left((A_{N}^{(1)})^{{}^{\prime}},\dots,(A_{N}^{(t)})^{{}^{\prime}}\right)$ satisfies

• •

$({\bf A_{2}^{\prime}})$* for any $z$ in $\Gamma$, there exists $\eta_{z}>0$ such that for all $N$ large enough, there is no singular value of*

[TABLE]

in $[0,\eta_{z}]$.

• •

for any $k=1,\dots,t$,

[TABLE]

If for some $\epsilon>0$, for all large $N$,

[TABLE]

then almost surely for all large $N$, the numbers of eigenvalues of $M_{N}^{(0)}=P(0_{N},\ldots,0_{N},A_{N}^{(1)},\ldots,A_{N}^{(t)})$ and $M_{N}=P\left(\frac{X_{N}^{(1)}}{\sqrt{N}},\dots,\frac{X_{N}^{(u)}}{\sqrt{N}},A_{N}^{(1)},\dots,A_{N}^{(t)}\right)$ in $\Gamma$ are equal.

The next statement is an easy consequence of Theorem 10.

Corollary 11**.**

Assume that ${\bf(X1)}$ holds and that, for $k=1,\ldots,t$, $A_{N}^{(k)}$ are deterministic matrices with rank $O(1)$ and operator norm $O(1)$. Let $\epsilon>0$, and suppose that for all sufficiently large $N$, there are no eigenvalues of $M_{N}^{(0)}=P(0,\ldots,0,A_{N}^{(1)},\ldots,A_{N}^{(t)})$ in $\{z\in\mathbb{C},\epsilon<d(z,\mathrm{spect}(P(c,0)))<3\epsilon\}$, and there are $j$ eigenvalues $\lambda_{1}(M_{N}^{(0)}),\ldots,\lambda_{j}(M_{N}^{(0)})$ for some $j=O(1)$ in the region $\{z\in\mathbb{C},d(z,\mathrm{spect}(P(c,0)))\geqslant 3\epsilon\}$. Then, a.s , for all large $N$, there are precisely $j$ eigenvalues of $M_{N}=P\left(\frac{X_{N}^{(1)}}{\sqrt{N}},\dots,\frac{X_{N}^{(u)}}{\sqrt{N}},A_{N}^{(1)},\dots,A_{N}^{(t)}\right)$ in $\{z\in\mathbb{C},d(z,\mathrm{spect}(P(c,0)))\geqslant 2\epsilon\}$ and after labeling these eigenvalues properly,

[TABLE]

We will first prove Theorem 10 in the case $r=0$.

Theorem 12**.**

Suppose that assumptions of Theorem 10 hold with, for any $k=1,\ldots,t,$ $(A_{N}^{(k)})^{\prime\prime}=0$, $A_{N}^{(k)}=(A^{(k)}_{N})^{\prime}$ and $\Gamma\subset\mathbb{C}\backslash\mathrm{spect}(P(c,a))$ a compact set. Then, a.s. for all $N$ large enough, $M_{N}$ has no eigenvalue in $\Gamma$.

In particular, if assumptions of Theorem 10 hold with, for any $k=1,\ldots,t,$ $(A_{N}^{(k)})^{\prime\prime}=0$, $A_{N}^{(k)}=(A^{(k)}_{N})^{\prime}$ and $\Gamma=\mathbb{C}\backslash\mathrm{spect}(P(c,a))$ then for any $\varepsilon>0$, a.s. for all $N$ large enough, all eigenvalues of $M_{N}$ are in $B(\mathrm{spect}(P(c,a)),\varepsilon)$.

To prove Theorems 12 and 10, we make use of a linearization procedure which brings the study of the polynomial back to that of the sum of matrices in a higher dimensional space. Then, this allows us to follow the approach of [6]. But for this purpose, we need to establish substantial operator-valued free probability results.

In Section 2, we present our theoretical results and corresponding simulations for four examples of random polynomial matrix models. Section 3.2 provides required definitions and preliminary results on operator-valued free probability theory. Section 4 describes the fundamental linearization trick as introduced in [1, Proposition 3]. In Sections 5 and 6, we establish Theorems 12 and 10 respectively.

2 Related results and examples

Recall that we do not need any assumption on the convergence of the empirical spectral measure of $M_{N}$. However, the convergence in $*$-distribution of $\left(\frac{X_{N}^{(1)}}{\sqrt{N}},\ldots,\frac{X_{N}^{(u)}}{\sqrt{N}},A_{N}^{(1)},\ldots,A_{N}^{(t)}\right)$ to $(c,a)=(c^{(1)},\ldots,c^{(u)},a^{(1)},\ldots,a^{(t)})$ (see Proposition 23) implies the convergence in $*$-distribution of

[TABLE]

to $P(c,a)$. In this situation, a good candidate to be the limit of the empirical spectral distribution of $M_{N}$ is the Brown measure $\mu_{P(c,a)}$ of $P(c,a)$ (see [13]). Unfortunately, the convergence of the empirical spectral distribution of $M_{N}$ to $\mu_{P(c,a)}$ is still an open problem for an arbitrary polynomial.

In the three following examples, we will consider the particular situation where we can decompose

[TABLE]

with $\alpha>0$, $X_{N}^{(1)}$ a Ginibre matrix and $Q$ an arbitrary polynomial. Indeed, in this case, a beautiful result of Śniady [32] ensures that the empirical spectral distribution of $M_{N}$ converges to $\mu_{P(c,a)}$. Thus, the description of the limiting spectrum of $M_{N}$ inside $\text{supp}(\mu_{P(c,a)})$ is a question of computing explicitely $\mu_{P(c,a)}$ (a quite hard problem, which can be handled numerically by [7]). On the other hand, Theorem 10 explains the behaviour of the spectrum of $M_{N}$ outside $\text{spect}(P(c,a))$. Thus, we have a complete description of the limiting spectrum of $M_{N}$, except potentially in the set $\text{spect}(P(c,a))\setminus\text{supp}(\mu_{P(c,a)})$ which is not necessarily empty (even if it is empty in the majority of the examples known, see [12]).

For an arbitrary polynomial, we only know that any limit point of the empirical spectral distribution of $M_{N}$ is a balayée of the measure $\mu_{P(c,a)}$ (see [12, Corollary 2.2]), which implies that the support of any such limit point is contained in $\text{supp}(\mu_{P(c,a)})$, and in particular is contained in $\text{spect}(P(c,a))$.

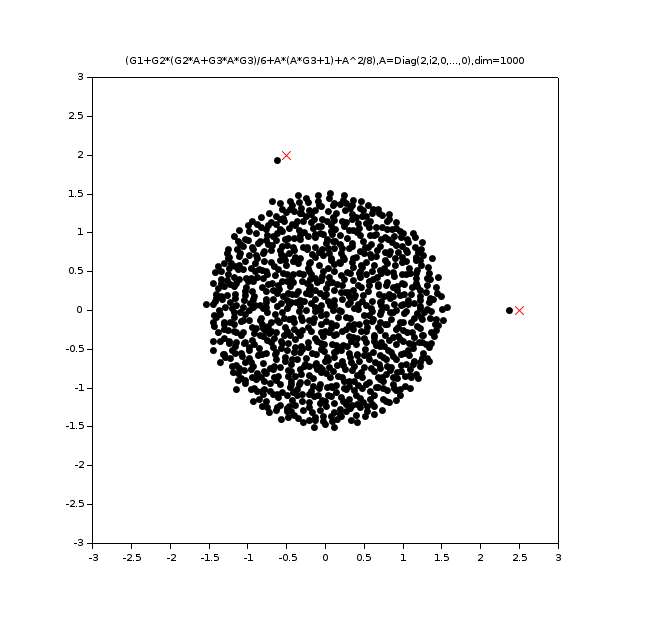

2.1 Example 1

We consider the matrix

[TABLE]

where $X^{(1)}_{N},X^{(2)}_{N},X^{(3)}_{N}$ are i.i.d. Gaussian matrices and

[TABLE]

The matrix $M_{N}$ converges in $*$-distribution to $\frac{3}{2}c$, where $c$ is a circular variable, and the empirical spectral measure of $M_{N}$ converges to the Brown measure of $c$, which is the uniform law on the centered disk of radius $3/2$ by [12]. This disk is also the spectrum of $\frac{3}{2}c$. Our theorem says that, outside this disk, the outliers of $M_{N}$ are closed to the eigenvalues $2.5$ and $2i-0.5$ of $P_{1}(0_{N},0_{N},0_{N},A_{N})=A_{N}+\frac{1}{8}A_{N}^{2}$ (see Figure 1).

2.2 Example 2

We consider the matrix

[TABLE]

where $X^{(1)}_{N},X^{(2)}_{N},X^{(3)}_{N}$ are i.i.d. Gaussian matrices,

[TABLE]

and $A_{N}^{(2)}$ is a realization of a G.U.E. matrix.

The matrix $M_{N}$ converges in $*$-distribution to the elliptic variable $\frac{1}{2}(c+s)$, where $c$ is a circular variable and $s$ a semicircular variable free from $c$. The empirical spectral measure of $M_{N}$ converges to the Brown measure of $\frac{1}{2}(c+s)$, which is the uniform law on the interior of the ellipse $\{\frac{3}{2\sqrt{2}}\cos(\theta)+i\frac{1}{2\sqrt{2}}\sin(\theta):0\leqslant\theta<2\pi\}$ by [12]. The interior of this ellipse is also the spectrum of $\frac{1}{2}(c+s)$. Our theorem says that, outside this ellipse, the outliers of $M_{N}$ are closed to the outliers of $P_{2}(0_{N},0_{N},0_{N},A_{N}^{(1)},A_{N}^{(2)})=A_{N}^{(1)}+\frac{1}{2}A_{N}^{(2)}$ (see Figure 2). Moreover, the outliers of $A_{N}^{(1)}+\frac{1}{2}A_{N}^{(2)}$ are those of an additive perturbation of a G.U.E. matrix, and converges to $2.125$ and $-2.6$ by [28].

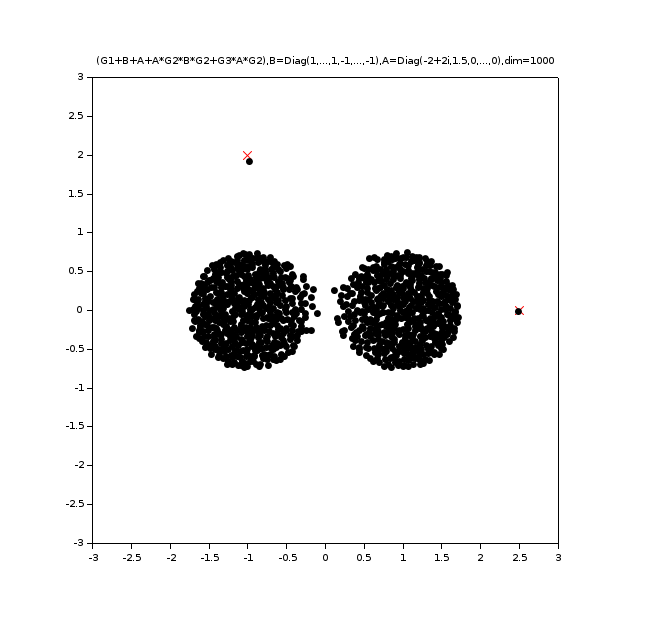

2.3 Example 3

We consider the matrix

[TABLE]

where $X^{(1)}_{N},X^{(2)}_{N},X^{(3)}_{N}$ are i.i.d. Gaussian matrices,

[TABLE]

is a matrix whose empirical spectral distribution converges to $\frac{1}{2}(\delta_{1}+\delta_{-1})$ and

[TABLE]

The matrix $M_{N}$ converges in $*$-distribution to the random variable $c+a$, where $c$ is a circular variable and $a$ is a self-adjoint random variable, free from $c$, and whose distribution is $\frac{1}{2}(\delta_{1}+\delta_{-1})$. The empirical spectral measure of $M_{N}$ converges to the Brown measure of $c+a$, which is absolutely continuous and whose support is the region inside the lemniscate-like curve in the complex plane with the equation $\{z\in\mathbb{C}:|z^{2}+1|^{2}=|z|^{2}+1\}$ by [12]. The interior of this ellipse is also the spectrum of $c+a$. Our theorem says that, outside this ellipse, the outliers of $M_{N}$ are closed to the outliers $2.5$ and $-1+2i$ of $P_{3}(0_{N},0_{N},0_{N},A_{N}^{(1)},A_{N}^{(2)})=A_{N}^{(1)}+A_{N}{(2)}$ (see Figure 3).

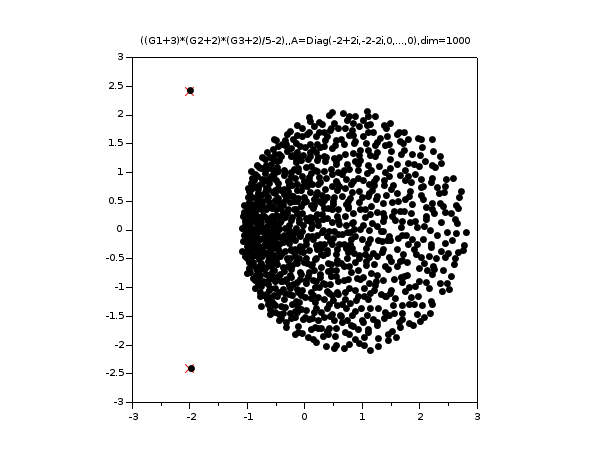

2.4 Example 4

We consider the matrix

[TABLE]

where $X^{(1)}_{N},X^{(2)}_{N},X^{(3)}_{N}$ are i.i.d. Gaussian matrices and

[TABLE]

The matrix $M_{N}$ converges in $*$-distribution to the random variable $(c_{1}+3)(c_{2}+2)(c_{3}+2)/5-2$, where $c_{1},c_{2},c_{3}$ are free circular variables. It is expected (but not proved) that the empirical spectral measure of $M_{N}$ converges to the Brown measure of $\left(c_{1}+3\right)\left(c_{2}+2\right)\left(c_{3}+2\right)/5-2$. The spectrum of $\left(c_{1}+3\right)\left(c_{2}+2\right)\left(c_{3}+2\right)/5-2$ is included in the set $\left(B(0,1)+3\right)(B(0,1)+2)\left(B(0,1)+2\right)/5-2$. Our theorem says that, outside this set, the outliers of $M_{N}$ are closed to the outliers $-2+2.4i$ and $-2-2.4i$ of $P_{4}(0_{N},0_{N},0_{N},A_{N})=\frac{6}{5}A_{N}-2I_{N}$ (see Figure 4).

3 Free Probability Theory

3.1 Scalar-valued free probability theory

For the reader’s convenience, we recall the following basic definitions from free probability theory. For a thorough introduction to free probability theory, we refer to [42].

• •

A ${\cal C}^{*}$-probability space is a pair $\left({\cal A},\varphi\right)$ consisting of a unital ${\cal C}^{*}$-algebra ${\cal A}$ and a state $\varphi$ on ${\cal A}$ (i.e a linear map $\varphi:{\cal A}\rightarrow\mathbb{C}$ such that $\varphi(1_{\cal A})=1$ and $\varphi(aa^{*})\geqslant 0$ for all $a\in{\cal A}$) $\varphi$ is a trace if it satisfies $\varphi(ab)=\varphi(ba)$ for every $(a,b)\in{\cal A}^{2}$. A trace is said to be faithful if $\varphi(aa^{*})>0$ whenever $a\neq 0$. An element of ${\cal A}$ is called a noncommutative random variable.

• •

The $\ast$-noncommutative distribution of a family $a=(a_{1},\ldots,a_{k})$ of noncommutative random variables in a ${\cal C}^{*}$-probability space $\left({\cal A},\varphi\right)$ is defined as the linear functional $\mu_{a}:P\mapsto\varphi(P(a,a^{*}))$ defined on the set of polynomials in $2k$ noncommutative indeterminates, where $(a,a^{*})$ denotes the $2k$-tuple $(a_{1},\ldots,a_{k},a_{1}^{*},\ldots,a_{k}^{*})$. For any self-adjoint element $a_{1}$ in ${\cal A}$, there exists a probability measure $\nu_{a_{1}}$ on $\mathbb{R}$ such that, for every polynomial P, we have

[TABLE]

Then, we identify $\mu_{a_{1}}$ and $\nu_{a_{1}}$. If $\varphi$ is faithful then the support of $\nu_{a_{1}}$ is the spectrum of $a_{1}$ and thus $\|a_{1}\|=\sup\{|z|,z\in\rm{support}(\nu_{a_{1}})\}$.

• •

A family of elements $(a_{i})_{i\in I}$ in a ${\cal C}^{*}$-probability space $\left({\cal A},\varphi\right)$ is free if for all $k\in\mathbb{N}$ and all polynomials $p_{1},\ldots,p_{k}$ in two noncommutative indeterminates, one has

[TABLE]

whenever $i_{1}\neq i_{2},i_{2}\neq i_{3},\ldots,i_{n-1}\neq i_{k}$ and $\varphi(p_{l}(a_{i_{l}},a_{i_{l}}^{*}))=0$ for $l=1,\ldots,k$.

• •

A noncommutative random variable $x$ in a ${\cal C}^{*}$-probability space $\left({\cal A},\varphi\right)$ is a standard semicircular variable if $x=x^{*}$ and for any $k\in\mathbb{N}$,

[TABLE]

where $d\mu_{sc}(t)=\frac{1}{2\pi}\sqrt{4-t^{2}}{1\!\!{\sf I}}_{[-2;2]}(t)dt$ is the semicircular standard distribution.

• •

Let $k$ be a nonnull integer number. Denote by ${\cal P}$ the set of polynomials in $2k$ noncommutative indeterminates. A sequence of families of variables $(a_{n})_{n\geqslant 1}=(a_{1}(n),\ldots,a_{k}(n))_{n\geqslant 1}$ in ${\cal C}^{*}$-probability spaces $\left({\cal A}_{n},\varphi_{n}\right)$ converges, when $n$ goes to infinity, respectively in distribution if the map $P\in{\cal P}\mapsto\varphi_{n}(P(a_{n},a_{n}^{*}))$ converges pointwise.

3.2 Operator-valued free probability theory

3.2.1 Basic definitions

Operator-valued distributions and the operator-valued version of free probability were introduced by Voiculescu in [38] with the main purpose of studying freeness with amalgamation. Thus, an operator-valued noncommutative probability space is a triple $(M,E,B)$, where $M$ is a unital algebra over $\mathbb{C}$, $B\subseteq M$ is a unital subalgebra containing the unit of $M$, and $E\colon M\to B$ is a unit-preserving conditional expectation, that is, a linear $B$-bimodule map such that $E[1]=1$. We will only need the more restrictive context in which $M$ is a finite von Neumann algebra which is a factor, $B$ is a finite-dimensional von Neumann subalgebra of $M$ (and hence isomorphic to an algebra of matrices), and $E$ is the unique trace-preserving conditional expectation from $M$ to $B$. The $B$-valued distribution of an element $X\in M$ w.r.t. $E$ is defined to be the family of multilinear maps called the moments of $\mu_{X}$:

[TABLE]

with the convention that the first moment (corresponding to $n=1$) is the element $E[X]\in B$, and the zeroth moment (corresponding to $n=0$) is the unit $1$ of $B$ (or $M$). The distribution of $X$ is encoded conveniently by a noncommutative analytic transform defined for certain elements $b\in B$, which we agree to call the noncommutative Cauchy transform:

[TABLE]

(To be more precise, it is the noncommutative extension $G_{X\otimes 1_{n}}(b)=(E\otimes{\rm Id}_{{\cal M}_{n}(B)})\left[(X\otimes 1_{n}-b)^{-1}\right]$, for elements $B\in{\cal M}_{n}(B)$, which completely encodes $\mu_{X}$ - see [41]; since we do not need this extension, we shall not discuss it any further, but refer the reader to [41, 39, 40, 29] for details.) A natural domain for $G_{X}$ is the upper half-plane of $B$, $H^{+}(B)=\{b\in B\colon\Im b>0\}$. It follows quite easily that $G_{X}(H^{+}(B))\subseteq H^{+}(B)$ - see [40].

We warn here the reader that we have changed conventions in our paper compared to [39, 40, 41], namely we have chosen $G_{X}(b)=E\left[(X-b)^{-1}\right]$ instead of $E\left[(b-X)^{-1}\right]$, so that $G_{X}$ preserves $H^{+}(B)$.

Among many other results proved in [38], one can find a central limit theorem for random variables which are free with amalgamation. The central limit distribution is called an operator-valued semicircular, by analogy with the free central limit for the usual, scalar-valued random variables, which is Wigner’s semicircular distribution. It has been shown in [38] that an operator-valued semicircular distribution is entirely described by its operator-valued free cumulants: only the first and second cumulants of an operator-valued semicircular distribution may be nonzero (see also [33, 41]). For our purposes, we use the equivalent description of an operator-valued semicircular distribution via its noncommutative Cauchy transform, as in [22]: $S$ is a $B$-valued semicircular if and only if

[TABLE]

for some $m_{1}=m_{1}^{*}\in B$ and completely positive map $\eta\colon B\to B$. In that case, $m_{1}=E[S]$ and $\eta(b)=E[SbS]-E[S]bE[S]$. The above equation is obviously a generalization of the quadratic equation determining Wigner’s semicircular distribution: $\sigma^{2}G_{S}(z)^{2}+(z-m_{1})G_{S}(z)+1=0$. Here $m_{1}$ is the - classical - first moment of $S$, and $\sigma^{2}$ its classical variance, which, as a linear completely positive map, is the multiplication with a positive constant. Unless otherwise specified, we shall from now on assume our semicirculars to be centered, i.e. $m_{1}=0$.

Example 13**.**

A rich source of examples of operator-valued semicirculars comes in the case of finite dimensional $B$ from scalar-valued semicirculars: assume that $s_{i,j},1\leq i\leq j\leq n$ are scalar-valued centered semicircular random variables of variance one. We do not assume them to be free. Then the matrix

[TABLE]

where $\alpha_{1},\dots,\alpha_{n}\in[0,+\infty)$ and $\gamma_{i,j}\in\mathbb{C}$, $1\leq i<j\leq n$, is an ${\cal M}_{n}(\mathbb{C})$-valued semicircular. Note that we do allow our scalars to be zero. This is a particular case of a result from [30], and its proof can be found in great detail in [25].

An important fact about semicircular elements, both scalar- and operator-valued, is that the sum of two free semicircular elements is again a semicircular element (this follows from the fact that a semicircular is defined by having all its cumulants beyond the first two equal to zero - see [38]). In particular, if $\{s_{1,1}^{(1)},s_{1,2}^{(1)},s_{2,2}^{(1)},s_{1,1}^{(2)},s_{1,2}^{(2)},s_{2,2}^{(2)}\}$ are centered all semicirculars of variance one, and in addition we assume them to be free from each other, then $\begin{bmatrix}s_{1,1}^{(1)}&s_{1,2}^{(1)}\\ s_{1,2}^{(1)}&s_{2,2}^{(1)}\end{bmatrix}$ and $\begin{bmatrix}s_{1,1}^{(2)}&is_{1,2}^{(2)}\\ -is_{1,2}^{(2)}&s_{2,2}^{(2)}\end{bmatrix}$ are ${\cal M}_{2}(\mathbb{C})$-valued semicirculars which are free over ${\cal M}_{2}(\mathbb{C})$, so their sum $\begin{bmatrix}s_{1,1}^{(1)}+s_{1,1}^{(2)}&s_{1,2}^{(1)}+is_{1,2}^{(2)}\\ s_{1,2}^{(1)}-is_{1,2}^{(2)}&s_{2,2}^{(1)}+s_{2,2}^{(2)}\end{bmatrix}$ is also an ${\cal M}_{2}(\mathbb{C})$-valued semicircular, despite its off-diagonal elements not being anymore distributed according to the Wigner semicircular law. This is hardly surprising: the two matrices we have added are the limits of the real and imaginary parts of a G.U.E. (Gaussian Unitary Ensemble). The upper right corner of a G.U.E. is known to be a C.U.E. (Circular Unitary Ensemble), and its eigenvalues converge to the uniform law on a disk. On the other hand, direct analytic computations show that the sum $s_{1,2}^{(1)}\pm is_{1,2}^{(2)}$, with $s_{1,2}^{(1)}$ and $s_{1,2}^{(2)}$ free from each other, has precisely the same law. Thus, the following definition, due to Voiculescu, is natural.

Definition 14**.**

An element $c$ in a ∗-noncommutative probability space $(\mathcal{A},\varphi)$ is called a circular random variable if $(c+c^{*})/\sqrt{2}$ and $(c-c^{*})/\sqrt{2}i$, respectively, are free from each other and identically distributed according to standard Wigner’s semicircular law.

3.2.2 Preliminary results

We first establish preliminary results in free probability theory that we will need in the following sections.

Lemma 15**.**

Let $\{m_{p}^{(j)},p=1,\ldots,4,j=1,\ldots,t\}$ be noncommutative random variables in some noncommutative probability space $(\mathcal{A},\varphi)$. Let $s_{i}^{(1)}$, $s_{i}^{(2)}$,$i=1,\ldots,u$ be semicircular variables and $c_{i}$,$i=1,\ldots,u$ be circular variables such that $s_{1}^{(1)},\ldots,s_{u}^{(1)},s_{1}^{(2)},\ldots,s_{u}^{(2)},c_{1},\ldots,c_{u},\{m_{p}^{(j)},p=1,\ldots,4,j=1,\ldots,t\}$ are $\ast$-free in $(\mathcal{A},\varphi)$. Define for $i=1,\ldots,u$,

[TABLE]

and for $j=1,\ldots,t$,

[TABLE]

Then, in the scalar-valued probability space $({\cal M}_{2}(\mathcal{A}),\operatorname{tr}_{2}\otimes\varphi)$, ${\bf s_{1}},\ldots,{\bf s_{u}},\{{\bf m_{j}},j=1,\ldots,t\}$ are free and for $i=1,\ldots,u$, each ${\bf s_{i}}$ is a semicircular variable.

Proof.

Let us prove that ${\bf s_{1}},\ldots,{\bf s_{u}}$ is free from $\mathcal{M}_{2}(\mathcal{B})$, where $\mathcal{B}$ is the $\ast$-algebra generated by $\{m_{p}^{(j)},p=1,\ldots,4,j=1,\ldots,t\}$. We already now (see [25, Chapter 9]) that ${\bf s_{1}},\ldots,{\bf s_{u}}$ are semicircular variables over $\mathcal{M}_{2}(\mathbb{C})$ which are free from $\mathcal{M}_{2}(\mathcal{B})$, with respect to $id_{2}\otimes\varphi$. Moreover, the covariance mapping of ${\bf s_{1}},\ldots,{\bf s_{u}}$ is the function $(\eta^{\mathcal{M}_{2}(\mathbb{C})}_{i,j}:{\cal M}_{2}(\mathbb{C})\to{\cal M}_{2}(\mathbb{C}))_{1\leqslant i,j\leqslant u}$, which can be computed as follows: for all m=\left(\begin{array}[]{cc}m_{1}&m_{2}\\ m_{3}&m_{4}\end{array}\right)\in{\cal M}_{2}(\mathbb{C}), we have

[TABLE]

Using [26, Theorem 3.5], the freeness of ${\bf s_{1}},\ldots,{\bf s_{u}}$ from ${\cal M}_{2}(\mathcal{B})$ over ${\cal M}_{2}(\mathbb{C})$ gives us the free cumulants of ${\bf s_{1}},\ldots,{\bf s_{u}}$ over ${\cal M}_{2}(\mathcal{B})$. More concretely, we get that ${\bf s_{1}},\ldots,{\bf s_{u}}$ are semicircular variables over ${\cal M}_{2}(\mathcal{B})$, with a covariance mapping $(\eta^{{\cal M}_{2}(\mathcal{B})}_{i,j}:{\cal M}_{2}(\mathcal{B})\to{\cal M}_{2}(\mathcal{B}))_{1\leqslant i,j\leqslant u}$ given by $\eta^{{\cal M}_{2}(\mathcal{B})}_{i,j}=\eta^{{\cal M}_{2}(\mathbb{C})}_{i,j}\circ(id_{2}\otimes\varphi)$.

Because of the previous computation, we know that $\eta^{{\cal M}_{2}(\mathbb{C})}_{i,j}=\operatorname{tr}_{2}\circ\eta^{{\cal M}_{2}(\mathbb{C})}_{i,j}\circ\operatorname{tr}_{2}$, which means that $\eta^{{\cal M}_{2}(\mathcal{B})}_{i,j}=(\operatorname{tr}_{2}\otimes\varphi)\circ\eta^{{\cal M}_{2}(\mathcal{B})}_{i,j}\circ(\operatorname{tr}_{2}\otimes\varphi)$. As a consequence, using again [26, Theorem 3.5], ${\bf s_{1}},\ldots,{\bf s_{u}}$ are semicircular variables over $\mathbb{C}$ free from $M_{2}(\mathcal{B})$ with respect to $(\operatorname{tr}_{2}\otimes\varphi)$, and the covariance mapping $\eta^{\mathbb{C}}_{i,j}$ is given by the restriction of the covariance mapping $\eta^{{\cal M}_{2}(\mathbb{C})}$ to $\mathbb{C}$: for all $m\in\mathbb{C}$

[TABLE]

which means that ${\bf s_{1}},\ldots,{\bf s_{u}}$ are free standard semicircular variables. ∎

Lemma 16**.**

Let $y$ be a noncommutative random variable in ${\cal M}_{m}({\cal A})$ and $c^{(1)},\dots,c^{(u)}$ be free circular variables in ${\cal A}$ free from the entries of $y$. Then, in the operator-valued probability space $({\cal M}_{m}({\cal A}),id_{m}\otimes\varphi)$, $|\sum_{j=1}^{u}\zeta_{j}\otimes c^{(j)}+y|^{2}$ has the same distribution as $|\sum_{j=1}^{u}\zeta_{j}\otimes s_{j}+(I_{m}\otimes\epsilon)\cdot y|^{2}$ where $\epsilon$ is a selfadjoint $\{-1,+1\}$-Bernoulli variable in ${\cal A}$, independent from the entries of $y$, and $s_{1},\ldots,s_{u}$ are free semicircular variables in ${\cal A}$, free from $\epsilon$ and the entries of $y$.

In the lemma above, we consider the symmetric version $\epsilon y$ of $y$, thanks to a noncommutative random variable $\epsilon$ which is tensor-independent from the entries of $y$, in the sense that $\epsilon$ commutes with the entries of $y$ and $\varphi(p_{1}(\epsilon)p_{2}(y_{i,j},y^{*}_{i,j}:i,j))=\varphi(p_{1}(\epsilon))\varphi(p_{2}(y_{i,j},y^{*}_{i,j}:i,j))$ for all polynomials $p_{1},p_{2}$.

Proof.

Let $n\geqslant 0$. We compute the $n$-th moment of $|\sum_{j=1}^{u}\zeta_{j}\otimes c^{(j)}+y|^{2}$ with respect to $id_{m}\otimes\varphi$, and compare it to the $n$-th moment of $|\sum_{j=1}^{u}\zeta_{j}\otimes s_{j}+\epsilon y|^{2}$ with respect to $id_{m}\otimes\varphi$.

Let us set $a_{0}=y$ and $a_{j}=\zeta_{j}\otimes c^{(j)}$. We compute

[TABLE]

Similarly,

[TABLE]

where $b_{0}=(I_{m}\otimes\epsilon)\cdot y$ and $b_{j}=\zeta_{j}\otimes s_{j}$. In order to conclude, it suffices to prove that, for all $0\leqslant i_{1},\ldots,i_{2n}\leqslant u$,

[TABLE]

Let us fix $0\leqslant i_{1},\ldots,i_{2n}\leqslant u$. Note that $a_{0}$ is free over ${\cal M}_{m}(\mathbb{C})$ from $a_{j}$ with respect to $id_{m}\otimes\varphi$ (see [25, Chapter 9]). Let us fix $S=\{j:i_{j}\neq 0\}\subset\{1,\ldots,2n\}$ and use the moment cumulant formula (see [33, page 36]):

[TABLE]

where $\pi^{c}$ is the largest partition of $S^{c}$ such that $\pi\cup\pi^{c}$ is noncrossing and $\hat{c}$ and $\hat{\varphi}$ are the ${\cal M}_{m}(\mathbb{C})$-valued cumulant function and the ${\cal M}_{m}(\mathbb{C})$-valued moment function associated to the conditional expectation $id_{m}\otimes\varphi$. We use here the notation of [33, Notation 2.1.4] which defines $(\hat{c}\cup\hat{\varphi})(\pi\cup\pi^{c})$ as some ${\cal M}_{m}(\mathbb{C})$-valued multiplicative function that acts on the blocks of $\pi$ like $\hat{c}$ and on the blocks of $\pi^{c}$ like $\hat{\varphi}$.

Recall that the cumulants of $\zeta_{j}\otimes c^{(j)}$ are vanishing if $\pi$ is not a pairing and if $\pi$ is not alternating (which means that $\pi$ links two indices with the same parity). Now, let us remark that if $\pi$ is a pairing which is alternating, then $\pi^{c}$ is even (each blocs of $\pi^{c}$ is even). Thus,

[TABLE]

Similarly, the cumulants of $\zeta_{j}\otimes s^{(j)}$ are vanishing if $\pi$ is not a pairing and that the moment of $b_{0}$ is vanishing if $\pi^{c}$ is odd. Moreover, if $\pi$ is a pairing and $\pi^{c}$ is even, then $\pi$ is alternating. As a consequence,

[TABLE]

In order to conclude, it suffices to remark that $\epsilon y$ and $y$ has the same even ${\cal M}_{m}(\mathbb{C})$-valued moments and $\zeta_{j}\otimes c^{(j)}$ and $\zeta_{j}\otimes s^{(j)}$ has the same alternating ${\cal M}_{m}(\mathbb{C})$-valued cumulants. ∎

It follows from [4] that the support in ${\cal M}_{m}(\mathbb{C})^{\rm sa}$ of the addition of a semicircular $s$ of variance $\eta$ and a selfadjoint noncommutative random variable $y\in({\cal M}_{m}({\cal A}),id_{m}\otimes\varphi)$ which is free with amalgamation over ${\cal M}_{m}(\mathbb{C})$ with $s$, is given via its complement in terms of $y$ and the functions

[TABLE]

where $G_{x}(b)=id_{m}\otimes\varphi\left[(x-b)^{-1}\right]$.

Proposition 17**.**

If $w\in{\cal M}_{m}(\mathbb{C})^{\rm sa}$ is such that $y-w$ is invertible and $\text{spect}(\eta\circ G_{y}^{\prime}(w))\subset\overline{\mathbb{D}}\setminus\{1\}$, then $s+y-H(w)$ is invertible. Conversely, if $b\in{\cal M}_{m}(\mathbb{C})^{\rm sa}$ is such that $s+y-b$ is invertible, then $y-\omega(b)$ is invertible.

It follows quite easily that $\text{spect}(\eta\circ G_{y}^{\prime}(\omega(b)))\subset\overline{\mathbb{D}}$. Generally, all conditions on the derivatives of $\omega$ and $H$ follow from the two functional equations above.

Proof.

Assume that $y-w$ is invertible and $\text{spect}(\eta\circ G_{y}^{\prime}(w))\subset\overline{\mathbb{D}}\setminus\{1\}$. Since $w=w^{*}$, the derivative $G^{\prime}_{y}(w)$ is completely positive, so $\eta\circ G_{y}^{\prime}(w)$ is completely positive. This means according to [17, Theorem 2.5] that the spectral radius $r$ of $\eta\circ G_{y}^{\prime}(w)$ is reached at a positive element $\xi\in M_{m}(\mathbb{C})$, so that necessarily $r\geq 0$. Since $1\not\in\sigma(\eta\circ G_{y}^{\prime}(w))$ by hypothesis, it follows that $r<1$, and thus

[TABLE]

This forces the derivative of $H(w)$, $H^{\prime}(w)=\mathrm{Id}_{M_{m}(\mathbb{C})}-\eta\circ G^{\prime}_{y}(w))$, to be invertible as a linear operator from ${\cal M}_{m}(\mathbb{C})$ to itself. By the inverse function theorem, $H$ has an analytic inverse on a small enough neighborhood of $H(w)$ onto a neighborhood of $w$. Since $H$ preserves the selfadjoints near $w$, so must the inverse. On the other hand, the map $v\mapsto H(w)+\eta(G_{y}(v))$ sends the upper half-plane into itself and has $w$ as a fixed point. Since its derivative has all its eigenvalues included strictly in $\mathbb{D}$ (recall that the spectral radius $r<1$), it follows that $w$ is actually an attracting fixed point for this map. Since for any $b$ in the upper half-plane, $\omega(b)$ is given as the attracting fixed point of $v\mapsto b+\eta(G_{y}(v))$, it follows that $\omega$ coincides with the local inverse of $H$ on the upper half-plane, so the local inverse of $H$ is the unique analytic continuation of $\omega$ to a neighborhood of $H(w)$. This proves that $\omega$ extends analytically to a neighborhood of $H(w)$ and the extension maps selfadjoints from this neighborhood to ${\cal M}_{m}(\mathbb{C})^{\rm sa}$. In particular, $\omega(H(v))=v$ and $G_{s+y}(H(v))=G_{y}(\omega(H(v)))=G_{y}(v)$ are selfadjoint for all $v=v^{*}$ in a small enough neighborhood of $w$, showing that $s+y-H(w)$ is invertible.

Conversely, say $b=b^{*}$ and $s+y-b$ is invertible. Then $G_{s+y}$ is analytic on a neighborhood of $b$ and maps selfadjoints from this neighborhood into ${\cal M}_{m}(\mathbb{C})^{\rm sa}$. Since $\omega(b)=b+\eta(G_{s+y}(b))$, the same holds for $\omega$. Since, by [4, Proposition 4.1], $\text{spect}(\omega^{\prime}(v))\subset\{\Re z>1/2\}$ for any $v$ in the upper half-plane, the analyticity of $\omega$ around $b=b^{*}$ implies $\text{spect}(\omega^{\prime}(0))\subset\{\Re z\geq 1/2\}$. Thus, $\omega$ is invertible wrt composition around zero by the inverse function theorem. As argued above, $H$ is its inverse, and extends analytically to a small enough neighborhood of $\omega(b)$, with selfadjoint values on the selfadjoints. Composing with $H$ to the left in Voiculescu’s subordination relation $G_{s+y}(v)=G_{y}(\omega(v))$ yields $G_{y+s}(H(w))=G_{y}(w)$, guaranteeing that $G_{y}$ is analytic on a neighborhood of $\omega(b)$, with selfadjoint values on the selfadjoints, and so $y-\omega(b)$ must be invertible. ∎

Remark 18**.**

The proof of the previous proposition, based on [17, Theorem 2.5], makes the condition $\text{spect}(\eta\circ G^{\prime}_{y}(0))\subseteq\overline{\mathbb{D}}\setminus\{1\}$ equivalent to the existence of an $r\in[0,1)$ such that $\text{spect}(\eta\circ G^{\prime}_{y}(0))\subseteq r\overline{\mathbb{D}}$.

The following lemma is a particular case of the above proposition.

Lemma 19**.**

Consider the operator-valued $\cal C^{*}$-algebraic noncommutative probability space $({\cal M}_{m}({\mathcal{A}}),id_{m}\otimes\varphi,{\cal M}_{m}(\mathbb{C}))$ and a pair of selfadjoint random variables $s,y\in{\cal M}_{m}({\mathcal{A}})$ which are free over ${\cal M}_{m}(\mathbb{C})$ with respect to $id_{m}\otimes\varphi$. Assume that $s$ is a centered semicircular of variance $\eta\colon{\cal M}_{m}(\mathbb{C})\to{\cal M}_{m}(\mathbb{C})$ and that each entry of $y\in{\cal M}_{m}({\mathcal{A}})$ is a noncommutative symmetric random variable in $({\mathcal{A}},\varphi)$. We define $G_{x}(b)=id_{m}\otimes\varphi\left[(x-b)^{-1}\right]$. Then $s+y$ is invertible if and only if $0\not\in\text{spect}(y)$ and $\text{spect}(\eta\circ G^{\prime}_{y}(0))$ is included in $\overline{\mathbb{D}}\setminus\{1\}$.

Proof.

Note that our hypotheses that all entries of the selfadjoint $y$ are symmetric and that $s$ is centered imply automatically that $H(i{\cal M}_{m}(\mathbb{C})^{+})\subseteq i{\cal M}_{m}(\mathbb{C})^{\rm sa}$ and $\omega(i{\cal M}_{m}(\mathbb{C})^{+})\cup G_{y}(i{\cal M}_{m}(\mathbb{C})^{+})\cup G_{y+s}(i{\cal M}_{m}(\mathbb{C})^{+})\subseteq i{\cal M}_{m}(\mathbb{C})^{+}.$

Assume that $y$ is invertible and $\text{spect}(\eta\circ G_{y}^{\prime}(0))\subseteq\overline{\mathbb{D}}\setminus\{1\}$. In particular, $G_{y}$ is analytic on a neighborhood of zero in ${\cal M}_{m}(\mathbb{C})$. Proposition 17 implies that $s+y-H(0)$ is invertible. Since $H(i{\cal M}_{m}(\mathbb{C})^{+})\subseteq i{\cal M}_{m}(\mathbb{C})^{+}$, it follows from the formula of $H$ that $H(0)=0$. Thus, $s+y$ is invertible.

Conversely, assume that $s+y$ is invertible, so that $G_{s+y}$ extends analytically to a small neighborhood of zero in such a way that it maps selfadjoints to selfadjoints. Since $\omega(b)=b+\eta(G_{s+y}(b))$, it follows that $\omega$ does the same. According to Proposition 17, $y-\omega(0)$ is invertible. Since $\omega(i{\cal M}_{m}(\mathbb{C})^{+})\subseteq i{\cal M}_{m}(\mathbb{C})^{+}$, we again have that $\omega(0)=0$, so that $y$ is invertible. ∎

4 Linearization trick

A powerful tool to deal with noncommutative polynomials in random matrices or in operators is the so-called “linearization trick.” Its origins can be found in the theory of automata and formal languages (see, for instance, [31]), where it was used to conveniently represent certain categories of formal power series. In the context of operator algebras and random matrices, this procedure goes back to Haagerup and Thorbjørnsen [20, 21] (see [25]). We use the version from [1, Proposition 3], which has several advantages for our purposes, to be described below.

We denote by $\mathbb{C}\langle X_{1},\dots,X_{k}\rangle$ the complex $\ast$-algebra of polynomials in $k$ noncommuting indeterminates $X_{1},\dots,X_{k}$. The adjoint operation is given by the anti-linear extension of $(X_{i_{1}}X_{i_{2}}\cdots X_{i_{l}})^{*}=X_{i_{l}}^{*}\cdots X_{i_{2}}^{*}X_{i_{1}}^{*}$, $(i_{1},\ldots,i_{l})\in\{1,\ldots,k\}^{l},l\in\mathbb{N}\setminus\{0\}$. We will sometimes assume that some, or all, of the indeterminates are selfadjoint, i.e. $X_{j}^{*}=X_{j}$. Unless we make this assumption explicitly, the adjoints $X_{1}^{*},\dots,X^{*}_{k}$ are assumed to be algebraically free from each other and from $X_{1},\dots,X_{k}$.

Given a polynomial $P\in\mathbb{C}\langle X_{1},\dots,X_{k}\rangle$, we call linearization of $P$ any $L_{P}\in{\cal M}_{m}(\mathbb{C})\otimes\mathbb{C}\langle X_{1},\ldots,X_{k}\rangle$ such that

[TABLE]

where

$m\in\mathbb{N}$, 2. 2.

$Q\in{\cal M}_{m-1}(\mathbb{C})\otimes\mathbb{C}\langle X_{1},\ldots,X_{k}\rangle$ is invertible in the complex algebra ${\cal M}_{m-1}(\mathbb{C})\otimes\mathbb{C}\langle X_{1},\ldots,X_{k}\rangle$, 3. 3.

$u^{*}$ is a row vector and $v$ is a column vector, both of length $m-1$, with entries in $\mathbb{C}\langle X_{1},\ldots,X_{k}\rangle$, 4. 4.

the polynomial entries in $Q,u$ and $v$ all have degree $\leqslant 1$, 5. 5.

$\hskip 113.81102pt{P=-u^{*}Q^{-1}v}.$

We refer to Anderson’s paper [1] for the - constructive - proof of the existence of a linearization $L_{P}$ as described above for any given polynomial $P\in\mathbb{C}\langle X_{1},\dots,X_{k}\rangle$. It turns out that if $P$ is selfadjoint, then $L_{P}$ can be chosen to be self-adjoint.

The well-known result about Schur complements yields then the following invertibility equivalence.

Lemma 20**.**

[25, Chapter 10, Corollary 3]** Let $P\in\mathbb{C}\langle X_{1},\dots,X_{k}\rangle$ and let $L_{P}\in{\cal M}_{m}(\mathbb{C}\langle X_{1},\dots,X_{k}\rangle)$ be a linearization of $P$ with the properties outlined above. Let $e_{11}$ be the $m\times m$ matrix whose single nonzero entry equals one and occurs in the row 1 and column 1. Let $y=(y_{1},\dots,y_{k})$ be a $k$-tuple of operators in a unital ${\cal C}^{*}$-algebra ${\cal A}$. Then, for any $z\in\mathbb{C}$, $ze_{11}\otimes 1_{\cal A}-L_{P}(y)$ is invertible if and only if $z1_{\cal A}-P(y)$ is invertible and we have

[TABLE]

Lemma 21**.**

Let $P\in\mathbb{C}\langle X_{1},\dots,X_{k}\rangle$ and let $L_{P}\in{\cal M}_{m}(\mathbb{C}\langle X_{1},\dots,X_{k}\rangle)$ be a linearization of $P$ with the properties outlined above. There exist two polynomials $T_{1}$ and $T_{2}$ in $k$ commutative indeterminates, with nonnegative coefficients, depending only on $L_{P}$, such that, for any $k$-tuple $y=(y_{1},\dots,y_{k})$ of operators in a unital ${\cal C}^{*}$-algebra ${\cal A}$, for any $z\in\mathbb{C}$ such that $z1_{\cal A}-P(y)$ is invertible,

[TABLE]

Proof.

The linearization of P can be written as

[TABLE]

Now, a matrix calculation in which we suppress the variable $y$ shows that

$(ze_{11}\otimes 1_{\cal A}-L_{P})^{-1}$

[TABLE]

Since $v$, $u^{*}$, and $Q^{-1}$ are polynomials in $y_{1},\ldots,y_{k}$, the result readily follows. ∎

In Section 5.3, we will provide an explicit construction of a linearization that is best adapted to our purposes. In this construction, it is clear that we can always find a linearization such that, for any $k$-tuple $y$ of matrices,

[TABLE]

5 No outlier; proof of Theorem 12

By Bai-Yin’s theorem (see [3, Theorem 5.8]), there exists $C>0$ such that, almost surely for all large $N$, $\|M_{N}\|\leqslant C$, so that for the first assertion of Theorem 12 readily yields the second one, by choosing

[TABLE]

Remember that, by (4), $\text{spect}(P({c},{a}))=\{z\in\mathbb{C}\colon 0\in\text{supp}(\mu_{z})\},$ where $\mu_{z}$ is the distribution of $(P(c,a)-z)(P(c,a)-z)^{*}$. The first assertion of Theorem 12 is equivalent to the following.

Proposition 22**.**

Let $\Gamma$ be a compact set of $\{z,0\notin\text{supp}(\mu_{z})\}$; assume that for any $z$ in $\Gamma$, there exists $\eta_{z}>0$ such that for all $N$ large enough,

[TABLE]

Then, for any $z$ in $\Gamma$, there exists $\gamma_{z}>0$, such that almost surely, for all large $N$, $s_{N}(M_{N}-zI_{N})\geqslant\gamma_{z}$. Consequently, there exists $\gamma_{\Gamma}>0$ such that almost surely, for all large $N$, $\inf_{z\in\Gamma}s_{N}(M_{N}-zI_{N})\geqslant\gamma_{\Gamma}$.

5.1 Ideas of the proof

The proof of Proposition 22 is based on the two following key results.

Proposition 23**.**

Assume that ${\bf(X1)}$ holds. Let K be a polynomial in $u+t$ noncommutative variables. Define

[TABLE]

• •

Assume that (3) holds. Let $\{{a}_{N}^{(j)},j=1,\dots,t\}$ be a set of noncommutative random variables in $\left({\cal A},\varphi\right)$ which is free from a free circular system $c=(c^{(1)},\dots,c^{(u)})$ in $\left({\cal A},\varphi\right)$ and such that the $\ast$-distribution of $({A}_{N}^{(j)}\!,j\!=\!1,\dots,t)$ in the noncommutative probability space $\left({\cal M}_{N}(\mathbb{C}),\frac{1}{N}\operatorname{Tr}\right)$ coincides with the $\ast$-distribution of $a_{N}=({a}_{N}^{(j)},j=1,\ldots,t)$ in $\left({\cal A},\varphi\right).$ Let $\tau_{N}$ be the the distribution of

[TABLE]

with respect to $\varphi$. If $[x,y]$, $x<y$, is such that there exists a $\delta>0$ such that for all large $N$, $(x-\delta;y+\delta)\subset\mathbb{R}\setminus\rm{supp}(\tau_{N})$, then, we have

[TABLE]

• •

Assume that (A1) holds. Then, almost surely, the sequence of $u+t$-tuples $\left(\frac{X_{N}^{(1)}}{\sqrt{N}},\ldots,\frac{X_{N}^{(u)}}{\sqrt{N}},A_{N}^{(1)},\ldots,A_{N}^{(t)}\right)_{N\geqslant 1}$ converges in $\ast$-distribution towards $(c,a)$ where $c=(c_{1},\ldots,c_{u})$ is a free circular system which is free with $a=(a^{(1)},\ldots,a^{(t)})$ in $\left({\cal A},\varphi\right)$.

Proposition 24**.**

Consider a polynomial $P({Y}_{1},{Y}_{2})$, where ${Y}_{1}$ is a tuple of noncommuting nonselfadjoint indeterminates, ${Y}_{2}$ is a tuple of selfadjoint indeterminates, and no selfadjointness is assumed for $P$. We evaluate $P$ in $(c,a)$ and $(c,a_{N})$, where $c$ is a tuple of free circulars, which is $*$-free from the tuples $a$ and $a_{N}$. We assume that $a_{N}\to a$ in moments and that there exists a $\tau>0$ such that $\sup_{N}\|a_{N}\|\leqslant\tau$.

We fix $z_{0}\in\mathbb{C}$ such that $|P(c,a)-z_{0}|^{2}\geq\delta_{z_{0}}>0$ for a fixed $\delta_{z_{0}}$. 2. 2.

We assume that there exists $N_{\delta_{z_{0}}}\in\mathbb{N}$ such that if $N\geq N_{\delta_{z_{0}}}$, then $|P(0,a_{N})-z_{0}|^{2}\geq\delta_{z_{0}}$.

Then, there exists $\epsilon_{z_{0}}>0$ for which there exists an $N_{\epsilon_{z_{0}}}\in\mathbb{N}$ such that if $N\geq N_{\epsilon_{z_{0}}}$, then $|P(c,a_{N})-z_{0}|^{2}\geq\epsilon_{z_{0}}$.

Remark 25**.**

Of course Proposition 24 still holds dealing with nonselfadjoint tuples $a_{N}$ by considering the selfadjoint tuples $(\Im(a_{N}),\Re(a_{N}))$.

Let us explain how to deduce Theorem 10 from Proposition 23 and Proposition 24.

Define $\mu_{N,z}$ as the distribution of

[TABLE]

where $\{c^{(1)},(c^{(1)})^{*}\},\ldots,\{c^{(u)},(c^{(u)})^{*}\},\{a_{N}^{(1)},\ldots,a_{N}^{(t)}\}$ are free sets of noncommutative random variables and the $\ast$-distribution of $(a_{N}^{(1)},\ldots,a_{N}^{(t)})$ in $({\cal A},\varphi)$ coincide with the $\ast$-distribution of $(A_{N}^{(1)},\ldots,A_{N}^{(t)})$ in $({\cal M}_{N}(\mathbb{C}),\operatorname{tr}_{N})$. $\mu_{N,z}$ is the so-called deterministic equivalent measure of the empirical spectral measure of $(M_{N}-zI_{N})(M_{N}-zI_{N})^{*}$.

The following is a straightforward consequence of Proposition 24.

Corollary 26**.**

Let $z\in\mathbb{C}$ be such that $0\notin\text{supp}(\mu_{z})$; assume that there exists $\eta_{z}>0$ such that for all $N$ large enough, there is no singular value of

[TABLE]

in $[0,\eta_{z}]$. Then, there exists $\epsilon_{z}>0$, such that, for all large $N$,

[TABLE]

Then, we can deduce from Corollary 26 and Proposition 23 that there exists some $\gamma_{z}>0$ such that almost surely for all large $N$, there is no singular value of $M_{N}-zI_{N}$ in $[0,\gamma_{z}]$.

By a compacity argument and the fact that $z\mapsto s_{N}(M_{N}-zI)$ is 1-Lipschitz, it readily follows that for any compact $\Gamma\subset\{z\colon 0\notin\text{supp}(\mu_{z})\}$, there exists some $\gamma_{\Gamma}>0$ such that almost surely for all large $N$,

[TABLE]

leading to Proposition 22.

5.2 Proof of Proposition 23

Note that

[TABLE]

so that the spectrum of $K_{N}K_{N}^{*}$ coincides with the spectrum of ${\begin{pmatrix}0&K_{N}\\ K_{N}^{*}&0\end{pmatrix}}^{2}$. Now

[TABLE]

where the $m_{i}$’s are monomials and the $b_{i}$’s are complex numbers. Define $Q_{1}=\begin{pmatrix}I_{N}&0\\ 0&0\end{pmatrix}$, $Q_{2}=\begin{pmatrix}0&0\\ 0&I_{N}\end{pmatrix}$ and $R=\begin{pmatrix}0&I_{N}\\ 0&0\end{pmatrix}$, $S=\begin{pmatrix}0&I_{N}\\ I_{N}&0\end{pmatrix}$. Note that

[TABLE]

where the ${\cal W}^{(i)}$’s, $i=1,\ldots,u$, are $2N\times 2N$ independent standard Wigner matrices. Now, note that as noticed by [7] for any monomial $x_{1}\cdots x_{k}$,

[TABLE]

where

[TABLE]

Indeed, this can be proved by induction noting that

[TABLE]

Note also that

[TABLE]

Set for j=1,…, t, ${\bf A}_{N}^{(j)}=\begin{pmatrix}0&A_{N}^{(j)}\\ 0&0\end{pmatrix}$.

From (13), (14), (15), it readily follows that there exists a polynomial $\hat{K}$ such that $\begin{pmatrix}0&K_{N}\\ K_{N}^{*}&0\end{pmatrix}$ is equal to

[TABLE]

Now, define for $j=1,\ldots,t$, ${\bf a}_{N}^{(j)}=\begin{pmatrix}0&a_{N}^{(j)}\\ 0&0\end{pmatrix}$, $q_{1}=\begin{pmatrix}1_{\mathcal{A}}&0\\ 0&0\end{pmatrix}$, $q_{2}=\begin{pmatrix}0&0\\ 0&1_{\mathcal{A}}\end{pmatrix}$ and $r=\begin{pmatrix}0&1_{\mathcal{A}}\\ 0&0\end{pmatrix}$. Let $s_{i}^{(1)}$, $s_{i}^{(2)}$,$i=1,\ldots,u$ be semicircular variables such that $\{s_{1}^{(1)}\},\ldots\{s_{u}^{(1)}\},\{s_{1}^{(2)}\},\ldots\{s_{u}^{(2)}\},\{c_{1},c_{1}^{*}\},\ldots,\{c_{u},c_{u}^{*}\},\{{a}_{N}^{(j)},j=1,\ldots,t\}$ are free. Define for $i=1,\ldots,u$,

[TABLE]

Similarly,

$\begin{pmatrix}0&K(c_{1},\ldots,c_{u},a_{N}^{(1)},\ldots,a_{N}^{(t)})\\ \left[K(c_{1},\ldots,c_{u},a_{N}^{(1)},\ldots,a_{N}^{(t)})\right]^{*}&0\end{pmatrix}$

[TABLE]

It readily follows that, the spectrum of $K_{N}K_{N}^{*}$ coincides with the spectrum of $\hat{K}\left(Q_{1},Q_{2},R,R^{*},{\bf A}_{N}^{(j)},({\bf A}_{N}^{(j)})^{*},j=1,\ldots,t,\frac{{\cal W}^{(i)}}{\sqrt{2N}},i=1,\ldots,u\right)^{2}$ and the spectrum of of $K(c_{1},\ldots,c_{u},a_{N}^{(1)},\ldots,a_{N}^{(t)})\left[K(c_{1},\ldots,c_{u},a_{N}^{(1)},\ldots,a_{N}^{(t)})\right]^{*}$ coincides with the spectrum of $\hat{K}\left(q_{1},q_{2},r,r^{*},{\bf a}_{N}^{(j)},({\bf a}_{N}^{(j)})^{*},j=1,\ldots,t,{\bf s_{i}},i=1,\ldots,u\right)^{2}.$

Now, it is straightforward to see that the $\ast$-distribution of $(q_{1},q_{2},r,{\bf a}_{N}^{(j)},j=1,\ldots,t)$ in $({\cal M}_{2}(\mathcal{A}),\operatorname{tr}_{2}\otimes\varphi)$ coincides with the $\ast$-distribution of $(Q_{1},Q_{2},R,$ ${\bf A}_{N}^{(j)},j=1,\dots,t)$ in $({\cal M}_{2N}(\mathbb{C}),\operatorname{tr}_{2N})$. Moreover, by Lemma 15, it turns out that the ${\bf s_{i}}$’s are free semicircular variables which are free with $(q_{1},q_{2},r,{\bf a}_{N}^{(j)},j=1,\dots,t)$ in $({\cal M}_{2}(\mathcal{A}),\operatorname{tr}_{2}\otimes\varphi)$.

Therefore, the first assertion of Proposition 23 follows by applying [6, Theorem 1.1. and Remark 4]. The second assertion of Proposition 23 can be proven by the same previous arguments. Indeed, there exists a polynomial $\tilde{K}$ such that

$\frac{1}{N}\operatorname{Tr}K\left(\frac{X_{N}^{(1)}}{\sqrt{N}},\ldots,\frac{X_{N}^{(u)}}{\sqrt{N}},A_{N}^{(1)},\ldots,A_{N}^{(t)}\right)$

[TABLE]

Thus, using [6, Proposition 2.2. and Remark 4], we obtain that

$\frac{1}{N}\operatorname{Tr}K\left(\frac{X_{N}^{(1)}}{\sqrt{N}},\ldots,\frac{X_{N}^{(u)}}{\sqrt{N}},A_{N}^{(1)},\ldots,A_{N}^{(t)}\right)$

[TABLE]

where, for $j=1,\ldots,t$, ${\bf a}^{(j)}=\begin{pmatrix}0&a^{(j)}\\ 0&0\end{pmatrix}$. Now,

$2\operatorname{tr}_{2}\otimes\varphi\left[\tilde{K}\left(q_{1},q_{2},r,r^{*},{\bf a}^{(j)},({\bf a}^{(j)})^{*},j=1,\ldots,t,{\bf s_{i}},i=1,\ldots,u\right)\right]$

[TABLE]

The second assertion of Proposition 23 follows.

5.3 Proof of Proposition 24

We prove this using linearization and hermitization. Our linearization of a nonselfadjoint polynomial will naturally not be selfadjoint, so the results from [5] do not apply directly to it, but some of the methods will. Before we analyze this linearization, let us lay down the steps that we shall take in order to prove the above result. Let $L$ be our linearization of $P({Y}_{1},{Y}_{2})-z_{0}$.

We have $|P(c,a_{N})\!-\!z_{0}|^{2}\geq\epsilon_{z_{0}}\!\iff\!\begin{bmatrix}0&P(c,a_{N})\!-\!z_{0}\\ (P(c,a_{N})\!-\!z_{0})^{*}&0\end{bmatrix}^{2}\!\geq\epsilon_{z_{0}}.$ 2. 2.

There exists $\iota=\iota({\epsilon_{z_{0}}},P,\tau)>0$ such that

[TABLE] 3. 3.

We write

[TABLE]

where $C$ is a selfadjoint matrix containing only circular variables and their adjoints. It will be clear that $\begin{bmatrix}0&L(c,a_{N})\\ L(c,a_{N})^{*}&0\end{bmatrix}$ contains at most one nonzero element per row/column, except possibly for the first row/column. 4. 4.

We use Lemma 16 to conclude that the lhs of the previous item is invertible if and only if

[TABLE]

is, where $\mathcal{S}$ is obtained from $C$ by replacing each circular entry with a semicircular from the same algebra (and hence free from $a_{N}$), and $\epsilon$ is a $\{-1,1\}$-Bernoulli distributed random variable which is independent from $a_{N}$ and free from $\mathcal{S}$. As noted in Example 13, since $C=C^{*}$, $\mathcal{S}$ is indeed a matrix-valued semicircular random variable. 5. 5.

We apply Lemma 19 to the above item in order to determine under what conditions the sum in question has a spectrum uniformly bounded away from zero. 6. 6.

Finally, we use the convergence in moments of $a_{N}$ to $a$ in order to conclude that the conditions obtained in the previous item are satisfied by $\begin{bmatrix}0&(I_{m}\otimes\epsilon)L(0,a_{N})\\ (I_{m}\otimes\epsilon)L(0,a_{N})^{*}&0\end{bmatrix}+\mathcal{S}$.

Part (1) is trivial:

[TABLE]

Since our variables live in a II1-factor, the two nonzero entries of the right hand side have the same spectrum.

Part (2) requires a careful analysis of the linearization we use. The construction from [1] proceeds by induction on the number of monomials in the given polynomial. If $P=X_{i_{1}}X_{i_{2}}X_{i_{3}}\cdots X_{i_{\ell-1}}X_{i_{\ell}}$, where $\ell\geq 2$ and $i_{1},\dots,i_{\ell}\in\{1,\dots,k\}$, we set $n=\ell$ and

[TABLE]

However, unlike in [1, 5], we choose here $L$ to be

[TABLE]

That is, we apply the procedure from [1], but to $P=1X_{i_{1}}X_{i_{2}}X_{i_{3}}\cdots X_{i_{\ell-1}}X_{i_{\ell}}1$. If $\ell=1$, we simply complete $X$ to $1X1$. Even if we have a multiple of $1$, we choose here to proceed the same way. The lower right $\ell\times\ell$ corner of this matrix has an inverse of degree $\ell$ in the algebra ${\cal M}_{\ell}(\mathbb{C}\langle X_{1},\dots,X_{k}\rangle)$. (The constant term in this inverse is a selfadjoint matrix and its spectrum is contained in $\{-1,1\}$.) The first row contains only zeros and ones, and the first column is the transpose of the first row. Suppose now that $p=P_{1}+P_{2}$, where $P_{1},P_{2}\in\mathbb{C}\langle X_{1},\dots,X_{k}\rangle$, and that linear polynomials

[TABLE]

linearize $P_{1}$ and $P_{2}$. Then we set $n=n_{1}+n_{2}-1$ and observe that the matrix

[TABLE]

is a linearization of $P_{1}+P_{2}$. $L$ is built so that $\left[(ze_{1,1}-L)^{-1}\right]_{1,1}=(z-P)^{-1}$, $z-P$ is invertible if and only if $(ze_{1,1}-L)$ is invertible, and each row/column of the matrix $L$, except possibly for the first, contains at most one nonzero indeterminate (i.e. non-scalar). By applying the linearization process to $1X_{i_{1}}X_{i_{2}}X_{i_{3}}\cdots X_{i_{\ell-1}}X_{i_{\ell}}1$ instead of $X_{i_{1}}X_{i_{2}}X_{i_{3}}\cdots X_{i_{\ell-1}}X_{i_{\ell}}$, we have insured that there is at most one nonzero indeterminate in each row/column. An important side benefit is that with this modification, we may assume that, with the notations from item 5 of Section 4,

[TABLE]

While this linearization is far from being minimal, and should not be used for practical computations, it turns out to simplify to some extent the notations and arguments of our proofs.

The concrete expression of the inverse of $ze_{1,1}-L$ in terms of $L=\begin{bmatrix}0&u^{*}\\ u&Q\end{bmatrix}$ is provided by the Schur complement formula as

[TABLE]

It follows easily from this formula that $z-P$ is invertible if and only if $ze_{1,1}-L$ is invertible. It was established in [5, Lemma 4.1] that $Q$, and hence $Q^{-1}$, is of the form $T(1+N)$ for some permutation scalar matrix $T$ and nilpotent matrix $N$, which may contain non-scalar entries. Let us establish a non-selfadjoint (and thus necessarily weaker) version of [5, Lemma 4.3].

Lemma 27**.**

Assume that $P\in\mathbb{C}\langle{Y_{1}},{Y_{2}}\rangle$ is an arbitrary polynomial in the non-selfadjoint indeterminates ${Y_{1}}$ and selfadjoint indeterminates ${Y_{2}}$. Let $L$ be a linearization of $P$ constructed as above. Given tuples of noncommutative random variables $c$ and $a$, for all $\delta>0$ such that $|P(c,a)|^{2}>\delta$, there exists $\mathfrak{e}>0$ such that $|L(c,a)|^{2}>\mathfrak{e}$, and the number $\mathfrak{e}$ only depends on $\delta>0,$ $P,$ and the supremum of the norms of $c,a$. Conversely, for all $\mathfrak{e}>0$ such that $|L(c,a)|^{2}>\mathfrak{e}$, there exists $q>0$ such that $|P(c,a)|^{2}>q>0$ and $q$ depends only on $\mathfrak{e}$, $P,$ and the supremum of the norms of $c,a$.

Proof.

With the decomposition $L\!=\!\begin{bmatrix}0&u^{*}\\ u&Q\end{bmatrix}$, we have $|L|^{2}\!=\!\begin{bmatrix}u^{*}u&u^{*}Q^{*}\\ Qu&\!uu^{*}\!+\!QQ^{*}\end{bmatrix}$. Recall that $|P|^{2}=u^{*}Q^{-1}uu^{*}(Q^{-1})^{*}u$. Now consider these expressions evaluated in the tuples of operators mentioned in the statement of the lemma. In order to save space, we will nevertheless suppress them from the notation. We assume that $|P|^{2}>\delta$. Strangely enough, it will be more convenient to estimate an upper bound for $|L|^{-2}$ rather than a lower bound for $|L|^{2}$. The entries of $|L|^{-2}$ expressed in terms of the above decomposition are

[TABLE]

We only need to estimate the norms of the above elements in terms of $\delta$, $P$, and the norms of the variables in which we have evaluated the above. It is clear that

[TABLE]

Similarly, $(uu^{*}+QQ^{*})^{-1}\leqslant(QQ^{*})^{-1}\leqslant\|Q^{-1}\|^{2}.$ We obtain this way the following majorizations for each of the entries, which will allow us to estimate $\mathfrak{e}$ (these majorizations are not optimal, but close to):

[TABLE]

We shall not be much more explicit than this, but let us nevertheless comment on why the above satisfies the corresponding conclusion of our lemma. As noted before, $u$ is a vector of zeros and ones. It follows immediately from the construction of $L$ that the number of ones is dominated by the number of monomials of $P$, quantity clearly depending only on $P$. Recall that $Q$ is of the form $T(1+N)$, with $T$ a permutation matrix, and $N$ a nilpotent matrix. The norm of $T$ is necessarily one. The nilpotent matrix corresponding to $Q$ is simply a block upper diagonal matrix (i.e. a matrix which has on its diagonal a succession of blocks, each block being itself an upper diagonal matrix) with entries which are operators from the tuples $a$ and $c$ in which we evaluate $P$ (and $L$). Its norm is trivially bounded by the supremum of all the norms of the operators involved times the supremum of all the scalar coefficients. Since $\|Q^{-1}\|=\|T^{-1}(1+N)^{-1}\|\leq 1+\sum_{j=1}^{m}\|N\|^{j}$, where $m$ is the size of the linearization, we obtain an estimate for $\|Q^{-1}\|$ from above by $(m+1)(1+\|Q\|)^{m}$. Finally, $\||P|^{-2}\|\leq\delta^{-1}$. This guarantees that $\||L|^{-2}\|$ is bounded from above, so that $|L|^{2}$ is bounded from below, by a number $\mathfrak{e}$ depending on $\delta$, $P$, and the norms of the entries of $P$.

Conversely, assume that $|L|^{2}>\mathfrak{e}$ for a given strictly positive constant $\mathfrak{e}$. As before, this is equivalent to $\||L|^{-2}\|<\frac{1}{\mathfrak{e}}$, which allows for the estimate of the $(1,1)$ entry of $|L|^{-2}$ by $\left\|\left(P(1+u^{*}(Q^{*})^{-1}Q^{-1}u)^{-1}P^{*}\right)^{-1}\right\|<\frac{1}{\mathfrak{e}}$, so that

[TABLE]

as inequality of operators. This tells us that $P(1+u^{*}(Q^{*})^{-1}Q^{-1}u)^{-1}P^{*}>\mathfrak{e}$, so that

[TABLE]

This concludes the proof. ∎

Part (3) is a simple formal step.

Step (4) becomes a direct consequence of Lemma 16.

Now, in step (5), we finally involve our variables $c,a,a_{N}$ directly. We have assumed that $|P(c,a)-z_{0}|^{2}>\delta_{z_{0}}>0$, so that, according to steps (1) and (2), we have $\left|\begin{bmatrix}0&L(c,a)\\ L(c,a)^{*}&0\end{bmatrix}\right|>\iota$ for a $\iota>0$ depending, according to step (2), only on $P$, $\delta_{z_{0}}$, and the norms of $c,a$. According to step (4), it follows that $\begin{bmatrix}0&(I_{m}\otimes\epsilon)L(0,a)\\ (I_{m}\otimes\epsilon)L(0,a)^{*}&0\end{bmatrix}+\mathcal{S}$ is invertible; moreover, the norm of the inverse is bounded in terms of $P$, $\delta_{z_{0}}$, and the norms of $c,a$. According to Lemma 19 and Remark 18, denoting $\mathcal{Y}=\begin{bmatrix}0&(I_{m}\otimes\epsilon)L(0,a)\\ (I_{m}\otimes\epsilon)L(0,a)^{*}&0\end{bmatrix}$, the condition of invertibility of $\mathcal{S+Y}$ is equivalent to the invertibility of $\mathcal{Y}$ together with the existence of an $r\in(0,1)$ such that $\text{spect}(\eta\circ G_{\mathcal{Y}}^{\prime}(0))\subset(1-r)\mathbb{D}$. We naturally denote $\mathcal{Y}_{N}=\begin{bmatrix}0&(I_{m}\otimes\epsilon)L(0,a_{N})\\ (I_{m}\otimes\epsilon)L(0,a_{N})^{*}&0\end{bmatrix}$. We have assumed that $|P(0,a_{N})-z_{0}|^{2}>\delta_{z_{0}}$ for all (sufficiently large) $N\in\mathbb{N}$, so that $|\mathcal{Y}_{N}|^{2}>\zeta$ for a $\zeta$ that only depends on $P,\delta_{z_{0}}$, and the supremum of the norms of $a_{N}$, which is assumed to be bounded. Thus, $|\mathcal{Y}_{N}|^{2}$ is uniformly bounded from below as $N\to\infty$. In order to insure the invertibility of $\mathcal{S+Y}_{N}$, we also need that $\text{spect}(\eta\circ G_{\mathcal{Y}_{N}}^{\prime}(0))\subset\overline{\mathbb{D}}\setminus\{1\}$, for all $N$ sufficiently large. The existence of $G_{\mathcal{Y}_{N}}^{\prime}(0)$ is guaranteed by the hypothesis of invertibility of $\mathcal{Y}_{N}$. Since

[TABLE]

and

[TABLE]

we only need to remember that all entries of $L(0,a_{N})^{-1}$ are products of polynomials in $a_{N}$ and $(P(0,a_{N})-z_{0})^{-1}$ in order to conclude that the convergence in moments of $a_{N}$ to $a$ implies the convergence in norm of $G_{\mathcal{Y}_{N}}^{\prime}(0)$ to $G_{\mathcal{Y}}^{\prime}(0)$ (recall that, according to hypothesis 2. in the statement of our proposition, $|P(0,a_{N})-z_{0}|^{2}>\delta_{z_{0}}>0$ uniformly). Thus, for $N$ sufficiently large, all eigenvalues of $\eta\circ G_{\mathcal{Y}_{N}}^{\prime}(0)$ are included in $(1-\frac{r}{2})\mathbb{D}$. This guarantees the invertibility of all $\mathcal{S+Y}_{N}$ for $N$ sufficiently large.

To prove item (6) and conclude our proof, we only need to show that for $N$ sufficiently large, $|\mathcal{S+Y}_{N}|^{2}>\frac{\iota}{2}$. There is a simple abstract shortcut for this: as Proposition 17 shows, the endpoint of the support of the (scalar) distribution of $\mathcal{S+Y}_{N}$ is given by that first $x_{N}\in(0,+\infty)$ for which $1\in\text{spect}(\eta\circ G_{\mathcal{Y}_{N}}^{\prime}(x_{N}))$. On the one hand, $G_{\mathcal{Y}_{N}}$ is guaranteed to be analytic on $[0,\delta_{z_{0}}]$. On the other, since ${\mathcal{Y}_{N}}\to\mathcal{Y}$ in distribution, we have $G_{\mathcal{Y}_{N}}\to G_{\mathcal{Y}}$ uniformly on $[0,\delta_{z_{0}}-\varepsilon]$ for any fixed $\varepsilon>0$. In particular, $G_{\mathcal{Y}_{N}}^{\prime}(x)\to G_{\mathcal{Y}}^{\prime}(x)$ for any $x$ in this interval. Thus, $x_{N}$ is bounded away from zero uniformly in $N$ as $N\to\infty$. A second application of the convergence of $G_{\mathcal{Y}_{N}}$ allows us to conclude.

6 Stable outliers; proof of Theorem 10

Making use of a linearization procedure, the proof closely follows the approach of [9]. The most significant novelty is Proposition 28 which substantially generalizes Theorem 1.3. A. in [14] (see also Proposition 2.1 in [9]) and whose proof relies on operator-valued free probability results established in Section 3.2.2. Nevertheless, we precise all arguments for the reader’s convenience.

Let

[TABLE]

be a linearization of $P(y_{1},\ldots,y_{u+t})$ with coefficients in ${\cal M}_{m}(\mathbb{C})$ such that, for any $u+t$-tuple $y$ of matrices, $|\det Q(y)|=1$ (see (11)).

Let $\Gamma$ be a compact set in $\mathbb{C}\setminus\text{spect}(P(c,a))$. Note that

[TABLE]

is equivalent to

[TABLE]

since $|\det Q|$ is constant. Now, following the proof of Lemma 4.3 in [5], one can see that this is also equivalent to

[TABLE]

According to Lemma 20, the eigenvalues of ${M}_{N}$ are the zeroes of $z\mapsto\det(ze_{11}\otimes I_{N}-\gamma\otimes I_{N}-\sum_{j=1}^{u}\zeta_{j}\otimes\frac{X_{N}^{(j)}}{\sqrt{N}}-\sum_{k=1}^{t}\beta_{k}\otimes(A_{N}^{(k)}))$. By Assumption (${\bf A_{2}^{\prime}}$), Proposition 22 and Lemma 20, almost surely for all large $N$, for any $z\in\Gamma$, we can define

[TABLE]

[TABLE]

Note that, since each $(A_{N}^{(k)})^{{}^{\prime\prime}}$ has a bounded rank $r_{k}(N)=O(1)$, there exist matrices $P_{N}\in{\cal M}_{mN,p}$, $Q_{N}\in M_{p,mN}$, where $p$ is fixed, such that

[TABLE]

Recall Sylvester’s identity: if $P,Q^{\top}\in{\cal M}_{d_{1},d_{2}}(\mathbb{C})$,

[TABLE]

Using this identity, it is clear that, almost surely for all large $N$, the eigenvalues of ${M}_{N}$ in $\Gamma$ are precisely the zeros of the random analytic function $z\mapsto\det(I_{p}-Q_{N}R_{N}(z)P_{N})$ in that set.

Now, similarly, for any $z$ in $\Gamma$,

[TABLE]

Thus, the zeroes of $z\mapsto\det(I_{p}-Q_{N}R{{}^{\prime}}_{N}(z)P_{N})$ in $\Gamma$ are the zeroes of $z\mapsto\det(ze_{11}\otimes I_{N}-\gamma\otimes I_{N}-\sum_{k}\beta_{k}\otimes A_{N}^{(k)})$ in $\Gamma$, that is, the eigenvalues in $\Gamma$ of

[TABLE]

The rest of the proof is devoted to establish that $\det(I_{p}-Q_{N}R_{N}(z)P_{N})-\det(I_{p}-Q_{N}R{{}^{\prime}}_{N}(z)P_{N})$ converges uniformly in $\Gamma$ to zero.

**Step 1: Iterated resolvent identities.

**

Set

[TABLE]

Using repeatedly the resolvent identity,

[TABLE]

we find that, for any integer number $K\geqslant 2$,

[TABLE]

The following two steps will be of basic use to prove the uniform convergence in $\Gamma$ of the right hand side of (20) towards zero.

**Step 2: Study of the spectral radius of $R^{\prime}_{N}(z)Y_{N}$.

**The aim of this second step is to prove Lemma 32 which establishes an upper bound strictly smaller than 1 of the spectral norm of $R^{\prime}_{N}(z)Y_{N}$. The proof of Lemma 32 is based on Proposition 22 and the characterization, provided by Lemma 19, of the invertibility of the sum of a centered ${\cal M}_{m}(\mathbb{C})$-valued semi-circular $s$ and some selfadjoint $y\in{\cal M}_{m}(\mathcal{A})$ with non-commutative symetric entries such that $s$ and $y$ are free over ${\cal M}_{m}(\mathbb{C})$. Recall that $\mu_{z}$ is the distribution of

[TABLE]

Define $\nu_{z}$ as the distribution of

[TABLE]

and $S_{0}=\left\{z\in\mathbb{C},0\in\text{supp}(\nu_{z})\right\}.$

Proposition 28**.**

Let

[TABLE]

be a linearization of $P(y_{1},\ldots,y_{u+t})$ with coefficients in ${\cal M}_{m}(\mathbb{C})$. Set

[TABLE]

Let $\epsilon$ be some selfadjoint $\{-1,+1\}$-Bernoulli variable in ${\cal A}$ independent from the entries of $y_{z}$. Let $s_{1},\ldots,s_{u}$ be free semicircular variables in ${\cal A}$ free from $\epsilon$ and the entries of $y_{z}$. Define

[TABLE]

If $z\notin S_{0}$, let $\Delta_{1}(z)$ be the operator

[TABLE]

We have $0\notin\text{supp}(\mu_{z})$ iff $z\notin S_{0}$ and $\text{spect}(\Delta_{1}(z))\subseteq\overline{\mathbb{D}}\setminus\{1\}$.

Proof.

According to Remark 4, we have that $0\notin\text{supp}(\mu_{z})$ if and only if $P(c^{(1)},\dots,c^{(u)},a^{(1)},\dots,a^{(t)})-z1$ is invertible. According to Lemma 20, it follows that $0\notin\text{supp}(\mu_{z})$ if and only if $\sum_{j=1}^{u}\zeta_{j}\otimes c^{(j)}+y_{z}$ is invertible. Now, $\sum_{j=1}^{u}\zeta_{j}\otimes c^{(j)}+y_{z}$ is invertible if and only if $\left[\sum_{j=1}^{u}\zeta_{j}\!\otimes\!c^{(j)}\!+\!y_{z}\right]\!\!\left[\sum_{j=1}^{u}\zeta_{j}\!\otimes\!c^{(j)}\!+y_{z}\right]^{*}$ and $\left[\sum_{j=1}^{u}\zeta_{j}\!\otimes\!c^{(j)}\!+y_{z}\right]^{*}\!\left[\sum_{j=1}^{u}\zeta_{j}\!\otimes\!c^{(j)}\!+y_{z}\right]$ are invertible, and then, by Lemma 16, since $\operatorname{tr}_{m}\!\otimes\varphi$ is faithful, if and only if $\left[\sum_{j=1}^{u}\zeta_{j}\!\otimes\!s_{j}+(I_{m}\otimes\epsilon)y_{z}\right]\!\left[\sum_{j=1}^{u}\zeta_{j}\!\otimes\!s_{j}+(I_{m}\otimes\epsilon)y_{z}\right]^{*}$ and $\left[\sum_{j=1}^{u}\zeta_{j}\otimes s_{j}+(I_{m}\otimes\epsilon)y_{z}\right]^{*}\left[\sum_{j=1}^{u}\zeta_{j}\otimes s_{j}+(I_{m}\otimes\epsilon)y_{z}\right]$ are invertible, that is if and only if ${\cal S}+{\cal Y}_{z}$ is invertible. Thus, Proposition 28 follows from Example 13 and Lemma 19. ∎

Define for any $w,z$ in $\mathbb{C}$, $\mu_{w,z}$ as the distribution of

[TABLE]

Lemma 29**.**

$0\notin\text{supp}(\mu_{w,z})$* if and only if $z\notin S_{0}$ and $\text{spect}(|w|^{2}\Delta_{1}(z))\subseteq\overline{\mathbb{D}}\setminus\{1\}$, where $S_{0}$ and $\Delta_{1}(z)$ are defined in Proposition 28.*

Proof.

Note that $(c^{(1)},\ldots,c^{(u)})$ and $(\exp(i\arg w)c^{(1)},\ldots,\exp(i\arg w)c^{(u)})$ have the same $\ast$-distribution so that $\mu_{w,z}$ is the distribution of

[TABLE]

Then the result follows from Proposition 28. ∎

Lemma 30**.**

Let $\Gamma$ be a compact subset in $\{z\in\mathbb{C}\colon 0\notin\text{supp}(\mu_{z})\}$. Then there exists $\rho>1$ such that for any $w\in\mathbb{C}$ such that $|w|\leqslant\rho$ and any $z\in\Gamma$, we have $0\notin\text{supp}(\mu_{w,z}).$

Proof.

Let $z$ be in $\Gamma$. According to Proposition 28, $z\notin S_{0}$ and $\text{spect}(\Delta_{1}(z))\subseteq\overline{\mathbb{D}}\setminus\{1\}$. According to [17, Theorem 2.5], if $r(z)$ is the spectral radius of the positive linear map $\Delta_{1}(z)$, then there exists a nonzero positive element $\xi$ in ${\cal M}_{m}(\mathbb{C})$ such that $\Delta_{1}(z)(\xi)=r(z)\xi$. Thus, we can deduce that $r(z)<1$. Now, since $\{z\in\mathbb{C}\colon 0\notin\text{supp}(\mu_{z})\}\subset\mathbb{C}\setminus S_{0}$, using Remark 4 and Lemma 20, it is easy to see that ($z\mapsto r(z)$) is continuous on $\{z\in\mathbb{C}\colon 0\notin\text{supp}(\mu_{z})\}$. Thus, there exists $0<\gamma<1$ such that for any $z\in\Gamma$, we have $0\leqslant r(z)<1-\gamma.$ It readily follows that if $|w|\leqslant\frac{1}{\sqrt{1-\gamma}}$ then $|w|^{2}r(z)<1$ and according to Lemma 29, $0\notin\text{supp}(\mu_{w,z})$. ∎

Lemma 31**.**

Let $\Gamma$ be a compact subset in $\{z\in\mathbb{C},0\notin supp(\mu_{z})\}$. Assume that $({\bf A^{\prime}_{2}})$ holds. Then there exists $\rho>1$ and $\eta>0$ such that a.s. for all large $N$, for any $w\in\mathbb{C}$ such that $|w|\leqslant\rho$ and any $z\in\Gamma$, there is no singular value of

[TABLE]

in $[0,\eta]$.

Proof.

Let $\tilde{\Gamma}=\{(w,z)\in\mathbb{C}^{2},|w|\leqslant\rho,z\in\Gamma\}$ where $\rho$ is defined in Lemma 30. According to Lemma 30, $\forall(w,z)\in\tilde{\Gamma}$, $0\notin\text{supp}(\mu_{w,z})$. Therefore, using $({\bf A^{\prime}_{2}})$, according to Proposition 22, there exists $\gamma(w,z)$ such that a.s. for all large N, there is no singular value of

[TABLE]

in $[0,\gamma(w,z)]$. The conclusion follows by a compacity argument (using Bai-Yin’s theorem and (5). ∎

Lemma 32**.**

Let $\Gamma$ be a compact subset in $\{z\in\mathbb{C}\colon 0\notin\text{supp}(\mu_{z})\}$. Assume that $({\bf A^{\prime}_{2}})$ and (5) hold. There exists $0<\epsilon_{0}<1$ such that almost surely for all large $N$, we have for any $z$ in $\Gamma$,

[TABLE]

where $\rho(M)$ denotes the spectral radius of a matrix $M$.

Proof.

Now, assume that $\lambda\neq 0$ is an eigenvalue of $R^{\prime}_{N}(z)Y_{N}$. Then there exists $v\in\mathbb{C}^{Nm}$, $v\neq 0$ such that $(ze_{11}\otimes I_{N}-\gamma\otimes I_{N}-\sum_{k=1}^{t}\beta_{k}\otimes(A_{N}^{(k)})^{{}^{\prime}})^{-1}Y_{N}v=\lambda v$ and thus $(ze_{11}\otimes I_{N}-\gamma\otimes I_{N}-\sum_{k=1}^{t}\beta_{k}\otimes(A_{N}^{(k)})^{{}^{\prime}}-\sum_{j=1}^{u}\zeta_{j}\otimes\lambda^{-1}\frac{X_{N}^{(j)}}{\sqrt{N}})v=0.$ This means that $z$ is an eigenvalue of

[TABLE]

or equivalently that [math] is a singular value of

[TABLE]

By Lemma 31, we can deduce that almost surely for all large $N$, the nonnul eigenvalues of $R^{\prime}_{N}(z)Y_{N}$ must satisfy $1/|\lambda|>\rho$. The result follows. ∎

Step 3: Study of the moments of $R{{}^{\prime}}_{N}(z)Y_{N}$.

Proposition 33**.**

Let $\Gamma$ be a compact subset in $\{z\in\mathbb{C},0\notin supp(\mu_{z})\}$. Assume that $({\bf A^{\prime}_{2}})$ and (5) hold. There exists $0<\epsilon_{0}<1$ and $C>0$ such that almost surely for all large $N$, for any $k\geqslant 1$,

[TABLE]

Proof.

For $z\in\Gamma$, we set $T_{N}(z)=R^{\prime}_{N}(z)Y_{N}.$ Let $\epsilon_{0}$ be as defined by Lemma 32 and $\rho$ be as defined in Lemma 31. Choose $0<\epsilon<\min(\epsilon_{0},1-\frac{1}{\rho})$. Therefore, according to Lemma 32 and using Dunford-Riesz calculus, we have almost surely for all large $N$, for any $z$ in $\Gamma$,

[TABLE]

and therefore

[TABLE]

Now, note that, for any $w$ such that $|w|=1-\epsilon$, we have $\frac{1}{|w|}<\rho$ and

$(w-T_{N}(z))=$

[TABLE]

so that

$(w-T_{N}(z))^{-1}=$

[TABLE]

[TABLE]

Lemma 31 readily implies that almost surely for all large $N$,

[TABLE]

where $\eta$ is defined in Lemma 31.

It readily follows from (22), Lemma 21, (23), (5) and Bai-Yin’s theorem that there exists $C>0$ such that we have almost surely for all large $N$, for any $z$ in $\Gamma$,

[TABLE]

Proposition 33 follows from (21) and (24).∎

**Step 4: Conclusion.

**We will use the following proposition from [9] to establish Lemma 35 below.

Proposition 34** ([9]).**

Let $n\geqslant 1$ be an integer and $Q\in\mathbb{C}\langle X_{1},\cdots,X_{n}\rangle$ such that the total exponent of $X_{n}$ in each monomial of $Q$ is nonzero. We consider a sequence $(B_{N}^{(1)},\cdots,B_{N}^{(n-1)})\in{\cal M}_{N}(\mathbb{C})^{n-1}$ of matrices with operator norm uniformly bounded in $N$ and $u_{N}$, $v_{N}$ in ${\mathbb{C}}^{N}$ with unit norm. Then if $X_{N}$ is a $N\times N$ matrix with iid entries centered with variance $1$ and finite fourth moment a.s.

[TABLE]

Lemma 35**.**

Assume (${\bf X_{1}}$), (3) and (${\bf A_{2}}$). For any $z$ in $\Gamma\subset\mathbb{C}\setminus\mathrm{spect}(P(c,a))$, almost surely, the series $\sum_{k\geqslant 1}Q_{N}\left(R^{\prime}_{N}(z)Y_{N}\right)^{k}R^{\prime}_{N}(z)P_{N}$ converges in norm towards zero when $N$ goes to infinity, where $P_{N}$ and $Q_{N}$ are defined by (18).

Proof.

The singular value decomposition of $\sum_{k}\beta_{k}\otimes(A_{N}^{(k)})^{{}^{\prime\prime}}$ gives that for any $i,j\in\{1,\ldots,p\}$,

[TABLE]

where $u_{j}$ and $v_{j}$ are unit vectors in $\mathbb{C}^{Nm}$ and $s_{i}$ is a singular value of $\sum_{k=1}^{t}\beta_{k}\otimes(A_{N}^{(k)})^{{}^{\prime\prime}}$. According to (3) and (5), the $s_{i}$’s are uniformly bounded. Using (${\bf A_{2}^{\prime}}$), (5) and (10), almost surely for any $z$ in $\Gamma$, there exists $\tilde{\eta}_{z}>0$ such that for all large $N$,

[TABLE]

Using (25) and Bai-Yin’s theorem, we deduce from Proposition 34 that $v_{i}^{*}(R^{\prime}_{N}(z)Y_{N})^{k}R^{\prime}_{N}(z)u_{j}$ converges almost surely to zero. The result follows by applying the dominated convergence theorem thanks to Proposition 33. ∎

We are going to prove that, assuming (${\bf X_{1}}$), (3) and (${\bf A_{2}}$), we have for any $z$ in $\Gamma$, almost surely, as $N\to\infty$,

[TABLE]

Let $C^{\prime}>0$ such that $\left\|P_{N}\right\|\left\|Q_{N}\right\|\leqslant C^{\prime}$. According to Proposition 22 and (10), for any $z\in\Gamma$, there exists $\tilde{\gamma}_{z}>0$ such that almost surely for all large $N$

[TABLE]

Then using also Proposition 33 and (25), for any $k\geqslant 1$, we have

[TABLE]

[TABLE]

Let $\eta>0$. Choose $K\geqslant 1$ such that $\frac{CC^{\prime}}{\tilde{\gamma}_{z}}(1-\epsilon_{0})^{K}<\eta/2$ and $\sum_{k\geqslant K}\frac{CC^{\prime}}{\tilde{\eta}_{z}}(1-\epsilon_{0})^{k}<\eta/2$.

Thus, using (20), we have that, for any $\eta>0$,

[TABLE]

and then, letting $\eta$ going to zero, that we have

[TABLE]

Applying Lemma 35, we obtain (26).

Proposition 36**.**

Let $\Gamma$ be a compact subset of $\mathbb{C}\setminus\text{spect}(P(c,a)).$ Assume (${\bf X_{1}}$), (3) and (${\bf A_{2}}$). Then, almost surely, $\det(I_{p}-Q_{N}R_{N}(z)P_{N})-\det(I_{p}-Q_{N}R^{\prime}_{N}(z)P_{N})$ converges to zero uniformly on $\Gamma$, when $N$ goes to infinity.

Proof.

It sufficient to check that for any $\delta>0$, a.s., for all large $N$,

[TABLE]

We set $\zeta_{z}=\tilde{\eta}_{z}\wedge\tilde{\gamma}_{z}$ and $r_{z}=(\zeta_{z}/2)\wedge(\delta(\zeta_{z}^{2}/2C^{\prime}))$. Using the resolvent identity, (25) and (27), if $(z,w)\in\Gamma^{2}$ are such that $|z-w|\leqslant r_{z}$, then

[TABLE]

Since $\Gamma\subset\cup_{z\in\Gamma}B(z,r_{z})$ and $\Gamma$ compact, there is a finite covering and the proposition follows from (26). ∎

Theorem 10 follows from Proposition 36 by Rouché’s Theorem, using (19) and (17).
