Chiral magnetic effect in the hadronic phase

TL;DR

This paper investigates the chiral magnetic effect in the hadronic phase, revealing that pseudoscalar mesons influence the CME current and that its strength diminishes with two flavors, independent of microscopic specifics.

Contribution

It introduces a modified functional form of the CME current involving pseudoscalar mesons and shows its independence from microscopic details.

Findings

CME current involves pseudoscalar mesons

CME strength decreases with two flavors

Independence from microscopic details

Abstract

We study the chiral magnetic effect (CME) in the hadronic phase. The CME current involves pseudoscalar mesons to modify its functional form. This conclusion is independent of microscopic details. The strength of the CME current in the hadronic phase would decrease for two flavors.

Figures

Equations

$$S_{\text{eff}}=-i\log \mathrm{Det}(i/D-m).$$

$${\partial }_{\mu }{j}^{\mu }=\frac{e^2{N}_{\text{c}}}{16{\pi }^2}\left(F^{\mathrm{R}\mu \nu }{\tilde{F}}_{\mu \nu }^{\mathrm{R}}-F^{\mathrm{L}\mu \nu }{\tilde{F}}_{\mu \nu }^{\mathrm{L}}\right),$$

$$S_{\text{eff}}=\frac{e^2{N}_{\text{c}}}{4{\pi }^2}\int d^{4}x{a}_{\mu }{A}_{\nu }{\tilde{F}}^{\mu \nu }\mathrm{tr}(Q^2)$$

$$\mathbf{j}=\frac{e^2{N}_{\text{c}}}{2{\pi }^2}{\mu }_5\mathbf{B}\mathrm{tr}(Q^2).$$

$$\mathcal{L}=\bar{q}(i/D-gM)q,$$

$$S_{\text{eff}}=-i\log \mathrm{Det}(i/D-gM).$$

$$\begin{array}{rl}& S_{\text{eff}}=-i{e}^2\\ & \cdot \mathrm{Tr}\left({\gamma }_5/a\frac{i/\partial +g{M}^{†}}{-{\partial }^2-g^2}Q/A\frac{i/\partial +g{M}^{†}}{-{\partial }^2-g^2}Q/A\frac{i/\partial +g{M}^{†}}{-{\partial }^2-g^2}\right),\end{array}$$

$$S_{\text{eff}}$$

$$\mathbf{j}=\frac{e^2{N}_{\text{c}}}{2{\pi }^2}{\mu }_5\mathbf{B}\mathrm{tr}\left(Q^2+\frac{1}{6}[Q,\Sigma ][Q,{\Sigma }^{†}]\right).$$

$$⟨\mathbf{j}⟩=\kappa \cdot \frac{e^2{N}_{\text{c}}}{2{\pi }^2}{\mu }_5\mathbf{B}\mathrm{tr}(Q^2),$$

$$\kappa \equiv ⟨\mathrm{tr}\left(Q^2+\frac{1}{6}[Q,\Sigma ][Q,{\Sigma }^{†}]\right)⟩/\mathrm{tr}(Q^2).$$

$$\begin{array}{rl}G& \equiv f_{\pi }^{-2}⟨{\pi }^A(x){\pi }^A(x)⟩\\ & =G_0-\frac{m_{\pi }^2}{16{\pi }^2{f}_{\pi }^2}+\frac{m_{\pi }T}{2{\pi }^2{f}_{\pi }^2}\sum _{n=1}^{\infty }\frac{1}{n}{K}_1\left(\frac{m_{\pi }n}{T}\right),\end{array}$$

$$\kappa =\frac{1}{5}(12+3e^{-2G}+9e^{-G}-18e^{-\frac{1}{2}G}).$$

$$S_{\text{eff}}$$

$$-i{N}_{\text{c}}\sum _{n=1}^{\infty }\frac{1}{n}\mathrm{Tr}\left[{\left(\frac{i/\partial +g{M}^{†}}{-{\partial }^2-g^2}(eQ/A+{\gamma }_5/a)\right)}^n\right].$$

$$S_{\text{eff}}=-i{N}_{\text{c}}\int \frac{d^{4}p}{(2\pi {)}^4}{a}_{\mu }{A}_{\nu }(p)A_{\rho }(-p)K^{\mu \nu \rho }(p).$$

$$K^{\mu \nu \rho }(p)=e^2\int \frac{d^{4}k}{(2\pi {)}^4}$$

$$\displaystyle\cdot\mathop{\mathrm{tr}}\bigg{(}\gamma_{5}\gamma^{\mu}\frac{\not{k}+gM^{\dagger}}{k^{2}-g^{2}}Q\gamma^{\nu}\frac{\not{k}+\not{p}+gM^{\dagger}}{(k+p)^{2}-g^{2}}Q\gamma^{\rho}\frac{\not{k}+gM^{\dagger}}{k^{2}-g^{2}}\bigg{)}\,.$$

$$K_1^{\mu \nu \rho }(p)$$

$$K^{\mu \nu \rho }(p)=-\frac{e^2}{12{\pi }^2}{ϵ}^{\mu \nu \rho \sigma }{p}_{\sigma }\mathrm{tr}(2Q^2+Q\Sigma Q{\Sigma }^{†}).$$

$$i\Delta (\alpha ,\beta )S_{\text{WZW}}[v,a,\Sigma ]=-\int d^{4}x\mathrm{tr}(\beta \mathcal{A}[v,a]),$$

$$\mathcal{A}[v,a]$$

$$=\frac{N_{\text{c}}}{4{\pi }^2}\left[f_v^2+\frac{1}{3}(D_{v}a{)}^2+\frac{i}{3}(f_v{a}^2+4a{f}_{v}a+a^2{f}_v)+\frac{1}{4}{a}^4\right],$$

$$[i\Delta (\alpha ,\beta ){]}^n{S}_{\text{WZW}}[v,a,\Sigma ]$$

$$=-\int d^{4}x[i\Delta (\alpha ,\beta ){]}^{n-1}\mathrm{tr}(\beta \mathcal{A}[v,a]),$$

$$e^{i\Delta (\alpha ,\beta )}{S}_{\text{WZW}}[v,a,\Sigma ]$$

$$=S_{\text{WZW}}[v,a,\Sigma ]-\int d^{4}x\frac{e^{i\Delta (\alpha ,\beta )}-1}{i\Delta (\alpha ,\beta )}\mathrm{tr}(\beta \mathcal{A}[v,a])$$

$$=S_{\text{WZW}}[v,a,\Sigma ]-{\int }_0^{1}ds\int d^{4}x{e}^{i\Delta (s\alpha ,s\beta )}\mathrm{tr}(\beta \mathcal{A}[v,a]).$$

$$e^{i({\alpha }_{\Sigma }+{\beta }_{\Sigma })}\Sigma e^{-i({\alpha }_{\Sigma }-{\beta }_{\Sigma })}=1,$$

$$\begin{array}{rl}& S_{\text{WZW}}[v,a,\Sigma ]\\ & =S_{\text{WZW}}[v,a,1]+{\int }_0^{1}ds\int d^{4}x\mathrm{tr}(\beta \mathcal{A}[v_s,a_s]).\end{array}$$

$$(v_s\pm a_s)$$

$${\alpha }_{\Sigma }=-{\beta }_{\Sigma },e^{-2i{\beta }_{\Sigma }}=\Sigma .$$

$$a=\hat{a}+\frac{1}{N_{\text{f}}}\mathrm{tr}(a).$$

Full text

I Introduction

Among a rich variety of quantum phenomena driven by a magnetic field Miransky and Shovkovy (2015); Fukushima (2019), the chiral magnetic effect (CME) Fukushima et al. (2008), that is, the generation of an electric current along a magnetic field in chirally imbalanced systems, is notable for its salient characteristics. By virtue of its anomalous origin, the formula of the CME current is topologically protected even in the strong coupling limit Adler (1969); *Bell:1969ts; Adler and Bardeen (1969), as substantiated by holographic approaches Yee (2009); Rebhan et al. (2010); Gynther et al. (2011); Gorsky et al. (2011). As the CME persists in the long-wavelength regime, it modifies the hydrodynamic and kinetic descriptions of chiral fluids Son and Surowka (2009); Son and Yamamoto (2012); Stephanov and Yin (2012); Son and Yamamoto (2013). The nondissipative nature of the CME, which is concisely understood in terms of the time-reversal symmetry Kharzeev and Yee (2011a), is also unusual and enables one to determine the corresponding transport coefficient in the chiral hydrodynamics Son and Surowka (2009).

Heavy ion collision experiments provide experimental probes to study the CME. (See also the realizations in Weyl semimetals Son and Spivak (2013); Zyuzin and Burkov (2012); Basar et al. (2014); Li et al. (2016); Huang et al. (2015); Arnold et al. (2016) and lattice simulations Buividovich et al. (2009); Yamamoto (2011a, b); Müller et al. (2016); Mace et al. (2017).) This is because ions passing near each other would generate an intense magnetic field of order $eB\sim m_{\pi}^{2}$ Kharzeev et al. (2008); Skokov et al. (2009); Kharzeev et al. (2016) and the fluctuating gauge topology generates the chirality imbalance Kharzeev (2006); Kharzeev and Zhitnitsky (2007); Kharzeev (2010). The STAR Collaboration at the Relativistic Heavy Ion Collider (RHIC) and the ALICE Collaboration at the Large Hadron Collider have reported the charge-dependent azimuthal correlators which are qualitatively consistent with the charge separations caused by the CME Abelev et al. (2009, 2010); Adamczyk et al. (2014); Abelev et al. (2013). The signals of the CME-driven collective excitation, called a chiral magnetic wave Kharzeev and Yee (2011b); Burnier et al. (2011); Gahramanov et al. (2012); Burnier et al. (2012); Stephanov and Yee (2013), is also expected to be observed as charge-dependent elliptic flows Adamczyk et al. (2015); Adam et al. (2016a). The beam energy scan program at RHIC is continuing to examine the energy dependence of charge separations toward the low-energy regime Kumar (2013); Aggarwal et al. (2010); Adamczyk et al. (2017). Further understanding would be achieved by these on-going experiments as well as firm quantification of the transport properties Fukushima and Ruggieri (2010); Kharzeev and Warringa (2009); Fukushima and Hidaka (2018); Hattori and Satow (2016); Hattori et al. (2017a); Fukushima et al. (2016); Hattori et al. (2017b); Aarts et al. (2007); Ding et al. (2011, 2016) and the real-time dynamics Fukushima et al. (2010); McLerran and Skokov (2014); Tuchin (2016); Müller et al. (2016); Copinger et al. (2018) of matter under a strong magnetic field.

One complication of heavy ion collisions is that created fireballs would undergo hadronization. Since the fundamental degrees of freedom change from quarks and gluons into hadrons, one cannot directly employ the formula of the CME derived in the chiral phase once the system has hadronized. However, the CME in the hadronic phase has not been studied in much detail. (Exceptions include Ref. Fukushima and Mameda (2012).) This is one of the paramount issues, especially when scanning the low-beam-energy regions where quark-gluon plasma would have a short lifetime or even not be generated. In order to examine the CME signals in heavy ion collisions with low energy, it is indispensable to quantify the CME in the hadronic phase.

In this work we present two conclusions. First, the CME current in the hadronic phase is, at the functional level, modified from the chiral phase by involving the pseudoscalar mesons. The current reads as Eq. (9). Its functional form, derived from the Wess-Zumino-Witten (WZW) action capturing the anomalous coupling between the pseudoscalar mesons and gauge fields, is independent of microscopic details because the WZW action is determined nonperturbatively by matching the anomaly. The involvement of the pseudoscalar mesons in the CME is not quite unnatural. Although the absence of higher-order corrections in the anomalous current has been perturbatively proved Adler and Bardeen (1969), has not been shown non-perturbatively. Indeed, the anomalous triangle diagram can, in general, involve the pseudoscalar particles as exemplified by the $\pi^{0}\to\gamma\gamma$ decay and the Primakoff effect. Second, the involvement of the pseudoscalar mesons would reduce the strength of the CME by a few percent. The reduction is quantified by the generalized dielectric constant, Eq. (11), incorporating the medium effect of the pseudoscalar mesons. We will analytically demonstrate this effect for the two-flavor free pion gas in equilibrium.

This paper is organized as follows. We first review the CME in the chiral phase in Sec. II. We compute the effective action to get the renowned CME formula. We then study the CME in the hadronic phase in Sec. III. The CME is first derived by means of a chiral effective model to clarify the physical picture. Afterwards, we show the model independence of the result. It is clarified that the CME in the hadronic phase involves the pseudoscalar mesons to modify its functional form. We then analyze how this modification influences the strength of the CME current in Sec. IV. We carry out an analytical evaluation of the current strength by limiting ourselves to a two-flavor free pion gas. We find that the CME current would be reduced by a few percent. The last section, Sec. V, is devoted to the summary and outlook.

II Chiral magnetic effect in the chiral phase

We outline the CME in the chiral phase. The original work Fukushima et al. (2008) provides four methods of derivation, among which we adopt a derivative expansion of the effective action.

We consider a system in the chiral phase with an external magnetic field and imbalance between right-handed and left-handed fermions. One way to derive the current in this system is through the effective action

[TABLE]

The covariant derivative $iD_{\mu}=i\partial_{\mu}-eQA_{\mu}-\gamma_{5}a_{\mu}$ incorporates the electromagnetic field $A_{\mu}$ associated with the charge matrix $Q$ and the axial gauge field $a_{\mu}=(\mu_{5},\boldsymbol{0})$ encoding the axial chemical potential. The electromagnetic field strength is denoted by $F_{\mu\nu}$. The determinant is over the coordinate space as well as the flavor, color, and Dirac indices. The quark masses are set to the same value $m$ for brevity. The derivative expansion of the effective action (1) is performed as in Ref. D’Hoker and Goldstone (1985). To determine the effective action without the renormalization scheme dependence, it is necessary to impose the physical requirement that the current should generate the canonical anomalous divergence

[TABLE]

with $N_{\text{c}}$ being the number of colors. This requirement identifies the effective action as

[TABLE]

in the leading order of the derivative expansion. We omitted the terms that are irrelevant to the CME. A functional derivative of Eq. (3) with respective to $\boldsymbol{A}$ yields the CME current

[TABLE]

We note that this derivation as such assumes a static and homogeneous magnetic field.

III Chiral magnetic effect in the hadronic phase

We have observed that the CME in the chiral phase is given by Eq. (4). In this section we derive the CME in the hadronic phase. The derivation is performed in two ways. First, we adopt a chiral effective model to get the effective action. This method clarifies the physical picture of the result. Second, we argue that the WZW action Wess and Zumino (1971); *Witten:1983tw gives the identical effective action. This method verifies the model independence of the result. The obtained effective action will yield the CME current.

Now, we consider a system in the hadronic phase with an external magnetic field and the chiral chemical potential. The chiral chemical potential can be substituted by the oscillating vacuum angle $\theta=2N_{\text{f}}\mu_{5}t$ or temporal fluctuation of the pseudoscalar mesons. Since the realizations of $\mu_{5}$ bring about the time dependence of the system, the following computations of the current should be justified away from equilibrium by means of the Kubo formalism or real-time formalism. We first adopt the chiral effective model called the nonlinear quark-meson model Kamikado et al. (2013); Schaefer and Wambach (2005). This model properly realizes the chiral symmetry pattern in the hadronic phase, in terms of the pseudoscalar meson multiplet $\Sigma\equiv\exp(i\pi^{A}\lambda^{A}/f_{\pi})$ with $A$ being the adjoint flavor indices, and thus reproduces consistent results in the low-energy limit. The pseudoscalar mesons are the background fields for the moment while we will treat them as the dynamical fields in Sec. IV. The Lagrangian of the quark sector reads

[TABLE]

where $M=P_{\mathrm{R}}\Sigma+P_{\mathrm{L}}\Sigma^{\dagger}$ with $P_{\mathrm{R}}$ and $P_{\mathrm{L}}$ being chiral projectors while $g\neq 0$ denotes the coupling constant. The quarks $q$ are constituent ones. The covariant derivative incorporates the magnetic field and the axial chemical potential as in Eq. (1). To derive the electric current, we again seek the effective action

[TABLE]

Note that this effective action formally reduces to Eq. (1) if the pseudoscalar mesons are absent, namely, $\Sigma=1$. The perturbative expansion of the effective action yields

[TABLE]

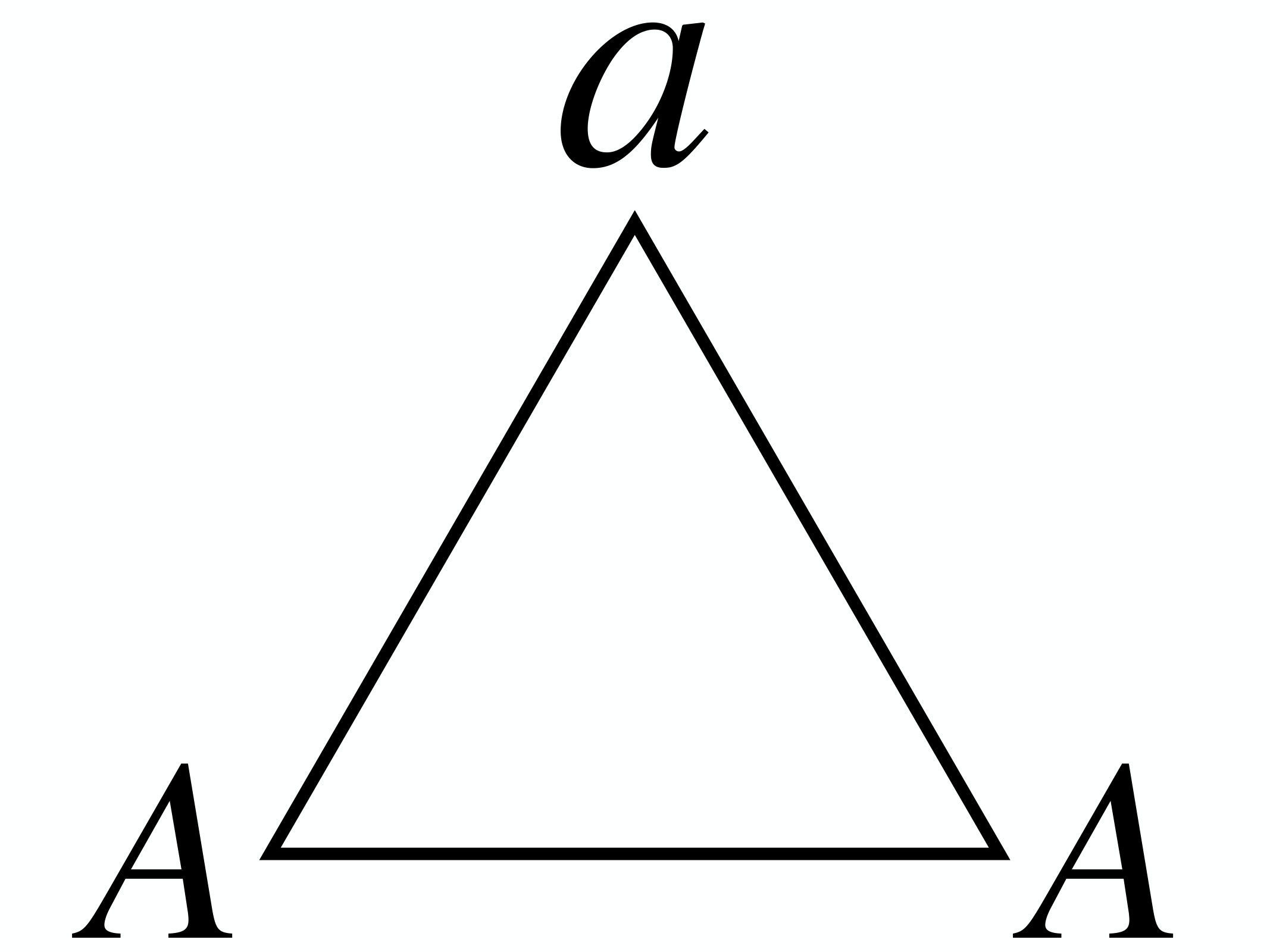

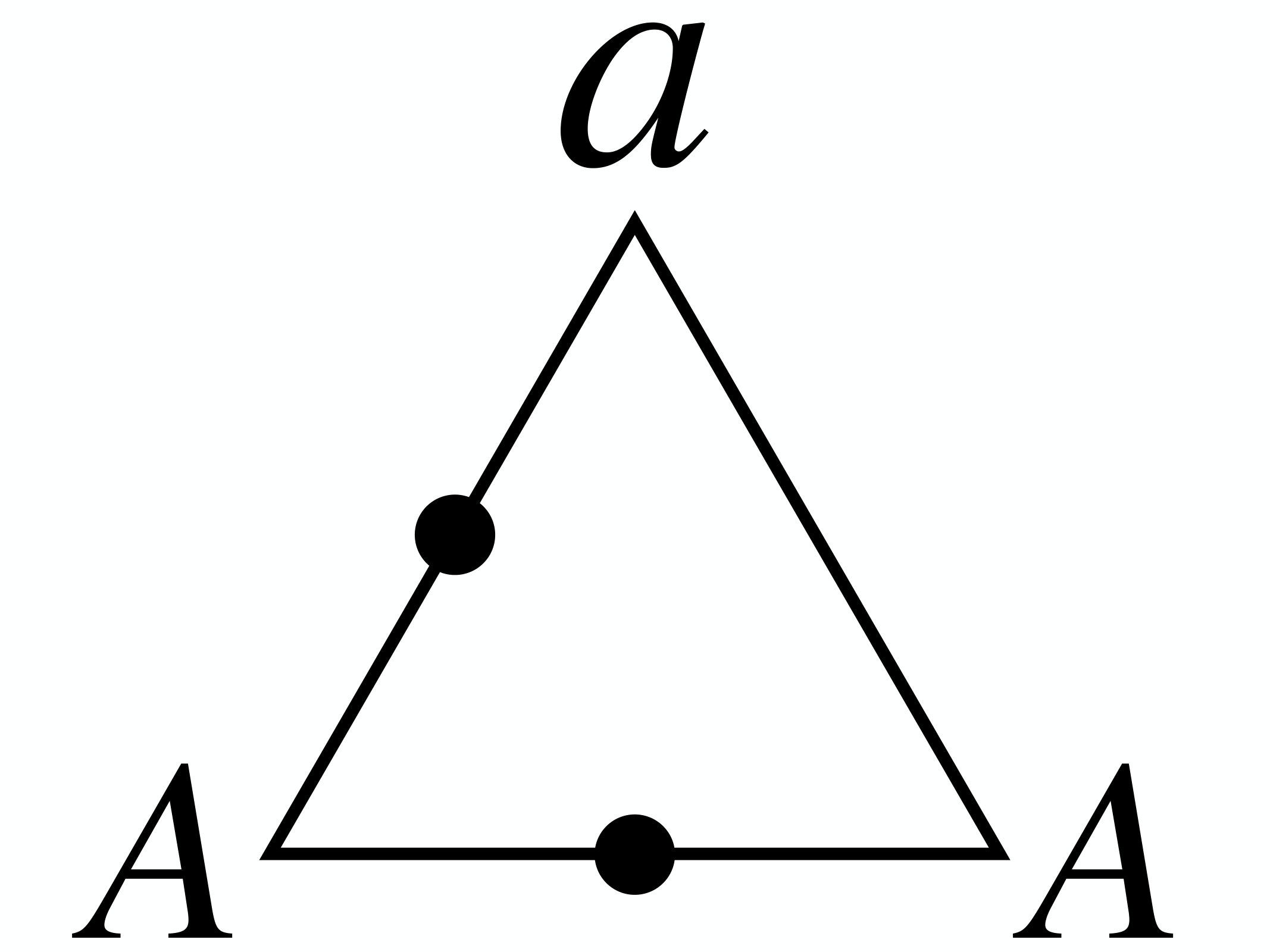

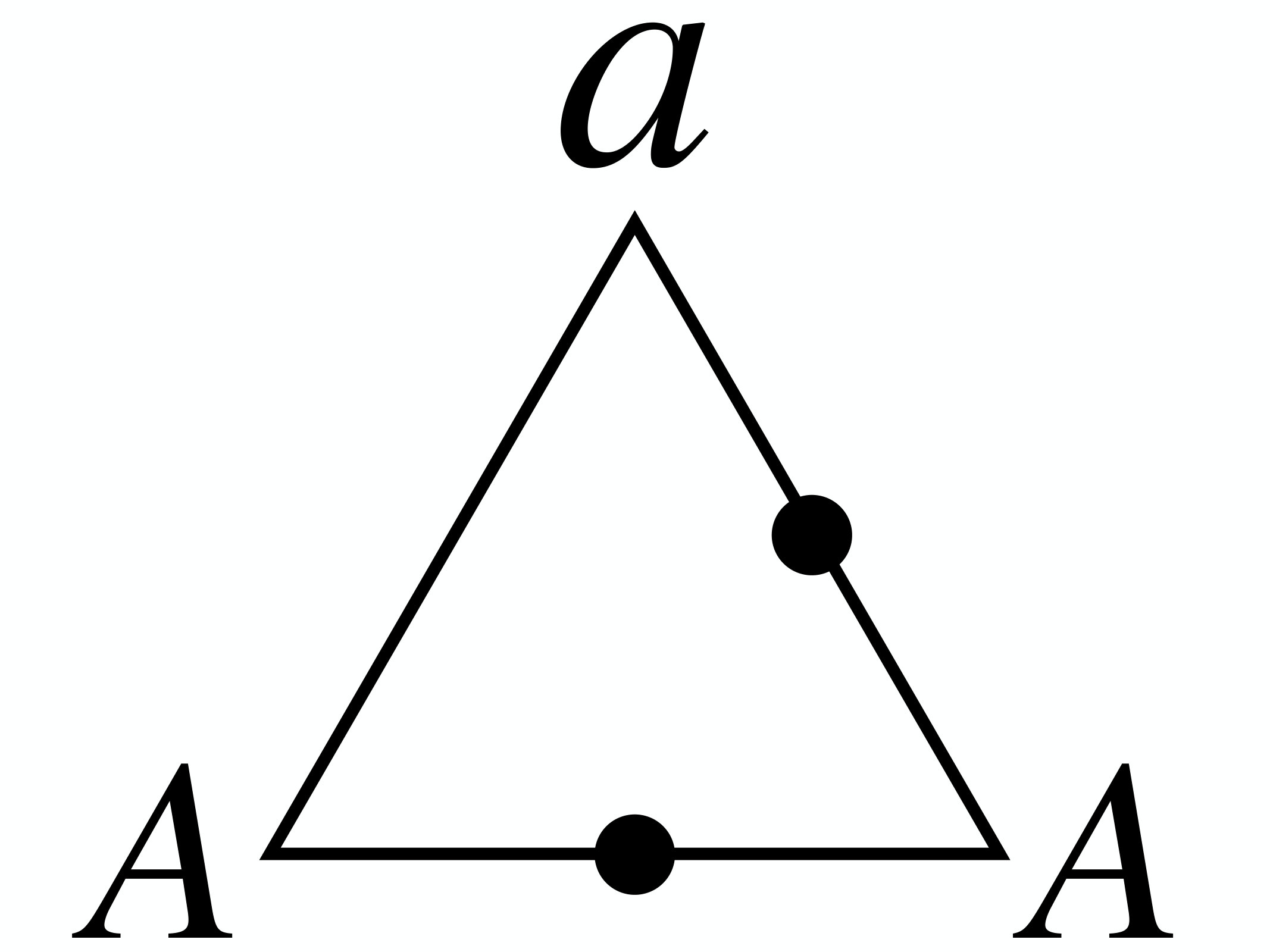

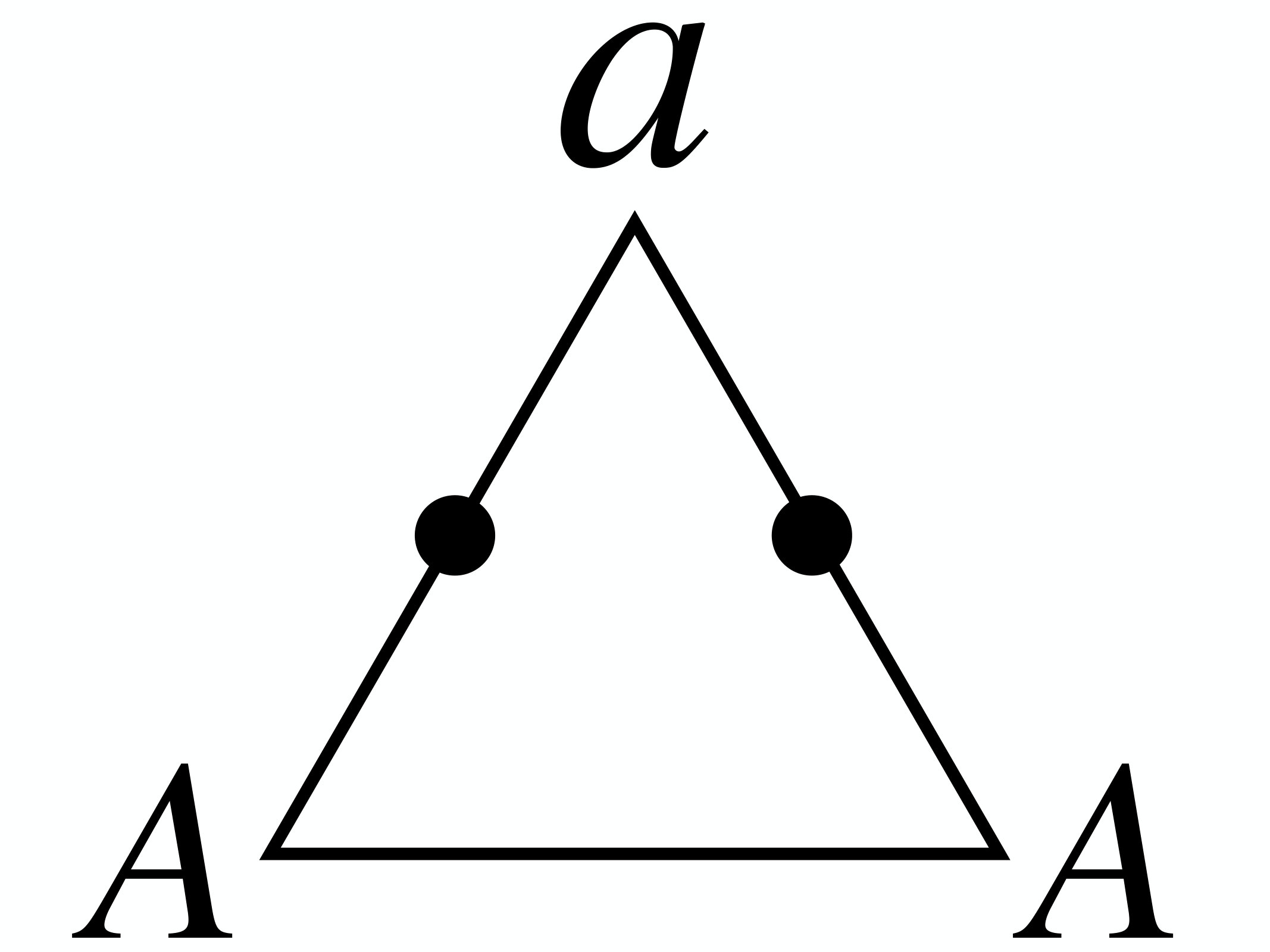

among which the nonvanishing contributions are depicted by the triangle diagrams in Fig. 1. We omitted the terms that are irrelevant to the CME. In contrast to the chiral phase, the effective action involves the pseudoscalar mesons through $M$ in Eq. (7). Further computation can be performed by imposing the physical requirement that the effective action should reduce to Eq. (3) for $\Sigma=1$. The result, in the leading order of the derivative expansion, reads

[TABLE]

which is independent of $g$. The derivation is given in Appendix A.

The effective action (8) is also obtained from the WZW action derived in Appendix B. This argument qualifies the effective action (8) to be independent of microscopic details in the low-energy regime.

The effective action (8) yields the CME current

[TABLE]

This is our main result. One can clearly see that the CME current involves the pseudoscalar mesons to modify its form from that in the chiral phase (4). The topological nature of the WZW action implies that the functional form of the current (9) does not receive higher-loop corrections. Note that this formula is for the pseudoscalar mesons being background fields. After taking these vacuum or thermal expectation values upon a proper redefinition of physical quantities, Eq. (9) reduces to a similar form as the chiral phase. We will substantiate this argument in the next section.

Before leaving this section, we make a remark on the disagreement with the work by Fukushima and Mameda Fukushima and Mameda (2012). Their work demonstrates that the CME current in the hadronic phase maintains the same functional form as the chiral phase. This disagreement stems from the WZW action that they cite from Ref. Kaiser and Leutwyler (2000); *Kaiser:2000ck. The WZW action in Ref. Kaiser and Leutwyler (2000); *Kaiser:2000ck does not have the term with the pseudoscalar mesons in Eq. (8), being contrary to the one derived in Appendix B and the multiple preceding works Chou et al. (1984); *Kawai:1984mx; *Kaymakcalan:1983qq; *Manes:1984gk. Although the WZW action in Ref. Chou et al. (1984); *Kawai:1984mx; *Kaymakcalan:1983qq; *Manes:1984gk as such yields a different action from Eq. (8) by a term proportional to $a_{\mu}A_{\nu}\tilde{F}^{\mu\nu}\mathop{\mathrm{tr}}(Q^{2})$, this term stems from the difference of counterterms. One can tame this renormalization scheme dependence by the requirement that the current should generate the one in the chiral phase.

IV Strength of the CME current

We have shown that the CME current in the hadronic phase (9) involves the pseudoscalar mesons. Now our interest is in how much this effect modifies the strength of the current. We examine this issue, for simplicity, by limiting ourselves to a two-flavor free pion gas at finite temperature in equilibrium. The extension to the nonequilibrium case requires appropriate treatment of the chirality imbalance as in Refs. Müller et al. (2016); Mace et al. (2017). This limitation enables an analytical evaluation of the current strength. We will see that the current strength is decreased by a few percent.

We hereby treat the pions as the dynamical fields. In this case, the flow of the charged pions also carries the electric current, but we ignore this nonanomalous contribution. The pions are assumed to be free with their mass $m_{\pi}$ and decay constant $f_{\pi}$ being substituted by the thermal effective values given in Ref. Petropoulos (1999). The magnetic-field dependences of $m_{\pi}$ and $f_{\pi}$ are ignored. The vacuum or thermal expectation value of the CME current (9) reads

[TABLE]

where we defined

[TABLE]

The bracket $\langle\cdots\rangle$ denotes the vacuum or thermal expectation value. The coefficient $\kappa$ is interpreted as the generalized dielectric constant incorporating the medium effect of the pseudoscalar mesons Fukushima and Ruggieri (2010); Kharzeev and Warringa (2009). In other words, the magnetic field would be substituted by $\boldsymbol{H}=\kappa\boldsymbol{B}$ in medium, as suggested in Ref. Fukushima and Ruggieri (2010). With this redefinition the anomaly relation (4) still holds.

As shown in Appendix. C, the dielectric constant (11) is evaluated in terms of the thermal Green function at the coincidental point Laine and Vuorinen (2016)

[TABLE]

where $K_{1}(z)$ denotes the modified Bessel function of the second kind. The sum over $A=1,2,3$ is not taken here. The constant $G_{0}$ is the counterterm to be determined shortly. The result reads

[TABLE]

In order to determine $G_{0}$, we impose the requirement that the dielectric constant (13) should be unity at the temperature of chiral symmetry restoration, $T=180\;\text{MeV}$. This requirement gives $G_{0}=1.48\;\text{MeV}$.

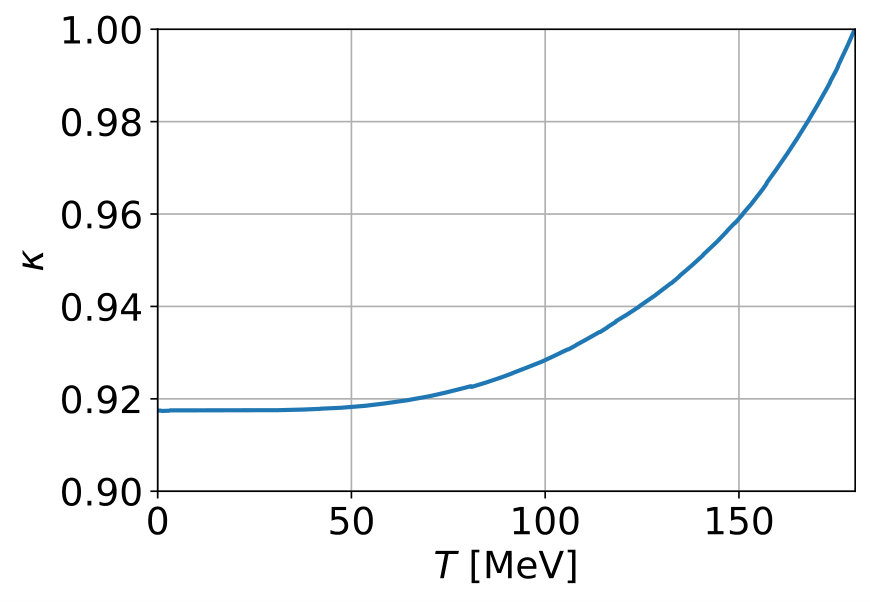

The temperature dependence of the dielectric constant $\kappa$ is shown in Fig 2. The strength of the CME current is reduced from that in the chiral phase. It is interesting to note that the beam energy scan programs in ALICE and STAR have reported reduced charge separations for low beam energies Abelev et al. (2013); Adamczyk et al. (2014), for which quark-gluon plasma would have a short lifetime until the system hadronizes.

V Summary and outlook

We studied the CME in the hadronic phase by means of the chiral effective model as well as the WZW action. The CME current is given by Eq. (9) and involves the pseudoscalar mesons. This result is independent of microscopic details. The involvement of the pseudoscalar mesons can either increase or decrease the strength of the CME current. In particular, the analysis of the two-flavor case implies that the CME signal would be reduced when the collision energy is so low that the system quickly hadronizes. This result qualitatively agrees with the observations of the beam energy scan programs.

The large multipion correlations, which were recently reported by the ALICE Collaboration Adam et al. (2016b); Begun (2016), might considerably influence the behavior of the CME signals. A recent theoretical study implied that these large correlations could be the manifestation of the Bose-Einstein condensation of the charged pions Liu and Zahed (2018). (See also Refs. Brauner and Yamamoto (2017); Huang et al. (2018) for related works.) Although we have limited ourselves to a free pion gas in Sec. IV, further analysis including the multipion correlations is necessary to inspect these interesting phenomena.

Other chiral transport phenomena, most of which have been examined in the chiral phase, could be enriched by hadronic environments. For instance, it is clear from Eq. (8) that the chiral separation effect (CSE) also involves the pseudoscalar mesons. Accordingly, the chiral magnetic wave, which is derived by combining the CME and the CSE, would change its behavior in the hadronic phase. Besides, one could examine the chiral vortical effect and the chiral torsional effect Khaidukov and Zubkov (2018); Imaki and Yamamoto (2019) in the hadronic phase by incorporating the pseudoscalar mesons. These intriguing transport phenomena deserve further investigations.

Acknowledgements.

The author is grateful to Kenji Fukushima, Misha Stephanov and Ho-Ung Yee for discussions. The author is supported by Grant-in-Aid for JSPS Fellows Grant Number 19J22323.

Appendix A Derivation of Eq. (8)

We derive the effective action (8). We neglect the momenta of the pseudoscalar mesons in what follows. The perturbative expansion of the effective action (6) yields

[TABLE]

The trace is over the coordinate space as well as the flavor and Dirac indices. As we are interested in the CME, we focus on the term that is linear in $a_{\mu}$ and quadratic in $A_{\mu}$, which is from $n=3$. This term reads, in the momentum space,

[TABLE]

The kernel $K^{\mu\nu\rho}(p)$ is given by the triangle diagrams in Fig. 1, or, the integral

[TABLE]

By virtue of the trace identity of gamma matrices, only the terms involving even numbers of $M$ are nonvanishing. The term with two $M$’s is given by a convergent integral and reads

[TABLE]

in the leading order of the derivative expansion. On the other hand, the term without an $M$ is divergent and thus depends on regularization schemes. We now impose a requirement that the CME current with $\Sigma=1$ must reproduce that in the chiral phase (4). This requirement identifies the coefficient with the form

[TABLE]

By plugging this into Eq. (14), we reach the effective action which is given by Eq. (8) in the coordinate space.

Appendix B Derivation of the WZW action

We derive the WZW action which leads to Eq. (8). We adopt the notation of differential forms. The WZW action is used to reproduce the anomaly,

[TABLE]

with $\Delta$ being the generator of an infinitesimal chiral transformation. The anomaly reads Bardeen (1969)

[TABLE]

where $v$ and $a$ are the vector and axial gauge fields of the flavor $\mathrm{U}(N_{\text{f}})$ group, respectively. We denote $f_{v}\equiv dv-iv^{2}$ and $D_{v}a\equiv da-iva-iav$. Equation (15) implies

[TABLE]

which gives

[TABLE]

For $\alpha=\alpha_{\Sigma}$ and $\beta=\beta_{\Sigma}$ satisfying the condition

[TABLE]

the relation above gives rise to

[TABLE]

We defined the fields $v_{s}$ and $a_{s}$ by the equations

[TABLE]

Although $\alpha_{\Sigma}$ and $\beta_{\Sigma}$ satisfying the condition (16) are not unique, any of these yield the unique WZW action (17) by virtue of the Wess-Zumino consistency condition Wess and Zumino (1971). With this understanding, we choose the pair of parameters as

[TABLE]

The choice of $S_{\text{WZW}}[v,a,1]$ in Eq. (17) corresponds to the choice of counterterms and will be made later.

We will now compute the WZW action (17). We split the axial gauge field into the $\mathrm{U}(1)$ component and the remnant,

[TABLE]

Accordingly the anomaly is given by

[TABLE]

where

[TABLE]

As we are interested in the CME, we hereby limit the axial gauge field $a$ to a $\mathrm{U}(1)$ field and focus on the terms in the WZW action that contain $a$. This limitation simplifies the definition (18) to

[TABLE]

with the notations $\Sigma_{s}=e^{-2is\beta_{\Sigma}}$, $L_{s}\equiv\Sigma_{s}d\Sigma_{s}^{\dagger}$ and $R_{s}\equiv d\Sigma_{s}^{\dagger}\Sigma_{s}$. One may notice that $a$ appears in the WZW action only through $\tilde{\mathcal{A}}[v_{s},a_{s}]$ in Eq. (19). Using the relation $\partial_{s}\Sigma_{s}=-2i\beta\Sigma_{s}$, we find

[TABLE]

Thus one can readily carry out the integration with respect to $s$ in the formula Eq. (17). The result reads

[TABLE]

We omitted the terms without $a$. If the vector field is the electromagnetic field, $v=QA$, this result becomes as simple as

[TABLE]

with $F\equiv dA$. The term $S_{\text{WZW}}[QA,a,1]$ is the effective action for $\Sigma=1$ and should be Eq. (3). This requirement determines the WZW action which gives Eq. (8).

Appendix C Derivation of Eq. (13)

We consider a two-flavor free pion gas to derive the dielectric constant (13). We represent the pions by $\Sigma=\exp(i\Pi^{A}\tau^{A})$, i.e. $\Pi^{A}\equiv\pi^{A}/f_{\pi}$, and the charge matrix by $Q=q^{0}+q^{A}\tau^{A}$. The Pauli matrices are denoted by $\tau^{A}$ ($A=1,\,2,\,3$). The quantity of our interest reads

[TABLE]

where $T^{XY}\equiv\langle\mathop{\mathrm{tr}}(\tau^{X}\Sigma\tau^{Y}\Sigma^{\dagger})\rangle$. This trace is given by

[TABLE]

The bosonic nature of pions and the anticommutative nature of Pauli matrices imply that the indices $A_{1},\dots,A_{n}$ and $B_{1},\dots,B_{m}$ in Eq. (20) respectively must take the same values. This observation simplifies this sum as

[TABLE]

We further observe that this trace is nonvanishing only when $n$ and $m$ are both odd or both even. For odd $n$ and $m$, the vacuum expectation value in Eq. (21) is nonvanishing only when the indices $A$ and $B$ are equal. Then Wick’s theorem gives

[TABLE]

The sum with even $n$ and $m$ can also be readily evaluated. After all, we obtain

[TABLE]

Thus, for the charge matrix of the $u$ and $d$ quarks, $Q=\mathrm{diag}(\frac{2}{3},-\frac{1}{3})$,

[TABLE]

It gives rise to the dielectric constant (13).
