Experimental study for leptonic and semileptonic decays in the charm sector

TL;DR

This paper presents experimental measurements of leptonic and semileptonic charm decays, testing flavor universality and exploring rare decays using data from BESIII, LHCb, and B factories.

Contribution

It provides the most precise measurements to date of charm decays and tests lepton flavor universality with large datasets from multiple experiments.

Findings

Precision measurements of charm meson and baryon decays.

Tests confirming or challenging lepton flavor universality.

Improved sensitivity to rare charm decay processes.

Abstract

Leptonic and semileptonic decays in the charm sector have been well studied in recent years. With the largest data sample near $D\bar D$ threshold, precision measurements of leptonic and semileptonic decays of charm meson and baryon are perfromed at BESIII. Test for letpon flavor universality is also performed. Sensitivity for rare leptonic and semileptonic charm decays is significantly improved taking advantage of the huge statistics in LHCb and the $B$ factories.

Figures

Tables

Table 1. Table 1: The measured BFs and product of form factors at q 2 = 0 superscript 𝑞 2 0 q^{2}=0 and CKM matrix elements for some D 𝐷 D meson semileptonic decays to psuedoscalar mesons.

$ℬ\left(D^0\to K^{-}{e}^{+}{\nu }_e\right)$	$\left(3.505\pm 0.014\pm 0.033\right)\%$	$f_{+}^{D^0\to K^{-}}\left(0\right)\left|V_{cs}\right|$	$0.7172\pm 0.0025\pm 0.0035$
$ℬ\left(D^0\to K^{-}{\mu }^{+}{\nu }_{\mu }\right)$	$\left(3.431\pm 0.019\pm 0.035\right)\%$	$f_{+}^{D^0\to K^{-}}\left(0\right)\left|V_{cs}\right|$	$0.7133\pm 0.0038\pm 0.0030$
$ℬ\left(D^{+}\to {\overline{K}}^0{e}^{+}{\nu }_e\right)$	$\left(8.60\pm 0.06\pm 0.015\right)\%$	$f_{+}^{D^{+}\to {\overline{K}}^0}\left(0\right)\left|V_{cs}\right|$	$0.7053\pm 0.0040\pm 0.0112$
$ℬ\left(D_s^{+}\to K^0{e}^{+}{\nu }_e\right)$	$\left(3.25\pm 0.38\pm 0.16\right)\times {10}^{-3}$	$f_{+}^{D_s^{+}\to K^0}\left(0\right)\left|V_{cd}\right|$	$0.162\pm 0.019\pm 0.003$
$ℬ\left(D^0\to {\pi }^{-}{e}^{+}{\nu }_e\right)$	$\left(2.95\pm 0.04\pm 0.03\right)\times {10}^{-3}$	$f_{+}^{D^0\to {\pi }^{-}}\left(0\right)\left|V_{cd}\right|$	$0.1435\pm 0.0018\pm 0.0009$
$ℬ\left(D^{+}\to {\pi }^0{e}^{+}{\nu }_e\right)$	$\left(3.63\pm 0.08\pm 0.05\right)\times {10}^{-3}$	$f_{+}^{D^{+}\to {\pi }^0}\left(0\right)\left|V_{cd}\right|$	$0.1400\pm 0.0026\pm 0.0007$
$ℬ\left(D^{+}\to \eta e^{+}{\nu }_e\right)$	$\left(10.74\pm 0.81\pm 0.51\right)\times {10}^{-4}$	$f_{+}^{D^{+}\to \eta }\left(0\right)\left|V_{cd}\right|$	$0.0786\pm 0.0064\pm 0.0021$
$ℬ\left(D_s^{+}\to \eta e^{+}{\nu }_e\right)$	$\left(2.323\pm 0.063\pm 0.063\right)\%$	$f_{+}^{D_s^{+}\to \eta }\left(0\right)\left|V_{cs}\right|$	$0.4455\pm 0.0053\pm 0.0044$
$ℬ\left(D_s^{+}\to {\eta }^{\prime }{e}^{+}{\nu }_e\right)$	$\left(0.824\pm 0.073\pm 0.027\right)\%$	$f_{+}^{D_s^{+}\to {\eta }^{\prime }}\left(0\right)\left|V_{cs}\right|$	$0.477\pm 0.049\pm 0.011$

Table 2. Table 2: The measured BFs and form factor ratios for some of the D 𝐷 D meson decays to vector mesons.

Decay	BF	$r_V$	$r_2$
$D^{+}\to {\overline{K}}^{\ast 0}{e}^{+}{\nu }_e$	$\left(3.54\pm 0.03\pm 0.08\right)\%$	$1.41\pm 0.06\pm 0.01$	$0.79\pm 0.04\pm 0.01$
$D^0\to {\overline{K}}^{\ast -}{e}^{+}{\nu }_e$	$\left(1.36\pm 0.03\pm 0.03\right)\%$	$1.46\pm 0.07\pm 0.02$	$0.67\pm 0.06\pm 0.01$
$D^{+}\to \omega e^{+}{\nu }_e$	$\left(1.63\pm 0.11\pm 0.08\right)\times {10}^{-3}$	$1.24\pm 0.09\pm 0.06$	$1.06\pm 0.15\pm 0.05$
$D^0\to {\rho }^{-}{e}^{+}{\nu }_e$	$\left(1.45\pm 0.05\pm 0.04\right)\times {10}^{-3}$	$1.70\pm 0.08\pm 0.05$	$0.85\pm 0.06\pm 0.04$
$D^{+}\to {\rho }^0{e}^{+}{\nu }_e$	$\left(1.86\pm 0.07\pm 0.06\right)\times {10}^{-3}$	$1.70\pm 0.08\pm 0.05$	$0.85\pm 0.06\pm 0.04$
$D_s^{+}\to K^{\ast 0}{e}^{+}{\nu }_e$	$\left(2.37\pm 0.26\pm 0.20\right)\times {10}^{-3}$	$1.67\pm 0.34\pm 0.16$	$0.77\pm 0.28\pm 0.07$

Equations

$$H^{\mu }=<0|-A^{\mu }|D(p)>=f_D{p}^{\mu }$$

$$\begin{array}[]{rcl}H^{\mu}&=&<P(p_{2})|V^{\mu}|D(p_{1})>\\ &=&f_{+}(q^{2})[p_{2}^{\mu}-\frac{M_{1}^{2}-M_{2}^{2}}{q^{2}}q^{\mu}]+f_{0}(q^{2})\frac{M_{1}^{2}-M_{2}^{2}}{q^{2}}q^{\mu}\end{array}$$

$$\begin{array}[]{rcl}H^{\mu}&=&<V(p_{2},\epsilon_{2})|V^{\mu}-A^{\mu}|D(p_{1})>\\ &=&-(M_{1}+M_{2})\epsilon_{2}^{*\mu}A_{1}(q^{2})+\frac{\epsilon_{2}^{*}q}{M_{1}+M_{2}}P^{\mu}A_{2}(q^{2})\\ &&+2M_{2}\frac{\epsilon_{2}^{*}q}{q^{2}}q^{\mu}[A_{3}(q^{2})-A_{0}(q^{2})]\\ &&+\frac{2i\epsilon_{\mu\nu\rho\sigma}\epsilon^{*\nu}p_{1}^{\rho}p_{2}^{\sigma}}{M_{1}+M_{2}}V(q^{2}).\end{array}$$

$$\mathcal{B}(D_s^{+}\to {\mu }^{+}{\nu }_{\mu })=(5.49\pm 0.16\pm 0.15)\times 10^{-3}.$$

$$f_{D_s^{+}}|V_{cs}|=246.2\pm 3.6\pm 3.5\mathrm{MeV}.$$

$$f_{D_s^{+}}=252.9\pm 3.7\pm 3.5\mathrm{MeV}.$$

$$|V_{cs}|=0.985\pm 0.014\pm \mathrm{0.014.}$$

$$\frac{{\mathcal{B}}_{D_s^{+}\to {\tau }^{+}{\nu }_{\tau }}}{{\bar{\mathcal{B}}}_{D_s^{+}\to {\mu }^{+}{\nu }_{\mu }}}=9.98\pm 0.52,$$

$$\mathcal{B}(D^{+}\to {\tau }^{+}{\nu }_{\tau })=(1.20\pm 0.24)\times 10^{-3},$$

$$f_{D^{+}}|V_{cd}|=50.4\pm 5.0\mathrm{MeV}$$

$$\frac{{\mathcal{B}}_{D^{+}\to {\tau }^{+}{\nu }_{\tau }}}{{\mathcal{B}}_{D^{+}\to {\mu }^{+}{\nu }_{\mu }}}=3.21\pm 0.64,$$

$$\frac{f_{+}^{D_s^{+}\to K^0}(0)}{f_{+}^{D^{+}\to {\pi }^0}(0)}=1.16\pm 0.14\pm 0.02,$$

$$\frac{\Gamma (D^0\to K^{-}{\mu }^{+}{\nu }_{\mu })}{\Gamma (D^0\to K^{-}{e}^{+}{\nu }_e)}=0.974\pm 0.014,$$

$$\frac{\Gamma (D^{+}\to {\bar{K}}^0{\mu }^{+}{\nu }_{\mu })}{\Gamma (D^{+}\to {\bar{K}}^0{e}^{+}{\nu }_e)}=1.014\pm 0.017,$$

$$\frac{\Gamma (D^0\to {\pi }^{-}{\mu }^{+}{\nu }_{\mu })}{\Gamma (D^0\to {\pi }^{-}{e}^{+}{\nu }_e)}=0.922\pm 0.037,$$

$$\frac{\Gamma (D^{+}\to {\pi }^0{\mu }^{+}{\nu }_{\mu })}{\Gamma (D^{+}\to {\pi }^0{e}^{+}{\nu }_e)}=0.964\pm 0.045,$$

$$r_V=\frac{V(0)}{A_1(0)},$$

$$r_2=\frac{A_2(0)}{A_1(0)},$$

$$A_1(0)=0.589\pm 0.010\pm \mathrm{0.012.}$$

$$\frac{r_V^{D_s^{+}\to K^{\ast 0}}}{r_V^{D^{+}\to {\rho }^0}}=1.13\pm 0.26\pm 0.11,$$

$$\frac{r_2^{D_s^{+}\to K^{\ast 0}}}{r_2^{D^{+}\to {\rho }^0}}=0.93\pm 0.36\pm \mathrm{0.10.}$$

$$R=\frac{\mathcal{B}(D^{+}\to f_0(980)e^{+}{\nu }_e)+\mathcal{B}(D^{+}\to f_0(500)e^{+}{\nu }_e)}{\mathcal{B}(D^{+}\to a_0(980{)}^0{e}^{+}{\nu }_e)}.$$

$$\mathcal{B}({\Lambda }_c^{+}\to \Lambda e^{+}{\nu }_e)=(3.63\pm 0.38\pm 0.20)\%,$$

$$\mathcal{B}({\Lambda }_c^{+}\to \Lambda {\mu }^{+}{\nu }_{\mu })=(3.49\pm 0.46\pm 0.26)\%,$$

$$\frac{\Gamma ({\Lambda }_c^{+}\to \Lambda {\mu }^{+}{\nu }_{\mu })}{\Gamma ({\Lambda }_c^{+}\to \Lambda e^{+}{\nu }_e)}=0.96\pm 0.16\pm \mathrm{0.04.}$$

$$\mathcal{B}(D^{+}\to \gamma e^{+}{\nu }_e)<3.0\times 10^{-5},$$

$$\mathcal{B}(D_s^{+}\to \gamma e^{+}{\nu }_e)<1.3\times 10^{-4}.$$

$$\mathcal{B}(D^0\to {\mu }^{+}{\mu }^{-})<6.2\times 10^{-9}@90\%C.L.,$$

$$\mathcal{B}(D^0\to K^{-}{\pi }^{+}{\mu }^{+}{\mu }^{-})=(4.17\pm 0.12\pm 0.40)\times 10^{-6},$$

$$\mathcal{B}(D^0\to K^{-}{\pi }^{+}{e}^{+}{e}^{-})=(4.0\pm 0.5\pm 0.2\pm 0.1)\times 10^{-6}$$

Full text

I Introduction

Leponic and semileptonic decays are well described in the Standard Model (SM). The decay amplitudes are proportional to the product of the hadronic current and the leptonic current. The hadronic current, which describes the strong interaction in the bound state for leptonic decays and in the hadronic transition in the semileptonic decays, can not be given directly. Instead, it can be written in terms of decay constants and form factors. Usually, we have Wirbel1985

[TABLE]

for leptonic decays,

[TABLE]

for semileptonic decays to pseudoscalar mesons, and

[TABLE]

for semileptonic decays to vector mesons. Here, $q$ is the total four momentum of the lepton system. The charm mesons and baryons are not light enough for applying perturbation method and not heavy enough for heavy quark theory, so it’s important to measure the decay constants and form factors in experiment. Since $q^{\mu}L_{\mu}$ vanishes when the mass of the lepton equals zero, the contributions from $f_{0}(q^{2})$ and $A_{0}(q^{2})$ are negligible for decays to electron or muon and are usually ignored in experiment.

Meanwhile, some recent results Lees2012 ; Lees2013 ; Aaij2015 ; Huschle2015 ; Sato2016 ; Aaij2014 ; Aaij2017 ; Abdesselam2019 in the measurements of $B$ semileptonic decays have shown hints of violation of lepton flavor universality (LFU), which requires that different generations of leptons have the same coupling strength with gauge bosons. For $D$ meson leptonic decays and semileptonic decays to pseudoscalar mesons, the hadronic currents are almost cancelled out when we calculate the ratio of decay rates to different generations of leptons. With these precisely determined SM prediction, we can test for LFU in the charm sector at a very good precision, which is important to understand the potential mechanism in the $B$ anomaly.

One can also test the SM in rare charm leptonic and semileptonic decays where the branching fractions (BFs) may be enhanced by new physics beyond the SM. In particular, the loop diagram of flavor changing neutral current in the SM is heavily suppressed and may receive contributions from various kinds of SM extensions.

II Facility working on charm leptonic and semileptonic decays

Measurements of charm leptonic and semileptonic decays are mainly carried out in the charm factory, nowadays mostly at the BESIII detector besiii with 2.93 fb*-1* and 3.19 fb*-1* data collected at center mass energy 3.773 GeV and 4.178 GeV, respectively. For charm factories which work at the energy point of $D\bar{D}$ threshold, the $D$ mesons are produced in pair. If we first fully reconstruct a $D$ meson using hadronic decays, the other $D$ meson is then guaranteed to exist in the recoiling system. One can also study these decays at the $B$ factories, e. g., Belle belle and BaBar babar , where the luminosity is much higher than the charm factories. In this case, the $D$ meson is often reconstructed from $D^{*}$ decay, and the flavor of the $D$ meson can be determined from the accompanying soft pion. Belle has collected about 1 ab*-1* data near $\Upsilon(4S)$ resonance, and ultimately 50 ab*-1* are expected at its upgrade, BelleII. BaBar also collected about 550 fb*-1* data at the similar energy point. The LHCb detector lhcb1 ; lhcb2 , working at the Large Hadron Collider, is also contributing data to charm physics. The statistic is much higher benefiting from the huge cross section at the hadron collider. However, the electron is hard to reconstruct due to bremsstrahlung and it is very difficult to reconstruct decay channels involving neutrinos. In 2018, LHCb has finished its run 2 data taking and in total about 9 fb*-1* data has been collected. Compared to the charm factories, study of charm leptonic and semileptonic decays at the $B$ factories and LHCb suffers from lower efficiency and higher backgrounds. However, the high statistics make them superior places for rare decay search.

III Recent results

III.1 Leptonic decays

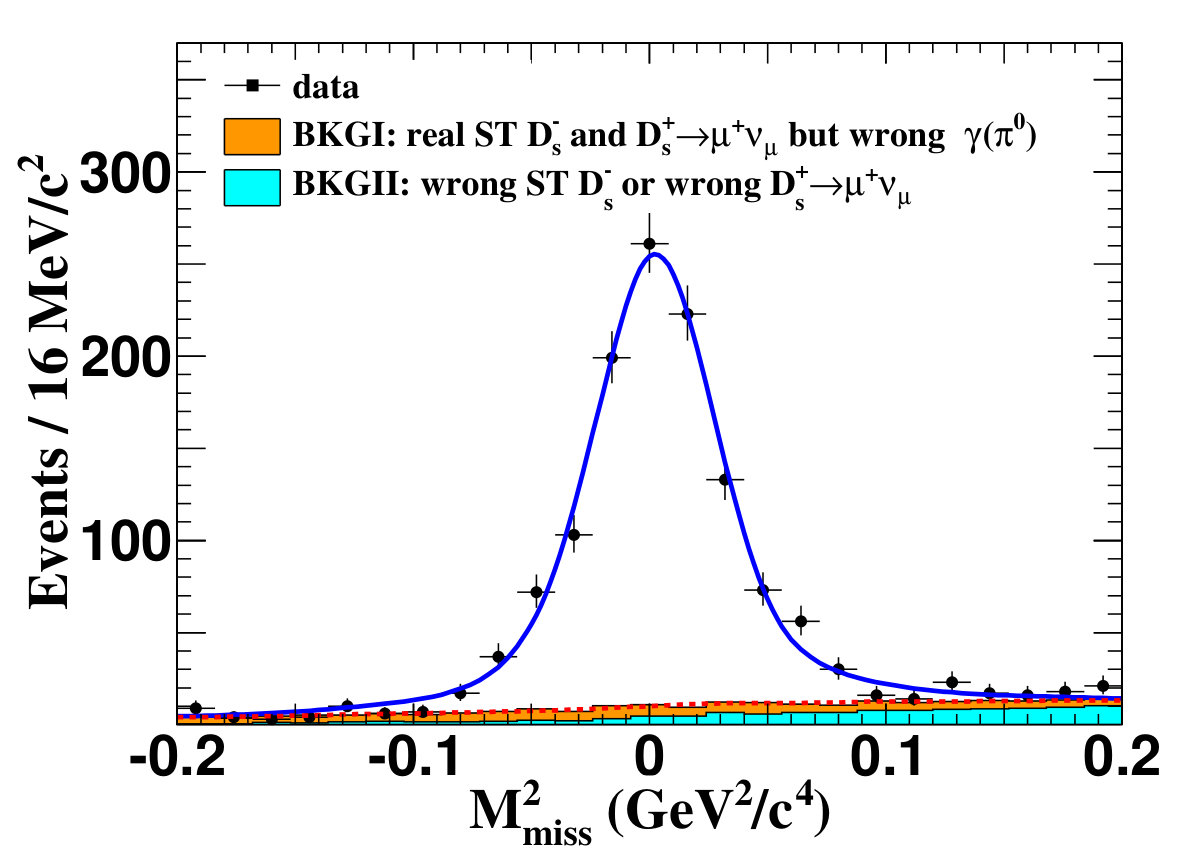

Leptonic decays give us direct access to the corresponding decay constants and CKM matrix elements. BESIII has recently published the measurement of the BF of $D_{s}^{+}\to\mu^{+}\nu_{\mu}$ bes_dstomuv . Figure 1 shows the missing mass square of the neutrino, which is defined as $M_{\rm miss}^{2}=\sqrt{E_{\rm miss}^{2}-p_{\rm miss}^{2}}$, where $E_{\rm miss}$ and $p_{\rm miss}$ are the missing energy and momentum of the candidate event. The BF is measured to be

[TABLE]

Given the lifetime of $D_{s}^{+}$ meson PDG2018 , one obtains

[TABLE]

If we input the CKM matrix element $|V_{cs}|$ from a global fit PDG2018 , we have

[TABLE]

In contrast, inputting $f_{D_{s}^{+}}$ from Lattice QCD calculation Bazavov2018 ; Carrasco2015 gives

[TABLE]

In any case, these are the most precise single measurements to date. Averaging this measurement of $\mathcal{B}(D_{s}^{+}\to\mu^{+}\nu_{\mu})$ with the previous measurements cleo_dstomuv ; babar_dstomuv ; belle_dstomuv ; bes_dstolv and combining the world average of $\mathcal{B}(D_{s}^{+}\to\tau^{+}\nu_{\tau})$ PDG2018 , we find

[TABLE]

which is consistent with the SM prediction 9.74.

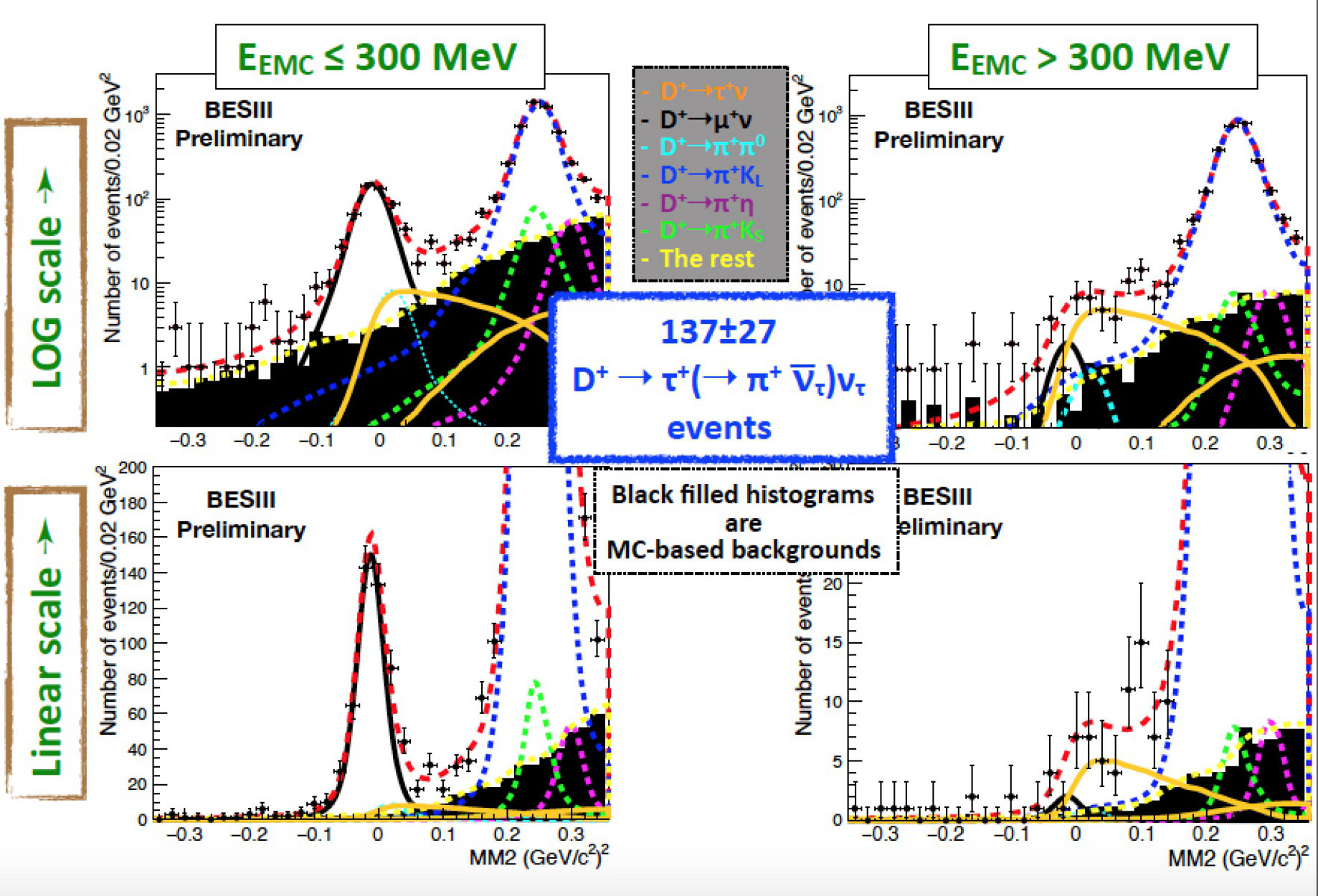

BESIII has also released the preliminary result of the search for $D^{+}\to\tau^{+}\nu_{\tau}$, as shown in Fig. 2. The data sample is divided according to the energy deposited in the electromagnetic calorimeter into pion and muon dominated samples to better constrain the background from $D^{+}\to\mu^{+}\nu_{\mu}$. We have

[TABLE]

and

[TABLE]

using the world average $D^{+}$ lifetime PDG2018 . Here the uncertainties are statistical only and the statistical significance is 4$\sigma$.

Combined with the previous measurement of the BF of $D^{+}\to\mu^{+}\nu_{\mu}$ from BESIII bes_dptomuv , we obtain

[TABLE]

which is also consistent with the SM prediction 2.66.

III.2 Semileptonic decays

$D$ meson semileptonic decays to pseudoscalar mesons can be fully characterized by the single kinematic variable $q^{2}$. The form factors, which describe the hadronic transition, are usually parametrized as the function of $q^{2}$ with respect to its value $q^{2}=0$. The most widely used parametrizations include the Single Pole Model Wirbel1985 , the Modified Pole Model mpm , the ISGW2 Model isgw2 and the series expansion parametrization sep . In experiment, one usually divide the $q^{2}$ distribution into several intervals and measure the partial decay rate in each interval. The measured partial decay rates are then fitted using the theoretically expected form to extract the form factor at $q^{2}=0$.

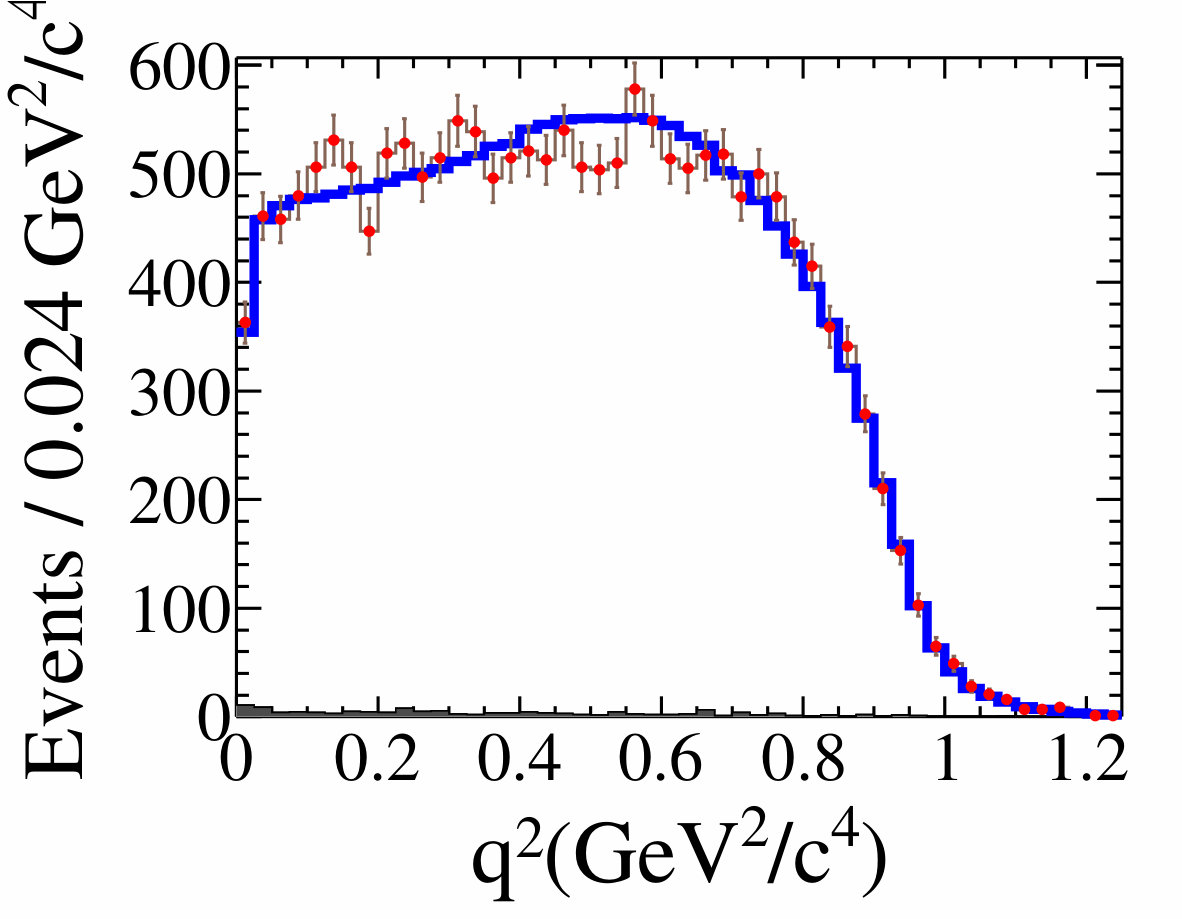

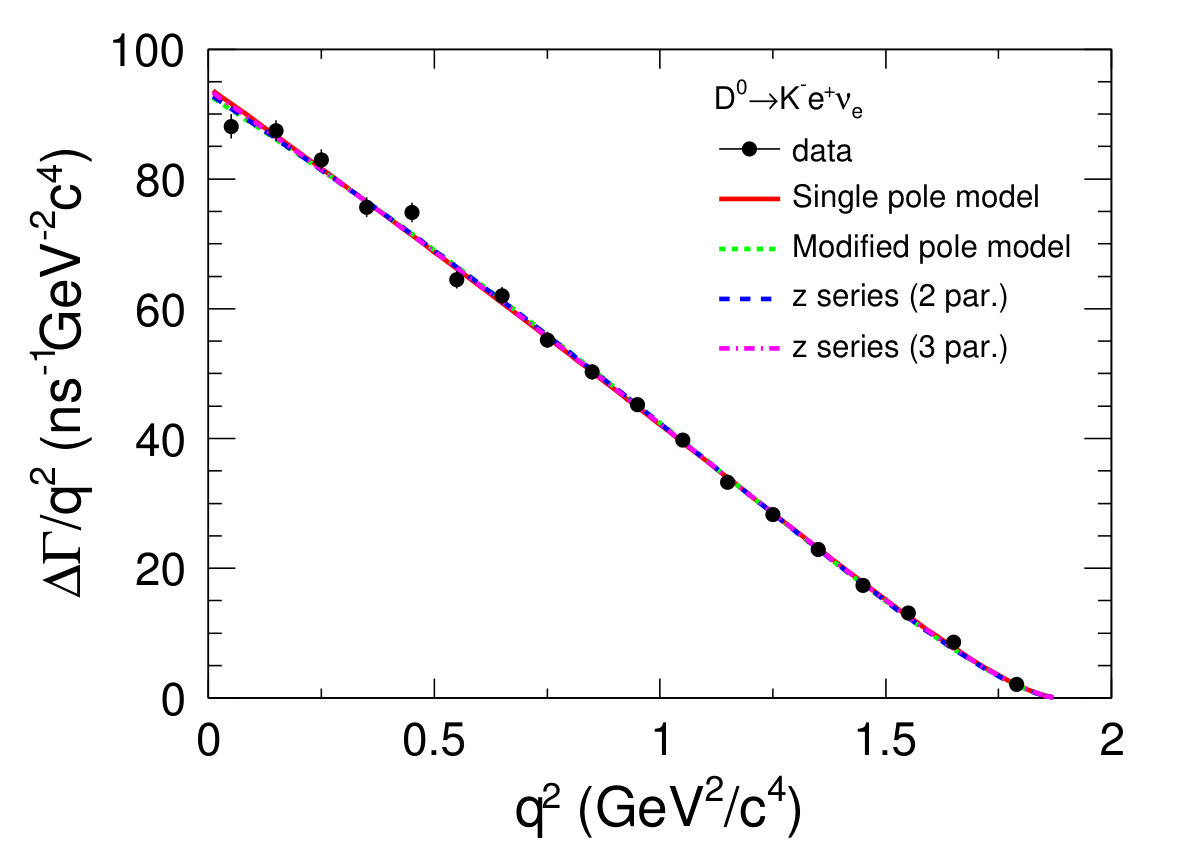

One such example is shown in Fig. 3 for $D^{0}\to K^{-}e^{+}\nu_{e}$ published by BESIII bes_d0tok_pi_ev .

In recent years, similar analyses have been performed at BESIII for $D\to\pi e^{+}\nu_{e}$, $D^{0}\to K^{-}\mu^{+}\nu_{\mu}$, and $D\to\eta(^{\prime})e^{+}\nu_{e}$, etc bes_d0tok_pi_ev ; bes_d0tokmuv ; bes_dptok_pi_ev ; bes_dptoetaev ; bes_dstoetaev ; bes_dstokev . The measured BFs and the product of form factors at $q^{2}=0$ and CKM matrix elements are summarized in Table 1. Here the results listed in the table are extracted using the 2-parameter series expansion parametrization.

Most of the measurements are consistent with the LQCD calculations Na2010 ; Na2011 ; Lubicz2017 ; Li2019 . We can also find that

[TABLE]

which is consistent with U-spin symmetry.

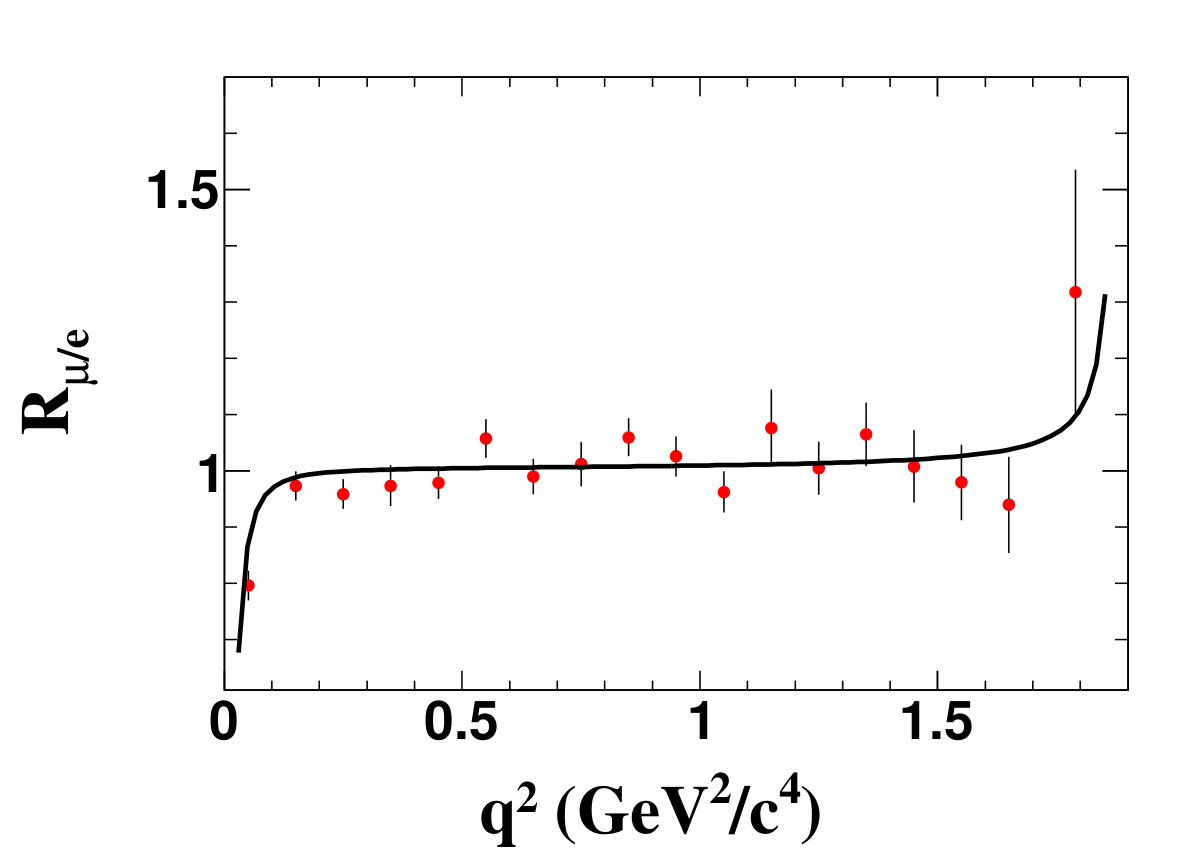

As introduced before, the ratio of the decay rates for $D$ meson semileptonic decays to pseudoscalar mesons with muon or with electron can be precisely determined in SM theory, which makes it an ideal place for test of LFU. Such studies have been performed at BESIII, yielding bes_d0tokmuv ; bes_dptokmuv ; bes_dtopimuv

[TABLE]

[TABLE]

[TABLE]

and

[TABLE]

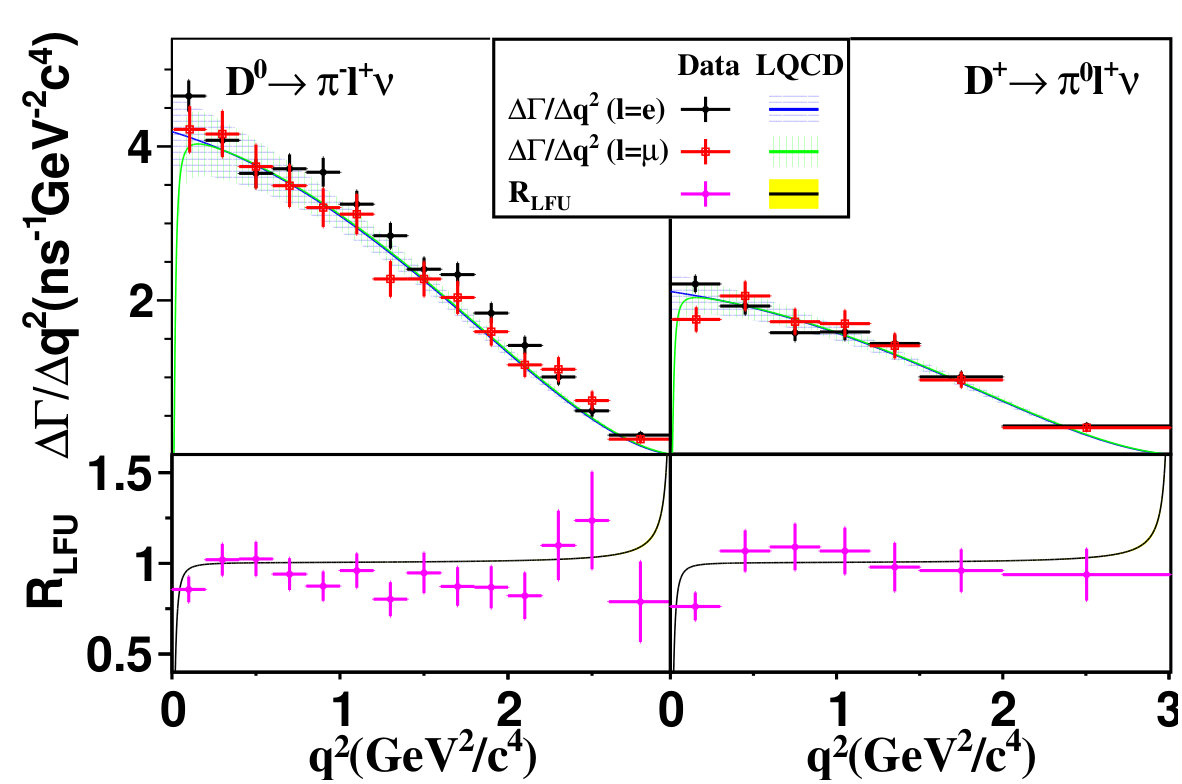

These are all consistent with the SM prediction within 2.5$\sigma$ Riggio2018 . One may wish to look at the ratios in different $q^{2}$ intervals which give us better sensitivity to potential LFU violation effect. Figure 4 shows the result for $D^{0}\to K^{-}\ell^{+}\nu_{\ell}$, $D^{0}\to\pi^{-}\ell^{+}\nu_{\ell}$, and $D^{+}\to\pi^{0}\ell^{+}\nu_{\ell}$, where the theoretical expectations are taken from a recent LQCD calculation from ETM Collaboration Lubicz2017 . No significant deviation is observed.

The situation is more complex in the case of semileptonic decays to vector mesons with the presence of extra polarization vectors. As illustrated in Fig. 5 for $D^{+}\to\bar{K}^{*0}e^{+}\nu_{e}$ bes_dptokpiev , the decay rate is described by three extra angular variables in addition to $q^{2}$, including the angle between the $\pi$ and the $D$ direction in the $K\pi$ rest frame ($\theta_{K}$), the angle between the $\nu_{e}$ and the $D$ direction in the $e\nu_{e}$ rest frame ($\theta_{e}$), and the angle between the two decay planes ($\chi$).

Meanwhile, we now have four form factors $A_{0,1,2}(q^{2})$ and $V(q^{2})$ ($A_{3}(q^{2})$ is not independent), where $A_{0}(q^{2})$ is often ignored. Due to the limited statistics, these form factors are usually modeled using the Single Pole Model. What’s more, since $A_{1}(q^{2})$ appears in every helicity amplitude, we often measure the form factor ratios

[TABLE]

and

[TABLE]

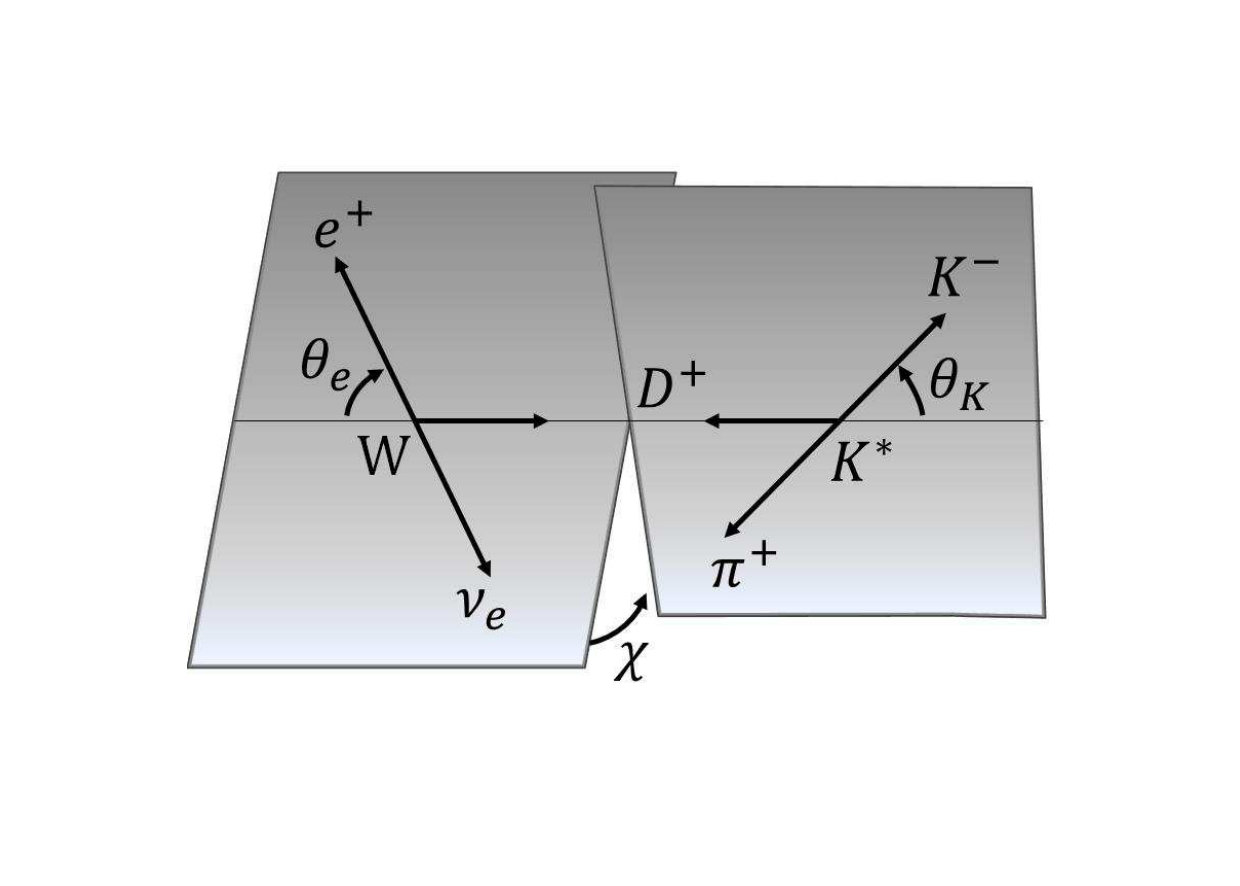

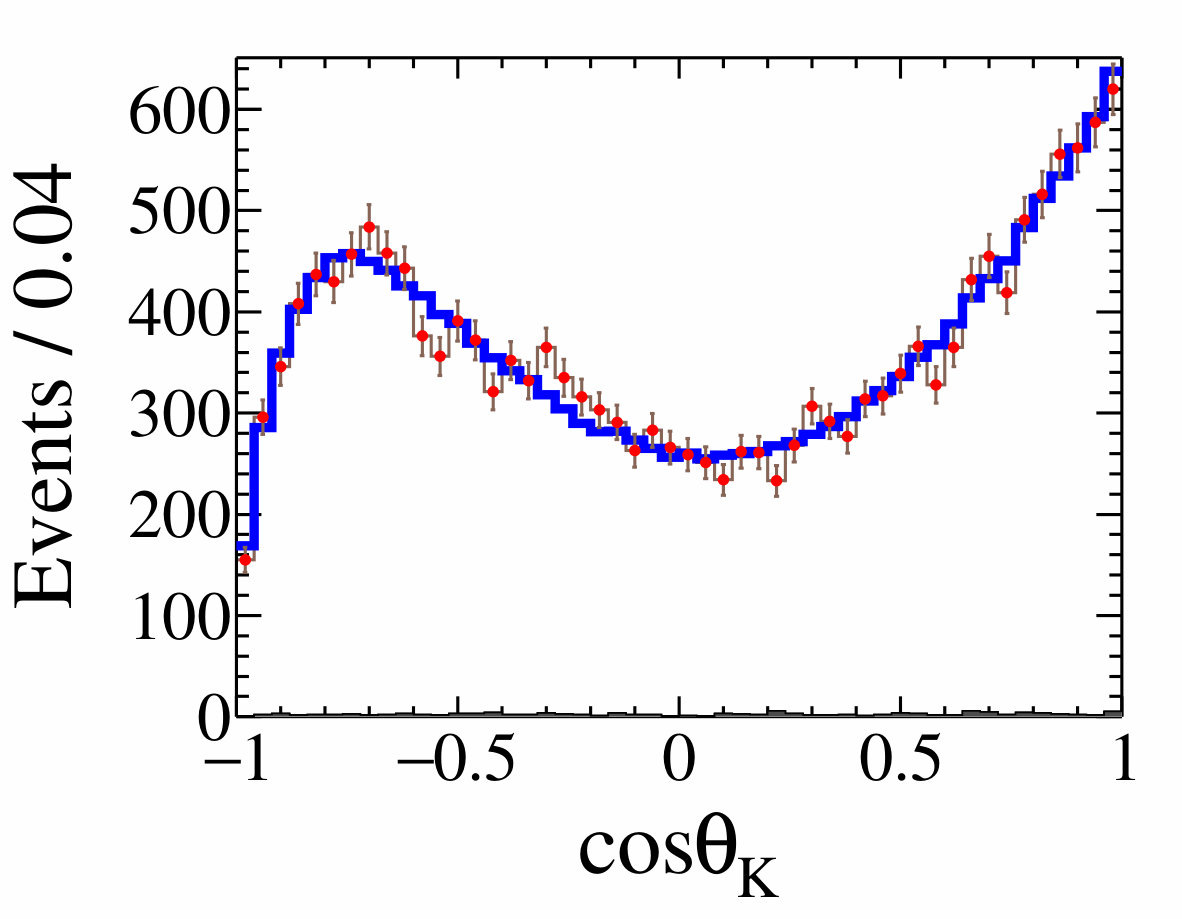

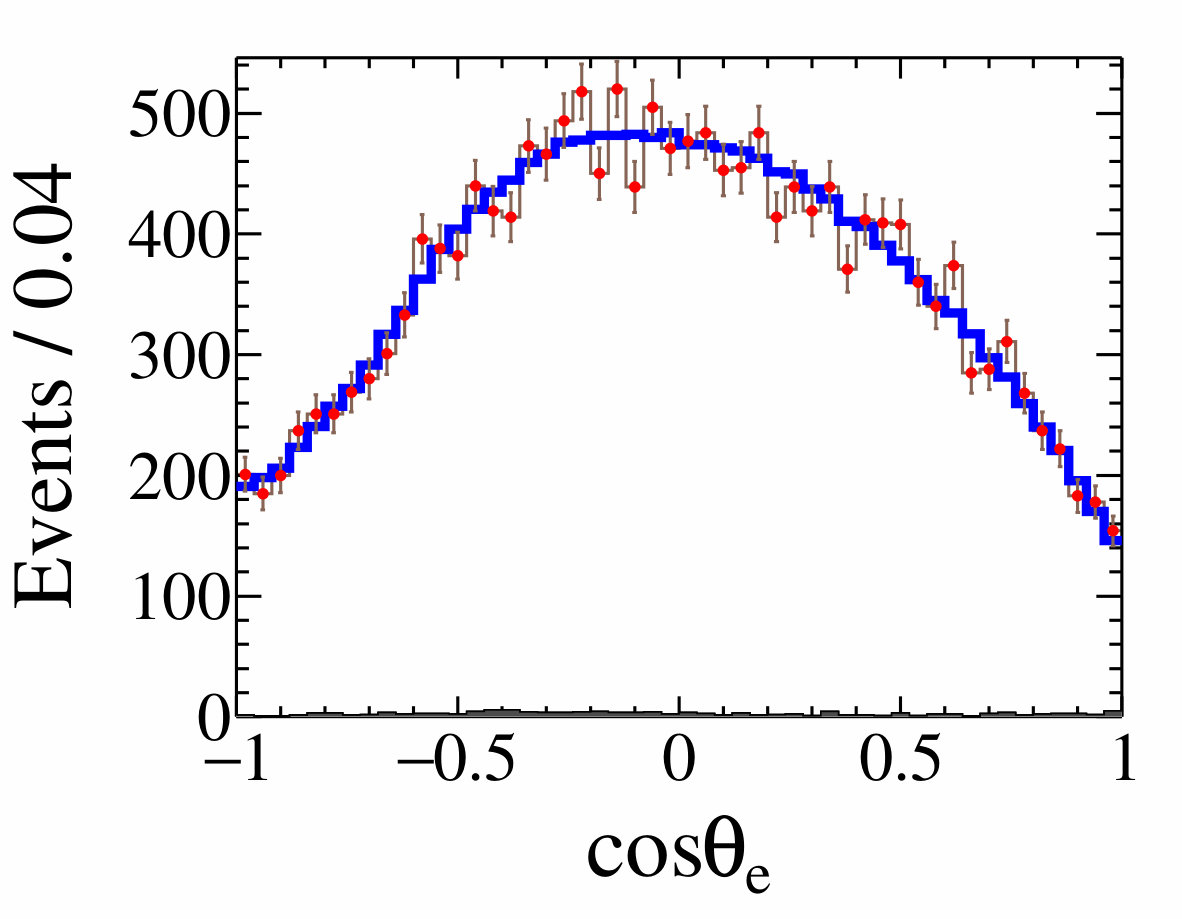

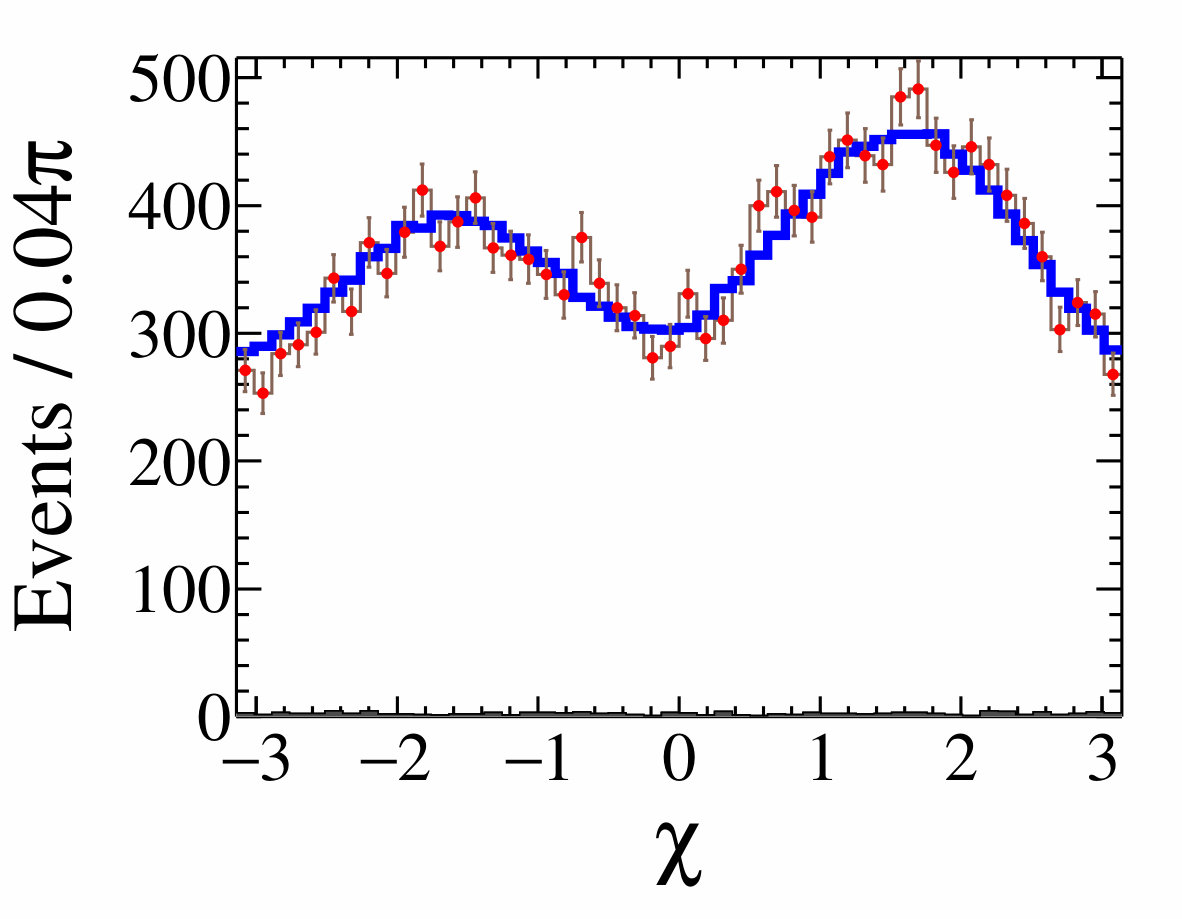

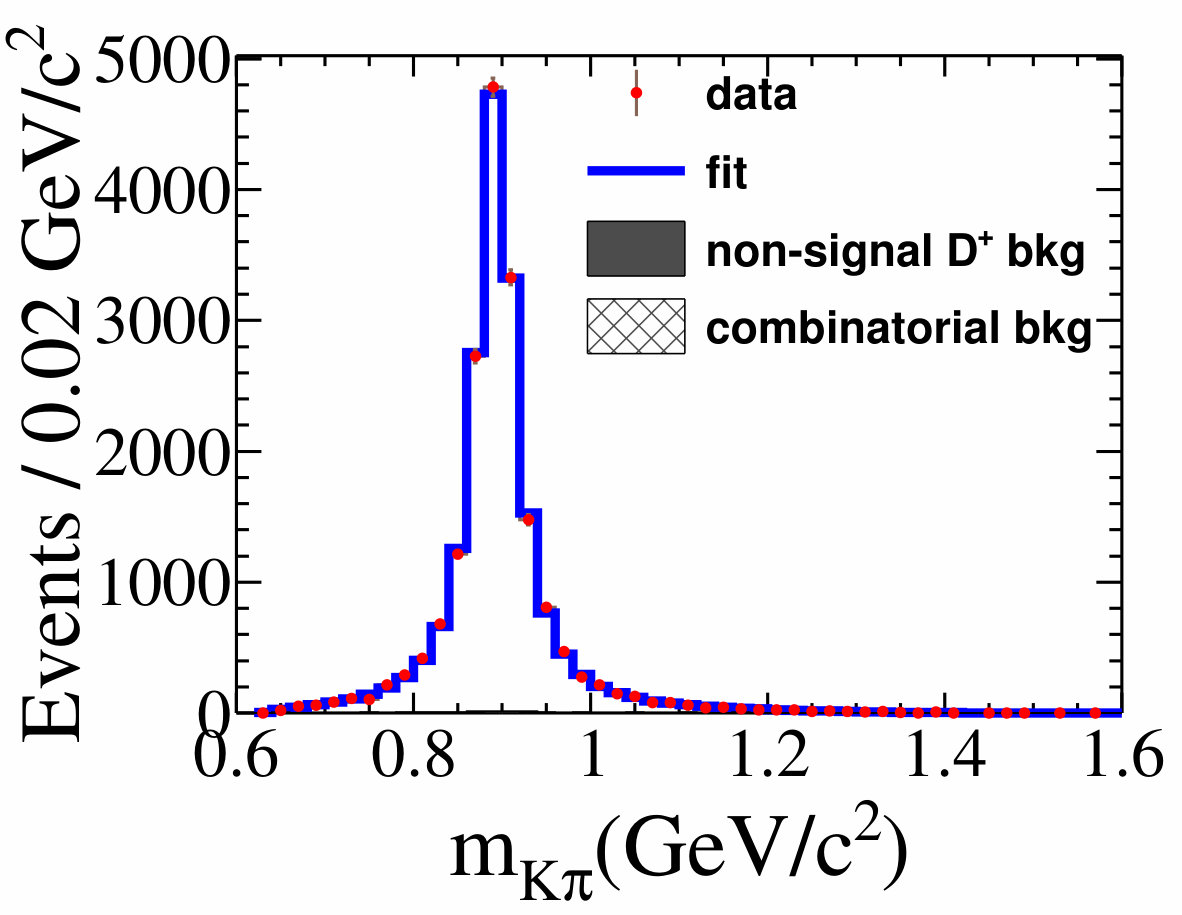

as they do not require additional inputs like $D$ meson lifetime and CKM matrix elements. Figure 6 shows the fit on $q^{2}$ and the three angular variable distributions, as well as the $K\pi$ invariant mass distribution for $D^{0}\to K^{-}\pi^{+}e^{+}\nu_{e}$ candidate events.

The BF of the $\bar{K}^{*0}$ contribution and the extracted form factor ratios are summarized in Table 2. With the input of $D^{+}$ lifetime PDG2018 and $|V_{cs}|$ PDG2018 , we obtain

[TABLE]

Similar analyses are also performed for $D^{0}\to\bar{K}^{0}\pi^{-}e^{+}\nu_{e}$ bes_d0tokpiev , $D^{+}\to\omega e^{+}\nu_{e}$ bes_dptoomegaev , $D\to\pi\pi e^{+}\nu_{e}$ bes_dtopipiev and $D_{s}^{+}\to K^{*0}e^{+}\nu_{e}$ bes_dstokev at BESIII and the results are summarized in Table 2. We also notice that significant S-wave contribution is observed for $f_{0}(500)$ in $D^{+}\to\pi^{-}\pi^{+}e^{+}\nu_{e}$ with $\mathcal{B}(D^{+}\to f_{0}(500)e^{+}\nu_{e},f_{0}(500)\to\pi^{+}\pi^{-})=(0.630\pm 0.043\pm 0.032)\times 10^{-3}$, while no evidence for $D^{+}\to f_{0}(980)e^{+}\nu_{e}$ is observed.

The U-spin symmetry is also found be conserved with

[TABLE]

[TABLE]

It is also interesting to search for $D$ meson semileptonic decays to scalar mesons which may help us understand the internal structure of the light scalar mesons. BESIII has recently searched for $D\to a_{0}(980)e^{+}\nu_{e}$ bes_dtoa0ev , where $D^{0}\to a_{0}(980)^{-}e^{+}\nu_{e}$ is observed for the first with 6.4$\sigma$ significance. The BF is measured to be $\mathcal{B}(D^{0}\to a_{0}(980)^{-}e^{+}\nu_{e},a_{0}(980)^{-}\to\eta\pi^{-})=(1.33^{+0.33}_{-0.29}\pm 0.09)\times 10^{-4}$. The significance for $D^{+}\to a_{0}(980)^{0}e^{+}\nu_{e}$ is 2.9$\sigma$ with $\mathcal{B}(D^{+}\to a_{0}(980)^{0}e^{+}\nu_{e},a_{0}(980)^{0}\to\eta\pi^{0})=(1.66^{+0.81}_{-0.66}\pm 0.11)\times 10^{-4}$, and less than $3.0\times 10^{-4}$ at 90% confidence level. Ref. Wang2010 proposed a model-independent method to study the nature of light scalar mesons with

[TABLE]

$R$ is estimated to be $1.0\pm 0.3$ for two-quark description of these scalar mesons, and $3.0\pm 0.9$ for tetraquark description. With BESIII’s results bes_dtopipiev we have $R>2.7$ at 90% confidence level, which favors the SU(3) nonet tetraquark description of the $f_{0}(500)$, $f_{0}(980)$, and $a_{0}(980)$.

The first measurements of the absolute BFs of charm baryon semileptonic decays are also performed at BESIII using 567 fb*-1* data taken at center mass energy $\sqrt{s}=4.6$ GeV bes_lambdaev ; bes_lambdamuv . We find

[TABLE]

[TABLE]

and

[TABLE]

These are consistent with a recent LQCD calculation Meinel2016 .

III.3 Rare decays

Some decays which are heavily suppressed in the SM may be enhanced by new physics mechanisms, which may be within the sensitivity of current experiments.

BESIII has searched for the radiative leptonic decays $D\to\gamma e^{+}\nu_{e}$ bes_dptogev ; bes_dstogev . Unlike the pure leptonic decays $D\to e^{+}\nu_{e}$, these decays do not subject to helicity suppression and the BFs are predicted to be about $10^{-4}$-$10^{-5}$ Geng2000 ; Lu2003 ; Yang2012 ; Yang2014 . No signal is observed at BESIII with photon energy larger than 10 MeV and the upper limits are set at 90% confidence level with

[TABLE]

[TABLE]

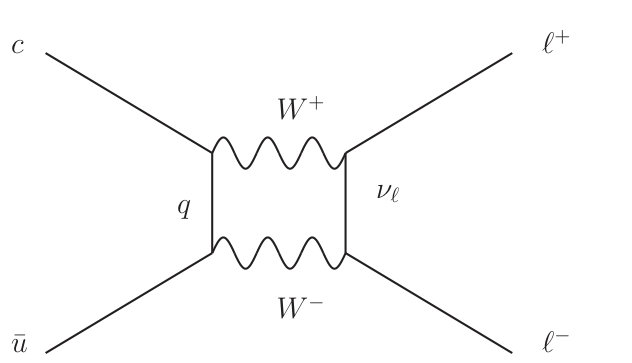

Among all of the rare charm leptonic and semileptonic decays, perhaps decays with FCNC are of the most concern since the loop diagrams (e.g. , Fig. 7 for $D^{0}\to\ell^{+}\ell^{-}$) are expected to receive large contribution from physics beyond the SM.

The BF of $D^{0}\to\mu^{+}\mu^{-}$ are expected to be enhanced by SUSY or leptoquark to $10^{-8}$ Golowich2009 and $10^{-7}$ Dorsner2009 . Currently the strongest limit is set by LHCb to be lhcb_d0tomumu

[TABLE]

which can heavily constrain new physics beyond the SM.

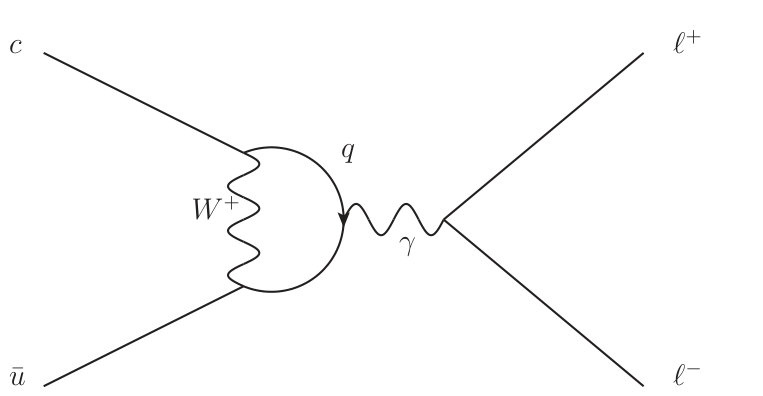

For charm semileptonic FCNC decays, the BFs may be enhanced by long distance contribution mediated via vector mesons to $10^{-6}$ Paul2011 ; Fajfer2007 ; Cappiello2013 . In 2016, LHCb reported the BF lhcb_d0tokpimumu

[TABLE]

which is consistent with this prediction. Recently, BaBar reported the result for $D^{0}\to K^{-}\pi^{+}e^{+}e^{-}$ babar_d0tokpiee and found that

[TABLE]

in $\rho/\omega$ resonance region, which agrees with LHCb’s measurement, and

[TABLE]

at the continuum region.

To search for new physics effect in semilptonic FCNC decays, one has to avoid the resonance region where the long distance contributions dominate. Such analyses have been performed at LHCb for $D^{0}\to\pi^{+}\pi^{-}\mu^{+}\mu^{-}$, $D^{0}\to K^{+}K^{-}\mu^{+}\mu^{-}$ lhcb_d0tokkmumu , and $\Lambda_{c}^{+}\to p\mu^{+}\mu^{-}$ lhcb_lambdactopmumu . While significant signals are observed in the resonance region, no evidence is observed in the continuum region, which is consistent with the SM prediction.

Another method to search for new physics is to look at the asymmetry effect, such as the forward-backward asymmetry, triple-product asymmetry and CP asymmetry. These observables are expected to be symmetric in the SM while several percent of asymmetry may be expected in physics beyond the SM. LHCb has searched for this kind of asymmetry in $D^{0}\to\pi^{+}\pi^{-}\mu^{+}\mu^{-}$ and $D^{0}\to K^{+}K^{-}\mu^{+}\mu^{-}$ lhcb_asym and no asymmetry is observed at current statistics.

IV Summary

In summary, BESIII has improved the precision of decay constants, form factors and CKM matrix elements in the charm sector with recent measurements. Meanwhile, LFU test at a very high precision (1.5% for Cabbibo favoured decays and 4% for Cabbibo suppressed decays) has been performed while no evidence of violation is found. Search for charm semileptonic decays to scalar mesons were performed at BESIII and the current results are in favor of the SU(3) nonet tetraquark description of $a_{0}(980)$, $f_{0}(500)$ and $f_{0}(980)$. Moreover, our sensitivity to rare charm leptonic and semileptonic decays has been improved by several magnitudes with the huge statistics at LHCb, and strong constraints have been set for various new physics models with recent measurements. With more data coming from BESIII, LHCb and BelleII, experiment study of charm leptonic and semileptonic decays will be further improved in the future.
