Self-conjugate representation SU(3) chains

TL;DR

This paper investigates SU(3) chains with self-conjugate representations, demonstrating they are always gapped and exhibit spontaneous parity symmetry breaking for odd p, extending previous results on symmetric irreps.

Contribution

It extends the understanding of SU(3) chains by analyzing self-conjugate irreps and showing they are always gapped with parity symmetry breaking for odd p.

Findings

Self-conjugate SU(3) chains are always gapped.

Parity symmetry is spontaneously broken for odd p.

The results generalize previous findings on symmetric irreps.

Abstract

It was recently argued that SU(3) chains in the $p$-box symmetric irreducible representation (irrep) exhibit a "Haldane gap" when $p$ is a multiple of 3 and are otherwise gapless [Nucl. Phys. B $\boldsymbol{924}$, 508 (2017)]. We extend this argument to the self-conjugate irreps of SU(3) with $p$ columns of length 2 and $p$ columns of length 1 in the Young tableau ($p=1$ corresponding to the adjoint irrep), arguing that they are always gapped but have spontaneously broken parity symmetry for $p$ odd but not even.

Figures

b) of Ref. Lajkó *et al.*, [2017](#bib.bib13). While critical points are expected at finite coupling at $\theta_{1}=-\theta_{2}=\pm 2\pi/3$, corresponding to the $\mbox{SU}(3)_{1}$ Wess-Zumino-Witten model Lajkó *et al.* ([2017](#bib.bib13)); Tanizaki and Sulejmanpasic ([2018](#bib.bib16)); Ohmori *et al.* ([2019](#bib.bib17)) no such critical points are expected at $\theta_{1}=-\theta_{2}=\pm\pi$. In that case we may expect an RG flow from weak coupling to strong coupling where broken parity occurs. A further complication is the breaking of Lorentz invariance and of the $\mathbb{Z}_{3}$ symme

b) of Ref. Lajkó *et al.*, [2017](#bib.bib13). While critical points are expected at finite coupling at $\theta_{1}=-\theta_{2}=\pm 2\pi/3$, corresponding to the $\mbox{SU}(3)_{1}$ Wess-Zumino-Witten model Lajkó *et al.* ([2017](#bib.bib13)); Tanizaki and Sulejmanpasic ([2018](#bib.bib16)); Ohmori *et al.* ([2019](#bib.bib17)) no such critical points are expected at $\theta_{1}=-\theta_{2}=\pm\pi$. In that case we may expect an RG flow from weak coupling to strong coupling where broken parity occurs. A further complication is the breaking of Lorentz invariance and of the $\mathbb{Z}_{3}$ symme

Tables

Table 1. Table 1: A list of candidate order parameters for detecting the breakdown of various discrete symmetries. From top to bottom these are the ℤ 2 subscript ℤ 2 \mathbb{Z}_{2} symmetries related to translation (tr), site parity (sp), bond parity (bp), and the a α ↔ b α ↔ subscript 𝑎 𝛼 superscript 𝑏 𝛼 a_{\alpha}\leftrightarrow b^{\alpha} parity. q i ​ ( r → ) subscript 𝑞 𝑖 → 𝑟 q_{i}(\vec{r}) stands for the local topological charge density on a plaquette, where the total topological charge is Q i = ∑ r → q i ​ ( r → ) subscript 𝑄 𝑖 subscript → 𝑟 subscript 𝑞 𝑖 → 𝑟 Q_{i}=\sum_{\vec{r}}q_{i}(\vec{r}) . The superscript of the field-based order parameters shows whether they are defined on bonds in the spatial or imaginary time direction. Note that some order parameters appear for multiple symmetries, therefore if they are measured to be nonzero, it would suggest the breakdown of all related symmetries.

symmetry	candidate order parameters
${\mathbb{Z}}_2^{\left(\text{tr}\right)}$	$q_1\left(\overrightarrow{r}\right)-q_2\left(\overrightarrow{r}\right)$	${𝒜}_1^{x\left(\tau \right)}\left(\overrightarrow{r}\right)={\left|{\overrightarrow{\varphi }}^{1\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^3\left(\overrightarrow{r}+{\overrightarrow{\delta }}_{x\left(\tau \right)}\right)\right|}^2-{\left|{\overrightarrow{\varphi }}^{2\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^3\left(\overrightarrow{r}+{\overrightarrow{\delta }}_{x\left(\tau \right)}\right)\right|}^2$
		${𝒜}_2^{x\left(\tau \right)}\left(\overrightarrow{r}\right)={\left|{\overrightarrow{\varphi }}^{1\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^2\left(\overrightarrow{r}+{\overrightarrow{\delta }}_{x\left(\tau \right)}\right)\right|}^2-{\left|{\overrightarrow{\varphi }}^{2\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^1\left(\overrightarrow{r}+{\overrightarrow{\delta }}_{x\left(\tau \right)}\right)\right|}^2$
		${𝒜}_3^{x\left(\tau \right)}\left(\overrightarrow{r}\right)={\left|{\overrightarrow{\varphi }}^{1\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^1\left(\overrightarrow{r}+{\overrightarrow{\delta }}_{x\left(\tau \right)}\right)\right|}^2-{\left|{\overrightarrow{\varphi }}^{2\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^2\left(\overrightarrow{r}+{\overrightarrow{\delta }}_{x\left(\tau \right)}\right)\right|}^2$
${\mathbb{Z}}_2^{\left(\text{sp}\right)}$	$q_1\left(\overrightarrow{r}\right)$, $q_2\left(\overrightarrow{r}\right)$, $q_3\left(\overrightarrow{r}\right)$	${ℬ}_1^x\left(\overrightarrow{r}\right)={\left|{\overrightarrow{\varphi }}^{1\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^3\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\right|}^2-{\left|{\overrightarrow{\varphi }}^{1\ast }\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\cdot {\overrightarrow{\varphi }}^3\left(\overrightarrow{r}\right)\right|}^2$
		${ℬ}_2^x\left(\overrightarrow{r}\right)={\left|{\overrightarrow{\varphi }}^{2\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^3\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\right|}^2-{\left|{\overrightarrow{\varphi }}^{2\ast }\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\cdot {\overrightarrow{\varphi }}^3\left(\overrightarrow{r}\right)\right|}^2$
		${ℬ}_3^x\left(\overrightarrow{r}\right)={\left|{\overrightarrow{\varphi }}^{1\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^2\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\right|}^2-{\left|{\overrightarrow{\varphi }}^{1\ast }\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\cdot {\overrightarrow{\varphi }}^2\left(\overrightarrow{r}\right)\right|}^2\equiv {𝒜}_2^x\left(\overrightarrow{r}\right)$
${\mathbb{Z}}_2^{\left(\text{bp}\right)}$	$q_1\left(\overrightarrow{r}\right)+q_2\left(\overrightarrow{r}\right)$	${𝒞}_1^x\left(\overrightarrow{r}\right)={\left|{\overrightarrow{\varphi }}^{1\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^3\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\right|}^2-{\left|{\overrightarrow{\varphi }}^{2\ast }\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\cdot {\overrightarrow{\varphi }}^3\left(\overrightarrow{r}\right)\right|}^2$
		${𝒞}_2^x\left(\overrightarrow{r}\right)={\left|{\overrightarrow{\varphi }}^{1\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^2\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\right|}^2-{\left|{\overrightarrow{\varphi }}^{2\ast }\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\cdot {\overrightarrow{\varphi }}^1\left(\overrightarrow{r}\right)\right|}^2\equiv 0$
		${𝒞}_3^x\left(\overrightarrow{r}\right)={\left|{\overrightarrow{\varphi }}^{1\ast }\left(\overrightarrow{r}\right)\cdot {\overrightarrow{\varphi }}^1\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\right|}^2-{\left|{\overrightarrow{\varphi }}^{2\ast }\left(\overrightarrow{r}+{\overrightarrow{\delta }}_x\right)\cdot {\overrightarrow{\varphi }}^2\left(\overrightarrow{r}\right)\right|}^2\equiv {𝒜}_3^x\left(\overrightarrow{r}\right)$
		${𝒜}_1^{\tau }\left(\overrightarrow{r}\right)$, ${𝒜}_2^{\tau }\left(\overrightarrow{r}\right)$, ${𝒜}_3^{\tau }\left(\overrightarrow{r}\right)$
${\mathbb{Z}}_2^{\left(a\leftrightarrow b\right)}$	$q_1\left(\overrightarrow{r}\right)+q_2\left(\overrightarrow{r}\right)$	${𝒜}_1^{x\left(\tau \right)}\left(\overrightarrow{r}\right)$, ${𝒜}_2^{x\left(\tau \right)}\left(\overrightarrow{r}\right)$, ${𝒜}_3^{x\left(\tau \right)}\left(\overrightarrow{r}\right)$

Equations

$${\hat{S}}_{\beta }^{\alpha }=a^{\alpha †}{a}_{\beta }-b_{\beta }^{†}{b}^{\alpha }.$$

$$\left[{\hat{S}}_{\beta }^{\alpha },{\hat{S}}_{\nu }^{\mu }\right]={\delta }_{\beta }^{\mu }{\hat{S}}_{\nu }^{\alpha }-{\delta }_{\nu }^{\alpha }{\hat{S}}_{\beta }^{\mu }.$$

$${\hat{N}}_a=\sum _{\alpha =1}^3{a}^{\alpha †}{a}_{\alpha }=p,{\hat{N}}_b=\sum _{\alpha =1}^3{b}_{\alpha }^{†}{b}^{\alpha }=p,\sum _{\alpha =1}^3{\hat{S}}_{\alpha }^{\alpha }={\hat{N}}_a-{\hat{N}}_b=0,$$

$$\begin{array}{r}\sum _{\gamma }{a}_{\gamma }{b}^{\gamma }|\Psi ⟩=0.\end{array}$$

$$\mathcal{H}=$$

$$\begin{array}{r}|\vec{z},\vec{w}⟩:=[(\vec{z}\cdot {\vec{a}}^{†})(\vec{w}\cdot {\vec{b}}^{†}){]}^p|0⟩\end{array}$$

$$\begin{array}{r}⟨\vec{z},\vec{w}|S_{\beta }^{\alpha }|\vec{z},\vec{w}⟩=p[z^{\alpha \ast }{z}_{\beta }^{}-w^{\alpha }{w}_{\beta }^{\ast }].\end{array}$$

$$\begin{split}H&=Jp^{2}\sum_{i}\big{[}z^{\alpha*}_{i}z_{\beta,i}^{\phantom{*}}-w^{\alpha}_{i}w_{\beta,i}^{*}][z^{\beta*}_{i+1}z_{\alpha,i+1}^{\phantom{*}}-w^{\beta}_{i+1}w_{\alpha,i+1}^{*}\big{]}\\ &=Jp^{2}\sum_{i}\big{[}|\vec{z}^{*}_{i}\cdot\vec{z}_{i+1}^{\phantom{*}}|^{2}+|\vec{w}^{*}_{i}\cdot\vec{w}_{i+1}^{\phantom{*}}|^{2}-|\vec{z}_{i}^{\phantom{*}}\cdot\vec{w}_{i+1}^{\phantom{*}}|^{2}-|\vec{w}_{i}^{\phantom{*}}\cdot\vec{z}_{i+1}^{\phantom{*}}|^{2}\big{]}.\end{split}$$

$${\vec{z}}_{2n}^{}={\vec{w}}_{2n+1}^{\ast }={\vec{\Phi }}^1,{\vec{w}}_{2n}^{\ast }={\vec{z}}_{2n+1}={\vec{\Phi }}^2$$

$$a^{1†}(i)a_1(i)=$$

$$b_2^{†}(i)b^2(i)=$$

$$a^{2†}(j)a_2(j)=$$

$$b_1^{†}(j)b^1(j)=$$

$$a^{1†}(i),a_1(i)⟶$$

$$b_2^{†}(i),b^2(i)⟶$$

$$a^{2†}(j),a_2(j)⟶$$

$$b_1^{†}(j),b^1(j)⟶$$

$${\mathcal{H}}^{(2)}=Jp\sum _{i\in {\Lambda }_1}\sum _{\begin{array}{c}j\in {\Lambda }_2\\ j=i\pm 1\end{array}}$$

$$+a^{2†}(i)a^{1†}(j)-a^{2†}(i)b_2^{†}(j)-b_1^{†}(i)a^{1†}(j)+b_1^{†}(i)b_2^{†}(j)$$

$$\displaystyle\quad+a_{2}(i)a_{1}(j)-a_{2}(i)b^{2}(j)-b^{1}(i)a_{1}(j)+b^{1}(i)b^{2}(j)\Big{]}$$

$$+\left[a^{3†}(j)a_3(j)+b_3^{†}(i)b^3(i)-b_3^{†}(i)a^{3†}(j)-b^3(i)a_3(j)\right]$$

$$+\left[a^{3†}(i)a_3(i)+b_3^{†}(j)b^3(j)-a^{3†}(i)b^{3†}(j)-a_3(i)b^3(j)\right]\}.$$

$$a_{\alpha }(l)=\sqrt{\frac{2}{L}}\sum _{k\in \text{RBZ}}{a}_{\alpha }(k,{\Lambda }_l)e^{-ik{r}_l},b^{\beta }(l)=\sqrt{\frac{2}{L}}\sum _{k\in \text{RBZ}}{b}^{\beta }(k,{\Lambda }_l)e^{-ik{r}_l},$$

$${\mathcal{H}}^{(2)}=Jp\sum _{k\in \text{RBZ}}\sum _{\alpha =1}^3\left({\mathbf{c}}_k^{\alpha †},{\mathbf{c}}_{-k}^{\alpha }\right)M_k^{\alpha }\left(\begin{array}{c}\text{ltrans}{\mathbf{c}}_k^{\alpha }\\ \text{ltrans}{\mathbf{c}}_{-k}^{\alpha †}\end{array}\right)$$

$$\begin{aligned} \mathbf{c}^{1\dagger}_{k}:=&\Bigl{(}a^{2,\dagger}(k,{\Lambda_{1}}),b^{\dagger}_{1}(k,{\Lambda_{1}}),a^{1\dagger}(k,{\Lambda_{2}}),b^{\dagger}_{2}(k,{\Lambda_{2}})\Bigr{)},\\ \mathbf{c}^{2\dagger}_{k}:=&\Bigl{(}a^{3\dagger}(k,{\Lambda_{1}}),b^{\dagger}_{3}(k,{\Lambda_{2}})\Bigr{)},\\ \mathbf{c}^{3\dagger}_{k}:=&\Bigl{(}a^{3\dagger}(k,{\Lambda_{2}}),b^{\dagger}_{3}(k,{\Lambda_{1}})\Bigr{)},\\ \end{aligned}\qquad\begin{aligned} \mathbf{c}^{1}_{-k}:=&\Bigl{(}a_{2}(-k,{\Lambda_{1}}),b^{1}(-k,{\Lambda_{1}}),a_{1}(-k,{\Lambda_{2}}),b^{2}(-k,{\Lambda_{2}})\Bigr{)},\\ \mathbf{c}^{2}_{-k}:=&\Bigl{(}a_{3}(-k,{\Lambda_{1}}),b^{3}(-k,{\Lambda_{2}})\Bigr{)},\\ \mathbf{c}^{3}_{-k}:=&\Bigl{(}a_{3}(-k,{\Lambda_{2}}),b^{3}(-k,{\Lambda_{1}})\Bigr{)},\end{aligned}$$

$$M_k^1:=$$

$$M_k^3:=M_k^2:=$$

$$\left(\begin{array}{cc}{A}^{\alpha }& B_k^{\alpha }\\ -B_k^{\alpha †}& -A^{\alpha }\end{array}\right)$$

$${\mathcal{H}}^{(2)}=J\sum _{k\in \text{RBZ}}$$

$${\omega }_{1,2}(k)$$

$${\omega }_{5,6}(k)$$

$$v_1:=v_2:=4apJ,v_3:=v_4:=v_5:=v_6:=2apJ.$$

$$S_{B,n}=-p\int d\tau \left[{\vec{z}}_n^{\ast }\cdot \frac{d}{d\tau }{\vec{z}}_n^{}+{\vec{w}}_n^{\ast }\cdot \frac{d}{d\tau }{\vec{w}}_n^{}\right],$$

$$\begin{split}H&=Jp^{2}\sum_{n}\big{[}|\vec{z}^{*}_{n}\cdot\vec{z}_{n+1}^{\phantom{*}}|^{2}+|\vec{w}^{*}_{n}\cdot\vec{w}_{n+1}^{\phantom{*}}|^{2}-|\vec{z}_{n}^{\phantom{*}}\cdot\vec{w}_{n+1}^{\phantom{*}}|^{2}-|\vec{w}_{n}^{\phantom{*}}\cdot\vec{z}_{n+1}^{\phantom{*}}|^{2}\big{]},\end{split}$$

$${\vec{z}}_{2j}^{}={\vec{w}}_{2j+1}^{\ast }={\vec{\Phi }}^1,{\vec{w}}_{2j}^{\ast }={\vec{z}}_{2j+1}^{}={\vec{\Phi }}^2,$$

$$S_{B,2j}+S_{B,2j+1}\approx -p\int d\tau \left[{\vec{z}}_{2j}^{\ast }\cdot \frac{d}{d\tau }{\vec{z}}_{2j}^{}+{\vec{w}}_{2j}^{\ast }\cdot \frac{d}{d\tau }{\vec{w}}_{2j}^{}+{\vec{w}}_{2j}^{}\cdot \frac{d}{d\tau }{\vec{w}}_{2j}^{\ast }+{\vec{z}}_{2j}^{}\cdot \frac{d}{d\tau }{\vec{z}}_{2j}^{\ast }\right]=-p\int d\tau \frac{d}{d\tau }[|{\vec{z}}_{2j}^{}{|}^2+|{\vec{w}}_{2j}^{}{|}^2]=0.$$

Full text

I Introduction

While SU(2) spin chains have been very extensively studied both theoretically and experimentally, higher symmetry SU($n$) chains represent a new domain which may be experimentally accessible with cold atoms.Wu et al. (2003); Honerkamp and Hofstetter (2004); Cazalilla et al. (2009); Gorshkov et al. (2010); Bieri et al. (2012); Scazza et al. (2014); Taie et al. (2012); Pagano et al. (2014); Zhang et al. (2014); Cazalilla and Rey (2014); Capponi et al. (2016) Chains with spins in the fully symmetric p-box irreducible representation (irrep) of SU(3) were studied in Refs. Bykov, 2012; Lajkó et al., 2017. The Lieb-Schulz-Mattis-Affleck (LSMA) theorem Lieb et al. (1961); Affleck and Lieb (1986) implies that these models must either be gapless or have spontaneously broken translation symmetry for $p\neq 3m$, with $m$ a positive integer. By mapping into a flag manifold $\sigma$-model at large $p$, with topological angles $\pm 2\pi p/3$, it was argued that for $p\neq 3m$, the models renormalize to the $\mbox{SU}(3)_{1}$ Wess-Zumino-Witten (WZW) conformal field theory, which was also verified by Monte Carlo calculations.Lajkó et al. (2017) Important extensions of the field theory treatment were made in Refs. Tanizaki and Sulejmanpasic, 2018; Ohmori et al., 2019, consistent with the same conclusion. Here we extend these arguments to the self-conjugate $\mbox{SU}(3)$ irreps. In this case, the LSMA theorem fails, as the number of boxes in the Young tableaux is always divisible by 3. We again map the chains into a related flag manifold quantum field theory with topological terms at large $p$. Notably, the model is not Lorentz invariant in this case due to unequal velocities for the Goldstone bosons which appear in the perturbative limit. The topological angles are now $\pm p\pi$, equivalently [math] for $p$ even and $\pm\pi$ for $p$ odd. We solve the field theory in the strong coupling limit, obtaining a gapped phase with spontaneously broken parity symmetry for p odd but not even. We also present AKLT type Affleck et al. (1988); Greiter and Rachel (2007); *GreiterRachelSchuricht2007 ground states of generalized chain models which are gapped for all $p$ but exhibit spontaneously broken parity symmetry for $p$ odd but not even.111In the context of spin chains, parity symmetry is often referred to as mirror symmetry.

In Sec. II we present the “flavour-wave theory” calculations (analogous to Holstein-Primakoff spin wave theory for $\mbox{SU}(2)$). In Sec. III we derive a non-Lorentz invariant flag manifold $\sigma$-model (NLI$\sigma$M) at large $p$. Its perturbative spectrum agrees with the low energy sector of the flavour-wave theory spectrum, consisting of 6 Goldstone bosons with two different velocities. We don’t expect such Goldstone bosons to exist in the true spectrum because the $\mbox{SU}(3)$ symmetry should not be spontaneously broken in accordance with the Mermin-Wagner-Coleman theorem.Mermin and Wagner (1966); Coleman (1973) In Sec. IV we present the failure of the LSMA theorem for chains with these irreps. In Sec. V we solve the strong coupling limit of the field theory, obtaining a gapped phase with spontaneously broken parity symmetry for topological angles $\pm\pi$ corresponding to $p$ odd. In Sec. VI we present Monte Carlo results that show the absence of the $\mbox{SU}(3)_{1}$ critical point that was present in the case of fully symmetric chains. Lajkó et al. (2017) In Sec. VII we propose AKLT states consistent with these conclusions, with the spontaneously broken symmetry, for $p$ odd, again being parity. Sec. VIII contains conclusions. We also provide several appendices including detailed calculations and possible ways to further verify our findings.

II Linear Flavour-Wave Theory

The linear flavour-wave theory (LFWT),Papanicolaou (1984, 1988); Joshi et al. (1999) which is analogous to the $\mathrm{SU}(2)$ spin-wave theory, is a method that can be applied to $\mathrm{SU}(n)$ models. The nomenclature originates from the $\mathrm{SU}(3)$ flavour symmetries of elementary particles. It can be applied to an ordered state to obtain the low-energy spectrum of the model.

The aim in this section is to derive the velocities of the Goldstone modes which will serve as a check for the field-theoretical approach in Sec. III. To this end, we will use the bosonic representation for $\mathrm{SU}(3)$ introduced by Mathur and Sen Mathur and Sen (2001) to obtain the spectrum for any self-conjugate irrep represented by the Young tableaux $[p,p]$ with $p$ two-box columns and $p$ one-box columns.

II.1 Bosonic representation of Mathur and Sen

Following Mathur and Sen Mathur and Sen (2001) , we write the spin operators in terms of two 3-component commuting boson operators $a_{\alpha}$ and $b^{\alpha}$:

[TABLE]

The operators $a_{1},a_{2},a_{3}$ are related to the fundamental irrep $\mathbf{3}$ of $\mathrm{SU}(3)$ whose states will be denoted by the flavours $A,B,C$, whereas the operators $b^{1},b^{2},b^{3}$ belong to its conjugate irrep $\mathbf{\bar{3}}$ whose states will be labelled with $\bar{A},\bar{B},\bar{C}$. This construction naturally satisfies the $\mathrm{SU}(3)$ commutation relations

[TABLE]

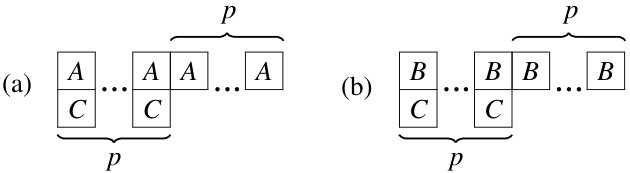

The $[p,p]$ self-conjugate irrep corresponds to states with p bosons of type $a$ and p bosons of type $b$,

[TABLE]

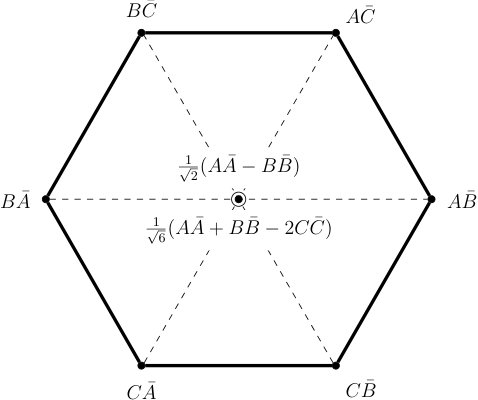

but not all such states belong to the $[p,p]$ irrep. Take the case of $p=1$ as an example. The $[1,1]$ irrep is 8 dimensional, but the states with one $a$ boson and one $b$ boson span a 9 dimensional subspace. The states corresponding the self-conjugate irrep are shown in the weight diagram in Fig. 1, while the ninth state is $\left|A\bar{A}\right>+\left|B\bar{B}\right>+\left|C\bar{C}\right>=(a^{1\dagger}b_{1}^{\dagger}+a^{2\dagger}b_{2}^{\dagger}+a^{3\dagger}b_{3}^{\dagger})\left|0\right>$, which actually belongs to the singlet irrep. In general the subspace spanned by states with p $a$ bosons and p $b$ bosons is a combination of all the self-conjugate irreps $[p^{\prime},p^{\prime}]$ with $p^{\prime}\leq p$ and the singlet irrep. To select the subspace corresponding to the $[p,p]$ irrep itself, we prove in Appendix A the following condition for any $\left|\Psi\right>$ of p $a$ bosons and p $b$ bosons lying in $[p,p]$:

[TABLE]

In the following we will apply the LFWT to the $\mathrm{SU}(3)$ antiferromagnetic Heisenberg chain:

[TABLE]

II.2 Classical ground state

Mathur and Sen Mathur and Sen (2001) introduced spin-coherent states for the $[p,p]$ irrep using the $a$, $b$ bosons as

[TABLE]

where $\vec{z}\cdot\vec{w}=0$ and $|\vec{z}|^{2}=|\vec{w}|^{2}=1$. The first condition guarantees that these states satisfy the traceless condition of Eq. (4) and are thus in the correct irreducible representation (see appendix A). The second condition is for normalization. These coherent states form an overcomplete set over the $[p,p]$ irrep. The expectation value of the spin operators reads as

[TABLE]

The classical limit, which corresponds to the expectation of the quantum Hamiltonian in a direct product of spin-coherent states reads as

[TABLE]

The classical groundstates are the two-sublattice states with

[TABLE]

where $|\vec{\Phi}^{i}|^{2}=1$ and $\vec{\Phi}^{1*}\cdot\vec{\Phi}^{2}=0$, giving an energy $-2Jp^{2}L$ where $L$ is the number of links. We can choose any of these states as a starting point for the flavour-wave calculations, because they are all equivalent up to global $\mbox{SU}(3)$ rotations.

II.3 Flavour-wave spectrum

According to the above discussion, we choose the classical ground state that is given by $p$ times $A$ and $p$ times $\bar{B}$ (or $(a^{1\dagger}b_{2}^{\dagger})^{p}\left|0\right>$ in bosonic language) on the sublattice $\Lambda_{1}$, and $p$ times $B$ and $p$ times $\bar{A}$ (or $(a^{2\dagger}b_{1}^{\dagger})^{p}\left|0\right>$) on the other sublattice $\Lambda_{2}$ in a Néel configuration. These two states are depicted in terms of the Weyl tableaux in Fig. 2. Using the notation of the coherent states these correspond to $\vec{z}_{2n}=\vec{w}_{2n+1}=(1,0,0)$ and $\vec{w}_{2n}=\vec{z}_{2n+1}=(0,1,0)$.

We now take the semi-classical limit by letting $p\rightarrow\infty$, just as in the spin-wave calculations in which $S\rightarrow\infty$. Under this assumption of a large condensate of $A$, $\bar{B}$ on $i\in\Lambda_{1}$ and $B$, $\bar{A}$ on $j\in\Lambda_{2}$, the constraints in Eq. (3) can be rewritten as

[TABLE]

where we treat the bosons on the RHS as small fluctuations.

The Holstein-Primakoff transformation reads as

[TABLE]

We can now apply this transformation on the Hamiltonian (5) written with the boson operators (1), which gives the quadratic Hamiltonian at the order $\mathcal{O}(p)$:

[TABLE]

We now use the Fourier transform,

[TABLE]

where $k$ runs over the reduced Brillouin zone (RBZ), $L$ is the total number of sites and $\Lambda_{l}\in\left\{{\Lambda_{1}},{\Lambda_{2}}\right\}$ is the sublattice index keeping track of the sublattice of site $l$. The quadratic Hamiltonian (12) is then given by (the left superscript stands for transpose)

[TABLE]

where

[TABLE]

and

[TABLE]

where the geometrical factor $\gamma_{k}:=\cos(ka)$ has been introduced. We now diagonalize the system by using the generalized Bogoliubov transformation.Ripka et al. (1986) Then the positive eigenvalues of the matrices

[TABLE]

yield the frequencies $\omega_{\mu}$ of the system. Hence, we finally obtain the diagonalized Hamiltonian

[TABLE]

where the bosons $\tilde{c}_{\mu}$ are the new Bogoliubov bosons, and

[TABLE]

yielding 2 different types of Goldstone modes and 2 flat modes. In Appendix B we give a detailed explanation of both the dispersive and the flat modes, and their relations to the spin generators. Hence, we finally observe that the dispersion relations related to the Goldstone modes are $\omega_{1,\dots,6}$. The velocities of these six Goldstone modes are given by

[TABLE]

While the Goldstone modes are absent in the actual spectrum, the true low energy excitations will have a mass that is exponentially suppressed in $p$, and still well below the $\mathcal{O}(p)$ energy scale of the flat modes. Indeed, this was shown to be true in the case of equal velocities in Ref. Lajkó et al., 2017, using the coupling constant beta function. Since unequal velocities will only modify the beta function by a $p$-independent function of their ratios, we expect the same exponential dependence to hold in the present theory.

III Mapping to Field Theory

Using the coherent states introduced earlier we can carry out a spin-coherent state path integral approach Klauder (1979); Gnutzmann and Kus (1998); Shibata and Takagi (1999); Lajkó et al. (2017) on the quantum spin Hamiltonian of Eq. (5) The imaginary Berry’s phase term in the action will be

[TABLE]

while the Hamiltonian part becomes

[TABLE]

as discussed in Sec. II.2. In this approach we parametrize fluctuations around the classical ground state manifold

[TABLE]

where $|\vec{\Phi}^{i}|^{2}=1$ and $\vec{\Phi}^{1*}\cdot\vec{\Phi}^{2}=0$. In the classical ground state

[TABLE]

Now, if we allow the $\vec{\Phi}^{1}$ and $\vec{\Phi}^{2}$ fields to change from site to site,

[TABLE]

the Hamiltonian becomes

[TABLE]

$\vec{\Phi}^{i*}_{n}\cdot\vec{\Phi}^{j}_{n}=\delta^{ij}$ must be strictly enforced on every site since it follows from the condition that we are in the correct irrep. We thus may combine the $\vec{\Phi}^{i}$ on each site to define a unitary matrix:

[TABLE]

where

[TABLE]

is uniquely defined from $\vec{\Phi}^{1}$ and $\vec{\Phi}^{2}$ in order that $W_{n}$ be an $\mbox{SU}(3)$ matrix. Note that this is unlike the path integral approach for $\mbox{SU}(3)$ chains in the fully symmetric irrep,Lajkó et al. (2017) where $\vec{\Phi}^{1}$, $\vec{\Phi}^{2}$ and $\vec{\Phi}^{3}$ were defined on 3 neighbouring sites so they did not have to be all mutually exactly orthogonal.

Using the $W_{n}$ matrices the Hamiltonian term can be written as

[TABLE]

where

[TABLE]

The Berry’s phase term in the action becomes

[TABLE]

Assuming the $\vec{\Phi}^{i}_{n}$ vary smoothly, the classical Hamiltonian density becomes

[TABLE]

The single derivative terms cancel, and after simple tranformations using the orthogonality of $\vec{\Phi}_{1}$ and $\vec{\Phi}_{2}$, this becomes

[TABLE]

All terms can be seen to be invariant under the $\vec{\Phi}^{i}(x,\tau)\to\vec{\Phi}^{i}(x,\tau)e^{i\vartheta_{i}(x,\tau)}$ gauge transformation.Lajkó et al. (2017) $\mathcal{H}_{cl}$ can be rewritten with purely off-diagonal terms using the fact that the $\vec{\Phi}^{i}$ on a given site form an orthonormal basis:

[TABLE]

Therefore

[TABLE]

In terms of the $W$ matrix this is

[TABLE]

where

[TABLE]

III.1 Uniform and staggered parts

We now give a parametrization of the $W_{2j}$ and $W_{2j+1}$ matrices. We follow concepts used in both the SU(2) Sierra (1997); Cabra and Pujol (2004) and in the fully symmetric $\mbox{SU}(3)$ case Lajkó et al. (2017) as well. The $\mbox{SU}(3)$ spin operators correspond to the spin matrices in the path integral

[TABLE]

The sign alternation arises from the different role of $\vec{\Phi}^{1}$ and $\vec{\Phi}^{2}$ on the two sublattices as shown in Eq. (24). Similarly to the SU(2) case, we introduce staggered and uniform parts of these spin matrices inside the two site unit cell. The staggered part of the spin corresponds to the uniform, slowly changing part of the $\vec{\Phi}$ fields, while the uniform part of the spin matrices corresponds to staggered terms in the $\vec{\Phi}$ field. This needs to be done while maintaining strict orthogonality of the $\vec{\Phi}^{i}_{n}$ on each site $n$. We do this, using a two site basis, by writing

[TABLE]

where $U_{j}$ and $V_{j}$ are both unitary matrices, defined for the unit cell $j$. We write

[TABLE]

which corresponds to the staggered part of the spins, describing a fully satisfied bond inside the unit cell. On the other hand, the unitary matrix $V_{j}$ describes fluctuations away from the perfect Néel order inside the unit cell, i.e. it corresponds to the uniform part of the spins. Since the presence of a uniform spin component gives a finite energy, we can take $V_{j}$ to be close to the identity, and thus the uniform part to be small compared to the staggered part. We can write $V_{j}$ in terms of the Gell-Mann matrices,

[TABLE]

We drop the diagonal Gell-Mann matrices, $T_{3}$ and $T_{8}$, since these correspond to gauge transformations that leave the action invariant222This is justified thanks to the factorization formula of SU(3) matrices discussed in Eq. (5.8) and Appendix G of Ref. Lajkó et al., 2017 . To leading approximation, we can expand the off-diagonal terms in $V$ to first order in the $\theta$’s and the diagonal terms to second order. It is convenient to write

[TABLE]

Then we can approximate:

[TABLE]

Next order corrections will be off-diagonal terms of $\mathcal{O}[(a/p)^{2}]$ and diagonal terms of $\mathcal{O}[(a/p)^{3}]$. Thus

[TABLE]

III.2 Integrating out the $L$ variables

With the above parametrization the total action reads as (the detailed calculations are provided in Appendix C)

[TABLE]

Integrating out the $L_{ij}$ fields gives

[TABLE]

where

[TABLE]

It follows from the completeness of the $\vec{\phi}^{m}$ vectors that

[TABLE]

where

[TABLE]

is an integer valued topological charge Berg and Lüscher (1981); Ueda et al. (2016) for the field $\vec{\phi}^{n}$ . Thus we write the imaginary part of the action as

[TABLE]

Note that the space derivative terms of Eq. (45) are identical to the classical Hamiltonian of Eq. (34) upon ignoring the difference between the $\vec{\Phi}^{n}$ and the $\vec{\phi}^{n}$.

In terms of the unitary matrix $U$, defined in Eq. (39), the real part of the Lagrangian density can be written:

[TABLE]

where the $\Lambda_{i}$ matrices are defined in Eq. (36). To get the perturbative spectrum we can expand $U$ in the Gell-Mann matrices:

[TABLE]

Only the off-dagonal Gell-Mann matrices appear in the Lagrangian. Then to quadratic order:

[TABLE]

We see that the velocities of the 6 perturbative Goldstone modes are:

[TABLE]

consistent with the flavour-wave theory results of Eq. (20). The different velocities implies that the model is not Lorentz invariant. Due to the Mermin-Wagner-Coleman theorem,Mermin and Wagner (1966); Coleman (1973) we expect that the $\mbox{SU}(3)$ symmetry will not be spontaneously broken once interaction effects are taken into account and no Goldstone modes will appear in the actual spectrum. Note that only low energy excitations appear in the path integral, therefore the flat modes don’t contribute due to the exponential cutoff in energy.

III.3 Symmetries of the NLI$\sigma$M

As we can see in Eq. (45), we arrive at an $\mbox{SU}(3)/(\mbox{U}(1)\times\mbox{U}(1))$ non-Lorentz invariant flag manifold $\sigma$-model (NLI$\sigma$M), similarly to the case of $\mbox{SU}(3)$ chains in the fully symmetric irrep.Lajkó et al. (2017) However, the origin of the fields is different in the two cases. In the fully symmetric case, the classical ground state had a three-sublattice order and the $\vec{\phi}^{1},\vec{\phi}^{2},\vec{\phi}^{3}$ correspond to the three spin states inside a unit cell. On the other hand, in the self-conjugate case, the classical ground state is a two-sublattice ordered state, and only $\vec{\phi}^{1},\vec{\phi}^{2}$ correspond to spin states directly, while $\vec{\phi}^{3}$ is uniquely defined from the other two. As a result the symmetries of the underlying spin models give rise to different symmetries in the field theory. Here we go through these symmetries in the self-conjugate case; the symmetries of the fully symmetric case can be found in Sec. 5 of Ref. Lajkó et al., 2017.

Assuming $\mbox{SU}(3)$, gauge and time reversal invariance the general form of the $\mbox{SU}(3)/(\mbox{U}(1)\times\mbox{U}(1))$ NLI$\sigma$M is Lajkó et al. (2017)

[TABLE]

where the imaginary $\lambda$-term is discussed in detail in Refs. Lajkó et al., 2017; Ohmori et al., 2019. In the specific case of the nearest neighbour self-conjugate Heisenberg Hamiltonian, the action obtained in Eq. (45) corresponds to $v_{1,2}=4apJ$, $v_{2,3}=v_{3,1}=2apJ$, $g_{1,2}=1/p$, $g_{2,3}=g_{3,1}=2/p$, $\theta_{1}=-\theta_{2}=\pi$ and $\lambda=0$. In the following we go through the symmetries of the Hamiltonian in Eq. (5) and examine what symmetries they give on the parameters of the NLI$\sigma$M.

III.3.1 Translation by one site

Under translation by one site the $\vec{\phi}^{1}(x,\tau)$ and $\vec{\phi}^{2}(x,\tau)$ fields map to each other, while $\vec{\phi}^{3}:=\vec{\phi}^{1*}\times\vec{\phi}^{2*}$ maps to $-\vec{\phi}^{3}=\vec{\phi}^{2*}\times\vec{\phi}^{1*}$. This transformation maps the $g_{2,3}$ and $g_{3,1}$ terms to each other, therefore requiring that $v_{2,3}=v_{3,1}$ and $g_{2,3}=g_{3,1}$.

The $\lambda$-term transforms as

[TABLE]

which is only invariant if $\lambda=0$ (note that the $q_{12}+q_{23}+q_{31}$ term is not integer valued, thus $\lambda=0$, not only mod $2\pi$). As for the topological term, $\theta_{1}Q_{1}+\theta_{2}Q_{2}$ maps to $\theta_{1}Q_{2}+\theta_{2}Q_{1}$, thus guaranteeing $\theta_{1}=\theta_{2}$ mod $2\pi$. It is interesting to note that this doesn’t fix $\theta_{1},\theta_{2}=\pi\text{ or }0$ on its own.

We find that the translational invariance of the self-conjugate $\mbox{SU}(3)$ chain maps to a $\mathbb{Z}_{2}^{(\text{tr})}$ symmetry (‘tr’ stands for translation) of the NLI$\sigma$M; a translation by two lattice sites would map to the identity transformation of the NLI$\sigma$M. This is the consequence of the two-sublattice ordered classical ground state. In the case of the fully symmetric $\mbox{SU}(3)$ chain, the translational invariance results in a $\mathbb{Z}_{3}$ symmetry, which corresponds to the cyclic permutation of the three fields. This is because the classical ground state has a three-sublattice structure in that case. The absence of this $\mathbb{Z}_{3}$ symmetry in the current case is manifested in the different coupling constants in the action, and has important consequences on the phase diagram, as we will discuss later.

III.3.2 Site Parity

The parity symmetry around a site maps each sublattice to itself, and inverts the position of the spins, therefore at the level of the NLI$\sigma$M it maps to a $\mathbb{Z}_{2}^{(sp)}$ symmetry taking $\vec{\phi}^{i}(x,\tau)$ to $\vec{\phi}^{i}(-x,\tau)$ (‘sp’ stands for site parity). Under this symmetry the real part of the action remains invariant, so it doesn’t give any constraint on the velocities or coupling constants. The $\lambda$-term and the topological term both get a minus sign, since they always contain exactly one spatial derivative. Therefore this symmetry is only satisfied if $\lambda=0$, and if $\theta_{1},\theta_{2}=0$ or $\pi\text{ mod }2\pi$, but in itself doesn’t fix the two angles to be equal.

III.3.3 Bond Parity

The parity symmetry around a bond centre maps the two sublattices into each other and flips the spatial coordinate. At the level of the NLI$\sigma$M this corresponds to another $\mathbb{Z}_{2}^{(\text{bp})}$ symmetry (‘bp’ stands for bond parity) mapping $\vec{\phi}^{1}(x,\tau)\to\vec{\phi}^{2}(-x,\tau)$, $\vec{\phi}^{2}(x,\tau)\to\vec{\phi}^{1}(-x,\tau)$ and $\vec{\phi}^{3}(x,\tau)\to-\vec{\phi}^{3}(-x,t)$. This symmetry once again fixes $v_{2,3}=v_{3,1}$ and $g_{2,3}=g_{3,1}$. The $\lambda$-term transforms as ${q_{12}+q_{23}+q_{31}}\to{-q_{21}-q_{13}-q_{32}}$, therefore it is invariant for any $\lambda$ due to Eq. (46). The topological term transforms as $\theta_{1}Q_{1}+\theta_{2}Q_{2}\to-\theta_{1}Q_{2}-\theta_{2}Q_{1}$, which is invariant for any $\theta_{1}=-\theta_{2}$.

III.3.4 $a_{\alpha}\leftrightarrow b^{\alpha}$ invariance and charge conjugation

In the self-conjugate $\mbox{SU}(3)$ chain model interchanging the role of the two types of bosons

[TABLE]

transforms the spin operators as

[TABLE]

which is clearly a symmetry of the Hamiltonian. In the coherent state language this corresponds to

[TABLE]

or, equivalently

[TABLE]

which in the field theory translates to the $\mathbb{Z}_{2}^{(a\leftrightarrow b)}$ symmetry

[TABLE]

This symmetry has similar consequences as the translation invariance, namely it guarantees that $v_{2,3}=v_{3,1}$, $g_{2,3}=g_{3,1}$ and $\lambda=0$, but forces $\theta_{1}=-\theta_{2}$, since $Q_{1}$ is mapped to $-Q_{2}$ ( because of the complex conjugation) and vice versa.

If we combine this symmetry with translation by one site, we get charge conjugation in the field theory

[TABLE]

III.4 Breaking the symmetries

Here we briefly discuss how one can break the above symmetries in the self-conjugate $\mbox{SU}(3)$ chain model by introducing dimerized nearest or next nearest neighbour couplings. Note, however, that the $a_{\alpha,n}\leftrightarrow b^{\alpha}_{n}$ symmetry cannot be broken unless we break the fundamental $\mbox{SU}(3)$ symmetry, or consider other, non self-conjugate representations. As a result, the currently considered spin models will always map to NLI$\sigma$Ms with $\theta_{1}=-\theta_{2}$, $\lambda=0$, and $v_{2,3}=v_{3,1}$, $g_{2,3}=g_{3,1}$. Actually, the ratio between the velocities $v_{1,2}$ and $v_{2,3}=v_{3,1}$ is also fixed at 2, independently of the breakdown of the lattice symmetries. This is a consequence of the self-conjugate irreps and $\mbox{SU}(3)$ symmetry, as discussed in more detail in the flavour-wave approach in Appendix B.

Considering a self-conjugate $\mbox{SU}(3)$ model with alternating $J_{1}$ and $J_{1}^{\prime}$ nearest neighbour, and alternating $J_{2}$ and $J_{2}^{\prime}$ next nearest neighbour interactions, the resulting $\sigma$-model reads as:

[TABLE]

where

[TABLE]

which gives a coupling constant $1/g=p\sqrt{J_{1}J_{1}^{\prime}-(J_{2}+J_{2}^{\prime})(J_{1}+J_{1}^{\prime})}/(J_{1}+J_{1}^{\prime})$ (the velocity $v$ can be set to $1$ by rescaling the space and time variables). Any longer range coupling would be equivalent to the nearest or next nearest couplings at the level of the NLI$\sigma$M. If $J_{1}=J_{1}^{\prime}$, the site parity is conserved independently of $J_{2},J_{2}^{\prime}$, thus fixing the topological angle to $p\pi$ (together with the $a_{\alpha}\leftrightarrow b^{\alpha}$ invariance). The difference between $J_{2},J_{2}^{\prime}$ has no effect on the underlying theory and the next nearest neighbour interactions only rescale the coupling constants and velocities, allowing us to tune the coupling constant and drive the system to $g\to\infty$, without changing the topological term. The two-sublattice classical ground state is only stable for $J_{2}<J_{1}/4$. For larger $J_{2}$ the classical ground state becomes helical, and thus our two-sublattice path integral approach breaks down, which is manifested in the diverging coupling constant $g$.

Breaking the translational invariance and site parity by introducing dimerization in the nearest neighbour bonds tunes the topological angle away from $p\pi$, while keeping $\theta_{1}=-\theta_{2}$. For $J_{1}^{\prime}=J_{1}/2$ we reach the $\theta_{1}=-\theta_{2}=2p\pi/3$ point, where the theory is invariant under the above mentioned $\mathbb{Z}_{3}$ transformation. As was discussed in Ref. Lajkó et al., 2017, in the infinite coupling limit this point corresponds to a first order phase transition point with spontaneously broken $\mathbb{Z}_{3}$ symmetry. For NLI$\sigma$Ms where all couplings are the same the action possesses this $\mathbb{Z}_{3}$ even for finite couplings. In those models, for strong but finite coupling the $\mathbb{Z}_{3}$ remains spontaneously broken only until a critical coupling $g_{c}$ below which the $\theta_{1}=-\theta_{2}=2\pi/3$ point becomes a gapless critical point. However, in case of the self-conjugate irreps the couplings are not equal, $g_{1,2}=2g_{1,3}=2g_{2,3}$ and the $\mathbb{Z}_{3}$ is explicitly broken for any finite coupling.

IV Failure of LSMA theorem

For the symmetric irreps of $\mbox{SU}(3)$ the LSMA theorem can be proven Affleck and Lieb (1986); Lajkó et al. (2017) by acting on a ground state, for a chain of length $L$ with periodic boundary conditions, with the unitary operator

[TABLE]

with

[TABLE]

Then under translation by one site

[TABLE]

Since the ground states obey $\mathcal{Q}|\psi_{0}\rangle=0$, we have

[TABLE]

where the ground state $|\psi_{0}\rangle$ was chosen to obey $T|\psi_{0}\rangle=|\psi_{0}\rangle$. For the fully symmetric irrep with $p$ boxes,

[TABLE]

Thus $TU|\psi_{0}\rangle=e^{i(2\pi/3)p}U|\psi_{0}\rangle$,

[TABLE]

and by considering translation by one site

[TABLE]

Thus $U|\psi_{0}\rangle$ is a low energy state orthogonal to $|\psi_{0}\rangle$, for $p\neq 3m$, implying either gapless excitations or spontaneously broken translation symmetry. On the other hand, for the self-conjugate representations,

[TABLE]

where we used $(\vec{a}^{\dagger}\cdot\vec{a}-\vec{b}^{\dagger}\cdot\vec{b})|\psi_{0}\rangle=0$. So

[TABLE]

where we used the fact that $a^{3\dagger}a_{3}$ and $b^{\dagger}_{3}b^{3}$ have integer eigenvalues. So, translating by one site maps $U|\psi\rangle$ into $U|\psi\rangle$ with no phase for any value of $p$. Thus there is no proof that $U|\psi\rangle$ is orthogonal to $|\psi\rangle$ so the LSMA theorem fails. Actual models with short range interactions and conserved $\mbox{SU}(3)$ symmetry and a unique gapped ground state exist for odd $p$,Gozel et al. (2019) giving direct evidence against a possible LSMA theorem.

V Strong coupling limit of field theory

In the strong coupling limit, the real terms in the action vanish and only the topological terms remain. In this limit, Lorentz invariance is restored. The action is simply

[TABLE]

for $p$ odd. Following the techniques of Refs. Seiberg, 1984; Plefka and Samuel, 1997 this limit was solved using a lattice formulation in Ref. Lajkó et al., 2017. The partition function, for arbitrary topological angles, becomes:

[TABLE]

where $A$ is the area of the 2-dimensional space-time (divided by the area of a plaquette in the lattice model) and

[TABLE]

In the infinite area limit the sum is dominated by the values of $m$ and $n$ which give the largest value of $|z|$. For $\theta_{1}$ near $-\pi$ and $\theta_{2}$ near $\pi$, it can be seen that

[TABLE]

with the dominant $(m,n)$ terms being $(m,n)=(1,0)$ for $\theta_{1}+\theta_{2}<0$ and $(m,n)=(0,-1)$ for $\theta_{1}+\theta_{2}>0$. The expectation value of the topological charges can be written

[TABLE]

Approaching the line $\theta_{1}=-\theta_{2}$ from the side $\theta_{1}+\theta_{2}>0$ or $\theta_{1}+\theta_{2}<0$ we get 2 different results:

[TABLE]

This is indicative of a first order phase transition along the line $\theta_{1}=-\theta_{2}$, which corresponds to the breakdown of the bond parity ($n\to 1-n$) and the $a_{\alpha}\leftrightarrow b^{\alpha}$ parity of the spin model. Both of these take $\theta_{1}\leftrightarrow-\theta_{2}$ in the field theory, therefore they are exact symmetries for $\theta_{1}=-\theta_{2}=\pi$. But they also map $\langle Q_{1}\rangle\leftrightarrow-\langle Q_{2}\rangle$, therefore the topological charge averages in Eq. (78) clearly show that these symmetries are spontaneously broken in the strong coupling limit.

It is plausible that broken parity symmetry occurs for $\theta_{2}=-\theta_{1}=\pi$ even for weak coupling. Indeed that is consistent with the renormalization group (RG) flow diagram suggested in Fig. 1b) of Ref. Lajkó et al., 2017. While critical points are expected at finite coupling at $\theta_{1}=-\theta_{2}=\pm 2\pi/3$, corresponding to the $\mbox{SU}(3)_{1}$ Wess-Zumino-Witten model Lajkó et al. (2017); Tanizaki and Sulejmanpasic (2018); Ohmori et al. (2019) no such critical points are expected at $\theta_{1}=-\theta_{2}=\pm\pi$. In that case we may expect an RG flow from weak coupling to strong coupling where broken parity occurs. A further complication is the breaking of Lorentz invariance and of the $\mathbb{Z}_{3}$ symmetry cyclically exchanging the three $\vec{\phi}^{i}$ fields. Both these symmetries are present in the field theory studied in Ref. Lajkó et al., 2017, arising from chains in the fully symmetric irrep, but not in the field theory studied here.

VI Monte Carlo simulations

Refs. Tanizaki and Sulejmanpasic, 2018; Ohmori et al., 2019 use a ’t Hooft anomaly argument ’t Hooft (1980) to predict a gapless or trimerized behaviour at $\theta_{1}=-\theta_{2}=2\pi/3$ in the Lorentz invariant sigma model with equal couplings. This anomaly argument relies on the presence of a $\mathbb{Z}_{3}$ symmetry corresponding to the cyclic permutation of the fields. In the current case this symmetry is explicitly broken at finite coupling for any values of the topological angles due to the different coupling constants. As a result there is no anomaly at $\theta_{1}=-\theta_{2}=2\pi/3$, or at any other value of topological angles, in agreement with the failure of the LSMA theorem.

We carried out Monte Carlo simulations to study the fate of the $\mbox{SU}(3)_{1}$ critical point at $\theta_{1}=-\theta_{2}=2\pi/3$ when one of the coupling constants is tuned away from the isotropic case. As it is discussed in Appendix E of Ref. Lajkó et al., 2017, the action of Eq. (45) can still be rewritten as three copies of a $\mbox{CP}^{2}$ theory, even for unequal coupling constants and velocities. Therefore the real part on the lattice can be written as

[TABLE]

where $v=4apJ$, $g=1/p$, and $\alpha=-1/2$. The difference in the coupling constants and velocities in Eq. (45) manifests in the $\alpha$ parameter. The topological term on the lattice is written following the recipe of Berg and Lüscher,Berg and Lüscher (1981) which guarantees that the topological charges are integer valued even in the discretized system action.

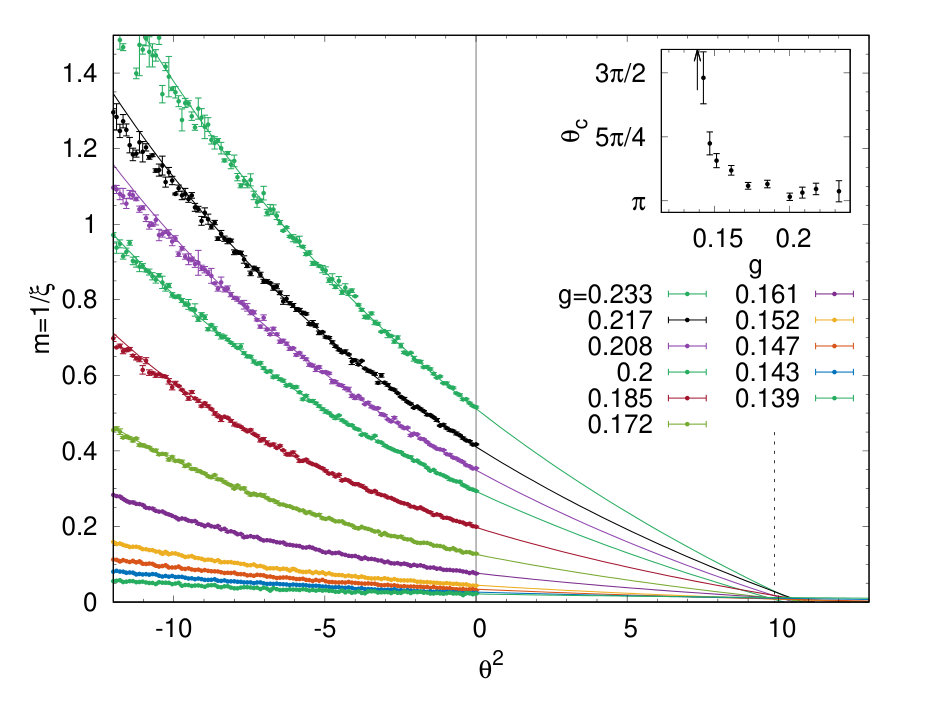

We can make Monte Carlo simulations for this lattice action for imaginary angles when the topological term is real.Azcoiti et al. (2012); Allés and Papa (2008); Allés et al. (2014) We set $v=1$, and changed the values of $g$ for $\alpha=-1/2$. We used a multigrid update method Hasenbusch and Meyer (1992); Lajkó et al. (2017) to decrease autocorrelations. For each imaginary angle and $\alpha$ we sampled $5\times 10^{4}$ configurations with a sampling distance of 10 multigrid sweeps after $5\times 10^{4}$ thermalizing multigrid sweeps. We obtained the mass gap from the inverse of the correlation length. We then extrapolated the mass gap values from imaginary to real angles by fitting a function of the form $(c_{1}+c_{2}\theta^{2})/(1+c_{3}\theta^{2})$. As it was discussed in Ref. Lajkó et al., 2017, we fitted values until the inflection point in the mass gap results, beyond which there is a change in behaviour due to saturation of the topological charge density.Imachi et al. (2006)

The results are shown in Fig. 3. We find that the extrapolated gap always closes beyond $\theta=\pi$; since $\theta$ and $-\theta$ are equivalent, this suggests that the gap stays finite for all $\theta$ and for all values of g. Note that this extrapolation can detect a gapless phase transition thanks to the closing of the extrapolated mass gap, but it cannot detect if a gapped transition happens. If the latter is the case, the extrapolated values beyond the transition are not physical, so even if the extrapolated gap closes further on, it doesn’t mean that there is an actual gapless point. What we can tell is that there can’t be any gapless transition before the extrapolated gap closes. Based on the strong coupling considerations we believe that there is a first order phase transition for some $\theta_{c}$ between [math] and $\pi$ separating a trivial phase for $\theta<\theta_{c}$ from a gapped doubly degenerate phase with spontaneous parity breaking for $\theta_{c}<\theta$. In Appendix D we discuss the possibility to detect spontaneous symmetry breaking by measuring various order parameters. Unfortunately so far we didn’t manage to extract meaningful results, due to difficulties in the extrapolation, therefore the verification of the proposed transition requires further study.

VII Exact ground states

Finally we can write down simple states, analogous to the AKLT states.Affleck et al. (1988) Let’s write the states of the $[p,p]$ irrep on a single site as

[TABLE]

where $\mathcal{P}_{[p,p]}$ projects the state with p $a$ bosons and p $b$ bosons onto the $[p,p]$ irrep. These are symmetric under interchanging raised or lowered indices and traceless under contracting any pairs of upper and lower indices.Mathur and Sen (2001) Then for $p$ even the AKLT state on the bond between sites $n$ and $n+1$ reads as

[TABLE]

Note that $p/2$ upper indices on site $n$ are contracted with $p/2$ lower indices on site $n+1$ and $p/2$ lower indices on site $n$ are contracted with $p/2$ upper indices on site $n+1$. For $p$ odd there are two AKLT states of the form

[TABLE]

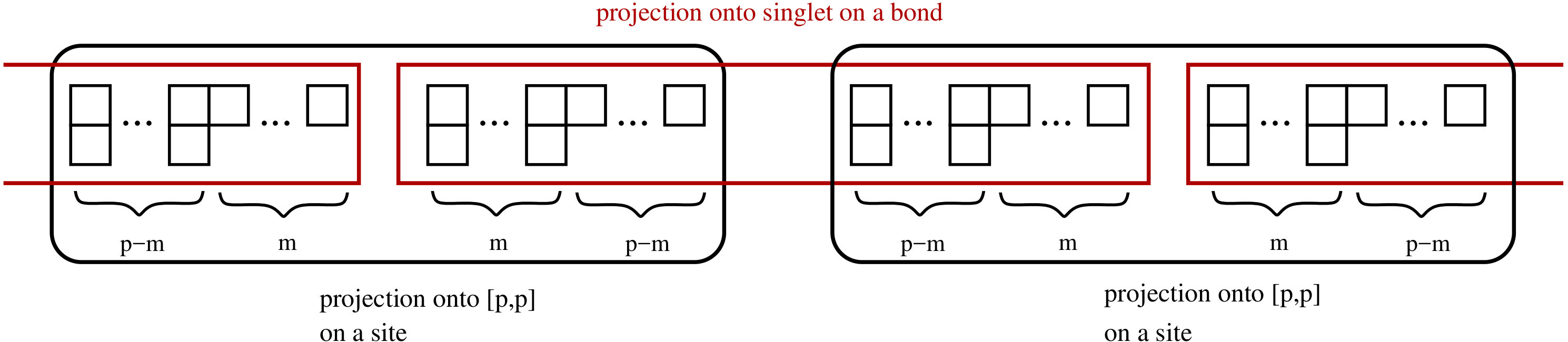

In one of the AKLT states, $(p+1)/2$ upper indices and $(p-1)/2$ lower indices on site $n$ are contracted with site $n+1$. In the other AKLT state $(p-1)/2$ upper indices and $(p+1)/2$ lower indices on site $n$ are contracted with site $n+1$. Both of these states are translation invariant and map into each other under the bond parity or the $a\leftrightarrow b$ parity as well. Fig. 4 provides an illustration of this construction. For $p=1$, this is similar to the construction of Morimoto et al.Morimoto et al. (2014)

With this type of construction we can’t find any AKLT type states, for $p$ odd, which do not break bond parity and the $a_{\alpha}\leftrightarrow b^{\alpha}$ parity, which is consistent with our conjecture that it is spontaneously broken. For $p$ odd and any given $0\leq m\leq p$ the state depicted in Fig. 4 is connected to the state with $m^{\prime}=p-m$ by bond parity or $a_{\alpha}\leftrightarrow b^{\alpha}$ parity. This is even true for $p$ even for any $m\neq p/2$. As was discussed recently in Ref. Gozel et al., 2019, Hamiltonians can be found for which these are the unique (or doubly degenerate) exact ground states.

VIII Conclusions

We have studied the self-conjugate representations of SU(3) whose Young Tableaux contain p columns of length 2 and p columns of length 1, focusing on the large-$p$ limit. We mapped the “spin” chains into a non-Lorentz invariant $\sigma$-model, for large $p$. We obtained topological angles in the field theory which are 0 for $p$ even and $\pi$ for $p$ odd. The field theory is not Lorentz invariant due to unequal velocities for different perturbative excitations. We have confirmed the perturbative limit of the field theory using flavour-wave theory.

Based on our proposed phase diagram for the Lorentz invariant version of this field theory in Ref. Lajkó et al., 2017, our analysis of the strong coupling limit of the field theory and AKLT states that we constructed, we conjecture a gapped phase for all $p$, with spontaneously broken parity and $a_{\alpha}\leftrightarrow b^{\alpha}$ symmetries for $p$-odd only. The gap was confirmed using a Monte Carlo study of the field theory. However, we were unable to confirm the broken symmetries using Monte Carlo simulations. AKLT states can be constructed Gozel et al. (2019) which do not have broken parity symmetry. So, for sufficiently general Hamiltonians, ground states without broken parity exist for $p$ odd. The Lieb-Schultz-Mattis-Affleck theorem, which proves either broken symmetry or a gapless ground states for the p-box symmetric representations with $p\neq 3$, fails for the self-conjugate representations. Nonetheless, we conjecture broken symmetry when $p$ is odd for the simplest Hamiltonian, which we consider here. Our broken symmetry conjecture definitely needs further confirmation. In Appendix D we present possible order parameters that could be used to detect these symmetry breakings, and briefly discuss our attempts to demonstrate it, in the hope that it might be useful to the community.

Acknowledgements

We would like to thank Nathan Seiberg for helpful communications. IA is supported by NSERC of Canada Discovery Grant 04033-2016 and by the Canadian Institute for Advanced Research. KW is supported by an NSERC PGS-D and the QuEST program of the Stewart Blusson Quantum Matter Institute. FK, ML and FM gratefully acknowledge the financial support of the Swiss National Science Foundation. The numerical simulations have been performed using the facilities of the Scientific IT and Application Support Center of EPFL.

Appendix A Traceless condition in the Mathur-Sen representation

Here we prove the traceless condition in Eq. (4). We start from the quadratic Casimir operator $S^{\alpha}_{\beta}S^{\beta}_{\alpha}$, which is proportional to the identity over any irrep, but the constant factor depends on the irrep itself, therefore offering a way to distinguish different irreps. Writing the quadratic Casimir in terms of the Mathur-Sen bosons we get

[TABLE]

where we only used the bosonic commutations relations to obtain the last line. Now if we consider a general state with p $a$ bosons and p $b$ bosons, we find that the quadratic Casimir is equivalent to

[TABLE]

Since a p $a$ boson and p $b$ boson state in general can be a mixture of various $[p^{\prime},p^{\prime}]$ irreps ($p^{\prime}<p$), the above expression is not proportional to the identity in general. However, every state $\left|\psi_{[p,p]}\right>$ in the $[p,p]$ irrep should be an eigenstate of the quadratic Casimir with eigenvalue $2p^{2}+4p$, 333 see Eq. (4.87) in Ref. Pfeifer, 2003, for example, but note that we have a factor 2 difference to their convention. One can also find this value for the quadratic Casimir by checking what it gives for the $(a^{1\dagger})^{p}(b_{2}^{\dagger})^{p}\left|0\right>$ state, which is clearly in the $[p,p]$ irrep. therefore

[TABLE]

From this it straightforwardly follows that $-2(a^{\beta\dagger}b_{\beta}^{\dagger})(a_{\alpha}b^{\alpha})\left|\psi_{[p,p]}\right>=0$ must be fulfilled. This is only true if $(a_{\alpha}b^{\alpha})\left|\psi_{[p,p]}\right>=0$, since if we get some nonzero state after applying the annihilation operators, acting with the creation operators on top of that will also give some nonzero state.

To show that the spin-coherent states defined in Eq. (7) are indeed in the $[p,p]$ irrep, we need to check if they vanish under $a_{\gamma}b^{\gamma}$.

[TABLE]

where the right hand side vanishes when $\vec{z}\cdot\vec{w}=0$.

Appendix B Detailed description of the flavour-wave modes

Each of the six Goldstone modes $\omega_{1,\dots,6}$ of Eq. (19) can be associated with one of the six off-diagonal generators acting on the initial condensate. For instance, the modes $\omega_{5,6}$ stemming from the matrix $M^{2}$ arise from the Holstein-Primakoff bosons $a^{3\dagger}(k,{\Lambda_{1}})$ and $b_{3}^{\dagger}(k,{\Lambda_{2}})$. These bosons correspond to acting on the initial condensate \frac{1}{p!}\big{(}a^{1\dagger}(i)b^{\dagger}_{2}(i)\big{)}^{p}\left|0\right>_{i}=:\left|(A\bar{B})^{\otimes p}\right>_{i} on sublattice ${\Lambda_{1}}$ with the generator $S^{3}_{1}(i)$ or acting on \frac{1}{p!}\big{(}a^{2\dagger}(j)b^{\dagger}_{1}(j)\big{)}^{p}\left|0\right>_{j}=:\left|(B\bar{A})^{\otimes p}\right>_{j} on sublattice ${\Lambda_{2}}$ with generator $S^{1}_{3}(j)$, respectively. Similarly, the modes $\omega_{7,8}$ come from bosons $b_{3}^{\dagger}(k,{\Lambda_{1}})$ and $a^{3\dagger}(k,{\Lambda_{2}})$ that correspond to acting with generators $S^{2}_{3}(i)$ on sublattice ${\Lambda_{1}}$ and $S^{3}_{2}(j)$ on sublattice ${\Lambda_{2}}$ on the initial condensate, respectively.

The case of bosons $a^{2\dagger}(k,{\Lambda_{1}}),b_{1}^{\dagger}(k,{\Lambda_{1}}),a^{1\dagger}(k,{\Lambda_{2}}),b_{2}^{\dagger}(k,{\Lambda_{2}})$ is a bit different. The generators $S^{2}_{1}(i)$ and $S^{1}_{2}(j)$ applied on the initial condensates $\left|(A\bar{B})^{\otimes p}\right>_{i}$ and $\left|(B\bar{A})^{\otimes p}\right>_{j}$ create the states $\left|(A\bar{A}-B\bar{B})(A\bar{B})^{\otimes(p-1)}\right>_{i}$ and $\left|(A\bar{A}-B\bar{B})(B\bar{A})^{\otimes(p-1)}\right>_{j}$, respectively. They belong to a two-dimensional subspace in the weight diagram, as shown in Fig. 1 for the case $p=1$ as an example. In terms of the bosonic operators in the flavour-wave approach these states correspond to f^{1\dagger}(i)=\big{(}a^{2\dagger}(i)-b_{1}^{\dagger}(i)\big{)}/\sqrt{2} on sublattice ${\Lambda_{1}}$ and f^{2\dagger}(j)=\big{(}a^{1\dagger}(j)-b_{2}^{\dagger}(j)\big{)}/\sqrt{2} on sublattice ${\Lambda_{2}}$, which give the remaining two propagating Goldstone modes $\omega_{1,2}$ that come from the matrix $M^{1}$. These modes have a velocity two times larger than the others, due to the fact that the states created by $S^{2}_{1}(i)$ and $S^{1}_{2}(j)$ from the initial condensates have a norm twice as large as the states created by the other generators discussed above. Alternatively, in terms of the Holstein-Primakoff bosons, this can be seen in the fact that the operators $S^{3}_{1}(i)$, $S^{2}_{3}(i)$ ($S^{1}_{3}(j)$, $S^{3}_{2}(j)$) correspond to creation operators $a^{3\dagger}(i)$ and $b_{3}^{\dagger}(i)$ on sublattice ${\Lambda_{1}}$ ($a^{3\dagger}(j)$ and $b_{3}^{\dagger}(j)$ on sublattice ${\Lambda_{2}})$, but $S^{2}_{1}(i)$ ($S^{1}_{2}(j)$) corresponds to $\sqrt{2}f^{1\dagger}(i)$ on sublattice ${\Lambda_{1}}$ ($\sqrt{2}f^{2\dagger}(j)$ on sublattice ${\Lambda_{2}}$).

Finally, the $\omega_{7,8}$ modes are related to the bosonic operators $g^{1\dagger}(i)=(a^{2\dagger}(i)+b_{1}^{\dagger}(i))/\sqrt{2}$ on sublattice ${\Lambda_{1}}$ and $g^{2\dagger}(j)=(a^{1\dagger}(j)+b_{2}^{\dagger}(j))/\sqrt{2}$ on sublattice ${\Lambda_{2}}$. In harmonic order, applying these on the initial condensates leads to the states $\left|(A\bar{A}+B\bar{B})(A\bar{B})^{\otimes(p-1)}\right>_{i}$ on sublattice ${\Lambda_{1}}$ and $\left|(A\bar{A}+B\bar{B})(B\bar{A})^{\otimes(p-1)}\right>_{j}$. These states are actually not fully in the p box self-conjugate irrep. For example, for $p=1$ the $\left|A\bar{A}+B\bar{B}\right>$ state is a combination of the $\left|A\bar{A}+B\bar{B}-2C\bar{C}\right>$ state in the self-conjugate irrep and the $\left|A\bar{A}+B\bar{B}+C\bar{C}\right>$ state in the singlet irrep. These two states cannot be distinguished in the harmonic order; only higher order corrections can reveal the true nature of the $g$ bosons. Nonetheless, we can understand the flat nature of these modes by realizing that $g$ bosons don’t correspond to any single generator applied on the initial condensate. For example the $\left|A\bar{A}+B\bar{B}-2C\bar{C}\right>$ state can be reached from $\left|A\bar{B}\right>$ by applying $\frac{2}{\sqrt{6}}S^{2}_{3}(i)S^{3}_{1}(i)-\frac{1}{\sqrt{6}}S^{2}_{1}(i)$ ($S^{2}_{1}$ itself only leads to $\left|A\bar{A}-B\bar{B}\right>$). Such multipolar states requiring a product of generators on one site are well known in the literature.Romhányi and Penc (2012); Penc et al. (2012) They appear as flat modes in the harmonic order, because dispersive terms appear in the expansion of the off-diagonal interaction terms only in higher order. For the same reason, the $\omega_{7}$ and $\omega_{8}$ stemming from the matrix $M^{1}$ are flat, and they do not correspond to the Goldstone modes.

Formally rewriting the Hamiltonian in Eq. (12) using the new bosons $f,g$ bosons

[TABLE]

we find

[TABLE]

where the new $g_{1},g_{2}$ bosons clearly give non-dispersive flat modes. To satisfyingly study the true nature of these modes, i.e. if they truly belong to the self-conjugate irrep or not requires higher order spin wave corrections, but it doesn’t change our conclusions, since we focus on the low energy modes.

Appendix C Detailed calculations for the derivation of the NLI$\sigma$M

Here we show how different terms read in the expansion of the Hamiltonian and Berry phase terms. The $\vec{\phi}$ fields in the $j+1$th unit cell are expanded as $\vec{\phi}^{n}_{j+1}=\vec{\phi}^{n}_{j}+2a\partial_{x}\vec{\phi}^{n}_{j}+2a^{2}\partial_{x}^{2}\vec{\phi}^{n}_{j}+\mathcal{O}(a^{3})$. The $\tau$ imaginary time variable and the $j$ unit cell index on the right hand side are omitted for simplicity.

[TABLE]

[TABLE]

where we used

[TABLE]

[TABLE]

[TABLE]

where we used

[TABLE]

Finally

[TABLE]

[TABLE]

The Berry’s phase terms become:

[TABLE]

Using the above expansions we arrive to the action given in Eq. (44). The $L$ fields can be integrated out using the Gaussian identity

[TABLE]

Carrying out the Gaussian integrals in $L$ fields gives

[TABLE]

that leads to Eq. (45).

Appendix D Order parameters for spontaneous symmetry breaking

Here we present various order parameters that could signal the spontaneous breakdown of the various discrete symmetries discussed in Sec. III.3. We are looking for expressions which should give 0 if a symmetry is conserved, therefore a nonzero value would mean the breakdown of that given symmetry. We suggest two families of order parameters, one based on topological charges, and one based on $\mbox{SU}(3)$ and gauge invariant terms built from the $\vec{\phi}$ fields of nearest neighbour sites of the discretized action.

Take for example the $\mathbb{Z}_{2}^{(\text{tr})}$ symmetry related to the translation by one site. Since this symmetry maps $Q_{1}$ to $Q_{2}$ and vice versa, $\langle Q_{1}-Q_{2}\rangle$ changes sign under this transformation, therefore if translational symmetry is conserved this quantity should be 0. On the other hand, if $\langle Q_{1}-Q_{2}\rangle\neq 0$, it would suggest that the translational invariance is explicitly broken.

Following a similar argument we can construct order parameters from the $\vec{\phi}$ fields as well. Consider for example the term $|\vec{\phi}^{1*}(x,\tau)\cdot\vec{\phi}^{3}(x+\delta_{x},\tau)|^{2}$ on a discretized lattice, under $\mathbb{Z}_{2}^{(\text{tr})}$ this maps to $|\vec{\phi}^{2*}(x,\tau)\cdot\vec{\phi}^{3}(x+\delta_{x},\tau)|^{2}$ and vice versa. Therefore if $\mathbb{Z}_{2}^{(\text{tr})}$ is conserved, the expectation \big{\langle}\sum_{x,\tau}\big{(}|\vec{\phi}^{1*}(x,\tau)\cdot\vec{\phi}^{3}(x+\delta_{x},\tau)|^{2}-|\vec{\phi}^{2*}(x,\tau)\cdot\vec{\phi}^{3}(x+\delta_{x},\tau)|^{2}\big{)}\big{\rangle} should vanish, or if it is nonzero it means that $\mathbb{Z}_{2}^{(\text{tr})}$ is broken. Following the same argument we can find multiple canditate order parameters for the breakdown of each of the previously discussed symmetries. If any of the candidate order parameters of a given symmetry are nonzero, it follows that the symmetry must be broken.

Based on Griffith,Griffiths (1966) we propose measuring the correlations of the local order parameters, and extracting the long distance limit of these correlations from finite size simulations. If this long distance limit is nonzero for a given order parameter that suggests spontaneous breakdown of the associated symmetry in the thermodynamic limit. In Table 1 we provide a list of candidate local order parameters for each of the symmetries discussed in Sec. III.3.

For the current model the most relevant candidates are \big{\langle}q_{1}(\vec{r})+q_{2}(\vec{r})\big{\rangle} and $\mathcal{C}_{1}^{x}(\vec{r})$. As we discussed above we believe that the $\mathbb{Z}_{2}^{(\text{bp})}$ bond parity and $\mathbb{Z}_{2}^{(a\leftrightarrow b)}$ symmetries are spontaneously broken for $\theta_{1}=-\theta_{2}=\pi$. This is supported by the strong coupling calculations in Sec. V, where we showed that $\langle q_{1}(\vec{r})+q_{2}(\vec{r})\rangle$ is nonzero in the thermodynamic limit, and by the AKLT-type example of Sec. VII. However, both the strong coupling calculations and the AKLT examples show that the $\mathbb{Z}_{2}^{(\text{tr})}$ remains conserved, which would fix all $\mathcal{A}$ order parameters to 0. Unfortunately, so far we haven’t been able to obtain clear results on the breakdown of symmetries for the physically relevant $\theta_{1}=-\theta_{2}=\pi$ in the weak coupling case using the extrapolation technique of Sec. VI. We believe that the main obstacle lies in the extrapolation itself. For imaginary topological angles we find that the correlations of the local order parameters converge to a fixed value within a few lattice spacing, promising a good estimate on the infinite range correlation. We found that the long range correlations of all order parameters go to 0 at $\theta_{1}=-\theta_{2}=0$, but we couldn’t get reliable estimates for finite real angles. We needed higher degree polynomials to accurately fit the results for imaginary angles, but as a result the extrapolated values were really sensitive to the fitting parameters, which made it impossible to get reliable values.
