Roles of cooperative effects and disorder in photon localization: The case of a vector radiation field

TL;DR

This study investigates how cooperative effects and disorder influence photon localization in three-dimensional atomic gases, emphasizing the dominant role of cooperative effects over disorder, and finds scalar models sufficiently approximate vector light behavior.

Contribution

The paper demonstrates that photon localization in atomic gases is primarily driven by cooperative effects, and shows scalar models are adequate for describing photon escape rates.

Findings

Photon escape rates scale with optical thickness

Photon localization is dominated by cooperative effects

Scalar models are effective for photon escape rate analysis

Abstract

We numerically study photon escape rates from three-dimensional atomic gases and investigate the respective roles of cooperative effects and disorder in photon localization, while taking into account the vectorial nature of light. A scaling behavior is observed for the escape rates, and photons undergo a crossover from delocalization toward localization as the optical thickness of the cloud is increased. This result indicates that light localization is dominated by cooperative effects rather than disorder. We compare our results with those obtained in the case of a scalar radiation field and find no significant differences. We conclude that the scalar model constitutes an excellent approximation when considering photon escape rates from atomic gases.

Figures

Equations

$$H_0=\hslash {\omega }_0\sum _{i=1}^N\sum _{\alpha }|e_{\alpha }^i⟩⟨e_{\alpha }^i|+\sum _{\text{k}\hat{\epsilon }}\hslash {\omega }_k{a}_{\text{k}\hat{\epsilon }}^{†}{a}_{\text{k}\hat{\epsilon }}.$$

$$V=-\sum _{i=1}^N{\text{d}}_i\cdot \text{E}({\text{r}}_i),$$

$$\text{E(r)}=i\sum _{\text{k}\hat{\epsilon }}\sqrt{\frac{\hslash {\omega }_k}{2{ϵ}_0\mathcal{V}}}\left(a_{\text{k}\hat{\epsilon }}\hat{\epsilon }{e}^{i\text{k}\cdot \text{r}}-a_{\text{k}\hat{\epsilon }}^{†}{\hat{\epsilon }}^{\ast }{e}^{-i\text{k}\cdot \text{r}}\right).$$

$$\begin{array}{r}{H}_{eff}=\left(\hslash {\omega }_0-i\frac{\hslash {\Gamma }_0}{2}\right)\sum _{i=1}^N\sum _{\alpha }|e_{\alpha }^i⟩⟨e_{\alpha }^i|\\ -\frac{\hslash {\Gamma }_0}{2}\sum _{i\ne j}\sum _{\alpha \beta }{g}_{\alpha \beta }({\text{r}}_{ij})S_{i,\alpha }^{(+)}{S}_{j,\beta }^{(-)},\end{array}$$

$$\begin{split}g_{\alpha\beta}(\textbf{r}_{ij})=\frac{3}{2}e^{ik_{0}r_{ij}}\bigg{[}\left(\frac{1}{k_{0}r_{ij}}+\frac{i}{(k_{0}r_{ij})^{2}}-\frac{1}{(k_{0}r_{ij})^{3}}\right)\delta_{\alpha\beta}\\ -\left(\frac{1}{k_{0}r_{ij}}+\frac{3i}{(k_{0}r_{ij})^{2}}-\frac{3}{(k_{0}r_{ij})^{3}}\right)\frac{r_{ij,\alpha}r_{ij,\beta}}{r_{ij}^{2}}\bigg{]},\end{split}$$

$$g(r_{ij})=\frac{e^{i{k}_0{r}_{ij}}}{k_0{r}_{ij}},$$

$$\begin{array}{r}\frac{\text{d}\rho }{\text{d}t}=-\frac{i}{\hslash }(H_{eff}\rho -\rho H_{eff}^{†})\\ +{\Gamma }_0\sum _{ij}\sum _{\alpha \beta }{\Lambda }_{\alpha \beta }({\text{r}}_{ij})S_{j,\alpha }^{(-)}\rho S_{i,\beta }^{(+)},\end{array}$$

$$\frac{\text{d}{\rho }_{GG}}{\text{d}t}={\Gamma }_0\sum _{ij}\sum _{\alpha \beta }{\Lambda }_{\alpha \beta }({\text{r}}_{ij})⟨G|S_{j,\alpha }^{(-)}\rho S_{i,\beta }^{(+)}|G⟩,$$

$$\frac{\text{d}{\rho }_{GG}}{\text{d}t}={\Gamma }_0\sum _{n=1}^{3N}{\Gamma }_n⟨G|S_n^{(-)}\rho S_n^{(+)}|G⟩,$$

$$\begin{split}\Lambda_{\alpha\beta}(\textbf{r}_{ij})=\frac{3}{2}\bigg{[}\left(\frac{\sin(k_{0}r_{ij})}{k_{0}r_{ij}}+\frac{\cos(k_{0}r_{ij})}{(k_{0}r_{ij})^{2}}-\frac{\sin(k_{0}r_{ij})}{(k_{0}r_{ij})^{3}}\right)\delta_{\alpha\beta}\\ -\left(\frac{\sin(k_{0}r_{ij})}{k_{0}r_{ij}}+3\frac{\cos(k_{0}r_{ij})}{(k_{0}r_{ij})^{2}}-3\frac{\sin(k_{0}r_{ij})}{(k_{0}r_{ij})^{3}}\right)\frac{r_{ij,\alpha}r_{ij,\beta}}{r_{ij}^{2}}\bigg{]}.\end{split}$$

$$\Lambda (r_{ij})=\frac{\sin (k_0{r}_{ij})}{k_0{r}_{ij}}.$$

$$P(\Gamma )=\frac{1}{M}\overline{\sum _{n=1}^M\delta (\Gamma -{\Gamma }_n)},$$

$$P(\Gamma )=\delta (\Gamma -1),$$

$$P(\Gamma )=\frac{1}{N}[\delta (\Gamma -N)+(N-1)\delta (\Gamma )].$$

$$C=1-2{\int }_1^{\infty }d\Gamma P(\Gamma ),$$

$$C=1-\frac{2}{N}.$$

$$C\simeq 1-3\frac{N_{\perp }}{N},$$

$$\begin{split}\Gamma^{(s,v)}_{max}=\sqrt{\frac{b_{0}^{(s,v)}-2/k_{0}l^{(s,v)}}{A}+\bigg{(}\frac{b_{0}^{(s,v)}-2/k_{0}l^{(s,v)}}{B}\bigg{)}^{2}}\\ +\frac{b_{0}^{(s,v)}-2/k_{0}l^{(s,v)}}{C}+1,\end{split}$$

$${\Gamma }_{min}^{(s,v)}\propto (\rho {\lambda }^{3}N{)}^{-2/3}.$$

Full text

1 Introduction

Light localization in cold atomic gases, namely an overall decrease of photon escape rates from the cloud, is a subject of interest in atomic and optical physics, both theoretically and experimentally skip1 ; BGAK ; skip2 ; skip4 ; Guerin2016 . Localization of light in atomic media can be induced by two mechanisms. The first one, Anderson localization, originates from interference effects in the presence of disorder anderson , whereas the second mechanism, cooperativity, stems from the synchronization of atomic dipoles and does not require disorder dicke . To investigate photon localization, resulting from the contribution of these two mechanisms, two different approaches have been proposed.

The first approach studies the complex spectrum of the effective Hamiltonian describing the atomic system. There, the real part of an eigenvalue corresponds to the energy of the eigenstate, while its imaginary part is related to the decay rate BGAK ; orlowski ; svidzinsky2 ; bienaime . A numerical analysis based on this approach has shown that localization of light can be achieved in random three-dimensional atomic media only for a scalar radiation field; it cannot be achieved when the vectorial properties of the electromagnetic wave are taken into account skip1 ; BGAK ; skip2 . A similar result has been obtained in two-dimensional systems as well Loc2DBachelar . Current studies following this approach examine the influence of external laser Guerin2016 ; bienaime ; Araujo2016 ; Roof2016 ; SubVSRT and magnetic SkipetrovPRA fields or additional disorder Celardo2017 on photon emission rates.

According to the second approach, photon escape rates are determined by the time evolution of the ground-state population obtained from the reduced atomic density matrix of the gas. This time evolution is governed by the spectrum of the imaginary part of the effective Hamiltonian ernst ; tallet1 ; tallet2 ; PRL2 . Unlike the first approach, the second one takes into account for detection purposes only the on-shell photons that leave the cloud. Studies based on the latter approach have been restricted to the interaction of atoms with a scalar radiation field. These studies have compared the roles of disorder and cooperative effects, e.g., superradiance and subradiance, in photon localization. It has been shown that in two- and three-dimensional media, photon localization occurs as a crossover between two limits: the single-atom limit where photons are spatially delocalized and spontaneous emission of independent atoms occurs, and the opposite limit where the photons are trapped in the gas for a very long time PRL2 ; PRA2 . As these two limits are connected by a crossover rather than a disorder-driven phase transition as expected from Anderson localization gang , one can argue that photon localization is dominated by cooperative effects rather than disorder. In one-dimensional atomic gases, the single-atom limit is never reached and photons are always localized in the cloud - a result clearly attributed to cooperative effects EPL .

The study described here examines whether the significant difference between the scalar and vector models in regard to photon localization, obtained within the framework of the first approach and mentioned above, occurs as part of the second approach as well. In other words, we focus on the emission of (detectable) photons from three-dimensional atomic gases in the case of a vector radiation field and compare the findings to those of the scalar model. We show that the vector and scalar models qualitatively lead to the same results. Moreover, in both cases a scaling behavior is observed for the escape rates, and photons undergo a crossover from delocalization toward localization as the optical thickness of the cloud is increased. The last result suggests that photon localization is dominated by cooperative effects rather than disorder. This conclusion is further validated by the finding that a similar scaling behavior is obtained for ordered media. Concerning photon localization, we think that the similarity between the scalar and vector models has an important impact on both theory and experiments.

The paper is organized as follows. In Section 2, we present the model of a gas of identical atoms interacting with the radiation field. In Section 3, the atomic effective Hamiltonian is introduced, and in Section 4 the photon collective emission rates from the atomic cloud are derived. In Section 5 we describe our numerical methods, and in Sections 6-7 present our findings. We finally discuss our results in Section 8 and draw some conclusions in Section 9.

2 Model

Atoms are taken as identical two-level systems, a ground state $|g\rangle=|J_{g}=0,m_{g}=0\rangle$ and an excited state $|e\rangle=|J_{e}=1,m_{e}=0,\pm 1\rangle$. $J$ is the quantum number of the total angular momentum and $m$ is its projection on a quantization axis, taken as the $\hat{z}$ axis. The states associated to $m_{e}$ are spanned by the Cartesian basis $\{|\alpha\rangle\}=\{|x\rangle,|y\rangle,|z\rangle\}$, where $|x\rangle=\frac{1}{\sqrt{2}}(|-1\rangle-|+1\rangle)$, $|y\rangle=\frac{i}{\sqrt{2}}(|-1\rangle+|+1\rangle)$ and $|z\rangle=|0\rangle$. Therefore, further on we denote the excited state by $|e_{\alpha}\rangle$. The energy separation between the ground and excited states, including radiative shift, is $\hbar\omega_{0}$ and the natural width of the excited state is $\hbar\Gamma_{0}$.

In order to describe the dynamics of $N\gg 1$ atoms, distributed at random positions $\textbf{r}_{i}$ in an external radiation field, we use the Hamiltonian $H=H_{0}+V$. $H_{0}$ is the free Hamiltonian, written as a sum of the atomic and radiation terms,

[TABLE]

Here, $a^{{\dagger}}_{\textbf{k}\hat{\varepsilon}}$ ($a_{\textbf{k}\hat{\varepsilon}}$) is the creation (annihilation) operator of a photon of wave vector k ($\omega_{k}=c|\text{{k}}|$) and polarization $\hat{\varepsilon}$ ($\textbf{k}\cdot\hat{\varepsilon}=0$).

The light-matter interaction $V$ expressed in the electric dipole approximation is

[TABLE]

where $\textbf{d}_{i}$ is the electric dipole moment operator of the $i$-th atom.

The atoms are coupled to each other via the electric field operator:

[TABLE]

It is assumed that the typical speed of the atoms is small compared to $\Gamma_{0}/k_{0}$ but large compared to $\hbar k_{0}/\mu$, where $\mu$ is the mass of the atom and $k_{0}=\omega_{0}/c$ is the wavenumber of the light used to probe the system. Under this assumption, the Doppler shift and recoil effects are negligible. It should be noted that recent theoretical and experimental studies have shown that under the assumption above, subradiant states are robust against thermal decoherence bienaime ; Weiss . Furthermore, we assume that the typical speed of the atoms is well above the recoil speed, so that their de-Broglie wavelength is much smaller than $2\pi/k_{0}$. Therefore, quantum statistical effects (e.g., Bose-Einstein condensation) do not play a role. Finally, we neglect retardation effects, so that interaction between atoms is instantaneous.

3 Effective Hamiltonian

Performing the trace over the radiation degrees of freedom of $H$, in the case of a single excitation, produces the non-Hermitian effective Hamiltonian PRL2 ; zoller :

[TABLE]

where $S_{i,\alpha}^{(+)}=|e_{\alpha}^{i}\rangle\langle g^{i}|$ is the raising operator of the $i$-th atom along the $\alpha$ direction and $S_{i,\alpha}^{(-)}=[S_{i,\alpha}^{(+)}]^{{\dagger}}$ is the corresponding lowering operator. The off-diagonal terms, $g_{\alpha\beta}(\textbf{r}_{ij})$, represent the resonant dipole-dipole interaction stephen ; lehmberg ; milonni also obtained in classical electrodynamics jackson :

[TABLE]

where $r_{ij}=|\textbf{r}_{i}-\textbf{r}_{j}|$ and $r_{ij,\alpha}$ is the projection of $\textbf{r}_{ij}$ on the $\alpha$ direction. The imaginary part of the resonant dipole-dipole interaction describes contribution from energy conserving processes, while its real part originates from virtual processes svidzinsky2 .

Averaging (5) over the random orientations of the pairs of atoms gives

[TABLE]

where we used $\langle\frac{r_{ij,\alpha}r_{ij,\beta}}{r_{ij}^{2}}\rangle=\frac{1}{3}\delta_{\alpha\beta}$.

This result is also obtained in the scalar case, where the atoms are coupled to a scalar radiation field PRL1 ; PRA1 .

4 Collective emission rates

The reduced atomic density operator $\rho$, obtained from tracing the density operator over the radiation degrees of freedom, obeys the following equation zoller :

[TABLE]

where the effective Hamiltonian (4) includes both energy-conserving and virtual processes. The random matrix

$\Lambda_{\alpha\beta}(\textbf{r}_{ij})$ is the imaginary part of the resonant dipole-dipole interaction (5), namely, $\Lambda_{\alpha\beta}(\textbf{r}_{ij})\equiv\mbox{Im}[g_{\alpha\beta}(\textbf{r}_{ij})]$.

The cooperative spontaneous emission rates of ”real” (detectable) photons from the gas are determined by the time evolution of the ground state population obtained from the reduced atomic density matrix ernst ; tallet1 ; tallet2 :

[TABLE]

where the ground state population is $\rho_{GG}=\langle G|\rho|G\rangle$ and $|G\rangle=|g_{1},...,g_{i},...,g_{N}\rangle$. As expected, these emission rates depend only on the imaginary part of the resonant dipole-dipole interaction which represents energy-conserving processes.

We denote the $n$-th dimensionless eigenvalue of $\Lambda_{\alpha\beta}(\textbf{r}_{ij})$ by $\Gamma_{n}$ and the associated $n$-th eigenfunction by $u_{i,\alpha}^{(n)}$. Using the orthonormality of the eigenfunctions, we can rewrite (8) as

[TABLE]

where the collective raising and lowering operators are $S_{n}^{(\pm)}=\sum_{i=1}^{N}\sum_{\alpha}u_{i,\alpha}^{(n)}S_{i,\alpha}^{(\pm)}$.

Thus, it is possible to interpret the eigenvalues of the random matrix $\Lambda_{\alpha\beta}(\textbf{r}_{ij})$ as the cooperative spontaneous emission rates (in units of $\Gamma_{0}$) of ”real” photons from the cloud , i.e., the photon escape rates from the atomic gas tallet1 ; tallet2 .

In the vectorial case, the $3N\times 3N$ coupling matrix is

[TABLE]

This matrix is comprised of $N\times N$ blocks, where the dimension of each block is $3\times 3$.

In the scalar case the $N\times N$ coupling matrix is given by

[TABLE]

The properties of (11) have been studied in detail, both numerically PRL2 and analytically PRL2 ; skip3 . In the following sections we study numerically the vectorial coupling matrix (10) and compare the obtained results to those of the scalar case.

The average density of eigenvalues of $\Lambda$ is

[TABLE]

where $M=3N$ (resp. $N$) in the vectorial (resp. scalar) case. The average, denoted by $\overline{\cdot\cdot\cdot}$, is taken over the spatial random configurations of the atoms.

We examine two limiting cases. In the dilute gas limit ($k_{0}r_{ij}\gg 1)$, $\Lambda_{\alpha\beta}(\textbf{r}_{ij})=\delta_{ij}\delta_{\alpha\beta}$ and $\Lambda({r}_{ij})=\delta_{ij}$. Thus,

[TABLE]

and the single-atom spontaneous emission rate, $\Gamma_{0}$, is recovered in both the vectorial and scalar cases.

In the so-called Dicke limit ($k_{0}r_{ij}\ll 1$), $\Lambda_{\alpha\beta}(\textbf{r}_{ij})=\delta_{\alpha\beta}$ and $\Lambda({r}_{ij})=1$. Therefore, for both the vectorial and scalar cases,

[TABLE]

Here, $\Gamma=N$ is the non-degenerate superradiant mode, while $\Gamma=0$ is the $(N-1)$-degenerate subradiant mode.

It should be noted that the mean value of $\Gamma$ hardly characterizes $P(\Gamma)$ since $\Gamma_{mean}=[\mbox{Tr}(\Lambda)]/M$ and $\mbox{Tr}(\Lambda)=M$ in both the vectorial and scalar cases, thus $\Gamma_{mean}=1$ regardless of the system parameters.

Therefore, in order to characterize $P(\Gamma)$ and obtain a measure of photon localization we use the following function:

[TABLE]

normalized to unity. The function $C$ measures the relative number of states having a vanishing escape rate. In the dilute gas limit, (13) implies that $C=0$, indicating photon delocalization note . In the Dicke limit, (14) gives

[TABLE]

Thus, for $N\gg 1$, $C=1$ and photons are localized in the gas.

In the scalar case, away from the Dicke limit, the function $C$ has been thoroughly studied. It exhibits a scaling behavior over a broad range of system size and density in one EPL , two PRA2 , and three dimensions PRL2 . In three dimensions, $C$ can be approximated asymptotically by

[TABLE]

where $N_{\perp}\equiv(k_{0}L)^{2}/4$ is the number of transverse photon modes in an atomic volume $L^{3}$.

In the next sections we study $C$ in the vectorial case and show that it exhibits a scaling behavior and obeys (17) as well.

5 Method

In order to obtain $P(\Gamma)$ and $C$ in the vectorial case beyond the two limits discussed in the previous section, we follow PRL2 . We consider $N\gg 1$ atoms enclosed in a cubic volume $L^{3}$. The atoms are distributed with a uniform density $\rho=N/{L}^{3}$. Using the resonant radiation wavelength, $\lambda=2\pi/k_{0}$, we define the dimensionless density $\rho\lambda^{3}$. Next, we introduce the Ioffe-Regel number IR , $k_{0}l$, where $l$ is the photon elastic mean free path, namely $l=1/\rho\sigma$ and $\sigma$ is the average single scattering cross section. For resonant scattering, the scattering cross section varies as $\lambda^{2}$, so that the Ioffe-Regel number can be written as $k_{0}l^{(s)}=2\pi^{2}/\rho\lambda^{3}$ in the scalar case and $k_{0}l^{(v)}=(2/3)k_{0}l^{(s)}$ in the vectorial case book . Finally, we define the (on resonance) optical thickness, $b_{0}$, as the ratio between the system size $L$ and the photon elastic mean free path $l$. Using the definitions above, one obtains $b_{0}^{(s)}=N^{1/3}(\rho\lambda^{3})^{2/3}/\pi$ and $b_{0}^{(v)}=(3/2)b_{0}^{(s)}$. It is important to note that the optical thickness is related to the number of transverse photon modes by $b_{0}^{(s)}=\pi N/N_{\perp}$ and $b_{0}^{(v)}=(3\pi/2)N/N_{\perp}$. Thus, $b_{0}$ is the scaling parameter in (17).

While the Ioffe-Regel number accounts for disorder effects IR2 , cooperative effects are better described by the optical thickness bienaime ; PRL2 ; lin1 ; lin2 . Therefore, we will use these two parameters to investigate the distinctive roles of disorder and cooperative effects in atomic gases.

For a given spatial atomic configuration, we numerically calculate the $3N$ eigenvalues of (10) in the vectorial case, and, for comparison, the $N$ eigenvalues of (11) in the scalar case. By varying the spatial configuration of the scatterers and averaging over disorder we obtain (12) and (15).

6 Photon escape rate distribution

In this section we study $P(\Gamma)$ in the vectorial case and compare the results to the scalar case, both for the large sample regime $(L>\lambda)$ and the small sample regime $(L\ll\lambda)$.

6.1 Large sample regime

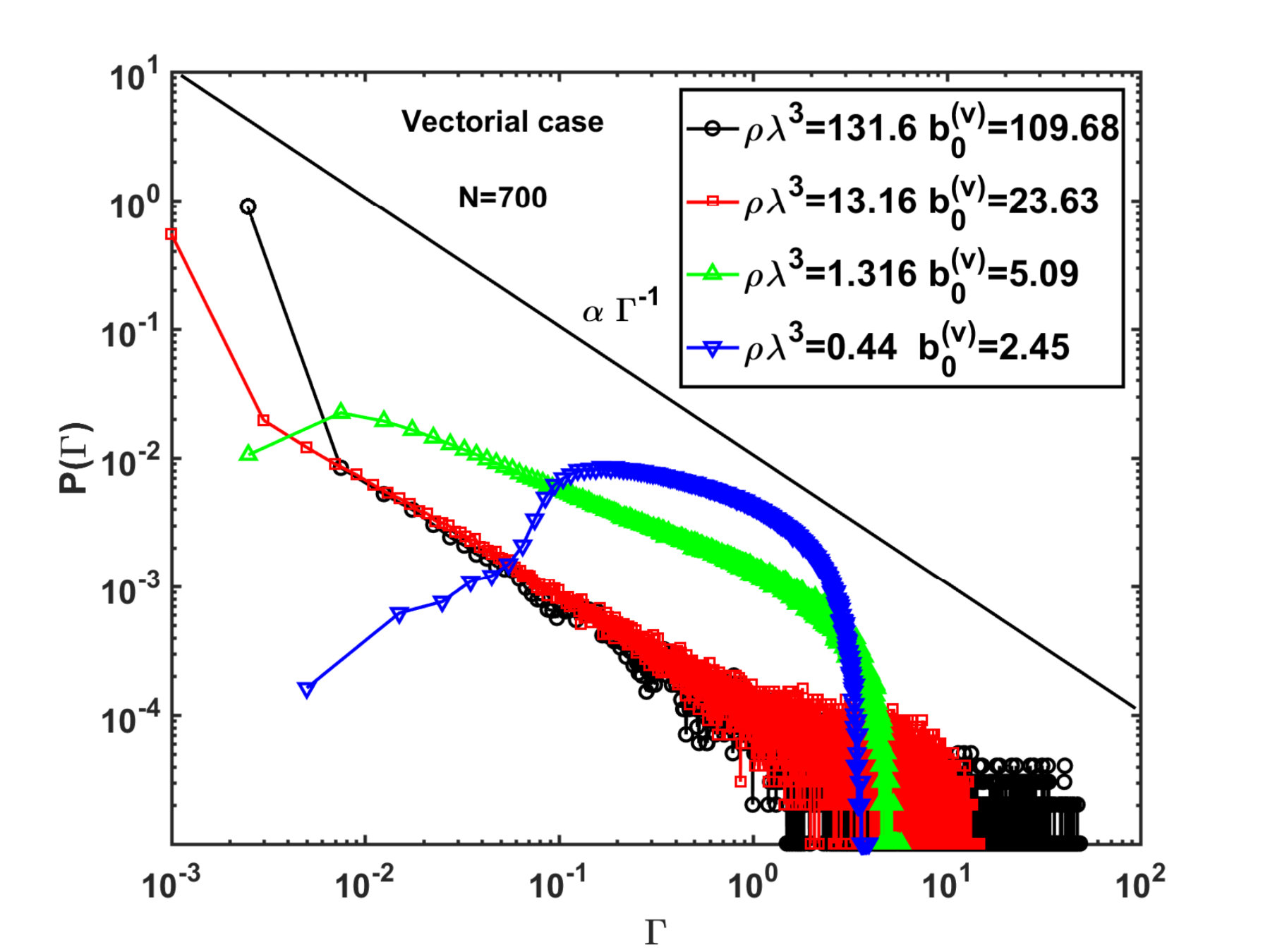

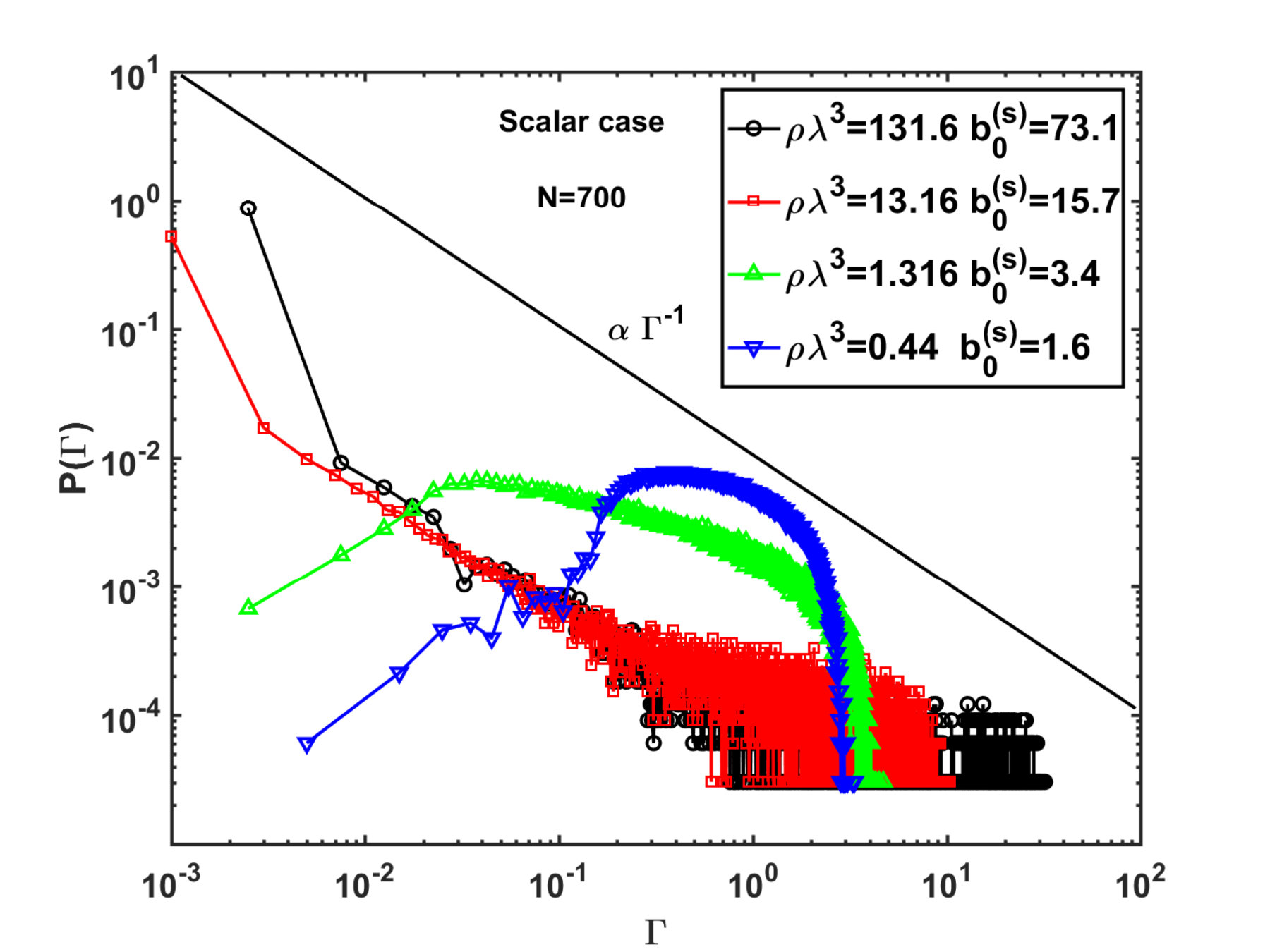

We first consider the photon escape rate distributions in the large sample size limit ($L>\lambda$). Figure 1 shows the photon escape rate distribution $P(\Gamma)$ for a gas of $N=700$ atoms with increasing spatial densities. The results show that the distribution is qualitatively the same for both the scalar and vectorial cases. For dilute gases, the distributions are peaked around the single atom decay rate, $\Gamma=1$, as predicted by (13).

When increasing the density, we observe that $P(\Gamma)$ is shifted toward lower values of $\Gamma$, indicating the existence of long-living modes of the photon inside the sample. For dense clouds, when the optical thickness is large enough, the distribution in both cases is well described by the $P(\Gamma)\sim\Gamma^{-1}$ power law, as suggested for the scalar case in orlowski .

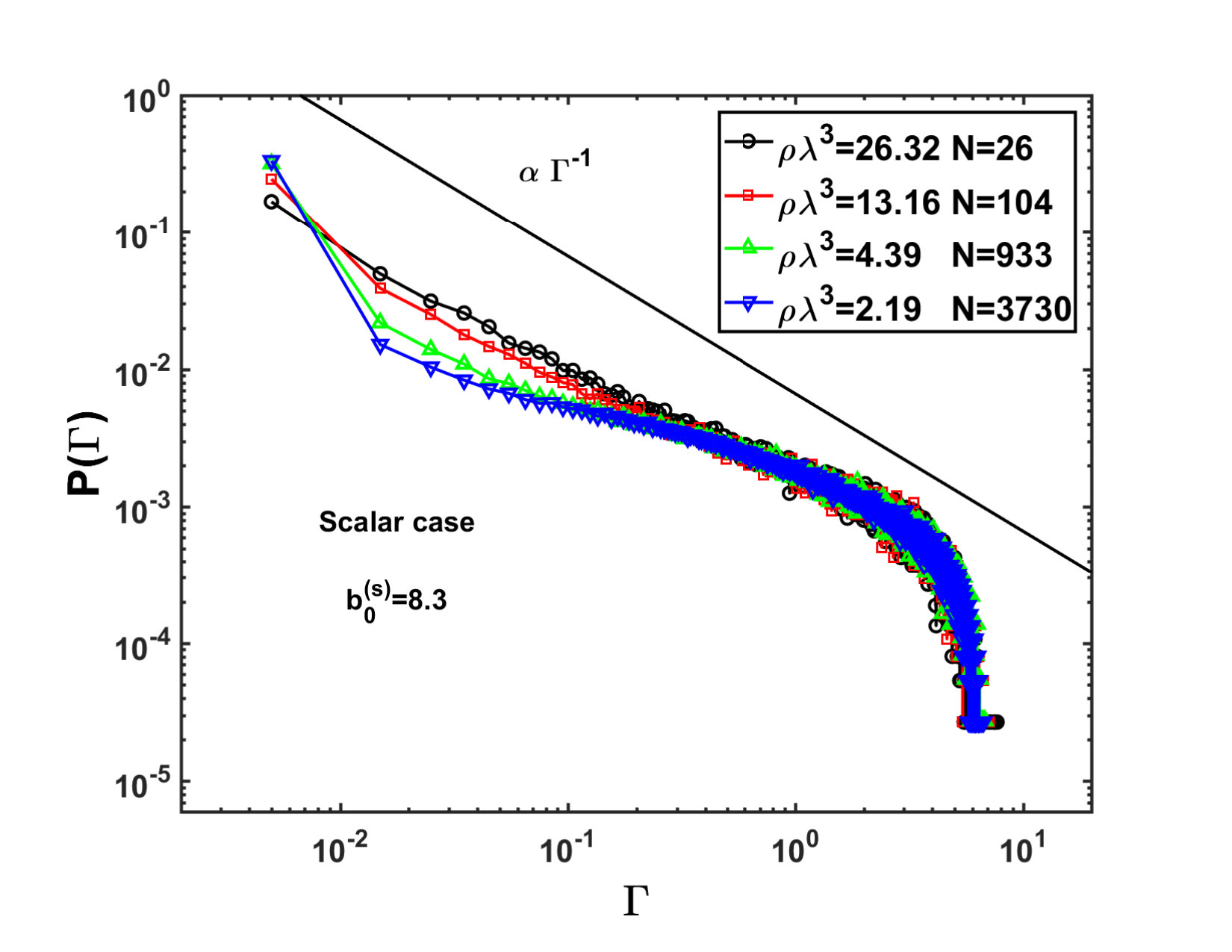

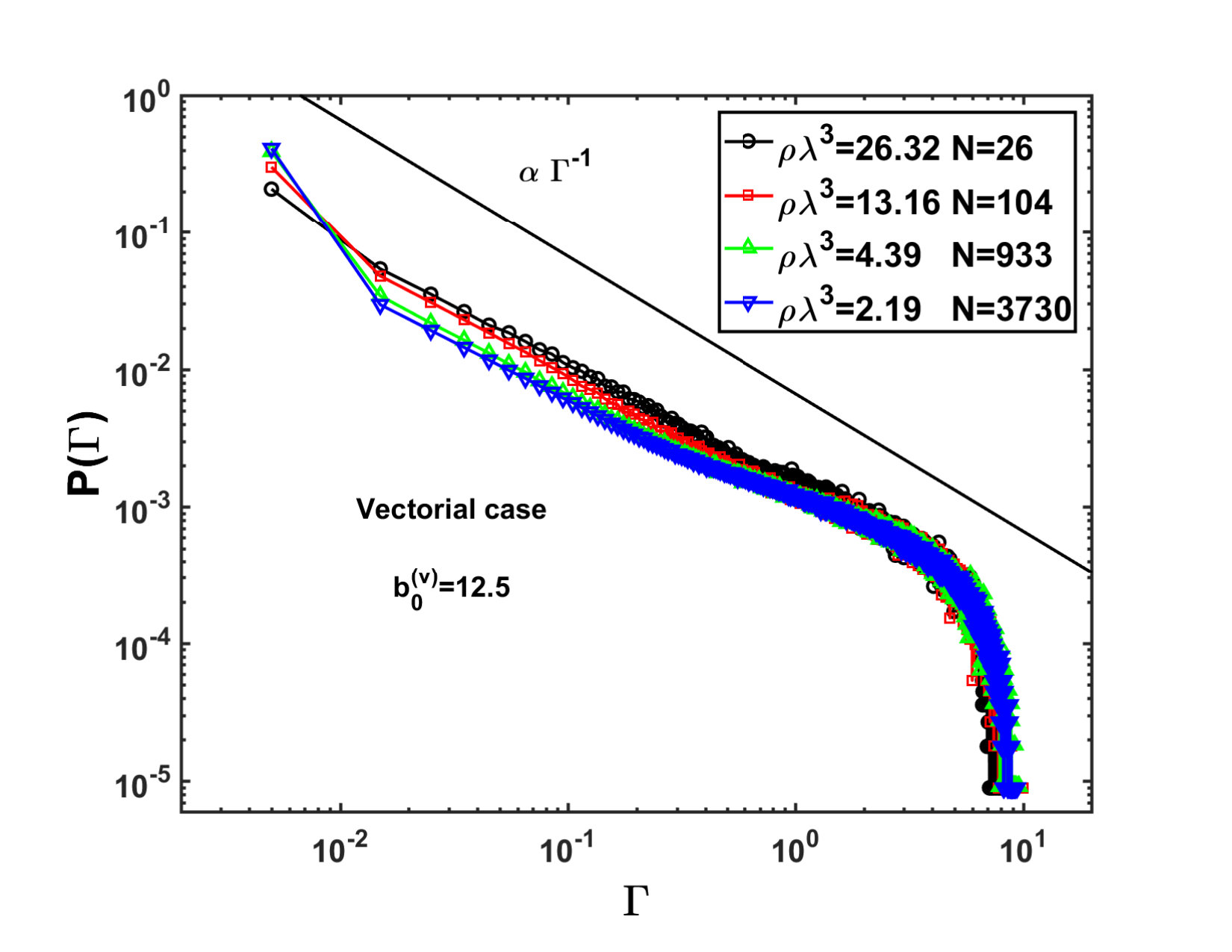

Figure 2 shows the distribution $P(\Gamma)$ at a fixed optical thickness for various spatial densities of scatterers. In both cases, for large enough densities, the photon escape rate obeys the power law of $P(\Gamma)\sim\Gamma^{-1}$.

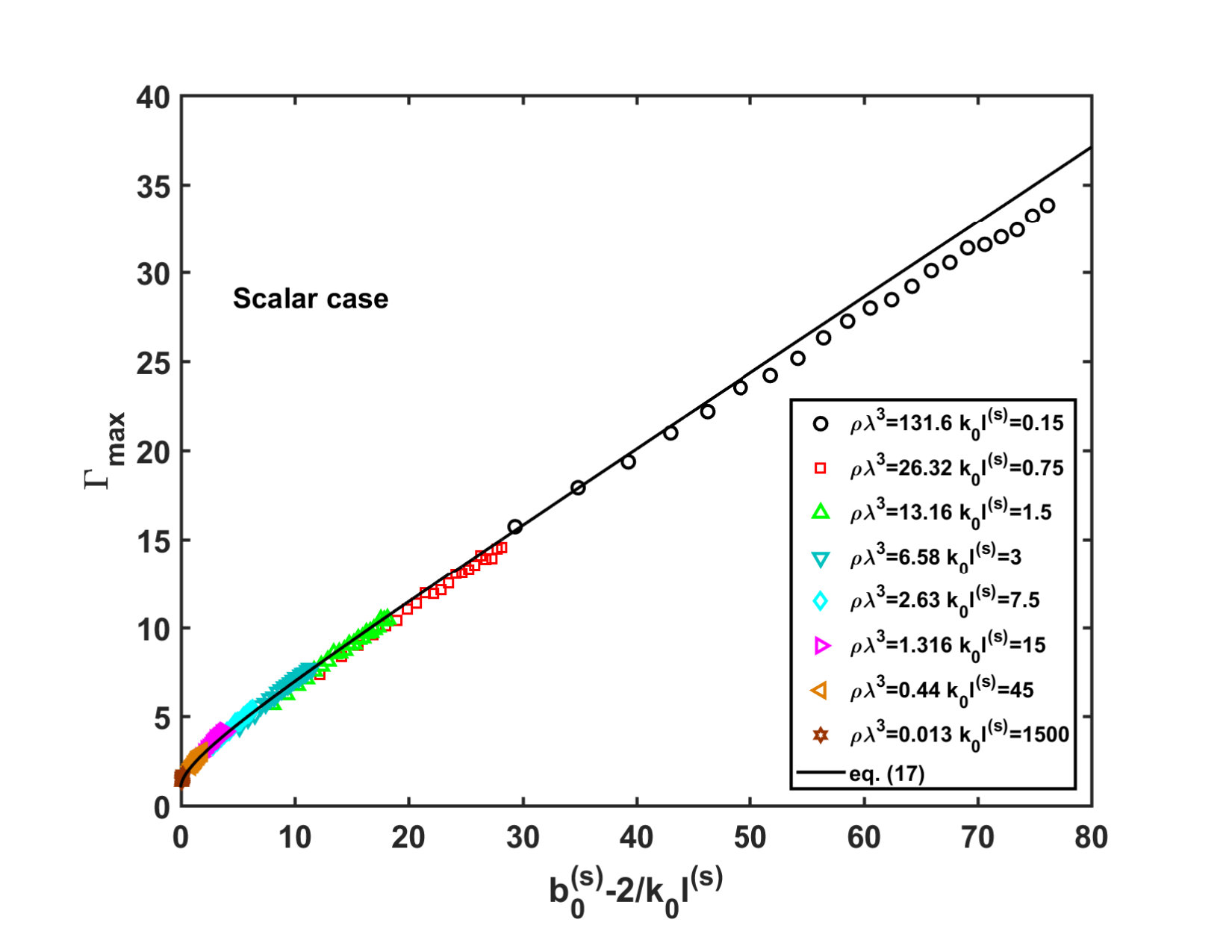

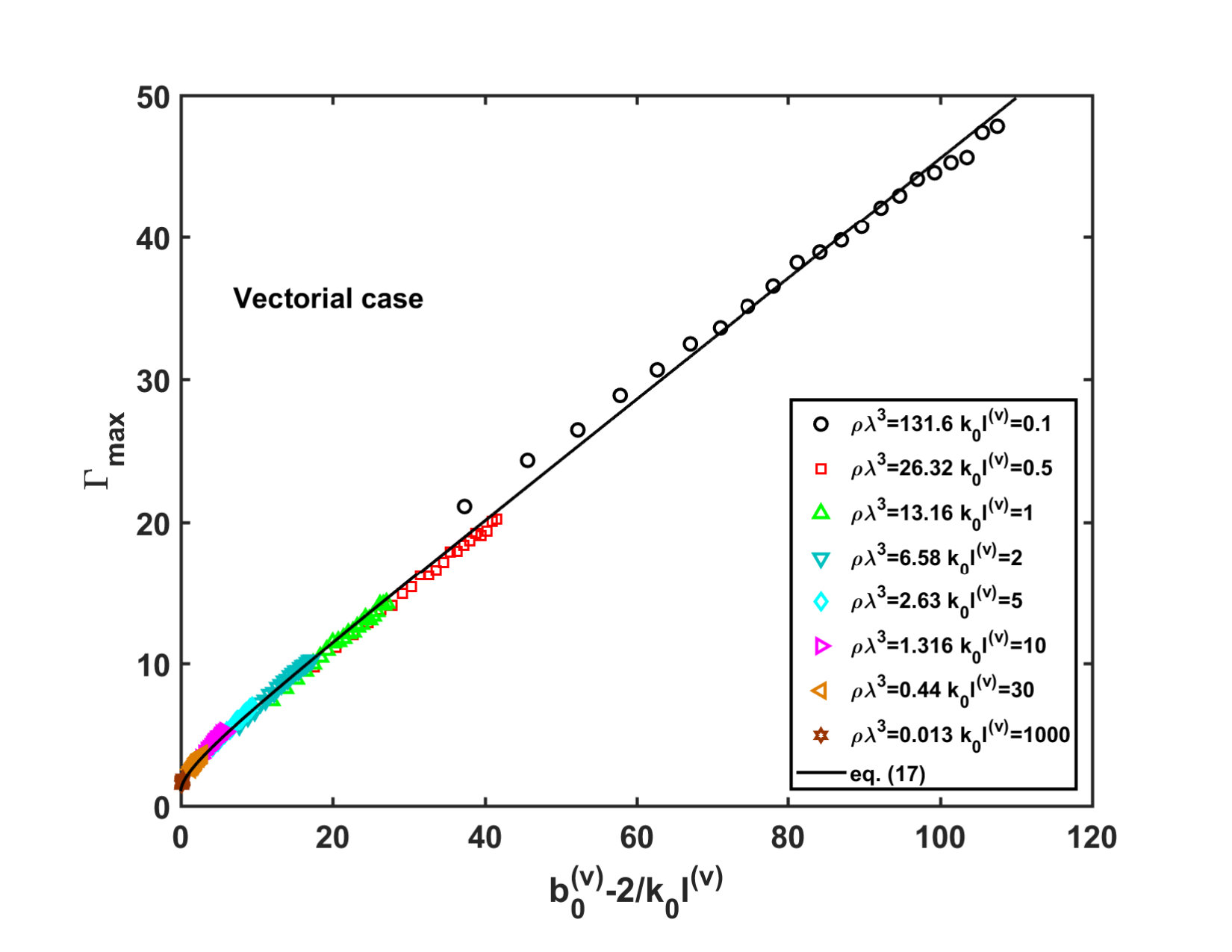

Next, we consider the configuration-averaged maximal photon emission rate, $\Gamma_{max}$. Figure 3 shows the behavior of $\Gamma_{max}$ as a function of the optical thickness rescaled by the spatial density of the gas for both the scalar and vectorial cases. No qualitative differences between the scalar and vectorial cases are observed, and in both cases the configuration-averaged maximal photon emission rate follows the expression:

[TABLE]

where $A=1.00$, $B=5.00$, and $C=4.50$ are free fitting parameters obtained numerically. Equation (18) results from the eigenvalue distribution of certain random matrices skip3 with some numerical adjustments BGAK . It indicates that $\Gamma_{max}$ is dominated by cooperative effects, depending on the optical thickness, and slightly corrected by disorder effects, depending on the spatial density of the cloud. This equation recovers the asymptotic behavior predicted by the Marchenko-Pastur law skip3 ; MPL , namely $\Gamma_{max}\propto\sqrt{b_{0}-2/k_{0}l}$ for dilute gases, and $\Gamma_{max}\propto b_{0}-2/k_{0}l$ for dense clouds.

Finally, we investigate the configuration-averaged minimal photon emission rate, $\Gamma_{min}$. Previous studies have shown that in dilute gases $\Gamma_{min}$ is dominated by subradiant pairs and is given by BGAK ; skip3 :

[TABLE]

As displayed in Fig. 4, both for the scalar and vectorial cases, equation (19) holds for low densities but breaks down for dense gases.

6.2 Small sample regime

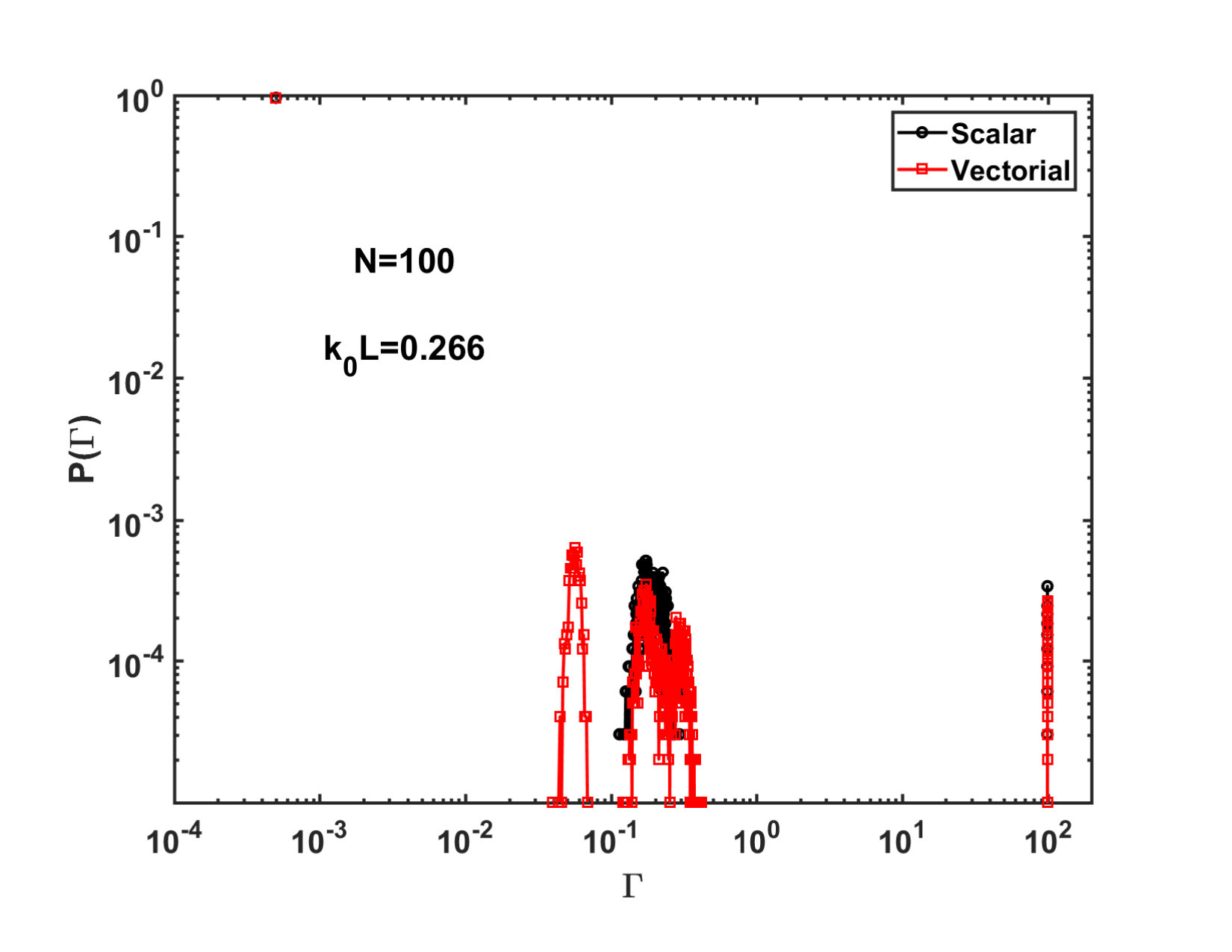

Figure 5 shows the photon escape rate distribution in the small sample regime for a cloud of $N=100$ atoms enclosed in a system of size $k_{0}L=0.266$ in the scalar and vectorial cases. In both cases, we observe the superradiant mode situated at $\Gamma=N$ and the subradiant modes close to $\Gamma=0$, as predicted by (14).

7 Scaling function

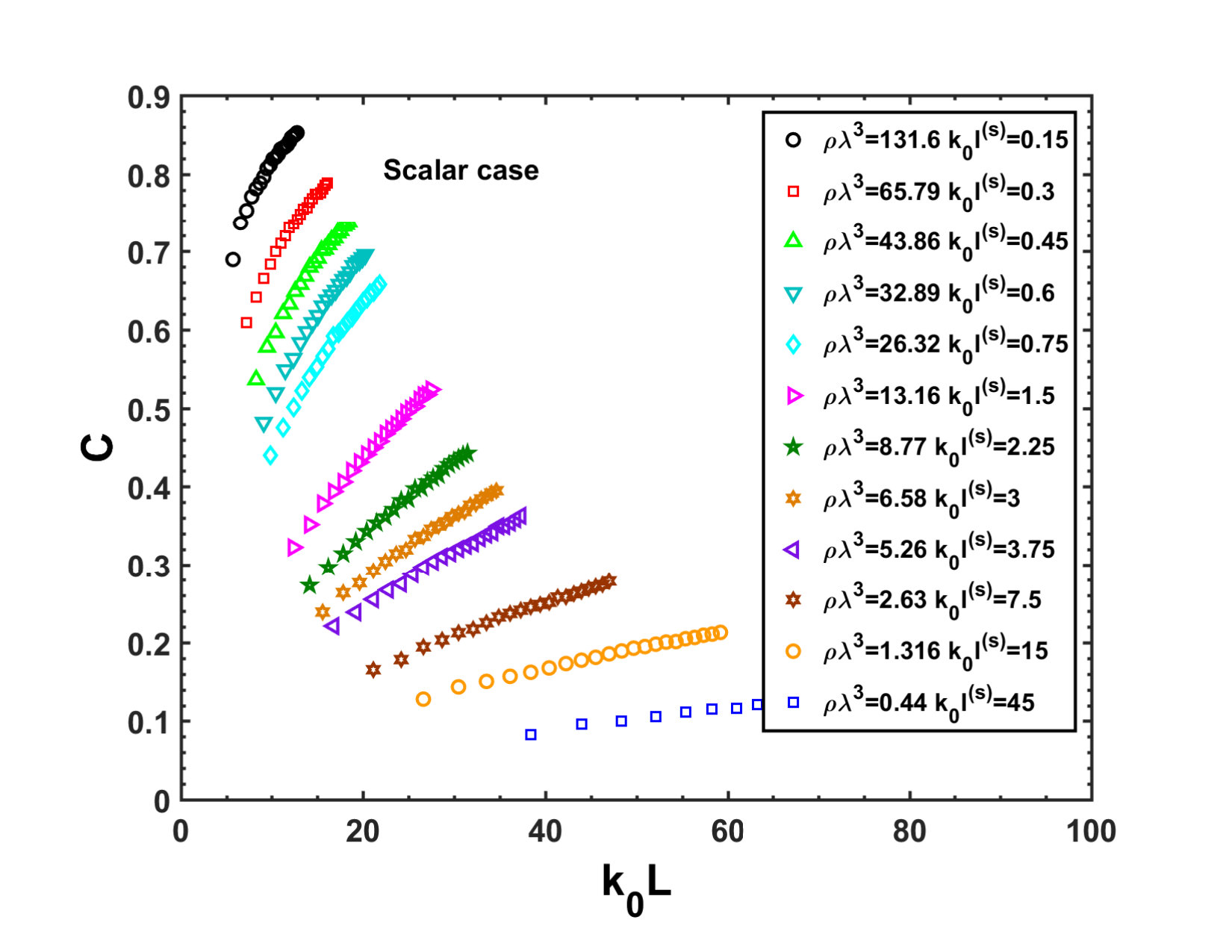

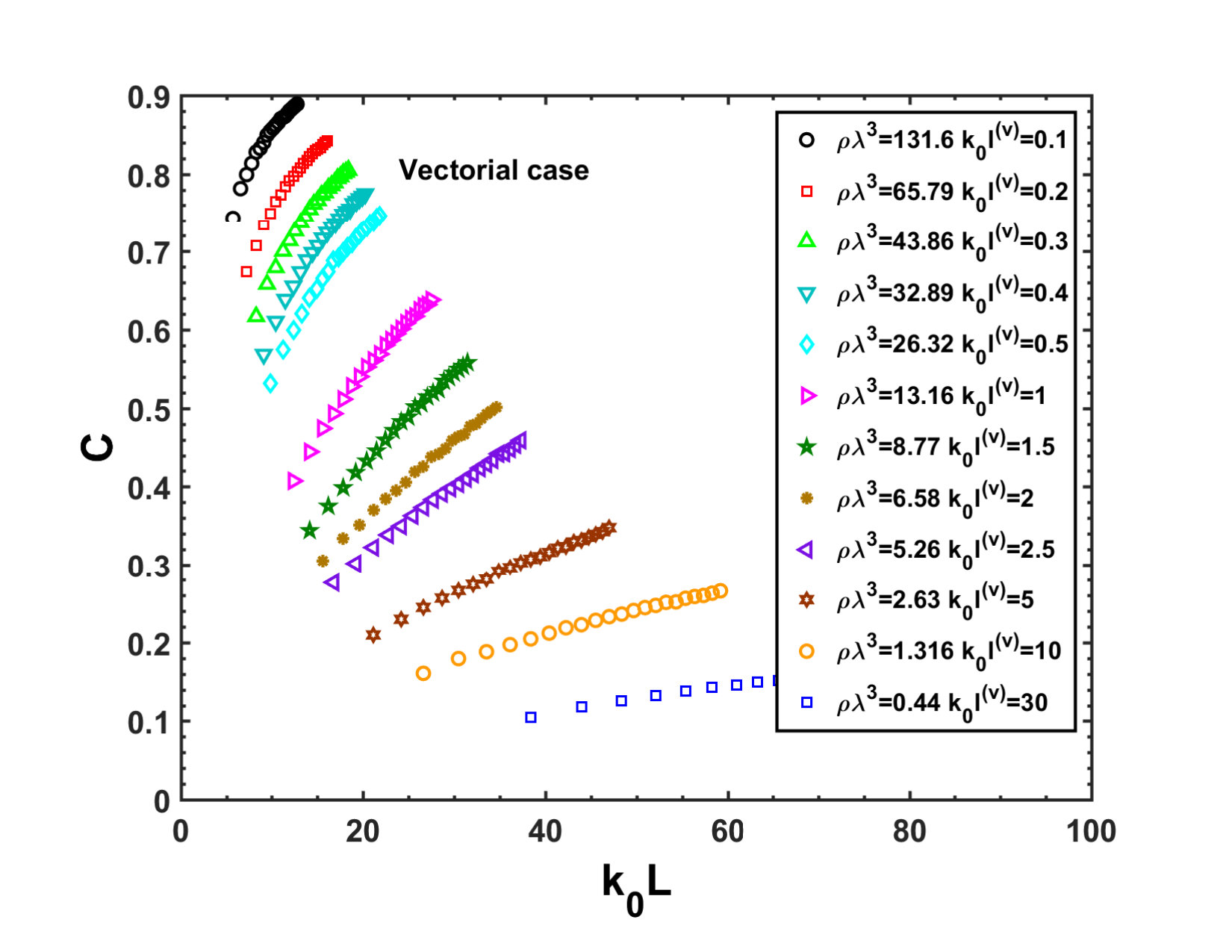

Figure 6 shows the behavior of $C$ defined in (15) as a function of the system size $(L>\lambda)$ for increasing atomic densities in the scalar and vectorial cases. No significant differences are observed between the two cases. For dilute (or optically thin) gases, $P(\Gamma)$ is peaked around the single atom decay rate, so that $C\rightarrow 0$. For dense (or optically thick) media, according to Section 6, $P(\Gamma)$ is shifted toward lower values of $\Gamma$, hence $C\rightarrow 1$.

The data of Fig. 6 (both in the scalar and vectorial cases) collapse on a single curve (Fig. 7) when plotted as a function of the optical thickness, indicating that photons undergo a crossover from delocalization toward localization as the scaling variable $b_{0}$ is increased. Therefore, photon localization is dominated by cooperative effects rather than disorder. In both cases, the numerical data are in line with the theoretical expression (17).

The obtained result that the scaling function increases with the optical thickness can be explained as follows. As the number of scattering events is increased, it takes more time for the photon to leave the gas, thus the relative number of states having a vanishing escape rate is increased.

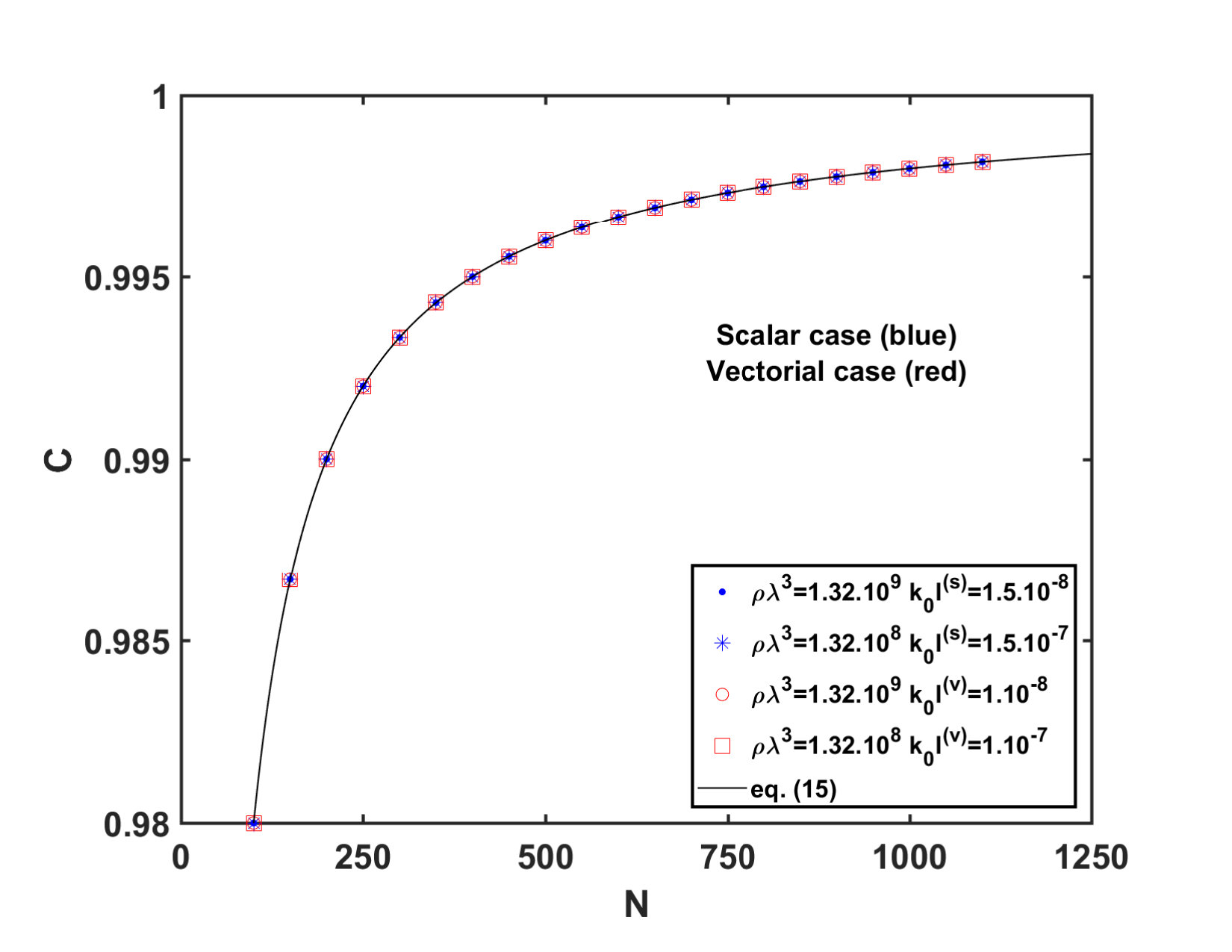

In the small sample regime $(L\ll\lambda)$, the behavior of the function $C$ is shown in Fig. 8 for the scalar and vectorial cases. In both cases, the numerical data are in full agreement with the theoretical prediction (16).

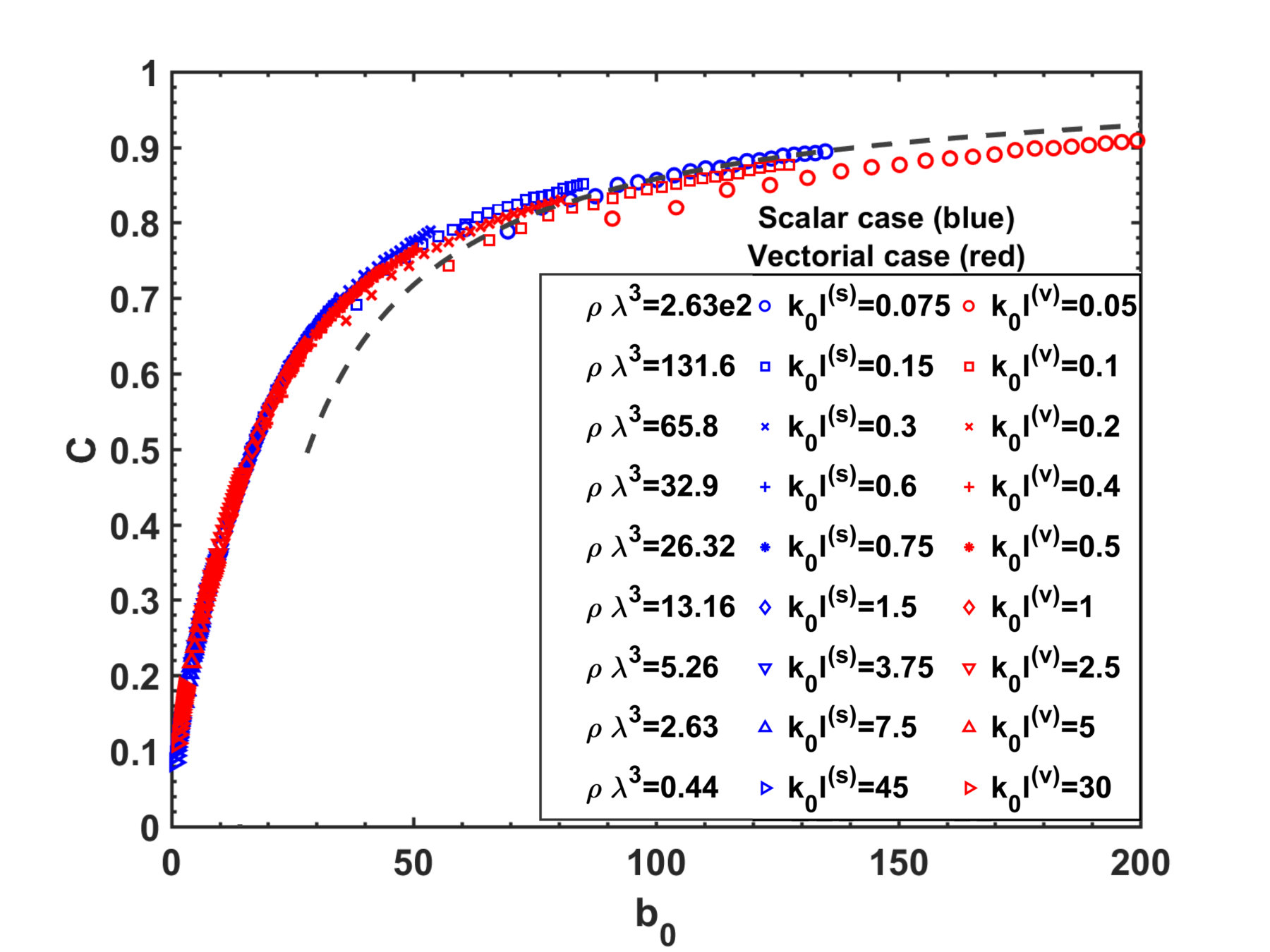

In order to verify that the scaling behavior observed in Fig. 7 is indeed dominated by cooperative effects rather than disorder, we study the quantity $C$ in the case of a spatially ordered medium (large sample regime). We consider a cubic lattice with an inter-atomic distance $a$. In this case, the Ioffe-Regel number is given by $k_{0}l^{(s)}=2\pi^{2}a^{3}/\lambda^{3}$ IR and the optical thickness is $b_{0}^{(s)}=N^{1/3}\lambda^{2}/2\pi a^{2}$. Figure 9 shows $C$ as a function of the optical thickness. A similar scaling behavior is observed, both in the scalar and vector models, corroborating that photon localization is dominated by cooperative effects rather than disorder.

8 Discussion

We have studied the photon escape rate distribution from an ensemble of random atomic scatterers coupled to a scalar or vector radiation field. In our analysis, virtual processes are allowed, but only the on-shell photons that leave the cloud are taken into account for detection purposes. We have shown that in both the scalar and vectorial cases, the results are qualitatively the same, namely the photon escape rate distribution follows the $P(\Gamma)\sim\Gamma^{-1}$ power law, the maximal photon emission rate recovers the asymptotic behavior predicted by the Marchenko-Pastur law, and in dilute gases the minimal photon emission rate is dominated by subradiant pairs. Moreover, in these two cases, the function $C$ exhibits a scaling behavior over a broad range of system parameters, where the optical thickness serves as the scaling parameter (in the large sample regime). This observation is in line with the findings reported by the authors of PRL2 , who originally calculated the scaling function in the scalar case. The finding that photons undergo a crossover from delocalization toward localization rather than a disorder-driven phase transition as expected from Anderson localization gang , suggests that photon localization is dominated by cooperative effects rather than disorder. This conclusion is further validated by the finding that a similar scaling behavior is obtained in ordered media. It should be noted, however, that the specific contribution of each mechanism to light localization, namely, cooperativity or disorder, cannot be singled out BGAK .

The results show that the scalar model is an excellent approximation when considering real photon escape rates from atomic gases. As the scalar model is much simpler compared to the vectorial one, the former could be used, without losing substantial information. Since averaging the vectorial coupling matrix $\Lambda_{\alpha\beta}(\textbf{r}_{ij})$ (10) over the random orientations of the atoms leads to the scalar coupling matrix $\Lambda(r_{ij})$ (11), our results indicate that $P(\Gamma)$ is not sensitive to the detailed location of the atoms.

It is interesting to compare our findings to those obtained when considering the emission of both ”real” and virtual photons, and calculating the spectrum of $g_{\alpha\beta}(\textbf{r}_{ij})$ (5) in the vectorial case and $g(r_{ij})$ (6) in the scalar case. When taking into account the real part of $g$ as well, in both the scalar and vectorial cases the photon escape rate distribution follows the $P(\Gamma)\sim\Gamma^{-4/3}$ power law (a criterion for strong localization of scalar waves within the Anderson model KottosPRL ; KottosPRB ), and the maximal photon emission rate recovers the asymptotic behavior predicted by the Marchenko-Pastur law (although the exact expression is different in each case) BGAK . However, the inclusion of virtual emission processes also leads to significant differences between the scalar and vector models. The minimal photon emission rate in the scalar case is substantially different from that in the vector model. Moreover, localization of light can be achieved in random three-dimensional atomic media only for a scalar radiation field; it cannot be achieved when the vectorial properties of the electromagnetic wave are taken into account skip1 ; BGAK .

A possible explanation for the considerable difference between the two cases is as follows: The real part of $g$ is responsible for van der Waals dephasing, a phenomenon that is sensitive to the detailed location of the scatterers gross . Therefore, when dealing with the spectrum of the effective Hamiltonian, the orientation-averaged scalar model is essentially different from the vector model. In the study described in this paper, only the imaginary part of $g$ is relevant and van der Waals dephasing does not play a role. Hence, the detailed location of the atoms is less important and an orientation-averaged calculation constitutes a very good approximation.

In summary, two approaches have been proposed to study light localization in atomic gases. The first approach explores the complex spectrum of the effective Hamiltonian describing the atomic system BGAK ; orlowski ; svidzinsky2 ; bienaime . There, in the case of a scalar radiation field, light localization occurs as a phase transition. However, when the vectorial properties of the electromagnetic wave are taken into account, photons are always delocalized skip1 ; BGAK . The second approach, discussed in this paper, investigates photon escape rates determined by the time evolution of the ground-state population ernst ; tallet1 ; tallet2 ; PRL2 . According to this approach, both for scalar and vector fields, photons undergo a crossover from delocalization toward localization. As this result is valid in both ordered and disordered media, it can be concluded that the observable studied within the framework of the latter approach, i.e., photon escape rates, is very weakly affected by disorder.

The inclusion (or exclusion) of additional symmetries can significantly modify disorder-driven phase transitions. For example, according to scaling theory of Anderson, electronic states in two-dimensional media should be localized gang . However, in the presence of spin-orbit coupling, a metal-insulator transition does occur in these systems SOC1 ; SOC2 . Indeed, the medium discussed here is three-dimensional. Yet, it could be that polarization introduces an additional symmetry that suppresses the transition. Whereas this effect is reflected in the behavior of quantity used in the first approach, the observable studied in the second one is not affected since it is hardly sensitive to disorder.

9 Conclusions

We have numerically studied photon escape rates from three-dimensional atomic gases, while taking into account the vectorial nature of light. We have shown that the vector and scalar models qualitatively follow the same scaling law. In both cases, photons undergo a crossover from delocalization toward localization as the optical thickness of the cloud is increased. Therefore, photon localization is dominated by cooperative effects rather than disorder. This theoretical conclusion calls for the identification of experimental signatures allowing to distinguish between the two mechanisms of photon localization.

Author contribution statement

L.B. performed the numerical simulations. L.B. and A.G. analyzed the data. E.A. and R.K. supervised the project, and all authors contributed to the writing of the paper.
