Social Cost Guarantees in Smart Route Guidance

TL;DR

This paper introduces moneyless, manipulation-resistant mechanisms for assigning routes in urban traffic networks, ensuring near-optimal social costs despite strategic driver behavior, with both theoretical guarantees and practical validation.

Contribution

It presents novel moneyless mechanisms with provable approximation guarantees that resist strategic manipulation in traffic routing, combining theoretical analysis with empirical testing.

Findings

Mechanisms achieve near-optimal social costs under strategic behavior.

Empirical results demonstrate practical effectiveness of the proposed mechanisms.

Mechanisms are resilient to manipulation without requiring monetary incentives.

Abstract

We model and study the problem of assigning traffic in an urban road network infrastructure. In our model, each driver submits their intended destination and is assigned a route to follow that minimizes the social cost (i.e., travel distance of all the drivers). We assume drivers are strategic and try to manipulate the system (i.e., misreport their intended destination and/or deviate from the assigned route) if they can reduce their travel distance by doing so. Such strategic behavior is highly undesirable as it can lead to an overall suboptimal traffic assignment and cause congestion. To alleviate this problem, we develop moneyless mechanisms that are resilient to manipulation by the agents and offer provable approximation guarantees on the social cost obtained by the solution. We then empirically test the mechanisms studied in the paper, showing that they can be effectively used in practice in order to compute manipulation resistant traffic allocations.

Figures

Tables

Table 1. Table 1: Mapping elements of Ψ Ψ \Psi to destination nodes of G 𝐺 G

$D_1$	$x_1\prec x_2\prec x_3$
$D_2$	$x_1\prec x_3\prec x_2$
$D_3$	$x_2\prec x_1\prec x_3$
$D_4$	$x_2\prec x_3\prec x_1$
$D_5$	$x_3\prec x_1\prec x_2$
$D_6$	$x_3\prec x_2\prec x_1$

Equations

$$cos{t}_i(M(\mathbf{D}),D_i)\le cos{t}_i(M(D_i^{\prime },{\mathbf{D}}_{-i}),D_i)$$

$$w(P_i)\le OP{T}_i+S{D}_{i-1}.$$

$$S{D}_i$$

$$\le 2((2^{i-1}-1)OP{T}_{i-1})+OP{T}_i\le (2^i-1)OP{T}_i.$$

$$RS{D}_i$$

$$\le \frac{1}{i}\sum _{k=1}^{i}w({\pi }_k)+\frac{1}{i}\sum _{k=1}^i\left((i-1)(OP{T}_i+w({\pi }_k))\right)\le \frac{1}{i}OP{T}_i+(i-1)OP{T}_i+\frac{i-1}{i}OP{T}_i$$

$$=i\cdot OP{T}_i$$

$$OP{T}_{-k,{\pi }_k}$$

$$cos{t}_1(M(D_1^{\prime },D_2),D_1)=K+1<cos{t}_1(M(\mathbf{D}),D_1)=K+2.$$

$$cos{t}_2(OP{T}_2(D_1,D_2^{\prime }),D_2)=K+1$$

$$<cos{t}_2(M_2(D_1,D_2^{\prime }),D_2)=K+3$$

Full text

1 Introduction

Recent years have witnessed increasing interest in the development of efficient traffic control systems [20, 16, 10]. This is motivated by the significant negative impact on the quality of life of both road users and residents caused by heavy traffic congestion levels in large cities such as London, Beijing, and Los Angeles. Indeed, heavy congestion is known to be a major cause of air and noise pollution, which are widely recognized as the main cause of many health issues [15, 24]. Adding to this is the economic cost associated with the large amount of time spent in traffic jams, which reduces the productivity of the economy [14]. Moreover, the situation is expected to become significantly worse in the future when the population, and thus the traffic flow, in large cities will be much bigger than at present. Unfortunately, conventional traffic control systems have proven unable to efficiently decrease congestion levels, as they are not designed to be adaptive to the dynamics of city traffic, which changes over space and time. On the other hand, it has been shown [22, 17] that by putting some sort of intelligence/smartness into traffic control systems, we can make them adapt to the changes of the traffic flow. A key objective within these smart traffic control systems is to address the so-called traffic assignment problem (TAP), in which mobile agents (i.e., typically drivers) declare their intended destination to the system, perhaps via their satellite navigation systems, and are then assigned a route to follow, in such a way that some objective function of the overall traffic flow in the system is optimized (i.e., minimizing the total traveled distance or maintaining an efficient traffic load balance). As these agents are typically self-interested and strategic (i.e., they try to maximize their own utility, disregarding whether this is detrimental to the global optimization goal), they may manipulate the system whenever they can benefit from doing so [17, 26]. This kind of opportunistic behavior is highly undesirable as it will increase the total social cost (i.e., decreasing the total load balance or increasing the total congestion level). As such, incentivizing agents not to be strategic is a key design objective of these traffic assignment systems [22, 17, 26]. Given this, we focus on strategyproof TAP mechanisms, which guarantee that it is in the agent’s best interest to always report her true destination and follow the assigned route. Furthermore, we assume that money transfers between the mechanism and the agents are not available. This is a common assumption in many domains [21] that will facilitate the likely real-world deployment of the system by lowering set up costs (i.e., avoiding the construction of tolling booths).

The remainder of the paper is organized as follows. In Section 2 we discuss related works. In Section 3 we introduce our model for TAP and prove that Pareto optimal allocations theoretically guarantee that agents will follow their assigned paths (Theorem 3.1). We then move to study deterministic (Section 4) and randomized (Section 5) Pareto optimal mechanisms for our problem. We show that the approximation ratio of deterministic strategyproof mechanisms is lower bounded by 3 (Theorem 0.A.2), while the Serial Dictatorship mechanism can achieve an upper bound of $2^{n}-1$ and it is Pareto-optimal and non-bossy (Theorems 4.3 and 0.A.5), where $n$ is the number of agents (Theorems 4.3 and 0.A.5). Furthermore, if we require non-bossiness and Pareto optimality, we are able to close this approximation ratio gap by showing that the Bipolar Serial Dictatorship mechanism is the only strategyproof mechanism. For randomized mechanisms, we show that the approximation ratio is lower bounded by $\frac{11}{10}$ (Theorem 0.A.7). In addition, the Random Serial Dictatorship mechanism can achieve an $n$-approximation (Theorems 8 and 9), while still preserving the desired properties of Pareto-optimality and non-bossyness. In addition to these theoretical results, we present an extensive experimental evaluation on traffic networks generated from real road network data, which show how the mechanisms studied in the paper provide good performance in practice, despite the high theoretical worst case approximation guarantee.

Full proofs and definitions can be found in the Appendix.

2 Related Work

There is a large body of literature on traffic network modelling and assignment [3, 23, 8, 9]. However, these works typically ignore the strategic behaviour of participating agents. Nevertheless, they can be useful to model the underlying traffic network in our work. In particular, we follow the widely used traffic model proposed in [3].

To tackle the strategic behaviour of the agents, several researchers have suggested employing mechanism design with money and auction theory for traffic control [22, 17, 26, 5]. These works typically rely on the computation of the VCG auction in order to assign vehicles to paths. However, they require monetary incentives, and typically focus on a local control level, such as intersection management (as VCG is typically computationally hard, and thus, not readily scalable [7]).

A number of researchers have focused on mechanism design without money [21, 6]. However, none of these mechanisms can be easily applied to the traffic assignment problem, as they do not take into account the features of the underlying traffic network structure. As we will show, TAP bears some resemblance to the problem of assigning indivisible objects [4, 25, 11], although these results are not directly applicable to our scenario. Indeed TAP has a much more complex structure (mainly due to the underlying traffic network topology) which traditional assignment mechanisms fail to address.

3 Model and Preliminary Definitions

A traffic assignment problem (TAP) consists of a set of agents $A=\{a_{1},\ldots,a_{n}\}$ and a road network infrastructure, represented as a directed graph $G=(V,E)$, where: (i) $V=\{v_{1},\ldots,v_{|V|}\}$ is the set of nodes representing the junctions of the road network infrastructure; and (ii) $E\subseteq V\times V$ is the set of directed edges representing one-way road segments. Each edge $e\in E$ has a capacity $c:E\rightarrow\mathbb{N}^{+}$, which determines the maximum number of agents that can travel through the edge at any given time, and a weight function $w:E\rightarrow\mathbb{R}^{+}$ which represents the cost incurred by the agent traveling through the edge (i.e., travel distance). Furthermore, each edge is associated to a transit time $\tau:E\rightarrow\mathbb{Z}^{+}$ which represents the free travel time of the edge (i.e., the minimum travel time needed to travel through the road at maximum allowed speed). This means that agent $a_{i}$ setting off at time $t$ from node $v_{o}$ and heading to node $v_{d}$ through the edge $(v_{o},v_{d})$ will reach node $v_{d}$ at time $t+\tau(v_{o},v_{d})$, and will occupy edge $(v_{o},v_{d})$ only in the time interval $[t,t+\tau(v_{o},v_{d})]$. Unless stated otherwise, we assume that edges $(u,v)$ and $(v,u)$ are symmetrical: for all $(u,v),(v,u)\in E$ $c(u,v)=c(v,u)$, $w(u,v)=w(v,u)$ and $\tau(u,v)=\tau(v,u)$.

As in [18], we assume that if the flow of traffic through an edge does not exceed its capacity, then no congestion occurs and the traveling time equals the free travel time. Initially, at time $t=0$, agents reside on a (publicly known) set $O\subseteq V$ of nodes111Restricting origins/destinations of journeys to road junctions is without loss of generality since fictitious nodes that serve the sole purpose of acting as starting/ending point of a journey can always be created by edge splitting operations. of the graph, $O_{i}$ being the initial location of agent $a_{i}$. Each agent $a_{i}\in A$ wants to reach an intended destination $D_{i}\in V$, which is the agent’s private information and will be referred to in the remainder as her type.

Agents submit (or bid) a destination to an allocation mechanism, which then assigns each agent a path in order to optimize a certain objective function. More formally, let $\mathcal{P}$ be the set of all possible simple paths between any two nodes in $G$. Let $\mathbf{D}=\left(D_{1},\ldots,D_{n}\right)\in V^{n}$ be a vector of declarations (also referred to as bids) by the agents and $\mathbf{D}_{-i}$ be the vector of declarations of all agents but $a_{i}$. A mechanism $M^{G,O}:V^{n}\rightarrow\mathcal{P}^{n}$ maps a vector of declarations to feasible paths (i.e., not exceeding the capacity of the edges at any given time) on $G$, given the initial locations $O$ of the agents. We write $M(\mathbf{D})$ instead of $M^{G,O}(\mathbf{D})$ when $G$ and $O$ can be deduced from the context. The path associated to agent $a_{i}$ is denoted as $M_{i}(\mathbf{D})$.

A traffic assignment $S=M(\mathbf{D})$ induces a flow over time222Sometimes also referred to as dynamic flow in the literature. We prefer the term flow over time as the adjective dynamic has often been used in many algorithmic settings to refer to problems where the input data arrive online or change over time. We assume that all the agents are present at time $t=0$ and the network is cleared after the last agent reaches their destination. $f_{S}:E\times\mathcal{T}\rightarrow\mathbb{N^{+}}$, where $\mathcal{T}$ is a suitable discretization of time w.r.t. the transit times of the edges of $G$ (for simplicity we will assume that $\mathcal{T}=\{0,1,\ldots,T\}$, where $T$ is a time horizon sufficient for the network to clear. Thus, $f_{S}(u,v;t)=|\{a_{i}\in A|(u,v)\in S_{i}\}|$ is the number of agents that are assigned a path that contains edge $(u,v)$ at time $t\in\mathcal{T}$. Feasibility constraints imply that $f_{S}(u,v;t)\leq c(u,v)$ for all $t\in\mathcal{T}$.

In the remainder, without loss of generality, we will study the problem on the time-expanded network [12, 13] of $G$ and consider the static flow through it (i.e, the transit of an agent over and edge is instantaneous). A time-expanded network is a properly constructed directed graph with cost and capacity functions on the edges just like $G$, but no transit time (i.e. travel time is instantaneous through all the edges). For completeness, we give the definition of time expanded networks in the Appendix. This is without loss of generality from the point of view of SP, Pareto-optimality, non-bossines and approximation guarantee since it is well known (see [12, 13]) that a flow over time is equivalent to a static flow on the corresponding time-expanded network.

Let $f^{-i}_{S}:E\rightarrow\mathbb{N}$ be the flow induced by traffic assignment $S$ generated by agents $A\setminus\{a_{i}\}$, formally for all $e\in E$, $f^{-i}_{S}(e)=|\{a_{j}\in A:e\in S_{j},j\neq i\}|$. The residual graph $G_{f}^{-i}$ is a graph such that: (i) $G_{f}^{-i}$ has the same nodes and edges as $G$; (ii) each edge $e\in E$ of $G_{f}^{-i}$ has capacity $c(e)-{f}^{-i}_{S}(e)$. For any two nodes $u,v\in V$, let $\mathcal{P}_{u,v}$ denote the set of simple paths in $G$ connecting $u$ to $v$. Furthermore, for all traffic assignments $S=M(\mathbf{D})$ and all agents $a_{i}$, let $\mathcal{P}_{u,v}^{i}(S)=\{P\in\mathcal{P}_{u,v}|\forall e\in P,c(e)>{f}^{-i}_{S}(e)\}$. Informally, $\mathcal{P}_{u,v}^{i}(S)$ is the set of paths connecting $u$ and $v$ that have spare capacity from the perspective of agent $a_{i}$ (i.e., they can be used by agent $a_{i}$) when the other agents implement $S$. Then, the set of reactions available to agent $a_{i}$ having type $D_{i}$ at allocation $S$ is defined as $R_{i}(S)=\mathcal{P}^{i}_{O_{i},D_{i}}(S)$.

Agents are not constrained to follow their assigned path but can choose a different one, subject to capacity constraints333We do not prevent agents from using edges other than the ones belonging to their assigned paths, as doing so would result in a waste of public resources (i.e., road capacity). To avoid congestion, though, we assume that agents not following their assigned route can be disincentivized from using an edge that, according to the scheduled traffic, is filled to capacity. This can be easily implemented in a smart traffic control system through the use of traffic cameras that check cars’ number plates.. To model this, as per [19], we assume that, after the mechanism computes a traffic allocation, the agents can react by choosing an action from a set $R_{i}\subseteq\mathcal{P}$. Hence, the actual cost function of an agent depends on: (i) her true type $D_{i}$; (ii) the allocation $S$ chosen by the mechanism on input the bids reported by the agents; and (iii) the reactions chosen by the agents.

We can now formally define the cost function of an agent. Given an allocation $S^{\prime}=M(D^{\prime}_{i},\mathbf{D}_{-i})$, the cost of an agent of type $D_{i}$ with respect to $S^{\prime}$ is defined as: $cost_{i}(S^{\prime},D_{i})=\min_{P\in R_{i}(S^{\prime})}w(P)$ where $w(P)=\sum_{(u,v)\in P}w(u,v)$ denotes the cost of $P$. We assume that agents are risk-neutral. In what follows, we define a set of desiderata for our allocation mechanism, namely: (i) strategyproofness, (ii) Pareto optimality and (iii) non-bossiness.

A deterministic mechanism $M$ is strategyproof (SP for short) if, for all agents $a_{i}$, for all declarations $D_{i}$ and $D^{\prime}_{i}$ and all declarations of the other agents $\mathbf{D}_{-i}$, agent $a_{i}$ cannot decrease her cost by misreporting her true type, namely:

[TABLE]

A randomized mechanism is strategyproof in expectation if (1) holds in expectation (i.e., over the random choices of the mechanism). A randomized mechanism is universally strategyproof if agents cannot gain by lying regardless of the random choices made by the mechanism, i.e., the output of the mechanism is a distribution over strategyproof deterministic allocations.

The social cost of an allocation $S$ is defined as $SC(S,\mathbf{D})=\sum_{a_{i}\in A}cost_{i}(S,D_{i})$. A mechanism $OPT$ is optimal for TAP if $OPT(\mathbf{D})\in\arg\min_{S\in\mathcal{P}^{n}}SC(S,\mathbf{D})$ for all $\mathbf{D}$. A mechanism $M$ is an $\alpha$–approximation (w.r.t the optimal social cost) with $\alpha\in\mathbb{R}$, $\alpha\geq 1$, being referred to as the approximation ratio of $M$, if, for all $\mathbf{D}$, $SC(M(\mathbf{D}),\mathbf{D})\leq\alpha\cdot SC(OPT(\mathbf{D}),\mathbf{D})$.

A traffic allocation $S\in\mathcal{P}^{n}$ is Pareto optimal if there exists no other feasible traffic allocation $S^{\prime}$ such that $cost_{j}(S^{\prime},D_{j})\leq cost_{j}(S,D_{j})$ for all $a_{j}$, and $cost_{k}(S^{\prime},D_{k})<cost_{k}(S,D_{k})$ for some $a_{k}$. Pareto optimal allocations are of particular interest in our scenario, because, as proven in Theorem 3.1, they are a min-cost response in the available reactions $R_{i}(S)$ of an agent. This gives us a theoretical guarantee that agents will actually implement Pareto optimal solutions returned by the mechanism.

Theorem 3.1

Let $S=M(\mathbf{D})$ be a traffic assignment and let $R_{i}(S)$ be the set of reactions available to $a_{i}$ at $S$. If $S$ is Pareto optimal, then $M_{i}(\mathbf{D})\in\arg\min_{P\in R_{i}(S)}w(P)$.

Finally, a mechanism $M$ is non-bossy if $M_{i}(\mathbf{D})=M_{i}(D^{\prime}_{i},\mathbf{D}_{-i})$ implies that $M_{j}(\mathbf{D})=M_{j}(D^{\prime}_{i},\mathbf{D}_{-i})$, for all $a_{i},a_{j}\in N$ and all $\mathbf{D}$ and $D^{\prime}_{i}$. In other words, non-bossyness excludes (arguably undesirable) mechanisms that allow one agent to change the allocation of other agents without changing her own too. In the remainder of this paper, we focus on strategyproof mechanisms for TAP that approximately achieve the optimal social cost. In particular, we are interested in mechanisms that are also Pareto-optimal and non-bossy.

4 Deterministic Mechanisms

In this section, we discuss deterministic mechanisms for TAP. In particular, we first provide a lower bound on the approximation ratio of SP deterministic mechanisms.

Theorem 4.1

There is no $\alpha$-approximate deterministic SP mechanism for the traffic assignment problem with $\alpha<3-\varepsilon$, for any $\varepsilon>0$.

The above theorem implies the following corollary:

Corollary 1

The optimal allocation is not strategyproof for TAP.

These impossibility results suggest that in order to achieve strategyproofness we have to give up on optimality. This naturally leads to asking to what extent can we approximate the optimal social welfare while satisfy the desired properties. As a first step to answer this question, we examine the well-known Serial Dictatorship mechanism that is deterministic and notoriously satisfies our three desiderata (i.e., strategyproofness, Pareto optimality and non-bossiness).

Definition 1

Mechanism Serial Dictatorship (SD), given an ordering $a_{1}\prec,\ldots,\prec a_{n}$ of the agents, allocates paths to agents in $n$ stages such that at stage $i$ agent $a_{i}$ is allocated her minimum cost path in the residual graph $G_{f}^{-\{a_{1},\ldots,a_{i-1}\}}$.

The following theorem proves that SD is indeed feasible under some mild conditions:

Theorem 4.2

If $G$ is $K$-edge-connected444A graph is $K$-edge-connected if it remains connected when strictly fewer than $K$ edges are removed., mechanism SD is feasible for $K$ agents.

Next we provide an upper bound on the approximation ratio of SD, and thus, on its worst case performance. In order to prove our result, we make the following assumption:

Definition 2

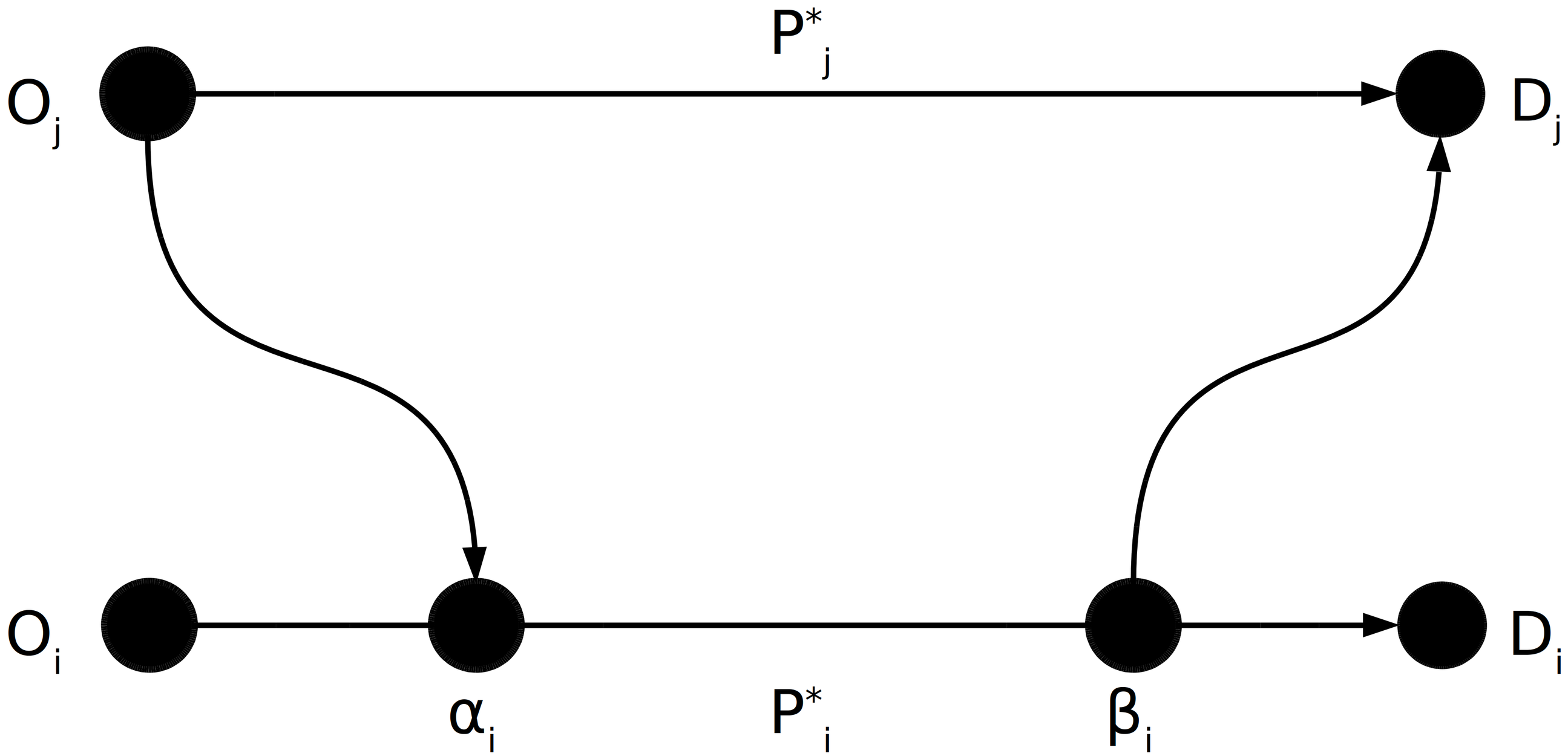

The deviation on capacious path assumption (DoCP) assumes that whenever the SD mechanism allocates to an agent a path that is different from the one that the optimal mechanism would allocate, the assigned path has sufficient capacity to potentially be allocated to all the remaining agents.

To better understand this assumption, consider the following example. With reference to Figure 1, let $a_{i}$ be an agent and $P^{*}_{i}$ be the path she is assigned in the optimal allocation (i.e., $OPT_{i}=P^{*}_{i}$). If agent $a_{i}$ is not assigned $P^{*}_{i}$ by SD, there must be an agent $a_{j}$, where $j\prec i$ in the ordering used by SD, such that: (i) $SD_{j}=P_{j}\neq OPT_{j}$ and (ii) $P_{j}\cap P^{*}_{i}\neq\emptyset$ and (iii) at least one edge of $P^{*}_{i}$ is saturated after $a_{j}$ is assigned $P_{j}$. In such a situation, we say that agent $a_{i}$ is blocked by agent $a_{j}$. Let $\alpha_{i}\in P_{j}\cap P^{*}_{i}$ ($\beta_{i}\in P_{j}\cap P^{*}_{i}$, respectively) be the first (last, respectively) node of $P^{*}_{i}$ in $P_{j}$. The DoCP assumption postulates that if $a_{j}$ blocks $a_{i}$, then the alternative path of blocked agent $a_{i}$ through blocking agent $a_{j}$ $\Gamma_{i}^{j}=(O_{i},\alpha_{i},O_{j},D_{j},\beta_{i},D_{i})$ has at least capacity $n-|\{a_{k}\in A|a_{j}\prec a_{k}\}|$ in the residual graph $G_{f}^{-\{a_{1},\ldots,a_{j}\}}$. That is, all agents yet to be assigned by SD after $a_{j}$ can be accommodated on this path. We note that, by construction, if agent $a_{i}$ is blocked by agent $a_{j}$ then path $\Gamma^{j}_{i}$ always exists, although unless we assume DoCP, it might not have spare capacity to be assigned to agent $a_{i}$.

It is not difficult to see that if we relax the DoCP assumption, then the approximation ratio of SD is not bounded by any function of the number of agents on certain pathological TAP instances.

Theorem 4.3

Under the DoCP assumption, SD is at most $(2^{n}-1)$-approximate.

Proof (Proof sketch)

We prove the claim by induction on the number of players. Let $OPT_{i}$ denote the cost and solution (with a slight abuse of notation) of the optimal allocation that only considers bids of agents $j\leq i$. Similarly, let $SD_{i}$ denote the cost and solution of $SD$ on input all the bids of agents $j\leq i$. Base of the induction ($i=1$): trivially $OPT_{1}=SD_{1}$. Now assume that the claim is true for $i-1$ and, for $j\leq i$, let $P^{*}_{j}$ ($P_{j}$, respectively) be the path assigned to agent $j$ by $OPT_{i}$ ($SD_{i}$, respectively). For a path $P$, we let $w(P)$ denote the cost of the path in the given graph G. We want to prove that under the DoCP assumption, the following holds:

[TABLE]

If $P^{*}_{i}=P_{i}$ then we are done. Therefore, we can assume that $P^{*}_{i}\neq P_{i}$. This means that the paths $P_{j}$ allocated to agents $j<i$ by $SD_{i}$ saturate some of the edges of $P^{*}_{i}$. Now, for at least one of these agents, say $\bar{j}$, $P^{*}_{\bar{j}}\neq P_{\bar{j}}$ for otherwise also in $OPT_{i}$ path $P^{*}_{i}$ would be unavailable to $i$. But then $w(P_{i})\leq w(\Gamma^{\bar{j}}_{i})$, $\Gamma^{\bar{j}}_{i}$ being the path that connects $O_{i}$ to $D_{i}$ through $O_{\bar{j}}$, as per the definition of DoCP. Note that, under the DoCP assumption, $\Gamma^{\bar{j}}_{i}$ is always feasible. Since $\Gamma^{\bar{j}}_{i}$ uses only edges in $OPT_{i}\cup SD_{i-1}$ (i.e. $P^{*}_{i}$ and $P^{*}_{j}$ are in $OPT_{i}$, paths $(O_{i},\alpha_{i})$ and $(\beta_{i},D_{j})$ belong to $SD_{i-1}$), (2) is proven. We finally observe that (2) and the inductive hypothesis yield:

[TABLE]

As the $(2^{n}-1)$-approximation ratio can be prohibitively large for large $n$, we ask ourselves whether we can further improve this upper bound. Unfortunately, the following theorem answers this question in the negative.

Theorem 4.4

Under the DoCP assumption, the bound of Theorem 4.3 is tight.

We now provide a characterization of SP, Pareto-optimal, and non-bossy mechanisms for a subset of instances of TAP, named TAP+  and we prove that the family of all mechanisms satisfying the above properties is comprised by a generalization of SD, namely Bi-polar Serial Dictatorship (BSD). Such a characterization extends naturally to TAP instances. TAP+ is subset of instances of TAP having a peculiar structure: (i) every agent has the same source node $O$; (ii) $O$ has outgoing edges with unitary capacity and no ingoing edges, let $E_{O}=\{(O,v_{1}),\ldots,(O,v_{m})\}$ denote the set of outgoing edges of $O$; and (iii) the set of possible destinations that the agents can declare is restricted to a given subset $\mathcal{D}\subset V$.

Definition 3

Given an ordering of the agents $\{i_{1},i_{2}\}\prec i_{3}\prec\ldots\prec i_{n}$ and a bipartition $\{X_{1},X_{2}\}$ of the set of alternatives $X$ (i.e., paths in the case of TAP) such that $X_{1}\cap X_{2}=\emptyset$ and $X_{1}\cup X_{2}=X$, a BSD mechanism executes SD with ordering $i_{2}\prec i_{1}\prec\ldots\prec i_{n}$ if $\min_{x\in X}cost_{1}(x)=\min_{x\in X}cost_{2}(x)=x\in X_{2}$; otherwise SD with ordering $i_{1}\prec i_{2}\prec\ldots\prec i_{n}$ is executed.

Theorem 4.5

A traffic allocation mechanism for TAP+is Pareto-optimal, SP and non-bossy if and only if it is a Bi-polar Serially Dictatorial Rule.

Proof (Proof sketch)

We reduce an instance of the problem of assigning indivisible objects with general ordinal preferences [4] (AIO for short) to TAP+. In an instance of AIO, a set of objects $X=\{x_{1},\ldots,x_{m}\}$ has to be assigned to a set of agents $A=\{a_{1},\ldots,a_{n}\}$, such that every agent receives at most one object and no agent is left without an object if there are objects still available. Agents have ordinal general preferences $\succeq_{i}$, where $x\succeq_{i}y$ for $x,y\in X$ means that agent $i$ (weakly) prefers object $x$ to object $y$. From an instance of AIO, we build an instance of TAP+ as follows. TAP+ has the same set of agents $A$ as AIO. Graph $G$ of TAP+ has a node $O$ such that $O_{i}=O$ for all $a_{i}\in A$. For every object $x_{j}\in X$ we construct in $G$ a node $v_{j}$ and an edge $(O,v_{j})$ such that $c(O,v_{j})=1$ and $w(O,v_{j})=\varepsilon$ for $0<\varepsilon\ll 1$. Let $\Psi$ be the set of all possible preference relations over $X$. We construct $|\Psi|$ destination nodes $D_{k}$, one for each preference relation $\succeq\in\Psi$ and for each $k\in{1,\ldots,|\Psi|}$. For each $j\in\{1,\ldots,m\}$ we add an edge $(v_{j},D_{k})$ having capacity 1 and weight $w(v_{j},D_{k})$ equal to the ranking of $x_{j}$ according to $\succeq$. We can now transform an instance of the so-constructed TAP+ problem to an instance of the AIO problem, and vice versa. In [4] it is proved that BSD is the only Pareto optimal, SP and non-bossy mechanism for AIO. This characterization transfers to TAP+ due to the reduction sketched above.

Next, we investigate the performance of BSD and show that it does not asymptotically perform better than SD. In particular, we state that:

Lemma 1

BSD cannot achieve an approximation ratio lower than $\Omega(2^{n})$ for TAP.

5 Randomized Mechanisms

Given the undesirable approximation guarantees of deterministic mechanisms, we now turn to randomization. Randomized mechanisms can often be interpreted as fractional mechanisms for the deterministic solutions, under mild conditions. We start by proving the following inapproximability lower bound:

Theorem 5.1

There is no $\alpha$-approximate universally truthful randomized mechanism for the traffic assignment problem with $\alpha<11/10$.

In the remainder of this section, we study the randomized version of SD for TAP, which is universally strategyproof, (ex-post) Pareto optimal and non-bossy.

Definition 4

The Randomized Serial Dictatorship (RSD) mechanism computes uniformly at random an ordering $\sigma$ over the agents and returns the output of SD over ordering $\sigma$.

The following results gives a tight bound on the approximation ratio of RSD.

Theorem 5.2

Under the DoCP assumption, RSD is at most $n$-approximate.

Proof (Proof sketch)

We are going to prove the claim by induction on the number of agents. As above, let $OPT_{i}$ denote the cost of the optimal solution with paths assigned only to agents $a_{j}$, with $j\leq i$. With a slight abuse of notation we also let $OPT_{i}$ denote the solution itself. Similarly, $RSD_{i}$ denotes the expected cost of $RSD$ on input all the bids of agents $a_{j}$, $j\leq i$. For the base of the induction with $i=1$, it is clear that $RSD_{1}$ is the optimal solution. Now assume that the claim is true for $i-1$ and consider an instance with $i$ agents. Let $I_{-k}(P)$, $P$ being a path from $O_{k}$ to $D_{k}$, be the instance of the problem without agent $a_{k}$ and with the capacity of the directed edges in $P$ diminished by one (i.e., as if the path $P$ were used by $a_{k}$). Note that by the DoCP assumption, one of the agents $a_{j}$, with $j\neq k$, is guaranteed to be able to use the edges of $P$ in the opposite direction than $a_{k}$. We now let $OPT_{-k,P}$ and $RSD_{-k,P}$ be the cost of the optimum and expected cost of RSD on $I_{-k}(P)$, respectively. Moreover, let $\pi_{j}$ be the path minimizing the cost of agent $a_{j}$ (i.e., the path that $SD$ would assign to $a_{j}$ if she was the first to choose). We then have

[TABLE]

where the first equality follows from the definition of RSD, i.e., with probability $1/i$ each agent $k$ will have the first choice. As for the inequalities, we note that the first follows from the inductive hypothesis whilst the last from the observation that $OPT_{i}\geq\sum_{k=1}^{i}w(\pi_{k})$. We are left with the second inequality. That is, we prove that under the DoCP $OPT_{-k,\pi_{k}}\leq OPT_{i}+w(\pi_{k}).$ If $OPT_{i}$ allocates $\pi_{k}$ to agent $a_{k}$ then we are done. Otherwise, let $P_{k}$ be the path that $a_{k}$ gets in $OPT_{i}$ and note that the paths $P_{j}$ allocated to agents $a_{j}$ $j\neq k$ by $OPT_{i}$ saturates some of the edges of $P_{k}$; let $a_{\bar{j}}$ be one of these agents. Consider now the solution $S$ to $I_{-k}(\pi_{k})$ where all agents but $a_{\bar{j}}$ are allocated the same path as in $OPT_{i}$ and agent $a_{\bar{j}}$ is given, instead of $P_{\bar{j}}$, the alternative path $\Gamma_{\bar{j}}^{k}$ through agent $a_{k}$. Observe that $\Gamma_{\bar{j}}^{k}$ uses the same directed edges of $P_{\bar{j}}$ and $P_{k}$ and the edges of $\pi_{k}$ in opposite direction and, as observed above, under the DoCP assumption, is a feasible path for $a_{\bar{j}}$ and $S$ a feasible solution to $I_{k}(\pi_{k})$, whose social cost is denoted $SC(S)$. But then:

[TABLE]

where the last inequality follows from the fact that the edges in $P\setminus(P_{k}\cup P_{j})$ are a subset of the edges in $\pi_{k}$.

Theorem 5.3

The approximation ratio of RSD is $\Omega(n)$.

This means that by allowing randomness in the allocation mechanism, we can improve the exponential approximation ratio of the deterministic case to a linear one.

6 Experimental Results

In this section we present the results of the experimental evaluation we conducted in order to assess whether the theoretical inapproximability lower bounds impose a high approximation cost on real-life instances. In short, we will show that they do not. In particular, we have measured the approximation ratio obtained by SD and RSD on three real-life graphs extracted from the DIMCAS 99 shortest path implementation challenge benchmark datasets [1]. In particular, Rome99 represents a large portion of the directed road network of the city of Rome, Italy, from 1999. The graph contains 3353 vertices and 8870 edges. Vertices correspond to intersections between roads and edges correspond to roads or road segments. NY-4000 and NY-10000 are two subgraphs extracted from NY-d, a larger distance graph (with 264,346 nodes and 733,846 edges) representing a large portion the road network infrastrucutre of New York City, USA. The two graphs were obtained by taking a subset, respectively, of the first 4000 and 10000 nodes of the graph while ensuring that the connectivity was preserved by adding edges representing paths through nodes of the original graph not included in the subgraph. In Table 3 some statistics related to the structural characteristics of our test graphs are reported, where $\delta^{+}_{AVG}$ represents the average outdegree of a node (i.e. the average number of edges originating from a node) and $c_{AVG}$ is the average capacity of the outgoing edges of a node. In our experimental assessment, we studied the variation of the approximation ratio of SD and RSD on the test graphs while varying the resource augmentation factor. The resource augmentation factor is the key parameter of the resource augmentation framework [6], a novel comparison framework where a truthful mechanism that allocates “scarce resources” is evaluated by its worst-case performance on an instance where such “scarce resources” are augmented, against the optimal mechanism on the same instance with the original amount of resources. In [6] it is argued that this is a fairer comparison framework than the traditional approximation ratio, which compares the performance of a mechanism that is severely limited by the requirement of truthfulness to that of an omnipotent mechanism that operates under no restrictions and has access to the real inputs of the agents. An equivalent resource augmentation framework is often also used in the analysis of online algorithms. In the TAP scenario, the natural resource to be augmented is the capacity of the existing edges, modelled by the augmentation factor $\gamma$, which in our framework is defined as the factor by which the average capacity of the edges departing from a node is multiplied, spreading the excess capacity evenly among the outgoing edges of the node. More formally, if $c_{AVG}(v)$ is the average capacity of node $v$, then the augmented average capacity $c^{\gamma}_{AVG}(v)=\gamma\cdot c_{AVG}$, and the capacity of each outgoing edge is set as $\frac{c_{AVG}(v)}{\delta^{+}(v)}$, where $\delta^{+}(v)$ is the outdegree of $v$. In our experiments we ranged the augmentation factor $\gamma$ in the interval $[1,2]$, which means increasing the initial capacity until it is doubled. To run our experiments, we generated three separate populations of agent-origin-destination triplets, one population for each test graph, each comprising a number of triplets roughly equal to $1/3$ of the nodes of the graph. The size of the population of triplets was empirically tailored to let the competition for popular links arise without making the allocation problem unfeasible. For each agent-origin-destination triplet in the population, both the origin and the destination were independently drawn uniformly at random from the set of the nodes of the graph, with replacement (i.e. the same node can be the origin/destination of multiple triplets).

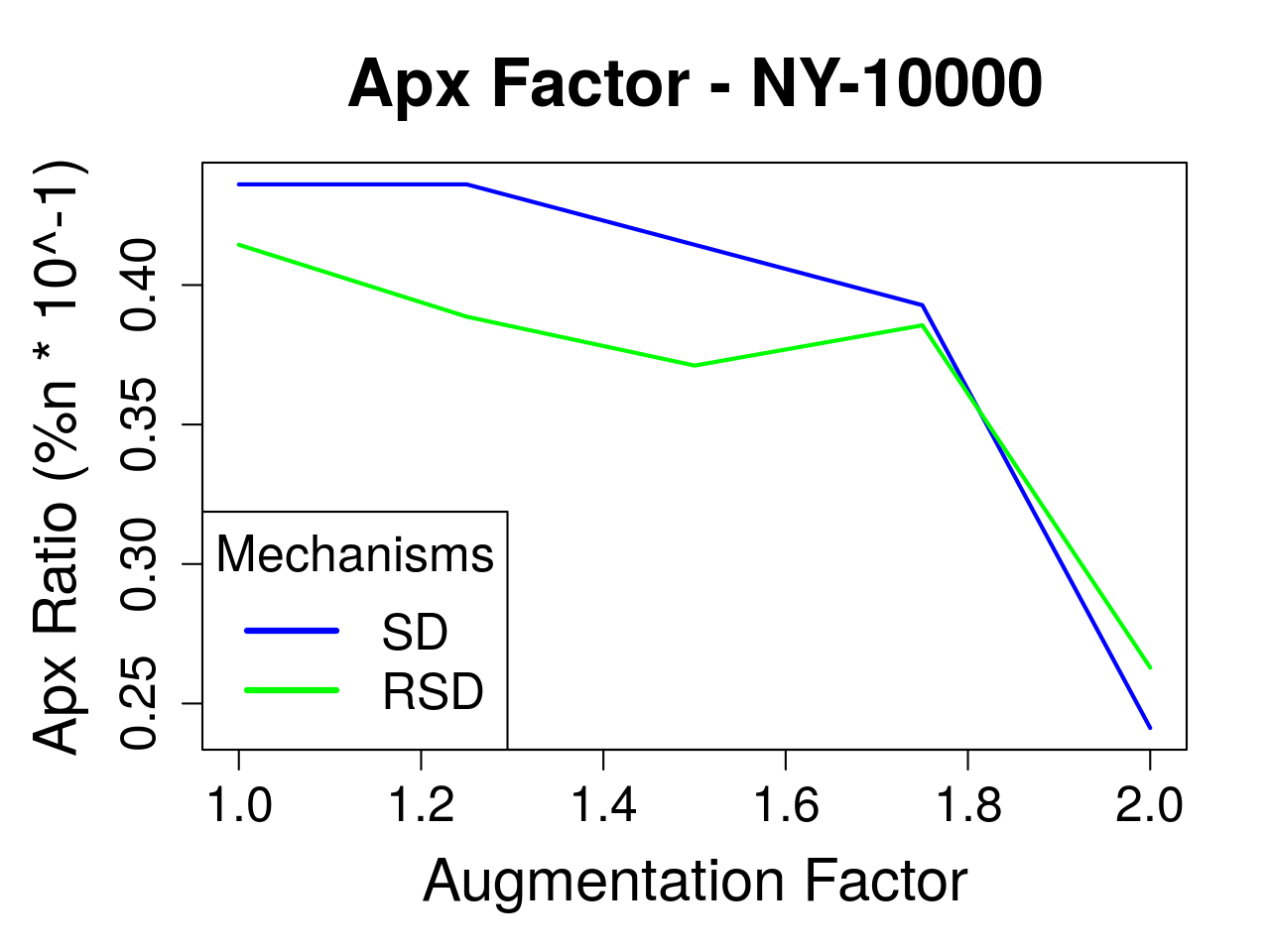

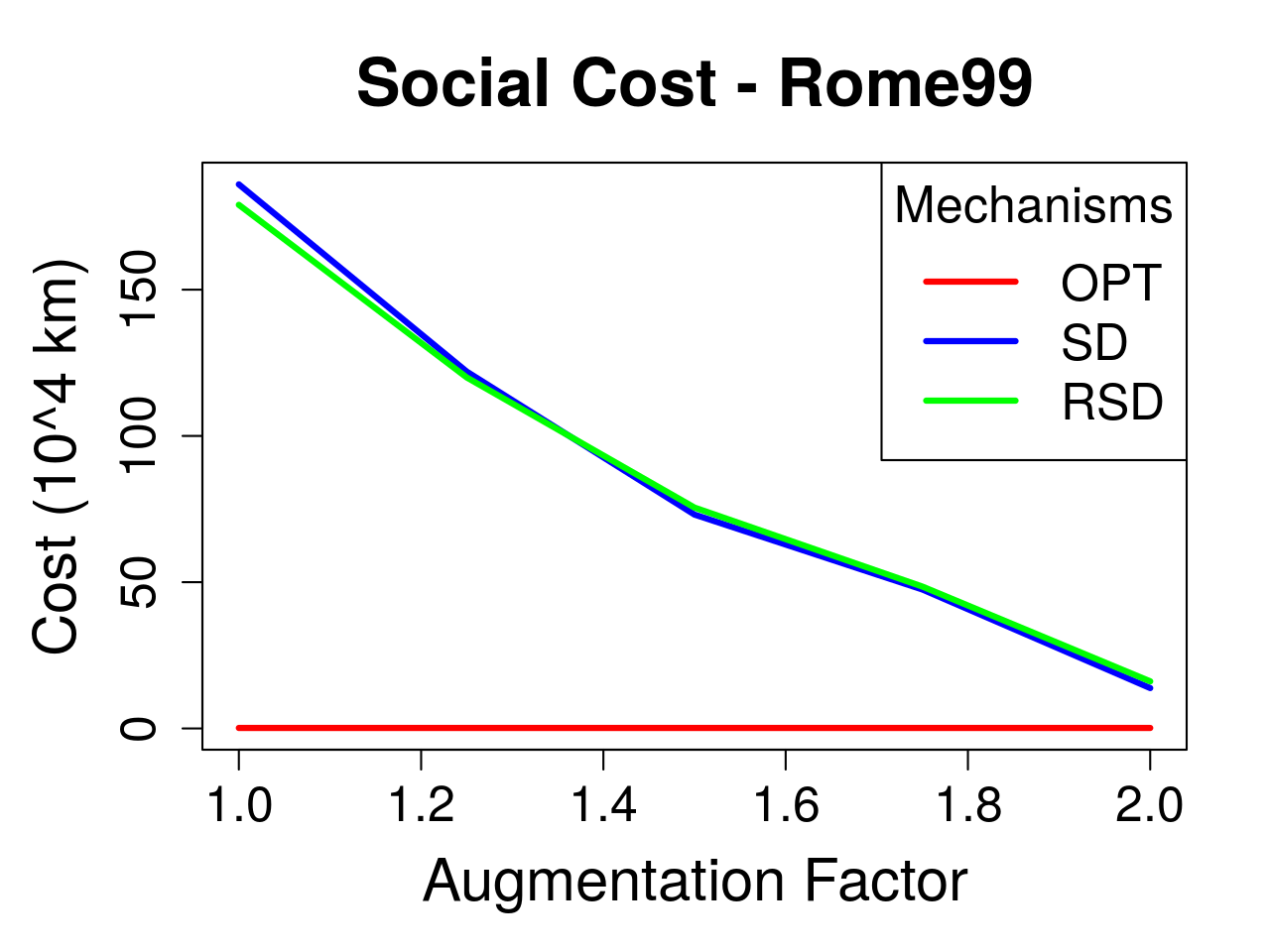

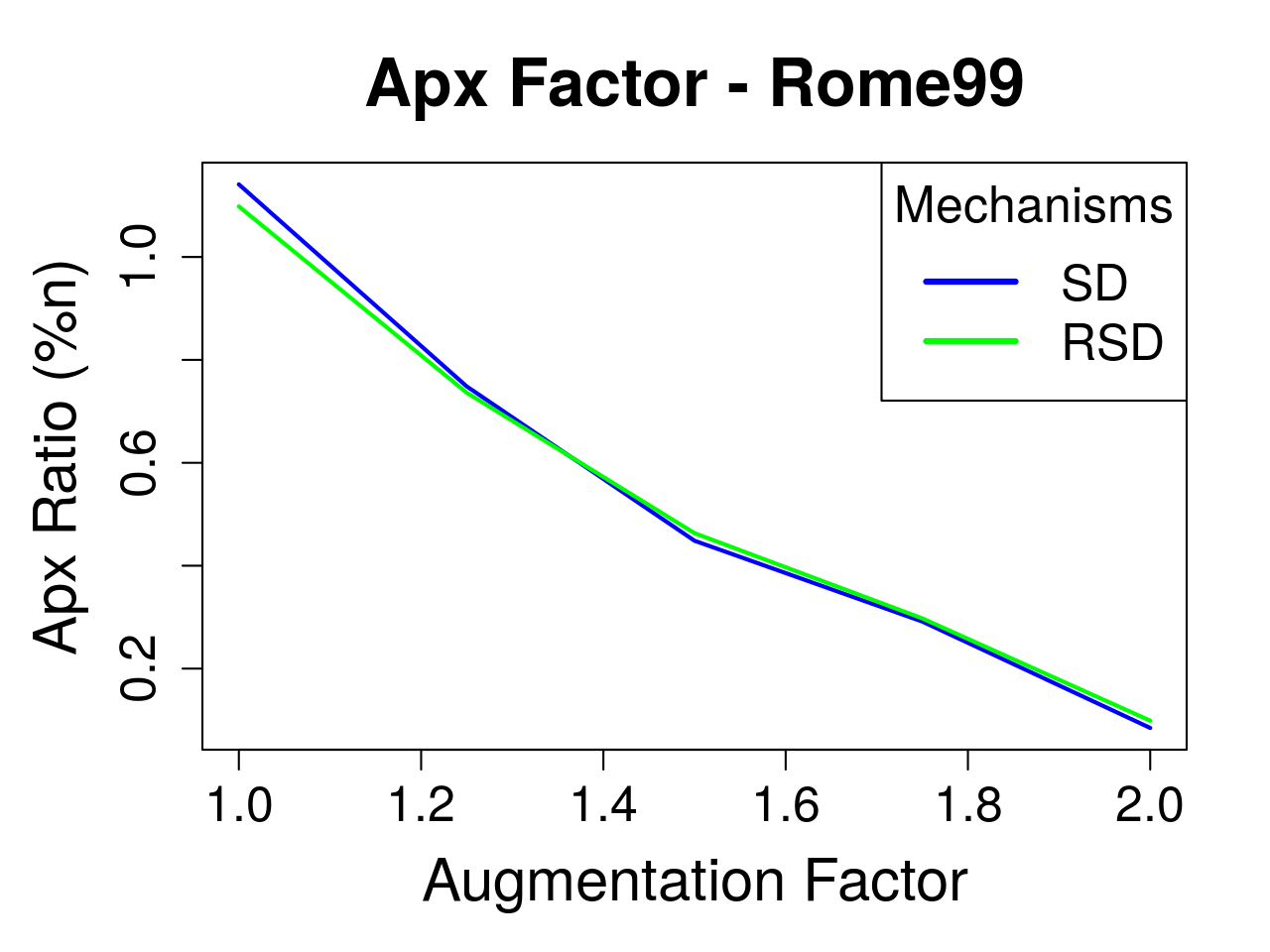

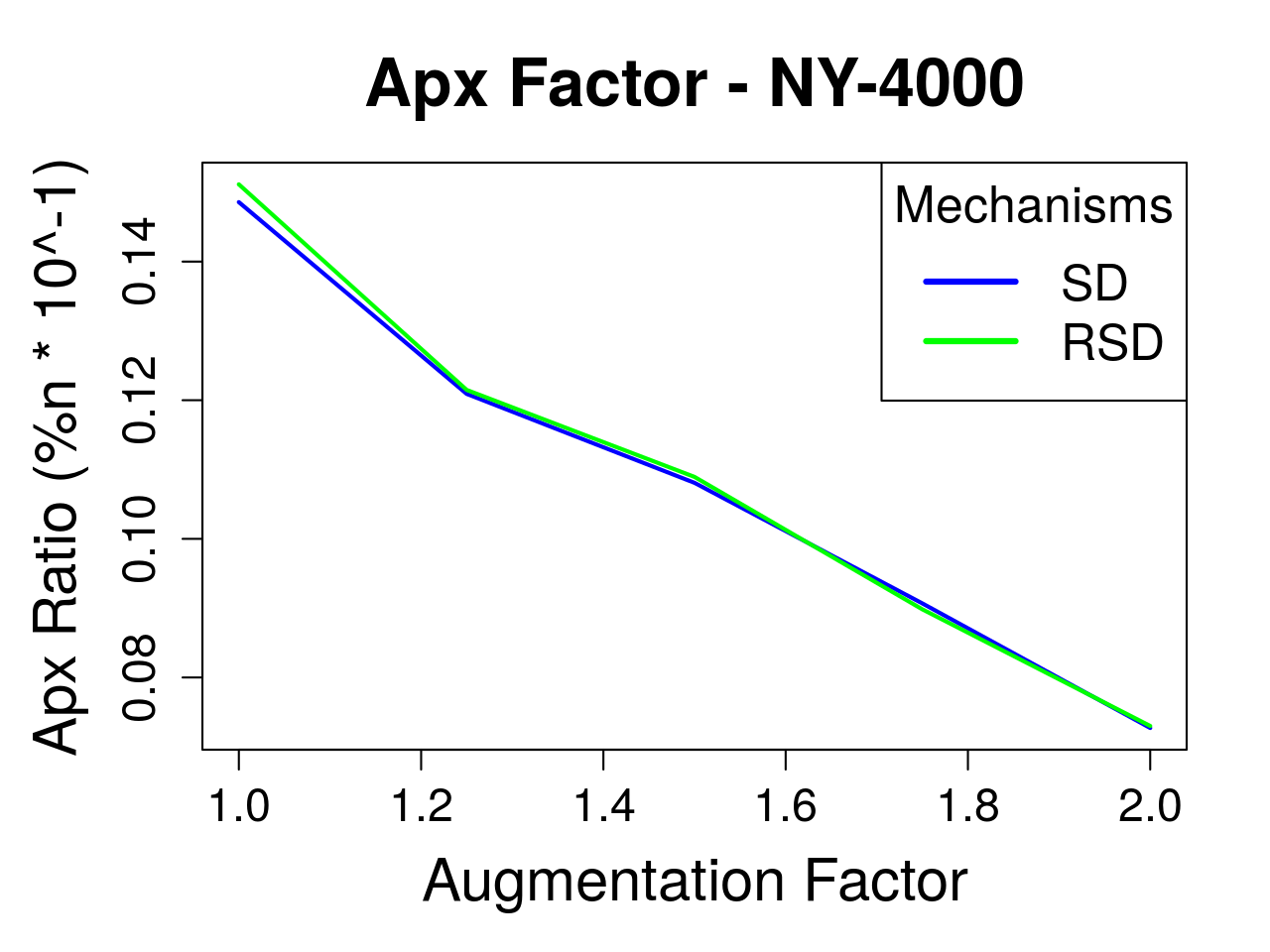

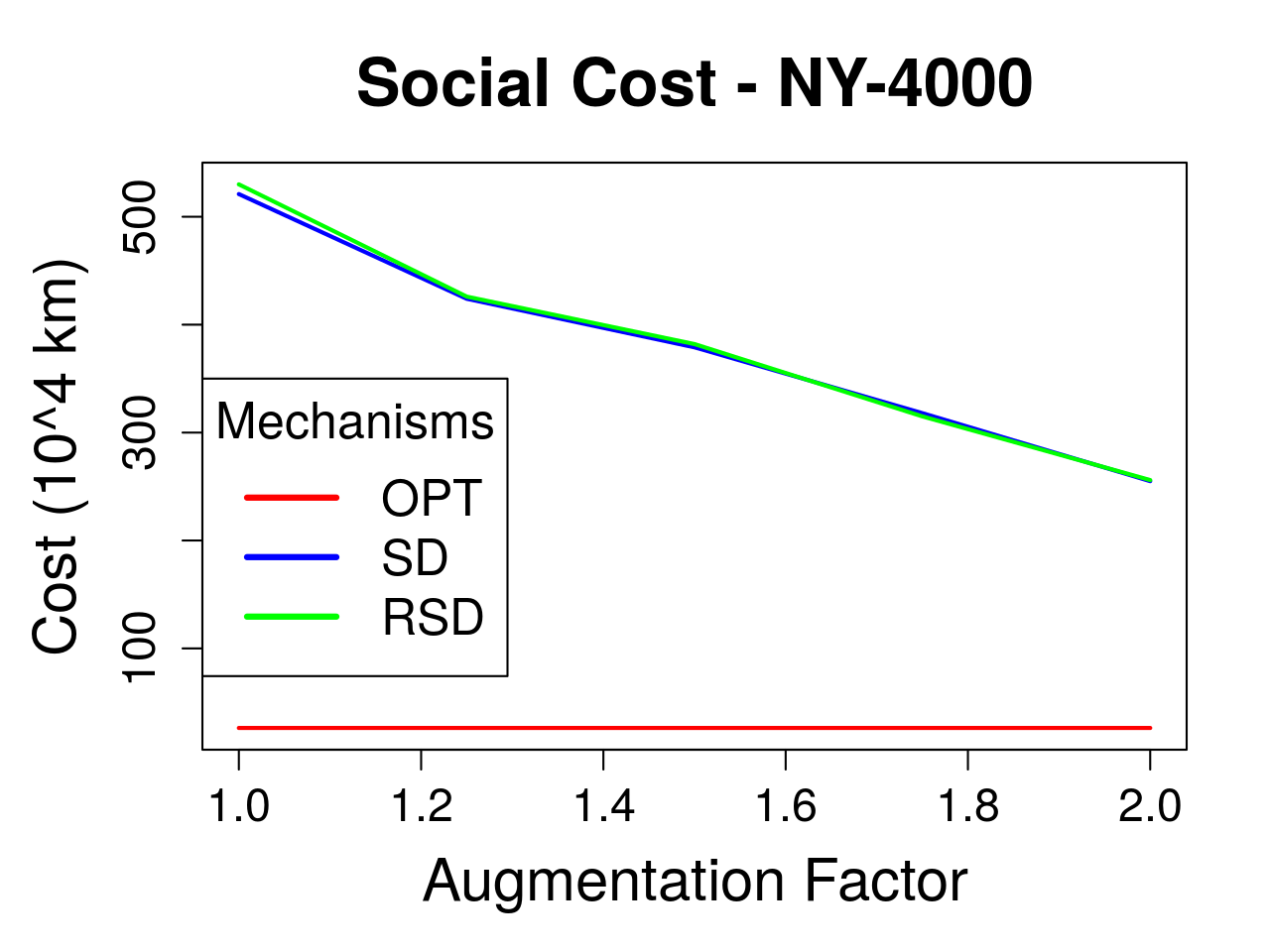

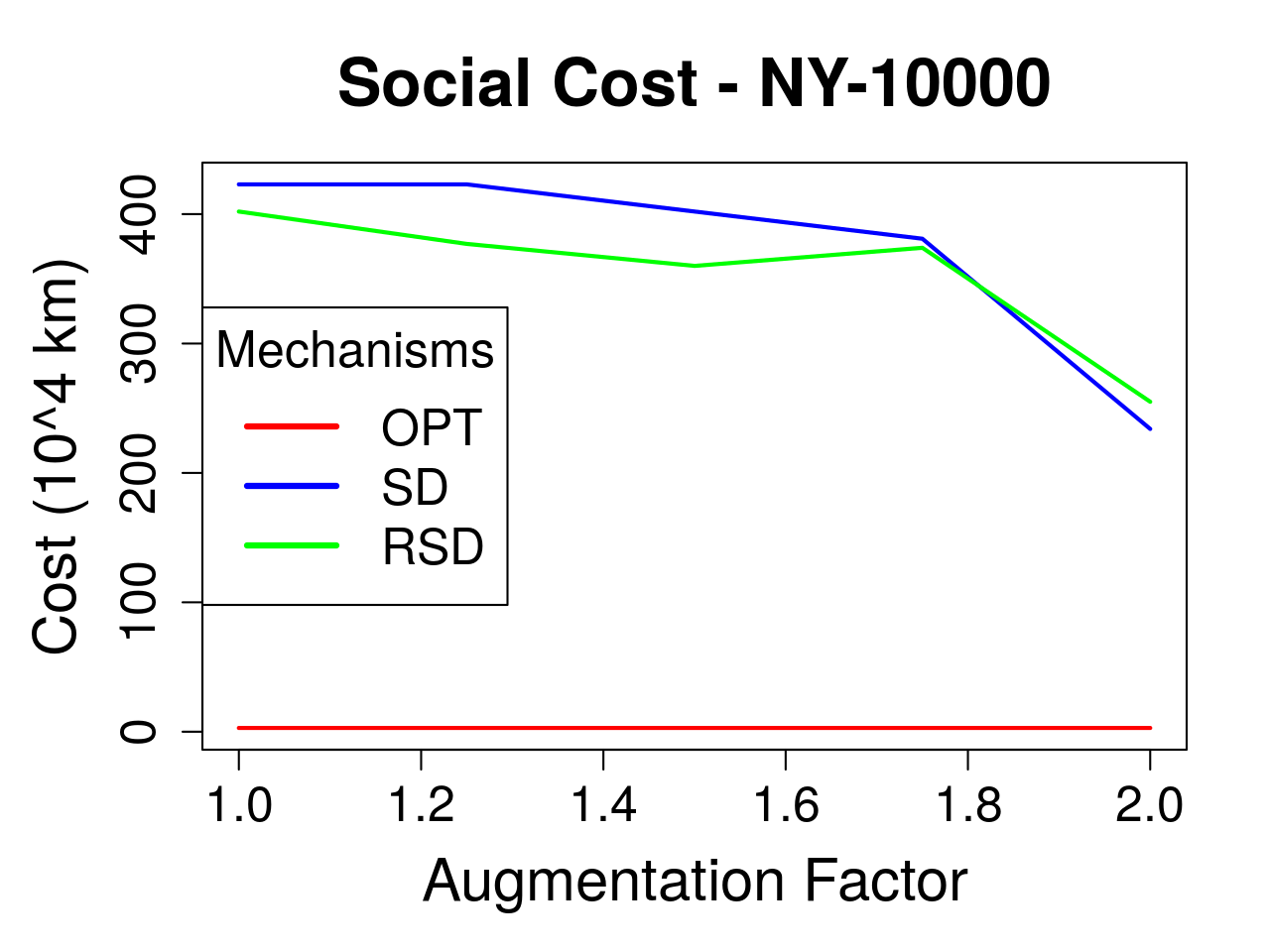

Figures 3, 5 and 5 show the results of our experimental analysis, respectively on graph Rome99, NY-4000 and NY-10000. In particular, the left hand side plot represents the absolute value of the social cost for the optimal mechanism, expressed in kilometers, for SD and for RSD, whereas the right hand side plot represents the approximation ratio for SD and RSD. From our experimental analysis we can see that the actual approximation ratio of both SD and RSD is much lower than the predicted theoretical worst-case approximation. In particular, our experiments show that the approximation ratios of SD and RSD are quite similar and strongly $o(n)$ on the investigated road networks. This is due to the fact that such theoretical approximation lower bounds rely on pathological instances that are quite unlikely to occur in real life graphs. It is also worth noting the beneficial effect that augmenting the capacity of existing roads has on the approximation ratio: increasing the augmentation factor steadily decreases the approximation ratio on both Rome99 and NY-4000. On the other hand a marked decrease is noticeable only if we increase the augmentation factor to 1.8 in the case of NY-10000. This phenomenon is due to the already reach topological structure of NY-10000, which necessitates less augmentation to yield good performances.

7 Conclusions

In this paper we investigate the problem of strategyproof traffic assignment without monetary incentives. We study two SP mechanism for our problem, namely Serial Dictatorship and its randomized counterpart Random Serial Dictatorships. For deterministic mechanisms we prove that Serial Dictatorship is $2^{n}-1$ under some mild assumptions, and characterize Bipolar Serial Dictatorship as the only SP, Pareto optimal and non-bossy deterministic mechanism for our problem. In the randomized case, we prove that Random Serial Dictatorship is $n$-approximate. Finally we assess the performance of Serial Dictatorship and Random Serial Dictatorship on real road network infrastructure, and show that they exhibit good approximation guarantees. In particular, RSD is almost indistinguishable from SD, which means that the instances giving rise to the inapproximability results rarely occur in practice.

Note that our work is the first that addresses the problem of moneyless strategyproof traffic assignment. Although it ignores a number of properties that occur in real-world scenarios (e.g., dynamic network behavior, or asynchronous bid submissions), it still serves as a proof of concept for the existence of moneyless strategyproof assignment mechanisms.

Appendix 0.A Appendix

In the following we give the proofs of the theorems that were omitted in the main body of the paper due to space limitations.

0.A.1 Time-Expanded Networks

Let $G=(V,E)$ be a network with capacities $c$, non-negative integral transit times $\tau$, and costs $w$ on the edges. For a given time horizon $T\in\mathbb{Z}>0$, the corresponding time-expanded network $G^{T}=(V^{T},E^{T})$ with capacities and costs on the edges is defined as follows. For each node $v\in V$ there are $T$ copies $v_{0},v_{1},\ldots,v_{T-1}$, that is, $V^{T}=\{v_{t}|v\in V,t\in\{0,1,\ldots,T-1\}\}$ . For each edge $e=(v,w)\in E$, there are $T-\tau(e)$ copies $e_{0},e_{1},\ldots,e_{T-1-\tau(e)}$ where edge $e_{t}$ connects node $v_{t}$ to node $w_{t+\tau(e)}$ . Edge $e_{t}$ has capacity $c(e_{t})=c(e)$ and cost $w(e_{t})=w(e)$. Moreover, $E_{T}$ contains holdover edges $(v_{t},v_{t+1})$ for $v\in V$ and $t=0,\ldots,T-2$. The capacity of holdover edges is infinite and they have zero cost.

0.A.2 Omitted Theorems

Theorem 0.A.1

Let $S=M(\mathbf{D})$ be a traffic assignment and let $R_{i}(S)$ be the set of reaction available to $a_{i}$ at $S$. If $S$ is Pareto optimal, then $M_{i}(\mathbf{D})\in\arg\min_{P\in R_{i}(S)}w(P)$.

Proof

If $M_{i}(\mathbf{D})\notin\arg\min_{P\in R_{i}(S)}w(P)$, then there must exist a reaction $r^{\prime}_{i}\in R_{i}$ that is strictly better than $M_{i}(\mathbf{D})$ for agent $a_{i}$, i.e. $c(r^{\prime}_{i})<c(M_{i}(\mathbf{D}))$. Then, a route assignment $M^{\prime}$ such that $M^{\prime}_{j}=M_{j}$ for all $j\neq i$ and $M^{\prime}_{i}=r_{i}$ is still feasible. Since $cost_{j}(M^{\prime})=cost_{j}(M^{\prime})$ for all $j\neq i$, and $cost_{i}(M^{\prime})<cost_{i}(M)$, $M$ is not Pareto optimal.

Theorem 0.A.2

There is no $\alpha$-approximate deterministic SP mechanism for the traffic assignment problem with $\alpha<3-\varepsilon$, for any $\varepsilon>0$.

Proof

Given $\varepsilon>0$, consider the graph depicted in Figure 6, where the labels on the edges represent their capacity (red) and length (black). The instance we consider has two agents $A=\{a_{1},a_{2}\}$, both initially located at node $A$, whose intended destination is $D$ and $G$, respectively (namely, $\mathbf{D}=(D,G)$). The length of the path $(B,C)$ is $K=\min\{2,\frac{10-4\varepsilon}{\varepsilon}\}$ and the length of path $(F,E)$ is $K-1$.

Let us consider a generic $\alpha$-approximate mechanism $M$. Assume by contradiction that $M$ is strategyproof and $\alpha$-approximate with $\alpha<3-\varepsilon$. The instance has two Pareto optimal solutions, depending on which player is allocated the edge $(A,F)$ (note that only one agent at a time can use edge $(A,F)$ as its capacity is 1). The optimal allocation $\mathbf{P}^{*}=OPT(\mathbf{D})$ is $P^{*}_{1}=(A,B,C,D)$ and $P^{*}_{2}=(A,F,E,G)$, $cost_{1}(\mathbf{P}^{*},D)=K+2$ and $cost_{2}(\mathbf{P}^{*},G)=K+1$, and $SC(\mathbf{P}^{*},\mathbf{D})=2K+3$. The second best solution is $P_{1}=(A,F,E,D)$ and $P_{2}=(A,B,C,E,G)$. We note that $cost_{1}(P_{1},D_{1})=K+1$ and $cost_{2}(P_{2},D_{2})=K+3$, for a social cost of $SC(M(\mathbf{D}),\mathbf{D})=2K+4$. We are going to prove that, regardless of the solution $M$ returns on this instance, there is another instance where to maintain SP, $M$ achieves an approximation not better than $3-\varepsilon$, a contradiction. Let us assume first that $M$ returns the optimal allocation. If agent $a_{1}$ declares $D^{\prime}_{1}=F$ instead of her true type, by SP, $M$ cannot allocate the edge $(A,F)$ to $a_{1}$. In fact, assume for the sake of contradiction that $M(D_{1}^{\prime},D_{2})$ allocates $(A,F)$ to $a_{1}$. Then $a_{2}$ is allocated path $(A,B,C,E,G)$ and $a_{1}$ can use path $(A,F,E,D)$ and reach her true destination, thus having:

[TABLE]

Therefore, $M(D_{1}^{\prime},D_{2})$ must return $P^{\prime}_{1}=(A,B,C,E,F)$ and $P^{\prime}_{2}=(A,F,E,G)$, with $SC((P^{\prime}_{1},P^{\prime}_{2}),(D_{1}^{\prime},D_{2}))=3K+2$, whilst the optimum for this instance is $OPT_{1}(D^{\prime}_{1},D_{2})=(A,F)$ and $OPT_{2}(D^{\prime}_{1},D_{2})=(A,B,C,E,G)$. The social cost of the optimum is then $SC(OPT(D^{\prime}_{1},D_{2}),(D^{\prime}_{1},D_{2}))=K+4$. Therefore $M$ has an approximation ratio higher than $3-\varepsilon$. Let us now suppose that $M(\mathbf{D})$ returns $M_{1}(\mathbf{D})=P_{1}$ and $M_{2}(\mathbf{D})=P_{2}$. In this case, consider the case that agent $a_{2}$ reports $D^{\prime}_{2}=F$ instead of her true type. The optimal allocation is $OPT_{1}(D_{1},D_{2}^{\prime})=(A,B,C,D)$ and $OPT_{2}(D_{1},D_{2}^{\prime})=(A,F)$, and $SC(OPT(D^{\prime}_{2},D_{1}),(D^{\prime}_{2},D_{1}))=K+3$. As before, this allocation is not strategyproof as:

[TABLE]

(i.e., agent $a_{2}$ can use the route $(A,F,E,G)$ to reach her true destination). As above, one can easily check that in this case the best (in terms of approximation ratio) strategyproof allocation is $P^{\prime}_{1}=(A,F,E,D)$ and $P^{\prime}_{2}=(A,B,C,E,F)$, with a cost of $SC((P^{\prime}_{1},P^{\prime}_{2}),(D_{1},D_{2}^{\prime}))=3K+2$. This solution has an approximation ratio higher than $3-\varepsilon$.

Theorem 0.A.3

If $G$ is $K$-edge-connected555A graph is $K$-edge-connected if removing at most $K$ edges from it does not disconnect the graph., mechanism Serial Dictator is feasible for $K$ agents.

Proof

If the graph is $K$-edge connected, the allocation returned by the Serial Dictator will always be feasible, (i.e. paths assigned to different agents will not overlap and there is always an assignable path for each agents). This follows from the fact that in a $K$-edge-connected graph there are at least $K$ edge disjoint paths between any pair of nodes.

Theorem 0.A.5

Under the DoCP assumption, the bound of Theorem 4 is tight.

Proof

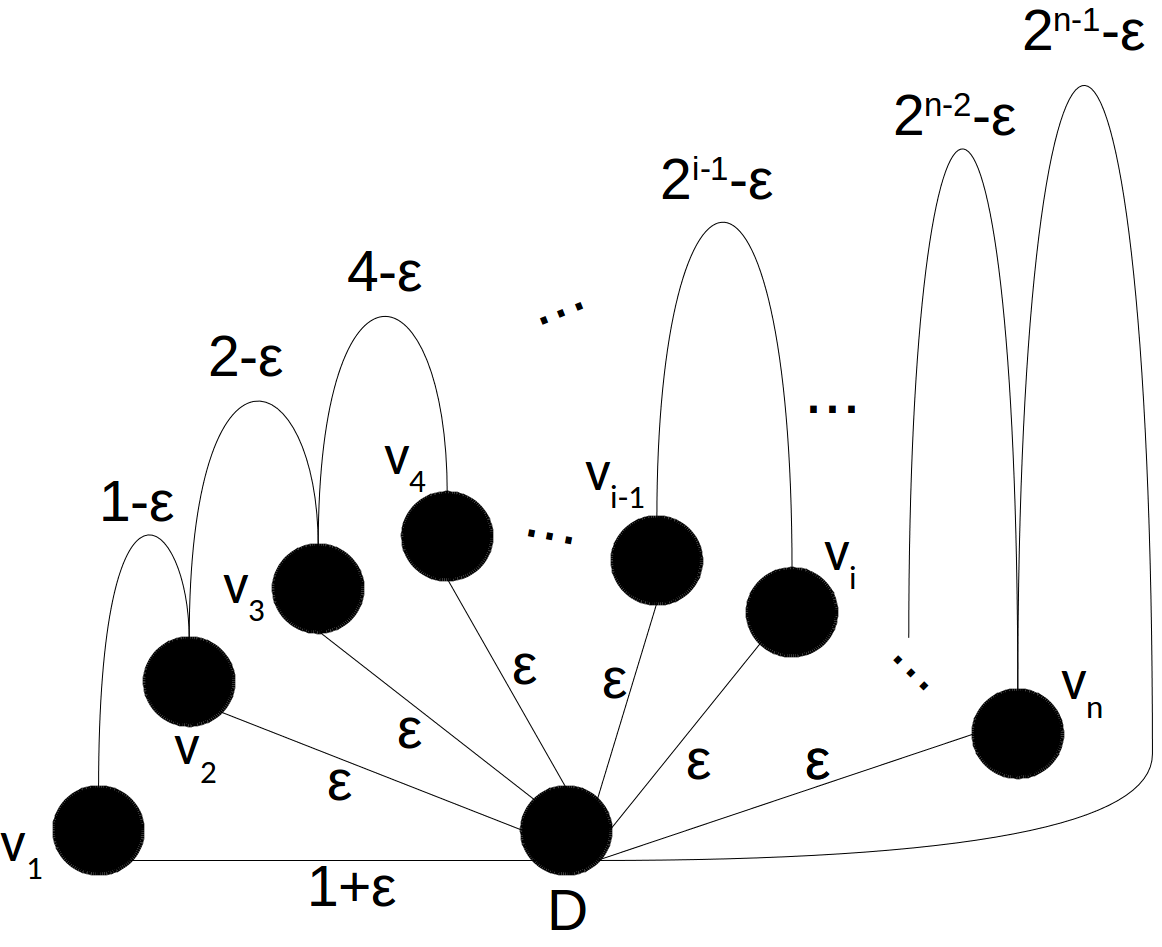

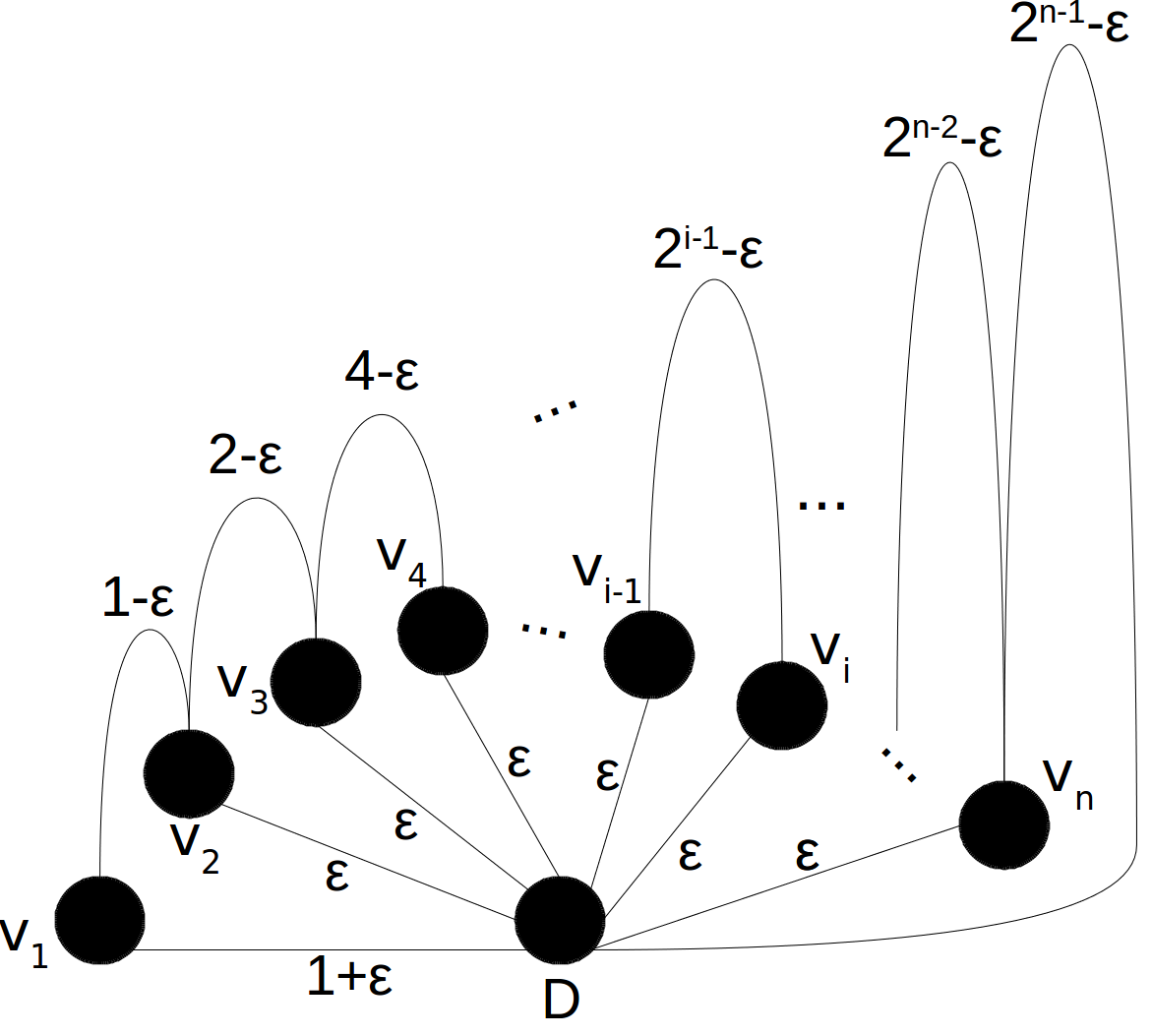

Let us consider the instance in Figure 7, where there are $n$ nodes $v_{1},\ldots,v_{n}$ and $n$ agents $A=\{a_{1},\ldots,a_{n}\}$ such that agent $a_{i}$ is initially located at node $v_{i}$. All agents want to reach the same destination $D$. Each link has capacity $1$. Agent $a_{1}$ has two paths to her destination $D$: one direct path that costs $1+\varepsilon$ (where $\varepsilon\ll 1$ is a small constant) and a path costing $1$ that goes through the node agent $a_{2}$ is initially located on. Each agent $a_{i}$, for $i=2,\dots,n-1$ has two paths: one direct path that costs $\varepsilon$ and a path costing $2^{i-1}$ that goes through the node agent $a_{i+1}$ is initially located on. Agent $a_{n}$ has two direct paths, costing $\varepsilon$ and $2^{n-1}$ respectively. The optimal traffic assignment assigns agent $a_{1}$ to the path that costs $1+\varepsilon$ and the other agents to the path costing $\varepsilon$, and has a cost of $1+\varepsilon n$. Let us consider ordering $a_{1}\prec a_{2}\prec\ldots\prec a_{n}$. On this ordering, mechanism SD assigns agent $a_{1}$ the path costing $1$, and to each agent $a_{i}$, for $i=2,\ldots,a_{n}$ the path costing $2^{i-1}$ for a total cost of $\sum_{i=0}^{n-1}2^{i}=2^{n}-1$. For $\varepsilon$ close to [math], the approximation ratio of SD on the instance depicted in Figure 7 is hence close to $2^{n}-1$.

Theorem 0.A.6

A traffic allocation mechanism for TAP+is Pareto-optimal, SP and non-bossy if and only if it is a Bi-polar Serially Dictatorial Rule.

Proof

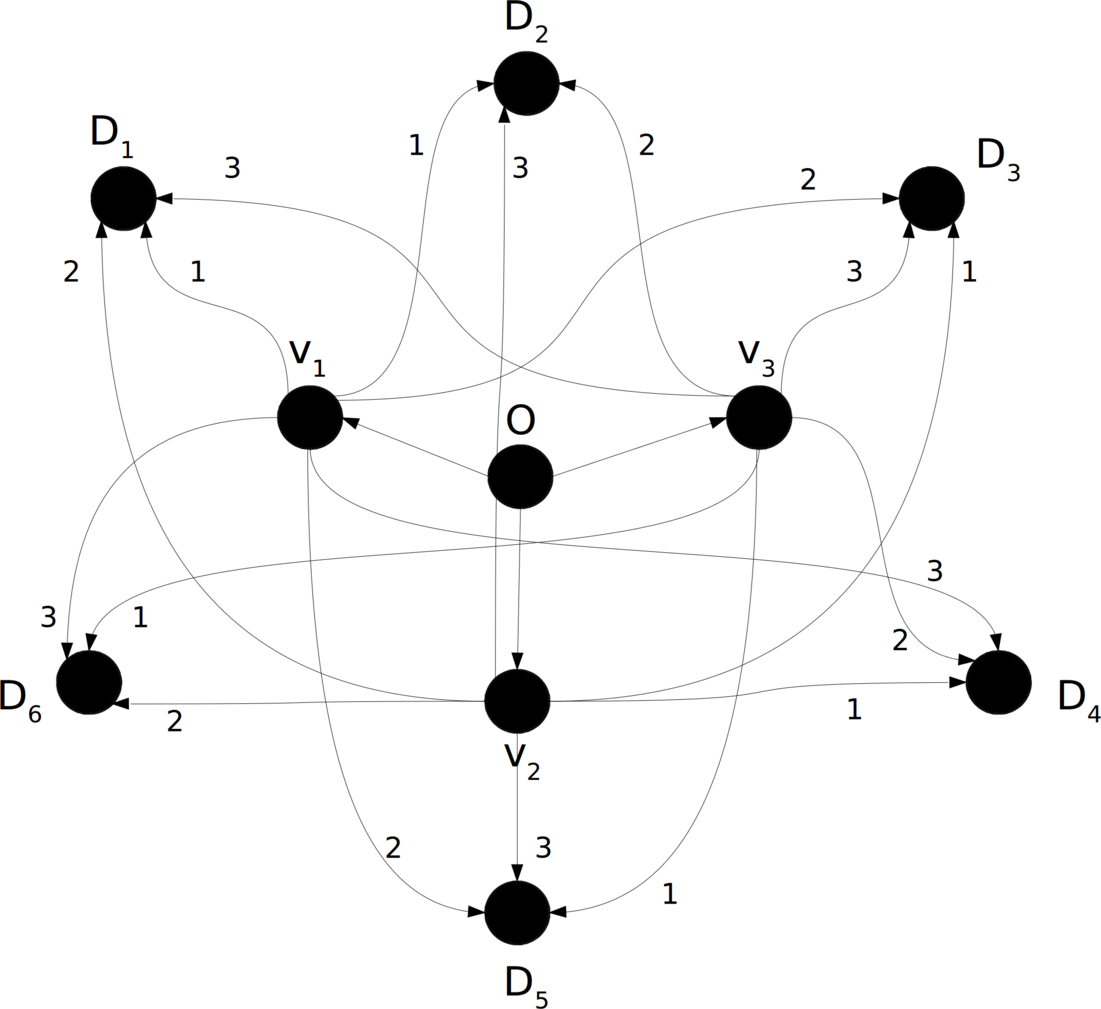

We will reduce an instance of the problem of assigning indivisible objects with general ordinal preferences [4] (AIO for short) to TAP+. An instance of AIO is composed of a set of objects $X=\{x_{1},\ldots,x_{m}\}$ that have to be assigned to a set of agents $A=\{a_{1},\ldots,a_{n}\}$, such that every agent receives at most one object and no agent is left without an object if there are objects still available. Agents have ordinal general preferences $\succeq_{i}$, where $x\succeq_{i}y$ for $x,y\in X$ means that agent $i$ (weakly) prefers object $x$ to object $y$. From an instance of AIO, we can build an instance of TAP+ as follows. TAP+ has the same set of agents $A$ as AIO. Graph $G$ of TAP+ has a node $O$ such that $O_{i}=O$ for all $a_{i}\in A$. For every object $x_{j}\in X$ we construct in $G$ a node $v_{j}$ and an edge $(O,v_{j})$ such that $c(O,v_{j})=1$ and $w(O,v_{j})=\varepsilon$ for $0<\varepsilon\ll 1$. Let $\Psi$ be the set of all possible preference relations over $X$. We construct666We note that, although $|\Psi|$ can be exponential in $m$, it is always finite. We remark that graphs of exponential size are not an issue here since the characterization we are proving in this theorem does not rely on computational efficiency. $|\Psi|$ destination nodes $D_{k}$, one for each preference relation $\succeq\in\Psi$ and for each $k\in{1,\ldots,|\Psi|}$. For each $j\in\{1,\ldots,m\}$ we add an edge $(v_{j},D_{k})$ having capacity 1 and weight $w(v_{j},D_{k})$ equal to the ranking777 The alternatives in $X$ can be partitioned in subsets ${X_{1},\ldots,X_{\ell},\ldots}$ such that any two elements $x_{1},x_{2}\in X_{\ell}$ are indifferent according to $\succeq$ and, for any $x_{1}\in X_{\ell}$ and $x_{2}\in X_{\ell+1}$, $x_{1}$ is strictly preferred to $x_{2}$ according to $\succeq$. Then $\ell$ is the ranking of $x\in X_{\ell}$. of $x_{j}$ according to $\succeq$. Figure 8 gives an example of the reduction applied to an AIO game with $A=\{a_{1},a_{2},a_{3}\}$, $X=\{x_{1},x_{2},x_{3}\}$ and $\Psi$ being the set of all possible linear orderings over $X$. The labels on the edges of the graph of Figure 8 represent the costs of the edges, whereas all capacities are set to 1.

By construction, the following hold: (i) any path allocation on $G$ must include all the edges $(O,v_{j})$; (ii) any edge $(O,v_{j})$ is used by at most one path; and (iii) only one agent can be assigned any given edge $(O,v_{j})$ due to the capacity constraint. We can now easily transform a path allocation for the so-constructed TAP+ problem to an allocation of objects to agents in the AIO problem, and vice versa. Indeed, let $P_{i}$ be the path assigned to agent $a_{i}$ in the TAP+ problem. If $P_{i}$ contains edge $(O,v_{j})$ we allocate object $x_{j}$ to agent $a_{i}$ in the AIO instance, and vice versa from an allocation for the AOI problem to an allocation for the TAP+ problem. In [4] it is proved that BSD is the only Pareto optimal, SP and non-bossy mechanism for AIO. This characterization trivially transfers to TAP+ due to the reduction sketched above. Indeed, let us suppose that there exists an SP, Pareto optimal and non-bossy algorithm for TAP. Such algorithm would be SP, Pareto optimal and non-bossy for the AIO instance as well.

Lemma 2

BSD cannot achieve an approximation ratio lower than $\Omega(2^{n})$ for TAP.

Proof

We are going to show an instance of TAP where BSD has an approximation ratio of $\Omega(2^{n})$. Let us take the instance of Figure 7 and let us consider the ordering $\{a_{1},a_{2}\}\prec a_{3}\prec\ldots\prec a_{n}$. Let us consider $X_{1}=\{v_{2},D\}$ and $X_{2}=E\setminus X_{1}$. The so-defined BSD mechanism, on input the instance of figure 7 would always execute SD with ordering $a_{1}\prec a_{2}\prec\ldots,a_{n}$. We know from Theorem 0.A.5 that under this ordering the approximation ratio of SD is $\Omega(2^{n})$.

Theorem 0.A.7

There is no $\alpha$-approximate randomized universally truthful mechanism for the traffic assignment problem with $\alpha<11/10$.

Proof

Our approach is based on Yao’s minimax principle [27]. In our context, this principle states that the approximation ratio of the best universally truthful randomized mechanism is equal to the approximation ratio of the best deterministic truthful mechanism under a worst-case input distribution. Accordingly, we exhibit a probability distribution over input instances for which any deterministic truthful mechanism cannot attain an approximation guarantee better than $11/10$. The two instances are taken from the proof of Theorem 0.A.2, where we set $K=2$. Specifically, we consider the instance in Figure 6, that we name $I$, and the very same instance where agent $a_{1}$ reports $F$; we call this instance $I^{\prime}$. We consider a probability distribution over $I$ and $I^{\prime}$ that returns $I$ with probability $\lambda$ and $I^{\prime}$ with the remaining probability $1-\lambda$, where $\lambda=2/3$. The expected value of the optimum will then be $(\lambda+1)K+4-\lambda=20/3$. Let $M$ be a SP deterministic mechanism. From the arguments in the proof of the theorem above, we know that $M$ must assign the edge $(A,F)$ to the same agent in both instances $I$ and $I^{\prime}$. If $M$ allocates $(A,F)$ to agent $a_{1}$ in both the instances then its expected social cost will be $(\lambda+1)K+4=22/3$ for an approximation ratio of $11/10$. If instead $M$ allocates $(A,F)$ to agent $a_{2}$ in both the instances then the expected social cost of the mechanism will be $(3-\lambda)K+\lambda+2=22/3$; the approximation ratio of $M$ would then be $11/10$.

Theorem 0.A.9

The approximation ratio of RSD is $\Omega(n)$.

Proof

The proof uses the same construction as the instance of Figure 7, with $k<n$ nodes. One agent is initially located at node $v_{1}$, whereas $1+2\cdot 3^{i-1}$ agents are initially located at node $v_{i}$, for $i=2,\ldots,k-1$ . With a little abuse of notation, let $|v_{i}|$ denote the number of agents initially located at node $v_{i}$, and let $n_{i}=\sum_{\ell=0}^{i}|v_{\ell}|$. Edges $(v_{1},D)$ and $(v_{1},v_{2})$ have capacity $1$, whereas edges $(v_{i},D)$ and $(v_{i},v_{i+1})$ have capacity $1+2\cdot 3^{i-1}$ for $i>1$. Let $a_{1}\prec\ldots\prec a_{n}$ be an ordering over the agents. We will be interested in orderings that possess the chain of levels property, namely for all $i=1,2,\ldots,k-1$ at least one agent located at node $i$ appears after all agents of levels $0,1,\ldots i-1$. The property of a chain of levels ordering with respect to the instance of Figure 7 is that it forces at least one agent located at node $v_{i}$, for all $i=1,\ldots,k-1$ to use the path $P=(v_{i},v_{i+1},D)$, at a cost of $2^{i-1}$ for the agents, and an overall social cost of $\sum_{i=1}^{k-1}2^{i-1}=2^{k}-1>2^{k-1}$.

We argue that the probability that a chain of levels ordering is chosen by RSD is $\Pi_{i=1}^{k-1}\left(1-\frac{n_{i-1}}{n_{i}}\right)$. Indeed, we can look at the process of randomly generating an ordering as follows. First an ordering for the agents located at each node is uniformly generated at random. Then orderings of agents of consecutive nodes are merged together in lexicographic order. In particular, we start merging the orderings of nodes $v_{1}$ and $v_{2}$. There are $\binom{|v_{2}|+|v_{1}|}{v_{1}}=\binom{n_{2}}{n_{1}}$ such orderings, whereas there are $\binom{n_{2}-1}{n_{1}}$ orderings where one agent located at node $v_{2}$ follows all the agents located at node $v_{1}$. The partial ordering obtained so far is randomly merged with the ordering of agents at node $v_{3}$ and the procedure continues until the partial ordering is complete. When merging agents at node $v_{i}$ with the current partial ordering, we note that there are $\binom{n_{i}}{n_{i-1}}$ possible orderings, and $\binom{n_{i}-1}{n_{i-1}}$ where for all $\ell=1,\ldots,i$, one agent located at node $v_{\ell}$ follows all the agents located at node $v_{\ell-1}$ in the ordering (i.e., fix one agent from node $v_{\ell}$ in the last position and compute all possible orderings of the other agents). Hence, the probability of one agent at node $v_{\ell}$ appearing after all agents at node $v_{\ell-1}$ is $\binom{n_{i}-1}{n_{i-1}}/\binom{n_{i}}{n_{i-1}}=\left(1-\frac{n_{i-1}}{n_{i}}\right)$. Since the random orderings generated at each stage are independent, the probability that for all $i=1,2,\ldots,k-1$ at least one agent at node $v_{i}$ appears after all agents at node $v_{i-1}$ in a random ordering is $\Pi_{i=1}^{k-1}\left(1-\frac{n_{i-1}}{n_{i}}\right)$. Hence, the probability that a chain of levels ordering is chosen by RSD for the instance of Figure 7 is $(2/3)^{k-1}$.

Finally, the expected cost of RSD is at least $(4/3)^{k-1}=n^{\log_{3}(4/3)}\approx n^{0.262}$. Since the optimal allocation costs $1+\epsilon\cdot n$, the approximation ratio is $\Omega(n)$ for $\epsilon$ close to [math].
