Water-Quenched Effects of 5 wt.% (Fe, Ti) particle-doped MgB$_2$ Superconductor and Low Limit of Pinning Effect

TL;DR

This study investigates how water quenching affects the magnetic properties and flux pinning mechanisms in 5 wt.% (Fe, Ti) particle-doped MgB₂ superconductors, revealing the dual role of grain boundaries as pinning centers and flux pathways.

Contribution

It demonstrates the impact of water quenching on grain boundary effects and flux pinning in doped MgB₂, providing a model for understanding these mechanisms.

Findings

Water quenching enhances grain boundary effects on magnetization.

Grain boundaries act as pinning centers at high fields and flux pathways at low fields.

Pinning ability decreases with increasing temperature due to coherence length growth.

Abstract

\begin{abstract} We have studied magnetic properties of water-quenched 5 wt.% (Fe, Ti) particle-doped MgB$_2$ comparing with that of air-cooled one. Generally, grain refinement is achieved by increasing cooling rate, which implies an increase of grainboundaries in the superconductor. Here we show that increased grainboundaries influence what kinds of effects on the field dependence of magnetization and what is the mechanism. As a result, they are served as a pinning center at a high field whereas they are served as a pathway to facilitate the movement of fluxes pinned on volume defects at a low field. As modeling grainboundaries in a superconductor, we explained that they had a flux pinning effect as well as the flux-penetrating promotion effect. As temperature increases, the pinning ability of a grainboundaries decreases, which was caused by increased coherence length. Stacking fault planes and twin boundaries have also been considered by using the model. It explained the reason for that stacking fault planes of MgB$_2$ do not have any pinning effect and the twin boundary of HTSC have the strong pinning or strong flux-penetration effect depending on the direction of the applied field.

Figures

Tables

Table 1. Table 1: Ratios of pinned fluxes at a planar defect along temperature, where ξ 0 subscript 𝜉 0 \xi_{0} is coherence length at 0 K and ξ K subscript 𝜉 𝐾 \xi_{K} is coherence length at a temperature. It is assumed that H c2 of the superconductor is 65.4 T at 0 K, T c is 37.5 K, and the width of grain boundary can pin a flux quantum.

Temperature	0 K	$5K$	10 K	15 K	20 K	25 K	30 K	35 K
Coherence length (nm)	2.24	$2.41$	2.62	2.90	3.29	3.89	5.02	8.29
Ratio of pinned fluxes	1	$0.86$	0.73	0.60	0.47	0.33	0.20	0.07
on the grain boundary: $($$\frac{{\xi }_0}{{\xi }_K}$$){}^2$

Equations

$$\xi (T{)}^2\propto \frac{1}{1-t}$$

$$\Delta A_{surface}=4\pi r_o^2\frac{4\pi (\frac{r_o}{n}{)}^2}{4\pi r_o^2}\times n^3=n\times 4\pi r_o^2$$

$$A_{GB,WQ}=(1+\frac{n-1}{2})a_o$$

Full text

MgB2, Flux pinning, (Fe,Ti) particles, grain boundary, planar defects, TEM, water-quenching

I Introduction

MgB2 has been known a superconductor which has a weak field dependence of magnetization Kimishima ; Kunitoshi ; Dou . In order to overcome the weakness, many researchers tried to improve field dependence of magnetization by doping method Shi ; Silva ; Chengduo . We also have been studying the properties of MgB2 doped with (Fe, Ti) particles of which radius is 163 nm on average Lee2 .

The best performance was obtained on 5 wt.% (Fe, Ti) particle-doped MgB2 among the various specimens. Although the specimen showed considerable results as shown in Fig. 1, we still have a desire that diamagnetic property of the superconductor would increase more on higher field (6.0 Tesla) than that of air-cooled 5 wt.% (Fe, Ti) particle-doped MgB2. On the other hand, we had a question for what kinds of change occur on M-H curve if grain boundaries increased under the condition that volume defects are fixed. To solve the question, we chose water-quenching (WQing) method.

Generally, if a WQing is carried out for materials, there is no time for grains to grow due to the rapid cooling rate. Thus, grains of the material are become finer, and grain boundary (GB) density of the material increased. And increased GBs mean increasing the number of weak pinning sites in the superconductor. The difference of GBs between specimens causes field dependence of magnetization curves (M-H curves) to change.

Up to now, many researchers have studied flux-pinning effects of grain boundaries in superconductors, which are a planar defect Sung ; Wang ; Dimos ; YAMADA ; Katase . However, correlations of flux-pinning between grain boundaries and volume defects, and flux-penetrating promotion effects of grain boundaries, were not revealed. Concerning GBs as pinning sites, they are not only interconnected, but also connected on volume defects. Thus, it is expected that there would be a flux-pinning correlation between volume defects and grain boundaries if pinned fluxes at a volume defects are many.

One noting thing is that a width of GB and amounts of GBs and volume defects in MgB2 are different according to fabrication methods. For example, volume defects cannot help increasing when MgB2 was synthesized at lower temperature Rogado . And widths of GB are different according to fabrication temperature and pressure when the specimen was fabricated in high pressure and high temperature method Kimishima ; Romero . Therefore, all of data presented in current paper are confined to the MgB2 specimen which was fabricated by nonspecial atmosphere synthesis (NAS) method at 920 oC for 1 hr Lee .

In this study, we inspected the mechanism for flux-pinning effects of increased grain boundaries by comparing M-H curves of water quenched 5 wt.% (Fe, Ti) particle-doped MgB2 with that of air cooled one.

II Experiment

Pure MgB2 and (Fe, Ti) particle-doped MgB2 specimens were synthesized using NAS method Lee . Briefly, NAS method needs Mg (99.9% powder), B (96.6% amorphous powder), (Fe, Ti) particles and stainless steel tube. Mixed Mg and B stoichiometry, and (Fe, Ti) particles were added by weight. They were finely ground and pressed into 10 mm diameter pellets. (Fe, Ti) particles were ball-milled for several days, and average radius of (Fe, Ti) particles was approximately 0.163 $\mu$m Lee4 . On the other hand, an 8 m-long stainless-steel (304) tube was cut into 10 cm pieces. Insert holed Fe plate into the stainless-steel tube. One side of the 10 cm-long tube was forged and welded. The pellets and pelletized excess Mg were placed at upper layer and lower layer in the stainless-steel tube, respectively. The pellets were annealed at 300 oC for 1 hour to make them hard before inserting them into the stainless-steel tube. The other side of the stainless-steel tube was also forged. High-purity Ar gas was put into the stainless-steel tube, and which was then welded. After specimens had been synthesized at 920 oC for 1 hour, they are quenched in water and cooled in air, respectively. Field dependences of magnetization were measured using a MPMS-7 (Quantum Design). During the measurement, sweeping rates of doped specimens were applied equally for the same flux-penetrating condition. TEM images were taken by 200KV Field Emission Transmission Electron Microscope (TALOS F200X).

III Results and discussion

III.1 Effects on M-H curves by water-quenching of 5 wt.% (Fe, Ti) particle-doped MgB2 at lower temperatures

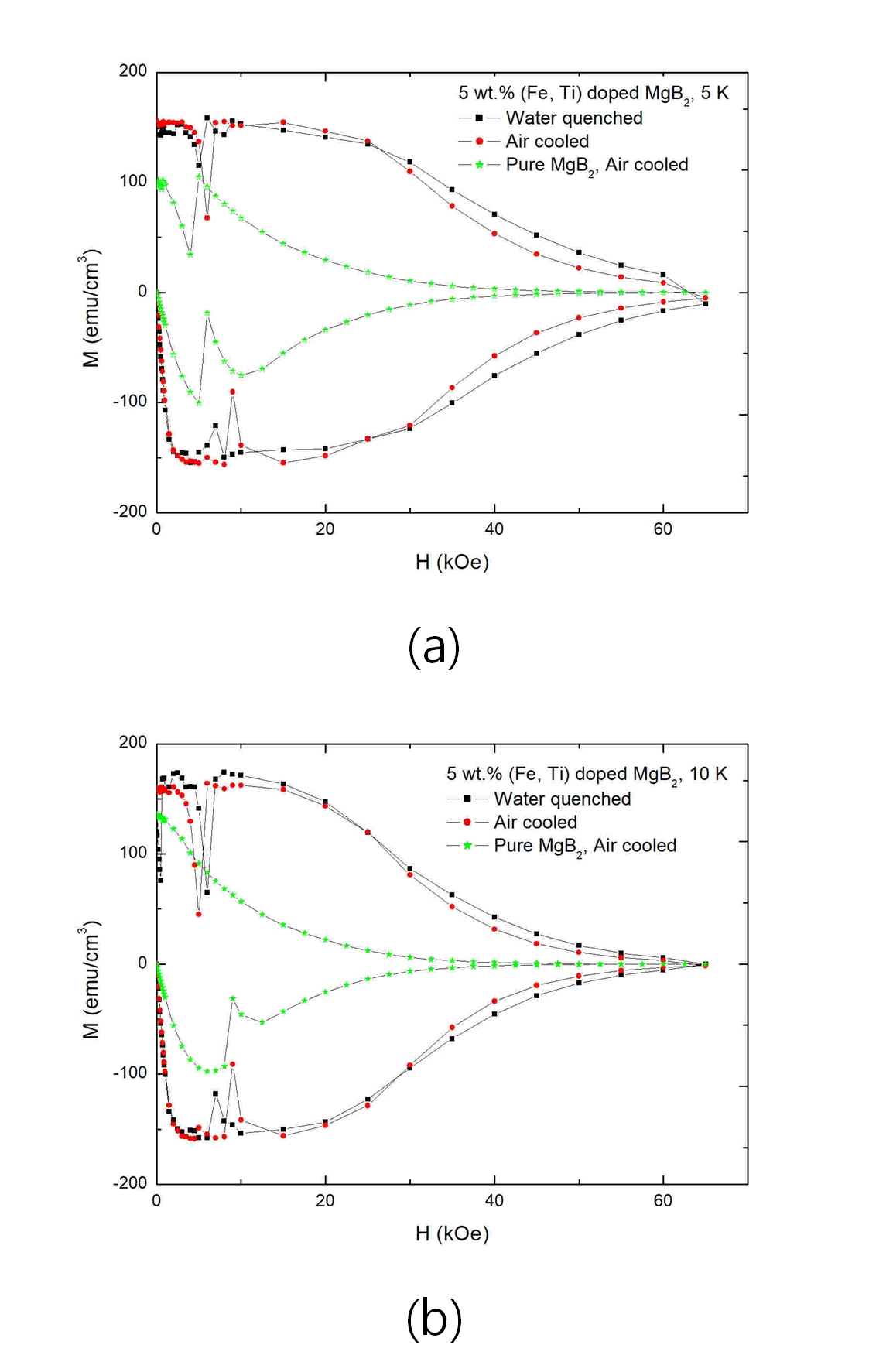

Figure 1 shows field dependences of magnetization (M-H) curves at 5 K, which are those of 5 wt.% (Fe, Ti) particle-doped MgB2 specimens cooled in air and quenched in water, respectively. Pure MgB2 are used as a reference, which was cooled in air. After doping 5 wt.% (Fe, Ti) particles on MgB2, the field dependences of magnetization of the specimens have been improved greatly regardless of cooling methods.

On the other hand, there was a significant difference in the M-H curves between 5 wt.% (Fe, Ti) particle-doped MgB2 specimens according to cooling methods. The first is that there was a magnetization difference on the higher applied magnetic field, which is that $\Delta$M of WQed specimen is much larger than the counterpart in magnetic field above 2.5 Tesla (T). And the second is that the crossover field of diamagnetic property of the two specimens was occurred around 2.5 T. It means that the air-cooled (ACed) specimen has a larger $\Delta$M under 2.5 T whereas WQed specimen has a larger $\Delta$M over 2.5 T.

Considering the reason that $\Delta$M of WQed specimen is smaller in lower field whereas it is larger in higher field compared with that of ACed specimen, this behavior seems to be caused by increased GBs due to the WQing. As mentioned above, GBs are not only interconnected, but also connected at volume defects. The free energy density of a volume defect is much deeper than that of the planar defect due to its own volume ($\Delta G_{defect}$ = -$\frac{(H-B)^{2}}{8\pi}\times\frac{4}{3}\pi r^{3}$, where H is applied field, B is magnetic induction and r is radius of a volume defect).

When many fluxes are pinned at a volume defect, the free energy density of the volume defect would not only increase (depth of $\Delta G_{defect}$ become shallow), but pinned fluxes at volume defects also have some tension of depinning (pick-out depinning) caused by repulsive force between them Lee4 . Therefore, they would leak out from the volume defect (leak-out depinning) through the GBs because a volume defects pinned the fluxes many enough and GBs are connected at the volume defect. The more GBs are connected at the volume defect, the more some of the pinned fluxes at the volume defect can be leak-out depinned from the volume defect through GBs.

The presence of leak-out depinning fluxes from the volume defect means that the fluxes move into an inside of the superconductor. When the behavior occurs, magnetic induction (B) increase and diamagnetic property (M) also decreases by 4$\pi$M = B - H. Therefore, diamagnetic property of a WQed 5 wt.% (Fe, Ti) particle-doped MgB2 having many GBs is lower than that of ACed one on lower field than 2.5 T, as shown in Fig. 1.

On the other hand, considering the higher applied magnetic field than crossover field ($>$ 2.5 T), all of the volume defects in the superconductor already pinned fluxes to their pinning limits because volume defects pinned the fluxes preferentially, which was caused by the fact that pinned fluxes at volume defects bent like bow Lee4 . If applied magnetic field increases more, the volume defect does not pin more fluxes. From this field, GB begins to show its ability as a barrier for the movement of fluxes. Of course, there is also a flux-pinning effect of GBs at lower field than 2.5 T. However, leak-out depinned fluxes from the volume defect through GBs are only visible in M-H curve because flux-pinning effect of volume defects is very strong under lower applied magnetic field (especially 0.2 T - 2.0 T in WQed specimen).

The mechanism appeared clearly in the experiments, as shown Fig. 1 (a). Since the volume defect of ACed specimen begin to be weakened as a pinning center from 1.5 T (2.0 T for WQed specimen) and the pinning effects of GBs are clearly seen over 2.5 T. Considered at 6 T in the figure, it is noted that total pinning effects by GBs of WQed specimen are more than twice when compared with that of ACed one.

When the external field is less than 1.5 T, M-H curve of ACed 5 wt.% (Fe, Ti) particle-doped MgB2 is almost parallel with horizontal line, which means $\Delta$H=$\Delta$B region Lee4 , whereas the WQed specimen is slightly angled with the horizontal line as shown in Fig. 1 (a). This behavior of WQed specimen means that the pinned fluxes on the volume defects in the WQed specimen are leak-out depinned from the volume defect more easier than that of the AC specimens owing to increased GBs, and the leak-out depinned fluxes penetrate into an inside of the superconductor along GBs.

Therefore, the amount of penetrated fluxes (B) into the superconductor increases, and the diamagnetic property decreases. The behavior is profounder at 10 K. Figure 1 (b) shows M-H curves at 10 K, which are that of 5 wt.% (Fe, Ti) particle-doped MgB2 specimens cooled in air and quenched in water, respectively. The crossover field of the two specimens is occurred around 2.5 T, which is similar with that of 5 K.

However, inspecting entire M-H curve, the crossover field shifted a quite higher field. This means that the influence of flux-pinning effects by GBs on the overall flux-pinning is reduced at 10 K compared with that at 5 K, which also means that pinned fluxes at volume defect leak-out depinned easier at 10 K than 5 K. The behavior are supported by the results that the diamagnetic property of 10 K decreased severely than that of 5 K in WQed doped specimen below crossover field as applied magnetic field increases, as shown in Fig. 1 (a) and (b). Therefore, it is determined that the increased GBs by WQing have promoted leak-out depinning as temperature increases.

III.2 Effects on M-H curves by water-quenching of 5 wt.% (Fe, Ti) particle-doped MgB2 at higher temperatures

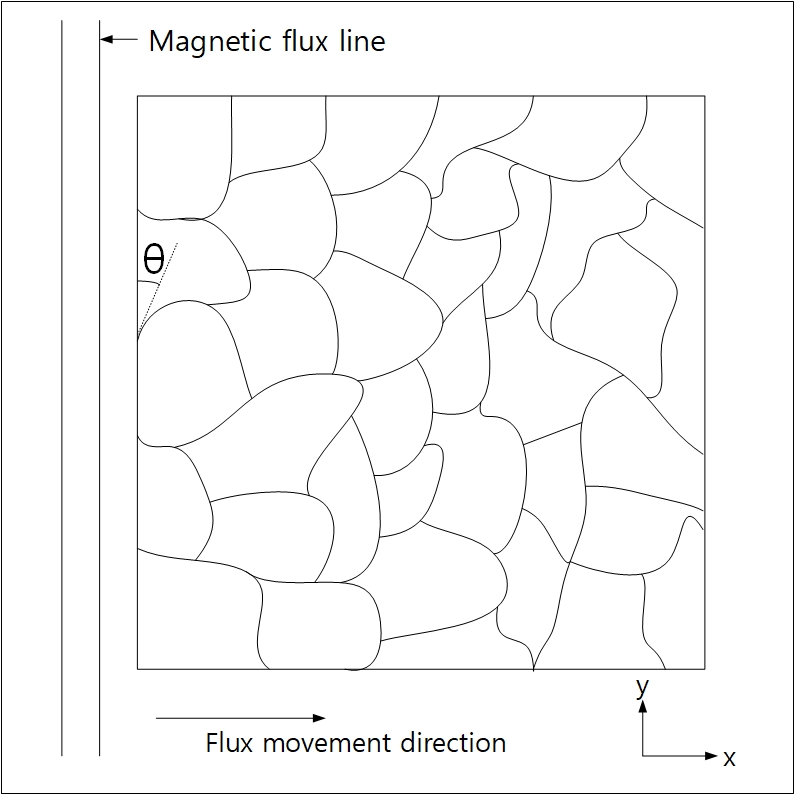

For proving flux-pinning effect and flux-penetrating promotion effect of GBs, we assumed that a superconductor has GBs in two dimensions (2-D) as shown in Fig. 2. When the external magnetic field is applied along y-axis, quantum fluxes in the superconductor move along x-axis as shown in the figure. They would serve as a pinning center when the fluxes move perpendicular to the GB (when the longitudinal direction of the flux and the plane direction of the GB are parallel).

However, GBs would act as a pathway to penetrate the fluxes into an inside of the superconductor rather than flux-pinning sites to pin the fluxes if the fluxes move through GBs that are in parallel with their direction of movement. Thus, $F_{pinning,GB}$ (pinning force of a GB) in 2-D is $F_{0}dcos\theta$ if the angle between the flux line and the GB is $\theta$ as shown in Fig. 2, where $F_{0}$ is the pinning force density of a GB in 2-D when the $\theta$ is 0 and $d$ is a width of the GB. On the other hand, $P_{pene,GB}$ (flux-penetrating promotion rate of GB) in 2-D is $P_{0}dsin\theta$, where $P_{0}$ is flux-penetrating promotion rate which is 1 in normal state.

It is known that coherence length ($\xi$) of a superconductor along temperature follows the equation

[TABLE]

where t = T/Tc Tinkham , Tc is critical temperature and T is a temperature which is lower than Tc. Table 1 shows variations of coherence length along temperature and ratios of a pinned quantum flux at GB when the width of GB can pin single flux quantum acoss GB. It was assumed that Hc2 of the superconductor is 65.4 T at 0 K and Tc is 37.5 K Lee6 . As shown in the table, flux-pinning effect of GB would drop sharply as temperature increases. On the other hand, flux-penetrating promotion effect increases as temperature increases because superconductivity of the specimen decreases and coherence length increases as temperature increases. Therefore, the movements of pinned fluxes at GB would be much easier as temperature increases.

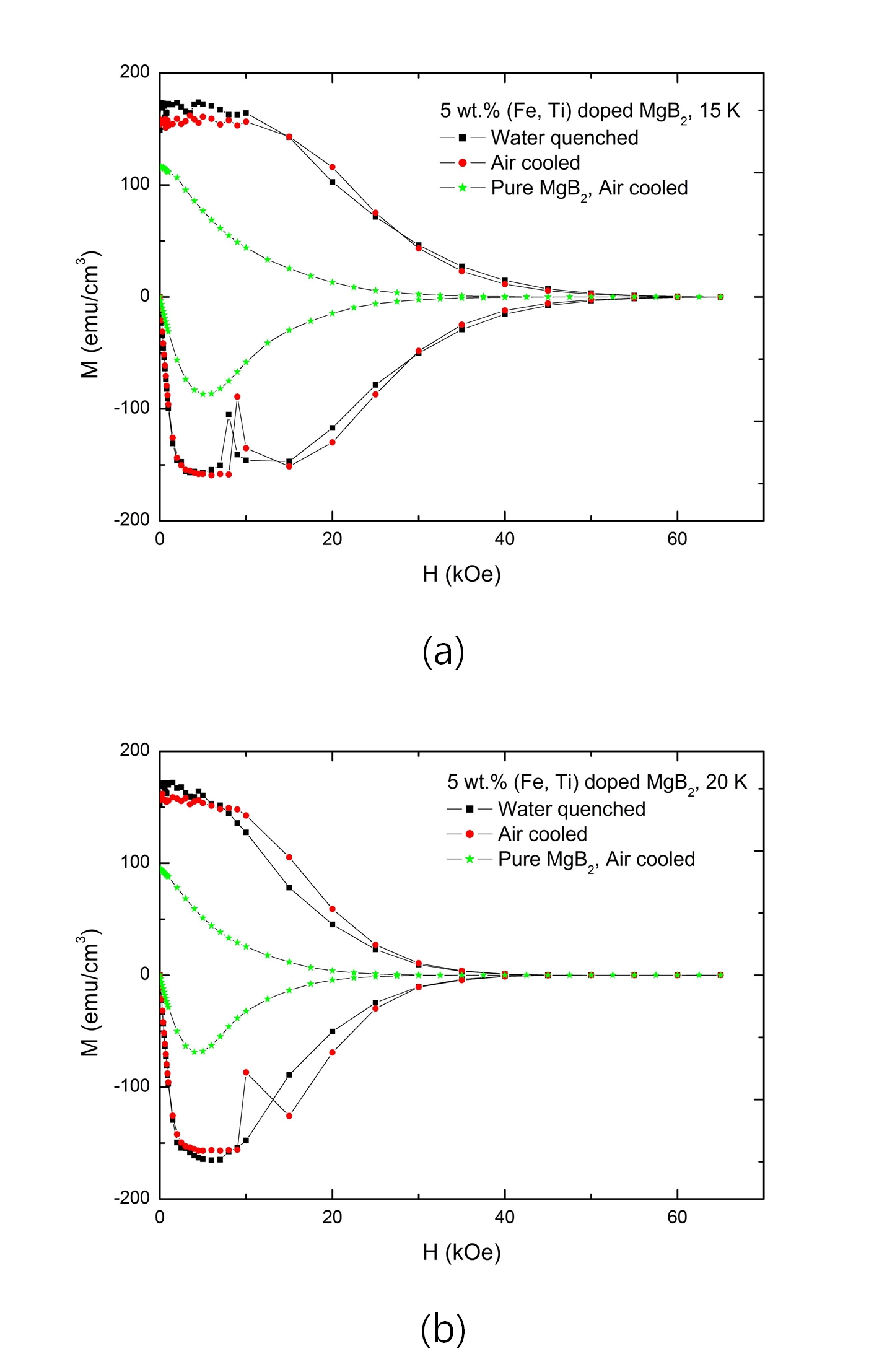

The behavior predicted by the representation is confirmed by Fig. 3 and Fig. 4. Figure 3 (a) is M-H curves at 15 K, which are those of 5 wt.% (Fe, Ti) doped MgB2 specimens cooled in air and quenched in water, respectively. M-H curves of the two specimens almost overlap at at 15 K, but $\Delta$M of the WQed specimen are slightly larger in the field over 2.5 T, which means that flux-pinning of GBs is still meaningful at the temperature. As temperature increases up to 20 K (Fig. 3 (b)), diamagnetic property of the ACed specimen is larger than that of the WQed specimen in entire field except the low field. From the results, we can understand that flux-penetrating promotion effect of GBs was larger than flux-pinning effect of them at 20 K.

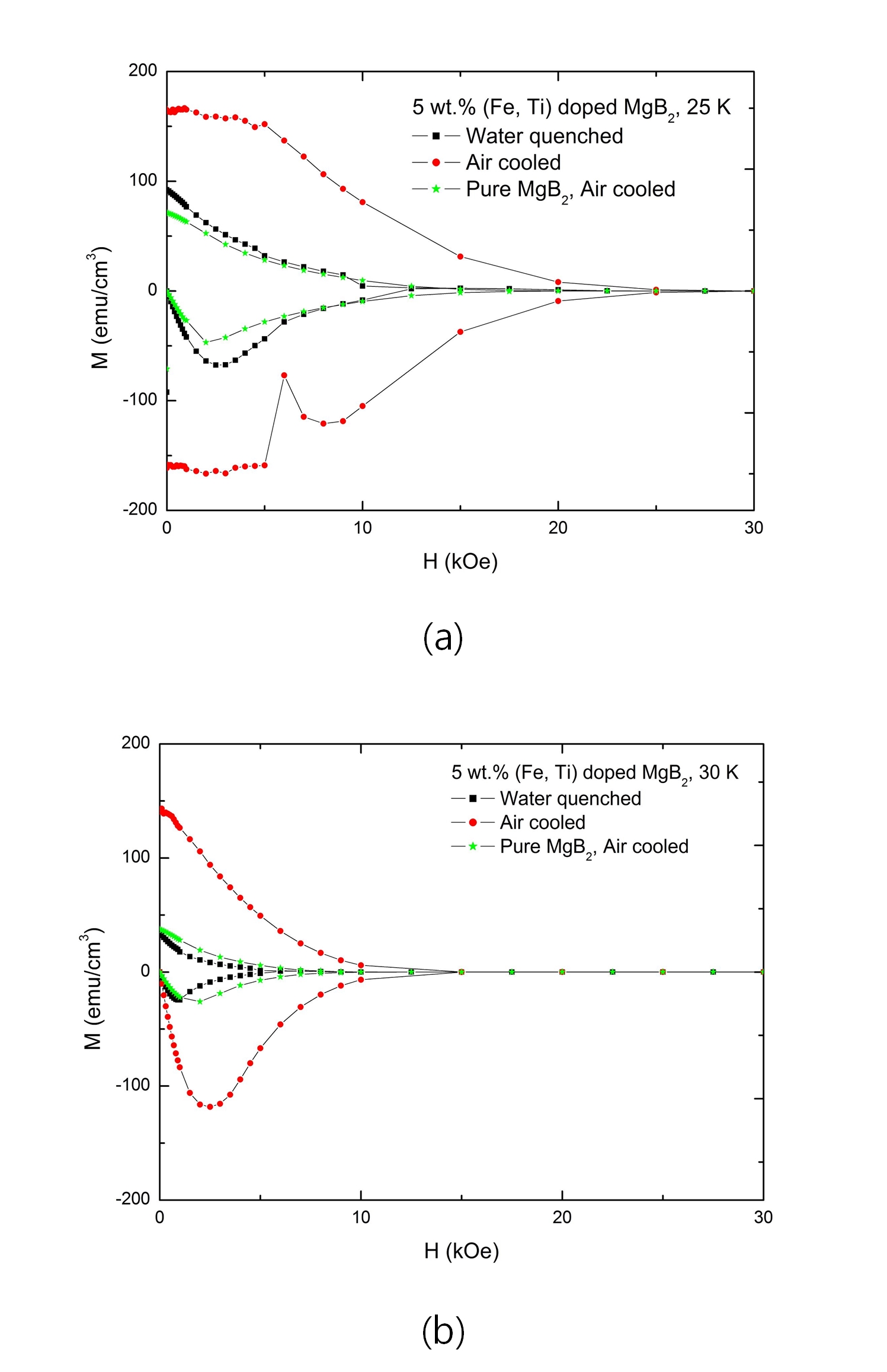

The tendency is more pronounced at 25 K. Figure 4 (a) shows that $\Delta$M of the ACed 5 wt.% (Fe, Ti) doped MgB2 are much larger than that of the WQed specimen over the entire field at 25 K. The decrease of diamagnetic property of the WQed specimen is too great to compare with that of the ACed specimen. The tendency is much more pronounced at 30 K (Fig. 4 (b)). The diamagnetic property of WQed 5 wt.% (Fe, Ti) particle-doped MgB2 specimens show even worse than that of ACed pure MgB2 specimen. The behavior proves the prediction that GBs did not play a role as flux-pinning centers but did as flux-penetrating promotion pathway owing to increased coherence length at 30 K. On the other hand, the maximum diamagnetic property of ACed doped specimen at 30 K is still not significantly different from the maximum diamagnetic property of other temperatures. It is considered to be because leak-out depinning of the ACed doped specimen was small.

III.3 Discussion

In order to know the width of GB and the amount of increased GBs by WQing, images of the specimens were taken by using transmission electron microscope (TEM). TEM image of ACed 5 wt.% (Fe, Ti) particle-doped MgB2 is shown in Fig. 5 (a). Inspecting GBs of MgB2, they are rather clearly observed when growth directions of two MgB2 grains are definitely different, but GBs are not clearly observed when they are not. The image was taken for the area that GB is clearly shown. Considered by the image, grain size of ACed specimen was over 100 nm.

Figure 5 (b) is TEM image of WQed 5 wt.% (Fe, Ti) particle-doped MgB2. A grain size of the WQed specimen was considerably reduced when compared with that of ACed specimen, and the size of the grain is less than 50 nm. Figure 5 (c) is the magnified image of the square in Fig. 5 (a). It is observed that the width of GB is less than 1 nm and the distribution of atom at neighborhoods of the GB was a little distorted from regular array of MgB2.

Therefore, a GB of MgB2 cannot pin several quantum fluxes across the width of a GB because the width of a GB (1 nm) is narrower than the $\xi$ of MgB2 (2.24 nm, 0 K). Another image of WQed 5 wt.% (Fe, Ti) particle-doped MgB2 are shown in Fig. 5 (d). We drew GB lines because GB lines of MgB2 are not clearly shown because mismatch between grains are not significant, but it is clear that growth direction of grains is different in the image. It is certain that GB density of WQed specimen considerably increased when compared with that of ACed specimen as shown in Fig. 5.

Calculating increased GB density by WQing, it is assumed that a grain of radius $r_{o}$ is divided to grains of radius r. Increased surface area by the divide is

[TABLE]

where n is the number of divide ($r_{o}$=$nr$). However, increased grain boundary area is \frac{n}{2}$$\times 4\pi r_{o}^{2} because grains in a material are in contact with each other. Therefore, GB density of the WQed specimen is

[TABLE]

where $a_{o}$ is GB density of the ACed specimen. Numerically, n is 2 when a grain size is reduced from 100 nm to 50 nm by WQing as shown in Fig. 5. Thus, the ratio of GB density between the WQed specimen and the ACed specimen ($A_{GB,WQ}/A_{GB,AC}$) is $\frac{3}{2}$.

On the other hand, increased GB density of the WQed specimen can be estimated by using M-H curve. Paying attention to 6 Tesla in Fig. 1 (a). $\Delta$M of the WQed specimen is approximately two times compared with that of the ACed specimen. The flux-pinning effect of volume defects become infinitesimal at the field because volume defects already have not only pinned the fluxes to their pinning limit but volume defects also are same for the two specimen Lee4 . Thus, flux-pinning effects of GBs are dominant. Considering the amount of flux-pinning effects of GBs, n is 3 in WQed specimen by Eq. (3) because flux-pinning effect of the WQed specimen is two times compared with that of ACed specimen, which means that grains of the WQed specimen are more refined than results of TEM. We think that the result of M-H curves is more reliable than that of TEM because the images of TEM are focused at a area.

IV conclusion

We studied field dependence of magnetization for water-quenched 5 wt.% (Fe, Ti) particles-doped MgB2 specimen and compared with that of the air-cooled specimen for flux-pinning effects caused by increased grain boundaries (GBs) by water-quenching. The diamagnetic properties of water-quenched specimen were rather lower than that of air-cooled specimen in less than 2.5 T at low temperatures (5 K and 10 K). It was because the increased GBs were served as a pathway leak-out depinning the fluxes pinned on the volume defects. On the other hand, diamagnetic properties of water-quenched specimen were higher than that of air-cooled specimen in more than 2.5 T at the temperatures, which were because the increased GBs by water-quenching are served as pinning center. TEM revealed that the width of grain boundary in specimens is approximately 1 nm, which is not wide enough to pin several flux quanta across the width of GB. A representation revealed that a GB has flux-pinning effect and a flux-penetrating promotion effect simultaneously. The increased coherence length of the superconductor as temperature increases resulted in a significant decrease of the flux-pinning effect of water-quenched specimen compared with that of air-cooled specimen, which was caused by increased GBs. On the other hand, degree of grain refinement by water-quenching for the specimen was evaluated by TEM and M-H curves, respectively. The result of M-H curves was more refined than that of TEM and the result of M-H curves is more reliable than that of TEM because the images of TEM are focused at a area.

$\bf{Acknowledgment}$

The authors would like to thank Dr. Byeong-Joo Kim of PNU for careful discussion.
