A Multiscale Visualization of Attention in the Transformer Model

TL;DR

This paper introduces an open-source visualization tool for multi-scale attention in Transformer models like BERT and GPT-2, aiding interpretability by revealing how models assign attention across layers and heads.

Contribution

The paper presents a novel visualization tool that makes multi-layer, multi-head attention mechanisms in Transformers more interpretable and accessible.

Findings

Effective in detecting model bias

Identifies relevant attention heads

Links neurons to model behavior

Abstract

The Transformer is a sequence model that forgoes traditional recurrent architectures in favor of a fully attention-based approach. Besides improving performance, an advantage of using attention is that it can also help to interpret a model by showing how the model assigns weight to different input elements. However, the multi-layer, multi-head attention mechanism in the Transformer model can be difficult to decipher. To make the model more accessible, we introduce an open-source tool that visualizes attention at multiple scales, each of which provides a unique perspective on the attention mechanism. We demonstrate the tool on BERT and OpenAI GPT-2 and present three example use cases: detecting model bias, locating relevant attention heads, and linking neurons to model behavior.

Figures

Equations

$$\alpha_{i}=\mbox{softmax}\Big{(}\frac{q_{i}\cdot k_{1}}{\sqrt{d}},\frac{q_{i}\cdot k_{2}}{\sqrt{d}},...,\frac{q_{i}\cdot k_{N}}{\sqrt{d}}\Big{)}$$

Full text

1 Introduction

In 2018, the BERT (Bidirectional Encoder Representations from Transformers) language representation model achieved state-of-the-art performance across NLP tasks ranging from sentiment analysis to question answering (Devlin et al., 2018). Recently, the OpenAI GPT-2 (Generative Pretrained Transformer-2) model outperformed other models on several language modeling benchmarks in a zero-shot setting Radford et al. (2019).

Underlying BERT and GPT-2 is the Transformer model, which uses a fully attention-based approach in contrast to traditional sequence models based on recurrent architectures Vaswani et al. (2017). An advantage of using attention is that it can help interpret a model by showing how the model assigns weight to different input elements (Bahdanau et al., 2015; Belinkov and Glass, 2019), although its value in explaining individual predictions may be limited Jain and Wallace (2019). Various tools have been developed to visualize attention in NLP models, ranging from attention-matrix heatmaps (Bahdanau et al., 2015; Rush et al., 2015; Rocktäschel et al., 2016) to bipartite graph representations (Liu et al., 2018; Lee et al., 2017; Strobelt et al., 2018).

One challenge for visualizing attention in the Transformer is that it uses a multi-layer, multi-head attention mechanism, which produces different attention patterns for each layer and head. BERT-Large, for example, which has 24 layers and 16 heads, generates 24 $\times$ 16 = 384 unique attention structures for each input. Jones (2017) designed a visualization tool specifically for multi-head attention, which visualizes attention over multiple heads in a layer by superimposing their attention patterns Vaswani et al. (2017, 2018).

In this paper, we extend the work of Jones (2017) by visualizing attention in the Transformer at multiple scales. We introduce a high-level model view, which visualizes all of the layers and attention heads in a single interface, and a low-level neuron view, which shows how individual neurons interact to produce attention. We also adapt the tool from the original encoder-decoder implementation to the decoder-only GPT-2 model and the encoder-only BERT model.

2 Visualization Tool

We now present a multiscale visualization tool for the Transformer model, available at https://github.com/jessevig/bertviz. The tool comprises three views: an attention-head view, a model view, and a neuron view. Below, we describe these views and demonstrate them on the GPT-2 and BERT models. We also present three use cases: detecting model bias, locating relevant attention heads, and linking neurons to model behavior. A video demonstration of the tool can be found at https://vimeo.com/340841955.

2.1 Attention-head view

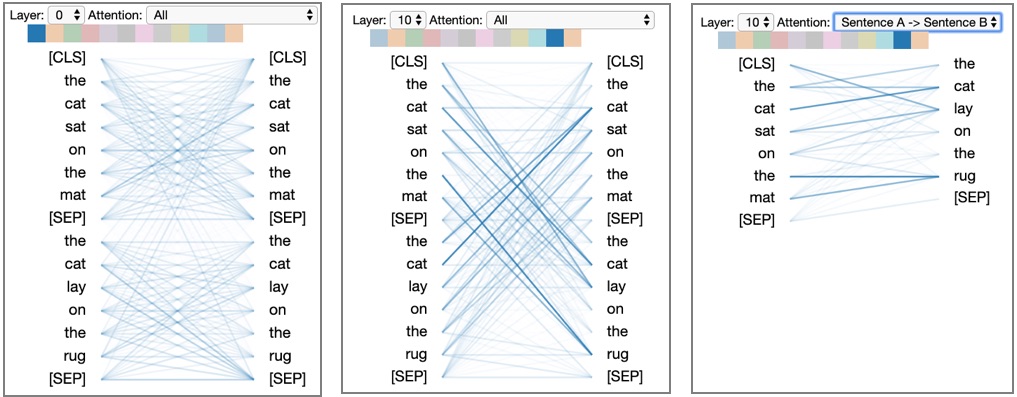

The attention-head view visualizes the attention patterns produced by one or more attention heads in a given layer, as shown in Figure 2 (GPT-2111GPT-2 small pretrained model.) and Figure 2 (BERT222BERT-base, uncased pretrained model.). This view closely follows the original implementation of Jones (2017), but has been adapted from the original encoder-decoder implementation to the encoder-only BERT and decoder-only GPT-2 models.

In this view, self-attention is represented as lines connecting the tokens that are attending (left) with the tokens being attended to (right). Colors identify the corresponding attention head(s), while line weight reflects the attention score. At the top of the screen, the user can select the layer and one or more attention heads (represented by the colored squares). Users may also filter attention by token, as shown in Figure 2 (right); in this case the target tokens are also highlighted and shaded based on attention weight. For BERT, which uses an explicit sentence-pair model, users may specify a sentence-level attention filter; for example, in Figure 2 (right), the user has selected the Sentence A $\rightarrow$ Sentence B filter, which only shows attention from tokens in Sentence A to tokens in Sentence B.

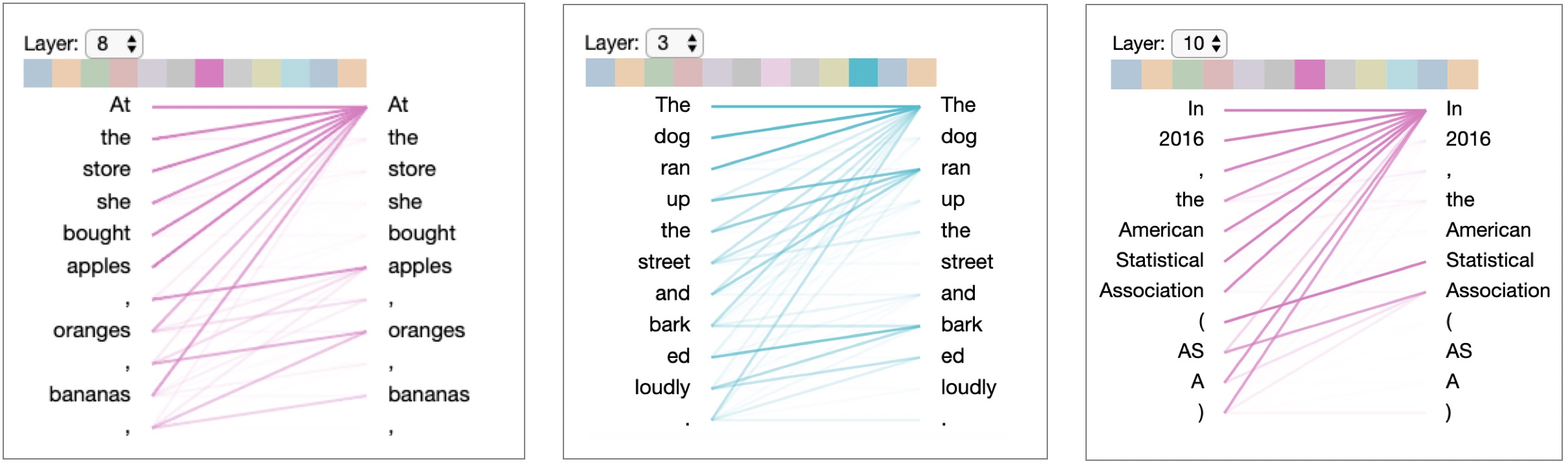

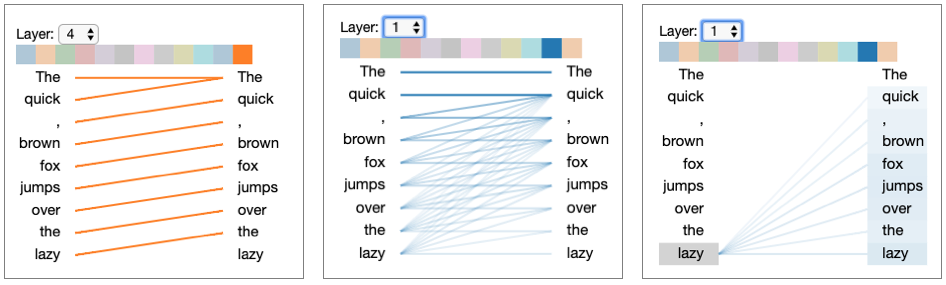

Since the attention heads do not share parameters, each head learns a unique attention mechanism. In the head shown in Figure 2 (left), for example, each word attends to the previous word in the sentence. The head in Figure 2 (center), in contrast, generates attention that is dispersed roughly evenly across previous words in the sentence (excluding the first word). Figure 2 shows attention heads for BERT that capture sentence-pair patterns, including a within-sentence pattern (left) and a between-sentence pattern (center).

Besides these coarse positional patterns, attention heads also capture specific lexical patterns, such as those as shown in Figure 3. Other attention heads detected named entities (people, places, companies), paired punctuation (quotes, brackets, parentheses), subject-verb pairs, and other syntactic and semantic relations. Recent work shows that attention in the Transformer correlates with syntactic constructs such as dependency relations and part-of-speech tags Raganato and Tiedemann (2018); Voita et al. (2019); Vig and Belinkov (2019).

Use Case: Detecting Model Bias

One use case for the attention-head view is detecting bias in the model, which we illustrate for the case of conditional language generation using GPT-2. Consider the following continuations generated333Using GPT-2 small model with greedy decoding. from two input prompts that are identical except for the gender of the pronouns (generated text underlined):

• •

The doctor asked the nurse a question. She said, “I’m not sure what you’re talking about.”

• •

The doctor asked the nurse a question. He asked her if she ever had a heart attack.

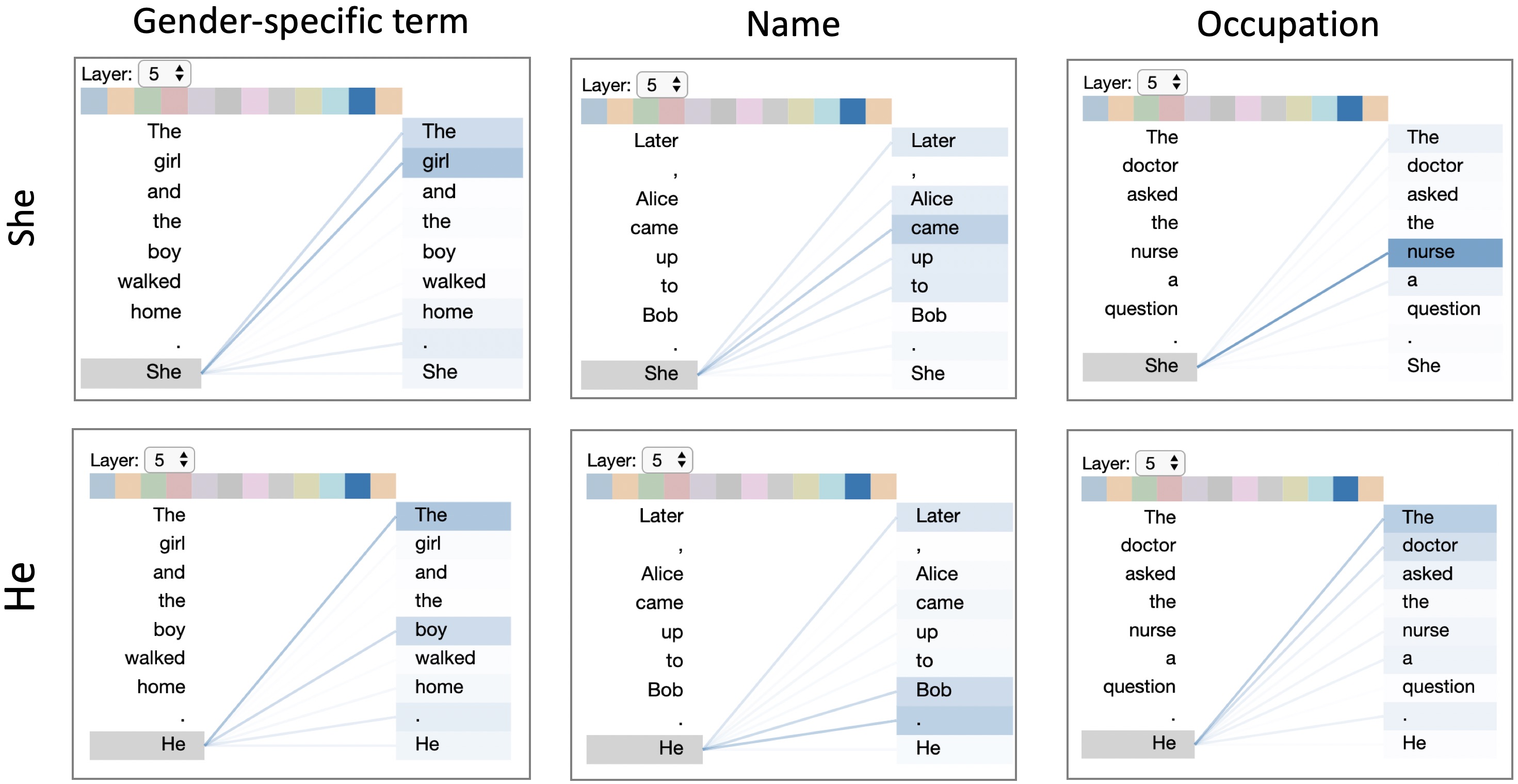

In the first example, the model generates a continuation that implies She refers to nurse. In the second example, the model generates text that implies He refers to doctor. This suggests that the model’s coreference mechanism may encode gender bias Zhao et al. (2018); Lu et al. (2018). Figure 4 shows an attention head that appears to perform coreference resolution based on the perceived gender of certain words. The two examples from above are shown in Figure 4 (right), which reveals that She strongly attends to nurse, while He attends more to doctor. By identifying a source of potential model bias, the tool could inform efforts to detect and control for this bias.

2.2 Model View

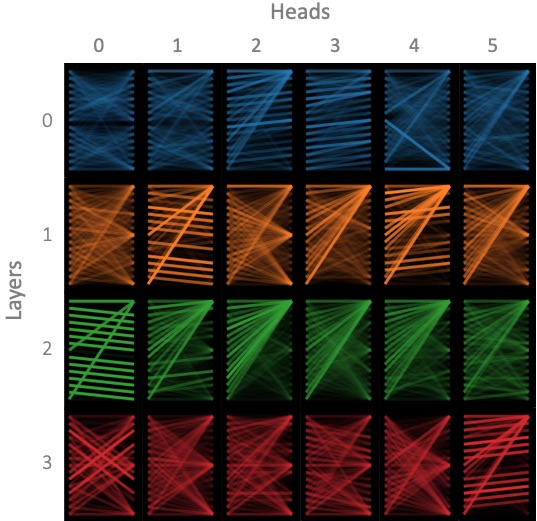

The model view (Figure 5) provides a birds-eye view of attention across all of the model’s layers and heads for a particular input. Attention heads are presented in tabular form, with rows representing layers and columns representing heads. Each layer/head is visualized in a thumbnail form that conveys the coarse shape of the attention pattern, following the small multiples design pattern (Tufte, 1990). Users may also click on any head to enlarge it and see the tokens.

The model view enables users to quickly browse the attention heads across all layers and to see how attention patterns evolve throughout the model.

Use Case: Locating Relevant Attention Heads

As discussed earlier, attention heads in BERT exhibit a broad range of behaviors, and some may be more relevant for model interpretation than others depending on the task. Consider the case of paraphrase detection, which seeks to determine if two input texts have the same meaning. For this task, it may be useful to know which words the model finds similar (or different) between the two sentences. Attention heads that draw connections between input sentences would thus be highly relevant. The model view (Figure 5) makes it easy to find these inter-sentence patterns, which are recognizable by their cross-hatch shape (e.g., layer 3, head 0). These heads can be further explored by clicking on them or accessing the attention-head view, e.g., Figure 2 (center). This use case is described in greater detail in Vig (2019).

2.3 Neuron View

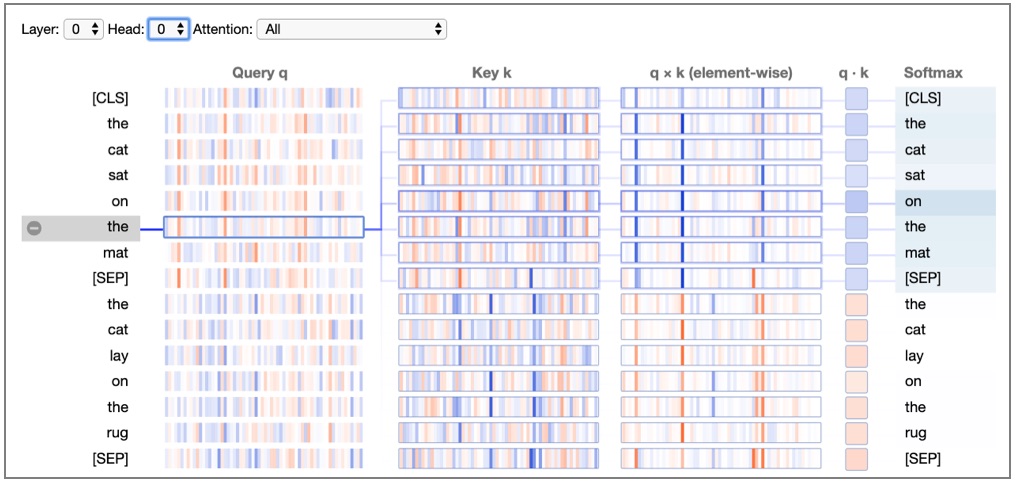

The neuron view (Figure 7) visualizes the individual neurons in the query and key vectors and shows how they interact to produce attention. Given a token selected by the user (left), this view traces the computation of attention from that token to the other tokens in the sequence (right).

Note that the Transformer uses scaled dot-product attention, where the attention distribution at position $i$ in a sequence $x$ is defined as follows:

[TABLE]

where $q_{i}$ is the query vector at position $i$, $k_{j}$ is the key vector at position $j$, and $d$ is the dimension of $k$ and $q$. $N$=$i$ for GPT-2 and $N$=len($x$) for BERT.444GPT-2 only considers the context up to position $i$, while BERT considers the entire sequence. All values are specific to a particular layer / head.

The columns in the visualization are defined as follows:

• •

Query q: The query vector of the selected token that is paying attention.

• •

Key k: The key vector of each token receiving attention.

• •

q$\times$k (element-wise): The element-wise product of the query vector and each key vector. This shows how individual neurons contribute to the dot product (sum of element-wise product) and hence attention.

• •

q $\cdot$ k: The dot product of the selected token’s query vector and each key vector.

• •

Softmax: The softmax of the scaled dot-product from previous column. This is the attention score.

Whereas the attention-head view and the model view show what attention patterns the model learns, the neuron view shows how the model forms these patterns. For example, it can help identify neurons responsible for specific attention patterns, as discussed in the following use case.

Use Case: Linking Neurons to Model Behavior

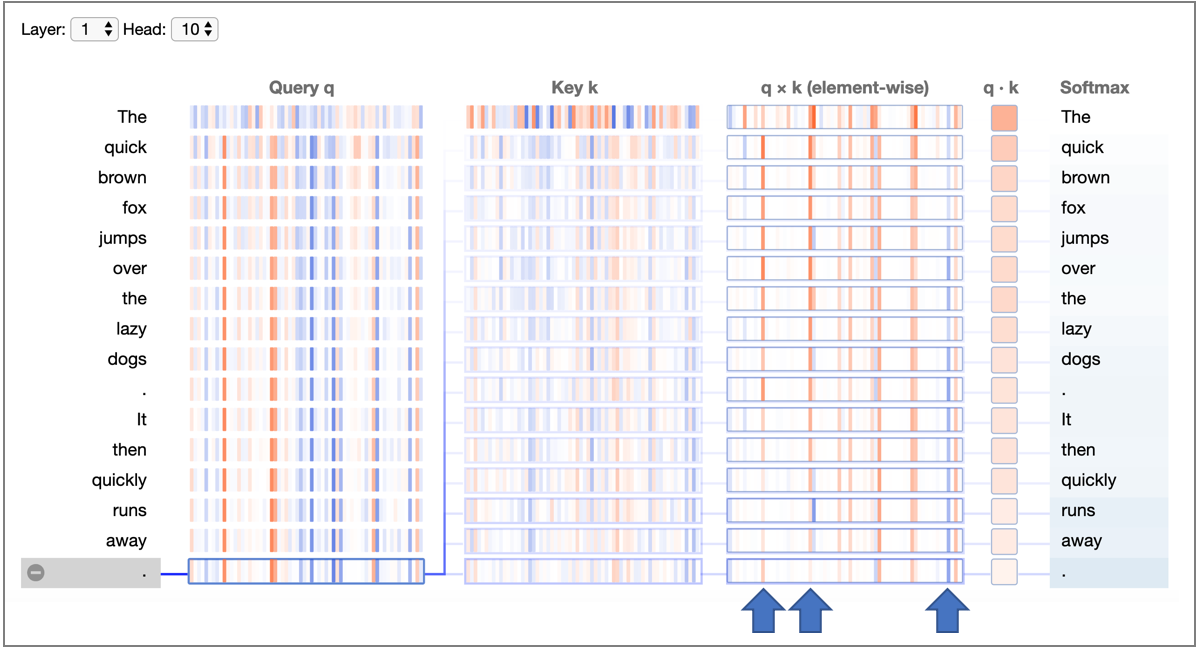

To see how the neuron view might provide actionable insights, consider the attention head in Figure 7. For this head, the attention (rightmost column) decays with increasing distance from the source token. This pattern resembles a context window, but instead of having a fixed cutoff, the attention decays continuously with distance.

The neuron view provides two key insights about this attention head. First, the attention weights appear to be largely independent of the content of the input text, based on the fact that all the query vectors have very similar values (except for the first token). Second, a small number of neuron positions (highlighted with blue arrows) appear to be mostly responsible for this distance-decaying attention pattern. At these neuron positions, the element-wise product $q\times k$ decreases as the distance from the source token increases (either becoming darker orange or lighter blue).

When specific neurons are linked to a tangible outcome, it presents an opportunity to intervene in the model (Bau et al., 2019). By altering the relevant neurons—or by modifying the model weights that determine these neuron values—one could control the attention decay rate, which might be useful when generating texts of varying complexity. For example, one might prefer a slower decay rate (longer context window) for a scientific text compared to a children’s story. Other heads may afford different types of interventions.

3 Conclusion

In this paper, we introduced a tool for visualizing attention in the Transformer at multiple scales. We demonstrated the tool on GPT-2 and BERT, and we presented three use cases. For future work, we would like to develop a unified interface to navigate all three views within the tool. We would also like to expose other components of the model, such as the value vectors and state activations. Finally, we would like to enable users to manipulate the model, either by modifying attention (Lee et al., 2017; Liu et al., 2018; Strobelt et al., 2018) or editing individual neurons (Bau et al., 2019).
