Magnetoelasticity of $\mathrm{Co_{25}}\mathrm{Fe_{75}}$ thin films

TL;DR

This study measures the magnetoelastic properties of Co-Fe thin films, revealing negative magnetostriction and highlighting their potential for micromechanical magnonic applications.

Contribution

It provides the first detailed measurement of magnetostrictive constants for specific Co-Fe thin films, contrasting bulk properties and identifying promising materials for sensors.

Findings

Negative magnetostriction constants for thin films.

Co25Fe75 combines low damping with sizable magnetostriction.

Potential applications in sensors and hybrid phonon-magnon systems.

Abstract

We investigate the magnetoelastic properties of $\mathrm{Co_{25}}\mathrm{Fe_{75}}$ and $\mathrm{Co_{10}}\mathrm{Fe_{90}}$ thin films by measuring the mechanical properties of a doubly clamped string resonator covered with multi-layer stacks containing these films. For the magnetostrictive constants we find $\lambda_{\mathrm{Co_{25}}\mathrm{Fe_{75}}}=(-20.68\pm0.25)\times10^{-6}$ and $\lambda_{\mathrm{Co_{10}}\mathrm{Fe_{90}}}=(-9.80\pm0.12)\times10^{-6}$ at room temperature. In stark contrast to the positive magnetostriction previously found in bulk CoFe crystals. $\mathrm{Co_{25}}\mathrm{Fe_{75}}$ thin films unite low damping and sizable magnetostriction and are thus a prime candidate for micromechanical magnonic applications, such as sensors and hybrid phonon-magnon systems.

Figures

Equations

$${\Omega }_0=\frac{\left({\sigma }_0+{\sigma }_1\cos {\Theta }^2\right)\pi \sqrt{{\rho }_{\mathrm{eff}}^{-1}}}{L\sqrt{{\sigma }_0+{\sigma }_1\cos {\Theta }^2}-2\sqrt{E{t}^2/12}}.$$

$$\Theta (\Phi )=\Phi -\frac{K\sin (2\Phi )}{-M_{\text{S}}{\mu }_{0}H+2K\cos (2\Phi )},$$

$${\lambda }_{\parallel }=\frac{{\sigma }_{1}t}{t_{\mathrm{CoFe}}{E}_{\mathrm{CoFe}}}.$$

$$b_1=-\frac{3{\lambda }_{\parallel }G}{M_{\mathrm{S}}},$$

Full text

††preprint: DS001

Magnetic alloys are an extremely well studied material group due to their importance for applications in magnetic information storage. While properties such as the saturation magnetization and magnetic anisotropy play key roles for the static configuration and stability of the magnetization state, material parameters related to magnetization control (beyond such enacted by static magnetic fields) are also of interest. Apart from current-induced magnetization switchingMangin et al. (2006); Krause et al. (2007); Yang, Kimura, and Otani (2008); Miron et al. (2011); Liu et al. (2012), techniques based on magnetostriction constitute a complementary way to control the magnetization direction. Here, the elastic deformation of the material generates a strain-induced anisotropy term which can be used to reorient the magnetization. Static control Weiler et al. (2009); Brandlmaier et al. (2011); Spaldin and Fiebig (2005); Martin and Ramesh (2012) as well as the excitation of magnetization dynamics Dreher et al. (2012); Weiler et al. (2011); Gowtham et al. (2015); Chang et al. (2018) already has been demonstrated. Moreover, the reciprocal effect is used in sensing applications based on magnetoelastics Grimes et al. (2011).

Cobalt iron alloys recently regained interest as an electrically conducting ferromagnetic material with ultra-low damping Schoen et al. (2016, 2017); Flacke et al. . Damping in thin film Co25Fe75 was found to be as low as in thin film yttrium iron garnet Collet et al. (2017). Since applications in spin electronics are usually based on thin films, quantification of the magnetoelastic properties of thin film Co25Fe75 is required. In previous studies Hall (1959); Hunter et al. (2011); Quandt and Ludwig (1999, 2000); Quandt et al. (1998); Ludwig et al. (2002); Chopra et al. (2005); Johnson et al. (2004); Cooke, Gibbs, and Pettifer (2001); Cooke et al. (2000); Żuberek et al. (2000); Hung et al. (2000); Cheng et al. (2018) only bulk materials have been studied.

In this article, we investigate the magnetostrictive properties of $\mathrm{Co_{25}}\mathrm{Fe_{75}}\,\mathrm{and}\,\mathrm{Co_{10}}\mathrm{Fe_{90}}$ thin films. The films were grown using the same recipe as the ultra-low damping material of Ref. 15. In our study we employ magnetostriction measurements based on nano-strings as reported in Ref.32. The paper is organized as follows: First we briefly sketch the physics of the nano-strings and how it is influenced by the magnetoelastic properties of the $\mathrm{Co_{x}}\mathrm{Fe_{1-x}}$ thin films deposited on them. Then we give a short description of sample fabrication, and the experimental setup used to characterize them. We then provide an in depth data analysis and summarize our findings.

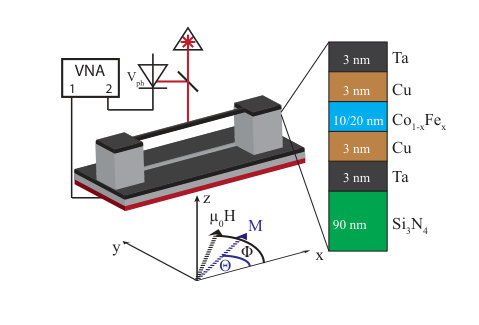

To access the magnetostrictive properties of thin film $\mathrm{Co_{x}}\mathrm{Fe_{1-x}}$, we deposit the ultra-low magnetization damping layer stacks reported in Ref.15 onto a freely suspended silicon nitride string (c.f. Fig. 1). The resonance frequency of this multilayer string scales approximately with $1/L\sqrt{\sigma_{\mathrm{eff}}/\rho_{\mathrm{eff}}}$, where $L$ is the length of the string, $\sigma_{\mathrm{eff}}$ is the effective stress along the string, and $\rho_{\mathrm{eff}}$ is the effective mass density of the whole layer stack. $\sigma_{\mathrm{eff}}$ is directly related to the the static stress $\sigma_{\mathrm{0}}$ in the system. Moreover, when we measure the resonance frequency as a function of the magnetization direction, we expect a modulation of the resonance frequency because the magnetoelastic interaction changes the stress in the sample depending on the magnetization direction. In more detail, the resonance frequency of a highly tensile stressed, doubly clamped nano-string, also depends on material parameters, like the Young’s modulus $E$, and size dependent parameters like the string moment of inertia $I$ and its cross-section $A=wt$, where $w$ is the strings width and $t$ its thickness. A nano-string can be treated as highly tensile stressed, if the static stress $\sigma_{0}$ is the dominant parameter ($(4Ew^{2}t^{4}\rho\Omega_{0}^{2})/12\ll\sigma_{0}^{2}(wt)^{2}$). The magnetization direction dependent resonance frequency of the string is given by Timoshenko, Weaver, and Young (h ed); Verbridge et al. (2006)

[TABLE]

This equation includes geometry sensitive bending effects to first order. The magnetization orientation with respect to the long axis of the string is denoted by $\Theta$, and $\sigma_{1}$ determines the change in stress along the x-direction. Note, however, that $\Theta$ is not directly accessible in our experiment. Our data are rather recorded as a function of the applied magnetic field direction, which is given by the angle $\Phi$ (see Fig. 1). To relate $\Phi$ to $\Theta$ we calculate the magnetization direction $\Theta$ for a given external magnetic field $\mathbf{H}$ by using a free energy minimization approach. For a uniaxial anisotropy along $x$ we obtain:

[TABLE]

with the saturation magnetization $M_{\textrm{S}}$ and the uniaxial anisotropy constant $K$ Gross and Marx (2012).

With the relation (2) we can translate the measured $\Omega_{0}(\Phi)$ dependence into an $\Omega_{0}(\Theta)$ dependence, which is fitted by Eq.,(1) to derive the stress component $\sigma_{1}$. The derived value of $\sigma_{1}$ finally allows us to determine the magnetostrictive constantPernpeintner et al. (2016):

[TABLE]

Note that due to the specific geometry of the string, we can access only the parallel part ($\lambda_{\parallel}\parallel\textit{x}$) of the magnetostrictive constant, because only stress variations in the x-direction change the string’s resonance frequency. The quantity $\lambda_{\parallel}$ used here is equivalent to the quantity $\lambda_{\mathrm{S}}$ commonly used for polycrystalline material in the literatureChikazumi (1997). From this magnetostrictive constant we can calculate the magnetoelastic constant $b_{1}$Dreher et al. (2012); Chikazumi (1997)

[TABLE]

with shear modulus $G$.

For the fabrication of the freely suspended $\mathrm{Co_{x}}\mathrm{Fe_{1-x}}$ layers on top of silicon nitride string resonators, we start with a single crystalline silicon wafer, which is commercially coated with a $t_{\mathrm{SiN}}=$90\text{,}\mathrm{nm}$$ thick, highly tensile-stressed, low pressure chemical vapor deposition (LPCVD) grown $\mathrm{Si_{3}}\mathrm{N_{4}}$(SiN) film. We define the geometry of the strings by defining a metal etch mask using electron beam lithography, electron beam evaporation of aluminum, and a lift-off process. The pattern is transferred to the silicon nitride using an anisotropic reactive ion etching (RIE) process to define the SiN strings. Subsequently, a second isotropic RIE process is used to remove the Si substrate below the strings to release them and enable mechanical in-plane(ip) and out-of-plane (oop) motion. The Al etching mask is removed afterwards. The resulting unloaded SiN strings show typical $Q$-factors of about $150,000$ for the ip and oop fundamental modes. As the last fabrication step, a Ta/Cu/CoFe/Cu/Ta layer stack (as shown in Fig. 1) was deposited on top of the strings by magnetron sputtering. Thus, the CoFe stack covers the strings as well as the surrounding substrate. However, we ensure that there is no mechanical contact between the top- or string layer and the substrate level. We investigate two sets of strings with two different CoFe alloys: The reported ultra-low damping $\mathrm{Co_{25}}\mathrm{Fe_{75}}$, and $\mathrm{Co_{10}}\mathrm{Fe_{90}}$ as an alloy with larger damping for comparison. For each Co-Fe alloy, we investigate the mechanical response for different string lengths $L$ ($25\text{\,}\mathrm{\SIUnitSymbolMicro m}$, $35\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and $50\text{\,}\mathrm{\SIUnitSymbolMicro m}$) and string widths $w$ ($150\text{\,}\mathrm{nm}$ and $200\text{\,}\mathrm{nm}$). We suspect that during the sputtering process material was also deposited on the sides of the string, creating an overhang.

To measure the resonance frequencies of the strings, we use a free space optical interferometer similar to the setup in Ref.32 (see Fig. 1). A laser beam with wavelength $633\text{\,}\mathrm{nm}$ is focused on the string and interferometry is used to measure the amplitude of the nanostring oop motion. To excite the string’s oop mode at its resonance frequency, the entire sample is placed on a piezo-actuator (Fig. 1, red layer). The resonance frequency of the string is obtained by measuring the output voltage of a photo-diode while sweeping the drive frequency using a vector network analyzer (VNA). The drive voltage is chosen small enough to keep the piezo actuator as well as the strings in their respective linear regimes. The sample holder is mounted on a $xyz$ piezo stage to allow positioning and focusing of the laser spot on an individual string. The interferometer is operated at room temperature. The sample stage is placed in vacuum ($p<$0.01\text{,}\mathrm{Pa}$$) to prevent air damping. To control the magnetization, and in particular the magnetization orientation of the Co-Fe on the string, the sample is positioned between the pole pieces of an electromagnet. The applied field direction is varied by rotating the electromagnet whereas the sample position and orientation remain fixed.

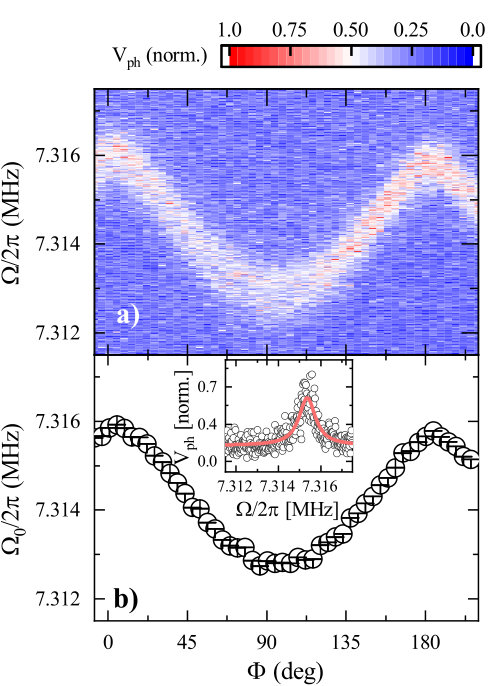

Figure 2a) shows a color-encoded plot of the mechanical response function as a function of actuation frequency and applied magnetic field direction. Red highlights large oop mechanical displacement, while blue indicates no visible motion. The raw data is measured for a constant actuation amplitude and a fixed magnitude of the magnetic field $\mu_{0}H=$950\text{,}\mathrm{mT}$$. The resonance frequency of the string is $180^{\circ}$ periodic with respect to the external magnetic field direction. A cut of this dataset at $\Phi=153^{\circ}$ is displayed in the inset of Fig. 2 b), showing the mechanical response as function of the drive frequency. To extract the resonance frequency, we fit a Lorentzian line shape to the data for each measured angle $\Phi$. From this fit we find a linewidth (full-width at half-maximum) of $900\text{\,}\mathrm{Hz}$ corresponding to a $Q$-factor of the string of about $8000$. This $Q$-factor is significantly smaller than that of a pure SiN string and can mainly be attributed to the added metal layer stack. The stack increases the overall mass of the string, and thereby its effective density, which lowers the resonance frequency (see Eq. (1)). Moreover, adding a metal component is known to change the mechanical damping of nano-strings Seitner, Gajo, and Weig (2014); Hoehne et al. (2010).

Figure 2b shows the evolution of the resonance frequency as a function of $\Phi$.

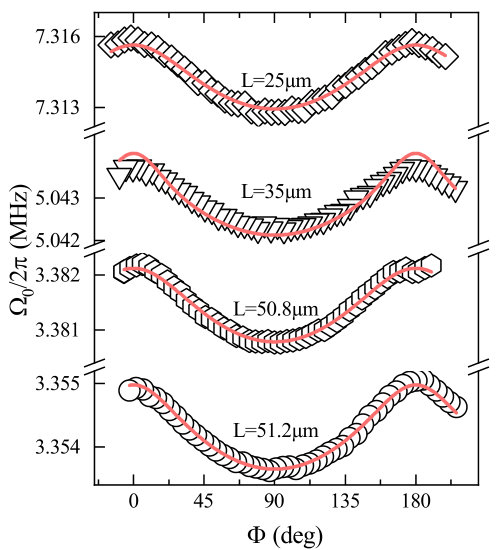

For comparison, we have measured a set of strings with different lengths and widths. To analyze our data, we use a global fit routine employing Eqs. (1) and (2). The fit uses the data of all strings for each CoFe composition as input parameter. In addition, we use the thickness $t=$112\text{,}\mathrm{nm} of the nano-string and effective density $\rho_{\mathrm{eff}}=$4350\text{\,}\mathrm{k}\mathrm{g}\mathrm{/}\mathrm{m}^{3} of each string as fixed parameters, as both are known fabrication parameters. The thickness of the metal stack was determined by calibrating the deposition rates using x-ray reflectometry. The density was calculated by using the weighted average of the single material bulk densities Cardarelli (2018). Figure 3 shows the fit of $\Omega_{0}$ for the $\mathrm{Co}_{25}\mathrm{Fe}_{75}$ compound for strings of different lengths. Here, the pre-stress $\sigma_{0}$, the magnetically induced stress $\sigma_{1}$, and the Young’s modulus $E$ of the sample were set as global fit parameters. For the fit we used fixed values for the length $L$ of the strings with $25\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and $35\text{\,}\mathrm{\SIUnitSymbolMicro m}$. The string lengths of the two nominally $50\text{\,}\mathrm{\SIUnitSymbolMicro m}$ long strings are free fit parameters. This allows to account for small variations in the frequencies of the two nominally identical strings, which otherwise should have the exactly the same frequency. The fitted lengths are $51.2\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and $50.8\text{\,}\mathrm{\SIUnitSymbolMicro m}$ in good agreement with the design value of $50\text{\,}\mathrm{\SIUnitSymbolMicro m}$. The uniaxial anisotropy constant $K$ is a free fit parameter for each string as it might differ from string to string. As shown in Fig 3, we find good agreement between the global fit and the data using $\sigma_{1}=$-386\pm 5\text{,}\mathrm{kPa}, $\sigma_{0}=$458.7\pm 0.1\text{\,}\mathrm{MPa} and $E=$857.7\pm 0.2\text{,}\mathrm{GPa}. The extracted pre-stress is reduced compared to the pre-stress in a SiN string without any metal on top. This can be attributed to a compressive stress in the layer stack of $\Delta\sigma_{0}\approx$270\text{\,}\mathrm{MPa}. The sputtering process may change the pre-stress of the composite string. Even though the sputtering process is carried out at room temperature, the temperature of the nanostring is expected to increase significantly due to the poor thermal coupling of the string to the substrate. Thus the metal stack is deposited at a temperature well above room temperature. Cooling down the string coated by the metal stack after deposition then results in a partial compensation of the pre-stress due to different thermal expansion coefficients of SiN and the metal stack. A temperature increase of about $300\text{\,}\mathrm{K}$ could explain the observed change of pre-stress. Also the extracted Young’s modulus is larger then expected from the Young’s moduli of the individual materials Cardarelli (2018). Using (3) and (4) in combination with the known sample parameters and the Co-Fe Young’s modulus we obtain a $\lambda_{\parallel}=(-20.68\pm 0.25)\times 10^{-6}$ and $b_{1}=$2.62\pm 0.05\text{,}\mathrm{T} for the $\mathrm{Co}_{25}\mathrm{Fe}_{75}$. We obtain these values when considering $t_{\textrm{CoFe}}=$10\text{\,}\mathrm{nm}, $t=$112\text{,}\mathrm{nm}, $E_{\textrm{CoFe}}=$208\text{\,}\mathrm{GPa}Cardarelli (2018), $M_{\textrm{S}}=$1.904\text{,}\mathrm{MA}\text{,}{\mathrm{m}}^{-1} Schoen *et al.* ([2017](#bib.bib16)) as well as the shear modulus $G=$81.7\text{\,}\mathrm{GPa}Cardarelli (2018).

In addition, the measured data allow to access magnetic anisotropy parameters. We find an anisotropy $2K/M_{\mathrm{S}}\approx$300\text{,}\mathrm{mT} with an easy axis pointing along the *y*-direction of the string. Note that because we have access only to in-plane measurements, we can calculate only projections of an anisotropy to the *x-y*-plane of the sample. Combined with the calculated shape anisotropy $B_{\textrm{shape}}\approx$100\text{\,}\mathrm{mT}Gross and Marx (2012), with an easy axis along the x-direction of the string, the total anisotropy field in the sample ads up to $B_{\textrm{aniso}}\approx$400\text{,}\mathrm{mT}. The compressive stress in the metal $\Delta\sigma_{0}$ leads to a magnetoelastic anisotropy of $B_{\mathrm{magel}}\approx$4\text{\,}\mathrm{mT} Chikazumi (1997). Unfortunately, we cannot identify the origin of the anisotropy. However we speculate that the overhanging material at the edges of the string might result in a preferential orientation of the magnetization direction perpendicular to the string.

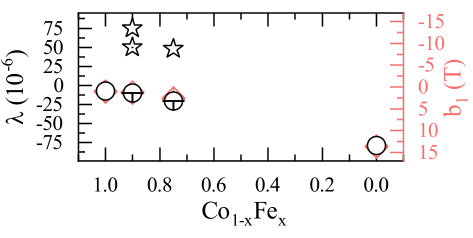

To set these results in context, we plot the extracted values of $\lambda_{\parallel}$ and $b_{1}$ for the two measured thin film CoFe alloys ($\mathrm{Co}_{25}\mathrm{Fe}_{75}$ and $\mathrm{Co}_{10}\mathrm{Fe}_{90}$) as well as the values for thin-film CoPernpeintner et al. (2016) and bulk FeCardarelli (2018) in Fig. 4. The ultra-low damping material investigated in this work seems to follow the simple trend of an interpolating magnetostrictive constant connecting the bulk values. Since the values for the saturation magnetization and shear modulus are similar for Co and Fe the $b_{1}$ is approximately linearly proportional to $\lambda$. Nevertheless, Fig. 4 also shows the data Hunter et al.Hunter et al. (2011) obtained using a cantilever displacement method on various $500\text{\,}\mathrm{nm}$ thick $\mathrm{Co}_{x}\mathrm{Fe}_{1-x}$ films. Their data show an entirely different behavior, most importantly an opposing sign of $\lambda_{\mathrm{S}}\approx 50\times 10^{-6}$. Even earlier experiments by HallHall (1959) extrapolated an in-plane magnetostrictive constant of $\lambda_{\mathrm{100}}\approx 75\times 10^{-6}$ for $\mathrm{Co}_{25}\mathrm{Fe}_{75}$ and of $\lambda_{\mathrm{100}}\approx 48\times 10^{-6}$ for $\mathrm{Co}_{10}\mathrm{Fe}_{90}$ for bulk crystal discs. We note, however, that the seed layer and the sputtering conditions are crucial for the realization of ultra-low damping material Edwards, Nembach, and Shaw (2019) and thus rationalize that the magnetoelastic properties can be significantly affected. To ensure that the low-damping behavior of the Co-Fe is still present when changing the substrate from SiSchoen et al. (2016) to SiN used in this paper, we performed ferromagnetic resonance (FMR) experiments on unpatterned CoFe-stacks on SiN samples and find a Gilbert damping of $\alpha=4.2\pm 0.2\times 10^{-3}$ for a $20\text{\,}\mathrm{nm}$ thick $\mathrm{Co}_{10}\mathrm{Fe}_{90}$ film which is in agreement with the values from Schoen et al.Schoen et al. (2016).

In this article, we extract the magnetostrictive constants of two low magnetic damping Co-Fe alloys grown within a layer stackSchoen et al. (2016). To get a quantitative value for the magnetostriction we use a magnetization direction dependent resonance frequency measurement of a nanostringPernpeintner et al. (2016), which is covered with the magnetostrictive layer stack. This method allows the investigation of the magnetostrictive and elastic properties of thin film magnetic layers, even with small sample volumes and high aspect ratios, which both are requisites for future technical applications of spintronic devices including sensing applications. We extract a magnetostrictive constant of $\lambda_{\parallel}=(-20.72\pm 0.33)\times 10^{-6}$ which corresponds to a magnetoelastic constant of $b_{1}=$2.62\pm 0.05\text{,}\mathrm{T} for the ultra low damping $\mathrm{Co}_{25}\mathrm{Fe}_{75}$ compound, as well as $\lambda_{\parallel}=(-9.8\pm 0.12)\times 10^{-6}$ and $b_{1}=$1.3\pm 0.02\text{\,}\mathrm{T} for the $\mathrm{Co_{10}}\mathrm{Fe_{90}}$ compound. This shows that the magnetoelastic properties of the two investigated alloys have the same order of magnitude as the constituent materials but differ significantly between the low-damping and normal damping case. Thus CoFe and in particular the ultra-low damping compound $\mathrm{Co}_{25}\mathrm{Fe}_{75}$ shows a sizeable magnetoelastic constant and hereby makes an ideal candidate for sensing and magnetization dynamic applications which rely on low damping materials.

See supplementary material for the derivation of Eq. (1) and the reference broadband ferromagnetic resonance measurements of thin film CoFe grown on SiN substrate.

Funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) under Germany’s Excellence Strategy – EXC-2111 – 390814868 and project WE5386/4-1.
