Soliton and breather splitting on star graphs from tricrystal Josephson junctions

TL;DR

This paper investigates how localized wave solutions, including solitons and breathers, interact with a vertex in a star graph domain modeling tricrystal Josephson junctions, revealing splitting and transmission behaviors consistent with quantum graph theory.

Contribution

It introduces a reduced model using the nonlinear Schrödinger equation to analyze soliton splitting and transmission in Josephson junction star graphs, connecting nonlinear wave dynamics with quantum graph concepts.

Findings

High-velocity solitons split into transmitted and reflected parts.

Transmission rates align with linear Schrödinger equation predictions.

Large-amplitude breathers exhibit complex, nonlinear behaviors.

Abstract

We consider the interactions of traveling localized wave solutions with a vertex in a star graph domain that describes multiple Josephson junctions with a common/branch point (i.e., tricrystal junctions). The system is modeled by the sine-Gordon equation. The vertex is represented by boundary conditions that are determined by the continuity of the magnetic field and vanishing total fluxes. When one considers small-amplitude breather solutions, the system can be reduced into the nonlinear Schr\"odinger equation posed on a star graph. Using the equation, we show that a high-velocity incoming soliton is split into a transmitted component and a reflected one. The transmission is shown to be in good agreement with the transmission rate of plane waves in the linear Schr\"odinger equation on the same graph (i.e., a quantum graph). In the context of the sine-Gordon equation, small-amplitude breathers show similar qualitative behaviors, while large-amplitude ones produce complex dynamics.

Figures

Equations

$$u_{xx}^{(j)}-u_{tt}^{(j)}=\sin u^{(j)},$$

$$u^{(1)}=u^{(2)}+u^{(3)},u_x^{(1)}=u_x^{(2)}=u_x^{(3)}.$$

$$u(x,t)=4{\tan }^{-1}\left\{\exp [-\gamma (x-vt-x_0)]\right\},x_0\in \mathbb{R}$$

$$u(x,t)=4{\tan }^{-1}\left\{\tan \theta \sin \left[\gamma \cos (\theta )(t-vx-t_0))\right]\mathrm{sech}\left[\gamma \sin (\theta )(x-vt-x_0)\right]\right\},x_0\in \mathbb{R}$$

$$u^{(j)}(x,t)=ϵU^{(j)}(X,T)+\text{c.c.}+\text{higher-order terms},$$

$$i{U}_T^{(j)}+U_{XX}^{(j)}+\frac{1}{2}|U^{(j)}{|}^2{U}^{(j)}=0.$$

$$U^{(1)}=U^{(2)}+U^{(3)},U_X^{(1)}=U_X^{(2)}=U_X^{(3)}.$$

$$U(X,T)=A\mathrm{sech}(A(X-vT-X_0)/2)\exp (i\varphi -ivX/2+i(A^2-v^2)T/4),$$

$$u_{xx}-u_{tt}=\sin u,x\in \mathbb{R},$$

$$i{U}_T+U_{XX}+\frac{1}{2}|U{|}^{2}U=0,X\in \mathbb{R},$$

$$\displaystyle\psi(X)=\left\{\begin{array}[]{llll}e^{i\left(kX-\omega T\right)}+\tilde{r}e^{i\left(-kX-\omega T\right)},\qquad X<0,\\ \tilde{t}e^{i\left(kX-\omega T\right)},\qquad X>0.\end{array}\right.$$

$$\tilde{r}=\frac{1}{3},\tilde{t}=\frac{2}{3}.$$

$$|\tilde{r}{|}^2+|\tilde{t}{|}^2=\frac{5}{9}<1,\tilde{t}<1+\tilde{r}=\frac{4}{3}.$$

$${\tilde{T}}_s=\underset{T\to \infty }{\lim }\frac{1}{4A}{\int }_{X>0}|U(X,T){|}^{2}dX.$$

$$H(x,t)=\frac{1}{2}{u}_t^2+\frac{1}{2}{u}_x^2+(1-\cos u).$$

$${\tilde{T}}_b=\underset{T\to \infty }{\lim }\frac{1}{{\mathcal{H}}_0}{\int }_{x>0}H(x,t)dx,$$

$$u=4{\tan }^{-1}\left\{\exp [-x\pm \ln \sqrt{3}]\right\},$$

$$\omega =\sqrt{\frac{1+\sqrt{13}}{8}}.$$

Full text

\pubvolume

11 \issuenum2 \articlenumber271

\historyReceived: 9 January 2019; Accepted: 12 February 2019; Published: 20 February 2019 \updatesyes \TitleSoliton and Breather Splitting on Star Graphs from Tricrystal Josephson Junctions

\AuthorHadi Susanto 1\orcidA, Natanael Karjanto *2,**\orcidB, Zulkarnain 3, Toto Nusantara 4\orcidD

and Taufiq Widjanarko 5\orcidE \AuthorNamesHadi Susanto, Natanael Karjanto, Zulkarnain, Toto Nusantara and Taufiq Widjanarko

\corresCorrespondence: natanael@skku.edu

1 Introduction

A quantum graph is a metric graph, i.e., a network-shaped structure of vertices connected by edges, with a Schrödinger-like operator suitably defined on functions that are supported on the edges. It arises as a model for wave propagations in a system similar to a thin neighborhood of a graph. Pauling pauling39 was most likely the pioneer of the research subject when he modeled free electrons in organic molecules. In his model, he approximated the atoms as vertices while the electrons form bonds that fix a frame in the shape of the molecule on which the free electrons are confined. The term ‘quantum graph’ itself may be a shortening of the title of a paper by Kottos and Smilansky kott97 . See, e.g., berko16 for an elementary introduction to quantum graphs, where some basic tools in the spectral theory of the Schrödinger operator on metric graphs are discussed.

Quantum graphs have been used to describe a variety of mathematical concepts as well as physical problems and applications. A review of quantum graphs with applications in theoretical physics is provided by Gnutzmann and Smilansky gnut06 . For a comprehensive introduction and survey of the current state of research on quantum graphs and their applications, the reader is encouraged to consult a mathematically oriented book by Berkolaiko and Kuchment berko13 . See also an introduction and a brief survey to quantum graphs by Kuchment kuchment08 .

The study of nonlinear counterparts of quantum graphs, where the linear wave equations are replaced by nonlinear ones, has been growing due to their potential of becoming a paradigm model for topological effects in nonlinear wave propagation (see noja14 for a recent review). Because of the nonlinearity, soliton solutions exist. However, a unique ’trapped soliton’ state, which is admitted by the cubic focusing nonlinear Schrödinger (NLS) equation on the star graph with Kirchhoff conditions at the vertex, is not the ground state adami12a . This is remarkably different from the NLS equation on the line. The  existence and behavior of trapped solitons with a $\delta$-interaction at the vertex are considered by Adami et al. adami12b . A generalized NLS equation with power nonlinearity on star graphs has also been investigated in various reports adami14 ; adami16 ; kairzhan17 . The existence of ground states of the same equation on several types of star metric graphs has been considered in li18 . Bifurcations of stationary solutions in various other simple topologies have also been studied, such as in tadpole graphs consisting of a half-line joined to a loop at a single vertex noja15 , dumbbell-shaped metric graphs marz16 ; good17 , bowtie graphs good17 , and double-bridge graphs noja19 .

In addition to stationary solutions, the interaction of a moving soliton with the vertex is also intriguing. Soliton scattering in the NLS equation on a star graph with a repulsive $\delta$-, $\delta^{\prime}$-function potential, and the free Kirchoff condition at the vertex is studied by Adami et al. adami11 , who extended the work of Holmer et al. holm07 . Adami et al. showed that a soliton will split into a transmitted soliton, a reflected one, and some radiation upon collision with the vertex. Soliton dynamics in star graphs with ’integrable’ vertex conditions that preserve the solution norm was studied in sobi10 .

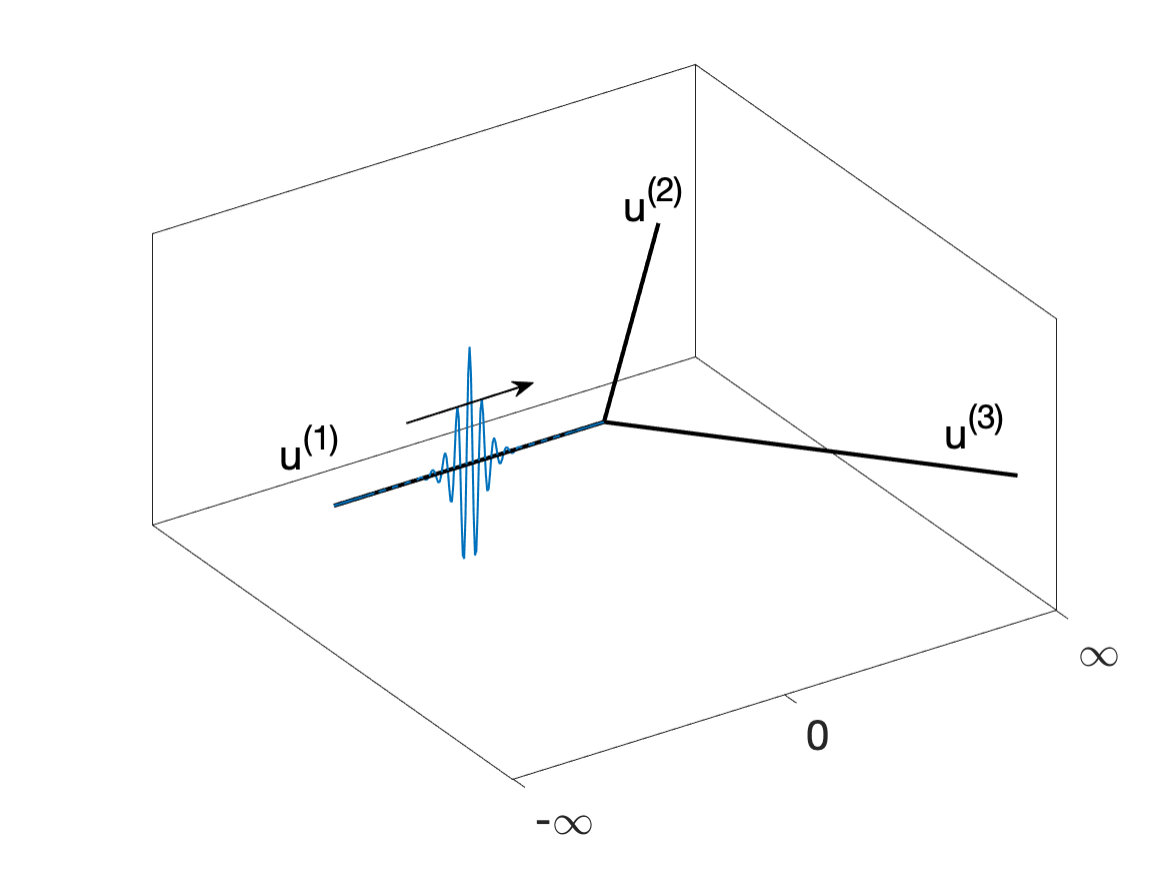

In this work, we consider a star graph that models a tricrystal Josephson junction, see Figure 1. A Josephson junction is a quantum mechanical structure that is made of two superconducting electrodes separated by a thin barrier. Three semi-infinite junctions with the ends meeting at a common point form a tricrystal junction. The vertex conditions were likely first derived in naka76 ; naka78 , where the structure was proposed as a logic gate device. In recent work, tricrystal Josephson junctions were fabricated as a probe of the order parameter symmetry of high-temperature superconductors tsue94 ; mill95 ; tsue00a ; tsue00 . In particular, tetracrystal junctions (i.e., star graphs with four arms) were also constructed and studied experimentally, see, e.g., Section IV.C of tsue00 ; toma12 .

The study of soliton solutions in tricrystal junctions has only been done for topological solitons, i.e., kinks, especially when they are static tsue00a ; koga00 ; susa04 ; susa05 . This type of solitons is also called ‘fluxons’ because they carry integer quanta of electromagnetic flux. The dynamics of moving vortices in tricrystal junctions was discussed in naka76 ; naka78 ; grun93 ; hatt96 . Here, instead, we consider for the first time the dynamics of non-topological solitons, i.e., breathers (see Figure 1). In the case of small-amplitude breather solutions, the governing equation, which is the sine-Gordon (sG) equation, can be reduced into the NLS equation with vertex conditions different from those considered in previous works. Soliton dynamics within that approximation will be discussed as well.

The paper is structured as follows. In Section 2, we discuss the governing equation of tricrystal Josephson junctions. Under an assumption of small-amplitude solutions, we will also derive the NLS equation with vertex conditions. In Section 3, the scattering of linear plane waves, soliton and breather solutions will be discussed. Numerical simulations will be presented in the same section describing the scattering processes when nonlinearity is present. In Section 4, we consider the nonlinear scattering of sG breathers numerically. We present two different typical cases corresponding to small- and large-amplitudes with slow- and fast-incoming velocities. The conclusion of the paper is in Section 5.

2 Governing Equations

The phase difference of wave functions along each Josephson junction is described by the sG equation

[TABLE]

where upper indices $j=1,2,3,$ label the different branches of the system and the subscripts indicate derivatives with respect to the variables. The direction of the $x$-axes follows the sketch in Figure 1.

At the meeting point between the three branches, i.e., $x=0$, we have the boundary conditions grun93 ; koga00

[TABLE]

The first equation comes from the physical property that the magnetic flux through an infinitesimally small contour encircling the origin must vanish, i.e., the total change of the gauge-invariant phase difference is zero. The second equation means that the field, which is proportional to the slope of the phase difference, is continuous at the origin.

Far away from the origin $x\ll 0$, the sG Equation (1) admits two types of fundamental solitons: a kink, that is in the form of

[TABLE]

and a breather

[TABLE]

where $\gamma=1/\sqrt{1-v^{2}}$ is the Lorentz-type contraction of a moving excitation. Both represent a topological and non-topological soliton moving with velocity $v$. The breather (4) oscillates in time with frequency $\gamma\cos\theta$. All the previous work on solitons in tricrystal junctions dealt with the first class of solutions (see the related references mentioned in Section 2). Here, we will concentrate on breather dynamics.

To study the dynamics of small-amplitude breathers (4), one can also use the standard multiple-scale expansion method. Writing

[TABLE]

where $X=\epsilon x$ and $T=\epsilon^{2}t/2$ are the slow space and time variables, respectively, and c.c. is the complex conjugation of the preceding terms, we obtain the NLS equation (see, e.g., kram13 )

[TABLE]

The boundary conditions (2) then become

[TABLE]

Far away from the branch point $X=0$, i.e., $X\to-\infty$, the NLS equation has a traveling bright soliton

[TABLE]

with $A>0$, $X_{0}$, $\phi$ and $v\in\mathbb{R}$. This soliton approximates the breather solution (4) for small $|\theta|$.

3 Scattering of NLS Solitons

Studying the scattering problem for non-topological solitary waves as sketched in Figure 1, we can consider a symmetric solution between the second and third branch, i.e., $u^{(2)}=u^{(3)}$ and $U^{(2)}=U^{(3)}$. Under the symmetry, the initial boundary value problems (1)–(2) and (5)–(6) become a single equation on the real line:

[TABLE]

with $u(0^{-})=2u(0^{+}),\>u_{x}(0^{-})=u_{x}(0^{+})$ and

[TABLE]

with $U(0^{-})=2U(0^{+}),\>U_{X}(0^{-})=U_{X}(0^{+})$.

3.1 Scattering in the Linear Problems

It is natural to consider first the scattering problem for plane waves in the linear Schrödinger equation obtained by omitting the cubic term in Equtaion (9). Incoming plane waves arriving from $X\to-\infty$ has the form $U(X,T)=e^{i(kX-\omega T)}$, with the amplitude normalized to 1, $\omega>0$, and $k=\sqrt{\omega}$. The general solution of the scattering problem is

[TABLE]

Here, $\tilde{r}$ and $\tilde{t}$ are reflection and transmission coefficients, respectively.

Substituting the solution (12) into the boundary conditions at $X=0$ will give us

[TABLE]

It turns out that these coefficients do not satisfy the standard (unitarity) condition due to the following:

[TABLE]

This informs us that the vertex conditions will not preserve the ‘mass’ of localized solutions $\mathcal{M}=\int_{X\in\mathbb{R}}|U|^{2}\,dX$.

3.2 NLS Soliton Scattering

We now consider the interaction of a bright soliton with the vertex. We integrate the NLS equation (9) numerically using the fourth-order Runge-Kutta method. The Laplacian is discretized using a three-point central difference. Therefore, our scheme has the discretization error of at least order $\mathcal{O}(\Delta x^{2},\Delta t^{4})$, where $\Delta x$ and $\Delta t$ are the spatial mesh size and the time step, respectively. We used several combinations of $\Delta x$ and $\Delta t$ to make sure that variations of the computed results caused by the discretization are small enough. As the initial data, we take a soliton approaching the branch point from $X\ll 0$ in the form of $U(X,0)$ from (7), and without losing its generality, we set $A=1$.

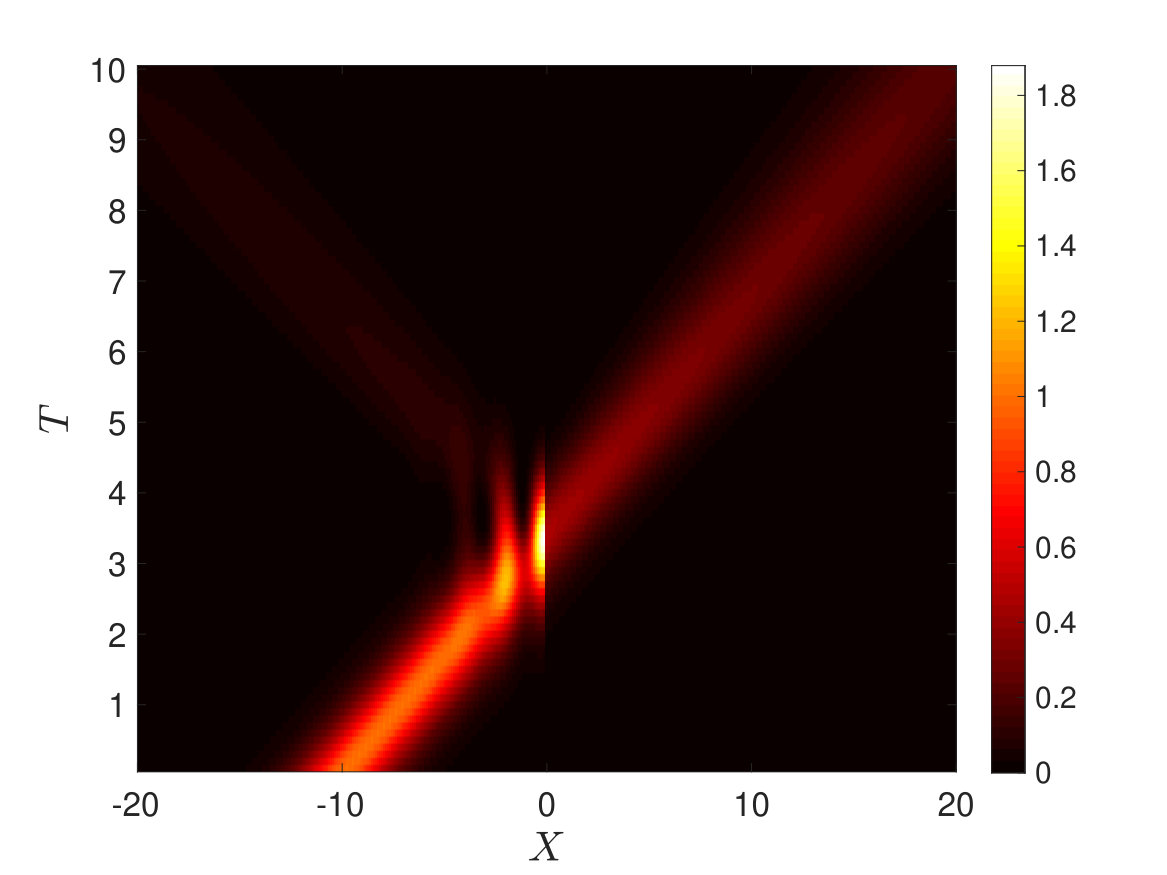

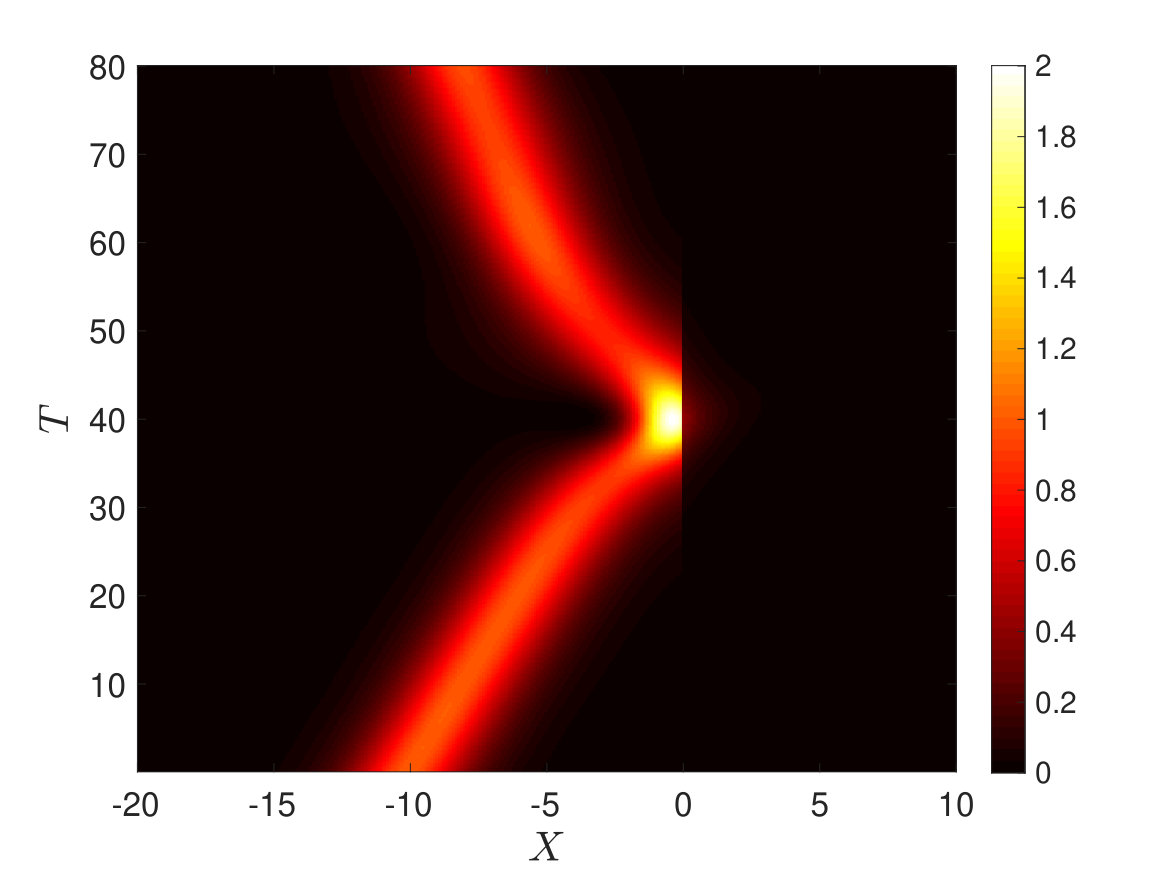

In Figure 2 we plot the dynamics of a soliton traveling towards the origin for two different initial velocities, namely $v=0.3$ and $3$, representing slow- and fast-moving solitons, respectively. In both cases, especially for the slow-incoming soliton, we see that as it approaches the branch point, it accelerates. This is usually a characteristic of an attractive potential. However, note that after the interaction, there is no trapped state, which on the other hand is a characteristic of a repulsive potential. It can be easily checked that the corresponding linear eigenvalue problem of (9) has no point spectrum, which confirms the absence of a trapped state. Thus, our branching point has both characteristics of an attractive as well as a repulsive potential at the same time.

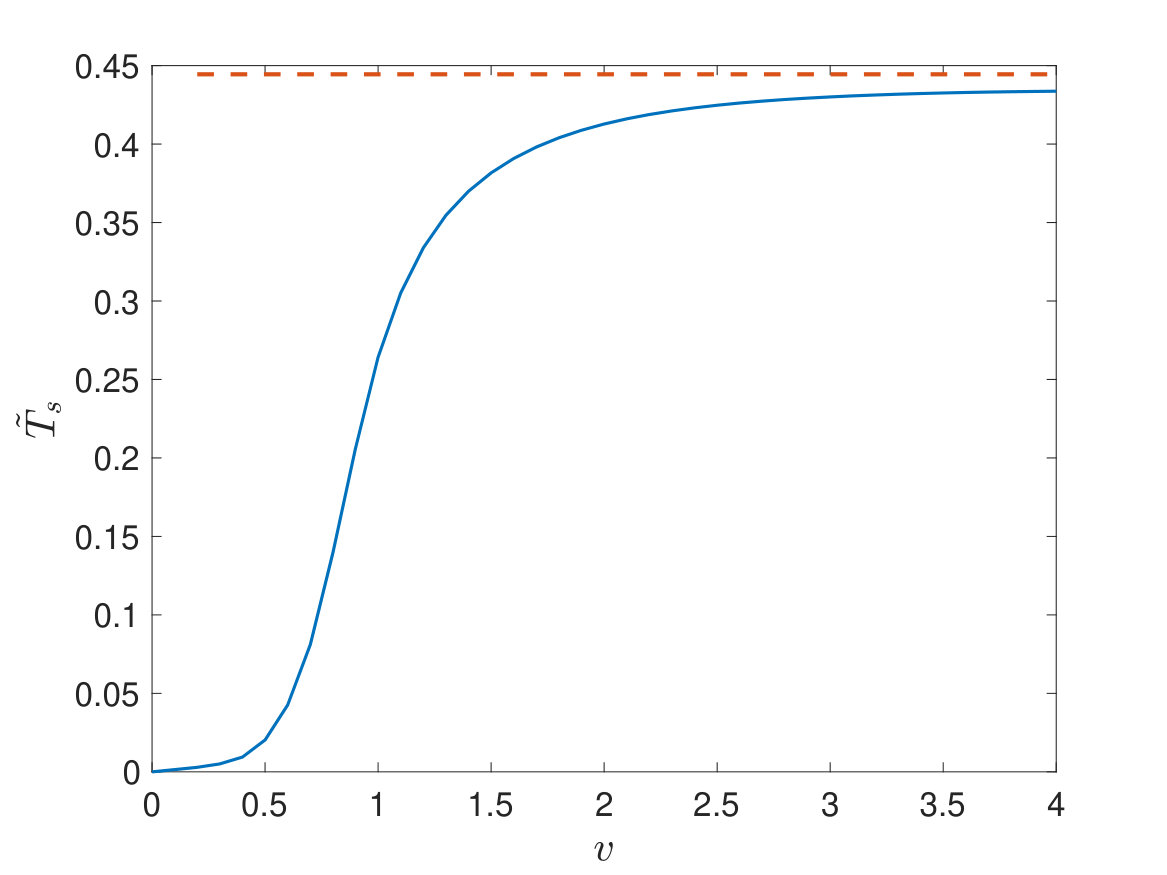

The main difference between Figure 2a, b is that for the slow-incoming soliton, most of the mass is reflected, while for the fast-moving one, most of it is transmitted. To quantify how much of the mass is being transmitted, we define the ‘transmission rate’ $\tilde{T}_{s}$ as

[TABLE]

Here, we normalize the rate with the initial $L^{2}$-norm $\lim_{T\to-\infty}||U(T)||_{L^{2}}^{2}=4A$, which (in the absence of the vertex conditions) normally would be constant in time. We plot the transmission rate $\tilde{T}_{s}$ in Figure 2c for different values of the initial velocity $v$. There is a steep transition in the interval of $v\approx 0.5$ and $v\approx 1.5$ where the soliton changes from being mostly reflected to mostly transmitted.

Recalling that for large $v$, the essential wave numbers of the Fourier transform of NLS solitons are concentrated around $k=v$, we can expect that the quantum transmission rate of a soliton with velocity $v$ will approach a limiting value that is given by the absolute value square of the transmission coefficient of the linear plane wave $|\tilde{t}|^{2}$, see (13). We can see that this is indeed the case.

4 Scattering of sG Breathers

After studying the soliton scattering in the NLS setting, finally, we now consider the original problem, i.e., scattering in the sG equation context. The results of Section 3 should be comparable to the scattering of small-amplitude breathers in the sG equation.

In the infinite domain problem without any vertex condition at $x=0$, the sG equation preserves the ‘mass’ $\mathcal{H}=\int_{x\in\mathbb{R}}H\,dx$, where the function $H$ is the Hamiltonian given by

[TABLE]

We solved the sG Equation (8) using a similar numerical integration method previously implemented in solving the NLS equation in Section 3. As the initial data, we take the breather (4) with $x_{0}\ll 0$ at $t=0$.

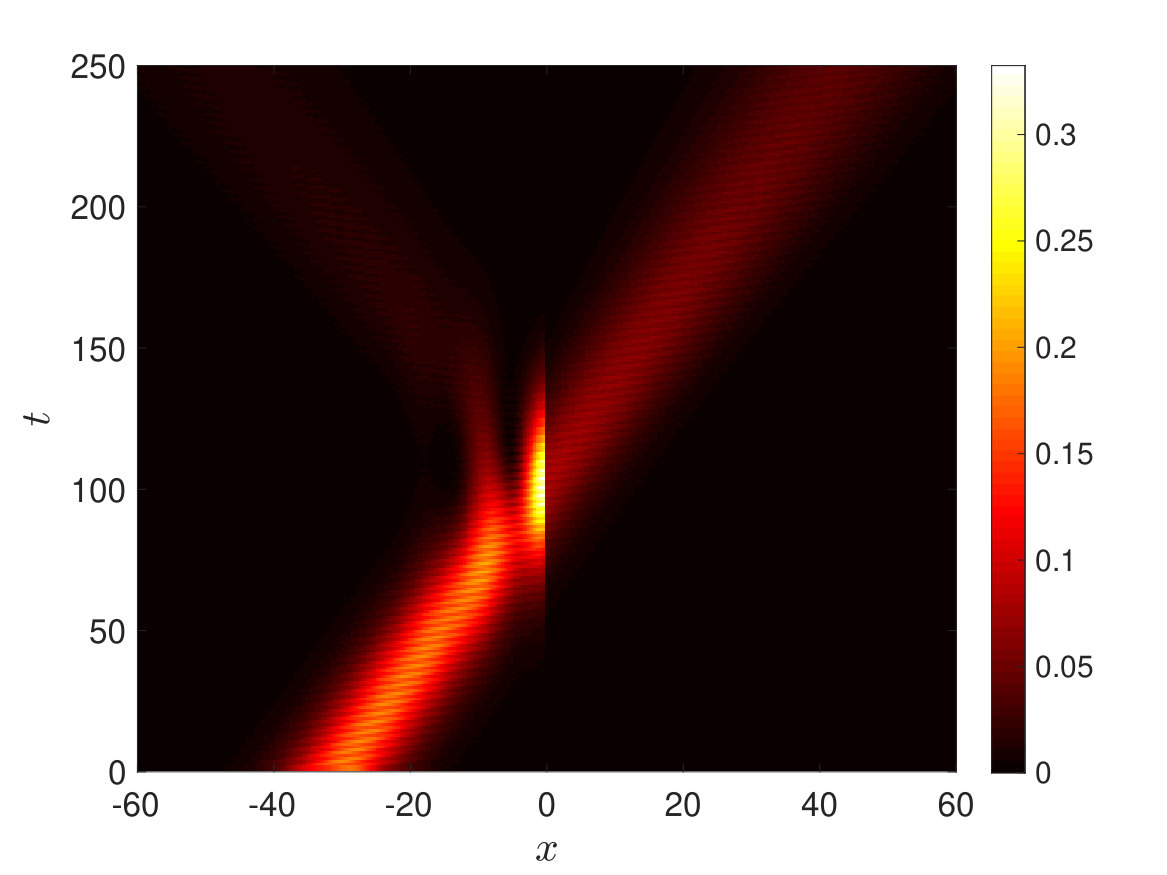

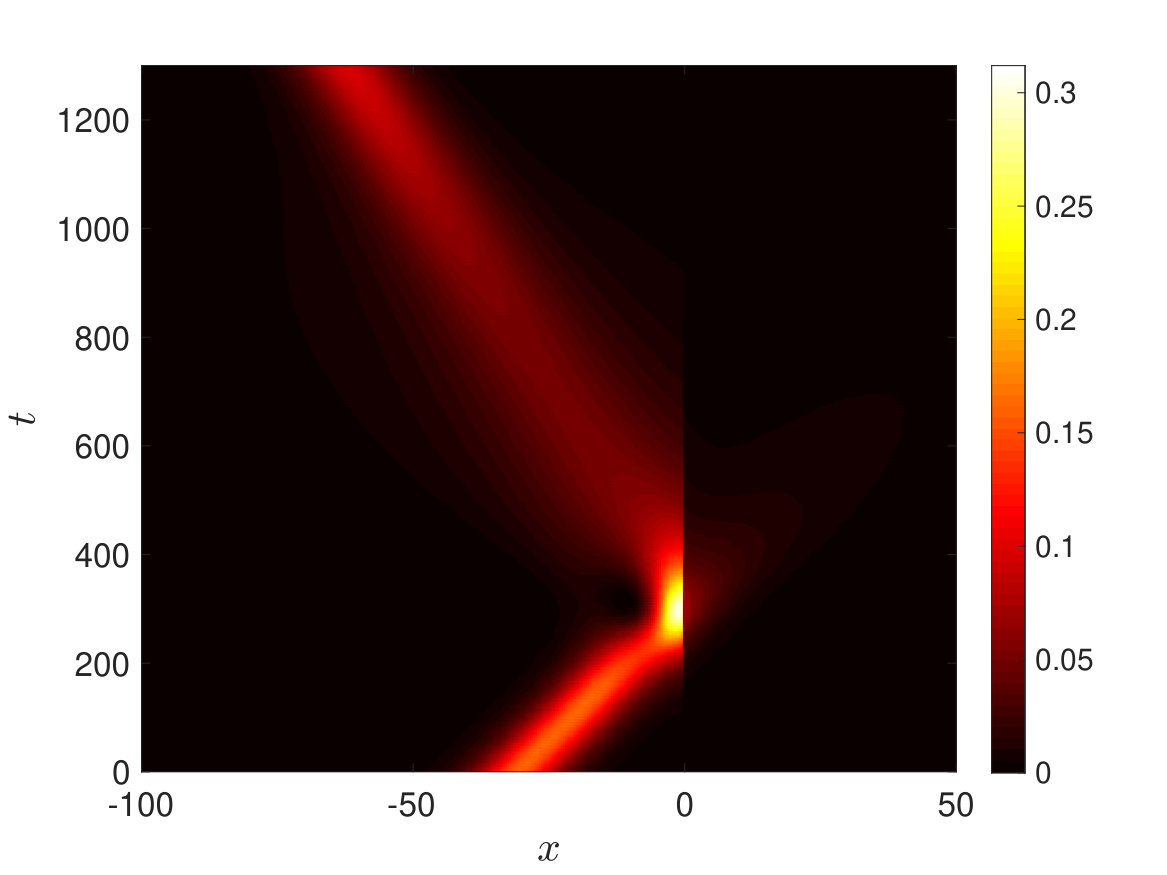

First, we simulate the dynamics of small-amplitude breathers with $\theta=\cos^{-1}0.99$. In Figure 3, we present our simulations of a breather traveling with two different velocities towards the branch point $x=0$. It is interesting to see a close resemblance between panels (a, b) of Figure 3 and those of Figure 2. It is then instructive to compute the transmission rate of the breathers for different values of the incoming velocity. Defining

[TABLE]

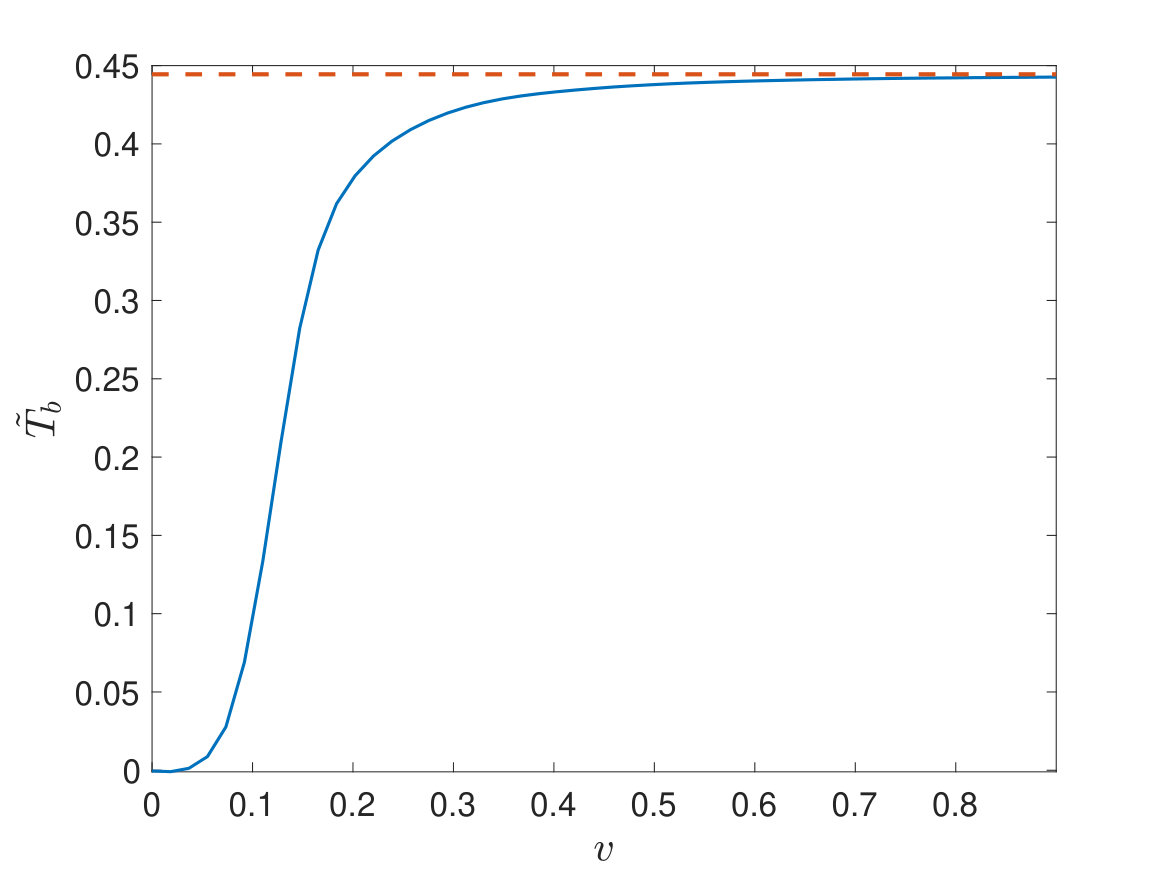

where $\mathcal{H}_{0}=\lim_{t\to-\infty}||H(t)||_{L^{1}}$, we plot in Figure 3c the transmission rate $\tilde{T}_{b}$, which again compared to Figure 2c shows the same qualitative profile. Moreover, we obtain numerically that the nonlinear transmission rate tends to the linear one $\tilde{t}^{2}$ (13) as the incoming breather velocity $v\rightarrow 1$.

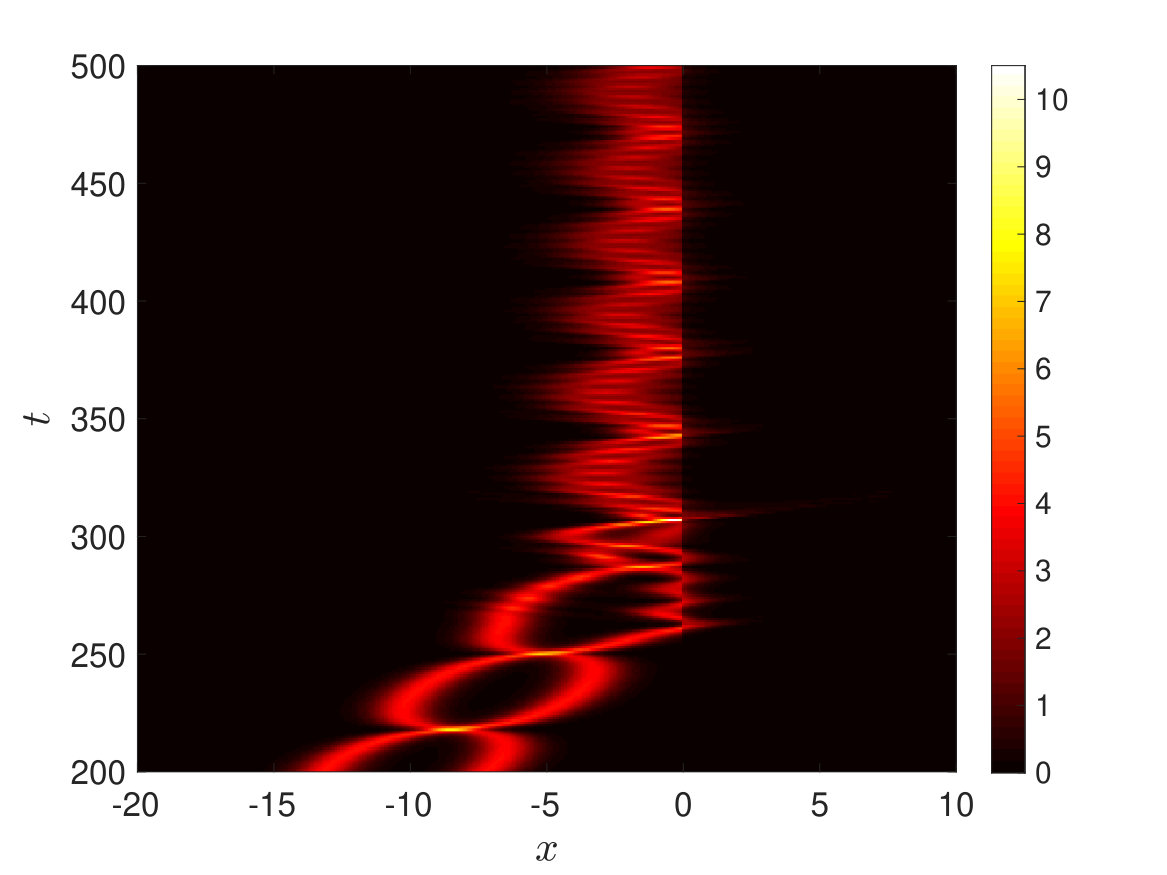

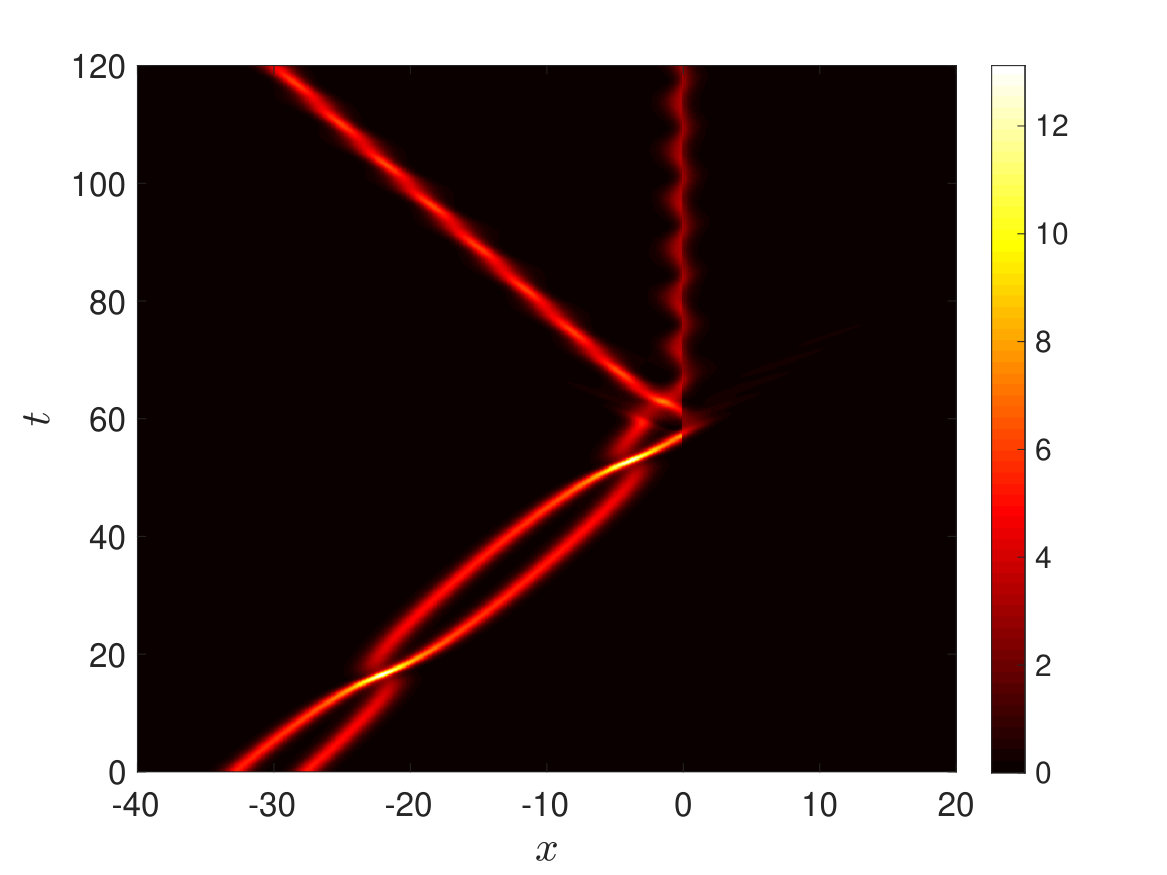

Next, we consider large-amplitude breathers. In a similar setup, we simulated a slow- and a fast-incoming soliton. We present the typical dynamics of the two cases in Figure 4, where we take $\theta=\cos^{-1}0.1$.

Far away from the branch point, a large-amplitude breather can be seen obviously as an oscillating pair of a kink and an anti-kink. Upon collision with the vertex, the slow-moving breather is trapped at the origin, while the fast-moving one dissociates into a trapped kink and an ejected anti-kink. Both cases show completely different dynamics from the small-amplitude breathers and the NLS solitons, see Figures 2 and 3. From the simulations, we note that the vertex acts as a repulsive potential for small-amplitude breathers, while it behaves as an attractive potential for large-amplitude ones. The difference can be explained as follows.

The branch point has been reported before to trap kinks, i.e., topological excitations naka76 ; grun93 ; hatt96 ; susa05 . They are given analytically by grun93 ; susa05

[TABLE]

with the ‘$+$’ sign for the region $x<0$ and the ‘$-$’ sign for $x>0$. They also have an oscillatory mode with frequency grun93 ; susa05

[TABLE]

When excited, the mode will vibrate, but eventually, it will fade away because of ’radiative’ damping, i.e., a damping mechanism due to the excitation of higher harmonics with frequencies in the continuous spectrum. Even more, trapped kink oscillations decay asymptotically at a rate of $\mathcal{O}(t^{-1/2})$, see ali11 . Here, even though our excitations are non-topological, large-amplitude breathers are close to an intertwining pair of kink and anti-kink. Trapping is therefore expected and in this case, an oscillatory mode must exist. Such oscillation can be seen quite well in Figure 4b where the trapped kink jiggles about $x=0$.

As for the oscillatory dynamics of the breather in Figure 4a, we can explain it as follows. The breather does not dissociate into a separate kink and anti-kink because its free energy is not enough to do so. As a result, it maintains its non-topological shape. In return, the vertex will tend to repel it. However, the non-topological excitation still has a relatively large amplitude, which on the other side looks like a kink and hence tends to be attracted by the vertex. Therefore, the branch point acts as a repellent and an attractor at the same time. This creates the oscillatory movement of the breather. Additionally, we also observe a fast oscillation. We strongly suspect that it is due to the trapping mode and hence its frequency is approximately given by (18).

5 Conclusions

We have analyzed for the first time the dynamics of breathers in a tricrystal Josephson junction. The physically relevant model consists of three semi-infinite Josephson junctions coupled at one end. For small-amplitude breathers, we have derived the corresponding NLS equation on star graphs from the governing sG equation. We have shown the resemblance of the dynamics of small-amplitude breathers with the NLS bright solitons. Large-amplitude breathers yield qualitatively different behaviors.

For future work, it will be interesting to rigorously study the collision of a fast-incoming NLS soliton with the vertex. This study will be along the lines of the analysis by Holmer et al. holm07 about the scattering of fast-moving solitons by a delta interaction on the line. An extension of their work to the case of sG equations on graphs, which is not available yet, will also be particularly appealing. In the context of collective coordinate methods, it will be important to derive an effective Hamiltonian describing slow-moving soliton interactions with the vertex, along the idea of, e.g., fori94 ; good04 ; holm07a . The main challenge is how to incorporate the vertex condition, which is not explicitly embedded within the governing equation. On the numerical side, it will also be interesting to provide bounds to the discretization as well as the round-off errors of our numerical scheme.

\authorcontributions

The contributions of the respective authors are as follows: H.S. designed and supervised the research and wrote the article; N.K. conducted analytical computations and wrote the article; Z.Z. performed numerical computations; T.N. and T.W. prepared the initial work and revised the article. All authors read and approved the final manuscript.

\funding

N.K. was funded by the National Research Foundation (NRF) of Korea through Grant No. NRF-2017-R1C1B5-017743 under the Basic Research Program in Science and Engineering.

Acknowledgements.

The authors acknowledge the two referees for their comments that improved the paper and Andrew Harrison and Christopher Saker (University of Essex) for proofreading the manuscript. \conflictsofinterestThe authors declare no conflict of interest. \abbreviationsThe following abbreviations are used in this manuscript:
