Building a Production Model for Retrieval-Based Chatbots

TL;DR

This paper presents a dual encoder architecture for retrieval-based chatbots that enables practical, scalable, and high-quality response suggestion suitable for production environments, validated on a large help desk dataset.

Contribution

The paper introduces a scalable dual encoder model and methods for generating response whitelists, addressing practical deployment challenges in retrieval-based chatbots.

Findings

Model achieves production-quality performance

Dual encoder scales well with response whitelist size

Human evaluation confirms effectiveness

Abstract

Response suggestion is an important task for building human-computer conversation systems. Recent approaches to conversation modeling have introduced new model architectures with impressive results, but relatively little attention has been paid to whether these models would be practical in a production setting. In this paper, we describe the unique challenges of building a production retrieval-based conversation system, which selects outputs from a whitelist of candidate responses. To address these challenges, we propose a dual encoder architecture which performs rapid inference and scales well with the size of the whitelist. We also introduce and compare two methods for generating whitelists, and we carry out a comprehensive analysis of the model and whitelists. Experimental results on a large, proprietary help desk chat dataset, including both offline metrics and a human evaluation, indicate production-quality performance and illustrate key lessons about conversation modeling in practice.

Figures

Tables

Table 1. Table 1: Summary statistics for the propriety help desk dataset.

Conversations	594,555
Utterances	15,217,773
Customer utterances	6,943,940
Agent utterances	8,273,833
Mean conversation length (# utterances)	25.60
Mean utterance length (# tokens)	12.70
Mean customer utterance length (# tokens)	7.53
Mean agent utterance length (# tokens)	17.15

Table 2. Table 2: A sample conversation from the propriety help desk chat dataset. The sample has been lightly edited to remove proprietary information.

Example Conversation

Customer: I would like to pay my bill can you help me

Agent: I can definitely help you to pay your bill. Are we going to work with the account logged in now?

Customer: Yes it still says there is no money on my account

Agent: I understand that. I have reviewed your account and its shows here that the payment has been posted and you’re all good until next month service.

Customer: Oh ok thank you for all your help

Agent: You’re welcome. Anything for a valued customer like you!

Table 3. Table 3: AUC and AUC@ p 𝑝 p of our model on the propriety help desk dataset.

Metric	Validation	Test
AUC	0.991	0.977
AUC@0.1	0.925	0.885
AUC@0.05	0.871	0.816
AUC@0.01	0.677	0.630

Table 4. Table 4: Recall@ k 𝑘 k from n 𝑛 n response candidates for different values of n 𝑛 n using random whitelists. Each random whitelist includes the correct response along with n − 1 𝑛 1 n-1 randomly selected responses.

Candidates	R@1	R@3	R@5	R@10
10	0.892	0.979	0.987	1
100	0.686	0.842	0.894	0.948
1,000	0.449	0.611	0.677	0.760
10,000	0.234	0.360	0.421	0.505

Table 5. Table 5: Recall@ k 𝑘 k for random, frequency, and clustering whitelists of different sizes. The “+” indicates that the true response is added to the whitelist.

Whitelist	R@1	R@3	R@5	R@10	BLEU
Random 10K+	0.252	0.400	0.472	0.560	37.71
Frequency 10K+	0.257	0.389	0.455	0.544	41.34
Clustering 10K+	0.230	0.376	0.447	0.541	37.59
Random 1K+	0.496	0.663	0.728	0.805	59.28
Frequency 1K+	0.513	0.666	0.726	0.794	67.05
Clustering 1K+	0.481	0.667	0.745	0.835	61.88
Frequency 10K	0.136	0.261	0.327	0.420	30.46
Clustering 10K	0.164	0.292	0.360	0.457	31.47
Frequency 1K	0.273	0.465	0.550	0.658	47.13
Clustering 1K	0.331	0.542	0.650	0.782	49.26

Table 6. Table 6: Recall@1 versus coverage for frequency and clustering whitelists.

Whitelist	R@1	Coverage
Frequency 10K	0.136	45.04%
Clustering 10K	0.164	38.38%
Frequency 1K	0.273	33.38%
Clustering 1K	0.331	23.28%

Table 7. Table 7: Results of the human evaluation of the responses produced by our model. A response is acceptable if it is either good or great. Note: Numbers may not add up to 100% due to rounding.

Whitelist	Great	Good	Bad	Accept
Freq. 1K	54%	26%	20%	80%
Cluster. 1K	55%	21%	23%	77%
Freq. 10K	56%	24%	21%	80%
Cluster. 10K	57%	23%	20%	80%
Real response	60%	24%	16%	84%

Table 8. Table 8: Inference time (milliseconds) of our model to encode a context using an SRU or an LSTM encoder on a single CPU core. The last row shows the extra time needed to compare the response encoding to 10,000 cached candidate response encodings in order to find the best response.

Encoder	Layer	Params	Time
SRU	2	3.7M	14.7
SRU	4	8.0M	21.9
LSTM	2	7.3M	90.9
LSTM	4	15.9M	174.8
+rank response	-	-	0.9

Table 9. Table 9: An ablation study showing the effect of different model architectures and training regimes on performance on the proprietary help desk dataset.

Model	Parameters	Validation AUC@0.05	Test AUC@0.05
Base	8.0M	0.871	0.816
4L SRU $\to$ 2L LSTM	7.3M	0.864	0.829
4L SRU $\to$ 2L SRU	7.8M	0.856	0.829
Flat $\to$ hierarchical	12.4M	0.825	0.559
Cross entropy $\to$ hinge loss	8.0M	0.765	0.693
6.6M $\to$ 1M examples	8.0M	0.835	0.694
6.6M $\to$ 100K examples	8.0M	0.565	0.417
200 $\to$ 100 negatives	8.0M	0.864	0.647
200 $\to$ 10 negatives	8.0M	0.720	0.412

Equations

$$\begin{array}{rl}{\text{f}}_t& =\sigma ({\text{W}}_f{\text{x}}_t+{\text{v}}_f\odot {\text{c}}_{t-1}+{\text{b}}_f)\\ {\text{c}}_t& ={\text{f}}_t\odot {\text{c}}_{t-1}+(1-{\text{f}}_t)\odot (\text{W}{\text{x}}_t)\\ {\text{r}}_t& =\sigma ({\text{W}}_r{\text{x}}_t+{\text{v}}_r\odot {\text{c}}_{t-1}+{\text{b}}_r)\\ {\text{h}}_t& ={\text{r}}_t\odot {\text{c}}_t+(1-{\text{r}}_t)\odot {\text{x}}_t\end{array}$$

$${\mathbf{\alpha }}^{(i)}=\mathtt{softmax}(\sigma ({\text{h}}^T{\text{W}}_a^{(i)}){\text{v}}_a^{(i)})$$

$${\tilde{\text{h}}}^{(i)}=\sum _{j=1}^n{\mathbf{\alpha }}_j^{(i)}{\text{h}}_j.$$

$$\tilde{\text{h}}=\frac{1}{n_h}\sum _{i=1}^{n_h}{\tilde{\text{h}}}^{(i)}.$$

$$s(c,r)=f_c(c)\cdot f_r(r).$$

$$\mathcal{L}=-s(c,r^{+})+\log \sum _{r\in R}{e}^{s(c,r)}$$

$$\mathcal{L}=\sum_{i=1}^{k}|s(c,r^{+})-s(c,r_{i}^{-})+m|\$$

Full text

1 Introduction

†††Work done primarily while an intern at ASAPP, Inc.

Predicting a response given conversational context is a critical task for building open-domain chatbots and dialogue systems. Recently developed conversational systems typically use either a generative or a retrieval approach for producing responses Wang et al. (2013); Ji et al. (2014); Vinyals and Le (2015); Serban et al. (2015); Li et al. (2016); Xing et al. (2016); Deb et al. (2019). While both of these approaches have demonstrated strong performance in the literature, retrieval methods often enjoy better control over response quality than generative approaches. In particular, such methods select outputs from a whitelist of candidate responses, which can be pre-screened and revised for desired qualities such as sentence fluency and diversity.

Most previous work on retrieval models has concentrated on designing neural architectures to improve response selection. For instance, several works have improved model performance by encoding multi-turn conversation context instead of single-turn context Serban et al. (2015); Zhou et al. (2016); Wu et al. (2017). More recent efforts Zhou et al. (2018); Zhang et al. (2018) have explored using more advanced architectures, such as the Transformer Vaswani et al. (2017), to better learn the mapping between the context and the candidate responses.

Relatively little effort, however, has been devoted to the practical considerations of using such models in a real-world production setting. For example, one critical consideration rarely discussed in the literature is the inference speed of the deployed model. While recent methods introduce rich computation, such as cross-attention Zhou et al. (2018), to improve the modeling between the conversational context and candidate response, the model outputs must be re-computed for every pair of context and response. As a consequence, these models are not well-suited to a production setting where the size of the response whitelist can easily extend into the thousands.

Another critical concern is the whitelist selection process and the associated retrieval evaluation. Most prior work have reported Recall@$k$ on a small set of randomly selected responses which include the true response sent by the agent  Lowe et al. (2015); Zhou et al. (2016, 2018); Wu et al. (2017); Zhang et al. (2018). However, this over-simplified evaluation may not provide a useful indication of performance in production, where the whitelist is not randomly selected, is significantly larger, and may not contain the target response.

In this paper, we explore and evaluate model and whitelist design choices for building retrieval-based conversation systems in production. We present a dual encoder architecture that is optimized to select among as many as 10,000 responses within a couple tens of milliseconds. The model makes use of a fast recurrent network implementation Lei et al. (2018) and multi-headed attention Lin et al. (2017) and achieves over a 4.1x inference speedup over traditional encoders such as LSTM Hochreiter and Schmidhuber (1997). The independent dual encoding allows pre-computing the embeddings of candidate responses, thereby making the approach highly scalable with the size of the whitelist. In addition, we compare two approaches for generating the response candidates, and we conduct a comprehensive analysis of our model and whitelists on a large, real-world help desk dataset, using human evaluation and metrics that are more relevant to use in a production setting.

2 Related Work

This paper extends the line of work on conversational retrieval models for multi-turn response selection Lowe et al. (2015); Al-Rfou et al. (2016); Zhou et al. (2016, 2018); Wu et al. (2016, 2017); Yan et al. (2016); Lu et al. (2017); Zhang et al. (2018); Shalyminov et al. (2018); Deb et al. (2019); Yang et al. (2019). Our model is most similar to Lowe et al. (2015), who construct the context of the conversation by concatenating all previous utterances. They use an RNN to separately encode the context and each candidate response, and they then compute a matching score between the context and response representations to determine the best response for that context.

Other recent work has explored more complex methods of incorporating information from the context of a conversation. Serban et al. (2015) and Zhou et al. (2016) employ a hierarchical architecture in which they encode the context using RNNs at both the word level and the utterance level. In contrast to these models, which generate a single context encoding, Wu et al. (2017) designed a network that matches a response to each utterance in the context individually.

While many of the models cited above implement their RNNs with an LSTM Hochreiter and Schmidhuber (1997), we instead use an SRU Lei et al. (2018). SRU uses light recurrence, which makes it highly parallelizable, and Lei et al. (2018) showed that it trains 5-9x faster than cuDNN LSTM. SRU also exhibits a significant speedup in inference time compared to LSTM (by a factor of 4.1x in our experiments), which is particularly relevant in a production setting. Furthermore, Lei et al. (2018) showed that SRU matches or exceeds the performance of models using LSTMs or the Transformer architecture Vaswani et al. (2017) on a number of NLP tasks, meaning significant speed gains can be achieved without a drop in performance.

Despite the abundance of prior work on retrieval models for dialogue, whitelist selection has received relatively little attention. Since practical use of conversational models has typically not been addressed, most models are evaluated on their ability to select the correct response from a small list of randomly sampled responses Lowe et al. (2015). Another option, from Wu et al. (2017), is to use Apache Lucene111http://lucene.apache.org/ to select a list of response candidates relevant to each context. However, neither method produces a single whitelist that can be used for every context and reviewed for quality. The closest work to ours is Lu et al. (2017), who build a whitelist using a $k$-means clustering of responses. We extend this work by doing a more comprehensive analysis of different whitelist selection methods, and we further analyze the effect of whitelist size on performance.

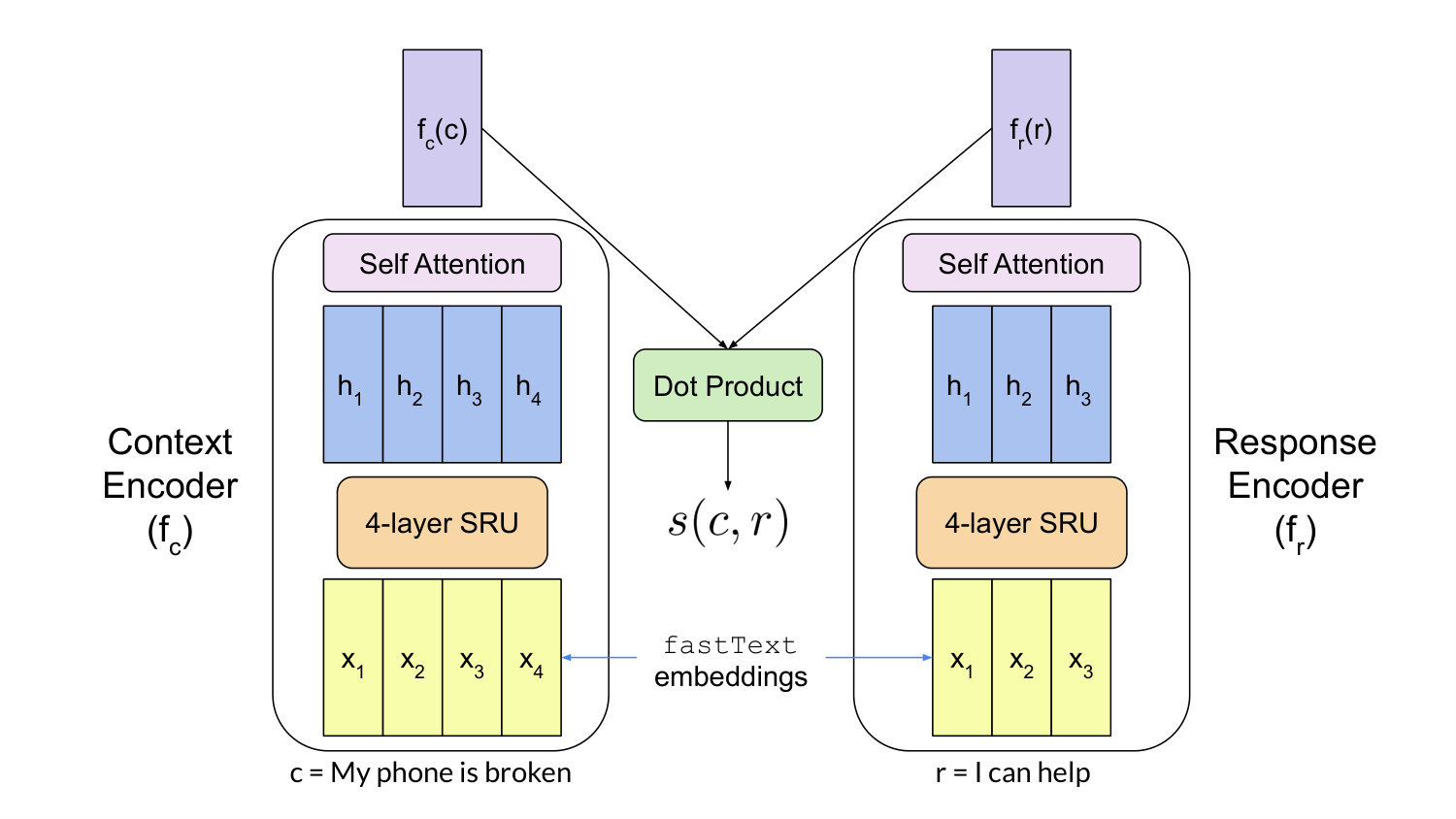

3 Model Architecture

Next we describe the architecture of our retrieval model. The two inputs to the model are a context $c$, which is a concatenation of all utterances in the conversation, and a candidate response $r$. In the context, we use special tokens to indicate whether each utterance comes from the customer or the agent. The model outputs a score $s(c,r)$ indicating the relevance of the response to the context. The model architecture is described in detail below and is illustrated in Figure 1.

3.1 Dual Encoders

At the core of our model are two neural encoders $f_{c}$ and $f_{r}$ to encode the context and the response, respectively. These encoders have identical architectures but learn separate weights.

Each encoder takes a sequence of tokens $w=\{w_{1},w_{2},\dots,w_{n}\}$ as input, which is either a context or a response. Due to the prevalence of typos in both user and agent utterances in real chats, we use fastText Bojanowski et al. (2016) as the word embedding method. fastText learns both word-level and character-level features and is therefore more robust to misspellings. We pretrained fastText222https://github.com/facebookresearch/fastText embeddings on a corpus of 15M utterances from help desk conversations and then fixed the embeddings while training the neural encoders.

Each encoder consists of a recurrent neural network followed by a multi-headed attention layer Lin et al. (2017) to perform pooling. We use multi-layer, bidirectional SRUs as the recurrent network. Each layer of the SRU involves the following computation:

[TABLE]

where $\sigma$ is the sigmoid activation function, $\textbf{W},\textbf{W}_{f},\textbf{W}_{r}\in\mathbb{R}^{d_{h}\times d_{e}}$ are learned parameter matrices, and $\textbf{v}_{f},\textbf{v}_{r},\textbf{b}_{f},\textbf{b}_{v}\in\mathbb{R}^{d_{h}}$ are learned parameter vectors.

The multi-headed attention layer compresses the encoded sequence $\textbf{h}=\{\textbf{h}_{1},\textbf{h}_{2},\dots,\textbf{h}_{n}\}$ into a single vector. For each attention head $i$, attention weights are generating with the following computation:

[TABLE]

where $\sigma$ is a non-linear activation function, $\textbf{W}^{(i)}_{a}\in\mathbb{R}^{d_{h}\times d_{a}}$ is a learned parameter matrix, and $\textbf{v}^{(i)}_{a}\in\mathbb{R}^{d_{a}}$ is a learned parameter vector.

The encoded sequence representation is then pooled to a single vector for each attention head $i$ by summing the attended representations:

[TABLE]

Finally, the pooled encodings are averaged across the $n_{h}$ attention heads:

[TABLE]

The output of the encoder is the vector $f(w)=\widetilde{\textbf{h}}$.

3.2 Scoring

To determine the relevance of a response $r$ to a context $c$, our model computes a matching score between the context encoding $f_{c}(c)$ and the response encoding $f_{r}(r)$. This score is simply the dot product of the encodings:

[TABLE]

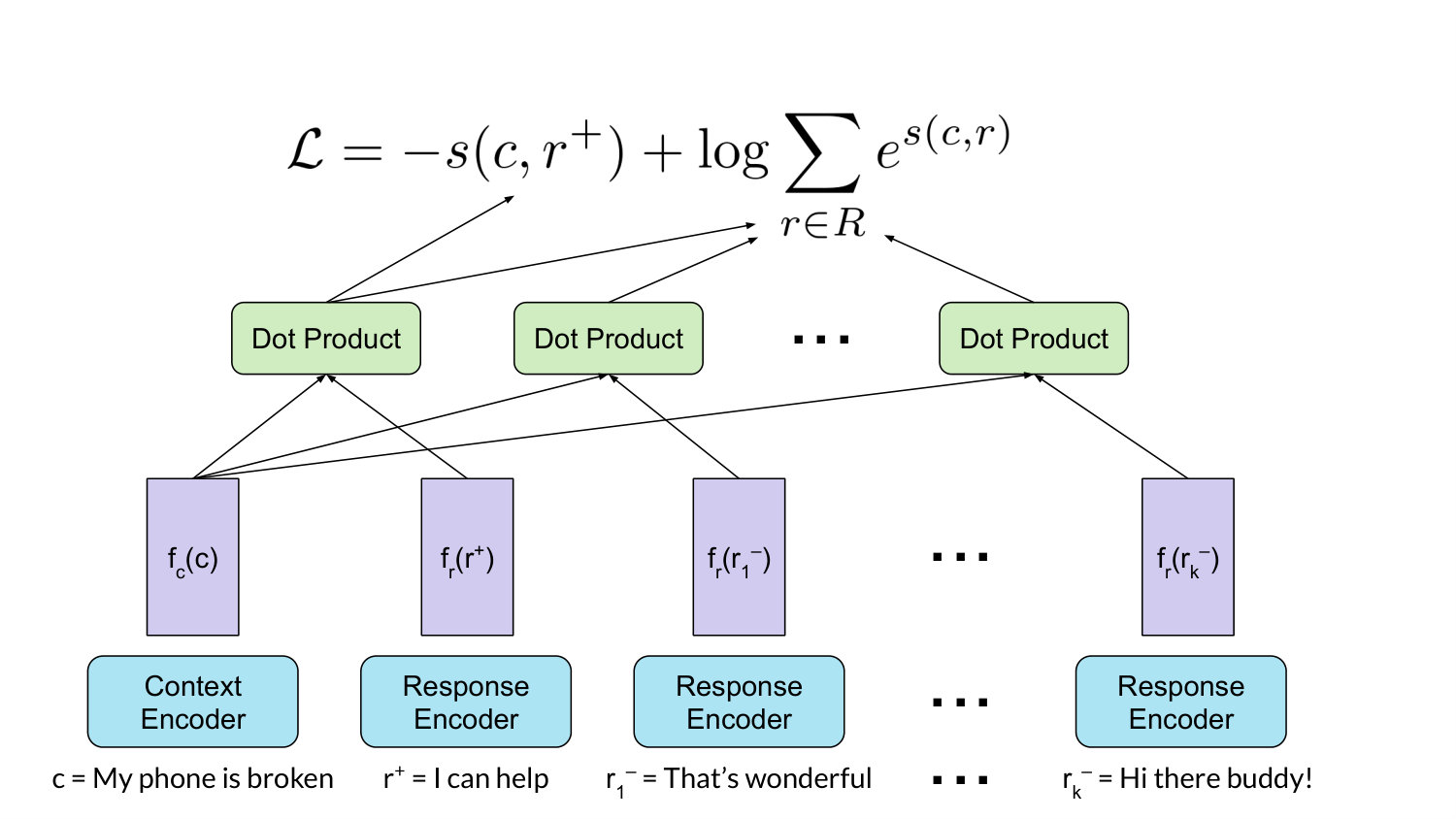

3.3 Training

We optimize the model to maximize the score between the context $c$ and the response $r^{+}$ actually sent by the agent while minimizing the score between the context and each of $k$ random (“negative”) responses $r_{1}^{-},\dots,r_{k}^{-}$. This is accomplished by training the model to minimize the cross-entropy loss:

[TABLE]

where $R=\{r^{+},r_{1}^{-},\dots,r_{k}^{-}\}$.

Although negative responses could be sampled separately for each context-response pair, we instead use a method inspired by Logeswaran and Lee (2018) and share a set of negative responses across all examples in a batch. Specifically, for each batch, we sample $k$ responses from the set of all agent responses (weighted according to response frequency), and we use those $k$ responses as the negative responses for every context-response pair in the batch. This has the benefit of reducing the number of responses that need to be encoded in each batch of size $b$ from $\mathcal{O}(bk)$ to $\mathcal{O}(b+k)$, thereby significantly accelerating training.

3.4 Whitelist Generation

After training, we experimented with two methods of creating the whitelist from which our model selects responses at inference time. For each method, we created both a 1,000 response whitelist and a 10,000 response whitelist. Having a whitelist with any more than 10,000 responses would likely make a manual review infeasible.

Frequency-Based Method.

Responses that are sent frequently are more likely to be relevant in multiple conversations and are less likely to contain errors. Therefore, one method of building a high-quality whitelist is simply to collect messages that are sent often. We created frequency-based whitelists by selecting the 1,000 or 10,000 most common agent responses, after accounting for minor variations in capitalization, punctuation, and whitespace.

Clustering-Based Method.

Although selecting responses based on frequency may help guarantee quality, manual examination of the frequency whitelists showed that they contained many redundant responses. Therefore, we experimented with a clustering-based whitelist selection method in the hope of reducing redundancy and increasing response diversity. Specifically, we encoded all agent responses using our response encoder $f_{r}$ and then used $k$-means clustering with $k=1,000$ or $k=10,000$ to cluster the responses. We then selected the most common response from each cluster to create the whitelists.

4 Experiments and Results

We evaluated our model and whitelists on a large, proprietary help desk chat dataset using several offline metrics and a human evaluation. We particularly emphasize metrics relevant to production, such as inference speed and Recall@$k$ from a large candidate set. The human evaluation illustrates how our model and whitelists compare to each other and to the responses sent by a real human agent.

4.1 Data

The help desk chat dataset used in our experiments consists of 15M utterances from 595K conversations. We randomly split the conversations into train, validation, and test sets with 80%, 10%, and 10% of the conversations, respectively. Since each conversation includes several agent responses, each of which produces a context-response example, our dataset consists of 6.6M training examples, 828K validation examples, and 828K test examples. Additional dataset statistics are provided in Table 1. An example chat conversation can be seen in Table 2.

4.2 Model Details

We implemented the dual encoder model using PyTorch Paszke et al. (2017). We use pre-trained fastText embeddings of dimension $d_{e}=300$, a 4-layer bidirectional SRU333SRU code available at https://github.com/taolei87/sru/tree/master/sru with hidden size $d_{h}=300$, and multi-headed attention with 16 heads and a hidden size of $d_{a}=64$. The batch size was 200 and we used $k=200$ negative responses for each positive response. To ensure quick encoding even for long inputs, contexts were restricted to the 500 most recent tokens and responses were restricted to the 100 most recent tokens444A context with 500 tokens contains 39 utterances on average, which is typically more than enough to understand the topic of conversation. Almost all responses are shorter than 100 tokens.. The model was optimized using Adam Kingma and Ba (2014) with the Noam learning rate schedule from  Vaswani et al. (2017). The model was trained for 30 epochs, with each epoch limited to 10,000 training batches (2M training examples). Training took about 32 hours on a single Tesla V100 GPU.

4.3 Results and Analysis

AUC and AUC@$p$.

To determine the model’s ability to use context to distinguish between true responses and negative responses, we use the metrics AUC and AUC@$p$. AUC is the area under the receiver operating characteristic curve when using the score $s(c,r)$ to determine whether each response is the true response or a negative response. AUC@$p$ is the area under the portion of the ROC curve where the false positive rate is $\leq p$, renormalized so that the maximum AUC@$p$ is 1.

The performance of our model according to these AUC metrics can be seen in Table 3. The high AUC indicates that our model can easily distinguish between the true response and negative responses. Furthermore, the AUC@$p$ numbers show that the model has a relatively high true positive rate even under the difficult requirement of a low false positive rate.

Recall and Whitelist Size.

In order to determine our model’s ability to select the correct response from a whitelist, we use recall at $k$ from $n$ (R$n$@$k$), which is the proportion of times that the true response is ranked as one of the top $k$ responses in a whitelist containing $n$ candidate responses.

Table 4 shows R$n$@$k$ on the test set for different values of $n$ and $k$ when using a random whitelist, meaning a whitelist which contains the true response and $n-1$ randomly sampled responses555To be precise, we sampled responses without replacement weighted according to the frequency with which the response was sent by agents.. As discussed in the introduction, most prior work evaluate their models using a random whitelist with $n=10$ candidates. However, a production whitelist needs to contain hundreds or thousands of response candidates in order to provide relevant responses in a variety of contexts. Therefore, a more meaningful metric for production purposes is R$n$@$k$ for $n\geq 100$. Table 4 shows that recall drops significantly as $n$ grows, meaning that the R10@$k$ evaluation performed by prior work may significantly overstate model performance in a production setting.

Comparison Between Whitelists.

An interesting question we would like to address is whether a random whitelist serves as a good proxy for whitelists generated using other methods. To this end, we also evaluate recall on the frequency and clustering whitelists from Section 3.4.

First, we compute recall when the true response is added to the whitelist, as in the case of the random whitelists described above. Second, we compute recall only on the subset of examples for which the true response is already contained in the whitelist. The latter recall measure is more relevant to a production setting since the true response is not known at inference time and therefore cannot be artificially added to the whitelist.

The results in Table 5 show that the three types of whitelists perform comparably to each other when the true response is added. However, in the more realistic second case, when recall is only computed on examples with a response already in the whitelist, performance on the frequency and clustering whitelists drops significantly.

Additionally, we compute the BLEU  Papineni et al. (2002); Ward and Reeder (2002) scores between the true responses and the best suggested responses. The BLEU score allows us to measure the semantic similarity when the true and suggested responses are not exactly matched. The BLEU scores computed with the frequency and clustering whitelists are slightly higher than those computed with random whitelists.

Recall versus Coverage.

Although recall is a good measure of performance, recall alone is not a sufficient criterion for whitelist selection. The recall results in Table 5 seem to indicate that the clustering-based whitelists are strictly superior to the frequency-based whitelists in the realistic case when we only consider responses that are already contained in the whitelist, but this analysis fails to account for the frequency with which this is the case. For instance, a whitelist may have very high recall but may only include responses that were sent infrequently by agents, meaning the whitelist will perform well for a handful of conversations but will be irrelevant in most other cases.

To quantify this effect, we introduce the notion of coverage, which is the percent of all context-response pairs where the agent response appears in the whitelist, after accounting for minor deviations in capitalization, punctuation, and whitespace. A whitelist that contains responses that are sent more frequently by agents will therefore have a higher coverage.

Table 6 shows R@1 and coverage for the frequency and clustering whitelists. While the clustering whitelists have higher recall, the frequency whitelists have higher coverage. This is to be expected since the frequency whitelists were specifically chosen to maximize the frequency of the included responses. Since both recall and coverage are necessary to provide good responses for a wide range of conversations, these results indicate the importance of considering the trade-off between recall and coverage inherent in a given whitelist selection method.

It may be interesting in future work to further investigate these trade-offs in order to identify a whitelist selection method that can simultaneously optimize recall and coverage.

Human Evaluation.

While offline metrics are indicative of model performance, the best measure of performance is a human evaluation of the model’s predictions. Therefore, we performed a small-scale human evaluation of our model and whitelists. We selected 322 contexts from the test set and used our model to generate responses from the Frequency 10K, Frequency 1K, Clustering 10K, and Clustering 1K whitelists. Three human annotators were shown each context followed by five responses: one from each of the four whitelists and the true response sent by the agent. The annotators were blinded to the source of each response. The annotators were asked to rate each response according to the following categories:

Bad: The response is not relevant to the context.

Good: The response is relevant to the context but is vague or generic.

Great: The response is relevant to the context and directly addresses the issue at hand.

For example, three such responses for the context “My phone is broken” would be:

Bad response: Goodbye!

Good response: I’m sorry to hear that.

Great response: I’m sorry to hear that your phone is broken.

The results of the human evaluation are in Table 7. Our proposed system works well, selecting acceptable (i.e. good or great) responses about 80% of the time and selecting great responses more than 50% of the time.

Interestingly, the size and type of whitelist seem to have little effect on performance, indicating that all the whitelists contain responses appropriate to a variety of conversational contexts. Since the frequency whitelists are simpler to generate than the clustering whitelists and since the 1K whitelists contain fewer responses to manually review than the 10K whitelists, the Frequency 1K whitelist is the preferred whitelist for our production system.

Inference Speed.

A major constraint in a production system is the speed with which the system can respond to users. To demonstrate the benefit of using an SRU encoder instead of an LSTM encoder in production, we compared the speed with which they encode a random conversation context at inference time, averaged over 1,000 samples. We used a single core of Intel Core i9 2.9 GHz CPU. As seen in Table 8, an SRU encoder is over 4x faster than an LSTM encoder with a similar number of parameters, making it more suitable for production use.

Table 8 also highlights the scalability of using a dual encoder architecture. Since the embeddings of the candidate responses are independent from the conversation context, the embeddings of the whitelist responses can be pre-computed and stored as a matrix. Retrieving the best candidate once the context is encoded takes a negligible amount of time compared to the time to encode the context.

Ablation analysis.

Finally, we performed an ablation analysis to identify the effect of different aspects of the model architecture and training regime. The results are shown in Table 9, and details of the model variants are available in the Appendix.

As Table 9 shows, the training set size and the number of negative responses for each positive response are the most important factors in model performance. The model performs significantly worse when trained with hinge loss instead of cross-entropy loss, indicating the importance of the loss function. We also experimented with a hierarchical encoder, where two different recurrent neural networks are used to encode contexts, one at the word level and one at the utterance level. We observed no advantage to using a hierachical encoder, despite its complexity and popularity for encoding conversations Serban et al. (2015); Zhou et al. (2016). Finally, we see that a 2 layer LSTM performs similarly to either a 4 layer or a 2 layer SRU with a comparable number of parameters. Since the SRU is more than 4x faster at inference time with the same level of performance, it is the preferred encoder architecture.

5 Conclusion

In this paper, we present a fast dual encoder neural model for retrieval-based human-computer conversations. We address technical considerations specific to the production setting, and we evaluate our model and two whitelist generation methods on a large help desk chat dataset. We observe that traditional offline evaluation metrics significantly overestimate model performance, indicating the importance of using evaluation metrics more relevant to a production setting. Furthermore, we find that our proposed model performs well, both on offline metrics and on a human evaluation. Due to its strong performance and its speed at inference time, we conclude that our proposed model is suitable for use in a production conversational system.

One important direction for future work is a deeper analysis of the whitelist selection process. Although our analysis found similar performance across whitelists according to a human evaluation, our offline metrics indicate underlying trade-offs between different characteristics of the whitelists such as recall and coverage. A better understanding the implications of these trade-offs may lead to improved whitelist generation methods, thereby further improving the performance of retrieval-based models.

Acknowledgments

We would like to thank Howard Chen for the invaluable conversations we had with him during the development of our model. We would also like to thank Anna Folinsky and the ASAPP annotation team for their help performing the human evaluation, and Hugh Perkins for his support on the experimental environment setup. Thank you as well to Ethan Elenberg, Kevin Yang, and Adam Yala for reviewing early drafts of this paper and providing valuable feedback. Finally, thank you to the anonymous reviewers for their constructive feedback.

Appendix A Appendix

A.1 Ablation Study

Table 9 shows the results of an ablation study we performed to identify the most important components of our model architecture and training regime. Each variant is described below.

Base. This is the model architecture described in Section 3.

4L SRU $\rightarrow$ 2L LSTM. We replace the 4 layer SRU encoder with a 2 layer LSTM encoder, which has a comparable number of parameters when using the same hidden sizes.

4L SRU $\rightarrow$ 2L SRU. We use an SRU with 2 layers instead of 4 layers. In order to match parameters, we use a hidden size of $d_{h}=475$ instead of $d_{h}=300$ in the model with 2 layers.

Flat $\rightarrow$ hierarchical. We replace the SRU encoder with two SRU encoders, one which operates at the word level and one which operates at the utterance level, following the architectures of Serban et al. (2015); Wu et al. (2017).

Cross entropy $\rightarrow$ hinge loss. Instead of using the cross-entropy loss defined in Equation 6, we use the hinge loss, which is defined as:

[TABLE]

where the margin $m=0.25$ encourages separation between the score of the correct response and the score of each negative response.

6.6M $\rightarrow$ 1M examples. We train on a dataset with 1 million examples instead of the full 6.6 million training examples.

6.6M $\rightarrow$ 100K examples. We trained on a dataset with 100 thousand examples instead of the full 6.6 million training examples.

200 $\rightarrow$ 100 negatives. During training, we sample 100 negatives for each context-response pair instead of 200 negatives.

200 $\rightarrow$ 10 negatives. During training, we sample 10 negatives for each context-response pair instead of 200 negatives.
