Accurate Predictions of Volatile Plutonium Thermodynamic Properties

Sophie Kervazo; Florent R\'eal; Fran\c{c}ois Virot; Andr\'e; Severo Pereira Gomes; Val\'erie Vallet

arXiv:1906.03157·physics.chem-ph·May 20, 2020

Accurate Predictions of Volatile Plutonium Thermodynamic Properties

Sophie Kervazo, Florent R\'eal, Fran\c{c}ois Virot, Andr\'e, Severo Pereira Gomes, Val\'erie Vallet

PDF

TL;DR

This paper uses advanced electronic structure calculations to accurately determine thermodynamic properties of volatile plutonium oxides, improving safety predictions in nuclear accident scenarios.

Contribution

It introduces a relativistic multi-reference computational approach to predict thermodynamic data for plutonium oxides, addressing previous uncertainties and lacking data.

Findings

01

Predicted enthalpies of formation for PuO2, PuO3, and PuO2(OH)2 with quantified uncertainties.

02

Confirmed the predominance of PuO2 in gaseous phase under oxidative conditions.

03

Reassessed the electronic ground state and ionization energy of PuO2.

Abstract

The ability to predict the nature and amounts of plutonium emissions in industrial accidents, such as in solvent fires at PUREX nuclear reprocessing facilities, is a key concern of nuclear safety agencies. In accident conditions and in the presence of oxygen and water vapor, plutonium is expected to form the three major volatile species $Pu O_{2}$ , $Pu O_{3}$ , and $Pu O_{2} (OH)_{2}$ , for which the thermodynamic data necessary for predictions (enthalpies of formation and heat capacities) presently show either large uncertainties or are lacking. In this work we aim to alleviate such shortcomings by obtaining the aforementioned data via relativistic correlated electronic structure calculations employing a two-step multi-reference approach (MS-CASPT2 with SO-RASSI), which is able to describe the multireference character of the ground-state wave functions of $Pu O_{3}$ and…

Figures13

Click any figure to enlarge with its caption.

a, Full-Valence CAS) there is a strong correlation within the nonbonding plutonyl-like orbitals ($\delta_{u},\phi_{u}$) and also between the b2/p*(O)* and the $\mathrm{5f\delta_{u}}$ orbitals, in agreement with our analysis of the $\mathrm{{}^{3}B_{2}}$ ground-state wave function.

Tables9

Table 1. Table 1 : Reactions Used to Derive the Standard Enthalpies of Formation of \ce PuO2, \ce PuO3, and \ce PuO2(OH)2

	\cePuO2	\cePuO3	\cePuO2(OH)2
R₁	\cePu + O2 -> PuO2	\cePu + 3/2 O2 -> PuO3	\cePu + O2 + 2 H2 -> PuO2(OH)2
R₂	\cePu + 2 O -> PuO2	\cePu + 3 O -> PuO3	\cePu + 4 O + 2 H -> PuO2(OH)2
R₃	\cePu + H2O2 -> PuO2 + H2	\cePu + 3/2 H2O2 -> PuO3 + 3/2 H2O	\cePu + 3 H2O2 -> PuO2(OH)2 + 2 H2O
R₄	\cePu + 2 OH -> PuO2 + 2 H	\cePu + 3 OH -> PuO3 + 3 H	\cePu + 4 OH -> PuO2(OH)2 + 2 H
R₅	\cePu + 2 H2O -> PuO2 + 2 H2	\cePu + 3 H2O -> PuO3 + 3 H2	\cePu + 4 H2O -> PuO2(OH)2 + 2 H2
R₆	\cePu + 2 H2O -> PuO2 + 4 H	\cePu + 3 H2O -> PuO3 + 6 H	\cePu + 4 H2O -> PuO2(OH)2 + 6 H

Table 2. Table 2 : Active Spaces for the Various Plutonium Oxides and Oxyhydroxides

molecule	active space
	(electron, orbitals)	orbitals
\cePuO2	(4,4)^a	$δ_{u}$ (2), $ϕ_{u}$ (2)
\cePuO2	(12,17)^b	$π_{u}$ (2), $π_{g}$ (2), $σ_{g}$ , $σ_{u}$ , $π_{u}^{}$ (2), $π_{g}^{}$ (2), $σ_{g}^{}$ , $σ_{u}^{}$ , $δ_{u}$ (2), $ϕ_{u}$ (2), $δ_{g}$ (2)

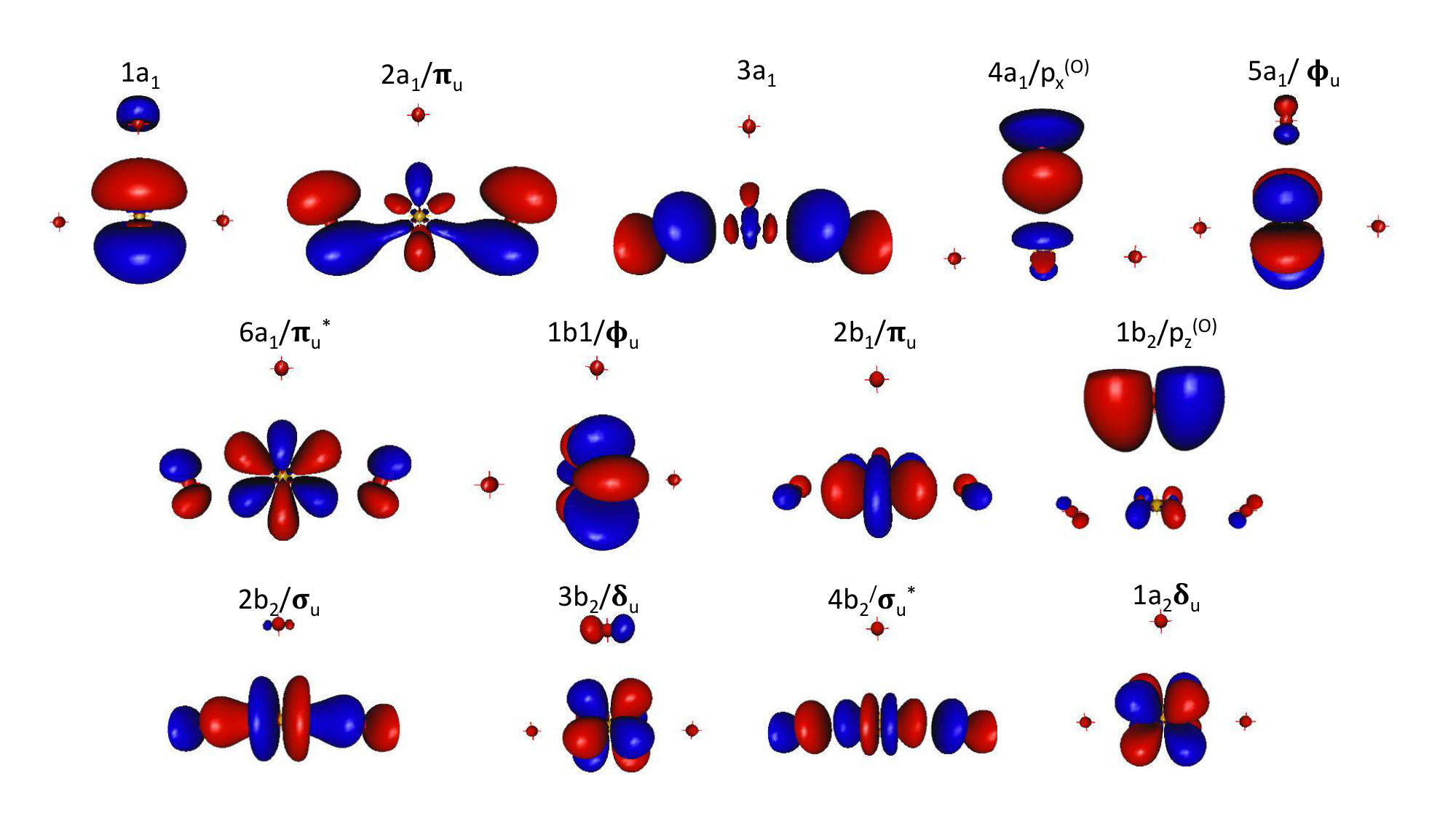

\cePuO3	(14,13)^c	1a₁, 2a₁/ $π_{u}$ , 2a₁, 4a₁/p ${}^{o}_{x}$ , 5a₁/ $ϕ_{u}$ ,
		6a₁/ $π_{u}$ , 1b₁/ $ϕ_{u}$ , 2b₁/ $π_{u}$ , 1b₂/p ${}^{o}_{z}$ , 2b₂/ $σ_{u}$ , 3b₂/ $δ_{u}$ , 4b₂/ $σ_{u}^{*}$ , 1a₂/ $δ_{u}$
\cePuO2(OH)2	(4,4)	1a/ $δ$ , 2a/ $ϕ$ , 1b/ $δ$ , 2b/ $ϕ$
Pu	(8,13)	7s, 5f, 6d
O	(6,4)	2s, 2p_x, 2p_y, 2p_z
\ceO2	(12, 8)	$σ_{2 s}$ , $σ_{2 s}^{}$ , $σ_{2 p}$ , $σ_{2 p}^{}$ , $π_{2 p}$ (2), $π_{2 p}^{*}$ (2)
\ceOH	(7,5)	$σ$ , $σ_{n b}$ , 2p ${}^{O}_{x}$ , 2p ${}^{O}_{y}$ , $σ^{*}$ ,
\ceH2O2	(14, 10)	1 $σ^{O - O}$ , 1 $σ^{* O - O}$ , $σ^{O - H}$ (2),
		2 $σ^{O - O}$ , $π^{O - O}$ , 2p^O, 1 $σ^{* O - O}$ , $σ^{O - H}$ (2)
\ceH2O	(8,6)	2a₁,1b₂, 3a₁, 1b₁, 4a₁, 1b₂
\ceH2	(2, 2)	$σ_{g}$ , $σ_{u}^{*}$
H	(1,1)	1s

Table 3. Table 3 : Fine Structure Transition Energies ( Δ E Δ 𝐸 \Delta E in cm − 1 centimeter 1 {\mathrm{cm}}^{-1} ) of Atomic Pu Computed at the SO-CASPT2 with the ANO-RCC-TZVP Basis Set and Analysis of the Various J 𝐽 J -States in Terms of the Dominating L S 𝐿 𝑆 LS Terms

exptl Bovey and Gerstenkorn (1961); Blaise et al. (1962, 1980)	$Δ E$	$J$ -value	weight of $L S$ states
$0$	$0$	0	54% ${}^{7}F$ , 38% ${}^{5}D$ , 7% ${}^{3}P$
$2204$	$1806$	1	64% ${}^{7}F$ , 32% ${}^{5}D$
$4300$	$4208$	2	82% ${}^{7}F$ , 17% ${}^{5}D$
$6145$	$6353$	3	88% ${}^{7}F$ , 10% ${}^{5}D$
$7775$	$8091$	4	93% ${}^{7}F$
$9179$	$9552$	5	90% ${}^{7}F$
$10 238$	$11 010$	6	85% ${}^{7}F$ , 10% ${}^{5}G$
$9773$	$12 499$	0	44% ${}^{7}F$ , 21% ${}^{5}D$ , 8% ${}^{3}P$
$13 528$	$13 612$	1	66% ${}^{9}H$ , 9% ${}^{7}F$ , 7% ${}^{7}G$

Table 4. Table 4 : Lowest Vertical Transition Energies ( Δ E Δ 𝐸 \Delta E in cm − 1 centimeter 1 {\mathrm{cm}}^{-1} ) of \ce PuO3 Computed at the SF-CASPT2 and SO-CASPT2 Levels with the ANO-RCC-TZVP Basis Set and Analysis of the Various States

	no.	state	$Δ E$	character : % [orbital(number of electron)]
SF	1	${}^{3}B_{2} (1)$	$0$	36% [4a₁/p^(O)(2), 1b₁/ $ϕ_{u} (1)$ , 1b₂/p^(O)( $\bar{1}$ ), 2b₂/ $σ_{u} (2)$ , 3b₂/ $δ_{u} (1)$ , 1a₂/ $δ_{u} (1)$ ]
				21% [4a₁/p^(O)(2), 1b₁/ $ϕ_{u} (1)$ , 1b₂/p^(O)(1), 2b₂/ $σ_{u} (2)$ , 3b₂/ $δ_{u}$ ( $\bar{1}$ ), 1a₂/ $δ_{u} (1)$ ]
				22% [4a₁/p^(O)(2), 1b₁/ $ϕ_{u} (1)$ , 1b₂/p^(O)(2), 2b₂/ $σ_{u} (2)$ , 1a₂/ $δ_{u} (1)$ ]
	2	${}^{3}A_{2} (1)$	$3161$	43% [4a₁/p^(O)(2), 5a₁/ $ϕ_{u} (1)$ , 1b₂/p^(O)( $\bar{1}$ ), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u} (1)$ , 1a₂/ $δ_{u} (1)$ ]
				23% [4a₁/p^(O)(2), 5a₁/ $ϕ_{u} (1)$ , 1b₂/p^(O)(1), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u}$ ( $\bar{1}$ ), 1a₂/ $δ_{u} (1)$ ]
				17% [4a₁/p^(O)(2), 5a₁/ $ϕ_{u} (1)$ , 1b₂/p^(O)(2), 2b₂/ $σ_{u} (2)$ , 1a₂/ $δ_{u} (1)$ ]
	3	${}^{3}B_{1} (1)$	$4663$	38% [4a₁/p^(O)(2),5a₁/ $ϕ_{u} (1)$ , 1b₁/ $ϕ_{u} (1)$ , 1b₂/p^(O)( $\bar{1}$ ), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u} (1)$ ]
				12% [4a₁/p^(O)(2), 5a₁/ $ϕ_{u} (1)$ , 2b₁/ $π_{u}$ (1), 1b₂/p^(O)( $\bar{1}$ ), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u} (1)$ ]
				12% [4a₁/p^(O)(2), 5a₁/ $ϕ_{u} (1)$ , 1b₁/ $ϕ_{u} (1)$ , 2b₁/ $π_{u}$ (2), 1b₂/p^(O)(2)]
	4	${}^{1}A_{1} (1)$	$7239$	32% [4a₁/p^(O)(2), 1b₂/p^(O)(1), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u}$ ( $\bar{1}$ ), 1a₂/ $δ_{u} (2)$ ]
				28% [4a₁/p^(O)(2), 1b₂/p^(O)(2), 2b₂/ $σ_{u} (2)$ , 1a₂/ $δ_{u} (2)$ ]
				11% [4a₁/p^(O)(1), 5a₁/ $Φ_{u}$ ( $\bar{1}$ ), 1b₂/p^(O)(2), 2b₂/ $σ_{u} (2)$ , 1a₂/ $δ_{u} (2)$ ]
	5	${}^{3}A_{2} (2)$	$7287$	20% [4a₁/p^(O)(2), 1b₁/ $ϕ_{u} (1)$ , 1b₂/p^(O)(1), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u} (2)$ ]
				18% [4a₁/p^(O)(1),5a₁/ $Φ_{u}$ ( $\bar{1}$ ), 1b₁/ $ϕ_{u} (1)$ , 1b₂/p^(O)(2), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u} (1)$ ]
				17% [4a₁/p^(O)(2), 1b₁/ $ϕ_{u} (1)$ , 1b₂/p^(O)(2), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u} (1)$ ]
	6	${}^{3}B_{1} (2)$	$8038$	31% [4a₁/p^(O)(1),5a₁/ $Φ_{u}$ ( $\bar{1}$ ), 1b₂/p^(O)(2), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u} (1)$ , 1a₂/ $δ_{u} (1)$ ]
				11% [4a₁/p^(O)(2),5a₁/ $ϕ_{u} (1)$ , 2b₁/ $π_{u}$ (1), 1b₂/p^(O)( $\bar{1}$ ), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u} (1)$ ]
				10% [4a₁/p^(O)(2), 1b₂/p^(O)(2), 2b₂/ $σ_{u} (2)$ ,3b₂/ $δ_{u} (1)$ , 1a₂/ $δ_{u} (1)$ ]
				10% [4a₁/p^(O)(2), 1b₁/ $ϕ_{u} (1)$ , 2b₁/ $π_{u}$ (1), 1b₂/p^(O)( $\bar{1}$ ), 2b₂/ $σ_{u} (2)$ , 1a₂/ $δ_{u} (1)$ ]
SO		X	$0$	47% ${}^{3}B_{2} (1)$ + 24% ${}^{3}A_{2} (1)$ + 14% ${}^{3}B_{1} (1)$
		a	$1235$	59% ${}^{3}B_{2} (1)$ + 25% ${}^{3}A_{2} (1)$
		b	$1783$	73% ${}^{3}B_{2} (1)$
		c	$3777$	51% ${}^{3}A_{2} (1)$
		d	$5660$	24% ${}^{3}B_{1} (1)$ + 18% ${}^{1}A_{1} (1)$ + 17% ${}^{3}A_{2} (2)$ + 10% ${}^{3}B_{1} (2)$

Table 5. Table 5 : Lowest Vertical Transition Energies ( Δ E Δ 𝐸 \Delta E in cm − 1 centimeter 1 {\mathrm{cm}}^{-1} ) of \ce PuO2(OH)2, Computed at the SF-CASPT2 and SO-CASPT2 Levels with ANO-RCC-TZVP Basis Sets and Analysis of the Various States

	state	$Δ E$	character : % [orbital(number of electron)]
SF	${(1)}^{3} B$	$0$	49% [2a/ $ϕ_{u} (1)$ , 1b/ $δ_{u} (1)$ ]
			48% [1a/ $δ_{u} (1)$ , 2b/ $ϕ_{u} (1)$ ]
	${(1)}^{3} A$	$889$	41% [1a/ $δ_{u} (1)$ , 2a/ $ϕ_{u} (1)$ ]
			59% [1b/ $δ_{u} (1)$ , 2b/ $ϕ_{u} (1)$ ]
	${(2)}^{3} B$	$2136$	75% [1a/ $δ_{u} (1)$ , 1b/ $δ_{u} (1)$ ]
			20% [2a/ $ϕ_{u} (1)$ , 2b/ $ϕ_{u} (1)$ ]
	${(2)}^{3} A$	$4698$	59% [1a/ $δ_{u} (1)$ , 2a/ $ϕ_{u} (1)$ ]
			41% [1b/ $δ_{u} (1)$ , 2b/ $ϕ_{u} (1)$ ]
	${(3)}^{3} B$	$5351$	52% 2a/ $ϕ_{u} (1)$ , 1b/ $δ_{u} (1)$
			46% [1a/ $δ_{u} (1)$ , 2b/ $ϕ_{u} (1)$ ]
	${(1)}^{1} A$	$5764$	[58% 1b/ $δ_{u} (1)$ , 2b/ $Φ_{u}$ ( $\bar{1}$ )]
			30% [1a/ $δ_{u} (1)$ , 2a/ $Φ_{u}$ ( $\bar{1}$ )]
			5%[2a/ $ϕ_{u} (2)$ ]
	${(1)}^{1} B$	$7444$	50% [1a/ $δ_{u} (1)$ , 1b/ $δ_{u}$ ( $\bar{1}$ )]
			28% [2a/ $ϕ_{u} (1)$ , 2b/ $Φ_{u}$ ( $\bar{1}$ )]
			16%[ 1a/ $δ_{u} (1)$ , 2b/ $Φ_{u}$ ( $\bar{1}$ )]
	${(2)}^{1} A$	$9626$	39% [1a/ $δ_{u} (1)$ , 2a/ $Φ_{u}$ ( $\bar{1}$ )]
			29 % [2a/ $ϕ_{u} (2)$ ]
			13% [1b/ $δ_{u} (1)$ , 2b/ $Φ_{u}$ ( $\bar{1}$ )]
			10% [1a/ $δ_{u} (2)$ ]
			7 %[2a/ $ϕ_{u} (2)$ ]
SO	X	$0$	46% ${(1)}^{3} A$ , 41% ${(1)}^{3} B$ , 6% ${(2)}^{3} B$
	a	$323$	45.% ${(1)}^{3} B$ , 45% ${(1)}^{3} A$ , 6% ${(2)}^{3} B$
	b	$2222$	35% ${(2)}^{3} B$ , 25% ${(1)}^{3} B$ , 14% ${(1)}^{1} A$ , 13% ${(2)}^{3} A$ , 10% ${(3)}^{3} B$
	c	$3757$	40% ${(2)}^{3} A$ , 25% ${(2)}^{3} B$ , 19% ${(1)}^{1} B$ , 7% ${(1)}^{3} B$ , 6% ${(1)}^{3} A$
	d	$4158$	36% ${(3)}^{3} B$ , 34% ${(2)}^{3} B$ , 14% ${(2)}^{1} A$ , 11% ${(1)}^{3} B$ ,

Table 6. Table 6 : Comparison of CBS Extrapolated DC M 2 superscript superscript DC M 2 \mathrm{{}^{2}DC^{M}} -EOM-CCSD and SO-CASPT2 \ce PuO2 Vertical Transition Energies ( Δ E Δ 𝐸 \Delta E in cm − 1 centimeter 1 {\mathrm{cm}}^{-1} ) Computed at the 1.744 and 1.808 Å times 1.808 angstrom 1.808\text{\,}\mathrm{\SIUnitSymbolAngstrom} \ce Pu-O Distances

$Ω$	${}^{2}{DC}^{M}$ -EOM-CCSD	SO-CASPT2		${}^{2}{DC}^{M}$ -EOM-CCSD	SO-CASPT2
	d(Pu-O)= $1.744 Å$			d(Pu-O)= $1.808 Å$
	$Δ E$	$Δ E$	$Δ E$ La Macchia et al. (2008)	$Δ E$	$Δ E$
$0_{g}^{+}$	$0$	$0$	$1794$	$0$	$0$
$1_{g}$	$2554$	$1438$	$2315$	$2457$	$2462$
$2_{g}$	$6366$	$4235$	$4131$	$5663$	$5904$
$0_{g}$	$7138$			$7134$
$3_{g}$	$9480$			$9073$
$1_{g}$	$10 098$			$9502$
$0_{g}$	$10 195$			$10 415$
$1_{u}$	$7011$	$1778$	$0$	$9822$	$5851$
$2_{u}$	$7225$	$1805$	$535$	$10 057$	$6265$
$2_{u}$	$7653$			$10 854$
$3_{u}$	$7955$			$11 214$
$4_{u}$	$13 531$			$16 236$

Table 7. Table 7 : Lowest Vertical Transition Energies ( Δ E Δ 𝐸 \Delta E in cm − 1 centimeter 1 {\mathrm{cm}}^{-1} ) of \ce PuO2 Computed at the SF-CASPT2 and SO-CASPT2 Levels (d(Pu-O)= 1.808 Å times 1.808 angstrom 1.808\text{\,}\mathrm{\SIUnitSymbolAngstrom} ) with ANO-RCC-TZVP Basis Sets and Analysis of the Various States

	state	$Δ E$	character : % [orbital(number of electron)]
SF	${(1)}^{5} Σ_{g}^{+}$	$0$	84% [ $1 a_{u}$ / $δ_{u}$ (1), $2 b_{2 u}$ / $ϕ_{u}$ (1), $2 b_{1 u}$ / $δ_{u}$ (1), 2b_3u/ $ϕ_{u}$ (1)]
	${(1)}^{5} Σ_{g}^{-}$	$4798$	45% [ $1 a_{u}$ / $δ_{u}$ (1), 3b_2u/ $π_{u}$ (1), $2 b_{1 u}$ / $δ_{u}$ (1), 2b_3u/ $ϕ_{u}$ (1)]
			45% [ $1 a_{u}$ / $δ_{u}$ (1), $2 b_{2 u}$ / $ϕ_{u}$ (1), $2 b_{1 u}$ / $δ_{u}$ (1), 3b_3u/ $π_{u}$ (1)]
	${(1)}^{5} Φ_{u}$	$5421$	85% [ $3 a_{g}$ (1), $1 a_{u}$ / $δ_{u}$ (1), $2 b_{1 u}$ / $δ_{u}$ (1), 2b_3u/ $ϕ_{u}$ (1)]
	${(1)}^{5} Δ_{u}$	$7452$	79% [ $3 a_{g}$ (1), $2 b_{2 u}$ / $ϕ_{u}$ (1), $2 b_{1 u}$ / $δ_{u}$ (1), 2b_3u/ $ϕ_{u}$ (1)]
	${(1)}^{3} Σ_{g}^{-}$	$10 308$	24% [ $1 a_{u}$ / $δ_{u}$ (1), $2 b_{2 u}$ / $ϕ_{u}$ (2), $2 b_{1 u}$ / $δ_{u}$ (1)]
			24% [ $1 a_{u}$ / $δ_{u}$ (1), $2 b_{1 u}$ / $δ_{u}$ (1), 2b_3u/ $ϕ_{u}$ (2)]
			19% [ $2 b_{2 u}$ / $ϕ_{u}$ (1), $2 b_{1 u}$ / $δ_{u}$ (2), 2b_3u/ $ϕ_{u}$ (1)]
			16% [ $1 a_{u}$ / $δ_{u}$ (1), $2 b_{2 u}$ / $ϕ_{u}$ (1), 2b_3u/ $ϕ_{u}$ (1)]
SO	$0_{g}^{+}$	$0$	48% ${(1)}^{5} Σ_{g}^{+}$ , 22% ${(1)}^{3} Σ_{g}^{-}$
	$1_{g}$	$2462$	67% ${(1)}^{5} Σ_{g}^{+}$ , 15% ${(1)}^{3} Σ_{g}^{-}$
	$1_{u}$	$5851$	27% ${(1)}^{5} Φ_{u}$ , 27% 21% ${(2)}^{5} Φ_{u}$ , 13% ${(1)}^{5} Δ_{u}$ , 13% ${(2)}^{5} Δ_{u}$
	$2_{g}$	$5904$	85% ${(1)}^{5} Σ_{g}^{+}$
	$2_{u}$	$6265$	21% ${(1)}^{5} Φ_{u}$ , 21% ${(2)}^{5} Φ_{u}$ , 24% ${(1)}^{5} Δ_{u}$
	$3_{u}$	$7195$	39% ${(1)}^{5} Φ_{u}$ , 25% ${(2)}^{5} Φ_{u}$

Table 8. Table 8 : CBS Extrapolated Vertical and Adiabatic Ionization Potentials (IPs in eV electronvolt \mathrm{eV} ) of \ce PuO2 Computed at the DC M 2 superscript superscript DC M 2 \mathrm{{}^{2}DC^{M}} -EOM-IP-CCSD Level. The interatomic distance ( r e subscript 𝑟 𝑒 r_{e} (Pu-O)= 1.808 Å times 1.808 angstrom 1.808\text{\,}\mathrm{\SIUnitSymbolAngstrom} , from DC M 2 superscript superscript DC M 2 \mathrm{{}^{2}DC^{M}} -CCSD(T) calculations) was used for the vertical IPs, while the adiabatic IPs correspond to the reported equilibrium r e subscript 𝑟 𝑒 r_{e} distances of \ce PuO2+ and harmonic symmetric stretching ω e subscript 𝜔 𝑒 \omega_{e} frequencies. Experimental and other theoretical values correspond to adiabatic IPs

${}^{2}{DC}^{M}$ -EOM-IP-CCSD
State	${IP}_{vert}$	${IP}_{adiab}$	$r_{e}$	$ω_{e}$
$3 / 2_{u}$	$7.67$	$7.07$	$1.697$	$1010$
$5 / 2_{u}$	$7.93$	$7.20$	$1.688$	$1035$
$1 / 2_{u}$	$9.81$	$9.77$	$1.771$	$811$
$3 / 2_{u}$	$10.80$	$10.79$	$1.831$	$940$
Theor. ( ${IP}_{adiab}$ )
X2C-DC-CCSD(T)		$5.93$	ref. 69
SO-CCSD(T)		$6.93$	ref. 68
Exp ( ${IP}_{adiab}$ )
		$9.4$ p m 0.5	ref. 20
		$10.1$ p m 0.1	ref. 22
		$7.03$ p m 0.12	ref. 23
		6.6^a	refs. 72; 73

Table 9. Table 9 : Standard Enthalpies of Formation ( \enthalpy ∗ ( f ) \enthalpy 𝑓 \enthalpy*(f){}{} ( 298.15 K times 298.15 kelvin 298.15\text{\,}\mathrm{K} ) in kJ mol − 1 times kilojoule mole 1 \mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1} ) of \ce PuO2, \ce PuO2(OH)2, \ce PuO3 in the Gas Phase Calculated at Various Level of Theory and Extrapolated to the Complete Basis Set (CBS) limit and Obtained from the Average over the Six Teactions Listed in Table 1 , except for DC M 2 superscript superscript DC M 2 \mathrm{{}^{2}DC^{M}} -CCSD(T) for Which the Average only Includes Four Reactions R3–R6. Δ E S O Δ subscript 𝐸 𝑆 𝑂 \Delta E_{SO} represents the spin-orbit contribution to the enthalpy, which is included in all SO-method results. The uncertainties Δ Δ \mathrm{\Delta} \enthalpy ∗ ( f ) \enthalpy 𝑓 \enthalpy*(f){}{} correspond to 95% confidence intervals are computed with the formulas Ruscic et al. ( 2005 ) given in the Supporting Information

Method	\cePuO2	\cePuO3	\cePuO2(OH)2
$Δ E_{S O}$ ^a	$34.4$	$59.0$	$46.9$
SO-B3LYP^b	$- 318.4$ p m 20.6	$- 405.7$ p m 22.5	$- 801.9$ p m 30.3
SO-UCCSD	$- 353.3$ p m 16.2	NC	NC
SO-UCCSD(T)	$- 411.2$ p m 6.6	NC	NC
${}^{2}{DC}^{M}$ -CCSD^c	$- 409.3$ p m 14.9	NC	NC
${}^{2}{DC}^{M}$ -CCSD(T)^c	$- 449.5$ p m 8.8	NC	NC
SO-CASPT2	$- 413.7$ p m 18.5	$- 553.2$ p m 27.5	$- 1012.6$ p m 38.1
Experiment	$- 410 \pm 20$ Cordfunke and Konings (1993); $- 428.7 \pm 7$ Gotcu-Freis et al. (2011)	$- 562.8$ p m 5 Krikorian et al. (1997)	$- 1018.2$ p m 3.3 Krikorian et al. (1997)
	$- 440 \pm 7$ Gotcu-Freis et al. (2011); $- 412 \pm 20$ Glushko et al. (1982)	$- 567.6$ p m 15 Konings et al. (2014)
	$- 428.7$ p m 20 Konings et al. (2014)

Equations42

\displaystyle\enthalpy*(r){}{}=\displaystyle\sum_{i}\left(E_{i}+ZPE_{i}+\left[\state[pre=]{H}($298.15\text{\,}\mathrm{K}$)-\state[pre=]{H}({$0\text{\,}\mathrm{K}$})\right]_{i}\right),

\displaystyle\enthalpy*(r){}{}=\displaystyle\sum_{i}\left(E_{i}+ZPE_{i}+\left[\state[pre=]{H}($298.15\text{\,}\mathrm{K}$)-\state[pre=]{H}({$0\text{\,}\mathrm{K}$})\right]_{i}\right),

\enthalpy * (f) (P u X) = \enthalpy * (r) - \enthalpy * (f) (B)

\enthalpy * (f) (P u X) = \enthalpy * (r) - \enthalpy * (f) (B)

+ \enthalpy * (f) (P u) + \enthalpy * (f) (A),

E_{n}^{CAS/HF} = E_{CBS}^{CAS/HF} + A (n + 1) exp (- 6.57 n),

E_{n}^{CAS/HF} = E_{CBS}^{CAS/HF} + A (n + 1) exp (- 6.57 n),

E_{n}^{corr} = E_{CBS}^{corr} + \frac{B}{( n + 1/2 ) ^{4}} .

E_{n}^{corr} = E_{CBS}^{corr} + \frac{B}{( n + 1/2 ) ^{4}} .

\displaystyle\state[pre=,subscript-right={$298\text{\,}\mathrm{K}$}]{S}=$262.9\text{\,}\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$,

\displaystyle\state[pre=,subscript-right={$298\text{\,}\mathrm{K}$}]{S}=$262.9\text{\,}\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$,

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\displaystyle$-1.2077\text{\times}{10}^{-5}$(T/K)^{2}-$2.0271\text{\times}{10}^{5}$(T/K)^{-2}

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\displaystyle$-1.7456\text{\times}{10}^{-6}$(T/K)^{2}+$2.2335\text{\times}{10}^{6}$(T/K)^{-2}

\displaystyle\enthalpy*(f){}({$298.15\text{\,}\mathrm{K}$})=$-449.5\pm 8.8\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$.

\displaystyle\enthalpy*(f){}({$298.15\text{\,}\mathrm{K}$})=$-449.5\pm 8.8\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$.

\enthalpy * (f) [\ce P u O 2 +] =

\enthalpy * (f) [\ce P u O 2 +] =

\enthalpy * (f) [\ce P u O 2 +] =

\displaystyle\state[pre=,subscript-right={$298\text{\,}\mathrm{K}$}]{S}=$310.98\text{\,}\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$,

\displaystyle\state[pre=,subscript-right={$298\text{\,}\mathrm{K}$}]{S}=$310.98\text{\,}\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$,

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\displaystyle$-7.1581\text{\times}{10}^{-5}$(T/K)^{2}-$7.1469\text{\times}{10}^{4}$(T/K)^{-2}

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\displaystyle+$4.5533\text{\times}{10}^{-6}$(T/K)^{2}-$3.5486\text{\times}{10}^{6}$(T/K)^{-2}.

\displaystyle\enthalpy*(f){}{}($298.15\text{\,}\mathrm{K}$)=$-553.2\pm 27.5\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$.

\displaystyle\enthalpy*(f){}{}($298.15\text{\,}\mathrm{K}$)=$-553.2\pm 27.5\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$.

\displaystyle\state[pre=,subscript-right={$298\text{\,}\mathrm{K}$}]{S}=$355.74\text{\,}\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$,

\displaystyle\state[pre=,subscript-right={$298\text{\,}\mathrm{K}$}]{S}=$355.74\text{\,}\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$,

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\displaystyle-$9.5789\text{\times}{10}^{-6}$(T/K)^{2}-$1.6030\text{\times}{10}^{6}$(T/K)^{-2}

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\state [p r e =, s u b scr i pt - r i g h t = p] C (T)

\displaystyle-$2.0559\text{\times}{10}^{-6}$(T/K)^{2}-$5.5254\text{\times}{10}^{6}$(T/K)^{-2}

\displaystyle\enthalpy*(f){}{}($298.15\text{\,}\mathrm{K}$)=$-1012.6\pm 38.1\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$.

\displaystyle\enthalpy*(f){}{}($298.15\text{\,}\mathrm{K}$)=$-1012.6\pm 38.1\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$.

Peer Reviews

No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.

Videos

No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.

Full text

\chemsetup

formula = mhchem, greek = chemgreek, modules = thermodynamics, modules = redox, modules = reactions

Accurate Predictions of Volatile Plutonium Thermodynamic Properties

Sophie Kervazo

Univ. Lille, CNRS, UMR 8523 - PhLAM - Physique des Lasers Atomes et Molécules, F-59000 Lille, France

Department of Chemistry and Chemical Biology, McMaster University, 1280 Main Street West, Hamilton L8S 4M1, Canada

Florent Réal

Univ. Lille, CNRS, UMR 8523 - PhLAM - Physique des Lasers Atomes et Molécules, F-59000 Lille, France

François Virot

Institut de Radioprotection et de Sûreté Nucléaire (IRSN) PSN-RES, Cadarache, Saint Paul Lez Durance 13115, France

André Severo Pereira Gomes

Univ. Lille, CNRS, UMR 8523 - PhLAM - Physique des Lasers Atomes et Molécules, F-59000 Lille, France

Valérie Vallet

Univ. Lille, CNRS, UMR 8523 - PhLAM - Physique des Lasers Atomes et Molécules, F-59000 Lille, France

[email protected]

Abstract

The ability to predict the nature and amounts of plutonium emissions in industrial accidents, such as in solvent fires at PUREX nuclear reprocessing facilities, is a key concern of nuclear safety agencies. In accident conditions and in the presence of oxygen and water vapor, plutonium is expected to form the three major volatile species \cePuO2, \cePuO3, and \cePuO2(OH)2, for which the thermodynamic data necessary for predictions (enthalpies of formation and heat capacities) presently show either large uncertainties or are lacking. In this work we aim to alleviate such shortcomings by obtaining the aforementioned data via relativistic correlated electronic structure calculations employing the multi-state complete active apace with second-order perturbation theory (MS-CASPT2) with state-interaction RASSI spin-orbit coupling approach, which is able to describe the multireference character of the ground-state wave functions of \cePuO3 and \cePuO2(OH)2. We benchmark this approach by comparing it to relativistic coupled cluster calculations for the ground, ionized, and excited states of \cePuO2. Our results allow us to predict enthalpies of formation $\enthalpy*(f){}{}$ ( $298.15\text{\,}\mathrm{K}$ ) of \cePuO2, \cePuO3, and \cePuO2(OH)2 to be $-449.5\pm 8.8$ , $-553.2\pm 27.5$ , and $-1012.6\pm 38.1\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ , respectively, which confirm the predominance of plutonium dioxide, but also reveal the existence of plutonium trioxide in the gaseous phase under oxidative conditions, though the partial pressures of \cePuO3 and \cePuO2(OH)2 are nonetheless always rather low under a wet atmosphere. Our calculations also permit us to reassess prior results for \cePuO2, establishing that the ground state of the \cePuO2 molecule is mainly of $\mathrm{{}^{5}\Sigma_{g}^{+}}$ character, as well as to confirm the experimental value for the adiabatic ionization energy of \cePuO2.

I Introduction

A key step in the reprocessing of spent nuclear fuel is the PUREX (plutonium uranium refining by extraction) liquid-liquid process, through which uranium and plutonium are separated from the minor actinides. Thanks to its remarkable selectivity and the stability properties, tri-n-butyl phosphate (TBP) is used as the organic extractant. However, its high viscosity and density impose that the organic phase should be diluted within a hydrocarbon solvent. In the French La Hague reprocessing plant, hydrogenated tetrapropylene (HTP) is currently used as a TBP diluent. As HTP is a highly flammable substance, this could, in case of an accidental event, trigger a fire of the uranium-plutonium containing organic solvent and may thus induce a release in the environment and atmosphere of highly radioactive species. The knowledge of their chemical behaviors is thus mandatory to carry out safety and risk analysis.

The presence of plutonium induces considerable difficulties to perform experimental investigations of solvent fires. One way to overcome these is to use a plutonium surrogate in order to carry out fire experimental campaigns. To make a selection of surrogate candidates, their behavior should be similar in all oxidation states. Considering for example the gaseous state, the volatility of Pu(VI), which still remains an open issue, should be addressed specifically because some of the candidates (Th, Ce) Šulka et al. (2014) cannot extend their oxidation degree up to VI. An alternative to surrogates is the development of a predictive model which includes all relevant physical and chemical transformations of plutonium-containing substances. Whatever the case, both approaches need reliable and accurate molecular properties of the gaseous species involved in the Pu+O+H system, required to calculate their thermodynamic properties.

The thermodynamic properties of the Pu+O+H system have been widely studied and assessed (see refs 2 and Guéneau et al. (2008) and the references therein). Nonetheless, some uncertainties remain in the thermodynamic properties of some species: for the gaseous plutonium dioxide, \cePuO2, the assessment of its standard heat of formation reveals a discordance between second and third law analyses of experimental data Konings et al. (2014). In addition, experimental data (and in particular thermodynamic data) for other Pu(VI) molecules, such as \cePuO2(OH)2 and \cePuO3, are scarce, and their existence in the gaseous phase remains an open question. Ronchi et al. Ronchi et al. (2000) have carried out mass spectrometric measurements of effusing vapor over plutonium oxide sample where \cePuO3(g) has been detected but only as a nonequilibrium species. Then, transpiration experiments of plutonium oxide have been performed by Krikorian et al. Krikorian et al. (1997) under oxygen as well as a mixture of oxygen and steam. From analogies with gaseous uranium species, the authors considered \cePuO2(OH)2 and \cePuO3 molecules as the effusing species. Hübener et al. Hübener et al. (2008) have studied by thermochromatography the volatility of plutonium oxide under wet oxygen flux, and their results highlighted the formation of volatile Pu(VI) expected as \cePuO2(OH)2.

To predict the respective quantities of the three target volatile products of plutonium in the presence of oxygen or steam, accurate thermal functions (heat capacity, entropy, enthalpy increment) and enthalpies of formation are needed. For gas-phase molecules, this all boils down to having data on their electronic structure in order to directly calculate the vibrational-rotational partition functions. The electronic partition functions in turn require the knowledge of all the low-lying excited states within $10\,000\text{\,}{\mathrm{cm}}^{-1}$ and their spectroscopic labeling as degeneracies enter the statistical weights. If not known from direct spectroscopic measurements, these are often roughly estimated from chemically and spectroscopically analogous systems, such as crystals or molecules containing another actinide. However, the investigation of plutonium-containing molecules with quantum chemical methods remains a big challenge because they exhibit complex electronic structures, and as such it is often of little use to estimate their properties from chemical analogues. The presence of open 5f, 6d, and 7s orbitals on the plutonium atom leads to dense valence electronic spectra, in which the numerous degenerate or quasi-degenerate electronic states are suspected to have strong multireference characters.

A potential route for handling electron correlation and relativistic effects simultaneously for multireference heavy element complexes is to work in the four-component (4C) framework, with the Dirac-Coulomb, Dirac-Coulomb-Gaunt, or Dirac-Coulomb-Breit Hamiltonian or with the exact two-component (X2C) approaches using a molecular mean-field (MMF) approach Sikkema et al. (2009) ( $\mathrm{{}^{2}DC^{M}}$ ). The multireference intermediate Hamiltonian Fock-space coupled cluster (IHFSCC) has been successfully applied to actinide-containing molecules Infante et al. (2006, 2007), though with available implementations it is not possible to treat states differing by more than two electrons from a closed-shell reference. This is problematic for \cePuO3, which turns out to have a complex multireference ground-state with significant contributions from configurations with two or even four unpaired electrons Boguslawski et al. (2017); Kovács (2017a); Gomes et al. (2008); Ruipérez et al. (2009); Weigand et al. (2009); Réal et al. (2009); Tecmer et al. (2011, 2012); Gomes et al. (2013). On the other hand, at the fully relativistic level, \cePuO2 turns out to have a closed-shell ground state, allowing us to also estimate its standard enthalpy of formation with coupled-cluster single and double with perturbative triples ( $\mathrm{{}^{2}DC^{M}}$ -CCSD(T)) calculations. The recent implementation of the fully relativistic EOM-CCSD method Shee et al. (2018) offers the possibility to accurately compute the ionization potential (IP) of the \cePuO2 molecule, and new arguments are proposed to clarify why the experimental values reported by Rauh et al. Rauh and Ackermann (1974a, b) and Capone et al. Capone et al. (1999) differ by about $3\text{\,}\mathrm{eV}$ from the IP value measured by Santos et al. Santos et al. (2002).

Considering $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) to be the gold standard – it was shown by Shee et al.Shee et al. (2018) that $\mathrm{{}^{2}DC^{M}}$ Hamiltonian yields results which are nearly indistinguishable from the Dirac–Coulomb Hamiltonian – and the fact that there are more experimental data estimating the enthalpy of formation, the \cePuO2 molecular system represents an excellent candidate to benchmark relativistic multireference methods with an a posteriori treatment of the spin-orbit coupling (SOC) interaction, namely the state-interaction-multistate second-order perturbation theory RASSI-MS-CASPT2 approach, hereafter referred to as SO-CASPT2, which has been used to compute the thermodynamic data of \cePuO3 and \cePuO2(OH)2. High accuracy is achieved by extrapolating the electronic energies to the complete basis set limit.

The details of the calculations are described in the following section, followed by a discussion of the electronic structure of the three aforementioned molecules. We continue with an analysis of the thermodynamic properties and a comparison to available experimental data and propose new heat capacity functions and standard entropies and enthalpies of formation. Finally, the volatility of Pu(VI) species is investigated within the framework of thermodynamic equilibrium calculations. The article closes with conclusions and perspectives for nuclear safety related issues.

II Computational Details

II.1 Chemical Reactions Used to Derive the Standard Enthalpies of Formation of \cePuX Molecules

To determine the enthalpies of formation, $\enthalpy*(f){}{}$ ( $298.15\text{\,}\mathrm{K}$ ), of the different plutonium oxides and oxyhydroxides, we consider the reactions presented in Table 1. We begin by computing the enthalpies of the reactions presented in Table 1, as:

[TABLE]

that is by summing up electronic energies $E_{i}$ , the vibrational zero point energies ( $ZPE_{i}$ ) and the enthalpy increment, $\left[\state[pre=]{H}($ 298.15\text{,}\mathrm{K} $)-\state[pre=]{H}({$ 0\text{,}\mathrm{K} $})\right]_{i}$ at $298.15\text{\,}\mathrm{K}$ (see Table S1) for the products, minus that of the reactants. For a generic reaction leading to the formation of \cePuX (\cePu + A -> PuX + B), the standard enthalpy of formation, \enthalpy*(f)( $298.15\text{\,}\mathrm{K}$ ), is computed as

[TABLE]

using the known enthalpies of formations of the \cePu and \ceA reactants and the \ceB product listed with their uncertainties in Table S1 in the Supporting Information Ruscic and Bross (2019); Lemire et al. (2001). Note that, because of the lack of thermodynamics data on plutonium species, it is not possible to use reactions that are isogyric or isodesmic, which might alter the final accuracy of our results; the measure of the resulting uncertainties within the 95% confidence limit obtained for the average of these reactions is computed as explained in the Supporting Information, and reported in Table 9.

II.2 Two-Step Relativistic Calculations

II.2.1 Geometries and Enthalpy Corrections

The geometries were obtained from scalar relativistic DFT calculations, except for \cePuO2, for which the optimal $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) geometry was used. In the DFT calculations, the plutonium atom was described by a relativistic effective core potential (RECP) ECP60MWB Küchle et al. (1994) with the corresponding basis set of quadruple- $\zeta$ quality Cao et al. (2003), while for the lighter atoms augmented triple $\zeta$ (aug-cc-pVTZ) Dunning (1989) basis sets were used. All of the DFT calculations were carried out with the B3LYP functional Becke (1993) and the GAUSSIAN09 Frisch et al. package. The ZPE values and enthalpy corrections needed in eq. 1 were calculated from the harmonic vibrational frequencies. Anharmonic corrections to the vibrational partition functions were not included, as these would contribute only a few tenths of a $\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ at most and only or those species involving hydrogen atoms. Using the vibrational perturbation theoryBarone (2004, 2005) as implemented in GaussianFrisch et al. , we have computed the anharmonic corrections for all molecules. The largest contribution to any of the reaction enthalpies was only $5\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ , even at temperatures as high as $3000\text{\,}\mathrm{K}$ , which is considered negligible for the accuracy goal of the present work.

II.2.2 Basis Sets and Extrapolation to the Complete Basis Set Limit

To reach high accuracy for ab initio thermochemistry, the computed electronic energies were extrapolated to the complete basis set limit (CBS), from two calculations with all-electron atomic natural orbitals relativistic core correlation (ANO-RCC) basis sets Roos et al. (2004, 2005) with quality sequentially increased from triple- $\zeta$ (n=3) to quadruple- $\zeta$ (n=4). The CASSCF/HF energies were extrapolated with the Karton and Martin formula Karton and Martin (2006):

[TABLE]

separately from the correlation energies $E^{\text{corr}}_{\text{n}}$ via Feller et al. (2008, 2011)

[TABLE]

While irregular basis convergence patterns was reported for lanthanide ANO-RCC basis sets Lu and Peterson (2016), the convergence is smooth in the case of the Pu basis sets as illustrated by Figure S1 in the Supporting Information.

II.2.3 Single Reference Wave Function Correlated Calculations

To account for dynamic electronic correlation, in cases of open-shell systems with a weak multireference character, UCCSD(T) (unrestricted coupled cluster singles doubles and perturbative triples) Watts et al. (1993) is the gold standard. These calculations were performed using the Molpro Quantum Chemistry software Werner et al. (2015). The frozen orbitals were the 1s orbital of O and 1s to 5d (included) orbitals of Pu. Core-valence correlation effects were discarded not only due to their high computational cost but also because we expect them to be no larger than $4\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ for actinide molecules Bross and Peterson (2014); Feng et al. (2017). Due to the important multiconfigurational character of the ground-state wave function of \cePuO3 and \cePuO2(OH)2 species, no UCCSD(T) calculations were performed.

II.2.4 Multireference Calculations and Definition of the Orbital Active Spaces

Knowing the multi-configurational character of the ground-state wave function of the atomic plutonium and the plutonium oxides and oxyhydroxides of interest Boguslawski et al. (2017), and since SOC needs to be included a posteriori Gagliardi and Roos (2007), the use of a multi-configurational approach that accounts for the static and dynamic electronic correlation effects is mandatory. The former was included with the CASSCF (Complete Active Space Self Consistent Field) method Knowles and Werner (1985); Werner and Knowles (1985). The active spaces are listed in the Table 2; for the atoms (O, H, Pu) and molecules without Pu (OH, \ceH2O2, \ceH2, \ceH2O), the active space is composed of the valence orbitals. Nevertheless, one has to note that the CAS (Complete Active Space) of (8,13) for the plutonium atom lead to convergence problems as the competing configurations $\mathrm{5f^{6}7s^{2}}$ , $\mathrm{5f^{6}6d^{1}7s^{1}}$ , $\mathrm{5f^{6}6d^{1}7s^{2}7p^{1}}$ are close in energy and intertwined.Bovey and Gerstenkorn (1961); Blaise et al. (1962, 1980) We instead used a RAS (Restricted Active Space) Malmqvist et al. (1990) to focus on the two configurations $\mathrm{5f^{6}7s^{2}}$ , $\mathrm{5f^{6}6d^{1}7s^{1}}$ that dominate the low-lying part of the Pu spectrum (up to $18\,000\text{\,}{\mathrm{cm}}^{-1}$ . The RAS space includes the 7s in the RAS1, the $\mathrm{5f}$ in the RAS2 and the 6d in RAS3 with one as the maximum number of holes in RAS1 and as number of particles in RAS3.

For the plutonium molecules, the difficulty is to design orbital active spaces that do not exceed the current active space limit of about 16 electrons in 16 orbitals. In a recent work, some of us have used the multireference density matrix renormalization group (DMRG) calculations Boguslawski et al. (2017), in which we could afford including all the valence orbitals from both Pu and oxygen atoms into the active space, thus allowing the maximum flexibility into the ground-state wave functions. These DMRG calculations cannot be used for quantitative thermodynamics calculations, as they were restricted to a DMRG-CI approach, and did not include orbital relaxation, dynamic correlation and SOC. However, concepts of quantum information theory, such as orbital-pair correlations, were helpful to identify which orbitals contribute most to the ground-state wave functions, helping the design of reduced “optimal” active spaces Boguslawski et al. (2017) that can be reasonably handled in the SO-CASPT2 calculations carried out here .

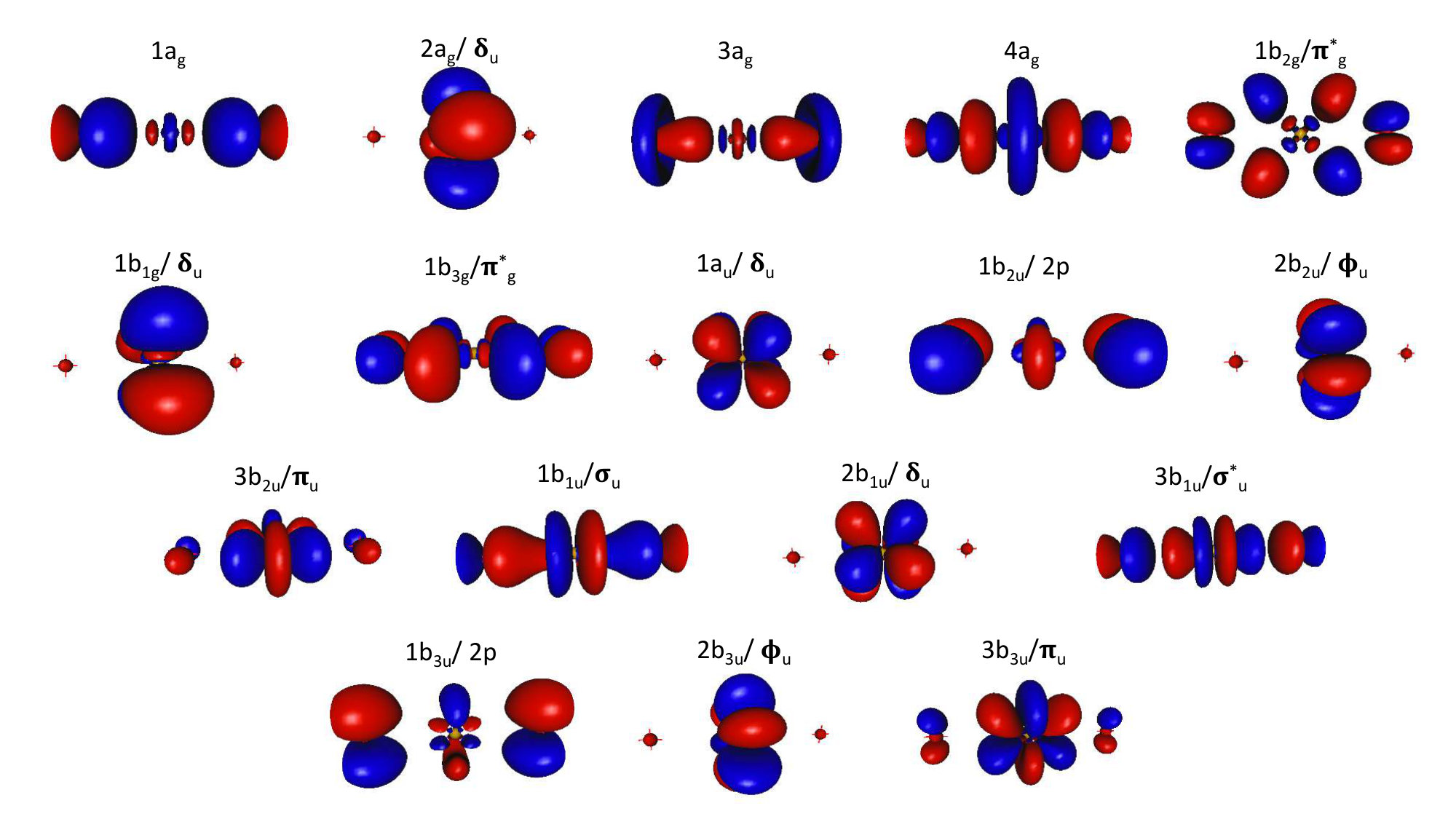

Regarding \cePuO2 (symmetry $D_{2h}$ ), the choice of the active space to describe the low lying excited states was based on the work of Denning et al. Denning (2007) and La Macchia et al. La Macchia et al. (2008). The full valence active space is composed of 2 $\pi_{u}$ , 2 $\pi_{g}$ , $\sigma_{g}$ , and $\sigma_{u}$ bonding orbitals, which are combinations of 5f and 6d orbitals of plutonium mixed with the 2p orbitals of the oxygen atoms, the corresponding antibonding orbitals, and the four nonbonding $\delta_{u}$ , $\phi_{u}$ .

Despite the increase of the computational power, a CASSCF calculation with the full valence active space Boguslawski et al. (2017) made of 16 electrons in 19 orbitals is still not feasible ( $203\,440\,360$ CSF for the ${}^{5}\Sigma_{g}^{+}$ ground state). We thus chose to remove two lowest doubly occupied $\pi_{g}$ orbitals, leading to an active space of 12 electrons in 17 orbitals. Note that La Macchia et al. La Macchia et al. (2008) used a smaller active space of 12 electrons in 14 orbitals, as they discarded the $\pi_{g}^{*}$ and $\sigma_{g}^{*}$ antibonding orbitals. Whereas for a good estimate of SOC effect in a two-step approach, numerous excited states have to be computed (to position accurately the excited states with respect to the ground state), this could degrade the description of the ground state in terms of total energy and wave function Stårling et al. (2001). Thus the ground-state $\mathrm{{}^{5}\Sigma_{g}^{+}}$ spin-free energy is computed from the well-suited minimal active space that distributes four electrons in the four nonbonding orbitals ( $\delta_{u}$ and $\phi_{u}$ ), denoted SO-CASPT2(4,4).

To define the important orbitals in the active space of \cePuO3 (symmetry $C_{2v}$ ), we used information from \cePuO2^2+ that can be considered as a subunit of plutonium trioxide suggesting an active space composed of two $\pi$ orbitals, one $\sigma$ orbital along with the corresponding antibonding associated to the plutonyl \cePuO2^2+ subunit, the four nonbonding $\delta_{u}$ and $\phi_{u}$ orbitals and the $\mathrm{p_{x}}$ , $\mathrm{p_{y}}$ and $\mathrm{p_{z}}$ of the third distant oxygen; this sums up to an active space of 14 electrons distributed in 13 orbitals as depicted in ref. 10. The active space to treat the cationic form \cePuO3+ includes one electron less.

For \cePuO2(OH)2 (symmetry $C_{2}$ ), the strengths of the orbital-pair correlations depicted in ref. 10 indicate that the nonbonding $\delta_{u}$ and $\phi_{u}$ orbitals of Pu are the most entangled orbitals and should be part of a chemically relevant active space for the ground-state wave function as well as the low-lying excited states. This yielded 16 electronic excited spin-free states. For the other Pu systems, it was not possible to include all states. Indeed, the higher excited states turned out to have too low reference weights (<20%) in the Multi-State Complete Active Space with Second-Order Perturbation Theory (MS-CASPT2) Finley et al. (1998) wave-functions.

The case of the Pu atom was peculiar since the RASSCF was not able to reproduce the exact degeneracy of the states of the same $L$ value. Therefore, the degeneracy was manually imposed across states with identical $L$ and $S$ values. The CASSCF and MS-CASPT2 calculations finally include 80, 119, and 16 electronic states for \cePuO2, \cePuO3, and \cePuO2(OH)2, respectively as detailed in Table S6 in the Supporting Information. As for the UCCSD(T) calculations the 1s orbital of O and the 1s to 5d orbitals (included) for Pu were kept frozen. To guarantee a good description of all the states, an imaginary shift of $0.05\text{\,}\mathrm{ua}$ Forsberg and Malmqvist (1997) was added to the zeroth-order Hamiltonian in addition to the IPEA = $0.25\text{\,}\mathrm{ua}$ correction Ghigo et al. (2004).

II.2.5 Spin-Orbit Coupling State Interaction Method

For the Pu atom and the plutonium molecules, SOC was treated a posteriori by state interactions between the MS-CASPT2 wave functions, using the restricted active space state interaction (RASSI) program Malmqvist et al. (2002), with spin-orbit integrals computed in the atomic mean field approximation using the AMFI code Heß et al. (1996); Schimmelpfennig (1996). These results are referred to as SO-CASPT2. The SOC contributions to the ground-state energies, i.e. the difference between the ground-state spin-free MS-CASPT2 energies (SF-CASPT2) and the SO-CASPT2 energies, was added to all other scalar relativistic results, such as the DFT and UCCSD(T) results. In Table 9, $\Delta E_{SO}$ corresponds to the difference between the SOC contributions of the plutonium molecule and the atomic Pu. All SO-CASPT2 calculations were performed with the MOLCAS8 package Francesco et al. (2015).

II.3 One-step relativistic correlated calculations

We also performed one-step relativistic calculations based on the molecular mean-field Sikkema et al. (2009) approximation to the Dirac–Coulomb ( $\mathrm{{}^{2}DC^{M}}$ ) Hamiltonian, at MP2, CCSD and CCSD(T) Visscher et al. (1996, 2001) levels of theory with Dirac18 electronic structure code DIR for \cePu, \cePuO2, \ceH2, \ceOH, \ceH2O and \ceH2O2. This allowed us to obtain the energies for reactions R3–R6 yielding \cePuO2.

The Dyall basis sets Dyall (2012, 2007) of triple- and quadruple-zeta quality were employed for the plutonium atom and Dunning aug-cc-pVnZ ( $n=3,4$ ) sets Dunning (1989) for the light elements, all of which are left uncontracted. These calculations have been performed in $D_{\infty h}$ symmetry for \cePu, \cePuO2 and \ceH2, in $C_{\infty v}$ symmetry for \ceOH, in $C_{2v}$ symmetry for \ceH2O and in $C_{1}$ symmetry for \ceH2O2. In all cases, we’ve employed the approximation of the $\left(SS|SS\right)$ -type two-electron integrals by a point-charge model Visscher (1997). Electrons in molecular spinors with energies between -3 and $100\text{\,}\mathrm{ua}$ were included in the correlated treatment, which amounted to correlating 28 electrons for \cePuO2, 16 for \cePu, 12 for \ceH2O2, 6 for \ceOH and \ceH2O, and 2 for \ceH2.

For \cePuO2, the SCF calculations were closed-shell ones, with 52 and 58 electrons in g and u irreducible representations, respectively. For this species, the equilibrium structure and stretching frequencies were determined via a polynomial fit of the potential energy surface constructed from single-point calculations for symmetric and antisymmetric \cePu-O stretching modes. Because of constraints in computational resources, the \ceO-Pu-O bending mode frequency was obtained from $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) calculations correlating a smaller number of spinors between -3 and $5\text{\,}\mathrm{ua}$ . Energies and potential energy curves at the complete basis set limit were obtained with the same formula (Eqs. 4 and 5) introduced previously.

The Pu atom is converged at the Hartree-Fock level to the $J=0$ ground-state, with 44 and 50 electrons in the g and u irreducible representations, respectively. For the hydroxy radical, the SCF calculation was performed using the average-of-configurations formalism Thyssen (2001), with 8 electrons taken as closed shell and 1 as open shell. In the open-shell coupled cluster model, the occupations of the different irreducible representations ( $\Omega=1/2,-1/2,3/2,-3/2$ ) were restricted to be 3, 3, 1, 0, respectively. The internuclear distance used was that obtained at the DFT level (see section II.2.1), as was the case for \ceH2, \ceH2O, and \ceH2O2.

Apart from the ground-state MP2, CCSD, and CCSD(T) calculations, we performed equation-of-motion calculations for ionization potentials (EOM-IP-CCSD) for atomic \cePu and \cePuO2, as well as excitation energies (EOM-EE-CCSD) Shee et al. (2018) for \cePuO2, on the basis of the coupled cluster wave functions above.

In the case of EOM-IP-CCSD for \cePu, we requested the number of states as follows: five $\mathrm{\Omega={1/2}_{g}}$ , two $\mathrm{\Omega={3/2}_{g}}$ , one $\mathrm{\Omega={5/2}_{g}}$ , three $\mathrm{\Omega={1/2}_{u}}$ , two $\mathrm{\Omega={3/2}_{u}}$ and one $\mathrm{\Omega={5/2}_{u}}$ , whereas for \cePuO2 we requested two $\mathrm{\Omega={1/2}_{g}}$ , one $\mathrm{\Omega={3/2}_{g}}$ , three $\mathrm{\Omega={1/2}_{u}}$ , two $\mathrm{\Omega={3/2}_{u}}$ and one $\mathrm{\Omega={5/2}_{u}}$ states. In the case of EOM-EE-CCSD we requested the number of states as follows: six $\mathrm{\Omega={0}_{g}}$ , four $\mathrm{\Omega={1}_{g}}$ , three $\mathrm{\Omega={2}_{g}}$ , two $\mathrm{\Omega={3}_{g}}$ , one $\mathrm{\Omega={4}_{g}}$ , one $\mathrm{\Omega={5}_{g}}$ , ten $\mathrm{\Omega={0}_{u}}$ , nine $\mathrm{\Omega={1}_{u}}$ , seven $\mathrm{\Omega={2}_{u}}$ , five $\mathrm{\Omega={3}_{u}}$ , three $\mathrm{\Omega={4}_{u}}$ , and one $\mathrm{\Omega={5}_{u}}$ .

III Results and Discussion

III.1 Electronic Structure Analysis

III.1.1 Atomic \cePu

To compute the enthalpies of formation of the plutonium molecules, an accurate description of the plutonium atom, i.e. its electronic structure, is mandatory. Thus, in Table 3 and Table S2 in the Supporting Information, the SO-CASPT2 calculations are reported and compared to available data from the literature Bovey and Gerstenkorn (1961); Blaise et al. (1962, 1980). The SO-CASPT2 energy levels are able to accurately reproduce the experimental assignments with errors between 91 and $397\text{\,}{\mathrm{cm}}^{-1}$ for the first five excited states below $9500\text{\,}{\mathrm{cm}}^{-1}$ . Deviations between our results and the available data appear after the sixth state; the experimental assignment predicts the sixth state at $9773\text{\,}{\mathrm{cm}}^{-1}$ with a $J=0$ while such state is found at $12\,488\text{\,}{\mathrm{cm}}^{-1}$ in the current study though uncertainties remain for the attribution of this electronic state. The computed seventh state with $J=6$ is about $800\text{\,}{\mathrm{cm}}^{-1}$ higher energy than the experimental value. Looking closely at the nature of the plutonium low-lying states, one can first notice the remarkable mixing between the $\mathrm{{}^{7}F}$ , $\mathrm{{}^{5}D}$ and $\mathrm{{}^{3}P}$ spin-orbit free states and that the contribution of the $\mathrm{{}^{5}D}$ state decreases as the energy increases. Finally, the most important result is the overall good reproduction of the SO splitting of $\mathrm{{}^{7}F}$ spin-free state, making us confident about the accuracy of the SOC for the plutonium molecules. We further note that we have the single-reference $J=0$ ground state, well described by the $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) method.

III.1.2 \cePuO3 and \cePuO2(OH)2 molecules

For \cePuO3, at the spin-orbit level, we report the description of the ground state and the six lowest excited states in Table 4. It is noteworthy that the $\mathrm{1a_{g}}$ , $\mathrm{2a_{g}}$ / $\mathrm{\delta_{u}}$ and 3ag orbitals are doubly occupied in all the calculated spin-free states. The \cePuO3 orbitals are composed of a mixture of orbitals belonging to the plutonyl subunit and the distant oxygen. Thus, for the sake of clarity, we label these orbitals with those normally associated to the \cePuO2^2+ ion (with linear energy $D_{2h}$ notations), and those of the distant oxygen atom are denoted by p ${}_{x,y,z}^{(O)}$ . The SO ground state is composed of 47% $\mathrm{{}^{3}B_{2}}$ , 24% $\mathrm{{}^{3}A_{2}}$ and 14% $\mathrm{{}^{3}B_{1}}$ spin-free states. The composition is similar to the one previously reported by Kovács Kovács (2017b) (52% $\mathrm{{}^{3}B_{2}}$ and 24% $\mathrm{{}^{3}A_{2}}$ ). More striking is the difference between our computed vertical excitation energies with that of Kovács’s SO-CASPT2 spectrum Kovács (2017b).

We predict the first excited state to be at $1235\text{\,}{\mathrm{cm}}^{-1}$ , in contrast to the $471\text{\,}{\mathrm{cm}}^{-1}$ previously found Kovács (2017b), and the overall spectrum determined from our calculations is much denser and lower by about $4000\text{\,}{\mathrm{cm}}^{-1}$ than in ref. 67. Such discrepancy may find its origin in the description of the spin-free states. Although we agree with Kovács that the spin-free ground state has $\mathrm{{}^{3}B_{2}}$ symmetry, we find a different orbital character. In our calculations, the $\mathrm{{}^{3}B_{2}}$ exhibits a strong multideterminantal character with 57% corresponding to the configuration in which the 4a1/p ${}_{z}^{(O)}$ and 2b2/ $\sigma_{u}$ orbitals are doubly occupied (See Table 4 and Figure 1) and the singly occupied orbitals 5b1/ $\Phi_{u}$ , 1b2/p ${}_{z}^{(O)}$ , 3b2/ $\delta_{u}$ and 1a2/ $\delta_{u}$ and 22% from the electronic configuration in which of the 4a1/p ${}_{z}^{(O)}$ , 1b2/p ${}_{z}^{(O)}$ and 2b2/ $\sigma_{u}$ orbitals are doubly occupied and the 5b1/ $\Phi$ and 1a2/ $\delta_{u}$ singly occupied. Kovács, however, finds the ground state to be mainly composed of plutonyl orbitals (79%).

Such a difference can be explained by the fact that the considered active spaces are different, a CAS(10,16) in his case and a CAS(14,13) in our work. In a close look at the entanglement diagram of \cePuO3 derived from DMRG calculations Boguslawski et al. (2017) (Figure 6a, Full-Valence CAS) there is a strong correlation within the nonbonding plutonyl-like orbitals ( $\delta_{u},\phi_{u}$ ) and also between the b2/p*(O)* and the $\mathrm{5f\delta_{u}}$ orbitals, in agreement with our analysis of the $\mathrm{{}^{3}B_{2}}$ ground-state wave function.

Concerning \cePuO2(OH)2, the low-energy part of the vertical spectrum including SOC reported in the Table 5 shows two close-lying states separated by about $323\text{\,}{\mathrm{cm}}^{-1}$ , followed by a state at $2222\text{\,}{\mathrm{cm}}^{-1}$ . The analysis of the two lowest states indicates that they correspond to a 50-50 combination of $\mathrm{(1)^{3}A}$ and $\mathrm{(1)^{3}B}$ spin-free states, with a small contribution of the $\mathrm{(2)^{3}B}$ (6% in each case). The next three states also have strong mixings induced by SOC between triplet states but also singlet excited states of $\mathrm{(1)^{1}A}$ and $\mathrm{(1)^{1}B}$ symmetries, placed at the spin-free level at about $5764$ and $7444\text{\,}{\mathrm{cm}}^{-1}$ , respectively.

III.1.3 \cePuO2 and \cePuO2+ Molecules

At the $\mathrm{{}^{2}DC^{M}}$ level, the \cePuO2 ground state is found to be well-described by a closed-shell ( $\mathrm{\Omega=0_{g}}^{+}$ ) determinant, corresponding to occupied $\mathrm{5f_{-3/2;+3/2}}$ , $\mathrm{5f_{-5/2;+5/2}}$ spinors. We note that the $T_{1}$ diagnostic is 0.03, a value very similar to that found for single-reference uranium molecules Tecmer et al. (2011). This allowed us to employ accurate two-component single-reference approaches such as CCSD(T) to determine the optimal \cePu-O bond length after CBS extrapolation to be $1.808\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ , with a corresponding harmonic vibrational symmetric stretching frequency of $791\text{\,}{\mathrm{cm}}^{-1}$ (the anti-symmetric stretch and bending frequencies being $840$ and $170\text{\,}{\mathrm{cm}}^{-1}$ , respectively). We note that these results are in excellent agreement with the scalar relativistic CCSD(T) geometry ( $1.814\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ ) and harmonic frequencies ( $147$ , $777$ , $825\text{\,}{\mathrm{cm}}^{-1}$ ) reported by Feng and Peterson Feng and Peterson (2017), who agree with us that \cePuO2 ground state has a $\mathrm{0_{g}^{+}}$ character with a longer distance than the one ( $1.744\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ ) predicted by La Macchia et al. La Macchia et al. (2008); Infante et al. (2010) at the SO-CASPT2 level, though for chemically different ground state $\mathrm{{}^{5}\Phi_{u}}$ .

Furthermore, our $\mathrm{{}^{2}DC^{M}}$ -EOM-EE-CCSD calculations (see Table 6) confirm that, at the CBS- $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) equilibrium structure, the $\mathrm{\Omega=0_{g}^{+}}$ state is indeed the ground state: it is sufficiently well-separated from the lowest-lying states of both g ( $\mathrm{\Omega=1_{g}}$ , by over $2000\text{\,}{\mathrm{cm}}^{-1}$ ) and u ( $\mathrm{\Omega=1_{u}}$ , by over $5000\text{\,}{\mathrm{cm}}^{-1}$ ), and considering a shorter bond length, namely $1.744\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ , as was proposed by La Macchia et al. La Macchia et al. (2008) for the ground state from SO-CASPT2 calculations, does not alter this picture. Thus, our results differ qualitatively and quantitatively from ref. 51, which found the \cePuO2 ground state to be of $\mathrm{\Omega=1_{u}}$ symmetry, corresponding to the occupation of the two $\delta_{u}$ , one $\phi_{u}$ and the 7s orbitals (See Figure 3).

From Table 6, we observe significant variations for the u-states (of nearly $3000\text{\,}{\mathrm{cm}}^{-1}$ ) when the internuclear distance is shortened from $1.808\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ to $1.744\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ , while the g-states remain more or less at the same energies. With this, at this longer distance, the $\mathrm{\Omega=2_{g}}$ state becomes lower than the $\mathrm{\Omega=1_{u}}$ state.

The SO-CASPT2 transition energies computed at the $\mathrm{{}^{2}DC^{M}}$ optimal bond length are reported in Tables 6 and 7 and Table S5 in the Supporting Information. The spin-orbit $\mathrm{0_{g}^{+}}$ ground state is composed by the spin-free ground state $\mathrm{(1)^{5}\Sigma_{g}^{+}}$ up to 48% and by the $\mathrm{{}^{3}\Sigma_{g}^{-}(1)}$ up to 22%, which lies $10\,308\text{\,}{\mathrm{cm}}^{-1}$ above it. Note that the current vertical transition energies computed at the SO-CASPT2 level are in very good agreement with the $\mathrm{{}^{2}DC^{M}}$ energies for the g-states, but the u-manifold come out about $4000\text{\,}{\mathrm{cm}}^{-1}$ lower in energy at the SO-CASPT2 level than at the $\mathrm{{}^{2}DC^{M}}$ -EOM-CCSD level. The fact that the $\mathrm{0_{g}^{+}-1_{u}}$ energy difference computed at the SO-CASPT2 level of theory ( $5851\text{\,}{\mathrm{cm}}^{-1}$ ) agrees best with the spin-orbit corrected CCSD(T) value by Feng and Peterson ( $5421\text{\,}{\mathrm{cm}}^{-1}$ ) than with the $\mathrm{{}^{2}DC^{M}}$ -EOM-CCSD value, suggests that triple corrections have a large contribution to such $\mathrm{g}$ to $\mathrm{u}$ transitions involving a change in Pu orbital occupations. Thus, all levels of theory predict the ground state to have $\mathrm{0_{g}^{+}}$ symmetry at both shorter and longer \cePu-O distances, disagreeing with the proposed $\mathrm{1_{u}}$ nature of the ground state by La Macchia et al. La Macchia et al. (2008). However, we note that the electronic state spacing within either the g or u symmetries agrees in both SO-CASPT2 calculations. This finding points out to the importance of the choice of the active space to accurately predict the relative energies of g-states involving mostly nonbonding $\mathrm{5f}$ Pu atomic-centered orbitals, versus the u-states involving the more diffuse Pu $\mathrm{7s}$ orbital.

Beside calculations including SOC, it is informative to discuss the nature of the \cePuO2 ground-state without SOC. Our CASPT2 and UCCSD(T) calculations place the $\mathrm{{}^{5}\Sigma_{g}}^{+}$ state (( $\delta_{u})^{2}(\phi_{u})^{2}$ occupations) lower in energy than the $\mathrm{{}^{5}\Phi_{u}}$ state (( $\delta_{u})^{2}(\phi_{u})^{1}(7s)^{1}$ ) by $7994\text{\,}{\mathrm{cm}}^{-1}$ at a Pu-O distance of $1.808\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ , as found in the previous studies Archibong and Ray (2000); La Macchia et al. (2008). With the ANO-RCC AVTZ basis set, the equilibrium \cePu-O distances are $1.818$ and $1.808\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ at the UCCSD(T) and CASPT2 levels, respectively, distances that are close to the $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) result. These values are also in line with the SF-CASPT2 (CAS(12,14)) of La Macchia (d(Pu-O))= $1.792\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ ), but significantly shorter (by about $0.04\text{/}0.05\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ ) than the estimations of Archibong and Ray Archibong and Ray (2000). The large discrepancies observed with respect to the latter are probably related to the choice of a large-core RECP (78 electrons), which yields bond distances in actinide molecules that are too long Batista et al. (2004), while the small-core ECP gives exactly the same distances as the all-electron Douglas-Kroll relativistic approach.

The ground state $\mathrm{(1)^{5}\Sigma_{g}^{+}}$ is dominated (84%) by the configuration in which the two 5 $\delta_{u}$ and two $\phi_{u}$ orbitals carry one electron each. It corresponds to the description of the ground state of Boguslawski et al. Boguslawski et al. (2017) and by Feng and Peterson Feng and Peterson (2017), and also to the $\mathrm{(1)^{5}\Sigma_{g}^{+}}$ state reported by La Macchia et al.La Macchia et al. (2008). The former study places the first excited state at $1800\text{\,}{\mathrm{cm}}^{-1}$ corresponding to $\mathrm{{}^{5}\Phi_{u}}$ state, while in our SF-CASPT2 calculation it appears at a higher energy ( $5421\text{\,}{\mathrm{cm}}^{-1}$ ). We note that in our SF-CASPT2 calculation the spectrum is less dense than in La Macchia’s results La Macchia et al. (2008). Such differences can be explained by the choice of different active spaces, by the fact that we computed a larger number of spin-free states, and most likely by the change in the interatomic \cePu-O distance. SOC is not expected to change the energy of the $\mathrm{\Omega=0^{-}_{g}}$ state, while it lifts the degeneracy of the $\mathrm{{}^{5}\Phi_{u}}$ state, giving rise to three ( $\mathrm{1_{u}}$ , $\mathrm{2_{u}}$ , and $\mathrm{3_{u}}$ ) fine structure states, split by $2133\text{\,}{\mathrm{cm}}^{-1}$ (See Table 4 of ref. 51). Given the small energy gap of $1800\text{\,}{\mathrm{cm}}^{-1}$ in La Macchia’s La Macchia et al. (2008) study between the $\mathrm{{}^{5}\Sigma_{g}^{+}}$ and $\mathrm{{}^{5}\Phi_{u}}$ states, the $\mathrm{1_{u}}$ state becomes the ground state, while in our work, it remains a state of $gerade$ symmetry ( $\mathrm{0_{g}^{+}}$ ), unambiguously confirmed by the $\mathrm{{}^{2}DC^{M}}$ calculations.

Apart from determining the excitation energies for \cePuO2, the EOM-CCSD method is also useful to investigate the ionization potentials of \cePuO2, for which there are experimental data. Being a relative measure, this can help to validate $\mathrm{{}^{2}DC^{M}}$ -EOM-CCSD as a reliable approach with which to benchmark SO-CASPT2. The computed vertical and adiabatic ionization energies (IP; see Table 8) can be grouped into three regions with respect to their energies: two below $8\text{\,}\mathrm{eV}$ , one between 8 and $10\text{\,}\mathrm{eV}$ and the last at energies higher than $10\text{\,}\mathrm{eV}$ . The lowest EOM-IP-CCSD state has $\mathrm{\Omega=3/2_{u}}$ symmetry, as found by Feng and Peterson Feng and Peterson (2017), with an adiabatic IP of $7.07\text{\,}\mathrm{eV}$ , in very good agreement with the SO-CCSD(T) value ( $6.93\text{\,}\mathrm{eV}$ ) Feng and Peterson (2017), and within the error bar of the adiabatic value $7.03\pm 0.12\text{\,}\mathrm{eV}$ , measured by Santos et al. Santos et al. (2002) However, the values reported by Rauh et al. Rauh and Ackermann (1974a) and Capone et al. Capone et al. (1999), lying at $9.4\pm 0.5$ and $10.1\pm 0.1\text{\,}\mathrm{eV}$ , respectively would match the value we computed for the first $\mathrm{\Omega=1/2_{u}}$ , leading us to suggest that these experiments may have measured \cePuO2+ in different electronically excited states.

The calculated electronic states of \cePuO2+ correspond to ionizations from the nonbonding $\mathrm{\delta_{u}}$ ( $\mathrm{\Omega=3/2_{u}}$ ) and $\mathrm{\phi_{u}}$ ( $\mathrm{\Omega=5/2_{u}}$ ), and from the bonding $\mathrm{\sigma_{u}}$ ( $\mathrm{\Omega=1/2_{u}}$ ) and $\mathrm{\pi_{u}}$ ( $\mathrm{\Omega=3/2_{u}}$ ). In the first two cases, as we do not alter the number of bonding spinors, the removal of an electron increases the Pu-O bond energy, as can be seen by the decreased equilibrium bond length and higher harmonic vibrational stretching frequencies compared to the CCSD values ( $r_{e}$ (\cePu-O)= $1.792\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ ; $\omega_{e}$ = $833\text{\,}{\mathrm{cm}}^{-1}$ ) for \cePuO2 (by about $0.095\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ and 177 ${\mathrm{cm}}^{-1}$ for $\mathrm{\Omega=3/2_{u}}$ , and $0.104\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ and $202\text{\,}{\mathrm{cm}}^{-1}$ for $\mathrm{\Omega=5/2_{u}}$ ).

The other two states, on the other hand, can be seen as excited states where the electrons from the bonding $\mathrm{\sigma_{u}}$ and $\mathrm{\pi_{u}}$ spinors are excited to the nonbonding $\mathrm{\delta_{u}}$ and as such the net bonding interaction is reduced in the molecule, whereas for the second $\mathrm{\Omega=3/2_{u}}$ there is an increase in bond length and in frequency in comparison to the \cePuO2 CCSD(T) values (by $0.039\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ and $107\text{\,}{\mathrm{cm}}^{-1}$ ). Finally, for the $\mathrm{\Omega=1/2_{u}}$ , we observe a slight decrease in bond length (of $0.021\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ ) together with a slight decrease in vibrational frequency (of $21\text{\,}{\mathrm{cm}}^{-1}$ ) in comparison to the \cePuO2 CCSD(T) values.

Taken together our $\mathrm{{}^{2}DC^{M}}$ -EOM-CCSD calculations show it can be used to assess the SO-CASPT2 method for energy differences.

III.2 Thermodynamic Data

All of the results so far have demonstrated the accuracy and reliability of the $\mathrm{{}^{2}DC^{M}}$ -CCSD approach and the relative accuracy of SO-CASPT2. Now, we can proceed with the determination of the thermodynamic data. Recently, a thorough assessment of the thermodynamic properties of gaseous plutonium oxides has been done by Konings et al. Konings et al. (2014). The derived functions (entropy and heat capacity) have been calculated on the basis of the most reliable data available in the literature. Nevertheless, the authors pointed out a number of missing data, especially regarding the contributions of electronically excited states.

In the following, from results discussed before and the related molecular parameters and electronic states (see Tables S7–S9 in the Supporting Information), the heat capacity and the standard entropy of \cePuO2(g), \cePuO3(g) and \cePuO2(OH)2(g) are thus derived and compared to those selected by Konings et al. Konings et al. (2014) or calculated by Ebbinghaus Ebbinghaus (2002). Regarding the standard heat of formation, an analysis of transpiration measurements made by Krikorian et al. Krikorian et al. (1997) was performed to extract values of \cePuO3(g) and \cePuO2(OH)2(g), whereas for \cePuO2(g), our results are analyzed in the light of Konings’ assessment Konings et al. (2014).

From the discussions on the previous sections of the electronic structures of the different Pu species, one will not be surprised to see that the single-reference methods, DFT and CC, fail at describing standard heats of formation of \cePuO2(OH)2 and \cePuO3, while it should be in principle applicable for \cePuO2. For the latter, data obtained by coupled-cluster calculations are therefore used to establish its thermodynamic properties whereas regarding the other species, multireference results are used.

III.2.1 \cePuO2(g)

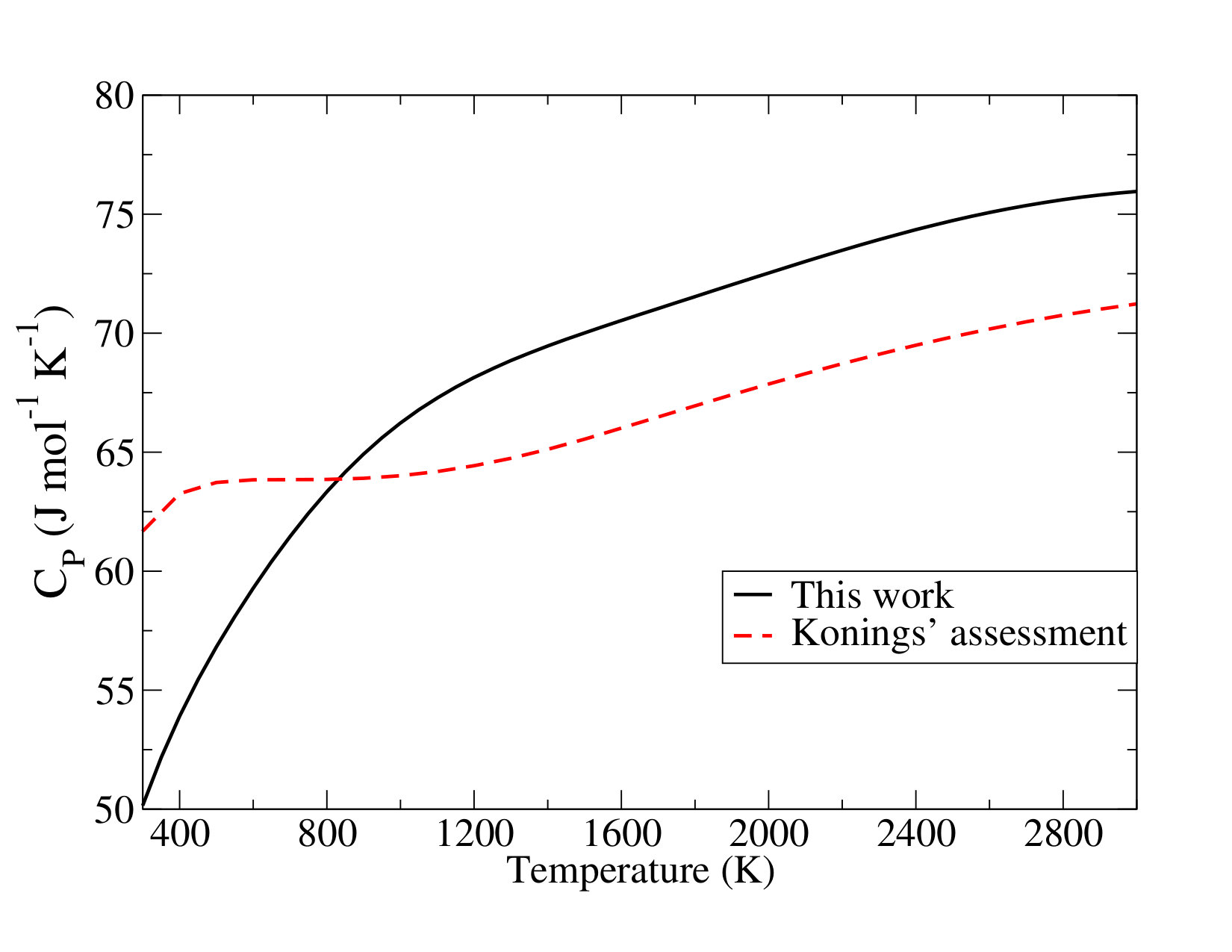

Let us first discuss the thermodynamic functions of \cePuO2. Regarding the standard entropy at room temperature, an analysis of the sources of discrepancies between our calculation and up-to-date data from the literature reveals that vibrational and electronic partition functions are in disagreement (see Table S10 in the Supporting Information).

In the thermodynamic review of Konings et al. Konings et al. (2014), although information on the \cePuO2 electronic states could have been taken from La Macchia et al. La Macchia et al. (2008), the contributions to the entropy of the \cePuO2 electronic states were estimated by considering the crystal-field split $\mathrm{5f^{2}}$ energy levels of \cePuF4(cr), which are densely spaced, thus leading to a significant overestimation of the electronic contributions to entropy. Regarding the vibrational contributions, Konings et al. Konings et al. (2014) used the harmonic frequencies computed at the scalar relativistic CCSD(T) level by Archibong and Ray Archibong and Ray (2000). Our $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) harmonic stretching frequencies (791 and $840\text{\,}{\mathrm{cm}}^{-1}$ ) are very close to their CCSD(T) values (792 and $828\text{\,}{\mathrm{cm}}^{-1}$ ) and to the DKH3-CCSD(T) values of Feng and Peterson Feng and Peterson (2017) ( $777$ and $825\text{\,}{\mathrm{cm}}^{-1}$ ), the bending frequency comes out slightly higher in our calculation ( $170\text{\,}{\mathrm{cm}}^{-1}$ ) than in previous reports ( $106\text{\,}{\mathrm{cm}}^{-1}$ Archibong and Ray (2000), and $147\text{\,}{\mathrm{cm}}^{-1}$ Feng and Peterson (2017)), probably due to the inclusion of spin-orbit coupling. As a result our thermodynamics function differs from that proposed by Konings et al. Konings et al. (2014) Unfortunately, except for the asymmetric stretching mode by infrared absorption spectroscopy Green and Reedy (1978) of \cePuO2 in Ar and Kr matrices (794.25 and $786.80\text{\,}{\mathrm{cm}}^{-1}$ ), the other vibrational frequencies are unknown, making it impossible to assess the accuracy of the currently reported quantum chemical frequencies. Our calculated standard entropy at room temperature is thus equal to

[TABLE]

which is lower by about $16\text{\,}\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$ than the value in the assessment of Konings et al. ( $278.7\text{\,}\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$ ) Konings et al. (2014). An analogous discussion can be made as to the effect of the \cePuO2 electronic states on the heat capacity (see Figure S1 in the Supporting Information). At room temperature, Konings et al. Konings et al. (2014) reported a $\state[pre=,subscript-right=p]{C}(T)$ value higher than ours by tens of $\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$ , due to their overestimated excited-state contributions. The heat capacity function of the present work (in $\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$ ) is expressed as

[TABLE]

in the 298.15– $1200\text{\,}\mathrm{K}$ temperature range, and becomes:

[TABLE]

in the $1200$ – $3000\text{\,}\mathrm{K}$ range.

Coming now to the standard enthalpy of formation of \cePuO2, we first note that the value we report in Table 9 from B3LYP calculations including the spin-orbit $+\Delta E_{SO}$ correction is about 25% off ( $100\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ ) the experimental value. A change in the density functional will not ensure a better agreement with experiment as observed previously for actinide systems Kovács et al. (2015) or for transition metal molecules Miradji et al. (2015). Thus, we will rely on wave-function-based approaches to propose revised values of $\enthalpy*(f){}{}$ ( $298.15\text{\,}\mathrm{K}$ ), and will take the CBS corrected $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) result to be the best estimate for the standard heat of formation of \cePuO2(g), yielding

[TABLE]

In addition, by combining the $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) standard enthalpy of formation of \cePuO2 with the $\mathrm{{}^{2}DC^{M}}$ -EOM-IP-CCSD value of its adiabatic ionization potential IE(\cePuO2), we can predict the standard enthalpy of formation of \cePuO2+ through the relation

[TABLE]

The SO-UCCSD(T) value ( $-411.2\pm 6.6\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ ) for \enthalpy*(f)[\cePuO2] roughly agrees with both the latter and experiment, but it is lower than the CBS- $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) value ( $-449.5\pm 8.8\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ ) by about $38\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ . The importance of the perturbative triple contributions in the electronic correlation treatment is highlighted by comparing these results to the CCSD results (see Table 9), as the one-step and two-step models show differences of $40$ and $58\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ , respectively. The difference between the SO-UCCSD(T) and $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) methods could be explained by a possible underestimation of the SOC contribution in the two-step approach, yielding a $\enthalpy*(f){}{}$ ( $298.15\text{\,}\mathrm{K}$ ) value higher by about $30\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ . The SO-CASPT2 value ( $\enthalpy*(f){}{}$ ( $298.15\text{\,}\mathrm{K}$ )= $-413.7\pm 18.3\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ ) reported in Table 9 deviates by about $36\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ from both $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) and experiments and by about $2\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ from the SO-UCCSD(T) value, therefore showing a fair agreement with the most accurate methods. This is mirrored in the closeness of the \cePuO2 atomization energies (reverse of reaction R2), reported in Table S11 in the Supporting Information. With this we concluded that perturbative approaches ( $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) and SO-CASPT2) yield reasonable results, and thus could be used for other systems, though with larger uncertainties for SO-CASPT2 than for $\mathrm{{}^{2}DC^{M}}$ -CCSD(T).

Going back to the available literature data, the $\enthalpy*(f){}{}$ ( $298.15\text{\,}\mathrm{K}$ ) computed with the $\mathrm{{}^{2}DC^{M}}$ -CCSD(T) approach is in almost perfect agreement with the available results that correspond to the highest values for the formation enthalpy in Table 9 Konings et al. (2014); Gotcu-Freis et al. (2011). The SO-CASPT2(4,4) value exhibits a rather good agreement with the selected one in the Konings assessment Konings et al. (2014) (the value has been obtained by a second law method applied to experiments published in ref. Gotcu-Freis et al. (2011)). This is motivated by the statement that the values obtained by third or second law analysis are not fully in agreement Gotcu-Freis et al. (2011); Konings et al. (2014) revealing a lack of consistency of experimental data.

Therefore, in future studies, experimental data can be scrutinized in regard to the present thermodynamic functions of \cePuO2. The crosscheck between data from molecular parameters and standard heat of formation from quantum chemistry calculations as well as values from experiments calls for further assessments.

III.2.2 \cePuO3(g)

As highlighted in the case of the \cePuO2(g) molecule, the uncertainties related to the entropy and heat capacity functions stem from the electronic partition functions. Ebbinghaus Ebbinghaus (2002) and Konings et al. Konings et al. (2014), both used the electronic spectra of \cePuO2^2+ to estimate that of \cePuO3 Infante et al. (2006); Eisenstein and Pryce (1966). The latter approximation is found here to be strong, even if both our calculations and the studies by Konings et al. Konings et al. (2014) and Ebbinghaus Ebbinghaus (2002) consider that the ground state is dominated by triplet spin-free states. Indeed, while Konings et al. only considered four states from the calculations of Infante et al.’s calculations Infante et al. (2006), we find seven states below $8000\text{\,}{\mathrm{cm}}^{-1}$ .

Regarding the vibrational contributions, the estimate used by these authors and based on an analogy with \ceUO3(g), seems to be acceptable because of a fortuitous good agreement, as highlighted by our calculations. The improvements of the electronic partition function lead to a weak decrease (see Table S10 in the Supporting Information) of the standard entropy at room temperature, and is thus equal to

[TABLE]

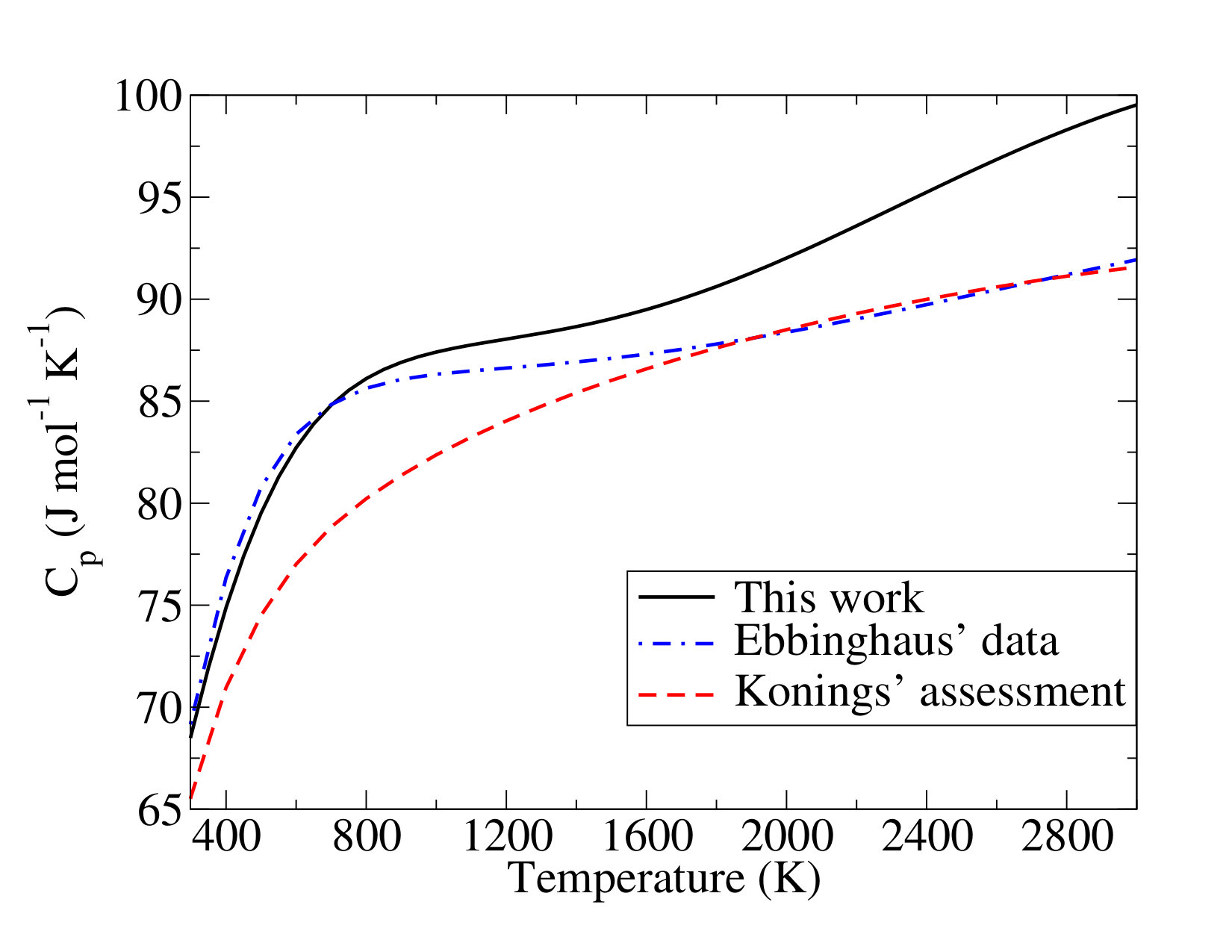

and the heat capacity function of \cePuO3(g) (in $\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$ ) is

[TABLE]

for the 298.15– $550\text{\,}\mathrm{K}$ temperature range, and

[TABLE]

in the $550$ – $2400\text{\,}\mathrm{K}$ range.

The only available experimental data of \cePuO3(g) for which its standard heat of formation has been obtained comes from the transpiration method of plutonium oxide under an oxygen atmosphere Krikorian et al. (1997). The involved species is postulated from an analogy with uranium, and under the experimental conditions (under a purely oxygen flow), \cePuO3 is expected to be the major volatile species (under a purely oxygen flow). In this type of apparatus, the partial pressure of target species is obtained by an indirect method (measure of transported masses), which may cause a bias in the present case due to a potential contamination of the results by the ash transport (pointed out by the authors of ref. 80). Nevertheless, one set of measures has been obtained with another apparatus configuration in which a silica wool glass filter has been added between the crucible and the collector tube (in a region where the temperature remains high).

Strangely, these obtained data are excluded because the following postulate has been made by authors: the lowest plutonium volatility is due to an interaction between its vapor and silica wool. Therefore, the standard heat of formation retained by the authors ( $-562.8\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ ) Krikorian et al. (1997) has been obtained with the set without a silica wool filter. However, one can make the assumption that the filter traps the ash. As the filter is located in a hot zone, in the vicinity of the crucible, one can postulate that only vapor species pass through the filter without modifying the equilibrium. Thus, the data set obtained with a filter may be more accurate than that without a silica wool filter.

Taking advantage of our improved entropy and heat capacity for the \cePuO3 molecule, we can reanalyze the experimental data using our ab initio data. The treatments by the third law method with the proper Gibbs energy functions of \cePuO2(c) Konings et al. (2014) and one from our adopted data for \cePuO3(g) lead to the following \enthalpy*(f) values: $-572\pm 12.1\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ from the data set without a silica wool filter and $-534.0\pm 18.5\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ with it222the uncertainties are given within a level of confidence of 95 percent. The former slightly differs from the original value ( $-562.8\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ ) Krikorian et al. (1997), due to our improvement of the standard entropy for \cePuO3(g). We propose that the standard heat of formation computed within the SO-CASPT2 approach can be considered as the best estimated data

[TABLE]

The predicted theoretical \enthalpy*(f)( $298.15\text{\,}\mathrm{K}$ ) is in the same range as the values reported in Table 9 and is in agreement with the new assessments of experimental data proposed here.

III.2.3 \cePuO2(OH)2(g)

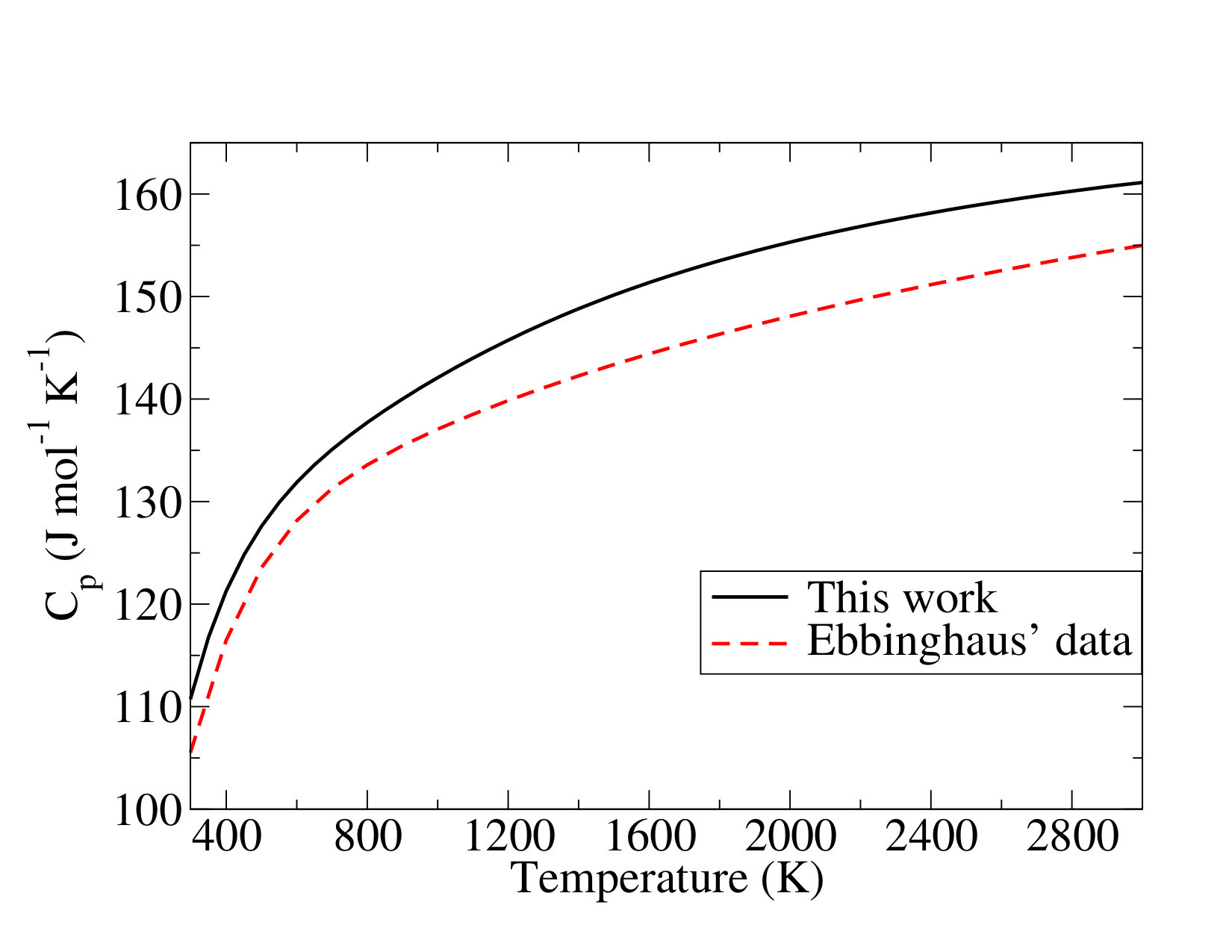

Ebbinghaus’ work reports the evaluation of the entropy and heat capacity of the plutonium oxy-hydroxide Ebbinghaus (2002). To compute the electronic contribution to the thermodynamics function of \cePuO2(OH)2(g), Ebbinghaus also used, as for \cePuO3(g), the electronic spectrum of \cePuO2^2+, but the main discrepancy in the standard entropy is due to the treatment of the vibrational frequencies. Actually, in Ebbinghaus’ work a full analogy to \ceUO2(OH)2(g) was assumed, and the simulation treated the two torsional modes (for this molecule, internal rotations of OH groups) with the hindered rotor approach instead of harmonic oscillators. Nonetheless, in a recent study related to the thermodynamic properties of \ceUO2(OH)2(g) Konings et al. (2017), no specific treatment has been made because it has been pointed out as an unreliable approach for these molecules in a previous review Guillaumont et al. (2003). Therefore, similar behavior could be expected for \cePuO2(OH)2(g) molecule: for reasons of computational cost, internal rotations are treated as other vibrations. Finally, for all these reasons, we prefer to rely on our calculations and we propose the following standard entropy of \cePuO2(OH)2(g) at room temperature:

[TABLE]

which is lower by $22.1\text{\,}\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$ than Ebbinghaus’ data ( $377.8\text{\,}\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$ ). The heat capacity function (in $\mathrm{J}\text{\,}{\mathrm{K}}^{-1}\text{\,}{\mathrm{mol}}^{-1}$ ) is:

[TABLE]

in the $298.15$ – $1000\text{\,}\mathrm{K}$ range, and

[TABLE]

in the $1000$ – $3000\text{\,}\mathrm{K}$ higher temperature range.

With respect to the standard heat of formation, the same drawbacks as for the \cePuO3 molecule are pointed out regarding the experimental measurements carried out by Krikorian et al. Krikorian et al. (1997). Additional issues may increase the uncertainty in this case, as the authors had to do some estimates related to water weighting in order to measure the steam pressure in the apparatus Krikorian et al. (1997). Thus, our calculations, which are not completely off from the reported experimental estimation ( $-1018.2\pm 3.3\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ ) Krikorian et al. (1997), can be considered as the most reliable ones. Our best estimate (SO-CASPT2) for the standard heat of formation thus is

[TABLE]

III.3 Thermodynamic Equilibrium Calculations

From an experimental viewpoint, the existence of \cePuO3(g) remains an open issue. The most recent analysis, involving mass spectrometric studies, performed on the plutonium vapor phase in the Pu+O system, has not detected the \cePuO3+ vaporous species in the apparatus, whatever the vacuum or oxidative environment Gotcu-Freis et al. (2011). However, the authors concluded that dedicated experiments are needed to state the existence of this vapor species especially due to the previous study by Ronchi where \cePuO3 was briefly detected Ronchi et al. (2000).

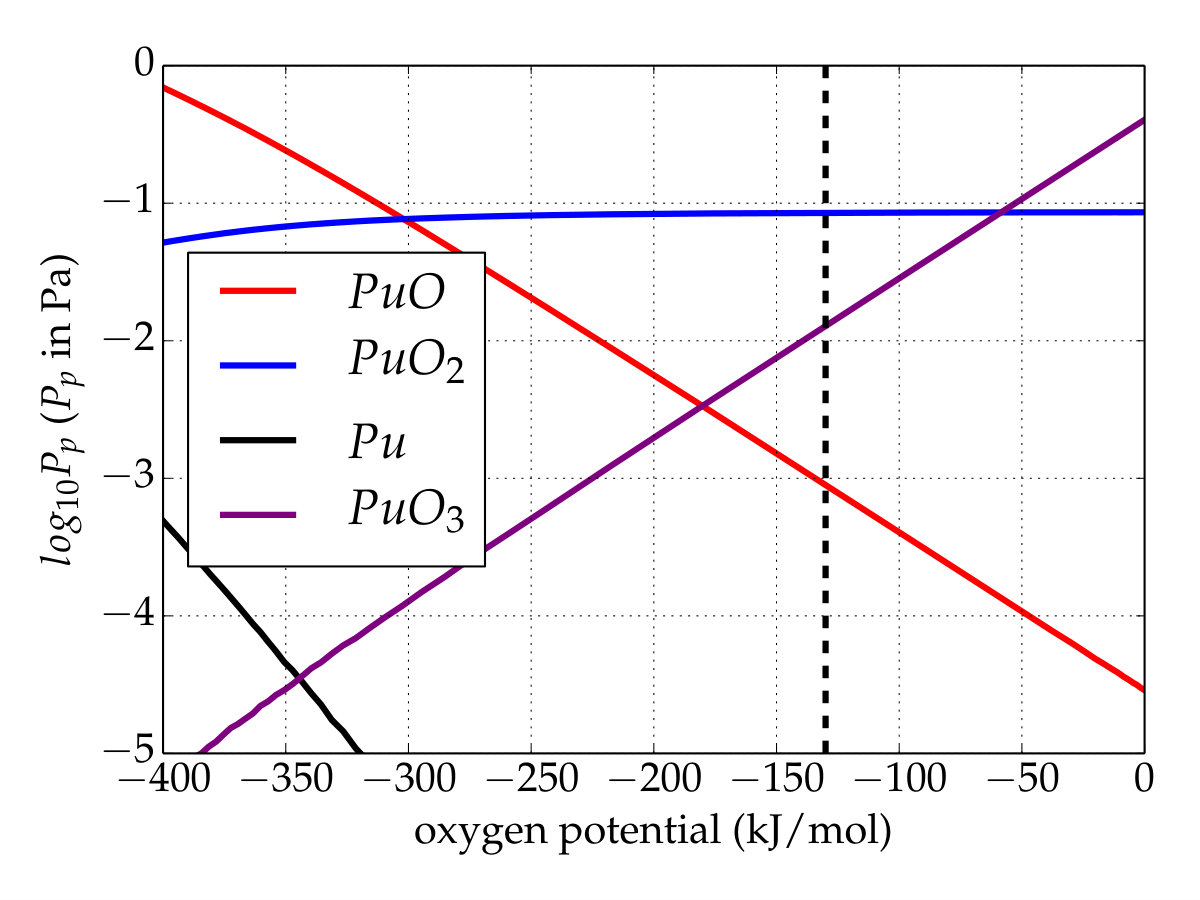

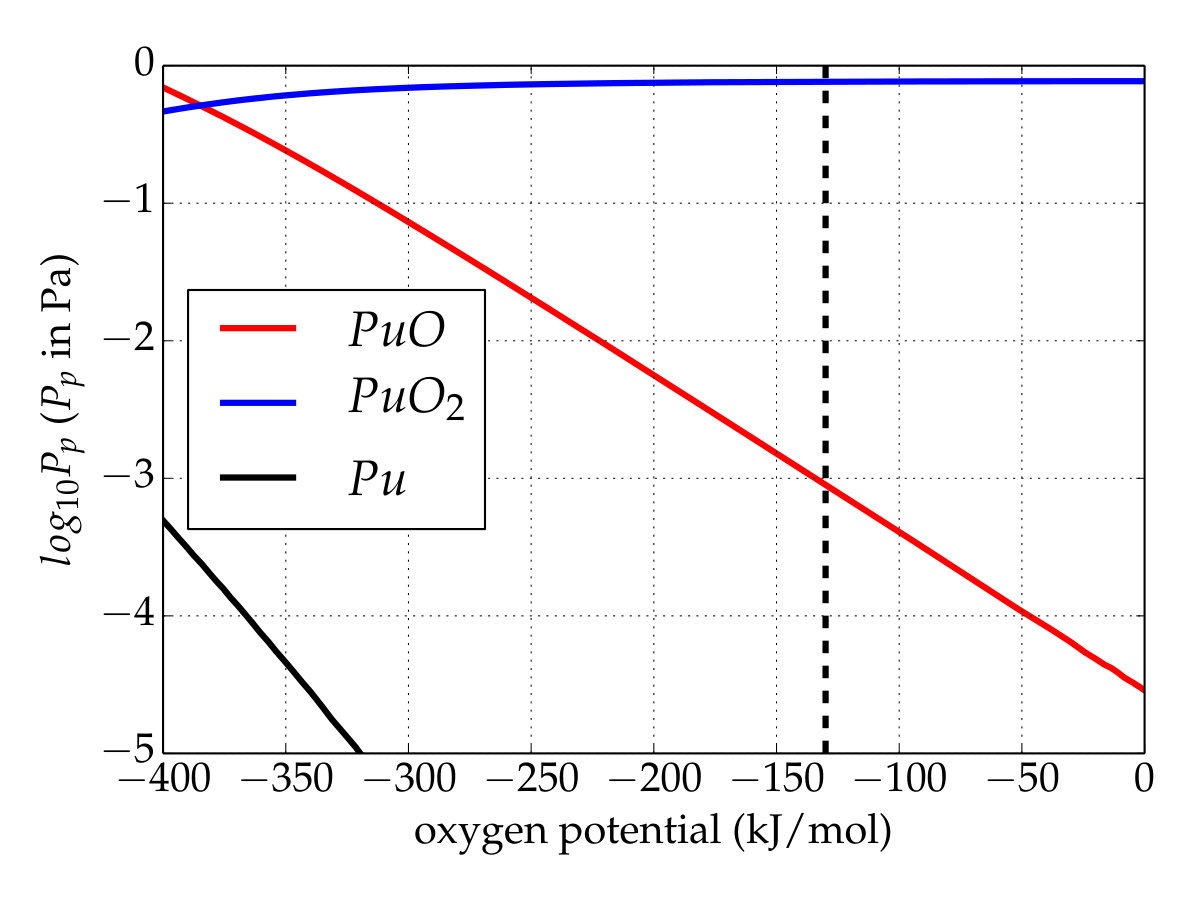

To investigate the chemical equilibrium of the vapor phase over the plutonium oxygen phase with the current thermodynamic data, thermodynamic equilibrium computations were performed within the Nuclea Toolbox software Piar and the self-consistent MEPHISTA (version 17 $\_$ 1) database designed for nuclear fuel Cheynet and Fischer (2007). Isochoric calculations in which the oxygen amount is varying (associated with constant plutonium quantity) are made to show the plutonium vapor trend versus the oxygen potential. The simulation was run at $2270\text{\,}\mathrm{K}$ to reproduce the experiment under oxidative conditions, carried out by Gotcu-Freis et al. Gotcu-Freis et al. (2011). Attention should be focused at the oxygen potential equal to about $-130\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ , corresponding to the oxygen pressure of $100\text{\,}\mathrm{Pa}$ applied during the experiment. In order to perceive the effect of the newly determined thermodynamics functions, a first calculation with the original thermodynamic database (MEPHISTA-17 $\_$ 1) was performed (Figure 4(a)). At an oxygen potential of $-130\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ the gaseous phase is mainly composed of \cePuO2 though its partial pressure remains low. In addition, the contribution to the gaseous phase of \cePuO increases as the oxygen’s chemical potential decreases.

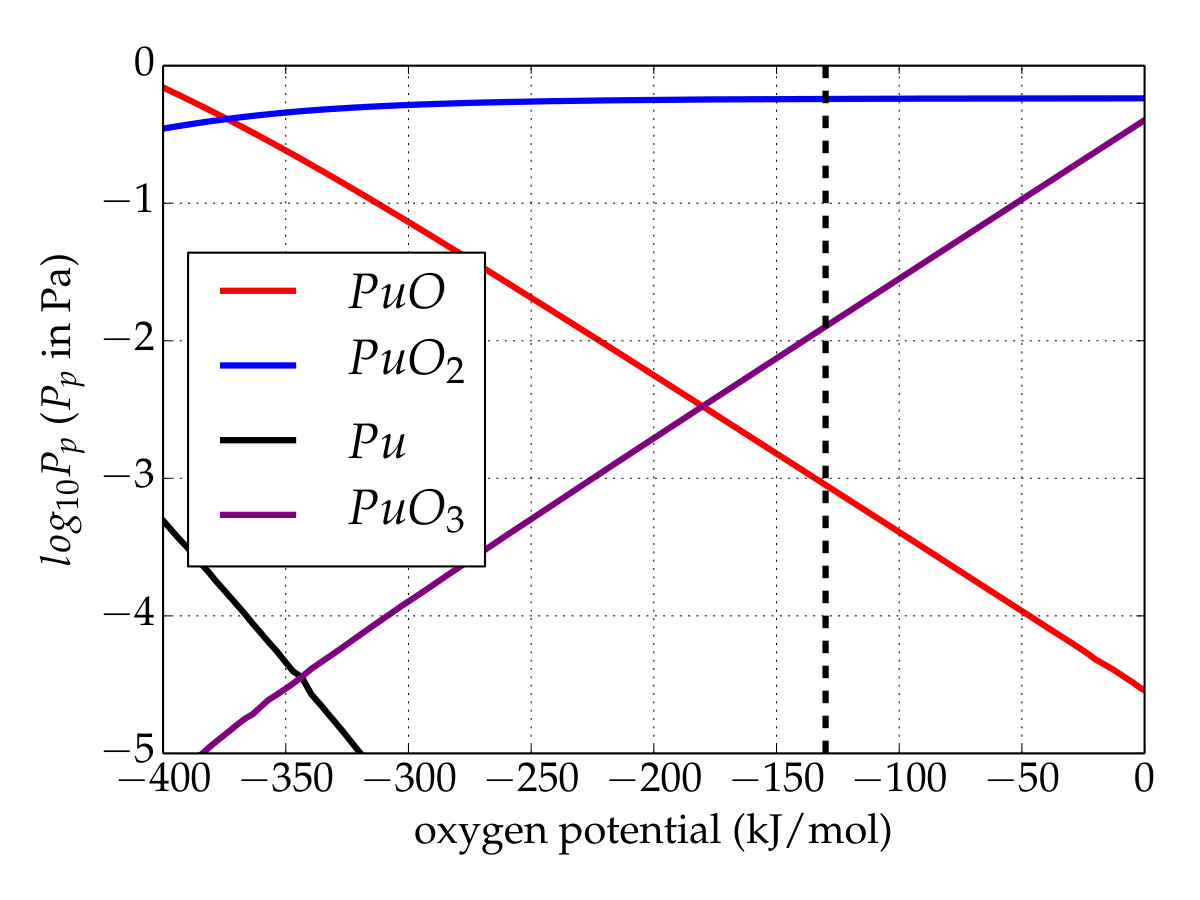

Conversely, with the updated database (Figure 4(b)), i.e. \cePuO3(g) is added and the Gibbs function of \cePuO2(g) is modified according to the present work. Unlike the first simulation, \cePuO3 appears in the gaseous phase up to low oxygen potentials, whereas its partial pressure is higher than that of \cePuO for an oxygen potential of about $-130\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ . This appears to contradict the analysis of Gotcu-Freis et al. Gotcu-Freis et al. (2011), in which \cePuO is detected whereas the same is not true for \cePuO3. The dissociation energy of \cePuO3 to \cePuO2+ is $1032\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ , calculated from the reviewed data of the ionization energy of \cePuO2 ( $7.07\text{\,}\mathrm{eV}$ ). The SO-CASPT2 calculations allow us to propose the value of $9.2\text{\,}\mathrm{eV}$ ( $887.5\text{\,}\mathrm{kJ}\text{\,}{\mathrm{mol}}^{-1}$ ) for the adiabatic ionization energy for \cePuO3, about $0.9\text{\,}\mathrm{eV}$ lower that that predicted ( $10.1\text{\,}\mathrm{eV}$ ) by scalar relativistic DFT calculations Gao et al. (2004). The \cePuO3 ionization energy is just below the dissociation energy and therefore suggests that the fragmentation of \cePuO3 to \cePuO2+ could be an important process and explains why \cePuO3 is not detected. Finally, even if the temperature is high, these simulations show that the total partial pressure of plutonium remains rather low, whatever the database. At high oxygen potentials, a temperature drop should promote the plutonium trioxide over the dioxide with nevertheless a partial pressure lower than that obtained at $2270\text{\,}\mathrm{K}$ .

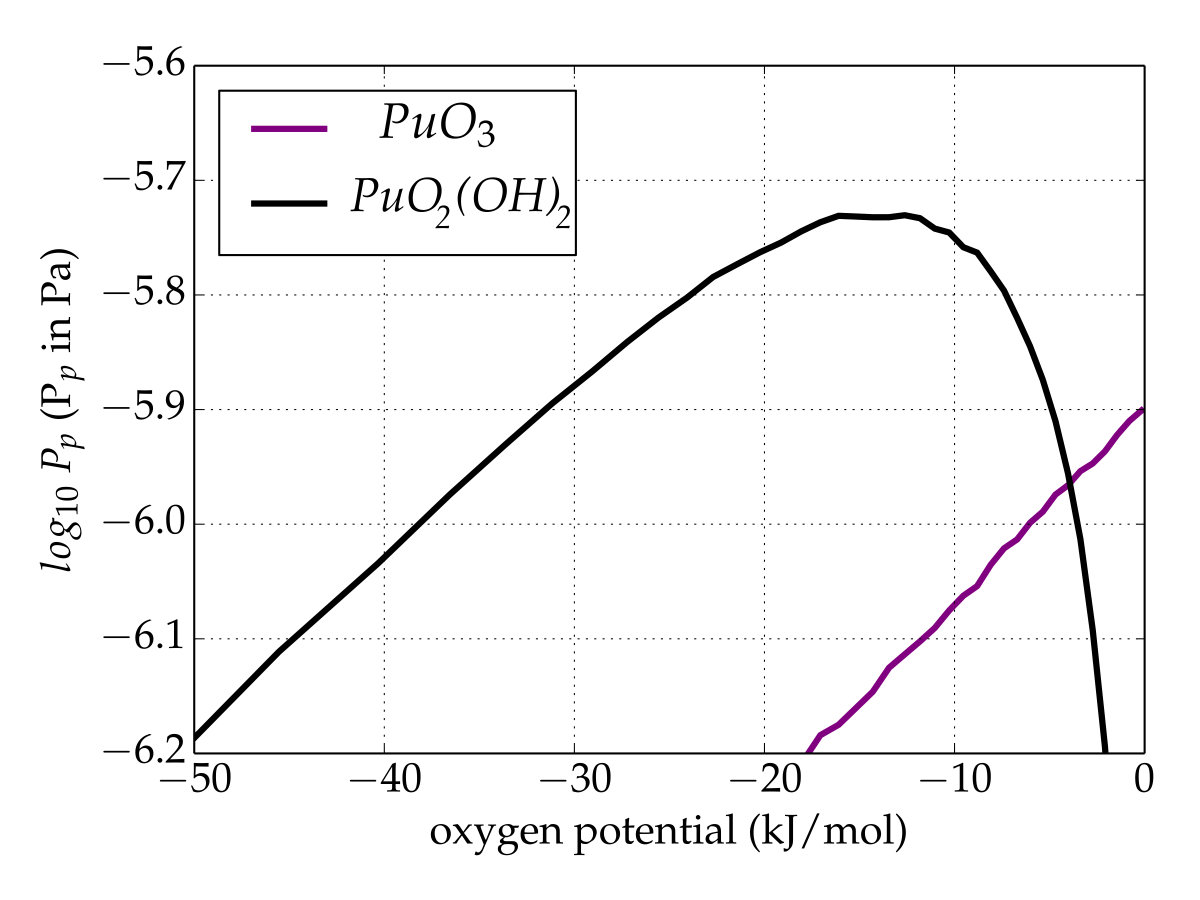

To extend the investigation to an oxygen/steam environment case, thermodynamic equilibrium calculations were also done under isobaric condition (standard pressure) with a constant amount of oxygen while a variable hydrogen inventory was used in order to shift the oxygen potential. The partial pressures of gaseous plutonium species versus the oxygen potential were calculated at the lowest possible temperature ( $1500\text{\,}\mathrm{K}$ ) at which gaseous plutonium is present, and in accordance with the simulation temperature used in the experiments dedicated to Pu(VI) volatility performed by Krikorian et al. Krikorian et al. (1997) and Hubener et al. Hübener et al. (2008). At this temperature, the plutonium volatility is very low: i.e., < 10*-11* bar whatever the oxygen potential. Under a purely oxygen atmosphere, as expected, only \cePuO3 appears, but if steam is present, the \cePuO2(OH)2 species exists and rapidly becomes the main gaseous species when the steam fraction rises (see Fig. 5).

IV Conclusions

In conclusion, this work proposes a complete revision of the thermodynamics functions of the main gaseous species of the \cePu-O-H system, namely \cePuO2, \cePuO3, and \cePuO2(OH)2, using accurate relativistic correlated quantum chemical calculations extrapolated to the complete basis set limit. This updated database is helpful to predict the most important thermophysical properties for nuclear safety and risk analysis: namely, the vapor pressure. Thermodynamic equilibrium calculations with the updated database performed at high temperature disclose new aspects of the volatility of plutonium under accidental conditions. They not only confirm the predominance of \cePuO2 under an oxygen atmosphere, but also validate the conjecture of Ronchi et al. Ronchi et al. (2000) and Krikorian et al. Krikorian et al. (1997) regarding the formation of the molecule \cePuO3(g) at high oxygen potentials. However, all reported quantum chemical calculations suggest that the stability of \cePuO3(g) might be hampered by fragmentation processes to lower-valent oxides. In the presence of steam, plutonium volatilizes into two competing Pu(VI) gaseous forms, \cePuO3(g), and \cePuO2(OH)2(g), though their partial pressures are low: $i.e.$ , < 10*-11* bar. This study increases the knowledge of the effective volatility of plutonium and calls for caution assessments and possibly new experiments in secured nuclear laboratories.

In addition to the nuclear implications, new insights into the electronic structure of the plutonium oxide and oxyhydroxide species have been gained, by confronting the results obtained with the two-component relativistic correlated $\mathrm{{}^{2}DC^{M}}$ -CCSD method and the more approximate two-step relativistic multireference method SO-CASPT2. Our SO-CASPT2 and $\mathrm{{}^{2}DC^{M}}$ -EOM-EE-CCSD results confirm the initial evidence by Feng and Peterson Feng et al. (2017) that the ground state of \cePuO2 is closed-shell at the relativistic level with a $\mathrm{\Omega=0_{g}^{+}}$ character and provide compelling evidence that it is well separated by about several thousands of ${\mathrm{cm}}^{-1}$ from the first open-shell u-state formally assigned as the \cePuO2 ground state by La Macchia et al. La Macchia et al. (2008) $\mathrm{{}^{2}DC^{M}}$ -EOM-IP-CCSD calculations place the adiabatic ionization energy of \cePuO2 at $7.07\text{\,}\mathrm{eV}$ , in excellent agreement with the up-to-date experimental value. The electronic ground states of \cePuO3 and \cePuO2(OH)2 exhibit strong multireference characters, and we evidence that multi-reference SO-CASPT2 is a quantitatively appropriate method to compute their enthalpies of formation. The reported values are in good agreement with the available data, making us confident about its predictive capability for other gas-phase heavy element species with complex electronic structures.

Acknowledgements

We gratefully acknowledge financial support from the France-Canada Research Fund, Natural Sciences and Engineering Research Council of Canada (NSERC). This research was supported by the NEEDS environment project (TEMPO, “ThErmodynamique des Molécules de PlutOnium”) funded in 2017. We acknowledge support by the French government through the Program "Investissement d’avenir" (LABEX CaPPA / ANR-11-LABX-0005-01 and I-SITE ULNE / ANR-16-IDEX-0004 ULNE), as well as by the Ministry of Higher Education and Research, Hauts de France council and European Regional Development Fund (ERDF) through the Contrat de Projets Etat-Region (CPER CLIMIBIO). Furthermore, this work was granted access to the HPC resources of [CINES/IDRIS/TGCC] under the allocation 2016-2019 [x2016081859 and A0010801859, A0030801859, A0050800244] made by GENCI. We also acknowledge Małgorzata Olejniczak for her exploratory work on the benchmarking of relativistic DFT and MS-CASPT2 calculations. We further thank Sidi Souvi and Marc Barrachin for the very fruitful discussions.

Associated content

The following file, ms-PuOx-ESI.pdf is available free of charge. It contains:

•

Mathematical formula used to compute the uncertainties.

•

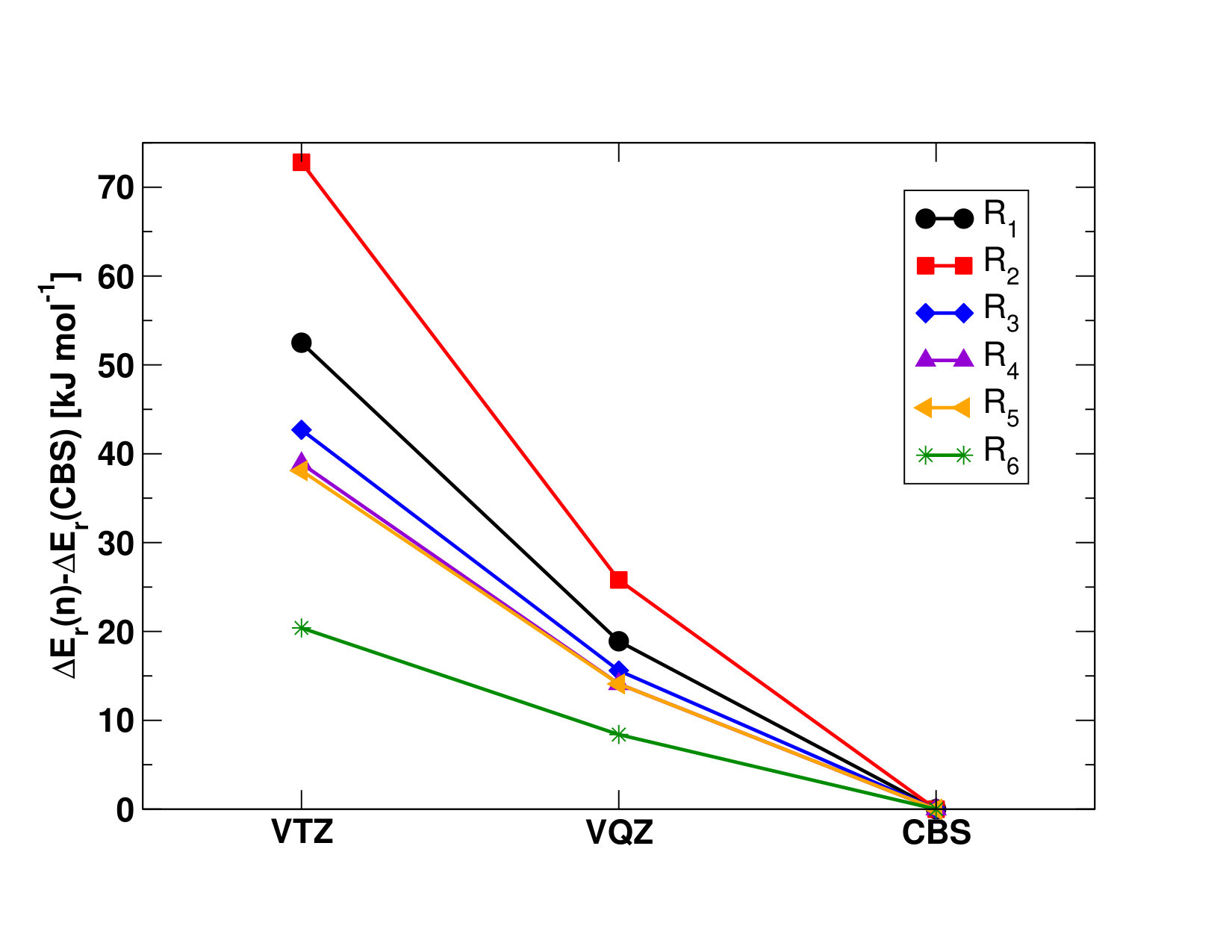

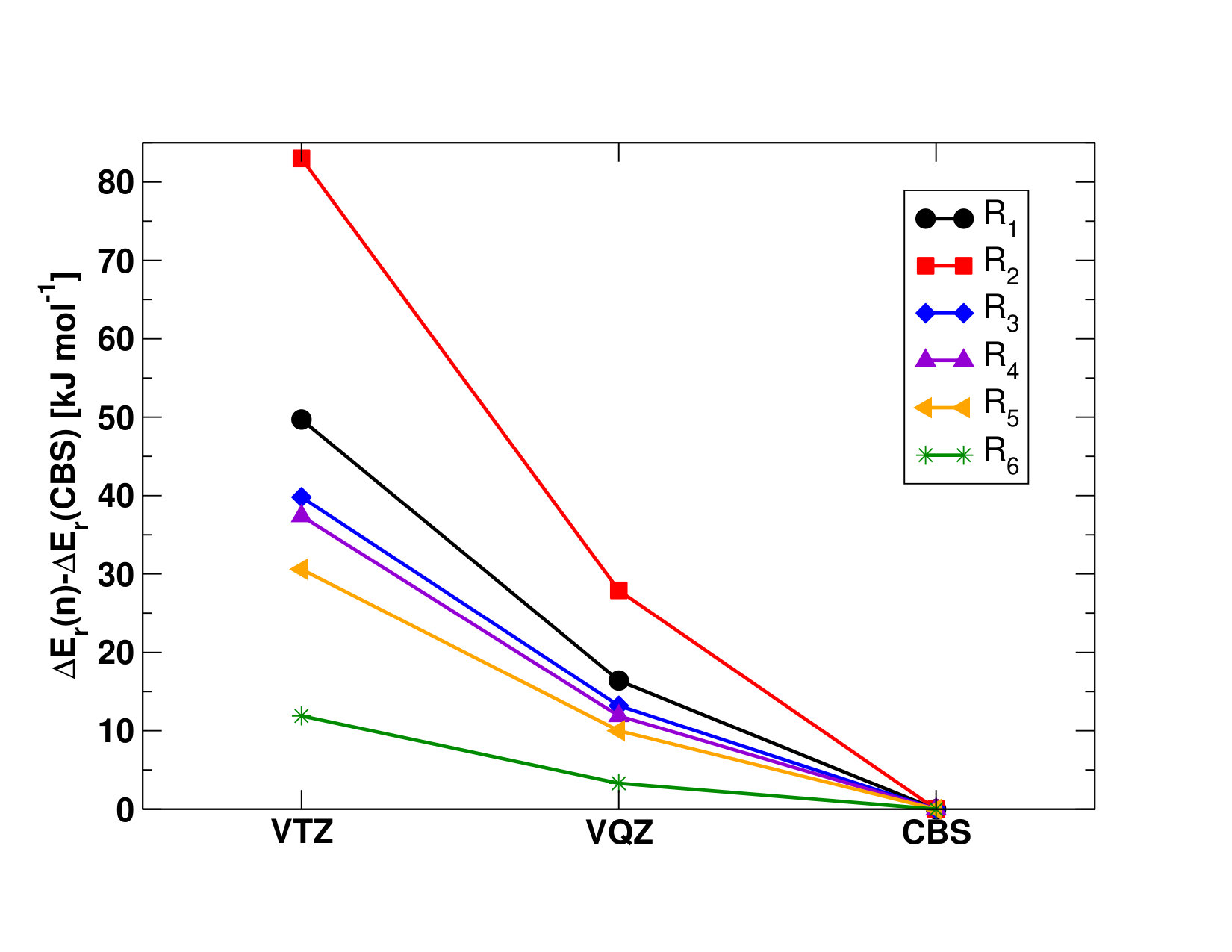

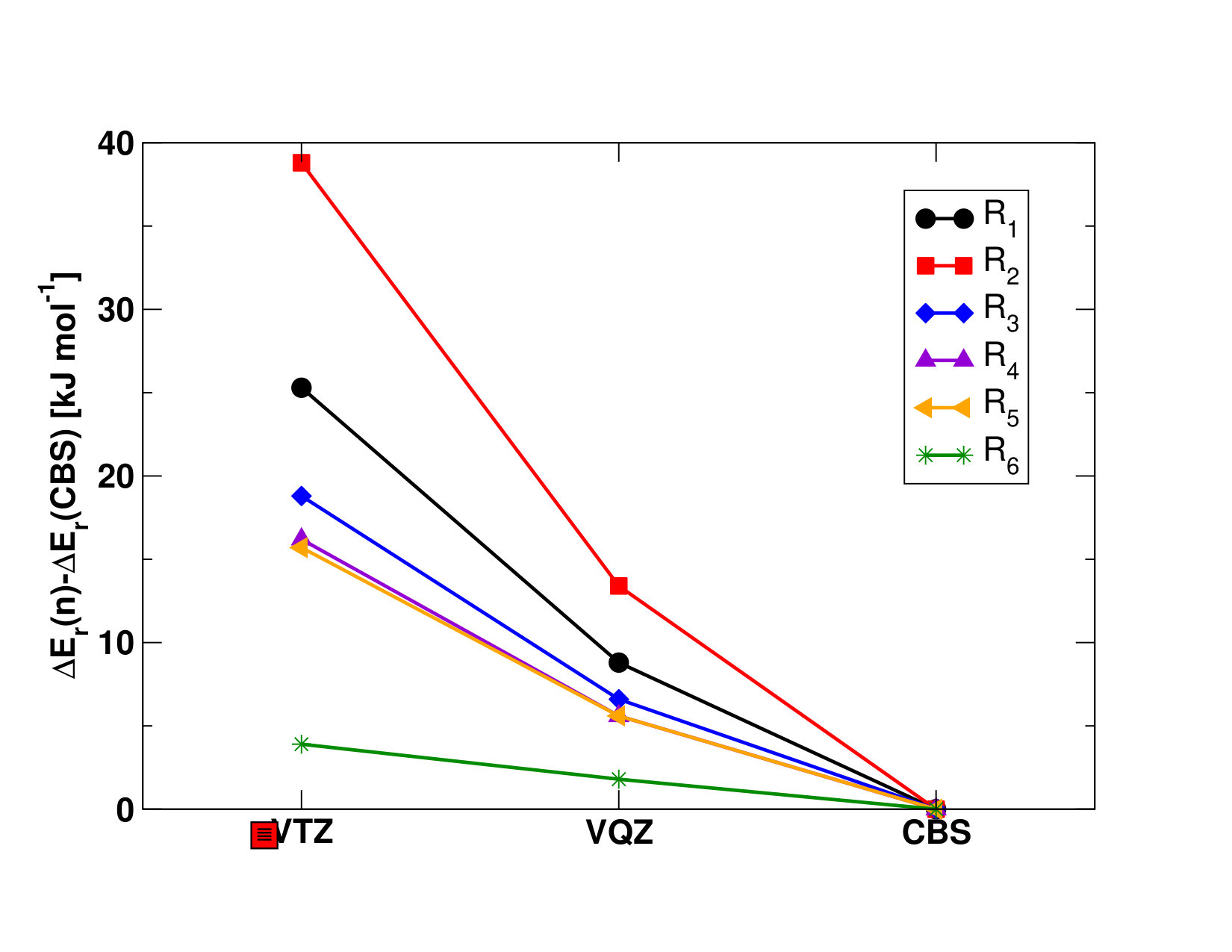

Figure illustrating the ANO-RCC basis set convergence to the CBS limit.

•

Analysis of the spin-free and spin-orbit states of \cePu, \cePuO2, \cePuO3, and \cePuO2(OH)2 and their SO-CASPT2 transition energies, up to $16\,000\text{\,}{\mathrm{cm}}^{-1}$ ;

•

Molecular parameters and standard entropies of the \cePuO2(g), \cePuO3(g), and \cePuO2(OH)2(g) molecules;

•

The heat capacity functions of the \cePuO2(g), \cePuO3(g), and \cePuO2(OH)2(g) molecules.

•

Atomization energies of \cePuO2.

The full data set distributed through the Zenodo repository Kervazo et al. (2019).

Bibliography90

The reference list from the paper itself. Each links out to its DOI / PubMed record.

1Šulka et al. (2014) M. Šulka, L. Cantrel, and V. Vallet, J. Phys. Chem. A 118 , 10073 (2014) . · doi ↗
2Konings et al. (2014) R. J. M. Konings, O. Beneš, A. Kovács, D. Manara, D. Sedmidubský, L. Gorokhov, V. S. Iorish, V. Yungman, E. Shenyavskaya, and E. Osina, J. Phys. Chem. Ref. Data 43 , 013101 (2014) , https://doi.org/10.1063/1.4825256 . · doi ↗
3Guéneau et al. (2008) C. Guéneau, C. Chatillon, and B. Sundman, J. Nucl. Mater. 378 , 257 (2008) . · doi ↗
4Ronchi et al. (2000) C. Ronchi, F. Capone, J. Y. Colle, and J. P. Hiernaut, J. Nucl. Mater. 280 , 111 (2000) . · doi ↗
5Krikorian et al. (1997) O. H. Krikorian, A. S. Fontes, B. B. Ebbinghaus, and M. G. Adamson, J. Nucl. Mater. 247 , 161 (1997) . · doi ↗
6Hübener et al. (2008) S. Hübener, S. Taut, A. Vahle, G. Bernhard, and T. Fanghänel, Radiochim. Acta 96 , 781 (2008) . · doi ↗
7Sikkema et al. (2009) J. Sikkema, L. Visscher, T. Saue, and M. Iliaš, J. Chem. Phys. 131 , 124116 (2009) . · doi ↗
8Infante et al. (2006) I. Infante, A. S. P. Gomes, and L. Visscher, J. Chem. Phys. 125 , 074301 (2006) . · doi ↗
