On Extending the Wireless Communications Range of Weather Stations using LoRaWAN

TL;DR

This paper introduces a low-cost, low-power device that extends the wireless range of consumer weather stations using LoRaWAN, enabling broader deployment in developing countries for disaster prevention.

Contribution

The paper presents a novel device that decodes existing weather station data and transmits it via LoRaWAN, significantly increasing communication range and applicability in resource-limited settings.

Findings

Extended wireless range to several kilometers

Low-cost and low-power design suitable for developing countries

Potential applications in disaster prevention networks

Abstract

Consumer grade weather stations typically involve transmitting sensor information to a digital console that provides readouts of the data being collected. The wireless range of such system is confined to about 100 m, making their use limited to urban environments. We present a device that decodes the data being sent by the weather station and forwards them using the emerging LoRaWAN technology. We designed the device keeping in mind the peculiar conditions of Developing Countries, in particular the low cost and low power requirements. This allows interesting applications in the realm of disaster prevention and mitigation using a network of numerous weather stations.

Figures

Tables

Table 1. Table 1. Battery duration scenarios

transm. interval	BSF32 T. , 7.4 Wh batt.	Lopy4 T., 48 Wh batt.
minutes	duration, days	duration, days
5	56	141
15	123	414
30	4204	739
60	326	1478

Full text

LPWAN, Long distance Wireless, LoRa, LoRaWAN, Weather Stations

††journalyear: 2019††copyright: acmlicensed††conference: GoodTechs ’19: 5th EAI International Conference on Smart Objects and Technologies for Social Good; September 25-27, 2019; Valencia, Spain††price: 15.00††doi: 10.1145/1122445.1122456††isbn: 978-1-4503-9999-9/18/06††ccs: Computer systems organization Embedded systems††ccs: Computer systems organization Redundancy††ccs: Computer systems organization Robotics††ccs: Networks Network reliability

1. Introduction

For disasters prevention and mitigation, it is very useful to install weather stations in remote areas, usually far from the site where the gathered data can be acted upon. For instance, for landslide mitigation, one would like to know the amount of precipitation in a mountain far away from where the catastrophic consequences might be felt. In this case, the cost of the remote units is quite relevant since they might need to be replaced often, and besides a cheaper unit is less attractive to thieves. Although cellular service is widespread, coverage in sparsely populated areas is often lacking and the recurring subscription cost might prove too much of a burden in some cases. According to Tessier(Tess, ), ”Communications costs between RWISs (Road Weather Information Systems) and a central data repository can be a significant recurring cost for the systems”. Emerging LPWAN (Low Power Wide Area Networks) technologies like LoRa, on the other hand, are specifically tailored to achieve greater range and lower TCO (Total Cost of Ownership, the sum of the initial cost and the recurring operating expenses).

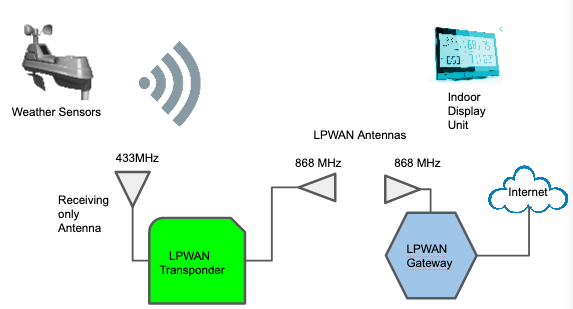

LoRa has demonstrated the capability to span 300 km (smart, ), when there is an unobstructed path between transmitter and receiver. In this work, we present three versions of a low cost ”transponder”, shown in Figure 1, that captures the radio signal used by many consumer grade weather stations (WSs) to convey the sensors’ data to the indoor display unit. It then forwards them to the Network Server using the LoRaWAN architecture, via one or more Gateways.

The design is open source and all the code we developed is freely available in Github (git, ) By intercepting the wireless communication to the indoor device, there is no need to tamper with the Weather Station’s sensors unit which could affect its calibration.

Weather data are used for a variety of purposes, according to the Weather Meteorological Organization (WMO) publication ”ATLAS OF HEALTH AND CLIMATE” (atlas, ) ”…climate affects the geographical and temporal distribution of large burdens of disease and poses important threats to health security, …. climate information is now being used to protect health through risk reduction, preparedness and response over various spatial and temporal scales and in both affluent and developing countries”

Weather data from as many regions as possible are also required to build accurate weather prediction models and to test the validity of the ones currently in place. Professional weather stations are expensive, and although they have been widely deployed in affluent countries, few are operative in Africa and Latin America. Mass produced consumer grade devices cannot claim the same level of performance, but are good enough for many applications. According to (bell, ), ”…the high temporal and spatial resolution of freely available CWS (Citizens Weather Stations) data potentially lends itself to many applications”.

The rest of the paper is organized as follows: Section 2 gives some background about weather stations. Section 3 provides a glimpse on LPWAN technologies. Section 4 describes the design of the transponder and in Section 5 we draw conclusions and hint at future work.

2. Background

2.1. Automatic Weather Stations

An Automatic Weather Station (AWS) comprises a number of meteorological sensors that automatically send their data to a remote server for storage, processing and visualization. The most common way of transmitting the data is by leveraging the cellular infrastructure that has been deployed all over the world. For developing countries, the high up front cost of professional Weather Stations and the recurring costs associated with cellular service have precluded their wide spread deployment, despite the recognition of the usefulness of the information provided. Furthermore, in sparsely populated areas the cellular phone coverage is lacking even in rich countries.

The authors of (bjorn, ) describe the building of an AWS in Uganda, but do not specifically address the issue of data transmission in absence of cellular infrastructure. Although satellites can provide global coverage, the recurring costs of the service make it currently unaffordable for AWS in developing countries.

2.2. 3D printed Automatic Weather Stations

Recognizing the need for affordable weather monitoring in sparsely populated regions, the use of 3D printed plastic to build the mechanical parts coupled with low cost electronic platforms has been suggested. In particular, the University Corporation for Atmospheric Research (UCAR) and the US National Weather Service International Activities Office (NWS IAO) launched a program mired to develop observation networks and applications to reduce weather related risk. The units they developed offer the advantage that the locally printed parts can be easily replaced when needed. Their estimated cost of setting up a 3D AWS printing system is about 5000 USD and the cost of the materials for a printed unit are between 300 and 600 USD (3dpaws, ). Data is meant to be transmitted with a wireless adapter or a cell-modem setup, therefore they can also be transferred with a LoRa radio like the one we are proposing in order to achieve a wide coverage.

In our own experiments with 3D printed solutions, we observed significant differences in the readings of the outside temperature depending on the type of housing in which the sensor was inserted and even the color of the plastic used. This might lead to significant differences in the reported data. Similar conditions apply to the measurement of the wind speed, which are influenced by the type of bearing deployed. Although these issues can be solved by performing in situ calibration of the assembled unit, this is not easily doable in the field. On the other hand, the large scale manufacturing process of commercial weather stations implies replicability, so that units of the same type are identical and therefore can maintain a reasonably good calibration.

2.3. Commercial LoRaWAN-based Weather Stations

AWSs that use the LoRaWAN communication protocol are commercially available (com, ) but their cost hinders their usage in developing countries. Furthermore, we could not find any information about calibration of such devices. The solution we propose has the advantage of decoupling the weather station and the long-distance transmission, allowing the use of pre-calibrated weather stations.

2.4. Low Cost Personal Weather stations

Numerous low cost personal weather stations can be found on the market (Warne, ). They are normally built with a split architecture, with the sensors unit placed outdoors to measure wind, rain, relative humidity and outside temperature, and the display unit placed indoor. As the atmospheric pressure is the same, often the barometer sensor is housed in the indoor unit. Some of the indoor units have an Ethernet connector so that data can also be transferred to a server on the cloud. Sensor’s data are transmitted to the indoor unit using unlicensed VHF frequencies reaching a maximum of 100 m. They range in cost from 100 to 800 USD and are readily available.

We used stations made by La Crosse and AcuRite, although the transponder developed could be adapted to many other brands.

2.4.1. La Crosse WS-2300

This WS (LaCross, ) comprises an indoor unit, or ”base station” with barometer, temperature and humidity sensors and a display that shows these data along with the one transmitted over the 434 MHz carrier by the outdoor sensors, with a maximum range in the open field of 25 m. The outdoor rain, temperature and humidity sensors are connected to the anemometer and wind vane by means of a 10 m long cable, allowing the installation of the wind sensor at 10 m above the ground, thus adhering to WMO (WMOrec, ) recommendations for wind sensing.

This feature can be relevant for some applications and it is a differentiator from other WS in which all the sensors are included in a single housing. Furthermore, installing also our transponder at that height increases significantly the maximum range achievable by the LoRa transmission.

Since the transponder receives the data from the sensing unit by a wireless stream, it can be installed in any convenient location of its surroundings. The sensor unit uses 2 AA batteries which should last for approximately 12 months.

2.4.2. AcuRite 5-in-1 Weather Station

This (acu, ) is a low cost WS that has been widely deployed and was used by the Massachusetts department of Transportation as a reference for the assessment of portable road weather information systems (Tess, ). It comprises an outdoors sensors unit and an indoor display that can be up to 100 m away. The integrated sensors unit has rain, wind speed, wind direction, humidity and temperature sensors. We added a barometric sensor to the trasponder unit as it is an important variable used in weather modeling, therefore we also send the barometric pressure over the LPWAN link. A barometer is included in the AcuRite indoor unit, but we will not use it in our application, since the meteorological data will be sent directly by the Transponder to be displayed remotely.

The AcuRite has a built-in small photovoltaic panel used to power an internal fan that turns on when the temperature exceeds a certain threshold, its purpose is to improve he accuracy of the measurement by counteracting the effect of the heat accumulation when the sun is stronger (thermal inertia).

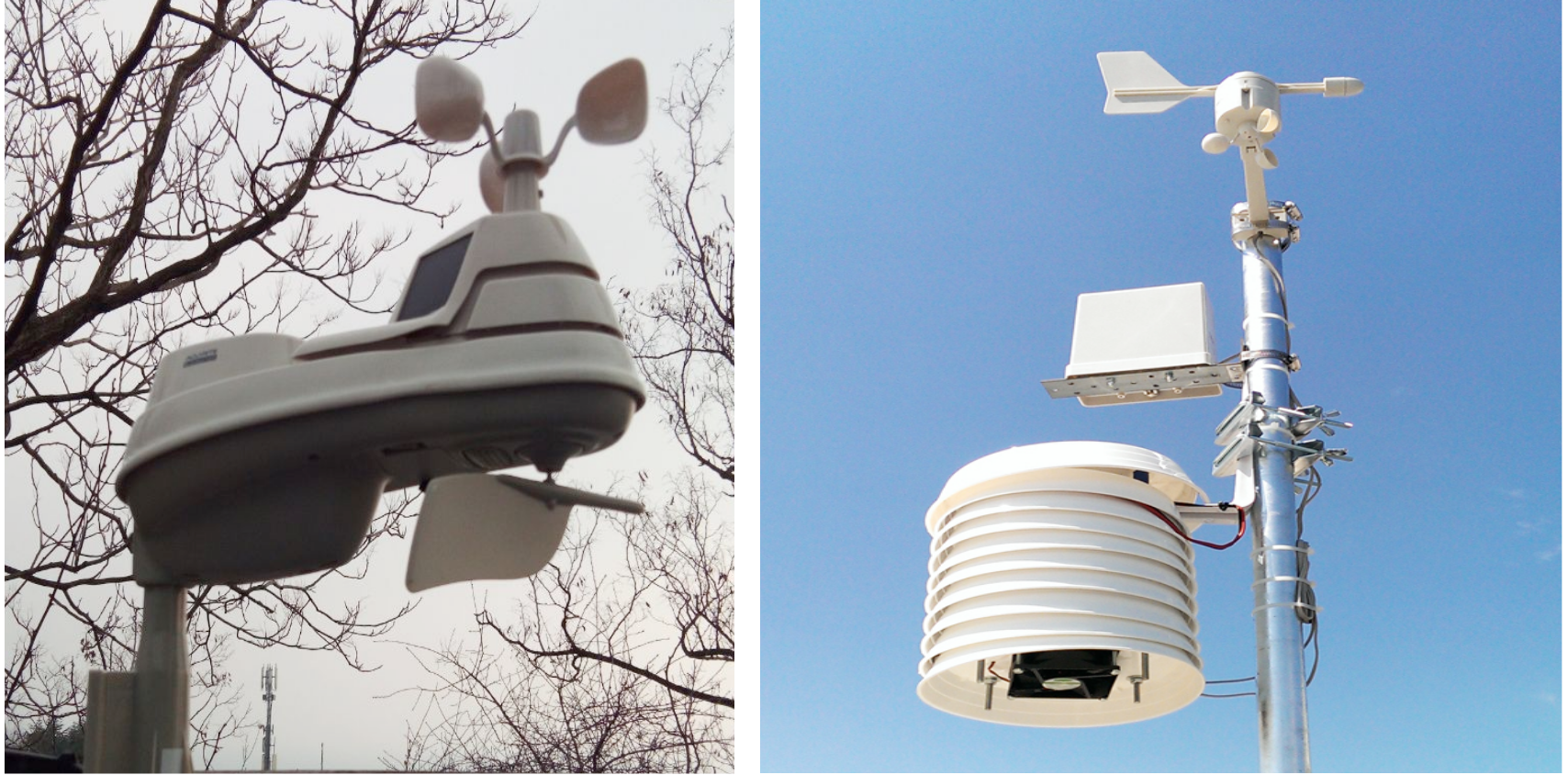

The outdoor unit is powered by four AA batteries and transmits data over the unlicensed 433 MHz frequency. Figure 2 shows the compact AcuRite outdoors unit on the right and the separate sensors of the La Crosse Weather Station on the left.

3. Long Distance, Low Power Wide Area Networks

3.1. LoRaWAN

Both SigFox or LoRaWAN can cover long distances by limiting the amount and rate of data transmitted. Weather data consist of a few bytes collected normally every 10 minutes, so they fit these requirements. Both solutions have been installed worldwide, but a significant difference is that SigFox service must be purchased from a commercial service provider whereas LoRaWAN offers also the possibility of autonomous installation by an interested party.

This opens up the possibility of deploying a LoRaWAN infrastructure even where no commercial service provider offers service, as was the case of Mozambique (Salomao, ), where a city wide LoRaWAN network comprising 10 Gateways has been installed in a very short time and at low cost.

A LoRaWAN infrastructure consists of a number of end nodes that connect to one or more Gateways, which in turn are normally connected to the Internet through which the required Network and Application servers are reached. Several commercial providers offer the service for a fee, but one can also install both the Network and Application server in a Unix box, even without internet access (pape, ).

The Things Network (TTN)(TTN, ) is a community network that makes available its LoRaWAN infrastructure to anyone wishing to use it, at no cost. This means that one can install an end node, like the transponder that we designed, register it in the TTN web site to obtain the required credentials, and connect to an existing TTN Gateway and from there to the Internet.

The user traffic is encrypted all the way from the end node to the Application server in which the data can be processed according to the specific requirements.

In places where no TTN Gateway is available, one can still leverage the TTN’s Network and Application servers by undertaking the installation of a GW. A number of LoRAWAN GWs are offered by many vendors, with prices that start at around 100 USD.

4. Transponder Design and Implementation

We designed the transponders following three design criteria:

• •

Low cost: the trasponder should be affordable to allow for large deployments in Developing Countries. It should also be widely available on the market.

• •

Low power: as the battery life of the two WS we considered is about 2 years, the trasponder should have the same battery life expectancy. We considered sampling rates from 5 to 60 minutes to acommodate different scenarios.

• •

Open source: to facilitate tailoring the project to other applications, we used devices and software that adhere to the open source movement.

4.1. Decoding the transmitted signal

We used on open source data receiver tool called rtl_433 (rtl, ) to analyze the data coming from the two different WSs. Once the data protocol was understood, we implemented the decoding in the microcontroller.

4.2. LoRa Transponder

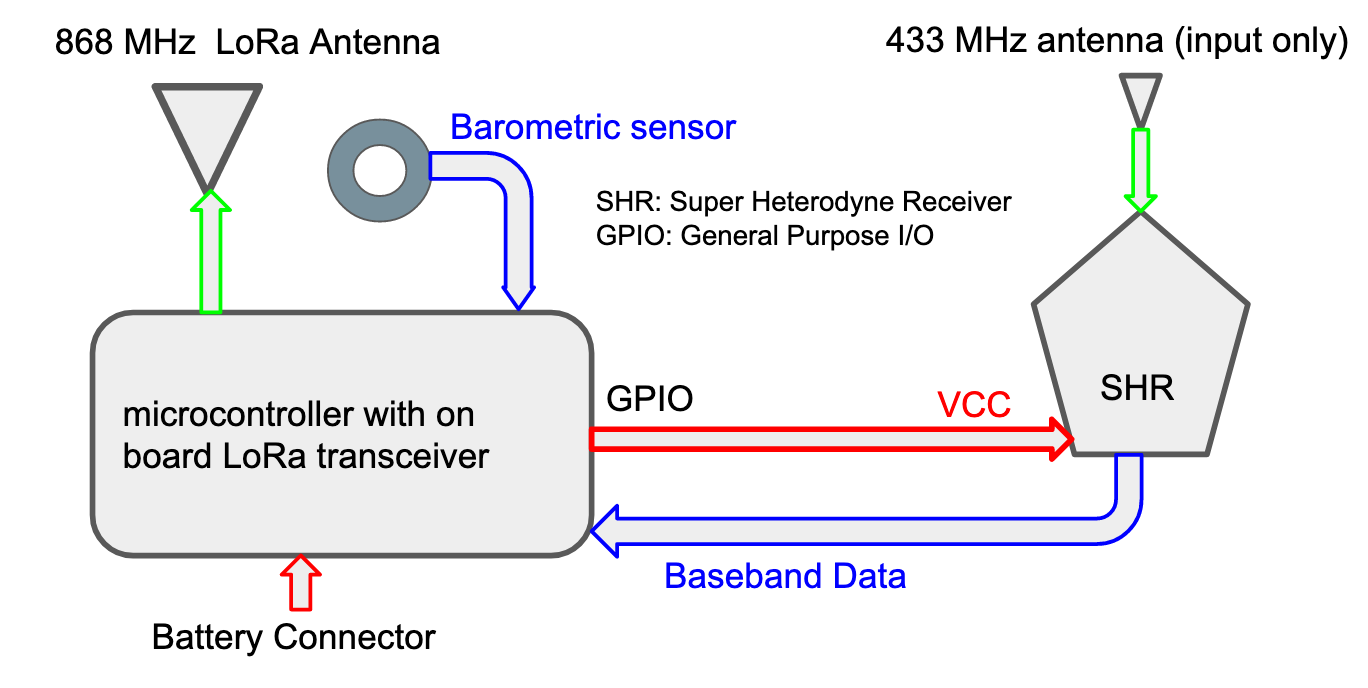

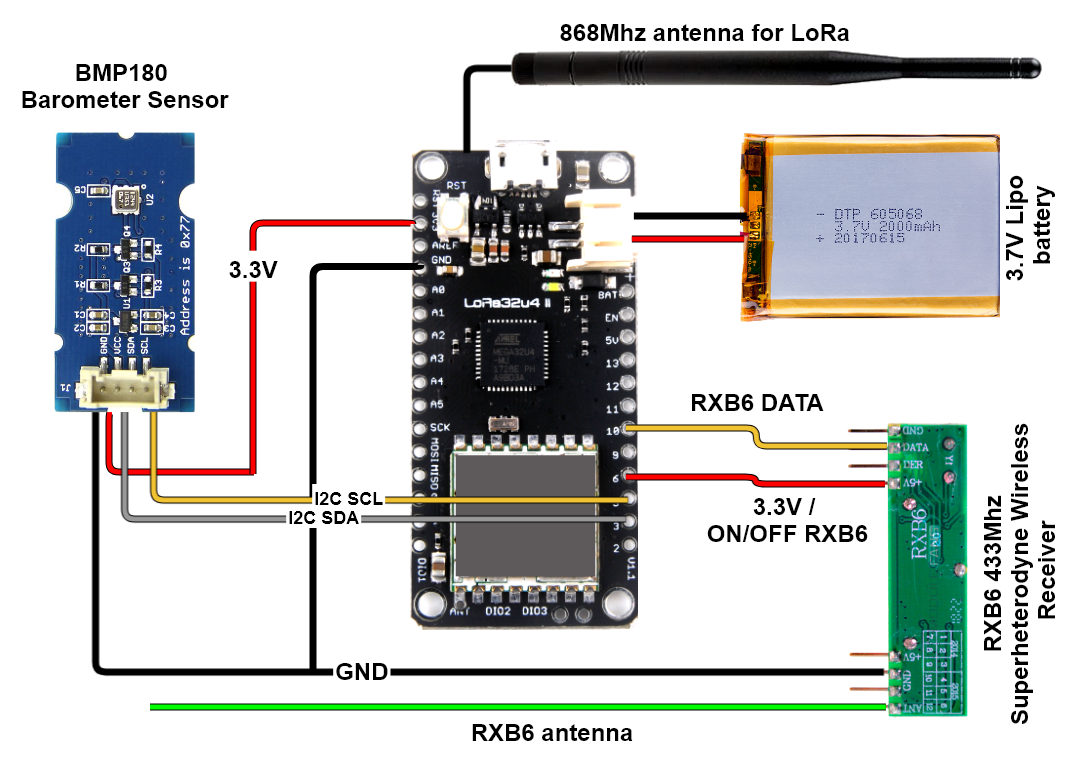

The generic transponder, shown in Figure 3, intercepts the radio signals from the sensing unit using the inexpensive RXB6 433 MHz super heterodyne receiver (SHR). A survey of the market revealed that the RXB6 433 was the cheapest receiver available in Europe that met our requirements.

We decoded the base band signal captured by the SRH with the microcontroller and sent it as the payload of a LoRaWAN frame to a TTN Gateway. To save energy, the microcontroller turns off the SHR after finishing the reception of the data from the WS, and turns it back on when another frame is ready for processing. In Europe the frequency allocated to LoRa transmissions lies in the 868 MHz band, for other countries the appropriate frequency should be configured.

The transponder uses two antennas, the one at 433 MHz is only for reception, so there is no need for precise matching and a simple piece of wire will do. The length of the wire is therefore not critical.

The 868 MHz LoRa antenna has an SMA connector, matched for optimum performance at 50 ohm, since it is used for transmission to the GW. The specific antenna deployed will depend on the topology. For a general purpose case an omnidirectional antenna with a small gain would be appropriate. For places in which there is a very long distance between the end node and the GW, a high gain directional antenna can be fitted to extend the coverage, thus meeting the requirements for remote weather stations monitoring in sparsely populated areas.

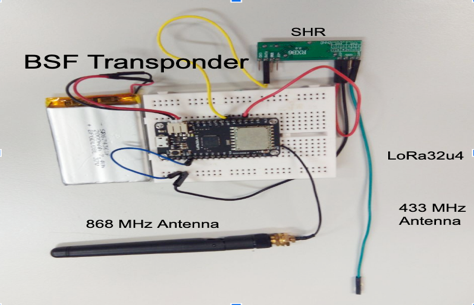

Figure 4 shows the BSF32 Transponder implementation, on the left the barometer sensor, in the center the microcontroller equipped with the LoRa transceiver an its omnidirectional 868 MHz antenna, on the right the Li-ion battery above the super heterodyne receiver fitted with a simple wire as a 433 MHz receiving only antenna.

For field deployment, the transponder is housed in an inexpensive waterproof enclosure made with RF transparent plastic that does not interfere with the antennas performance. The transponder can be installed at any convenient location, not too far from the WS (for instance, attached to the same pole), ideally with line of sight towards at least one of the LoRaWAN gateways. It will also work when the line of sight is blocked, but the range will be much shorter.

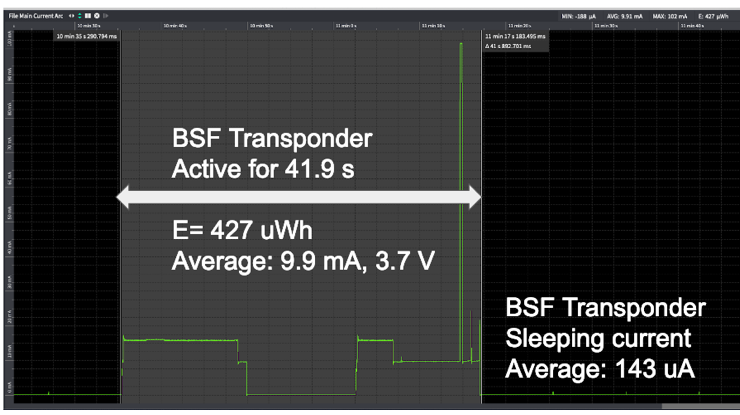

As one of the key factors in designing the system was low power consumption, we measured the current absorption at different phases of the cycle using an OTII device (otii, ), specifically meant for recording low current measurements with a very high time resolution.

The microcontroller decodes the data received from the SHR and switches it off after reception, since the average consumption while using the SHR is 9.9 mA.

In order to minimize the transmission air time in the ISM frequencies (which are normally constrained to a maximum duty cycle of 1%), the string coming from the sensor’s unit was parsed to convey only the meteorological data, which are encrypted according to the LoRaWAN protocol.

The decoded data are then passed to the SX1276 transceiver, which uses the LMIC-Arduino library to implement the LoRaWAN protocol required to connect to TTN. After completing transmission, the LoRa transceiver is switched off and the transponder enters the sleep phase during which the current is 144 uA. The time spent sleeping can be adapted to suit specific needs.

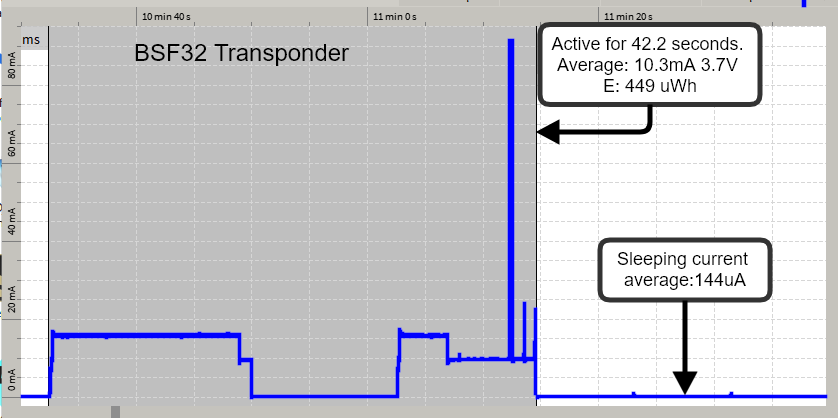

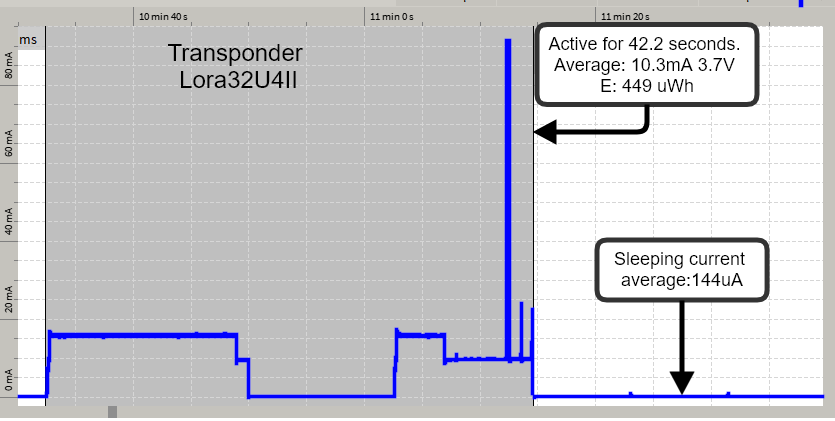

Figure 5 shows a graph of the measured current consumption at different stages for the whole transponder fed at 3.7 V. The active part lasts 42.2 s. The actual LoRa transmission consumes 102 mA but lasts only 289 ms when the 29 bytes payload is sent at spreading factor 9 and with an RF output power of 14 dBm. The total consumption will depend on the periodicity of transmission: for example, transmitting every 323 s (about 5 minutes), the consumption during the active phase is 449 uWh, while sleeping for 271 seconds consumes 40 uWh, for a total of 489 uWh per cycle. The consumption per day is therefore 489X24X3600/323 = 130803 uWh, so a 3.7 V, 2000 mAh Li-ion battery will last for 56.7 days.

In fact, we were able to run an experiment transmitting every 313 seconds and the 2000 mAh battery lasted 55 days.

If the transmissions are done every 15 minutes, which is the recommended sampling rate for weather data, the consumption per cycle is 622 uWh, so per day it will be 622X24x4 = 59712 uWh, and the same battery will last 123 days. transmitting every 30 minutes will extend the battery duration to 204 days.

This transponder was used with both the AcuRite and the La Crosse WSs. Although their over the air protocol is different, the baseband was recovered by making appropriate changes in the coding. The results were quite similar in terms of power consumption. One slight difference is that the La Crosse outputs 27 bytes per cycle instead of the 29 used by the AcuRite.

One limitation of the BSF32 microcontroller is that to minimize the power consumption it must be fed through the JST (Japan Solderless Terminal) battery connector. If it is fed from the on-board micro USB connector, the power consumption is significantly higher since other circuit blocks are also activated.

Given that the project aim is to provide a solution with minimum end user involvement, we discarded the option to modify the feeding connector. This poses a problem since Li-ion batteries (that use the JST connector) are not readily available in some markets, and they cannot be shipped due to current safety regulations. Therefore, after successfully testing this transponder with both of our weather stations, we decided to investigate another solution.

4.3. Lopy4 Transponder

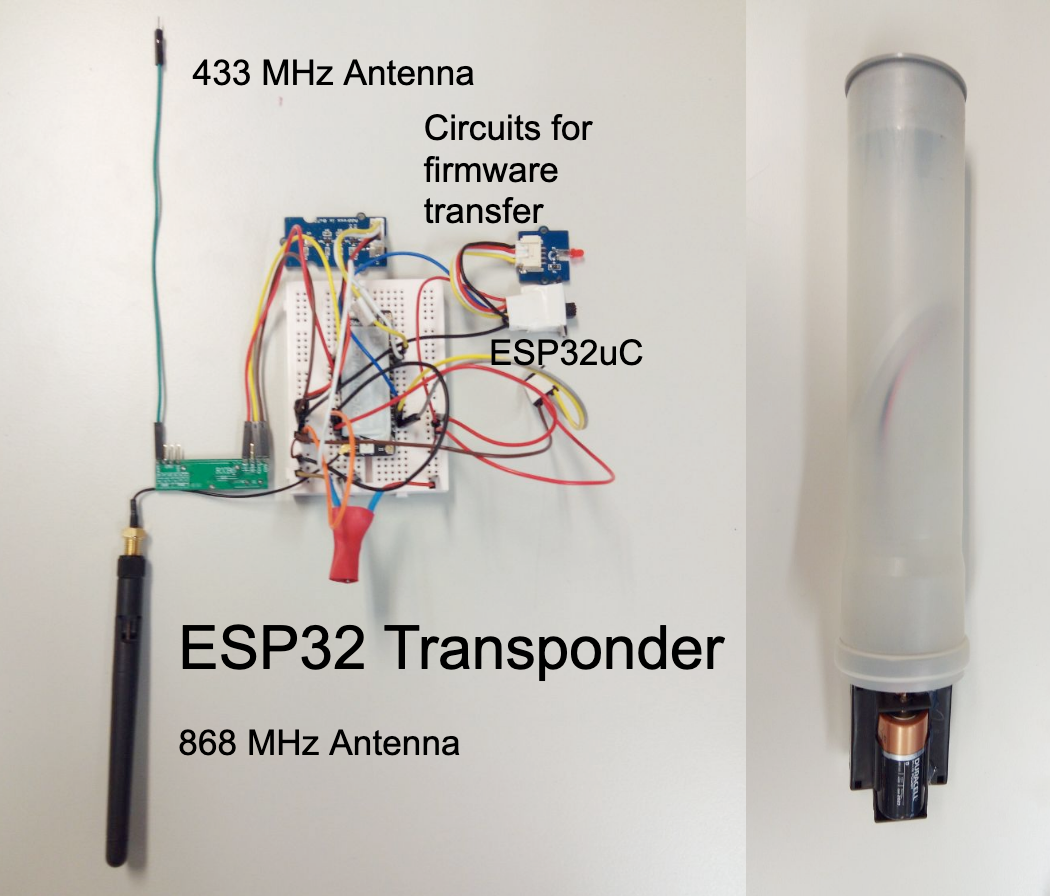

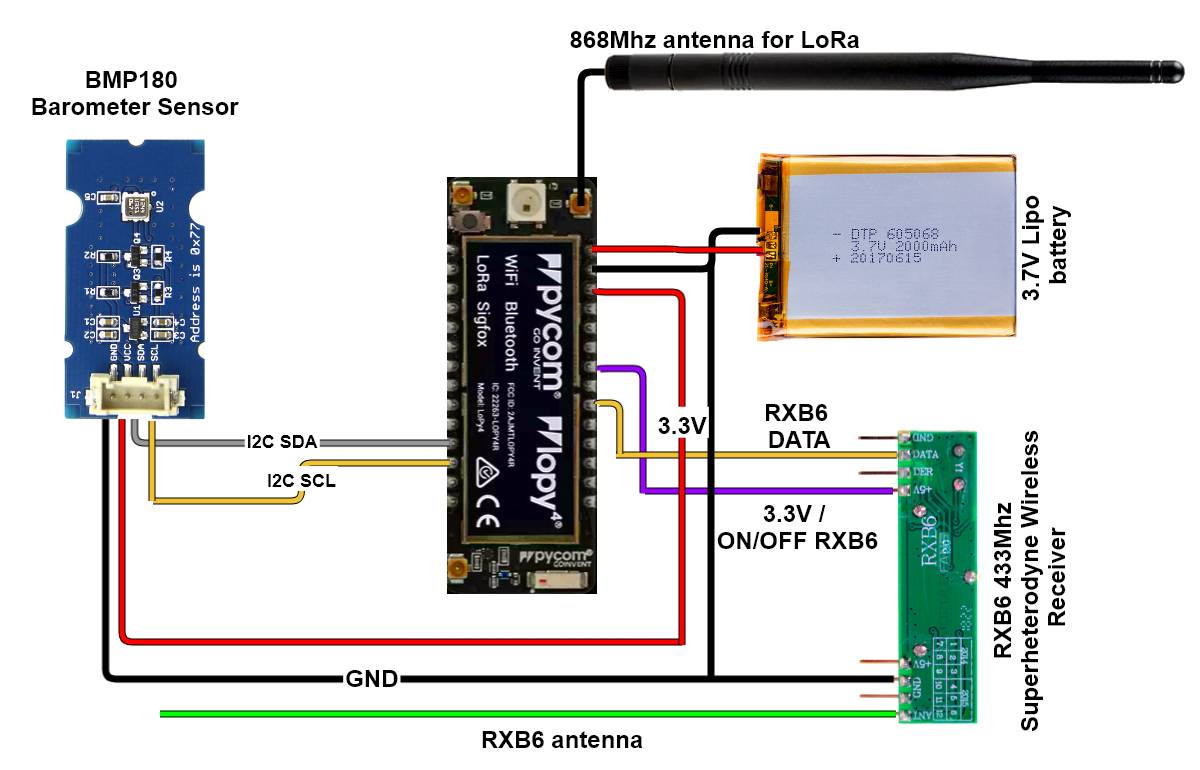

A more versatile, albeit more expensive, version of the transponder was implemented using the Lopy4 module, which is fitted with the powerful ESP32 processor and the same SX1276 LoRa transceiver. This microcontroller (lopy, ) has more memory and a faster clock, which increases the consumption during the active phase. Nevertheless the sleeping current is only 32.8 uA and it can be powered with a voltage ranging from 3.5 to 5.5. This is a significant advantage as we can feed it with 3 type D alkaline batteries which are cheaper, widely available even in emerging economies, and have a total capacity of 48 Wh. Figure 7 shows the second transponder prototype.

Even if consumption is higher due to the powerful processor, the bigger battery pack allows for a longer overall duration. This is also a more versatile solution, given that besides the LoRa it also has SigFox, WiFi and Bluetooth transceivers.

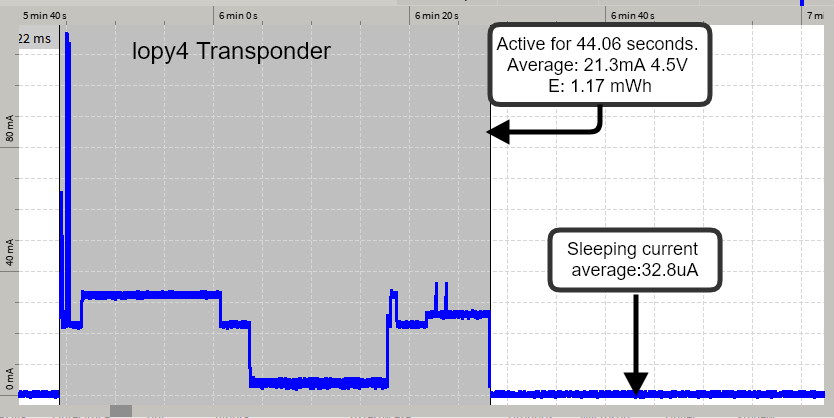

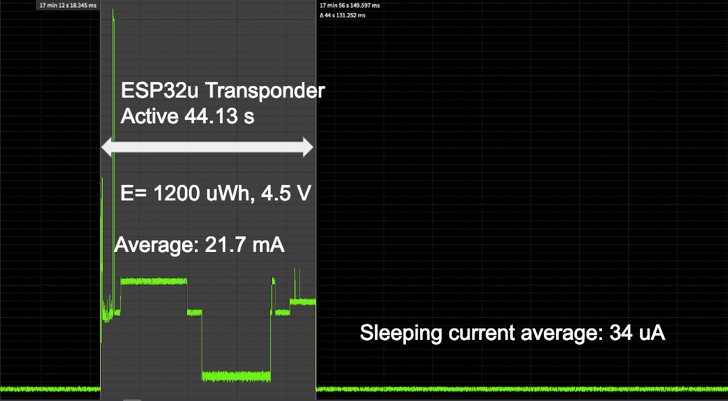

Measurements with the OTII device showed that consumption in the active phase, which lasts 44.06 s, was 1.17 mWh, so when transmitting every 5 minutes it spent 256 s in the sleep phase thus consuming 32.4uAX4.5VX256/3600h = 10.4 uWh, for a total of 1.18 mWh. In a day it will consume 1.18X12X24 = 33.98 mWh. A 48 Wh battery pack will therefore last 141 days.

If the transmission interval is extended to 15 minutes, the same battery pack will last 414 days. If we settle for transmission every half hour, the battery pack will last 739 days

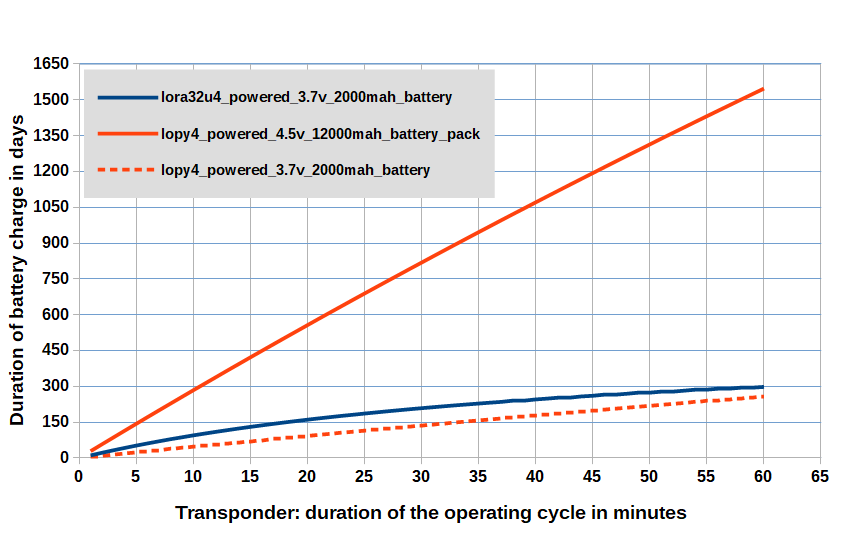

Table 1 summarizes battery pack estimated duration for the BSF32 fitted with a 7.4 Wh battery and for the Lopy4 transponder fitted with a 48 Wh battery pack in four different scenarios of transmission frequency.

5. CONCLUSIONS

Weather data are currently scarce in developing countries, despite their recognized relevance in many fields, not the least in disaster mitigation. To address this issue, we have designed and built inexpensive, low power and open source transponders that can capture the meteorological data from low cost commercial weather stations and send them over long distances using the open LoRaWAN protocol. The code is freely downloadable from Github.

Existing cloudsourced LoRaWAN TTN gateways can be leveraged to convey the gathered data to a target application server anywhere in the cloud at no cost. Alternatively, inexpensive LoRaWAN Gateways can be installed by any interested party even in places where no Internet connectivity is available. The LoRa reliance on unlicensed frequencies implies no recurring fee for data transmission. Our design does not interfere with the normal operation of the weather station, and the gathered data are stored in a server accessible by any Internet enabled user device.

We have tested two versions of the transponder based on the BSF32 microcontroller, to accommodate the needs of two types of commercial WSs, and a third version based on the more capable Lopy4.

The latter has additionally an on board SigFox transceiver, so it can also be used wherever SigFox networks are available by paying the corresponding subscription fee. Nevertheless the 12 bytes maximum payload of the Sigfox protocol will not accomodate the size of the message transmitted by the weather stations, so some sort of data compression would need to be implemented.

On the other hand, replacing the Lopy4 transponder with the Fipy model from the same manufacturer, which has also an NB-IoT transceiver, would allow to leverage that infrastructure in places where NB-IoT service is available. This has the advantage of working in licensed bands, inherently protected from interference, and not subjected to the maximum air time limitations that affect both LoRa and Sigfox.

Accurate consumption measurements reveal that in typical operation the batteries can last over a year, matching the replacement cycle of the weather sensor’s batteries.

Future work will address the installation of a number of Transponder’s equipped weather stations to assess their performance in the field, leading to refinements of the design and its implementation in a single printed circuit that can be tailored to the output protocols from different WSs by a mere software configuration.
