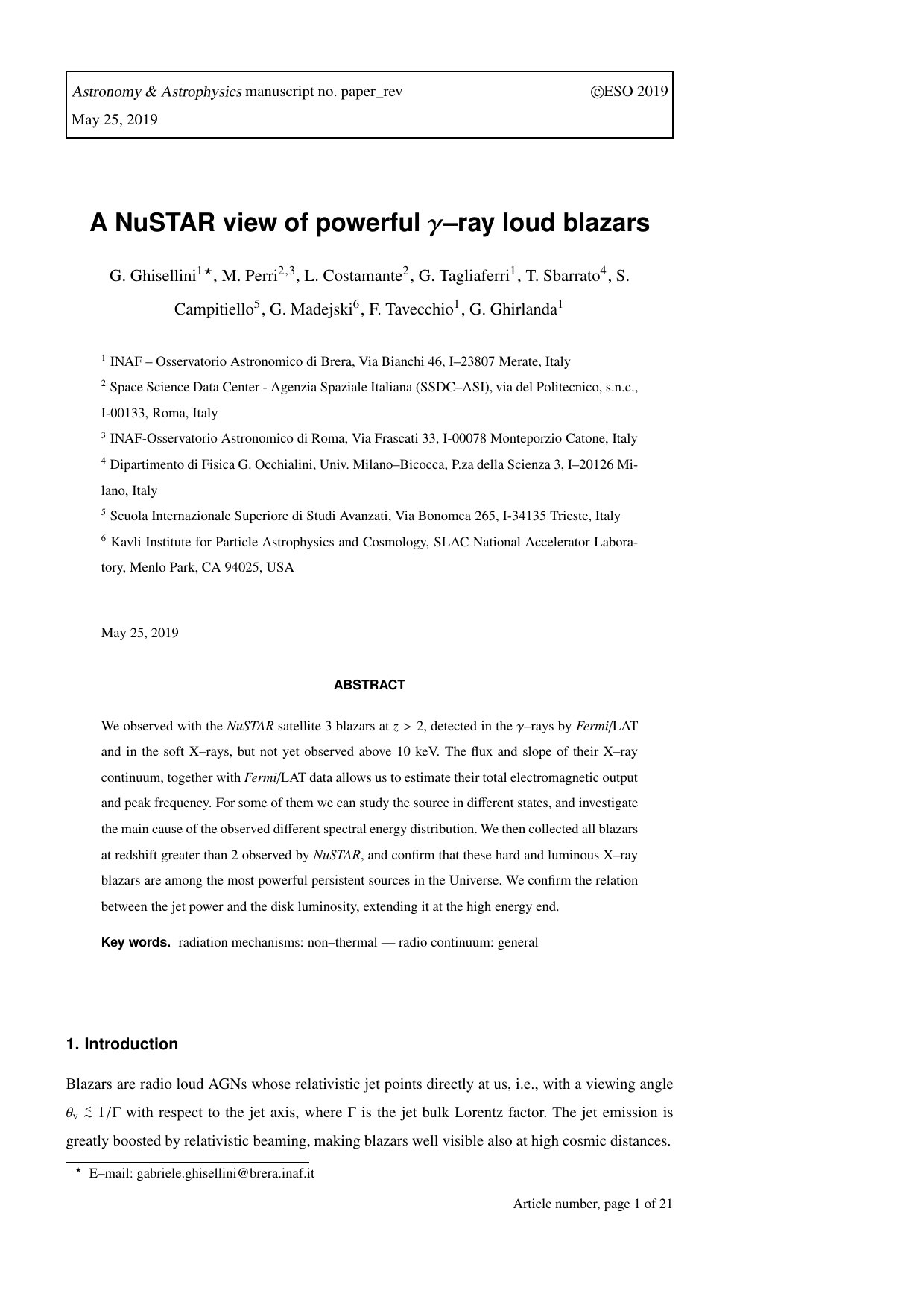

A NuSTAR view of powerful gamma-ray loud blazars

TL;DR

This study uses NuSTAR observations to analyze high-redshift gamma-ray loud blazars, revealing their extreme power and extending the understanding of jet and disk luminosity relations at high energies.

Contribution

It provides new NuSTAR data on z>2 blazars, characterizes their spectral energy distributions, and confirms the jet power-disk luminosity relation at high energies.

Findings

High-redshift blazars are among the most powerful persistent sources.

Confirmed the relation between jet power and disk luminosity at high energies.

Extended the jet-disk luminosity relation to the high-energy regime.

Abstract

We observed with the NuSTAR satellite 3 blazars at z>2, detected in gamma-rays by Fermi/LAT and in the soft X-rays, but not yet observed above 10 keV. The flux and slope of their X-ray continuum, together with Fermi/LAT data allows us to estimate their total electromagnetic output and peak frequency. For some of them we can study the source in different states, and investigate the main cause of the observed different spectral energy distribution. We then collected all blazars at redshift greater than 2 observed by NuSTAR, and confirm that these hard and luminous X-ray blazars are among the most powerful persistent sources in the Universe. We confirm the relation between the jet power and the disk luminosity, extending it at the high energy end.

Figures

Tables

Table 1. Table 1: Selected targets: coordinates (J2000), alias, redshift z 𝑧 z , radio flux at 5 GHz; X–ray flux in the 0.3–10 keV band; X–ray photon spectral index; K–corrected 0.3–10 keV luminosity; R 𝑅 R magnitude; virial black hole mass. The virial black hole masses are respectively from: Kelly & Bechtold (2007); Shaw et al. (2012); Fan & Cao (2004); Shen et al. (2011).

RA	Dec	Alias	$z$	$F_5$	$F_{\left[0.3-10\right]}$	${\Gamma }_X$	$L_X$	$m_R$	$M_{\mathrm{BH}}^{\mathrm{vir}}$
				Jy	cgs		erg/s		$M_{\odot }$
01 26 42	$+$25 59 01	PKS 0123+25	2.358	1.4	2.5e–12	1.4	5.2e46	17.8	1.8e9
02 29 28	$-$36 43 56	PKS 0227–369	2.115	0.4	1.3e–12	1.4	2.2e46	19.0	—
05 01 12	$-$01 59 14	TXS 0458–020	2.291	3.3	1.4e–12	1.5	3.1e46	19.0	4.6e8

Table 2. Table 2: Parameters of the X-ray spectral analysis of the NuSTAR data. The errors are at 90% level of confidence for one parameter of interest. Fluxes are corrected for the galactic absorption.

Date	$\Gamma$	$F_{3-5\mathrm{kev}}$	$F_{5-10\mathrm{kev}}$	$F_{10-30\mathrm{kev}}$	${\chi }^2$ / dof
		$\mathrm{erg}{\mathrm{cm}}^{-2}{s}^{-1}$	$\mathrm{erg}{\mathrm{cm}}^{-2}{s}^{-1}$	$\mathrm{erg}{\mathrm{cm}}^{-2}{s}^{-1}$
2018 Jan 03	${1.68}_{-0.12}^{+0.12}$	$4.7\times {10}^{-13}$	$7.7\times {10}^{-13}$	$1.6\times {10}^{-12}$	13.3 / 30

Table 3. Table 3: Parameters of the power-law fits to the Fermi /LAT data. Col. [1]: object name. Col. [2]: test statistics (Mattox et al. 1996). Col. [3]: integrated photon flux or 95% upper limit in the 0.1-300 GeV band, in units of 10 − 8 superscript 10 8 10^{-8} cm -2 s -1 . Col. [4]: photon index of the LAT spectrum, measured or assumed for the upper limit. Col. [5]: total LAT exposure, around the NuSTAR pointing, in days (d) or years (y).

Source	TS	Flux	${\Gamma }_{\mathrm{LAT}}$	Exp.
[1]	[2]	[3]	[4]	[5]
PKS 0123+25	0.0		2.8	30d
	32.7	$1.28\pm 0.35$	$2.89\pm 0.23$	4y
PKS 0227–369	0.0		2.7	30d
	63.3	$1.61\pm 0.29$	$2.73\pm 0.14$	2y
TXS 0458–02	137.8	$46.2\pm 8.2$	$2.30\pm 0.14$	2d

Table 4. Table 4: Parameters for the models shown in Fig. 1 , Fig. 2 , Fig. 3 , Fig. 4 and Fig. 6 . For the BLR we have always assumed L BLR = 0.1 ​ L d subscript 𝐿 BLR 0.1 subscript 𝐿 d L_{\rm BLR}=0.1L_{\rm d} . For all models we assumed ψ = 0.1 = 5.7 ∘ 𝜓 0.1 superscript 5.7 \psi=0.1=5.7^{\circ} , except otherwise noted. For a simple geometry (a spherical torus surrounding the disk), the ratio L T / L d subscript 𝐿 T subscript 𝐿 d L_{\rm T}/L_{\rm d} corresponds to the aperture angle θ T subscript 𝜃 T \theta_{\rm T} of the torus (the angle between the normal to the disk and the border of the torus): L T / L d = cos 2 ⁡ θ T subscript 𝐿 T subscript 𝐿 d superscript 2 subscript 𝜃 T L_{\rm T}/L_{\rm d}=\cos^{2}\theta_{\rm T} . A ratio L T / L d = 0.3 subscript 𝐿 T subscript 𝐿 d 0.3 L_{\rm T}/L_{\rm d}=0.3 gives θ T = 57 ∘ subscript 𝜃 T superscript 57 \theta_{\rm T}=57^{\circ} , while L T / L d = 0.5 subscript 𝐿 T subscript 𝐿 d 0.5 L_{\rm T}/L_{\rm d}=0.5 gives θ T = 45 ∘ subscript 𝜃 T superscript 45 \theta_{\rm T}=45^{\circ} .

Source	$z$	$M_{\mathrm{BH}}^{\mathrm{SED}}$	$L_d$	$L_T/L_d$	$R_{\mathrm{diss}}$	$R_{\mathrm{BLR}}$	$R_T$	$P_{\mathrm{inj}}^{\prime }$
		$M_{\odot }$	${10}^{45}$erg s-1		${10}^{15}$ cm	${10}^{15}$ cm	${10}^{15}$ cm	${10}^{45}$ erg s-1
PKS 0123+25	2.358	1.5e9	58.5	0.3	270	764	3.1e4	0.017
PKS 0123+25 no torus	2.358	1.5e9	58.5	0	225	764	—	0.012
PKS 0123+25 no torus	2.358	1.5e9	58.5	0	3.6e3	764	—	0.3
PKS 0123+25 ($\psi ={1.3}^{\circ })$	2.358	1.5e9	58.5	0.3	540	764	3.1e4	0.025
PKS 0227–369 new	2.115	2e9	18.2	0.5	660	427	5.6e3	0.011
PKS 0227–369 old	2.115	2e9	18.2	0.5	480	427	5.6e3	0.045
TXS 0458–020 new	2.291	8e8	10.4	0.5	144	322	2.7e3	0.11
TXS 0458–020 quiesc.	2.291	8e8	10.4	0.5	132	322	2.7e3	0.025
TXS 0458–020 “flare”	2.291	8e8	10.4	0.5	192	322	2.7e3	0.35
TXS 0458–020  $\left(\Gamma =7\right)$	2.291	8e8	10.4	0.5	192	322	2.7e3	0.25

Table 5. Table 5: continue . Parameters for the models shown in Fig. 1 , Fig. 2 , Fig. 3 , Fig. 4 and Fig. 6 . Luminosities are in units of erg s -1 .

Source	$B$	$\Gamma$	${\theta }_v$	${\gamma }_b$	${\gamma }_{\max }$	$s_1$	$s_2$	${\gamma }_{\mathrm{peak}}$	$\log P_r$	$\log P_{\mathrm{jet}}$
	G		deg
PKS 0123+25	6.0	11	3	400	5e3	1.5	4	98	45.6	47.2
PKS 0123+25 no torus	6.6	12	3	1e3	5e3	1.9	4.4	73	45.5	47.4
PKS 0123+25 no torus	0.036	22	2	200	5e3	1.9	4.4	181	45.5	49.5
PKS 0123+25 ($\psi ={1.3}^{\circ })$	6.7	11	3	550	5e3	1.9	4.3	54	45.6	47.7
PKS 0227–369 new	0.9	13	3	600	5e3	1	3.1	305	45.6	46.5
PKS 0227–369 old	1.3	13	3	250	5e3	0	3	181	46.3	46.9
TXS 0458–020 new	3.2	14	3	300	4e3	–1	2.5	317	46.8	47.3
TXS 0458–020 quiesc.	8.1	13	3	190	3e3	0.7	3	116	46.0	47.1
TXS 0458–020 “flare”	2.5	18	3	200	4e3	–1	3	170	47.5	48.2
TXS 0458–020$\left(\Gamma =7\right)$	1.7	7	3	800	7e3	–1	2.5	824	46.5	47.0

Table 6. Table 6: The entire sample of z > 2 𝑧 2 z>2 blazars observed by NuSTAR . References: S16: Sbarrato et al. 2106; B18: Bhatta et al. 2018; S16: Sbarrato et al. 2016; M17: Marcotulli et al., 2017; T15: Tagliaferri et al., 2015, P15: Paliya et al., 2015; S13: Sbarrato et al. 2013; D16: D’Ammando & Orienti, 2016.

Name	$z$	Ref
S5 0014+81	3.366	S16, B18
PKS 0123+25	2.358	This paper
B0222+185	2.690	S16, B18
PKS 0227–369	2.115	This paper
TXS 0322+222	2.066	M17
PKS 0446+11	2.15	M17
PKS 0451–28	2.564	M17
TXS 0458–020	2.291	This paper
S5 0836+710	2.172	T15, P15, B18
B2 1023+25	5.3	S13
PKS 2149–306	2.345	T15, D16, B18

Equations

$$Q(\gamma )=Q_0\frac{(\gamma /{\gamma }_{\mathrm{b}}{)}^{-s_1}}{1+(\gamma /{\gamma }_{\mathrm{b}}{)}^{-s_1+s_2}}\mathrm{c}{\mathrm{m}}^{-3}$$

$$P_{\mathrm{inj}}^{\prime }=m_{\mathrm{e}}{c}^2\int Q(\gamma )\gamma d\gamma$$

$$P_{\mathrm{i}}=\pi {\psi }^2{R}_{\mathrm{diss}}^2{U}_{\mathrm{i}}{\Gamma }^2\beta c$$

$$P_{\mathrm{r}}\sim 2\frac{L_{\mathrm{jet}}^{\mathrm{bol}}}{{\Gamma }^2}$$

$${\nu }_{\mathrm{C}}=\frac{4}{3}{\gamma }_{\mathrm{peak}}^2{\nu }_{\mathrm{Ly}\alpha }\frac{{\Gamma }^2}{1+z};R_{\mathrm{diss}}<R_{\mathrm{BLR}}$$

$${\nu }_{\mathrm{C}}=\frac{4}{3}{\gamma }_{\mathrm{peak}}^2{\nu }_{\mathrm{torus}}\frac{{\Gamma }^2}{1+z};R_{\mathrm{BLR}}<R_{\mathrm{diss}}<R_{\mathrm{torus}}$$

Full text

1 Introduction

Blazars are radio loud AGNs whose relativistic jet points directly at us, i.e., with a viewing angle \theta_{\rm v}\lower 2.15277pt\hbox{;\buildrel<\over{\sim};}1/\Gamma with respect to the jet axis, where $\Gamma$ is the jet bulk Lorentz factor. The jet emission is greatly boosted by relativistic beaming, making blazars well visible also at high cosmic distances.

The beamed non–thermal spectral energy distribution (SED) of powerful blazars is characterised by two broad distinctive humps. Most of the electromagnetic output of very powerful blazars is in the MeV band, just where we have no sensitive instrument to look at. We can detect them in the adjacent bands, through Fermi/LAT ($>$100 MeV) or in the hard X–rays, through INTEGRAL, Swift/BAT and NuSTAR. Only NuSTAR has the spectral resolution (through pointed observations) to accurately find out, together with the LAT data (detections and upper limits), the peak frequency and luminosity of the blazar emission. We claimed (Ghisellini et al. 2010, hereafter G10) that the trend of lower intrinsic peak frequency with larger luminosity, observed in blazars of low and intermediate power, continues to be valid also at the extreme high power end of the population. This was based on blazars detected by BAT, but not by LAT. Instead, considering blazars detected by both instruments, Ajello et al. (2009) claimed that no trend was visible. In addition to this controversial intrinsic property, the K-correction favours in any case the detection in the hard X–ray band of blazars at high redshifts. Therefore the most powerful persistent objects of the Universe should be found in the hard X–ray band. Looking for these extreme objects, we have proposed to observe with NuSTAR a few blazars at $z>2$ that have been already detected by Fermi/LAT, but not by Swift/BAT, hoping to shed light on the intrinsic properties of these sources, and in particular on the possible relation between the peak frequency of the high energy component of the SED and its luminosity.

Another key question in modern cosmology is how supermassive black holes (SMBH) gained most of their mass, especially at the highest redshifts probed by current observations. Most high–$z$ searches of SMBHs concern radio–quiet objects, but a very promising alternative approach concerns radio–loud ones, and specifically blazars. Beaming makes blazars a unique tool in assessing the number density of radio–loud SMBH at high redshift. In fact, for any confirmed high–redshift blazar there must exist other $2\Gamma^{2}=450(\Gamma/15)^{2}$ sources sharing the same intrinsic properties, but whose jets are not pointing at us. Some SMBHs with masses in excess of $10^{9}M_{\odot}$ were already in place when the Universe was only $\simeq 700$ Myrs old (e.g., ULAS J1120+0641 at $z=7.08$, Mortlock et al. 2011; ULAS J1342+0928 at $z=7.5$, Bañados et al. 2018). Their very existence is difficult to reconcile with black hole growth at the Eddington rate starting from stellar sized seeds (e.g. Volonteri 2010).

To the three blazars observed for the first time by NuSTAR, we have added all other blazars with $z>2$ observed by NuSTAR, in order to better understand their common properties. We will show that all of them belong to the group of the most powerful blazars both in their jet and in their accretion disk properties, fully confirming the fact that the jet power is proportional to the accretion luminosity and our expectations that the hard X–ray selection of high redshift blazars picks up the most powerful sources.

We use a flat $\Lambda$CDM cosmology with $h=\Omega_{\Lambda}=0.7$.

2 Data analysis

Table 1 lists the three blazars observed by NuSTAR, selected among all blazars at $z>2$ already detected by Fermi/LAT (Atwood et al. 2009), having a [0.3–10 keV] flux larger than $10^{-12}$ erg cm*-2* s*-1* and not already observed by NuSTAR, nor by Swift/BAT. This table reports also the redshift, the flux at 5 GHz, the optical magnitude in the $R$ band, and the estimate of the black hole mass obtained through the virial estimate, when available.

2.1 NuSTAR

The NuSTAR satellite (Harrison et al. 2013) observed PKS 0123+25 on 2018 January 03 (obsID 60367001002), PKS 0227–369 on 2017 August 10 (obsID 60367002002) and TXS 0458–020 on 2018 April 26 (obsID 60367003001). The total net exposure times were 19.9 ks, 23.3 ks and 20.7 ks, respectively.

The Focal Plane Modules A and B (FPMA and FPMB) data sets were processed with the NuSTARDAS software package (v.1.8.0) developed by the ASI Space Science Data Center (SSDC, Italy) in collaboration with the California Institute of Technology (Caltech, USA). Calibrated and cleaned event files were produced with the nupipeline task using the version 20170705 of the NuSTAR Calibration Database (CALDB).

The three sources were all well detected above the background by the two NuSTAR hard X–ray telescopes up to 30 keV. The FPMA and FPMB energy spectra of the three sources were extracted from the cleaned and calibrated event files using a circular spatial region with a radius of 12 pixels ($\sim 30$ arcseconds) centered on the target, while the background was extracted from nearby circular regions of 50 pixel radius. The ancillary response files were generated with the nuproducts task, applying corrections for the Point Spread Function (PSF) losses, exposure maps and telescope vignetting.

For all three observations the spectral analysis of the NuSTAR data was performed using the XSPEC package adopting a single power-law model with an absorption hydrogen–equivalent column density fixed to the Galactic values given by Kalberla et al. (2005), i.e. $N_{\rm H}=6.8\times 10^{20}$ cm*-2* for PKS 0123+25 , $N_{\rm H}=2.4\times 10^{20}$ cm*-2* for PKS 0227–369 and $N_{\rm H}=6.0\times 10^{20}$ cm*-2* for TXS 0458–02. All spectra were binned to ensure a minimum of 30 counts per bin and energy channels below 3.0 keV and above 30.0 keV were excluded. A multiplicative constant factor was included to take into account for cross-calibration uncertainties between the two telescopes (NuSTAR FPMA and FPMB). We found that this model fit the spectral data very well for all three sources in the considered energy band. The results of the spectral fits are given in Table 2.

2.2 Swift-XRT

The Neil Gehrels Swift Observatory (Gehrels et al. 2004) observed with the X-ray Telescope (XRT, Burrows et al. 2005) the source PKS 0123+25 simultaneously with NuSTAR, namely on 2018 January 03 and January 4 (obsIDs 00088100001, 00088100002), for a total net exposure time of 2.0 ks.

The XRT observations were carried out with the Photon Counting (PC) readout mode. The XRT data were first processed using the XRT Data Analysis Software (XRTDAS, v.3.4.1), which was developed under the responsibility of the ASI Space Science Data Center. Standard calibration and cleaning processing steps were applied using the xrtpipeline software module and using the version 20180710 of the Swift-XRT Calibration Database (CALDB).

Source events for the spectral analysis were extracted in the 0.3–10 keV energy band using a circular spatial extraction region with a 20 pixels radius ($\sim 47$ arcseconds). The background was estimated using a nearby source-free circular region with a radius of 50 pixels. Corrections to the ancillary response files for PSF losses, CCD defects and telescope vignetting were calculated and applied using the xrtmkarf software module.

For the spectral analysis the energy spectrum was grouped to ensure at least 20 counts in each bin. We adopted an emission model described by a single power-law with an absorption hydrogen-equivalent column density fixed to the Galactic value of $N_{\rm H}=6.8\times 10^{20}$ cm*-2* (Kalberla et al. 2005). The results of the spectral fit were found to be consistent in slope and normalisation with the ones derived from the NuSTAR observation, thus extending the observed spectral slope down to 0.3 keV, with a best fit photon index $\Gamma=1.7_{-0.3}^{+0.3}$.

For the two blazars PKS 0227–369 and TXS 0458–020 no simultaneous observations with NuSTAR were carried out by the Neil Gehrels Swift Observatory.

2.3 Fermi/LAT

We analyzed the Fermi/LAT data around the NuSTAR pointings using the Pass–8 data version and the public Fermi Science Tools version v11r5p3.

First we looked for nearly simultaneous data, with several choices of exposure time, until we derived a detection. The blazar TXS 0458–02 was in a bright state, and an integration time of just 2 days ($\pm$1 day around the NuSTAR pointing) was enough for a detection of $\sim 11\sigma$. The other two objects, instead, require years of integration for a detection. We therefore considered two exposures, a short one of 30 days ($\pm$15 days around the NuSTAR pointing) to derive a meaningful upper limit at the same epoch of NuSTAR, and a long one of years, in order to measure the average spectrum. The long exposure is 4 years for PKS 0123+25 (from May 24, 2014 to May 24, 2018), and 2 years for PKS 0227–369 (from May 24, 2016 to May 24). The results are reported in Table 3.

Gamma–ray events were selected from a Region of Interest (ROI) of 15°using standard quality criteria, as recommended by the Fermi Science Support Center (FSSC). We performed the likelihood analysis in two steps. In the first step the XML model included all the sources in the preliminary LAT 8–year Point Source List (FL8Y). We then performed a second likelihood fit using the XML model from the first step, optimized by dropping all sources with a TS$<1$. The analysis was performed with the NEWMINUIT optimizer, using an unbinned likelihood for the short datasets and a binned likelihood for the long exposures, with 0.1°bins and 10 bins for decade in energy.

The LAT data points for the SED were obtained by binning the spectrum with 2 bins per decade in energy, in the 0.1-100 GeV range, and performing a likelihood analysis in each single energy bin. In the XML model all parameters were kept fixed to the best–fit values, except for the normalization of the target and of the two backgrounds (isotropic and galactic). A binned or unbinned likelihood was used if the total number of counts in the bin was higher or lower than 15000, respectively. A Bayesian upper limit was calculated if in that bin the target had a TS$<9$ or npred$<3$. The light curves were obtained by performing an unbinned likelihood analysis in each time bin of 7 days, leaving free the parameters of the brightest or variable FL8Y sources in the ROI, within an 8–degree radius of the target.

3 Modelling

We interpret the overall SEDs of our sources with a leptonic, one–zone jet emission model plus the contribution from an accretion disk, its X–ray corona, and a molecular torus, that is absorbing and re–emitting in the infrared a fraction of the disk radiation. The detail of the model are in Ghisellini & Tavecchio (2009) and Ghisellini and Tavecchio (2015) and we summarize here its main features.

• •

The emitting region producing the non–thermal radiation is assumed to be spherical, with radius $R$ and at a distance $R_{\rm diss}$ from the central black hole. The jet is assumed conical, with semi–aperture angle $\psi$. Although $\psi\Gamma\sim 1$ is born out by numerical simulations of jet acceleration, jets could have a parabolic shape while accelerating, becoming conical when coasting (e.g. Marsher 1980; Komissarov et al. 2007). They could also re–collimate at large distances, making the relation between the transverse radius $r$ and the distance $R_{\rm diss}$ uncertain. We assume, for simplicity, $\psi=0.1$, corresponding to $5.7^{\circ}$ and, roughly, $\psi\sim 1/\Gamma$. The emitting plasma is assumed to move with a bulk motion of velocity $\beta c$ and Lorentz factor $\Gamma$ at a viewing angle $\theta_{\rm v}$ from the line of sight. The Doppler factor is $\delta=1/[\Gamma(1-\beta\cos\theta_{\rm v})]$.

• •

Throughout the emitting region relativistic electron are continuously injected at a rate $Q(\gamma)$ [cm*-3* s*-1*] for a time equal to the light crossing time $R/c$. The shape of $Q(\gamma)$ is assumed to be a smoothly broken power law, with a break at $\gamma_{\rm b}$:

[TABLE]

• •

The power injected in the form of relativistic electrons is

[TABLE]

This is calculated in the comoving frame. We solve the continuity equation to find the energy distribution $N(\gamma)$ [cm*-3*] of the emitting particles at the particular time $R/c$, when the injection process is assumed to end. We account for synchrotron and inverse Compton cooling and $e^{\pm}$ pair production and reprocessing, although, in our sources, $e^{\pm}$ pairs are not important.

• •

The magnetic field $B$ is tangled and uniform throughout the emitting region.

• •

There are several sources of radiation externally to the jet:

the broad line photons, assumed to re–emit 10% of the accretion luminosity from a shell–like distribution of clouds located at a distance $R_{\rm BLR}=10^{17}L_{\rm d,45}^{1/2}$ cm; 2. 2.

the IR emission from a dusty torus, located at a distance $R_{\rm IR}=2.5\times 10^{18}L_{\rm d,45}^{1/2}$ cm; 3. 3.

the direct emission from the accretion disk, including its X–ray corona; 4. 4.

the starlight contribution from the inner region of the host galaxy and the cosmic background radiation.

All these contributions are evaluated in the blob comoving frame, where we calculate the corresponding inverse Compton radiation from all these contributions, and then transform into the observer frame.

• •

The numerical code we use is not time dependent: it gives a “snapshot” of the predicted SED at the time $R/c$, when the particle distribution $N(\gamma)$ and consequently the produced flux are at their maximum.

• •

For powerful sources, the radiative cooling is efficient, and the cooling timescale can be shorter than $R/c$ even for the low energy particles. This implies that $\gamma_{\rm peak}$, the random Lorentz factor of the electron emitting most of the radiation is close to $\gamma_{\rm b}$.

• •

The size of the emitting region is rather compact, as indicated by the short variability timescales observed in blazars. As a consequence, the synchrotron flux is self–absorbed at high frequencies, in the submm band. Therefore the model cannot account for the radio emission at lower frequencies, that must be produced by more extended regions of the jet.

• •

To calculate the flux produced by the accretion disk, we adopt a standard Shakura & Sunyaev (1973) disk (see Ghisellini & Tavecchio 2009). This model depends mainly on the accretion rate (regulating the total disk luminosity) and on black hole mass (regulating the location of the peak of the emission). This allows us to fit also the thermal radiation seen in the optical–UV range, and to estimate the accretion rate and the black hole mass.

• •

The disk luminosity is independent of the adopted accretion model (e.g. standard Shakura & Sunyaev, with zero spin, or an accretion disk around a Kerr black hole). Instead the estimate of the mass does depend on the assumed accretion model (see e.g. Calderone et al. 2013. See also Campitiello et al. (2018) that studied how the black hole spin and the special and general relativistic effects impact on the determination of the black hole mass).

• •

The total jet power is the sum of the power carried by particles (we assumed one cold proton per emitting electron), magnetic field and radiation. Therefore the estimate of the magnetic and particle power is model dependent, because the particle number and the value of the magnetic field depend on which model we are using to interpret the data (leptonic or hadronic, molti or one–zone, and so on). This is calculated at the dissipation region, through

[TABLE]

where the subscript “i” can stand for protons, electrons, magnetic field, or radiation, and $U$ is the corresponding energy density, as calculated in the comoving frame. The power in radiation is instead model independent. It can be calculated with the equation above, that can be re-written as (for viewing angles $\theta_{\rm v}\sim 1/\Gamma$):

[TABLE]

where $L^{\rm bol}_{\rm jet}$ is the bolometric observed luminosity produced by the jet. This is an observable. Therefore only the knowledge of $\Gamma$ enters this estimate. This makes $P_{\rm r}$ almost model independent. It is a lower limit of the jet power. $P_{\rm jet}$ is the sum of the different components.

• •

The uniqueness of the parameter values has been discussed in some detail in Ghisellini & Tavecchio (2015). We have stressed there that in the framework of our leptonic, one–zone model, it is possible to find a unique solution for fitting the SED, but only if the data are of sufficient quality. One would need simultaneous data from the mm to the $\gamma$–rays, and this is possible only in a few cases. We are then constrained to assume that the not–simultaneous data we have collected are a reasonably good representation of the SED. We have tried to constrain the $\gamma$–ray flux and slope the best we could, by analyzing the Fermi/LAT data as close as possible to theNuSTAR observations. In addition, when possible, we will compare the resulting SED with the SED corresponding to other states of the sources, to enlighten the possible causes of variations.

4 Results

We show the overall SEDs of the three blazars analyzed in this paper in Figs. 1, 4 and 6. The SEDs of PKS 0123+25 and PKS 0227–369 show the presence of a thermal component at optical–UV frequencies, that we interpret as the due to a standard accretion disk. Perhaps more surprising, this thermal emission is not clearly visible in TXS 0458–02, most probably because it is hidden by the dominating synchrotron spectrum. Besides showing our data, the figures reports the archival data from the ASI/SSDC database (https://tools.ssdc.asi.it/).

4.1 PKS 0123+25

The NuSTAR data of this source lie on the extrapolation of the lower energy X–ray data taken by XMM/Newton on Jan. 8, 2009, and the Swift/XRT data taken simultaneously with NuSTAR. Integrating the Fermi/LAT data 15 days before plus 15 day after the NuSTAR observation, the source was not detected. The corresponding 95% upper limits are shown in Fig. 1 together with the Fermi/LAT spectrum integrating over the last 4 years. The upper limits are consistent with the spectrum obtained with the long exposure, indicating no flares during the NuSTAR observation.

The optical spectrum can be well fitted by a standard accretion disk model, and we find a black hole mass of $M=1.5\times 10^{9}M_{\odot}$ and a disk luminosity $L_{\rm d}=5.85\times 10^{46}$ erg s*-1*, corresponding to 30% of the Eddington luminosity. This value agrees with the observed broad line luminosities, as observed by the SDSS spectrum (DR13). We have used the template of Francis et al. (1991), and assumed that $L_{\rm d}=10L_{\rm BLR}$. In this way we derived $L_{\rm BLR}=10^{46}$ erg s*-1* (using the CIV line); $L_{\rm BLR}=7.3\times 10^{45}$ erg s*-1* (CIII] line) and $L_{\rm BLR}=1.6\times 10^{45}$ erg s*-1* (MgII line). In the infrared band there can be the contribution of both the torus and the jet emission. In order to disentangle the two, we have assumed that the time averaged $\gamma$–ray spectrum is indicative of the high energy emission during the NuSTAR observation. In Fig. 2 we show the model SED assuming there is no torus: if we fit the high energy SED, we under–reproduce the near IR. We therefore assume that the near IR flux is produced by the torus, and this helps to find the peak of the high energy SED and its dominance with respect to the synchrotron component. These information help to constrain the magnetic field and $\gamma_{\rm peak}$ allowing to find a robust solution for the model parameters (assuming that the archival data are indicative of the real SED). Fig. 3 compares the models assuming two different values for the aperture angle of the jet: $\psi=0.1=5.7^{\circ}$ (blue lines) and $\psi=0.023=1.3^{\circ}$ (red lines). The latter value corresponds to the average value of Fermi/LAT blazars derived by Pushkarev et al. (2017). Bot models represent the data well, and are indistinguishable. The model with the smaller $\psi$ requires a larger $R_{\rm diss}$ (factor 3) and a larger jet power (factor 3). For homogeneity with the blazars fitted previously, in the rest of the paper we use $\psi=0.1$. The parameters are listed in Table 4 and Table 5.

4.2 PKS 0227–369

The X–ray flux was significantly lower during the NuSTAR observations with respect to an earlier Swift/XRT observation carried out in November 2008 (Ghisellini, Tavecchio & Ghirlanda 2009). The shown $\gamma$–ray data (red symbols) refer to the last 2 years, and indicate a low state both with respect to the archival data and to an older flaring state. The slopes of both the X–ray and the $\gamma$–ray data are instead the same as the ones derived by the archival data. Unfortunately, during the NuSTAR observations, the source was not observed by Swift, so that we cannot check if any change occurred also in the optical–UV bands. However, we do not expect any strong flux variability in these bands, since they are produced by the accretion disk, whose emission is usually much more stable than the jet one. Applying our standard disk model we derive $M=2\times 10^{9}M_{\odot}$ and $L_{\rm d}=1.8\times 10^{46}$ erg s*-1*, corresponding to 7% of the Eddington luminosity. We did not find any published optical spectra reporting the luminosity of the broad lines. However, the disk emission is clearly visible in this source and the accretion disk luminosity we found is therefore reliable. As in PKS 0123+25, the infrared flux is dominated by the jet synchrotron emission. As a consequence, the torus component is somewhat uncertain: in Fig. 4 we show a torus reprocessing half of the disk luminosity.

To model the source, we have assumed that the radio–to–optical archival data give a good representation of the SED in this frequency range, and we tried to explain the change of the SED by changing the minimum number of parameters.

We find that the observed variability can be explained by changing the power of the relativistic electrons injected throughout the source, that are responsible for the emission. The shown models differ by a factor 4 in $P^{\prime}_{\rm inj}$. Furthermore, the lower NuSTAR state is characterized by a slightly larger dissipation region, with a slightly smaller magnetic field and a larger value of the energy of the electrons emitting at the peaks of the SED. The total jet power is a factor three smaller than in the high state.

4.3 TXS 0458–020

Fig. 5 reports the Fermi/LAT light curve of the last 3 years, to show the variability behaviour of this source. The dashed vertical line indicates the day of the NuSTAR observation.

Fig. 6 shows the overall SED of the source. It is characterized by a relatively harder $\gamma$–ray spectrum with respect to the other two sources, as suggested by the nearly simultaneous Fermi/LAT data (red points). In this case the flux was high enough to allow the detection and some spectral determination integrating for one week around the NuSTAR observation.

Since the synchrotron jet emission hides the accretion disk component, we cannot fit directly the disk. We can derive a (rough) estimate of the accretion disk luminosity by the observation of the broad lines, that are seen in this source even if the continuum is dominated by the synchrotron emission. The CIV broad line has a flux $F_{CIV}=2.6\times 10^{-15}$ erg cm*-2* s*-1*, corresponding to a luminosity of $L_{CIV}=1.1\times 10^{44}$ erg s*-1*. According to the template of Francis et al. (1991) this should correspond to a BLR total luminosity of $L_{\rm BLR}=9.7\times 10^{44}$ erg s*-1* and to a disk luminosity ten times larger: $L_{\rm d}\sim 10^{46}$ erg s*-1*.

For the black hole mass, we must consider that smaller masses, for a given $L_{\rm d}$, correspond to a disk spectrum peaking at larger frequencies. Therefore we can derive an lower limit to the black hole mass requiring that the disk emission does not over–contribute to the optical–UV flux. We can have an upper limit to the mass requiring that the disk is emitting is geometrically thin and optically thick, and therefore has a luminosity larger than 0.01 $L_{\rm Edd}$. We have chosen $L_{\rm d}=0.1L_{\rm Edd}$ for $L_{\rm d}\sim 2\times 10^{46}$ erg s*-1*, deriving $M=8\times 10^{8}M_{\odot}$. These values are only indicative, and uncertain by at least a factor 2.

To explain the observed different states, we have assumed that the archival data are representative of the quiescent state, while during the NuSTAR observation the source was in a high state. In March 2014 there was a Fermi/LAT flare almost brighter than in 2018, but unfortunately with no other observations at other frequencies. We show a possible fit for this flare, but only to illustrate the change of the parameters if the source would ever resemble the proposed theoretical SED.

As usual, we look for solution involving the smallest change of the minimum number of parameters to explain the observed variability. For the “NuSTAR state” the power injected in relativistic electrons if 4 times larger than in the quiescent state, but the magnetic field is $\sim$2.5 times smaller. The slopes of the injected electron distribution are slightly harder and the total jet power, in the “NuSTAR” state, is twice as much than in quiescence. The “high” state would require more power in the injected electrons (more than 10 times than in quiescence), a smaller still magnetic field, and the total jet power would be $\sim$13 times larger. All these estimates are calculated assuming that the synchrotron part of the spectrum is well represented by the quiescent state, in turn shown by the archival data. This source was studied also in Ghisellini et al. 2011, where simultaneous Swift (UVOT and XRT) and Fermi/LAT observations are reported. They correspond to the black symbols in Fig. 6.

Recently, Lister et al. (2016) have measured the apparent speed of a superluminal knot in this source, deriving an apparent speed $\beta_{\rm app}\sim 6$. Although this is a lower limit to the value of the bulk Lorentz factor, and therefore consistent with the values used in Fig. 6, it is interesting to compare these models with the one using a smaller value of $\Gamma$. This is done in Fig. 7, that compares the models with $\Gamma=14$ and $\Gamma=7$, as labelled. The latter slightly underestimate the NuSTAR data, but can reproduce well the rest of the SED. The parameters listed in Table 4 and Table 5 indicate (for the $\Gamma=7$ case) that the jet power and the magnetic field are slightly smaller, and the electron energies are larger. Overall, we have that the parameters are not vastly different.

5 Discussion

5.1 Comparison with other $z>2$ NuSTAR blazars

Tab. 6 reports the list of all blazars at $z>2$ observed by NuSTAR. They are 11 sources. The table reports their redshift and the reference to the papers discussing the NuSTAR X–ray data. They all are FSRQs, and their SEDs are shown in Fig. 8, in the $\nu L_{\nu}$ vs $\nu$ (rest frame) representation. In this way we can compare the rest frame SED of the sources. Most of the data comes from archives (mostly ASI/SSDC) and the figure shows how similar the sources are in the radio–mm band, while they become different (and varying with a very large amplitude) at greater frequencies. Note the source S5 0014+813, the most luminous in the optical–UV, due to its extraordinary luminous accretion disk (Ghisellini et al. 2009), and S5 0836+710, the most luminous in X–rays and in $\gamma$–rays, where it reached a luminosity of $\sim 10^{50}$ erg s*-1* during a flare observed on August 2nd, 2015 (Ciprini 2015).

The reason of the smaller dispersion of data points in the radio with respect to the other wavelengths is probably due to the lower amplitude variability in the radio band. Another reason for having less dispersion in the radio–mm band is that the Doppler amplification of the synchrotron flux scales as $F(\nu)\propto\delta^{3+\alpha}\sim\delta^{3}$ (for flat spectral indices $\alpha=0$), while the amplification factor for the inverse Compton process, with photons produced externally to the jet, scales as $F(\nu)\propto\delta^{4+2\alpha}\sim\delta^{5}$ (for X-ray spectral indices $\alpha\sim 0.5$) as pointed out by Dermer (1995) and illustrated in Fig. 5 of Ghisellini (2015).

Note that all sources show no signs of changing slope at the lowest radio frequencies, an indication that the jet emission is extremely strong and hides any contribution of the extended radio structure, that should have a steep (i.e. increasing at lower frequencies) spectrum. On the other hand, for almost all sources we do see the contribution of the accretion disk in the optical–UV. The accompanying X–ray coronal emission is absent in these sources, completely overwhelmed by the beamed X–rays from the jet. As a consequence for no source there is any sign of the presence of the iron fluorescence line at 6.4 keV (rest frame).

The hardness of the X–ray spectrum coupled with the steepness of the $\gamma$–ray one indicates a spectral peak around $\sim$10 MeV. We can try to be more precise by extrapolating the X–ray and $\gamma$–ray spectra of each source and find out the matching frequency. The result is shown in Fig. 9: the $\gamma$–ray luminosity $L_{\gamma}$ is plotted vs the peak frequency. For $L_{\gamma}$ we have chosen an average state, not the extreme flaring state. Bear in mind that this result can be affected by systematic errors, since the spectral shape around the peak is likely to be curved and not accurately described by a broken power law. The figure in any case suggests a trend (smaller $\nu_{peak}$ for larger $L_{\gamma}$) and an outlier (TXS 0458–020 in the high state).

5.2 Seed photons from the BLR or the torus?

The peak frequency $\nu_{\rm C}$ of the high energy hump of blazars depends on the frequency of the seed photons, the energy of the relevant electrons contributing to the peak, the bulk Lorentz factor $\Gamma$ and the beaming factor $\delta$. For our sources, that are all very powerful, we can assume that $\delta\sim\Gamma$, that implies that the viewing angle $\theta_{\rm v}\sim 1/\Gamma$. If the emitting region is inside the broad line region (i.e. $R_{\rm diss}<R_{\rm BLR}$ the most important seed photons are the Ly$\alpha$ ones. Therefore we expect

[TABLE]

If $R_{\rm BLR}<R_{\rm diss}<R_{\rm torus}$ the most important seed photons are the ones produced by the torus. These have a frequency related to the torus temperature, that has to be smaller than $\sim$2000 K to avoid sublimation.

[TABLE]

The ratio of the two $\nu_{\rm C}$ frequencies is $\sim 40\,(10^{3}\,{\rm K}/T_{\rm torus})$. If the emitting region is at a distance greater, but close to $R_{\rm BLR}$, both types of seed photons are important, and we have an intermediate peak frequency as long as $\gamma_{\rm peak}$ is the same. In general, one would expect that the radiative cooling time is affected by the nature of the seed photons: inside the BLR the BLR radiation energy density is larger than the one produced by the torus. Cooling is more severe, and this could favour smaller $\gamma_{\rm peak}$. This compensates the larger seed photon energy. On the other hand, we calculate the particle distribution at the end of the injection, that lasts for a time $R/c$. We also assume that the jet is conical, and therefore $R\propto R_{\rm diss}$: if the emitting region is beyond $R_{\rm BLR}$, it is larger than if it is inside. This means that emission (and cooling) operates for a longer time, and this has the effect to decrease $\gamma_{\rm peak}$. So, it is not obvious that sources dissipating beyond $R_{\rm BLR}$ should be “bluer” than the others. In any case, we have tried to see for how many blazars studied previously by our group we require $R_{\rm diss}>R_{\rm BLR}$.

Fig. 10 shows $R_{\rm diss}$ as a function of $R_{\rm BLR}$ for the sample of blazars studied in Ghisellini et al. (2014) and for the high redshift NuSTAR FSRQs studied here. The figure shows that there is a small ($\sim$12%) fraction of sources having R_{\rm diss}\lower 2.15277pt\hbox{;\buildrel>\over{\sim};}R_{\rm BLR} and that there is an overall trend for $R_{\rm diss}$ increasing more than linearly with $R_{\rm BLR}$. The NuSTAR blazars requires the largest $R_{\rm diss}$ and $R_{\rm BLR}$ and nearly half of them dissipate beyond $R_{\rm BLR}$. We can also wonder if the $R_{\rm diss}/R_{\rm BLR}$ ratio is a function of the black hole mass. We do expect some dependence, because $R_{\rm BLR}$ depends on the black hole mass only through $L_{\rm d}$ (and we do expect more luminous disk for larger black hole masses), while $R_{\rm diss}$ should scale linearly with the mass if dissipation occurs at the same distance measured in units of the Schwarzschild radius. Therefore we expect a dependence (albeit weak) for larger ratios $R_{\rm diss}/R_{\rm BLR}$ for larger masses. Fig. 11 shows this weak trend.

5.3 $\gamma_{\rm peak}$–$U^{\prime}$ relation

We now consider the relation between the electron random Lorentz factor $\gamma_{\rm peak}$ of the electrons emitting at the peaks of the SED (both synchrotron and IC) and the magnetic plus radiation energy density in the comoving frame of the emitting region. This is shown in Fig. 12 that compares our high–$z$ NuSTAR blazars with the samples of blazars studied by Celotti & Ghisellini (2008) and Ghisellini et al. (2014). If considered altogether, there is a clear trend of decreasing $\gamma_{\rm peak}$ for increasing energy density. On the other hand, the number of NuSTAR blazars is too small to derive any conclusions: they are, as all the other powerful FSRQs, at the extreme of the distribution.

5.4 Jet power and disk luminosity

Finally, in Fig. 13, we consider the jet power as a function of the disk luminosity. The blue circles are labeled “BL Lacs”, as it was done in (Ghisellini et al. 2014). They come from the sample of Shaw et al. (2013), containing 475 sources. Of these, Ghisellini et al. (2014) selected the few (26) objects with broad emission lines. Therefore these “BL Lacs” should be considered as the low disk luminosity tail of FSRQs. The relation between $P_{\rm jet}$ and $L_{\rm d}$ remains significant even after accounting for the common dependence upon redshift, with a probability $P<10^{-8}$ to be random (Ghisellini et al. 2014). This figure clearly shows that the NuSTAR blazars studied in this paper are the most powerful. This remains true even if we consider the lower limit to the jet power given by $P_{\rm r}$, that is almost model independent. PKS 0836+710 has the most powerful jet, and S5 0014+81 has the most powerful accretion disk. They extend the almost linear correlation between the two quantities found in Ghisellini et al. (2014), and confirm that active blazars have jets often more powerful than their accretion disks.

6 Conclusions

• •

Selection in the hard X–rays allows to find the most powerful blazar jets and the most luminous accretion disk.

• •

PKS 0227–369 and TXS 0458–020 show a significant variability in hard X–rays with respect to previous observations. This variability can be explained mainly by a change of power of the injected electrons and in part by a change of the magnetic field.

• •

All the high–$z$ NuSTAR blazars observed so far belong to the class of very powerful FSRQs and have large black hole masses and accretion disks emitting well above the 0.01 $L_{Edd}$ rate.

• •

The high–$z$ NuSTAR blazars extend and confirm the relation between jet power and accretion disk luminosity.
