Fiducial cross sections for the four-lepton decay mode in Higgs-plus-jet production up to NNLO QCD

TL;DR

This paper presents NNLO QCD calculations of fiducial cross sections for Higgs boson decaying into four leptons in Higgs-plus-jet production, highlighting the impact of QCD corrections and measurement definitions on experimental results.

Contribution

The study provides the first NNLO QCD corrections to fiducial cross sections in Higgs-plus-jet production for the four-lepton decay mode, analyzing measurement definition effects.

Findings

QCD corrections significantly affect fiducial acceptance factors.

Differences in lepton isolation impact higher order correction calculations.

The results improve the precision of Higgs property measurements.

Abstract

The four-lepton decay mode of the Higgs boson allows for a clean kinematic reconstruction, thereby enabling precision studies of the Higgs boson properties and of its production dynamics. We compute the NNLO QCD corrections to fiducial cross sections relevant to this decay mode in the gluon-fusion production of a Higgs boson in association with a hadronic jet, and study the impact of the QCD corrections on the fiducial acceptance factors in inclusive Higgs and Higgs-plus-jet production. We investigate in detail the different definitions used in the ATLAS and CMS measurements to define the fiducial cross sections. Differences in the lepton isolation prescription are found to have a sizeable impact on the higher order corrections to the fiducial acceptance factors.

Figures

Tables

Table 1. Table 1 : Fiducial cuts for final state leptons and jets in the calculations of NNLO JET (based on the measurements of CMS  CMSHto4l ; CMSHto4lconf , ATLAS I  ATLASHto4l and ATLAS II  ATLASHto4lconf ). Jet definitions do not apply to the inclusive transverse momentum distributions. The prescriptions for lepton-jet separation differ considerably between the two experiments, as described in detail in the text. For ATLAS, they are part of the jet definition, while for CMS they are part of the lepton isolation.

	CMS	ATLAS I	ATLAS II
Lepton Kinematics
1st lepton $p_T^{l_1}$ (GeV)	$>20$	$>20$	$>20$
2nd lepton $p_T^{l_2}$ (GeV)	$>10$	$>15$	$>15$
3rd lepton $p_T^{l_3}$ (GeV)	—	$>10$	$>10$
lepton $p_T^{e\left(\mu \right)}$ (GeV)	$>7\left(5\right)$	$>7\left(5\right)$	$>5$
Rapidity $\left|y^{e\left(\mu \right)}\right|$
Lepton Isolation
Cone size $R^l$	$0.3$	—	—
${\sum }_i{p}_T^i/p_T^l$ ( $i\in R^l$)		—	—
$\Delta R^{\text{SF(DF)}}(l_i,l_j)$	$>0.02$	$>0.1\left(0.2\right)$	$>0.1$
Invariant Mass (GeV)
$Z_1$ candidate $m_{Z_1}$	$[40,120]$	$[50,106]$	$[50,106]$
$Z_2$ candidate $m_{Z_2}$	$[12,120]$	$[12,115]$	$[12,115]$
$m_{l^{+}{l}^{{}_{}{}^{\prime }-}}$ (SF+DF)	$>4$	—	—
$m_{l^{+}{l}^{-}}$ (SF)	—	$>5$	$>5$
Four leptons $m_{4l}$	125	125	125
Jet Definition
Algorithm	anti-$k_T$	anti-$k_T$	anti-$k_T$
Cone size R	0.4	0.4	0.4
$p_T^j$ (GeV)	$>30$	$>30$	$>30$
Rapidity $\left|y^j\right|$
$\Delta R(j,e\left(\mu \right))$	—	$>0.2\left(0.1\right)$	$>0.1$

Table 2. Table 2 : The fiducial cross section of Higgs boson production measured in the four-lepton final state using ATLAS II fiducial cuts listed in Table  1 . The decay channel of 2 ​ e ​ 2 ​ μ 2 𝑒 2 𝜇 2e2\mu is distinguished from 2 ​ μ ​ 2 ​ e 2 𝜇 2 𝑒 2\mu 2e by requiring the first lepton pair being the Z 1 subscript 𝑍 1 Z_{1} candidate as described in Section  2.3 . Experimental errors are statistical and systematic. Theoretical uncertainties are from scale variation as described in the text.

Cross section [fb]	ATLAS II Data ATLASHto4lconf	NNLO	NNLO$\otimes$LOM
${\sigma }_{4\mu }$	$0.97\pm 0.17\pm 0.05$	${0.700}_{-0.072}^{+0.066}$	${0.660}_{-0.068}^{+0.062}$
${\sigma }_{4e}$	$0.61\pm 0.21\pm 0.07$	${0.700}_{-0.072}^{+0.066}$	${0.660}_{-0.068}^{+0.062}$
${\sigma }_{2\mu 2e}$	$0.88\pm 0.21\pm 0.08$	${0.617}_{-0.064}^{+0.058}$	${0.582}_{-0.060}^{+0.055}$
${\sigma }_{2e2\mu }$	$1.37\pm 0.22\pm 0.07$	${0.617}_{-0.064}^{+0.058}$	${0.582}_{-0.060}^{+0.055}$
${\sigma }_{4l}$	$3.84\pm 0.41\pm 0.23$	${2.65}_{-0.272}^{+0.250}$	${2.48}_{-0.255}^{+0.234}$
${\sigma }_H$ [pb]	$67.2\pm 6.8\pm 4.1$	${42.5}_{-4.28}^{+3.86}$	${40.1}_{-4.03}^{+3.64}$

Table 3. Table 3 : The fiducial cross section of Higgs boson production measured in the four-lepton final state using CMS fiducial cuts listed in Table  1 . The decay channels of 2 ​ e ​ 2 ​ μ 2 𝑒 2 𝜇 2e2\mu and 2 ​ μ ​ 2 ​ e 2 𝜇 2 𝑒 2\mu 2e are not distinguished. Experimental uncertainties are statistical and systematic errors combined. Theoretical uncertainties are from scale variation as described in the text.

Cross section [fb]	CMS Data CMSHto4lconf	NNLO	NNLO$\otimes$LOM
${\sigma }_{4\mu }$	${0.749}_{-0.098}^{+0.109}$	${0.643}_{-0.063}^{+0.056}$	${0.595}_{-0.058}^{+0.052}$
${\sigma }_{4e}$	${0.692}_{-0.160}^{+0.188}$	${0.574}_{-0.056}^{+0.049}$	${0.531}_{-0.052}^{+0.045}$
${\sigma }_{2\mu 2e+2e2\mu }$	${1.295}_{-0.176}^{+0.190}$	${1.077}_{-0.107}^{+0.095}$	${0.998}_{-0.099}^{+0.086}$
${\sigma }_{4l}$	${2.733}_{-0.292}^{+0.330}$	${2.294}_{-0.226}^{+0.200}$	${2.124}_{-0.209}^{+0.186}$

Equations

$$\mu \equiv {\mu }_R={\mu }_F=\frac{1}{2}\sqrt{m_H^2+(p_T^{4l}{)}^2},$$

$$R_{\text{LO}}={\sigma }_{\text{LO}}^{\text{M}}/{\sigma }_{\text{LO}}^{\text{EFT}},$$

$$\frac{\hbox{d}\sigma^{\text{M}}_{\text{NLO}}}{\hbox{d}p^{H}_{T}}\approx R_{\text{LO}}(p^{H}_{T})\bigg{(}\frac{\hbox{d}\sigma^{\text{EFT}}_{\text{NLO}}}{\hbox{d}p^{H}_{T}}\bigg{)},$$

$$R_{\text{LO}}(\mathcal{O})=\bigg{(}\frac{\hbox{d}\sigma^{\text{M}}_{\text{LO}}}{\hbox{d}\mathcal{O}}\bigg{)}\bigg{/}\bigg{(}\frac{\hbox{d}\sigma^{\text{EFT}}_{\text{LO}}}{\hbox{d}\mathcal{O}}\bigg{)},$$

$$\frac{\hbox{d}\sigma_{\text{N(N)LO}\otimes\text{LOM}}}{\hbox{d}\mathcal{O}}=R_{\text{LO}}(\mathcal{O})\bigg{(}\frac{\hbox{d}\sigma^{\text{EFT}}_{\text{N(N)LO}}}{\hbox{d}\mathcal{O}}\bigg{)}.$$

$$K_{\text{N(N)LO}}(\mathcal{O})=\frac{d{\sigma }_{\text{N(N)LO⊗ LOM}}^{\mathcal{X}(+jet)}/d\mathcal{O}}{d{\sigma }_{\text{LOM}}^{\mathcal{X}(+jet)}/d\mathcal{O}}=\frac{d{\sigma }_{\text{N(N)LO}}^{\mathcal{X}(+jet)}/d\mathcal{O}}{d{\sigma }_{\text{LO}}^{\mathcal{X}(+jet)}/d\mathcal{O}}.$$

$$\frac{d{\tilde{\sigma }}_{\text{FO}}^{H(+jet)}}{d\mathcal{O}}=\frac{d{\sigma }_{\text{FO}}^{H(+jet)}}{d\mathcal{O}}\times ({\text{BR}}_{2e2\mu }+{\text{BR}}_{4\mu }+{\text{BR}}_{4e}),$$

$$A_{\text{FO}}(\mathcal{O})=\frac{d{\sigma }_{\text{FO}}^{H\to Z{Z}^{\ast }\to 4l(+jet)}/d\mathcal{O}}{d{\tilde{\sigma }}_{\text{FO}}^{H(+jet)}/d\mathcal{O}}.$$

Full text

††preprint: ZU-TH 27/19, IPPP/19/45, CERN-TH-2019-083

1 Introduction

The discovery of the Higgs boson higgsexp initiated a large-scale research program aiming for the precise characterisation of the Higgs boson properties and of the details of the underlying Higgs mechanism of electroweak symmetry breaking. These studies rely largely on measurements of the different Higgs boson production modes and decay channels, which are becoming increasingly precise as more and more data is accumulated by the LHC experiments. The interpretation of these precision data calls for equally precise theory predictions, ideally taking into account the final-state definition used in the experimental measurement, including fiducial cuts on the Higgs boson decay products as well as on accompanying objects such as hadronic jets. These predictions are obtained in perturbation theory and become increasingly precise as higher orders are included. They play an important role in translating the experimental measurements into so-called simplified template cross sections YR4 , which are then used in precision studies of Higgs boson properties and Higgs boson couplings.

The dominant Higgs boson production mode at the LHC is gluon fusion ggH , which is mediated through a closed top quark loop, corresponding to a Born process at ${\cal O}(\alpha_{s}^{2})$. This process displays very large QCD corrections at next-to-leading order (NLO) spira ; mtfinite , which motivated extensive work on the derivation of higher order QCD corrections to gluon fusion. These are typically obtained in the limit of infinite top quark mass, which is described by an effective field theory coupling the Higgs field to gluons. In this limit, inclusive Higgs boson production in gluon fusion ggHnlo ; ggHnnlo ; hnnlo ; ggHn3lo and its rapidity distribution hrapn3lo is described up to third order in perturbation theory (N3LO), ${\cal O}(\alpha_{s}^{5})$. The leading order gluon fusion process always produces a Higgs boson at vanishing transverse momentum, such that the transverse momentum distribution starts only at ${\cal O}(\alpha_{s}^{3})$. This distribution is closely related to Higgs-plus-jet production, which has been computed to next-to-next-to-leading order (NNLO, ${\cal O}(\alpha_{s}^{5})$) for infinite top quark mass caolaH2 ; njH ; caolaH3 ; ourHpT , and to NLO including exact top quark dependence Jones:2018hbb ; Lindert:2018iug ; Neumann:2018bsx . These calculations are either performed for a stable Higgs boson caolaH2 ; njH ; Jones:2018hbb ; Lindert:2018iug ; Neumann:2018bsx , or focus on the $H\to\gamma\gamma$ caolaH3 ; ourHpT or $H\to(2l,2\nu)$ caolaH3 decay modes.

The Higgs boson decay mode to four charged leptons (through $H\to ZZ^{*}$) is particularly well-suited for precision studies Aad:2015mxa ; Khachatryan:2014kca ; Aad:2014tca ; Khachatryan:2015yvw ; ATLASHto4l ; ATLASHto4lconf ; CMSHto4l ; CMSHto4lconf , due to the clear final state signature and the high momentum resolution that can be achieved in its reconstruction. At higher order, predictions for fiducial cross sections in this mode are challenging the quality of the numerical integrations, owing to the high dimensionality of the Born-level final state phase space. They have been computed for the inclusive Higgs boson production process to NNLO hnnlo , corresponding to NLO-level for Higgs boson production at finite transverse momentum.

In this paper, we extend the NNLO QCD description (for infinite top quark mass) of gluon-fusion Higgs boson production ourHpT to include Higgs boson decays to four charged leptons, thereby providing NNLO-accurate predictions, accounting for top quark mass effects through rescaling, for fiducial cross sections in this decay channel. The calculation is described in Section 2. We perform a detailed phenomenological study of the recent ATLAS and CMS 13 TeV measurements ATLASHto4l ; ATLASHto4lconf ; CMSHto4l ; CMSHto4lconf of Higgs boson production in the four-lepton decay mode in Section 3, investigating in particular the impact of different fiducial cross section definitions and lepton isolation prescriptions. Our findings are summarised and discussed in Section 4.

2 Setup

2.1 Framework of the calculation

Higgs boson production at the LHC mainly proceeds through the gluon-fusion channel, which is mediated by a top quark loop. In the computation of cross sections, this top quark loop can be integrated out, provided that the top quark mass is larger than all scales involved in the process under consideration. In this limit, one obtains an effective field theory (EFT, eft ), whose matching onto full QCD and its renormalisation have been derived to four-loop order steinhauser ; Kniehl:2006bg . In the EFT framework, higher-order perturbative corrections can be computed in massless QCD.

The EFT-based calculation of NNLO QCD corrections to Higgs boson production at finite transverse momentum has been performed previously for on-shell Higgs boson production caolaH2 ; kirill1 ; ourH , as well as for the decay modes to two photons caolaH3 ; ourHpT and two leptons plus two neutrinos caolaH3 . It involves the following partonic channels: (a) the two-loop matrix elements of Higgs-plus-three-parton processes (double-virtual contributions) h3g2l , (b) the one-loop matrix elements of Higgs-plus-four-parton processes (real-virtual contributions) h4g1l and (c) the tree-level matrix elements of Higgs-plus-five-parton processes (double-real contributions) h5g0l . All three types of NNLO matrix elements are separately infrared divergent upon integration over the relevant phase spaces and only their sum is finite. Consequently, their implementation requires a method to extract and recombine the infrared singularities from each contribution. In our implementation ourHpT , we employ the antenna subtraction method ourant . Our calculation is implemented in a parton-level event generator NNLO

JET

. The calculation of Higgs boson decay to $ZZ^{*}\rightarrow 4l$ is performed in the narrow-width approximation using the leading-order matrix elements HtoZZto4l . The implementation of Higgs boson decay in NNLO

JET

is checked by comparing Born-level predictions for fiducial cross sections for final states with up to three jets with MCFM MCFM7.0 and HNNLO hnnlo .

In our numerical computations, we take the Higgs boson mass of $m_{H}=125$ GeV and the corresponding decay width of $4.1\times 10^{-3}$ GeV. The vacuum expectation value is fixed to $v=246.2$ GeV and the top quark mass (appearing in the Wilson coefficient at NNLO) is 173.2 GeV. We use the PDF4LHC15 parton distribution functions (PDFs) nnpdf with the value of $\alpha_{s}(m_{Z})=0.118$ and $m_{Z}=91.1876$ GeV. Note that we systematically use the same set of PDFs (PDF4LHC15_nnlo_mc) and the same value of $\alpha_{s}(m_{Z})$ for LO, NLO and NNLO predictions. External quarks in initial and final states and final-state leptons are all considered to be massless. The factorisation ($\mu_{F}$) and renormalisation ($\mu_{R}$) central scales are chosen dynamically on an event-by-event basis as,

[TABLE]

where $p^{4l}_{T}$ is the transverse momentum of the final-state four-lepton system. The theoretical uncertainty is estimated by a seven-point scale variation, which amounts to varying the renormalisation and factorisation scales independently by factor of $1/2$ and 2 around $\mu$ to the combinations of $(\mu_{R},\mu_{F})=(\mu/2,\mu/2),(2\mu,2\mu),(\mu,2\mu),(2\mu,\mu),(\mu,\mu/2)$ and $(\mu/2,\mu)$ and taking the envelope of the predictions as error estimate.

2.2 Quark mass effects

With the enlargement of the LHC data set, Higgs boson production can be measured over an increasingly large kinematic range. For example, by combining measurements of various Higgs boson decay channels, the Higgs boson transverse momentum distribution above 350 GeV could recently be determined with an error of about $\pm 25$% Aaboud:2018ezd ; CMS:2018hhg . At those high transverse momenta, the quark loop probes energy scales comparable to or larger than the top quark mass. Consequently, the EFT description is no longer applicable to the Higgs boson production via gluon fusion. This implies that top quark mass effects can not be neglected in the large transverse momentum region above $p^{H}_{T}\sim m_{t}$. The exact matrix elements with full top quark mass dependence have been known for some time at Born level (one-loop) for Higgs-plus-jet final states Ellis:1987xu ; Baur:1989cm . Recent progress in numerical calculations of two-loop matrix elements Li:2015foa ; Borowka:2015mxa ; Borowka:2017idc enabled the calculation of the NLO QCD corrections to Higgs-plus-jet final states with full top quark mass dependence Jones:2018hbb . Analytical calculations of approximated massive two-loop matrix elements in Melnikov:2016qoc ; Melnikov:2017pgf ; Kudashkin:2017skd allowed detailed NLO phenomenology studies of top mass effects in the large transverse momentum limit Neumann:2018bsx and of top-bottom interference effects in Higgs-plus-jet production at the LHC Lindert:2017pky ; Caola:2018zye .

For fully consistent predictions of Higgs boson production at large transverse momentum, one would ideally derive the NNLO QCD corrections involving matrix elements with full top quark mass dependence, which would imply computing three-loop four-point amplitudes with an internal mass. Due to the complexity of computing those amplitudes, such calculations are not feasible at present. Instead of the full calculation, one can apply re-weighting procedures to approximate quark mass effects in the higher-order EFT predictions. For inclusive observables such as the Higgs boson production cross section, the NLO top quark mass corrections are observed HNLOmass to be well-approximated by re-weighting the NLO EFT cross section by the ratio between the full and EFT predictions at LO:

[TABLE]

where $\sigma^{\text{M}}_{\text{LO}}$ includes the exact mass dependence of top quark loops. For differential observables such as the Higgs boson transverse momentum distribution, comparing predictions at LO and NLO between the EFT and including the full top mass dependence, the work in Jones:2018hbb has demonstrated a rather flat ratio for NLO over LO predictions at large transverse momentum. This indicates that the NLO top mass effects can be estimated by a multiplicative rescaling of the NLO EFT predictions:

[TABLE]

where $R_{\text{LO}}(\mathcal{O})$ is the generalised LO re-weighting factor for the differential distribution of an observable $\mathcal{O}$

[TABLE]

which is computed with the same fiducial cuts as the cross section under consideration. The multiplicative re-weighting procedure which is defined by (3) has been referred to as the EFT$\otimes$LOM approximation in ourHpT , where the differential cross sections in Higgs-plus-jet production in the di-photon decay channel were studied up to NNLO EFT$\otimes$LOM accuracy. To estimate the quark mass effects in the Higgs boson to four-lepton decay channel, we systematically apply this multiplicative re-weighting procedure to NLO and NNLO EFT predictions:

[TABLE]

With the recent results Jones:2018hbb for the exact top quark mass dependence of the NLO corrections in Higgs-plus-jet production at the LHC, this procedure could in the future be refined through an NLO re-weighting factor $R_{\text{NLO}}(\mathcal{O})$ which would define an EFT$\otimes$NLOM accuracy, similar to the prescription used for double Higgs boson production Grazzini:2018bsd .

The mass effects from bottom and charm quarks are numerically smaller than those from top quarks. Nevertheless, one can include those effects by adding the corresponding quark loops in the numerator of Eq. (4). In this paper, all re-weighting factors $R_{\text{LO}}$ or $R_{\text{LO}}(\mathcal{O})$ include massive charm, bottom and top loops in $\sigma^{\text{M}}_{\text{LO}}$ or $\hbox{d}\sigma^{\text{M}}_{\text{LO}}$ with masses of $m_{t}=173.2$ GeV, $m_{b}=4.18$ GeV, $m_{c}=1.275$ GeV while keeping other light quarks massless.

To illustrate the corrections to EFT predictions with massive top, bottom and charm quarks we apply fiducial cuts based on the CMS measurements CMSHto4l ; CMSHto4lconf with $H\rightarrow ZZ^{*}\rightarrow 4l$ (+ jets) final states (see Section 2.3 below for details) as an example. Figure 1 shows $R_{\text{LO}}(p^{4l}_{T})$ for Higgs boson production as a function of $p^{4l}_{T}$ and $R_{\text{LO}}(p^{j1}_{T})$ for Higgs-plus-jet production as a function of $p^{j1}_{T}$ (transverse momentum of the leading jet). We observe that the exact quark mass dependence leads to a mild enhancement (up to about 4.1% for $R_{\text{LO}}(p^{4l}_{T})$ and up to about 4.8% for $R_{\text{LO}}(p^{j1}_{T})$) in the transverse momentum region below $m_{t}$. For $(p_{T}^{4l},p_{T}^{j1})>m_{t}$, $R_{\text{LO}}(p^{4l}_{T})$ and $R_{\text{LO}}(p^{j1}_{T})$ falls off steeply with increasing transverse momentum as the top quark mass in the loop starts to be resolved.

2.3 Definition of the fiducial cross sections

In order to facilitate a direct comparison with the differential cross sections measured by CMS (2016 data CMSHto4l and 2016-18 data CMSHto4lconf ) and ATLAS (2016 data ATLASHto4l and 2016-17 data ATLASHto4lconf ), we apply fiducial event selection cuts in the Higgs-to-four-lepton decay mode (with or without associated jets), which are summarized in Table 1. The fiducial selection criteria are slightly different between the two ATLAS measurements in ATLASHto4l and ATLASHto4lconf , while the two CMS measurements adopt the same fiducial cuts in both their analysis of a partial set CMSHto4l and the full set CMSHto4lconf of the Run II data. For the $H\rightarrow ZZ^{*}\rightarrow 4l$ decay mode, the measured lepton pairs come in three categories: $2e2\mu$, $4e$ or $4\mu$ while $\tau$ lepton pairs are excluded. Same-flavour-opposite-sign (SFOS) lepton pairs are identified to constrain the invariant mass of $Z$ boson candidates. In the $2e2\mu$ case, there are only two SFOS pairs, while in the $4e$ or $4\mu$ case, there are four possible assignments of SFOS pairs. The SFOS lepton pair with invariant mass closest to $m_{Z}$ is labelled as the $Z_{1}$ candidate, while the remaining SFOS lepton pair is labelled as the $Z_{2}$ candidate. The $H\rightarrow ZZ^{*}$ decay process creates two off-shell $Z$ bosons, and the CMS CMSHto4l ; CMSHto4lconf and ATLAS ATLASHto4l ; ATLASHto4lconf measurements use different invariant mass cuts on $m_{Z_{1}}$ and $m_{Z_{2}}$, as well as on the four-lepton invariant mass $m_{4l}$. Our calculation includes all these experimental cuts, with the exception of the four-lepton invariant mass, which is in our case always fixed to be the on-shell value of $m_{H}$. Owing to the small width of the Higgs boson, this approximation is justified for the ATLAS and CMS cuts on $m_{4l}$. Off-shell Higgs boson production becomes sizeable in this decay mode only for invariant masses above $2m_{Z}$, which are vetoed by the experimental cuts.

The jet-related fiducial cuts and jet algorithm are only applied for the Higgs+jet cross sections. CMS CMSHto4l ; CMSHto4lconf applies the standard anti-$k_{T}$ jet algorithm for jet clustering and jet counting. ATLAS ATLASHto4l ; ATLASHto4lconf uses the anti-$k_{T}$ jet algorithm for jet clustering while applying an additional criterion for the jet counting: In order to avoid ambiguities with the potential assignment of leptons to jets, the ATLAS measurements ATLASHto4l ; ATLASHto4lconf remove any jet candidate within $\Delta R(j,l)$ for each final-state lepton. Note that this criterion only affects the jet counting but does not remove the event from any of the histograms such as the Higgs boson transverse momentum distribution. Besides this jet removal, the ATLAS measurements do not apply lepton isolation cuts. In contrast, the CMS measurement CMSHto4l ; CMSHto4lconf requires the scalar sum of the transverse momenta of all partons within a cone size of $R^{l}$ around each lepton to be smaller than 35% of the lepton’s transverse momentum ($\sum_{i}p^{i}_{T}/p^{l}_{T}\ <$ 0.35 for $i\in R^{l}$). If this criterion is not fulfilled, the lepton is not considered as a lepton in the list of final state particles. In the theoretical calculation, this implies the removal of the event, since less than four leptons are identified. The final-state leptons are also required to be separated from each other by $\Delta R(l_{i},l_{j})$ for any $i\neq j$ in all four measurements CMSHto4l ; CMSHto4lconf ; ATLASHto4l ; ATLASHto4lconf . The ATLAS measurement ATLASHto4l further uses a different cone size for $\Delta R(l_{i},l_{j})$ in the case of same-flavour (SF) and different-flavour (DF) lepton pairs. The full set of the fiducial cuts is summarised in Table 1. We will see in Section 3 below, how the different cuts and isolation requirements affect the perturbative stability of the theoretical predictions.

2.4 Fiducial and inclusive cross sections

The experimental measurements of fiducial cross sections are used frequently to reconstruct simplified template cross sections, which are kinematic distributions that are corrected to stable Higgs boson production. These simplified template cross sections play an important role in discriminating different Higgs boson production processes, and allow detailed studies of Higgs boson couplings. In this reconstruction, the measured fiducial cross sections are multiplied with acceptance factors (determined from theory or simulation) to extrapolate them to a fully inclusive acceptance of the Higgs boson decay products (which we abbreviate as inclusive cross sections in the following). These acceptance factors are often based on leading-order theory predictions, since precision calculations for fiducial cross sections for complicated high-multiplicity decay channels are only gradually becoming available.

Our calculations for fiducial cross sections in Higgs boson and Higgs-plus-jet production in the $H\rightarrow ZZ^{*}\rightarrow 4l$ decay mode provide an excellent testing ground for the perturbative stability of these acceptance factors. We distinguish between ${\mathcal{X}}=H\rightarrow ZZ^{*}\rightarrow 4l$, denoting the final state with fiducial cuts and ${\mathcal{X}}=H$ denoting Higgs boson production inclusive over its decay products.

By normalising to the respective leading-order predictions, one obtains the commonly used $K$-factor, where all multiplicative mass corrections cancel:

[TABLE]

We define semi-inclusive differential distributions (no fiducial cuts on Higgs boson decay observables) by using differential cross sections of inclusive Higgs boson production multiplied by the leading-order Higgs-to-four-lepton branching ratio:

[TABLE]

with FO being LOM, NLO$\otimes$LOM or NNLO$\otimes$LOM. For $m_{H}=125$ GeV the branching ratios of the Higgs boson decay are $\text{BR}_{2e2\mu}=5.8\times 10^{-5}$ for two different flavour lepton pairs and $\text{BR}_{4e}=\text{BR}_{4\mu}=3.2\times 10^{-5}$ for two identical flavour lepton pairs. The total Higgs boson decay width is $4.1\times 10^{-3}$ GeV.

The ratio of fiducial and semi-inclusive cross section defines the acceptance correction factor:

[TABLE]

This factor can be computed perturbatively to FO = (LO, NLO, NNLO), thereby testing its stability under higher-order corrections and its sensitivity to the cuts that define the fiducial cross section.

3 Results

Higgs boson production with the subsequent decay to four leptons via two off-shell Z bosons has been measured by ATLAS ATLASHto4l ; ATLASHto4lconf and CMS CMSHto4l ; CMSHto4lconf , based on the data taken at 13 TeV. Both experiments perform measurements in fiducial phase space regions, on one hand, to ensure that all final state observables (jets, leptons) are within the detector coverage, on the other hand, to apply lepton isolation algorithms that distinguish between leptons from Z boson decay and those from electroweak fragmentation of hadrons within jets. The measured fiducial total and differential cross sections for the four-lepton final states (plus jets) receive contributions from all possible Higgs boson production channels at the LHC. In this section we derive NNLO-accurate parton-level predictions for the Higgs boson production via gluon-gluon fusion including the decay to four leptons in association with a jet and investigate the effect of the lepton fiducial cuts and lepton isolation requirement on the acceptance factors and their perturbative stability. Sub-dominant Higgs production channels (vector boson fusion, associated production with a vector boson and top anti-top quark fusion) become important at the 10% level. They also become dominant at large Higgs transverse momentum region beyond 600 GeV. In the comparison to current measurements from ATLAS and CMS, we do not include them in the theory predictions.

3.1 Acceptance factors for Higgs simplified template cross sections at the LHC

For Higgs-boson and Higgs-boson-plus-jet production, simplified template cross sections that are differential in the Higgs kinematics are reconstructed from fiducial cross sections in certain Higgs boson decay channels. This is achieved through acceptance factors, defined in Section 2.4, to extrapolate fiducial cross sections defined on the Higgs boson decay products to inclusive phase space.

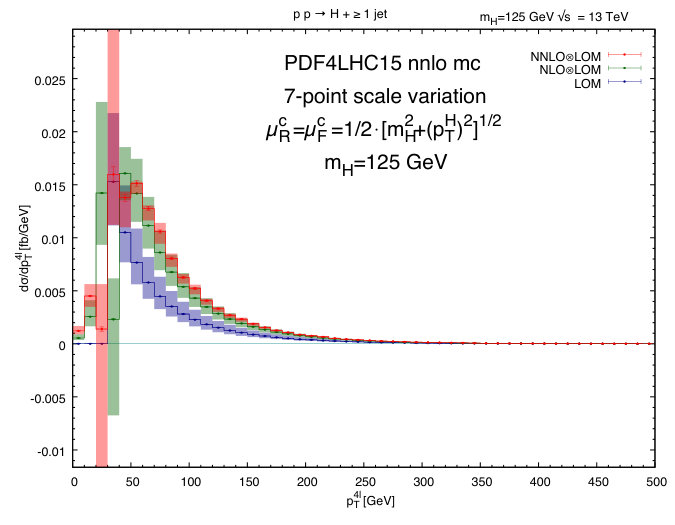

The shape of fiducial distributions in Higgs-related kinematic variables may be influenced by the fiducial selection cuts applied to the decay products. This is illustrated in Fig. 2, which compares the Higgs boson transverse momentum distribution in the four-lepton final state for the different analyses defined in Table 1, using ATLAS I ATLASHto4l as normalization. At low transverse momentum CMS and ATLAS I coincide, while the ATLAS II fiducial cross section is slightly larger due to the larger rapidity acceptance for the leptons. At higher transverse momenta, both CMS and ATLAS II fiducial cuts retain more events than the ATLAS I cuts. The stronger increase for the CMS fiducial cuts can be traced back the less strict requirements on the transverse momenta of the sub-leading leptons, which are produced in the decay of highly boosted $Z$-bosons.

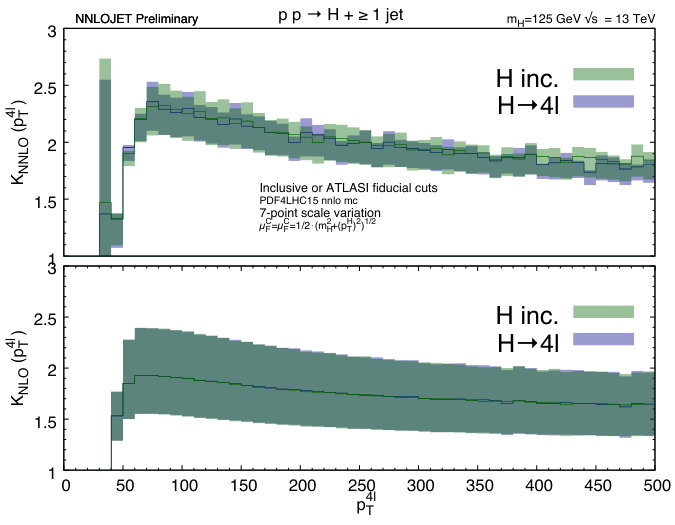

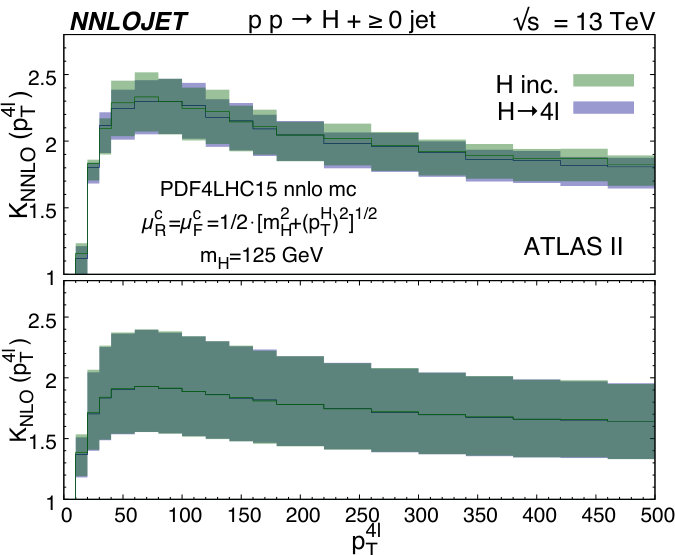

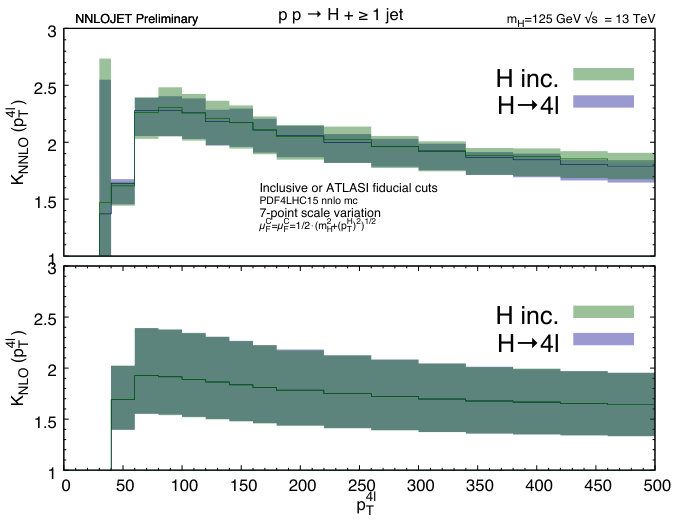

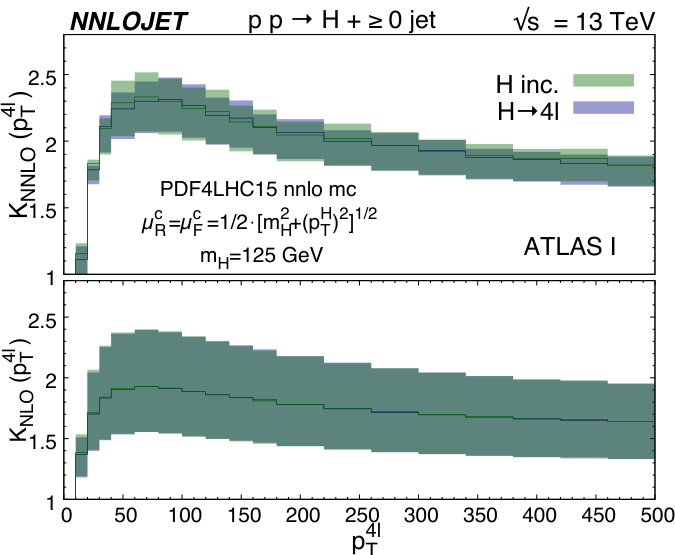

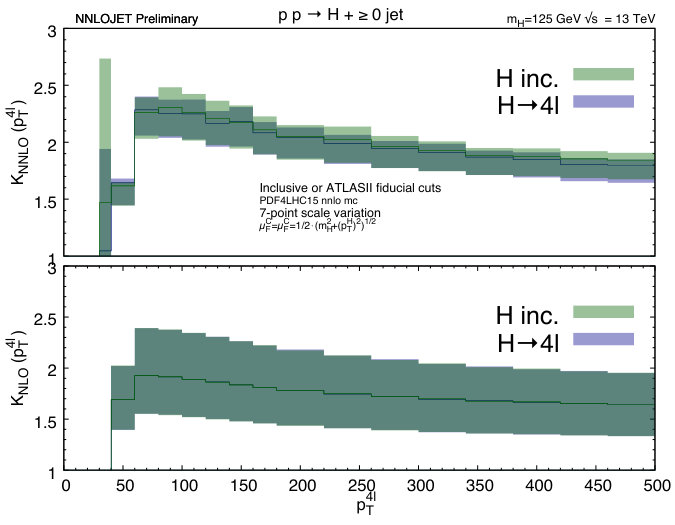

Figure 3 displays the $K$-factors defined in Eq. (6) for the Higgs boson transverse momentum distributions. The blue curves correspond to the $K$-factors for the fiducial four-lepton cross sections (defined in Table 1), while the green ones indicate the $K$-factors for inclusive Higgs boson production (which are identical in all three frames). Scale variation bands are obtained by fixing the denominator of the $K$-factors at the central scale while varying the numerator using the seven-point scale variation introduced in Section 2.1 above. We observe large $K$-factors for the inclusive distribution as well as for all three sets of fiducial cuts at NLO and NNLO. The scale variations are reduced going from NLO to NNLO by more than a factor of two. For the ATLAS I and ATLAS II analyses, the fiducial $K$-factors at NLO and NNLO are almost identical to the inclusive ones. In contrast, deviations between inclusive and fiducial $K$-factors are clearly visible for the CMS fiducial cuts. Already at NLO, the inclusive $K$-factor is about 5% larger than the fiducial one, and this discrepancy increases to about 9% at NNLO. The lepton isolation prescription applied by CMS CMSHto4l ; CMSHto4lconf is the main source of this deviation. We recall that the CMS analysis rejects leptons that are accompanied by hadrons if the sum of hadronic transverse momenta in a cone of size 0.3 around the lepton direction exceeds 35% of the lepton transverse momentum. The increasing amount of parton radiation at higher orders covers more and more final state phase space. This leads to the rejection of a larger number of leptons (which passed all other lepton fiducial cuts) at each order, thereby explaining the reduction of the $K$-factor compared to the inclusive case. ATLAS applies the lepton isolation in a completely different manner, by rejecting jets that are found within a cone of radius of 0.1 or 0.2 around the final state leptons. Unlike in the CMS prescription, the lepton is retained, and the event is kept in the analysis. As a consequence, the ATLAS fiducial $K$-factors are much closer to the inclusive ones at either perturbative order.

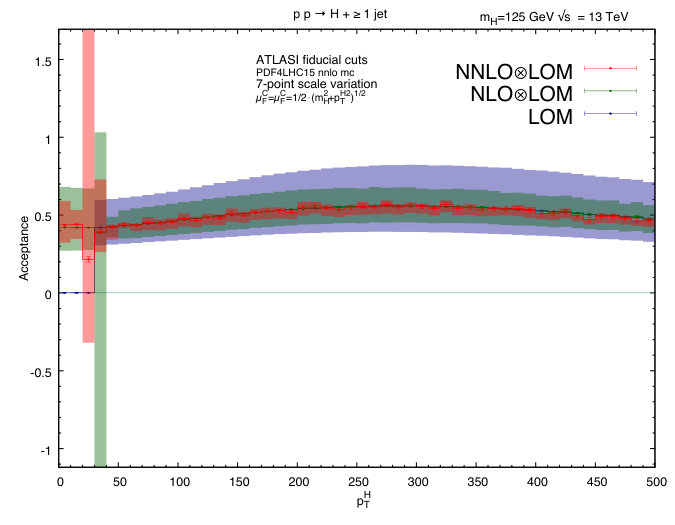

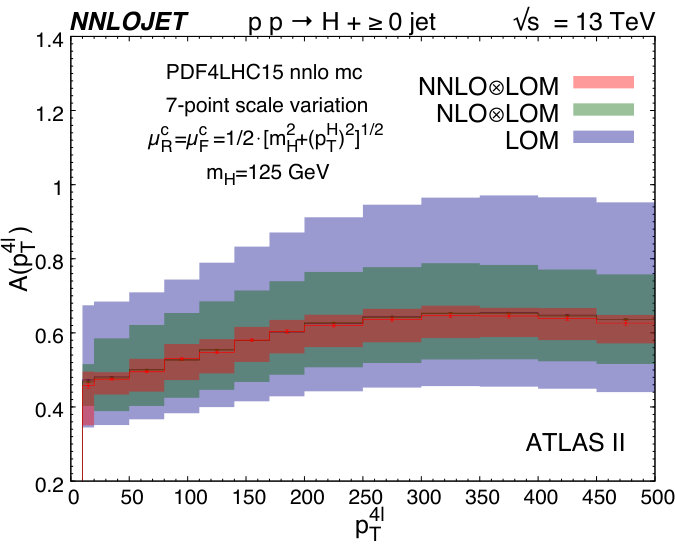

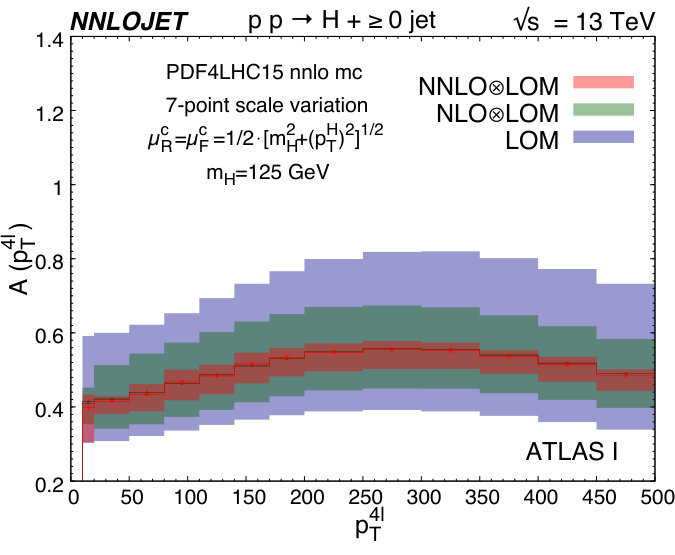

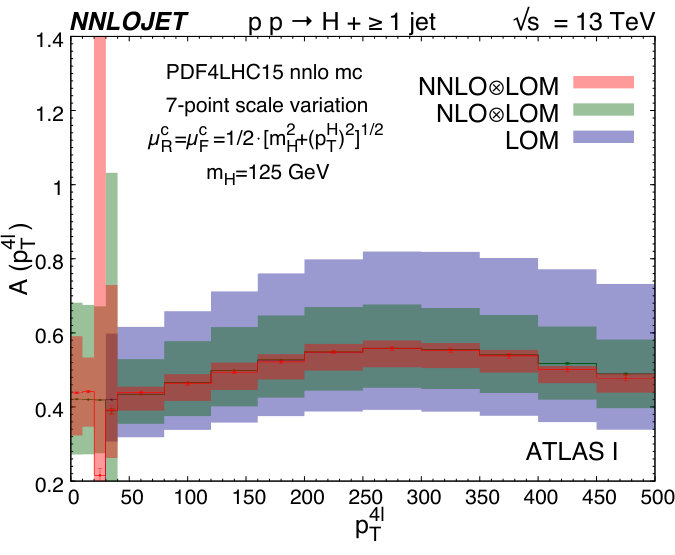

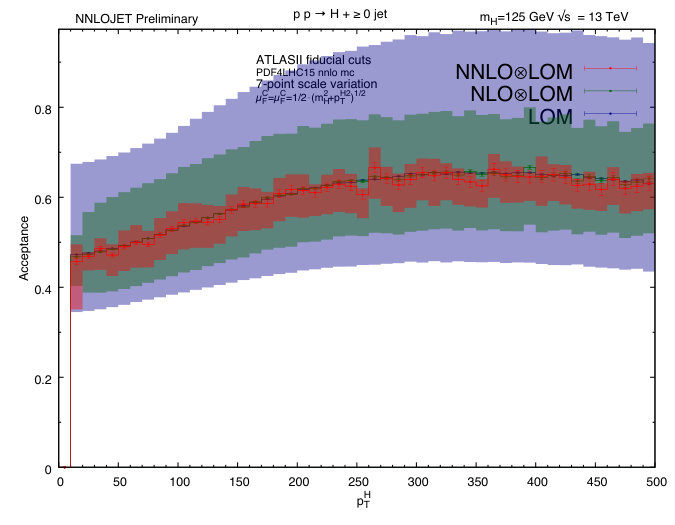

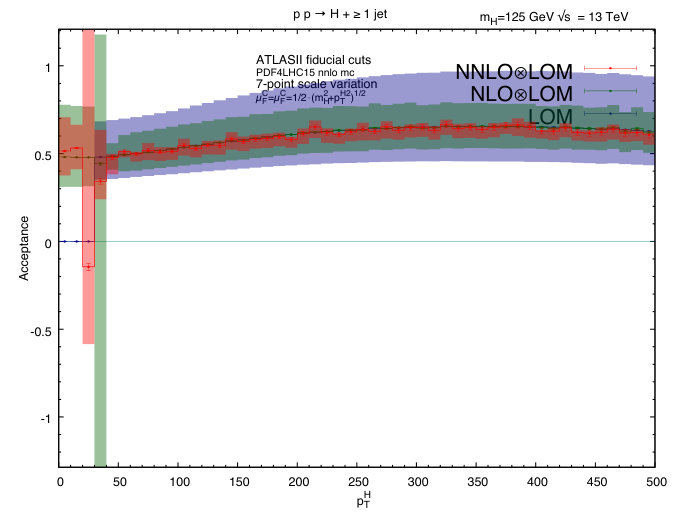

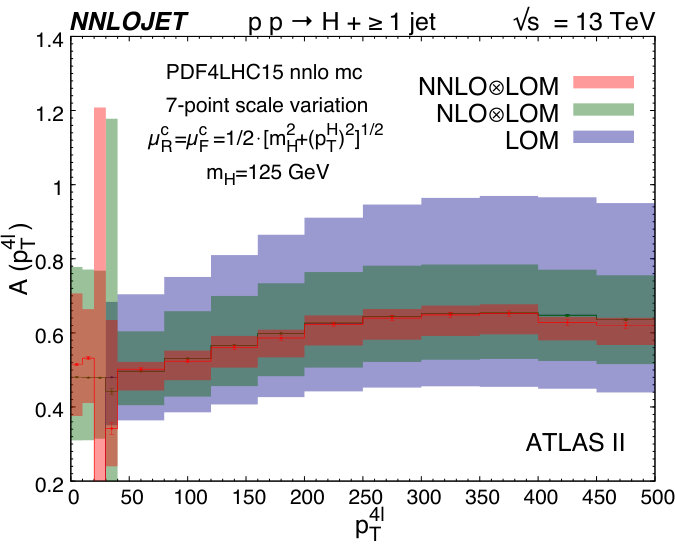

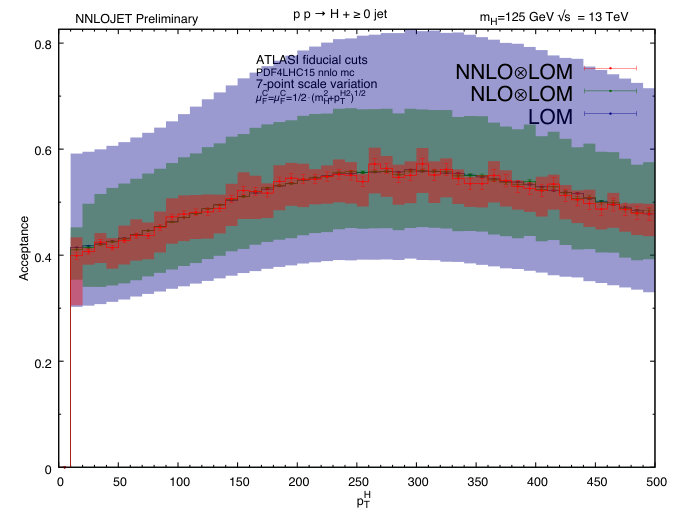

The differential acceptance factors as defined in Eq. (8) for the four-lepton channel are shown as a function of the Higgs boson transverse momentum in Fig. 4 for both Higgs and Higgs-plus-jet final states. To estimate the scale uncertainties of acceptance factors, as in Fig. 3, the uncertainty bands are obtained by fixing the semi-inclusive distributions (Eq. (7)) in the denominator at the respective central scale while varying the numerator using a seven-point scale variation. Combined integration errors originated from both inclusive and fiducial transverse momentum distributions are plotted as error bars. The fiducial transverse momentum distributions for the four-lepton system constitute the numerators of the acceptances, see (8). These are the same distributions used as the numerators of the $K$-factors (6). Consequently, the properties of the $K$-factors of Fig. 3 propagate into Fig. 4 for various fiducial cuts. The central value of the acceptance distributions are almost identical between LO, NLO and NNLO for the ATLAS I and ATLAS II analyses. Because of the different lepton isolation prescription, in the CMS analysis, the central value of the acceptance for inclusive Higgs boson production and the Higgs-plus-jet production decrease by up to $3.1\%$ from LO to NNLO. This indicates that the estimation of acceptances from LO simulations do not fully capture the higher-order effects from the lepton isolation prescription, which may in turn affect the determination of simplified template cross sections from the four-lepton channel. The shapes of the Higgs boson transverse momentum acceptance distributions are in general similar between LO, NLO and NNLO for a fixed set of fiducial cuts. Between the different sets of fiducial cuts, we observe a considerable change in the shapes of the acceptance factors, especially in the region of large transverse momenta. These differences can be explained through the lepton kinematic cuts in the different analyses, as discussed in Fig. 2 above. For Higgs-plus-jet acceptance factors, we moreover observe a distortion around $p_{T}^{4l}=30$ GeV. This Sudakov shoulder is caused by the requirement of observing at least one jet with $p_{T}^{j}>30$ GeV, and is well-understood. Away from this region, the shape of the $p_{T}^{4l}$ acceptance distributions are similar for Higgs and Higgs-plus-jet production. When including higher order corrections, the jet-lepton cone separation criterion $\Delta R(j,l)$ applied by ATLAS analyses does not cause noticeable deviations for the $p_{T}^{4l}$ acceptance between LO, NLO and NNLO distributions. This is partially because of the small cone size required for jet-lepton separation which applies only to relatively limited fiducial volume. Moreover, it should be recalled that failing the $\Delta R(j,l)$ requirement will not cause the event to be removed; instead, the number of jets is reduced.

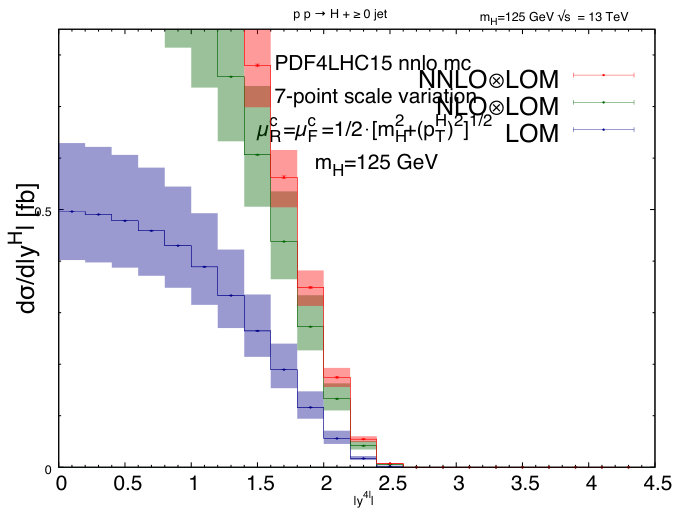

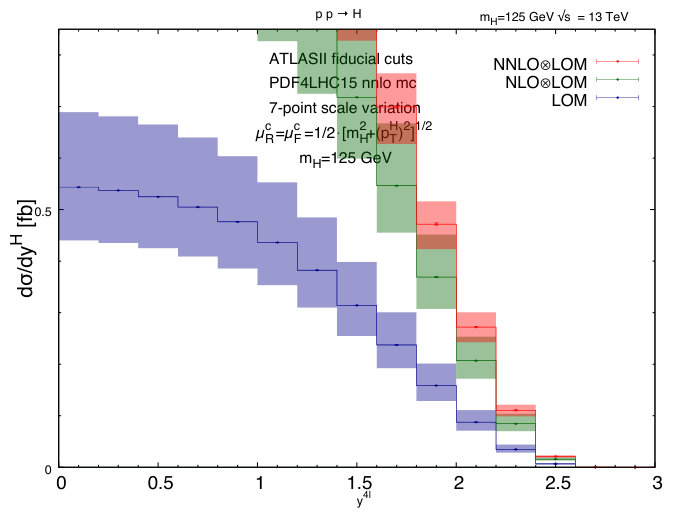

As for the transverse momentum distribution, the Higgs boson rapidity distribution is also inferred from fiducial distributions in specific Higgs boson decay channels. Since the rapidity distribution is fully inclusive in the transverse momentum, its perturbative expansion is related to the Higgs-plus-zero-jet process, i.e. starting one order lower in $\alpha_{s}$ than the transverse momentum distribution. In Fig. 5, we compute the $K$-factors for the Higgs boson rapidity distributions up to NNLO for inclusive (green) and fiducial (blue) event selection cuts. In the central rapidity region (where the bulk of the cross section is contained), we observe an excellent agreement of inclusive and fiducial $K$-factors for the ATLAS cuts, and a slightly lower fiducial $K$-factor for the CMS cuts. This pattern reflects the different lepton isolation prescriptions and was discussed in detail above. At larger rapidities, $|y^{4l}|>1.5$, we first observe an increase in the fiducial $K$-factors, which is then followed by a sharp drop that occurs in the region where the rapidity cuts on the individual leptons become effective, and where the cross sections drop to zero. The initial increase in the fiducial $K$-factors can be understood to be due to the extra radiation at higher orders, which, for a given Higgs boson rapidity, allows the leptons to be more central, thereby passing the fiducial cuts.

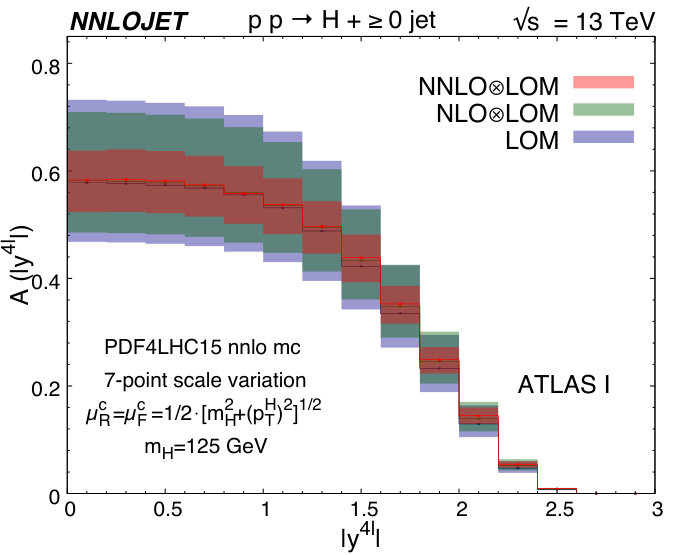

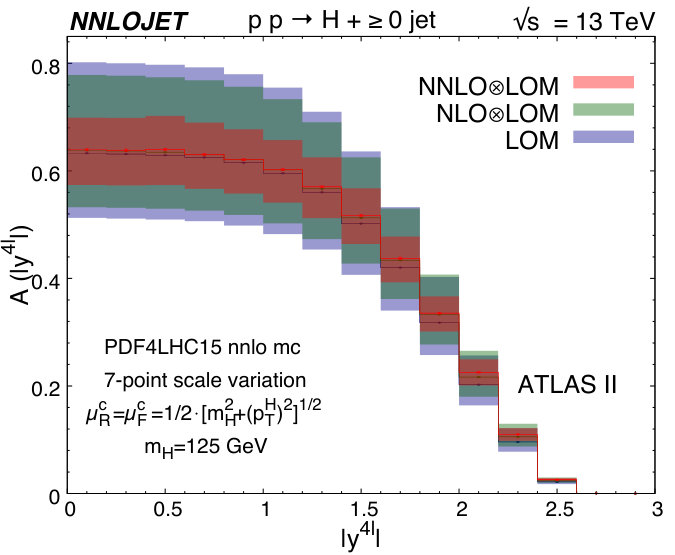

Figure 6 presents the acceptance distributions for the rapidity of the four-lepton system from Higgs boson decay. As in Fig. 5, in the central rapidity region the shapes of the distributions are less sensitive than the transverse momentum acceptances with respect to different lepton isolation criteria. At larger rapidities of $1.5<|y^{4l}|<2.5$, the acceptance distributions become more sensitive to the different fiducial cuts on the lepton rapidity (which are similar for CMS and ATLAS I, but more loose for ATLAS II).

3.2 Comparison with LHC measurements

The ATLAS and CMS experiments have measured fiducial cross sections in the four-lepton decay mode for Higgs and Higgs-plus-jet production at 13 TeV. A summary of the fiducial cuts applied in the ATLAS ATLASHto4l ; ATLASHto4lconf and CMS CMSHto4l ; CMSHto4lconf measurements are summarised in Table 1. Both CMS measurements use the same fiducial cuts. In the following, we compare these measurements to the predictions obtained using NNLO

JET

for the gluon-fusion production to NNLO in the infinite-top-mass EFT, re-weighted for quark mass effects by the exact LO expressions, as described in Section 2.2 above. The Higgs boson decay to four leptons is described by using the narrow-width approximation with an on-shell Higgs boson decaying to two off-shell Z bosons, each of which decay to a lepton-antilepton pair.

Figure 7 compares the ATLAS and CMS measurements for different jet multiplicities with the NNLO

JET

predictions up to $\mathcal{O}(\alpha_{s}^{5})$, which is up to NNLO accuracy for Higgs-plus-one-jet final states (but only LO for Higgs-plus-three-jets). We observe a significant reduction of scale uncertainties for the one-jet bin going from NLO to NNLO for all three sets of fiducial cuts. The more recent ATLAS II ATLASHto4lconf (79.8 fb*-1*) and CMS CMSHto4lconf (137.1 fb*-1*) measurements of the Higgs-plus-one-jet cross section agree well with NNLO theory predictions. Higgs-plus-two-jet production is described only to NLO, showing good agreement with CMS CMSHto4lconf , while the ATLAS II ATLASHto4lconf measurement is considerably above the theory prediction.

A similar discrepancy between ATLAS II data ATLASHto4lconf and theory can also be observed in the total fiducial cross section given in Table 2. The measured total cross sections for reconstructed inclusive Higgs boson production ($\sigma_{H}$) and for Higgs boson decay to different lepton flavour combinations ($\sigma_{4\mu},\sigma_{4e},\sigma_{2e2\mu}$ and $\sigma_{2\mu 2e}$) are consistently above the NNLO and NNLO$\otimes$LOM predictions. For inclusive Higgs boson production cross sections, sub-dominant production channels together contribute about $15\%$ of the total cross section YR4 which can not explain the difference of about $68\%$ between ATLAS II data and NNLO$\otimes$LOM predictions.

The comparison of the total fiducial cross section between CMS measurement CMSHto4lconf and theory presents better agreement than ATLAS. As summarised in Table 3, the NNLO and NNLO$\otimes$LOM predictions are consistently below the CMS data for individual and combined lepton flavour channels, while still being consistent within errors. The excess is compatible with the anticipated contribution from sub-leading production channels, which will need to be accounted for in the theory predictions once the measurements become more precise with an increasing data set.

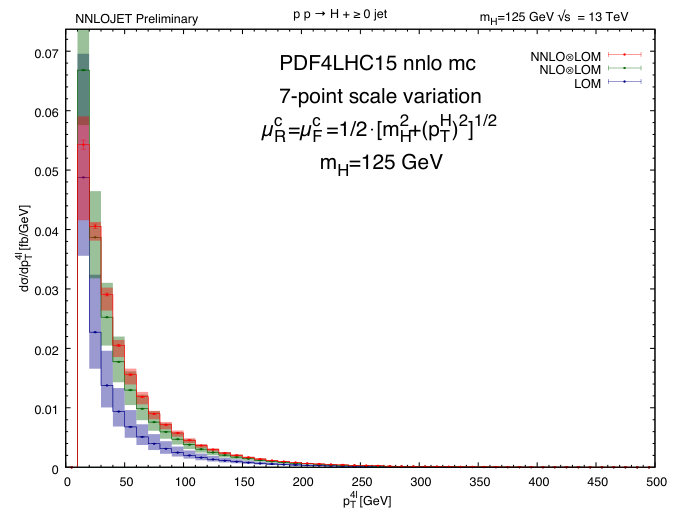

Both ATLAS ATLASHto4l and CMS CMSHto4l ; CMSHto4lconf measured the transverse momentum distributions of the leading jet in Higgs-plus-jet events. We compare these measurements to NNLO

JET

predictions in Fig. 8. We observe that the NNLO corrections are sizeable especially in the low transverse momentum region for $p_{T}^{j1}<100$ GeV. They are slightly larger for the ATLAS I cuts than for the CMS cuts, which may be understood from the larger jet rapidity acceptance in the ATLAS I analysis. While observing excellent agreement of the theory description with the CMS measurement CMSHto4lconf , we find the ATLAS I data ATLASHto4l to be consistently above the theory prediction, as already observed on the jet-binned cross sections in Fig. 7. Unfortunately, a measurement of the jet transverse momentum distribution has not been performed on the larger ATLAS II data set.

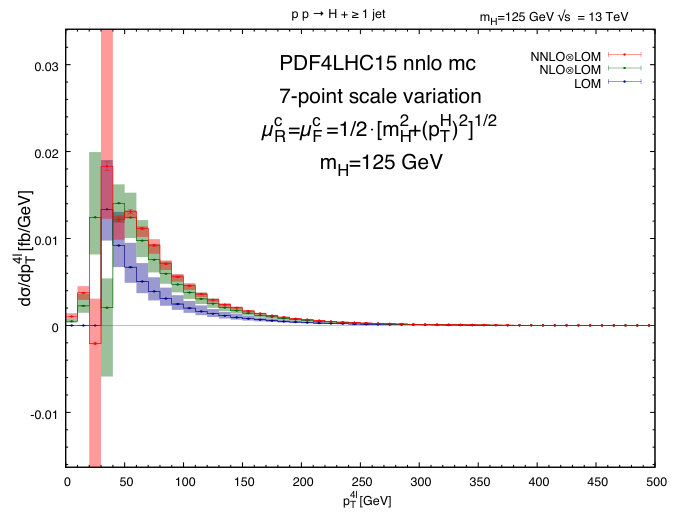

Figure 9 shows the transverse momentum distributions of the Higgs boson produced in association with exactly zero or one jet, which was only measured in the ATLAS I analysis ATLASHto4l , with a $p_{T}^{j}$ cut of 30 GeV. Despite the relatively large experimental errors, it demonstrates the feasibility of determining the Higgs boson transverse momentum distribution in exclusive jet bins, which will be instrumental in the future to disentangle different Higgs boson production processes. For the Higgs boson transverse momentum distribution with a jet veto (zero-jet exclusive), the first bin is computed from Higgs boson production up to NNLO, while the second and the third bin are obtained from Higgs-plus-jet final state up to NNLO. In the one-jet bin, the Higgs boson transverse momentum distribution does not receive a LO contribution below 30 GeV, and consequently displays a Sudakov shoulder leading to large corrections and poor perturbative convergence in the first and second bin. At the level of the inclusive Higgs production cross section, the effect of this kinematical requirement can be viewed as a jet veto, whose resummation is well-understood jetveto . To obtain reliable predictions for the Higgs transverse momentum distribution in Higgs-plus-jet final states in the vicinity of the $p_{T}^{j}$ cut will require these jet veto resummations to be extended towards more exclusive final states, similar to jetvetoex . Outside this region, we observe that the NNLO$\otimes$LOM theory predictions provide a good description of the ATLAS data, and that the remaining theory uncertainty is below 10%.

Higgs boson transverse momentum distributions are compared with the available ATLAS and CMS measurements in Fig. 10. The NNLO

JET

predictions are obtained from the Higgs-plus-jet process by replacing the jet algorithm by a small cut on the Higgs boson transverse momentum, aligned with the first bin edge of the experimental data. To describe the full transverse momentum spectrum including the first bin requires the resummation of large logarithmic corrections hresum1 ; hresum2 . The NLO and NNLO $K$-factors for these distributions are kinematics dependent and were already discussed above in the context of Fig. 3. We observe that the NNLO predictions provide an improved description of the experimental data especially for small $p_{T}^{4l}$ below 80 GeV. At larger transverse momentum, the theory description of the ATLAS II ATLASHto4lconf and CMS CMSHto4lconf data (which each correspond to the larger data sets) is satisfactory within errors. Overall, it is observed that the experimental data in this region are typically exceeding the theory predictions, especially for $p_{T}^{4l}>150$ GeV. In this region, gluon fusion Higgs boson production is complemented by sizeable contributions from other production processes (vector boson fusion and associated production with a vector boson), which are not included in the present study.

3.3 Lepton transverse momentum distributions

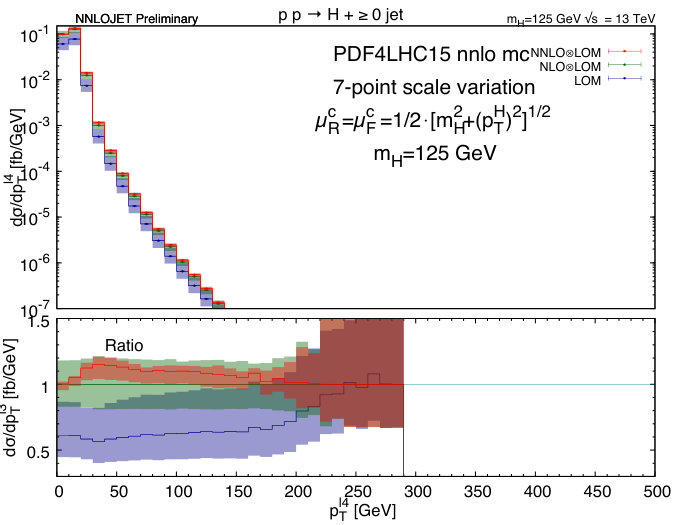

The future increase of the LHC data set will enable multi-differential measurements in specific Higgs-boson final states, thereby opening up novel opportunities for precision studies of Higgs boson production and decay. The interpretation of such future measurements will rely on theory predictions for the relevant fiducial distributions. To illustrate that such types of fiducial distributions can be reliably predicted using NNLO

JET

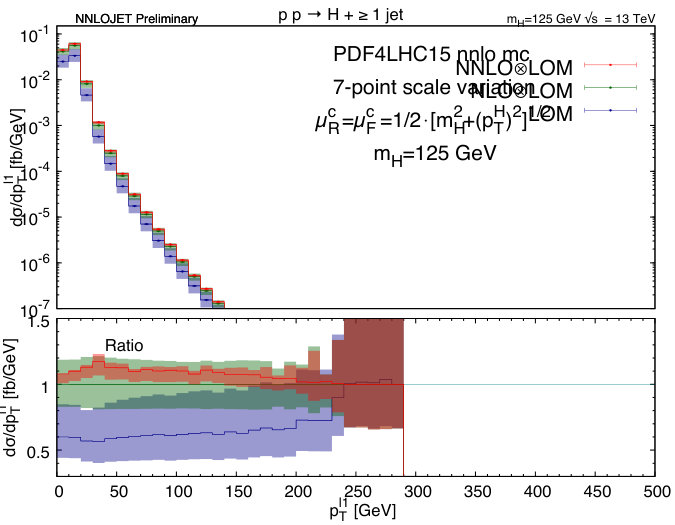

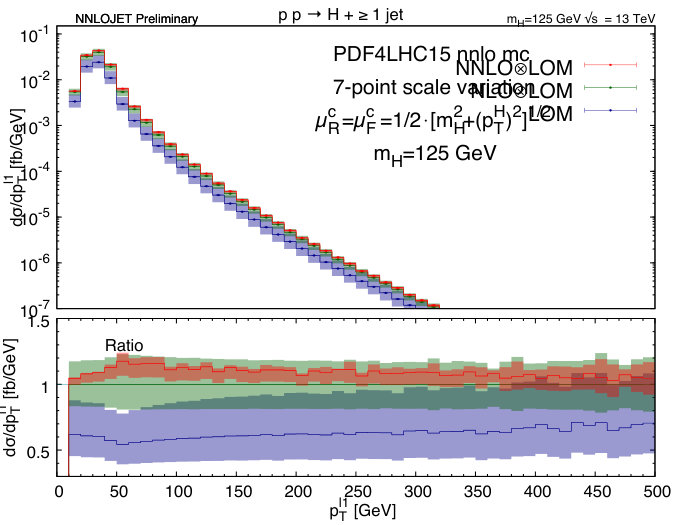

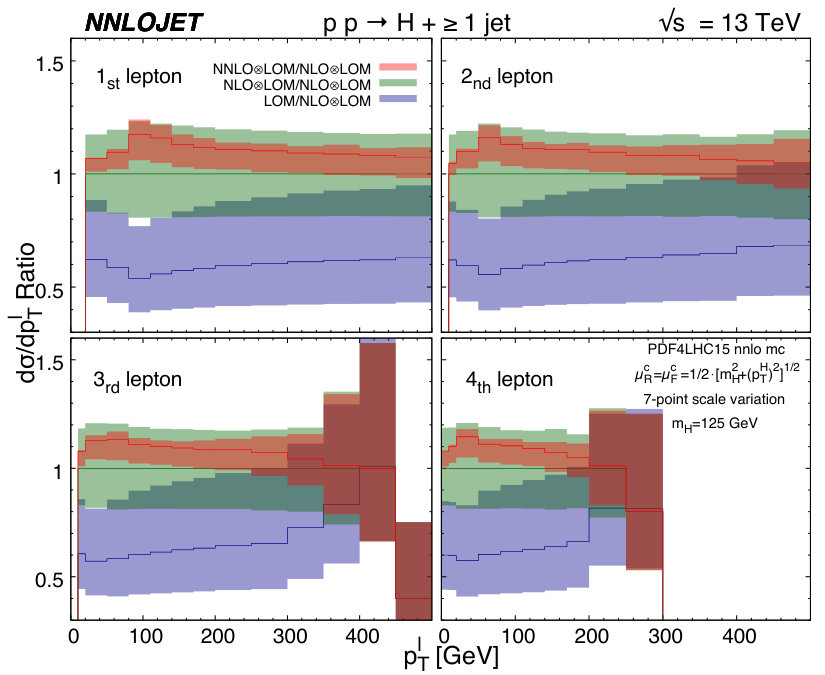

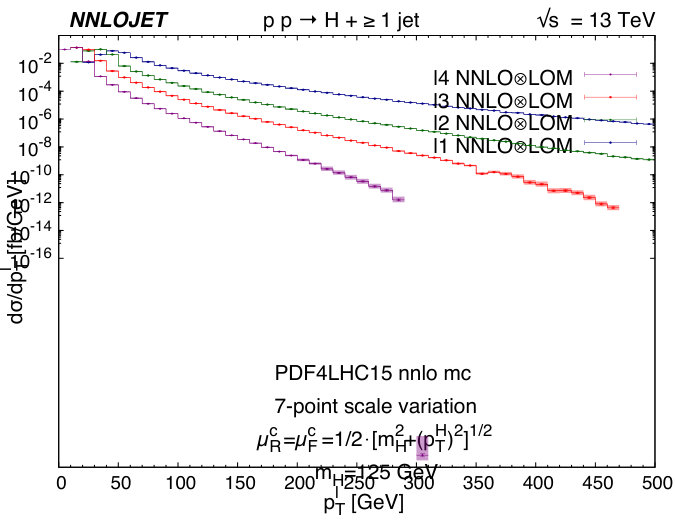

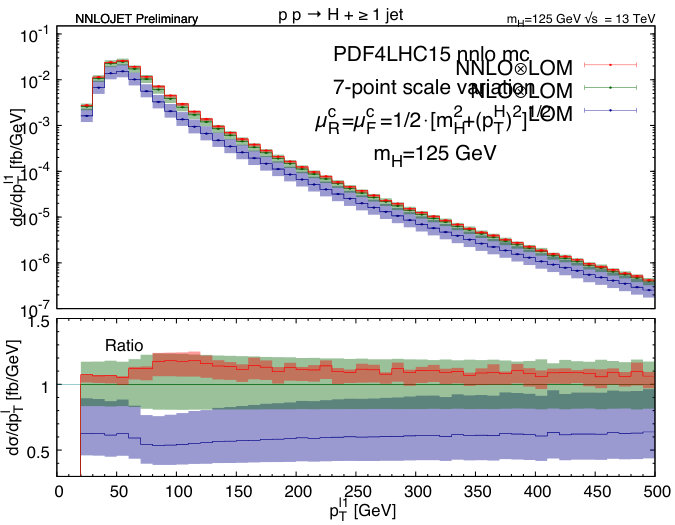

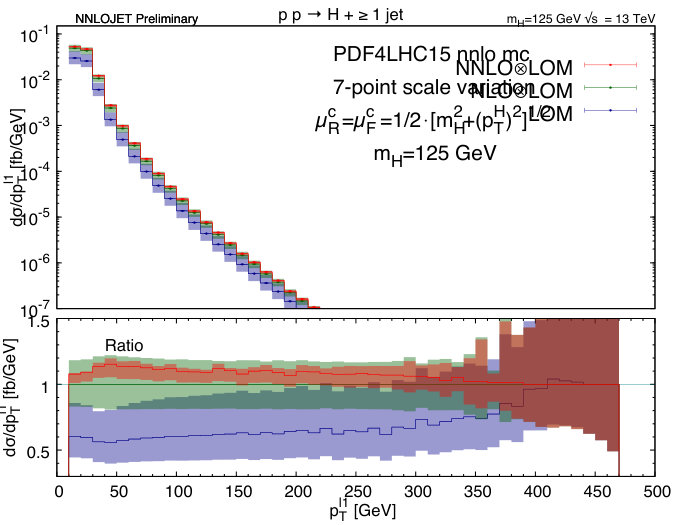

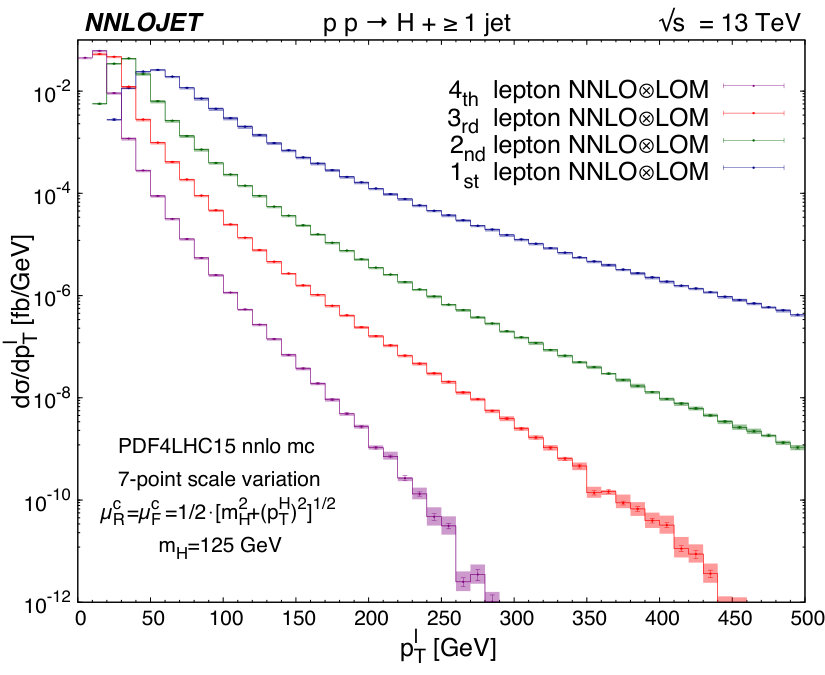

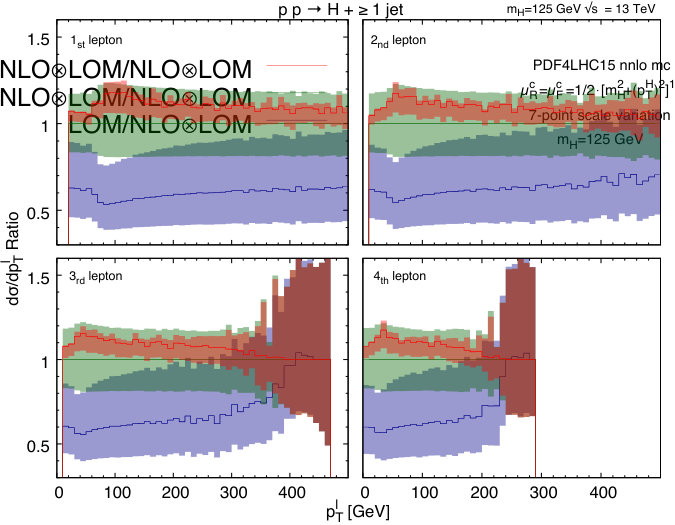

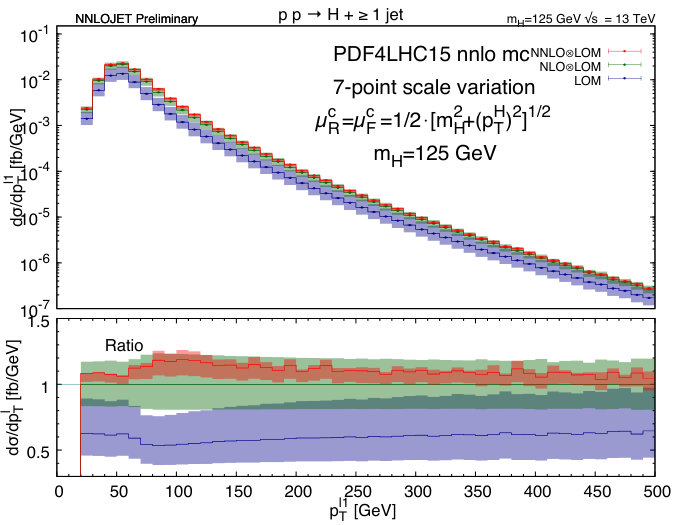

, we present in Fig. 11 the individual transverse momentum distributions of all four leptons in Higgs-plus-jet production, computed for the ATLAS II fiducial cuts. The leptons are ordered by their transverse momentum, and summed over charge and flavour. The theory uncertainties are obtained from the common seven-point scale variation and the numerical integration errors are indicated on the central values as error bars. The distributions for the leading and sub-leading leptons are very stable throughout the plotted region. The statistics for the third and fourth leptons drop drastically beyond 300 and 200 GeV respectively, exhibiting relatively large residual integration errors. All four leptons must satisfy the fiducial selection criterion and are identified as isolated leptons. Each of the lepton transverse momentum distribution can be integrated to the same total cross section (within corresponding Monte Carlo errors) which explains the differences in hardness and low-momentum shapes in the left panel of Fig. 11. On the right panel of Fig. 11, predictions for each lepton are normalised to the corresponding NLO$\otimes$LOM distribution. We observe non-flat NNLO corrections for all four leptons with up to $+17\%$ corrections in the peak region. The scale uncertainties for NLO$\otimes$LOM are typically at a level of $\pm 19\%$, which are reduced to about ${}^{+4\%}_{-8\%}$ at NNLO$\otimes$LOM. These distributions illustrate the non-trivial effects of higher order QCD corrections on fiducial cross sections, which are often controlled by a subtle interplay between fiducial cuts, isolation prescriptions and extra QCD radiation.

4 Conclusions and outlook

In this paper, we investigated the effect of QCD corrections up to NNLO on the fiducial cross sections for Higgs boson production and Higgs-plus-jet production in the $H\to 4l$ decay mode. Owing to its kinematic complexity, this decay mode had previously not been computed to NNLO accuracy for Higgs-plus-jet final states and the Higgs boson transverse momentum distribution. Our calculations were performed using the NNLO

JET

framework in an effective field theory with infinite top quark mass. Finite-mass effects were corrected for by a leading-order multiplicative re-weighting. NNLO corrections are found to be sizeable and kinematics dependent, and they lead to a substantial reduction of scale uncertainties to a level of about 10% in most distributions.

The four-lepton fiducial cross sections are used frequently to infer simplified template cross sections that enter into global analyses of Higgs boson couplings and properties. This conversion is based on acceptance factors, which allow to convert the fiducial measurements to full acceptance. We investigated the perturbative stability of these acceptance factors, and found that they were very stable for the ATLAS $H\to 4l$ measurements, while decreasing with increasing order for the CMS $H\to 4l$ measurements. This difference could be understood to be due to the different lepton isolation prescriptions: ATLAS uses a jet-lepton overlap criterion, leading to the potential removal of the jet (but not the lepton), while CMS uses an isolation cone around the lepton, leading to a potential removal of the lepton. QCD corrections to the acceptance factors are uniform in transverse momentum, but show a dependence on the Higgs boson rapidity in the region approaching the lepton rapidity cuts.

We performed a detailed comparison with the ATLAS and CMS measurements performed at 13 TeV. Overall, the NNLO theory predictions provide a good description of the experimental data, typically with uncertainties well below the experimental errors. At large transverse momentum, the experimental measurements usually exceed the theory predictions, indicating the increasing importance of other Higgs boson production processes besides the dominant gluon fusion mechanism considered here.

Our results allow the precise QCD computation of fiducial cross sections and acceptance factors, and can be extended to arbitrary infrared-safe distributions related to Higgs-plus-jet final states. They prepare the ground for precision studies of Higgs boson couplings and properties with upcoming high-luminosity LHC data.

Acknowledgements.

We thank Juan Cruz-Martinez, James Currie, Aude Gehrmann-De Ridder, Marius Höfer, Imre Majer, Jan Niehues, Joao Pires, Duncan Walker and James Whitehead for useful discussions and their many contributions to the NNLO

JET

code. The authors also thank the University of Zurich S3IT and CSCS Lugano for providing the computational resources for this project. This research was supported in part by the UK Science and Technology Facilities Council under contract ST/G000905/1, by the Swiss National Science Foundation (SNF) under contract 200020-175595, by the Swiss National Supercomputing Centre (CSCS) under project ID UZH10, by the Research Executive Agency (REA) of the European Union through the ERC Consolidator Grant HICCUP (614577) and the ERC Advanced Grant MC@NNLO (340983).
