$\pi$-Radical Formation by Pyrrolic H Abstraction of Phthalocyanine Molecules on Molybdenum Disulfide

TL;DR

This study demonstrates the creation and stabilization of a pyrrolic radical in phthalocyanine molecules on MoS2 using STM, revealing unique electronic states and the role of the substrate in radical stabilization.

Contribution

It introduces a method to generate and observe stable molecular radicals on MoS2, combining STM manipulation with spectroscopy and theoretical calculations.

Findings

Successful N-H bond dissociation in phthalocyanine on MoS2.

Identification of Coulomb-split HOMO resonance inside the energy gap.

Stabilization of the radical state due to the substrate's inertness.

Abstract

For a molecular radical to be stable, the environment needs to be inert. Furthermore, an unpaired electron is less likely to react chemically, when it is placed in an extended orbital. Here, we use the tip of a scanning tunneling microscope to abstract one of the pyrrolic hydrogen atoms from phthalocyanine (H2Pc) deposited on a single layer of molybdenum disulfide (MoS2) on Au(111). We show the successful dissociation reaction by current-induced three-level fluctuations reflecting the inequivalent positions of the remaining H atom in the pyrrole center. Tunneling spectroscopy reveals two narrow resonances inside the semiconducting energy gap of MoS2 with their spatial extent resembling the highest occupied molecular orbital (HOMO) of H2Pc. By comparison to simple density functional calculations of the isolated molecule, we show that these correspond to a single occupation of the Coulomb-split highest molecular orbital of HPc. We conclude that the dangling $\sigma$ bond after N-H bond cleavage is filled by an electron from the delocalized HOMO. The extended nature of the HOMO together with the inert nature of the MoS2 layer favor the stabilization of this radical state.

Figures

Full text

Molecular radicals hold one or more unpaired electrons in their valence orbitals. These molecules have attracted great interest for applications in organic optoelectronic Hattori et al. (2014); Peng et al. (2015) and spintronic Mas-Torrent et al. (2011); Ratera and Veciana (2012) devices. Unfortunately, the open-shell nature renders these molecules highly reactive. Hence, the class of stable molecular radicals is limited. Most promising candidates for stable radicals are molecules with the unpaired electron being hosted in an extended orbital Mas-Torrent et al. (2011); Shimizu and Osuka (2018). Such molecules can be obtained, e.g., by dehydrogenation or dehalogenation, where the dissociation reaction involves the highest occupied molecular orbital (HOMO) Zhao et al. (2005); Repp et al. (2006); Pavliček et al. (2015); Pavliček and Gross (2017); Pavliček et al. (2017a, b). Prime examples for H abstraction are porphyrin and phthalocyanine molecules, where one of the pyrrolic H atoms can be detached by a voltage pulse from the tip of a scanning tunneling microscope (STM) Auwärter et al. (2012); Smykalla et al. (2014). However, when the molecules are placed on a metal substrate the expected radical state is not preserved. Intramolecular relaxations and charge transfer with the substrate lead to a closed-shell configuration Sperl et al. (2011); Pavliček et al. (2015); Pham et al. (2016). To suppress the interaction of radical molecules with the substrate, thin insulating layers of NaCl have been employed successfully for several radical species Repp et al. (2006); Pavliček et al. (2015); Pavliček and Gross (2017); Pavliček et al. (2017a, b), but a radical state of H-abstracted Pc has not been reported to date.

Here, we show that a monolayer of MoS2 on Au(111) is an ideal system to study the H-abstraction reaction by STM. We prove the successful dehydrogenation reaction by three-level fluctuations of the tunneling current, reflecting the switching of the position of the single H atom in the pyrrolic center Auwärter et al. (2012). By mapping the spatial distribution of the singly occupied molecular orbital (SOMO) and singly unoccupied molecular orbital (SUMO), we find that the cleavage of an N–H bond does not lead to a localized dangling bond, but to an extended $\pi$ radical hosted by the former HOMO. We propose that intramolecular charge transfer thus stabilizes the radical in an extended orbital, similar to intramolecular charge transfer when both H atoms are detached from the molecule Néel et al. (2016).

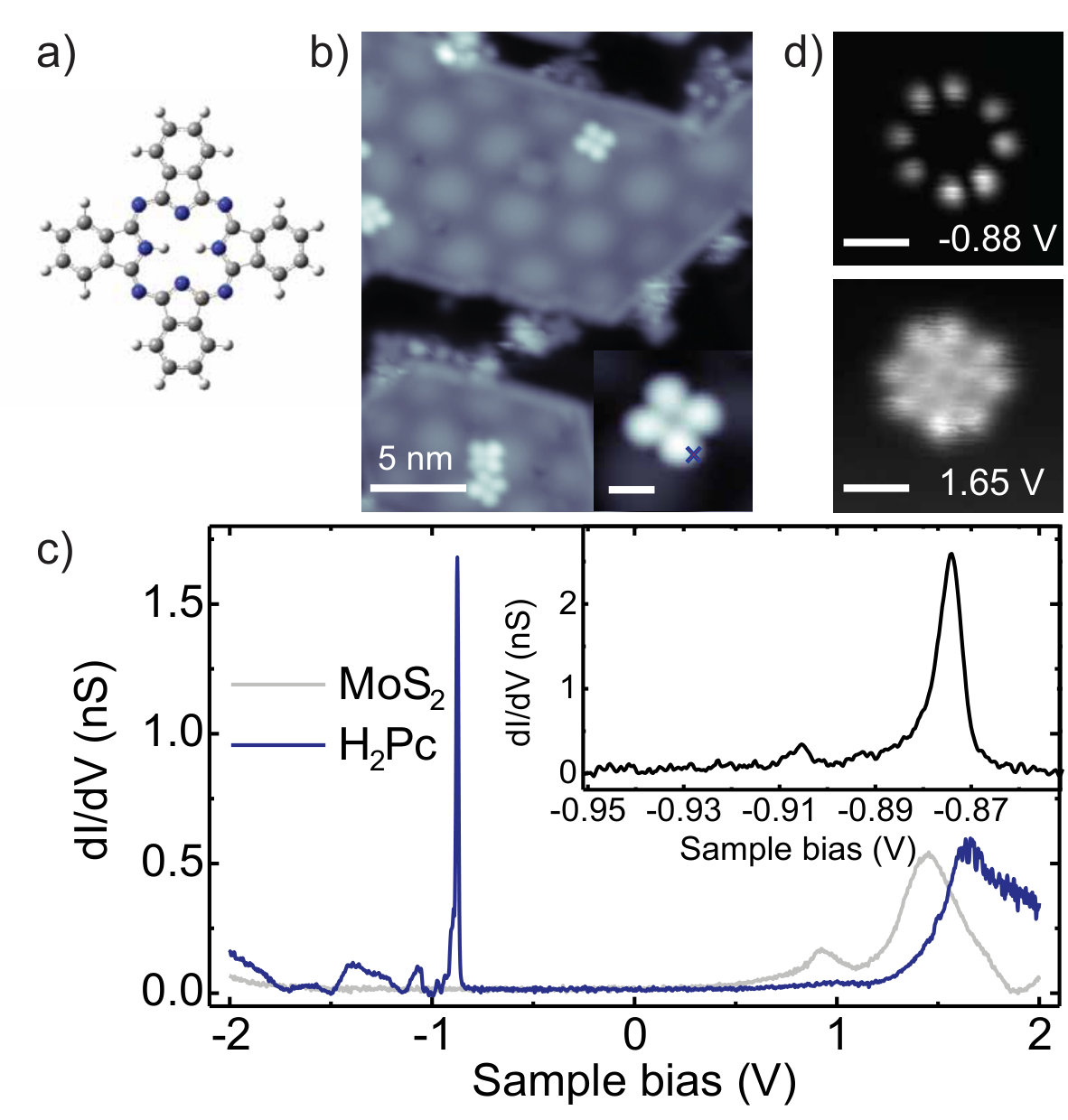

STM images of monolayer islands of MoS2 on Au(111) show a characteristic moiré pattern due to the lattice mismatch of the S-terminating lattice and the Au substrate (Figure 1b) Grønborg et al. (2015); Krane et al. (2016). Deposition of a low density of H2Pc molecules at a sample temperature of 120 K leads to a random distribution of isolated molecules, both, on the bare Au(111) surface as well as the MoS2 islands. In both locations the molecules appear with a fourfold clover shape (at sufficiently low bias voltage) (inset in Figure 1b). The shape essentially corresponds to the topographic structure of the H2Pc molecules, because the low bias voltage lies within the HOMO-LUMO gap of the molecule (see below) Sperl et al. (2011); Néel et al. (2016); Kügel et al. (2017); Imai-Imada et al. (2018).

Differential conductance spectra on MoS2 reflect the semiconducting band gap around the Fermi level (gray spectrum in Figure 1c) Sørensen et al. (2014); Krane et al. (2016). Spectra recorded on one of the isoindole units of the H2Pc molecules on MoS2 exhibit a sharp conductance peak at around -0.88 V and a broad peak at 1.65 V. The narrow resonance lies within the gap of the MoS2 monolayer. Its width of $\sim$ 7 meV (inset of Figure 1c) signifies a long lifetime ($\sim$ 100 fs) of the transiently charged molecular state. The resonance is followed by a small vibronic side peak at -0.905 V. Such a narrow linewidth and the observation of vibronic levels within the excited state are ascribed to an efficient electronic decoupling from the metal substrate combined with a small electron-phonon coupling strength in the underlying layer (MoS2), preventing fast relaxation of the excitation Krane et al. (2018). Differential-conductance maps at the bias voltage of the sharp resonance show eight lobes – two lobes on each isoindole moiety (Figure 1d). This shape has been identified as the HOMO of the H2Pc molecule on other decoupling layers Néel et al. (2016); Imai-Imada et al. (2018) and is in agreement with gas-phase DFT calculations (see below). The broad conductance peak at 1.65 V lies outside the energy gap of MoS2. Hence, the excitation of the negative ion resonance is not protected by the MoS2 layer. A conductance map recorded at the respective energy shows an eight-lobed intensity on the isoindole units as well as intensity in the center of the macrocycle (Figure 1d). This shape corresponds to the overlap of the quasi-degenerate LUMO and LUMO+1 of the H2Pc (see below)Imai-Imada et al. (2018). Note that the noise in the images is an inherent molecular property. As we will show below and explain in more detail in Supporting Information, we can associate it to the tautomerization reaction of the two hydrogen atoms within the macrocycle.

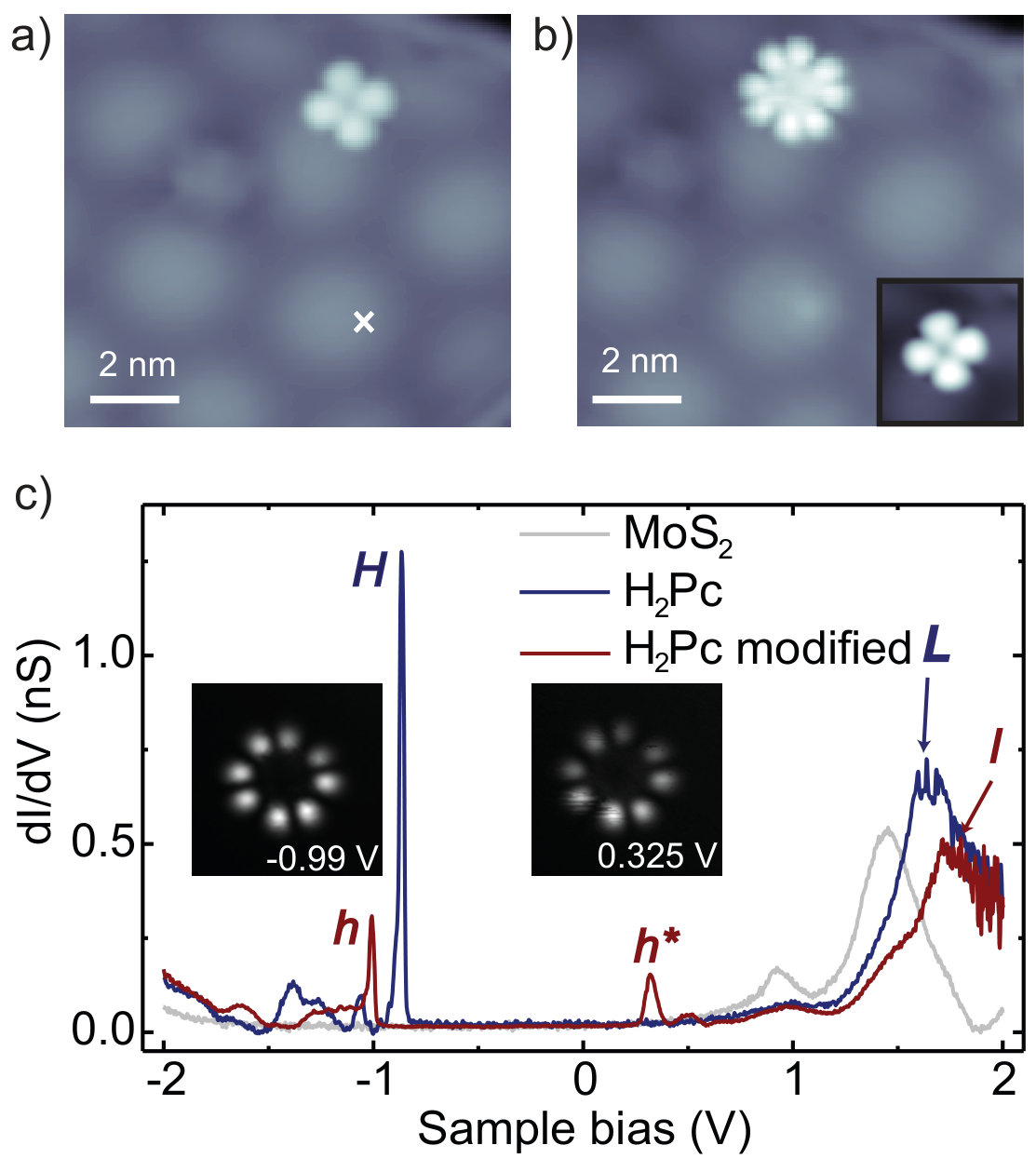

Having characterized the electronic energy levels of the H2Pc molecules, we now turn to their intentional modification under the influence of a bias-voltage pulse. Figure 2a and b show the STM topographies recorded with a sample bias of 0.5 V, before and after a voltage pulse of 3.5 V has been applied at the position marked by the white cross. After the voltage pulse, the molecule does not appear with the four-lobe structure but instead exhibits eight lobes at a bias voltage of 0.5 V. The clover shape is recovered when imaging with a lower bias voltage of 0.1 V, suggesting that the macrocycle is intact (inset Figure 2b).

To gain further insights into the modification, we record a d$I$/d$V$ spectrum on this molecule. The spectrum differs drastically from the initial H2Pc molecule. Most prominent, a new resonance within the former HOMO–LUMO gap appears at 0.3 V. This state lies close to the onset of the conduction band of MoS2. It is therefore slightly broader than the former states deep inside the bandgap of MoS2 but still very narrow compared to the states outside the gap. Additionally, the other two resonances, i.e., both the narrow resonance at negative bias voltage and the broad resonance at large positive bias voltage, appear shifted away from the Fermi level. Conductance maps at the energies of both narrow resonances reveal the typical eight-lobe structure of the HOMO of the H2Pc molecule. The same appearance of both orbital distributions at positive and negative bias voltage suggest that they both derive from the former HOMO, which is now singly occupied Repp et al. (2006). We therefore label them as $h$ and $h^{*}$, respectively. From the spectra, we now understand that resonance $h^{*}$ confers the eight-lobe appearance to the molecule in STM images of Figure 2b. Note that this tip induced modification of the molecule is easily reproducible, with the similar observations than we describe above (See additional examples in Supporting Information).

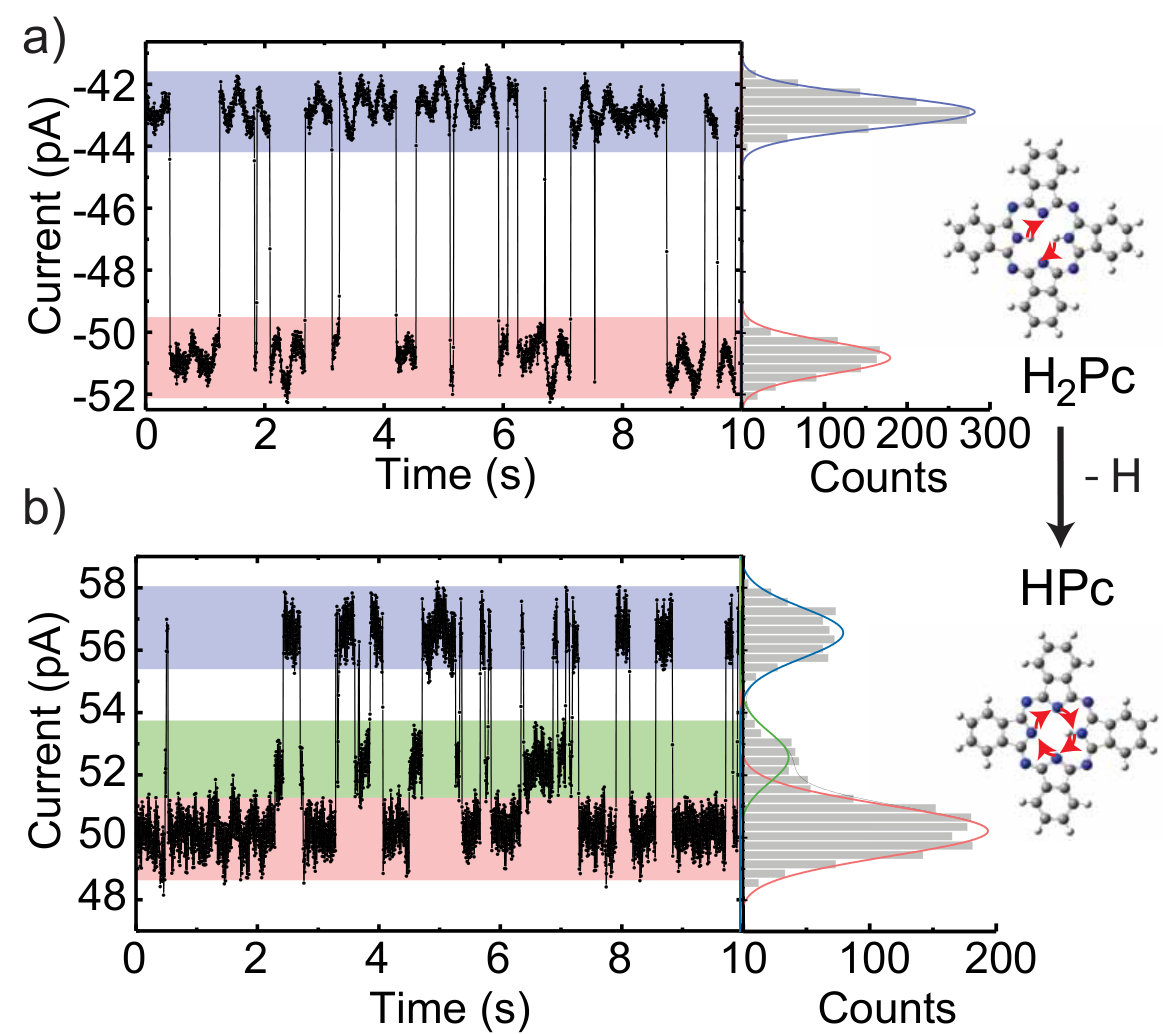

To elucidate the origin of the modification of the electronic structure of the phthalocyanine we perform the following experiments. First, we position the STM tip over one lobe of the non-modified H2Pc and switch off the feedback regulation (constant-height condition). We then record a time trace of the tunneling current. Such a trace shows a bi-stable telegraph noise (Figure 3a) revealing a two-level fluctuation of the molecule. Similar fluctuations have been observed in free-base phthalocyanine and porphyrin systems and ascribed to the tautomerization reaction within the H2Pc core Liljeroth et al. (2007); Auwärter et al. (2012); Kumagai et al. (2014); Kügel et al. (2016, 2017). The tautomerization is a collective switching of the two hydrogen atoms between the two trans configurations inside the pyrrole macrocycle (upper scheme in Figure 3). Second, we perform the equivalent procedure on the modified molecule. These time traces show a three-level switching (Figure 3b). An increase in the number of available states can only be explained by the abstraction of one H atom Auwärter et al. (2012); Kügel et al. (2017). The remaining H atom can then switch between four bonding sites and, hence, four distinct states. However, when the tip is located above one of the four isoindole units, two states are symmetric with respect to the tip position. Thus, they yield the same conductance level, thereby reducing the measurement to a three-level fluctuation instead of four-level fluctuation. We also note that small displacements of the tip from the symmetry points should lead to a distinction as four-level switching. However, the difference in the conductance level is expected to be very small and therefore well below our noise level. From the distinct tautomerization traces we conclude that the modified molecule occurred upon pyrrolic hydrogen removal under the influence of the voltage pulse.

Despite the clear signature of H abstraction, the molecular electronic state is not completely understood by the three-level fluctuation. The reactant may either lie in an ionic, closed-shell configuration or in a neutral radical state. The first scenario typically happens on metal surfaces, where the hydrogen-abstracted phthalocyanines or porphyrins accept charge from the substrate Sperl et al. (2011); Auwärter et al. (2012); Kügel et al. (2017); Pham et al. (2016). In contrast, on the MoS2 layer the electronic band gap may prevent such charge transfer. In the following, we show that we can distinguish between these possibilities by the spectroscopic signatures presented above and their comparison to simple DFT calculations of isolated molecules.

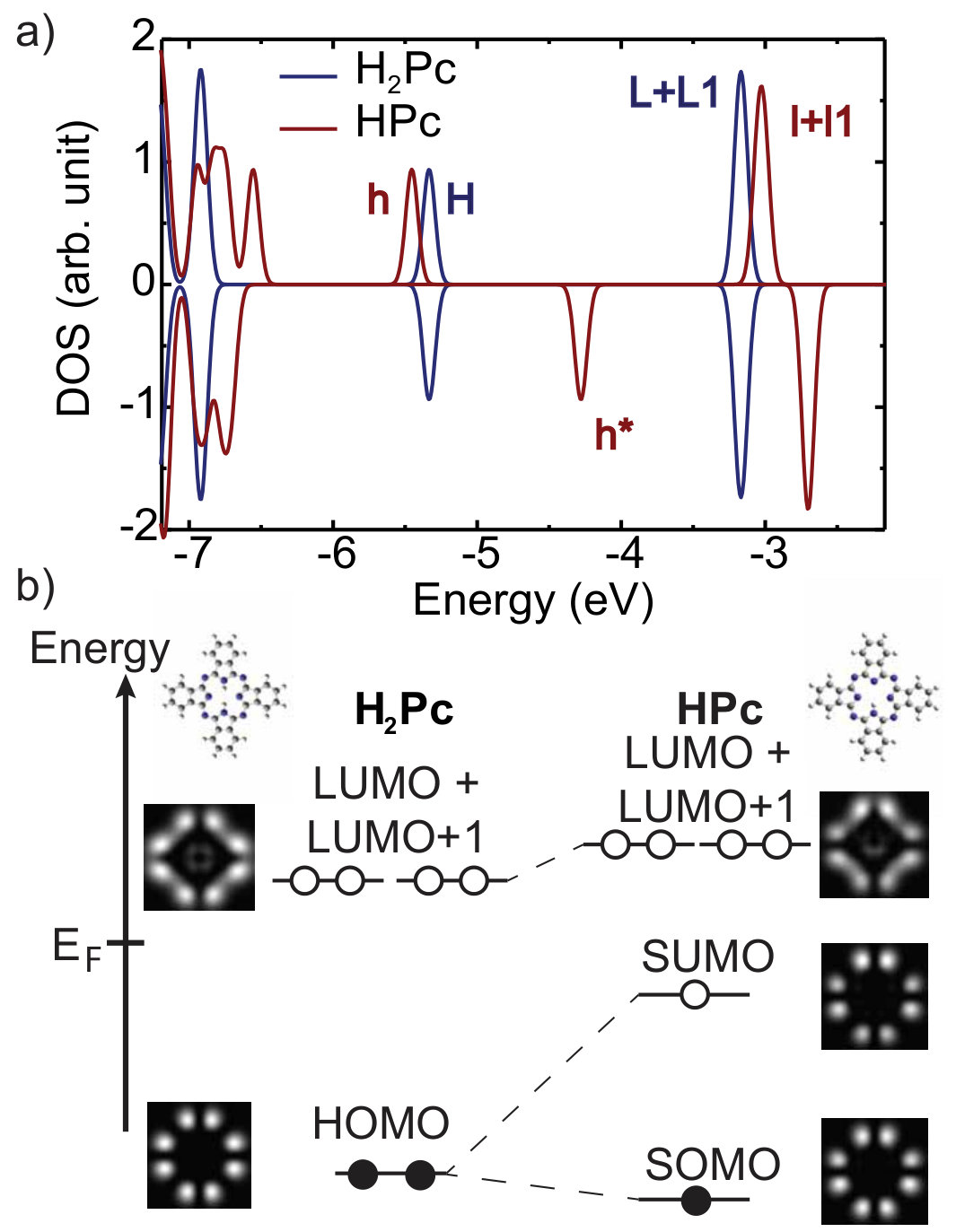

To justify the simple simulations of gas-phase molecules, we first simulate the electronic structure of H2Pc and plot the resulting partial density of the states (PDOS) of the frontier molecular orbitals in Figure 4a. We label the highest occupied molecular state with H and the lowest unoccupied molecular state by L. We note that the LUMO+1 is quasi-degenerate (energy difference between LUMO and LUMO+1 amounts to $\sim$ 35 meV). The HOMO-LUMO gap amounts to $\sim$ 2.2 eV. The experimentally observed gap between the positive and negative ion resonance is slightly larger. Such a deviation from DFT calculations is expected, because the excitation requires the addition of an electron/hole. We also simulate constant-height conductance images within the Bardeen approach using the DFT electronic structure (maps in Figure 4b). The spatial distribution of the HOMO shows the eight-lobe structure as observed in experiment. The combined map of LUMO and LUMO+1 shows additional intensity in the center of H2Pc, in agreement with the experimental conductance maps at the energy of the broad unoccupied state (see Figure 1d).

Next, we simulate the neutral, open-shell HPc molecule. Its PDOS exhibits an additional state ($h^{*}$) within the HOMO-LUMO gap of H2Pc and the former H and L peaks are slightly shifted in energy (now labeled as $h$ and $l$, respectively).The LUMO is quasi-degenerate with the LUMO+1. Comparison to the experimental spectrum on the H-abstracted molecule shows that the most prominent change, namely the appearance of a new resonance $h^{*}$ within the former HOMO-LUMO gap, is captured by this model calculation (compare to Figure 2c). This suggests that the molecule lies in the neutral, open-shell configuration. However, we find even more striking evidence for this identification from the fact that the conductance maps of $h$ and $h^{*}$ look identical as a result of imaging the SOMO and SUMO, respectively (simulated maps on the right side in Figure 4b and experimental maps in Figure 2c). In conclusion, the filled HOMO of H2Pc converts to a singly-occupied molecular orbital (SOMO) upon hydrogen abstraction. Moreover, we can associate the experimental energy difference between the SOMO and SUMO of $\sim$ 1.3 eV to the Coulomb repulsion energy of the electrons populating this state. Since the LUMO is lying outside of the energy gap of MoS2 and is therefore several hundred meV broad, we are not able to resolve any spin-splitting in the experiment (see spectra in Figure 2c).

At first sight, it may seem surprising that the radical state is imprinted in the delocalized HOMO instead of in a localized dangling $\sigma$ bond at the N site. However, it was recently shown that abstraction of both pyrrolic H atoms does not yield a bi-radical state at the N sites. Instead, the localized $\sigma$ states are filled by electrons from the HOMO Néel et al. (2016). Similarly, in our case, the dangling bond is saturated by an electron from the HOMO leaving the HPc molecule in a delocalized radical state. The stabilization of this radical state on the MoS2 layer is intriguing and stands in contrast to closed-shell states of H-abstracted phthalocyanines or porphyrins on metal surfaces. In those systems, the molecule–metal interactions lead to sizable structural relaxations of the molecule and charge transfer Sperl et al. (2011); Auwärter et al. (2012); Kügel et al. (2017); Pham et al. (2016). In contrast, the MoS2 layer suppresses structural deformations due to the absence of reactive bonding sites. Moreover, its band gap protects the radical state to be compensated by charge from the substrate. More frequently than MoS2, ionic layers (such as NaCl) or graphene have been employed for decoupling molecules from a metallic substrate. Interestingly, similar pulse experiments on phthalocyanine on graphene on Ir(111) did not lead to a single H abstraction, but to the simultaneous abstraction of both pyrrolic H atoms Néel et al. (2016). Hence, the final state is again a closed-shell electronic configuration.

In conclusion, we have demonstrated that abstraction of a single H atom from the pyrrolic center of H2Pc leads to the formation of a $\pi$-radical if the molecules lie on a decoupling layer of MoS2 on a metal substrate. The MoS2 takes on an important role in the stabilization of the radical state. When the molecules are in direct contact to a metal substrate, the molecules undergo significant structural relaxations such that the broken bond is compensated by a chemical bond to the substrate. The molecule thus looses its radical character. The passive S termination of MoS2 does not support bond formation. However, the dangling $\sigma$ bond is also not stable in this configuration. It is filled by intramolecular charge transfer from the HOMO, leaving behind a delocalized radical state. Our study demonstrates the fully inert character of MoS2 towards otherwise highly reactive molecules. Hence, MoS2 may be used for studying intermolecular reactions where the substrate plays no significant role.

I Methods

The Au(111) crystal was cleaned under ultra-high vacuum conditions by sputtering with Ne+ ions at 1 kV, followed by annealing to 800 K. Monolayer-islands of MoS2 were grown in-situ by deposition of Mo onto the atomically clean surface, followed by annealing the pre-covered sample at 820 K under H2S atmosphere Grønborg et al. (2015). H2Pc molecules were evaporated from a Knudsen cell heated to 680 K onto the MoS2-covered Au(111) sample held at a temperature below 120 K. The as-prepared sample was transferred into the STM, where all measurements were performed at a temperature of 4.6 K. Differential-conductance spectra and maps were recorded with an open feedback-loop using lock-in detection with a modulation frequency of 721 Hz and a root mean square modulation amplitude between 1 and 10 mV for the spectra (indicated in the caption for each spectrum) and 15 mV for the maps.

The structure and electronic energy levels of isolated H2Pc and HPc molecules were simulated by density functional theory as implemented in the Gaussian 09 code using the b3pw91 functional and employing the 6-31++g(d,p) basis set Frisch et al. (2009). These structures served as the input for simulations of constant-height conductance maps by employing Bardeen‘s approach using an s-wave tip with a work function of 5.3 eV (simulating Au), and a tip molecule-distance of $\sim 4$ Å. The PDOS was extracted from the calculated electronic structure using the code Multiwfn 3.3.9 Lu and Chen (2012).

I.1 Supporting Information

Further examples of H abstraction in H2Pc molecules on MoS2 and switching properties of pyrrolic H atoms can be found in the Supporting Information, which is available free of charge on the ACS Publications website.

II Acknowledgments

We gratefully acknowledge funding from the German Research Foundation within the collaborative research center TRR227 (project B05) and from the European Research Council for the Consolidator Grant ”NanoSpin”.

Supporting Information

S2 Further examples of H abstraction in H2Pc molecules on MoS2

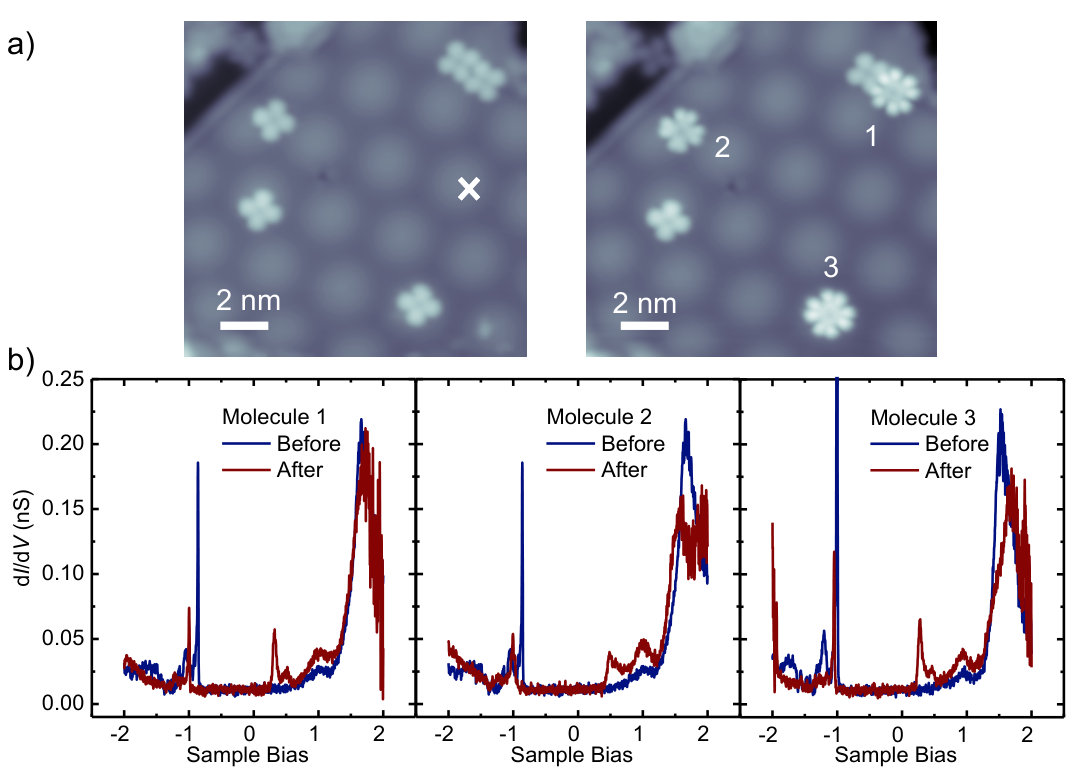

As described in the main text, applying a voltage pulse in the vicinity of H2Pc molecules on MoS2 may lead to H abstraction. Figure S1 shows further examples of H abstraction after a voltage pulse of 3.5 V, 1 nA, has been launched for 60 s at the position marked by the white cross. Scanning at a bias voltage of 0.4 V reveals that three out of the five molecules in the scan range appear with the distinct eight-lobe structure reflecting the shape of the HOMO of the H2Pc molecule. The observation of a considerable fraction of molecules being modified within a finite distance from the voltage pulse indicates a field-induced reaction mechanism Alemani et al. (2006).

The observation of the HOMO shape at positive bias voltage is indicative of a (partial) depopulation of the HOMO. As explained in more detail in the main text, we show that the modified molecules exhibit a single electron in the HOMO. d$I$/d$V$spectra recorded before and after the voltage pulse (Figure S1b) reflect the characteristic changes in the electronic structure that have also been described in the main text. Most importantly, all modified molecules exhibit a new resonance at positive bias voltage, with the precise value varying between 0.25 V and 0.45 V. The lower the energy of the corresponding state, the more narrow is its line shape, eventually even exhibiting vibronic resonances seen as higher-energy satellite peaks in Figure S1b. When the energy of this state approaches the broad edge of the conduction band, the peak width increases due to faster relaxation rates of the excited electronic state. We ascribe the variation of the energy level alignment to the differences in adsorption site on the moir$\acute{\mathrm{e}}$ structure and/or influence of neighboring molecules (see e.g. molecule 1). Similar to the variations of the SUMO state, we also find variations in energy of the SOMO state, corroborating this interpretation.

S3 Switching properties of pyrrolic H atoms

As explained in more detail in the main manuscript, we observe two-level current fluctuations on as-deposited H2Pc molecules whereas three-level fluctuations occur on the modified molecules. The occurrence of three-level fluctuations has been ascribed to H abstraction in the pyrrole core. The switching properties of the H atoms in the pyrrole have been intensively studied both for the H2Pc and HPc Kügel et al. (2016, 2017) and other similar macrocycle molecules on metal substrates. In this section, we emphasize some differences in the switching properties on MoS2 as compared to a metal substrate.

On a metal substrate, the switching of the inner hydrogen atoms is accompanied by a geometrical reorganization of the molecule due to the interaction with the metal Sperl et al. (2011). Thus, when imaged at low bias voltages, two (one) lobes of the H2Pc (HPc) molecule appear higher, indicating the position of the inner hydrogen. The ’reading’ of the tautomerization state is mainly a topographic effect. On MoS2, the situation is different: at low bias voltages (inside the gap of the molecule) the molecule (H2Pc or HPc) appears with a 4-fold symmetry (see Fig.1 and 2 in the main manuscript). This is explained by a flat adsorption of the molecule on MoS2 (similar to graphene Néel et al. (2016)), which is possible when the interaction with the substrate is very small. Therefore, in the absence of structural relaxations, the tautomerization state cannot be ’read’ as a topographic effect.

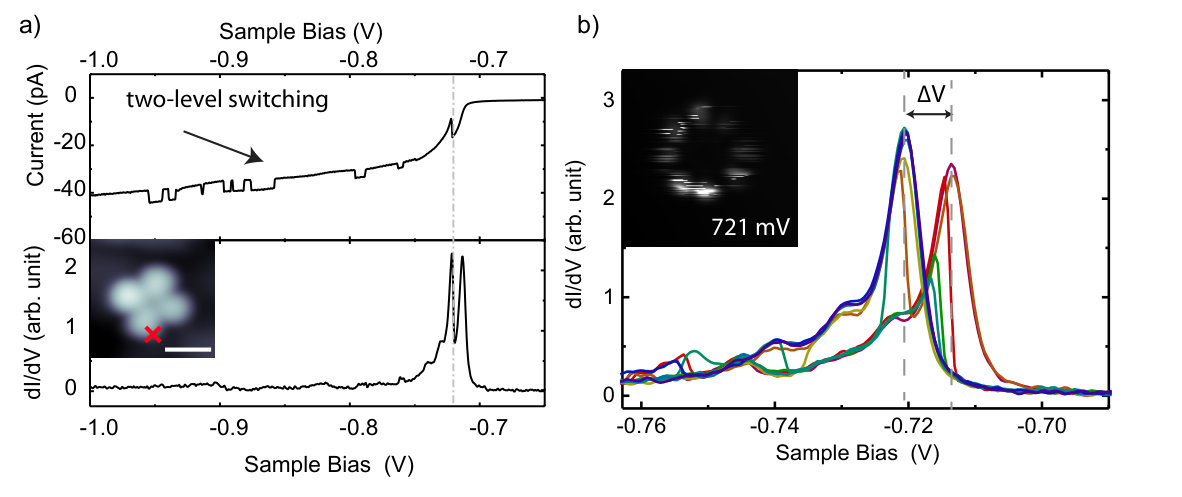

Instead, we can only observe the electronic effect of the tautomerization of the molecules on MoS2. We illustrate this effect at the energy of the HOMO of H2Pc. Figure S2a shows a typical I(V) curve and the simultaneously recorded d$I$/d$V$spectrum of H2Pc. The I(V) curve reflects a two-level switching associated to the tautomerization reaction. The variations in the d$I$/d$V$spectrum become very pronounced when the bias voltage reaches the HOMO energy (gray dashed line in Figure S2a). To understand the large variations in the conductance at this energy range (as compared to higher bias voltages), we recorded ten successive spectra on the same molecule (Figure S2b). This set of spectra reflects two distinct peaks, which are separated by $\Delta V\sim$ 7 mV. Moreover, the peaks are of different height. Hence, the two peaks reveal a shift in the HOMO energy when the H atoms are placed in different locations of the molecule. Such a behavior can only be explained by a reduced symmetry of the molecule on the substrate including a different interaction of the HOMO with the substrate in the two orientations. We ascribe this to the different effective orientations of the HOMO with respect to the underlying atomic lattice and moir$\acute{\mathrm{e}}$ structure of MoS2. Furthermore, the change of intensity is a result of the twofold symmetry of the HOMO state with the symmetry axis given by the position of the two H atoms, and therefore, depends on tip position.

While recording conductance maps of this state, the modification of the electronic structure is also observable. In the inset of Figure S2b, we show one of these maps recorded at the energy of one of the peaks with a small lock-in modulation amplitude of 3 mV. In this map we observe a large telegraph noise due to the shift of the HOMO peak with the tautomerization. For the conductance maps presented in the manuscript (Figure 1 and 2), we used a larger modulation amplitude (15 mV) in order to reduce this effect and reveal more clearly the eight-lobed shape of the orbital.

Next, we discuss the switching efficiency. For H2Pc and HPc adsorbed on metal substrates, it has been shown that the switching rate is strongly increased for HPc compared to H2Pc (by almost three order of magnitude) Kügel et al. (2016, 2017). This is explained by the reduction of the potential barrier for a single hydrogen switching compared to the collective switching of two hydrogen atoms. Moreover, it has been shown that the voltage dependance of the switching is symmetric in bias voltage (thresholds of increasing rates at $\pm$0.1, $\pm$0.4 and $\pm$0.9 V). This behavior has been explained by a vibration-mediated switching mechanism.

For H2Pc on MoS2, the switching rates behave differently. While we do not observe any switching at voltages within the HOMO-LUMO gap (at maximum 1 nA), the switching rates increase drastically at the onset of molecular resonances (at -0.8 or +1.4 V) and are then higher than on a metal (e.g., at -1.1 V: 2 Hz at 50 pA on MoS2, $vs.$ 5 Hz at 1 nA on AgKügel et al. (2017)). Tautomerization events occur even at low currents above the resonance (see I(V) curve in Figure S2). From the threshold behavior we can exclude a vibration-mediated mechanism. A similar conclusion was drawn for the case of naphthalocyanine molecules on NaCl Liljeroth et al. (2007).

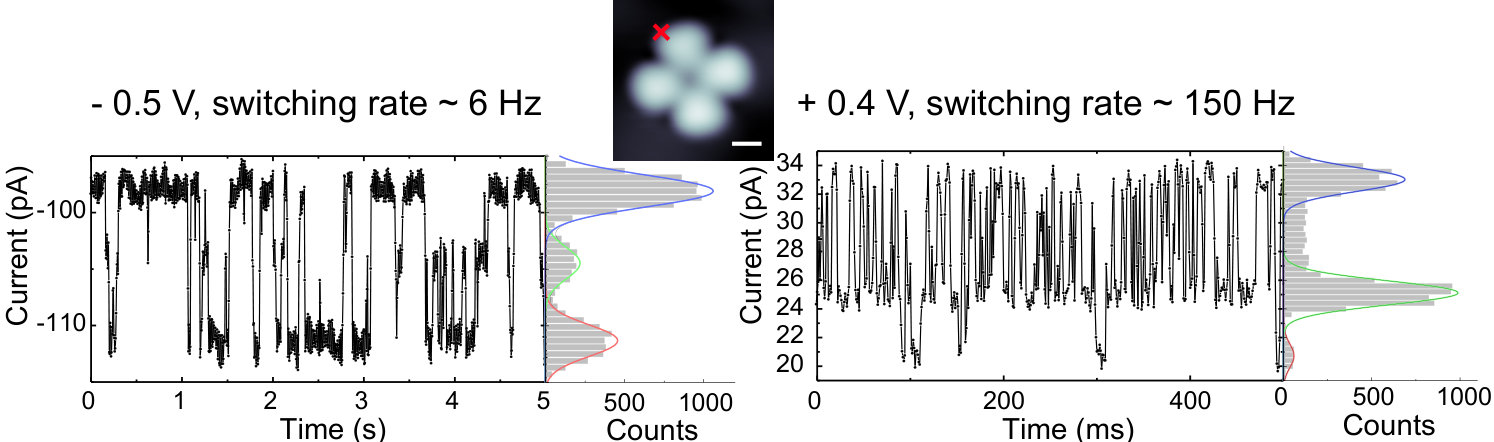

The switching behavior of HPc is again somewhat different. In contrast to H2Pc, we observe switching within the HOMO-LUMO gap (see, e.g., current trace at -0.5 V in Figure S3 and 0.2 V in Figure 3 of the main manuscript). When increasing the bias voltage, the switching rate is strongly enhanced (from few Hz at 0.2 V to few hundred Hz at 0.4 V). Moreover, there is a strong bias asymmetry (few Hz at -0.5 V vs. few hundred Hz at 0.4 V). Similarly to the measurements in Figure 3 of the manuscript, we observe a three-level switching. For the current trace at 0.4 V, this observation is not so clear without the histogram of the current distribution, because of the fast switching rate ($\approx$ 150 Hz), which is close to the limit of the bandwidth of the I(V) converter (1kHz).
