Fingerprints of Kitaev physics in the magnetic excitations of honeycomb iridates

TL;DR

This study uses resonant inelastic x-ray scattering to reveal signatures of Kitaev physics in honeycomb iridates, showing a persistent magnetic excitation continuum indicative of a proximate spin liquid state.

Contribution

It provides direct spectroscopic evidence of Kitaev-like magnetic excitations in iridates, highlighting a proximate spin liquid regime beyond conventional magnetic order.

Findings

Broad magnetic excitation continuum persists above magnetic ordering temperatures.

Magnetic correlations are limited to nearest neighbors.

Spectroscopic features are also observed in magnetically ordered states.

Abstract

In the quest for realizations of quantum spin liquids, the exploration of Kitaev materials - spin-orbit entangled Mott insulators with strong bond-directional exchanges - has taken center stage. However, in these materials the local spin-orbital j=1/2 moments typically show long-range magnetic order at low temperature, thus defying the formation of a spin-liquid ground state. Using resonant inelastic x-ray scattering (RIXS), we here report on a proximate spin liquid regime with clear fingerprints of Kitaev physics in the magnetic excitations of the honeycomb iridates alpha-Li2IrO3 and Na2IrO3. We observe a broad continuum of magnetic excitations that persists up to at least 300K, more than an order of magnitude larger than the magnetic ordering temperatures. We prove the magnetic character of this continuum by an analysis of the resonance behavior. RIXS measurements of the dynamical structure factor for energies within the continuum show that dynamical spin-spin correlations are restricted to nearest neighbors. Notably, these spectroscopic observations are also present in the magnetically ordered state for excitation energies above the conventional magnon excitations. Phenomenologically, our data agree with inelastic neutron scattering results on the related honeycomb compound RuCl3, establishing a common ground for a proximate Kitaev spin-liquid regime in these materials.

Figures

Equations

$$I(\mathbf{q})\propto I_2{\cos }^2(\mathbf{q}\cdot {\mathbf{r}}_2/2)+I_{1/3}{\cos }^2(\mathbf{q}\cdot {\mathbf{r}}_{1/3}/2),$$

$${\chi }_{ij}^{\Lambda }=\int \mathrm{d}t⟨{\mathbf{S}}_i(t){\mathbf{S}}_j(0)⟩$$

$$H$$

$$+{\Gamma }_1^{\prime }\sum _{⟨i,j{⟩}_1^{\gamma }}\sum _{\alpha \ne \gamma }\left(S_i^{\gamma }{S}_j^{\alpha }+S_i^{\alpha }{S}_j^{\gamma }\right),$$

Full text

I Introduction

Spin liquids are elusive states of quantum matter in which quantum fluctuations prevent the formation of long-range magnetic order even at $T$ = 0 Broholm19 . Theory distinguishes various types of spin liquids, e.g., gapless and gapped variants with topological order Savary17 ; Knolle19 . A particularly interesting version arises from exchange frustration as described by the Kitaev model on tricoordinated lattices Kitaev06 ; OBrien16 , which exhibits fractional excitations in the form of itinerant Majorana fermions and static visons Hermanns18 .

Realizations of such Kitaev spin liquids are sought in Mott insulators with spin-orbit-entangled $j$ = 1/2 moments Witczak14 such as the honeycomb iridate H3LiIr2O6 Kitagawa18 which does not show magnetic order down to at least 50 mK FootnoteDisorder . The related compounds $\alpha$-Li2IrO3, Na2IrO3, and $\alpha$-RuCl3 all show dominant bond-directional Kitaev interactions Chun15 ; Rau2016 ; Winter17rev but order magnetically below 7 -15 K, which is commonly attributed to additional coupling terms, e.g., Heisenberg and off-diagonal interactions Rau2016 ; Winter17rev ; Trebst2017 .

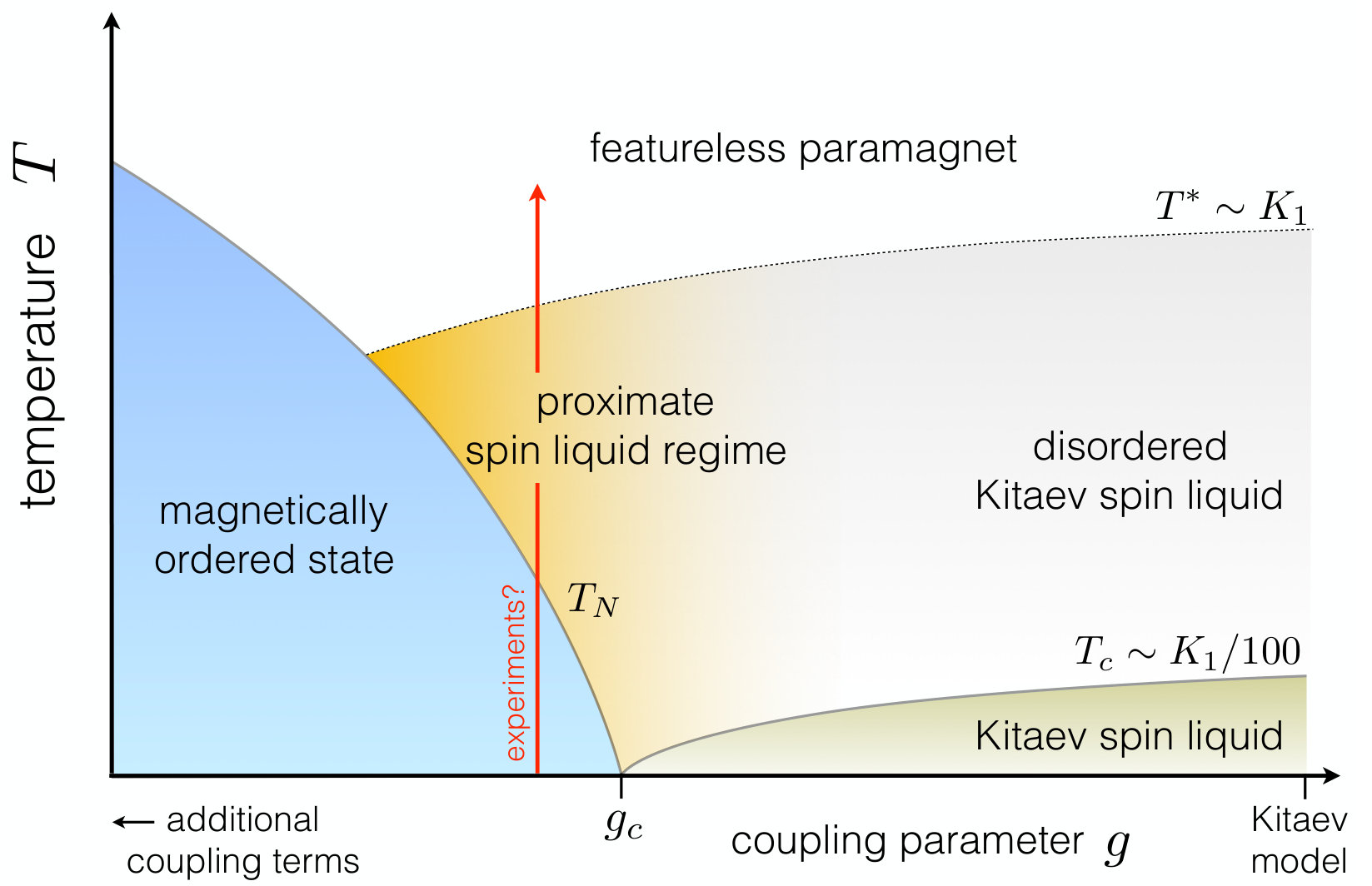

This raises the question whether these materials are, by virtue of their dominant bond-directional interactions, destined to form Kitaev spin liquids, which however is impeded at low temperatures by spurious additional couplings. This situation can be compared to quasi-1D quantum spin systems such as KCuF3 showing 3D long-range order at low temperature due to a residual inter-chain coupling. Despite magnetic ordering, the excitation spectrum can, however, still be described by a continuum of fractional spinons for energies larger than the energy scale of the inter-chain coupling Lake13 , with the low-energy magnons taking only a small fraction of the total spectral weight. At high energy, the spinon continuum is not affected by the ordering temperature $T_{N}$ and persists to temperatures far above $T_{N}$. For the Kitaev materials at hand, this suggests the existence of a proximate spin-liquid regime above the long-range ordering temperature in which the physics of fractionalized excitations manifests itself, see Fig. 1. Indeed, $\alpha$-RuCl3 has been described as a proximate spin liquid based on inelastic neutron scattering data Banerjee16 ; Banerjee17 which revealed a continuum of magnetic excitations, smeared out both in energy and momentum space, which persists far above the Néel temperature $T_{N}$. The large width in energy is attributed to the fractional character of excitations; the sinusoidal momentum dependence of the dynamical structure factor reflects the dominance of nearest-neighbor correlations. Together, these count as clear fingerprints of spin-liquid behavior as reported in inelastic neutron scattering on the Kagome lattice antiferromagnet Herbertsmithite Han12 and Ca10Cr7O28 Balz16 . The proximity of $\alpha$-RuCl3 to a Kitaev spin liquid was most prominently highlighted by the observation of a half-integer quantized thermal Hall effect attributed to fractionalized Majorana fermions in an external magnetic field suppressing long-range order Kasahara18 . Also a low-energy Raman continuum was attributed to Majorana fermions Nasu16 ; Sandilands15 .

Here, we address the question whether the existence of a proximate spin liquid regime is a generic feature of Kitaev materials by exploring the $j$ = 1/2 honeycomb iridates Na2IrO3 and $\alpha$-Li2IrO3. According to ab-initio calculations Winter17rev , the iridates and in particular Na2IrO3 are expected to be closer to the pure Kitaev limit than $\alpha$-RuCl3. However, experimental studies of the magnetic excitations in the honeycomb iridates are challenging and thus scarce. Powder inelastic neutron scattering data of Na2IrO3 and $\alpha$-Li2IrO3 show magnon modes at a few meV Choi12 ; Choi19 , but further investigations are obstructed by the strong neutron absorption of Ir. Resonant inelastic x-ray scattering (RIXS) has been used to study the magnetic excitations of corner-sharing iridates Kim12 ; Gretarsson16 ; Pincini17 ; MorettiSr3 ; Lu17 but the much smaller energy scale of edge-sharing honeycomb iridates is comparable to the state-of-the-art energy resolution of 24 meV Moretti13 ; Moretti18 . In Na2IrO3, a broad inelastic RIXS feature peaking at about 30 to 50 meV was previously attributed to the sum of magnons and phonons Gretarsson13PRB .

To explore the existence of a proximate spin liquid regime in these honeycomb iridates we probe their magnetic excitations using RIXS. We resolve the character of the low-lying excitations by comparing Na2IrO3 and $\alpha$-Li2IrO3 as well as by studying the resonance behavior and the $\mathbf{q}$ dependence of the RIXS intensity. We find clear fingerprints of proximate spin-liquid behavior: (i) a broad continuum of quasi-2D magnetic excitations centered around the $\Gamma$ point of the first Brillouin zone, (ii) the insensitivity of this continuum to the magnetic ordering temperature $T_{N}$ and the persistence of the continuum up to temperatures as high as 300 K, i.e., far above $T_{N}$, and (iii) dynamical spin-spin correlations restricted to nearest-neighbor bonds. The latter is a key feature of Kitaev exchange on tricoordinated lattices. Observations (i)-(iii) are comparable to the neutron results for $\alpha$-RuCl3 Banerjee17 discussed above, establishing a common experimental ground for these $j$ = 1/2 honeycomb compounds. Going beyond the thermodynamic perspective of the phase diagram sketched in Fig. 1, the magnetic continuum for excitation energies $\hbar\omega\gtrsim k_{B}T_{N}$ shows fingerprints of proximate Kitaev spin-liquid behavior even below the magnetic ordering temperature – a spectroscopic proximate spin liquid regime.

II Crystal synthesis and RIXS measurements

Single crystals of Na2IrO3 can be grown by solid-state synthesis out of a polycrystalline bed Singh10 . Single crystals of several mm size were grown from Na2CO3 and Ir in a ratio of 1.5/1 at 1423 K. After cooling to room temperature the crystals were separated mechanically from the remaining polycrystalline sintered compact. Sub-millimeter single crystals of $\alpha$-Li2IrO3 can be grown from separated educts Freund16 . Na2IrO3 and $\alpha$-Li2IrO3 both crystallize in the monoclinic $C2/m$ space group Choi12 , display opposite magnetic anisotropy, and order antiferromagnetically in zigzag and spiral states, respectively, near 15 K Winter17rev . Crystal quality for the present study was checked by XRD and magnetic measurements. We use the reciprocal lattice of the monoclinic setting. In this framework, $\Gamma$ points of the 2D honeycomb net are given by, e.g., (0 0), (1 1), or (2 0).

RIXS was measured at the Ir $L_{3}$ edge at beamline ID20 at the ESRF. The measurements were performed with incident $\pi$ polarization in the horizontal scattering plane in order to suppress the elastic line for $2\theta$ close to 90∘. The energy resolution equals $\Delta E$ = 24 meV, while the resolution of the transferred momentum $\mathbf{q}$ amounts to about 1/5 of the Brillouin zone. The incident energy was tuned to the Ir $2p_{3/2}\!\rightarrow\!5d_{t_{2g}}$ absorption edge, i.e., to resonate with the $t_{2g}$ manifold forming the $j$ = $1/2$ state. For both compounds, the measurements were performed on a (001) surface. The samples were oriented such that the $b$ axis was in the scattering plane and the $a$ axis perpendicular to it.

III Experimental results

III.1 Broad continuum of excitations

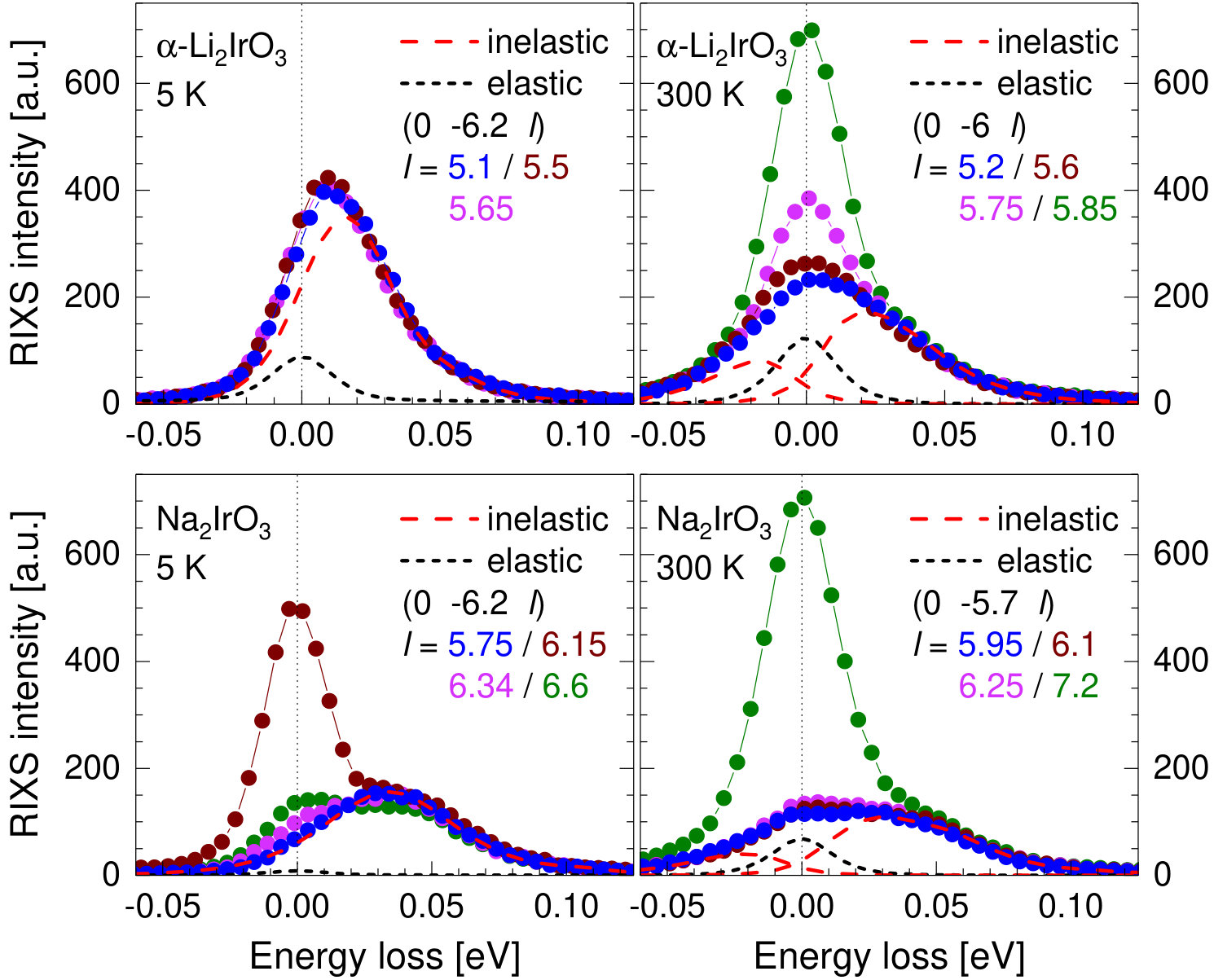

One general challenge for RIXS studies of magnetic excitations in the honeycomb iridates is that the relevant excitation energies one has to cope with are comparably low. Therefore, we first address how, in our RIXS measurements, we distinguish inelastic features from the elastic line. Figure 2 shows exemplary low-energy RIXS spectra for $\alpha$-Li2IrO3 (top) and Na2IrO3 (bottom) at 5 K (left) and 300 K (right). The elastic line at zero energy loss with a width of $\Delta E$ = 24 meV overlaps with inelastic features that extend up to about 100 meV. Below we will show that this inelastic contribution corresponds to magnetic excitations. To disentangle inelastic features and the elastic line, we change the intensity of the latter by varying the scattering angle $2\theta$ in the range close to $90^{\circ}$. This is achieved by varying $l$ in the transferred momentum $\mathbf{q}$ = ($h$ $k$ $l$). Ideally, the elastic line is fully suppressed for $2\theta$ = $90^{\circ}$. We fit the spectra for different $l$ by a sum of elastic line (black dashed) and inelastic features (red dashed) using the Pearson VII line shape Wang05 . At 300 K, the fit includes an Anti-Stokes contribution at negative energy loss, where the Anti-Stokes-to-Stokes intensity ratio is given by $\exp(-\hbar\omega/k_{B}T)$. In the fit, only the intensity of the elastic line is allowed to vary with $l$. The insensitivity to $l$ of the inelastic features reflects the quasi-2D character of the excitations.

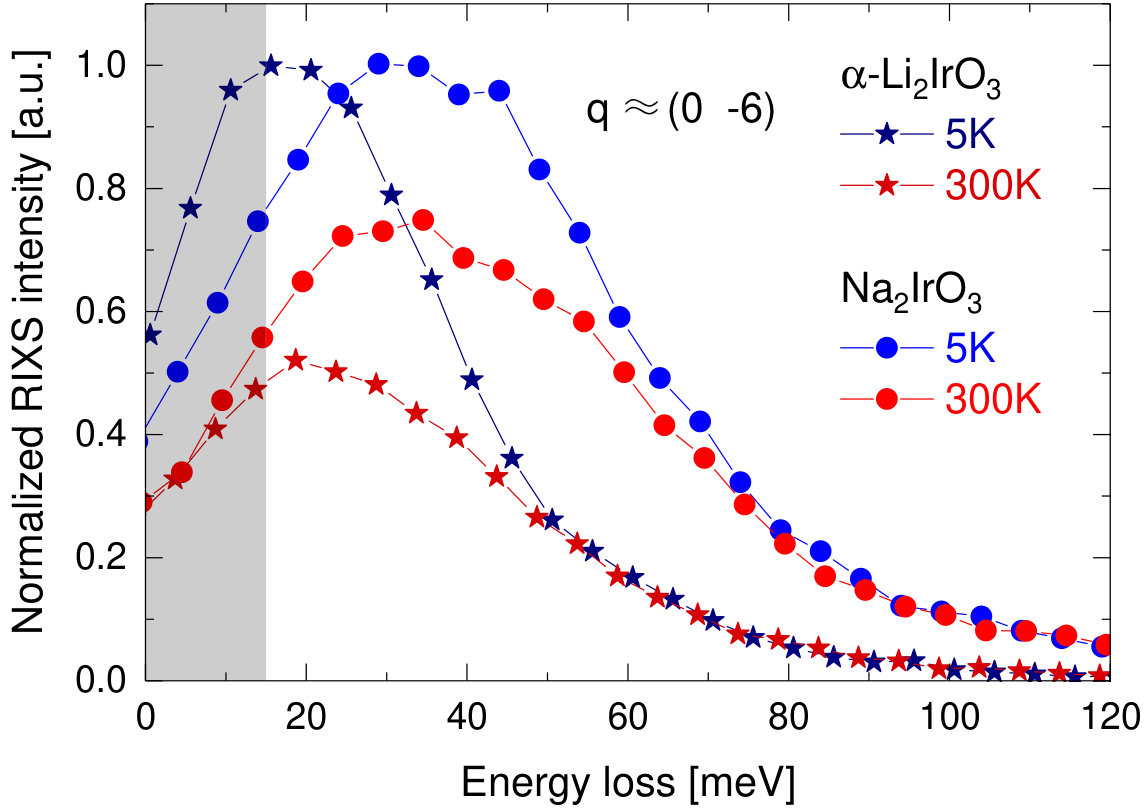

The resulting Stokes contribution for transferred in-plane momenta close to (0 -6) is depicted in Fig. 3. Note that (0 -6) is equivalent to a $\Gamma$ point of the reciprocal lattice of the honeycomb net. At 5 K, we find a broad excitation continuum peaking at about 15 meV in $\alpha$-Li2IrO3 and 35 meV in Na2IrO3. A continuum character is suggested by the large width of more than 50 meV, which is much larger than the experimental resolution $\Delta E$ = 24 meV, and by the featureless line shape. A continuum reflects a two-particle or multi-particle character of the excitation, a hallmark of fractional excitations.

III.2 Temperature dependence

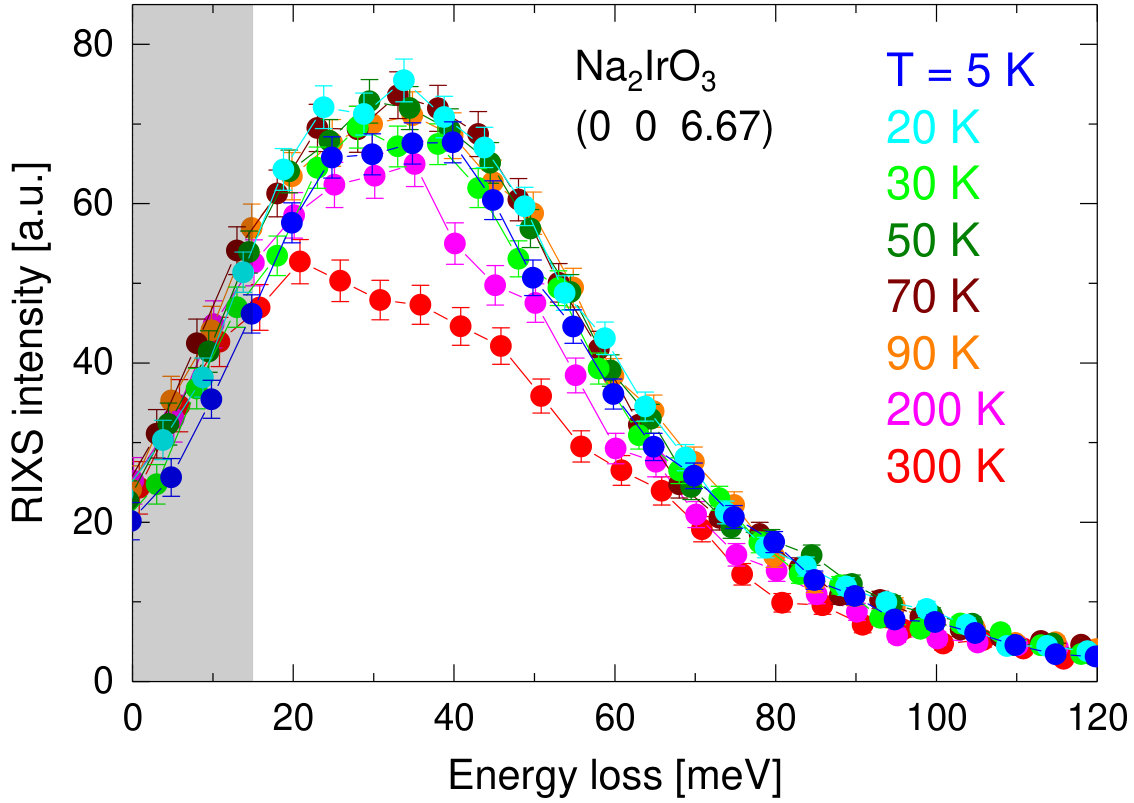

At 300 K, the RIXS data are stunningly similar to the 5 K result, the main change being a reduction of the peak intensity, see Fig. 3. The temperature-driven reduction is larger in $\alpha$-Li2IrO3, in agreement with the smaller energy scale. For Na2IrO3, the striking robustness with respect to temperature is emphasized in Fig. 4 which shows that the RIXS peak for $q$ = (0 0 6.67) hardly changes between 5 K and 90 K $\approx 6T_{N}$.

The insensitivity to temperature across $T_{N}$ = 15 K and the robustness up to 6 $T_{N}$ shows that the RIXS continuum cannot be explained in terms of magnons of the magnetically long-range ordered state observed below $T_{N}$. Also the quasi-2D character speaks against magnons of the 3D ordered state. As discussed in the next section, our RIXS data nevertheless provide strong evidence for a magnetic character of the continuum, pointing towards a more intriguing origin. A dominant Kitaev exchange is well accepted for the honeycomb iridates Chun15 ; Rau2016 ; Winter17rev , in which long-range order is thought to arise due to additional weaker coupling terms beyond the pure Kitaev model Rau2016 ; Winter17rev ; Trebst2017 . This suggests an analogy with quasi-one dimensional systems which show long-range order at low temperature due to finite inter-chain couplings. Nevertheless the excitations at higher energy are well described as fractional spinon excitations, both below and above the ordering temperature. For the iridates, this suggests that the proximate Kitaev spin liquid leaves its fingerprints not only in the magnetic excitations above the ordering temperature, as sketched in Fig. 1, but also in the high-energy magnetic excitations for temperatures below the long-range ordering temperature. In this scenario, long-range order mainly affects the excitations at lower energy, i.e., below 20 meV in Na2IrO3. The high-energy Kitaev-related excitations are much more robust against temperature than conventional magnons.

III.3 Magnetic character and resonance behavior

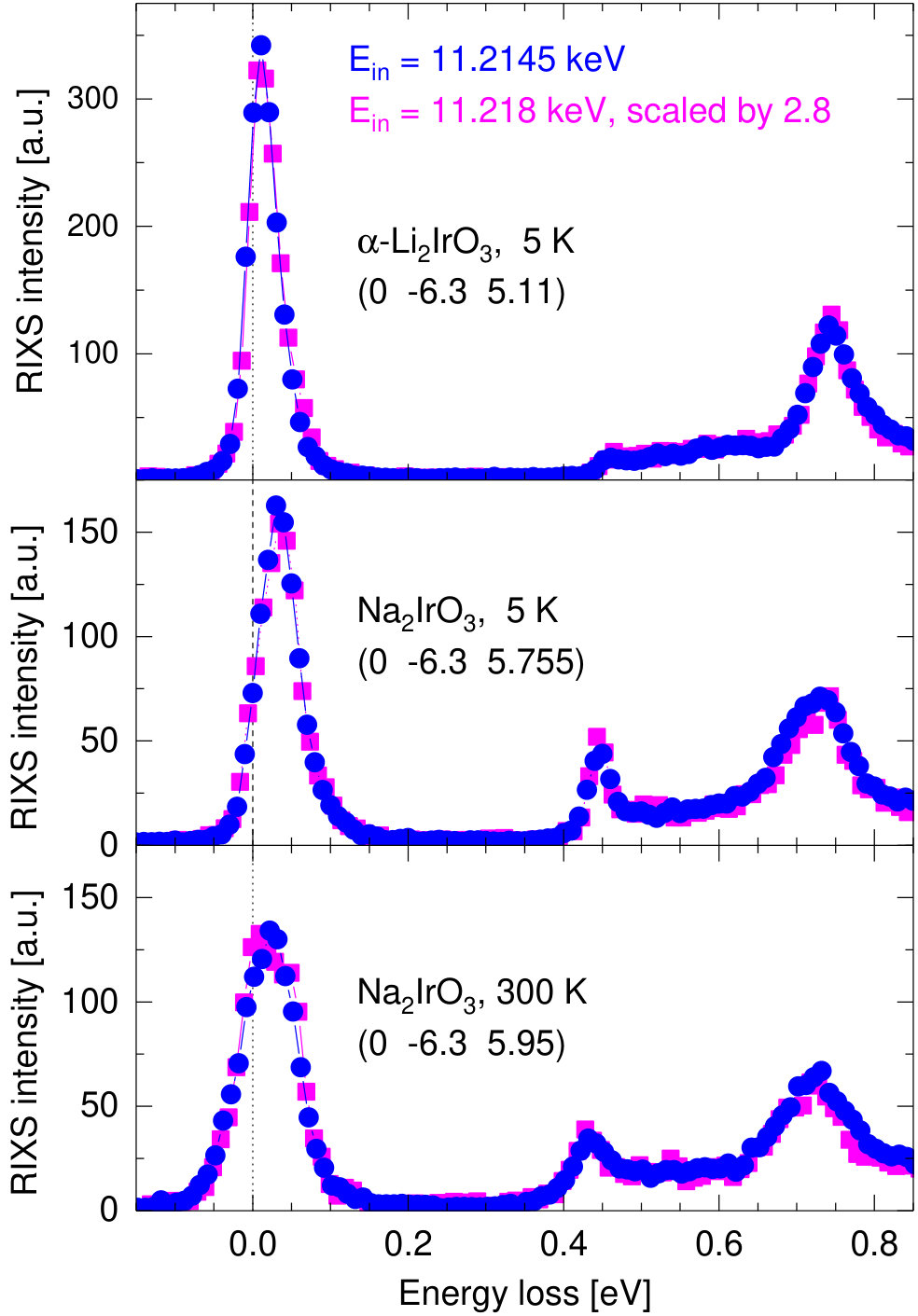

At first sight, a magnetic interpretation of excitations that show such low sensitivity to temperature is counterintuitive and requires a solid experimental foundation, which we will give in the following. Our RIXS spectra of Na2IrO3 shown in Fig. 4 agree very well with the data reported by Gretarsson et al. Gretarsson13PRB . They interpreted their data in terms of a series of overlapping phonons at high temperature and as a sum of phonons and magnons at low temperature Gretarsson13PRB . In their scenario, the small temperature dependence of the intensity on the Stokes side is due to an accidental balance of the phonon intensity increasing and the magnon intensity decreasing with increasing temperature. A first argument against this scenario is provided by the comparison of the data for isostructural $\alpha$-Li2IrO3 and Na2IrO3, see Fig. 3. Phonons are expected to be very similar in these two compounds, with an enhanced energy scale in $\alpha$-Li2IrO3 due to the smaller mass of Li compared to Na, as observed in optical spectroscopy Hermann17 . In contrast, the energy scale is markedly lower in $\alpha$-Li2IrO3 in the RIXS data, questioning the phonon interpretation.

In RIXS at the Ir $L_{3}$ edge, magnetic excitations can be distinguished from phonons by their resonance behavior. Magnetic spin-flip excitations and orbital excitations are created in a direct RIXS process. Starting from a local $j$ = 1/2 ground state with a $2p^{6}\,5d^{5}$ configuration in which the five $5d$ electrons occupy the $t_{2g}$ shell, the incident photon energy of 11.2145 keV is tuned to resonantly enhance the absorption process that promotes a $2p$ core electron to the $5d$ $t_{2g}$ level, resulting in a $2p^{5}\,t_{2g}^{6}$ intermediate state. Within a few femtoseconds, this intermediate state relaxes to the final state by photon emission, resulting in an excited $2p^{6}\,t_{2g}^{5*}$ state that corresponds to a magnetic or orbital excitation. The resonance strongly boosts the RIXS intensity of these excitations. In contrast, a phonon excitation is an indirect RIXS process which arises due to the dynamics in the short-lived intermediate state, i.e., the lattice distorts to screen the core hole before the electronic system relaxes from the intermediate state to the $j$ = 1/2 ground state. Typically, the cross section for direct RIXS is much larger Ament11RMP . Phonons are expected to be particularly weak in RIXS if the core hole in the intermediate state is well screened Ament11RMP , as commonly assumed for the Ir $2p^{5}t_{2g}^{6}$ intermediate state with localized $t_{2g}$ states. This explains why no detectable phonon contribution was observed thus far in $L$-edge RIXS data of other Mott-insulating $5d^{5}$ iridates Kim12 ; Liu12 ; KimNatComm14 ; Gretarsson13PRL ; Gretarsson13PRB ; MorettiCaIrO3 ; Gretarsson16 ; Pincini17 ; MorettiSr3 ; Lu17 ; Rossi17 ; Revelli19 ; Revelli19a . A significant phonon contribution requires a more delocalized intermediate state, in which case the core hole is screened by adjacent ions and the lattice distorts. Since the $e_{g}$ orbitals are both, more delocalized and more strongly coupled to the lattice, the intensity of a hypothetical phonon peak is expected to be enhanced at the $e_{g}$ resonance Moser15 , which occurs at about $E_{\rm in}$ = 11.218 keV in the $5d^{5}$ iridates Lefrancois16 . The 3.5 eV difference in resonance energy between $t_{2g}$ and $e_{g}$ levels corresponds to the cubic crystal field splitting.

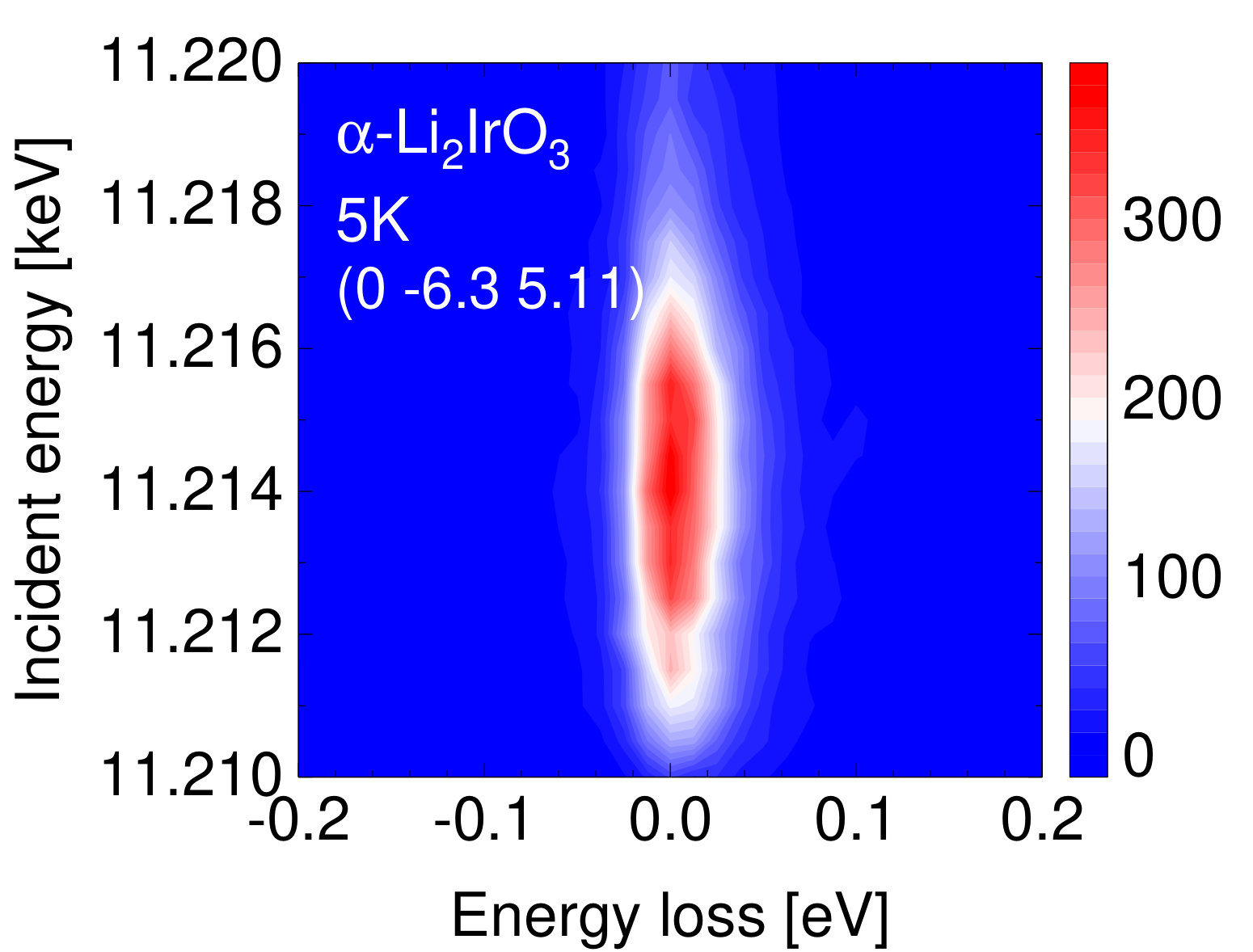

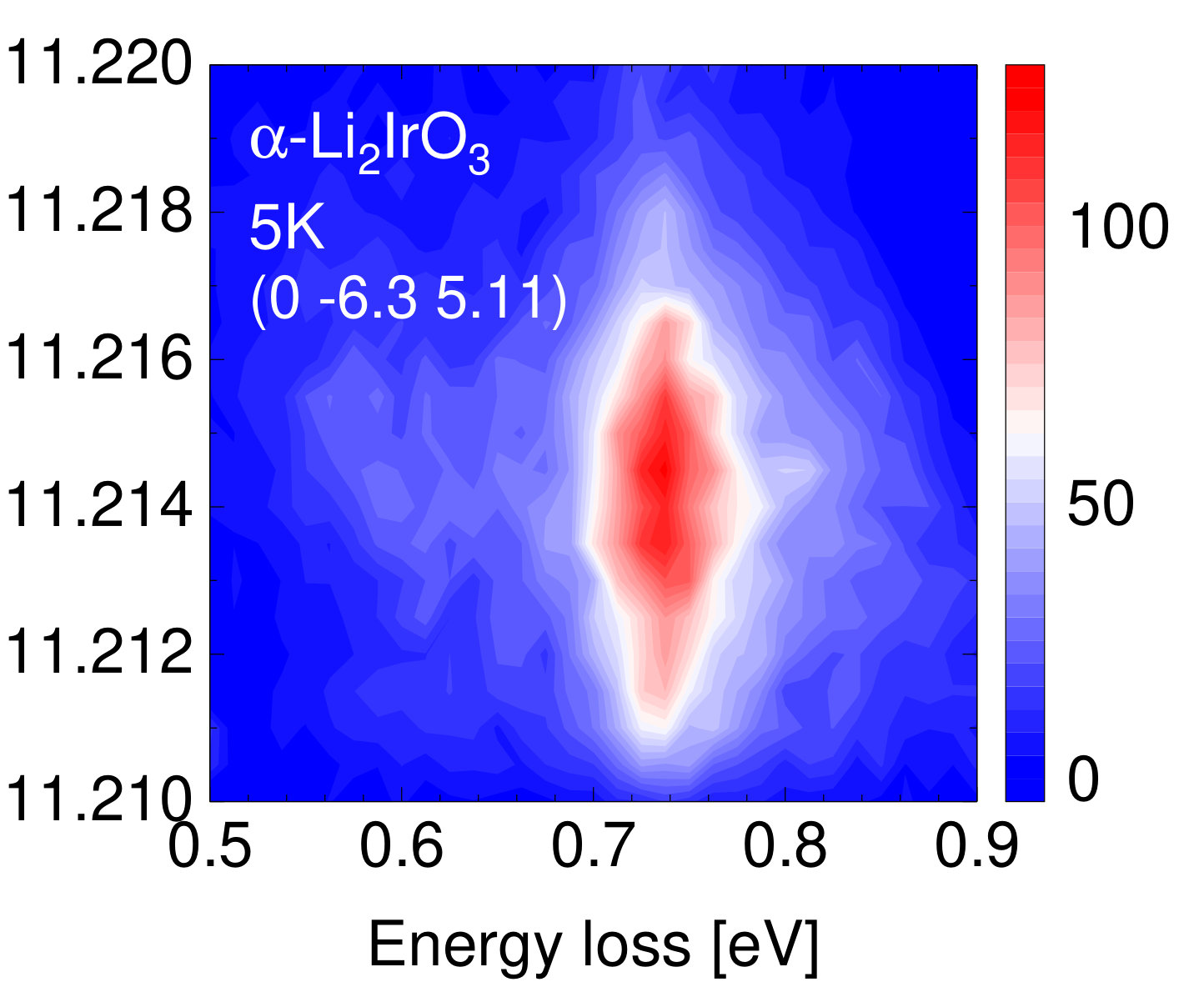

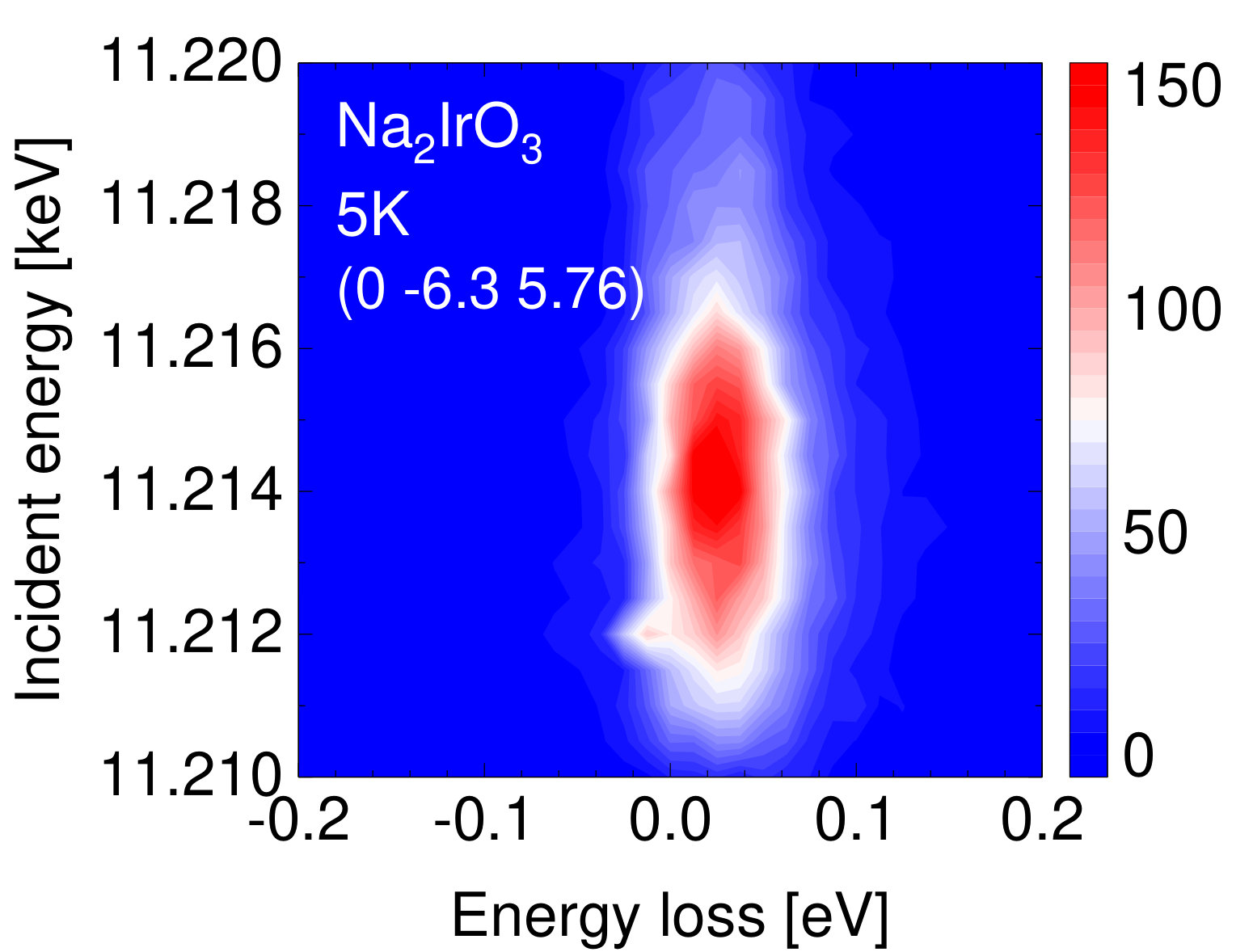

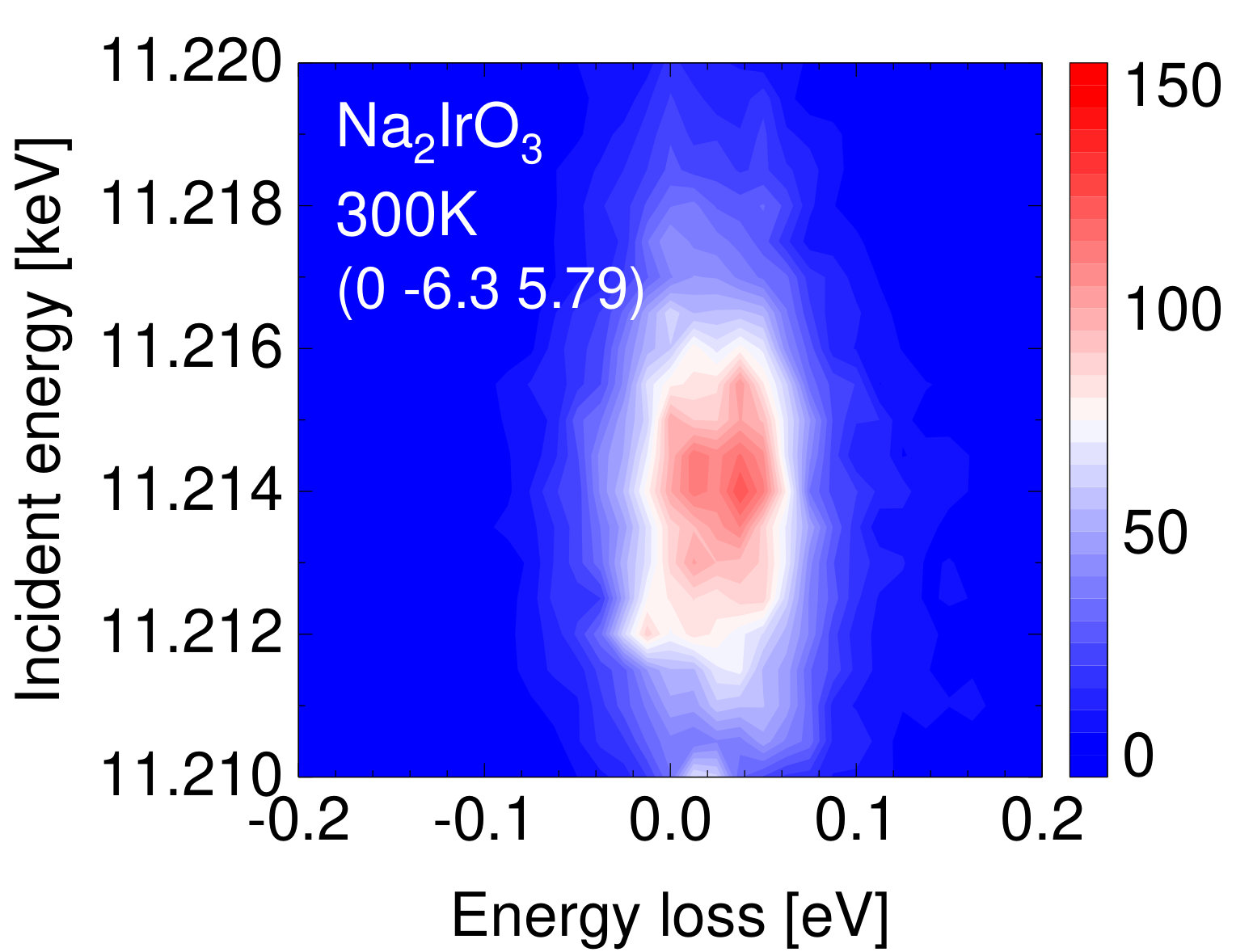

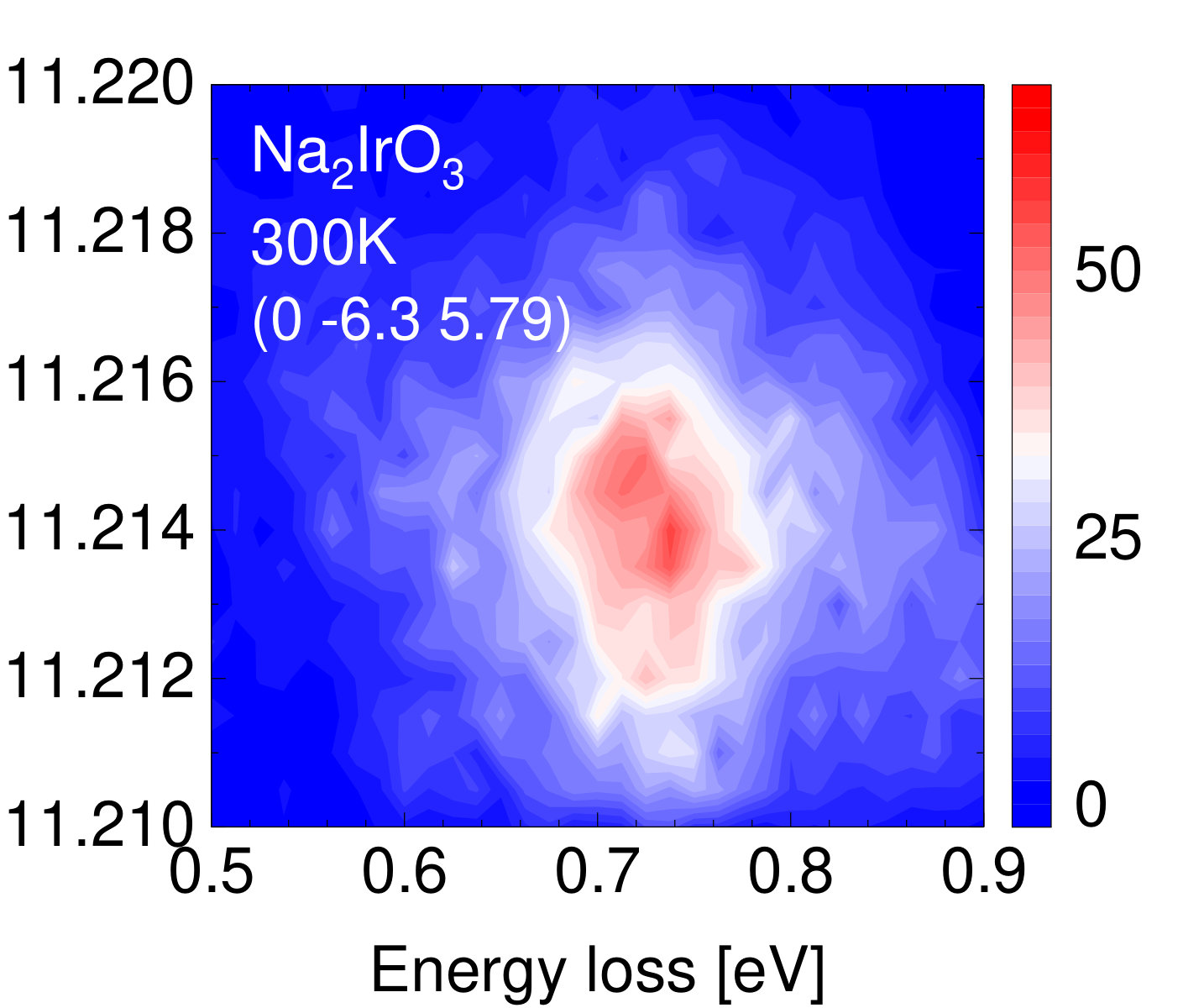

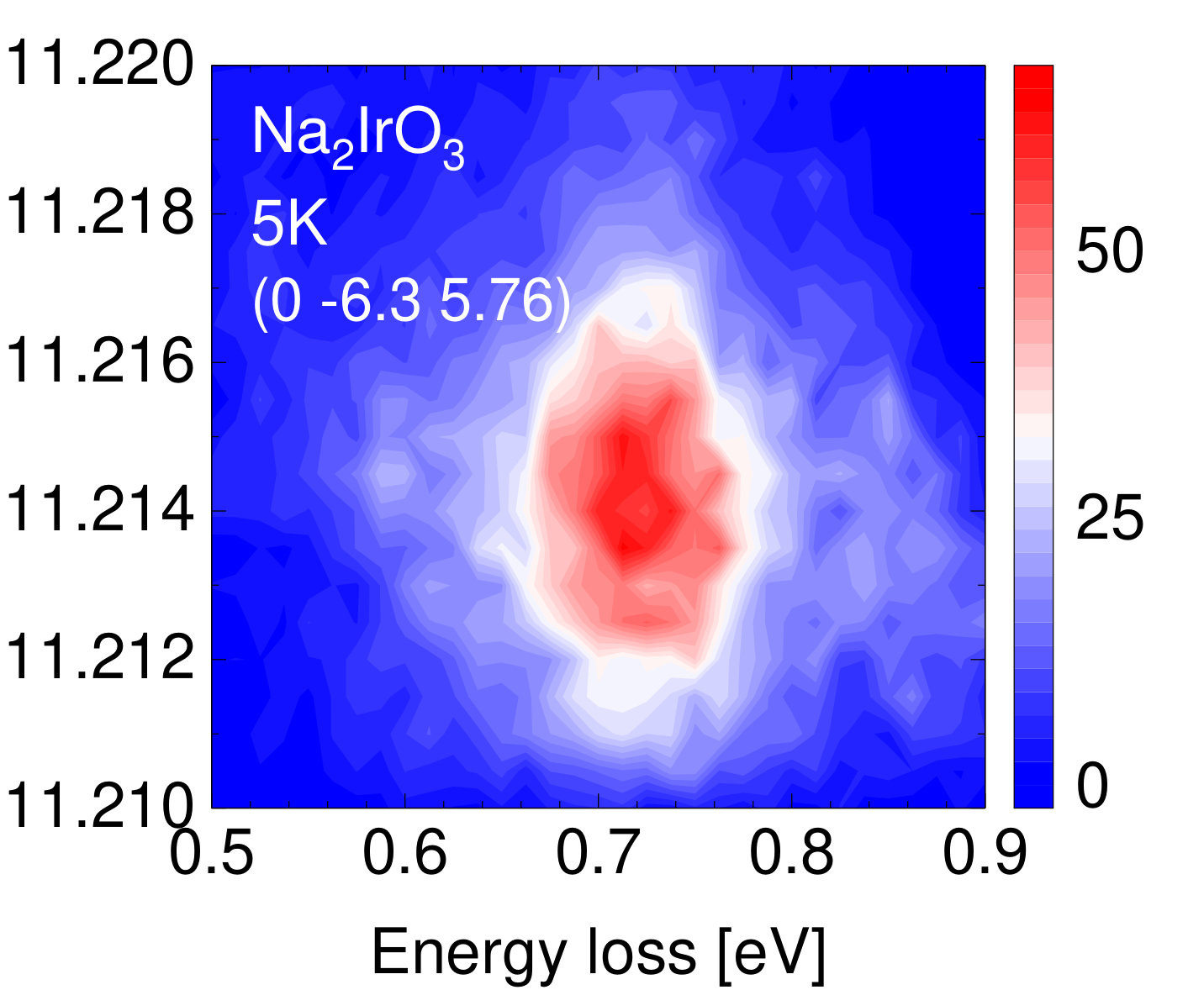

The resonance behavior thus provides a litmus test for the magnetic character of excitations. In the iridates, magnetic excitations and intra-$t_{2g}$ orbital excitations both resonate at $E_{\rm in}$ = 11.2145 keV, whereas the RIXS intensity of phonons is expected to show a different resonance behavior. In Mott-insulating $\alpha$-Li2IrO3 and Na2IrO3, intra-$t_{2g}$ excitations set in at 0.4 eV with a peak at about 0.7 eV for spin-orbital excitations to the $j$ = 3/2 state Gretarsson13PRL , see Fig. 5. The resonance maps depicted in Fig. 6 show the same resonance behavior for the RIXS continuum below 0.1 eV and the intra-$t_{2g}$ excitations above 0.4 eV, both resonating at $E_{\rm in}$ = 11.2145 keV. We emphasize that an $e_{g}$ resonance at 11.218 keV is not observed.

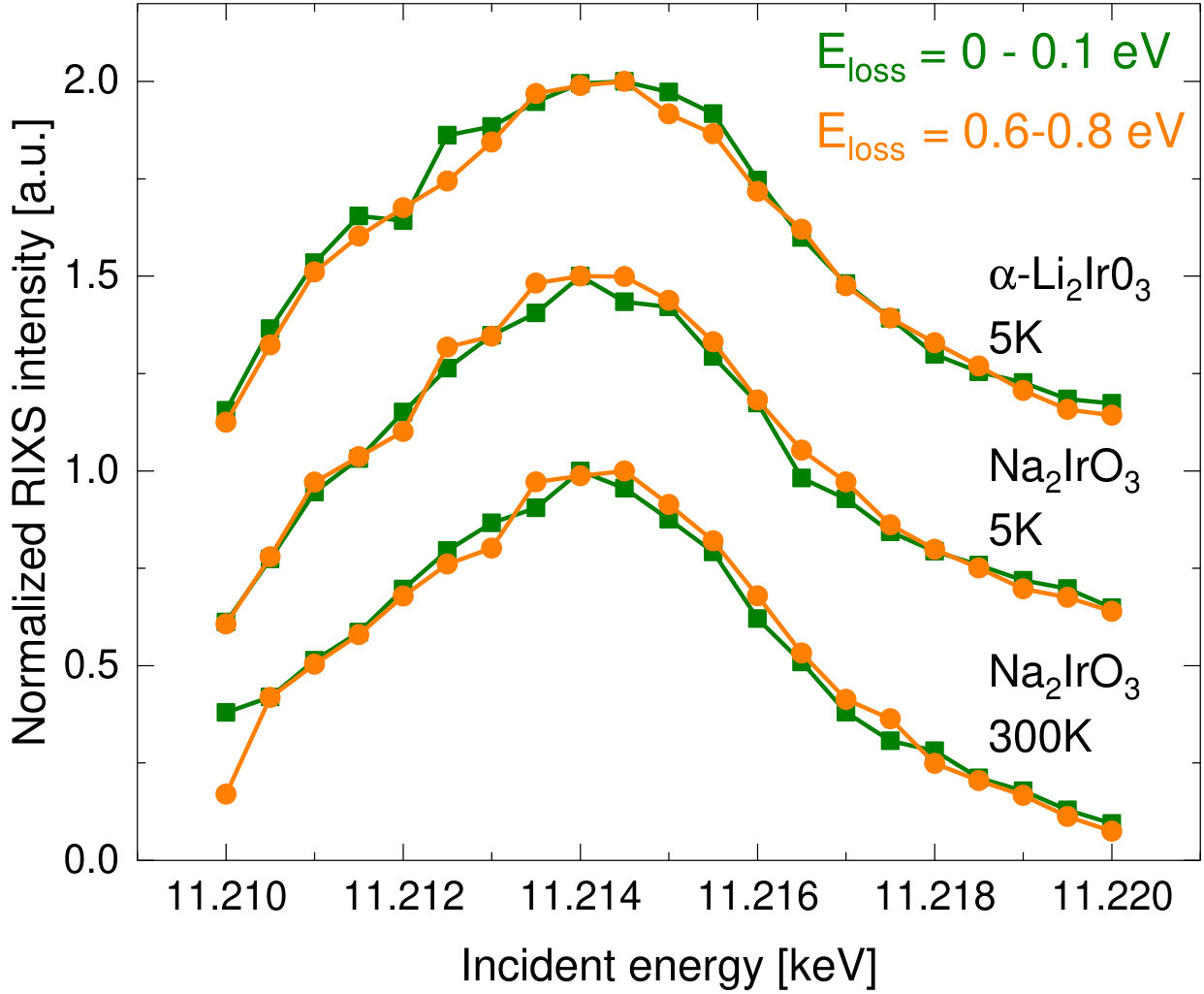

The experimental result that all excitations in the measured energy range show the same resonance behavior is particularly obvious from cuts through the resonance maps. Normalized constant-loss cuts below 0.1 eV and around 0.6 to 0.8 eV agree very well with each other, showing a maximum resonance enhancement at 11.2145 keV independent of the energy loss, see Fig. 7. Cuts for constant $E_{\rm in}$ = 11.2145 keV and 11.218 keV are compared in Fig. 5. Also these spectra fall on top of each other after normalization. For the normalization, the data for $E_{\rm in}$ = 11.218 keV were scaled up by a factor of 2.8, which compensates the detuning of $E_{\rm in}$ away from the $t_{2g}$ resonance. This scaling behavior proves a common electronic intra-$t_{2g}$ character of the entire excitation spectrum below 1 eV, where ‘electronic’ refers to magnetic and orbital degrees of freedom at low and high energies, respectively. Most noteworthy, this still holds true at 300 K, see the bottom panel of Fig. 5. Thus, we conclude that a phonon interpretation of the low-energy continuum can be firmly ruled out.

III.4 Nearest-neighbor spin-spin correlations

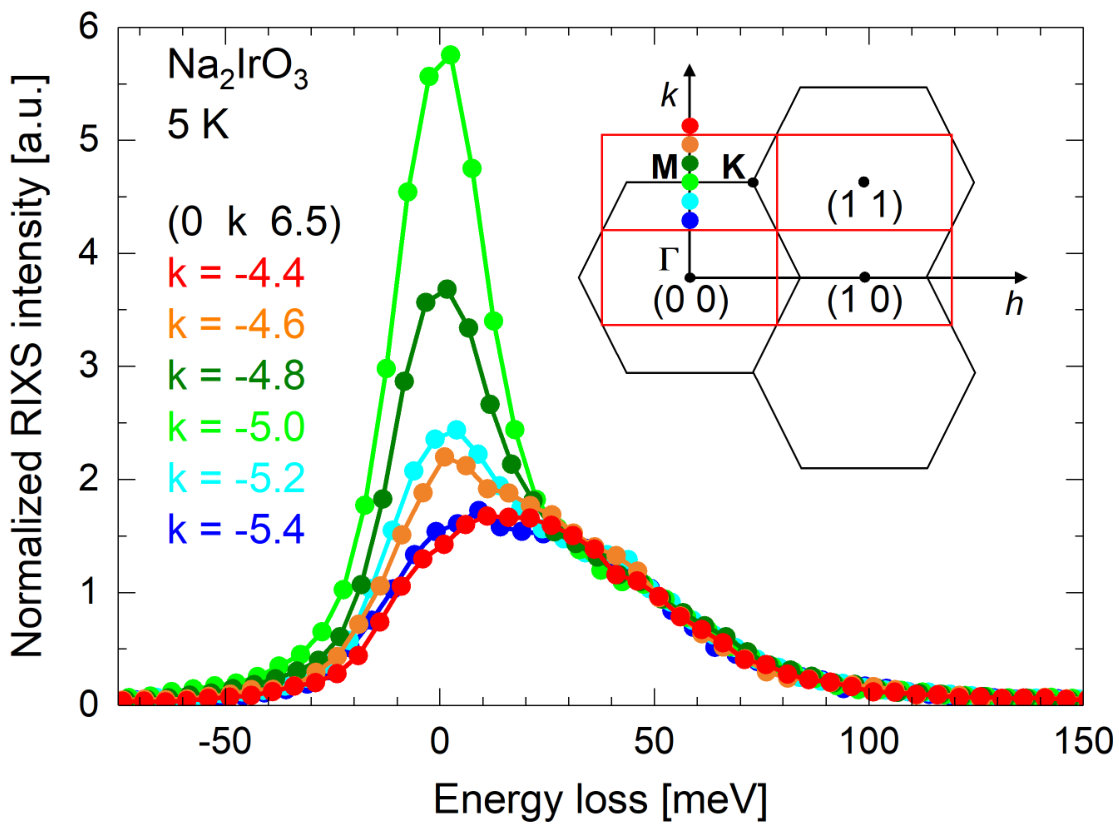

Having established the magnetic character of the continuum, we now address the $\mathbf{q}$-dependent behavior. RIXS spectra of Na2IrO3 covering the range from (0 -4.4 6.5) to (0 -5.4 6.5) are depicted in Fig. 8. Note that (0 -5 6.5) corresponds to a magnetic Bragg peak Ye12 . The data in Fig. 8 were normalized to the RIXS intensity at an energy loss of 50 meV. The excellent agreement obtained above some 20 meV shows that the RIXS intensity of the magnetic continuum depends on $\mathbf{q}$ while the peak energy and width are hardly affected. The $\mathbf{q}$-dependent intensity of the continuum corresponds to the dynamical structure factor $S(\mathbf{q},\omega)$, which allows us to measure dynamical spin-spin correlations in real space (see also the Discussion section).

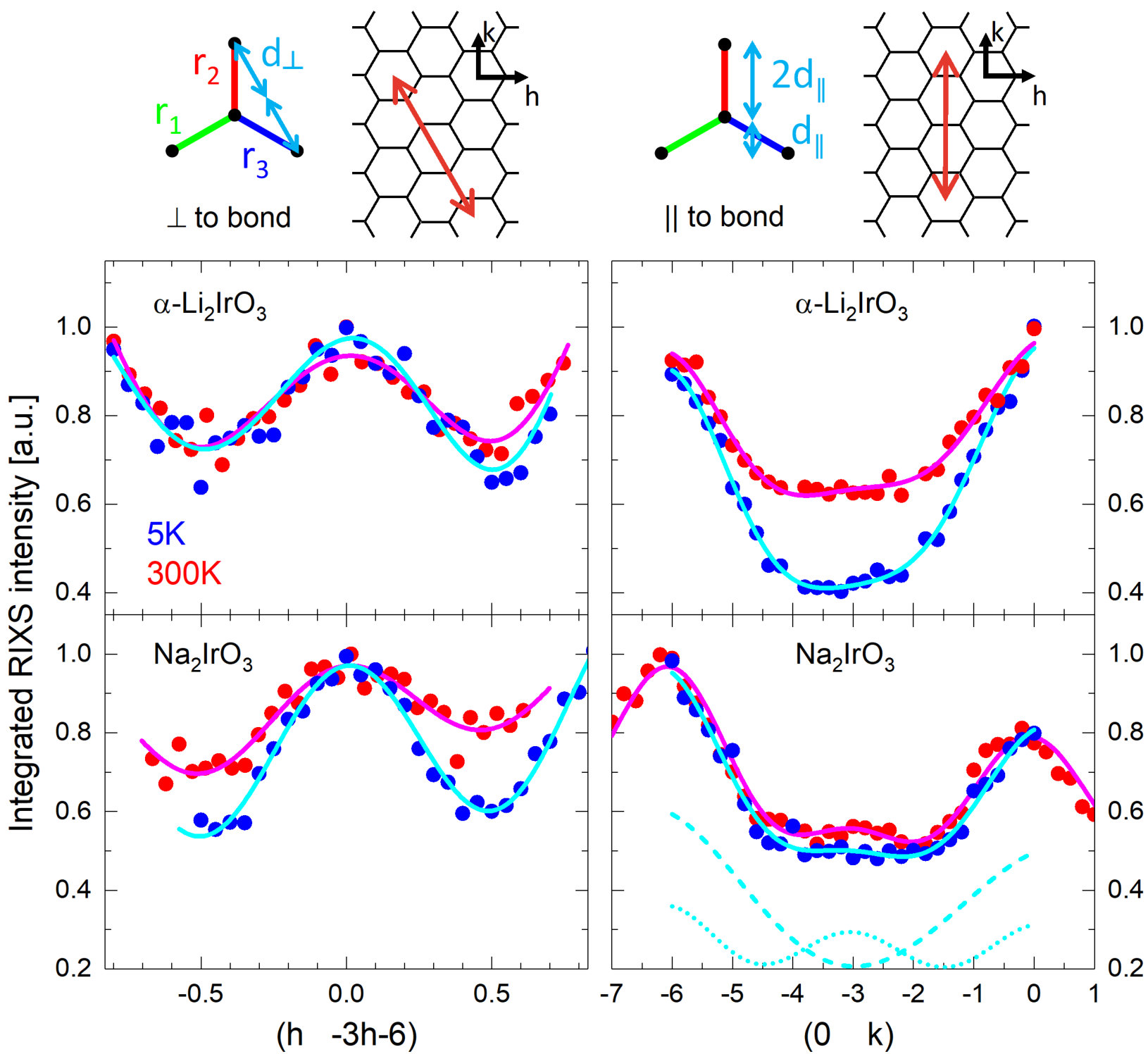

We address $S(\mathbf{q},\omega)$ by measuring the $\mathbf{q}$-dependent intensity modulation of the magnetic continuum above 30 meV for different directions of $\mathbf{q}$, see Fig. 9. The data cover several Brillouin zones, both at 5 K and 300 K. Note that the honeycomb lattice has three different Ir-Ir bonds described by the real-space vectors $\mathbf{r}_{1/3}$ = ($\pm a/2$, $b/6$, 0) and $\mathbf{r}_{2}$ = (0, $b/3$, 0), as sketched by the green, red, and blue bonds on top of Fig. 9. The left panels of Fig. 9 show data for $\mathbf{q}\perp\mathbf{r}_{1}$ with $\mathbf{q}\cdot\mathbf{r}_{2}$ = $\mathbf{q}\cdot\mathbf{r}_{3}$ ($\Gamma$-$K$ direction, cf. inset of Fig. 8). In this direction, we find a pronounced sinusoidal intensity modulation $\cos^{2}(\mathbf{q}\cdot\mathbf{r}_{2}/2)$ in both compounds. The modulation period corresponds to nearest-neighbor correlations. This behavior strongly deviates from the expectations for magnons in a long-range ordered state, as reported in $L$-edge RIXS on the square-lattice Heisenberg magnet Sr2IrO4 Kim12 . Recently, such a sinusoidal modulation of the Ir $L$-edge RIXS intensity was observed for Ir dimers in Ba3CeIr2O9 where it was discussed as an inelastic incarnation of Young’s double slit experiment Revelli19 . Applied to the magnetic continuum, it shows that a given excited state can only be reached by spin-flip RIXS processes on either of the two Ir sites of a given bond. In other words, dynamical spin-spin correlations for the magnetic continuum are restricted to nearest neighbors. This is a key feature of the Kitaev model, in which the three different spin-flip channels are independent and do not interfere with each other Halasz16 . Flipping the $x$ component of the spin creates an excitation on an $x$ bond, while a flip of the $y$ component yields an orthogonal final state living on a $y$ bond. Similar results were reported for $\alpha$-RuCl3 based on inelastic neutron scattering Banerjee17 . Remarkably, $\alpha$-Li2IrO3 and Na2IrO3 show very similar behavior, despite their different magnetic ordering patterns Winter17rev .

Besides the sinusoidal modulation, the RIXS intensity shows a slow variation with $\mathbf{q}$. Note that a change of $\mathbf{q}$ is unavoidably accompanied by a change of the experimental scattering geometry, which affects the x-ray polarization and the matrix elements. This gives rise to deviations from a pure sinusoidal behavior. We emphasize that spin-spin correlations beyond nearest neighbors would give rise to a shorter modulation period, for which we do not find any evidence. Based on the noise level of the data, we estimate the upper limit for such a further-neighbor contribution with a shorter modulation period to 10%.

The restriction of dynamical spin-spin correlations to nearest neighbors is corroborated by the behavior observed for the $\Gamma$-$M$ direction, see right panels of Fig. 9. With $\mathbf{q}\parallel\mathbf{r}_{2}$ and $\mathbf{q}\cdot\mathbf{r}_{1}$ = $\mathbf{q}\cdot\mathbf{r}_{3}$ = $(\mathbf{q}\cdot\mathbf{r}_{2})/2$, the nearest-neighbor correlations on the three different bonds give rise to an incoherent sum of two sinusoidal modulations,

[TABLE]

where the period of the latter is twice the period of the former due to the different projections $\mathbf{q}\cdot\mathbf{r}_{i}$, see dashed and dotted lines in the lower right panel of Fig. 9. Most importantly, we do not find, within our experimental resolution, any evidence for further modulation periods beyond nearest neighbors. The experiment roughly shows $I_{1/3}\approx 2I_{2}$, which reflects the fact that the two bonds $\mathbf{r}_{1}$ and $\mathbf{r}_{3}$ contribute to the modulation amplitude $I_{1/3}$. Additionally, the prefactors depend on the x-ray polarization and the scattering geometry, both changing with $\mathbf{q}$ in our measurements. As discussed above for the $\Gamma$-$K$ direction, this causes deviations from a pure sinusoidal behavior.

The $\mathbf{q}$-dependent intensity modulation is very robust against temperature. The main change at 300 K is a reduction of the modulation amplitude, see Fig. 9. This can be rationalized by the energy scale of the observed excitations, which is comparable to $k_{B}\,300\,K\approx 26\,$meV. It is thus not surprising that nearest-neighbor correlations are still strong at 300 K.

Our central experimental finding is that the magnetic continuum shows only nearest-neighbor spin-spin correlations even in the long-range magnetically ordered state at 5 K. This behavior strongly deviates from the expectations for magnons, which are supposed to reflect longer-range spin-spin correlations at lower energy. Indeed, for integration below 30 meV at 5 K, both Na2IrO3 and $\alpha$-Li2IrO3 show additional modulation periods which correspond to spin-spin correlations beyond nearest neighbors, see open symbols in Fig. 10. Due to the different magnetic ordering patterns, the behavior of the two compounds differs at low energy and for temperatures below $T_{N}$. In Na2IrO3, the intensity for instance strongly increases in the vicinity of (0 -1 6.5), a magnetic Bragg peak reflecting zigzag order. The incommensurate magnetic order of $\alpha$-Li2IrO3 gives rise to a different dynamical structure factor $S(\mathbf{q},\omega)$. These differences observed at low energy corroborate the notion that the common high-energy continuum is not related to long-range magnetic order, as sketched in Fig. 1.

IV Discussion

Our RIXS study of Na2IrO3 and $\alpha$-Li2IrO3 in the high-temperature regime above their respective magnetic ordering transitions as well as the high-energy regime of their magnetically ordered low-temperature states has revealed many atypical features that allow to clearly rule out that this high-energy and high-temperature RIXS response can be interpreted as arising from a conventional, featureless paramagnetic state. In fact, taken together these experimentally observed features – a broad continuum of magnetic excitations, its persistence to high temperatures, and dominant nearest-neighbor spin-spin correlations – can be consistently explained, as we will argue in the following, by assuming that Na2IrO3 and $\alpha$-Li2IrO3 are both in close proximity to a Kitaev spin liquid. To do so, we will review the RIXS response expected for the pure Kitaev model and discuss how this response is modified in the presence of additional magnetic interactions Winter16 , i.e. generic diagonal and off-diagonal couplings expected to be present in these spin-orbit entangled materials Rau2016 .

RIXS response of pure Kitaev model.– For the pure Kitaev model, the RIXS response was first elucidated by Halász, Perkins, and van den Brink Halasz16 , where they showed that, with a $t_{2g}^{6}$ intermediate state, the response naturally decomposes into four independent RIXS channels. The single spin-conserving RIXS channel corresponds to an indirect RIXS process and is thus much weaker than the remaining three spin-flip RIXS channels, which correspond to direct processes. As a result, it is only these spin-flip RIXS channels that are of relevance to the discussion here. The three different channels correspond to the three diagonal components of the dynamical spin structure factor. In the language of the Kitaev model, they excite both mobile Majorana fermions and static flux excitations, so-called visons. For example, the operator $S_{i}^{x}$ creates propagating Majoranas, as well as two visons in adjacent plaquettes, as illustrated in Fig. 11(a). Since the visons are gapped, this translates to a gapped RIXS response, with a sharp peak at the $\Gamma$ point at the two-flux gap of the order of ten percent of the Kitaev coupling $K_{1}$, followed by a broad continuum, reflecting the existence of fractionalized excitations (itinerant Majorana fermions and static visons).

Broad continuum of excitations.– Experimentally, the total spin-flip RIXS spectrum shows only a broad magnetic excitation continuum at the $\Gamma$ point, peaking at about 15 meV in $\alpha$-Li2IrO3 and 35 meV in Na2IrO3. The expectation of the pure Kitaev model, a dominant sharp peak at $\hbar\omega\,\sim\,0.1\,|K_{1}|$ followed by a broad continuum, must be modified to include (i) the anisotropy of the Kitaev coupling on different bonds Winter16 , (ii) the inclusion of additional exchange interactions such as Heisenberg and off-diagonal, bond-directional terms (such as the so-called $\Gamma$-exchange) Rau2016 , and (iii) finite temperature. Taken together, all three effects lead to a significant broadening of the dominant peak and a shift to higher energies Knolle14 ; Knolle18 ; Yoshitake16 ; Yoshitake17a ; Samarakoon17 . For both Na2IrO3 and $\alpha$-Li2IrO3 the anisotropy of $K_{1}$ and the existence of additional exchange interactions are well established Winter16 . Unfortunately, inclusion of such terms breaks the integrability of the model, providing a challenge to quantitative theoretical modeling. However, an augmented parton mean-field theory from Knolle, Bhattacharjee, and Moessner Knolle18 found that the dominant low-energy peak does indeed broaden substantially and shift to significantly higher energy upon inclusion of the additional relevant exchange interactions. Without detailed knowledge of the minimal model for the materials at hand, one can only estimate that the peak energy should be comparable to the energy scale of the Kitaev coupling. The ratio of the energy at which the peak occurs for Na2IrO3 to that for $\alpha$-Li2IrO3 is roughly a factor of two. Form this, we are led to infer a similar ratio of their respective Kitaev couplings. Indeed, this is in good agreement with ab-initio estimates Winter16 ; Katukuri14 ; Nishimoto16 ; Yamaji14 , which yield ferromagnetic $K_{1}$ in the range -15 to -35 meV for Na2IrO3 and -4 to -13 meV for $\alpha$-Li2IrO3. The broad excitation continuum observed is thus consistent with the expectation for an extended Kitaev model.

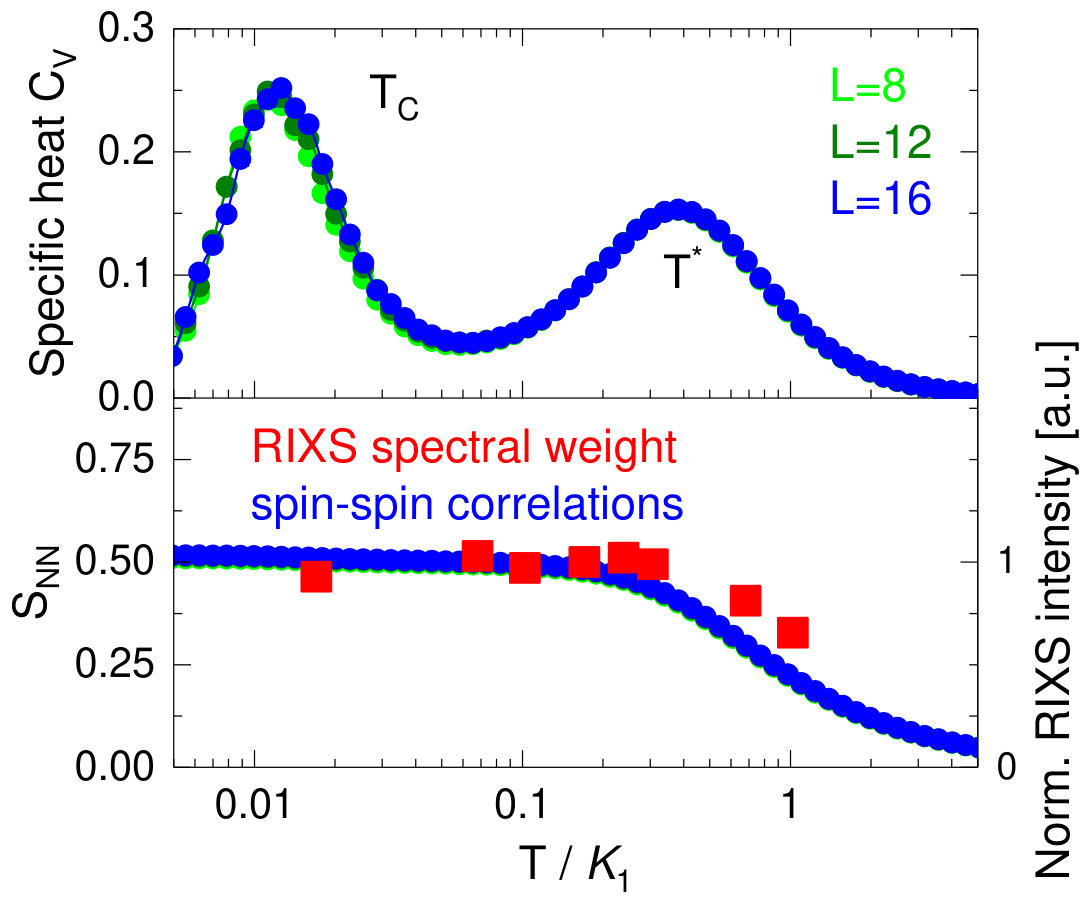

Temperature dependence of continuum.– With increasing temperature, the shape of the experimentally observed broad continuum remains largely unchanged, with only a decrease in overall intensity. This decrease is more pronounced for $\alpha$-Li2IrO3, consistent with the overall lower energy scale of the peak. Such a temperature dependence is qualitatively consistent with numerical calculations, where, at temperatures above the flux gap, the broad continuum displays only a smooth weakening in intensity as temperature increases Yamaji18 ; Yoshitake16 ; Samarakoon17 ; Suzuki18 . Since the magnetic continuum reveals only nearest-neighbor correlations, see Fig. 9, we can quantitatively compare the integrated RIXS intensity of the continuum with the (static) nearest-neighbor correlations of the pure Kitaev model, calculated through numerically exact quantum Monte Carlo simulations Nasu2014 . Note that we consider static correlations in our numerics, i.e. the dynamical structure factor integrated over all energies, while in experiment the data was integrated above a cutoff of 30 meV. Such a comparison is shown in Fig. 12, where we have rescaled the temperature scale, using the experimentally determined specific heat data of Na2IrO3 Mehlawat17 which locates the high-temperature crossover in the specific heat (see upper panel in Fig. 12) at $T^{*}$ = 110 K. After this rescaling, the two data sets bear a striking resemblance – both traces of the nearest-neighbor correlations remain nearly constant up to the order of the high-temperature crossover scale and drop only then, indicating a transition to a featureless, paramagnetic state at temperatures which are one order of magnitude higher than the experimentally observed magnetic ordering scale.

We note that an alternate scenario for the origin of the broad continuum in $\alpha$-RuCl3 has recently been put forward by Winter et al.  Winter17 , which attributes it to magnon decay within a multi-magnon continuum. They showed that large anisotropic couplings in spin-orbit coupled magnets can generically lead to substantial two-magnon decay, giving rise to a broad, incoherent excitation continuum in the long-range ordered state. This raises the question of whether the magnetically ordered state or the proximate spin liquid are the better starting point for the description of the excitations in Na2IrO3 and $\alpha$-Li2IrO3. In our experimental RIXS data, one of the most striking observations is that the excitation continuum persists up to temperatures of roughly 20 $T_{N}$, far above the ordered state and magnon modes. Consequently, we are led to the conclusion that we cannot explain the existence of a high-temperature quasi-2D continuum via the physics of low-temperature 3D magnons and that the scenario of a proximate spin liquid is a better starting point.

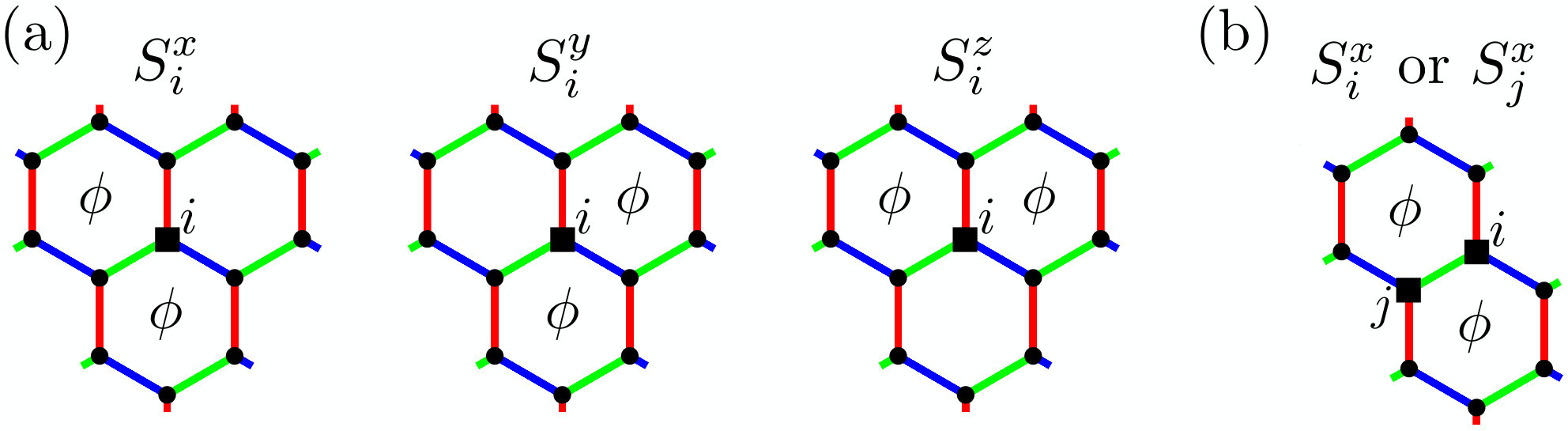

Nearest-neighbor spin-spin correlations.– As discussed above for the pure Kitaev model, spin-flip RIXS creates two local visons in adjacent plaquettes as illustrated in Fig. 11. Such a probe of only the nearest-neighbor spin correlations is indeed corroborated by our experimentally observed momentum dependence. Note that this observation clearly differs from the response of other spin liquid candidates inspected on the Kagome lattice and the triangular lattice which show clear deviations from a pure $\cos^{2}(qR/2)$ behavior Han12 ; Shen16 due to finite correlations between next-nearest and further neighbors. The pronounced sinusoidal shape thus provides strong evidence for the dominant role of Kitaev interactions.

The strict nearest-neighbor spin-spin correlations of the pure Kitaev model are, of course, modified by the inclusion of the necessary additional interactions. These integrability-breaking terms add dynamics to the previously immobile flux excitations, giving rise to correlations beyond nearest neighbors Yamaji16 ; Knolle18 . To quantitatively illustrate this effect, we plot results from numerical exact diagonalization calculations TPQS1 ; TPQS2 , similar to Ref. Yamaji16, , for the (static) nearest and next-nearest neighbor spin-spin correlations in Fig. 13. Shown are data for both, the pure Kitaev model (top) and an extended Kitaev model (bottom) augmented by Heisenberg and off-diagonal spin exchanges, based on the proposal Yamaji14 by Yamaji et al. for Na2IrO3: $J_{1}$ = $+3.2$, $K_{1}$ = $-29.4$, $\Gamma^{\prime}_{1}$ = $-3.5$, $J_{3}$ = $+1.7$ in units of meV. As can be seen, these static next-nearest neighbor correlations remain negligible at elevated temperatures, remaining at a level well below 20% of the corresponding nearest-neighbor correlations in the temperature region corresponding to the upper peak in the specific heat. For a detailed discussion of the role of the individual exchange terms on the nearest and next-nearest neighbor spin-spin correlations, see the Appendix.

Comparison to $\alpha$-RuCl3.– Phenomenologically, we note that the results presented here are in full analogy with the inelastic neutron scattering data on the closely related $j$ = 1/2 compound $\alpha$-RuCl3 Banerjee17 . Both in $\alpha$-RuCl3 and the honeycomb iridates studied here, there is a broad excitation continuum with a maximum of intensity at the $\Gamma$ point at high energies which is robust against temperature, persisting up to roughly $20\,T_{\rm N}$. Additionally, the neutron data show a nearly sinusoidal modulation along $\Gamma$-$K$ with a period that reflects that spin-spin correlations are predominantly of nearest-neighbor type. Similar to our analysis of the RIXS data, this modulation was interpreted as a signature of the experimental proximity to the Kitaev spin liquid. Note that in our RIXS data of $\alpha$-Li2IrO3 and Na2IrO3, the deviations from a pure nearest-neighbor behavior are even smaller than in $\alpha$-RuCl3.

Conclusions

In conclusion, we find that our experimental RIXS probes of the magnetic excitations of the honeycomb iridates Na2IrO3 and $\alpha$-Li2IrO3 reveal compelling evidence for the emergence of fractional excitations in a broad temperature and energy regime. Both at temperatures up to an order of magnitude above the magnetic ordering transition as well as for high-energy probes in the magnetically ordered ground state, we find evidence of a broad continuum of magnetic states which cannot be explained in terms of low-energy magnon modes. In addition, a careful analysis of the (spin-flip) RIXS processes reveals that the spin-spin correlations are, within our experimental resolution, confined to nearest neighbor sites. While extremely localized in nature, the spin-spin correlations are extremely robust against thermal fluctuations up to temperatures of about 300 K. In combination, these experimental findings prove that both materials must be located in close proximity to a Kitaev spin liquid, which leaves a distinct fingerprint on their high-temperature and high-energy regimes beyond their magnetically ordered ground states.

We note that the principal findings of our RIXS experiments for the honeycomb iridates Na2IrO3 and $\alpha$-Li2IrO3 are in striking analogy to recent inelastic neutron scattering experiments Banerjee17 on $\alpha$-RuCl3. Their common phenomenology – a broad continuum of magnetic excitations and spin-spin correlations confined to nearest neighbors, which are both stable way beyond their magnetic ordering temperatures – should be taken as a concrete notion of what constitutes a “Kitaev material” beyond the existence of a dominant bond-directional exchange Trebst2017 , and makes these compounds prototypical examples of this new class of materials.

Acknowledgements.

We acknowledge funding from the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) – Project numbers 277146847, 247310070, and 107745057 – CRC 1238 (projects A02, B03, C03), CRC 1143 (project A05), and TRR 80 (project E06), respectively, and the research grant JE 748/1. The numerical simulations were performed on the JUWELS cluster at FZ Jülich and the CHEOPS cluster at RRZK Cologne.

Appendix A Correlations in the extended Kitaev model

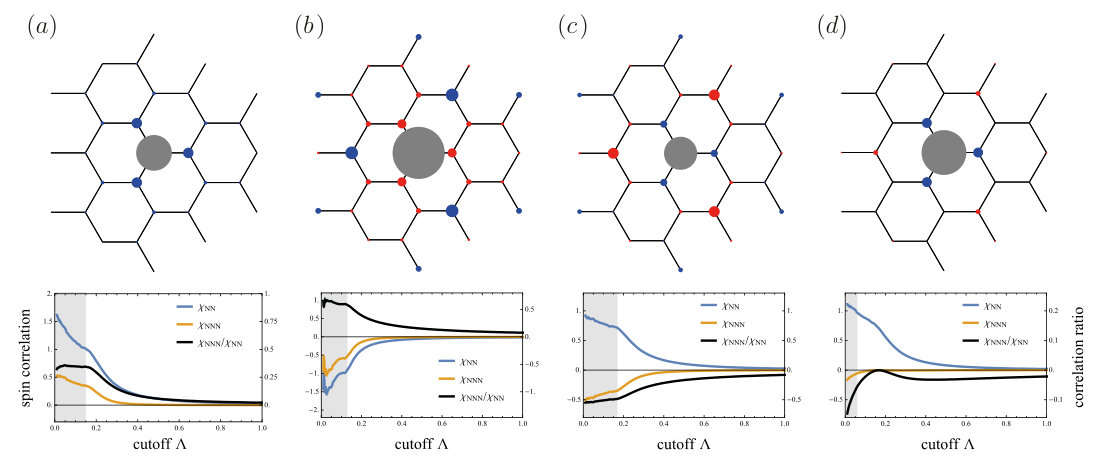

In this appendix, we investigate the effect of spin interactions beyond the pure Kitaev model on the spin-spin correlations. We individually evaluate the effect of nearest neighbor and next-nearest neighbor Heisenberg interactions as well as off-diagonal $\Gamma_{1}^{\prime}$ interactions, as defined in Eq. (A), which are arguably relevant in Na2IrO3 Winter17rev . We make use of a pseudo-fermion functional renormalization group (pf-FRG) approach Reuther2010 , which has previously been employed to study the Kitaev model on the honeycomb lattice augmented by nearest neighbor Reuther2011c and further neighbor Singh2012 Heisenberg interactions. Recently, the method has been extended to comprise arbitrary non-diagonal two-spin interactions Buessen2019 , including also interactions of $\Gamma_{1}^{\prime}$ type. The pf-FRG approach can be understood as a simultaneous large-S expansion Baez2017 , typically associated with magnetically ordered phases, and large-N expansion Buessen2018a ; Roscher2018 , commonly favoring spin liquid ground states. The treatment of both channels on equal footing explains why the method can be readily employed to model the delicate interplay of magnetic order and spin-liquid physics, both in two-dimensional Reuther2010 and three-dimensional Iqbal2016 ; Buessen2016 frustrated quantum spin systems.

The technique is based on a re-writing of spin operators in terms of Abrikosov fermions Abrikosov1965 (pseudo-fermions), and applying a conventional fermionic functional renormalization group (FRG) scheme Wetterich1993 to the resulting strongly coupled pseudo-fermion system. Within the FRG scheme, it is possible to simultaneously compute the renormalization (in a Wilsonian sense) of millions of interaction parameters. The renormalization group flow of the interaction parameters is generated by the installation of a (Matsubara-) frequency cutoff $\Lambda$; the flow equations are solved numerically from the limit of infinite cutoff, which corresponds to high temperatures Iqbal2016 , down to zero cutoff where the fully interacting physical system at zero temperature is restored. If the system undergoes a magnetic ordering transition at finite temperatures, the associated spontaneous symmetry breaking manifests itself in the form of a non-analyticity in the flow of the spin-spin correlation function

[TABLE]

at some critical cutoff scale $\Lambda_{c}$. Properties of the system below the flow breakdown point $\Lambda_{c}$ cannot be resolved within pf-FRG, but the spin-spin correlations just above the breakdown can be used as an indicator for the type of magnetic order that is about to proliferate. Note that this definition of the correlation function corresponds to the elastic $(\omega$ = $0)$ component of the (real-space transformed) dynamic structure factor.

Our general model of interest comprises Kitaev interactions at strength $K_{1}$, nearest and third-nearest neighbor Heisenberg interactions of strength $J_{1}$ and $J_{3}$, respectively, as well as $\Gamma_{1}^{\prime}$ interactions. It is governed by the Hamiltonian

[TABLE]

where $\langle i,j\rangle_{1}$ and $\langle i,j\rangle_{3}$ denote summations over all nearest neighbors and third-nearest neighbors, respectively, and the index $\gamma$ = $x$, $y$, $z$ denotes the bond type. We investigate four different scenarios of spin interactions beyond the pure ferromagnetic Kitaev model ($K_{1}$ = $-1$). (i) Augmenting the Kitaev model with a finite $\Gamma_{1}^{\prime}$ = $-0.25$ generates ferromagnetic spin-spin correlations on nearest, next-nearest and further neighbors. It induces a phase transition into a ferromagnetically ordered state, indicated in our pf-FRG calculations by a kink in the RG flow of the observables, below which they exhibit unphysical behavior (Fig. 14a). (ii) Adding sizable anti-ferromagnetic nearest neighbor Heisenberg interactions $J_{1}$ = $0.5$ drives the system into the phase of ‘stripy’ order. Its symmetrized correlations $\chi_{ij}^{\Lambda}$, which we determine just above the phase transition at $\Lambda_{c}$, are anti-ferromagnetic for nearest neighbors as well as next-nearest neighbors (Fig. 14b). (iii) The combination of Kitaev interactions with anti-ferromagnetic third-nearest neighbor Heisenberg exchange $J_{3}=0.25$ favors a ‘zigzag’ ordered ground state. This configuration has ferromagnetic nearest-neighbor correlations, while the second-nearest neighbors correlate anti-ferromagnetically (Fig. 14c). (iv) Ab-initio calculations Yamaji14 suggest the presence of anti-ferromagnetic nearest-neighbor Heisenberg interactions $J_{1}/|K_{1}|\approx 0.1$ and third-nearest neighbor Heisenberg interactions $J_{3}/|K_{1}|\approx 0.05$ in Na2IrO3. We have argued that both of these couplings favor anti-ferromagnetic correlations on next-nearest neighbor level. These correlations can be suppressed in the presence of finite $\Gamma_{1}^{\prime}$ interactions. At moderate values for $\Gamma_{1}^{\prime}/|K_{1}|\approx-0.25$, the next-nearest neighbor correlations thereby almost vanish (Fig. 14d). At smaller values of $\Gamma_{1}^{\prime}$ the suppression is less drastic, particularly at $\Gamma_{1}^{\prime}/|K_{1}|\approx 0.1$ which is the value suggested by ab-initio calculations; in our calculations, however, we neglect bond anisotropies in the coupling constants that are also part of the ab-initio theory. Nevertheless, we have qualitatively demonstrated that the presence of $\Gamma_{1}^{\prime}$ interactions in Na2IrO3 may play an important role in the suppression of next-nearest neighbor correlations at temperatures above the ordering transition.
