Probing gaseous halos of galaxies with radio jets

TL;DR

This study models the radio luminosity of galaxies' gaseous halos to explain the observed increase at around 10^{11} solar masses, linking it to changes in halo gas density and cooling rates, using LOFAR survey data.

Contribution

The paper introduces models of radio luminosity based on different halo gas states and compares them with LOFAR data, revealing the role of halo gas density changes at a critical galaxy mass.

Findings

Hydrostatic halo models match the upper envelope of LOFAR data.

The rise in radio luminosity at 10^{11} M_sun is due to lower cooling rates and gas density changes.

Wind and infall models do not reproduce the observed steepening.

Abstract

Gaseous halos play a key role for understanding inflow, feedback and the overall baryon budget in galaxies. Literature models predict transitions of the state of the gaseous halo between cold and hot accretion, winds, fountains and hydrostatic halos at certain galaxy masses. Since luminosities of radio AGN are sensitive to halo densities, any significant transition would be expected to show up in the radio luminosities of large samples of galaxies. The Low Frequency Array (LOFAR) Two Metre Sky Survey (LoTSS) has indeed identified a galaxy stellar mass scale, $10^{11} M_\odot$ , above which the radio luminosities increase disproportionately. Here, we investigate, if radio luminosities of galaxies, especially the marked rise at galaxy masses around $10^{11} M_\odot$, can be explained with standard assumptions on jet powers, scaling between black hole-mass and galaxy mass and gaseous halos. We developed models for the radio luminosity of radio AGN in halos under infall, galactic wind and hydrostatic conditions based on observational data and theoretical constraints, and compared it to LoTSS data for a large sample of galaxies in the mass rangebetween $10^{8.5} M_\odot$ and $10^{12} M_\odot$. Assuming the same characteristic upper limit to jet powers as is known from high galaxy masses to hold at all masses, we find that the maximum radio luminosities for the hydrostatic gas halos fit well with the upper envelope of the distribution of the LOFAR data. The marked rise in radio luminosity at $10^{11} M_\odot$ is matched in our model, and is related to significant change in halo gas density around this galaxy mass, which is a consequence of the lower cooling rates at higher virial temperature. Wind and infall models overpredict the radio luminosities at small galaxy masses and have no particular steepening of the run of the radio luminosities predicted at any galaxy mass. [...]

Figures

Equations

$${\Phi }_{\mathrm{NFW}}=-\frac{G{M}_{\mathrm{vir}}}{r}\frac{\log \left(1+r/R_{\mathrm{s}}\right)}{\log (1+C)-C/(1+C)}.$$

Full text

*Aims. *Here, we investigate, if radio luminosities of galaxies, especially the marked rise at galaxy masses around $10^{11}M_{\odot}$, can be explained with standard assumptions on jet powers, scaling between black hole-mass and galaxy mass and gaseous halos.

*Methods. *We developed models for the radio luminosity of radio AGN in halos under infall, galactic wind and hydrostatic conditions based on observational data and theoretical constraints, and compared it to LoTSS data for a large sample of galaxies in the mass range between $10^{8.5}M_{\odot}$ and $10^{12}M_{\odot}$.

*Results. *Assuming the same characteristic upper limit to jet powers as is known from high galaxy masses to hold at all masses, we find that the maximum radio luminosities for the hydrostatic gas halos fit well with the upper envelope of the distribution of the LOFAR data. The marked rise in radio luminosity at $10^{11}M_{\odot}$ is matched in our model, and is related to significant change in halo gas density around this galaxy mass, which is a consequence of the lower cooling rates at higher virial temperature. Wind and infall models overpredict the radio luminosities at small galaxy masses and have no particular steepening of the run of the radio luminosities predicted at any galaxy mass.

*Conclusions. *Our analysis is consistent with radio AGN having the same characteristic, Eddington-scaled upper limit to jet powers in galaxies of all masses and with all galaxies having hydrostatic gas halos in phases when radio AGN are active. We find no evidence for a change of the type of galaxy halo with galaxy mass. Galactic winds and quasi-spherical cosmological inflow phases cannot frequently happen at the same time as powerful jet episodes unless the jet properties in these phases are significantly different from what we assumed in our model.

1 Introduction

Radio emission in galaxies is commonly attributed to activity of the supermassive black hole as well as to processes related to the formation of stars (for recent reviews see Hardcastle, 2015; Tadhunter, 2016; Norris, 2017; Krause, 2018). The LOFAR radio telescope is surveying the northern sky at low-frequency with unprecedented resolution and sensitivity (Combes et al., 2019), giving us a much more comprehensive view of the radio emission of the local galaxy population. Of the 326,000 sources in the first data release of the LOFAR Two-metre Sky Survey (LoTSS Shimwell et al., 2019), 70% have optical counterparts (Williams et al., 2019) including redshifts and absolute magnitudes (Duncan et al., 2019).

Sabater et al. (2019) cross-matched the LoTSS database with the Sloan Digital Sky Survey and classified the sources as galaxies with or without active galactic nuclei based on diagnostic emission line and two-colour plots, and the strength of the 4000 Å break and the luminosity in H$\alpha$ compared to the 150 MHz radio luminosity. This resulted in a local sample of 2121 galaxies with active galactic nuclei (AGN) and 8494 star-forming galaxies. They find that galaxy mass is the main driver of radio-AGN formation and that above a stellar mass of $10^{11}M_{\odot}$, all galaxies are switched on, whereas below $3\times 10^{10}M_{\odot}$ less than 10% of the galaxies show even the faintest sign of a radio AGN. This is a significant improvement of previous results, and a direct consequence of the more sensitive LoTSS observations compared to previous surveys.

Separating contributions from AGN activity and star formation to the total radio luminosity is, however, a difficult issue (e.g., Gürkan et al., 2018). It is even more complicated by the fact that even luminous radio AGN frequently do not show any optical activity.

The radio luminosity of an AGN depends on both, jet power and environment (e.g., Kaiser et al., 1997; Manolakou & Kirk, 2002; Hardcastle & Krause, 2013, 2014; Maciel & Alexander, 2014; Turner & Shabala, 2015; English et al., 2016; Turner et al., 2018). The lack of radio AGN at lower galaxy masses might therefore either indicate that such galaxies have the capacity to produce radio jets to a much lesser extent, or that the gaseous halos of the smaller galaxies differ significantly from the ones in bigger galaxies.

Empirical studies provide hints that AGN may work differently in galaxies of different masses. For example, Best et al. (2005) found that the expression of optical activity is essentially independent of activity in the radio band, with lower mass galaxies showing more optical activity and higher mass galaxies showing more radio-loud AGN. Focussing on radio-loud AGN only, Kauffmann et al. (2008) showed that the probability for them to have emission lines decreases with galaxy mass. This could, however, be due to the fact that at low galaxy mass, radio AGN with low Eddington ratio, which tend to have little line emission (Best & Heckman, 2012), are harder to detect. On the other hand, the existence of scaling relations between black-hole mass and stellar velocity dispersion, bulge mass and total galaxy mass (e.g., Magorrian et al., 1998; Häring & Rix, 2004; Gültekin et al., 2009; Reines & Volonteri, 2015; Bentz & Manne-Nicholas, 2018) suggests most galaxies have supermassive black holes, which grow in a similar way during phases of nuclear activity (compare, e.g., Soltan, 1982; Merloni & Heinz, 2008; Tucci & Volonteri, 2017). Radio AGN that also have strong emission lines tend to be associated with more strongly star-forming hosts (Hardcastle et al., 2013), higher Eddington ratios and lower stellar mass (Best & Heckman, 2012). Hence, the observational evidence suggests that lower mass galaxies have, on average, higher Eddington-scaled accretion rates on their central, supermassive black holes. In emission line AGN, the luminosity in optical emission lines is broadly correlated to the radio luminosity (McCarthy, 1993; Kauffmann et al., 2008). Therefore, one should expect that the typical, Eddington-scaled jet power in low-mass galaxies is, if anything, rather higher than in high-mass galaxies.

Galaxy halos, however, might be expected to be qualitatively different in galaxies with different masses: a hot halo can form via an accretion shock in galaxies with a mass of their dark matter halo $>10^{11}M_{\odot}$, whereas at lower masses, one expects that the accreting gas cools so fast that no shock forms (Birnboim & Dekel, 2003). This difference has lead to the concept that high mass galaxies accrete their gas mainly in the hot mode, i.e. by first shock-heating it to the virial temperature of the dark matter halo and subsequent gas cooling, whereas the lower mass galaxies accrete in the cold mode with cold gas being channeled into the galaxies along cosmic filaments (Dekel & Birnboim, 2006). In a cosmological, hydrodynamic simulation, Kereš et al. (2005) find a critical dark matter mass, at a similar level of $3\times 10^{11}M_{\odot}$. We can use the halo occupation model of Moster et al. (2013) to derive a critical stellar mass of 1-3$\times 10^{9}M_{\odot}$ where the properties of the gas halos would be expected to change. However, this disagrees with the mass scale of $10^{11}M_{\odot}$ (stellar mass) now identified in the sensitive LOFAR measurements.

One might suspect that stellar feedback affects the properties of galaxy halos. Two types of interstellar medium-halo interaction are known: fountains, where the gas mainly circulates in the lower (i.e. closer to the galactic disc) part of the halo and galactic winds where gas appears at above escape speed and the outflow likely proceeds beyond the virial radius of the galaxy (e.g., Chevalier & Clegg, 1985; de Avillez & Breitschwerdt, 2004, 2005; Veilleux et al., 2005; Dubois & Teyssier, 2008; von Glasow et al., 2013; Gatto et al., 2015; Heckman & Thompson, 2017; Kim & Ostriker, 2018).

In the fountain case, high entropy material accumulates at high altitudes and there is a smooth transition to a hydrostatic halo (e.g., de Avillez & Breitschwerdt, 2004, 2005). This is confirmed by studies of, e.g., the motion of HI clouds (e.g., Mirabel, 1981; Kalberla & Dedes, 2008; Marasco et al., 2012) and observations of the hot halo gas of the Milky Way in X-ray absorption and emission (Gupta et al., 2012, 2017; Bregman et al., 2018).

Simulations of galactic winds found that at the onset of the wind, any infalling or hydrostatic halo is swept up by a shock wave, leaving the halo in a state of low density outflow with regions of turbulence and denser gas in filaments or on the walls of the outflow cone (e.g., Strickland & Stevens, 2000; Cooper et al., 2008; Dubois & Teyssier, 2008; von Glasow et al., 2013; Ruszkowski et al., 2017). Multi-wavelength observations of the different gas phases are generally consistent with this structure (e.g., Veilleux et al., 2005; Strickland & Heckman, 2007; Heckman & Thompson, 2017).

The transition between wind and fountain solution occurs at different galaxy masses in different types of simulations, depending probably mainly on details of the feedback implementation. For example, Dubois & Teyssier (2008), using an effective equation of state for unresolved interstellar medium and energy input from clustered supernovae, find a galactic wind for their galaxies with circular velocity of 35 km s*-1*  (stellar mass $\approx 10^{7}M_{\odot}$), but a fountain for 75 km s*-1*  galaxies (stellar mass $\approx 10^{9}M_{\odot}$). Jacob et al. (2018), who also use an effective equation of state for unresolved interstellar medium and focus on cosmic rays as driver of feedback, find galactic winds below 160 km s*-1* (stellar mass $\approx 3\times 10^{10}M_{\odot}$), and a fountain solution at higher masses. Galactic winds consistently form in the simulations, when a characteristic threshold of star formation rate per unit area is exceeded (e.g., von Glasow et al., 2013). Hence, any given galaxy might switch repeatedly between wind and fountain, depending on the current availability of fuel for star formation.

Direct observations of hot gaseous halos of galaxies in X-rays are rare (for reviews see Putman et al., 2012; Tumlinson et al., 2017). For a few massive spirals and elliptical galaxies with stellar mass $\gtrsim 10^{11}M_{\odot}$, Bregman et al. (2018) report X-ray detections, and in some cases also density profiles. The results are consistent with expectations for a gas halo at the virial temperature close to hydrostatic equilibrium. Strickland et al. (2004) show for a sample of disc galaxies with circular velocities between 100 and 244 km s*-1* (stellar masses: $\approx 10^{10}-10^{11}M_{\odot}$) that most of the luminosity of extraplanar X-ray emission is likely related to superbubble blowout (see also Krause et al., 2014). The total vertical extent of the X-ray halos, however, correlates with circular velocity and might therefore also indicate a hydrostatic halo. Galaxies of all masses show multi-phase gas in their halos (e.g. Tumlinson et al., 2017; Bordoloi et al., 2018; Lan & Mo, 2018). Winds at or above escape velocity have been reported up to circular velocities of 300 km s*-1* (Heckman & Thompson, 2017).

Summarising, while trends of the state of gaseous halos (inflow, outflow or hydrostatic) with galaxy mass are expected, neither simulations nor observations currently provide a clear picture of these trends, or any particular galaxy masses where transitions would occur.

However, the new LOFAR LoTSS survey has clearly identified such a critical galaxy mass at $\approx 10^{11}M_{\odot}$. Here we investigate, with simple models for the maximum luminosity expected from the radio-AGN of a galaxy of a given mass, if this mass scale can be understood as a critical stellar mass at which the properties of gaseous halos of galaxies change significantly. We first construct fiducial gaseous halo models for the different situations described above (Sect. 2). We then describe our models for the radio emission of AGN-jets in the given halos (Sect. 3), compare to the LoTSS radio emitting galaxies in Sect. 4 and summarise our conclusions in Sect. 5.

2 Models for gaseous halos of galaxies

In this section we discuss three simple models for gaseous halos of galaxies. Hydrostatic halos are characterised by an overall equilibrium between gravity and pressure gradient. Gas cooling, stellar and AGN feedback are unable to cause large perturbations to the overall equilibrium, but produce convection (a galactic fountain) in the lower part of the halo close to the stellar component, or buoyant bubbles. Wind halos occur where feedback in the galaxy is strong enough to lead to a global gaseous outflow from the galaxy beyond its virial radius. An inflow halo will occur, where pressure forces in the halo and feedback from the galaxy are insufficient to balance the ram pressure of a global gas inflow into the galaxy. In reality, combinations of different halo types can occur in the same galaxy. For example, a disc galaxy could have a global inflow in its equatorial region, when at the same time a starburst in its core drives an outflow in the polar directions. Since jets are a directed phenomenon, we consider here only galaxies with one type of gaseous halo and imply that this is the type of halo relevant for the direction into which the jets are emitted.

2.1 Hydrostatic halos

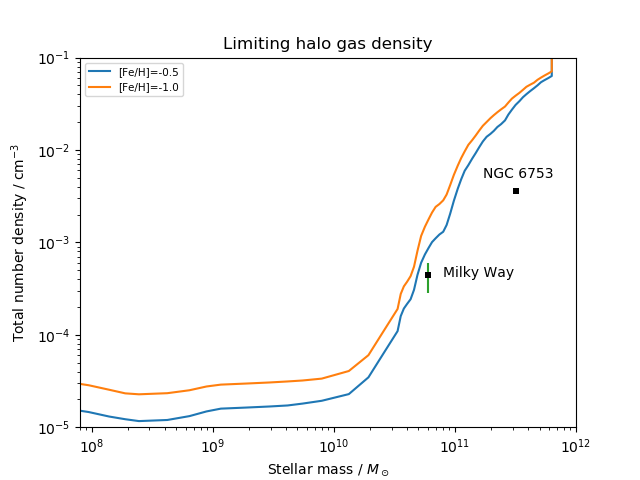

We construct a fiducial hydrostatic halo model from thermodynamic and cosmological constraints. Isothermal hydrostatic gas halos in Navarro et al. (1997) dark matter halos were derived by Makino et al. (1998). As they note, the resulting profile is similar to the conventional $\beta$-profile, which we adopt in the following: $\rho(r)=\rho_{0}(1+(r/r_{\mathrm{c}})^{2})^{-3\beta/2}$. Here $\rho(r)$ is the gas density profile approximated as spherically symmetric and $r_{\mathrm{c}}$ is the core radius. The Makino et al. (1998) gas profile is characterised by a core with a radius given by the scale radius $R_{\mathrm{s}}$ of the dark matter halo, which is related to the virial radius $R_{\mathrm{vir}}$ by the concentration $C=R_{\mathrm{vir}}/R_{\mathrm{s}}$. We use the fitting formula from Klypin et al. (2016) for redshift zero, $C=7.4(M_{\mathrm{vir}}/(10^{12}M_{\odot}/h))^{-0.12}(1+(M_{\mathrm{vir}}/M_{0})^{0.4})$, with $M_{\mathrm{vir}}=M_{200}=200\rho_{\mathrm{crit}}4\pi R_{\mathrm{vir}}^{3}/3$ and $M_{0}=5.5\times 10^{17}M_{\odot}/h$. We use the Planck Collaboration et al. (2016) cosmology; for redshift zero, $h=0.68$ and $\rho_{\mathrm{crit}}=8.62\times 10^{-30}$g cm*-3*. Massive spiral as well as elliptical galaxies are well fit by the $\beta$-model with $\beta\approx 0.5$ (Bregman et al., 2018) and we adopt this value. We note that this leads to a radio luminosity that declines with source size for radio sources larger than the core radius. Since in the following we are only interested in the maximum luminosity a radio source can produce, the exact value of $\beta$ is not important as long as $\beta>0.37$, which is required for a radio luminosity that declines with source size (Hardcastle & Krause, 2013; Yates et al., 2018). Again, since we are interested in the maximum radio luminosity of radio AGN for a given galaxy mass, we take the core density as the maximum density allowed by the requirement that the radiative cooling time $t_{\mathrm{c}}$ exceeds the dynamical time. For a given dark matter halo, we define the dynamical time as $t_{\mathrm{dyn}}=R_{\mathrm{s}}/v_{\mathrm{vir}}$ with the virial velocity $v_{\mathrm{vir}}=(GM_{\mathrm{vir}}/R_{\mathrm{vir}})^{1/2}$. We link virial masses to stellar masses $M_{*}$ by the halo occupation model of Moster et al. (2013), which we approximate as $\log_{10}M_{*}=2.2\log_{10}M_{\mathrm{vir}}-15.4$ for $\log_{10}M_{\mathrm{vir}}<11.8$ and $\log_{10}M_{*}=0.4\log_{10}M_{\mathrm{vir}}+5.8$, otherwise. This yields dynamical times of the order of 100 Myr. Using the $\left[\rm Fe/H\right]=-0.5$ and $\left[\rm Fe/H\right]=-1.0$ (Bogdán et al., 2017; Bregman et al., 2018) collisional ionisation equilibrium cooling functions $\Lambda(T)$ from Sutherland & Dopita (1993), the maximum particle density in a hydrostatic halo at the virial temperature is then given by $n_{\mathrm{max}}=k_{\mathrm{B}}T_{\mathrm{vir}}/(\Lambda(T)\,t_{\mathrm{c}})$. We plot the maximum particle density in Fig. 1 and compare it to measurements for the Milky Way and a more massive spiral galaxy. The strong increase between $M_{*}=10^{10}M_{\odot}$ and $M_{*}=10^{11}M_{\odot}$ mirrors the behaviour of the cooling function for the relevant virial temperature. Towards $10^{12}M_{\odot}$ the scale radii become very large, and the model would lead to a strong overestimate of the total gas mass. Therefore, we restrict the valid range of the model to $\log_{10}M_{*}/M_{\odot}\leq 11.5$. We adopt $\left[\rm Fe/H\right]=-0.5$ as appropriate for the case of the Milky Way, most galaxies where it has been measured (Bregman et al., 2018) and the central galaxies of groups and clusters (Böhringer & Werner, 2010). Assuming a metallicity of $\left[\rm Fe/H\right]=-1.0$ would increase the gas density in the modelled halos by a factor of two or less. This would increase the predicted radio luminosities by less than 50 % (compare, e.g., Maciel & Alexander, 2014, their Fig. 10), which is not important for the arguments presented here.

2.2 Galactic-wind halos

Following the work of Chevalier & Clegg (1985), we assume a core at almost constant density and pressure, where the stellar mass and energy input take place, and a free wind zone at constant outflow velocity with density declining as $r^{-2}$. The solution is fully determined by the energy and mass input rates, $\dot{M}$ and $\dot{E}$, both linear in the star formation rate. The core temperature is proportional to $\dot{E}/\dot{M}$ and therefore constant for all systems. The initial temperature could be as high as $\approx 10$ keV (Chevalier & Clegg, 1985; Strickland & Heckman, 2007). However, similar to the case of superbubbles (Krause et al., 2014; Rogers & Pittard, 2014), mixing of material from swept-up shells and remnant cloud cores likely reduces the temperature of the hot phase quickly. We therefore adopt a temperature of 3 keV which is approximately the lower limit allowed by models for the nearby, probably best studied, wind galaxy M82 (Strickland & Heckman, 2009). The density in the model increases with star formation rate, but for realistic conditions should be dominated by mixing as well. Further following Strickland & Heckman (2009), we adopt a core density of 0.6 cm${}^{-3}M_{*}/M_{82}$, where $M_{82}$ is the stellar mass of M82. The latter is between $10^{9}M_{\odot}$ (Förster Schreiber et al., 2003) and $10^{10}M_{\odot}$ (Greco et al., 2012, dynamical mass estimate). We adopt $M_{82}=10^{10}M_{\odot}$, because the lower value takes into account only the central parts of the galaxy. Using the lower value would increase our core densities by a factor of ten, and the radio luminosities for this model would consequently be higher by a factor of a few (compare, e.g., Maciel & Alexander, 2014, their Fig. 10). This would not change the conclusions of the present analysis (compare below, e.g., Fig. 3). We use a constant core radius of 500 pc, as for M82 (Greco et al., 2012), for all galaxies. We note that the thermal pressure quickly declines outside the core, and hence the isothermality assumed by our $\beta$-model ansatz is violated. We ignore this effect, because we expect the maximum radio luminosity on the scale of the core radius.

2.3 Infall halos

In the infalling halo picture, galaxies get their fuel for star formation from accretion of intergalactic gas. The accretion rate is therefore given by the star formation rate. For this, we use the average star formation rate of the main sequence enhanced by one standard deviation from Belfiore et al. (2018): $-\log\dot{M}/M_{\odot}\,\mathrm{yr}^{-1}=$ $\log\dot{M}_{*}/M_{\odot}\,\mathrm{yr}^{-1}=0.73\log(M_{*}/M_{\odot})-6.94$. While some of this gas might be clumpy, we get an upper limit on the gas density by assuming spherically symmetric accretion. To model this, we consider either a free fall or Bondi accretion into a Navarro et al. (1997) dark-matter halo. The velocity close to the galaxy is in both cases given by $v=-\sqrt{-2\Phi_{\mathrm{NFW}}}$, where the Navarro-Frenk-White potential is given by (Hayashi et al., 2007):

[TABLE]

We then get the halo density from mass conservation, $\dot{M}=4\pi r^{2}\rho v$. Since the infalling medium is assumed to be cold, the relevant halo pressure is now the ram pressure of the infalling halo, $\rho v^{2}$. This leads to an almost constant velocity in the relevant inner part of the halo, and hence a density and ram pressure distribution as $r^{-2}$. This can be modelled by an isothermal beta profile with $\beta=2/3$. We assume the infall continues down to 0.5 kpc, where we assume normal processes of star formation to keep the density constant and the pressure balanced with the ram pressure of the infalling halo.

3 Radio luminosities of jets in different halos

The early evolution of radio AGN is treated in Alexander (2006) and Maciel & Alexander (2014). As can be seen, e.g., from Fig. 5 in Maciel & Alexander (2014), the source luminosity increases throughout the early evolution into the self-similar phase. It reaches its peak approximately where the ambient density distribution starts to decline, i.e., near the core radius. In this phase, the radio lobes dominate the luminosity. For an estimate of the radio luminosity, it is therefore appropriate to use a standard model for the evolution of radio lobes, such as the one in Hardcastle (2018). The model requires that radio lobes have formed already, which first happens when the radio source has reached a certain size given, e.g., by Krause et al. (2012). After confirming that the radio lobes form earlier than our scale of interest for all cases, we therefore used the standard radio lobe models of Hardcastle (2018). Briefly, the model is based on 3D simulation results (Hardcastle & Krause, 2013, 2014; English et al., 2016), distributes a constant fraction of the steadily supplied power $Q_{0}$, respectively, to radio lobes and shocked ambient gas and advances the prolate spheroidal outer shock surface according to the Rankine-Hugoniot shock jump conditions. It assumes that the lobes consist of an electron-positron pair plasma (compare below) and that the ratio between the energy in the magnetic field and the one in particles is 0.1. We assumed an injection power law index for relativistic electrons of $q=-2.2$. Adiabatic, synchrotron and inverse Compton losses at the cosmic microwave background (redshift $z=0$) are taken into account. Sabater et al. (2019) probe the jet power distribution for massive galaxies, $10^{11}M_{\odot}<M_{*}<10^{12}M_{\odot}$, as a fraction of the Eddington luminosity $L_{\mathrm{Ed}}$ of the supermassive black hole. They find a strong decline towards higher jet powers. Only 0.3% of all galaxies have a radio AGN with $Q_{0}>10^{-2}L_{\mathrm{Ed}}$. We therefore adopt this as upper limit for radio sources in all galaxies. To estimate the black hole masses, we adopt a constant mass fraction, $M_{\mathrm{SMBH}}=0.0005M_{*}$ (Bentz & Manne-Nicholas, 2018).

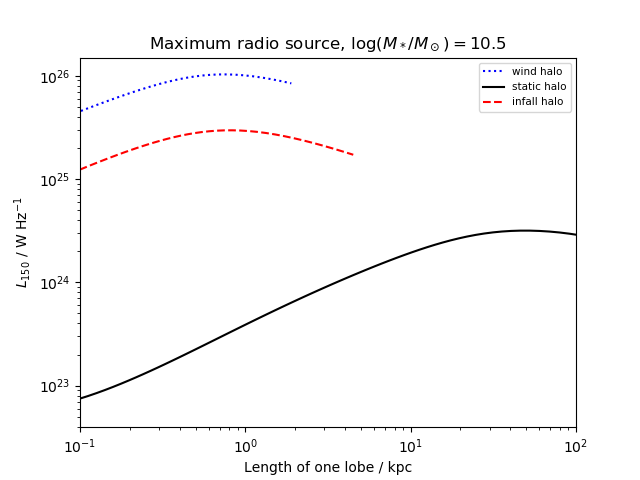

We show a plot of the resulting radio luminosities at 150 MHz over lobe length in Fig. 2 for an intermediate mass galaxy. Due to our assumption that wind and infall halos have a small core region of only 0.5 kpc, the radio luminosity also peaks on this scale. The relevant length scale for the hydrostatic halo is the scale radius of the dark-matter halo. Consequently, the peak of the radio luminosity is reached at a scale of tens of kpc. The peak luminosities for the wind and infall models are much higher than for the hydrostatic-halo case. This is because, at the galaxy mass of the chosen example, $M_{*}=3\times 10^{10}M_{\odot}$, cooling still severely restricts the density in a hydrostatic halo. The luminosities in the wind and infall models would increase even further, if the core radius was assumed to be greater than 0.5 kpc. The radio luminosity in our models scales directly with the kinetic jet power, which is linearly coupled to the black hole mass. Varying the black hole mass to galaxy mass ratio would therefore move all models along the vertical axis in Figs. 2 and 3.

4 Comparison to the LoTSS sample

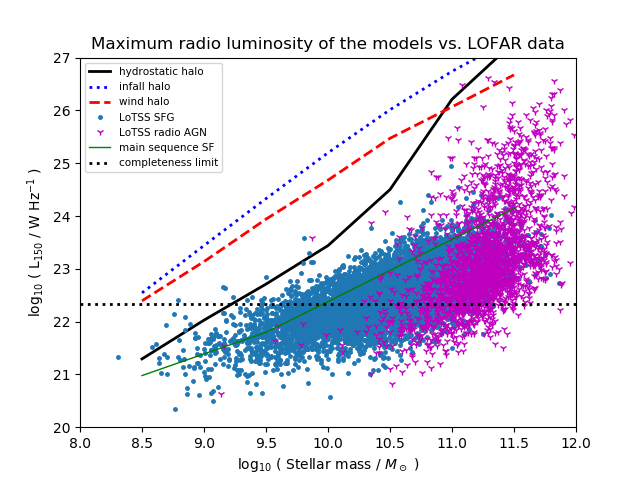

We compare the maximum of the predicted radio luminosities against galaxy mass for all halo models to the LoTSS measurements in Fig. 3. The radio sources in the hydrostatic halos approximate well the upper envelope of the data points. It is well known that the models reproduce radio luminosities of radio sources in large dark-matter halos well (Hardcastle & Krause, 2013; Hardcastle, 2018), it is an interesting feature of the present model that the radio luminosities of smaller galaxies are also not overpredicted by a large factor. This means that, if all galaxies have hydrostatic gas halos, radio AGN in low-mass galaxies could have the same jet-power distribution (in terms of the Eddington luminosity of the supermassive black hole) as the ones in high-mass galaxies, but the observed luminosities would be much lower. The low luminosities are due to the lower halo gas densities, which are a direct consequence of the higher cooling rates at lower halo temperature, which via the virial temperature is a function of the galaxy mass (compare Fig. 1). Of course the radio luminosity in any given low-mass galaxy might still be entirely due to star formation. The models only tell us that, if the galaxy developed a radio AGN, its radio luminosity would not exceed a certain luminosity. The models therefore need to be compared to the upper envelope of the observed distribution.

Radio sources in wind galaxies or in halos dominated by spherical infall would have a luminosity far greater than observed. This could be interpreted as galaxies not having strong radio AGN in such phases, or that such conditions are rare. This would agree with findings in the literature that starburst and AGN phases are sequential rather than simultaneous (e.g., Krause, 2005; Schawinski et al., 2007; Schartmann et al., 2010; Shabala et al., 2012). The predicted luminosities become very similar at high galaxy masses. At those masses, all halo models are consistent with the radio observations.

An interesting caveat here is the type of the radio source. It is possible that jets in more strongly star-forming systems suffer much more entrainment of proton-rich interstellar medium, and therefore develop more Fanaroff & Riley (1974) class I-like radio sources (Croston et al., 2018). In this case, the same jet power would be distributed also to additional protons, and thus the expected radio luminosity would be lower than in our model, possibly to a degree that could reconcile the prediction for wind and infall halos with the observations.

The spatial resolution of the LoTSS survey corresponds to 28 kpc at the redshift limit of $z=0.3$ (6 arcsec resolution, Sabater et al., 2019). Radio AGN in infall and wind halos would therefore mostly be unresolved. The maximum radio luminosity in hydrostatic halos occurs around 20 (40, 100) kpc for $10^{9}(10^{10},10^{11})M_{\odot}$ galaxies. Radio AGN would therefore also frequently be unresolved in less massive galaxies in our model, if they had a hydrostatic halo. This agrees with the findings of Shabala (2018) that the fraction of unresolved radio AGN decreases with increasing galaxy mass. This prediction could be tested with LOFAR observations that include international baselines ($<1$ arcsec resolution, Ramírez-Olivencia et al., 2018), which are, however, not yet available for large samples of galaxies.

The maximum radio luminosity we predict in our models should not be regarded as a strict upper limit on the measured LOFAR 150 MHz luminosities. We estimate the measurement uncertainties for the luminosities due to uncertainties of the flux calibration scale to about 0.3 dex or more (compare Hardcastle et al., 2019). Also, jet powers are known to sometimes exceed our choice of 1% of the Eddington luminosity (Sabater et al., 2019). For example Turner et al. (2018) estimate jet powers around $10^{47}$ erg/s for several 3C radio sources in galaxies with $11.5<\log(M_{*}/M_{\odot})<12$. The jet power in these sources therefore likely exceeds 10% of the Eddington luminosity. Further, the black-hole-mass scaling relation has a scatter of about a factor of three. Taken together, individual sources could still be one or two dex more luminous than predicted by our model.

The high jet power phases might, however, be rare, possibly linked to galaxy merging (Ramos Almeida et al., 2012; Shabala et al., 2012; Tadhunter et al., 2014; Krause et al., 2019). The Sabater et al. (2019) sample is local (redshift $z\leq 0.3$) and therefore contains relatively few recent mergers, especially for the lower galaxy masses (Hopkins et al., 2010).

For the general distribution of galaxies, however, our assumptions reasonably cover the top end of the relevant distributions: in Sabater et al. (2019), much less than 1% of the radio sources exceed our jet power limit and the halo properties we assume take account of the scatter. For example, Fig. 1 demonstrates that observations fall comfortably below our limiting halo gas density.

5 Conclusions

We use an established model for the radio luminosity of radio AGN to estimate the maximum AGN-related LOFAR 150 MHz luminosities of galaxies. As input to our model, we assume a jet power of 1% of the Eddington luminosity with supermassive black hole masses following the observed scaling relation and models for the gaseous halos of galaxies based on theoretical constraints and observations. We consider hydrostatic, galactic wind and infall halos. Our aim is to explain the marked rise of radio luminosities at stellar masses around $10^{11}M_{\odot}$. Our main findings are:

The shape of the cooling function translates into higher hydrostatic halo masses, and hence a marked increase in radio luminosity around $10^{11}M_{\odot}$. 2. 2.

Assuming hydrostatic gas halos in all galaxies and the jet power (as fraction of the Eddington luminosity) distribution seen in massive galaxies to hold for all galaxies we find an upper envelope for the radio luminosities that matches the data well. 3. 3.

Disproportionately lower radio luminosities in low-mass galaxies can therefore not be used as an argument that radio-AGN are absent in such galaxies. 4. 4.

A model where low-mass galaxies are dominated by winds or infall and higher mass galaxies by hydrostatic gas halos is not supported by the data. Models expect the presence of hydrostatic halos in galaxies with masses $M_{*}\gtrsim 10^{9}M_{\odot}$ (Birnboim & Dekel, 2003; Kereš et al., 2005). This corresponds to the mass range covered by the LOTSS sample. Our findings are hence consistent with these predictions. 5. 5.

We would predict higher radio luminosities than observed for low-mass galaxies, if their jets were frequently launched in phases of smooth, quasi-spherical inflow or galactic winds, unless jets in such environments suffer a lot of entrainment of proton-rich gas. This is consistent with the idea that galactic winds and AGN-jet outbursts do not happen at the same time. 6. 6.

Our results are also consistent with scenarios in which radio AGN occur much more rarely in lower mass galaxies, such that their radio luminosities are always completely dominated by star formation. We regard, however, the alternative, namely that AGN have similar jet power distributions at all galaxy masses, which is as well consistent with the data, as the simpler explanation.

Acknowledgements.

We gratefully acknowledge the provision of the LOFAR radio data in electronic form by Jose Sabater Montes. We thank the anonymous referee for a very useful report.
