Chiral Light--Matter Interaction Beyond the Rotating-Wave Approximation

TL;DR

This paper explores chiral light-matter interactions in the ultrastrong coupling regime beyond the rotating-wave approximation, revealing new coupling mechanisms and ground state properties with implications for quantum engineering.

Contribution

It introduces a novel model of light-matter interaction that includes counter-rotating terms and constructs an analytic ansatz leveraging angular momentum conservation.

Findings

Ground states are two-mode squeezed.

Counter-rotating terms enable coupling to decoupled modes.

Analytic solutions provide insight into dynamics beyond RWA.

Abstract

I introduce and analyse chiral light--matter interaction in the ultrastrong coupling limit where the rotating-wave approximation cannot be made. Within this limit, a two-level system (TLS) with a circularly polarized transition dipole interacts with a copolarized mode through rotating-wave terms. However, the counter-rotating terms allow the TLS to couple to a counter-polarized mode with the same coupling strength, i.e., one that is completely decoupled within the rotating-wave approximation. Although such a Hamiltonian is not particle number conserving, the conservation of angular momentum generates a $U(1)$ symmetry which allows constructing an ansatz. The eigenstates and dynamics of this novel model are computed for single-cavity interactions and for a many-mode system. The form of the ansatz provides significant analytic insight into the physics of the ground state and the dynamics, e.g., it indicates that the ground states are two-mode squeezed. This work has significant implications for engineering light--matter interaction and novel quantum many-body dynamics beyond the rotating-wave approximation.

Figures

Equations

$$\hat{H}=\frac{{\omega }_0}{2}{\hat{\sigma }}_z+{\omega }_c({\hat{a}}^{†}\hat{a}+{\hat{b}}^{†}\hat{b})+g{\hat{\sigma }}_{+}(\hat{a}+{\hat{b}}^{†})+h.c.,$$

$${\hat{L}}_z={\hat{a}}^{†}\hat{a}-{\hat{b}}^{†}\hat{b}+\frac{{\hat{\sigma }}_z}{2},$$

$$|\psi {⟩}_l=\sum _{n=0}^{\infty }{c}_{n,l}|g⟩|n+l,n⟩+\sum _{n=1}^{\infty }{d}_{n,l}|e⟩|n+l-1,n⟩,$$

$$\begin{array}{rl}\hat{\mathcal{H}}& =\frac{{\omega }_0}{2}{\hat{\sigma }}_z+{\omega }_c\sum _{i=0}^{L-1}{\hat{a}}_i^{†}{\hat{a}}_i+{\hat{b}}_i^{†}{\hat{b}}_i+g{\hat{\sigma }}_{+}({\hat{a}}_0+{\hat{b}}_0^{†})+h.c.\\ & -J\sum _{i=0}^{L-2}\left({\hat{a}}_i^{†}{\hat{a}}_{i+1}+{\hat{b}}_i^{†}{\hat{b}}_{i+1}\right)+h.c.,\end{array}$$

$$\begin{array}{rl}& |\Psi {⟩}_l=\sum _{n=0}^{\infty }\sum _{\mathbf{i},\mathbf{j}=0}^{L-1}\frac{c_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}}}{\sqrt{n!(n+l)!}}\prod _{k,m=1}^{n+l,n}{\hat{a}}_{i_k}^{†}{\hat{b}}_{j_m}^{†}|0⟩|g⟩\\ & +\frac{d_{n,l;j_1,j_2,\dots ,i_n}^{i_1,i_2,\dots ,i_{n+l-1}}}{\sqrt{n!(n+l-1)!}}\prod _{k,m=1}^{n+l-1,n}{\hat{a}}_{i_k}^{†}{\hat{b}}_{j_m}^{†}|0⟩|e⟩.\end{array}$$

$$\hat{H}=\frac{{\omega }_0}{2}{\hat{\sigma }}_z+{\omega }_c({\hat{a}}^{†}\hat{a}+{\hat{b}}^{†}\hat{b})+g{\hat{\sigma }}_{+}(\hat{a}+{\hat{b}}^{†})+h.c.,$$

$$|\psi {⟩}_l=\sum _{n=0}^{\infty }{c}_{n,l}|g⟩|n+l,n⟩+\sum _{n=1}^{\infty }{d}_{n,l}|e⟩|n+l-1,n⟩.$$

$$\begin{array}{rl}g\sqrt{n+1}{d}_{n+1,l}+g\sqrt{n+l}{d}_{n,l}+\left[{\omega }_c(2n+l)-\frac{{\omega }_0}{2}\right]c_{n,l}& =E_l{c}_{n,l}\\ g\sqrt{n+l}{c}_{n,l}+g\sqrt{n}{c}_{n-1,l}+\left[{\omega }_c(2n+l-1)+\frac{{\omega }_0}{2}\right]d_{n,l}& =E_l{d}_{n,l}.\end{array}$$

$$|\psi (t)⟩=\sum _{m,l}{e}^{-i{E}_{m,l}t}|{\psi }_m{⟩}_l{}_l⟨{\psi }_m|\psi (0)⟩.$$

$$S=-\mathrm{Tr}\left[{\hat{\rho }}_{l,\text{TLS}}\log {\hat{\rho }}_{l,\text{TLS}}\right].$$

$${\hat{\rho }}_{l,\text{TLS}}=\mathrm{T}{\mathrm{r}}_{\mathrm{cav}}\left[|\psi {⟩}_l{}_l⟨\psi |\right]=\sum _n|c_{n,l}{|}^2|g⟩⟨g|+|d_{n,l}{|}^2|e⟩⟨e|.$$

$$S=-\sum _n|c_{n,l}{|}^2\log \left[\sum _{n^{\prime }}|c_{n^{\prime },l}{|}^2\right]-\sum _n|d_{n,l}{|}^2\log \left[\sum _{n^{\prime }}|d_{n^{\prime },l}{|}^2\right].$$

$${\hat{H}}_V={\omega }_c({\hat{a}}^{†}\hat{a}+{\hat{b}}^{†}\hat{b})+{\omega }_0(|1⟩⟨1|+|2⟩⟨2|)+\Delta |2⟩⟨2|+g\left[|1⟩⟨g|(\hat{a}+{\hat{b}}^{†})+|2⟩⟨g|(\hat{b}+{\hat{a}}^{†})\right]+h.c..$$

$${\hat{L}}_V={\hat{a}}^{†}\hat{a}+|1⟩⟨1|-({\hat{b}}^{†}\hat{b}+|2⟩⟨2|).$$

$$|{\psi }_V{⟩}_l=\sum _{n=0}^{\infty }{c}_{n,l}|g⟩|n+l⟩|n⟩+d_{n,l}|1⟩|n+l-1,n⟩+e_{n,l}|2⟩|n+l+1,n⟩.$$

$$\begin{array}{rl}{\omega }_c(2n+l)c_{n,l}+g\left[d_{n,l}\sqrt{n+l}+d_{n+1,l}\sqrt{n+1}+e_{n-1}\sqrt{n}+e_{n,l}\sqrt{n+l+1}\right]& =E_l{c}_{n,l}\\ \left[{\omega }_0+{\omega }_c(2n+l-1)\right]d_{n,l}+g\left[c_{n,l}\sqrt{n+l}+c_{n-1,l}\sqrt{n}\right]& =E_l{d}_{n,l}\\ \left[{\omega }_0+\Delta +{\omega }_c(2n+l+1)\right]e_{n,l}+g\left[c_{n+1}\sqrt{n+1}+c_{n,l}\sqrt{n+l+1}\right]& =E_l{e}_{n,l},\end{array}$$

$$\begin{array}{rl}& \left[{\omega }_c(2n+l)-\frac{{\omega }_0}{2}\right]c_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}}+\frac{g}{\sqrt{n+l}}{d}_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l-1}}\left[{\delta }_{i_1}+{\delta }_{i_2}+\dots +{\delta }_{i_{n+l}}\right]\\ & +\frac{g}{\sqrt{n+1}}\left[d_{n+1,l;0,j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}}+d_{n+1,l;j_1,0,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}}+\dots +d_{n+1,l;j_1,j_2,\dots ,j_n,0}^{i_1,i_2,\dots ,i_{n+l}}\right]\\ & -J\left[c_{n,l;j_1,j_2,\dots ,j_n}^{i_1+1,i_2,\dots ,i_{n+l}}+c_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2+1,\dots ,i_{n+l}}+\dots +c_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}+1}\right]-J\left[c_{n,l;j_1,j_2,\dots ,j_n}^{i_1-1,i_2,\dots ,i_{n+l}}+c_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2-1,\dots ,i_{n+l}}+\dots +c_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}-1}\right]\\ & -J\left[c_{n,l;j_1+1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}}+c_{n,l;j_1,j_2+1,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}}+\dots +c_{n,l;j_1,j_2,\dots ,j_n+1}^{i_1,i_2,\dots ,i_{n+l}}\right]\\ & -J\left[c_{n,l;j_1-1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}}+c_{n,l;j_1,j_2-1,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}}+\dots +c_{n,l;j_1,j_2,\dots ,j_n-1}^{i_1,i_2,\dots ,i_{n+l}-1}\right]=E_l{c}_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l}}.\end{array}$$

$$\begin{array}{rl}& \left[{\omega }_c(2n+l-1)+\frac{{\omega }_0}{2}\right]d_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l-1}}+\frac{g}{\sqrt{n-1}}[c_{n-1,l;j_2,j_3,\dots ,j_{n-1}}^{i_1,i_2,\dots ,i_{n+l-1}}{\delta }_{j_1}+c_{n-1,l;j_1,j_3,\dots ,j_{n-1}}^{i_1,i_2,\dots ,i_{n+l-1}}{\delta }_{j_2}\\ & +\dots +c_{n-1,l;j_1,j_2,\dots ,j_{n-2}}^{i_1,i_2,\dots ,i_{n+l-1}}{\delta }_{j_{n-1}}]+\frac{g}{\sqrt{n+l}}\left[c_{n,l;j_1,j_2,\dots ,j_n}^{0,i_1,\dots ,i_{n+l-1}}+c_{n,l;j_1,j_2,\dots ,j_n}^{i_1,0,i_2,\dots ,i_{n+l-1}}+\dots +c_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l-1},0}\right]\\ & -J\left[d_{n,l;j_1,j_2,\dots ,j_n}^{i_1+1,i_2,\dots ,i_{n+l-1}}+d_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2+1,\dots ,i_{n+l-1}}+\dots +d_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l-1}+1}\right]\\ & -J\left[d_{n,l;j_1,j_2,\dots ,j_n}^{i_1-1,i_2,\dots ,i_{n+l-1}}+d_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2-1,\dots ,i_{n+l-1}}+\dots +d_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l-1}-1}\right]\\ & -J\left[d_{n,l;j_1+1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l-1}}+d_{n,l;j_1,j_2+1,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l-1}}+\dots +d_{n,l;j_1,j_2,\dots ,j_n+1}^{i_1,i_2,\dots ,i_{n+l-1}}\right]\\ & -J\left[d_{n,l;j_1-1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l-1}}+d_{n,l;j_1,j_2-1,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l-1}}+\dots +d_{n,l;j_1,j_2,\dots ,j_n-1}^{i_1,i_2,\dots ,i_{n+l-1}-1}\right]=E_l{d}_{n,l;j_1,j_2,\dots ,j_n}^{i_1,i_2,\dots ,i_{n+l-1}}.\end{array}$$

$$\begin{array}{rl}{\hat{a}}_k& =\frac{1}{\sqrt{L}}\sum _{j=1}^L{\hat{a}}_j\sin \left[\frac{\pi k}{L+1}j\right],\\ {\hat{a}}_j& =\frac{1}{\sqrt{L}}\sum _{k=1}^L{\hat{a}}_k\sin \left[\frac{\pi k}{L+1}j\right],\end{array}$$

$$|\varphi ⟩=\sum _{k=1}^L{\alpha }_k{\hat{a}}_k^{†}|0,g⟩+b{\sigma }_{+}|0,g⟩,$$

$$\begin{array}{rl}\frac{gb}{\sqrt{L}}\sin \left(\frac{\pi k}{L+1}\right)& =\left[E-{\omega }_0+2J\cos \left(\frac{\pi k}{L+1}\right)\right]{\alpha }_k\\ \frac{g}{\sqrt{L}}\sum _k{\alpha }_k\sin \left(\frac{\pi k}{L+1}\right)& =(E-{\omega }_0)b.\end{array}$$

$$E_{\pm }=\frac{{\omega }_0}{2}\pm \frac{g^2/J}{\sqrt{g^2/J^2-1}}.$$

$$\begin{array}{rl}{\hat{\mathcal{H}}}_{HC}& ={\omega }_0{\hat{c}}^{†}\hat{c}+{\omega }_c\sum _{i=0}^{L-1}{\hat{a}}_i^{†}{\hat{a}}_i+{\hat{b}}_i^{†}{\hat{b}}_i+g{\hat{c}}^{†}({\hat{a}}_0+{\hat{b}}_0^{†})+h.c.-J\sum _{i=0}^{L-2}\left({\hat{a}}_i^{†}{\hat{a}}_{i+1}+{\hat{b}}_i^{†}{\hat{b}}_{i+1}\right)+h.c.+U{\hat{c}}^{†}{\hat{c}}^{†}\hat{c}\hat{c}.\end{array}$$

$$|\psi ⟩=\sum _{n_1,n_2,\dots ,n_L}{A}^{n_1}{A}^{n_2}\dots A^{n_L}|n_1{n}_2\dots n_L⟩,$$

Full text

The Rabi model Rabi (1937) constitutes perhaps the paradigmatic example of light–matter interaction (LMI) in quantum optics. It describes the interaction of a two-level system (TLS) with a single cavity mode under the dipole approximation. Recently, this model has has seen renewed interest for two main reasons: for many years LMI was considered under the rotating-wave approximation (RWA) where terms that do not preserve the total number of excitations are neglected. This is typically valid for systems operating at optical frequencies. Recently, however, microwave-frequency circuit QED platforms with light–matter coupling $g/\omega_{c}\sim 1$ have been developed Niemczyk et al. (2010); Forn-Díaz et al. (2017); Yoshihara et al. (2017); Kockum et al. (2019). These platforms can thus probe the full dynamics of the Rabi model. The second reason is that recent work by Braak Braak (2011) has piqued theoretical interest by showing that the Rabi model is analytically solvable: a task which remained elusive for many years. This has led to many works investigating the structure of the solution of the Rabi model and its extensions Moroz (2014); Tomka et al. (2014); Xie et al. (2014).

Simultaneously, tremendous effort has been put in engineering LMI. This has involved using photonic nanostructures to strengthen coupling to a single mode while minimizing coupling to others Arcari et al. (2014); Goban et al. (2014); Lodahl et al. (2015). Researchers have now also developed sophisticated techniques that allow tailoring the phase and magnitude of the coupling to each mode. For example, this has been achieved using non-local interactions in one- Kockum et al. (2018) and two-dimensional systems González-Tudela et al. (2019), by considering emission in the presence of strong dispersion González-Tudela and Cirac (2017), incorporating phonons Calajo et al. (2019), as well by using chiral LMI Petersen et al. (2014); Mitsch et al. (2014); Söllner et al. (2015); Lodahl et al. (2017). Chiral LMI uses the circularly polarized transition dipole of a TLS to selectively couple to modes whose electric fields have the same circular polarization at the position of the TLS, while remaining decoupled to counter-circulating modes. Unidirectional emission from a TLS is achieved by engineering the electromagnetic modes of a one-dimensional waveguide to have a direction-dependent circular polarization Bliokh and Nori (2012); Mahmoodian et al. (2017). This then enables emission whose direction is controlled by the handedness of the TLS’s transition dipole. Chiral LMI has however thus far only been considered within the RWA.

In this manuscript, I show that chiral LMI also leads to novel physics beyond the RWA and can be used to engineer interactions in the ultrastrong-coupling limit. In particular, I show that, when a TLS with a circularly polarized transition dipole couples to a bath whose modes are elliptically or circularly polarized, the coupling strengths are generally different for the rotating-wave and counter-rotating-wave terms. Extraordinarily, a mode that is completely orthogonal to the TLS’s transition dipole and does not couple within the RWA can interact with the TLS through the counter-rotating terms. I highlight this using a novel two-mode chiral Rabi model. I then extend ultrastrong chiral LMI to a many-mode model and compute its ground states and its quench dynamics. In general, the physics of these systems can be described in terms of the conservation of angular momentum, which generates a $U(1)$ symmetry of the Hamiltonian. The conserved quantity is exploited to construct an ansatz for obtaining the ground states and dynamics in these systems. This work paves the way for engineering many-body dynamics in quantum optical systems beyond the RWA.

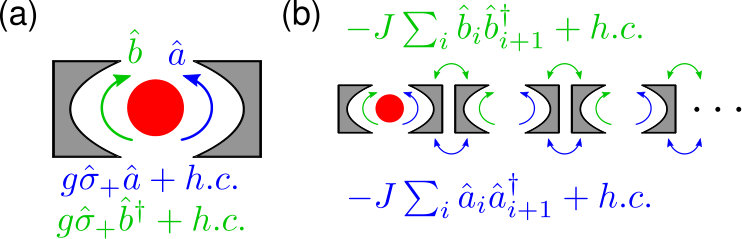

I begin by considering a TLS interacting with a single cavity mode under the dipole approximation. This has the interaction Hamiltonian $\hat{H}_{\rm int}=-\hat{\mathbf{d}}\cdot\hat{\mathbf{E}}_{a}$, where the electric field operator for mode $a$ is $\hat{\mathbf{E}}_{a}=\mathbf{E}_{a}\hat{a}+\mathbf{E}_{a}^{*}\hat{a}^{\dagger}$ with cavity field $\mathbf{E}_{a}$, where $\hat{a}$ ($\hat{a}^{\dagger}$) is an annihilation (creation) operator. The dipole operator is $\hat{\mathbf{d}}=\mathbf{d}\hat{\sigma}_{-}+\mathbf{d}^{*}\hat{\sigma}_{+}$ where $\mathbf{d}$ is the transition dipole moment and $\hat{\sigma}_{-}=|g\rangle\langle e|$ and $\hat{\sigma}_{+}=|e\rangle\langle g|$ take the TLS to and from the excited $|e\rangle$ and ground $|g\rangle$ states. The interaction Hamiltonian then clearly has the form $\hat{H}_{\rm int}=g_{R}\hat{\sigma}_{-}\hat{a}^{\dagger}+g_{R}^{*}\hat{\sigma}_{+}\hat{a}+g_{cR}\hat{\sigma}_{-}\hat{a}+g_{cR}^{*}\hat{\sigma}_{+}\hat{a}^{\dagger}$, where $g_{R}=\mathbf{d}\cdot\mathbf{E}_{a}^{*}$ and $g_{cR}=\mathbf{d}\cdot\mathbf{E}_{a}$. For a linearly polarized transition dipole and a linearly polarized dipole $g_{R}=g_{cR}$, but when the transition dipole or the electric field are elliptically polarized, i.e. when $\mathbf{d}$ or $\mathbf{E}$ cannot be made real, $g_{R}\neq g_{cR}$. Notably, the interaction does not generally take on the form of the Rabi model and cannot be written as $(\sigma_{-}+\sigma_{+})(\hat{a}+\hat{a}^{\dagger})$. Instead it has the form of the generalized Rabi model Xie et al. (2014) where the rotating wave (RW) and counter-rotating wave (cRW) terms have different coupling coefficients. Previous work Xie et al. (2014) suggested creating a generalized Rabi model using both electric and magnetic dipole moments. However, simply controlling the degree of circular polarization of the electric dipole and cavity modes enables engineering the relative strength of the RW and cRW parts of the Hamiltonian. Engineering a Hamiltonian within the generalized Rabi model is highly desirable as it can, e.g., be used to simulate supersymmetric quantum field theories Tomka et al. (2015) and electron transport in the presence of spin–orbit coupling Erlingsson et al. (2010).

Conservation of angular momentum underlies the difference between the values of $g_{cR}$ and $g_{R}$ when the fields are not linearly polarized. In order to fully take advantage of this, I now consider the limit where both $\mathbf{E}_{a}$ and $\mathbf{d}$ are circularly polarized and have the same polarization. In this limit the counter-rotating terms vanish and the interaction is purely through the rotating-wave terms. The role of angular momentum becomes clear by considering a cavity which also supports another mode with field $\mathbf{E}_{b}$ and annihilation operator $\hat{b}$ which has the opposite circular polarization to $\mathbf{E}_{a}$ and $\mathbf{d}$, i.e. $\mathbf{E}_{b}=\mathbf{E}^{*}_{a}$ (see Fig. 1(a)). This can occur if the cavity has a point group symmetry such that it supports two degenerate polarization modes McIsaac (1975); Steel et al. (2001). In this manuscript, I, for simplicity, assume that the two cavity modes are spectrally degenerate with frequency $\omega_{c}$, but this is not generally a requirement. The total Hamiltonian ($\hbar=1$) under the dipole approximation is

[TABLE]

where $h.c.$ denotes the Hermitian conjugate of the preceding term, and $g=\mathbf{d}\cdot\mathbf{E}^{*}_{a}=\mathbf{d}\cdot\mathbf{E}_{b}$. Here, $\hat{\sigma}_{z}$ is the Pauli $z$-matrix and $\omega_{0}$ is the transition frequency of the TLS. In this chiral Rabi model the TLS interacts with the copolarized mode through the rotating wave terms, while it interacts with the orthogonally polarized mode through counter-rotating terms. The novel model highlights that modes whose fields are orthogonal to the transition dipole moment, and therefore do not interact in the rotating wave approximation, couple through counter-rotating terms with the same coupling coefficient. This is a consequence of the conservation of angular momentum: rotating-wave terms transfer excitations between the TLS and cavity mode, thus the transition dipole and field must have the same angular momentum. On the other hand, counter-rotating terms create or destroy excitations in pairs, thus the dipole moment and field must have opposite angular momenta. The angular momentum of the system in the $z$-direction,

[TABLE]

is conserved and commutes with the Hamiltonian $[\hat{L}_{z},\hat{H}]=0$. It generates a continuous $U(1)$ symmetry of the system. In the Jaynes-Cummings model the total number of excitations and the angular momentum are conserved. On the other hand, the conserved quantity $\hat{L}_{z}$ does not correspond to the total number of excitations which is not conserved. This type of conserved quantity has previously been observed in other quantum many-body systems Porras et al. (2012); Fan et al. (2014).

The eigenstates of the conserved quantity $\hat{L}_{z}$ can be used to construct the eigenstates of $\hat{H}$ using the ansatz

[TABLE]

where $|i,j\rangle$ indicates $i$-photon and $j$-photon Fock states occupying modes $a$ and $b$ respectively. Substituting the ansatz in Schrödinger’s equation leads to a set of eigenrecurrence relations for the coefficients $c_{n,l}$ and $d_{n,l}$ and the energy $E_{l}$. These equations appear in the Supplementary Material (SM). The system of recurrence relations is diagonalized by truncating the Hilbert space at a sufficiently large value of $n$. Figure 2(a) shows the eigenstates for different values of $l$ versus $g$. When $g\ll\omega_{0}$ the eigenstates are Jaynes-Cummings-like, and when $\omega_{0}=\omega_{c}$, $|\psi\rangle^{\pm}_{\rm JC}=\frac{1}{\sqrt{2}}\left[|g\rangle|n,m\rangle\pm|e\rangle|n-1,m\rangle\right]$ with energy $E_{\rm JC}^{\pm}=(n+m-\frac{1}{2})\omega_{0}\pm g\sqrt{n}$ for integers $n\geq 0$ and $m\geq 0$. Here the photons in modes $a$ and $b$ are uncorrelated and the ground state is trivial. As $g$ increases the $l=0$ ground state becomes composed of an entangled state of light and matter with photons in modes $a$ and $b$ and the TLS partially excited (see Fig. 2(b)). The entanglement entropy between the TLS and the cavity modes approaches unity as $g/\omega_{0}$ increases (see SM). I note that, although a TLS has been considered here, the treatment can be generalized to other level schemes (see SM for a $V$-level scheme).

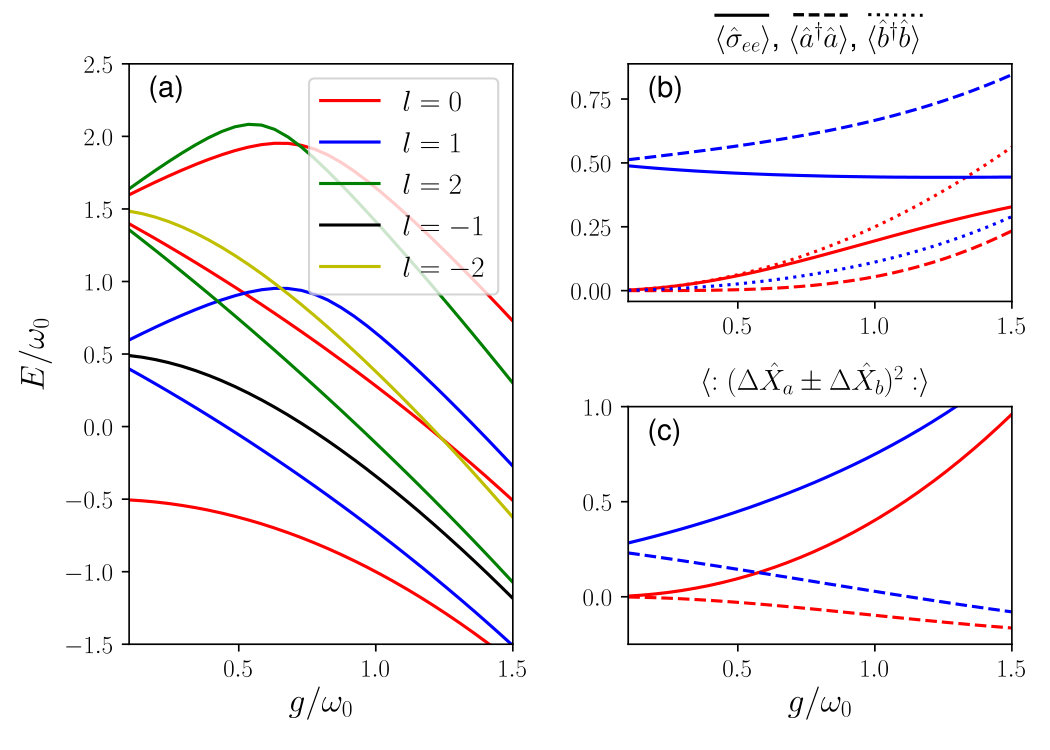

The form of the ansatz (3) reveals how the TLS and the photonic modes are correlated. The form of the Fock states is reminiscent of two-mode squeezing. This is considered by introducing quadratures $\hat{X}_{a}=(\hat{a}+\hat{a}^{\dagger})/2$ and $\hat{P}_{a}=i(\hat{a}^{\dagger}-\hat{a})/2$ (with equivalent definitions for mode $b$). For all eigenstates $\langle\hat{a}\rangle=\langle\hat{b}\rangle=\langle\hat{a}^{2}\rangle=\langle\hat{b}^{2}\rangle=\langle\hat{a}^{\dagger}\hat{b}\rangle=0$. From this one can compute that the normally ordered variances for the individual quadratures are $\langle:(\Delta\hat{X}_{a})^{2}:\rangle=\langle:(\Delta\hat{P}_{a})^{2}:\rangle=\langle\hat{a}^{\dagger}\hat{a}\rangle/2$ and $\langle:(\Delta\hat{X}_{b})^{2}:\rangle=\langle:(\Delta\hat{P}_{b})^{2}:\rangle=\langle\hat{b}^{\dagger}\hat{b}\rangle/2$, which are always positive and therefore the individual mode quadratures are not squeezed. Additionally both modes also satisfy $\langle:\Delta\hat{X}\Delta\hat{P}:\rangle=0$. On the other hand, there are strong correlations between quadratures of the different modes with $\langle:\Delta\hat{X}_{a}\Delta\hat{X}_{b}:\rangle=-\langle:\Delta\hat{P}_{a}\Delta\hat{P}_{b}:\rangle=\operatorname{Re}{\langle\hat{a}\hat{b}\rangle}/2$. Figure 2(c) shows the variance $\langle:(\Delta\hat{X}_{a}\pm\Delta\hat{X}_{b})^{2}:\rangle=\langle:(\Delta\hat{P}_{a}\mp\Delta\hat{P}_{b})^{2}:\rangle$ for the ground state $l=0$ and the lowest energy eigenstate of $l=1$. The $l=0$ ground state exhibits two-mode squeezing for all $g$ while the $l=1$ state is squeezed for $g\gtrsim\omega_{0}$ and the strength of the squeezing grows with $g$.

Using the ansatz, the dynamics of the chiral Rabi model can also be computed. In the large $g$ limit, the counter-rotating terms destroy the coherence of the Rabi oscillations and the system descends into quasiperiodic collapse and revivals similar to those found in the Rabi model Casanova et al. (2010) (see SM).

The idealized single-cavity model successfully illustrates the role of conservation of angular momentum in chiral LMI beyond the RWA. Nevertheless, most quantum optical platforms exhibit open-system dynamics where dissipation plays a key role in the system evolution. This has recently been demonstrated beyond the RWA in circuit QED platforms Forn-Díaz et al. (2017) and has been supported by numerical and analytic investigations Sanchez-Burillo et al. (2014); Shi et al. (2018). I now consider chiral LMI beyond the RWA in a one-dimensional many-mode model. In chiral LMI Petersen et al. (2014); Mitsch et al. (2014); Söllner et al. (2015); Lodahl et al. (2017), polarization selection rules allow the TLS to couple to a unidirectional spatial mode. Here, instead of considering decoupled directional modes, I consider a photonic bath formed by an array of $L$ coupled cavities, each with two polarization modes. The two polarization modes $a$ and $b$ propagate independently in analogy to the forward and backward propagating modes in conventional chiral LMI (see Fig. 1(b)). The full Hamiltonian for this system is

[TABLE]

where $\hat{a}_{i}$ and $\hat{b}_{i}$ are the annihilation operators for the $a$ and $b$ modes of the $i$th cavity, and $J$ is the cavity coupling coefficient. Here the coupled-cavity array provides a simple model for a bath whose dispersion curve can be computed exactly with each set of modes having the dispersion $\omega_{a/b}(k)=\omega_{c}-2J\cos{(k)}$, where $k\in[-\pi,\pi)$. The angular momentum operator is now $\hat{L}_{z}=\hat{\sigma}_{z}/2+\sum_{i}\hat{a}_{i}^{\dagger}\hat{a}_{i}-\hat{b}_{i}^{\dagger}\hat{b}_{i}$ and commutes with $\hat{{\cal H}}$. As before, the eigenstates with the same angular momentum can be used to construct an ansatz

[TABLE]

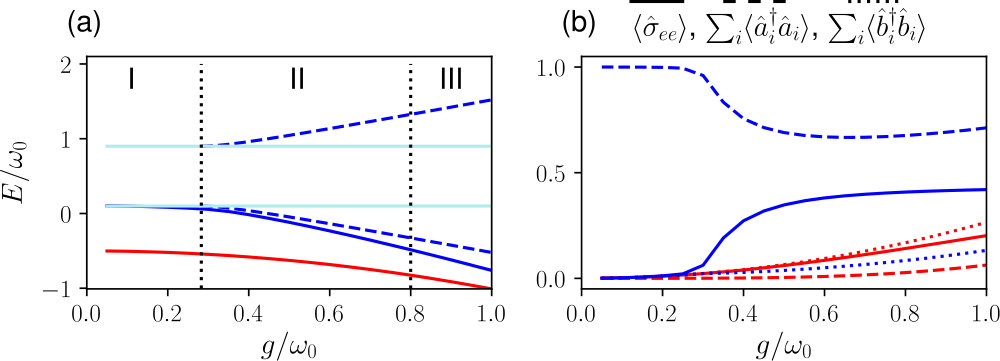

In general, solving for the ground state or the dynamics of the Hamiltonian is a many-body problem with an exponentially large Hilbert space. Here the ground state and dynamics of (4) are computed by truncating the ansatz (5) and by using a matrix-product state (MPS) ansatz Schollwöck (2011). Truncating the sum in (5) to $n\leq 2$, provides a good approximation for the ground states. The accuracy of the ansatz is limited by the number of photons that can be present in the system. Figure 3(a) shows the energy of the ground state of the $l=0$ and $l=1$ manifolds. These results agree well with MPS calculations (see SM). The regions I, II, III show three different phases of the $l=1$ eigenstates. Region I has $g<\sqrt{2}J$ and there is no localized state outside the photon band. This is due to the semi-infinite nature of the lattice and also occurs within the RWA where the bound states can be computed analytically (see SM). This is unlike an infinite system where there is always a bound state Calajó et al. (2016); Shi et al. (2016); Sánchez-Burillo et al. (2017). The change from phase I to II is clearly visible in the observables in Fig. 3(b).

In regions II and III the $l=1$ ground state is composed of a photon-atom bound state whose energy lies below the photon continuum. Here the counter-rotating terms cause the energy of the eigenstate to decrease. Note that within the RWA there is also an eigenstate above the photon continuum. The numerical calculations were unable to resolve this upper eigenstate of the full Hamiltonian (4). In the limit where $g\gg J$ the behaviour of the eigenstates approaches that of the single cavity eigenstate. Within this limit the upper eigenstate behaves like the upper $l=1$ eigenstate shown in Fig. 2(a), i.e., due to the counter-rotating terms its energy decreases as $g$ increases. This causes the eigenstate to eventually enter the photon continuum and it is no longer bound. This sets the boundary between phases II and III. From the single cavity eigenstate this point can be estimated to occur at $g\sim 0.8\omega_{0}$.

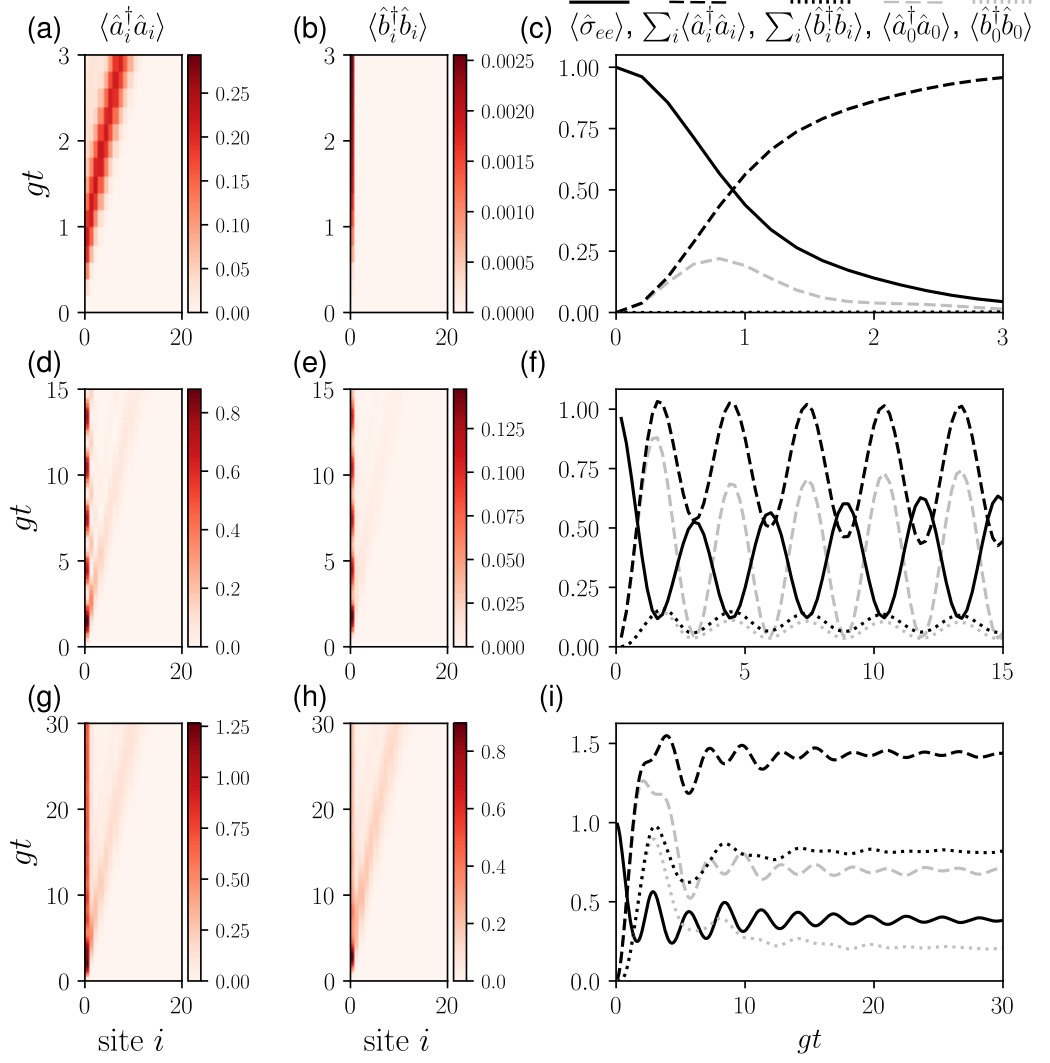

One of the main features of chiral LMI under the RWA is the selective spontaneous emission of light into a directional subset of modes Söllner et al. (2015). Computing the non-equilibrium dynamics of the Hamiltonian (4) shows how the counter-rotating wave terms modify this behaviour. Here, the dynamics are computed using an open source MPS implementation Wall and Carr (2012); Jaschke et al. (2018). The MPS calculations are checked for convergence by varying the bond dimensions and the maximum number of bosons at each site (see SM). Figure 4 shows the evolution of the system when starting in the state $|e\rangle|00\rangle$ for (a)-(c) $g=0.1\omega_{0}$, (d)-(f) $g=0.5\omega_{0}$, (g)-(i) $g=\omega_{0}$. These correspond to values lying in phases I, II, and II of Fig. 3(a). As $g$ increases there are two key changes in the system dynamics: the population of the $b$ modes increases, and the dynamics undergoes changes from decay, to Rabi oscillations, and then to fractional decay into a bound state. The increase in photon population of the $b$ modes is explicitly due to the counter-rotating terms whose role becomes more prevalent as $g$ increases. This is the hallmark of the chiral Rabi model.

The change in the nature of the dynamics is due to a combination of the nonlinear dispersion of the photon band and the counter-rotating interaction. It can be understood from the three phases of the $l=1$ ground state shown in Fig. 3. In Fig. 4(a)-(c) there is no bound state and the excited TLS can only decay into the photon continuum. Figure 4(d)-(f) corresponds to region II which contains two bound eigenstates. The excited TLS emits into these two bound states which continue to beat together in time generating Rabi oscillations. As $g$ increases the Rabi oscillations are modified due to the counter-rotating terms and the $b$ mode is populated. In Fig. 4(g)-(i) the dynamics exhibit fractional decay into a bound state. This occurs in region III. Since there is only a single bound state in his region, the dynamics cannot exhibit Rabi oscillations. Comparing observables in Figs. 3(b) and 4(i) shows that the system decays into the $l=1$ ground state. The overlap of the states is $|\langle e|\langle 00|\Psi\rangle_{l=1}^{\rm ground}|^{2}=0.32$.

In conclusion, I have shown that chiral LMI forms a novel platform for exploring many-body physics beyond the RWA. In this limit, counter-circulating modes that are decoupled within the RWA play a key role in the system dynamics. The single-cavity chiral Rabi model can be potentially implemented in circuit QED platforms or using trapped cold atoms Dareau et al. (2018) or ions Meekhof et al. (1996). A circuit QED implementation requires introducing angular momentum or chirality into the system, which was recently illustrated using three qubits Roushan et al. (2017). Many-mode chiral LMI can, in principle, be realized in circuit QED by coupling a qubit to two points in a transmission line with different phases Vermersch et al. (2016). In general, the work here opens significant new avenues in the study of spin-Boson and Kondo physics Leggett et al. (1987) with engineered impurity–bath interactions.

I would like to thank Klemens Hammerer for useful discussions and for proof reading this manuscript. I also acknowledge useful discussions with Anders Sørensen, Florentin Reiter, Philipp Schneeweiss, and Tao Shi.

S1 Eigenrecurrence equation and single-cavity dynamics

In this section I present the eigenrecurrence relations for the single-cavity chiral Rabi model. I start with the single-cavity Hamiltonian given in Eq. 1 of the main text

[TABLE]

and the ansatz in Eq. 3

[TABLE]

Substituting these into Schrödinger’s equation and using the orthogonality of the Fock states, it is straightforward to obtain the set of coupled eigenrecurrence relations

[TABLE]

The coefficients $c_{n,l}$ and $d_{n,l}$ can be obtained by writing S1 as a matrix eigenvalue equation and truncating at a sufficiently large Fock state. Note that when $l<0$ all Fock state coefficients with $n<l$ are zero.

Since one has to only solve for two coefficients for each Fock state the size of the problem scales linearly with the number of Fock states used. This means that it is feasible to compute a near-complete basis of eigenstates. These can then be used to compute the evolution of an arbitrary initial state. For example, given an arbitrary initial state $|\psi(0)\rangle$ the time evolution is given by

[TABLE]

Here, $m$ is a mode index and ${}_{l}\langle\psi_{m}|\psi_{m^{\prime}}\rangle_{l^{\prime}}=\delta_{l-l^{\prime}}\delta_{m-m^{\prime}}$, where the Kronecker delta is defined such that $\delta_{0}=1$ and $\delta_{i}=0$ for $i\neq 0$. For the initial condition $|e\rangle|00\rangle$ used in the manuscript, $\langle e|\langle 00|\psi_{m}\rangle_{l}=d_{0,l}^{m}\delta_{l-1}$.

S2 Entanglement Entropy

The form of the ansatz in (3) indicates that the ground state can feature entanglement between the two cavity modes as well as entanglement between the two-level system (TLS) and the two cavity modes. The degree of entanglement between the TLS and the cavity is quantified by the bipartite entanglement entropy

[TABLE]

Here the matrix logarithm is taken with base two and $\hat{\rho}_{l,\textrm{TLS}}$ is the reduced density matrix of the TLS, i.e., when the cavity modes are traced over,

[TABLE]

The entanglement entropy is then

[TABLE]

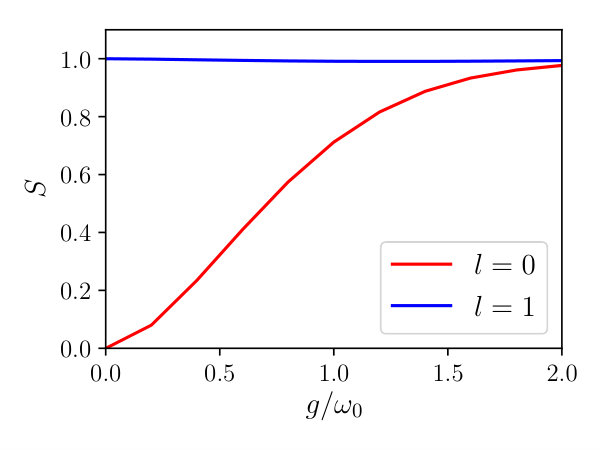

Figure S1 shows the bipartite entanglement entropy between the TLS and the two cavity modes for the $l=0$ and $l=1$ ground states. When $g/\omega_{0}\sim 0$ the $l=0$ ground state is $|g\rangle|00\rangle$ and does not feature entanglement. As $g/\omega_{0}$ increases the TLS becomes entangled with the two cavity modes and eventually becomes maximally entangled. The $l=1$ ground state has the form of a Jaynes-Cummings state with a single excitation when $g/\omega_{0}\ll 1$ and is therefore maximally entangled. It remains maximally entangled as $g/\omega_{0}$ increases.

S3 Dynamics

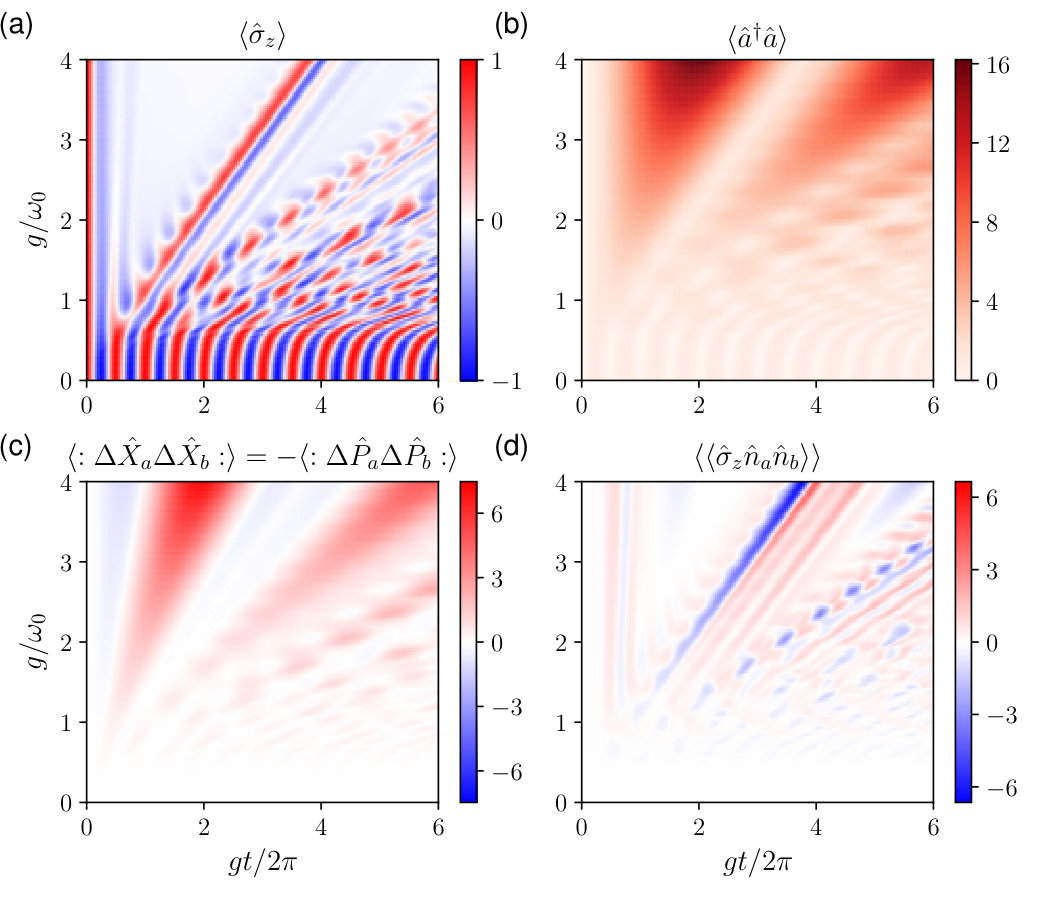

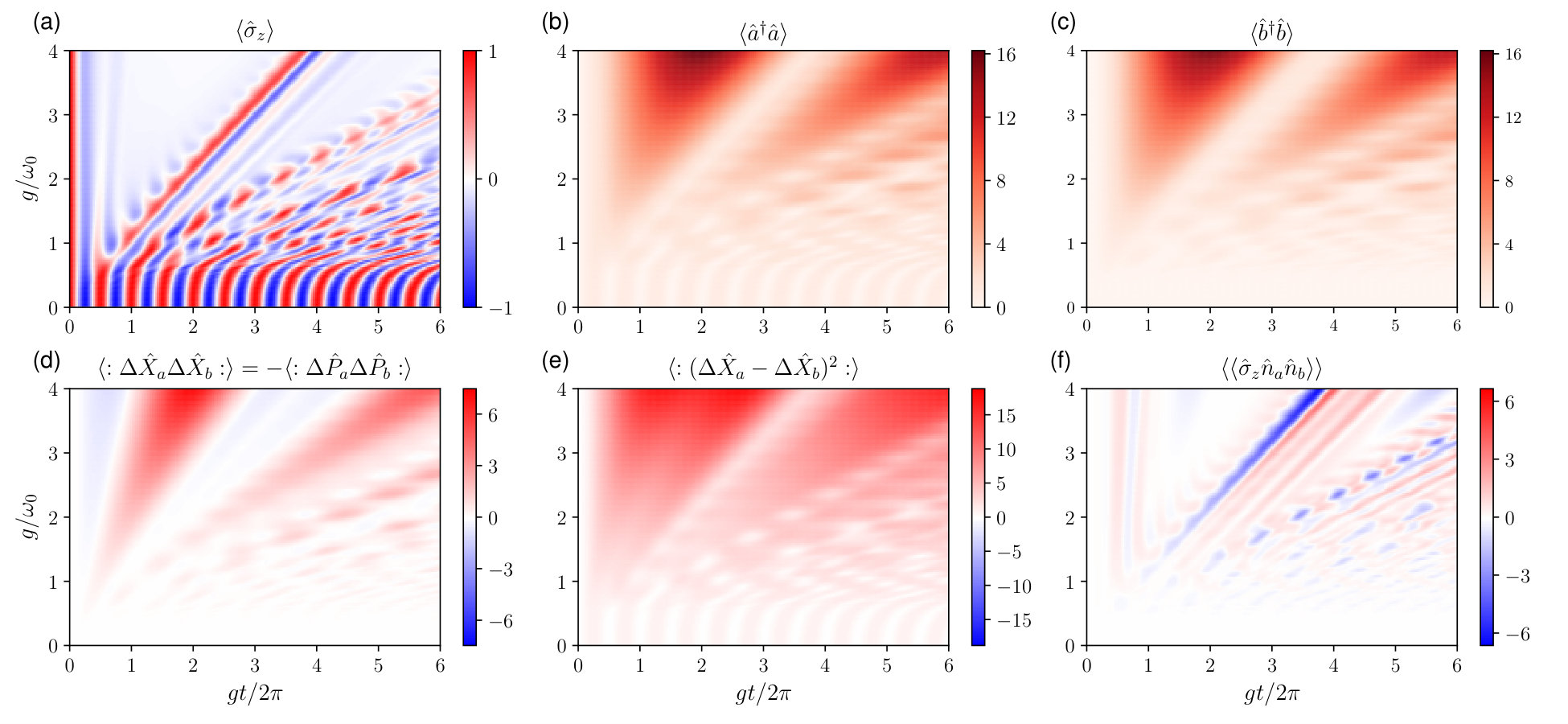

One can also gain insight into the physics of this system by computing its dynamics. Here I consider the evolution of the initial state $|e\rangle|00\rangle$. The dynamics from this initial state can be efficiently computed by projecting $|e\rangle|00\rangle$ on the set of $l=1$ eigenstates and evolving them through time. Figure S2 (a) shows the observable $\langle\hat{\sigma}_{z}\rangle$ versus time for different values of $g/\omega_{0}$. In the JC limit $g\ll\omega_{0}$ this exhibits well-known Rabi oscillations. Here, mode $b$ is decoupled from the dynamics. When $g\sim\omega_{0}$ the counter-rotating terms spoil the coherence of the Rabi oscillations. In the deep strong coupling limit $g>\omega_{0}$ the system dynamics descends into quasiperiodic collapses and revivals. In this limit the emitter rapidly decays into a state with $\langle\sigma_{z}\rangle\sim 0$, while generating photons in modes $a$ and $b$ (see Fig. S2(b)-(c)). As shown in Fig. S2(d) the $X$ quadratures of these modes are highly correlated, but there is no squeezing (Fig. S2(e)). Once the system emits the maximum number of photons, which scales with $g^{2}$, the process reverses and the system starts absorbing the photons. This is similar to recurrences in the Rabi model Casanova et al. (2010). Once almost all the photons are absorbed the system is reexcited and $\langle\hat{\sigma}_{z}\rangle$ oscillates between values close to $1$ and $-1$. This oscillation is not a Rabi oscillation but results from full three-body interactions between photons in modes $a$ and $b$ and the TLS. This is evident from Fig. S2 (f) which shows that the three-body cumulant $\langle\langle\hat{\sigma}_{z}\hat{n}_{a}\hat{n}_{b}\rangle\rangle$ at the point of this oscillation becomes non-zero. The revivals are not complete as the system never fully reaches $\langle\hat{\sigma}_{z}\rangle=1$. Although the revivals occur periodically, their quality decays in time.

S4 Extension to a V-level scheme

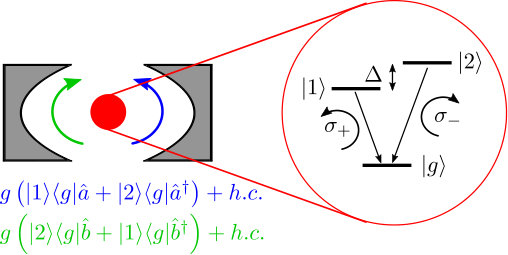

The analysis in the manuscript can be extended to atoms with multiple levels. Here I consider an atom with a $V$-level scheme where the optical transitions have transition dipoles with opposite handedness circular polarization. As shown in Fig. S3, the atom has levels $|g\rangle$, $|1\rangle$, and $|2\rangle$. As before $\hat{\mathbf{E}}=(\hat{a}\mathbf{E}_{a}+\hat{b}\mathbf{E}_{b})+h.c.$, but now $\hat{\mathbf{d}}_{1}=\mathbf{d}_{1}|g\rangle\langle 1|+\mathbf{d}_{1}^{*}|1\rangle\langle g|$ and $\hat{\mathbf{d}}_{2}=\mathbf{d}_{2}|g\rangle\langle 1|+\mathbf{d}_{2}^{*}|1\rangle\langle g|$ with $\mathbf{d}_{2}=\mathbf{d}_{1}^{*}$. Here, I take $\mathbf{d}_{1}$ to be copolarized with $\mathbf{E}_{a}$, while $\mathbf{d}_{2}$ is copolarized with $\mathbf{E}_{b}$. Within the dipole approximation, the Hamiltonian is

[TABLE]

Here the angular momentum, which is a conserved quantity and generates a $U(1)$ symmetry, is

[TABLE]

As before the conserved quantity is used to construct an ansatz for the eigenstates. The ansatz is

[TABLE]

One can use the ansatz to derive a set of eigenrecurrence relations

[TABLE]

where I have taken $g$ to be real. The coefficients can be solved for by truncating at a sufficiently large Fock state $n$.

S5 Many-body ansatz

In this section I present the eigenrecurrence equations for the many-body Hamiltonian. Starting from the Hamiltonian in Eq. 4 one uses the ansatz in Eq. 5 and substitutes it into Schrödinger’s equation to obtain a set of eigenrecurrence equations. Equations for each Fock state $n$ are obtained by projecting out the terms containing the ground state $|g\rangle$,

[TABLE]

The second set of equations are obtained by projecting out the terms containing the excited state $|e\rangle$,

[TABLE]

As in the main text, here the indices $i_{k}$ and $j_{k}$ run over lattice sites $0,1,2,\ldots,L-1$ for $k\geq 1$.

Diagonalizing the above equations becomes impractical by truncating at some large $n$ as the size of the Hilbert space grows exponentially as $L^{2n+l}$. The equations for $l=0$ and $l=1$ can be diagonalized for small systems $L\lesssim 30$ when keeping terms $n\leq 2$. These provide a good approximation for the $l=0$ and $l=1$ ground states which are dominated by $n=0$ and $n=1$ coefficients. When truncating at $n=2$, for $l=0$, one obtains the coupled set of equations ($d_{0,0}=0$) which are diagonalized to obtain the results shown in Fig. 3 of the main text. An equivalent set of equations can be obtained for $l=1$.

S6 Phase Transition of the many-mode system within the RWA

The $l=1$ ground state of the many-mode system, whose energy and observables are shown in Figure 3, undergoes a phase transition at a critical value of $g$. The behaviour of this phase transition can be described within the rotating wave approximation and is due to the semi-infinite geometry of the coupled-cavity waveguide array. In a finite cavity array (without periodic boundaries) with $L$ cavities in the absense of the TLS, the Hamiltonian is $\hat{H}_{\rm CCW}=\sum_{i=1}^{L}\omega_{c}\hat{a}_{i}^{\dagger}\hat{a}_{i}-J\sum_{i=1}^{L-1}\hat{a}_{i}\hat{a}_{i+1}^{\dagger}+h.c.$, and can be diagonalized by using the $k$-space operators with

[TABLE]

which gives $\hat{H}_{\rm CCW}=\sum_{k=1}^{L}\left[\omega_{0}-2J\cos{\left(\frac{\pi k}{L+1}\right)}\right]\hat{a}_{k}^{\dagger}\hat{a}_{k}$. The TLS is then introduced into the first cavity, which, within the RWA, leads to the interaction $g(\hat{\sigma}_{+}\hat{a}_{i=1}+h.c.)$. The $l=1$ ground state then corresponds to the single-excitation eigenstate. This eigenstate can be described using the ansatz

[TABLE]

where $|0,g\rangle$ corresponds to the TLS being in the ground state and all the cavities being in the vacuum state. Substituting $|\phi\rangle$ into Schrödinger’s equation leads to the equations

[TABLE]

Solving for $E$ by taking the continuum limit in $k$, transforming the sum to and integral, and looking for solutions with $|E-\omega_{0}|>2J$, yields

[TABLE]

At $g=\sqrt{2}J$, $|E-\omega_{0}|=2J$ and thus the expression is only valid for $g\geq\sqrt{2}J$. At $g=\sqrt{2}J$ bound state enters the continuum. This point corresponds to the boundary between regions I and II in Figure 3(a) within the RWA.

S7 Matrix-Product States

Matrix product states (MPS) are used here to compute the dynamics of the many-body Hamiltonian 4. Open source software (open MPS) Wall and Carr (2012); Jaschke et al. (2018) is used for the computations. In order to to use this code, the Hamiltonian is recast using hardcore Bosons

[TABLE]

Here the spin operators are replaced with the bosonic operators with $[\hat{c},\hat{c}^{\dagger}]=1$ and a nonlinear term $U\hat{c}^{\dagger}\hat{c}^{\dagger}\hat{c}\,\hat{c}$ is introduced. In the limit $U\rightarrow\infty$ the bosonic mode $c$ can only contain at most one excitation and thus behaves as a spin-1 TLS. The dynamics of this Hamiltonian are therefore equivalent to that of Eq. (4). The conserved angular momentum now becomes $\hat{L}_{HC}=\hat{c}^{\dagger}\hat{c}+\hat{a}^{\dagger}\hat{a}-\hat{b}^{\dagger}\hat{b}$. Note that the energies are renormalized by $+\omega_{0}/2$.

The MPS ansatz is used to represent a pure state of a system with $L$ sites and open boundary conditions as

[TABLE]

where the $A^{n_{j}}$ are matrices and the $n_{j}$ range over the number of bosonic excitations. For sufficiently large matrices and $n_{j}$ the representation is exact, but is exponentially large. If the matrices $A^{n_{j}}$ are scalars the ansatz can only represent product states. Matrices are required to represent entanglement with larger matrices being able to represent more entanglement. There are therefore two main convergence parameters that are checked here: the local bond-dimension $\chi$, which controls the amount of entanglement allowed in the system, and the number of Bosonic excitations $\nu$ allowed at each site, i.e., in modes $a$, $b$, and $c$ combined.

S8 Comparsion of MPS and Ansatz

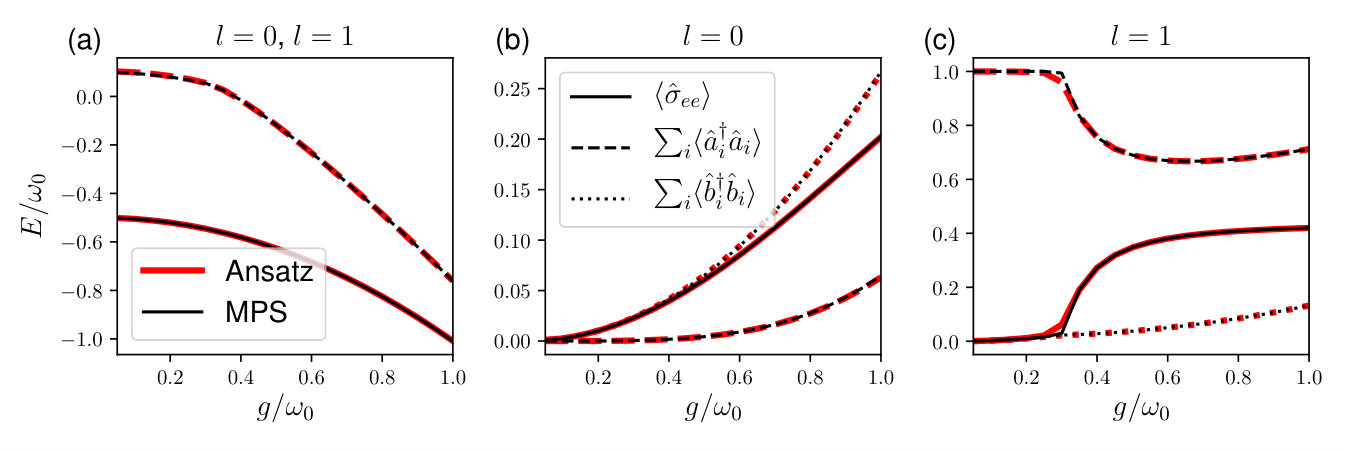

Figure S4 compares the eigenstate calculations shown in Fig. 3 of the main text with MPS calculations. In the MPS calculations a much larger computation domain of $L=100$ was used. Both the observables and the energies show excellent agreement. For $l=1$, in both the ansatz and MPS calculations the photons in the $a$ mode did not decay to zero at the computation boundaries for $g\leq 0.3\omega_{0}$. The eigenstates are thus influenced by the boundary conditions and these points are therefore omitted from the plots.

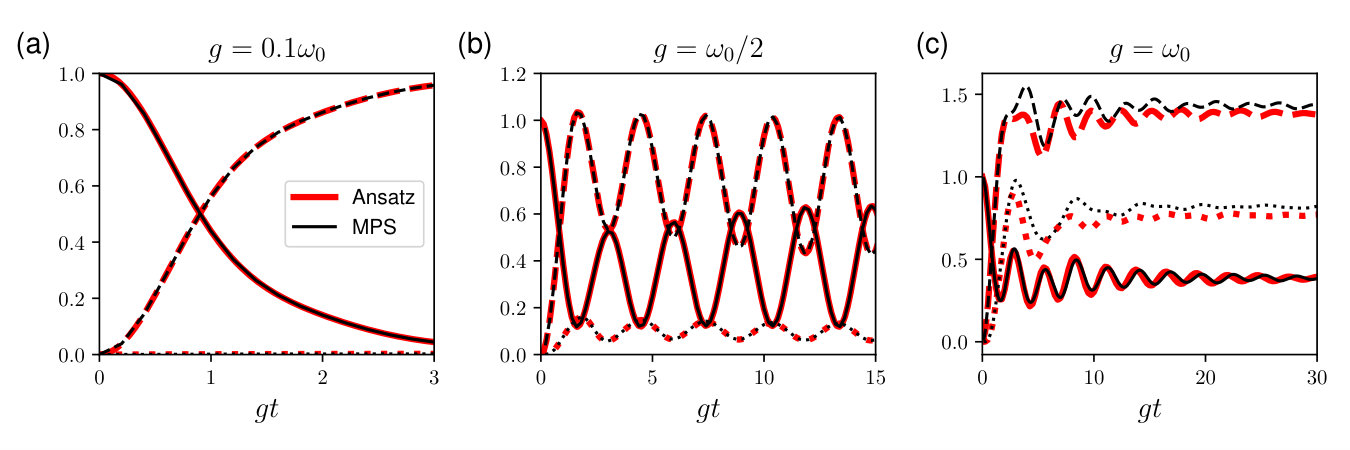

Figure S5 shows the comparison of observables versus time for the quench dynamics computed using the many-body ansatz in equation (5) truncated at $n\leq 2$ and an MPS ansatz. The parameters used here for the MPS simulations are the same as in Fig. 4 in the main text. The two computations show excellent agreement for $g=0.1\omega_{0}$ and $g=\omega_{0}/2$, while the ansatz starts becoming quantitatively inaccurate at $g=\omega_{0}$. This is because for larger values of $g$, the number of photons in the system becomes large and cannot be captured by the ansatz when it is truncated to values $n\leq 2$.

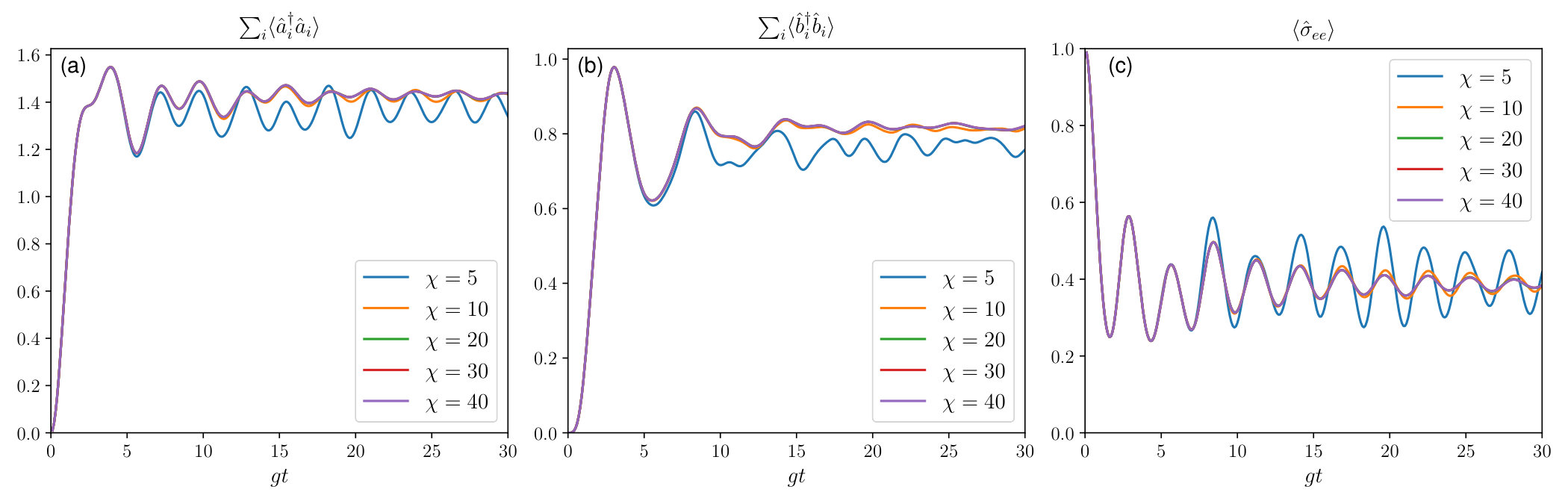

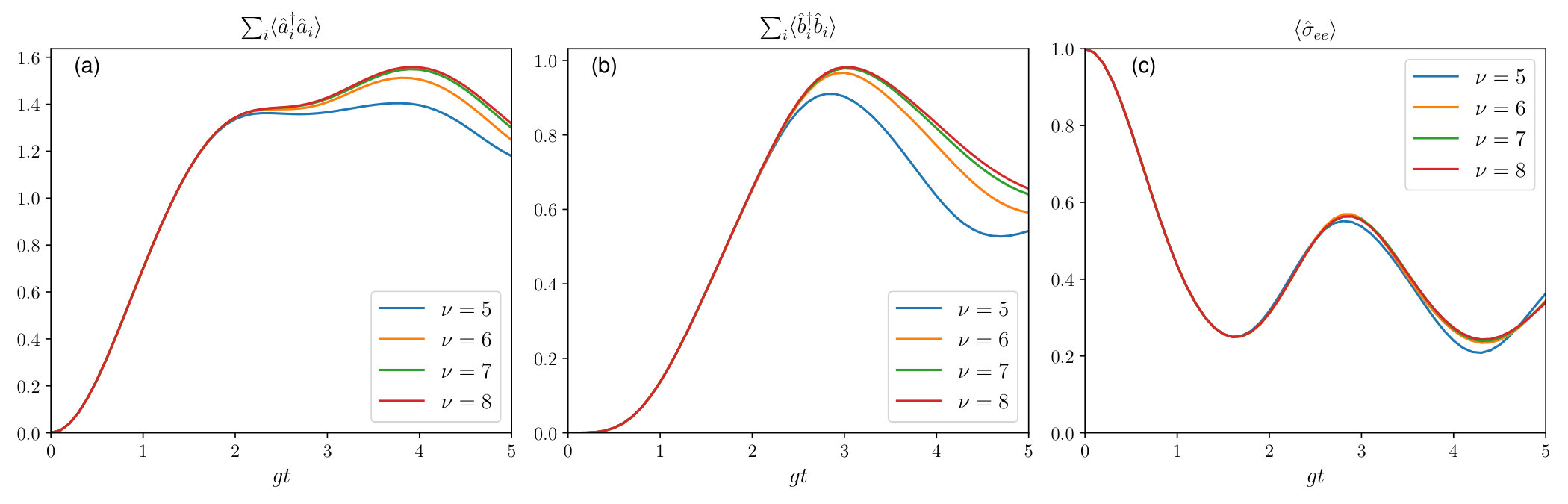

S9 Convergence calculations for MPS

Since there is a discrepancy between the results computed using MPS and the ansatz for $g=\omega_{0}=\omega_{c}$, a convergence analysis of the MPS calculations is performed. Figures S6 and S7 show the convergence calculations for the quench dynamics with $g=\omega_{0}=\omega_{c}$ and $J=0.2\omega_{0}$ using MPS for the maximum number of bosons and the bond dimensions respectively. The evolution of the system here is such that the dynamics is most sensitive to the value of $\nu$ at short times, while being sensitive to the value of $\chi$ at larger times. This is because near the beginning of the calculations, the emitter produces many photons at site $i=0$ and therefore this part of the evolution determines the required value of $\nu$. On the other hand as the simulation progresses the amount of entanglement across the sites grows and, at larger times, larger bond dimensions $\chi$ are required to capture the entanglement in the quantum state. This is rather fortunate, because the convergence of $\nu$ and $\chi$ can then be done independently. One chooses a smaller value of $\chi=20$ and runs the simulation for different values of $\nu$ for short times to check this parameter for convergence. This is shown in Fig. S6. These computations indicate that $\nu=7$ is adequate to obtain reasonable convergence for understanding the dynamics of the system. Once the value of $\nu=7$ is set, the convergence calculations for $\chi$ can be carried out. This is shown in Fig. S7 where the dynamics are simulated to $gt=30$. Clearly a bond dimension of $\chi=5$ is insufficient for obtaining even qualitatively accurate results. From these computations it appears that $\chi\geq 20$ is required for capturing the correct time-evolution of the observables. The convergence here is performed for $g=\omega_{0}$. For smaller $g$, fewer photons are generated and thus lower values of $\nu$ and $\chi$ can be used. This convergence study therefore gives an upper bound for the required values of $\nu$ and $\chi$.
