Horizon-AGN virtual observatory -- 2: Template-free estimates of galaxy properties from colours

TL;DR

This paper introduces a novel, template-free method using self-organising maps to estimate galaxy properties from colours, demonstrating improved accuracy and reduced bias over traditional template-based techniques.

Contribution

The study presents a data-driven approach with self-organising maps that accurately maps galaxy colours to physical properties, outperforming traditional template-based methods.

Findings

Accurate colour-to-physical property mapping in simulations.

Comparable redshift estimation with less bias.

Significantly better star formation rate predictions.

Abstract

Using the Horizon-AGN hydrodynamical simulation and self-organising maps (SOMs), we show how to compress the complex data structure of a cosmological simulation into a 2-d grid which is much easier to analyse. We first verify the tight correlation between the observed 0.3$\!-\!5\mu$m broad-band colours of Horizon-AGN galaxies and their high-resolution spectra. The correlation is found to extend to physical properties such as redshift, stellar mass, and star formation rate (SFR). This direct mapping from colour to physical parameter space is shown to work also after including photometric uncertainties that mimic the COSMOS survey. We then label the SOM grid with a simulated calibration sample and estimate redshift and SFR for COSMOS-like galaxies up to $z\sim3$. In comparison to state-of-the-art techniques based on synthetic templates, our method is comparable in performance but less biased at estimating redshifts, and significantly better at predicting SFRs. In particular our "data-driven" approach, in contrast to model libraries, intrinsically allows for the complexity of galaxy formation and can handle sample biases. We advocate that obtaining the calibration for this method should be one of the goals of next-generation galaxy surveys.

Figures

Tables

Table 1. Table 1: Terminology used throughout this work (see also Sect.  2.2 ).

Parameter space	$M$-dimensional space where each dimension is a galaxy feature (a colour in our case).
Colour ($𝒞$)	Observer’s frame colour (e.g., $u-g$).
SOM	Self-organising map connecting the $M$-d space to a lower dimensional space ($N$-d).
Grid	Low-dimensional space with rectangular shape ($N=2$) used here to display the SOM.
Cell	Minimum element of the grid, which can contain one or more galaxies.
Weight ($\hat{w}$)	$M$-d vector for a given cell, connecting it to a point in the parameter space.
Training	Iterative process to define the weights and distribute galaxies into cells.
Mapping	Projecting a new galaxy on the grid, linking it to its best-matching weight/cell.
Calibration	Assign a value (label) to each cell, according to any galaxy property.
${⟨\dots ⟩}^{\mathrm{cell}}$	Median of a generic quantity computed for galaxies in the same cell.

Equations

$${\hat{w}}_i(t+1)={\hat{w}}_i(t)+\alpha (t)\varphi ({\hat{w}}_i,{\hat{w}}_b,t)\left[\hat{x}-{\hat{w}}_i(t)\right].$$

$$d_{ij}=\sqrt{\sum _{m=1}^M{\left({\mathcal{C}}_m-w_{ij,m}\right)}^2},$$

$$d_i=\sqrt{\sum _n{\left({\mathcal{C}}_n-w_{i,n}\right)}^2/\Delta {\mathcal{C}}_n^2},$$

$${\mathrm{SFR}}_{\mathrm{SOM}}=\frac{{\sum }_{i\in N_{\mathrm{nc}}}({\mathrm{SFR}}_{\mathrm{cal}}/d_i^2)\times (f/f_{\mathrm{cal},\mathrm{i}})}{{\sum }_{i\in N_{\mathrm{c}}}1/d_i^2},$$

$$SFR(H\alpha )=5.4\times 10^{-42}\frac{L_{H\alpha }}{{\mathrm{erg}\mathrm{s}}^{-1}}{M}_{\odot }{\mathrm{yr}}^{-1},$$

$$E(B-V)=\frac{E(H\beta -H\alpha )}{k(H\beta )-k(H\alpha )}.$$

$$SFR(\mathrm{NUV},\mathrm{IR})=8.6\times 10^{-11}\frac{L_{\mathrm{IR}}+2.3L_{\mathrm{NUV}}}{{\mathrm{erg}\mathrm{s}}^{-1}}{M}_{\odot }{\mathrm{yr}}^{-1},$$

Full text

††pubyear: 2019††pagerange: Horizon-AGN virtual observatory – 2. Template-free estimates of galaxy properties from colours.–B.3

1 Introduction

One of the most successful techniques to understand galaxy formation is measuring galaxy properties in large-area surveys and comparing the results with cosmological-scale simulations based on theoretical models of galaxy formation. Typically the comparison is done in physical parameter space, so secure estimates of redshift, luminosity ($L$), stellar mass ($M$), star formation rate (SFR), must be obtained from observational data. These estimates usually come from the analysis of the spectral energy distribution (SED) or the high-resolution spectrum of galaxies, relying on the correlation between specific wavelengths and physical properties: for example Hα emission and star formation (Kennicutt, 1998) or $\sim\!2\mu$m light and stellar mass (Madau et al., 1998). In the past two decades data from multi-wavelength photometry and spectroscopic surveys has become abundant, and fitting galaxy templates to observed SED and spectra is now the standard method to perform this analysis (among the pioneering studies: Sawicki & Yee, 1998; Bell & de Jong, 2000; Gavazzi et al., 2002; Pérez-González et al., 2003; Fontana et al., 2004; Gallazzi et al., 2005). Galaxy parameters are usually derived from the maximum-likelihood template (Bolzonella et al., 2000) or from the full probability distribution function (PDF) of the template set (Benítez, 2000). For quantities like stellar mass or star formation history (SFH), templates are built from stellar population synthesis models (e.g., Bruzual & Charlot, 2003; Maraston, 2005; Conroy et al., 2009).

The modelling process often introduces systematic effects that have been shown to severely bias $M$ and SFR estimates in some cases (e.g. Mitchell et al., 2013; Mobasher et al., 2015; Laigle et al., 2019). For instance, the synthetic templates are not guaranteed to have fully realistic features: e.g., their SFH is often an analytically function (as the $\tau$- and inverted-$\tau$ models, see Maraston et al., 2010) that does not include either multiple bursts or chemical enrichment. Discrepancy between synthetic templates and real galaxies is also due to the assumptions about their stellar population initial mass function (IMF) and dust attenuation of their stellar light (e.g., Davidzon et al., 2013). Moreover, templates not always take into account nebular emission lines, which may contaminate the observed broad band photometric colours. Finally, some galaxy types may not even be included in the library (e.g. the old and dusty galaxies at $z\sim 2\!-\!3$ discussed in Marchesini et al., 2010).

Beyond modelling problems, there are additional systematics introduced by the fitting procedure. The relative abundance of a given SED in the real universe is often not accounted in the synthetic library: most of the fitting codes assume that all templates are equally likely. Moreover the SED (or spectral) fitting algorithms may not treat the template set in an optimal way, as they often rely on computationally expensive brute-force approaches to explore the entire library (see Speagle et al., 2016) or they may introduce systematics when convolving templates with instrumental errors (see Cappellari, 2017). These uncertainties all propagate into the commonly used statistical descriptors of a galaxy census, such as the galaxy stellar mass function (Ilbert et al., 2013; Grazian et al., 2015) and the specific SFR evolution of star forming galaxies (Santini et al., 2017; Davidzon et al., 2018). Ultimately, all of these uncertainties combine to result in a biased view of galaxy demographics, preventing a clear and straightforward comparison between observations and simulations.

To make such a comparison more robust, significant effort has been devoted to improving template fitting techniques. To date, substantial progress has been achieved in each step of the computation, from the construction of galaxy models with more complex SFHs (Pacifici et al., 2013) to improved radiative transfer modes including the interstellar medium (da Cunha et al., 2008) and sophisticated Bayesian fitting techniques (Leja et al., 2017; Chevallard & Charlot, 2016).

In parallel to this ongoing effort other authors have explored alternate paths, replacing standard template fitting with new techniques based on machine learning (ML). Besides implicitly accounting for biases, a key advantage of ML techniques is indeed their speed, which enables analyses of extremely large data sets. Most of the existing work aims at estimating redshifts (see Salvato et al., 2019 and references therein), with the exception of a few publications where ML has been applied e.g. to recover SFR (Delli Veneri et al., 2019) and specific SFR (Stensbo-Smidt et al., 2017) of $z\sim 0$ galaxies from the Sloan Digital Sky Survey (SDSS). A wider range of galaxy parameters (including stellar mass and metallicity) is estimated in Simet et al. (2019). That study, complementary to ours, use a supervised neural network trained with a semi-analytic model simulation.

In the present work we describe a novel technique based on unsupervised ML combined with analytic data modelling, to simultaneously provide redshift and SFR estimates for galaxies across a large redshift range ($0<z\lesssim 3$, spanning about 12 Gyr of universe’s life). The ML algorithm adopted here is the self-organising map (SOM, Kohonen, 1981), which is an unsupervised manifold learning algorithm used to analyse high-dimensional data (see also Kohonen, 2001). Initially popular in engineering research, it soon circulated to many other fields including Astrophysics. Seminal work has used the SOM mainly to classify astronomical objects and their properties, including stellar populations (Hernandez-Pajares & Floris, 1994), star vs galaxy separation (Miller & Coe, 1996; Maehoenen & Hakala, 1995), and morphological types (Molinari & Smareglia, 1998). Since it does not require the manifold to have physical meaning, the SOM has also been used to classify astronomical publications (Poincot et al., 1998). More recently the SOM has been applied to calibrating redshifts for weak lensing cosmology (Masters et al., 2015). Other recent studies using the SOM will be mentioned throughout this work.

As other ML methods, the SOM starts with a training phase. However, unlike supervised methods, the goal of the training is to create a compressed, lower-dimensional representation of the data rather than estimate an output. In this work we first perform the training on galaxy colours drawn from the Horizon-AGN simulation. We then label the SOM with galaxy properties not learned during the training phase. These labels can be drawn from a data model based either on simulations or, as suggested later, bona fide galaxies observed as reference for calibration. Since the mapping from the data to the labels is explicit and analytic, control over selection functions, sample biases, and the effects of observational noise is retained (unlike supervised ML where these factors are part of the learning scheme).

In this paper we focus on galaxy SFR estimates because they are fundamental to constraining galaxy evolution (Madau & Dickinson, 2014) along with stellar mass measurements. However, compared to the latter, the SFR estimates from template fitting are much more uncertain: previous work (e.g., Laigle et al., 2019) shows that SFR is more sensitive than stellar mass to SED-fitting assumptions. This sensitivity is inherent to relying on the ultraviolet (UV) continuum as a star formation indicator because it is highly attenuated by dust, geometry dependent, and also sensitive on the details of SFH. Other techniques offer better performance by using either far-infrared (FIR) data ($\geqslant$24 $\mu$m, Le Floc’h et al., 2009; da Cunha et al., 2008) or spectroscopic follow-up (Kennicutt, 1998; Kewley et al., 2004) which is expensive and impractical to obtain for every galaxy. Therefore we focus the present study on estimating SFR from the rest-frame UV to near-IR (NIR) photometry, leaving the details of other physical properties to future work.

To test and develop our ML method we use a mock galaxy catalogue of $\sim\!8\times 10^{5}$ objects extracted from the cosmological hydrodynamical simulation Horizon-AGN (Dubois et al., 2014); the mock catalogue was presented in Laigle et al. (2019, hereafter Paper I) as the first milestone of the Horizon-AGN virtual observatory project. One of the main goals of the project is to bridge the divide between empirical and theoretical studies by adding observational-like features to simulated galaxy samples. To this purpose, we produced mock catalogues with characteristics similar to the COSMOS survey (Scoville et al., 2007) and Euclid (as predicted in Laureijs et al., 2011). By applying our SOM estimator to the COSMOS-like version of the Horizon-AGN galaxies we aim to demonstrate its feasibility for real data sets. Both the simulated data set and the SOM are described in Sect. 2.

Building on this result, in Sect. 4 we introduce the SOM-based estimator of redshift and SFR, and apply it to the COSMOS-like mock catalogue. In Sect. 5 we show that redshift and SFR must be known for only a subset of galaxies in order to “calibrate” the SOM estimator and provide estimates without a synthetic template library. We then discuss possible ways to build such a calibration sample, inspired by previous work proposing a highly complete spectroscopic follow-up in large cosmological surveys (Masters et al., 2015; Hemmati et al., 2019b). To show the improvement of template-free ML with respect to standard fitting techniques, Sect. 5 ends with a comparison between SOM estimates vs the SFR derived in Paper I for the same galaxies by means of the code LePhare (Arnouts et al., 1999; Ilbert et al., 2006). We discuss the results and draw our conclusion in Sect. 6.

Throughout this work we use a flat $\Lambda$CDM cosmology with $H_{0}=70.4$ km s*-1* Mpc*-1*, $\Omega_{m}=0.272$, $\Omega_{\Lambda}=0.728$, and $n_{s}=0.967$ (Komatsu et al., 2011, WMAP-7). All magnitudes are in the AB (Oke, 1974) system. The IMF is as in Chabrier (2003).

2 Data and Methods

2.1 The Horizon-AGN virtual observatory

The present study relies on a mock galaxy catalogue built from the Horizon-AGN hydrodynamical simulation111 http://www.horizon-simulation.org/ (Dubois et al., 2014). This catalogue, presented in Laigle et al. (2019), includes 789,354 galaxies extracted from a $1\times 1$ deg2 lightcone by running the AdaptaHOP halo finder (Aubert et al., 2004) on the stellar particles distribution. Each stellar particle (of mass $\sim 2\times 10^{6}\,M_{\odot}$) is linked to a synthetic simple stellar population (Bruzual & Charlot, 2003, hereafter BC03) assuming Chabrier’s IMF (Chabrier, 2003) and interpolating between the metallicity values available in BC03. The galaxy catalogue is selected in stellar mass ($M_{\mathrm{sim}}>10^{9}\,M_{\odot}$) and redshift222 cosmological redshifts ($z_{\mathrm{sim}}$) in our light-cone include galaxies’ peculiar velocity. ($0<z_{\mathrm{sim}}<4$). The upper limit in redshift is imposed to work with galaxy colours consistently defined across the whole redshift range, i.e. avoiding non-detection in the $u$ band due to the Lyman limit shifting into the band.

Our virtual observatory mimics the optical and near-infrared (NIR) photometry of COSMOS2015 galaxies (Laigle et al., 2016) in 10 broad bands ($u$, $B$, $V$, $r$, $i^{++}$, $z^{+}$, $Y$, $J$, $H$, $K_{\mathrm{s}}$) and 14 medium-band filters (from Subaru/SuprimeCam, see Taniguchi et al., 2007). It also includes the Spitzer/IRAC channels centred at 3.6 and 4.5 $\mu$m (hereafter $[3.6]$ and $[4.5]$). In each filter we reproduce the signal-to-noise ratio ($S/N$) distribution as in the “ultra-deep” stripes of COSMOS2015. Reference 3$\sigma$ limits (in 3$\arcsec$ apertures) used in previous work are $K_{\mathrm{s}}<24.7$ and $i^{+}<26.2$ (for a list of sensitivity depths in every filter, see Table 1 in Laigle et al., 2016). After introducing such uncertainties we perturb the original galaxy fluxes accordingly. Attenuation by dust and inter-galactic medium is also taken into account, whereas flux contamination by nebular emission is not implemented. In the following we refer to the attenuated fluxes without photometric errors as intrinsic, while perturbed photometry is the one that takes into account galaxy $S/N$.

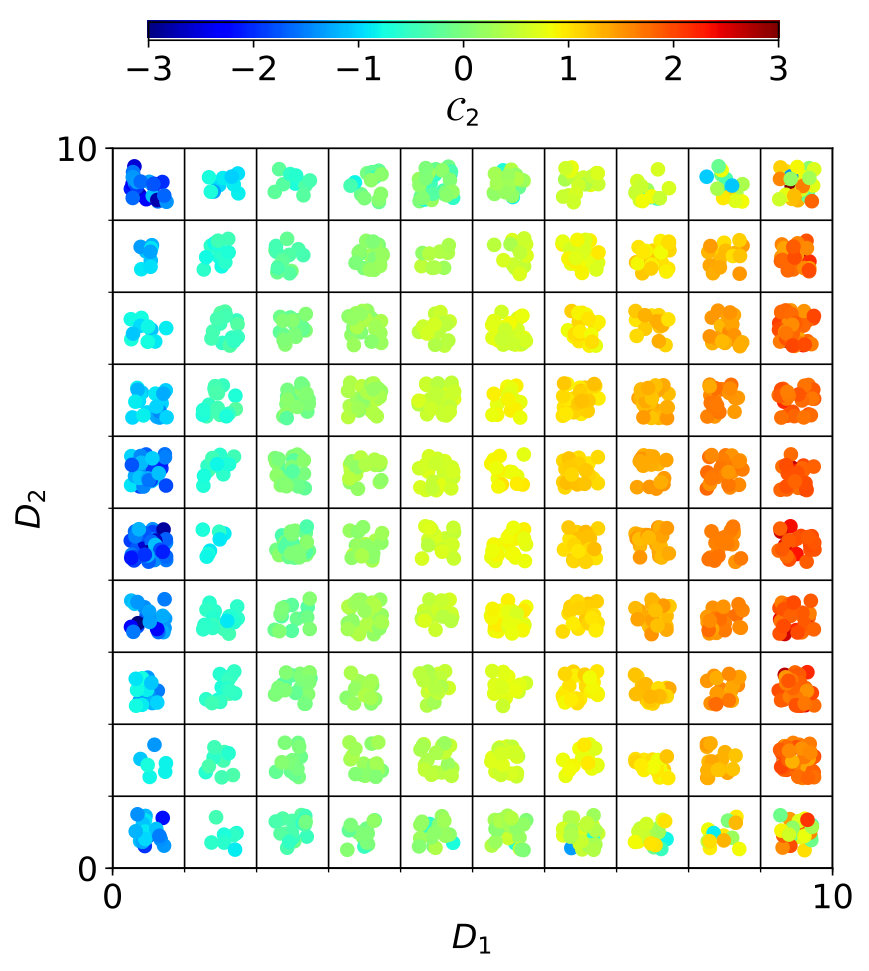

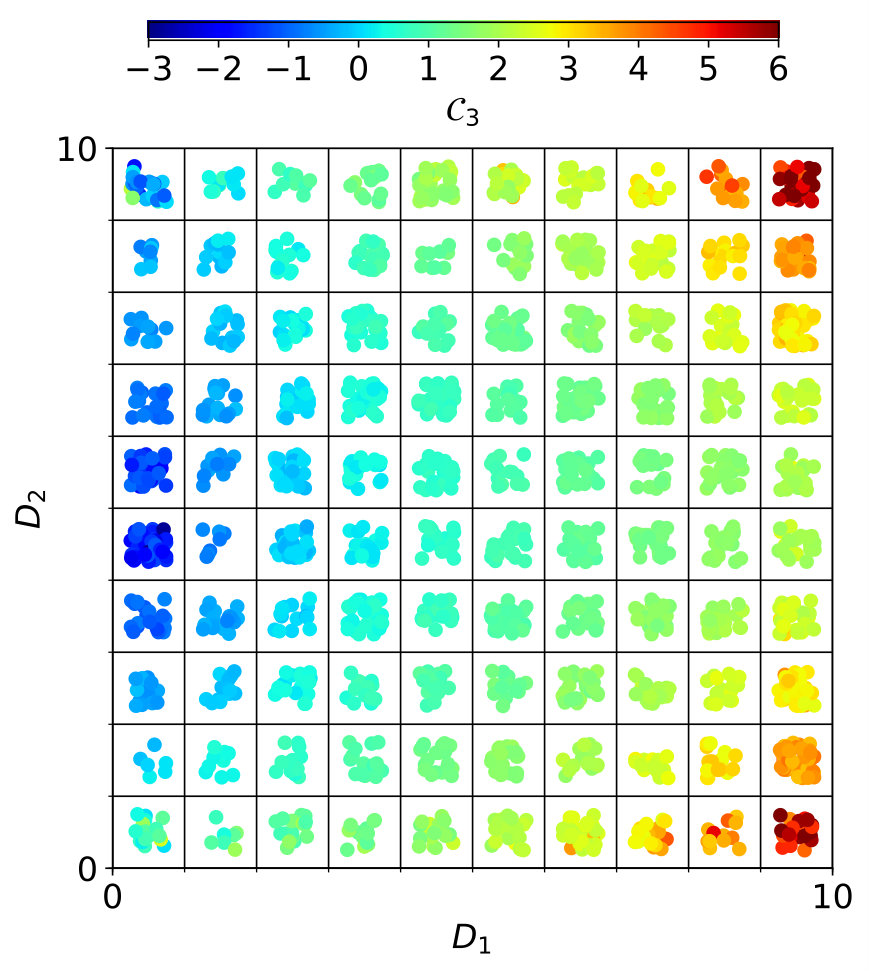

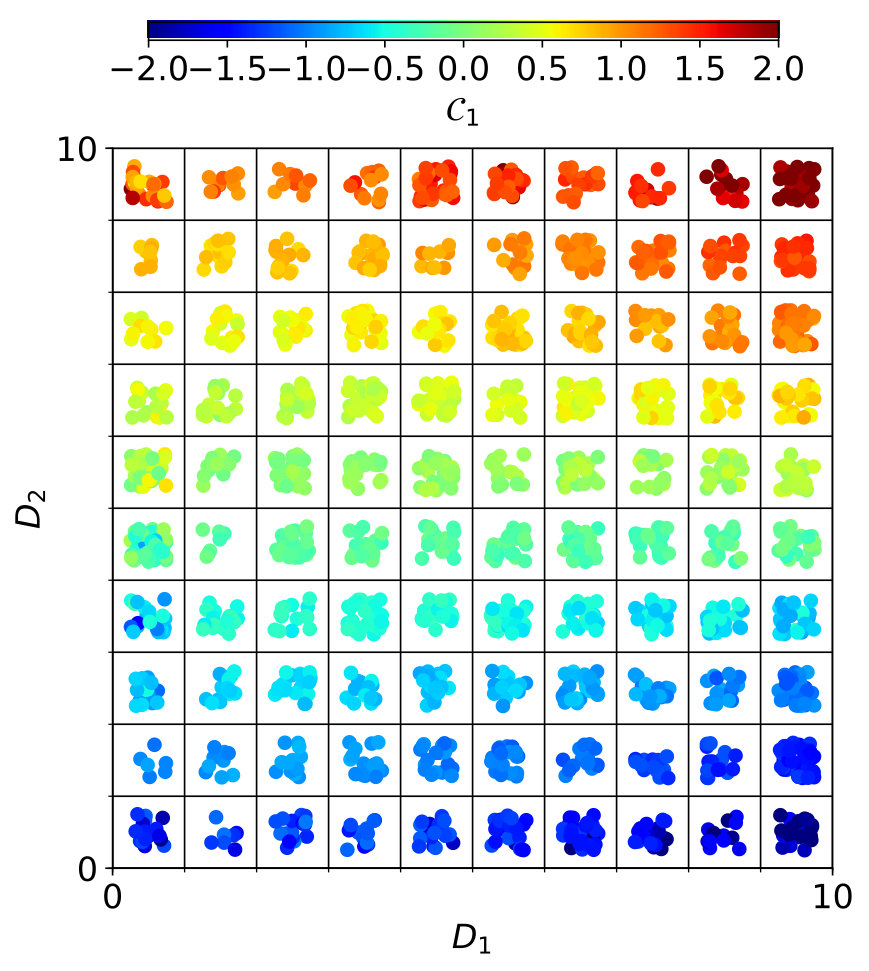

Further details about the realisation of the Horizon-AGN mock galaxy catalogue can be found in Paper I and Appendix A1 (see On-line Supplementary Materials). We also use a simpler (“phenomenological”) simulation to show that neither the Horizon-AGN limit in stellar mass nor the absence of nebular emission lines affect our main results (Appendix A2).

2.2 The self-organizing maps

In brief, a self-organising map (SOM) represents a high-dimensional data distribution into fewer dimensions (e.g., a 2-D space) through an unsupervised neural network that preserves topology. In other words, objects that are multi-dimensional neighbours remain close to each other also in the 2-D space.

Assume that the original (compact) space $\mathcal{M}$, with dimensions equal to $M$, has to be reduced into a space $\mathcal{N}$, which we choose to be bi-dimensional ($N=2$)333Choosing $N=3$ or higher is possible but it would not offer the same advantage in terms of visualisation.. To build the SOM we create a neural network where each neuron is associated to a weight vector $\hat{w}$. Each element in these vectors comes from the corresponding dimension of $\mathcal{M}$ (i.e., $\hat{w}$ has length $M$). Neurons (and the vectors attached to them) are ordered in the $N$-dimensional configuration defined by the user, for instance a rectangular lattice (see a pedagogical example in Fig. 1).

The SOM relies on a training sample of objects drawn from $\mathcal{M}$. The neural network explores $\mathcal{M}$ by adapting neurons’ weights to the training sample. Such a learning phase proceeds by iteration until the value of each weight gets as close as possible (according to a convergence criterion) to the input data. The first task in the procedure is to find the best-matching unit for any given data point ($\hat{x}$) of the training sample. The best matching unit is the neuron whose weight $\hat{w}_{b}$ is the closest from $\hat{x}$. Then, the weight of each neuron (including the best-matching unit) is updated during an iterative process:

[TABLE]

Equation (1) is written for the $i$-th neuron, updated from step $t$ to $t+1$. The learning coefficient $\alpha$ is a monotonically decreasing function to ensure convergence, while $\phi$ is a neighbourhood function that modulates the update depending on the distance between the $i$-th neuron and the best-matching unit: $\phi\propto\exp(-|\hat{w}_{i}-\hat{w}_{b}|)$. The procedure is repeated by scanning the other elements of the training sample. It is critical to use a training sample that is representative of the whole space, otherwise the grid of neurons/weights is adjusted to probe only a sub-set of $\mathcal{M}$.

The learning process is unsupervised because it does not require the training sample to be labelled a priori. Neurons autonomously organise their weights: hence the name “self-organizing” map. The resulting SOM is a mapping function that connects a point from $\mathcal{N}$ to $\mathcal{M}$ and vice versa. We stress out that the topology is preserved so that in the low-dimensional configuration (the 2-D lattice in our example) two adjacent weights are linked to nearby regions of $\mathcal{M}$.

In our case the high-dimensional space is the typical baseline of an extragalactic survey, i.e. each dimension is a colour measured from broad-band filters (for example $u-g$, $g-r$, etc.). The training sample is a set of galaxies large enough to span the colour distributions observed in the universe. We specifically explore the panchromatic space because there is a straightforward connection to the physics of galaxy evolution we aim at studying444 A colour is more informative about galaxies’ SFH than single broad-band magnitudes. The SOM can also analyse more complex high-dimensional spaces defined by a combination of miscellaneous parameters (galaxy colours, fluxes, morphology, etc.).. We choose a rectangular lattice to order the neurons. Because of its appearance, and to maintain the same lexicon of previous work, hereafter we will refer to the neurons as “cells” in a 2-D “grid” (Fig. 1)555 It should be noticed that in our SOM implementation input data will be normalised in each dimension, re-scaling the distribution to unit variance and centring the mean at zero.. Each cell is defined by its weight vector, for example $\hat{w}_{ij}$ for the cell with coordinate $i,j$ in the grid. The weight connects its cell to a point in the panchromatic space, i.e. the vector components $(w_{ij,1}\cdots w_{ij,M})$ now represent a set of colours. The terminology used to describe the SOM is summarised in Table 1.

To follow Kohonen’s prescriptions – i.e., to find the best-matching units and implement Eq. (1) – the distance between weights and galaxies is computed assuming a Euclidean metrics:

[TABLE]

where the given galaxy is defined by the colour vector $\hat{\mathcal{C}}=(\mathcal{C}_{1},\mathcal{C}_{2},...,\mathcal{C}_{M})$. The total $i\times j$ number of cells/weights is chosen by the user (see Sect. 3). As a result each SOM cell “contains” one or more galaxies from the training sample, whose colours are similar to the weight vector of that cell. The galaxy-cell association determined during the training phase is performed by the python software SOMPY666https://github.com/sevamoo/SOMPY . Before the iterative process, to start with weights that are already close to the galaxy distribution, each weight vector is initialised by setting its colours via principal component analysis (PCA, Chatfield & Collins, 1980) of the training sample. A parallelism between these weights and PCA eigenvectors can help understanding the SOM: its weights can be thought as a set of characteristic SEDs that describe the panchromatic space. However, the SOM has important differences from a PCA (see Sect. 3.3). In particular PCA is a linear hyper-surface defined by principle components, so it cannot fully describe a non-linear manifold, which is what we expect the galaxy colour space to be.

Once the SOM is trained, new galaxies can be mapped onto the grid by finding the nearest weight vector to each of them through Eq. (2). Moreover, the grid can be labelled a posteriori by looking to another galaxy property not included in the parameter space $\mathcal{M}$. For example, one can consider the redshift distribution of galaxies within a given cell and take their median $\langle z\rangle^{\mathrm{cell}}$ to label that cell. Such explicit labelling gives our method a key advantage over supervised ML because we keep control of the relationship between features (the broad-band colours) and labels (the redshift in the example above). This means that if we have a model of the bias or errors in our data we can directly account for that. However, it also means that an additional calibration phase is required to make the SOM work as an effective galaxy estimator. Indeed, as we will highlight in the following, galaxies clustered together in the colour space also share other (physical) properties.

3 Self-organising map of Horizon-AGN galaxies

We apply the procedure summarised in Section 2.2 using Horizon-AGN galaxies as a training sample. The considered features are their broad-band colours $u-B$, $B-V$, $V-r$, $r-i^{+}$, $i^{+}-z^{++}$, $z^{++}-Y$, $Y-J$, $J-H$, $H-K_{\mathrm{s}}$, $K_{\mathrm{s}}-[3.6]$, $[3.6]-[4.5]$. Except for the Subaru intermediate-band filters, which are not included here, this is the same baseline used in Paper I. As the SOM projects that 11-dimensional space into a rectangular grid (likewise Fig. 1) we can explore galaxy physical parameters as a function of their 2-D position, to see whether training objects located in the same cell have in common other properties besides their broad-band colours. It should be noticed that a galaxy not detected in any of the filters poses a challenge to the SOM as one colour would be ill-defined. This is a common problem in ML methods that will be addressed in Sect. 4.

In the present Section we consider intrinsic colours (i.e., not affected by photometric noise) unless specified otherwise. The results discussed here are instrumental to show the fundamental properties of our method and its full potential in the case of an “ideal” survey. In Sect. 5 we will address the impact of observational uncertainties.

3.1 Generating an ideal SOM

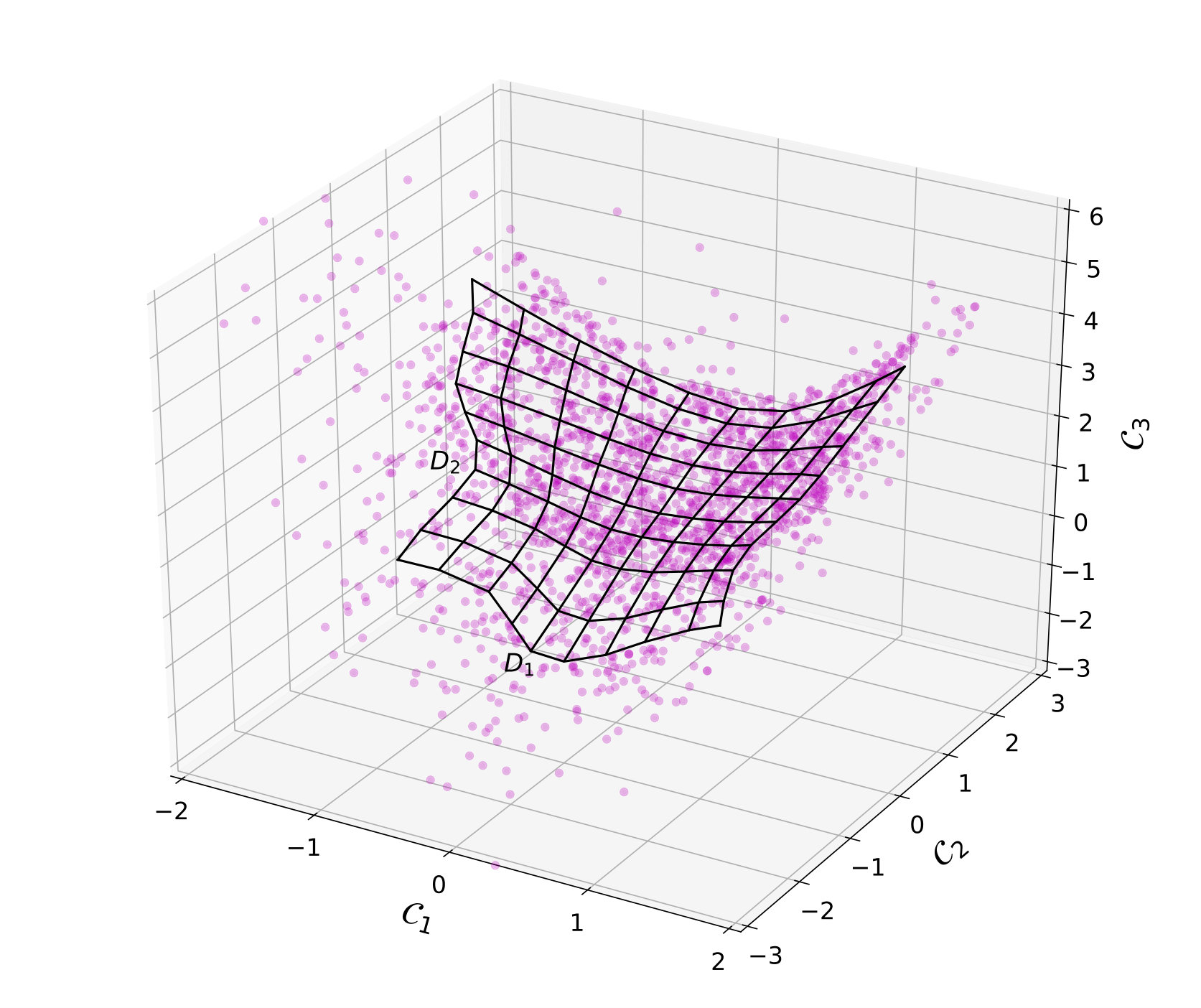

Since we decided to adopt a rectangular lattice for the SOM the first step is to decide its size and axial ratio777 Other 2-D configurations are possible, e.g. a lattice made by hexagonal cells or a spherical projection divided in healpix (see Carrasco Kind & Brunner, 2014 for a comparison).. We set them by iteration, looking at changes in galaxy dispersion as a function of those two quantities (i.e., how tightly clustered are the galaxies associated to a given cell). We also check that the number of galaxies per cell is large enough to assure a good sampling in the various regions of the parameter space.

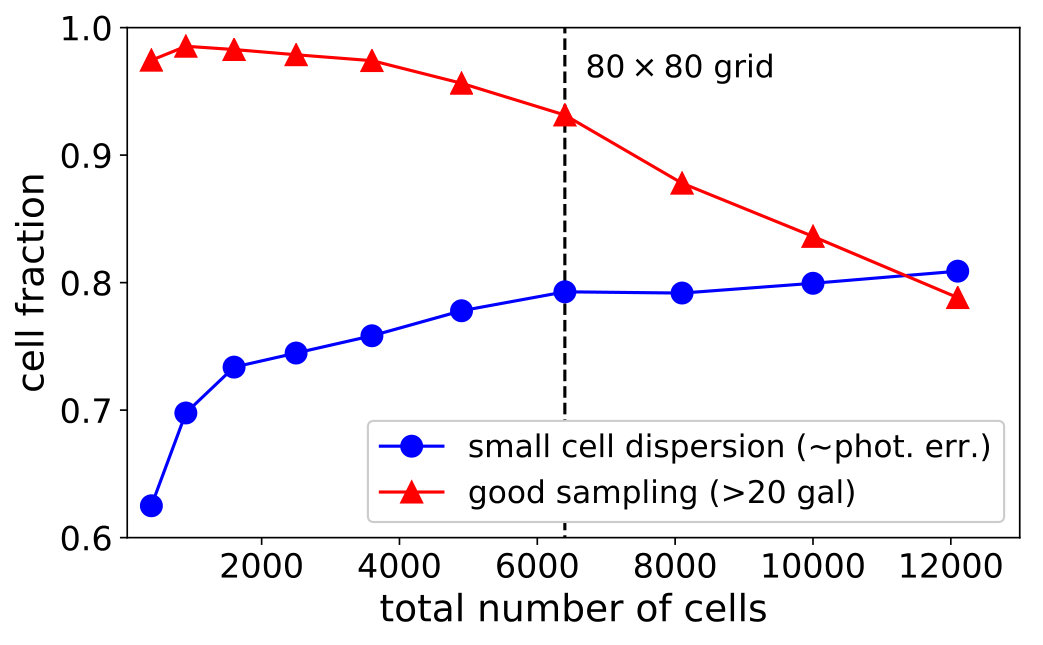

First we test the optimal SOM size. Starting from a $20\times 20$ grid, we gradually increase the size by adding ten cells in both dimensions (i.e., maintaining a “square” configuration). Each time we train the SOM with the whole Horizon-AGN catalogue and measure i) the average distance of galaxies from their best-matching weight, ii) the number of galaxies associated to each weight. The SOM converges fast with respect to i), so that in grids of $\gtrsim$6,000 cells most of the galaxies are tightly clustered in their cells, i.e., their distance from the weight in the colour space is smaller then the typical photometric errors in deep surveys like COSMOS (0.01$-$0.05 mag from optical to IR). On the other hand, the larger the grid of weights, the fewer the number of galaxies associated to each of them. With the $90\times 90$ configuration a significant area of the SOM starts to be under-sampled, with about 15 per cent of the cells defined by less than 20 galaxies each (Fig. 2, upper panel). Therefore we identify a slightly smaller size ($80\times 80$ cells) as a good compromise between high resolution and sampling, also considering computational efficiency.

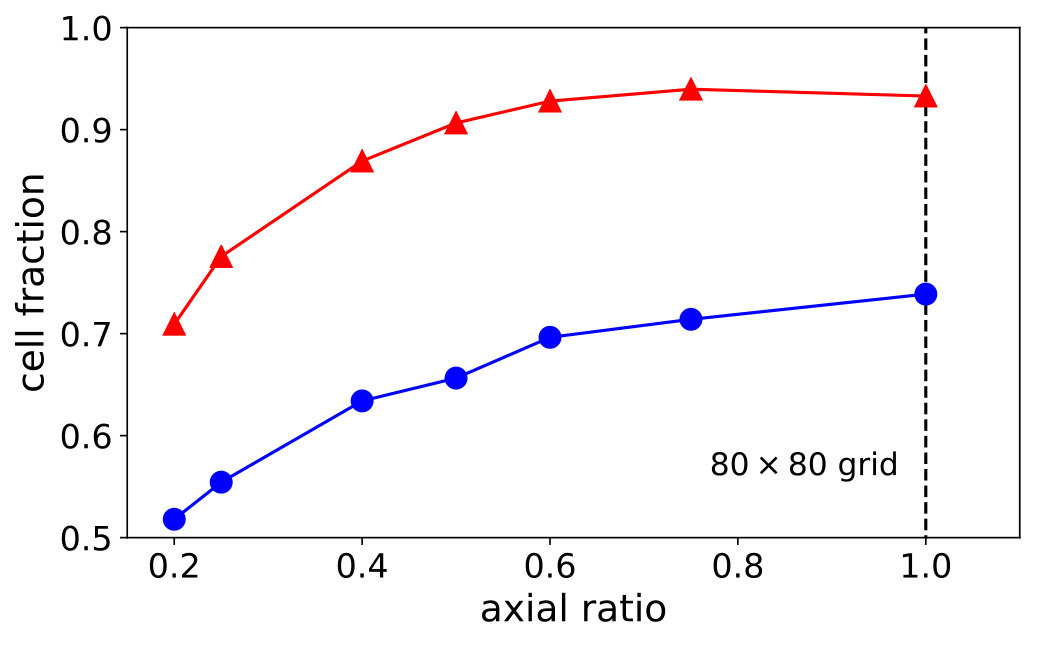

The next step is to define the best geometry for our SOM, namely the ratio between its axes. In the previous test we used only square grids with increasing number of cells, while now we fix the number of cells to $6,400$ and modify the aspect of the grid from 1:5 ratio to 1:1 (i.e., the $80\times 80$ configuration) in eight steps. We describe again the quality of each SOM in terms of i) and ii), finding that the best configuration is that with 1:1 axis ratio (Fig. 2, lower panel). In a rectangular grid there are more galaxies not well represented (i.e., far from their best-matching weight) especially when the two sides have very different lengths.

In conclusion, the SOM we will use throughout is made by $80\times 80$ cells. The result is specific for the Horizon-AGN parameter space: the optimal configuration for another galaxy sample may be different. We notice nonetheless that the total number of cells is comparable to those used to describe the real COSMOS and CANDELS data sets, respectively in Masters et al. (2015, 11,250 cells for galaxies up to $z\sim 6$) and Hemmati et al. (2019b, 4,800 up to $z\sim 4$). An alternate method, proposed by Hemmati et al., consists in increasing the grid size until the histogram of each weight vector component matches the distribution of the corresponding colour (see their figure 6). We calculate these histograms and find that indeed they converge when the grid dimension is $\geqslant 80\times 80$.

3.2 Redshift calibration

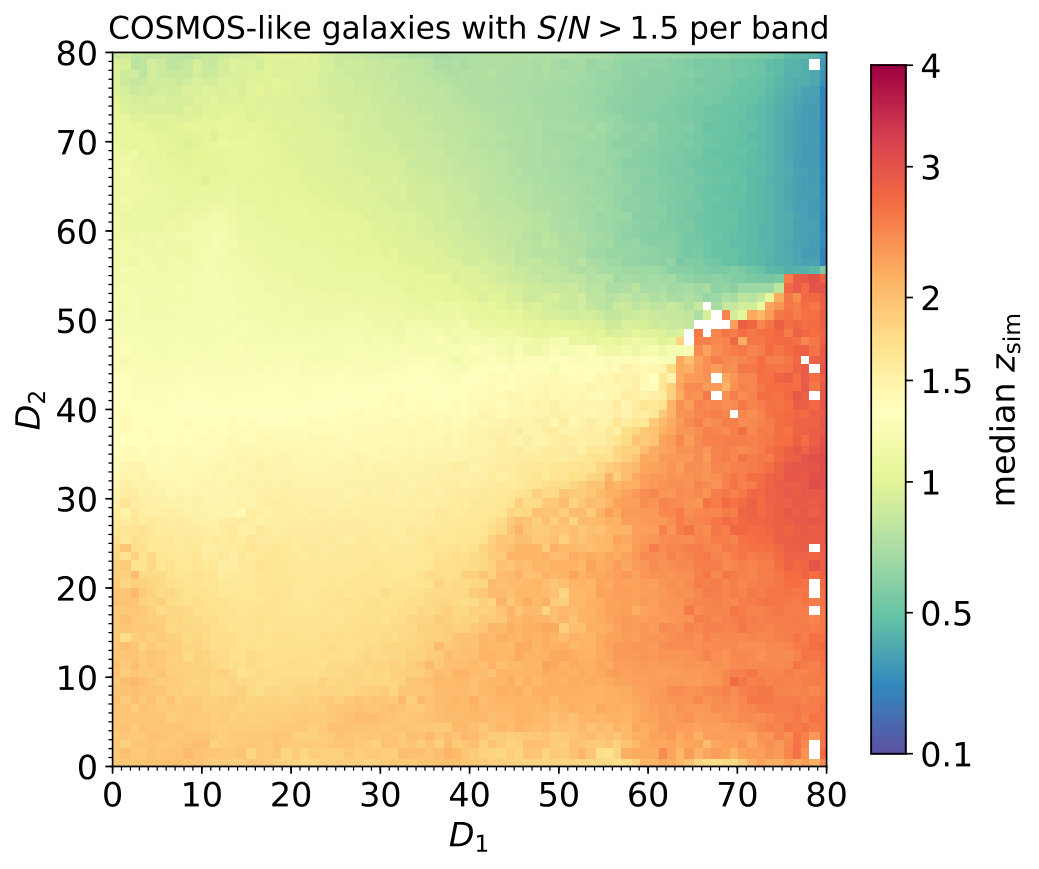

After the training phase, we can label each SOM cell according to a given property of the galaxies contained in it. We compute the median redshift $\langle z_{\mathrm{sim}}\rangle^{\mathrm{cell}}$ and the relative scatter $\sigma_{z}$ defined as $\sigma(z_{\mathrm{sim}}-\langle z_{\mathrm{sim}}\rangle^{\mathrm{cell}})$. The SOM of Horizon-AGN shows the same cell-$z$ relationship found by Geach (2012) in COSMOS, with a smooth redshift evolution as moving across the 2-D space (Fig. 3). The redshift scatter in every cell (not shown in the Figure) is particularly small, with $\sigma_{z}$ always between 0.05 and 0.1. The small scatter is even more remarkable when the $\sigma_{z}$ values are divided by the $1+z$ factor, shrinking to 0.01$-$0.03. This is due to the algorithm’s ability of clustering objects with very similar (observer’s frame) colours, which correspond to similar redshift. One may expect some redshift interlopers – i.e., objects with a significantly different $z_{\mathrm{sim}}$ from the rest of the cell – due to SED degeneracies (Papovich et al., 2001). However, we do not find this in the ideal case discussed here. On the other hand, we do observe boundary effects produced by galaxies with extreme colours, which lie at the limits of the panchromatic manifold (see also the example in Fig. 1). Those galaxies are pushed to the border of the grid, but with a negligible impact on the redshift distribution inside a cell (the redshift scatter remains modest: $\sigma_{z}\simeq 0.1$).

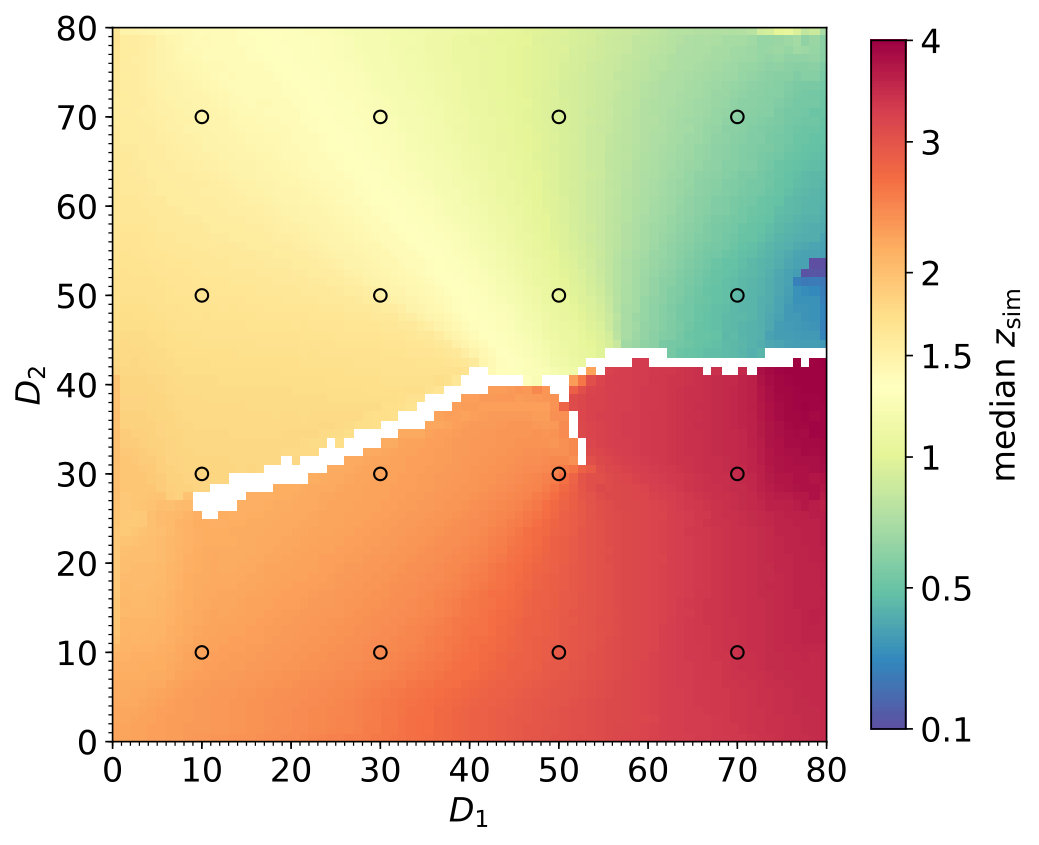

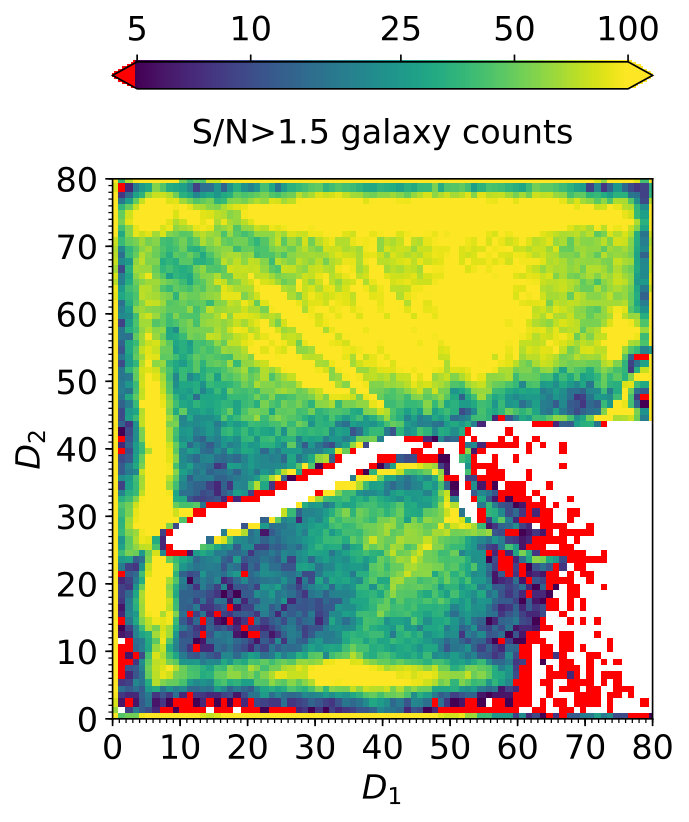

In Fig. 3 we also observe a long horizontal stripe of empty cells. No galaxy has been associated to their $\hat{w}$ during the training. The $\langle z_{\mathrm{sim}}\rangle^{\mathrm{cell}}$ labels explain the physical meaning of this empty region: it is a “caustic” in the parameter space dividing $z\sim 3$ galaxies from those at lower redshift with similar colours. Since we are working with intrinsic photometry, their Lyman vs Balmer break degeneracy (e.g. Stabenau et al., 2008) is fully disentangled.

3.3 High-resolution spectra in the SOM cells

In the Horizon-AGN virtual observatory the broad-band colours are integrated from high-resolution BC03 spectra, which are built accounting for complex SFH and chemical enrichment (Sect. 2.1).

In the SOM we stack galaxy spectra from the same cell, re-normalising them to a fixed $i^{+}$ flux to ease the comparison. Stacking is performed in the observer’s reference frame: spectra are redshifted to their $z_{\mathrm{sim}}$ before adding them, to be consistent with the analogue procedure one would implement in a real survey.

The fact that the colour-based SOM can efficiently map redshifts (Sect. 3.2) does not necessarily imply that it performs as well with spectral features. Given the small amount of spectroscopic information in real data sets, previous work has only proven that broad-band SEDs are well clustered within the grid, with the exception of Rahmani et al. (2018) analysing 142 spectra at $0.5<z<1$ and Hemmati et al. (2019b) showing a handful of $z\sim 1$ spectra that have similar shape and are also clustered in nearby cells. We find that this is actually the case for the whole Horizon-AGN sample: galaxy spectra are in excellent agreement in most of the cells (see a few examples in Fig. 4). Inspecting the regions close to the redshift caustic we find more dispersion, mainly because the median stacking is performed in observer’s frame and therefore it is affected by the difference between individual redshifts. We check that spectral shapes are even more similar if the comparison is made in rest frame, removing the $\sigma_{z}$ scatter.

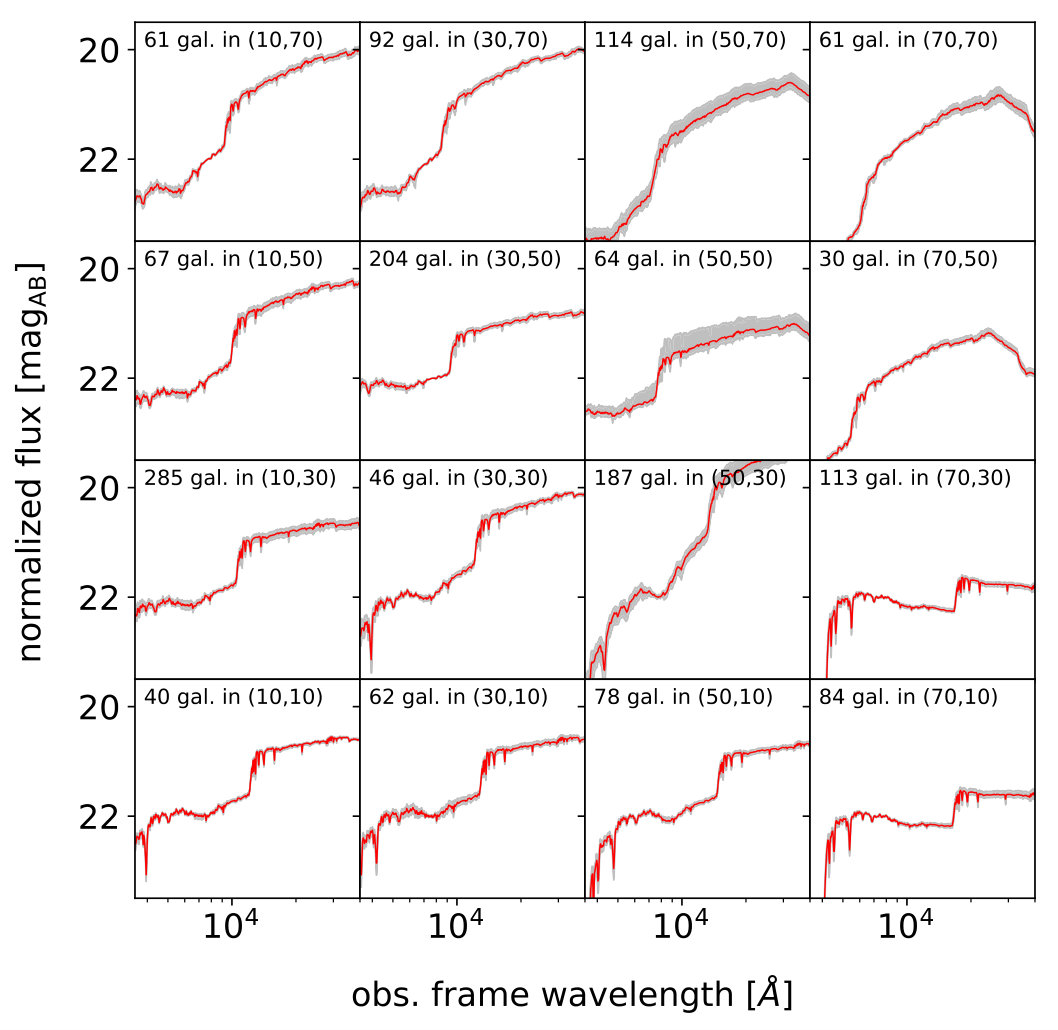

In addition to the examples shown in Fig. 4 we perform the same stacking analysis in 225 distinct cells evenly distributed across the grid888Those cells have coordinates $D_{1}=5i$ and $D_{2}=5j$, where $i$ and $j$ are integers ranging from 1 to 15., finding that their average inter-quartile dispersion is always $\lesssim$15 per cent ($<8$ percent in half of the cells probed). It is worth emphasising the differences between this result and what a PCA classification would give. First of all, PCA provides a basis of eigenvector to be linearly combined, whereas the SOM works also with non-linear transformations. Each weight in the SOM has a clear physical meaning by itself, i.e., it describes a galaxy phenotype in the observed frame (Sánchez & Bernstein, 2019). On the other hand, in a PCA classification, the 2$-$4 eigenspectra that usually have the most discriminating power are difficult to interpret. They can be combined to reproduce actual galaxy features, but classes for those resulting spectra are not inherently provided by the PCA and human intervention is required (e.g., defining meaningful regions in a Karhunen-Loève diagram, Marchetti et al., 2013).

The degree of similarity of the simulated spectra within a given SOM cell also depends on the complexity of their features. Spectra used in this work are extracted from the Horizon-AGN and their realism and complexity are constrained by those of the simulation. Modelling galaxy evolution on cosmological scales is inevitably done at expenses of resolution. Because Horizon-AGN maximum spatial resolution is at best 1 pkpc, the impact on the inter-stellar medium (ISM) of any process occurring at a smaller scale is averaged through sub-grid recipes. These recipes have been iteratively improved in order to reproduce as well as possible the statistical distribution of integrated galaxy properties throughout cosmic time (in Horizon-AGN such a progress can be tracked through Dubois et al., 2012; Dubois et al., 2014; Park et al., 2019). However, they might fail to some extent at reproducing ISM in-homogeneity and clumpiness. As a result, we expect the SFH of our simulated galaxies to be smoother (and their spectra less diverse) than the real ones. As a consequence, the dispersion that we measured within a SOM cell must be considered as a lower limit. A more extended discussion about caveats in our modelling is provided in Appendix A1.

3.4 Exploring other physical parameters in the SOM

The remarkable similarity between spectra in the same cell suggests that those galaxies went through a similar evolutionary path, resulting e.g. in the same mass-to-light ratio at the redshift of observation. Horizon-AGN provides us with galaxy physical parameters such as luminosity ($L$), stellar mass ($M_{\mathrm{sim}}$), and star formation rate (SFRsim). Thus, we can use our simulation to test whether the objects that are grouped toegther by the SOM have other properties in common besides their redshift. Regarding SFRsim, this is defined by averaging galaxy SFH over the last 100 Myr, an interval comparable to the timescale of SFR indicators widely used in the literature (Kennicutt & Evans, 2012).

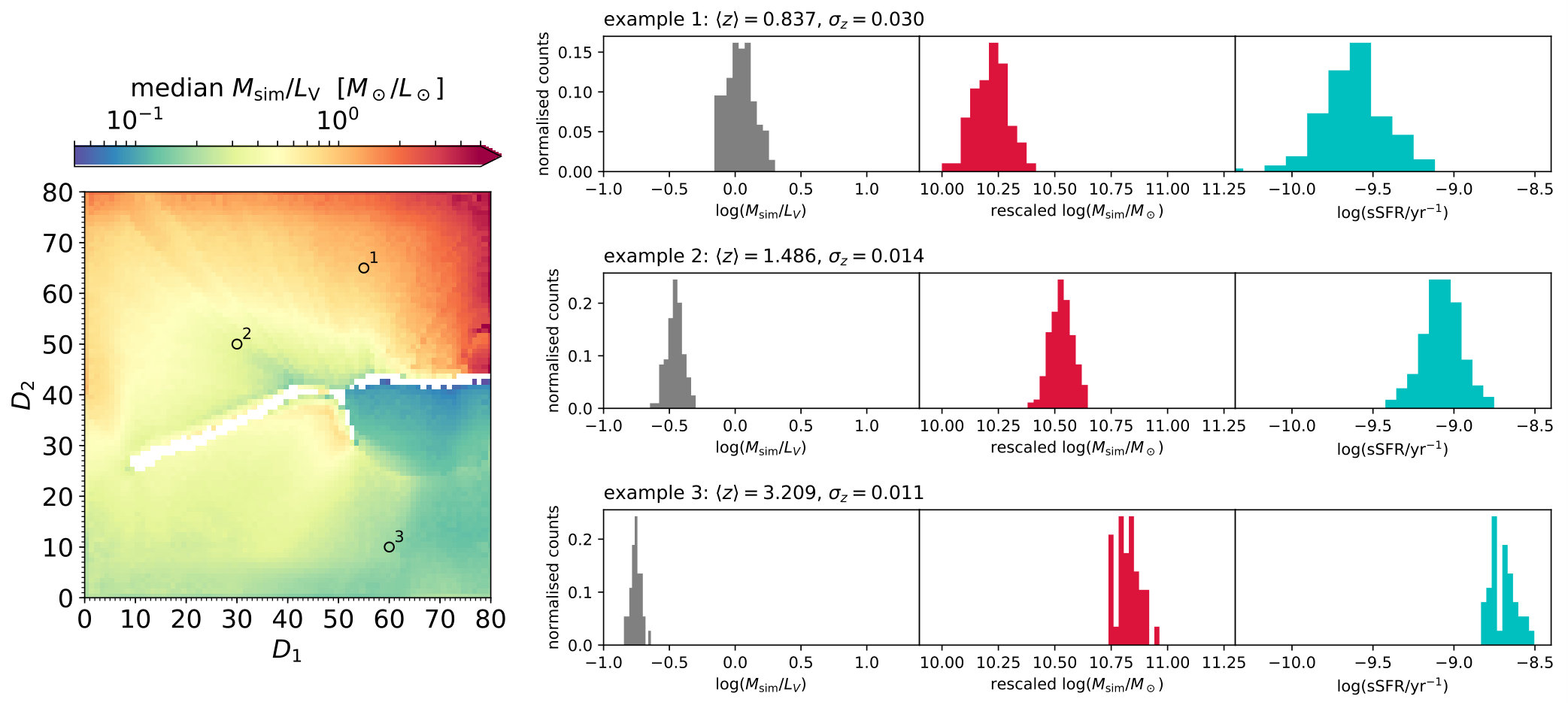

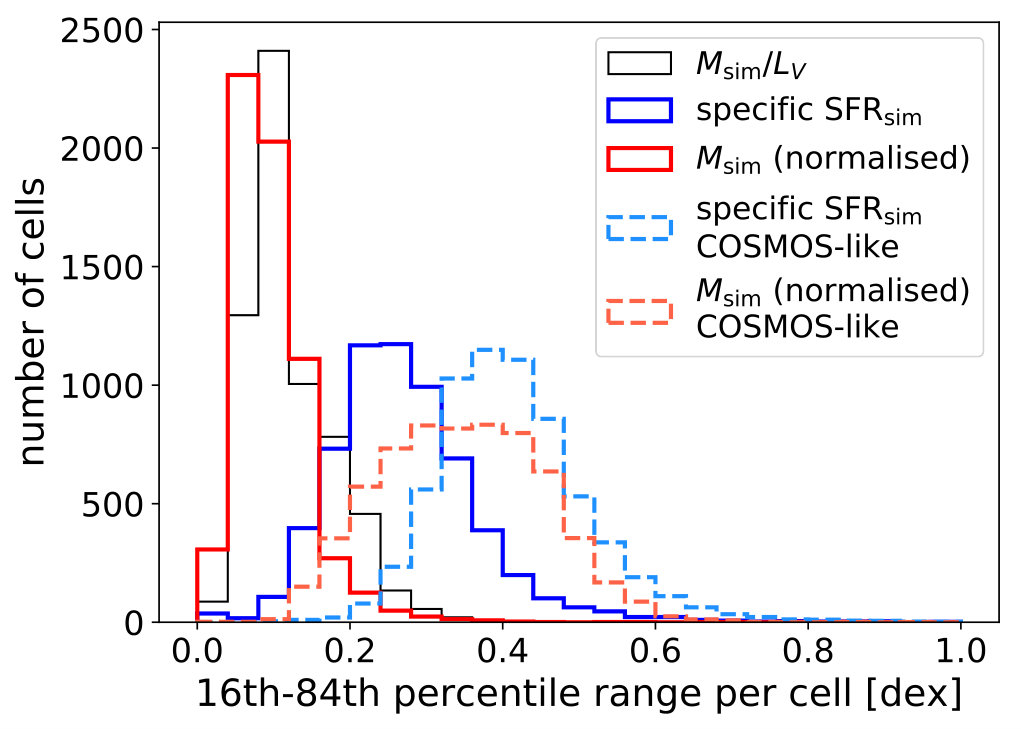

We calibrate the SOM to show the typical mass-to-light ratio per cell (Fig. 5, left panel). The procedure is similar to the redshift calibration in Sect. 3.2, this time computing the median $\langle M_{\mathrm{sim}}/L_{V}\rangle^{\mathrm{cell}}$ with $L_{V}$ being the luminosity in the rest-frame $V$ band. In this way we can visualise the variation of this quantity across the grid, which is also an evolution across redshift: more mature galaxies with larger $M/L$ occupy cells with lower $\langle z_{\mathrm{sim}}\rangle^{\mathrm{cell}}$ (cf. Fig. 3). We also aim at verifying that the scatter inside a given cell is small by calculating the difference between the 84th and 16th percentile in the logarithmic $M_{\mathrm{sim}}/L_{V}$ distribution. We find that in most of the cells this is smaller than 0.2 dex. A few examples of the tight correlation between position in the grid and $M/L$ are shown in the histograms of Fig. 5.

A similar trend can also be observed regarding stellar mass after a scaling factor is applied. This factor is required since we do not train the SOM with information about SED normalisation, as instead other authors do with different ML methods (Bonjean et al., 2019)999 We prefer working in a pure colour space because an additional dimension with a different dynamical range may not be properly weighed with respect to the others.. This is the same procedure used in Fig. 4 to compare galaxy spectra, which have similar shapes but different magnitude. Therefore, to analyse the intrinsic $M_{\mathrm{sim}}$ scatter within a given cell, we first normalise each galaxy to a reference point of $i^{+}=22$ mag. In principle this should be done in rest frame, given the fundamental $M/L$ correlation, but since spectra in the same cell are at about the same redshift one can use apparent magnitudes instead. After such a re-scaling, the $\log(M_{\mathrm{sim}}/M_{\odot})$ dispersion is smaller than 0.2 dex in most of the cells (see three examples in Fig. 5, and also Fig. 6).

The specific SFR (sSFR$\equiv$SFR${}_{\mathrm{sim}}/M_{\mathrm{sim}}$) does not need such a normalisation as it is expected to be directly related to $M/L$. However the scatter is larger than $M/L$ and also stellar mass. In fact, the latter is an integrated quantity strongly connected to the global evolutionary path of the galaxy, whereas the sSFR depends on recent fluctuations in the mass assembly history. The 0.2$-$0.5 dex dispersion in the SOM (Fig. 5 and 6) reflects such a stochasticity; sSFR is also more sensitive than stellar mass to different levels of dust attenuation.

These tight correlations are obtained with a SOM trained with intrinsic colours: larger scatter is expected when galaxy photometry is affected by observational uncertainties. The results shown in this section can be considered as an “asymptotic” limit represented by an ideal galaxy survey with infinite $S/N$. This ideal example can be approximated by the brightest galaxies in an “ultra-deep” survey. In that case the $S/N$ should be high enough to enable the SOM to classify galaxies not only with respect to their redshift, but also stellar mass and SFR. Such a clustering ability is that cornerstone of our original technique to recover stellar mass and SFR. In principle, knowing the stellar mass of a “calibration” object ($M_{\mathrm{cal}}$, which can be independently obtained via template fitting) one could get a fairly precise $M$ estimate for other galaxies mapped into the same cell: it would suffice to re-scale $M_{\mathrm{cal}}$ by the flux ratio between the known galaxy and the target one: $M\simeq M_{\mathrm{cal}}\times(f/f_{\mathrm{cal}})$. As suggested by the examples in Fig. 5 in the best-case scenario the uncertainty of such an estimate would be comparable to the typical mass errors of template fitting codes ($\lesssim 0.3$ dex, see e.g. Davidzon et al., 2017) with significant improvement in computational speed (about 106 times faster according to Hemmati et al., 2019a).

The same argument used for stellar mass applies to SFR, which is not shown in Fig. 5 as it will be thoroughly discussed in the following. A flux re-normalisation will be necessary as in the case of stellar mass. In the present analysis we use the $i^{+}$ band for the flux scaling factor since it has one of the deepest sensitivity limits. The $K_{\mathrm{s}}$ band is a better proxy for stellar mass but in COSMOS2015 (and therefore in our COSMOS-like sample) its $3\sigma$ limit $\sim$1.5 mag shallower than $i^{+}$ and would result in a larger scatter of the results (but still preserving the properties of the SOM, see Appendix A2).

4 A novel estimator of galaxy SFR

We concluded Sect. 3 by suggesting that the SOM can be used to empirically recover galaxy physical parameters in the same framework used in Masters et al. (2015) for photometric redshift computation. In this section we discuss how to calibrate the SOM in order to derive SFRs from broad-band colours in a fast but accurate way. We focus on SFR since standard SED fitting shows its limit when deriving this quantity (see Paper I). One can obtain robust SFR estimates based on IR imaging or spectroscopy, but this is generally possible for a small fraction of galaxies (which indeed we can use as a calibration sample for our method). A SOM-based estimator for stellar masses should also be feasible, but it would likely be based on template fitting, at least for calibration purposes, given the current state of the art in estimating stellar mass101010 Other options are available in some case, e.g. dynamical masses from spectroscopy (Courteau et al., 2014). . For template based approaches, we refer the reader to Hemmati et al. (2019a) for an overview of how to effectively use the SOM. Here, our goal is to empirically calibrate properties based on direct indicators rather than depending on synthetic SED libraries.

With this goal in mind we devise a method that can be applied to real data, requiring some adjustment to the SOM. We replace the ideal (noiseless) photometry used in the previous section with a catalogue that mimics the COSMOS survey, including errors and selection functions. In other words, apparent magnitudes and colours of Horizon-AGN galaxies are now perturbed with observational-like errors and selection effects. As a consequence we use a different training sample, selecting only galaxies above a given $S/N$ threshold. Thus, the observational-like training sample does not include objects that are not detected in some band. In Sect. 4.1 we show that, after the $S/N$ selection, photometric errors do not impair the relationship between SOM cells and galaxy properties shown above.

In Sect. 4.2 we explain the details of our methods. In that context we modify the way to label SOM cells. In fact, in previous sections we made calibrated versions of the SOM by labelling its cells with median values of either redshift or other physical parameters, i.e., under the assumption of knowing them for the whole sample. Hereafter we assume to know the SFR of a small subset of 6,400 galaxies (i.e., one object per cell) and use them to label the grid. At the moment we do not make particular assumptions on how such a calibration sample is built; this is discussed later in Sect. 5 where we also compare to SFR estimates from template fitting.

4.1 The COSMOS-like SOM

The observational uncertainties to perturb the Horizon-AGN photometry are statistical errors affecting apparent magnitudes so that our mock galaxy catalogue resembles the quality of COSMOS data (see Paper I). For this reason in the following we refer to the (noisy) Horizon-AGN sample also with the term “COSMOS-like”, in contrast to the previous version with intrinsic photometry (Sect. 3). We do not model confusion noise and contamination by saturated stars; this kind of issues shall be addressed in future work after providing the Horizon-AGN virtual observatory with simulated images.

The training phase of the implemented algorithm does not account for cases of non-detection (e.g., when the “observed” flux is smaller than the flux error). Therefore, while working with perturbed photometry, we limit the analysis to a galaxy sub-sample with $S/N>1.5$ in each broad-band filter. A statistically correct treatment of lower and upper limits in the input colours would require an improved SOM algorithm that is beyond the goal of the present work. We note that also template fitting codes often neglect such a treatment (as highlighted in Sawicki, 2012). The $S/N$ pre-selection will restrict the analysis to $z\lesssim 3.5$ because galaxies at higher redshift are $u$-band drop-outs (Steidel et al., 1996) with $S/N\ll 1$ in that filter. Given the sensitivity of our catalogue the $S/N$ threshold roughly corresponds to a flux-limited survey with a cut at $i^{+}<25$ (see Fig. B1 in the On-line Supplementary Materials). Besides the removal of $z>3.5$ galaxies from the sample there are other caveats in the $S/N$ selection, which are listed in Appendix B1. None of them affects the analysis between $z=0.2$ and $z\sim 3$, but there is a “boundary effect” at the lowest and highest redshifts of the range (see below).

After this preliminary test we use the perturbed photometry of Horizon-AGN galaxies with $S/N>1.5$ to produce a new SOM; the multi-dimensional space is the same as in Sect. 3 (11 broad-band colours). Figure 7 shows the resulting redshift map limited to $z_{\mathrm{sim}}\lesssim 3.5$. The redshift evolution across the $80\times 80$ grid is similar to the ideal SOM, although some details are smeared out because of photometric errors. For example the gap between low- and high-$z$ regions is now filled by scattered galaxies (cf.  Fig. 3). We quantify redshift dispersion in each cell through the normalised median absolute deviation (NMAD, Hoaglin et al., 1983) and the outlier fraction. The former is defined as $1.48\times\mathrm{median}(|\Delta z|)/(1+\langle z\rangle^{\mathrm{cell}})$, where $\Delta z\equiv z_{\mathrm{sim}}-\langle z\rangle^{\mathrm{cell}}$ (Fig. 7, middle panel). The latter is the fraction of objects in a given cell having $|\Delta z|/(1+\langle z\rangle^{\mathrm{cell}})>0.15$ (Fig. 7, lower panel). These metrics are similar to those used to describe the quality of photometric redshifts estimated via template fitting ($z_{\mathrm{phot}}$, see e.g. Ilbert et al., 2013). The NMAD is on average $<0.047$, with only 343 cells above 0.1 (mainly in the formerly empty region of the $z$ caustic). The outlier fraction is overall small, being less than 10 per cent in 5,228 cells (namely 82 per cent of the grid). On the other hand systematics at the borders are more evident than before.

Besides redshift, Horizon-AGN galaxies remain well clustered also with respect to $M$ and sSFR (see Fig. 6). With perturbed photometry, the sSFRsim is slightly less constrained than in the ideal SOM: e.g., now there are no cells with scatter $<$0.2 dex. On the other hand only $\sim$10 per cent of the cells exceed 0.5 dex dispersion in sSFR. These are cells hosting low-sSFR galaxies. The results are comparable to other classification methods (e.g. the $\mathrm{NUV}-r$ vs $r-K$ diagram, Arnouts et al., 2013). The typical scatter in $\log(M_{\mathrm{sim}}/M_{\odot})$ within one cell is 0.3$-$0.4 dex, much larger than before because not only the input colours but also the $i^{+}$-band re-scaling now is done with perturbed fluxes. However, this is of the same order of $M$ statistical errors in observed galaxies (e.g., Davidzon et al., 2017), a further indication that the SOM estimator can work also in the observed universe.

4.2 Galaxy redshift and SFR measurements

Encouraged by the previous tests, we proceed in the implementation of the SOM estimator. First of all we need a reference sample to label the SOM grid with both redshift and SFR values. Therefore we assume to “observe” one galaxy per cell to obtain an estimate of their redshift and SFR. These galaxies belong to the calibration sample and their “measured” properties are dubbed $z_{\mathrm{cal}}$ and SFRcal. For the moment we do not make stringent requirements about how $z_{\mathrm{cal}}$ and SFRcal are measured: they may come e.g. from a spectroscopic survey, but not necessarily. We only make the assumptions that these are bona fide galaxies with reliable $z$ and SFR, and they cover the entire $80\times 80$ grid. Each calibration galaxy is randomly targeted among those in the given cell, with a sampling rate of one target per cell. For sake of simplicity, we do not model observational uncertainty so the $z_{\mathrm{cal}}$ and SFRcal values correspond to $z_{\mathrm{sim}}$ and SFRsim of the given galaxy. In Sect. 5.1 we will discuss which kind of survey might provide such a calibration sample, modifying $z_{\mathrm{cal}}$ and SFRcal accordingly.

The other galaxies in the SOM, not used for the calibration, will get an estimate of redshift and SFR from the SOM through the procedure described here. The method takes into account not only the best-matching cell in which galaxies lie but also the nearby ones. This choice is motivated by the impact of colour uncertainties: even though the SOM training phase places any COSMOS-like galaxy is placed into its best-matching cell, the colours of that galaxy are still compatible (within error bars) with the weights of other cells. There is a non-negligible probability that one them, in absence of observational errors, would be the true best-matching cell for the given galaxy.

For each entry of the mock catalogue our algorithm includes the following steps:

consider $N_{\mathrm{c}}$ cells: the best-matching unit in which the Horizon-AGN galaxy reside and the nearest $N_{\mathrm{c}}-1$ cells; 2. 2.

calculate the distance between the galaxy and each of those cells, with a modified version of Eq. (2) that takes into account photometric errors:

[TABLE]

where $\Delta\mathcal{C}_{n}$ is the 1$\sigma$ uncertainty for the n-th colour and $i$ is one of the $N_{\mathrm{c}}$ cells; 3. 3.

take the $z_{\mathrm{cal}}$ and SFRcal labels of the $N_{\mathrm{c}}$ cells; 4. 4.

compute their distance-weighted mean $z_{\mathrm{SOM}}$ and SFRSOM.

In particular the resulting SFR is re-normalised (as done for stellar masses in Sect. 3.4):

[TABLE]

where $f/f_{\mathrm{cal,i}}$ is the flux ratio in a reference band (we choose $i^{+}$) between the given photometric galaxy and the bona fide one that labels the $i$-th cell. The square distance from the $i$-th cell is also used in the weighted mean to compute $z_{\mathrm{SOM}}$.

We set $N_{\mathrm{c}}=10$ as the scatter generated by photometric errors typically involves the first surrounding cells. We verify that including more distant neighbours do not alter the results owing to the $1/d^{2}$ factor in Eq. (4). A more accurate, object-by-object determination of $N_{\mathrm{c}}$ could be done defining the 11-dimensional ellipsoid enclosing the 68 per cent confidence limit in all dimensions jointly. However the colours’ covariance matrix is necessary for such a task (Press et al., 1992) and that is not available in Horizon-AGN, to be consistent with the real COSMOS catalogue. To tackle this limitation, Hemmati et al. (2019a) suggest a Monte Carlo method based on multiple realisations of the SOM mapping, extracting each time a different SED for the various galaxies (consistently with their photometric errors). A more rigorous Bayesian approach can be found in Carrasco Kind & Brunner (2014) and Buchs et al. (2019, see also , for neural network redshifts). We postpone to future work a thorough analysis of the redshift PDF via SOM. That kind of analysis shall also improve the $z_{\mathrm{SOM}}$ estimates by smearing out the horizontal stripes visible in Fig. 8 (upper panel). Those are the caused by a discretisation in redshift for galaxies well-segregated in a restricted area of the SOM, even though they span a large $z_{\mathrm{sim}}$ range. Their pseudo-observed flux in one of the filters is significantly different from the intrinsic one, despite a rather small error bar associated to it. In those cases, averaging over $N_{\mathrm{c}}$ neighbours is not sufficient to explore distant cells. A full Bayesian approach would possibly capture their diversity better than the present implementation.

We emphasise that the entire procedure takes less than 30 minutes of wall clock time, whereas to process the same 371,168 galaxies LePhare needs more than 100 hours (without considering the computational time to estimate redshifts in the first run). In Fig. 8 we provide a comparison between the true redshifts of Horizon-AGN galaxies and those derived either through the SOM (upper panel) or LePhare ($z_{\mathrm{phot}}$, lower panel). The Figure shows 371,168 COSMOS-like galaxies from $z=0$ to $\sim$3.5, namely the $S/N$-selected sample with the exception of the bona fide galaxies used for calibration. Overall, $z_{\mathrm{SOM}}$ are in decent agreement with $z_{\mathrm{sim}}$, despite the significant scatter. NMAD and outlier fraction are computed for $\Delta z\equiv z_{\mathrm{SOM}}-z_{\mathrm{sim}}$, being respectively 0.044 and 6.1 per cent. Galaxies at $z_{\mathrm{sim}}<0.2$ and $z_{\mathrm{sim}}>3.2$ are the most problematic as they suffer from SOM boundary effects: at those redshifts, i.e. the extremes of the distribution, there are too few galaxies to train a distinct cell. For instance there are only 910 galaxies with $z_{\mathrm{sim}}<0.2$, spread across 23 cells; in each cell they represent 5$-$12 per cent of the objects because they are classified together with a much larger number of $0.2<z_{\mathrm{sim}}<0.5$ galaxies.

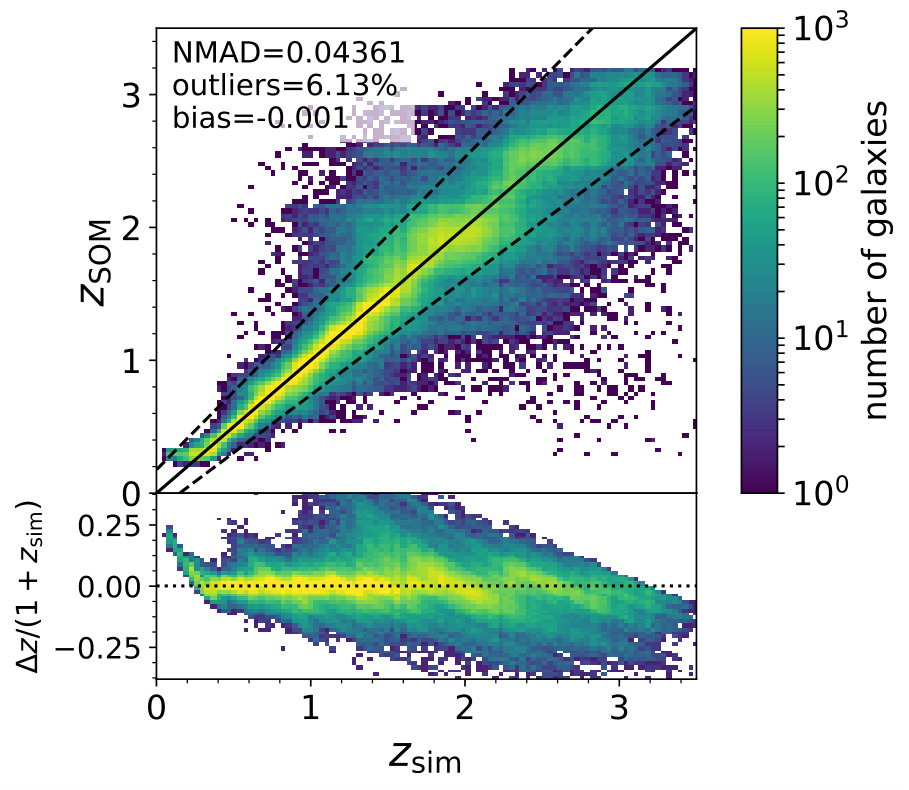

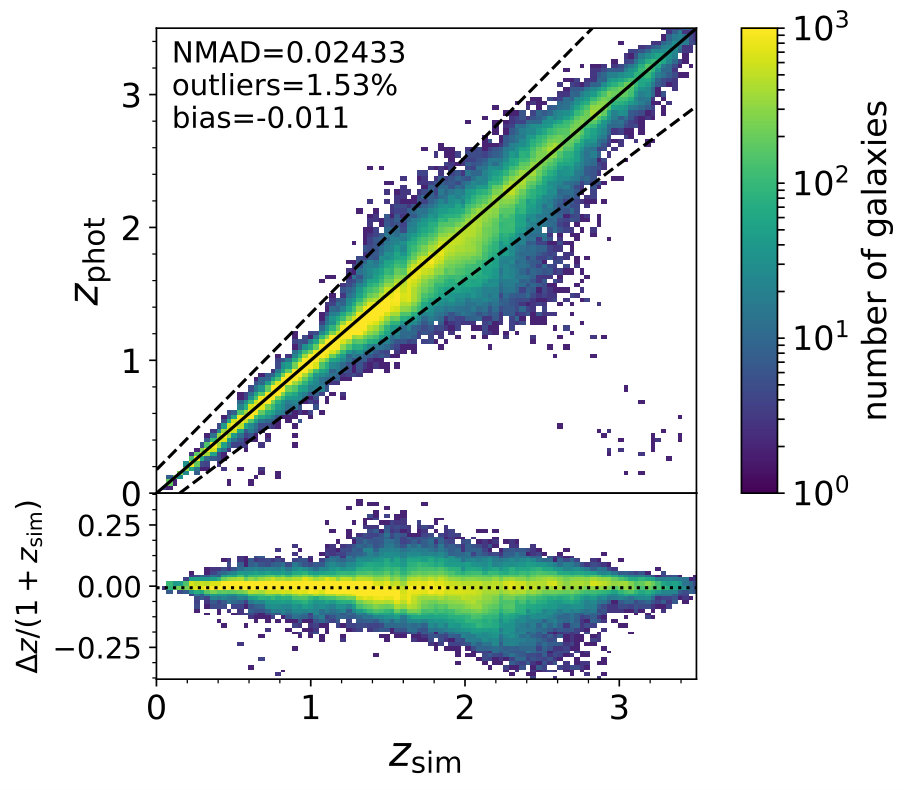

The NMAD and outlier fraction we find are both larger than those computed in Masters et al. (2019) for the COSMOS $z_{\mathrm{SOM}}$, but their method slightly differs from ours as they use a deeper sample for calibration and then map (typically brighter) spectroscopic galaxies on the SOM. Here we compute the NMAD and outlier fractions with a sample that goes fainter, which can explain the slightly worse results. In Paper I we discussed the caveats of using a spectroscopically selected sub-set of galaxies to assess SED fitting quality of the parent photometric sample, as it is a limited (and sometimes biased) representation of the entire population. The comparison of Fig. 8 does not have this caveat because the same Horizon-AGN galaxies are used in both cases. We find that LePhare NMAD (0.024) and outlier fraction (1.5 per cent) are significantly smaller. It is worth noticing that those estimates take advantage of a more advanced Bayesian framework during the SED fitting: a galaxy $z_{\mathrm{phot}}$ is defined as the median of the PDF($z$) resulting from LePhare template library. More complex applications of the SOM (Masters et al., 2019; Sánchez & Bernstein, 2019) yield to redshift estimates comparable in precision to LePhare. What is nonetheless surprising is the significantly better performance of our SOM in terms of redshift bias (as pointed out also in Masters et al., 2019) defined as the mean of $(z_{\mathrm{SOM}}-z_{\mathrm{sim}})/(1+z_{\mathrm{sim}})$. This can be deduced from Fig. 8 by observing the scatter in the two panels: the one of $z_{\mathrm{SOM}}$ vs $z_{\mathrm{sim}}$ is larger but more symmetric. After removing outliers, the $z_{\mathrm{SOM}}$ bias is -0.001, a factor 10 smaller than the bias resulting from LePhare.

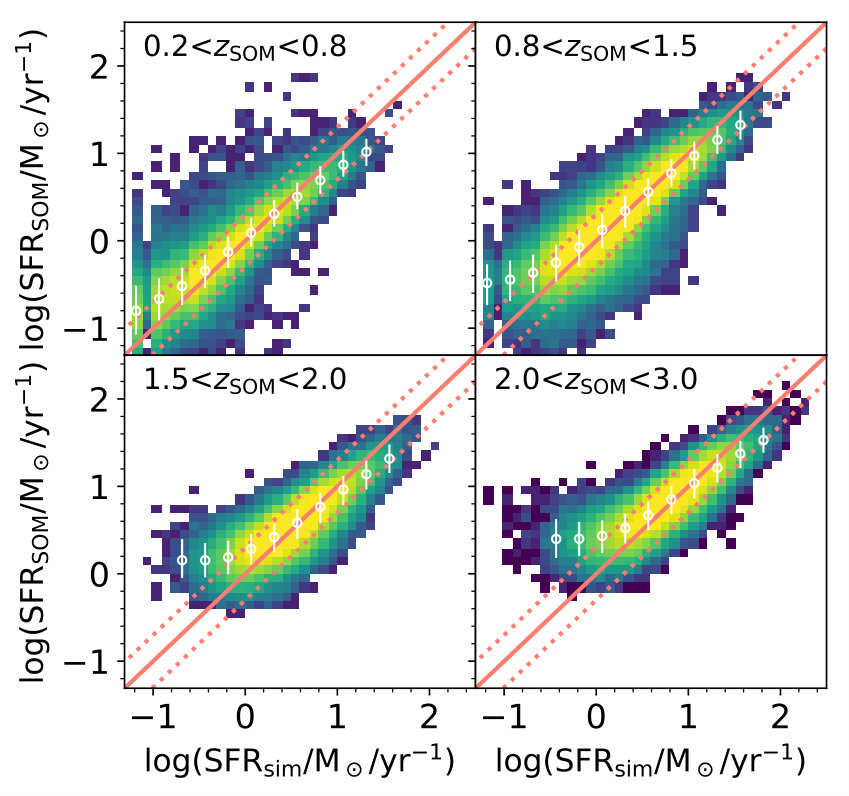

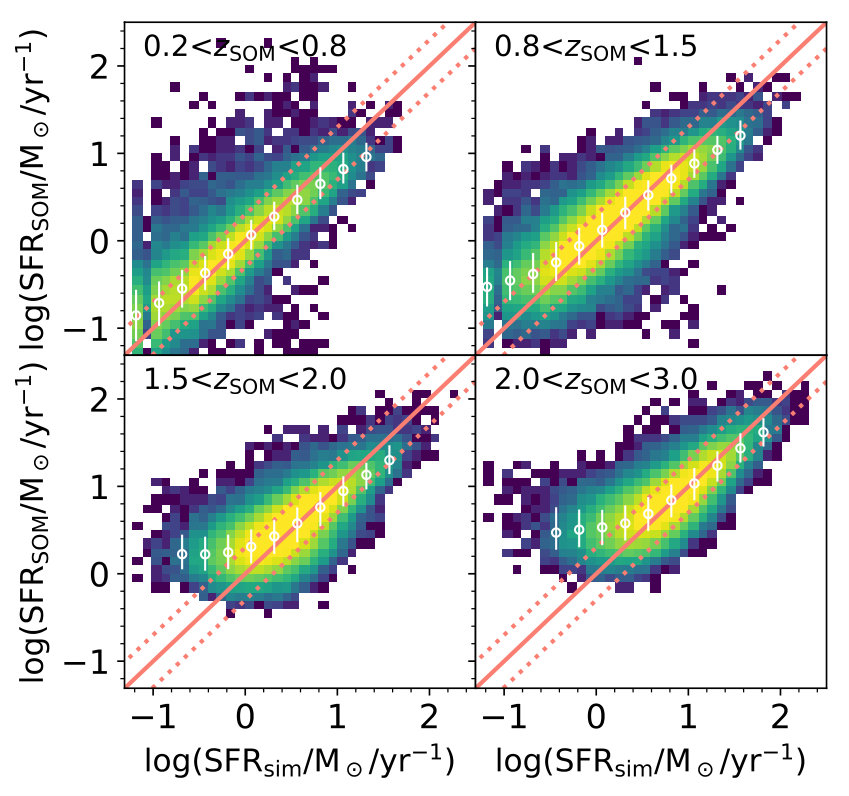

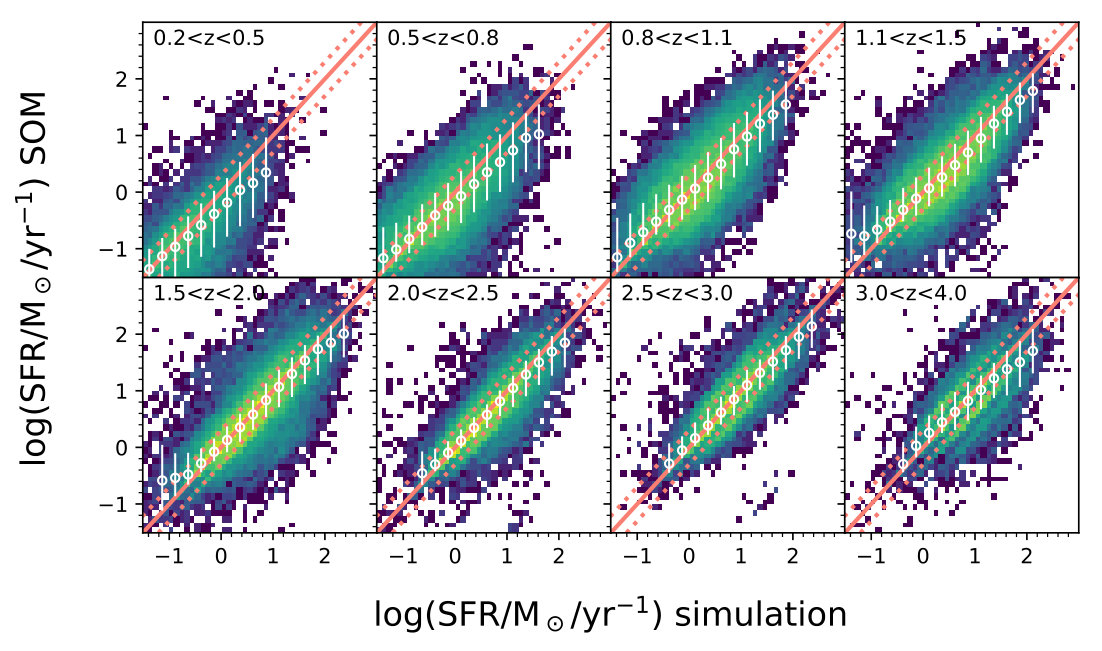

Along with $z_{\mathrm{SOM}}$, this method provides at the same time the SFR estimates. Fig. 9 shows how they compare to the intrinsic SFRsim in different redshift bins111111 See Fig. A4 in the On-line Supplementary Materials, for an alternate version of the calculation using $K_{\mathrm{s}}$ fluxes for the re-scaling in Eq. (4).. The correlation between the two is very tight for SFR${}_{\mathrm{sim}}>1\,M_{\odot}\,\mathrm{yr}^{-1}$. Measuring its scatter as $\log(SFR_{\mathrm{SOM}}/SFR_{\mathrm{sim}})$, the NMAD is always $<$0.2 dex (i.e., smaller than the typical scatter for stellar mass estimates). Namely, in the four redshift bins of Fig. 9, the logarithmic SFR scatter ranges from 0.16 to 0.18 dex. On the other hands, the method overestimates low levels of star formation (SFR${}_{\mathrm{sim}}<1\,M_{\odot}\,\mathrm{yr}^{-1}$) at $z>0.8$. There is also a systematic underestimation for the most star-forming galaxies, but that offset is always smaller than 0.15 dex. The two systematics have different explanations. The trend in the low-SFRsim regime is due to $z_{\mathrm{SOM}}$ outliers: because of SED degeneracy, a few galaxies121212Note that the spatial density map used in Fig. 9 is in logarithmic scale. already in the red sequence are miss-classified in cells mostly occupied by dusty star forming galaxies at higher $z$. This bias should diminish in deeper surveys, as they better disentangle redshift degeneracies. On the opposite hand, the bending of the SFRSOM vs SFRsim relation for the most star forming objects is a consequence of the intrinsic SFR distribution inside those cells. Galaxies with the highest activity are in the tail of such distribution so it is unlikely that one of them is selected for calibration. The reference SFRcal extracted in those cells is usually 0.1$-$0.2 dex lower than the maximum, explaining the underestimation shown in Fig. 9.

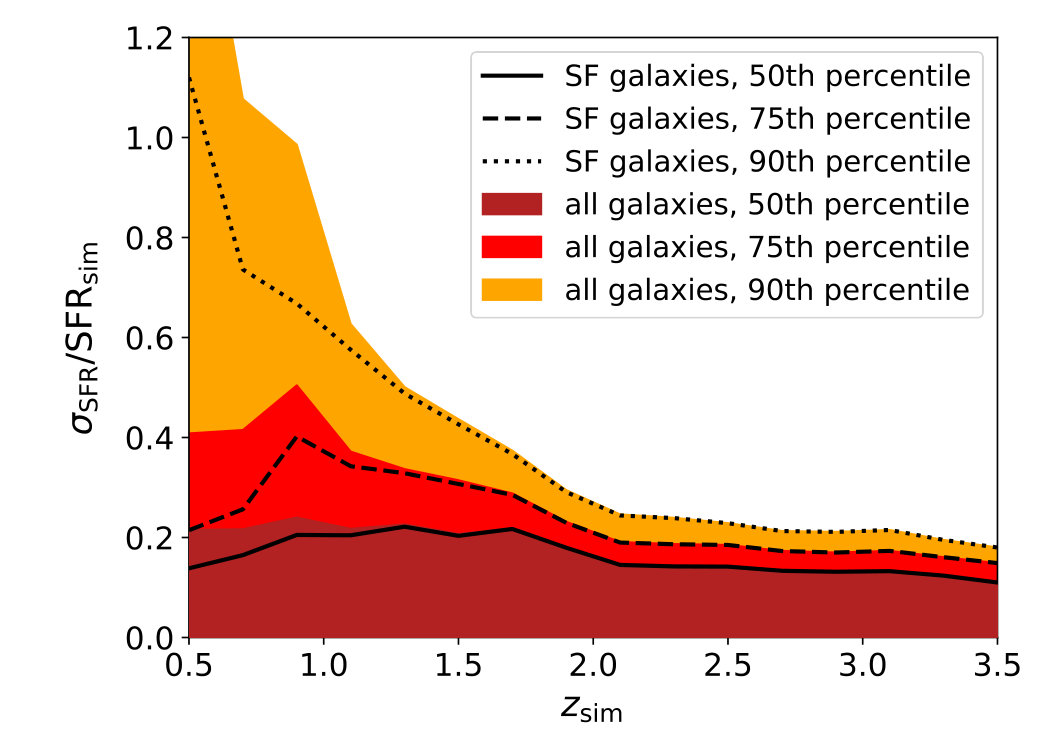

We also investigate the statistical error due to the random selection of bona fide galaxies. The SFRcal label of a given cell might significantly change depending on which galaxy is actually targeted. A Monte Carlo simulation can quantify this uncertainty. We produce 100 calibration samples of the COSMOS-like SOM, each time randomly extracting a different set of bona fide galaxies. The standard deviation of the SFRSOM estimates ($\sigma_{\mathrm{SFR}}$) within the 100 realisations is calculated as a function of redshift. Remarkably, most of the galaxies at $z_{\mathrm{sim}}>2$ have $\sigma_{\mathrm{SFR}}/\mathrm{SFR}_{\mathrm{sim}}<30\%$ (Fig. 10). At lower redshift, $\sim$70 per cent of the sample still shows such a small uncertainty, confirming the tight SFRSOM-SFRsim correlation discussed above. Fig. 10 also reveals a sub-sample of low-$z$ galaxies with a larger dispersion (although their fractional errors do not exceed a factor $\sim$2). These objects are mainly quiescent or post-starburst galaxies in cells with a large spread in SFR so they are more sensitive to the random SFRcal selection. With the same Monte Carlo we also quantify the $z_{\mathrm{SOM}}$ error which is always below 4 per cent.

5 Application of the SOM estimator to present and future surveys

So far we have applied the new method without discussing the details about how to build its calibration sample in practice. To collect robust measurements of their redshift and SFR, the bona fide galaxies can be observed with present or future facilities. We are particularly interested in the applications that our method will have in the next decade, as foreseen surveys will offer an ideal test-bed for it. This is motivated by the clear advantage of ML methods in terms of computational speed, which will be a key factor e.g. for future cosmology-driven missions probing large cosmic volumes. Moreover, the next generation of telescopes will allow to exploit the full potentiality of the SOM by assembling unprecedented calibration samples (see Bundy et al., 2019). In Sect. 5.1 we envision two of these opportunities, assuming that the SOM will be calibrated either by a large-scale spectroscopic survey in optical-NIR or from FIR observations. In Sect. 5.2 we compare the results from both calibrations to standard template fitting. The SOM method applied here is more realistic than Sect. 4.2 but is also affected by the selection function of those “pseudo-surveys”. More details about their design and the bias they may introduce can be found in Appendix B (see the On-line Supplementary Materials).

5.1 How to build the SFR calibration sample?

We discuss the realisation of a calibration sample within the Horizon-AGN framework, to be consistent with the rest of our analysis. Thanks to the wealth of observations in the COSMOS field a similar attempt can also be made using real data, although with some limitations; we postpone this test to future work. We propose two alternate calibrations for the SOM, namely

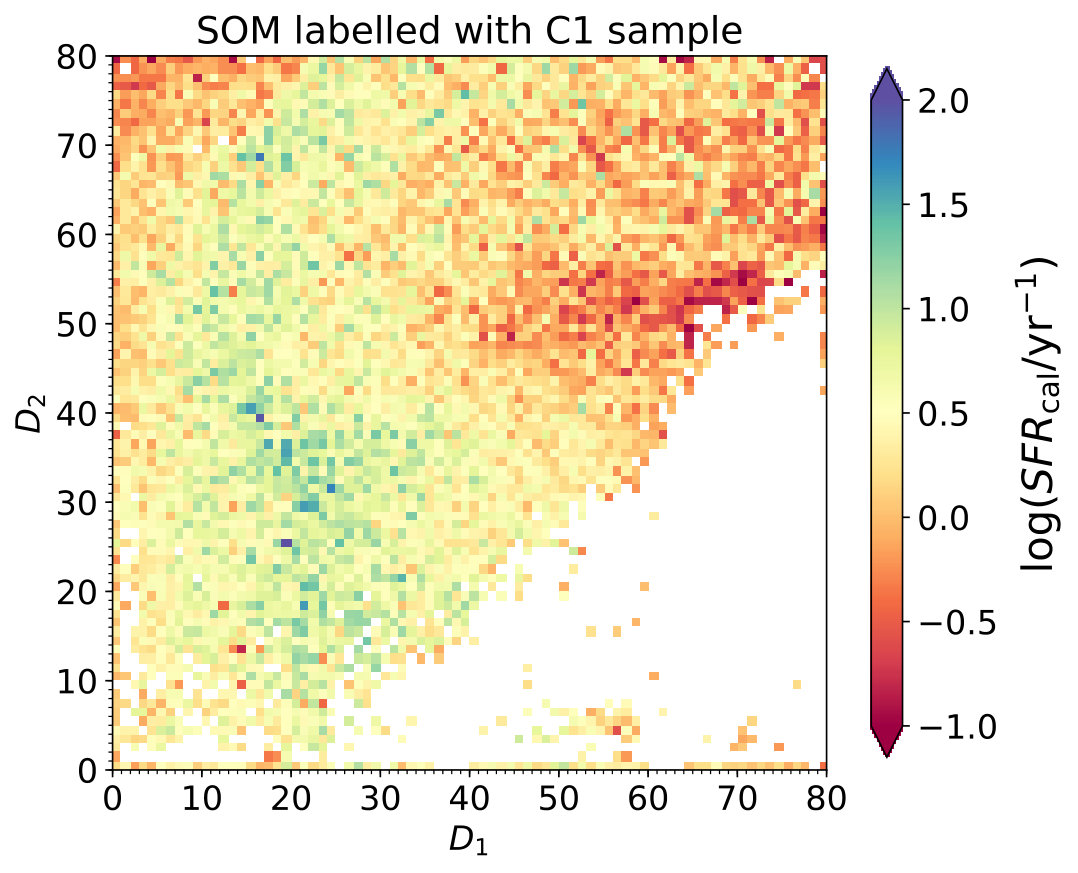

1. C1:

a spectroscopic follow-up targeting one galaxy per cell, to derive SFRcal from their H$\alpha$ flux. 2. C2:

a combination of UV and IR imaging covering a portion of the field, providing SFRcal for several galaxies per cell via energy balance equation.

We anticipate that the analyses resulting from the two calibrations will differ, because of the specific priors of each scenario. The calibration effort also provides spectroscopic redshifts (to be used as $z_{\mathrm{cal}}$) but we will focus on SFRcal measurements since they introduce the major uncertainties in our SOM estimator131313 Typical spectroscopic redshift errors are sub-dominant in the present analysis therefore we assume $z_{\mathrm{cal}}\equiv z_{\mathrm{sim}}$.. Although we imagine data to be taken from next-generation facilities, galaxy parameters are assumed to be derived with the usual prescriptions. For instance, the SFR indicator adopted in C1 follows Kennicutt (1998):

[TABLE]

in which the original coefficient ($7.9\times 10^{-42}$) has been converted to Chabrier’s IMF. $L_{H\alpha}$, namely the luminosity of the H$\alpha$ line, must be corrected for dust absorption. This correction can be done e.g. by using the Balmer decrement:

[TABLE]

The numerator on the right-hand side of Eq. (6) is the colour excess due to dust reddening (see equation 2 in Moustakas et al., 2006) while the denominator comes from an attenuation function $k(\lambda)$, as e.g. in Cardelli et al. (1989).

With respect to the C2 case, there are different approaches in the literature to derive SFRs from UV+IR luminosity. The one used in Arnouts et al. (2013) is based on the formula

[TABLE]

where $L_{\mathrm{IR}}$ is the total IR luminosity (8$-$1000 $\mu$m) and $L_{\mathrm{NUV}}$ is the monochromatic luminosity in the near-UV rest frame filter. The IR luminosity accounts for the new-born stars enshrouded by dust that do not contribute to the NUV term. Different dust corrections have been proposed for Eq. (7), also depending on the observations used as a proxy for $L_{\mathrm{IR}}$ (see Hao et al., 2011). Further details about these SFR indicators can be found in Kennicutt & Evans (2012) and references therein.

As mentioned above, we aim at designing both calibration sample as they would be assembled by means of next-generation facilities. For instance the spectroscopic survey required for C1 could be carried out in the optical with the 4-metre Multi-Object Spectroscopic Telescope (4MOST, de Jong et al., 2019) and in NIR with the Multi-Object Optical and Near-infrared Spectrograph (MOONS, Cirasuolo et al., 2014; Taylor et al., 2018) or the Prime Focus Spectrograph (PFS, Takada et al., 2014). In principle the James Webb Space Telescope (JWST) could also be considered, expanding up to the mid-IR, but it is not optimised for surveying across 1 deg2 (see the discussion in Davidzon et al., 2018). We consider the case in which 4MOST and MOONS are used to measure $z_{\mathrm{cal}}$ and SFR$\mathrm{cal}$ at $z<1.7$. For sake of simplicity we exclude higher redshifts not to rely on another nebular emission line, since this would make the calibration sample less homogeneous. 4MOST and MOONS specifications are further discussed in Appendix B2 (On-line Supplementary Materials).

To realise the C2 sample, one could carry out FIR observations with the proposed SPICA observatory141414SPace Infrared telescope for Cosmology and Astrophysics, https://spica-mission.org/ or the Origins151515https://asd.gsfc.nasa.gov/firs/ mission, both expected to launch in the 2030s. We can imagine using these telescopes to scan $\sim$0.1 deg2 of our field in the wavelength range between 20 and 230 $\mu$m. This would result in robust $L_{\mathrm{IR}}$ estimates up to $z\sim 3$ (Gruppioni et al., 2017; Kaneda et al., 2017). To complete Eq. (7) with rest-frame NUV luminosity one can assume to rely on GALEX data at $z<0.5$ (Arnouts et al., 2013) and deep $u$ and $B$ photometry at higher redshift. Those data should be superseded by higher-resolution photometry from CASTOR161616CASTOR is the Cosmological Advanced Survey Telescope for Optical and ultraviolet Research proposed by the Canadian Space Agency (Côte et al., 2012). This satellite could launch as early as 2027, surveying the UV with a $\times$30 better resolution than GALEX and a $\times$100 larger field of view than HST. and from the Large Synoptic Survey Telescope (LSST Science Collaboration et al., 2009). All these future facilities are expected to observe COSMOS as one of their calibration deep fields (Capak et al., 2019), so in our simulated universe it is fair to assume that a COSMOS-like lightcone can benefit from them as well.

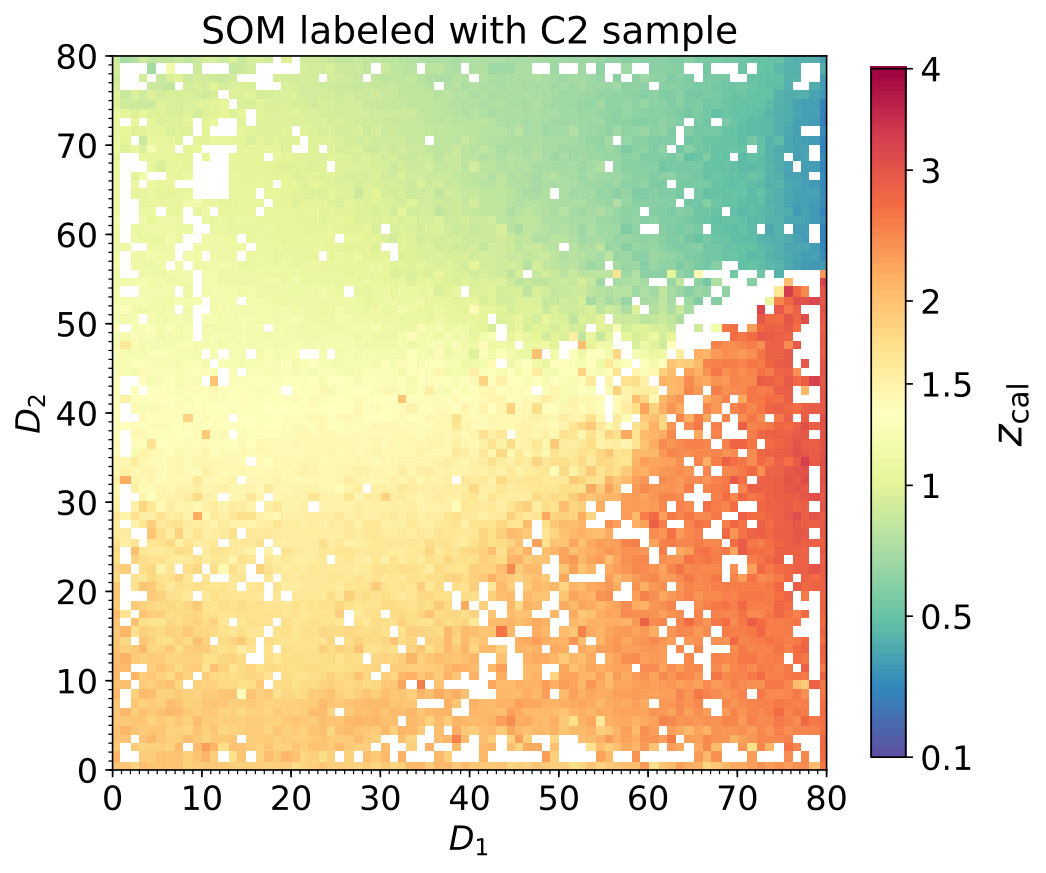

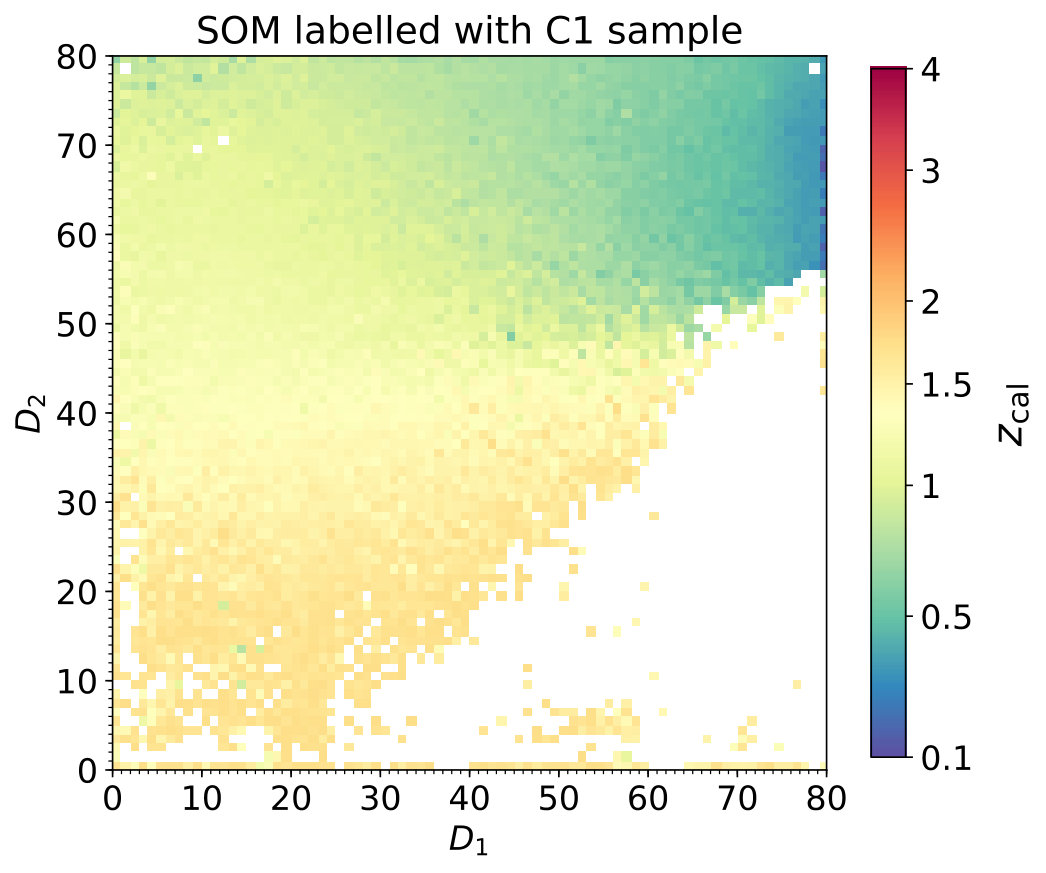

A difference between C1 and C2 is that the former provides also $z_{\mathrm{cal}}$ by construction, whereas the C2 photometric data must be complemented by reliable redshifts to estimate galaxy rest-frame luminosity. In the assumption of using SPICA, this shall result from its FIR high sensitivity grating spectrometer. We can also suppose that the simulated lightcone, like the real COSMOS field, will be within the Euclid mission footprint, so Euclid grism redshifts will also be available171717Euclid will collect spatially resolved H$\alpha$ fluxes from $z=0.9$ to 1.8 (down to $0.5\!-\!3\times 10^{-16}$ erg cm*-2* s*-1*, Pozzetti et al., 2016) that can be used e.g. for aperture correction calibration of the multi-slit instruments.. Other options are proposed in Appendix B3 along with a thorough discussion on sample variance (see On-line Supplementary Materials).

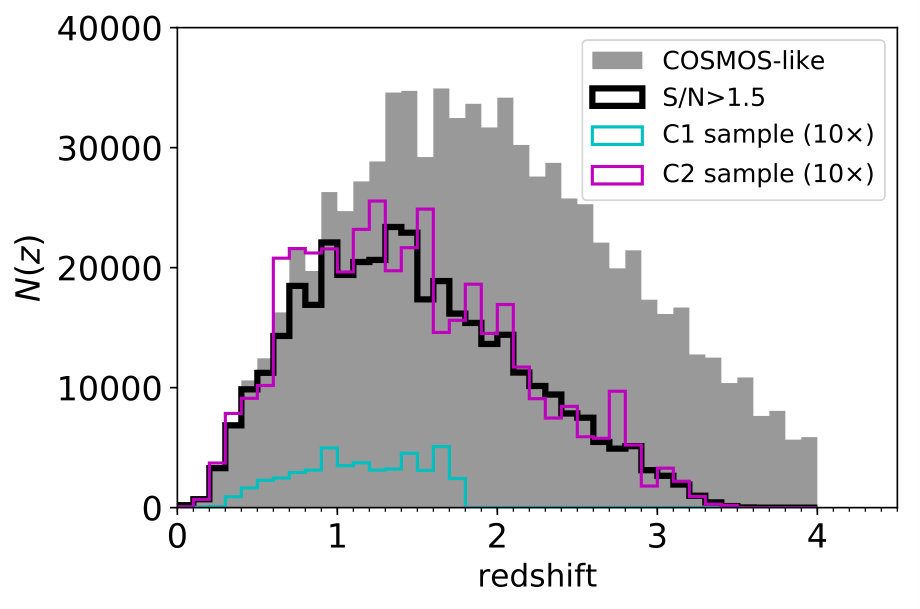

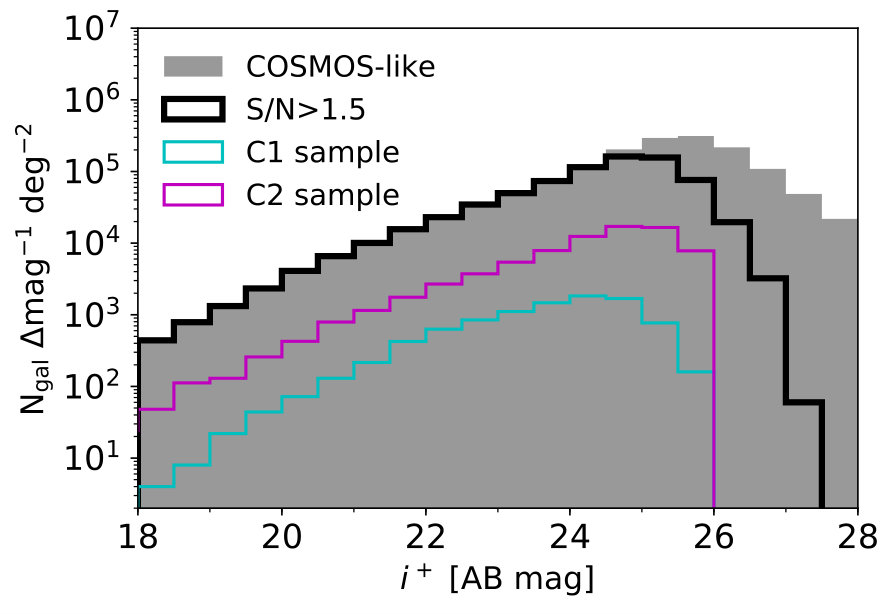

To summarise, the calibration sample C1 is made by 4,749 bona fide galaxies in an equivalent number of cells. They are supposed to be $H_{\alpha}$ emitters ($>2\times 10^{-17}$ erg s*-1* cm*-2*) at $0<z<1.7$. C2 assumes to observe $19\mathrm{\SIUnitSymbolArcminute}\times 19\mathrm{\SIUnitSymbolArcminute}$ of the Horizon-AGN lightcone in UV and FIR; the 40,046 galaxies in that area are stacked (binned per cell) to obtain median SFRs. In the former case, the logarithmic SFRcal is obtained by perturbing the original $\log(\mathrm{SFR}_{\mathrm{sim}}/M_{\odot}/\mathrm{yr}^{-1})$ of each bona fide galaxy with random Gaussian noise. The Gaussian standard deviation is set to $\sigma=0.18$ dex from comparison to state-of-the-art surveys (e.g. FMOS-COSMOS, Kashino et al., 2019). In C2 we do not attempt to reconstruct $L_{\mathrm{UV}}$ and $L_{\mathrm{IR}}$ for sake of simplicity. The SFRcal of a given cell is the median $\mathrm{SFR}_{\mathrm{sim}}$ of the bona fide galaxies inside it181818 This is expected to be a good proxy of the UV+IR estimator, whose timescale is similar to the 100 Myr interval used to define SFRsim in Horizon-AGN (it is also comparable with H$\alpha$-derived measurements, see Kashino et al., 2019)., perturbed with Gaussian noise ($\sigma=0.1$ dex, see Ilbert et al., 2015). Eventually, the SOM is labelled with the $z_{\mathrm{cal}}$ and SFRcal values of either C1 (Fig. 11, upper panels) or C2 (lower panels). Depending on the used bona fide sample, certain cells do not get a label.

5.2 SFR estimates and comparison with template fitting

After labelling the SOM we apply the procedure described in Sect. 4.2 to assign a SFRSOM estimate (Eq. 4) to each photometric galaxy. The outcome can be compared to that obtained in Paper I by using LePhare. We do not show the $z_{\mathrm{SOM}}$ vs $z_{\mathrm{sim}}$ comparison as the trend is similar to Fig. 8 (upper panel). Despite the additional uncertainties introduced in Sect. 5.1, the figure of merit does not change. For the C2 calibration, which covers the same redshift range of Fig. 8, NMAD$(z_{\mathrm{SOM}})$ and outlier fraction remain 0.043 and 6 per cent. In the following we focus on the SFRSOM results, which show a remarkable improvement with respect to template fitting estimates (SFRphot).

We remind that the estimate of physical properties via template fitting involves a two-step procedure. First, to find their $z_{\mathrm{phot}}$, LePhare fits galaxy SEDs with a composite set of templates (described in Laigle et al., 2016); then, after fixing the redshift of each galaxy to $z_{\mathrm{phot}}$, the code calculates the SFR (along with stellar mass and other physical quantities) by means of another SED library, this time made from BC03 models. Since our mock catalogue reproduces COSMOS2015, LePhare is used with the same configuration as in Laigle et al. (2016) . More details about running LePhare to estimate SFRs in Horizon-AGN can be found in Paper I.

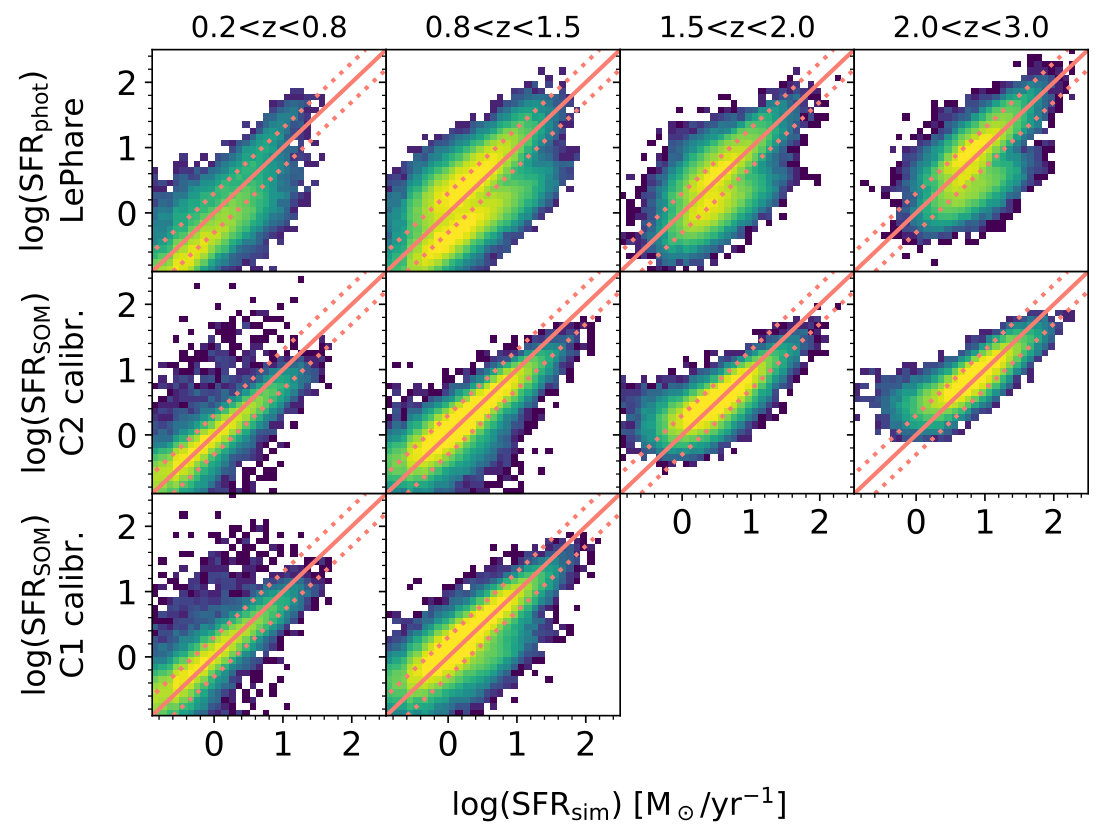

The upper panels of Fig. 12 shows the comparison between SFRphot and SFRsim in different bins from $z_{\mathrm{phot}}=0.2$ to 3. Under- and over-estimates produced by LePhare are clearly visible, generating a two parallel sequences in the distribution. Such a bimodality is due to SED fitting degenarcies. By comparing a dust-free ve dusty Universe, Paper I isolated the major role of dust attenuation in driving this bimodality. In particular, the choice of the extinction curves in the template library is pivotal. This remains true even when the redshift is fixed to its intrinsic value instead of $z_{\mathrm{phot}}$. Inadequate extinction models or $E(B-V)$ values may cause indeed an overestimation or an underestimation of the SFR, as shown in Appendix B of Paper I.

The same photometric galaxies191919 All the bona fide galaxies used for calibration have been excluded from the comparison. are reported in the middle and lower panels of Fig. 12 comparing intrinsic SFRs with the values computed through the SOM (C2 and C1 version respectively). The performance of the SOM is significantly better than template fitting. The SFRSOM distribution does not show the same bimodality observed for the SFRphot estimates because the SOM fitting is based only on observed SEDs, which naturally include the “correct” dust attenuation law and $E(B-V)$ range. In LePhare the grid of templates is built without strong observational priors so the library is affected by artificial degeneracies.

Also our method is model dependent because of the SFRcal labels. These measurement requires some theoretical prescription (e.g., about dust attenuation or IMF). However we argue that the required assumptions, for either C1 or C2, introduce a milder bias than template fitting. For instance the C1 calibration requires the choice of a dust extinction curve (Eq. 6) but the difference between models is small: e.g., $k(H\beta)-k(H\alpha)=1.07,1.27$ for Cardelli et al. (1989) and Calzetti et al. (2000) respectively. On the contrary LePhare templates are constrained by data at bluer r.f. wavelengths where the dust extinction curve plays a more important role (Ilbert et al., 2009); for the same models in the example above: $k(2000\textup{\AA})-k(3000\textup{\AA})=3.18$ and $1.95$.

With respect to the C2 sample one may notice that the energy balance equation is also implemented in template fitting codes (e.g. MAGPHYS, da Cunha et al., 2008) sometimes in very elaborated ways including also the AGN contribution (e.g. SED3FIT, Berta et al., 2013). In fact one may also use one of those codes instead of Eq. 7 but not for the other Horizon-AGN galaxies that do not belong to C2. Moreover, even if the whole galaxy sample were observed in UV and FIR, codes like MAGPHYS are extremly expensive in terms of computational time and run only after fixing the redshift. This 2-step fitting procedure, which is of widespread use in the literature, raises several issue (e.g., propagation of $z$ uncertainties, Grazian et al., 2015; Davidzon et al., 2017). On the other hand, the SOM does not require such a procedure, providing $z$ and SFR estimates simultaneously.

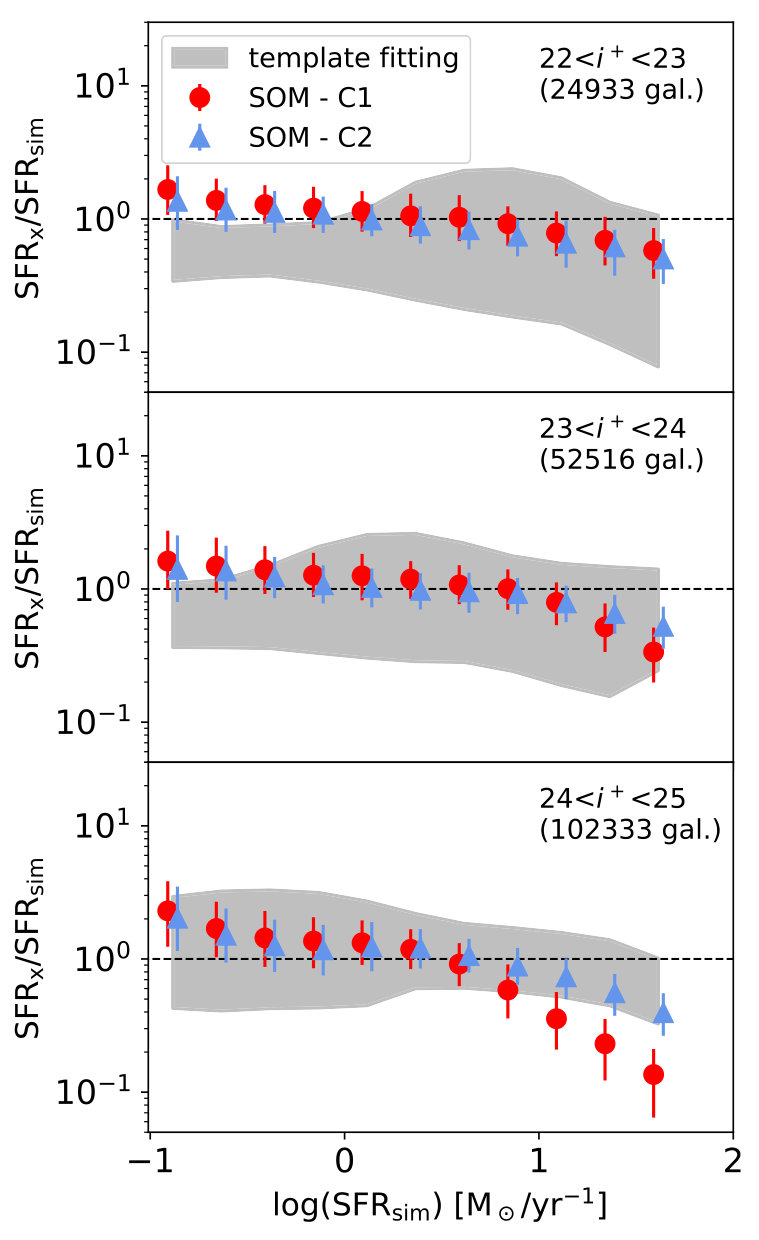

Fig. 13 proposes the same comparison of Fig. 12 in a different flavour, i.e. showing the median ratio SFRSOM/SFRsim in three bins of apparent magnitude from $i^{+}=22$ to 25. At $i^{+}<23$ (Fig. 13, middle panel) there is an excellent agreement of both C1 and C2 estimates with the intrinsic SFR. Such a trend is still observed at $23<i^{+}<24$ even though the most star forming galaxies start to be systematically underestimated by more than a factor 2. This is a border effect inherent to the SOM analysis already discussed in Sect. 4.2; having a larger sample that allows for a more representative SOM would mitigate this effect (Buchs et al., 2019). The discrepancy becomes more accentuated at $24<i^{+}<25$ (Fig. 13, lower panel) especially for the C1 calibration that by construction relies on bona fide galaxies systematically brighter than the average (an effect that could be accounted for by a higher sampling rate in those cells, see Masters et al., 2019). Concerning LePhare, under- and over-estimates would compensate each other resulting in a misleading SFRphot/SFR${}_{\mathrm{sim}}\simeq 1$. Therefore Fig. 13 does not show the median of the SFRphot distribution but only the interval between the 16th and 84th percentile. Such a dispersion is significantly larger than the ML estimates in all the magnitude bins.

6 Summary and conclusion

Compared to the large number of studies measuring galaxy redshifts with ML techniques, little progress has been made concerning other physical parameters. In spite of that, ML methods will be pivotal in the near future to derive stellar mass, star formation history, and other galaxy properties in extremely large data sets from surveys such as Euclid and LSST. In addition to their unprecedented speed, these algorithms (particularly the unsupervised ML methods) may lead to a “new paradigm” in which human intervention (i.e., the application of interpretative models) starts after galaxy classification and demographics have been decided by the machine. However, results may be affected by new kinds of systematics introduced, e.g., during the data reduction process or the training set selection. A thorough investigation of ML performance and the role of its “observational priors” is thus imperative before such high expectations may be deemed justified.

With this in mind, we have explored advantages and limitations of the SOM as a galaxy parameter estimator independent of model templates. We chose the SOM because it is an unsupervised dimensionality reduction algorithm able not only to learn the complex structure of data but also to project it in a lower-dimensional space (2-d in our analysis) still preserving its “topological” features. It should be clarified that our goal is not advocating for the SOM to replace standard template fitting: the two complementary approaches should be used in synergy, the same way semi-analytic and hydrodynamical simulations have contributed to inform each other and together improve our understanding of galaxy evolution. For example, ML investigations may help to shed light on the systematic $M_{\ast}$ underestimation in unrisolved SED fitting of star froming galaxies (Pozzetti et al., 2007; Sorba & Sawicki, 2015, 2018).

We tested the SOM with a mock galaxy catalogue (presented for the first time in Laigle et al., 2019, Paper I) derived from the Horizon-AGN hydrodynamical simulation. Galaxies cover 1 deg2 area and a redshift range $0<z<4$, with a photometric baseline similar to state-of-the-art surveys (broad-band filters from $u$ to [4.5$\mu$m]). The SOM has been trained using as input only galaxy colours, to be an analogue of “classical” SED fitting codes like LePhare or EAZY (Brammer et al., 2008). In principle other (e.g., morphological) features may be trained for, but this is left to future work. After classifying the mock galaxies in about 6,400 different classes (called “cells” in our jargon) we explored the connections between the class/cell a galaxy belongs to and its physical properties. Then, we calibrated a posteriori the SOM by labelling each cell with a value of $z$ and SFR, so that other galaxies in the same cell may have a proxy of their own redshift and star formation activity. Eventually we used the calibrated SOM to estimate the SFR for a sub-sample of about 375,000 mock galaxies between $z\sim 0$ and $3$. Our findings are summarised in the following.

• •

The SOM is an effective tool to visualise the characteristics of a complex, non-linear manifold as the Horizon-AGN lightcone. Galaxies are organised in a (human-readable) 2-d grid without smearing out the features of their original parameter space. Moreover this is computational inexpensive, suggesting a convenient way to describe and inspect the properties of extremely large simulations (Mitra et al., 2015).

• •

Since in our case the parameter space is made by observer’s frame colours, the SOM works like an SED fitting algorithm without a pre-compiled library of templates: the SOM adapts its cells/weights to the data so that galaxies with similar colours (i.e., similar SEDs) are enclosed the same cell. We find that also the high-resolution spectra turn out to be nicely classified, in spite of using only broad-band photometry for training.

• •

We confirm that objects in the same cell have similar redshift (as shown in Masters et al., 2015 in the observed universe) but we also find that their $M/L$ and sSFR is similar, with typical scatter of 0.15 and 0.3 dex respectively. Also $M$ and SFR, after taking into account a normalisation factor, are well correlated to the cell where a galaxy lies. After including photometric uncertainties (modelled after the COSMOS2015 survey) and rejecting objects with $S/N<1.5$ in any band, we trained again the SOM: the correlation between galaxy properties and cells was still present, although with larger scatter. This indicates that our analysis can be reproduced in real optical-NIR surveys (provided a sufficient depth of the observations).

• •

We have measured the redshift of COSMOS-like ($S/N>1.5$) galaxies through the SOM, finding a fairly good agreement with intrinsic $z_{\mathrm{sim}}$ but a larger scatter than template fitting: The $z_{\mathrm{SOM}}$ vs $z_{\mathrm{sim}}$ comparison results into NMAD$\,=0.044$ and about 6 per cent of catastrophic errors, whereas with LePhare they are respectively 0.024 and 1.5 per cent. On the other hand the redshift bias in the SOM case is significantly smaller ($-0.001$, compared to $-0.011$ in LePhare). We considered such a result sufficiently good for our purposes so we did not attempt to improve the redshift estimator (as done e.g. in Buchs et al., 2019).

• •

Exploiting these SOM properties, we have developed a new SFR estimator for photometric galaxies. We have assumed that a small fraction of them (10 per cent or less) has been followed-up to serve as a calibration sub-sample, providing labels ($z_{\mathrm{cal}}$, SFRcal) to the SOM cells. We have discussed possible follow-up strategies with optical-NIR spectroscopy or with UV+FIR instruments, and the possible bias introduced by each of them. After accounting for such uncertainties we have compared the SFRSOM of COSMOS-like galaxies with their intrinsic SFRsim. Overall the dispersion (defined as the range between 16th and 84th percentile in logarithmic bins of SFR) is $\pm 0.2$ dex, with a small systematic offset (median $\log(\mathrm{SFR}_{\mathrm{SOM}}$/SFR${}_{\mathrm{sim}})\simeq 0.02\!-\!0.04$ dex). The most active galaxies are an exception, being significantly underestimated because they are in cells whose majority of objects (including the calibration ones) are less star forming.

• •

LePhare SFRphot estimates are also available in Horizon-AGN and we have compared them to the new indicator. The latter performs remarkably better: SFRSOM are more precise but also significantly less biased, as they do not rely on a template library that introduces artificial degeneracies in the SED fitting (as investigated in Paper I).

The suboptimal performance of the SOM as a redshift machine found in this analysis is partly due to the fact that we have not entirely followed Masters et al. (2015) prescriptions, e.g. we did not use cell occupation as a prior nor we distinguished a deeper calibration sample from the rest of the survey (or use a combination of multiple fields). We note that the comparison is not straightforward since Masters et al., working with observed galaxies, are forced to use a spectroscopic sub-sample that is biased to some extent (see Paper I). However, as highlighted in Masters et al., on that spectroscopic sample their $z_{\mathrm{SOM}}$ figure of merit is better than LePhare.

On the other hand, the better performance of our SOM method to compute SFR does not imply that it is bias-free: some systematics may be introduced while selecting the calibration galaxies and measuring their SFRcal. We argue however that model assumptions in the SFRcal calculation are generally less severe than those involved in the construction of libraries from stellar population synthesis models, with a coarse grid of $E(B-V)$ values, simplistic SFHs, fixed stellar metallicity, and other limitations to which SFR is sensitive (Papovich et al., 2001, see also discussion in Paper I). Moreover if the sub-sample used for calibration turns out to be strongly biased it can be replaced by a better one without re-classifying the target galaxies, while any improvement in the template library of LePhare would require to run again that (computationally expensive) code over the whole catalogue. It should also be emphasised that estimates of redshift and physical parameters are provided simultaneously – a unique advantage of the SOM method that in future developments shall allow for a better treatment of $z$ error propagation.

We aim at transferring our method to the real COSMOS catalogue in the next paper of this series, even though data available in that field may be able to calibrate the SFR only in a limited portion of the SOM. Nonetheless, this effort can result in an original comparison between different estimators. For example, one could derive SFR from radio continuum stacking (as in Karim et al., 2011) vs UV+IR luminosity (as in Ilbert et al., 2015) for galaxies in the same cells, easily identifying the region of the parameter space where the indicators disagree.

The present work is also intended to provide a new science case for upcoming large-area surveys. The SOM requires an accurate calibration sample relatively modest in size (but large enough to limit sample variance effects, Buchs et al., 2019)) and then billions of galaxies (e.g. from the 15,000 deg2 of Euclid) can be efficiently mapped to get a proxy for their redshift and physical properties. This is particularly true for the Euclid Deep Fields, which will have a photometric baseline similar to the one assumed here thanks to the complementary surveys in optical (Hawaii two-O, PI: D. Sanders) and MIR (Euclid/WFIRST Spitzer Legacy Survey, PI: P. Capak). We also mentioned the contribution that 4MOST, MOONS, and PFS may provide to calibrating the galaxy colour space, owing to their unprecedented multiplexing. Our case study also supports the concept of a deep surveying of COSMOS with CASTOR, SPICA, and Origins, to continue its use as a reference field for the coming decades.

Acknowledgements

ID thanks Stefano Andreon, Sirio Belli, Micol Bolzonella, Keerthana Jegatheesan, Chris Hayward, Lucia Pozzetti for useful discussions, and Elvira CL is supported by a Beecroft Fellowship. OI acknowledges the funding of the French Agence Nationale de la Recherche for the project “SAGACE”. This research was supported in part by the National Science Foundation under Grant No. NSF PHY-1748958 and by the NASA ROSES grant 12-EUCLID12-0004. The analysis presented in this work relied on the HPC resources of CINES (Jade) under the allocation 2013047012 and c2014047012 made by GENCI and on the Horizon and CANDIDE clusters hosted by Institut d’Astrophysique de Paris. We warmly thank S. Rouberol for maintaining these clusters on which the simulation was post-processed. This research is part of ERC grant 670193 and horizon-UK and is also partly supported by the Centre National d’Etudes Spatiales (CNES). Several python packages were used, including ASTROPY (Astropy Collaboration et al., 2013; Price-Whelan et al., 2018) and SOMPY (main contributors: Vahid Moosavi, Sebastian Packmann, Iván Vállas).

Appendix A Caveats in the SOM of Horizon-AGN galaxies

A.1 Resolution and subgrid recipes in Horizon-AGN

As mentioned in Section 3.3, our modelling of Horizon-AGN photometry is limited both by the resolution of the simulation and the accuracy of the recipes implemented at the subgrid scale. The spatial resolution of Horizon-AGN simulation is at best 1 pkpc, and the mass resolution is $\sim 8\times 10^{7}\,{\rm M}_{\odot}$ for dark matter particles. In Dubois et al. (2014) this translates into a lower limit of $10^{8}\,{\rm M}_{\odot}$ in galaxy stellar mass, while we stop at $M=10^{9}\,{\rm M}_{\odot}$ to be conservative. Our galaxies are therefore resolved by at least $\sim 500$ particles. However, in despite of the SFH of each galaxy being well sampled, the scale limit hinder us from accounting for radiative transfer and for the impact of the turbulence on star-formation. It will naturally smooth out clumpiness in the ISM and therefore in the SFH themselves. One can expect that intrinsic SFH and metallicity enrichment histories of our simulated galaxies are less diverse at low than high resolution (see e.g. Lagos et al., 2016, for a study on the limited effect of resolution on the gas mass fraction).

A.2 Modelling of the photometry

Beyond these intrinsic limitations of the simulation, we made also several simplifying assumptions while computing galaxy photometry in post-processing. These shortcomings are detailed in Appendix A.5 of Paper I and listed here for completeness. We assume a single and spatially constant IMF and stellar mass-loss prescription as in BC03. Dust distribution is assumed to follow the gas metal distribution, and we take a dust-to-metal ratio constant in time and space. For all these reasons, the simulated photometry naturally presents less variety than the observed one, and the SOM performance that we derive must be considered as optimal estimates.

Besides that, nebular emission is not taken into account when mimicking the COSMOS photometry. Emission lines within the wavelength range of a broad-band filter can boost the measured flux and alter galaxy colours. However, nebular emission should not impair the SOM estimator as flux contamination is proportional to galaxy star formation activity. The resulting SOM would have a different appearance because of the modified colours, but without loosing the capacity to classify galaxy SEDs. Both the $10^{9}\,{\rm M}_{\odot}$ lower limit and the lack of emission lines are tested by means of an empirical simulation built independently of Horizon-AGN. In this simulation we fit BC03 models to COSMOS2015 galaxies, fixing the redshift to the $z_{\mathrm{phot}}$ value provided there. We integrate each best-fit BC03 spectrum within the same filters used in the present work, adding realistic noise to get a photometric catalogue similar to the observed one. The BC03 spectra include UV-optical emission lines (e.g., Ly$\alpha$, [OII]$\lambda$3727, H$\beta$, [OIII]$\lambda\lambda$4959,5007, H$\alpha$) according to Schaerer & de Barros (2009) recipe. Owing to the deep IR data, the COSMOS2015 catalogue includes numerous objects with $M<10^{9}\,{\rm M}_{\odot}$ (see fig. 17 in Laigle et al., 2016) and so does this replica. We produce the SOM of the empirical simulation using the empirically simulated galaxies between $M=10^{8}$ and $10^{12}\,{\rm M}_{\odot}$, then we apply our method to calculate their SFR. The resulting values are in good agreement with the intrinsic SFR (Fig. 14). Despite the simplistic approach (e.g., BC03 models assume $tau$ or delayed-$tau$ SFHs) this test indicates that the SOM estimator should work well also for a survey encompassing a larger stellar mass range and whose galaxy photometry is contaminated by nebular emission.

We also test the $i^{+}$ flux normalisation used in the computation of stellar mass and SFR from the SOM (e.g., Fig. 5 in the main text). Since galaxy SEDs in the same cell have similar shape, the normalisation factor (see Eq. 4 in the main text) does not change significantly if another band is used (with the exception of the bluest filters). Fig. 15 shows this is the case for a $K_{\mathrm{s}}$ flux normalisation. In the main text we rely on the $i^{+}$ because it is has a higher $S/N$ whereas photometric errors in $K_{\mathrm{s}}$ would produce additional scatter in the SFRSOM vs SFRsim comparison (cf. Fig. 15 with Fig. 9 in the main text).

Appendix B Training and calibration galaxy samples

B.1 Training sample selection

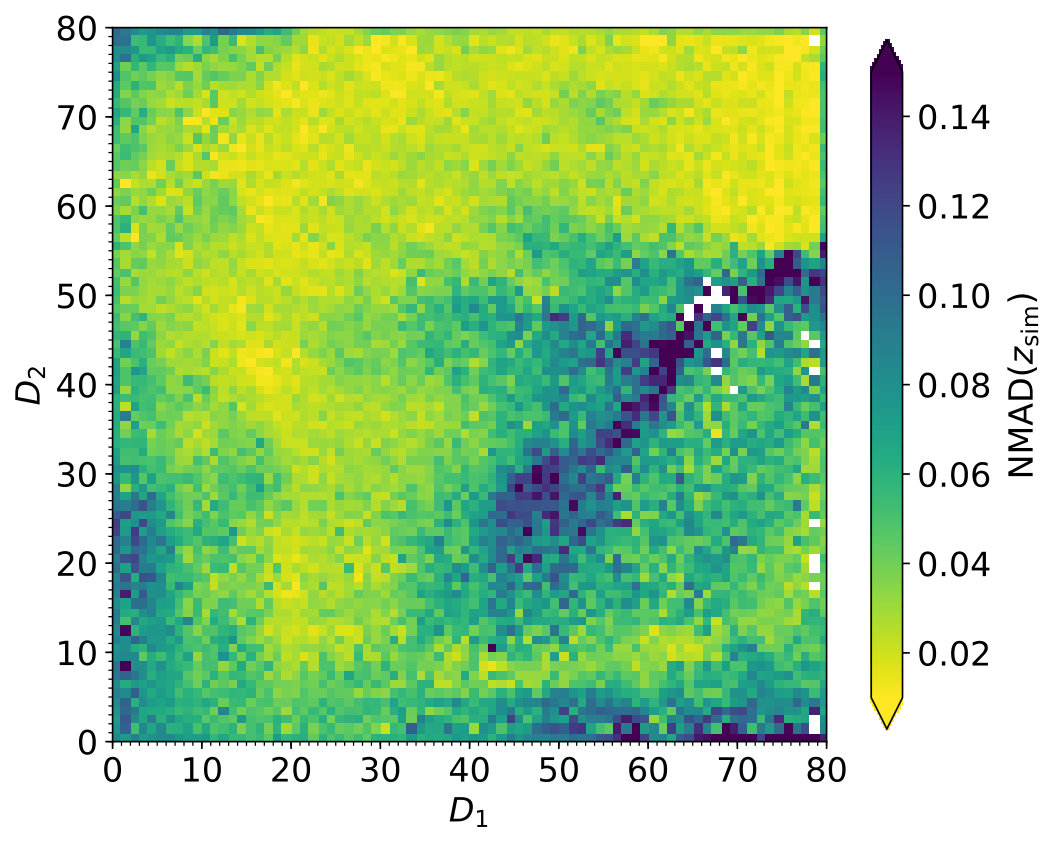

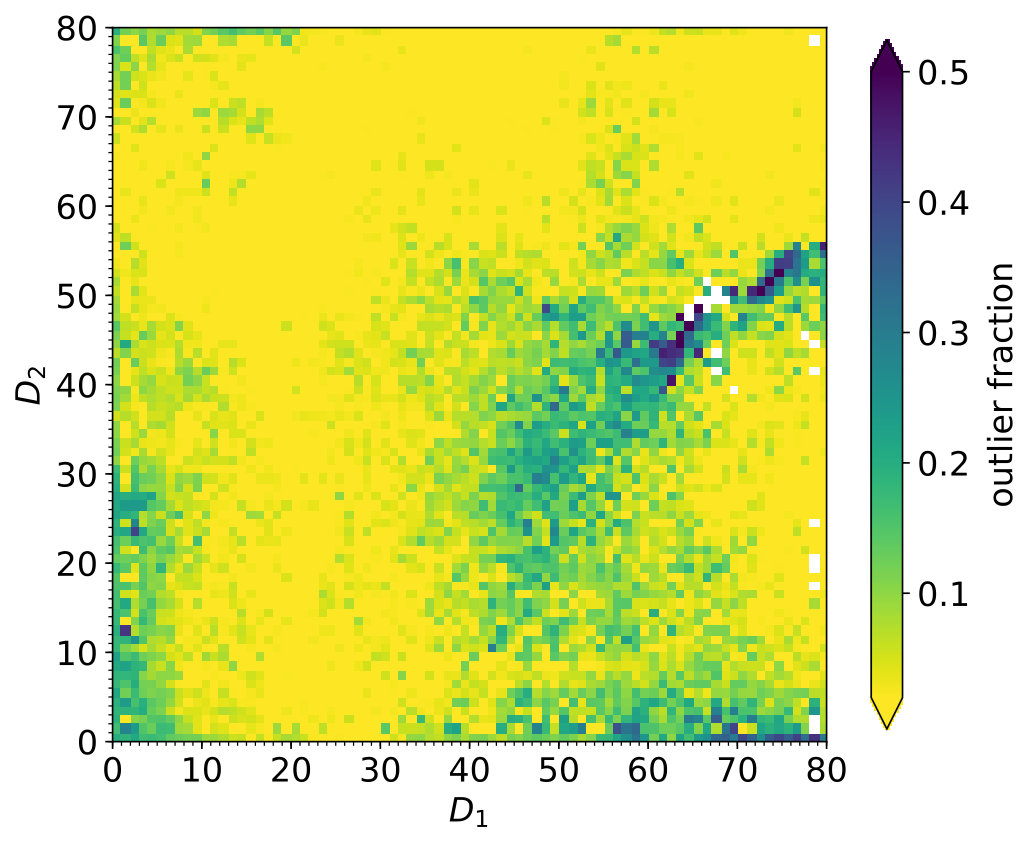

As mentioned in Sect. 4.1, the selection of COSMOS-like galaxies with $S/N>1.5$ may bias the results. First of all, we note that such a selection corresponds in practice to a magnitude cut $i^{+}<25$ (see Fig. 16, upper panel) with the removal (because of the required $u$-band detection) of $z>3.5$ galaxies (Fig. 16, lower panel). Even when working in the narrower range $0<z<3.5$, the SOM would still be biased if any galaxy type were missing from the training sample. To investigate this potential issue we consider the SED classes (i.e., the cells) defined in the initial SOM (shown in Fig. 3 of the main text) and verify whether they are well-represented after the $S/N$ cut. We find that most of those classes are still included with a fairly good statistics (Fig. 17). The occupation is larger than 10 galaxies per cell in most of them. Nearly 10 per cent of the cells, predominantly at $z>3.2$, have less than 5 objects inside; these significant lack of high-$z$ galaxies introduces the $z_{\mathrm{SOM}}$ bias shown in Fig. 8 of the main text.

B.2 Calibration sample C1

Another step in the SOM method is to label its cells using a sample of bona fide galaxies. Sect. 5 presented two possible ways of building such a sample with future telescopes.

The calibration sample C1 relies on the unparalleled multiplexing that 4MOST and MOONS will offer (placing $10^{2}$ to $10^{3}$ fibers simultaneously) in order to observe the several hundreds of bona fide galaxies needed to label the SOM cells. Both spectrographs will start operations in 2020$-$2022, at the ESO telescopes VISTA and VLT respectively. Together they shall enable for H$\alpha$ detection in thousands of galaxies between $z=0$ and $\sim$1.7, which is the highest redshift that MOONS can reach before $H_{\alpha}$ moves outside its wavelength window (which ends at 1.8 $\mu$m). 4MOST will observe $H_{\alpha}$ emission up to $z\sim 0.4$, i.e. one sixth of the SOM map (see the redshift map in Fig. 7). According to its expected sensitivity, 4MOST should provide $S/N>6$ spectra for galaxies brighter than 20 mag, in 2h of exposure with “grey sky” conditions202020 Sensitivity per resolution element, converted from the $S/N$ per Å provided by the 4MOST team at https://www.4most.eu/cms/facility/capabilities/. Sensitivity for emission lines is not provided.. The spectral resolution ranges from $\sim$4,000 in the bluest band, up to 7,700. The MOONS Consortium predicts that the sensitivity of their instrument shall reach $S/N=5$ for a line flux of $0.6\times 10^{-17}$ erg s*-1* cm*-1*, in 1h exposure212121 Predicted $S/N$ per resolution element including background subtraction, assuming an emission line with FWHM$=$200 km s*-1* (see https://vltmoons.org/ and Taylor et al., 2018).

Concerning the “observational bias” introduced by C1, a major concern is the survey strategy of selecting targets among the brightest galaxies in each cell, i.e., objects brighter than $\langle i^{+}\rangle^{\mathrm{cell}}$ to enhance the probability of a $S/N>10$ line detection. The dominant source of error is the aperture correction, which in future surveys may be mitigated by larger slits222222Although this is not the case of either 4MOST or MOONS, which will have fibers with a similar diameter of Subaru FMOS. or by overlapping with grism or IFU spectroscopy (HST, Euclid, JWST) that would allow for an object-by-object correction. We do not attempt to model systematic uncertainties related e.g. to the dust prescription (see Eq. 6) or to the conversion factor between nebular and stellar extinction (see Kashino et al., 2013). Fig. 11 illustrates the solidity of manifold learning: despite the stochastic SFRcal fluctuations due to the random selection of these galaxies, the SOM labels still show a clear evolutionary pattern.

B.3 Calibration sample C2

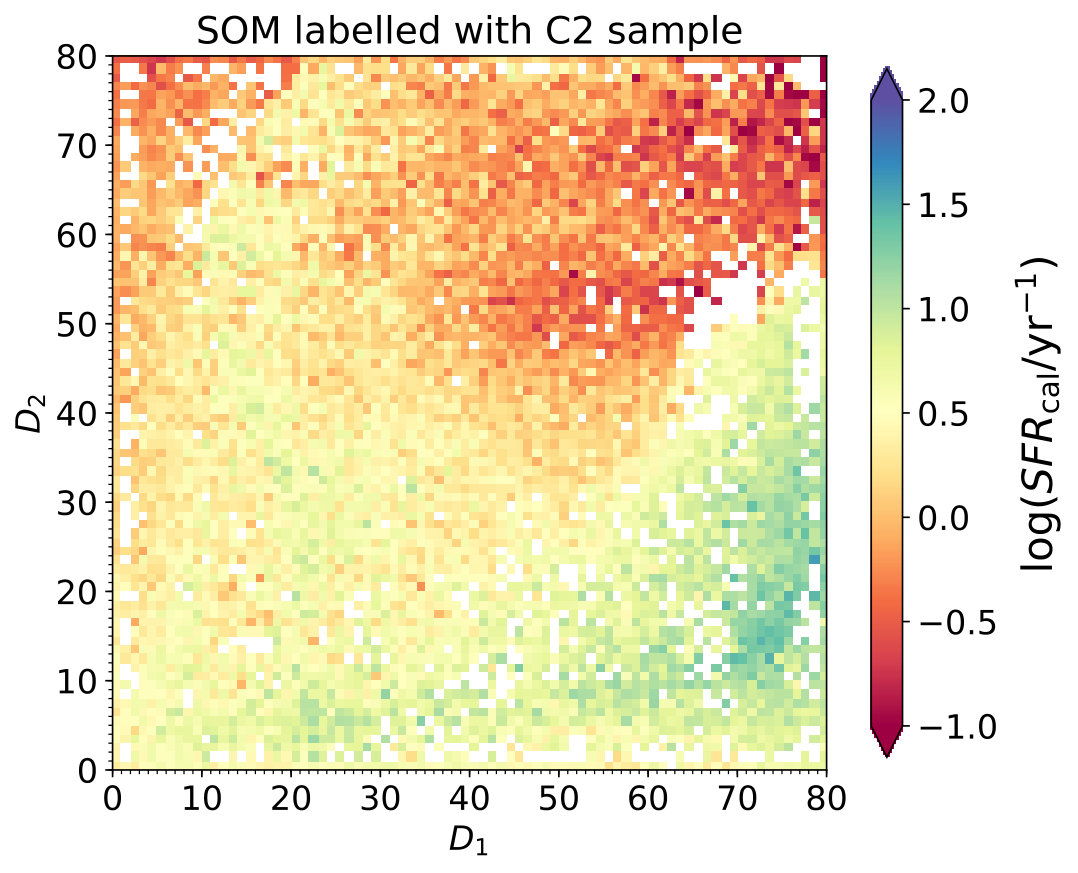

In the case of C2, a $19\mathrm{\SIUnitSymbolArcminute}\times 19\mathrm{\SIUnitSymbolArcminute}$ patch of UV and FIR pseudo-observations is chosen to be the S-W corner of the Horizon-AGN lightcone and supposed to be observed in UV and FIR. Final results are preserved if we change the location of the patch. Compared to the previous calibration, this one has the advantage that more bona fide galaxies are observed in each cell, averaging the intrinsic variance in their star formation activity. Moreover, the redshift range is larger (see 16, bottom panel).

As the SFRcal values come from UV+IR energy balance (Eq. 7 in the main text) precise redshifts for the bona fide galaxies should be gathered to compute rest frame luminosities. This apparently implies an additional follow-up to get spectroscopic redshifts (see discussion in Sect. 5.1). However, following the parallelism between the Horizon-AGN lightcone and COSMOS2015, we can assume that in our field there is already an extended number of them. In the real COSMOS field these $z_{\mathrm{spec}}$ come from two decades of spectroscopic campaigns, most notably the ongoing survey for a Complete Calibration of the Color-Redshift Relation (C3R2, Masters et al., 2017). The C3R2 programme is systematically collecting spectroscopic redshifts in each cell of the COSMOS SOM (already covering $\sim$75 per cent of it, Masters et al., 2019) building on previous surveys as zCOSMOS (Lilly et al., 2007), VUDS (Le Fevre et al., 2015), Keck/DEIMOS (Hasinger et al., 2018).

In a traditional analysis a key concern in the design of C2 would be cosmic variance uncertainty, hereafter referred as “sample variance”232323Although the term less popular in the literature (see Moster et al., 2011) sample variance is more advisable to indicate the uncertainty due to large-scale clustering which changes the observed density of a given type of object. Strictly speaking, cosmic variance describes the intrinsic limitation of cosmological experiments, which cannot be reproduced in other observable universes.. This is due to the fact that the necessary UV and FIR photometry is taken from deep pencil-beam surveys covering only 0.1 deg2 (10% of the total area of the Horizon-AGN lightcone). The relatively small area means that specific types of objects may be over-represented and dominate the measured density. Given the quality of our results, sample variance does not seem to dramatically impair our method. Nonetheless, it might bias the SOM in a subtle way. An assessment of sample variance uncertainties for a given survey design is always recommended, but difficult to pursue because ideally it requires several independent realisations of the survey itself.

Buchs et al. (2019) does an extensive analysis of how sample variance would affect mapping functions like the one proposed here, and how to correct for it. Their analysis relies on multiple realisations of a Gpc-scale numerical simulation (although limited to $z<1.5$). They find that sample variance is a major contributor to the error budget, accounting for $3\!-\!5$ times the shot-noise uncertainty when a calibration sample covers an area of 1 deg2 (see their figure 4). However, if the parent photometric data set is observed over a large enough area, the variance in the calibration field can be determined and corrected for. So, in principle sample variance is much less of an issue with the SOM method. However, we are limited by the box size of Horizon-AGN and the $19\mathrm{\SIUnitSymbolArcminute}\times 19\mathrm{\SIUnitSymbolArcminute}$ sub-region we have selected still corresponds to a small cosmic volume in which some galaxy types may be under-represented and others over-abundant respect to the rest of the sample. For example if a dark matter over-density is present along the line of sight of the pseudo-survey, then a higher fraction of bona fide galaxies at that redshift will be “red and dead” and perhaps cells of star-forming objects will not be filled. The bottom panels of Fig. 11 (see main text) shows this concept: even though C2 galaxies span the whole redshift range, a few isolated cells (or small groups of cells) are empty. On the other hand, C1 galaxies are dispersed in a much larger volume and are likely to live in a broader variety of environments (besides the fact they fill a contiguous area of the SOM by construction). A certain degree of sample variance can be appreciated also in the redshift and magnitude distributions shown in Fig. 16. We also note that sample variance may be misidentified with other survey selection effects: for instance the SFR map from C2 calibration differs from C1 not for the smaller area, but mainly because in the latter the “spectroscopic” $F_{H\alpha}$ threshold favourites the targeting of more actively star-forming galaxies.
