Squeezing phase diffusion

TL;DR

This paper demonstrates how an optical parametric oscillator can reduce phase diffusion in quantum optical channels, showing both theoretical and experimental results that identify a threshold for effective noise squeezing based on input energy and OPO parameters.

Contribution

It introduces a method to counteract phase noise in quantum communication using OPOs, with a detailed analysis of the threshold conditions for noise squeezing.

Findings

OPO can squeeze phase noise above a certain threshold

The threshold depends on input energy and OPO parameters

Experimental results confirm theoretical predictions

Abstract

We address the use of optical parametric oscillator (OPO) to counteract phase-noise in quantum optical communication channels, and demonstrate reduction of phase diffusion for coherent signals travelling through a suitably tuned OPO. In particular, we theoretically and experimentally show that there is a threshold value on the phase-noise, above which OPO can be exploited to squeeze phase noise. The threshold depends on the energy of the input coherent state, and on the relevant parameters of the OPO, i.e. gain and input/output and crystal loss rates.

Figures

Equations

$$\varrho =\int d\varphi g_{\sigma }(\varphi )|\beta e^{i\varphi }⟩⟨\beta e^{i\varphi }|,$$

$$\hat{\phi }={\tan }^{-1}\frac{⟨y⟩}{⟨x⟩}.$$

$$\mathrm{var}[\hat{\phi }]=$$

$$+{\left(\frac{⟨x⟩}{⟨x{⟩}^2+⟨y{⟩}^2}\right)}^2\mathrm{var}[y].$$

$$\mathrm{var}[\hat{\phi }]=\frac{1}{4{\beta }^2},$$

$$⟨x⟩=2|\beta |e^{-{\sigma }^2}\text{mbox}and⟨y⟩=0,$$

$$\mathrm{var}[x]$$

$$\mathrm{var}[y]$$

$$\mathrm{var}[\hat{\phi }]=\frac{\cosh ({\sigma }^2)+(1+4{\beta }^2)\sinh ({\sigma }^2)}{4{\beta }^2}\ge \frac{1}{4{\beta }^2}$$

$${\eta }_{\mathrm{in}}=\frac{{\gamma }_{\mathrm{ic}}}{\gamma }\text{mbox}and{\eta }_{\mathrm{esc}}=\frac{{\gamma }_{\mathrm{oc}}}{\gamma },$$

$$X$$

$$Y$$

$${\Sigma }_x^2({\eta }_{\mathrm{esc}},d)$$

$${\Sigma }_y^2({\eta }_{\mathrm{esc}},d)$$

$$⟨x⟩={\alpha }_x{e}^{-{\sigma }^2/2}⟨y⟩=0,$$

$$\mathrm{var}[x]$$

$$\mathrm{var}[y]$$

$${\alpha }_x$$

$${\alpha }_y$$

$$\mathrm{var}[\hat{\phi }]=\frac{{\Sigma }_y^2+{\alpha }_y^2{e}^{-{\sigma }^2}\sinh ({\sigma }^2)}{{\alpha }_x^2{e}^{-{\sigma }^2}}.$$

$${\sigma }_{\mathrm{th}}(\beta ,{\eta }_{\mathrm{in}},{\eta }_{\mathrm{esc}},d)=$$

$$\sqrt{\log \left[\frac{\sqrt{2}\beta \sqrt{{\alpha }_x^2-{\alpha }_y^2}}{\sqrt{{\alpha }_x^2+2{\beta }^2({\alpha }_x^2-{\alpha }_y^2-2{\Sigma }_x^2)}}\right]}.$$

$$\frac{⟨y⟩}{⟨x⟩}=\frac{1-d}{1+d}\tan \phi ,$$

$$\tan {\theta }_d=\frac{1-d}{1+d}\tan {\theta }_0$$

Full text

I Introduction

The encoding of information onto the phase of an optical signal represents a basic building block for quantum enhanced metrology and communication caves ; holland ; giovannetti:1 ; giovannetti:2 ; demko ; escher ; chaves ; smirne ; dary . In particular, protocols based on coherent phase-shift-keyed signals are useful in those scenarios where single photons and entanglement may not be the optimal choice, as it happens in free-space communication. In those cases, the major obstacle to fully exploit the advantages of quantum measurements, thus beating the shot-noise limit, is phase noise due to phase diffusion bina ; witt ; muller ; izumi ; genoni ; witt2 ; tsuj .

Besides trying to avoid phase noise, a question thus arises on whether, and how, it may be possible to contrast and counteract the effects of phase diffusion, and to decrease its detrimental effect on the coherence of the signal. In this framework, a natural choice to hamper phase diffusion is to use phase-sensitive amplification, as that provided by optical parametric oscillators (OPOs) in the degenerate regime. Despite the simplicity of the underlying idea the use of OPO to squeeze phase diffusion did not receive much attention in the past. The reason is twofold: on the theoretical side, the existence of quantum limits to amplification suggests that no full compensation of noise is possible qlm1 ; qlm2 ; qlm3 ; qlm4 ; qlm5 . On the experimental side, seeding a quantum amplifier with a phase diffused state in order to compensate the noise is not a trivial task. Likewise, achieving the necessary level of pump phase stabilization may be challenging.

In this paper, thanks to an active stabilisation scheme of our OPO cavity and to a novel technique for pump stabilisation, we have been able to explore experimentally the use of optical parametric oscillator (OPO) to counteract phase-noise, and to demonstrate reduction of phase diffusion for coherent signals. In particular, we theoretically and experimentally show that there is a threshold value on the phase-noise, above which OPOs may be exploited to effectively squeeze phase noise. As we will see, the noise threshold depends on the amplitude of the input signal, and on the relevant parameters of the OPO, i.e. gain and input/output and crystal loss rates.

The paper is structured as follows. In Section II, we introduce notation and discuss the effect of an OPO on a phase-diffused coherent signal. In Section III, we briefly describe our experimental setup and present our results, showing that above a given threshold of the phase diffusion amplitude, OPO may be indeed exploited to squeeze phase noise. Section IV closes the paper with some concluding remarks.

II Phase diffusion and OPO

Let us consider a coherent state $|\beta\,e^{i\varphi}\rangle$, with $\beta\in{\mathbbm{R}}_{+}$ undergoing phase diffusion. The evolved state may be written as genoni ; geno:12

[TABLE]

where $g_{\sigma}(\phi)=(2\pi\sigma^{2})^{-\frac{1}{2}}\exp\{-\frac{1}{2}\phi^{2}/\sigma^{2}\}$ and we refer to $\sigma$ as to the amplitude of the phase diffusion (see Fig. 1). An estimate of the phase $\varphi$ may be obtained from the expectations of the two orthogonal quadratures $x=a+a^{\dagger}$ and $y=i(a^{\dagger}-a)$, where $a$ and $a^{\dagger}$ are the creation and annihilation operators, $[a,a^{\dagger}]=1$

[TABLE]

The uncertainty in the estimate $\hat{\varphi}$ is thus given by namely:

[TABLE]

For a coherent signal ${\rm var}[x]={\rm var}[y]=1$

[TABLE]

that scales, as expected, as the inverse of the energy $|\beta|^{2}$ of the input coherent state. Notice that we estimate phase by two measurements performed on two copies of the input state oli:rev (thanks to stability of the scheme). Let us now consider a coherent signal undergoing phase diffusion, and for the sake of simplicity let us assume that $\varphi=0$, i.e., $\beta\in{\mathbbm{R}}$ and $\beta>0$. In this case we have:

[TABLE]

and:

[TABLE]

Note that ${\rm var}[x]\leq{\rm var}[y]$. It is straightforward to show that:

[TABLE]

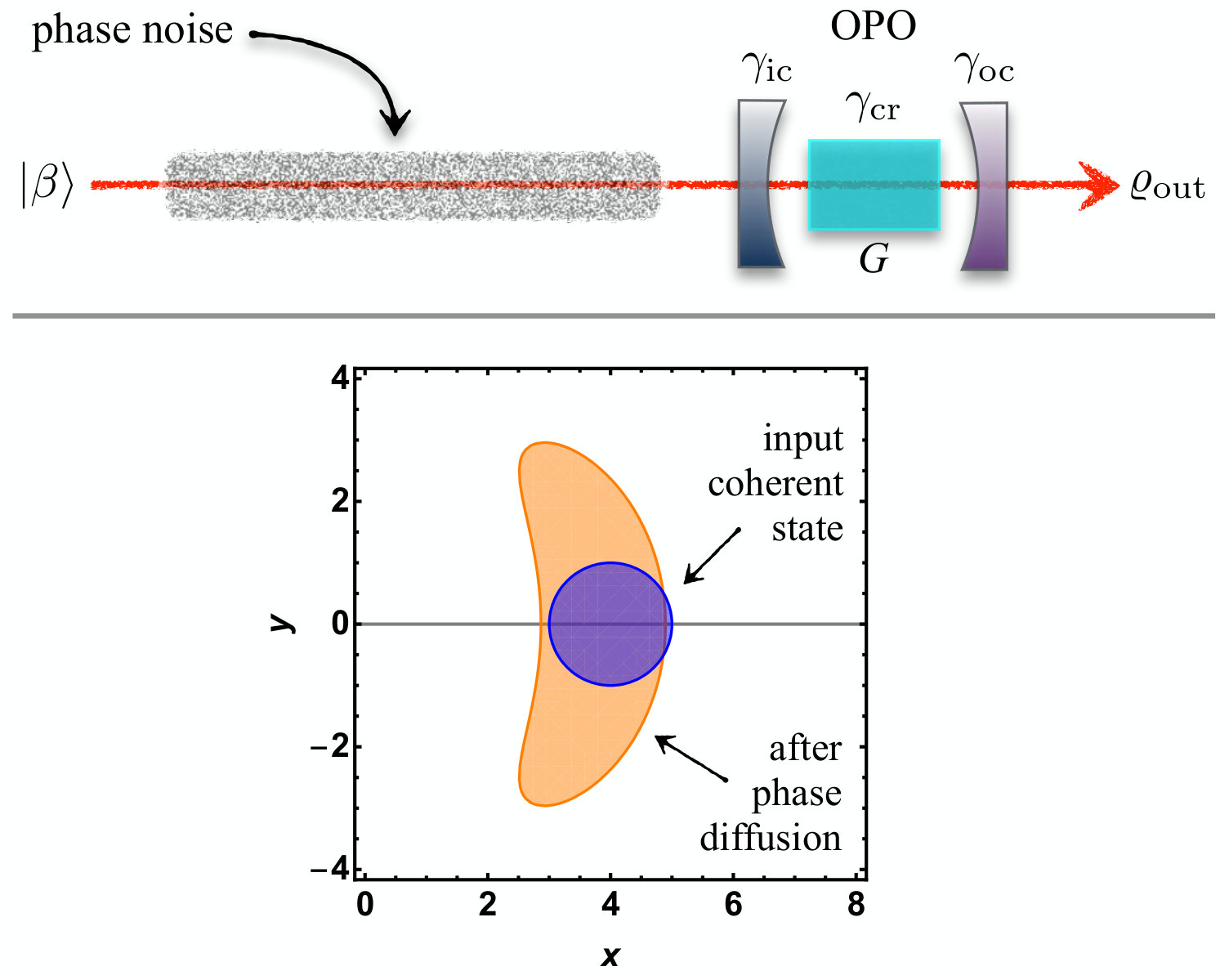

In Fig. 1 we compare a coherent state with its phase diffused counterpart.

Let us now assume that after the phase diffusion process the degraded state passes through an OPO as sketched in the upper panel of Fig. 1. The OPO can be characterised by the gain and the input and output parameters, $\eta_{\rm in}$ and $\eta_{\rm esc}$, respectively, which summarise the effect of the input and output couplers transmissivity and the internal losses bachor . The gain can be written as $G=(1-d)^{-2}$, where $d=\sqrt{P/P_{\rm th}}$, where $P$ is the pump power and $P_{\rm th}$ the OPO power threshold; the input and output parameters depends on the input ($\gamma_{\rm ic}$) and output ($\gamma_{\rm oc}$) loss rates of the input and output couplers, respectively, but also on the loss rate due to the OPO crystal ($\gamma_{\rm cr}$). Overall, we have:

[TABLE]

where we introduced $\gamma=\gamma_{\rm ic}+\gamma_{\rm oc}+2\gamma_{\rm cr}$. In the following we will focus on the effect of the OPO on the first and second moments of the quadratures relevant for our analysis.

We begin our study assuming as input a coherent state $|\beta\,e^{i\phi}\rangle$ (without phase noise). Lengthy but straightforward calculations lead to the following results (we choose the OPO pump phase such to amplify the $x$ quadrature):

[TABLE]

and

[TABLE]

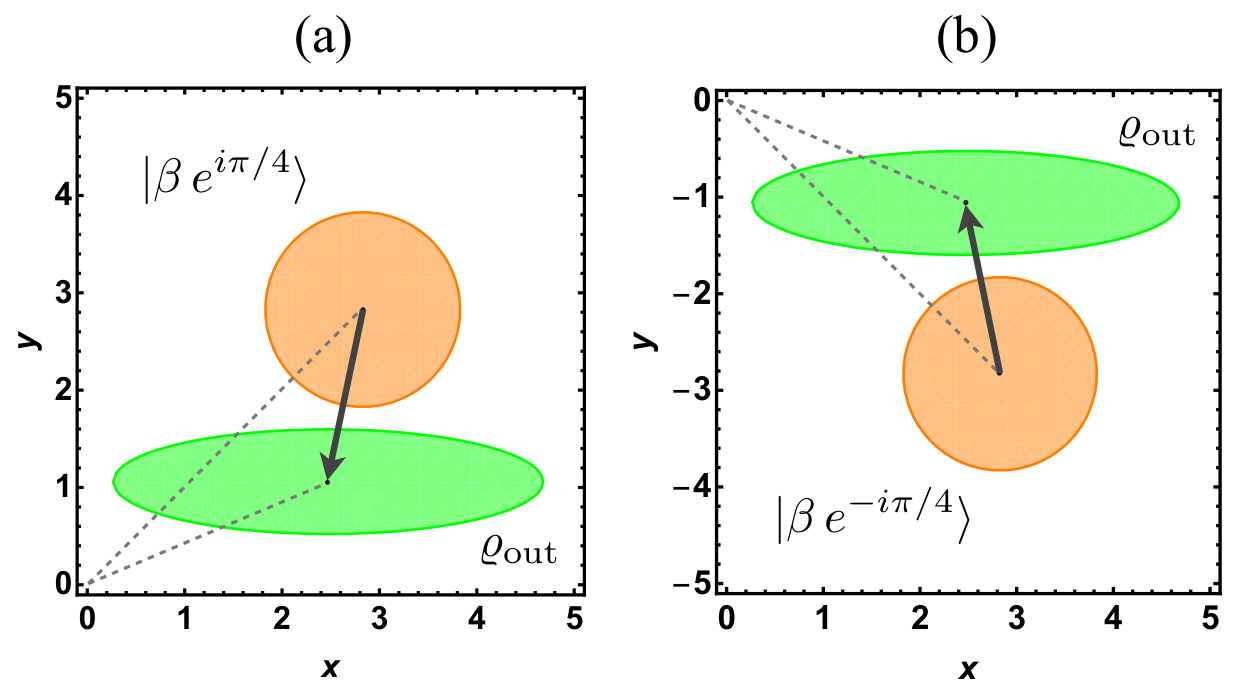

In Fig. 2 we show the effect of the OPO on a coherent state for a particular choice of the involved parameters. It is worth noting that the presence of the OPO reduces the phase shift of the state: this effect will be fundamental to reduce the phase diffusion.

When phase noise affects the propagation of the coherent state before the OPO, the evolved state is given by Eq. (1). By using the results of Eqs. (10) and (11) it is easy to find the new mean values of the relevant quadratures and their variances, namely (we set $\varphi=0$):

[TABLE]

and

[TABLE]

where:

[TABLE]

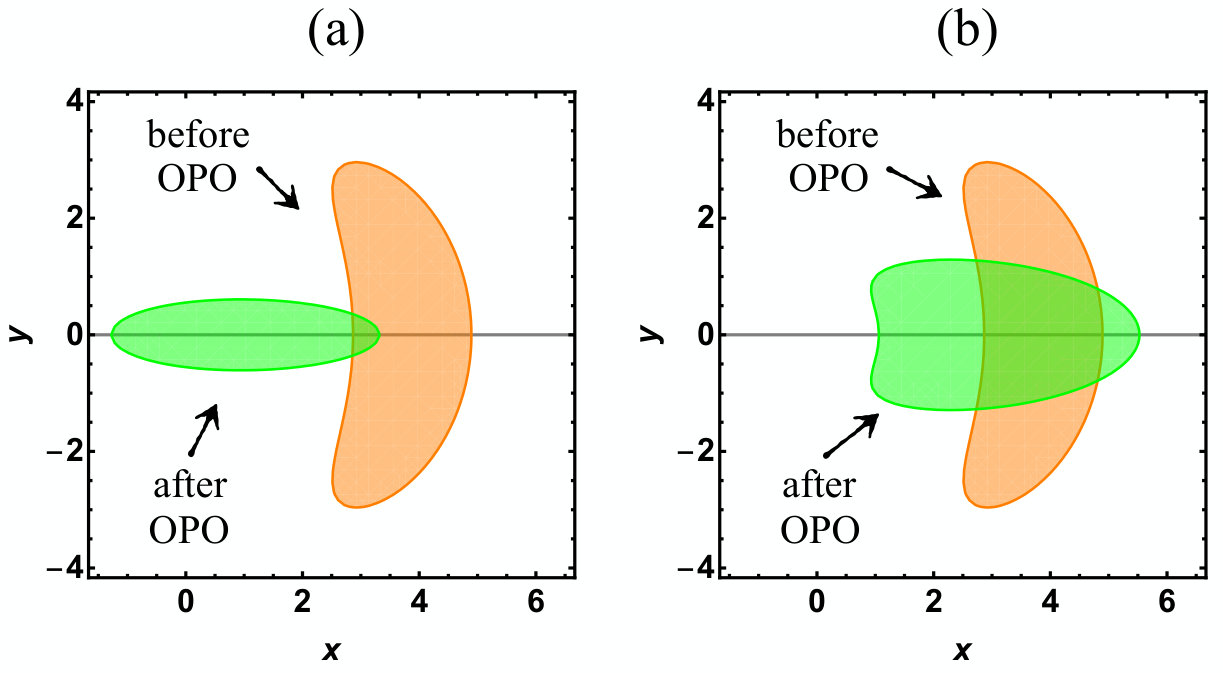

whereas $\Sigma^{2}_{x}$ and $\Sigma^{2}_{y}$ are given in Eqs. (11). In Fig. 3 we can see how a phase diffused coherent state is modified by the evolution through the OPO.

In order to assess the reduction of phase diffusion, we use the previous results to evaluate $\hat{\varphi}$ and ${\rm var}[\hat{\varphi}]$ given in Eqs. (2) and (II). In particular, for the variance we find:

[TABLE]

By comparing the variance (15) and the one obtained without the OPO, namely, Eq. (8), we can find a threshold value $\sigma_{\rm th}$ of the phase noise amplitude above which phase diffusion can be reduced, namely:

[TABLE]

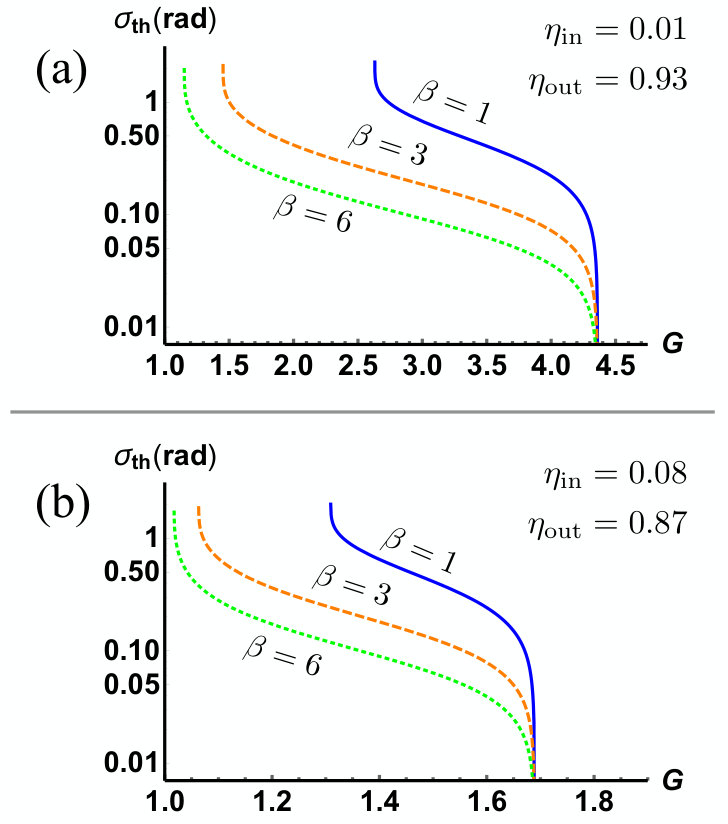

In Fig. 4 we plot the threshold $\sigma_{\rm th}$ as a function of the OPO gain $G=(1-d)^{-2}$ for different values of the involved parameters. We can see that, for a fixed choice of the involved parameters, there exists a maximum value of $G$ above which the OPO always reduces phase noise.

III Experimental results

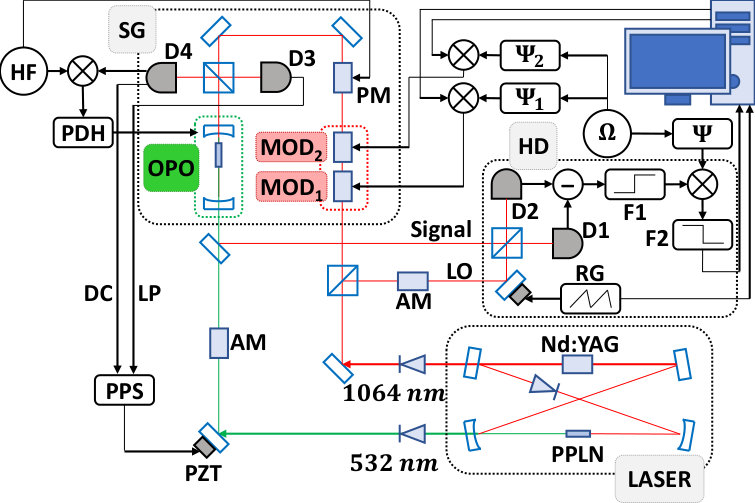

Theoretical predictions have been tested using the experimental scheme depicted in Fig. 5. The setup allows us to generate and manipulate displaced-squeezed states. In particular, we have control not only on both the amplitude and phase of the states, but also on the gain $G$ and the pump phase. The setup is described in detail in mandarino:16 and consists of different stages: a Laser source (LASER), a state generation and manipulation stage (SG) and an homodyne detector (HD). A home-made $1064\text{\,}\mathrm{nm}$ wavelength Nd:YAG laser internally frequency doubled at $532\text{\,}\mathrm{nm}$ serves both as the input seed and the pump beam for the Optical Parametric Oscillator (OPO). In particular, from the infrared output of the laser we generate two different beams by a polarising beam splitter: one is used as the local oscillator (LO) for the homodyne detection, while the other is sent to the SG.

OPO consists in a linear cavity with a free spectral range of $3.270\text{\,}\mathrm{GHz}$. A $10\text{\,}\mathrm{mm}$-long MgO:LiNbO3 crystal with anti-reflection coating is inserted inside the cavity. The losses related to the crystal are $\Delta=2.42\times 10^{-3}$. We used two different configurations A and B for the OPO. In configuration A the input mirror has a reflectivity $R_{\rm ic,A}=0.999$ with a radius of curvature of $10\text{\,}\mathrm{mm}$, while the output mirror has a reflectivity $R_{\rm oc}=0.917$ with a radius of curvature of $25\text{\,}\mathrm{mm}$, leading to $\eta_{\rm in,A}=0.008$ and $\eta_{\rm esc,A}=0.937$, with a measured cavity total transmissivity $T_{\rm A}=0.029$. In configuration B the input mirror has a reflectivity $R_{\rm ic,B}=0.9925$, and the output mirror is the same as A, both with the same radii of curvature of A, leading to $\eta_{\rm in,B}=0.079$ and $\eta_{\rm esc,B}=0.871$, with a measured cavity total transmissivity $T_{\rm B}=0.26$. The role of the transmissivities will be clear later. The cavity is actively stabilized using the Pound-Drever-Hall (PDH) technique cialdi:16 by means of a phase modulator (PM) placed along the SG beam, which generates two $116\text{\,}\mathrm{MHz}$ sidebands around the laser frequency. Coherent states are generated exploiting the combined effect of two optical modulators (MOD1 and MOD2) placed before the OPO. A proper choice of their modulations allows us to generate an arbitrary coherent state on the sidebands at $3\text{\,}\mathrm{MHz}$ for seeding the OPO mandarino:16 ; cialdi:16 . Amplitude and phase values are set on demand by a computer.

In order to effectively amplify a certain quadrature with the OPO, the pump phase $\Theta$ must be stable over the whole time of the measurement. Therefore, a novel technique for the pump phase stabilization (PPS) has been developed and will be described in detail in a forthcoming work bib:cialdi2030 , whereas in the following we highlight its main elements. In our stabilization technique, the field $E_{\rm r\,tot}$ reflected by the OPO can be exploited as an error signal for the stabilization of $\Theta$. We note that the field $E_{\rm r\,tot}$ is the sum of the field $E_{\rm r}$, directly reflected by the input mirror, and the field $E_{\rm t}$ transmitted by the cavity through the input mirror. The laser and the field generated by down conversion by the pump interact inside the cavity and their interaction leads to constructive or destructive interference depending on the pump phase $\Theta$. Since $E_{\rm r}$ and $E_{\rm t}$ are $\pi$-shifted, in the first case $E_{\rm t}$ increases and $E_{\rm r\,tot}$ decreases, while in the second case $E_{\rm t}$ decreases and $E_{\rm r\,tot}$ increases. This can be summarized as $E_{\rm r\,tot}=E_{\rm r\,tot}(\Theta)$, thus in order to access the information about $\Theta$ we measure the corresponding power $P_{\rm rtot}$ with the DC output of the detector $\rm D_{\rm 4}$ (see Fig. 5). Finally, the obtained error signal is properly manipulated with a PID and applied to a piezoelectric actuator which can change $\Theta$. At the moment the total bandwidth of the PPS is around $1\text{\,}\mathrm{kHz}$, thus we can compensate pump phase fluctuations of at most that frequency.

The effect of the OPO on a phase-diffused coherent state has been tested directly by generating a rapid sequence of three coherent states: one with [math]-phase shift and two with a $\pm$40\text{,}\mathrm{\SIUnitSymbolDegree}$$-phase shift. Indeed, considering the Eqs. (10), if the phase shift before OPO is $\varphi=\theta_{0}$, then after OPO we have

[TABLE]

leading to the simple relation

[TABLE]

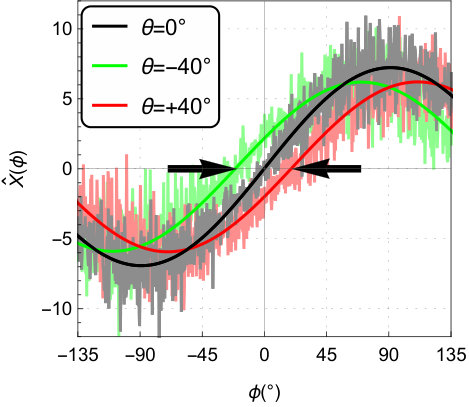

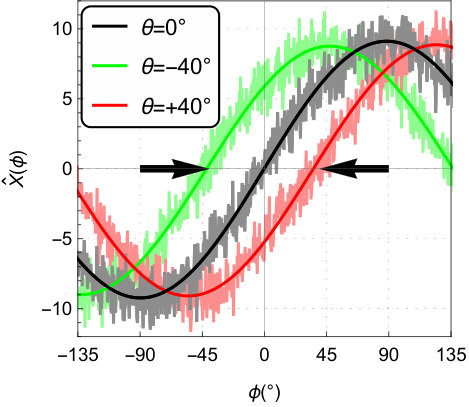

where $\theta_{d}$ and $\theta_{0}$ refer to the case with and without OPO respectively. We performed a tomography of every state, both with and without the OPO. Results are shown in the upper panels of Fig. 6. In order to highlight the effect of the OPO on the phase shift, we used two different amplitudes for the cases with and without the OPO and this is possible as the reduction of the phase shifts does not depend on the $\beta$s [it is clear from Eq. (18)]. In particular the system was in configuration A, with $\beta=4.5$ without OPO and $\beta_{\rm OPO}=2.0$ with OPO. In this last case the gain was $G=3.1$, leading to $d=0.43$. Results show that the phase shift is reduced from $\theta_{0}=$40\text{,}\mathrm{\SIUnitSymbolDegree} to a measured $\theta_{d,\rm ex}=$20\text{\,}\mathrm{\SIUnitSymbolDegree}, while the theoretical value calculated with $d$ is $\theta_{d,\rm th}=$18.4\text{,}\mathrm{\SIUnitSymbolDegree}$$.

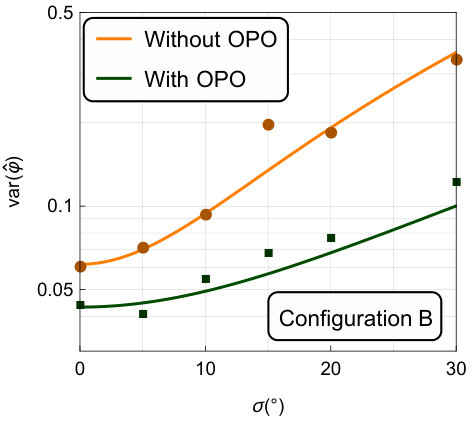

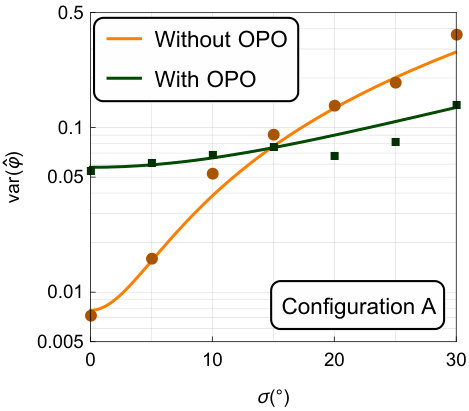

In our experiments, we generated the phase-diffused coherent states by modulating their phases with a suitable Gaussian distribution oli:2013 and we evaluated ${\rm var}[\hat{\varphi}]$ of Eq. (15) with and without OPO for different values of the phase diffusion $\sigma$ in both configurations A and B. For practical reasons, in the measurements without OPO we did not physically remove it from the setup, but we increased the amplitude of the coherent state by a factor $1/\sqrt{T}$ with respect to the case of squeezed coherent, in order to compensate the effect of the cavity transmissivity $T$. That is why we have measured transmissivities. Of course, pump was turned off during these measurements. In order to obtain ${\rm var}[\hat{\varphi}]$, we measured $\langle x\rangle$, $\langle y\rangle$, ${\rm var}[x]$ and ${\rm var}[y]$ and we used Eq. (II). We made measurements for different values of the phase diffusion $\sigma$. The theoretical expectation has been obtained directly using Eq. (15), where we considered the experimental values for $\Sigma_{y}$, $\beta$ and $G$, from which we calculated $\alpha_{x}$ and $\alpha_{y}$. Finally, the threshold $\sigma_{\rm th}$ has been calculated by Eq. (II). Both the experimental points and the theoretical previsions are shown in the lower panels of Fig. 6 for the two configurations. In particular, in configuration A we have $\beta_{\rm A}=5.70$ and $G_{\rm A}=2.75$, with a theoretical threshold $\sigma_{\rm th}=$14.8\text{,}\mathrm{\SIUnitSymbolDegree}$$ perfectly compatible to experimental points. In configuration B we have $\beta_{\rm B}=2.05$, $G_{\rm B}=3.12$ and there is no threshold, so the use of the OPO is convenient for every phase diffusion amplidue.

IV Conclusions

In this paper, we have exploited our innovative OPO scheme to address the use of phase-sensitive amplification to counteract phase-noise in quantum phase channels. Our results demonstrate the reduction of phase diffusion for coherent signals travelling through a suitably tuned OPO. More generally, we have shown that there is a threshold value on the phase-noise, above which OPO can be exploited to squeeze phase noise. The threshold depends on the energy of the input coherent state, and on the relevant parameters of the OPO. Our results may be exploited to enhance quantum phase communication channels and for state preparation in quantum metrological schemes.

Acknowledgements.

This work has been partially supported by FNP TEAM project ”Quantum Optical Communication Systems” and by UniMI project PSR2017-DIP-008.
