Quantum information processing with space-division multiplexing optical fibres

TL;DR

This paper reviews recent advances in using space-division multiplexing optical fibres for quantum information processing, highlighting new protocols, devices, and potential for manipulating quantum systems with this technology.

Contribution

It provides a comprehensive overview of how SDM optical fibres are being utilized in quantum information processing, a novel integration of fibre technology and quantum protocols.

Findings

Demonstration of quantum protocols using SDM fibres

Potential for scalable quantum communication systems

New methods for quantum state manipulation

Abstract

The optical fibre is an essential tool for our communication infrastructure since it is the main transmission channel for optical communications. The latest major advance in optical fibre technology is spatial division multiplexing (SDM), where new fibre designs and components establish multiple co-existing data channels based on light propagation over distinct transverse optical modes. Simultaneously, there have been many recent developments in the field of quantum information processing (QIP), with novel protocols and devices in areas such as computing, communication and metrology. Here, we review recent works implementing QIP protocols with SDM optical fibres, and discuss new possibilities for manipulating quantum systems based on this technology.

Figures

Tables

Table 1. Table 1: Quantum information experiments using SDM fibres. Telecom integration refers to experiments aimed at characterising the impact of classical data channels on a quantum channel over SDM fibres. The clock rate refers to the repetition rates where active modulation was employed in the experiment. HD stands for high-dimensional, meaning that more than 2 dimensional systems were used, and DOF for degree-of-freesom. MDI-QRNG stands for measurement device-independent quantum random number generation. ** means “not applicable” or no explicit information available.

Year	Experiment	Fibre type	Distance	Clock rate	DOF	Reference
$2012$	Entanglement distribution	FMF	40 cm	**	Spatial	Kang_2012
$2013$	Telecom integration	FMF	2 m	**	**	Carpenter_2013
$2016$	QKD + telecom integration	7-core MCF	53 km	10 Gb/s	Time-bin	Dynes_2016
$2017$	HD-QKD	4-core MCF	300 m	1 kHz	Path	Canas_2017
$2017$	HD-QKD	7-core MCF (4 used)	3 m	5 kHz	Path	Ding_2017
$2017$	HD entanglement distribution	4-core MCF	30 cm	**	Path	Lee_2017
$2017$	Entanglement distribution	FMF	1 km	**	Polarisation/time-bin	Cui_2017
$2017$	Parallel QKD	7-core MCF (4 used)	3 m	5 kHz	Path	Bacco_2017
$2018$	QKD	Ring-core	60 m	**	OAM	Sit_2018
$2018$	HD-QKD	Ring-core	1.2 km	50 kHz	OAM	Cozzolino_2018
$2018$	Telecom integration	7-core MCF	2.5 km	**	**	Lin_2018
$2018$	Parallel QKD	37-core MCF	7.9 km	595 MHz	Time-bin	Da Lio_2019
$2018$	HD entanglement distribution	FMF	1 km	**	OAM	Cao_2018
$2019$	HD entanglement distribution	4-core MCF	30 cm	**	Path	Lee_2019
$2019$	QKD + telecom integration	7-core MCF	1 km	**	**	Hugues-Salas_2019
$2019$	QKD + telecom integration	7-core MCF	30 km (attenuator)	50 MHz	Time-bin	Cai_2019
$2019$	Telecom integration	19-core MCF	10.1 km	**	**	Eriksson_2019
$2019$	Telecom integration	7-core MCF	2.5 km	**	**	Lin_2019
$2019$	HD entanglement distribution	Ring-core	5 m	**	Hybrid	Eriksson_2019
$2019$	HD entanglement distribution	FMF	250 m	**	Hybrid	Liu_2019
$2019$	MDI-QRNG	4-core MCF	45 cm	2 MHz	Path	Carine_2019

Full text

Quantum information processing (QIP) is a field that has seen tremendous growth over the many years since Richard Feynman’s seminal talk on the use of quantum computers to simulate physical systems Feynman . When information bits are encoded on individual or entangled quantum states, a gain over traditional systems can be seen for some information processing tasks. A famous example is the well-known Shor’s algorithm for prime number factorisation running on a quantum computer, where an impressive reduction in resources is obtained when compared to classical algorithms Shor . Another major application of QIP is in communication security, where the fact that unknown quantum states cannot be faithfully cloned nocloning is exploited to detect the presence of an eavesdropper. This concept was used as the core foundation behind quantum key distribution (QKD), a communication protocol designed to distribute random private keys among remote parties BB84 ; Gisin_2002 . As the first application to showcase in practice the benefits of QIP, QKD has experienced huge development ever since Lo_2014 ; Diamanti_2016 ; Xu_2019 . QKD is part of a more general family of protocols called quantum communications (QC), which includes other schemes such as quantum teleportation and entanglement swapping Gisin_2007 , aiming to be the communication backbone supporting future networks of quantum computers Wehner_2018 .

During the last decades a number of technological features were developed by the telecommunication community in order to support the continuous increase in demand for more transmission bandwidth over a communication channel. These developments have been motivated by several applications that have cropped up along the years, from the internet to social networking and high-quality on-demand video streaming. Arguably the optical fibre has played a major role in the success of the telecommunication infrastructure, mainly due to its high transparency and high-bandwidth support Agrawal . Technologies such as wavelength division multiplexing (WDM) WDM , and the erbium doped fibre amplifier (EDFA) Payne ; Desurvire have been major catalysts to the extremely high capacities and ultra-long transmission distances available today. The latest technological drive towards maintaining the bandwidth growth is called spatial division multiplexing (SDM), and it consists of employing the transverse spatial properties of a light beam to multiplex information and increase the data capacity Richardson_2013 . SDM nowadays routinely allows hundreds of Tbit/s of transmission capacity Wakayama_2019 , ensuring that the bandwidth demand can keep growing.

In photonic QIP, different degrees-of-freedom (DOFs) of a single-photon such as polarisation, frequency and its transverse momentum, are used for encoding quantum systems of arbitrary dimension Sciarrino_2018 ; Erhard_2018 . Of particular interest, for instance, is the strategy that relies on encoding a quantum system in terms of the transverse optical modes available, which provides versatility to define high-dimensional Hilbert spaces Rarity_1991 ; Neves_2005 ; Boyd_2005 ; Groblacher_2006 ; Rossi_2009 ; Aguilar_2018 . It has already been proven to be useful for QIP with photonic integrated circuits Duan_2001 ; Politi_2008 ; Obrien_2018 ; Sciarrino_2018 ; Chen_2018 , aimed at improving the robustness and compactness of experimental setups. However, remarkably, propagation over optical fibres for such quantum states has been a major challenge due to the fact that many optical fibres are designed to support only the fundamental gaussian propagation mode. Although multi-mode fibres exist (and have been available before single-mode fibres), they support hundreds of modes, requiring complex auxiliary optoelectronic systems to reconstruct the original phase wavefront following propagation Choi_2012 . Fortunately, SDM optical fibres and components can be used to cover this gap. In this topical review we go through the different SDM technologies, and cover a number of key experiments that have recently shown the advantages and new possibilities that this technology offers for QIP. We also discuss the integration of QIP into an SDM optical fibre-based network infrastructure.

I SDM fibres and components for optical communications

I.1 SDM fibres

A typical telecommunication optical fibre is a cylindrical dielectric silica waveguide composed of a core and the surrounding cladding, possessing extremely low losses ($<$ 0.2 dB/km at 1550 nm) Agrawal . A major advance for increasing transmission capacity was achieved when multiple data channels were multiplexed using different wavelengths over a single fibre, a technique called wavelength division multiplexing (WDM) WDM . Although WDM, together with other technologies, has been incredibly successful in sustaining the internet growth, optical fibres are nevertheless reaching their maximum capacities Richardson_2013 . A promising avenue to continue expanding data rates over the fibre-optical infrastructure is to explore different transverse optical modes of a light beam to multiplex data channels, thus increasing the spatial data density. This technique is the spatial analogue of WDM, and aptly named spatial division multiplexing Richardson_2013 .

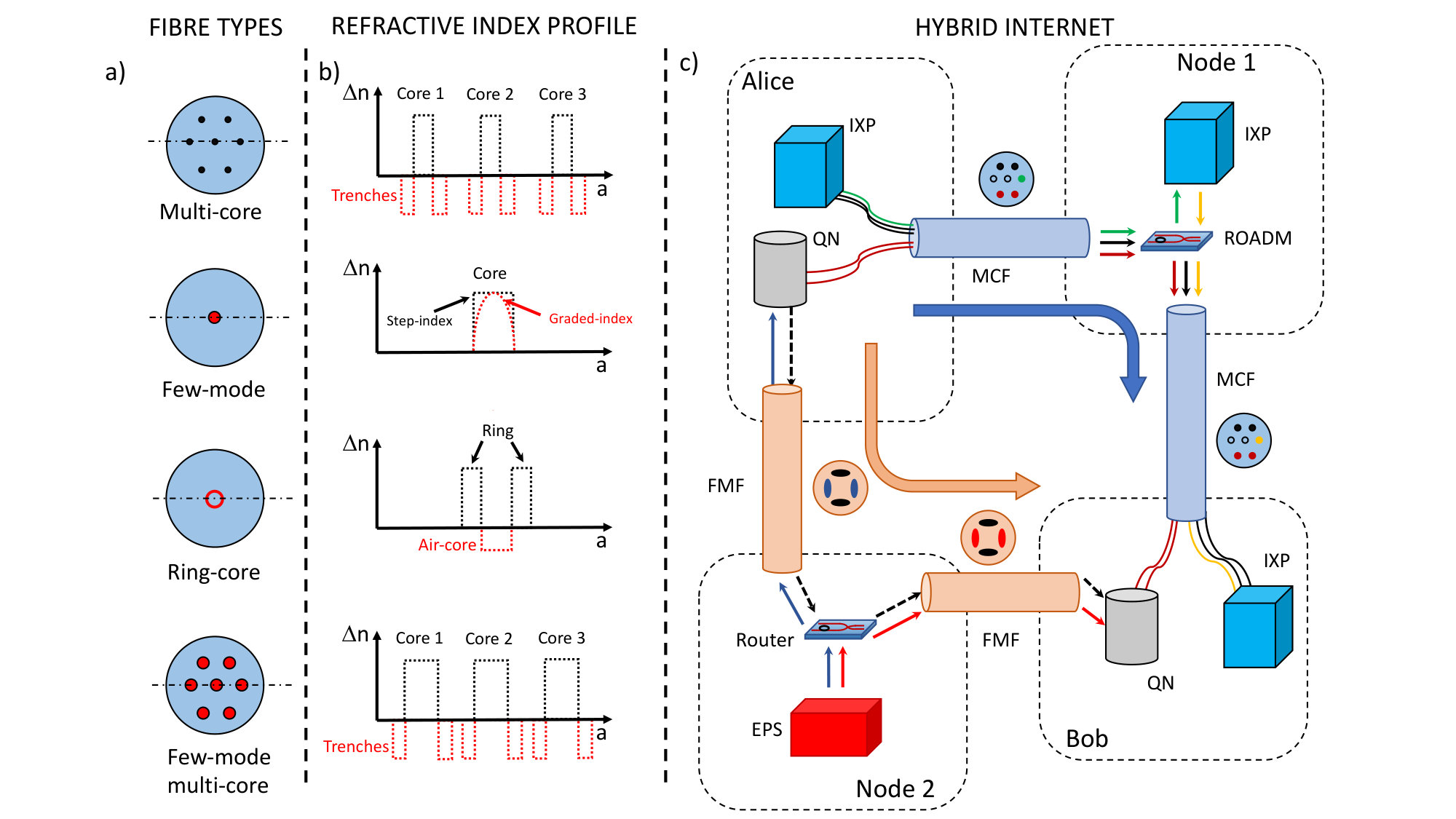

Any fibre that can support more than one transverse optical mode of propagation is, in principle, suitable for SDM. Different types of SDM optical fibre can be seen in Fig. 1a. The most direct approach is to embed several single-mode cores in a single fibre cladding, thus producing a multi-core fibre (MCF) Iano_1979 ; Saitoh_2016 . If the transverse core separation is larger than approximately 40 $\mu$m, the attenuation of cross-coupled optical power between the cores exceeds several tens of dBs, and thus they can be approximated as independent fibres in most applications. These fibres are referred to as weakly-coupled MCFs Saitoh_2016 , and the main advantage is that multiple-input multiple-output (MIMO) receivers MIMO are not needed for detection of the spatial channels. The price to be paid is a lower spatial channel density, since the cladding diameter cannot be much larger than approximately 200 $\mu$m to avoid rupture due to bending Saitoh_2013 . Nevertheless successful results have recently been obtained for 19-core weakly-coupled MCFs Sakaguchi_2013 . In order to minimise inter-core coupling, lower refractive-index “trenches” or holes are often used around the cores (Fig. 1b), at the once again expense of lower spatial density.

Another alternative is to use a fibre with a single core, but which is capable of supporting more than one transverse mode for light propagation Berdague_1982 . Standard telecommunication multi-mode optical fibres (MMFs) are actually not very useful in this regard since they support many propagation modes requiring MIMO detection systems with extremely high complexities Saitoh_2016 . Recently, significant progress has been achieved using fibres that only support a few linearly polarised (LP) transverse modes of propagation (typically 3 or 6), the so-called few-mode fibres (FMFs) Sillard_2014 . The main difference with an SMF is a larger core area, and borrowing from MMF technology, parabolic refractive index profiles can be used to minimise mode group velocity dispersion (Fig. 1b). With only a few modes present intermodal crosstalk is limited and thus MIMO decoding is feasible. Significant progress has been made recently, combining MCFs with FMFs technology, yielding fibres with multiple cores where each core can support a few modes (FM-MCFs, see Fig. 1a) Xia_2012 . Due to an increased spatial channel density, these fibres can greatly increase the transmission capacity van_Uden_2014 . Finally, owing to their multi-core nature, and due to the fact that the higher-order modes have a larger mode field diameter (MFD) than the fundamental LP01 mode, lower refractive index trenches are also employed to minimise cross-talk from adjacent cores Xia_2012 ; van_Uden_2014 .

Another strategy for spatial multiplexing of data channels has been the use of transverse optical modes carrying orbital angular momentum (OAM) Gibson_2004 . A Laguerre-Gaussian beam carries discrete orbital orthogonal angular momentum modes characterised by an integer $l$, called the topological charge. Each associated photon carries an OAM of $l\hbar$, where $\hbar$ is Planck’s constant divided by $2\pi$ Allen_1992 . Recently, OAM-encoded beams have been used for spatial multiplexing and to demonstrate the possibility of Tbit/s data rates over free-space links Wang_2012 . Following that, demonstrations of the transmission of these beams over optical fibres with high-index ring refractive index profiles were reported Bozinovic_2013 , thus expanding the toolbox of such optical modes towards fibre communications. These fibres are usually referred to as ring- or air-core fibres Brunet_2015 ; Gregg_2015 , due to their characteristic high refractive-index ring profile (Fig. 1b).

I.2 Multiplexers and demultiplexers

Multiplexers and demultiplexers (also typically called fan-in and fan-out devices respectively) are employed to combine and split different data streams into corresponding spatial channels in an SDM fibre. Here we shall only focus on passive components that can already be implemented directly integrated within the fibres or through photonic chips (i.e. without resorting to bulk optical elements). In common, they all take $N$ independent single-mode input fibres, and map them onto a particular mode on the SDM fibre. For MCFs, mux/demuxes can be directly constructed using integrated waveguides written three-dimensionally onto silica chips using ultrafast laser writing Thomson_2012 . The appropriate fibres are then connected to the chip. Alternatively, discrete components (based on fibre bundles or compact lenses for example) may be used Watanabe_2012 ; Tottori_2012 . For FMFs, devices called photonic lanterns are normally used Birks_2015 , where the input single-mode fibres are tapered together (in parallel) ending in a multi-mode fibre at the other end. If the single-mode fibres have slightly different sized cores, then a mode-selective lantern can be built Yerolatsitis_2014 , yielding considerably better mode excitation/separation than using identical single-mode inputs/outputs. Recently, lanterns built onto integrated photonic chips have also been developed, allowing better integration possibilities Riesen_2014 . For OAM-carrying optical modes, there are demultiplexers, typically called mode sorters, and they have been done mostly using bulk optic components/active elements Berkhout_2010 . Recently, significant progress has been made towards all-fibre OAM sorters, thus making possible the use of compact and passive multiplexing elements for OAM carrying optical modes as well Zeng_2018 . Finally, fan-in/fan-out units for FM-MCF fibres can also be constructed in integrated photonics chips resorting to the 3D-femtosecond laser writing technique and integrated lanterns Riesen_2017 .

The previously mentioned SDM technologies can already be used to support a “hybrid internet”, where quantum and classical communication systems co-exist (Fig. 1c). Here, as an example, one party (Alice) wishes to send information encoded on single-photons to a remote party (Bob). Specifically they both have quantum nodes (QNs), which might be a quantum computer or a QKD terminal. The single-photons are to be transmitted using the telecommunication fibre-optical infrastructure, where classical data streams will be simultaneously transmitted to maximise the use of the available infrastructure. This is represented by IXPs (internet exchange points), where several local data streams are aggregated for transmission over a high-capacity optical link to another IXP for delivery. Two routes are possible in this example for Alice’s single-photons to reach Bob: (i) the blue clockwise direction going through an intermediate node with a reconfigurable add and drop multiplexer (ROADM), where one of the classical core channels is dropped to the intermediate IXP, and a new one is added towards the IXP at Bob. The rest of the traffic (both quantum and classical) is forwarded to Bob. The counter-clockwise route (ii) is used by the QNs and it consists of a link enhanced by quantum repeaters Gisin_2007 (a simplified version is shown where a single entangled photon pair is shared across the link). Here, one of the modes (LP11a) is used by the entangled photons (blue from the entanglement source to Alice, and red to Bob), while the LP11b mode is used for the classical channel from Alice to Bob for synchronisation and communication information required by quantum repeater protocols. Additional wavelength separation may be used to avoid cross-mode contamination. The two links employ different SDM technologies, as the blue one is based on MCFs (with 2 cores used by the QNs, and 3 by the IXPs), while the salmon one is deployed with FMFs. This illustrates a possible case in network channel allocation, where routes are dynamically assigned depending on availability. For this to be feasible, the network must be transparent in terms of the employed SDM technology.

II Quantum information with SDM fibres

II.1 High-dimensional quantum key distribution over SDM fibres

Many fundamental and applied tasks in quantum information benefit when $d$-dimensional ($d>2$) quantum systems (qudits) are employed Kaszlikowski_2000 ; Araujo 2014 ; Martinez_2018 . One popular realisation for high-dimensional photonic quantum information processing is path encoding Rarity_1991 ; Neves_2005 ; Boyd_2005 ; Rossi_2009 ; Canas_2014 ; Obrien_2018 ; Martinez_2018 . A $d$-dimensional path-encoded qudit has the general form $|\psi\rangle=\frac{1}{2}\sum_{d=0}^{d}e^{\phi_{d}}|d\rangle$, where $|d\rangle$ represents the $d_{th}$ path and $\phi_{d}$ is the relative phase in path $d$. A direct advantage gained in quantum communication when using qudits is increasing the transmission rate of QKD systems Cerf_2002 , due to the fact that we can encode $log_{2}d$ bits onto an $d$-dimensional quantum state. This is a similar approach to what has always been done to increase the number of bits sent per symbol in classical communication systems. This technique is particularly useful, when it becomes too resource-intensive to simply increase the transmission rate by employing faster modulation and demodulation/detection opto-electronic devices. It then aims for a different approach, which takes advantage of extra dimensions Proakis_2007 .

QKD’s goal is to generate a shared secret string of bits (a key) between spatially separated parties (usually referred to as Alice and Bob) through the transmission of properly encoded single-photons Gisin_2002 . Current experiments in optical fibres can reach distances over 400 kms Boaron_2018 , and generate a few Mbit/s of final sifted key rate over metropolitan distances Patel_2014 . The security of QKD relies on the simple fact that an unknown quantum system cannot be faithfully cloned nocloning , and this is explored in the well known BB84 protocol BB84 . Alice chooses randomly a quantum state to be transmitted and Bob does a random measurement on it, while recording the result. After many such rounds, Alice and Bob perform classical reconciliation and post-processing procedures to distill a shared secret key. Many factors affect the key generation rate, from the channel losses, the optical quality of the setup to the physical specifications of the detectors.

BB84-based proof-of-principle high-dimensional quantum key distribution (HD-QKD) experiments was already performed many years ago relying on the linear transverse momentum (LTM) of single-photons Steve_2006 . The two employed bases consisted of imaging and Fourier optical systems (by changing the appropriate lenses). The main limitation of this scheme is that the states had to be manually prepared and measured by changing the lenses and moving pinholes. An important next step occurred when spatial light modulators (SLMs) were used, capable of dynamically generating sets of parallel slits, which allowed the encoding of a high-dimensional qudit onto a single-photon propagating through these slits Glima_2009 ; Glima_2011 . This was then combined with synchronised FPGA (Field Programmable Gate Array) electronics to perform the first automated BB84 session in higher-dimensions using attenuated optical pulses Etcheverry_2013 . Here a QKD session using path-encoded 16-dimensional quantum states was realised by dynamically using the SLMs to prepare and measure the states, allowing 4 bits to be sent in each round. On the other hand, there has been considerable effort to implement HD-QKD using OAM encoding strategies through free-space Mafu_2013 , which was also later done with a fully automated setup Boyd_2015 and even over free-space intra-city channels Sit_2017 .

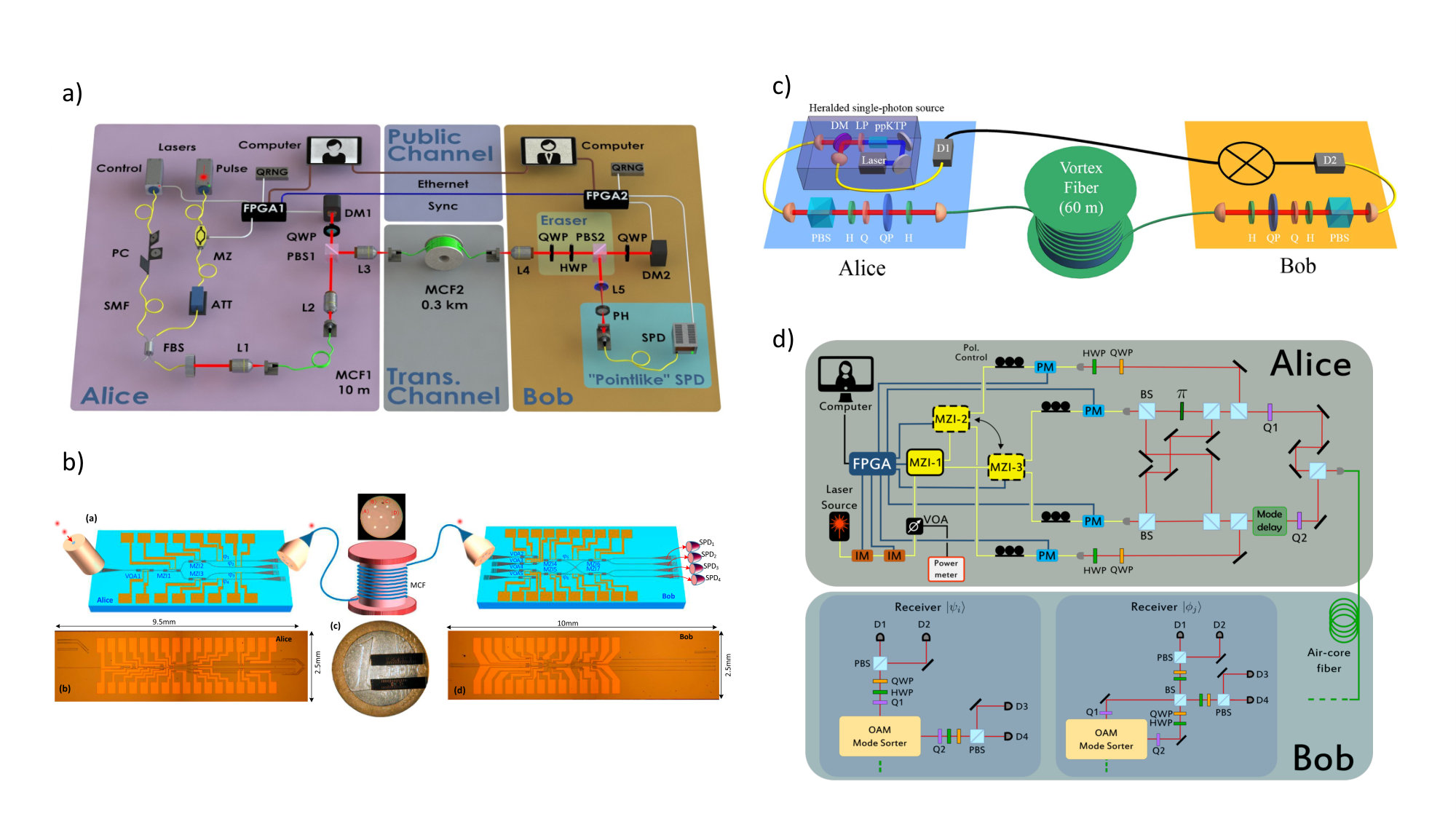

The major challenge of transmitting quantum systems encoded onto transverse optical modes through optical fibres remained. Some efforts had been done a few years ago using a 30-cm-long photonic crystal fibre Loffler_2011 , which are unfortunately not practical for long-distance propagation. The parallel development of SDM fibres came to change this paradigm, since spatial-mode-supporting fibres became widely available at a reasonable cost. Two experiments performed simultaneously kick-started this trend. In the first (Fig. 2a Canas_2017 ) a 300-m-long four-core fibre was used to perform a HD-QKD session using deformable mirrors as the phase modulators, yielding improvements over the previous efforts with SLMs Etcheverry_2013 . This result is the longest distance ever reported for the transmission of path-qudit states, showing that MCFs can be used for high-fidelity propagation over distances of practical interest. The other experiment also showed a successful HD-QKD session using a 4-core fibre, but with Alice and Bob’s hardware fully implemented on integrated silicon photonics circuits Ding_2017 (Fig. 2b). Thermal elements on the chip were employed to perform active modulation. Both experiments also carried out rigorous security analyses showing that much longer distances could be achieved while still being capable of positive secret key rates. It was also shown that MCFs can be used to deliver keys in parallel choosing separate sets of cores Bacco_2017 . More recently, ring-core-type fibres have also been employed for remote QKD sessions using OAM encoded qudits. The first one (Fig. 2c) was actually done in a 2-dimensional space over a 60 m vortex fibre with no active state preparation Sit_2018 , while the second one (Fig. 2d) employed hybrid polarisation/OAM states to perform an HD-QKD session using ququarts over 1.2 km-long air-core fibre Cozzolino_2018 .

II.2 Entanglement distribution

The successful distribution of photonic entanglement over long optical fibres is an important operational toolbox in quantum information. Many experiments have been performed using different degrees of freedom of a single-photon over optical fibres, mainly using polarisation Poppe_2004 ; Hubel_2007 ; Zhong_2010 ; Wengerowski_2019 and energy-time/time-bin Tittel_1998 ; Marcikic_2004 ; Cuevas_2013 ; Inagaki_2013 . For many years the distribution of spatial entanglement (i.e., entanglement between quantum systems encoded in terms of the transverse optical modes of light) over optical fibres has been out of reach. This has been mainly due to the fact that (i) single-mode fibres, by their very nature, do not support more than one spatial mode; and (ii) mode coupling scrambles the multi-mode spatial state during propagation. Nevertheless, significant progress has been made recently using both custom-made and standard commercially available optical fibres. In common, all experiments employ fibres that support only a few spatial modes, in order to minimize significant mode coupling.

The first experiment to be able to propagate spatially entangled photons employed a 30-cm long hollow-core photonic crystal fibre to transmit one of the photons of the pair, while successfully measuring a Bell inequality violation over the pair of qubits Loffler_2011 . This was an important first step demonstrating the feasibility of distributing spatially entangled states, but the use of specialty fibres hampers practical use. This was improved upon with standard polarisation maintaining fibres that were used as FMFs (by working with single-photons at 810 nm), and then two of the three possible linearly polarised modes in the fibre were used for each single-photon of the pair (LP01 and the even LP11 mode) Kang_2012 .

Nevertheless, one immediate advantage of resorting to spatial entanglement is the possibility of reaching higher-dimensional Hilbert spaces. When combined with fibre propagation, this allows the execution of more interesting high-dimensional quantum information tasks, where physical separation between parties who do not share line-of-sight is no longer a restriction. Going in this direction more recent experiments have taken direct advantage of the possibilities allowed by newly developed SDM hardware. In Lee_2017 , 4-dimensional spatial entanglement has been distributed over short-distances (30 cm) 4-core fibres. Entanglement was verified through quantum state tomography, and this was later expanded to a Bell inequality test Lee_2019 (Fig. 3a). Another experiment taking direct advantage of SDM fibres was Cui_2017 , where a 1 km-long FMF was used to test if polarisation and time-bin entanglement can be propagated through the different modes.

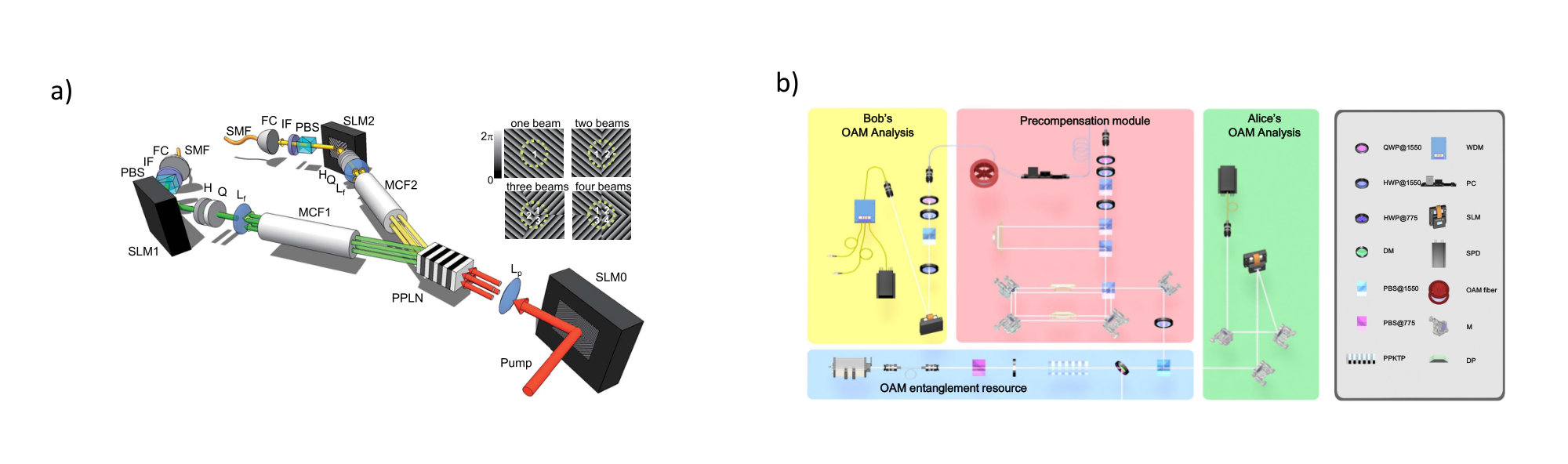

Very recent progress has also shown the propagation of OAM entangled quantum states over optical fibres. One of the photons of a 3-dimensional OAM entangled state was successfully propagated over a 1 km step-index fibre Cao_2018 , supporting up to 6 LP modes (Fig. 3b). The employed fibre required careful alignment of the input axis in order to properly excite and later decode the OAM modes. This experiment also featured compensation of modal dispersion, which is necessary as the fibre length increases, even more so for entangled states produced by down-conversion processes, due to the typical low temporal coherence involved. Another experiment started with a polarisation-entangled photon pair, where one of the photons gets further encoded with a superposition of OAM modes (vector vortex mode) to generate hybrid three-qubit entanglement Cozzolino_2019 . The hybrid-encoded photon is transmitted through a 5 m-long air-core fibre, showing that hybrid high-dimensional entanglement can be propagated over SDM fibres. Then, another experiment demonstrated hybrid OAM/polarisation entanglement with one of the photons propagated through 250 m of single-mode telecom fibre, which works as a FMF at the working wavelength in the experiment of 810 nm Liu_2019 . The main drawback here is the much greater attenuation ($>$ 2 dB/km) when compared to working with standard SDM FMF fibres at telecom wavelengths.

III Integration with classical telecommunication optical networks

Compatibility with optical networks is a major driving force for the widespread deployment of quantum communication Chapuran_2009 ; Patel_2012 . The next logical step is to ensure compatibility of quantum communication systems with the next-generation SDM optical networks. A first proof-of-principle experiment (over a short distance of 2 m) has shown that spatial multiplexing of a classical and a quantum channel is possible on a few-mode fibre Carpenter_2013 . Then a compatibility experiment between QKD and classical data co-existing in the same fibre using separate cores over a MCF was carried out Dynes_2016 . The centre core was reserved for the QKD channel, while the side cores were pairwise-filled with 10 Gbit/s data streams from opposite directions. A 7-core fibre was employed with a relatively high core-to-core distance ($47\mu m$), such that inter-core crosstalk was rather low at -60 dB and -80 dB at the forward and backwards propagation directly. Nevertheless this crosstalk was still high enough to ensure that the quantum and classical channels could not share the same wavelengths on separate cores (Fig. 4a). If these limitations are taken into account, co-existence between quantum and classical signals in the same fibre is possible, as with single-mode fibres. A follow-up study characterised the difference in impact between trench-assisted and non-trench-assisted (TA- and NT- respectively) MCFs Lin_2018 , while having the same core-to-core distance in both fibres (41.1 $\mu m$). All cores were simultaneously loaded with high speed traffic (112 Gbit/s), at different wavelengths. NT-MCFs are interesting to be studied for compatibility, since they allow a higher core density due to the absence of lower refractive index trenches surrounding the cores. The results showed that compatibility is also possible, with a larger penalty imposed by the classical channels on the NT-MCF, as expected due to the higher cross-talk.

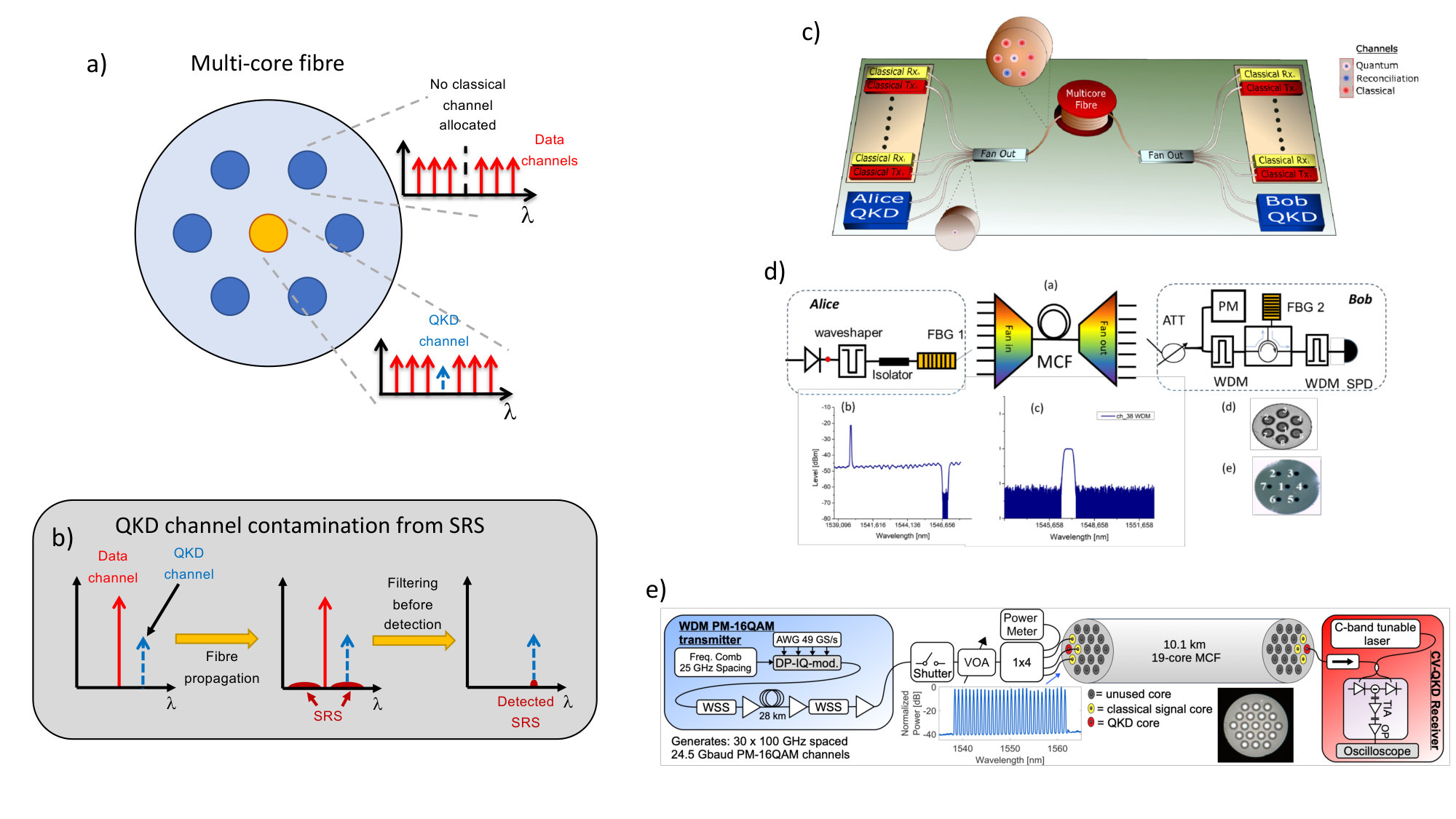

Recently, improved classical channel data rates has been achieved over a 7-core fibre while simultaneously allocating the center core to a QKD channel Hugues-Salas_2019 . Other works have also studied the use of a dedicated side-core for QKD while having neighbouring cores filled with classical data Cai_2019 , the inter-core crosstalk produced from classical channels on MCFs affecting continuous variable (CV) QKD systems Eriksson_2019 and performed detailed modelling on SDM-QKD integration Urena_2019 . Finally, a major increase in key generation rate has been achieved by sending out parallel keys over 37 cores of a MCF, while also propagating a 10Gbit/s data stream within each core, wavelength-multiplexed with the QKD channel Da Lio_2019 . One important limitation for co-existence is spontaneous Raman scattering (SRS), where photons from classical channels are inelastically scattered over a broad wavelength range Chapuran_2009 . Even if the cross-talk produced from in-band photons can be fully removed (with high-quality filtering for instance), SRS photons will eventually be scattered back to the QKD channel band over the fibre link (Fig. 4b). Therefore, the overall system design needs to take this issue into account Patel_2012 . Recently, SRS has been demonstrated for the first time in each core of an MCF Lin_2019 , indicating as expected the same limitations when simultaneously propagating quantum and classical signals in the same core of an MCF. Table 1 lists relevant quantum information experiments using SDM fibres.

IV Outlook and open challenges

There has been a rapid acceptance of SDM fibres and devices by the quantum information community with promising results reported so far. On the one hand the ability of these fibres to successfully manipulate and propagate high-dimensional quantum states over long distances has proven very fruitful for quantum information processing. On the other hand, their use for a number of QI protocols will ease the integration of both quantum and classical network systems based on the SDM optical fibre infrastructure.

Nevertheless, many challenges await that the community needs to handle to ensure that experiments based on SDM technology yield better results. Multi-core fibres have shown good promise for long-distance propagation and ease of integration with photonic circuits. Furthermore, high-quality devices can be built directly in the fibre itself Carine_2019 . Next it is important to see if they can support propagation distances for high-dimensional states that is comparable to single-mode fibres (i.e. hundreds of kms). They also need to be validated for states of even higher dimensionality, by employing a fibre with a higher core number, such as 7 or 19. Regarding telecom compatibility, it is important to verify more stringent limits such as noise produced from non-linear effects such as Raman scattering and four-wave mixing produced from classical channels in different wavelengths from different cores.

Although ring-core and even step-index fibres have also proved fruitful for OAM propagation, further experiments need to be carried out to verify their support for high-dimensions (only one experiment managed to go further than OAM qubits, and even then only OAM qutrits were employed Cao_2018 ). This is worth pursuing since experiments in classical communications show that several modes can be simultaneously supported Wang_2018 ; Zhu_2018 , although MIMO detection was still required, so better mode isolation will be needed for QC experiments. By far most OAM based experiments have resorted to bulk-optics-based mode sorters, although recent results open up a new path towards integration for OAM Zeng_2018 ; Chen_2018 . FMFs also need to be studied in this regard, to verify their ability to coherently propagate superpositions of linearly polarised modes over long distances. The successful use of FMFs would open a direct path towards the transmission of much higher dimensional states, since they can be directly combined with MCFs. For instance, a fibre with 36 cores where each core supports the three lowest order LP modes, yielding a possible 108-dimensional space, has been demonstrated Sakaguchi_2016 .

An important challenge to be tackled comes from the modal dispersion. This problem is even more critical for entangled states due to their short coherence time. This has been tackled by pre-compensating the mode delay before transmission in the optical fibre Cozzolino_2018 ; Cao_2018 . Further efforts need to be carried out to demonstrate feasibility over much longer distances, as well as ability to cover compensation for a wide range of modes, aiming at high-dimensionality.

It is quite fortunate that the technological developments that are sustaining the growth of communication networks can be directly applied for quantum information technologies. This has been the case since the dawn of photonic quantum information, and will continue to be so. We have highlighted here the key developments in the nascent intersection of SDM and quantum information, with already many experiments having been able to directly benefit from SDM. We envisage that (i) integration between SDM networks and quantum information systems will be inevitable, and (ii) SDM offers the hardware to support efficient, high-fidelity, high-dimensional quantum information processing, which will be a major cornerstone of future developments in quantum technologies.
