Long-range order imposed by short-range interactions in methylammonium lead iodide: Comparing point-dipole models to machine-learning force fields

TL;DR

This study compares point-dipole models and machine-learning force fields in predicting molecular ordering in methylammonium lead iodide, revealing the effectiveness of short-range pd models with cutoff radii in capturing low-temperature order.

Contribution

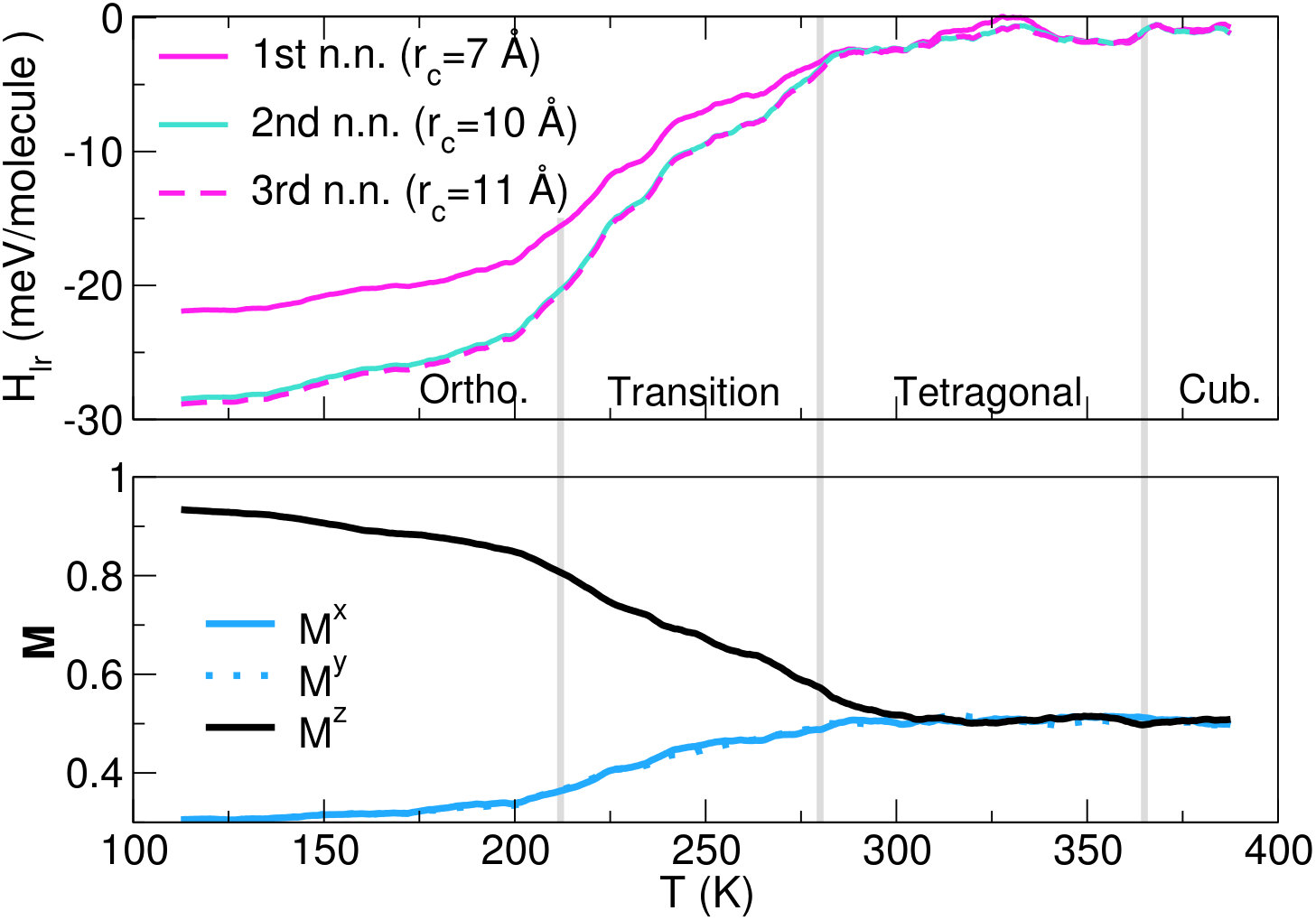

It demonstrates that short-range point-dipole models with cutoff radii can accurately describe the long-range order in MAPbI$_3$, aligning with machine-learning force field results and DFT calculations.

Findings

Point-dipole models with cutoff radii capture low-temperature order.

Short-range interactions suffice to describe molecular ordering.

Machine-learning force fields agree with DFT-based effective interactions.

Abstract

The crystal structure of the MAPbI$_3$ hybrid perovskite forms an intricate electrostatic puzzle with different ordering patterns of the MA molecules at elevated temperatures. For this perovskite three published model Hamiltonians based on the point-dipole (pd) approximation combined with short-range effective interactions are compared to a recently developed machine-learning force field. A molecular order parameter is used to consistently compare the transformation of the anti-ferroelectric ordering in the orthorhombic phase upon raising the temperature. We show that the ground states and the order-disorder transition of the three models are completely different. Our analysis indicates that the long-range order in the low-temperature orthorhombic phase can be captured by pd-based models with a short cutoff radius, including the nearest and next-nearest neighbor molecules. By constructing effective atomic interactions the ordering can already be described within 6 A radius. By extracting the coupling energetics of the molecules from density functional theory calculations on MA$_x$Cs$_{1-x}$PbI$_3$ test systems, we show that the pd-approximation holds at least for static structures. To improve the accuracy of the pd-interaction an Ewald summation is applied combined with a distance dependent electronic screening function.

Figures

Tables

Table 1. Table 1: Bandwidth of the models (meV/molecule) as expressed by the standard deviation ( σ 𝜎 \sigma ) of the DOS and the energy difference between the ground- and highest state ( Δ ​ E Δ 𝐸 \Delta{}E ). The multiplicity of the ground state ( Ω Ω \Omega ) and the total number of different energy states ( N s subscript 𝑁 𝑠 N_{s} ) are shown in the last columns.

Model	$\sigma$	$\Delta E$	$\Omega$	$N_s$
Short-range I	12	150	6	21
Short-range I + NN dipole-dipole	15	150	6	95
Short-range II	12	105	6	41
Short-range II + NN dipole-dipole	17	126	6	257
Short-range III	9.3	56	1024	8
Short-range III + NN dipole-dipole	11	99	32	138
Short-range III + full dipole-dipole	-	-	8	-

Table 2. Table 2: Parameters of the model dielectric function. Fitted screening length parameter ( λ 𝜆 \lambda ) in Å − 1 superscript Å 1 \mbox{\AA}^{-1} and the ”ion clamped” static dielectric constant ( ε ∞ subscript 𝜀 \varepsilon_{\infty} ) both adapted from Ref.  Bokdam  et al. , 2016 .

	$\lambda$	${\epsilon }_{\infty }$		$\lambda$	${\epsilon }_{\infty }$
MASnI3	1.05	9.18	MAPbBr3	1.13	5.15
FASnI3	1.05	8.06	FASnBr3	1.13	5.32
FAPbI3	1.05	7.10	FAPbCl3	1.17	4.27
MAPbI3	1.05	6.83	MAPbCl3	1.17	4.22
MASnBr3	1.13	5.89	FASnCl3	1.17	4.07
FAPbBr3	1.13	5.25	MASnCl3	1.17	4.05

Equations

$$U({\mathbf{p}}_i,{\mathbf{p}}_j,{\mathbf{n}}_{ij})=\frac{|\mathbf{p}{|}^2}{4\pi {\epsilon }_0{\epsilon }_r}\frac{1}{r_{ij}^3}\left({\hat{\mathbf{p}}}_i{\hat{\mathbf{p}}}_j-3({\hat{\mathbf{p}}}_i\cdot {\hat{\mathbf{n}}}_{ij})({\hat{\mathbf{p}}}_j\cdot {\hat{\mathbf{n}}}_{ij})\right),$$

$$H_{\text{lr}}=\frac{1}{2}\sum _{i=1}^N\sum _{j\in r_c}U({\mathbf{p}}_i,{\mathbf{p}}_j,{\mathbf{n}}_{ij}).$$

$$H_{\text{sr}}^{\mathrm{I}}=-K\frac{1}{2}\sum _{i=1}^N\sum _{j\in \mathrm{NN}}{\hat{\mathbf{p}}}_i\cdot {\hat{\mathbf{p}}}_j,$$

$$H_{\text{sr}}^{II/III}=\frac{1}{2}\sum _{i=1}^N\sum _{j\in \mathrm{NN}}g\left({\hat{\mathbf{p}}}_i,{\hat{\mathbf{p}}}_j\right).$$

$${\mathrm{M}}^{\alpha }=\frac{1}{N\pi }\sum _{\mathbf{q}}^N\arccos ({\hat{\mathbf{p}}}_{\mathbf{q}}\cdot {\hat{\mathbf{p}}}_{\mathbf{q}+{\mathbf{n}}^{\alpha }}),$$

$${\mathbf{M}}_{\mathrm{ortho}}=(0.3,0.3,1)$$

$${\mathbf{M}}_{\mathrm{tetra}}=(0.5,0.5,0.53)$$

$${\mathbf{M}}_{\mathrm{cub}}=(0.5,0.5,0.5).$$

$$\Delta E_x=E_x-E_a-⟨E_x-E_a⟩,$$

$$\Delta E_b^{\mathrm{pd}}=-4\frac{C}{a^3{\epsilon }_r}\cos \theta ,\Delta E_c^{\mathrm{pd}}=0,$$

$$\varepsilon_{\rm m}^{-1}(r)=1-(1-\epsilon^{-1}_{\infty})\text{erf}\left({\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}\frac{\lambda}{2\pi}}r\right),$$

$$V(\mathbf{k})=\left(\frac{4\pi}{\mathbf{k}^{2}}\right)\varepsilon^{-1}_{\rm m}(|\mathbf{k}|)=\frac{4\pi}{\mathbf{k}^{2}}\left(1-(1-\varepsilon^{-1}_{\infty})e^{-\frac{|\mathbf{k}|^{2}}{{\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}4}\lambda^{2}}}\right).$$

$$V(\mathbf{r})={\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}\frac{1}{(2\pi)^{3}}}\int_{-\infty}^{\infty}\left[\frac{4\pi}{\mathbf{k}^{2}}\left(1-(1-\varepsilon^{-1}_{\infty})e^{-\frac{|\mathbf{k}|^{2}}{{\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}4}\lambda^{2}}}\right)\right]e^{i\mathbf{kr}}d\mathbf{k}.$$

$$V(r)={\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}\frac{1}{(2\pi)^{3}}}\frac{16\pi^{2}}{r}\int_{0}^{\infty}\left[\frac{1-(1-\varepsilon^{-1}_{\infty})e^{-\frac{k^{2}}{{\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}4}\lambda^{2}}}}{k}\right]\sin(kr)dk.$$

$$A(r)={\int }_0^{\infty }\frac{\sin (kr)}{k}dk,$$

$$B(r)=\int_{0}^{\infty}\frac{sin(kr)e^{-\frac{k^{2}}{{\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}4}\lambda^{2}}}}{k}dk.$$

$$\frac{dI(\beta ,r)}{d\beta }=-{\int }_0^{\infty }\sin (kr)e^{-\beta k}dk=-\frac{r}{{\beta }^2+r^2}.$$

$$I(\infty ,r)=-\frac{\pi }{2}+C={\int }_0^{\infty }\frac{\sin (kr)}{k}{e}^{-\infty k}dk=0,$$

$$A(r)=\frac{\pi }{2}.$$

$$\frac{dB(r)}{dr}={\int }_0^{\infty }{e}^{-D{k}^2}cos(kr)dk=\frac{1}{2}{\int }_{-\infty }^{\infty }{e}^{-D{k}^2}{e}^{ikr}dk.$$

$$\frac{dB(r)}{dr}=\frac{1}{2}{\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}\sqrt{\frac{\pi}{D}}}e^{-\frac{r^{2}}{4D}}.$$

$$B(r)=\frac{\pi }{2}\text{erf}\left(r\lambda \right).$$

$$V(r)={\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}\frac{1}{(2\pi)^{3}}}\frac{16\pi^{2}}{r}\frac{\pi}{2}\varepsilon_{\rm m}^{-1}(r)={\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}\left(\frac{1}{r}\right)\varepsilon_{\rm m}^{-1}(r)},$$

$${\epsilon }_{\mathrm{m}}^{-1}(r)=1-(1-{ϵ}_{\infty }^{-1})\text{erf}\left(r\lambda \right).$$

Full text

I Introduction

The finite temperature structure of the promising Methylammonium-Lead Iodide (MAPbI3) hybrid perovskite solar cell material is characterized by a vast number of accessible macro-states related to the orientational degree of freedom of the Methylammonium (MA) molecule. Above $\sim 333$ K, a cubic crystal structure is formed by PbI6 octahedra enclosing MA molecules. Below $\sim 150$ K, an orthorhombic lattice is formed, with molecules in a long-range ordered pattern. The MA+Pb*2+*I${}_{3}^{-}$ system is held together by a mixture of covalent and ionic bonds, whereby the MA molecule is chemically decoupled from the PbI framework. Weak (hydrogen, van der Waals) bonds link the MA molecule to the frameworkEgger and Kronik (2014); Lee et al. (2015, 2016); Li and Rinke (2016), and the intrinsic dipole moment ($|\mathbf{p}|$) of the molecules couples them, even more weakly, to each otherFrost et al. (2014a). There is a large spread in the reported MA preferred orientations as well as in their rotation barriers (10-100 meV), see Ref. Lahnsteiner et al. (2018) and references therein. On one thing all seem to agree, at room temperature and above the molecules show entropic disorderPoglitsch and Weber (1987) in their orientations. It is important to understand the ordering pattern (or lack thereof) of the MA molecules, since the orientation of the molecules are connected to various physical effects (screening, charge localization, polarons, Rashba) which affect electronic device propertiesFrost et al. (2014a); Ma and Wang (2015); Zheng et al. (2015); Motta et al. (2015); Etienne et al. (2016); Neukirch et al. (2016); Gong et al. (2016); Hu et al. (2017); Kang and Biswas (2017); Govinda et al. (2017). Previous first-principles based molecular dynamics (FPMD) calculations have indicated that a soft long-range ordering pattern between neighboring MA molecules remains at room temperature Lahnsteiner et al. (2016, 2018). This order is a remnant of the highly ordered molecular pattern in the low-temperature orthorhombic phase. This order has been well resolved in experiment and is sketched in Figure 1. This pattern also shows the lowest energy in DFT calculationsMenéndez-Proupin et al. (2014); Filip et al. (2014); Filip and Giustino (2014); Quarti et al. (2014); Lee et al. (2015); Lahnsteiner et al. (2016). However, the length and time scales required to model the finite temperature structure occurring in real devices exclude a straightforward application of FPMD methods. Therefore effective model Hamiltonians that describe the potential energy surface of MA molecules on a lattice could be of great help in understanding the local structure at defectsŠimėnas et al. (2018) and domain boundariesAshhab et al. (2019). The presence of the reorienting molecules makes it difficult to apply models used for other perovskites, like BaTiO3Zhong et al. (1995). Therefore point-dipole (pd) based model HamiltoniansFrost et al. (2014b); Leguy et al. (2015); Pecchia et al. (2016); Motta et al. (2016); Šimėnas et al. (2017); Tan et al. (2017); Li et al. (2018); Järvi et al. (2018); Ashhab et al. (2019), a rigid rotor cluster expansionThomas et al. (2018) and classical force fieldsMattoni et al. (2015); Handley and Freeman (2017) have been designed. Often pd-models have been constructed in such a way that the heat capacity as function of temperature and/or phase transitions resemble experimental data. In some cases the coupling energies of certain inter-molecular ordering patterns have been fitted to DFT energies calculated for (relaxed) surrogates of the structure at different temperatures obtained from the experimentWeber (1978); Onoda-Yamamuro et al. (1990); Baikie et al. (2013); Stoumpos et al. (2013); Kawamura et al. (2002); Whitfield et al. (2016). The local microscopic structure is in most experiments only observed on a time and space average. These surrogates show dynamic instabilities that manifest themselves as imaginary phonon frequencies in FP calculationsBrivio et al. (2015); Leguy et al. (2016). This indicates that the higher temperature crystal phases are possibly entropically stabilized. When many different mirco-states of the molecular orientation are accessible, the related gain in entropy can shift the Gibbs free energy of the system such that the tetragonal and cubic phases are stabilized under certain temperature and pressure conditions.

In this work, we compare the inter-molecular structure at elevated temperature described by three recently published pd-based modelsFrost et al. (2014b); Leguy et al. (2015); Tan et al. (2017); Šimėnas et al. (2017) to a highly accurate machine learned force field (MLFF)Jinnouchi et al. (2019). The MLFF has the advantage that it learns on-the-fly during FPMD and generates ensembles that are practically indistinguishable from FPMD at much lower computational cost. By Monte Carlo calculations we study the change of this ordering pattern for the different models when the temperature is slowly raised. We show that the models have completely different ground states as well as excited states. Only one of the three considered models (Model III Šimėnas et al. (2017)) shows similar phase transitions as the MLFF. With DFT calculations on cubic MAxCs1-xPbI3 supercells we demonstrate that the pd-approximation of the MA molecule has a limited accuracy. By summing the dipole-dipole (d-d) electrostatic energy by means of an Ewald sum and by introducing a distance dependent model screening function we improve the accuracy. We show that the d-d coupling effectively splits the degeneracy of the states imposed by the short-range part of the Hamiltonian. These short-range interactions are the dominant energetic terms as can already be inferred from the experimentally observed long-range order in the low-temperature structure (Fig. 1). The molecules do not display a ”striped” configuration (anti-ferroelectric aligned columns of head-to-tail dipoles) as would be expected for pure d-d interactions, but rather close to orthogonal orientations. Our analysis indicates that essence of this long-range order can be reduced to effective interactions within a $6$ Å radius.

This paper is organized as follows. In Section II we introduce the different model Hamiltonians, followed by a description of the applied Monte Carlo strategy and computational details in Section III. The results are presented in Section IV and, for readability, split into several subsections. The paper is closed with a discussion in Section V and its conclusions are summarized in Section VI.

II Model Hamiltonians

Several model Hamiltonians describing the interactions of MA dipoles on a grid have been proposed in the last five yearsFrost et al. (2014b); Leguy et al. (2015); Pecchia et al. (2016); Motta et al. (2016); Šimėnas et al. (2017); Tan et al. (2017); Li et al. (2018); Järvi et al. (2018); Ashhab et al. (2019). In these models an effective Hamiltonian splits the total interaction energy of all $N$ molecules in the cell in a short-range framework-dipole interaction and a long-range dipole-dipole interaction: $H=H_{\text{sr}}+H_{\text{lr}}$. The interaction terms are often very similar in these models, therefore we will limit the analysis to three representatives. For the models here considered (hereafter referred to as, IFrost et al. (2014b); Leguy et al. (2015), IITan et al. (2017), IIIŠimėnas et al. (2017)), the long-range part ($H_{\rm lr}$) is based on the electrostatic interaction energy of two point-dipoles

[TABLE]

where $\hat{\mathbf{p}}_{i}$ and $\hat{\mathbf{p}}_{j}$ denote unit dipole vectors at different lattice sites. The distance between the dipoles is given by $r_{ij}=|\mathbf{n}_{ij}|$, and $\hat{\mathbf{n}}_{ij}=\mathbf{n}_{ij}/|\mathbf{n}_{ij}|$ is the unit displacement vector. The total long-range energy is then calculated by a sum over all neighbors within the interaction radius ($r_{c}$) and then summed over all lattice sites,

[TABLE]

All dipoles have the same dipole moment $|\mathbf{p}|$, but the relative permittivity $\varepsilon_{r}$ and the long-range cutoff ($r_{c}$) depend on the model. In model II the Ewald summation technique is used to compute $H_{\text{lr}}$. In the three models, the prefactor in Eq. (1) is treated as an effective coupling constant for which an optimally tuned value is used. These values can be compared by $\varepsilon_{r}$ when we define the dipole moment of the MA molecule to $2.29$ DFrost et al. (2014b). This results in $\varepsilon^{\rm I}_{r}=1$, $\varepsilon^{\rm II}_{r}=0.73$, $\varepsilon^{\rm III}_{r}=1.5$.

The short-range interaction ($H_{\rm sr}$) is differently modeled in models I, II and III. In model I, it is described by a linear pair potential,

[TABLE]

where the first sum runs over all lattice sites and the second sum over the nearest neighbors (NN). The parameter $K=25$ meV approximates the strain on the framework and favors the parallel arrangement of dipoles. Both models II and III use a penalty potential of the form,

[TABLE]

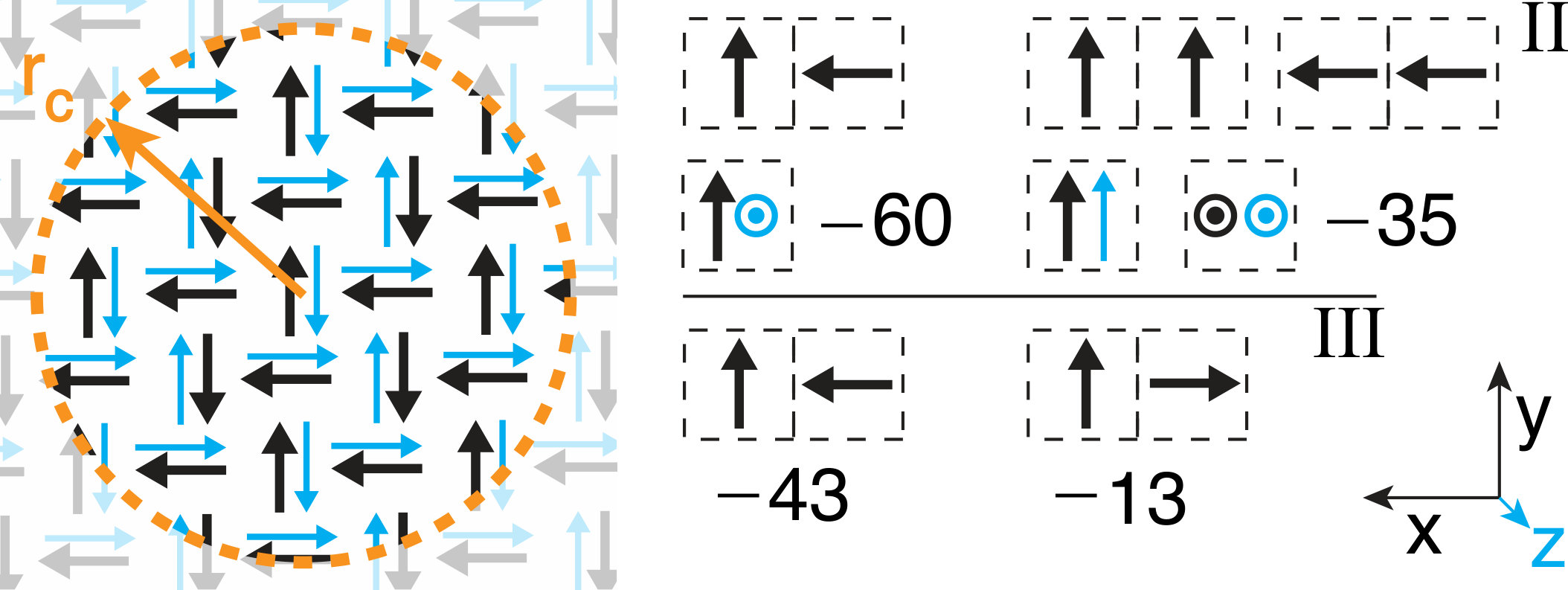

The strength of the penalty depends on the relative orientations of NN molecules as sketched in Figure 2. In model II, two interaction modes are described: the pair of molecules lies ”flat” in a common plane $[(\hat{\mathbf{p}}_{i}\times{}\hat{\mathbf{p}}_{j})\cdot\hat{\mathbf{n}}_{ij}=0]$ and (i) they are orthogonal and one of them points to the neighbor in the pair, then $g(\uparrow,\leftarrow)=-60$ meV, or (ii) they are pointing in the same direction, then $g(\uparrow,\uparrow)=-35$ meV. For all other NN configurations that can occur, $g=0$ meV. Model III, also describes only two pair modes, but these modes are more restricted: the pair of molecules lies orthogonal to each other in the $xy$-plane and one of them points (i) to the neighbor in the pair, then $g(\uparrow,\leftarrow)=-43$ meV, or (ii) away from the neighbor in the pair, then $g(\uparrow,\rightarrow)=-13$ meV. As before, for all other nearest neighbor configurations that can occur, $g=0$ meV. We note that the explicit preference for the $xy$-plane breaks the cubic symmetry of the Hamiltonian. In reality upon cooling from cubic to the orthorhombic phase, the molecules can condense in any of the cubic planes.

In regard to the short-range interaction of Eq. (4) we would like to mention the thorough work of Li et.al., who have systematically analyzed the ”pair-mode” concept based on $4\times 4\times 4$ supercell DFT calculationsLi et al. (2018). The pair-modes used in models II and III also appear in their study as low energy configurations.

III Computational details

Monte-Carlo method. All the model Hamiltonians are evaluated by Monte-Carlo methods based on the Metropolis-Rosenbluth algorithm Metropolis et al. (1953). $16\times 16\times 16$ dipole grids based on a cubic lattice ($a=6.3$ Å) using periodic boundary conditions were simulated. The starting configuration is a minimal representation of the molecular order in the experimental low-temperature (orthorhombic) structure. It solely consists out of $x$ and $y$ axes orientated molecules as sketched in Fig. 1, and the next plane in $z$ direction has the same orientations anti-ferroelectrically aligned. Starting from the same configuration we calculate 20 Markov chains in parallel. The random number generator is initialized differently for every core to obtain different trajectories. Every chain equilibrates the system at the desired temperature by calculating $4\times 10^{6}$ MC steps and then produces 25 equidistant samples spaced by $10\cdot 16^{3}$ MC steps. Hereafter the temperature is increased by 10 K and the system is equilibrated again. This procedure is 60 times repeated, thereby raising the temperature from 0 to 600 K. Statistical averages are calculated over the chains. This setup has been carefully tested and shows converged order parameters.

Model I maps the orientational freedom of the dipoles on 26 discrete cubic orientations: $6\times[1,0,0]$ (axes), $12\times[1,1,0]$ (face diagonal) and $8\times[1,1,1]$ (room diagonal). To avoid a bias for an orientation, we have weighted the chances in the Monte Carlo steps accordingly. Models II and III are more restrictive and allow only for the six cubic axes directions. The cutoff-radii for the long-range interaction were set as in the respective publications, ie. $r^{\rm I}_{c}=3a$, $r^{\rm III}_{c}=2a$. For model II the Ewald technique as presented in Ref. Frenkel and Smit, 2002 is used instead of the real space summation.

Density Functional Theory. For the first-principles calculations we use a plane-wave basis and the projector augmented wave (PAW) methodBlöchl (1994) as implemented in the vasp codeKresse and Hafner (1993); Kresse and Furthmüller (1996); Kresse and Joubert (1999). For the DFT calculations on the MAxCs1-xPbI3 test systems, the PBE (Perdew-Burke-Ernzerhof)Perdew et al. (1996) functional and standard vasp pseudo-potentials are used with a 400 eV energy cut-off for the plane-wave basis. Gaussian smearing with $\sigma=0.05$ eV is used to broaden the one-electron levels. The Brillouin zone is sampled by a $2\times 2\times 2$ $\Gamma$-centered Monkhorst-Pack grid. The Kohn-Sham orbitals are updated in the self-consistency cycle until an energy convergence of $10^{-6}$ eV is obtained. $2\times{}2\times{}2$ CsPbI3 super cells were constructed out of cubic unit cells with lattice constant $a=6.3$ Å. On two sites, Cs atoms are replaced by Methylammonium (CH3NH3) molecules. All positions are kept fixed at their high symmetry cubic sites. The central molecule is rigidly rotated in spherical coordinates around the center of the C-N bond. No ionic relaxation was performed in these test systems.

Molecular Dynamics. The machine-learned force field (MLFF) of MAPbI3 as presented in Ref. Jinnouchi et al. (2019) is used to generate MD trajectories. The MLFF was trained on-the-fly during FPMD calculations with the SCAN (Strongly Constrained Appropriately Normed) Sun et al. (2015) exchange-correlation functional, as its relative total energies agree well with many-body perturbation theory calculations in random phase approximationBokdam et al. (2017). The MLFF approach has the advantage that it speeds up the MD by three orders of magnitude, while retaining near FP accuracy. Note that the finite temperature structure of MAPbI3 obtained with the MLFF is in excellent agreement with traditional FPMD Lahnsteiner et al. (2016, 2018). Further computational details are presented in Ref. Jinnouchi et al. (2019). Here we have calculated a 600 ps long trajectory for a $4\times 4\times 4$ supercell (768 atoms) in the $NPT$ ensemble. The temperature was linearly increased from 100 to 400 K using a Langevin thermostatAllen and Tildesley (1991). Since the heating trajectory shows signs of hysteresis, we have calculated the averaged molecular order parameter on constant temperature MDs. In these calculations snapshots of the heating run were equilibrated for 0.2-1.2 ns, depending on the crystal phase and temperature.

IV Results

The results of this study are presented in four subsections. We start by introducing an order parameter for the molecules that is used to compare models I-III with MD. Hereafter we study the working of the short-range and long-range interactions separately.

IV.1 Molecular Order Parameter

In order to straightforwardly compare the ordering patterns of the MA molecules we calculate the molecular order parameter as briefly presented Ref. Jinnouchi et al. (2019). We assume an integer cubic grid $\mathbf{q}=(i,j,k)$ of dimensions $N=N_{x}\times N_{y}\times N_{z}$ that has on each site a unit vector $\mathbf{\hat{p}}_{\mathbf{q}}$ describing the orientation of the MA molecule. The order parameter, $\mathbf{M}=\left({\rm M}^{x},{\rm M}^{y},{\rm M}^{z}\right)$, is then defined as

[TABLE]

where $\mathbf{n}^{\alpha}$ is the displacement vector to the neighboring site in the Cartesian direction $\alpha$. Typical order parameters in the three different crystal phases are:

[TABLE]

These values agree well with the experimental structures as long as the temperature is not too close to the phase transition temperatureJinnouchi et al. (2019).

IV.2 Molecular ordering at finite temperature

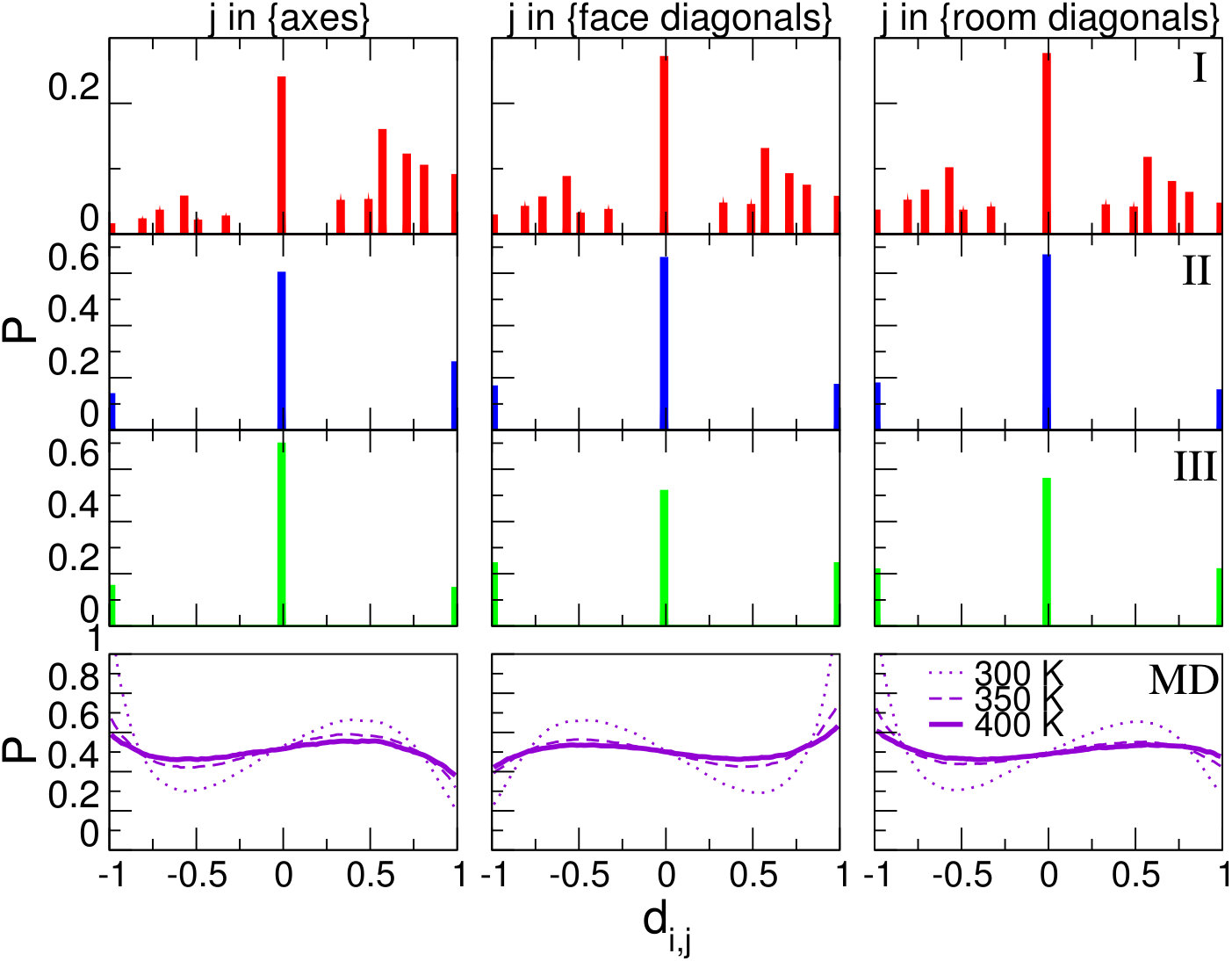

To compare the ordering patterns of the dipoles imposed by the model Hamiltonians, we have calculated large finite temperature ensembles by slowly heating up the experimental low temperature molecular configuration by Monte Carlo simulations. In the first row of Figure 3(a) the change of the order parameter ($\mathbf{M}$) during heating is shown. The initial structure for the models is described by $\mathbf{M}_{\rm init}=(0.5,0.5,1)$. $\mathbf{M}_{\rm init}$ is the closest equivalent of $\mathbf{M}_{\rm ortho}$ described with only axes orientations of the molecules. Models I and II already break down this structure at 0 K by exothermic steps, indicating it is not the true ground state (GS). Model II switches directly to its GS, which is an anti-ferroelectric (AFE) striped pattern, $\mathbf{M}_{GS}^{\rm II}=(0,0,1)$. Model I exhibits a kinetic barrier from $\mathbf{M}_{\rm init}\rightarrow\mathbf{M}_{GS}^{\rm I}=(0,0,0)$ and reaches it only partially at 75 K. The cubic symmetry breaking (indicated by different components of $\mathbf{M}$) observed at low temperature is an artefact. Its GS is the fully polarized state with molecules ordered along one of the room diagonal (xyz) orientations. Model III retains the initial ordering at low temperature and shows a gradual transition involving two steps to a cubic-like phase. The different behavior of model I compared to II and III does not come as a surprise, its Hamiltonian has cubic symmetry and has no short-range interaction that can stabilize ”flat” molecular orientations in the $xy$, $xz$ or $yz$ planes. Models II and III do have such interactions, imposed by favoring certain pair configurations. In model II, these pairs are counted for independently in which plane they lie, therefore the observed symmetry breaking is imposed by the initial structure only.

The second row of Fig. 3(a) shows the fractional occupancy of each quantized molecular orientation. Model I distinguishes 26 orientations, model II and III only 6 orientations. These different degrees of freedom cannot be compared directly, but do give an intuitive picture of the structure as function of temperature. At high temperature all orientations become equally occupied. Note here that there are eight room diagonal orientations (xyz), compared to four face diagonals (xy) and two axes (x) orientations, therefore these directions are weighted accordingly. To build a model that describes all three crystal phases by their typical molecular orientations, one minimally needs the axes basisset. The expected occupancy of the orientations would then be for orthorhombic: ($\nicefrac{{1}}{{2}},\nicefrac{{1}}{{2}},0$), tetragonal ($\nicefrac{{1-\delta}}{{2}},\nicefrac{{1-\delta}}{{2}},\delta$) and cubic: ($\nicefrac{{1}}{{3}},\nicefrac{{1}}{{3}},\nicefrac{{1}}{{3}}$).

Using the order parameter as a common reference framework, we compare the models (Fig. 3 a) to the MD results (Fig. 3 b) in order to find the best working model. Both models I and II show different ordering compared to the MD already at 0 K. Their GS ordering patterns ($\mathbf{M}_{GS}^{\rm I}$,$\mathbf{M}_{GS}^{\rm II}$) are totally different compared to $\mathbf{M}_{\rm ortho}$. Model I does not mimic an orthorhombic/tetragonal to cubic phase transition, but shows a gradual changing ordering pattern with cubic symmetry. In model II, the barrier to leave the GS is roughly 300 K. The resulting transformation is manifested as a first-order phase transition (evidenced by a discontinuity in the first derivative of the order parameter) to the cubic phase. Model III shows qualitatively the best comparison with the MD. While heating up, the system undergoes two transitions at approximately 150 and 300 K. This is in agreement with the phase transitions obtained from peaks in the calculated heat capacityŠimėnas et al. (2017). Similarly, the MD shows two transitions at 200 and 350 K. Each transition decreases the molecular order and brings it closer to $\mathbf{M}_{\rm cub}$. Furthermore, it has the correct GS ($\mathbf{M}_{\rm init}$). Still important differences between model III and the MD remain. Within the applied temperature window $\mathbf{M}_{\rm cub}$ is not reached, and both transitions are of second order. This is at odds with experimental data indicating a first order phase transition followed by a close to tri-critical transitionWhitfield et al. (2016). Interestingly, when turning off the long-range d-d interactions, model III breaks $\mathbf{M}_{\rm init}$ down to $\mathbf{M}_{\rm cub}$ at low temperature, even though the pair configurations only favor the $xy$-plane and can perfectly form the initial molecular order. We come back to this stabilizing effect in Section IV.3.

Model III can capture the essence of the long-range order in the low temperature orthorhombic phase, although it fails to reproduce the more detailed molecular orientation. These orientations are illustrated in Figure 3(c) by the three-dimensional distributions of the molecular C-N axis calculated from MD. An iso-surface shows the outer shell of this distribution. The three different temperatures show the typical orientations of the molecules in the three phases. These missing orientations are also important to describe the probability distributions of the relative molecular orientation ($d_{i,j}=\hat{\mathbf{p}}_{i}\cdot\hat{\mathbf{p}}_{j}$). In Figure 4 we see that all models show more structure at 400 K compared to the almost flat MD distributions. Furthermore, the MLFF captures the soft ordering that remains at room temperature and above, consistent with previous FPMD calculationsLahnsteiner et al. (2016). In the first NN shell there is a broad peak at $d_{i,j}=\sim 0.5$ and in the second at $d_{i,j}=\sim-0.5$ and so on. When using the axes basisset, both relative orientations are mapped to $d_{i,j}=0$. Expanding the basis with the face- and room-diagonal orientations would allow us to reach a qualitative description for these relative orientations. To get realistic microscopic structures one would have to include the dominant orientations as they occur in the MD.

IV.3 Splitting of degenerate ground states by dipole-dipole interaction

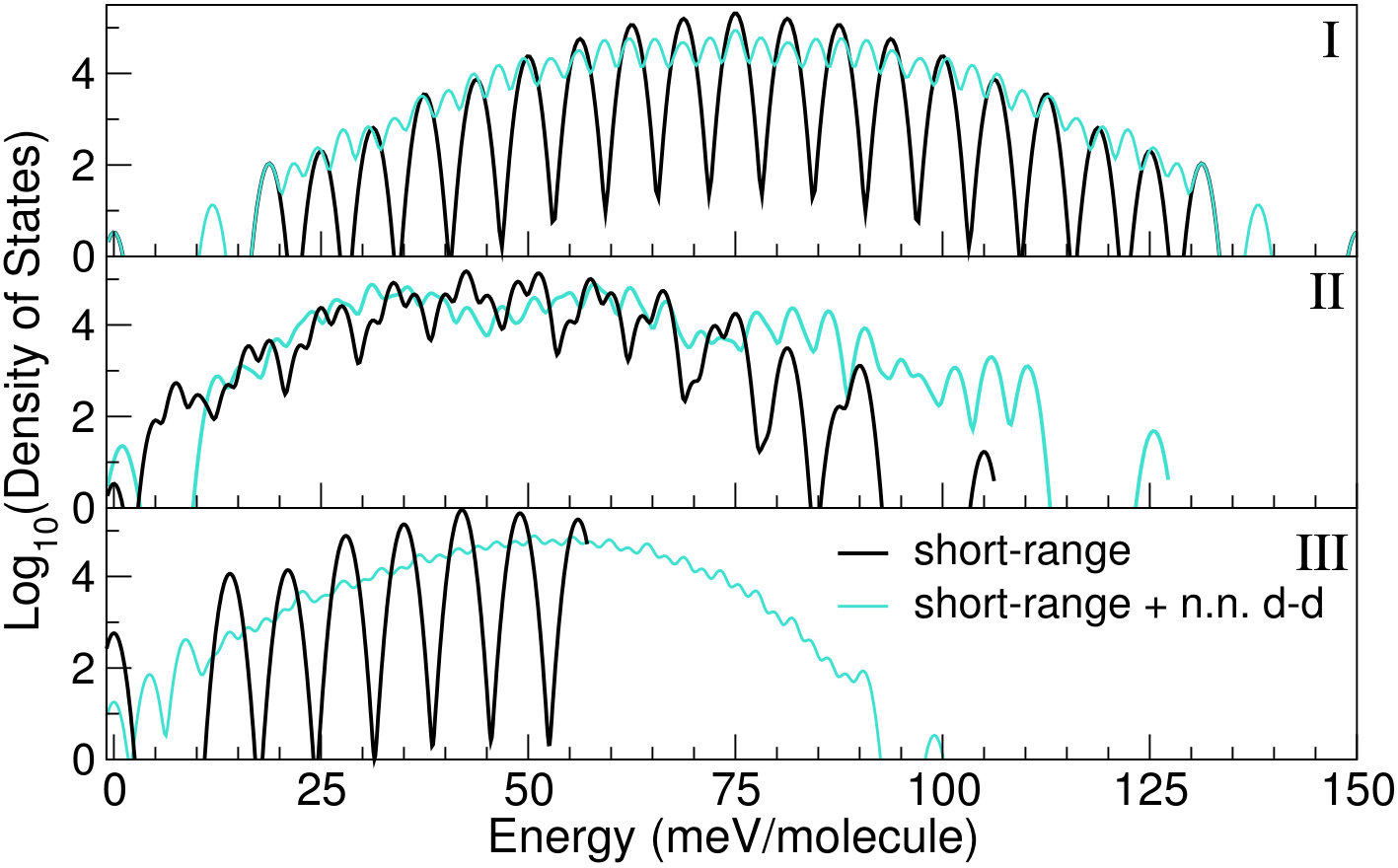

In oder to clarify the origin of the long-range order, we analyze the short- and long-range interactions on the molecular orientations. As shown in Section II, the short-range interaction is the energetically dominant term in all model Hamiltonians I, II and III. It is build up of NN pair interactions, and its ground state (GS) can be studied on a $2\times 2\times 2$ cubic grid with periodic boundaries. Using only the 6 axes orientations we have calculated the total energies of all $6^{8}$ possible ordering patters. To illustrate the spread of these levels we have plotted the density of states (DOS) in Figure 5. We can roughly assess the influence of including the dipole-dipole coupling by calculating the NN interactions. In models II and III this increases the energy difference between the ground- and highest energy state ($\Delta{}E$), whereas it is unaffected in model I. More importantly, many of the degenerate states are split, thereby raising the total number of different energy states ($N_{s}$). This also holds for the states occupied at room temperature (roughly those between 0-25 meV). In this small system with only NN interactions we can determine the GS exactly; model I shows a fully polarized state with multiplicity $(\Omega)$ of 6, and model II shows an AFE striped pattern also with $\Omega=6$. Both GSs are different compared to the low temperature experimental ordering pattern of Fig. 1. We have summarized the characteristics of the models in Table 1, and we will now discuss model III.

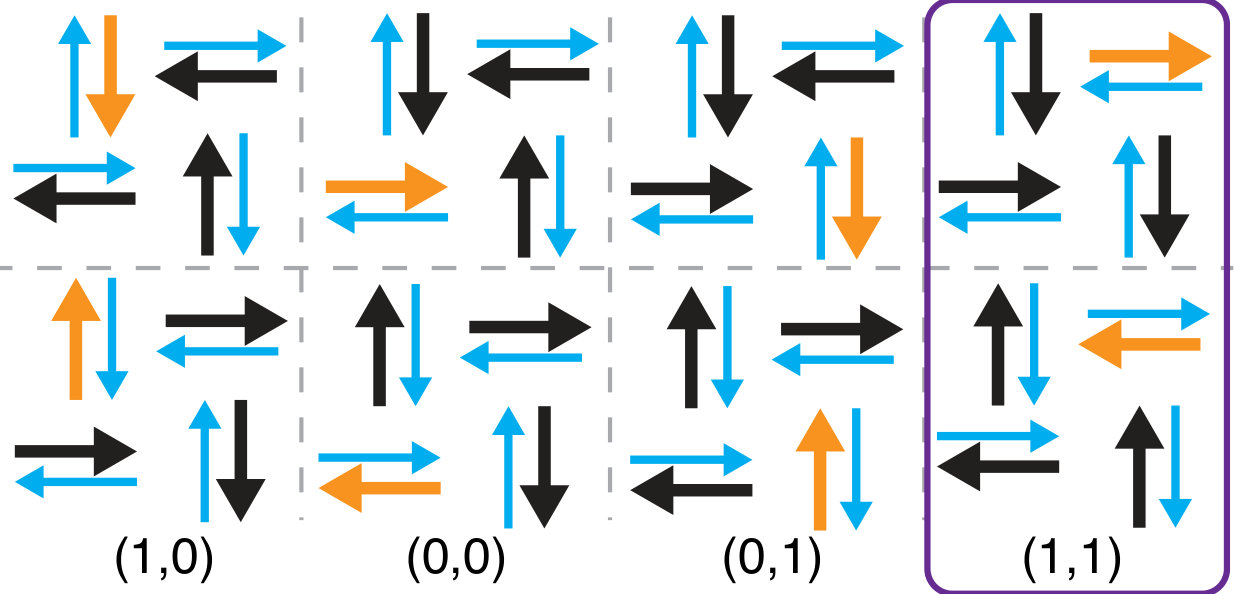

In Figure 6, eight out of a total of $\Omega=1024$ possible ground states of only the short-range interaction (Eq. (4)) as parameterized in model III are sketched. The most in-plane polar states (highlighted in purple) that alternate between (1,1) and ($-$1,$-$1) polarized layers is the expected ordering. The inclusion of NN dipole-dipole coupling splits the degeneracy of the GS and brings its multiplicity down from $1024\rightarrow 32$. It couples the layers in the $z$-direction to each other and enforces their AFE ordering. Still all states of Fig. 6 and further symmetry equivalents are possible ground states. If the cutoff radius of the d-d interaction is extended to include the next NN ($r_{c}=\sqrt{2}a$), the GS of Fig. 6 splits into three energy levels. Whereby the (1,1) state is the new GS with $\Omega=8$, followed in energy by the (1,0) and (0,0) state. This means that d-d interaction in model III stabilizes the long-range ordering pattern to $\mathbf{M}=(0.5,0.5,1)$ and makes it the GS. Note that including only NN coupling would enable a checkerboard pattern of the different orderings (shown in Fig. 6) at low temperature.

We now turn the problem around and use the unscreened long-range energy ($H_{\rm lr}$, $\varepsilon_{r}=1$), to analyze the ordering patterns obtained with the MLFF. To calculate Eq. (1), the center and direction of the C-N axes are used in combination with the constant value for $|\mathbf{p}|$. In Figure 7 the energy and molecular order parameter are shown for a system in which the temperature was continuously raised from 100 K to 400 K. The still fairly fast heating rate results in hysteresis spreading the orthorhombic to tetragonal transition over a $50$ K temperature range. The orthorhombic order $\mathbf{M}_{\rm ortho}$ is stabilized by d-d interactions by $\sim 30$ meV/molecule, whereas this contribution drastically reduces in the tetragonal phase and vanishes in the cubic phase. This trend is the same in constant temperature MDs, where we obtain on time-average -29, -3.7, -2.6 and -1.7 meV/molecule at 150, 250, 300 and 400 K, respectively. These unscreened energies from an upper-bound to the real d-d interaction energy. This indicates that long-range d-d interactions stabilize the orthorhombic phase, but essentially play no role in the more disordered tetragonal and cubic phases.

IV.4 Accuracy of the long-range interaction

IV.4.1 The MAxCs1-xPbI3 test system

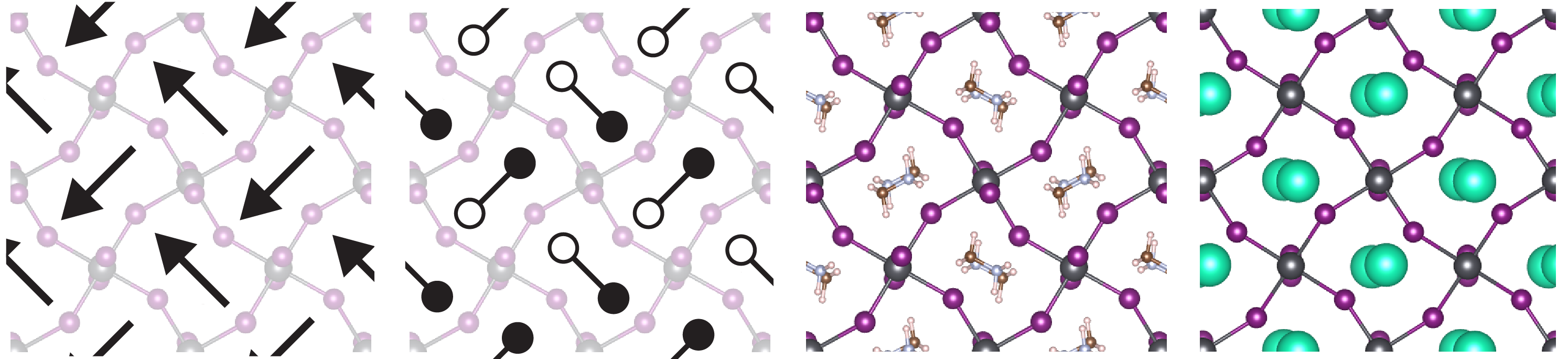

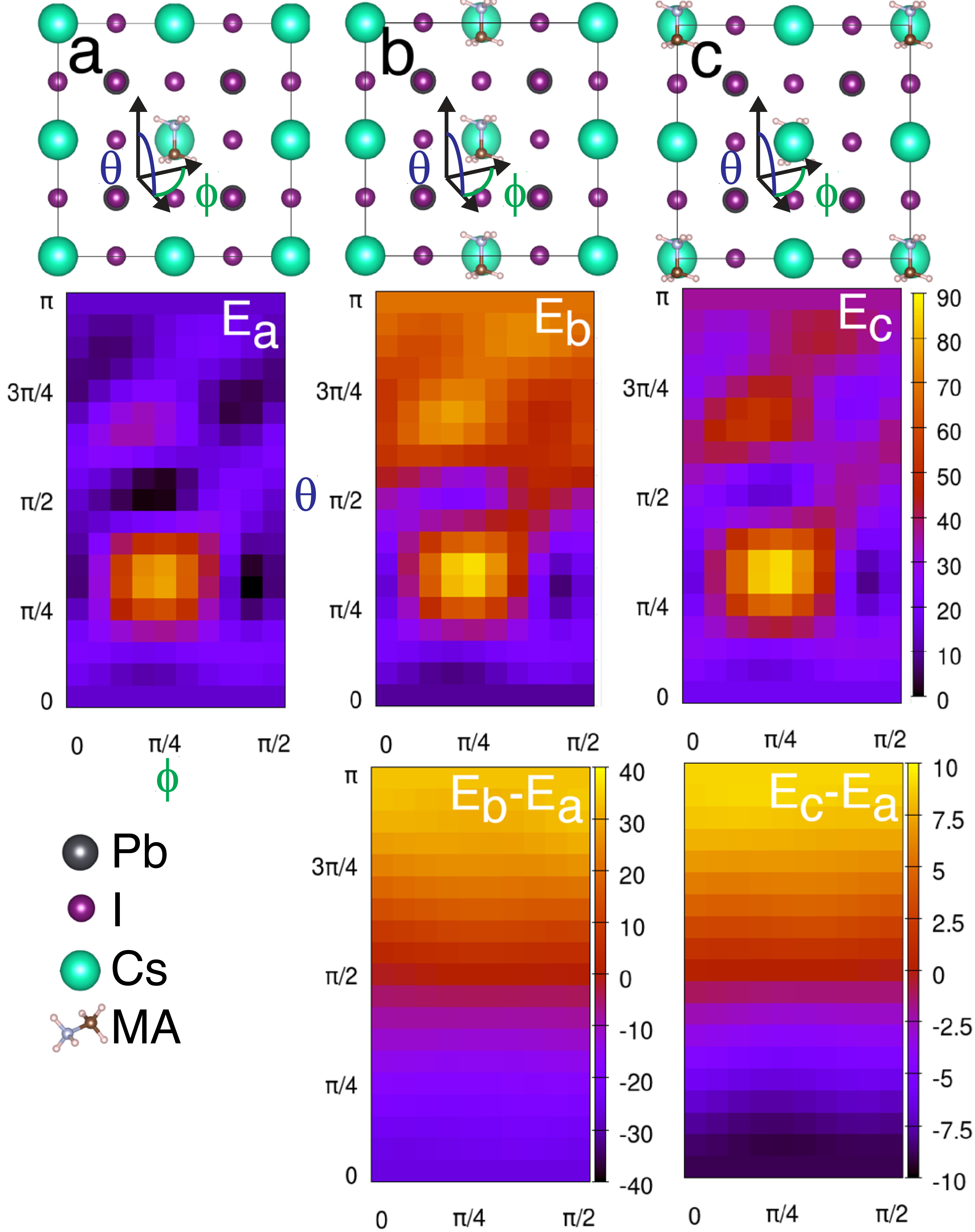

The pd-interaction plays an essential role in the stabilization of the long-range molecular order. However, the origin and validity of the selected parameters in the models is unclear. To test their accuracy, we have constructed MAxCs1-xPbI3 test systems and examined the dipole-dipole interactions by DFT calculations. The systems are based on $2\times 2\times 2$ CsPbI3 cubic supercells as shown in Figure 8. The central Cs atom is replaced by a MA molecule which is rotated manually. The DFT total energy ($E$) of the rotated configurations $\{0\leq\phi<\nicefrac{{\pi}}{{2}},0\leq\theta<\pi\}$ is used to map out the short-range interaction energy $E_{a}(\phi,\theta)$. The obtained energy surface has a corrugation energy of $\sim 80$ meV with a room-diagonal orientation in the cubic PbI framework that is unfavored. Hereafter, a second Cs is replaced by a fixed MA molecule to probe the d-d coupling. As before, the central molecule is rotated, and the DFT total energies are calculated. Depending on the position of the fixed molecule, see Figs. 8 (b) axes $\mathbf{n}=(\pm 1,0,0)$ and (c) room diagonal $\mathbf{n}=(\pm 1,\pm 1,\pm 1)$ neighbors, energy surfaces $E_{b}(\phi,\theta)$ and $E_{c}(\phi,\theta)$ are obtained, respectively. Assuming the short-range interaction is unaffected by the replacement of a neighboring Cs by MA, we can extract the long-range interaction energy by calculating

[TABLE]

where $x=\{b,c\}$ and $\langle{}.\rangle$ the average over $\{\theta,\phi\}$. The DFT long-range interaction energy obtained in test systems (b) and (c) (shown on the bottom of Fig. 8) are accurately fitted by: $\Delta{}E_{x}=\alpha_{x}\cos{\theta}$, where $\alpha_{b}=-35$ meV and $\alpha_{c}=-10$ meV. In the pd-approximation these systems are described by $\Delta{}E^{\rm pd}_{x}=H_{\rm lr}$ using periodic-boundaries. Summing the interaction in real space and cutting off the interactions beyond $r_{c}=\sqrt{3}a$, the following two energies are obtained

[TABLE]

where $C=\frac{|\mathbf{p}|^{2}}{4\pi\varepsilon_{0}}$ is the Coulomb constant. Setting $|\mathbf{p}|$ to 2.29 D fixes the energy scale to $C/a^{3}\approx 13$ meV. This means that the pd model with the real space sum and $\varepsilon_{r}=\frac{4\times 13}{\alpha_{b}}\approx 1.5$ describes the DFT result for system (b). However, it is unable to capture the cosine with amplitude $\alpha_{c}$ observed in system (c), even when the interaction radius is increased.

IV.4.2 Changes to the long-range interaction

In order to understand the missing coupling in system (c), we further analyze the d-d interaction using three different electrostatic models.

First, considering the long-range nature of Eq. (1), the conditional convergence of Eq. (2) under the periodic boundaries that are imposedMakov and Payne (1995), $H_{\rm lr}$ should be calculated by an Ewald summation. Here we apply the formulation of the Ewald sum as presented in Ref. Frenkel and Smit, 2002. Note that the ($\mathbf{k}=0$) term in the Ewald sum is omitted, implying that ”conducting boundaries” are assumedChen and Bongiorno (2011).

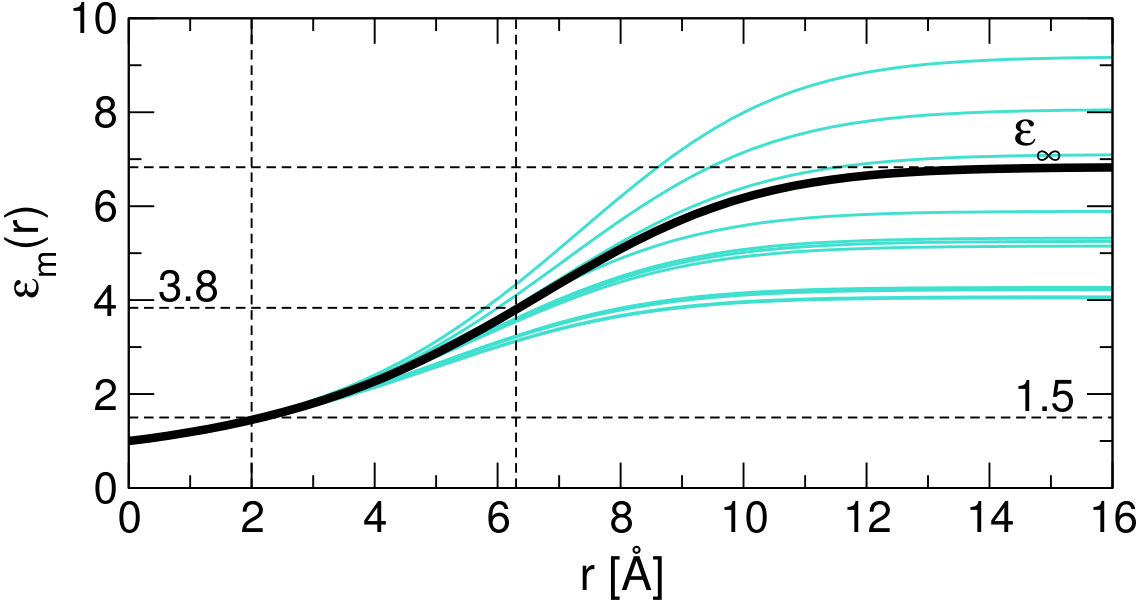

Second, the microscopic electronic screening in this semiconductor can be more accurately described. Here, we apply the following distance dependent dielectric function

[TABLE]

where $r$ is the distance, and {\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}\frac{\lambda}{2\pi}} is the real space screening length. Equation (9) is the real space version of the local model dielectric function fitted to the Many-Body Perturbation Theory calculations in the $GW_{0}$ approximation as described in the supplementary materials of Ref. Bokdam et al., 2016 It was used there to screen electron-hole interactions in MAPbI3. The Fourier transform of $\varepsilon^{-1}(|\mathbf{k}+\mathbf{G}|)\rightarrow{}\varepsilon^{-1}(r)$ is described in Appendix A. Compared to one fixed effective dielectric constant ($\varepsilon_{r}$) this is a more realistic screening description with proper limits, $\varepsilon(0)=1$ and $\varepsilon(\infty)=\varepsilon_{\infty}$. This screening function is closely related to the hybrid screened exchange functional, where $\lambda$ is the range-separation parameterLiu et al. (2019). Note it only includes contributions from electronic screening, the ionic contributions are not included. We tabulate the parameters for a set of commonly studied hybrid perovskites in Table 2 and plot the inverse of $\varepsilon^{-1}_{\rm m}(r)$ in Figure 9. We recall the $\varepsilon_{r}$ values for the three models $\varepsilon^{\rm I}_{r}=1$, $\varepsilon^{\rm II}_{r}=0.73$, $\varepsilon^{\rm III}_{r}=1.5$. Since the dominant contribution to the total dipole-dipole interaction energy comes from NN coupling, which occurs at distances of one lattice spacing ($\sim$6.3 Å), setting $\varepsilon_{r}<\varepsilon_{\infty}$ as an effective screening parameter seems reasonable. In comparison to models I-III, the distance dependent dielectric function screens more, with a NN screening of $\varepsilon_{\rm m}(a)=3.8$.

Third, the use of the pd-approximation can be circumvented by replacing the atoms with point charges, thereby creating interacting monopoles (mm). The system is sketched in Fig. 1 and is in total charge neutral. The same dipole moment as before is used to fix the charges: $q_{\rm C}=2.29\times 0.20819434\,{\rm e\AA{}}/1.51\,{\rm\AA{}}=0.316{\rm e}$, $q_{\rm N}=-q_{\rm C}$, $q_{\rm Pb}=-2q_{\rm I}$, $q_{\rm H}=0$ and $q_{\rm MA}=q_{\rm Cs}=-q_{\rm I}$. A compensation charge $q_{\rm MA}$ is placed on the middle of the C-N bond. The Ewald sum is used to calculate the electrostatic energy of the monopole arrangements. Since the PbI framework and the center of mass of the molecule are fixed in this analysis, the charges $q_{\rm Pb}$, $q_{\rm I}$ and $q_{\rm MA}$ only create a potential offset.

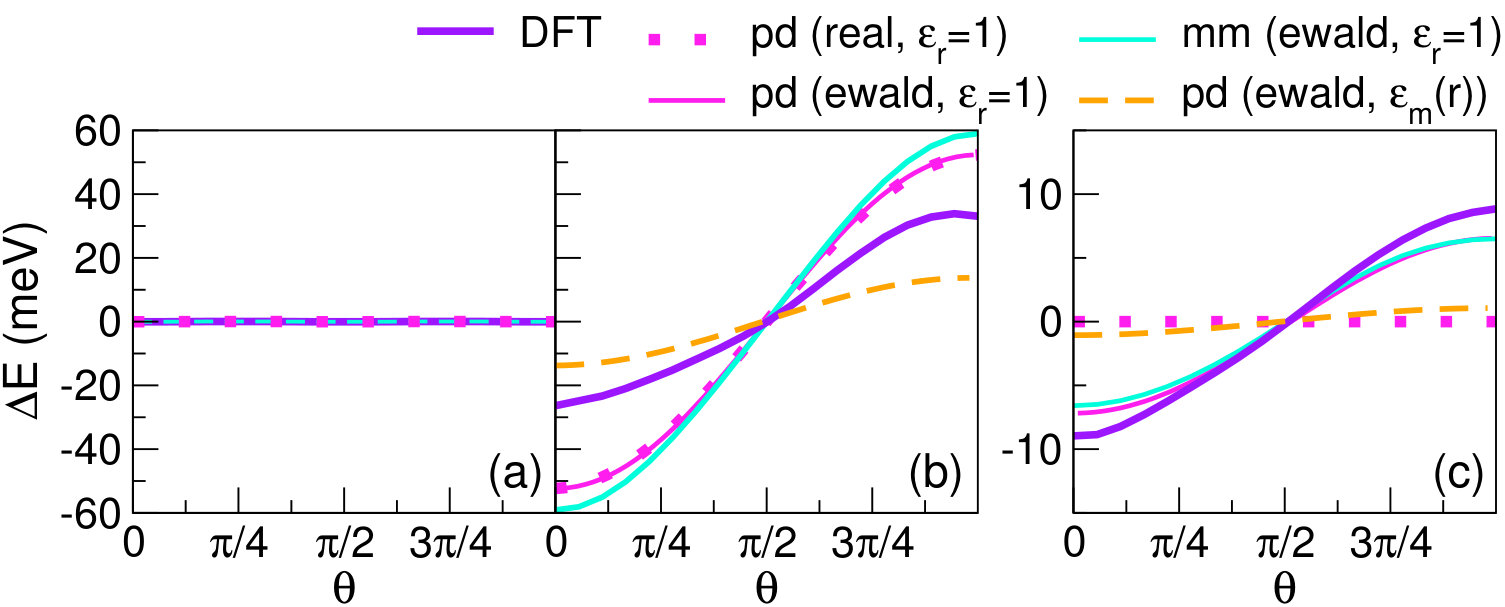

In Figure 10, we have applied the three changes to the test systems (a)-(c). The most clear improvement is that by applying the Ewald sum the cosine term is recovered for system (c). This term appears from the reciprocal space sum in the Ewald method. Note that the coupling to the second NN $\mathbf{n}=(\pm 1,\pm 1,0)$ are correctly accounted for in the real-space sum. The mm-model (solid cyan line) shows almost the same result as the pd-model with the Ewald sum. This means that the distance between C and N is sufficiently small compared to the NN distance $a$. The cosine behavior of both systems (b) and (c) are captured by the pd-model with Ewald sum and $\varepsilon_{r}=1$ , but their amplitudes are not. In system (b) the coupling is overestimated, while it underestimates the coupling in system (c). This is not mitigated by the distance dependent dielectric function $\varepsilon_{\rm m}(r)$, which ”over-screens” the coupling in both systems. The amplitude of the DFT energy is approximately 2$\times$ and 8$\times$ larger than the $\varepsilon_{\rm m}(r)$ screened d-d interaction energy of systems (b) and (c), respectively. Overall, none of the applied electrostatic schemes can capture the strength of the interactions calculated by DFT in both systems simultaneously.

V Discussion

With the Cs/MA-testsystem we removed what in most model studies of MAPbI3 would be considered as the physical/chemical reasons for the short-range interactions. Stress and strain on the framework are removed because the framework is kept rigid under the MA rotation and the reference energy of system (a) is subtracted. We assume that the hydrogen bonds of the molecules with the framework are only marginally affected by the rotation of a neighboring molecule and should therefore be taken away in this scheme. The pd-approximation using the Ewald method qualitatively captures the interaction between the molecules. The inability to capture the correct amplitude of the interaction in both systems (b) and (c) simultaneously can be explained by microscopic polarization effects. $H_{\text{lr}}$ assumes a constant dipole moment ($|\mathbf{p}|$), however in reality it is not constant but the result of an effective (depolarisation) field imposed by the surrounding ions and dipoles. These effects could possibly be captured by an anisotropic dielectric function.

By including a distance dependent electronic screening function with a relatively large value for $\varepsilon_{\infty}=6.31$ we have increased the total screening of the d-d coupling compared to the previous models, especially for the second NN and beyond. The ionic screening from the PbI lattice has been omitted. In a previous study we have shown that the dielectric functions at 0 K calculated with density functional perturbation theory and at 300 K calculated with FPMD are very similarBokdam et al. (2016). The dominant (dipole-active) oscillators related to Pb-I bonds lie between 2-10 meV (2-0.4 ps), ie. slightly faster than the MA reorientation times (several ps). This results in a sizable increase of the static dielectric constant ($\varepsilon_{0}=30$) compared to the ‘ion-clamped’ high frequency dielectric constant ($\varepsilon_{\infty}$). It can therefore not be excluded that the d-d interactions are (partially) screened by the PbI lattice. This implies that the here computed d-d interaction energy is an upper bound.

The d-d coupling between the molecules is only an effective description of the electrostatics related to the ionic nature of the perovskite lattice. Without the MA cation, cubic PbI3 is metallic in a DFT calculation. Introducing a MA or Cs turns it into a semiconductor. Each molecule donates one electron to the framework, which exactly fills up the (Pb and I states dominated) valence band. To lower the electrostatic energy, each MA+ moves (with its nitrogen side) to a different PbI${}_{3}^{-}$. The same mechanism also occurs in CsPbI3, even though the Cs cation does not have an intrinsic dipole moment. As shown in the low temperature orthorhombic phases of Figure 1, similar off-center displacements for the Cs cations as for the center of masses of the MA molecules occur. And, in both perovskites the PbI octahedra show a clock-wise, anti-clockwise ordering. This results in stretched and squeezed cavities in which the molecules align, because of space filling, along the extended axes. The framework imposes the long-range order of the molecules, whereas the displaced centers of masses of the cations are the result of the ionic lattice.

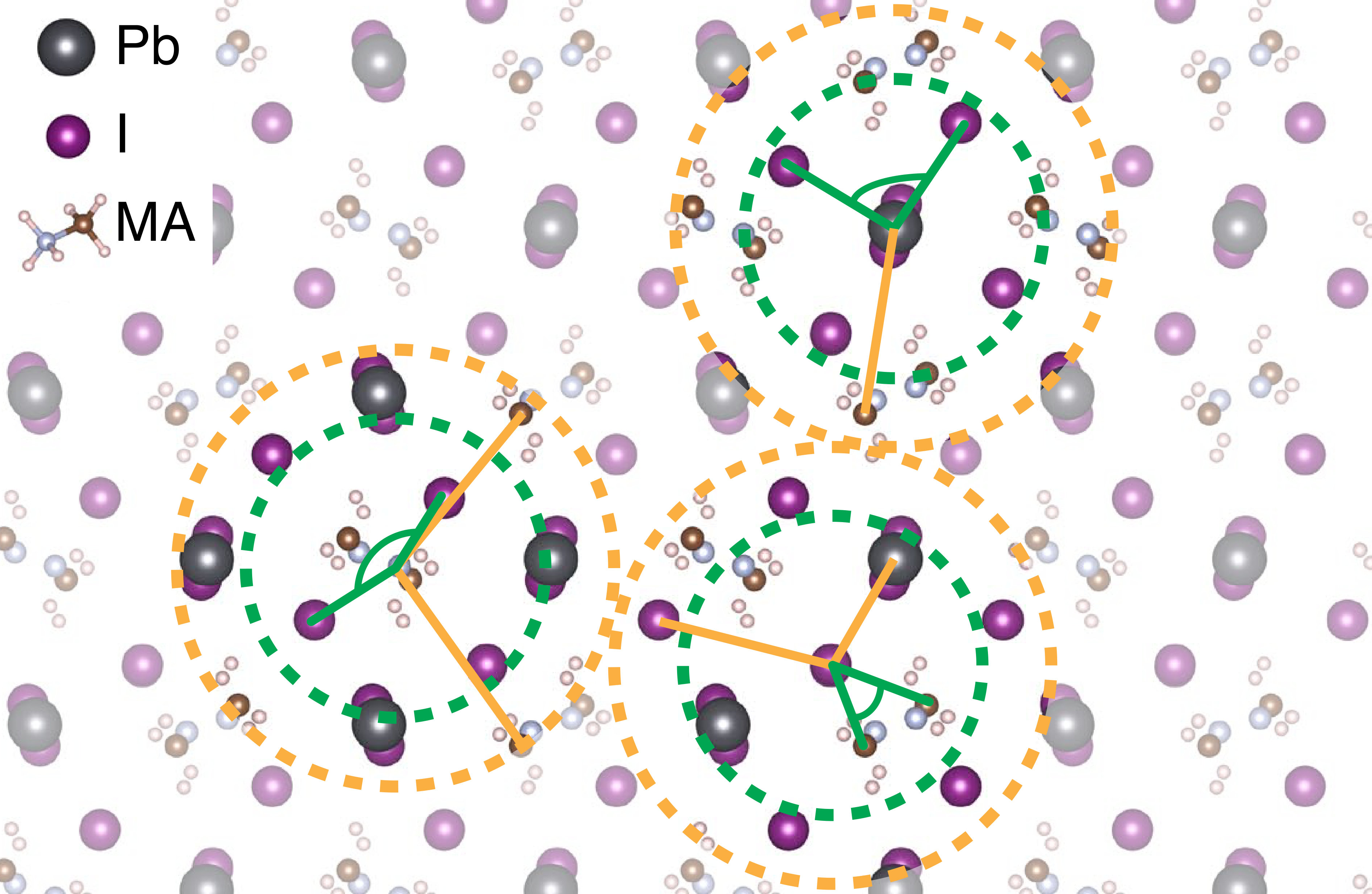

To capture such interactions, we have applied a machine-learning force field approach which learns a force field on-the-fly during FPMDJinnouchi et al. (2019). The constraining effect of the PbI framework is automatically included, one of the difficult terms to model accurately. This force field is based on a purely short-range description as shown in Figure 11. Two-body radial and three-body angular descriptors with a cut-off of 6 Å and 4 Å, respectively, are used to represent the local chemical environment around each atom. The total energy is then defined as the sum of atomic energies assigned to each atomBartók et al. (2010) by means of a similarity kernel. This method shows ordering patterns, lattice constants and phase transition temperatures in very good agreement with experiments. The chemical environment around a Pb atom (shown in Fig. 11 top right) connects both NN as well as next NN molecules. Thereby it is able to impose the AFE ordering pattern of the molecules in the orthorhombic phase. It effectively has the same reach as the minimal cutoff radius ($r_{c}=\sqrt{2}a$) required to split the degenerate GS of the short-range part of the model Hamiltonians. This implies that long-range d-d coupling is not necessary to capture the molecular ordering.

VI Conclusions and Outlook

The ordering pattern of molecules in the hybrid perovskite MAPbI3 at finite temperatures as described by three different model Hamiltonians (I-III) and an accurate MD simulation have been studied. A comparison based on the molecular order parameter ($\mathbf{M}$) has shown that model III best captures the features observed in MD. Using a discrete set of molecular orientations, model III qualitatively captures the ordered (orthorhombic) to disordered (cubic) transition upon heating, involving two second order transitions. The order-disorder transition in model I is a continuous process, while in model II the system undergoes one abrupt first-order transition. The ground state ordering pattern of model III closely resembles that of the experimental orthorhombic structure, whereas both models I and II show completely different ground state order.

In attempt to improve upon the models, we examined the accuracy of the dipole-dipole interactions using a more advanced electrostatic description with a distance dependent dielectric function and the Ewald summation technique. Although these methods enable a better quantitative description of the electrostatic interaction, the improvement was found to be not substantial. Static MAxCs1-xPbI3 test systems were constructed to probe the d-d interaction energies in self-consistent DFT calculations. The point-dipole model is able to qualitatively describe the DFT interaction energies. However, its strength can not be consistently captured with one set of screening parameters.

We have shown that the pd-approximation ($H_{\text{lr}}$) effectively splits the degenerate ground state imposed by the short-range part ($H_{\text{sr}}$) of the Hamiltonian ($H=H_{\text{lr}}+H_{\text{sr}}$) of model III. A short cutoff radius ($r_{c}=\sqrt{2}a$) for the calculation of $H_{\text{lr}}$ including the first and second NN dipole already suffices to capture the long-range AFE order of the molecules observed in the low-temperature orthorhombic phase. The d-d interaction energy calculated for ordering patterns from the MLFF shows a stabilizing effect in the orthorhombic phase, however it is practically absent in the tetragonal and cubic phases. The essence of the long-range order in the low-temperature orthorhombic phase lies in the propagation of this order by short-range interactions. The MLFF effectively captures these interactions between atoms that are no more than 6 Å apart. This analysis explains the large similarity of the MAPbI3 and CsPbI3 crystal lattices at low temperature, even though Cs does not have a permanent dipole-moment.

In future work, it is possible to improve the model Hamiltonians further by adopting more elaborate descriptions of $H_{\text{sr}}$ as well as inclusion of more refined molecular degrees of freedom. However, its development and optimization by-hand are not tractable. In contrast, the MLFF method systematically constructs an accurate interaction model on-the-fly during FPMD. It enables the automatic inclusion of the constraining effect of the PbI framework as well as the effective short-range electrostatics with high accuracy, thereby realizing realistic ordering patterns of the molecules. The method can be extended to more complex systems with defects, surfaces and mixed halides or molecules.

Acknowledgements.

We appreciate discussions with Merzuk Kaltak and Peitao Liu in finalizing the manuscript. M.B. thanks Viktor Fournarakis and Lorenzo Papa for helpful discussions. Funding by the Austrian Science Fund (FWF): P 30316-N27 is gratefully acknowledged. Computations were performed on the Vienna Scientific Cluster VSC3. R.J. appreciates the financial support from Toyota Central R&D Labs., Inc.

Appendix A Real space dielectric function

The Coulomb potential in reciprocal space screened by the model dielectric function $\varepsilon_{\rm m}$ as presented in Ref. Bokdam et al., 2016 is given by

[TABLE]

The screened Coulomb potential in real space is obtained by the Fourier transform of Eq. (10),

[TABLE]

Switching to spherical coordinates and evaluating the integrals with respect to the spherical angles $\theta$ and $\varphi$ gives,

[TABLE]

Hereby, the problem reduces to solving the integrals

[TABLE]

and

[TABLE]

To solve $A(r)$, a damping function $e^{-\beta k}$ is multiplied to the integrand. Note that in the limit of $\beta\rightarrow 0$ the original function is recovered. The derivative of this integral with respect to $\beta$ is

[TABLE]

The indefinite integral with respect to $\beta$ results in the inverse tangent function $I(\beta,r)=-\arctan\left(\frac{\beta}{r}\right)+C$. By considering the limit $\beta\rightarrow\infty$,

[TABLE]

one can determine the integration constant $C=\pi/2$. Thereby Eq. (13) reduces to

[TABLE]

To solve $B(r)$, one introduces D=\frac{1}{{\color[rgb]{0,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,0}\pgfsys@color@gray@stroke{0}\pgfsys@color@gray@fill{0}4}\lambda^{2}} and takes the derivative with respect to r,

[TABLE]

The integration over k simplifies to a 1-dimensional Fourier transform of a Gaussian function,

[TABLE]

Integrating with respect to r results in

[TABLE]

Combining the Eqs. (17) and (20) with Eq. (12) gives the real space screened Coulomb potential

[TABLE]

where

[TABLE]

is the inverse dielectric function in real space. Here $\lambda$ is expressed in (angular) wavenumbers.
