High efficiency dark-to-bright exciton conversion in carbon nanotubes

TL;DR

This study reveals that dark excitons in carbon nanotubes can efficiently convert to bright excitons, significantly impacting emission properties and offering avenues for surface-engineered optoelectronic applications.

Contribution

It demonstrates high dark-to-bright exciton conversion efficiency in carbon nanotubes and explores how surface interactions enhance this process.

Findings

Dark excitons contribute significantly to emission intensity.

Dark-to-bright transition rates are high and chirality-dependent.

Adsorbed air molecules enhance conversion efficiency.

Abstract

We report that dark excitons can have a large contribution to the emission intensity in carbon nanotubes due to an efficient exciton conversion from a dark state to a bright state. Time-resolved photoluminescence measurements are used to investigate decay dynamics and diffusion properties of excitons, and we obtain intrinsic lifetimes and diffusion lengths of bright excitons as well as diffusion coefficients for both bright and dark excitons. We find that the dark-to-bright transition rates can be considerably high, and that more than half of the dark excitons can be transformed into the bright excitons. The state transition rates have a large chirality dependence with a family pattern, and the conversion efficiency is found to be significantly enhanced by adsorbed air molecules on the surface of the nanotubes. Our findings show the nontrivial significance of the dark excitons on the emission kinetics in low dimensional materials, and demonstrate the potential for engineering the dark-to-bright conversion process by using surface interactions.

Figures

Equations

$$\displaystyle\frac{dN_{\mathrm{B}}}{dt}=-\bigl{(}\frac{1}{\tau_{\mathrm{B}}}+\frac{1}{\tau_{\mathrm{BD}}}\bigr{)}N_{\mathrm{B}}+\frac{1}{\tau_{\mathrm{BD}}}N_{\mathrm{D}},$$

$$\displaystyle\frac{dN_{\mathrm{D}}}{dt}=-\bigl{(}\frac{1}{\tau_{\mathrm{D}}}+\frac{1}{\tau_{\mathrm{BD}}}\bigr{)}N_{\mathrm{D}}+\frac{1}{\tau_{\mathrm{BD}}}N_{\mathrm{B}},$$

$$\tau (L)=\frac{{\int }_{-L/2}^{L/2}g(z){\tau }^{\ast }(L,z)dz}{{\int }_{-L/2}^{L/2}g(z)dz},$$

$$\tau^{*}(L,z)=\tau^{\mathrm{int}}\biggl{\{}1-\frac{\cosh(z/l)}{\cosh(L/2l)}\biggr{\}},$$

$${\tau }^{\ast }(L,z)=\frac{L^2-4z^2}{8D},$$

Full text

I Introduction

Due to limited screening of the Coulomb interaction, electron-hole pairs form tightly-bound excitons in atomically thin semiconductors such as transition metal dichalcogenides and carbon nanotubes (CNTs) Amori et al. (2018); Mueller and Malic (2018). The stable excitonic states play a central role in the optical processes, leading to unique phenomena such as quantum light emission He et al. (2017); Ishii et al. (2017); Tonndorf et al. (2015), exciton Hall effect Onga et al. (2017), and formation of interlayer excitons Rivera et al. (2015). In addition, there exist excitonic fine structures within the large binding energy, many of which are dark states with optical transitions forbidden by spin, valley, and parity selection rules Perebeinos et al. (2005); Malic et al. (2018). The dark states, although they may seem subtle because of the lack of any spectral signatures, can lead to unexpected optical phenomena and are important for understanding of the exciton physics Stich et al. (2014); Nishihara et al. (2015); Zhang et al. (2017); Zhou et al. (2017).

In particular, the parity-even dark states of excitons in CNTs are known to be responsible for the diminishing emission quantum efficiencies at cryogenic temperatures Mortimer and Nicholas (2007); Matsunaga et al. (2009), and various approaches have been taken to circumvent the “dark” nature of these states. For example, same-parity transitions by two-photon excitation Wang et al. (2005); Maultzsch et al. (2005) and intraexcitonic excitation by terahertz spectroscopy Luo et al. (2015, 2019) can address the dark states without relying on dipole transitions to and from the ground state, whereas magnetic and electric fields can be used to mix the bright and dark states Matsunaga et al. (2008); Srivastava et al. (2008); Uda et al. (2016). In the absence of external fields, light emission should not be affected by the presence of dark excitons, and indeed, time-resolved photoluminescence (PL) measurements show that the contribution of the dark excitons to PL intensity is insignificant Berciaud et al. (2008); Gokus et al. (2010); Hertel et al. (2010); Crochet et al. (2012).

Here we show that conversion efficiency of the dark excitons to the bright excitons can become higher than 50%, and that a considerable fraction of light emission can originate from the dark states. The kinetics of the bright and dark excitons in individual air-suspended CNTs are investigated using time-resolved PL measurements, and we determine the effective decay lifetimes and diffusion properties by measuring CNTs with various suspended lengths. We find that the dark excitons have intrinsic lifetimes exceeding our measurement capability, and their decay rates are solely limited by quenching at the tube ends. For long tubes, the dark exciton effective lifetime becomes comparable to the bright-dark transition time, and conversion to the bright excitons occurs efficiently. The transition rates exhibit a large chirality dependence with a family pattern, and we find that it can be significantly enhanced by adsorbed molecules on the CNTs.

II Photoluminescence spectroscopy and time-resolved measurements

Our air-suspended carbon nanotubes are grown over trenches on Si substrates with metal pads, where molecular desorbed states of carbon nanotubes Uda et al. (2018) can be observed for an extended period of time Sup . We perform electron-beam lithography and dry etching to form trenches with widths ranging from 0.5 to 4.0 $\mu$m. The samples are then oxidized in an annealing furnace at 1050∘C for an hour in order to form a 65-nm-thick oxide layer. Another lithography step defines the metal pad areas 50 $\mu$m away from the trenches, and sputtering is used to deposit 1.5 nm Ti and 40 nm Pt. Catalyst areas are patterned on the oxide layer near the trenches with a third lithography step, and 0.2-nm thermally evaporated Fe film is deposited and lifted off. Single-walled carbon nanotubes are synthesized by alcohol chemical vapor deposition at 800∘C with a growth time of 1 min Ishii et al. (2015).

PL measurements are performed with a homebuilt sample-scanning confocal microscopy system Ishii et al. (2015, 2018). We use a wavelength-tunable Ti:sapphire laser where the output can be switched between continuous-wave (CW) and $\sim$100-fs pulses with a repetition rate of 76 MHz. An excitation laser beam with power $P$ and wavelength $\lambda_{\mathrm{ex}}$ is focused onto the sample by an objective lens with a numerical aperture of 0.85 and a focal length of 1.8 mm, resulting in a spot size of $\sim$1 $\mu$m. The wavelength-dependent diameter of the focused laser has been characterized by performing PL line scans perpendicular to a suspended CNT. PL and the reflected beam are collected by the same objective lens and separated by a dichroic filter. A Si photodiode detects the reflected beam for imaging, while a translating mirror is used to switch between PL spectroscopy and time-resolved PL measurements. PL spectra are measured with an InGaAs photodiode array attached to a spectrometer, and time-resolved PL measurements are performed using a fiber-coupled superconducting single photon detector and a time-correlated single-photon counting module. The detection wavelength dependent instrument response function (IRF) is obtained by using super-continuum white light pulses dispersed by a spectrometer. All measurements are conducted at room temperature in a nitrogen-purged environment.

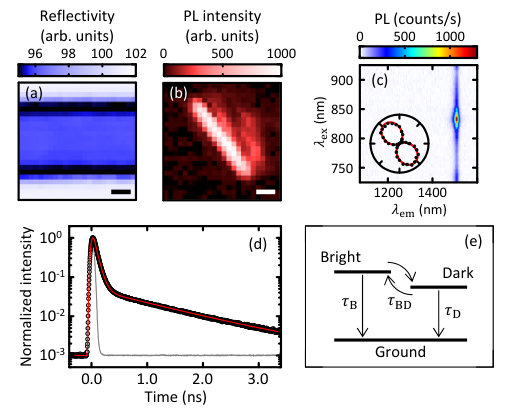

For characterizing as-grown suspended CNTs, we perform PL spectroscopy measurements under CW excitation Ishii et al. (2015). Line scans along the trenches are used to locate the suspended CNTs, and we take reflectivity and PL images to confirm that they are fully suspended. Figures 1(a) and (b) show reflectivity and PL images, respectively, for a relatively long tube. The PL image at the emission wavelength $\lambda_{\mathrm{em}}$ shows a smooth spatial profile, indicating that the suspended nanotube is defect free and does not contain any quenching sites or trapping sites. Next, we perform PL excitation (PLE) spectroscopy [Fig. 1(c)] to identify the chirality $(n,m)=(11,7)$ by comparing the $E_{11}$ and $E_{22}$ wavelengths to tabulated data Ishii et al. (2015). Polarization dependence of PL intensity is then measured to determine the angle of the nanotube [inset of Fig. 1(c)], and the suspended length $L=4.8$ $\mu$m is calculated using the angle and the designed trench width.

Using such well-characterized CNTs, we perform time-resolved PL measurements Ishii et al. (2018) to investigate exciton decay dynamics by mode locking the laser and collecting PL from the center of the nanotube. The excitation laser is tuned to the $E_{22}$ wavelength and the polarization is aligned parallel to the CNT axis unless otherwise noted. Figure 1(d) shows a PL decay curve taken from the same CNT measured in Figs. 1(a-c). The decay curve shows two components with different lifetimes, and a fit is done with a bi-exponential function convoluted with the IRF. The bi-exponential function is defined as $A_{1}\exp(-t/\tau_{1})+A_{2}\exp(-t/\tau_{2})$, where $t$ is time and $\tau_{1}<\tau_{2}$, and we obtain the decay lifetimes $\tau_{1}=67$ ps and $\tau_{2}=1216$ ps as well as the intensity fraction of the slow component $Y_{2}=A_{2}\tau_{2}/(A_{1}\tau_{1}+A_{2}\tau_{2})=36.6\%$ from the fit. It is surprising that the slow decay component constitutes such a large fraction of the PL intensity, because it is believed to originate from dark excitons converted into bright excitons Berciaud et al. (2008); Gokus et al. (2010); Crochet et al. (2012).

The conversion kinetics can be understood by analyzing the bi-exponential decay curve with a three-level model Gokus et al. (2010), which is schematically shown in Fig. 1(e). The rate equations for the populations of bright excitons $N_{\mathrm{B}}$ and dark excitons $N_{\mathrm{D}}$ are expressed as

[TABLE]

where $\tau_{\mathrm{B}}$ and $\tau_{\mathrm{D}}$ are the effective decay lifetimes for bright and dark states, respectively, and $\tau_{\mathrm{BD}}$ is the state-transition time between the bright and the dark states. By solving these kinetic equations assuming an initial population ratio of $N_{\mathrm{B}}:N_{\mathrm{D}}=1:1$, a bi-exponential function representing the time-evolution of $N_{\mathrm{B}}$ can be obtained, which corresponds to the observed PL decay curves. From the experimentally obtained parameters $\tau_{1},\tau_{2},A_{1}$, and $A_{2}$, we obtain $\tau_{\mathrm{B}}=69$ ps and $\tau_{\mathrm{D}}=2422$ ps as well as $\tau_{\mathrm{BD}}=2369$ ps. The conversion efficiency $\eta_{\uparrow}$ is given by $\tau_{\mathrm{D}}/(\tau_{\mathrm{D}}+\tau_{\mathrm{BD}})=51$%, showing that more than half of the dark excitons are converted to the bright excitons.

III Diffusion-limited conversion efficiency

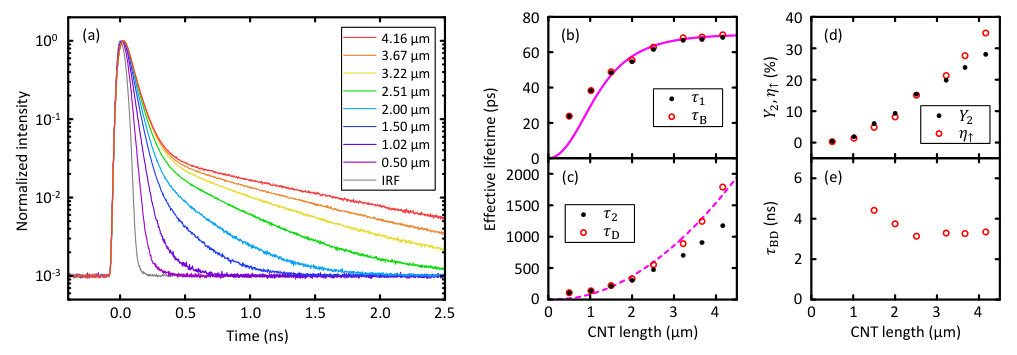

It turns out that the dark-to-bright conversion efficiency depends strongly on the suspended length. We select (9,8) CNTs with lengths ranging from 0.5 to 4.2 $\mu$m and measure PL decay curves with $E_{22}$ excitation at a low power so that the effects of exciton-exciton annihilation can be negligible Ishii et al. (2015). The influence of excitation and detection wavelengths as well as the excitation power dependence on the decay dynamics are discussed in the Supplemental Materials Sup . In Fig. 2(a), the PL decay curves taken at various suspended lengths are shown, where drastic changes are observed. As CNT length becomes longer, decay lifetimes of both fast and slow components become longer, and the intensity fraction of the slow component increases. The decay curves are fitted with the bi-exponential function, and the length dependence of $\tau_{1}$, $\tau_{2}$, and $Y_{2}$ are plotted as filled circles in Figs. 2(b-d), respectively. For each CNT, we calculate $\tau_{\mathrm{B}}$, $\tau_{\mathrm{D}}$, $\eta_{\uparrow}$, and $\tau_{\mathrm{BD}}$ as shown by open circles in Figs. 2(b-e), respectively, based on the three-level model. The values of $\tau_{\mathrm{B}}$ are very close to $\tau_{1}$, while $\tau_{\mathrm{D}}$ considerably deviates from $\tau_{2}$ for long CNTs, indicating that $\tau_{\mathrm{BD}}$ is important for dark exciton dynamics. Considering the uncertainty of the measurement results for short CNTs where the decay is very fast, $\tau_{\mathrm{BD}}$ for longer tubes should be considered as the intrinsic values [Fig. 2(e)]. In contrast to $\tau_{\mathrm{B}}$ which is almost saturated at CNT lengths longer than 3 $\mu$m, $\tau_{\mathrm{D}}$ continues to grow even at the longest length, resulting in the steady increase of $Y_{2}$ and $\eta_{\uparrow}$ with the CNT length.

We analyze the length dependence of the effective lifetimes with a random walk theory where the influence of end quenching is evaluated Ishii et al. (2015); Anderson et al. (2013). As the end quenching efficiency depends on the suspended length $L$ and the generated position $z$ of excitons, the effective lifetime is given by

[TABLE]

where $g(z)$ is the normalized Gaussian profile representing the excitation laser profile with a wavelength-dependent spot size. The behavior of $\tau(L)$ is mostly determined by the position-specific lifetime $\tau^{*}(L,z)=\int_{0}^{\infty}S_{\mathrm{I}}(t)S_{\mathrm{E}}(L,D,z,t)dt$, where $S_{\mathrm{I}}(t)=\exp(-t/\tau^{\mathrm{int}})$ is the survival probability through intrinsic decay with a lifetime of $\tau^{\mathrm{int}}$, and $S_{\mathrm{E}}(L,D,z,t)$ is the end quenching survival probability for excitons generated at $z$ with diffusion coefficient $D$.

For a finite $\tau^{\mathrm{int}}$, we can simplify the expression to Ishii et al. (2015)

[TABLE]

where $l_{\mathrm{B}}=\sqrt{D\tau^{\mathrm{int}}}$ is the exciton diffusion length, and this model is adopted for the length dependence of $\tau_{\mathrm{B}}$. We obtain the intrinsic lifetime $\tau_{\mathrm{B}}^{\mathrm{int}}=70$ ps and diffusion length $l_{\mathrm{B}}=390$ nm as well as $D=22$ cm2/s from the fit [solid line in Fig. 2(b)]. The intrinsic lifetime is almost the same as the reported values Xiao et al. (2010); Crochet et al. (2012), while the diffusion length is shorter than those reported for similar air-suspended CNTs Ishii et al. (2015); Moritsubo et al. (2010). We note that this analysis gives the true diffusion length for the bright excitons, while the previously reported values include the dark exciton effects.

For the dark excitons, in contrast, fits by Eq. 4 does not converge because $\tau_{\mathrm{D}}$ does not show any sign of saturation, implying that the intrinsic lifetime for dark excitons is much longer than the effective lifetime limited by end quenching. Letting $\tau^{\mathrm{int}}\rightarrow\infty$,

[TABLE]

explaining the rapid increase of $\tau_{\mathrm{D}}$ with $L$ responsible for the enhanced conversion efficiency. The diffusion coefficient $D$ can be determined by fitting the length dependence [broken line in Fig. 2(c)], and we obtain $D=13$ cm2/s.

IV Chirality dependence of exciton dynamics and the state transition rate

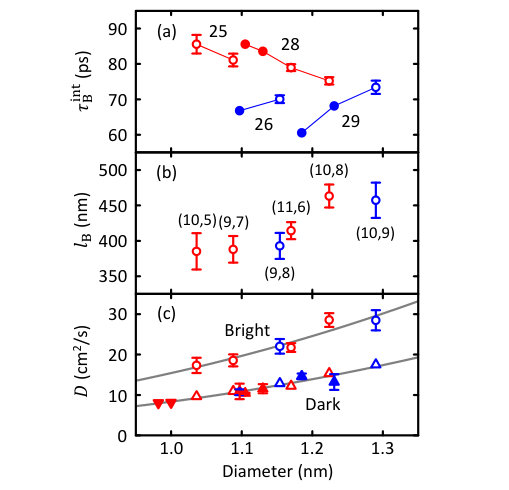

We now investigate the chirality dependence of the dark-to-bright conversion efficiency. The same measurements for different chiralities are repeated, and we first characterize the exciton diffusion properties. Figures 3(a) and (b) show $\tau_{\mathrm{B}}^{\mathrm{int}}$ and $l_{\mathrm{B}}$, respectively, as a function of CNT diameter $d$. Since $\tau_{\mathrm{B}}$ is mostly saturated at long CNT lengths [Fig. 2(b)], we also plot the largest values of $\tau_{\mathrm{B}}$ for 5 additional chiralities for which multiple CNTs longer than 3 $\mu$m are measured [filled circles in Fig. 3(a)]. We find a clear family pattern dispersion for $\tau_{\mathrm{B}}^{\mathrm{int}}$ ranging from 61 ps to 86 ps, whereas $l_{\mathrm{B}}$ shows an increasing trend with the CNT diameter.

The diffusion constant $D$ for the bright excitons is obtained from $\tau_{\mathrm{B}}^{\mathrm{int}}$ and $l_{\mathrm{B}}$ [open circles in Fig. 3(c)], while $D$ of the dark excitons is directly obtained from the length dependence fits [open triangles in Fig. 3(c)]. In all the chiralities, Eq. 5 accurately reproduces the length dependence of $\tau_{\mathrm{D}}$, indicating that exciton diffusion limits the effective lifetime for the dark excitons. In addition, the fits for the length dependent $\tau_{\mathrm{D}}$ can converge with a limited number of data, allowing us to plot $D$ of the dark excitons for 8 additional chiralities [filled triangles in Fig. 3(c)].

The diffusion coefficients for both the bright and dark states show clear diameter $d$ dependence, and we use a power law function $D=D_{0}(d/d_{0})^{\alpha}$ to fit the data, where $D_{0}$ is the diffusion coefficient at the diameter $d_{0}=1$ nm and $\alpha$ is the exponent. The fit results show a good agreement with the experimental data [gray lines in Fig. 3(c)], where we obtain $D_{0}=15.36\pm 1.24$ cm2/s and $\alpha=2.56\pm 0.43$ for bright excitons and $D_{0}=8.36\pm 0.31$ cm2/s and $\alpha=2.79\pm 0.22$ for dark excitons. The results are consistent with the theoretical prediction of $D\propto d^{2.5}$, where the chirality dependence of the effective mass of excitons and the exciton-phonon scattering rate is considered Srivastava and Kono (2009). We find that $D_{0}$ differs by about a factor of 2 between bright and dark excitons, which is reasonable because the effective mass of the bright excitons is much smaller than that of dark excitons due to the difference of their band structures Perebeinos et al. (2005). A quantitative comparison of the theory with the experimental data, however, is still challenging due to other mechanisms of exciton scattering Crochet et al. (2012).

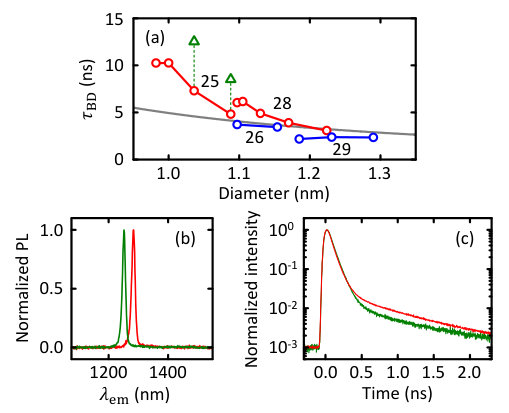

Finally we discuss the transition rate between the bright and dark states. As we have observed in Fig. 2(e), the transition time $\tau_{\mathrm{BD}}$ does not depend on CNT length and is more reliable for long CNTs, and therefore we can obtain the intrinsic values from a relatively long CNT for each chirality. In Fig. 4(a), such representative values of $\tau_{\mathrm{BD}}$ are plotted as a function of CNT diameter, and a clear family pattern on top of a decreasing trend with CNT diameter is observed. It is worth mentioning that such a wide variation of $\tau_{\mathrm{BD}}$ considerably affects the observed PL decay curves, particularly in the intensity ratio between fast and slow decay components. For example, 2.5-$\mu$m-long (12,1) nanotube with $\tau_{\mathrm{BD}}=10.24$ ns shows $Y_{2}=8.6$% and $\eta_{\uparrow}=8.5$%, while a (10,9) CNT with the same length has $\tau_{\mathrm{BD}}=2.20$ ns exhibiting $Y_{2}=18.2$% and $\eta_{\uparrow}=17.4$%. The chirality dependence of the bright-dark transition rate is likely related to the bright-dark energy separation $\Delta E$, where a similar family pattern is known with a leading order dependence of $\Delta E\propto 1/d^{2}$ Capaz et al. (2006). To confirm this dependence, we take near-armchair chiralities from each family group, and a fit is done by assuming $\Delta E=3$ meV at $d=1$ nm Matsunaga et al. (2008). The fit result is displayed as a gray line in Fig. 4(a), showing a fairly good agreement with the data.

As the state transition requires a parity flip process, it should be possible to control the conversion efficiency by modifying the exciton scattering site density. We compare the state transition time for a nanotube with and without molecular adsorption Sup . As shown in Fig. 4(b), a blueshift by 32 nm is observed in the PL spectrum of a (9,7) CNT, due to the change of the molecular screening effect Uda et al. (2018). The PL decay curves are taken before and after molecular desorption as shown in Fig. 4(c), and we observe a drastic change of the state transition rate where $\tau_{\mathrm{BD}}$ increases by a factor of 2, resulting in a decrease of $Y_{2}$ and $\eta_{\uparrow}$ from 16.8% to 9.1% and from 17.3% to 8.7%, respectively. We plot $\tau_{\mathrm{BD}}$ of the desorbed state for (9,7) and (10,5) CNTs as green triangles in Fig. 4(a). We note that $\tau_{\mathrm{BD}}$ can be affected by the change of $\Delta E$ due to the reduced molecular screening, but it only accounts for 10% of the $\tau_{\mathrm{BD}}$ reduction if we assume that $\Delta E$ scales similar to the $E_{11}$ energy Lefebvre and Finnie (2008). In addition, we observe 8.9% decrease of $\tau_{\mathrm{D}}$ after the molecular desorption. If $\tau_{\mathrm{D}}$ is still determined by end quenching as described by Eq. 5, the reduction of $\tau_{\mathrm{D}}$ implies 9.7% increase of diffusion coefficient, consistent with the reduced scattering.

V Conclusion

We have investigated exciton dynamics in air-suspended CNTs and have shown that the dark excitons can be converted to the bright state with efficiencies higher than 50%. Time-resolved PL measurements reveal the decay dynamics of excitons, where the bright excitons have intrinsic lifetimes ranging from 61 to 86 ps, while intrinsic lifetimes of the dark excitons are found to be too large to experimentally determine. For long CNTs, the dark exciton decay rate becomes comparable to the bright-dark state transition rate, resulting in a considerable contribution of the dark excitons to the emission intensity. Reflecting the dissimilar lifetimes, the diffusion properties are contrastingly different for bright and dark excitons. By understanding the diffusive motion of the dark states, it should become possible to improve the performance of nanotube single photon emitters as they utilize the mobile nature of excitons Ma et al. (2015a, b); He et al. (2017); Ishii et al. (2017). The distinct difference between bright and dark excitons are also expected in other atomically thin materials, which may potentially be used to optimize exciton transport in van der Waals heterostructure photovoltaic devices Furchi et al. (2014); Memaran et al. (2015). We also show chirality dependence of the bright-dark state transition rate, where a wide range of variation with a clear family pattern is observed. Furthermore, by comparing exciton dynamics for pristine and molecular adsorbed states of the same CNTs, we find that the state transition rate is significantly reduced by molecular desorption, suggesting an enhanced parity flip process originating from the adsorbed molecules. If manipulation of multiple exciton species becomes possible by engineering the exciton conversion process, it may lead to development of advanced photonic and optoelectronic devices with devoted channels for exciton transport, recombination, and dissociation.
