High-Field Expansion Approach to Kagome Antiferromagnets with Dzyaloshinskii-Moriya Interactions

TL;DR

This study uses linked cluster expansion to analyze the high-field phase of Kagome antiferromagnets with Dzyaloshinskii-Moriya interactions, revealing robust Dirac points, topological magnon bands, and phase transitions affecting thermal Hall conductivity.

Contribution

It introduces a high-field expansion method to explore the effects of DMI on Kagome antiferromagnets, highlighting the robustness of Dirac points and the emergence of topological phases.

Findings

Dirac points are robust against DMI with in-plane magnetic fields.

Out-of-plane magnetic fields open gaps and induce topological magnon bands.

Thermal Hall conductivity is enhanced near phase transitions.

Abstract

We apply linked cluster expansion techniques to study the polarized high-field phase of a spin-half antiferromagnet on the Kagome lattice with Heisenberg and Dzyaloshinskii-Moriya interactions (DMI). We find that the Dirac points of the single-magnon spectrum without DMI are robust against arbitrary DMI when the magnetic field lies in the Kagome plane. Unlike the typical case where DMI gaps the spectrum, here we find that varying the DMI merely shifts the location of the Dirac points. In contrast, a magnetic field with a component out of the Kagome plane gaps the spectrum, leading to topological magnon bands. We map out a topological phase diagram as the couplings are varied by computing the band Chern numbers. A pair of phase transitions are observed and we find an enhanced thermal Hall conductivity near the phase boundary.

Figures

Equations

$$H=-\sum _i\mathbf{B}\cdot {\mathbf{S}}_i+\sum _{⟨ij⟩}\left[J{\mathbf{S}}_i\cdot {\mathbf{S}}_j+{\mathbf{D}}_{ij}\cdot \left({\mathbf{S}}_i\times {\mathbf{S}}_j\right)\right]$$

$$H=H_0+\lambda H_1$$

$$P(A+B)=P(A)\oplus P(B)$$

$$W(c)=P(c)-\sum _{g\subset c}W(g)$$

$$H_{\text{eff}}=U^{†}{H}_{c}U$$

$${\Delta }_1(\mathbf{i},\mathbf{j})=E_1(\mathbf{i},\mathbf{j})-E_0{\delta }_{\mathbf{i},\mathbf{j}}$$

$$|\mathbf{k}⟩=\frac{1}{\sqrt{N}}\sum _{\mathbf{j}}\exp \left(i\mathbf{k}\cdot \mathbf{j}\right)|j⟩$$

$${\omega }_1^{ab}(\mathbf{k})=\sum _{{\delta }_{ab}}{\Delta }_1({\delta }_{ab})\left[\cos \left(\mathbf{k}\cdot {\delta }_{ab}\right)+i\sin \left(\mathbf{k}\cdot {\delta }_{ab}\right)\right]$$

$${\Delta }_1({\delta }_{ab})={\Delta }_1^{\ast }(-{\delta }_{ab})={\Delta }_1\left({\delta }_{ba}\right)$$

$$H_{2\times 2}\left(\mathbf{k}\right)=E_{0}1+h_x\left(\mathbf{k}\right){\sigma }_x+h_z\left(\mathbf{k}\right){\sigma }_z$$

$${\Delta }_1({\delta }_{ab})={\Delta }_1(-{\delta }_{ab})={\Delta }_1^{\ast }({\delta }_{ba})$$

$${\kappa }_{xy}=-\frac{k_B^{2}T}{{\left(2\pi \right)}^2\hslash }\sum _n{\int }_{\text{BZ}}\left[c_2\left[g\left({ϵ}_{nk}\right)\right]-\frac{{\pi }^2}{3}\right]{\Omega }_n^z\left(\mathbf{k}\right)d^{2}k$$

$$c_2(x)=(1+x){\left[\ln \left(\frac{1+x}{x}\right)\right]}^2-{\left[\ln (x)\right]}^2-2{\text{Li}}_2(-x)$$

Full text

I Introduction

In recent decades, the search for novel phases of matter in frustrated systems has been a major focus of condensed matter physics Balents2010; Yan1173 ; 2015NatPh..11..444G ; PhysRevLett.64.88 . Exotic phases of matter formed due to the interplay of various physical interactions can be delicate, forcing theorists to consider models with a range of perturbations. One such perturbation is Spin-orbit coupling (SOC), which enters the Hamiltonian of insulating magnets via Dzyaloshinskii-Moriya interactions (DMI) 1958JPCS….4..241D ; PhysRev.120.91 .

SOC has recently garnered increased attention 2006AnPhy.321….2K ; PhysRevLett.102.017205 ; 2010NatPh…6..376P ; 2013PhRvB..87f4423L . Experimental efforts to artificially control SOC are an important aspect of spintronics Chen2013TailoringTC ; article , and the competition between frustration, SOC, and various symmetry-breaking perturbations has proven to contain rich physics 2017RPPh…80a6502S ; 2016NatCo…712691L ; 2018arXiv181101946O ; 2018JPCM…30x5803O . In such systems spin-wave theory has been used to extract the spectrum of quasiparticles (particularly magnons), yielding a host of predictions for insulating ferromagnets and antiferromagnets, with and without DMI. Through these calculations, the theory of magnon transport has been refined and various experimental probes have been proposed.

Despite the successes of spin-wave theory, the approach has some limitations. Linearization of the magnon Hamiltonian forbids certain processes and leaves out terms that may alter magnon spectra and wavefunctions, especially for low spin. It is also important to move beyond single-magnon bands and study the physics of multi-magnon states. Directly addressing spin-half systems would open the possibility of studying multiparticle inelastic scattering processes and bound states in realistic systems.

This study considers a different approach to the physics of strongly correlated magnetic systems, built from perturbation theory. While perturbation theory has obvious limitations, it removes the linearization inherent in spin-wave theory. The work presented here focuses on single-magnon states, which allows us to make contact with previous studies of similar models. Multi-magnon states will be the subject of future investigations.

In this work, we consider a model of localized spin-$1/2$ particles on the Kagome lattice in high magnetic fields. The model, while simple, furnishes both a magnonic Dirac semimetal and a topological magnon insulator, which can each be achieved by tuning an external magnetic field. Importantly, the Dirac points in the semimetal phase are robust against arbitrary DMI and can be manipulated in principle with modern spintronics techniques. The interactions between the spins are purely nearest-neighbor and include an antiferromagnetic Heisenberg coupling and DMI. The Hamiltonian is

[TABLE]

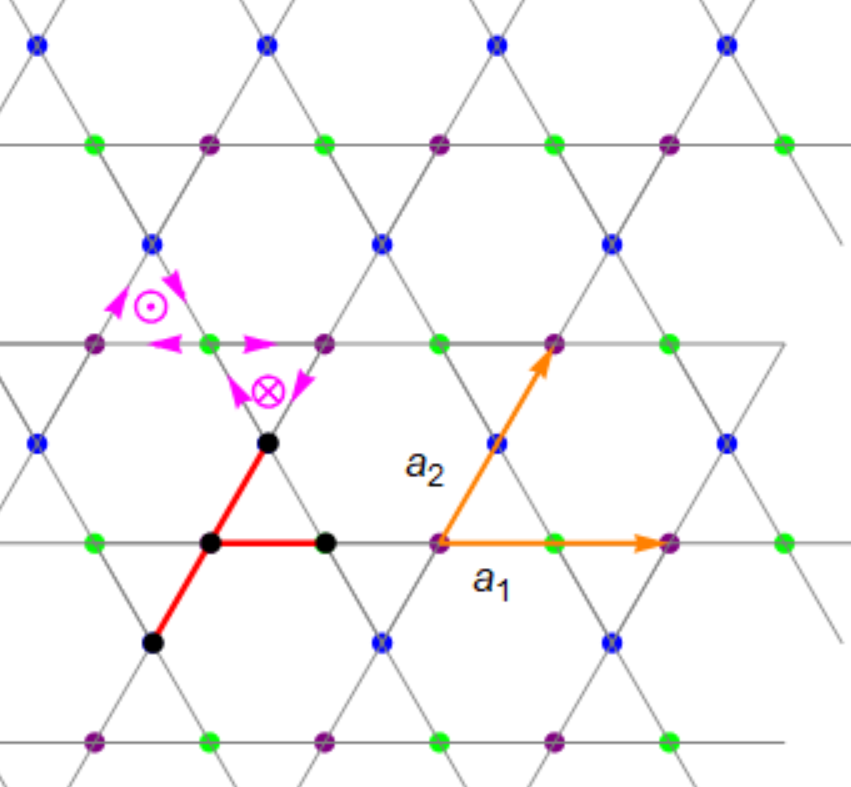

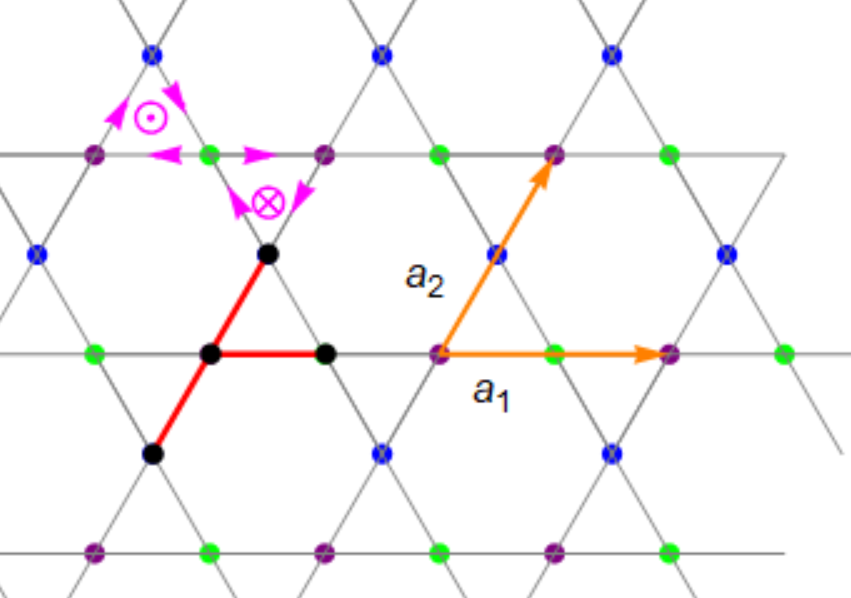

Here $\mathbf{B}$ is the magnetic field, $\langle ij\rangle$ denotes nearest neighbors, $J>0$ is the antiferromagnetic Heisenberg coupling, and $\mathbf{D}_{ij}$ is the DM vector on the bond $ij$ PhysRevB.66.014422 ; PhysRevB.78.140405 ; 2015arXiv150801523S ; PhysRevLett.98.207204 ; PhysRevB.95.054418 ; PhysRevB.85.104417 ; PhysRevLett.117.187203 ; PhysRevB.98.224414 ; Owerre_2016 ; PhysRevLett.104.066403 ; 2018PhRvB..97h1106R ; 2019arXiv190105683C ; 2019arXiv190504549M . We will treat the spin interactions as perturbations to the magnetic field coupling; this is valid in the polarized phase. Remaining in the polarized phase roughly requires that $|\mathbf{B}|\gtrapprox(J+|\mathbf{D}|)/3$, but more precisely corresponds to magnon bands without a zero-energy mode (PhysRevLett.82.4536, ). Figure 1 shows our DMI conventions.

Studies of similar models have been conducted in the past, outside of the high-field regime. Mook et. al. PhysRevB.89.134409 considered a ferromagnetic version of (1) with next nearest neighbor (NNN) exchange. Laurell and Fiete 2018PhRvB..98i4419L carried out a spin-wave analysis of the antiferromagnetic version of the same model. The NNN exchange used in these works provides a mechanism for the experimentally observed (weak) dispersion in the bottom band of a Kagome system, which would otherwise be flat PhysRevB.73.214446 ; PhysRevLett.96.247201 ; PhysRevB.92.094409 . Although we do not explicitly include NNN interactions, our approach ultimately produces dispersion in every band. This is because the effective single-particle problem generated by our analysis gives rise to long-ranged hopping (see section II). Degeneracies in our band structures should therefore be taken seriously, despite the simplicity of (1).

The rest of the paper is organized as follows. In section II, we will review the graphical linked cluster technique and explain how the bands of the model (1) are calculated. Section III presents our results in the case of a magnetic field in the Kagome plane. The resulting phase is a magnonic Dirac semi-metal with Dirac points that can be manipulated by tuning the magnetic field or DMI. Section IV introduces an out-of-plane magnetic field, which breaks the symmetry protecting the Dirac points and gaps the spectrum. There we calculate the magnon thermal Hall conductivity, the Chern numbers of each band, and investigate a pair of topological phase transitions.

II Linked Cluster Expansion

In this paper we employ the linked cluster expansion technique to derive the properties of single-magnon states. Here we will sketch the technique and establish notation; we refer the reader elsewhere for more details and proofs of our statements PhysRevLett.85.4373 ; 2000AdPhy..49…93G ; Gelfand1990 ; oitmaa_hamer_zheng_2006 . We begin by considering a model of spins on a lattice $\mathcal{L}$ with Hamiltonian

[TABLE]

where $H_{0}$ is a solvable Hamiltonian, $\lambda$ is a small parameter, and $H_{1}$ is a non-trivial perturbation. In our case, $1/|\mathbf{B}|$ plays the role of $\lambda$, and the unperturbed Hamiltonian is that of non-interacting spins in a magnetic field. The key to our analysis is to identify physical observables whose properties in the thermodynamic limit can be systematically understood by studying finite subsystems of $\mathcal{L}$. Define a connected cluster $c\subset\mathcal{L}$ to be an embedding of a connected graph into $\mathcal{L}$ (see figure 1). The cluster $c$ inherits a cluster Hamiltonian $H_{c}$ by setting the couplings between all spins in $c$ and the remainder of the lattice to zero.

Let $P(\mathcal{L})$ be some physical property for the full lattice model, such as the ground state energy. Such a property can be computed on a cluster $c$, $P(c)$, using standard perturbation theory. For a generic physical property, computing $P(c)$ reveals little about $P(\mathcal{L})$. However, we will only consider properties which satisfy the following relation:

[TABLE]

This is the so-called cluster addition property, and it guarantees that we need only consider connected clusters. One proceeds by defining the weight of a cluster, $W(c)$,

[TABLE]

where $g$ indexes all (proper, connected) subclusters of $c$. In our case, the weight of a cluster with $n$ bonds will only contribute at order $\lambda^{n}$ due to the subgraph subtraction. Therefore, given a list of all connected graphs which have embeddings in $\mathcal{L}$ along with their multiplicities, we can compute $P(\mathcal{L})$ to arbitrarily high orders.

The discussion thus far works as described for simple properties such as the ground state energy. In general however we are interested in studying the excitations induced by $H_{1}$ about the ground state of $H_{0}$. For this purpose, the constraint (3) seems too strong: there is nothing preventing a quasiparticle from hopping between disconnected clusters. Moreover the number of excitations is not generally conserved unless it happens to be protected by a symmetry of $H$. Both problems are present in the model (1), where the ground state of $H_{0}$ is spin-polarized and the excitations are magnons. We can circumvent the latter difficulty by generating effective Hamiltonians on subgraphs of $\mathcal{L}$ which forbid mixing between sectors with different quasiparticle numbers. This is done by finding a unitary transformation $U$ which block diagonalizes the cluster Hamiltonian $H_{c}$:

[TABLE]

The transformation $U$ is constructed perturbatively in $\lambda$, so that $H_{\text{eff}}$ self-consistently forbids mixing up to a given order in perturbation theory. This allows us to study the single-particle band structure in spite of the lack of quasiparticle conservation.

The possibility of excitations hopping between disconnected clusters is still present. To avoid this we need to find a property related to the spectrum which satisfies (3). Define $E_{1}(\mathbf{i},\mathbf{j})=\langle\mathbf{i}|H_{\text{eff}}|\mathbf{j}\rangle$ to be the hopping matrix element for a single particle state between sites $\mathbf{i}$ and $\mathbf{j}$. Then the following quantity has the cluster addition property:

[TABLE]

where $E_{0}$ is the ground state energy of the cluster. We will only deal with systems invariant under translations by Bravais lattice vectors, which encourages us to consider momentum eigenstates ($N$ is the number of lattice sites),

[TABLE]

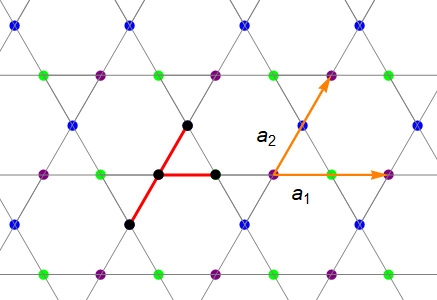

In general, we must allow for the possibility that the unit cells of $\mathcal{L}$ contain multiple sites. Let $\mathbf{\delta}_{ab}$ denote the vector connecting two sites of the lattice in sublattices $a$ and $b$ respectively (for the Kagome lattice, $a,b=1,2,3$). Then the energetics of the quasiparticles are captured in the matrix

[TABLE]

Diagonalizing this matrix gives the band structure at $\mathbf{k}$. This procedure generates effective tight binding Hamiltonians for one-particle excitations. In the case of the model (1), we find that the matrix elements $E_{1}(\mathbf{i},\mathbf{j})$ are generically nonzero at sufficiently high orders in perturbation theory. This is a reflection of the strongly correlated nature of the magnons in this problem, and allows a model without NNN exchange to potentially capture details of the band structure of realistic systems.

III Tunable Dirac Points

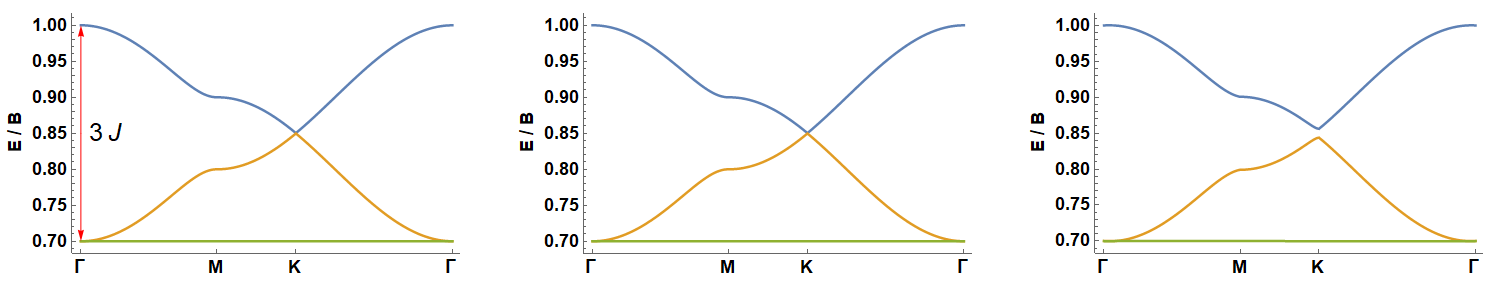

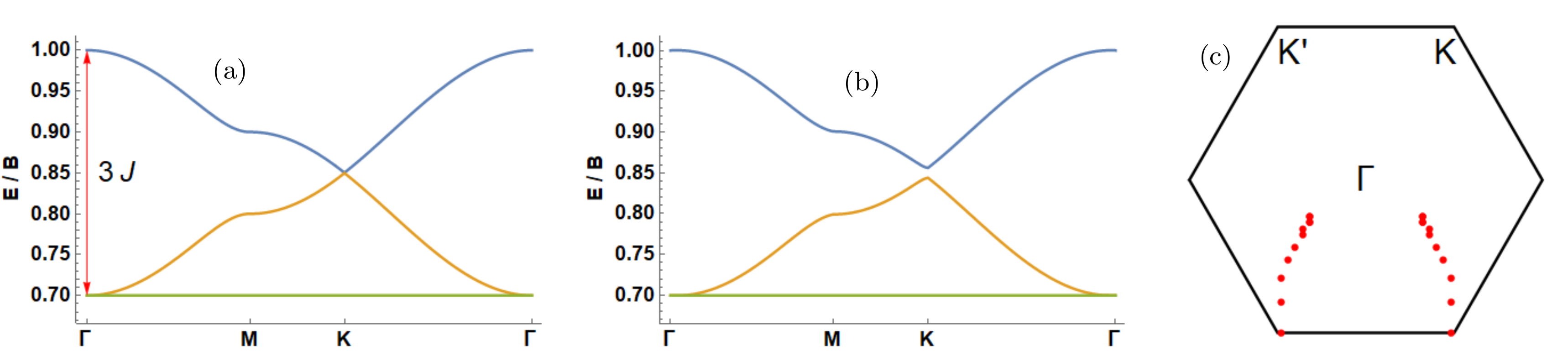

In this section we take the magnetic field to lie in the Kagome plane, and unless otherwise mentioned we will let $\mathbf{B}=\hat{x}$ (this choice is not essential to the qualitative physics). In the absence of DMI and above the saturation field, the spectrum is known to contain a flat band at finite energy and two dispersive bands with Dirac points at $\mathbf{K}=\left(\frac{\pi}{3},\frac{\pi}{\sqrt{3}}\right),\mathbf{K^{\prime}}=\left(-\frac{\pi}{3},\frac{\pi}{\sqrt{3}}\right)$ PhysRevB.82.184502 ; 2004PhRvB..70j0403Z ; Owerre_2017 (figure 2). The tight binding model for the single magnon sector in this case involves only nearest-neighbor hopping.

Upon introducing DMI, the model develops dispersion in each band. We find that the hopping amplitudes satisfy

[TABLE]

This result is consistent with a ground state ordering which is spin-polarized along an axis in the Kagome plane. Combined with (8), this implies that $\omega_{1}^{ab}(\mathbf{k})$ is purely real. This result is manifest when the DMI points out of the Kagome plane, since the Hamiltonian is real; the extension to arbitrary DMI is less obvious. This implies that any effective two-band Hamiltonian obtained via projection has an expansion of the form

[TABLE]

where $h_{x}(\mathbf{k}),h_{z}(\mathbf{k})$ are real-valued functions and $E_{0}>0$ is a constant energy shift. Perturbations which preserve (10) are not expected to gap the Dirac points, which is consistent with our findings: tuning the relative magnitude of the in-plane ($D_{p}$) and out-of-plane ($D_{z}$) DMI shifts the Dirac points off of high-symmetry lines but never gaps them. The direction of displacement for the Dirac points also depends on the magnetic field orientation. This is to be contrasted with the typical result that SOC gaps out Dirac points, demonstrated for example in graphene.

IV Topological Magnon Bands, Chern Numbers, and Thermal Hall Effect

With a magnetic field out of the Kagome plane, all lattice directions in the bulk are equivalent, and

[TABLE]

More generally, the hopping amplitudes are invariant under rotations which map the Kagome into itself, provided the sublattice structure is properly accounted for. $\omega_{1}^{ab}(\mathbf{k})$ is no longer manifestly real, which violates (10). In two dimensions fine tuning is therefore required to find gapless points and a gapped spectrum is anticipated.

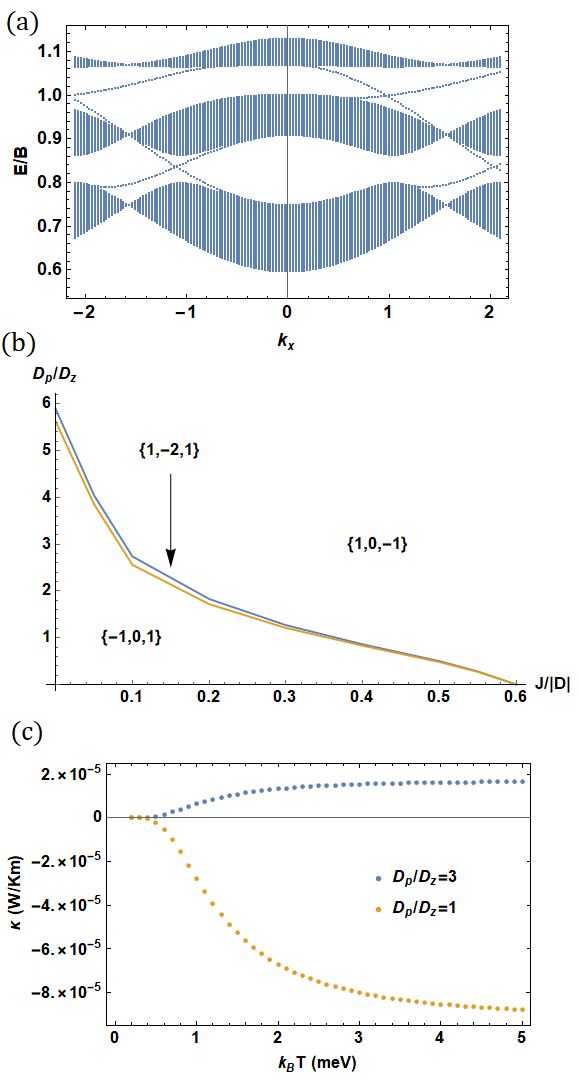

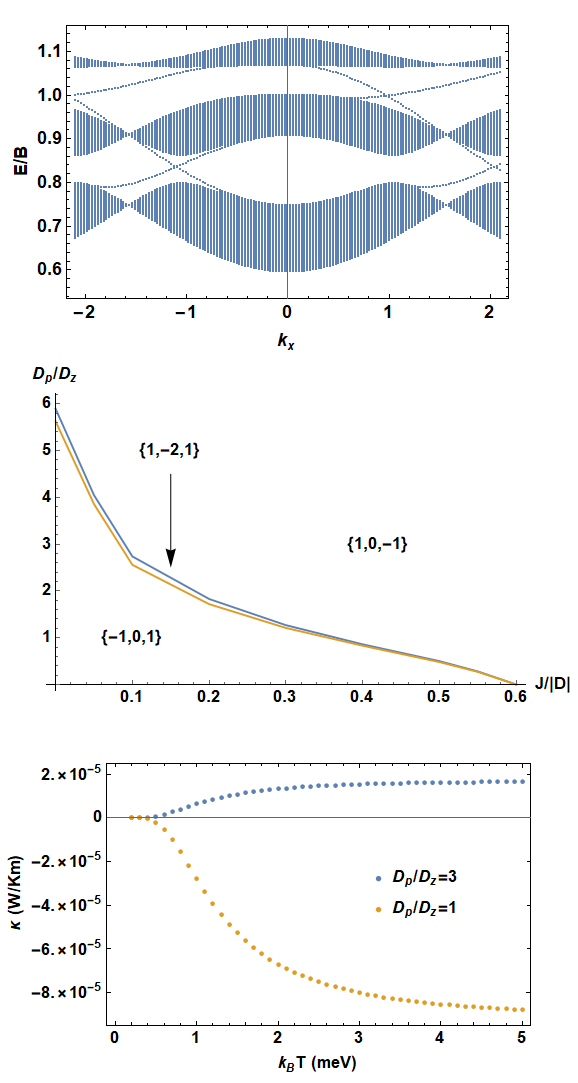

Previous work on similar systems has focused on the thermal Hall conductivity and we will do the same. By putting the system on a finite strip we find clear evidence of chiral edge states in the bulk band gaps which are associated with the conduction (figure 3 a). In the bulk, we compute the band Chern numbers doi:10.1143/JPSJ.74.1674 . Fixing $J+|\mathbf{D}|$ to be a constant fraction of $|\mathbf{B}|$, we can map out a phase diagram by looking for changes in the Chern numbers (figure 3 b). The most common set of Chern numbers is $\{1,0,-1\}$ (from the highest to lowest energy band). However there is also a phase with Chern numbers $\{-1,0,1\}$ separated from the former phase by a narrow region with Chern numbers $\{1,-2,1\}$. From an empirical perspective, these transitions are significant because they imply small energy gaps in the neighborhood of the phase boundaries. This typically enhances the thermal Hall conductivity, which we also find (figure 3 c). We also see that the thermal Hall conductivity changes sign across the phase boundary.

We compute the thermal Hall conductivity as follows. Letting $\Omega_{n}^{z}(\mathbf{k})$ denote the Berry curvature of band $n$, the (magnon) thermal Hall conductivity at temperature $T$ is given by PhysRevB.89.054420

[TABLE]

where $g(\epsilon_{nk})$ is the usual Bose-Einstein distribution factor. The function $c_{2}(x)$ is

[TABLE]

where $\text{Li}_{2}(x)$ is the dilogarithm. When stacks of Kagome layers are used with an interlayer spacing $\ell$, $\kappa/\ell$ is naturally given in W/Km. All values reported here assume $\ell=5\AA$.

The values obtained for the thermal Hall conductivity are comparable to those found in other studies, although we have chosen small values of $J$ and $|\mathbf{D}|$ so that only modest magnetic fields are necessary to polarize the ground state. Specifically, figure 3 assumes a magnon energy of 5 meV in the absence of interactions, with $J+|\mathbf{D}|=1$ meV. The effect of stronger interactions on the thermal Hall conductivity can also be considered, but a price is paid by requiring a larger saturation field. In general, we see that there can be a significant benefit to finding materials which naturally sit near the phase boundaries discussed in figure 3. The empirical interest in such a result should be clear to the spintronics community and others working with tunable DMI and other interactions.

V Conclusion and Future Directions

In this paper, we have considered a “minimal model” of antiferromagnetic spins with SOC. In the absence of DMI, the physics of the magnons in the polarized phase is already well understood. The physics becomes significantly richer with the inclusion of DMI because of the coupling it induces between spin-space and real-space. By changing the ground state ordering (in our case, with a magnetic field), this coupling allows us to see qualitatively new physics, particularly more robust and controllable Dirac points.

We have also explored the phase diagram of a polarized magnet, and the presence of topological phase transitions opens up the possibility of finding enhanced response functions. A search for materials which can exhibit these enhanced responses could prove interesting.

As previously mentioned, our technique has the advantage of avoiding any linearization in the analysis. This means that multi-magnon states can be considered in detail with our technique, enabling the study of bound states and the multi-magnon continuum. This will be the subject of future work.

VI Acknowledgements

We would like to thank Eduardo da Silva Neto and Giacomo Resta for helpful discussions. This work is supported in part by NSF-DMR grant number 1855111.
