Circumbinary discs with radiative cooling and embedded planets

TL;DR

This study uses advanced simulations to explore how radiative cooling and disc parameters influence the final positions of planets in circumbinary systems, aligning theoretical models with observed planetary locations.

Contribution

It introduces a more realistic thermal disc model and analyzes how disc viscosity and planet mass affect planet migration and final parking locations.

Findings

Lower viscosity discs allow planets to migrate closer to the binary.

Gap-opening planets tend to have more circular orbits.

Final planet position depends on planet mass and disc viscosity.

Abstract

As of today ten circumbinary planets orbiting solar type main sequence stars have been discovered. Nearly all of them orbit around the central binary very closely to the region of instability where it is difficult to form them in situ. It is assumed that they formed further out and migrated to their observed position. We extend previous studies to a more realistic thermal disc structure and determine what parameter influence the final parking location of a planet around a binary star. We perform two-dimensional numerical simulations of viscous accretion discs around a central binary that include viscous heating and radiative cooling from the disc surfaces. We vary the binary eccentricity as well as disc viscosity and mass. Concerning the disc evolution we find that it can take well over 100000 binary orbits until an equilibrium state is reached. As seen previously, we find that the central cavity opened by the binary becomes eccentric and precesses slowly in a prograde sense. Embedded planets migrate to the inner edge of the disc. In cases of lower disc viscosity they migrate further in maintaining a circular orbit, while for high viscosity they are parked further out on an eccentric orbit. The final location of an embedded planet is linked to its ability to open a gap in the disc. Gap opening planets separate inner from outer disc, preventing eccentricity excitation in the latter and making it more circular. This allows embedded planets to migrate closer to the binary, in agreement with the observations. The necessary condition for gap opening and the final planet position depend on the planet mass and disc viscosity.

Figures

Tables

Table 1. Table 1: Orbital parameter of the stellar binaries in the Kepler-16 and Kepler-38 systems. Here, M A subscript 𝑀 𝐴 M_{A} and M B subscript 𝑀 𝐵 M_{B} denote the stellar masses of the binary, and its mass ratio is defined as q bin = M B / M A subscript 𝑞 bin subscript 𝑀 𝐵 subscript 𝑀 𝐴 q_{\mathrm{bin}}=M_{B}/M_{A} . The orbital elements are the semi-major axis, a bin subscript 𝑎 bin a_{\mathrm{bin}} , the eccentricity, e bin subscript 𝑒 bin e_{\mathrm{bin}} , and the period, T bin subscript 𝑇 bin T_{\mathrm{bin}} . References: Doyle et al. ( 2011 ); Orosz et al. ( 2012 )

Kepler	$M_A$	$M_B$	$q_{\mathrm{bin}}$	$a_{\mathrm{bin}}$	$e_{\mathrm{bin}}$	$T_{\mathrm{bin}}$
	$\left[M_{☉}\right]$	$\left[M_{☉}\right]$		$\left[\mathrm{au}\right]$		$\left[d\right]$
16	0.67	0.20	0.29	0.22	0.16	41.0
38	0.95	0.25	0.26	0.15	0.10	18.8

Table 2. Table 2: Orbital parameter of planet in the Kepler-38 system. Reference: Orosz et al. ( 2012 ) .

$m_p\left[M_{\mathrm{Jup}}\right]$	$a_p\left[\mathrm{au}\right]$	$e_p$	$P_p\left[d\right]$
0.38	0.47		105

Equations

$$\frac{\partial }{\partial t}\Sigma +\nabla \cdot \left(\Sigma \mathrm{u}\right)=0,$$

$$\frac{\partial }{\partial t}\left(\Sigma \mathrm{u}\right)+\nabla \cdot \left(\Sigma \mathrm{u}\otimes \mathrm{u}-\mathrm{\Pi }\right)=-\nabla P+\Sigma \mathrm{g},$$

$$\nu =\alpha c_{s}H,$$

$$H=\sqrt{\frac{P}{\Sigma }}{\left[\sum _{\ell }\frac{G{M}_{\ell }}{{\left|\mathrm{R}-{\mathrm{R}}_{\ell }\right|}^3}\right]}^{-1/2},$$

$$H=\sqrt{\frac{P}{\Sigma }\frac{|\mathrm{R}{|}^3}{G{M}_{\mathrm{bin}}}},$$

$$\frac{\partial }{\partial t}\left(\Sigma e\right)+\nabla \cdot \left[\left(\Sigma e+P-\mathrm{\Pi }\right)\mathrm{u}\right]=\left(\Sigma \mathrm{u}\right)\cdot \mathrm{g}-Q_{-}.$$

$$\Sigma e=\frac{P}{\gamma -1}+\frac{1}{2}\Sigma {\mathrm{u}}^2,$$

$$P=\frac{k_{\mathrm{B}}}{\mu m_{\mathrm{H}}}\Sigma T,$$

$$c_s=\sqrt{\gamma \frac{P}{\Sigma }}.$$

$$Q_{-}=2{\sigma }_{\text{R}}\frac{T^4}{{\tau }_{\mathrm{eff}}},$$

$${\tau }_{\mathrm{eff}}=\frac{3}{8}\tau +\frac{\sqrt{3}}{4}+\frac{1}{4\tau +{\tau }_{\min }}.$$

$$\tau =\int \varrho \kappa \mathrm{d}z\approx {\varrho }_0\kappa H=\frac{c}{\sqrt{2\pi }}\Sigma \kappa ,$$

$$\kappa ={\kappa }_0{\varrho }_0^a{T}^b,$$

$$\Sigma (t=0)=f_{\mathrm{gap}}{\Sigma }_{\mathrm{ref}}{\left(\frac{R}{a_{\mathrm{bin}}}\right)}^{-1.5}.$$

$$f_{\mathrm{gap}}={\left[1+\exp \left(-\frac{R-R_{\mathrm{gap}}}{\Delta R}\right)\right]}^{-1},$$

$$P(t=0)=h(t=0{)}^2\frac{G{M}_{\mathrm{bin}}}{R}\Sigma (t=0).$$

$${\Sigma }_{\mathrm{floor}}=10^{-6}{\Sigma }_{\mathrm{ref}},$$

$$\Phi =\frac{9}{4}\Sigma \nu {\left(R\frac{\partial \Omega }{\partial R}\right)}^2.$$

$$c_v\Sigma \frac{\partial T}{\partial t}=\Phi -Q_{-},$$

$$T_{\mathrm{eq}}^2\propto {\Sigma }^2\alpha .$$

$${\mathrm{U}}^{\ast }$$

$${\mathrm{U}}^{n+1}$$

$$\kappa ={\kappa }_0{\left(\frac{T}{\mathrm{K}}\right)}^2{\mathrm{cm}}^2{\mathrm{g}}^{-1},$$

$$Q_{-}=\frac{16}{3}\frac{{\sigma }_{\mathrm{R}}{T}^4}{\kappa \Sigma }\sqrt{2\pi },$$

$$\Sigma$$

$$T$$

$$\frac{\partial }{\partial t}\mathrm{U}={\mathrm{S}}_{\mathrm{cooling}}$$

$${\mathrm{U}}^{n+1}={\mathrm{U}}^n+\Delta t{\mathrm{S}}_{\mathrm{cooling}}$$

Full text

*Aims. *We extend previous studies to a more realistic thermal disc structure and determine what parameter influence the final parking location of a planet around a binary star.

*Methods. *We perform two-dimensional numerical simulations of viscous accretion discs around a central binary that include viscous heating and radiative cooling from the disc surfaces. We vary the binary eccentricity as well as disc viscosity and mass.

*Results. *Concerning the disc evolution we find that it can take well over $100\,000$ binary orbits until an equilibrium state is reached. As seen previously, we find that the central cavity opened by the binary becomes eccentric and precesses slowly in a prograde sense. Embedded planets migrate to the inner edge of the disc. In cases of lower disc viscosity they migrate further in maintaining a circular orbit, while for high viscosity they are parked further out on an eccentric orbit.

*Conclusions. *Discs around binary stars are eccentric and precess very slowly around the binary. The final location of an embedded planet is linked to its ability to open a gap in the disc. Gap opening planets separate inner from outer disc, preventing eccentricity excitation in the latter and making it more circular. This allows embedded planets to migrate closer to the binary, in agreement with the observations. The necessary condition for gap opening and the final planet position depend on the planet mass and disc viscosity.

1 Introduction

Circumbinary discs are accretions discs that surround two central objects such as a system of binary black holes or binary stars. Here, we are dealing with protostellar discs that orbit around a binary system consisting of two protostars. We are interested in the dynamical evolution of such circumbinary discs and in addition we study the evolution of planets in them.

About ten planets orbiting main sequence stellar binaries in a Tatooine like manner have been discovered until today, all of them by the Kepler space telescope. The systems show planetary transits for both stars, hence they are all very flat, an overview of their orbital parameter is given in Hamers et al. (2018) and references therein. This suggests a coplanar configuration of binary orbit and protostellar disc during the formation phase of the planetary systems. As a consequence, and to simplify the simulations, two-dimensional hydrodynamical studies of infinitesimally thin discs around binary stars are a good approximation. In this spirit, several simulations of circumbinary discs with and without embedded planets have been performed (Günther & Kley, 2002; Pierens & Nelson, 2007; MacFadyen & Milosavljević, 2008), some with explicit reference to the observed Kepler systems (Pierens & Nelson, 2013; Kley & Haghighipour, 2014, 2015; Mutter et al., 2017b; Thun & Kley, 2018).

Due to angular momentum transfer from the binary to the disc a central cavity develops where the density is strongly reduced. The size of this induced gap depends on disc parameter such as viscosity and pressure, and binary parameter such as orbital eccentricity and mass ratio (Artymowicz & Lubow, 1994). Longterm high resolutions simulations have shown that the formed gaps around circumbinary stars feature a complicated dynamical evolution (Miranda et al., 2017; Thun et al., 2017; Thun & Kley, 2018) with details depending on binary and disc parameter. In all cases the gap and the inner disc region turns eccentric and precesses slowly in a prograde manner around the binary star. Surprisingly, the highest gap eccentricity develops for circular binaries. Upon increasing the binary eccentricity, $e_{\mathrm{bin}}$, the gap first become more circular and then more eccentric again above a critical value of $e_{\mathrm{bin}}\approx 0.16$ (Thun et al., 2017). Varying the binary mass ratio shows that for more equal mass binaries the precession period increases for all binary eccentricities. Results of sequences of simulations for different binary parameter are shown in Thun & Kley (2018), where the overall variation of the gap orbital dynamics is compared to test particle trajectories around the binary.

In spite of the formation of the gap the central binary can still accrete material from the disc that flows into the gap and is added onto central circumstellar discs. This mass flow within the cavity around the stars has been studied in a several simulations (Artymowicz & Lubow, 1994; Günther & Kley, 2002; Hanawa et al., 2010; de Val-Borro et al., 2011). The gas dynamics near the central objects is relevant in another example of circumbinary discs that refers to a central binary black hole system which is orbited by a disc, for example after a merger process of two galaxies in the early Universe. Of particular interest in this case is the evolution of the orbital elements of the binary as it accretes mass and angular momentum from the disc and exchanges angular momentum with the disc via gravitational torques. While earlier studies found a decrease of the orbit of the binary due to the angular momentum loss to the disc (Cuadra et al., 2009), recent work suggests that an expansion of the binary orbit due to mass and accompanying angular momentum accretion is also possible (Miranda et al., 2017; Muñoz et al., 2019). As we are interested here in the overall longterm evolution and structure of the disc we do not study the central region in this work and leave this interesting topic to future investigations.

The detected circumbinary planets all orbit the binary star close to the dynamical instability limit (Quarles et al., 2018). The strong dynamical action of the binary makes an in situ formation at this close vicinity very difficult and it is typically assumed that the planets formed further out in the disc and then migrated to their present location. Indeed, simulations of embedded planets show that they migrate inwards due to the planet disc interaction and then are ’parked’ at the inner disc edge, which is the outer rim of the gap (Pierens & Nelson, 2007, 2008, 2013; Kley & Haghighipour, 2014). Its final location will be determined by the size and structure of the central cavity region which depends, as mentioned above, on binary as well as disc parameter.

Most of the studies on circumbinary disc dynamics work with a simplified thermodynamical model using a locally isothermal disc structure where the temperature (or sound speed) in the disc is a given function of radius. As the few exceptions (Günther & Kley, 2002; Kley & Haghighipour, 2014) suffer from low numerical resolution or too short time span, we perform here a detailed study of the disc structure including viscous heating and radiative cooling from the disc surfaces. Starting from two baseline models using Kepler-16 and Kepler-38 parameter we vary binary eccentricity as well as disc mass and viscosity and compute the disc evolution until an equilibrium state is reached. Finally, we embed planets into the disc and follow their evolution. We show that the final position of the planet is determined by its ability to open its own gap in the disc.

The paper is organised as follows: In Sect. 2 we describe the assumptions of our physical and numerical model. This is followed in Sect. 3 by a description of the structure of radiative circumbinary discs, for various binary eccentricities and different values for the disc viscosity. The evolution of an embedded planet in a radiative disc using Kepler-38 parameter is presented in Sect. 4. Our results are finally discussed in Sect. 5 and summarised in Sect. 6.

2 Model setup

We extend our previous locally isothermal circumbinary disc models (Thun et al., 2017; Thun & Kley, 2018) to a more realistic equation of state, study the impact on the disc structure and dynamics, and follow the orbital evolution of an embedded planet. We perform two-dimensional (2D) hydrodynamical, viscous simulations including an energy equation. To account for energy losses and prevent the disc from overheating by viscous dissipation we consider also radiative cooling from the disc surfaces. We study the evolution of two sample systems, Kepler-16 and Kepler-38, their parameters are summarised in Table 1.

2.1 Physical model

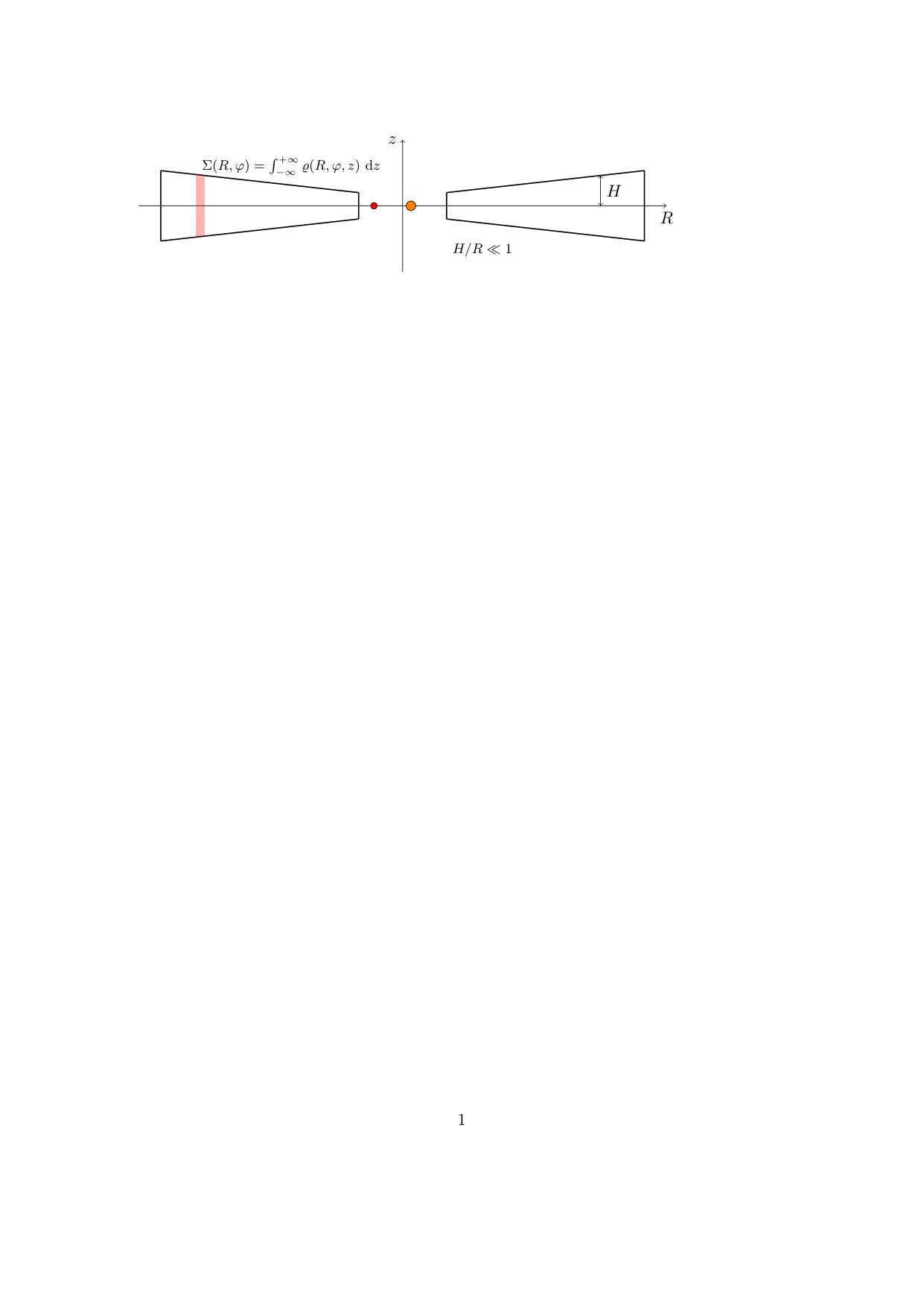

To model the circumbinary discs we use cylindrical coordinates ($R$, $\varphi$, $z$) centred on the centre of mass (COM) of the binary with the disc lying in the $z=0$-plane. The observed Kepler systems with a circumbinary planet are nearly coplanar which justifies to work in 2D. We therefore assume that the vertical extent of the disc, $H$, is small compared to the radial extension, and use the vertically averaged hydrodynamical equations, see Figure 1. To be concise we quote briefly only the main equations that are solved and will refer to our previous studies for more details.

The continuity equation is given by

[TABLE]

with the surface density $\Sigma=\int_{-\infty}^{\infty}\varrho\,\mathrm{d}z$  (see Fig. 1) and the 2D velocity $\bm{\mathrm{u}}=(u_{R},u_{\varphi})^{\mathrm{T}}$. The vertically averaged equation of momentum conservation is given by

[TABLE]

with the vertically integrated pressure, $P=\int_{-\infty}^{\infty}p\,\mathrm{d}z$, and viscous stress tensor $\bm{\mathrm{\Pi}}$. The individual components in cylindrical coordinates are given in Kley (1999) or Masset (2002), where we use here a vanishing bulk viscosity. To model the turbulent shear viscosity in the disc we use the standard $\alpha$-disc model by Shakura & Sunyaev (1973). In this approximation, the kinematic viscosity coefficient can be written for thin discs as

[TABLE]

with a parameter $\alpha<1$, the adiabatic sound speed of the gas $c_{s}$, and the vertical pressure scale height (disc half thickness) $H$.

The gravitational acceleration, $\bm{\mathrm{g}}$, acting on each cell due to the binary and the planet is given in detail described in Thun & Kley (2018) and we do not go into details here. It is given by the sum of the gravitational forces of the two binary stars, a possible planet and takes into account a possible acceleration of the COM of the binary. The gravitational acceleration contains a smoothing length $\epsilon H$ to avoid singularities and to account for the correct treatment of the three-dimensional gravity in our 2D setup (Müller et al., 2012). In all simulations we use $\epsilon=0.6$ (Masset, 2002) and evaluate the pressure scale height, $H$, at the location of the cell. Assuming a vertical hydrostatic equilibrium and an isothermal disc in the $z$-direction the disc height is given by

[TABLE]

where $\bm{\mathrm{R}}$ denotes the position of the grid cell and $\bm{\mathrm{R}}_{\ell}$ the position of a star or planet. The summation in eq. (4) runs over all gravitating objects (stars and planets). In the approximation $\bm{\mathrm{R}}_{\ell}\rightarrow 0$, i.e. for large distances from the binary, this simplifies to

[TABLE]

where the mass of the binary is $M_{\mathrm{bin}}=M_{\mathrm{A}}+M_{\mathrm{B}}$. We carried out test simulations to compare the sophisticated disc height (4) to the simple one (5), and did not find any significant differences. Therefore, we use in all our simulations eq. (5) to calculate the height of the disc.

The vertically averaged equation of energy conservation reads

[TABLE]

The total specific energy $e$ is related to the pressure by

[TABLE]

with the adiabatic index $\gamma$. In all our simulations we use a value of $\gamma=1.4$. The pressure is related to the midplane temperature $T$ of the disc

[TABLE]

with the Boltzmann constant $k_{\mathrm{B}}$, the mass of the hydrogen atom $m_{\mathrm{H}}$ and the mean molecular mass of the gas $\mu$ (we use $\mu=2.35$). The adiabatic sound speed of the gas is then given by

[TABLE]

To model the cooling term $Q_{-}$ we follow D’Angelo et al. (2003) and Müller & Kley (2012) and only consider the cooling effect of radiation in the vertical direction and neglect radiation transport in the disc midplane. This is a good assumption if the vertical extent of the disc is small compared to the discs’ radial extent. The cooling term models the energy loss by radiation from the upper and lower disc surface and can be written as

[TABLE]

with the Stefan-Boltzmann constant $\sigma_{\text{R}}$. Since radiation can escape on both sides of the disc the factor of two in eq. (10) is necessary. To calculate the effective optical depth $\tau_{\mathrm{eff}}$ we follow an approach by Hubeny (1990) as given in Müller & Kley (2012).

[TABLE]

For the mean optical depth we use the following approximation

[TABLE]

where $\varrho_{0}$ denotes the midplane gas density and $c=\nicefrac{{1}}{{2}}$ is a constant to account for the drop of opacity with vertical height in our two dimensional simulations (Müller & Kley, 2012). To calculate the Rosseland mean opacity $\kappa$ we assume a power-law dependence on temperature and density (Lin & Papaloizou, 1985)

[TABLE]

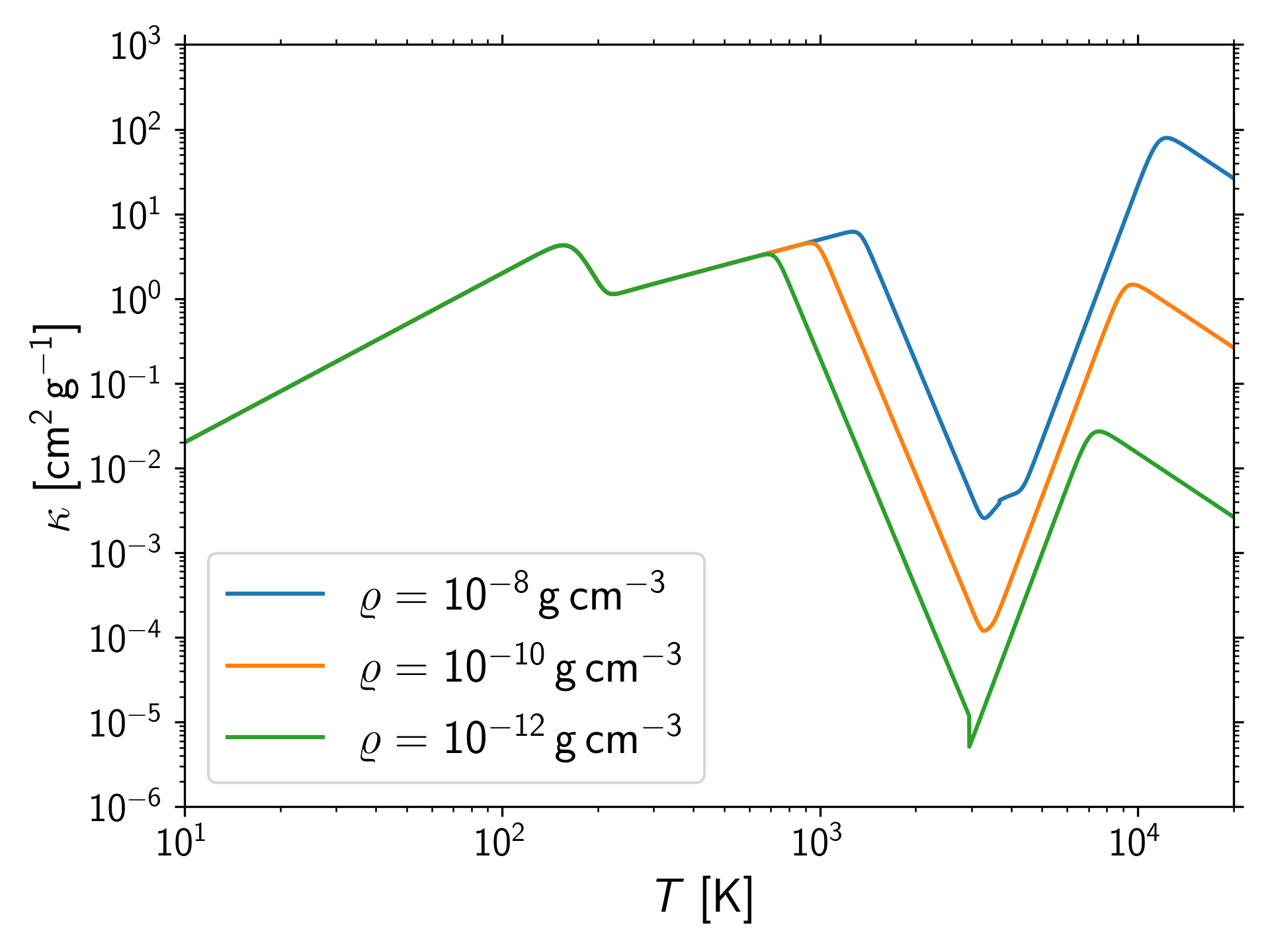

where $\varrho_{0}$ and $T$ refer to the midplane gas density and temperature. The values of $\kappa_{0}$, $a$, and $b$ for different opacity regimes can be found in a table given in Müller & Kley (2012). Figure 2 shows the opacity variation with temperature for three different densities. To calculate the opacity we use a function which smoothly transitions from one regime to another. We apply a minimum optical depth of $\tau_{\mathrm{min}}=0.1$ to account for the very optically thin regions of the disc.

In our simulations we do not consider the self-gravity of the disc as we are primarily interested in the end phase of the planet migration process when the disc mass is already reduced. For simulations of discs with self-gravity and embedded planets, see Mutter et al. (2017a, b). We also do not consider stellar irradiation and will discuss this in Sect. 5.3.

2.2 Initial conditions

For the initial disc parameters we follow Thun & Kley (2018) and use an initial surface density profile given by

[TABLE]

The function $f_{\mathrm{gap}}$ models the expected cavity created by the binary (Artymowicz & Lubow, 1994; Günther & Kley, 2002)

[TABLE]

with $R_{\mathrm{gap}}=2.5\,a_{\mathrm{bin}}$ and $\Delta R=0.1\,R_{\mathrm{gap}}$. The reference density $\Sigma_{\mathrm{ref}}$ is calculated according to the disc mass $M_{\mathrm{disc}}$ inside the computational domain, and typically we use a total initial disc mass of $0.01M_{\mathrm{bin}}$ (for details see Thun & Kley (2018, Sec. 2.2)). For the pressure profile we assume a disc with an initial constant aspect ratio $h(t=0)=H/R=0.05$ and calculate the initial pressure from eq. (5)

[TABLE]

The initial radial velocity is set to zero $u_{R}(t=0)=0$ and the initial azimuthal velocity is set to the local Keplerian velocity with respect to the COM of the binary $u_{\varphi}(t=0)=\sqrt{GM_{\mathrm{bin}}/R}$.

2.3 Numerical considerations

All simulations were performed by a modified version of Pluto 4.2 (Mignone et al., 2007) which runs on GPUs and has in addition a N-body module to simulate the motion of planets in binary stars. Details can be found in Thun & Kley (2018) The new implementation of the cooling terms into the code is described in Appendix A. An overview of the numerical options for the hydrodynamical solver used here is given in Thun et al. (2017, Sec. 3.1). The numerical setup is identical to the setup described in Thun & Kley (2018, Sec. 2.3). We use a logarithmically expanding grid in the radial direction from $R_{\mathrm{min}}=1\,a_{\mathrm{bin}}$ to $R_{\mathrm{max}}=40\,a_{\mathrm{bin}}$ and a uniform grid from [math] to $2\pi$ in the azimuthal direction. In all our simulations this domain is covered by a grid with fixed resolution of $N_{r}\times N_{\varphi}=684\times 584$ cells. At $R_{\mathrm{min}}$ a zero-gradient boundary condition ($\partial/\partial R=0$) is used for surface density, radial velocity, angular velocity $\Omega_{\varphi}=u_{\varphi}/R$ and pressure. Additionally, no inflow into the computational domain is allowed at $R_{\mathrm{min}}$. At $R_{\mathrm{max}}$ we set the azimuthal velocity to the Keplerian velocity. For surface density and radial velocity we use a wave damping boundary condition, where $u_{R}$ is damped towards zero and $\Sigma$ to the initial value. (de Val-Borro et al., 2006; Thun & Kley, 2018). For the pressure we use again a zero gradient boundary condition. In the azimuthal direction we use periodic boundary conditions. For stability reasons we use a global density floor of

[TABLE]

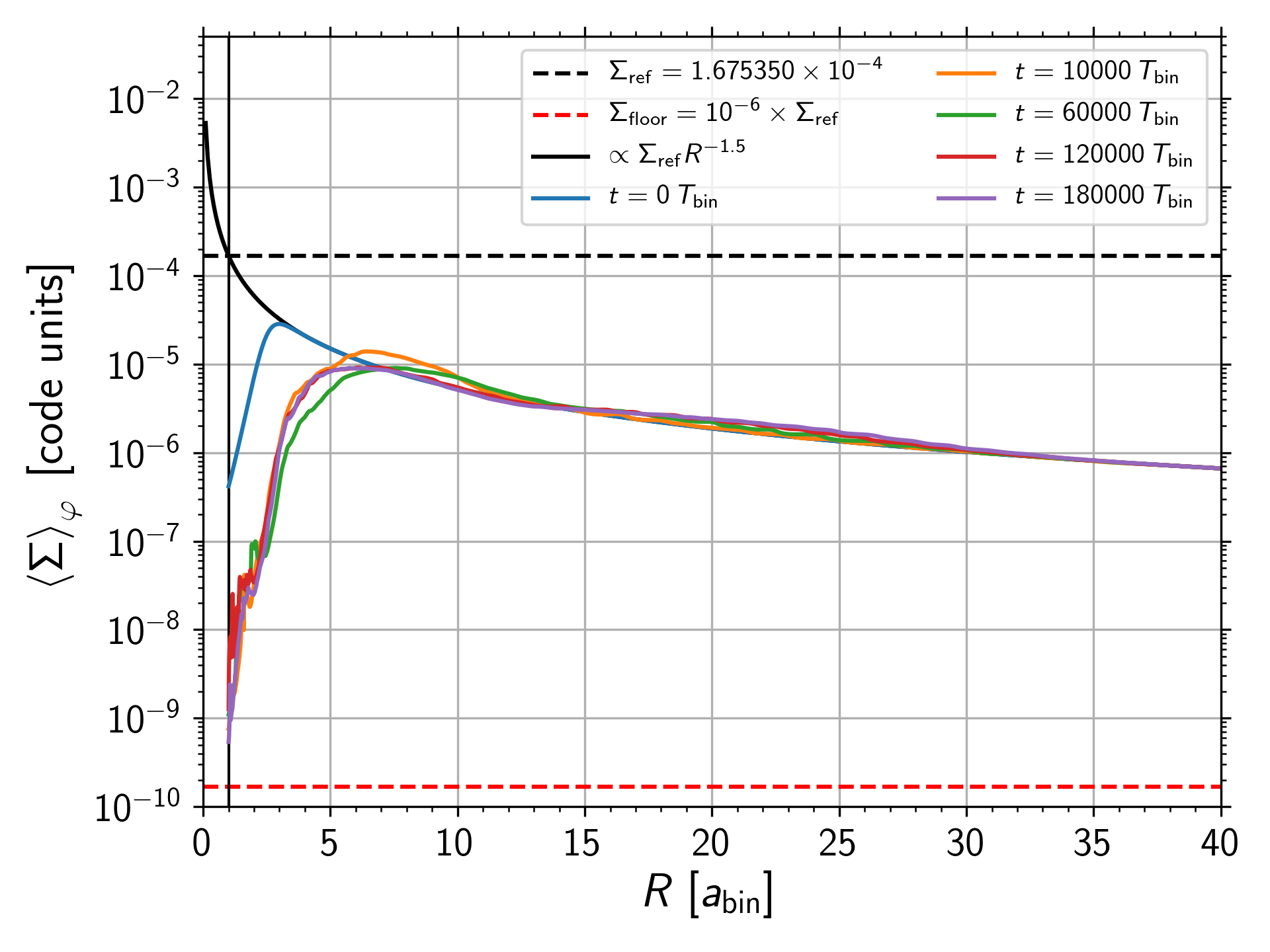

for a discussion of this value see Thun & Kley (2018). To enhance numerical stability we also use a temperature floor of $T_{\mathrm{floor}}=$3\text{,}\mathrm{K} and a temperature ceiling of $T_{\mathrm{ceiling}}=$3000\text{\,}\mathrm{K}. The lower value prevents material from too low temperatures while the upper ceiling is relevant in the initial phase of the simulations in order to prevent too large temperatures in the inner gap region.

3 Disc structure

In this Section we focus on the disc structure created by the gravitational interaction between the binary and the disc. We are interested in the size and eccentricity as well as the precession period of the gap as a function of binary eccentricity and physical disc properties. First, we describe a sequence of models for a fixed binary mass ratio $q_{\mathrm{bin}}=0.29$ as in the Kepler-16 system, and vary the binary eccentricity $e_{\mathrm{bin}}$. As the thermodynamics of the disc is determined by the disc mass and viscosity we present subsequently models using the fixed binary parameter of Kepler-38 for different $M_{\mathrm{disc}}$ and viscosity $\alpha$. The orbital parameter of Kepler-16 & 38 are listed in Tab. 1.

3.1 Models for different binary eccentricity

For the model sequence presented in this section we use a fixed disc viscosity $\alpha=0.001$ and an initial disc mass of $0.01M_{\mathrm{bin}}$. The total mass and mass ratio of the binary are those of the Kepler-16 system as quoted in Tab. 1. We run a sequence of models for various binary eccentricities running from $e_{\mathrm{bin}}=0$ to $e_{\mathrm{bin}}=0.28$.

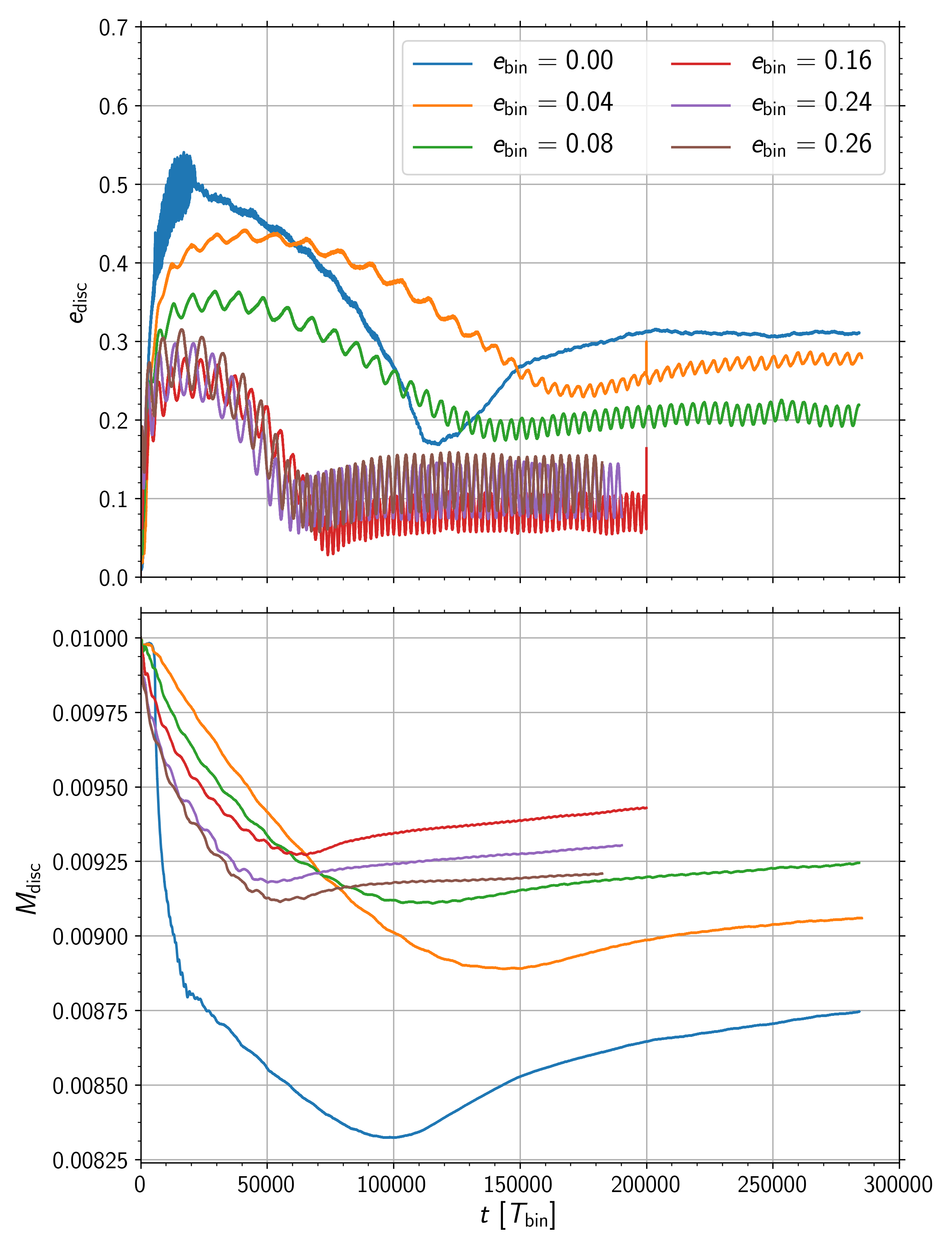

In Fig. 3 we display the evolution of the disc mass and eccentricity for various $e_{\mathrm{bin}}$ over time. The top panel shows the disc eccentricity, where an averaging has been performed over the inner disc area out to a radius of $R=8.0\,a_{\mathrm{bin}}$ (Thun et al., 2017). The bottom panel shows the time evolution of the total disc mass in units of the central binary mass. Clearly noticeable is the very long time needed until the disc reaches a quasi-equilibrium state. However, this timescale depends on the binary eccentricity. For $e_{\mathrm{bin}}$ larger than about 0.16 the discs settle in less than 100\,000$\,T_{\mathrm{bin}}$ while for lower $e_{\mathrm{bin}}$ the equilibration time well exceeds 150,000$\,T_{\mathrm{bin}}$.

The discs around more circular binary stars with $e_{\mathrm{bin}}<0.1$ show a larger disc eccentricity, $e_{\mathrm{disc}}$. The minimum of $e_{\mathrm{disc}}$ is reached around $e_{\mathrm{bin}}=0.16$ with a small increase for larger $e_{\mathrm{bin}}$. The mass loss from the disc through the inner boundary is moderate overall, during the $$200,000$\,T_{\mathrm{bin}}$ the total mass loss is at most 15%. In the very early phase, the mass loss is larger for the more eccentric binaries because the secondary periodically approaches the inner edge of the disc ’pulling out’ some material from it. Upon the strong increase of the disc eccentricity, particularly for the $e_{\mathrm{bin}}=0$ model, the mass loss increases suddenly. In the long run all the models settle to a stationary state, as the density at the outer radius of the disc is held fixed at its initial value. During this adjustment phase the disc mass can also increase as the fixed density at $R_{\mathrm{max}}$ serves as a mass reservoir for the inner disc.

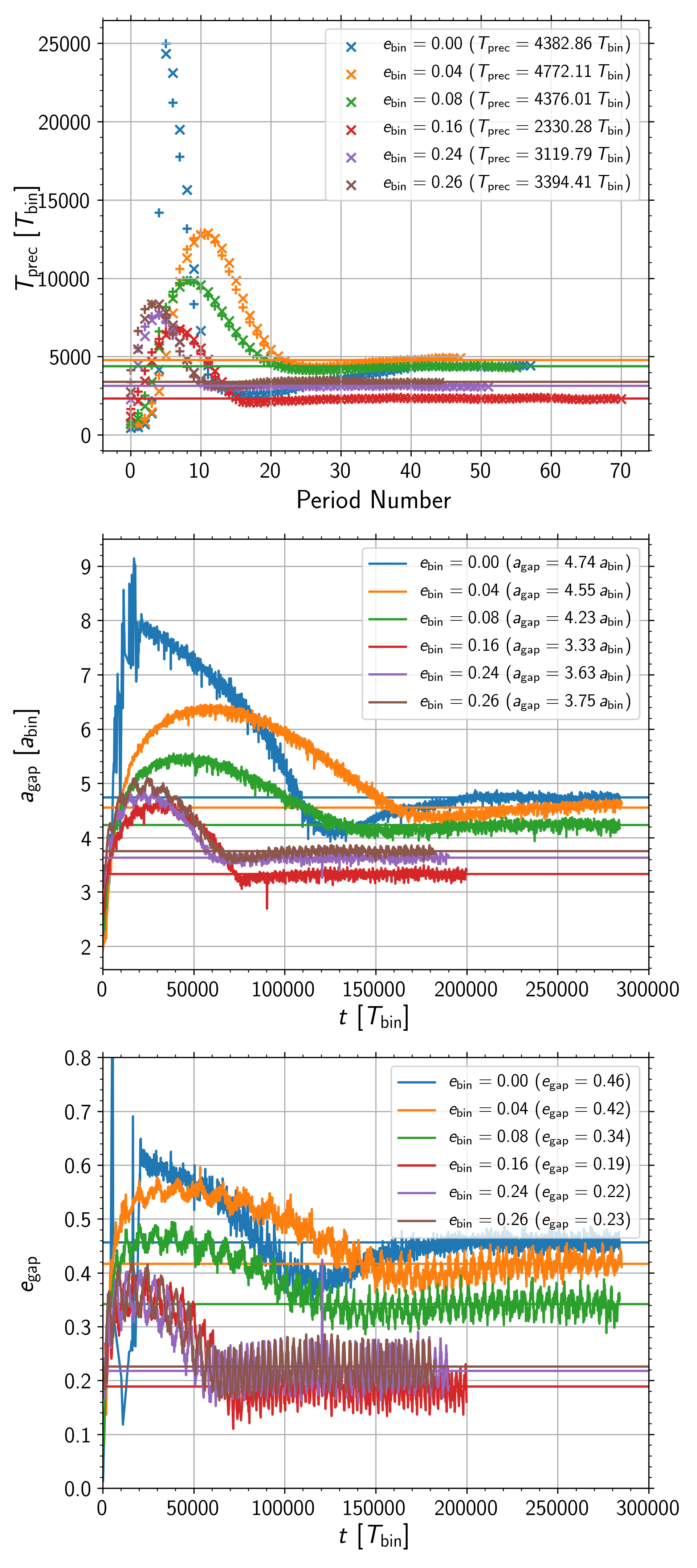

In Fig. 4 we display the evolution of the gap geometry for the same models over time. The properties of the gap are here obtained by fitting an ellipse to the inner gap edge, where the density has reached about half of the maximum density near the inner rim of the disc. The exact procedure is described in Thun et al. (2017), and examples of such fitted ellipses are shown in Fig. 10 below. The time evolution of the obtained semi-major axis, eccentricity and precession period of the ellipses are shown in Fig. 4. The horizontal lines in the figure and the labels indicate the values measured in the final phase of the simulations. The long process of finding the equilibrium is seen clearly in the lower two panels. In all models the gap size and eccentricity increase initially very strongly, reach their maxima between $20\,000$ and about 60\,000$\,T_{\mathrm{bin}}$, and then settle slowly towards equilibrium. The final gap eccentricities (bottom panel) are largest for the circular binary, reach the minimum at $e_{\mathrm{bin}}=0.16$ and then increase again. The variation of the gap semi-major axis (middle panel) follows the same trend: the largest gap sizes are seen for low $e_{\mathrm{bin}}$ and the smallest for $e_{\mathrm{bin}}=0.16$. As seen from the top panel in the figure, the precession rate of the ellipse becomes very long for the discs with large gaps, and reach over 10,000$\,T_{\mathrm{bin}}$ for the smaller $e_{\mathrm{bin}}$ cases. Eventually, the precession period settles to values between about 2300 and 4770 $T_{\mathrm{bin}}$ for all models. This disc evolution is different to that of the locally isothermal discs presented in Thun & Kley (2018). There we did not observe the initial strong increase in the hole size and eccentricity. We will comment on this difference in Sect. 5.2 below.

The time evolution for the disc eccentricity in Figs. 3 and 4 displays oscillatory behaviour for $e_{\mathrm{disc}}$ or $e_{\mathrm{gap}}$, respectively. The oscillations are a secular effect, they have been seen already in Thun et al. (2017) and discussed in Miranda et al. (2017). The oscillation period is identical to the precession period of the disc, i.e. the time for one $360^{\circ}$ turn of the eccentric disc. Similar to single test particle orbits, the period of the oscillations becomes longer for larger cavity sizes (corresponding to larger distances of the particle) and shorter for smaller cavities (Thun et al., 2017). This explains why the oscillations are wider in the early phase with the extended gap size, and are narrower in the relaxed equilibrium state.

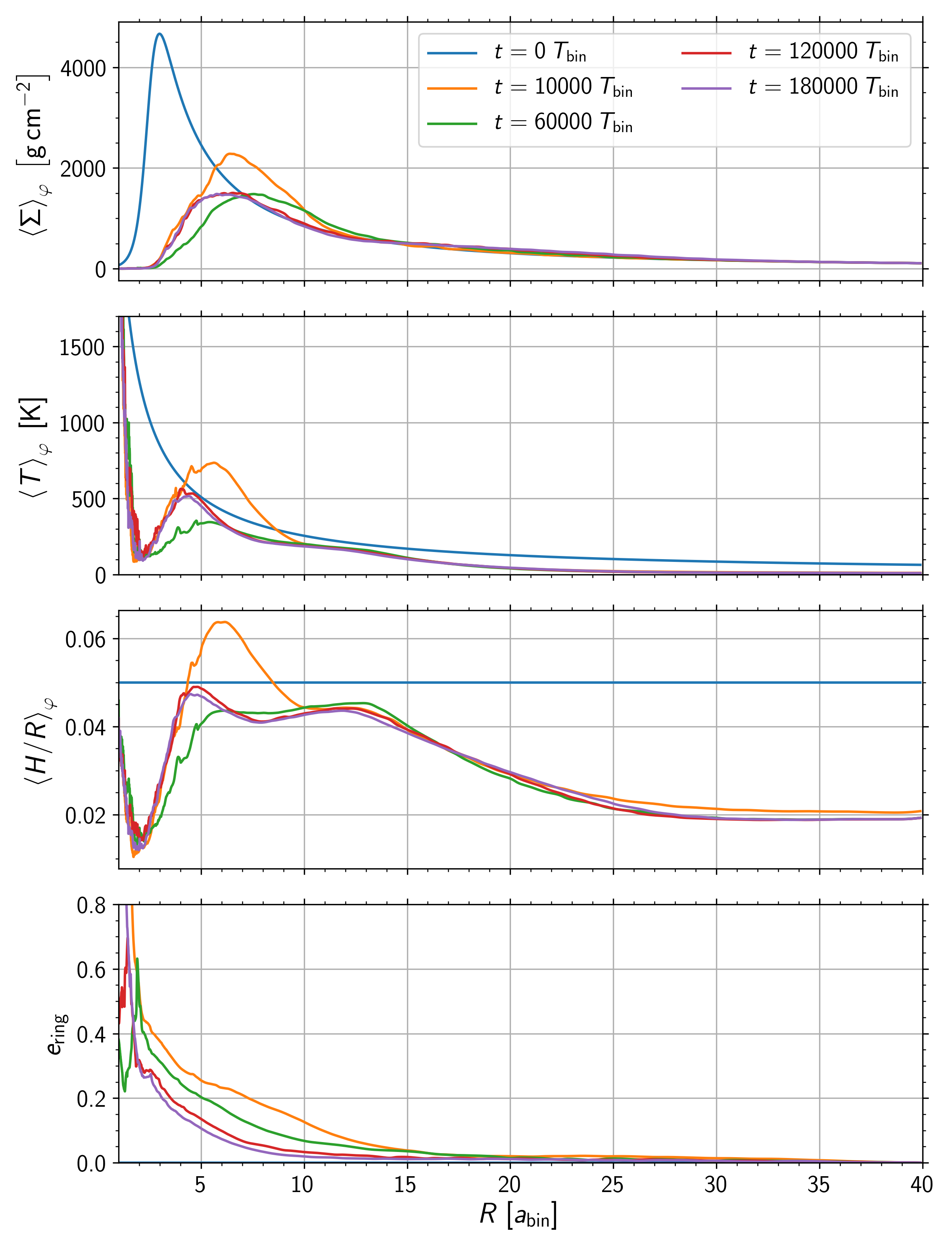

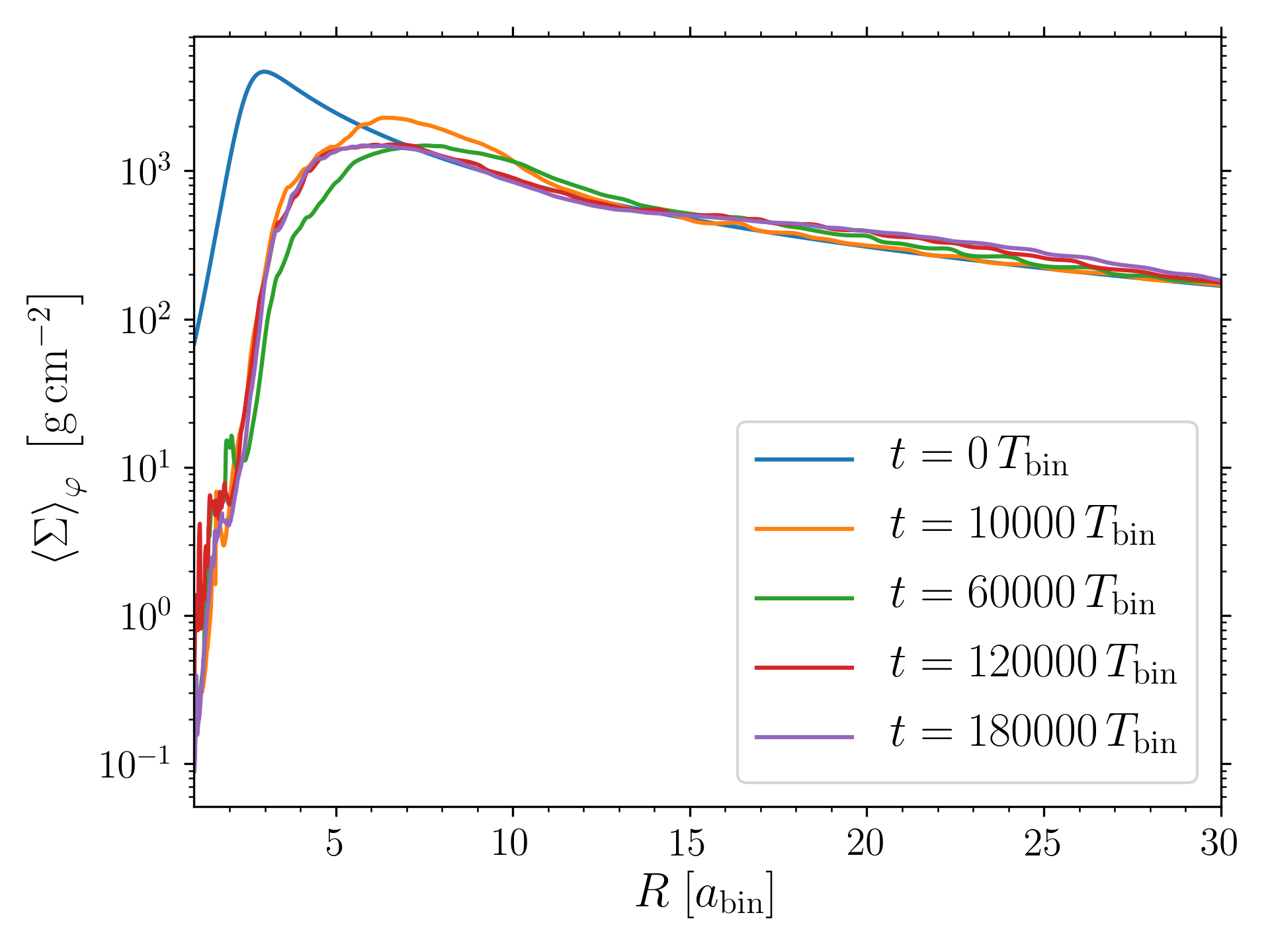

The azimuthally averaged radial profile of various disc quantities are shown in Fig. 5 for the Kepler-16 case with $e_{\mathrm{bin}}=0.16$ at five evolutionary times. The initial model is shown as reference. The next two models at $10\,000$ and 60\,000$\,T_{\mathrm{bin}}$ demonstrate the early adjustment phase, and the two final models at $120\,000$ and 180,000$\,T_{\mathrm{bin}}$ that the disc has indeed reached its equilibrium state. While initially the disc experiences a phase with a large eccentric gap, in the final state, the surface density is identical to the initial state beyond about $7a_{\mathrm{bin}}$. The disc’s averaged inner edge (about half value of $\Sigma_{\mathrm{peak}}$) always lies around $4a_{\mathrm{bin}}$. Overall, the radiative disc is cooler than the initial setup with a reduced thickness. In the disc’s inner regions inside of about $15a_{\mathrm{bin}}$ the thickness is about $H/R=0.04$ while in the outer regions the thickness reduces to $H/R=0.02$. Within the gap the minimum thickness is again about $H/R=0.01-0.02$. In the very inner parts of the disc near the inner boundary where the density is very close to the density floor, the temperature increases strongly, but still remains below the initial value corresponding to $H/R=0.05$. This increase in temperature is a numerical artefact and is discussed in more detail in Appendix A. Due to the very small density and pressure this hot gas does not have any dynamical influence on its environment. In the equilibrium state the disc’s eccentricity (bottom panel) reaches about 0.3 at the inner disc edge (at $3a_{\mathrm{bin}}$) and is nearly circular beyond $15a_{\mathrm{bin}}$.

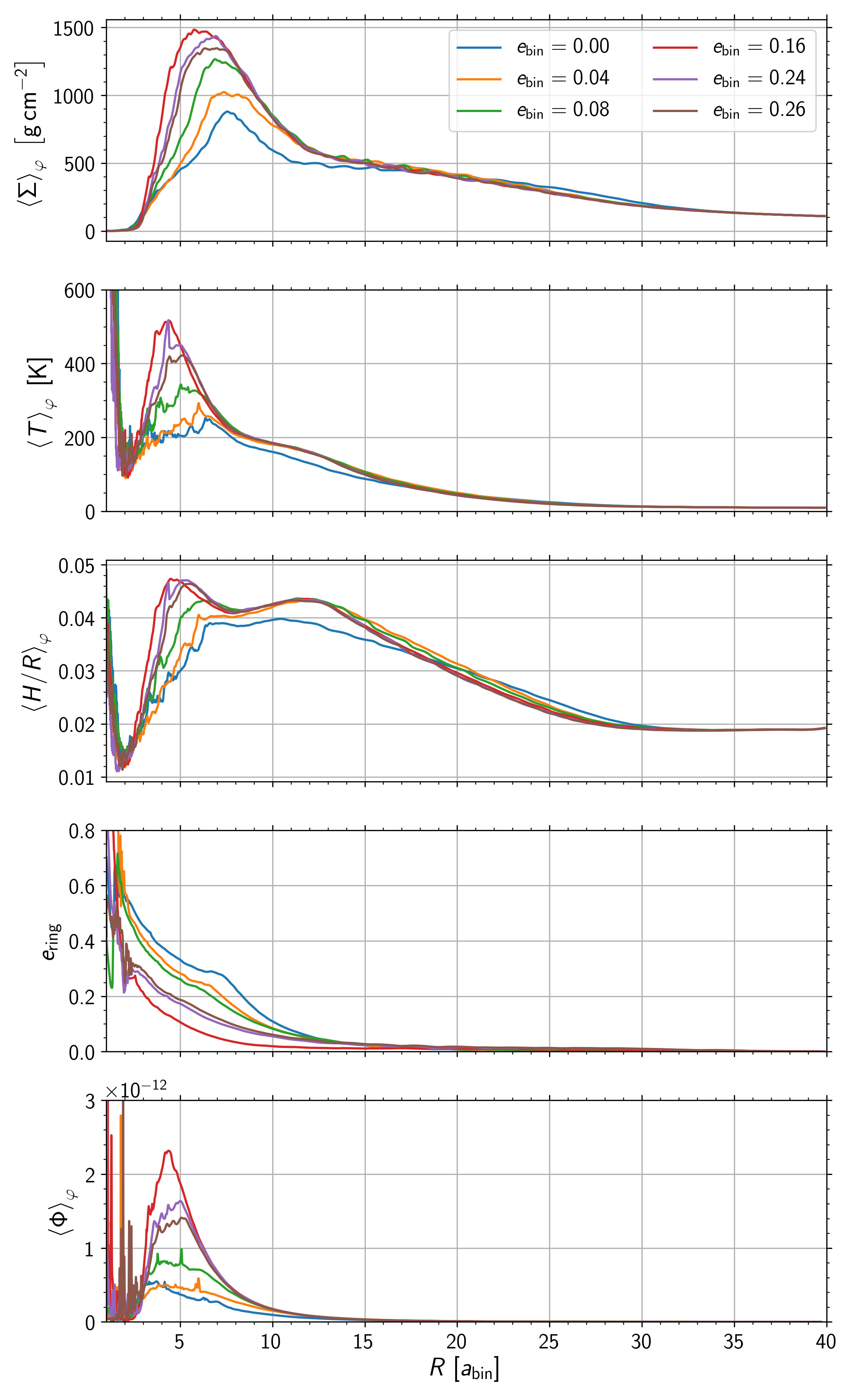

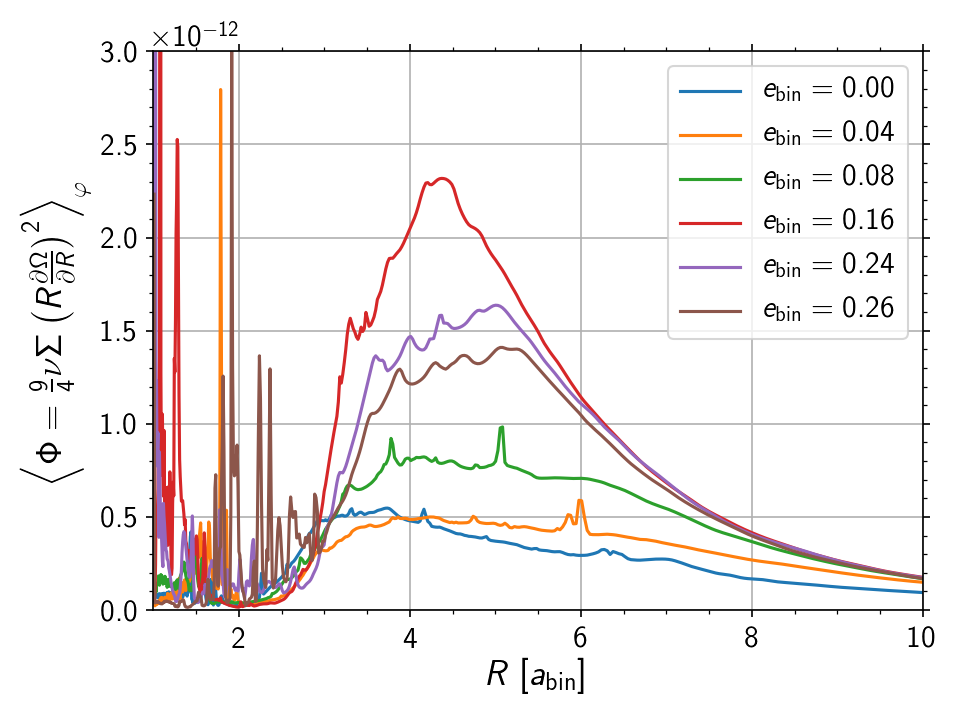

In Fig. 6 we display the azimuthally averaged radial disc profiles for different $e_{\mathrm{bin}}$ after $180\,000$ binary orbits. At this time all models have reached the final equilibrium configuration.

As could be already inferred from the calculated gap semi-major axis, in the models with smaller $e_{\mathrm{bin}}$ the maximum of the surface density lies further out in the disc and the peak value is very small. The turning point model with the smallest inner hole, for $e_{\mathrm{bin}}=0.16$, has the largest density spike which lies closest to the binary. Due to the higher density the disc is optically thicker and the midplane temperature is higher for the models with larger $e_{\mathrm{bin}}$. The temperature maxima for all models lie within the range 4 to 7 $a_{\mathrm{bin}}$, well inside of the peak density. For the models with the larger binary eccentricities, the temperature peak coincides with the maximum of viscous dissipation at around $4-5\,a_{\mathrm{bin}}$, as indicated in the bottom panel in Fig. 6. For the dissipation function we considered only the the $R\varphi$-component of the viscous stress tensor

[TABLE]

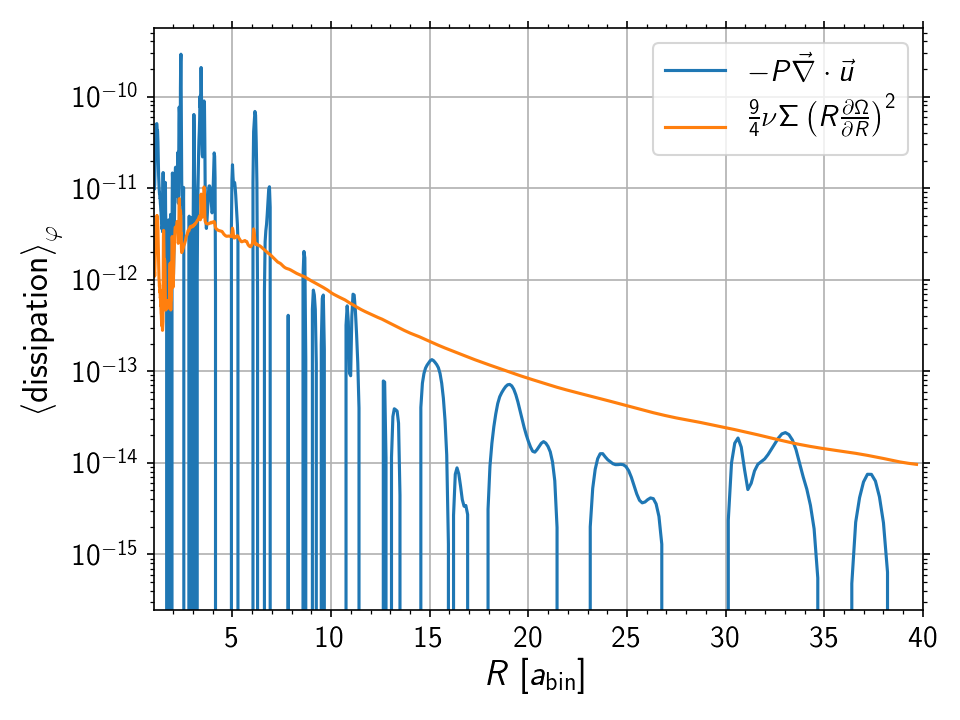

For the small binary eccentricities the temperature maximum is shifted to larger radii due to additional contributions by shock heating which is given by the term $-P\,\nabla\cdot\bm{\mathrm{u}}$. The disc eccentricity follows the same trend as the gap eccentricity. For smaller $e_{\mathrm{bin}}$ the discs are more eccentric over a larger radial domain.

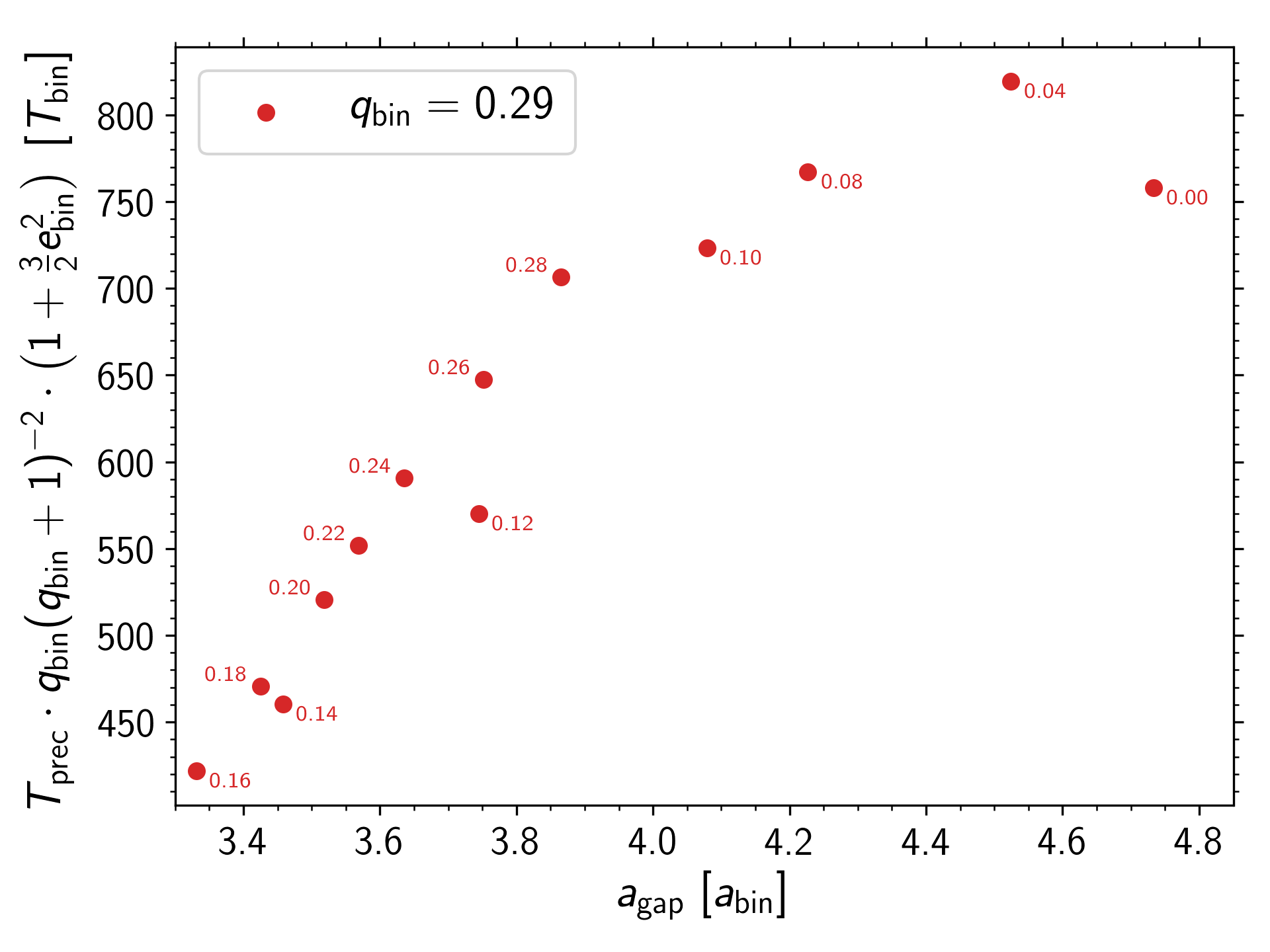

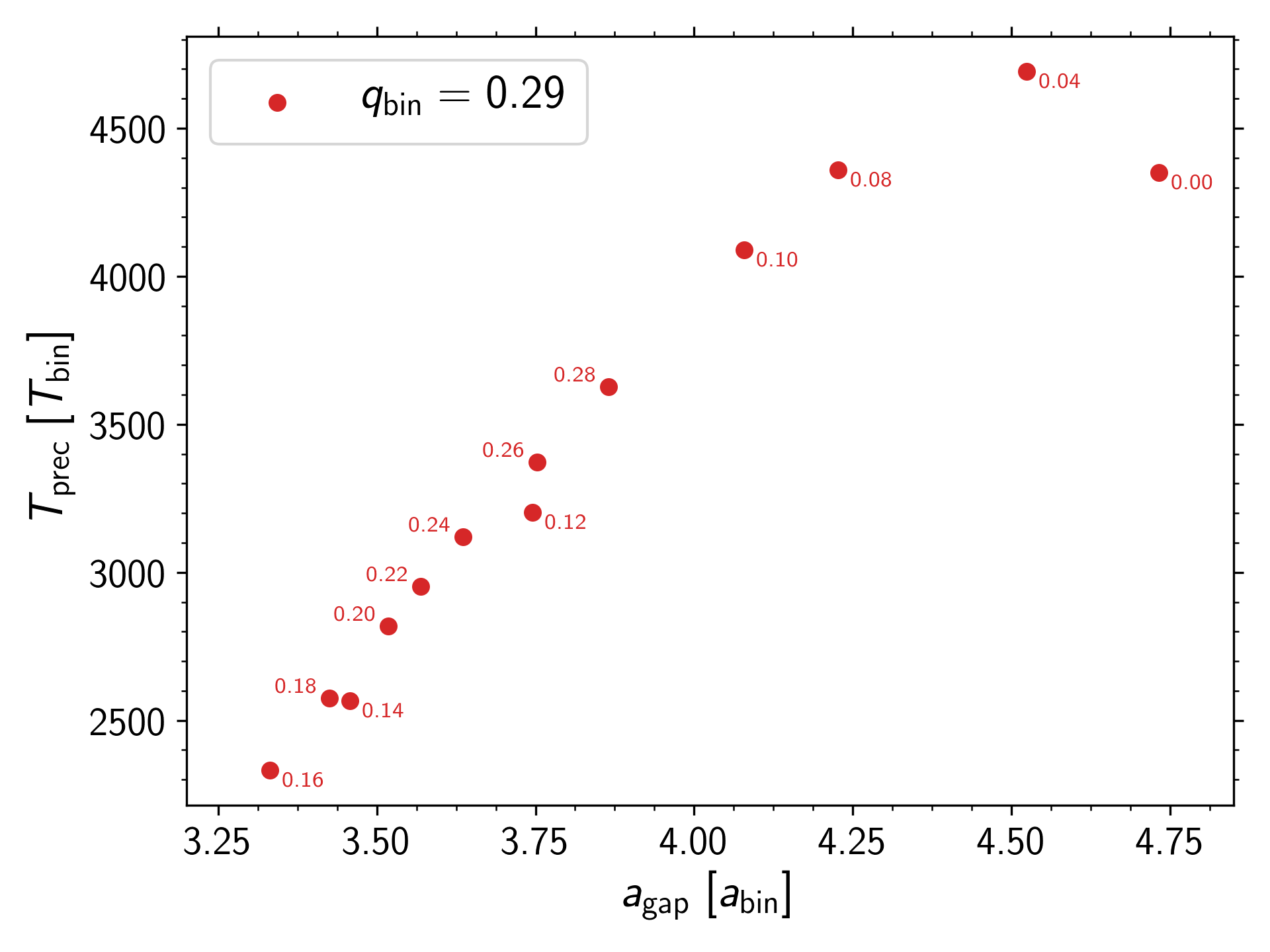

In Fig. 7 we display the gap precession period against gap size for models with identical $q_{\mathrm{bin}}=0.29$ and varying $e_{\mathrm{bin}}$. The models for small $e_{\mathrm{bin}}$ have large holes and long precession periods. Increasing $e_{\mathrm{bin}}$ reduces the gap size and ellipticity and makes the disc precess faster. The turning point at which this trend reverses again, occurs at a critical value of $e_{\mathrm{bin}}=0.16$. This value is identical to the critical point obtained for locally isothermal discs (with $H/R=0.5$) and with a viscosity of $\alpha=0.01$, as shown in the bifurcation diagram in Thun & Kley (2018). For this radiative disc the upper and lower branch lie very close to each other. Scaling of the precession period with the free particle orbits, as done in Thun & Kley (2018), would separate the branches vertically.

3.2 Models for different disc masses and viscosities

For radiative models the disc evolution will be influenced by the total disc mass $M_{\mathrm{disc}}$ and the viscosity $\alpha$ of the disc as these alter the disc temperature and hence change the dynamics. To estimate the impact that these parameters have on the disc structure we calculated models with different disc masses and viscosity. For the basic binary system we chose here Kepler-38, with the stellar masses and binary eccentricity given in Tab. 1.

To cover various disc physics we performed altogether four simulations with two different values for the viscosity, $\alpha=0.001$ and $0.01$, and two different initial disc masses, $M_{\mathrm{disc}}=0.01M_{\mathrm{bin}}$ and $0.0057M_{\mathrm{bin}}$. Fig 8 summarises the evolution of the dynamical gap properties in the 4 cases. As noticed already for the previous model sequence using Kepler-16 parameter here all 4 simulations initially produce a large inner gap which becomes very eccentric with peak values reached after $40\,000$ to $60\,000$ binary orbits. After this, the inner gap shrinks and becomes more circular and settles to an equilibrium after about $100\,000$ $T_{\mathrm{bin}}$.

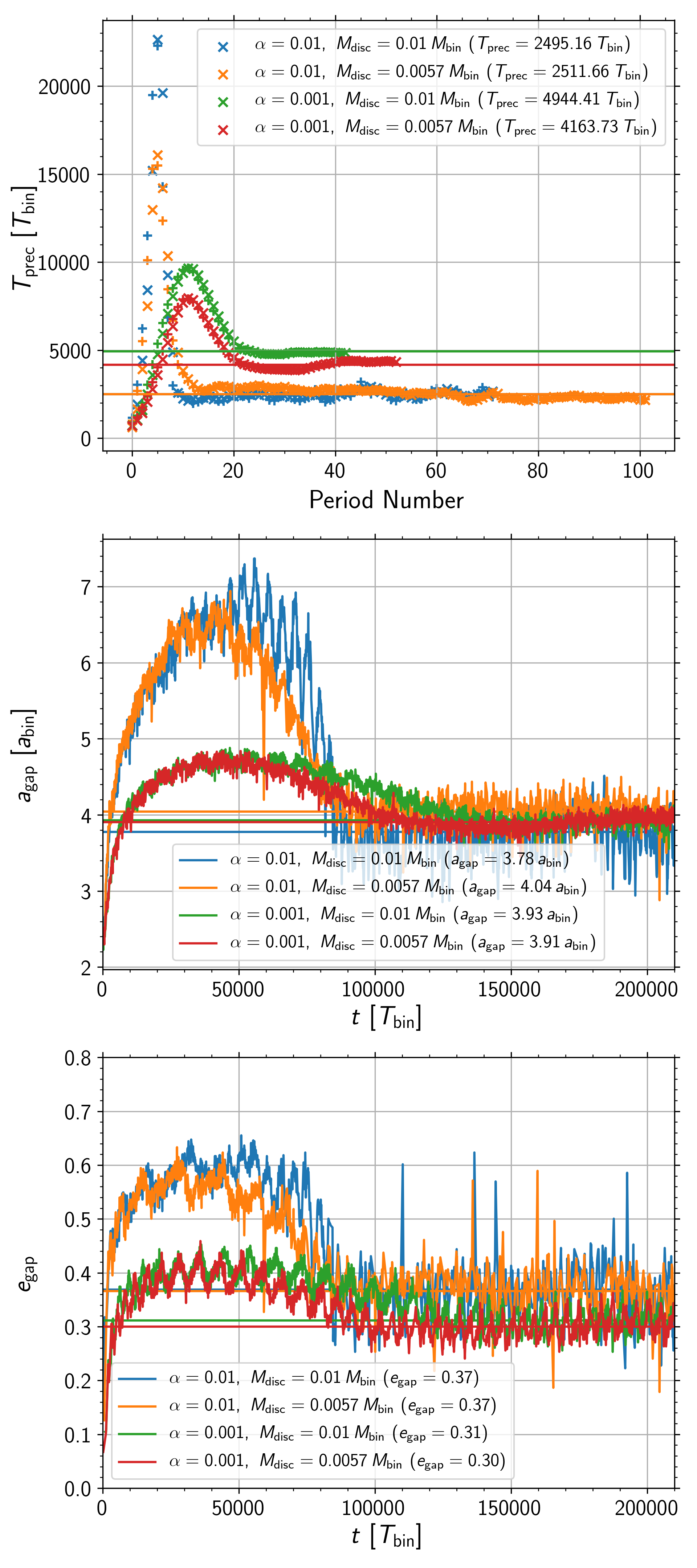

Discs with high viscosity ($\alpha=0.01$, blue and orange curves in Fig. 8) initially develop larger, and more eccentric gaps with precession periods above $15\,000$ $T_{\mathrm{bin}}$. Reducing the viscosity by an order of magnitude ($\alpha=0.001$, red and green curves in Fig. 8) does not produce so large and eccentric gaps in the beginning. Both, the gap size and eccentricity are near maximum approximately 30% smaller compared to the high viscosity case. The precession period of these low viscosity discs is still long and about $8000$-$10\,000$ binary orbits in the early phase. During the subsequent evolution all disc models settle to a dynamically similar final state after about $100\,000$ $T_{\mathrm{bin}}$, with gap semi-major axes of $a_{\mathrm{gap}}=4a_{\mathrm{bin}}$ and $e_{\mathrm{gap}}$ between 0.3 and 0.4, depending on $\alpha$.

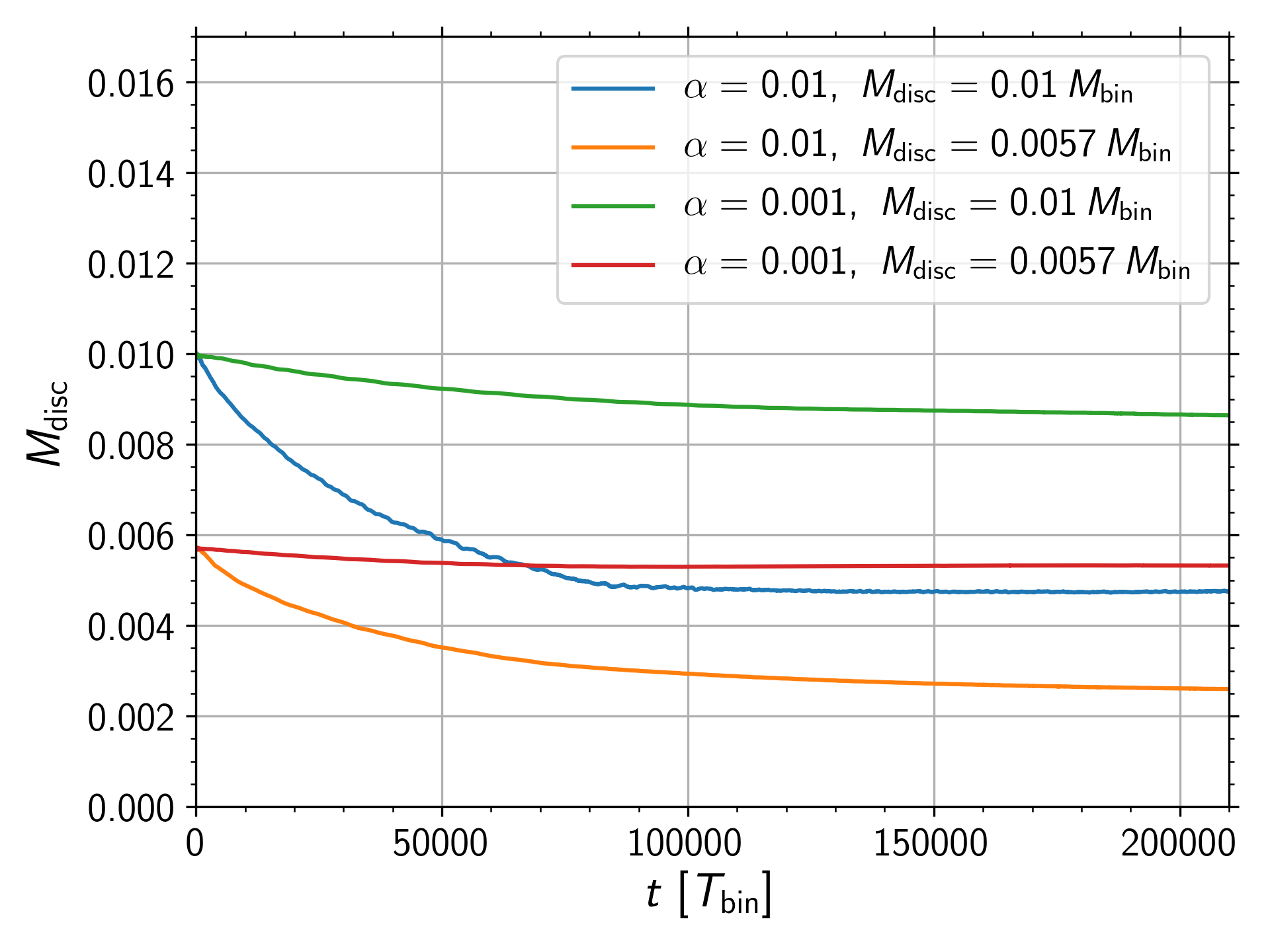

The evolution of the disc mass for the models is quoted in Fig. 9. The two models with the high viscosity, $\alpha=0.01$, loose mass at a higher rate which is due to the higher viscosity and to the larger eccentricity of the disc which causes material to be lost through the inner boundary. After the quasi-equilibrium states have been reached the mass loss from the disc into the inner hole becomes comparable for all cases. Compared to locally isothermal models with the same viscosity (as presented in Thun & Kley (2018)) the radiative models tend to lose more mass. This could be due to the increased disc eccentricity in the radiative case. Highly eccentric orbits in the inner part of the disc come very close to the open inner boundary and gas on these orbits can easily flow through the open inner boundary. In contrast to the disc mass evolution presented in Fig. 3 where we saw a slight mass increase in the end, we see here a continuous drop in disc mass. The overall evolution of the total disc mass in the domain is difficult to predict a priori. It depends on the initial mass in the disc which is not the same for the different cases. The models for Kepler-38 contain initially a higher disc mass ($0.012M_{\odot}$) compared to the Kepler-16 models ($0.00089M_{\odot}$) such that they loose more mass to reach equilibrium.

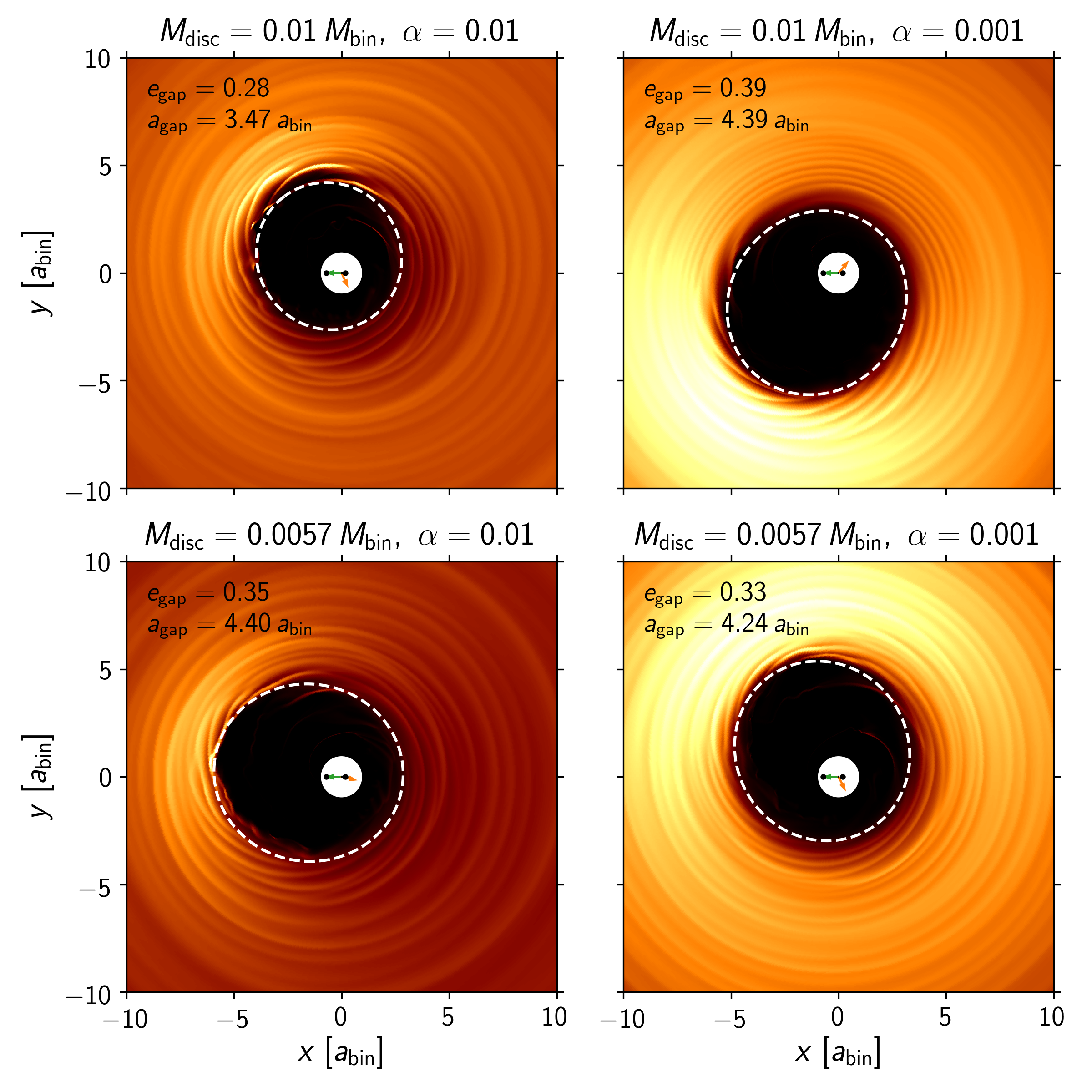

The two-dimensional density distribution of the central region at a time $t=$88,000$$ is displayed in Fig. 10. For two models with the smaller viscosity (left panels) the surface density is lower than for the other two due to larger mass loss from the disc. The dashed white line corresponds to an elliptical fit to the approximate size and shape of the inner hole. The method of calculation of the approximate ellipse is described in detail in Thun et al. (2017). As mentioned above, all four models end up in a dynamically comparable configuration.

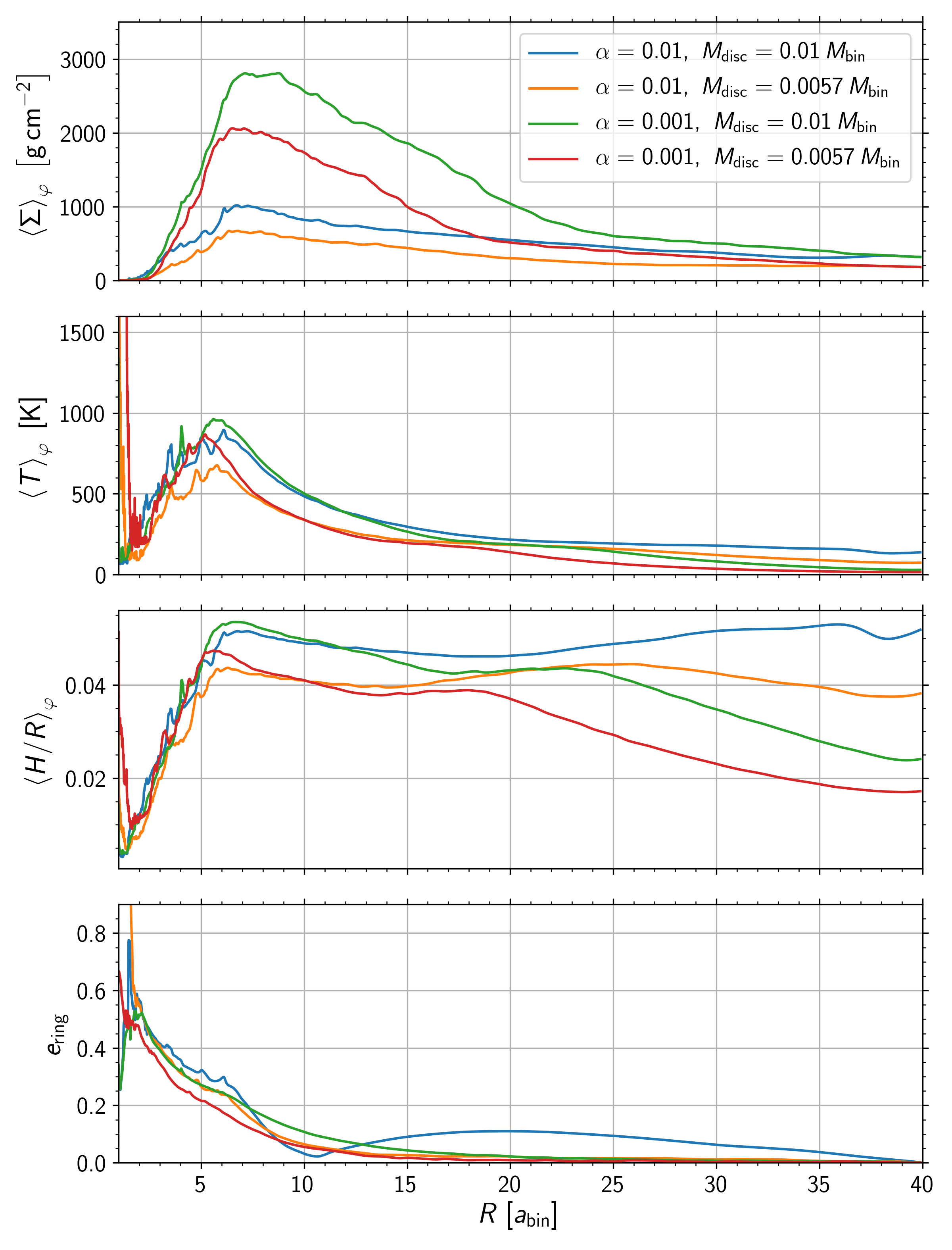

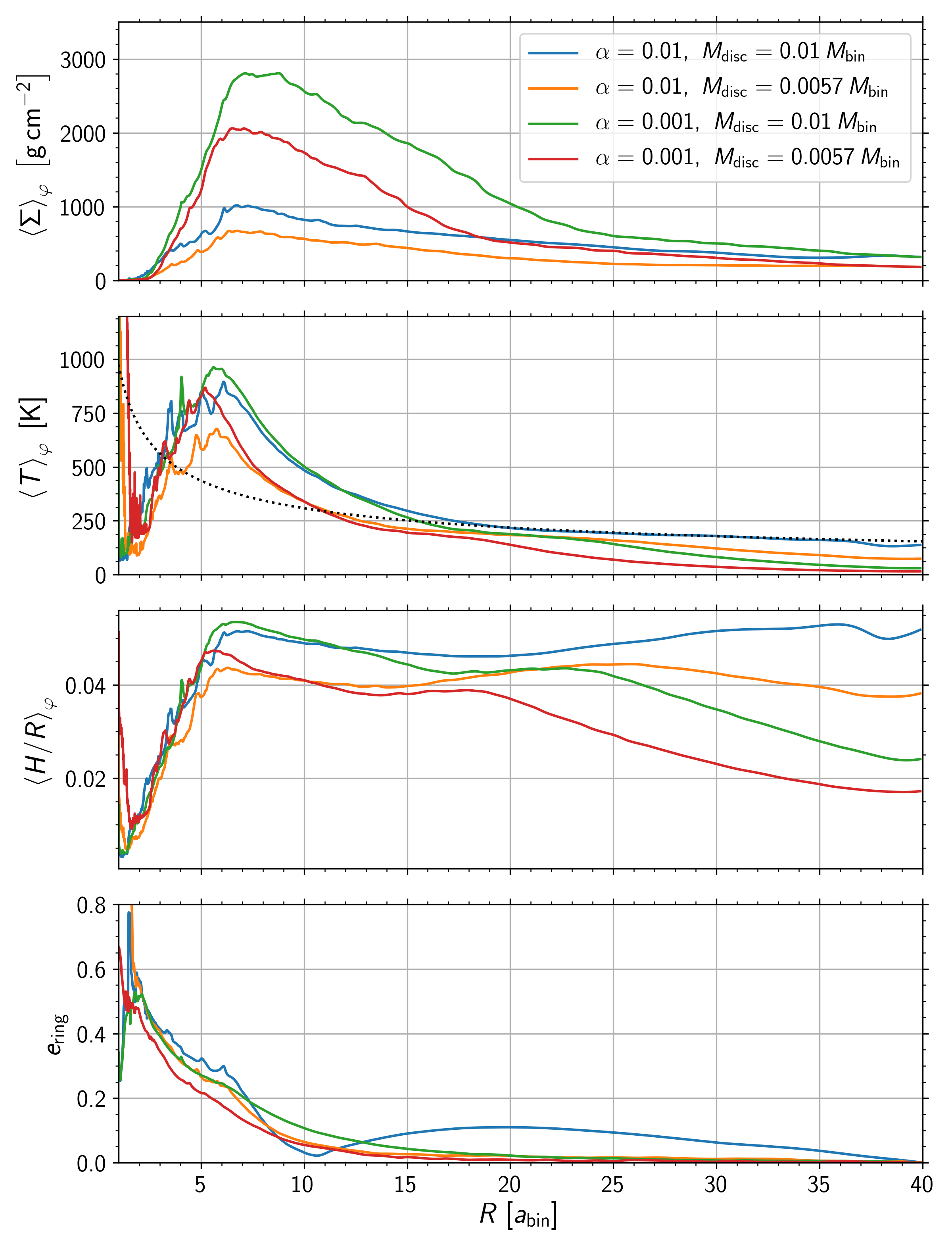

The azimuthally averaged radial disc profiles are displayed in Fig. 11 after $120\,000$ binary orbits when all models have reached equilibrium. The two low viscosity models are shown in red and green, and the two high viscosity models in blue and orange. Due to the increased mass loss through the open inner boundary for high viscosity models the surface density (top panel) is reduced, while the lower $\alpha=0.001$ models show a more pronounced density maximum. The second panel in Fig. 11 shows the midplane temperature of the disc. The temperature peaks near the inner rim of the disc just inside of the density maximum due to viscous dissipation. As shown in the third panel of Fig. 11, the models with the higher initial disc mass show a final temperature above the starting configuration which corresponds to $H/R=0.05$, while the models with lower mass lie below it. Inside the gap, where the density rapidly drops, the cooling is very effective leading to very low temperatures. This behaviour is in agreement with Kley & Haghighipour (2014). In the very inner regions, close to $R_{\mathrm{min}}$ we see again a strong increase in temperature which is due to numerically inaccurate cooling (see Appendix A, where we describe a possible solution). This feature has no dynamical impact due to the very low densities. In the outer part of the disc the behaviour of the temperature depends on the viscosity. For discs with high viscosity the viscous heating is more effective than the cooling and the temperature is slightly increased above the low viscosity models. We will discuss the issue of irradiation (black dotted line in the 2nd panel) below in Sect. 5.3.

Noticeable is the larger disc eccentricity of the model with high viscosity and disc mass, in particular in the outer regions of the disc. We do not have a full explanation for this behaviour but we believe that it is related to the different history of the model. Due to the larger disc mass, the temperature is higher than for the model with the same viscosity and lower mass (in orange). This makes sound waves propagate faster through the disc, increasing the interaction with the outer boundary at $R_{\mathrm{max}}$. In the corresponding temperature and $H/R$ distributions there is indeed some variation seen near the outer boundary which supports this reasoning.

4 Planet evolution

In addition to just studying the disc dynamics, we add now a planet to the last four simulations of the Kepler-38 system and follow its evolution through the disc. The planet, with the observed mass of Kepler-38b (see Tab. 2), is embedded after $88\,000$ binary orbits into the system. At this time the discs have approximately reached their equilibrium configurations, the corresponding 2D density distribution is shown in Fig. 10. To reduce the simulation time, the planet’s starting position lies close to the disc’s inner edge at $a_{p}(t=0)=6a_{\mathrm{bin}}$. As shown in previous simulations, the final ’parking slots’ of planets in circumbinary discs does not depend on their initial location (Kley & Haghighipour, 2015; Mutter et al., 2017b; Thun & Kley, 2018). After insertion, the planet is first held fixed on its initial circular orbit for 2000 $T_{\mathrm{bin}}$. Starting at $90\,000$ $T_{\mathrm{bin}}$, all three objects (binary stars and planet) feel the disc in these simulations and the planets evolve their orbits under the gravitational torques from the disc.

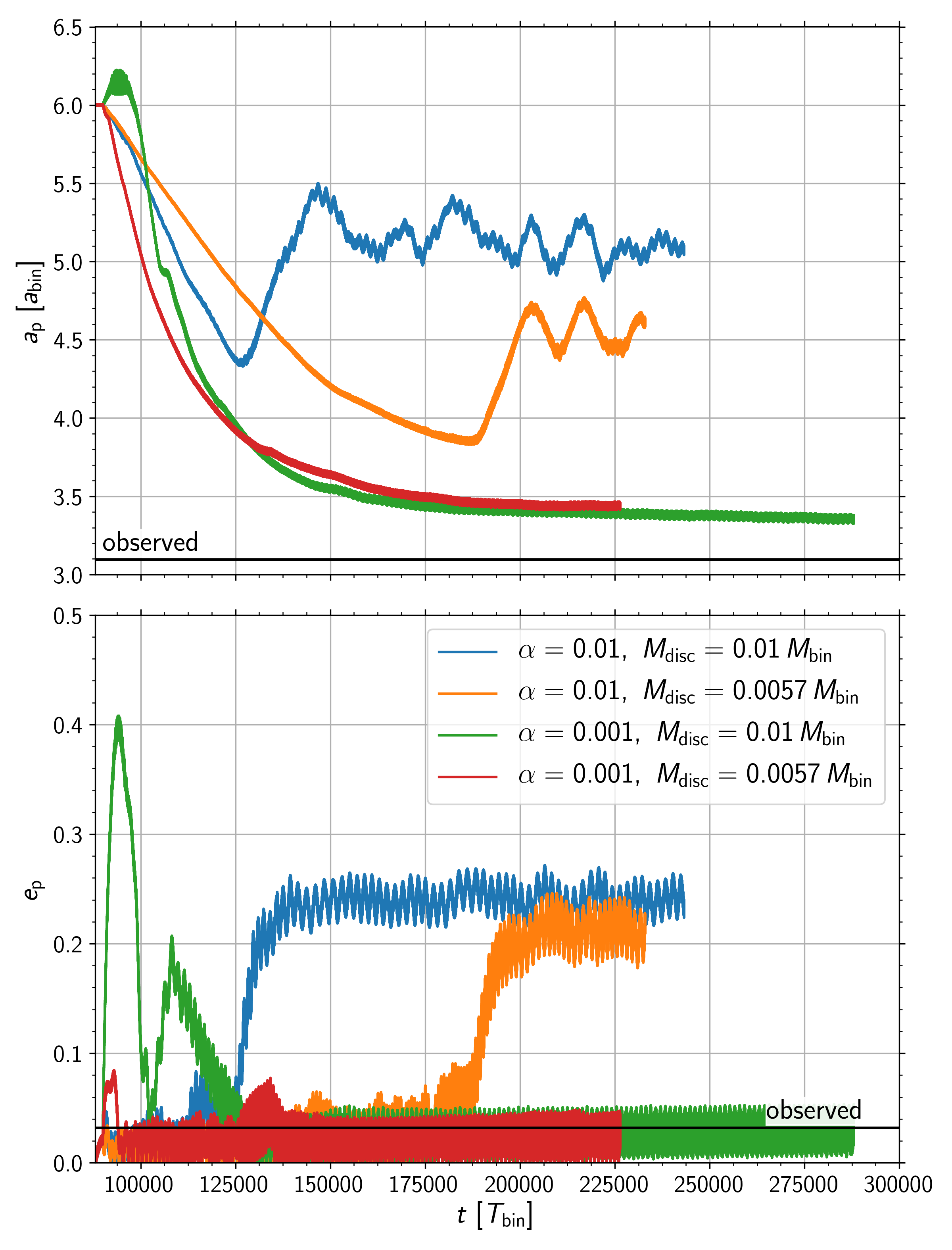

Figure 12 shows the evolution of orbital elements of the embedded planet for the four different cases. As seen already in simulations of locally isothermal discs, the planets can reach two different final parking positions (Thun & Kley, 2018). In the first case (’high state’) the planets migrate first inward and then reverse to reach a final position further away from the central binary with a relatively high eccentricity of about $0.20$. In this state the orbit of the planet is fully aligned with the eccentric inner hole of the disc and precesses with the same speed. Here, this configuration is reached for the two high viscosity models using $\alpha=0.01$. In the second situation for the low viscosity, the planets continue their inward migration and reach a final position further in (’low state’) with very small orbital eccentricity. This final parking position lies very close to the observed location of the planet, and the low orbital eccentricity agrees with the observation as well.

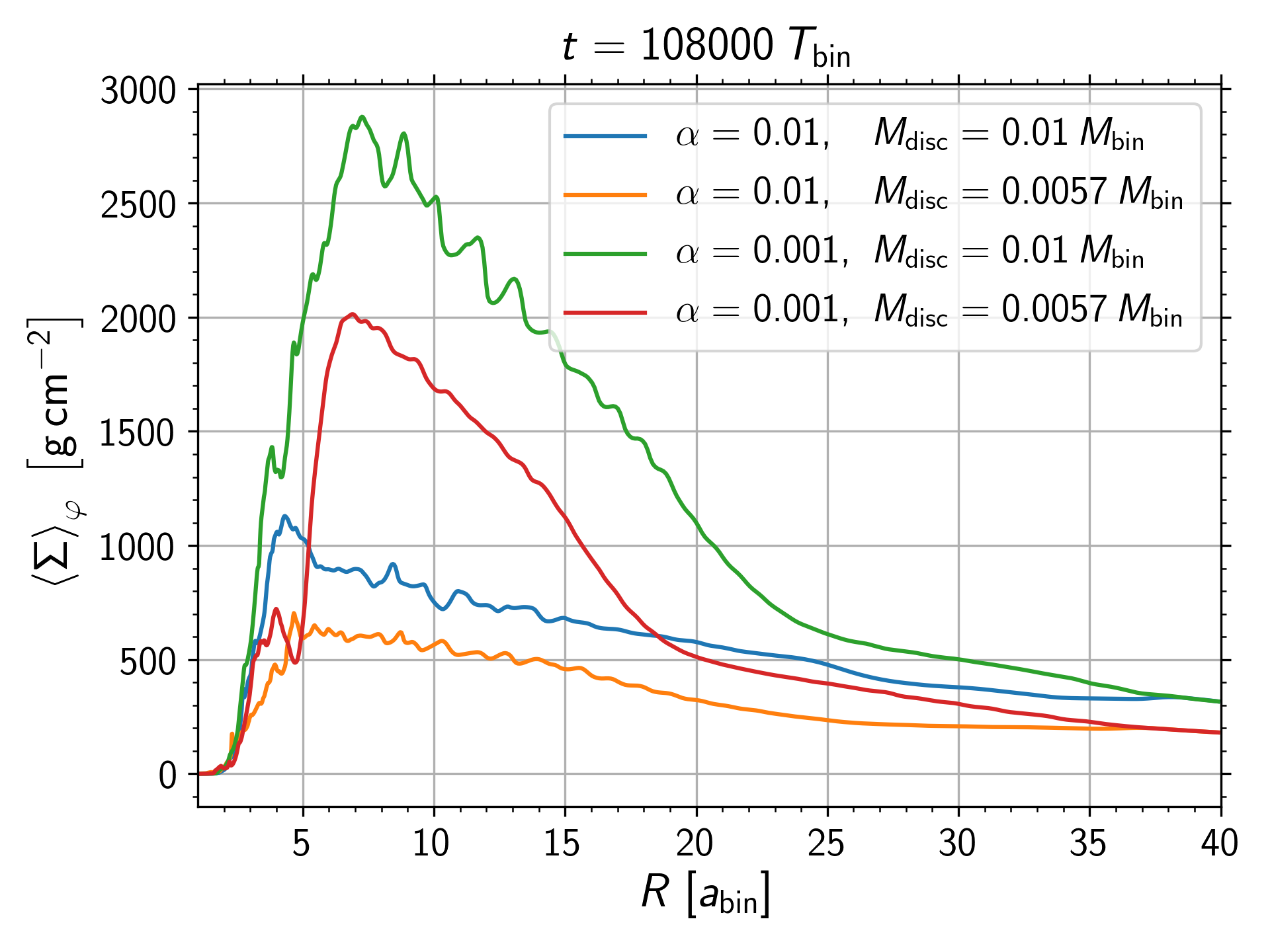

In Thun & Kley (2018) we argued that it depends on the planet mass which state is reached eventually but there we only performed models with one single (high) viscosity of $\alpha=0.01$. Here, the planet mass is the same in all models, and the main difference is the disc viscosity. The reason for the different behaviour of the planets lies in their ability to open a gap in the density of the disc. In the lower viscosity models the planet mass of $0.38M_{\mathrm{Jup}}$ is sufficient to open a partial gap in the surface density of the disc while this is not the case for the higher viscosity. Once the planet induced gap is opened, the outer disc is separated from the inner one and hydrodynamical waves cannot propagate through the opened gap. As a consequence, the binary is not able to excite eccentricity in the outer disc, and it becomes more circular which is accompanied by a reduction in gap size. This allows the planet to migrate further in and remain on a nearly circular orbit. To corroborate this statement we ran an additional model using a locally isothermal disc with a small viscosity, $\alpha=0.001$. As expected, in this case the planet opens a partial gap and it continues to migrate towards a position very close to the observed one with low eccentricity.

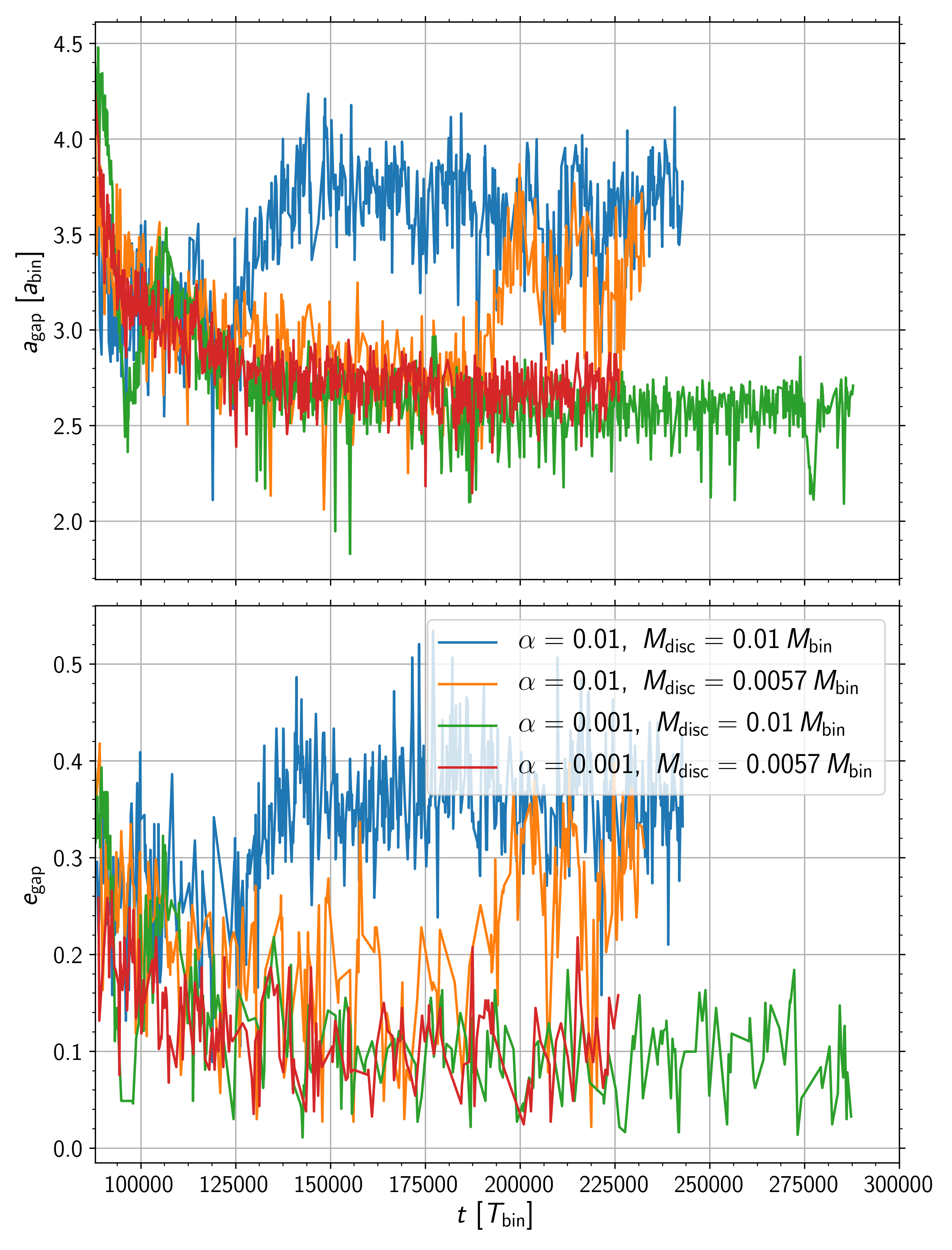

The strong mutual interaction of the disc with the planet is supported with Fig. 13 where we show the time evolution of gap’s semi-major axis and eccentricity. Comparing to the planets’ elements in Fig. 12 demonstrates that the gap behaves exactly as the planets with respect to the increase and decrease of size and eccentricity. The calculation of the gap’s elements is quite noisy because the presence of the planet disturbs the density of the disc making the automated fit of approximate ellipses (Thun et al., 2017) more difficult.

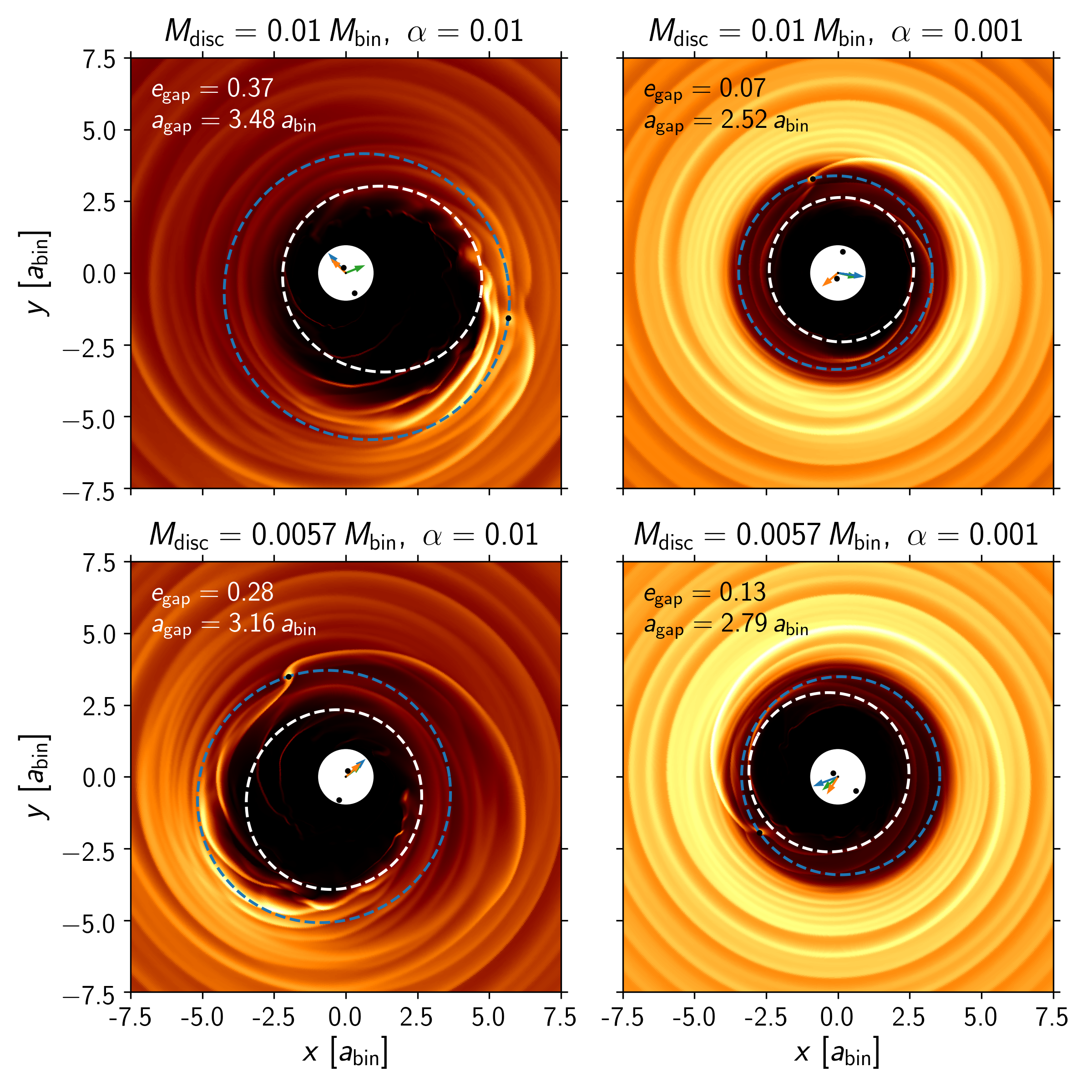

The equilibrium density configuration of the disc is shown in Fig. 14 after $225\,000$ binary orbits together with the positions of the binary stars and the planets. Additionally, we have indicated the direction of pericentres of binary, disc and planets, with green, orange and blue arrows, respectively. The white ellipses denote the inner gap of the disc and the blue ones the orbit of the planet. As seen already in the time evolution plots, in the low viscosity models (right panels) the planets have moved in closer and are on more circular orbits, and the discs inner holes are also smaller and more circular. The planets orbit well inside the regions of maximum density of the disc. In the case of high viscosity (left panels) the planets are more in touch with the disc and the density maxima sometimes lie inside of the planetary orbit. In this case the planet is not able to clear its surroundings to form its own gap due to the high viscosity which tends to fill in the gaps.

5 Discussion

In this section we discuss several aspects concerning the physics of the radiative disc models and the planet migration process.

5.1 Role of thermodynamics

One goal of this work was to investigate what impact the disc’s thermal structure has on its dynamical evolution. For this purpose we extended our previous locally isothermal models in Thun et al. (2017); Thun & Kley (2018) taking viscous energy dissipation into account and assuming a cooling prescription using a vertically averaged opacity. In such a situation the thermal structure of an accretion disc will be given by the viscosity coefficient (here $\alpha$) as this determines the heating rate, and the mass contained in the disc as this will determine the cooling rate through the density dependent opacity. Neglecting for the moment compressive heating, e.g. by shocks, the temperature evolution follows from

[TABLE]

where $\Phi$ denotes the viscous dissipation, and $Q_{-}$ the cooling from eq. (10). Taking for a simple estimate the dominant $r\varphi$-component of the stress tensor into account, the dissipation is given by eq. (18). In the inner regions of the disc the opacity for our models varies as $\kappa\propto T$ and shows no density dependence, see Fig. 2. The viscosity varies as $\nu=\alpha c_{s}^{2}/\Omega_{K}$ (see eq. (3)) and the sound speed is $\propto T^{1/2}$. For the equilibrium temperature of the disc we then find, using $\Phi=Q_{-}$, the following dependence on mass and viscosity

[TABLE]

This relation explains very well the fact that the disc temperature in the four disc models displayed in Fig. 11 are very similar to each other at the edge of the central cavity. In the models with the reduced viscosity the density is higher because less mass is transferred into the cavity which would result in a higher temperature but this is compensated by the lower viscosity. In the outer regions of the discs the densities are similar and the temperature is reduced for the small viscosity models. In addition to the viscous dissipation we checked the impact of shock heating, given by the work done by compression, $-P\,\nabla\cdot\bm{\mathrm{u}}$. We find that this term is highly variable and only contributes near the inner rim of the central gap.

5.2 Comparison to locally isothermal models

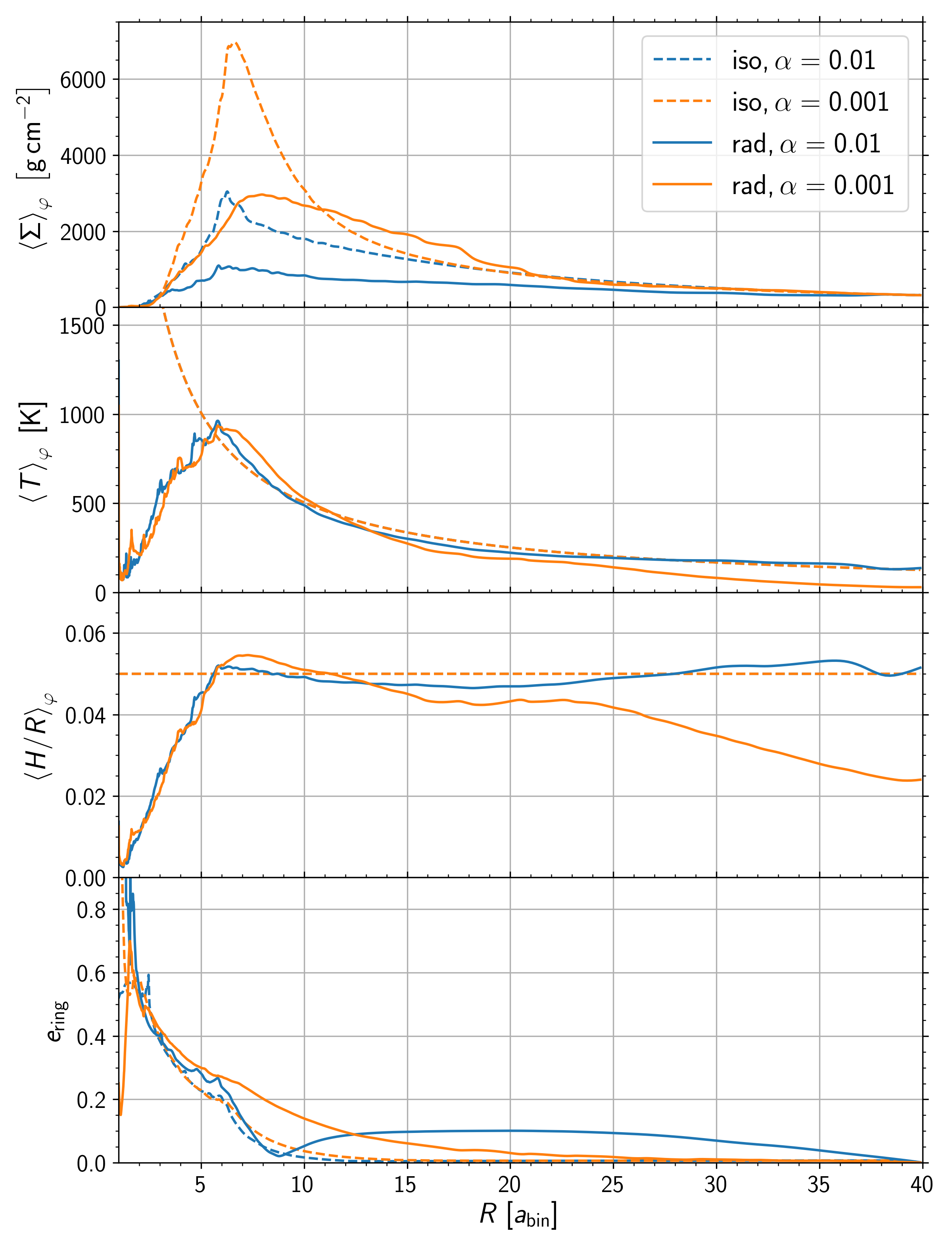

Concerning the overall evolution of the system, one important difference between our previous locally isothermal models (Thun & Kley, 2018) seems to be the extended initial phase before the system eventually reaches an equilibrium sate. This is most likely caused by the fact that in the full models the initial cooling in regions with lower density results in low temperatures with low pressure and small viscosity such that very large and highly eccentric cavities are produced in the early phase, as shown for example in Fig. 8. In the subsequent evolution the disc adjusts slowly on the longer viscous timescale and closes the inner disc region again. In the locally isothermal models this effect was less pronounced because the temperature, and consequently the viscosity, in the disc were always fixed and the disc did much less show this overshoot behaviour especially for high $\alpha$ and/or high binary eccentricities. The models for the Kepler-16 parameter show a very similar initial dynamical behaviour, as demonstrated in Figs. 4 and 5. The transient feature seen here during the initial evolution can only be a feature of real discs in case of a sudden change of the disc properties because slow variations would lead to a continuous re-adjustment. Sudden changes of the disc could occur for example by a flyby of an additional object.

On the other hand, the final equilibrium states for both cases are quite similar, when locally isothermal models are compared to radiative ones which show a similar disc height. In our previous study (Thun & Kley, 2018) we constructed sequences of locally isothermal models using a fixed $H/r=0.05$ and $\alpha=0.01$ for Kepler-38 parameter. In the situation studied here, the two radiative models using the smaller disc mass ($0.0057M_{\mathrm{bin}}$) result in temperatures that give a $H/r$ value very close 0.05 in the inner disc regions for both viscosities. And indeed, the gap size and eccentricity are very compatible. In Thun & Kley (2018) we find in equilibrium for Kepler-38 values of $a_{\mathrm{gap}}=4.5a_{\mathrm{bin}}$ and $e_{\mathrm{gap}}=0.34$, while here we obtain for the $\alpha=0.01$ model $a_{\mathrm{gap}}=4.04a_{\mathrm{bin}}$ and $e_{\mathrm{gap}}=0.37$ (orange curves in Fig. 8). From these viscous heated simulations we can see that in isothermal simulations a constant aspect ratio is reasonable for the inner part of a binary system up to about $15-20a_{\mathrm{bin}}$.

5.3 Irradiation

The models presented in this work do not include stellar irradiation and here we justify this simplification. In Fig. 11 we overplot in the temperature panel the expected equilibrium temperature of a disc that is heated by a single star with one solar mass. This serves as a conservative estimate for the expected irradiation because it is slightly more luminous than both binary stars together. For the inner $10a_{\mathrm{bin}}$ viscous heating is the primary heat source of the main disc. Due to the very low density within the gap viscous heating is strongly reduced and irradiation becomes more important there. Dynamically, the effects are limited because of the little mass contained in this region, but a more detailed treatment should take irradiation into account.

Beyond this radius irradiation can become more important, depending on viscosity and disc mass. As the luminosity of a star scales with stellar mass to the power of about 3.5, binary systems have a much lower luminosity for the same total mass than a single star system. Therefore, in the case of a binary, viscous heating can become more relevant than irradiation. In the outer regions of the disc irradiation, which scales with $L_{*}^{1/8}/M_{*}^{1/2}$, becomes more important and it affects the value of the aspect ratio.

5.4 The inner disc region

Using a polar grid does not allow to cover the central region which include the binary stars. Based on our previous studies (Thun et al., 2017), where we tested in detail the impact of the location of the inner boundary on the results, we performed all the present simulations with a value $R_{\mathrm{min}}=a_{\mathrm{bin}}$. As all simulations show clear gaps with very low densities this value of $R_{\mathrm{min}}$ should be sufficient for an accurate determination of the disc dynamics around binaries. However, this does not allow to follow the flow of gas inside of the gap and calculate which star will accrete the material eventually.

The imposed outflow boundary at $R_{\mathrm{min}}$ does not allow for mass flowing back into the computational domain. In reality, gas leaving through the inner boundary could come back into the domain being ’flung out’ by one of the binary stars. But recent simulations (Muñoz et al., 2019) show that gas entering the gap is accreted onto the stars in circumstellar discs and does not influence the ambient circumbinary disc. Hence, as the inner boundary in our model lies well within the gap it does not influence the dynamics of the circumbinary disc.

Recently, Mösta et al. (2019) presented simulations of the inner region near the central binary where they resolve the individual circumstellar discs covering $5000$ binary orbits. In a comparison simulation using our standard setup with $R_{\mathrm{min}}=a_{\mathrm{bin}}$ we find very similar features in the inflow regime. This demonstrates that even in the early phases of the simulation the inner region inside a binary separation does not alter the disc behaviour and the chosen boundary condition creates an environment for the disc similar to a simulation with the full domain.

5.5 The evolution of the binary

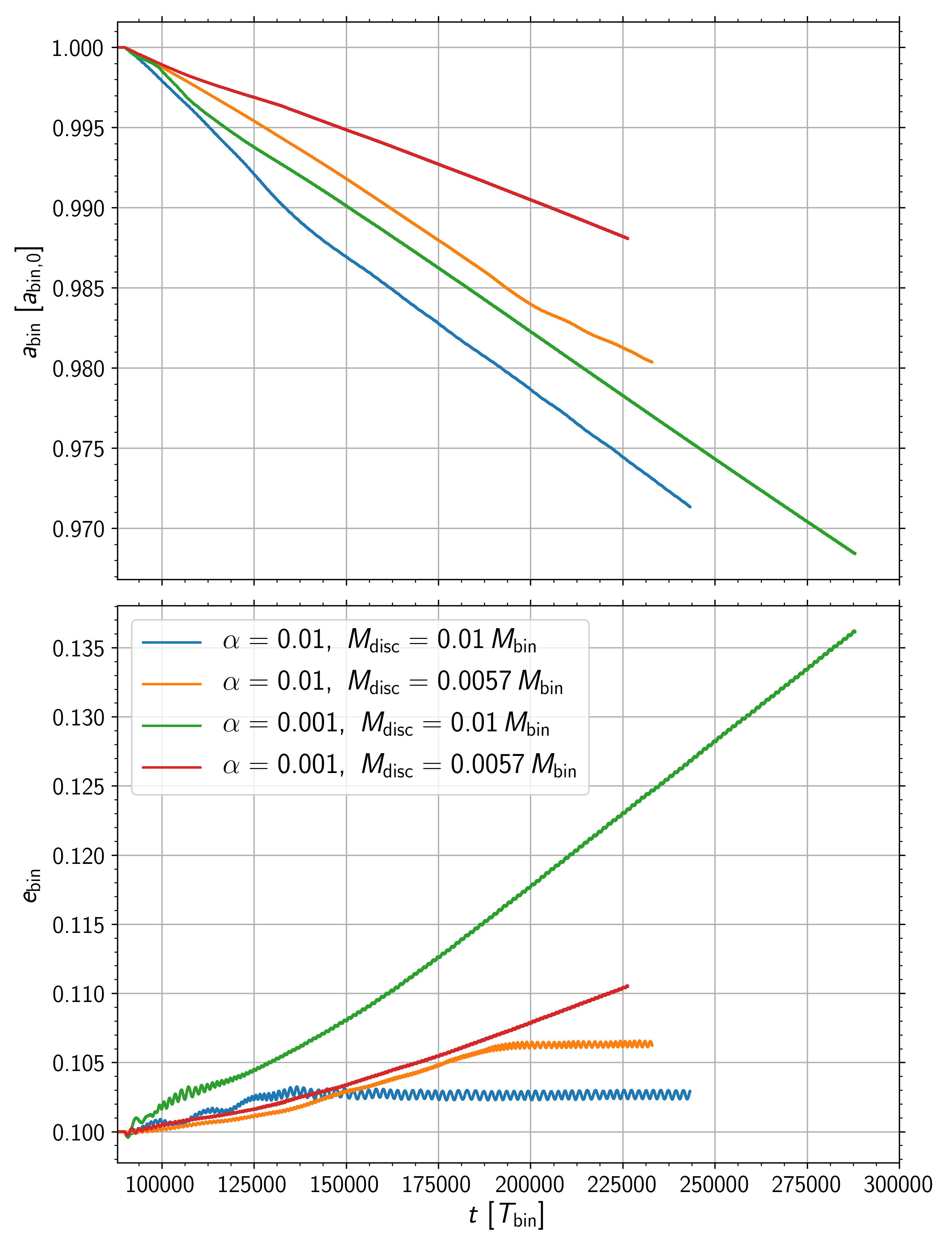

In the simulations with the migrating planet the central binary is allowed to evolve as well due to the gravitational action of the disc. The disc torque will lead to a shrinkage of the orbit accompanied by an increase in eccentricity. Over the whole time span of the active simulations from $90\,000$ to $225\,000$ $T_{\mathrm{bin}}$ the binary semi-major axis changes only very little. The largest reduction (2.5%) is seen for the model with $\alpha=0.01,M_{\mathrm{disc}}=0.01M_{\mathrm{bin}}$, the smallest (1.2%) for $\alpha=0.001,M_{\mathrm{disc}}=0.0057M_{\mathrm{bin}}$. At the same time the highest increase (to 0.123) in $e_{\mathrm{bin}}$ is seen for the model with $\alpha=0.001,M_{\mathrm{disc}}=0.01M_{\mathrm{bin}}$ the lowest one (to 0.103) for the $\alpha=0.01,M_{\mathrm{disc}}=0.01M_{\mathrm{bin}}$ model. These changes are so small that they have no significant impact on the evolution of the planet or disc structure, such that in future simulations of this kind the evolution of the binary can be neglected.

The mentioned test simulations in Thun et al. (2017) and the comparison to Miranda et al. (2017) and to Mösta et al. (2019) give us some confidence that by leaving out the innermost region of the binary we do not loose significant dynamics. This can only be checked in simulations where the whole domain is covered. The question whether the binary experiences an orbit shrinkage (as due to the disc torques) or an expansion (for example due to direct accretion of high angular material from the disc) can only be studied by computations that cover the whole domain. Recent examples that find some evidence for an expansion of the binary are the simulations by Muñoz et al. (2019) or Moody et al. (2019). It remains to be seen if this persists for discs with full thermodynamics.

5.6 The evolution of the planet

In agreement with previous studies (Pierens & Nelson, 2013; Kley & Haghighipour, 2014) we have shown that an embedded planet migrates to the edge of the central cavity. Additionally, we confirm the existence of two final states. In the first case (’high state’) the planetary orbit has a larger eccentricity (usually around $e_{\mathrm{p}}\approx 0.2$ to $0.3$) and is fully aligned with the eccentric hole of the disc, i.e. planet and gap precess at the same rate. In the second case (’low state’) the orbit of the planet remains circular and the final semi-major axis is smaller than in the first case. Here, and in our previous study (Thun & Kley, 2018) we demonstrate that the high state is taken for low planet masses and/or high viscosity while the low state for higher planet masses and/or low viscosity. Hence, it is linked to the ability of gap formation by the planet in the disc which depends on exactly these two parameter (Crida et al., 2006). This connection became apparent in the locally isothermal simulations in Thun & Kley (2018) where a variation of planet mass has shown that lower mass planets end up in the high state while high mass planets reach the low state. Here, we have investigated additionally the viscosity dependence.

Once a planet near the inner edge is able to open its own gap the outer disc is shielded from the action of the binary, becomes more circular and allows for a continuation of the inward migration. When the planet is not able to open a gap, its motion is dominated by the disc and its orbit remains eccentric. This close connection between disc and planet dynamics is illustrated by a direct comparison of Figs. 12 and 13. We have illustrated this behaviour for the Kepler-38 system, where the planet is more massive but it has been seen for Kepler-16 as well, for example in the simulations by Mutter et al. (2017b) who discussed the evolution of growing cores in discs with low viscosity $\alpha=0.001$.

6 Summary

We have performed 2D numerical simulations of viscous accretion discs around binary stars where we included viscous heating and radiative cooling. In a first study we explored, using a given binary mass ratio of $q_{\mathrm{bin}}=0.29$ (as in Kepler-16) and an initial disc mass of $1/100M_{\mathrm{bin}}$, the impact of the binary eccentricity on the disc dynamics. In a second part we focused on the Kepler-38 system and calculated the disc structure for two different values of disc masses and viscosities. For the Kepler-38 we then followed the evolution of an embedded planet for the four models.

We find that in all cases the discs evolve towards a quasi-stationary state with an eccentric cavity that shows a slow prograde precession. The time for attaining this equilibrium can take over   $100\,000$ binary orbits, starting from an axisymmetric initial configuration. In contrast to locally isothermal models, the inner discs cools off initially in the centre such that gaps of large size and high eccentricity are formed because of the reduced pressure and viscosity (see Figs. 4 and 8). During the subsequent evolution the disc readjusts and settles to an equilibrium state where the in the inner disc region the vertical pressure scale height is about $H/R=0.04$ to $0.05$, which depends on disc mass and viscosity. Given that these values are not too different from locally isothermal simulations that typically use $H/R=0.05$, the gap structures are comparable concerning size and eccentricity. However, in the general case, the agreement between isothermal and radiative models will depend on the used parameter of the system (disc viscosity and mass). In the end, only radiative models will give the correct temperature in the disc, which allows to predict a realistic aspect ratio profile for further studies.

For the displayed model sequences we find a similar dependence of the gap precession rate on binary eccentricity as in locally isothermal models. Models with circular binaries produce holes with the highest eccentricity. Upon increasing $e_{\mathrm{bin}}$ the gap size becomes smaller, less eccentric, and the precession period reduces until at a critical $e_{\mathrm{bin}}=0.16$ the trend reverses. The gaps become larger and more eccentric with an increase of the precession period. Hence, overall this behaviour is very similar to the locally isothermal models even with the same turning point (Thun & Kley, 2018).

The temperature maximum of the disc lies inside of the density peak and coincides for the models with $e_{\mathrm{bin}}>0.1$ with the maximum of the viscous dissipation rate, which is here the main heating source of the disc. Shock heating plays a role only in the very inner regions of the disc and contributes more for the binaries with small $e_{\mathrm{bin}}$. Concerning stellar irradiation, we find that for the parameters used here, it did not play a role in determining the energy balance of the disc. However, for more massive (luminous) stars and larger binary separations, this additional energy source will play a role and needs to be included.

Concerning the evolution of embedded planets we find that the planets migrate inward through the disc due the gravitational torques acting on them. They are parked near the inner edge of the disc because the positive density gradient acts as a planet trap (Masset et al., 2006). We find evidence for two different dynamical states of the final position. In the ’high’ state the planet resides at larger separations on an eccentric orbit which is precessing at the same rate as the gap region of the disc, i.e. the planetary orbit is always fully aligned with the disc. In the ’low’ state the planet remains on a circular orbit and is able to move closer to the central binary star. We have shown that it is the ability of the planet to open its own gap in the disc which separates the two states. The high state occurs for lower mass planets, or if the disc’s viscosity is too high that the planet cannot open its gap, such that its dynamics is determined by the eccentric disc. On the other hand, for higher planet masses or lower viscosity the planet opens a gap and shields the outer disc from the action of the binary. Hence, the disc remains circular and the planet can move in closer to the star keeping its circular orbit.

Our simulations show that the final position of the modelled planet lies slightly outside of the observed location of the Kepler-38 planet even for the low state result. Considering that the observed planet is on a nearly circular orbit, we can conclude that in the final phase of the planetary migration process the disc was in a low viscosity state. This applies most likely to the majority of the observed circumbinary planets as well, because they reside on orbits with very low eccentricity close to the binary (Hamers et al., 2018). This connection of final parking position of planets with the disc viscosity in circumbinary systems will allow to put constraints on the disc viscosity via observed planetary orbits. Only in the systems Kepler-34 and Kepler-413 the planets show significant eccentricity and in both cases the numerical models show an even higher eccentricity of the final planetary orbit (Mutter et al., 2017b; Thun & Kley, 2018). These systems need further investigation.

In a recent study investigating the stability of planetary orbits around binary stars it was argued that there is no pile-up of planets in circumbinary discs (Li et al., 2016) as in more than half of the Kepler systems it would be possible to place an additional planet inside of the observed one on a stable orbit (Quarles et al., 2018). In spite of this possibility of stable orbits, our results suggest that it might be difficult to place migrating planets that close due to the large disc gap opened by the binary. In this context it will be useful to investigate the migration process of two planets in the disc and study their final locations and stability (Kley & Haghighipour, 2015) and investigate the possibility of packed orbits around binaries (Kratter & Shannon, 2014). In this context the recent new finding of a third planet in Kepler-47 circumbinary system (Orosz et al., 2019) will be of importance.

Acknowledgements.

We acknowledge fruitful discussions with Richard Nelson. Daniel Thun and Anna Penzlin were funded by grant KL 650/26 of the German Research Foundation (DFG). Most of the numerical simulations were performed on the bwForCluster BinAC. The authors acknowledge support by the High Performance and Cloud Computing Group at the Zentrum für Datenverarbeitung of the University of Tübingen, the state of Baden-Württemberg through bwHPC and the German Research Foundation (DFG) through grant no INST 37/935-1 FUGG. All plots in this paper were made with the Python library matplotlib (Hunter, 2007).

Appendix A Implementation of the cooling term

As mentioned in the numerics section we use a modified version of Pluto 4.2 which was ported to run entirely on Graphical Processor Units (GPUs). The original version of Pluto contains a very sophisticated cooling module (Teşileanu et al. 2008) which we did not implemented in the GPU version. We followed a simpler approach which will be described in this Appendix.

Pluto advances the hydrodynamical equations by one time step solving the following equations (we use the Runge-Kutta 2 time step algorithm):

[TABLE]

with the vector of conserved variable $\bm{\mathrm{U}}=(\Sigma,\Sigma u_{R},\Sigma u_{\varphi},\Sigma e)^{\mathrm{T}}$ and the ?right-hand-side? operator $\mathcal{L}$ (for details see Mignone et al. (2007)). During the calculation of the ?right-hand-side? operator, the contribution of the cooling term $\Delta t\cdot Q_{-}$ is subtracted from the total energy of the gas.

To test our simple implementation we used the following test problem by D’Angelo et al. (2003), and simulate a Keplerian disc around a solar mass star with kinematic viscosity $\nu=$5\text{\times}{10}^{16}\text{,}\mathrm{c}\mathrm{m}^{2}\mathrm{s}^{-1}$$. If we assume an optical thick disc $\tau\gg 1$ and an opacity given by

[TABLE]

with $\kappa_{0}=$2\text{\times}{10}^{-6}$$. The cooling term is given by

[TABLE]

see eqs. (10), (11) and (12). In such a disc the equilibrium surface density and temperature are given by

[TABLE]

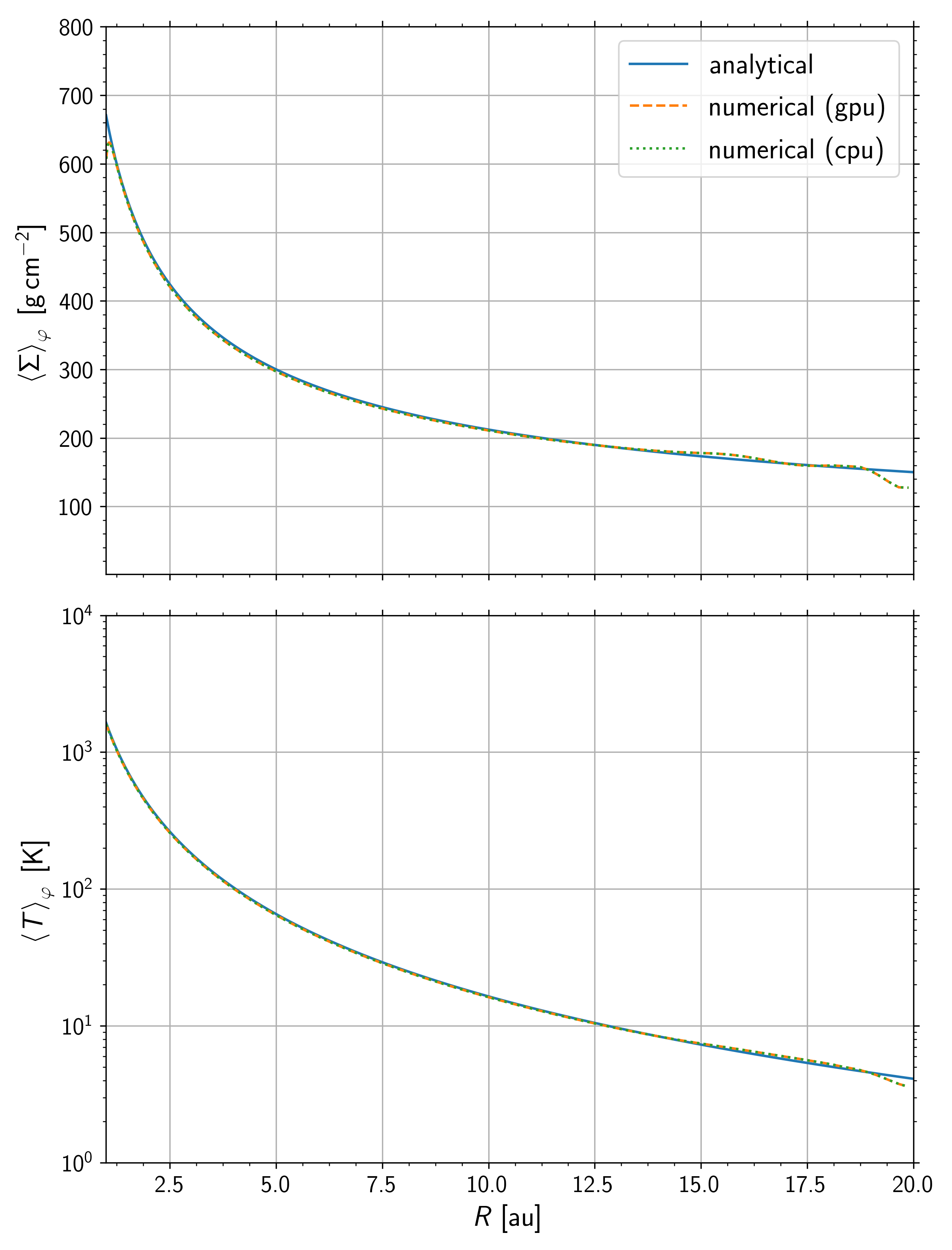

For details see D’Angelo et al. (2003). Figure 15 shows the numerical result from the CPU and GPU version of the code as well as the analytical solution. In our simulation we started with a constant surface density $\Sigma(t=0)=$197\text{,}\mathrm{g}\mathrm{c}\mathrm{m}^{-2} and a constant temperature of $T(t=0)=$352\text{\,}\mathrm{K}. One can see that both versions of the code reproduce the analytical equilibrium states of the surface density and temperature. Deviations at the inner and outer boundary come from the closed boundary conditions applied there.

During our circumbinary disc simulations we noticed that the temperature rises to very high values at the inner boundary of the computational domain, where the densities are very low. To examine this behaviour, we therefore computed models for the full setup, as described in Sec. 2, using different methods of solving for the cooling. The surface density and the temperature are compared after $1500$ binary orbits for the GPU and CPU version of the code. The results are summarised in Fig. 16.

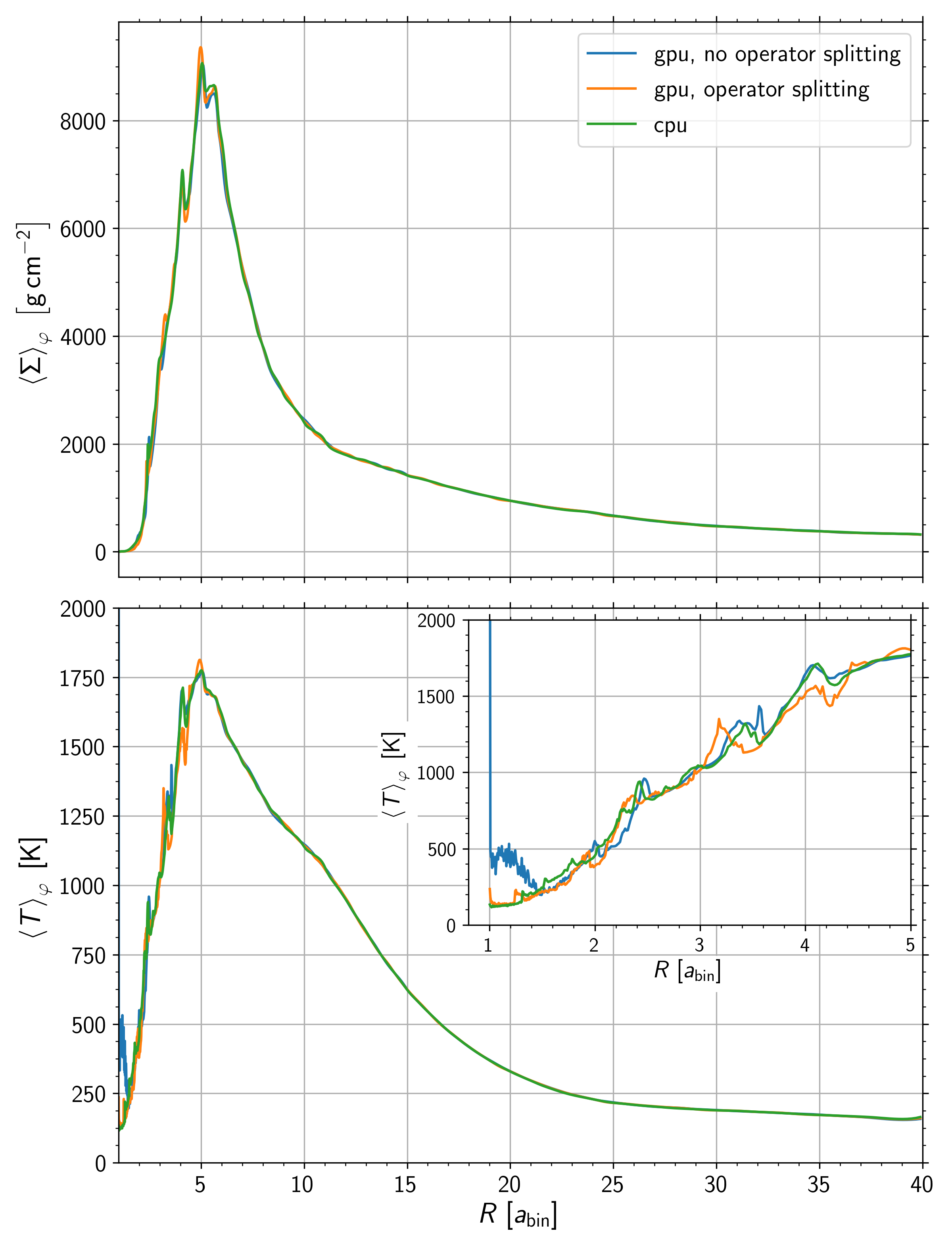

The blue curves in Fig. 16 shows result from the GPU version with the cooling term implemented as described above. The inlet in the bottom panel shows the rise of the temperature at the inner boundary. The CPU version using the module from Teşileanu et al. (2008) (green curve) does not show this rise of temperature. We therefore concluded that it is a numerical artefact. To test this hypothesis we changed the implementation of the cooling term in the GPU version from the direct approach above to an operator splitting method. In this new implementation the hydrodynamical equations (21) are solved first, without adding the cooling term. After the hydro step, the following equation is solved as a separate substep in the code.

[TABLE]

with the simple Euler method

[TABLE]

The cooling source term is $\bm{\mathrm{S}}_{\mathrm{cooling}}=(0,0,0,-Q_{-})^{\mathrm{T}}$, with $Q_{-}$ given by eq. (10).

The orange curve in Fig. 16 shows result using this operator splitting technique. Here the temperature remains low at the inner boundary, comparable to the CPU version which also uses an operator splitting technique. The results shown in this paper are however calculated with the direct approach described at the beginning of this appendix. Since the surface density and pressure at the inner boundary are very low. The numerically increased temperatures do not alter our results, but in the future we will use the more suitable operator splitting method.

The time step of the CPU version is more than two orders of magnitude smaller than the time step of the GPU version. This due to the complex cooling module implemented in the CPU version (Teşileanu et al. 2008). Our GPU version implements the cooling term in a much simpler way, as described in this appendix. Due to the very low time step of the CPU version we compared the results of the two codes already after $1500$ binary orbits. In cases where the simple Euler step does lead to numerical problems it could be applied multiple times during one hydro time step or solved with an iterative method.
