An HI absorption distance to the black hole candidate X-ray binary MAXI J1535-571

TL;DR

This study used ASKAP radio observations to measure HI absorption spectra, constraining the distance to the black hole candidate X-ray binary MAXI J1535-571, and analyzed its luminosity and spectral state transition at this distance.

Contribution

First application of ASKAP HI absorption spectroscopy to determine the distance to a Galactic X-ray binary, demonstrating the method's effectiveness for transient sources.

Findings

Distance to MAXI J1535-571 is approximately 4.1 kpc.

The source's luminosity was >78% of the Eddington luminosity at the measured distance.

The spectral state transition occurred at a very low Eddington ratio.

Abstract

With the Australian Square Kilometre Array Pathfinder (ASKAP) we monitored the black hole candidate X-ray binary MAXI J1535--571 over seven epochs from 21 September to 2 October 2017. Using ASKAP observations, we studied the HI absorption spectrum from gas clouds along the line-of-sight and thereby constrained the distance to the source. The maximum negative radial velocities measured from the HI absorption spectra for MAXI J1535--571 and an extragalactic source in the same field of view are $-69\pm4$ km s$^{-1}$ and $-89\pm4$ km s$^{-1}$, respectively. This rules out the far kinematic distance ($9.3^{+0.5}_{-0.6}$ kpc), giving a most likely distance of $4.1^{+0.6}_{-0.5}$ kpc, with a strong upper limit of the tangent point at $6.7^{+0.1}_{-0.2}$ kpc. At our preferred distance, the peak unabsorbed luminosity of MAXI J1535--571 was $>78$ per cent of the Eddington luminosity, and shows that the soft-to-hard spectral state transition occurred at the very low luminosity of 1.2 -- 3.4 $\times$ 10$^{-5}$ times the Eddington luminosity. Finally, this study highlights the capabilities of new wide-field radio telescopes to probe Galactic transient outbursts, by allowing us to observe both a target source and a background comparison source in a single telescope pointing.

Figures

Tables

Table 1. Table 1: Details of our ASKAP observations of MAXI J1535–571.

Observation	Observation	Observation	MJDb	Exposure	Flux Densitya	rms noise
ID	Start date	Start time		time	$S_0$	(mJy beam-1)
	(DD-MM-YYYY)	(hh:mm:ss)		(hh:mm:ss)	(mJy)
4340	21-09-2017	03:06:32	58017.17	02:02:26	$579.6\pm 2.1$	0.74
4364	22-09-2017	01:30:02	58018.12	02:51:50	$156.1\pm 1.9$	0.72
4367	22-09-2017	10:35:41	58018.50	03:00:56	$306.1\pm 1.3$	0.54
4374	23-09-2017	13:23:39	58019.58	01:00:52	$478.2\pm 2.4$	0.91
4410	30-09-2017	03:29:59	58026.23	04:00:56	$39.8\pm 0.8$	0.53
4414	01-10-2017	03:35:00	58027.23	04:01:01	$26.3\pm 0.8$	0.54
4418	02-10-2017	03:39:59	58028.24	04:01:22	$21.4\pm 0.7$	0.52

Full text

††pubyear: 2019††pagerange: An H i absorption distance to the black hole candidate X-ray binary MAXI J1535–571–An H i absorption distance to the black hole candidate X-ray binary MAXI J1535–571

1 Introduction

Stellar-mass black holes in binary systems play an important role in understanding the universal phenomena of accretion and ejection (Fender, Belloni, & Gallo, 2004), as they evolve on humanly observable time-scales. However, black hole X-ray binaries (XRBs) typically have poorly constrained distances, with uncertainties often more than 50% (Jonker & Nelemans, 2004). The distance of a stellar object is of great importance as it enables us to determine the physical parameters from observables, such as luminosity from flux, physical separation from angular separation, and velocity from proper motion.

Parallax is the most fundamental and model-independent method for estimating stellar distances. The main caveat of this method is that for typical XRB distances, the measured parallax is extremely small (1 milliarcsec for 1 kpc). Therefore, instruments capable of probing sub-milliarcsecond scales are required. Such studies are possible only with very long baseline interferometry (VLBI) and Gaia (Gaia Collaboration et al., 2018), and only for a handful of XRBs (e.g. Miller-Jones et al., 2009; Reid et al., 2011; Gandhi et al., 2019).

High-precision trigonometric parallax measurements are not possible for most black hole XRBs. In such cases, the distance is commonly estimated by comparing the inferred absolute magnitude of the donor star (as determined from its spectral type) with the apparent magnitude, after considering the maximum contribution from the accretion disk (Jonker & Nelemans, 2004). The main limitations of this technique are the uncertainties associated with the disk contribution and the extinction along the line of sight.

If the companion star is too faint (e.g. if the system is highly extincted) then other methods must be used, one of which uses the Doppler shifted 21-cm absorption line of neutral hydrogen (H i; e.g. Koribalski et al., 1995; Dhawan, Goss, & Rodríguez, 2000; Lockman, Blundell, & Goss, 2007). Intervening interstellar H i clouds are presumed to follow the rotation of the Milky Way and their absorption features allow us to constrain the kinematic distance to the source (Gathier, Pottasch, & Goss, 1986; Kuchar & Bania, 1990). If the source is beyond the solar orbit, this method provides an accurate kinematic distance estimation. However, the method suffers from ambiguities if the source lies within the solar orbit (Wenger et al., 2018).

On 2 September 2017, an uncatalogued XRB was co-discovered by the Monitor of All-sky X-ray Image111http://maxi.riken.jp/top/index.html (MAXI; Matsuoka et al., 2009) and the Neil Gehrels Swift Observatory (Swift; Gehrels, et al., 2004), and designated MAXI J1535–571 (Negoro et al., 2017a; Kennea et al., 2017a). In J2000.0 coordinates, the source is located at RA = 15:35:19.714$\pm 0.007$, DEC = –57:13:47.583$\pm 0.024$ (Galactic coordinates l = 323.72407°$,b\,=\,$-$1.12887\degree$; Russell et al., 2017a). Multi-wavelength studies of the system strongly suggest that the accreting compact object is a stellar-mass black hole (Dincer, 2017; Kennea, 2017b; Negoro et al., 2017b; Russell et al., 2017a, b). However, the physical parameters, including the black hole mass and distance, and the peak luminosity of the outburst are still uncertain.

In this study, we aim to constrain the distance to MAXI J1535–571 using H i absorption spectra from Australian Square Kilometre Array Pathfinder (ASKAP) early science observations. ASKAP is a synthesis radio telescope located at the Murchison Radio-astronomy Observatory (MRO) in Western Australia, which has already established its ability to detect H i absorption from extragalactic sources (Allison et al., 2015, 2017). The telescope operates in the frequency range 0.7–1.8 GHz providing an angular resolution of 10 arcsec and a field of view (FOV) of 30 deg2 at 1.4 GHz (Hotan et al., 2014). This allows us to simultaneously measure the H i absorption towards both MAXI J1535–571 and an extragalactic calibrator source, allowing us to distinguish between near and far kinematic distances.

2 Observations and Data reduction

During the 2017 outburst of MAXI J1535–571, ASKAP observed the source over seven epochs from 21 September to 2 October 2017. At the time of these early science observations, ASKAP was operated in a sub-array of twelve dishes, which provides an angular resolution of $\sim 30$ arcsec. All observations were conducted at a central frequency of 1.34 GHz with a processed bandwidth of 192 MHz. The total bandwidth was further divided into 10368 fine channels, each with a frequency resolution of 18.519 kHz, with visibilities recorded every 10 s. Further details of the observations can be seen in Table 1.

We reduced our data using the standard ASKAP data analysis software, ASKAPsoft222http://www.atnf.csiro.au/computing/software/askapsoft/sdp/docs/current/index.html (pipeline version 0.24.1). For continuum imaging, we performed dynamic flagging of faulty antennas, faulty channels, and baselines affected by radio frequency interference (RFI) during bandpass calibration. Bandpass and flux calibration were performed using the calibrator source PKS B1934–638, and the bandpass solution was interpolated across frequencies where data were flagged. The IMFIT task in the Common Astronomy Software Application (CASA v5.1.2-4: McMullin et al., 2007) package was used for measuring the flux densities and $1\sigma$ uncertainties of MAXI J1535–571 from the continuum images, which are listed in Table 1.

With a flux density $>150$ mJy during the first four epochs, there was enough signal-to-noise to detect H i absorption towards MAXI J1535–571. We used the SIMAGER task to generate spectral-line cubes, and performed only stokes-V flagging to avoid removing the true absorption line in the H i region. We applied the bandpass solutions to the raw spectral data and extracted a sub-spectral cube with 1000 channels centered at 1.42 GHz and a velocity resolution of $\sim 4$ km/s. Note that our conclusions should not be affected by the Galactic H i absorption towards PKS B1934–638, which is very narrow (FWHM $<$ 6 km/s; approximately one channel wide) and therefore only affects the H i absorption line at local standard of rest (LSR) velocity = 0 km s*-1* (Dénes et al., 2018). We extracted the H i spectra corresponding to MAXI J1535–571 and a nearby extragalactic comparison source PMN J1533–5642 (= MGPS J153358–564218; Griffith & Wright, 1993; Murphy et al., 2007), located at RA = 15:33:57.439, DEC = $-$56:42:17.183 (uncertainty of 10 arcsec), and analysed the H i absorption complexes with significance exceeding $3\sigma$.

3 Results

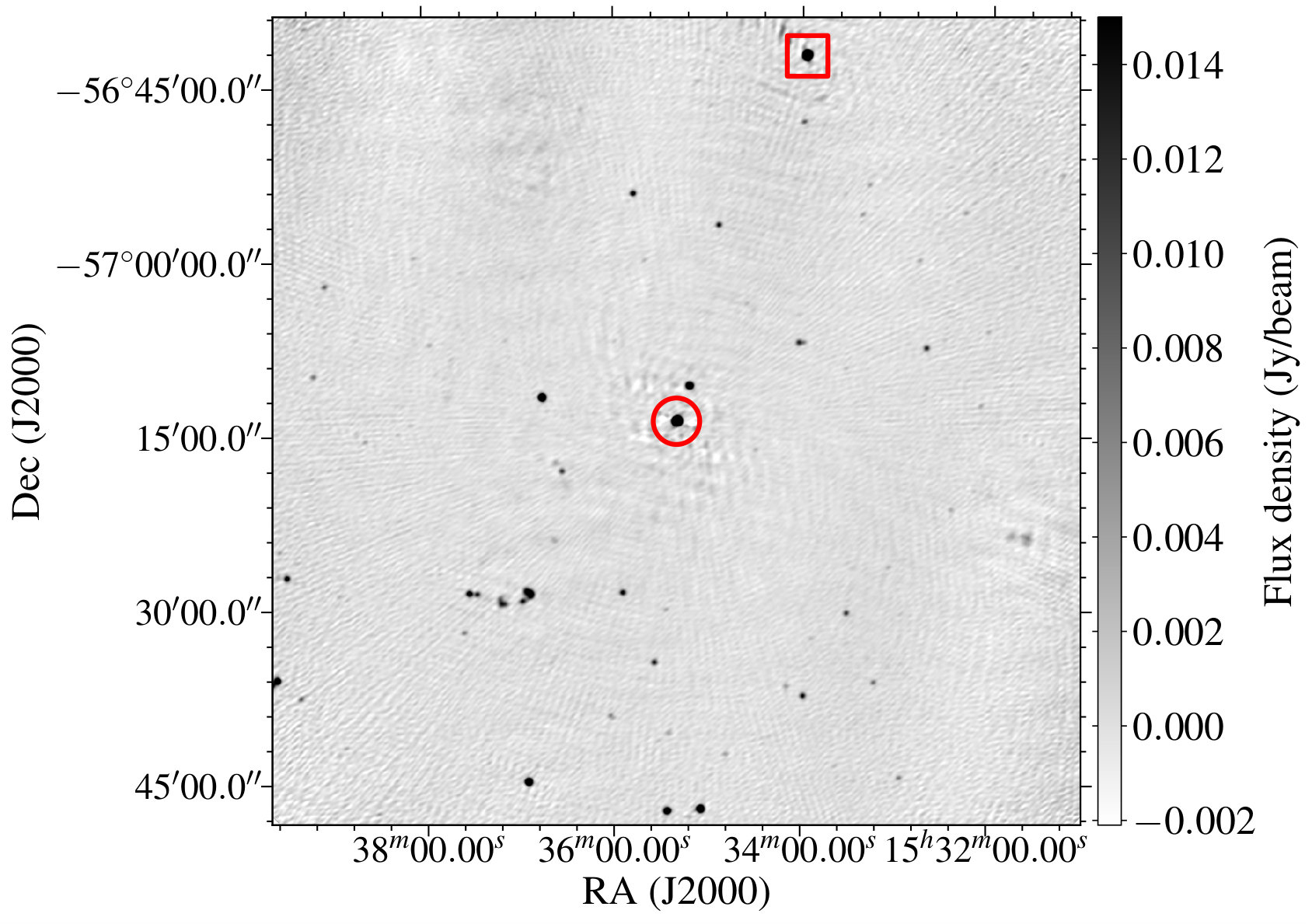

The continuum image of the region around MAXI J1535–571 for the 21 September 2017 observation is shown in Figure 1 (left panel), where the source is detected at high significance ($>200\sigma$). Residual calibration, deconvolution and amplitude errors remain in our images due to these data being obtained during ASKAP’s early science phase with 12 of 36 active antennas, causing reduced UV coverage, the use of the rapidly evolving ASKAPsoft software, and the lack of complete instrumental characterisation that will only improve over time. Figure 1 (left panel) also shows the extragalactic comparison source MGPS J153358–564218 with a measured flux density of $340\pm 2$ mJy on 21 September 2017, which remained stable to better than 10% between all the epochs.

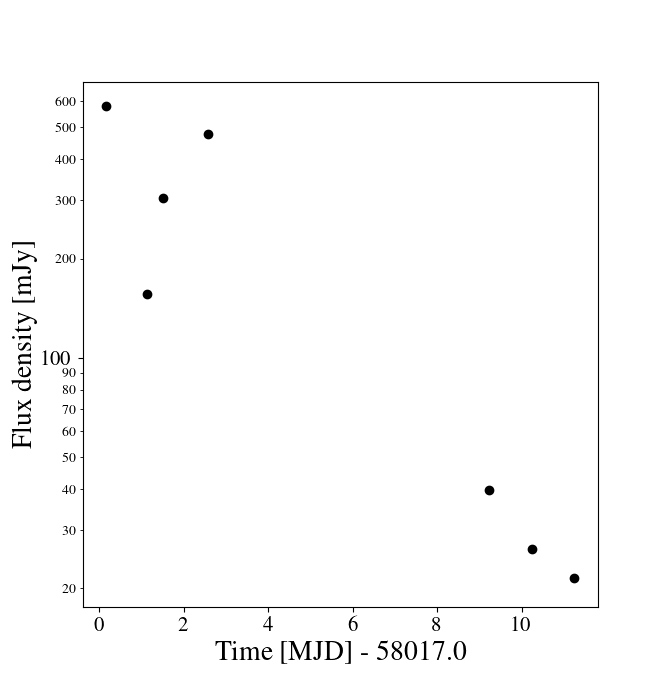

In the right panel of Figure 1, we present the 1.34 GHz light curve of MAXI J1535–571 from 21 September to 2 October 2017. During this period we observed two distinct peaks on 21 and 23 September, reaching flux densities $>450$ mJy, likely corresponding to separate flaring events. Subsequently, the radio flux density of MAXI J1535–571 gradually decreased, reaching a level of $\sim 20$ mJy by 2 October.

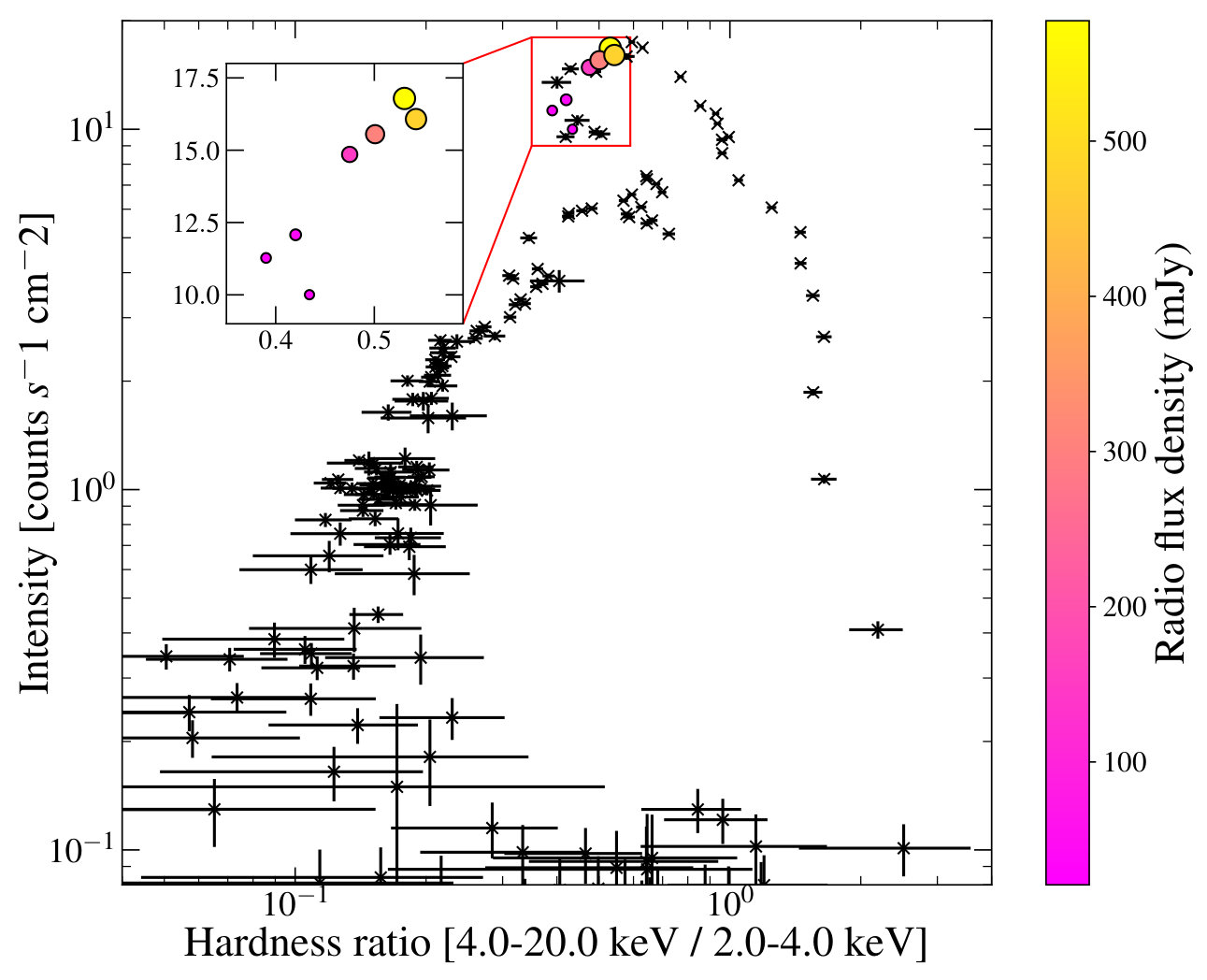

We downloaded the on-demand X-ray light curves from MAXI in the energy range 2.0–20.0 keV to create a hardness-intensity diagram (HID) for MAXI J1535–571, presented in Figure 2. From the HID, all our radio observations were taken in the soft-intermediate spectral state (Tao et al., 2018). This confirms that MAXI J1535–571 underwent radio flaring behaviour during the hard-to-soft X-ray spectral state transition, as is typical for XRBs (Fender, Belloni, & Gallo, 2004).

3.1 H i absorption spectra

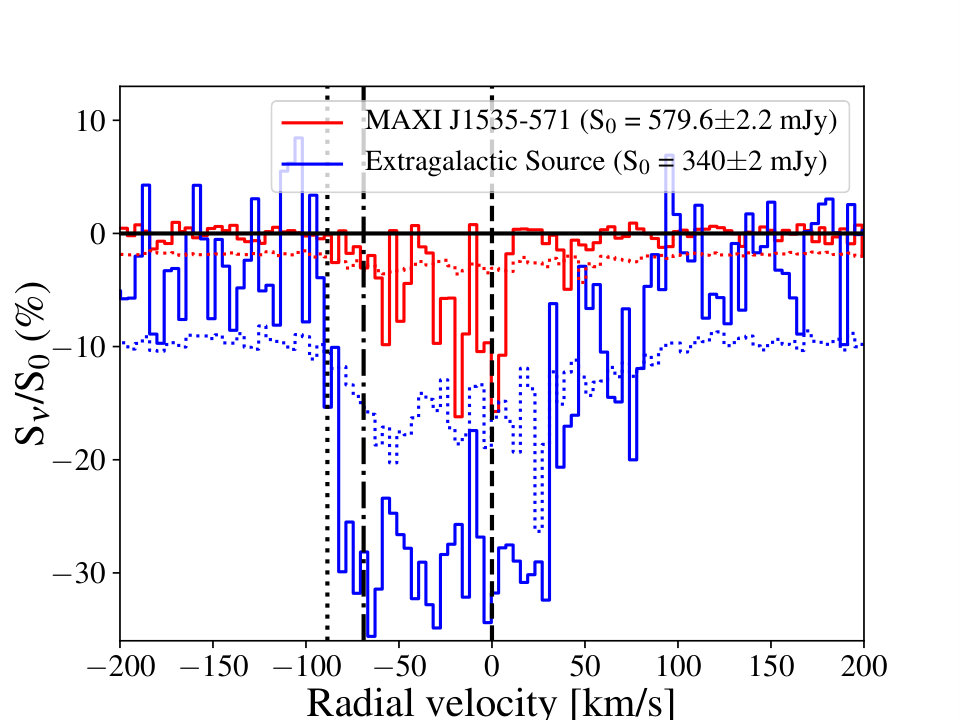

In Figure 3, we show the H i spectrum for MAXI J1535–571 for the first epoch (21 September 2017). In the same plot, we also display the spectrum for the extragalactic source MGPS J153358–564218, and the $3\sigma$ rms noise levels for the spectra of both sources. For both sources, we measured the rms noise per channel from the spectral cube, taking the median noise value in each channel from a number of regions close to the source to mitigate against any faint Galactic Hi emission in any given region. The rms noise level for both sources is shown as the dotted line (with their respective red and blue colours) in Figure 3, where $S_{\nu}$ is the flux density measured from the data cube and $S_{0}$ is that measured from the continuum image via the IMFIT task. In the case of MAXI J1535–571, we observed a significant ($>3\sigma$) H i absorption complex with a maximum negative velocity of $-69\pm 4$ km s*-1*. In the second epoch, the H i absorption lines are weaker due to the lower flux density. Therefore, we have not used the second epoch because the sensitivity was not high enough to reliably determine the maximum velocity out to which absorption could be observed. The third and fourth epochs are excluded from this analysis due to the presence of RFI in the H i spectrum.

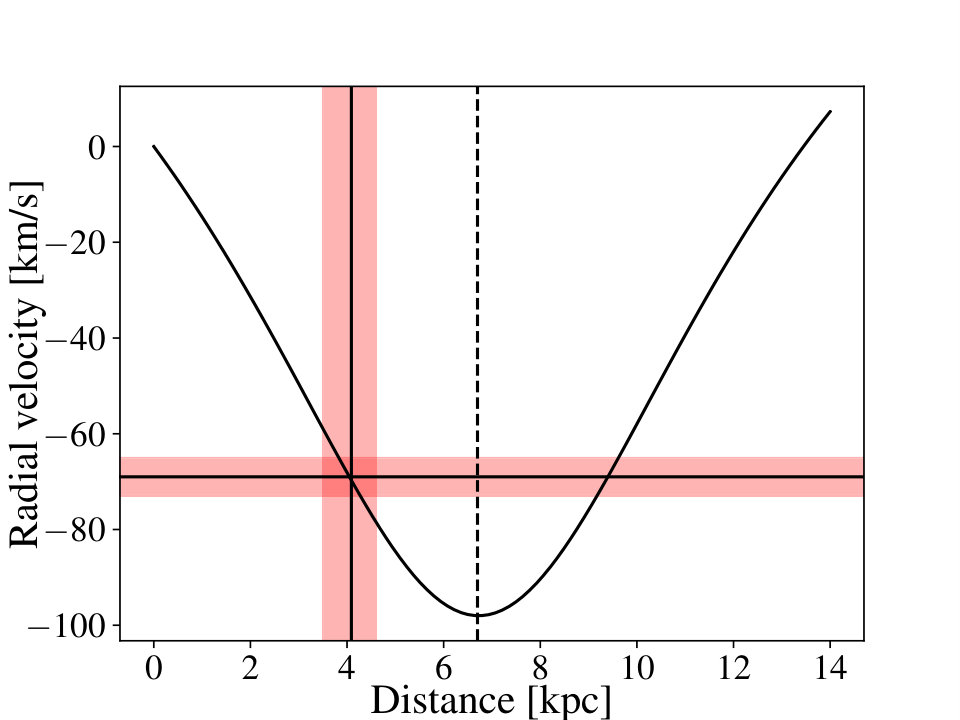

For Galactic longitudes $270\degree\leq l\leq 360\degree$, the expected radial velocities from Galactic rotation are negative. Figure 4 shows the calculated variation of velocity of the local standard of rest ($V_{\rm LSR}$) with distance from the Sun ($d$) in the direction of MAXI J1535–571. For the determination of $V_{\rm LSR}$, we presumed the Galactic rotation curve to be flat with a circular velocity ($V_{0}$) and a Galactic centre distance ($R_{0}$) of $240\pm 8$ km s*-1* and $8.34\pm 0.16$ kpc, respectively (Reid et al., 2014). $V_{\rm LSR}$ is symmetric about the tangent point distance ($R=R_{0}\cos{l}\equiv 6.7^{+0.1}_{-0.2}$ kpc), and therefore provides two estimates of the distance, near and far, within the solar circle. Beyond $d=13.2$ kpc, where $R>R_{0}$, $V_{\rm LSR}$ becomes positive. The kinematic distance to MAXI J1535–571 suffers ambiguities because the source is located within the solar orbit. Furthermore, the gas clouds in the Milky Way may not all be following circular motions. Therefore, we have followed the prescription given by Wenger et al. (2018), who used the rotation curve given by Reid et al. (2014) with a Monte Carlo approach333http://www.treywenger.com/kd/index.php to derive a more robust kinematic distance and uncertainty. Using the observed maximum negative absorption velocity and the methodology of Wenger et al. (2018), we constrain the near and far source distances to be $4.1^{+0.6}_{-0.5}$ kpc and $9.3^{+0.5}_{-0.6}$ kpc, respectively.

The H i absorption spectrum of the extragalactic source MGPS J153358–564218 (Figure 3) shows $>3\sigma$ significance absorption out to a maximum negative velocity of $-89\pm 4$ km s*-1*, which is due to more distant gas clouds, and consistent (within uncertainties) with the tangent point velocity of $-92^{+8}_{-9}$ km s*-1* (obtained following Reid et al. 2014 and Wenger et al. 2018). Absorption at the tangent point velocity is not seen towards MAXI J1535–571, implying that MAXI J1535–571 should be located closer than the tangent point distance of $6.7^{+0.1}_{-0.2}$ kpc (Figure 4).

4 Discussion

As outlined in section 3.1, we place a lower limit of $4.1^{+0.6}_{-0.5}$ kpc on the distance to MAXI J1535–571. The more negative radial velocities detected towards the extragalactic source must therefore be coming from larger distances, out to at least the tangent point at $6.7^{+0.1}_{-0.2}$ kpc. If we discount the unlikely scenario that all absorption at intermediate velocities comes from gas clouds more distant than the tangent point, we find a most probable distance of $4.1^{+0.6}_{-0.5}$ kpc for MAXI J1535–571. In the following subsections we discuss the implications of these distance constraints.

4.1 Spectral state transition luminosity

According to Kalemci et al. (2013), the soft-to-hard spectral state transition in black hole XRBs usually occurs between 0.3 and 3 per cent of the Eddington luminosity. A Swift/XRT observation on 29 April 2018 was identified as the point of the soft-to-hard spectral state transition (Tao et al., 2018), with an unabsorbed X-ray flux of $\sim 6$ $\times$ 10*-12* erg cm*-2* s*-1*. Using our distance estimates, and assuming a typical black hole mass of $8\pm 1M_{\odot}$ (Kreidberg et al., 2012), we calculate a transition luminosity of 1.2 – 3.4 $\times$ 10*-5* times the Eddington luminosity, which is much lower than is typical for black hole XRBs (Kalemci et al., 2013).

Such a peculiar behavior has been seen in a few other sources, and there are a few possible explanations. Vahdat Motlagh, Kalemci, & Maccarone (2019) hypothesised that a new episode of accretion during an outburst decay could launch a new soft state, with a lower transition luminosity than the normal 0.3 – 3 % of the Eddington luminosity. Alternatively, Petrucci et al. (2008) and Begelman & Armitage (2014) suggested that low viscosity or low magnetic fields in the accretion disk could also decrease the state transition luminosity.

4.2 Peak X-ray luminosity

Stiele & Kong (2018) observed a peak absorbed X-ray flux of $\sim 3.7$ $\times$ 10*-7* erg cm*-2* s*-1* from MAXI J1535–571 in the energy range 0.6–10 keV. Using our derived distance of $4.1^{+0.6}_{-0.5}$ kpc, this corresponds to an absorbed luminosity of 7.5 – 19.9 $\times$ 1038 erg s*-1*. For a compact object of typical black hole mass $8\pm 1M_{\odot}$ (Kreidberg et al., 2012), this corresponds to $>78$ per cent of the Eddington luminosity. Tao et al. (2018) reported that over the peak of the outburst, the X-ray spectrum could be fit with a slim disk model, suggesting a luminosity close to the Eddington luminosity. Their conclusion is therefore consistent with our distance estimate.

4.3 Line-of-sight hydrogen column density

From our distance constraints and Galactic latitude ($b$), we infer MAXI J1535–571 to lie 0.08–0.13 kpc below the Galactic plane, well within the scale height of the Milky Way disk ($\sim 0.3$ kpc; Mandel, 2016). Using X-ray spectroscopy, the absorption column density ($n_{\rm H}$) towards MAXI J1535–571 was found to be in the range 2.8 – 5.6 $\times 10^{22}$ cm*-2* (Miller et al., 2018; Stiele & Kong, 2018; Tao et al., 2018), which is consistent with the predicted Galactic absorption value of $2.0\pm 1.0\times 10^{22}$ cm*-2* in the direction of MAXI J1535–571, calculated from the extinction maps and estimated correlation between $n_{\rm H}$ and $A_{\rm V}$ (Schlafly & Finkbeiner, 2011; Bahramian et al., 2015; Foight, Güver, Özel & Slane, 2016).

5 Summary

In this study, we measured a kinematic distance to the black hole candidate XRB MAXI J1535–571 using an H i absorption spectrum obtained from ASKAP early science observations. A comparison extragalactic source in the same field shows H i absorption out to $-89\pm 4$ km s*-1* (consistent with coming from the tangent point at $6.7^{+0.1}_{-0.2}$ kpc), whereas MAXI J1535–571 shows no significant H i absorption beyond $-69\pm 4$ km s*-1*. Therefore, the most probable distance to the source is $4.1^{+0.6}_{-0.5}$ kpc, with a robust upper limit of $6.7^{+0.1}_{-0.2}$ kpc.

Our distance constraints have confirmed that MAXI J1535–571 was accreting close to the Eddington rate at the peak of the outburst, in agreement with X-ray spectral fitting results by Tao et al. (2018). We also demonstrate that the soft-to-hard X-ray spectral state transition in MAXI J1535–571 occurred at a very low fraction (1.2 – 3.4 $\times$ 10*-5*) of the Eddington luminosity, which could either be due to a second episode of accretion partway through the outburst decay, or to a low viscosity and magnetic field in the accretion disk.

This study also highlights the importance of modern radio telescopes such as ASKAP, which provide both high sensitivity and a wide field-of-view. In this project, the wide field-of-view of ASKAP afforded us the opportunity to study the H i absorption spectrum of both MAXI J1535–571 and a comparison extragalactic source within the same observation. The high sensitivity and high spectral resolution of ASKAP allowed us to extract the H i spectrum from just two hours of observation, placing stringent constraints on the distance to MAXI J1535–571.

Acknowledgements

We thank the referee for their valuable comments. The Australian SKA Pathfinder is part of the Australia Telescope National Facility which is managed by CSIRO. Operation of ASKAP is funded by the Australian Government with support from the National Collaborative Research Infrastructure Strategy. ASKAP uses the resources of the Pawsey Supercomputing Centre. Establishment of ASKAP, the Murchison Radio-astronomy Observatory and the Pawsey Supercomputing Centre are initiatives of the Australian Government, with support from the Government of Western Australia and the Science and Industry Endowment Fund. We acknowledge the Wajarri Yamatji people as the traditional owners of the Observatory site. JCAM-J is the recipient of Australian Research Council Future Fellowship (project number FT140101082) and GEA is the recipient of an Australian Research Council Discovery Early Career Researcher Award (project number DE180100346) funded by the Australian Government.
