The dynamics of the outer edge of Saturn's A ring perturbed by the satellites Janus and Epimetheus

TL;DR

This paper develops an analytical model to understand how Saturn's A ring edge is dynamically influenced by Janus and Epimetheus through resonances, revealing chaotic zones and particle oscillations over decades.

Contribution

The study introduces a new averaged equations model to analyze the long-term effects of co-orbital moon resonances on ring edge dynamics, including chaos and particle oscillations.

Findings

Four radial zones are chaotic on decadal timescales.

Particle semi-major axes vary up to 11 km due to resonances.

Object 'Peggy' is strongly perturbed by Janus's resonance.

Abstract

We present an analytical model to study the dynamics of the outer edge of Saturn's A ring. The latter is influenced by 7:6 mean motion resonances with Janus and Epimetheus. Because of the horseshoe motion of the two co-orbital moons, the ring edge particles are alternately trapped in a corotation eccentricity resonance (CER) or a Lindblad eccentricity resonance (LER). However, the resonance oscillation periods are longer than the 4-year interval between the switches in the orbits of Janus and Epimetheus. Averaged equations of motion are used, and our model is numerically integrated to describe the effects of the periodic sweeping of the 7:6 CERs and LERs over the ring edge region. We show that four radial zones (ranges 136715-136723, 136738-136749, 136756-136768, 136783-136791 km) are chaotic on decadal timescales, within which particle semi-major axes have periodic changes due to partial libration motions around the CER fixed points. After a few decades, the maximum variation of semi-major axis is about 11 km (respectively 3 km) in the case of the CER with Janus (respectively Epimetheus). Similarly, particle eccentricities have partial oscillations forced by the LERs every 4 yr. For initially circular orbits, the maximum eccentricity reached is ~0.001. We apply our work to "Peggy", an object recently discovered at the ring edge, confirming that it is strongly perturbed by the Janus 7:6 LER. The CER has currently no effect on that body, nevertheless the fitted semi-major axes are just outside the chaotic zone of radial range 136756-136768 km.

Figures

Tables

Table 1. Table 1: Mean motions and orbital periods for Janus, Epimetheus (Cooper et al., 2015 ) and the outer edge of the A ring (El Moutamid et al., 2016 ) .

	Mean motion (deg.day-1)	Orbital period (day)
A ring edge	604.22	0.59581
Janus	518.35 or 518.24	0.69451 or 0.69466
Epimetheus	518.10 or 518.49	0.69484 or 0.69432

Table 2. Table 2: Geometric orbital elements for Janus and Epimetheus at epoch 2007 JUN 01 00:00:00.0 UTC (JED 2454252.50075446), computed from fits to C ​ a ​ s ​ s ​ i ​ n ​ i 𝐶 𝑎 𝑠 𝑠 𝑖 𝑛 𝑖 Cassini observations (Cooper et al., 2015 ) . At this epoch, the orbit of Janus is in the inner position.

	Janus	Epimetheus
Mass (kg)	$1.896\times {10}^{18}$	$5.262\times {10}^{17}$
$a$ (km)	151441.171	151488.969
$e$	0.00677	0.00972
$i$ (deg)	0.16446	0.35199
$\Omega$ (deg)	16.03786	53.92315
$\varpi$ (deg)	328.67973	79.18426
$\lambda$ (deg)	268.22574	145.38974

Table 3. Table 3: Saturn constants, from Cooper et al. ( 2015 ) .

Constant	Value	units
$GM$	$3.793120706585872\times {10}^7$	km3 s-2
Radius	60330	km
$J_2$	$1.629084747205768\times {10}^{-2}$
$J_4$	$-9.336977208718450\times {10}^{-4}$
$J_6$	$9.643662444877887\times {10}^{-5}$

Table 4. Table 4: Numerical values (km) for the locations of the 7:6 resonances shown Figure 3 . The red (resp. blue) colour applies to Janus (resp. Epimetheus). The full widths are in parentheses and are given by Eqs. ( 4 ) and ( 7 ) . The location of the resonances are computed iteratively by cancelling the time derivatives of the resonance angles, and using the mean motion values, the pericentre precession rates from Table 1 and 2 and the Saturn parameters given in Table 3 .

	Janus inside	Janus outside
LER	136809.1 (12.1)	136784.5 (22.9)
CER	136786.6 (4.3)	136762.0 (6.8)
LER	136765.9 (22.9)	136741.5 (12.1)
CER	136743.5 (6.8)	136719.0 (4.3)

Equations

$$\left\{\begin{array}[]{l}\displaystyle\dot{\xi}=-2mn\frac{M_{\rm S}}{M}\frac{a}{a_{\rm S}}Ee_{{\rm S}}\sin(\psi_{{\rm C}})\\ \\ \displaystyle\dot{\psi}_{\rm C}=\frac{3}{2}mn\xi\\ \\ \displaystyle\dot{h}=-(\Delta n)k\\ \\ \displaystyle\dot{k}=+(\Delta n)h+\frac{a}{a_{\rm S}}\frac{M_{\rm S}}{M}nA\end{array}\right.$$

$${\ddot{\psi }}_{\mathrm{C}}=-3m^2{n}^2\frac{M_{\mathrm{S}}}{M}\frac{a}{a_{\mathrm{S}}}E{e}_{\mathrm{S}}\sin ({\psi }_{\mathrm{C}}).$$

$$J=-\frac{3}{8}{\xi }^2+\frac{M_{\mathrm{S}}}{M}\frac{a}{a_{\mathrm{S}}}E{e}_{\mathrm{S}}\cos ({\psi }_{\mathrm{C}}),$$

$$W_{\mathrm{C}}=\frac{8}{\sqrt{3}}{a}_{\mathrm{C}}\sqrt{\frac{M_{\mathrm{S}}}{M}\frac{a}{a_{\mathrm{S}}}|E|e_{\mathrm{S}}}.$$

$$\displaystyle P_{\rm CER}=\frac{P_{\rm ORB}}{|m|}\Big{(}{3\frac{M_{\rm S}}{M}\frac{a}{a_{\rm S}}Ee_{\rm S}}\Big{)}^{-1/2}.$$

$$e_f=-\frac{a}{a_{\mathrm{S}}}\frac{M_{\mathrm{S}}}{M}\frac{n}{\Delta n}A.$$

$$W_{\mathrm{LER}}=2.9a\sqrt{\frac{M_{\mathrm{S}}}{M}},$$

$$P_{\mathrm{LER}}=\frac{2\pi }{|\Delta n|}.$$

$$e_{\rm MAX}=2\Big{|}\frac{4}{3}\frac{a}{a_{\rm S}}\frac{A}{m^{2}}\frac{M_{\rm S}}{M}\Big{|}^{1/3}\rm{,}$$

Full text

††pagerange: The dynamics of the outer edge of Saturn’s A ring perturbed by the satellites Janus and Epimetheus–The dynamics of the outer edge of Saturn’s A ring perturbed by the satellites Janus and Epimetheus††pubyear: 2019

1 Introduction

The first resolved images of the inner satellites of Saturn Janus and Epimetheus were provided in 1980 by the Voyager 1 spacecraft (Smith et al., 1981). Small differences in the mean motions of Janus and Epimetheus (Table 1) cause the two co-orbital satellites to approach one another at intervals of about 4.2 years. At these times, the mutual perturbations lead to a switch in their orbital configuration. In fact, in a reference frame centred on Saturn and rotating with the average mean motion, Janus and Epimetheus each follow a horseshoe orbit separated by $180$ degrees in longitude (Yoder et al., 1983; Murray & Dermott, 1999). Porco et al. (1984) examined the outer edge of Saturn’s A ring using the Voyager data. They showed that this structure is influenced by a 7:6 inner Lindblad eccentricity resonance (LER) with the co-orbital moons (Figure 1), the resonance forcing a seven-lobed radial distortion of amplitude $6.7\pm 1.5$ km on ring particles that revolve with the average mean motion of the co-orbital satellite system. Spitale & Porco (2009) revisited the shape and kinematics of the ring edge using high-resolution (1-10 km pixel-scale) Cassini ISS (Imaging Science Subsystem) images spanning nearly four years between 2005 and 2009, allowing the variation with time to be measured. They found that the ring edge is irregular for data obtained within about eight months of the encounter between Janus and Epimetheus that occured in 2006, suggesting that a period of adjustment occurs as the satellites approach and recede from each switch in their orbits. Outside that adjustment period, when Janus is in the inner position of its orbit, the ring is dominated by a $m=7$ pattern revolving at the same rate as Janus’ mean motion. However, the alignment is opposite in phase to that predicted for isolated test particles : Porco & Nicholson (1987) predict that streamlines exterior to the resonance like those at the A ring edge should have one apocentre oriented towards the satellite, instead of one pericentre as observed. This configuration, also seen at the outer edge of the B ring, is most likely the result of ring particle interactions (Porco et al., 1984). Finally, the amplitude of the radial distortion varies with time, a behavior that Spitale & Porco (2009) attributed to a beat pattern between the perturbations from the two satellites. El Moutamid et al. (2016) extended the ring edge analysis using Cassini images and occultation data over a period of 8 years from 2006 to 2014. Their fits confirmed that, for the period between 2006 and 2010 when Janus is on the inner leg of the horseshoe orbit, the A ring outer edge is dominated by the Janus 7:6 LER. However, the 7-lobed pattern disappears after the Janus/Epimetheus orbit swap in 2010 which moves the Janus resonance away from the ring edge. Moreover, El Moutamid et al. (2016) found a variety of pattern speeds with different azimuthal wave numbers, probably representing waves trapped in resonant cavities, and also identified some other signatures consistent with tesseral resonances that could be associated with inhomogeneities in Saturn’s interior.

Recently, Murray et al. (2014) discovered an embedded, sub-km-radius object (nicknamed “Peggy") at the ring edge in Cassini images producing localized, time-varying structures due to its gravitational perturbation of nearby ring material. The observational signature of this object has been tracked since its discovery in 2013, the deduced semi-major axis varying within $\sim 10$ km of the ring edge location, between 136766 km and 136775 km. The careful tracking of the features detected leads to longitude patterns that are consistent with the orbital evolution of several (at least two) objects. Semi-major axis changes could mainly arise from collisions with the local ring material due to the differences in relative eccentricity. Such collisions could also cause the destruction of an outwardly evolving object due to ring torques. This may explain the unusual brightness of the object seen in the discovery image by Murray et al. (2014) and the apparent disappearance of another feature soon afterwards. Moreover, the periodic sweeping of the Janus/Epimetheus 7:6 resonances may also have an effect over the orbit of the embbeded object.

This is the core of this paper : predicting the consequences of the abrupt satellite semi-major axis changes at four-year intervals over the resonant orbits of the A ring edge particles. In fact, the strongest resonances from Janus/Epimetheus that affect the A ring edge are the Corotation Eccentricity Resonance (hereafter, CER) and the Lindblad Eccentricity Resonance (LER). These two types of resonances involve the following arguments : $\Psi_{\rm C}=$(m+1)\lambda_{S}$$-m\lambda$$-$$\varpi_{S} and $\Psi_{\rm L}=$(m+1)\lambda_{S}$$-m\lambda$$-$$\varpi, where $\lambda$ represents the geometric mean longitude, $\varpi$ the geometric longitude of pericentre, the subscript $S$ stands for the perturbing satellite, and $m=6$ in the case of the ring edge. The LERs and CERs produce different effects : a CER affects the semi-major axis of the particles, forcing a libration motion inside the so-called corotation sites, but keeps orbital eccentricities almost constant. In contrast, a LER modifies eccentricities and keeps semi-major axes almost constant (El Moutamid et al., 2014).

We focus on providing a short-term dynamical study of the motion of the A ring edge perturbed by the 7:6 CER/LER due to Janus and Epimetheus. Therefore the ring physical effects (collisions, viscosity, self-gravity,..) will not be addressed here. In particular, the goal is to understand the additional effect of the periodic trapping into the CERs, which was not considered in previous work. The paper is organized as follows. Section 2 summarizes the orbital characteristics of Janus-Epimetheus and gives an overview of the CERs/LERs affecting the edge of the A ring. Section 3 presents the analytical modeling, basically averaged equations of motion near the resonances and associated timescales. Numerical simulation results are examined and the model is applied to object “Peggy" in Section 4. Concluding remarks are given in Section 5.

2 Motion of Janus-Epimetheus and resonances at

the A ring edge

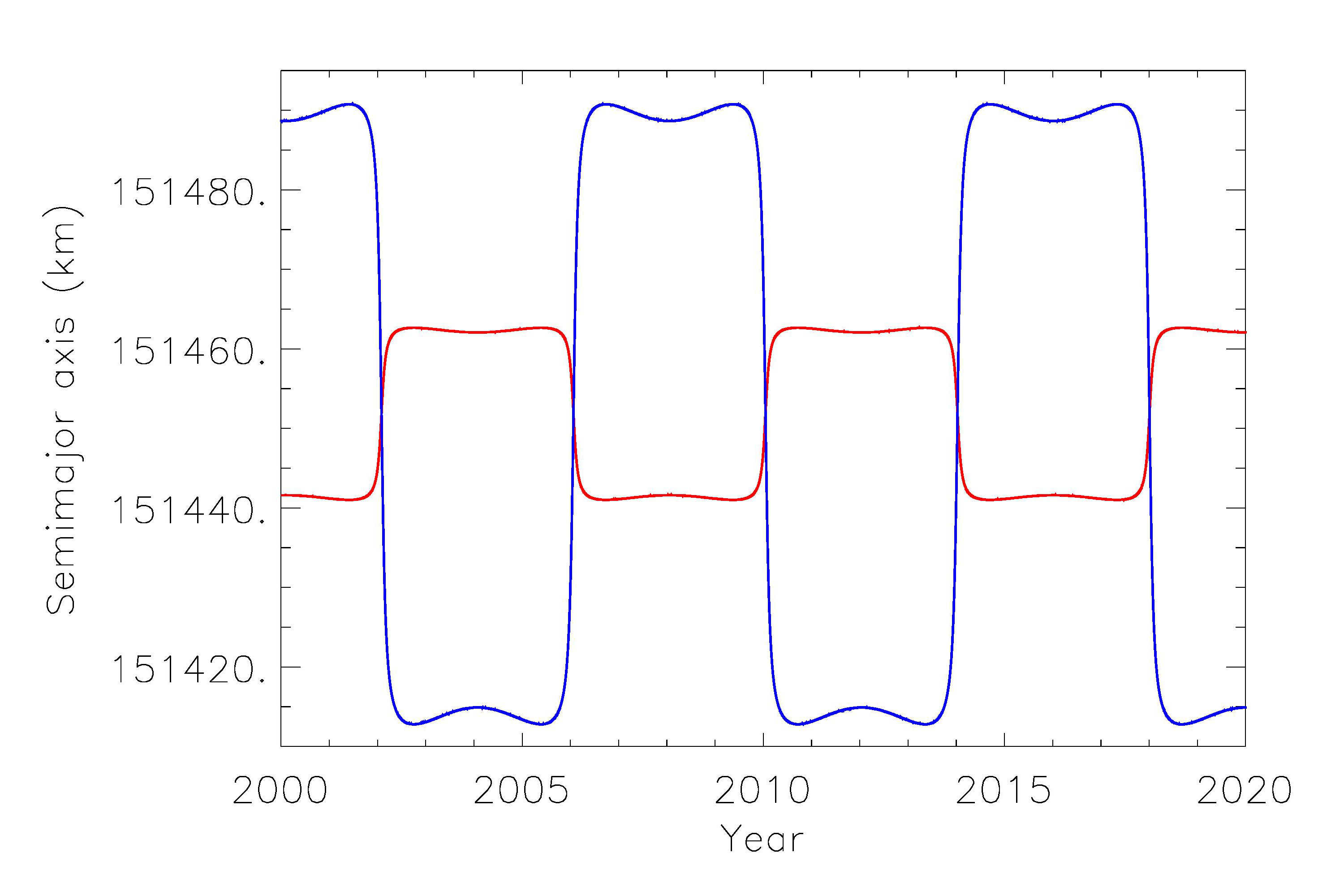

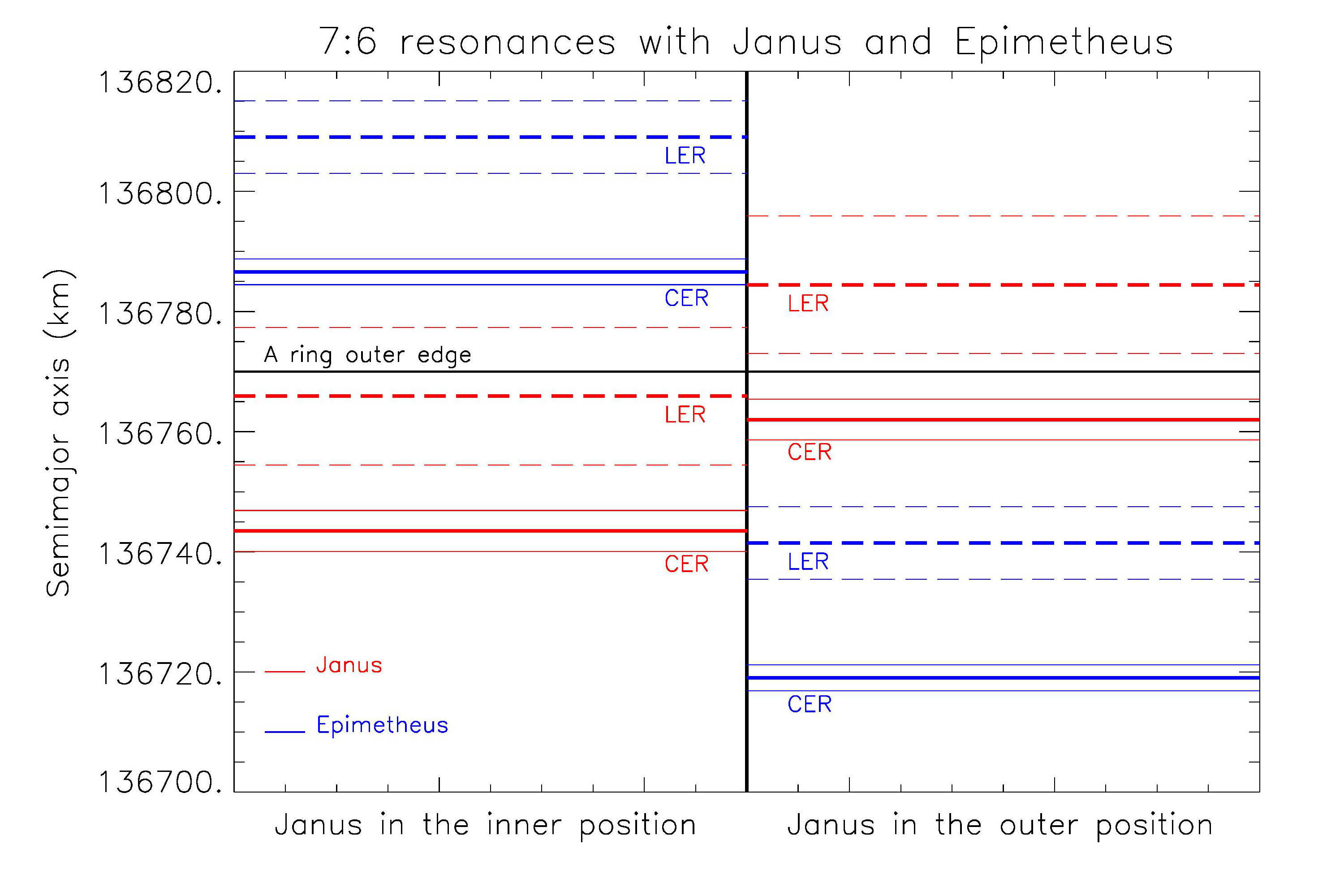

Figure 2 shows the time evolution of the semi-major axes and the switches in the orbits of Janus and Epimetheus, resulting from a numerical model fitted to Cassini ISS astrometric data for all the inner satellites (Cooper et al., 2015). For this fit, the state vectors and masses were solved at the epoch 2007 June 01 00:00:00.0, and ephemerides spanning the period 2000-2020 were generated. As a result, Table 2 gives the geometric orbital elements for Janus and Epimetheus computed from the state vectors using the method of Renner & Sicardy (2006) and the parameters of Saturn given in Table 3.

The radial widths of the librational arcs of Janus and Epimetheus in Figure 2 have a ratio equal to the mass ratio ($\sim 3.6$, see Table 2), as a consequence of the conservation of angular momentum. Thus, Janus has the smaller variations in semi-major axis since it is the more massive moon. The difference between the semi-major axes of the two satellites is approximately $48$ km. Note that away from the approaches, the radial separation between the satellites is not constant : it is maximum for a relative longitude corresponding to the $L_{4}$, $L_{5}$ Lagrangian points, and minimum at the longitude of the $L_{3}$ point (Dermott & Murray, 1981a, b).

The direct consequence of the horsehoe motion is that the locations of the 7:6 resonances by Janus-Epimetheus shift inwards or outwards every four years. Since the semi-major axis difference between the resonances is comparable to the radial excursions of the two satellites, the particles located in three specific regions (around semi-major axes $\sim 136740$, 136765 and 136785 km) are alternately trapped in a CER or a LER. This peculiarity is presented in Figure 3 and Table 4, which give the resonance locations and widths. For instance, when Janus is in the outer position, the ring edge is roughly at Janus CER position, with the (weaker) Epimetheus LER located inside the ring and the (stronger) Janus one displaced outside, thus explaining the smaller eccentricities of the ring edge fitted by Spitale & Porco (2009) for observations a few months preceding the inward swap of Janus. As demonstrated in Sections 3 and 4, the CERs also cause significant perturbations on the ring particles, in spite of the low-eccentricity orbits of Janus and Epimetheus.

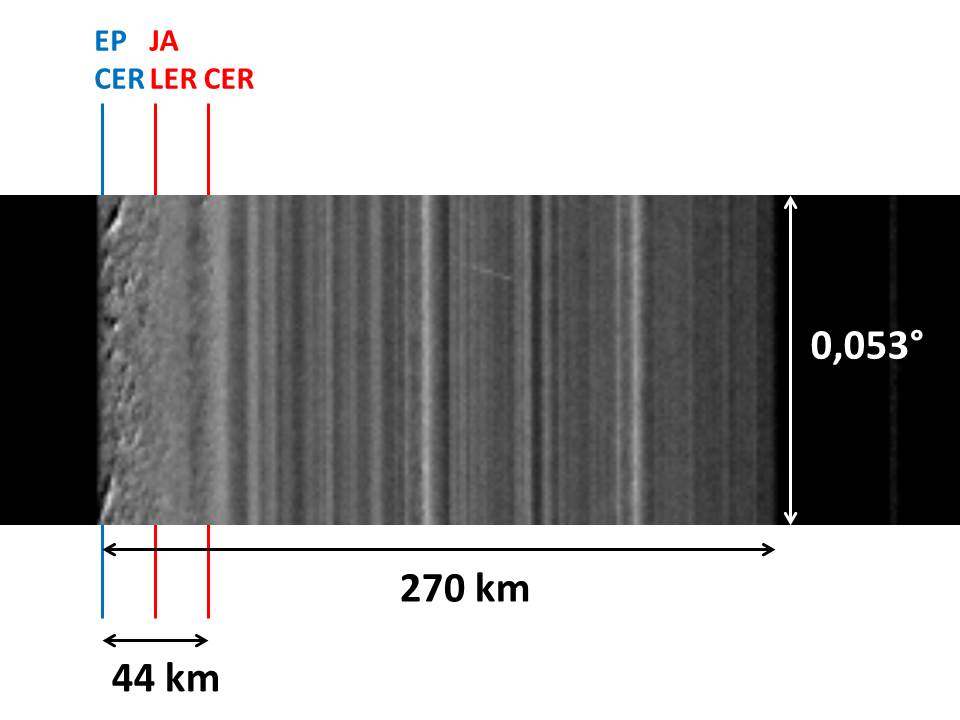

Figure 4 shows two Cassini ISS high-resolution images of the A ring edge where the locations of the relevant 7:6 resonances have been superimposed, one corresponding to Janus in the inner position and the other in the outer position. Thanks to a grazing illumination, these data clearly reveal the presence of clumps with vertical extents. By selecting another longitude interval to produce the top image, note that the ring edge would instead match the location of the LER with Janus. Indeed the edge is structured by seven lobes of radial amplitude $\sim 15$ km (Spitale & Porco, 2009), a distance comparable to the location difference between the CER with Epimetheus and the LER with Janus.

We can neglect the inclination of Janus and Epimetheus in this work. Indeed, the mean motion inclination resonances are located well inside the edge of the A ring. The strongest of these resonances are respectively the corotation inclination resonance (CIR) and the Lindblad inclination resonance (LIR), for which the critical angles are $\displaystyle\Psi_{\rm CIR}=2[(m+1)\lambda_{\rm S}-m\lambda-\Omega_{\rm S}]$ and $\displaystyle\Psi_{\rm LIR}=2[(m+1)\lambda_{\rm S}-m\lambda-\Omega]$. When Janus is in the inner position, the nearest resonance to the ring edge is the CIR due to Epimetheus located at a semi-major axis of 136684 km. When Janus is in the outer position, the nearest one is the CIR due to Janus at 136660 km.

3 Averaged equations of motion

Near a CER, the average motion of a test particle can be described by the following two variables :

$\displaystyle\xi=\frac{a-a_{\rm C}}{a}$

$\displaystyle\psi_{\rm C}=(m+1)\lambda_{\rm S}-m\lambda-\varpi_{\rm S}$,

where $a_{\rm C}$ is the CER radius, $\xi$ is the nondimensional distance from the exact CER, $m$ is a positive (resp. negative) integer when the particle’s orbit is inside (resp. outside) that of the satellite, and $\psi_{\rm C}$ is the CER critical angle.

The motion near a LER is depicted by the eccentricity vector $(h,k)$ of the particle :

$\displaystyle h=e\cos(\psi_{\rm L})$

$\displaystyle k=e\sin(\psi_{\rm L})$,

where the LER argument $\displaystyle\psi_{\rm L}=(m+1)\lambda_{\rm S}-m\lambda-\varpi$ measures the difference between the longitude of conjunction with the satellite and the pericentre longitude of the particle.

The method to compute the rates of change of $\xi$, $\psi_{\rm C}$, $h$, $k$ is detailed in Araujo (2017), based on previous work by, e.g., Shu (1984), Sicardy (1991) and Foryta & Sicardy (1996). The classical technique is to expand the perturbing potential near the first order $m+1:m$ resonance, taking into account the secular terms due to the central planet’s oblateness and ignoring the rapidly varying angles, and then to derive the time variation of the orbital elements from the total averaged Hamiltonian. The resulting equations of motion can be written :

[TABLE]

The first two equations of the system (1) describe the CER and the last two describe the LER, where $n$ is the mean motion, $M_{\rm S}$ (resp. $M$) is the mass of the perturbing satellite (resp. the planet), and $\displaystyle\Delta n=\dot{\psi}_{\rm L}\simeq(m+1)n_{\rm S}-mn$ ($\displaystyle\dot{\varpi}<<n$) is the distance in frequency from the exact LER. The coefficients $E$ and $A$ are combinations of Laplace coefficients $b_{\gamma}^{m}$ (Shu, 1984) :

$\displaystyle E=-\frac{1}{2}\left[(2m+1)+\alpha D\right]b_{1/2}^{m}(\alpha)\simeq-0.802m$

$\displaystyle A=\frac{1}{2}\left[2(m+1)+\alpha D\right]b_{1/2}^{m+1}(\alpha)\simeq 0.802m$,

where $\displaystyle\alpha=\frac{a}{a_{\rm S}}$, $\displaystyle D=\frac{d}{d\alpha}$ and where the approximations hold for large $|m|$.

We apply the model above by numerically integrating the system (1) with $m=6$, Saturn as central body, Janus or Epimetheus as perturbing satellite, and by changing semi-major axes for Janus/Epimetheus every $4.2$ years, which alternately traps particles in a CER (first two equations of system (1)) or a LER (last two equations). This allows us to study in a simple and satisfactory way the dynamics of the ring edge, as confirmed by comparative full N-body simulations (Section 4). Note that equations (1) do not contain any coupling between the CER and LER as discussed in El Moutamid et al. (2014), since the two types of resonances are sufficiently isolated in the case of the A ring edge (Figure 3).

The two CER equations of the system (1) reduce to the simple pendulum equation :

[TABLE]

This equation has the following integral of motion :

[TABLE]

from which we derive the full width of the corotation site,

[TABLE]

This yields $W_{\rm C}=6.8$ and $4.3$ km in the case of Janus and Epimetheus, respectively.

The equation (2) can be developed near the centre of the corotation site ($\psi_{\rm C}=180$ deg, $\xi=0$) to obtain the CER libration period :

[TABLE]

We find $P_{\rm CER}=14.5$ years (Janus) and 23.0 years (Epimetheus).

The effect of the LER is to induce a forced eccentricity on particles given by the fixed points $\dot{h}=\dot{k}=0$ in Eqs. (1) :

[TABLE]

In a frame rotating with the satellite, the particle motions are $(m+1)$-lobed patterns called streamlines. The value of $e_{f}$ decreases as the distance from the exact resonance increases, with a shift of $\pi$ for the streamlines on opposite sides of the resonance. The width of the LER is determined by the distance from the resonance such that the value of the forced eccentricity is large enough to intersect an outer streamline with an inner one (Porco & Nicholson, 1987; Murray & Dermott, 1999). Then a good approximation for the width of the influence of the LER is given by :

[TABLE]

i.e. $22.9$ and $12.1$ km in the case of Janus and Epimetheus, respectively.

From Eqs. (1), the oscillation period of the eccentricity vector $(h,k)$ is :

[TABLE]

For example with $a=136770$ km and when Janus is in the inner position, $P_{\rm LER}=6.0$ years. Therefore, the CER and LER libration periods are greater than the four year period of orbital swap between Janus and Epimetheus.

4 Numerical simulation

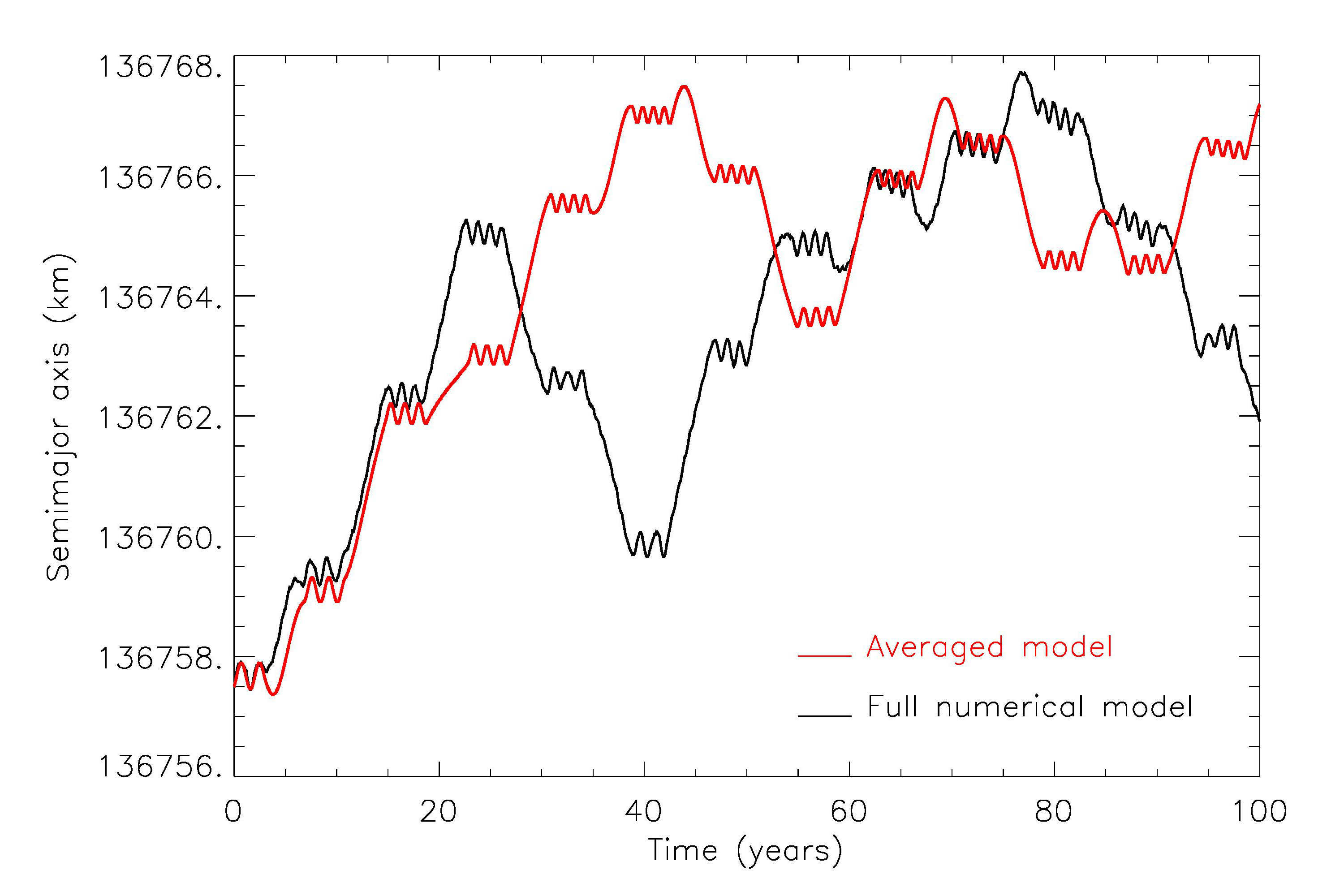

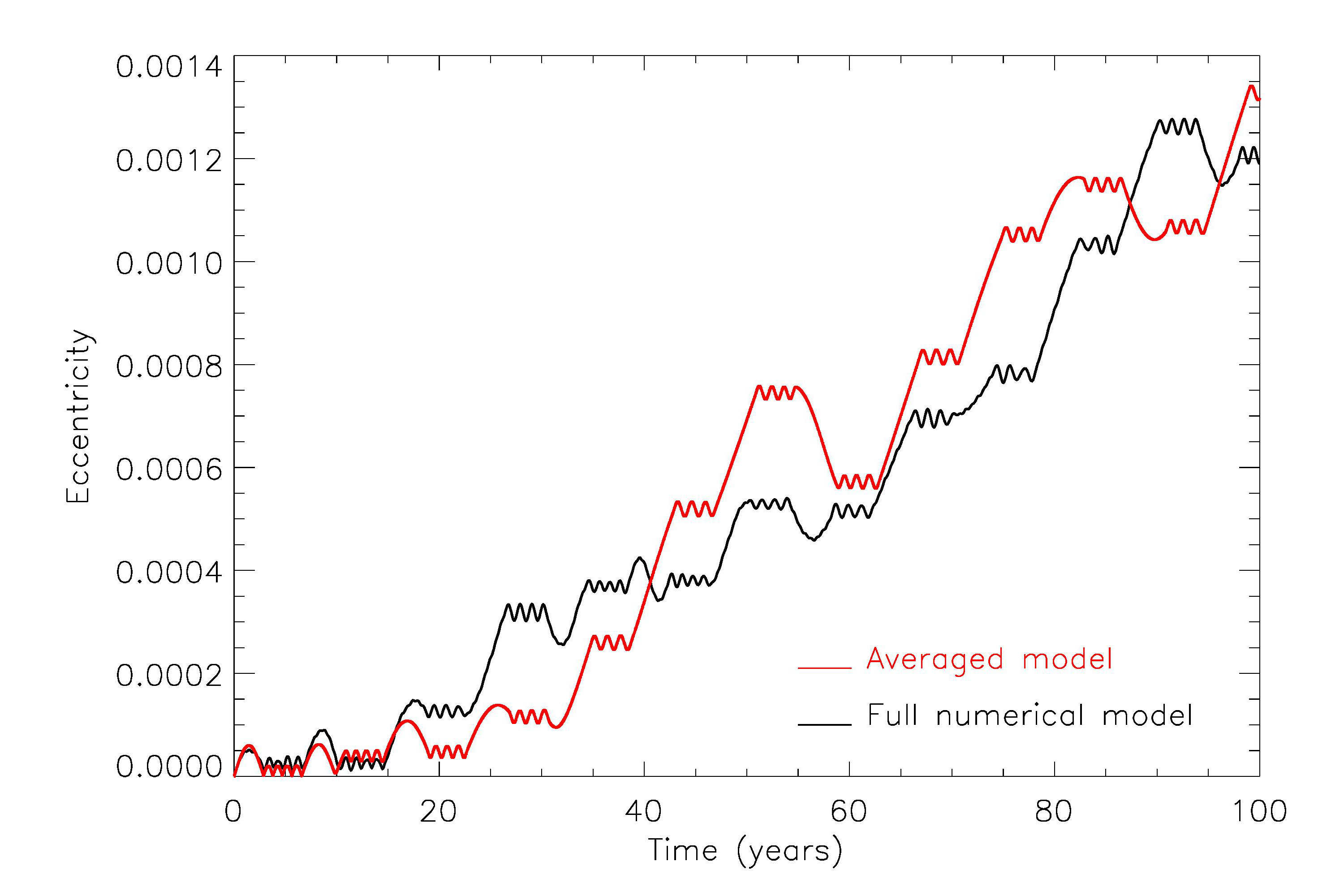

Ring edge particle motions are numerically integrated from the model presented in the previous section. These simulations are also compared to full N-body integrations. The full equations of motion are integrated in a Saturn-centred cartesian reference frame, using Everhart’s 15th-order Radau algorithm (Everhart, 1985) and taking into account the effects of the planet’s oblateness up to and including terms in $J_{6}$. State vectors are converted into geometric orbital elements using the algorithm given by Renner & Sicardy (2006). Indeed, these elements are not contaminated by the short-period terms caused by planetary oblateness, contrary to the classical osculating elements. Except Janus and Epimetheus, the perturbations from the other Saturnian satellites are neglected. Here we summarize the results.

4.1 Individual particle behaviour

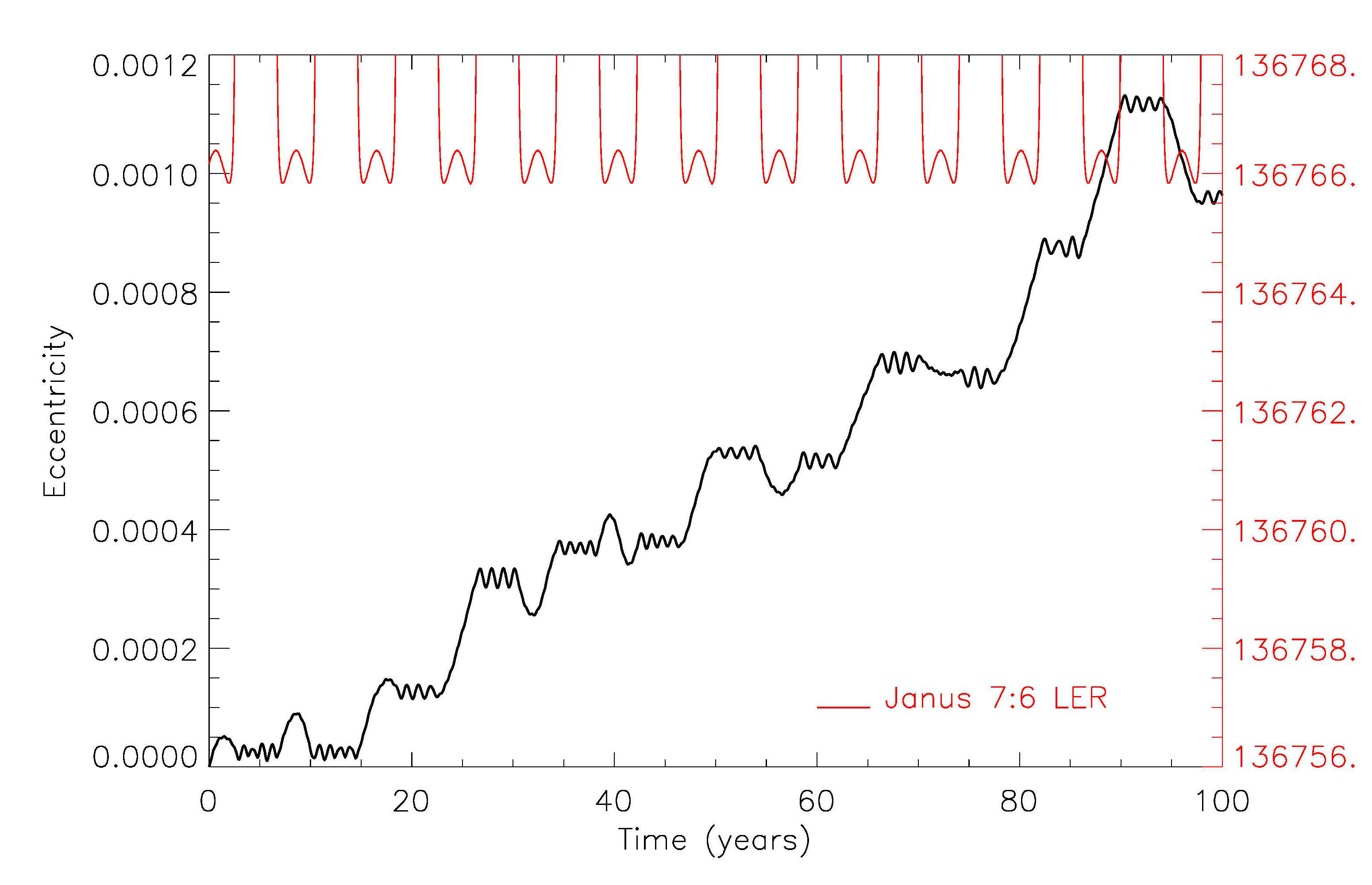

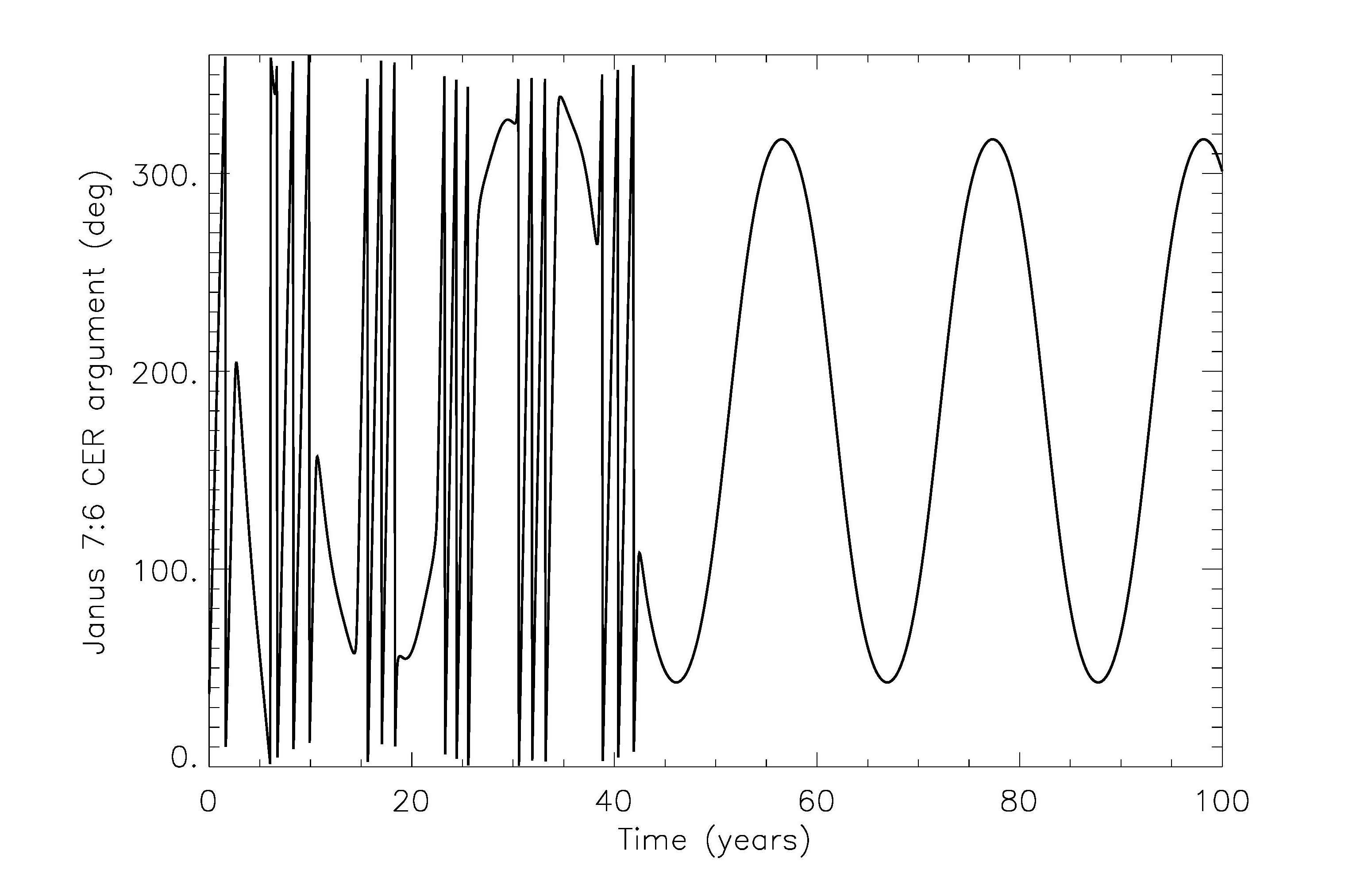

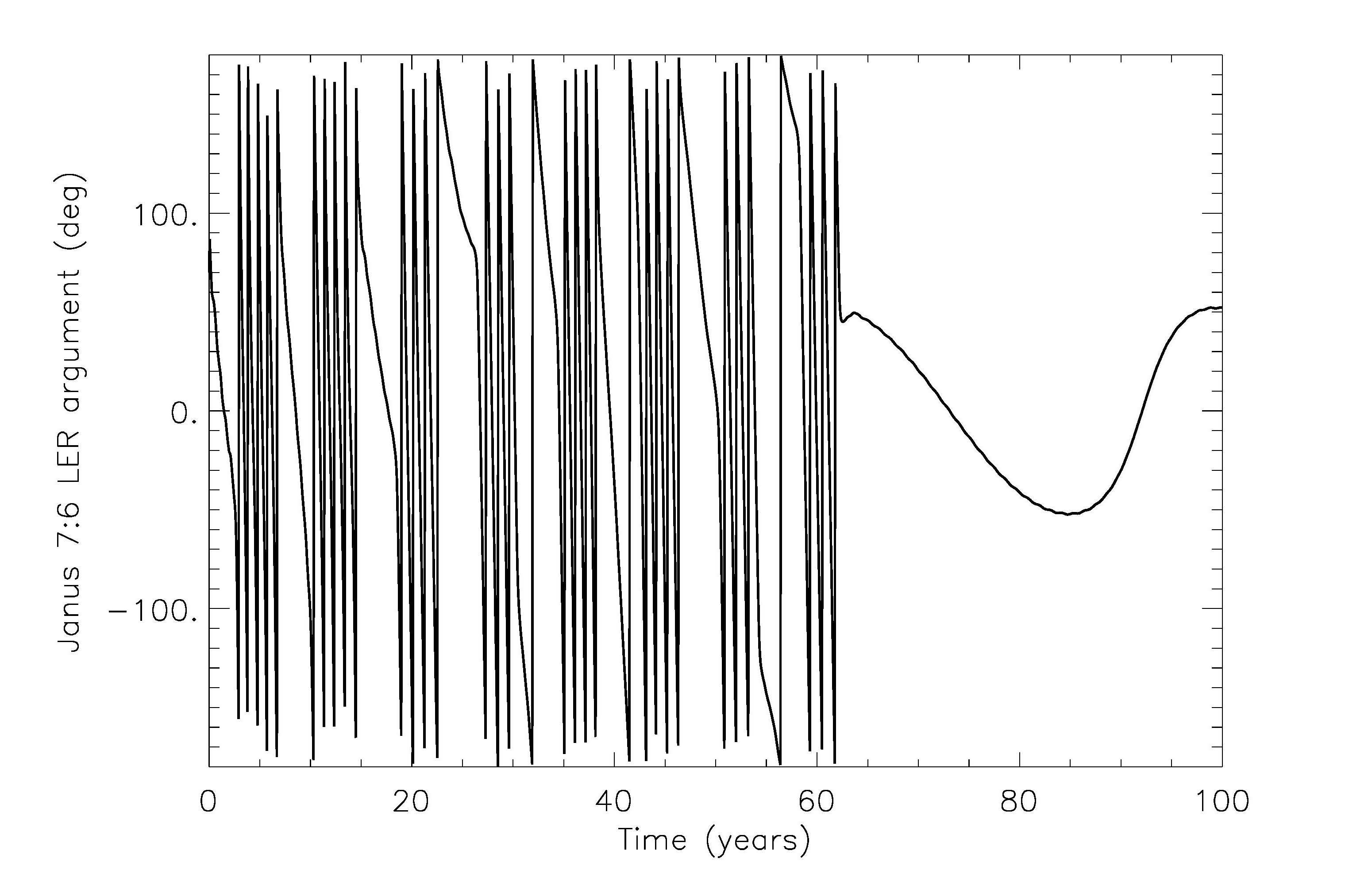

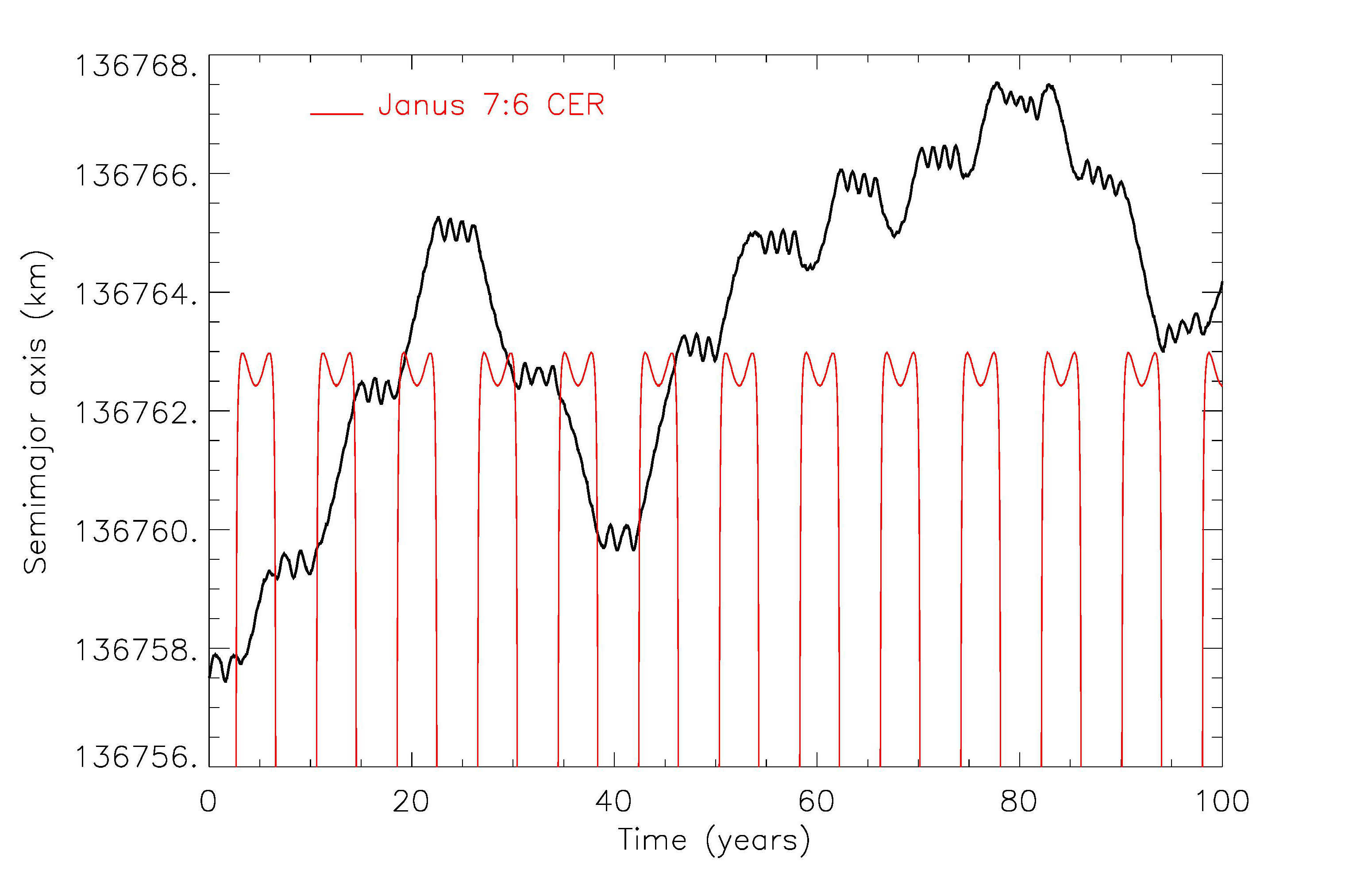

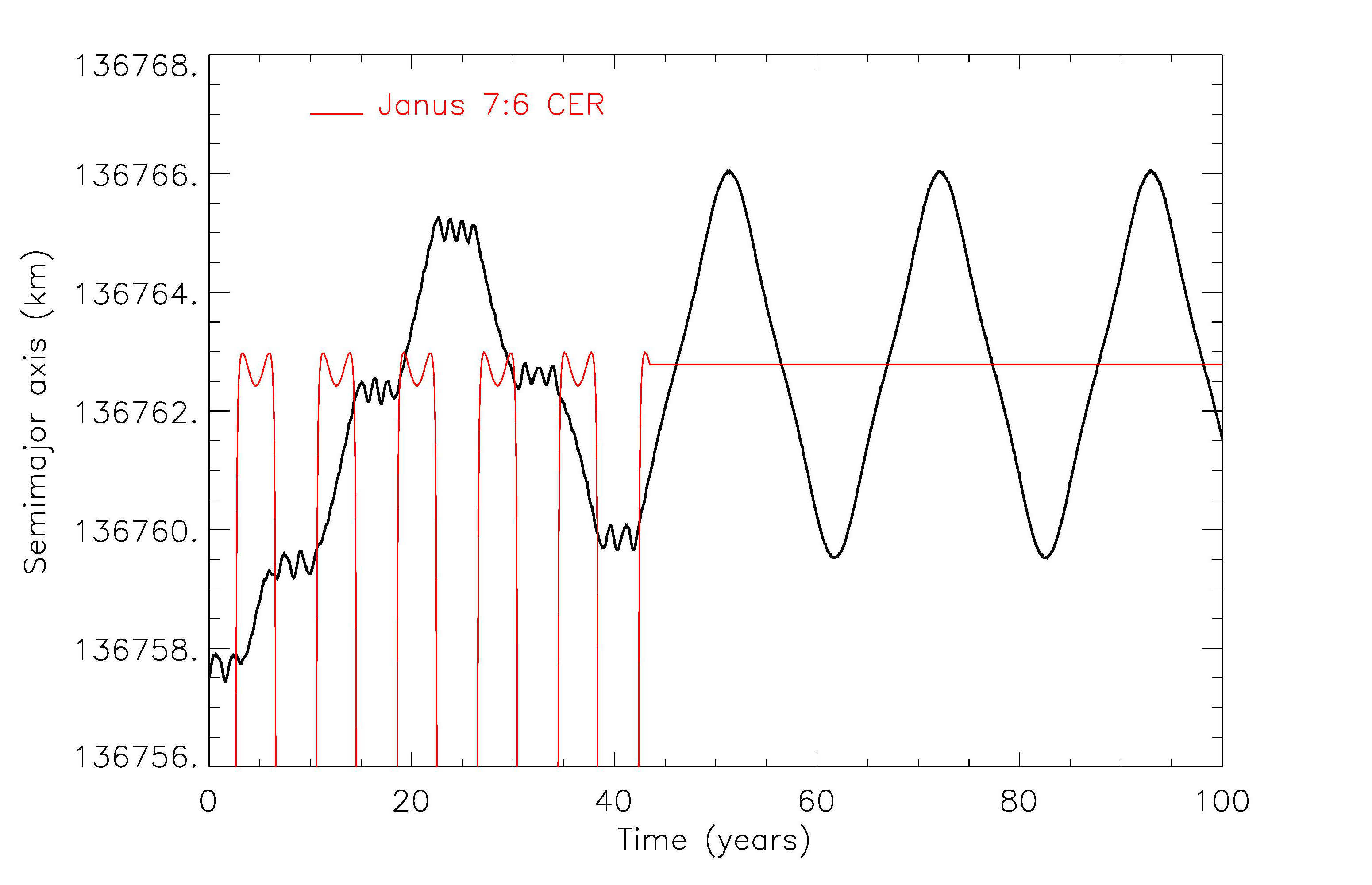

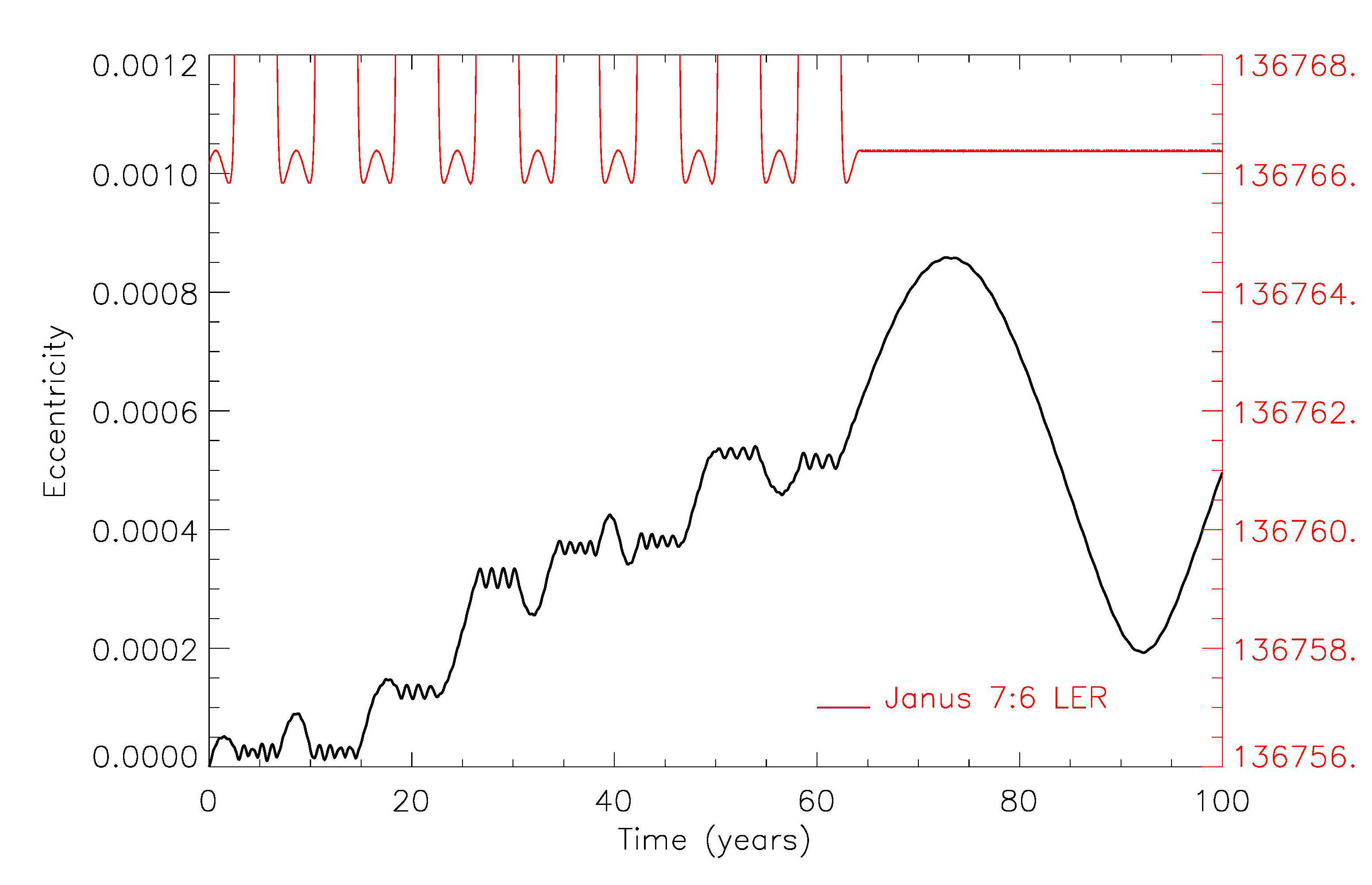

Figure 5 typically illustrates the dynamical response of a test particle alternately perturbed by the CER/LER due to Janus-Epimetheus. Initially, the particle has no eccentricity and a semi-major axis $a=136757.5$ km, corresponding to the radial zone perturbed by the Janus resonances only, see Figure 3.

Because of the horseshoe motion, the location of the 7:6 CER shifts from $a=136743.5$ to $136762.0$ km (Table 4) every $4.2$ years, periodically trapping the test particle in this resonance of full width $6.8$ km. Since the libration period ($14.5$ years near the CER fixed point) is longer than the interval between the orbital switches, the particle does not complete the full libration cycle. The particles instead enter corotation sites with random phases, which randomly increase or decrease their semi-major axes as a result of the partial CER libration motion. Consequently the motion is chaotic, as shown in the next section (Figure 7) : starting with two sets of very close initial conditions can lead to very different final positions after a few passages into resonance. Nevertheless, the semi-major-axis range explored by the particle is of the same order as the CER full width. When Janus is in the inner position, the CER is at $a=136743.5$ km well inside the ring particle’s orbit, leaving its semi-major axis constant at first order. In that case the LER location ($a=136766$ km) and the particle’s orbit are close, exciting the eccentricity (top right plot of Figure 5). Again, the LER libration period ($6$ years for a particle’s semi-major axis $a=136770$ km) is longer than the interval between the orbital switches. After a few trappings in the LER, the eccentricity grows up to $\sim 10^{-3}$, a value in good agreement with the analytical estimate (equation 9). When Janus is in the outer position, the particle’s eccentricity remains almost constant as the LER moves 20 km outwards.

The middle and bottom plots of Figure 5 show that the particle remains trapped into resonance (CER or LER) when we arbitrarily remove Epimetheus from the simulation at different times, thus cancelling the orbital switches between the two co-orbital moons. With Epimetheus removed at $t=43.5$ years corresponding to Janus in the outer position, the 7:6 CER argument librates and the semi-major axis oscillates around the CER radius, with an amplitude and a period that compare well with the formulae (4) and (5), respectively. Similarly, the LER argument and the particle’s eccentricity oscillate when Epimetheus is removed at $t=64.3$ years corresponding to Janus in the inner position, with a period given by equation (8).

4.2 Cumulative effects

In order to assess the overall effect of the resonances on the ring edge, we consider 10000 test particles with initial semi-major axes uniformly distributed with a spacing of $0.5$ km between 136700 and 136820 km, where the the 7:6 resonances are located (Figure 3). Initial mean longitudes are also uniformly distributed and eccentricities are fixed at zero. For each given semi-major axis value, the motion of 10 particles is integrated with an integration time of 500 years, corresponding to several dozens of librational paths of Janus-Epimetheus. The initial conditions for Janus and Epimetheus are given in Table 2. We compute the maximum variation of semi-major axis for ring edge test particles, defined as the difference between the largest and the smallest semi-major axis value reached during the simulation. The results are shown in Figure 6. Four radial zones centred on the CER radii (Table 4) exhibit large semi-major axis variations. These changes in semi-major axis result from the periodic but partial libration motions around the CER fixed points (Figure 5 top left). The semi-major axis intervals of the four regions are : 136715-136723, 136738-136749, 136756-136768, 136783-136791 km. The maximum variations reached are respectively $\sim 11$ km and $3.5$ km for particles perturbed by Janus and Epimetheus CERs. The values are larger in the case of the Janus since the latter has a larger mass, and are of the same order as the CER full widths (Table 4). Modulations of semi-major axis for particles located near but outside the resonance (circulation) and/or the CER sweeping every 4.2 years may explain why the radial zones can be larger than the CER full width, as is the case for Janus CER.

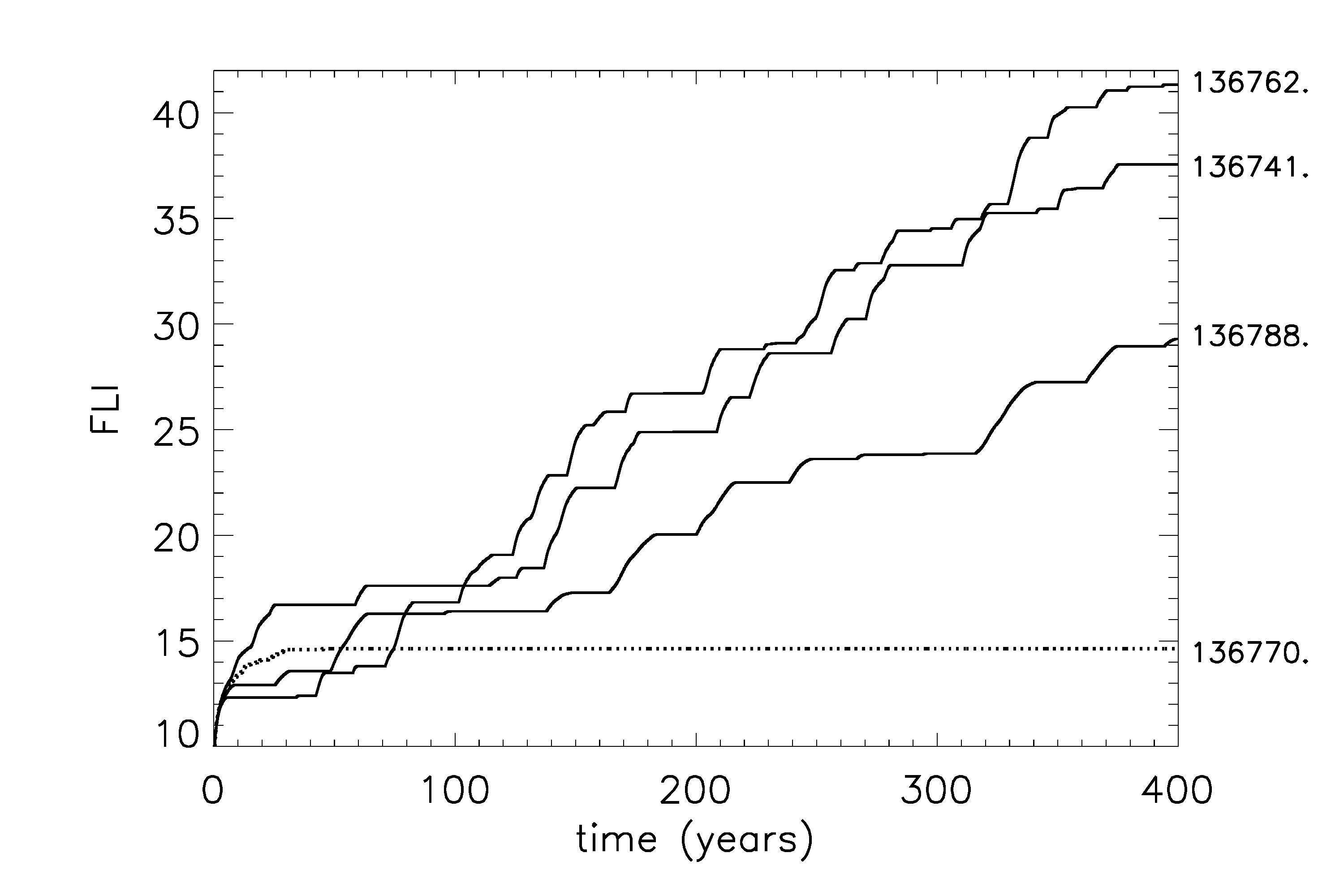

Since particles get into the CERs with random phases, motions in the four radial zones of Figure 6 are chaotic. We demonstrate the chaoticity using the Fast Lyapunov Indicator method, hereafter FLI (Froeschlé et al., 1997; Froeschlé & Lega, 2000). To compute the FLI time evolution, the variational equations are integrated simultaneously with the full equations of motion, still taking into account the effects of Saturn’s oblateness (up to $J_{6}$ included) and using the same physical parameters of Saturn, masses and initial states for Janus/Epimetheus (Table 3 and 2, respectively). Some details on the method are given in, e.g., Cooper et al. (2015). For a given autonomous dynamical system $\displaystyle\dot{\bf{x}}=\bf{f}(\bf{x})$, the FLI is defined by $\displaystyle\rm{FLI}=\underset{0<t<t_{f}}{sup}\ln||\bf{w}(t)||$, where $\bf{w}$ is a deviation/tangent vector solution of the variational equations $\displaystyle\dot{\bf{w}}=\frac{\partial\bf{f}}{\partial\bf{x}}(\bf{x})\bf{w}$ of the system. The FLI is in fact the initial part, up to a stopping time $t_{f}$, of the computation of the maximum Lyapunov characteristic exponent, making it a faster tool to distinguish chaotic from regular orbits. For a chaotic orbit, the FLI grows linearly with time, whereas the FLI of a regular orbit has a logarithmic growth. The inverse of the FLI slope defines the Lyapunov time, the characteristic timescale which measures the time needed for nearby orbits of the system to diverge by $e$. Typical results are presented in Figure 7. The three upper curves are chaotic orbits for particles of the three outer radial zones of Figure 6, that exhibit large variations of semi-major axes. The slopes of the FLI evolution correspond to Lyapunov times of 10-15 years, meaning that just a few CER encounters are sufficient to make neighbouring orbits diverge.

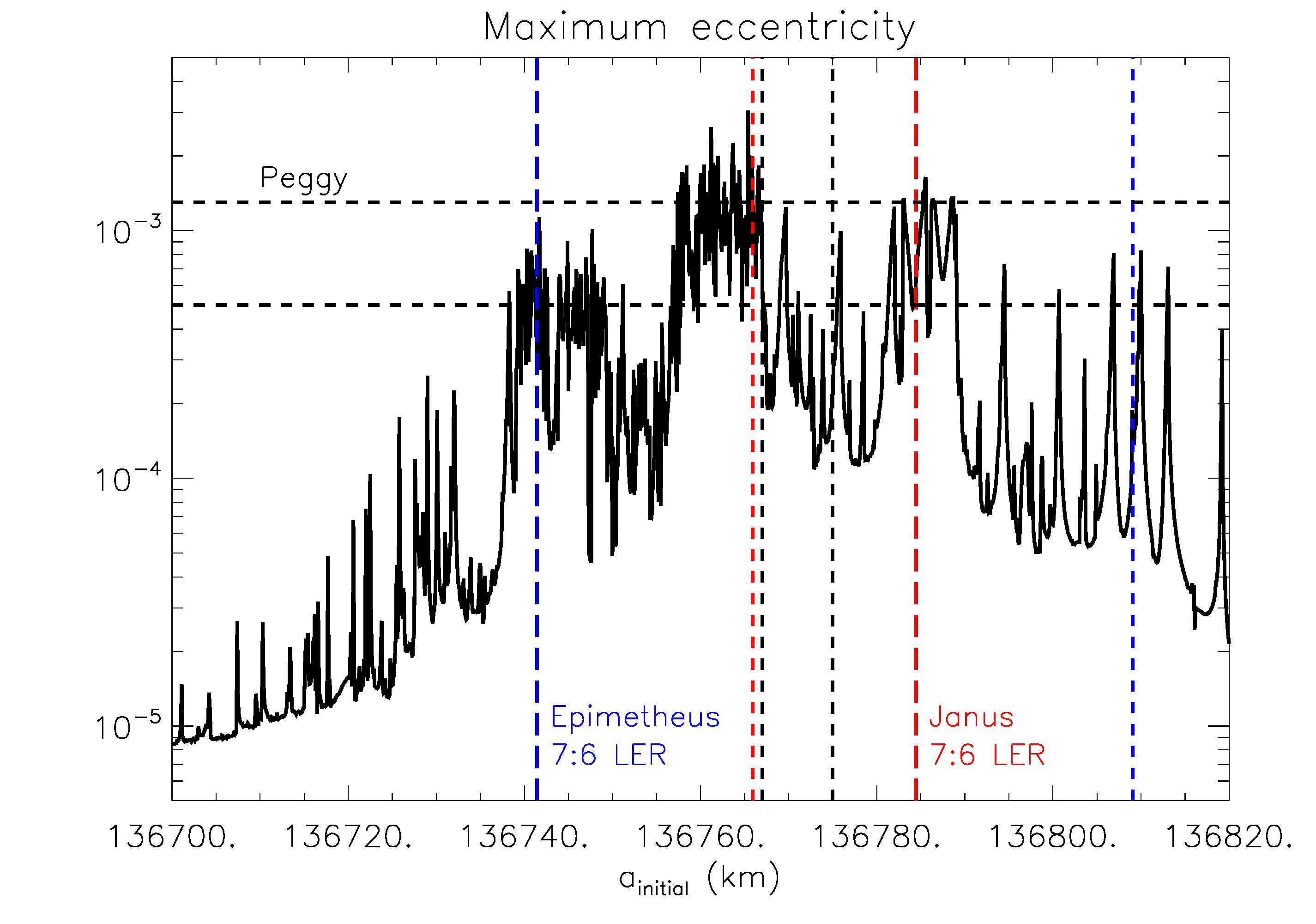

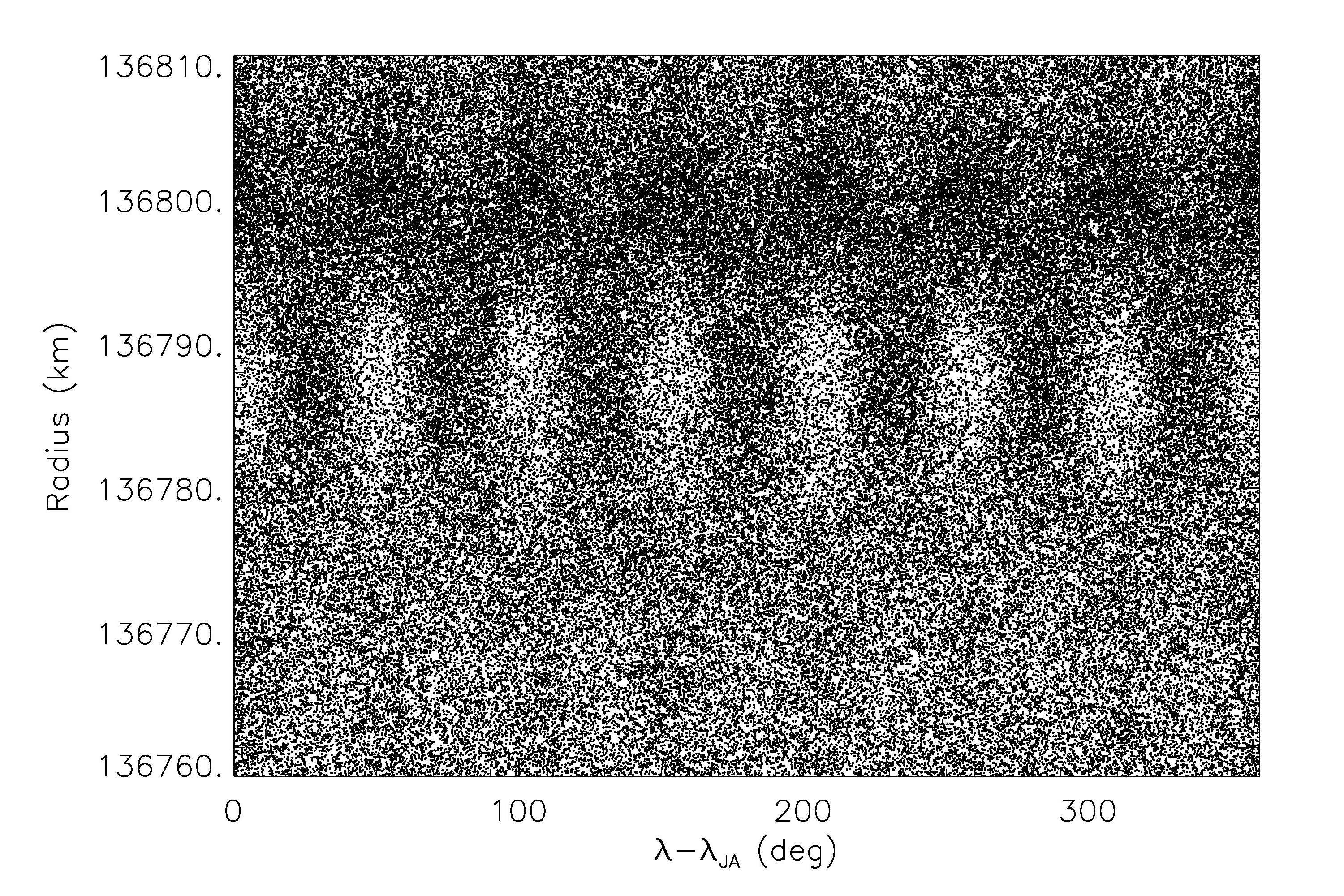

Figure 8 shows the maximum eccentricity of ring edge particles (initially on circular orbits), using the same method applied for the maximum changes in semi-major axis. Eccentricities reach values up to $10^{-3}$ for particles at the locations of the 7:6 LER. This is consistent with the the analytical expression obtained from classical resonance theory for initially circular orbits (Henrard & Lemaitre, 1983; Malhotra, 1998) :

[TABLE]

which yields $1.7\times 10^{-3}$ (resp. $1.1\times 10^{-3}$) in the case of Janus (resp. Epimetheus).

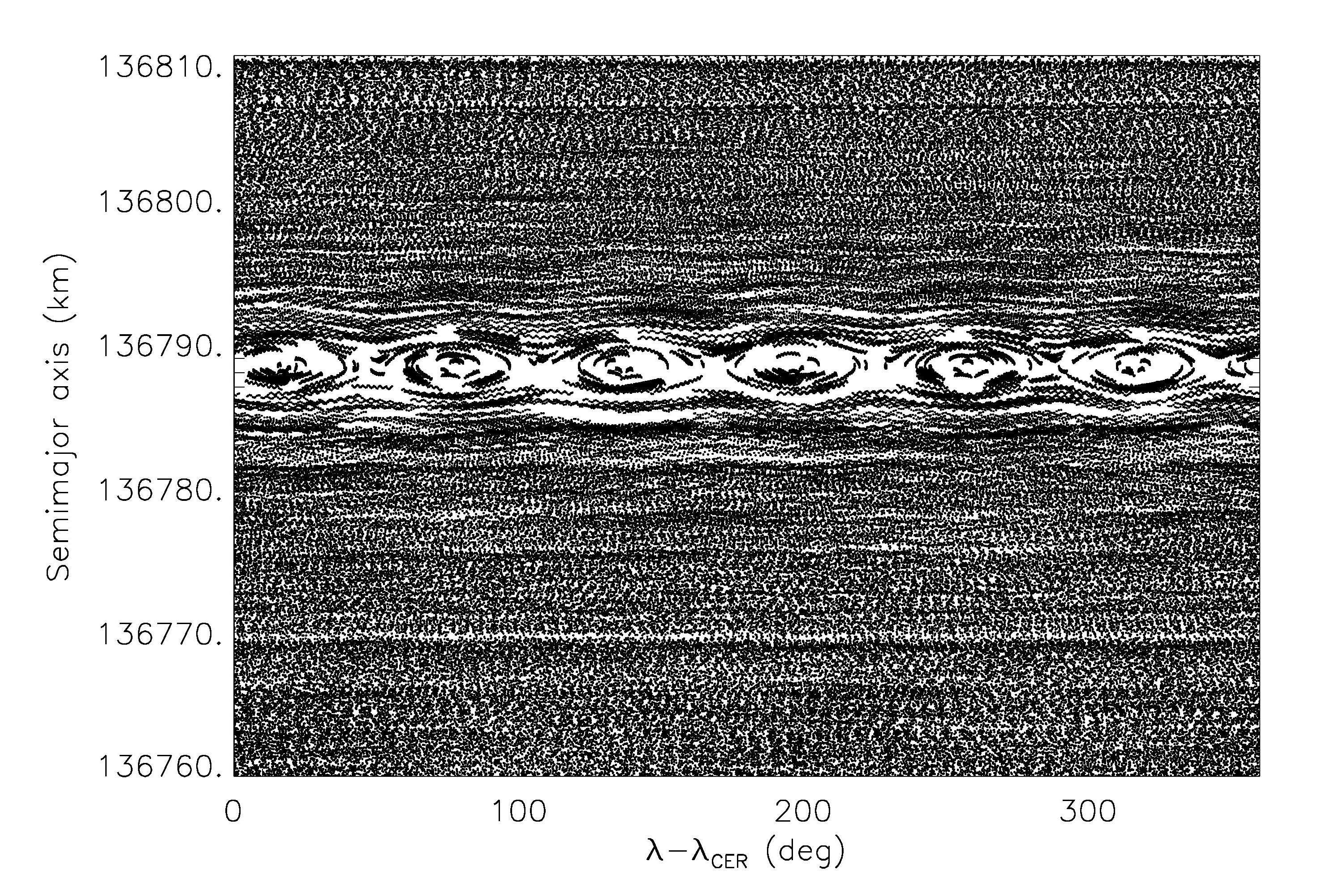

A comparison of the orbital elements (semi-major axis and eccentricity) as a function of time for ring edge particles is displayed Figure 9. These elements are derived from both the analytical model (red) and a four-body simulation (black) including Janus, Epimetheus, Saturn’s oblateness (up to $J_{6}$ included), and a test particle. The integration of the averaged equations is in very good agreement with the full numerical model, confirming that the system (1) reproduces the main features of the motion. Figure 9 also confirms the short Lyapunov times derived from the FLI computation, as very close initial orbits move away after just 2-3 CER encounters.

Particle eccentricities from the model are similar to the observed values derived from Cassini imaging. The histogram Figure 10 essentially shows values from $10^{-5}$ to $10^{-4}$, a range comparable to the eccentricity variation among the Spitale & Porco (2009) data sets. The $m=7$ pattern resulting from the 7:6 LER is also clearly visible Figure 11 that shows, as a function of mean longitude in a frame rotating with Janus’ mean motion, the orbital radii of ring edge particles accumulated over 4.2 years (after 400 years of integration and with a time step of 0.1 year) when Janus LER is at 136784 km (outer position). The amplitude $ae$ of this pattern is about 15 km, corresponding to an eccentricity of order $10^{-4}$ akin to the value derived from the simultaneous fit to all data sets in Spitale & Porco (2009). Note that the density of particles is lower on a wide orbital radius range between $\sim 136740$ and $136790$ km, since a significant fraction of particles has reached higher eccentricities due to the repeated LER perturbations (Figs. 8 and 10).

4.3 Application to Peggy’s orbital elements

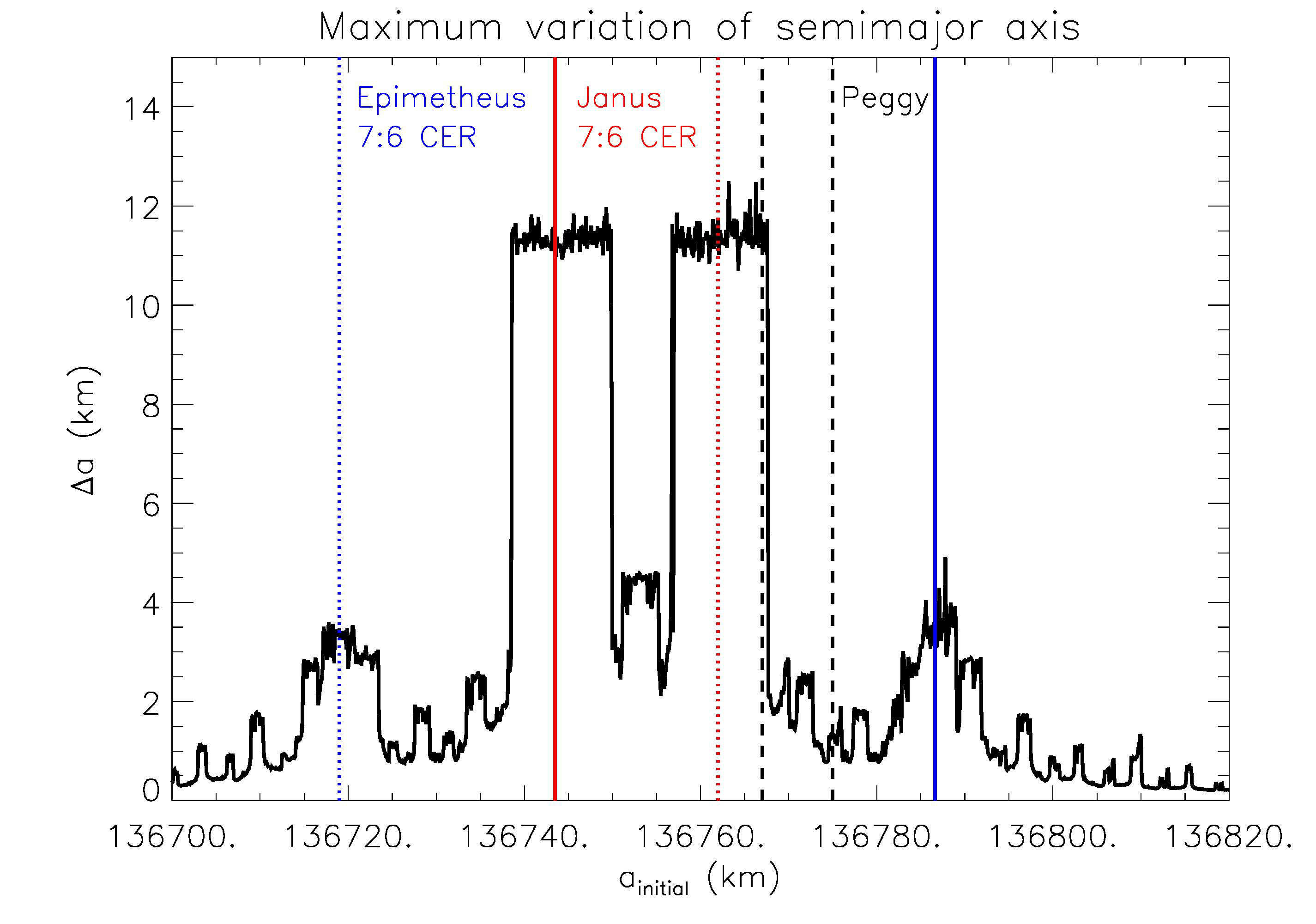

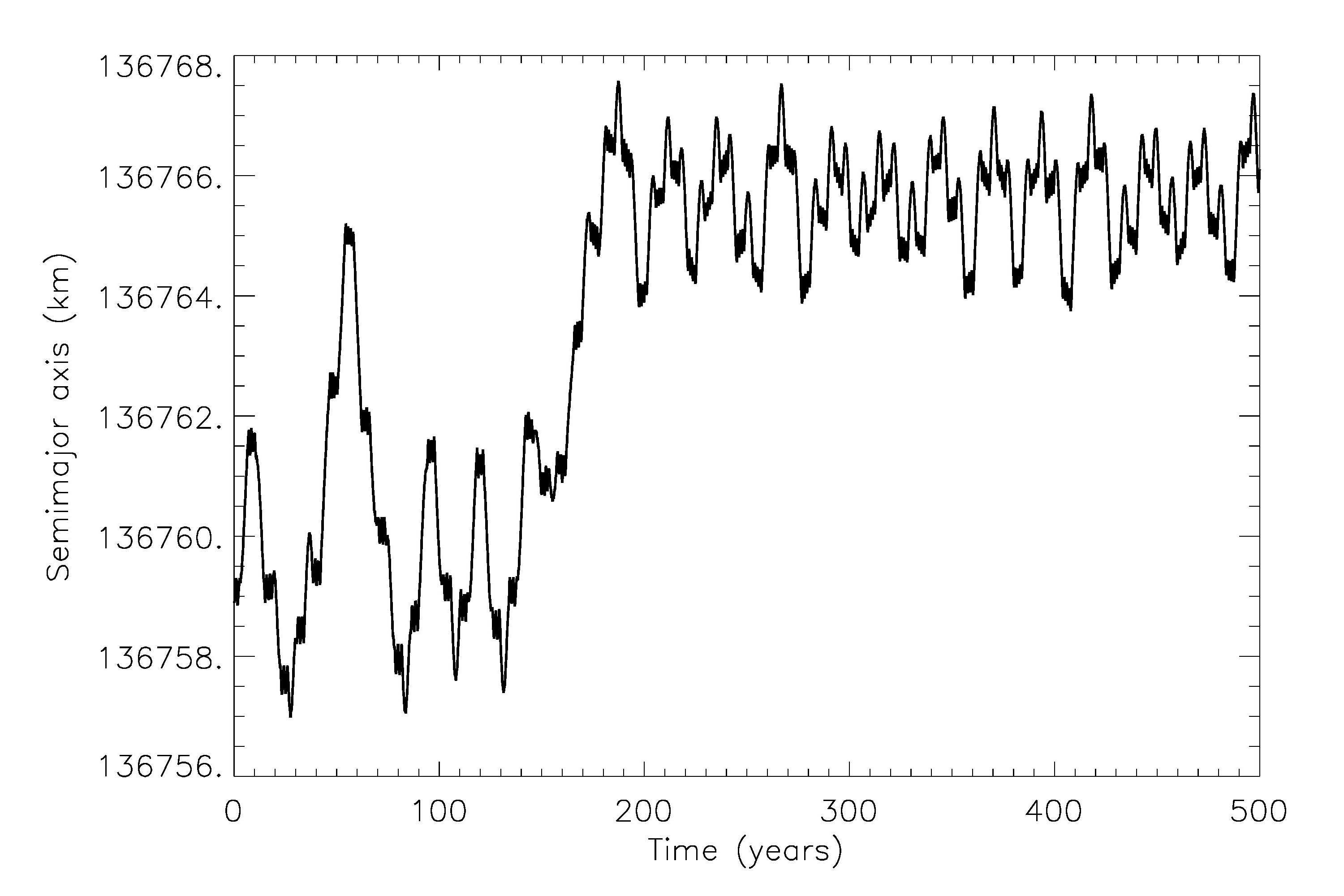

The object Peggy is currently not perturbed by the CERs. In fact, the semi-major axis range ($136767-136775$ km, see Figure 6) derived for that body from Cassini observations (Cooper & Murray, private com.) is located right next to the outer chaotic radial zone (centred at 136762 km) due to Janus CER. On the other hand, the eccentricity interval ($5\times 10^{-4}-2\times 10^{-3}$) is compatible with the maximum eccentricity forced by the LERs (Figure 8), and matches even better the values around $136760$ km. This raises the idea that the object possibly formed in the CER region before moving outwards to its current location.

In Figure 12, particle semi-major axes are displayed as a function of mean longitude in a frame rotating with the CER pattern speed $n_{\rm CER}$, when Epimetheus CER is located at 136787 km. The six corotation sites are distinguishable. The partial libration motions around the CER fixed points create clumpy structures along the ring. These structures, which extend over a few kilometres in the radial direction and have various longitudinal lengths up to dozens of degrees, are undetectable in Cassini ISS data. Figure 13 shows an example where a test particle, randomly trapped every 4.2 years into the 7:6 CER with Janus, moves to the outer part of the ring edge at $\sim 136767$ km, i.e. the lowest possible semi-major axis for Peggy. It is therefore possible that the periodic trapping into CERs with Janus/Epimetheus may help to aggregate ring particles into larger objects at the ring edge.

5 Conclusions

We numerically examined an analytical model that describes the dynamics of the outer edge of Saturn’s A ring. While the seven-lobed radial distortion of the A ring edge resulting from the 7:6 Janus LER is well-known (Porco et al., 1984), our work is the first study to explain the effects of periodic perturbations by CERs, arising from co-orbital satellites in horseshoe motion.

In terms of orbital elements, we find that the semi-major axis evolution is dominated by chaotic jumps due to periodic captures into CERs with Janus and Epimetheus. These semi-major axis variations are comparable (or slightly larger) than those expected from the oscillations into the CER sites (Figure 6). Similarly, the eccentricity experiences step-by-step increases due to periodic LER perturbations, before eventually reaching the maximum value forced by the resonance (equation 9). A good agreement is found between the simulated and observed eccentricities of A ring edge particles (Spitale & Porco, 2009; El Moutamid et al., 2016).

We showed that the object Peggy recently discovered at the ring edge (Murray et al., 2014) is strongly perturbed by the Janus 7:6 LER (when Janus is on its inner leg of its libration motion), but not currently perturbed by any CER, with fitted semi-major axes just outside one of the four chaotic radial zones (Figure 6). The model presented suggests that the periodic CER/LER perturbations due to the co-orbital moons may help to form objects at the ring edge from particles that move outwards. This dynamical mechanism would add to (long-term) satellite formation processes such as the viscous spreading of the rings (Charnoz et al., 2010) or the ejection from the rings of objects denser than ice (Charnoz et al., 2011).

Acknowledgements

N.C.S.A. thanks the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior - Brasil (CAPES) - Finance Code 001. N.J.C. and C.D.M. thank the Science and Technology Facilities Council (Grant No. ST/P000622/1) for financial support. Part of the research leading to these results has received funding from the European Research Council under the European Community’s H2020 (2014-2020/ERC Grant Agreement no. 669416 “LUCKY STAR"). The authors also thank Thomas Rimlinger for useful comments, the Encelade working group for interesting discussions, the International Space Science Institute (ISSI) for support, and the members and associates of the $Cassini$ ISS team.
