I Introduction

With the discovery of the new resonance of mass around 125 GeV at the LHC Chatrchyan:2012xdj ; Aad:2012tfa ; ATLAS:2013xla ; ATLAS:2013nma ; ATLAS:2013vla ; CMS:xwa ; CMS:bxa ; Aad:2013wqa ; Chatrchyan:2012xdj ; Chatrchyan:2013lba ; Aad:2012tfa ; ATLAS:2016oum ; ATLAS:2016pkl ; ATLAS:2016zzs ; Aad:2015vsa ; ATLAS:2016hru , a new era is open in the investigations of elementary particle dynamics. The new particle is so far consistent in every way with the long expected Higgs boson of the Standard Model (SM). All the expected SM decays are observed at the LHC, albeit some tension in the decay widths, which are still consistent within the statistical fluctuations. The spin and parity analysis favour a spin-zero, even-parity object ATLAS:2013xla ; ATLAS:2013nma ; ATLAS:2013vla ; CMS:xwa ; CMS:bxa ; Aad:2015mxa . These measurements establish the role of Higgs mechanism in the electroweak symmetry breaking (EWSB) and the discovered resonance as the Higgs boson. So far the measurements are consistent with the properties of the Higgs boson expected in the SM Higgs mechanism. While we wait for further statistics to establish more detailed identity of this discovery, it is worth revisiting the role of new physics in the Higgs sector in the light of the new measurements. It is well accepted that, even if all the properties of the new particle meets the expectations of the SM, there still remain several questions on the SM. One of the serious issues within the Higgs sector is the difficulty with quadratically diverging quantum corrections to the mass of the Higgs boson, or the so called hierarchy problem. This itself should convince us that the SM is at the most effective theory, highly successful at the electroweak scale. Another contentious issue is the stability of the vacuum. With the quantum corrections to the quartic Higgs coupling that the massive fermions and gauge bosons would induce, it is indicated that the minimum of the potential corresponds to a local metastable vacuum, with a possible global vacuum at much higher energies Degrassi:2012ry . Among the plethora of suggestions to look beyond the SM, one could indeed narrow down to scenarios that can accommodate a light Higgs boson, very likely an elementary one, with properties very close to that of the SM Higgs boson. One may need to wait till the LHC reveals further indications of new physics, if we are lucky, or perhaps even need to wait till the new generation lepton colliders, like the International Linear Collider (ILC) BrauJames:2007aa ; Djouadi:2007ik ; MoortgatPick:2005cw , start exploring the TeV scale physics. Being a discovery machine, the LHC is capable of observing any direct production of new particle resonance at the energy scales explored, while the latter is more suitable to explore the new physics through detailed precision analysis, in the absence of any such direct observation of new physics.

Taking a cue from the observations so far, we are compelled to consider a case with new physics somewhat decoupled from the electroweak physics, which in turn is dictated by the SM. In that case, the effect of new physics will be reflected in the various couplings through the quantum corrections they acquire. The best way to study such effects is through an effective Lagrangian, which encodes the new physics effects in higher dimensional operators with anomalous couplings. Interesting phenomenological studied with effective Higgs couplings, including the possibility of CP violation in the Higgs sector is discussed in the literature 555An important issue of the top quark Yukawa coupling in the context of CP-mixed Higgs boson is studies in Refs. Ananthanarayan:2013cia ; Ananthanarayan:2014eea ; Muhlleitner:2012jy ; Godbole:2011hw . The study of Higgs sector through an effective Lagrangian, and effective couplings goes back to Refs.Weinberg:1978kz ; Weinberg:1980wa ; Georgi:1994qn ; Buchmuller:1985jz ; Hagiwara:1993ck ; Hagiwara:1993qt ; Alam:1997nk ; Barger:2003rs ; Giudice:2007fh ; Grzadkowski:2010es ; Contino:2010rs ; Grzadkowski:2010es ; Grzadkowski:2010es ; GutierrezRodriguez:2011gi ; GutierrezRodriguez:2009uz ; GutierrezRodriguez:2005fe ; Rindani:2010pi ; Rindani:2009pb . More recently, the Lagrangian including complete set of dimension-6 operators was studied in Refs. Baak:2012kk ; Einhorn:2013kja ; Contino:2013kra ; Amar:2014fpa ; Masso:2014xra ; Biekoetter:2014jwa ; Willenbrock:2014bja . For some of the recent reference discussing the constraints on the anomalous couplings within different approches, please see Bonnet:2011yx ; Corbett:2012dm ; Chang:2013cia ; Elias-Miro:2013mua ; Banerjee:2013apa ; Boos:2013mqa ; Masso:2012eq ; Han:2004az ; Corbett:2012ja ; Dumont:2013wma ; Pomarol:2013zra ; Ellis:2014dva ; Belusca-Maito:2014dpa ; Gupta:2014rxa ; Ellis:2017kfi ; Denizli:2017pyu ; DiVita:2017vrr ; Ellis:2018gqa ; Liu:2018peg ; Rindani:2018ubx ; Hesari:2018ssq . Ref. Ellis:2014dva studied the H+V, where V= Z, W, associated production at the LHC and the Tevatron to discuss the bounds obtainable from the global fit to the presently available data, whereas Refs. Belusca-Maito:2014dpa and Ellis:2018gqa discuss the constraint on the parameters coming from the LHC results as well as other precision data from LEP, SLC and the Tevatron. Experimental studies on the Higgs couplings at the LHC are presented in, for example, Aad:2013wqa ; Teyssier:2014hta ; ATLAS:2018otd ; Khachatryan:2016vau ; CMS:2013xfa .

Higgs self couplings give direct information about the scalar potential, and therefore, very important to understand the nature of the EWSB. The process, $e^{+}e^{-}\rightarrow ZHH$ is one of the best suited to study the Higgs trilinear coupling DeRujula:1991ufe ; GutierrezRodriguez:2008nk ; Takubo:2009ws ; Tian:2010np ; Battaglia:2001nn ; Barger:2003rs ; Killick:2013mya ; Djouadi:1999gv ; Baer:2013cma ; Castanier:2001sf ; Liu:2018peg . At the same time, this process also depends on the Higgs-Gauge boson couplings, $ZZH$ and $ZZHH$, which will affect the determination of the the $HHH$ coupling. Another process that could probe the $HHH$ couplings is $e^{+}e^{-}\rightarrow\nu\bar{\nu}HH$ following the WW fusion Battaglia:2001nn ; Barger:2003rs ; Killick:2013mya ; Djouadi:1999gv ; Rindani:2018ubx , which is also affected by the $WWH$ and $WWHH$ couplings. With the first phase of the ILC expected to run at 250 GeV centre of mass energy, efforts to probe the $ZH$ production process, where the influence of the quartic couplings would be felt at one loop, are seriously studied Rindani:2018ubx ; DiVita:2017vrr . In this report we will focus on the Higgs pair production processes within the framework of the effective Lagrangian. One goal of this study is to investigate how significant is the effect of $VVH$ coupling, where $V=Z,~{}W$, in the extraction of the $HHH$ coupling. In contrast to other similar studies, we perform a multi-parameter analysis employing the Markov-Chain-Monte-Carlo method to obtain simultaneous constraints in hyperspace spanned by all relevant parameters.

The report is presented in the following way. In Section II the effective Lagrangian will be presented, with the currently available constraint on the parameters. In Section III the processes under consideration will be presented, with details. In Section IV the results will be summarized.

II General Setup

The effective Lagrangian with full set of dimension-6 operator involving the Higgs bosons is described in Ref.  Giudice:2007fh ; Grzadkowski:2010es ; Contino:2010rs ; Grzadkowski:2010es ; Contino:2013kra ; Ellis:2014dva . In this report, we shall restrict our discussion to the processes $e^{+}e^{-}\rightarrow ZHH$, and $e^{+}e^{-}\rightarrow\nu\bar{\nu}WW\rightarrow\nu\bar{\nu}HH$. Relevant to these processes, part of the Lagrangian is given by

[TABLE]

where $\Phi^{\dagger}{\overleftrightarrow{D}}_{\mu}\Phi=\Phi^{\dagger}D^{\mu}\Phi-D_{\mu}\Phi^{\dagger}\Phi\ ,$ $D^{\mu}$ being the appropriate covariant derivative operator, and $\Phi$, the usual Higgs doublet in the SM. Also, $G_{\mu\nu}^{a}$, $W_{\mu\nu}^{k}$ and $B_{\mu\nu}$ are the field tensors corresponding to the $SU(3)_{C}$, $SU(2)_{L}$ and $U(1)_{Y}$ of the SM gauge groups, respectively, with gauge couplings $g_{s}$, $g$ and $g^{\prime}$, in that order. $\sigma_{k}$ are the Pauli matrices, and $\lambda$ is the usual (SM) quadratic coupling constant of the Higgs field. The above Lagrangian leads to the following in the unitary gauge and mass basis  Alloul:2013naa

[TABLE]

Various physical couplings present in the Lagrangian in Eq. (LABEL:eq:LagPhys) are given in terms of the parameters of the effective Lagrangian in Eq. (1) as

[TABLE]

In total eight coefficients, namely, $\bar{c}_{6},~{}\bar{c}_{H},~{}\bar{c}_{T},~{}\bar{c}_{\gamma},~{}\bar{c}_{B},~{}\bar{c}_{W},~{}\bar{c}_{HB},~{}\bar{c}_{HW}$, govern the dyanmics of $ZHH$ and $\nu\bar{\nu}HH$ productions at the ILC. Coming to the experimental constraints on these parameters, the first two, $\bar{c}_{6}$ and $\bar{c}_{H}$ influence only the Higgs self couplings, and therefore, practically, do not have any experimental constraints on them. Electroweak precision tests constrain $\bar{c}_{T}$, $\bar{c}_{W}$ and $\bar{c}_{B}$ as  Baak:2012kk

[TABLE]

Note that, $\bar{c}_{W}$ and $\bar{c}_{B}$ are not independently constrained, leaving a possibility of having large values with a cancellation between them as per the above constraint. $\bar{c}_{W}$ itself, along with $\bar{c}_{HW}$ and $\bar{c}_{HB}$ is constrained from the LHC observations on the associated production of Higgs along with $W$ in Ref.  Ellis:2014dva . Consideration of the Higgs associated production along with W, ATLAS and CMS along with D0 put a limit of \bar{c}_{W}\in\big{[}-0.05,0.04\big{]}, when all other parameters are set to zero. A global fit using various information from ATLAS and CMS, including signal-strength information constrains the region in $\bar{c}_{W}-\bar{c}_{HW}$ plane, leading to a slightly more relaxed limit on $\bar{c}_{W}$, and a limit of about \bar{c}_{HW}\in\big{[}-0.1,0.06\big{]}. The limit on $\bar{c}_{HB}$ estimated using a global fit in Ref. Ellis:2014dva is about $\bar{c}_{HB}\in[-0.05,0.05]$ with a one parameter fit.

The purpose of this study is to understand how to exploit a precision machine like the ILC to investigate suitable processes so as to derive information regarding these couplings. In the next section we shall explain the processes of interest in the present case, and discuss the details to understand the influence of one or more of the couplings mentioned above.

III Discussion of the processes considered

It is generally expected that the ILC, with its clean environment, fixed centre of mass energy, and additional features like availability of beam polarization, will be able to do the precision studies much more efficiently than what the LHC could do. This is especially so in the case of Higgs self couplings. One of the best suited process to study the trilinear (self) coupling of the Higgs boson is $e^{+}e^{-}\rightarrow ZHH$, the phenomenological analysis of which is studied in detail within the context of the SM. The Feynman diagrams corresponding to this process in the SM are given in Fig. 1.

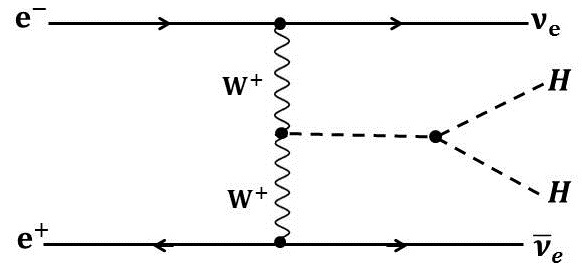

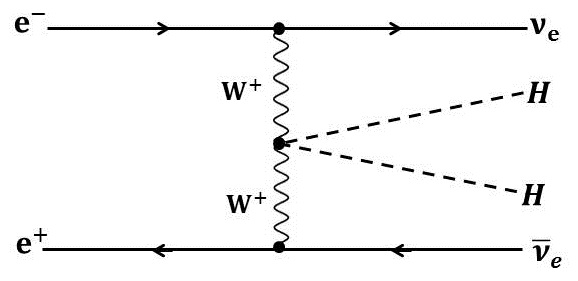

Another process that is relevant to the study of $HHH$ coupling is $e^{+}e^{-}\rightarrow\nu_{e}\bar{\nu}_{e}HH$. The earlier process, $e^{+}e^{-}\rightarrow ZHH$, with the invisible decay of $Z\rightarrow\nu_{e}\bar{\nu}_{e}$ also leads to the same final state. However, this can be easily reduced by considering the missing invariant mass. The rest of the process goes through the Feynman diagrams presented in Fig. 2.

Apart from the $HHH$ coupling, these processes are influenced by gauge-Higgs couplings like $ZZH$, $ZZHH$, $WWH$ and $WWHH$. Keeping in mind the above discussion of the effective couplings deviating from the SM due to the influence of the BSM at some higher energies, one must understand how such a scenario would affect the phenomenology, in order to draw any conclusion regarding these couplings. In the rest of this report, we shall revisit these processes, with a specific purpose of understanding the correlation between the gauge-Higgs coupling and the trilinear Higgs couplings.

For our analyses we use MadGraph5 Alwall:2014hca , with the Effective Lagrangian implemented through FeynRules Alloul:2013bka as given by Alloul:2013naa .

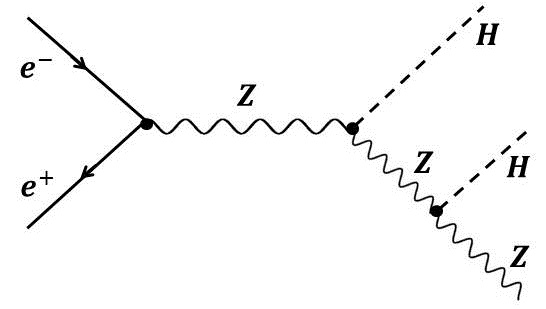

III.1 $e^{+}e^{-}\rightarrow ZHH$ Process

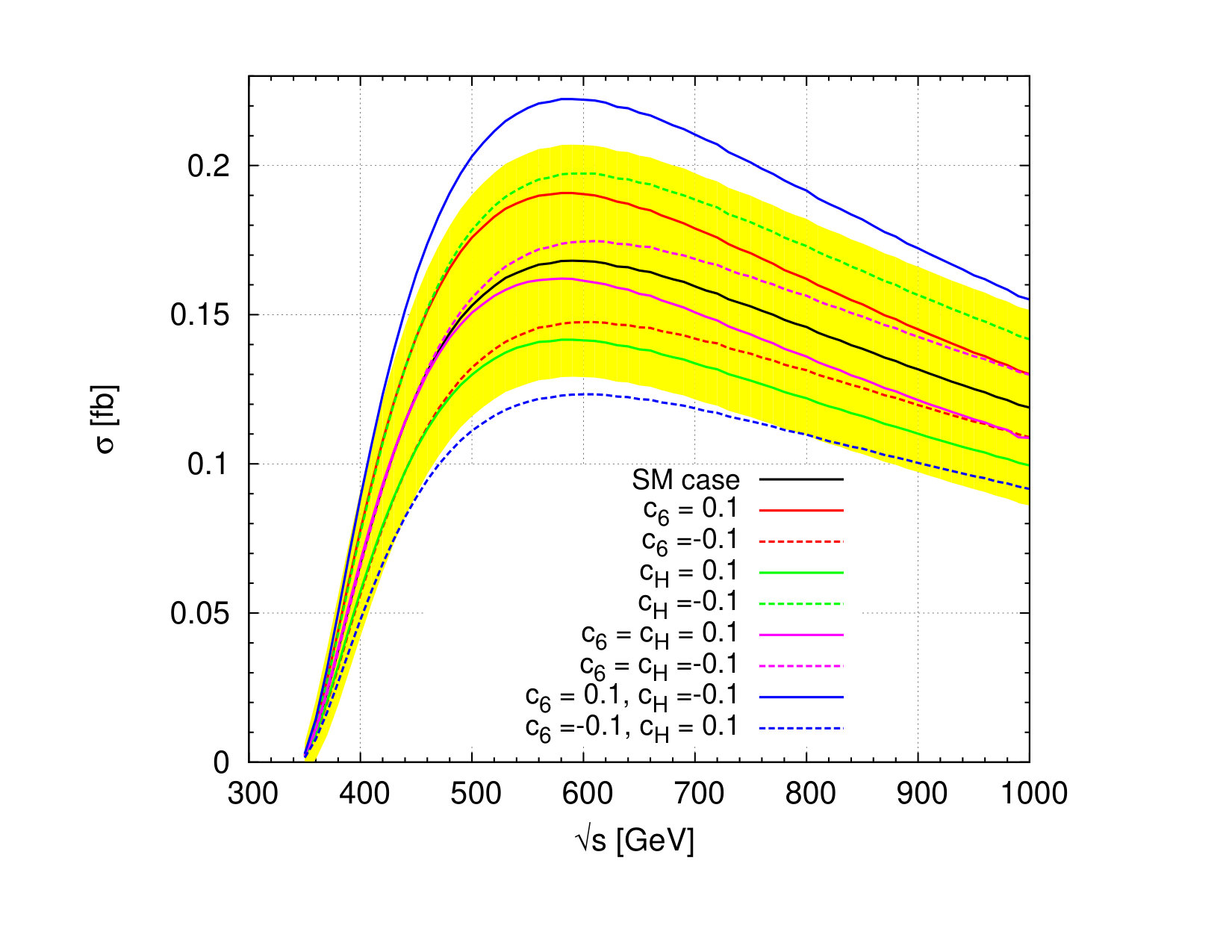

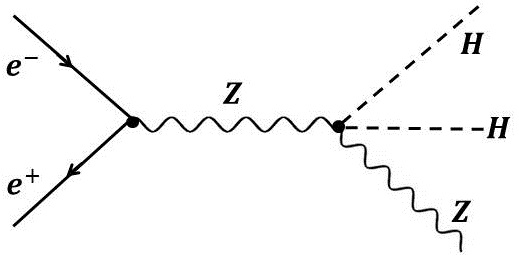

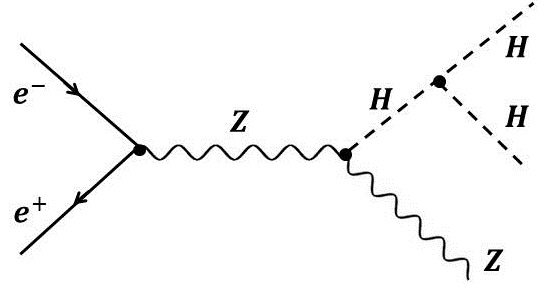

We shall first consider $e^{+}e^{-}\rightarrow ZHH$ process. In Fig. 3 the cross section is plotted against the centre of mass for the SM case as well as for some selected $(c_{6},c_{H})$ points. The cross section peaks around a centre of mass energy of 600 GeV with a value of about 0.17 fb, which slides down to about 0.16 fb at 500 GeV. We perform our analysis for the ILC running at a centre of mass energy of 500 GeV.

To seek a functional form of cross section as a function of the anomalous couplings we generated events in MadGraph5 for the process $e^{+}e^{-}\to hhZ$ with and without decaying the particles with $100$ random set of couplings $f_{i}=(c_{6},c_{H},c_{W},c_{B},c_{HB},c_{HW})$ within a given range at $\sqrt{s}=500$ GeV and fitted the cross section of the process with the formula

[TABLE]

Here $\sigma_{0}$ is the cross section when $f_{i}=0$, i.e., the SM cross section. The production cross section of $e^{+}e^{-}\to hhZ$ at $\sqrt{s}=500$ GeV as a function of the anomalous higgs couplings ($c_{6},c_{H},c_{W},c_{B},c_{HB},c_{HW}$) is obtained to be

[TABLE]

The total cross section including the decay of $Z\to l^{+}l^{-}$ and $h\to b\bar{b}$ would be

[TABLE]

The influence of $c_{6}$ and $c_{H}$ on the production cross section given in Eq. (6) are shown in Fig. 4 in the left-panel and in the right-panel, respectively. We compare the variation of cross section with $c_{6}$ keeping all other parameters to the SM value, with the cases when some of the relevant parameters having non-standard values. The $3\sigma$ region (yellow band) of the SM value of the cross section, considering an integrated luminosity of 1000 fb*-1*, is presented in these plots so as to make an estimate of the reach on the $c_{6}$. The plots clearly indicate the correlation between the influence of different parameters on the cross section. For example, assuming only $c_{6}$ takes a non-zero value, the reach at $3\sigma$ level is approximately $-0.5<c_{6}<0.45$, as indicated by the black solid line. However, as indicated by the red solid line, if we assume a typical value of $c_{W}=-c_{B}=-0.005$, the lower limit is considerably relaxed, with some moderate change in the upper bound to 0.5. On the other hand, for the case with $c_{W}=-c_{B}=0.001$, where the sign is reversed, the upper bound becomes more stringent, whereas the lower bound is more relaxed. A similar story can be read out for the cases with the presence of other parameters as well. The effect of all the parameters $c_{W}$, $c_{HW}$ and $c_{HB}$, which contribute to the $ZZH$ and $ZZHH$ couplings are found to be significant. Strong dependence of the sensitivity of $c_{6}$ on the presence of $c_{H}$ is somewhat expected, for both parameters contribute to the $HHH$ coupling. The dependence on all the parameters on the sensitivity of $c_{H}$ on the cross section is also found to be significant for chosen typical values of the parameters.

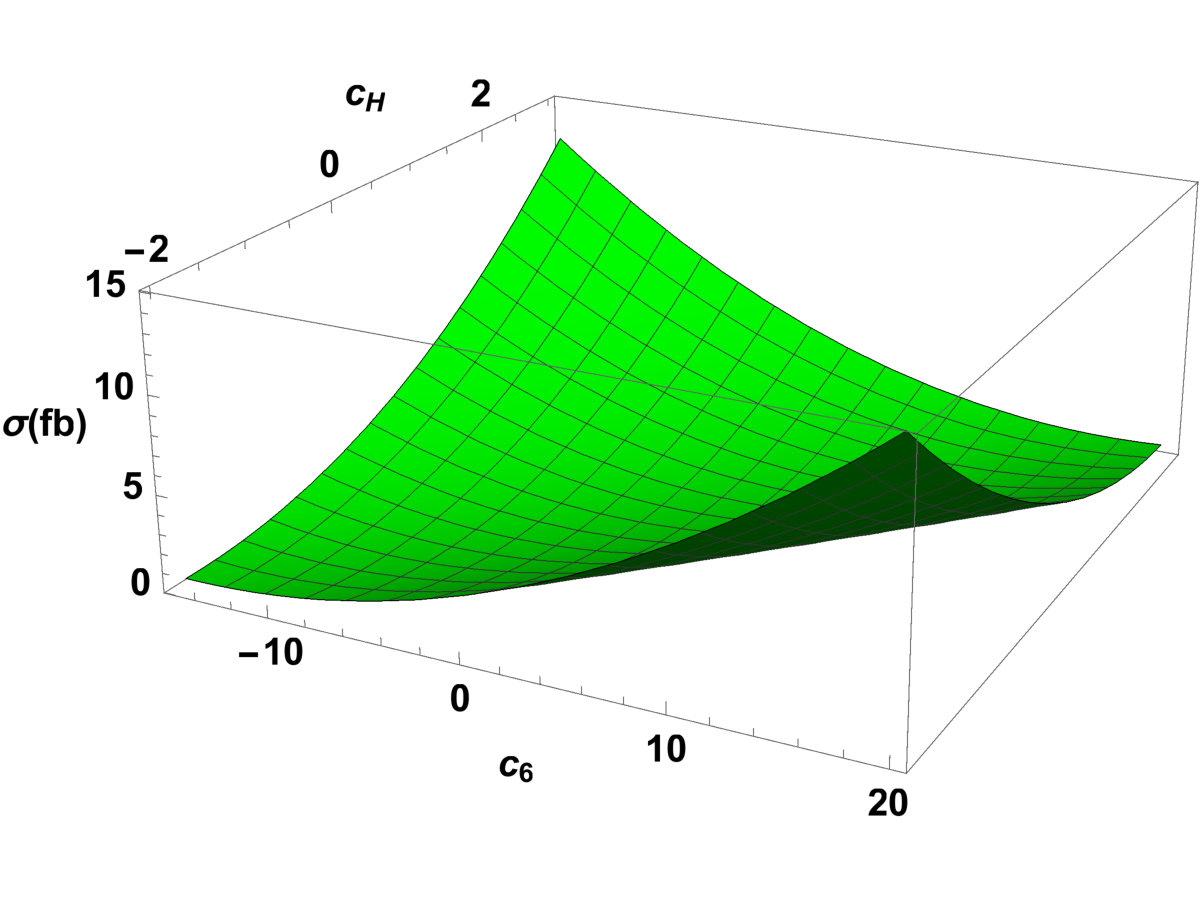

To see the simultaneous effect of $c_{6}$ and $c_{H}$, the production cross section given in is plotted against $c_{6}$ and $c_{H}$ In Fig. 5. The correlation of the sensitivity between the two parameters is clear. The opposite sign combination seems to be more sensitive to the cross section, and therefore more stringent constraints could be drawn in this case compared to the same sign case.

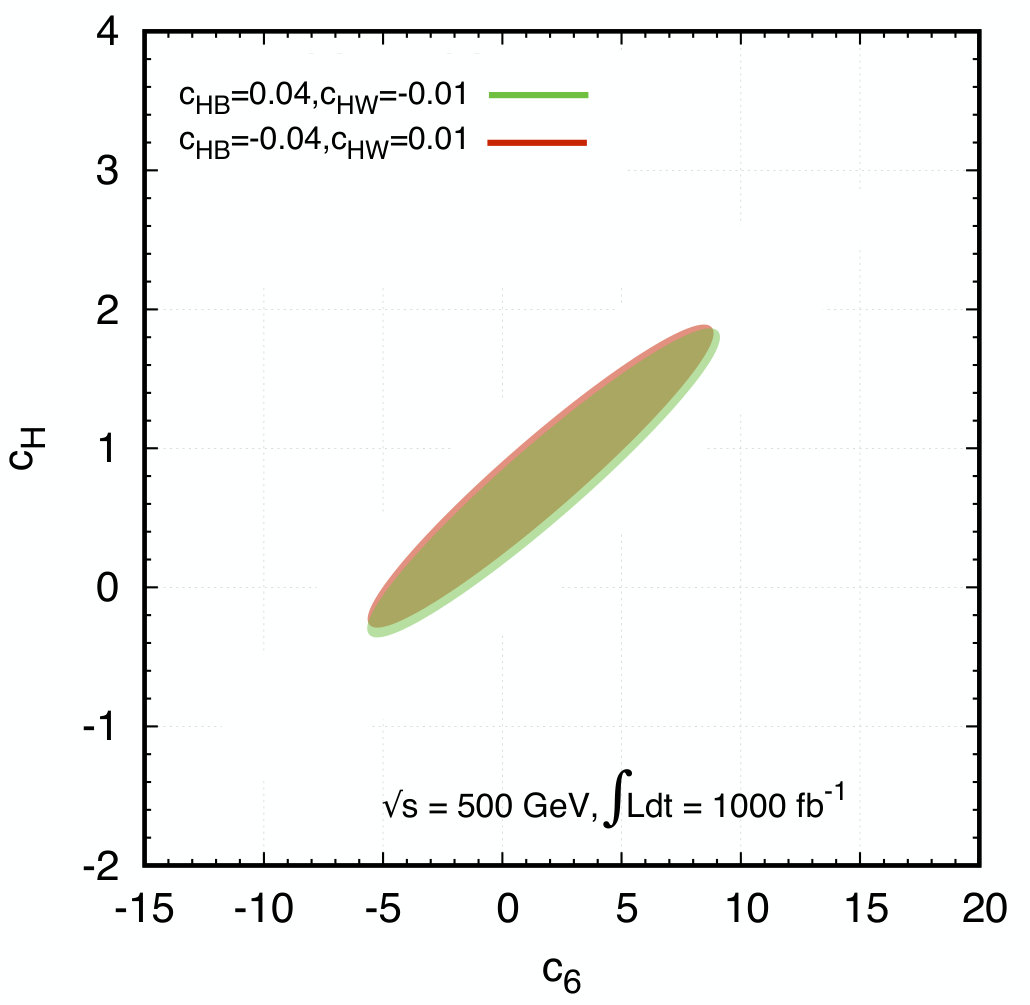

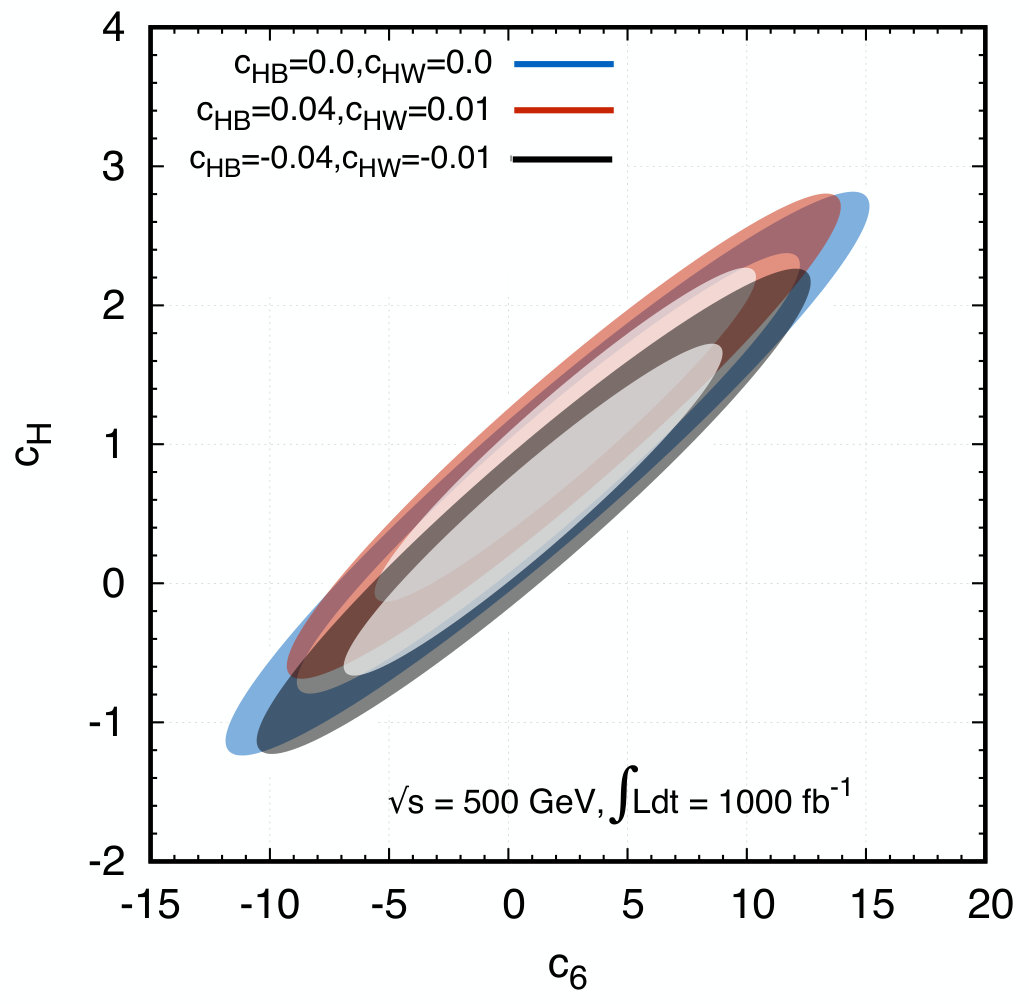

The reach of the ILC on the trilinear Higgs coupling through the process being considered can be established by considering the $3\sigma$ limit of the cross section at an integrated luminosity of 1000 $fb^{-1}$ as presented in Fig. 6, for the case of SM, and cases with non-vanishing anomalous $ZZH$ and $ZZHH$ couplings. Please note that, when cross section is considered as a function of $c_{6}$ and $c_{H}$, the result is a second order polynomial with these two parameters (see Eq. (6)). With this, the $3\sigma$ limit of the cross section leads to an elliptic equation corresponding to the relation between these two parameters. This result in an elliptic band in the $c_{6}-c_{H}$ plane respecting the $3\sigma$ limit of the cross section. As is evident from the plots, these allowed bands of the parameters move in the parameter space, depending on the values of the other parameters, as illustrated by the cases of $c_{W}=-c_{B}$, $c_{HW}$ and $c_{HB}$. These results also illustrate how important the signs of different couplings are in a study of the sensitivity of the trilinear Higgs couplings. What we may learn from the above is that the limits drawn with assuming the absence of all other parameters may not depict the actual situation.

It is important to know the behaviour of the kinematic distributions, and how the anomalous parameters influence these, to derive any useful and reliable conclusions from the experimental results. This is so, even in cases where the fitting to obtain the reach of the parameters is done with the total number of events, as the reconstruction of events and the reduction of the background depend crucially on the kinematic distributions of the decay products. In the following, we shall present some illustrative cases of distributions at the production level, in order to understand the effect of different couplings on these. The changes in the kinematic distributions at the production level will also be carried over to the distributions of their decay products. Presently we would like to be content with the analysis at the production level, considering the limited scope of this work. As mentioned earlier we shall focus on the ILC running at a centre of mass energy of 500 GeV for our study.

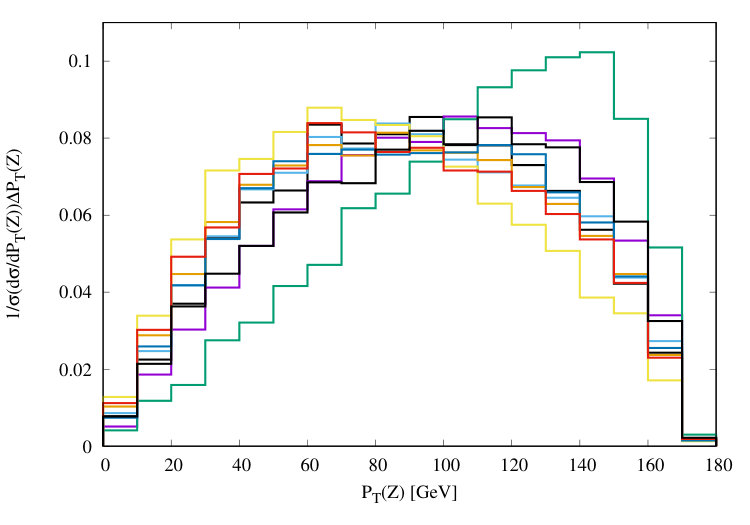

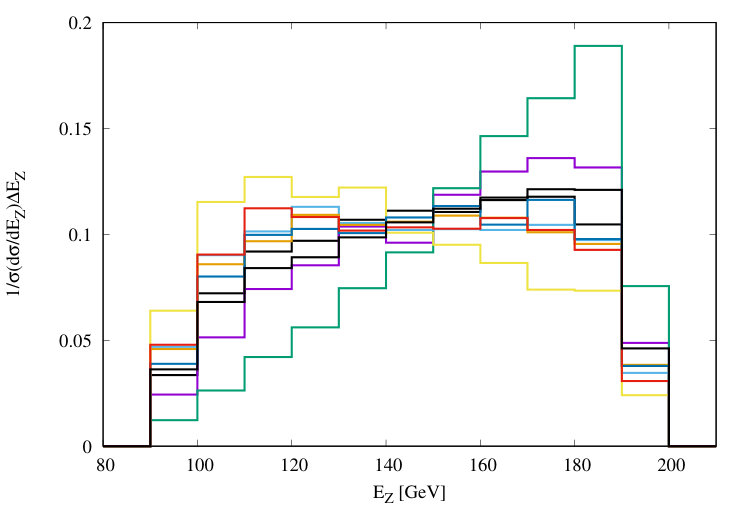

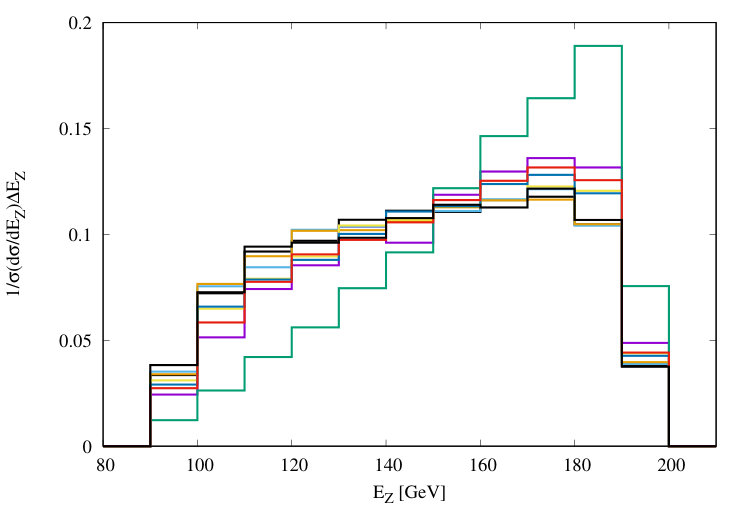

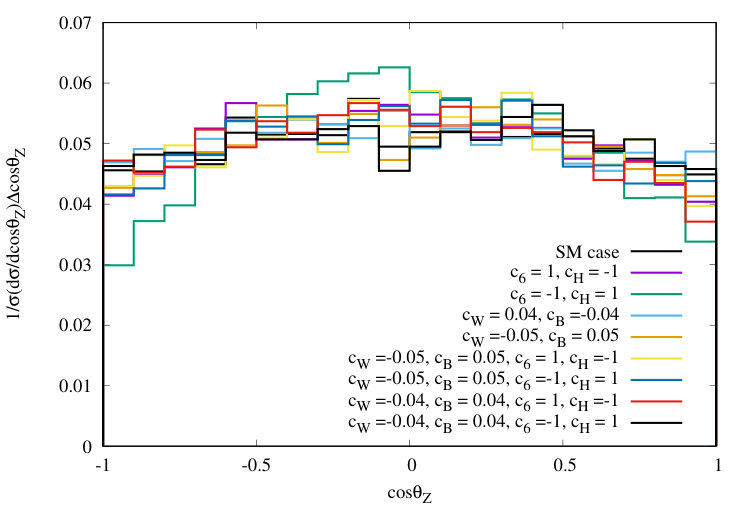

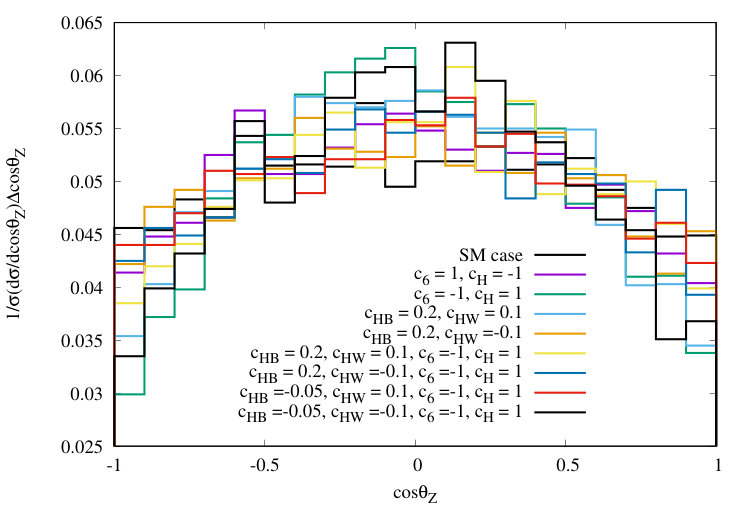

We first consider in Fig.7 (top row), the normalized $\cos\theta_{Z}$ distributions of the $Z$ boson for the case of SM, as well as for different cases with anomalous couplings. The normalized distributions present the difference in the shape, which brings out the qualitative difference in a more visible manner. The figure on the left shows the case with $c_{W}=-c_{B}$ taking typical values, while the other parameters set to zero, whereas the figure on the right considers $c_{HW}$ and $c_{HB}$ non-zero, while setting other parameters to zero. The case with only $c_{6}$ and $c_{H}$ taking non-zero values, when compared with the SM case shows a perceivable change in the distribution with more number of events piling in the small $\cos\theta_{Z}$ region. Such experimental observations could, therefore, be considered as an indication of the anomalous $HHH$ coupling. On the other hand, the presence of anomalous $c_{W}$ and $c_{B}$ couplings does not affect the distribution much. More importantly, in their presence, the non-zero $c_{W}$ and $c_{B}$, the distribution remains close to the SM distribution, even with non-zero $c_{6}$ and $c_{H}$. Thus, a conclusion regarding the presence or otherwise of the $HHH$ coupling drawn from the $\cos\theta_{Z}$ distribution will depend on the values of $c_{W}$ and $c_{B}$. The figure on the right tells a similar story for the case of $c_{HW}$ and $c_{HB}$ replacing $c_{W}$. In Fig.7 (second row) and (third row), the $p_{T}$ and energy distributions of the $Z$ boson are plotted. Here too, we see that if only $c_{6}$ and $c_{H}$ are considered to be non-zero, events with high $p_{T}$ and high energy $Z$ bosons are preferred much more in comparison with the SM case. This conclusion is upset with the simultaneous presence of other parameters related to $ZZH$ coupling.

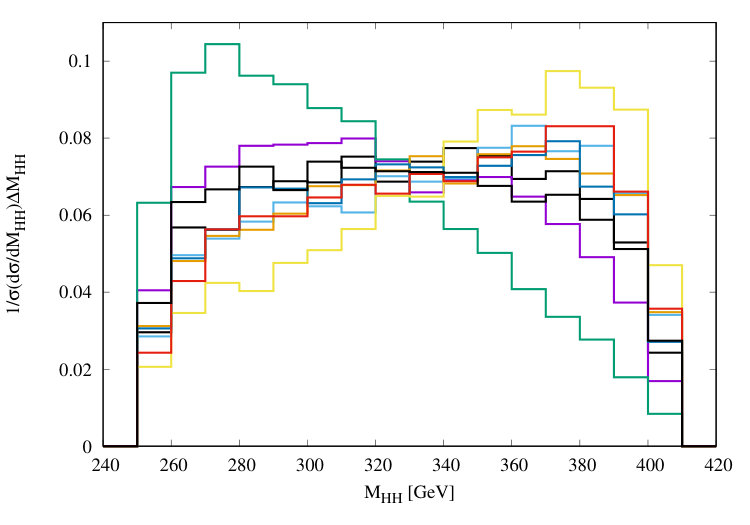

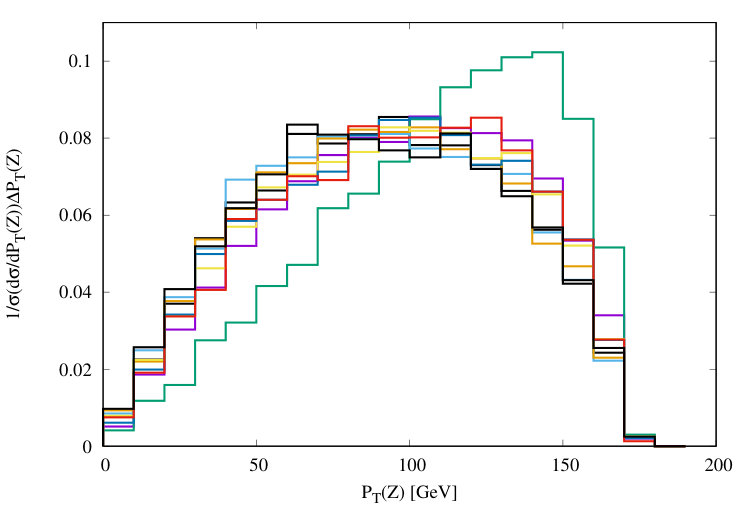

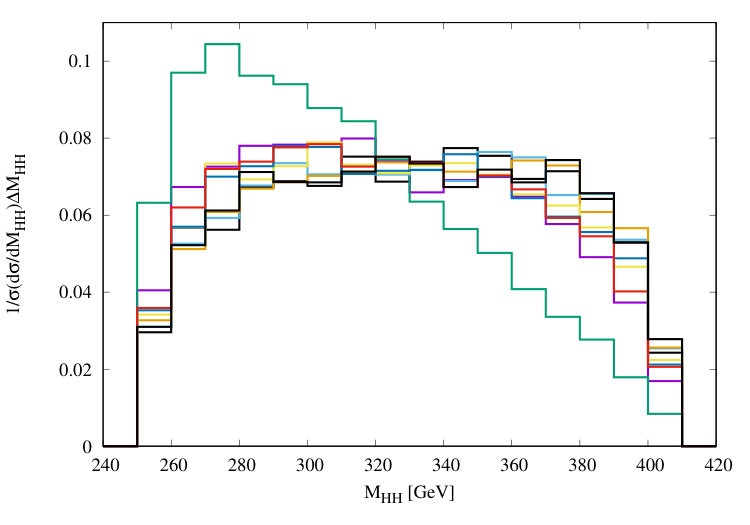

The distribution of the opening angle between the two Higgs bosons as well as their invariant mass distribution presented in Fig. 8 indicate the same feature captured in the various distributions of the $Z$ bosons. While in all cases including the SM case, most of the events are in the forward hemisphere, in the presence of non-vanishing $c_{6}$ and $c_{H}$, but with $c_{W}=c_{HW}=c_{HB}=0$, the events are more evenly distributed within the forward hemisphere, compared to the rest of the cases including the SM case. The $HH$ invariant mass demonstrate an even more dramatic difference in the different cases mentioned above.

The conclusions that we draw from the above considerations is that single parameter considerations to understand the effect of $HHH$ coupling will not be realistic if other relevant gauge-Higgs couplings receive anomalous contributions. Our preliminary investigation clearly indicates that the correlations can be rather strong, for all the relevant parameters, and one needs to consider a careful analysis to obtain realistic limits on the parameters.

The reach on the parameter $c_{6}$ and $c_{H}$ discussed above uses the production cross section, while the inclusion of decay will loosen the limit on them. Here we use the total cross section including the decay of the $Z$ bosons and the $H$ given in Eq. (7) and study the sensitivity to all the couplings. The sensitivity of the total cross section $\sigma_{tot}$ to a couplings $f$ is defined as

[TABLE]

$\delta\sigma_{tot}$ is the estimated error in $\sigma_{tot}$.

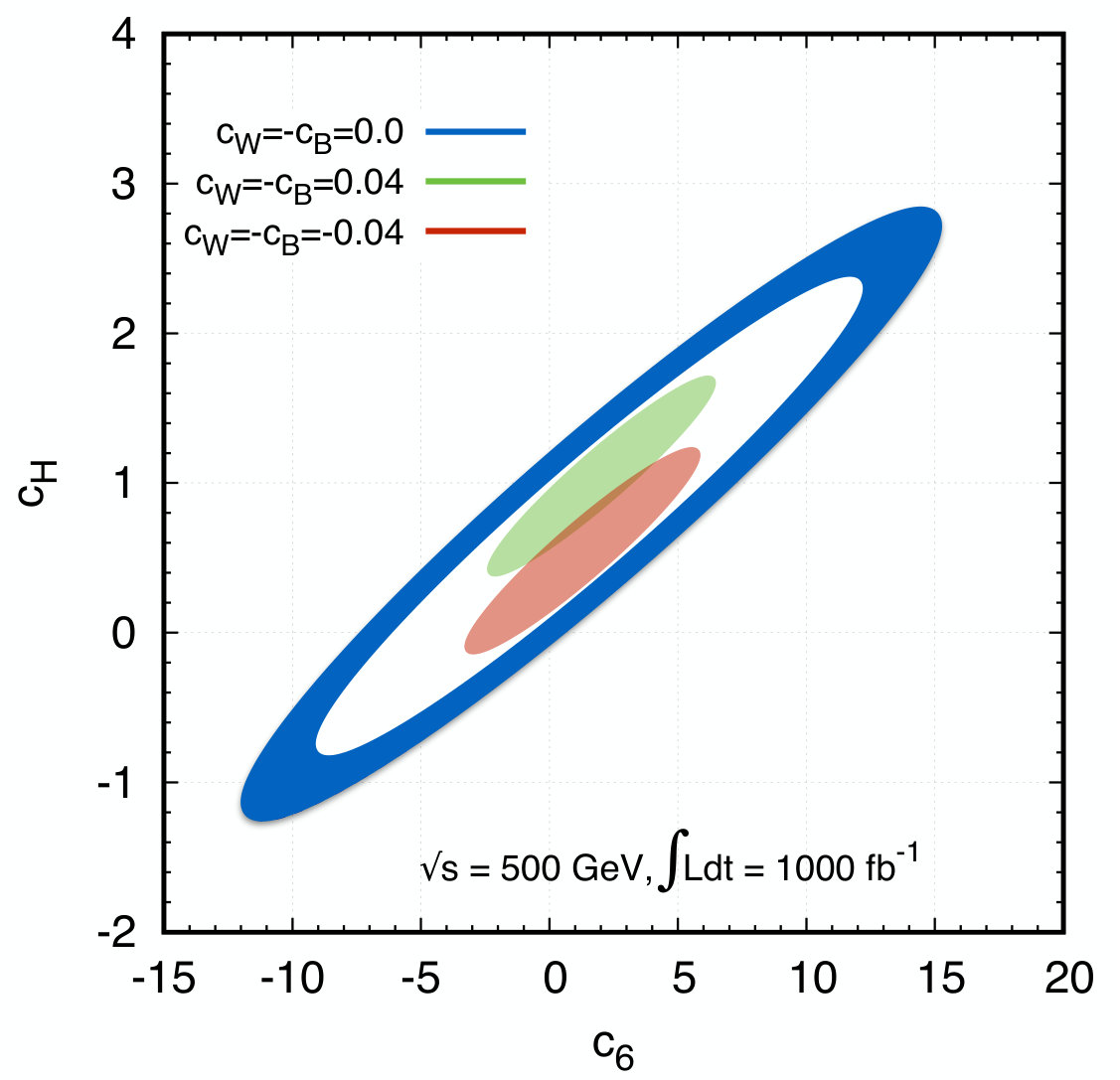

In Fig.9, we present the sensitivity of the total cross section given in Eq. (7) to all the couplings at center of mass energy of $500$ GeV and Integrated luminosity of $1000$ $fb^{-1}$. Due to the presence of linear piece along with quadratic piece, the sensitivity of $c_{6}$ and $c_{H}$ in the left-panel has double hump nature. Both $c_{6}$ and $c_{H}$ has roughly symmetric limits at $1\sigma$ ($c_{6}\in[-1.4,1.0]$) but these get asymmetric limits at $3\sigma$ ($c_{6}\in[-9.20,+2.43]$) due to the double hump nature. The couplings $c_{W}=-c_{B}$, $c_{HB}$ and $c_{HW}$ shown in the right-panel posses asymmetric limit at $1\sigma$ as well as at $3\sigma$ sensitivity. The one parameter limit at $3\sigma$ sensitivity on all the couplings are shown in the last column of TABLE 1.

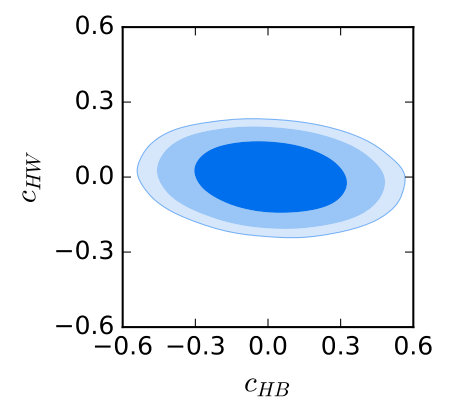

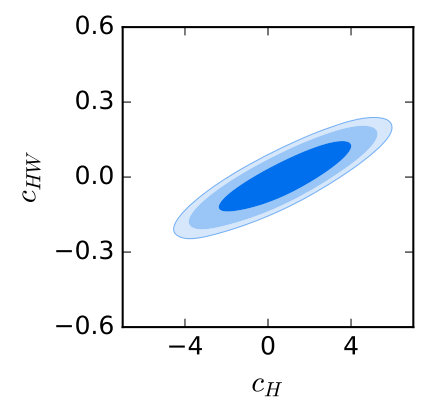

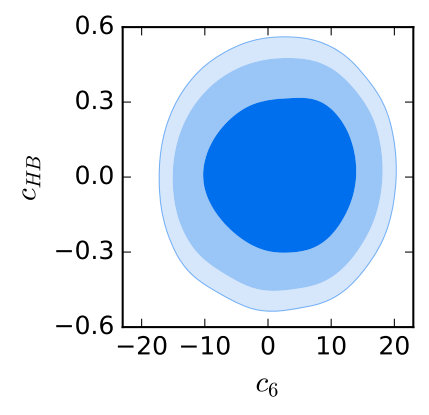

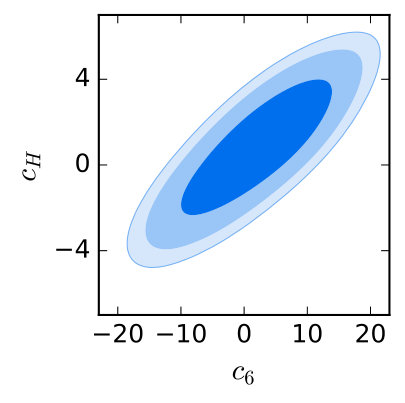

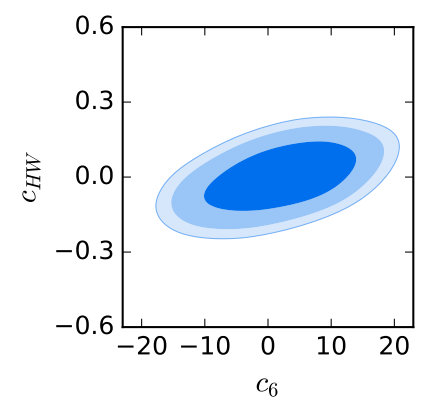

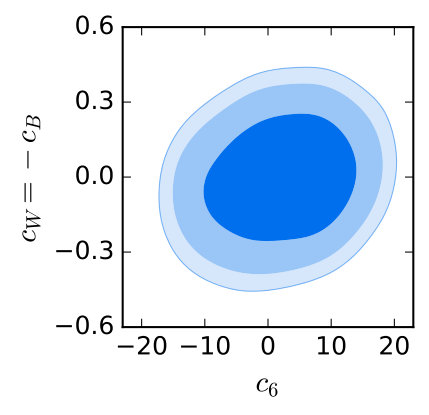

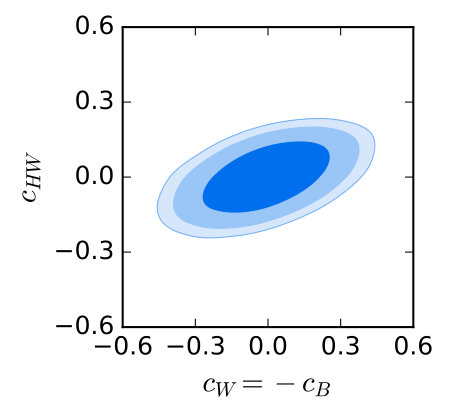

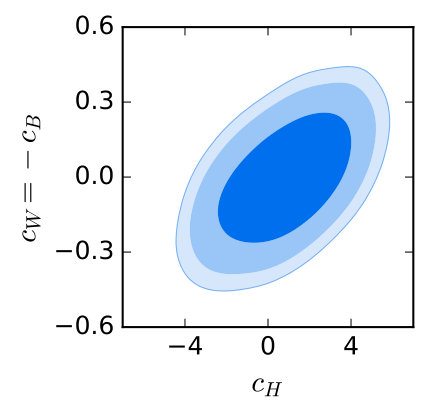

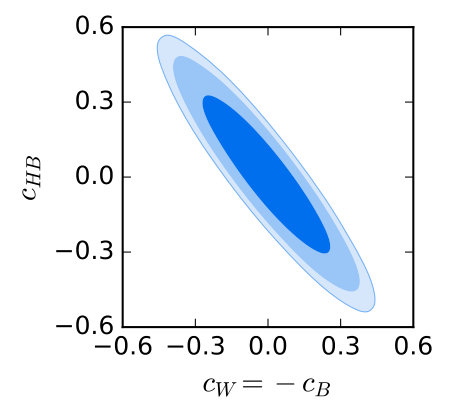

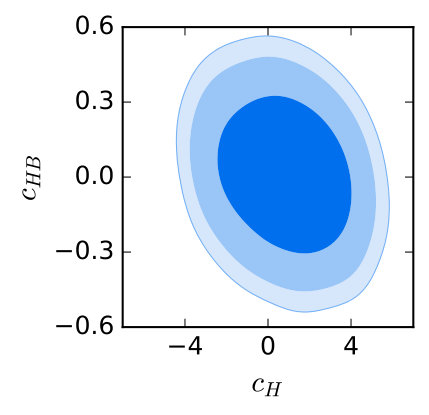

We perform a simultaneous multi-parameter analysis with the total cross section using the Markov-Chain–Monte-Carlo (MCMC) method. We obtain simultaneous limits by varying all the couplings simultaneously using GetDist Antony:GetDist package with the MCMC chain. The $68~{}\%$, $95~{}\%$ and $99~{}\%$ Bayesian-Confidence-Interval (BCI) on the couplings are shown in the TABLE 1. The $99~{}\%$ BCI on the couplings can be compared with the $3\sigma$ one parameter limit from sensitivity on the fifth column of the same table. It can be seen that the simultaneous limits on $c_{6}$ are much tighter than its one parameter limit by its parametric dependence, while simultaneous limits on all other couplings are less tighter than their one parameter limit. The correlation among all parameter after marginalization in the remaining parameters are studied and they are shown in Fig. 10. In the figure, the darkest-shaded contours are for $68~{}\%$ BC, less darker-shaded contours are for $95~{}\%$ BC and lightest-shaded contours are for $99~{}\%$ BC. The (anti) correlations among the couplings have emerged in the multi-parameter analysis. A mild correlation can be seen in the panel $c_{6}$–$c_{H}$ and $c_{W}$–$c_{HW}$, while a strong anti-correlation is observed in the panel $c_{W}=-c_{B}$–$c_{HB}$.

III.2 $e^{+}e^{-}\rightarrow HH\nu\bar{\nu}$ process

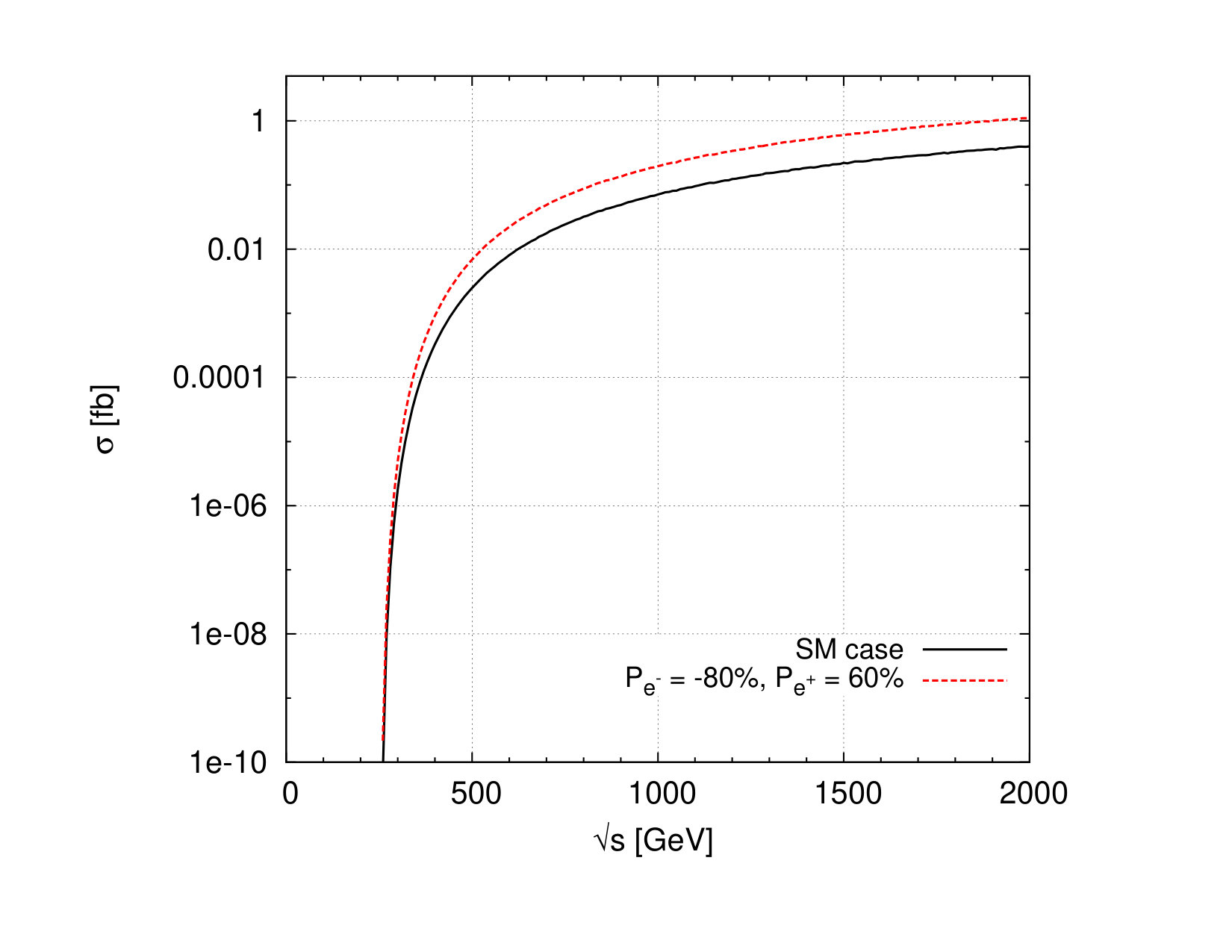

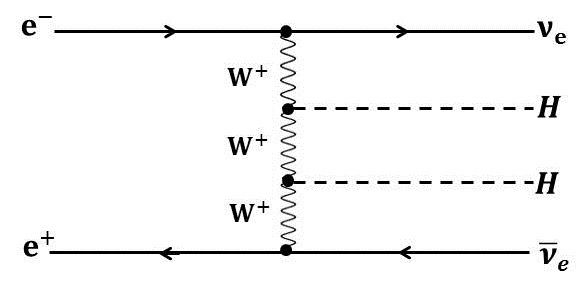

We shall now turn our attention to the second process involving $HHH$ couplings, as well as gauge-Higgs couplings. We consider the two Higgs production with missing energy through the process $e^{+}e^{-}\rightarrow HH\nu\bar{\nu}$. The previous process, $e^{+}e^{-}\rightarrow HHZ$, with $Z\rightarrow\nu\bar{\nu}$ has the same final state. But, this can be easily separated from the rest of the contributions in the SM, to the channels presented in the Feynman diagrams given in Fig. 2, through, for example considering the missing invariant mass. The cross section for the process is plotted against the centre of mass energy for the case of polarized as well as unpolarized beams in Fig. 11. The advantage of very high energy collider is evident here. We shall consider a centre of mass energy of 2 TeV, for which the cross section is close to 0.4 fb in case of unpolarized beams, and slightly more than 1 fb for $e^{-}$ beam of $-80~{}\%$ polarization and $e^{+}$ beam with $+60~{}\%$ polarization Behnke:2013xla . This study will complement the study of the $ZHH$ production in the sense that the physical couplings involved are $HHH$ along with $WWH$ and $WWHH$ instead of the ones involving the neutral gauge bosons. Although in the language of the effective Lagrangian, the couplings involved are similar to the ones in the previous process, their involvement in the current process is expected to be different.

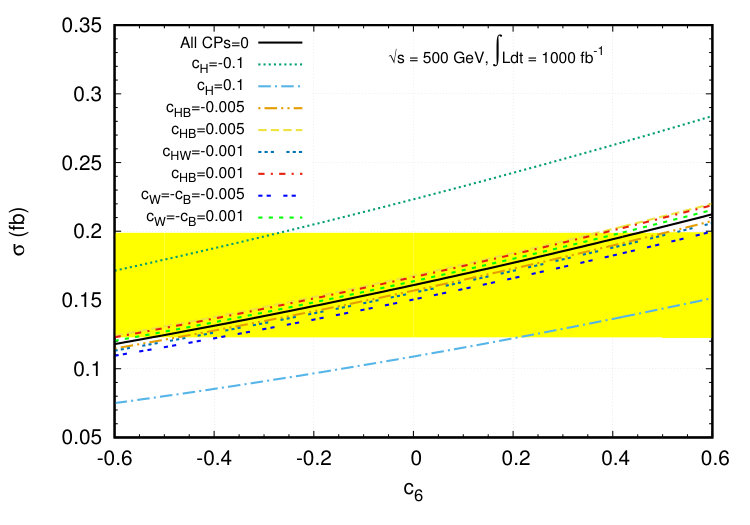

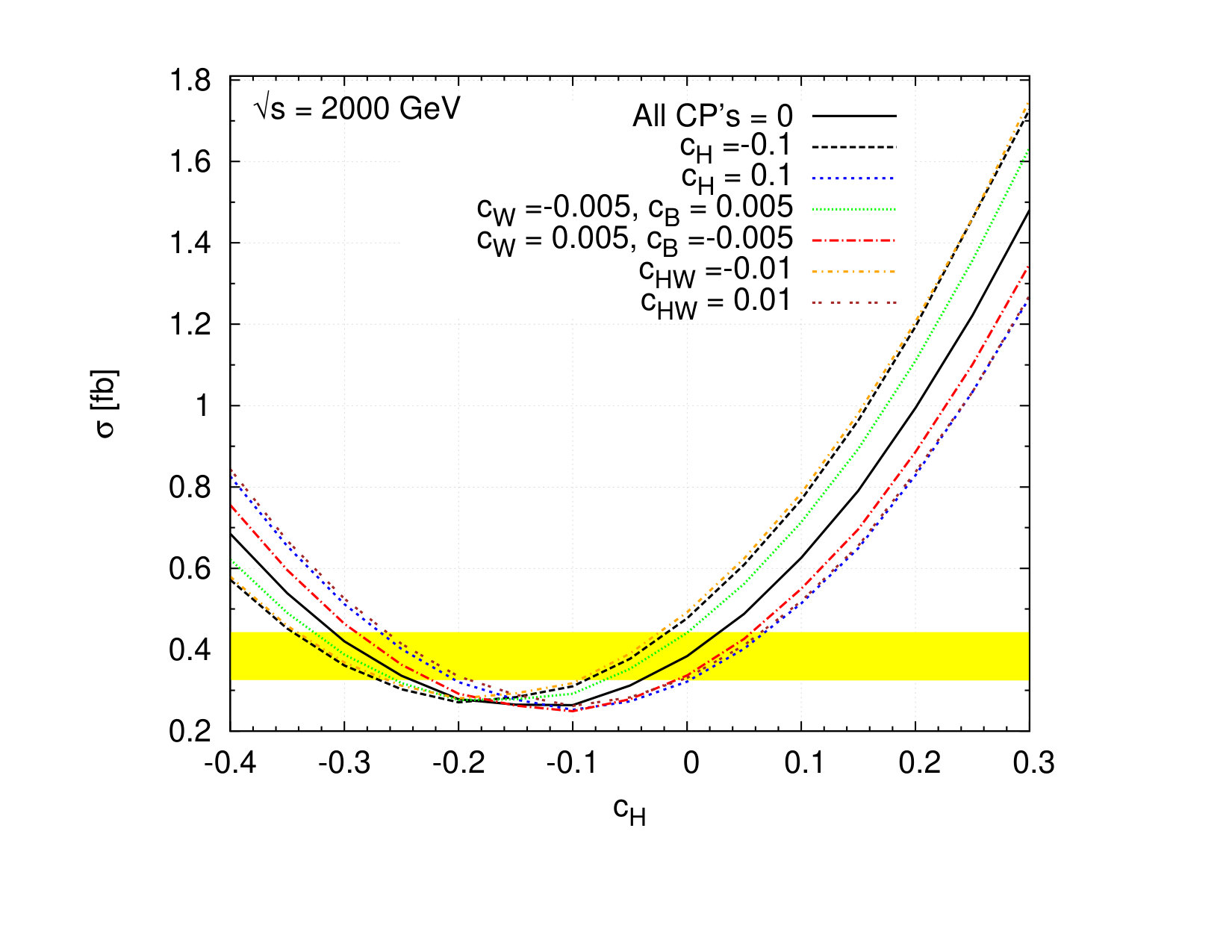

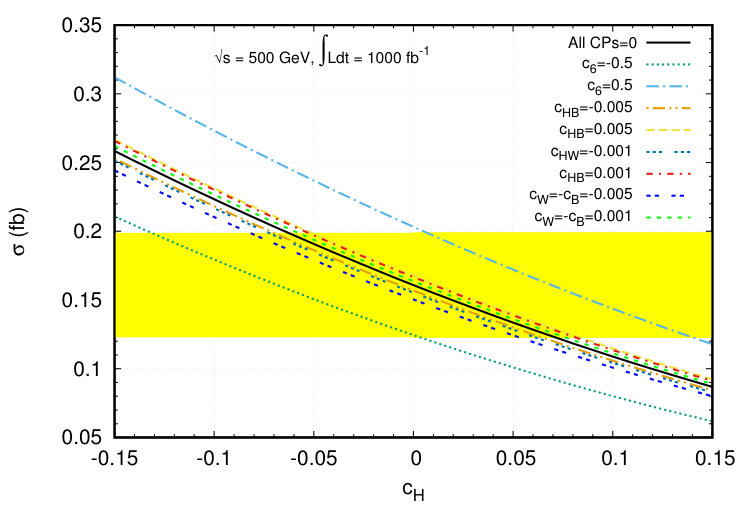

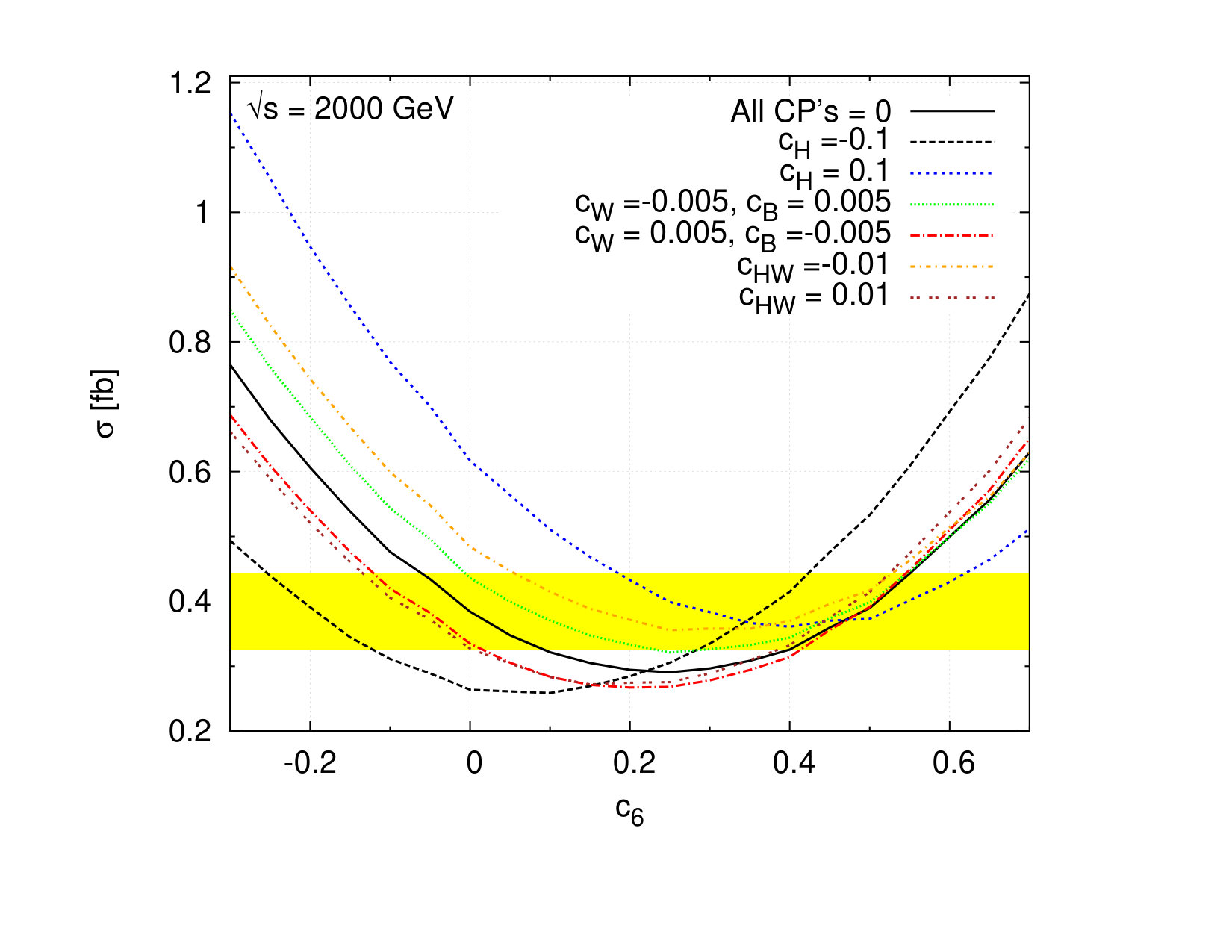

As in the earlier case, the sensitivity of $c_{6}$ and $c_{H}$ on the total cross section at the centre of mass energy of 2 TeV is presented in Figs. 12, where all other parameters are set to zero, as well as in the presence of some of the relevant parameters. We have included the $3\sigma$ band of the SM cross section assuming 1000 fb*-1* luminosity. Clearly, the correlation is perceivable, and the conclusions are similar to the case of $ZHH$ production, that the sensitivity of $HHH$ coupling on the process considered strongly depend on the values of other parameters relevant to $WWH$ and $WWHH$ couplings.

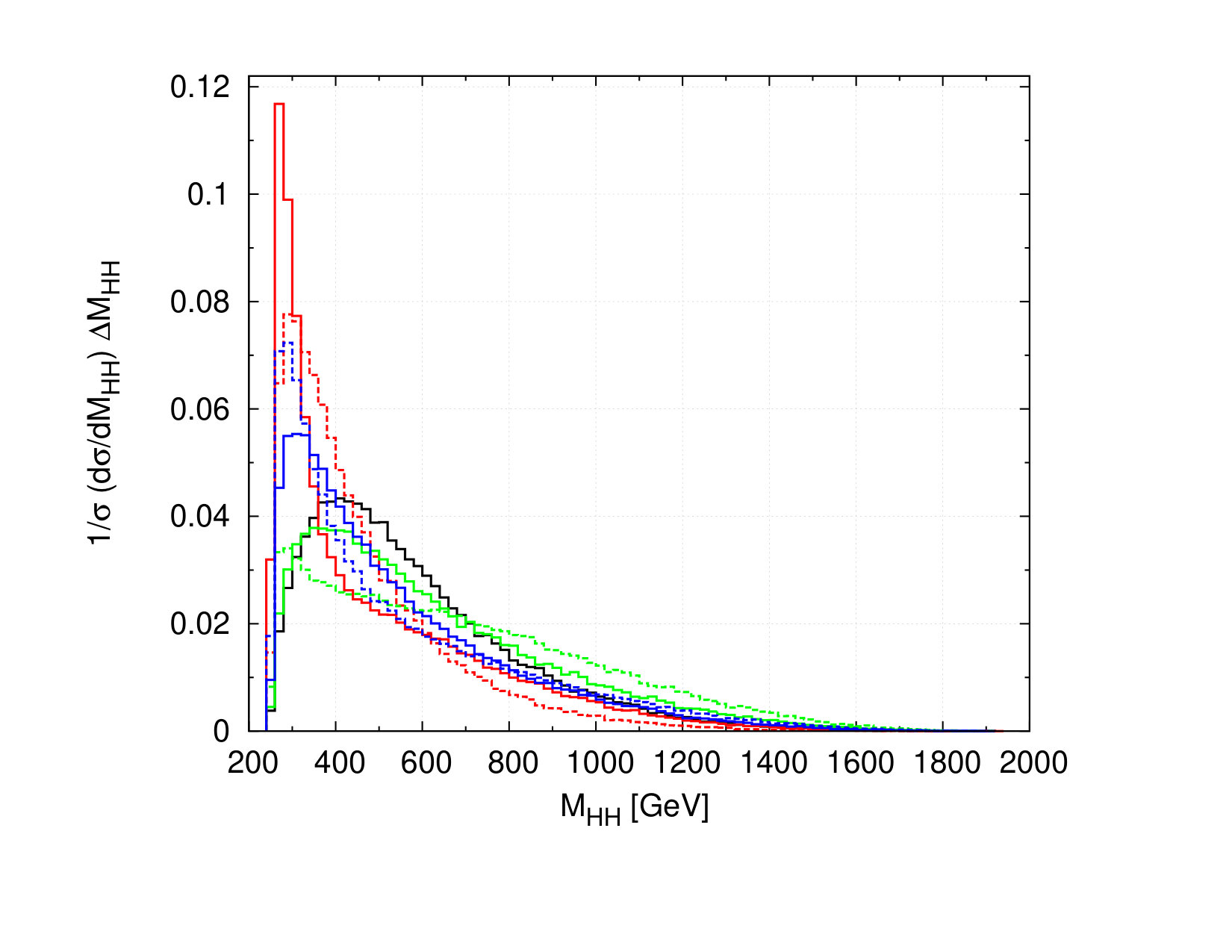

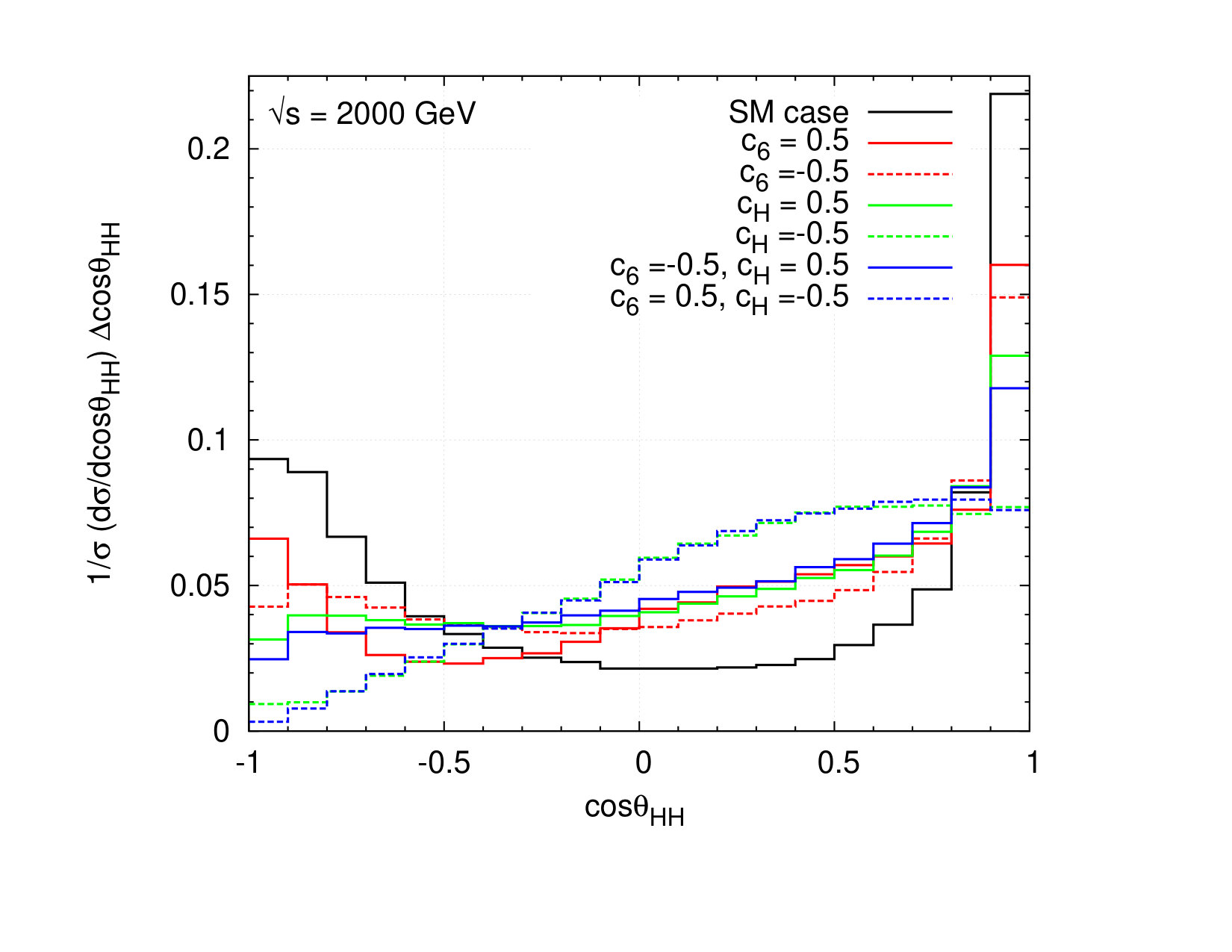

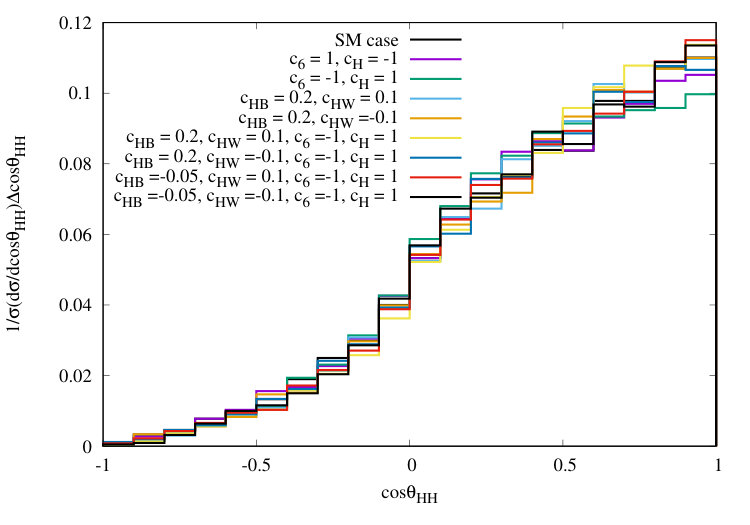

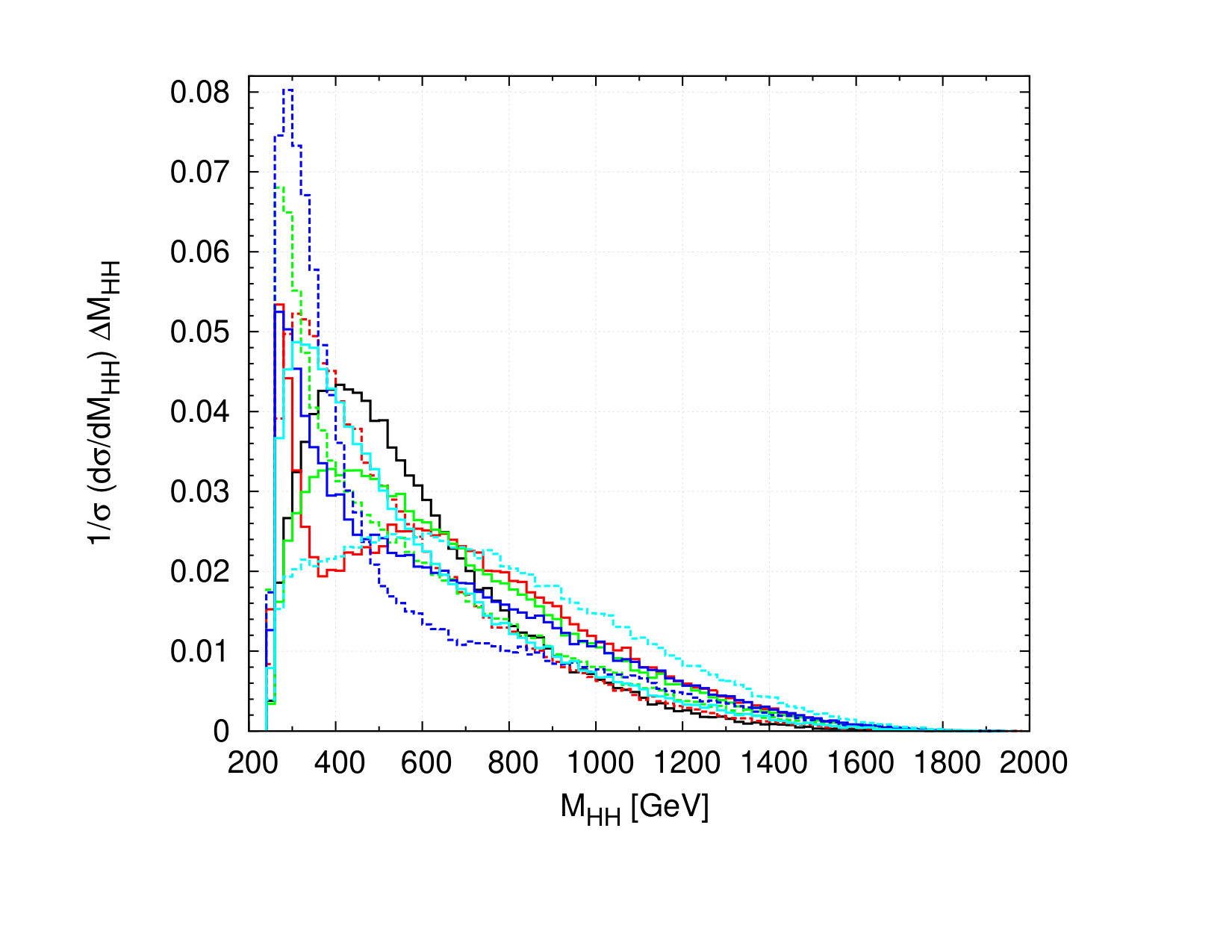

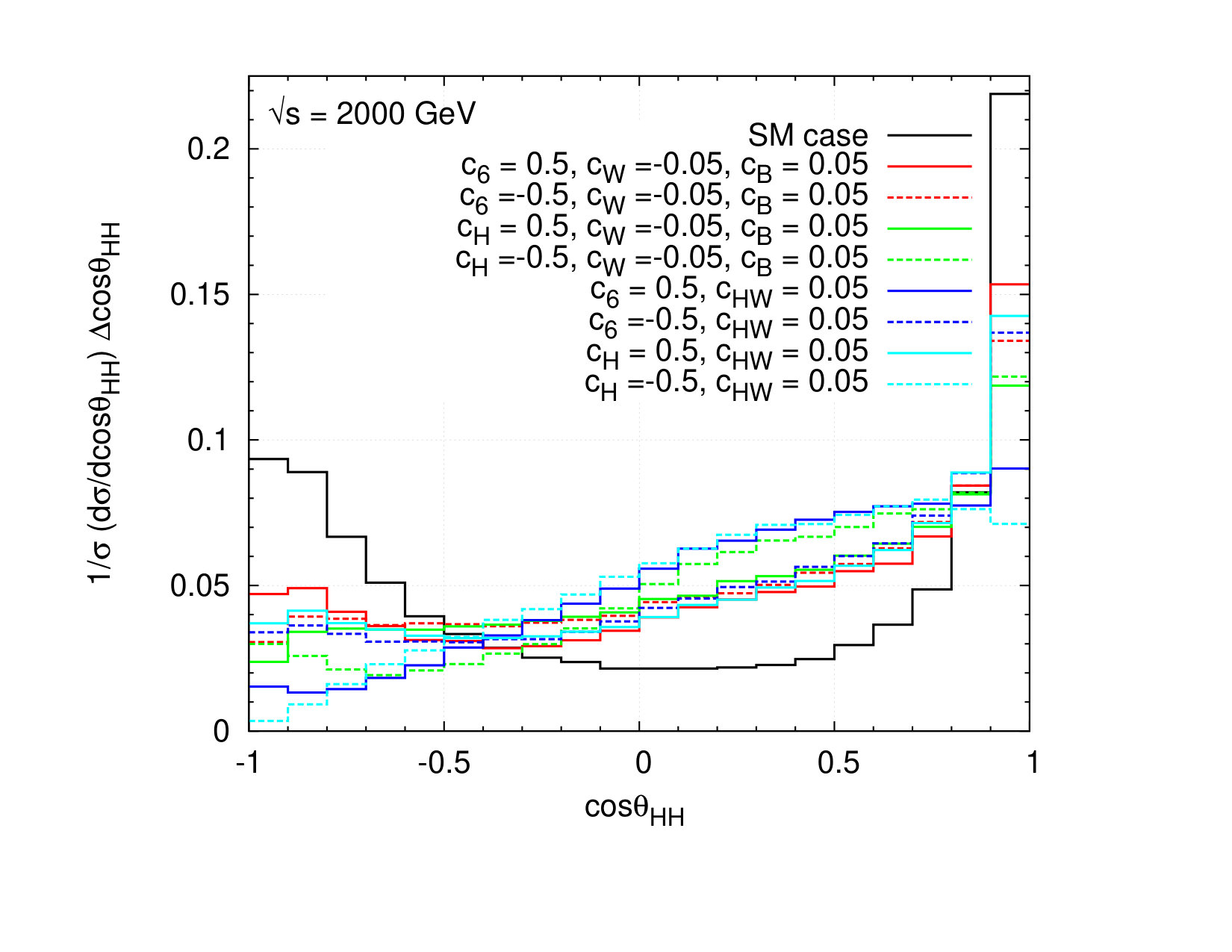

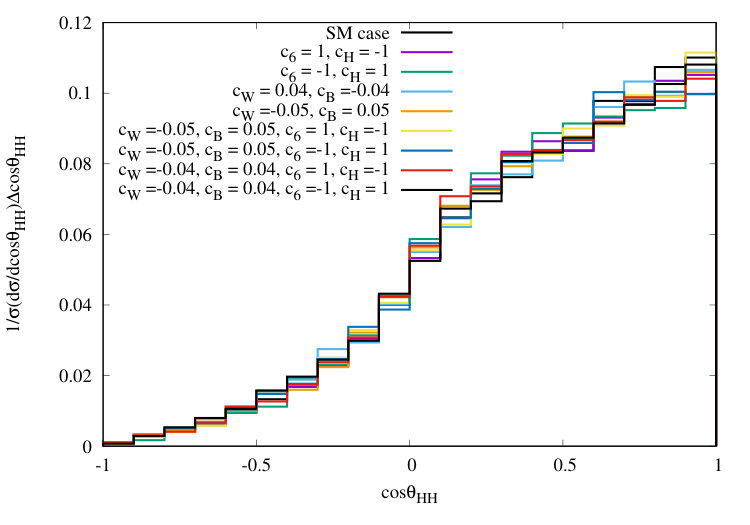

Moving on to the kinematic distributions, we shall present the distributions of the opening angle between the two Higgs bosons is presented in Fig.13 (first row). The effect of $c_{W}$, and $c_{HW}$ and $c_{HB}$ are presented separately in the first column and the second column, respectively. In both cases, the case with only $c_{6}$ and $c_{H}$ considered to be non-vanishing, and the SM case are presented for comparison. The dependence of the gauge-Higgs coupling on the sensitivity of $HHH$ coupling is clear from the plots. The $HH$ invariant mass, as well as the missing invariant mass distributions, also indicate a similar dependence, as presented in Fig.13 (second row) and (third row). On the other hand, the missing transverse energy distribution does not show much influence of the Higgs-gauge couplings on the sensitivity of $c_{6}$ and $c_{H}$.

IV Summary and Conclusions

The recent discovery of the Higgs boson at the LHC has established the Higgs mechanism as the way to have electroweak symmetry breaking, thus generating masses to all the particles. While the mass of the particle is more or less precisely measured, details like the strengths of its self interactions, its couplings with other particles like the gauge bosons, etc. need to be known precisely to understand and pinpoint the exact mechanism of electroweak symmetry breaking. Precise knowledge of the trilinear Higgs self-coupling, which is typically probed directly through processes involving two Higgs production, play a vital role in reconstructing the Higgs potential. Typically, such processes also involve other couplings from the Higgs sector, like the Higgs-gauge boson couplings. We consider the $ZHH$ and $\nu\bar{\nu}HH$ productions at the ILC to understand the influence of the $ZZH$ and $ZZHH$ couplings, in the first process, and $WWH$ and $WWHH$ couplings, on the second process, on the sensitivity of $HHH$ coupling on this process. Single and two parameter limits on the $c_{6}$ and $c_{H}$ couplings, which are related to the $HHH$ couplings, are considered in the case of the ILC with $\sqrt{s}=500$ GeV and integrated luminosity of 1000 fb*-1*, to see how the other parameters, $c_{W}$, $c_{HW}$ and $c_{HB}$ influence the limits. It is seen that these latter parameters have significant influence of the reach of $c_{6}$ and $c_{H}$, indicating that prior, and somewhat precise knowledge of the Higgs-gauge coupling is necessary to draw any conclusion on the influence of trilinear couplings on the process considered. The kinematic distributions also indicate a strong influence of Higgs-gauge couplings, showing that, in the presence of very moderate Higgs-gauge couplings, it is difficult to extract reliable information regarding $c_{6}$ and $c_{H}$. A similar story is unfolded by considerations of $e^{+}e^{-}\rightarrow\nu\bar{\nu}HH$, where the influence of $WWH$ and $WWHH$ on the sensitivity of the trilinear Higgs self-coupling is explored. Concluding, one may need to rely on knowledge of the Higgs gauge couplings from elsewhere, or consider clever observables eliminating or subduing their effects, in order to extract meaningful information regarding the trilinear Higgs couplings.

Acknowledgements S. K. would like to acknowledge the financial support from the SERB-DST, India, under the National Post-doctoral Fellowship programme, Grant No. PDF/2015/000167. R. R. thanks Department of Science and Technology, Government of India for support through DST-INSPIRE Fellowship for doctoral program, INSPIRE CODE IF140075.
