Hyperon I: Study of the $\Lambda(1405)$

TL;DR

This paper analyzes various low-energy experimental data related to the $ar{K}N$ system, demonstrating that the $ ext{Lambda}(1405)$} can be described with a single isoscalar spin-1/2 negative-parity pole, simplifying previous models.

Contribution

It provides a comprehensive fit of diverse experimental data using a single pole model for the $ ext{Lambda}(1405)$, challenging more complex multi-pole interpretations.

Findings

Data can be fitted with one $ ext{Lambda}(1405)$ pole

Background contributions are significant

Supports a simplified single-pole model

Abstract

Low-energy data on the three charge states in $\gamma p \to K^+(\Sigma\pi)$ from CLAS at JLab, on $K^-p\to \pi^0\pi^0\Lambda$ and $\pi^0\pi^0\Sigma$ from the Crystal Ball at BNL, bubble chamber data on $K^-p\to\pi^-\pi^+\pi^{\pm}\Sigma^{\mp}$, low-energy total cross sections on $K^-$ induced reactions, and data on the $K^-p$ atom are fitted with the BnGa partial-wave-analysis program. We find that the data can be fitted well with just one isoscalar spin-1/2 negative-parity pole, the $\Lambda(1405)$, and background contributions.

Figures

Tables

Table 1. Table 1: Residues for K − ​ p → Λ ​ ( 1405 ) → final → superscript 𝐾 𝑝 Λ 1405 → final K^{-}p\to\Lambda(1405)\to{\rm final} .

Pole position:   $M_{\mathrm{pole}}$ =	$(1422\pm 3,-i\left(21\pm 3\right))$ MeV
Residues:	Magnitude	phase
$K^{-}p\to \Lambda \left(1405\right)\to \overline{K}N$	$63\pm 4$ MeV	${\left(155\pm 15\right)}^{\circ }$
$K^{-}p\to \Lambda \left(1405\right)\to \pi \Sigma$	$42\pm 3$ MeV	${\left(0\mathrm{or}\mathrm{\hspace{0.17em}180}\pm 15\right)}^{\circ }$

Equations

$$S=\left(I+i\hat{\rho }\hat{K}\right){\left(I-i\hat{\rho }\hat{K}\right)}^{-1}=I+2i\hat{\rho }\hat{K}{\left(I-i\hat{\rho }\hat{K}\right)}^{-1}.$$

$$\hat{A}=\hat{K}{\left(I-i\hat{\rho }\hat{K}\right)}^{-1}=\hat{K}+\hat{K}i\hat{\rho }\hat{K}+\hat{K}i\hat{\rho }\hat{K}i\hat{\rho }\hat{K}+\dots$$

$$\hat{A}=\hat{A}i\hat{\rho }\hat{K}+\hat{K}.$$

$$K_{ij}=\sum _{\alpha }\frac{g_i^{(\alpha )}{g}_j^{(\alpha )}}{M_{\alpha }^2-s}+f_{ij}.$$

$$A_{ab}(s)=\int \frac{d{s}^{\prime }}{\pi }\frac{A_{aj}(s,s^{\prime })}{s^{\prime }-s-iϵ}{\rho }_j(s^{\prime })K_{jb}(s^{\prime },s)+K_{ab}(s).$$

$$\int \frac{d{s}^{\prime }}{\pi }\frac{A_{aj}(s,s^{\prime })}{s^{\prime }-s-iϵ}{\rho }_j(s^{\prime })K_{jb}(s^{\prime },s)$$

$$P\int \frac{d{s}^{\prime }}{\pi }\frac{A_{aj}(s,s^{\prime })}{s^{\prime }-s}{\rho }_j(s^{\prime })K_{jb}(s^{\prime },s)$$

$$\to i{A}_{aj}(s,s){\rho }_j(s)K_{jb}(s),$$

$$\int \frac{d{s}^{\prime }}{\pi }\frac{A_{aj}(s,s^{\prime })}{s^{\prime }-s-iϵ}{\rho }_j(s^{\prime })K_{jb}(s^{\prime },s)=$$

$$A_{aj}(s,s)ReB(s)K_{jb}(s,s)+$$

$$\mathrm{where}ReB(s)=P\int \frac{d{s}^{\prime }}{\pi }\frac{{\rho }_j(s^{\prime })}{s^{\prime }-s}$$

$$A$$

$$S$$

$$D_{\alpha \beta }$$

$$\hat{D}=\hat{D}\hat{B}\hat{d}+\hat{d}\hat{D}=\hat{d}(I-\hat{B}\hat{d}{)}^{-1}$$

$$\hat{d}=diag\left(\frac{1}{M_1^2-s},\frac{1}{M_2^2-s},\dots ,\frac{1}{M_N^2-s}\right)$$

$${\hat{B}}_{\alpha \beta }$$

$$\sum _j$$

$$g_j^{R(\alpha )}=g_j^{L(\alpha )}=g_j^{(\alpha )}$$

$$A_{ij}=g_i^{(\alpha )}{\hat{D}}_{\beta \gamma }{g}_j^{(\gamma )}.$$

$$\Delta E-i\Gamma /2=-2{\alpha }^3{\mu }_c^2{a}_{K^{-}p}\left[1-2a_{K^{-}p}\alpha {\mu }_c(\ln \alpha -1)\right],$$

$$\Delta E-i\Gamma /2$$

$$\gamma$$

$$R_n$$

$$R_c$$

$$Res(K^{-}p\to \Lambda (1405)\to \mathrm{final})=\frac{g_i{g}_f}{2W_{\mathrm{pole}}}\sqrt{{\rho }_i{\rho }_f}$$

Full text

1 Introduction

The $\Lambda(1405)1/2^{-}$ resonance – here written as $\Lambda(1405)$ – has been discussed controversially since its discovery in 1961 Alston:1961zzd . Dalitz and collaborators considered the $\Lambda(1405)$ as a quasibound molecular state of the $\bar{K}N$ system Dalitz:1960du ; Dalitz:1967fp . In quark models, this resonance is interpreted as $qqq$ resonance in which one of the quarks is excited to the $p$ state; jointly with its spin partner $\Lambda(1520)3/2^{-}$ it forms a spin-doublet SU(3)-singlet, as expected within SU(6) Isgur:1978xj . Later, Kaiser, Waas and Weise constructed an effective potential from a chiral Lagrangian, and the $\Lambda(1405)$ emerged as quasi-bound state in the $\bar{K}N$ and $\pi\Sigma$ coupled-channel system Kaiser:1996js . Oller and Meissner Oller:2000fj studied the $S$-wave $\bar{K}N$ interactions in a relativistic chiral unitary approach based on a chiral Lagrangian. The Lagrangian was obtained from the interaction of the SU(3) octet of pseudoscalar mesons and the SU(3) octet of stable baryons. In their coupled-channel approach, they found two isoscalar resonances below 1450 MeV, at 1379.2 MeV and at 1433.7 MeV, and one isovector resonance at 1444.0 MeV. The authors of Ref. Jido:2003cb suggested that the two $\Lambda^{*}$ poles as well as a third state at 1680 MeV are combinations of the singlet state and the two octet states expected in the $8\otimes 8$ into $1\oplus 8_{s}\oplus 8_{a}\oplus 10\oplus\overline{10}\oplus 27$. They interpreted the first wider state (at 1390 MeV in their analysis) as mainly singlet, a second and a third state at 1426 MeV and 1680 MeV as mainly octet states. The isovector sector was found to be much more sensitive on the details of the coupled channel approach Jido:2003cb . Based on the approach used in Oller:2000fj , two poles were found at 1401 MeV and 1488 MeV Jido:2003cb , based on Oset:2001cn , one state was found at 1580 MeV. Here the other isovector state disappeared for dynamical reasons. The $\Sigma$ resonances were interpreted as isovector companions of the isoscalar states. The findings presented in Oller:2000fj and Jido:2003cb were confirmed in a number of further studies. Here we quote a few recent papers Cieply:2009ea ; Ikeda:2012au ; Guo:2012vv ; Mai:2012dt ; Mai:2014xna ; Roca:2013av ; Roca:2013cca ; Miyahara:2018onh ; Feijoo:2018den . A survey of the literature and a discussion of the different approaches can be found in Ref. Cieply:2016jby .

In quark models Capstick:1986bm ; Glozman:1995fu ; Loring:2001ky ; Giannini:2015zia , three isoscalar resonances are expected below 1.9 GeV. $\Lambda(1405)$ is interpreted as the (mainly) SU(3) singlet state. The four-star $\Lambda(1670)$ $1/2^{-}$ has a mass 140 MeV above $N(1535)1/2^{-}$; the three-star $\Lambda(1800)1/2^{-}$ is found 150 MeV above $N(1650)1/2^{-}$. These two states are commonly identified with the two expected (mainly) octet states Loring:2001ky . The $\Sigma(1620)1/2^{-}$ resonance is interpreted as the isospin partner of $\Lambda(1670)1/2^{-}$ and $\Sigma(1750)1/2^{-}$ as the isospin partner of $\Lambda(1800)1/2^{-}$. This interpretation is supported in a forthcoming study of the spectrum of hyperon resonances hyperon-II ; hyperon-III . The SU(3) symmetry of the quark model is thus experimentally confirmed. An assignment of the two resonances at 1426 MeV and 1680 MeV to the quark model SU(3) octet states with spin-parity $1/2^{-}$, instead of the $\Lambda(1670)$ and $\Lambda(1800)1/2^{-}$, would be at variance with the quark model.

Many, possibly all, dynamically generated baryon resonances like $N(1440)1/2^{+}$, $N(1535)1/2^{-}$, $\Delta(1700)3/2^{-}$, $\cdots$ can be mapped onto the spectrum expected in quark models, except of course the pentaquark candidates $P_{c}(4380)$ and $P_{c}(4450)$ Aaij:2015tga . With the identification of the negative-parity $\Lambda$ resonances as outlined above, one of the two low-mass $\Lambda$ states and the low-mass $\Sigma$ state in Jido:2003cb ; Oset:2001cn cannot be mapped onto quark-model states: the two states are supernumerous (and not required in the analysis presented here). Based on Regge phenomenology, the authors of Ref. Fernandez-Ramirez:2015fbq argue that the narrow state at about 1430 MeV fits into the common pattern of a linear Regge trajectory of known three-quark hyperons possibly indicating its three-quark nature. The wider state below $\approx$1400 MeV is speculated to be a pentaquark or of molecular nature.

The two-pole structure of the $\Lambda(1405)$ region is not uncontested. All work before Oller:2000fj assumed a single pole in this region. Later, HADES data on the reaction $p+p\to\Sigma^{+}+\pi^{-}+K^{+}+p$ were successfully fitted with a single $\Lambda(1405)$ Agakishiev:2012xk , and this result was confirmed in a subsequent reanalysis Hassanvand:2012dn . The CLAS collaboration studied the three charge states in the reaction $\gamma p\to K^{+}\Sigma\pi$ Moriya:2013eb which provide precise information on the $\Lambda(1405)$ line shape. Its spin and parity were determined in Moriya:2014kpv , until then taken from the quark model. The data were fitted in Moriya:2013eb , the best fit was achieved with two low-mass isovector states ($\Sigma^{*}$’s) and one isoscalar state $\Lambda(1405)$. A reanalysis of these data showed that the data are also compatible with a standard single-pole $\Lambda(1405)$ Hassanvand:2017iif . Dong, Sun and Pang Dong:2016auh solved the Bethe-Salpeter equation in an unitary coupled-channel ansatz taking relativistic effects and off-shell corrections into account. In their model, the authors found that the off-shell corrections are very important. Without these, the authors reproduced the two-pole structure. Yet one pole disappeared when the off-shell corrections were switched on, and only one $\Lambda(1405)$ survived. This contradicts Mai:2012dt ; Bruns:2010sv ; in their ansatz, off-shell effects were found to be small and two poles were present. Myint al. Myint:2018ypc used a chiral model and found two poles in the $\Lambda(1405)$ region. The peak structure in the data was assigned to a single pole while the second one provided a continuum background amplitude affecting the shape of the peak, but that pole was not interpreted as genuine resonance.

Direct experimental evidence for the presence of two poles in the $\Lambda(1405)$ region has been reported Lu:2013nza . The CLAS collaboration studied electroproduction of this resonance by studying the reaction $e^{-}p\to e^{-}K^{+}(p\pi^{0})\pi^{-}$ with the $p\pi^{0}$ mass being compatible with $\Sigma^{+}$ and with four-momentum transfers ranging from $-t=0.5$ to 4.5 GeV2. The data were shown for two subsets with $1.0<Q^{2}<1.5$GeV2 and $1.5<Q^{2}<3.0$ GeV2. The latter data were fitted with two incoherent Breit-Wigner functions with $\Sigma\pi$ as only decay channel. The masses optimized at 1.368$\pm$0.004 GeV and 1.423$\pm$0.002 GeV (statistical fit errors only). A possible $\Sigma(1385)3/2^{+}$ contribution was estimated to be small. The low-$t$ data set was not fitted simultaneously, and seem not describable with the same assumptions. Also the related chain $e^{-}p\to e^{-}K^{+}(p\pi^{-})\pi^{0}$ – which avoids possible $\Sigma(1385)3/2^{+}$ contaminations – has not been investigated.

In this paper we present a partial wave analysis of data covering the $\Lambda(1405)$ region. The data include the low-mass part of the $\Sigma\pi$ system in the reaction $\gamma p\to K^{+}\Sigma\pi$ from JLab Moriya:2013eb , data on the reaction $K^{-}p\to\pi^{0}\pi^{0}\Sigma^{0}$ from BNL Prakhov:2004an and bubble chamber data on $K^{-}p\to\pi^{-}\pi^{+}\pi^{\pm}\Sigma^{\mp}$ Hemingway:1984pz , differential cross sections for $K^{-}p\to K^{-}p$ and $K^{-}p\to\bar{K}^{0}n$ from Mast:1975pv , total cross section measurements Humphrey:1962zz ; Watson:1963zz ; Sakitt:1965kh ; Ciborowski:1982et , ratios of $K^{-}p$ capture rates Tovee:1971ga ; Nowak:1978au , and the recent experimental results on the energy shift and width of kaonic hydrogen atoms which constrain the $K^{-}p$ $S$-wave scattering length Bazzi:2011zj ; Bazzi:2012eq . Within the BnGa ansatz, the data are fully compatible with just one isoscalar resonance and conveniently chosen background amplitudes.

2 Formalism

In this section the basic features of the dispersion integration method are considered for the scattering amplitude. We start from the $K$-matrix method. This approximation extracts the leading singularities, it is a very popular approach in partial wave analyses. The pole and threshold singularities of the partial wave amplitude are taken into account, and the amplitude automatically satisfies the unitarity condition. Here we describe the dynamical amplitude without the angular momentum tensors needed for non-vanishing angular momenta. The full amplitude is discussed in Ref. hyperon-II .

Although the K-matrix amplitude is an analytic function in the complex plane, it neglects left-hand singularities of the partial wave amplitude. Near thresholds, the $K$-matrix approach generates false kinematical singularities that need to be suppressed by imposing new assumptions. As a result, the $K$-matrix approach is not reliable in the low energy region: this was clearly demonstrated in the analysis of the $\pi\pi$ S-wave scattering amplitude near the $\pi\pi$ threshold Gasser ; Caprini:2005zr .

2.1 Spectral integral equation for the K-matrix amplitude

The $K$-matrix approach was introduced to satisfy directly the unitarity condition which is very important for an analysis of the reactions near the unitarity limit. The $S$-matrix for transition between different final states can be written as

[TABLE]

Here, $\hat{\rho}$ is a diagonal matrix describing the phase volumes and $\hat{K}$ is a real matrix which describes resonant and non-resonant contributions.

For the partial wave amplitude $A(s)$ one obtains

[TABLE]

This equation can be also rewritten as

[TABLE]

The factor $(I-i\hat{\rho}\hat{K})^{-1}$ describes the rescattering in the final state, it is inherent not only for scattering amplitudes but for production amplitudes as well.

The elements of the K-matrix are parameterized as a sum of resonant terms (first-order poles) and non-resonant contributions:

[TABLE]

This form is defined by the symmetry condition and the condition that the scattering amplitude has pole singularities of the first order.

This approach allows us to distinguish between “bare” and “dressed” particles: due to rescattering, the bare particles, with poles on the real-$s$ axis, are transformed into particles dressed by a “coat” of mesons. In the $K$-matrix approach we deal with a “coat” formed by real particles. The contribution of virtual particles is included in the main part of the loop diagram, $B(s)$, discussed below, and is taken into account effectively by the renormalization of mass and couplings.

Let us discuss hadron-hadron scattering and the production amplitudes using the dispersion-relation (or spectral integral) technique. We write for the $K$-matrix amplitude a spectral integral equation which is an analog of the Bethe-Salpeter equation Salpeter for the Feynman technique. The spectral integral equation for the transition amplitude from the channel $a$ to channel $b$ is given by

[TABLE]

Here, $\rho_{j}(s^{\prime})$ is the diagonal matrix of the phase volumes, $A_{aj}(s,s^{\prime})$ the off-shell amplitude and $K_{j\,b}(s,s^{\prime})$ the off-shell elementary interaction. The term $-i\epsilon$ indicates that the integration is carried out in the complex plane just below the real axis.

The standard way of transforming Eq. (5) into a $K$-matrix form is the extraction of the imaginary and principal parts of the integral. The principal part has no singularities in the physical region and can be omitted (or taken into account by a renormalization of the $K$-matrix parameters):

[TABLE]

where $\int p$ is the principle-value integral. We thus obtain the standard K-matrix expression (3).

One of the easiest ways to take into account the real part of the integral in Eq. (6) (the so-called dispersion corrections) is to assume that the amplitude and the $K$-matrix have a trivial dependence on $s^{\prime}$. Such a case corresponds, e.g., to a parameterization of the resonant couplings and non-resonant $K$-matrix terms by constants and to a regularization of the integral in Eq. (6) which depends on the scattering channel only by subtraction at a fixed energy. In this case we obtain

[TABLE]

[TABLE]

And for the transition amplitude we obtain

[TABLE]

This approach provides a correct continuation of the amplitude below thresholds.

2.2 The $D$-matrix approach

As we discussed above, the K-matrix approach can be considered as an effective way to calculate an infinite sum of rescattering diagrams from the spectral integral equation. The rescattering diagrams can be divided into $K$-matrix blocks which describe a transition from one channel into another one. Thus the rank of the $K$-matrix is defined by the number of the channels taken into account explicitly. The key issue of the $K$-matrix approach is a factorization of vertices and loop diagrams. The factorization is automatically fulfilled for the imaginary part, and in many cases a contribution from the real part is neglected. When the vertices have a non-trivial energy dependence, the real part can not be separated from the $K$-matrix block and another approach should be used to calculate the amplitude. The most straightforward idea is to extract blocks which describe a transition from one “bare” state to another one. Then, factorization is automatically fulfilled for the pole terms.

Let us introduce the block $D_{\alpha\beta}$ which describes a transition between the bare state $\alpha$ (but without the propagator of this state) and the bare state $\beta$ (with the propagator of this state included). For such a block one can write the following equation:

[TABLE]

Or, in the matrix form,

[TABLE]

Here, the $\hat{d}$ is a diagonal matrix of the propagators

[TABLE]

where $N$ is the number of resonant terms. The elements of the $\hat{B}$-matrix are equal to

[TABLE]

The $g^{R(\alpha)}_{j}$ and $g^{L(\alpha)}_{j}$ are right and left vertices for a transition from the bare state $\alpha$ to the channel $j$. The function $B^{j}_{ab}$ depends on initial, intermediate and final states and allows us to introduce for every transition a specific energy dependence and regularization procedure.

For the resonance transition the right and left vertices are the same:

[TABLE]

The scattering amplitude between channels $i$ and $j$ which are taken into account in the rescattering has the form

[TABLE]

2.3 $\Lambda(\frac{1}{2}^{-})$ and $\Sigma(\frac{1}{2}^{-})$ partial waves parameterizations

We are interested in the amplitude behavior in the region from the $\pi\Sigma$ threshold to $\sqrt{s}\sim 1.5$ GeV. Hence both $I=0$ and $I=1$ amplitudes could contain one or two poles. The fit should tell us where the poles of the amplitudes are located. The $\Lambda(\frac{1}{2}^{-})$ amplitude is described by a five-channel amplitude with possible decays to $\pi^{-}\Sigma^{+}$, $\pi^{0}\Sigma^{0}$, $\pi^{+}\Sigma^{-}$, $K^{-}p$ and $K^{0}n$. The constructed amplitudes take into account isotopic mass differences (threshold positions) but neglect Coulomb interactions. It means that a one-pole D-Matrix amplitude depends on two real coupling constants ($g_{\pi\Sigma}$ and $g_{KN}$) and a bare mass value $M$. These parameters are defined in the fit. The two-pole amplitude depends on six fitting parameters. The $\Sigma(\frac{1}{2}^{-})$ amplitude has additionally the $\Lambda\pi^{0}$ channel, so we have a six-channel amplitude. We use a two-pole parametrization for this amplitude which depends on eight fit parameters.

3 Fits to the data

The mass of $\Lambda(1405)$ falls below the $K^{-}p$ threshold. In $K^{-}p$ induced reactions only the high-mass part of $\Lambda(1405)$ can be produced. An important role for the study of $\Lambda(1405)$ is hence provided by the CLAS results on $\gamma p\to K^{+}\Sigma^{+}\pi^{-}$, $K^{+}\Sigma^{0}\pi^{0}$, and $K^{+}\Sigma^{-}\pi^{+}$ Moriya:2013eb where the full $\Lambda(1405)$ shape can be studied. Fig. 2 (left) and 2 (left) show selected two-dimensional mass distributions: $M_{\pi^{-}K^{+}}$ versus $M_{\pi^{-}\Sigma^{+}}$ and $M_{K^{+}\Sigma^{-}}$ versus $M_{\pi^{+}\Sigma^{-}}$ for a $\gamma p$ invariant mass in the 2400 - 2600 MeV range. In both figures, a vertical band is seen at $M_{\Sigma^{+}\pi^{-}}$ GeV or $M_{\Sigma^{-}\pi^{+}}=1.52$ GeV: the $\Lambda(1520)$. At low masses, a broad enhancement due to $\Sigma(1385)$ and $\Lambda(1405)$ is seen which both decay into $\Sigma^{\pm}\pi^{\mp}$. A horizonzal band in Fig. 2 evidences $K^{*}$ production. The resonances $K^{*}$, $\Sigma(1385)$ and $\Lambda(1520)$ are described by relativistic Breit-Wigner amplitudes with masses and widths compatible with the PDG central values Tanabashi:2018oca . The $K^{*}$ band interferes with $\Sigma(1385)$, $\Lambda(1405)$, and $\Lambda(1520)$.

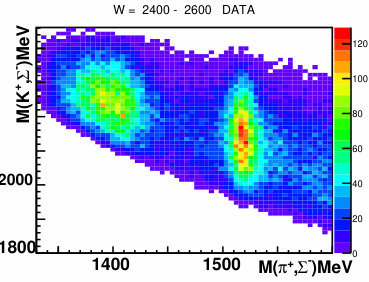

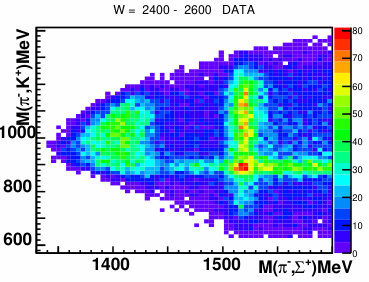

In Fig. 2 (left) , the $M_{K^{+}\Sigma^{-}}$ invariant mass is plotted against $M_{\Sigma^{-}\pi^{+}}$. There are no longer striking horizontal bands which would indicate $\Sigma^{+}K^{+}$ resonances. There is also no $K^{+}\pi^{+}$ band which would show up as a band in the counterdiagonal.

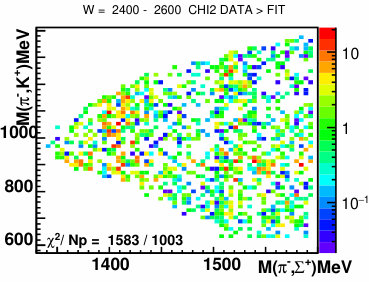

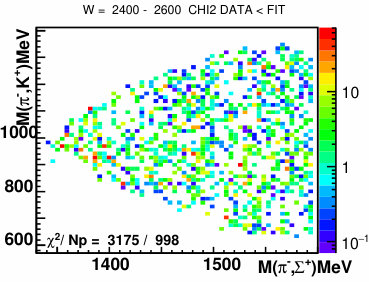

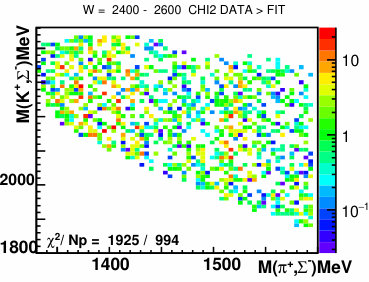

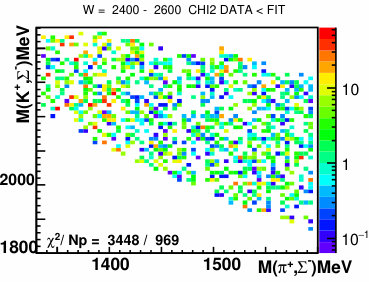

The data were fitted event by event in a likelihood fit. The center and right subfigures in Figs. 2 and 2 show the $\chi^{2}$ per bin for events in which the data exceed the fit and for events in which the fit exceeds the data. The $\chi^{2}$ of the fit is moderate: it is 41320 for 16076 cells. However, no significant pattern is seen in the difference plots. Hence we believe the fit to be acceptable.

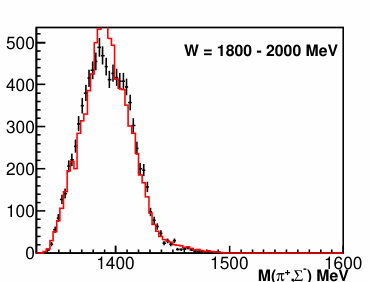

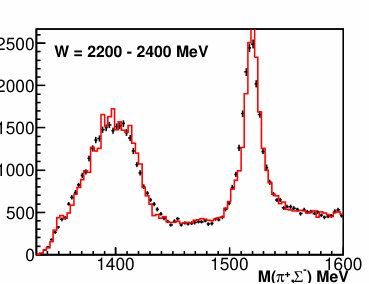

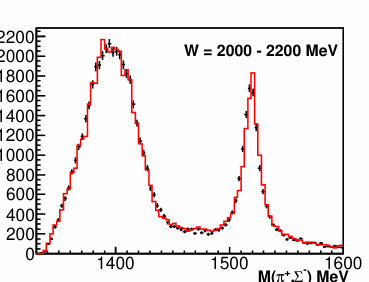

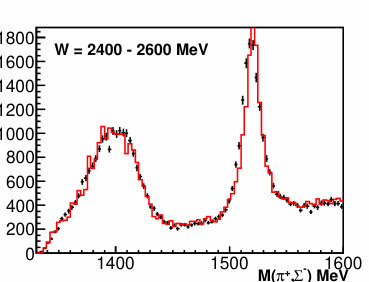

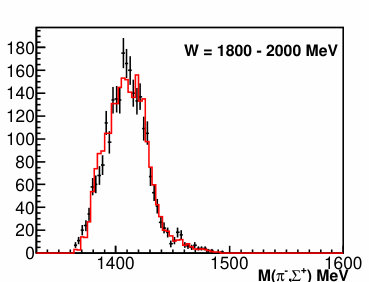

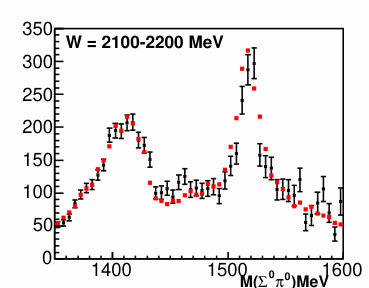

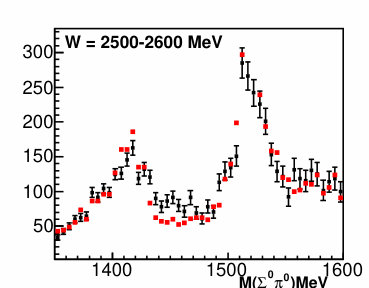

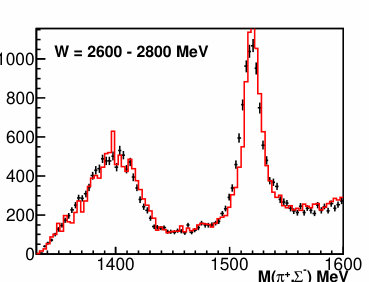

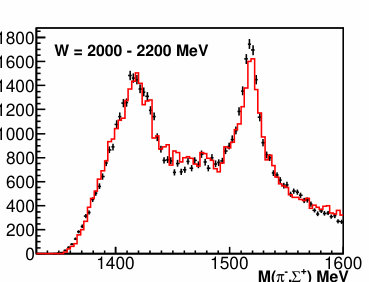

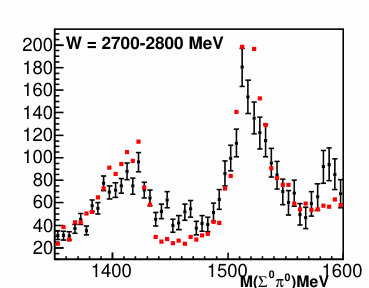

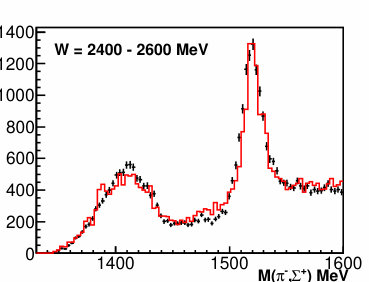

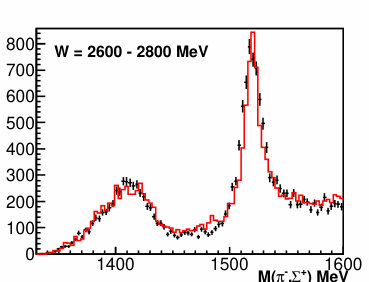

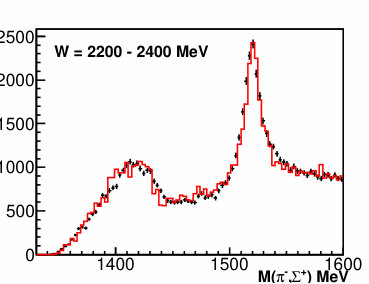

Figure 3 shows the two $\Sigma^{\pm}\pi^{\mp}$ mass distributions and the BnGa fit. The $\Lambda(1520)$ resonance is clearly seen. The low-mass structure contains contributions from $\Lambda(1405)$ and from $\Sigma(1385)$. The result of the fit was then used to predict the $\Sigma^{0}\pi^{0}$ mass distribution for events from $\gamma p\to K^{+}\Sigma^{0}\pi^{0}$. Data and prediction are shown in Fig. 4. The fit identifies the two components reliably; the prediction for the $\pi^{0}\Sigma^{0}$ mass distribution is very good: this distribution contains no $\Sigma(1385)$ since the decay $\Sigma(1385)\to\pi^{0}\Sigma^{0}$ is forbidden.

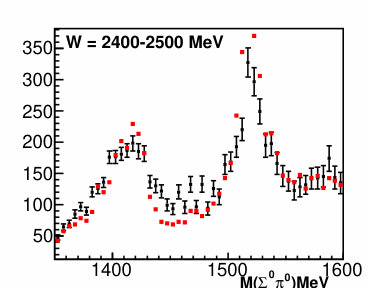

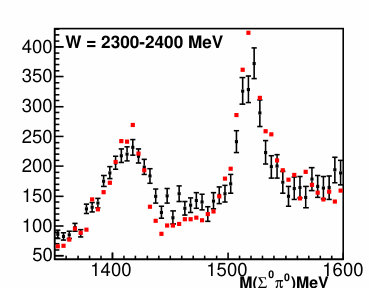

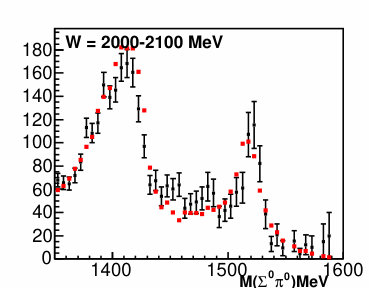

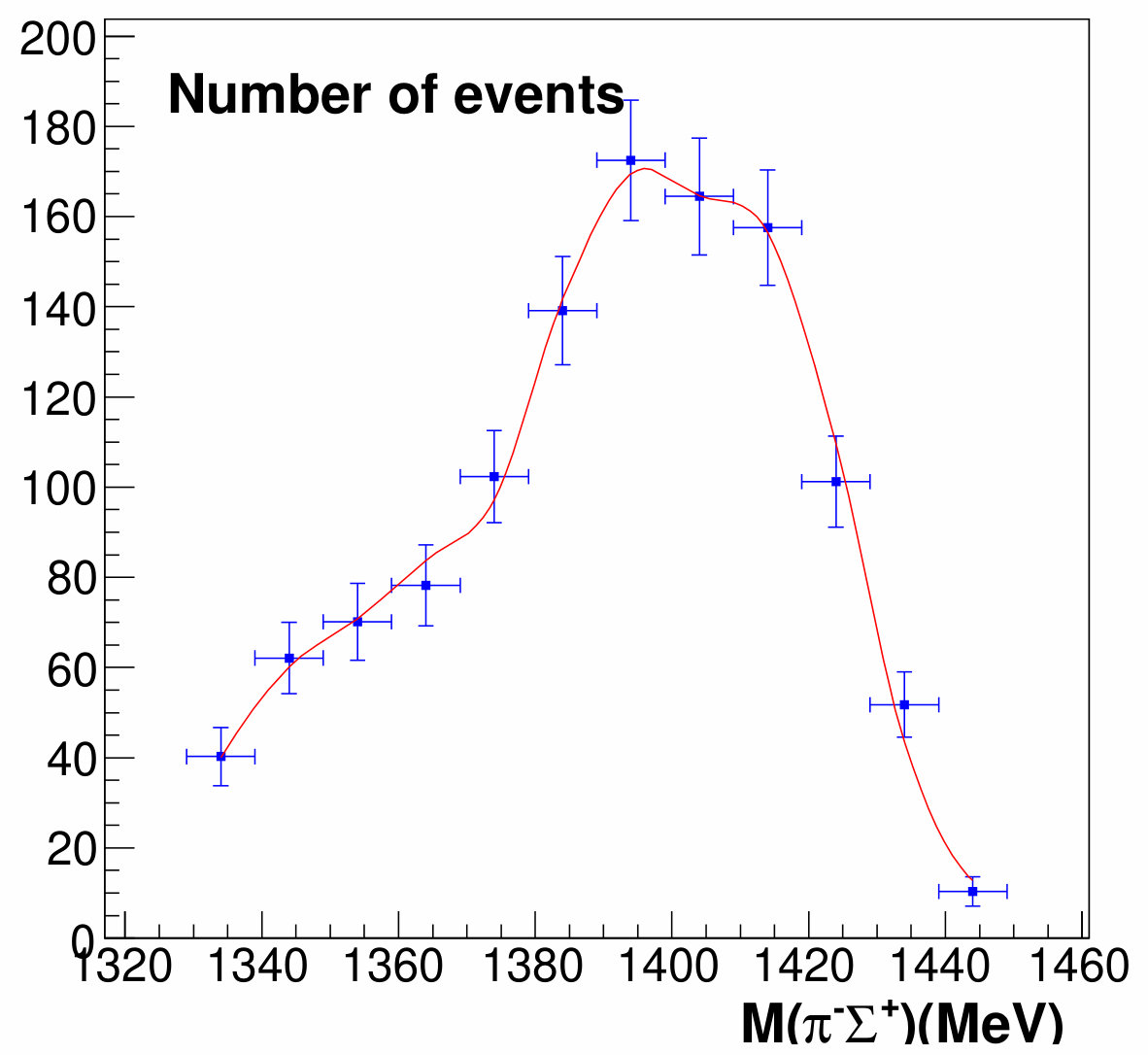

Before the CLAS data became available, the full $\Lambda(1405)$ mass distribution was accessible from old bubble chamber data on $K^{-}p\to\pi^{-}\pi^{+}\pi^{\pm}\Sigma^{\mp}$ Hemingway:1984pz . The $\Lambda(1405)$ was observed in the $K^{-}p\to\pi^{-}\Sigma^{+}(1670)3/2^{-}$, $\Sigma^{+}(1670)3/2^{-}\to$ $\pi^{+}\Lambda(1405)$ cascade, with $\Lambda(1405)1/2^{-}\to\pi^{\pm}\,\Sigma^{\mp}$. In the fit, a $\approx 25$% fraction of $\Sigma^{0}(1385)$ was admitted. The data are well reproduced by our fit with $\chi^{2}/(N_{\rm data}-N_{\rm param.})=3.3/(12-7)$ (see Fig. 5).

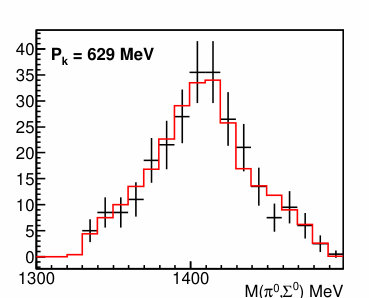

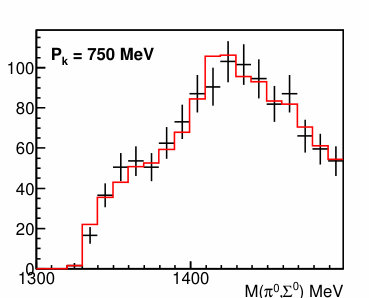

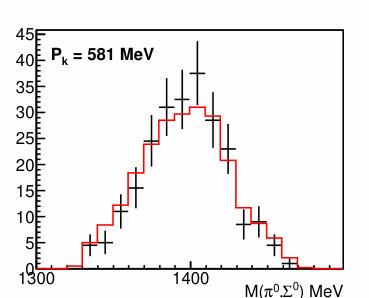

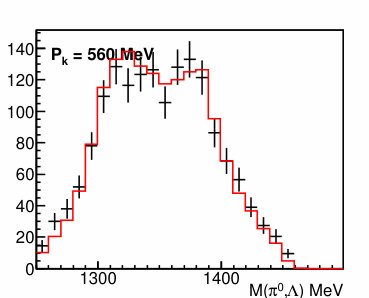

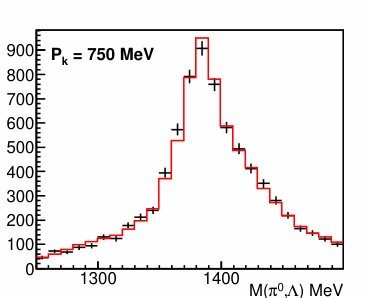

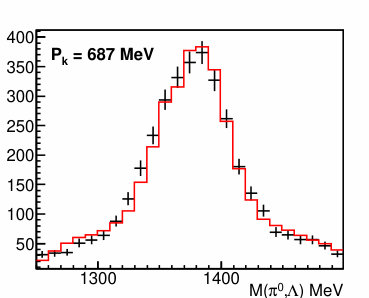

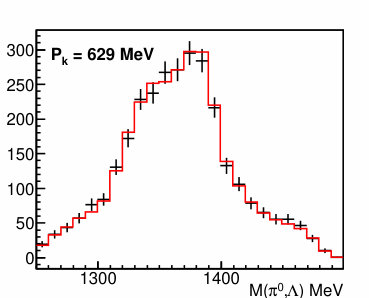

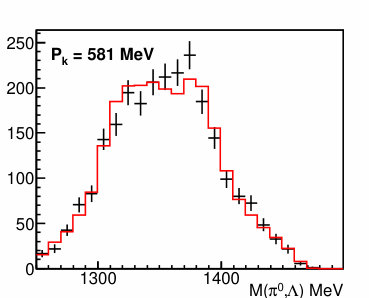

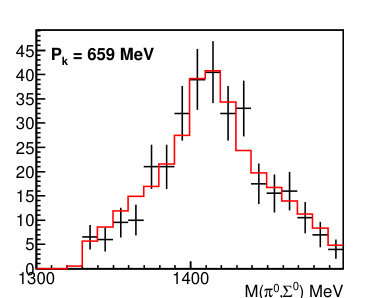

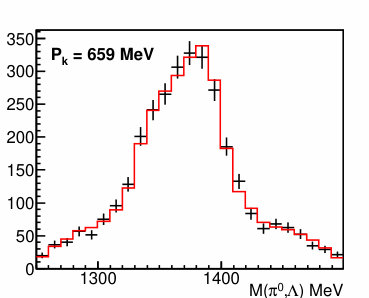

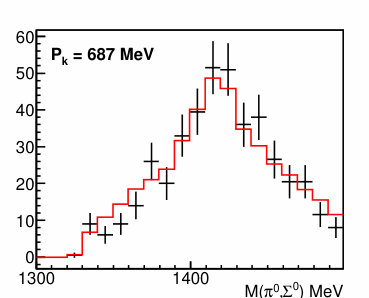

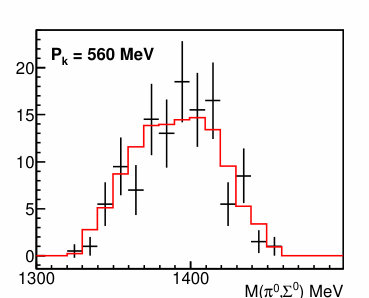

The Crystal Ball Collaboration at BNL studied the reactions $K^{-}p\to\pi^{0}\pi^{0}\Lambda$ and $K^{-}p\to\pi^{0}\pi^{0}\Sigma^{0}$ Prakhov:2004an . The events were fitted maximizing the likelihood in an event-by-event fit. Figure 6 shows the $\pi^{0}\Lambda$ and $\pi^{0}\Sigma^{0}$ invariant mass distributions and the fit. In the $\pi^{0}\Lambda$ distribution, the $\Sigma(1385)$ dominates the reaction, a peak in the $\pi^{0}\Sigma^{0}$ mass distribution provides evidence for $\Lambda(1405)$. The data are well reproduced by the fit.

$K^{-}p$ scattering starts at 1432 MeV, above the nominal mass of $\Lambda(1405)$. Nevertheless, kaon-induced reactions provide significant constraints on the $I(J^{P})=0(1/2^{-})$-amplitude. Figure 7 shows the differential cross section for $K^{-}p\to K^{-}p$ and $K^{-}p\to\bar{K}^{0}n$ from Mast:1975pv in selected bins of the invariant mass. The data are reasonably well described.

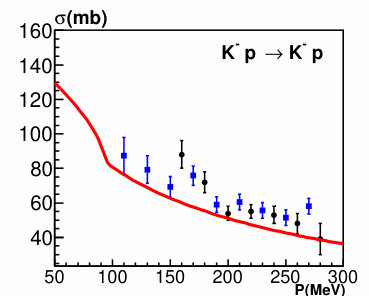

Figure 8 shows the total cross sections for $K^{-}p$ induced reactions: $K^{-}p\to K^{-}p$, $K^{-}p\to\bar{K}^{0}n$, $K^{-}p\to\pi^{0}\Lambda$, $K^{-}p\to\pi^{+}\Sigma^{-}$, $K^{-}p\to\pi^{0}\Sigma^{0}$, $K^{-}p\to\pi^{-}\Sigma^{+}$ Humphrey:1962zz ; Watson:1963zz ; Sakitt:1965kh ; Ciborowski:1982et . The data are restricted to the low-mass region region, with $K^{-}$ laboratory momentum $P_{\rm lab}<300$ MeV, where the $P$-wave scattering amplitude can be neglected. Note that the fit curve for the elastic scattering total cross section is rather determined by the differential cross section of the data from Mast:1975pv and hardly influenced by the data on the total cross section.

The fits are constrained by properties of the $K^{-}p$ system at rest. The SIDDHARTA experiment at DA$\Phi$NE determined the energy shift and width of the 1S level of the kaonic hydrogen atom Bazzi:2011zj ; Bazzi:2012eq . The values (Eq. 17a) are related to the $K^{-}p$ scattering length via the modified Deser-type formula Meissner:2004jr :

[TABLE]

where $\alpha\simeq 1/137$ is the fine-structure constant, $\mu_{c}$ is the reduced mass and $a_{K^{-}p}$ the scattering length of the $K^{-}p$ system. From Refs. Tovee:1971ga ; Nowak:1978au , we take decay ratios listed in Eqs. (17b)-(17d).

[TABLE]

The quantities listed in Eqs. (17) are compared to the fit in Fig. 9.

The authors of Ref. Cieply:2016jby have performed a comparative analysis of the different approaches based on the chiral SU(3) dynamics. The different approaches lead to rather different predictions for the $K^{-}p$ and $K^{-}n$ S-wave elastic scattering amplitudes. In particular the extrapolation to subthreshold energies yields a wide spectrum of results. The amplitudes are shown in Fig. 10 and compared to our $K^{-}p$ S-wave elastic scattering amplitudes. Our amplitudes are well within the range of amplitudes derived in models based on the chiral SU(3) dynamics. The real part of our scattering amplitude vanishes at about 1420 MeV, the imaginary part reaches a maximum of about 2 fm.

4 Results

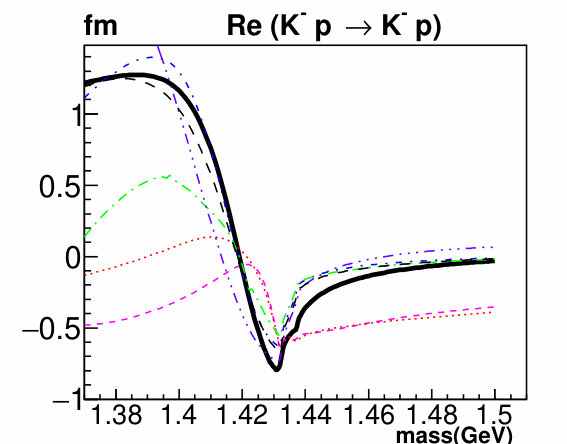

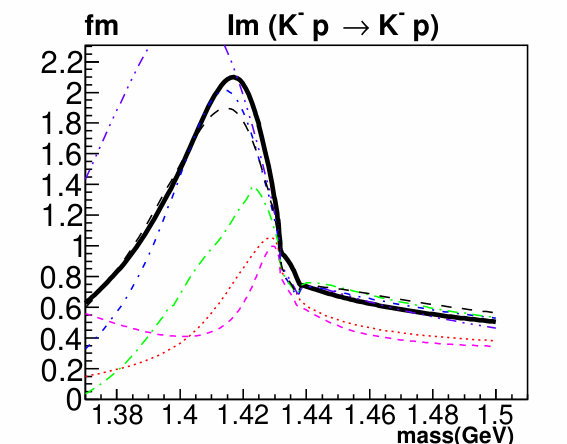

To find the pole positions in the $\Lambda(\frac{1}{2}^{-})$ wave in the region below 1500 MeV, we performed one-pole and two-pole fits. The one-pole fit describes the data convincingly. The two-poles hypothesis fit gives a slightly better description but we did not find any solution with a pole position close to the $1300-1400$ MeV region. When a second pole was admitted in the fit, it moved into the non-physical region below the $\pi\Sigma$ threshold and can be considered as a non-resonant background contribution; alternatively, the pole moved to the $K^{-}p$ threshold with an anomalously small hadronic width (few MeV). We do not consider this solution as physically meaningful. In all solutions, we find one leading pole position of the $\Lambda(1405)$. The pole properties are collected in Table 1.

The CLAS data on three-body final states are, of course, more complicated to analyze; effects like three-body unitarity are not considered in this analysis. When these data were excluded, the results hardly changed. In particular, no second pole in the $1300-1400$ MeV region was needed. The bubble chamber data from Hemingway:1984pz had practically no impact on the fit; the data were included for historical reasons.

We use a two-pole parametrization for the $\Sigma(\frac{1}{2}^{-})$ partial wave. Both poles move far away from the physical region and describe background processes, likely due to $t$ and/or $u$-channel exchange processes. Thus we conclude that there is no $\Sigma(\frac{1}{2}^{-})$ resonance in the region below 1500 MeV.

The transition residues listed in Table 1 for the transition from the initial are defined as

[TABLE]

where $W_{\rm pole}$ represents the pole mass and $\rho_{i}$, $\rho_{f}$ are the initial and final-state phase spaces. The relative sign of the $K^{-}p\to\Lambda(1405)\to\pi\Sigma$ residue is cannot be deduced from the available data.

5 Summary and discussion

We have performed a partial wave analysis of low-energy data on $\Sigma\pi$ and $K^{-}p$ interactions. Analyses based on unitarized chiral perturbation theory Oller:2000fj ; Jido:2003cb ; Cieply:2009ea ; Ikeda:2012au ; Guo:2012vv ; Mai:2012dt ; Mai:2014xna ; Roca:2013av ; Roca:2013cca find two $\Lambda^{*}$ resonances with $J^{P}=1/2^{-}$ in the region below 1500 MeV. We find that the data are fully compatible with a fit with one single resonance, $\Lambda(1405)$, and background terms. The background consists of two or three poles below the $\Sigma\pi$ threshold: two $\Sigma$ poles and either no or only one single $\Lambda$ pole. The pole of the $\Lambda(1405)$ is found at $M_{\rm pole}=(1422\pm 3,-i(21\pm 3))$ MeV.

One of the authors (UT) would like to acknowledge useful discussions with U.-G. Meißner. This work was supported by the Deutsche Forschungsgemeinschaft (SFB/ TR110), the Russian Science Foundation (RSF 16-12-10267), the United States Department of Energy under contract DE-AC05-06OR23177 (Jefferson Lab) and DE-FG02-87ER 40315 (Carnegie Mellon University).
